DVD VIDEO PLAYER
DVP
520
DVP
520
01-34 DVP520_02a1 18/03/2004, 6:30 PM1
02(A)_8239 210 98882
Important notes for users in the
U.K.
Mains plug
This apparatus is fitted with an approved 13
Amp plug. To change a fuse in this type of plug
proceed as follows:
1 Remove fuse cover and fuse.
2 Fix new fuse which should be a BS1362 5 Amp,
A.S.T.A. or BSI approved type.
3 Refit the fuse cover.
If the fitted plug is not suitable for your jack
outlets, it should be cut off and an appropriate
plug fitted in its place.
If the mains plug contains a fuse, this should
have a value of 5 Amp. If a plug without a fuse
is used, the fuse at the distribution board
should not be greater than 5 Amp.
Note: The severed plug must be disposed to
avoid a possible shock hazard should it be
inserted into a 13 Amp jack elsewhere.
How to connect a plug
The wires in the mains lead are coloured with
the following code: blue = neutral (N),
brown = live (L).
¶ As these colours may not correspond with the
colour markings identifying the terminals in
your plug, proceed as follows:
– Connect the blue wire to the terminal
marked N or coloured black.
– Connect the brown wire to the terminal
marked L or coloured red.
– Do not connect either wire to the earth
terminal in the plug, marked E (or e) or
coloured green (or green and yellow).
Before replacing the plug cover, make certain
that the cord grip is clamped over the sheath
of the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may
require consent. See Copyright Act 1956 and
The Performer’s Protection Acts 1958 to 1972.
CAUTION
Use of controls or adjustments or
performance of procedures other than
herein may result in hazardous
radiation exposure or other unsafe
operation.
VAROITUS
Muiden kuin tässä esitettyjen
toimintojen säädön tai asetusten
muutto saattaa altistaa vaaralliselle
säteilylle tai muille vaarallisille
toiminnoille.
01-34 DVP520_02a1 18/03/2004, 6:30 PM2
02(A)_8239 210 98882
DK
Advarsel: Usynlig laserstråling ved
åbning når sikkerhedsafbrydere er ude
af funktion. Undgå utsættelse for
stråling.
Bemærk: Netafbryderen er sekundært
indkoblet og ofbryder ikke strømmen
fra nettet. Den indbyggede netdel er
derfor tilsluttet til lysnettet så længe
netstikket sidder i stikkontakten.
S
Klass 1 laseraparat
Varning! Om apparaten används på
annat sätt än i denna bruksanvisning
specificerats, kan användaren utsättas
för osynlig laserstrålning, som
överskrider gränsen för laserklass 1.
Observera! Stömbrytaren är sekundärt
kopplad och bryter inte strömmen från
nätet. Den inbyggda nätdelen är
därför ansluten till elnätet så länge
stickproppen sitter i vägguttaget.
SF
Luokan 1 laserlaite
Varoitus! Laitteen käyttäminen muulla
kuin tässä käyttöohjeessa mainitulla
tavalla saattaa altistaa käyttäjän
turvallisuusluokan 1 ylittävälle
näkymättömälle lasersäteilylle.
Oikeus muutoksiin varataan. Laite ei
saa olla alttiina tippu-ja roiskevedelle.
Huom. Toiminnanvalitsin on kytketty
toisiopuolelle, eikä se kytke laitetta irti
sähköverkosta. Sisäänrakennettu
verkko-osa on kytkettynä
sähköverkkoon aina silloin, kun pistoke
on pistorasiassa.
01-34 DVP520_02a1 18/03/2004, 6:30 PM3
02(A)_8239 210 98882
General Information
CAUTION
(WARNING LOCATION: ON THE
BACKPLATE OF THE SET)
NEVER MAKE OR CHANGE
CONNECTIONS WITH THE
POWER SWITCHED ON.
The DVD VIDEO player is in
conformity with the EMC directive
and low-voltage directive.
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic” and the
double-D symbol are trademarks of Dolby
Laboratories.
Laser safety
This unit employs a laser. Due to possible
eye injury, only a qualified service person
should remove the cover or attempt to
service this device.
NOTE:
PICTURES SHOWN MAYBE
DIFFERENT BETWEEN
COUNTRIES.
LASER
Type Semiconductor laser
GaAlAs
Wave length 650 nm (DVD)
780 nm (VCD/CD)
Output Power 7 mW (DVD)
10 mW (VCD/CD)
Beam divergence 60 degree
For Customer Use:
Read carefully the information located at
the bottom of your DVD VIDEO player
and enter below the Serial No. Retain this
information for future reference.
Model No. DVP520
Serial No. _______________
Environmental Information
All unnecessary packaging has been
omitted. The packaging has been made
easy to separate into three materials:
cardboard (box), polystyrene foam
(buffer) and polyethylene (bags, protective
foam sheet).
Your DVD player consists of materials
which can be recycled and reused if
disassembled by a specialised company.
Please observe the local regulations
regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Important Note:
Due to the numerous versions of new
CD-Audio copy protection or
enhanced CD-Audio protection
recently available on certain discs,
Philips is unable to guarantee that
this DVD Player is fully compatible
with such new discs. Should you have
difficulty playing any such CD-Audio
discs, kindly refer them to your CD-
Audio disc retailer.
The apparatus shall not be exposed to dripping
or splashing and that no objects filled with
liquids, such as vases, shall be placed on
apparatus.
01-34 DVP520_02a1 18/03/2004, 6:30 PM4
02(A)_8239 210 98882
5
English
Français
Deutsch
Italiano Español
Svenska
Dansk
Index
CAUTION
VISIBLE AND INVISIBLE LASER
RADIATION WHEN OPEN.
AVOID EXPOSURE TO BEAM.
ADVARSEL
SYNLIG OG USYNLIG
LASERSTRÅLING VED ÅBNING
UNDGÅ UDSÆTTELSE FOR STRÅLING
VARNING
SYNLIG OCH OSYNLIG
LASERSTRÅLNING NÄR DENNA DEL
ÄR ÖPPNAD BETRAKTA EJ STRÅLEN
VARO!
AVATTAESSA OLET ALTTIINA
NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE
LASER SÄTEILYLLE. ÄLÄ KATSO
SÄTEESEEN
VORSICHT
GEFAHR VON SICHTBARER UND
UNSICHTBARER LASERSTRAHLUNG
BEI GEÖFFNETEM GEHÄUSE.
ATTENTION
RAYONNEMENT LASER VISIBLE ET
INVISIBLE EN CAS D’OUVERTURE
EXPOSITION DANGEREUSE AU
FAISCEAU
English --------------------------------------- 6
Français ------------------------------------ 35
Deutsch ------------------------------------ 63
Español ------------------------------------ 91
Italiano ------------------------------------ 119
Svenska ----------------------------------- 147
Dansk -------------------------------------- 175
01-34 DVP520_02a1 18/03/2004, 6:30 PM5
02(A)_8239 210 98882
English
6
Introduction
Supplied accessories ....................................... 7
Care and safety information .......................... 7
Connections
Connecting TV .............................................. 8-9

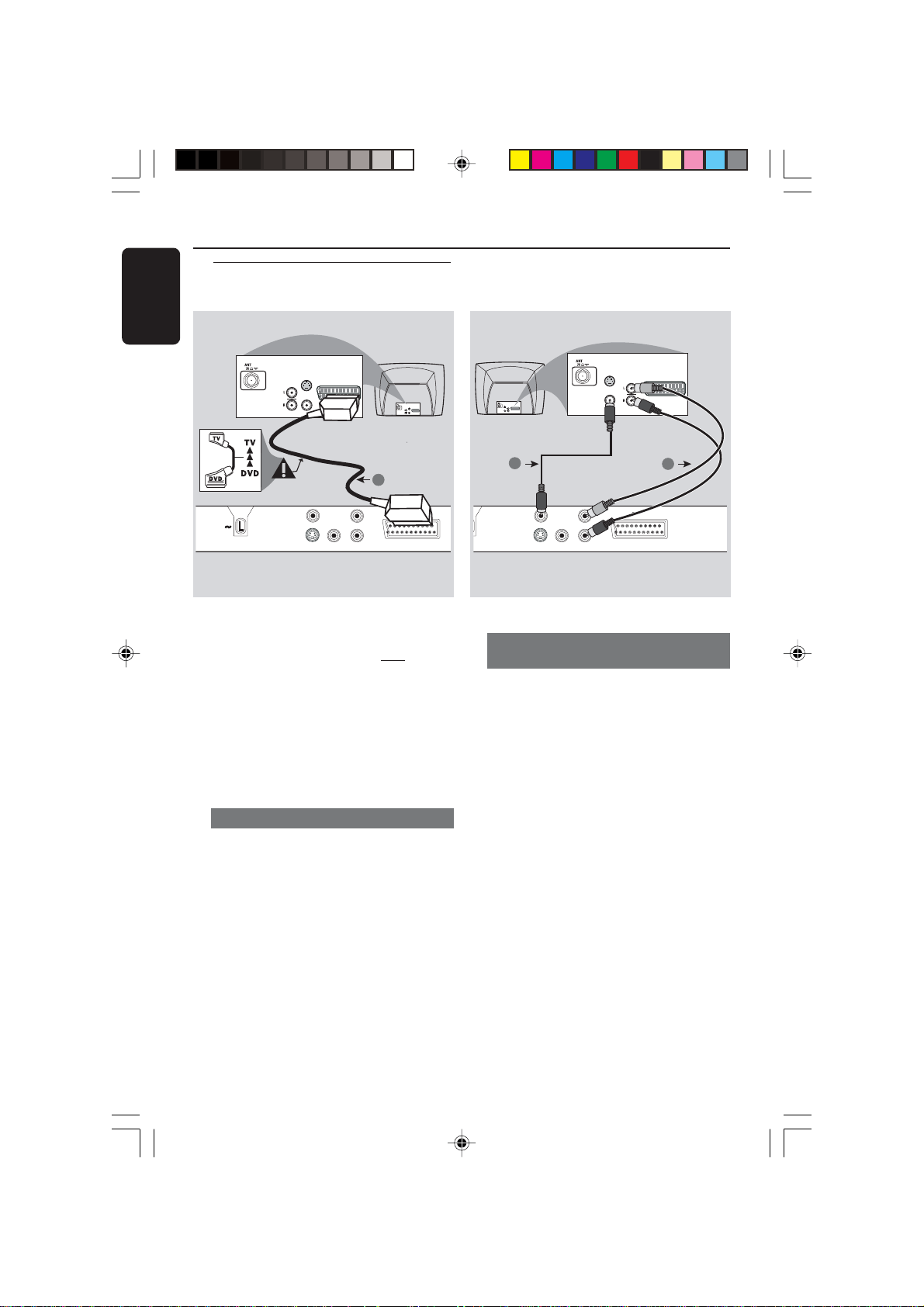

Using SCART jack........................................... 8
Using Composite Video jacks (CVBS)........ 8
Using S-Video jack .......................................... 9
Using an accessory RF modulator .............. 9

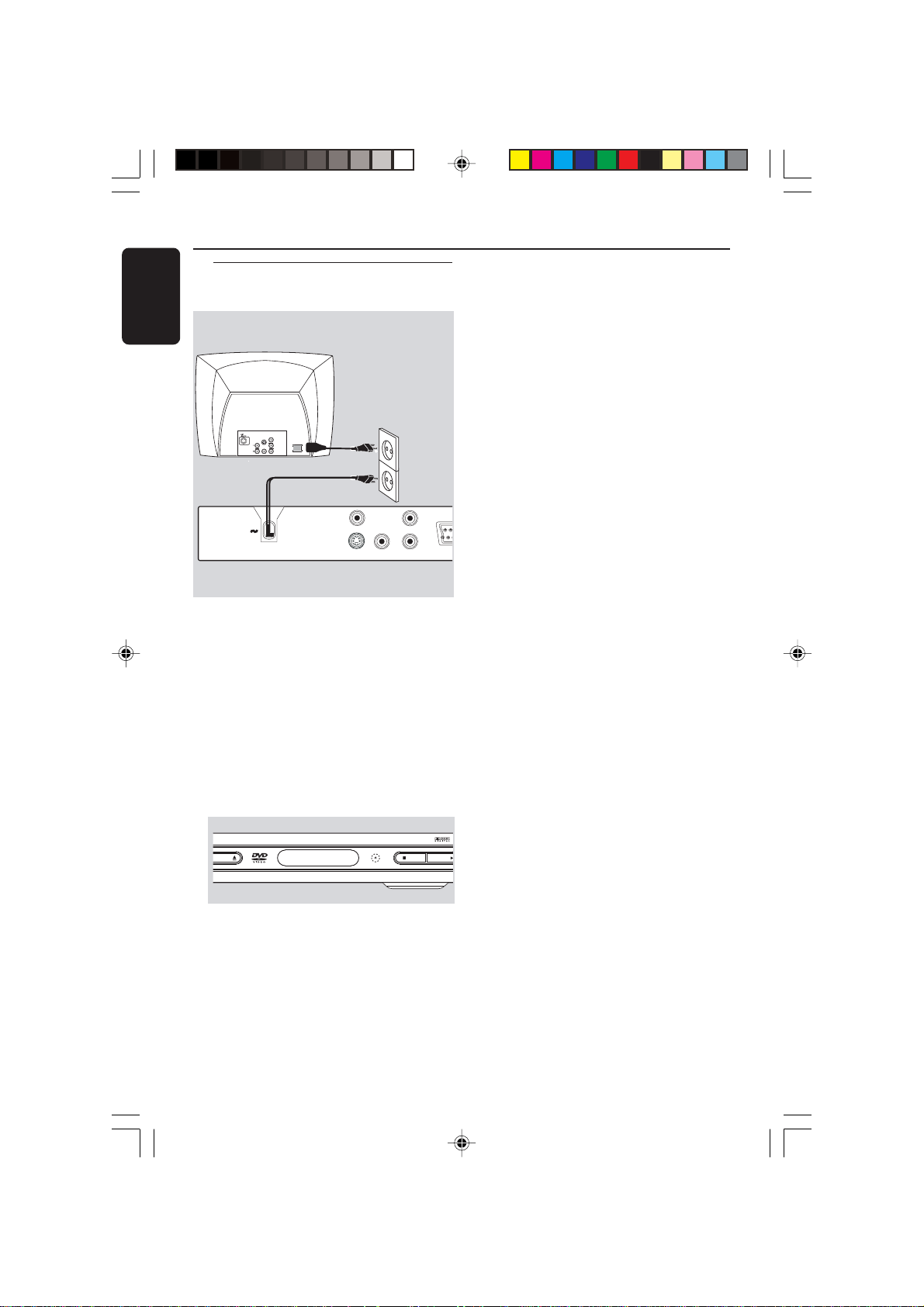

Connecting the power cord........................ 10

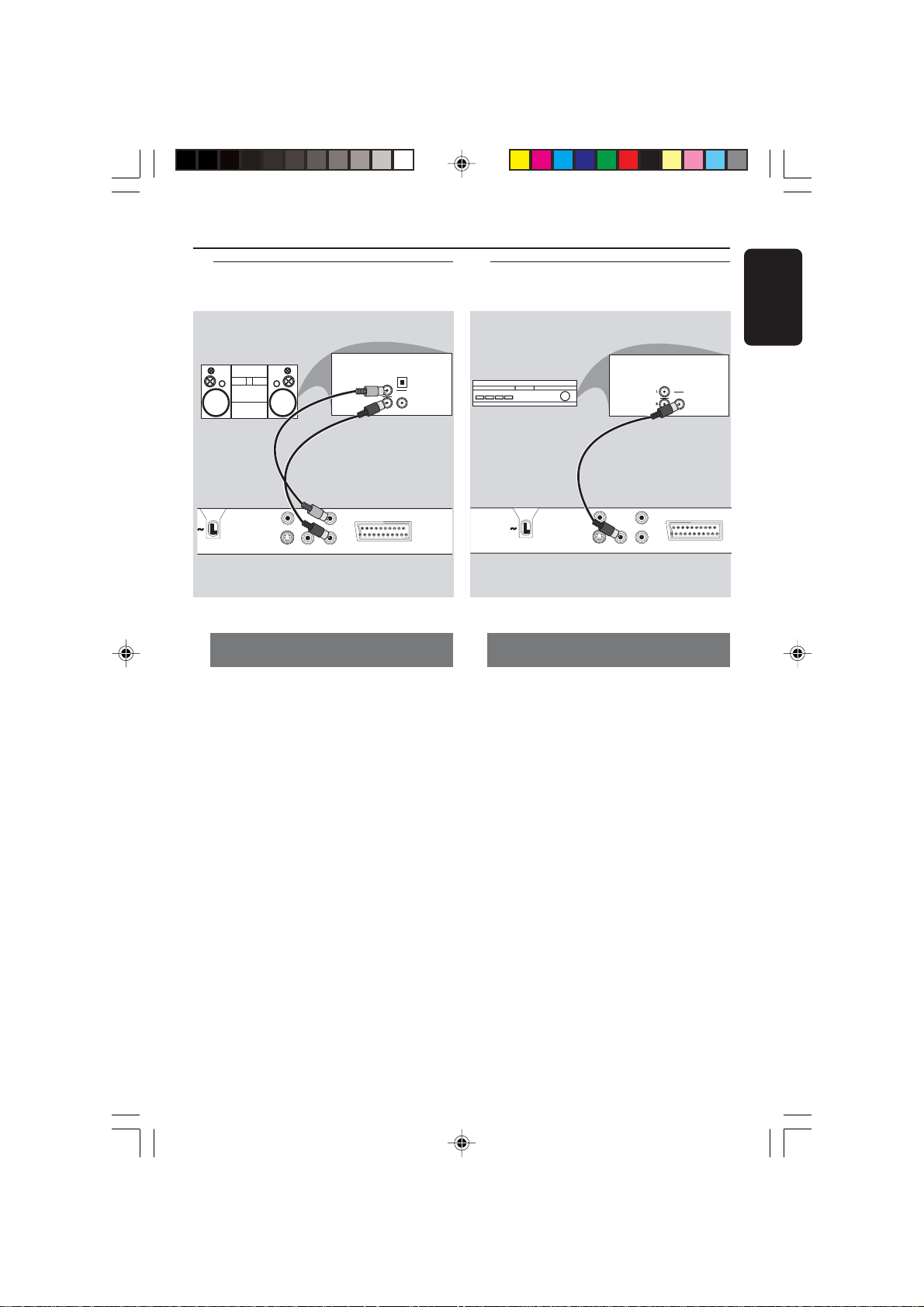

Optional : Connecting to an Audio System .
........................................................................... 11
Stereo system has Dolby Pro Logic or Right
/ Left Audio In jack ....................................... 11
Optional: Connecting Digital AV Receiver ...
........................................................................... 11
Receiver has a PCM, Dolby Digital, or
MPEG2 decoder............................................ 11
Functional Overview

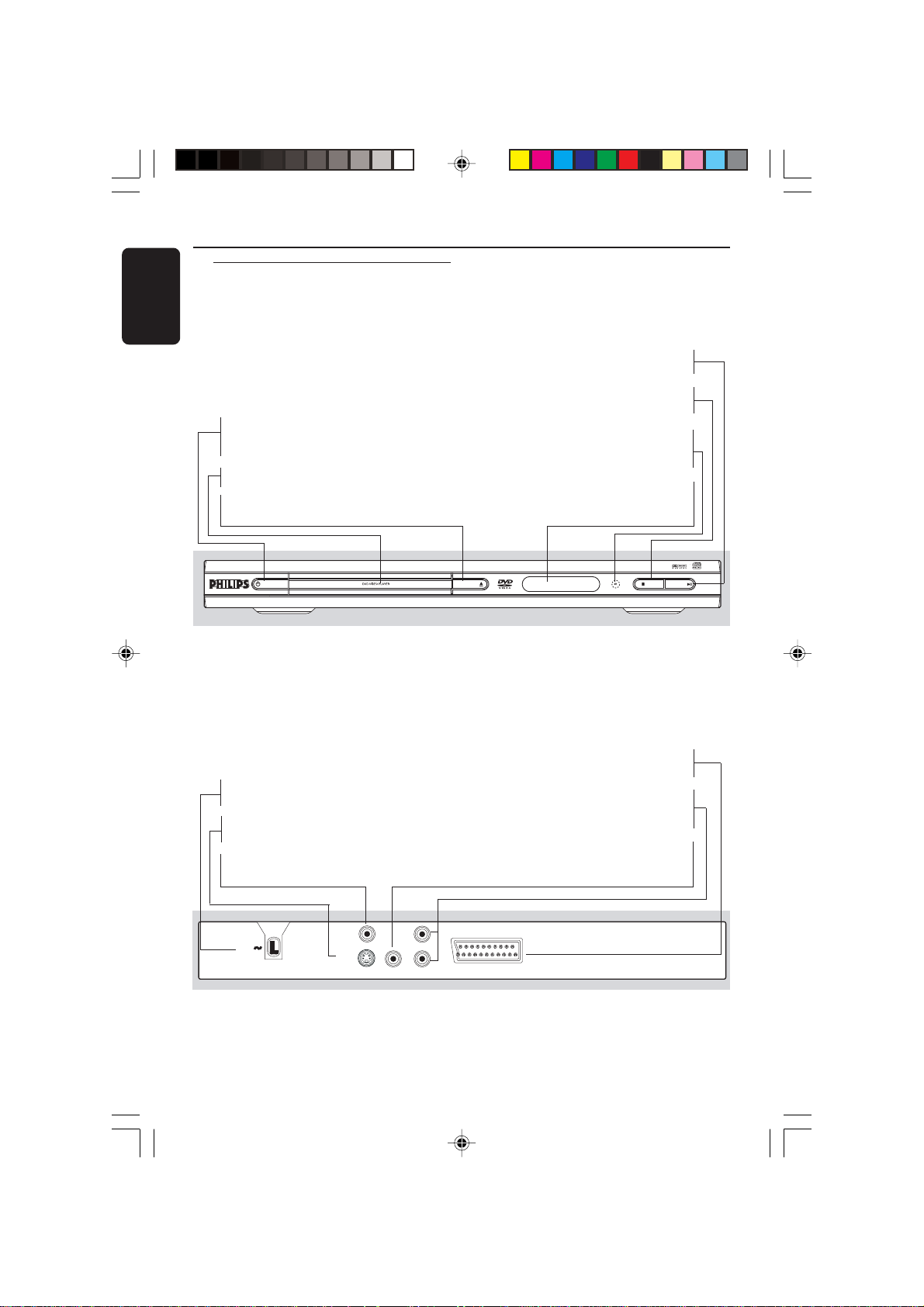

Front and Rear Panels .................................. 12

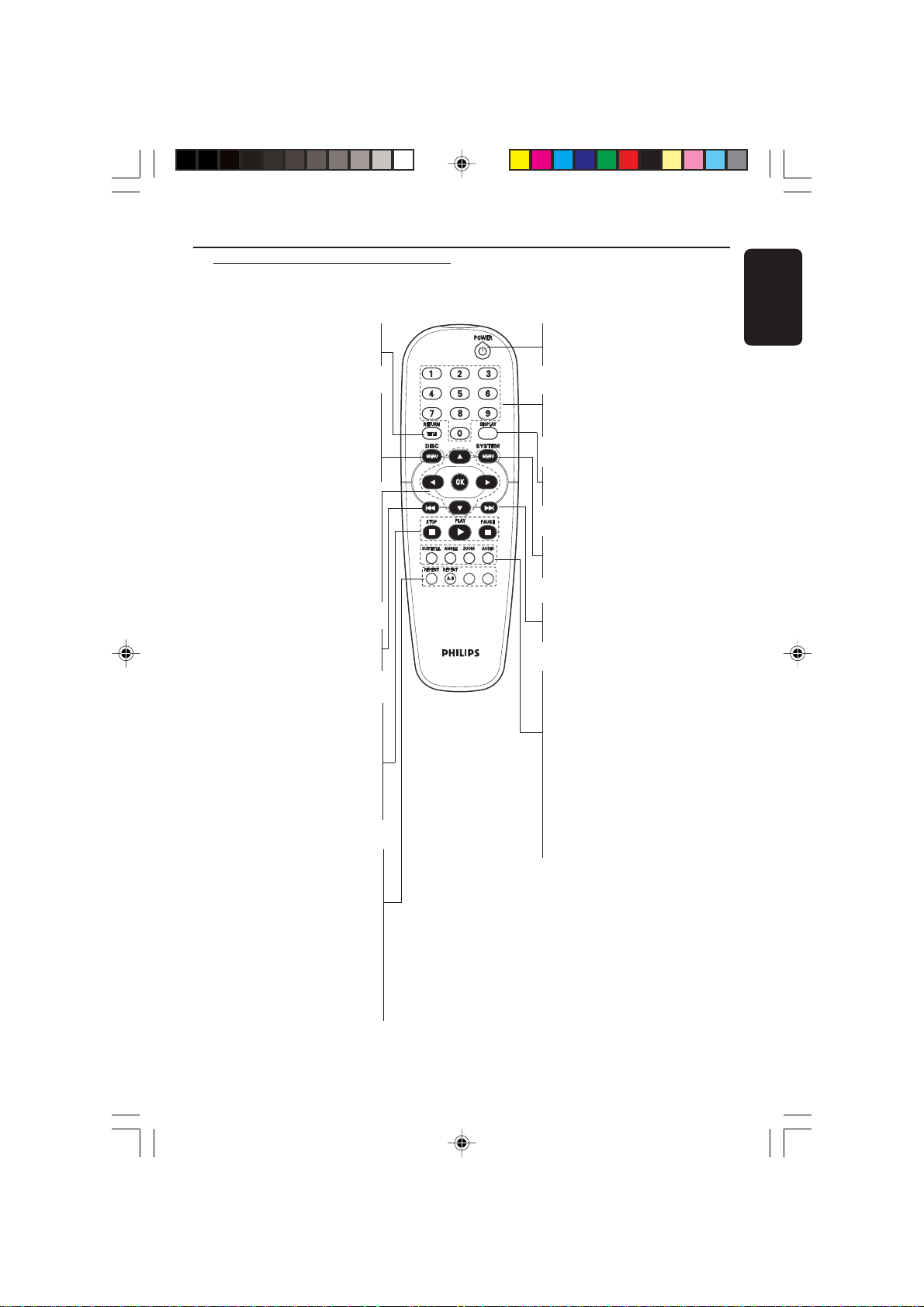

Remote Control ............................................ 13
Getting Started

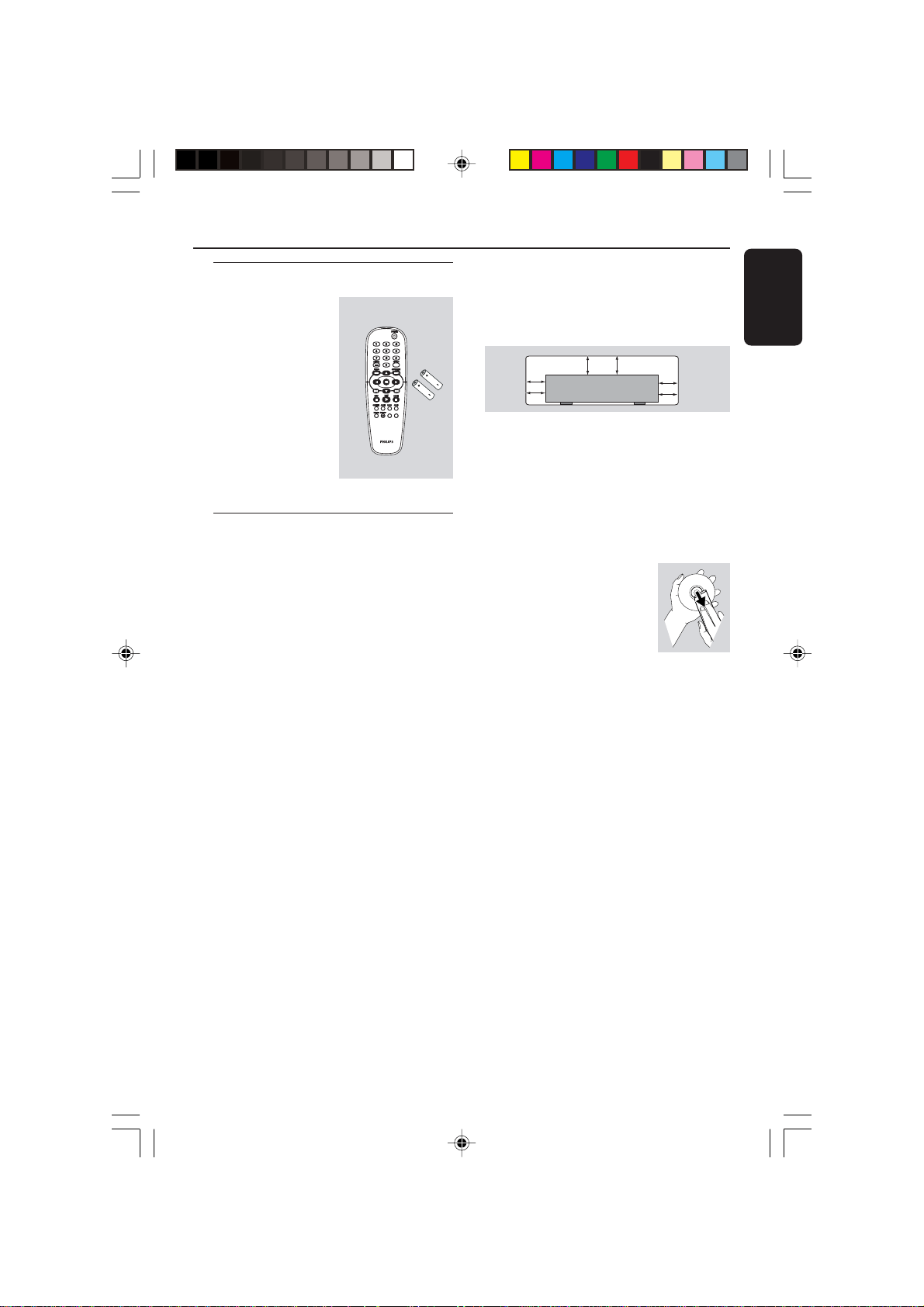

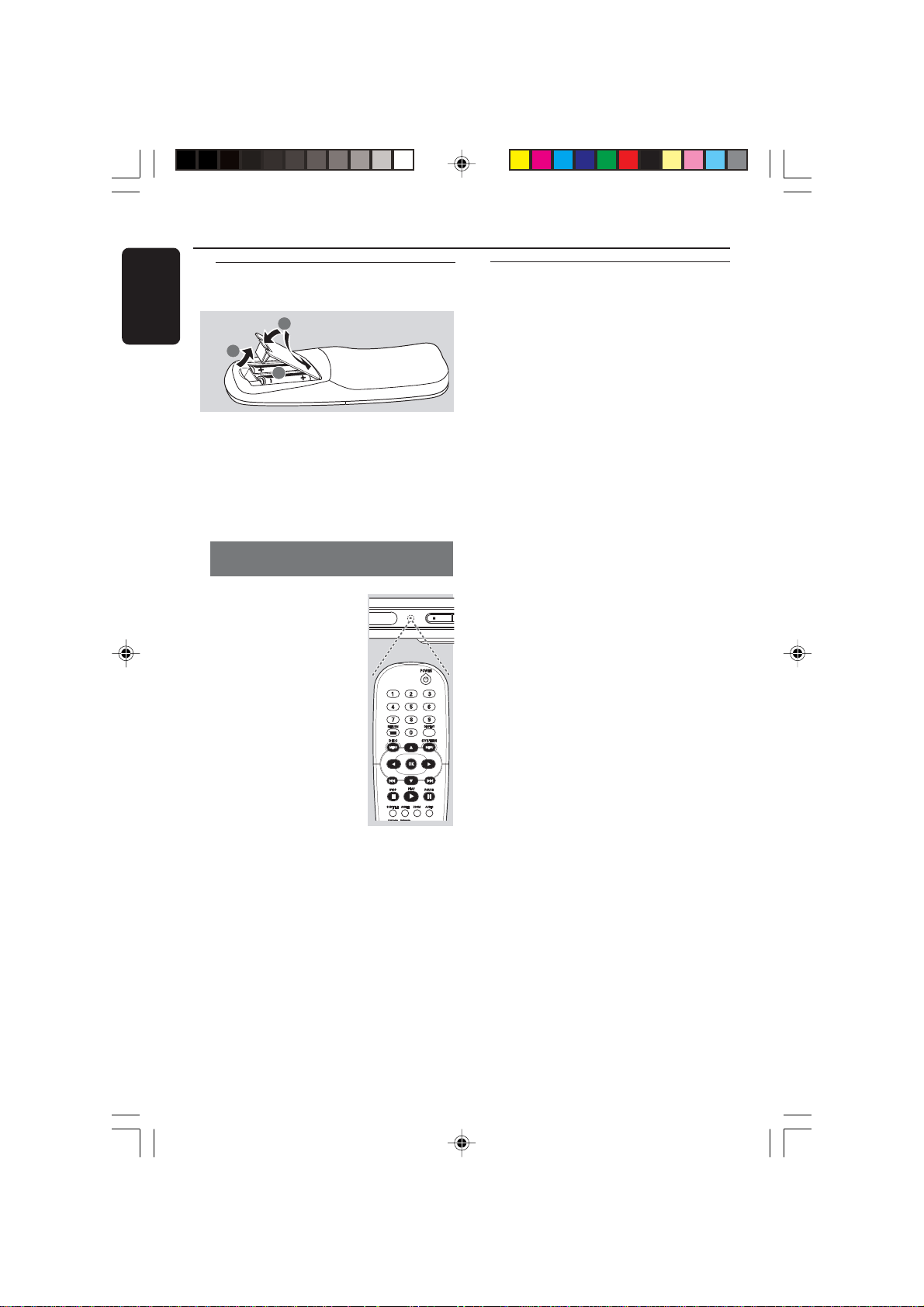

Step 1: Inserting batteries into the
Remote Control ............................................ 14
Using the Remote Control to operate the
Player ............................................................... 14
Step 2: Setting up the TV .............................. 14
Selecting the colour system that
corresponds to your TV .............................. 15
Step 3: Setting language preference ...........16
Setting the OSD Language.......................... 16
Setting the Audio, Subtitle and Disc menu
language .......................................................... 16
Disc Operations

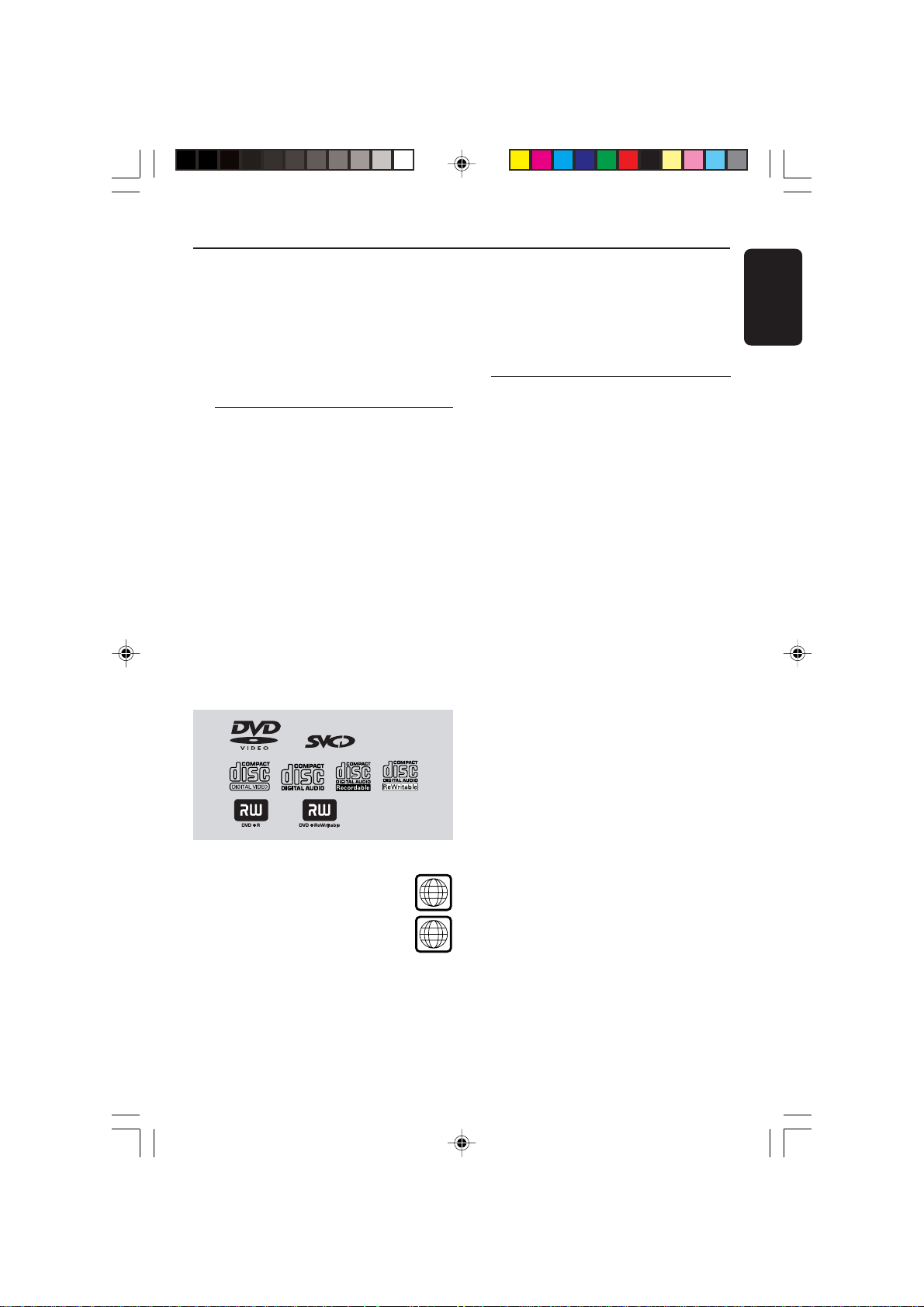

Playable Discs ................................................. 17
Playing discs ..................................................... 17
Using the Disc Menu..................................... 18
Basic playback controls........................... 18-20
Pausing playback ............................................ 18
Selecting track/chapter ................................ 18
Resuming playback from the last stopped
point ................................................................ 18
Zoom .............................................................. 19
Repeat ............................................................. 19
Repeat A-B ..................................................... 19
Slow Motion .................................................. 19
Forward / Reverse Searching ..................... 19
Time Search ................................................... 20
Special DVD features .................................... 20
Playing a Title ................................................. 20
Camera Angle ................................................ 20
Changing the Audio Language .................... 20
Subtitles .......................................................... 20
Special VCD & SVCD Features ................... 21
Preview ........................................................... 21
Playing MP3/JPEG Picture CD..................... 21
General Operation ....................................... 21
Playback selection ......................................... 21
Repeat (MP3/JPEG) ...................................... 22
Program playback ......................................... 22
Fast Forward/Reverse.................................. 22

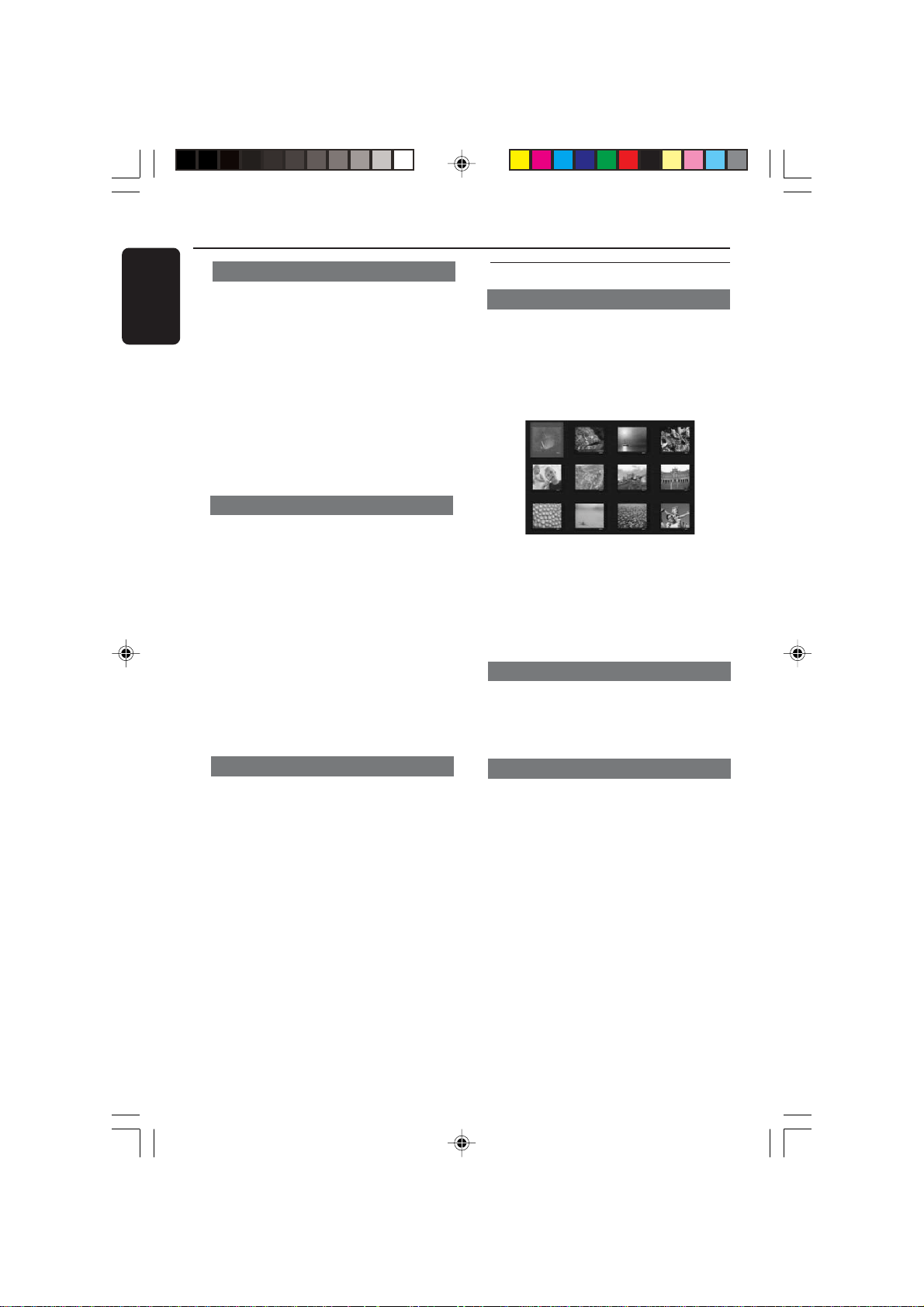

Special MP3/JPEG features ........................... 22
Preview Function (JPEG) ............................. 22
Zoom picture (JPEG) ................................... 22
Playback with multi-angles (JPEG) ............. 22
System Menu Options
Basic Operations ........................................... 23
General Setup Page ....................................... 23
Program .......................................................... 23
Screen Saver .................................................. 23
Audio Setup Page..................................... 24-26
Speaker Setup ................................................ 24
Digital Audio Setup................................. 24-25
Dolby Digital Setup ...................................... 25
Equalizer ......................................................... 26
3D Processing ................................................ 26

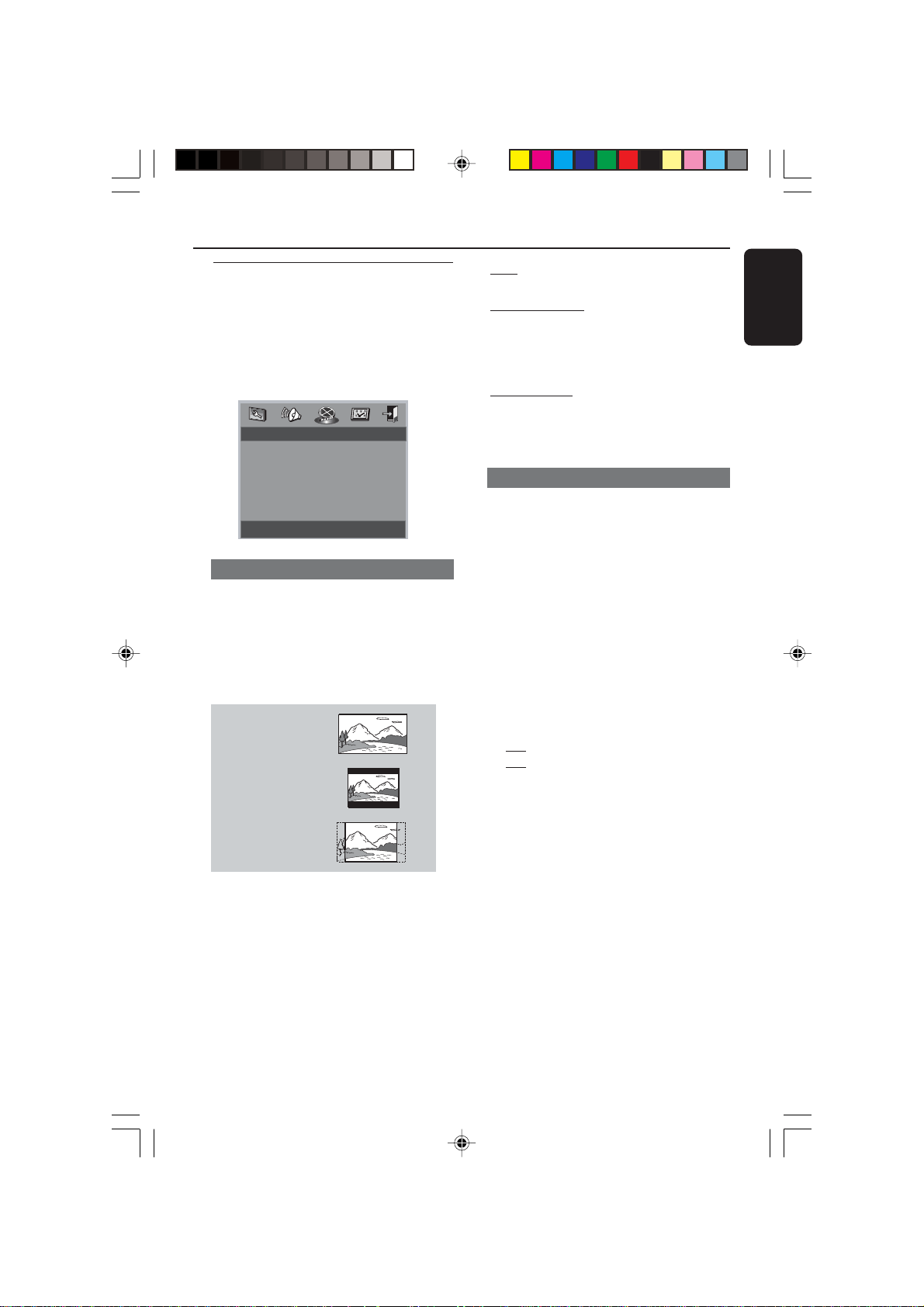

Video Setup Page ..................................... 27-28
TV Display ...................................................... 27
Closed Captions ........................................... 27
Angle Mark ..................................................... 28
Smart Picture ................................................. 28
Picture Setting ............................................... 28
Preference Setup Page ............................ 29-30
Parental ........................................................... 29
Password ........................................................ 30
Default............................................................. 30
Specifications ...................................... 31
Troubleshooting ......................... 32–33
Glossary ...................................................................... 34
Contents
01-34 DVP520_02a1 18/03/2004, 6:30 PM6
02(A)_8239 210 98882
English
7
Supplied accessories
Remote Control
and
two AA batteries
Introduction
Care and safety information
● Power consumption
– When the system is switched to
Standby mode, it is still consuming power.
To disconnect the system from the power
supply completely, remove the AC power
plug from the wall jack.
● Avoid high temperatures, moisture,
water and dust
– Do not expose the player, batteries or
discs to humidity, rain, sand or excessive
heat (caused by heating equipment or
direct sunlight.)
● Avoid condensation problem
– The lens may cloud over when the
player is suddenly moved from cold to
warm surroundings, making it impossible
to play a disc. Leave the player in the
warm environment until the moisture
evaporates.
PREVIEW
PREVIEW
MUTE
MUTE
● Do not block the vents
– Do not operate the DVD Player in an
enclosed cabinet, allow about 10 cm (4
inches) of free space all around the player
for adequate ventilation.
10 cm
(4 inches)
10 cm
(4 inches)
10 cm
(4 inches)
DVD Home Cinema System
PHILIPS
● Care of the cabinet
– Use a soft cloth slightly moistened with
a mild detergent solution. Do not use a
solution containing alcohol, spirits,
ammonia or abrasives.
● Finding a suitable location
– Place the player on a flat, hard, and
stable surface.
● Disc handling
–To clean a CD, wipe it in a
straight line from the center
towards the edge using a soft,
lint-free cloth. A cleaning
agent may damage the disc!
– Write only on the printed
side of a CDR(W) and only with a soft felt-
tipped pen.
– Handle the disc by its edge, do not
touch the surface.
01-34 DVP520_02a1 18/03/2004, 6:30 PM7
02(A)_8239 210 98882
English
8
Connections
Connecting TV
L
VIDEO OUT
S-VIDEO OUT
COAXIAL
TV OUT
MAINS
R
DIGITAL OUT AUDIO OUT
AUDIO
IN
S-VIDEO
IN
VIDEO IN
TV IN
AUDIO
IN
S-VIDEO
IN
VIDEO IN
TV IN
1
IMPORTANT!
–You only need to make
one video
connection from the following
options, depending on the
capabilities of your TV system.
– Connect the DVD system directly
to the TV.
– SCART connection will let you
use the features of both the Audio
and Video in the DVD Player.
Using SCART jack
● Use the SCART cable (black) to connect
the DVD Player’s SCART jack (TV OUT)
to the corresponding Scart input jacks on
the TV (cable not supplied).
Helpful Hint:
– Ensure that the “TV” indication on
SCART cable is connected to the TV
set and “DVD” indication on SCART
cable is connected to the DVD Player.
L
VIDEO OUT
S-VIDEO OUT
COAXIAL
TV OUT
R
DIGITAL OUT AUDIO OUT
AUDIO
IN
S-VIDEO
IN
VIDEO IN
TV IN
AUDIO
IN
S-VIDEO
IN
VIDEO IN
TV IN
2
1
Using Composite Video jacks
(CVBS)
1 Use the composite video cable (yellow) to
connect the DVD Player’s CVBS (VIDEO
OUT) jack to the video input jack (or
labeled as A/V In, Video In, Composite or
Baseband) on the TV (cable not supplied).
2 To hear the sound of this DVD Player
through your TV, use the audio cables
(white/red) to connect AUDIO OUT (L/
R) jacks of the DVD Player to the
corresponding AUDIO IN jacks on the TV
(cable not supplied).
01-34 DVP520_02a1 18/03/2004, 6:30 PM8
02(A)_8239 210 98882
English
9
Connections
L
VIDEO OUT
S-VIDEO OUT
COAXIAL
TV OUT
R
DIGITAL OUT AUDIO OUT
AUDIO
IN
S-VIDEO
IN
VIDEO IN
TV IN
AUDIO
IN
S-VIDEO
IN
VIDEO IN
TV IN
2
1
IMPORTANT!
– S-Video connection provides
better picture quality. This option
must be available on your TV.
Using S-Video jack
1 Use the S-video cable to connect the
DVD system’s S-VIDEO OUT jack to
the S-Video input jack (or labeled as Y/C
or S-VHS) on the TV (cable not supplied).
2 To hear the sound of this DVD Player
through your TV, use the audio cables
(white/red) to connect AUDIO OUT (L/
R) jacks of the DVD Player to the
corresponding AUDIO IN jacks on the TV
(cable not supplied).
IMPORTANT!
– If your TV only has a single
Antenna In jack (or labeled as 75
ohm or RF In,) you will need an RF
modulator in order to view the DVD
playback on the TV. See your
electronics retailer or contact
Philips for details on RF modulator
availability and operations.
Using an accessory RF modulator
1 Use the composite video cable (yellow) to
connect the DVD Player’s CVBS (VIDEO
OUT) jack to the video input jack on the
RF modulator.
2 Use the RF coaxial cable (not supplied) to
connect the RF modulator to your TV’s
RF jack.
L
VIDEO OUT
S-VIDEO OUT
COAXIAL
TV OUT
R
DIGITAL OUT AUDIO OUT
AUDIO IN
R L
VIDEO
IN
TO TVANT IN
CH3 CH4
2
1
RF coaxial cable to TV
Back of RF Modulator
(example only)
Antenna or
Cable TV signal
01-34 DVP520_02a1 18/03/2004, 6:30 PM9
02(A)_8239 210 98882
English
10
Connections
L
VIDEO OUT
S-VIDEO OUT
COAXIAL
MAINS
R
DIGITAL OUT AUDIO OUT
~ AC MAINS
AUDIO
IN
V (Pr/Cr)
U (Pb/Cb)
Y
S-VIDEO
IN
VIDEO IN
COMPONENT
VIDEO IN
After everything is connected
properly, plug in the AC power cord
to the power outlet.
Never make or change any connections
with the power switched on.
When no disc is loaded, press
STANDBY ON on the DVD Player
front panel,
“NO DISC” may appear on the
display panel.
EN/CLOSE
STOP PLAY/PAUSE
Connecting the power cord
NO DISC
01-34 DVP520_02a1 18/03/2004, 6:30 PM10
02(A)_8239 210 98882
English
11
Stereo system has Dolby Pro Logic
or Right / Left Audio In jack
1 Select one of the video connections
(VIDEO IN, S-VIDEO IN or SCART jack
(TV IN) depending on the options
available on your TV.
2 Use the audio cables (white/red) to
connect AUDIO OUT (L/R) jacks of
the DVD Player to the corresponding
AUDIO IN jacks on the stereo system
(cable not supplied).
Connections
L
VIDEO OUT
S-VIDEO OUT
COAXIAL
TV OUT
R
DIGITAL OUT AUDIO OUT
AUDIO
IN
STEREO
DIGITAL
OPTICAL
Optional: Connecting to an
Audio System
Optional: Connecting Digital AV
Receiver
L
VIDEO OUT
S-VIDEO OUT
COAXIAL
TV OUT
MAINS
R
DIGITAL OUT AUDIO OUT
AUDIO
IN
COAXIAL
AV Receiver
Receiver has a PCM, Dolby Digital,
or MPEG2 decoder
1 Select one of the video connections
VIDEO IN, S-VIDEO IN or SCART jack
(TV IN) depending on the options
available on your TV.
2 Connect the COAXIAL jack of the DVD
Player to the corresponding Digital Audio
In jack on your Receiver (cable not
supplied).
3 Set the DVD Player’s Digital Output to
PCM-ONLY or ALL depending on the
capabilities of your Receiver (see page 24
“Digital Output”).
Helpful Hint:
– If the audio format of the Digital Output
does not match the capabilities of your
receiver, the receiver will produce a strong,
distorted sound or no sound at all.
01-34 DVP520_02a1 18/03/2004, 6:30 PM11
02(A)_8239 210 98882
English
12
Functional Overview
Front and Rear Panels
TV OUT
– Connect to SCART input of a TV
Audio Out (Left/Right)
– Connect to AUDIO inputs of an amplifier,
receiver or stereo system
Digital Out (Coaxial)
– Connect to coaxial AUDIO input of a
digital audio equipment
STANDBY-ON OPEN/CLOSE
STOP PLAY/PAUSE
STANDBY-ON B
–To switch the DVD Player to Standby
mode or ON
Disc tray
OPEN/CLOSE /
– Open/Close the disc tray
2; PLAY/PAUSE
– To start or interrupt playback
9 STOP
– To stop playback
IR Sensor
– Point the remote control towards this
sensor
Display
– Shows the current status of the DVD
Player
L
VIDEO OUT
S-VIDEO OUT
COAXIAL
TV OUT
MAINS
R
DIGITAL OUT AUDIO OUT
Mains (AC Power Cord)
– Connect to a standard AC outlet
S-Video Out
– Connect to S-Video input of a TV
Video Out (CVBS)
– Connect to CVBS Video input of a TV
Caution: Do not touch the inner pins of the jacks on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
01-34 DVP520_02a1 18/03/2004, 6:30 PM12
02(A)_8239 210 98882
English
13
Functional Overview
Remote Control
PREVIEW MUTE
MUTE
RETURN / TITLE
– To go back to previous menu /
show title menu
DISC MENU
– Enters or exits the disc contents
menu
– Switches on or off the playback
control mode (for VCD version
2.0 only)
1 2 3 4
– Selects an item in the menu/
fast backward/forward, slow forward/
backward
OK
– Acknowledge menu selection
S
– To search or select previous
chapter or track
STOP ( 9 )
– To stop playback
PLAY ( B )
– To start playback
PAUSE ( ; )
– To pause playback temporarily /
frame-by-frame playback
REPEAT
– Selects various repeat modes
REPEAT (A-B)
– Repeats playback a specific section
on a disc
PREVIEW
– To preview the content of a track
or whole disc
MUTE
– Disables or enables sound output
POWER B
–To switch the DVD player to
standby mode or ON
0-9 numerical key pad
– Selects numbered items in a
menu
DISPLAY
– Displays information on TV
screen during playback
SYSTEM MENU
– Access or exit DVD Player’s
system menu
T
–To search or select next chapter
or track
SUBTITLE
–To access subtitle language in disc
menu
ANGLE
– Selects a DVD camera angle
ZOOM
– Enlarge or reduce a picture on
the TV screen
AUDIO
–To access audio language in disc
menu
01-34 DVP520_02a1 18/03/2004, 6:30 PM13
02(A)_8239 210 98882
English
14
STOP
PREVIEWPREVIEW MUTEMUTE
Getting Started
Step 1: Inserting batteries into
the Remote Control
1
3
2
1 Open the battery compartment.
2 Insert two batteries type R06 or AA,
following the indications (+-) inside
the compartment.
3 Close the cover.
Using the Remote Control to
operate the Player
1 Aim the Remote Control
directly at the remote
sensor (IR) on the front
panel.
2 Do not put any objects
between the Remote
Control and the DVD
Player while operating the
DVD Player.
CAUTION!
– Remove batteries if they are
exhausted or if the Remote Control
is not being used for a long time.
– Do not use old and new or
different types of batteries in
combination.
– Batteries contain chemical
substances, so they should be
disposed properly.
Step 2: Setting up the TV
IMPORTANT!
Make sure you have completed all
the necessary connections. (See
pages 8-9 “Connecting TV”).
1 Turn on the TV and set to the correct
video-in channel. You should see the blue
Philips DVD background screen on the
TV.
➜Usually these channels are between the
lowest and highest channels and may be
called FRONT, A/V IN, or VIDEO. See your
TV manual for more details.
➜Or, you may go to channel 1 on your
TV, then press the Channel down button
repeatedly until you see the Video In
channel.
➜Or, the TV Remote Control may have a
button or switch that chooses different
video modes.
➜Or, set the TV to channel 3 or 4 if you
are using an RF modulator.
2 If you are using external equipment, (eg.
audio system or receiver), turn it on and
select the appropriate input source for
the DVD Player output. Refer to the
equipment owner’s manual for detail.
01-34 DVP520_02a1 18/03/2004, 6:31 PM14
02(A)_8239 210 98882
English
15
Getting Started
1 Press SYSTEM MENU.
2 Press 1 2 to select ‘Video Setup Page’.
3 Use the 1 2 3 4 keys on the Remote
Control to navigate in the menu.
Move to ‘TV Type’ and press 2.
PAL – Select this if the connected TV is
PAL system. It will change the video signal
of a NTSC disc and output in PAL format.
NTSC – Select this if the connected TV
is NTSC system. It will change the video
signal of a PAL disc and output in NTSC
format.
Multi – Select this if the connected TV is
compatible with both NTSC and PAL
(multi-system). The output format will be
in accordance with the video signal of the
disc.
4 Select an item and press OK.
Selecting the colour system that
corresponds to your TV
This DVD Player is compatible with both
NTSC and PAL. In order for a DVD disc
to play on this Player, the colour system of
the Disc, the TV and the DVD Player
should match.
- - Video Setup Page - -
Set TV Standard
TV Type PAL
TV Display NTSC
Closed Captions Multi
Angle Mark
Smart Picture
Picture Setting
Helpful Hint:
– Before changing the current TV
Type setting, ensure that your TV
supports the ‘selected TV Type’ system.
–Follow the instructions that
appears on the TV screen.
– If there is no proper picture on
your TV, wait for 15 seconds for auto
recovery.
HINTS:(refer to the owner's manual
Changing to (selected TV Type)
1. Ensure your TV supports it.
2. If there is a blank screen on normal TV,
wait 15 seconds for auto recover
< > - Move
OK - Select
Cancel
OK
Confirm again to use (selected TV Type)
If picture is good press OK on remote
TO GO BACK TO (Current TV Type):
1. Open tray
2. Press '3' Key
< > - Move
OK - Select
Cancel
OK
To exit from the menu
Press SYSTEM MENU or select ‘Exit
Setup Menu’ and then press OK.
01-34 DVP520_02a1 18/03/2004, 6:31 PM15
02(A)_8239 210 98882
English
16
Step 3: Setting language
preference
You can select your own preferred
language settings.This DVD system will
automatically switch to the selected
language whenever you load a disc. If the
language selected is not available on the
disc, the disc’s default language will be
used instead. The OSD language in the
system menu will remain once selected.
Setting the OSD Language
- - General Setup Page - -
Set OSD Language English
Program ENGLISH
OSD Language DEUTSCH
Screen Saver NEDERLANDS
FRANÇAIS
ITALIANO
ESPANOL
SVENSKA
PORTUGUESE
1 Press SYSTEM MENU.
2 Press 1 2 to select ‘General Setup’ page.
3 Use the 1 2 3 4 keys on the Remote
Control to navigate in the menu.
Move to ‘OSD Language’ and press 2.
4 Select a language and press OK.
To exit from the menu
Press SYSTEM MENU or select ‘Exit
Setup Menu’ and then press OK.
Setting the Audio, Subtitle and Disc
menu language
- - Preference Page - -
Set Preference To English
Audio English
Subtitle Chinese
Disc Menu Japanese
Parental French
Password German
Default Spanish
Dutch
Italian
1 Press STOP twice then, press SYSTEM
MENU.
2 Press 1 2 to select ‘Preference Page’.
3 Press 3 4 to highlight the following in the
Preference Page.
–‘Audio’ (disc’s soundtrack)
– ‘Subtitle’ (disc’s subtitles)
– ‘Disc Menu’ (disc’s menu)
4 Enter its submenu by pressing B.
5 Select a language and press OK.
6 Repeat steps 3~5 for other language
settings.
To exit from the menu
Press SYSTEM MENU or select ‘Exit
Setup Menu’ and then press OK.
If you choose OTHERS in Audio,
Subtitle or Disc Menu,
1 Press 3 4 to highlight ‘Others’.
2 Press OK and when you are asked to
enter a language code (see ‘Language
Code’ on page 203).
3 Input a language code by using the
numeric keypad (0-9).
4 Press OK to confirm.
Getting Started
01-34 DVP520_02a1 18/03/2004, 6:31 PM16
02(A)_8239 210 98882
English
17
Disc Operations
IMPORTANT!
– Depending on the DVD or VIDEO
CD, some operations may be
different or restricted.
– Do not push on the disc tray or
put any objects other than disc on
the disc tray. Doing so may cause
the disc player malfunction.
Playable Discs
Your DVD Player will play:
– Digital Versatile Discs (DVDs)
– Video CDs (VCDs)
– Super Video CDs (SVCDs)
– Digital Versatile Discs + Recordable
(DVD+R)
– Digital Versatile Discs + Rewritable
(DVD+RW)
– Compact Discs (CDs)
– MP3 disc on CD-R(W):
–Maximum 30 characters display.
–Supported sampling frequencies :
32 kHz, 44.1 kHz, 48 kHz
–Supported Bit-rates : 32~256 kbps
variable bitrates
– Picture (JPEG) files on CD-R(W):
–JPEG/ISO 9660 format.
Region Codes
DVDs must be labelled for ALL
regions or Region 2 in order to
play on this DVD system. You
cannot play discs that are labelled
for other regions.
Helpful Hint:
– If you are having trouble playing a
certain disc, remove the disc and try a
different one. Improper formatted disc will
not play on this DVD Player.
ALL
2
IMPORTANT!
If the inhibit icon (
ø) appears on the
TV screen when a button is pressed,
it means the function is not available
on the current disc or at the current
time.
Playing discs
1 Connect the power cords of the DVD
Player and TV (and any optional stereo or
AV receiver) to a power outlet.
2 Turn on the TV power and set to the
correct Video In channel. (See page 14
“Setting up the TV”).
3 Press STANDBY-ON on the DVD Player
front panel.
➜You should see the blue Philips DVD
background screen on the TV.
4 Press OPEN•CLOSE 0 button to open
the disc tray and load in a disc, then press
the same button again to close the disc
tray.
➜Make sure the label side is facing up.
For double-sided discs, load the side you
want to play facing up.
5 Playback will start automatically
(depending on the disc type).
➜If a disc menu appears on the TV, see
“Using the Disc Menu”.
➜If the disc is locked by parental control,
you must enter your four-digit password.
(See page 30).
6 At any time, simply press STOP to stop
playback.
01-34 DVP520_02a1 18/03/2004, 6:31 PM17
02(A)_8239 210 98882
English
18
Disc Operations
Using the Disc Menu
Depending on the disc, a menu may
appear on the TV screen once you load
the disc.
To select a playback feature or item
● Use the 1 2 3 4 or numeric keypad
(0-9) on the Remote Control, then press
PLAY B to start playback.
To access or exit from the menu
● Press DISC MENU on the Remote
Control.
For VCD with Playback Control
(PBC) feature (version 2.0 only)
PBC playback allows you to play Video
CDs interactively, following the menu on
the display.
● In stop mode, use the numeric keypad
(0-9) to select a track and PBC will turn
off.
➜ Playback will start automatically
● During playback, press DISC MENU;
➜ If PBC was ON, it will switch to OFF
and continue playback.
➜If PBC was OFF, it will switch to ON
and return to menu screen.
● During playback, pressing RETURN/
TITLE will return to the menu screen (if
PBC is on).
Basic playback controls
Unless otherwise stated, all operations
described are based on the use of
Remote Control.
Pausing playback
(DVD/VCD/CD/MP3)
1 During playback, press PAUSE ;.
➜Playback will pause and sound will be
muted.
2 Press PAUSE ; again to select the next
picture frame.
3 To return to normal playback, press
PLAY B.
Selecting track/chapter
(DVD/VCD/CD)
1 Press T briefly during playback to go
to the next chapter/track
2 Press S to go to the previous track
(VCD/CD) or return to the beginning of
the current chapter (DVD).
● Press S twice briefly to step back to
the previous chapter (DVD).
3 To go directly to any chapter/track, enter
the chapter/track number using the
numerical keys (0-9).
Resuming playback from the last
stopped point (DVD/VCD/CD/MP3)
● In stop mode and when the disc has not
been ejected, press PLAY B.
To cancel resume mode
● In stop mode, press STOP 9 again.
01-34 DVP520_02a1 18/03/2004, 6:31 PM18
02(A)_8239 210 98882
English
19
Disc Operations
Repeat (DVD/VCD/CD)
● Press REPEAT continuously to choose a
Repeat mode during playback.
REPEAT CHAPTER (DVD)
– to repeat playback of the current
chapter.
REPEAT TRACK/TITLE (CD/VCD/DVD)
– to repeat playback of the current
track (CD/SVCD/VCD)/title (DVD).
REPEAT ALL
– to repeat playback of all the disc and
all the programmed tracks.
SHUFFLE
– to repeat playback at random order.
REPEAT OFF
– to cancel the repeat mode.
Helpful Hint:
– REPEAT function is not available for VCD
2.0 when PCB is on.
Repeat A-B (DVD/VCD/CD)
1 Press REPEAT A-B at your chosen
starting point.
2 Press REPEAT A-B again at your chosen
end point.
➜The section A and B can be set only
within the same chapter/track.
➜The section will now repeat continuously.
3 To exit the sequence, press REPEAT A-B.
Zoom (DVD/VCD/JPEG)
Zooming allows you to enlarge or reduce
the video image during playback.
1 Press ZOOM repeatedly to increase and
decrease the playback video image.
2 Press 1 2 3 4 to pan across the TV
screen.
Forward / Reverse Searching
(DVD/VCD/CD)
1 Press 1 2 during playback to select the
required speed: 2X, 4X, 8X, 16X or 32X
(backward or forward).
➜Sound will be muted (DVD/VCD) or
intermittent (CD).
2 To return to normal speed, press PLAY B.
Slow Motion (DVD/VCD)
1 Press 3 4 during playback to select the
required speed: 1/2, 1/4, 1/8 or 1/16
(backward or forward).
➜Sound will be muted.
2 To return to normal speed, press PLAY B.
Helpful Hint:
– Slow backward is not possible on VCDs.
01-34 DVP520_02a1 18/03/2004, 6:31 PM19
02(A)_8239 210 98882
English
20
Time Search (DVD/VCD)
The Time Search function allows you to
start playing at any chosen time on the
disc.
1 Press DISPLAY.
2 Press 3 4 to highlight time search box.
➜The on-screen display shows the total
playing time of the title/chapter.
Bitrate 67 TT Elapsed 0:16:35
Bitrate 67 TT Elapsed 0:16:35
TT Time
TT Time
0:03:01
0:03:01
CH Time
CH Time
0:01:08
0:01:08
Repeat
Repeat
Off
Off
Time Disp.
Time Disp.
TT Elapsed
TT Elapsed
Menu
Menu
3 Use 2 keys to select an option.
4 Enter hours, minutes and seconds from
left to right in the time edit box using
remote control numerical key pad.
(e.g. 0:34:27)
For DVD
➜
Title/Chapter Remain: displays the
remaining time of the current title/
chapter.
➜
Title/Chapter Elapsed: displays the
elapsed time of the current title/chapter.
For Super VCD or VCD
➜
Total/Single Remain: displays the
remaining time of the current total/single
track.
➜
Total/Single Elapsed: displays the
elapsed time of the current total/single
track.
5 Press the DISPLAY key to confirm.
➜Playback starts from the selected time
on the disc.
Disc Operations
Special disc features
Playing a Title (DVD)
1 Press DISC MENU.
➜The disc title menu appears on the TV
screen.
2 Use 341 2 keys or numeric keypad
(0-9) to select a play option.
3 Press OK key to confirm.
Camera Angle (DVD)
● Press ANGLE repeatedly to select
different desired angle.
Changing the Audio Language
(DVD/VCD)
For DVD
● Press AUDIO repeatedly to select
different audio languages.
Changing the Audio Channel
For VCD
● Press AUDIO to select the available
audio channels provided by the disc
(STEREO, MONO LEFT, MONO RIGHT
or MIX MONO).
Subtitles (DVD)
● Press SUBTITLE repeatedly to select
different subtitle languages.
01-34 DVP520_02a1 18/03/2004, 6:31 PM20
02(A)_8239 210 98882
English
21
Disc Operations
Preview Function (DVD/VCD)
The preview function allows you to
reduce the picture of 6 tracks enough to
display in a full screen.
1 Press PREVIEW.
➜The preview menu appears on the TV
screen.
Select Digest Type:
Title Digest
Chapter Digest
Title Interval
Chapter Interval
Select Digest Type:
Title Digest
Chapter Digest
Title Interval
Chapter Interval
Select Digest Type:
Track Digest
Disc Interval
Track Interval
Select Digest Type:
Track Digest
Disc Interval
Track Interval
2 Press 3 4 to select the PREVIEW type,
then press OK.
➜The picture of each segment will
appear on the screen.
ABC
DE F
(example for 6 thumbnail pictures display)
3 Press 3 4 1 2 to select a track and input
your selected track number using the
numeric keypad (0-9), then press OK.
➜ Playback will start automatically on the
selected track.
● For CDDA (Musical CD)
➜ Press PREVIEW to listen to the first
10 seconds of each sound track in the
disc.
(DVD example)
(Video CD example)
Playing MP3/JPEG Picture CD
IMPORTANT!
You have to turn on your TV and set to
the correct Video In channel. (See page
14 “Setting up the TV”).
General Operation
1 Load an MP3/JPEG Picture CD disc.
➜The data disc menu appears on the TV
screen.
2 Use 3 4 to select the folder and press
OK to open the folder.
00:37 03:50 128kbps
001/162
\MP3\
Song 1
Song 2
Song 3
Song 4
Song 5
MP3
MP3
MP3
MP3
MP3
3 Press 3 4 or use the numeric keypad
(0-9) to highlight an option.
4 Press OK to confirm.
➜The playback will start from the
selected file to the end of the folder.
Playback selection
During playback, you can;
● Press S / T to select another file in
the current folder.
● Use
1 2 3 4 on the remote to rotate/flip
the picture files.
● Press
; repeatedly to pause/resume
playback.
01-34 DVP520_02a1 18/03/2004, 6:31 PM21
02(A)_8239 210 98882
English
22
Disc Operations
Program playback
● In Stop mode, press DISC MENU
repeatedly to toggle the menu between
Folder and Filelist.
1 When Filelist is on the screen, press 3 4
to select the files and press 2 to add the
files to the playlist.
2 Press DISC MENU to display the playlist.
3 Press 1 to delete unwanted files from the
playlist.
Helpful Hint:
– The disc reading time may exceed 10
seconds due to large number of songs
compiled onto the disc.
Fast forward / reverse (MP3)
● During playback, press 1 2 to fast forward
or reverse playback.
● To resume normal playback, press PLAY
B.
Repeat
● Press REPEAT continuously to access
different ‘Play Mode’.
➜SINGLE: play the selected file once,
then return to the menu.
➜REPEAT ONE: keep a JPEG image still on
the screen or play an MP3 file repeatedly.
➜REPEAT FOLDER: play all files in the
selected folder repeatedly.
➜SHUFFLE: play all files in the selected
folder in random order.
➜FOLDER : play all files in the selected
folder.
Special JPEG features
Preview Function (JPEG)
This function shows the content of the
current folder or the whole disc.
1 Press PREVIEW during playback.
➜Thumbnails of 12 pictures appears on
the TV screen.
(example for 12 thumbnail pictures display)
2 Press S / T to display the other
pictures on the previous/next page.
3 Use 1 2 3 4 to highlight one of the
picture and press OK to start playback,
4 Press DISC MENU to return to MP3/
Picture CD menu.
Zoom picture (JPEG)
● During playback, press ZOOM repeatedly
to display the picture with different scales.
● Use 1 2 3 4 to view the zoomed picture.
Playback with multi-angles (JPEG)
● During playback, press
3 4 1 2 to rotate
the picture on the TV screen.
3: flip the picture vertically
4: flip the picture horizontally
1: rotate the picture anti-clockwise
2: rotate the picture clockwise
01-34 DVP520_02a1 18/03/2004, 6:31 PM22
02(A)_8239 210 98882
English
23
Basic Operations
1 Press SYSTEM MENU to enter the
Setup Menu.
2 Press OK to enter the next level
submenu or confirm your selection.
3 Press 1 2 to enter the submenu or
return to the previous menu.
4 Press 34 to highlight the desired menu.
To exit from the menu
Press SYSTEM MENU or select ‘Exit
Setup Menu’ and then press OK.
➜The settings will be stored in the
player’s memory even if the player is
switched off.
General Setup Page
The options included in General Setup
page are: ‘Program’, ‘OSD Language’, and
‘Screen Saver’.
Follow the steps below:
- - General Setup Page - -
Go To General Setup Page
Program
OSD Language
Screen Saver
1 Press SYSTEM MENU to enter the
setup menu.
2 Press 1 2 to select the ‘General Setup’
page.
System Menu Options
NOTE:
Some of the features in the System
Menu Options are described in
“Getting Started”.
Program (not for Picture CD/MP3)
To select favourite tracks/chapters
playback in preferred sequence.
Program:Chapter(01-12)
START NEXTExit
1
12
2
01
3
4
5
6
7
8
9
10
05
1 Use the numerical keypad (0-9) to
direct input the tracks or chapters (single
track number with digit ‘0’ in front, for
example ‘05’).
2 Move the cursor by pressing 3 4 1 2 to
select START.
3 Press OK to start playback.
Helpful Hint:
–Program can be activated only when a
disc is in the DVD player.
Screen Saver
This function is used to turn the screen
saver on or off.
- - General Setup Page - -
Screen Saver
Program
OSD Language
Screen Saver On
Off
1 Press 34 to highlight ‘Screen Saver’.
2 Enter its submenu by pressing 2.
3 Move the cursor by pressing 34 to
highlight the selected item.
➜On: In STOP, PAUSE or No DISC
mode, if no actions are performed about
5 minutes, the screen saver will be
activated.
➜
Off: Screen saver is disabled.
01-34 DVP520_02a1 18/03/2004, 6:31 PM23
02(A)_8239 210 98882
English
24
System Menu Options
Speaker Setup
The options included in Speaker Setup
are: ‘Downmix’ and ‘D.R.C’.
1 Press the 34 keys to highlight an option.
2 Enter its submenu by pressing 2.
3 Move the cursor by pressing the 34 keys
to highlight the selected item.
- - Speaker Setup Page - -
Set Downmix Mode
Downmix LT/RT
D.R.C Stereo
Virtual Surround
Downmix
This options allows you to set the stereo
analog output of your DVD Player.
➜
LT/RT: Select this option if your DVD
Player is connected to a Dolby Pro Logic
decoder.
➜
Stereo: Select this option when output
delivers sound from only the two front
speakers.
➜
Virtual Surround: Allows the DVD
player to use virtual surround sound
effects.
Digital Audio Setup
The options included in Digital Audio
Setup are: ‘Digital Output’ and ‘LPCM
Output’.
1 Press the 34 keys to highlight an option.
2 Enter its submenu by pressing 2.
3 Move the cursor by pressing the 34 keys
to highlight the selected item.
- - Digital Audio Page - -
Setup SPDIF
Digital Output SPDIF Off
LPCM Output All
PCM Only
Digital Output
Set the Digital output according to your
optional audio equipment connection.
➜
SPDIF Off: Turns off the SPDIF
output.
➜
All: If you have connected your
DIGITAL AUDIO OUT to a multi-channel
decoder/receiver.
➜
PCM Only: Only if your receiver is
not capable of decoding multi-channel
audio.
Helpful Hint:
– If DIGITAL OUTPUT is set to ‘All’, all
audio settings except MUTE are invalid.
Audio Setup Page
The options included in Audio Setup page
are: ‘Speaker Setup’, ‘Digital Audio Setup’,
‘Dolby Digital Setup’, ‘Equalizer’ and ‘3D’.
1 Press SYSTEM MENU.
2 Press 1 2 to select the ‘Audio Setup’ page.
D.R.C (Dynamic Range Control)
Analogue sound dynamic range
compression.
➜
On: Audio with fully compressed
dynamic range.
➜
Off: Audio with uncompressed dynamic
range.
➜Auto: Select ‘Auto’ to adjust the
dynamic level automatically according to
the disc record.
01-34 DVP520_02a1 18/03/2004, 6:31 PM24
02(A)_8239 210 98882
English
25
LPCM Output
If you connect the DVD Player to a PCM
compatible receiver via the digital
terminals, such as coaxial or optical etc,
you may need to adjust ‘LPCM Output’.
Discs are recorded at a certain sampling
rate. The higher the sampling rate, the
better the sound quality.
➜
48kHz: Playback a disc recorded at the
sampling rate of 48kHz.
➜
96kHz: Playback a disc recorded at the
sampling rate of 96kHz.
Helpful Hint:
– LPCM Output can be selected only when
PCM Only is activated.
Dolby Digital Setup
The options included in Dolby Digital
Setup are: ‘Dual Mono’ and ‘Dynamic’.
1 Press the 34 keys to highlight an option.
2 Enter its submenu by pressing 2.
3 Move the cursor by pressing the 34 keys
to highlight the selected item.
- - Dolby Digital Setup - -
Dual Mono (1 + 1) Setup
Dual Mono Stereo
Dynamic L-Mono
R-Mono
MIX-Mono
Dual Mono
To select the setting that matches the
number of speakers you have connected.
➜
Stereo: Left mono sound will send
output signals to Left speaker and Right
mono sound will send output signals to
Right speaker.
➜
L-Mono: Left mono sound will send
output signals to Left speaker and Right
speaker.
➜
R-Mono: Right mono sound will send
output signals to Left speaker and Right
speaker.
➜
Mix-Mono: Left and Right mixed
mono sound will send output signals to
Left and Right speakers.
Dynamic
To o ptimise the dynamic sound output
high volume outputs are softened,
enabling you to watch your favourite
movie without disturbing others.
➜The levels for dynamic selection:
Full, 3/4, 1/2, 1/4 and Off.
Helpful Hint:
– DTS surround audio output are not
available in this DVD player.
System Menu Options
01-34 DVP520_02a1 18/03/2004, 6:31 PM25
02(A)_8239 210 98882
English
26
System Menu Options
Equalizer
The options included in Equalizer is: ‘Sound
Mode’.
1 Press the 34 keys to highlight an option.
2 Enter its submenu by pressing 2.
3 Move the cursor by pressing the 34 keys
to highlight the selected item.
- - Equalizer Page - -
None
Sound Mode None
Rock
Pop
Live
Dance
Techno
Classic
Soft
Sound Mode
Select a Sound Mode that matches the
type of music you are playing. These
preset Sound Modes adjust the frequency
bands of the audio to enhance your
favourite music.
➜None, Rock, Pop, Live, Dance,
Techno, Classic and Soft
3D Processing
The option included in 3D Processing is:
‘Reverb Mode’.
1 Press the 34 keys to highlight an option.
2 Enter its submenu by pressing 2.
3 Move the cursor by pressing the 34 keys
to highlight the selected item.
- - 3D Processing Page - -
Reverb Mode
Reverb Mode Off
Concert
Living Room
Hall
Bathroom
Cave
Arena
Church
Reverb Mode
Reverb mode provides a virtual surround
sound experience using just two speakers.
➜Off, Concert, Living Room, Hall,
Bathroom, Cave, Arena and Church
Helpful Hint:
–Reverb mode will be activated when
‘Downmix’ is set to off.
01-34 DVP520_02a1 18/03/2004, 6:31 PM26
02(A)_8239 210 98882
English
27
Video Setup Page
The options included in Video Setup page
are: ‘TV Type’, ‘TV Display’, ‘Closed
Captions’, ‘Angle Mark’, ‘Smart Picture’,
and ‘Picture Setting’.
1 Press SYSTEM MENU.
2 Press 1 2 to select the ‘Video Setup’ page.
- - Video Setup Page - -
Go To Video Setup Page
TV Type
TV Display
Closed Captions
Angle Mark
Smart Picture
Picture Setting
TV Display
Set the aspect ratio of the DVD Player
according to the TV you have connected.
1 Press 34 to highlight ‘TV Display’.
2 Enter its submenu by pressing 2.
3 Move the cursor by pressing 34 to
highlight the selected item.
16:9
4:3
Letter Box
4:3
Pan Scan
System Menu Options
16:9
➜If you have a wide-screen TV.
4:3 Letter Box
➜If you have a normal TV. In this case, a
wide picture with black bands on the
upper and lower portions of the TV
screen will be displayed.
4:3 Pan Scan
➜If you have a normal TV and want both
sides of the picture to be trimmed or
formatted to fit your TV screen.
Closed Captions
Closed captions are data that are hidden
in the video signal of some discs. Captions
are different from subtitles because
captions hearing are impaired by showing
the sound effects (e.g., “phone ringing”
and “footsteps”), while subtitles do not.
Before you select this function, please
ensure that the disc contains closed
captions information and your TV set also
has this function.
1 Press 34 to highlight ‘Closed Captions’.
2 Enter its submenu by pressing 2.
3 Move the cursor by pressing 34 to
highlight the selected item.
➜
On: Enable Closed Captions.
➜Off: Disable Closed Captions.
01-34 DVP520_02a1 18/03/2004, 6:31 PM27
02(A)_8239 210 98882
English
28
System Menu Options
Angle Mark
Displays current angle setting information
on the right hand corner of the TV screen
if available on the disc.
1 Press 34 to highlight ‘Angle Mark’.
2 Enter its submenu by pressing 2.
3 Move the cursor by pressing 34 to
highlight the selected item.
➜
On: Enable Angle Mark.
➜Off: Disable the current angle setting
display.
Smart Picture
In this menu, you can choose a picture
setting from a fixed set of predefined
picture settings.
1 Press 34 to highlight ‘Smart Picture’.
2 Enter its submenu by pressing 2.
3 Move the cursor by pressing 34 to
highlight the selected item.
➜Standard: select the standard picture
setting.
➜
Bright: make the TV picture brighter.
➜
Soft: make the TV picture softer.
Picture Setting
The options included in Picture Setting
Setup page are: ‘Sharpness’, ‘Brightness’
and ‘Contrast’.
1 Press the 34 keys to highlight an option.
2 Enter its submenu by pressing 2.
3 Move the cursor by pressing the 34 keys
to highlight the selected item.
- - Picture Setting Setup - -
Low
Sharpness High
Brightness 00 Medium
Contrast 00 Low
Sharpness
You can personalise your picture colour
by adjusting sharpness, brightness or
contrast.
➜
High: Choose high to make the
picture’s edge sharper.
➜
Medium: Choose medium to get a
standard picture.
➜
Low: Choose low to make the
picture’s edge softer.
Brightness/Contrast
Choose a positive value to increase the
brightness/contrast level or move to a
negative value to decrease the brightness/
contrast level.
01-34 DVP520_02a1 18/03/2004, 6:31 PM28
02(A)_8239 210 98882
English
29
System Menu Options
Preference Setup Page
The options included in Preference page
are: ‘Audio’, ‘Subtitle’, ‘Disc Menu’,
‘Parental’, ‘Password’ and ‘Default’.
1 Press SYSTEM MENU.
2 Press 1 2 to select the ‘Preference Page’.
- - Preference Page - -
Go To Preference Page
Audio
Subtitle
Disc Menu
Parental
Password
Default
Note:
Preference features can be selected
only during ‘No Disc’ condition or
STOP mode.
Parental
Some DVDs may have a parental level
assigned to the complete disc or to
certain scenes on the disc. This feature
lets you set a playback limitation level.
The rating levels are from 1 to 8 and are
country dependent. You can prohibit the
playing of certain discs that are not
suitable for your children or have certain
discs played with alternative scenes.
● VCD, SVCD, CD have no level indication,
so parental control function has no effect
on those kinds of discs. This applies to
most illegal DVD discs.
1 Press 34 to highlight ‘Parental’.
2 Enter its submenu by pressing 2.
3 Use 34 to highlight a rating level for the
disc inserted.
➜DVDs that are rated above the level
you selected will not play unless you enter
your four-digit password and choose a
higher level rating.
➜To disable Parental controls and have
all Discs play, choose ‘Off’.
Parental - cont’d
Helpful Hint:
– Some DVDs are not encoded with a
rating though the movie rating may be
printed on the Disc cover. The rating level
feature does not work for such Discs.
Rating explanations
1 KID SAFE
– Kids material; recommended especially for
children and viewers of all ages.
2 G
– General Audience; recommended as acceptable
for viewers of all ages.
3 PG
– Parental Guidance suggested.
4 PG13
– Material is unsuitable for children under age 13.
5-6 PG-R
– Parental Guidance - Restricted; recommended
that parents restrict children under 17 from
viewing or allow to view only when supervised by
a parent or adult guardian.
7 NC-17
– No children under age 17; not recommended
viewing for children under age 17.
8 ADULT
– Mature material; should be viewed only by
adults due to graphic sexual material, violence or
language.
OFF
– It will play all discs.
01-34 DVP520_02a1 18/03/2004, 6:31 PM29
02(A)_8239 210 98882
English
30
System Menu Options
Password
This feature is used for Parental Control.
Enter your four digit password when a
hint is displayed on the screen. The default
password is 1009.
1 Press 34 to highlight ‘Password’.
2 Enter its submenu by pressing 2.
3 Press OK to open the ‘New Password’
page.
Old Password
New Password
Confirm PWD
OK
4 Enter the existing 4 digit code.
5 Enter the new 4-digit code.
6 Enter the new 4-digit code a second time
to confirm.
➜ The new 4 digit code will be take effect.
7 Press OK to exit.
Helpful Hints:
– If the password has been changed, the
parental and disc lock code will also be
changed.
– The default password (1009) is always
active even the password has been changed.
Default
Setting the ‘Default’ function will reset all
options and your personal settings to the
factory defaults and all your personal
settings will be erased.
1 Press 34 to highlight ‘Default’.
2 Highlight RESET by pressing 2.
3 Press OK to confirm selection.
Caution!
– When this function is activated, all
settings will be reset to factory
defaults.
01-34 DVP520_02a1 18/03/2004, 6:31 PM30
02(A)_8239 210 98882
English
31
TV STANDARD (PAL/50Hz) (NTSC/60Hz)
Number of lines 625 525
Playback Multistandard (PAL/NTSC)
VIDEO PERFORMANCE
DA Converter 12 bit, 54kmHz
Video Output 1Vpp — 75 ohm
S-Video Output Y: 1Vpp — 75 ohm
C: 0.3 Vpp — 75 ohm
RGB (SCART) output 0.7 Vpp — 75 ohm
AUDIO FORMAT
Digital Mpeg compressed Digital
Dolby Digital 16, 20, 24 bits
PCM fs, 44.1, 48, 96 kHz
MP3(ISO 9660) 96, 112, 128, 256 kbps
& variable bit rate fs, 32,
44.1, 48 kHz
Analog Sound Stereo
Dolby Surround-compatible downmix from Dolby Digital
multi-channel sound
Specifications
AUDIO PERFORMANCE
DA Converter 24 bit, 192kHz
DVD fs 96 kHz 4Hz- 44kHz
fs 48 kHz 4Hz- 22kHz
SVCD fs 48 kHz 4Hz- 22kHz
fs 44.1kHz 4Hz- 20kHz
CD/VCD fs 44.1kHz 4Hz- 20kHz
Signal-Noise (1kHz) > 90 dB
Dynamic range(1kHz) > 80 dB
Crosstalk (1kHz) > 80 dB
Distortion/noise (1kHz) > 80 dB
MPEG MP3 MPEG Audio L3
CONNECTIONS
Scart Output Euroconnector
S-Video Output Mini DIN, 4 pins
Video Output Cinch (yellow)
Audio Output(L+R) Cinch (white/red)
Digital Output 1 coaxial
IEC60958 for CDDA / LPCM
IEC61937 for MPEG 1/2,
Dolby Digital
CABINET
Dimensions (w x h x d) 360 x 43 x 285 mm
Weight Approximately 2.0 kg
POWER CONSUMPTION
Power inlet 220-230V; 50Hz
Power consumption 12W
Power consumption in Standby mode < 1 W
Specifications subject to change without prior notice
01-34 DVP520_02a1 18/03/2004, 6:31 PM31
02(A)_8239 210 98882
English
32
WARNING
Under no circumstances should you try to repair the system yourself, as this will
invalidate the warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If
you are unable to remedy a problem by following these hints, consult your dealer or
Philips for help.
Problem Solution
No power – Check if the AC power cord is properly connected.
– Press the STANDBY ON on the front of the DVD
system to turn on the power.
No picture – Refer to your TV’s manual for correct Video In
channel selection. Change the TV channel until you
see the DVD screen.
– Check if the TV is switched on.
Distorted picture – Sometimes a small amount of picture distortion may
appear depending on the disc being played back. This
is not a malfunction.
Completely distorted picture or – Connect DVD Player directly to the TV.
black/white picture with DVD – Make sure the disc is compatible with the DVD
Player.
– Ensure that the DVD Player’s TV Type is set to match
that of the Disc and your TV.
No sound or distorted sound – Adjust the volume.
– Ensure to select stereo output on your disc (except
multichannel).
– Check that the speakers are connected correctly.
– Ensure that the DTS disc also supports Dolby Digital
output.
No audio at digital output – Check the digital connections.
– Check if your receiver can decode MPEG-2 or DTS
and if not, please make sure the digital output is set
to PCM.
– Check if the audio format of the selected audio
language matches your receiver capabilities.
No sound and picture – Check that the SCART cable is connected to the
correct device (See Connecting TV).
Disc can’t be played – The DVD+R/CD-R must be finalized.
– Ensure the disc label is facing up.
– Check if the disc is defective by trying another disc.
– If you have recorded a Picture CD or MP3 CD
yourself, ensure that your disc contains at least 10
pictures or 5 MP3 tracks.
– Region code incorrect.
Picture freezes momentarily – Check the disc for fingerprints/scratches and
during playback clean with a soft cloth wiping from centre to edge.
Troubleshooting
01-34 DVP520_02a1 18/03/2004, 6:31 PM32
02(A)_8239 210 98882
English
33
Problem Solution
No return to start-up screen when – Reset the unit by switching the player off, then on
disc is removed again.
The player does not respond to –Aim the Remote Control directly at the sensor
the Remote Control on the front of the player.
– Reduce the distance to the player.
– Replace the batteries in the Remote Control.
– Re-insert the batteries with their polarities (+/–
signs) as indicated.
Buttons do not work –To completely reset the player, unplug the AC
cord from the AC outlet for 5-10 seconds.
Player does not respond to some – Operations may not be permitted by the disc.
operating commands during playback. Refer to the instructions of the disc jacket.
DVD Player cannot read – Use a commonly available cleaning CD/DVD to
CDs/DVDs clean the lens before sending the DVD Player for
repair.
Menu items cannot be selected – Press STOP twice before selecting System Menu.
– Depending on the disc availability, some menu items
cannot be selected.
If you are unable to remedy a problem by following these hints, consult your dealer
or service center (HOTLINE).
Troubleshooting
01-34 DVP520_02a1 18/03/2004, 6:31 PM33
02(A)_8239 210 98882
English
34
Analog: Sound that has not been turned into
numbers. Analog sound varies, while digital sound has
specific numerical values. These jacks send audio
through two channels, the left and right.
Aspect ratio: The ratio of vertical and horizontal
sizes of a displayed image. The horizontal vs. vertical
ratio of conventional TVs. is 4:3, and that of wide-
screens is 16:9.
AUDIO OUT Jacks: Jacks on the back of the DVD
System that send audio to another system (TV, Stereo,
etc.).
Bit Rate: The amount of data used to hold a given
length of music; measured in kilobits per seconds, or
kbps. Or, the speed at which you record. Generally,
the higher the bit rate, or the higher the recording
speed, the better the sound quality. However, higher
bit rates use more space on a Disc.
Chapter: Sections of a picture or a music piece on a
DVD that are smaller than titles. A title is composed
of several chapters. Each chapter is assigned a chapter
number enabling you to locate the chapter you want.
Disc menu: A screen display prepared for allowing
selection of images, sounds, subtitles, multi-angles, etc
recorded on a DVD.
Digital: Sound that has been converted into
numerical values. Digital sound is available when you
use the DIGITAL AUDIO OUT COAXIAL or
OPTICAL jacks. These jacks send audio through
multiple channels, instead of just two channels as
analog does.
Dolby Digital: A surround sound system developed
by Dolby Laboratories containing up to six channels
of digital audio (front left and right, surround left and
right, center and subwoofer).
DTS: Digital Theater Systems. This is a surround
sound system, but it is different from Dolby Digital.
The formats were developed by different companies.
JPEG: A very common digital still picture format. A
still-picture data compression system proposed by the
Joint Photographic Expert Group, which features small
decrease in image quality in spite of its high
compression ratio.
MP3: A file format with a sound data compression
system. “MP3” is the abbreviation of Motion Picture
Experts Group 1 (or MPEG-1) Audio Layer 3. By using
MP3 format. one CD-R or CD-RW can contain about
10 times as much data volume as a regular CD can.
Multichannel: DVD is specified to have each sound
track constitute one sound field. Multichannel refers
to a structure of sound tracks having three or more
channels.
Parental Control: A function of the DVD to limit
playback of the disc by the age of the users according
to the limitation level in each country. The limitation
varies from disc to disc; when it is activated, playback
will be prohibited if the software’s level is higher than
the user-set level.
PCM (Pulse Code Modulation): A system for
converting analog sound signal to digital signal for
later processing, with no data compression used in
conversion.
Playback control (PBC): Refers to the signal
recorded on video CDs or SVCDs for controlling
reproduction. By using menu screens recorded on a
Video CD or SVCD that supports PBC, you can enjoy
interactive-type software as well as software having a
search function.
Region code: A system for allowing discs to be
played back only in the region designated beforehand.
This unit will only play discs that have compatible
region codes. You can find the region code of your
unit by looking on the product label. Some discs are
compatible with more than one region (or ALL
regions).
S-Video: Produces a clear picture by sending
separate signals for the luminance and the color. You
can use S-Video only if your TV has S- video In jack.
Title: The longest section of a picture or music
feature on DVD, music, etc., in video software, or the
entire album in audio software. Each title is assigned a
title number enabling you to locate the title you want.
VIDEO OUT jack: Jack on the back of the DVD
System that sends video to a TV.
Glossary
01-34 DVP520_02a1 18/03/2004, 6:31 PM34
