16631760 Fujifilm Cameras User Manual

BODM1P302-100

User's Guide (Full version)

[INSTANT PRINT

+

DIGITAL TECHNOLOGIES]

INSTAX MINI HM1

NA_EN

2

Table of Contents

Before Use �� 3

Notes on Disposing of the Camera ��3

About This Camera �� 3

Main Features ��3

Functions Available with INSTAX® Mini LiPlay Smartphone

App ��3

Part Names ��4

LCD Monitor ��5

Using the Cross Key ��6

Attaching the Strap �� 6

Charging the Battery ��7

Charging Status Indication ��7

Powering on/off �� 7

Checking the Battery Level ��7

Initial Settings �� 8

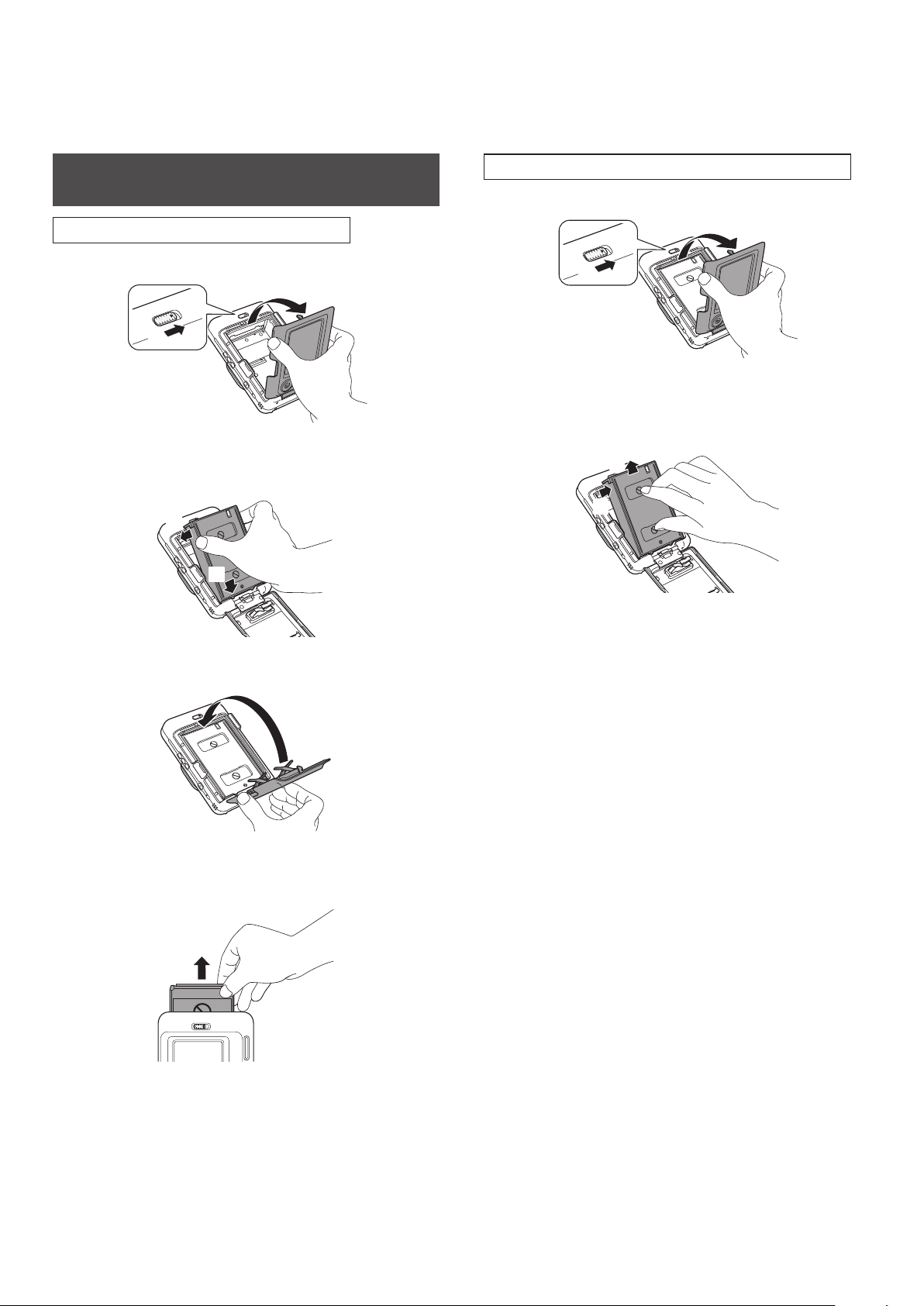

Loading/Unloading INSTAX® Mini Instant Film Pack ��10

Loading INSTAX® Mini Instant Film Pack �� 10

Unloading a Used INSTAX® Mini Instant Film Pack �� 10

Basic Shooting and Playback ��11

Shooting �� 11

Playing Back Images�� 11

Changing the Playback Screen Display �� 11

Printing ��12

Remaining Film Indicator �� 13

Selecting the Frame and Filter ��13

Selecting the Frame �� 13

Selecting the Filter�� 13

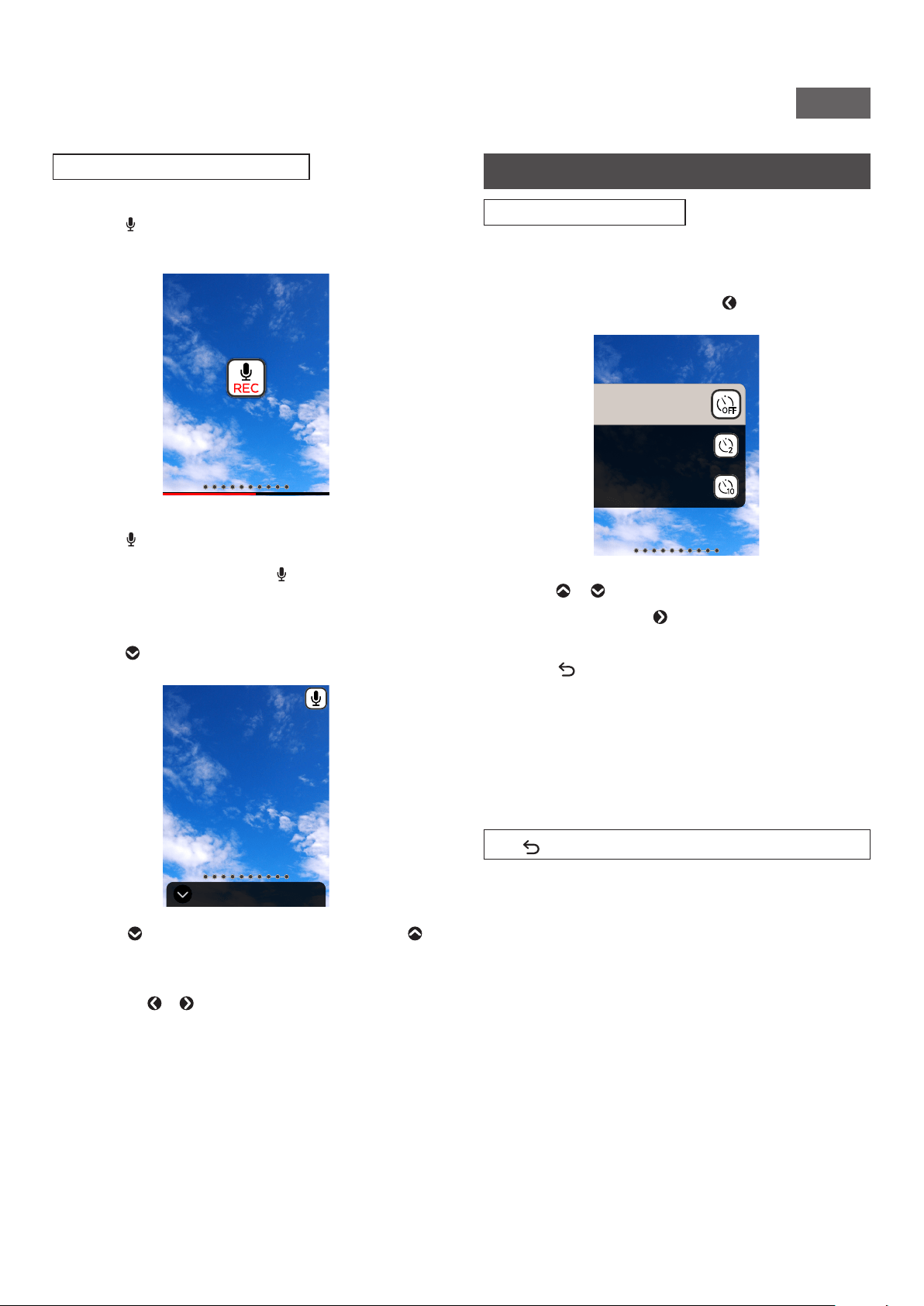

Adding Sound to Images ��14

Adding Sound When Shooting �� 14

Adding Sound When Playing Back �� 15

Various Types of Shooting ��15

Shoot Using the Self-timer �� 15

Shooting Using the Flash �� 16

Taking a Photo of Yourself (Selfie) �� 16

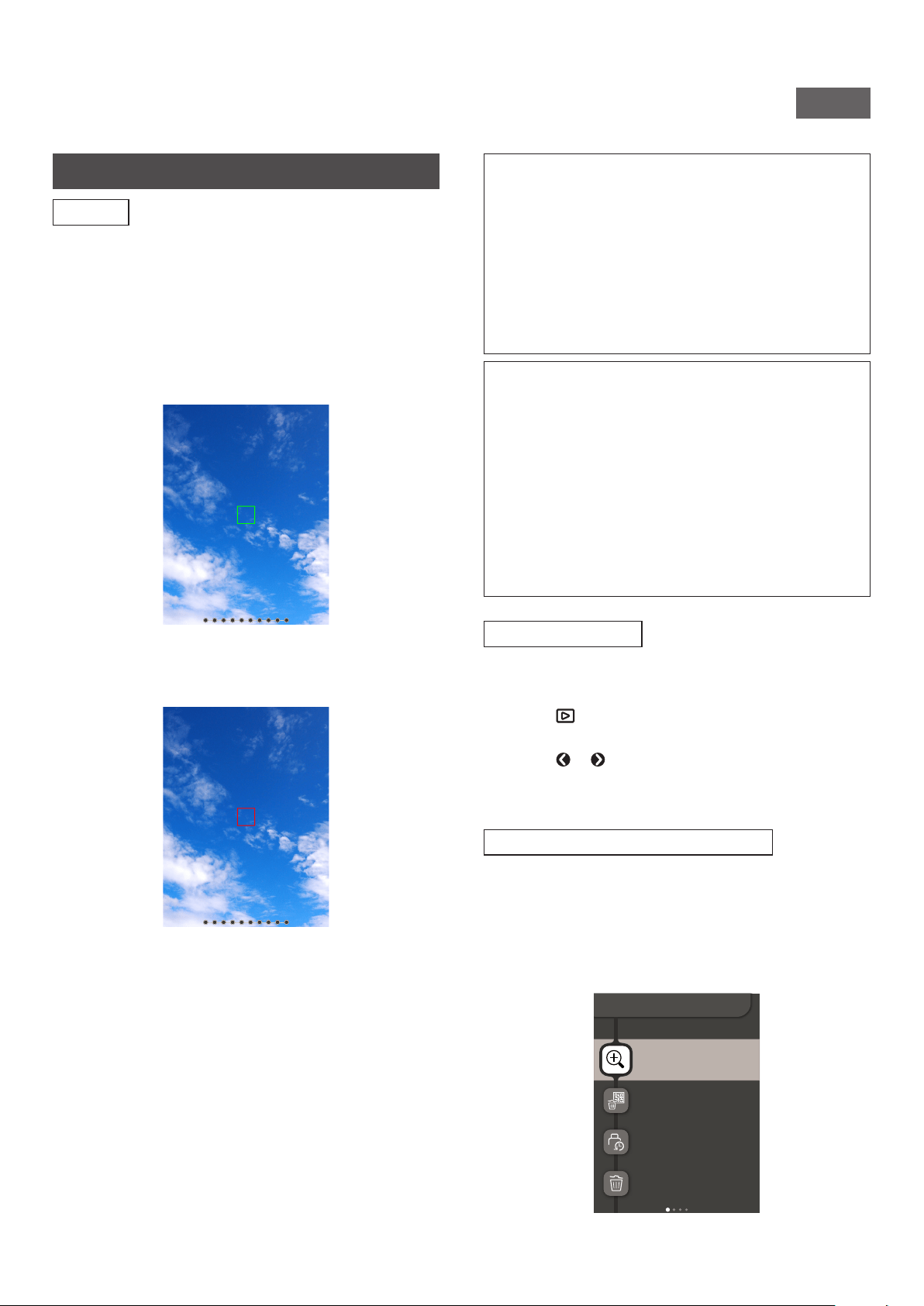

Shooting Using the AF/AE Lock �� 16

Printing from Print History ��17

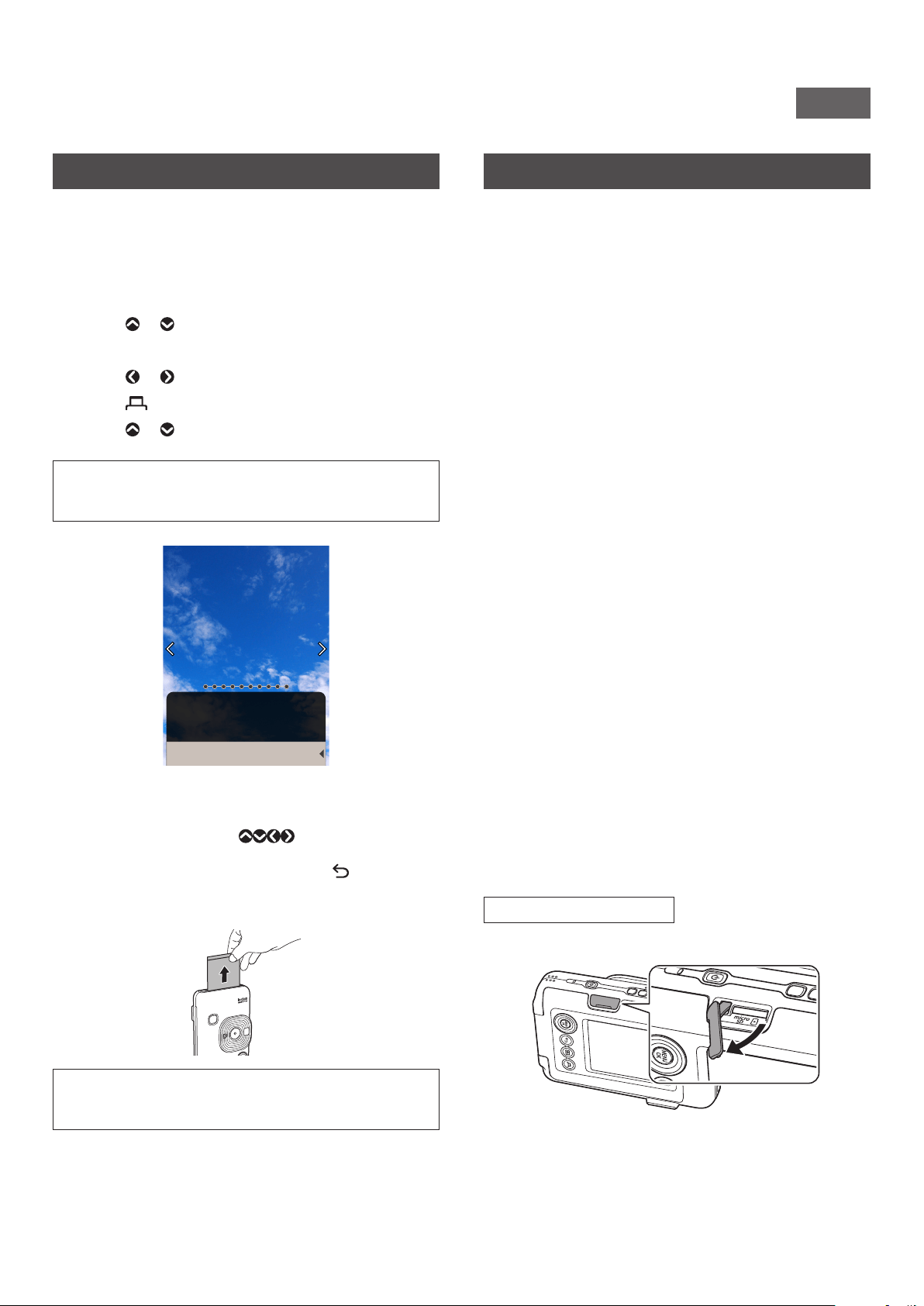

Using a Memory Card ��17

Inserting a Memory Card �� 17

Using the Shooting Menu ��18

Using the Playback Menu ��19

Using the Set-up Menu �� 19

Functions Available by Linking with INSTAX® Mini

LiPlay Smartphone App ��20

Sound Function �� 20

Remote Shooting Function �� 20

Shortcut Function �� 20

Direct Print Function �� 20

Specifications ��21

Troubleshooting ��22

IMPORTANT SAFETY NOTICE ��23

Common Sense Camera Care �� 23

Bluetooth® Device Cautions �� 24

3

NA_EN

Before Use

Before using the camera, check you have the following.

Supplied Accessories

• USB cable for charging (1)

• Strap (1)

• User’s Guide

(1)

Note that USB AC adapter is not included, but is typically provided

with your smartphone.

Notes on Disposing of the Camera

A built-in lithium ion battery is used for this camera�

When you dispose of the camera, follow your local regulations and

dispose of it properly.

Do not attempt to remove the built-in battery. Injury may result.

For proper disposal in the United States at product end-of-life,

please contact 1-800-800-3854 Option #1 INSTAX.

About This Camera

Main Features

● Smallest INSTAX® product available on the market�

● You can take a photo while looking at the LCD monitor and

save it on the camera memory or on your micro SD card�

● You can select a photo from your photo library and print it

using the INSTAX® print feature�

● You can edit your photos by using 10 Frames and 6 Filters�

● You can save your photo with the recorded sound�

● Equipped with selfie mirror for easy taking of selfies�

Functions Available with INSTAX® Mini LiPlay

Smartphone App

Navigate to your Smartphone App store and download the FREE

FUJIFILM INSTAX® Mini LiPlay Smartphone App. (See p. 8) Using

INSTAX® Mini LiPlay Smartphone App you can:

● Sound Function

Record sound with the camera, convert it to QR code and print

the QR code on a photo (Print With Sound). Sound is played

when QR codes printed with the INSTAX® Print Feature are read

with your smartphone.

● Remote Shooting Function

Control the camera with your smartphone for remote shooting

of photos.

● Shortcut Function

Press any of the 3 shortcut buttons located on the side of the

camera to use a Frame on your photo. You can use INSTAX® Mini

LiPlay Smartphone App to assign your favorite templates to the

3 shortcut buttons.

● Direct Print

Transfer a photo from your smartphone to the camera, and print

it with the INSTAX® print feature. Before sending the photo, you

can use INSTAX® Mini LiPlay Smartphone App to move, rotate,

zoom in, or zoom out the photo.

4

Part Names

Front

1

2

3

4

5

6

8

7

Rear

1

2

3

FI L M

1

2

3

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

1 Film ejection slot

2 Shutter button

3 Flash/Self-timer lamp

4 Strap hook

5 USB port

6 (Sound) button

7 Lens

8 Selfie mirror

9 Film door lock

10 Film door

11 (Shortcut 1) button

12 Reset button*

13 (Shortcut 2) button

14 (Shortcut 3) button

15 Micro SD card slot

16 (Power) button

17 Microphone

18 Speaker

19 Cross key ( )

20 MENU/OK button

21 (Back) button

22 (Playback) button

23 (Print) button

24 LCD monitor

*If the camera does not work properly, press the reset button to

reset the camera. Keep in mind the camera will not work properly

if the battery is not properly charged.

5

NA_EN

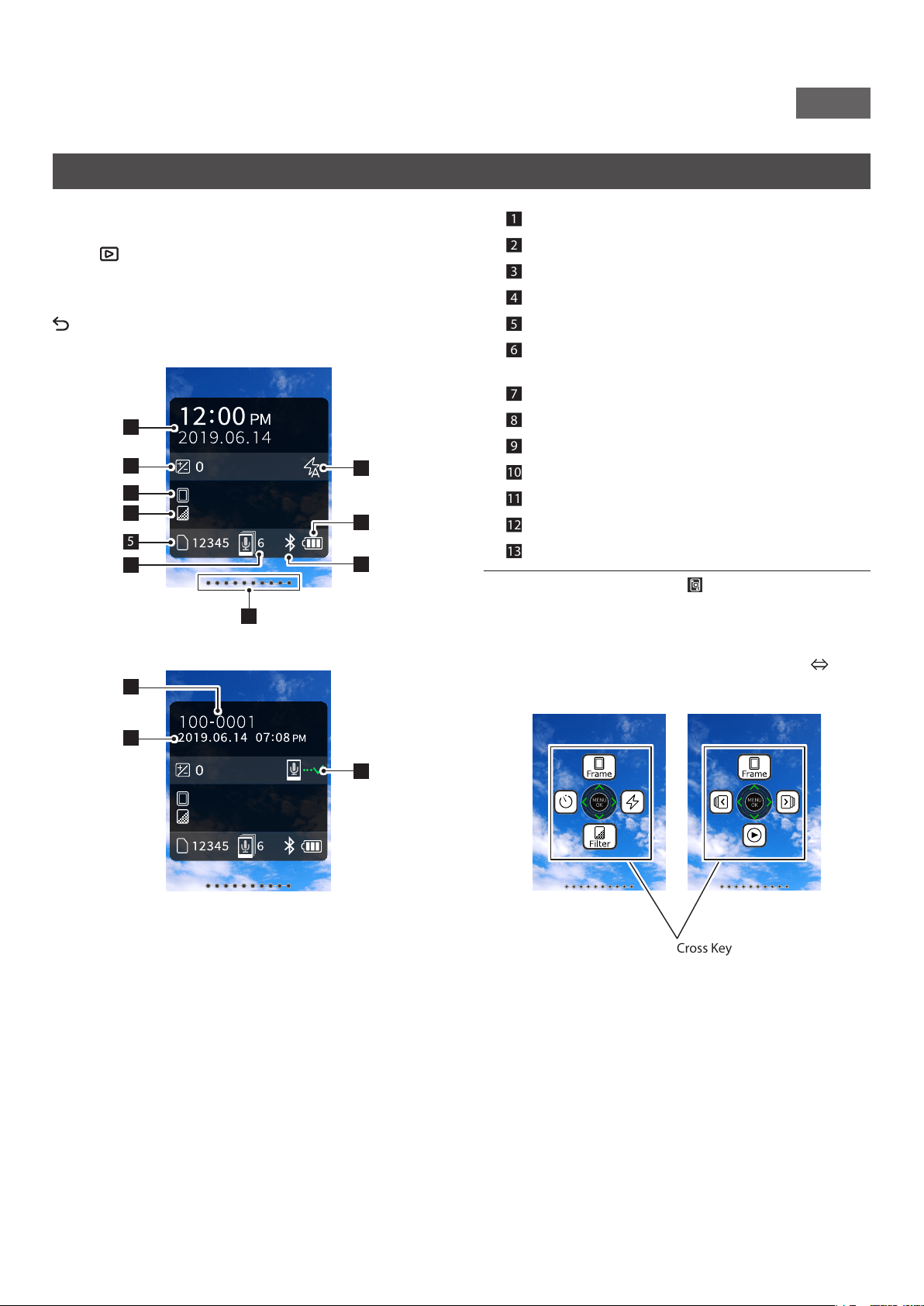

LCD Monitor

When you turn on the power, the Shooting Screen displays on the

LCD monitor.

• To switch from the Shooting Screen to the Playback Screen,

press (Playback).

• To switch from the Playback Screen to the Shooting Screen,

press the shutter button.

While the Shooting Screen or Playback Screen is displayed, press

(Back) to display the following information on the LCD monitor.

Shooting Screen

1

2

3

4

5

7

6

8

9

10

No Frame

No Filter

Playback Screen

12

13

11

No Frame

No Filter

1 Current date and time

2 Exposure

3 Frame name

4 Filter name

5 Number of images available*

6 Number of Print With Sound images waiting to be sent to

INSTAX® Mini LiPlay Smartphone App

7 Remaining film indicator

8 Bluetooth connection status indicator

9 Battery level indicator

10 Flash indicator

11 Frame No. indicator

12 Shooting date/time information

13 Transmission status indicator of Print With Sound images

*When using the internal memory, is displayed. The icon

displays in red when the number of further images that can be

saved to internal memory is 10 or less.

■ Cross Key Guide Display

When starting up or switching screens (Shooting Screen

Playback Screen), the Cross Key Guide appears for a short time.

Shooting Screen Playback Screen

Cross Key Guide

6

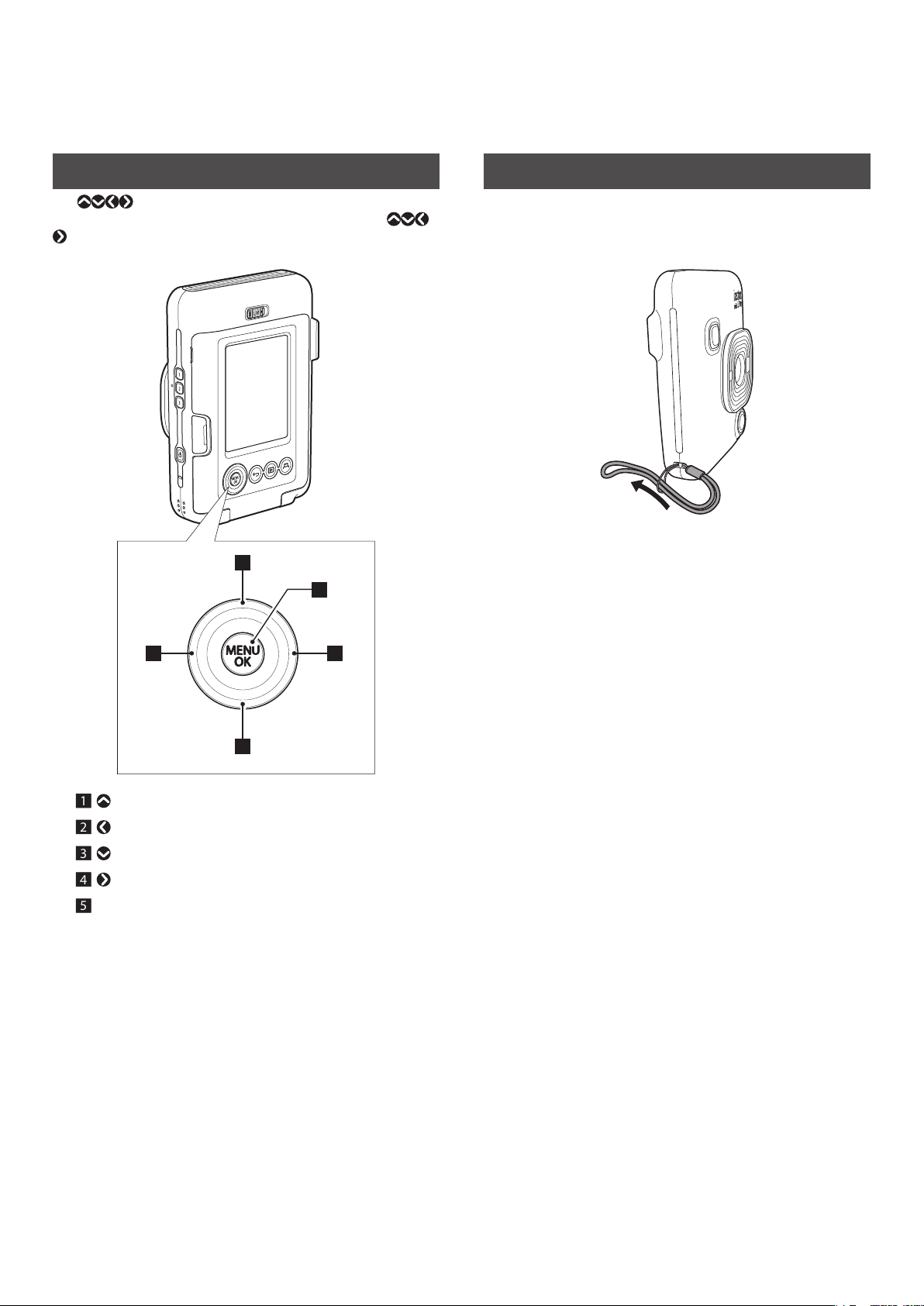

Using the Cross Key

The (up, down, left, and right) keys are used to select

Menu Items, etc. or to recall the functions assigned to the

keys. The [MENU/OK] button is used to display the Menu or to

make a selection.

2 4

1

3

5

1 Move up

2 Move left

3 Move down

4 Move right

5 Menu display/Make selection

Attaching the Strap

Attach the strap as shown below.

• To avoid dropping the camera, put the strap around your wrist

when carrying it or taking photos. The camera may be damaged

if dropped.

7

NA_EN

Charging the Battery

Turn off the camera before charging the battery. Battery will not

charge if the camera is powered on.

Be careful to properly attach cable as indicated.

FIL M

Connect the camera and a USB AC adapter supplied with your

smartphone using the supplied USB cable, then connect the USB

AC adapter to an indoor power outlet.

• Charging time is approximately 2 to 3 hours.

Charging Status Indication

While charging Self-timer lamp lights up.

Charging finished Self-timer lamp goes off.

Charging error Self-timer lamp flashes.

Charging from a PC:

• Connect the camera and PC directly. Do not connect via a

USB hub or keyboard.

• If the PC goes into sleep mode while charging, charging is

discontinued. To continue charging, exit sleep mode and then

reconnect the USB cable.

• The battery may not be able to charge depending on the

specifications and settings or conditions of the PC .

Note

• The battery cannot be removed.

• The battery is not fully charged when shipped. Be sure to

charge the battery before use.

• For notes about the battery, please refer to “Common Sense

Camera Care”. (See p. 23)

Powering on/off

Press and hold (Power) to power on or off.

Checking the Battery Level

The battery level is displayed on the LCD monitor when pressing

(Back) on the Shooting Screen or Playback Screen.

Display Battery level

There is enough remaining charge.

The remaining charge is half or less. Charging is

recommended.

There is not enough remaining charge. Please

charge as soon as possible.

• When the battery level is low, the icon displays at the

bottom right of the LCD monitor.

• When the battery runs out completely, the icon appears on

the LCD monitor and the power is turned off.

• If you do not operate the camera for a certain period of time,

it will turn off automatically. You can also set the time until

the power is turned off. (See p. 20)

• During Shooting Mode, press (Playback) to display the

Playback Screen and enter Playback Mode.

• Fully press the shutter button during Playback Mode to

display the Shooting Screen and select Shooting Mode.

8

Initial Settings

When turning on the power for the first time after purchase, the

screen to set the language, date and time, and pairing with a

smartphone is displayed automatically.

App Installation Instructions

Please install INSTAX® Mini LiPlay Smartphone App on your

smartphone before carrying out pairing registration.

• If you are using an Android OS smartphone, please search for

INSTAX® Mini LiPlay Smartphone App in Google Play Store

and install it.

*Requirements for Android OS smartphones: Android Ver.

5.0 or higher with Google Play Store installed

• If you are using an iOS smartphone, please search for INSTAX®

Mini LiPlay Smartphone App in the App Store and install it.

*Requirements for iOS smartphones: iOS Ver. 10 or higher

Depending on your smartphone model, you may not be able to

use INSTAX® Mini LiPlay Smartphone App even if you have

installed it and your smartphone meets the above requirements.

This setting can also be configured later� If you want to

configure the settings later or reconfigure the settings, set

the [言語/LANG�], [DATE/TIME] and [Bluetooth SETTINGS] in the

SET-UP MENU�

1

Turn on the power

• When you turn on the power for the first time after

purchase, the Language Setting (言語/LANG.) Screen is

displayed.

2

Select the language you wish to use and press

[MENU/OK]

ENGLISH

FRANCAIS

DEUTSCH

NO

3

Set the date order and press [MENU/OK]

YY.MM.DD

DD.MM.YY

DATE/TIME

MM/DD/YY

NO

4

Set the year, month, day, hour, and minute and press

[MENU/OK]

Move the cursor by using , then change the number

using .

DATE/TIME

YY.MM.DD

NO

SET

Next, configure the pairing settings.

5

Press [MENU/OK]

Bluetooth

SETTINGS

NO

PAIRING

Pair this product

with a smartphone

to use the functions

linked to this product's

smartphone app.

• If you do not wish to set pairing, press (Back) to finish

the Initial Settings.

6

Launch INSTAX® Mini LiPlay Smartphone App and

press [SETTINGS]

Refer “App Installation Instructions”. (See p. 8)

9

NA_EN

7

Press [Bluetooth settings] on INSTAX® Mini LiPlay

Smartphone App

8

Press [Connect] on INSTAX® Mini LiPlay Smartphone

App

• You can confirm camera’s OWN NAME by accessing the

Set-up Menu (See p. 19). Next, select the menu items in

the following order: [Bluetooth SETTINGS], [INFORMATION],

[OWN NAME].

9

Allow pairing

10

Confirm that Pairing Registration is complete

PAIRING

REGISTRATION

PAIRING

COMPLETE

xxxx-xxxx

When Pairing Registration is complete, the screen changes

to the Shooting Screen.

10

Loading/Unloading INSTAX® Mini Instant Film

Pack

Loading INSTAX® Mini Instant Film Pack

1

Slide the film door lock and open the film door

FI LM

1

2

3

FIL M

2

1

2

Insert INSTAX® Mini Instant Film Pack by aligning the

yellow marks

1

2

3

2

1

3

Close the film door

1

2

3

FI LM

4

Remove the black film cover that is automatically

rejected

FILM

Unloading a Used INSTAX® Mini Instant Film Pack

1

Slide the film door lock and open the film door

FI LM

1

2

3

FIL M

2

1

2

Grasp the rectangular holes on INSTAX® Mini Instant

Film Pack, then pull the film pack out from the

camera

FI LM

2

1

2

3

11

NA_EN

Basic Shooting and Playback

Shooting

The following steps describe the basic shooting procedure.

1

Turn on the power

2

Configure the Frame and Filter, etc� as needed

3

Decide the composition to shoot

4

Press the shutter button halfway to focus on the

subject

When the subject is in focus

A beep sounds and the green AF Frame displays on the LCD

monitor.

When the subject is not in focus

The red AF Frame displays on the LCD monitor. Either

change the composition or use the AF/AE Lock. (See p. 16)

5

While pressing the shutter button halfway, press the

button down further (full press)

The photo is taken and the image is saved to the internal

memory or memory card.

• For the procedure to print an image you have taken, please

refer to “Printing”. (See p. 12)

• When shooting, steady your arms against your body and hold

the camera firmly with both hands.

• Be careful not to touch the camera lens when pressing the

shutter button.

• When pressing the shutter button fully, press it gently so that

the camera does not move or shake.

• Be careful not to cover the flash or lens with your fingers or

the strap.

• In low light or backlit conditions, the flash may fire when you

fully press the shutter button. You can change the Flash

Settings so that the flash does not fire. (See p. 16)

Notes on the internal memory

• When the internal memory is full, the shutter does not release

and you cannot shoot photos. Please delete some images or

use a memory card.

• Images in the internal memory may be corrupted or lost due

to malfunction of the camera.

• It is recommended that you copy important images to

another media format (Hard disk, CD-R, CD-RW, DVD-R, etc.)

as a backup. Refer to “[COPY]”. (See p. 19)

• If you submit your camera for repair, we cannot guarantee the

integrity of the data in the internal memory.

• When repairing the camera, we may need to check the data in

the internal memory.

Playing Back Images

You can play back images on the LCD monitor.

1

Turn on the power

2

Press (Playback)

The last image taken is displayed.

3

Press or to select the image you want to play

back

• Press the shutter button fully to return to the Shooting

Screen.

Changing the Playback Screen Display

You can zoom in the image and change the number of images

displayed on the LCD monitor.

■ Zooming Images

1

Select the image you want to zoom in and press

[MENU/OK]

The Playback Menu is displayed.

ZOOM

ERASE SOUND

PLAYBACK MENU

PRINT HISTORY

ERASE

12

2

Press or to select [ZOOM]

3

Press [MENU/OK]

The Zoom Screen is displayed.

4

Zoom in or zoom out the image with and

Move

• Press or on the Zoom Screen to switch to the Move

Screen and move the screen position using . To

return to the Zoom Screen, press (Back).

• If you press [MENU/OK] while the Zoom Screen or Move

Screen is displayed, the screen returns to the Playback

Screen.

• You can also print with the image zoomed in or zoomed

out.

■ Change the Number of Images Displayed

While displaying the Playback Screen, press (Playback) to

change the number of images displayed.

One Image Display

Four Image DisplayNine Image Display

Printing

You can print the images using the following procedure.

1

Turn on the power

2

Press (Playback)

The last image taken is displayed.

3

Press or to select the image you want to print

4

Configure settings such as Frame and Zoom as

needed

5

Press (Print)

6

Press or to select [PRINT] or [PRINT WITH

SOUND]

Note

To Print With Sound, it is necessary to link with the Sound

Function of INSTAX® Mini LiPlay Smartphone App. Properly

download the App to ensure the Sound Function is enabled.

(See p. 8)

PRINT WITH SOUND

PRINT

BACK

7

Press [MENU/OK]

Printing starts.

• To Print With Sound, use to change the print

position of the QR Code as needed.

• To cancel printing, select [BACK] or press (Back).

8

When the sound of the film unloading stops, hold

the top of the film and remove it

Note

Be careful not to obstruct the film ejection slot with your fingers

or the strap.

13

NA_EN

Remaining Film Indicator

The remaining number of INSTAX® Mini Instant Film sheets is

indicated by the dots at the bottom of the screen. Each time a

image is printed, a dot changes to a small square dot. The dots

display in red when the number of available INSTAX® Mini Instant

Film sheets is 2 or less.

Ten sheets remaining

Five sheets remaining

Two sheets remaining

No sheets remaining; Film pack is entirely used up

• For handling of INSTAX® Mini Instant Film, please refer to the

FUJIFILM INSTAX® Mini Instant Film instruction manual.

• Film development takes about 90 seconds (the time varies

depending on the temperature).

Selecting the Frame and Filter

Selecting the Frame

Follow the procedure below to select the Frame type.

1

On the Shooting Screen or Playback Screen, press

The following guide is displayed.

No Frame

2

Press or to select the Frame type

3

Press or [MENU/OK]

The Frame is applied and the display returns to the previous

screen.

• Press (Back) to return to the previous screen without

applying the Frame.

• To cancel the Frame you have applied, select "No Frame"

under Frame type.

You can also press a shortcut button to select the Frame

assigned to that button.

Selecting the Filter

Follow the procedure below to select the Filter type.

1

On the Shooting Screen, press

The following guide is displayed.

No Filter

2

Press or to select the Filter type

14

3

Press or [MENU/OK]

The Filter is applied and the display returns to the previous

screen.

• Press (Back) to return to the previous screen without

applying the Filter.

• To cancel the Filter you have applied, select "No Filter"

under Filter type.

Adding Sound to Images

This camera can attach recorded sound to images.

Adding Sound When Shooting

1

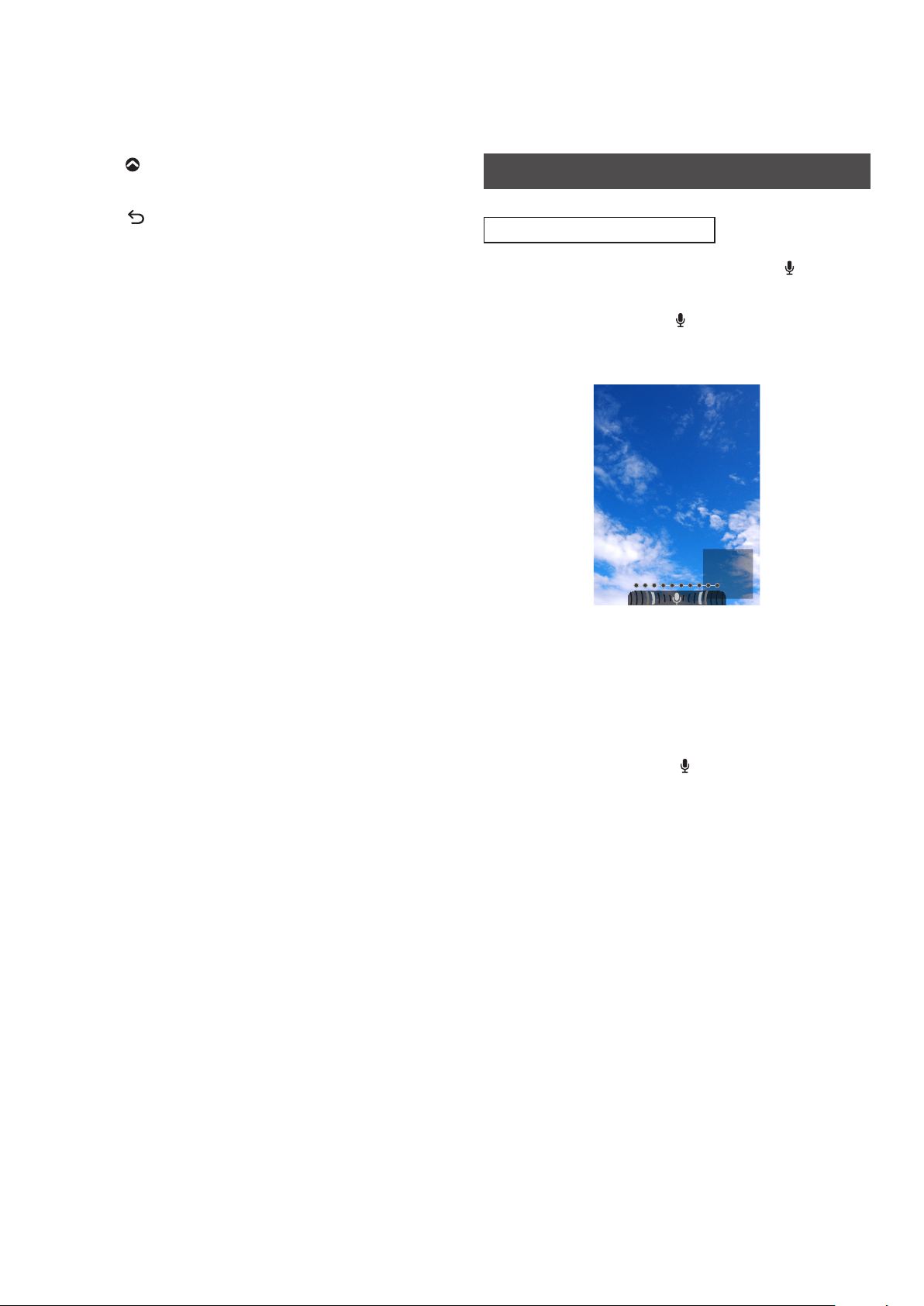

On the Shooting Screen, press and hold (Sound)

Sound Mode starts, and a recording animation is displayed

at the bottom of the screen.

• When you press and hold (Sound) for the first time after

turning on the power, the Sound Mode Function

description is displayed for a short time before Sound

Mode starts.

2

Press the shutter button halfway to focus on the

subject

3

When ready to record sound, press the button down

further (full press)

Sound will be recorded for 5 seconds before and after fully

pressing down the shutter button.

• To exit Sound Mode, press (Sound) again.

15

NA_EN

Adding Sound When Playing Back

1

On the Single Image Playback Screen, press and

hold (Sound)

Sound Mode starts, and a recording icon is displayed in the

center of the screen.

• Sound is recorded for about 10 seconds after you press and

hold (Sound).

• Note that each image can only be assigned 1 sound

message. If you press and hold (Sound) while displaying

an Image With Sound, the message "Are you sure you want

to overwrite this recording?" is displayed. To overwrite,

select [CONFIRM]. Otherwise, select [BACK].

2

Press button to confirm the recorded sound

The recording is played back.

PLAY

• Press to pause the sound during playback, or press to

stop playback.

• Press [MENU/OK] during playback to display the Adjust

Playback Volume Screen. You can also adjust the volume by

pressing or .

Various Types of Shooting

Shoot Using the Self-timer

Use the Self-timer for group photos including the photographer or

to prevent the camera from shaking when the shutter button is

pressed.

1

On the Shooting Screen, press

The following guide is displayed.

SELF-TIMER

OFF

2 SEC

10 SEC

2

Press or to select [2 SEC] or [10 SEC]

3

Press [MENU/OK] or

An icon corresponding to the Self-timer that has been set

displays in the upper right of the screen.

• Press (Back) to return to the previous screen without

applying the setting.

4

Fully press the shutter button

If you selected [2 SEC]:

When you press the shutter button, the self-timer lamp

blinks.

If you selected [10 SEC]:

When you press the shutter button, the self-timer lamp

lights up and blinks for 3 seconds before shooting.

Press (Back) to cancel the Self-timer.

16

Shooting Using the Flash

Use the flash to shoot at night or in a dark environment. You can

change the settings so that the flash does not fire.

1

On the Shooting Screen, press

The following guide is displayed.

AUTO

FLASH

FORCED

FLASH

SUPPRESSED

FLASH

2

Press or to select the Flash Setting

• For details about the Flash Settings, please refer to “Types

of Flash”.

3

Press [MENU/OK] or

4

Fully press the shutter button

• If you press the shutter button during flash charging, the

self-timer lamp blinks and the shutter does not release.

■ Types of Flash

Auto Flash

The flash fires automatically if the surroundings are dark. This

setting is suitable for most situations.

Forced Flash

The flash fires regardless of the surrounding brightness. Use

when the subject is dark due to backlighting.

Suppressed Flash

The flash does not fire even when the surroundings are dark.

This setting is suitable for shooting in places where flash

photography is prohibited.

It is recommended to stabilize the camera on a table, etc. when

shooting in the dark.

Taking a Photo of Yourself (Selfie)

You can take a photo of yourself using the selfie mirror.

1

Hold the camera firmly with the front edge of the

lens 30 cm to 50 cm from your face

• Hold the camera firmly, as it is particularly vulnerable to the

effects of camera shake in a dark environment.

2

Check the composition with the selfie mirror and

shoot

• Do not stare at the flash when shooting. Staring at the flash

may temporarily make it difficult to see.

Shooting Using the AF/AE Lock

When shooting, holding the shutter button halfway to lock the

focus is called "AF Lock", and deciding the brightness and fixing it

is called "AE Lock". This is useful when you want to place the

subject outside the center of the screen when shooting. Both AF

and AE Lock will occur when you activate the AF/AE Lock. There is

no way to activate one without the other.

1

Press the shutter button halfway to focus on the

subject

When you press the shutter button halfway, AF and AE are

locked.

2

Change the composition while pressing the shutter

button halfway

3

Press the shutter button fully to shoot

It is recommended to use the AE/AF Lock when shooting the

following subjects, as they can be difficult to focus on.

• Shiny subjects such as a mirror or car body

• Subjects that are moving at high speed

• Subjects on the other side of a glass

• Dark subjects that absorb light without reflecting it such as

hair or fur

• Non-solid subjects such as smoke or flames

• Subject with little contrast with the background (such as a

person wearing clothes with the same color as the

background)

• When there is a large contrast difference in the AF Frame and

the subject is close to it (such as a subject in front of a

background with a strong contrast)

17

NA_EN

Printing from Print History

You can recall images printed in the past and retain the settings

(such as image effects) for printing.

You can print the images you have taken using the following

procedure.

1

Press [MENU/OK] on the Playback Screen

The Playback Menu is displayed.

2

Press or and select [PRINT HISTORY]

3

Press [MENU/OK]

4

Press or to select the image you want to print

5

Press (Print)

6

Press or to select [PRINT] or [PRINT WITH

SOUND]

Note

To Print With Sound, it is necessary to link with the Sound

Function of INSTAX® Mini LiPlay Smartphone App.

PRINT WITH SOUND

PRINT

BACK

7

Press [MENU/OK]

Printing starts.

• To Print With Sound, use to change the print

position of the QR Code as needed.

• To cancel printing, select [BACK] or press (Back).

8

When the sound of the film unloading stops, hold

the top of the film and remove it

Note

Be careful not to obstruct the film ejection slot with your fingers

or the strap.

Using a Memory Card

The camera can save about 45 images in the internal memory, but

you can save more images by using a memory card.

Notes on Memory Card Use with the INSTAX® Mini LiPlay Camera

• Micro SD and micro SDHC memory cards are compatible with

this camera. Using a memory card other than the specified type

may cause damage to the camera.

• Because memory cards are small, infants and children may

accidentally swallow them. Keep out of reach of infants and

children. Please consult your doctor immediately if an infant or

child swallows a memory card.

• Do not turn off the camera or remove the memory card while

formatting the memory card or recording or erasing images,

sounds or other data� Doing so may damage the memory

card�

• Do not use or store a memory card in an environment prone to

strong static electricity or electrical noise.

• If you insert a memory card charged with static electricity into

the camera, the camera may malfunction. If this happens, turn

off the power and then turn it on again.

• Do not put a memory card in your pants pocket. When you sit

down, stress may be applied to the memory card causing it to

break.

• When you remove a memory card after prolonged use, it may

be warm, but this is not a malfunction.

• Do not put labels, etc. on memory cards. Labels that are not

intact or that are peeling off may cause the camera to

malfunction.

Notes on Memory Card Use With Your PC

• Be sure to use the camera to format unused memory cards and

memory cards used on your PC and other devices before use.

• When you format a memory card with the camera, shoot and

record images, a folder is automatically created. Do not use a

computer to change or delete the memory card folder names or

file names. The memory card may become unusable by the

camera.

• Do not use the PC to delete images from the memory card.

Always use the camera to delete images from the memory card.

• When editing an image file, copy or move the image file from

the memory card to your PC, hard disk, flash drive, etc. for

editing.

Inserting a Memory Card

1

Open the card slot cover

1

2

3

FILM

2

3

18

2

Insert the memory card all the way in until it clicks in

the correct orientation as shown below

1

2

3

FILM

2

3

Close the card slot cover

1

2

3

FILM

2

3

• When removing a memory card, push the memory card with

your finger and slowly release your finger. The lock is released

and the memory card can be removed.

Note

When removing a memory card, it may pop out quickly if you

release your finger suddenly. Please release your finger gently.

Using the Shooting Menu

You can change various settings related to shooting from the

Shooting Menu.

1

Press [MENU/OK] on the Shooting Screen

The Shooting Menu displays.

AF ILLUMINATOR

EXPOSURE

PRINT SETTINGS

Bluetooth

SETTINGS

SHOOTING MENU

2

Press or to select the item to set

• For a description of each item, please refer to “Shooting

Menu Items”.

3

Change the settings

4

Press [MENU/OK]

The settings are applied and the display returns to the

Shooting Screen.

■ Shooting Menu Items

[AF ILLUMINATOR]

If you select ON, the AF Illuminator will be lit during the period

from when you press the shutter button halfway until the subject

is in focus, making it easier to focus on dark subjects.

• Depending on the scene, it may be difficult to focus even if the

flash is used.

• When shooting close to the subject, the effect of the AF

Illuminator may not be sufficient.

• Do not use the AF Illuminator close to human eyes.

[EXPOSURE]

Exposure is used when the subject is too bright or too dark, or

when the contrast between the subject and the background

(difference in brightness) is large. Change the exposure value and

adjust the brightness of the image.

• The set exposure value is retained even after moving the image

data to a PC, etc.

For a description of the following items, please refer to “Using the

Set-up Menu”. (See p. 19)

[PRINT SETTINGS] / [Bluetooth SETTINGS] / [CROSS KEY GUIDE] /

[DATE/TIME] / [言語/LANG.] / [SOUND SET-UP] / [PLAYBACK

VOLUME] / [AUTO POWER OFF] / [RESET] / [FRAME DATA RESET] /

[FORMAT] / [FIRMWARE UPGRADE]

19

NA_EN

Using the Playback Menu

You can change various settings related to playback from the

Playback Menu.

1

Press [MENU/OK] on the Playback Screen

The Playback Menu is displayed.

ZOOM

ERASE SOUND

PLAYBACK MENU

PRINT HISTORY

ERASE

2

Press or to select the item

• For a description of each item, please refer to “Playback

Menu Items”.

3

Change the settings

4

Press [MENU/OK]

The settings are applied and the display returns to the

previous screen.

■ Playback Menu Items

[ZOOM]

Please refer to “Zooming Images”. (See p. 11)

[ERASE SOUND]

Erases only the sound from images with sound.

[PRINT HISTORY]

• Display up to last 50 images that were printed.

• Select an image and press (Print) to start printing.

• You can clear the Print History one image at a time by pressing

[MENU/OK].

[ERASE]

You can erase images one by one or erase them all at once.

[IMAGE ROTATE]

Display an image rotated by 90 degrees.

[COPY]

Copy images from the internal memory to a memory card or from

a memory card to the internal memory.

Follow the procedure below.

1.

Select [COPY] from the Playback Menu

2.

Select the copy destination and press [MENU/OK]

3.

Select [FRAME] or [ALL FRAMES] and press [MENU/OK]

If you selected [ALL FRAMES], copying starts. If you selected

[FRAME], proceed to step 4.

4.

Press or to select the image to copy

5.

Press or to select [COPY]

6.

Press [MENU/OK]

For a description of the following items, please refer to “Using the

Set-up Menu”. (See p. 19)

[PRINT SETTINGS] / [Bluetooth SETTINGS] / [CROSS KEY GUIDE] /

[DATE/TIME] / [言語/LANG.] / [SOUND SET-UP] / [PLAYBACK

VOLUME] / [AUTO POWER OFF] / [RESET] / [FRAME DATA RESET] /

[FORMAT] / [FIRMWARE UPGRADE]

Using the Set-up Menu

Follow the procedure below to change settings with the Set-up

Menu.

1

On the Shooting Screen or Playback Screen, press

[MENU/OK]

2

Press or to select the item to set

• For a description of each item, please refer to “Set-up Menu

Items”.

3

Change the settings

4

Press [MENU/OK]

The settings are applied and the display returns to the

previous screen.

■ Set-up Menu Items

[PRINT SETTINGS]

Change the print position and print color of the QR Code printed

on Print With Sound.

Note

To Print With Sound, it is necessary to link with the Sound

Function of INSTAX® Mini LiPlay Smartphone App.

[Default QR Code Position]:

Change the default QR code position.

[QR Code Color]:

Change the QR Code printing color.

[Bluetooth SETTINGS]

Please install INSTAX® Mini LiPlay Smartphone App on your

smartphone before pairing registration.

[PAIRING REGISTRATION]:

When you connect with your smartphone via Bluetooth for the

first time, you will need to pair the devices. Please refer to the

following procedure for pairing.

1.

Select [Bluetooth SETTINGS] from the Playback Menu

2.

Select [PAIRING REGISTRATION] and press [MENU/OK]

3.

Press [SETTINGS] on INSTAX® Mini LiPlay Smartphone App

4.

Press [Bluetooth settings] on INST

AX® Mini LiPlay Smartphone

App

5.

Press [Connect]

6.

Allow pairing

[DELETE PAIRING REG�]:

You can delete information of a smartphone registered for pairing.

[INFORMATION]:

Displays the Bluetooth address, name, and registered terminal

name of the main unit.

[CROSS KEY GUIDE]

Sets whether to show or hide the Cross Key Guide.

20

[DATE/TIME]

Set the date and time.

[言語/LANG�]

Set the language to be displayed on the LCD monitor.

[SOUND SET-UP]

Set the volume of the operation sound, shutter volume and start

up sound.

Select [OFF] if you want to turn off the sound.

[PLAYBACK VOLUME]

Set the playback volume of the recorded sounds.

[AUTO POWER OFF]

Set the time until the power is turned off automatically when the

camera is not operated.

[RESET]

Reset the settings to the default settings.

The date and time set in Date/Time are not reset.

[FRAME DATA RESET]

Reset the default Frame settings used for the shortcut buttons.

[FORMAT]

Select and format the camera's internal memory or a memory card

inserted in the card slot. All saved images will be deleted.

[FIRMWARE UPGRADE]

Upgrade the firmware version.

Insert the memory card containing the firmware into the card slot

and follow the instructions on the screen.

Download the latest firmware from the FUJIFILM website.

Functions Available by Linking with INSTAX®

Mini LiPlay Smartphone App

The following functions can be used by linking with INSTAX® Mini

LiPlay Smartphone App.

Sound Function

You can convert the sound recorded by the camera into a QR Code

and print it together with an image (Print With Sound). You can

change the print position of the QR Code.

• The sound is played when the QR Code printed on the Print With

Sound image is read by a smartphone, etc.

• You can play or delete the sound of images with sound that you

have printed in the past using INSTAX® Mini LiPlay Smartphone

App.

Note

If you delete an Image With Sound using INSTAX® Mini LiPlay

Smartphone App, the sound will no longer be able to be played

even if the QR Code is read.

Remote Shooting Function

You can set the Flash and Self-timer with INSTAX® Mini LiPlay

Smartphone App and shoot remotely.

Shortcut Function

The 3 shortcut buttons on the side of the camera can be freely set

to the Frames selected in INSTAX® Mini LiPlay Smartphone App.

Direct Print Function

You can send an image from your smartphone to the camera and

print it with the INSTAX® Printing Function. Before sending, you

can move, rotate and zoom the image with INSTAX® Mini LiPlay

Smartphone App.

21

NA_EN

Specifications

■ Camera Function

Image sensor 1/5 type CMOS primary color filter

Number of recorded

pixels

2560 × 1920 pixels

Storage media Internal memory,

micro SD/micro SDHC memory card

Storage capacity Approximately 45 images in internal

memory; approximately 850 images per

1 GB in micro SD/micro SDHC memory

card

Recording method DCF compliant Exif Ver 2.3

Focus distance f = 28 mm (35 mm film equivalent)

Aperture F2.0

Auto focus Single AF (with AF Illuminator)

Shooting distance 10 cm and beyond

Shutter speed

1/4 second to 1/8000 second (automatic

switching)

Shooting sensitivity ISO100 to 1600 (automatic switching)

Exposure control Program AE

Exposure −2.0 EV to +2.0 EV (1/3 EV step)

Metering method TTL 256 split metering, multi metering

White balance Auto

Flash Auto Flash / Forced Flash/Suppressed

Flash

Shooting range with flash: Approximately

50 cm to 1.5 m

Self-timer Approximately 2 seconds / approximately

10 seconds

Image effects 6 Filters, 10 Frames (3 available with

shortcuts)

Sound recording Possible to record sound when shooting

or playing back single image. Possible to

overwrite.

■ Print Function

Film used FUJIFILM INSTAX® Mini Instant Film (sold

separately)

Number of films 10 films/pack

Film size 86 mm

×

54 mm

Screen size 62 mm

×

46 mm

Print pixel count 800

×

600 dots

Print resolution 12.5 dots / mm (318 dpi, 80 μm dot pitch)

Print gradation RGB gradation of 256 colors

Printable image

format

JPEG images taken with this unit

Print output time Approximately 12 seconds

Print function Images in the internal memory and

images in the memory card can be

printed

Reprint Reprint is possible for images stored in

Print History (up to 50)

■ Other

Smartphone app

linked functions

Sound Playback Function from printed

images, Smartphone Image Print

Function, Remote Shooting Function,

Frame Selection Function

LCD monitor 2.7-inch TFT color LCD monitor

Pixel count: Approximately 230,000 dots

External interface Micro USB Micro-B (for charging only)

Power supply Lithium ion battery (internal type: not

removable)

Charging function Built-in battery

Possible number of

printed images

Approximately 100 (from full charge)

(The number of prints depends on the

usage conditions.)

Charging time Approximately 2-3 hours

(Charging time depends on the

temperature.)

Main unit

dimensions

82.5 mm × 122.9 mm × 36.7 mm

(excluding projecting parts)

Main unit weight Approximately 255 g

Operating

environment

Temperature: +5 ºC to +40 ºC (+41 ºF to

+104 ºF)

Humidity: 20% to 80% (no condensation)

*The above specifications are subject to change for performance

improvement.

22

Troubleshooting

Please check the following items before considering a problem to

be a malfunction. If the problem persists even after taking action,

please contact the FUJIFILM service center for repair in your

country or visit the website below.

FUJIFILM website: http://www.fujifilm.com/

If the following problem occurs��

Problem Possible causes and solutions

I cannot turn on

the camera.

The battery may not be charged. Please

charge the camera.

The battery

loses its charge

quickly.

If you use the camera in a very cold

environment, the battery will drain quickly.

Please keep the camera warm before

shooting.

The power cut

off during use.

The battery level may be low. Please charge

the camera.

Charging does

not start.

• Make sure that the USB power adapter

plug is properly connected to the power

outlet.

• Turn off the camera when charging it. If

power is on camera will not charge.

It takes too long

to charge.

At low temperatures, charging may take

some time.

The self-timer

lamp flashes

while charging.

Charge the battery in a temperature range of

+5 °C to +40 °C (+41 ºF to +104 ºF).

I cannot shoot

when I press the

shutter button.

• Make sure that the power is on.

• If the battery level is low, please charge

the camera.

• If the internal memory or memory card is

full, insert a new memory card or delete

unnecessary images.

• Use a memory card formatted with this

unit.

• If the contact surface of the memory card

(gold part) is dirty, wipe it with a soft, dry

cloth.

• The memory card may be broken. Please

insert a new memory card.

I cannot focus

the camera.

Use the AF/AE Lock to shoot subjects that

are difficult to focus on.

The flash does

not fire.

Is Suppressed Flash selected in the Flash

Settings? Select a setting other than

Suppressed Flash.

Even though the

flash fired, the

image is dark.

• Are you too far from the subject? Please

shoot within the range where flash

photography is possible.

• Hold the camera correctly so that you do

not obstruct the flash with your fingers.

Problem Possible causes and solutions

The image is

blurry.

• If the lens has fingerprints on it, clean the

lens.

• Make sure that the AF Frame is green

before taking a photo.

• Make sure to hold the camera steady,

particularly in dark environments.

The camera

does not work

properly.

• There may be a temporary malfunction.

Please press the reset button. If it still does

not work properly, please contact our

repair service center for repair.

• The battery may not be charged. Please

charge the camera.

The film pack

does not load or

does not load

smoothly.

• Please use FUJIFILM INSTAX® Mini Instant

Film (other films cannot be used).

• Align the yellow mark on the film pack

with the camera alignment mark (yellow)

and load it.

The film does

not unload.

• The film may be misaligned due to shock

such as vibration or dropping. Please load

a new film pack.

• If the film is jammed, turn off the camera

and turn it on again. If the problem

persists, remove the jammed film and

then load a new film pack.

Some or all of

the finished

prints are white.

Do not open the film door until the film is

used up. If the film door is opened with film

remaining, the film is exposed and the

exposed area becomes white.

The print is

uneven.

• Do not shake, bend, fold or hold the print

immediately after it is printed.

• Do not obstruct the film ejection slot.

23

NA_EN

IMPORTANT SAFETY NOTICE

This product has been designed with safety in mind, and to

provide safe service when handled correctly and in accordance

with the User’s Guide and instructions� It is important that both

the product and the FUJIFILM INSTAX® Mini Instant Film are

handled properly and used only to print photos as instructed in

the User’s Guide and in INSTAX® Mini Instant Film instructions�

For your ease and safety, strictly follow the instructions in the

User’s Guide� Keep the User’s Guide in a safe, convenient place

for easy future reference as needed�

WARNING

This symbol indicates danger, which could result in product

damage, or personal injury or death. Follow the instructions

indicated to avoid damage to the camera or injury.

WARNING

If one of the following cases occur, immediately unplug the

USB cable, turn the camera off and refrain from any further

use of the camera:

• The camera becomes hot, emits smoke, has a burnt smell, or

otherwise seems abnormal�

• The camera is dropped into water, or is exposed to rain or

otherwise wet weather conditions, sand, dirt or metal get

inside the camera�

The camera has a built-in battery� Do not subject it to heat,

expose it to an open flame, drop it, or otherwise apply impact

to it� Doing so may cause the camera to explode, resulting in

injury�

WARNING

Never attempt to take this product apart� You may be injured�

All repairs should be handled solely by FUJIFILM� Injury may

result from attempts to self-assess or repair this camera�

If this product is dropped or damaged so that the inside is

showing, do not touch it� Contact FUJIFILM Corporation�

Do not touch any parts which are inside the back cover� You

may be injured�

Never get this product wet or handle it with wet hands� Doing

so may result in electric shock and injury�

Promptly unplug the USB cable once battery is fully charged�

Keep out of the reach of small children� This product could

cause injury in the hands of a child�

Do not cover or wrap the camera or the AC power adapter in a

cloth or blanket, or otherwise place the camera in the sun or

an environment where heat may build up� This could distort

the casing and cause a fire�

The “CE” mark certifies that this product satisfies the

requirements of the EU (European Union) regarding

safety, public health, environment and consumer

protection. (“CE” is the abbreviation of Conformité

Européenne.)

Common Sense Camera Care

■ Camera Care

1.

Do not open the film door until you have used up the film;

otherwise, the rest of the film is exposed and turns white�

The film can no longer be used�

2.

Your camera is a precision instrument. Do not get it wet or

drop it. Also, do not expose it to sand, dust or dirt.

3.

Do not use a strap made for cellular phones or other similar

electronic products. These straps are usually too weak to

hold your camera securely. For safety, use only straps

designed for your camera, and use only as specifically

intended and instructed.

4.

Do not use cleaning products or solvents such as those with

bleach or alcohol to remove dirt.

5.

In hot weather, do not leave your camera in hot places such

as in a car or on the beach. Do not leave it in damp places or

places where weather exposure could result.

6.

Moth repellent gas such as naphthalene may affect your

camera and prints. Store your camera and photo prints in a

place where exposure to harmful cleaning or other

household elements will be avoided.

7.

Note that the temperature range within which your camera

can be used is +5 °C to +40 °C (+41 °F to +104 °F).

8.

Take great care to ensure that printed materials do not

violate copyright, image rights, privacy or other personal

rights and do not offend public decency. Actions that violate

the rights of others, are contrary to public decency or

constitute a nuisance may be punishable by law or

otherwise legally actionable.

■ Handling the LCD Monitor

As the LCD monitor can be easily damaged, do not scratch the

surface with a solid material. To avoid the LCD monitor getting

damaged, we recommend you attach a protective, clear plastic

sheet (commercially available) on the monitor.

■ Charging the Battery

The battery is not charged at shipment� Charge the battery

completely before use�

Charge the battery using the supplied USB cable. Refer

“Charging the Battery”. (See p. 7) Charging times will

increase at ambient temperatures below +10 °C (+50 °F) or

above +35 °C (+95 °F). Do not attempt to charge the battery in

environments where temperature is above +40 °C (+104 °F) or

temperature is below +5 °C (+41 °F), as the battery will not

properly charge and the camera may be damaged.

■ Battery Life

At normal temperatures, the battery can be recharged about

300 times. A noticeable decrease in the length of time the

battery will hold a charge indicates that it has reached the end

of its service life.

■ Cautions: Handling the Battery

The battery and camera body may become warm to the touch

after extended use. This is normal.

24

■ Certification marks applicable to the camera are located

inside the film chamber�

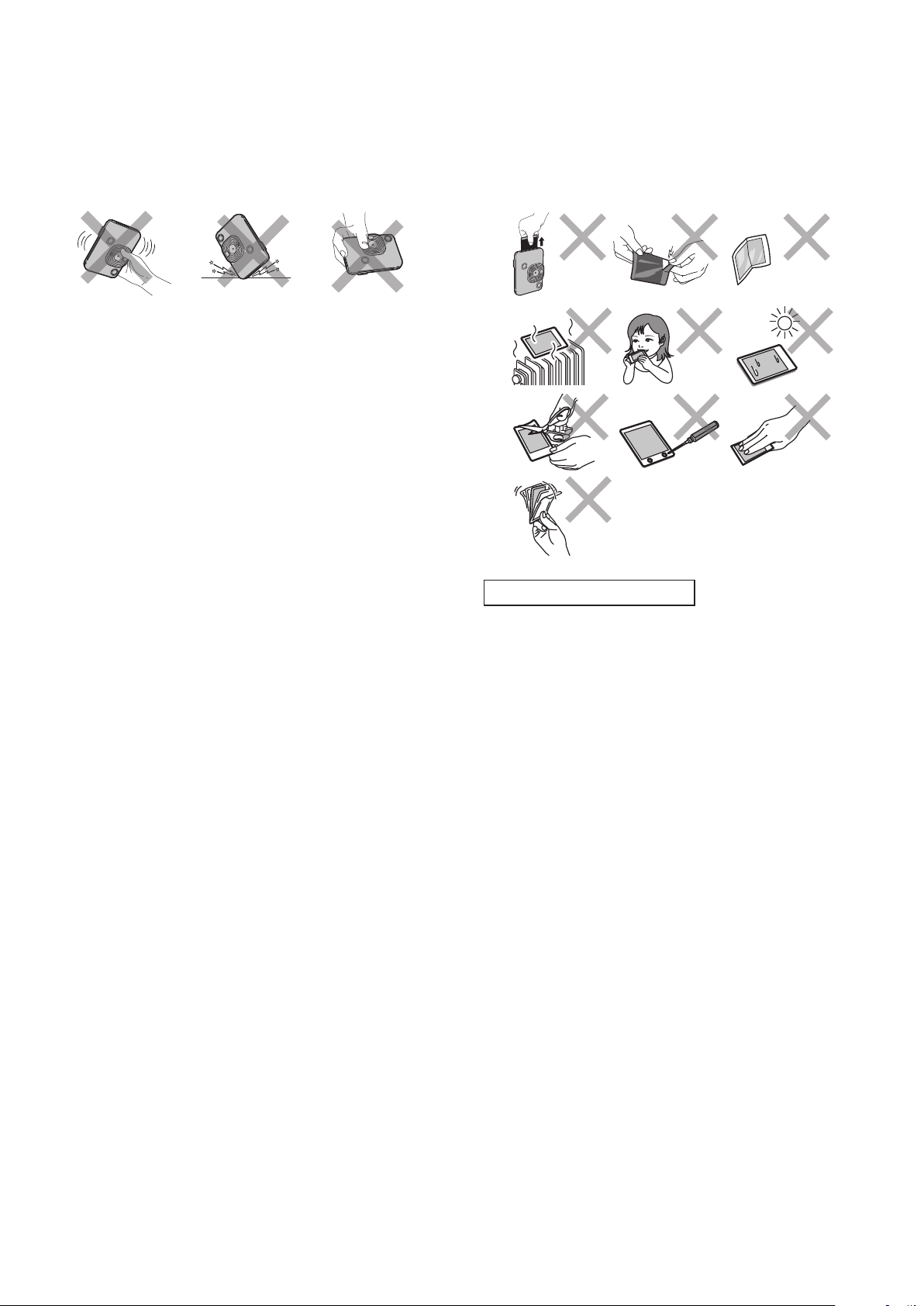

■ Cautions During Printing

Do not shake the

camera while

printing.

Do not drop the

camera while

printing.

Do not cover the

film ejection slot

while printing.

■ INSTAX® Mini Instant Film and Photo Care

See FUJIFILM INSTAX® Mini Instant Film for film use instructions.

Follow all instructions for safe and proper use.

1.

Keep the film in a cool place. Do not leave the film in a place

where the temperature is extremely high (e.g., in a closed

car) for many hours.

2.

Do not puncture, tear, or cut the film. If film becomes

damaged, do not use.

3.

When you load a film pack, use the film as soon as possible.

4.

If the film has been kept in a place where the temperature is

extremely high or low, bring it to room temperature before

loading or starting to print photos.

5.

Be sure to use the film before the expiration date.

6.

Avoid airport checked luggage inspection and other strong

X-ray illumination. The effect of fogging, etc. may appear on

unused film. Carrying your camera and film onto an aircraft

in your carry-on luggage is recommended. (Check with each

airport for more information.)

7.

Avoid strong light, and keep the developed prints in a cool

and dry place.

8.

Do not puncture or cut the film as it contains a small amount

of caustic paste (high alkaline). Never let children or animals

put the film into their mouth. Also pay attention so that the

paste does not come into contact with skin or clothes.

9.

In case the paste inside the film comes into contact with skin

or clothes, immediately wash off with plenty of water. If the

paste comes into contact with the eyes or mouth,

immediately wash the area with plenty of water and contact

a doctor. Note that the alkaline inside the film remains active

for about 10 minutes after the photo has been printed.

■ Cautions on Handling the Film and Prints

For details, refer to the instructions and warnings on FUJIFILM

INSTAX® Mini Instant Film.

Bluetooth® Device Cautions

IMPORTANT: Read the following notices before using the

product’s built-in Bluetooth transmitter�

■ Use only as part of a Bluetooth network�

FUJIFILM Corporation and its affiliates do not accept liability for

damages resulting from unauthorized use. Do not use in

applications requiring a high degree of reliability, for example in

medical devices or other systems that may directly or indirectly

impact human life. When using the device in computer and

other systems that demand a greater degree of reliability than

Bluetooth networks, be sure to take all necessary precautions to

ensure safety and prevent malfunction.

■ Use only in the country in which the device was intended for

sale�

This device conforms to regulations governing Bluetooth

devices in the country in which it was intended for sale by an

authorized FUJIFILM product dealer. Observe all location

regulations when using the device. FUJIFILM Corporation and its

affiliates do not accept liability for problems arising from use in

other jurisdictions.

■ Wireless data (images) may be intercepted by third parties�

The security of data transmitted over wireless networks is not

guaranteed.

■ Do not use the device in locations subject to magnetic fields,

static electricity, or radio interference�

Do not use the transmitter in the vicinity of microwave ovens or

in other locations subject to magnetic fields, static electricity, or

radio interference that may prevent reception of wireless

signals. Mutual interference may occur when the transmitter is

used in the vicinity of other wireless devices operating in the 2.4

GHz band.

25

NA_EN

■ The Bluetooth transmitter operates in the 2�4 GHz band� The

standard output is 3�16 mW�

■ This device operates on the same frequency as commercial,

educational, and medical devices and wireless transmitters�

It also operates on the same frequency as licensed transmitters

and special unlicensed low-voltage transmitters used in radio-

frequency identification tracking systems for assembly lines and

in other similar applications.

■ To prevent interference with the above devices, observe the

following precautions�

Confirm that the radio-frequency identification transmitter is

not in operation before using this device. If you notice that this

device causes interference in low-voltage radio-frequency

identification tracing systems, refrain from further use of this

device and contact a FUJIFILM representative.

■ The following may be punishable by law:

– Disassembly or modification of this device.

– Removal of device certification labels.

■ Trademark Information

The Bluetooth® word mark and logos are registered trademarks

owned by the Bluetooth SIG, Inc., and any use of such marks by

FUJIFILM is under license.

For customers in the USA:

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operation.

For more information, access the website below.

http://www.fujifilm.com/products/instant_photo/cameras/instax_

mini_liplay/

CAUTION

This device has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This device

generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular

installation. If this device does cause harmful interference to radio

or television, which can be determined by turning the device off

and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the device and receiver.

• Connect the device into an outlet on a circuit different from that

to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for

help.

Changes or modifications of this device will void the Limited

Product Warranty and may void any authority to further use this

device.

This transmitter must not be co-located or operated in conjunction

with any other antenna or transmitter.

The available scientific evidence does not show that any health

problems are associated with using low power wireless devices.

There is no proof, however, that these low power wireless devices

are absolutely safe. Low power Wireless devices emit low levels of

radio frequency energy (RF) in the microwave range while being

used. Whereas high levels of RF can produce health effects (by

heating tissue), exposure of low-level RF that does not produce

heating effects causes no known adverse health effects. Many

studies of low-level RF exposures have not found any biological

effects. Some studies have suggested that some biological effects

might occur, but such findings have not been confirmed by

additional research. The “INSTAX mini HM1” has been tested and

found to comply with FCC radiation exposure limits set forth for an

uncontrolled environment and meets the FCC radio frequency (RF)

Exposure Guidelines.

Notes on the Grant

To comply with Part 15 of the FCC Rules, this product must be used

with a FUJIFILM-specified ferrite-core USB cable (provided along

with the camera).

For customers in Canada :

CAN ICES-3 (B)/NMB-3 (B)

This device contains licence-exempt transmitter(s)/receiver(s) that

comply with Innovation, Science and Economic Development

Canada’s licence-exempt RSS(s). Operation is subject to the

following two conditions:

1.

This device may not cause interference.

2.

This device must accept any interference, including

interference that may cause undesired operation of the device.
