FRIDGE-FREEZER
User's Guide
Please read this User's Guide carefully
before operating and keep it handy for
reference at all times.
Introduction
Operation
Suggestion On
Food storage
Care and
Maintenance
Trouble Shooting
Table of Contents
Registration
Important Safety Instruction

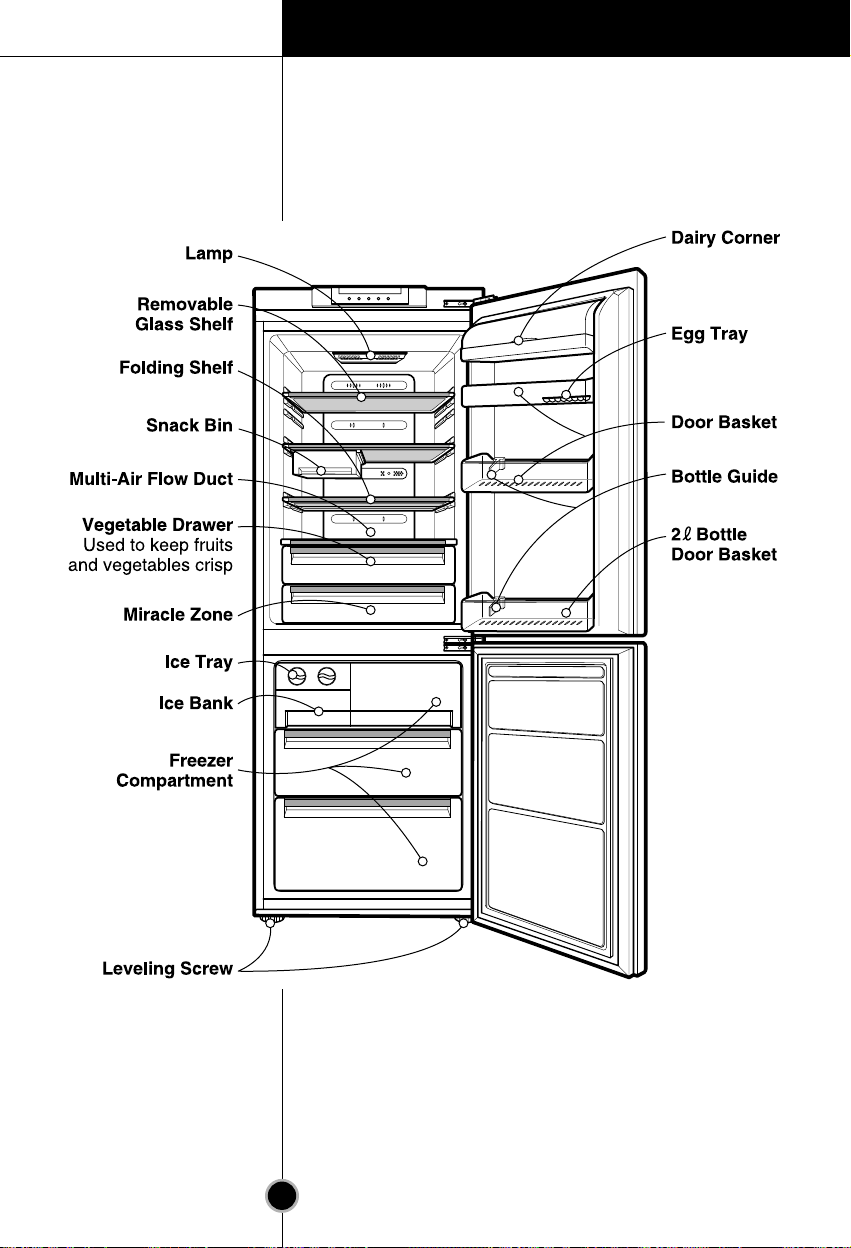

Identification of Parts
Temperature Control
Super Freezer
Self Test
Door Alarm
Miracle Zone
Snack Bin
Ice Making
Defrosting
Folding Shelf
Storing Food
General Information
Lamp Replacement
To Reverse the Doors
Cleaning
Trouble Shooting
3
* Refer to Installation Insturction for details.
4
5
17
18
20
20
20
21
21
22
22
23
24
26
27
27
28
29
Introduction
Registration
4
Introduction
The model and serial number are found on the rear of
this unit. This number is unique to this unit and not
available to others. You should record requested
information here and retain this guide as a permanent
record of your purchase. Staple your receipt here.
Date of Purchase :
Dealer Purchased From :
Dealer Address :
Dealer Phone No. :
Model No. :
Serial No. :
Important Safety Instruction
BASIC SAFETY PRECAUTIONS
This guide contains many important safety messages.
Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety
messages that inform you of hazards that can kill or hurt
you or others or cause damage to the product. All safety
messages will be preceded by the safety alert symbol and
the hazard signal word DANGER, WARNING, or
CAUTION. These words mean:
You will be killed or seriously injured if
you don’t follow instructions.
DANGER
All safety messages will identify the hazard, tell you how
to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
You can be killed or seriously injured if
you don’t follow instructions.
WARNING
Indicates an imminently hazardous
situation which, if not avoided, may
result in minor or moderate injury, or
product damage only.
CAUTION
Prevent the power cord from being squeezed or
imprinted if the refrigerator is pushed in after the
power plug is extracted during the installation.
It becomes the cause of fire or electric shock.
When moving your appliance away from the wall, be
careful not to roll over or damage the power cord.
It may damage the power cord to cause
fire or electric shock.
Do not allow the power cord bent or pressed by the
heavy object to be damaged.
Introduction
5
Important Safety Instruction
To reduce the risk of fire, electric shock, or injury to
persons when using your product, basic safety
precautions should be followed, including the
following. Read all instructions before using this
appliance.
1. When connecting the power
•
Using several devices at one outlet
may cause fire.
•
The electric leakage breaker may
damage food and the dispenser may
be leaked.
The dedicated outlet should be used.
Water may be flown into or the plug
may be damaged, which causes fire or
electric shock.
Do not allow the power plug to face upward or to
be squeezed at the back of the fridge-freezer.
WARNING
It may cause electric shock or short circuit to
fire.
Pull out the power plug not by grasping
the cord but the plug of its end.
Introduction
6
•
It may cause electric shock or injury.
•
When replacing the interior lamp of
the fridge-freezer, make sure that the
rubber ring for preventing the electric
spark within the socket is not taken
off.
Unplug the power plug when cleaning, handling or
replacing the interior lamp of the fridge-freezer.
Important Safety Instruction
It may cause electric shock or injury.
Do not pull out the cord or touch the power plug
with wet hands.
Dust, water or unstable connection may
fire or electric shock.
Remove water or dust from the power plug and
insert it with the ends of the pins securely
connected.
It causes electric shock or fire by the
electric damage of the power cord or
others.
Do not extend or modify the length of the power
plug.
Introduction
7
Make sure of grounding.
Consult a qualified electrician or
service person if the grounding
instructions are not completely
understood, or if you have doubts
on whether the appliance is properly
grounded or not.
The incorrect grounding may cause breakdown and
electric shock.
Be sure to use grounded exclusive proper voltage
consent for the power plug.
It becomes the cause of fire.
It may cause electric shock or short circuit
to make fire.
When the power cord or the power plug is
damaged or the holes of the outlet
are loosed, do not use them.
Important Safety Instruction
Copper
Flat
Ground
Wire
More than
30 inches
It may cause the operation of the
freezer to fail.
Wait for 5 minutes or longer when
reconnecting the plug.
2. When using the fridge-freezer
It may make the fridge-freezer fallen
down or damage the hands. Especially,
do not allow the children to do the
above.
Do not cling to the door or the shelves of the door
or the home bar of the freezer or the cool chamber.
It may be dropped to cause injury, fire or
electric shock when opening or closing
the door.
Do not place the heavy object or the dangerous
object (container with liquid) on the fridge-freezer.
After
5minutes
Introduction
8
Important Safety Instruction
Opening and closing the door of the refrigerator
vigorously may cause the stored food in the
refrigerator basket to fall by shock and hurt the
foot, so take precautions.
Deterioration of insulation of electric
parts may cause electric leakage.
Do not install the fridge-freezer in the wet place or
the place which water or rain splashes.
It may cause explosion or fire.
Do not use or store inflammable materials ether,
benzene, alcohol, medicine, LP gas, spray or
cosmetics near or in the fridge-freezer.
It may cause explosion or fire.
Do not place the lit candle within the fridge-freezer
to deodorize. Do not use drier to
dry the inside, nor light a candle to
remove odor.
It may endanger the life of a child if
the child enters the refrigerator.
Prevent children from entering the product.
Introduction
9
When the material with the strict
temperature control is stored, it may be
deteriorated or it may make an
unexpected reaction to cause any risk.
Do not store the medicine or the academic materials
at the fridge-freezer.
Avoid the heating devices. Install
in places away from the fire such
as the place where flammable gas
is leaked.
Important Safety Instruction
It may cause fire.
Do not use the combustible spray near the fridge-
freezer.
It may cause fire.
It may cause fire, electric shock or
injury by dropping down.
Do not place flower vase, cup, cosmetics, medicine
or any container with water on the fridge-freezer.
There is a danger of electric shock or
fire.
In case of thunder and lightning, or not in use for a
long period of time, detach the
power plug.
Introduction
10
Important Safety Instruction
Deterioration of insulation of electric
parts may cause electric shock or fire.
Do not spray water at the outside or the inside of
the fridge-freezer or do not clean it
with benzene or
thinner.
•
The explosion by spark may cause
fire or burn.
•
Because this fridge-freezer uses
natural gas (isobutene, R600a) as
the environment-friendly
refrigerant, even a small amount
(80~90g) is
combustible. When the gas is leaked by the
severe
damage during delivering, installing or using the fridge-
freezer, any spark may cause fire or burn.
When gas is leaked, do not touch the fridge-freezer
or the outlet and ventilate the room immediately.
It may cause fire.
When any strange smell or smoke is detected from
the fridge-freezer, disconnect the power plug
immediately and contact to the service center.
Service
Center
It may cause electric shock or fire.
Use the submerged fridge-freezer after checking it.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Introduction
11
It may cause injury, electric shock or
fire.
Do not allow any person except the qualified
engineer to disassemble, repair or alter the fridge-
freezer.
Important Safety Instruction
It may cause an unexpected risk such
as fire, electric shock, deterioration of
stored material or chemical reaction.
Do not use the fridge-freezer for non-domestic
purpose (storing medicine or testing material, using
at the ship, etc.).
It may cause to lock out the child.
When disposing the fridge-freezer, remove the
packing materials from the door.
Children should be supervised to ensure that they
do not play with the appliance.
Introduction
12
Important Safety Instruction
It may cause electric shock or
injury.
Do not insert the hands or the metal stick into the
exit of cool air, the cover, the bottom of the fridge-
freezer, the heatproof grill (exhaust hole) at the
backside.
Do not place the food in disorder inside the
refrigerator.
The food may fall during opening and closing the door
of the refrigerator and hurt people.
When you want to dispose the large
living waste such as
electric home appliance and furniture,
you’d better contact the local down-
block office.
When you want to dispose the fridge-freezer,
contact to the down-block office.
It may cause frostbite.
Do not touch food or containers at
the freezer with wet hands.
Violating this direction may cause injury or damage
house or furniture. Always be careful, please.
CAUTION
Down-block
office
Installing it on the unstable place may
cause death by falling down the
fridge-freezer when opening or
closing the door.
Install the fridge-freezer on the solid and level floor.
Introduction
13
Important Safety Instruction
The iron plate of the bottom may
cause injury.
Do not insert the hands into the bottom of the
fridge-freezer.
It may freeze the contents to break the
bottle to cause injury.
Do not put bottle in the freezer.
Otherwise, your hands may be slipped
to cause injury. Because the product is
heavy, carrying it alone may hurt
people or accidents may occur.
Carry the fridge-freezer with the handle bar at the
bottom of the front and the top of the rear.
Opening or closing the door may
cause feet or hands to be caught in
the chink in door or the child to be get
hurt by the corner.
Because opening or closing the door or the home
bar of the fridge-freezer may cause injury to the
person around it, be careful,
please.
Do not put any living animal in the
fridge-freezer.
Introduction
14
Important Safety Instruction
Warning
Precaution
•
This fridge-freezer must be properly installed and
located in accordance with the Installation Instruction
before it is used.
•
Before you install this fridge-freezer reference to
installation manual.
•
Never unplug your fridge-freezer by pulling on the
power cord. Always grip plug firmly and pull straight
out from the outlet.
•
After your fridge-freezer is in operation, do not touch
the cold surfaces in the freezer compartment,
particularly when hands are damp or wet. Skin may
adhere to these extremely cold surfaces.
•
Pull out the power plug prior to cleaning the fridge-
freezer.
Never damage, serverely bend, pull out, or twist the
power cord because power cord damage may cause a
fire or electronic shock.
Never place glass products in the freezer because they
may be broken when their inner contents are frozen.
•
Do not directly spray water inside or outside the
fridge/freezer.
There is a risk of explosion or fire.
•
Do not insert the power plug with wet hands.
You may receive an electric shock.
•
Do not install the fridge/freezer in a damp place, where
it could be splashed with water.
Incorrect insulation of the electrical parts may cause an
electric shock or fire.
Introduction
15
Important Safety Instruction
•
Do not disassemble, repair or alter the appliance.
It may cause fire or abnormal operations, which may
lead to injury.
•
Pull the power plug out of the socket before replacing
the interior light in the refrigerator.
Otherwise, there is a risk of electric shock.
•
If possible, connect the fridge-freezer to its own
individual electrical outlet to prevent it and other
appliances or household lights from causing an overload.
The supply plug of the refrigerator-freezer should be
placed in easy accessible position for quick disconnection
in emergency.
Accessibility of
Supply Plug
It will cause electric shock or fire.
Do not modify or
extend the Power
Cord length.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
Don't store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
In the event of an electric short circuit, grounding
(earthing) reduces the risk of electric shock by providing
an escape wire for the electric current. In order to prevent
possible electric shock, this appliance must be grounded.
Improper use of the grounding plug can result in an
electric shock.
Risk of child entrapment.
Before you throw away your old refrigerator or freezer:
Take off the doors.
Leave the shelves in place so that children may not easily
climb inside.
Supply Cord
Replacement
Danger
Don't store
Grounding
(Earthing)
Introduction
16
Important Safety Instruction
Caution
•
If the wall socket is loose, do not insert the power
plug.
It may cause electric shock or fire.
•
Never unplug your refrigerator by pulling on the
power cord. Always grip plug firmly and pull it
straight out from the outlet.
You may disconnect a wire and cause a short circuit.
•
Do not use a wet or damp cloth when cleaning the
plug. Remove any foreign matter from the power
plug pins.
Otherwise, there is a risk of fire.
•
Do not put your hands into the bottom area of the
appliance.
Any Sharp edges may cause personal injury.
•
After unplugging the appliance, wait for at least
five minutes before plugging it again to the wall
socket.
Abnormal operation of the freezer may cause material
damage.
•
If the appliance is not to be used for a long time,
pull out the power plug.
Any deterioration in the insulation may cause fire.
•
Do not let children touch or play with the control
panel on the front of the appliance.
•
The refrigerant used in fridge/freezer and the
gases in the insulation material require special
disposal procedures. Ensure that none of the pipes
on the back of the appliances are damaged prior
to disposal.
Introduction
17
Identification of Parts
Operation
18
Temperature Control
Display Panel For
Temperature Control
Your fridge-freezer has controls that lets you regulate the
temperature in the fridge and freezer compartments.
Adjusting the
temperatures and
functions
Operation
19
How to adjust the
temperature in the
refrigerator and
freezer
compartment
•
The initial Temperature of the Freezer and Refrigerator
Compartment is -18°C and 2°C respectively.
You can now adjust the temperature of the
compartments as you want.
Power
•
If you push button more than 3 seconds
you can switch on or off the Refrigerator.
•
When you press the
temperature control button,
the temperature of the
Freezer or Refrigerator part is
change by 1 degree.
The actual inner temperature varies depending on the
food status, as the indicated setting temperature is a
target temperature, not actual temperature within
refrigerator.
Refrigeration function is weak in the initial time. Please
adjust temperature as above after using refrigerator for
minimum 2~3 days.
Note
Operation
20
Super Feezer
•
Please select this function for prompt freezer.
•
This function is used when you want to freeze the
foods quickly. Press the SUPER FRZ (Super Freezer)
button once, and then the quick freeze operation starts
with the lamp it.
•
The Super Freeze operation takes about 3 hours. When
its operation ends, it automatically returns to the
previous temperature setting. If you want to stop the
quick freeze operation, press the SUPER FRZ button
once more, the lamp goes out, and the Super Freeze
operation stops and the refrigerator returns to the
previous temperature setting.
Self Test
This function allows you to check for operational
problems. If you think you have a problem with your
fridge-freezer, then press the temperature control button:
- If the indicate lights move up or down, then there is no
problem with your fridge-freezer.
- If the indicate lights do not move up or down, then
please leave the power connected and call your nearest
service agent.
Door Alarm
When the door of the fridge is left open for a while, the
alarm sounds.
In selecting
"Off"
In selecting
"On"
Operation
21
Miracle Zone
Temperature
Transition Corner
•
By pressing the button, store vegetables, fruits (at
relatively low conservation temperature) or other types
of food such as meat to be defrosted, raw fish, etc.
Snack Bin
The Snack Bin can move left and right.
Method to Use
•
You can select optimum temperature range depending
on types of food stored.
•
3 steps of temperature selection including 2°C, -1°C,
-3°C is available.
Vegetables/fruits and cold storage foods requiring
humidity maintenance and meats/fishes can be more
freshly stored depending on type of food stored.
Operation
22
Ice Making
•
Fill water in ice making box of
the ice making corner. If
water is fully filled the ice will
not be separated well and
water can be dropped to
make ice lumped.
•
Ice will be dropped into the
ice storage bin by rotating ice
separation handle of ice
making compartment.
Defrosting
•
Defrosting takes place automatically.
•
The defrosting water flows down to the evaporating
tray and is evaporated automatically.
Note
•
Rotating the ice separation handle before ice is fully
frozen may cause the remaining water drop into the
ice storage bin to lump the ice together.
Tip
To remove ice cubes easily, run water on the tray before
twisting.
Operation
23
Folding Shelf
•
You can store taller items such as a gallon or bottles by
simply pushing in front half of shelf underneath back
half of shelf.
Pull toward you to return to a full shelf.
Suggestions on food storage
24
•
Do not store food which goes bad easily at low
temperature, such as banana, and melon.
•
Allow hot food to cool prior to storing. Placing hot food
in the fridge-freezer could spoil other food, and lead to
higher electric bills.
•
When storing the food, use a container with a lid. This
prevents moisture from evaporating, and helps food to
keep its taste and nutrients.
•
Do not block air vents with food. Smooth circulation of
cold air keeps fridge-freezer temperature even.
•
Do not open the door frequently. Opening the door lets
warm air enter the fridge-freezer, and cause
temperature to rise.
•
Never keep too many foods in door rack, as this may
stop the door from fully closing.
•
Do not store bottles in the freezer compartment,
Miracle Zone or snack bin they may break when frozen.
•
Do not refreeze food that has been thawed. This causes
loss of taste and nutrition.
•
Do not store pharmaceutical products, scientific materials
or other temperature sensitive products in the refrigerator.
Products that require strict temperature controls must
not be stored in the refrigerator.
•
If you want to quick freeze new food, you put it middle
drawer of freezer compartment, and then press the
Super Freezer button.
•
Do not put in front of the air hole of the upper drawer of
freezer compartment. It could decrease freezer capacity.
Caution
Storing Food
Suggestions on food storage
25
•
To ensure good air circulation in the appliance, insert
the freezer drawers all the way.
•
If large quantities of food are to be stored in the freezer,
a middle drawer of freezer compartment can be taken
out of the appliance and the food can be stored directly
right over the food stacked from the lower drawer.
To remove a freezer drawer, pull out all the way, lift at
the front and remove.
Note
If you keep the fridge-freezer in a hot, and humid place,
frequently open its door or put a lot of vegetables in it, dew
may form in it, which has no effect on its performance.
Remove the dew with dust cloth free from care.
Care and Maintenance
26
•
Especially after installation or
when ambient temperature
is high, the fridge-freezer
may feel hot, which is quite normal.
•
The Anti-Condensation pipe
is installed around the front
side of fridge-freezer as well
as on the partition between
fridge compartment and
freezer compartment to
prevent dewing.
General Information
Power Failure
•
1~2 hour power failure does no harm to the foods
stores. Try to avoid opening and closing the door too
frequently.
If You Move
•
Take out foods from the fridge-freezer and firmly fix the
loose items with tape.
•
Do not move the fridge freezer by sliding.
Anti Condensation
Pipe
Care and Maintenance
27
Lamp Replacement
1. Unplug the power cord
from the outlet or
shutdown the main switch
in your house.
2. Remove the room lamp lid
by taking down while pulling its back projection.
3. Remove the lamp by turning it counterclockwise and
replace new one.
4. Assemble in reverse order of disassembly.
Replacement bulb must be the same specification as
original.
To Reverse the
Doors
•
Your fridge-freezer is designed with reversible doors, do
that they may open from either the left of right hand
side to suit your kitchen design.
Caution
However, When you want to reverse the doors, you
must be calling to service agent.
Note
•
Lamp capacity is MAX 30W.
•
The lamp will remain “ON” for 7minutes if the door is
left open and then it is “OFF” for safety. (If you
reopen the door, the lamp is “On”.)
Caution
•
You must check the O-RING, which is made by rubber
and prevent electric spark
.
•
Don’t touch the lamp, in case of light on the long
time. Because it can be very hot.
Care and Maintenance
28
Before Cleaning
Be sure to unplug the power or shutdown the main
switch in your house.
Interior
As above.
After Cleaning
Check that the power cord is not damaged, power plug
has not overheated, and that the power plug is tightly
inserted into the outlet.
Exterior
Clean the outside of the fridge-freezer with a soft cloth
soaked with hot water or liquid detergent. If you use a
detergent, be sure to wipe it with a clean wet cloth.
Warning
Be sure to dry the appliance with a cloth after washing
it with water.
Do not use abrasive, petroleum, benzene, thinner,
hydrochloride acid, boiling water, rough brush, etc,
as they may damage parts of the fridge-freezer.
Cleaning
Trouble Shooting
29
Possible Causes
Before calling for service, check this list.
It may save you both time and expense.
This list includes common occurrences that are not
the result of defective workmanship or materials in
this appliance.
Problem
Fridge-Freezer
does not operate
•
Power plug may be unplugged from the electric
outlet.
Plug it in securely.
•
House fuse has blown or circuit breaker has
tripped.
Check and/or replace fuse and reset circuit breaker.
•
Power cut.
Check house lights.
Fridge or Freezer
Compartment
Temperature too
warm
•
Temperature control not set on proper position.
Refer to Temperature Control section.
•
Appliance is placed close to heat source.
•
Warm weather-frequent door openings.
•
Door left open for a long time.
•
Package holding door open or blocking air duct in
freezer compartment.
Vibration or
Rattling or
Abnormal Noise
•
The floor on which the fridge-freezer is installed
may be uneven or the fridge-freezer may be
unstable.
Make it even by rotating the leveling screw.
•
Unnecessary objects placed in the back side of the
fridge-freezer.
Frost or Ice
Crystals on frozen
Food
•
Door may have been left ajar or package holding
door open.
•
Too frequent or too long door openings.
•
Frost within package is normal.
Moisture forms on
Cabinet Surface
•
This phenomenon is likely to occur in a wet space.
Wipe it with a dry towel.
Trouble Shooting
30
Possible CausesProblem
Moisture collects
inside
•
Too frequent or too long door openings.
•
In humid weather, air carries moisture into fridge when
doors are opened.
Fridge has odor
•
Foods with strong odors should be tightly covered or
wrapped.
•
Check for spoiled food.
•
Interior needs cleaning.
Refer to CLEANING section
Interior light does
not work
•
No power at outlet.
•
Light lamp needs replacing.
Refer to the Lamp Replacement section
Door not closing
properly
•
Food package is keeping door open.
Move packages that keep door from closing.
•
Fridge-freezer is not level.
Adjust the leveling screws.
•
The floor on which the fridge-freezer is installed may
be uneven or the fridge-freezer may be unstable.
Slightly raise the front side with the leveling screw.
DISPOSAL OF YOUR OLD APPLIANCE
1. When this crossed-out wheeled bin symbol is attached to a product it
means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately
from the municipal waste stream via designated collection facilities
appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance,
please contact your city office, waste disposal service or the shop
where you purchased the product.
P/No. 3828JD8636Q
