Sleek design and a durable frame, the Renogy 100
Watt 12 Volt Monocrystalline Panel provides you
with the highest efficiency per area and is the perfect
item for off-grid applications.
The Renogy 100 Watt Monocrystalline Panel can be
used in various off-grid applications that include 12
and 24 volts arrays, water pumping systems, signal-
ing systems and other off-grid applications.
RNG-100D-R-BK
100W Monocrystalline Solar Panel
High module conversion efficiency
Top ranked PTC rating
Quick and inexpensive mounting
100% EL testing on all Renogy modules
No hot spots guaranteed
Key Features Potential Uses
25
Years
Power Output Warranty
5
Years
Material and Workmanship Warranty
Renogy | www.renogy.com | customerservice@renogy.com | 909-287-7111
2775 E. Philadelphia St, Ontario, CA 91761

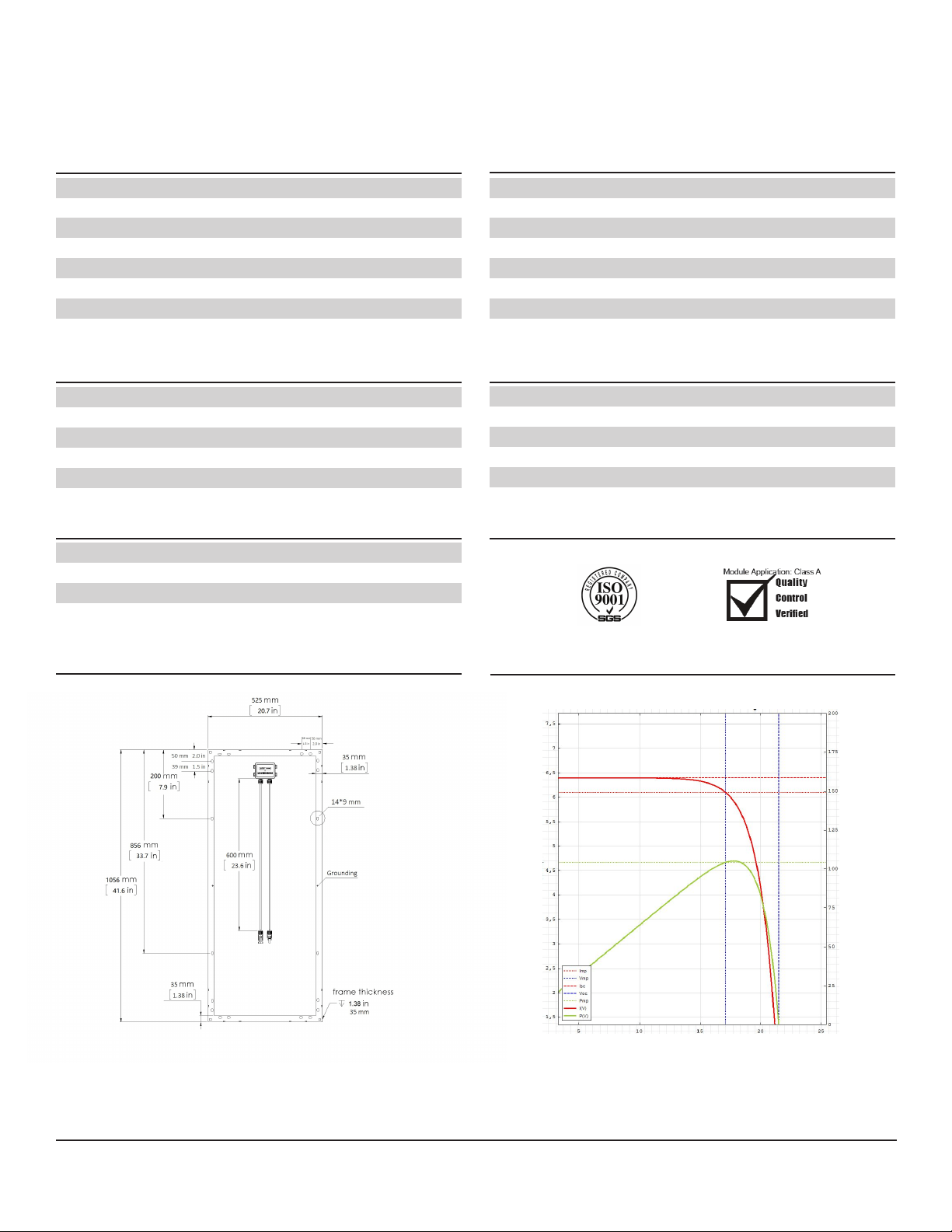

RNG-100D-R-BK
100W Monocrystalline Solar Panel
Electrical Data
Maximum Power at STC*
Optimum Operating Voltage (V
mp
)
Optimum Operating Current (I
mp
)
Open Circuit Voltage (V
oc
)
Short Circuit Current (I
sc
)
Maximum System Voltage
Maximum Series Fuse Rating
100 W
17.1 V
6.1 A
21.5 V
6.4 A
Cell Efficiency
21.0%
600 VDC UL
15 A
IP Rating
IP 65
Number of Diodes
2 Diode(s)
Output Cables
12 AWG (2.00 ft long)
Mechanical Data
Solar Cell Type
Number of Cells
Dimensions
Weight
Front Glass
Frame
Monocrystalline (5.0 x5.0 in)
32 (4 x 8)
41.6 x 20.7 x 1.4 in (1056 x 525 x 35mm)
14.3 lbs (6.5 kg)
Tempered Glass 0.13 in (3.2 mm)
Black Anodized Aluminum Alloy
Connectors
Fire Rating
MC4 Connectors
Class C
Thermal Characteristics
Operating Module Temperature
Nominal Operating Cell Temerature (NOCT)
Temperature Coefficient of Pmax
Temperature Coefficient of Voc
Temperature Coefficient of Isc
-40ºC to +90ºC
47±2ºC
-0.44%/ºC
-0.30%/ºC
Diode Type
15SQ045
0.04%/ºC
Junction Box
Rated Current
30A
IP Rating
Temperature Range
-40ºF to 194ºF
IP 67
Maximum AWG Size Range
10 AWG
Maximum Voltage
1000VDC
MC4 Connectors
Certifications
*All specifications and data described in this data sheet are tested under Standard Test Conditions (STC - Irradiance: 1000W/m
2
, Temperature: 25 C,
Air Mass: 1.5) and may deviate marginally from actual values. Renogy and any of its affiliates has reserved the right to make any modifications to the
information on this data sheet without notice. It is our goal to supply our customers with the most recent information regarding our products. These data
sheets can be found in the downloads section of our website, www.renogy.com
IV-Curve
Module Diagram
RNG-100D-R-BK Characteristics Versus Voltage
Current (A)
Power (W)
Voltage (V)
º
