OWNER’S MANUAL OLED TV

Preparing

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

  • It is recommended to move the TV in the box or packing material that the TV originally came in.
  • Before moving or lifting the TV, disconnect the power cord and all cables.
  • When holding the TV, the screen should face away from you to avoid damage.

  • Hold the side and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

  • When transporting a large TV, there should be at least 2 people.
  • When transporting the TV by hand, hold the TV as shown in the following illustration.

  • When transporting the TV, do not expose the TV to jolts or excessive vibration.
  • When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
  • Do not apply excessive pressure to cause flexing / bending of frame chassis as it may damage screen.
  • When handling the TV, be careful not to damage the protruding buttons.

WARNING:

  • Avoid touching the screen at all times, as this may result in damage to the screen.
  • When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

Mounting on the Table

  1. Lift and tilt the TV into its upright position on a table.
  2. Leave a 10cm (minimum) space from the wall for proper ventilation. 2 Connect the power cord to a wall outlet.

WARNING:

  • Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.)
  • If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.
  • Do not use any unapproved items to ensure the safety and product life span.
  • Any damage or injuries caused by using unapproved items are not covered by the warranty.
  • Make sure that the screws are inserted correctly and fastened securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.
  • When installing on a cabinet or a shelf using a stand, make sure its width is greater than that of the TV

Securing TV to the Wall

  1. Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV. If there are bolts inserted at the eye-bolts position, remove the bolts first.
  2. Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.
  3. Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the flat surface.
  • Use a platform or cabinet that is strong and large enough to support the TV securely.
  • Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

Stand

Mounting to the Wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. It is advised to connect all the cables before installing fixed wall mounts.

WARNING:

  • Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.
  • For more information of screws and wall mount bracket, refer to the Separate purchase.
  • If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.
  • When mounting a TV on the wall, make sure not to install the TV by hanging the power and signal cables on the back of the TV.
  • Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.
  • When installing the Full Contact Wall Mount, the TV may not be contacted firmly against the wall due to some wall conditions

Wall Mounting Bracket (Depending on model)

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Before Installation (Except for OLW480B)

  • Do not use the product for any purpose other than installing the TV on a wall.
  • Avoid product damage and safety accidents caused by careless installing or use of improper or unauthorized wall mount.
  • Follow the instructions in the installation manual for a convenient installation of the wall mount.
  • Immediately discontinue installation and contact the service centre if you cannot fully understand the installation process. Use a professional installer if any installation issues remain after the inquiry.
  • Installation of this product on a concrete wall or wood stud is recommended. Installation of this product on other surfaces (Dry wall, plywood, bricks, etc.) is not recommended. Improper installation may result in the product falling.
  • Install the product only on a vertical wall. Do not install on a tilted wall that exceeds building standards or on the heavily titled wall or ceiling. LG is not responsible for problems caused by improper installation of the product, e.g., heavily tilted walls and ceilings.
  • Check the enclosed accessories before installation. We are not responsible for any lost or damaged accessories after the inner packaging is opened.
  • When an infant or small child swallows the enclosed accessories, various safety accidents such as choking may occur. Keep the enclosed accessories out of the reach of infants and children.
  • When tightening screws, tighten until fully snug. Avoid using excessive force when tightening the screws. Doing so may damage the wall and product or reduce the rigidity or performance of the product.
  • Avoid installing a TV that exceeds the specified tensile load, and do not allow any external force to be applied to the product.
  • Avoid accidents by using work tools with care during installation.

Tools for Installation

  • “+” shaped screwdriver (manual or electric) / level / drill / Ø 8 mm drill bit for concrete or Ø 4 mm drill bit for steel

Securing TV to the Wall (Except for OLW480B)

  • Please use the TV close to the wall after installation.

How to fix anchors and screws (Except for OLW480B)

Please make sure that:

  • Check that the material and thickness of the wall and finishing material comply with the installation manual. Before beginning the mounting process, you must be sure the wall is able to support the weight of the TV.
  • Should use the enclosed anchors and screws on crack-free concrete walls.
  • Never install the product on a plasterboard or wall made of paper or medium-density fiberboard (MDF). When it is necessary to install the product on such wall, anchor screws must be fastened to retaining walls (concrete) or wood Stud inside the finishing material.
  • The wall mount should be attached to a stud.This usually will not be a problem, but depending on individual circumstances, there may be cases when the ability to mount into a studis not possible. In this case, there are a variety of drywall anchors, such as toggle bolts, which may provide a solution. If using drywall anchors, please be sure the anchors and the wall have the ability to support the weight of your TV. Please note that the supplied anchors may not be the correct ones for your individual situation, so you should check with a local professional.
  • Other unspecified walls must be capable of supporting pullout loads of over 70kgf (686 N) and shear loads of over 100kgf (980 N) per fastener.
  • Use an Ø 8 mm drill bit for concrete and a hammer (impact) drill or Ø 4 mm drill bit for wood stud to drill holes.

For installation on concrete wall

1 Drill holes in anchor locations with a drill bit of Ø 8 mm to a depth of 80 mm to 100 mm.

2 Clean the drilled holes.

3 Insert the enclosed anchors for fixing the wall mount into the holes. (Use a hammer when inserting anchors.)

4 Push the wall mount support closely toward the wall to match the hole locations.

5 Tighten screws for fixing the wall mount to the holes. At this time, tighten the screws to a torque of between 45kgf/cm to 60kgf/cm.

For installation on wood stud

Use the Ø 4 mm drill bit for wood to drill holes with the depth of 76 mm. (Clean the drilled hole.) Without using the wall mounting anchor, fasten the wall mounting screw directly to the wood stud.

After Installation

  • When connecting additional cables from the sides, we recommend holding the centre of the TV horizontally or vertically and pulling the product to make sure there is sufficient distance from the wall before connecting.
  • When connecting additional cables from the bottom, we recommend releasing the TV from the wall mount before connecting.
  • Use cable management systems to arrange the cables at the bottom of the TV as shown below. Cable managements are not provided with the product, so purchase them separately
  • After installing the product, be sure to use it adhered to the wall. Using the product while it is not adhered to the wall may damage or shake the product.

Antenna/Cable

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

  • Use a signal splitter to use more than 2 TVs.
  • If the image quality is poor, install a signal amplifier properly to improve the image quality.
  • If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction. • An antenna cable and converter are not supplied.
  • For a location that is not supported with Ultra HD broadcasting, this TV cannot receive Ultra HD broadcasts directly

Satellite dish

Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω). (Depending on model)

Starting TV

Turning on the TV

You can simply operate the TV functions, using the button.

Using button

Adjusting the menu

When the TV is turned on, press the button one time. You can adjust the Menu items using the button.

Inserting the battery

When the message [Magic Remote battery is low. Please change the battery.] is displayed, replace the battery.

To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching the ends to the label inside the compartment, and close the battery cover.

WARNING:

  • Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.
  • Failure to match the correct polarities of the battery may cause the battery to burst or leak, resulting in fire, personal injury, or ambient pollution.
  • This apparatus uses batteries. In your community there might be regulations that require you to dispose of these batteries properly due to environmental considerations. Please contact your local authorities for disposal or recycling information.
  • Batteries inside or inside the product shall not be exposed to excessive heat such as sunshine, fire or the like.

Registering Magic Remote Control

How to register the Magic Remote Control

To use the Magic Remote, first pair it with your TV.

  1. Put batteries into the Magic Remote and turn the TV on
  2. Point the Magic Remote at your TV and press the Wheel (OK) on the remote control.

* If the TV fails to register the Magic Remote, try again after turning the TV off and back on.

How to deregister the Magic Remote Control

Press the (Back) and (Home) buttons at the same time, for five seconds, to unpair the Magic Remote with your TV.

* Press and hold the (Home) and (Q. Settings) buttons for more than 5 seconds to disconnect and re-register the Magic Remote at the same time.

WARNING: It is recommended that an Access Point (AP) be located more than 0.2 m away from the TV. If the AP is installed closer than 0.2 m, the Magic remote control may not perform as expected due to frequency interference.

Connecting Smart Devices using NFC Tagging

Using the NFC Feature NFC is technology that uses Near Field Communication, allowing you to conveniently send and receive information without separate settings. By bringing a smart device near the NFC-enabled remote control, you can install the LG ThinQ app and connect the device to the TV.

  1. Turn on NFC in the smart device’s settings. To use NFC with Android devices, set the NFC option to enable ‘read/write tags’ in the smart device’s settings. The NFC settings may vary depending on the device.
  2. Bring the smart device near the (NFC) on the remote control. The required distance for NFC tagging is about 1 cm.
  3. Follow the instructions to install the LG ThinQ app on your smart device.
  4. Retagging the smart device to the remote control allows you to conveniently access various features on the connected TV through the LG ThinQ app.

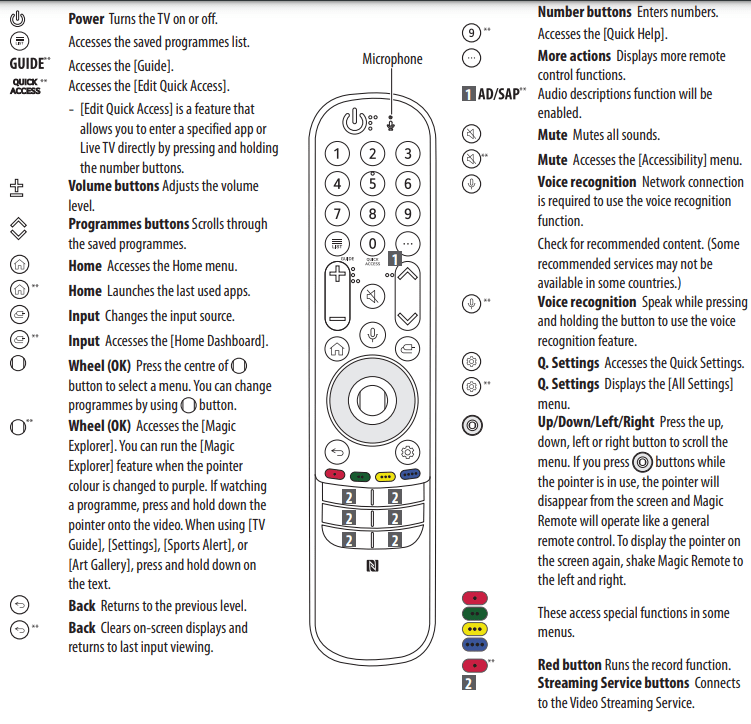

Using Remote Control

(Some buttons and services may not be provided depending on models or regions.)

Connections

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device.

Troubleshooting

Cannot control the TV with the remote control.

  • Check the remote control sensor on the product and try again.
  • Check if there is any obstacle between the product and the remote control.
  • Check if the batteries are still working and properly installed

No image display and no sound is produced.

  • Check if the product is turned on.
  • Check if the power cord is connected to a wall outlet.
  • Check if there is a problem in the wall outlet by connecting other products.

The TV turns off suddenly

  • Check the power control settings. The power supply may be interrupted.
  • Check if the auto-off function is activated on the settings related time.
  • If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity

When connecting to the PC (HDMI), no signal is detected.

  • Turn the TV off/on using the remote control.
  • Reconnect the HDMI cable.
  • Restart the PC with the TV on.

Abnormal Display

  • If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product.
  • This panel is an advanced product that contains millions of pixels. You may see tiny black dots and/or brightly coloured dots (white, red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.
  • You may find different brightness and colour of the panel depending on your viewing position(left/right/ top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

Generated Sound

  • “Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required.
  • Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product. This generated sound does not affect the performance and reliability of the product.

  • Make sure to wring any excess water or cleaner from the cloth.
  • Do not spray water or cleaner directly onto the TV screen.
  • Make sure to spray just enough of water or cleaner onto a dry cloth to wipe the screen.

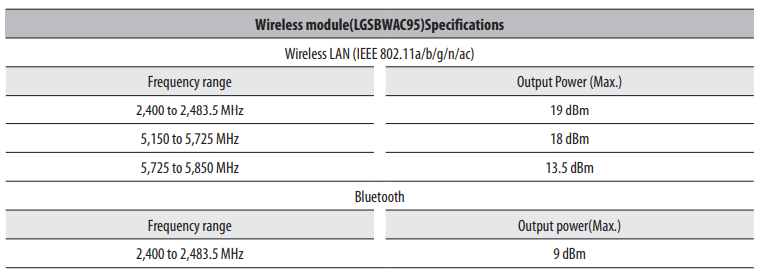

Specifications

(Depending on country)

As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.

For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body

For information of the power supply and power consumption, refer to the label attached to the product. The typical power consumption is measured in accordance with IEC 62087 or each country’s energy regulations.

  • On some models, the label is inside the external device connection terminal cover.
  • Depending on the model or country, the typical power consumption may not be on label.

Precautions for Protecting the OLED TV Screen

Unlike regular LED/LCDs, OLED TVs produce images that emit light for each pixel, achieving a perfect black colour and delivering clear images without blurring.

Due to the nature of the organic materials used to achieve high-resolution image quality, OLED displays generally experience image retention on the screen, which can be a persistent phenomenon. This phenomenon is observed in all OLED panels, and although recommended picture modes can minimise image retention, current technology cannot completely prevent this from occurring.

Displaying the same image for a long time or repeatedly displaying the same image can cause image retention on the screen, which is a common phenomenon in OLED panel products due to the nature of the product. This product has a built-in screen protection feature. Avoid displaying images that are likely to cause image retention, and follow the recommendations.

Images that are likely to cause image retention

  • Images with black areas on the top and bottom and/or the left and right sides of the screen.
  • Images whose aspect ratio is 4:3 or 21:9.
  • Images that are fixed for a long time, such as program number, station logo, game console icon, set-top box menu, etc.
  • Other fixed screen images or repeatedly displayed images.

Running [Pixel Cleaning] to Protect the OLED TV Screen

The OLED TV is equipped with a Pixel Cleaning feature to check the status of the screen by itself and prevent image retention. This feature is automatically activated when the TV is turned off after four hours of cumulative use (per day) or after 2,000 hours of cumulative use (per year). While this feature is running, horizontal lines may appear at the top and bottom of the screen.

The pixel cleaning feature runs for approximately 1 hour and requires the power cord and main power to be connected to the product.

  • To run this function manually, press the button on the remote control, go to → [Support] → [OLED Screen Saver] and press [Pixel Cleaning].

Recommendations for Minimising Image Retention

When watching the TV for a long time, press the button on the remote control, go to → [Picture] → [Select Mode] and set the mode to [Eco], go to [Advanced Settings] → [Brightness] and set [OLED Pixel Brightness] to a lower level. In addition, press the button on the remote control, go to → [Support] → [OLED Screen Saver] and set the [Adjust Logo Brightness] value to [High]. When showing images with black bars at the top/bottom/left/right side of the screen, press the button on the remote control, press , and go to [Picture] → [Aspect Ratio] → [User Selection] → [Vertical Zoom] or [4-Way Zoom] to remove the black bars. Turn off the menus for setting up devices such as set-top boxes so that they are not displayed on the screen for a long time.

Note: When the screen is showing one fixed image for a long time, the screen brightness will be automatically reduced and then restored once the screen content changes. This is a normal function to minimise image retention.
