EN
User Manual
Warming Drawer
02
DE
Gebrauchsanweisung
Wärmeschublade
15
FR
Mode d'emploi
Chauffe Vaisselle
28
NL
Gebruiksaanwijzing
Servieswarmer
42
ES
Manual de instrucciones
Cajón calientaplatos
54
PT
Manual de Instruções
Gaveta de Aquecimento
66
www.aeg.com
2
CONTENTS
1. SAFETY INFORMATION ................................................................................................... 3
2. APPLIANCE DESCRIPTION .............................................................................................. 7
3. USE .................................................................................................................................... 8
4. LOAD CAPACITY ............................................................................................................. 11
5. CLEANING AND MAINTENANCE ................................................................................... 11
6. WHAT SHOULD I DO IF THE CROCKERY WARMER DOESN’T WORK? ..................... 12
7. ENVIRONMENTAL CONCERNS ..................................................................................... 12
8. INSTALLATION INSTRUCTIONS .................................................................................... 13
9. INSTALLATION ................................................................................................................ 79
WE'RE THINKING OF YOU
Thank you for purchasing an AEG appliance. You’ve chosen a product that brings with
it decades of professional experience and innovation. Ingenious and stylish, it has been
designed with you in mind. So whenever you use it, you can be safe in the knowledge
that you’ll get great results every time. Welcome to AEG.
Visit our website to:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com
Register your product for better service:
www.aeg.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information.
General information and tips.
Environmental information.
Subject to change without notice.
ENGLISH
3
1. SAFETY INFORMATION
Carefully read the instructions before installing and using
the equipment. The manufacturer is not liable for improper
installation and use of the equipment that may cause
injuries and damage. Always keep the instructions at
hand, so they can be easily referred to during use. This
appliance complies with current safety standards.
Improper use of the appliance may put the user at risk.
1.1. Safety of children and vulnerable adults
WARNING!
Risk of choking, injury or permanent disability.
This appliance can be used by children aged 8 years
and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and
knowledge if they are given supervision or instructions
concerning how to use the appliance in a safe way and
understand the hazards involved.
Children should not play with the appliance.
Keep packaging materials away from children.
Keep children and pets away from the appliance during
operation or when cooling.
Cleaning and maintenance should not be done by
children without supervision.
WARNING: Accessible parts may become hot during
use. Young children should be kept away.
1.2. Warnings on general safety
WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years
of age shall be kept away unless continuously
supervised.
During use the appliance becomes hot. Care should be
taken to avoid touching heating elements inside the
oven.
Depending on the temperature selected and the
operating time, the temperature inside the appliance
may reach 80 ºC. To take crockery out of the crockery
www.aeg.com
4
warmer protect your hands by using oven gloves or an
oven cloth.
Do not sit or hang on the drawer. The telescopic
runners will be damaged. The maximum load capacity
of the drawer is 25 kg.
Do not store synthetic containers or easily inflammable
objects inside the crockery warmer. When you switch
on the appliance such containers and objects may melt
or catch fire. Fire danger.
Do not use the appliance to heat up the air temperature
in the kitchen. The high temperatures reached may
cause easily inflammable objects close to the appliance
to catch fire.
When you stop using the appliance at the end of its
working life, disconnect it from the power supply and
render the electrical cable unusable so that the
appliance is not a danger if, for example, children use it
for playing.
1.3. Installation
During installation, follow the instructions supplied
separately.
Only qualified personnel can install the appliance and
replace the cable.
The electric system must be equipped with a means for
disconnection, with a contact separation in all poles that
provides full disconnection under overvoltage category
III.
If a plug is used for the electric connection, then it must
be accessible after installation.
The connection should include correct earthing, in
compliance with current norms.
WARNING! Before connecting the appliance compare
the power data (voltage and frequency) indicated on the
characteristics plate with those of the power supply in
question. If these data do not match there may be
problems. In case of doubt, contact an electrician.
WARNING! If the electrical wire plug is removed, the
appliance must be installed and connected by a
technician. Contact a qualified electrician who knows
and respects current safety standards. The
ENGLISH
5
manufacturer cannot be held responsible for damage
resulting from fitting or connecting errors.
WARNING! The electrical safety of the appliance can
only be guaranteed if it is earthed. The manufacturer
cannot be held responsible for damage resulting from
the absence of or defects in the installation’s protection
system (e.g. electrical shock).
WARNING! Only use the appliance once it has been
fitted into its built-in position. Only in this manner can it
be guaranteed that users cannot access the electrical
components.
WARNING! Never open up the appliance’s frame.
Possible contacts with electrical conducting parts or
changes to electrical or mechanical components may
represent a danger to users’ safety and prejudice the
correct working of the appliance.
1.4. Cleaning
Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of
the glass.
Do not use steam cleaners to clean the appliance.
Do not use high pressure or steam jet cleaning devices.
The steam may affect electrical components and cause
a short circuit. The steam pressure may also cause
damage to the appliance’s surface and components in
the long term.
1.5. Repairs
Disconnect the appliance from the power supply before
carrying out any maintenance operation.
WARNING! The appliance must be disconnected from
the electrical current when installation and repair work
is being done. To disconnect the appliance from the
current, one of the following conditions must apply:
- The switchboard fuses / circuit breakers must be
disconnected.
- The plug should be removed from the socket. To
remove the plug from the socket do not pull on the
electric cable but rather pull out the plug itself directly.
www.aeg.com
6
WARNING! Repairs and maintenance, especially of
parts carrying electrical current, must only be done by
technicians authorised by the manufacturer. The
manufacturer and retailers do not accept responsibility
for any damaged caused to people, animals or property
as a result of repairs and maintenance carried out by
non-authorised personnel.
WARNING! Repairs undertaken during the guarantee
period must only be done by technicians authorised by
the manufacturer. If this is not the case then any
damage resulting from the repair in question is
excluded from the guarantee.
7
ENGLISH
2. APPLIANCE DESCRIPTION
2.1. Main Components
Handle
On/Off switch
Anti-Slip mat
Control Lamp
Drawer Grid *
2.2. How the crockery warmer works
This appliance is equipped with a warm
air circulation system. A fan distributes
the heat generated by an electrical
heating element throughout the interior of
the appliance.
The thermostat allows the user to define
and control the temperature wanted for
the crockery.
The circulating hot air that is generated
heats up the crockery quickly and evenly.
A metal grille protects both the heating
element and the fan.
The base of the drawer is fitted with a
non-slip mat to prevent plates and dishes
sliding around when the drawer is
opened and closed.
1
4
2
5
3
6
KD91403 / KD92903 / KD92923
KD91404
*Drawer Grid only available with the model KD92903E/KD92923E
6
www.aeg.com
8
3. USE
3.1. Before using for the first
time
Before using the appliance for the first
time you should clean the interior and the
exterior, following the cleaning
instructions given in the section
“Cleaning and Maintenance”.
Then heat the crockery warmer for at
least 2 hours. For this, turn the
temperature control to the maximum
position (see section ‘Selecting
temperature”).
Make sure the kitchen is well-ventilated
when you are doing this.
The appliance’s parts are protected by a
special product. For this reason, during
the first heating an odour will be
released. Both the odour and any smoke
that may form will disappear after a short
time and neither signifies that there is
anything wrong with the connection or
the appliance.

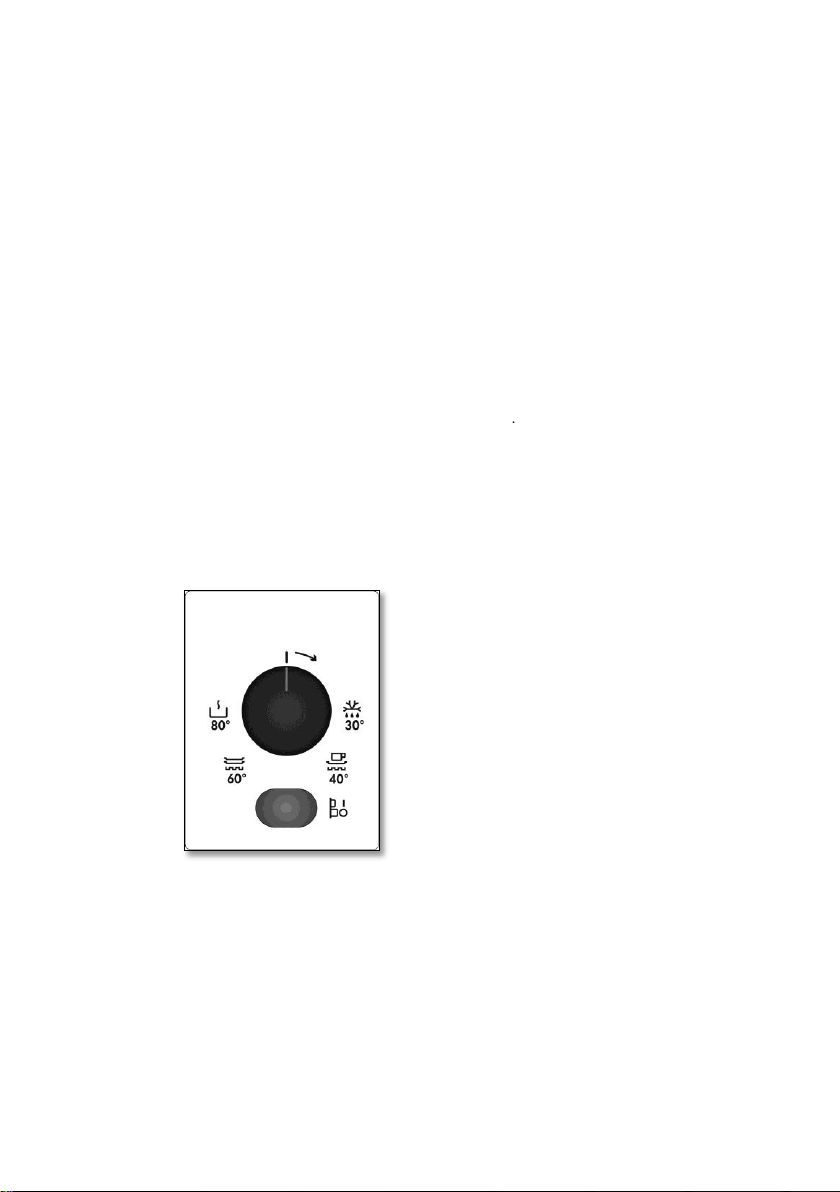

3.2. Control Panel
The control panel has a function and the
on/off switch. The control panel is only
visible when the drawer is open.
3.3. Using the crockery warmer
To use the crockery warmer, proceed as
follows:
Put the crockery in the drawer.
Select the function you want by turning
the thermostat control to the desired
position.
Switch on the appliance by pressing
the switch, which will light up.
Close the drawer.
Be careful not to use too much force
when closing the drawer since it may
open up again. Before taking out the
warm crockery you must switch off the
crockery warmer by pressing the switch
again
3.4. Selecting function
By turning the thermostat control you can
select temperatures between 30 and 80
°C.
Do not force the thermostat control to the
left of the “0” position or to the right of the
maximum position since this may
damage the appliance.
As soon as the selected temperature is
reached, the heating is turned off. When
the temperature drops to a value below
than the one selected, the heating is
turned back on.
The temperature scale is marked with
absolute temperatures in ºC and also has
symbols which correspond to the
optimum temperatures for groups of
crockery:
ENGLISH
9
Symbol
ºC
Function
30ºC
Defrosting
40ºC
Proving dough
Cups / glasses warming
60ºC
Crockery warming
Keep food warm
80ºC
Food Warming
Low temperature cooking
(only available with the model KD92903E)
3.5. Heating times
Various factors affect heating times:
Material and thickness of the crockery;
Load quantity;
How the crockery is arranged;
Temperature setting.
It is therefore not possible to give any
precise heating times.
As you use the crockery warmer more
and more you will learn the best settings
for your crockery.
However, as a guide, the following times
are given for the thermostat
setting and for uniform heating of
the crockery:
3.6. Suggestions for the
function Keep Food Warm and
Food Warming:
Preheat the Warming Drawer 15 minutes
to ensure the interior space has the
required temperature.
3.7. Low temperature cooking
(only available with the model
KD92903E)
With the low temperature cooking meat
can be gently prepared at low
temperatures over a longer period of
cooking time. The cooking time is
dependent on the piece of meat’s size.
Use dishes made of glass, china or
ceramics.
3.8. Preparation:
Preheat the device with the dishes at
80°C for 10 minutes.
Sear the meat in a pan using fat and
place it into the heat drawer on the
preheated dishes. Keep the setting at
80° C.
Load
Time (min)
Crockery for 6 people
30 – 35
Crockery for 12 people
40 – 45
www.aeg.com
10
Table: Low Temperature Cooking (Reference Values)
Application
Quantity
Roast gently on the
cooking plate
Cooking times
Beef
Completely rare
1kg
on all sides, on each
2min.
1hr
Rare
1kg
on all sides, on each
3min
1.25hrs
Medium
1kg
on all sides, on each
3min
1.75 hrs
Well-done
1kg
on all sides, on each
3min
2.25hrs – 2.5hrs.
Roast beef in one
piece
1kg
on all sides, on each
3min
3 hrs rare
4.5 hrs medium
Veal
Filet, whole
1kg
on all sides, on each
2min.
1.75 – 2hrs.
Loin, in one piece
1kg
on all 4 sides, on
each 3min.
2 – 2.5hrs.
Roast, vat
1kg
on all sides, on each
3min.
2 – 2.5hrs.
Roast, shoulder
1kg
on all sides, on each
3min.
2.5hrs.
Porc
Filet, whole
500-600 g
on all sides, on each
2min.
1.5hrs
Loin
600 -1000g
all around 10-15min.
2 - 3hrs
Lamb
Gigot with haunch
2kg
on all sides, on each
4min.
3 – 4hrs
Gigot steak of the
haunch
2kg
on all sides, on each
2min
0.75-1hr
Filet
400g
on all sides, on each
2min
1 – 1.25hrs.
1) If you wish to keep the cooked meat warm, put the setting back to 60° C. We recommend not to use
the warming function for more than 1hr.
ENGLISH
11
4. LOAD CAPACITY

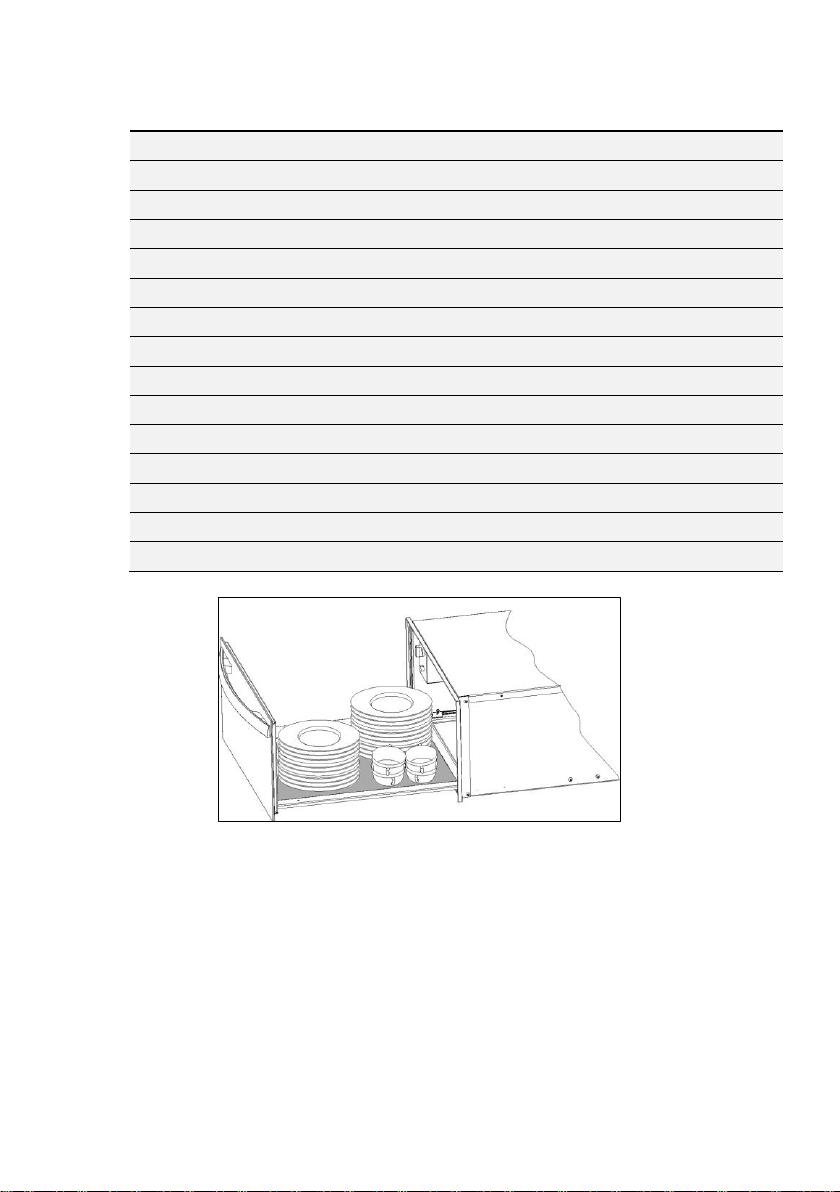

Load capacity depends on the size of the crockery items:
KD 91403 / KD 91404
KD 92903 / KD 92923
6 persons servings
12 persons servings
6 x 24cm Dinner Plates
12 x 24cm Dinner Plates
6 x 10cm Soup Bowls
12 x 10cm Soup Bowls
1 x 19cm Serving Dish
1 x 19cm Serving Dish
1 x 17cm Serving Dish
1 x 17cm Serving Dish
1 x 32cm Meat Plates
2 x 32cm Meat Plates
or
or
20 dishes with 28 cm
40 dishes with 28 cm
or
or
80 espresso coffee cups
160 espresso coffee cups
or
or
40 tea cups
80 tea cups
or
or
…
…
5. CLEANING AND MAINTENANCE
Cleaning is the only maintenance action
that is required normally.
Warning! Cleaning must be done with the
crockery warmer disconnected from the
electrical power supply. Remove the plug
from the power socket or disconnect the
crockery warmer power supply circuit.
Do not use aggressive or abrasive
cleaning products, abrasive sponges or
pointed objects since stains or abrasion
marks may appear.
Do not use high pressure or steam jet
cleaning appliances.
5.1. Appliance front and control
panel
The crockery warmer can be cleaned
using just a damp cloth. If it is very dirty,
add a few drops of washing-up liquid to
the washing water.
Wipe the surfaces dry using a dry cloth.
For stainless steel fronted crockery
warmers, special products for treatment of
www.aeg.com
12
stainless steel surfaces can be used.
These products prevent the surfaces
becoming dirty again for some time. Apply
a thin layer of such a product on the
surface using a soft cloth
On aluminium fronted crockery warmers
use a gentle glass cleaning product and a
soft cloth that does not release fluff. Wipe
horizontally without pressing on the
surface since aluminium is sensitive to
scratches and cuts.
5.2. Interior of the crockery
warmer
Clean the inside of the crockery warmer
regularly using a damp cloth.
If it is very dirty add a few drops of
washing-up liquid to the washing water.
Wipe the surfaces dry using a dry cloth.
Avoid water entering through the air
circulation opening.
Only use the crockery warmer again when
it is completely dry.
5.3. Mat with non-slip surface
The non-slip surface mat can be removed
to facilitate cleaning of the drawer.
The mat can be cleaned by hand using hot
water with a few drops of washing-up
liquid. Dry thoroughly.
The non-slip mat should only be replaced
when it is completely dry.
6. WHAT SHOULD I DO IF THE CROCKERY WARMER
DOESN’T WORK?
WARNING! Any type of repair must
only be done by a specialised technician.
Any repair done by a person not
authorised by the manufacturer is
dangerous.
Before contacting Technical Assistance,
check on the following:
The crockery doesn’t heat up enough.
Check whether:
The appliance has been switched on.
The appropriate temperature has
been selected.
The air circulation orifices are
covered by the crockery.
The crockery was left to heat up for
sufficient time.
Heating time depends on several
factors, such as, for example:
Crockery material type and thickness.
Quantity of crockery.
How the crockery is arranged.
The crockery doesn’t heat up at all.
Check whether:
You can hear the noise of a fan. If
the fan is operating then the heating
element is broken; if the fan is not
operating then the fan is broken.
The switchboard fuses / circuit
breakers have fused / tripped out.
The crockery is heating up too much:
The temperature selector is broken.
The on/off switch does not light up:
The switch’s pilot light has blown.
7. ENVIRONMENTAL CONCERNS
Recycle the materials with the
Symbol . Put the packaging in
applicable containers to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
and electronic appliances.
Do not dispose appliances marked
with the symbol with the household
waste. Return the product to your local
recycling facility or contact your
municipal office.
13
ENGLISH
8. INSTALLATION INSTRUCTIONS
8.1. Before installation
Check that the input voltage indicated on
the characteristics plate is the same as
the voltage of the power outlet you are
going to use.
Open the drawer and take out all the
accessories and remove the packing
material.
Attention! The front surface of the
crockery heater may be wrapped in a
protective film. Before using the crockery
warmer for the first time, remove this film
carefully.
Make sure that the crockery warmer is
not damaged in any way. Check that the
drawer opens and closes correctly. If you
find any damage, contact the Technical
Assistance Service.
Attention: the power socket should be
easily accessible after the crockery
warmer has been installed.
The crockery warmer should only be built-
in in combination with those appliances
indicated by the manufacturer. If it is fitted
in combination with other appliances, the
guarantee is no longer valid since it is
impossible to guarantee that the crockery
warmer will work correctly.
8.2. Installation
To build-in the crockery warmer in
combination with another appliance there
must be a fixed, interim shelf in the
housing unit to support the weight of both
appliances.
The appliance to be combined with the
crockery warmer will be placed directly on
the latter without any need to have a
separating shelf.
To build-in the appliance which is
combined with the crockery warmer,
follow the instructions set out in the
respective instructions and fitting booklet.

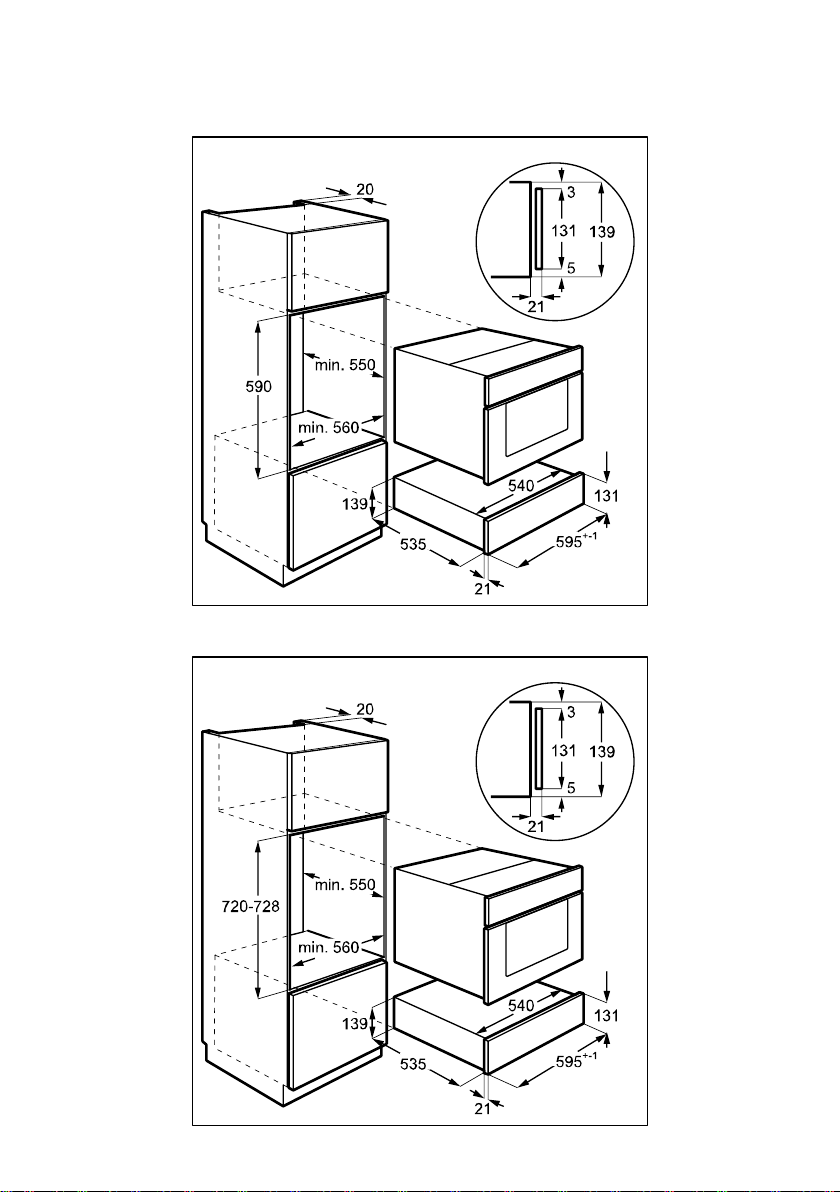

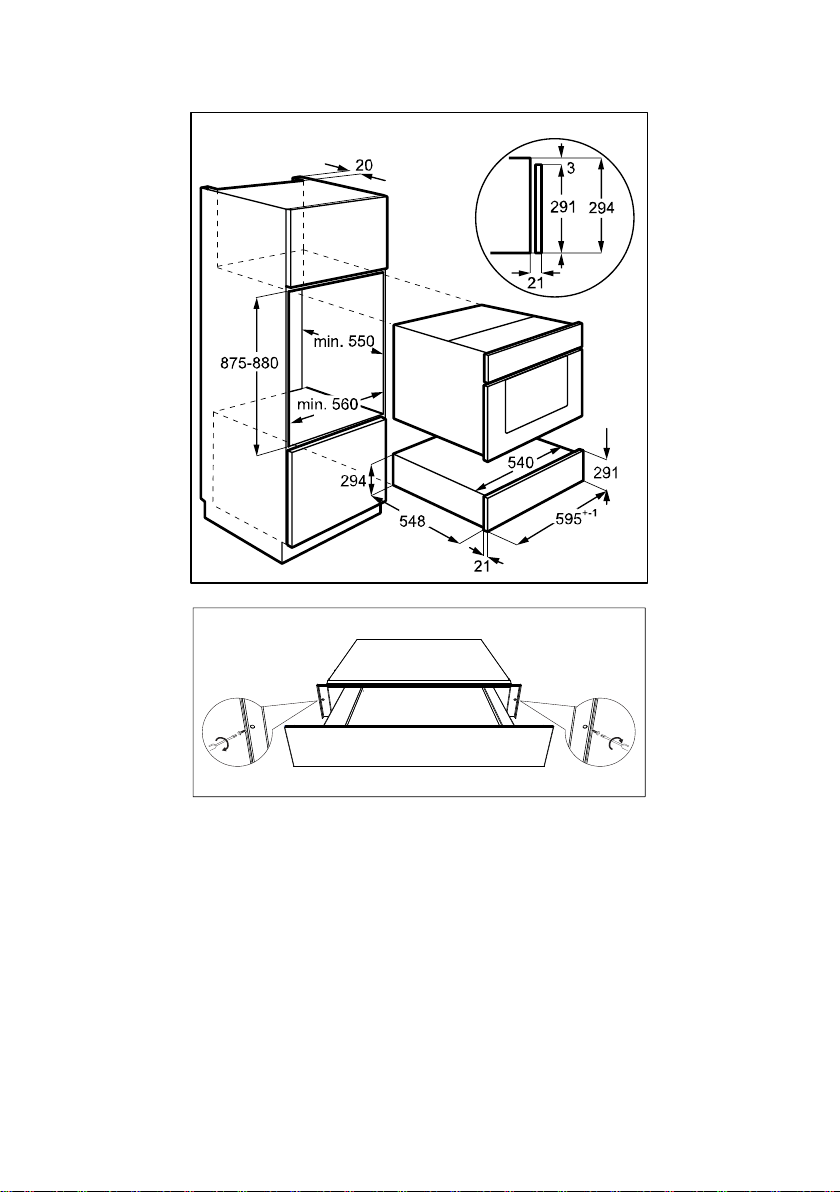

The relevant installation dimensions are
indicated in mm in the diagrams shown at
the end of this booklet. Proceed as
follows:
1. Place the crockery warmer on the
shelf and slide it towards the interior
of the niche in such a way that it is
centred and completely lined up with
the front of the unit.
2. Check that the crockery warmer’s
frame is properly levelled and is
sitting evenly on the shelf.
3. Open the drawer and fix the crockery
warmer to the sides of the unit using
the provided screws.
8.3. Electrical Connection
Electrical installation must be performed
by an electrician qualified in accordance
with the legislation in force.
Before connecting the crockery warmer to
the electric mains, check that the voltage
and frequency of the mains matches that
which is shown on the rating plate located
in the heating block inside.
The electric connection is made via an
omnipolar switch, which is suitable for the
intensity to be tolerated and which has a
minimum gap of 3mm between its
contacts, which will ensure
disconnection in case of emergency or
when cleaning the crockery warmer.
If a plug is used for the electric
connection, then it must be accessible
after installation.
The connection should include correct
earthing, in compliance with current
norms.
WARNING: THE CROCKERY
WARMER MUST BE EARTHED.
If the flexible supply cable fitted to the
crockery warmer ever needs to be
changed, it should be replaced by an
official After Sales Service, because it
requires special tools.
The manufacturer and retailers do not
accept responsibility for any damage that
may be caused to people, animals or
property if these installation instructions
are not observed.
This document sets out the terms and conditions of the product warranties for
AEG Appliances. It is an important document. Please keep it with your proof
of purchase documents in a safe place for future reference should there be a
manufacturing defect in your Appliance. This warranty is in addition to other
rights you may have under the Australian Consumer Law.
1. In this warranty:
(a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the Competition and
Consumer Act 2010;
(b) ‘Appliance’ means any Electrolux product purchased by you and accompanied
by this document;
(c) ‘ASC’ means Electrolux’s authorised serviced centres;
(d) ‘AEG’ is the brand controlled by Electrolux Home Products Pty Ltd of 163
O’Riordan Street, Mascot NSW 2020, ABN 51 004 762 341 in respect of
Appliances purchased in Australia and Electrolux (NZ) Limited (collectively
“Electrolux”) of 3-5 Niall Burgess Road, Mount Wellington, in respect of
Appliances purchased in New Zealand;
(e) ‘Warranty Period’ means the period specified in clause 3 of this warranty;
(f) ‘you’ means the purchaser of the Appliance not having purchased the
Appliance for re-sale, and ‘your’ has a corresponding meaning.
2. Application: This warranty only applies to new Appliances, purchased and used
in Australia or New Zealand and is in addition to (and does not exclude, restrict, or
modify in any way) other rights and remedies under a law to which the Appliances
or services relate, including any non-excludable statutory guarantees in Australia
and New Zealand.
3. Warranty Period: Subject to these terms and conditions, this warranty continues
for in Australia for a period of 60 months and in New Zealand for a period of 60
months, following the date of original purchase of the Appliance.
4. Repair or replace warranty: During the Warranty Period, Electrolux or its ASC
will, at no extra charge if your Appliance is readily accessible for service, without
special equipment and subject to these terms and conditions, repair or replace
any parts which it considers to be defective. Electrolux may, in its absolute
discretion, choose whether the remedy oered for a valid warranty claim is repair
or replacement. Electrolux or its ASC may use refurbished parts to repair your
Appliance. You agree that any replaced Appliances or parts become the property
of Electrolux.
5. Travel and transportation costs: Subject to clause 7, Electrolux will bear the
reasonable cost of transportation, travel and delivery of the Appliance to and from
Electrolux or its ASC. Travel and transportation will be arranged by Electrolux as
part of any valid warranty claim.
6. Proof of purchase is required before you can make a claim under this warranty.
7. Exclusions: You may not make a claim under this warranty unless the defect claimed
is due to faulty or defective parts or workmanship. This warranty does not cover:
(a) light globes, batteries, filters or similar perishable parts;
(b) parts and Appliances not supplied by Electrolux;
(c) cosmetic damage which does not aect the operation of the Appliance;
(d) damage to the Appliance caused by:
(i) negligence or accident;
(ii) misuse or abuse, including failure to properly maintain or service;
(iii) improper, negligent or faulty servicing or repair works done by
anyone other than an Electrolux authorised repairer or ASC;
(iv) normal wear and tear;
(v) power surges, electrical storm damage or incorrect power supply;
(vi) incomplete or improper installation;
(vii) incorrect, improper or inappropriate operation;
(viii) insect or vermin infestation;
(ix) failure to comply with any additional instructions supplied with
the Appliance;
In addition, Electrolux is not liable under this warranty if:
(a) the Appliance has been, or Electrolux reasonably believes that the Appliance
has been, used for purposes other than those for which the Appliance was
intended, including where the Appliance has
been used for any non-domestic purpose;
(b) the Appliance is modified without authority from Electrolux in writing;
(c) the Appliance’s serial number or warranty seal has been removed
or defaced.
8. How to claim under this warranty: To enquire about claiming under this warranty,
please follow these steps:
(a) carefully check the operating instructions, user manual and the terms of
this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
9. Australia: For Appliances and services provided by Electrolux in Australia: Electrolux
goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
for compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the Appliance repaired or replaced if the Appliance fails to be of
acceptable quality and the failure does not amount to a major failure. ‘Acceptable
quality’ and ‘major failure’ have the same meaning as referred to in the ACL.
10. New Zealand: For Appliances and services provided by Electrolux in New
Zealand, the Appliances come with a guarantee by Electrolux pursuant to the
provisions of the Consumer Guarantees Act, the Sale of Goods Act and the Fair
Trading Act. Where the Appliance was purchased in New Zealand for commercial
purposes the Consumer Guarantee Act does not apply.
11. Confidentiality: You accept that if you make a warranty claim, Electrolux and
its agents including ASC may exchange information in relation to you to enable
Electrolux to meet its obligations under this warranty.
Warranty
FOR SALES IN AUSTRALIA AND NEW ZEALAND
ALL AEG BRANDED APPLIANCES
Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.
FOR SERVICE
or to find the address of your nearest
authorised service centre in Australia
PLEASE CALL 1300 363 664
OR EMAIL
For the cost of a local call (Australia only)
SERVICE AUSTRALIA
aeg.com/au
FOR SPARE PARTS
or to find the address of your nearest
spare parts centre in Australia
PLEASE 13 13 50
OR EMAIL
For the cost of a local call (Australia only)
FOR SERVICE
or to find the address of your nearest
authorised service centre in New Zealand
PLEASE CALL 0800 234 234
OR EMAIL [email protected]
(New Zealand only)
SERVICE NEW ZEALAND
aegnewzealand.co.nz
FOR SPARE PARTS
or to find the address of your nearest
spare parts centre in New Zealand
PLEASE 0800 10 66 20
OR EMAIL [email protected]
(New Zealand only)
AEG_Warr_May17
79
INSTALLATION / EINBAU / L'INSTALLATION /
INSTALLATIE / INCASSO / MONTAJE / INSTALAÇÂO
80
www.aeg.com/shop
943306-o - 202016
