SERIES
TM
©2002 Sony Corporation
Model No. DCR-TRV Model No. AC-
Serial No. Serial No.
Operating Instructions
Before operating the unit, please read this manual thoroughly,
and retain it for future reference.
Owner’s Record
The model and serial numbers are located on the bottom. Record the
serial number in the space provided below. Refer to these numbers
whenever you call upon your Sony dealer regarding this product.
3-072-650-12 (1)
DCR-TRV240/TRV340/TRV740/
TRV840
Digital
Video Camera
Recorder
DCR-TRV740
2
Welcome!
Congratulations on your purchase of this Sony Handycam. With your Handycam, you can
capture life’s precious moments with superior picture and sound quality. Your Handycam is
loaded with advanced features, but at the same time it is very easy to use. You will soon be
producing home video that you can enjoy for years to come.
WARNING
To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
This symbol is intended to
alert the user to the presence
of uninsulated “dangerous
voltage” within the product’s
enclosure that may be of
sufficient magnitude to
constitute a risk of electric
shock to persons.
This symbol is intended to
alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
Never expose the battery pack to temperatures
above 60°C (140°F) such as in a car parked in
the sun or under direct sunlight.
For customers in the U.S.A.
and CANADA
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
RECYCLING LITHIUM-ION BATTERIES
Lithium-Ion batteries are
recyclable.
You can help preserve our
environment by returning
your used rechargeable
batteries to the collection and
recycling location nearest you.
For more information regarding recycling of
rechargeable batteries, call toll free 1-800-822-
8837, or visit http://www.rbrc.org/.
Caution: Do not handle damaged or leaking
Lithium-Ion batteries.
“Memory Stick”
THIS DEVICE COMPLIES WITH PART 15 OF
THE FCC RULES. OPERATION IS SUBJECT
TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE
HARMFUL INTERFERENCE, AND (2) THIS
DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE
UNDESIRED OPERAION.
THIS CLASS B DIGITAL APPARATUS
COMPLIES WITH CANADIAN ICES-003.
3
For the customers in the U.S.A.
If you have any questions about this product,
you may call:
Sony Customer Information Center 1-800-222-
SONY (7669)
The number below is for the FCC related
matters only.
Regulatory Information
Declaration of Conformity
Trade Name: SONY
Model No.: DCR-TRV240, DCR-
TRV340
Responsible Party: Sony Electronics Inc.
Address: 680 Kinderkamack
Road, Oradell,
NJ07649 U.S.A.
Telephone No.: 201-930-6972
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2)this device must accept any interference
received, including interference that may
cause undesired operation.
Declaration of Conformity
Trade Name: SONY
Model No.: DCR-TRV740, DCR-
TRV840
Responsible Party: Sony Electronics Inc.
Address: 680 Kinderkamack
Road, Oradell,
NJ07649 U.S.A.
Telephone No.: 201-930-6972
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2)this device must accept any interference
received, including interference that may
cause undesired operation.
CAUTION
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
Note:
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced
radio/TV technician for help.
The supplied interface cable must be used with
the equipment in order to comply with the
limits for a digital device pursuant to Subpart
B of Part 15 of FCC Rules.
4
Recording moving or still images, and playing them back
•Recording moving pictures on a tape (p. 21)
•Recording still images on a tape (p. 39)
•Playing back a tape (p. 34)
•Recording still images on “Memory Stick”s (except DCR-TRV240) (p. 124)
•Recording moving pictures on “Memory Stick”s (except DCR-TRV240) (p. 140)
•Viewing still images recorded on “Memory Stick”s (except DCR-TRV240) (p. 150)
•Viewing moving pictures on “Memory Stick”s (except DCR-TRV240) (p. 153)
Capturing images on your computer
•Viewing images recorded on “Memory Stick”s using the USB cable
(except DCR-TRV240) (p. 155)
•Viewing images recorded on a tape using the USB cable (p. 94)
•Viewing images live on your computer from your camcorder using the USB cable
(p. 103)
•Capturing images from an analog video unit on your computer (p. 88)
Other uses
Functions for adjusting exposure in the recording mode
•BACKLIGHT (p. 28)
•NightShot/Super NightShot/Color Slow Shutter (p. 29)
•PROGRAM AE (p. 51)
•Adjusting the exposure manually (p. 53)
Functions for giving images more impact
•Digital zoom [MENU] (p. 24) The default setting is OFF. (To zoom greater than 25×,
(DCR-TRV240/TRV340)/15× (DCR-TRV740/TRV840), select the digital zoom power
in D ZOOM in the menu settings.)
•Fader (p. 44)
•Picture effects (p. 47)
•Digital effects (p. 48)
•Titles (p. 58, 60)
•MEMORY MIX (except DCR-TRV240) (p. 129)
Functions for giving a natural appearance to your recordings
•Sports lesson (p. 51)
•Landscape (p. 51)
•Manual focus (p. 54)
Functions for use on recorded tapes
•END SEARCH/EDITSEARCH/Rec Review (p. 32)
•DATA CODE (p. 35)
•Tape PB ZOOM (p. 65)
•ZERO SET MEMORY (p. 67)
•Digital program editing (on tapes) (p. 74)/(on “Memory Stick”s) (except DCR-
TRV240) (p. 146)
Main features
b
Getting Started
5
Checking supplied accessories

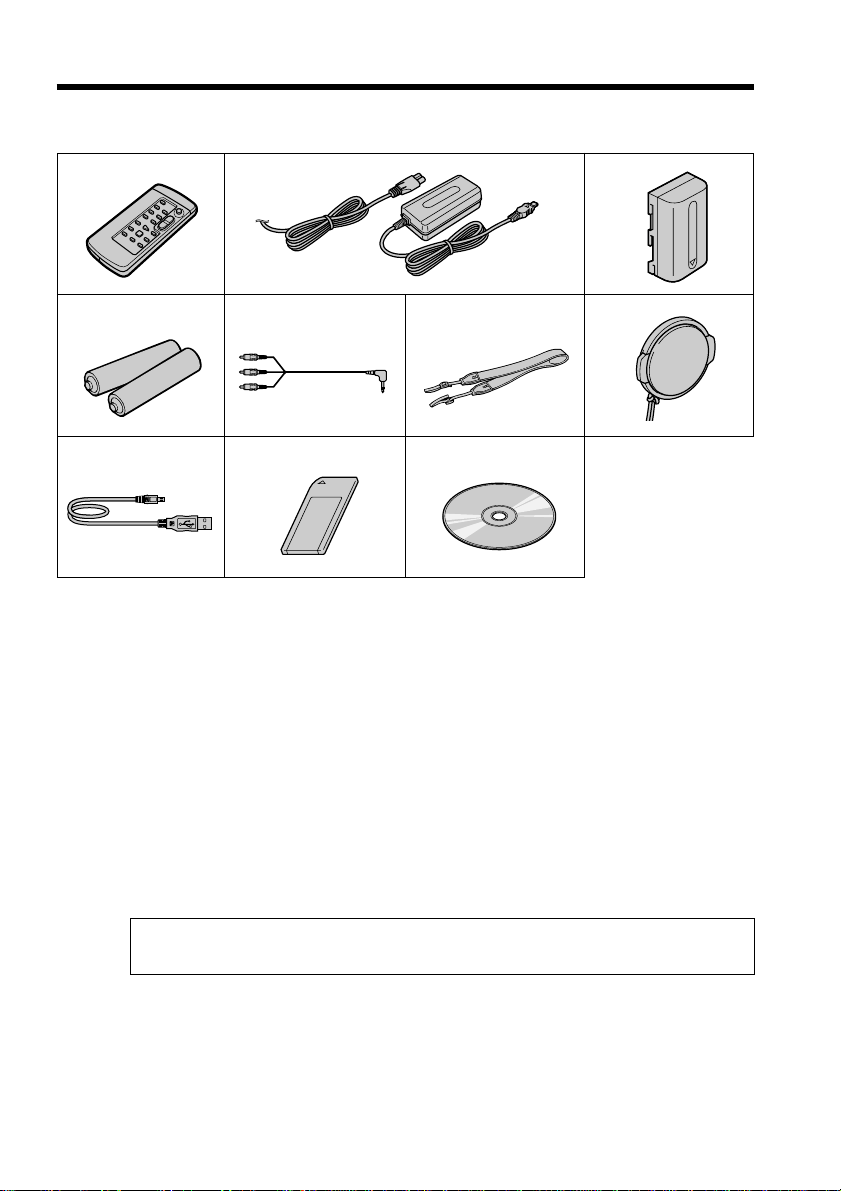

Make sure that the following accessories are supplied with your camcorder.
1 Wireless Remote Commander (1)
(p. 207)
2 AC-L10A/L10B/L10C AC power
adaptor (1), Power cord (1) (p. 13)
3 NP-FM30 battery pack (1) (p. 12, 13)
DCR-TRV240/TRV340
NP-FM50 battery pack (1) (p. 12, 13)
DCR-TRV740/TRV840
4 Size AA (R6) battery for Remote
Commander (2) (p. 207)
5 A/V connecting cable (1) (p. 38)
6 Shoulder strap (1) (p. 201)
7 Lens cap (1) (p. 21)
8 USB cable (1) (p. 96, 156)
9 “Memory Stick” (1)
(except DCR-TRV240) (p. 116)
0 CD-ROM (SPVD-008 USB Driver) (1)
(p. 96, 156)
12 3
45 6 7
89 0
Contents of the recording cannot be compensated if recording or playback is not
made due to a malfunction of the camcorder, storage media, etc.
6
Table of contents
Using the PROGRAM AE function .... 51
Adjusting the exposure manually ...... 53
Focusing manually................................ 54
Interval recording ................................. 55
Frame by frame recording
– Frame recording .......................... 57
Superimposing a title ........................... 58
Making your own titles ........................ 60
Inserting a scene .................................... 62
Advanced Playback Operations
Playing back tapes with picture
effects ............................................... 63
Playing back tapes with digital
effects ............................................... 64
Enlarging recorded images
– Tape PB ZOOM ........................... 65
Quickly locating a scene
– ZERO SET MEMORY ................. 67
Searching a recording by date
– DATE SEARCH ........................... 68
Searching for a photo – PHOTO
SEARCH/PHOTO SCAN ............. 69
Editing
Dubbing a tape ...................................... 71
Dubbing only desired scenes
– Digital program editing
(on tapes) ......................................... 74
Capturing images from an analog
video unit on your computer
– Signal convert function............... 88
Recording video or TV programs ....... 89
Inserting a scene from a VCR
– Insert Editing ............................... 92
Viewing images recorded on a tape
on your computer
(Windows users only).................... 94
Customizing Your Camcorder
Changing the menu settings.............. 105
Main features ........................................... 4
Checking supplied accessories.............. 5
Quick Start Guide............................. 8
Getting Started
Using this manual ................................. 10
Step 1 Preparing the power supply ... 12
Installing the battery pack ............ 12
Charging the battery pack............. 13
Connecting to a wall outlet ........... 17
Step 2 Setting the date and time ........ 18
Step 3 Inserting a cassette ................... 20
Recording – Basics
Recording a picture............................... 21
Shooting backlit subjects
– BACK LIGHT ........................ 28
Shooting in the dark
– NightShot/Super NightShot/
Color Slow Shutter .................. 29
Self-timer recording
(except DCR-TRV240) ............. 31
Checking recordings – END SEARCH/
EDITSEARCH/Rec Review .......... 32
Playback – Basics
Playing back a tape ............................... 34
To display the screen indicators
– Display function ................... 35
Viewing recordings on TV................... 38
Advanced Recording Operations
Recording still images on a tape
– Tape Photo recording ................. 39
Using the wide mode ........................... 42
Using the fader function ...................... 44
Using special effects
– Picture effect................................. 47
Using special effects
– Digital effect ................................. 48
Getting Started
7
Table of contents
“Memory Stick” operations
(except DCR-TRV240)
Using “Memory Stick”
– Introduction ............................... 116
Recording still images on
“Memory Stick”s
– Memory Photo recording ......... 124
Superimposing a still image in the
“Memory Stick” on an image
– MEMORY MIX .......................... 129
Recording images from a tape as still
images ............................................ 135
Copying still images from a tape
– PHOTO SAVE............................ 138
Recording moving pictures on
“Memory Stick”s
– MPEG movie recording ............ 140
Recording pictures from a tape as
moving pictures ............................ 142
Recording edited pictures as a
moving picture
– Digital program editing
(on “Memory Stick”s) .................. 146
Viewing still images
– Memory Photo playback .......... 150
Viewing moving pictures
– MPEG movie playback ............. 153

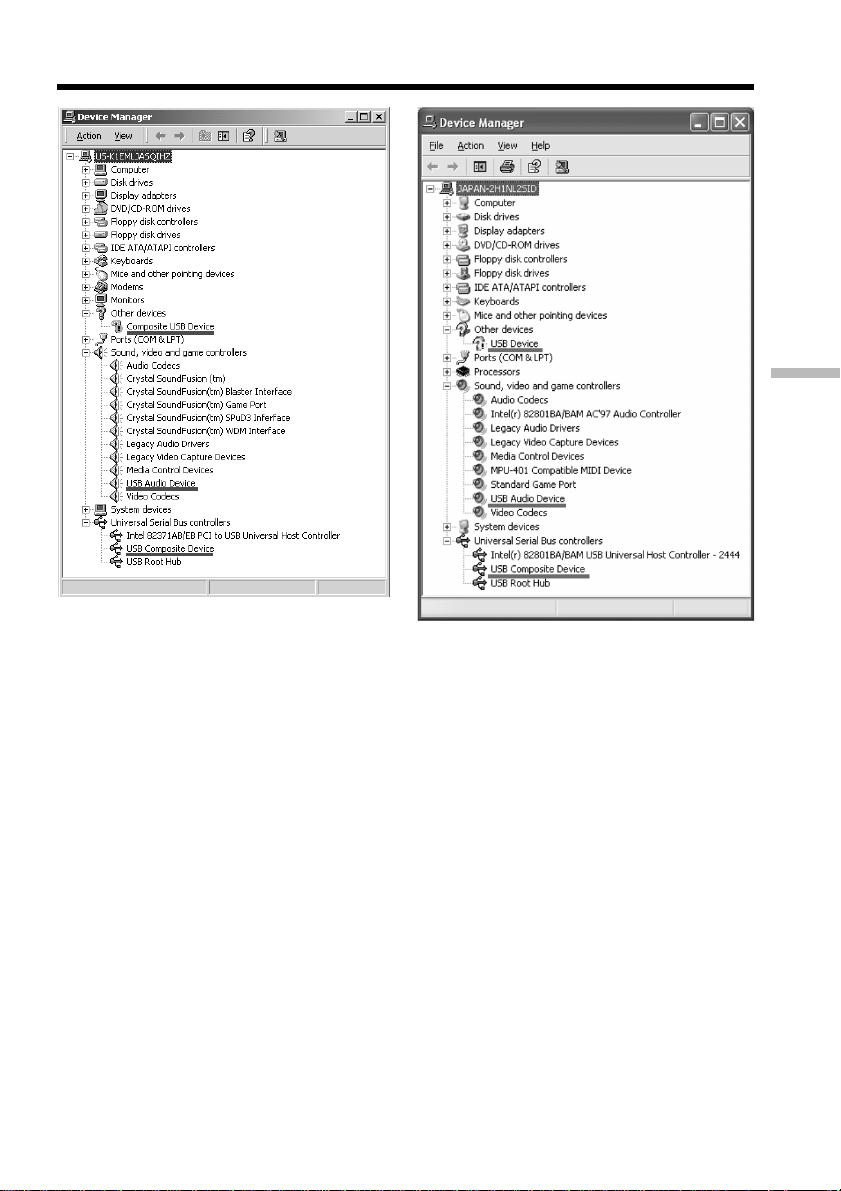

Viewing images recorded on
“Memory Stick”s on your
computer........................................ 155

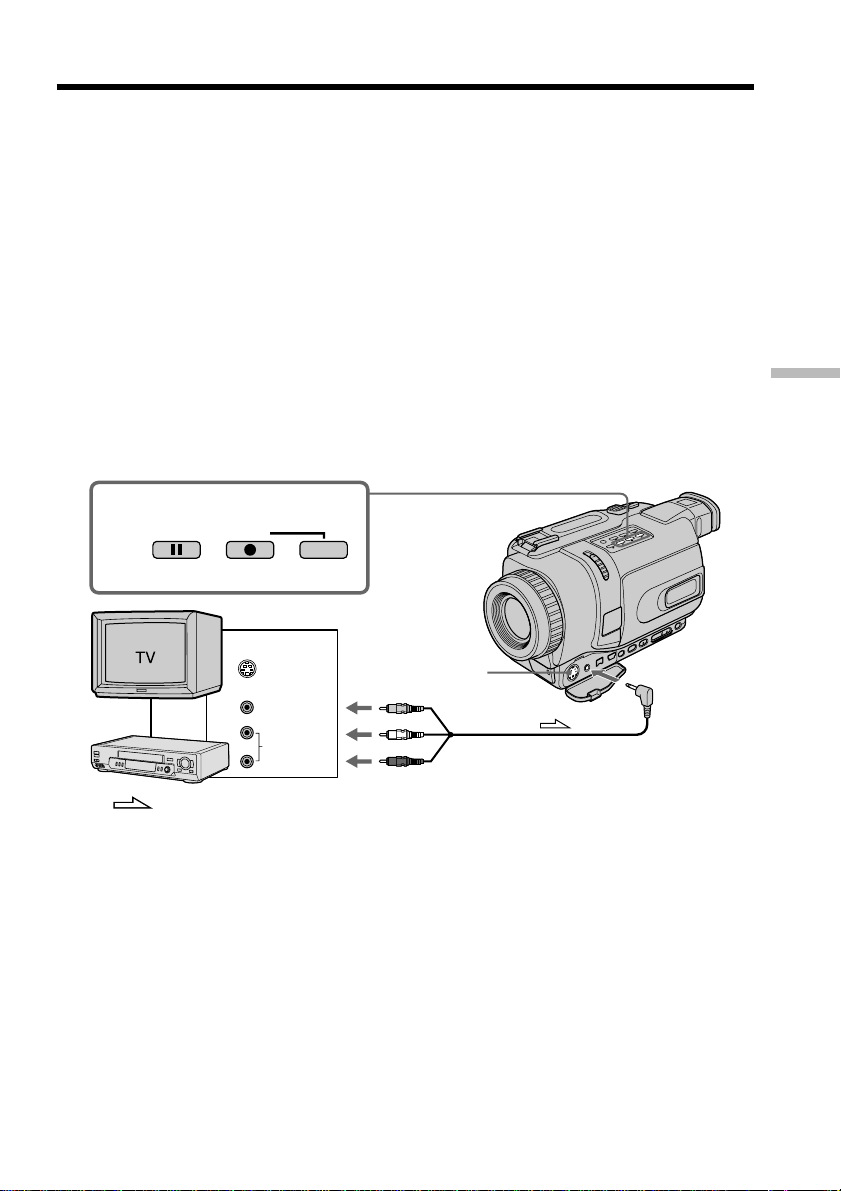

Copying images recorded on
“Memory Stick”s to tape ............. 164
Enlarging still images recorded on
“Memory Stick”s
– Memory PB ZOOM ................... 166
Playing back images in a continuous
loop – SLIDE SHOW .................... 168
Preventing accidental erasure
– Image protection........................ 170
Deleting images – DELETE ............... 171
Writing a print mark
– PRINT MARK ............................ 174
Using the optional printer ................. 176
Troubleshooting
Types of trouble and how to correct
trouble ............................................ 178
Self-diagnosis display......................... 184
Warning indicators and messages.... 185
Additional Information
Digital8 system, recording and
playback......................................... 187
About the “InfoLITHIUM” battery
pack ................................................ 189
About i.LINK ....................................... 191
Using your camcorder abroad .......... 193
Maintenance information and
precautions .................................... 194
Specifications ....................................... 199
Quick Reference

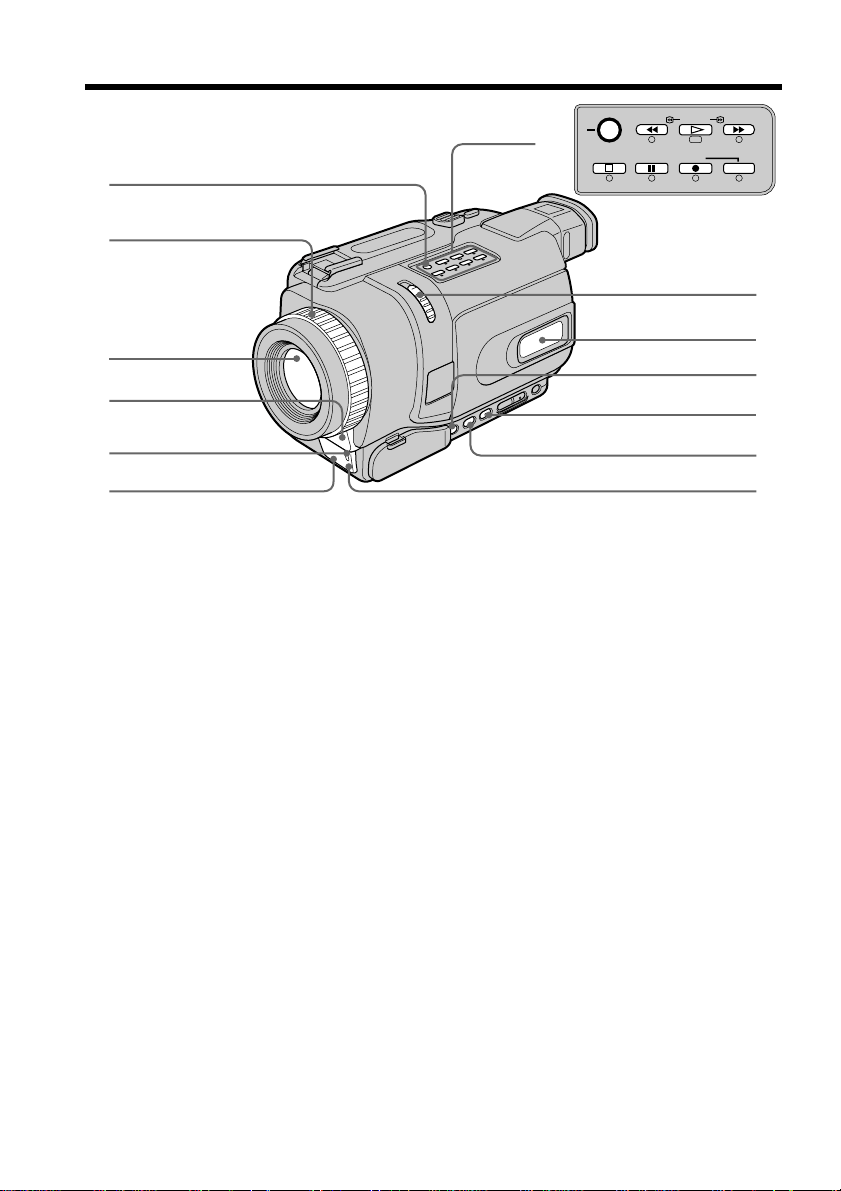

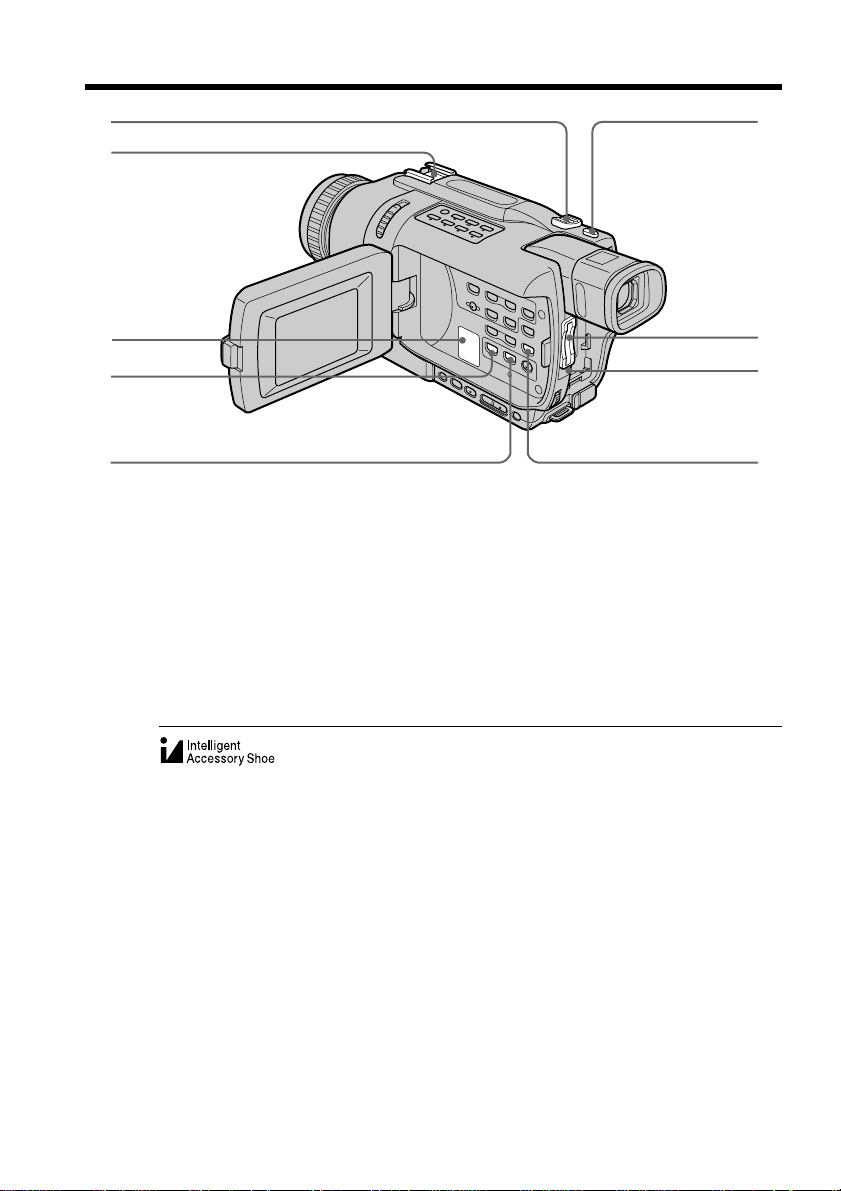

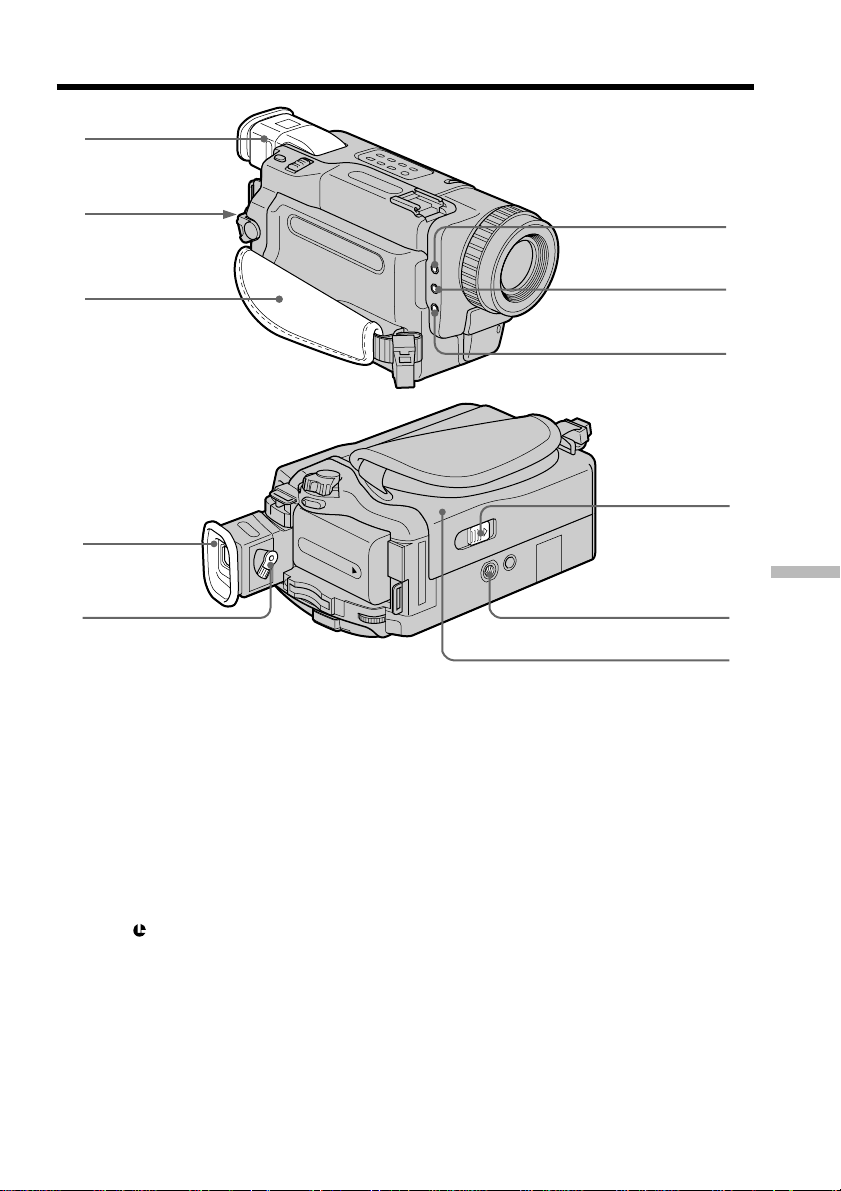

Identifying parts and controls........... 201
Index ..................................................... 209
Quick Start Guide
8

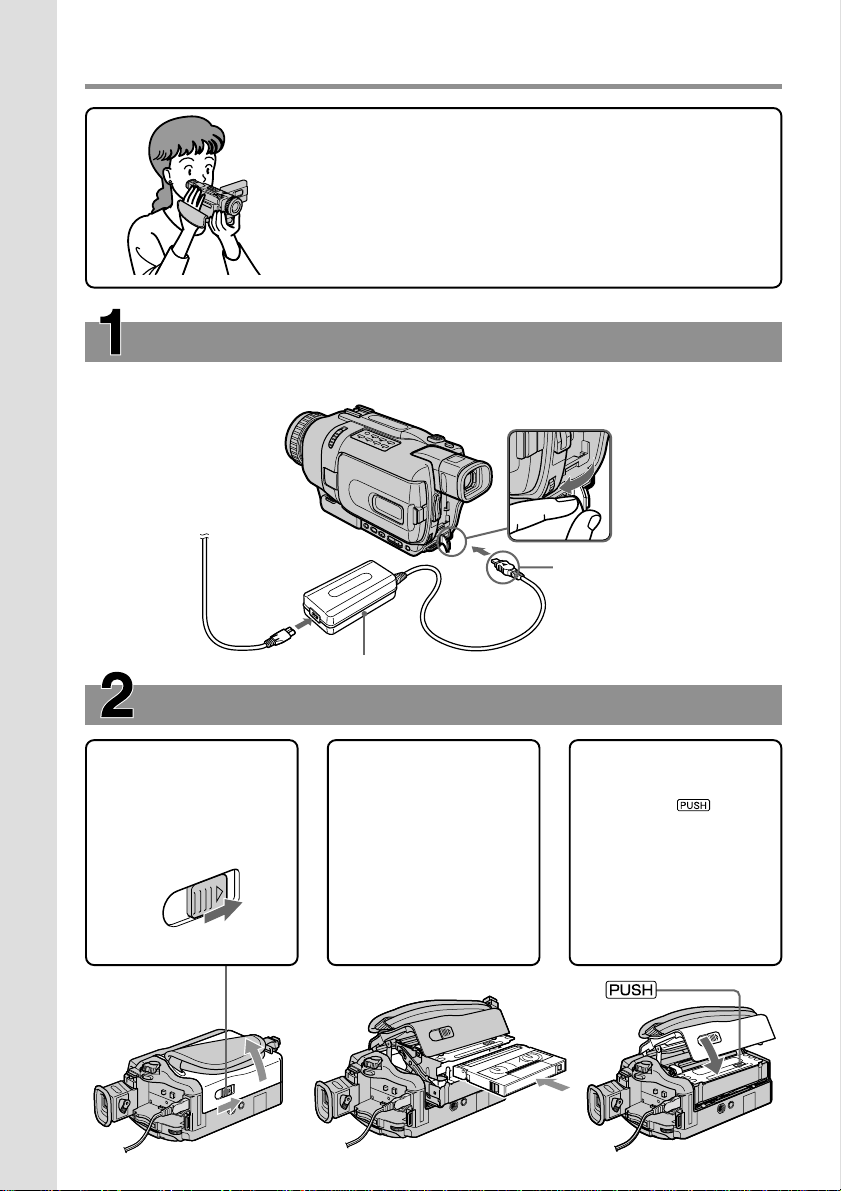

Quick Start Guide
This chapter introduces you to the basic features of your
camcorder. See the page in parentheses “( )” for more
information.
Inserting a cassette (p. 20)
Connecting the power cord (p. 17)
Use the battery pack when using your camcorder outdoors (p. 12).
1Slide OPEN/EJECT
in the direction of the
arrow and open the
lid.
2Insert the cassette in
straight as far as
possible into the
cassette
compartment with
the window facing
up.
Push the center of
the cassette back to
insert the cassette.
3Close the cassette
compartment by
pressing
on the
cassette
compartment.
After the cassette
compartment goes
down completely,
close the lid until it
clicks.
Open the DC IN
jack cover.
Connect the plug with
its v mark facing up.
AC power adaptor (supplied)
Quick Start Guide
9
Viewfinder
When the LCD panel is closed, use the viewfinder with your eye
against the eyecup.
The picture in the viewfinder is black and white.

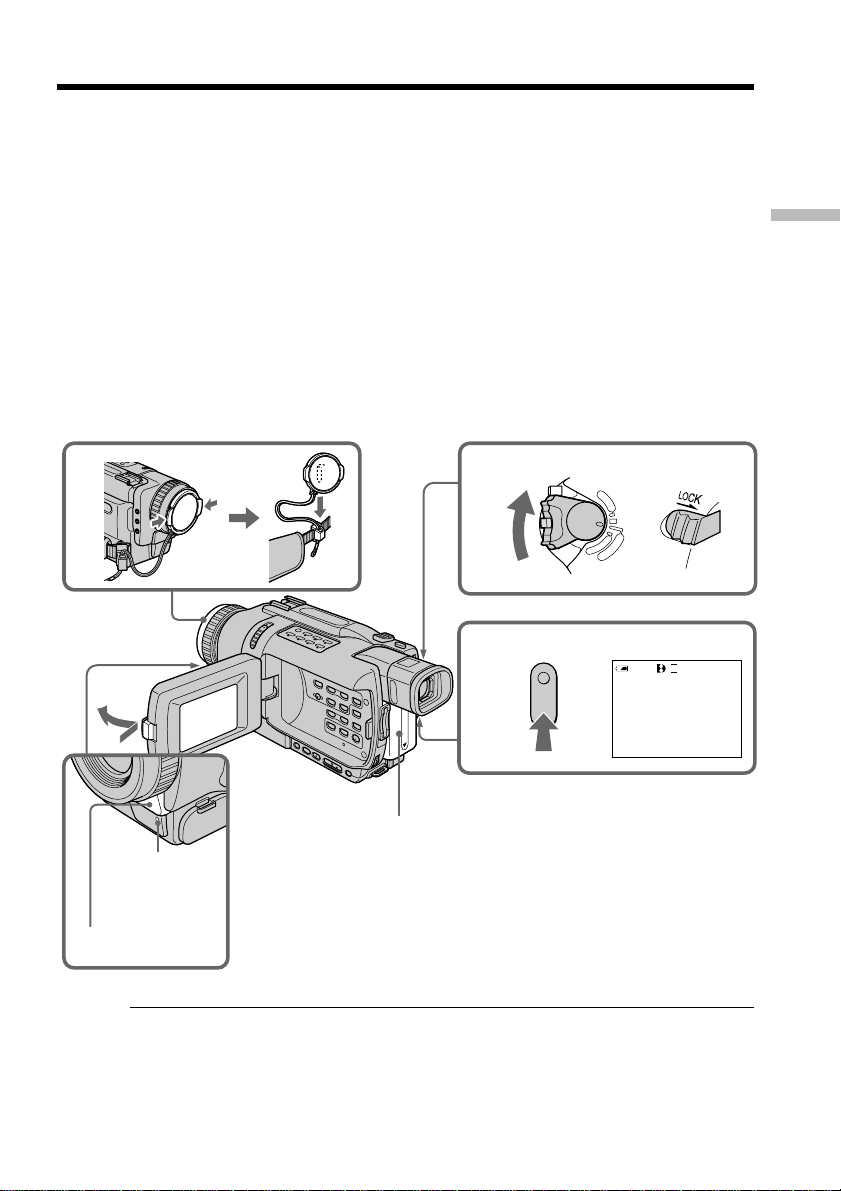

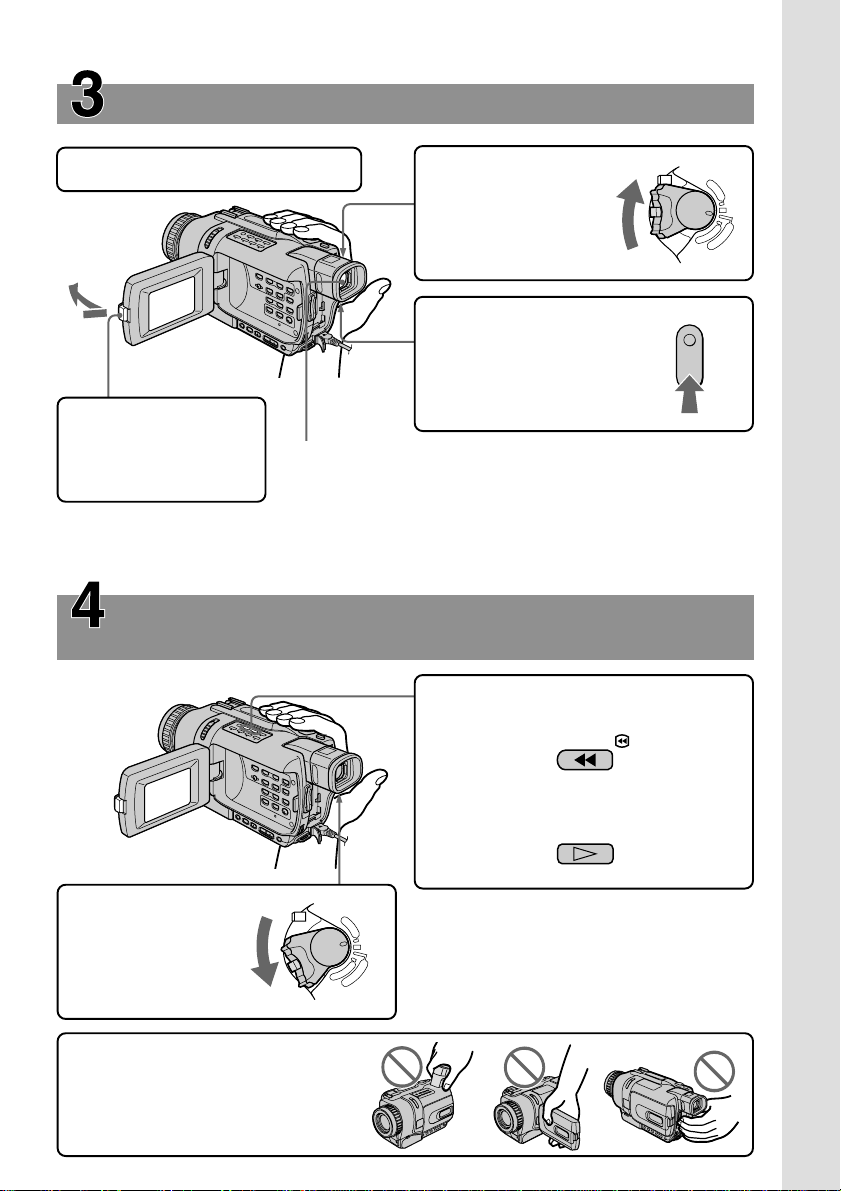

Recording a picture (p. 21)
3Open the LCD panel
while pressing OPEN.
The picture appears
on the LCD screen.
2Set the POWER
switch to CAMERA
while pressing the
small green button.
4Press START/STOP.
Your camcorder
starts recording. To
stop recording, press
START/STOP button
again.
1Remove the lens cap.
C
A
M
E
R
A
M
E
M
O
R
Y
V
C
R
O
F
F
(
C
H
G
)
POWER
When you purchase your camcorder, the clock setting is set to off. If you want to record the date
and time for a picture, set the clock setting before recording (p. 18).

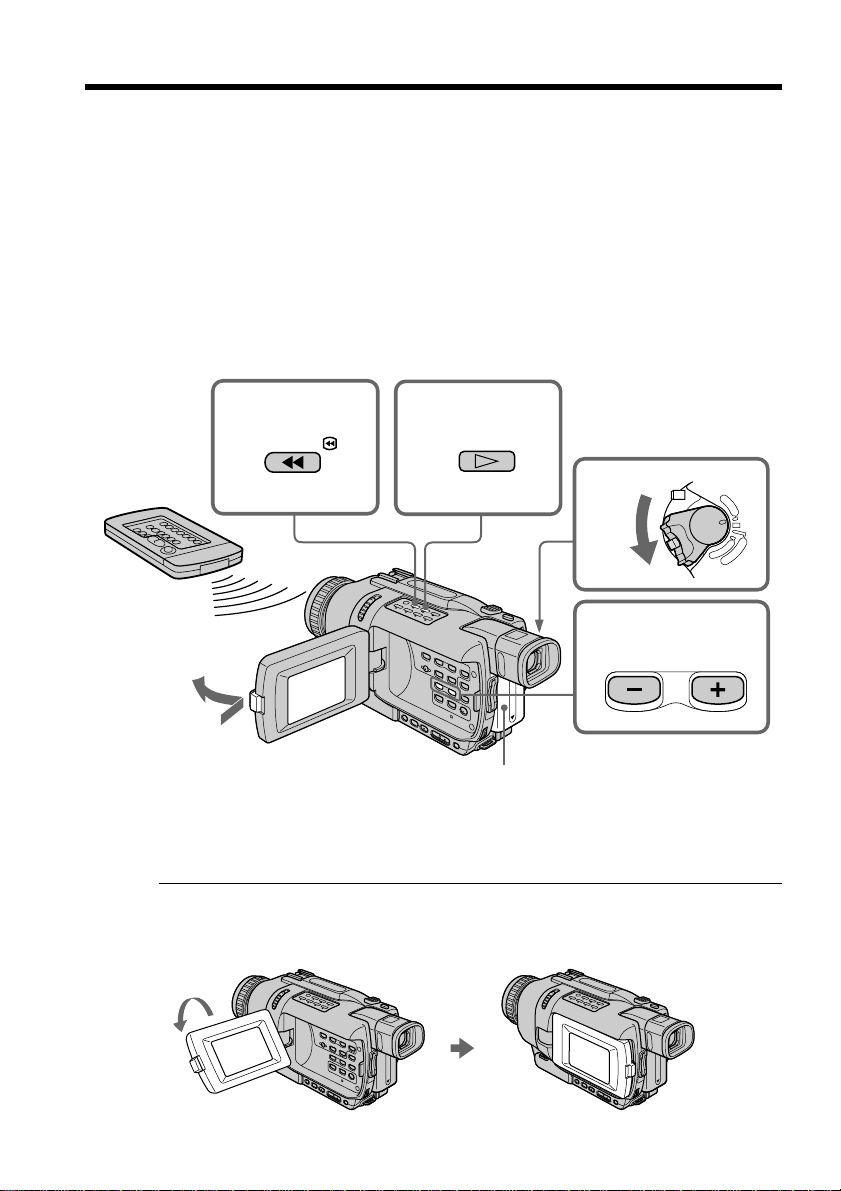

Monitoring the playback picture on the LCD
screen (p. 34)
2Press m to rewind the tape.
3Press N to start playback.
Note
Do not pick up your camcorder by
holding the viewfinder, the LCD
panel, or the battery pack.
1Set the POWER
switch to VCR while
pressing the small
green button.
C
A
M
E
R
A
M
E
M
O
R
Y
V
C
R
O
F
F
(
C
H
G
)
P
O
W
E
R
REW
PLAY
10
— Getting Started —
Using this manual
The instructions in this manual are for the four models listed in the table below. Before
you start reading this manual and operating your camcorder, check the model number
by looking at the bottom of your camcorder. The DCR-TRV740 is the model used for
illustration purposes. Otherwise, the model name is indicated in the illustrations. Any
differences in operation are clearly indicated in the text, for example, “except DCR-
TRV240.”
As you read through this manual, buttons and settings on your camcorder are shown in
capital letters.
e.g. Set the POWER switch to CAMERA.
When you carry out an operation, you can hear a beep to indicate that the operation is
being carried out.
Differences by camcorder model
DCR- TRV240 TRV340 TRV740 TRV840
MEMORY mark*
(on the POWER switch)
— zzz
Self-timer — zzz
Digital zoom 700× 700× 420× 420×
LCD Screen
6.2 cm 6.2 cm 6.2 cm 8.8 cm
(2.5 type) (2.5 type) (2.5 type) (3.5 type)
z Provided
— Not provided
* The models with MEMORY marked on the POWER switch is provided with memory
functions. See page 116 for details.
Before using your camcorder
With your digital camcorder, you can use Hi8 /Digital8 video cassettes. Your
camcorder records and plays back pictures in the Digital8 system. Also, your
camcorder plays back tapes recorded in the Hi8 /standard 8 (analog) system.
You, however, cannot use the functions in “Advanced Playback Operations” on page
63 to 70 for playback in the Hi8 /standard 8 system. To enable smooth transition,
we recommend that you do not mix pictures recorded in the Hi8 /standard 8
with the Digital8 system on a tape.
Note on TV color systems
TV color systems differ from country to country. To view your recordings on a TV, you
need an NTSC system-based TV.
Copyright precautions
Television programs, films, video tapes, and other materials may be copyrighted.
Unauthorized recording of such materials may be contrary to the provision of the
copyright laws.
11
Getting Started
Using this manual
Precautions on camcorder care
Lens and LCD screen/finder
• The LCD screen and the finder are manufactured using extremely high-precision
technology so over 99.99% of the pixels are operational for effective use.
However, there may be some tiny black points and/or bright points (white, red,
blue or green in color) that constantly appear on the LCD screen and the finder.
These points are normal in the manufacturing process and do not affect the
recording in any way.

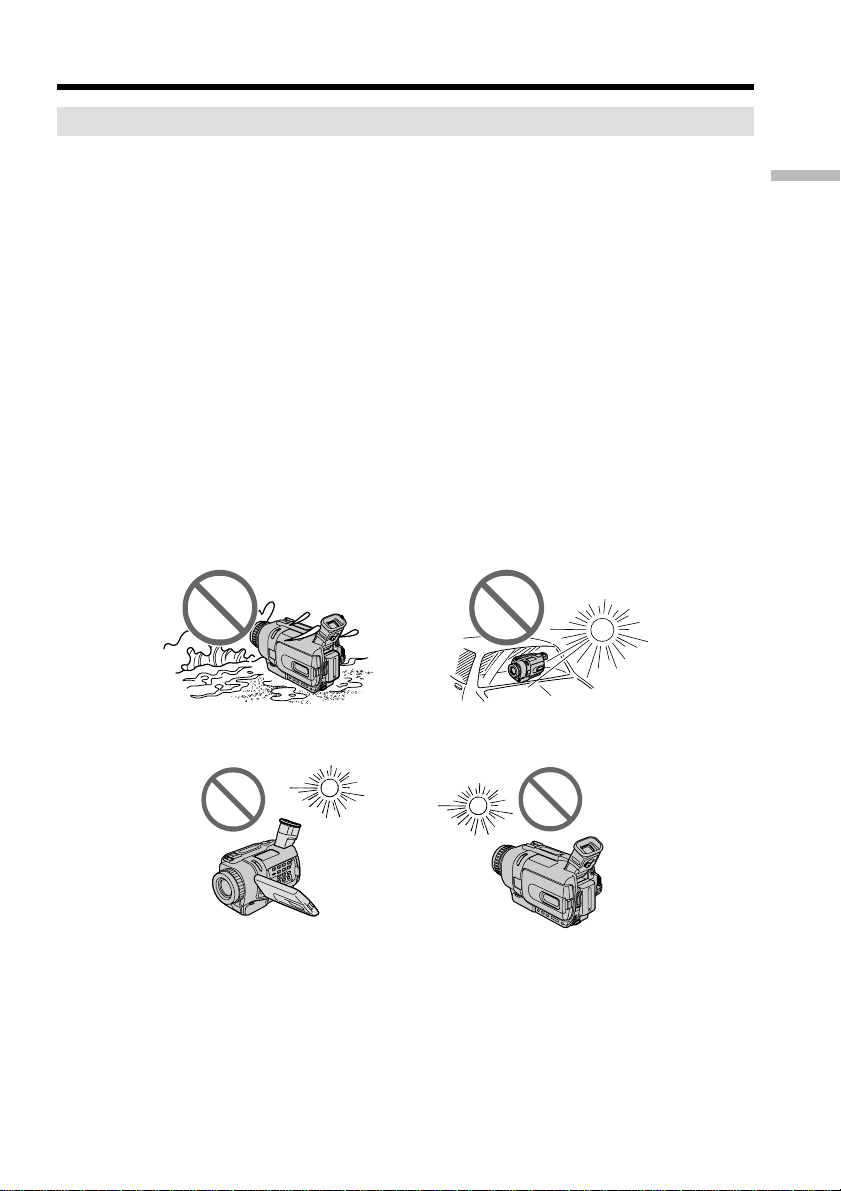

•Do not let your camcorder become wet. Keep your camcorder away from rain and sea
water. Letting your camcorder become wet may cause your camcorder to malfunction.
Sometimes this malfunction cannot be repaired [a].
•Never leave your camcorder exposed to temperatures above 60°C (140°F), such as in a
car parked in the sun or under direct sunlight [b].
•Be careful when placing the camera near a window or outdoors. Exposing the LCD
screen, the finder or the lens to direct sunlight for long periods may cause
malfunctions [c].
•Do not directly shoot the sun. Doing so might cause your camcorder to malfunction.
Take pictures of the sun in low light conditions such as dusk [d].
[a] [b]
[c]
[d]
12

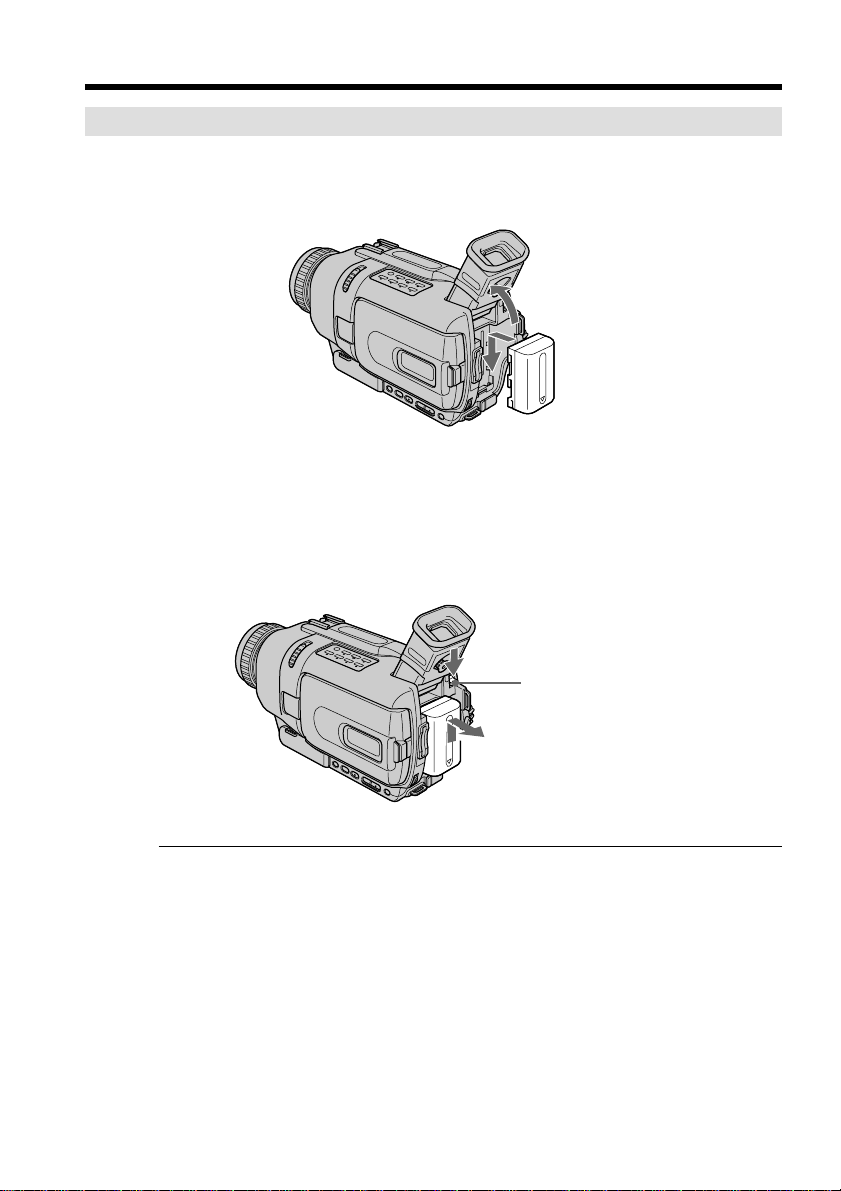

Installing the battery pack
(1) Lift up the viewfinder.
(2) Slide the battery pack down until it clicks.
To remove the battery pack
(1) Lift up the viewfinder.
(2) Slide the battery pack out in the direction of the arrow while pressing BATT
(battery) release lever down.

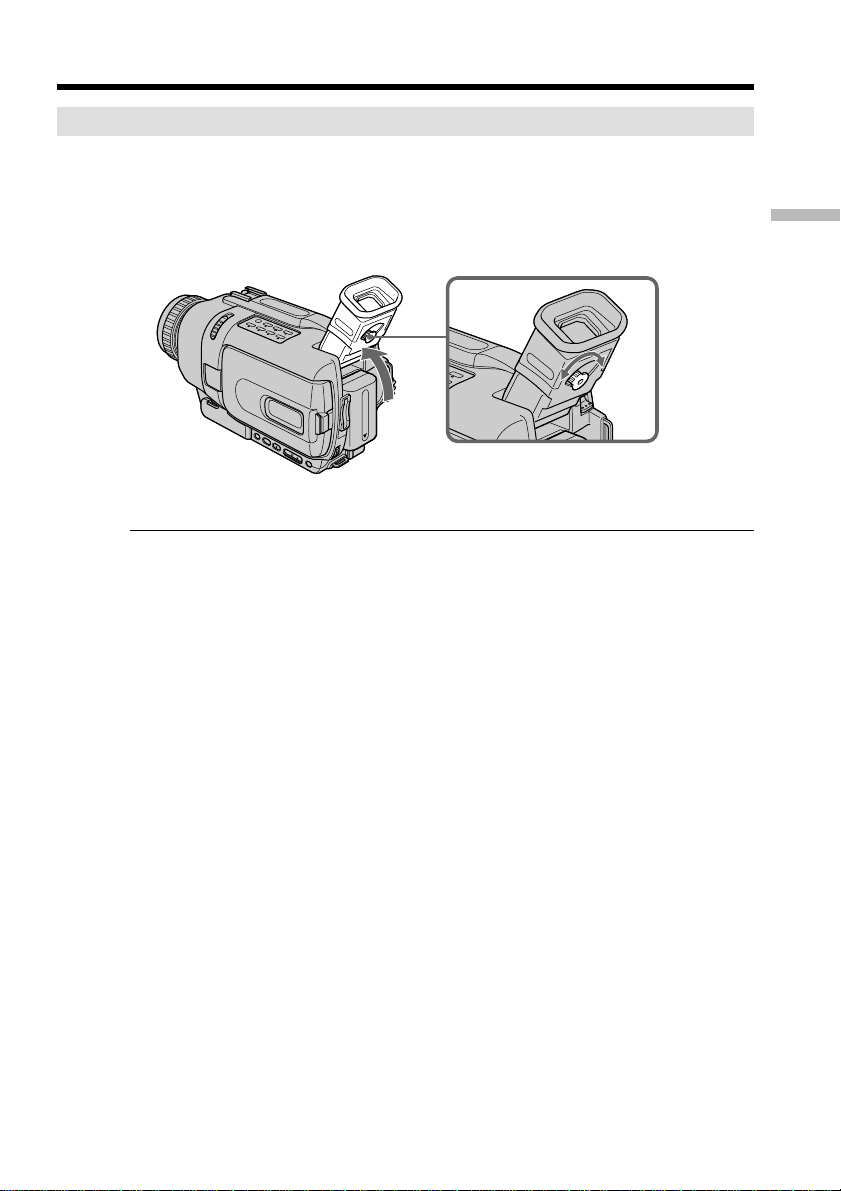

If you install the large-capacity battery pack
If you install the NP-FM70/QM71/FM90/QM91/FM91 battery pack on your
camcorder, extend its viewfinder.
Step 1 Preparing the power supply
1
2
BATT (battery)
release lever
13
Getting Started

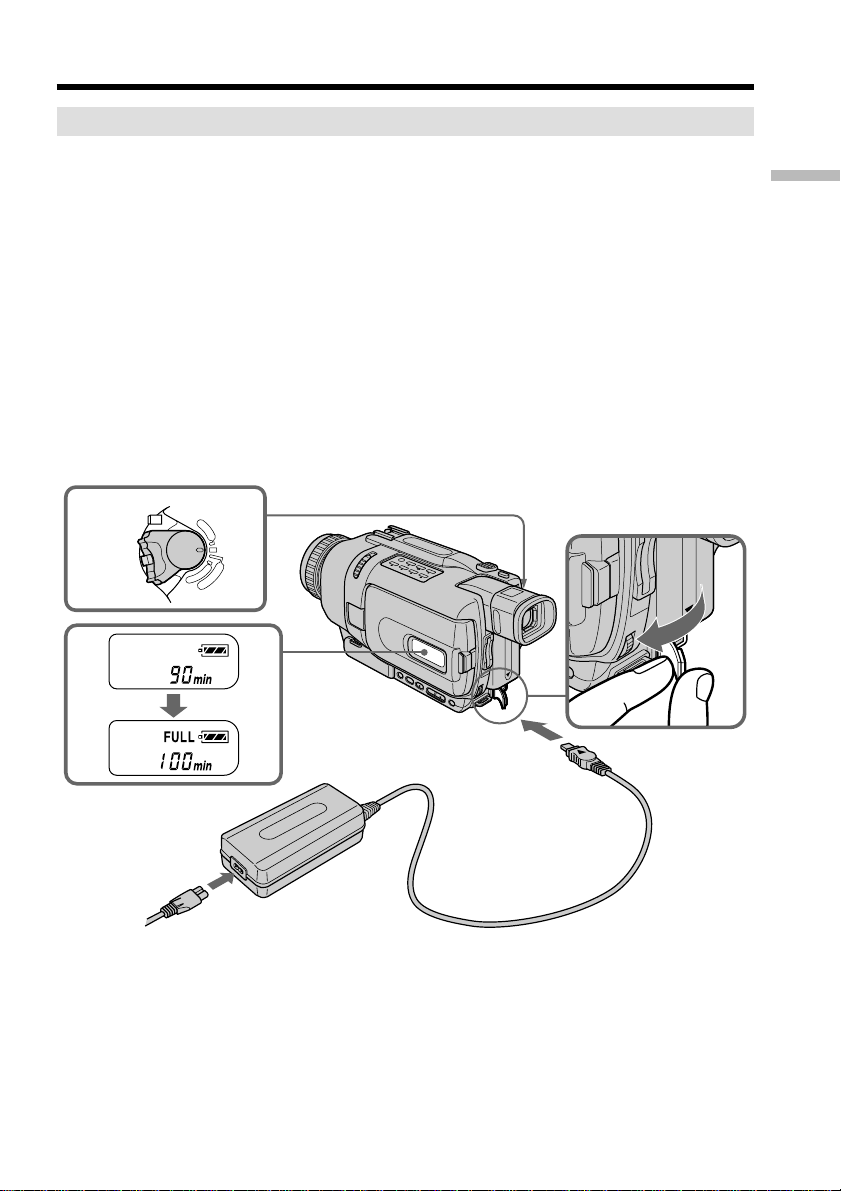

Charging the battery pack
Use the battery pack after charging it for your camcorder.
Your camcorder operates only with the “InfoLITHIUM” battery pack (M series).
See page 189 for details of “InfoLITHIUM” battery pack.
(1) Open the DC IN jack cover and connect the AC power adaptor supplied with
your camcorder to the DC IN jack with the plug’s v mark facing up.
(2) Connect the power cord to the AC power adaptor.
(3) Connect the power cord to a wall outlet.
(4) Set the POWER switch to OFF (CHG). Charging begins. The remaining battery
time is indicated in minutes on the display window.
When the remaining battery indicator changes to u, normal charge is completed. To
fully charge the battery (full charge), leave the battery pack attached after normal
charge is completed until FULL appears on the display window. Fully charging the
battery allows you to use the battery longer than usual.
The number in the illustration of the display window may differ from that on your
camcorder.
After charging the battery pack
Disconnect the AC power adaptor from the DC IN jack on your camcorder.
Step 1 Preparing the power supply
4
1
2
C
A
M
E
R
A
M
E
M
O
R
Y
V
C
R
O
F
F
(
C
H
G
)
POW
ER
14
Step 1 Preparing the power supply
Note
Prevent metallic objects from coming into contact with the metal parts on the DC plug
of the AC power adaptor. This may cause a short-circuit, damaging the AC power
adaptor.
When the battery pack is charged fully
The LCD backlight of the display window is turned off.
Remaining battery time indicator
The remaining battery time indicator in the display window roughly indicates the
recording time when recording using the viewfinder.
Until your camcorder calculates the actual remaining battery time
“– – – – min” appears in the display window.
While charging the battery pack
No indicator appears or the indicator flashes in the display window in the following
cases:
– The battery pack is not installed correctly.
– Something is wrong with the battery pack.
If the power may go off although the remaining battery time indicator indicates
that the battery pack has enough power to operate
Charge the battery pack fully again so that the indication on the remaining battery time
indicator is correct.
When you use the AC power adaptor
Place the AC power adaptor near a wall outlet. If any trouble occurs with this unit,
disconnect the plug from the wall outlet as soon as possible to cut off the power.
Recommended charging temperature
We recommend charging the battery pack in an ambient temperature of between 10°C
to 30°C (50°F to 86°F).
What is ”InfoLITHIUM”?
The “InfoLITHIUM” is a lithium ion battery pack that can exchange data such as
battery consumption with compatible electronic equipment. This unit is compatible
with the “InfoLITHIUM” battery pack (M series). Your camcorder operates only with
the “InfoLITHIUM” battery. “InfoLITHIUM” M series battery packs have the
SERIES
TM
mark.
“InfoLITHIUM” is a trademark of Sony Corporation.
15
Getting Started
Step 1 Preparing the power supply
Charging time
Battery pack Full charge (Normal charge)
NP-FM30
1)
145 (85)
NP-FM50
2)
150 (90)
NP-FM70 240 (180)
NP-QM71 260 (200)
NP-FM90 330 (270)
NP-QM91/FM91 360 (300)
The charging time may increase if the battery’s temperature is extremely high or low
because of the ambient temperature.
Approximate number of minutes to charge an empty battery pack at 25°C (77°F)
1)
Supplied with DCR-TRV240/TRV340
2)
Supplied with DCR-TRV740/TRV840
Recording time
DCR-TRV240/TRV340
Recording with Recording with
Battery pack the viewfinder the LCD screen
Continuous* Typical** Continuous* Typical**
NP-FM30 (supplied) 100 55 80 45
NP-FM50 165 95 130 75
NP-FM70 345 200 270 155
NP-QM71 400 230 315 180
NP-FM90 520 300 410 235
NP-QM91/FM91 605 350 475 275
DCR-TRV740
Recording with Recording with
Battery pack the viewfinder the LCD screen
Continuous* Typical** Continuous* Typical**
NP-FM30 85 45 70 40
NP-FM50 (supplied) 140 80 110 60
NP-FM70 295 170 240 135
NP-QM71 340 195 275 155
NP-FM90 450 260 360 205
NP-QM91/FM91 520 300 420 240
DCR-TRV840
Recording with Recording with
Battery pack the viewfinder the LCD screen
Continuous* Typical** Continuous* Typical**
NP-FM30 85 45 65 35
NP-FM50 (supplied) 140 80 105 60
NP-FM70 295 170 225 130
NP-QM71 340 195 265 150
NP-FM90 450 260 345 200
NP-QM91/FM91 520 300 400 230
16
Step 1 Preparing the power supply
Approximate number of minutes when you use a fully charged battery
* Approximate continuous recording time at 25°C (77°F). The battery life will be
shorter if you use your camcorder in a cold environment.
** Approximate number of minutes when recording while you repeat recording start/
stop, zooming and turning the power on/off. The actual battery life may be shorter
Playing time
DCR-TRV240/TRV340
Battery pack
Playing time Playing time
on LCD screen with LCD closed
NP-FM30 (supplied) 80 110
NP-FM50 130 180
NP-FM70 270 370
NP-QM71 315 430
NP-FM90 410 560
NP-QM91/FM91 475 645
DCR-TRV740
Battery pack
Playing time Playing time
on LCD screen with LCD closed
NP-FM30 80 105
NP-FM50 (supplied) 135 170
NP-FM70 275 355
NP-QM71 325 415
NP-FM90 425 540
NP-QM91/FM91 490 625
DCR-TRV840
Battery pack
Playing time Playing time
on LCD screen with LCD closed
NP-FM30 75 105
NP-FM50 (supplied) 125 170
NP-FM70 265 355
NP-QM71 305 415
NP-FM90 400 540
NP-QM91/FM91 465 625
Approximate number of minutes when you use a fully charged battery
Approximate continuous playing time at 25°C (77°F). The battery life will be shorter if
you use your camcorder in a cold environment.
Note
The table shows the playing time for tapes recorded in the Digital8 system. The
playing time of tapes recorded in the Hi8/standard 8 system is reduced by about 20%..
17
Getting Started

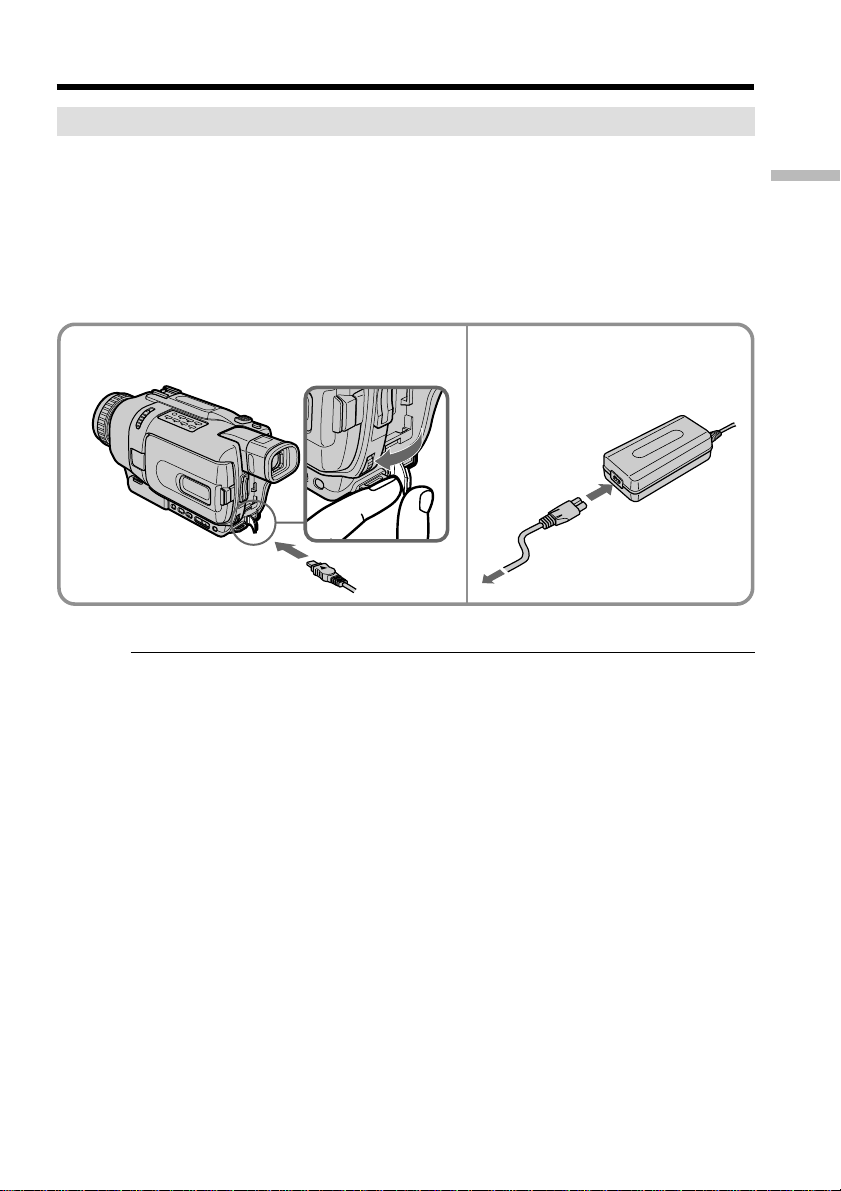

Connecting to a wall outlet
When you use your camcorder for a long time, we recommend that you power it from a
wall outlet using the AC power adaptor.
(1) Open the DC IN jack cover, and connect the AC power adaptor to the DC IN
jack on your camcorder with the plug’s v mark facing up.
(2) Connect the power cord to the AC power adaptor.
(3) Connect the power cord to a wall outlet.
PRECAUTION
The set is not disconnected from the AC power source (house current) as long as it is
connected to the wall outlet, even if the set itself has been turned off.
Notes
•The AC power adaptor can supply power even if the battery pack is attached to your
camcorder.
•The DC IN jack has “source priority”. This means that the battery pack cannot supply
any power if the power cord is connected to the DC IN jack, even when the power
cord is not plugged into a wall outlet.
Using a car battery
Use Sony Car Battery Adaptor (optional).
2, 3
1
Step 1 Preparing the power supply
18

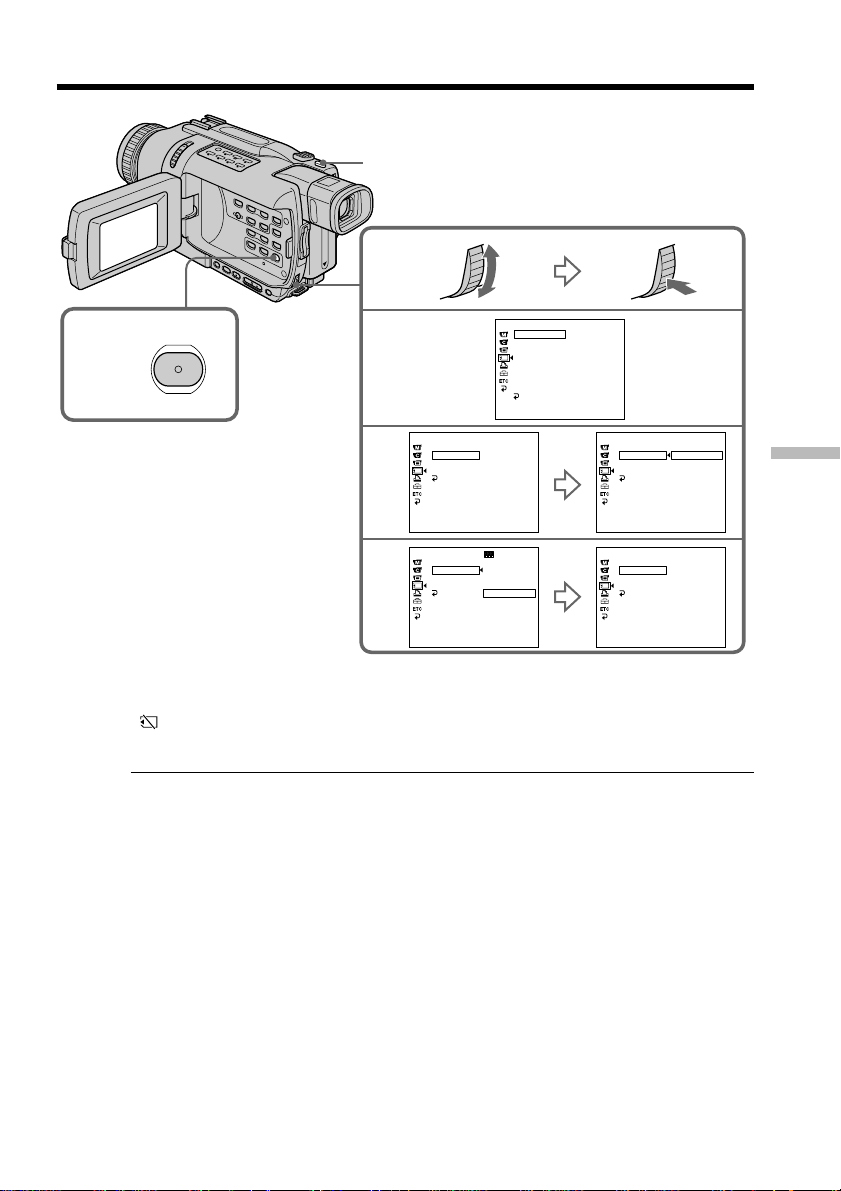

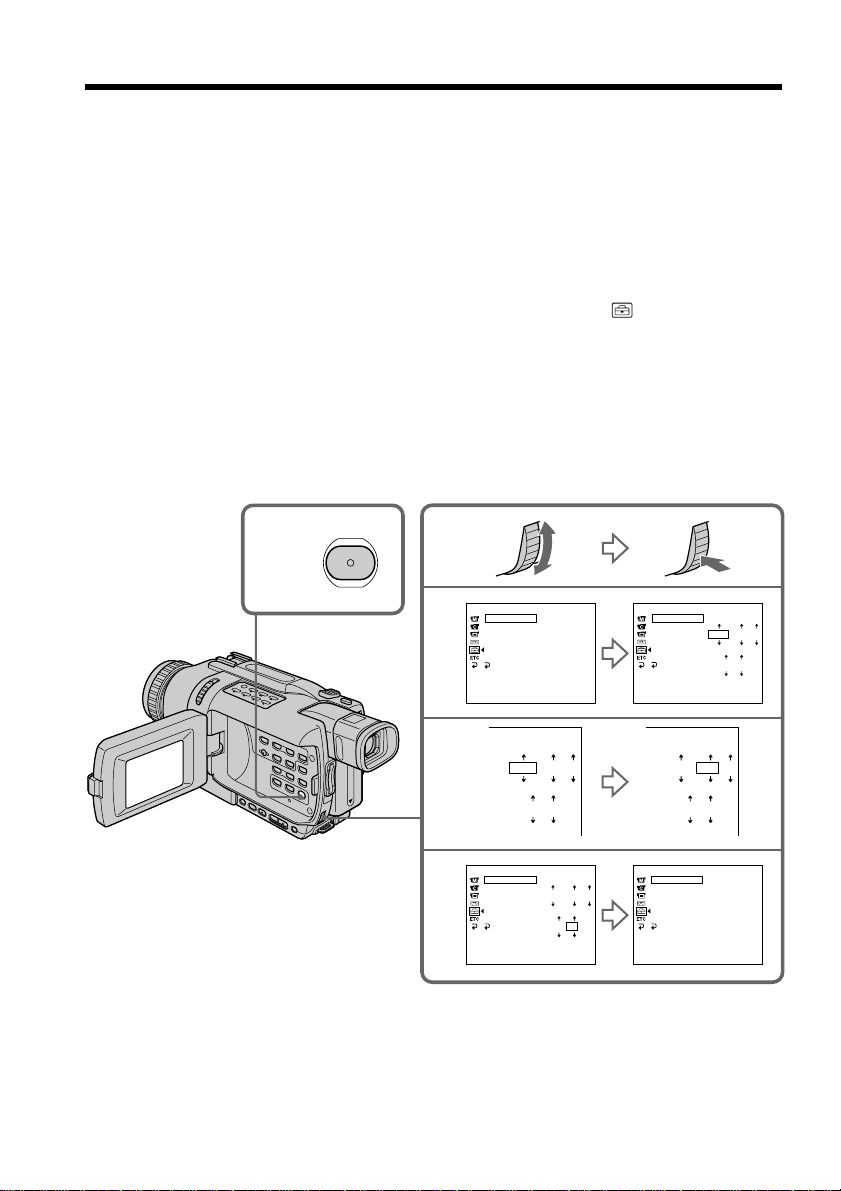

Step 2 Setting the date and time
Set the date and time settings when you use your camcorder for the first time.
“CLOCK SET” will be displayed each time that you set the POWER switch to
CAMERA/MEMORY (except DCR-TRV240) unless you set the date and time settings.
If you do not use your camcorder for about half a year, the date and time settings may
be cleared from memory (bars may appear) because the built-in rechargeable battery
installed in your camcorder will have been discharged (p. 196).
Set the year, then the month, the day, the hour and then the minute.
(1) Set the POWER switch to CAMERA or MEMORY (except DCR-TRV240), and
then press MENU to display the menu settings.
(2) Turn the SEL/PUSH EXEC dial to select CLOCK SET in
, then press the
dial.
(3) Turn the SEL/PUSH EXEC dial to adjust the desired year, then press the dial.
(4) Set the month, day and hour by turning the SEL/PUSH EXEC dial and
pressing the dial.
(5) Set the minute by turning the SEL/PUSH EXEC dial and pressing the dial by
the time signal. The clock starts to move.
(6) Press MENU to make the menu settings disappear.
1,6
MENU
2
3
5
SETUP MENU
CLOCK SET
USB STREAM
USBCONNECT
LTR SIZE
LANGUAGE
DEMO MODE
RETURN
– –
:
– –
:
– –
[
MENU
]
:
END
SETUP MENU
CLOCK SET
USB STREAM
USB
CONNECT
LTR SIZE
LANGUAGE
DEMO MODE
RETURN
2002 JAN 1
12 00 AM
[
MENU
]
:
END
SETUP MENU
CLOCK SET
USB STREAM
USBCONNECT
LTR SIZE
LANGUAGE
DEMO MODE
RETURN
2002 JUL 4
5 30 PM
[
MENU
]
:
END
SETUP MENU
CLOCK SET
USB STREAM
USBCONNECT
LTR SIZE
LANGUAGE
DEMO MODE
RETURN
JUL 4 2002
5
:
30
:
00 PM
[
MENU
]
:
END
2002 JAN 1
12 00 AM
2002 JAN 1
12 00 AM
19
Getting Started
Step 2 Setting the date and time
The year changes as follows:
If you do not set the date and time
“--- -- ----” “--:--:--” is recorded on the tape and the “Memory Stick”.
(except DCR-TRV240)
Note on the time indicator
The internal clock of your camcorder operates on a 12-hour cycle.
•12:00 AM stands for midnight.
•12:00 PM stands for noon.
1995 T · · · · t 2002 T · · · · t 2079
20

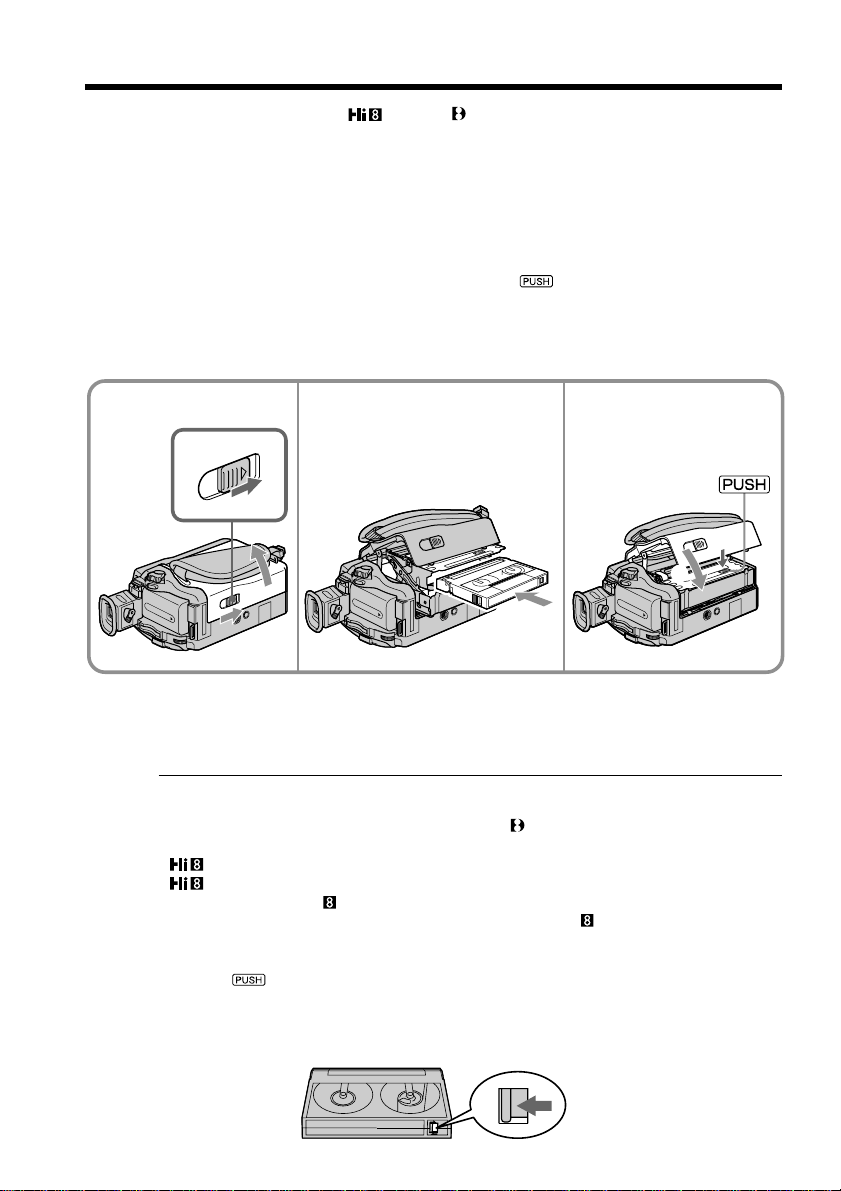

We recommend using Hi8 /Digital8 video cassettes.
(1) Prepare the power source (p. 12).
(2) Slide OPEN/EJECT in the direction of the arrow and open the lid.
The cassette compartment automatically lifts up and opens.
(3) Insert the cassette straight as far as possible into the cassette compartment with
the window facing up.
Push the center of the cassette back to insert.
(4) Close the cassette compartment by pressing
on the cassette compartment.
The cassette compartment automatically goes down.
(5) After the cassette compartment going down completely, close the lid until it
clicks.
To eject a cassette
Follow the procedure above, and take out the cassette in step 3.
Notes
•Do not press the cassette compartment down. Doing so may cause a malfunction.
•Your camcorder records pictures in the Digital8 system.
• The recording time when you use your camcorder is half of indicated time on Hi8
tape. If you select the LP mode in the menu settings, 3/4 of indicated time on Hi8
tape.
•If you use standard 8 tape, be sure to play back the tape on your camcorder. Mosaic
pattern noise may appear when you play back standard 8 tape on other camcorders
(including other DCR-TRV240/TRV340/TRV740/TRV840).
•The cassette compartment may not be closed when you press any part of the lid other
than the mark.
To prevent accidental erasure
Slide the write-protect tab on the cassette to expose the red mark.
Step 3 Inserting a cassette
2 3
4,5
4
5
21
Recording
– Basics
Your camcorder automatically focuses for you.
(1) Remove the lens cap by pressing both knobs on its sides and attach the lens
cap to the grip strap.
(2) Install the power source and insert a cassette. See “Step 1” to “Step 3” for more
information (p. 12 to 20).
(3) Set the POWER switch to CAMERA while pressing the small green button.
This sets your camcorder to the standby mode.
(4) Open the LCD panel while pressing OPEN. The viewfinder automatically
turns off.
(5) Press START/STOP. Your camcorder starts recording. The REC indicator
appears on the screen. The camera recording lamp located on the front of your
camcorder lights up. To stop recording, press START/STOP again.
The recording lamp lights up in the viewfinder when you record with the
viewfinder.
Notes
•Fasten the grip strap firmly.
•Do not touch the built-in microphone during recording.
— Recording – Basics —
Recording a picture
5
3
4
1
2
50min
REC
0:00:01
SP
C
A
M
E
R
A
M
E
M
O
R
Y
V
C
R
O
F
F
(
C
H
G
)
P
O
W
E
R
Camera
recording lamp
Microphone
22
Note on recording mode
Your camcorder records and plays back in the SP (standard play) mode and in the LP
(long play) mode. Select SP or LP in the menu settings (p. 105). In the LP mode, you can
record 1.5 times as long as in the SP mode. When you record a tape in the LP mode on
your camcorder, we recommend that you play back the tape on your camcorder.
Note on the LOCK switch (except DCR-TRV240)
When you slide the LOCK switch to the right, the POWER switch can no longer be set
to MEMORY accidentally. The LOCK switch is released as the default setting.
To enable smooth transition
Transition between the last scene you recorded and the next scene is smooth as long as
you do not eject the cassette even if you turn off your camcorder.
However, check the following:
– Do not mix recordings in the SP mode and in the LP mode on one tape.
– When you change the battery pack, set the POWER switch to OFF (CHG).
If you leave your camcorder in the standby mode for three minutes while the
cassette is inserted
Your camcorder automatically turns off. This is to save battery power and to prevent
battery and tape wear. To resume the standby mode, set the POWER switch to OFF
(CHG) once, then turn it to CAMERA again. However, your camcorder does not turn
off automatically while the cassette is not inserted.
When you record in the SP and LP modes on one tape or you record some scenes
in the LP mode
•The transition between scenes may not be smooth.
•The playback picture may be distorted or the time code may not be written properly
between scenes.
Recording data
The recording data (date/time or various settings when recorded) are not displayed
while recording. However, they are recorded automatically onto the tape. To display
the recording data, press DATA CODE on the Remote Commander during playback.
After recording
(1) Set the POWER switch to OFF (CHG).
(2) Close the LCD panel.
(3) Eject the cassette.
(4) Remove the battery pack.
Recording a picture
23
Recording
– Basics

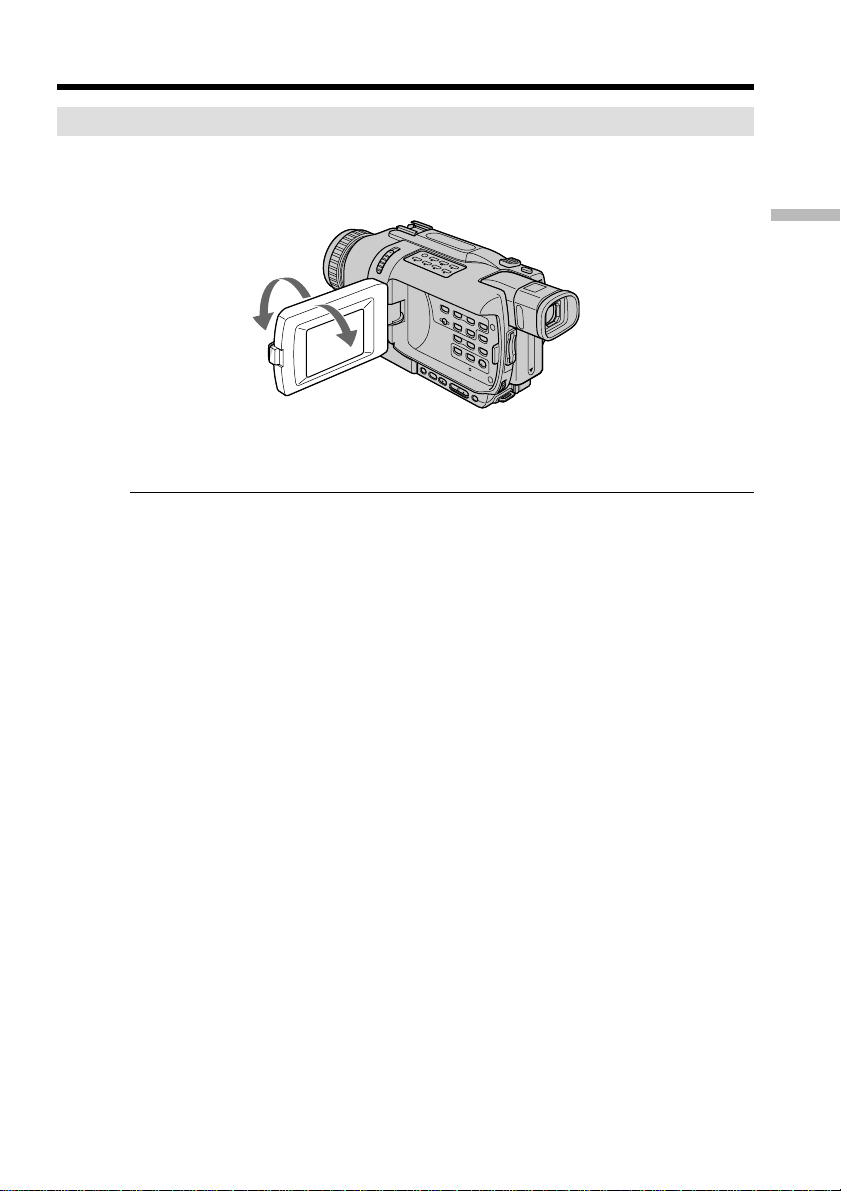

Adjusting the LCD screen
The LCD panel can be opened up to 90 degrees. The LCD panel moves about 90 degrees
to the viewfinder side and about 180 degrees to the lens side.
When closing the LCD panel, set it vertically until it clicks, and swing it into the
camcorder body.
Note
When using the LCD screen except in the mirror mode, the viewfinder automatically
turns off.
When you use the LCD screen outdoors in direct sunlight
The LCD screen may be difficult to see. If this happens, we recommend that you use the
viewfinder.
When you adjust angles of the LCD panel
Make sure if the LCD panel is opened up to 90 degrees.
When recording with the LCD panel opened
Recording time becomes shorter a little compared with when recording with the LCD
panel closed.
Brightness of the LCD screen
You can adjust the brightness of the LCD screen. Select LCD B.L. or LCD BRIGHT in the
menu settings (p. 105). Even if you adjust the LCD B.L. or LCD BRIGHT, the recorded
picture will not be affected.
Recording a picture
180°
90°
24

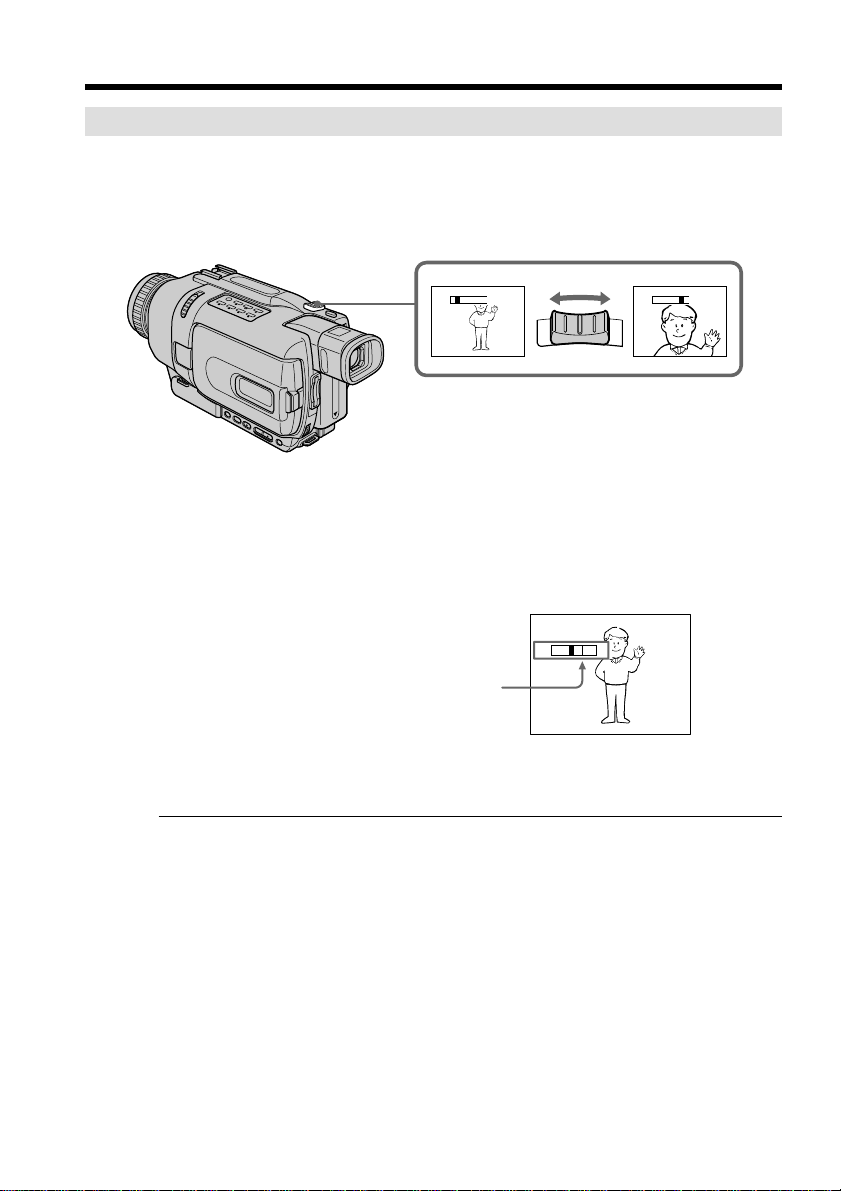

Using the zoom feature
Move the power zoom lever a little for a slower zoom. Move it further for a faster zoom.
Using the zoom function sparingly results in better-looking recordings.
“T” side: for telephoto (subject appears closer)
“W” side: for wide-angle (subject appears farther away)
To use zoom greater than 25× (DCR-TRV240/TRV340)/15× (DCR-TRV740/TRV840)
Zoom greater than 25× (DCR-TRV240/TRV340)/15× (DCR-TRV740/TRV840) is
performed digitally. To activate digital zoom, select the digital zoom power in D ZOOM
in the menu settings. (p. 105)
The digital zoom function is set to OFF as the default setting.
Notes on digital zoom
•Digital zoom starts to function when zoom exceeds 25× (DCR-TRV240/TRV340)/15×
(DCR-TRV740/TRV840).
•The picture quality deteriorates as you go towards the “T” side.
When you shoot close to a subject
If you cannot get a sharp focus, move the power zoom lever to the “W” side until the
focus is sharp. You can shoot a subject that is at least about 80 cm (about 2 feet 5/8 inch)
away from the lens surface in the telephoto position, or about 1 cm (about 1/2 inch)
away in the wide-angle position.
When the POWER switch is set to MEMORY (except DCR-TRV240)
You cannot use the digital zoom.
Recording a picture
T
W
T
W
WT
The right side of the bar shows the digital
zooming zone.
The digital zooming zone appears when you
select the digital zoom power in the menu
settings.
T
W
25
Recording
– Basics
Adjusting the viewfinder
If you record pictures with the LCD panel closed, check the picture with the viewfinder.
Adjust the viewfinder lens to your eyesight so that the indicators in the viewfinder
come into sharp focus.
Lift up the viewfinder and move the viewfinder lens adjustment lever.
Viewfinder backlight
You can change the brightness of the backlight. Select VF B.L. in the menu settings
(p. 105). Even if you adjust the VF B.L., the recorded picture will not be affected.
Recording a picture
26
Shooting with the Mirror Mode
This feature allows the camera subject to view him-or herself on the LCD screen.
The subject uses this feature to check his or her own image on the LCD screen while
you look at the subject in the viewfinder.
Set the POWER switch to CAMERA or MEMORY (except DCR-TRV240).
Rotate the LCD screen 180 degrees.
The indicator appears in the viewfinder and on the LCD screen.
Xz appears in the standby mode, and z appears in the recording mode. Some of other
indicators appear mirror-reversed and others are not displayed.
Pictures in the mirror mode
The picture on the LCD is a mirror-image. However, the picture will be normal when
recorded.
During recording in the mirror mode
ZERO SET MEMORY on the Remote Commander does not work.
Recording a picture
27
Recording
– Basics
Indicators displayed in the recording mode
Indicators are not recorded on tapes.
Remaining battery time indicator during recording
The remaining battery time indicator roughly indicates the continuous recording time.
The indicator may not be correct, depending on the conditions in which you are
recording. When you close the LCD panel and open it again, it takes about one minute
for the correct remaining battery time in minutes to be displayed.
Time code (for tapes recorded in the Digital8 system only)
The time code indicates the recording or playback time, “0:00:00” (hours:minutes:
seconds) in CAMERA mode and “0:00:00:00” (hours:minutes:seconds:frames) in VCR
mode. You cannot rewrite only the time code.
When you play back tapes recorded in the Hi8/standard 8 system, the tape counter
appears on the screen.
You cannot reset the time code or the tape counter.
STBY/REC
Remaining tape
This appears after the POWER switch is set to CAMERA
for a while.
Remaining battery time
Time code/Tape counter
Format
Recording mode
Time
This is displayed for five seconds after the POWER switch is
set to CAMERA or MEMORY (except DCR-TRV240).
Date
This is displayed for five seconds after the POWER switch is
set to CAMERA or MEMORY (except DCR-TRV240).
SP
0:00:01
12:05:56
PM
JUL 4 2002
50
min
REC
Recording a picture
28

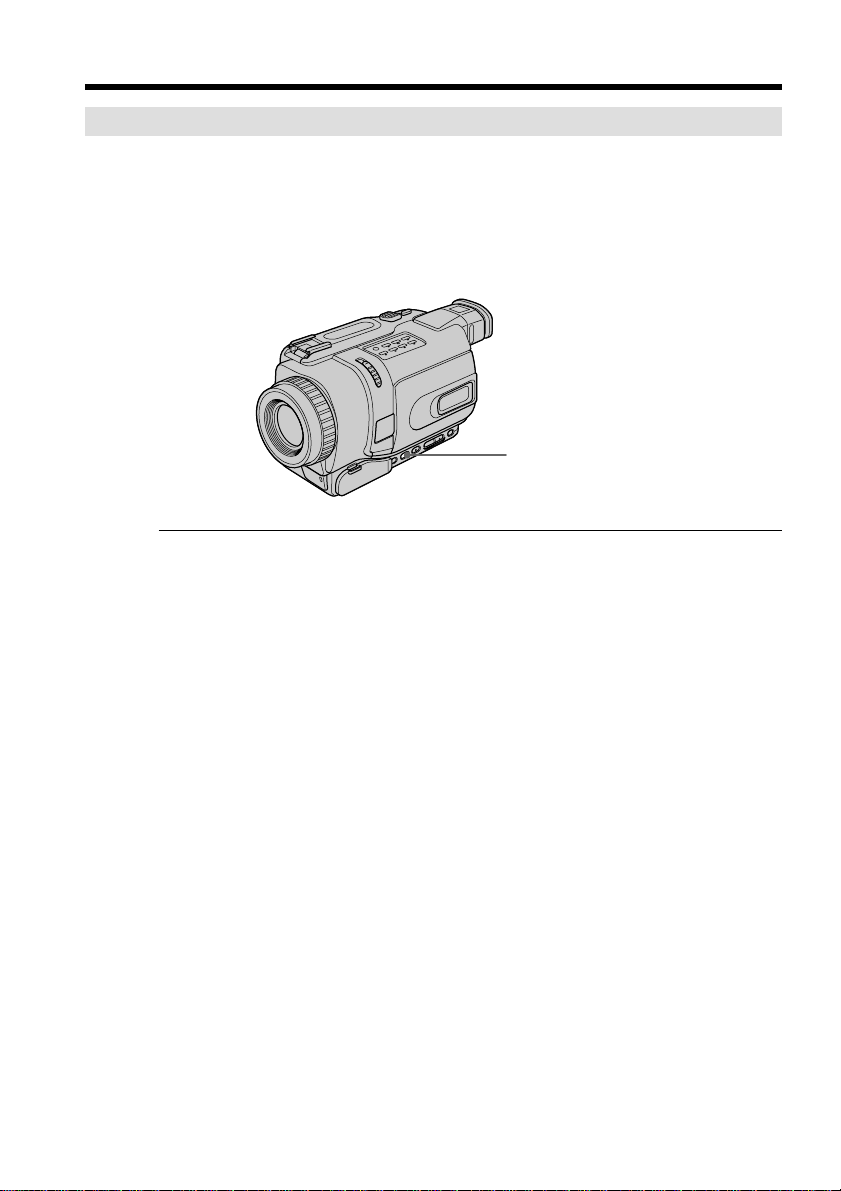

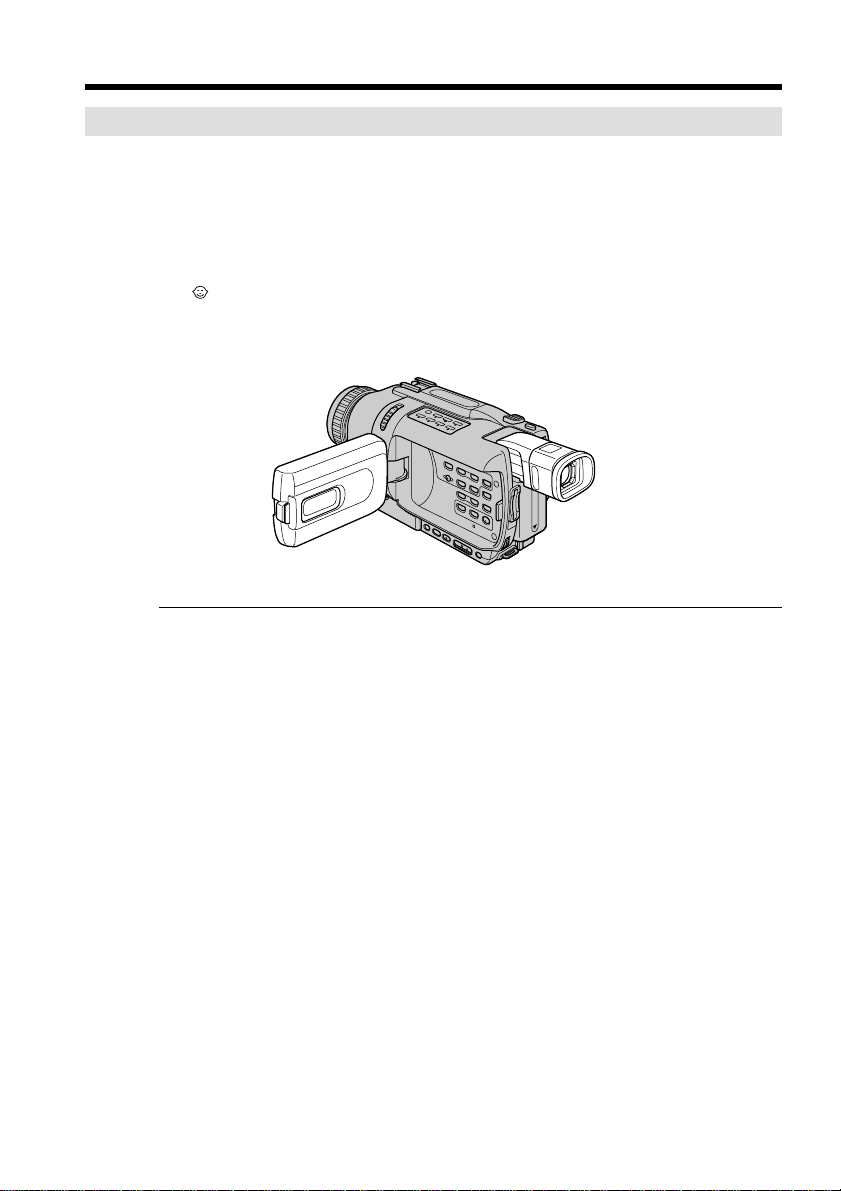

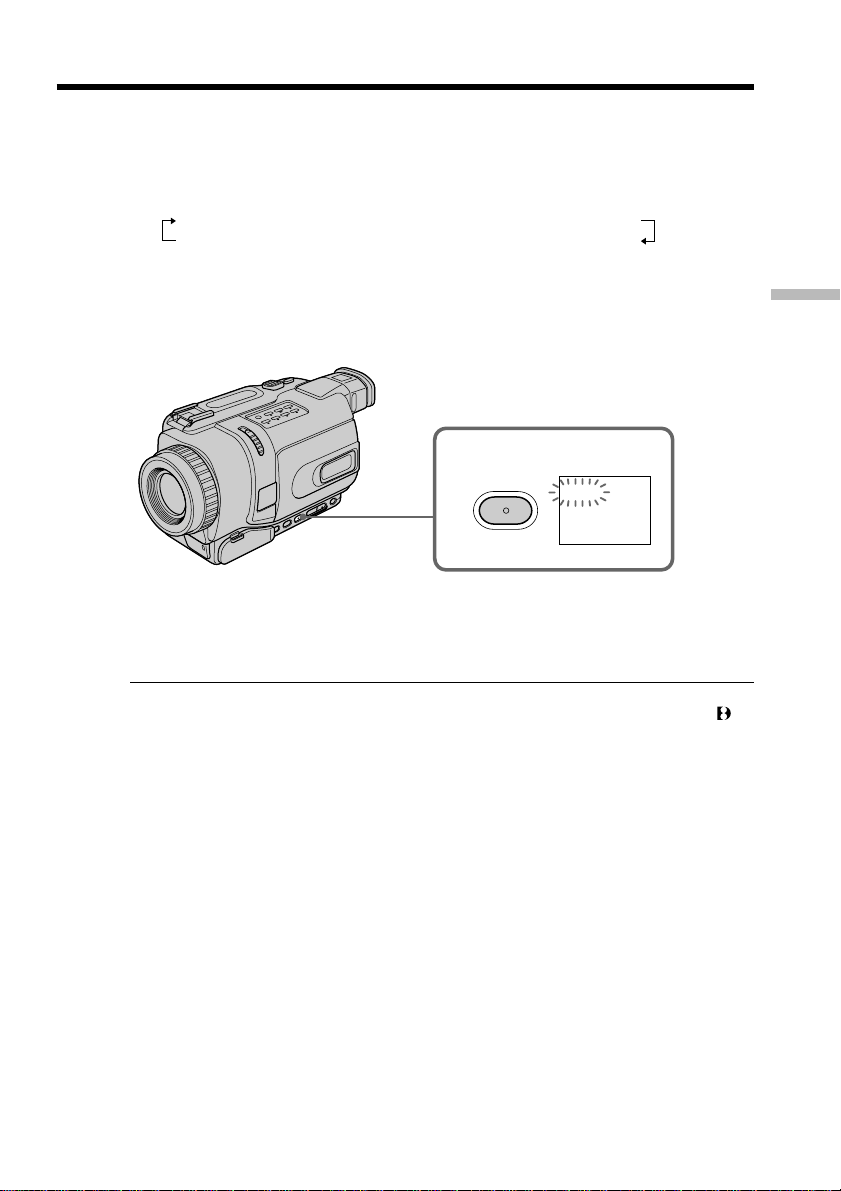

Shooting backlit subjects – BACK LIGHT
When you shoot a subject with the light source behind the subject or a subject with a
light background, use the backlight function.
In CAMERA or MEMORY (except DCR-TRV240) mode, press BACK LIGHT.
The . indicator appears on the screen.
To cancel, press BACK LIGHT again.
If you press EXPOSURE when shooting backlit subjects
The backlight function will be canceled.
Recording a picture
BACK LIGHT
29
Recording
– Basics
Recording a picture

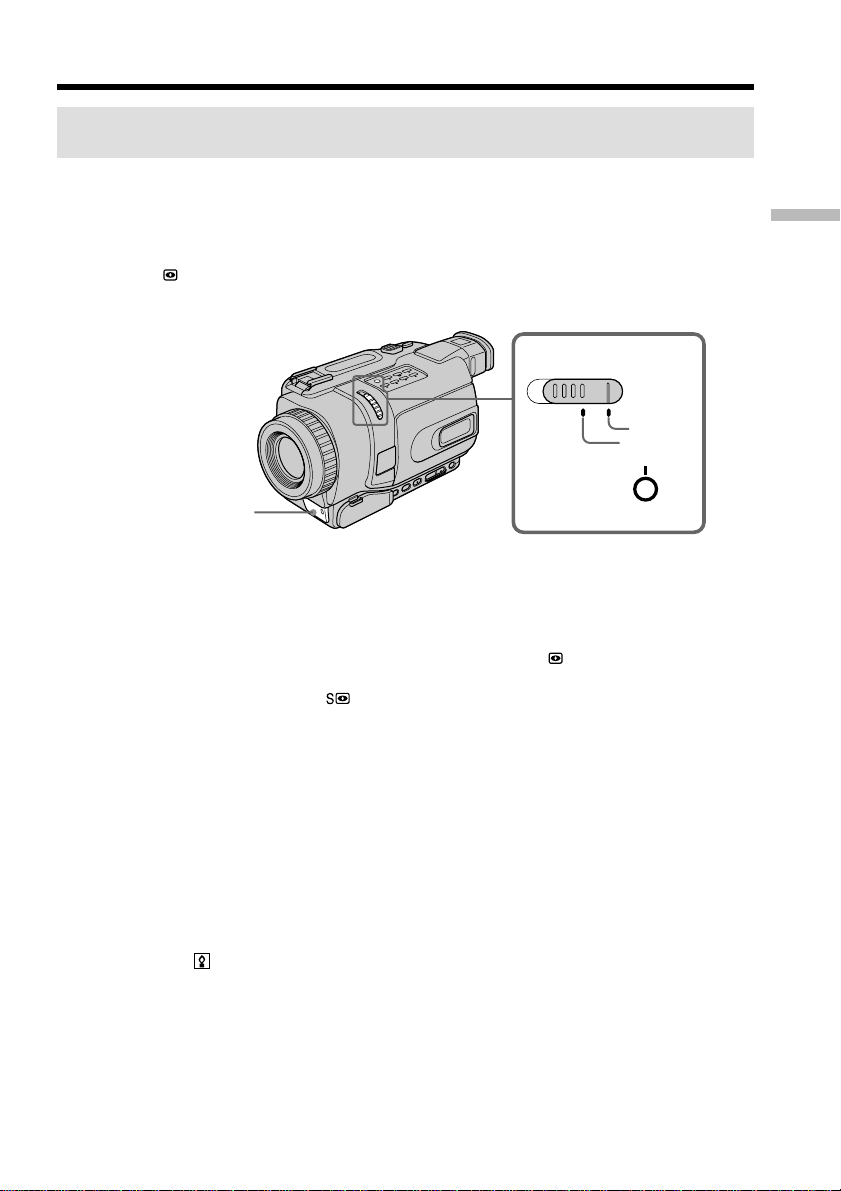

Shooting in the dark
– NightShot/Super NightShot/Color Slow Shutter
The NightShot function enables you to shoot a subject in a dark place. For example, you
can satisfactorily record the environment of nocturnal animals for observation when
you use this function.
In CAMERA or MEMORY (except DCR-TRV240) mode, slide NIGHTSHOT to ON.
The and “NIGHTSHOT” indicators flash on the screen.
To cancel the NightShot function, slide NIGHTSHOT to OFF.
Using Super NightShot
The Super NightShot function makes subjects up to 16 times brighter than those
recorded in the NightShot mode.
(1) In CAMERA mode, slide NIGHTSHOT to ON. The and “NIGHTSHOT”
indicators flash on the screen.
(2) Press SUPER NS. The
and “SUPER NIGHTSHOT” indicators flash on the
screen.
To cancel the Super NightShot mode, press SUPER NS again.
Using the NightShot Light
The picture will be clearer with the NightShot Light on. To enable NightShot Light, set
N.S.LIGHT to ON in the menu settings (The default setting is ON.) (p. 105).
Using Color Slow Shutter
The Color Slow Shutter function enables you to record color images in a dark place.
(1) Slide NIGHTSHOT to OFF in CAMERA mode.
(2) Press COLOR SLOW S.
The
and COLOR SLOW SHUTTER indicators flash on the screen.
To cancel the Color Slow Shutter function, press COLOR SLOW S again.
OFF ON
NIGHTSHOT
COLOR SLOW S
SUPER NS
Infrared rays
emitter
30
Notes
•Do not use the NightShot mode in bright places (e.g. outdoors in the daytime). This
may cause your camcorder to malfunction.
•When you keep NIGHTSHOT set to ON in normal recording, the picture may be
recorded in incorrect or unnatural colors.
•If focusing is difficult with the autofocus mode when using the NightShot function,
focus manually.
•You cannot use the Color Slow Shutter function in dark places where the illumination
is 0 lux.
While using the NightShot function, you can not use the following functions:
– Exposure
– PROGRAM AE
While using the Super NightShot or Color Slow Shutter function, you cannot use
the following functions:
– Fader
– Digital effects
– Exposure
– PROGRAM AE
– Memory Photo recording (except DCR-TRV240)
While using the Super NightShot or Color Slow Shutter function
The shutter speed is automatically adjusted depending on the brightness. At this
time, moving pictures may slow down.
When the POWER switch is set to MEMORY (except DCR-TRV240)
You cannot use the following functions:
– Super NightShot
– Color Slow Shutter
NightShot Light
NightShot Light rays are infrared and so are invisible. The maximum shooting distance
using the NightShot Light is about 3 m (10 feet).
Recording a picture
31
Recording
– Basics

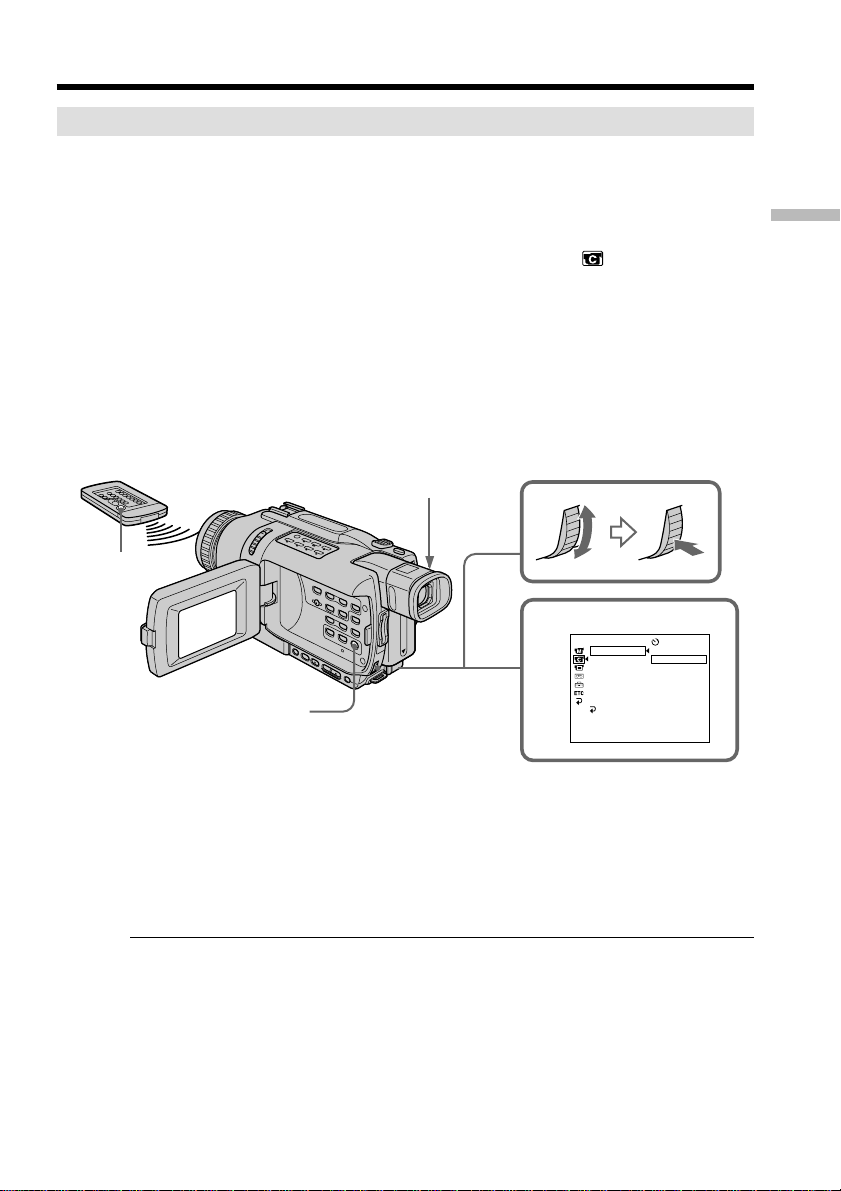

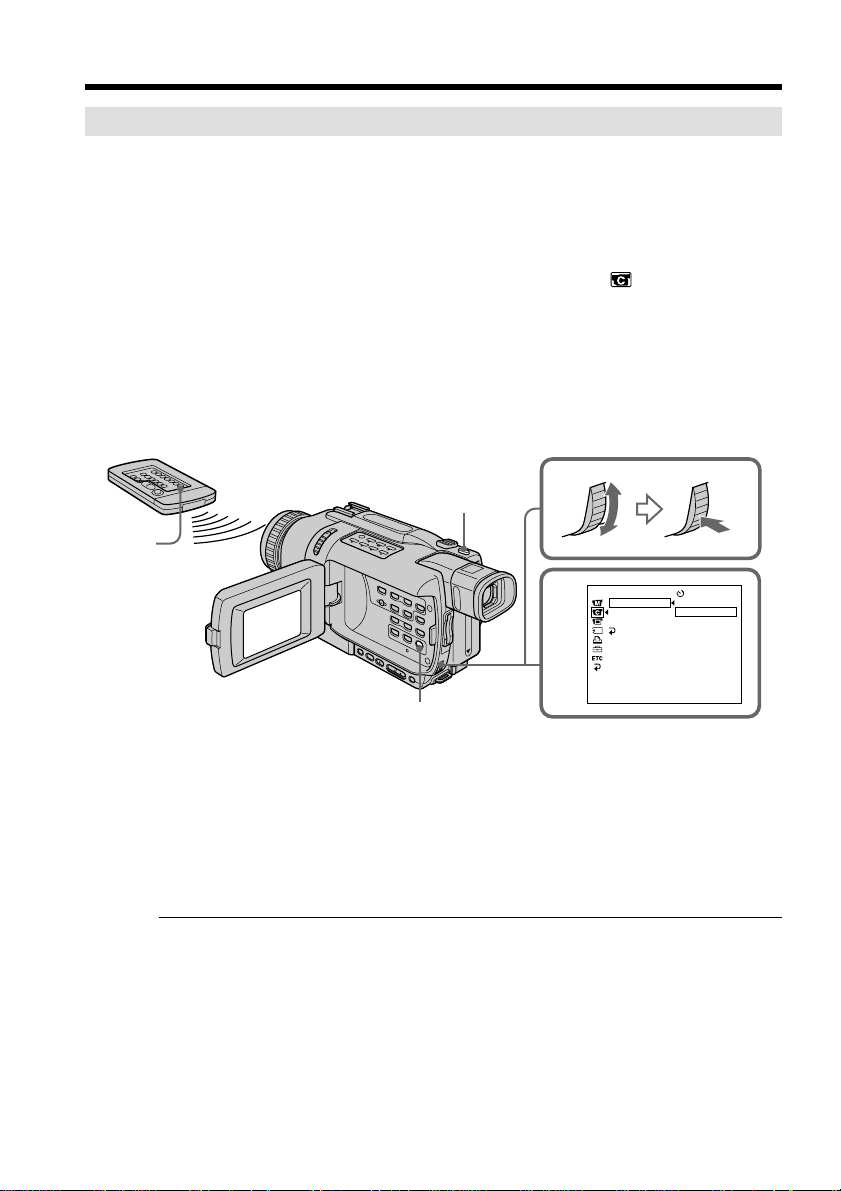

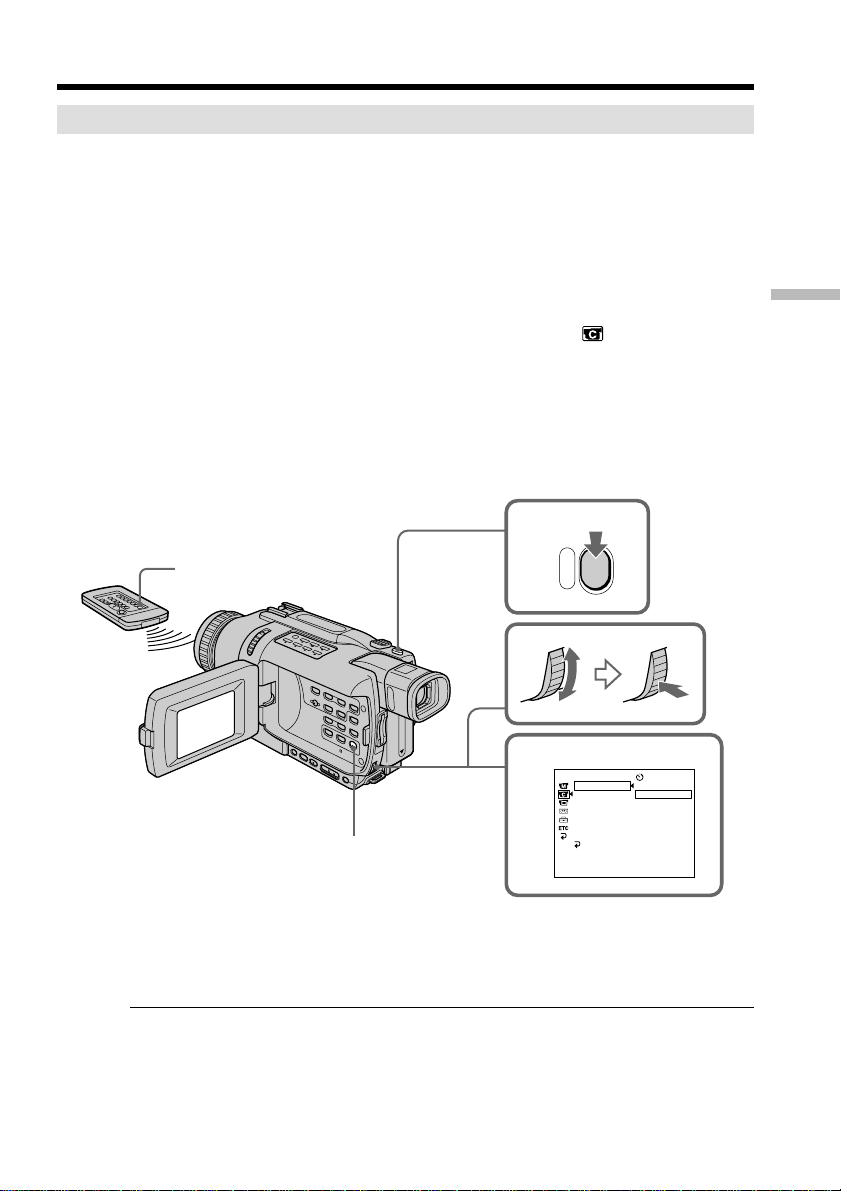

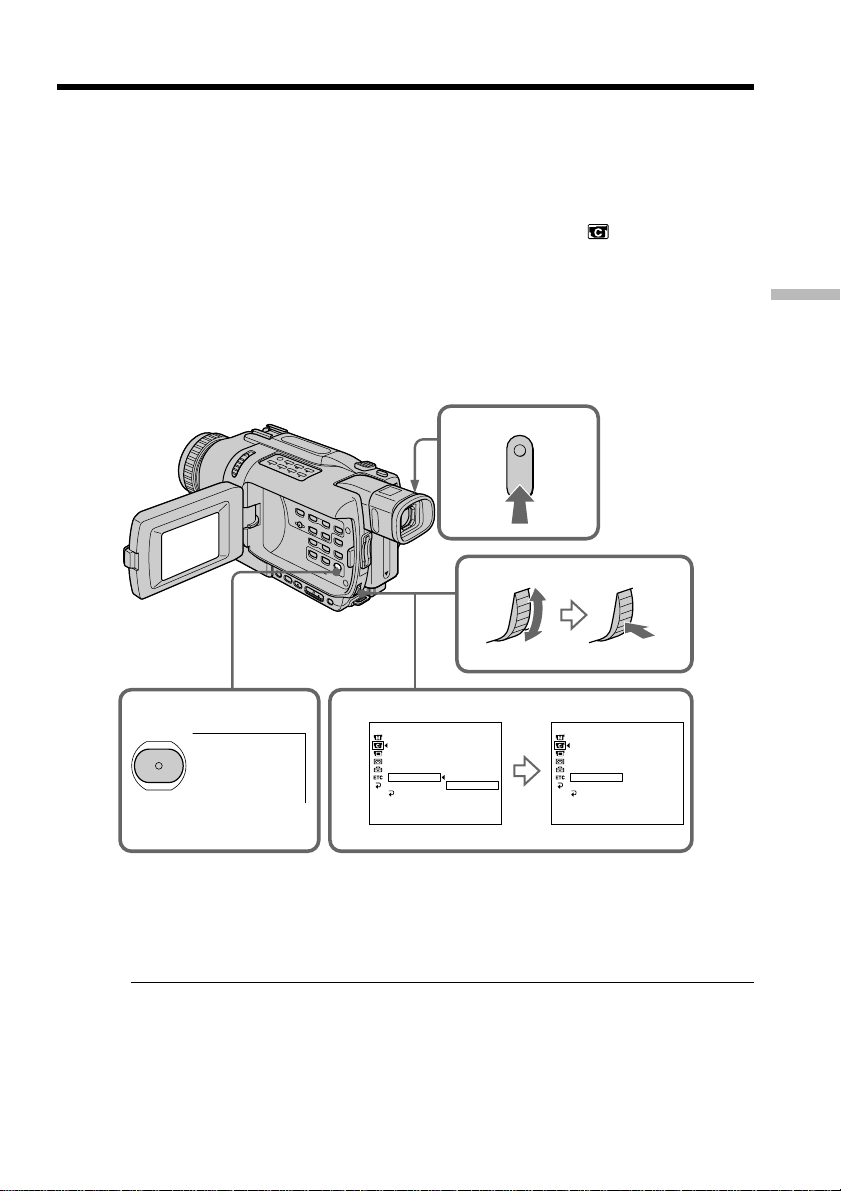

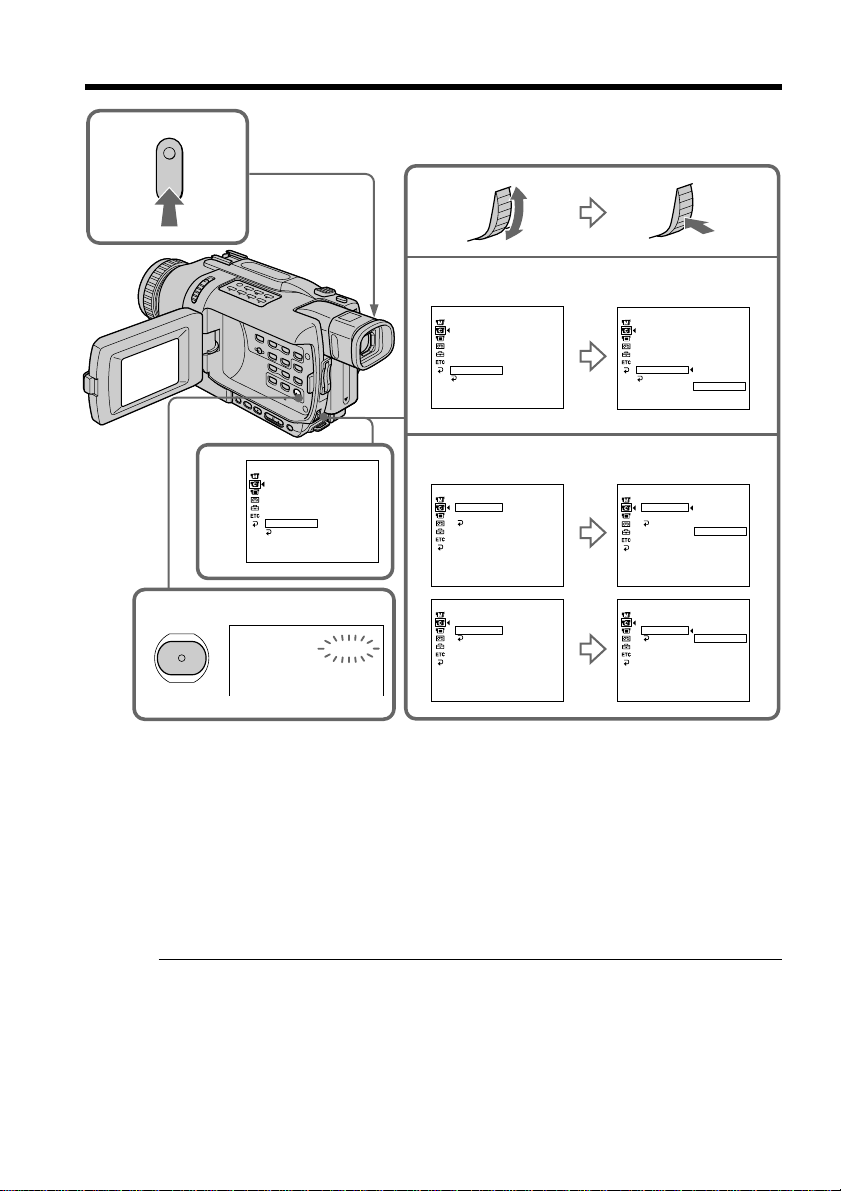

Self-timer recording
– Except DCR-TRV240
Recording with the self-timer starts in 10 seconds automatically.
You can also use the Remote Commander for this operation.

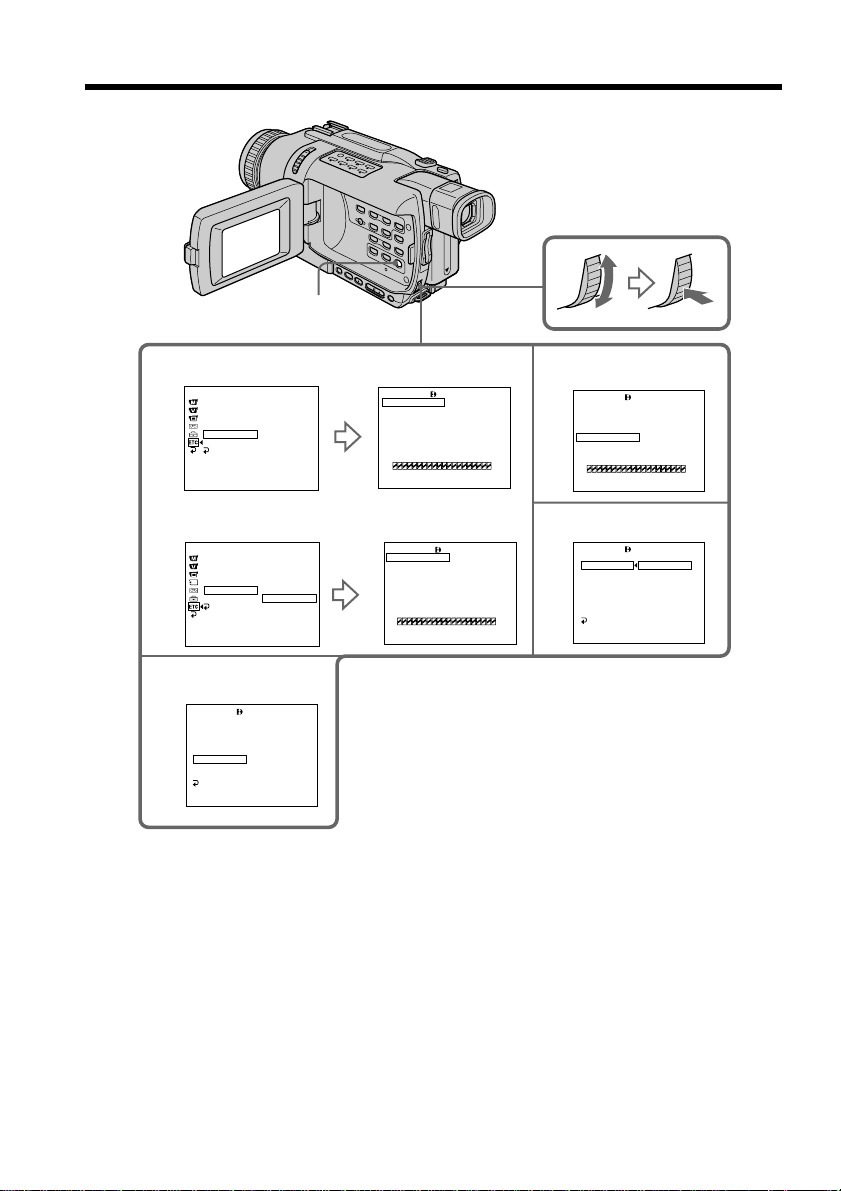

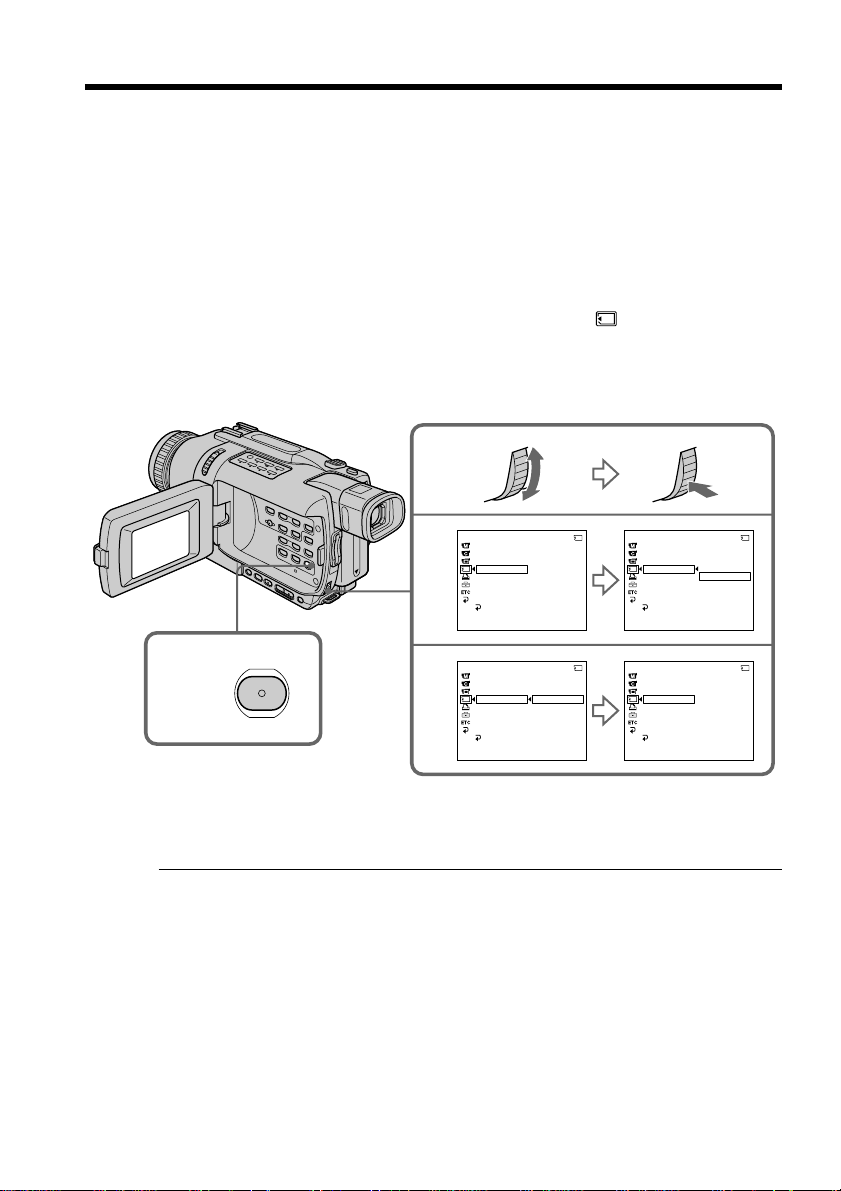

(1) In the standby mode, press MENU to display the menu settings.
(2) Turn the SEL/PUSH EXEC dial to select SELFTIMER in
, then press the
dial.
(3) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
(4) Press MENU to make the menu settings disappear.
(5) Press START/STOP.
The self-timer starts counting down from 10 with a beep. In the last two
seconds of the countdown, the beep gets faster, then recording starts
automatically.
To stop recording, press START/STOP again.
To stop the countdown
Press START/STOP.
To restart the countdown, press START/STOP again.
To cancel self-timer recording
Set SELFTIMER to OFF in the menu settings in the standby mode.
Note
The self-timer recording mode is automatically canceled when:
– Self-timer recording is finished.
– The POWER switch is set to OFF (CHG) or VCR.
When the POWER switch is set to MEMORY (except DCR-TRV240)
You can also record still images on “Memory Stick”s with the self-timer (p. 128).
Recording a picture
3
[
MENU
]
:
END
CAMERA SET
SELFTIMER
D ZOOM
PHOTO REC
16 : 9WIDE
STEADYSHOT
FRAME REC
INT. REC
RETURN
OFF
ON
1,4 MENU
START/STOP
5 START/STOP
32

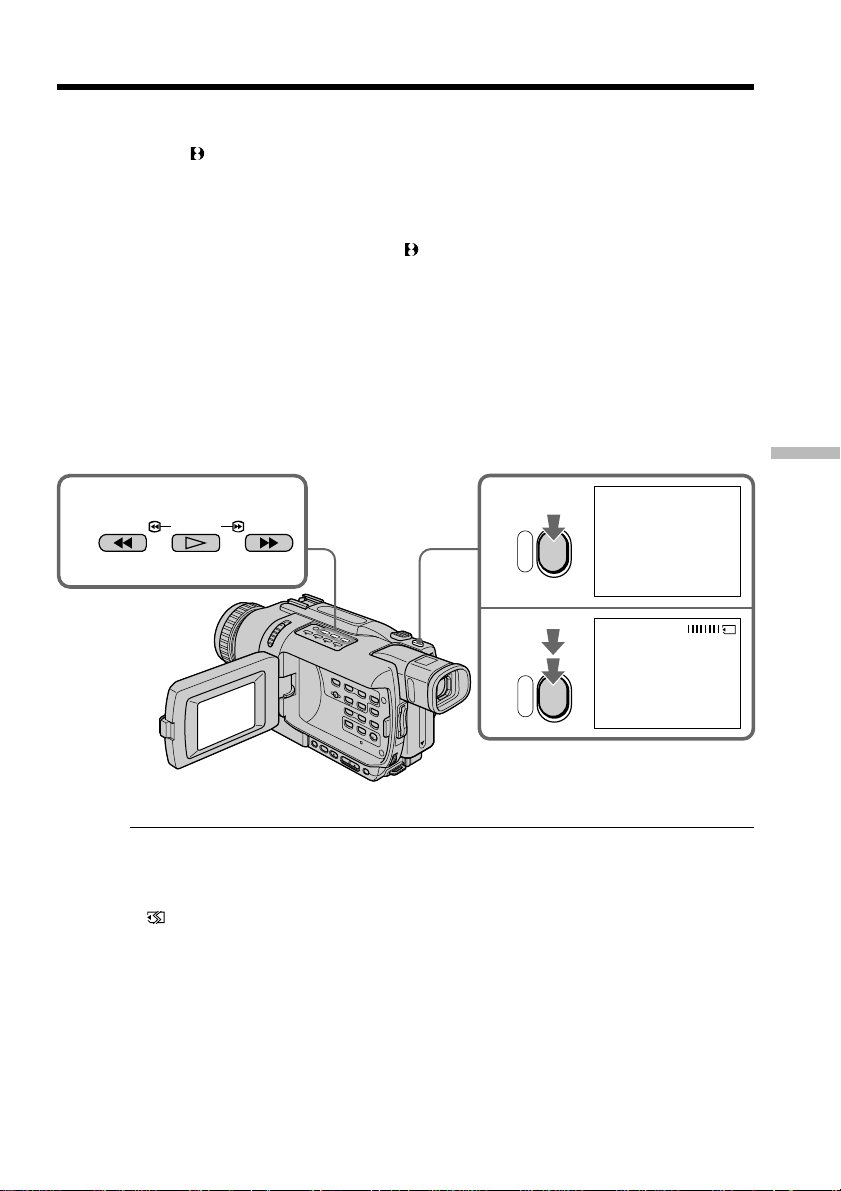

You can use these buttons to check the recorded picture or shoot so that the transition
between the last recorded scene and the next scene you record is smooth.
END SEARCH
You can go to the end of the recorded section after you record.
In the standby mode, press END SEARCH.
The last five seconds of the recorded section are played back and your camcorder
returns to the standby mode. You can monitor the sound from the speaker or
headphones.
EDITSEARCH
You can search for the next recording start point.
In the standby mode, hold down the +/– 7 side of EDITSEARCH. The recorded
portion is played back.
+ : to go forward
– 7 : to go backward
Release EDITSEARCH to stop playback. If you press START/STOP, re-recording begins
from the point you released EDITSEARCH. You cannot monitor the sound.
Rec Review
You can check the last recorded section.
In the standby mode, press the – 7 side of EDITSEARCH momentarily.
The section you have stopped most recently will be played back for a few seconds, and
then your camcorder will return to the standby mode. You can monitor the sound from
the speaker or headphones.

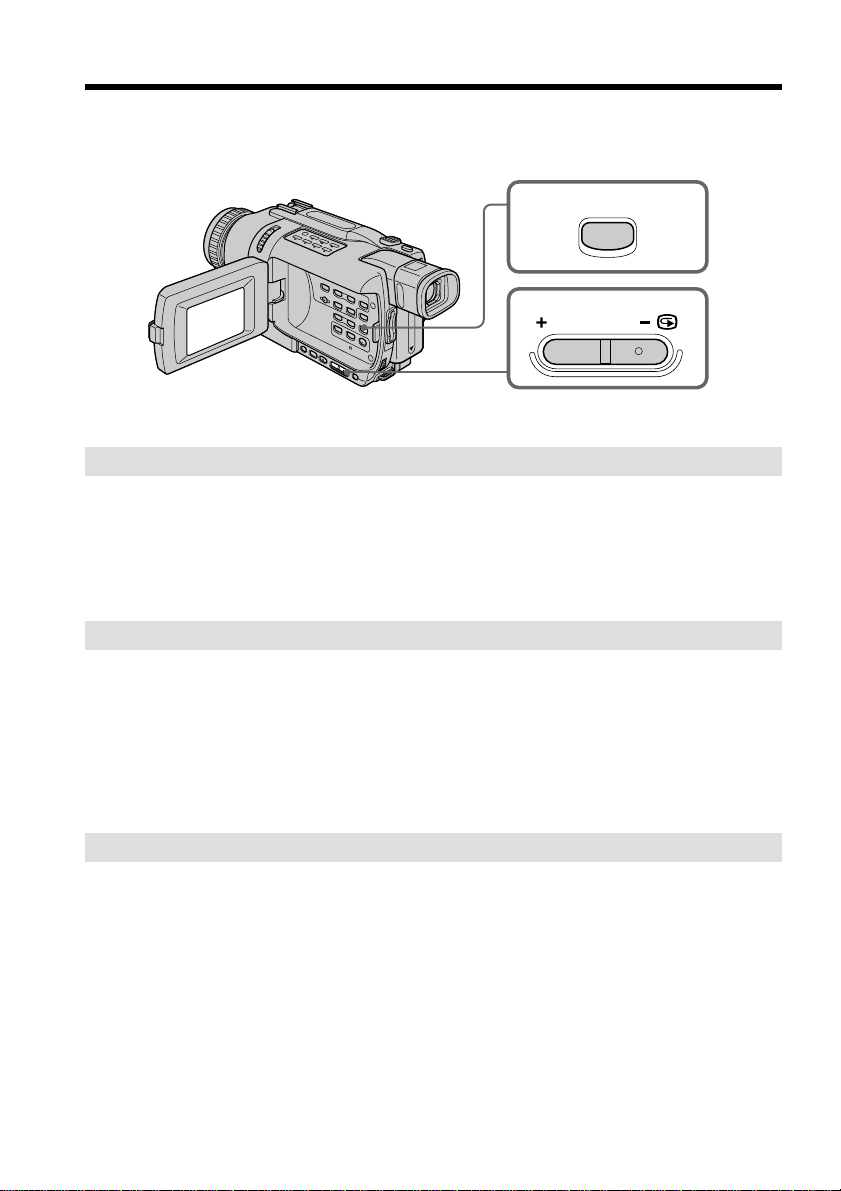

Checking recordings
– END SEARCH/EDITSEARCH/Rec Review
EDITSEARCH
END SEARCH
33
Recording
– Basics
Checking recordings – END SEARCH/EDITSEARCH/Rec Review
Notes
•END SEARCH, EDITSEARCH and Rec Review work only for tapes recorded in the
Digital8 system.
•If you start recording after using the end search function, occasionally, the transition
between the last scene you recorded and the next scene may not be smooth.
•Once you eject the cassette after you have recorded on the tape, the end search
function does not work.
If a tape has a blank portion between recorded portions
The end search function may not work correctly.
34
You can monitor the playback picture on the LCD screen. If you close the LCD panel,
you can monitor the playback picture in the viewfinder.
You can control playback using the Remote Commander supplied with your
camcorder.
(1) Install the power source and insert the recorded tape.
(2) Set the POWER switch to VCR while pressing the small green button.
(3) Open the LCD panel while pressing OPEN.
(4) Press m to rewind the tape.
(5) Press N to start playback.
(6) To adjust the volume, press either of the two buttons on VOLUME. When you
close the LCD panel, sound is muted.
To stop playback
Press x.
When monitoring on the LCD screen
You can turn the LCD panel over and move it back to the camcorder body with the LCD
screen facing out.
— Playback – Basics —
Playing back a tape
3
5
4
2
6
1
VOLUME
REW
PLAY
C
A
M
E
R
A
M
E
M
O
R
Y
V
C
R
O
F
F
(
C
H
G
)
PO
W
ER
35
Playback
– Basics

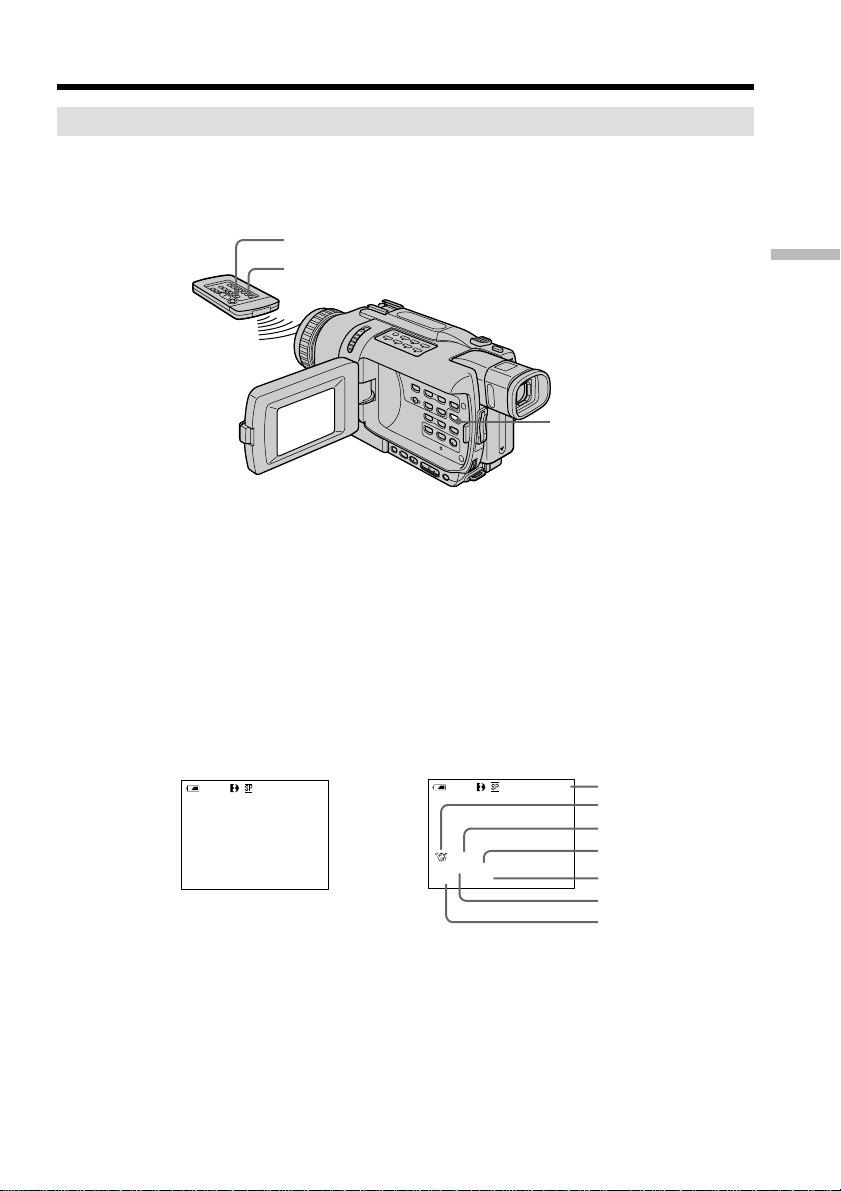

To display the screen indicators – Display function
Press DISPLAY on your camcorder or the Remote Commander supplied with your
camcorder. The indicators appear on the screen.
To make the indicators disappear, press DISPLAY again.
About date/time and various settings
Your camcorder automatically records not only pictures on the tape but also the
recording data (date/time or various settings when recorded) (Data code).
Use the Remote Commander for this operation.
1 Set the POWER switch to VCR, then playback a tape.
2 Press DATA CODE on the Remote Commander.
The display changes as follows:
date/time t various settings (SteadyShot, exposure, white balance, gain, shutter
speed, aperture value) t no indicator
[a] Time code/Tape counter
[b] SteadyShot off
[c] Exposure mode
[d] White balance
[e] Gain
[f] Shutter speed
[g] Aperture value
Playing back a tape
DISPLAY
DISPLAY
DATA CODE
Date/time
JUL 4 2002
12:05:56 PM
0:00:23:01
50
min
[a]
[b]
[c]
[d]
[e]
[f]
[g]
Various settings
60 AWB
F1.6
9dB
AUTO
0:00:23:01
50
min
36
Playing back a tape
To not display various settings
Set DATA CODE to DATE in the menu settings (p. 105).
The display changes as follows when you press DATA CODE on the Remote
Commander:
date/time y no indicator
Notes on the data code function
•The data code function works only for tapes recorded in the Digital8 system.
•Various settings of the recording data are not recorded when recording images on
“Memory Stick”s (except DCR-TRV240).
Recording data
Recording data is your camcorder’s information when you have recorded. In the
recording mode, the recording data will not be displayed.
When you use data code function, bars (-- -- --) appear if:
– A blank portion of the tape is being played back.
– The tape is unreadable due to tape damage or noise.
– The tape was recorded by a camcorder without the date and time set.
Data code
When you connect your camcorder to the TV, the data code appears on the TV screen.
Remaining battery time indicator during playback
The indicator indicates the approximate continuous playback time. The indicator may
not be correct, depending on the conditions in which you are playing back. When you
close the LCD panel and open it again, it takes about one minute for the correct
remaining battery time to be displayed.
Various playback modes
To operate video control buttons, set the POWER switch to VCR.
To playback pause (view a still image)
Press X during playback. To resume normal playback, press X or N.
To advance the tape
Press M in the stop mode. To resume normal playback, press N.
To rewind the tape
Press m in the stop mode. To resume normal playback, press N.
To change the playback direction
Press on the Remote Commander during playback to reverse the playback direction.
To resume normal playback, press N.
To locate a scene monitoring the picture (picture search)
Keep pressing m or M during playback. To resume normal playback, release the
button.
37
Playback
– Basics
To monitor high-speed pictures while advancing or rewinding
the tape (skip scan)
Keep pressing m while rewinding or M while advancing the tape. To resume
rewinding or advancing, release the button.
To view pictures at slow speed (slow playback)
Press y on the Remote Commander during playback. For slow playback in the reverse
direction, press , then press y on the Remote Commander. To resume normal
playback, press N.
To view pictures at double speed
Press ×2 on the Remote Commander during playback. For double speed playback in the
reverse direction, press , then press ×2 on the Remote Commander. To resume
normal playback, press N.
To view pictures frame-by-frame
Press C on the Remote Commander in the playback pause mode. For frame-by-frame
playback in the reverse direction, press c. To resume normal playback, press N.
To search the last scene recorded (END SEARCH)
Press END SEARCH in the stop mode. The last five seconds of the recorded section
plays back and stops.
In the various playback modes
•Noise may appear when your camcorder plays back tapes recorded in the Hi8/
standard 8 system.
•Sound is muted.
•The previous recording may appear as a mosaic image when playing back in the
Digital8 system.
Notes on the playback pause mode
•When the playback pause mode lasts for three minutes, your camcorder automatically
enters the stop mode. To resume playback, press N.
•The previous recording may appear.
Slow playback for tapes recorded in the Digital8 system
Slow playback can be performed smoothly on your camcorder; however, this function
does not work for an output signal through the DV IN/OUT jack.
When you play back a tape in reverse
Horizontal noise may appear at the center, or top and bottom of the screen. This is not a
malfunction.
Playing back a tape
38

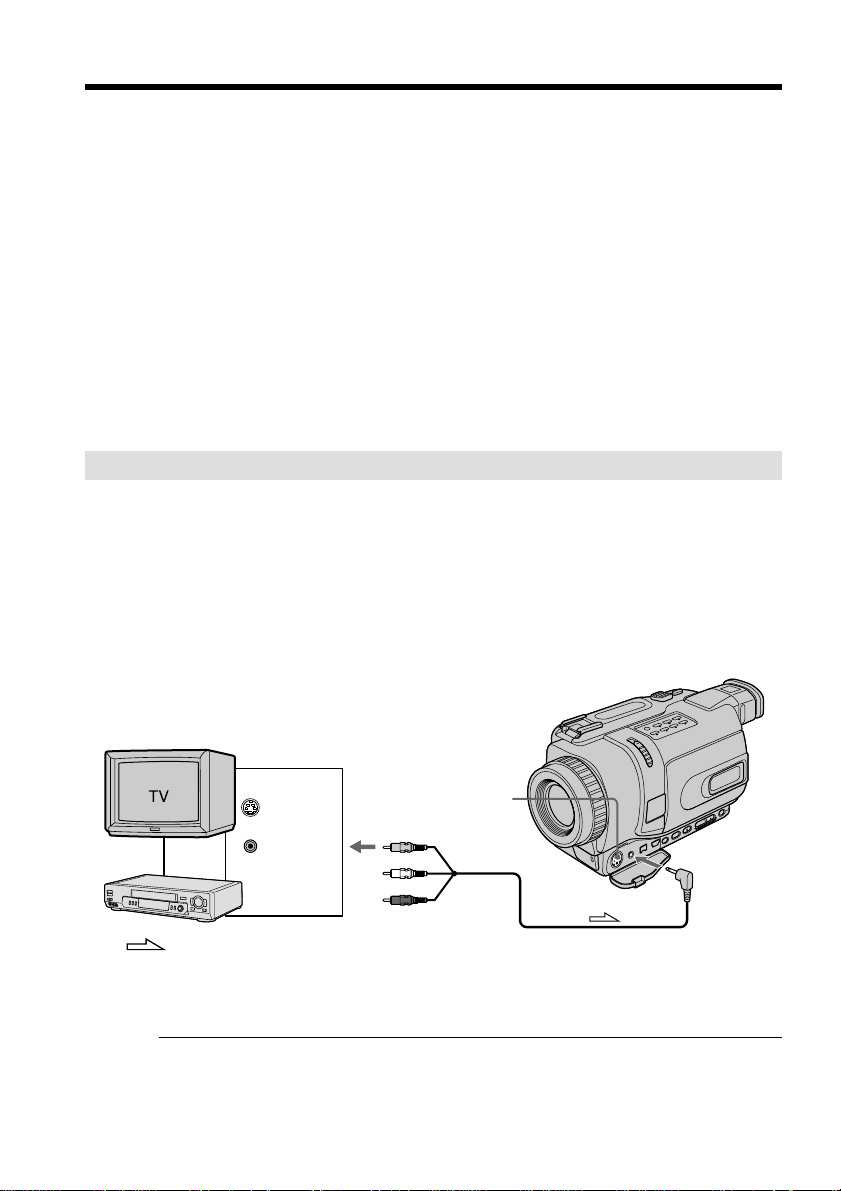

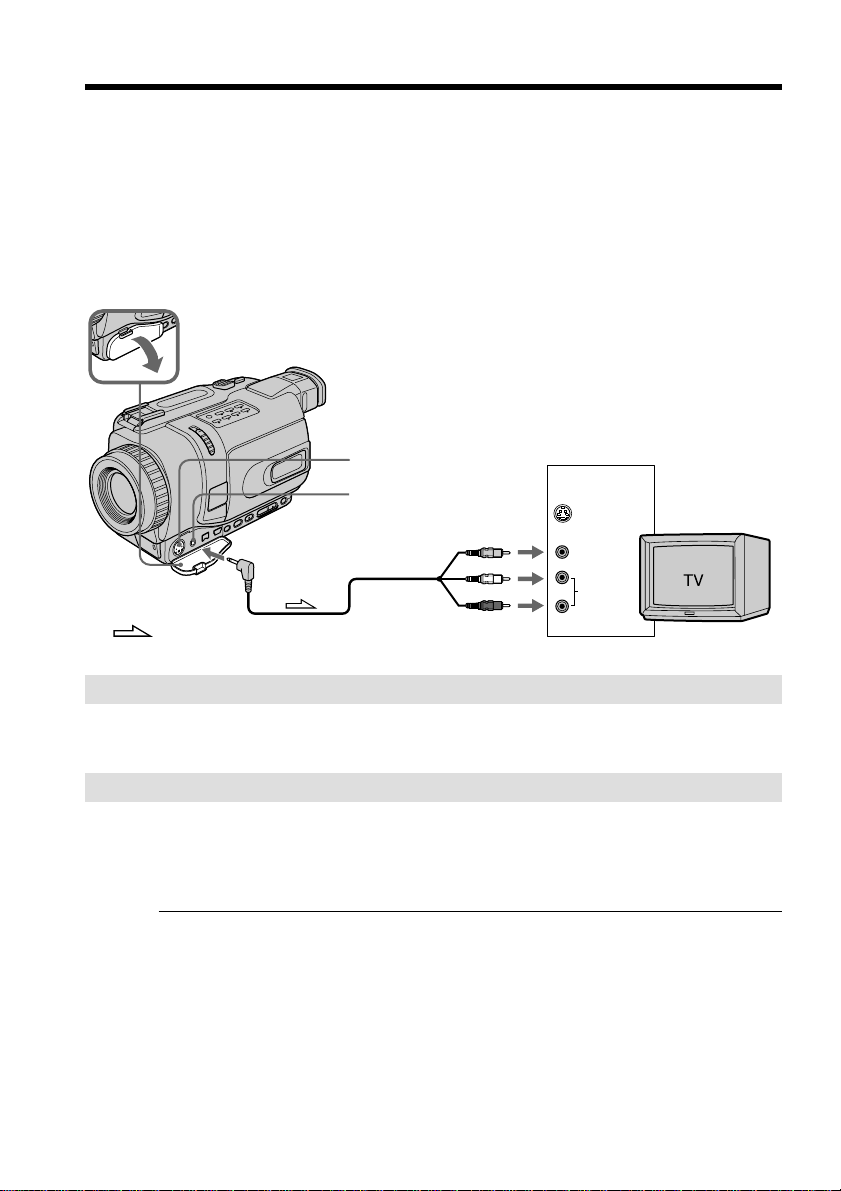

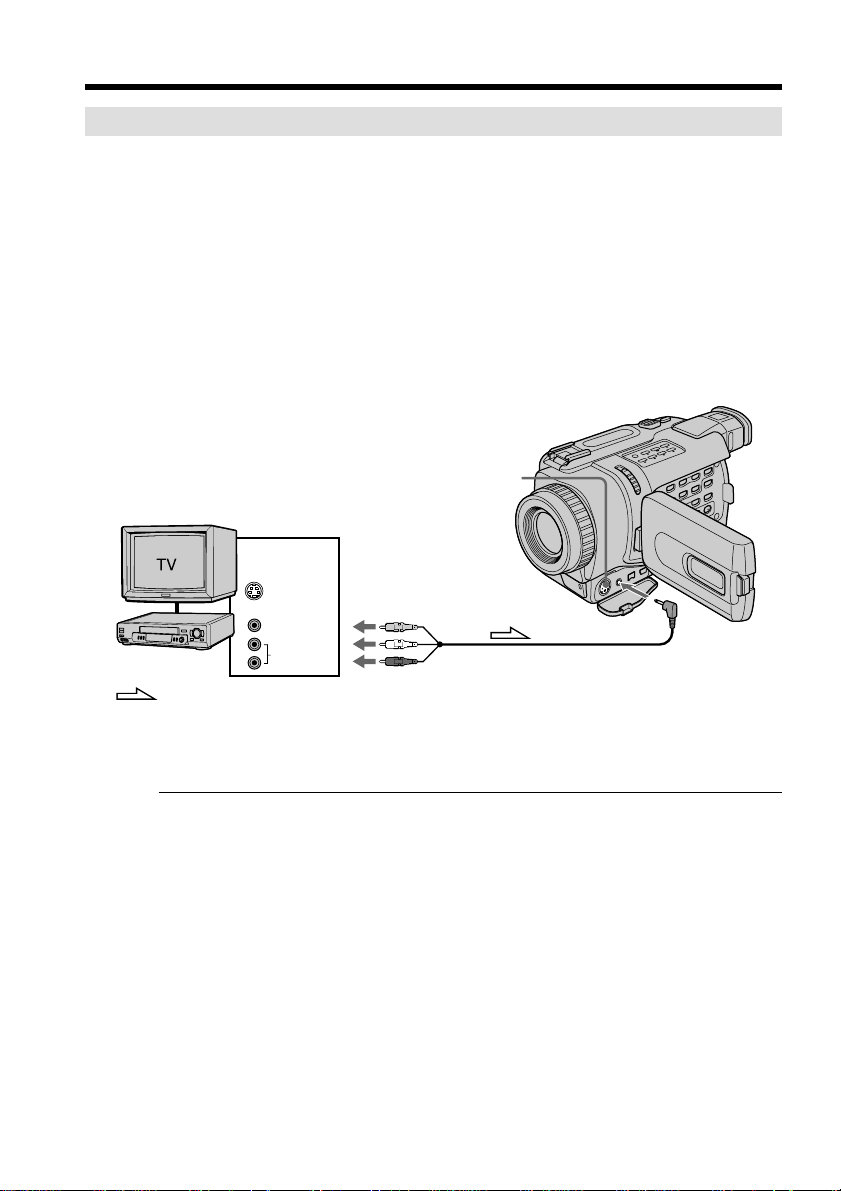

Connect your camcorder to your TV with the A/V connecting cable supplied with your
camcorder to watch playback pictures on the TV screen. You can operate the video
control buttons in the same way as when you monitor playback pictures on the LCD
screen. When monitoring playback pictures on the TV screen, we recommend that you
power your camcorder from a wall outlet using the AC power adaptor (p. 17). Refer to
the operating instructions of your TV.
Open the jack cover. Connect your camcorder to the TV using the A/V connecting cable
supplied with your camcorder. Then, set the TV/VCR selector on the TV to VCR.
If your TV is already connected to a VCR
Connect your camcorder to the LINE IN input on the VCR by using the A/V connecting
cable supplied with your camcorder. Set the input selector on the VCR to LINE.
If your TV or VCR is a monaural type
Connect the yellow plug of the A/V connecting cable to the video input jack and the
white or the red plug to the audio input jack on the VCR or the TV. If you connect the
white plug, the sound is L (left) signal. If you connect the red plug, the sound is R
(right) signal.
If your TV has an S video jack
Pictures can be reproduced more faithfully by using an S video cable (optional). With
this connection, you do not need to connect the yellow (video) plug of the A/V
connecting cable. Connect the S video cable (optional) to the S video jacks on both your
camcorder and the TV.
To display the screen indicators on TV
Set DISPLAY to V-OUT/LCD in the menu settings (p. 105).
Then, press DISPLAY on your camcorder. To turn the screen indicators off, press
DISPLAY on your camcorder again.
Viewing recordings on TV
S VIDEO
VIDEO
AUDIO
IN
S VIDEO
AUDIO
/
VIDEO
: Signal flow
39
Advanced Recording Operations

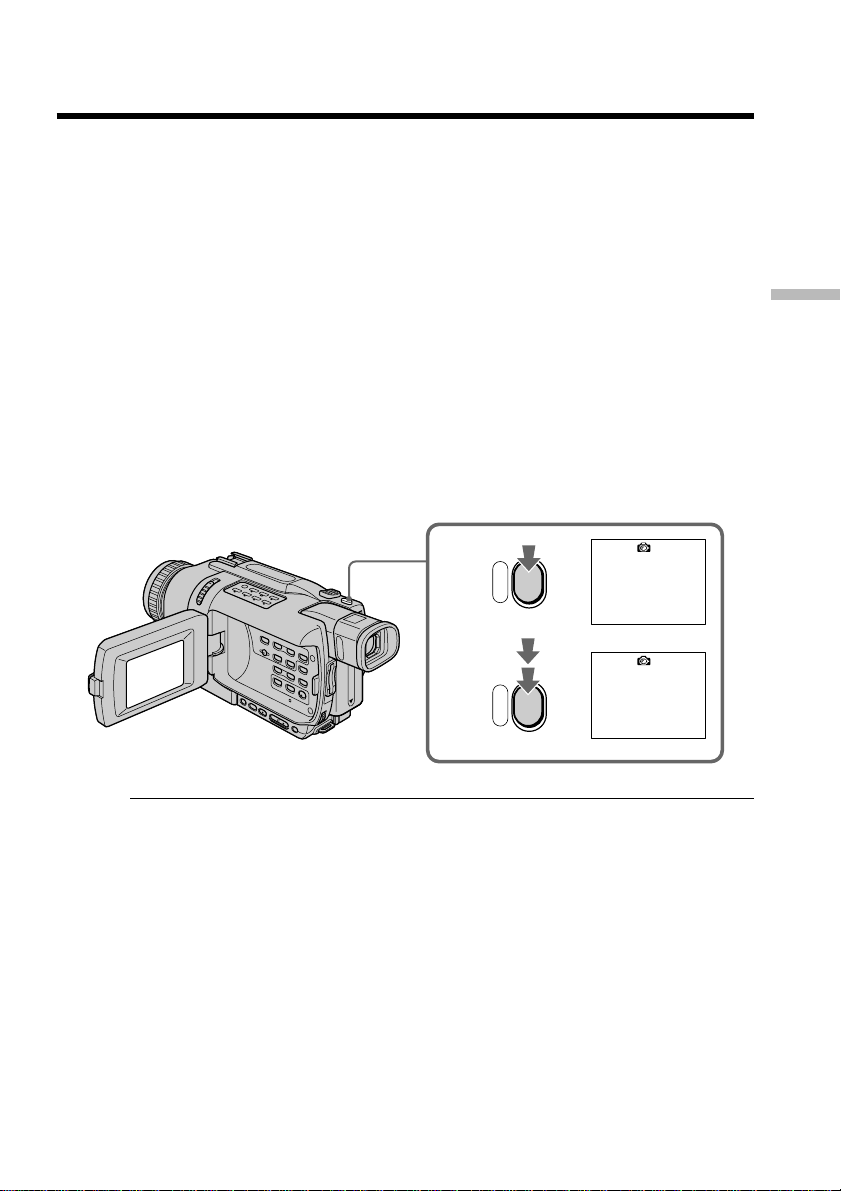

You can record still images such as photographs.
You can record about 510 images in the SP mode and about 765 images in the LP mode
on a tape which can record for 60 minutes in the SP mode.
Besides the operation described here, your camcorder can record still images on
“Memory Stick”s (except DCR-TRV240) (p. 124).
Before operation
Set PHOTO REC to TAPE in the menu settings. (The default setting is MEMORY.)
(except DCR-TRV240) (p. 105)

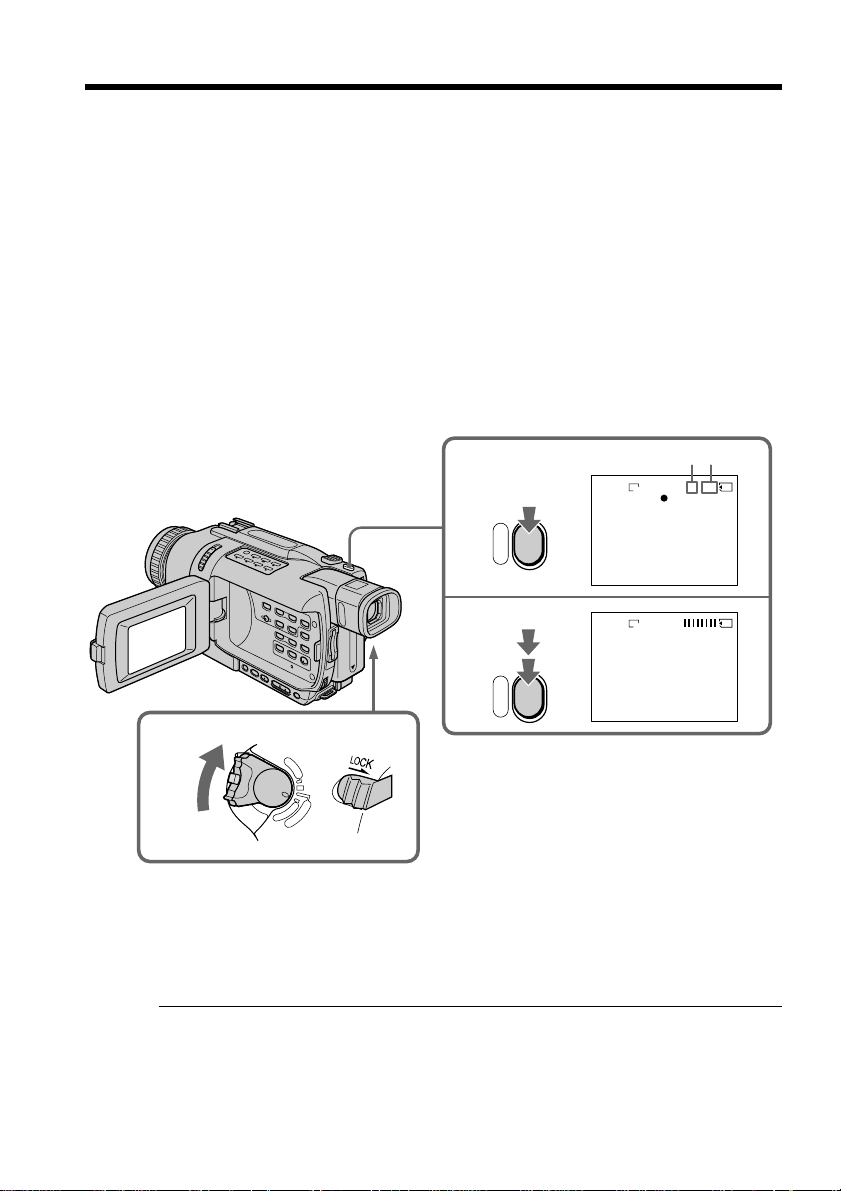

(1) In the standby mode, keep pressing PHOTO lightly until a still image appears.
The CAPTURE indicator appears. Recording does not start yet.
To change the still image, release PHOTO, select a still image again, and then
press and hold PHOTO lightly.
(2) Press PHOTO deeper.
The still image on the screen is recorded for about seven seconds. The sound
during those seven seconds is also recorded.
The still image is displayed on the screen until recording is completed.
Notes
•During Tape Photo recording, you cannot change the mode or setting.
•You cannot use PHOTO during the following operations:
– Fader
– Digital effects
•When recording a still image, do not shake your camcorder. The image may fluctuate.
If you record a moving subject with tape photo recording function
The image may fluctuate when you play back the still image on other equipment.
This is not a malfunction.
To use tape photo recording function using the Remote Commander
Press PHOTO on the Remote Commander. Your camcorder records an image on the
screen immediately.
— Advanced Recording Operations —
Recording still images on a tape
– Tape Photo recording
1
•••••••
CAPTURE
2
40
To use the tape photo recording function during normal CAMERA recording
You cannot check an image on the screen by pressing PHOTO lightly. Press PHOTO
deeper. The still image is then recorded for about seven seconds, and your camcorder
returns to the standby mode.
To record clear and less fluctuated still images
We recommend that you record on “Memory Stick”s.
You can record still images on “Memory Stick”s even in CAMERA mode. (P.124)
(except DCR-TRV240)
Recording still images on a tape – Tape Photo recording
41
Advanced Recording Operations
Self-timer recording
– Except DCR-TRV240
You can record still images on tapes with the self-timer.
You can also use the Remote Commander for this operation.
Before operation
Set PHOTO REC to TAPE in the menu settings. (The default setting is MEMORY.)
(p. 105)
(1) In the standby mode, press MENU to display the menu settings.
(2) Turn the SEL/PUSH EXEC dial to select SELFTIMER in
, then press the
dial.
(3) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
(4) Press MENU to make the menu settings disappear.
(5) Press PHOTO deeper.
The self-timer starts counting down from 10 with a beep sound. In the last two
seconds of the countdown, the beep gets faster, then recording starts
automatically.
To cancel self-timer recording
In the standby mode, set SELFTIMER to OFF in the menu settings.
You cannot cancel self-timer recording using the Remote Commander.
Note
The self-timer recording mode is automatically canceled when:
– Self-timer recording is finished.
– The POWER switch is set to OFF (CHG) or VCR.
Recording still images on a tape – Tape Photo recording
1,4 MENU
5
3
CAMERA SET
SELFTIMER
D ZOOM
PHOTO REC
16 : 9WIDE
STEADYSHOT
FRAME REC
INT. REC
RETURN
[
MENU
]
:
END
OFF
ON
42

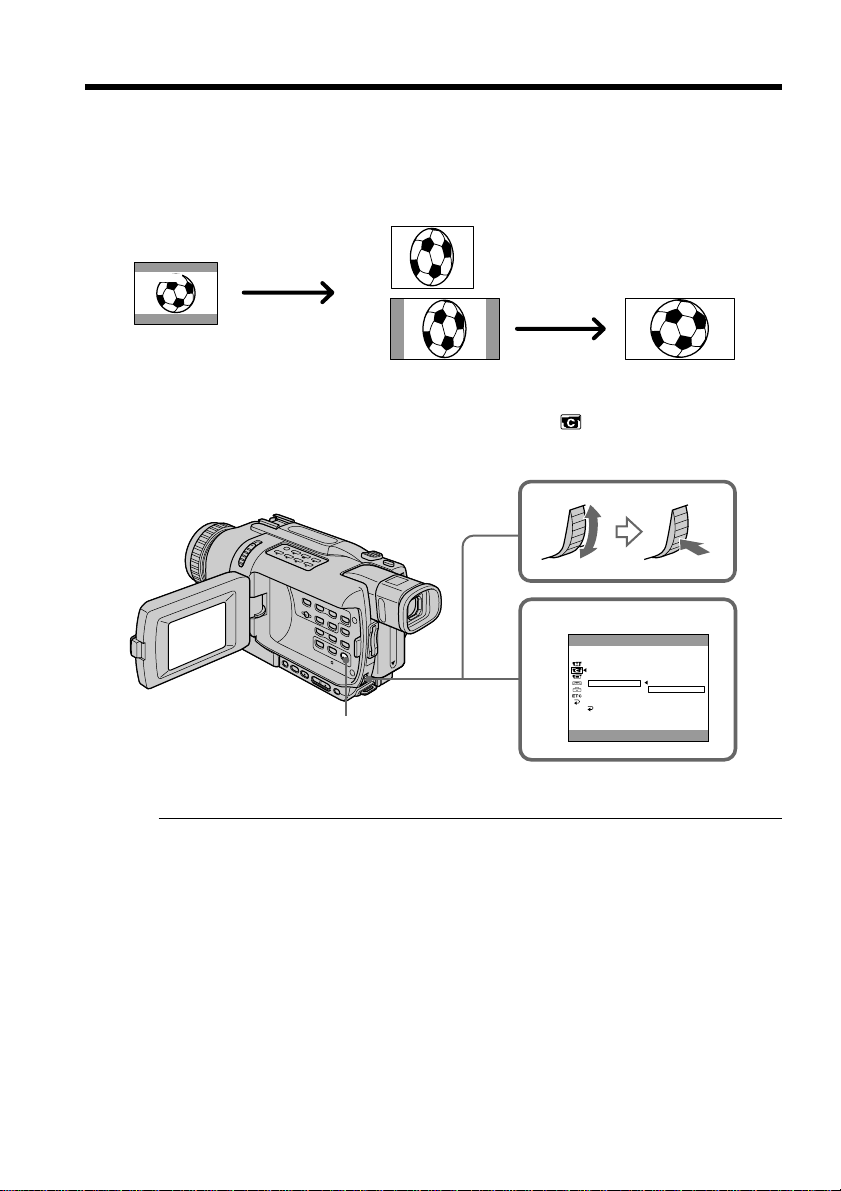

You can record a 16:9 wide picture to watch on a 16:9 wide-screen TV (16:9WIDE).
Black bands appear on the screen during recording in 16:9WIDE mode [a]. The picture
during playing back on a normal TV [b] or a wide-screen TV [c] are compressed in the
widthwise direction. If you set the screen mode of the wide-screen TV to the full mode,
you can watch pictures of normal images [d].

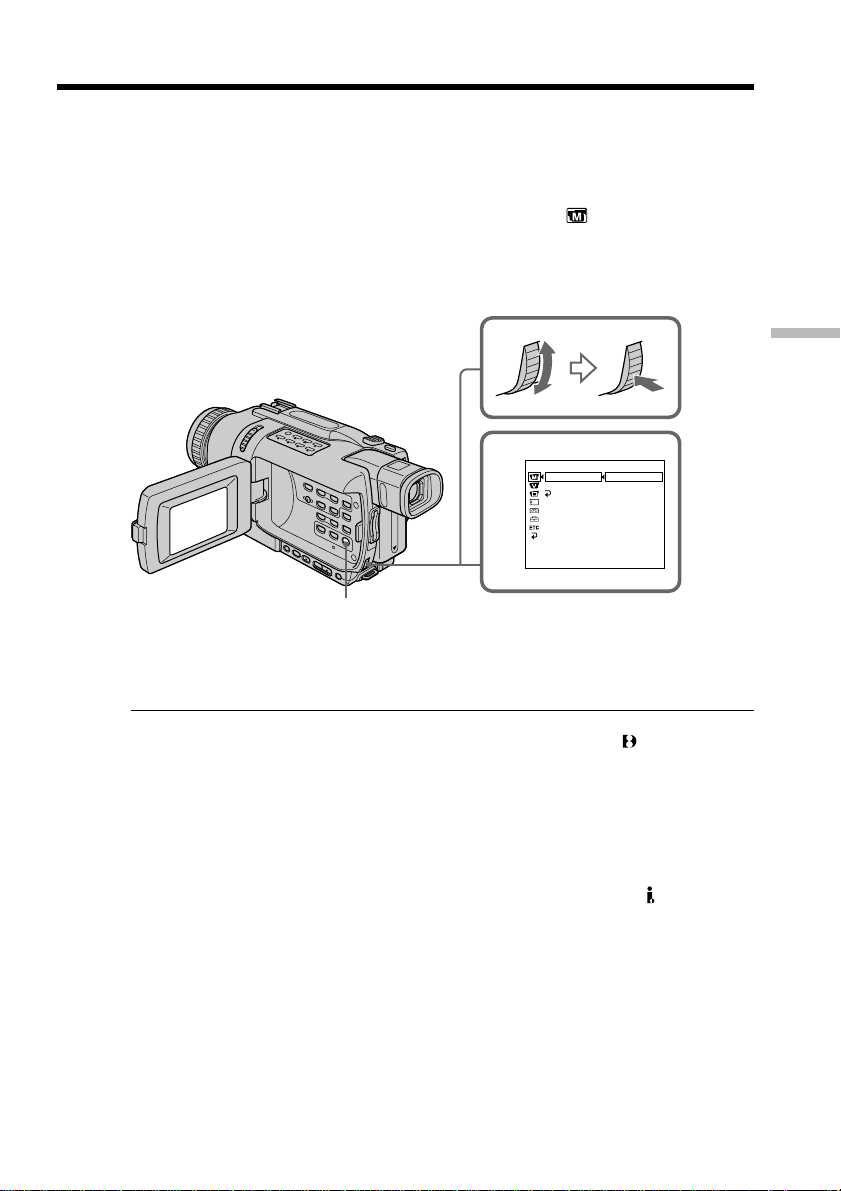

(1) In the standby mode, press MENU to display the menu settings.
(2) Turn the SEL/PUSH EXEC to select 16:9WIDE in
, then press the dial.
(3) Turn the SEL/PUSH EXEC to select ON, then press the dial.
To cancel the wide mode
Set 16:9WIDE to OFF in the menu settings.
In the wide mode
You cannot operate the following functions:
– OLD MOVIE
– BOUNCE
– Memory Photo recording (except DCR-TRV240)
During recording
You cannot select or cancel the wide mode.
When you cancel the wide mode, set your camcorder to the standby mode and then set
16:9WIDE to OFF in the menu settings.
Connection for a TV
Pictures recorded in the 16:9WIDE mode automatically appear on the TV screen at full
size when:
– You connect your camcorder to a TV that is compatible with the video ID (ID-1/ID-2)
system.
– You connect your camcorder to the S video jack on the TV.
Using the wide mode
[a]
[c]
[b]
16:9
WIDE
[d]
MENU
2
CAMERA SET
SELFTIMER
D ZOOM
PHOTO REC
16:9WIDE
STEADYSHOT
FRAME REC
INT. REC
RETURN
[
MENU
]
:
END
OFF
ON
43
Advanced Recording Operations
Using the wide mode
ID-1 system
The ID-1 system sends aspect ratio (screen horizontal/vertical ratio) information (16:9,
4:3, or letter box) with video signals. If you connect a TV compatible with the ID-1
system, the screen size is automatically selected.
ID-2 system
The ID-2 system sends a copyright protection signal with ID-1 signals inserted between
video signals when you connect your camcorder to other equipment by an A/V
connecting cable.
If 16:9WIDE is set to ON (DCR-TRV240/TRV340 only)
The SteadyShot function does not work. If you set 16:9WIDE to ON in the menu settings
when the SteadyShot function is working, flashes and the SteadyShot function does
not function.
44

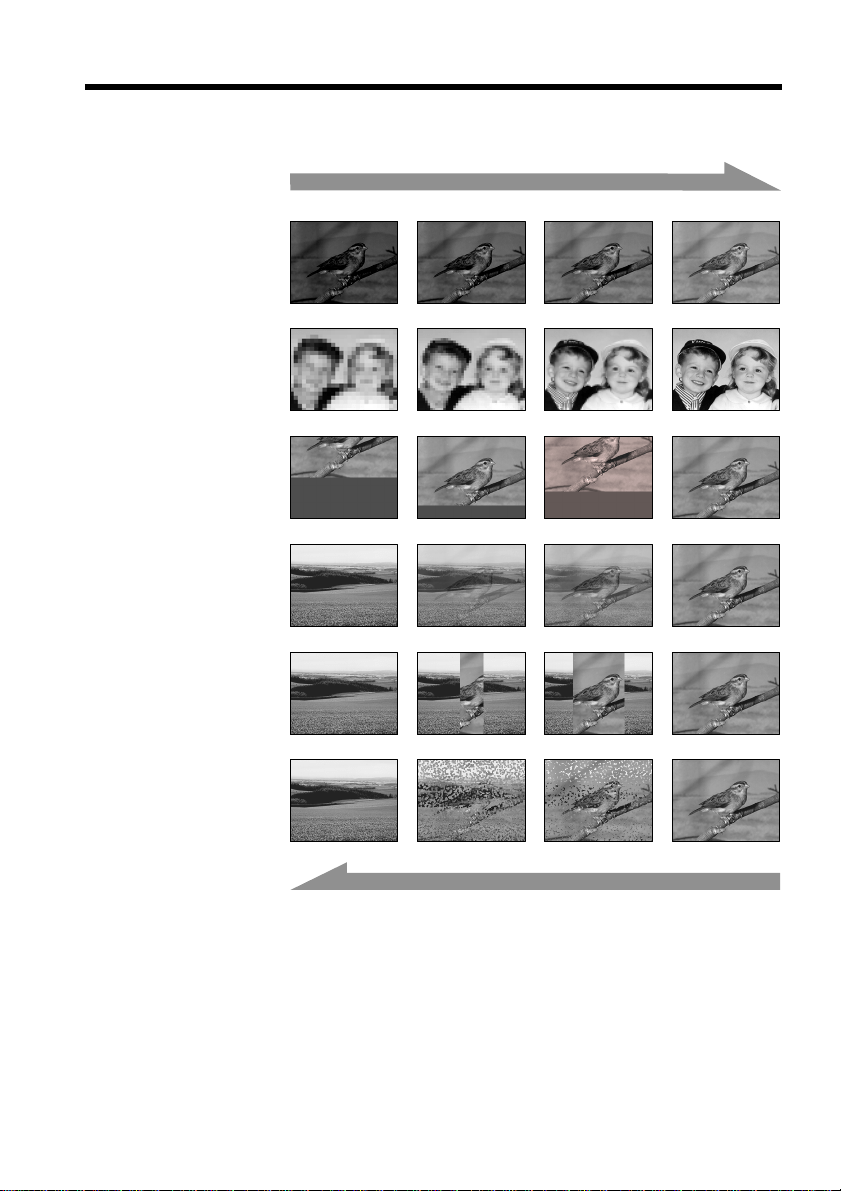

You can fade in or out to give your recording a more professional appearance.
MONOTONE
When fading in, the picture gradually changes from black-and-white to color.
When fading out, the picture gradually changes from color to black-and-white.
1)
You can use this function when D ZOOM is set to OFF in the menu settings.
2)
Fade in only
[a]
RECSTBY
RECSTBY
[b]
Using the fader function
FADER
M.FADER
(mosaic)
BOUNCE
1) 2)
OVERLAP
2)
WIPE
2)
DOT
2)
45
Advanced Recording Operations
(1) When fading in [a]
In the standby mode, press FADER until the desired fader indicator flashes.
When fading out [b]
In the recording mode, press FADER until the desired fader indicator flashes.
The indicator changes as follows:
FADER t M.FADER t BOUNCE t MONOTONE
no indicator T DOT T WIPE T OVERLAP
The last selected fader mode is indicated first of all.
(2) Press START/STOP. The fader indicator stops flashing.
After fade in/out ends, your camcorder automatically returns to the normal
mode.
To cancel the fader function
Before pressing START/STOP, press FADER repeatedly until the indicator disappears.
Notes
•The overlap, wipe and dot functions work only for tapes recorded in the Digital8
system.
•You cannot use the following functions while using the fader function. Also, you
cannot use the fader function while using the following functions:
– Digital effects
– Color Slow Shutter
– Super NightShot
– Photo recording
– Interval recording
– Frame recording
When you select OVERLAP, WIPE, or DOT
Your camcorder automatically stores the picture recorded on tape. While the picture is
being stored, the indicators flash fast, and the picture from the tape appears on the
screen. At this stage, the picture may not be recorded clearly, depending on the tape
condition.
Using the fader function
1
FADER
FADER
46
While using the bounce function, you cannot use the following functions:
– Focus
– Zoom
– Picture effects
Note on the bounce function
The BOUNCE indicator does not appear in the following mode or functions:
– When D ZOOM is activated in the menu settings
– Wide mode
– Picture effects
– PROGRAM AE
Using the fader function
47
Advanced Recording Operations

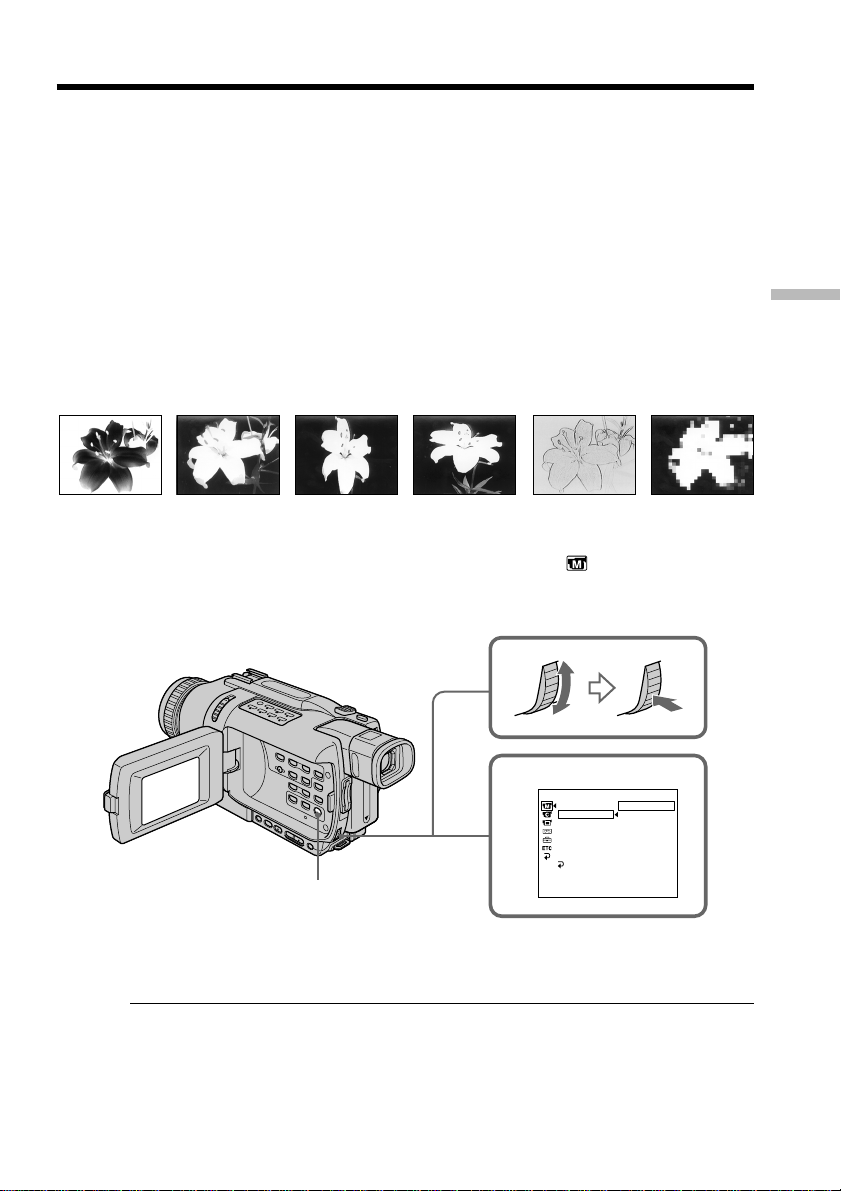

You can digitally process pictures to obtain special effects like those in films or on the
TV.
NEG. ART [a] : The color and brightness of the picture is reversed.
SEPIA : The picture appears in sepia.
B&W : The picture appears in monochrome (black-and-white).
SOLARIZE [b] : The light intensity becomes clearer to make the picture look more like
an illustration.
SLIM [c] : The picture expands vertically.
STRETCH [d] : The picture expands horizontally.
PASTEL [e] : The contrast of the picture is emphasized to make the picture look more
like an animated cartoon.
MOSAIC [f] : The picture appears mosaic-patterned.
(1) In CAMERA mode, press MENU to display the menu settings.
(2) Turn the SEL/PUSH EXEC dial to select P EFFECT in
, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to select the desired picture effect mode, then
press the dial.
To cancel the picture effect
Set P EFFECT to OFF in the menu settings.
While using the picture effect function
You cannot operate the following functions:
– OLD MOVIE with the digital effect function.
– Memory Photo recording (except DCR-TRV240)
When you set the POWER switch to OFF (CHG)
Picture effects are automatically canceled.
Using special effects – Picture effect
[a] [b] [c] [d] [e] [f]
2
MANUAL SET
PROGRAM AE
P EFFECT
D EFFECT
FLASH MODE
FLASH LVL
N. S. LIGHT
AUTO SHTR
RETURN
[
MENU
]
:
END
OFF
NEG. ART
SEPIA
B&W
SOLARIZE
SLIM
STRETCH
PASTEL
MOSAIC
MENU
48
Using special effects – Digital effect
You can add special effects to recorded picture using the various digital functions.
Sound is recorded normally.
STILL
You can record a still image so that it is superimposed on a moving picture.
FLASH (FLASH MOTION)
You can record still images successively at constant intervals.
LUMI. (LUMINANCEKEY)
You can swap a brighter area in a still image with a moving picture.
TRAIL
You can record the picture so that an incidental image like a trail is left.
SLOW SHTR (SLOW SHUTTER)
You can slow down the shutter speed. The slow shutter mode is good for recording
dark picture more brightly.
OLD MOVIE
You can add an old movie type atmosphere to pictures. Your camcorder automatically
sets the wide mode to ON, picture effect to SEPIA, and sets the appropriate shutter
speed.

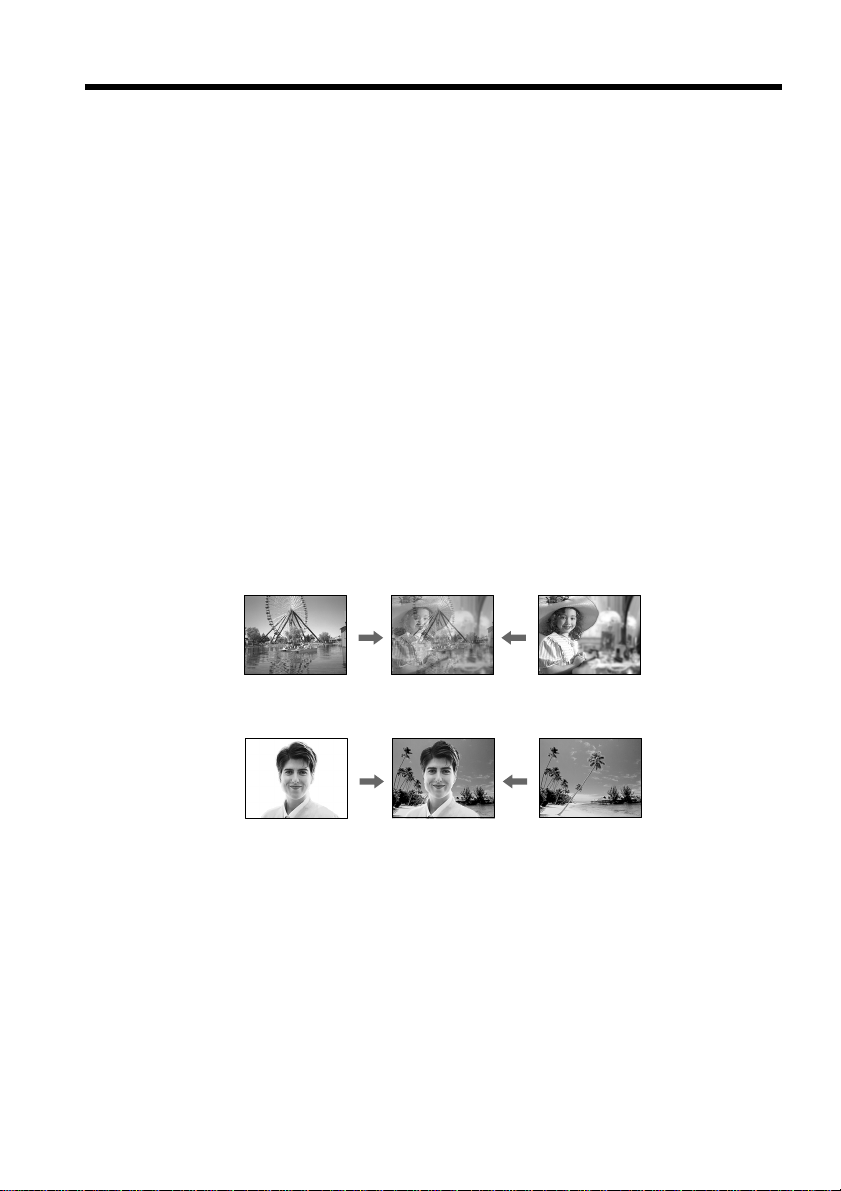

STILL
LUMI.
Still image Moving picture
Still image Moving picture
49
Advanced Recording Operations
(1) In CAMERA mode, press MENU to display the menu settings.
(2) Turn the SEL/PUSH EXEC dial to select D EFFECT in
, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to select the desired digital effect mode.
(4) Press the SEL/PUSH EXEC dial. The bars appear on the screen. In the STILL
and LUMI. modes, the still image is stored in memory.
(5) Turn the SEL/PUSH EXEC dial to adjust the effect as follows:
Items to be adjusted
STILL The rate of the still image you want to superimpose on the moving
FLASH The interval of flash motion
LUMI. The color scheme of the area in the still image which is to be
swapped with a moving picture
TRAIL The vanishing time of the incidental picture
SLOW SHTR Shutter speed. The larger the shutter speed number, the slower the
shutter speed becomes.
OLD MOVIE No adjustment necessary
The more bars there are on the screen, the stronger the digital effect. The bars
appear in the following modes: STILL, FLASH, LUMI. and TRAIL.
To cancel the digital effect
Set D EFFECT to OFF in the menu settings.
Using special effects – Digital effect
42
MANUAL SET
D EFFECT
OFF
STILL
FLASH
LUMI.
TRAIL
SLOW SHTR
OLD MOVIE
[
MENU
]
:
END
[
MENU
]
:
END
MANUAL SET
D EFFECT
LUMI.
IIIIIIII
••••••••
MENU
50
Using special effects – Digital effect
Notes
•The following functions do not work during digital effects:
– Fader
– Photo recording
– Super NightShot
– Color Slow Shutter
•The PROGRAM AE function does not work in the slow shutter mode.
•The following functions do not work in the old movie mode:
– Wide mode
– Picture effects
– PROGRAM AE
When you set the POWER switch to OFF (CHG)
Digital effects are automatically canceled.
When recording in the slow shutter mode
Auto focus may not be effective. Focus manually using a tripod.
Shutter speed
Shutter speed number Shutter speed
SLOW SHTR 1 1/30
SLOW SHTR 2 1/15
SLOW SHTR 3 1/8
SLOW SHTR 4 1/4
51
Advanced Recording Operations

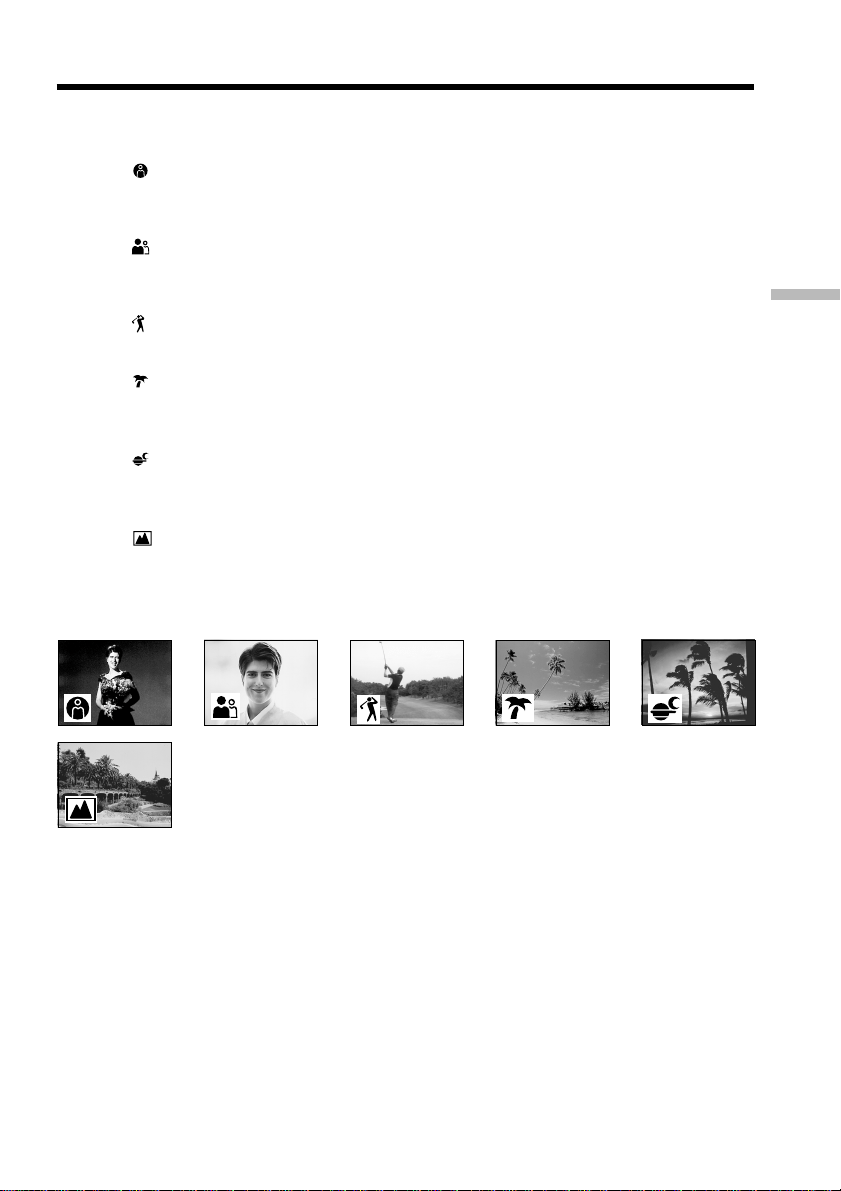

Using the PROGRAM AE function
You can select the PROGRAM AE (Auto Exposure) mode to suit your specific shooting
requirements.
Spotlight
This mode prevents people’s faces, for example, from appearing excessively white
when shooting subjects lit by strong light in the theater.
Soft portrait
This mode brings out the subject while creating a soft background for subjects such as
people or flowers.
Sports lesson
This mode minimizes camera shake on fast-moving subjects such as in tennis or golf.
Beach & ski
This mode prevents peoples’ faces from appearing dark in strong light or reflected light,
such as at a beach in midsummer or on a ski slope.
Sunset & moon
This mode allows you to maintain atmosphere when you are recording sunsets, general
night views, fireworks displays and neon signs.
Landscape
This mode is for when you are recording distant subjects such as mountains and
prevents your camcorder from focusing on glass or metal mesh in windows’ when you
are recording a subject behind glass or a screen.
52

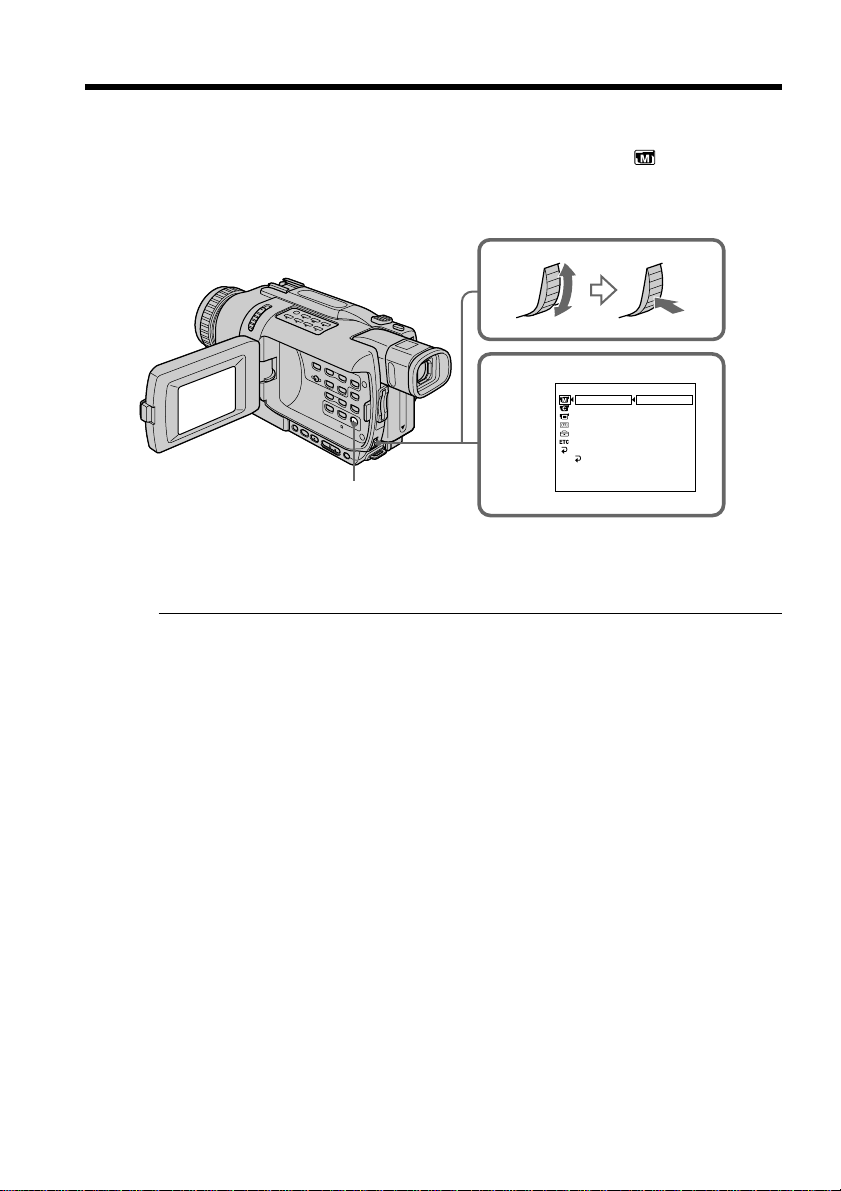

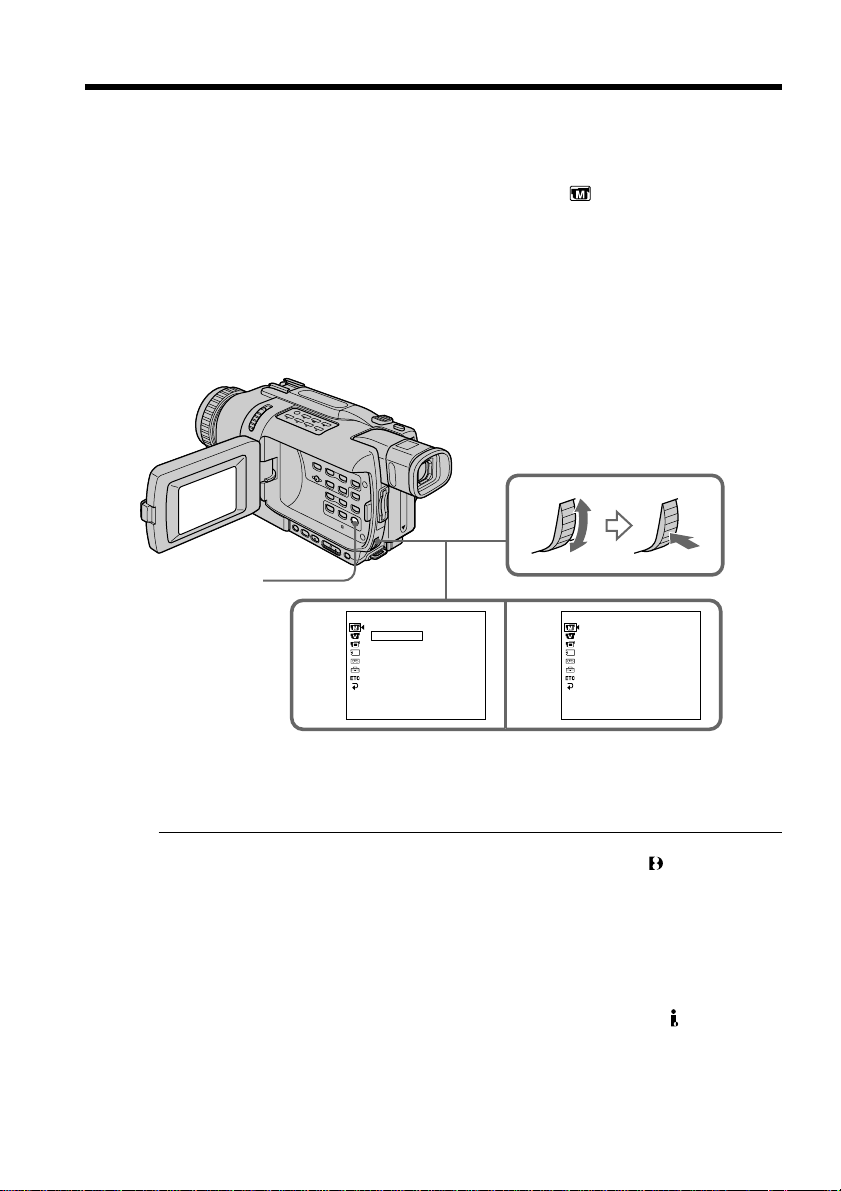

(1) In CAMERA or MEMORY (except DCR-TRV240) mode, press MENU to
display the menu settings.
(2) Turn the SEL/PUSH EXEC dial to select PROGRAM AE in
, then press the
dial.
(3) Turn the SEL/PUSH EXEC dial to select the desired mode.
To cancel the PROGRAM AE function
Set PROGRAM AE to AUTO in the menu settings.
Notes
•Because your camcorder is set to focus only on subjects in the middle to far distance,
you cannot take close-ups in the following modes:
– Spotlight
– Sports lesson
– Beach & ski
•Your camcorder is set to focus only on distant subjects in the following modes:
– Sunset & moon
– Landscape
•The following functions do not work in the PROGRAM AE mode:
– Color Slow Shutter
– Slow shutter
– OLD MOVIE
– BOUNCE
•While setting NIGHTSHOT to ON, the PROGRAM AE function does not work. (The
indicator flashes.)
•The PROGRAM AE function does not work in the Color Slow Shutter mode.
If you are recording under a discharge tube such as a fluorescent lamp, sodium
lamp or mercury lamp
Flickering or changes in color may occur in the following modes. If this happens, turn
the PROGRAM AE function off.
– Soft portrait
– Sports lesson
Using the PROGRAM AE function
2
MANUAL SET
PROGRAM AE
P EFFECT
D EFFECT
FLASH MODE
FLASH LVL
N. S LIGHT
AUTO SHTR
RETURN
[
MENU
]
: END
AUTO
SPOTLIGHT
PORTRAIT
SPORTS
BEACH&SKI
SUNSETMOON
LANDSCAPE
MENU
53
Advanced Recording Operations

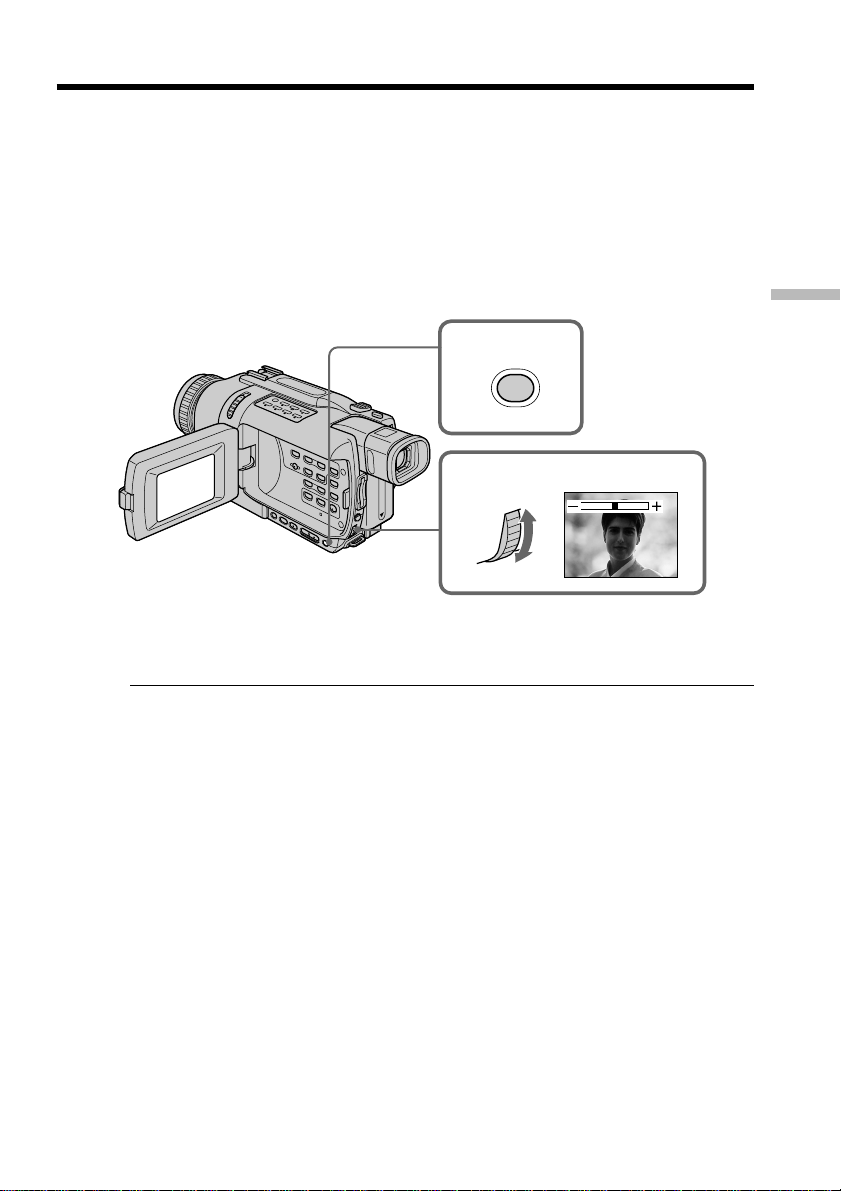

You can manually adjust and set the exposure. Normally, exposure is automatically
adjusted.
Adjust the exposure manually in the following cases:
– When the subject is backlit
– When shooting bright subjects and dark backgrounds
– When recording dark pictures (e.g. night scenes) faithfully
(1) In CAMERA or MEMORY (except DCR-TRV240) mode, press EXPOSURE. The
exposure indicator appears on the screen.
(2) Turn the SEL/PUSH EXEC dial to adjust the brightness.
To return to the automatic exposure mode
Press EXPOSURE to turn off the indicator.
Note
When you adjust the exposure manually, the following functions do not work:
– BACKLIGHT
– Color Slow Shutter
Your camcorder automatically returns to the automatic mode:
– If you change the PROGRAM AE mode
– If you slide NIGHTSHOT to ON
Adjusting the exposure manually
2
1
EXPOSURE
54

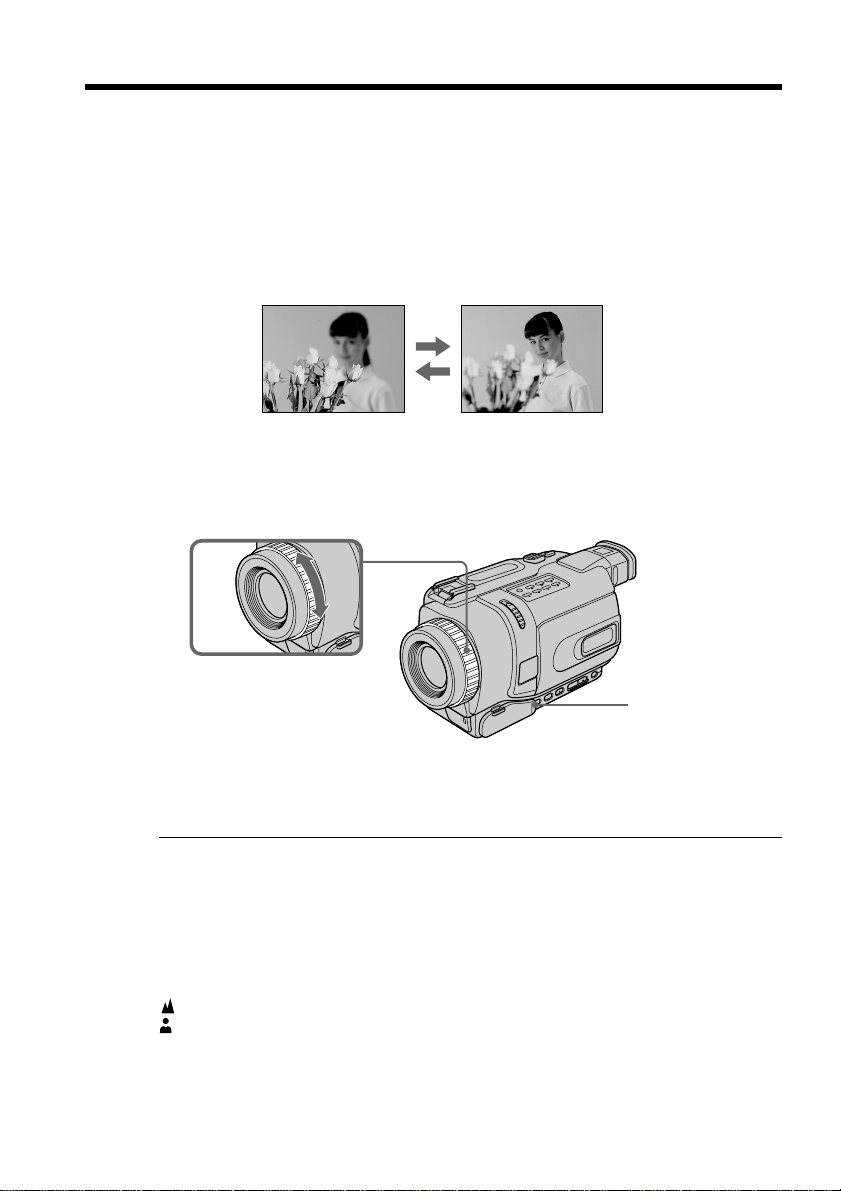

You can gain better results by manually adjusting the focus in the following cases.
Normally, focus is automatically adjusted:
•The autofocus mode is not effective when shooting:
– Subjects through glass coated with water droplets.
– Horizontal stripes.
– Subjects with little contrast with backgrounds such as walls and sky.
•When you want to change the focus from a subject in the foreground to a subject in
the background.
•Shooting a stationary subject when using a tripod.
(1) In CAMERA or MEMORY (except DCR-TRV240) mode, press FOCUS. The 9
indicator appears on the screen.
(2) Turn the focus ring to sharpen focus.
To return to the autofocus mode
Press FOCUS to turn off the indicator.
To focus precisely
It is easier to focus on subjects if you adjust the zoom to shoot at the “W” (wide-angle)
after focusing at the “T” (telephoto) position.
When you shoot close to the subject
Focus at the end of the “W” (wide-angle) position.
9 changes to the following indicators:
when recording a distant subject.
when the subject is too close to focus on.
Focusing manually
2
FOCUS
55
Advanced Recording Operations
You can make a time-lapse recording by
setting your camcorder to automatically
record and standby sequentially. You can
achieve an excellent recording for flowering,
gradual appearances, etc., with this function.

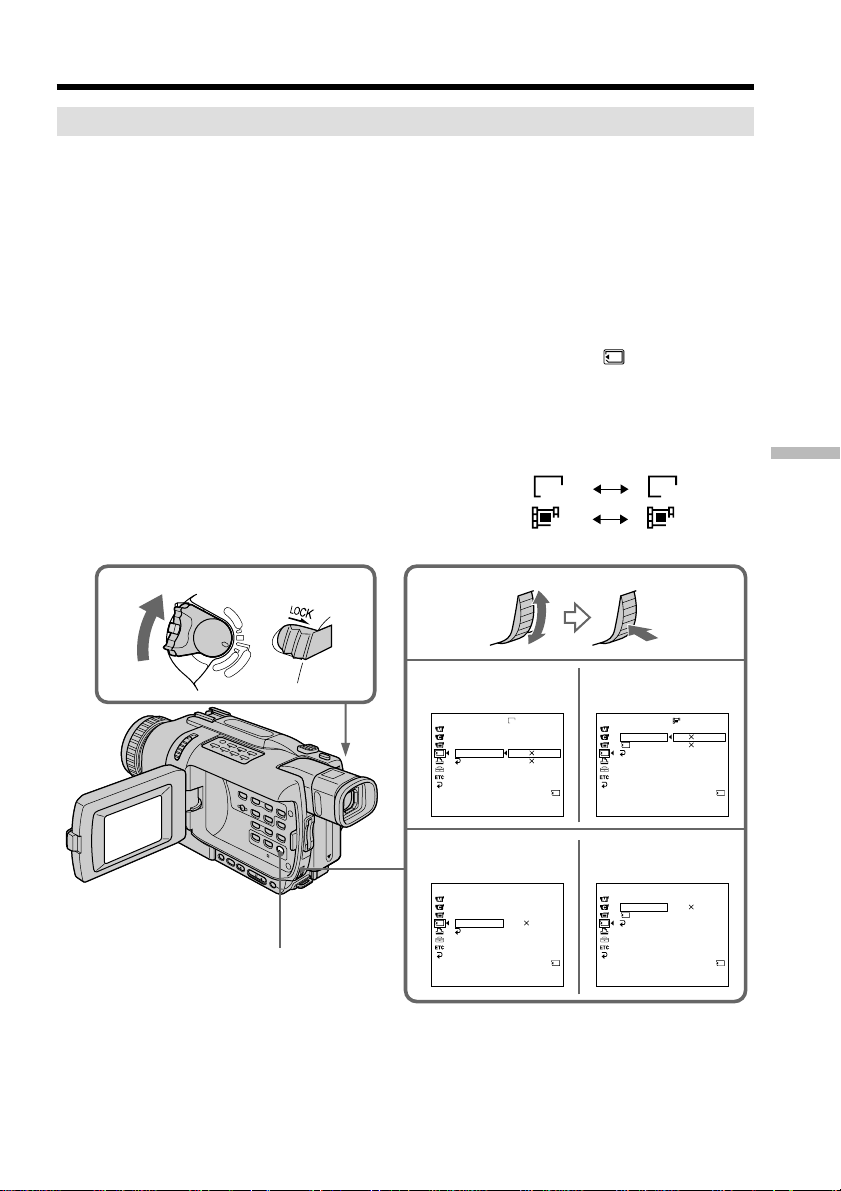

(1) In the standby mode, press MENU to display the menu settings.
(2) Turn the SEL/PUSH EXEC dial to select INT. REC in
, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to select SET, then press the dial.
(4) Set INTERVAL and REC TIME.
1 Turn the SEL/PUSH EXEC dial to select INTERVAL, then press the dial.
2 Turn the SEL/PUSH EXEC dial to select the desired interval time, then
press the dial.
The time: 30SEC y 1MIN y 5MIN y 10MIN
3 Turn the SEL/PUSH EXEC dial to select REC TIME, then press the dial.
4 Turn the SEL/PUSH EXEC dial to select the desired recording time, then
press the dial.
The time: 0.5SEC y 1SEC y 1.5SEC y 2SEC
5 Turn the SEL/PUSH EXEC dial to select
RETURN, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
(6) Press MENU to make the menu settings disappear. The INTERVAL indicator
flashes.
(7) Press START/STOP to start interval recording. The INTERVAL indicator lights
up.
Interval recording
10 min10 min
1 s 1 s
9 min 59 s 9 min 59 s
[a][a]
[b][b]
Example
[a]REC TIME
[b]INTERVAL
56
Interval recording
To cancel interval recording
Perform either of the following:
– Set INT. REC to OFF in the menu settings.
– Set the POWER switch to other than CAMERA.
To perform normal recording during interval recording
You can perform normal recording only once during INTERVAL.
Press START/STOP. The INTERVAL indicator flashes, and normal recording starts. To
stop normal recording, press START/STOP again.
On recording time
There may be a discrepancy in the recording time of up to +/– six frames from the
selected time.
5
7
CAMERA SET
SELFT
I
MER
D ZOOM
PHOTO REC
16 : 9W
I
DE
STEADYSHOT
FRAME REC
I
NT. REC
RETURN
ON
[
MENU
]
:
END
CAMERA SET
SELFT
I
MER
D ZOOM
PHOTO REC
16 : 9W
I
DE
STEADYSHOT
FRAME REC
I
NT. REC
RETURN
[
MENU
]
:
END
CAMERA SET
SELFT
I
MER
D ZOOM
PHOTO REC
16 : 9W
I
DE
STEADYSHOT
FRAME REC
I
NT. REC
RETURN
ON
OFF
SET
OFF
[
MENU
]
:
END
CAMERA SET
I
NT. REC
I
NTERVAL
REC T
I
ME
RETURN
30SEC
[
MENU
]
:
END
CAMERA SET
I
NT. REC
I
NTERVAL
REC T
I
ME
RETURN
30SEC
1M
I
N
5M
I
N
10M
I
N
[
MENU
]
:
END
CAMERA SET
I
NT. REC
I
NTERVAL
REC T
I
ME
RETURN
0
.
5SEC
[
MENU
]
:
END
CAMERA SET
I
NT. REC
I
NTERVAL
REC T
I
ME
RETURN
0
.
5SEC
1SEC
1
.
5SEC
2SEC
[
MENU
]
:
END
2,3
4
6
STBY
I
NTERVAL
MENU
57
Advanced Recording Operations

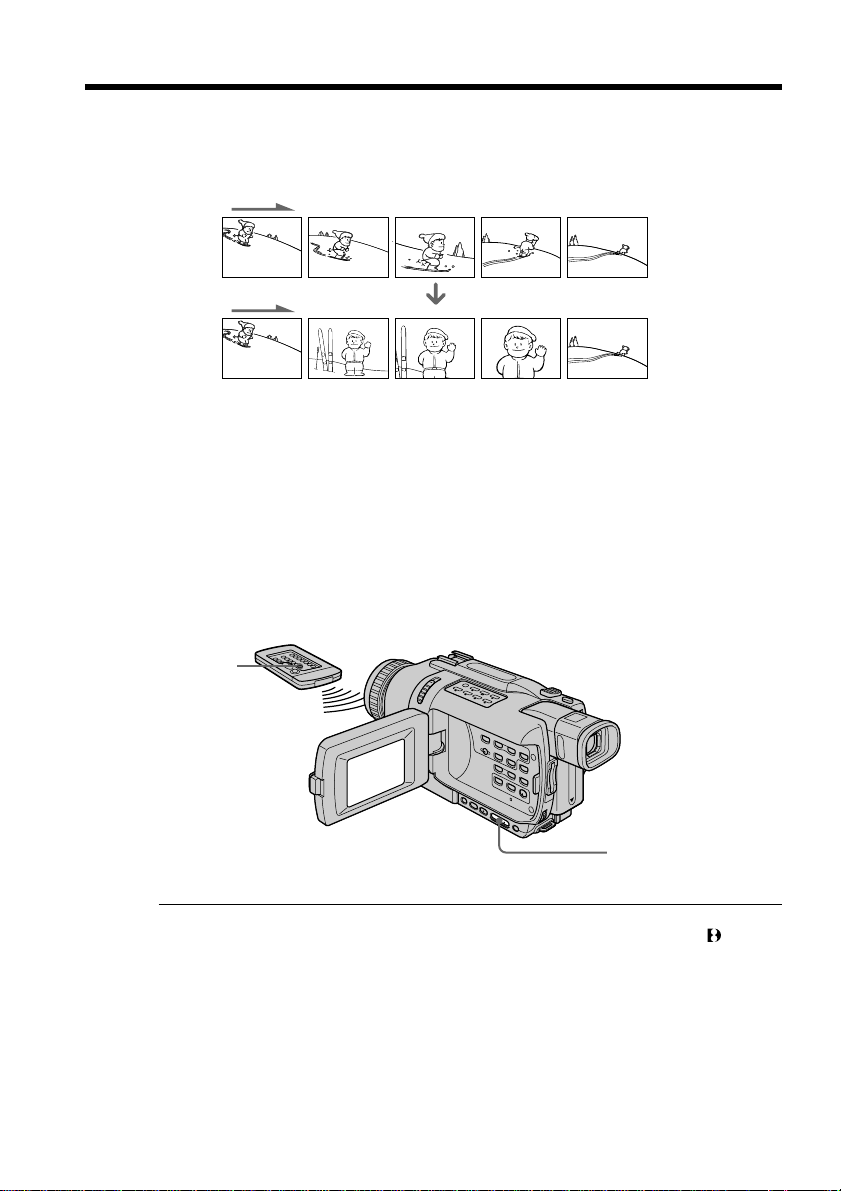

You can make a recording with a stop-motion animated effect using frame recording.
To create this effect, alternately move the subject a little and make a frame recording.
We recommend that you use a tripod, and operate your camcorder using the Remote
Commander after step 5.
(1) In the standby mode, press MENU to display the menu settings.
(2) Turn the SEL/PUSH EXEC dial to select FRAME REC in
, then press the
dial.
(3) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
(4) Press MENU to make the menu settings disappear.
The FRAME REC indicator appears.
(5) Press START/STOP to start frame recording. Your camcorder makes a
recording for about six frames, and returns to recording standby.
(6) Move the subject, and repeat step 5.
To cancel the frame recording
Perform either of the following:
– Set FRAME REC to OFF in the menu settings.
– Set the POWER switch to other than CAMERA.
Note
The remaining tape time is not indicated correctly if you use this function continuously.
When using the frame recording function
The last recorded cut is longer than other cuts.
Frame by frame recording
– Frame recording
5
4
STBY
FRAME REC
MENU
3
CAMERA SET
SELFT
I
MER
D ZOOM
PHOTO REC
16 : 9W
I
DE
STEADYSHOT
FRAME REC
I
NT. REC
RETURN
ON
[
MENU
]
:
END
CAMERA SET
SELFT
I
MER
D ZOOM
PHOTO REC
16 : 9W
I
DE
STEADYSHOT
FRAME REC
I
NT. REC
RETURN
OFF
ON
[
MENU
]
:
END
58

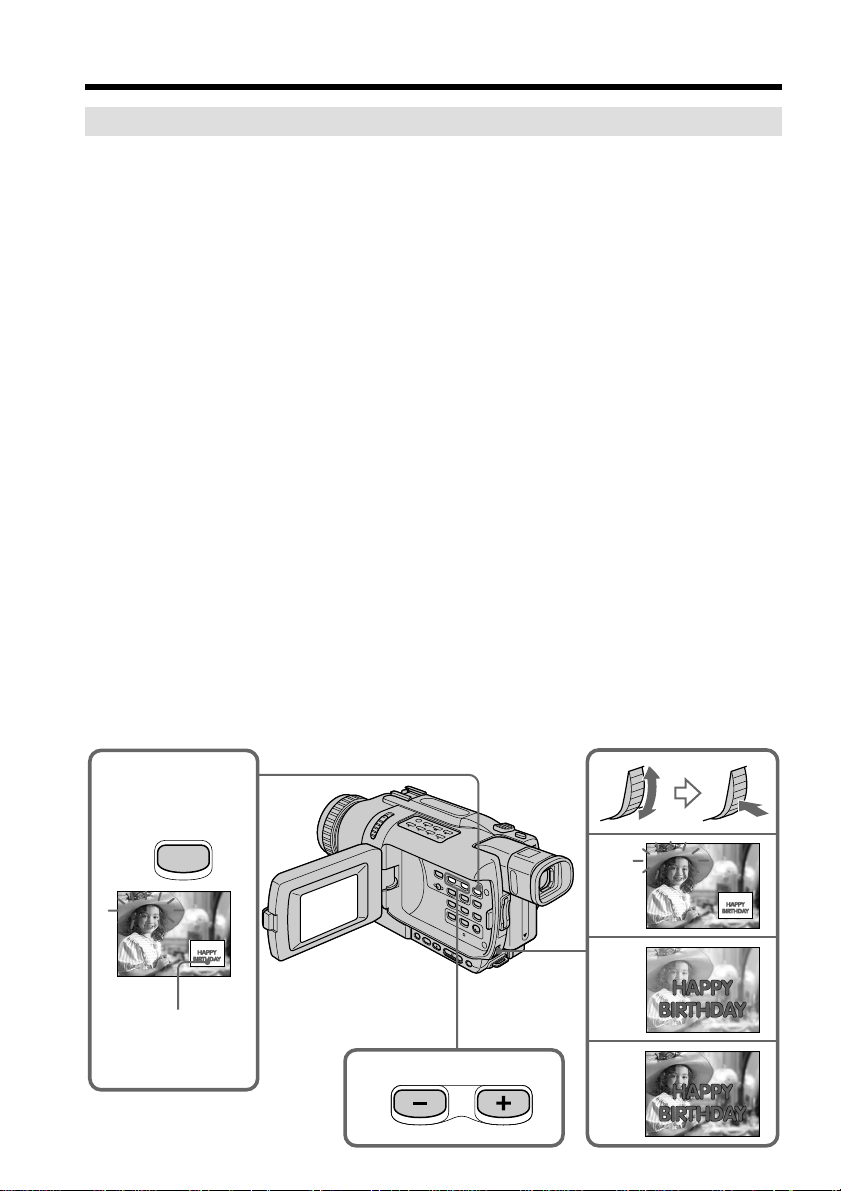

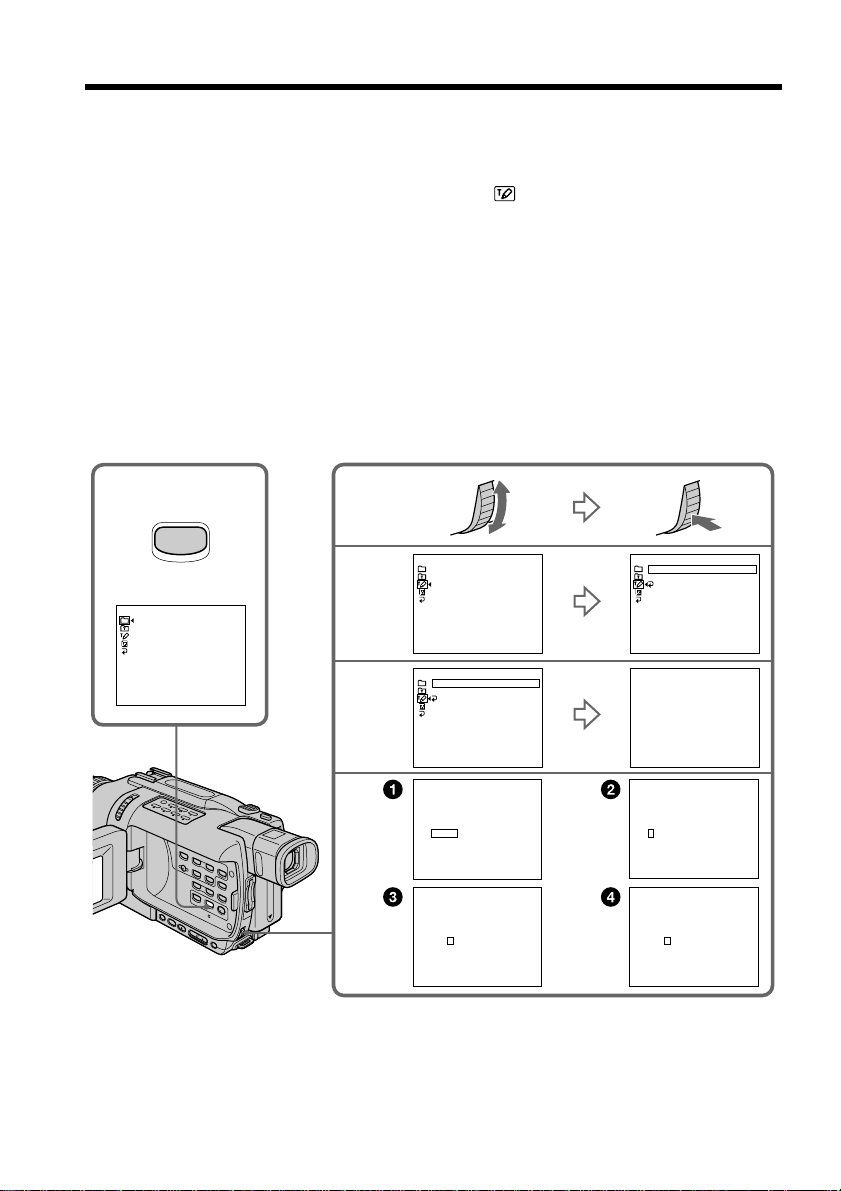

You can select one of eight preset titles and two custom titles (p. 60). You can also select
the language, color, size and position of titles.
(1) In the standby mode, press TITLE to display the title menu. The title menu
display appears on the screen.
(2) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to select the desired title, then press the dial.
The titles are displayed in the language you selected.
(4) Change the color, size, or position, if necessary.
1 Turn the SEL/PUSH EXEC dial to select COLOR, SIZE, or POSITION, then
press the dial. The selected item appears on the screen.
2 Turn the SEL/PUSH EXEC dial to select the desired item, then press the
dial.
3 Repeat steps 1 and 2 until the title is laid out as desired.
(5) Press the SEL/PUSH EXEC dial again to complete the setting.
(6) Press START/STOP to start recording.
(7) When you want to stop recording the title, press TITLE.
Superimposing a title
VACATION
1
2
3
4
TITLE
PRESET TITLE
HELLO!
HAPPY BIRTHDAY
HAPPY HOLIDAYS
CONGRATULATIONS!
OUR SWEET BABY
WEDDING
VACATION
THE END
[
TITLE
]
: END
PRESET TITLE
HELLO!
HAPPY BIRTHDAY
HAPPY HOLIDAYS
CONGRATULATIONS!
OUR SWEET BABY
WEDDING
VACATION
THE END
RETURN
[
TITLE
]
: END
VACATION
[
TITLE
]
: END
TITLE
VACATION
[
TITLE
]
: END
TITLE
PRESET TITLE
HELLO!
HAPPY BIRTHDAY
HAPPY HOLIDAYS
CONGRATULATIONS!
OUR SWEET BABY
WEDDING
VACATION
THE END
[
TITLE
]
: END
PRESET TITLE
HELLO!
HAPPY BIRTHDAY
HAPPY HOLIDAYS
CONGRATULATIONS!
OUR SWEET BABY
WEDDING
VACATION
THE END
RETURN
[
TITLE
]
: END
VACATION
SIZE SMALL
SIZE LARGE
59
Advanced Recording Operations
To superimpose the title while you are recording
Press TITLE while you are recording, and carry out steps 2 to 5. When you press the
SEL/PUSH EXEC dial at step 5, the title is recorded.
To select the language of a preset title
If you want to change the language, select before step 2. Then select the desired
language and return to step 2.
If you display the menu while superimposing a title
The title is not recorded while the menu is displayed.
To use a custom title
If you want to use a custom title, select in step 2.
Title setting
•The title color changes as follows:
WHITE y YELLOW y VIOLET y RED y CYAN y GREEN y BLUE
•The title size changes as follows:
SMALL y LARGE
You cannot input 13 characters or more in LARGE size. If you input more than 12
characters, the title size returns to SMALL even you select LARGE.
•The title position changes as follows:
1y 2y 3y 4y 5y 6y 7y 8y 9
The larger the position number, the lower the title is positioned.
When you select the title size LARGE, you cannot choose position 9.
When you are selecting and setting the title
You cannot record the title displayed on the screen.
When you superimpose a title while you are recording
The beep does not sound.
While you are playing back
You can superimpose a title. However, the title is not recorded on tape.

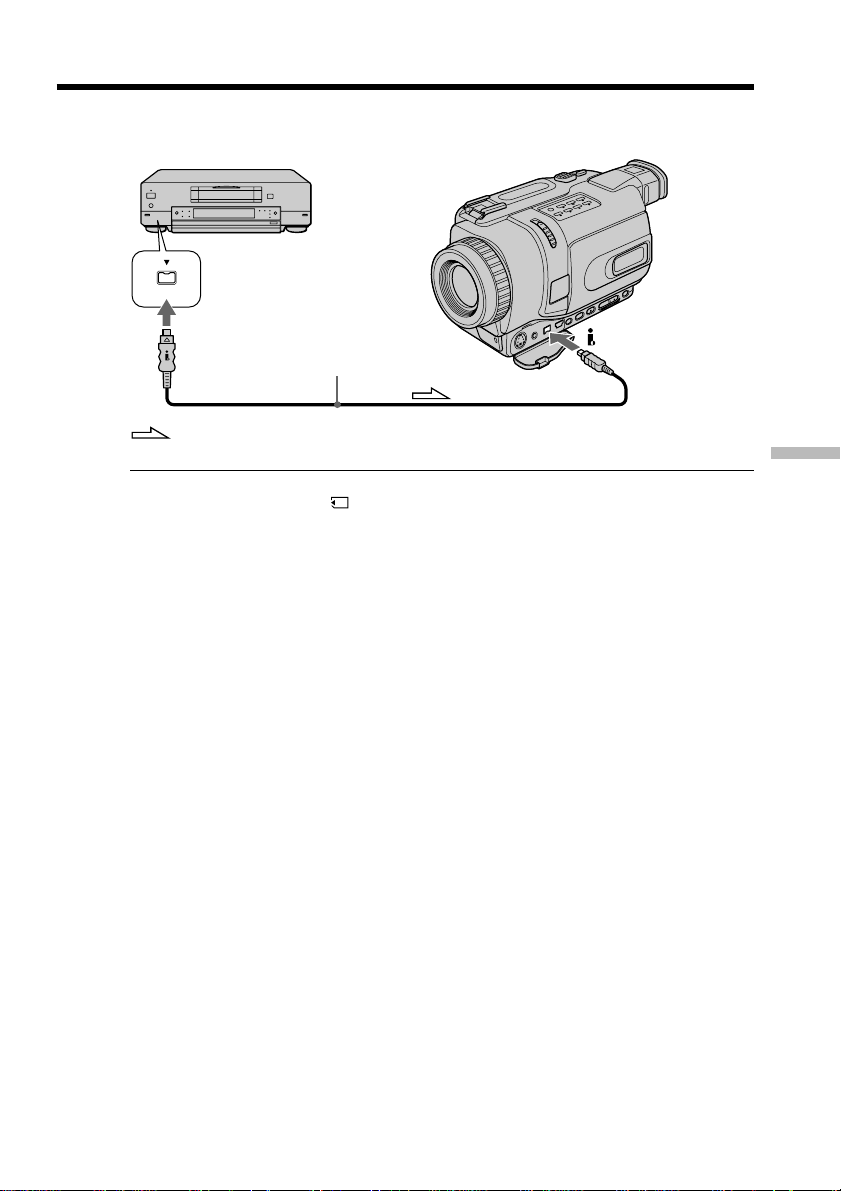

You can record a title when you dub a tape connecting your camcorder to the VCR with
the A/V connecting cable. If you use the i.LINK cable instead of the A/V connecting
cable, you cannot record the title.
Superimposing a title
60
Making your own titles
You can make up to two titles and store them in your camcorder. Each title can have up
to 20 characters.
(1) In the standby or VCR mode, press TITLE.
(2) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to select CUSTOM1 SET or CUSTOM2 SET,
then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select the column of the desired character,
then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select the desired character, then press the
dial.
(6) Repeat steps 4 and 5 until you have selected all characters and completed the
title.
(7) To finish making your own titles, turn the SEL/PUSH EXEC dial to select
[SET], then press the dial. The title is stored in memory.
(8) Press TITLE to make the title menu disappear.
1
TITLE
2
3
4
6
-
PRESET TITLE
HELLO!
HAPPY BIRTHDAY
HAPPY HOLIDAYS
CONGRATULATIONS!
OUR SWEET BABY
WEDDING
VACATION
THE END
[
TITLE
]
:
END
TITLE SET
CUSTOM1 SET
CUSTOM2 SET
[
TITLE
]
:
END
TITLE SET
CUSTOM1 SET
CUSTOM2 SET
RETURN
[
TITLE
]
:
END
TITLE SET
CUSTOM1 SET
CUSTOM2 SET
RETURN
[
TITLE
]
:
END
TITLE SET
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
ABCDE
FGHIJ
KLMNO
PQRST
UVWXY
Z& ?!
’ . , / –
[
TITLE
]
: END
12345
67890
ÀÈÌÒÙ
ÁÉÍÓÚ
ÂÊÔ
ƌ
ÃÕÑ
ç
ß
ÄÏÖÜÅ
P1
$F¥
DM
£
¿
i ø ” :
[ C ]
[ cP2 ]
[ SET ]
TITLE SET
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
ABCDE
FGHIJ
KLMNO
PQRST
UVWXY
Z& ? !
’ . , / –
[
TITLE
]
: END
12345
67890
ÀÈÌÒÙ
ÁÉÍÓÚ
ÂÊÔ
ƌ
ÃÕÑ
ç
ß
ÄÏÖÜÅ
P1
$F¥
DM
£
¿
i ø ” :
[ C ]
[ cP2 ]
[ SET ]
TITLE SET
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
ABCDE
FGHIJ
KLMNO
PQRST
UVWXY
Z& ? !
’ . , / –
[
TITLE
]
: END
12345
67890
ÀÈÌÒÙ
ÁÉÍÓÚ
ÂÊÔ
ƌ
ÃÕÑ
ç
ß
ÄÏÖÜÅ
P1
$F¥
DM
£
¿
i ø ” :
[ C ]
[ cP2 ]
[ SET ]
TITLE SET
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
ABCDE
FGHIJ
KLMNO
PQRST
UVWXY
Z& ? !
’ . , / –
[
TITLE
]
: END
12345
67890
ÀÈÌÒÙ
ÁÉÍÓÚ
ÂÊÔ
ƌ
ÃÕÑ
ç
ß
ÄÏÖÜÅ
P1
$F¥
DM
£
¿
i ø ” :
[ C ]
[ cP2 ]
[ SET ]
TITLE SET
S_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
ABCDE
FGHIJ
KLMNO
PQRST
UVWXY
Z& ? !
’ . , / –
[
TITLE
]
: END
12345
67890
ÀÈÌÒÙ
ÁÉÍÓÚ
ÂÊÔ
ƌ
ÃÕÑ
ç
ß
ÄÏÖÜÅ
P1
$F¥
DM
£
¿
i ø ” :
[ C ]
[ cP2 ]
[ SET ]
61
Advanced Recording Operations
To change a title you have stored
In step 3, select CUSTOM1 SET or CUSTOM2 SET, depending on which title you want
to change, then press the SEL/PUSH EXEC dial.
Turn the SEL/PUSH EXEC dial to select [C], then press the dial to delete the title. The
last character is erased. Enter the new title as desired.
If you take three minutes or longer to enter characters in the standby mode while
a cassette is in your camcorder
The power automatically goes off. The characters you have entered remain stored in
memory. Set the POWER switch to OFF (CHG) once, and turn it to CAMERA again,
then proceed from step 1.
We recommend setting the POWER switch to VCR or removing the cassette so that
your camcorder does not automatically turn off while you are entering title characters.
If you select [ ]
The menu for selecting alphabet and Russian characters appear. Select [ ] to return
to the previous screen.
To erase a character
Select [C]. The last character is erased.
To enter a space
Select [Z& ?!], then select the blank part.
Making your own titles
62
You can insert a scene in the middle of a recorded tape by setting the start and end
points. The previously recorded frames between these start and end points will be
erased.
Use the Remote Commander for this operation.
(1) In the standby mode, keep pressing EDITSEARCH, and release the button at
the insert end point [b].
(2) Press ZERO SET MEMORY on the Remote Commander.
The ZERO SET MEMORY indicator flashes and the counter resets to zero.
(3) Keep pressing the – 7 side of EDITSEARCH and release the button at the
insert start point [a].
(4) Press START/STOP to start recording.
The scene is inserted. Recording stops automatically near the counter zero
point. Your camcorder returns to the standby mode.
Notes
•The zero set memory function works only for tapes recorded in the Digital8 system.
•The picture and the sound may be distorted at the end of the inserted section when it
is played back.
If a tape has a blank portion between recorded portions
The zero set memory function may not work correctly.

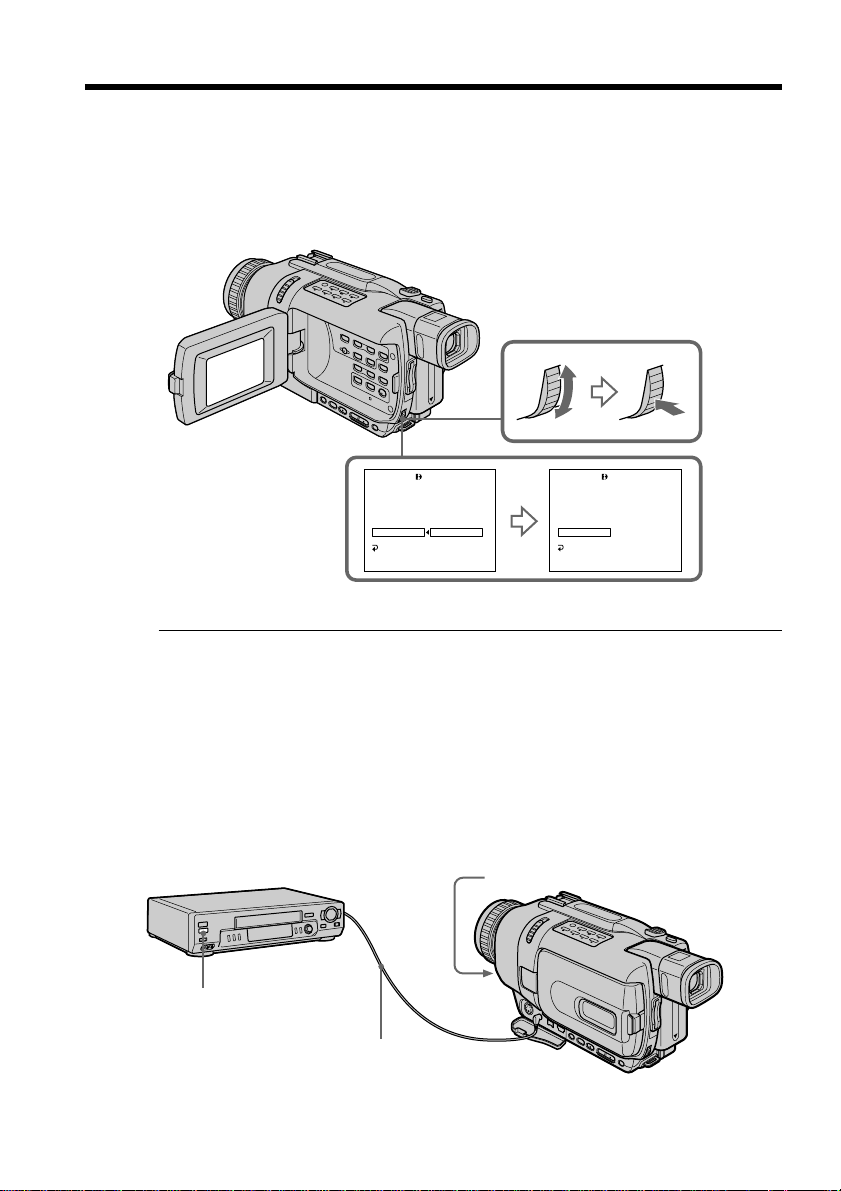

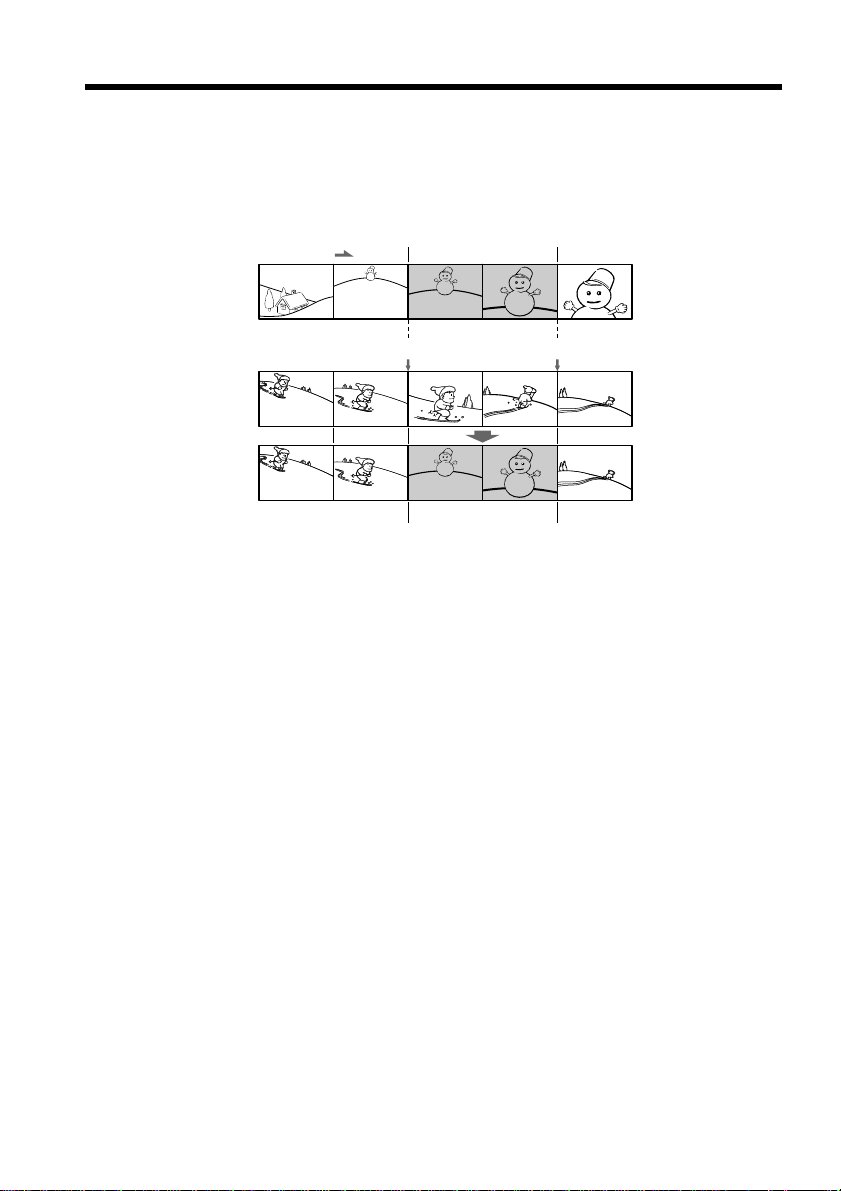

Inserting a scene
[a]
[b]
EDITSEARCH
ZERO SET
MEMORY
63
Advanced Playback Operations
During playback, you can process a scene using the following picture effect functions:
NEG.ART, SEPIA, B&W and SOLARIZE.

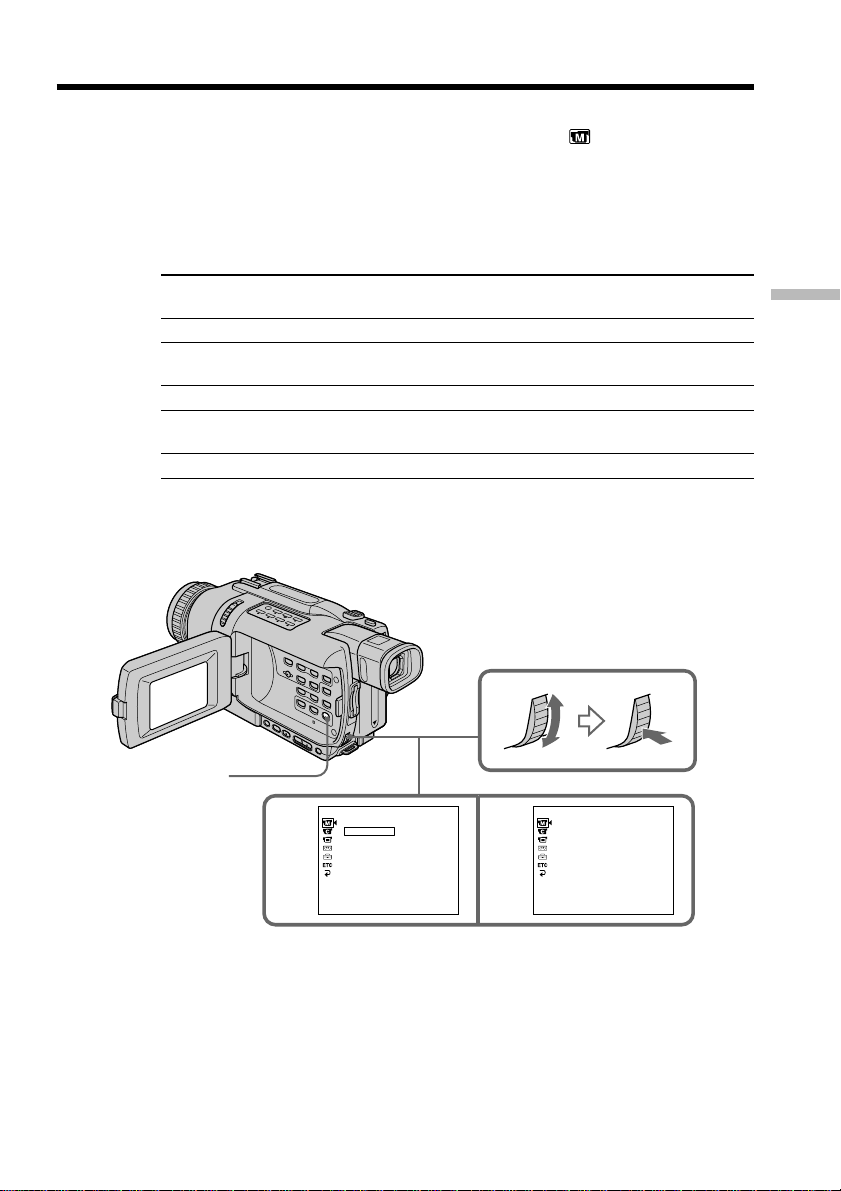

(1) In the playback or playback pause mode, press MENU to display the menu
settings.
(2) Turn the SEL/PUSH EXEC dial to select P EFFECT in
, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to select the desired picture effect mode, then
press the dial.
For details of each picture effect function, see page 47.
To cancel the picture effect
Set P EFFECT to OFF in the menu settings.
Notes
•Picture effect functions work only for tapes recorded in the Digital8 system.
•You cannot process externally input scenes using the picture effect functions.
•You cannot record pictures on a tape on your camcorder when you have processed
the picture using the picture effect function. However, you can record pictures on a
“Memory Stick” (except DCR-TRV240) (p. 135, 142), or on a VCR using your
camcorder as a player.
Pictures processed by picture effect functions
Pictures processed by picture effect functions are not output through the DV IN/OUT
jack.
When you set the POWER switch to OFF (CHG) or stop playing back
The picture effect function is automatically canceled.
— Advanced Playback Operations —
Playing back tapes with picture effects
2
MANUAL SET
P EFFECT
D EFFECT
RETURN
[
MENU
]
:
END
OFF
NEG. ART
SEPIA
B&W
SOLARIZE
MENU
64
During playback, you can process a scene using the following digital effect functions:
STILL, FLASH, LUMI. and TRAIL.
(1) In the playback mode, press MENU to display the menu settings.
(2) Turn SEL/PUSH EXEC dial to select D EFFECT in
, then press the dial.
(3) Turn SEL/PUSH EXEC dial to select the desired digital effect mode, then press
the dial.
The bars appear on the screen.
In the STILL or LUMI. mode, the picture is captured and is stored in memory
as a still image at the time you press the SEL/PUSH EXEC dial.
(4) Turn the SEL/PUSH EXEC dial to adjust the effect.
For details of each digital effect function, see page 48.
To cancel the digital effect
Set D EFFECT to OFF in the menu settings.
Notes
•Digital effect functions work only for tapes recorded in the Digital8 system.
•You cannot process externally input scenes using digital effect functions.
•You cannot record images on a tape on your camcorder when you have processed the
image using digital effect functions. However, you can record images on a “Memory
Stick” (except DCR-TRV240) (p. 135, 142), or on a VCR using your camcorder as a
player.
Pictures processed by digital effect functions
Pictures processed by digital effect functions are not output through the DV IN/OUT
jack.
When you set the POWER switch to OFF (CHG) or stop playing back
The digital effect function is automatically canceled.
Playing back tapes with digital effects
42
MANUAL SET
D EFFECT
OFF
ST ILL
FLASH
LUMI.
TRAIL
[
MENU
]
:
END
MANUAL SET
D EFFECT
LUMI.
[
MENU
]
:
END
IIIIIIII
••••••••
MENU
65
Advanced Playback Operations

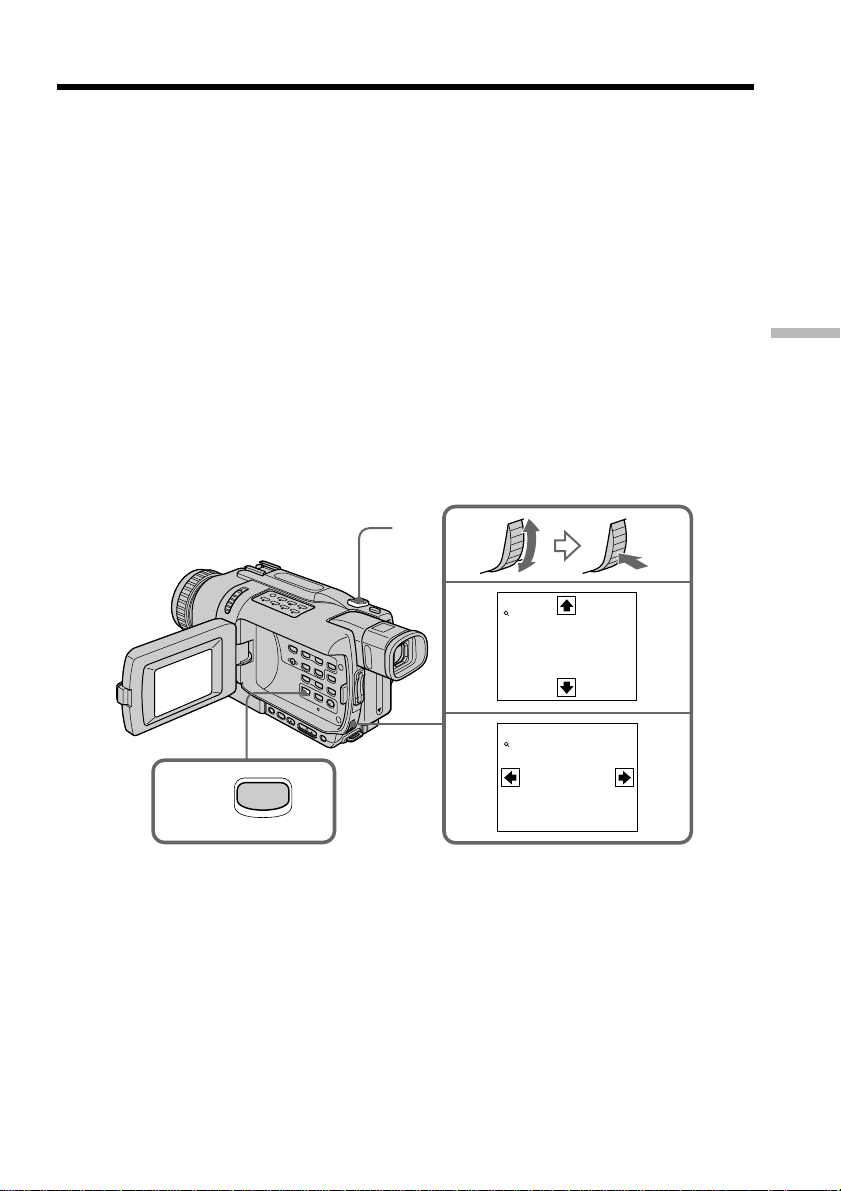

You can enlarge moving and still images recorded on tapes.
Besides the operation described here, your camcorder can enlarge still images recorded
on “Memory Stick”s (except DCR-TRV240) (p. 166).
(1) In the playback or playback pause mode, press PB ZOOM. The image is
enlarged, and R r indicators which showing the direction to move the image
appear on the screen.
(2) Turn SEL/PUSH EXEC dial to move the enlarged image, then press the dial.
R : The image moves downwards.
r : The image moves upwards.
(3) Turn SEL/PUSH EXEC dial to move the enlarged image, then press the dial.
T : The image moves rightward (Turn the dial downwards.)
t : The image moves leftward (Turn the dial upwards.)
(4) Except DCR-TRV240:
Adjust the zoom ratio by the power zoom lever.
You can enlarge the image from 1.1 times up to five times its size.
W : Decreases the zoom ratio.
T : Increase the zoom ratio.
To cancel the PB ZOOM function
Press PB ZOOM to turn off the indicator.
Enlarging recorded images
– Tape PB ZOOM
3
4
2
PB ZOOM
× 5.0
[
EXEC
]
: T t
PB ZOOM
× 5.0
[
EXEC
]
: r R
1
PB ZOOM
66
Notes
•The PB ZOOM function works only for tapes recorded in the Digital8 system.
•You cannot process externally input scenes using the PB ZOOM function.
•You cannot record images on a tape on your camcorder when you have processed the
image using the PB ZOOM function. However, you can record images on a “Memory
Stick” (except DCR-TRV240) (p. 135), or on a VCR using your camcorder as a player.
Images in the PB ZOOM function
Images in the PB ZOOM function are not output through the DV IN/OUT jack.
PB ZOOM function is automatically canceled when:
– The POWER switch is set to OFF (CHG)
– You stop playing back
– You press MENU
– You press TITLE
– You insert a “Memory Stick” (except DCR-TRV240)
To record an image processed by Tape PB ZOOM on “Memory Stick”s
(except DCR-TRV240)
Press PHOTO to record the image processed by Tape PB ZOOM.
Enlarging recorded images – Tape PB ZOOM
67
Advanced Playback Operations
Your camcorder goes forward or backward to automatically stop at a desired scene
having a tape counter value of “0:00:00”.
Use the Remote Commander for this operation.
Use this function, for example, to view a desired scene later on during playback.
(1) In the playback mode, press DISPLAY.
(2) Press ZERO SET MEMORY at the point you want to locate later. The tape
counter shows “0:00:00” and the ZERO SET MEMORY indicator flashes on the
screen.
(3) Press x when you want to stop playback.
(4) Press m to rewind the tape to the counter’s zero point. The tape stops
automatically when the counter reaches approximately zero. The ZERO SET
MEMORY indicator disappears, and the time code appears.
(5) Press N. Playback starts from the counter’s zero point.
Notes
•The zero set memory function works only for tapes recorded in the Digital8 system.
•When you press ZERO SET MEMORY before rewinding the tape, the zero set memory
function is canceled.
•There may be a discrepancy of several seconds from the time code.
If a tape has a blank portion between recorded portions
The zero set memory function may not work correctly.
Quickly locating a scene
– ZERO SET MEMORY
DISPLAY ZERO SET
MEMORY
Nm
x
68

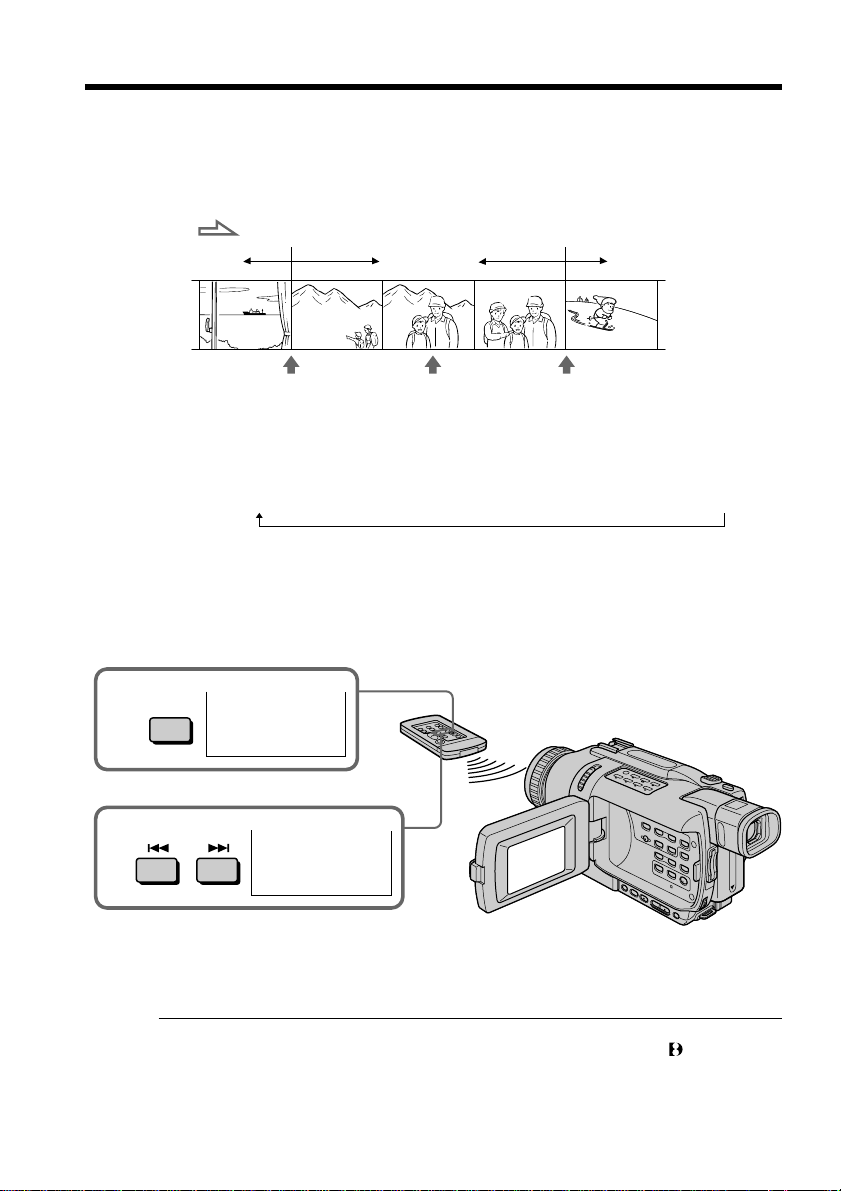

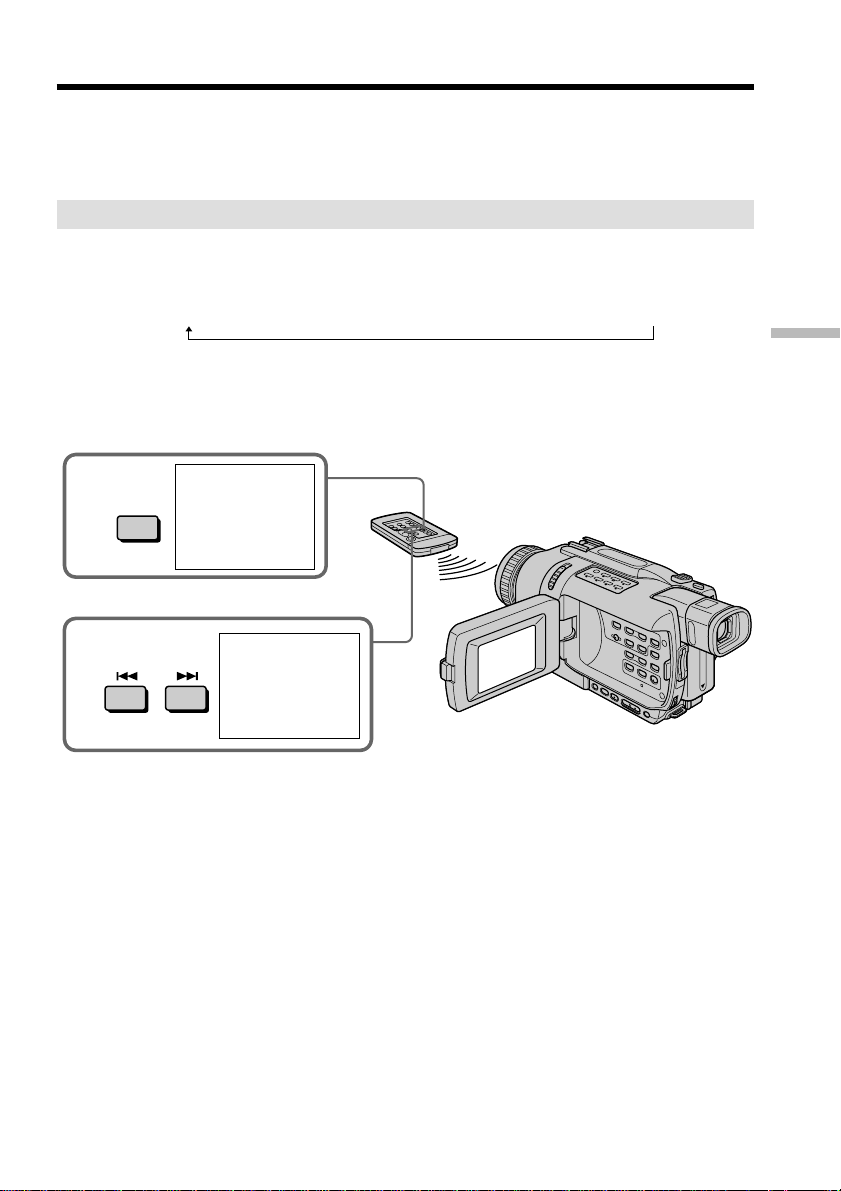

You can automatically search for the point where the recording date changes and start
playback from that point (date search).
Use the Remote Commander for this operation.
Use this function to check where recording dates change or to edit the tape at each
recording date.
(1) Set the POWER switch to VCR.
(2) Press SEARCH MODE on the Remote Commander repeatedly until the DATE
SEARCH indicator appears on the screen. The indicator changes as follows:
DATE SEARCH t PHOTO SEARCH t PHOTO SCAN t (no indicator)
(3) When the current position is [b], press . to search towards [a] or press >
to search towards [c]. Your camcorder automatically starts playback at the
point where the date changes.
Each time you press . or > your camcorder searches for the previous or
next date.
To stop searching
Press x.
Notes
•The date search function works only for tapes recorded in the Digital8 system.
•If one day’s recording is less than two minutes, your camcorder may not accurately
find the point where the recording date changes.
If a tape has a blank portion between recorded portions
The date search function may not work correctly.
Searching a recording by date
– DATE SEARCH
[a][b][c]
JUL 5 2002JUL 4 2002 DEC 31 2002
3
2
SEARCH
MODE
DATE
00
SEARCH
DATE
01
SEARCH
69
Advanced Playback Operations
You can search for the recorded still image recorded on tape (photo search).
You can also search for still images one after another and display each image for five
seconds automatically (photo scan).
Use the Remote Commander for these operations.
Searching for a photo
(1) Set the POWER switch to VCR.
(2) Press SEARCH MODE on the Remote Commander repeatedly until the photo
search indicator appears on the screen. The indicator changes as follows:
DATE SEARCH t PHOTO SEARCH t PHOTO SCAN t (no indicator)
(3) Press . or > to select the photo for playback. Each time you press . or
> your camcorder searches for the previous or next photo. Your camcorder
automatically starts playback from the photo.
To stop searching
Press x.
Searching for a photo
– PHOTO SEARCH/PHOTO SCAN
3
01
SEARCH
2
SEARCH
MODE
00
SEARCH
70

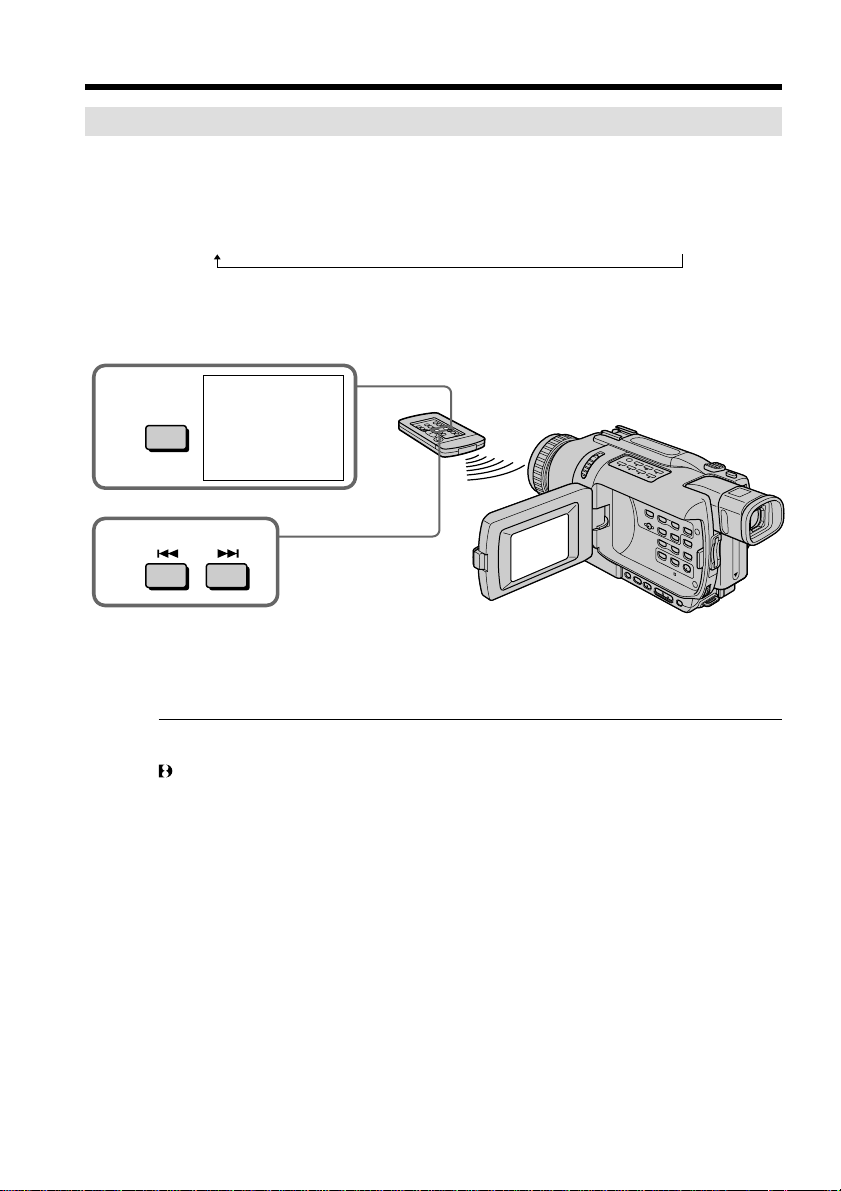

Scanning photo
(1) Set the POWER switch to VCR.
(2) Press SEARCH MODE on the Remote Commander repeatedly until the photo
scan indicator appears on the screen.
The indicator changes as follows:
DATE SEARCH t PHOTO SEARCH t PHOTO SCAN t (no indicator)
(3) Press . or >.
Each photo is played back for about five seconds automatically.
To stop scanning
Press x.
Note
The photo search and photo scan functions work only for tapes recorded in the Digital8
system.
If a tape has a blank portion between recorded portions
The photo search/photo scan function may not work correctly.
Searching for a photo – PHOTO SEARCH/PHOTO SCAN
3
2
SEARCH
MODE
00
SCAN
71
Editing

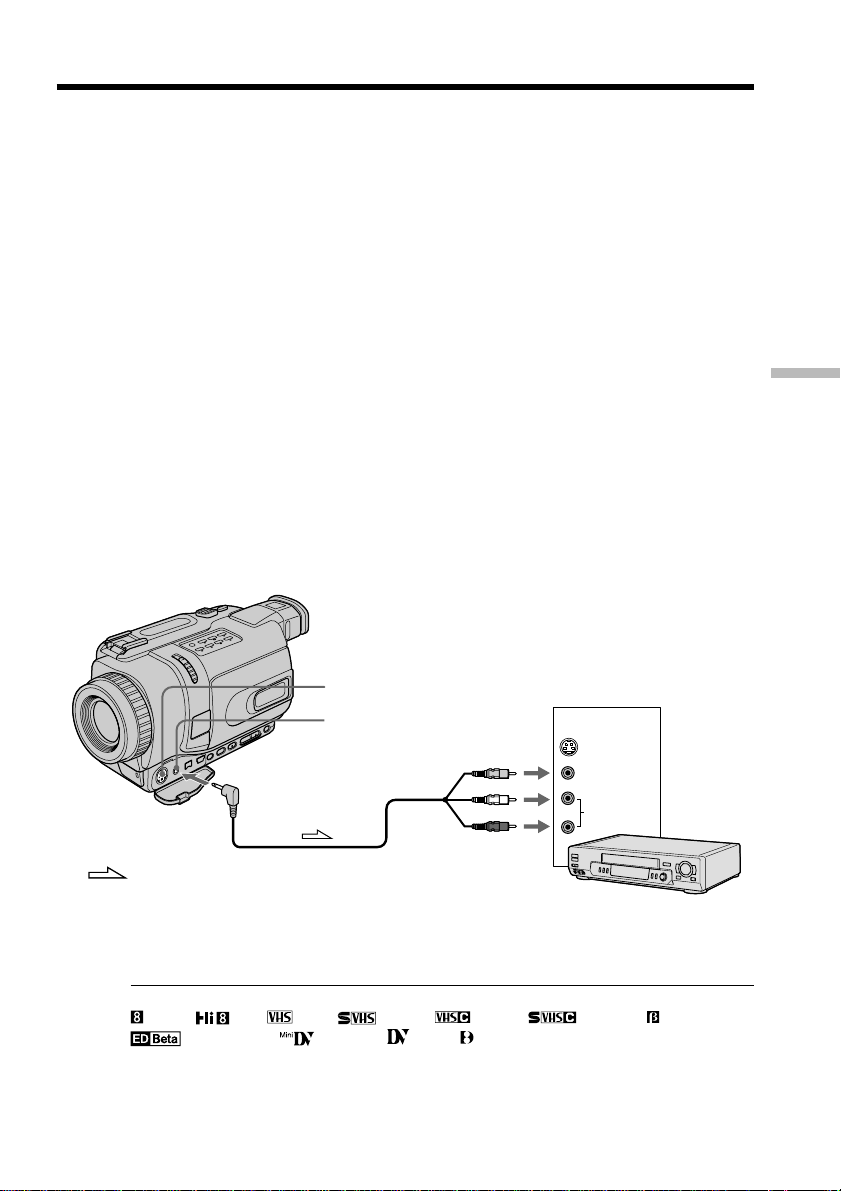

Using the A/V connecting cable
You can dub or edit on the VCR connected to your camcorder using your camcorder as
a player.
Connect your camcorder to the VCR using the A/V connecting cable supplied with
your camcorder.
Before operation
•Set DISPLAY to LCD in the menu settings. (The default setting is LCD.)
•Press the following buttons to make the indicators disappear so that they will not be
superimposed on the edited tape:
– DISPLAY
– DATA CODE on the Remote Commander
– SEARCH MODE on the Remote Commander
(1) Insert a blank tape (or a tape you want to record over) into the VCR, and insert
the recorded tape into your camcorder.
(2) Prepare the VCR for recording, then set the input selector to LINE.
Connect the A/V connecting cable to the AUDIO/VIDEO jack. Refer to the
operating instructions of your VCR.
(3) Set the POWER switch to VCR on your camcorder.
(4) Play back the recorded tape on your camcorder.
(5) Start recording on the VCR.
Refer to the operating instructions of your VCR.
When you have finished dubbing a tape
Press x on both your camcorder and the VCR.
You can edit on VCRs that support the following systems:
8 mm, Hi8, VHS, S-VHS, VHSC, S-VHSC, Betamax,
ED Betamax, mini DV, DV or Digital8
— Editing —
Dubbing a tape
AUDIO
VIDEO
S VIDEO
IN
S VIDEO
AUDIO
/
VIDEO
: Signal flow
VCR
72
If your VCR is a monaural type
Connect the yellow plug of the A/V connecting cable to the video input jack and the
white or the red plug to the audio input jack on the VCR or the TV. When the white
plug is connected, the left channel audio is output, and when the red plug is connected,
the right channel audio is output.
If your VCR has an S video jack
Pictures can be reproduced more faithfully by using an S video cable (optional).
With this connection, you do not need to connect the yellow (video) plug of the A/V
connecting cable.
Connect an S video cable (optional) to the S video jacks of both your camcorder and the
VCR.

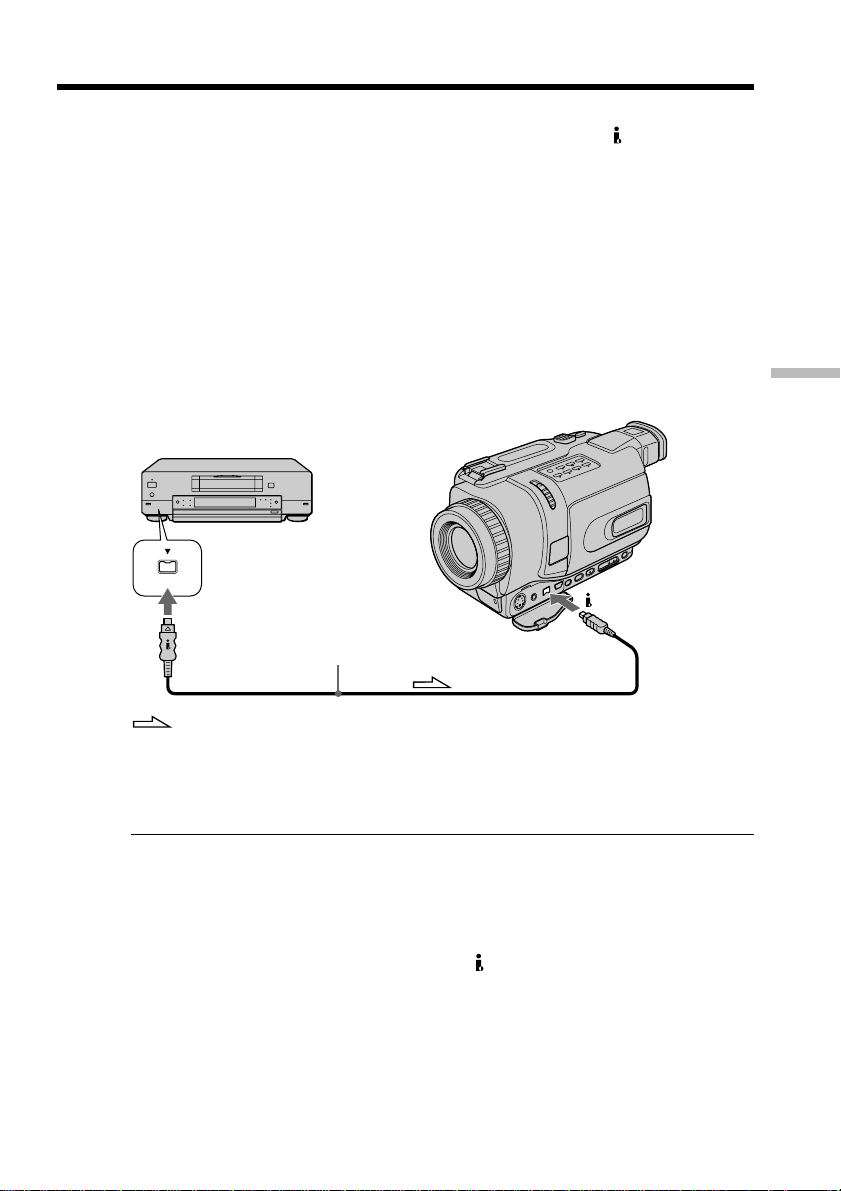

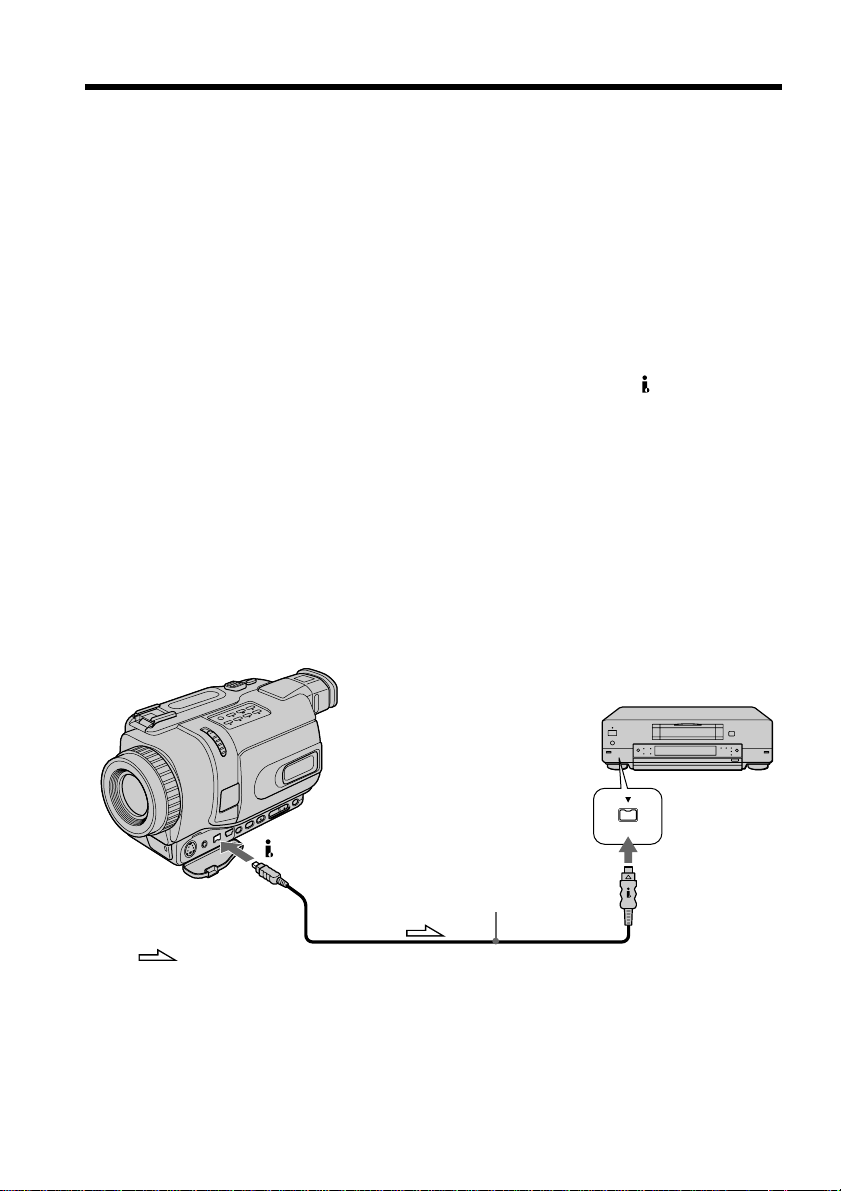

Using the i.LINK cable (DV connecting cable)
Simply connect the i.LINK cable (DV connecting cable) (optional) to DV IN/OUT on
your camcorder and to DV IN/OUT on the DV products. With a digital-to-digital
connection, video and audio signals are transmitted in digital form for high-quality
editing. You cannot dub the screen indicators.
(1) Insert a blank tape (or a tape you want to record over) into the VCR, and insert
the recorded tape into your camcorder.
(2) Set the input selector on the VCR to DV IN if it is available. Refer to the
operating instructions of your VCR.
(3) Set the POWER switch to VCR on your camcorder.
(4) Play back the recorded tape on your camcorder.
(5) Start recording on the VCR.
Refer to the operating instructions of your VCR.
When you have finished dubbing a tape
Press x on both your camcorder and the VCR.
Dubbing a tape
DV
DV IN/OUT
DV IN/OUT
: Signal flow
(optional)
73
Editing
Note on tapes that are not recorded in the Digital8 system
The picture may fluctuate. This is not a malfunction.
During playback of tapes recorded in the Hi8/standard 8 system
Digital signals are output as the image signals from the DV IN/OUT jack.
You can connect one VCR only using the i.LINK cable (DV connecting cable)
See page 191 for more information about i.LINK.
Pictures processed by picture effects, digital effects or the PB ZOOM function
Pictures processed by picture effects, digital effects or the PB ZOOM function are not
output through the DV IN/OUT jack.
If you record playback pause picture with the DV IN/OUT jack
The recorded picture becomes rough. Also, when you play back the picture using other
video equipment, the picture may jitter.
Dubbing a tape
74
You can duplicate selected scenes (programs) for editing onto a tape without operating
the VCR.
Scenes can be selected by frame. You can set up to 20 programs.
Your camcorder can dub on “Memory Stick”s (except DCR-TRV240). See page 146 for
more information.
Before operating the Digital program editing function on
tapes recorded other equipment
Step 1 Connecting the VCR (p. 75).
Step 2 Setting the VCR for operation (p. 75, 80).
Step 3 Adjusting the synchronization of the VCR (p. 82).
When you dub using the same VCR again, you can skip steps 2 and 3.
Using the Digital program editing function on tapes recorded
other equipment
Operation 1 Making a program (p. 84).
Operation 2 Performing the program (dubbing a tape) (p. 87).
Notes
•The Digital program editing works only for tapes recorded in the Digital8 system.
•When you connect with an i.LINK cable (DV connecting cable), you may not be able to
operate the dubbing function correctly, depending on the VCR. Set CONTROL to IR
in the menu settings of your camcorder.
•When editing digital video, the operation signals cannot be sent with LANC .

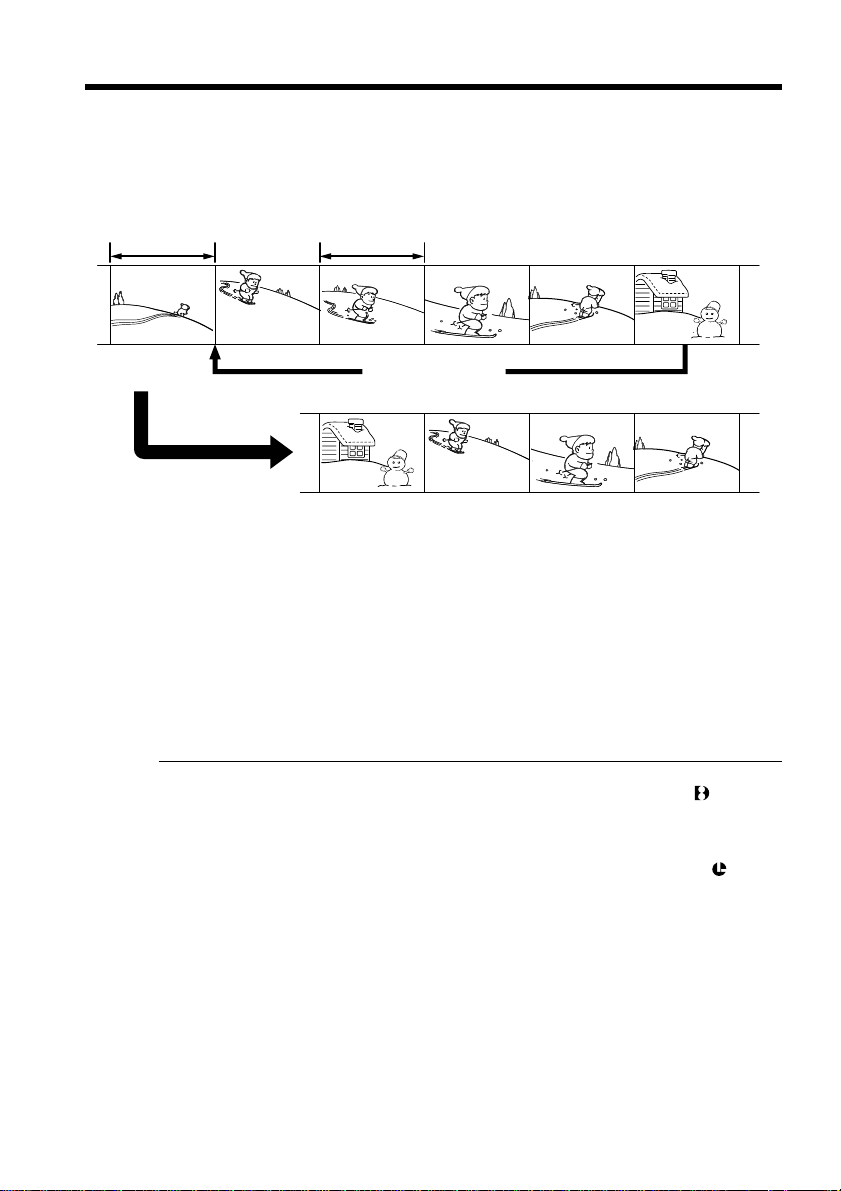

Dubbing only desired scenes
– Digital program editing (on tapes)
Unwanted scene Unwanted scene
Switch the order
75
Editing
Dubbing only desired scenes – Digital program editing (on tapes)
Step 1: Connecting the VCR
You can connect both an A/V connecting cable and an i.LINK cable (DV connecting
cable).
When you use the A/V connecting cable, connect the devices as illustrated in page 71.
When you use an i.LINK cable (DV connecting cable), connect the devices as illustrated
on page 72.
If you connect using an i.LINK cable (DV connecting cable)
With a digital-to-digital connection, video and audio signals are transmitted in digital
format for high-quality editing.
Step 2: Setting the VCR to operate with the A/V connecting cable
To edit using the VCR, send the control signal by infrared rays to the remote sensor on
the VCR.
When you connect using an A/V connecting cable, follow the procedure below, steps
(1) to (4), to send the control signal correctly.

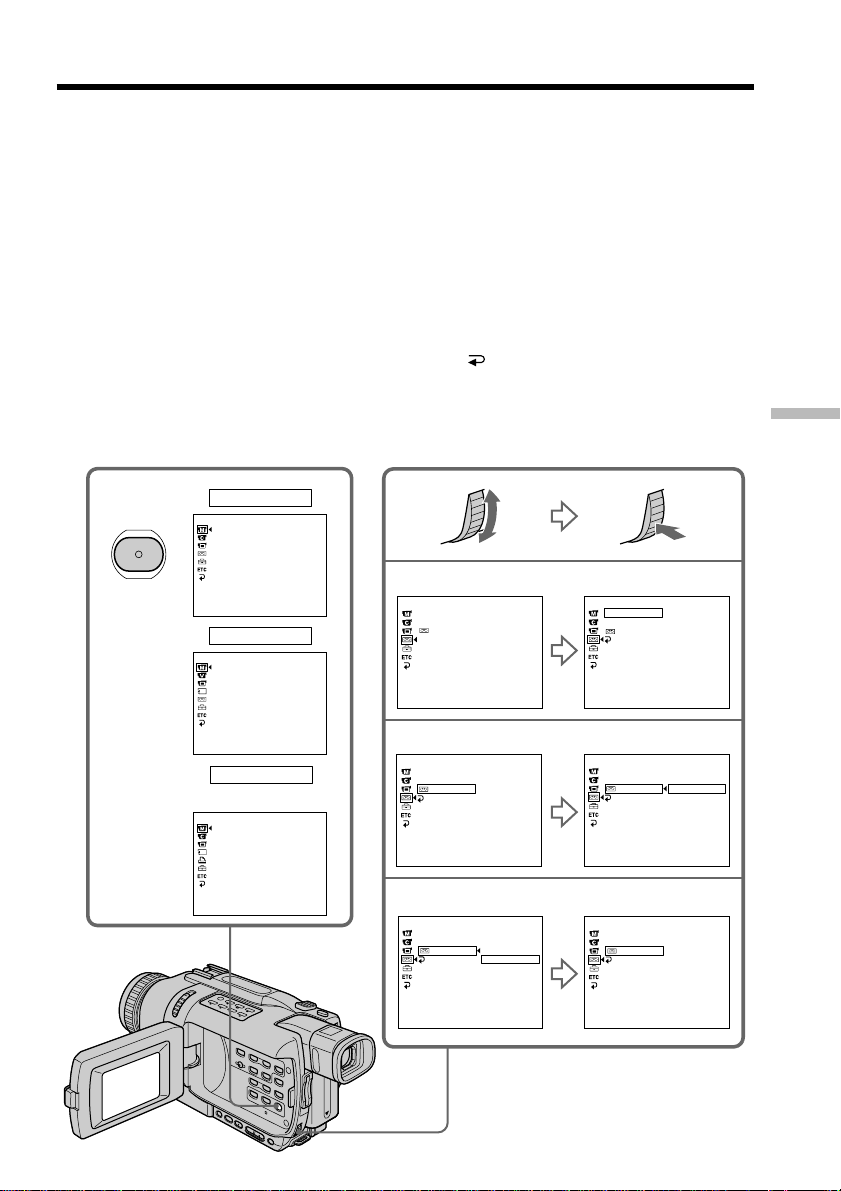

(1) Set the IR SETUP code
1 Set the POWER switch to VCR on your camcorder.
2 Turn the power of the connected VCR on, then set the input selector to LINE.
When you connect a video camera recorder, set its power switch to VCR/VTR.
3 Press MENU to display the menu settings.
4 Turn the SEL/PUSH EXEC dial to select
, then press the dial.
5 For DCR-TRV240:
Turn the SEL/PUSH EXEC dial to select VIDEO EDIT, then press the dial.
For DCR-TRV340/TRV740/TRV840:
Turn the SEL/PUSH EXEC dial to select TAPE in VIDEO EDIT, then press the
dial.
6 Turn the SEL/PUSH EXEC dial to select EDIT SET, then press the dial.
7 Turn the SEL/PUSH EXEC dial to select CONTROL, then press the dial.
8 Turn the SEL/PUSH EXEC dial to select IR, then press the dial.
9 Turn the SEL/PUSH EXEC dial to select IR SETUP.
0 Turn the SEL/PUSH EXEC dial to select IR SETUP code number of your VCR,
then press the dial.
Check the code in “About IR SETUP codes.” (p. 77)
76
Dubbing only desired scenes – Digital program editing (on tapes)
5
7
6
10
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
IR
0
:
08
:
55
:
06
TOTAL 0
:
00
:
00
:
00
SCENE 0
[
MENU
]
:
END
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
1 IN
0
:
08
:
55
:
06
TOTAL 0
:
00
:
00
:
00
SCENE 0
[
MENU
]
:
END
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
IR
i. LINK
0
:
08
:
55
:
06
[
MENU
]
:
END
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
3
0
:
08
:
55
:
06
[
MENU
]
:
END
OTHERS
DATA CODE
BEEP
COMMANDER
DISPLAY
VIDEO EDIT
INDICATOR
RETURN
RETURN
TAPE
MEMORY
[
MENU
]
:
END
OTHERS
DATA CODE
BEEP
COMMANDER
DISPLAY
VIDEO EDIT
INDICATOR
RETURN
READY
[
MENU
]
:
END
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
1 IN
0
:
08
:
55
:
06
TOTAL 0
:
00
:
00
:
00
SCENE 0
[
MENU
]
:
END
MENU
For DCR-TRV240:
For DCR-TRV340/TRV740/TRV840:
77
Editing
Dubbing only desired scenes – Digital program editing (on tapes)
* TV/VCR component
Note on IR SETUP codes
Digital program editing is not possible if the VCR does not support IR SETUP codes.
About IR SETUP codes
The IR SETUP code is stored in the memory of your camcorder. Be sure to set the
correct code to match your VCR. The default setting is code number 3.
Brand IR SETUP code
Sony 1, 2, 3, 4, 5, 6
Admiral (M. Wards) 89
Aiwa 47, 54, 80
Akai 49, 51
Audio Dynamic 21, 35
Bell&Howell 36
(M. Wards)
Broksonic 21, 70, 82
Canon 77, 78
Citizen 47
Craig 47, 73
Curtis Mathis 8, 77, 80
Daewoo 26, 40, 77
DBX 21, 33, 35
Dimensia 8
Emerson 26, 48, 59, 70, 80, 81, 82
Fisher 36, 37, 44, 45
Funai 80
General Electric 8, 32*, 77, 94*, 101
Goldstar/LG 47
GO VIDEO 71
Hitachi 8, 42, 78
HQ 40
Instant Replay 77, 78
JC Penny 8, 21, 33, 35, 36, 42, 77
JVC 12, 13, 14, 21, 33, 35
Kenwood 21, 33, 35, 47
LXI (Sears) 36, 37, 42, 44, 45, 47, 49, 80
Magnavox 17, 77, 78, 83
Marantz 21, 33, 35
Marta 47
Memorex 37, 77
Minolta 8, 42
Brand IR SETUP code
Mitsubishi/MGA 22, 23, 24, 28, 29
Multitech 23, 32, 80
NEC 21, 33, 35
Olympic 77, 78
Optimus 22
Orion 60
Panasonic 16, 17, 77, 78
Pentax 8, 42
Philco 26, 70, 77, 78
Philips 47, 77, 78, 83
Pioneer 78
Quasar 6, 16, 17, 77, 78
RCA/PROSCAN 7, 8, 16, 40, 41, 42, 77, 78, 78*, 83,
101
Realistic 22, 36, 37, 77, 80, 88
Sansui 21
Singer 73
Samsung 24, 24*, 32, 32*, 41, 94, 94*
Sanyo 26, 36, 37, 47
Scott 22, 23, 24, 28, 32, 37, 40, 41
Sharp 88, 89
Shintom 73
Signature 2000 80, 89
Sylvania 77, 78, 80, 83
Symphonic 80
Tashiro 47
Tatung 21, 33, 35
Teac 21, 33, 35, 80
Technics 77, 78
Toshiba 7, 40, 49
Wards 37, 47, 88, 89, 95
Yamaha 21, 33, 35, 36
Zenith 95
78
(2) Setting the modes to cancel the recording pause on the VCR
1 Turn the SEL/PUSH EXEC dial to select PAUSEMODE, then press the dial.
2 Turn the SEL/PUSH EXEC dial to select the mode to cancel recording pause
on the VCR, then press the dial.
Refer to the operating instructions of your VCR.
Buttons to cancel recording pause on the VCR
The buttons vary depending on your VCR. To cancel recording pause:
– Select PAUSE if the button to cancel recording pause is X.
– Select REC if the button to cancel recording pause is z.
– Select PB if the button to cancel recording pause is N.
(3) Setting your camcorder and the VCR to face each other
Locate the infrared rays emitter of your camcorder and face it towards the remote
sensor of the VCR.
Set the devices about 30 cm (12 in.) apart, and remove any obstacles between the
devices.
Dubbing only desired scenes – Digital program editing (on tapes)
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
PAUSE
REC
PB
0
:
08
:
55
:
06
[
MENU
]
:
END
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
PAUSE
0
:
08
:
55
:
06
[
MENU
]
:
END
Infrared rays emitter
A/V connecting cable (supplied)
Remote sensor
VCR
79
Editing
(4) Confirming VCR operation
1 Insert a recordable tape into the VCR, then set to recording pause.
2 Turn the SEL/PUSH EXEC dial to select IR TEST, then press the dial.
3 Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
If the VCR starts recording, the setting is correct.
When recording is finished, the indicator changes to COMPLETE.
When the VCR does not operate correctly
•After checking the code in “About IR SETUP codes”, set the IR SETUP or the
PAUSEMODE again.
•Place your camcorder at least 30 cm (12 in.) away from the VCR.
•Refer to the operating instructions of your VCR.
Dubbing only desired scenes – Digital program editing (on tapes)
23
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
RETURN
EXECUTE
ENGAGE
REC PAUSE
0
:
08
:
55
:
06
[
MENU
]
:
END
VIDEO EDIT
EDIT SET

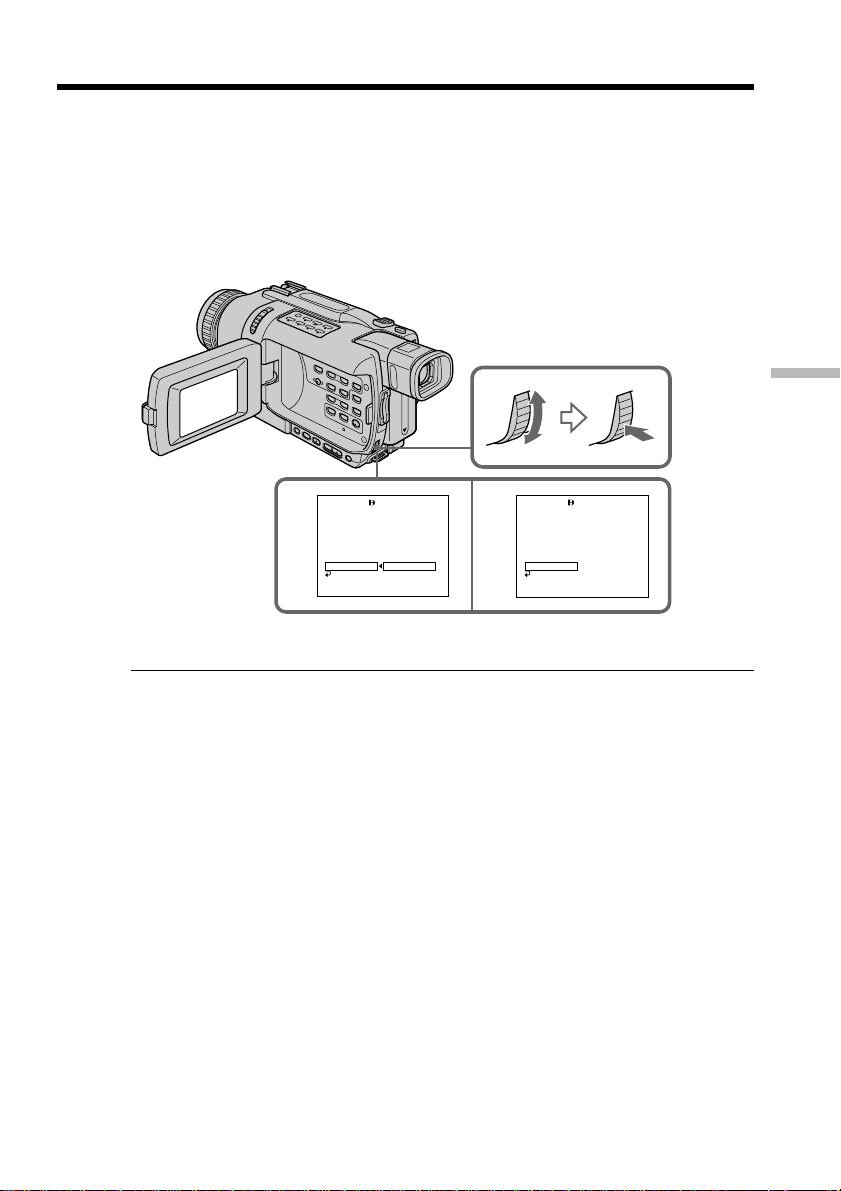

CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
COMPLETE
0
:
08
:
55
:
06
[
MENU
]
:
END
80

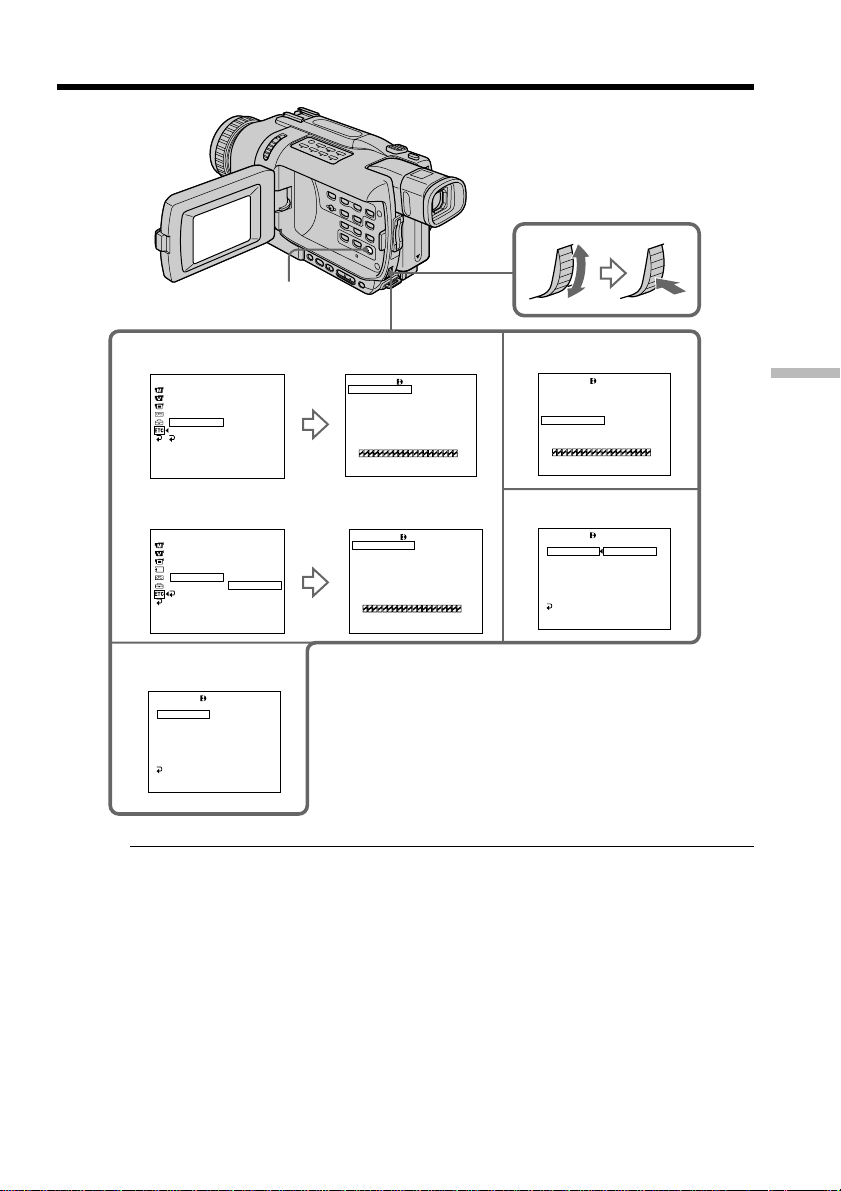

Step 2: Setting the VCR to operate with the i.LINK cable
(DV connecting cable)
When you connect using i.LINK cable (DV connecting cable) (optional), follow the
procedure below.
(1) Set the POWER switch to VCR on your camcorder.
(2) Turn the power of the connected VCR on, then set the input selector to DV
input. When you connect a digital video camera recorder, set its power switch
to VCR/VTR.
(3) Press MENU to display the menu settings.
(4) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(5) For DCR-TRV240:
Turn the SEL/PUSH EXEC dial to select VIDEO EDIT, then press the dial.
For DCR-TRV340/TRV740/TRV840:
Turn the SEL/PUSH EXEC dial to select TAPE in VIDEO EDIT, then press the
dial.
(6) Turn the SEL/PUSH EXEC dial to select EDIT SET, then press the dial.
(7) Turn the SEL/PUSH EXEC dial to select CONTROL, then press the dial.
(8) Turn the SEL/PUSH EXEC dial to select i.LINK, then press the dial.
Dubbing only desired scenes – Digital program editing (on tapes)
81
Editing
When you connect using an i.LINK cable (DV connecting cable)
You cannot dub the titles and display indicators.
Dubbing only desired scenes – Digital program editing (on tapes)
5
7
6
8
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
IR
0
:
08
:
55
:
06
TOTAL 0
:
00
:
00
:
00
SCENE 0
[
MENU
]
:
END
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
IR
i. LINK
0
:
08
:
55
:
06
[
MENU
]
:
END
i. LINK
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
0
:
08
:
55
:
06
[
MENU
]
:
END
OTHERS
DATA CODE
BEEP
COMMANDER
DISPLAY
VIDEO EDIT
INDICATOR
RETURN
READY
[
MENU
]
:
END
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
1 IN
0
:
08
:
55
:
06
TOTAL 0
:
00
:
00
:
00
SCENE 0
[
MENU
]
:
END
OTHERS
DATA CODE
BEEP
COMMANDER
DISPLAY
VIDEO EDIT
INDICATOR
RETURN
RETURN
TAPE
MEMORY
[
MENU
]
:
END
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
1 IN
0
:
08
:
55
:
06
TOTAL 0
:
00
:
00
:
00
SCENE 0
[
MENU
]
:
END
MENU
For DCR-TRV240:
For DCR-TRV340/TRV740/TRV840:
82
Dubbing only desired scenes – Digital program editing (on tapes)
Step 3: Adjusting the synchronization of the VCR
You can adjust the synchronization of your camcorder and the VCR. Have a pen and
paper ready for notes. Before operation, eject the cassette from your camcorder if
inserted.
(1) Set the POWER switch to VCR on your camcorder.
(2) Insert a blank tape (or a tape you want to record over) into the VCR, then set
to recording pause.
When you select i.LINK in CONTROL, you do not need to set to recording
pause.
(3) Turn the SEL/PUSH EXEC dial to select ADJ TEST, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
IN and OUT are recorded on an image for five times each to calculate the
number values for adjusting the synchronization.
The EXECUTING indicator flashes on the screen.
When finished, the indicator changes to COMPLETE.
(5) Rewind the tape in the VCR, then start slow playback.
Take a note of the first number value of each IN and the last number value of
each OUT.
(6) Calculate the average of all the first number values of each IN, and the
average of all the last number values of each OUT.
(7) Turn the SEL/PUSH EXEC dial to select “CUT-IN”, then press the dial.
(8) Turn the SEL/PUSH EXEC dial to select the average number value of IN, then
press the dial.
The calculated start position for recording is set.
(9) Turn the SEL/PUSH EXEC dial to select “CUT-OUT”, then press the dial.
(10)Turn the SEL/PUSH EXEC dial to select the average number value of OUT,
then press the dial.
The calculated stop position for recording is set.
(11)Turn the SEL/PUSH EXEC dial to select
RETURN, then press the dial.
83
Editing
Notes
•When you complete step 3, the image used to adjust synchronization is recorded for
about 50 seconds.
•If you start recording from the very beginning of the tape, the first few seconds of the
tape may not record properly. Be sure to allow about 10 seconds’ lead before starting
recording.
•When you connect with an i.LINK cable (DV connecting cable) you may not be able to
operate the dubbing function correctly, depending on the VCR.
Keep the i.LINK connection, and set CONTROL to IR in the menu settings.
Video and audio signals are transmitted in digital format.
Dubbing only desired scenes – Digital program editing (on tapes)
79
4
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
RETURN
EXECUTE
ENGAGE
REC PAUSE
0
:
08
:
55
:
06
[
MENU
]
:
END
3
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
EXECUTING
No. 5
IN
–60
0
:
08
:
55
:
06
[
MENU
]
:
END
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
0
0
:
08
:
55
:
06
[
MENU
]
:
END
0
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
0
:
08
:
55
:
06
[
MENU
]
:
END
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
COMPLETE
0
:
08
:
55
:
06
[
MENU
]
:
END
84
Dubbing only desired scenes – Digital program editing (on tapes)

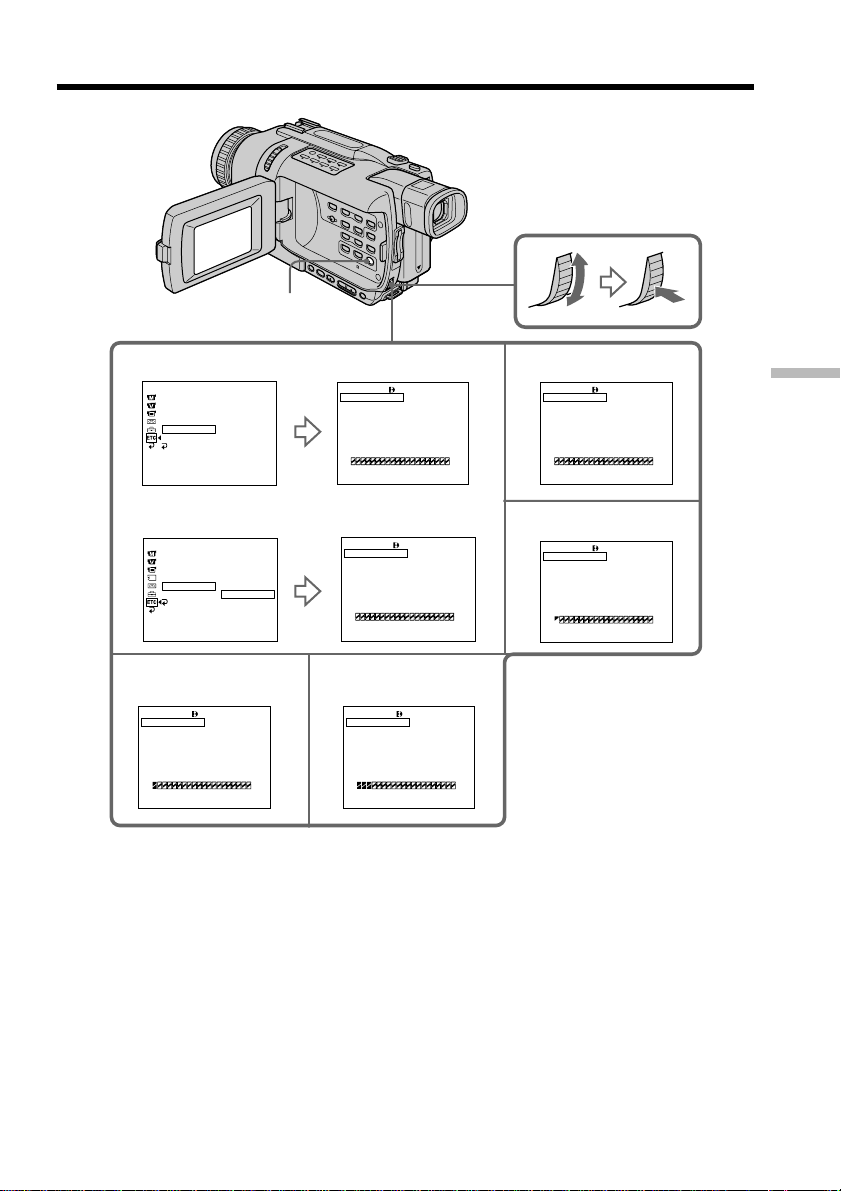

Operation 1: Making a program
(1) Insert the tape for playback into your camcorder, and insert a tape for
recording into the VCR.
(2) Press MENU to display the menu settings.
(3) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(4) For DCR-TRV240:
Turn the SEL/PUSH EXEC dial to select VIDEO EDIT, then press the dial.
For DCR-TRV340/TRV740/TRV840:
Turn the SEL/PUSH EXEC dial to select TAPE in VIDEO EDIT, then press the
dial.
(5) Search for the beginning of the first scene you want to insert using the video
operation buttons, then pause playback.
You can fine-adjust one frame at a time with EDITSEARCH.
(6) Press the SEL/PUSH EXEC dial.
The IN point of the first program is set, and the top part of the program mark
changes to light blue.
(7) Search for the end of the first scene you want to insert using the video
operation buttons, then pause playback.
(8) Press the SEL/PUSH EXEC dial.
The OUT point of the first program is set, then the bottom part of the program
mark changes to light blue.
(9) Repeat steps 5 to 8, then set the program.
When the program is set, the program mark changes to light blue.
You can set up to 20 programs.
85
Editing
Dubbing only desired scenes – Digital program editing (on tapes)
5
6
89
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
1 IN
0
:
08
:
55
:
06
TOTAL 0
:
00
:
00
:
00
SCENE 0
[
MENU
]
:
END
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
1 OUT
0
:
08
:
55
:
06
TOTAL 0
:
00
:
00
:
00
SCENE 0
[
MENU
]
:
END
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
4 IN
0
:
10
:
01
:
23
TOTAL 0
:
00
:
47
:
12
SCENE 3
[
MENU
]
:
END
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
2 IN
0
:
09
:
07
:
06
TOTAL 0
:
00
:
12
:
00
SCENE 1
[
MENU
]
:
END
4
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
1 IN
0
:
08
:
55
:
06
TOTAL 0
:
00
:
00
:
00
SCENE 0
[
MENU
]
:
END
OTHERS
DATA CODE
BEEP
COMMANDER
DISPLAY
VIDEO EDIT
INDICATOR
RETURN
RETURN
TAPE
MEMORY
[
MENU
]
:
END
OTHERS
DATA CODE
BEEP
COMMANDER
DISPLAY
VIDEO EDIT
INDICATOR
RETURN
READY
[
MENU
]
:
END
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
1 IN
0
:
08
:
55
:
06
TOTAL 0
:
00
:
00
:
00
SCENE 0
[
MENU
]
:
END
MENU
For DCR-TRV240:
For DCR-TRV340/TRV740/TRV840:
86
Dubbing only desired scenes – Digital program editing (on tapes)

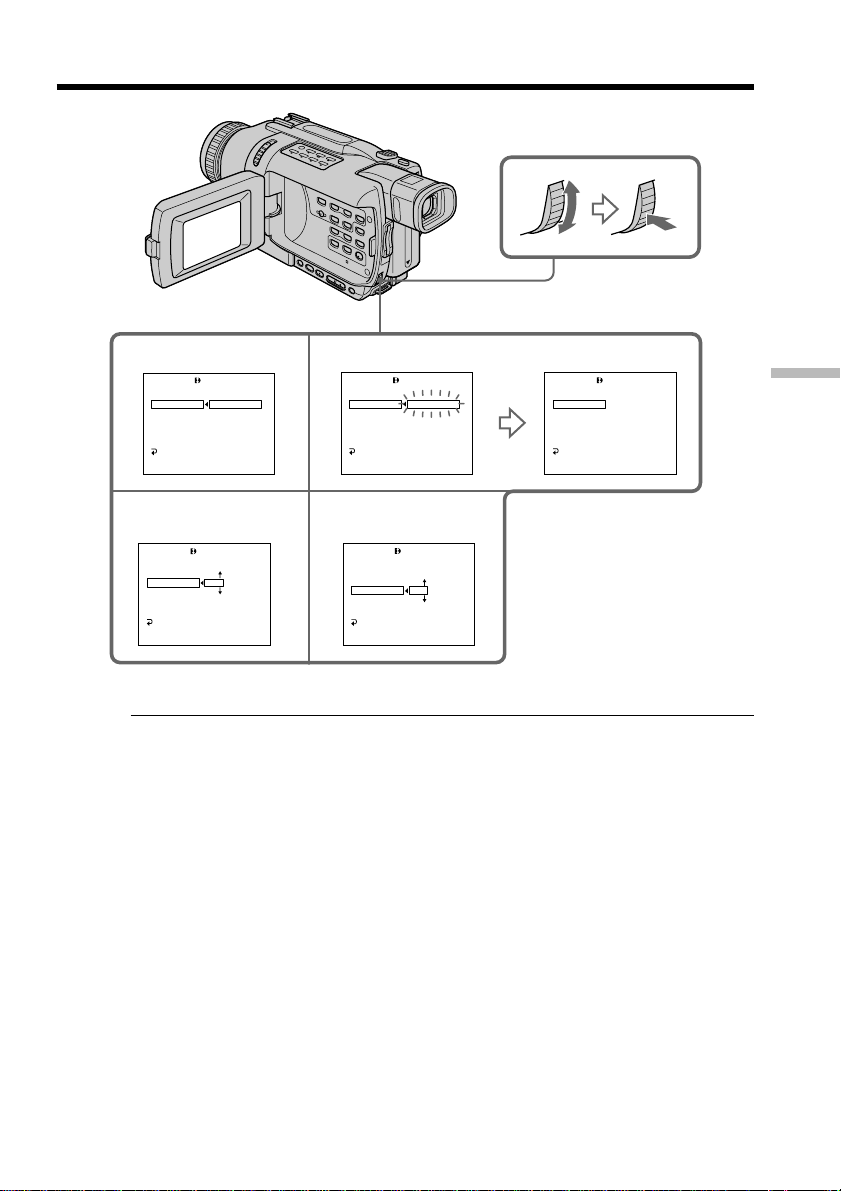

Erasing the program you have set
Erase OUT first and then IN from of the last program.
(1) Turn the SEL/PUSH EXEC dial to select UNDO, then press the dial.
(2) Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
The last set program mark flashes, then the setting is canceled.
To cancel erasing
Select RETURN in step 2.
Erasing all programs
(1) For DCR-TRV240:
Turn the SEL/PUSH EXEC dial to select VIDEO EDIT, then press the dial.
For DCR-TRV340/TRV740/TRV840:
Select VIDEO EDIT in the menu settings. Turn the SEL/PUSH EXEC dial to
select TAPE, then press the dial.
(2) Select ERASE ALL in the menu settings. Turn the SEL/PUSH EXEC dial to
select EXECUTE, then press the dial.
All the program marks flash, then the settings are canceled.
To cancel erasing all programs
Select RETURN in step 2.
To cancel a program you have set
Press MENU.
The program is stored in memory until the tape is ejected.
Notes
•Digital program editing does not work when PB MODE is set to / in the menu
settings.
•You cannot operate recording during Digital program editing.
You cannot set IN or OUT to the following portions of the tape:
– A blank portion of the tape
– A portion recorded in a system other than Digital8
The total time code may not be displayed correctly in the following cases:
– The tape is not recorded in the Digital8 system.
– There is a blank portion between IN and OUT on the tape.
87
Editing
Dubbing only desired scenes – Digital program editing (on tapes)
Operation 2: Performing the program (Dubbing a tape)
Make sure that your camcorder and VCR are connected, and that the VCR is set to
recording pause. When you use an i.LINK cable (DV connecting cable), the following
procedure is not necessary.
When you use a digital video camera recorder, set its power switch to VCR/VTR.
(1) For DCR-TRV240:
Turn the SEL/PUSH EXEC dial to select VIDEO EDIT, then press the dial.
For DCR-TRV340/TRV740/TRV840:
Select VIDEO EDIT in the menu settings. Turn the SEL/PUSH EXEC dial to
select TAPE, then press the dial.
(2) Select START in the menu settings. Turn the SEL/PUSH EXEC dial to select
EXECUTE, then press the dial.
Search for the beginning of the first program, then start dubbing.
The program mark flashes.
The SEARCH indicator appears during search, and the EDITING indicator
appears during edit on the screen.
The program mark changes to light blue after dubbing ends.
When dubbing ends, your camcorder and the VCR automatically stop.
To stop dubbing during editing
Press x on your camcorder.
To end the Digital program editing function
Your camcorder stops when the dubbing ends. Then the display returns to VIDEO
EDIT in the menu settings.
Press MENU to end the Digital program editing function.
You cannot record on the VCR when:
– The cassette has run out of tape.
– The write-protect tab on the cassette is set to lock.
– The IR SETUP code is not correct (when IR is selected).
– The button to cancel recording pause is not correct (when IR is selected).
NOT READY appears on the LCD screen when:
– The program to operate Digital program editing has not been made.
– i.LINK is selected but an i.LINK cable (DV connecting cable) is not connected.
– The power of the connected VCR is not turned on (when you set i.LINK).
88

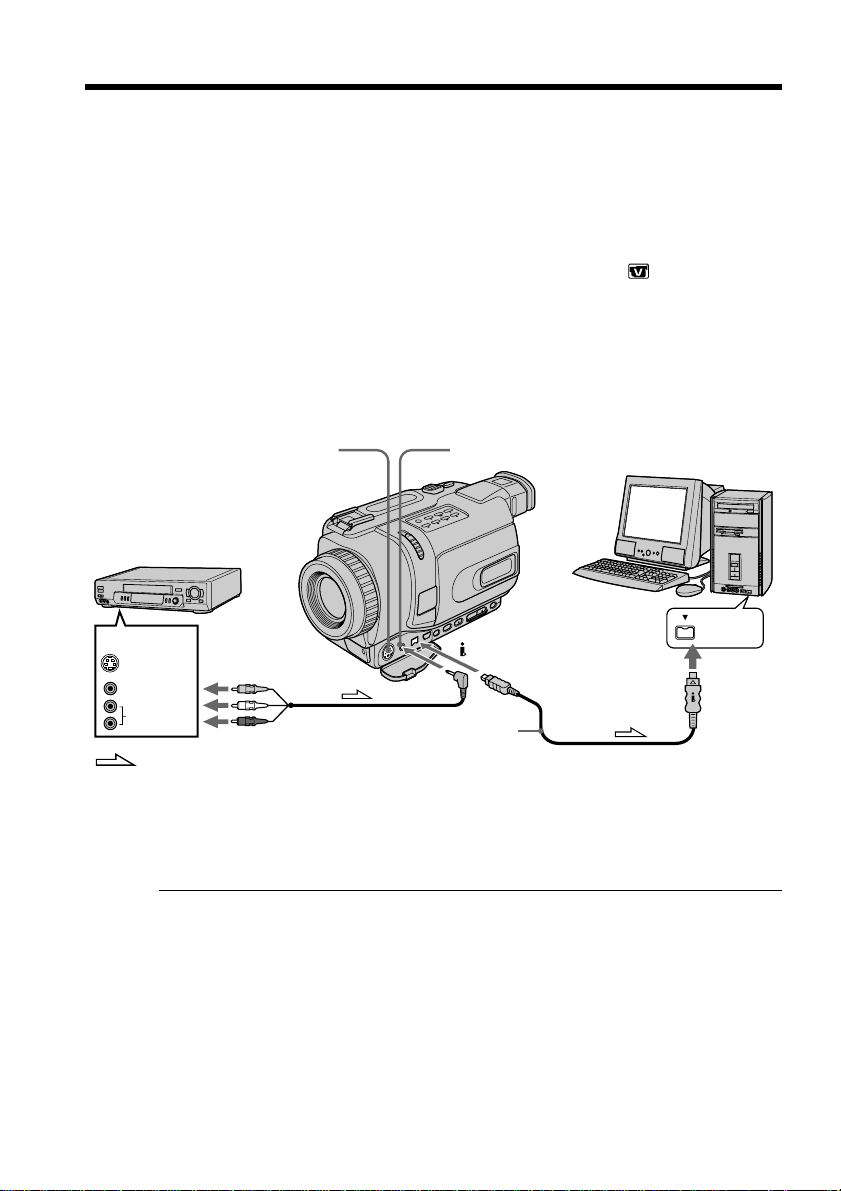

You can capture images and sound from an analog video unit connected to your
computer which has the i.LINK (DV) jack connected to your camcorder.
Before operation
Set DISPLAY to LCD in the menu settings. (The default setting is LCD.)
(1) Set the POWER switch to VCR.
(2) Press MENU to display the menu settings.
(3) Turn the SEL/PUSH EXEC dial to set A/V t DV OUT in
to ON. (p. 105)
(4) Start playback on the analog video unit.
(5) Start procedures for capturing images and sound on your computer.
The operation procedures depend on your computer and the software you are
using.
For details on how to capture images, refer to the operating instructions of
your computer and the software you are using.
After capturing images and sound
Stop capturing procedures on your computer, and stop the playback on the analog
video unit.
Notes
•You need to install software that supports the exchange video signals.
•Depending on the state of the analog video signals, your computer may not be able to
output the images correctly when you convert analog video signals into digital video
signals via your camcorder. Depending on the analog video unit, the image may
contain noise or incorrect colors.
•You cannot record or capture video output via your camcorder when the video tapes
include copyright protection signals such as the ID-2 system.
•You can capture images and sound with an S video cable (optional) instead of the
A/V connecting cable (supplied).
If your computer has a USB jack
You can connect your camcorder to your computer using the USB cable supplied with
your camcorder. Note, however, that the image may flicker.
Capturing images from an analog video unit
on your computer – Signal convert function
i.LINK
VIDEO
AUDIO
S VIDEO
OUT
AUDIO/VIDEO
S VIDEO
DV IN/OUT
(optional)
: Signal flow
VCR
89
Editing
Recording video or TV programs
Using the A/V connecting cable
You can record a tape from another VCR or a TV program from a TV that has video/
audio outputs. Use your camcorder as a recorder.
Before operation
Set DISPLAY to LCD in the menu settings. (The default setting is LCD.)
(1) Insert a blank tape (or a tape you want to record over) into your camcorder. If
you are recording a tape from the VCR, insert a recorded tape into the VCR.
(2) Set the POWER switch to VCR on your camcorder.
(3) Press z REC and the button on its right simultaneously on your camcorder,
then immediately press X on your camcorder.
(4) Press N on the VCR to start playback if you are recording a tape from VCR.
Select a TV program if you are recording from TV.
The picture from a TV or VCR appears on the screen of your camcorder.
(5) Press X on your camcorder at the scene where you want to start recording
from.
When you have finished dubbing a tape
Press x on both your camcorder and the VCR.
: Signal flow
S VIDEO
VIDEO
AUDIO
OUT
S VIDEO
AUDIO
/
VIDEO
3
PAUSE REC
VCR
90
Recording video or TV programs
Notes
•To enable smooth transition, we recommend that you do not mix pictures recorded in
the Hi8/standard 8 with the Digital8 system on a tape.
•If you fast-forward or slow-playback on the other equipment, the image being
recorded may fluctuate. When recording from other equipment, be sure to play back
the original tape at normal speed.
If your VCR is a monaural type
Connect the yellow plug of the A/V connecting cable to the video output jack and the
white or the red plug to the audio output jack on the VCR or the TV. When the white
plug is connected, the left channel audio is output, and when the red plug is connected,
the right channel audio is output.
If your TV or VCR has an S video jack
Pictures can be reproduced more faithfully by using an S video cable (optional).
With this connection, you do not need to connect the yellow (video) plug of the A/V
connecting cable.
Connect an S video cable (optional) to the S video jacks of both your camcorder and the
TV or VCR.
91
Editing
Using the i.LINK cable (DV connecting cable)
Simply connect the i.LINK cable (DV connecting cable) (optional) to DV IN/OUT of
your camcorder and to DV OUT of the DV products. With a digital-to-digital
connection, video and audio signals are transmitted in digital form for high-quality
editing.
(1) Insert a blank tape (or a tape you want to record over) into your camcorder,
and insert the recorded tape into the VCR on your camcorder.
(2) Set the POWER switch to VCR on your camcorder.
(3) Press z REC and the button on its right simultaneously on your camcorder,
then immediately press X on your camcorder.
(4) Press N on the VCR to start playback.
The picture to be recorded appears on the screen of your camcorder.
(5) Press X on your camcorder at the scene where you want to start recording
from.
When you have finished dubbing a tape
Press x on both your camcorder and the VCR.
You can connect one VCR only using the i.LINK cable (DV connecting cable).
During digital editing
The color of the display may be uneven. However this does not affect the dubbed
picture.
If you record playback pause picture with the DV IN/OUT jack
The recorded picture becomes rough. When you play back the picture using your
camcorder, the picture may jitter.
Before recording
Make sure that the DV IN indicator appears on the screen of your camcorder by
pressing DISPLAY. The DV IN indicator may appear on both equipment.
Recording video or TV programs
: Signal flow
(optional)
DV
DV OUT
DV IN/OUT
92
You can insert a new scene from a VCR onto your originally recorded tape by
specifying the insert start and end points.
Use the Remote Commander for this operation.
Connections are the same as on page 89, 91. Insert a cassette containing the desired
scene to insert into the VCR.
[A]: A tape that contains the scene to be superimposed
[B]: A tape before editing
[C]: A tape after editing
Inserting a scene from a VCR
– Insert Editing
[a]
[b]
[c]
[A]
[B]
[C]
93
Editing
(1) Set the POWER switch to VCR on your camcorder.
(2) On the connected VCR, locate just before the insert start point [a], then press X
to set the VCR to the playback pause mode.
(3) On your camcorder, locate the insert end point [c] by pressing m or M.
Then press X to set your camcorder to the playback pause mode.
(4) Press ZERO SET MEMORY on the Remote Commander. The ZERO SET
MEMORY indicator flashes and the end point of the insert is stored in
memory. The tape counter shows “0:00:00.”
(5) On your camcorder, locate the insert start point [b] by pressing m, then press
z REC and the button on its right simultaneously to set your camcorder to the
recording pause mode.
(6) First press X on the VCR, and after a few seconds press X on your camcorder
to start inserting the new scene.
Inserting automatically stops near the zero point on the counter. Your
camcorder automatically stops. The end point [c] of the insert stored in
memory is canceled.
To change the insert end point
Press ZERO SET MEMORY again after step 5 to make the ZERO SET MEMORY
indicator disappear and begin from step 3.
Notes
•The zero set memory function works only for tapes recorded in the Digital8 system.
•Pictures and sound recorded on the section between the insert start and end points
will be erased when you insert the new scene.
When the inserted picture is played back
Pictures may be distorted at the end of the inserted section. This is not a malfunction.
To insert a scene without setting the insert end point
Skip step 3 and 4. Press x when you want to stop inserting.
Inserting a scene from a VCR – Insert Editing
4
ZERO SET
MEMORY
5
0:00:00
ZERO SET
MEMORY
REC
94

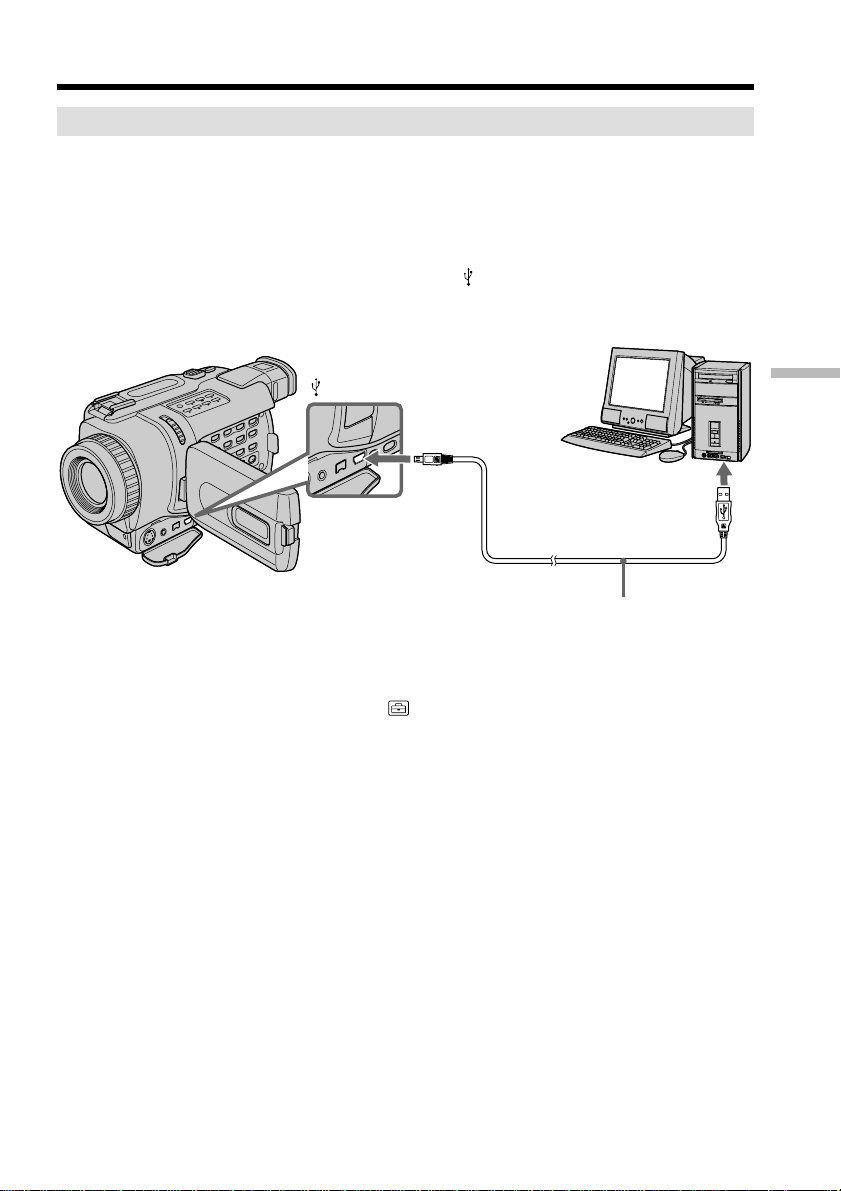

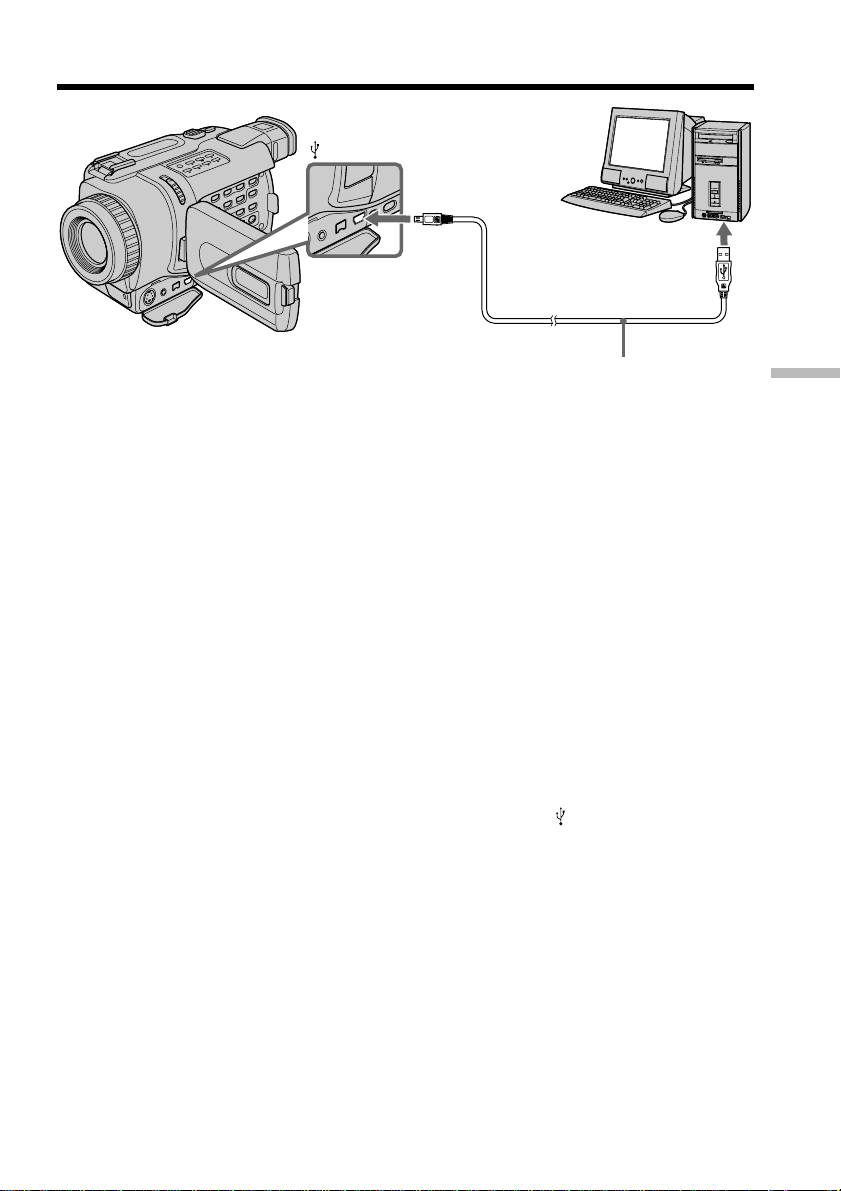

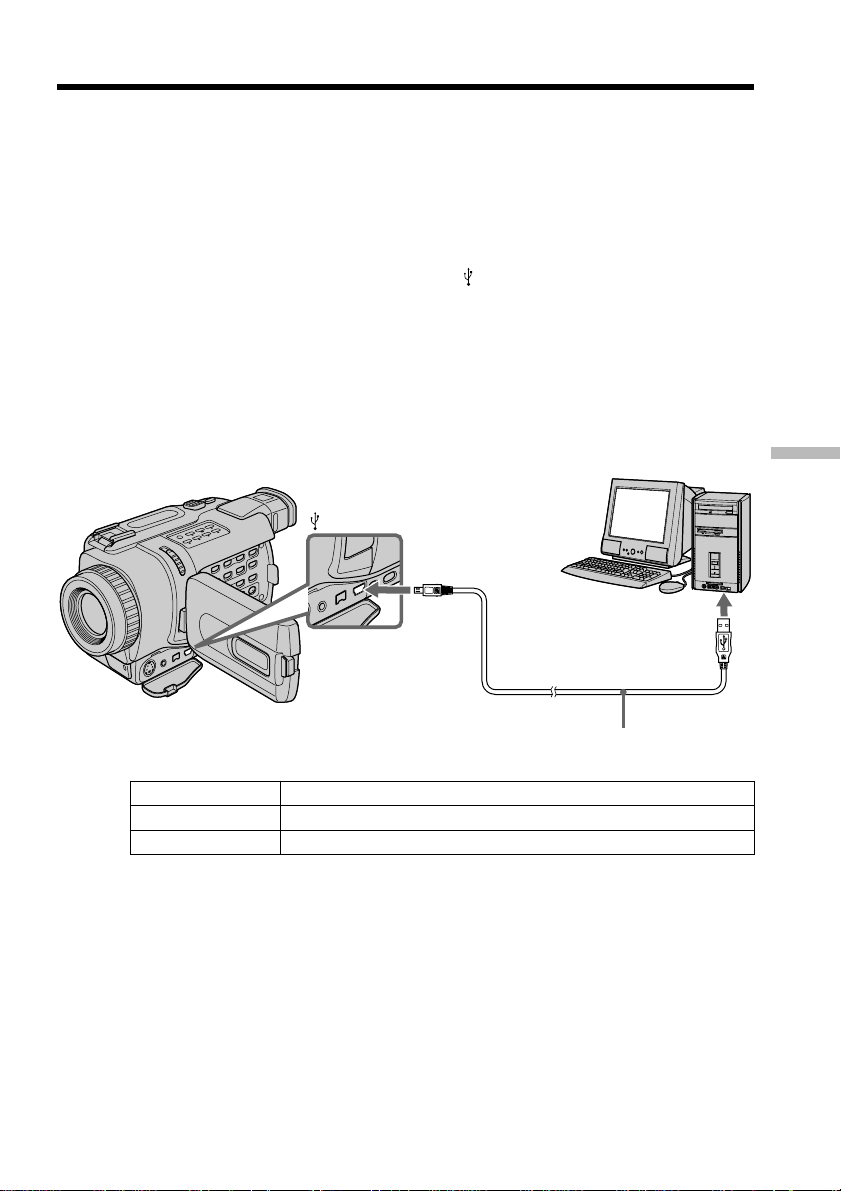

If you connect your camcorder and your computer using the USB cable, you can view
pictures live from your camcorder and pictures recorded on a tape on your computer
(USB Streaming function).
Furthermore, if you capture images recorded on a tape from your camcorder to your
computer, you can process or edit them in image processing software and append them
to e-mail.
Connecting with USB cable and viewing images on your
computer
•Installing the USB driver (p. 96)

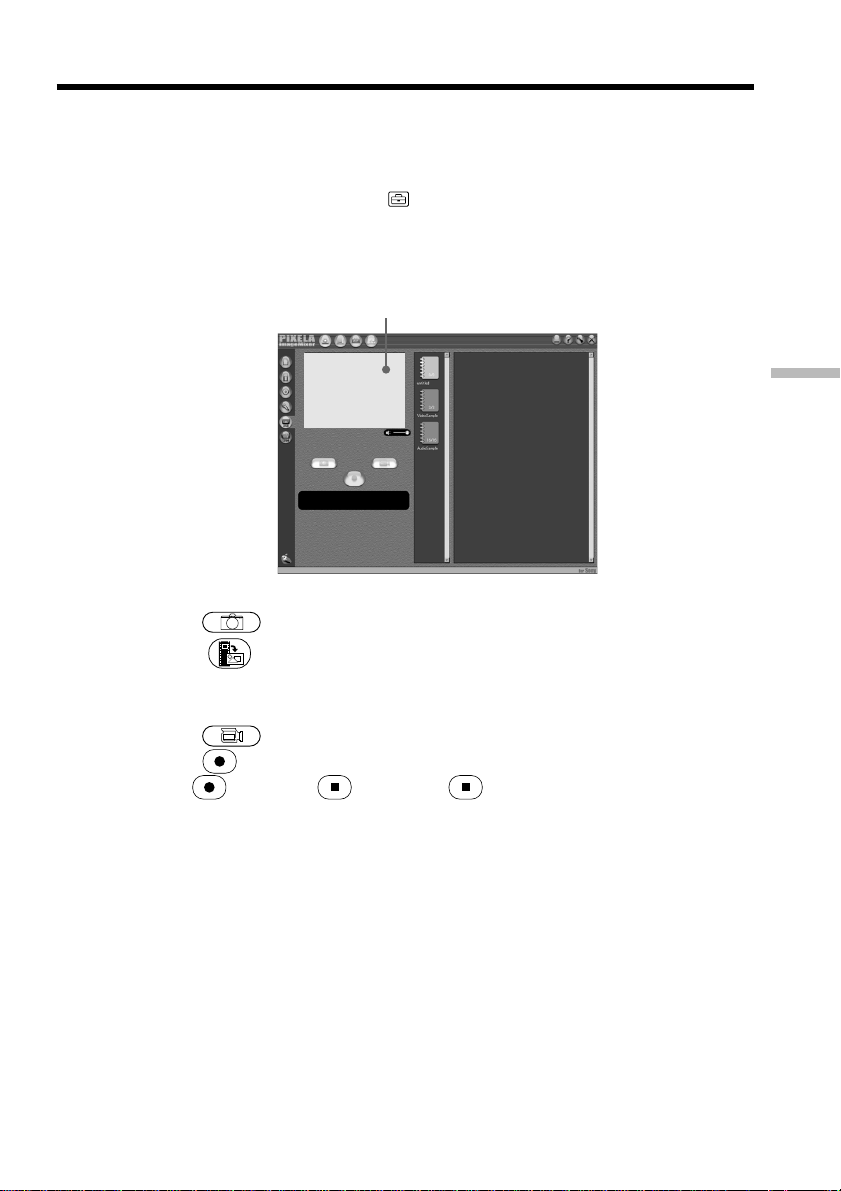

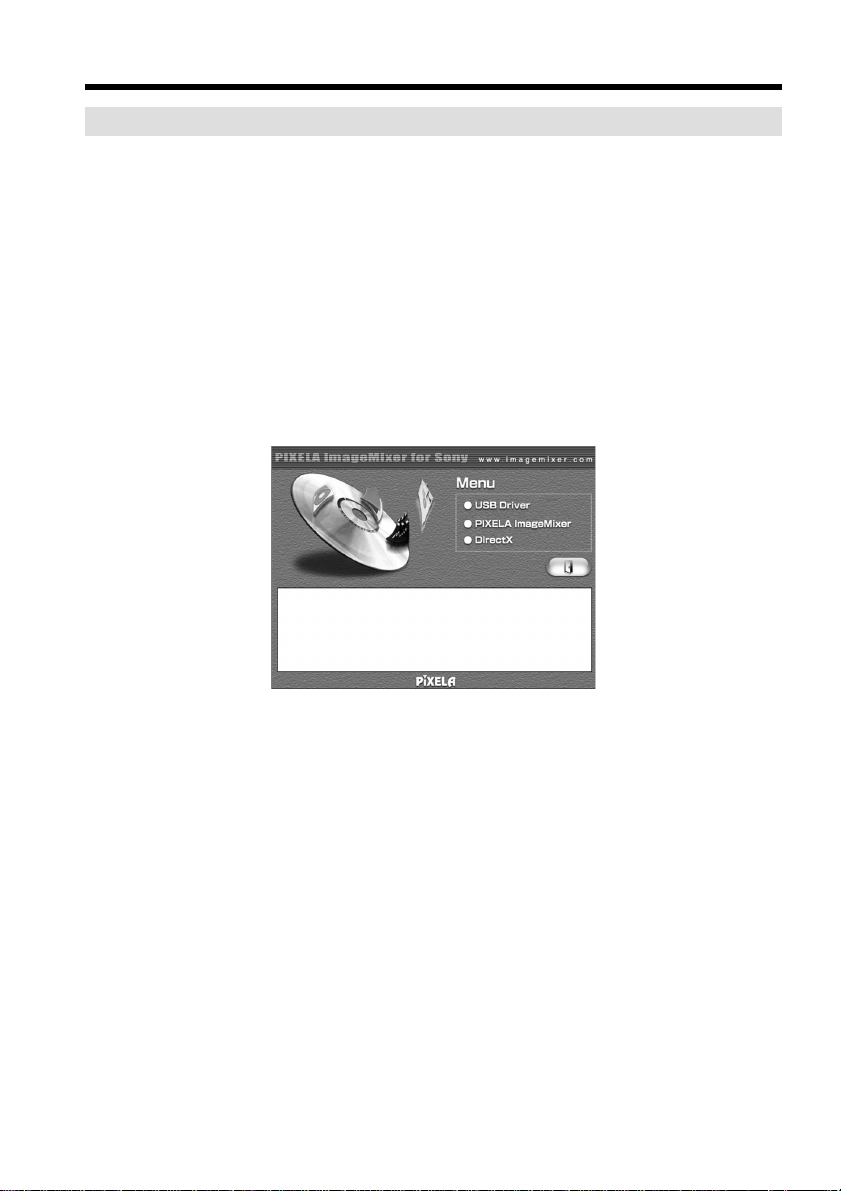

•Installing “PIXELA ImageMixer Ver.1.0 for Sony” (p. 100)
•Capturing images with “PIXELA ImageMixer Ver.1.0 for Sony” (p. 101)
Recommended computer environment
OS:
Microsoft Windows 98SE, Windows Me, Windows 2000 Professional, Windows XP
Home Edition or Windows XP Professional (standard installation)
However, operation is not assured if the above environment is an upgraded OS.
If you are using Windows 98, you cannot capture sounds.
CPU:
Minimum 500 MHz Intel Pentium III or faster (800 MHz or faster recommended)
Application:
DirectX 8.0a or later
Sound system:
16 bit stereo sound card and speakers
Memory:
64 MB or more
Hard disk:
Minimum 200 MB available hard disk space for installation
1 GB hard disk space or more recommended for working area (depending on the file
size of editing images)
Display:
4 MB VRAM video card, Minimum 800 × 600 dot Hi color (16 bit color, 65,000 colors),
Direct Draw display driver capability (At 800 × 600 dot or less, 256 colors and less, this
product will not operate correctly.)
Others:
This product is compatible with DirectX technology, so it is necessary to install DirectX.
The USB connector is provided as standard.
You cannot use this function in the Macintosh environment.
Viewing images recorded on a tape on
your computer (Windows users only)
95
Editing
Notes
•Operations are not guaranteed for either the Windows or Macintosh environment if
you connect two or more USB equipment to a single computer at the same time, or
when using a hub.
•Some equipment may not operate depending on the type of USB equipment that is
used simultaneously.
•Operations are not guaranteed for all the recommended computer environments
mentioned above.
Windows and Windows Media are trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries.
All other product names mentioned herein may be the trademarks or registered
trademarks of their respective companies. Furthermore, “™” and “®” are not
mentioned in each case in this manual.
Viewing images recorded on a tape on your computer
(Windows users only)
96

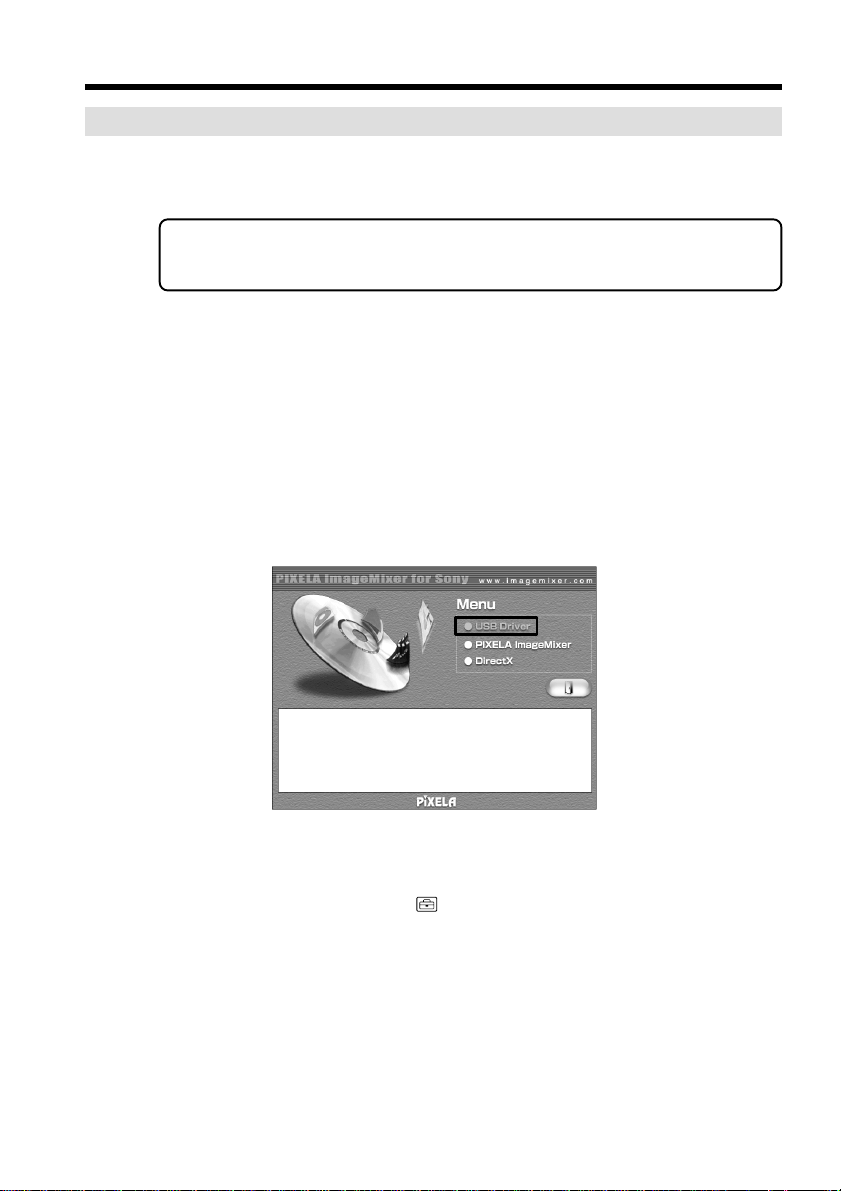

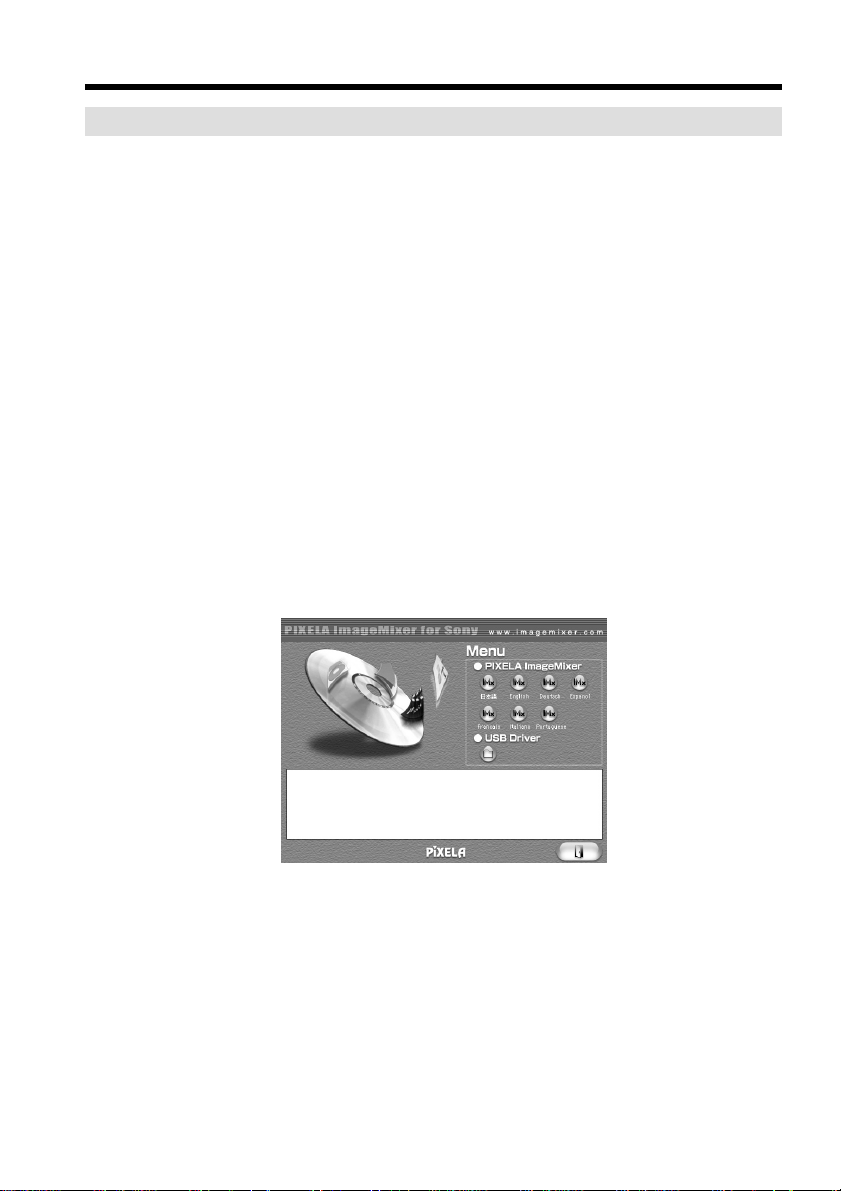

Installing the USB driver
Before connecting your camcorder to your computer, install the USB driver on the
computer. The USB driver is packaged together with application software for viewing
images on the CD-ROM supplied with your camcorder.
Start the following operation without connecting the USB cable to your
computer.

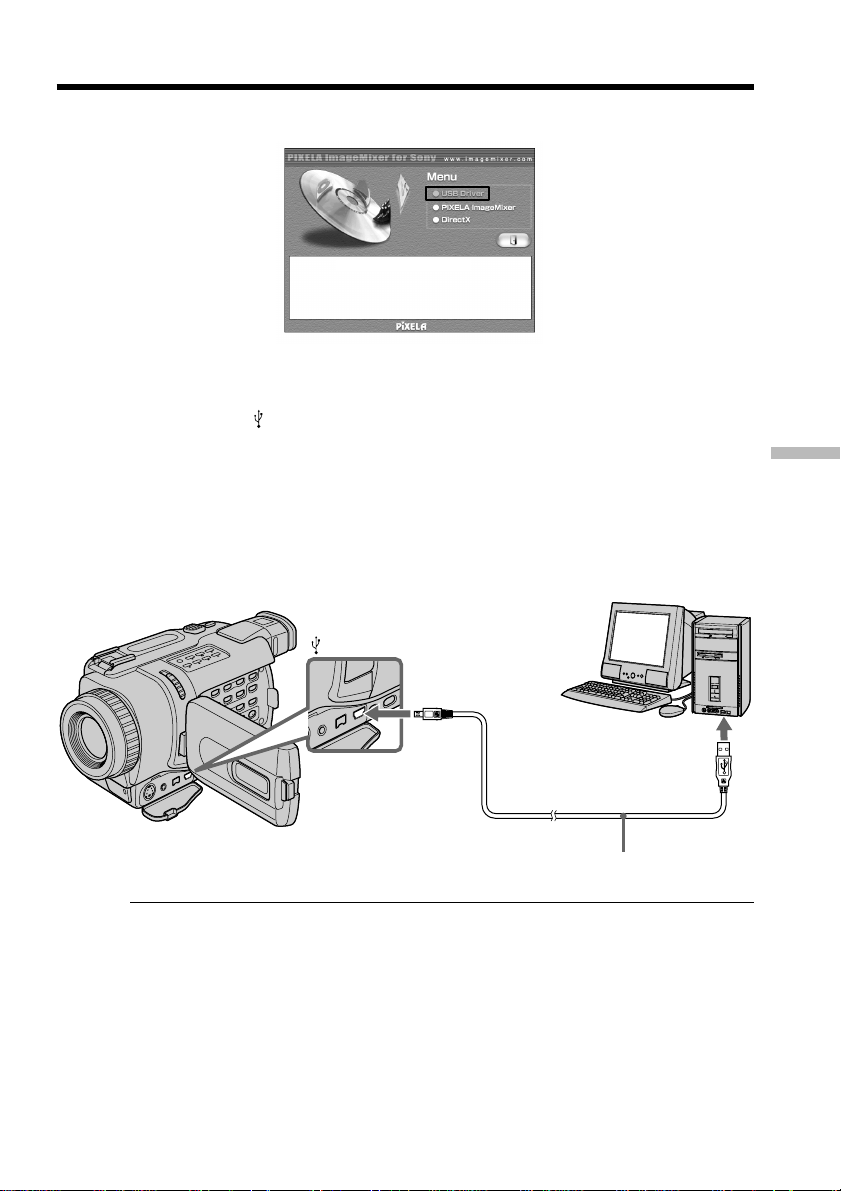

Connect the USB cable in step 8.
If the USB driver has been registered incorrectly because your computer was
connected to your camcorder before installation of the USB driver was complete,
reinstall the USB driver following the procedure on page 97.
For Windows 98SE, Windows Me, Windows 2000 Professional, Windows XP users
If you are using Windows 2000 Professional or Windows XP, log in with permission of
administrator.
(1) Turn on your computer and allow Windows to load.
(2) Insert the supplied CD-ROM into the CD-ROM drive of your computer. The
application software screen appears.
(3) Move the cursor to “USB Driver” and click. This starts USB driver installation.
(4) Follow the on-screen messages to install the USB driver.
(5) Connect the AC power adaptor to your camcorder and then to a wall outlet.
(6) Set the POWER switch to CAMERA or VCR.
(7) Select USB STREAM to ON in
in the menu settings (p. 105).
(8) With the CD-ROM inserted, connect the USB jack on your camcorder to the
USB connector on your computer using the supplied USB cable.
Your computer recognizes the camcorder, and the Windows Add Hardware
Wizard starts.
Viewing images recorded on a tape on your computer
(Windows users only)
97
Editing
Viewing images recorded on a tape on your computer
(Windows users only)
(9) Follow the on-screen messages so that the Add Hardware Wizard recognizes
that the USB drivers have been installed. The Add Hardware Wizard starts
three times because three different USB drivers are installed. Be sure to allow
the installation to complete without interrupting it.
If the “Files Needed” screen appears (For Windows 2000 Professional/Windows XP
users)
(10)Insert the supplied CD-ROM into the CD-ROM drive of your computer, then
select “Browse…” t “My Computer” t “ImageMixer” t “sonyhcb.sys”,
and click the “OK” button.
When the installation is complete, go to "Installing 'PIXELA ImageMixer Ver.1.0 for
Sony'" on page 100.
If you cannot install the USB driver
The USB driver has been registered incorrectly as your computer was connected to your
camcorder before installation of the USB driver was completed. Perform the following
procedure to correctly install the USB driver.
Step 1: Uninstall the incorrect USB driver
1 Turn on your computer and allow Windows to load.
2 Connect the USB connector on your computer to the
(USB) jack on your
camcorder using the USB cable supplied with your camcorder.
3 Connect the AC power adaptor, and set the POWER switch to CAMERA or
VCR.
USB connector
(USB) jack
USB cable (supplied)
98
Viewing images recorded on a tape on your computer
(Windows users only)
4 Open your computer’s “Device Manager”.
For Windows XP:
Select “Start” t “Control Panel” t “System” t “Hardware” tab, and click
the “Device Manager” button.
If there is no “System” inside “Pick a Category” after clicking “Control Panel”,
click “Switch to Classic View” instead.
For Windows 2000 Professional:
Select “My Computer” t “Control Panel” t “System” t “Hardware” tab,
and click the “Device Manager” button.
For Windows 98SE/Windows Me:
Select “My Computer” t “Control Panel” t “System”, and click the “Device
Manager” button.

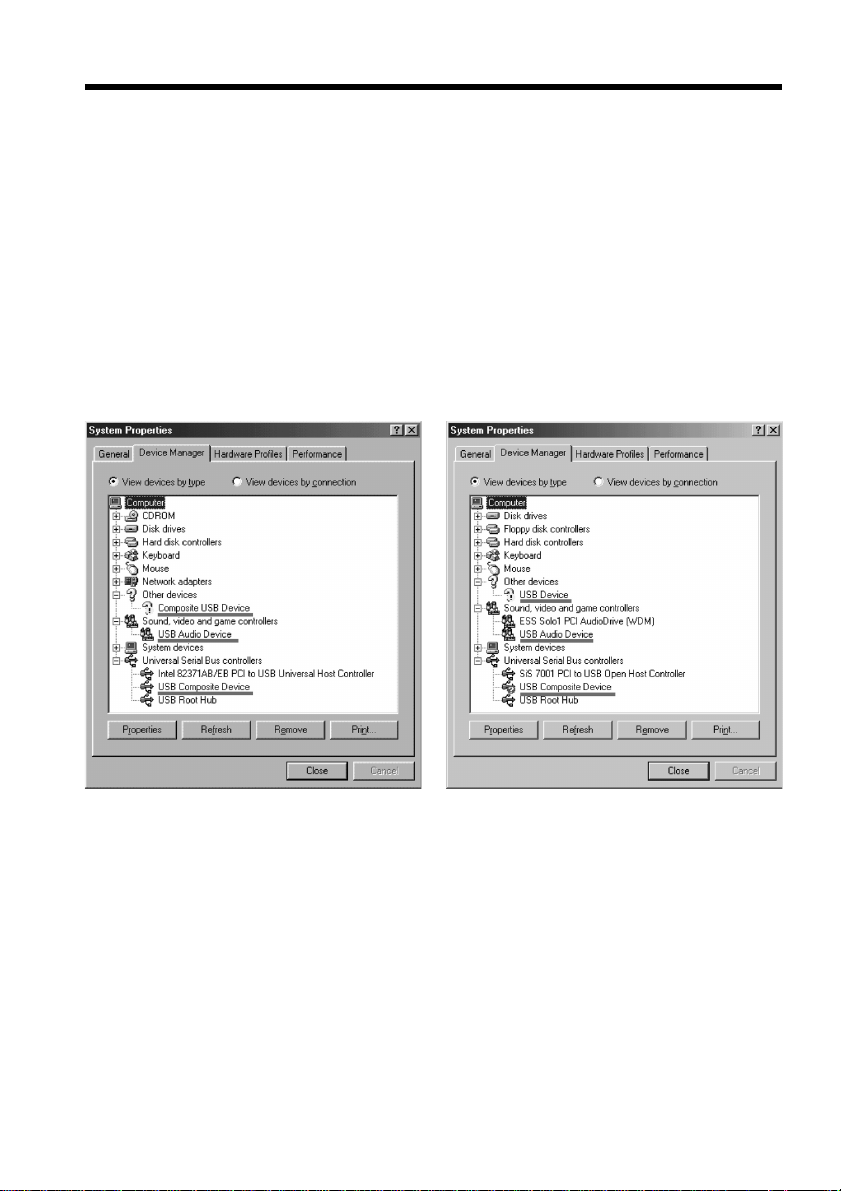

5 Select and delete the underlined devices below.
Windows 98SE Windows Me
99
Editing
6 Set the POWER switch to OFF (CHG) on your camcorder, and then disconnect
the USB cable.
7 Restart your computer.
Step 2: Install the USB driver on the CD-ROM
Perform the entire procedure described in “Installing the USB driver” on page 96.
Viewing images recorded on a tape on your computer
(Windows users only)
Windows 2000 Professional
Windows XP
100
Installing “PIXELA ImageMixer Ver.1.0 for Sony”
Install “PIXELA ImageMixer Ver.1.0 for Sony” on your computer. “PIXELA
ImageMixer Ver.1.0 for Sony” is packaged on the CD-ROM supplied with your
camcorder. “PIXELA ImageMixer Ver.1.0 for Sony” allows you to easily view images on
your camcorder on your computer for your enjoyment.
To install and use this software in Windows 2000 Professional, you must be authorized
as a Power User or Administrator. For Windows XP, you must be authorized as an
Administrator.
(1) Turn on your computer and allow Windows to load.
If you are using your computer, close all running applications.
(2) Insert the supplied CD-ROM into the CD-ROM drive of your computer.
The application software screen appears. If the application software screen
does not appear, double-click “My Computer” and then “ImageMixer” (CD-
ROM Drive). The application software screen appears after a while.
(3) Move the cursor to “PIXELA ImageMixer” and click.
The language selection dialog box appears.
(4) Select the language for installation.
(5) Follow the on-screen messages.
Follow the directions on the screen to install DirectX. DirectX 8.0 will be installed.
Viewing images recorded on a tape on your computer
(Windows users only)
101
Editing
Capturing images with “PIXELA ImageMixer Ver.1.0 for Sony”
To use this software in Windows 2000 Professional, you must be authorized as a Power
User or Administrator. For Windows XP, you must be authorized as an Administrator.
Viewing images
Viewing images recorded on a tape
(1) Turn on your computer and allow Windows to load.
(2) Connect one end of the USB cable to the
(USB) jack on your camcorder and
the other end to the USB connector on your computer.
(3) Connect the AC power adaptor to your camcorder and then to a wall outlet,
and insert a cassette into your camcorder.
(4) Set the POWER switch to VCR.
Select USB STREAM to ON in
in the menu settings (p. 105).
(5) Select “Start” t “Program” t “PIXELA” t “ImageMixer” t “ImageMixer
Ver.1.0 for Sony” on Windows.
Viewing images recorded on a tape on your computer
(Windows users only)
USB connector
USB cable
(USB) jack
102
Viewing images recorded on a tape on your computer
(Windows users only)
(6) Click on the screen.
The “PIXELA ImageMixer Ver.1.0 for Sony” startup screen appears on your
computer.
(7) Click
.
(8) Start playback on your camcorder.
The image from the tape appears in the preview window.
Preview window
103
Editing
Viewing images live from your camcorder
(1) Follow the steps (1), (2) on page 101, then connect the AC power adaptor to
your camcorder and then to a wall outlet.
(2) Set the POWER switch to CAMERA.
Select USB STREAM to ON in
in the menu settings (p. 105).
(3) Follow the steps (5) to (7) on page 101, 102.
The image from your camcorder appears live in the preview window.
Capturing images
Capturing still images
(1) Click .
(2) Click
at the point to capture using the preview window. The captured
image appears on the thumbnail list window.
Capturing moving pictures
(1) Click .
(2) Click at the start point to capture using the preview window.
The
changes to . Then click at the stop point to capture. The
captured image appears on the thumbnail list window.
Viewing images recorded on a tape on your computer
(Windows users only)
Preview window
104
Viewing images recorded on a tape on your computer
(Windows users only)
Notes
•When you view images on your computer with the USB connection, the following
may occur. This is not a malfunction:
– The image may fluctuate
– The image may contain noise, etc.
– The image does not appear properly if the TV color system used for the image signal
differs to the system used on your camcorder.
•When your camcorder is in the standby mode with a cassette inserted, it turns off
automatically after three minutes.
•We recommend setting DEMO MODE to OFF in the menu settings when your
camcorder is in the standby mode, and no cassette is inserted.
•Indicators in the camcorder LCD screen do not appear on images that are captured
into your computer.
If image data cannot be transferred by the USB connection
The USB driver has been registered incorrectly as your computer was connected to your
camcorder before installation of the USB driver was completed. Reinstall the USB driver
following the procedure on page 97.
If any trouble occurs
Close all running applications, then restart it.
Carry out the following operations after quitting the application:
– Disconnect the USB cable
– Change the POWER switch setting or set it to OFF (CHG)
Seeing the on-line help (operating instructions) of “PIXELA
ImageMixer Ver.1.0 for Sony”
“PIXELA ImageMixer Ver.1.0 for Sony” is provided with on-line help (operating
instructions).
(1) Click button located in the upper-right corner of the screen.
The “ImageMixer’s Manual” screen appears.
(2) You can access the desired topics from the contents.
To close on-line help
Click located in the upper-right corner of the “ImageMixer’s Manual” screen.
If you have any questions about “PIXELA ImageMixer Ver.1.0 for Sony”
“ImageMixer Ver.1.0 for Sony” is a trademark of PIXELA corporation. Refer to the
information web site at: “http://www.imagemixer.com”.
Notes on using your computer
Communications with your computer
Communications between your camcorder and your computer may not recover after
recovering from Suspend, Resume, or Sleep.
105
Customizing Your Camcorder
— Customizing Your Camcorder —

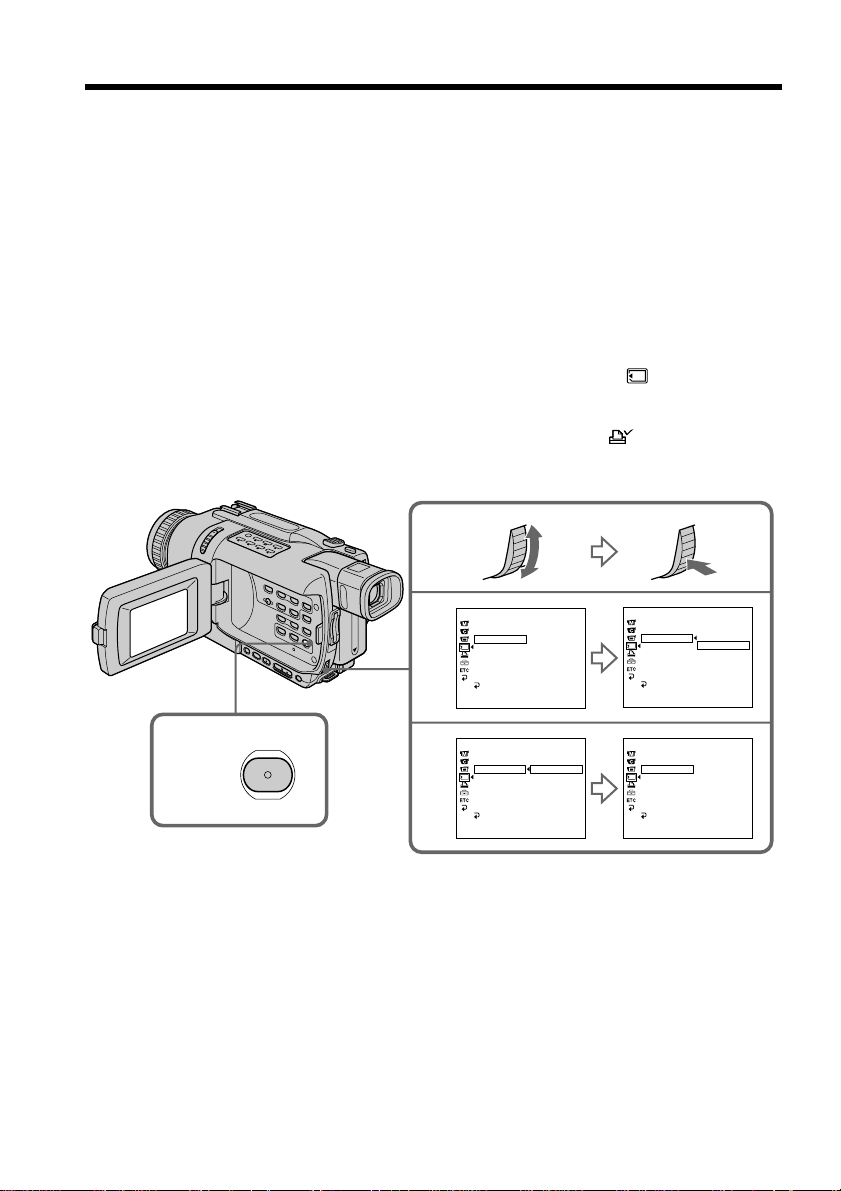

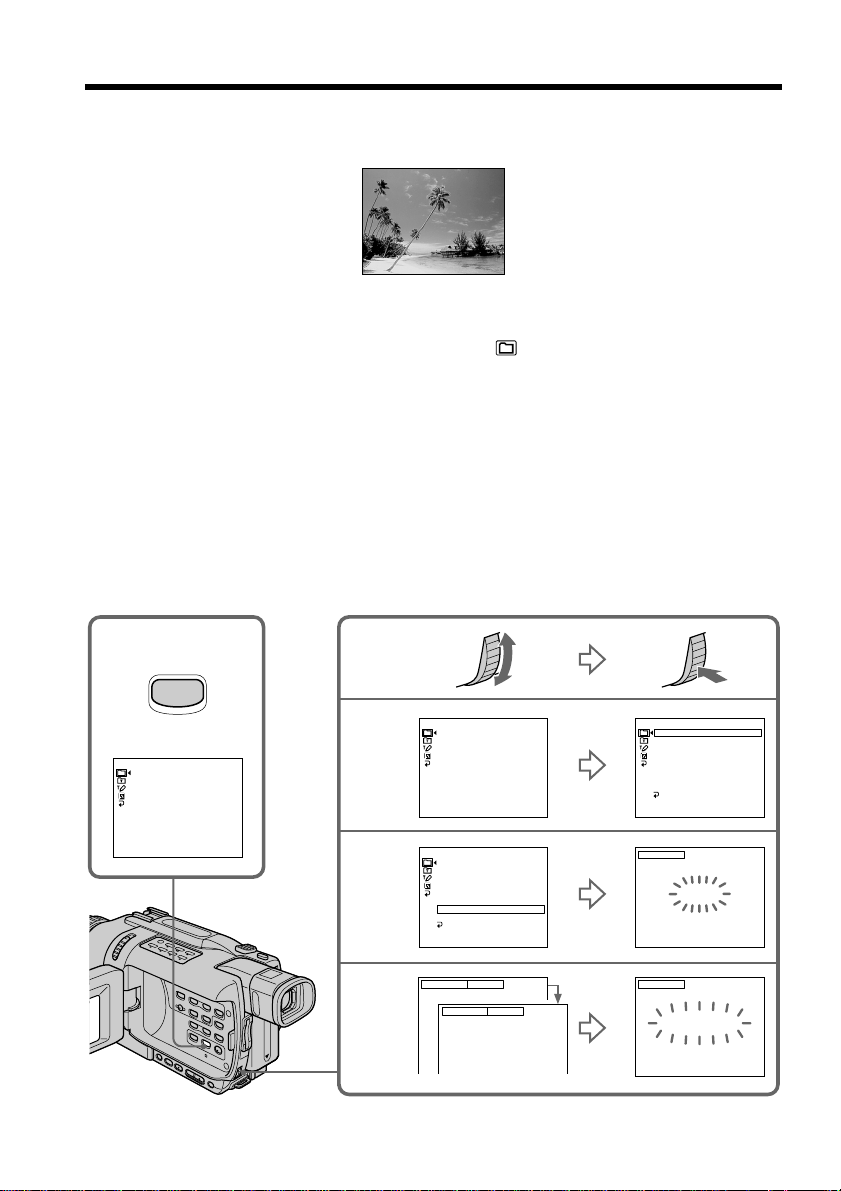

Changing the menu settings
To change the mode settings in the menu settings, select the menu items with the SEL/
PUSH EXEC dial. The default settings can be partially changed. First, select the icon,
then the menu item and then the mode.
(1) In CAMERA, VCR or MEMORY (except DCR-TRV240) mode, press MENU to
display the menu settings.
(2) Turn the SEL/PUSH EXEC dial to select the desired icon, then press the dial to
set.
(3) Turn the SEL/PUSH EXEC dial to select the desired item, then press the dial to
set.
(4) Turn the SEL/PUSH EXEC dial to select the desired mode, and press the dial
to set.
(5) If you want to change other items, select
RETURN and press the dial, then
repeat steps from 2 to 4.
For details, see “Selecting the mode setting of each item” (p. 106).
1
CAMERA
2
3
4
VCR
MEMORY
MENU
MANUAL SET
P EFFECT
D EFFECT
[
MENU
]
: END
MANUAL SET
PROGRAM AE
P EFFECT
D EFFECT
FLASH MODE
FLASH LVL
N. S LIGHT
AUTO SHTR
[
MENU
]
: END
MANUAL SET
PROGRAM AE
FLASH MODE
FLASH LVL
N. S LIGHT
AUTO SHTR
[
MENU
]
: END
TAPE SET
REC MODE
AUDIO MODE
REMAIN
RETURN
AUTO
ON
TAPE SET
REC MODE
AUDIO MODE
REMAIN
TAPE SET
REC MODE
AUDIO MODE
REMAIN
RETURN
AUTO
TAPE SET
REC MODE
AUDIO MODE
REMAIN
RETURN
ON
TAPE SET
REC MODE
AUDIO MODE
REMAIN
RETURN
SP
TAPE SET
REC MODE
AUDIO MODE
REMAIN
RETURN
AUTO
ON
(except DCR-TRV240)
106
Icon/item
PROGRAM AE
P EFFECT
D EFFECT
FLASH MODE
FLASH LVL
N.S. LIGHT
AUTO SHTR
To make the menu display disappear
Press MENU.
Menu items are displayed as the following icons:
MANUAL SET
CAMERA SET
VCR SET
LCD/VF SET
MEMORY SET (except DCR-TRV240)
PRINT SET (except DCR-TRV240)
TAPE SET
SETUP MENU
OTHERS
Selecting the mode setting of each item z is the default setting.
Menu items differ depending on the position of the POWER switch.
The screen shows only the items you can operate at the moment.
Changing the menu settings
Mode
—
—
—
z ON
AUTO
AUTO
HIGH
z NORMAL
LOW
z ON
OFF
z ON
OFF
Meaning
To suit your specific shooting requirement
(p. 51)
To add special effects like those in films or on
the TV to images (p. 47, 63)
To add special effects using the various digital
functions (p. 48, 64)
To fire the flash (optional) regardless of the
brightness of the surroundings
The flash fires automatically.
To fire the flash before recording to reduce the
red-eye
Makes the flash level higher than normal.
Normal setting
Makes the flash level lower than normal.
To use the NightShot Light function (p. 29)
To cancel the NightShot Light function
To automatically activate the electronic shutter
when shooting in bright conditions
To not automatically activate the electronic
shutter even when shooting in bright conditions
POWER
switch
CAMERA
MEMORY
CAMERA
VCR
CAMERA
VCR
CAMERA
MEMORY
CAMERA
MEMORY
CAMERA
MEMORY
CAMERA
MEMORY
Notes on FLASH MODE and FLASH LVL
•You cannot adjust FLASH MODE or FLASH LVL if the flash (optional) is not
compatible with FLASH MODE or FLASH LVL.
•FLASH MODE and FLASH LVL are displayed only when an external flash (optional)
is connected to the intelligent accessory shoe.
107
Customizing Your Camcorder
Icon/item
SELFTIMER*
D ZOOM
(DCR-TRV240/
TRV340)
D ZOOM
(DCR-TRV740/
TRV840)
PHOTO REC*
16:9WIDE
STEADYSHOT
FRAME REC
INT. REC
POWER
switch
CAMERA
MEMORY
CAMERA
MEMORY
CAMERA
CAMERA
CAMERA
CAMERA
MEMORY**
CAMERA
CAMERA
Changing the menu settings
Mode
z OFF
ON
z OFF
50×
700×
z OFF
30×
420×
z MEMORY
TAPE
z OFF
ON
z ON
OFF
z OFF
ON
ON
z OFF
SET
Meaning
To not use the self-timer function
To use the self-timer function
To deactivate the digital zoom. Up to 25× zoom
is performed.
To activate the digital zoom. More than 25× to
50× zoom is performed digitally (p. 24).
To activate the digital zoom. More than 25× to
700× zoom is performed digitally (p. 24).
To deactivate the digital zoom. Up to 15× zoom
is performed.
To activate the digital zoom. More than 15× to
30× zoom is performed digitally (p. 24).
To activate the digital zoom. More than 15× to
420× zoom is performed digitally (p. 24).
To record still images on "Memory Stick"s in
CAMERA mode while you are in the standby
mode or recording moving pictures to tape by
pressing PHOTO (p. 124)
To record still images on tape in CAMERA
mode while you are in the standby mode or
recording moving pictures to tape by pressing
PHOTO (p. 39)
—
To record a 16:9 wide picture (p. 42)
To compensate for camera-shake
To cancel the SteadyShot function. Natural
pictures are produced when shooting a
stationary object with a tripod.
To deactivate the frame recording
To activate the frame recording (p. 57)
To activate the interval recording function
(p. 55)
To deactivate the interval recording function
To set INTERVAL and REC TIME for interval
recording
* Except DCR-TRV240
** DCR-TRV340 only
Notes on the SteadyShot function
•The SteadyShot function will not correct excessive camera-shake.
•Attachment of a conversion lens (optional) may influence the SteadyShot function.
If you cancel the SteadyShot function
The SteadyShot off indicator appears on the screen. Your camcorder prevents
excessive compensation for camera-shake.
(continued on the following page)
108
Icon/item
HiFi SOUND
TBC*
TBC stands for “Time Base Corrector”.
DNR*
DNR stands for “Digital Noise Reduction”.
AUDIO MIX
A/V t DV OUT
PB MODE
Mode
z STEREO
1
2
z ON
OFF
z ON
OFF
—
z OFF
ON
z AUTO
/
Meaning
To play back a stereo tape or dual sound track
tape with main and sub sound (p. 188)
To play back a stereo tape with the left sound or
a dual sound track tape with main sound
To play back a stereo tape with the right sound
or a dual sound track tape with sub sound
To correct jitter
To not correct jitter. Set TBC to OFF when
playing back a tape on which you have dubbed
over and recorded the signal of a TV game or
similar machine.
To reduce picture noise
To reduce a conspicuous afterimage when the
picture has a lot of movement
To adjust the balance between the stereo 1 and
stereo 2
To output digital images and sound in analog
format using your camcorder
To output analog images and sound in digital
format using your camcorder (p. 88)
To automatically select the system (Hi8/
standard 8 or Digital8 ) that was used to
record on the tape, and play back the tape
To play back a tape that was recorded in the
Hi8/standard 8 system when your camcorder
does not automatically distinguish the recording
system
POWER
switch
VCR
VCR
VCR
VCR
VCR
VCR
* When you play back tapes recorded in the Hi8/standard 8 system only
Notes on AUDIO MIX
•When playing back a tape recorded in the 16-bit mode, you cannot adjust the balance.
•You can adjust the balance only for tapes recorded in the Digital8 system.
Note on PB MODE
The mode will return to the default setting when:
– you remove the battery pack or power source.
– you turn the POWER switch.
ST1 ST2
Changing the menu settings
109
Customizing Your Camcorder
Icon/item
LCD BRIGHT
LCD B. L.
LCD COLOR
VF B.L.
Mode
—
z BRT NORMAL
BRIGHT
—
z BRT NORMAL
BRIGHT
Meaning
To adjust the brightness on the LCD screen with
the SEL/PUSH EXEC dial.
To set the brightness on the LCD screen to
normal
To brighten the LCD screen
To adjust the color on the LCD screen, turning
the SEL/PUSH EXEC dial to adjust the
following bar
To set the brightness on the viewfinder screen to
normal
To brighten the viewfinder screen
POWER
switch
CAMERA
VCR
MEMORY
CAMERA
VCR
MEMORY
CAMERA
VCR
MEMORY
CAMERA
VCR
MEMORY
Notes on LCD B.L. and VF B.L.
•When you select BRIGHT, battery life is reduced by about 10 percent during
recording.
•When you use power sources other than the battery pack, BRIGHT is automatically
selected.
Even if you adjust LCD BRIGHT, LCD B.L., LCD COLOR and/or VF B.L.
The recorded picture will not be affected.
(continued on the following page)
To darken To lighten
To get low-
intensity
To get high-
intensity
Changing the menu settings
110
Icon/item
1)
STILL SET
BURST
PIC MODE
(DCR-TRV340
only)
QUALITY
FLD/FRAME
(DCR-TRV340
only)
IMAGESIZE
(DCR-TRV740
/TRV840 only)
MOVIE SET
IMAGESIZE
REMAIN
PRINT MARK
1)
Except DCR-TRV240
2)
For DCR-TRV740/TRV840, the default setting is SUPER FINE.
Mode
z OFF
NORMAL
EXP BRKTG
MULTI SCRN
z SINGLE
MULTI SCRN
z
2)
SUPER FINE
(DCR-TRV740/
TRV840 only)
z
2)
FINE
STANDARD
z FIELD
FRAME
z 1152 × 864
640 × 480
z 320 × 240
160 × 112
z AUTO
ON
ON
z OFF
Meaning
To not record continuously
To record continuously
To record three images consecutively with
different exposures
To record nine images continuously, display the
images on a single page divided into nine boxes.
To not record continuously
To record nine images continuously, display the
images on a single page divided into nine boxes.
To record still images in the finest image quality
mode (p. 119)
To record still images in the fine image quality
mode (p. 119)
To record still images in the standard image
quality mode
To record moving subjects correcting jitter
(p. 124)
To record stopping subjects in high quality
To record still images in 1152 × 864 size (p. 121)
To record still images in 640 × 480 size
To record moving pictures at 320 × 240 size
(p. 121)
To record moving pictures at 160 × 112 size
To display the remaining capacity of the
“Memory Stick” in the following cases:
•For five seconds after inserting a “Memory
Stick” into your camcorder
•When the capacity of the “Memory Stick” is
less than one minute in MEMORY mode
•For five seconds after completing a moving
picture recording
To always display the remaining capacity of the
“Memory Stick”
To write a print mark on recorded still images
you want to print out later (p. 174)
To cancel print marks on still images
POWER
switch
MEMORY
MEMORY
VCR
MEMORY
MEMORY
VCR
MEMORY
VCR
MEMORY
VCR
MEMORY
VCR
MEMORY
Changing the menu settings
(DCR-
TRV740/
TRV840 only)
111
Customizing Your Camcorder
Icon/item
* PROTECT
SLIDE SHOW
PHOTO SAVE
FILE NO.
DELETE ALL
FORMAT
Mode
ON
z OFF
——
——
z SERIES
RESET
z RETURN
OK
z RETURN
OK
Meaning
To protect selected images against accidental
erasure (p. 170)
To not protect images
To play back images in a continuous loop
(p. 168)
To copy still images on tape onto “Memory
Stick” (p. 138)
To assign numbers to file in sequence even if the
“Memory Stick” is changed
To reset the file numbering each time the
“Memory Stick” is changed
To cancel deleting all images
To delete all unprotected images
To cancel formatting
To format an inserted “Memory Stick”
1. Select FORMAT with the SEL/PUSH EXEC
dial, then press the dial.
2. Select OK with the SEL/PUSH EXEC dial,
then press the dial.
3. After EXECUTE appears, press the
SEL/PUSH EXEC dial. FORMATTING
flashes during formatting. COMPLETE
appears when formatting is finished.
POWER
switch
VCR
MEMORY
MEMORY
VCR
VCR
MEMORY
MEMORY
MEMORY
Notes on formatting *
•Supplied “Memory Stick”s have been formatted at factory. Formatting “Memory
Stick”s on your camcorder is not required.
•Do not do any of the following while FORMATTING is displayed:
– Switch the POWER switch
– Operate buttons
– Remove the “Memory Stick”
•You cannot format the “Memory Stick” if the write-protect tab on the “Memory Stick”
is set to LOCK.
•Format the “Memory Stick” when “ FORMAT ERROR” is displayed.
Formatting erases all information on the “Memory Stick” *
Check the contents of the “Memory Stick” before formatting.
• Formatting erases sample images on the “Memory Stick.”
• Formatting erases protected image data on the “Memory Stick.”
* Except DCR-TRV240
(continued on the following page)
Changing the menu settings
112
Icon/item
* 9PIC PRINT
DATE/TIME
REC MODE
AUDIO MODE
q REMAIN
Mode
z RETURN
SAME
MULTI
MARKED
z OFF
DATE
DAY&TIME
z SP
LP
z 12BIT
16BIT
z AUTO
ON
Meaning
To cancel prints of split screens
To make prints of the same split screen (p. 176)
To make prints of different split screens
To make prints of images with print marks in
recording order
To make prints without the recording date and
time
To make prints with the recording date
To make prints with the recording date and time
(p. 176)
To record in the SP (Standard Play) mode
To increase the recording time to 1.5 times the
SP mode
To record in the 12-bit mode (two stereo sounds)
To record in the 16-bit mode (one stereo sound
with high quality)
To display the remaining tape bar:
•For about eight seconds after your camcorder
is turned on and calculates the remaining
amount of tape
•For about eight seconds after a cassette is
inserted and your camcorder calculates the
remaining amount of tape
•For about eight seconds after N is pressed in
VCR mode
•For about eight seconds after DISPLAY is
pressed to display the screen indicators
•For the period of tape rewinding, forwarding
or picture search in VCR mode
To always display the remaining tape bar
POWER
switch
MEMORY
MEMORY
CAMERA
VCR
CAMERA
VCR**
CAMERA
VCR
Note on PRINT SET *
9PIC PRINT and DATE/TIME are displayed only when an external printer (optional) is
connected to the intelligent accessory shoe.
Notes on the LP mode
•When you record a tape in the LP mode on your camcorder, we recommend playing
back the tape on your camcorder. When you play back the tape on other camcorders
or VCRs, noise may occur in pictures or sound.
•When you record in the LP mode, we recommend using a Sony cassette so that you
can get the most out of your camcorder.
•When you record in the SP and LP modes on one tape or you record some scenes in
the LP mode, the playback picture may be distorted or the time code may not be
written properly between scenes.
Note on AUDIO MODE
When playing back a tape recorded in the 16-bit mode, you cannot adjust the balance in
AUDIO MIX.
* Except DCR-TRV240
** To dub a tape to another VCR
You cannot select AUDIO MODE for tapes recorded in the Digital8 system. You,
however, can select AUDIO MODE when you dub tapes recorded in the Hi8/standard
8 system to another VCR using the i.LINK cable.
Changing the menu settings
113
Customizing Your Camcorder
* DCR-TRV740/TRV840 only
Notes on DEMO MODE
•You cannot select DEMO MODE when a cassette is inserted in your camcorder.
•The DEMO MODE default setting is STBY (Standby), and the demonstration starts
about 10 minutes after you have set the POWER switch to CAMERA without a
cassette inserted.
To cancel the demonstration, insert a cassette, set the POWER switch to other than
CAMERA, or set DEMO MODE to OFF. To set to STBY (Standby) again, leave the
DEMO MODE at ON in the menu settings, turn the POWER switch to OFF (CHG),
and return the POWER switch to CAMERA.
•When NIGHTSHOT is set to ON, the “NIGHTSHOT” indicator appears on the screen
and you cannot select DEMO MODE in the menu settings.
(continued on the following page)
Changing the menu settings
Icon/item
CLOCK SET
USB STREAM
USBCONNECT*
LTR SIZE
LANGUAGE
DEMO MODE
Mode
—
z OFF
ON
z NORMAL
PTP
z NORMAL
2×
z ENGLISH
FRANÇAIS
ESPAÑOL
PORTUGUÊS
z ON
OFF
Meaning
To set the date or time (p. 18)
To deactivate the USB Streaming function
To activate the USB Streaming function
To select normal USB connection
To select USB connection supporting Picture
Transfer Protocol (compatible with
Windows XP)
To display selected menu items in normal size
To display selected menu items at twice the
normal size
To display the following information indicators
in English: REC, STBY, min, CAPTURE, END
SEARCH and VOL, etc.
To display the information indicators in French
To display the information indicators in Spanish
To display the information indicators in
Portuguese
To display the information indicators in Chinese
To display the information indicators in Korean
To make the demonstration appear
To cancel the demonstration mode
POWER
switch
CAMERA
MEMORY
MEMORY
CAMERA
VCR
MEMORY
CAMERA
VCR
MEMORY
CAMERA
CAMERA
VCR
114
Changing the menu settings
Icon/item
DATA CODE
WORLD TIME
BEEP
COMMANDER
DISPLAY
Mode
z DATE/CAM
DATE
—
z MELODY
NORMAL
OFF
z ON
OFF
z LCD
V-OUT/LCD
Meaning
To display date, time and recording data during
playback
To display date and time during playback
To set the clock to the local time
Turn the SEL/PUSH EXEC dial to set a time
difference. The clock changes by the time
difference you set here. If you set the time
difference to 0, the clock returns to the originally
set time.
To output the melody when you start/stop
recording or when an unusual condition occurs
on your camcorder
To output the beep instead of the melody
To cancel all sound including shutter sound
To activate the Remote Commander supplied
with your camcorder
To deactivate the Remote Commander to avoid
erroneous remote control operation caused by
other VCR’s remote control
To show the display on the LCD screen and in
the viewfinder
To show the display on the TV screen, LCD
screen and in the viewfinder
POWER
switch
VCR
MEMORY
CAMERA
MEMORY
CAMERA
VCR
MEMORY
CAMERA
VCR
MEMORY
CAMERA
VCR
MEMORY
Note
If you press DISPLAY with DISPLAY set to V-OUT/LCD in the menu settings, the
picture from a TV or VCR will not appear on the screen even when your camcorder is
connected to outputs on the TV or VCR. (Except when your camcorder is connected
with the i.LINK cable)
In more than five minutes after removing the power source
The AUDIO MIX, FLASH LVL, COMMANDER and HiFi SOUND settings are returned
to their default settings.
Other menu settings are held in memory even when the battery is removed.
115
Customizing Your Camcorder
Changing the menu settings
Icon/item
REC LAMP
VIDEO EDIT
INDICATOR
Mode
z ON
OFF
z RETURN*
TAPE*
MEMORY*
z BL OFF
BL ON
Meaning
To light up the camera recording lamp at the
front of your camcorder
To turn the camera recording lamp off so that
the person is not aware of the recording
To cancel video editing
To make a program and perform video editing
(p. 74)
To make a program and perform MPEG editing
(p. 146)
To turn off the backlight on display window
To turn on the backlight on display window
POWER
switch
CAMERA
MEMORY
VCR
CAMERA
VCR
MEMORY
* Except DCR-TRV240
When recording a close subject
When REC LAMP is set to ON, the red camera recording lamp on the front of the
camcorder may reflect on the subject if it is close. In this case, we recommend that you
set REC LAMP to OFF.
Notes on INDICATOR
•When you select BL ON, battery life is reduced by about 10 percent during recording.
•When you use power sources other than the battery pack, BL ON is automatically
selected.
116
– Except DCR-TRV240
You can record and play back images on a “Memory Stick” supplied with your
camcorder. You can easily play back, record or delete images. You can exchange image
data with other equipment such as your computer etc., using the USB cable for
“Memory Stick” supplied with your camcorder.
On file format
Still image (JPEG)
Your camcorder compresses image data in JPEG format (extension .jpg).
Moving picture (MPEG)
Your camcorder compresses picture data in MPEG format (extension .mpg).
Typical image data file name
Still image
100-0001: This file name appears on the screen of your camcorder.
Dsc00001.jpg: This file name appears on the display of your computer.
Moving picture
MOV00001: This file name appears on the screen of your camcorder.
Mov00001.mpg: This file name appears on the display of your computer.
Using a “Memory Stick”
•You cannot record or erase images when the write-protect tab on the “Memory Stick”
is set to LOCK.
•The position and shape of the write-protect tab may be different depending on the
model.
•We recommend backing up important data on the hard disk of your computer.
•Image data may be damaged in the following cases:
– If you remove the “Memory Stick” or turn the power off during reading or writing.
– If you use “Memory Stick”s near static electricity or magnetic fields.
•Prevent metallic objects or your finger from coming into contact with the metal parts
of the terminal.
•Stick the label at the labeling position.
•Do not bend, drop or apply strong shock to “Memory Stick”s.
•Do not disassemble or modify “Memory Stick”s.
•Do not let “Memory Stick”s become wet.
•Do not use or keep “Memory Stick”s in locations that are:
– Extremely hot such as in a car parked in the sun or under the scorching sun
– Under direct sunlight
– Very humid or subject to corrosive gases
•When you carry or store a “Memory Stick,” put it in its case.
— “Memory Stick” operations —
Using “Memory Stick”– Introduction
Write-protect tab
Labeling position
Terminal
117
“Memory Stick
” operations
Using “Memory Stick”– Introduction
“Memory Stick”s formatted on computer
“Memory Stick”s formatted on Windows OS or Macintosh computers are not
guaranteed compatible with your camcorder.
Notes on image data compatibility
•Image data files recorded on “Memory Stick”s by your camcorder conform with the
Design Rules for Camera File Systems universal standard established by the JEITA
(Japan Electronics and Information Technology Industries Association). You cannot
play back on your camcorder still images recorded on other equipment (DCR-
TRV890E/TRV900/TRV900E or DSC-D700/D770) that does not conform with this
universal standard. (These models are not sold in some areas.)
•If you cannot use the “Memory Stick” that is used with other equipment, format it
with this camcorder (p. 111). However, formatting erases all information on the
“Memory Stick.”
•“Memory Stick” and are trademarks of Sony Corporation.
•Windows and Windows Media are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
•Macintosh and Mac OS, QuickTime are trademarks of Apple Computer, Inc.
•RealPlayer is either a registered trademark or trademark of RealNetworks, Inc. in the
United States and/or other countries.
•Pentium is either registered trademark or trademark of Intel Corporation.
•All other product names mentioned herein may be the trademarks or registered
trademarks of their respective companies.
Furthermore, “™” and “®” are not mentioned in each case in this manual.
118

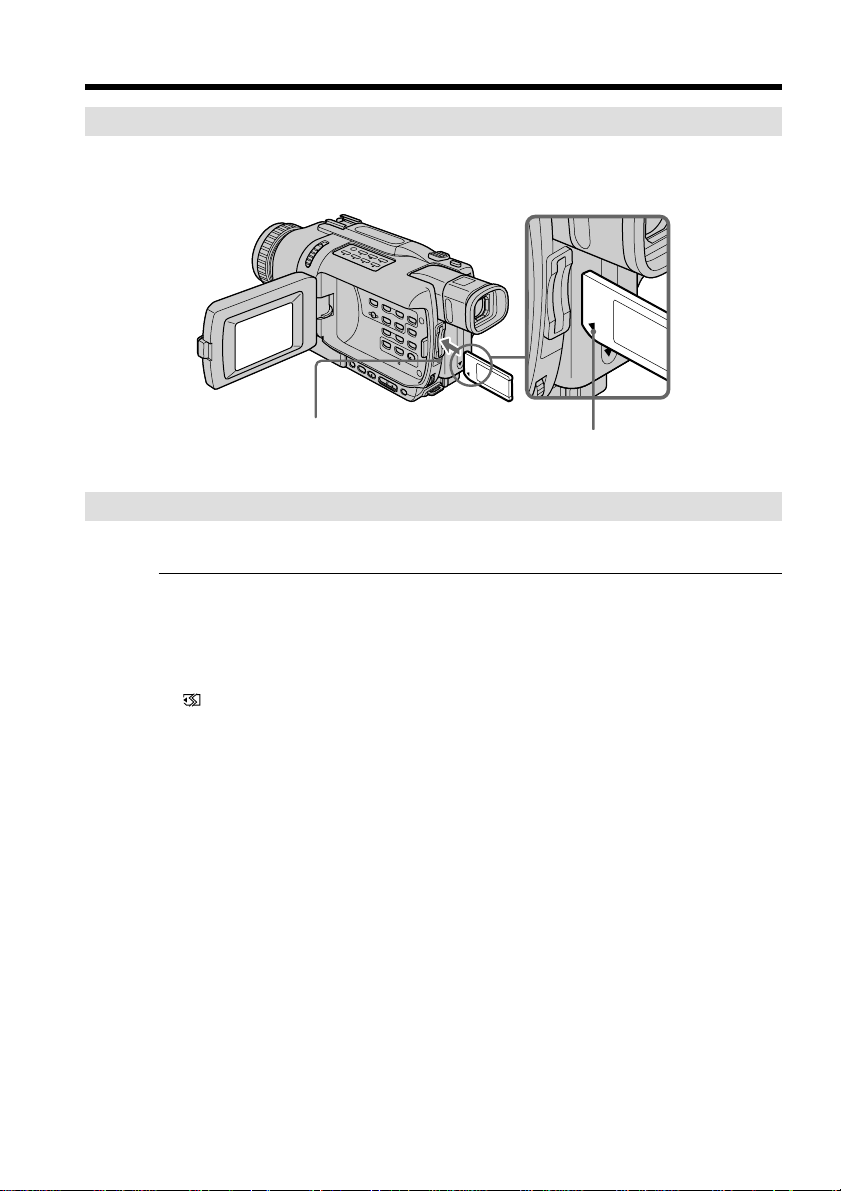

Inserting “Memory Stick”
Insert a “Memory Stick” in the “Memory Stick” slot as far as it can go with the b mark
facing toward the “Memory Stick” slot as illustrated.
Ejecting the “Memory Stick”
Press the “Memory Stick” once lightly.
When the access lamp is lit or flashing
Do not shake or knock your camcorder because your camcorder is reading the data
from the “Memory Stick” or recording the data on the “Memory Stick”. Do not turn the
power off , eject the “Memory Stick” or remove the battery pack. Otherwise, image data
may become damaged.
If “ MEMORY STICK ERROR” is displayed
Reinsert “Memory Stick” a few times. The “Memory Stick” may be damaged if the
indicator is still displayed. If this occurs, use another “Memory Stick.”
Using “Memory Stick”– Introduction
b mark
Access lamp
119
“Memory Stick
” operations

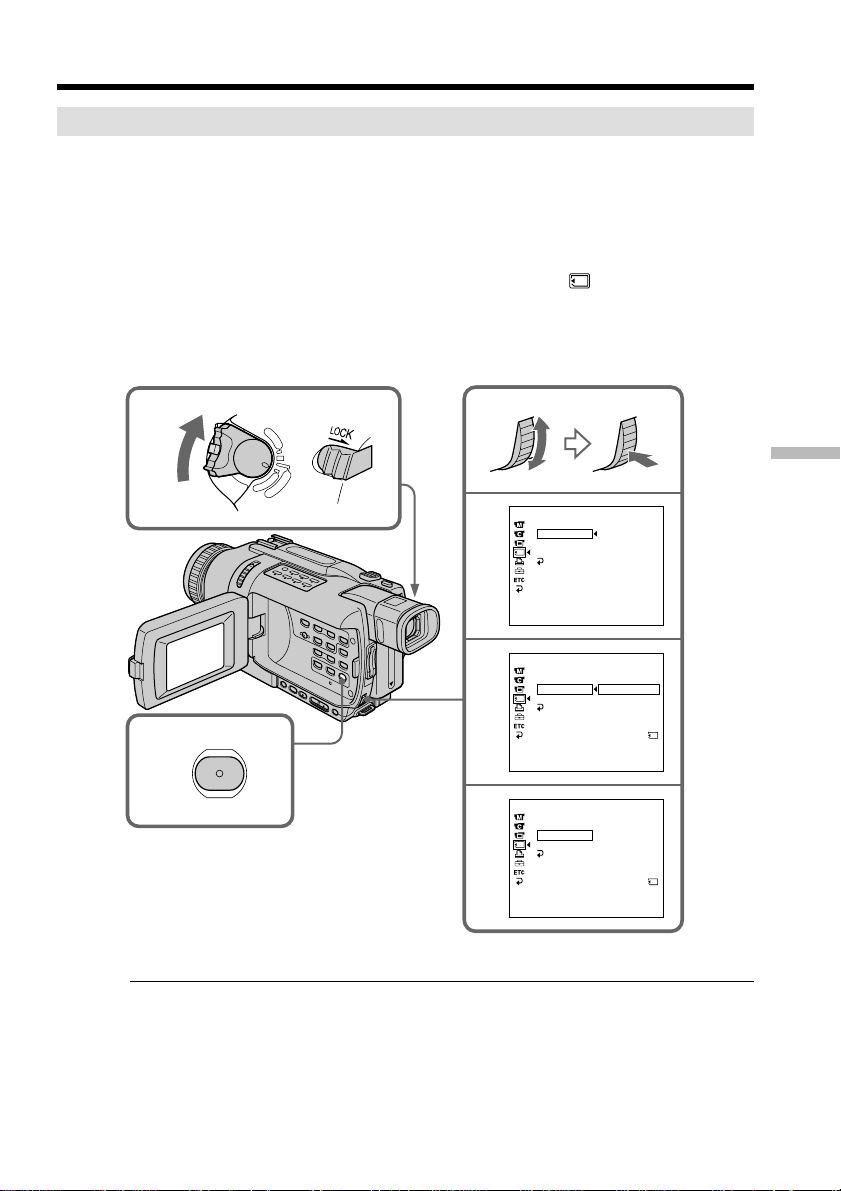

Selecting the still image quality mode
You can select the image quality mode in still image recording. The default setting is
SUPER FINE (DCR-TRV740/TRV840), or FINE (DCR-TRV340).
(1) Set the POWER switch to VCR or MEMORY. Make sure that the LOCK switch
is set to the left (unlock) position.
(2) Press MENU to display the menu settings.
(3) Turn the SEL/PUSH EXEC dial to select STILL SET in
, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select QUALITY, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select the desired image quality, then press
the dial.
Note
In some cases, changing the image quality mode may not affect the image quality,
depending on the type of images you are shooting.
Using “Memory Stick”– Introduction
1
2
3
4
5
MENU
C
A
M
E
R
A
M
E
M
O
R
Y
V
C
R
O
F
F
(
C
H
G
)
POWER
MEMORY SET
STILL SET
BURST
QUALITY
IMAGESIZE
RETURN
[
MENU
]
:
END
OFF
MEMORY SET
STILL SET
BURST
QUALITY
IMAGESIZE
RETURN
[
MENU
]
:
END
SUPER FINE
FINE
STANDARD
REMAIN
40
MEMORY SET
STILL SET
BURST
QUALITY
IMAGESIZE
RETURN
[
MENU
]
:
END
STANDARD
REMAIN
60
120
Using “Memory Stick”– Introduction
Image quality settings
Setting Meaning
SUPER FINE (SFN) This is the highest image quality in your camcorder.
(DCR-TRV740/ The number of still images you can record is less than
TRV840 only) in FINE mode. The image is compressed to about 1/3.
FINE (FINE) Use this mode when you want to record high quality
images. Fine images are compressed to about 1/6.
STANDARD (STD) This is the standard image quality. Standard images
are compressed to about 1/10.
Note
In some cases, changing the image quality mode may not affect the image quality,
depending on the types of images you are shooting.
Differences in image quality mode
Recorded images are compressed in JPEG format before being stored into memory. The
memory capacity allotted to each image varies depending on the selected image quality
mode and image size. Details are shown in the tables below. (You can select 1152 × 864
or 640 × 480 image size in the menu settings. (DCR-TRV740/TRV840 only))
1152 × 864 image size (DCR-TRV740/TRV840 only)
Image quality mode Memory capacity
SUPER FINE About 600 KB
FINE About 300 KB
STANDARD About 200 KB
640 × 480 image size
Image quality mode Memory capacity
SUPER FINE (DCR-TRV740/TRV840 only) About 190 KB
FINE About 100 KB
STANDARD About 60 KB
Image quality mode indicator
The image quality mode indicator is not displayed during playback.
When you select image quality
The number of images you can shoot in the currently selected image quality appears on
the screen.
121
“Memory Stick
” operations
Selecting the image size
You can select either of two image sizes
Still images (DCR-TRV740/TRV840 only): 1152 × 864 or 640 × 480.
The default setting is 1152 × 864.
Moving pictures: 320 × 240 or 160 × 112
The default setting is 320 × 240.
(1) Set the POWER switch to MEMORY. Make sure that the LOCK switch is set to
the left (unlock) position.
(2) Press MENU to display the menu settings.
(3) Turn the SEL/PUSH EXEC dial to select STILL SET (still image) (DCR-
TRV740/TRV840 only) or MOVIE SET (moving picture) in
, then press the
dial.
(4) Turn the SEL/PUSH EXEC dial to select IMAGESIZE, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select the desired image size, then press the
dial.
The indicator changes as follows:
Still images (DCR-TRV740/TRV840 only):
1152 640
Moving pictures:
320 160
Using “Memory Stick”– Introduction
4
5
1
C
A
M
E
R
A
M
E
M
O
R
Y
V
C
R
O
F
F
(
C
H
G
)
POWER
160 112
MEMORY SET
MOV I E SET
RETURN
REMA IN
[
MENU
]
:
END
IMAGESIZE
REMA IN
2
min
BURST
MEMORY SET
STI LL SET
RETURN
[
MENU
]
:
END
QUAL I TY
IMAGESIZE
640 480
60
REMA IN
BURST
MEMORY SET
STI LL SET
RETURN
[
MENU
]
:
END
QUAL I TY
IMAGESIZE
1152 864
640 480
1152
12
REMA IN
MEMORY SET
MOV I E SET
RETURN
REMA IN
[
MENU
]
:
END
IMAGESIZE
320 240
160 112
REMA IN
320
40sec
MENU
MOVIE SET
STILL SET
(DCR-TRV740/
TRV840 only)
MOVIE SET
STILL SET
(DCR-TRV740/
TRV840 only)
122
Using “Memory Stick”– Introduction
Image size settings
Setting Meaning Indicator
Recording Playback
1152 × 864* Records 1152 × 864 still images.
1152
SFN
1152
640 × 480* Records 640 × 480 still images.
640
SFN
640
320 × 240 Records 320 × 240 moving pictures.
320
320
160 × 112 Records 160 × 112 moving pictures.
160
160
* DCR-TRV740/TRV840 only
Maximum recording time of moving pictures
(DCR-TRV340 only)
Image size Maximum recording time
320 × 240 15 seconds
160 × 112 60 seconds
123
“Memory Stick
” operations
Approximate number of still images you can record on a
“Memory Stick”
The number of images you can record varies depending on which image quality you
select and the complexity of the subject.
*DCR-TRV740/TRV840 only
Approximate time of moving pictures you can record on a
“Memory Stick”
The time of moving pictures you can record varies depending on which image size you
select and the complexity of the subject.
Type of “Memory Stick”s
Image size
8MB 16MB 32MB 64MB 128MB
(supplied) (optional) (optional) (optional) (optional)
160 × 112
5 min. 10 min. 21min. 42min. 85min.
20 sec. 40 sec. 20 sec. 40 sec. 20 sec.
320 × 240
1 min. 2 min. 5 min. 10min. 21min.
20 sec. 40 sec. 20 sec. 40 sec. 20 sec.
The table above shows approximate number of still images and times of moving
pictures you can record on a “Memory Stick” formatted on your camcorder.
Using “Memory Stick”– Introduction
Type of “Memory Stick”s
Image quality Image size
8MB 16MB 32MB 64MB 128MB
(supplied) (optional) (optional) (optional) (optional)
SUPER FINE*
1152 × 864 12 images 25 images 51 images 100 images 205 images
640 × 480 40 images 80 images 160 images 325 images 650 images
FINE
1152 × 864* 25 images 50 images 100 images 205 images 415 images
640 × 480 80 images 160 images 325 images 650 images 1310 images
STANDARD
1152 × 864* 37 images 74 images 150 images 300 images 600 images
640 × 480 120 images 240 images 485 images 980 images 1970 images
124

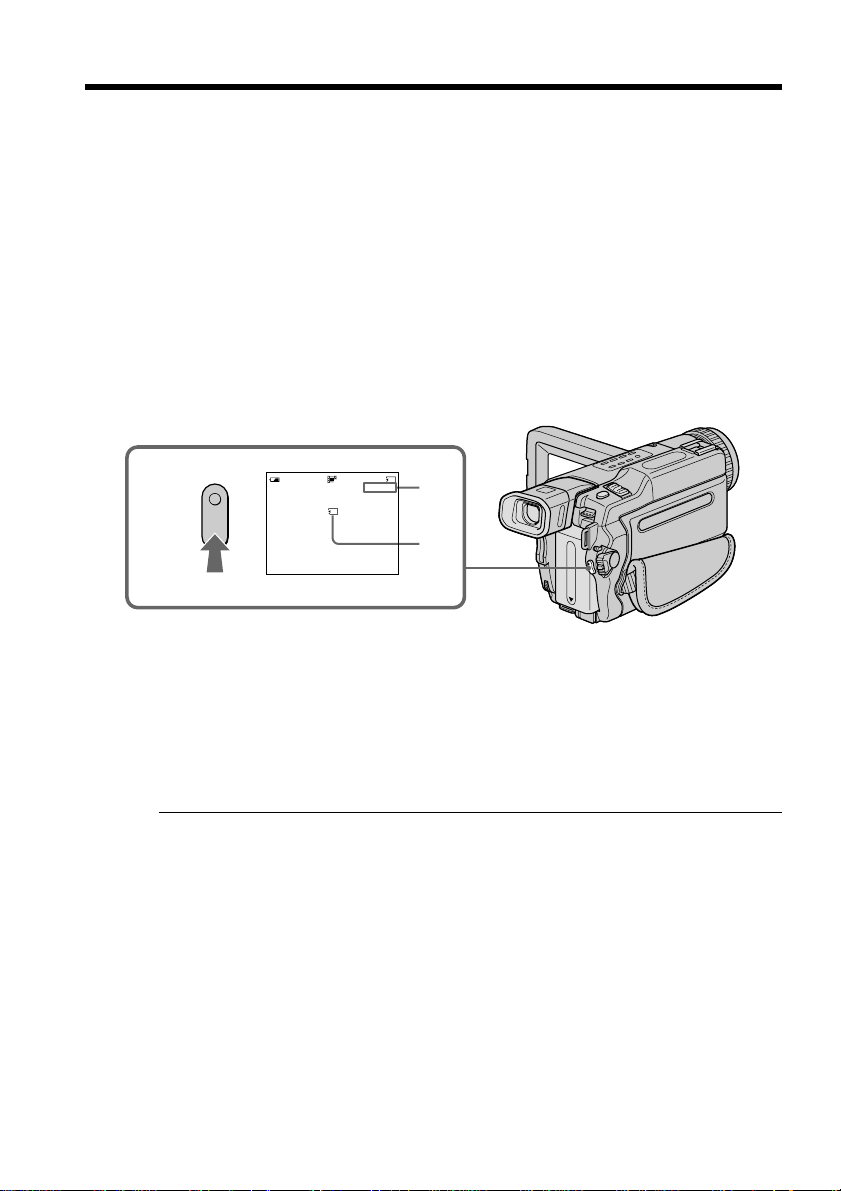

– Except DCR-TRV240
You can record still images on “Memory Stick”s.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY. Make sure that the LOCK switch is set to
the left (unlock) position.
(2) Keep pressing PHOTO lightly until the desired still image appears. The green
z mark stops flashing, then lights up. The brightness of the image and focus
are adjusted, being targeted for the middle of the image and are fixed.
Recording does not start yet.
(3) Press PHOTO deeper.
Recording is complete when the bar scroll indicator disappears.
The image when you pressed PHOTO deeper will be recorded on the
“Memory Stick.”
For DCR-TRV340 only
You can select the FIELD or FRAME mode in still image recording. Your camcorder
compensates for camera-shake when recording moving subjects in the FIELD mode.
Your camcorder records still images in high quality in the FRAME mode. Select the
FIELD or FRAME in the menu settings (p. 105).
Notes
•When recording fast-moving subjects in the FRAME mode, the recorded image blurry.
(DCR-TRV340 only)
•When recording in the FRAME mode, your camcorder may not correct camera-shake.
We recommend that you shoot objects with a tripod. (DCR-TRV340 only)
•When recording still images at step 2 with PHOTO pressed lightly, the image
momentarily flickers. This is not a malfunction.
Recording still images on “Memory
Stick”s – Memory Photo recording
[a]: Number of recorded images
[b]: Approximate number of images that can
be recorded on the “Memory Stick”.
3
2
1 / 12
STD
STD
1152
1152
1
C
A
M
E
R
A
M
E
M
O
R
Y
V
C
R
O
F
F
(
C
H
G
)
PO
W
ER
[a][b]
125
“Memory Stick
” operations
When the POWER switch is set to MEMORY
The following functions do not work:
– Wide mode
– SUPER NIGHTSHOT
– Color Slow Shutter
– Fader
– Picture effects
– Digital effects
– Titles
– Digital zoom (DCR-TRV740/TRV840 only)
– SteadyShot (DCR-TRV740/TRV840 only)
– Sports lesson (DCR-TRV740/TRV840 only)
When you press PHOTO lightly in step 2
The image momentarily flickers. This is not a malfunction.
While you are recording a still image
You can neither turn off the power nor press PHOTO.
When you press PHOTO on the Remote Commander
Your camcorder immediately records the image that is on the screen when you press
the button.
Recording data
The recording data (date/time or various settings when recorded) are not displayed
while recording. However, they are recorded automatically onto the “Memory Stick.”
To display the recording data, press DATA CODE on the Remote Commander during
playback.
You can record still images on “Memory Stick”s in CAMERA
mode, even while you are in the standby mode or recording
moving pictures to tape
Set PHOTO REC to MEMORY in the menu settings before operation. (The default
setting is MEMORY.)
Press PHOTO to record still images on “Memory Stick”s in CAMERA mode, while you
are standing by for recording or recording moving pictures to tape.
You cannot record still images on “Memory Stick”s in CAMERA mode in the
following functions:
– Fader
– Wide mode
– Super NightShot
– Color Slow Shutter
– Picture effects
– Digital effects
– MEMORY MIX
While recording still images on “Memory Stick”s in CAMERA mode
•While the title is displayed, images can be recorded but titles cannot.
•The image is recorded in the FIELD mode automatically even you select FRAME in
the menu settings. (DCR-TRV340 only)
•The image size is automatically set to 640 × 480, even if you set IMAGESIZE to 1152 ×
864 in the menu settings. (DCR-TRV740/TRV840 only)
Recording still images on “Memory Stick”s
– Memory Photo recording
126

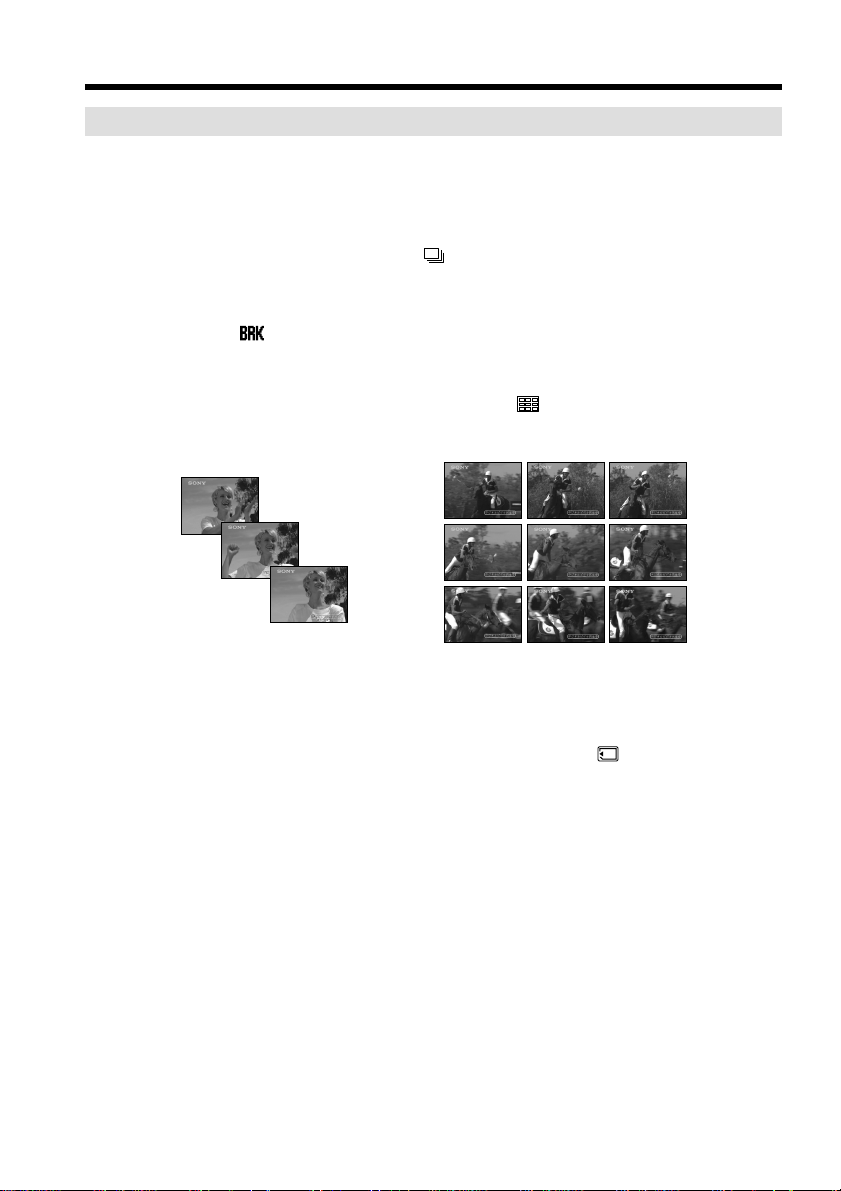

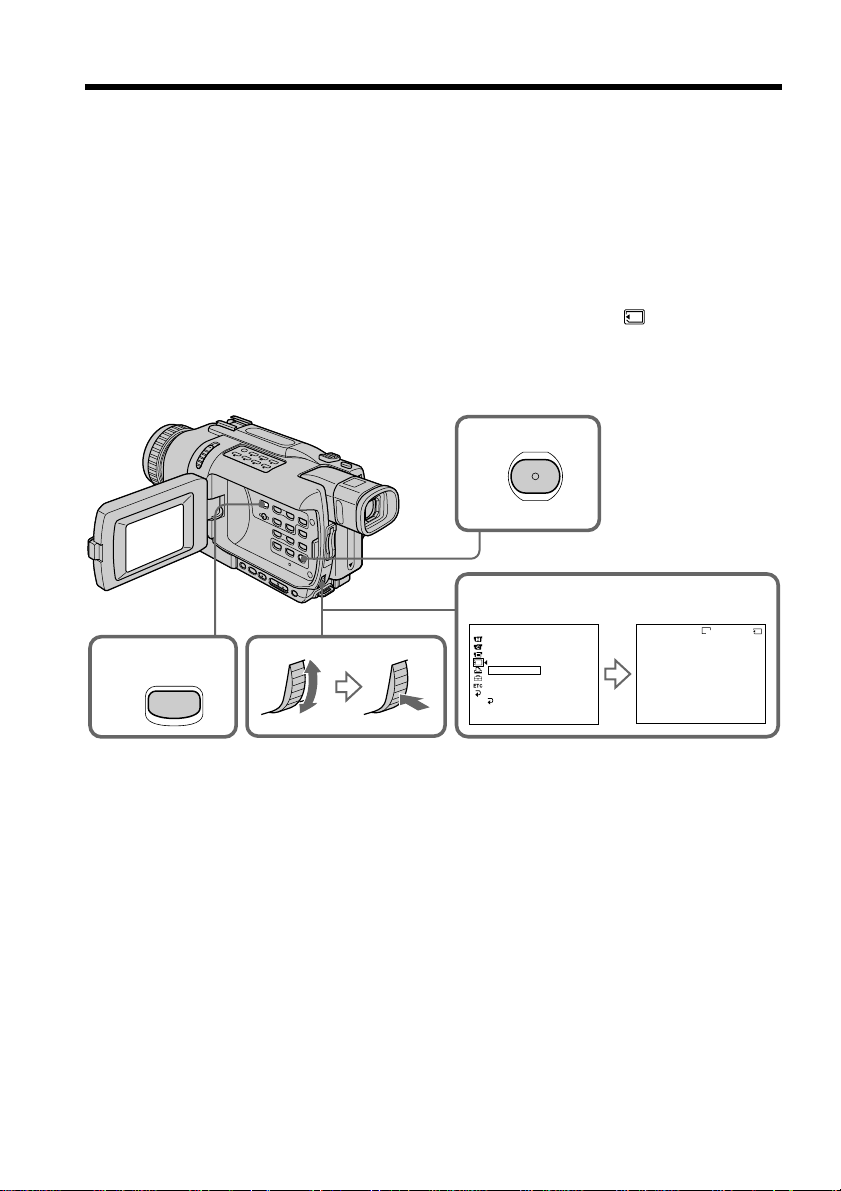

Recording images continuously
You can record still images continuously. Select one of the three modes described below
before recording.
NORMAL [a] (DCR-TRV740/TRV840 only)
Your camcorder shoots up to four still images in 1152 × 864 size or 13 still images in 640
× 480 size at about 0.5 sec intervals. ( )
EXP BRKTG (Recording image size is 640 × 480) (DCR-TRV740/TRV840 only)
Your camcorder automatically shoots three images at about 0.5 sec intervals at different
exposure. ( )
MULTI SCRN (Recording image size is 640 × 480) [b]
Your camcorder shoots nine still images at about 0.4 sec intervals and displays the
images on a single page divided into nine boxes. ( )
(1) Set the POWER switch to MEMORY. Make sure that the LOCK switch is set to
the left (unlock) position.
(2) Press MENU to display the menu settings.
(3) Turn the SEL/PUSH EXEC dial to select STILL SET in
, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select BURST (DCR-TRV740/TRV840 only)
/PIC MODE (DCR-TRV340 only), then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select the desired setting, then press the
dial.
(6) Press MENU to make the menu settings disappear.
(7) Press PHOTO deeper.
Recording still images on “Memory Stick”s
– Memory Photo recording
[a] [b]
127
“Memory Stick
” operations

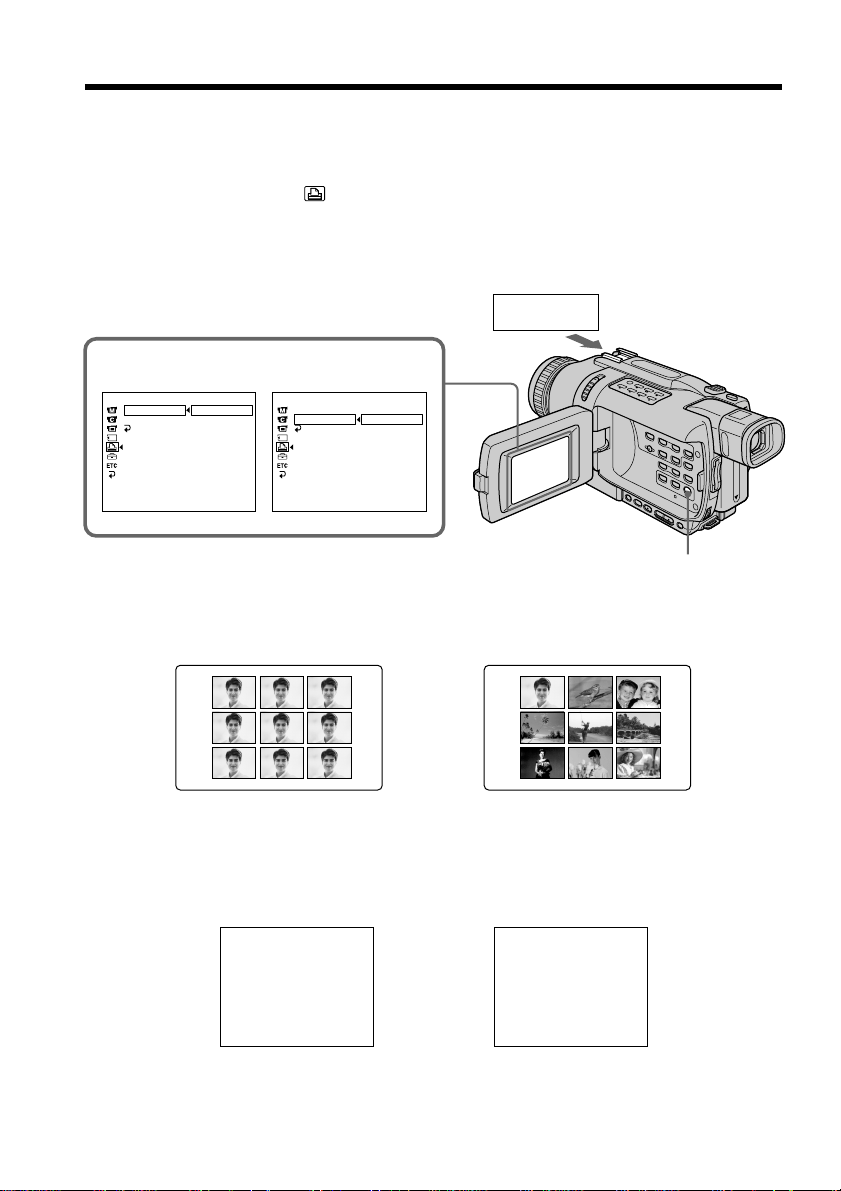

Recording still images on “Memory Stick”s
– Memory Photo recording
2,6
3
4
5
MENU
MEMORY SET
STILL SET
MOVIE SET
PRINT MARK
PROTECT
SLIDE SHOW
FILE NO.
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
MEMORY SET
STILL SET
BURST
QUALITY
IMAGESIZE
RETURN
[
MENU
]
:
END
OFF
MEMORY SET
STILL SET
BURST
QUALITY
IMAGESIZE
RETURN
[
MENU
]
:
END
MULTI SCRN
MEMORY SET
STILL SET
BURST
QUALITY
IMAGESIZE
RETURN
[
MENU
]
:
END
OFF
NORMAL
EXP BRKTG
MULTI SCRN
MEMORY SET
STILL SET
BURST
QUALITY
IMAGESIZE
RETURN
[
MENU
]
:
END
OFF
NORMAL
EXP BRKTG
MULTI SCRN
If the capacity of the “Memory Stick” becomes full
“ FULL” appears on the screen and you cannot record still images on the “Memory
Stick”.
When recording in the multi screen mode
The image is recorded in the FIELD mode automatically even you select FRAME in the
menu settings. (DCR-TRV340 only)
The number of images in continuous shooting
The number of images you can shoot continuously varies depending on the image size
and the capacity of the “Memory Stick.” (DCR-TRV740/TRV840 only)
When shooting with the self-timer function or the Remote Commander
Your camcorder automatically records up to the maximum recordable number of still
images. (DCR-TRV740/TRV840 only)
When selecting NORMAL (DCR-TRV740/TRV840 only)
Recording continues up to the maximum number of still images during pressing
PHOTO deeper. Release PHOTO to stop recording.
When recording images continuously
You cannot zoom images.
When selecting MULTI SCRN, the image size is automatically set to 640 × 480, even if
you set IMAGESIZE to 1152 × 864 in the menu settings. (DCR-TRV740/TRV840 only)
128
Self-timer memory photo recording
You can record images on “Memory Stick”s with the self-timer.
You can use the Remote Commander for this operation.
(1) Set the POWER switch to MEMORY. Make sure that the LOCK switch is set to
the left (unlock) position.
(2) In the standby mode, press MENU to display the menu settings.
(3) Turn the SEL/PUSH EXEC dial to select SELFTIMER in
, then press the
dial.
(4) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
(5) Press MENU to make the menu settings disappear.
(6) Press PHOTO deeper.
Self-timer starts counting down from 10 with a beep. In the last two seconds of
the countdown, the beep gets faster, then recording starts automatically.
To record moving pictures on “Memory Stick”s with the self-
timer
Press START/STOP in step 6. To cancel recording, press START/STOP again.
To cancel self-timer recording
Set SELFTIMER to OFF in the menu settings while your camcorder is in the standby
mode. You cannot cancel self-timer recording with Remote Commander.
Note
The self-timer recording mode is automatically canceled when:
– Self-timer recording is finished.
– The POWER switch is set to OFF (CHG) or VCR.
To check the image to be recorded
You can check the image by lightly pressing PHOTO, then press it deeper to start self-
timer recording.
Recording still images on “Memory Stick”s
– Memory Photo recording
4
CAMERA SET
SELFTIMER
D ZOOM
STEADYSHOT
RETURN
OFF
ON
[
MENU
]
:
END
MENU
129

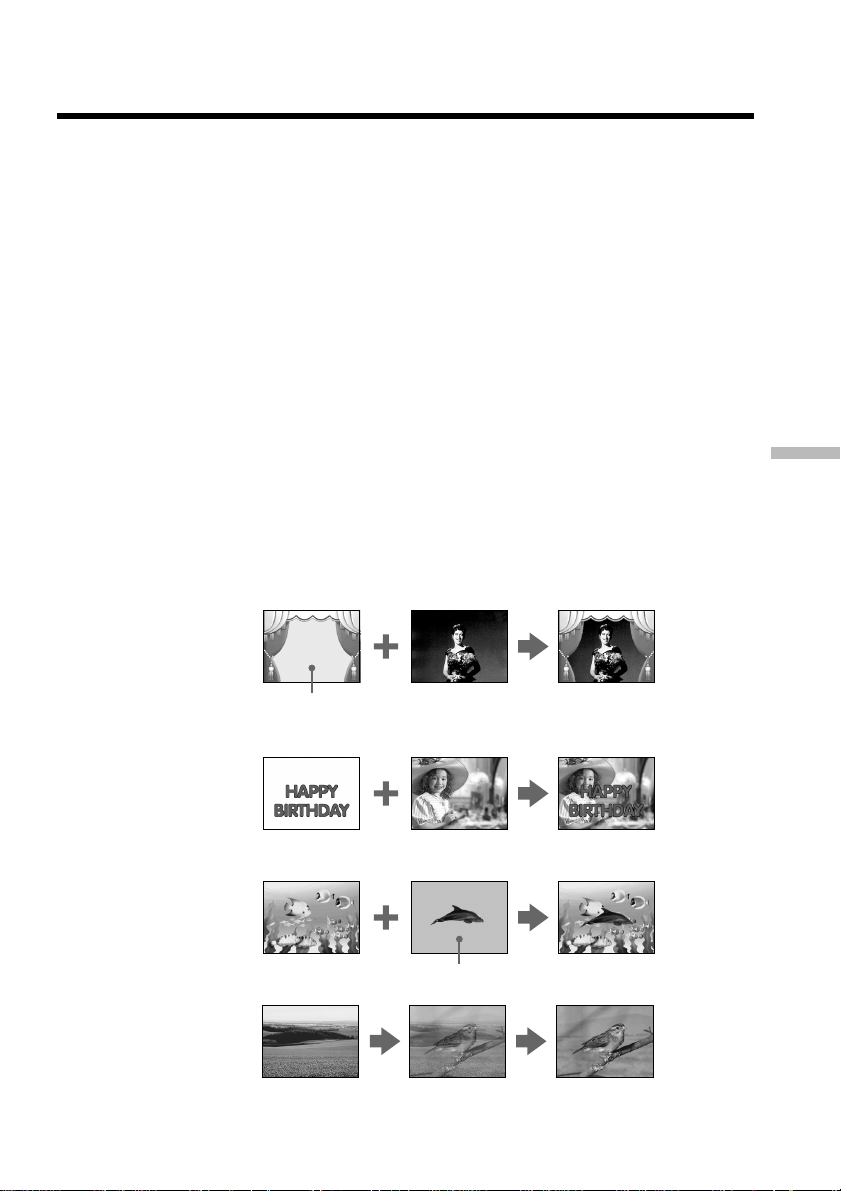

“Memory Stick
” operations
– Except DCR-TRV240
You can superimpose a still image you have recorded on the “Memory Stick” on the
moving picture you are recording. You can record the superimposed images on a tape
or a “Memory Stick”. (However, you can record only superimposed still images on the
“Memory Stick”.)
M. CHROM (memory chroma key)
You can swap a blue area of a still image such as an illustration or a frame with a
moving picture.
M. LUMI (memory luminance key)
You can swap a brighter area of a still image such as a handwritten illustration or title
with a moving picture. Record a title on the “Memory Stick” before a trip or event for
convenience.
C. CHROM (camera chroma key)
You can superimpose a moving picture on a still image such as an image can be used as
background. Shoot the subject against a blue background. The blue area of the moving
image will be swapped with a still image.
M. OVERLAP* (memory overlap)
You can make a moving picture fade in on top of a still image recorded on the “Memory
Stick” as the overlap function.
* The superimposed image using Memory overlap function can be recorded on tapes
only.
Superimposing a still image in the
“Memory Stick” on an image
– MEMORY MIX
M. OVERLAP*
Still image Moving picture
C. CHROM
Still image Moving picture
Blue
M. LUMI
Still image Moving picture
M. CHROM
Still image Moving picture
Blue
130

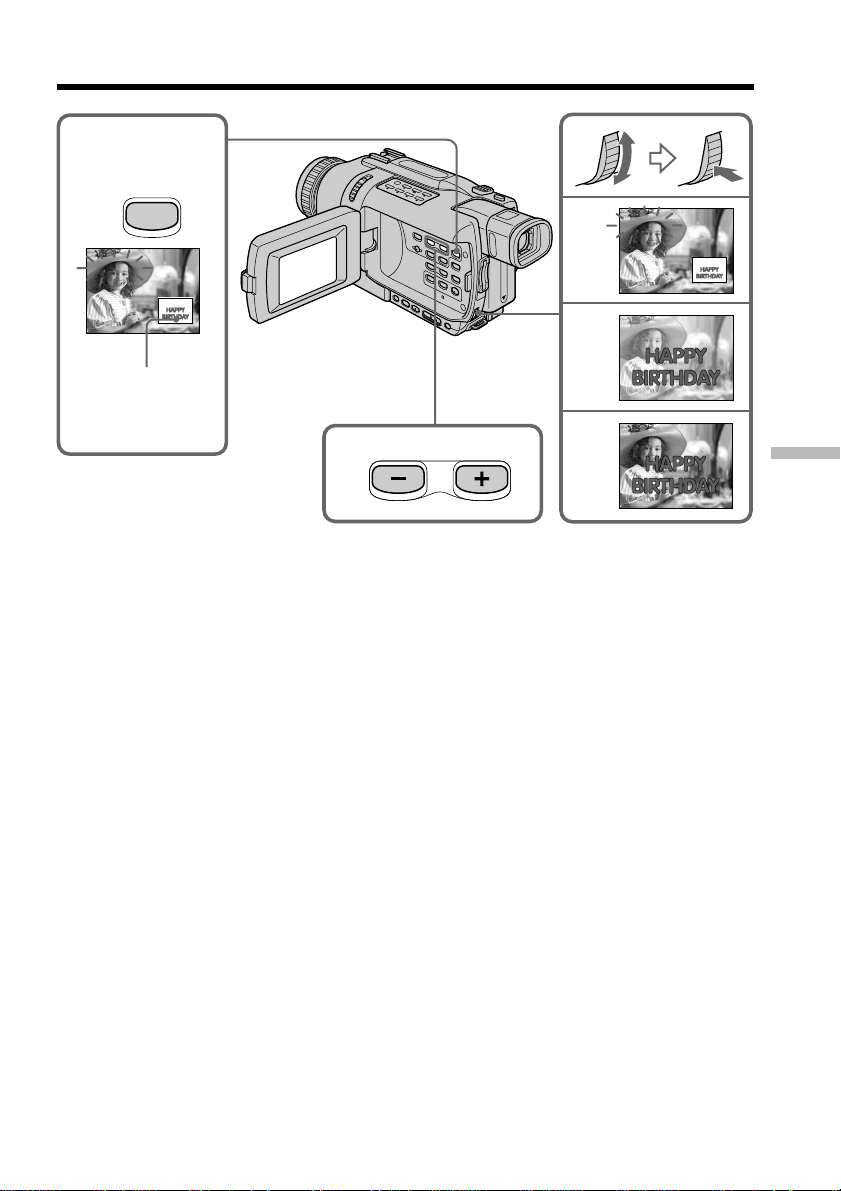

Superimposing a still image in the “Memory Stick” on an image
– MEMORY MIX
Recording superimposed images on a tape
Before operation
•Insert a tape for recording into your camcorder.
•Insert a “Memory Stick” is recorded still images into your camcorder.
(1) Set the POWER switch to CAMERA.
(2) In the standby mode, press MEMORY MIX.
The last recorded or last composed image appears on the lower part of the
screen as a thumbnail image.
(3) Press MEMORY+/– to select the still image you want to superimpose.
To see the previous image, press MEMORY –. To see the next image, press
MEMORY+.
(4) Turn the SEL/PUSH EXEC dial to select the desired mode.
The mode changes as follows:
M. CHROM y M. LUMI y C. CHROM y M. OVERLAP
(5) Press the SEL/PUSH EXEC dial.
The still image is superimposed on the moving picture.
(6) Turn the SEL/PUSH EXEC dial to adjust the effect.
M. CHROM – The color (blue) scheme of the area in the still image which is
to be swapped with a moving picture
M. LUMI – The color (bright) scheme of the area in the still image which
is to be swapped with a moving picture
C. CHROM – The color (blue) scheme of the area in the moving picture
which is to be swapped with a still image
M. OVERLAP – No adjustment necessary
The fewer bars there are on the screen, the stronger the effect becomes.
(7) Press START/STOP to start recording.
2
4
5
6
M. CHROM
M. LUMI
M. LUMI
M. LUMI
III••••
I••••••
100–0021
100–0021
3
100–0021
100–0021
MEMORY
MIX
Still image
131
“Memory Stick
” operations
Superimposing a still image in the “Memory Stick” on an image
– MEMORY MIX
To change the still image to superimpose
Do either of the following:
– Press MEMORY+/– before step 7.
– Press the SEL/PUSH EXEC dial before step 7, and repeat the procedure from step 4.
To change the mode setting
Press the SEL/PUSH EXEC dial before step 7, and repeat the procedure from step 4.
To cancel MEMORY MIX
Press MEMORY MIX.
Notes
•You cannot use the MEMORY MIX function for moving pictures recorded on
“Memory Stick”s.
•When the overlapping still image has a large amount of white, the thumbnail image of
the picture may not be clear.
Image data modified on your computer or shot with other equipment
You may not be able to play modified images back with your camcorder.
When you select M. OVERLAP
You cannot change the still image or the mode setting.
During recording
You cannot change the mode setting.
To record the superimposed image as a still image
Press PHOTO deeper in step 7.
Images processed by MEMORY MIX
You cannot record the images on “Memory Stick”s in CAMERA mode.
Record them in MEMORY mode. (p. 132)
132
Superimposing a still image in the “Memory Stick” on an image
– MEMORY MIX

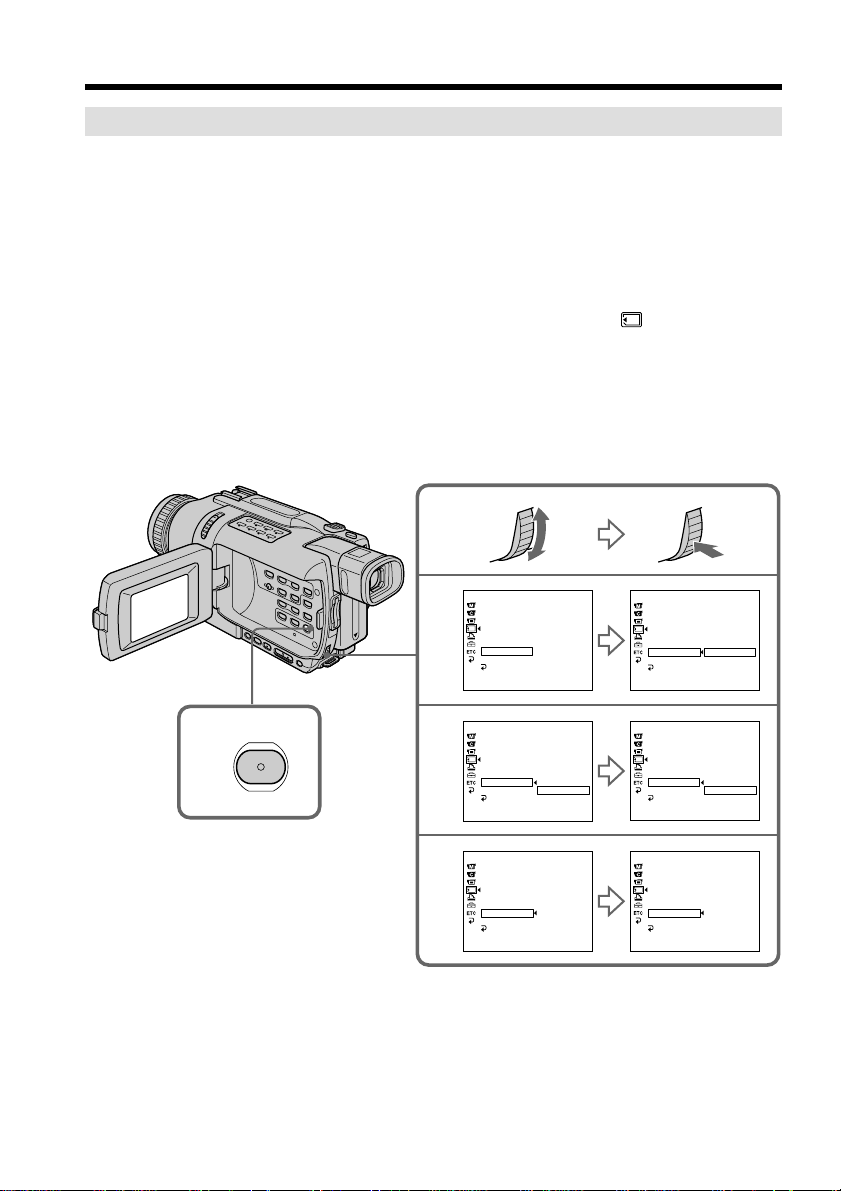

Recording superimposed images on a “Memory Stick” as a still
Before operation
Insert a “Memory Stick” is recorded still images into your camcorder.
(1) Set the POWER switch to MEMORY. Make sure that the LOCK switch is set to
the left (unlock) position.
(2) Press MEMORY MIX.
The last recorded or last composed image appears on the lower part of the
screen as a thumbnail image.
(3) Press MEMORY+/– to select the still image you want to superimpose.
To see the previous image, press MEMORY –. To see the next image, press
MEMORY+.
(4) Turn the SEL/PUSH EXEC dial to select the desired mode.
The mode changes as follows:
M. CHROM y M. LUMI y C. CHROM
(5) Press the SEL/PUSH EXEC dial.
The still image is superimposed on the moving picture.
(6) Turn the SEL/PUSH EXEC dial to adjust the effect.
M. CHROM – The color (blue) scheme of the area in the still image which is
to be swapped with a moving picture
M. LUMI – The color (bright) scheme of the area in the still image which
is to be swapped with a moving picture
C. CHROM – The color (blue) scheme of the area in the moving picture
which is to be swapped with a still image
The fewer bars there are on the screen, the stronger the effect becomes.
(7) Press PHOTO deeper to start recording.
The image displayed on the screen will be recorded on a “Memory Stick.”
Recording is complete when the bar scroll indicator disappears.
133
“Memory Stick
” operations
Superimposing a still image in the “Memory Stick” on an image
– MEMORY MIX
To change the still image to superimpose
Do either of the following:
– Press MEMORY+/– before step 7.
– Press the SEL/PUSH EXEC dial before step 7, and repeat the procedure from step 4.
To change the mode setting
Press the SEL/PUSH EXEC dial before step 7, and repeat the procedure from step 4.
To cancel MEMORY MIX
Press MEMORY MIX.
2
4
5
6
M. CHROM
M. LUMI
M. LUMI
M. LUMI
III••••
I••••••
100–0021
100–0021
3
100–0021
100–0021
MEMORY
MIX
Still image
134
Superimposing a still image in the “Memory Stick” on an image
– MEMORY MIX
Notes
•You cannot use the MEMORY MIX function for moving pictures recorded on
“Memory Stick”s.
•When the overlapping still image has a large amount of white, the thumbnail image of
the picture may not be clear.
Image data modified on your computer or shot with other equipment
You may not be able to play modified images back with your camcorder.
During recording
You cannot change the mode setting.
When recording images on a “Memory Stick” using the MEMORY MIX function
The PROGRAM AE function does not work. (The indicator flashes.)
The “Memory Stick” supplied with your camcorder is already stored with 20
images
– For M. CHROM: 18 images (such as a frame) 100-0001~100-0018
– For C. CHROM: two images (such as a background) 100-0019~100-0020
Sample images
Sample images stored in the “Memory Stick” supplied with your camcorder are
protected (p. 170).
While using the MEMORY MIX function
•The image is recorded in the FIELD mode automatically even you select FRAME in
the menu settings. (DCR-TRV340 only)
•The image size is automatically set to 640 × 480, even if you set IMAGESIZE to 1152 ×
864 in the menu settings. (DCR-TRV740/TRV840 only)
135
“Memory Stick
” operations
– Except DCR-TRV240

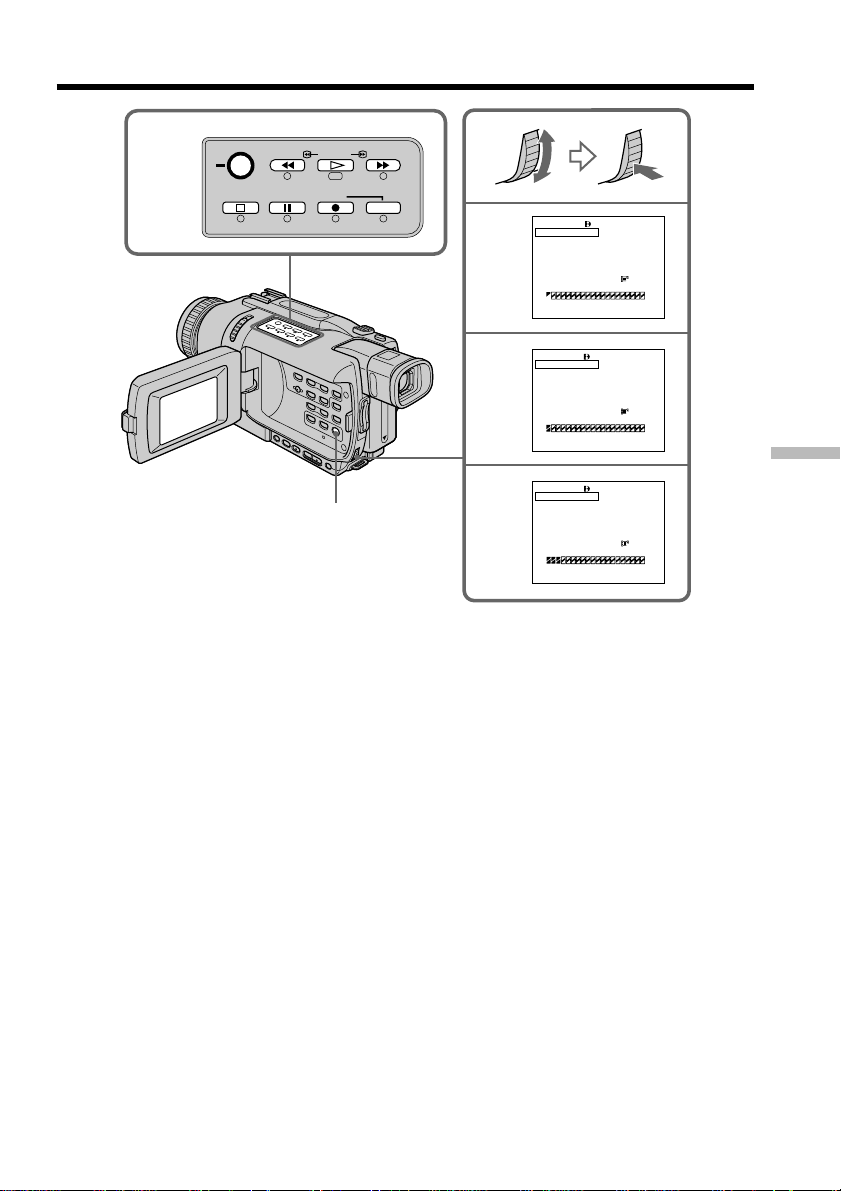

Your camcorder can read moving image data recorded on a tape recorded in the
Digital8 system, and record it as a still image on a “Memory Stick.”
Your camcorder can also capture moving image data through the input connector and
record it as a still image on a “Memory Stick.”
Before operation
•Insert a tape recorded in the Digital8 system into your camcorder.
•Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to VCR.
(2) Press N. Moving pictures recorded on the tape are played back.
(3) Keep pressing PHOTO lightly until the picture from the tape freezes.
“CAPTURE” appears on the screen. Recording does not start yet.
(4) Press PHOTO deeper. The image displayed on the screen will be recorded on
the “Memory Stick”. Recording is complete when the bar scroll indicator
disappears.
When the access lamp is lit or flashing
Do not shake or knock the unit. Also do not turn the power off, eject the “Memory
Stick” or remove the battery pack. Otherwise, image data may become damaged.
If appears on the screen
The inserted “Memory Stick” is incompatible with your camcorder because its format
does not conform with your camcorder. Check the format of the “Memory Stick.”
If you press PHOTO lightly in the playback mode
Your camcorder stops momentarily.
Sound recorded on a tape
You cannot record audio from a tape.
Recording images from a tape as still
images
2
REW PLAY FF
4
3
CAPTURE
136
When you press PHOTO on the Remote Commander
Your camcorder immediately records the image that is on the screen when you press
the button.
Titles superimposed on tapes
You cannot record titles on the “Memory Stick.” However, you can record titles which
have already been recorded on tapes.
Recording date/time
The recording data (date/time) when it is recorded on “Memory Stick” is recorded.
Various settings are not recorded.
While recording still images from a tape as still images
•The image is recorded in the FIELD mode automatically even you select FRAME in
the menu settings. (DCR-TRV340 only)
•The image size is automatically set to 640 × 480, even if you set IMAGESIZE to 1152 ×
864 in the menu settings. (DCR-TRV740/TRV840 only)
Recording a still image from external equipment
Before operation
Set DISPLAY to LCD in the menu settings. (The default setting is LCD.)
(1) Set the POWER switch to VCR.
(2) Play back the recorded tape, or turn the TV on to see the desired program.
The picture from TV or VCR appears on the screen of your camcorder.
(3) Follow the steps 3 and 4 on page 135.
Using the A/V connecting cable
Connect the yellow plug of the A/V connecting cable to the video jack on the VCR or
the TV.
If your TV or VCR has an S video jack
Pictures can be reproduced more faithfully by using an S video cable (optional).
With this connection, you do not need to connect the yellow (video) plug of the A/V
connecting cable.
Connect an S video cable (optional) to the S video jacks of both your camcorder and the
TV or VCR.
Recording images from a tape as still images
: Signal flow
S VIDEO
VIDEO
OUT
S VIDEO
AUDIO
/
VIDEO
VCR
137
“Memory Stick
” operations
Using the i.LINK cable (DV connecting cable)
Note
In the following instances, “ REC ERROR” is displayed and recording is not possible.
Record undistorted images.
– When recording on a tape in a poor recording state, for example, on a tape that has
been repeatedly used for dubbing
– Between scenes or in the various playback modes on the tape recorded in Hi8/
standard 8 system
– When attempting to input images that are distorted due to poor radio wave reception
when a TV tuner unit is in use
DV
DV OUT
DV IN/OUT
: Signal flow
(optional)
Recording images from a tape as still images
138

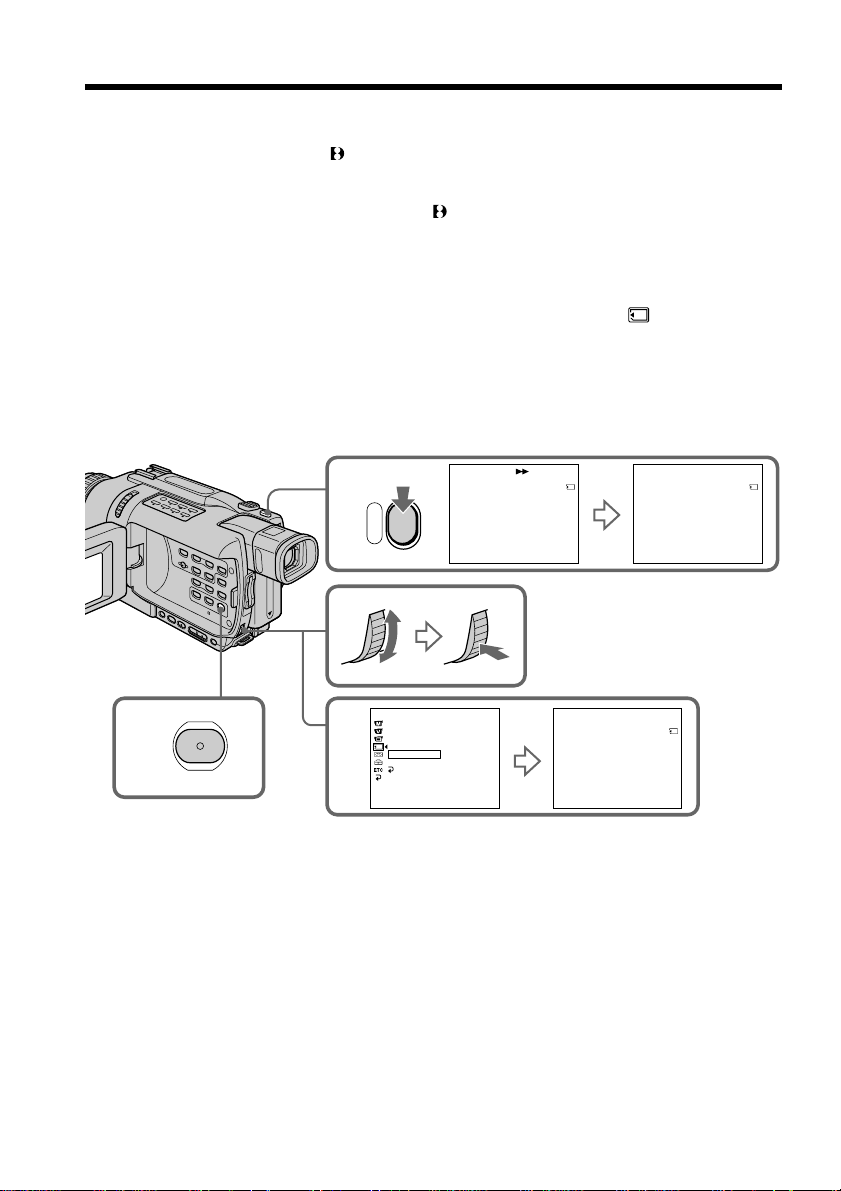

Copying still images from a tape
– PHOTO SAVE
– Except DCR-TRV240
Using the search function, you can automatically capture only still images from tapes
recorded in the Digital8 system and record them on a “Memory Stick” in sequence.
Before operation
•Insert a tape recorded in the Digital8 system and rewind the tape.
•Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to VCR.
(2) Press MENU to display the menu settings.
(3) Turn the SEL/PUSH EXEC dial to select PHOTO SAVE in
, then press the
dial.
PHOTO BUTTON appears on the screen.
(4) Press PHOTO deeper. The still image from the tape is recorded on the
“Memory Stick.” The number of still images copied is displayed. END is
displayed when copying ends.
4
3
2
MENU
SAV
I
NG
0
END
4
PHOTO BUTTON
PHOTO SAVE
[
MENU
]
:
END
0
:
00
:
00
:
00
21/40
FINE
PHOTO SAVE
[
MENU
]
:
END
0
:
30
:
00
:
00
25/40
FINE
PHOTO SAVE
[
]
:
START
[
MENU
]
:
END
0
:
00
:
00
:
00
21/40
FINE
MEMORY SET
STILL SET
MOVIE SET
PRINT MARK
PROTECT
PHOTO SAVE
FILE NO.
RETURN
[
MENU
]
:
END
READY
139
“Memory Stick
” operations
To stop copying
Press MENU.
When the “Memory Stick” becomes full
“MEMORY FULL” appears on the screen, and copying stops. Insert another “Memory
Stick” and repeat the procedure from step 2.
When the access lamp is lit or flashing
Do not shake or knock your camcorder. As well do not turn the power off, eject the
“Memory Stick” or remove the battery pack. Otherwise, image data may become
damaged.
If the write-protect tab on the “Memory Stick” is set to LOCK
“NOT READY” appears on the screen when you select PHOTO SAVE in the menu
settings.
When you change the “Memory Stick” during copying
Your camcorder resumes copying from the last image recorded on the previous
“Memory Stick”.
While copying still images from a tape
•The image is recorded in the FIELD mode automatically even you select FRAME in
the menu settings. (DCR-TRV340 only)
•The image size is automatically set to 640 × 480, even if you set IMAGESIZE to 1152 ×
864 in the menu settings. (DCR-TRV740/TRV840 only)
Copying still images from a tape – PHOTO SAVE
140
– Except DCR-TRV240
You can record moving pictures with sound on “Memory Stick”s.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY. Make sure that the LOCK switch is set to
the left (unlock) position.
(2) Press START/STOP. Your camcorder starts recording. The camera recording
lamp located on the front of your camcorder lights up.
For DCR-TRV340 only:
When IMAGESIZE in the menu settings is set to 320 × 240, the maximum
recording time is 15 seconds. However, when IMAGESIZE in the menu
settings is set to 160 × 112, the maximum recording time is 60 seconds.
To stop recording
Press START/STOP.
Note
Sound is recorded in monaural.
When the POWER switch is set to MEMORY
The following functions do not work:
– Wide mode
– SUPER NIGHTSHOT
– Color Slow Shutter
– Fader
– Picture effects
– Digital effects
– Titles
– Digital zoom (DCR-TRV740/TRV840 only)
– SteadyShot (DCR-TRV740/TRV840 only)
– Sports lesson (The indicator flashes) (DCR-TRV740/TRV840 only)
Recording moving pictures on “Memory
Stick”s – MPEG movie recording
[a]: The recording time can be recorded on the
“Memory Stick”
[b]: This indicator is displayed for five seconds
after pressing START/STOP. This indicator
is not recorded.
2
320
BBB
50min REC
0:03
[
15sec
]
[a]
[b]
141
“Memory Stick
” operations
When the POWER switch is set to MEMORY
The angle of view is slightly larger compared with the angle of view in CAMERA
mode.
When using an external flash (optional)
Turn the power of the external flash off when recording moving pictures on “Memory
Stick”s.
Otherwise, the charging sound for the flash may be recorded.
Recording date/time
The date/time are not displayed while recording. However, they are automatically
recorded onto the “Memory Stick.”
To display the recording date/time, press DATA CODE on the Remote Commander
during playback. Various settings cannot be recorded.
During recording on “Memory Stick”
Do not eject the cassette tape from your camcorder. During ejecting the tape, sound is
not recorded on the “Memory Stick.”
Recording moving pictures on “Memory Stick”s
– MPEG movie recording
142

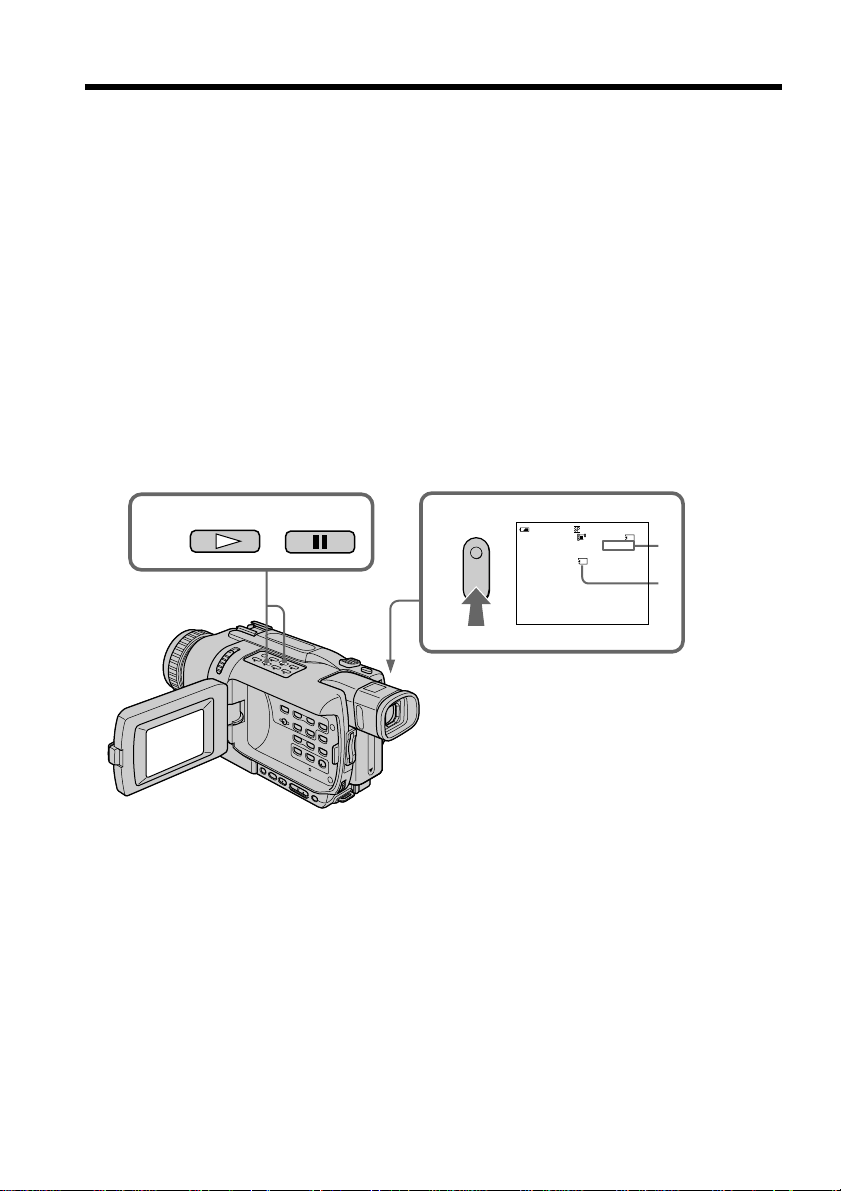

– Except DCR-TRV240
Your camcorder can read moving picture data recorded on tapes and record it as a
moving picture on a “Memory Stick.” Your camcorder can also capture moving picture
data through the input connector and record it as a moving picture on a “Memory
Stick.”
Before operation
•Insert a recorded tape into your camcorder.
•Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to VCR.
(2) Press N. The picture recorded on the tape is played back.
And press X at the scene where you want to start recording from.
(3) Press START/STOP on your camcorder.
For DCR-TRV340 only:
When IMAGESIZE in the menu settings is set to 320 × 240, the maximum
recording time is 15 seconds. However, when IMAGESIZE in the menu
settings is set to 160 × 112, the maximum recording time is 60 seconds.
To stop recording
Press START/STOP or x.
Recording pictures from a tape as moving
pictures
3
2
320
BBB
N
0:15:42:43
REC0:03
[
15sec
]
50
min
PAUSE
PLAY
[a]: The recording time can be recorded on the
“Memory Stick.”
[b]: This indicator is displayed for five seconds
after pressing START/STOP. This indicator
is not recorded.
[a]
[b]
143
“Memory Stick
” operations
Notes
•Sound recorded in 48 kHz is converted to 32 kHz sound when recording pictures from
a tape to “Memory Stick”s.
•Sound recorded in stereo is converted to monaural sound when recording from tape.
When the access lamp is lit or flashing
Do not shake or knock the unit. Also, do not turn the power off, eject a “Memory Stick”
or remove the battery pack. Otherwise, image data may become damage.
If “ AUDIO ERROR” is displayed
Sound that cannot be recorded by your camcorder has been recorded. Connect the A/V
connecting cable to input images from external equipment used to play back the image
(p. 144).
Recording date/time
The recording data (date/time) when it is recorded on “Memory Stick” is recorded.
Various settings are not recorded.
The picture may be recorded on the “Memory Stick” incorrectly if:
– You turn the POWER switch during recording
– You press any video control buttons during recording
– Between the scenes recorded in the Digital8 system and in the Hi8/standard 8
system.
Moving pictures processed by PB ZOOM
You cannot record them on “Memory Stick”s.
Recording pictures from a tape as moving pictures
144
Recording a moving picture from external equipment
Before operation
Set DISPLAY to LCD in the menu settings. (The default setting is LCD.)
(1) Set the POWER switch to VCR.
(2) Play back the recorded tape, or turn the TV on to see the desired program.
The picture of the other equipment is displayed on the LCD screen or
viewfinder.
(3) Follow the procedure on page 142 from step 3 onwards at the point where you
want to start recording from.
Using the A/V connecting cable
Connect the yellow plug of the A/V connecting cable to the video jack on the VCR or
the TV.
If your TV or VCR has an S video jack
Pictures can be reproduced more faithfully by using an S video cable (optional).
With this connection, you do not need to connect the yellow (video) plug of the A/V
connecting cable.
Connect an S video cable (optional) to the S video jacks of both your camcorder and the
TV or VCR.
Recording pictures from a tape as moving pictures
S VIDEO
VIDEO
OUT
AUDIO/
VIDEO
S VIDEO
AUDIO
: Signal flow
VCR
145
“Memory Stick
” operations
Using the i.LINK cable (DV connecting cable)
Note
In the following instances, recording is discontinued.
– When recording on a tape in a poor recording state, for example, on a tape that has
been repeatedly used for dubbing
– Between scenes or in the various playback modes on the tape recorded in Hi8/
standard 8 system
– When attempting to input images that are distorted due to poor radio wave reception
when a TV tuner unit is in use
– The recording stops automatically if the picture is disrupted.
– When the input signal is cut off
When “ REC ERROR” is displayed
Recording is discontinued, and image data is not saved.
During recording on “Memory Stick”
Do not eject the cassette tape from your camcorder. During ejecting the tape, sound is
not recorded on the “Memory Stick.”
Recording pictures from a tape as moving pictures
DV OUT
DV IN/OUT
DV
: Signal flow
(optional)
146
– Except DCR-TRV240
You can duplicate selected scenes (programs) for editing onto “Memory Stick”s.
Making the program
(1) Set the POWER switch to VCR on your camcorder.
(2) Insert the tape for playback, and a “Memory Stick” for recording into your
camcorder.
(3) Press MENU to display the menu settings.
(4) Turn the SEL/PUSH EXEC dial to select VIDEO EDIT in
, then press the
dial.
(5) Turn the SEL/PUSH EXEC dial to select MEMORY, then press the dial.
(6) Turn the SEL/PUSH EXEC dial to select IMAGESIZE, then press the dial.
(7) Search for the beginning of the first scene you want to insert using the video
operation buttons, then pause playback.
You can fine-adjust one frame at a time with EDITSEARCH.
(8) Press the SEL/PUSH EXEC dial.
The IN point of the first program is set, and the top part of the program mark
changes to light blue.
(9) Search for the end of the first scene you want to insert using the video
operation buttons, then pause playback.
(10) Press the SEL/PUSH EXEC dial.
The OUT point of the first program is set, then the bottom part of the program
mark changes to light blue.
(11) Repeat steps 7 to 10, then set the program.
When one program is set, the program mark changes to light blue.
You can set 20 programs in maximum.
Recording edited pictures as a moving
picture – Digital program editing (on
“Memory Stick”s)
147
“Memory Stick
” operations
Recording edited pictures as a moving picture
– Digital program editing (on “Memory Stick”s)
7,9
8
10
11
REW
REC
FF
PAUSE
STOP
PLAY
320
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
IMAGESIZE
TOTAL
[
MENU
]
:
END
0 SEC
[
15SEC
]
0:08:55:06
1 OUT
320
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
IMAGESIZE
TOTAL
[
MENU
]
:
END
3 SEC
[
15SEC
]
0:08:55:06
2 IN
320
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
IMAGESIZE
TOTAL
[
MENU
]
:
END
13 SEC
[
15SEC
]
0:10:01:23
4 IN
MENU
Erasing the program you have set
Erase OUT first and then IN from of the last program.
(1) Turn the SEL/PUSH EXEC to select UNDO, then press the dial.
(2) Turn the SEL/PUSH EXEC to select EXECUTE, then press the dial.
To cancel erasing
Select RETURN in step 2.
Erasing all programs
(1) Select VIDEO EDIT in the menu settings. Turn the SEL/PUSH EXEC dial to
select MEMORY, then press the dial.
(2) Select ERASE ALL in the menu settings. Turn the SEL/PUSH EXEC dial to
select EXECUTE, then press the dial.
To cancel erasing all programs
Select RETURN in step 2.
To cancel a program you have set
Press MENU.
The program is stored in memory until the tape is ejected.
148
Notes
•Digital program editing works only for tapes recorded in the Digital8 system.
•You cannot dub the titles or display indicators.
•You cannot operate recording during Digital program editing on “Memory Stick”s.
•You cannot set IN or OUT on a blank portion of the tape.
•If there is a blank portion between IN and OUT on the tape, the total time code may
not be displayed correctly.
During making a program
If you eject the cassette, NOT READY appears on the screen. The program will be
erased.
If you set over the maximum recording time (DCR-TRV340 only)
The program mark changes to yellow, and OVER 15 SEC LIMIT appears when
IMAGESIZE is set to 320 × 240, or OVER 60 SEC LIMIT appears when IMAGESIZE is
set to 160 × 112. However, you can record up to the maximum recording time.
Recording edited pictures as a moving picture
– Digital program editing (on “Memory Stick”s)
149
“Memory Stick
” operations
Recording edited pictures as a moving picture
– Digital program editing (on “Memory Stick”s)
Performing the program (Dubbing a “Memory Stick”)
(1) Select VIDEO EDIT in the menu settings. Turn the SEL/PUSH EXEC dial to
select MEMORY, then press the dial.
(2) Select START in the menu settings. Turn the SEL/PUSH EXEC dial to select
EXECUTE, then press the dial.
Search for the beginning of the first program, then start dubbing.
The program mark flashes.
The SEARCH indicator appears during search, the EDITING indicator appears
during writing of data on your camcorder, and REC appears during dubbing
on the screen.
The program mark changes to light blue after dubbing is complete.
When the dubbing ends, your camcorder automatically stops.
To stop dubbing during editing
Press x using the video operation buttons.
The program you made is recorded on a “Memory Stick” up to the place where you
pressed x.
To end the Digital program editing function
Your camcorder stops when the dubbing ends. Then the display returns to VIDEO
EDIT in the menu settings.
Press MENU to end the Digital program editing function.
NOT READY appears on the LCD screen when:
– The program to operate Digital program editing has not been made.
– The “Memory Stick” is not inserted.
– The write-protect tab on the “Memory Stick” is set to LOCK.
–“Memory Stick” does not have enough space to record.
When “Memory Stick” does not have enough space to record
LOW MEMORY appears on the screen. However, you can record pictures up to the
time indicated.
If you set over the maximum recording time
OVER MEMORY LIMIT appears on the screen. However, you can record moving
pictures up to the maximum recording time.
150
– Except DCR-TRV240

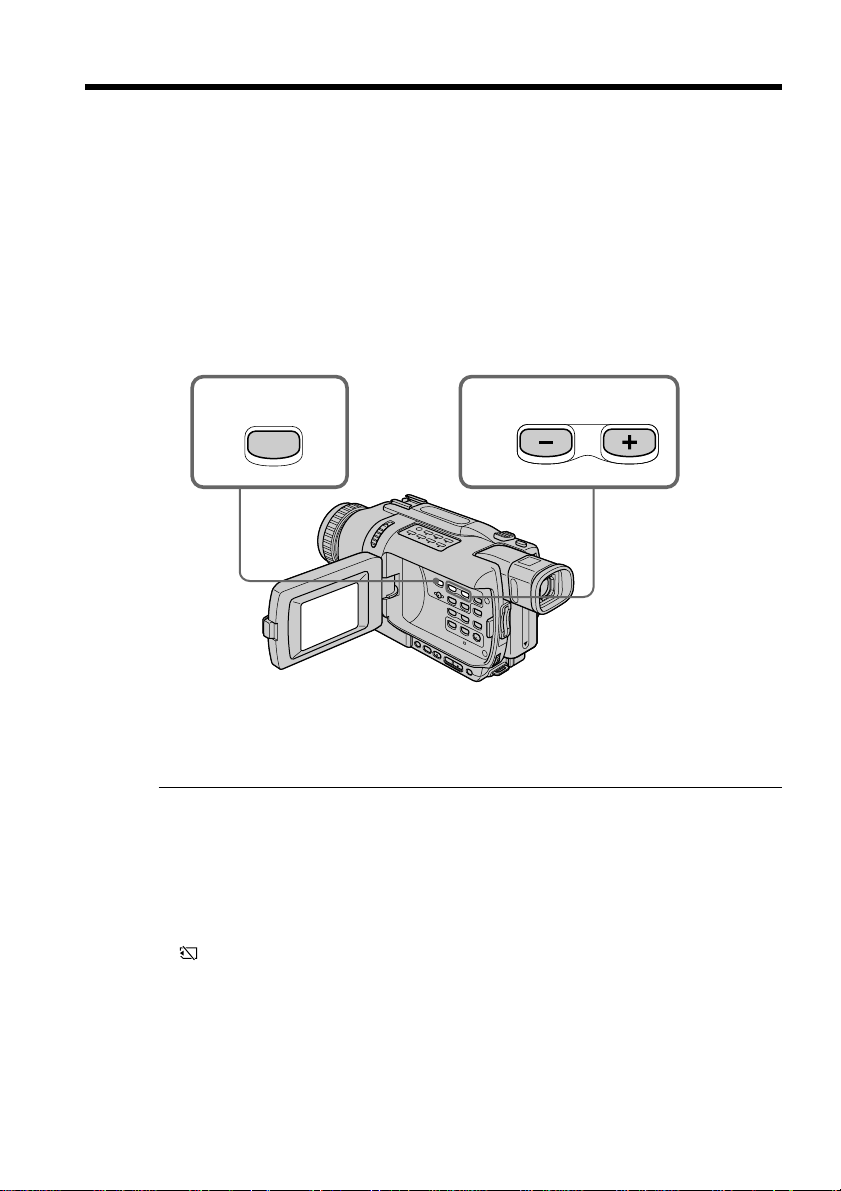

You can play back still images recorded on a “Memory Stick”. You can also play back
six images including moving pictures in order at a time by selecting the index screen.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY or VCR. Make sure that the LOCK switch
is set to the left (unlock) position.
(2) Press MEMORY PLAY. The last recorded image is displayed.
(3) Press MEMORY +/– to select the desired still image. To see the previous
image, press MEMORY –. To see the next image, press MEMORY +.
To stop memory photo playback
Press MEMORY PLAY.
Note
You may not be able to play back images with your camcorder:
– When playing back image data modified on your computer.
– When playing back image data shot with other equipment.
Notes on the file name
•The directory number may not be displayed and only the file name may be displayed
if the structure of the directory does not conform to the DCF standard.
•“ - DIRECTORY ERROR” may appear on the screen if the structure of the
directory does not conform to the DCF standard. While this message appears, you can
play back images but cannot record them on the “Memory Stick.”
•The file name flashes on the screen if the file is corrupted or the file is unreadable.
Viewing still images
– Memory Photo playback
2
3
PLAY
151
“Memory Stick
” operations
To play back recorded images on a TV screen
•Before operation connect your camcorder to the TV with the A/V connecting cable
supplied with your camcorder.
•When operating memory photo playback on a TV or the LCD screen, image quality
may appear to have deteriorated. This is not a malfunction. The image data is as good
as ever.
•Turn the audio volume of the TV down before operation, or noise (howling) may be
output from the TV speakers.
When no still image is recorded on the “Memory Stick”
The message “ NO FILE” appears.
Screen indicators during still image playback
Recording data
You can view recording data (date/time or various settings when recorded) by pressing
DATA CODE on the Remote Commander.
Viewing still images – Memory Photo playback
21 / 40
MEMORY PLAY
100-0021
640
JUL 4 2002
12:05:56 PM
Data file name
Image number/Total number of recorded images
Protect
Print mark
Recording data
Image size (DCR-TRV740/TRV840 only)
152

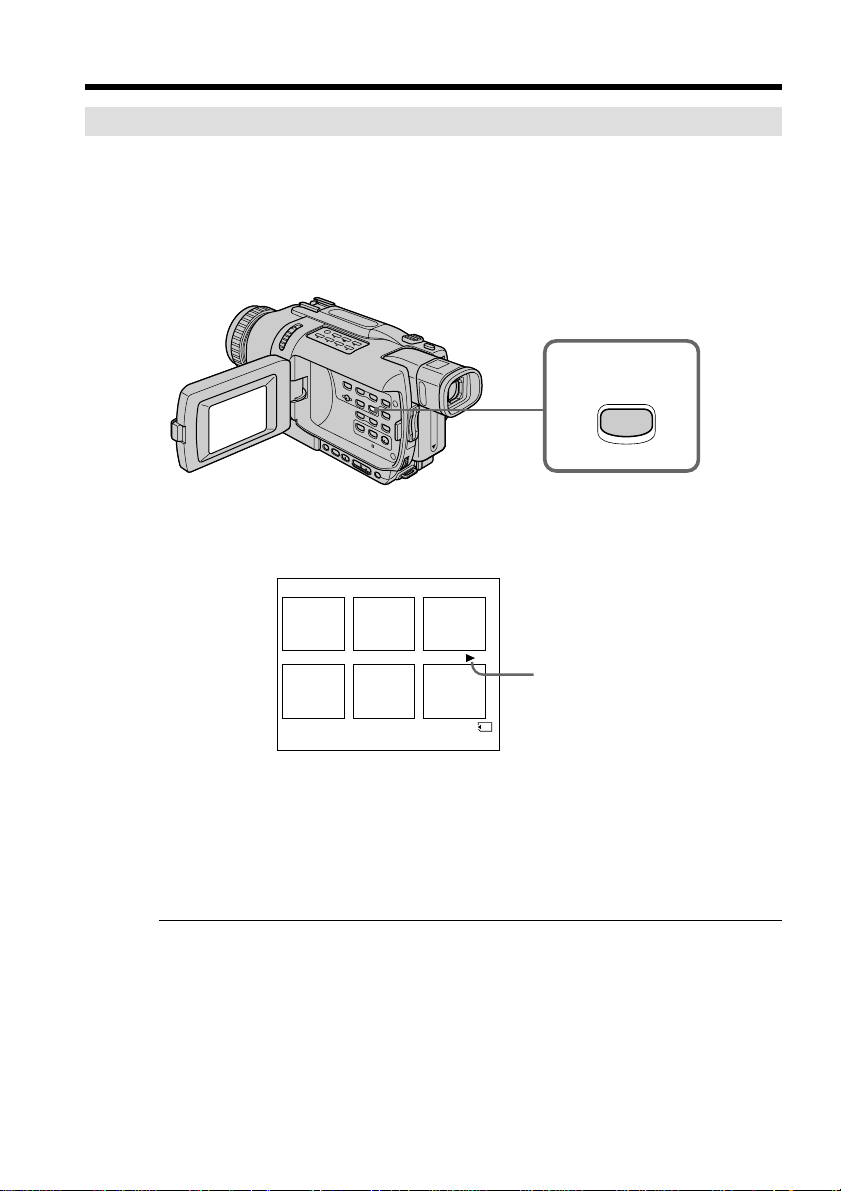

Playing back six recorded images at a time (index screen)
You can play back six recorded images at a time. This function is especially useful when
searching for a particular image.
(1) Set the POWER switch to MEMORY or VCR. Make sure that the LOCK switch
is set to the left (unlock) position.
(2) Press MEMORY INDEX to display the index screen.
A red B mark appears above the image that is displayed before changing to the index
screen mode.
•To see the next six images, keep pressing MEMORY +.
•To see the previous six images, keep pressing MEMORY –.
To return to the normal playback screen (single screen)
Press MEMORY +/– to move the B mark to the image you want to display on full
screen, then press MEMORY PLAY.
Note
When displaying the index screen, the number appears above each image. This
indicates the order in which images are recorded on the “Memory Stick”. These
numbers are different from the data file names (p. 116).
Image data modified on your computer or shot with other equipment
These files are sometimes not displayed on the index screen.
Viewing still images – Memory Photo playback
2
INDEX
B mark
6 / 40
100-0006
1 2 3
4 5 6
153
“Memory Stick
” operations

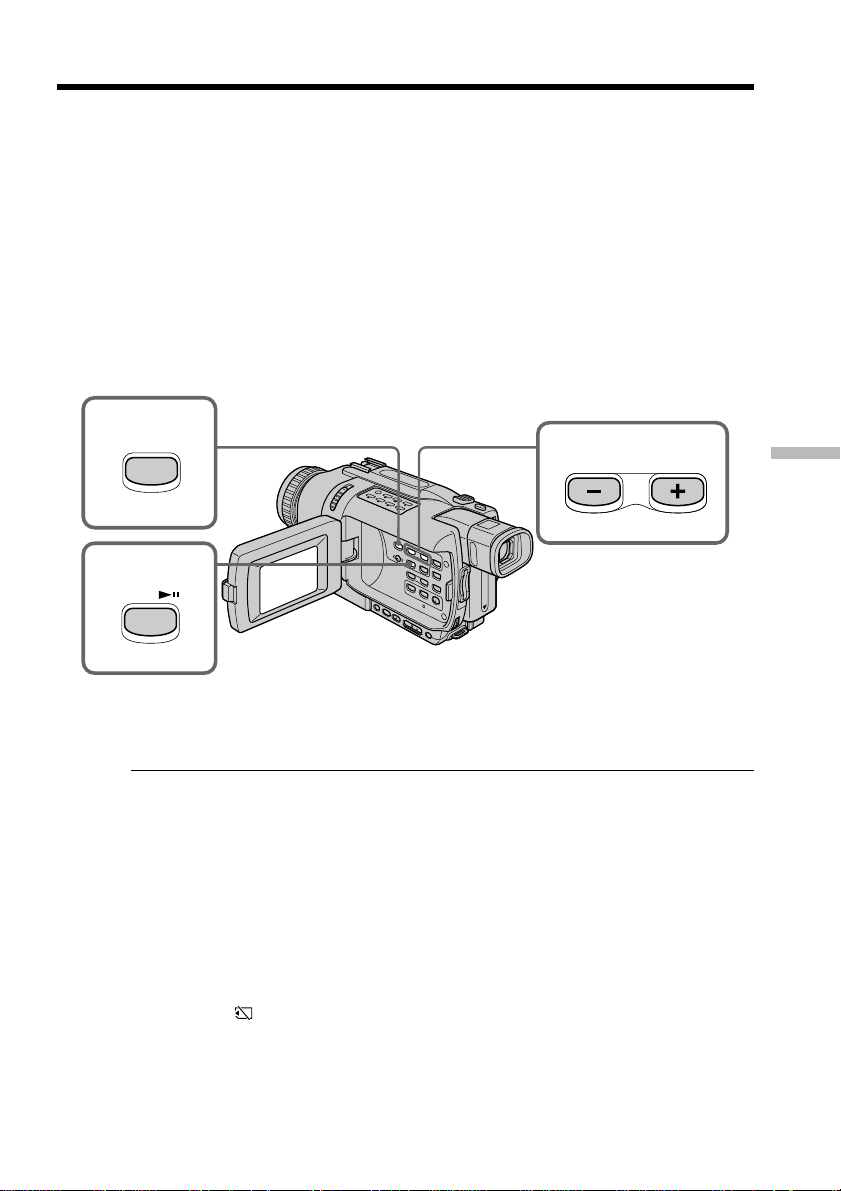

– Except DCR-TRV240
You can play back moving pictures recorded on a “Memory Stick.” You can also play
back six images including still images in order at a time by selecting the index screen.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY or VCR. Make sure that the LOCK switch
is set to the left (unlock) position.
(2) Press MEMORY PLAY. The last recorded image is displayed.
(3) Press MEMORY +/– to select the desired moving pictures. To see the previous
picture, press MEMORY –. To see the next picture, press MEMORY +.
(4) Press MPEG N X to start playback.
To stop MPEG movie playback
Press MPEG N X .
Note
You may not be able to play back images with your camcorder:
– When playing back image data modified on your computer.
– When playing back image data shot with other equipment.
To play back recorded images on a TV screen
•Before operation, connect your camcorder to the TV with the A/V connecting cable
supplied with your camcorder.
•Turn the audio volume of the TV down before operation, or noise (howling) may be
output from the TV speakers.
When no image is recorded on the “Memory Stick”
The message “ NO FILE” appears.
Viewing moving pictures
– MPEG movie playback
3
2
4
PLAY
MPEG
154
Screen indicators during moving picture playback
Recording date/time
You can view recording date/time by pressing DATA CODE on the Remote
Commander during playback.
Viewing moving pictures – MPEG movie playback
Picture number/Total number of recorded
pictures
Image size
Data directory number/File number
Protect
JUL 4 2002
12:05:56 PM
320
–––
–––
MOV00001
2 / 20
MEMORY PLAY
0:12
Memory playback
Recording date/time.
(Various settings are displayed as “– – –”.)
155
“Memory Stick
” operations
– Except DCR-TRV240
You can view data recorded on the “Memory Stick” on your computer.
Note
Data recorded on the “Memory Stick” is stored in the following formats. Make sure that
applications that support these file formats are installed on your computer.
– Still images: JPEG format
– Moving pictures/audio: MPEG format
Viewing images using computer
For Windows users (p. 156)
For Macintosh users (p. 160)
Notes
•Operations are not guaranteed for either the Windows or Macintosh environment if
you connect two or more USB equipment to a single computer at the same time, or
when using a hub.
•Some equipment may not operate depending on the type of USB equipment that is
used simultaneously.
•Operations are not guaranteed for all the recommended computer environments
mentioned above.
•All other product names mentioned herein may be the trademarks or registered
trademarks of their respective companies. Furthermore, “™” and “®” are not
mentioned in each case in this manual.
Viewing images recorded on “Memory
Stick”s on your computer
156
For Windows users
Recommended Windows environment
OS: Microsoft Windows 98, Windows 98SE, Windows Me, Windows 2000
Professional, Windows XP Home Edition or Windows XP Professional
standard installation is required.
However, operation is not assured if the above environment is an
upgraded OS.
CPU: MMX Pentium 200 MHz or faster
The USB connector must be provided as standard.
Windows Media Player must be installed (to play back moving pictures).
Installing the USB driver
Before connecting your camcorder to your computer, install the USB driver on the
computer. The USB driver is packaged together with application software for viewing
images on the CD-ROM supplied with your camcorder.
If you installed the USB driver in “Viewing images recorded on tape on your computer”
(p. 96), start from step 5.
For Windows XP users
The USB driver needs not be installed. Your computer is automatically recognized as a
driver just by connecting your computer using the USB cable.
For Windows 98/98SE/Me, Windows 2000 Professional users
If you are using Windows 2000 Professional, log in with permission of administrator.
Start the following operation without connecting the USB cable to your
computer.
Connect the USB cable in step 6.
If the USB driver has been registered incorrectly because your computer was
connected to your camcorder before installation of the USB driver was completed.
Reinstall the USB driver following the procedure on page 158.
(1) Turn on the power of your computer and allow Windows to load.
(2) Insert the supplied CD-ROM into the CD-ROM drive of your computer. The
application software screen appears.
Viewing images recorded on “Memory Stick”s on your computer
157
“Memory Stick
” operations
(3) Move the cursor to “USB Driver” and click. This starts USB driver installation.
(4) Follow the on-screen messages to install the USB driver.
(5) Insert a “Memory Stick” into your camcorder, connect the AC power adaptor
and set the POWER switch to MEMORY.
(6) Connect the
(USB) jack on your camcorder with the USB connector on your
computer using the supplied USB cable.
USB MODE appears on the LCD screen of your camcorder. Your computer
recognizes the camcorder, and the Windows Add Hardware Wizard starts.
(7) Follow the on-screen messages to make the Add Hardware Wizard recognize
the hardware. The Add Hardware Wizard starts two times because two
different USB drivers are installed. Be sure to allow each installation to
complete without interrupting them.
Note
You cannot install the USB driver if a “Memory Stick” is not in your camcorder.
Be sure to insert a “Memory Stick” into your camcorder before installing the USB
driver.
USB connector
(USB) jack
USB cable
Viewing images recorded on “Memory Stick”s on your computer
158
Viewing images recorded on “Memory Stick”s on your computer
If you cannot install the USB driver
The USB driver has been registered incorrectly as your computer was connected to your
camcorder before installation of the USB driver was completed. Perform the following
procedure to correctly install the USB driver.
Step1: Uninstall the incorrect USB driver
1 Turn on your computer and allow Windows to load.
2 Insert a “Memory Stick” into your camcorder.
3 Connect the AC power adaptor, and set the POWER switch to MEMORY.
4 Connect the USB connector on your computer to the
(USB) jack on your
camcorder using the USB cable supplied with your camcorder.
5 Open your computer’s “Device Manager”.
Windows 2000 Professional:
Select “My Computer” t “Control Panel” t “Hardware” tab, and click the
“Device Manager” button.
Other OS:
Select “My Computer” t “Control Panel” t “System”, and click “Device
Manager”.
6 Select “Other devices”.
Select the device prefixed with the “?” mark and delete.
Ex: (?)Sony Camcorder
7 Turn the POWER switch to OFF (CHG), and then disconnect the USB cable.
8 Restart your computer.
Step2: Install the USB driver on the CD-ROM
Perform the entire procedure described in “Installing the USB driver” on page 156.
159
“Memory Stick
” operations
Viewing images on Windows
An application such as Windows Media Player must be installed to play back moving
pictures in Windows environment.
(1) Turn on your computer and allow Windows to load.
(2) Insert a “Memory Stick” into your camcorder, and connect the AC power
adaptor to your camcorder and then to a wall outlet.
(3) Set the POWER switch to MEMORY.
(4) Connect one end of the USB cable to the
(USB) jack on the camcorder and the
other end to the USB connector on your computer.
USB MODE appears on the screen of your camcorder.
(5) Open “My Computer” on Windows and double-click the newly recognized
drive (Example: “Removable Disk (E:)”).
The folders inside the “Memory Stick” are displayed.
(6) Select and double-click the desired image file from the folder.
For the detailed folder and file name, see “Image file storage destinations and
image files” (p. 163).
Desired file type Double-click in this order
Still image “Dcim” folder t “100msdcf” folder t Image file
Moving picture* “Mssony” folder t “Moml0001” folder t Image file*
* Copying a file to the hard disk of your computer before viewing it is recommended. If
you play back the file directly from the “Memory Stick,” the image and sound may
break off.
Unplug the USB cable or eject the “Memory Stick”
– For Windows 2000 Professional/Me, Windows XP users
To unplug the USB cable or eject the “Memory Stick,” follow the procedure below.
(1) Move the cursor to the “Unplug or Eject Hardware” icon on the Task Tray and
click to cancel the applicable drive.
(2) A message to remove the device from the system appears, then unplug the
USB cable or eject the “Memory Stick.”
(3) Set the POWER switch of your camcorder to OFF(CHG).
Viewing images recorded on “Memory Stick”s on your computer
USB connector
USB cable
(USB) jack
160
For Macintosh users
Recommended Macintosh environment
Mac OS 8.5.1/8.6/9.0/9.1/9.2 or Mac OS X (v10.0/v10.1) standard installation is
required.
However, note that the update to Mac OS 9.0/9.1 should be used for the following
models.
•iMac with the Mac OS 8.6 standard installation and a slot loading type CD-ROM drive
•iBook or Power Mac G4 with the Mac OS 8.6 standard installation
The USB connector must be provided as standard.
Installing the USB driver
Before connecting your camcorder to your computer, install the USB driver on the
computer. The USB driver is packaged together with application software for viewing
images on the CD-ROM supplied with your camcorder. Do not connect the USB cable to
your computer before installation of the USB driver is completed.
For Mac OS 9.1/9.2/Mac OS X (v10.0/v10.1)
The USB driver need not be installed. Your Mac is automatically recognized as a driver
just by connecting your Mac using the USB cable.
For Mac OS 8.5.1/8.6/9.0 users
(1) Turn on your computer and allow the Mac OS to load.
(2) Insert the supplied CD-ROM into the CD-ROM drive of your computer.
The application software screen appears.
Viewing images recorded on “Memory Stick”s on your computer
161
“Memory Stick
” operations
(3) Click “USB Driver” to open the folder containing the six files related to
“Driver”.
(4) Select all six files, and drag and drop them into the System Folder.
(5) When the message appears, click “OK.”
(6) Restart your computer.
Viewing images recorded on “Memory Stick”s on your computer
162
Viewing images on Macintosh
QuickTime 3.0 or newer must be installed to play back moving pictures in Macintosh
environment.
(1) Turn on your computer and allow Mac OS to load.
(2) Insert a “Memory Stick” into your camcorder, and connect the AC power
adaptor to your camcorder and then to a wall outlet.
(3) Set the POWER switch to MEMORY.
(4) Connect one end of the USB cable to the
(USB) jack on the camcorder and the
other end to the USB connector on your computer.
USB MODE appears on the screen of your camcorder.
(5) Double click the newly recognized icon on the desktop.
The folders inside the “Memory Stick” are displayed.
(6) Select and double-click the desired image file from the folder.
Desired file type Double-click in this order
Still image “Dcim” folder t “100msdcf” folder t Image file
Moving picture* “Mssony” folder t “Moml0001” folder t Image file*
* Copying a file to the hard disk of your computer before viewing it is recommended. If
you play back the file directly from the “Memory Stick,” the image and sound may
break off.
Unplug the USB cable or eject the “Memory Stick”
To unplug the USB cable or eject the “Memory Stick”, follow the procedure below.
(1) Close all running applications.
Make sure that the access lamp of the hard disk is not lit.
(2) Drag and drop the “Memory Stick” icon to the Trash or select Eject under the
Special menu.
(3) Unplug the USB cable or eject the “Memory Stick.” Set the POWER switch of
your camcorder to OFF(CHG).
For Mac OS X (v10.0) users
Shutting down your computer, then unplug the USB cable or eject the “Memory Stick”.
Viewing images recorded on “Memory Stick”s on your computer
163
“Memory Stick
” operations
Notes on using your computer
“Memory Stick”
•“Memory Stick” operations on your camcorder cannot be assured if a “Memory Stick”
formatted on your computer is used on your camcorder, or if the “Memory Stick” in
your camcorder was formatted from your computer when the USB cable was
connected.
•Do not compress the data on the “Memory Stick.” Compressed files cannot be played
back on your camcorder.
Software
•Depending on your application software, the file size may increase when you open a
still image file.
•When you load an image modified using retouching software from your computer to
your camcorder or when you directly modify the image on your camcorder, the image
format will differ so a file error indicator may appear and you may be unable to open
the file.
Communications with your computer
Communications between your camcorder and your computer may not recover after
recovering from Suspend, Resume, or Sleep.
Image file storage destinations and image files
Image files recorded with your camcorder are grouped in folders by recording mode.
The meanings of the file names are as follows. ssss stands for any number within
the range from 0001 to 9999.
For Windows Me users
(The drive recognizing your camcorder is [E:].)
Folder File Meaning
100MSDCF DSC0ssss.JPG Still image file
MOML0001 MOV0ssss.MPG Moving picture file
Viewing images recorded on “Memory Stick”s on your computer
Folder containing moving picture data
Folder containing still image data
164
– Except DCR-TRV240
You can copy still images recorded on “Memory Stick”s and record them to tapes.
Before operation
•Insert a tape for recording into your camcorder.
•Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to VCR.
(2) Using the video control buttons, search a point where you want to record the
desired still image. Set the tape to playback pause mode.
(3) Press z REC and the button on its right simultaneously on your camcorder.
The tape is set to the recording pause mode.
(4) Press MEMORY PLAY. The last recorded image is displayed.
(5) Press MEMORY+/– to select the desired image.
To see the previous image, press MEMORY–. To see the next image, press
MEMORY+.
(6) Press X to start recording and press X again to stop.
z appears on the screen during recording.
(7) If you have more to copy, repeat steps 4 to 6.
To stop copying
Press x.
Copying images recorded on “Memory
Stick”s to tape
6
4
3
2
REC
PAUSE
5
PLAY
165
“Memory Stick
” operations
During copying
You cannot operate the following buttons:
– MEMORY PLAY
– MEMORY INDEX
– MEMORY DELETE
– MEMORY MIX
– MEMORY +/–
Note on the index screen
You cannot record the index screen.
If you press EDITSEARCH during pause mode
Memory playback stops.
Image data modified on your computer or shot with other equipment
You may not be able to copy modified images with your camcorder.
If you press DISPLAY in the standby or recording mode
You can see memory playback and the file name indicators in addition to the indicators
pertinent to tapes, such as the time code indicator.
Copying images recorded on “Memory Stick”s to tape
166
– Except DCR-TRV240
You can enlarge still images recorded on a “Memory Stick.” You can select and view a
desired part from the enlarged still image. Also, you can copy the desired part of the
enlarged still image to tapes or “Memory Stick”s.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY or VCR. Make sure that the LOCK switch
is set to the left (unlock) position.
(2) Press PB ZOOM on your camcorder while you are playing back images
recorded on “Memory Stick.” The still image is enlarged, and R r indicators
showing the direction to move the image appear on the screen.
(3) Turn SEL/PUSH EXEC dial to move the enlarged image, then press the dial.
R : The image moves downward.
r : The image moves upward.
T t becomes available.
(4) Turn SEL/PUSH EXEC dial to move the enlarged image, then press the dial.
T : The image moves rightward. (Turn the dial downward.)
t : The image moves leftward. (Turn the dial upward.)
(5) Adjust the zoom ratio by the power zoom lever.
You can enlarge the image from 1.1 times up to five times its size.
W : Decreases the zoom ratio.
T : Increase the zoom ratio.
Enlarging still images recorded on
“Memory Stick”s – Memory PB ZOOM
5
2
PB ZOOM
3
4
PB ZOOM
× 5.0
[
EXEC
]
: T t
PB ZOOM
× 5.0
[
EXEC
]
: r R
167
“Memory Stick
” operations
To cancel memory PB ZOOM mode
Press PB ZOOM.
The PB ZOOM mode is canceled when the following buttons are pressed:
– MENU
– MEMORY PLAY
– MEMORY INDEX
– MEMORY +/–
Moving pictures recorded on “Memory Stick”s
The PB ZOOM mode does not work.
To record an image processed by PB ZOOM on “Memory Stick”s
Press PHOTO to record the image processed by PB ZOOM.
To record an image processed by PB ZOOM on tape
Press REC to record the image processed by Memory PB ZOOM.
Enlarging still images recorded on “Memory Stick”s
– Memory PB ZOOM
168
– Except DCR-TRV240
You can automatically play back images in sequence. This function is useful especially
when checking recorded images or during a presentation.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY. Make sure that the LOCK switch is set to
the left (unlock) position.
(2) Press MENU to display the menu settings.
(3) Turn the SEL/PUSH EXEC dial to select SLIDE SHOW in
, then press the
dial.
(4) Press MEMORY PLAY. Your camcorder plays back the images recorded on the
“Memory Stick” in sequence.
To stop the slide show
Press MENU.
To pause during a slide show
Press MEMORY PLAY.
To start the slide show from a particular image
Select the desired image using MEMORY +/– buttons before step 2.
Playing back images in a continuous loop
– SLIDE SHOW
2
4
MENU
PLAY
3
MEMORY SET
STILL SET
MOVIE SET
PRINT MARK
PROTECT
SLIDE SHOW
FILE NO.
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
READY
SLIDE SHOW
100 – 0021
21/40
[
M PLAY
]
:
START
[
MENU
]
:
END
640
169
“Memory Stick
” operations
To view recorded images on TV
Before operation, connect your camcorder to a TV with the A/V connecting cable
supplied with your camcorder.
If you change the “Memory Stick” during operation
The slide show function does not operate. If you change the “Memory Stick”, be sure to
follow the steps again from the beginning.
Playing back images in a continuous loop – SLIDE SHOW
170
– Except DCR-TRV240
You can protect selected images, to prevent accidental erasure of important images.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY or VCR. Make sure that the LOCK switch
is set to the left (unlock) position.
(2) Play back the image you want to protect.
(3) Press MENU to display the menu settings.
(4) Turn the SEL/PUSH EXEC dial to select PROTECT in
, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
(6) Press MENU to make the menu settings disappear. The - mark is displayed
beside the data file name of the protected image.
To cancel image protection
Select OFF in step 5, then press the SEL/PUSH EXEC dial.
Note
Formatting erases all information on the “Memory Stick”, including the protected
image data. Before formatting a “Memory Stick”, check its contents.
If the write-protect tab on the “Memory Stick” is set to LOCK
You cannot protect images.
Preventing accidental erasure
– Image protection
3,6
MENU
4
5
MEMORY SET
STILL SET
MOVIE SET
PRINT MARK
PROTECT
SLIDE SHOW
FILE NO.
DELETE ALL
FORMAT
RETURN
OFF
21/40
[
MENU
]
:
END
MEMORY SET
STILL SET
MOVIE SET
PRINT MARK
PROTECT
SLIDE SHOW
FILE NO.
DELETE ALL
FORMAT
RETURN
ON
OFF
21/40
[
MENU
]
:
END
MEMORY SET
STILL SET
MOVIE SET
PRINT MARK
PROTECT
SLIDE SHOW
FILE NO.
DELETE ALL
FORMAT
RETURN
ON
OFF
21/40
[
MENU
]
:
END
MEMORY SET
STILL SET
MOVIE SET
PRINT MARK
PROTECT
SLIDE SHOW
FILE NO.
DELETE ALL
FORMAT
RETURN
ON
21/40
[
MENU
]
:
END
171
“Memory Stick
” operations
– Except DCR-TRV240
You can delete images stored in a “Memory Stick.” You can delete all images or only
selected images.
Deleting selected images
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY or VCR. Make sure that the LOCK switch
is set to the left (unlock) position.
(2) Play back the image you want to delete.
(3) Press MEMORY DELETE. “DELETE?” appears on the screen.
(4) Press MEMORY DELETE again. The selected image is deleted.
To cancel deleting an image
Press MEMORY – in step 4.
To delete an image displayed on the index screen
Press MEMORY +/– to move the B indicator to the image and follow steps 3 and 4.
Notes
•You cannot delete a protected image. To delete a protected image, first cancel image
protection.
•Once you delete an image, you cannot restore it. Before deleting an image, carefully
check the image.
If the write-protect tab on the “Memory Stick” is set to LOCK
You cannot delete images.
Deleting images – DELETE
3
DELETE
DELETE?
DELETE
100–0021
[
DELETE
]
:
DEL
[
–
]
:
CANCEL
21/40
640
172
Deleting all images
You can delete all unprotected images in the “Memory Stick.”
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY. Make sure that the LOCK switch is set to
the left (unlock) position.
(2) Press MENU to display the menu settings.
(3) Turn the SEL/PUSH EXEC dial to select DELETE ALL in
, then press the
dial.
(4) Turn the SEL/PUSH EXEC dial to select OK, then press the dial. OK changes
to EXECUTE.
(5) Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
DELETING appears on the screen. When all unprotected images are deleted,
COMPLETE is displayed.
Deleting images – DELETE
2
MENU
3
4
5
MEMORY SET
STILL SET
MOVIE SET
PRINT MARK
PROTECT
SLIDE SHOW
FILE NO.
DELETE ALL
FORMAT
RETURN
READY
[
MENU
]
:
END
MEMORY SET
STILL SET
MOVIE SET
PRINT MARK
PROTECT
SLIDE SHOW
FILE NO.
DELETE ALL
FORMAT
RETURN
RETURN
OK
[
MENU
]
:
END
MEMORY SET
STILL SET
MOVIE SET
PRINT MARK
PROTECT
SLIDE SHOW
FILE NO.
DELETE ALL
FORMAT
RETURN
RETURN
OK
[
MENU
]
:
END
MEMORY SET
STILL SET
MOVIE SET
PRINT MARK
PROTECT
SLIDE SHOW
FILE NO.
DELETE ALL
FORMAT
RETURN
RETURN
EXECUTE
[
MENU
]
:
END
MEMORY SET
STILL SET
MOVIE SET
PRINT MARK
PROTECT
SLIDE SHOW
FILE NO.
DELETE ALL
FORMAT
RETURN
DELETING
[
MENU
]
:
END
MEMORY SET
STILL SET
MOVIE SET
PRINT MARK
PROTECT
SLIDE SHOW
FILE NO.
DELETE ALL
FORMAT
RETURN
COMPLETE
[
MENU
]
:
END
173
“Memory Stick
” operations
To cancel deleting all the images in the “Memory Stick”
Select RETURN in step 4, then press the SEL/PUSH EXEC.
While DELETING appears
Do not turn the POWER switch or press any buttons.
If the write-protect tab on the “Memory Stick” is set to LOCK
You cannot delete images.
Deleting images – DELETE
174
– Except DCR-TRV240
You can specify a recorded still image to print out by writing a print mark. This
function is useful for printing out still images later.
Your camcorder conforms to the DPOF (Digital Print Order Format) standard for
specifying still images to print out.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY or VCR. Make sure that the LOCK switch
is set to the left (unlock) position.
(2) Play back the still image you want to write a print mark on.
(3) Press MENU to display the menu settings.
(4) Turn the SEL/PUSH EXEC dial to select PRINT MARK in
, then press the
dial.
(5) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
(6) Press MENU to make the menu settings disappear. The
mark is displayed
beside the data file name of the image with a print mark.
To cancel writing of print marks
Select OFF in step 5, then press the SEL/PUSH EXEC dial.
Writing a print mark – PRINT MARK
3,6
MENU
4
5
MEMORY SET
STILL SET
MOVIE SET
PRINT MARK
PROTECT
SLIDE SHOW
FILE NO.
DELETE ALL
FORMAT
RETURN
OFF
[
MENU
]
:
END
MEMORY SET
STILL SET
MOVIE SET
PRINT MARK
PROTECT
SLIDE SHOW
FILE NO.
DELETE ALL
FORMAT
RETURN
ON
OFF
[
MENU
]
:
END
MEMORY SET
STILL SET
MOVIE SET
PRINT MARK
PROTECT
SLIDE SHOW
FILE NO.
DELETE ALL
FORMAT
RETURN
ON
OFF
[
MENU
]
:
END
MEMORY SET
STILL SET
MOVIE SET
PRINT MARK
PROTECT
SLIDE SHOW
FILE NO.
DELETE ALL
FORMAT
RETURN
ON
[
MENU
]
:
END
175
“Memory Stick
” operations
If the write-protect tab on the “Memory Stick” is set to LOCK
You cannot write print marks on still images.
Moving pictures
You cannot write print marks on moving pictures.
While the file name is flashing
You cannot write the print mark on the still image.
Writing a print mark – PRINT MARK
176
Using the optional printer
– Except DCR-TRV240
You can use the printer (optional) on your camcorder to print images on print paper.
For details, refer to the operating instructions of the printer.
There are various ways of printing still images. The following, however, describes how
to print by selecting in the menu settings on your camcorder. (p. 105)
Before operation
•Insert a recorded “Memory Stick” into your camcorder.
•Attach the optional printer to your camcorder.
You can print nine still images on the 9-split print paper. Select the desired mode in the
menu settings.
* Nine still images with print marks are printed together.
You can make prints with the recording date and/or recording time. Select the desired
mode in the menu settings.
SAME PICS MULTI PICS or MARKED PICS*
JUL 4 2002
DATE DAY & TIME
4 12:00 PM
Printer
DATE
PRINT SET
9PIC PRINT
DATE/TIME
RETURN
RETURN
SAME
MULTI
MARKED
[
MENU
]
:
END
PRINT SET
9PIC PRINT
DATE/TIME
RETURN
OFF
DATE
DAY&TIME
[
MENU
]
:
END
MENU
9PIC PRINT DATE/TIME
177
“Memory Stick
” operations
Using the optional printer
Images recorded in the multi screen mode
You cannot print images recorded in the multi screen mode on sticker type print paper.
Moving pictures recorded on “Memory Stick”
You cannot print moving pictures.
When “Memory Stick” has no files
“ NO STILL IMAGE FILE” appears on the screen.
When there are no files with a PRINT MARK
“ NO PRINT MARK” appears on the screen.
178
If you run into any problem using your camcorder, use the following table to
troubleshoot the problem. If the problem persists, disconnect the power source and
contact your Sony dealer or local authorized Sony service facility. If “C:ss:ss”
appears on the screen or the display window, the self-diagnosis display function has
worked. See page 184.
In the recording mode
Symptom Cause and/or Corrective Actions
• The POWER switch is not set to CAMERA.
c Set it to CAMERA (p. 21).
• The tape has run out.
c Rewind the cassette or insert a new one (p. 20, 34).
• The write-protect tab is set to expose the red mark.
c Use a new tape or slide the tab (p. 20).
• The tape is stuck to the drum (moisture condensation).
c Remove the cassette and leave your camcorder for at
least one hour to acclimatize (p. 194).
• While being operated in CAMERA mode, your camcorder
has been in the standby mode for more than three
minutes.
c Set the POWER switch to OFF (CHG) and then to
CAMERA again (p. 21).
• The battery pack is dead or nearly dead.
c Install a charged battery pack (p. 12, 13).
• The viewfinder lens is not adjusted.
c Adjust the viewfinder lens (p. 25).
• STEADYSHOT is set to OFF in the menu settings.
c Set it to ON (p. 105).
• 16:9WIDE is set to ON in the menu settings.
c Set it to OFF (p. 105) (DCR-TRV240/TRV340 only).
• The setting is the manual focus mode.
c Set FOCUS to the autofocus mode (p. 54).
• Shooting conditions are not suitable for autofocus.
c Adjust for manual focusing (p. 54).
• The LCD panel is open.
c Close the LCD panel (p. 23).
• The contrast between the subject and background is too
high. This is not a malfunction.
• This is not a malfunction.
• Slow shutter, Super NightShot or Color Slow Shutter
mode is activated. This is not a malfunction.
• PHOTO REC is set to MEMORY in the menu settings.
c Set it to TAPE (p. 105) (except DCR-TRV240)
— Troubleshooting —
Types of trouble and how to correct
trouble
START/STOP does not operate.
The power goes off.
The image on the viewfinder screen
is not clear.
The SteadyShot function does not
work.
The autofocusing function does not
work.
The picture does not appear in the
viewfinder.
A vertical band appears when you
shoot a subject such as lights or a
candle flame against a dark
background.
A vertical band appears when you
shoot a very bright subject.
Some tiny white spots appear on the
screen.
You cannot record still images on
tapes
179
Troubleshooting
Symptom Cause and/or Corrective Actions
• If 10 minutes elapse after you set the POWER switch to
CAMERA or DEMO MODE is set to ON in the menu
settings without a cassette inserted, your camcorder
automatically starts the demonstration.
c Insert a cassette and the demonstration stops.
You can also cancel DEMO MODE (p. 105).
• NIGHTSHOT is set to ON.
c Set it to OFF (p. 29).
• NIGHTSHOT is set to ON in a bright place.
c Set it to OFF (p. 29).
• The backlight function is active.
c Set it off (p. 28).
• BEEP is set to OFF in the menu settings.
c Set it to MELODY or NORMAL (p. 105).
• Set STEADYSHOT to OFF in the menu setting (p. 105).
• The power of the external flash is off or the power source
does not installed.
c Turn on the external flash or install the power source.
• Two or more external flashes are attached.
c Only one external flash can be attached.
• AUTO is selected in FLASH MODE in the menu settings
while recording in a bright place.
c Set it to ON (p. 105).
In the playback mode
Symptom Cause and/or Corrective Actions
• The POWER switch is not set to VCR.
c Set it to VCR (p. 34).
• The cassette has run out of tape.
c Rewind the tape (p. 34).
• The video heads may be dirty.
c Clean the heads using the Sony V8-25CLD cleaning
cassette (optional) (p. 195).
• The stereo tape is played back with HiFi SOUND set to 2
in the menu settings.
c Set it to STEREO (p. 105).
• The volume is turned to minimum.
c Press VOLUME + (p. 34).
• AUDIO MIX is set to the ST2 side in the menu settings.
c Adjust AUDIO MIX (p. 105).
• The tape has a blank portion between recorded portion
(p. 68).
• PB MODE is set to / in the menu settings.
c Set it to AUTO (p. 105).
• Set PB MODE to / in the menu settings (p. 105).
(continued on the following page)
Types of trouble and how to correct trouble
An unknown picture is displayed on
the screen.
The picture is recorded in incorrect or
unnatural colors.
Picture appears too bright, and the
subject does not appear on the
screen.
The shutter does not sound.
A horizontal black band appears
when shooting a TV screen or a
computer screen.
An external flash (optional) does not
work.
The tape does not move when a
video control button is pressed.
The playback button does not work.
There are horizontal lines on the
picture, or the playback picture is not
clear or does not appear.
No sound or only a low sound is
heard when playing back a tape.
The date search does not work
correctly.
The picture which is recorded in the
Digital8 system is not played back.
The tape which is recorded in the Hi8
/standard 8 system is not played
back correctly.
180
In the recording and playback modes
Symptom Cause and/or Corrective Actions
• The battery pack is not installed, or is dead or nearly dead.
c Install a charged battery pack (p. 12, 13).
• The AC power adaptor is not connected to a wall outlet.
c Connect the AC power adaptor to a wall outlet (p. 17).
• The tape was ejected after recording.
• You have not recorded on the new cassette yet.
• The tape has a blank portion at the beginning or midway.
• The operating temperature is too low.
• The battery pack is not charged enough.
c Charge the battery pack fully again (p. 13).
• The battery pack is completely dead, and cannot be
recharged.
c Replace with a new battery pack (p. 12).
• You have used the battery pack in an extremely hot or
cold environment for a long time.
• The battery pack is completely dead, and cannot be
recharged.
c Replace with a new battery pack (p. 12).
• The battery is dead.
c Use a fully charged battery pack (p. 12, 13).
• A deviation has occurred in the remaining battery time.
c Charge the battery pack fully so that the remaining
battery time indicator indicates correct time (p. 13).
• A deviation has occurred in the remaining battery time.
c Charge the battery pack fully so that the remaining
battery time indicator indicates correct time (p. 13).
• The power source is disconnected.
c Connect it firmly (p. 12, 17).
• The battery is dead.
c Use a charged battery pack (p. 12, 13).
• Moisture condensation has occurred.
c Remove the cassette and leave your camcorder for at
least one hour to acclimatize (p. 194).
Types of trouble and how to correct trouble
The power does not turn on.
The end search function does not
work.
The end search function does not
work correctly.
The battery pack is quickly
discharged.
The remaining battery time indicator
does not indicate the correct time.
The power goes off although the
remaining battery time indicator
indicates that the battery pack has
enough power to operate.
The cassette cannot be removed from
the holder.
The % and Z indicators flash and no
functions except for cassette ejection
work.
181
Troubleshooting
When operating using the “Memory Stick”
– Except DCR-TRV240
Symptom Cause and/or Corrective Actions
• The POWER switch is not set to MEMORY.
c Set it to MEMORY (p. 124).
• The “Memory Stick” is not inserted.
c Insert a “Memory Stick” (p. 118).
• The “Memory Stick” is full.
c Delete unnecessary images and record again (p. 171).
• The “Memory Stick” formatted incorrectly is inserted.
c Format the “Memory Stick” on your camcorder or use
another “Memory Stick” (p. 111, 118).
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock (p. 116).
• The image is protected.
c Cancel image protection (p. 170).
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock (p. 116).
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock (p. 116).
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock (p. 116).
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock (p. 116).
• The image to protect is not played back.
c Press MEMORY PLAY to play back the image (p. 150).
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock (p. 116).
• The image to write a print mark to is not played back.
c Press MEMORY PLAY to play back the image (p. 150).
• You are trying to write a print mark on a moving picture.
c Print marks cannot be written on a moving picture.
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock (p. 116).
• PHOTO REC is set to TAPE in the menu settings.
c Set it to MEMORY (p. 105)
(continued on the following page)
The “Memory Stick” does not
function.
Recording does not function.
The image cannot be deleted.
You cannot format the “Memory
Stick”.
Deleting all the images cannot be
carried out.
You cannot protect the image.
You cannot write a print mark on
the still image.
The photo save function does not
work.
You cannot record still images on
“Memory Stick”s while in the
standby mode or while moving
pictures are being recorded to tape
Types of trouble and how to correct trouble
182
Others
Symptom Cause and/or Corrective Actions
• The input selector on the VCR is not set correctly.
c Check the connection and set the input selector on the
VCR again (p. 75)
• Your camcorder is connected to DV equipment of other
than Sony using the i.LINK cable (DV connecting cable).
c Set it to IR (p. 75).
• You have attempted to set a program on a blank portion of
the tape.
c Set the program again on a recorded portion (p. 84).
• Your camcorder and the VCR are not synchronized.
c Adjust the synchronization (p. 82).
• The IR SETUP code is incorrect.
c Set the correct code (p. 77).
• PB MODE is set to / in the menu settings.
c Set it to AUTO. (p. 105)
• Setting program on a blank portion of the tape is
attempted.
c Set the program again on a recorded portion (p. 146).
• COMMANDER is set to OFF in the menu settings.
c Set it to ON (p. 105).
• Something is blocking the infrared rays.
c Remove the obstacle.
• The batteries are inserted with + and – incorrectly
matching + and – inside the battery compartment.
c Insert the batteries correctly (p. 207).
• The batteries are dead.
c Insert new ones (p. 207).
• DISPLAY is set to V-OUT/LCD in the menu settings.
c Set it to LCD (p. 105).
• Moisture condensation has occurred.
c Remove the cassette and leave your camcorder for at
least one hour to acclimatize (p. 194).
• Some trouble have occurred in your camcorder.
c Remove the cassette and insert it again, then operate
your camcorder.
• The POWER switch is not set to OFF (CHG).
c Set it to OFF (CHG).
• Charging is completed.
• The AC power adaptor is disconnected.
c Connect it firmly (p. 13).
• Something is wrong with the battery pack.
c Contact your Sony dealer or local authorized Sony
service facility.
Digital program editing to a tape
does not function.
Digital program editing to a
“Memory Stick” does not function.
(except DCR-TRV240)
The Remote Commander supplied
with your camcorder does not work.
The picture from a TV or VCR does
not appear on the screen even when
your camcorder is connected to
outputs on the TV or VCR.
The melody or beep sounds for five
seconds.
You cannot charge the battery pack.
While charging the battery pack, the
backlight of the display window
does not light.
Types of trouble and how to correct trouble
183
Troubleshooting
Others
Symptom Cause and/or Corrective Actions
• The battery pack is not properly installed.
c Install it properly.
• Something is wrong with the battery pack.
c Contact your Sony dealer or local authorized Sony
service facility.
• Disconnect the power cord of the AC power adaptor or
remove the battery, then reconnect it in about one minute.
Turn the power on. If the functions still do not work, open
the LCD panel and press the RESET button under TITLE
button using a sharp-pointed object (If you press the
RESET button, all the settings including the date and time
return to their defaults.) (p. 203).
• The USB cable was connected before installation of the
USB driver was completed.
c Uninstall the incorrect USB driver and re-install the USB
driver (p. 97, 158).
While charging the battery pack, the
remaining battery time indicator
flashes.
No function works though the power
is on.
Image data cannot be transferred by
the USB connection.
Types of trouble and how to correct trouble
184
Five-digit display Cause and/or Corrective Actions
• You are using a battery pack that is not an
“InfoLITHIUM” battery pack.
c Use an “InfoLITHIUM” battery pack (p. 14, 189).
• Moisture condensation has occurred.
c Remove the cassette and leave your camcorder for at
least one hour to acclimatize (p. 194).
• The video heads are dirty.
c Clean the heads using the Sony V8-25CLD cleaning
cassette (optional) (p. 195).
• A malfunction other than the above that you can service
has occurred.
c Remove the cassette and insert it again, then operate
your camcorder.
c Disconnect the power cord of the AC power adaptor or
remove the battery pack. After reconnecting the power
source, operate your camcorder.
• A malfunction that you cannot service has occurred.
c Contact your Sony dealer or local authorized Sony
service facility and inform them of the 5-digit code.
(example: E:61:10)
If you are unable to rectify the problem even if you try corrective actions a few times,
contact your Sony dealer or local authorized Sony service facility.
Your camcorder has a self-diagnosis display
function.
This function displays the current state of your
camcorder as a 5-digit code (a combination of a
letter and figures) on the screen or in the display
window.
If a 5-digit code is displayed, check the following
list of codes. The last two digits (indicated by ss)
differ depending on the state of your camcorder.
LCD screen, viewfinder or
display window
C:04:ss
C:21:ss
C:22:ss
C:31:ss
C:32:ss
E:20:ss
E:61:ss
E:62:ss
Self-diagnosis display
C:21:00
Self-diagnosis display
•C:ss:ss
You can service your camcorder
yourself.
•E:ss:ss
Contact your Sony dealer or local
authorized Sony facility.
185
Troubleshooting
Warning indicators and messages
If indicators and messages appear on the screen or in the display window, check the
following.
See the page in parentheses “()” for more information.
Warning indicators
100-0001 Warning indicator as to file
(except DCR-TRV240)
Slow flashing:
•The file is corrupted.
•The file is unreadable.
•You are trying to use the MEMORY MIX
function on a moving picture (p. 131).
C:21:00 Self-diagnosis display (p. 184).
E Warning indicator as to battery
Slow flashing:
•The battery is nearly dead.
The E indicator sometimes flashes even if
the remaining battery time is about five to
10 minutes depending on the operating
conditions, environment and battery
condition.
Fast flashing:
•The battery is dead.
% Moisture condensation has occurred*
Fast flashing:
•Eject the cassette, turn off your camcorder,
and leave it for about one hour with the
cassette compartment open (p. 194).
Warning indicator as to “Memory
Stick”* (except DCR-TRV240)
Slow flashing:
•No “Memory Stick” is inserted.
Warning indicator as to “Memory Stick”
formatting (except DCR-TRV240)
Fast flashing:
•“Memory Stick” data is corrupted (p. 116).*
•“Memory Stick” is not formatted correctly
(p. 111).
C:21:00100–0001
Q Warning indicator as to tape
Slow flashing:
•The tape is near the end.
•No tape is inserted.*
•The write-protect tab on the cassette is
exposed (red) (p. 20).*
Fast flashing:
•The cassette has run out of tape.*
Z You need to eject the cassette*
Slow flashing:
•The write-protect tab on the cassette is
exposed (red) (p. 20).
Fast flashing:
•Moisture condensation has occurred
(p. 194).
•The cassette has run out of tape.
•The self-diagnosis display function is
activated (p. 184).
- The image is protected*
(except DCR-TRV240)
Slow flashing:
•The image is protected (p. 170).
Warning indicator as to the flash
(optional)
Fast flashing:
•There is something wrong with the external
flash (optional).
* You hear the melody or beep.
186
Warning messages
•CLOCK SET Set the date and time (p. 18).
•FOR “InfoLITHIUM” Use an “InfoLITHIUM” battery pack (p. 189).
BATTERY ONLY
•Q Z TAPE END The cassette has run out of tape.*
•Q NO TAPE Insert a cassette tape.*
• CLEANING CASSETTE The video heads are dirty. (The x indicator and “
CLEANING CASSETTE” message appear one after
another on the screen.) (p. 195)
•COPY INHIBIT You tried to record a picture that has a copyright
control signal* (p. 187).
• FULL** The “Memory Stick” is full* (p. 127).
• -** The write-protect tab on the “Memory Stick” is set to
LOCK* (p. 116).
• NO FILE** No still image is recorded on the “Memory Stick”*
(p. 151).
• NO MEMORY STICK** No “Memory Stick” is inserted.*
• AUDIO ERROR** You are trying to record an image with sound that
cannot be recorded by your camcorder on “Memory
Stick”* (p. 143).
• MEMORY STICK ERROR** The “Memory Stick” data is corrupted* (p. 118).
• FORMAT ERROR** Check the type of formatting* (p. 111).
• - DIRECTORY ERROR** The “Memory Stick” has more than one directory
such as 100msdcf* (p. 150).
• PLAY ERROR** The image cannot be played back.
Reinsert the “Memory Stick”, then playback the
image again.
• REC ERROR** Check the input signal before retrying recording*
(p. 137, 145).
• NO PRINT MARK** You selected MARKED in 9PIC PRINT in the menu
settings using an “Memory Stick” contains no image
with a print mark* (p. 177).
• NO STILL IMAGE FILE** You selected MULTI in 9PIC PRINT in the menu
settings using a “Memory Stick” contains no still
image* (p. 177).
•DELETING** You have pressed PHOTO during deleting all images
on “Memory Stick.”*
•FORMATTING** You have pressed PHOTO during formatting a
“Memory Stick.”*
• NOW CHARGING Charging an external flash (optional) does not work
correctly.*
* You hear the melody or beep.
** Except DCR-TRV240
Warning indicators and messages
187
Additional Information
— Additional Information —
Digital8 system, recording and
playback
What is the “Digital8 system”?
This video system has been developed to enable digital recording to Hi8 /Digital8
video cassette.
Usable cassette tapes
We recommend using Hi8 /Digital8 video cassette.*
The recording time when you use your Digital8 system camcorder on Hi8 /
standard 8 tape is half the recording time when using the conventional Hi8 /
standard 8 system camcorder. (120 minutes of recording time becomes 60 minutes in
the SP mode.)
* If you use standard 8 tape, be sure to play back the tape on this camcorder. Mosaic
pattern noise may appear when you play back standard 8 tape on other VCRs
(including other DCR-TRV240/TRV340/TRV740/TRV840).
Note
Tapes recorded in the Digital8 system cannot be played back on Hi8 /standard 8
(analog) system machine.
is a trademark.
is a trademark.
is a trademark.
Playback system
The Digital8 system or Hi8 /standard 8 system is automatically detected
before the tape is played back.
During playback of tapes recorded in the Hi8 /standard 8 system, digital signals
are output as the image signals from the DV IN/OUT jack.
Display during automatic detection of system
The Digital8 system or Hi8 /standard 8 system is automatically detected, and
the playback system is automatically switched to. During switching of systems, the
screen turns blue, and the following displays appear on the screen. A hissing noise also
sometimes can be heard.
t / : During switching from Digital8 to Hi8 /standard 8
/ t : During switching from Hi8 /standard 8 to Digital8
Copyright signal
When you play back
Using any other video camera recorder, you cannot record on a tape that has recorded
copyright control signals for copyright protection of software which is played back on
your camcorder.
When you record
You cannot record software on your camcorder that contains copyright control signals
for copyright protection of software.
COPY INHIBIT appears on the LCD screen, in the viewfinder or on the TV screen if you
try to record such software. Your camcorder does not record copyright control signals
on the tape when it records.
188
When you playback a dual sound track tape
When you use tapes recorded in the Digital8 system
When you play back a Digital8 system tape which is dubbed from a dual sound track
tape recorded in the DV system, set HiFi SOUND to the desired mode in the menu
settings (p. 105).
Sound from speaker
HiFi Sound Playing back Playing back a dual
Mode a stereo tape sound track tape
STEREO Stereo Main sound and sub sound
1 Lch Main sound
2 Rch Sub sound
When you use a tape recorded in the Hi8/standard 8 system
When you play back a dual sound track tape recorded in an AFM HiFi stereo system,
set HiFi SOUND to the desired mode in the menu settings (p. 105).
Sound from speaker
HiFi Sound Playing back Playing back a dual
Mode a stereo tape sound track tape
STEREO Stereo Main sound and sub sound
1 Monaural Main sound
2 Unnatural Sound Sub sound
You cannot record dual sound programs on your camcorder.
Digital8 system, recording and playback
189
Additional Information
About the “InfoLITHIUM” battery pack
What is the “InfoLITHIUM” battery pack?
The “InfoLITHIUM” battery pack is a lithium-ion battery pack that has functions for
communicating information related to operating conditions between your camcorder
and an AC adaptor/charger (optional).
The “InfoLITHIUM” battery pack calculates the power consumption according to the
operating conditions of your camcorder, and displays the remaining battery time in
minutes.
Charging the battery pack
•Be sure to charge the battery pack before you start using your camcorder.
•We recommend charging the battery pack in an ambient temperature of between
10°C to 30°C (50°F to 86°F) until the backlight of the display window goes out,
indicating that the battery pack is fully charged. If you charge the battery outside of
this temperature range, you may not be able to efficiently charge the battery pack.
•After charging is completed, either disconnect the cable from the DC IN jack on your
camcorder or remove the battery pack.
Effective use of the battery pack
•Battery pack performance decreases in low-temperature surroundings. So, the time
that the battery pack can be used is shorter in cold places. We recommend the
following to ensure longer battery pack use:
– Put the battery pack in a pocket to warm it up, and insert it in your camcorder
immediately before you start taking shots.
– Use the large-capacity battery pack (NP-FM70/QM71/FM90/FM91/QM91,
optional).
•Frequently using the LCD panel or frequently operating playback, fast-forward or
rewind wears out the battery pack faster. We recommend using the large-capacity
battery pack (NP-FM70/QM71/FM90/FM91/QM91, optional).
•Be sure to turn the POWER switch to OFF (CHG) when not taking shots or playing
back on your camcorder. The battery pack is also consumed when your camcorder is
in the standby mode or playback is paused.
•Have spare battery packs handy for two or three times the expected recording time,
and make a trial recordings before taking the actual recording.
•Do not expose the battery pack to water. The battery pack is not water-resistant.
Remaining battery time indicator
•If the power may go off although the remaining battery time indicator indicates that
the battery pack has enough power to operate, charge the battery pack fully again so
that the indication on the remaining battery time indicator is correct. Note, however,
that the correct battery indication sometimes will not be restored if it is used in high
temperatures for a long time or left in a fully charged state, or the battery pack is
frequently used. Regard the remaining battery time indication as the approximate
shooting time.
•The E mark indicating that there is little remaining battery time sometimes flashes
depending on the operating conditions or ambient temperature and environment even
if the remaining battery time is about five to 10 minutes.
190
About the “InfoLITHIUM” battery pack
How to store the battery pack
•If the battery pack is not used for a long time, do the following procedure once per
year to maintain proper function.
1. Fully charge the battery.
2. Discharge on your electronic equipment.
3. Remove the battery from the equipment and store it in a dry, cool place.
•To use the battery pack up on your camcorder, leave your camcorder in the standby
mode until the power goes off without a cassette inserted.
Battery life
•The battery life is limited. Battery capacity drops little by little as you use it more and
more, and as time passes. When the available battery time is shortened considerably, a
probable cause is that the battery pack has reached the end of its life. Buy a new
battery pack.
•The battery life varies according to how it is stored and operating conditions and
environment for each battery pack.
191
Additional Information
The DV jack on this unit is an i.LINK-compliant DV input/output jack. This section
describes the i.LINK standard and its features.
What is “i.LINK”?
i.LINK is a digital serial interface for handling digital video, digital audio and other
data in two directions between equipment having the i.LINK jack, and for controlling
other equipment.
i.LINK-compatible equipment can be connected by a single i.LINK cable. Possible
applications are operations and data transactions with various digital AV equipment.
When two or more i.LINK-compatible equipment are connected to this unit in a daisy
chain, operations and data transactions are possible with not only the equipment that
this unit is connected to but also with other devices via the directly connected
equipment.
Note, however, that the method of operation sometimes varies according to the
characteristics and specifications of the equipment to be connected, and that operations
and data transactions are sometimes not possible on some connected equipment.
Note
Normally, only one piece of equipment can be connected to this unit by the i.LINK
cable (DV cable). When connecting this unit to i.LINK-compatible equipment having
two or more i.LINK jacks (DV jacks), refer to the operating instructions of the
equipment to be connected.
About the name “i.LINK”
i.LINK is a more familiar term for IEEE 1394 data transport bus proposed by SONY,
and is a trademark approved by many corporations.
IEEE 1394 is an international standard standardized by the Institute of Electrical and
Electronic Engineers.
i.LINK baud rate
i.LINK’s maximum baud rate varies according to the equipment. Three maximum baud
rates are defined:
S100 (approx. 100 Mbps*)
S200 (approx. 200 Mbps)
S400 (approx. 400 Mbps)
The baud rate is listed under “Specifications” in the operating instructions of each
equipment. It is also indicated near the i.LINK jack on some equipment.
The maximum baud rate of equipment on which it is not indicated such as this unit is
“S100”.
When units are unit is connected to equipment having a different maximum baud rate,
the baud rate sometimes differs from the indicated baud rate.
* What is “Mbps”?
Mbps stands for megabits per second, or the amount of data that can be sent or received
in one second. For example, a baud rate of 100 Mbps means that 100 megabits of data
can be sent in one second.
About i.LINK
192
About i.LINK
i.LINK functions on this unit
For details on how to dub when this unit is connected to other video equipment having
DV jacks, see page 72, 137.
This unit can also be connected to other i.LINK (DV) compatible equipment made by
SONY (e.g. VAIO series personal computer) other than video equipment.
Before connecting this unit to a personal computer, make sure that application software
supported by this unit is already installed on the personal computer.
For details on precautions when connecting this unit, also refer to the operating
instructions of the equipment to be connected.
Required i.LINK cable
Use the Sony i.LINK 4-pin-to-4-pin cable (during DV dubbing).
i.LINK and are trademarks.
193
Additional Information
Using your camcorder abroad
You can use your camcorder in any country or area with the AC power adaptor
supplied with your camcorder within 100 V to 240 V AC, 50/60 Hz.
When charging the battery pack, use a commercially available AC plug adaptor [a], if
necessary, depending on the design of the wall outlet [b].
Your camcorder is an NTSC system based camcorder. If you want to view the playback
picture on a TV, it must be an NTSC system based TV with VIDEO/AUDIO input jack.
The following shows TV color systems used overseas.
NTSC system
Bahama Islands, Bolivia, Canada, Central America, Chile, Colombia, Ecuador, Jamaica,
Japan, Korea, Mexico, Peru, Surinam, Taiwan, the Philippines, the U.S.A., Venezuela,
etc.
PAL system
Australia, Austria, Belgium, China, Czech Republic, Denmark, Finland, Germany, Great
Britain, Holland, Hong Kong, Italy, Kuwait, Malaysia, New Zealand, Norway, Portugal,
Singapore, Slovak Republic, Spain, Sweden, Switzerland, Thailand, etc.
PAL-M system
Brazil
PAL-N system
Argentina, Paraguay, Uruguay
SECAM system
Bulgaria, France, Guyana, Hungary, Iran, Iraq, Monaco, Poland, Russia, Ukraine, etc.
Simple setting of clock by time difference
You can easily set the clock to the local time by setting a time difference. Select WORLD
TIME in the menu settings. See page 105 for more information.
Using your camcorder abroad
AC-L10A/L10B/L10C
[b][a]
194
Maintenance information and
precautions
Moisture condensation
If your camcorder is brought directly from a cold place to a warm place, moisture may
condense inside your camcorder, on the surface of the tape, or on the lens. In this state,
the tape may stick to the head drum and be damaged or your camcorder may not
operate correctly. If there is moisture inside your camcorder, the beep sounds and the %
indicator flashes. When the Z indicator flashes at the same time, the cassette is inserted
in your camcorder. If moisture condenses on the lens, the indicator will not appear.
If moisture condensation has occurred
None of the functions except cassette ejection will work. Eject the cassette, turn off your
camcorder, and leave it for about one hour with the cassette compartment open. Your
camcorder can be used again if the % indicator does not appear when the power is
turned on again.
Note on moisture condensation
Moisture may condense when you bring your camcorder from a cold place into a warm
place (or vice versa) or when you use your camcorder in a hot place as follows:
•You bring your camcorder from a ski slope into a place warmed up by a heating
device.
•You bring your camcorder from an air-conditioned car or room into a hot place
outside.
•You use your camcorder after a squall or a shower.
•You use your camcorder in a high temperature and humidity place.
How to prevent moisture condensation
When you bring your camcorder from a cold place into a warm place, put your
camcorder in a plastic bag and tightly seal it. Remove the bag when the air temperature
inside the plastic bag has reached the surrounding temperature (after about one hour).
195
Additional Information
Maintenance information
Cleaning the video heads
To ensure normal recording and clear pictures, clean the video heads.
When you playback/record in the Digital8 system
The video head may be dirty when:
•Mosaic-pattern noise appears on the playback picture.
•Playback pictures do not move.
•Playback pictures are hardly visible.
•Playback pictures do not appear.
•The x indicator and “ CLEANING CASSETTE” message appear one after another.
When you play back in the Hi8/Standard 8 (analog) system
The video head may be dirty when:
•Playback pictures contain noise.
•Playback pictures are hardly visible.
•Playback pictures do not appear.
If the above problem occurs, clean the video heads with the Sony V8-25CLD cleaning
cassette (optional). Check the picture and if the above problem persists, repeat cleaning.
Cleaning the LCD screen
If fingerprints or dust make the LCD screen dirty, we recommend using the LCD
Cleaning Kit (optional) to clean the LCD screen.
Maintenance information and precautions
or
or
196
Maintenance information and precautions
Charging the built-in rechargeable battery
Your camcorder is supplied with a built-in rechargeable battery installed to retain the
date and time, etc., regardless of the setting of the POWER switch. The built-in
rechargeable battery is always charged as long as you are using your camcorder. The
battery, however, will become discharged gradually if you do not use your camcorder.
It will be completely discharged in about half a year if you do not use your camcorder
at all. Even if the built-in rechargeable battery is not charged, it will not affect
camcorder operation. To retain the date, time, and other information, charge the battery
if the battery is discharged.
Charging the built-in rechargeable battery:
•Connect your camcorder to wall outlet using the AC power adaptor supplied with
your camcorder, and leave your camcorder with the POWER switch turned off for
more than 24 hours.
•Or, install a fully charged battery pack in your camcorder, and leave your camcorder
with the POWER switch set to OFF (CHG) for more than 24 hours.
Precautions
Camcorder operation
•Operate your camcorder on 7.2 V (battery pack) or 8.4 V (AC power adaptor).
•For DC or AC operation, use the accessories recommended in these operating
instructions.
•If any solid object or liquid gets inside the casing, unplug your camcorder and have it
checked by a Sony dealer before operating it any further.
•Avoid rough handling or mechanical shock. Be particularly careful of the lens.
•Keep the POWER switch set to OFF (CHG) when you are not using your camcorder.
•Do not wrap your camcorder with a towel, for example, and operate it. Doing so
might cause heat to build up inside.
•Keep your camcorder away from strong magnetic fields or mechanical vibration.
Noise may appear on the image.
•Do not touch the LCD screen with your fingers or a sharp-pointed object.
•If your camcorder is used in a cold place, a residual image may appear on the screen.
This is not a malfunction.
•While using your camcorder, the back of the LCD screen may heat up. This is not a
malfunction.
On handling tapes
•Do not insert anything into the small holes on the rear of the cassette. These holes are
used to sense the type and thickness of the tape and if the recording tab is in or out.
•Do not open the tape protect cover or touch the tape.
197
Additional Information
Camcorder care
•Remove the tape, and periodically turn on the power, operate the CAMERA and VCR
sections and play back a tape for about three minutes when your camcorder is not to
be used for a long time.
•Clean the lens with a soft brush to remove dust. If there are fingerprints on the lens,
remove them with a soft cloth.
•Clean the camcorder body with a dry soft cloth, or a soft cloth lightly moistened with
a mild detergent solution. Do not use any type of solvent which may damage the
finish.
•Do not let sand get into your camcorder. When you use your camcorder on a sandy
beach or in a dusty place, protect it from the sand or dust. Sand or dust may cause
your camcorder to malfunction, and sometimes this malfunction cannot be repaired.
Connection to your computer
When inputting the image recorded by Hi8/standard 8 system into Sony VAIO
The Program Capture function of DVgate motion doesn’t work. To use this function,
dub the image into a Digital8 or DV tape first, and then input it into your Sony VAIO.
AC power adaptor
•Unplug the unit from the wall outlet when you are not using it for a long time. To
disconnect the power cord, pull it out by the plug. Never pull the power cord itself.
•Do not operate the unit with a damaged cord or if the unit has been dropped or
damaged.
•Do not bend the power cord forcibly, or place a heavy object on it. This will damage
the cord and may cause fire or electric shock.
•Prevent metallic objects from coming into contact with the metal parts of the
connecting section. If this happens, a short may occur and the unit may be damaged.
•Always keep metal contacts clean.
•Do not disassemble the unit.
•Do not apply mechanical shock or drop the unit.
•While the unit is in use, particularly during charging, keep it away from AM receivers
and video equipment. AM receivers and video equipment disturb AM reception and
video operation.
•The unit becomes warm during use. This is not a malfunction.
•Do not place the unit in locations that are:
– Extremely hot or cold
– Dusty or dirty
– Very humid
– Vibrating
Maintenance information and precautions
198
Maintenance information and precautions
About care and storage of the lens
•Wipe the surface of the lens clean with a soft cloth in the following instances:
– When there are fingerprints on the lens surface
– In hot or humid locations
– When the lens is used in environments susceptible to salt such as the seaside
•Store the lens in a well-ventilated location subject to little dirt or dust.
To prevent mold from occurring, periodically perform the above.
We recommend turning on and operating your camcorder about once per month to
keep your camcorder in an optimum state for a long time.
Battery pack
•Use only the specified charger or video equipment with the charging function.
•To prevent accident from a short circuit, do not allow metal objects to come into
contact with the battery terminals.
•Keep the battery pack away from fire.
•Never expose the battery pack to temperatures above 60°C (140°F), such as in a car
parked in the sun or under direct sunlight.
•Keep the battery pack dry.
•Do not expose the battery pack to any mechanical shock.
•Do not disassemble nor modify the battery pack.
•Attach the battery pack to the video equipment securely.
•Charging while some capacity remains does not affect the original battery capacity.
Notes on dry batteries
To avoid possible damage from battery leakage or corrosion, observe the following:
– Be sure to insert the batteries with the + and – correctly matching the + and – inside
the battery compartment.
– Dry batteries are not rechargeable.
– Do not use a combination of new and old batteries.
– Do not use different types of batteries.
– Current flows from batteries when you are not using them for a long time.
– Do not use leaking batteries.
If batteries are leaking
•Wipe off the liquid in the battery compartment carefully before replacing the batteries.
•If you touch the liquid, wash it off with water.
•If the liquid gets into your eyes, wash your eyes with a lot of water and then consult a
doctor.
If any problem occurs, unplug your camcorder and contact your nearest Sony dealer.
199
Additional Information
Memory mode:
40 - 600 mm (1 5/8 - 23 5/8 in.)
Color temperature
Auto
Minimum illumination
DCR-TRV240/TRV340:
4 lx (lux) (F 1.6)
DCR-TRV740/TRV840:
7 lx (lux) (F1.6)
0 lx (lux) (in the NightShot mode)*
* Objects unable to be seen due to
the dark can be shot with
infrared lighting.
Input/output
connectors
S video input/output
4-pin mini DIN
Luminance signal: 1 Vp-p,
75 Ω (ohms), unbalanced
Chrominance signal: 0.286 Vp-p,
75 Ω (ohms), unbalanced
Audio/Video input/output
AV MINIJACK, 1 Vp-p, 75 Ω
(ohms), unbalanced, sync negative
327 mV, (at output impedance
more than 47 kΩ (kilohms))
Output impedance with less than
2.2 kΩ (kilohms)/Stereo minijack
(ø 3.5 mm)
Input impedance more than 47 kΩ
(kilohms)
Headphone jack
Stereo minijack (ø 3.5 mm)
USB jack
mini-B
LANC jack
Stereo mini-minijack (ø 2.5 mm)
MIC jack
Stereo minijack (ø 3.5 mm)
DV input/output
4-pin connector
LCD screen
DCR-TRV240/TRV340/TRV740:
6.2 cm (2.5 type)
50.3 × 37.4 mm (2 × 1 1/2 in.)
DCR-TRV840:
8.8 cm (3.5 type)
72.2 × 50.4 mm (2 7/8 × 2 in.)
Total dot number
DCR-TRV240/TRV340/TRV740:
61 600 (280 × 220)
DCR-TRV840:
123 200 (560 × 220)
Video camera
recorder
System
Video recording system
2 rotary heads
Helical scanning system
Audio recording system
Rotary heads, PCM system
Quantization: 12 bits (Fs 32 kHz,
stereo 1, stereo 2), 16 bits
(Fs 48 kHz, stereo)
Video signal
NTSC color, EIA standards
Recommended cassette
Hi8/Digital8 video cassette
Recording/playback time (using
120 min. Hi8 video cassette)
SP mode: 1 hour
LP mode: 1 hour and 30 minutes
Fast-forward/rewind time (using
120 min. Hi8 video cassette)
Approx. 5 min.
Viewfinder
Electric Viewfinder, Monochrome
Image device
DCR-TRV240/TRV340:
3 mm (1/6 type) CCD
(Charge Coupled Device)
Gross: Approx. 460 000 pixels
Effective: Approx. 290 000 pixels
DCR-TRV740/TRV840:
4.5 mm (1/4 type) CCD
(Charge Coupled Device)
Gross: Approx. 1 070 000 pixels
Effective: Approx. 690 000 pixels
(Camera mode)
Approx. 1 000 000 pixels
(Memory mode)
Lens
Combined power zoom lens
Filter diameter 37 mm (1 1/2 in.)
DCR-TRV240/TRV340:
25× (Optical), 700×
(Digital)
DCR-TRV740/TRV840:
15× (Optical), 420×
(Digital)
Focal length
DCR-TRV240/TRV340:
2.4 – 60 mm (1/8 – 2 3/8 in.)
When converted to a 35 mm still
camera
42 – 1 050 mm (1 11/16 – 41 3/8
in.)
DCR-TRV740/TV840:
3.6 - 54 mm (5/32 - 2 1/4 in.)
When converted to a 35 mm still
camera
Camera mode:
48 - 720 mm (1 15/16 - 28 3/8 in.)
Specifications
General
Power requirements
7.2 V (battery pack)
8.4 V (AC power adaptor)
Average power consumption
(when using the battery pack)
During camera recording using
LCD
DCR-TRV240/TRV340:
3.8 W
DCR-TRV740:
4.3 W
DCR-TRV840:
4.5 W
Viewfinder
DCR-TRV240/TRV340:
3.0 W
DCR-TRV740/TRV840:
3.5 W
Operating temperature
0°C to 40°C (32°F to 104°F)
Recommended charging
temperature
10°C to 30°C (50°F to 86°F)
Storage temperature
–20°C to + 60°C (–4°F to + 140°F)
Dimensions (approx.)
DCR-TRV240/TRV340:
206 × 101 × 85 mm
(8 1/8 × 4 × 3 3/8 in.)
(w/h/d)
DCR-TRV740/TRV840:
207 × 101 × 85 mm
(8 1/4 × 4 × 3 3/8 in.)
Mass (approx.)
DCR-TRV240:
890 g (1 lb 15 oz)
DCR-TRV340/TRV740:
900 g (1 lb 15 oz)
DCR-TRV840:
930 g (2 lb)
excluding the battery pack,
cassette, lens cap and shoulder
strap
DCR-TRV240:
1 030 g (2 lb 4 oz)
DCR-TRV340/TRV740:
1 040 g (2 lb 4 oz)
DCR-TRV840:
1 070 g (2 lb 5 oz)
including the battery pack
(NP-FM30 or NP-FM50), 120min.
Hi8 cassette, lens cap and shoulder
strap
Supplied accessories
See page 5.
200
Specifications
AC power adaptor
Power requirements
100 – 240 V AC, 50/60 Hz
Power consumption
23 W
Output voltage
DC OUT: 8.4 V, 1.5 A in the
operating mode
Operating temperature
0°C to 40°C (32°F to 104°F)
Storage temperature
–20°C to + 60°C (–4°F to + 140°F)
Dimensions (approx.)
125 × 39 × 62 mm
(5 × 1 9/16 × 2 1/2 in. ) (w/h/d)
excluding projecting parts
Mass (approx.)
280 g (9.8 oz)
excluding power cord
Battery pack
Maximum output voltage
DC 8.4 V
Mean output voltage
DC 7.2 V
Capacity
NP-FM30:
5.0 Wh (700 mAh)
NP-FM50:
8.5 wh (1 180 mAh)
Operating temperature
0°C to 40°C (32°F to 104°F)
Dimensions (approx.)
38.2 × 20.5 × 55.6 mm
(1 9/16 × 13/16 × 2 1/4 in.)
(w/h/d)
Mass (approx.)
NP-FM30:
65 g (2.3 oz)
NP-FM50:
76 g (2.7 oz)
Type
Lithium ion
“Memory Stick”
(except DCR-TRV240)
Memory
Flash memory
8MB: MSA-8A
Operating voltage
2.7 – 3.6 V
Power consumption
Approx. 45 mA in the operating
mode
Approx. 130 µA in the standby
mode
Dimensions (approx.)
50 × 2.8 × 21.5 mm
(2 × 1/8 × 7/8 in.) (w/h/d)
Mass (approx.)
4 g (0.14 oz)
Design and specifications are
subject to change without notice.
201
Quick Reference
— Quick Reference —
Identifying parts and controls
1 Lens cap (p. 21)
2 LCD screen (p. 21)
3 OPEN button (p. 21)
4 VOLUME –/+ button (p. 34)
5 Battery pack (p. 12)
6 BATT (battery) release lever (p. 12)
7 POWER switch (p. 21)
8 START/STOP button (p. 21)
9 Hooks for shoulder strap
0 DC IN jack (p. 13)
Attaching the shoulder strap
Attach the shoulder strap supplied with your camcorder to the hooks for the shoulder
strap.
Camcorder
4
3
2
7
8
9
0
1
6
5
202
qa SUPER NS/COLOR SLOW S button
(p. 29)
qs Focus ring (p. 54)
qd Lens
qf Microphone
qg Camera recording lamp (p. 21)
qh Infrared rays emitter (p. 29)
qj Video control buttons (p. 34, 36)
x STOP (stop)
m REW (rewind)
N PLAY (playback)
M FF (fast-forward)
X PAUSE (pause)
z REC (recording)
qk NIGHTSHOT switch (p. 29)
ql Display window (p. 208)
w; FOCUS button (p. 54)
wa FADER button (p. 45)
ws BACK LIGHT button (p. 28)
wd Remote sensor
Identifying parts and controls
qh
qf
qd
qg
qa
qs
qk
ql
ws
wa
w;
wd
qj
REW
REC
FF
PAUSE
STOP
PLAY
203
Quick Reference
Identifying parts and controls
wf RESET button (p. 183)
wg EDITSEARCH button (p. 32)
wh MEMORY operation buttons*
MEMORY PLAY button (p. 150)
MEMORY – button (p. 150)
MEMORY + button (p. 150)
MEMORY MIX button (p. 130)
MEMORY DELETE button (p. 171)
MPEG u button (p. 153)
MEMORY INDEX button (p. 152)
wk
wf
wg
wh
wj
wl
e;
PLAY
MEMORY
MIX
DELETE MPEG INDEX
MEMORY
* Except DCR-TRV240
Attaching the lens cap
Attach the lens cap to the grip strap as illustrated.
wj DISPLAY button (p. 35)
wk MENU button (p. 105)
wl SEL/PUSH EXEC dial (p. 105)
e; EXPOSURE button (p. 53)
204
Identifying parts and controls
ea Power zoom lever (p. 24)
es Intelligent accessory shoe
ed Speaker
ef PB ZOOM button (p. 65, 166)
eg TITLE button (p. 58)
eh PHOTO button (p. 39, 124)
ej “Memory Stick” slot* (p. 118)
ek Access lamp* (p. 118)
el END SEARCH button (p. 32, 37)
eg
ea
es
ef
ek
eh
el
ej
ed
* Except DCR-TRV240
Notes on the intelligent accessory shoe
•The intelligent accessory shoe supplies power to optional accessories such as a video
light or microphone or printer (except DCR-TRV240).
•The intelligent accessory shoe is linked to the POWER switch, allowing you to turn the
power supplied by the shoe on and off. Refer to the operating instructions of the
accessory for further information.
•The intelligent accessory shoe has a safety device for fixing the installed accessory
securely. To connect an accessory, press down and push it to the end, and then tighten
the screw.
•To remove an accessory, loosen the screw, and then press down and pull out the
accessory.
205
Quick Reference
rj rl
t;
rk
rh
Identifying parts and controls
r; Viewfinder (p. 25)
ra LOCK switch* (p. 21)
rs Grip strap
rd MIC (PLUG IN POWER) jack
Connect an external microphone
(optional). This jack also accepts
a “plug-in-power” microphone.
rf i (headphones) jack
rg LANC
jack
LANC stands for Local Application
Control Bus System. The LANC control
jack is used for controlling the tape
transport of video equipment and other
peripherals connected to the video
equipment. This jack has the same
function as the jack indicated as
CONTROL L or REMOTE.
rs
ra
r;
rf
rd
rg
rh Eyecup
rj Viewfinder lens adjustment lever
(p. 25)
rk OPEN/EJECT switch (p. 20)
rl Tripod receptacle (base)
Make sure that the length of the tripod
screw is less than 5.5 mm (7/32 inch).
Otherwise, you cannot attach the tripod
securely and the screw may damage
your camcorder.
t; Cassette compartment (p. 20)
* Except DCR-TRV240
206
Identifying parts and controls
ts
ta
tf
td
Fastening the grip strap
Fasten the grip strap firmly.
ta S VIDEO jack (p. 38, 71, 136)
ts AUDIO/VIDEO jack (p. 38, 71, 136)
td DV IN/OUT jack (p. 72, 137)
The DV IN/OUT jack is i.LINK
compatible.
tf
(USB) jack (p. 97, 157)
207
Quick Reference
To prepare the Remote Commander
Insert 2 size AA (R6) batteries by matching the + and – on the batteries to
the + and – in the battery compartment.
Notes on the Remote Commander
•Point the remote sensor away from strong light sources such as direct sunlight or
overhead lighting. Otherwise, the Remote Commander may not function properly.
•Your camcorder works in the Commander mode VTR 2. Commander modes 1, 2 and 3
are used to distinguish your camcorder from other Sony VCRs to avoid erroneous
remote control operation. If you use another Sony VCR in the Commander mode
VTR 2, we recommend changing the Commander mode or covering the sensor of the
VCR with black paper.
Remote Commander
The buttons that have the same name on the Remote Commander as on your camcorder
function identically to the buttons on your camcorder.
Identifying parts and controls
1 PHOTO button (p. 39, 124)
2 DISPLAY button (p. 35)
3 SEARCH MODE button (p. 68, 69)
4 ./> buttons (p. 68, 69)
5 Tape transport buttons (p. 36)
6 Transmitter
Point toward the remote sensor to
control the camcorder after turning on
the camcorder.
7 ZERO SET MEMORY button (p. 67)
8 START/STOP button (p. 21)
9 DATA CODE button (p. 35)
0 Power zoom button (p. 24)
5
4
3
2
1
0
8
7
6
9
208
Operation indicators
LCD screen and Viewfinder Display window
Identifying parts and controls
1 Recording mode (p. 21)
/Mirror mode (p. 26)
2 Format (p. 187)
, or indicator appears.
3 Remaining battery time
(p. 27, 35)
4 Zoom (p. 24)/Exposure (p. 53)
5 Fader (p. 45)/Digital effect (p. 49, 64)
6 Wide mode (p. 42)/FRAME indicator
(except DCR-TRV240) (p. 124)
7 Picture effect (p. 47, 63)
8 Volume (p. 34)/Data code (p. 35)
9 PROGRAM AE (p. 52)
0 Backlight (p. 28)
qa SteadyShot off (p. 107)
qs Manual focusing (p. 54)
qd Self-timer (except DCR-TRV240)
(p. 31, 41, 128)
qf STBY/REC (p. 21)/Video control mode
(p. 36)
qg Tape counter (p. 27)/Time code
(p. 27)/Self-diagnosis display (p. 184)/
Tape Photo recording (p. 39)
50
min
REC
0:00:00
M.FADER
16:9WIDE
SEPIA
16B
I
T
TW
DATE
01
SEARCH
ZERO SET
MEMORY
A/V DV
SP
2
4
5
6
7
8
9
0
qa
qs
3
1
qd
qf
qh
ql
wa
w;
ws
wf
wd
wg
qk
qj
qg
wh
2wj
3
qh Remaining tape (p. 27)
qj ZERO SET MEMORY (p. 67)
qk Search mode (p. 32, 68, 69)
ql NIGHTSHOT (p. 29)/SUPER NIGHTSHOT
(p. 29)/COLOR SLOW SHUTTER (p. 29)
w; A/V t DV (p. 88)/DV IN (p. 91)
wa Audio mode (p. 112)
ws Warning (p. 185)
wd Recording lamp (p. 21)
This indicator appears in the viewfinder.
wf Video flash ready (p. 106)
This indicator appears when you use the
video flash light (optional).
wg Video flash mode (p. 106)
This indicator appears when you use the
video flash light (optional).
wh Tape counter (p. 27)/Time code
(p. 27)/Self-diagnosis display (p. 184)/
Remaining battery time (p. 14)
wj FULL charge (p. 14)
209
Quick Reference
Index
A, B
AC power adaptor.................. 13
Adjusting viewfinder ............. 25
AFM HiFi Sound................... 188
AUDIO MIX .......................... 108
AUDIO MODE ...................... 112
A/V connecting cable
.................................. 38, 71, 136
BACK LIGHT .......................... 28
Battery pack ............................. 13
BEEP ....................................... 114
BOUNCE.................................. 44
C, D
Camera chromakey .............. 129
Charging battery ..................... 13
Charging built-in rechargeable
battery ................................. 196
Clock set ................................... 18
Color Slow Shutter ................. 29
Continuous ............................ 126
Data code ................................. 35
Date search .............................. 68
DEMO..................................... 113
DIGITAL EFFECT ............ 48, 64
Digital8 system ..................... 187
Digital program editing
........................................ 74, 146
DISPLAY .................................. 35
DOT .......................................... 44
Dual sound track tape .......... 188
DV connecting cable....... 72, 137
E
EDITSEARCH ......................... 32
END SEARCH................... 32, 37
EXP BRKTG ........................... 126
Exposure .................................. 53
F, G, H
FADER ..................................... 44
Fade in/out.............................. 44
FLASH MOTION.................... 48
FOCUS...................................... 54
Format .................................... 111
Frame recording...................... 57
Full charge ............................... 13
Grip strap ............................... 205
i (Headphones jack)............ 205
Heads...................................... 195
HiFi SOUND ......................... 108
I, J, K, L
i.LINK ..................................... 191
Image protection ................... 170
Image quality mode ............. 119
Image size .............................. 121
Index screen........................... 152
“InfoLITHIUM” battery ...... 189
Infrared rays emitter .............. 29
Insert editing ........................... 92
Intellingent accessory shoe
.............................................. 204
Interval recording ................... 55
JPEG........................................ 116
LANC jack ............................. 205
LUMINANCEKEY ................. 48
M, N
Main sound............................ 188
Manual focus ........................... 54
Memory chromakey ............. 129
Memory luminancekey ........ 129
MEMORY MIX...................... 129
Memory overlap ................... 129
Memory PB ZOOM .............. 166
Memory photo recording .... 124
“Memory Stick” .................... 116
Menu settings ........................ 105
Mirror mode ............................ 26
Moisture condensation ........ 194
Monaural.................................. 38
MONOTONE .......................... 44
M.FADER................................. 44
MPEG ..................................... 116
MPEG movie recording ....... 140
MULTI SCRN ........................ 126
NIGHTSHOT .......................... 29
NTSC system ......................... 193
O, P, Q
OLD MOVIE............................ 48
Operation indicators ............ 208
