COOKER HOOD
COOKER HOOD
CH6T4BXUK
254
233
403
600
40
490
min. 160
max. 470
min. 690 - max. 1000
ELECTRICAL 550
GAS 650
A
Y
X
80
337
1
3
5
2
4
6
10 cm
16 cm
>1 cm
>30 cm
16 cm
W cm
220-240V
50-60Hz
W -2 cm
>30 cm
>1 cm
7
9
11
8
10
12
13
17
14
16
18
1
4
19
21
23
20
22
7
EN - COOKER HOOD
Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or res caused by
not complying with the instructions in this manual, is declined. The hood is conceived for the suction of cooking fumes and steam and is
destined only for domestic use.
The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installa-
tion, however, remain the same.
! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together
with the product.
! Read the instructions carefully: there is important information about installation, use and safety.
! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
! Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your
dealer and do not proceed with the installation.
Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not
supplied.
CAUTION
WARNING! Do not connect the appliance to the mains until the installation is fully complete.
Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical
supply.
Always wear work gloves for all installation and maintenance operations.
The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience
or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.
This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance.
This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.
Never use the hood without effectively mounted grating!
The hood must NEVER be used as a support surface unless specically indicated.
The premises where the appliance is installed must be sufciently ventilated, when the kitchen hood is used together with other gas combus-
tion devices or other fuels.
The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose
such as discharging exhaust fumes from appliances burning gas or other fuels.
The aming of foods beneath the hood itself is severely prohibited.
The use of exposed ames is detrimental to the lters and may cause a re risk, and must therefore be avoided in all circumstances.
Any frying must be done with care in order to make sure that the oil does not overheat and ignite. Accessible parts of the hood may became
hot when used with cooking appliance.
With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided
by the local authorities.
The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided
in this user guide regarding the cleaning of the hood and lters will lead to the risk of res.
Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
We will not accept any responsibility for any faults, damage or res caused to the appliance as a result of the non-observance of the instruc-
tions included in this manual.
This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE). By ensur-
ing this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this product.
The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as
household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equip-
ment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate
department of your local authorities or the local department for household waste or the shop where you purchased this product.
Appliance designed, tested and manufactured according to:
• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; ISO 3741;
EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3.
Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking
and kept it running for few minutes after cooking is nished. Increase the speed only in case of large amount of smoke and vapour and use
8
boost speed(s) only in extreme situations. Replace the charcoal lter(s) when necessary to maintain a good odour reduction efciency. Clean
the grease lter(s) when necessary to maintain a good grease lter efciency. Use the maximum diameter of the ducting system indicated in
this manual to optimize efciency and minimize noise.
Additional Installation Specications:
Use only the xing screws supplied with the product for installation or, if not supplied, purchase the correct screws type. Use the correct
length for the screws which are identied in the Installation Guide.
In case of doubt, consult an authorised service assistance centre or similar qualied person.
WARNING! Failure to install the screws or xing device in accordance with these instructions may result in electrical hazards.
USE
The hood is designed to be used either for exhausting or lter version.
DUCTING VERSION
In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top
of the hood.
Attention! The exhausting pipe is not supplied and must be purchased apart. Diameter of the exhausting pipe must be equal to that of the
connection ring.
In the horizontal runs the exhausting pipe must be slightly slanted (about 10°) and directed upwards to vent the air easily from the room to
the outside.
Attention! If the hood is supplied with active charcoal lter, then it must be removed.
Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection ange).
Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic
increase in noise.
Any responsibility in the matter is therefore declined.
! Use a duct of the minimum indispensible length.
! Use a duct with as few elbows as possible (maximum elbow angle: 90°).
! Avoid drastic changes in the duct cross-section.
! Use a duct as smooth as possible inside.
! The duct must be made of certied material.
FILTER VERSION
One active charcoal lter is needed for this and can be obtained from your usual retailer.
The lter removes the grease and smells from the extracted air before sending it back into the room through the upper outlet grid.

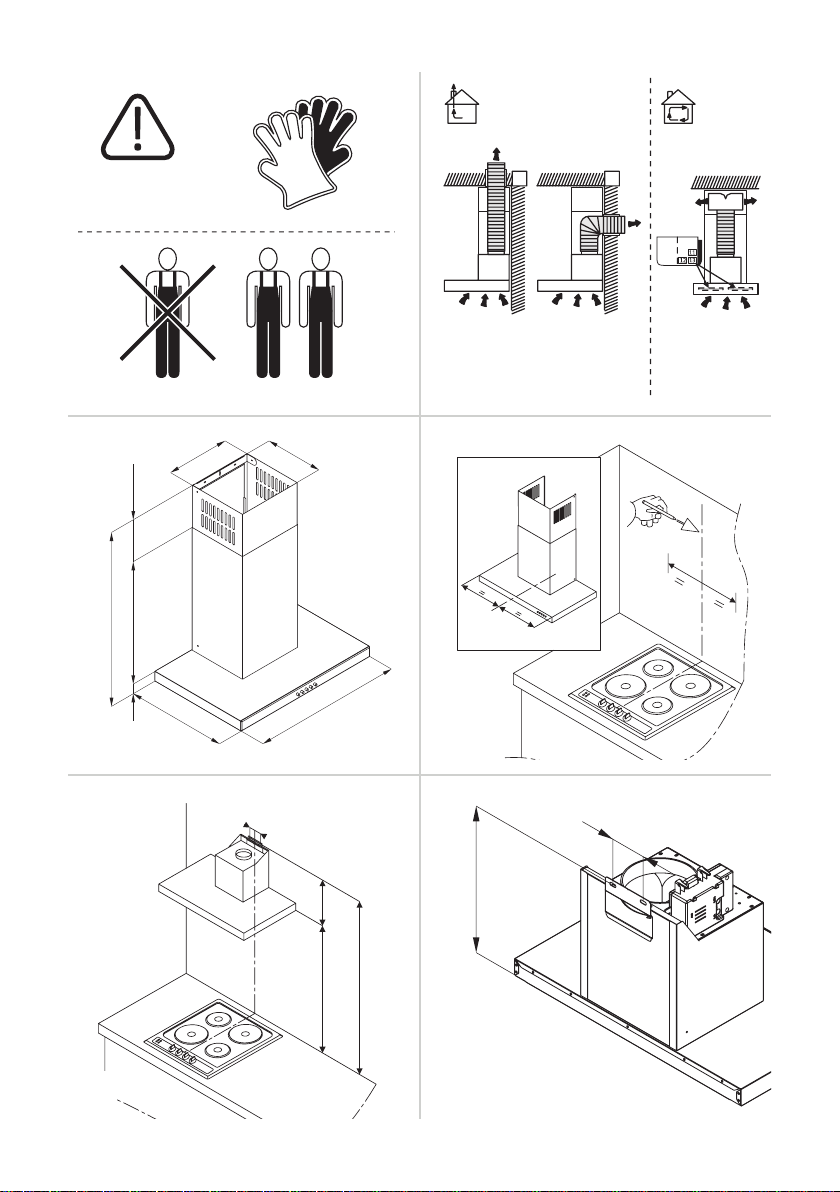

INSTALLATION
The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be
not less than 50cm from electric cookers and 65cm from gas or mixed cookers.
If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.
ELECTRICAL CONNECTION
The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the
hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not tted with a plug
(direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with
standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with
installation instructions.
Warning! Before re-connecting the hood circuit to the mains supply and checking the efcient function, always check that the mains cable
is correctly assembled.
The hood is provided with a special power cable ; if the cable is damaged, request a new one from Technical Service.
MOUNTING
Very heavy product; hood handling and installation must be carried out by at least two persons. Before beginning installation:
• Check that the product purchased is of a suitable size for the chosen installation area.
• Remove the charcoal (*) lter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want lo use the
hood in the ltering version.
• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*),
etc.), eventually removing them and keeping them.
• If possible, disconnect and move freestanding or slide-in range from cabinet opening to provide easier access to rear wall/ceiling.
9
Otherwise put a thick, protective covering over countertop, cooktop or range to protect from damage and debris. Select a at surface
for assembling the unit. Cover that surface with a protective covering and place all canopy hood parts and hardware in it.
• In addition check whether near the installation area of the hood (in the area accessible also with the hood mounted) an electric socket
is available and it is possible to connect a fumes discharge device to the outside (only suction version).
• Carry out all the masonry work necessary (e.g. installation of an electric socket and/or a hole for the passage of the discharge tube).
Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualied technician must verify suitability
of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile,
grout or silicone this appliance to the wall. Surface mounting only.
OPERATION
Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for
5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.
1. OFF motor
Pressing the button during functioning, the hood turns OFF.
2. ON motor
Pressing the button the hood passes from the OFF state to speed 1.
Pressing the button (hood in ON state) the motor speed is increased from speed 1 to intensive.
Speed 1:
Speed 2:
Speed 3:
3. ON / OFF light
MAINTENANCE
ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the
connector and removing the connector fuse.
Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.
CLEANING
The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat lters) inter-
nally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!
WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the lters may cause re risks.
Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any re
damage linked to inappropriate maintenance or failure to observe the above safety recommendations.
GREASE FILTER
Traps cooking grease particles. The grease lter must be cleaned once a month using non aggressive detergents, either by hand or in the
dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease lter may discolour slightly,
but this does not affect its ltering capacity. To remove the grease lter, press it and pull it down.
CHARCOAL FILTER (lter version only)
It absorbs unpleasant odours caused by cooking. The saturation of the charcoal lter occurs after more or less prolonged use, depending on
the type of cooking and the regularity of cleaning of the grease lter. In any case it is necessary to replace the cartridge at least every four
mounths. The charcoal lter may NOT be washed or regenerated.
REPLACING LAMPS
The hood is equipped with a lighting system based on LED technology. The LEDs guarantee an optimum lighting, a duration up to 10 times
as long as the traditional lamps and allow to save 90% electrical energy.
For replacement, contact the technical service.
