UUnnpplluugg ssaaffeellyy
To avoid loss of data, disconnect your player safely.
Exit
DDMMMM
.
CC
lick on the task tray.
Remove the USB cable.
AATTTTEENNTTIIOONN!!
WINDOWS 98 USERS:
To avoid installation problems,
DDOO NNOOTT CCOONNNNEECCTT
your player to your
computer until
AAFFTTEERR
installation completes.
1
PPrreeppaarraattiioonnss
CCoonnnneecctt ppllaayyeerr ttoo ccoommppuutteerr
Open the USB cover. Connect your player to your computer using
the supplied USB cable.
3
IInnssttaallll
Insert the supplied CD into your computer’s CD-ROM drive.
Follow screen instructions to complete installation.
1
OOrrggaanniizzee aanndd ttrraannssffeerr mmuussiicc vviiaa DDMMMM
Launch DMM on your PC from Windows desktop or
SSttaarrtt
menu.
Use DMM to organize your music.
Transfer music files from your computer to your player.
4
TIP
Please refer to your computer’s manual for the exact position of
your USB port. Look for the USB symbol on the processing unit of
your computer.
✔
CChhaarrggee
Open the USB cover. Connect the supplied charger to the USB port
and the main power supply. For extended battery power, please
charge for at least 4 hours for first time use.
2
TIP
This indicator shows your battery information during charging.
✔
PPoowweerr oonn aanndd eennjjooyy!!
Press and hold 22;; for 2 seconds to power on if the player does not power
on automatically. Enjoy your new music experience!
6
5
4 HRS =
1 HR =
psa220_eng.qxd 2/6/04 14:54 Page 1
2

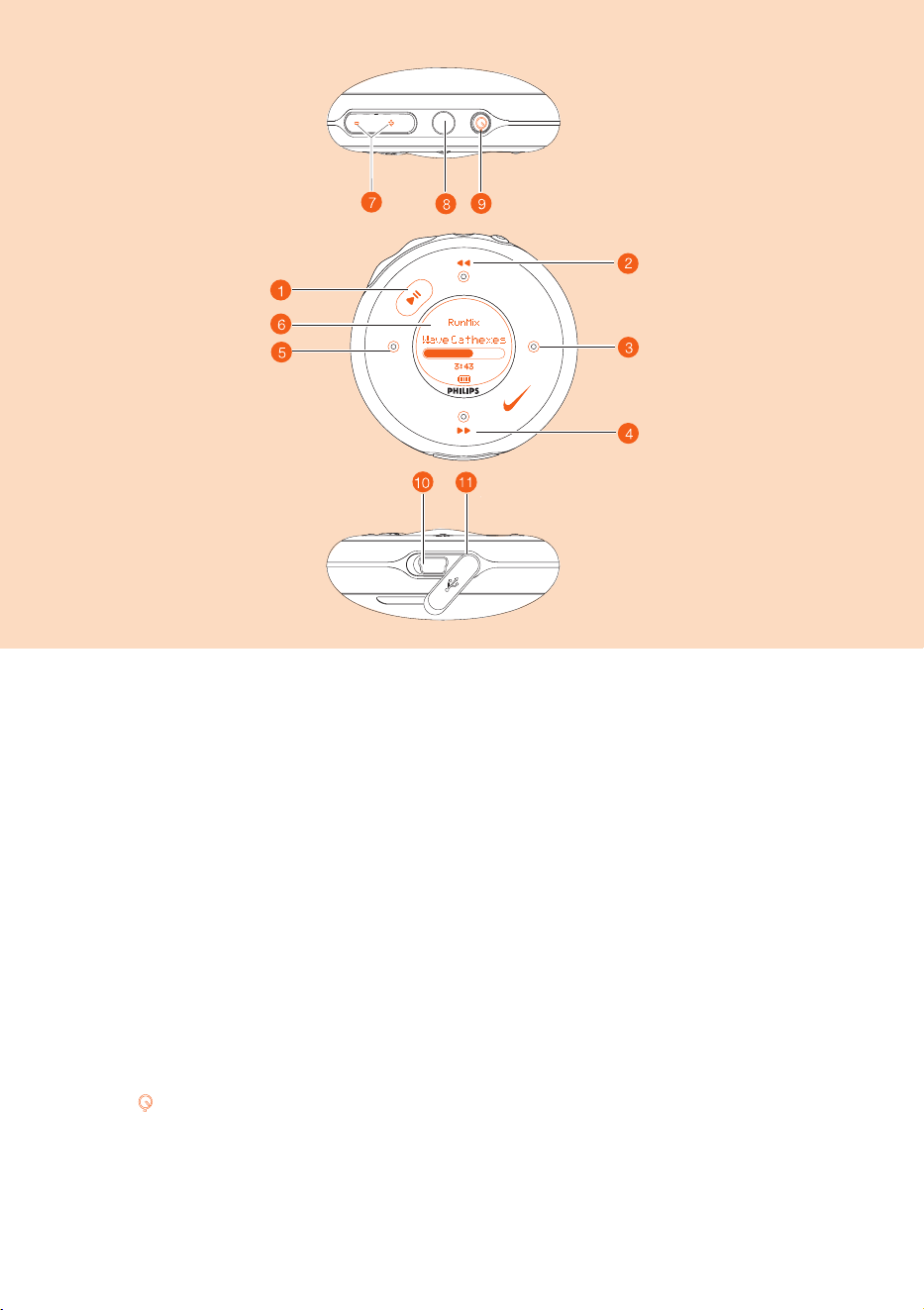

NNaammee ooff PPaarrttss
1 22;; Press and hold to power on / off; press briefly to play / pause
2 33 , 55 Up / Previous / Fast rewind
3 22 Right
4 44 , 66 Down / Next / Fast forward
5 11 Left
6
LLCCDD ddiissppllaayy
Dynamically displays menu, options and track information
7
−− // ++
Volume control, press
−−
to decrease; press
++
to increase
8
HHeeaaddpphhoonneess jjaacckk
Connects headphones or waistband remote control
9 Stop watch, press to start, pause, or reset stop watch
0
UUSSBB ppoorrtt //
Connects to computer / charges your player
CChhaarrggiinngg ssoocckkeett
!
UUSSBB ccoovveerr
Protects USB port / Charging socket
psa220_eng.qxd 2/6/04 14:54 Page 2
3
MMeennuu NNaavviiggaattiioonn
MMuussiicc PPllaayylliissttss
AArrttiissttss
AAllbbuummss
GGeennrreess
AAllll TTrraacckkss
RRaaddiioo PPrreesseettss
SSeettttiinnggss SSttrroobbee lliigghhtt
SShhuuffffllee && RReeppeeaatt
DDBBBB
EEqquuaalliizzeerr
BBaacckklliigghhtt
CCoonnttrraasstt
LLaanngguuaaggee
FFaaccttoorryy sseettttiinnggss
Press and hold 22;; to power on.
Press and hold 11 for the root menu.
See specific chapters for details of each setting.
2
e.g. Playlist001
PlaylistXXX
...
e.g. A
Z
...
Preset 1
Preset 10
Autostore
...
33
11 22
44
Up
Down
Left
Right
44
e.g. A
Z
...
44
e.g. A
Z
...
44
e.g. A
Z
...
44
1
44
psa220_eng.qxd 2/6/04 14:54 Page 3
4
Press and hold 22;; to power on.
From the root menu, press 22 to enter the music mode.
Any radio playback will stop as you enter the music mode.
1
Press 33 to scroll up or 44 to scroll down for your option.
Press 22 for next or 11 for previous levels of library.
Press 22;; to play.
2
MMuussiicc MMooddee:: BBaassiicc OOppeerraattiioonn
Library options Artists list
Playscreen
Press 33 , 33 for the previous or 44 for the next track.
Press and hold 44 to fast forward or 33 to rewind in a track during playback.
4
Press and hold 22;; to power off. Your player will save your current
music playback status and resume next time you power on.
5
Press 22;; to pause during playback.
3
*Actual display varies with use
TIP
Your music playback status will be erased when you connect your player to your
computer.
✔
psa220_eng.qxd 2/6/04 14:54 Page 4
5
MMuussiicc MMooddee:: LLiibbrraarryy OOppttiioonnss aanndd FFaasstt SSccrroolllliinngg
Press 33 to scroll up or 44 to scroll down for your library option.
Press 22 on
AArrttiisstt
to display the artist library
Press 22 for the next or 11 for the previous level of library.
2
Artists list in alphabetical order
Press and hold 44 for 3 seconds to scroll down quickly.
Press and hold 33 for 3 seconds to scroll up quickly.
Release button to stop scrolling.
3
Browsing tracks quickly.
1
TIP
To display library options during playback, press and hold 11 for the root menu.
The playscreen (see page 4) will appear again when you have stopped browsing.
✔
*Actual display varies with use
psa220_eng.qxd 2/6/04 14:54 Page 5
6
RRaaddiioo MMooddee:: AAuuttoommaattiicc TTuunniinngg
From the root menu, press 44, 22 to enter the radio mode.
Any music playback will stop as you enter the radio mode.
1
Press 44 to scroll down to
AAUUTTOO SSEEAARRCCHH
. Press 22;; to automatically select
the 10 strongest radio stations. Press 11 to abort
AAUUTTOO SSEEAARRCCHH
.
2
Press 33 to scroll up or 44 to scroll down for your preset.
Press 22;; to play the selected station.
3
Radio mode, no station stored
Stations tuned
Automatic tuning
TIP
No stations are tuned if you are using your player for the first time.
✔
*Actual display varies with use
psa220_eng.qxd 2/6/04 14:54 Page 6
7
RRaaddiioo MMooddee:: MMaannuuaall TTuunniinngg
Press 33 to scroll up or 44 to scroll down for your preset.
1
Press 22;; to play the selected station.
Press 44 or 33 to fine tune (tune step by step).
Press and hold 44 to search for the next available station.
Press and hold 33 for the previous available station.
Press 11 to abort searching.
Press 22;; to save your setting.
3
Manual tuning
Station stored
TIP
If you want to discard the newly searched station, press 11 to exit the radio menu.
✔
Radio preset menu
2
*Actual display varies with use
psa220_eng.qxd 2/6/04 14:54 Page 7
8
SSeettttiinnggss MMooddee
From the root menu, press 44, 44, 22 to enter the settings mode.
1
Press 33 to scroll up or 44 to scroll down for your setting.
Press 22 for next or 11 for previous levels of options.
2
Settings mode
Repeat / Shuffle Strobe light Equalizer
Press 22 to confirm your selection.
3
TIP
To display player information, select and highlight
FFaaccttoorryy sseettttiinnggss
;
press and hold 22 for 2 seconds. The information screen will tell you
the model number and free space available on your player.
✔
*Actual display varies with use
psa220_eng.qxd 2/6/04 14:54 Page 8
9
AAddvvaanncceedd SSeettttiinnggss aanndd AAccttiioonnss
You can adjust the following settings from the settings mode.
Press 33 to scroll up or 44 to scroll down for your setting.
Press 22 for next or 11 for previous levels of options.
Press 22 to confirm your selection.
33
11 22
44
Up
Down
Left
Right
SSeettttiinnggss SSttrroobbee lliigghhtt
DDBBBB
EEqquuaalliizzeerr
SShhuuffffllee &&
RReeppeeaatt
LLaanngguuaaggee
BBaacckklliigghhtt
CCoonnttrraasstt
FFaaccttoorryy sseettttiinnggss
on
ooffff
Rock
Funk
Techno
ooffff
HipHop
Shuffle
Shuffle & Repeat
ooffff
EEnngglliisshh
Italiano
Español
Repeat All
Portugués
Français
Deutsch
5 sec
1100 sseecc
30 sec
Off
Levels 1 to 10
LLeevveell 77
on
ooffff
Restore
Cancel
Default setting in
bboolldd
.
psa220_eng.qxd 2/6/04 14:54 Page 9
10
SSttoopp WWaattcchh MMooddee
From any player mode, press to start the stop watch.
1
Press to pause the stop watch. Press again to resume the stop watch.
2
Press and hold to exit stop watch mode.
3
Stop watch mode
TIP
Music or radio playback is not affected when you start your stop watch.
Stop watch count will be displayed at the bottom of your music or radio screen.
✔
SSttrroobbee LLiigghhtt
Strobe light is an illumination technology setting that allows the backlit LCD
display to gradually radiate bursts of light, enhancing visibility of the runner
in low light conditions. (see p.9 for more information)
*Actual display varies with use
psa220_eng.qxd 2/6/04 14:54 Page 10
11
AArrmmbbaanndd aanndd WWaaiissttbbaanndd RReemmoottee CCoonnttrrooll
(availability subject to regions)
TIP
Use armband and player holder to wear player on your arm.
Use armband, waistband remote control and player holder to wear player
on your waist.
✔
Connect headphones
Attach waistband
Player holder
Attach
armband
TIP
The controls of your waistband remote control works just like those on
your player during music playback.
✔
psa220_eng.qxd 2/6/04 14:54 Page 11
12
AAbboouutt DDiiggiittaall MMeeddiiaa MMaannaaggeerr ((DDMMMM))
Digital Media Manager contains all the necessary software components you need to work
properly with your player. These include:
- playlist creation
- MP3 / WMA transfer for playback on player
- paths and supporting link for DMM software and player firmware upgrades.
*Actual display varies with use
psa220_eng.qxd 2/6/04 14:54 Page 12
13

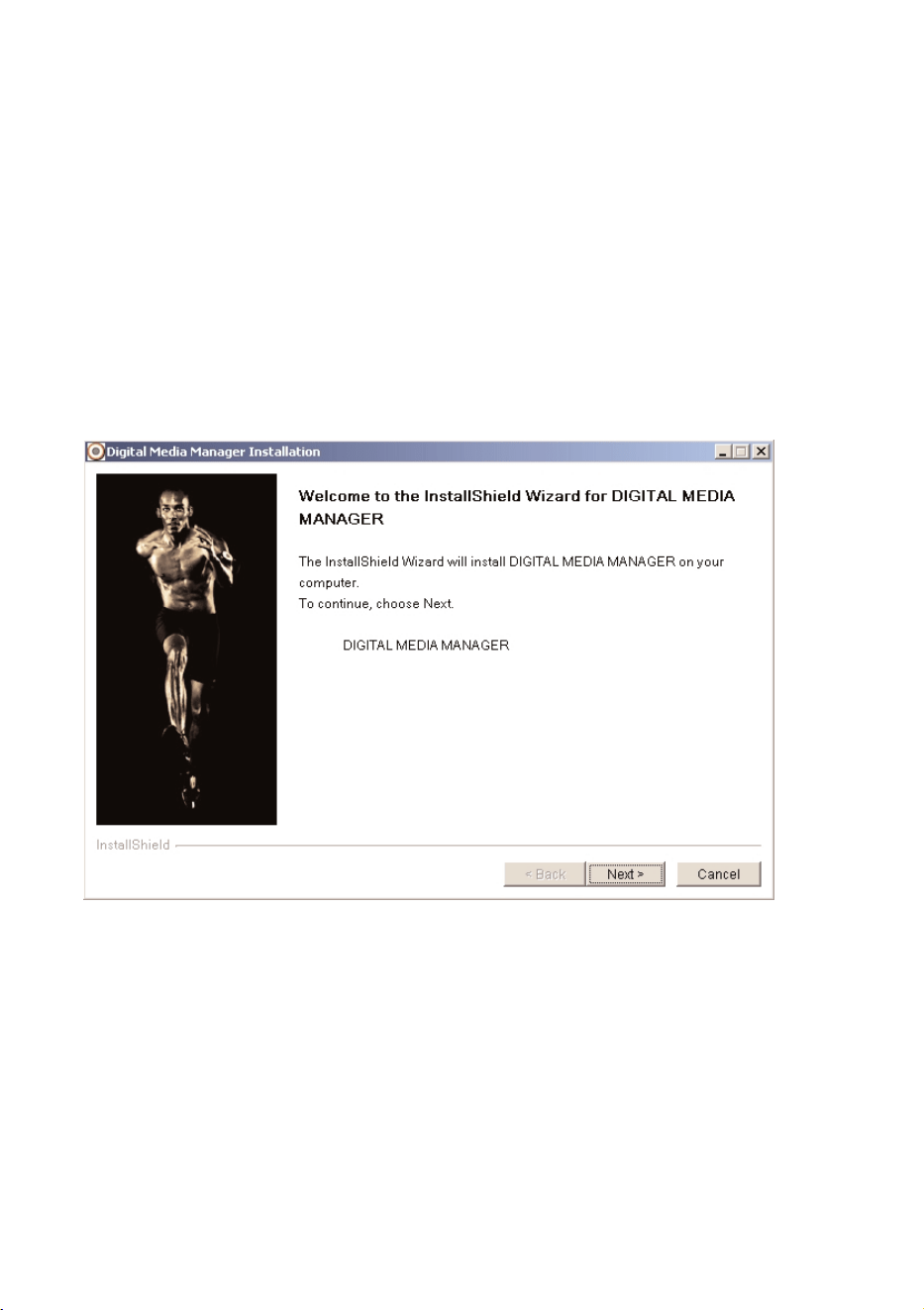

IInnssttaallll DDMMMM
Insert the supplied CD into your computer’s CD-ROM drive.
1
Follow screen instructions to begin and complete DMM installation.
2
Launch DMM to customize your settings when prompted to do so.
3
Select DMM’s display language*
Specify one or more music folder*
*Actual display varies with use
psa220_eng.qxd 2/6/04 14:54 Page 13
14
LLaauunncchh DDMMMM ((ppllaayyeerr ccoonnnneecctteedd))
Open the USB cover.
Connect your player to your computer using the supplied USB cable.
The USB connection screen will automatically appear.
1
Launch DMM. (see page 15 for first time launch settings)
2
Organize your music and playlists in DMM.
3
Transfer your music from DMM to your player.
4
TIP
Please refer to your computer’s manual for the exact position of your USB port.
Look for the USB symbol on the processing unit of your computer.
✔
*Actual display varies with use
psa220_eng.qxd 2/6/04 14:54 Page 14
15
TThhee mmaaiinnssccrreeeenn ((ppllaayyeerr ccoonnnneecctteedd))
1
2
MMYY MMUUSSIICC
: displays the contents of your music folders; click on to minimize / maximize.
1
PPLLAAYYEERR MMUUSSIICC
: displays the contents of your player; click on to minimize / maximize.
2
NNeeww ppllaayylliisstt::
creates a new playlist.
IImmppoorrtt mmuussiicc
: adds music or playlist.
TTrraasshh
: deletes selection.
EEddiitt IIDD33 ttaagg
: edits track information of selected track.
SSeeaarrcchh
: searches for music from
MMYY MMUUSSIICC
and / or
PPLLAAYYEERR MMUUSSIICC
.
*Actual display varies with use
psa220_eng.qxd 2/6/04 14:54 Page 15
16
SSeelleeccttoorr ppaanneell aanndd ccoonntteenntt ppaanneell
SSeelleeccttoorr ppaanneell
: arranges the display order of the content panel.
1
CCoonntteenntt ppaanneell
: displays the contents of
MMYY MMUUSSIICC
, highlight to drag from
MMYY MMUUSSIICC
and drop to
PPLLAAYYEERR MMUUSSIICC..
2
1
2
5 6 8 9
3
4 7
SSccrroollll bbaarr
3
PPuullll ddoowwnn mmeennuuss
4
TTeexxtt aarreeaa
: type your search criteria here.
5
: transfers highlighted tracks and / or playlists.
6
HHeeaaddeerr sseeppaarraattoorr
: resizes column width.
7
PPllaayyeerr mmeemmoorryy iinnddiiccaattoorr
: shows available memory on your player.
8
RReessiizziinngg bbuuttttoonnss
: minimizes, maximizes DMM view / exit DMM.
9
*Actual display varies with use
psa220_eng.qxd 2/6/04 14:54 Page 16
17
IInnddiiccaattoorrss oonn tthhee ccoonntteenntt ppaanneell
: expanded view, displays item contents in full.
1
: track / playlist not on the player.
2
1
2
3
4
5
Click to highlight an item.
Press <Delete> on your keyboard to delete the highlighted item.
3
: indicates track is playing by DMM.
4
: collapsed view: item contains more contents to display.
5
*Actual display varies with use
psa220_eng.qxd 2/6/04 14:54 Page 17
18
CClliicckk aanndd TTrraannssffeerr
Make sure your player is connected when you launch DMM.
1
Click and highlight an item (e.g. track, artist, album, genre, playlist).
2
Click on to copy your selection from your computer to your player.
3
Your selection is now transferred to your player.
4
IIMMPPOORRTTAANNTT:: KKEEEEPP AA CCOOPPYY OOFF YYOOUURR OORRIIGGIINNAALL FFIILLEESS!!
Please keep a copy of the original files transferred to your player. Philips is not
responsible for any loss of content if the player is damaged or not readable.
*Actual display varies with use
TIP
Press and hold <Ctrl> on your keyboard and click to select more than one item.
To select consecutive items, click the first item, press and hold <Shift> on your
keyboard, and then click the last item.
✔
psa220_eng.qxd 2/6/04 14:54 Page 18
19
DDrraagg aanndd DDrroopp ttoo TTrraannssffeerr
Make sure your player is connected when you launch DMM.
1
Click to highlight an item (e.g. track, artist, album, genre, playlist).
Drag the selection to
PPLLAAYYEERR MMUUSSIICC
or a specific playlist.
2
Your selection is now transferred to your drop destination.
3
IIMMPPOORRTTAANNTT:: KKEEEEPP AA CCOOPPYY OOFF YYOOUURR OORRIIGGIINNAALL FFIILLEESS!!
Please keep a copy of the original files transferred to your player. Philips is not
responsible for any loss of content if the player is damaged or not readable.
*Actual display varies with use
TIP
Press and hold <Ctrl> on your keyboard and click to select more than one item.
To select consecutive items, click the first item, press and hold <Shift> on your
keyboard, and then click the last item.
✔
psa220_eng.qxd 2/6/04 14:54 Page 19
20
AAdddd aa TTrraacckk ttoo aa PPllaayylliisstt bbyy DDrraagg aanndd DDrroopp
Click on a track.
1
Drag the selected track to a playlist.
2
Hold the mouse button and move your selection to a destination playlist.
3
Your selected track is now in the playlist.
4
TIP
Press and hold <Ctrl> on your keyboard and click to select more than one item.
To select consecutive items, click the first item, press and hold <Shift> on your
keyboard, and then click the last item.
✔
*Actual display varies with use
psa220_eng.qxd 2/6/04 14:54 Page 20
21
CCrreeaattee PPllaayylliissttss
Click on to create a new playlist.
1
Fill in the information in the pop up window.
2
Follow screen instructions to save your new playlist.
You can now drag more tracks to the new playlist.
3
Click on to import a playlist.
1
Fill in the information in the pop up window.
2
Follow screen instructions to import your new playlist.
You can now drag more tracks to the imported playlist.
3
IImmppoorrtt PPllaayylliissttss
*Actual display varies with use
psa220_eng.qxd 2/6/04 14:54 Page 21
22
DDeelleettee TTrraacckkss aanndd PPllaayylliissttss
Click to highlight an item.
1
Drag your selection to to delete.
2
Alternatively, press <Delete> on your keyboard to delete your selection.
3
*Actual display varies with use
TIP
Press and hold <Ctrl> on your keyboard and click to select more than one item.
To select consecutive items, click the first item, press and hold <Shift> on your
keyboard, and then click the last item.
✔
psa220_eng.qxd 2/6/04 14:54 Page 22
23
EEddiitt TTrraacckk IInnffoorrmmaattiioonn
Click on a track to edit its information.
1
Click on to call up the
IIDD33 TTaagg EEddiittoorr
.
2
Click on the text boxes of
TTrraacckk nnaammee
,
TTrraacckk nnuummbbeerr
,
AArrttiisstt
,
AAllbbuumm
,
GGeennrree
,
YYeeaarr
,
CCoommmmeennttss
to edit relevant information.
3
Click on
OOKK
to save the information. Click
CCaanncceell
to discard changes made.
4
*Actual display varies with use
psa220_eng.qxd 2/6/04 14:54 Page 23
24
SSeeaarrcchh ffoorr TTrraacckkss oorr PPllaayylliissttss
Type a search string in the
SSeeaarrcchh
field.
1
Click on to start searching.
2
You will see tracks and / or playlists that contain the search string.
3
You can transfer, delete or drag and drop these tracks as described in previous sections.
4
TIP
Deleting items from the searched results will delete them from your library!
✔
Click on the
SSeelleeccttoorr ppaanneell
to exit the search view.
5
*Actual display varies with use
psa220_eng.qxd 2/6/04 14:54 Page 24
25
DDMMMM MMeennuuss aanndd AAccttiioonnss
Use menus to customize DMM:
FFiillee
RReeffrreesshh ccoonntteennttss
For updating the latest status of the selected window
Start player link/ For disconnecting your player from DMM
Stop player link
QQuuiitt
For exiting DMM
EEddiitt
TTrraacckk iinnffoorrmmaattiioonn
For editing track information (see page 27 for more information)
UUsseerr aanndd ppllaayyeerr nnaammee
For changing the names of the user and your player
PPrreeffeerreenncceess
LLaanngguuaaggee
For selecting a language for DMM
MMuussiicc ffoollddeerrss
For adding, deleting or re-arranging your Music folders
TTrraannssffeerr ooppttiioonnss
For selecting transfer options
PPllaayyeerr ffiirrmmwwaarree
For checking, upgrading and restoring player firmware
UUppggrraaddee DDMMMM
For checking and upgrading DMM
HHeellpp
DDMMMM HHeellpp
For additional help and tips
SSuuppppoorrtt
For instant access to support site
AAbboouutt DDMMMM
For software version information
AAbboouutt PPllaayyeerr
For player information
TIP
The menus will call up various messages or windows where you need to input
some information. Follow screen instructions to complete your settings.
✔
psa220_eng.qxd 2/6/04 14:54 Page 25
26
MMaakkee UUssee ooff tthhee DDiiffffeerreenntt VViieewwss
SSeeccttiioonn iiccoonnss
You can click on or to expand or minimize respective content panels.
1
BBoorrddeerr aarreeaa
Drag the border area between
MMYY MMUUSSIICC
and
PPLLAAYYEERR MMUUSSIICC
. When the content
panel is reduced to a certain size, the content panel will only show the section icon.
2
DDrroopp ZZoonnee
When
PPLLAAYYEERR MMUUSSIICC
is minimized, you will see a
DDrroopp ZZoonnee
. You can drag
selected items and drop them here. Note that the
DDrroopp ZZoonnee
icon turns grey when
player memory is full.
3
DMM provides different view options. This is to minimize content refreshing time.
There are a few ways to customize DMM views.
psa220_eng.qxd 2/6/04 14:54 Page 26
27
DDiissppllaayy TTrraacckkss YYoouurr WWaayy
SSoorrttiinngg
You can click on the contents header (Track, Artist, Album, Genre) to arrange music
tracks according to the order you selected.
1
DDeettaaiilleedd // ssuummmmaarryy vviieeww
Click on the next to the contents header to turn on / turn off
detailed display of item contents.
2
detailed view
summary view
psa220_eng.qxd 2/6/04 14:54 Page 27
28
UUppggrraaddeess
We know you will enjoy your product for a long time. For best performance, we recommend that
you regularly check in to www.nike-philips.com for free upgrades of the latest software
and firmware for your product.
FFiirrmmwwaarree UUppggrraaddee
Your player is controlled by an internal program called
ffiirrmmwwaarree
. You can download and install
the latest firmware to keep your player updated.
Click
PPrreeffeerreenncceess
➔
PPllaayyeerr FFiirrmmwwaarree
➔
UUppggrraaddee FFiirrmmwwaarree
. This will give you further
information on how to download and upgrade your player firmware.
1
Follow screen instructions to complete firmware upgrade.
2
TIP
Because you are updating the program of your player, please make sure
your player is connected to your computer before you launch DMM.
Keep it connected during the firmware upgrade process.
✔
DDMMMM UUppggrraaddee
DMM is the software that enables best interactions between your player and your computer
Keep it updated by doing upgrades.
Click
PPrreeffeerreenncceess
➔
UUppggrraaddee DDMMMM
. This will give you further information on how to
download and upgrade your DMM.
1
Follow screen instructions to complete DMM upgrade.
2
psa220_eng.qxd 2/6/04 14:54 Page 28
29
UUnniinnssttaallll DDMMMM
Close all applications, including DMM.
1
From the Start menu, go to Control Panel. Select Add / Remove Programs.
Select DMM from your currently installed programs to uninstall.
2
For further information on uninstalling programs, please refer to Windows’
user manual.
3
psa220_eng.qxd 2/6/04 14:54 Page 29
PPrroobblleemm CCaauussee SSoolluuttiioonn
Cannot power on player Battery drained Charge the battery
(See page 1, step 2)
Loose key press Press and hold 22;; for 2 seconds
USB connected Disconnect player from
computer (See page 1, step 5)
Firmware error Connect player to computer and
restart DMM
Database error Connect player to computer
and restart DMM
USB doesn’t work Loose connection Check connection
USB driver not installed Windows 98SE user only: install the
USB driver provided in by-packed CD
Player does not respond Player busy Press and hold [VOLUME +] and 33 to
reset. Press and hold 22;; for 2 seconds
to power on again if the power on
screen does not appear automatically
Automatic power off Your player automatically powers
if there is no operation and no
music played within 20 seconds.
Press and hold
22;;
to power on.
30
TTrroouubblleesshhoooottiinngg ((11))
If a fault occurs, first check the points listed. For further help and other troubleshooting tips,
please also check out FAQ for your player at w
ww.nike-philips.com.
If you are unable to find a solution from these hints, consult your dealer or service center.
WARNING:
Under no circumstances should you try to repair the set yourself, as this will invalidate
the warranty.
psa220_eng.qxd 2/6/04 14:54 Page 30
31
PPrroobblleemm CCaauussee SSoolluuttiioonn
Cannot play track Track format not Your player is not able to play
supported AAC encrypted or WMA songs
bought from the internet.
Since it is possible for you to upgrade
your product, we recommend that you
register your product on
www.nike-philips.com/register so we can
inform you as soon as new free
upgrades becom available.
Tracks were copied Your player will play tracks only if they
from your computer are transferred using the by-packed
to your player using music management software
drag and drop in Windows
Explorer or Finder
Tracks not shown in Track format not Ensure that all your music on your
by-packed music supported computer is in formats supported by
management software your player.
TTrroouubblleesshhoooottiinngg ((22))
psa220_eng.qxd 2/6/04 14:54 Page 31
32
SSaaffeettyy aanndd MMaaiinntteennaannccee
TTaakkee ccaarree wwhheenn uussiinngg hheeaaddpphhoonneess
HHeeaarriinngg ssaaffeettyy
:
Listen at a moderate volume. Using headphones at high volume can impair your hearing.
TTrraaffffiicc ssaaffeettyy::
Do not use headphones while driving or cycling as you may cause an accident.
TTaakkee ccaarree wwhheenn uussiinngg ssttrroobbee lliigghhtt
Do not look directly into the strobe light for prolonged period as this may cause
damage to your eyes.
GGeenneerraall mmaaiinntteennaannccee
TToo aavvooiidd ddaammaaggee oorr mmaallffuunnccttiioonn::
– Do not expose to excessive heat caused by heating equipment or direct sunlight.
– Do not drop your player or allow objects to fall on your player.
– Do not allow your player to be submersed in water. Do not expose earphone socket or
battery compartment to water as water entering the set may cause major damage.
– Do not use any cleaning agents containing alcohol, ammonia, benzene, or abrasives as
these may harm the set.
– Active mobile phones in the vicinity may cause interference.
UUssiinngg DDMMMM
Avoid the risk of corrupting and losing data with the following precautions when using DMM:
– Never disconnect the USB cable while file transfer is in progress.
– Never close DMM while file transfer is in progress.
– Operate using one file management system only. When transferring files, do not attempt to
transfer files via Windows Explorer / Finder whilst waiting for transfer to complete on DMM.
– Do not delete any track via Windows Explorer / Finder when file transfer is active in DMM.
If you wish to delete a file, please only do so from either DMM or from Windows Explorer / Finder
after file transfer completes.
UUssiinngg tthhee ppoowweerr aaddaapptteerr // cchhaarrggeerr
– Use only the power adapter that came with your player. Adapters for other electronic
devices may look similar, but they may damage your player.
– The only way to shut off power completely to your power adapter/charger is to disconnect
it from the power source.
– Always leave space around your power adapter. Do not use this equipment in a location
where airflow around the power adapter is confined, such as a bookcase.
– When connecting or disconnecting your power adapter, always hold the power adapter by
its sides. Keep fingers away from the metal part of the plug.
– The power adapter for your player is a high-voltage component and should not be opened
for any reason, even when your player is off.
EEnnvviirroonnmmeennttaall iinnffoorrmmaattiioonn
We have reduced the packaging to its minimum and made it easy to separate into
materials: cardboard, PS, PE, PET.
Your set consists of material which can be recycled if disassembled by a specialized company
Please observe the local regulations to dispose of packaging, exhausted
batteries and old equipment.
psa220_eng.qxd 2/6/04 14:54 Page 32
33
NNoottiiccee ffoorr tthhee UUSSAA
Nike-Philips
PSA220, PSA250
Note:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
0 Relocate the receiving antenna.
0 Increase the separation between the equipment and receiver.
0 Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
0 Consult the dealer or an experienced radio/ TV technician for help.
This Class B digital apparaatus complies with Canadian ICES-003.
This product complies with the radio interference requirements of the European Community.
MMooddiiffiiccaattiioonnss
Modifications not authorized by the manufacturer may void user authority to operate this device.
CCooppyyrriigghhtt iinnffoorrmmaattiioonn
All other brand and product names are trademarks of their respective companies
or organizations.
Unauthorized duplication of any recordings downloaded from the internet or made from audio
CDs is a violation of copyright laws and international treaties.
psa220_eng.qxd 2/6/04 14:54 Page 33
34
TTeecchhnniiccaall DDaattaa
GGeenneerraall
Dimension 27 (D) x 27 (H) x 71 mm
Weight 70g
PPoowweerr ssuuppppllyy
Built-in 600mAh Li-ion rechargeable battery
Multi-voltage AC power adapter / charger
BBaatttteerryy ppllaayyttiimmee
12 hours using built-in rechargeable battery (4 hours fully charged, 1 hour fast charge)
*Battery life may vary according to use.
DDiissppllaayy
White Backlight LCD
IInnddiiccaattiioonnss
Album name, artist name, battery status, DBB, frequency, pre-set station, time, track
SSoouunndd
Bass enhancement Dynamic Bass Boost
Equalizer settings Funk, Hip hop, Rock, Techno
Frequency Response 20 - 20 000 Hz
Output power (RMS) 2 x 5 mW (16 Ω)
Signal to noice ratio >80
Volume control Digital
AAuuddiioo PPllaayybbaacckk
MP3 (8 - 320 kbps and VBR)
WMA (32 - 192 kbps)
IIDD33--ttaagg ssuuppppoorrtt
Album title, genre title, track title and artist name
SSttoorraaggee MMeeddiiaa
Mass storage class, 256MB* NAND Flash (psa 220), 512MB* NAND Flash (psa 250)
Music memory capacity:
psa 220: up to 60 MP3 tracks (128kbps) or 120 WMA tracks (64kbps)
psa 250: up to 125 MP3 tracks (128kbps) or 250 WMA tracks (64kbps)
* Actual formatted capacity will be less.
TTuunneerr
Frequency range 87.5 - 108 MHz
Station presets 10
Tuner bands FM stereo
CCoonnnneeccttiivviittyy
5V DC, headphones (3.5mm line-out), remote control, USB 1.1
MMuussiicc ttrraannssffeerr
via DMM for music playback
FFiillee ttrraannssffeerr
via Windows Explorer (PC) of data in general
AAcccceessssoorriieess
(availability subject to regions)
AY4102 AC/ DC adapter
AY4208 Armband
AY4207 Carrier
SBC HJ030/77 Headphones
AY3192 USB cable
AY4002 Waistband remote control
The type plate is at the back of the set.
Philips, Nike, Inc. reserves the right to make design and specification changes for product
improvement without prior notice.
All rights reserved.
psa220_eng.qxd 2/6/04 14:54 Page 34
www.nike-philips.com
type number - psa220 / 250
© 2004 Phillips, Nike, Inc. All rights reserved.
Meet Philips & Nike on the Internet
http://www.nike-philips.com
psa220&250 cover 2/6/04 14:31 Page 2
