OWNER’S MANUAL
COMMERCIAL WASHER
MODEL
TCW2013LS/TCW2013QS/TCW2013CS
www.lg.com
Before beginning installation, read these instructions carefully. This will simplify
installation and ensure that the washer is installed correctly and safely.
Leave these instructions near the washer after installation for future reference.
MFL67658508
2
PRODUCT FEATURES
PRODUCT FEATURES
DIRECT DRIVE SYSTEM
The advanced brushless DC motor drives the drum directly without using a belt and pulley.
TILTED DRUM AND EXTRA LARGE DOOR OPENING
The tilted drum and extra large opening make it possible to load and unload clothing more easily.
ULTRA CAPACITY
The larger drum enables more tumbling action and greater centrifugal force, but also less tangling
and wrinkling of the laundry. Heavier loads, such as king size comforters, blankets, and curtains can
be washed.
SEE-THROUGH DOOR AND BIG DOOR
You can see the laundry throughout the cycle.
MAGNETIC DOOR PLUNGER
Safely and conveniently secure the door slightly ajar with the magnetic door plunger. This will
promote air circulation and allow the interior of the machine to dry. To use this feature, after the load
has been removed, do not close the door completely. When the magnetic door plunger comes into
contact with the metal washer cabinet, it will secure the door slightly open allowing the interior of
the washer to dry.
STAINLESS STEEL DRUM
Stainless steel drum offers extreme durability.
TUB CLEAN
Regular cleaning of the tub on a monthly basis using TUB CLEAN can help keep the tub clean and
fresh.
3
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, injury to persons, or death.
Your Safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always
read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER, WARNING or
CAUTION.
These words mean:
DANGER
You will be killed or seriously injured if you don’t immediately follow instructions.
WARNING
You can be killed or seriously injured if you don’t follow instructions.
CAUTION
You may be slightly injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of
injury, and tell you what can happen if the instructions are not followed.
4
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, injury to persons, or death.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance for electric current. This appliance is equipped with
a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
WARNING
Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a
qualified electrician or servicer if you are in doubt as to whether the appliance is properly grounded. Do not
modify the plug provided with the appliance. If it does not fit the outlet, have a proper outlet installed by a
qualified electrician. Failure to follow these warnings can cause serious injury, fire, electric shock, or death.
BASIC SAFETY PRECAUTIONS
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic
precautions, including the following.
•
Before use, the washer must be properly installed as
described in this manual.
•
Do not wash articles that have been previously cleaned
in, washed in, soaked in, or spotted with gasoline, dry
cleaning solvents, or other flammable or explosive
substances,
as they give off vapors that could ignite or
explode.
•
Do not add gasoline, dry cleaning solvents, or other
flammable or explosive substances to the wash water.
These substances give off vapors that could ignite or
explode.
• Under certain conditions, hydrogen gas may be produced
in a hot water system that has not been used for 2
weeks or more. HYDROGEN GAS IS EXPLOSIVE.
If the
hot water system has not been used for such a period,
before using the washer, turn on all hot water faucets
and let the water flow from each for several minutes.
This will release any accumulated hydrogen gas. As the
gas is flammable,
do not smoke or use an open flame
during this time.
•
Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer is
used near children.
•
Before the washer is removed from service or
discarded, remove the door to prevent children from
climbing inside.
•
Do not install or store the washer where it will be
exposed to the weather or freezing temperatures.
•
Do not tamper with controls.
•
Do not repair or replace any part of the washer or
attempt any servicing other than as described in this
manual.
We strongly recommend that any service be
performed by a qualified technician.
•
See Installation Instructions for grounding requirements.
•
ALWAYS follow the fabric care instructions supplied by
the garment manufacturer.
•
Do not place items exposed to cooking oil in your
washer.
Items contaminated with cooking oils may
contribute to a chemical reaction that could cause a load
to catch fire.
•
Use fabric softeners or products to eliminate static only
as recommended by the manufacturer.
• This washer is not designed for maritime use or for
mobile installations such as in RVs, aircraft, etc.
•
Turn off the water faucets and unplug the washer if the
machine is to be left for an extended period of time,
such as during vacations.
•
Do not use to dry articles containing foam rubber or
similarly textured rubber-like materials.
• Packaging material can be dangerous for children. There
is a risk of suffocation!
Keep all packaging from children.
•
Always check the inside of the washer for foreign
objects before loading laundry. Keep the door closed
when not in use.
•
Do not reach into the appliance if the tub or agitator is
moving.
• WARNING :
This product contains chemicals known to
the
State of California to cause cancer and birth defects
or other reproductive harm.
Wash hands after handling.
5
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, injury to persons, or death.
SAFETY INSTRUCTIONS FOR INSTALLATION
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic
precautions, including the following.
•
Refer to INSTALLATION INSTRUCTIONS for
detailed grounding procedures.
Installation
instructions are packed with the washer for
installer’s reference. If the washer is moved to a
new location, have it checked and reinstalled by a
qualified service technician. Failure to follow this
warning can cause serious injury, fire, electric shock,
or death.
•
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord.
Failure to follow this warning can cause serious
injury, fire, electric shock, or death.
•
For personal safety, this appliance must be properly
grounded.
Failure to follow this warning can cause
serious injury, fire, electric shock, or death.
•
The power cord of this appliance is equipped with
a 3-prong (grounding) plug which mates with a
standard 3-prong (grounding) wall outlet
to minimize
the possibility of electric shock from this appliance.
•
This washer must be plugged into a 120 VAC, 60 Hz
grounded outlet.
Failure to follow this warning can
cause serious injury, fire, electric shock, or death.
•
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
Failure to follow this warning
can cause serious injury, fire, electric shock, or
death.
•
Where a standard 2-prong wall outlet is
encountered, it is your personal responsibility
and obligation to have it replaced with a properly
grounded 3-prong wall outlet.
Failure to follow this
warning can cause serious injury, fire, electric shock,
or death.
•
Do not install on carpet. Install washer on a solid
floor.
Failure to follow this warning can cause
serious leak damage.
•
Do not remove ground prong. Do not use an
adapter or extension cord. Plug into a grounded
3-prong outlet.
Failure to follow these warnings can
cause serious injury, fire, electric shock, or death.
•
The washer should always be plugged into its own
individual electrical outlet which has a voltage rating
that matches the rating plate.
This provides the best
performance and also prevents overloading house
wiring circuits which could cause a fire hazard from
overheated wires.
•
Never unplug your washer by pulling on the power
cord.
Always grip plug firmly and pull straight out
from the outlet. Failure to follow this warning can
cause serious injury, fire, electric shock, or death.
•
Repair or immediately replace all power cords that
have become frayed or otherwise damaged. Do not
use a cord that shows cracks or abrasion damage
along its length or at either end.
Failure to follow
this warning can cause serious injury, fire, electric
shock, or death.
•
When installing or moving the washer, be careful
not to pinch, crush, or damage the power cord.
Failure to follow this warning can cause serious
injury, fire, electric shock, or death.
•
The washer must be installed and electrically
grounded by a qualified service person in
accordance with local codes
to prevent shock
hazard and assure stability during operation.
•
The washer is heavy. Two or more people may be
needed to install and move the appliance.
Failure to
do so can result in back or other injury.
•
Store and install the washer where it will not
be exposed to temperatures below freezing or
exposed to outdoor weather conditions.
Failure to
follow this warning can cause serious leak damage.
•
Do not install the washer in humid spaces to reduce
the risk of electric shock
. Failure to follow this
warning can cause serious injury, fire, electric shock,
or death.
•
To reduce the risk of injury to persons, adhere to all
industry recommended safety procedures including
the use of long sleeved gloves and safety glasses.
Failure to follow all of the safety warnings in this
manual could result in property damage, injury to
persons or death.
6
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, injury to persons, or death.
SAFETY INSTRUCTIONS FOR USE, CARE, CLEANING, AND DISPOSAL
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic
precautions, including the following.
SAVE THESE INSTRUCTIONS
•
Unplug the washer before cleaning
to avoid
the risk of electric shock.
•
Never use harsh chemicals, abrasive
cleaners, or solvents to clean the washer.
They will damage the finish.
•
Do not put oily or greasy rags or clothing on
top of the washer.
These substances give off
vapors that could ignite the materials.
•
Do not wash items that are soiled with
vegetable or cooking oil.
These items may
contain some oil after laundering. Due to the
remaining oil, the fabric may smoke or catch
fire by itself.
•
Disconnect this appliance from the
power supply before attempting any user
maintenance. Turning the controls to the OFF
position does not disconnect this appliance
from the power supply.
Failure to follow this
warning can cause serious injury, fire, electric
shock, or death.
•
Do not combine laundry products for use in
one load unless specified on the label.
•
Do not mix chlorine bleach with ammonia
or acids such as vinegar. Follow package
directions when using laundry products.
Incorrect usage can produce poisonous gas,
resulting in serious injury or death.
•
Do not reach into the washer while parts are
moving. Before loading, unloading, or adding
items, press the START/PAUSE button and
allow the drum to coast to a complete stop
before reaching inside.
Failure to follow this
warning can cause serious injury, fire, electric
shock, or death.
•
Do not allow children to play on or in the
washer. Close supervision of children is
necessary when the washer is used near
children. As children grow, teach them the
proper, safe use of all appliances.
Failure to
comply with these warnings could result in
serious injury to persons or death.
•
Destroy the carton, plastic bag, and other
packing materials after the washer is
unpacked. Children might use them for play.
Cartons covered with rugs, bedspreads, or
plastic sheets can become airtight chambers.
Failure to comply with these warnings could
result in serious injury to persons or death.
•
Keep laundry products out of children’s
reach. To prevent injury to persons, observe
all warnings on product labels.
Failure to
comply with these warnings could result in
serious injury to persons or death.
•
Remove the door to the washing
compartment to avoid the danger of children
or small animals getting trapped inside
before your washer is removed from service
or discarded.
Failure to do so can result in
serious injury to persons or death.
7
TABLE OF CONTENTS
TABLE OF CONTENTS
2 PRODUCT FEATURES
3 IMPORTANT SAFETY INSTRUCTIONS
4 BASIC SAFETY PRECAUTIONS
4 GROUNDING INSTRUCTIONS
5 SAFETY INSTRUCTIONS FOR INSTALLATION
6 SAFETY INSTRUCTIONS FOR USE, CARE,
CLEANING, AND DISPOSAL
8 PARTS AND ACCESSORIES
8 Parts
8 Accessories
9 CONTROL PANEL FEATURES
9 Coin / Card type
10 OPL type
12 INSTALLATION INSTRUCTIONS
12 Checking and choosing the proper location
13 Unpacking and removing shipping bolts
13 Installing Hole cap
14 Connecting the water lines
15 Connecting the drain line
15 Installation of drain hose
16 Leveling the washing machine
17 PREPARATION
17 Precautions for fabric care before wash cycle
18 Fabric Care Labels

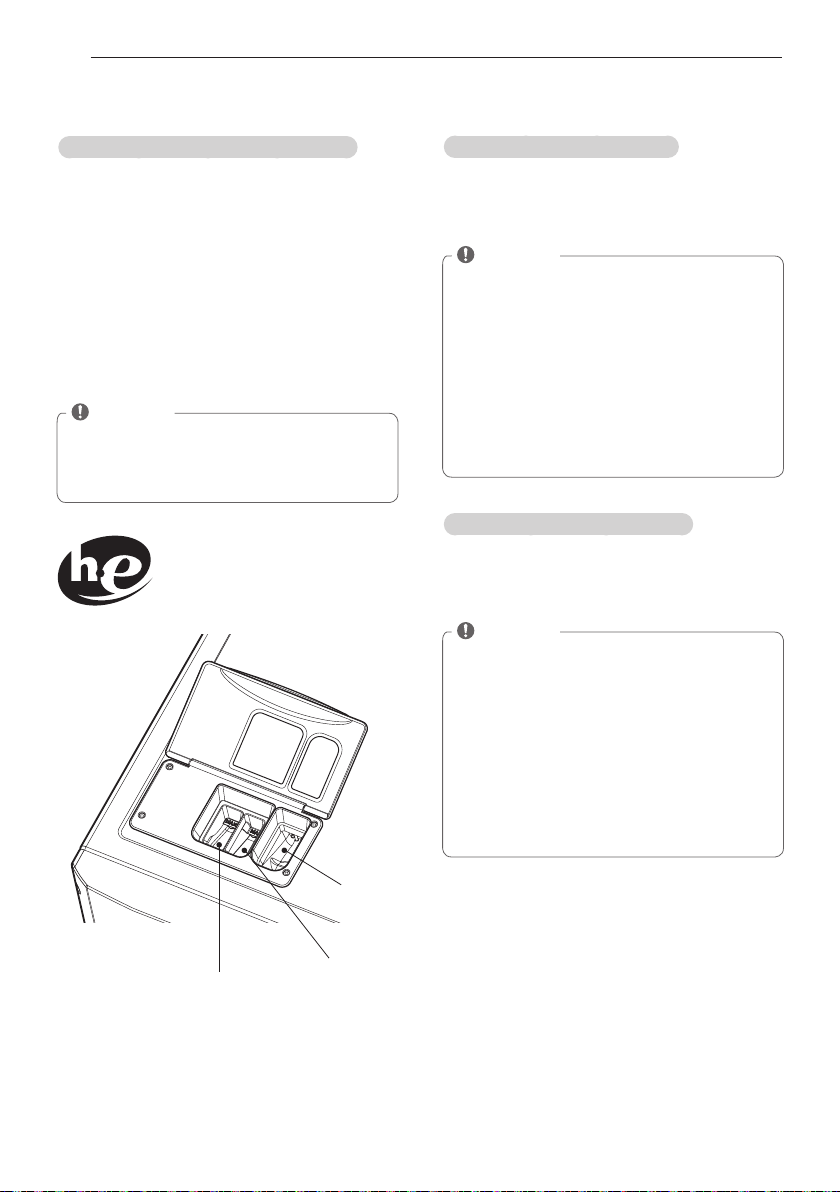

19 Using detergent/fabric softener
19 - Recommended detergent
19 - About the dispenser
20 - Loading the dispenser
21 OPERATING YOUR WASHER

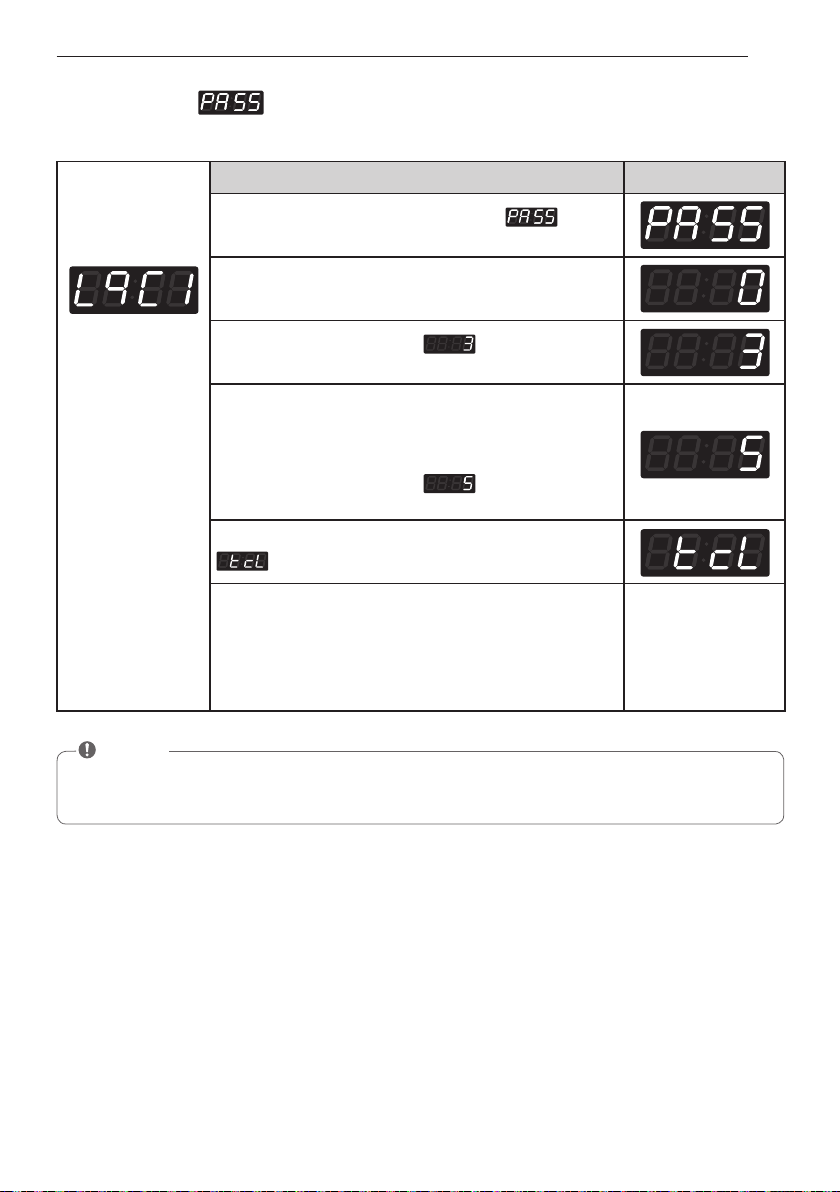

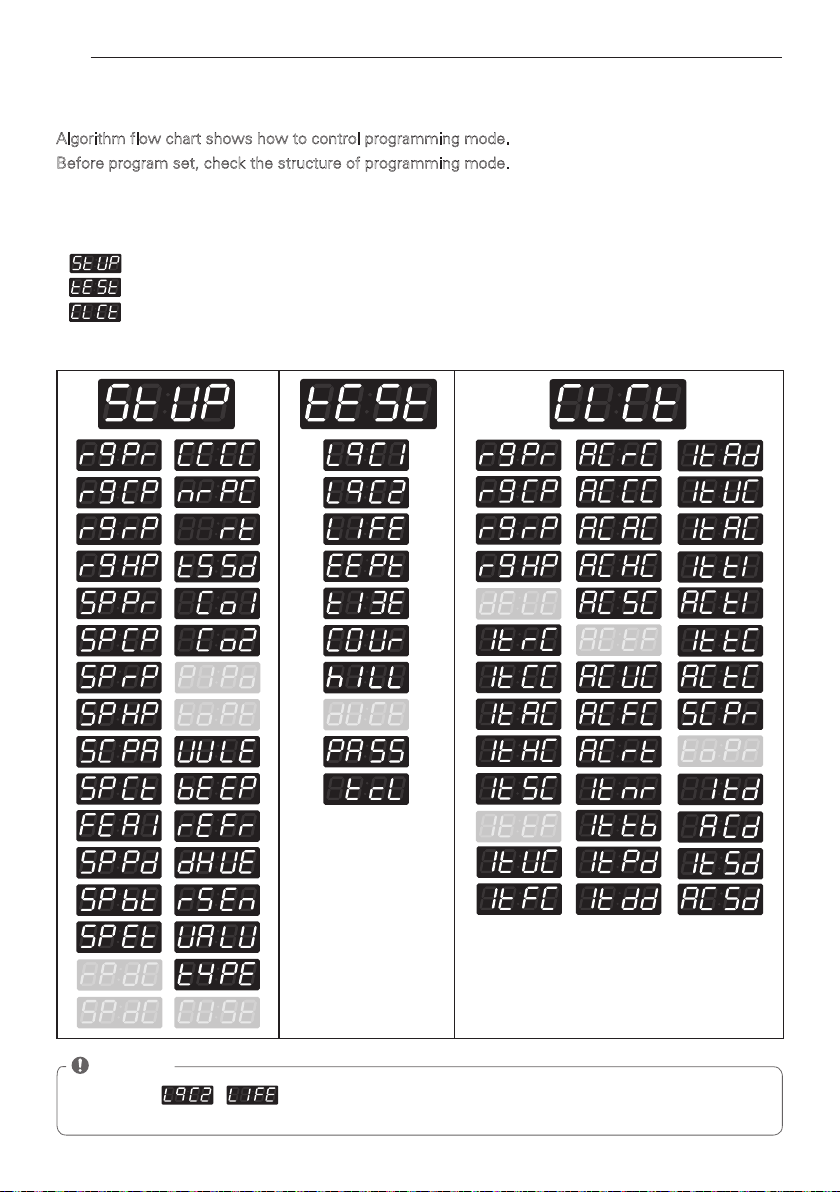

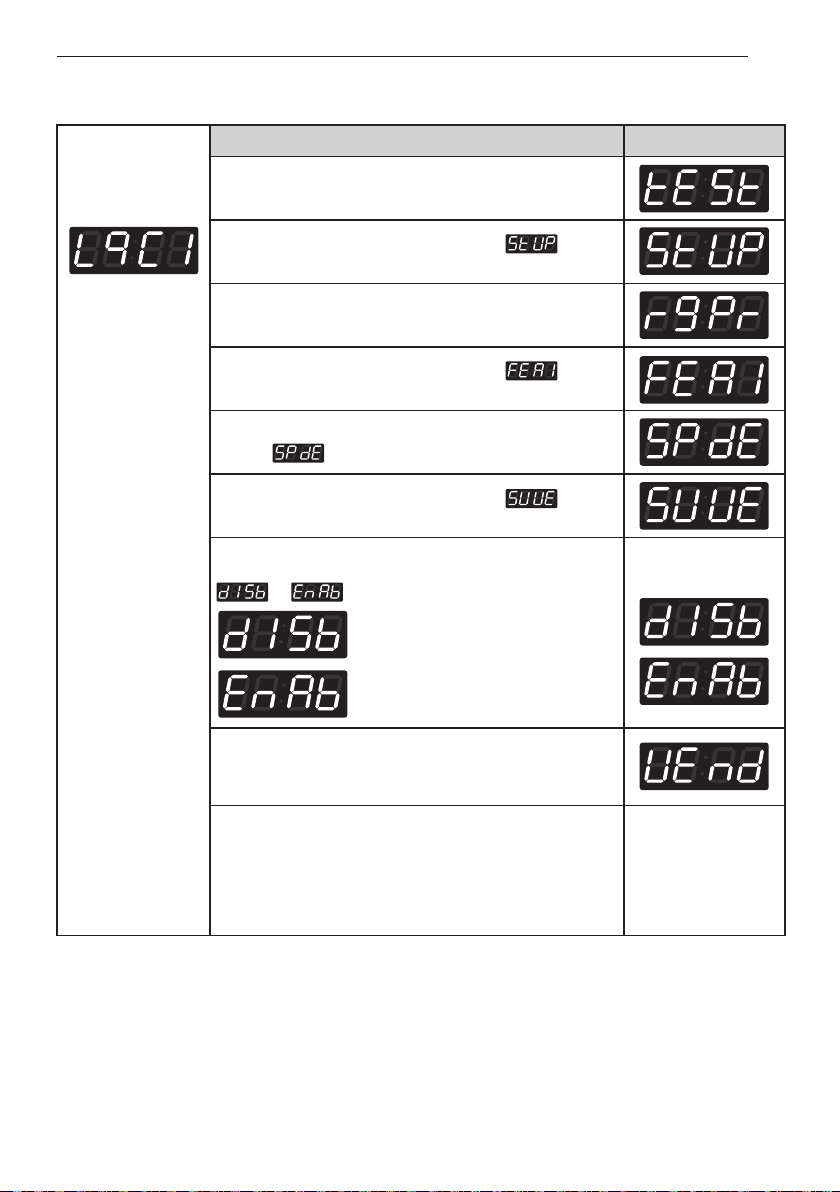

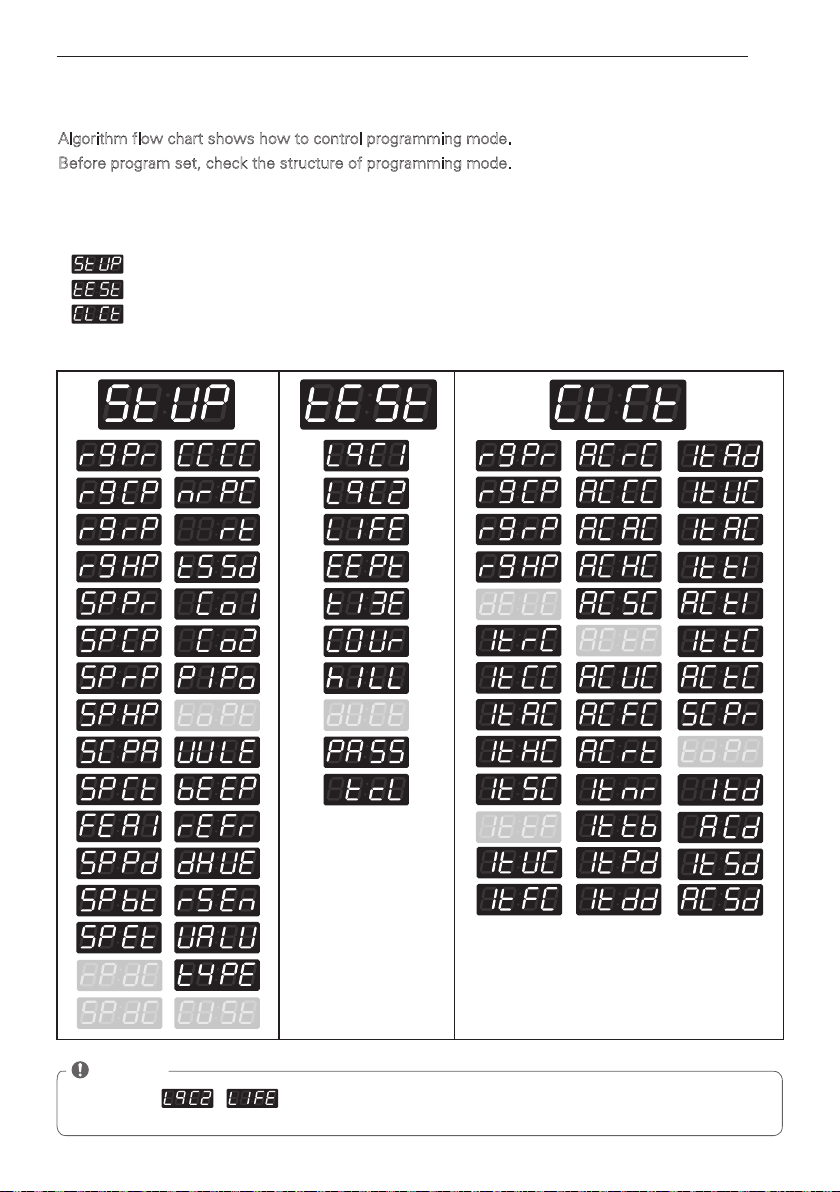

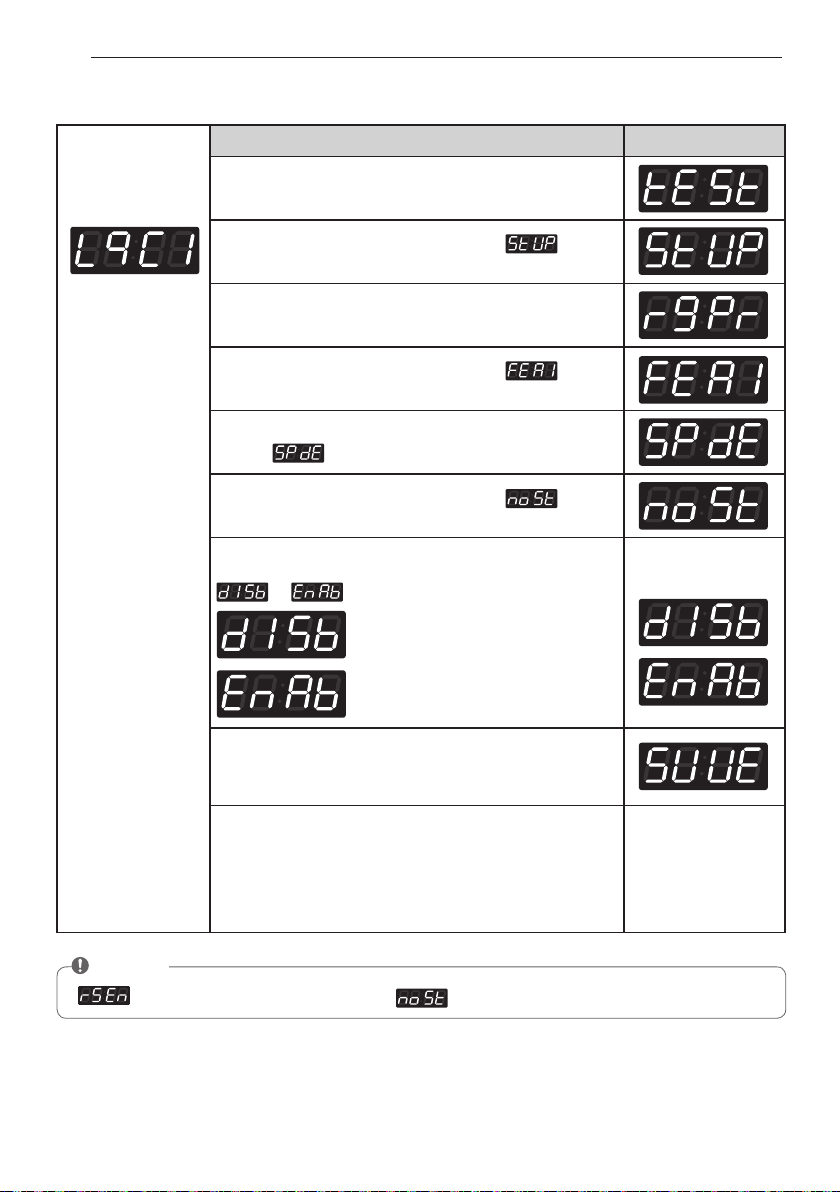

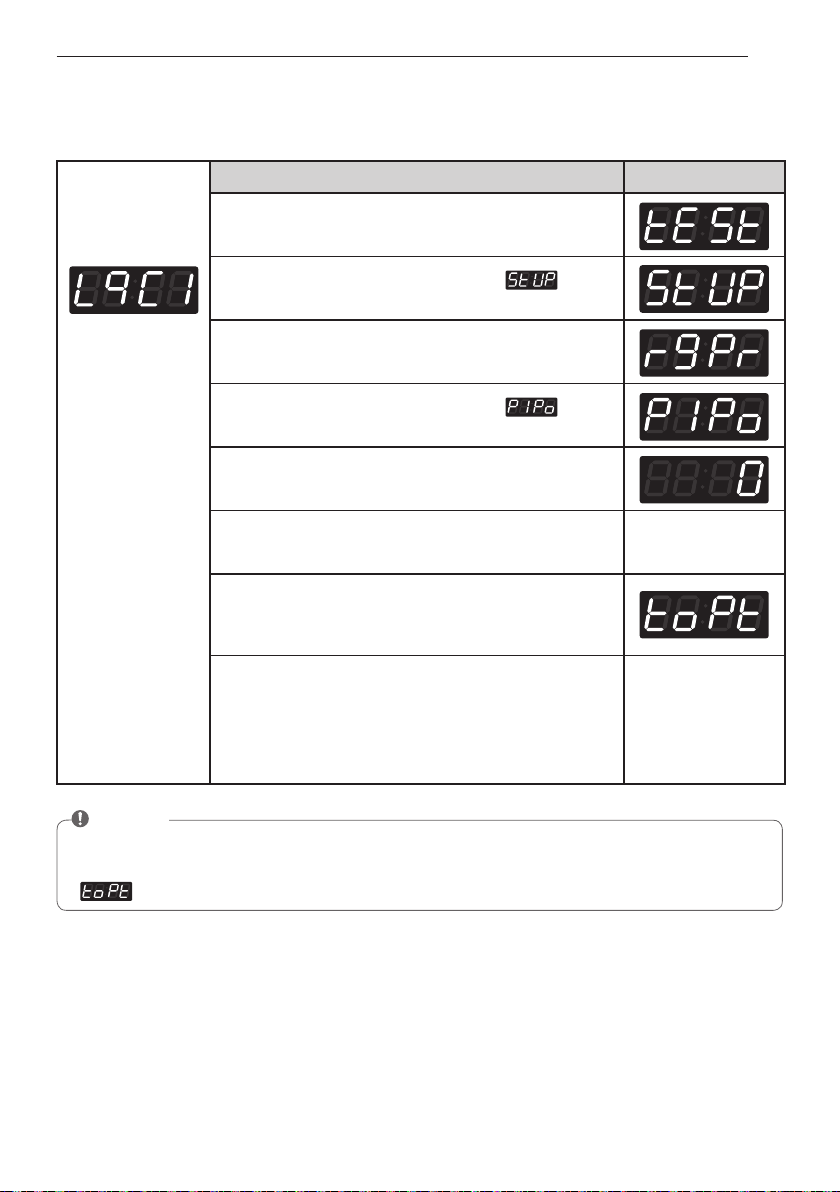

22 PROGRAMMING MODE
23 Card type
24 Coin type
25 OPL type

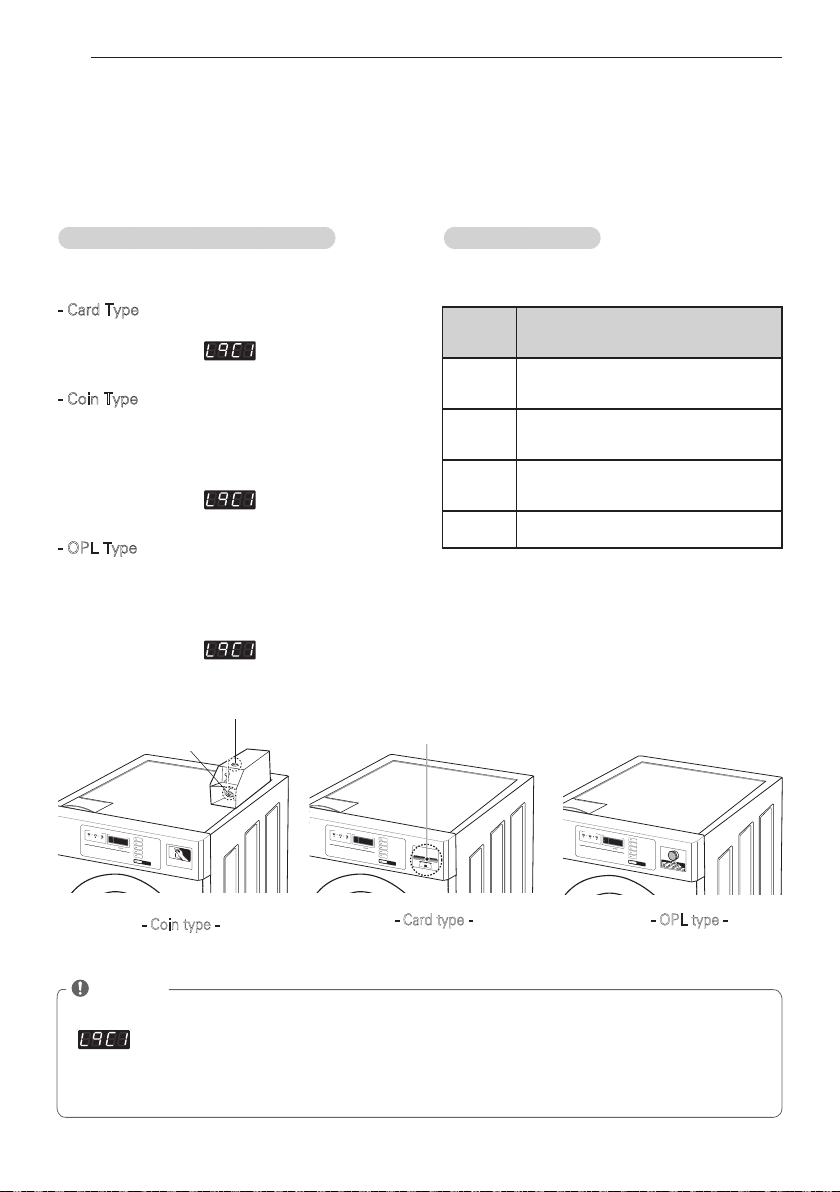

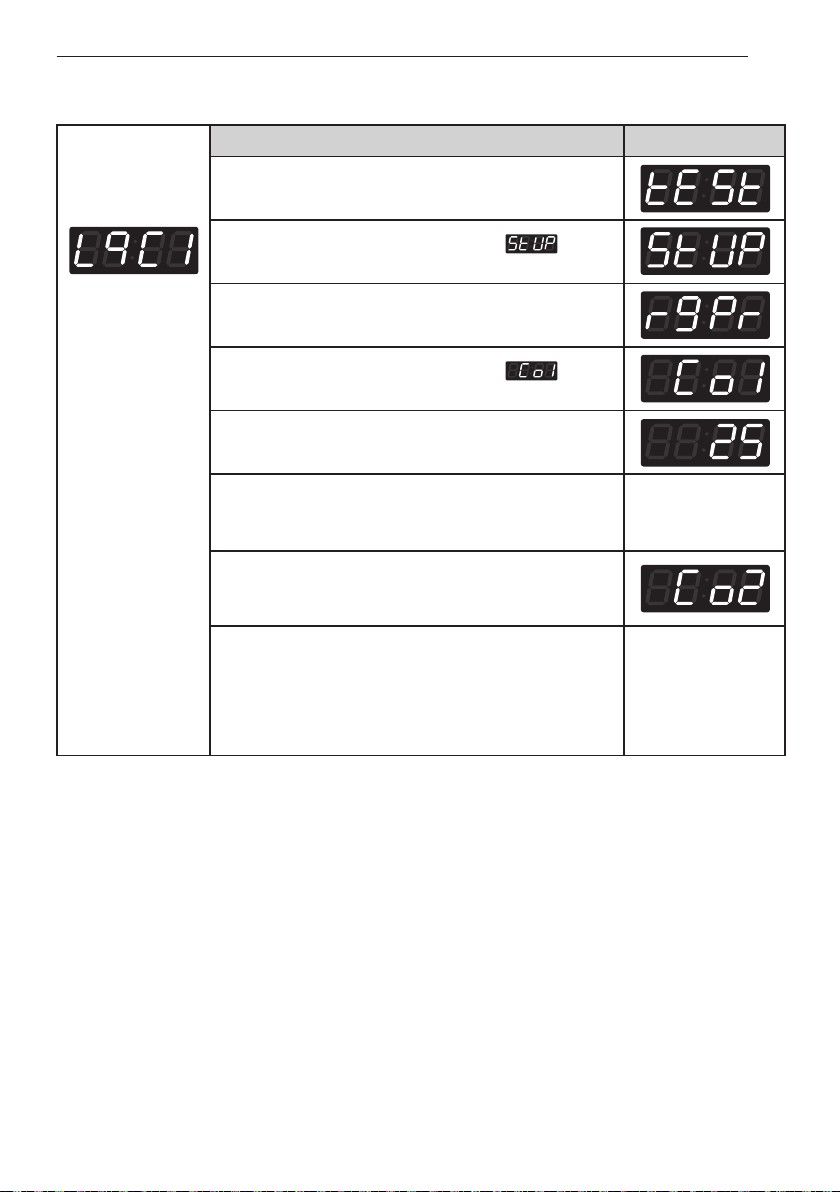

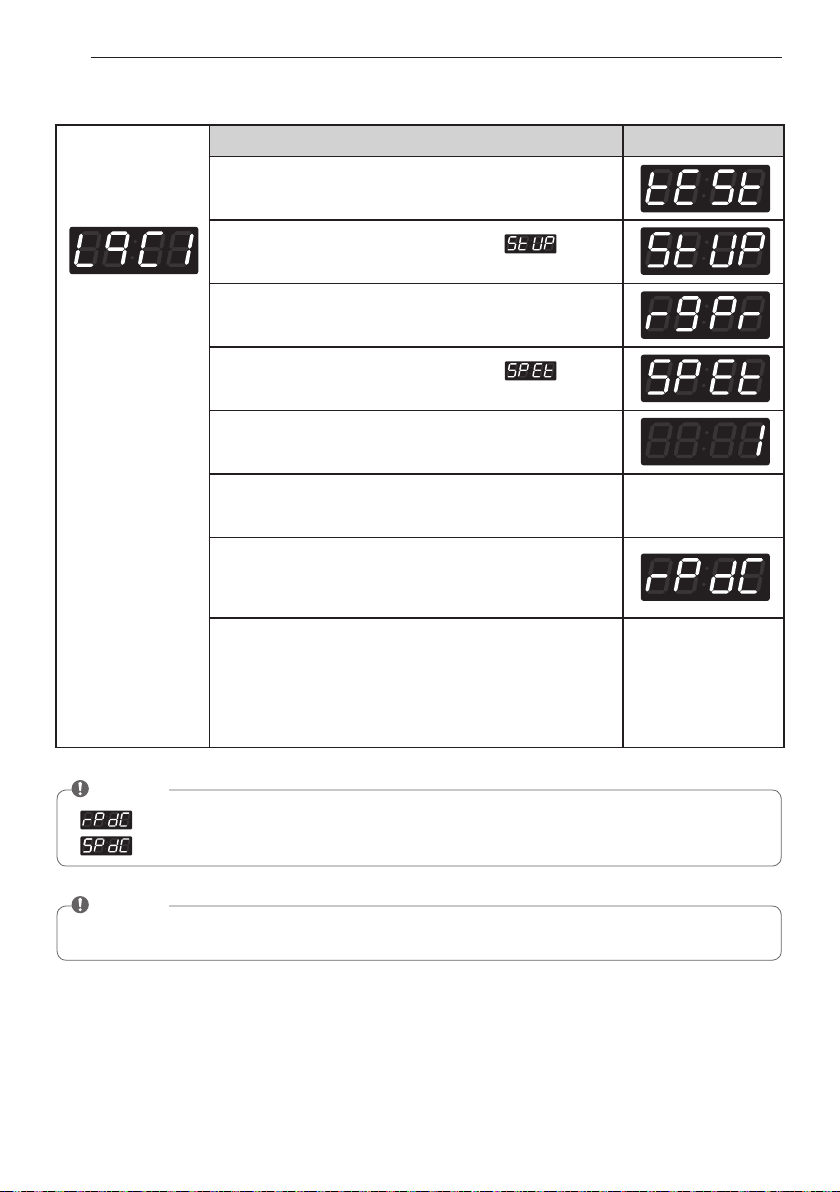

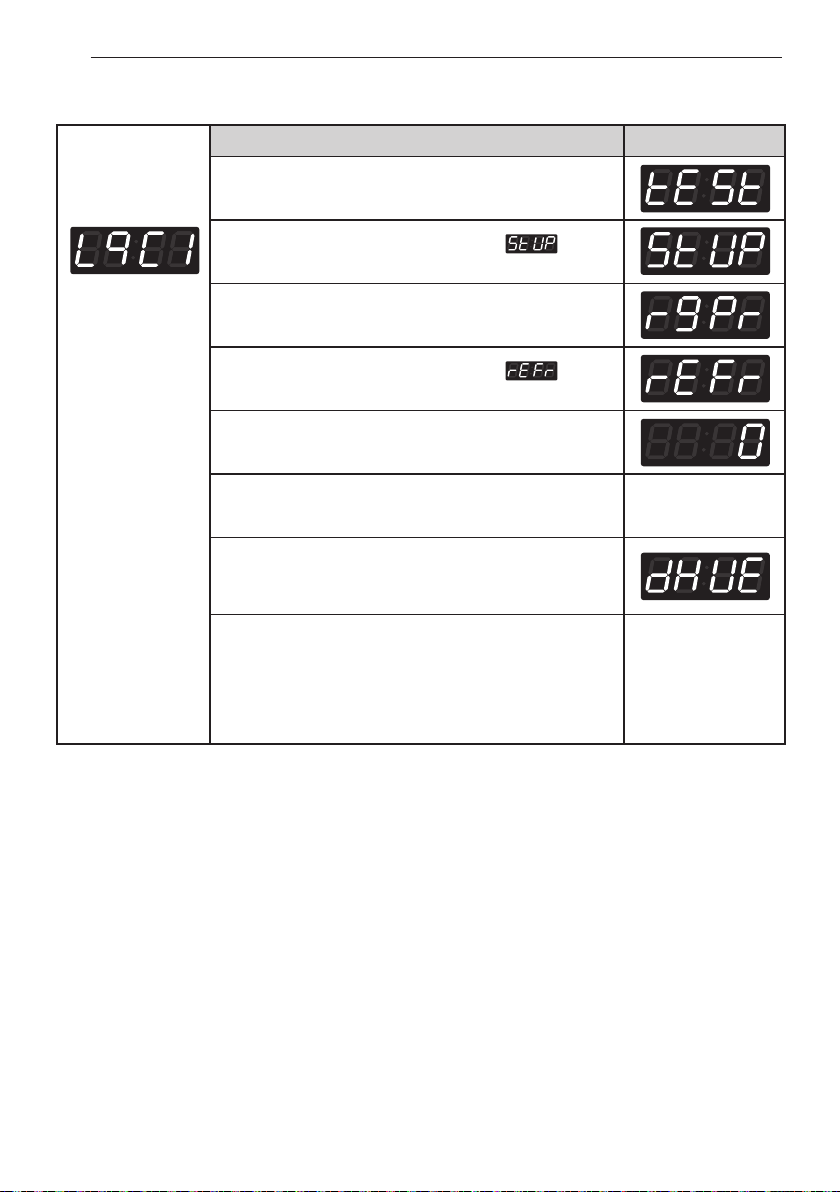

26 Programming mode - Setup Mode
26 - 1. How to change regular price.
27 - 2. How to change regular delicates price.
28 - 3. How to change regular warm & cold price
29 - 4. How to change regular hot price
30 - 5. How to change special price
31 - 6. How to change special delicates price
32 - 7. How to change special warm & cold price
33 - 8. How to change special hot price
34 - 9. How to change add super wash price
35 - 10. How to change add super wash type

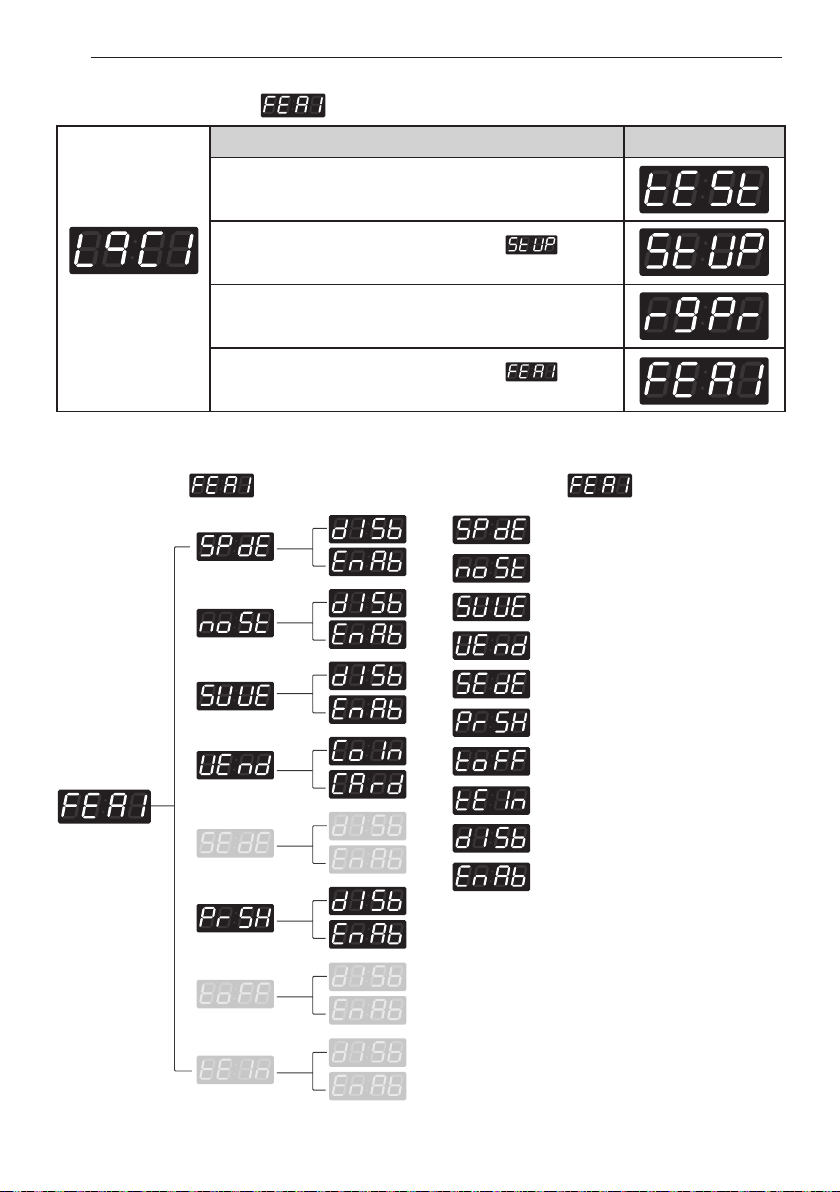

36 - 11. How to enter the
37 - 11-1. Special price day setup
38 - 11-2. Non-stop rinse
39 - 11-3. Add super wash setup

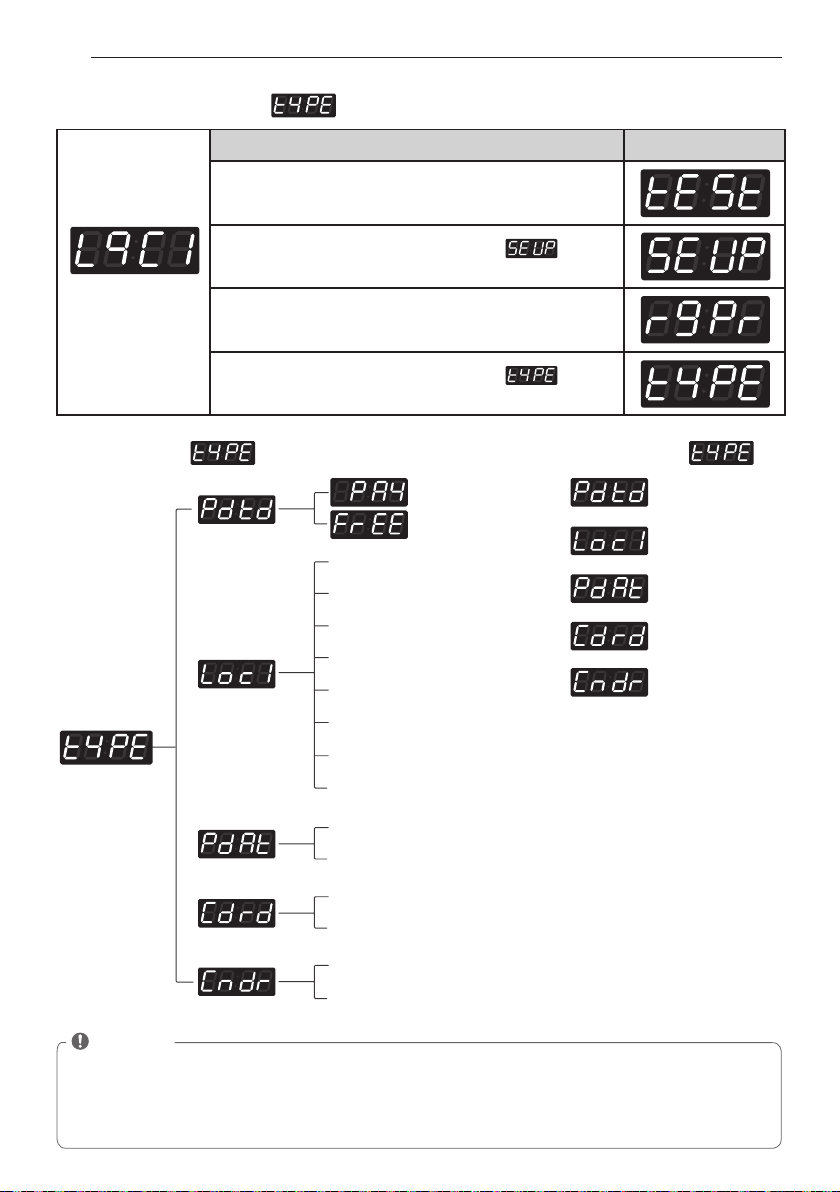

40 - 11-4. Vend type setup - card type or coin type setup
41 - 11-5. Pre-wash set up
42 - 11-6. Twin spray set up

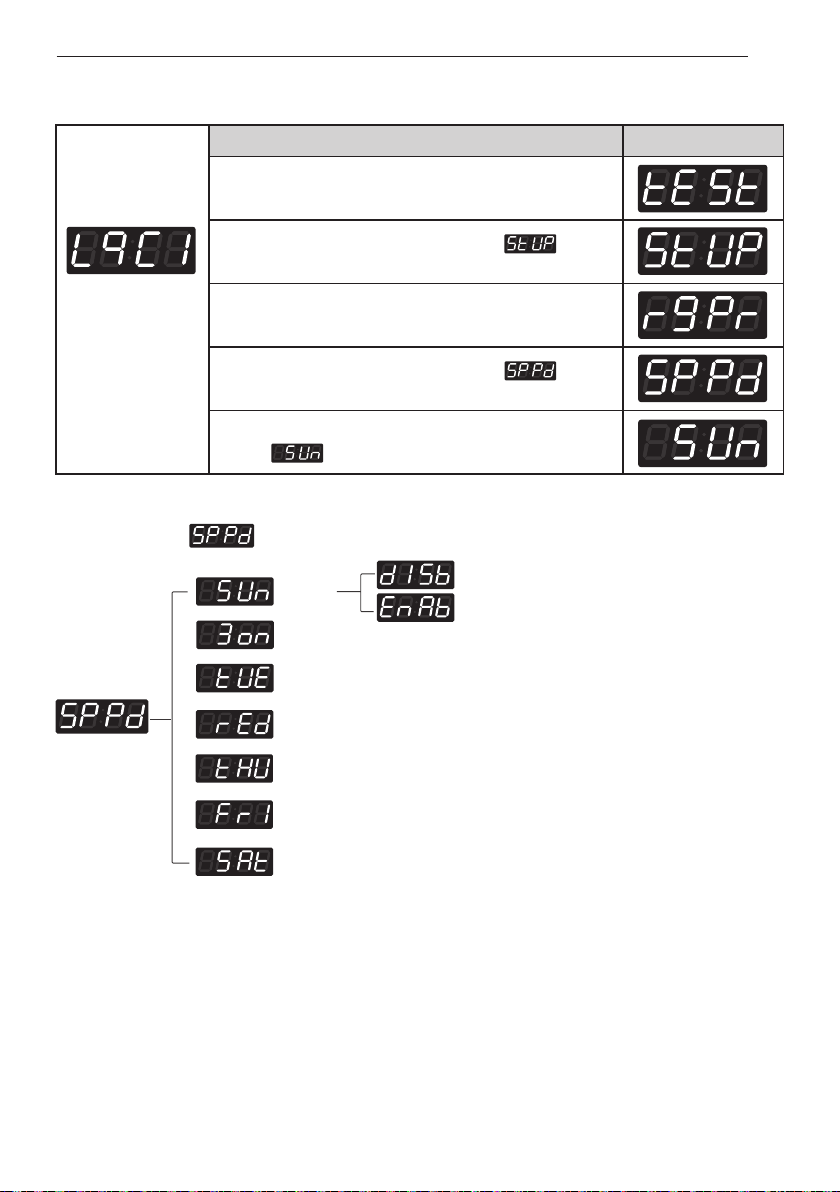

43 - 12. How to enter the special price day
44 - 12-1. How to change to Sunday
45 - 13. Special price beginning time setup
46 - 14. Special price ending time setup
47 - 15. Washing time set up
48 - 16. Rinsing times per cycle
49 - 17. Rinsing time setup
50 - 18. Top spin speed – final spin time depends on RPM
51 - 19. Value of coin 1
52 - 20. Value of coin 2
53 - 21. Penny increment pricing offset
54 - 22. How to change the water level

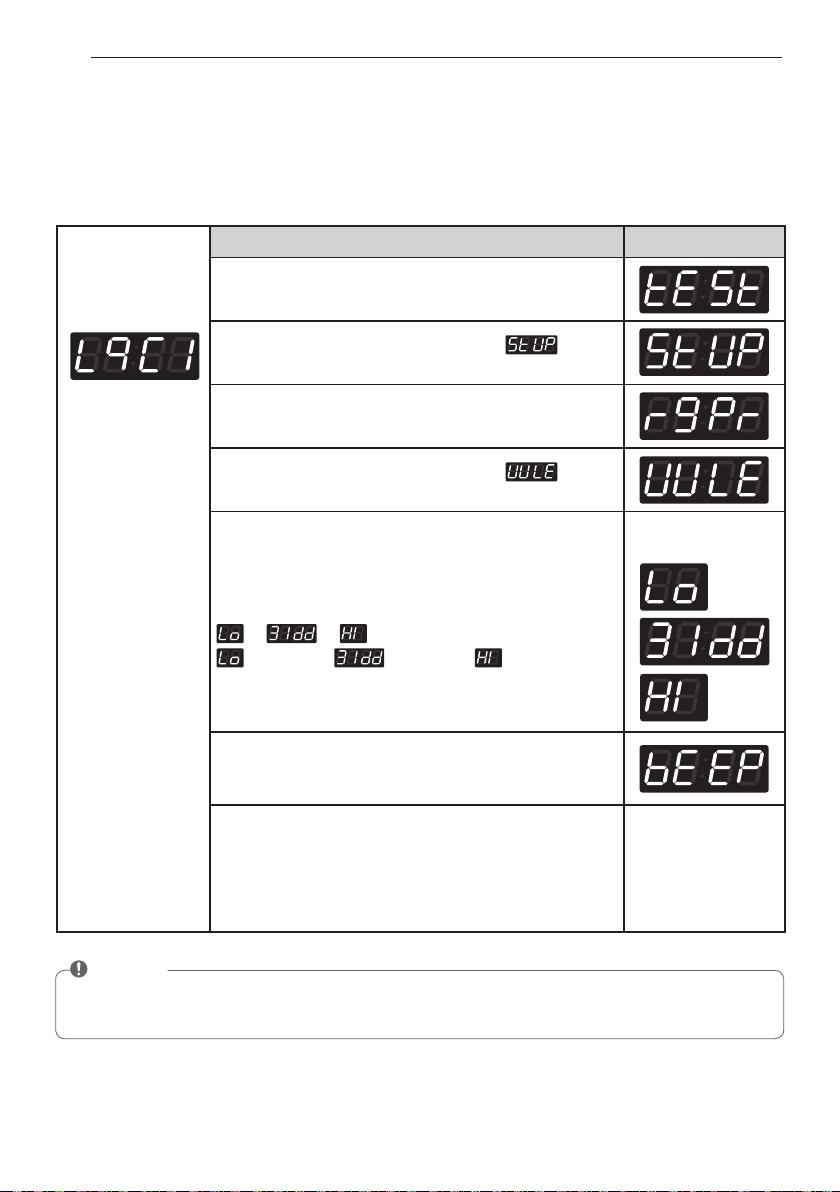

55 - 23. Beep volume
56 - 24. Time to keep the coin (Use only for coin type)
57 - 25. How to setting drop count

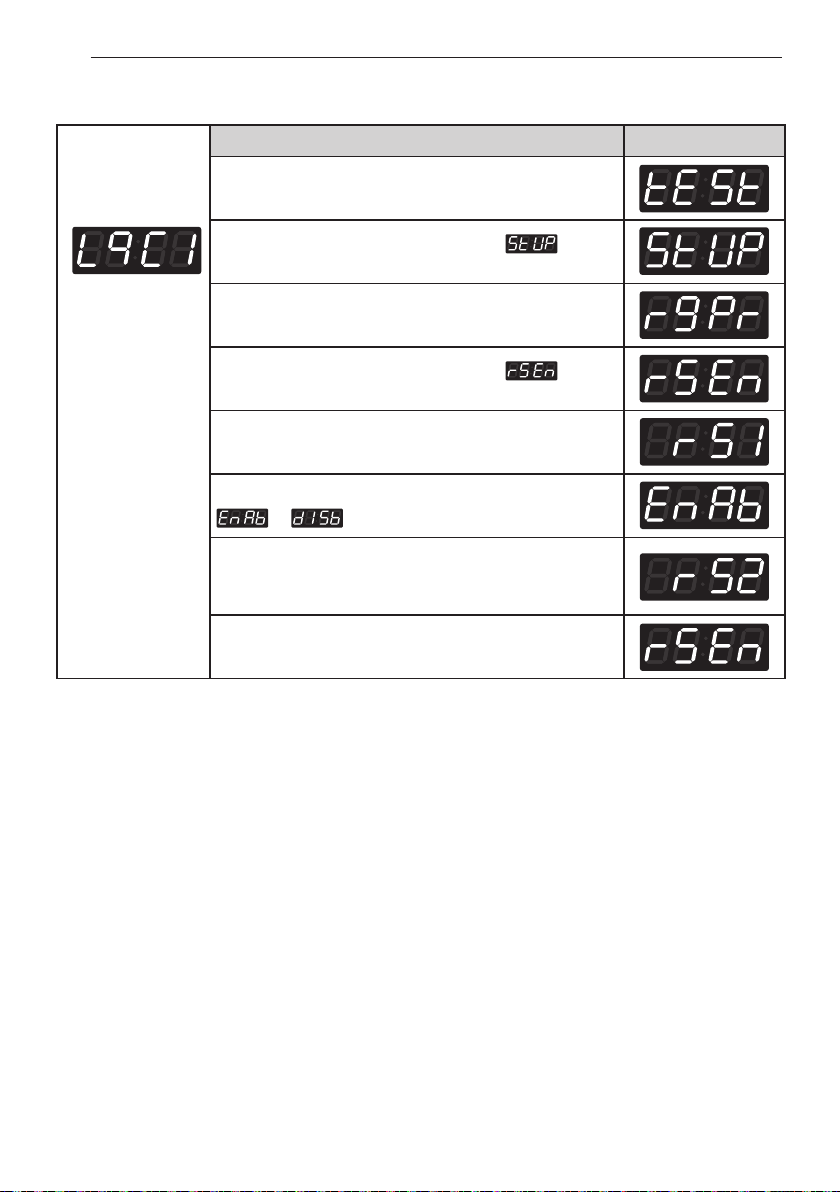

58 - 26. How to setting rinse spin enable
59 - 27. How to setting auto dosing
60 - 28. How to enter the

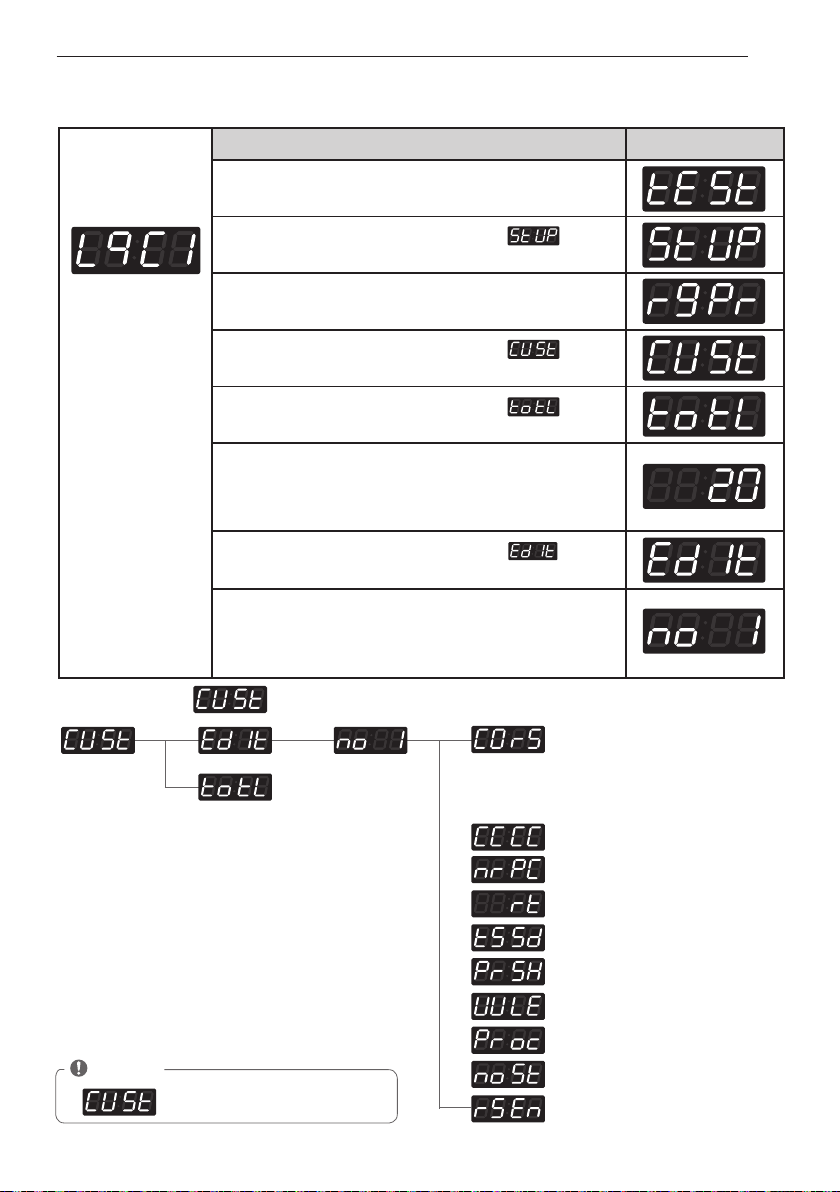

61 - 29. How to setting custom program

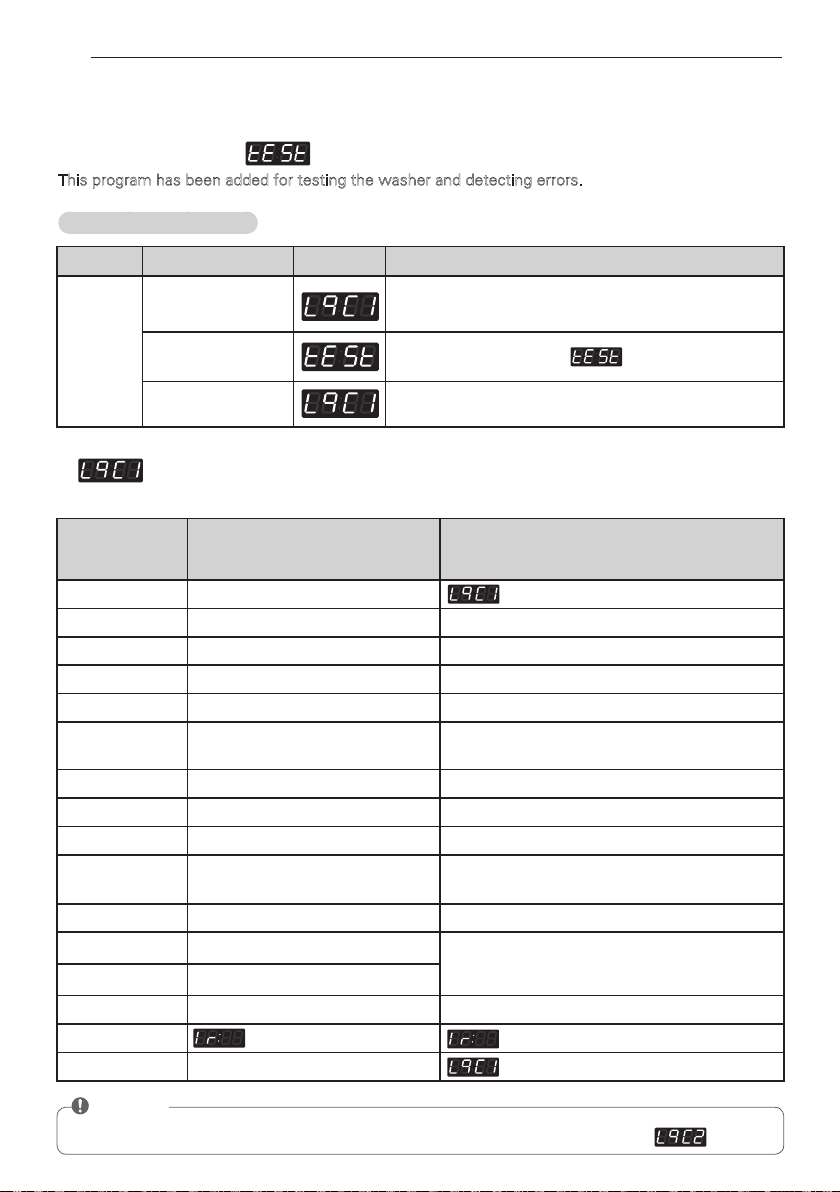

62 Programming Mode - Test mode
62 - 1.
63 - 2. Factory reset -
64 - 3. Time set up
65 - 4. Courtesy cycle
66 - 5. Cycle Kill
67 - 6. Password -
68 - 7. Tub clean -

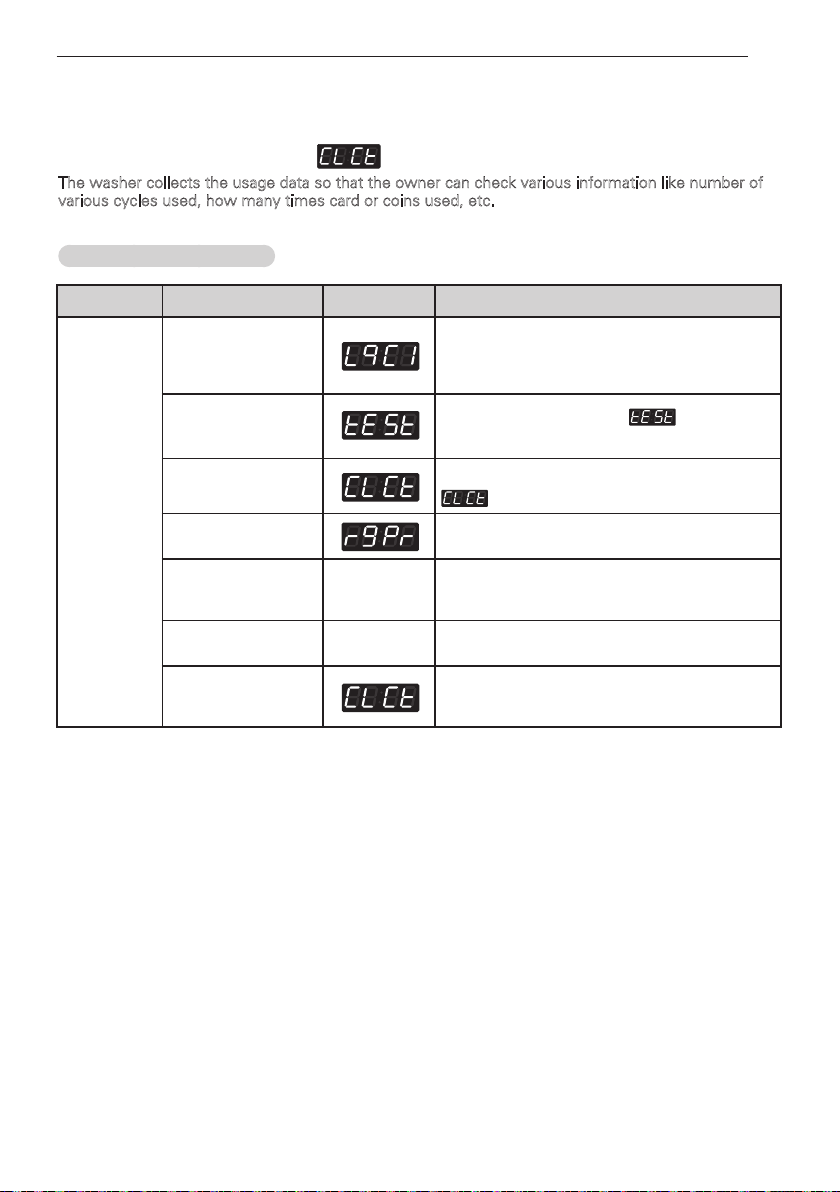

69 Programming Mode - Collect mode
70 Collect Mode Data lists
71 MAINTENANCE
71 - Care after wash
71 - Storing the Washer
71 - Cleaning the Dispenser
72 - Cleaning the detergent box
72 - Cleaning the water inlet filters
73 - Clean the door seal
73 - Clean the drum, TUB CLEAN
74 ERROR MODE
75 POWER FAIL RECOVERY
75 DEFAULT WASHER SETTINGS
75 SPECIFICATIONS
8

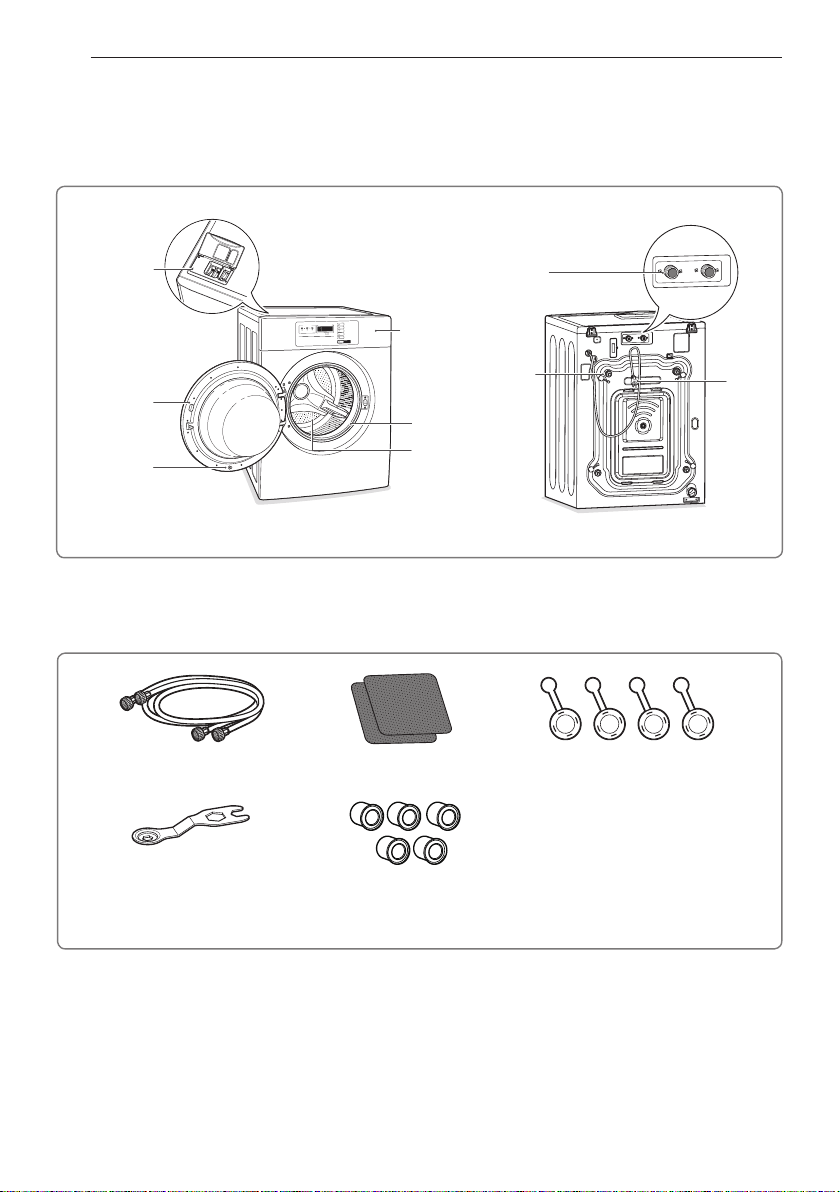

PARTS AND ACCESSORIES
PARTS AND ACCESSORIES
Parts
Accessories
Detergent
dispenser
drawer
Door
Magnet Door
Plunger
(see page 2)
Control
panel
Door seal
Tu b
Water inlets
Shipping
bolts
Power
cord
Hot and Cold
Water Hoses
Non-skid pads
Caps (4)
(for covering shipping bolt holes)
Wrench
(for removing
shipping bolts and
adjusting leveling feet)
Hole cap (5)
(for securing auto
dosing hole)
9

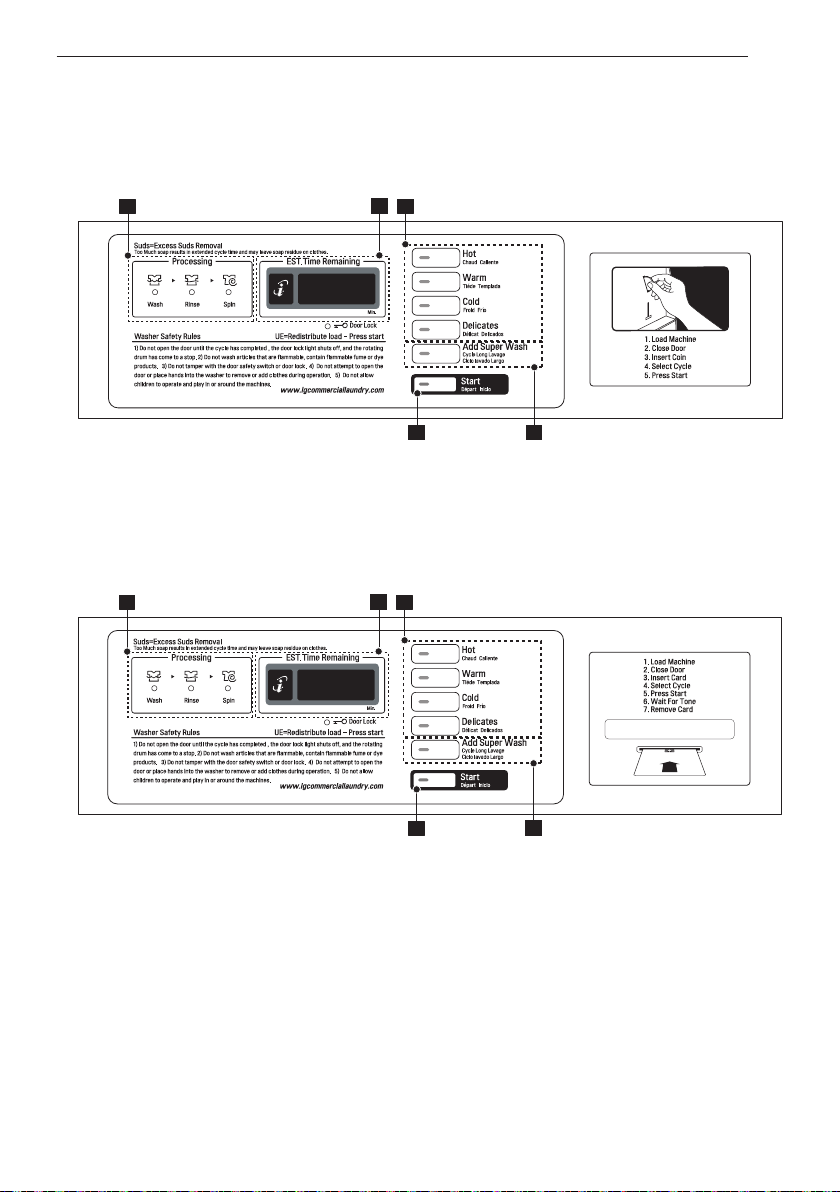

CONTROL PANEL FEATURES
1 25
4 3
1 25
4
3
1 25
4 3
Optional function button

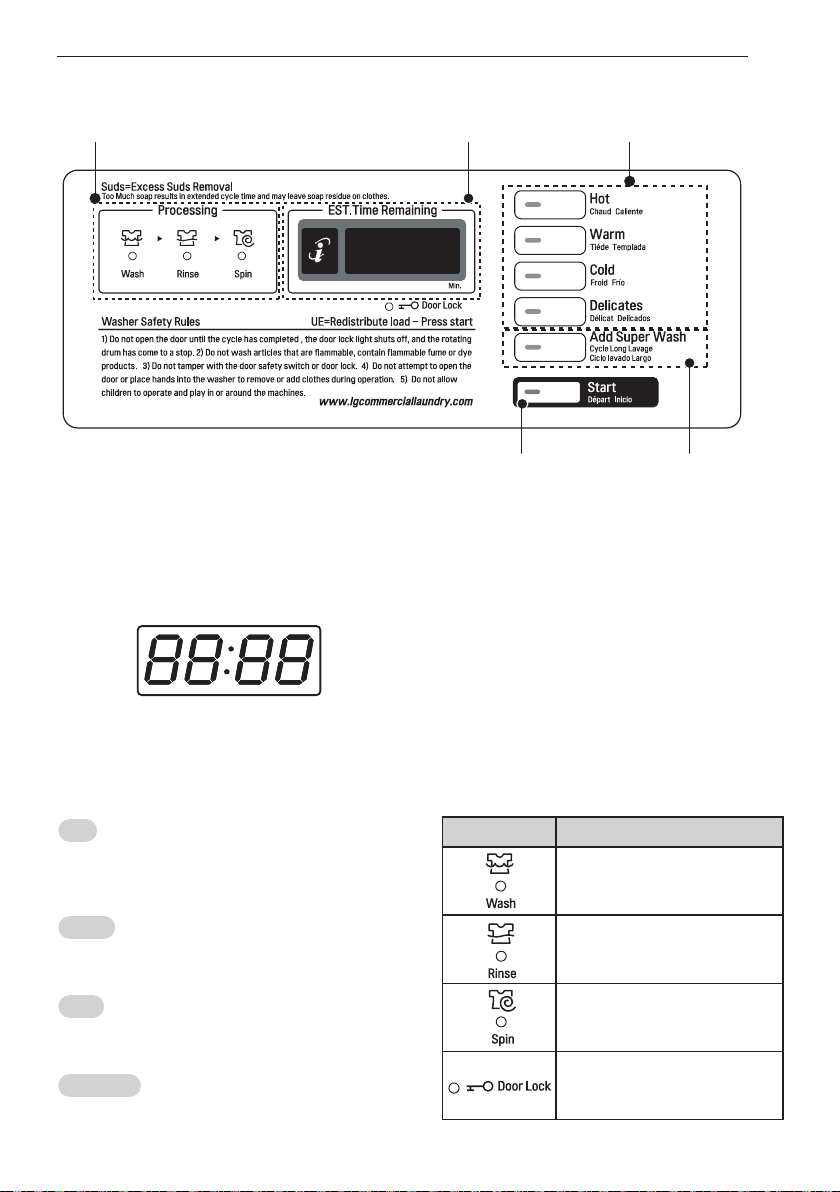

1. Display LED
2. Cycle button
3. Optional cycle button
4. Start button
5. Status LED
CONTROL PANEL FEATURES
Coin type (TCW2013QS)
Card type (TCW2013CS)
1 25
4 3
1 25
4
3
1 25
4 3
Optional function button
10
CONTROL PANEL FEATURES

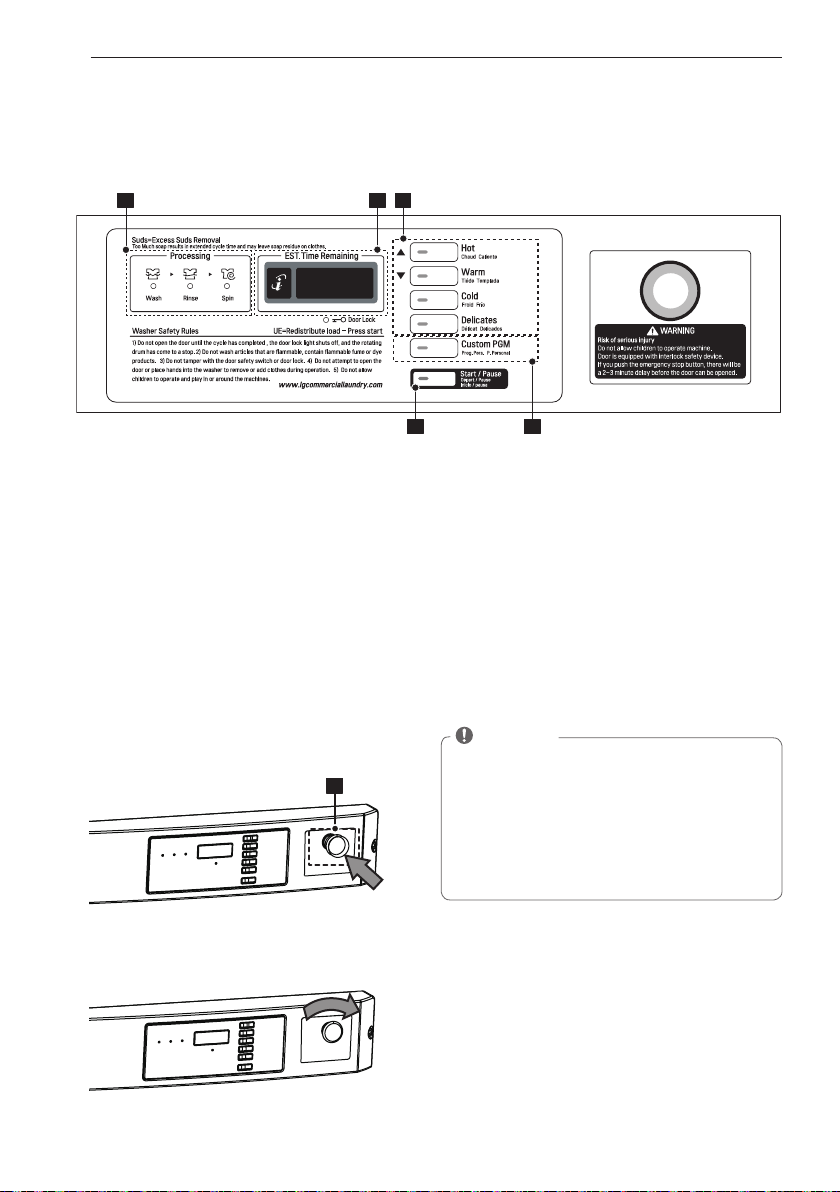

How to Emergency stop button
1
Press emergency stop button in emergency
situation.
2
After emergency situation is resolved turn
the button follow by arrow sign (right).
1. Display LED
2. Cycle button
3. Optional cycle button
4. Start button
5. Status LED
6. Emergency stop button
OPL type (TCW2013LS)
1 25
4 3
1 25
4
3
1 25
4 3
Optional function button
NOTE
• In case of pressing button by mistake,
machine can run normally by resetting
emergency stop button after 2, 3 seconds.
• After resetting emergency stop button,
LED light will blink in start button and by
pressing start button again, machine will
run normally again.
6
11
CONTROL PANEL FEATURES
Display LED
The display shows the vend price and
remaining time and programming options.
Error codes are also displayed here.
Optional function button
Wash time or rinse cycle can be added when
additional coin is inserted or a valid cash card is
entered.
Start button
The START LED flashes when the full vend
price has been satisfied and the cycle has been
chosen.
Status LED
Cycle button
Press the CYCLE button to select the desired
cycle based on laundry types and conditions.
Hot
Use for hot washing for heavy fabrics, such as
white clothes, table linens, and heavily soiled
clothes.
Warm
Use for warm washing for heavy fabrics, such
as jeans, corduroys, or work clothes.
Cold
Use for cold washing for sturdy fabrics, such as
casual work.
Delicates
Use for cold washing for synthetic fabrics, such
as washable knit fabric and no-iron finishes.
Start button
Display LEDStatus LED Cycle button
Optional function button
LED Description
LED flashes whenever the
washing cycle is in operation.
LED flashes whenever the
Rinsing cycle is in operation.
LED flashes whenever the
Spining cycle is in operation.
LED flashes whenever the
door lock is activated.
12
INSTALLATION INSTRUCTIONS
Space requirements
You must allow sufficient space for water lines,
the drain line, and airflow.
Installing on a floor
Install the washing machine on a solid floor
that is strong and rigid enough to support the
weight of the washing machine, even when
fully loaded, without flexing or bouncing. If
the floor has too much flex, you may need to
reinforce it to make it more rigid. If the floor
is not solid, it may cause severe vibration and
noise.
1
Clean the floor before installation.
- Make sure to select solid and smooth
ground.
2
Two or more people are needed for moving
and unpacking the washing machine.
3
Allow for sufficient space between the walls
and the washing machine for installation.
Checking and choosing the
proper location
32”
(81.4 cm)
53.9”
(137 cm)
4”
(10 cm)
22.5”
(57 cm)
29”
(73.7 cm)
1”
(2.5 cm)
1”
(2.5 cm)
INSTALLATION INSTRUCTIONS
NOTE
• Be sure to allow for wall, door, or floor
moldings that may increase the required
clearances.
NOTE
• The floor must be strong and rigid enough
to support the weight of the washer,
when fully loaded, without flexing or
bouncing. If your floor has too much flex,
you may need to reinforce it to make it
more rigid. A floor that is adequate for
a top-loading washer may not be rigid
enough for a front loading washer, due to
the difference in the spin speed and direc-
tion. If the floor is not solid, your washer
may vibrate and you may hear and feel the
vibration throughout your house.
• Before installing the washer, make sure
the floor is clean, dry and free of dust,
dirt, water and oils so the washer feet
can not slide easily. Leveling feet that can
move or slide on the floor can contribute
to excess vibration and noise due to poor
contact with the floor.
Cap
13
INSTALLATION INSTRUCTIONS
Installing Hole cap
1
Take the hole cap out from manual bag.
2
Insert the hole cap (5 pieces) into hose
connect in back of the machine.
Foam Tub Support Carton Base
NOTE
• Save the bolt assemblies for future use.
To prevent damage to internal
components, DO NOT transport the
washer without reinstalling the shipping
bolts.
• Failure to remove shipping bolts and
retainers may cause severe vibration
and noise, which can lead to permanent
damage to the washer. The cord is
secured to the back of the washer with
a shipping bolt to help prevent operation
with shipping bolts in place.
NOTE
• In case of using auto dosing feature,
inserting hole cap is unnecessary.
1
R.emove the bottom two shipping bolts
with the wrench (included) to fully loosen
all four shipping bolts by turning them
counterclockwise and then pulling them out.
2
Locate the four hole caps included in the
accessory pack and install them in the
shipping bolt holes.
Unpacking and removing
shipping bolts
When removing the washer from the carton
base, be sure to remove the foam drum
support in the middle of the carton base.
If you must lay the washer down to remove the
base packaging materials, always lay it carefully
on its side.
DO NOT lay the washer on its front or back.
Shipping
bolt
Retainer
Cap
Hole cap
14
INSTALLATION INSTRUCTIONS
NOTE
• For your safety, and for extended product
life, use only authorized components.
The manufacturer is not responsible for
product malfunction or accidents caused
by the use of separately purchased
unauthorized parts.
• Use new hoses when you install the
washing machine. Do not reuse old hoses.
Use only the inlet hoses provided with the
washer. LG does not recommend the use
of aftermarket hoses.
• Periodically check the hoses for cracks,
leaks and wear, and replace the hoses
every 5 years.
• Do not stretch the water hoses
intentionally, and make sure that they are
not crushed by other objects.
• Water supply pressure must be between
14.5 PSI and 116 PSI (100~800 kPa). If the
water supply pressure is more than 116
PSI, a pressure reducing valve must be
installed.
• To provide optimum washing performance
the hot water temperature should be set
at 120-135°F (48-57°C) and the cold at
60°F (15°C).
Connecting the water lines
1
Check the rubber seals on both sides of the
hose.
- Insert a rubber seal into the threaded
fittings on each hose to prevent leaking.
2
Connect the water supply hoses to the HOT
and COLD water faucets tightly by hand and
then tighten another 2/3 turn with pliers.
- Connect the blue hose to a cold water
faucet and the red hose to a hot water
faucet.
4
Connect the hoses to the water inlets tightly
by hand and then tighten another 2/3 turn
with pliers.
- Connect the blue hose to the cold water
inlet and the red hose to the hot water
inlet.
5
Check for leaks by turning on the faucets.
- If water leaks, check steps 1 to 4 again.
3
After connecting inlet hose to water
faucets, turn on the water faucets to flush
out foreign substances (dirt, sand, sawdust)
in the water lines. Let water drain into a
bucket, and check the water temperature.
Cold
water inlet
Hot water
inlet
Rubber seal
Water hose
(To water inlet on the
washing machine)
Rubber seal
Water hose
(To faucet)
WARNING
• Do not overtighten. Damage to the
coupling can result.
WARNING
• Do not overtighten the hoses.
Overtightening can damage the valves
resulting in leaking and property damage.
15
INSTALLATION INSTRUCTIONS
Connecting the drain line
Secure the drain hose in place to prevent
moving and leaking.
Installation of drain hose
NOTE
• The drain hose should be properly secured.
Failure to properly secure the drain hose
can result in flooding and malfunction.
• While installing drain hose, height of hose
should not be over 2.7 inch (from bottom
of the machine).
• The drain must be installed in accordance
with any applicable local codes and
regulations.
• Make sure that the water lines are not
stretched, pinched, crushed, or kinked.
1
Remove drain cap from the machine.
2
Place the end of the drain hose in the
drainage ditch of the floor drain system.
The drain hose should not be placed higher
than 2.7 in. from the bottom of the washer.
• Make sure that the hose is not twisted.
• Do not submerge the end of the hose.
Max. 2.7
"
(6.9 cm)
16
INSTALLATION INSTRUCTIONS
Leveling the washing machine
The washer tub of your new washing machine
spins at very high speeds. To minimize
vibration, noise, and unwanted movement, the
floor must be perfectly level and solid.
1
Check the washing machine’s level.
- Check the precise level by rocking the top
edges of the washing machine or placing
a level on the washing machine. The slope
beneath the washing machine must not
exceed 1°, and all four leveling feet must
rest firmly on the floor.
2
Turn the lower leveling feet clockwise to
level the washing machine.
- Turning the lower leveling feet clockwise
raises the washing machine.
3
Turn the locknuts counterclockwise and
tighten them when the washing machine is
level.
4
Check the washing machine’s level again.
- Push or rock the top edges of the washing
machine gently to make sure that the
washing machine does not rock.
- If the washing machine rocks, repeat steps
1 to 3.
Using non-skid pads (optional)
If you install the washing machine on a slippery
surface, it may move because of excessive
vibration. Incorrect leveling may cause
malfunction through noise and vibration. In the
event of this, lay the non-skid pads under the
leveling feet and adjust the level.
1
Clean the floor to attach the non-skid pads.
- Use a dry rag to remove and clean foreign
objects or moisture. If moisture remains,
the non-skid pads may slip.
2
Adjust the level after placing the washing
machine in the installation area.
3
Place the adhesive side of the non-skid pad
on the floor.
- It is most effective to install the non-skid
pads under the front legs. If it is hard to
place the pads under the front legs, place
them under the back legs.
4
Check the washing machine’s level again.
- Push or rock the top edges of the washing
machine gently to make sure that the
washing machine does not rock. If the
washing machine rocks, level the washing
machine again.
Level
1°
Raise
Tighten all 4 lock
nuts securely
using
the wrench.
Remove
backing
This side up
Adhesive
side
WARNING
• Using the washing machine without
leveling, it may result in malfunction caused
by the production of excess vibration and
noise.
• Use the leveling feet only when you level
the washing machine. If you raise the
leveling feet unnecessarily, it may cause
abnormal vibration of the washing machine.
17
PREPARATION
Check all pockets to make sure that they are
u
empty.
- Items such as clips, matches, pens, coins,
and keys can damage both your washer and
your clothes.
Close zippers, hooks, and drawstrings
u
to prevent these items from snagging or
tangling on other clothes.
Pretreat heavily stained areas before
u
washing.
- Doing so will produce clean, stain-free
results.
Combine large and small items in a load.
u
Load large items first.
Large items should not be more than half of
u
the total washload.
The washer can be fully loaded, but the drum
u
should not be tightly packed with items.
-The door of the washer should close easily.
Do not wash single items, except for bulky
u
items such as blankets. Make sure to wash
laundry in similar types of loads.
- Washing a single small item may result in
the tub becoming unbalanced, vibrating,
making a noise.
Do not wash waterproof clothes.
u
- This may cause abnormal vibration or may
cause the load to bounce, which could
damage the tub.
Check if there are any other foreign objects
u
in the door seal and take extra care that
clothes do not get caught there.
- Foreign objects in the door seal may stain
clothes, and water may leak if clothes get
caught in the door seal.
Wash underwear or small, light items in a
u
laundry net.
- Small, light items may get caught in the
door seal, and a brassiere hook may
damage other items or the tub.
Brush heavy soil, dust, or hair off fabrics
u
before washing.
- Laundry may not wash clean if there is
dirt or sand on the fabrics, or they may be
damaged due to particles rubbing against
sheer fabrics.
Wash blankets individually.
u
- Washing more than one blanket together
may produce unclean results due to tangling
or an unbalanced load.
Always separate fabrics according to their
u
colors and wash them separately to prevent
colors from running.
- Fabrics may damage or become stained
due to fabric dyes running or due to foreign
objects transferring from one fabric to
another.
PREPARATION
Precautions for fabric care before wash cycle
Read and observe the following to prevent shrinkage or damage to clothes.
18
PREPARATION
Category Label Directions
Washing
Hand Wash
Machine Wash,
Normal Cycle
Use Permanent
Press/Wrinkle
Resistant washing
machine setting
(which has a cool
down or
cold spray before the
reduced spin)
Use Gentle/Delicate
washing machine
setting (slow
agitation and/ or
reduced wash time).
Do Not Wash
Do Not Wring
Water
Temperature
Hot
Warm
Cold/Cool
Bleach
symbols
Any Bleach (When
Needed)
Only Non-Chlorine
Bleach
(When Needed)
Do Not Bleach
Fabric care labels
Most articles of clothing feature fabric care
labels that include instructions for proper care.
19
PREPARATION
NOTE
• It is normal for a small amount of water to
remain in the dispenser compartments at
the end of the cycle.
About the dispenser
The automatic dispenser consists of three
compartments which hold:
• Liquid chlorine bleach.
• Liquid fabric softener.
• Liquid and powdered detergent and color-
safe bleach for main wash.
All laundry products can be added at once in
their respective dispenser compartments. They
will be dispensed at the appropriate time for
the most effective cleaning.
After adding the laundry products to the
dispenser, close the dispenser cover.
To add detergent, bleach, and fabric softener to
the automatic dispenser:
1. Open the dispenser cover.
2. Load the laundry products into the
appropriate compartments.
3. Slowly close the dispenser cover to avoid
early dispensing of the laundry products.
NOTE
• Only use HE detergents, since using a
regular detergent will produce excessive
suds.
• HE detergents produce fewer suds,
dissolve more efficiently to improve
washing and rinsing performance, and
help to keep the interior of your washer
clean.
• Use less detergent for soft water.
• Wipe up any spills immediately, as liquids
could damage the finish and the control
panel of the washing machine.
• Using too much detergent can cause
a build-up in the tub resulting in
unsatisfactory performance and machine
malfunction.
• If you use a detergent that does not
dissolve easily or a detergent with high
viscosity, it will leave a residue on the tub,
which may not rinse properly.
Using detergent/fabric softener
Recommended detergent
Make sure to use HE (High-Efficiency)
detergent for front-loading washing machines.
HE detergents dissolve more efficiently
and produce fewer suds to ensure efficient
washing and rinsing. Use the correct amount
of detergent as indicated on the label of the
detergent packaging.
Designed specially to use only
HE (High-Efficiency) detergent
20
PREPARATION
Loading the dispenser
Main Wash Detergent Compartment
This compartment holds laundry detergent
for the main wash cycle, which is added to
the load at the beginning of the cycle. Always
use HE (High-Efficiency) detergent with your
washing machine.
Follow the detergent manufacturer's
instructions with respect to the amount of
detergent to use, and never use more than
the recommended amount. Using too much
detergent can result in detergent buildup in
clothing and the washer. Either powdered or
liquid detergent may be used.
Liquid Bleach Compartment
This compartment holds liquid chlorine bleach,
which will be dispensed automatically at the
proper time during the wash cycle.
Fabric Softener Compartment
This compartment holds liquid fabric softener,
which will be automatically dispensed during
the final rinse cycle.
NOTE
• Liquid or powdered color-safe bleach may
be added to the main wash compartment
with detergent of the same type.
NOTE
• Do not add powdered or liquid color-safe
bleach to this compartment.
• Always follow the manufacturer’s
recommendations when adding bleach.
Do not exceed the maximum fill line.
Using too much bleach can damage
fabrics.
• Never pour undiluted liquid chlorine bleach
directly onto the load or into the drum.
Fabric damage can occur.
NOTE
• Always follow the manufacturer’s
recommendations when adding fabric
softener. Do not exceed the maximum fill
line. Using too much fabric softener may
result in stained clothes.
• Dilute concentrated fabric softeners with
warm water. Do not exceed the maximum
fill line.
• Never pour fabric softener directly onto
the load or into the drum.
Liquid Fabric
Softener
Compartment
Main Wash
Detergent
Compartment
Liquid Chlorine
Bleach
Compartment
Designed specially to use only
HE (High-Efficiency) detergent
21
OPERATING YOUR WASHER
OPERATING YOUR WASHER
NOTE
• When the card balance is not enough,
machine displays the card balance for
5 seconds and then displays
message repetitively
NOTE
• The machine will not start until sufficient
coins are inserted.
❋
Do not work any button and stop the washer
(When the washer is operating) or (when a
cycle is in progress)
1. Ready mode
1) Coin / Card type
– The cycle LEDs flash at the same time,
when the price of cycles are equal.
2) OPL type
– The cycle LEDs is lit at the same time, and
displayed PUSH.
4. Add super wash
Wash time or rinse cycle can be added
when additional coin is inserted or a valid
cash card is entered.
5. Change course
You cannot change the cycle while the
machine is running.
6. Cycle finish
The machine stops and LED display shows
with beeper sound.
2. Insert card/coin (not for OPL type)
Insert a cash card that has a sufficient balance.
The card balance should be more than the
programmed vend price for a selected cycle.
3. Select the cycle
Press the desired button and press the
Start button. The display LED will show the
remaining time and the selected cycle starts.
• Select cycles designed for different types of
fabric and soil levels.
• Insert a sufficient amount of change that
is more than the programmed vend price
for the selected cycle.
CYCLE Fabric type
Wash/Rinse
Temp.
Hot
Cotton, linen, towels,
shirts, sheets
Hot / Cold
Warm
Cotton, mixed loads, work
clothes, jeans, shirts
Warm /
Cold
Cold
Cotton, dress shirts,
pants, wrinkle-free
clothing, cotton/poly blend
clothing, tablecloths
Cold / Cold
Delicates
Dress shirts, blouses,
nylons, sheer or lacey
garments
Cold / Cold
WARNING
• To reduce the risk of fire, electric shock, or
injury to persons, read the IMPORTANT
SAFETY INSTRUCTIONS before operating
this appliance.
22
PROGRAMMING MODE
How to enter Programming mode
You can enter programming mode only for Idle
state and pause state.
- Card Type
1) Insert service card.
2) Display will show
.
- Coin Type
1) Dissemble upper coin box key.
2) Take out the coin drop from the coin box.
3) Turn on/off the toggle switch at the back of
the coin box.
4) Display will show
.
- OPL Type
1) Push the Hot & Cold button at the same
time.
2) Push the Warm button 3 times.
3) Push the Start button.
4) Display will show .
How to use button
You can change Washer vend price, cycle time
and Cycle parameters, etc.
: You can check machine information or change setting on Program setup, collect information data,
Diagnostic test. There are two methods that you can enter programming mode.
PROGRAMMING MODE
Coin Box Key
- Coin type -
- Card type - - OPL type -
Insert Debit Card
Coin Vault
Openings close
Press
Button
Description
Hot
Move to upper level or
Comes back to Idle State
Warm Move to the mode in the same
level (+)
Cold Move to the modes in the same
level (-)
Start Enter the selected mode
NOTE
• If you turn on the power without connecting meter case for the first time, the machine display
.
• When the machine is shipped from the factory, it is set in the coin type. You can change Card/
Coin type by button. (For more information refer to SETUP mode.)
• The machine will display PUSH for OPL type.
23
PROGRAMMING MODE
NOTE
• Do not use , .
• It is used only in inspecting the machine.
Algorithm flow chart shows how to control programming mode.
Before program set, check the structure of programming mode.
1. Turn on/off toggle switch or Insert service card, for entering set up mode.
2. Press Hot button to move to the upper level.
3. Press Warm (+) or Cold (-) button if you want to be at the same level.
4. Press Start button to enter the details of Set up or Diagnostic Tests.
is to set price value, time value, vend type, etc.
consists of line test, reset, free cycle, and kill cycle.
is to collect the usage data.
Card type
Structure of Programming mode
24
PROGRAMMING MODE
NOTE
• Do not use , .
• It is used only in inspecting the machine.
Algorithm flow chart shows how to control programming mode.
Before program set, check the structure of programming mode.
1. Turn on/off toggle switch or Insert service card, for entering set up mode.
2. Press Hot button to move to the upper level.
3. Press Warm (+) or Cold (-) button if you want to be at the same level.
4. Press Start button to enter the details of Set up or Diagnostic Tests.
is to set price value, time value, vend type, etc.
consists of line test, reset, free cycle, and kill cycle.
is to collect the usage data.
Coin type
Structure of Programming mode
25
PROGRAMMING MODE
OPL type
Algorithm flow chart shows how to control the programming mode.
Before program set, check the structure of the programming mode.
The method of entering set up mode.
1) Push the Hot & Cold button at the same time.
2) Push the Warm button 3 times.
3) Push the Start button.
4) Display will show
.
is to set price value, time value, vend type, etc.
consists of line test, reset, free cycle, and kill cycle.
is to collect the usage data.
Structure of Programming mode
NOTE
• Do not use , .
• It is used only in inspecting the machine.
26

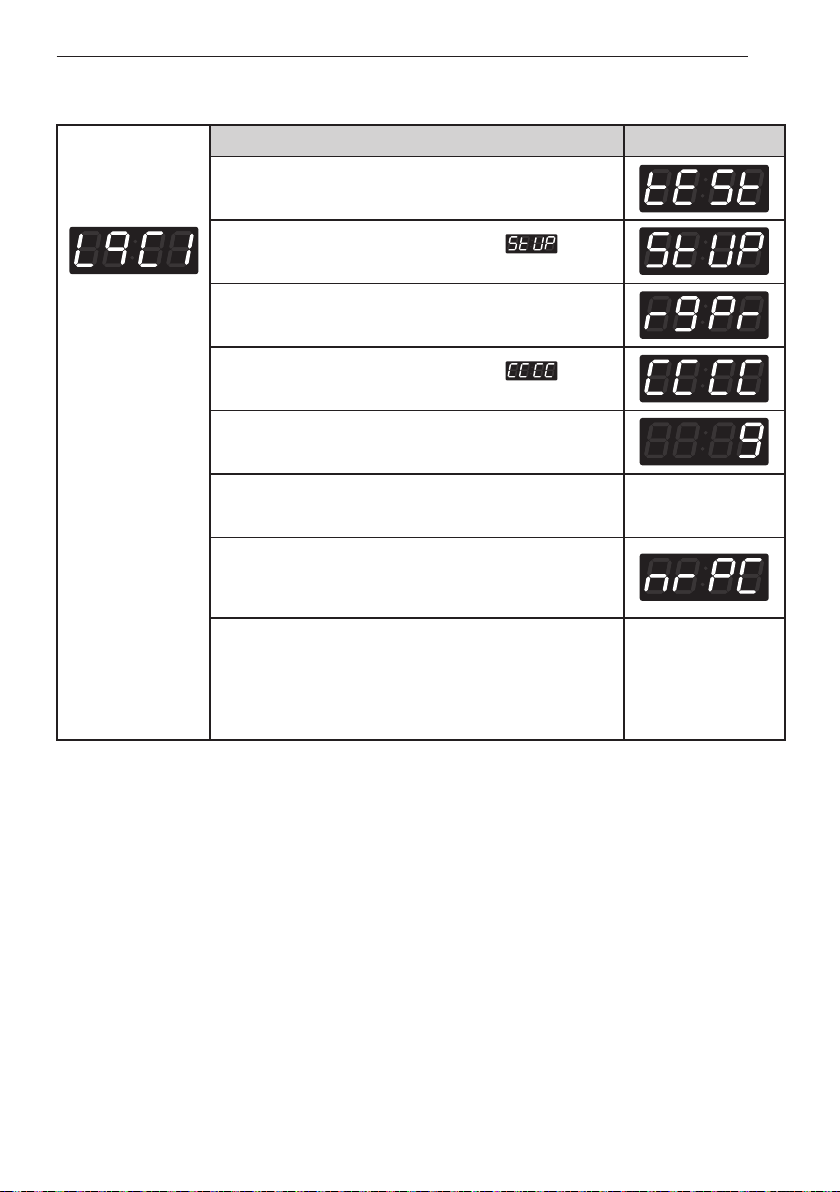

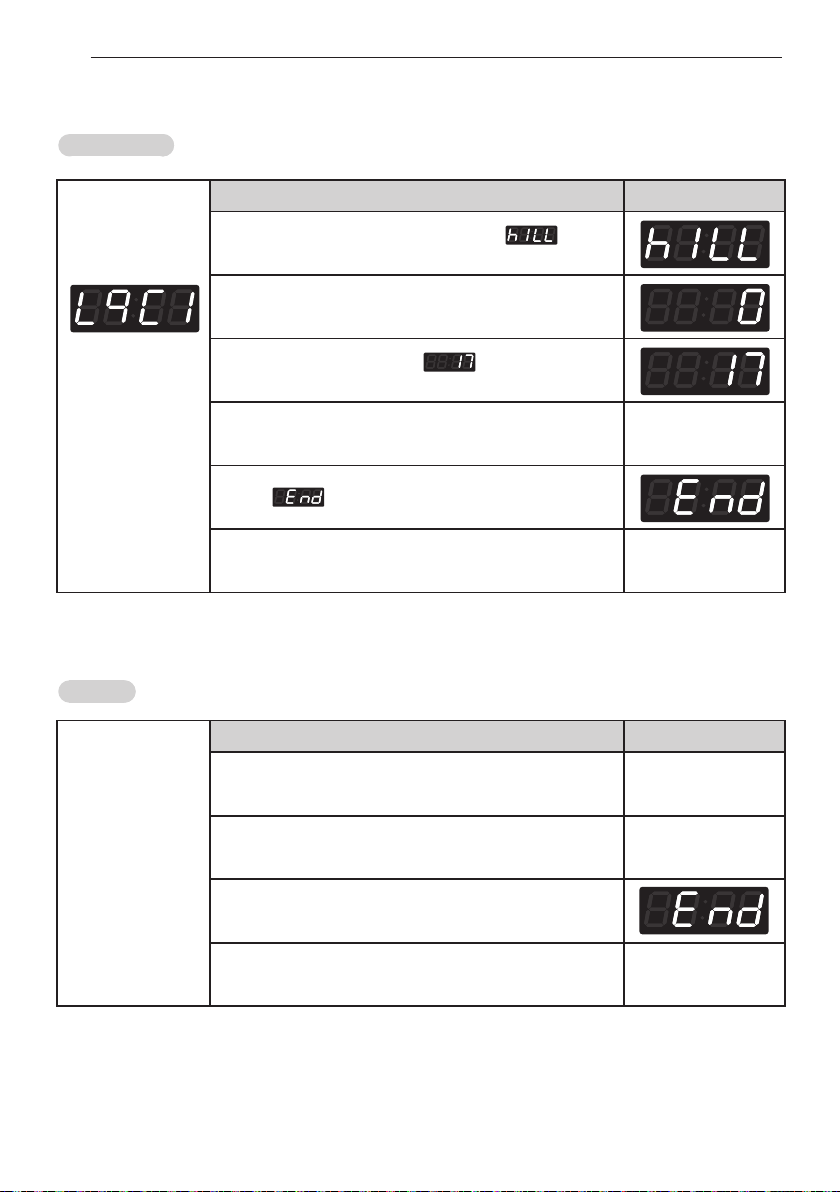

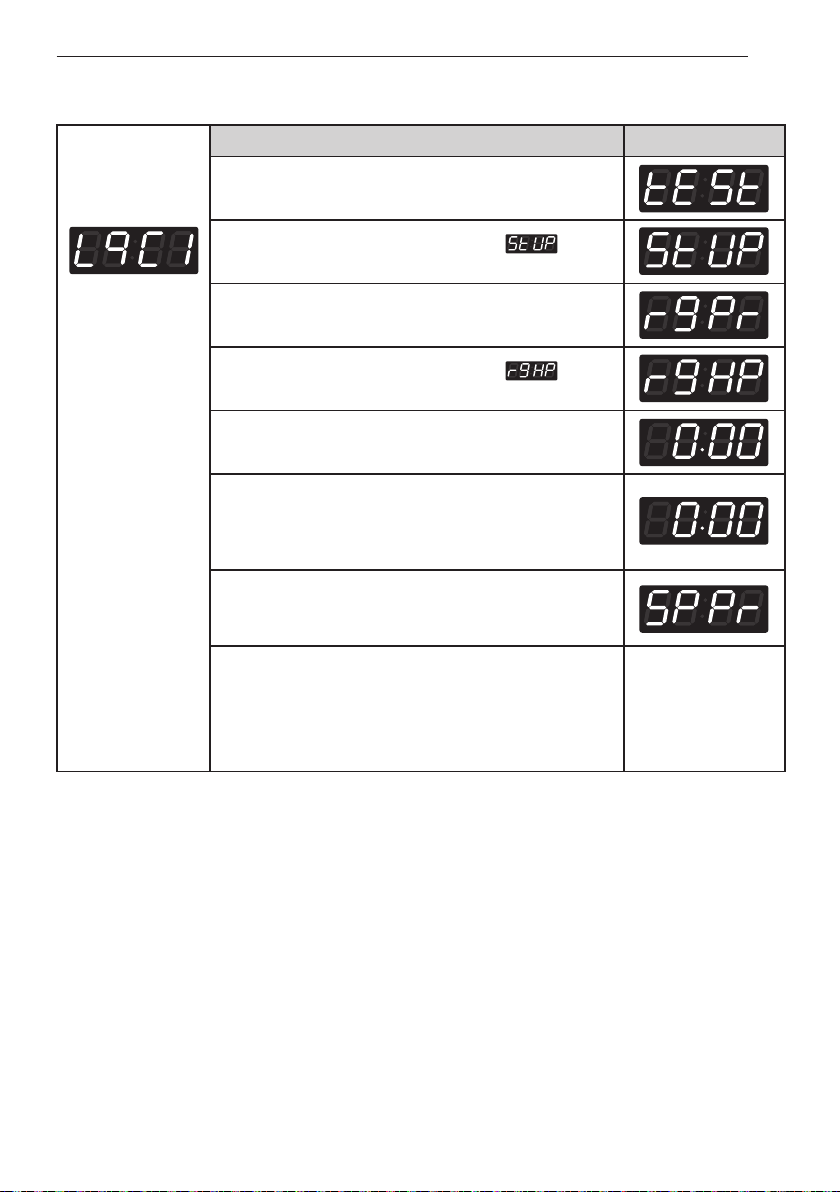

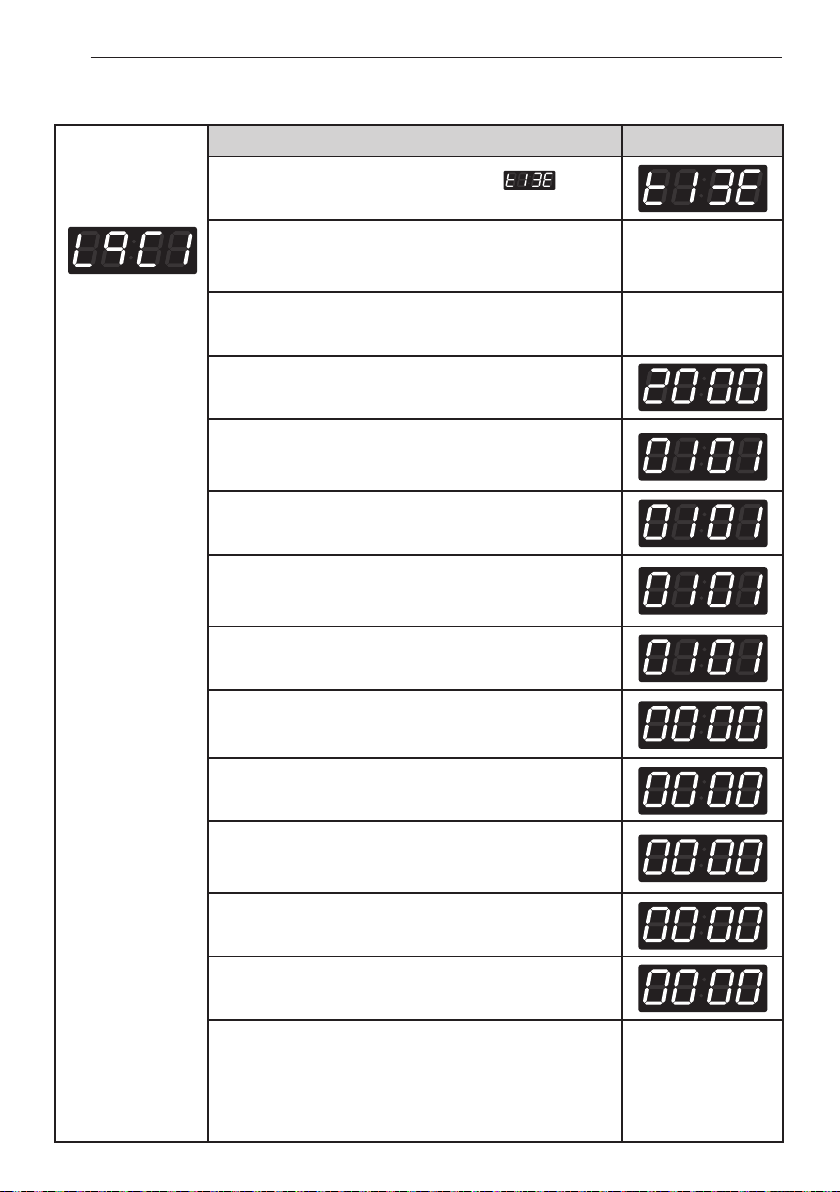

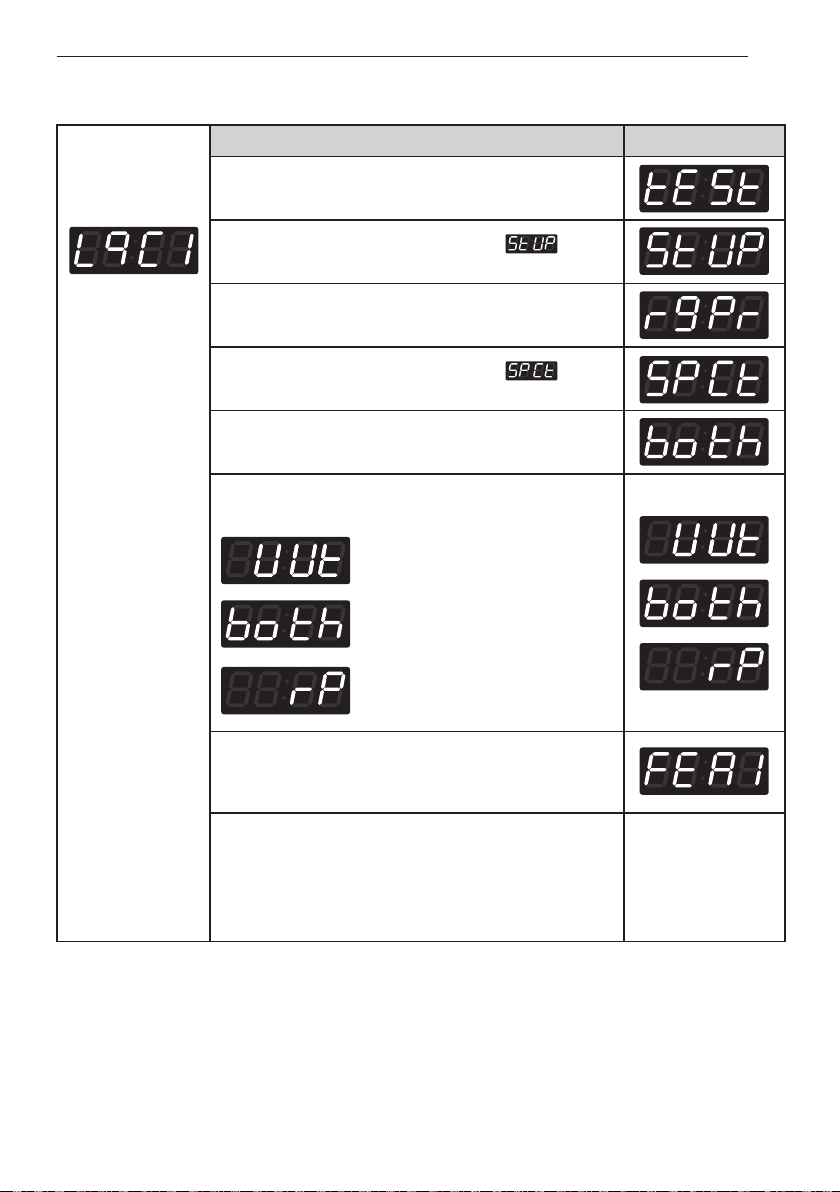

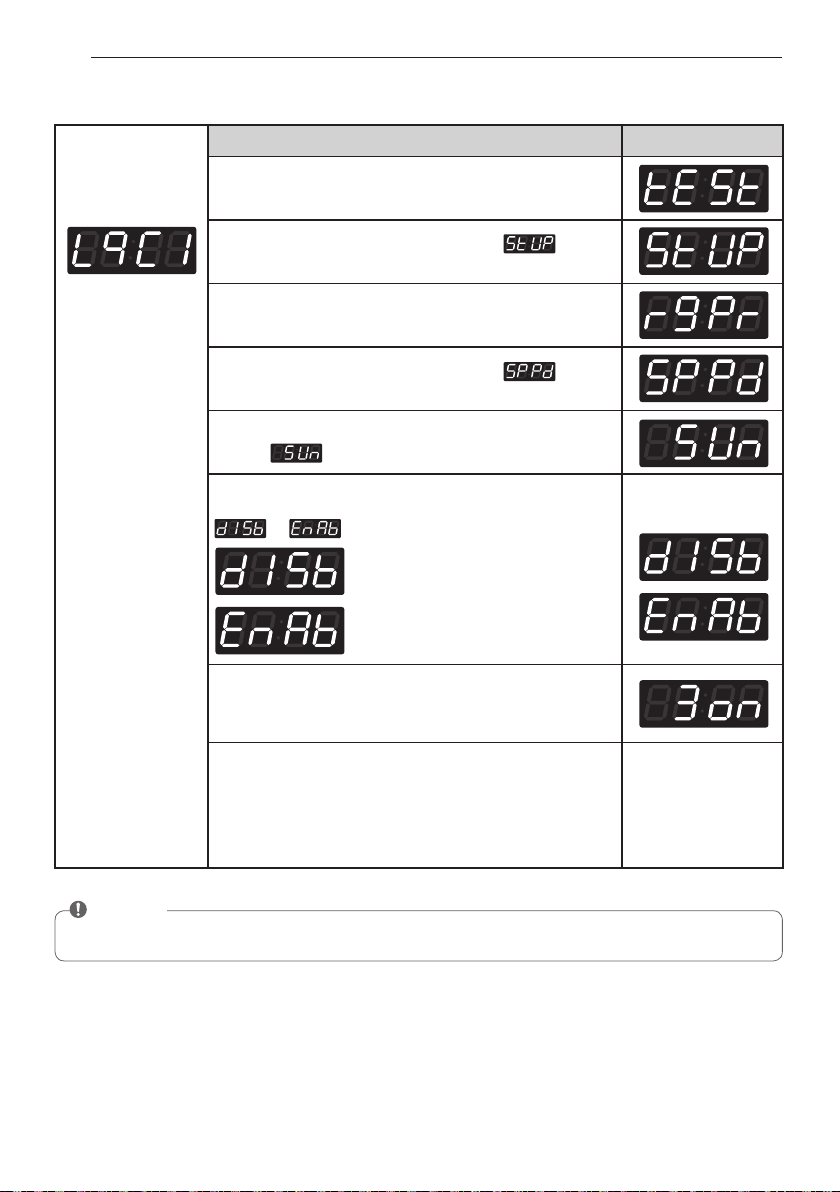

PROGRAMMING MODE - SETUP MODE

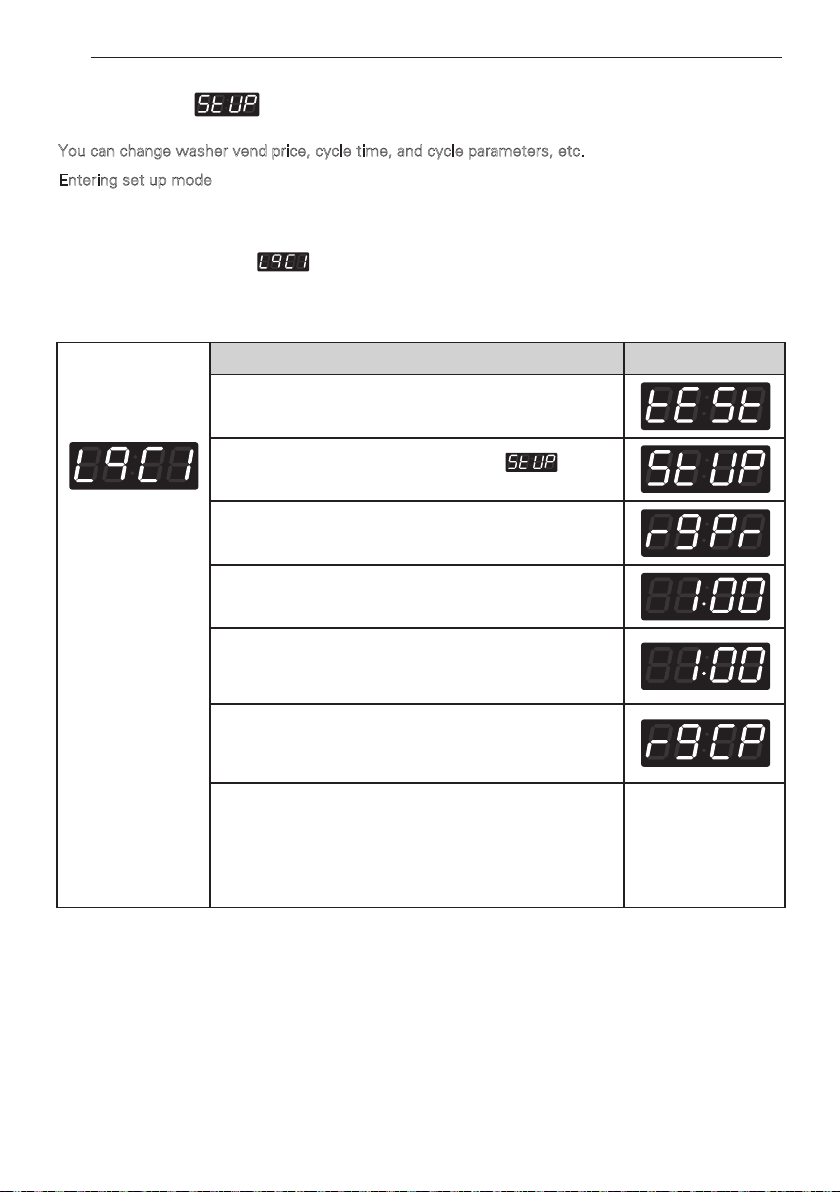

Setup Mode (display)
You can change washer vend price, cycle time, and cycle parameters, etc.
Entering set up mode
- Coin type – Turn on/off toggle switch.
- Card type – Insert the service card.
- OPL type – Push Hot + Cold and the 3.
- Then, the washer displays .
1. How to change regular price.
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Start
button.
Display previous regular price.
Press
Warm(+)
or
Cold(-)
button to set the regular price.
(The vend price can be set from 0 to 9.95 in 5¢
increments.)
Press the
Start
button.
The machine sets up the regular price, then advances to
the next process automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type/Coin type - Push the Hot button twice
27

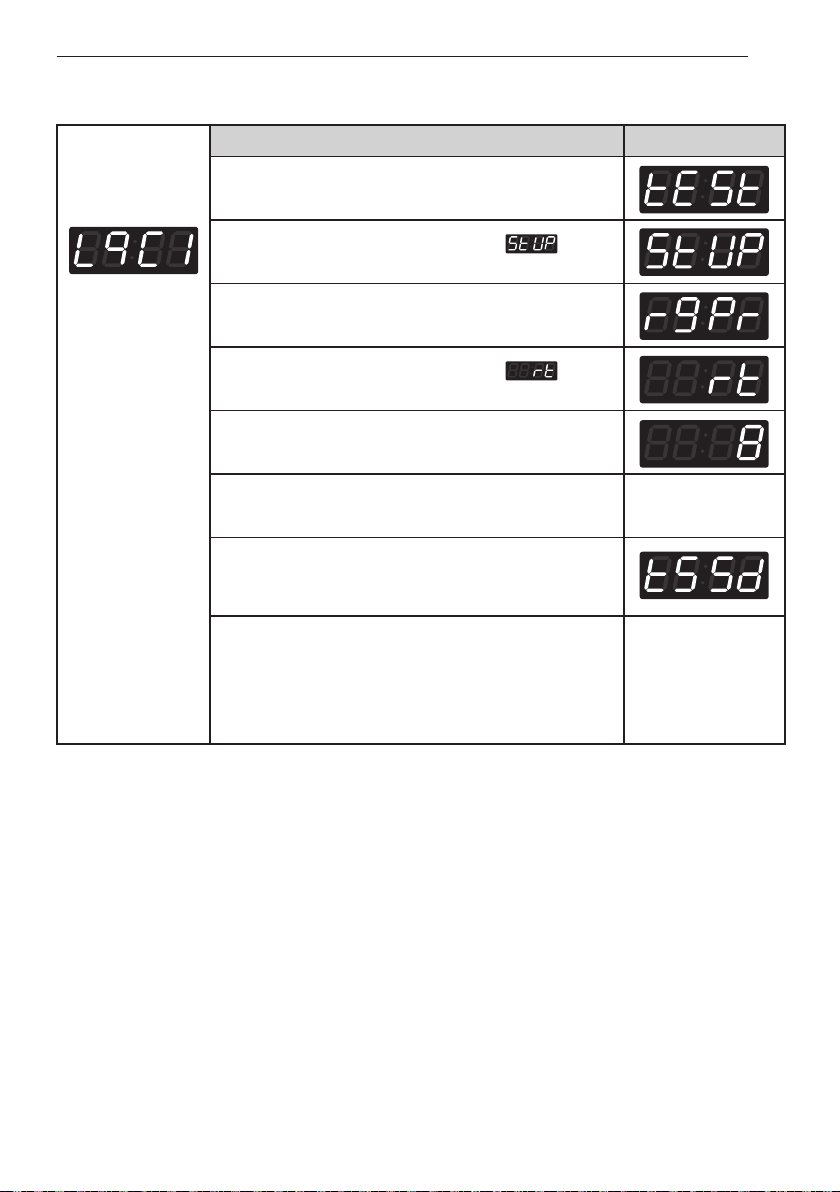

PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous regular cold price.
Press
Warm(+)
or
Cold(-)
button to set the regular cold
price.
(The vend price can be set from $0.00 to $9.95 in 5¢
increments.)
Press the
Start
button.
The machine sets up the regular cold price, then
advances to the next process automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
2. How to change regular delicates price.
28
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous regular warm price.
Press
Warm(+)
or
Cold(-)
button to set the regular warm
price.
(The vend price can be set from $0.00 to $9.95 in 5¢
increments.)
Press the
Start
button.
The machine sets up the regular warm price, then
advances to the next process automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
3. How to change regular warm & cold price
29
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous regular hot price.
Press
Warm(+)
or
Cold(-)
button to set the regular hot
price.
(The vend price can be set from $0.00 to $9.95 in 5¢
increments.)
Press the
Start
button.
The machine sets up the regular hot price, then
advances to the next process automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
4. How to change regular hot price
30
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous special price.
Press
Warm(+)
or
Cold(-)
button to set a special price.
(The vend price can be set from $0.00 to $9.95 in 5¢
increments.)
Press the
Start
button.
The machine sets up the special price, then advances to
the next process automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
5. How to change special price
31
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous special cold price.
Press
Warm(+)
or
Cold(-)
button to set the special cold
price.
(The vend price can be set from $0.00 to $9.95 in 5¢
increments.)
Press the
Start
button.
The machine sets up the special cold price, then
advances to the next process automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
6. How to change special delicates price
32
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous special warm price.
Press
Warm(+)
or
Cold(-)
button to set the special warm
price.
(The vend price can be set from $0.00 to $9.95 in 5¢
increments.)
Press the
Start
button.
The machine sets up the special warm price, then
advances to the next process automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
7. How to change special warm & cold price
33
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous special hot price.
Press
Warm(+)
or
Cold(-)
button to set the special hot
price.
(The vend price can be set from $0.00 to $9.95 in 5¢
increments.)
Press the
Start
button.
The machine sets up the special hot price, then
advances to the next process automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
8. How to change special hot price
34
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous add super wash price.
Press
Warm(+)
or
Cold(-)
button to set add super wash
price.
(The vend price can be set from $0.00 to $9.95 in 5¢
increments.)
Press the
Start
button.
The machine sets up the add super wash price, then
advances to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
9. How to change add super wash price
35
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous add super wash type.
Press
Warm
or
Cold
button and then select the add
super wash type you want.
Wash time increase.
Both (Wash time increase and
rinsing once more.)
Rinsing once more.
Press the
Start
button.
The machine sets up the add super wash type, then
advances to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
10. How to change add super wash type
36
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
11. How to enter the
• Special price days apply or not
• Non-stop wash apply or not
• Add super wash apply or not
• Select vend type
• Sense dry apply or not (only for
dryer)
• Pre-wash apply or not
• Top off apply or not (only for dryer)
• Disable
• Disable
• Enable
Structure of
Content of
37
PROGRAMMING MODE - SETUP MODE
Content of
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display
.
Press the
Start
button.
Press
Warm
or
Cold
button and then select
or
.
Disable
Enable
One or the other will
display.
Press the
Start
button.
The machine sets up the special price day, then
advances to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
11-1. Special price day setup
38
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display
.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press
Warm
or
Cold
button and then select
or
.
Disable
Enable
One or the other will
display.
Press the
Start
button.
The machine sets up the add super wash application,
then advances to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
11-2. Non-stop rinse
NOTE
• (rinse spin enable) is not available in option.
39
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display
.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press
Warm
or
Cold
button and then select
or
.
Disable
Enable
One or the other will
display.
Press the
Start
button.
The machine sets up the add super wash application,
then advances to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
11-3. Add super wash setup
40
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display
.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press
Warm
or
Cold
button and then select
or
.
Coin type
Card type
One or the other will
display.
1.Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
11-4. Vend type setup - card type or coin type setup
NOTE
• After setting the Value to VEND, vend type is changed directly without power on/off
(Sense dry) is not available in washer
41
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display
.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press
Warm
or
Cold
button and then select
or
.
Disable
Enable
One or the other will
display.
Press the
Start
button.
The machine sets up the pre-wash, then advances to
the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
11-5. Pre-wash set up
NOTE
• (top off) is not available in washer (Only for dryer)
42
PROGRAMMING MODE - SETUP MODE
NOTE
• (Twin spray) is not available in Titan c washer.
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display
.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press
Warm
or
Cold
button and then select
or
.
Disable
Enable
One or the other will
display.
Press the
Start
button.
The machine sets up the pre-wash, then advances to
the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
11-6. Twin spray set up
43
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display
.
12. How to enter the special price day
Structure of
Sunday
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
44
PROGRAMMING MODE - SETUP MODE
NOTE
• As explained on the previous page, similarly, other days can be set up by the same method.
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display
.
Press the
Start
button.
Press
Warm
or
Cold
button and then select
or
.
Disable
Enable
One or the other will
display.
Press the
Start
button.
The machine sets up the special price day (Sunday),
then advances to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
12-1. How to change to Sunday
45
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous special price beginning time.
Press
Warm(+)
or
Cold(-)
button to select time between
0
and
23
.
Press the
Start
button.
The machine sets up the special price beginning time,
then advances to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
13. Special price beginning time setup
46
PROGRAMMING MODE - SETUP MODE
NOTE
• When setting up a special price period, the ending time must be later than the beginning time.
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous Special Price ending time.
Press
Warm(+)
or
Cold(-)
button to select time between
1
and
24
.
Press the
Start
button.
The machine sets up the special price ending time, then
advances to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
14. Special price ending time setup
NOTE
• (regular priced dryer cycle time) is not available in washer.
•
(special priced dryer cycle time) is not available in washer.
47
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous wash time.
Press
Warm(+)
or
Cold(-)
button to select wash time.
(Maximum 15 minutes, Minimum 5 minutes.)
Press the
Start
button.
The machine sets up the wash time, then advances to
the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type – Turn on/off toggle switch.
• Card type – Insert the service card.
• OPL type – Push the Hot button twice.
15. Washing time set up
48
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous rinsing times per cycle.
Press
Warm(+)
or
Cold(-)
button to select rinsing times
per cycle.
(Max 5, Min 1)
Press the
Start
button.
The machine sets up the rinsing times per cycle, then
advances to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type – Turn on/off toggle switch.
• Card type – Insert the service card.
• OPL type – Push the Hot button twice.
16. Rinsing times per cycle
49
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous rinsing time.
Press
Warm(+)
or
Cold(-)
button to select rinse cycle.
(Max 15min, Min 8min)
Press the
Start
button.
The machine sets up the rinsing time, then advances to
the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type – Turn on/off toggle switch.
• Card type – Insert the service card.
• OPL type – Push the Hot button twice.
17. Rinsing time setup
50
PROGRAMMING MODE - SETUP MODE
NOTE
• Top spin speed
0: 980 rpm
1: 900 rpm
2: 800 rpm
3: 700 rpm
4: 600 rpm
5: 500 rpm
6: 400 rpm
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous top spin speed.
Press
Warm(+)
or
Cold(-)
button to select top spin
speed. (0~6)
Press the
Start
button.
The machine sets up the top spin speed, then advances
to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type – Turn on/off toggle switch.
• Card type – Insert the service card.
• OPL type – Push the Hot button twice.
18. Top spin speed – final spin time depends on RPM
51
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous coin 1 value.
Press
Warm(+)
or
Cold(-)
button to select value of coin 1.
(The value can be set from 5 tod 995 in 5 increments.)
Press the
Start
button.
The machine sets up the value of coin 1, then advances
to the next process automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type – Push the Hot button twice.
19. Value of coin 1
52
PROGRAMMING MODE - SETUP MODE
NOTE
• Coin 2 is available for E-suds system
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous Coin 2 value.
Press
Warm(+)
or
Cold(-)
button to select value of coin 2.
(The value can be set from 5 tod 995 in 5 increments.)
Press the
Start
button.
The machine sets up the value of Coin 2, then advances
to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
20. Value of coin 2
53
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous penny increment pricing offset.
Press
Warm(+)
or
Cold(-)
button to select value of PIPo.
(0~4)
Press the
Start
button.
The machine sets up the value of PIPo, then advances
to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
21. Penny increment pricing offset
This represents the cent increment price offset used when debit card is setup.
NOTE
• Penny Increment Pricing Offset is available only in card type.
(It hasn’t affected the coin type’s price setting.)
(top off time) is not available in washer.
54
PROGRAMMING MODE - SETUP MODE
NOTE
• This function can be set only at the machine. It cannot be managed via the setup card.
(It is not applied in setup card.)
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press
Warm(+)
or
Cold(-)
button and then select
or or
237 [KHz] 235 [KHz] 230 [KHz]
One or the other will
display.
Press the
Start
button.
The machine sets up the value of water level, then
advances to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type – Turn on/off toggle switch.
• Card type – Insert the service card.
• OPL type – Push the Hot button twice.
22. How to change the water level
You can change the water level by selecting two options.
1. Lo indicate water level 237 [KHz]
2. Idd indicate water level 235 [KHz]
2. HI indicate water level 230 [KHz]
E
55
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous value.
Press
Warm(+)
or
Cold(-)
button to select
High or Low or Off.
Press the
Start
button.
The machine sets up the beep volume, then advances
to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type – Turn on/off toggle switch.
• Card type – Insert the service card.
• OPL type – Push the Hot button twice.
23. Beep volume
56
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display previous value.
Press
Warm(+)
or
Cold(-)
button to select button to
select time between
0 ~ 180
.
Press the
Start
button.
The machine sets up the time to keep the coin, then
advances to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
24. Time to keep the coin (Use only for coin type)
57
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display default drop count.
Press
Warm
or
Cold
button to select time between
25
and
45
.
(Unit of drop count : 5)
Press the
Start
button.
The machine sets up the drop count, then advances to
the next process automatically.
25. How to setting drop count
58
PROGRAMMING MODE - SETUP MODE
26. How to setting rinse spin enable
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display step of rinse.(rs1~rs5)
Press the
Warm
or the
Cold
button to select risne spin
or .
Press the
Start
button.
The machine sets up the rinse spin and display next
step of rinse.
Press the
Hot
button. The machine sets up the rinse
spin.
59
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display auto dosing channel (CH1~5).
Press the
Start
button.
Display previous dosing time (sec).
Press
Warm
or
Cold
button to select time between
1
and
20
(Except CH3)
CH3 can select time between 1 and 10.
Press the
Start
button.
Display next auto dosing channel.(until CH5)
The machine sets up the dosing time.
Press the
Hot
button,
then advances to the next process automatically.
CH Detergent Input period
➀
ETC (Emulsifier) Main wash phase
➁
Main wash Main wash phase
➂
Bleach
Main wash (Remaining washing time
: 5 Minutes )
➃
Softener Final rinse phase
➄
Pre-wash Pre-wash phase
27. How to setting auto dosing
➄ ➃ ➂ ➁ ➀
60
PROGRAMMING MODE - SETUP MODE
28. How to enter the
Structure of
0 EUK (England)
1 EAP (Australia)
2 ELC (USA)
3 EPN (China)
4 KOR (Korea)
5 EJP (Japan)
6 ECI (Canada)
7 GSC (Philippines)
0 (Pharos)
1 (HP)
0 (Greenwald)
1 (ESD)
0 (ESD, Greenwald, Munzprufer)
1 (Korea)
NOTE
• Pay means card or coin type.
• Default type is coin type. If you want to change coin type to card type, you need to setup
vend type in fea1. (refer to FEA1 function)
• Free means OPL type.
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
• Product type
• Currency choice
• PDA type
• Card reader type
• Coin drop type
Content of
61
PROGRAMMING MODE - SETUP MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Hot
button.
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display. Press the
Start
button.
Press the
Warm
or the
Cold
button until
appears
in the display. Press the
Start
button.
Press the
Warm
or Cold button to select the number of
custom course.(1~20)
Press the
Start
button. The machine sets up the number
of custom course
Press the
Warm
or the
Cold
button until
appears
in the display. Press the
Start
button.
Press the
Warm
or
Cold
button to select custom
number.(no1~20)
Press the
Start
button. The machine sets up the custom
mode, then advances to the next process automatically.
29. How to setting custom program
NOTE
• is available in OPL type.
• Select course
Cos1 : Hot
Cos2 : Warm
Cos3 : Cold
Cos4 : Delicates
• Wash time
• Rinsing times per cycle
• Rinse cycle
• Top spin speed
• Pre-wash
• Water level
• Rinse spin, spin only
• Non-stop wash
• Rinse spin enable
Structure of
62
PROGRAMMING MODE - TEST MODE
PROGRAMMING MODE - TEST MODE
Diagnostic tests: (display)
This program has been added for testing the washer and detecting errors.
1.
According to pressing Start button, test move to the next step.
Entering the test mode
Data Name
Button Display Description
Entering
the test
mode
1. Entering
programming mode
Insert service card (card type), turn on/off toggle switch
(Coin type).
2. Hot
Press the Hot button. Then
appears in the display.
3. Start Enter the diagnostic test mode.
Number of times
the Start button is
pressed
Check Point Display
None
1time Turns on all lamps and locks the door Displays 1U:XX, 1t:XX and 12:X0 alternately (Version)
2 times Tumble Clockwise. rpm (42~50)
3 times Low Speed Spin rpm (550~650)
4 times High Speed Spin rpm (900~1000)
5 times Inlet valve for cold water turns on.
(Close the gravity drain valve.)
Water level frequency (255~)
6 times Inlet valve for hot water turns on. Water level frequency (255~)
7 times Inlet valve for atomizing turns on. Water level frequency (255~)
8 times Inlet valve for bleach turns on. Water level frequency (255~)
9 times
Tumble counter clockwise.
(Open the gravity drain valve.)
rpm (42~50)
10 times Turn on the heater Displayed XX
11 times Turns on all lamps.
Displays 1U:XX, 1t:XX and 12:X0 alternately
12 times Button Checks.
13 times High Speed Spin rpm (900~1000)
14 times PDA Signal Check this function is not applied in this machine
15 times
NOTE
• Make sure the drum is empty when a diagnostic test is performed. Do not use .
63
PROGRAMMING MODE - TEST MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
button until
appears in the
display.
Press the
Start
button, then factory reset is done.
is displayed.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type – Turn on/off toggle switch.
• Card type – Insert the service card.
• OPL type – Push the Hot button twice.
2. Factory reset -
After factory reset, machine information is changed to the default value.
NOTE
• Washing time 9 minutes
• Rinse cycle twice
• Top spin speed 980 RPM
• Add SUPER WASH 3 minutes extra wash and one extra rinse
64
PROGRAMMING MODE - TEST MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
The display will cycle through 2000 --> 0101 --> Sat -->
0000 repeatedly.
Press the
Start
button.
Press
Warm (+)
or
Cold (-)
button to select year
between 2000 and 2099.
Press the
Start
button.
The machine sets up the year, then advances to the
next process automatically.
Press
Warm (+)
or
Cold (-)
button to select a month
between 01 and 12.
Press the
Start
button.
The machine sets up the month, then advances to the
next process automatically.
Press
Warm (+)
or
Cold (-)
button to select the day
between 01 and 31.
Press the
Start
button.
The machine sets up the day, then advances to the next
process automatically.
Press
Warm (+)
or
Cold (-)
button to select the hour
between 00 and 23.
Press the
Start
button.
The machine sets up the hour, then advances to the
next process automatically.
Press
Warm (+)
or
Cold (-)
button to select minute
between 00 and 59.
Press the
Start
button.
The machine sets up the minute.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type - Push the Hot button twice.
3. Time set up
65
PROGRAMMING MODE - TEST MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
button until
appears in the
display.
Press the
Start
button.
Go back to ready mode.
Select the cycle you desire.
Press the
Start
button.
Display will show the remaining time and Start.
4. Courtesy cycle
A courtesy cycle is like a complimentary cycle given to the customer when the washer goes out of
order after the customer has made the payment to wash clothes.
66
PROGRAMMING MODE - TEST MODE
Entering set up
mode.
You will see LqC1
Button Display
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
button until
appears in the
display.
Press the
Start
button.
Start drain and display spin time.
Display spin time
Display with beeping.
Go back to ready mode.
Insert cycle kill
card.
Description Display
Display spin time. Spin Time
Begin to drain. Spin Time
Remove cycle kill card.
Go back to ready mode.
5. Cycle Kill
Coin / OPL type
Card type
67
PROGRAMMING MODE - TEST MODE
NOTE
• Default password is 3.
If you want to change the password, you must know the present password.
Entering set up
mode.
You will see LqC1
Button Display
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Press the
Warm
button until
appears in the
display.
Set up the number you want
By pressing
Warm
or the
Cold
button.
For example, If you want to change password number
to No. 5.
Press the
Warm
button until
appears in the
display.
Press the
Start
button, then Password change is done.
is displayed.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type – Push the Hot button twice.
6. Password -
How to change the password.
68
PROGRAMMING MODE - TEST MODE
NOTE
• Never load laundry while using TUB CLEAN. The laundry may be damaged or become contami-
nated. Make sure to clean the washer tub when it is empty.
• Leave the door open after finishing the laundry to keep the tub clean.
• TUB CLEAN should be repeated monthly.
• Safely and conveniently secure the door slightly ajar with a magnetic door plunger. This will
promote air circulation and allow the interior of the machine to dry.
Entering set up
mode.
You will see LqC1
Button Display
Press the
Warm
or the
Cold
button until
appears
in the display.
Press the
Start
button.
Display will show the remaining time.
When the TUB CLEAN cycle is finished,
is
displayed with beeping.
Go back to ready mode.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready
mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• OPL type – Push the Hot button twice.
7. Tub clean -
To clean up the tub, please run the TUB CLEAN cycle.
69
PROGRAMMING MODE - COLLECT MODE
PROGRAMMING MODE - COLLECT MODE
Collect information data : (display)
The washer collects the usage data so that the owner can check various information like number of
various cycles used, how many times card or coins used, etc.
Entering the collect mode
Data Name
Button Display Description
Entering
the collect
mode
1.
Entering the
programming
mode.
Insert service card (card type), turn on/off
toggle switch (coin type).
2.
Hot
Press the
Hot
button until appears in
the display.
3. Warm(+), Cold(-)
Press the
Warm (+), Cold (-)
button until
appears in the display.
4. Start
Enter the Collect information data.
5. Warm(+), Cold(-)
xxxx
Move to each data list that you want to check
by pressing with
Warm (+)
or
Cold (-)
button.
6. Start
xxxx
Display the value of selected data list
7. Hot
Move to upper level or Comes back to Idle
State
❖
Check the collect information reference to the follow lists. The lists are displayed by abbreviations.
70
PROGRAMMING MODE - COLLECT MODE
No. Abbreviation Meaning Description
1
rgPr Regular Price 0~199 nickels ($0.00 ~ $9.95)
2
rgCP Regular Delicates Price 0~199 nickels ($0.00 ~ $9.95)
3
rgrP Regular Warm & Cold Price 0~199 nickels ($0.00 ~ $9.95)
4
rgHP Regular Hot Price 0~199 nickels ($0.00 ~ $9.95)
5
dELC Dryer Moisture Sense 0: disable 1: enable
6
ItrC Interval Regular Cycles Number of Regular cycles ( 0~65535 )
7
ItCC Interval Regular Delicates Cycles (60°C NORMAL ) Number of Regular Cold cycles ( 0~65535 )
8
ItAC
Interval Regular Warm & Cold Cycles (75°C HOT,
PERM. PRESS )
Number of Regular Warm cycles ( 0~65535 )
9
ItHC Interval Regular Hot Cycles (90°C MEDICAL) Number of Regular Hot cycles ( 0~65535 )
10
ItSC Interval Super Cycles Number of Super cycles ( 0~65535 ) ( Washer Only)
11
IttF Interval Topoff Cycles Number of Topoff cycles ( 0~65535 ) (Dryer Only)
12
ItUC Interval Service Cycles Number of Service cycles (0~65535)
13
ItFC Interval Token Cycles Number of Token cycles (0~65535)
14
ACrC Accumulated Regular Cycles Number of Regular cycles ( 0~65535 )
15
ACCC
Accumulated Regular Delicates Cycles (60°C
NORMAL)
Number of Regular Cold cycles ( 0~65535 )
16
ACAC
Accumulated Regular Warm & Cold Cycles (75°C
HOT, PERM. PRESS )
Number of Regular Warm cycles ( 0~65535 )
17
ACHC Accumulated Regular Hot Cycles (90°C MEDICAL) Number of Regular Hot cycles ( 0~65535 )
18
ACSC Accumulated Super Cycles Number of Super cycles ( 0~65535 ) (Washer Only)
19
ACtF Accumulated Topoff Cycles Number of Topoff cycles ( 0~65535 ) (Dryer Only)
20
ACUC Accumulated Service Cycles Number of Service cycles ( 0~65535 )
21
ACFC Accumulated Token Cycles Number of Token cycles (0~65535)
22
ACrt Accumulated Run Time Number of Running minutes ( 0~65535 )
23
Itnr Interval No Runs Money inserted, but no run
24
Ittb Interval Trouble Cycles No money, but ran
25
ItPd Interval Power Downs Number of power down
26
Itdd Interval Unauthorized Service Door Openings
Number of Unauthorized Service Door Openings
( 0~ 255)
27
ItAd Interval Authorized Service Door Openings Number of Authorized Service Door Openings ( 0~255)
28
ItUC Interval Unauthorized Coin Vault Openings Number of Authorized Service Door Openings ( 0~255)
29
ItAC Interval Authorized Coin Vault Openings Number of Authorized Coin Vault Openings (0~255)
30
Ittl Interval Total Income Amount of money cycle($ 0 ~ $ 65535)
31
ACtl Accumulated Total Income Amount of money cycle($ 0 ~ $ 65535)
32
IttC Interval Total Cycles Number of Total cycle($ 0 ~ $ 65535)
33
ACtC Accumulated Total Cycles Number of Total cycle($ 0 ~ $ 65535)
34
SCPr Super Cycle Price $0.00 ~ $9.95
35
toPr Top Off Price $0.00 ~ $9.95
36
Itd Interval Money Amount of money for regular cycle($ 0 ~ $ 65535)
37
Acd Accumulated Money Amount of money for regular cycle($ 0 ~ $ 65535)
38
ItSd Interval Superwash Money Amount of money for superwash cycle($ 0 ~ $ 65535)
39
ACSd Accumulated Superwash Money Amount of money for superwash cycle($ 0 ~ $ 65535)
❊
Interval Cycles (Interval means Since last data collecting)
❊
Accumulated Cycles (Accumulated means Total cycles in washer/dryer's life time not include service cycles or trouble cycles)
❊
Authorized: Service Door Openings with PDA Communication (Open Service door Within 20 seconds After communicating
with PDA)
❊
Unauthorized: Service Door Openings without PDA Communication
❊
These items (No. 30~33) are not applied this program
Collect Mode Data lists
71
MAINTENANCE
After the cycle is finished, wipe the door and the
inside of the door seal to remove any moisture.
Leave the door open to dry the washer tub interior.
Wipe the body of the washing machine with a dry
cloth to remove any moisture

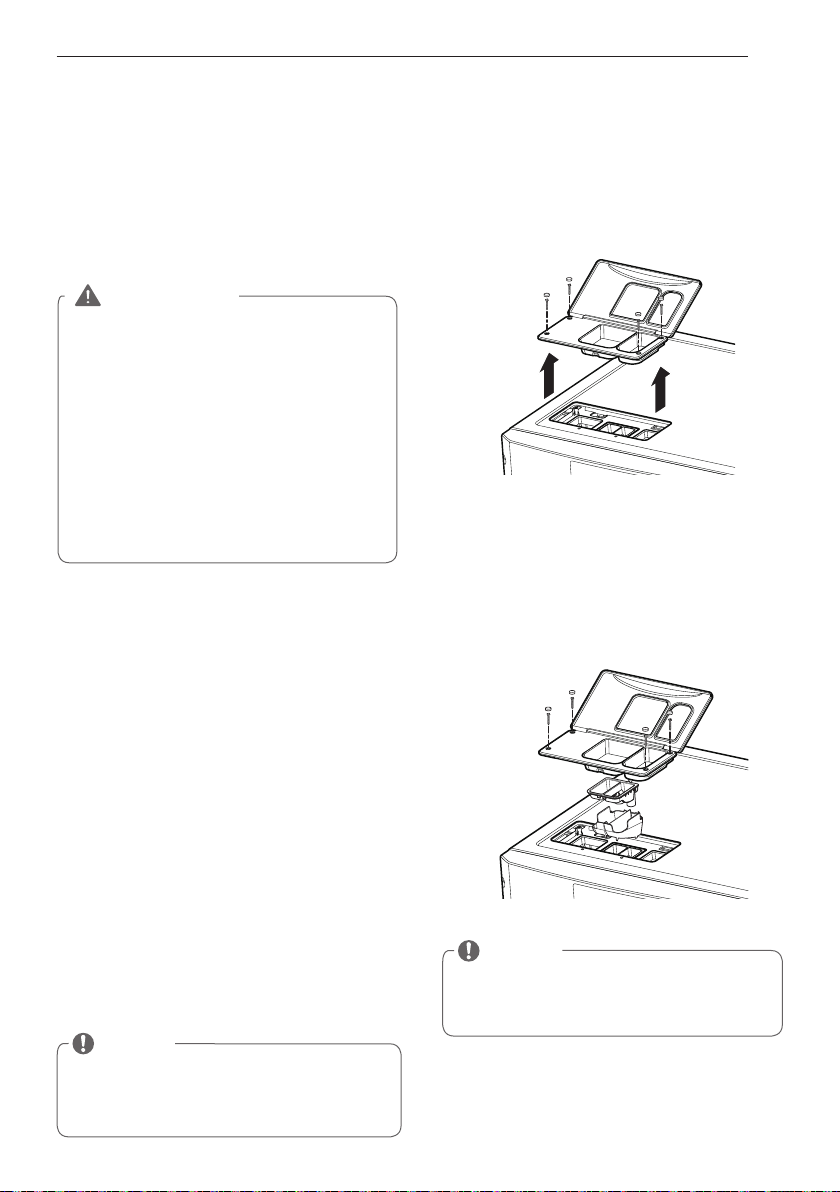

Cleaning the Dispenser
1. The dispenser should be cleaned periodically
to remove buildup from detergent and other
laundry products.
2. Remove the inserts from the drawer, and
clean them with warm water and a soft cloth
or brush to remove any residue or buildup.
Wipe out the inside of the drawer opening
with a damp cloth. Reassemble the drawer
and reinstall in the drawer opening.
Storing the Washer
If the washer will not be used for an extended
period of time and is in an area that could be
exposed to freezing temperatures:
1. Turn off water supply tap.
2. Disconnect hoses from water supply and drain
water from hoses.
3. Plug the power cord into a properly grounded
electrical outlet.
4. Add 1 gallon of nontoxic recreational vehicle (RV)
antifreeze to the empty wash drum. Close door.
5. Select the spin cycle and let washer spin for 1
minute to drain out all the water.
6. Unplug the power cord, dry the drum interior
with a soft cloth, and close the door.
7. Remove the inserts from the dispenser.
Drain any water in compartments and dry the
compartments.
8. Store the washer in an upright position.
9. To remove the antifreeze from the washer after
storage, run washer through a complete cycle
using detergent.
Do not add laundry!
Care after wash
MAINTENANCE
NOTE
• Not all of the RV antifreeze will be expelled.
• Weekly cleaning of the detergent dispenser
will ensure problem free operation.
NOTE
• Do not use anything other than water
to clean the drawer, inserts, and drawer
opening.
WARNING
• Unplug the washer before cleaning to avoid
the risk of electric shock. Failure to follow
this warning can cause serious injury, fire,
electrical shock, death.
• Never use harsh chemicals, abrasive
cleaners, or solvents to clean the washer.
They will damage the finish.
• Do not use volatile substances (benzene, paint
thinner, alcohol, acetone, etc.) or detergents
with strong chemical components when
cleaning the washing machine. Doing so may
cause discoloration or damage to the machine,
or it may cause a fire.
72
MAINTENANCE

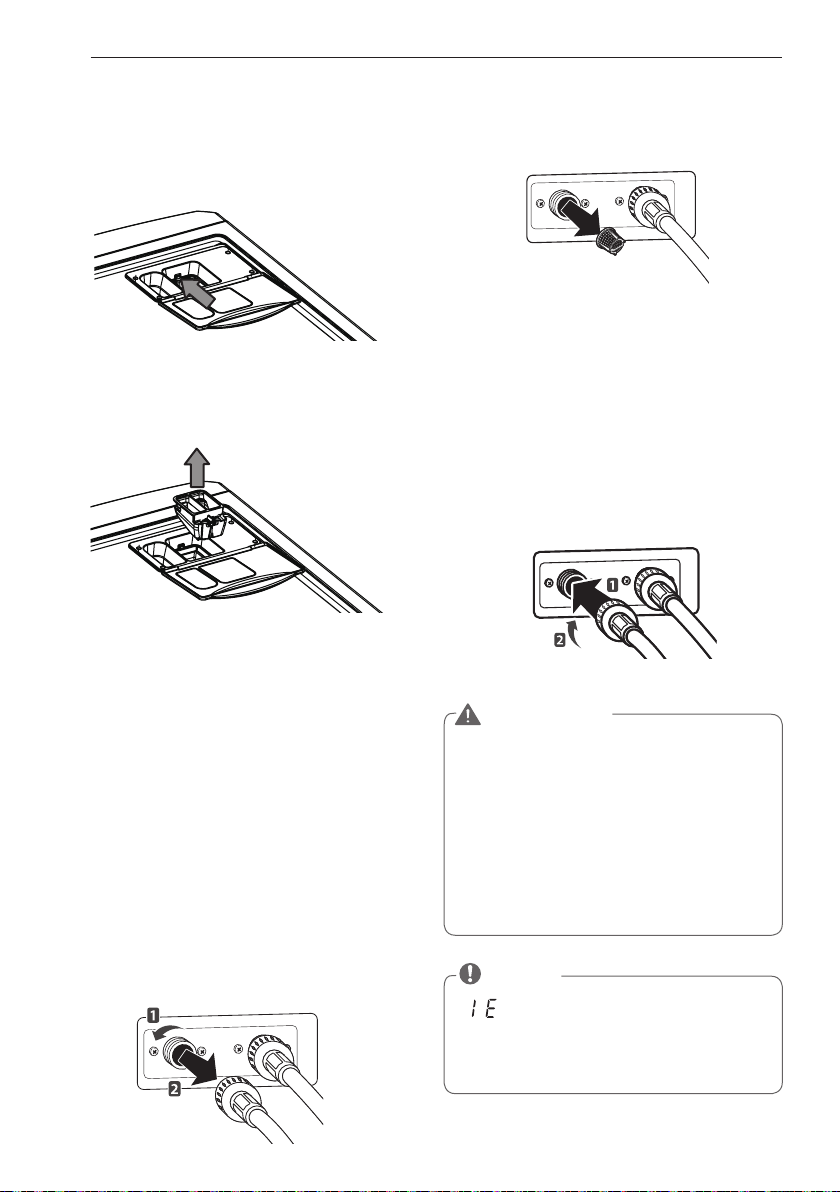

Cleaning the water inlet filters
Clean the water inlet filters periodically to
prevent clogging. Take extra care to clean the
water inlet filters for areas using hard water.
Water may not be supplied if there are foreign
objects, such as rust, sand, or stones in the
water inlet filters.
1
Pull out the plug to turn off the washing
machine.
2
Turn off the faucets connected with the
water inlets.
3
Remove the water inlet hoses.
Cleaning the detergent box
1
In order to clean detergent box only, detach
it from the machine it by pressing arrow as
shown in below image.
2
Detach detergent box and clean with warm
water and brush.
4
Pull out the water inlet filter.
5
Remove foreign objects from the water filter
inlet.
- Soak the water filter inlets in white vinegar
or a lime scale remover or use a toothbrush
to remove foreign objects and rinse
thoroughly.
6
Press the water filter inlets back into place.
7
Reattach the water lines to the washing
machine.
Inlet Filter
NOTE
• message will blink on the display
when the water pressure in the detergent
drawer is weak or an inlet filter is clogged
with dirt. Clean the inlet filter.
WARNING
• Unplug the power cord and turn off the
faucets before cleaning. Failure to do so
may cause electric shock.
• Do not use the washing machine without
the inlet filters. If you use the washing
machine without the inlet filters it will
cause leaks and malfunction.
• If you use the washing machine in an area
with hard water, the inlet filter may clog
due to lime buildup.
73
MAINTENANCE
CAUTION
• Cleaning the door seal with an undiluted
solution may cause malfunction of the
door seal and washing machine parts.
Clean the door seal
Clean the door seal once a month to prevent
build-up of dirt in the door seal.
1
Wear rubber gloves and protective goggles.
2
Dilute 3/4 cup (177 ml) of liquid chlorine
bleach in 1 gallon (3.8 L) of water.
3
Soak a sponge or a soft cloth in this diluted
solution and wipe down all around the door
seal.
4
Wipe any moisture with a dry towel or cloth
after cleaning.
5
Leave the door open to allow the door seal
to dry completely.
Clean the drum, TUB CLEAN
Using the washing machine in a humid space
for a long period of time may lead to a buildup
of black mold and germs in the air inside the
washer tub and affect your health. If you clean
the washer tub regularly on a monthly basis
using TUB CLEAN it will keep the washer tub
clean for hygienic use.
1 Add tub cleaner or lime scale remover into
the detergent dispenser drawer.
- Do not exceed the maximum detergent
limit line when you add it. Detergent may
remain in the washer tub after cleaning.
- When you use liquid chlorine bleach, load it
into the liquid chlorine bleach compartment.
When you use a powdered cleaner, add it
into the main wash detergent compartment.
- When you use cleaning tablets, place them
directly into the washer tub. (Do not add
cleaning tablets to the drawer.)
2 Do operate tub clean. (please refer to 58
page about tub)
NOTE
• Never load laundry while using TUB
CLEAN. The laundry may damage or
become contaminated.
Make sure to clean the washer tub when
it is empty.
• Leave the door open after finishing the
laundry to keep the tub clean.
• TUB CLEAN should be repeated
monthly.
• Safely and conveniently secure the
door slightly ajar with a magnetic door
plunger. This will promote air circulation
and allow the interior of the machine to
dry.
74
ERROR MODE
ERROR MODE

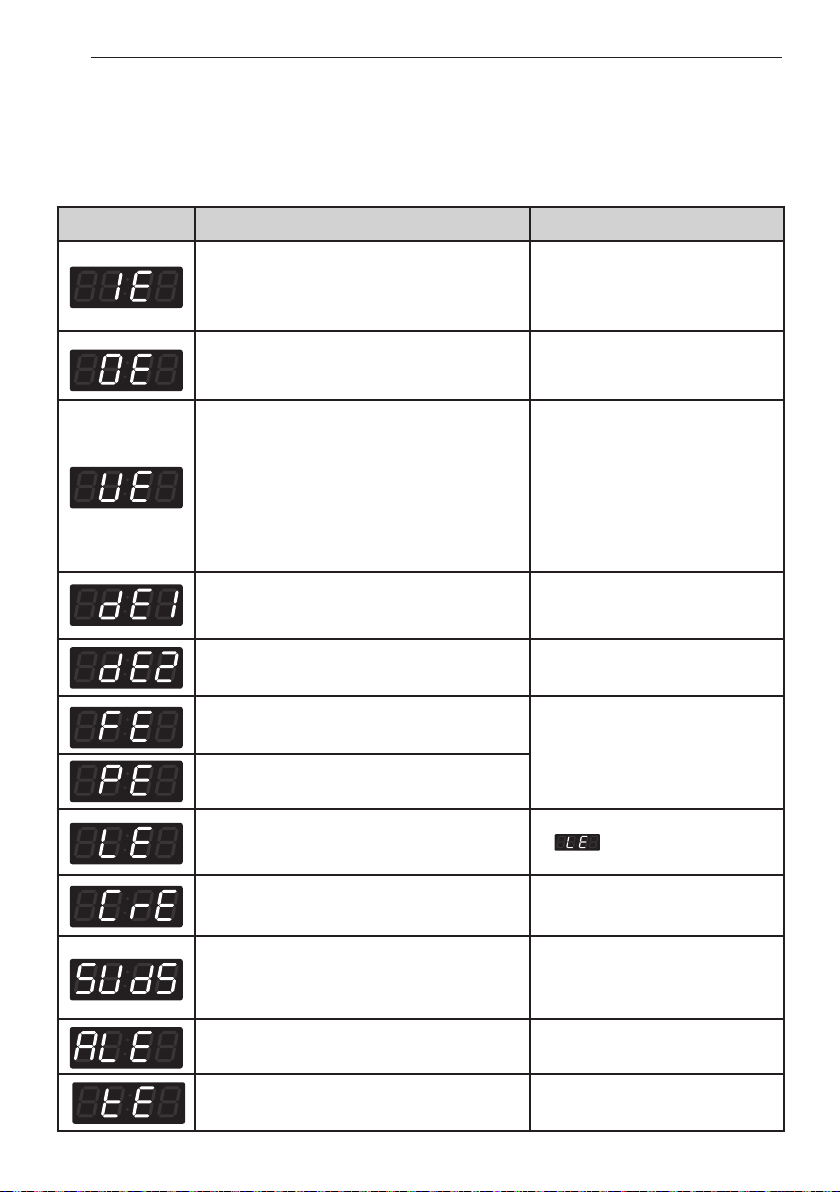

Meaning of Error Codes that LED displays during occurrence of
problem.
Problem Possible Cause Solution
• Water supply is not adequate in area.
• Water supply taps are not completely open.
• Water inlet hose is bent.
• The filter of the inlet hose clogged.
Check another tap in the house.
Fully open tap.
Straighten hose.
Check the filter of the inlet hose.
• Drain hose is bent
or clogged.
• The drain filter is clogged.
Clean and straighten the drain
hose.
Clean the drain filter.
• Load is too small.
• Load is out of balance.
• The appliance has an imbalance detection
and correction system. If individual heavy
articles are loaded (bath mat, bath robe,
etc.) and the imbalance is too great, after
several attempts to restart the spin cycle the
machine will stop and the error code will be
displayed.
Add 1~2 similar items to help
balance the load.
Rearrange load to allow proper
spinning.
• Is the door opened or not completely closed? Close the door completely.
✽
If it will not open, call for
service.
• Door lock is broken. Check the door switch.
• The water overfills due to a faulty water
valve.
Close the water tap.
Unplug the power plug.
Call for service.
• The water level sensor malfunction.
• Overload in motor. Restart the cycle after 30 minutes.
If
is not released, call for
service.
• Disconnection of card reader cable. Check the card reader wire.
• Too much detergent is used. This is not an error. It indicates a
suds removal routine.
It will clear and restart the cycle
when the suds are gone.
• Emergency stop button is pressed. Release the emergency button.
• Thermistor is opened or shorted. Thermistor should be replaced.
75
POWER FAIL RECOVERY & DEFAULT WASHER SETTINGS & SPECIFICATIONS
POWER FAIL RECOVERY
In case of power failure, the machine stops running but the time display remains on, showing the
time just before power failure.
DEFAULT WASHER SETTINGS
SPECIFICATIONS
NOTE
• Specifications subject to change by manufacturer.
Problem Possible Cause Solution
• Water supply is not adequate in area.
• Water supply taps are not completely open.
• Water inlet hose is bent.
• The filter of the inlet hose clogged.
Check another tap in the house.
Fully open tap.
Straighten hose.
Check the filter of the inlet hose.
• Drain hose is bent
or clogged.
• The drain filter is clogged.
Clean and straighten the drain
hose.
Clean the drain filter.
• Load is too small.
• Load is out of balance.
• The appliance has an imbalance detection
and correction system. If individual heavy
articles are loaded (bath mat, bath robe,
etc.) and the imbalance is too great, after
several attempts to restart the spin cycle the
machine will stop and the error code will be
displayed.
Add 1~2 similar items to help
balance the load.
Rearrange load to allow proper
spinning.
• Is the door opened or not completely closed? Close the door completely.
✽
If it will not open, call for
service.
• Door lock is broken. Check the door switch.
• The water overfills due to a faulty water
valve.
Close the water tap.
Unplug the power plug.
Call for service.
• The water level sensor malfunction.
• Overload in motor. Restart the cycle after 30 minutes.
If is not released, call for
service.
• Disconnection of card reader cable. Check the card reader wire.
• Too much detergent is used. This is not an error. It indicates a
suds removal routine.
It will clear and restart the cycle
when the suds are gone.
• Emergency stop button is pressed. Release the emergency button.
• Thermistor is opened or shorted. Thermistor should be replaced.
Default Settings Default
Wash Time (Minutes) 9 Minutes
Rinse Time (Minutes) 16 Minutes
Spin Time (Minutes) 10 Minutes
Rinsing times Twice
Coin #1 Value 25¢
Coin #2 Value (E-suds) 25¢
Vend Price $1.00
Add super wash price 25¢
Top Spin speed 980 rpm
Model TCW2013**
Name Front-loading Washing Machine
Power supply 120 V~ 60 Hz
Size
73.7 cm (W) X 81.4 cm (D) X 103.6 cm (H), 137 cm (D with door open)
29”(W) X 32”(D) X 40.8”(H), 53”(D with door open)
Weight 221.8 lbs. (100.6 kg)
Wash capacity 5.16 cu.ft (IEC: 5.95 cu.ft)
Spin speed 980 rpm max.
Permissible water pressure 14.5~116 psi (100~800 kPa)
