Thank you for purchasing this Denon product. To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
Quick Start Guide CD-ROM
(Owner’s Manual)
Safety Instructions Power cord
Remote control unit
(RC-1207)
R03/AAA batteries Audio cable
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index

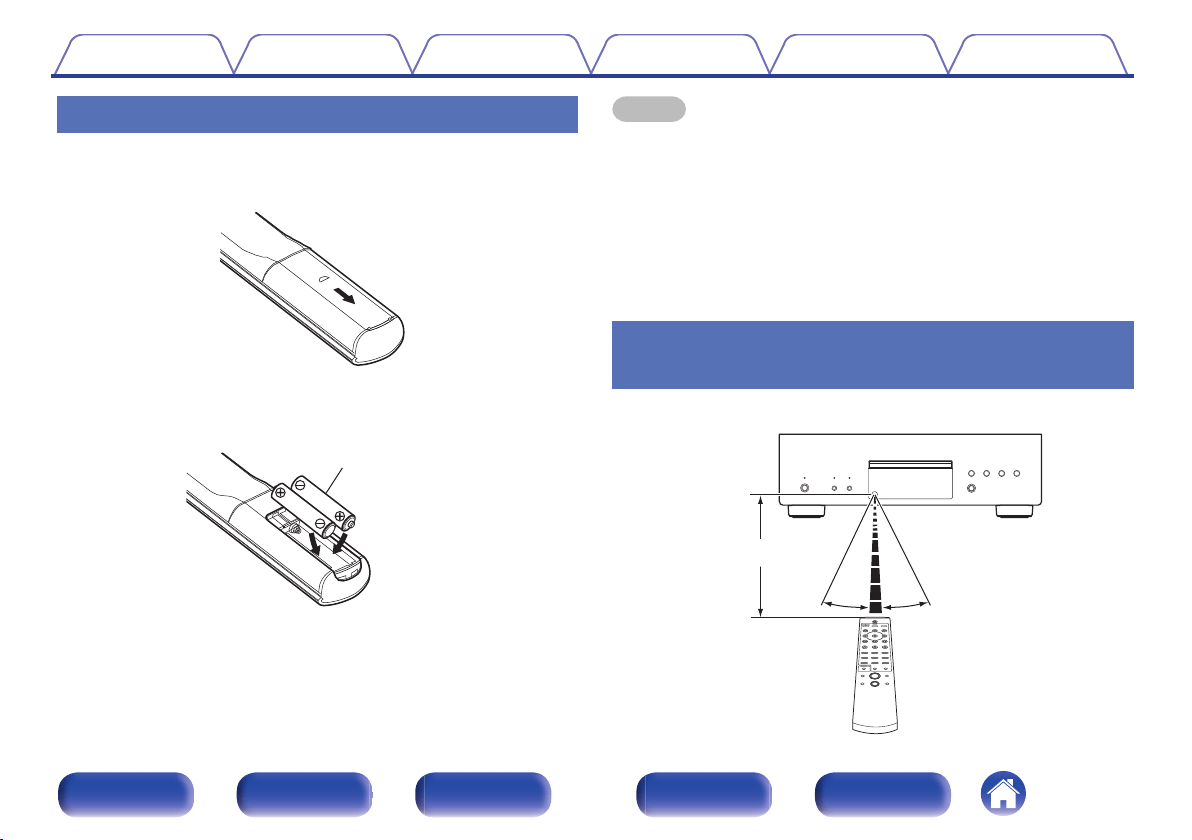

Inserting the batteries
1
Remove the rear lid in the direction of the arrow and
remove it.
.
2
Insert two batteries correctly into the battery
compartment as indicated.
.
R03/AAA batteries
3
Put the rear cover back on.
NOTE
0
When inserting the batteries, be sure to do so in the proper direction, following the
q and w marks in the battery compartment.
0
To prevent damage or leakage of battery fluid:
0
Do not use a new battery together with an old one.
0
Do not use two different types of batteries.
0
Remove the batteries from the remote control unit if it will not be in use for long
periods.
0
If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
Approx. 7 m
30°
30°
Contents
Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index
Features
High quality sound
0
High Bitrate and High Sampling with Advanced AL32 Processing
Plus
A high bitrate and high sampling has been achieved with Denon's
unique data interpolation algorithm. 16 bit audio signals are converted
to a high bitrate of 32 bit and 44.1 kHz sampling signals are up-sampled
by 16x to achieve smoother recreation of sound waves. Data
interpolation is also used, predicting interpolation points from a large
number of surrounding points to provide audio as close as possible to
the original sound. This elaborate restoration of data lost during digital
recording achieves fine, distortion-free rendering, accurate sound
localizing, rich bass and recreation that is faithful to the original sound.
0
DAC Master Clock Design for the Ideal Clock
To make full use of the properties of this unit's semiconductor, it was
important to use a highly accurate clock signal for the semiconductor's
operations. This model contains 2 new oscillators, one for each
frequency. These oscillators are developed to dramatically decrease
phase noise caused by frequency displacement, achieving a more
stable and more accurate clock than ever before. The master clock is
near the D/A converter, reducing jittering to achieve faithful playback.
0
Advanced S.V.H. Mechanism & Direct Mechanical Ground
Construction
Each part of the newly developed Advanced S.V.H. Mechanism is
made from a different material to suit its purpose, including an aluminum
die cast tray. The high weight of these parts improves damping, and the
resonance points are also decentralized to provide a high level of
damping. The center of gravity of the mechanical parts has been
lowered. In addition to reducing internal vibration caused by the rotation
of the disc, this also makes the structure resistant to external vibration.
A Direct Mechanical Ground construction is also used. Through
measures such as placing the power transformer near the feet, this
construction thoroughly removes the effects of internal and external
vibration and thoroughly prevents transmission of unnecessary vibration
and emission of noise.
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index
High performance
0
Supports high-resolution audio sources stored on discs
MP3, WMA, AAC, WAV, FLAC, ALAC, AIFF and DSD files that have
been recorded onto DVD-R/-RW/+R/+RW or CD-R/-RW discs can be
played back on this CD player.
0
Reduced power consumption during standby
In consideration of the environment, power consumption during standby
has been reduced to 0.1 Watts or better.
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index
Part names and functions

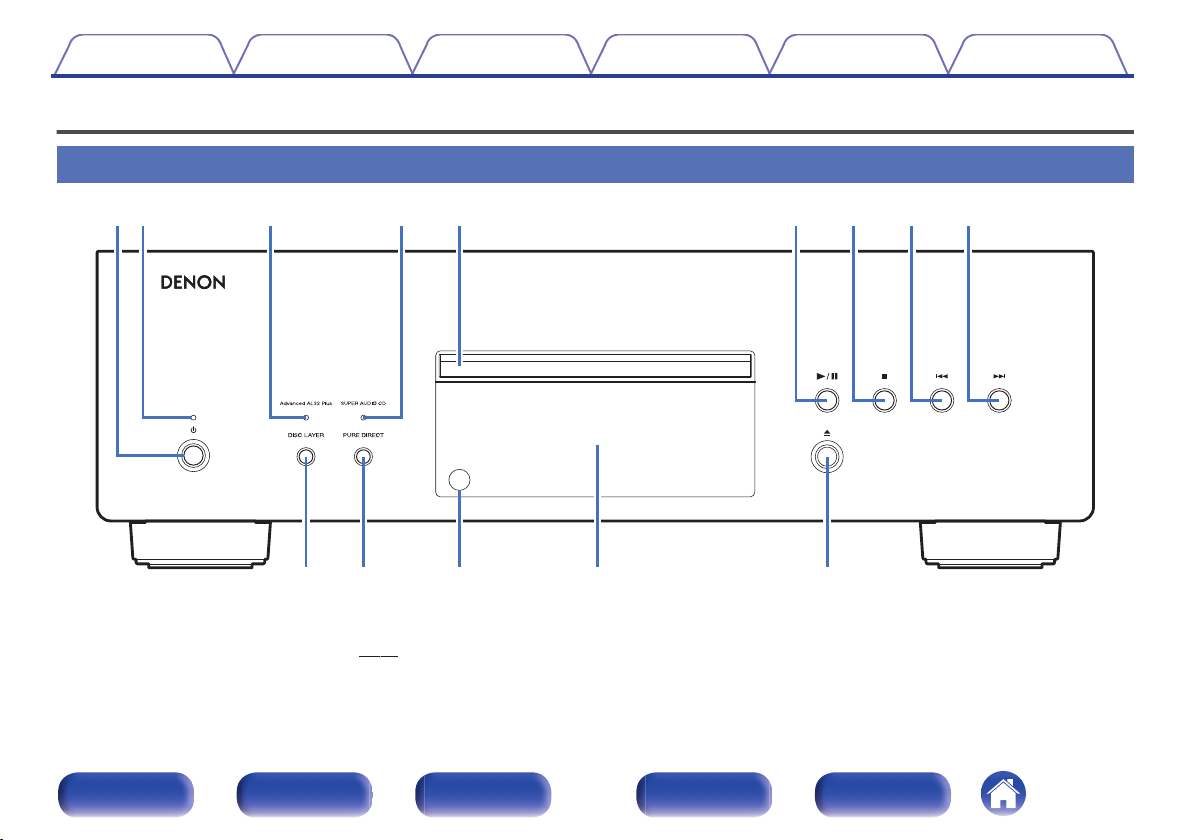

Front panel
.
y u i owq ert
Q3 Q4Q2Q1Q0
A
Power operation button (X)
Turns power to this unit on and off. (v p. 22)
B
Power indicator
This is lit as follows according to the power status:
0
Power on : Green
0
Standby : Off
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index
.
Q
3
Q
4
Q
2
Q
1
Q
0
yuioert
C
Advanced AL32 Plus indicator
When this unit is used in the following ways, Advanced AL32
Processing Plus is activated and this light turns on.
0
When a CD is inserted
0
When a data disc is inserted
0
When “CD” is set as the layer mode of a Super Audio CD
0
When a DSD file is played, Advanced AL32 Processing Plus stops and this
light turns off.
D
SUPER AUDIO CD indicator
This light turns on when this unit is used in the following ways.
0
When a Super Audio CD is inserted
0
When “STEREO” or “MULTI” is set as the layer mode of a Super
Audio CD
E
Disc tray
Used to insert a disc.
F
Play/pause button (1 / 3)
Plays the track/Pauses the track.
G
Stop button (2)
Stops playback.
H
Reverse-skip button (8)
Returns to the start of the currently playing track.
I
Forward-skip button (9)
Plays the next track.
J
DISC LAYER button
This switches the Super Audio CD layer. (v
p. 24)
K
PURE DIRECT button
This switches the Pure Direct mode. (v
p. 23)
L
Remote control sensor
This receives signals from the remote control unit. (v
p. 5)
M
Display
This displays various pieces of information. (v p. 10)
N
Disc tray open/close button (5)
Opens and closes the disc tray.
Contents
Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index
Display
.

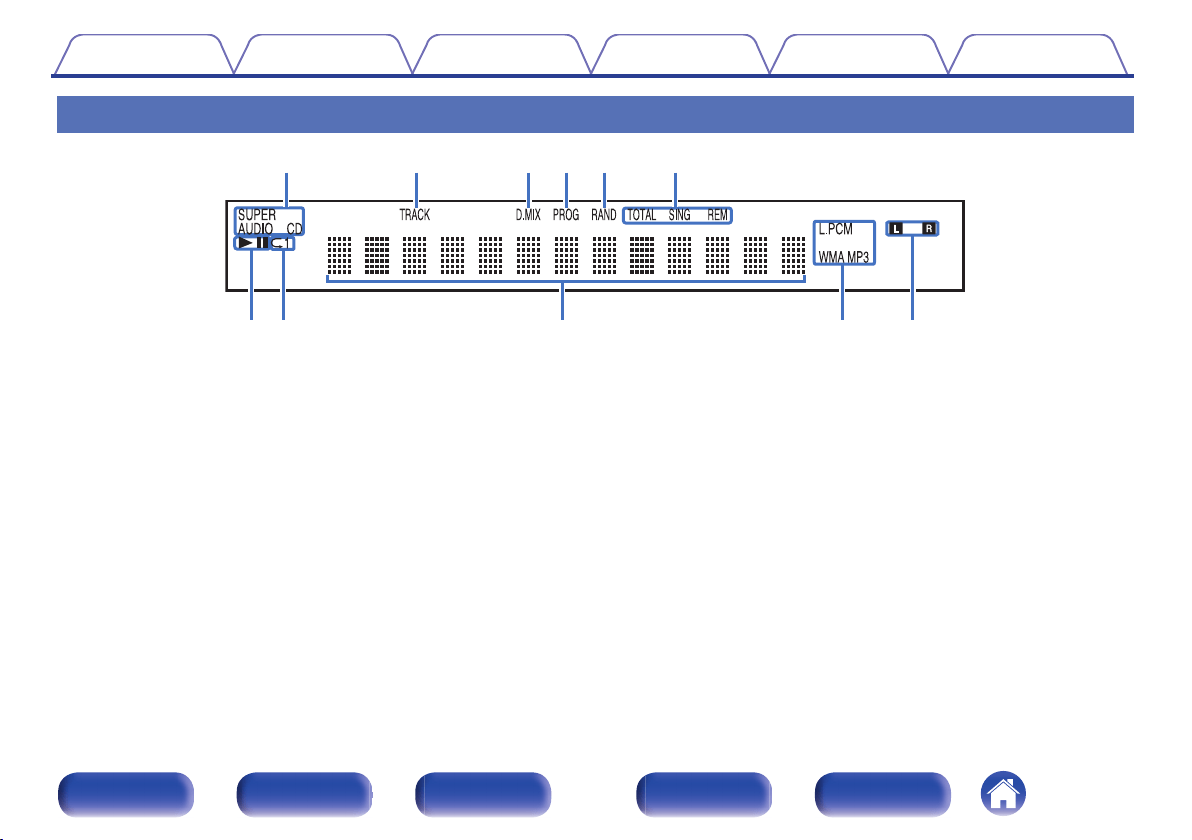

iu o Q0
q
w r t y
Q1
e
A
Disc media indicators
Displays the type of disc that is being played back.
B
Track number indicator
Lights up when displaying the track number.
C
Downmix indicator (D.MIX)
This light turns on when a multi-channel area of a Super Audio CD is
played.
D
Program indicator (PROG)
Lights up during program playback.
E
Random indicator (RAND)
Lights during random playback.
F
Time display indicators
TOTAL REM : Lights up when displaying the remaining time in all-track
playback.
SING REM : Lights up when displaying the remaining time in
singletrack playback.
G
Playback mode indicators
1 : Lights up during playback.
3 : Lights up during pause.
H
Repeat mode indicator
Lights to match the repeat mode settings.
I
Information display
Displays various information or playback elapsed time and so on of the
disc.
J
Playback format indicators
Lights up while an WAV/MP3/WMA file is being played back.
K
Input signal indicators
The respective indicator will light corresponding to the input signal.
L : Front left
R : Front right
Contents
Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index

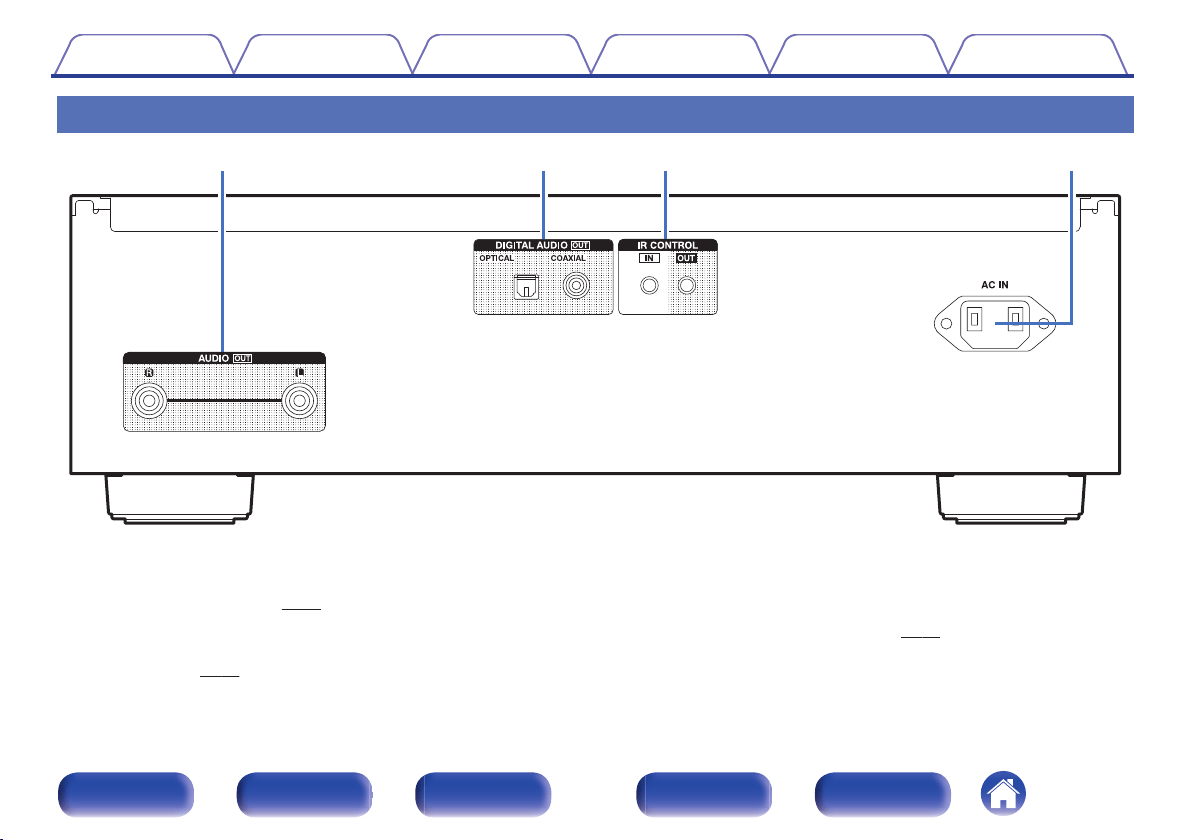

Rear panel
.
rq w e
A
AUDIO OUT connectors
Used to connect devices equipped with analog audio inputs connectors
or an external amplifier. (v p. 17)
B
DIGITAL AUDIO OUT connectors (OPTICAL/COAXIAL)
Used to connect an AV receiver or D/A converter that has a digital input
connectors. (v p. 18)
C
IR CONTROL jacks
Used to connect Denon network audio players with an IR controller.
D
AC inlet (AC IN)
Used to connect the power cord. (v
p. 20)
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index

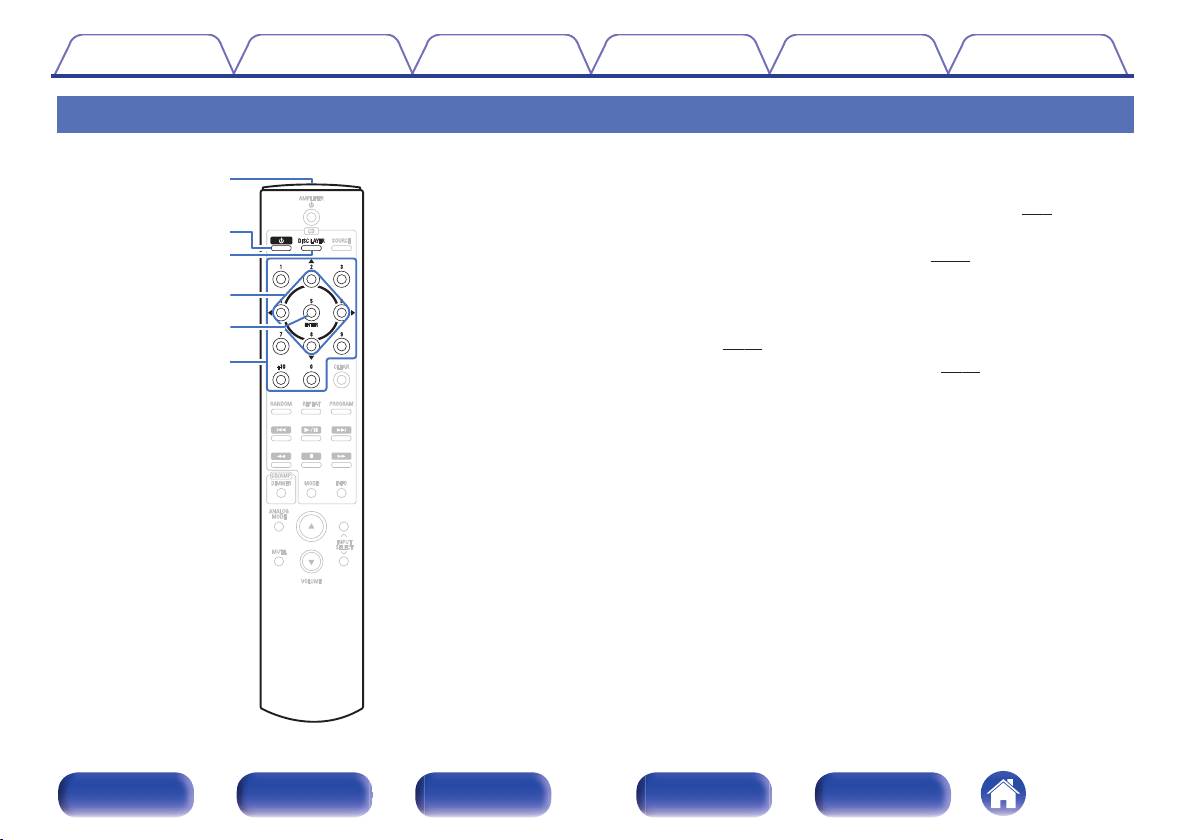

Remote control unit
r
y
t
w
e
q
o
Operating this unit
A
Signal transmitter
This transmits signals from the remote control unit. (v
p. 5)
B
Power operation button (X)
This turns the power on/off (standby). (v p. 22)
C
DISC LAYER button
This switches the playback layer of a Super Audio CD.
0
“Setting the top priority playback layer for Super Audio
CDs” (v
p. 24)
0
“Playing CDs and Super Audio CDs” (v p. 25)
D
Cursor buttons (uio p)
These select items.
E
ENTER button
This determines the selection.
F
Number buttons (0 – 9, +10)
These enter numbers into the unit.
Contents
Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index

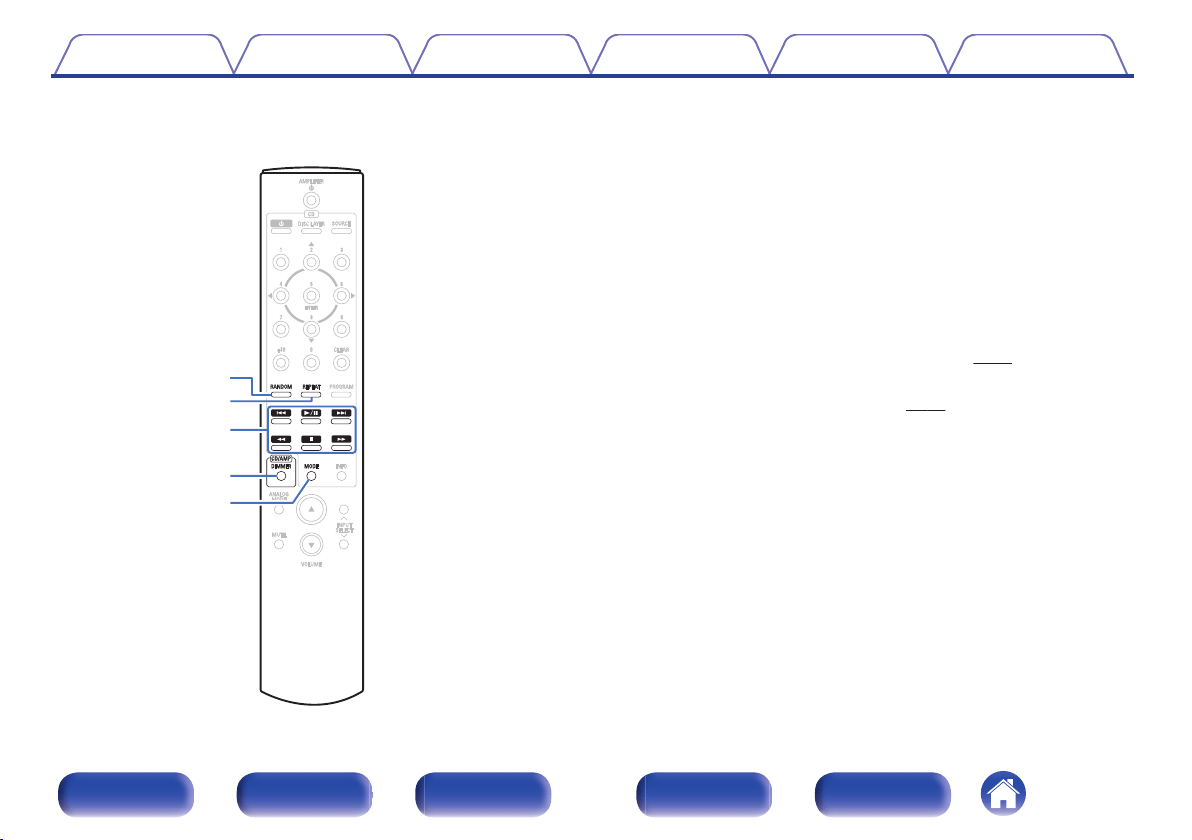

Q0
o
i
u
Q1
G
RANDOM button
Switches the random playback.
H
REPEAT button
Switches the repeat playback.
I
System buttons
These perform playback related operations.
0
Skip buttons (8 / 9)
0
Play/pause button (1 / 3)
0
Fast-reverse/Fast-forward buttons (6 / 7)
0
Stop button (2)
J
DIMMER button
This switches the brightness of the display. (v
p. 23)
K
MODE button
This switches the playback mode. (v
p. 31)
Contents
Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index

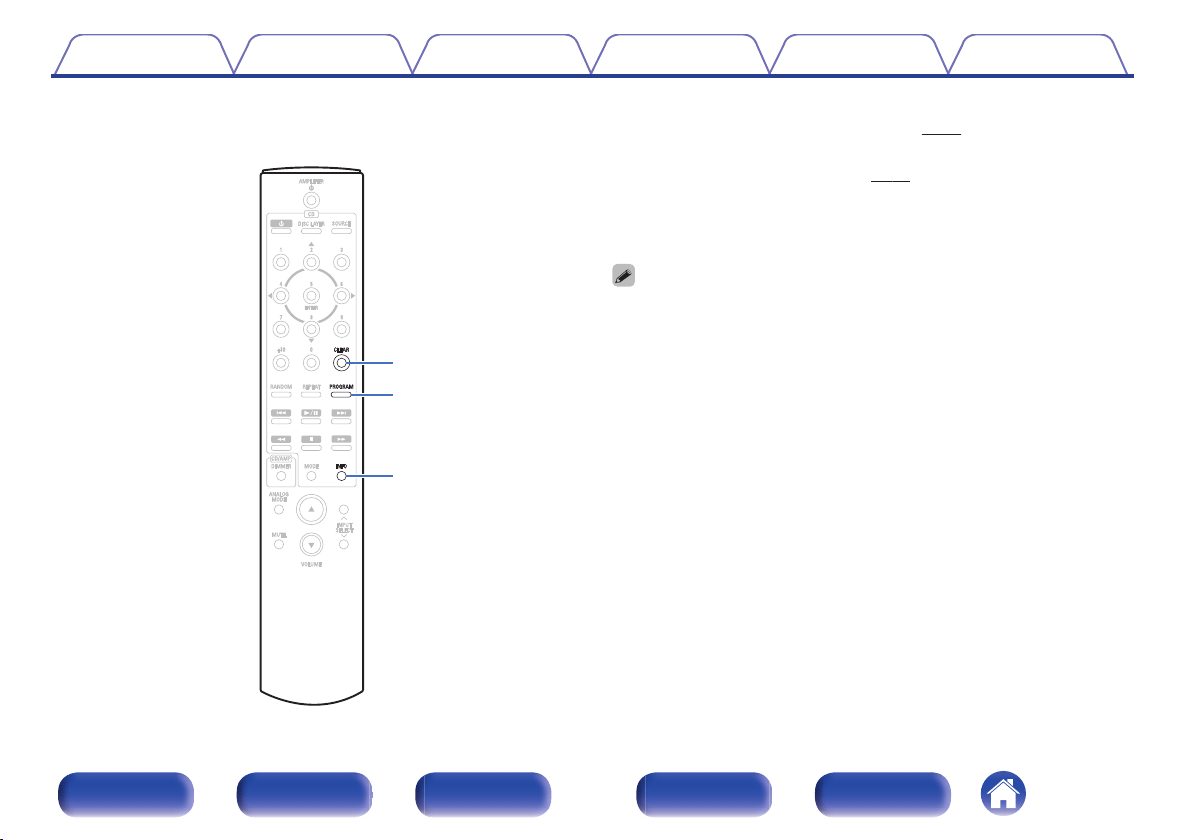

Q3
Q4
Q2
L
CLEAR button
This clears the program registration. (v
p. 28)
M
PROGRAM button
This sets program playback. (v p. 27)
N
Information button (INFO)
This switches the track information shown in the display during
playback.
0
You cannot use the SOURCE button for the operation of this unit.
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index
r
t
e
w
q
y
o
Amplifier operations
A Denon amplifier can be operated.
A
Power operation button (AMPLIFIER X)
B
DIMMER button
C
ANALOG MODE button
D
MUTE button
E
VOLUME buttons (df)
F
Input source select buttons (INPUT SELECT)
NOTE
0
The remote control may not operate some products.
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index
o
Contents
Connecting to a stereo audio amplifier 17
Connecting to a device with digital audio input connectors 18
Connecting the timer device 19
Connecting the power cord 20
NOTE
0
Do not plug in the power cord until all connections have been completed.
0
Do not bundle power cords together with connection cables. Doing so can result in
noise.
o

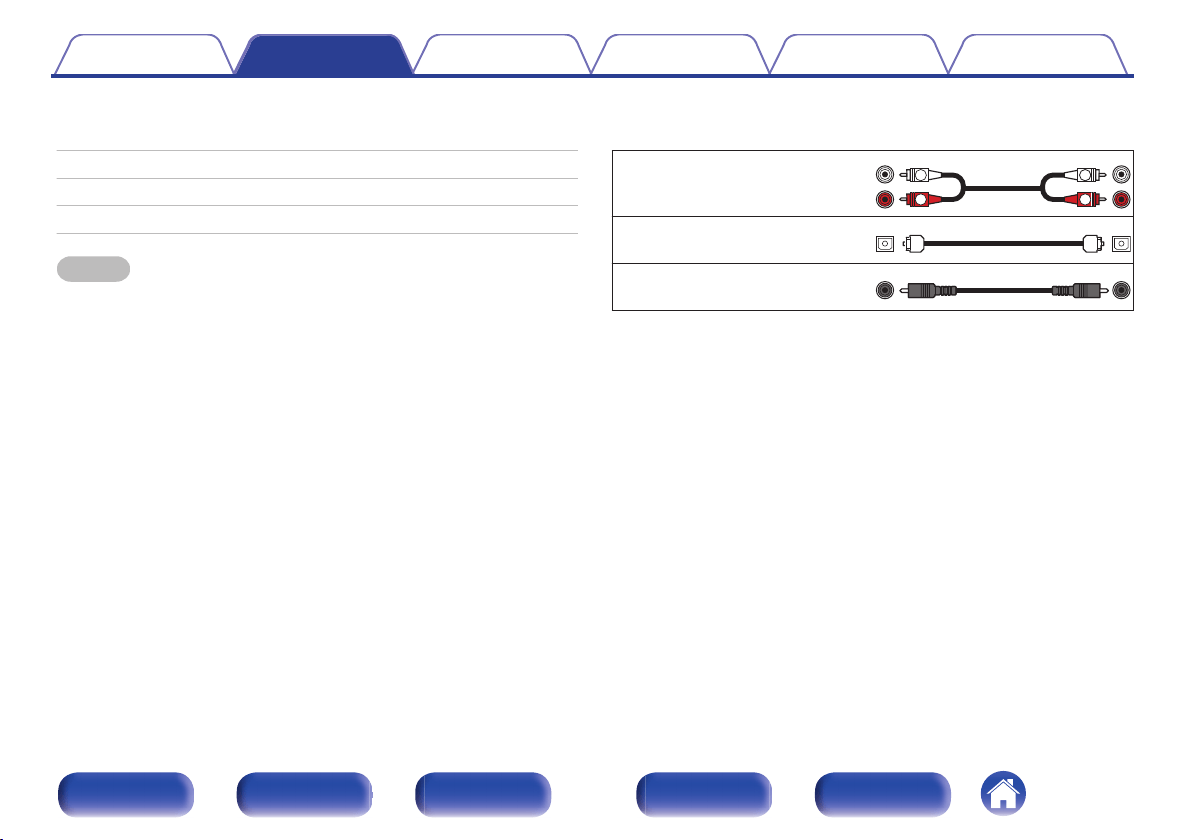

Cables used for connections
Provide necessary cables according to the devices you want to connect.
Audio cable (supplied)
.
R
L
R
L
Optical cable (Sold separately)
.
Coaxial digital cable
(Sold separately)
.
Contents Connections Playback Settings Tips Appendix
Connections
16
Front panel Display Rear panel Remote Index
Connecting to a device with digital audio input connectors
You can enjoy digital audio playback by connecting an AV receiver or D/A converter that has a digital audio terminal to this unit.
.
COAXIAL
IN
OPTICAL
IN
AV receiver /
D/A converter
NOTE
0
Digital audio output stops during playback of the HD layer of Super Audio CDs and files with a sampling frequency of 32 kHz.
Contents Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index
Connecting the timer device
This unit can perform timer play when an amplifier and timer device are connected to this unit.(“Using the timer play function” (v p. 32))
.
This unit
Amplifier
To household power outlet
(AC 230V, 50/60Hz)
Timer device
Contents
Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index

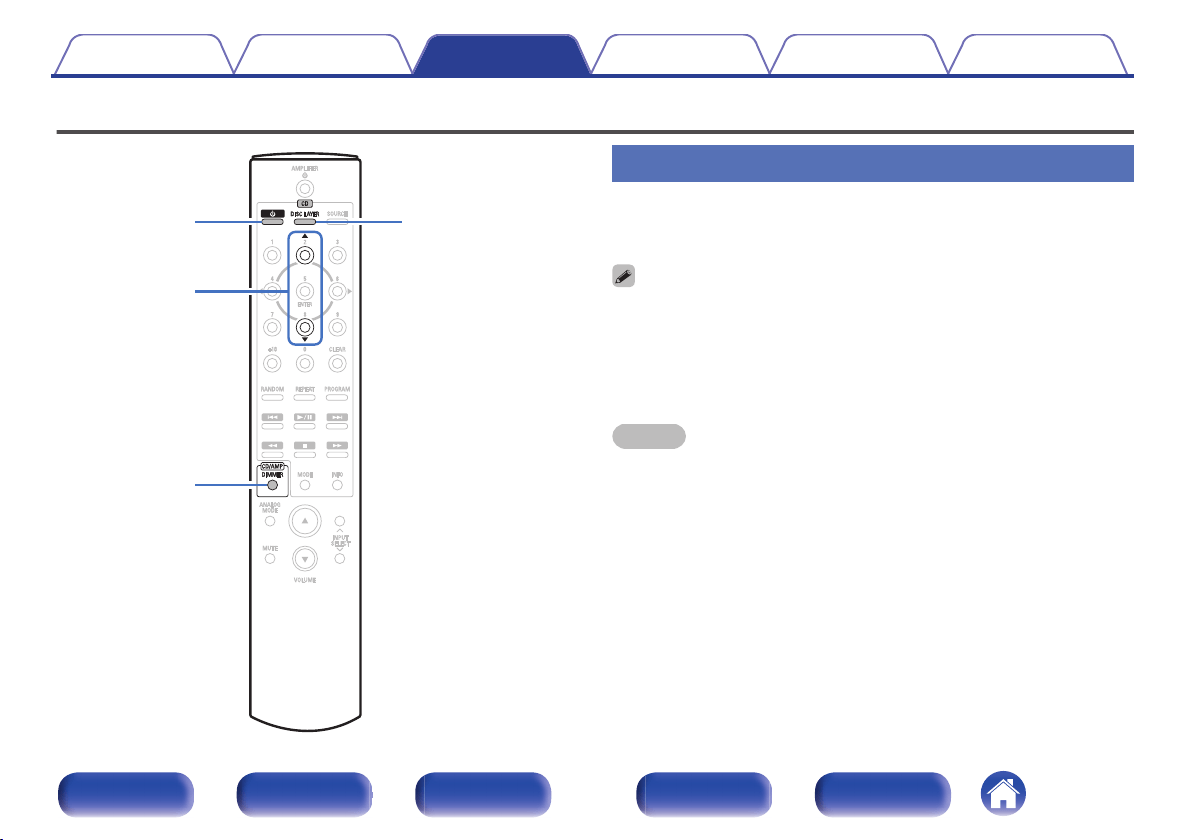

Basic operation
.
X
DIMMER
DISC LAYER
ui
Turning the power on
1
Press X on this unit to turn the power on.
The power indicator lights green.
0
Press X on the remote control unit to turn on power from standby mode.
o
When power is switched to standby
1
Press X on the remote control unit.
NOTE
0
Power continues to be supplied to some of the circuitry even when the power is in
the standby mode. When leaving home for long periods of time or when going on
vacation, either press X on the main unit to turn off the power, or unplug the power
cord from the power outlet.
Contents Connections Playback Settings Tips Appendix
22
Front panel Display Rear panel Remote Index
Switching the display’s brightness
The brightness of the display can be adjusted to one of four levels.
1
Press DIMMER.
0
The DIMMER button also controls the Denon's Integrated Amplifier PMA-2500NE,
so the PMA-2500NE can be operated simultaneously with this unit.
o
Dimmer setting menu
When the Denon PMA-2500NE integrated amplifier is used with this unit,
you can set different brightnesses for this unit and the PMA-2500NE by
calling the Dimmer setting menu separately.
1
Press and hold DIMMER for more than 2 seconds.
The dimmer setting menu appears on the display.
2
Use ui to change to desired setting.
Bright
(Default) :
Normal display brightness.
Dim : Reduced display brightness.
Dark : Very low display brightness.
Off : Turns the display off.
Switching the Pure Direct mode
When the Pure Direct mode is used, the display turns off and digital output
stops.
This reduces the source of noise that can adversely affect sound quality,
enabling high quality playback.
1
Press PURE DIRECT on this unit.
The display turned off, and Pure Direct playback begins.
0
To turn off this mode, press PURE DIRECT again.
NOTE
0
In the Pure Direct mode, DIMMER is not available for operation.
0
The display is only turned off during playback.
Contents Connections Playback Settings Tips Appendix
23
Front panel Display Rear panel Remote Index
Setting the top priority playback layer
for Super Audio CDs
The layer that is played with priority when the disc is loaded can be set.
1
Check that no disc is loaded.
0
If the layer is switched while the disc is being loaded, the
playback layer switches for that disc, but the top priority playback
layer setting itself does not change.
2
Press DISC LAYER and switch to the layer you want to
set.
STEREO
(Default):
Plays back the 2-channel area of the
Super Audio CD.
MULTI:
Plays back the multi-channel area of the
Super Audio CD.
The analog output of this unit outputs a
down-mixed 2-channel signal.
CD:
Plays back the CD layer of the Super
Audio CD.
0
The layer for playback can also be switched by pressing DISC LAYER on this unit.
0
When a disc is loaded after the setting has been made, the contents recorded on
the set layer are displayed.
0
If a disc that does not contain the layer set for top priority playback is loaded, the
contents recorded on another layer are displayed automatically.
0
This setting is stored in the memory and is not cleared even when the disc holder
is opened or closed or the power is turned off. To change the setting, repeat the
procedure above.
0
The priority playback layer cannot be set when a disc is inserted or “Open” is
shown on the display.
0
If the area and layer have not been set for a disc, the priority playback order is as
follows:
A
STEREO
B
MULTI
C
CD
Contents Connections Playback Settings Tips Appendix
24
Front panel Display Rear panel Remote Index

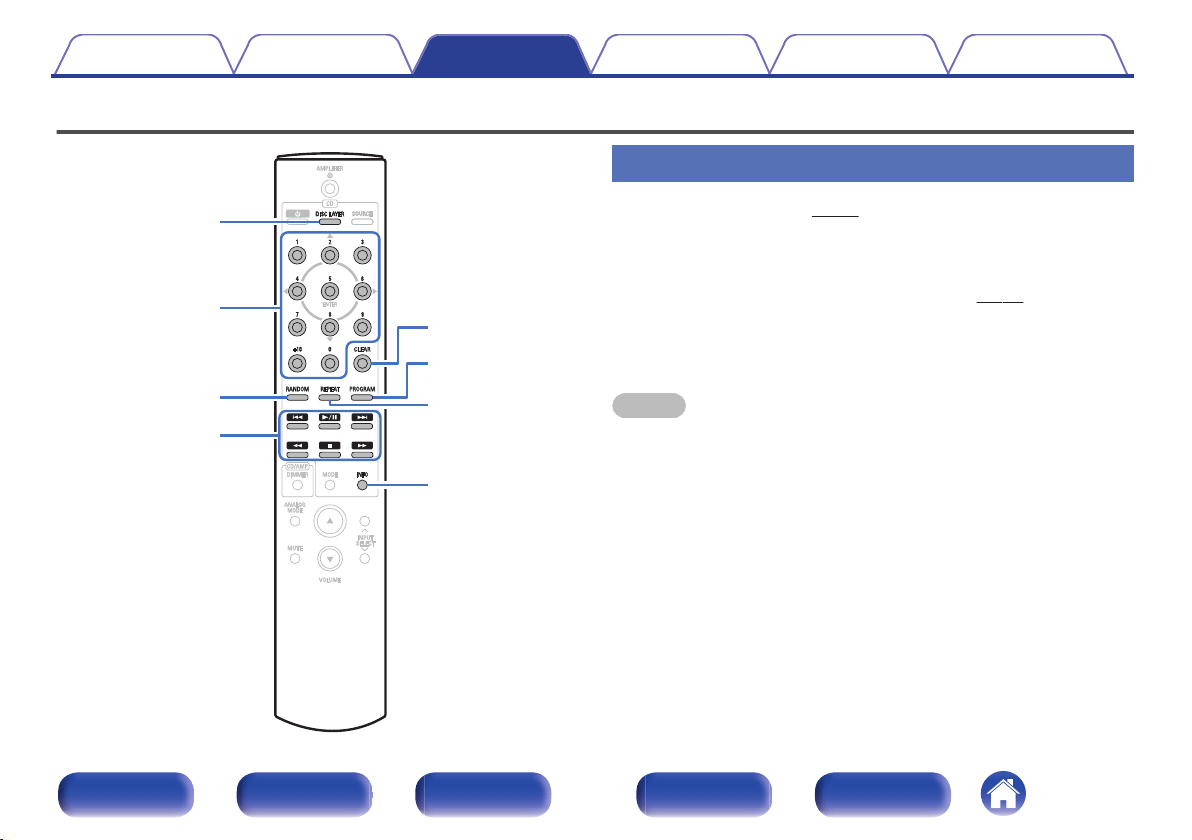

Playing CDs/Super Audio CDs
.
INFO
RANDOM
PROGRAM
CLEAR
REPEAT
0 - 9
㸩
10
1
/
3
2
8 9
6 7
DISC LAYER
Playing CDs and Super Audio CDs
1
Insert a disc. (v p. 44)
0
Press 5 on the unit to open/close the disc tray.
2
When playing back a Super Audio CD, press DISC
LAYER to set the playback layer. (v p. 24)
3
Press 1/3.
The 1 indicator lights on the display. Playback starts.
NOTE
0
Do not place any foreign objects in the disc tray. Doing so could damage the set.
0
Do not push the disc tray in by hand when the power is turned off. Doing so could
damage the set.
Contents
Connections Playback Settings Tips Appendix
25
Front panel Display Rear panel Remote Index
Operation buttons
Function
1/3
Playback / Pause
2
Stop
8 9
Skip to previous track / Skip to next track
6 7
Fast-reverse / Fast-forward
0 – 9, +10 Select the track
RANDOM Random playback
REPEAT
Repeat playback
0
Switching between All-track repeat and
Single-track repeat.
INFO
Time display switching
0
Switching between elapsed time of the
current track, remaining time of the
current track and remaining time of all
tracks.
0
The time displayed on this unit may differ
from this actual time, as it is calculated
by truncating to the nearest 1 second.
Text information recorded on the Super
Audio CD appears in the display.
o
Switching the display
Press INFO.
Displays text and time information stored on media.
0
The text information is only displayed for Super Audio CD.
0
The player can display the following characters :
ABCDEFGHIJKLMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz
0123456789
! ” # $ % & : ; < > ? @ ＼ [ ] _ ` l { } ~ ^ ’( ) * + , - . / = (space)
o
Discs that can be played back
0
See “Discs”. (v p. 40)
Contents
Connections Playback Settings Tips Appendix
26
Front panel Display Rear panel Remote Index
o
Playing a specific track (Direct searching)
1
Use 0 – 9 and +10 to select the tracks.
GExampleH
Track 4 :
Press number 4 to select track 4.
Track 12 :
Press numbers +10 and 2 consecutively to select track 12.
Playing tracks in a specific order
(Program playback)
Up to 20 tracks can be programmed.
1
In the stop mode, press PROGRAM.
The program indicator lights on the display.
2
Use 0 – 9 and +10 to select the tracks you want to
program.
GExampleH
To program tracks 3 and 12 to be played in that order, press 3, +10
and 2 one after the other.
3
Press 1/3.
Playback starts in the programmed order.
0
When REPEAT is pressed during program playback, the tracks are played
repeatedly in the programmed order.
Contents Connections Playback Settings Tips Appendix
27
Front panel Display Rear panel Remote Index
o
Checking the order of the programmed tracks
In the stop mode, press 9.
The track numbers are displayed in the programmed order each time
the button is pressed.
o
To clear the last track programmed
In the stop mode, press CLEAR.
The last track programmed is cleared each time the button is pressed.
o
Clearing the all programmed track
In the stop mode, press PROGRAM.
Contents Connections Playback Settings Tips Appendix
28
Front panel Display Rear panel Remote Index
Playing Data CDs and Data DVDs
.
INFO
RANDOM
REPEAT
MODE
uio
ENTER
1
/
3
2
8 9
6 7
0
This section explains how to playback music files that are recorded onto
a CD-R/-RW or DVD-R/-RW/+R/+RW.
0
There are many music distribution sites on the Internet allowing you to
download music files in MP3 or WMA (Windows Media
®
Audio) format.
The music (files) downloaded from such sites can be stored on CD-R/-
RW or DVD-R/-RW/+R/+RW discs and played on this unit.
“Windows Media” and “Windows” are the trademarks or
registered trademarks of Microsoft Corporation in the United
States and other countries.
0
The audio format types and specifications supported by this unit for
playback are as follows.
See “Playable files” for details. (v
p. 41)
0
WMA
0
MP3
0
WAV
0
AAC
0
FLAC
0
ALAC
0
AIFF
0
DSD
Contents
Connections Playback Settings Tips Appendix
29
Front panel Display Rear panel Remote Index
Playing files
1
Load a CD-R/-RW or DVD-R/-RW/+R/+RW disc
containing music files into the disc tray. (v p. 44)
0
Press 5 on the unit to open/close the disc tray.
2
Use uio to select the folder to be played, then press
ENTER.
3
Use ui to select the file to be played, then press
ENTER.
Playback starts.
Operation buttons
Function
1/3
Playback / Pause
2
Stop
8 9
Skip to previous track / Skip to next track
6 7
Fast-reverse / Fast-forward
o
Moving up a level in the folder tree
u i
Select the item
ENTER Enter the selected item / Playback
MODE Select the playback range
RANDOM Random playback
REPEAT
Repeat playback
0
Switching between All-track repeat and
Single-track repeat.
INFO
Switch the display between the elapsed
playback time, text information stored in the
file and the file format.
0
To play another file while playing from a CD-R/-RW or DVD-R/-RW/+R/+RW,
press o to display the folder tree, ui to select the file to be played, and then
press ENTER.
Contents Connections Playback Settings Tips Appendix
30
Front panel Display Rear panel Remote Index
o
Switching the display
During playback, press INFO.
0
Switch the display between the elapsed playback time, text
information stored in the file and the file format.
0
If a file does not support text information or no track information is
recorded, the file name is displayed.
0
The player can display the following characters:
ABCDEFGHIJKLMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz
0123456789
! ” # $ % & : ; < > ? @ ＼ [ ] _ ` l { } ~ ^ ’( ) * + , - . / = (space)
0
The folder and file numbers are set automatically when the disc is
loaded.
NOTE
0
Copyright-protected files cannot be played.
Note that depending on the software used for burning and other conditions,
some files may not play or display correctly.
o
Files that can be played back
0
See “Playable files”. (v p. 41)
o
Switching the playback range
In the stop mode, press MODE.
0
The playback range of a track can be set.
Folder mode:
All the files in the selected folder are
played.
All mode: All the files in the disc are played.
0
The folder hierarchy is not displayed when “All mode” is set as the playback
range.
Contents Connections Playback Settings Tips Appendix
31
Front panel Display Rear panel Remote Index
Using the timer play function
1
Turn on the power of the connected
components. (v p. 19)
2
Switch the amplifier’s function to input from the
connected unit.
3
Load a disc.
4
Set the audio timer for the desired times.
0
Refer also to the owner’s manual of the audio timer.
5
Turn the timer “On”.
0
The power of the components connected to the timer turns off.
0
When the set time is reached, the power of the different
components automatically turns on and playback starts from the
first track.
NOTE
0
The timer play does not support the random play or program play.
Contents Connections Playback Settings Tips Appendix
32
Front panel Display Rear panel Remote Index

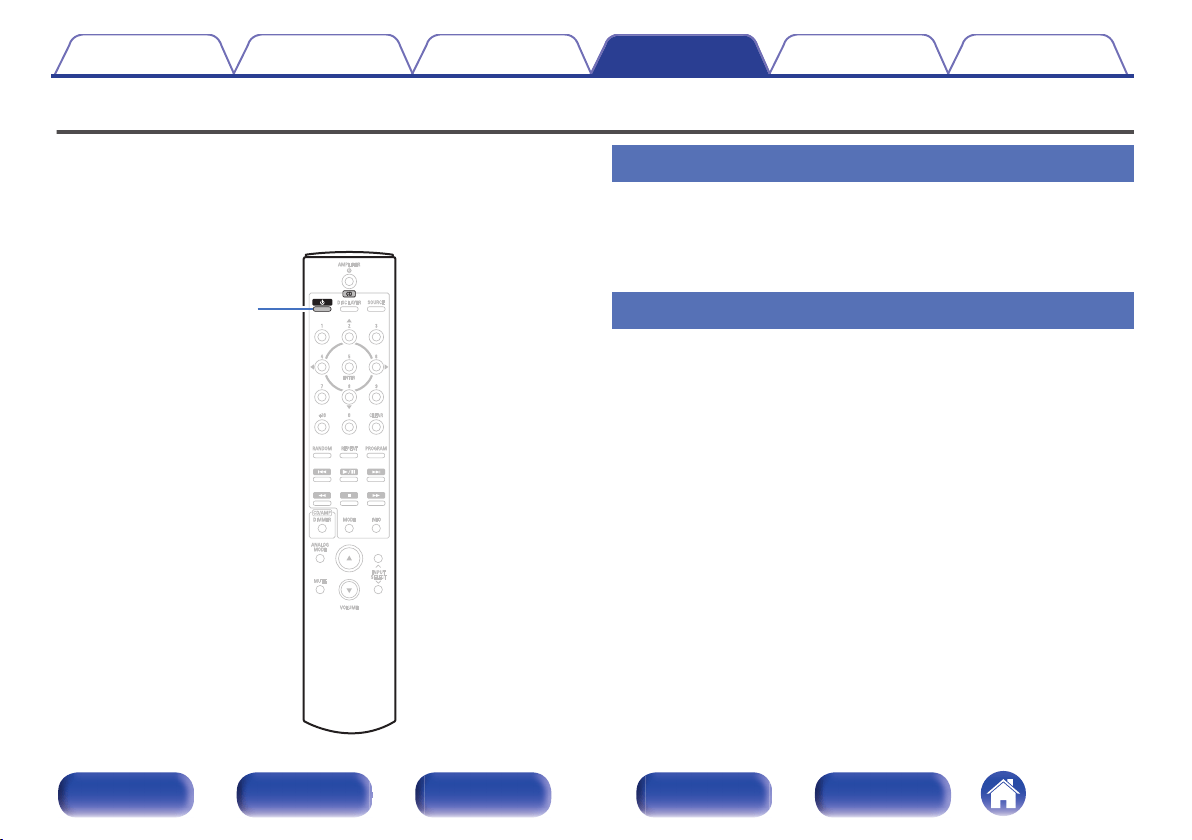

Setting the Auto Standby mode
When Auto Standby mode is set to On, if the unit remains in the stopped
state and no operations are performed or if there are no input signals for
approximately 30 minutes, the unit automatically switches to standby
mode.
The default setting is “On”.
.
X
Turning Auto Standby mode off
1
Press and hold X for more than 5 seconds to turn the
Auto Standby mode off.
The power indicator flashes once.
Turning Auto Standby mode on
1
Press and hold X for more than 5 seconds to turn the
auto standby mode on.
The power indicator flashes three times.
Contents Connections Playback Settings Tips Appendix
Settings
33
Front panel Display Rear panel Remote Index
o
Contents
Tips
I want to enjoy analog output audio at higher quality 35
I want to playback just the specified folder 35
I want to display Super Audio CD text 35
I want to play the multi-channel area of a Super Audio CD is played 35
I want to play all tracks on a DVD-R/-RW/+R/+RW or CD-R/-RW at
random 35
Troubleshooting
Power does not turn on / Power is turned off 36
Operations cannot be performed through the remote control unit 37
Display on this unit shows nothing 37
No sound comes out 38
Sound is interrupted or noise occurs 38
Cannot playback discs 39
Contents Connections Playback Settings Tips Appendix
Tips
34
Front panel Display Rear panel Remote Index
Tips
I want to enjoy analog output audio at higher quality
0
Set Pure Direct which turns digital output and the display off. (v p. 23)
I want to playback just the specified folder
0
The MODE button to set the playback range to “Folder mode”. (v p. 31)
I want to display Super Audio CD text
0
This unit supports Super Audio CD text. Press the INFO button to switch the display information. (v p. 26)
I want to play the multi-channel area of a Super Audio CD is played
0
This unit can play multi-channel audio by downmixing to two channels. Press the DISC LAYER button and set “MULTI”. (v
p. 24)
I want to play all tracks on a DVD-R/-RW/+R/+RW or CD-R/-RW at random
0
Random playback can be set by pressing the MODE button and setting “All Mode” as the playback mode before playback.
Contents
Connections Playback Settings Tips Appendix
35
Front panel Display Rear panel Remote Index
Troubleshooting
If a problem should arise, first check the following.
1. Are the connections correct?
2. Is the set being operated as described in the owner’s manual?
3. Are the other devices operating properly?
If this unit does not operate properly, check the items listed in the table below.
Should the problem persist, there may be a malfunction. In this case, disconnect the power immediately and contact your store of purchase.
o
Power does not turn on / Power is turned off
Symptom Cause / Solution Page
Power is not turned on.
0
Check whether the power plug is correctly inserted into the power outlet. 20
0
This unit is in standby mode. Press the X button on the remote control.
22
Power automatically turns
off.
0
The Auto Standby mode is set. The Auto Standby mode switches the unit to standby mode when the unit
is not operated for approximately 30 minutes.
33
Contents Connections Playback Settings Tips Appendix
36
Front panel Display Rear panel Remote Index
o
Operations cannot be performed through the remote control unit
Symptom Cause / Solution Page
Operations cannot be
performed through the
remote control unit.
0
Batteries are worn out. Replace with new batteries. 5
0
Operate the remote control unit within a distance of about 7 m from this unit and at an angle of within 30°. 5
0
Remove any obstacle between this unit and the remote control unit. －
0
Insert the batteries in the proper direction, checking the q and w marks.
5
0
The set’s remote control sensor is exposed to strong light (direct sunlight, inverter type fluorescent bulb
light, etc.). Move the set to a place in which the remote control sensor will not be exposed to strong light.
－
0
When using a 3D video device, the remote control unit of this unit may not function due to effects of
infrared communications between units (such as TV and glasses for 3D viewing). In this case, adjust the
direction of units with the 3D communications function and their distance to ensure they do not affect
operations from the remote control unit of this unit.
－
o
Display on this unit shows nothing
Symptom Cause / Solution Page
Display is off.
0
Press the DIMMER button, and change the setting to anything other than off. 23
0
The display turns off when the Pure Direct mode is on. 23
Contents Connections Playback Settings Tips Appendix
37
Front panel Display Rear panel Remote Index
o
No sound comes out
Symptom Cause / Solution Page
No sound is produced. Or
sound is distorted.
0
Check the connections for all devices. 16
0
Insert connection cables all the way in. －
0
Check that input connectors and output connectors are not reversely connected. －
0
Check cables for damage. －
0
Check the amplifier’s functions and controls and adjust as necessary. －
o
Sound is interrupted or noise occurs
Symptom Cause / Solution Page
During playback from the
CD-R/CD-RW/DVD-R/
DVD-RW/DVD+R/DVD
+RW, sound is
occasionally interrupted.
0
The sound may skip during playback of a CD-R/CD-RW containing a high-resolution audio source. －
0
This may be caused by poor recording conditions, or the disc itself may be of poor quality. Use a correctly
recorded disc.
－
Contents Connections Playback Settings Tips Appendix
38
Front panel Display Rear panel Remote Index
o
Cannot playback Discs
Symptom Cause / Solution Page
Cannot playback when the
play button is pressed, or
cannot correctly play back
a specific part of the disc.
0
The disc is dirty or scratched. Either clean the disc, or insert a different disc. 45
Cannot playback DVD-R/-
RW/+R/+RW or CD-R/CD-
RW.
0
Discs cannot be played back unless they have been finalized. Use a finalized disc. 40
0
This may be caused by poor recording conditions, or the disc itself may be of poor quality. Use a correctly
recorded disc.
－
0
Files are created in a format that is not supported by this unit. Check the formats supported by this unit. 40
“No Disc” is displayed.
0
“No Disc” is displayed if the disc is loaded upside-down or if no disc is loaded. 44
“Unsupported” is
displayed.
0
“Unsupported” is displayed if a disc that cannot be played is loaded. 44
Contents Connections Playback Settings Tips Appendix
39
Front panel Display Rear panel Remote Index

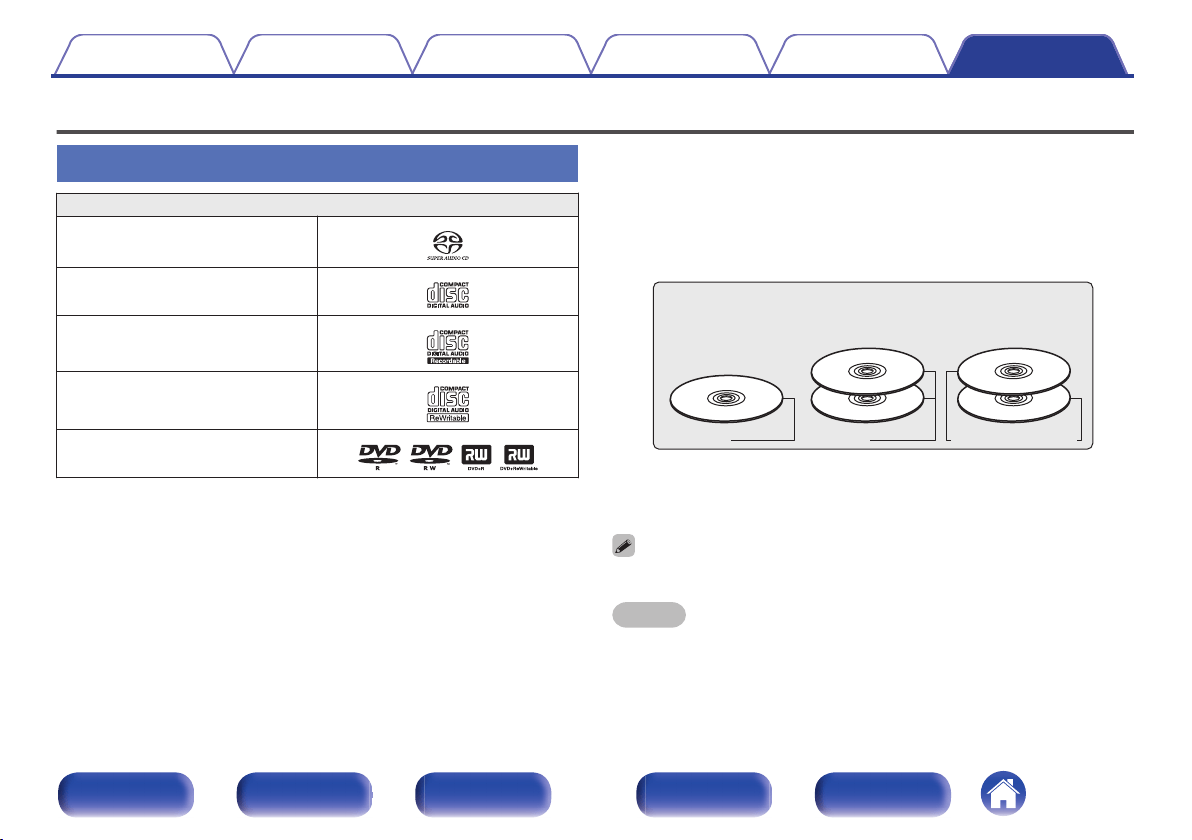

Playable media
Discs
Playable media
Super Audio CD
.
CD
.
CD-R
.
CD-RW
.
DVD-R/-RW/+R/+RW
.
o
Super Audio CD
There are three types of Super Audio CDs:
A
Single layer discs
Single layer Super Audio CD with just an HD layer.
B
Dual layer discs
Super Audio CD with a double HD layer, offering extended playing time
and high sound quality.
C
Hybrid discs
Two-layer Super Audio CD with an HD layer and a CD layer.
The signals on the CD layer can be played on a regular CD player.
.
Types of Super Audio CDs
Single layer disc Dual layer disc
Hybrid disc
HD layer
HD layer HD layer
CD layer
The HD layer is a layer of high density signals for Super Audio CDs.
The CD layer is the layer of signals that can be read on a regular CD
player.
0
When “MULTI” is selected, down-mixed audio is output to the L and R channels.
NOTE
0
Some discs and some recording formats may not be playable.
0
Non-finalized discs cannot be played.
Contents Connections Playback Settings Tips Appendix
Appendix
40
Front panel Display Rear panel Remote Index
o
Playable files
Sampling frequency Bit rate
Bit length
Playable discs
Extension
CD-R/
CD-RW
DVD-R/
DVD-RW
DVD+R/
DVD+RW
MP3 32/44.1/48 kHz 32 – 320 kbps －
P P P
.mp3
WMA 32/44.1/48 kHz 48 – 320 kbps －
P P P
.wma
AAC 32/44.1/48 kHz 16 – 320 kbps －
P P P
.aac/
.m4a
WAV
32/44.1/48/88.2/
96/176.4/192 kHz
– 16/24 bit
P
z
2
P P
.wav
FLAC
32/44.1/48/88.2/
96/176.4/192 kHz
– 16/24 bit
P
z
2
P P
.flac
ALAC
z
1
32/44.1/48/
88.2/96 kHz
– 16/24 bit
P
z
2
P P
.m4a
AIFF
32/44.1/48/88.2/
96/176.4/192 kHz
– 16/24 bit
P
z
2
P P
.aif/
.aiff
DSD 2.8 MHz/5.6 MHz – 1 bit –
P P
.dsf/
.dff
z1
Copyright [2012] [D&M Holdings. Inc.]
Licensed under the Apache License, Version 2.0 (the “License”); you may not use this file except in compliance with the License. You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
z2
This item can only be used to play files with a sampling frequency of 32/44.1/48 kHz.
o
Maximum number of playable files and folders
Maximum number of files : 1,000
Maximum number of files in 1 folder : 2,000
Contents Connections Playback Settings Tips Appendix
41
Front panel Display Rear panel Remote Index
NOTE
0
Be sure to give files the extension. Files with any other extensions or files with
no extensions cannot be played.
0
Recordings you have made should only be used for your personal enjoyment,
and as per copyright laws may not be used in other ways without permission of
the copyright holder.
0
Only music files that are not copyright-protected can be played on this set.
0
Contents downloaded from pay sites on the Internet are copyright protected.
Also, files encoded in WMA format when ripped from a CD, etc., on a
computer may be copyright protected, depending on the computer’s
settings.
0
Digital audio output stops during files with a sampling frequency of 32 kHz.
0
The maximum number of files and folders that can be played differs
depending on conditions such as the length of the file name or folder name or
the number of levels in the folder hierarchy.
Playback order of music files
When there are multiple folders containing music files, the playback order
of folders is automatically set when this unit reads the media. The files in
each folder are played back in the order in which the files were recorded
on the media, from the oldest date and time.
DVD-R/-RW/+R/+RW and CD-R/-RW
For playback of files on DVD-R/-RW/+R/+RW or CD-R/-RW, files in all
folders on the first layer are played first, next on the second layer, then
next on the third layer, and so on in this order.
0
The playback order displayed on a PC may differ from the actual playback order.
0
The playback order with a DVD-R/-RW/+R/+RW and CD-R/-RW may differ,
depending on the writing software.
Contents Connections Playback Settings Tips Appendix
42
Front panel Display Rear panel Remote Index

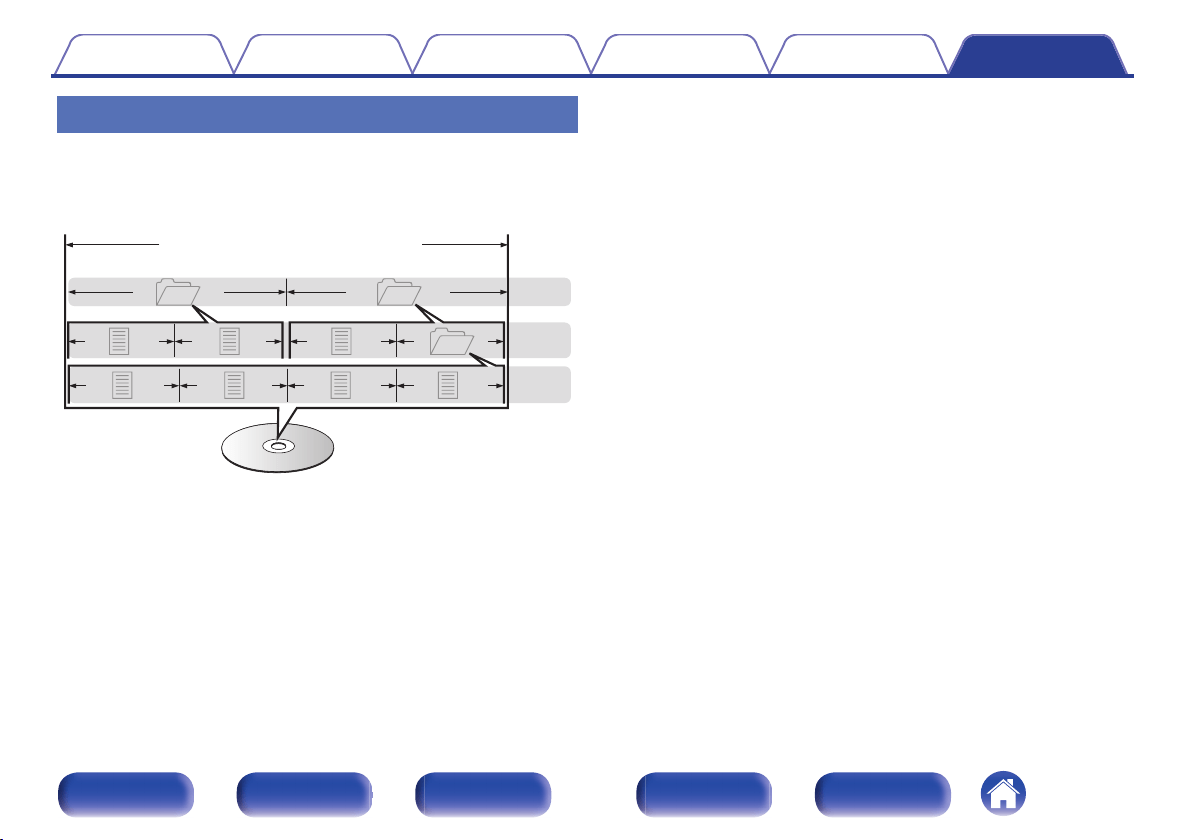

About discs and files
Music files recorded on CD-R/-RW and DVD-R/-RW/+R/+RW are divided
into large segments (folders) and small segments (files).
Files are stored in folders, and folders can be placed for storage in a
hierarchy. The unit can recognize up to 8 levels of folders.
.
3rd level
File 7
File 6
File 5
File 4
2nd level
Folder 3
File 3File 2
File 1
1st level
Folder 1
Folder 2
DVD-R/-RW/+R/+RW or CD-R/-RW
0
When writing music files on a DVD-R/-RW/+R/+RW or CD-R/-RW disc,
set the writing software’s format to “ISO9660”. The files may not play
properly if they are recorded in other formats. For details, refer to the
instructions of your writing software.
Contents
Connections Playback Settings Tips Appendix
43
Front panel Display Rear panel Remote Index

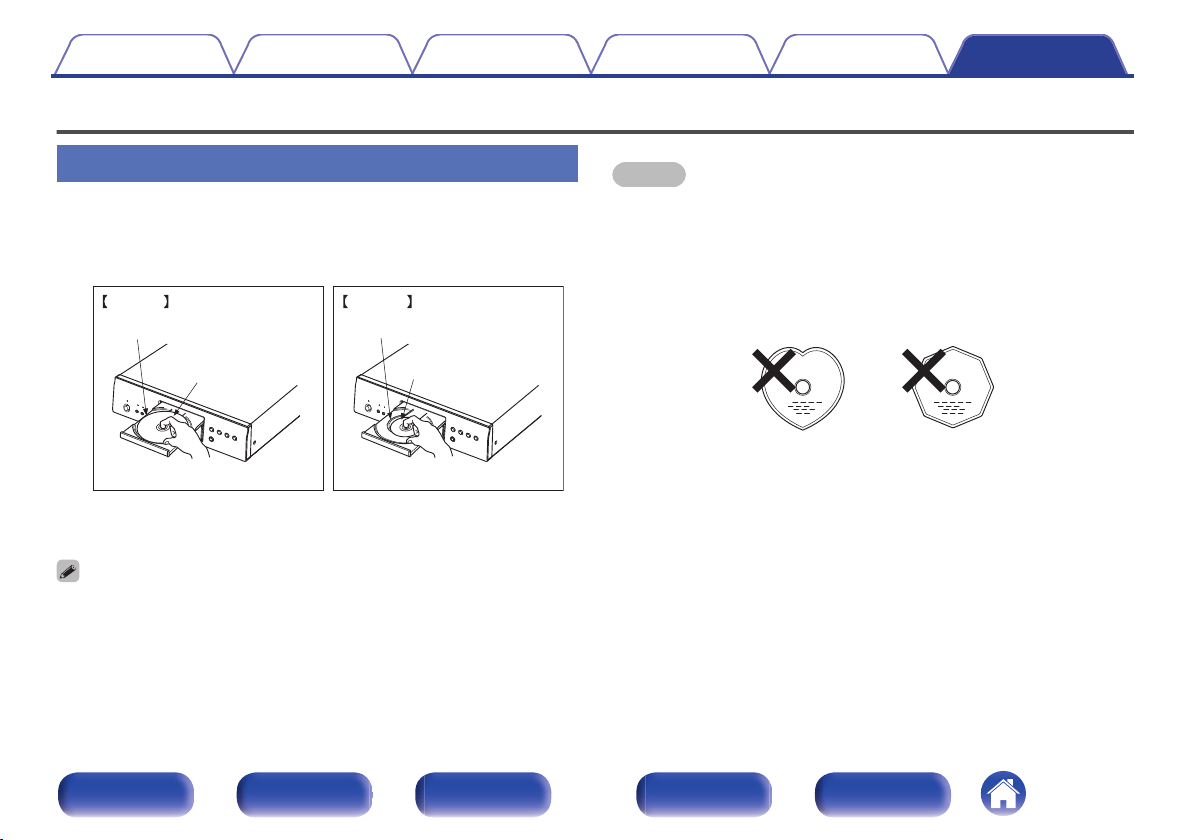

Cautions on using media
Inserting a disc
0
Set the disc in the tray label side up.
0
Make sure the disc tray is fully open when inserting the disc.
0
Place the discs flatly, 12 cm discs in the outer tray guide (Figure 1), 8
cm discs in the inner tray guide (Figure 2).
.
Outer tray guide Inner tray guide
12 cm disc
8 cm disc
Figure 2Figure 1
0
Place 8 cm discs in the inner tray guide without using an adapter.
0
“Unsupported” is displayed if a disc that cannot be played is loaded.
0
“No Disc” is displayed if the disc is loaded upside-down or if no disc is loaded.
NOTE
0
Only load one disc at a time. Loading two or more discs can damage the unit or
scratch the discs.
0
Do not use cracked or warped discs or discs that have been repaired with
adhesive, etc.
0
Do not use discs on which the sticky part of cellophane tape or labels is exposed
or on which there are traces of where labels have been removed. Such discs can
get caught inside the player and damage it.
0
Do not use discs in special shapes, as they may damage the player.
.
0
Do not push the disc tray in by hand when the power is off. Doing so could
damage the set.
0
If the unit is left in a room full of smoke from cigarettes, etc., for long periods of
time, the surface of the optical pickup may get dirty, preventing it from receiving
signals properly.
Contents
Connections Playback Settings Tips Appendix
44
Front panel Display Rear panel Remote Index
How to handle media
0
Do not get fingerprints, oil or dirt on discs.
0
Take special care not to scratch discs when removing them from their
cases.
0
Do not bend or heat discs.
0
Do not enlarge the hole in the center.
0
Do not write on the labeled (printed) surface with ball-point pens,
pencils, etc., or stick new labels on discs.
0
Condensation may form on discs if they are moved suddenly from a
cold place (outdoors for example) to a warm place, but do not try to dry
discs with a hairdryer, etc.
0
Do not store discs in the following places:
1. Places exposed to direct sunlight for long periods of time
2. Dusty or humid places
3. Places exposed to heat from heaters, etc.
Cleaning discs
0
If there are fingerprints or dirt on a disc, wipe them off before using the
disc.
0
Use a commercially available disc cleaning set or a soft cloth to clean
discs.
.
Gently wipe the disc from the
inside towards the outside.
Do not wipe with a circular
motion.
NOTE
0
Do not use record spray, antistatic agents, benzene, thinner or other solvents.
Contents Connections Playback Settings Tips Appendix
45
Front panel Display Rear panel Remote Index
Explanation of terms
Advanced AL32 Processing Plus
Equipped with Advanced AL32 Processing Plus, Denon’s own analog
waveform reproduction technology.
The reproducibility of weak signals is enhanced by expanding 16 bit digital
data to 32 bit.
AIFF (Audio Interchange File Format)
This is an uncompressed and lossless format for digital audio. Use AIFF
files to burn high-quality audio CDs from imported songs. AIFF files use
approximately 10 MB of disk space per minute.
ALAC (Apple Lossless Audio Codec)
This is a codec for lossless audio compression method developed by
Apple Inc. This codec can be played back on iTunes, iPod or iPhone. Data
compressed to approximately 60 – 70% can be decompressed to exactly
the same original data.
DSD (Direct-Stream Digital)
One of the audio data recording methods, it is the signal aspect used to
store audio signals on a super audio CD, and is Δ-Σ modulated digital
audio. It is configured of an array of single bit values at a 2.8 MHz
sampling rate.
FLAC
FLAC stands for Free lossless Audio Codec, and is a lossless free audio
file format. Lossless means that the audio is compressed without any loss
in quality.
The FLAC license is as shown below.
Copyright (C) 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008,
2009 Josh Coalson
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
0
Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
0
Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
0
Neither the name of the Xiph.org Foundation nor the names of its
contributors may be used to endorse or promote products derived from
this software without specific prior written permission.
Contents
Connections Playback Settings Tips Appendix
46
Front panel Display Rear panel Remote Index
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
MP3 (MPEG Audio Layer-3)
This is an internationally standardized audio data compression scheme,
using the “MPEG-1” video compression standard. It compresses the data
volume to about one eleventh its original size while maintaining sound
quality equivalent to a music CD.
WMA (Windows Media Audio)
This is audio compression technology developed by Microsoft
Corporation.
WMA data can be encoded using Windows Media
®
Player.
To encode WMA files, only use applications authorized by Microsoft
Corporation. If you use an unauthorized application, the file may not work
properly.
Sampling frequency
Sampling involves taking a reading of a sound wave (analog signal) at
regular intervals and expressing the height of the wave at each reading in
digitized format (producing a digital signal).
The number of readings taken in one second is called the “sampling
frequency”. The larger the value, the closer the reproduced sound is to the
original.
Dynamic range
The difference between the maximum undistorted sound level and the
minimum discernible level above the noise emitted by the device.
Downmix
This function converts the number of channels of surround audio to a
lower number of channels and plays back according to the system’s
configuration.
Contents
Connections Playback Settings Tips Appendix
47
Front panel Display Rear panel Remote Index
Bit rate
This is the amount of audio data recorded on a disc that is read in one
second.
Finalizing
This process enables CDs recorded with a CD recorder or drive to be
played by other players.
Linear PCM
This is an uncompressed PCM (Pulse Code Modulation) signal. Unlike
lossy compression audio sources such as MP3, no audio quality or
dynamic range deteriorates.
Contents Connections Playback Settings Tips Appendix
48
Front panel Display Rear panel Remote Index
Specifications
o
Audio performance
0
Analog output [Super Audio CD] [CD]
Channels: 2-channels 2-channels
Playable frequency range: 2 Hz – 100 kHz 2 Hz – 20 kHz
Playable frequency response: 2 Hz – 50 kHz (-3 dB) 2 Hz – 20 kHz (±0.5 dB)
S/N: 120 dB (Audible range) 118 dB
Dynamic range: 112 dB (Audible range) 101 dB
Harmonic distortion: 0.0006 % (1 kHz, Audible range) 0.0015 % (1 kHz)
Wow & flutter: Below measurable limits Below measurable limits
Output level: 2.0 V (10 kΩ/kohms) 2.0 V (10 kΩ/kohms)
Signal type: 1-bit DSD 16-bit linear PCM
Sampling frequency: 2.8224 MHz 44.1 kHz
Usable discs: Super Audio CD Compact Disc
0
Digital output
Coaxial: － 0.5 Vp-p / 75 Ω/ohms
Optical: － -15 － -21 dBm
Emission wavelength: － 660 nm
Contents Connections Playback Settings Tips Appendix
50
Front panel Display Rear panel Remote Index

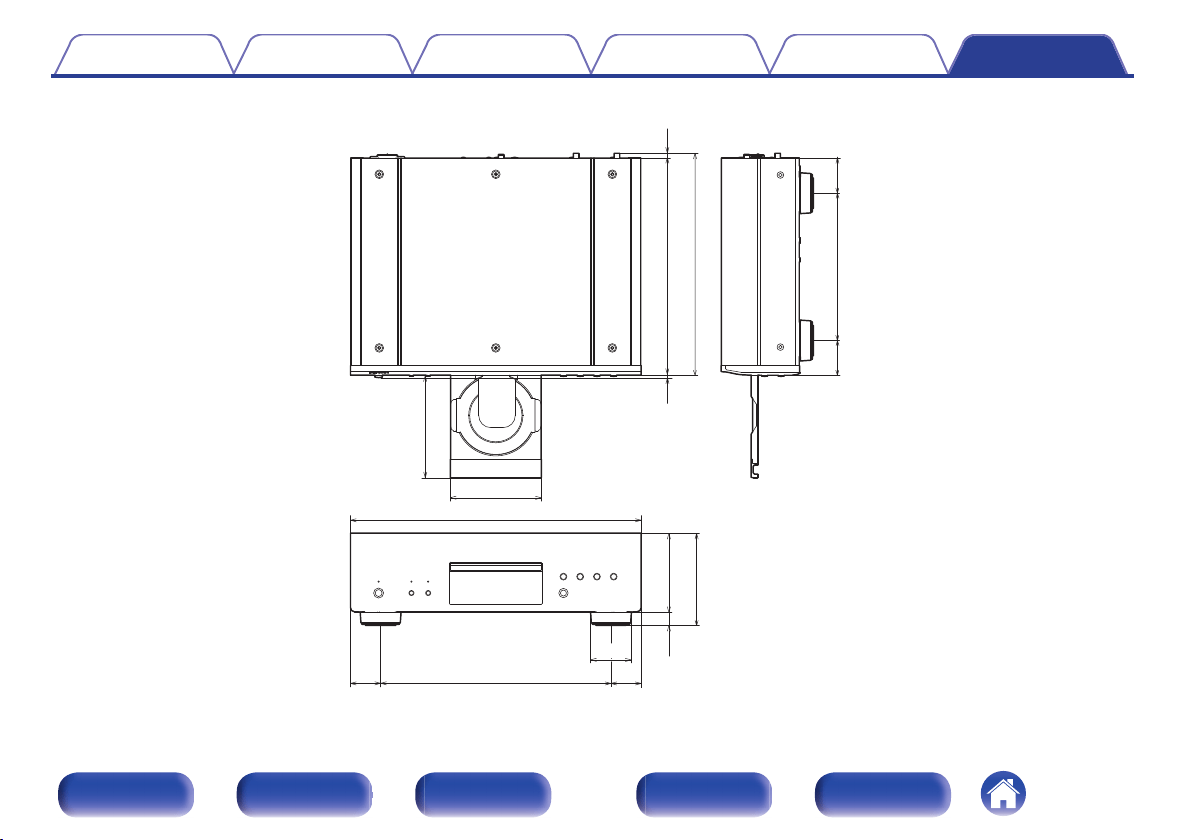

o
General
Power supply: AC 230 V, 50/60 Hz
Power consumption: 25 W
Power consumption in standby mode: 0.1 W or less
For the purpose of improvement, the specifications and design are subject to change without notice.
Contents Connections Playback Settings Tips Appendix
51
Front panel Display Rear panel Remote Index
Index
v A
Amplifier ......................................................... 17
Auto Standby ................................................. 33
AV receiver ..................................................... 18
v C
CD .................................................................. 25
v D
D/A converter ................................................. 18
DATA CD ....................................................... 29
Display ........................................................... 10
Display brightness .......................................... 23
v F
Front panel ....................................................... 8
v P
Program playback .......................................... 27
v R
Rear panel ...................................................... 11
Remote control unit ........................................ 12
v T
Timer device ............................................. 19, 32
Tips ................................................................ 35
Troubleshooting ............................................. 36
Contents Connections Playback Settings Tips Appendix
53
Front panel Display Rear panel Remote Index
.
www.denon.com
3520 10425 00AD
Copyright © 2015 D&M Holdings Inc. All Rights Reserved.
54
