LCB2-3 INSTALLATION INSTRUCTIONS
TOOLS REQUIRED: 7/16 Wrench
CONTENTS OF KIT: An adjustable side burner mounting bracket
Side shelf mounting bracket with 7/16 fasteners
Decorative cover for the L27 and L36 models
The side burner support bracket comes preassembled for the L27 and L36
Lynx Grills, 7300 Flores St., Downey, CA 90242
P/N 34912 8/14
INSTRUCTIONS FOR MODELS L36 and L27:
1. Remove the right hand side shelf and the cabinet back panel (fig. 1)
2. Mount the LCB2-3 side burner to the supports (fig. 2)
3. If needed, any misalignment can be corrected by 1st measuring the amount of misalignment, 2nd loosening the
bracket support fasteners. 3rd raise or lower the bracket according to your measurements.
Tighten the fasteners. (fig 3)
4. Hang the side shelf removed in step 1 on the right side shelf support pins of the side burner (Fig. 6, pg. 2)
P/N 34912. 8/14

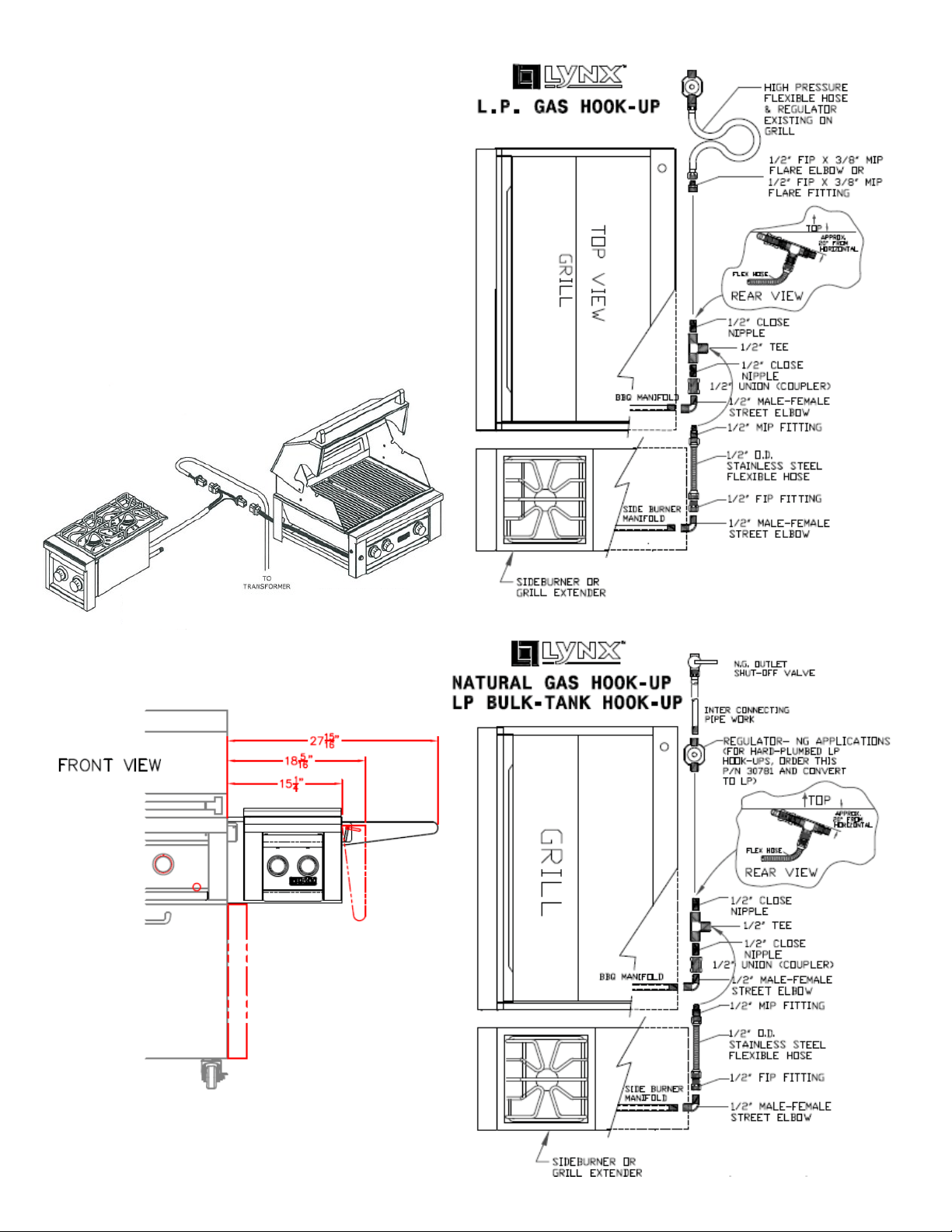

Rear View
1
2
3
