Video Cassette
Recorder
Operating Instructions
For customers in the U.S.A.
If you have any questions about your Sony VCR, you may call Sony Customer
Information Services Company at 1-800-VHS-SONY (847-7669). For all other
Sony product questions, please call Sony Customer Information Services
Company at 1-800-222-SONY (7669). Or write to: Sony Customer Information
Services Company 12451 Gateway Boulevard Ft. Myers, FL 33913
Declaration of Conformity
Trade Name: SONY
Model No.: SLV-N99
Responsible Party: Sony Electronics Inc.
Address: 680 Kinderkamack Road Oradell, New Jersey 07649
Telephone No.: 201-930-6972
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
For Customers in Canada
If this product is not working properly, please call 1-877-602-2008 for Peace of Mind
Warranty Replacement service.
For other product related questions please contact our Customer Information
Service Centre at 1-877-899-7669 or write to us at: Customer Information Service
115 Gordon Baker Road, Toronto, Ontario, M2H 3R6
SLV-N99
© 2002 Sony Corporation
010cov.fm Page 1 Friday, November 30, 2001 1:42 PM
2
WARNING
filename[010WAR.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.

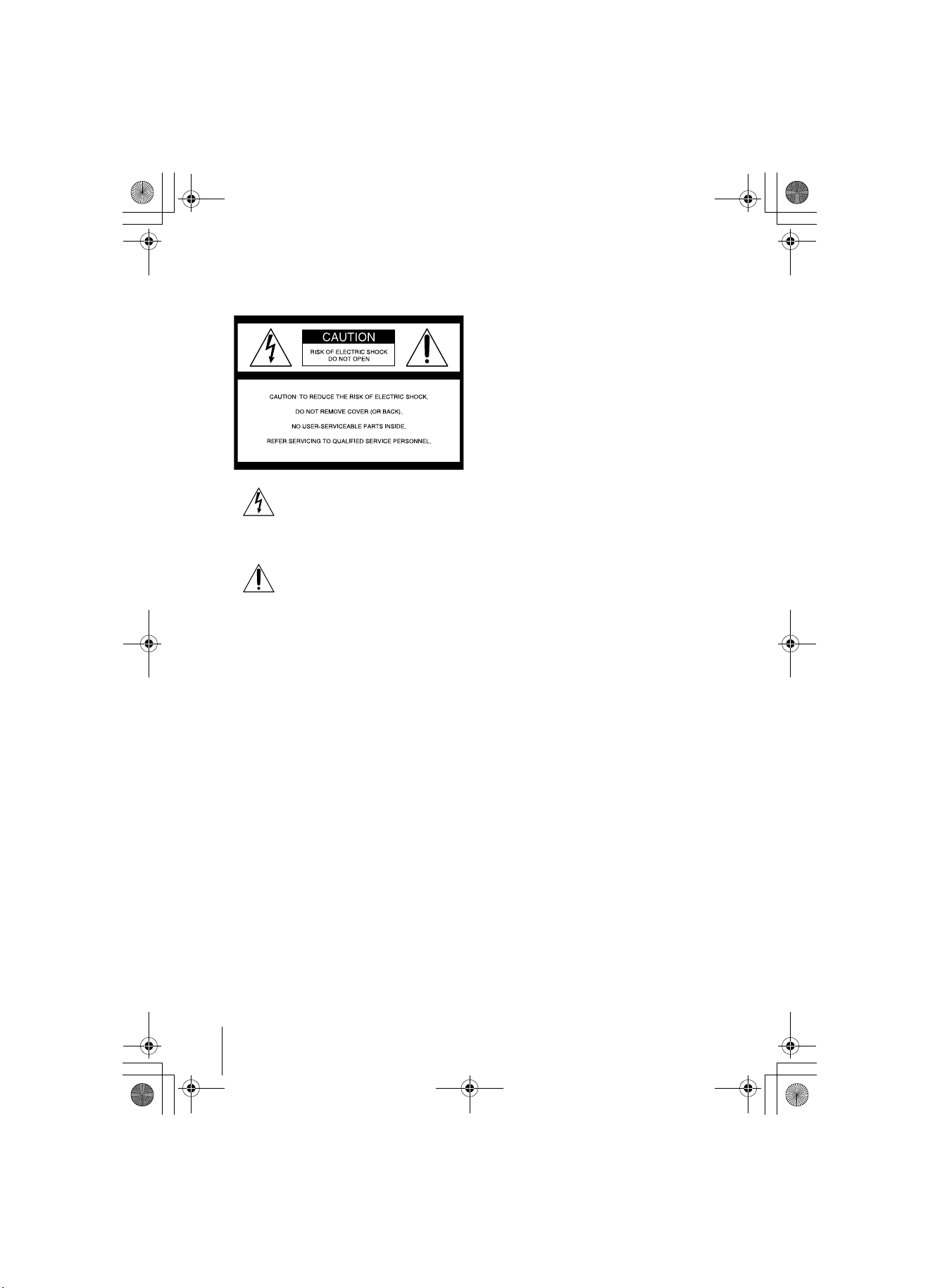

This symbol is intended to alert the user
to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
This symbol is intended to alert the user
to the presence of important operating
and maintenance (servicing) instructions
in the literature accompanying the
appliance.
CAUTION
To prevent electric shock, do not use this polarized
AC plug with an extension cord, receptacle or other
outlet unless the blades can be fully inserted to
prevent blade exposure.
Precautions
Safety
• Operate the unit only on 120 V AC, 60 Hz.
• If anything falls into the cabinet, unplug the unit
and have it checked by qualified personnel before
operating it any further.
• This unit is not disconnected from the AC power
source (mains) as long as it is connected to the
wall outlet, even if the unit itself has been turned
off.
• Unplug the unit from the wall outlet if you do not
intend to use it for an extended period of time. To
disconnect the cord, pull it out by the plug, never
by the cord.
• One blade of the plug is wider than the other for
the purpose of safety and will fit into the power
outlet only one way. If you are unable to insert
the plug fully into the outlet, contact your Sony
dealer.
Installing
• Allow adequate air circulation to prevent internal
heat buildup.
• Do not place the unit on surfaces (rugs, blankets,
etc.) or near materials (curtains, draperies) that
may block the ventilation slots.
• Do not install the unit near heat sources such as
radiators or air ducts, or in a place subject to
direct sunlight, excessive dust, mechanical
vibration or shock.
• Do not install the unit in an inclined position. It
is designed to be operated in a horizontal position
only.
• Keep the unit and cassettes away from equipment
with strong magnets, such as microwave ovens or
large loudspeakers.
• Do not place heavy objects on the unit.
• If the unit is brought directly from a cold to a
warm location, moisture may condense inside the
VCR and cause damage to the video head and
tape. When you first install the unit, or when you
move it from a cold to a warm location, wait for
about three hours before operating the unit.
Information
For customers in the USA
CAUTION
You are cautioned that any changes or modifications
not expressly approved in this manual could void
your authority to operate this equipment.
NOTE:
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Owner’s record
The model and serial numbers are located at the rear
of the unit.
Record these numbers in the spaces provided below.
Refer to them whenever you call upon your Sony
dealer regarding this product.
Model No._________________________
Serial No._________________________
010WAR.fm Page 2 Friday, November 30, 2001 1:44 PM
3
Important Safeguards
filename[010WAR.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Important Safeguards
For your protection, please read these safety
instructions completely before operating the
appliance, and keep this manual for future reference.
Carefully observe all warnings, precautions and
instructions on the appliance, or the one described in
the operating instructions and adhere to them.
Use
Installation
Power sources
This set should be operated only
from the type of power source
indicated on the marking label. If
you are not sure of the type of
electrical power supplied to your
home, consult your dealer or local power company.
For those sets designed to operate from battery
power, or other sources, refer to the operating
instructions.
Grounding or Polarization
This set is equipped with a polarized ac power cord
plug (a plug having one blade wider than the other),
or with a three-wire grounding type plug (a plug
having a third pin for grounding). Follow the
instructions below:
For the set with a polarized ac power cord
plug:
This plug will fit into the power
outlet only one way. This is a
safety feature. If you are unable
to insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact
your electrician to have a suitable outlet installed.
Do not defeat the safety purpose of the polarized
plug by forcing it in.
For the set with a three-wire grounding
type ac plug:
This plug will only fit into a
grounding-type power outlet.
This is a safety feature. If you are
unable to insert the plug into the outlet, contact your
electrician to have a suitable outlet installed. Do not
defeat the safety purpose of the grounding plug.
Overloading
Do not overload wall outlets,
extension cords or convenience
receptacles beyond their capacity,
since this can result in fire or
electric shock.
Object and Liquid Entry
Never push objects of any kind into
the set through openings as they
may touch dangerous voltage
points or short out parts that could
result in a fire or electric shock.
Never spill liquid of any kind on the set.
Attachments
Do not use attachments not
recommended by the manufacturer, as
they may cause hazards.
Cleaning
Unplug the set from the wall
outlet before cleaning or polishing
it. Do not use liquid cleaners or
aerosol cleaners. Use a cloth
lightly dampened with water for
cleaning the exterior of the set.
Water and Moisture
Do not use power-line operated sets
near water - for example, near a
bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or
near a swimming pool, etc.
Power-Cord Protection
Route the power cord so that it is
not likely to be walked on or
pinched by items placed upon or
against them, paying particular attention to the
plugs, receptacles, and the point where the cord exits
from the appliance.
Accessories
Do not place the set on an
unstable cart, stand, tripod,
bracket, or table. The set may
fall, causing serious injury to a
child or an adult, and serious damage to the set. Use
only a cart stand tripod, bracket, or table
recommended by the manufacturer.
An appliance and cart
combination should be moved
with care. Quick stops, excessive
force, and uneven surfaces may
cause the appliance and cart
combination to overturn.
Ventilation
The slots and openings in the cabinet are provided for
necessary ventilation. To ensure reliable operation of
the set, and to protect it from overheating, these slots
and openings must never be blocked or covered.
• Never cover the slots and
openings with a cloth or other
materials.
• Never block the slots and
openings by placing the set on
a bed, sofa, rug or other similar
surface.
S3125A
010WAR.fm Page 3 Friday, November 30, 2001 1:44 PM
4
Important Safeguards
filename[010WAR.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Antennas
Service
• Never place the set in a
confined space, such as a
bookcase, or built-in cabinet,
unless proper ventilation is
provided.
• Do not place the set near or
over a radiator or heat register,
or where it is exposed to direct
sunlight.
Outdoor antenna grounding
If an outdoor antenna or cable system is installed,
follow the precautions below.
An outdoor antenna system should not be located in
the vicinity of overhead power lines or other electric
light or power circuits, or where it can come in
contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA
SYSTEM, EXTREME CARE SHOULD BE
TAKEN TO KEEP FROM CONTACTING SUCH
POWER LINES OR CIRCUITS AS CONTACT
WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide
some protection against voltage surges and built-up
static charges. Section 810 of the National Electrical
Code provides information with respect to proper
grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of antenna-
discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
Antenna Grounding According to the
National Electrical Code
Lightning
For added protection for this set during a lightning
storm, or when it is left unattended and unused for
long periods of time, unplug it from the wall outlet
and disconnect the antenna or cable system. This
will prevent damage to the set due to lightning and
power-line surges.
Antenna Lead in Wire
Ground Clamp
Antenna Discharge unit
(NEC Section 810-20)
Grounding Conductors
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System
(NEC Art 250 Part H)
Electric Service
Equipment
NEC-NATIONAL ELECTRICAL CODE
Damage Requiring Service
Unplug the set from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
• When the power cord or plug is
damaged or frayed.
• If liquid has been spilled or
objects have fallen into the set.
• If the set has been exposed to
rain or water.
• If the set has been subject
to excessive shock by
being dropped, or the
cabinet has been damaged.
• If the set does not operate
normally when following the
operating instructions. Adjust
only those controls that are
specified in the operating
instructions. Improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the set to normal operation.
• When the set exhibits a distinct change in
performance - this indicates a need for service.
Servicing
Do not attempt to service the set
yourself as opening or removing
covers may expose you to
dangerous voltage or other
hazards.
Refer all servicing to qualified service personnel.
Replacement parts
When replacement parts are required, be sure the
service technician has used replacement parts
specified by the manufacturer that have the same
characteristics as the original parts.
Unauthorized substitutions may result in fire,
electric shock, or other hazards.
Safety Check
Upon completion of any service
or repairs to the set, ask the
service technician to perform
routine safety checks (as specified
by the manufacturer) to determine
that the set is in safe operating
condition.
010WAR.fm Page 4 Friday, November 30, 2001 1:44 PM
5
Table of contents
Getting Started
filename[010COVTOC.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Table of contents
Getting Started
6
Step 1 : Unpacking
7
Step 2 : Setting up the remote commander
9
Step 3 : Hookups
27
Selecting a language
28
Setting the clock
35
Setting up the cable box control
41
Presetting channels
48
Setting up the VCR Plus+® GOLD system
Basic Operations
55
Playing a tape
58
Recording TV programs
61
Recording TV programs using the
Dial Timer
66
Recording TV programs using the
VCR Plus+ GOLD system
69
Setting the timer manually
72
Locking the VCR (Child Lock)
Additional Operations
73
Playing/searching at various speeds
75
Setting the recording duration time
76
Checking/changing/canceling timer
settings
78
Recording stereo and bilingual
programs
80
Searching using the index function
81
Searching for a selected point on the
tape
83
Locating a channel by Station ID
84
Creating a favorite channel list with
Station ID
86
Adjusting the picture
88
Changing menu options
90

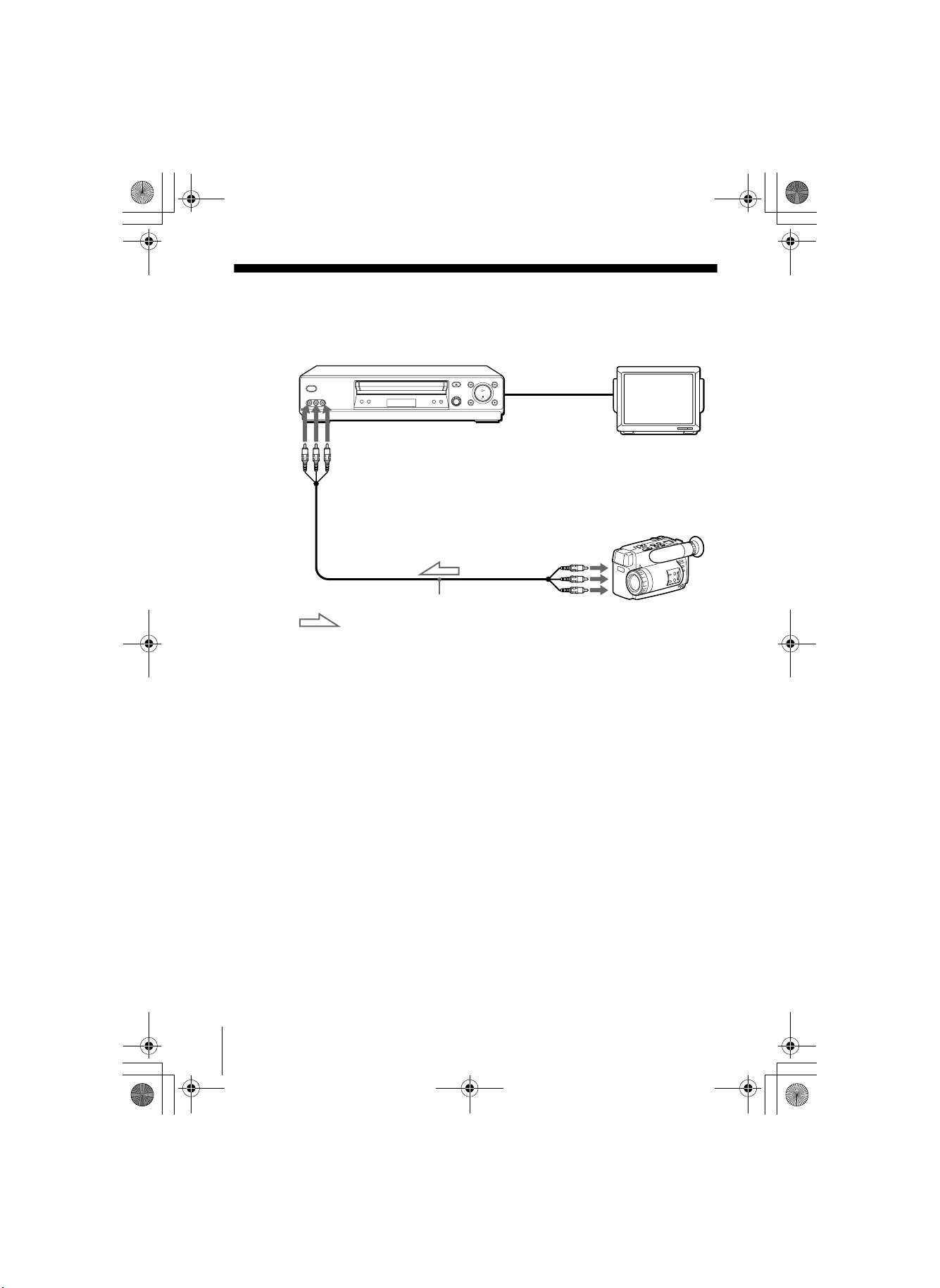

Editing with another VCR
Additional Information
92
General setup information
94
Troubleshooting
96
Specifications
97

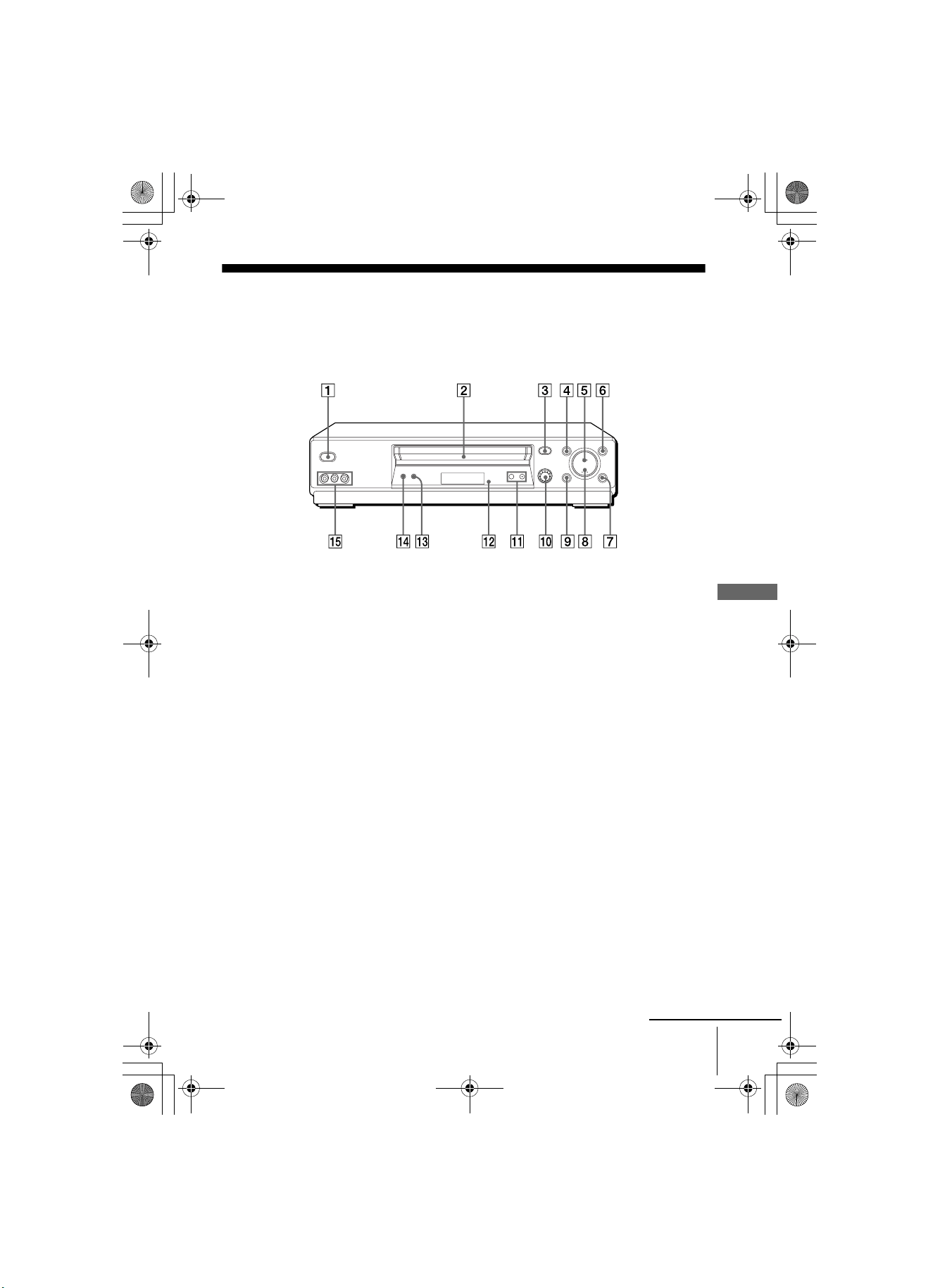

Index to parts and controls
102
Index
Back Cover
Quick reference to using the VCR
VCR Plus+, C
3
, A
LL
S
ET
and PlusCode are trademarks of Gemstar Development Corporation.
The VCR Plus+ system is manufactured under license from Gemstar Development Corporation.
Caution
Television programs, films, video tapes and other materials may be copyrighted.
Unauthorized recording of such material may be contrary to the provisions of the copyright laws. Also, use
of this recorder with cable television transmission may require authorization from the cable television
transmission and/or program owner.
010COVTOC.fm Page 5 Friday, November 30, 2001 1:52 PM
6
Unpacking
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Getting Started
Step 1 : Unpacking
Check that you have received the following items with the VCR:
• Remote commander • 75-ohm coaxial cable with F-type connectors
• Size AA (R6) batteries
010GET.fm Page 6 Friday, November 30, 2001 1:47 PM
Getting Started
7
Setting up the remote commander
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Step 2 : Setting up the remote commander
Notes
• With normal use, the batteries should last about three to six months.
• If you do not use the remote commander for an extended period of time, remove the batteries
to avoid possible damage from battery leakage.
• Do not use a new battery with an old one.
• Do not use different types of batteries.
Inserting the batteries
Insert two size AA (R6) batteries
by matching the + and – on the
batteries to the diagram inside the
battery compartment.
Insert the negative (–) end first,
then push in and down until the
positive (+) end clicks into
position.

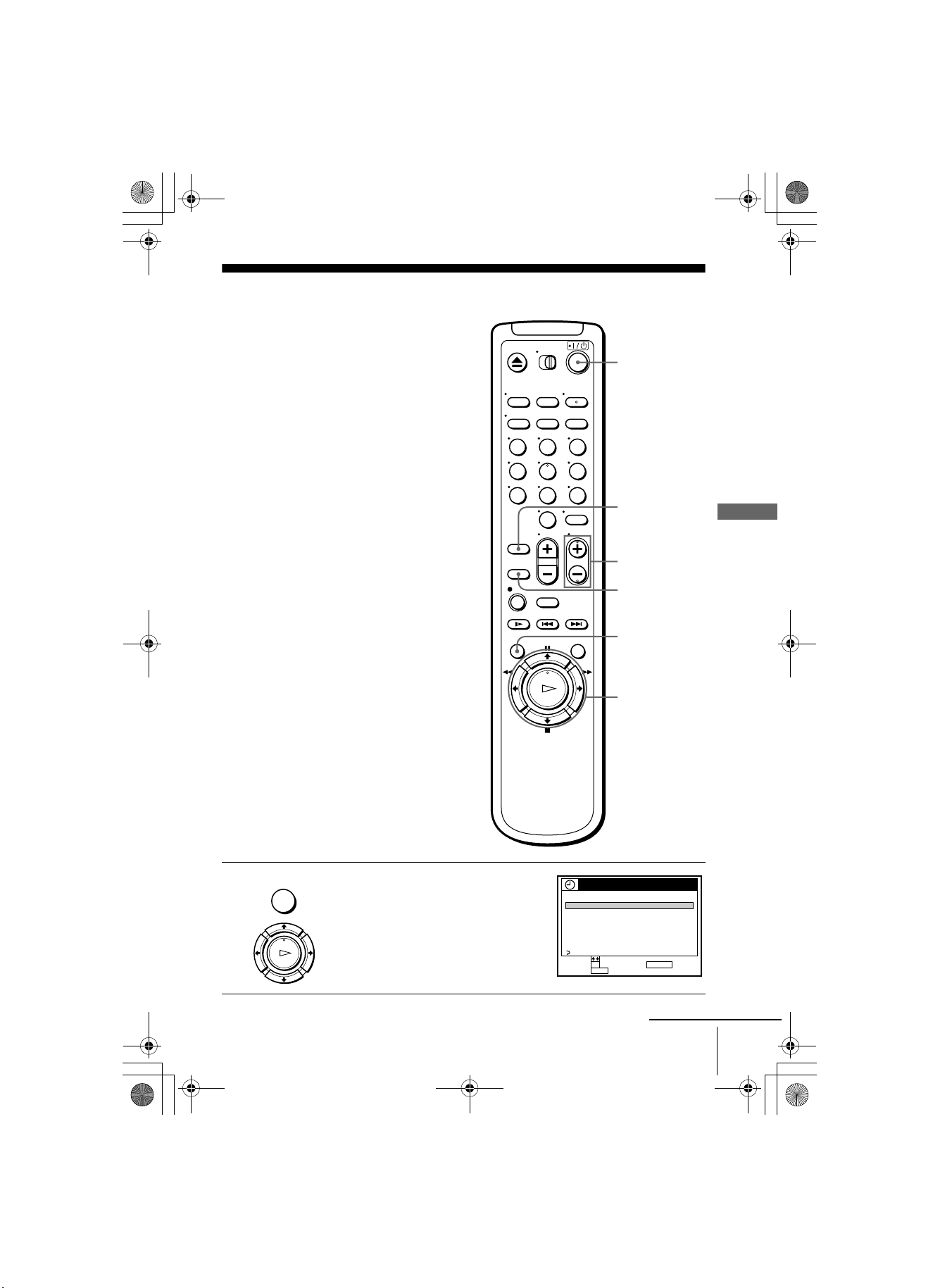

Using the remote
commander
You can use this remote
commander to operate this VCR
and a Sony TV. Buttons on the
remote commander marked with a
dot (•) can be used to operate your
Sony TV.
To operate
Set
•TV / VIDEO to
the VCR VIDEO
and point at the remote sensor at the VCR
a Sony TV •TV
and point at the remote sensor at the TV
123
•TV
/ VIDEO
Remote sensor
continued
010GET.fm Page 7 Friday, November 30, 2001 1:47 PM
8
Setting up the remote commander
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Controlling other TVs with the remote commander
The remote commander is preprogrammed to control non-Sony TVs. If your TV is
listed in the following table, set the appropriate manufacturer’s code number.
Now you can use the
?
/
1
, VOL +/–, CH +/–, and TV/VIDEO buttons to control your
TV. You can also use the buttons marked with a dot (•) to control a Sony TV. To
control the VCR, reset •TV
/ VIDEO to VIDEO.
Code numbers of controllable TVs
If more than one code number is listed, try entering them one at a time until you find
the one that works with your TV.
Notes
• If you enter a new code number, the code number previously entered will be erased.
• If the TV uses a different remote control system from the one programmed to work with the
VCR, you cannot control your TV with the remote commander.
• When you replace the batteries of the remote commander, the code number may change. Set
the appropriate code number every time you replace the batteries.
• When you press the AUDIO MONITOR button, your TV’s menu may appear on the TV
screen. To exit the TV menu, press the MENU button on the TV remote commander or wait
until the menu disappears automatically.
1
Set •TV / VIDEO at the top of the remote commander to •TV.
2
Hold down
?
/
1
, and enter your TV’s code number using the number buttons.
Then release
?
/
1
.
TV brand
Code
number
Sony 01
Akai 04
AOC 04
Centurion 12
Coronado 03
Curtis-Mathes 12
Daytron 12
Emerson 03, 04, 14
Fisher 11
General Electric 06, 10
Gold Star 03, 04, 17
Hitachi 02, 03
J.C.Penney 04, 12
JVC 09
KMC 03
Magnavox 03, 08, 12
Marantz 04, 13
MGA/Mitsubishi
04, 12, 13, 17
NEC 04, 12
Panasonic 06, 19
Philco 03, 04
Philips 08
Pioneer 16
Portland 03
Quasar 06, 18
Radio Shack 05, 14
TV brand
Code
number
RCA 04, 10
Sampo 12
Sanyo 11
Scott 12
Sears 07, 10, 11
Sharp 03, 05, 18
Sylvania 08, 12
Teknika 03, 08, 14
Toshiba 07
Wards 03, 04, 12
Yo rx 1 2
Zenith 15
TV brand
Code
number
010GET.fm Page 8 Friday, November 30, 2001 1:47 PM
Getting Started
9
Hookups
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Step 3 : Hookups
Selecting the best hookup option
There are many ways in which your VCR can be hooked up. To hook up your VCR
so that it works best for you, first scan through the table below. Then use the
accompanying diagrams and procedures on the following pages to set up your VCR.
If your TV has audio/video inputs, refer to pages 10 and 11 for audio/video (A/V)
hookup. Then follow one of the hookups below. If your TV doesn’t have A/V inputs,
go directly to one of the hookups below.
For hookup 1 or 2, use the Sony RM-CM101 Cable Mouse (cable box controller) (not
supplied). For details on obtaining a Cable Mouse controller, contact the Sony
Customer Information Services Center.
After you’ve completed the connections, follow the instructions for setup. During
setup, if you need more details on the procedure described, page numbers are
provided where you can find complete, step-by-step instructions.
After you’ve completed the setup, you’re ready to use your VCR. Procedures differ
depending on the hookup you used. For an overview, refer to “Quick reference to
using the VCR” on the back cover.
Before you get started
• Turn off the power to all equipment.
• Do not connect the AC power cords until all of the connections are completed.
• Be sure to make connections firmly. Loose connections may cause picture
distortion.
• If your TV doesn’t match any of the examples provided, see your nearest Sony
dealer or qualified technician.
If you have Use Refer to
A cable box that is compatible with the
Cable Mouse
Hookup 1 Pages 12 to 14
A digital broadcast service’s digital
satellite receiver that is compatible with
the Cable Mouse
Hookup 2 Pages 15 to 17
No cable box or cable box with only a few
scrambled channels
Hookup 3 Pages 18 to 20
Antenna only, no cable TV Hookup 4 Pages 21 to 23
Cable box with many scrambled channels Hookup 5 Pages 24 to 26
010GET.fm Page 9 Friday, November 30, 2001 1:47 PM
10
Hookups
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]

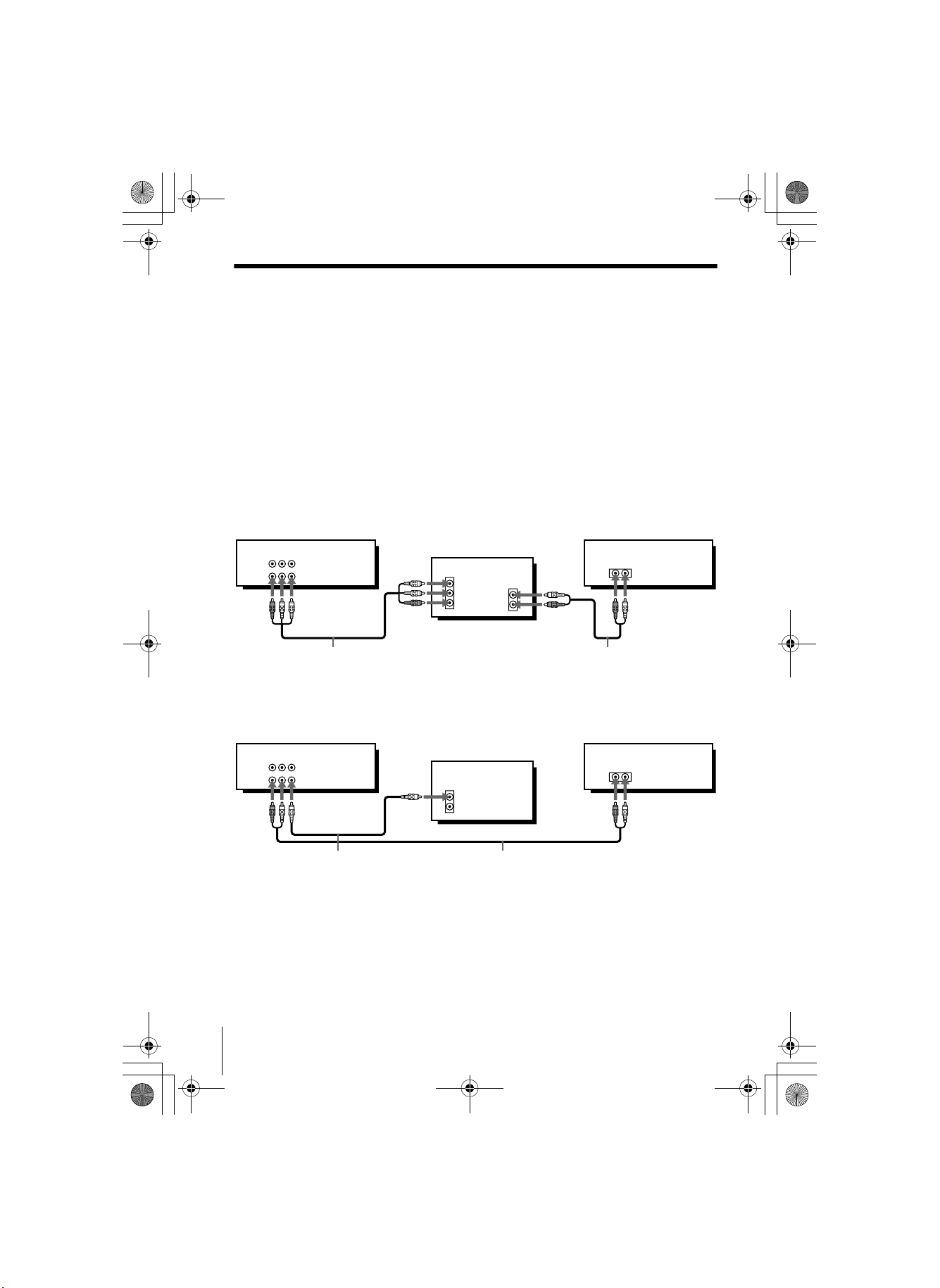

Audio/video (A/V) hookup
If your TV has audio/video (A/V) input jacks, you will get a better picture and sound
if you hook up your VCR using these connections. For a true “home theater”
experience, you should connect the audio outputs of your VCR or TV to your stereo
system. If your TV doesn’t have A/V inputs, see the following pages for antenna or
cable hookups.
If your TV has the Control S function, hook up your VCR using the connection
shown on page 11. This will allow you to operate your VCR by pointing your VCR’s
remote commander at your TV.
If you’re not planning to use your VCR to record programs, you’re finished setting up
the VCR after you’ve made the connections shown on pages 10 and 11. If you want
to record regular or cable TV programs, complete these connections first, and then go
to the following pages for antenna or cable hookups.
A
Use this hookup if your TV has stereo jacks
B
Use this hookup if your TV doesn’t have stereo jacks
Note
• If you don’t have a stereo receiver, connect the white LINE OUT/AUDIO L jack to the
AUDIO IN jack on your TV.
LINE-1
IN
LINE
OUT
AUDIO VIDEO
IN
VIDEO
AUDIO
AUDIO OUT
AUX IN
Audio/video cable (not supplied)
TV
Audio cable (not supplied)
Stereo receiverVCR
VIDEO
AUDIO
IN
AUX IN
LINE-1
IN
LINE
OUT
AUDIO VIDEO
Video cable (not supplied)
TV
Audio cable (not supplied)
Stereo receiverVCR
010GET.fm Page 10 Friday, November 30, 2001 1:47 PM
Getting Started
11
Hookups
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
C
Use this hookup if your TV has the Control S function
Notes
• To play a tape in stereo, you must use the A/V connection.
• Use the RK-G69 Control S cable (not supplied) for Control S connections.
Completing A/V hookup:
After you’ve connected your TV and completed antenna or cable hookup, return to
this procedure to complete VCR set up. This will prevent unwanted noise in the RF
channel.
Caution
Connections between the VCR’s VHF/UHF connector and the antenna terminals of the TV
receiver should be made only as shown in the following instructions. Failure to do so may result
in operation that violates the regulations of the Federal Communications Commission regarding
the use and operation of RF devices. Never connect the output of the VCR to an antenna or
make simultaneous (parallel) antenna and VCR connections at the antenna terminals of your
receiver.
Note to CATV system installer (in USA)
This reminder is provided to call the CATV system installer’s attention to Article 820- 40 of the
NEC that provides guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close to the point of cable
entry as practical.
LINE-1
IN
LINE
OUT
IN
CONTROL S
AUDIO VIDEO
IN
VIDEO
AUDIO
AUDIO OUT
AUX IN
CONTROL S OUT
Audio/video cable
(not supplied)
TV
Audio cable (not supplied)
Stereo receiverVCR
Control S cable (not supplied)
SET :
SELECT :
OK
MENUQUIT :
TIMER SET/CHECK
SETTINGS
ADVANCED OPTIONS
SET :
SELECT :
OK
MENUQUIT :
ADVANCED OPTIONS
PAGE1
AUTO STEREO
AUTO ANT SELECT
TUNER AUDIO
TAPE SELECT
AUTO TAPE SPEED
OFF
ON
AUTO
FAVORITE CH
ON
ON
NEXT
RETURN
Press MENU and select
ADVANCED OPTIONS.
Set AUTO ANT SELECT
to OFF and press OK.
For details, see page 88.
,
010GET.fm Page 11 Friday, November 30, 2001 1:47 PM
12
Hookups
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]

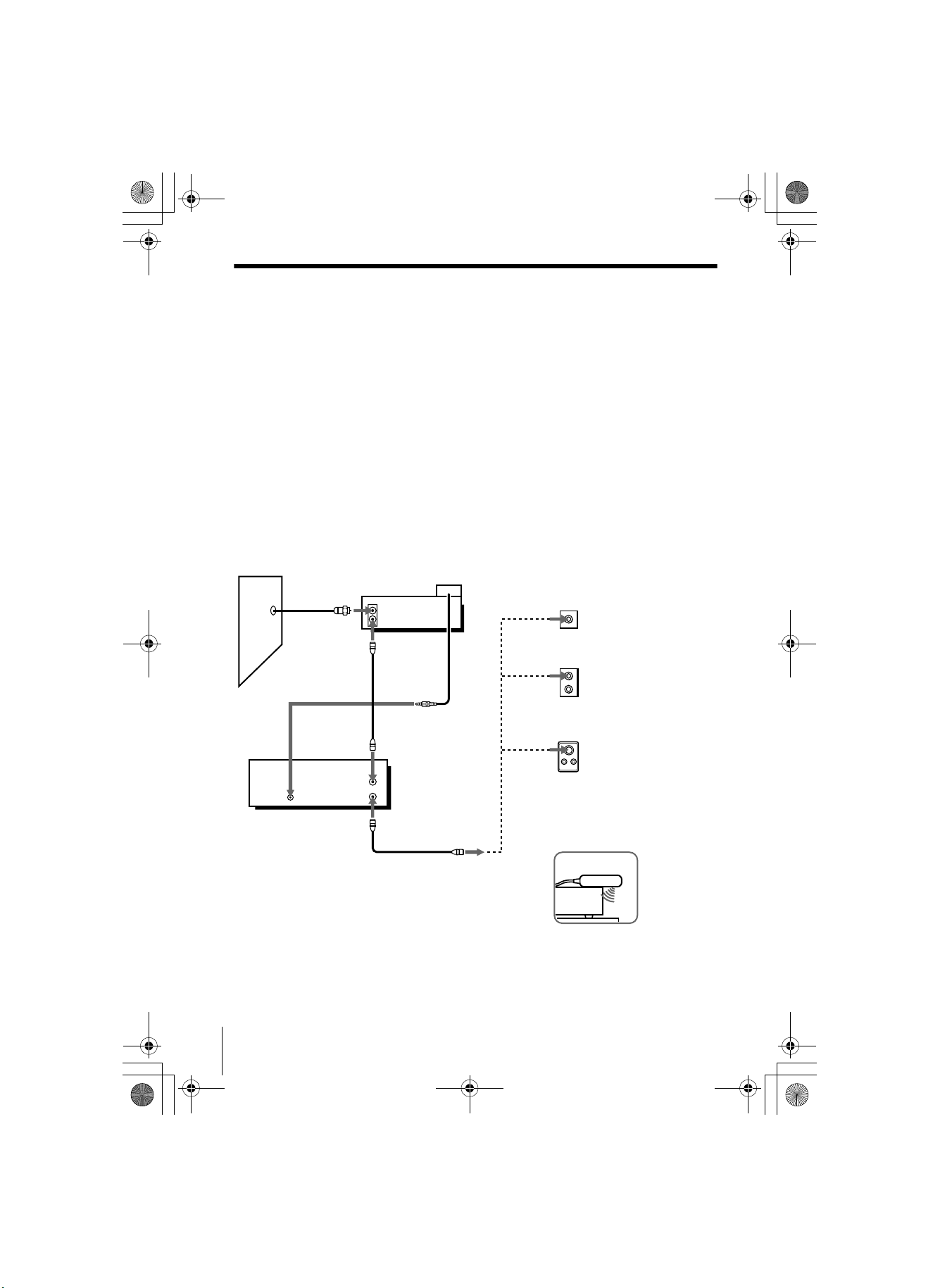

Hookup 1
Using the cable box control feature
Recommended use
You should use this hookup if you have a cable box, especially if your cable system
scrambles all or most channels. This hookup allows the VCR’s cable box control
feature to control the channels on the cable box, simplifying the recording process. A
list of compatible cable boxes is on pages 37 and 38.
What you can do with this hookup
• Record any channel by using the Cable Mouse to select channels on the cable box
What you can’t do
• Record with the cable box turned off
• Record one channel while watching another channel
CONTROL S
( )
CABLE BOX
CONTROL
PLUG IN
POWER
OUT
IN
OUT
VHF/UHF
IN
OUT
Rear of TV
VHF/UHF
RM-CM101
Cable Mouse
(not supplied)
VHF
UHF
Positioning the Cable Mouse
Place the Cable Mouse so that it
hangs out over the front of the
remote sensor on the cable box.
VCR
Wall
Match the type of
connector on your
TV: A, B, or C.
For connector types
B and C, no UHF
connection is
required.
B
C
Side view
or
or
Cable box
A
VHF
UHF
010GET.fm Page 12 Friday, November 30, 2001 1:47 PM
Getting Started
13
Hookups
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]

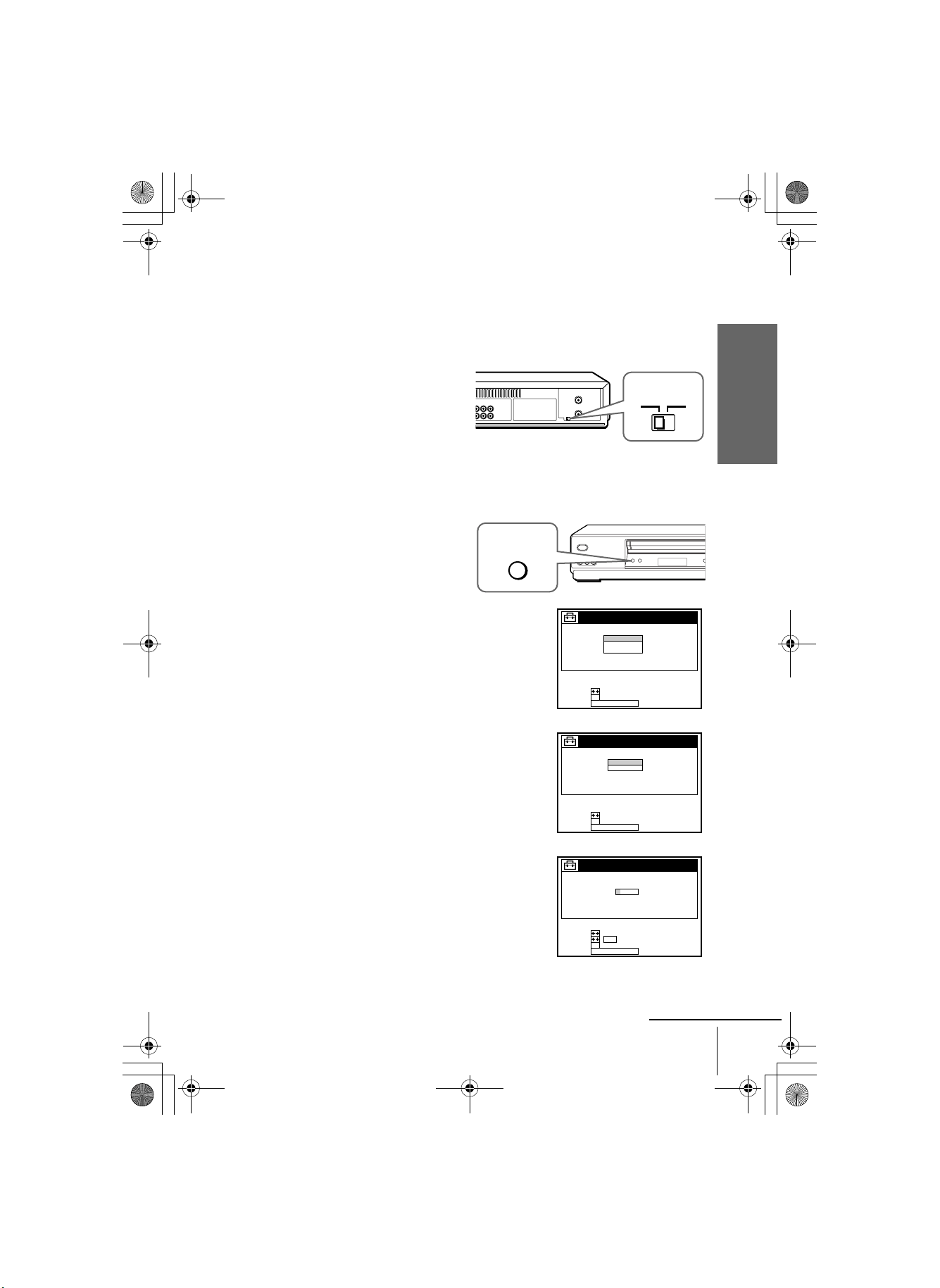

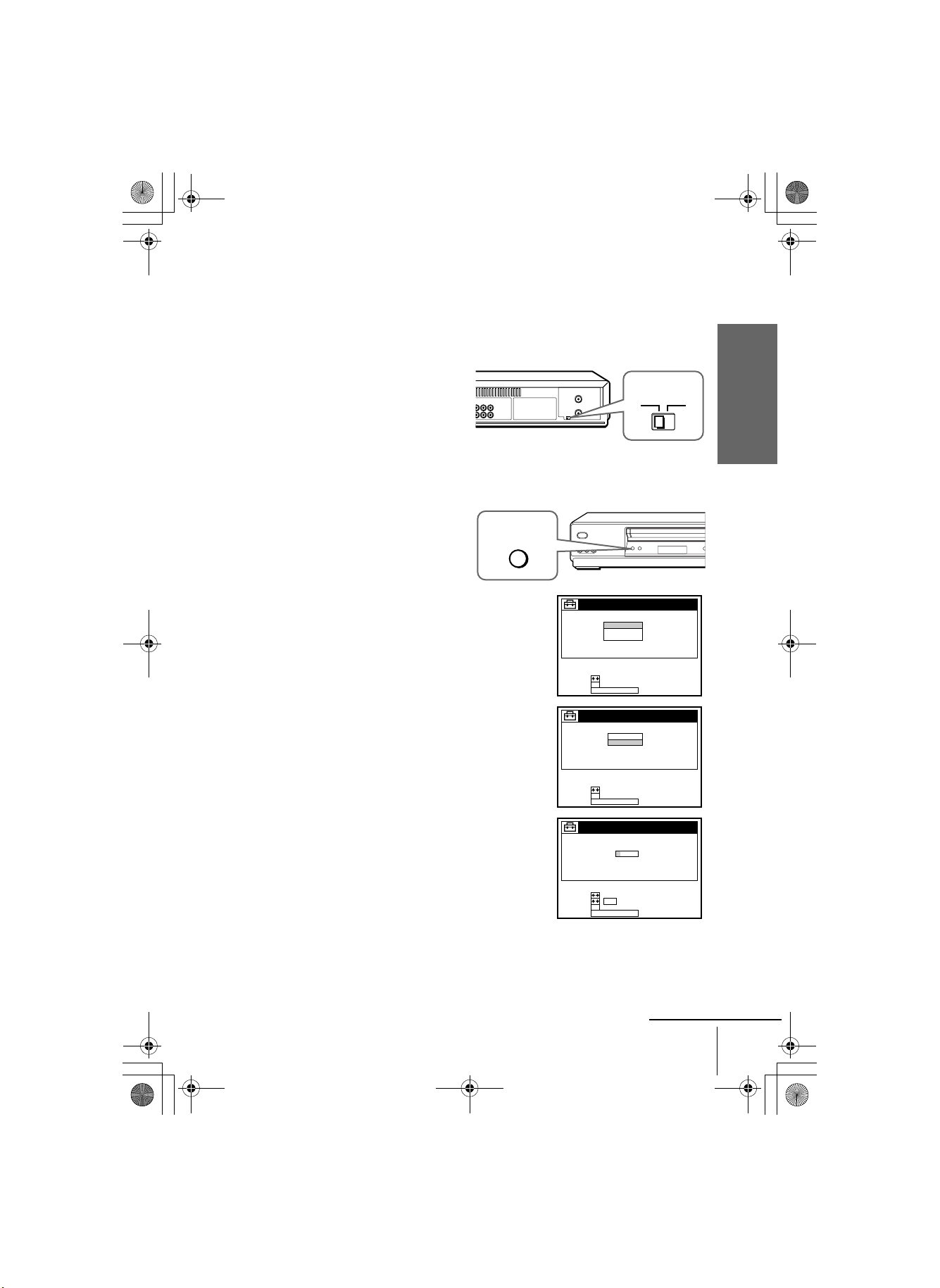

Hookup 1 : VCR setup
Before you start…
• Turn on the VCR and the TV.
• Press TV/VIDEO to display the VIDEO indicator in the VCR’s display window.
1
Set the RF UNIT switch to CH3
or CH4, whichever channel is not
used in your area. If both are
used, set the switch to either
channel. For details, see page 92.
If you made A/V connections
(from page 10), you do not need
to adjust the RF UNIT switch.
2
Turn on your cable box.
3

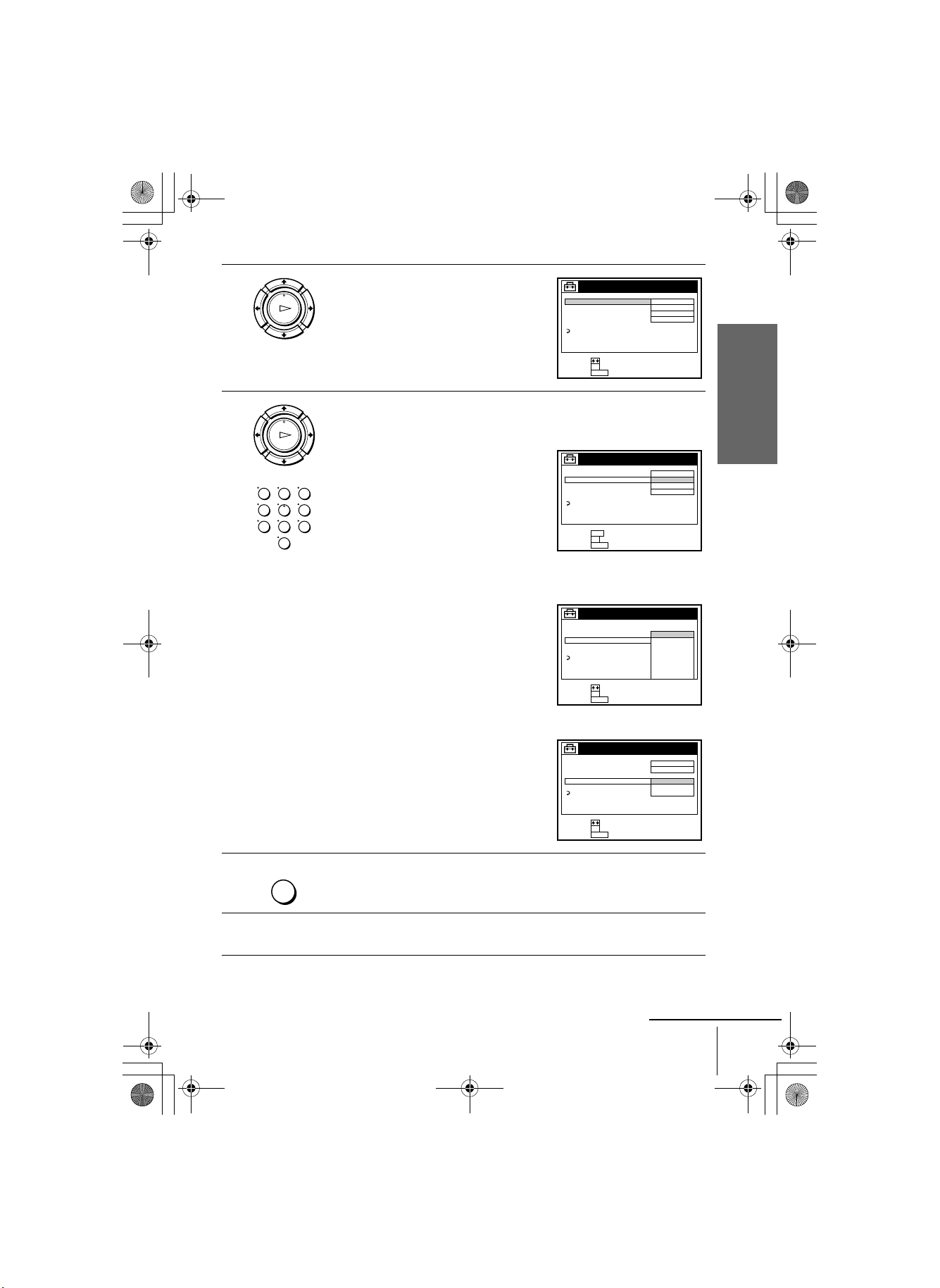

Press EASY SET UP on the VCR.
1
The LANGUAGE menu appears. Change the
on-screen display language to Spanish
(ESPAÑOL) or French (FRANÇAIS) if
desired, and press OK. For details, see page
27.
2 The CLOCK SET menu appears. Select
AUTO and press OK. For details, see page
29.
3 The SMART CHANNEL MAPPING menu
appears. Press
M
/
m
/
<
/
,
to enter the ZIP/
POSTAL CODE in your area and press OK.
(You can also use the number buttons to enter
the ZIP/POSTAL CODE.)
CH3
RF UNIT
CH4
EASY
SET UP
SET UP
LANGUAGE
NEXT :
SELECT :
OK
EASY SET UPCANCEL :
ENGLISH
ESPAÑOL
FRANÇAIS
NEXT :
SELECT :
OK
AUTO
MANUAL
SET UP
CLOCK SET
EASY SET UPCANCEL :
NEXT :
SET :
OK
0–9
SELECT :
ZIP / POSTAL CODE
––––3
SET UP
SMART CHANNEL MAPPING
EASY SET UPCANCEL :
continued
010GET.fm Page 13 Friday, November 30, 2001 1:47 PM
14
Hookups
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
You have now completed hookup. If you want to use the VCR Plus+ GOLD system
for recording, go to page 48 for VCR Plus+ GOLD system channel set up.
Automatic clock setting
Once you’ve set up the VCR, it automatically sets the clock the first time you turn off
the VCR. “ACS” (Auto Clock Set) will flash in the display window and search for a
time signal provided by some TV channels. After that, whenever you turn off the
VCR, it checks the time and adjusts the clock, even for Daylight Saving Time.
If you want to use the timer to record right away, or if the channels in your area do not
carry time signals, set the clock manually. For details, see page 33.
Notes
• To use the Auto Clock Set feature, leave the cable box on.
• If the clock is not set, “ACS” will flash in the display window whenever the VCR is turned
off. During this time, the VCR will search for a time signal.

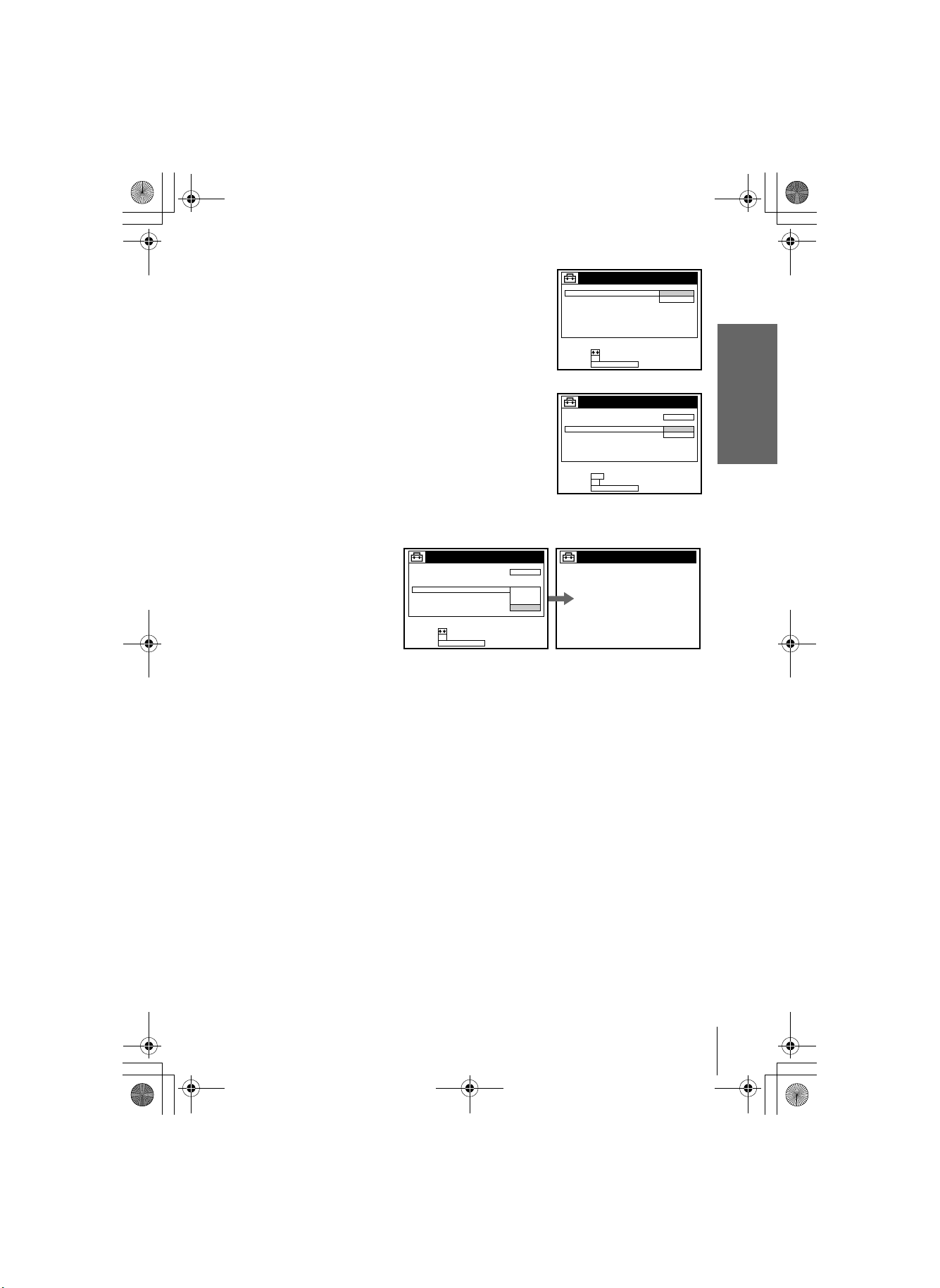

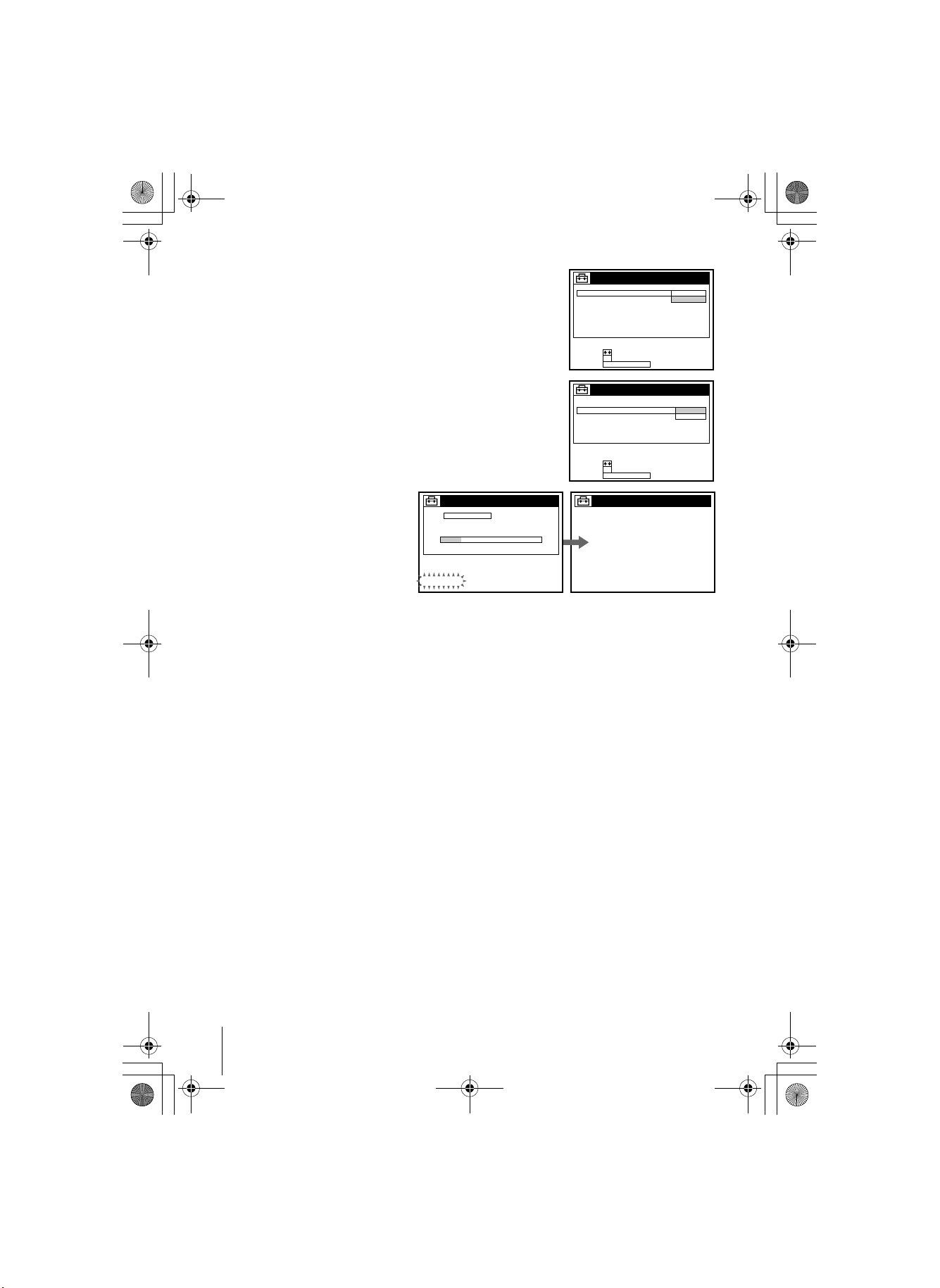

4 The CABLE BOX CONTROL menu appears.
Select ON. For details, see page 36.
5 Enter your cable box code number and press
OK. For details, see page 36.
6 Select your cable box output channel and press OK.
NEXT :
SELECT :
OK
SET UP
CABLE BOX CONTROL
EASY SET UPCANCEL :
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
OFF
ON
NEXT :
USE :
OK
0–9
SET UP
CABLE BOX CONTROL
EASY SET UPCANCEL :
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
ON
CH3
–––
SET UP
SET UP IS DONE
NEXT :
SELECT :
OK
SET UP
CABLE BOX CONTROL
EASY SET UPCANCEL :
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
ON
CH2
LINE
CH4
CH3
010GET.fm Page 14 Friday, November 30, 2001 1:47 PM
Getting Started
15
Hookups
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]

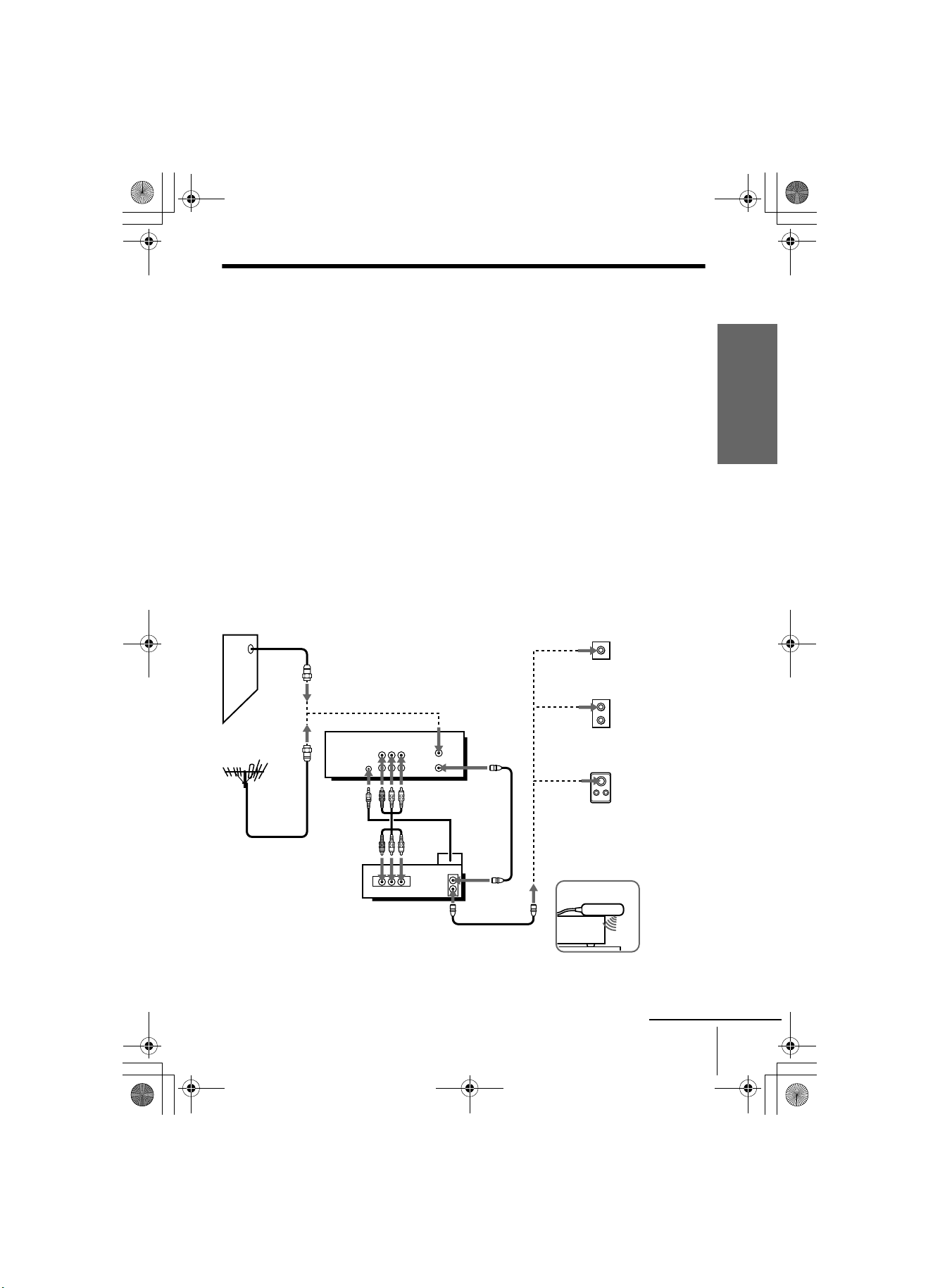

Hookup 2
Connecting to a digital satellite receiver
Recommended use
Use this hookup if you have a digital satellite receiver that is compatible with the
Cable Mouse. It allows the VCR’s cable box control feature to control the channel on
the digital satellite receiver, simplifying the recording process. A list of compatible
digital satellite receivers is on page 39.
What you can do with this hookup
• Record any channels by using the Cable Mouse to select channels on the digital
satellite receiver
What you can’t do
• Record with the digital satellite receiver turned off
• Record any channels from cable or an antenna (To record channels from cable or
an antenna, turn off the cable box control feature.)
• Use a cable box
• Record programs with the VCR Plus+ GOLD system (To use the VCR Plus+
GOLD system, turn off the cable box control feature.)
LINE-1
IN
LINE
OUT
AUDIO VIDEO
IN
OUT
VHF/UHF
AUDIO VIDEO
LINE
OUT
OUT
VHF/UHF
IN
CONTROL S
( )
CABLE BOX
CONTROL
PLUG IN
POWER
OUT
Rear of TV
VHF/UHF
VHF
UHF
Positioning the Cable Mous
e
Place the Cable Mouse so that it
hangs out over the front of the
remote sensor on the digital
satellite receiver.
VCR
Wall
Match the
type of
connector on
your TV: A,
B, or C.
For connector
types B and
C, no UHF
connection is
required.
B
C
Side view
or
or
A
VHF
UHF
Digital satellite
receiver
RM-CM101
Cable
Mouse
(not supplied)
or
continued
010GET.fm Page 15 Friday, November 30, 2001 1:47 PM
16
Hookups
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]

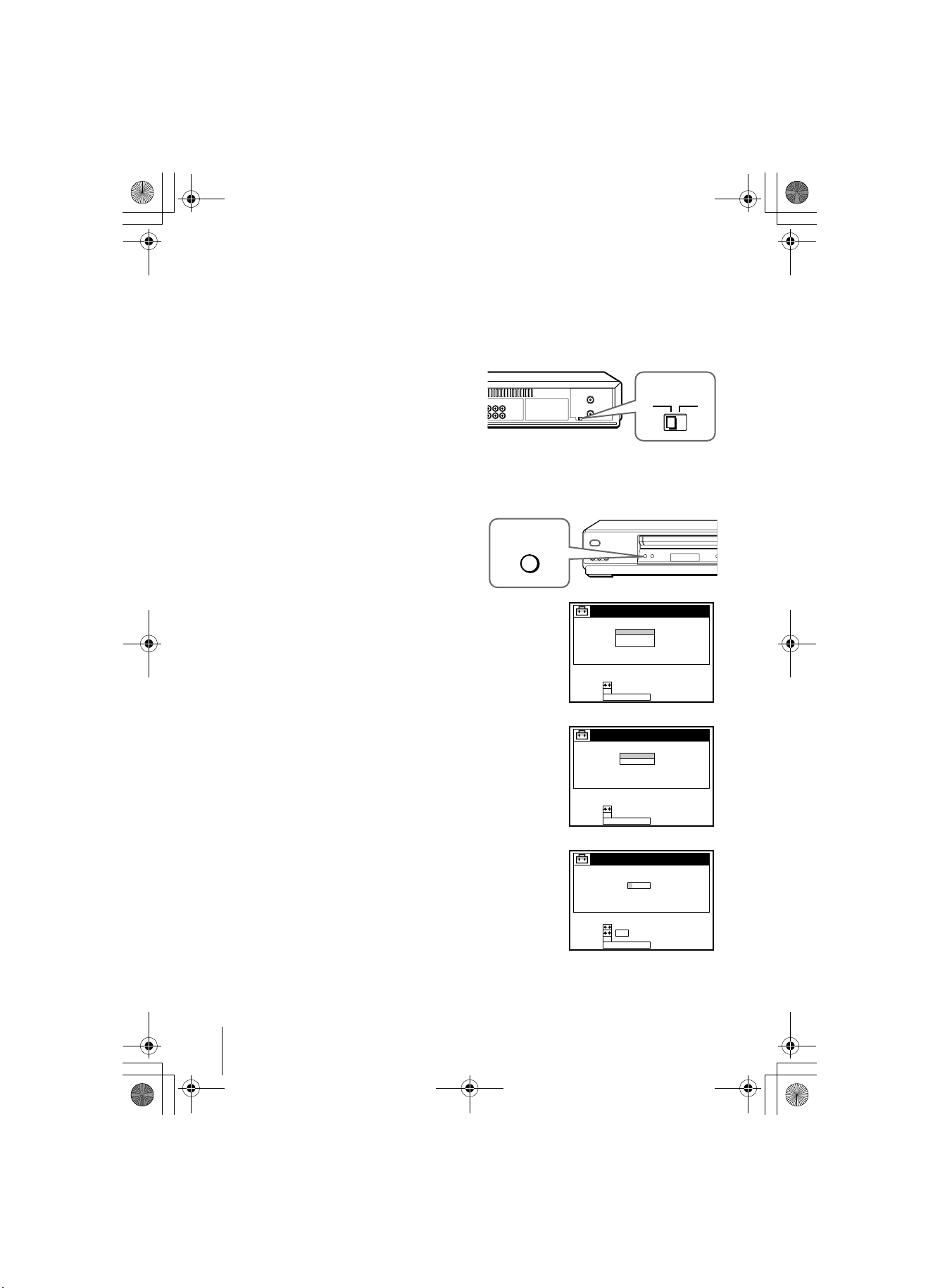

Hookup 2 : VCR setup
Before you start…
• Turn on the VCR and the TV.
• Press TV/VIDEO to display the VIDEO indicator in the VCR’s display window.
1
Set the RF UNIT switch to CH3
or CH4, whichever channel is not
used in your area. If both are
used, set the switch to either
channel. For details, see page 92.
If you made A/V connections
(from page 10), you do not need
to adjust the RF UNIT switch.
2
Turn on your digital satellite receiver.
3
Press EASY SET UP on the VCR.
1 The LANGUAGE menu appears. Change the
on-screen display language to Spanish
(ESPAÑOL) or French (FRANÇAIS) if
desired, and press OK. For details, see page
27.
2 The CLOCK SET menu appears. Select
AUTO and press OK. For details, see page
29.
3
The SMART CHANNEL MAPPING menu
appears. Press
M
/
m
/
<
/
,
to enter the ZIP/
POSTAL CODE in your area and press OK.
(You can also use the number buttons to enter
the ZIP/POSTAL CODE.)
CH3
RF UNIT
CH4
EASY
SET UP
SET UP
LANGUAGE
NEXT :
SELECT :
OK
EASY SET UPCANCEL :
ENGLISH
ESPAÑOL
FRANÇAIS
NEXT :
SELECT :
OK
AUTO
MANUAL
SET UP
CLOCK SET
EASY SET UPCANCEL :
NEXT :
SET :
OK
0–9
SELECT :
ZIP / POSTAL CODE
––––3
SET UP
SMART CHANNEL MAPPING
EASY SET UPCANCEL :
010GET.fm Page 16 Friday, November 30, 2001 1:47 PM
Getting Started
17
Hookups
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
You have now completed hookup.
Automatic clock setting
Once you’ve set up the VCR, it automatically sets the clock the first time you turn off
the VCR. “ACS” (Auto Clock Set) will flash in the display window and search for a
time signal provided by some TV channels. After that, whenever you turn off the
VCR, it checks the time and adjusts the clock, even for Daylight Saving Time.
If you want to use the timer to record right away, or if the channels in your area do not
carry time signals, set the clock manually. For details, see page 33.
Notes
• If the clock is not set, “ACS” will flash in the display window whenever the VCR is turned
off. During this time, the VCR will search for a time signal.
• To successfully record a program from the digital satellite receiver, proceed as follows:
– Leave the digital satellite receiver on all the time.
– Turn off the display (menu screen, channel number, etc.) of the digital satellite receiver.
– To record or receive locked channels, unlock the channel before the VCR starts recording.
– To set pay-per-view programs in the timer setting, order the pay-per-view program before
the VCR starts recording.
– Some programs are copy protected. You cannot record these programs.
4 The CABLE BOX CONTROL menu appears.
Select ON. For details, see page 36.
5 Enter your digital satellite receiver code
number and press OK. For details, see page
36.
6 Set your digital satellite receiver output channel (BOX OUTPUT CH) to LINE
and press OK.
NEXT :
SELECT :
OK
SET UP
CABLE BOX CONTROL
EASY SET UPCANCEL :
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
OFF
ON
NEXT :
USE :
OK
0–9
SET UP
CABLE BOX CONTROL
EASY SET UPCANCEL :
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
ON
CH3
–––
SET UP
SET UP IS DONE
NEXT :
SELECT :
OK
SET UP
CABLE BOX CONTROL
EASY SET UPCANCEL :
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
ON
CH2
LINE
CH4
CH3
010GET.fm Page 17 Friday, November 30, 2001 1:47 PM
18
Hookups
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Hookup 3
You have no cable box, or a cable box with only a few
scrambled channels
Recommended use
Use this hookup if you do not have a cable box. Also use this hookup if your cable
system scrambles only a few channels.
What you can do with this hookup
• Record any unscrambled channel by selecting the channel on the VCR
What you can’t do
• Record scrambled channels that require a cable box
IN
OUT
VHF/UHF
IN
OUT
Rear of TV
VHF/UHF
VHF
UHF
VCR
Match the type
of connector
on your TV: A,
B, or C.
For connector
types B and C,
no UHF
connection is
required.
B
C
or
or
Cable box
A
VHF
UHF
Wall
Connect this cable
directly to your TV if
you don’t have a
cable box.
010GET.fm Page 18 Friday, November 30, 2001 1:47 PM
Getting Started
19
Hookups
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Hookup 3 : VCR setup
Before you start…
• Turn on the VCR and the TV.
• Press TV/VIDEO to display the VIDEO indicator in the VCR’s display window.
1
Set the RF UNIT switch to CH3
or CH4, whichever channel is not
used in your area. If both are
used, set the switch to either
channel. For details, see page 92.
If you made A/V connections
(from page 10), you do not need
to adjust the RF UNIT switch.
2
Press EASY SET UP on the VCR.
1 The LANGUAGE menu appears. Change the
on-screen display language to Spanish
(ESPAÑOL) or French (FRANÇAIS) if
desired, and press OK. For details, see page
27.
2 The CLOCK SET menu appears. Select
AUTO and press OK. For details, see page
29.
3 The SMART CHANNEL MAPPING menu
appears. Press
M
/
m
/
<
/
,
to enter the ZIP/
POSTAL CODE in your area and press OK.
(You can also use the number buttons to enter
the ZIP/POSTAL CODE.)
CH3
RF UNIT
CH4
EASY
SET UP
SET UP
LANGUAGE
NEXT :
SELECT :
OK
EASY SET UPCANCEL :
ENGLISH
ESPAÑOL
FRANÇAIS
NEXT :
SELECT :
OK
AUTO
MANUAL
SET UP
CLOCK SET
EASY SET UPCANCEL :
NEXT :
SET :
OK
0–9
SELECT :
ZIP / POSTAL CODE
––––3
SET UP
SMART CHANNEL MAPPING
EASY SET UPCANCEL :
continued
010GET.fm Page 19 Friday, November 30, 2001 1:47 PM
20
Hookups
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
You have now completed hookup. If you want to use the VCR Plus+ GOLD system
for recording, go to the page listed below.
Go to page 48 for VCR Plus+ GOLD system channel set up.
Automatic clock setting
Once you’ve set up the VCR, it automatically sets the clock the first time you turn off
the VCR. “ACS” (Auto Clock Set) will flash in the display window and search for a
time signal provided by some TV channels. After that, whenever you turn off the
VCR, it checks the time and adjusts the clock, even for Daylight Saving Time.
If you want to use the timer to record right away, or if the channels in your area do not
carry time signals, set the clock manually. For details, see page 33.
Note
• If the clock is not set, “ACS” will flash in the display window whenever the VCR is turned
off. During this time, the VCR will search for a time signal.

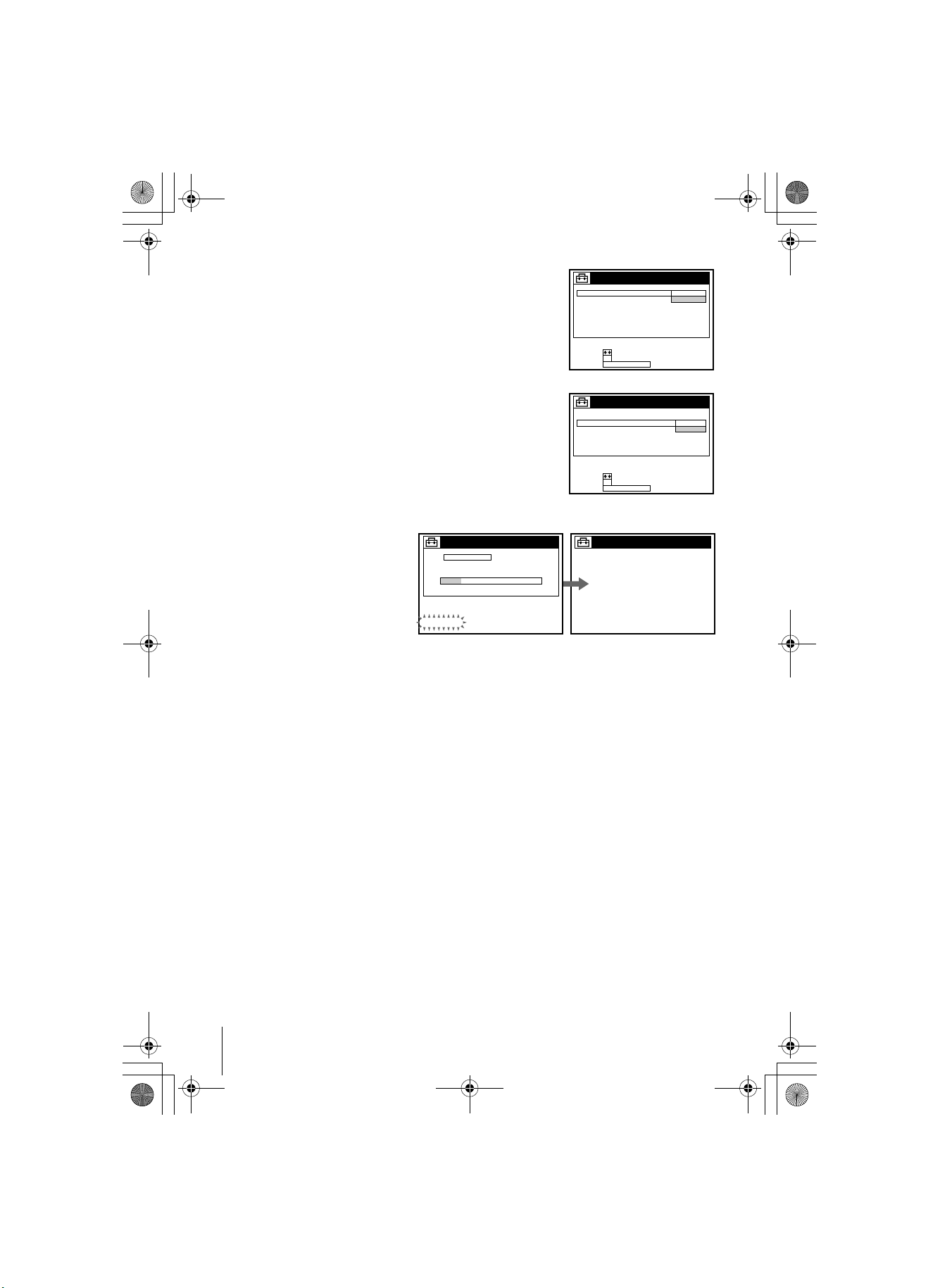

4 The CABLE BOX CONTROL menu appears.
Select OFF and press OK.
5 The TUNER PRESET menu appears. Set
ANTENNA/CABLE to CABLE and press
OK. For details, see page 42.
6 The AUTO PRESET starts.
NEXT :
SELECT :
OK
SET UP
CABLE BOX CONTROL
EASY SET UPCANCEL :
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
OFF
ON
NEXT :
SELECT :
OK
SET UP
TUNER PRESET
EASY SET UPCANCEL :
ANTENNA / CABLE
CABLE
ANT
SET UP
SET UP IS DONE
PLEASE WAIT
SET UP
TUNER PRESET CH 2 4
AUTO PRESET
PROCESSING
010GET.fm Page 20 Friday, November 30, 2001 1:47 PM
Getting Started
21
Hookups
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]

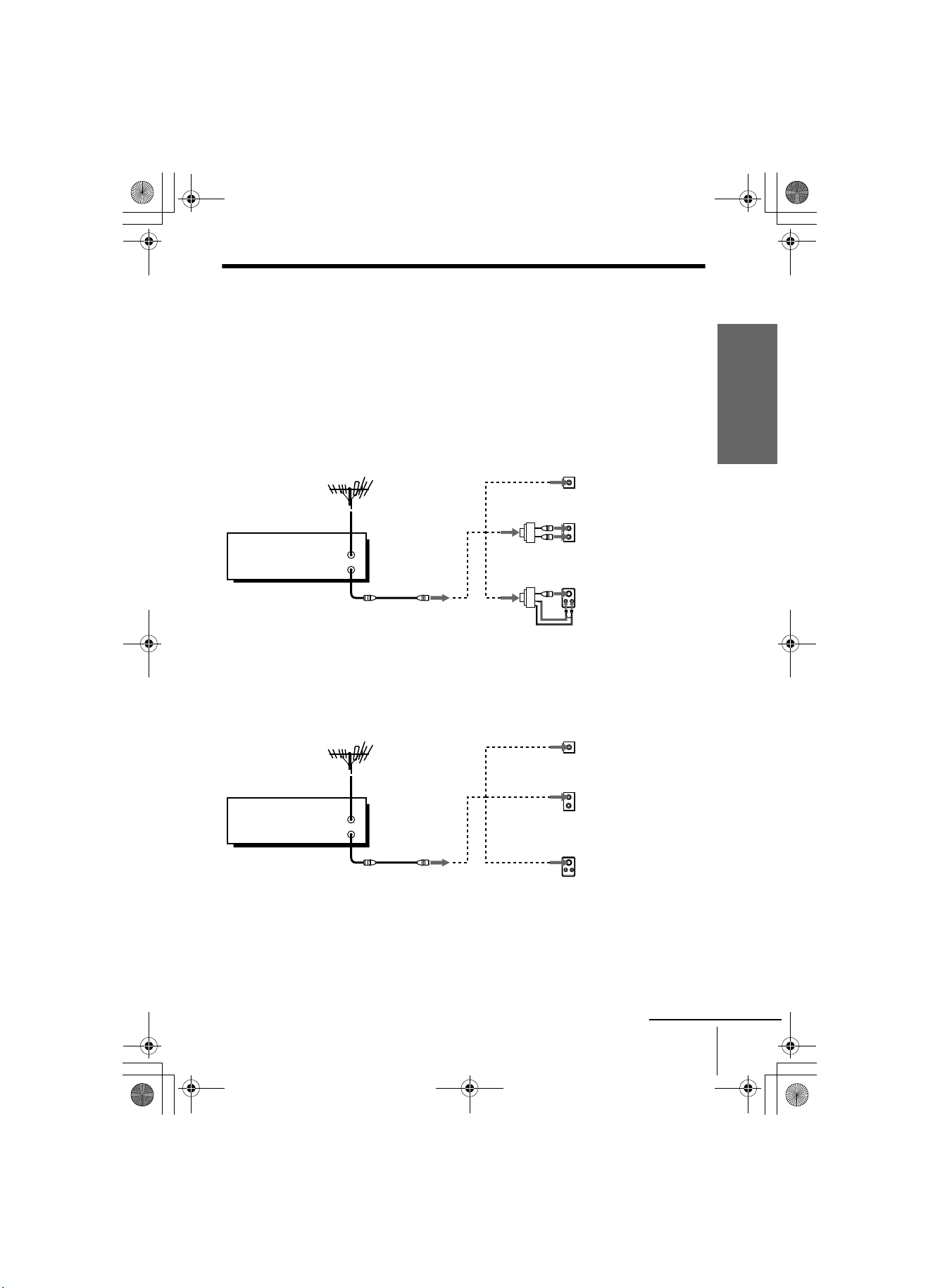

Hookup 4
Antenna hookup
Make the following connections if you’re using an antenna (if you don’t have cable
TV).
A
Use this hookup if you’re using:
• VHF/UHF antenna (you get channels 2–13 and channels 14 and higher)
• UHF-only antenna (you get channels 14 and higher)
• Separate VHF and UHF antennas
B
Use this hookup if you’re using a VHF-only antenna (you get
channels 2–13 only)
If you cannot connect your antenna cable to the VCR directly
If your antenna cable is a flat cable (300-ohm twin lead cable), attach an external
antenna connector (not supplied) so you can connect the cable to the VHF/UHF IN
connector. If you have separate cables for VHF and UHF antennas, you should use a
U/V band mixer (not supplied). For details, see page 93.
IN
OUT
VHF/UHF
or
A
Rear of TV
VHF/UHF
B
VHF
C
VHF
or
Match the type of
connector on your
TV: A, B, or C.
UHF
UHF
VCR
IN
OUT
VHF/UHF
or
A
Rear of TV
VHF/UHF
B
VHF
C
VHF
or
Match the type of
connector on your
TV: A, B, or C.
UHF
UHF
VCR
For connector type
s
B and C, no UHF
connection is
required.
continued
010GET.fm Page 21 Friday, November 30, 2001 1:47 PM
22
Hookups
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Hookup 4 : VCR setup
Before you start…
• Turn on the VCR and the TV.
• Press TV/VIDEO to display the VIDEO indicator in the VCR’s display window.
1
Set the RF UNIT switch to CH3
or CH4, whichever channel is not
used in your area. If both are
used, set the switch to either
channel. For details, see page 92.
If you made A/V connections
(from page 10), you do not need
to adjust the RF UNIT switch.
2
Press EASY SET UP on the VCR.
1
The LANGUAGE menu appears. Change the
on-screen display language to Spanish
(ESPAÑOL) or French (FRANÇAIS) if
desired, and press OK. For details, see page
27.
2 The CLOCK SET menu appears. Select
AUTO and press OK. For details, see page
29.
3 The SMART CHANNEL MAPPING menu
appears. Press
M
/
m
/
<
/
,
to enter the ZIP/
POSTAL CODE in your area and press OK.
(You can also use the number buttons to enter
the ZIP/POSTAL CODE.)
CH3
RF UNIT
CH4
EASY
SET UP
SET UP
LANGUAGE
NEXT :
SELECT :
OK
EASY SET UPCANCEL :
ENGLISH
ESPAÑOL
FRANÇAIS
NEXT :
SELECT :
OK
AUTO
MANUAL
SET UP
CLOCK SET
EASY SET UPCANCEL :
NEXT :
SET :
OK
0–9
SELECT :
ZIP / POSTAL CODE
––––3
SET UP
SMART CHANNEL MAPPING
EASY SET UPCANCEL :
010GET.fm Page 22 Friday, November 30, 2001 1:47 PM
Getting Started
23
Hookups
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
You have now completed hookup. If you want to use the VCR Plus+ GOLD system
for recording, go to the page listed below.
Go to page 48 for VCR Plus+ GOLD system channel set up.
Automatic clock setting
Once you’ve set up the VCR, it automatically sets the clock the first time you turn off
the VCR. “ACS” (Auto Clock Set) will flash in the display window and search for a
time signal provided by some TV channels. After that, whenever you turn off the
VCR, it checks the time and adjusts the clock, even for Daylight Saving Time.
If you want to use the timer to record right away, or if the channels in your area do not
carry time signals, set the clock manually. For details, see page 33.
Note
• If the clock is not set, “ACS” will flash in the display window whenever the VCR is turned
off. During this time, the VCR will search for a time signal.
4 The CABLE BOX CONTROL menu appears.
Select OFF and press OK.
5 The TUNER PRESET menu appears. Set
ANTENNA/CABLE to ANT and press OK.
For details, see page 42.
6 The AUTO PRESET starts.
NEXT :
SELECT :
OK
SET UP
CABLE BOX CONTROL
EASY SET UPCANCEL :
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
OFF
ON
NEXT :
SELECT :
OK
SET UP
TUNER PRESET
EASY SET UPCANCEL :
ANTENNA / CABLE
CABLE
ANT
SET UP
SET UP IS DONE
PLEASE WAIT
SET UP
TUNER PRESET CH 2 4
AUTO PRESET
PROCESSING
010GET.fm Page 23 Friday, November 30, 2001 1:47 PM
24
Hookups
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]

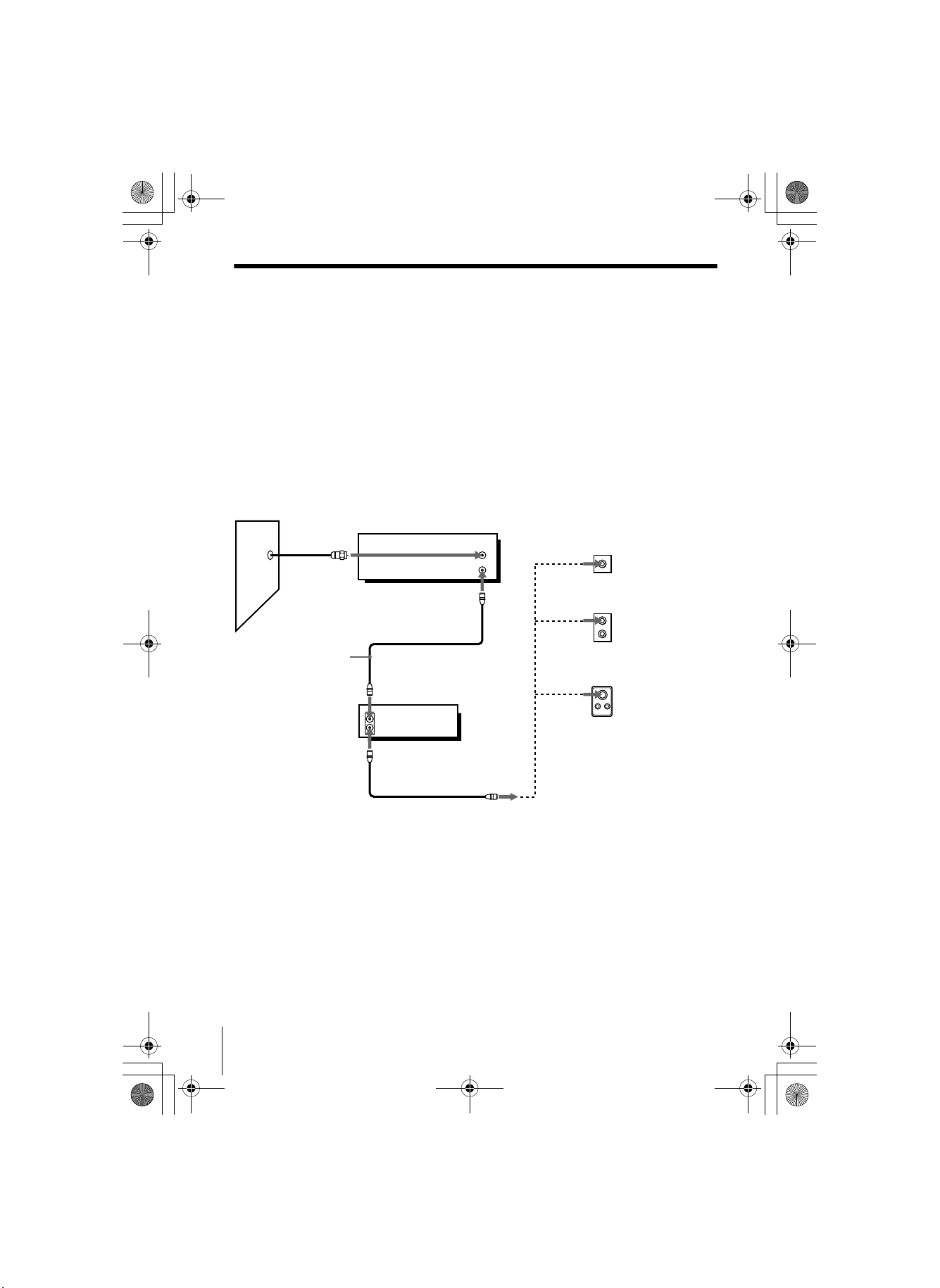

Hookup 5
Connecting a cable box with many scrambled channels
Recommended use
Use this hookup if your cable system scrambles all or most channels.
What you can do with this hookup
• Record any channel by selecting the channel on the cable box
What you can’t do
• Record with the cable box turned off
• Record one channel while watching another channel
IN
OUT
VHF/UHF
IN
OUT
Rear of TV
VHF/UHF
VHF
UHF
VCR
Match the type of
connector on your
TV: A, B, or C.
For connector
types B and C, no
UHF connection
is required.
B
C
or
or
Cable box
A
VHF
UHF
Wall
010GET.fm Page 24 Friday, November 30, 2001 1:47 PM
Getting Started
25
Hookups
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Hookup 5 : VCR setup
Before you start…
• Turn on the VCR and the TV.
• Press TV/VIDEO to display the VIDEO indicator in the VCR’s display window.
1
Set the RF UNIT switch to CH3
or CH4, whichever channel is not
used in your area. If both are
used, set the switch to either
channel. For details, see page 92.
If you made A/V connections
(from page 10), you do not need
to adjust the RF UNIT switch.
2
Turn on your cable box.
3
Press EASY SET UP on the VCR.
1 The LANGUAGE menu appears. Change the
on-screen display language to Spanish
(ESPAÑOL) or French (FRANÇAIS) if
desired, and press OK. For details, see page
27.
2 The CLOCK SET menu appears. Select
MANUAL and press OK. Then set the clock
manually and press OK. For details, see page
34.
3 The SMART CHANNEL MAPPING menu
appears. Press
M
/
m
/
<
/
,
to enter the ZIP/
POSTAL CODE in your area and press OK.
(You can also use the number buttons to enter
the ZIP/POSTAL CODE.)
CH3
RF UNIT
CH4
EASY
SET UP
SET UP
LANGUAGE
NEXT :
SELECT :
OK
EASY SET UPCANCEL :
ENGLISH
ESPAÑOL
FRANÇAIS
NEXT :
SELECT :
OK
AUTO
MANUAL
SET UP
CLOCK SET
EASY SET UPCANCEL :
NEXT :
SET :
OK
0–9
SELECT :
ZIP / POSTAL CODE
––––3
SET UP
SMART CHANNEL MAPPING
EASY SET UPCANCEL :
continued
010GET.fm Page 25 Friday, November 30, 2001 1:47 PM
26
Hookups
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
You have now completed hookup. If you want to use the VCR Plus+ GOLD system
for recording, go to the pages listed below.
Find the VCR Plus+ GOLD system Channel Listing in your program guide. For
details, see page 48. Then enter all channels you want to record and the cable box
output channel (usually 2, 3, or 4) as described on page 52.
Automatic clock setting
Once you’ve set up the VCR, it automatically sets the clock the first time you turn off
the VCR. “ACS” (Auto Clock Set) will flash in the display window and search for a
time signal provided by some TV channels. After that, whenever you turn off the
VCR, it checks the time and adjusts the clock, even for Daylight Saving Time.
To use the Auto Clock Set feature with this hookup, you need to manually select a
channel that carries a time signal:
If you want to use the timer to record right away, or if the channels in your area do not
carry time signals, set the clock manually. For details, see page 33.
Notes
• To use the Auto Clock Set feature, leave the cable box on.
• If the clock is not set, “ACS” will flash in the display window whenever the VCR is turned
off. During this time, the VCR will search for a time signal.
4 The CABLE BOX CONTROL menu appears.
Select OFF and press OK.
5
The TUNER PRESET menu appears. Set
ANTENNA/CABLE to ANT and press OK.
For details, see page 42.
6 The AUTO
PRESET
starts.
1
Tune the cable box to a channel that carries a time signal.
2
Select AUTO in the CLOCK SET menu to turn on the Auto Clock Set feature.
3
Turn off the VCR. It automatically sets the clock and adjusts for Daylight Saving
Time by picking up the time signal.
NEXT :
SELECT :
OK
SET UP
CABLE BOX CONTROL
EASY SET UPCANCEL :
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
OFF
ON
NEXT :
SELECT :
OK
SET UP
TUNER PRESET
EASY SET UPCANCEL :
ANTENNA / CABLE
CABLE
ANT
SET UP
SET UP IS DONE
PLEASE WAIT
SET UP
TUNER PRESET CH 2 4
AUTO PRESET
PROCESSING
010GET.fm Page 26 Friday, November 30, 2001 1:47 PM
Getting Started
27

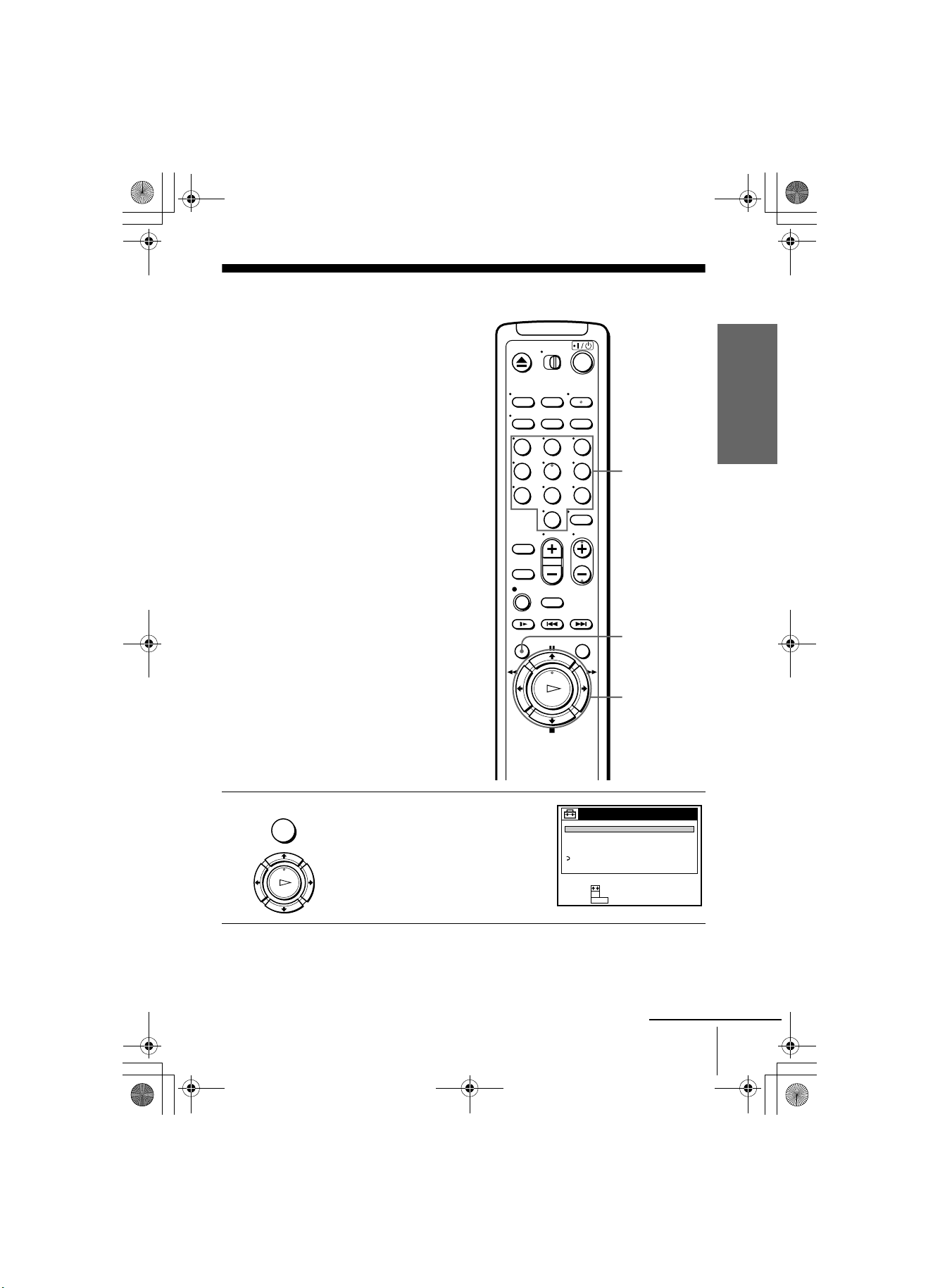

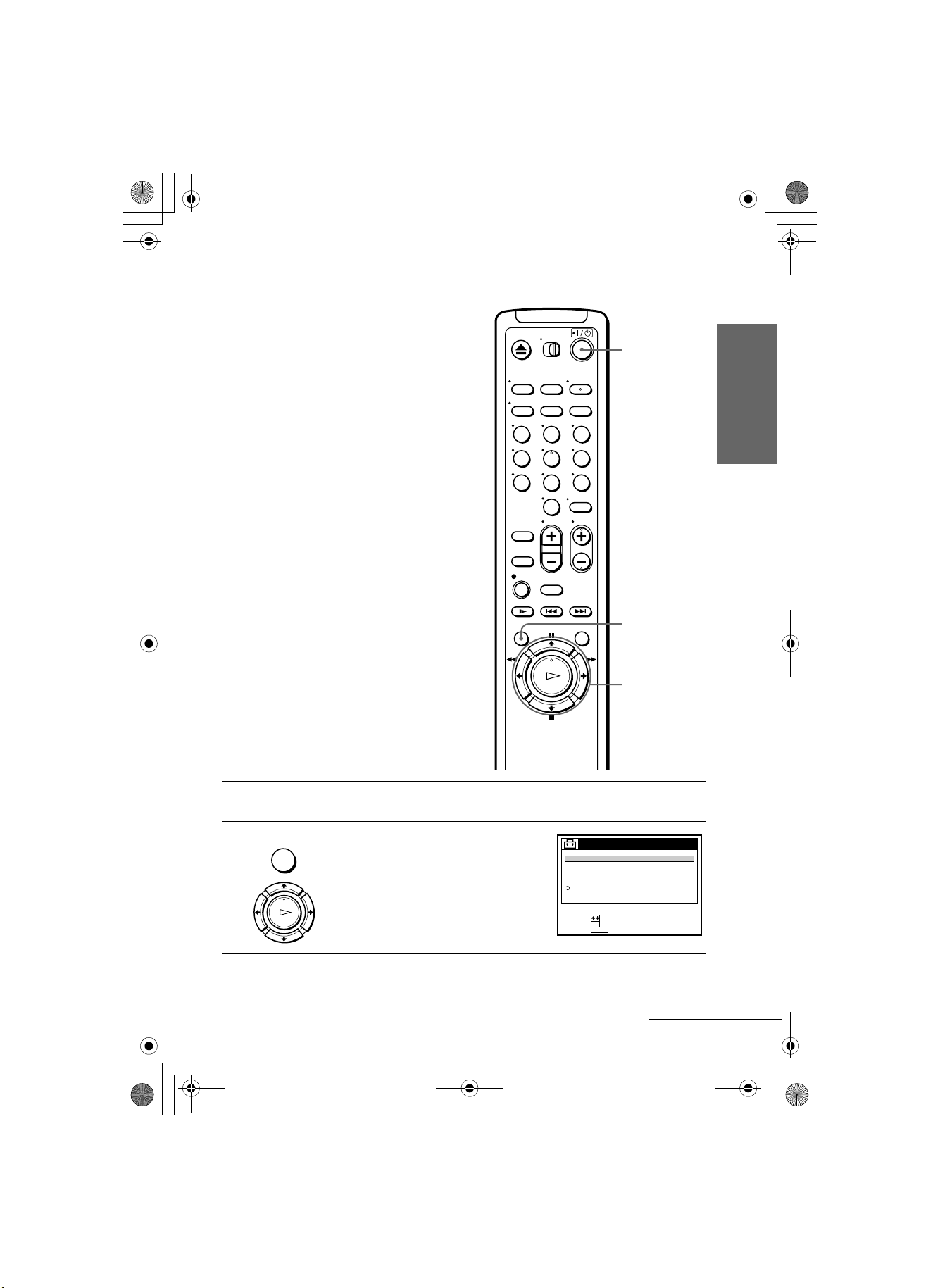

Selecting a language
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Selecting a language
Tip
• If you want to return to the previous menu, highlight RETURN and press OK.
You can change the on-screen display
language.
Before you start…
• Turn on the VCR and the TV.
• Set the TV to the VCR channel (channel 3
or 4). If your TV is connected to the VCR
using A/V connections, set the TV to video
input.
• Press TV/VIDEO to display the VIDEO
indicator in the VCR’s display window.
1
Press MENU, then press
M
/
m
to highlight
SETTINGS and press OK.
When using the EASY SET UP procedure,
skip steps 1 and 2.

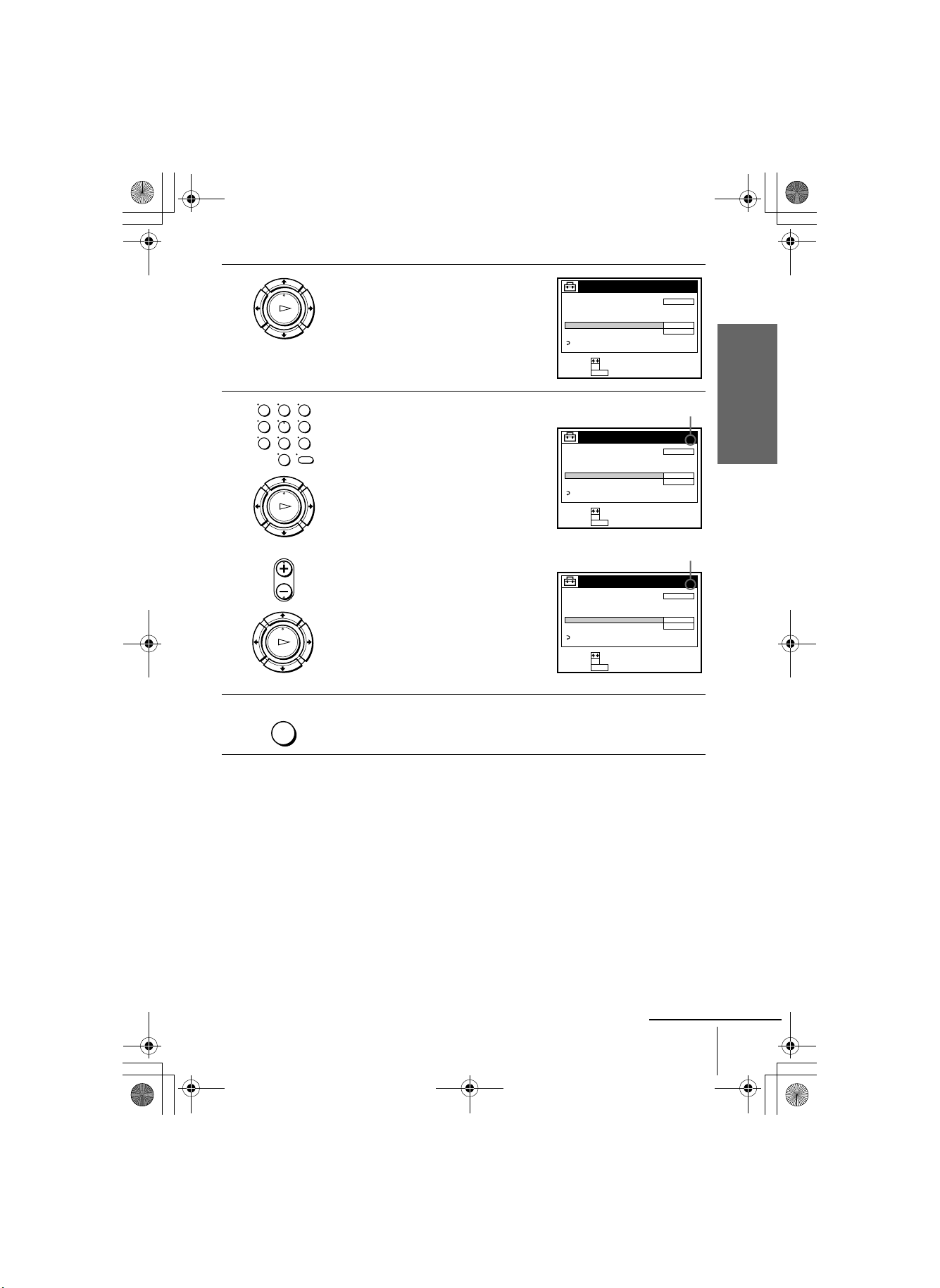

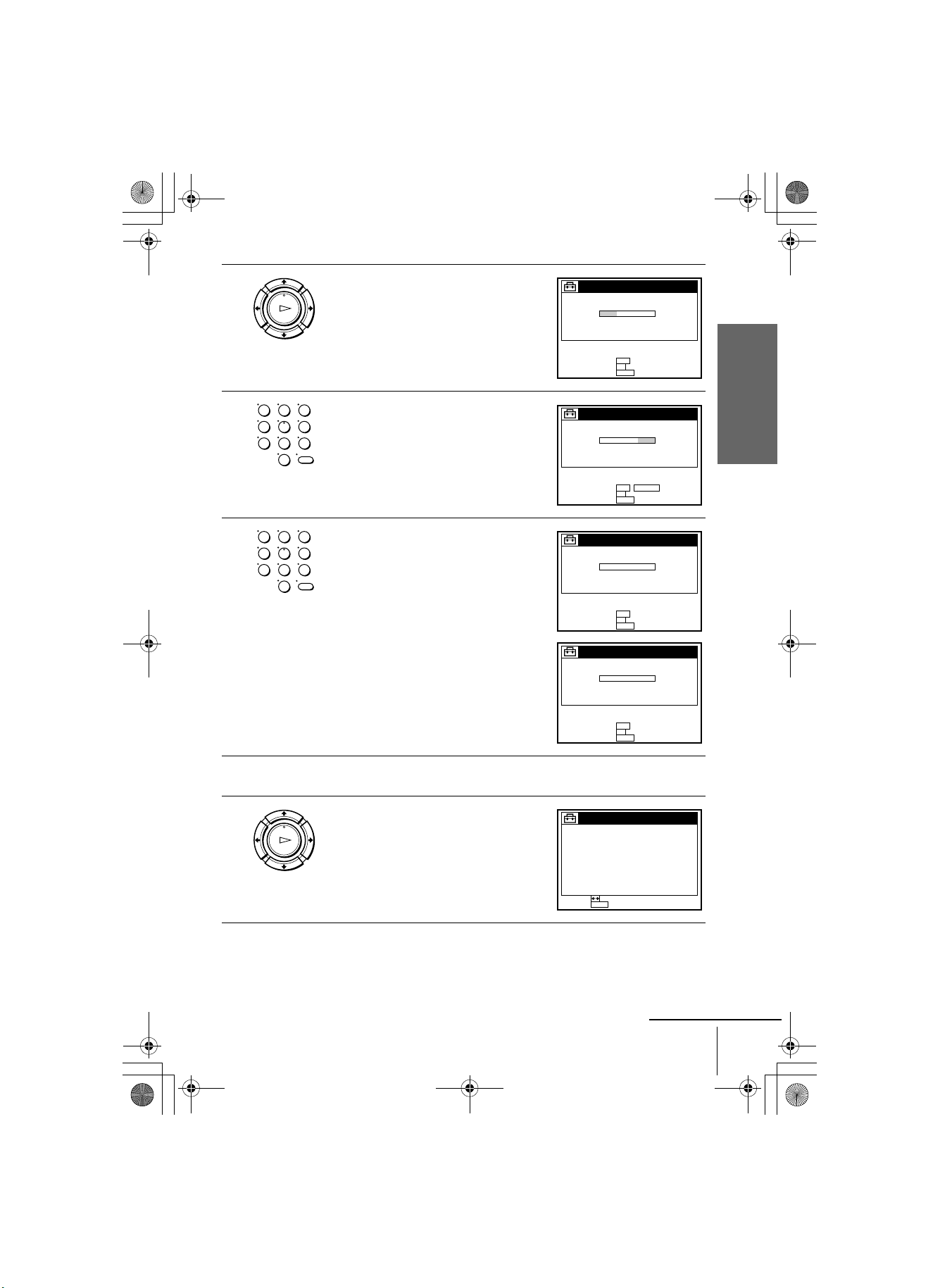

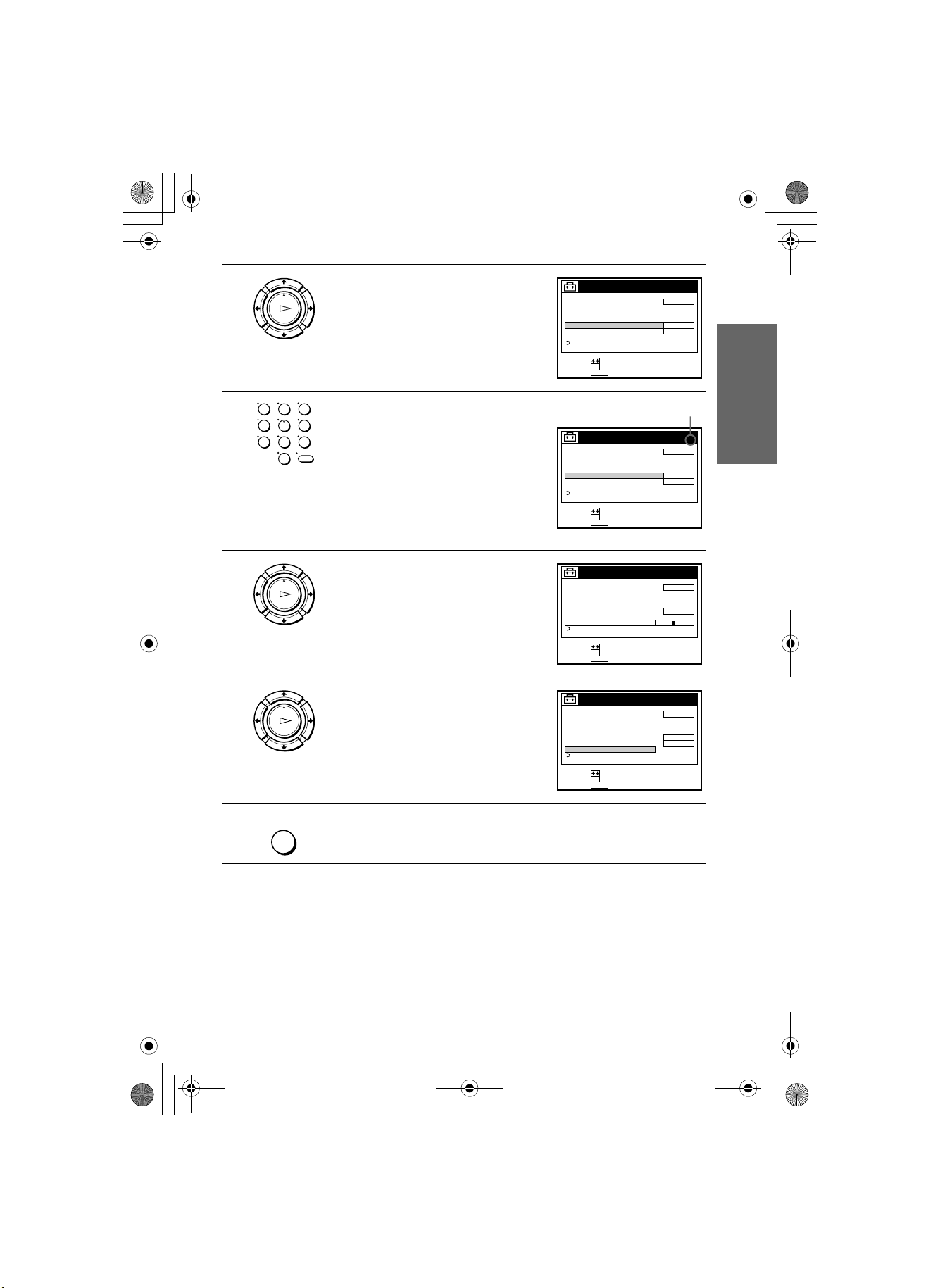

2
Press
M
/
m
to highlight LANGUAGE, then
press OK.

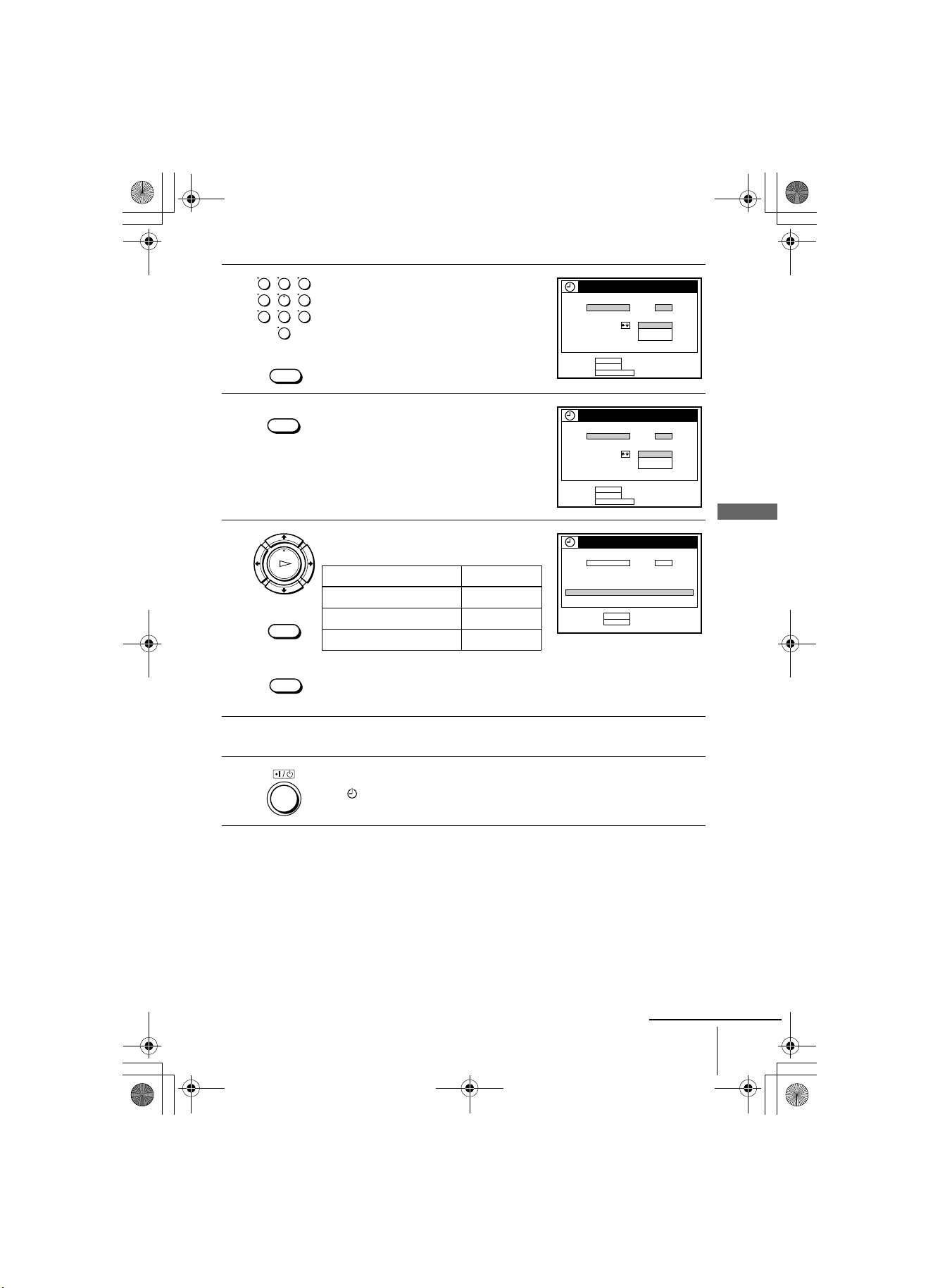

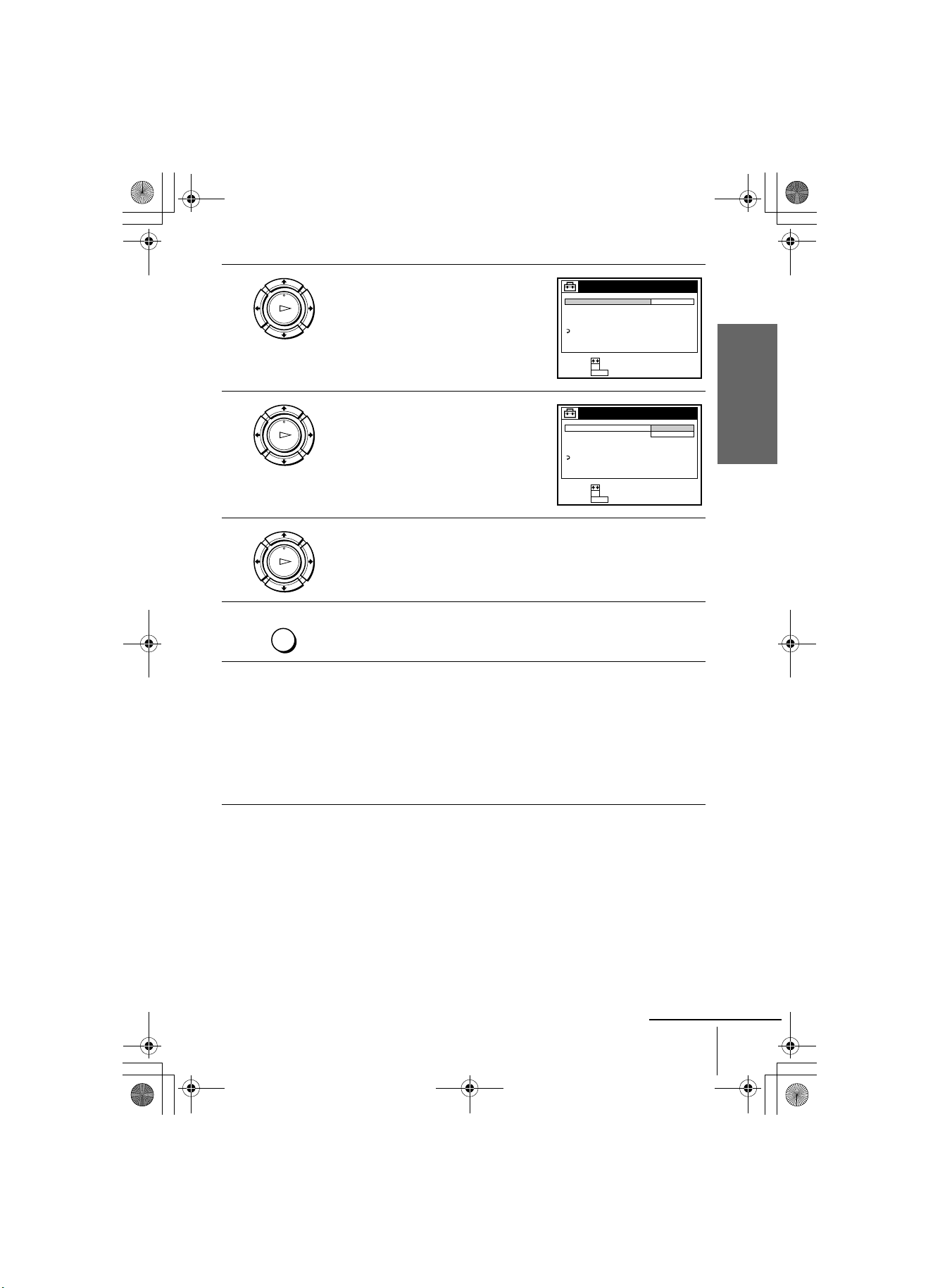

3
Press
M
/
m
to highlight ENGLISH, ESPAÑOL, or FRANÇAIS, then press
OK.
M/m
OK
MENU
MENU
OK
PLAY
SETTINGS
TUNER PRESET
SET VCR Plus+ sys. CH
CABLE BOX CONTROL
CLOCK SET
LANGUAGE
RETURN
SET :
SELECT :
OK
MENUQUIT :
OK
PLAY
LANGUAGE
ENGLISH
ESPAÑOL
FRANÇAIS
SET :
SELECT :
OK
MENUQUIT :
OK
PLAY
010GET.fm Page 27 Friday, November 30, 2001 1:47 PM
28
Setting the clock
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]

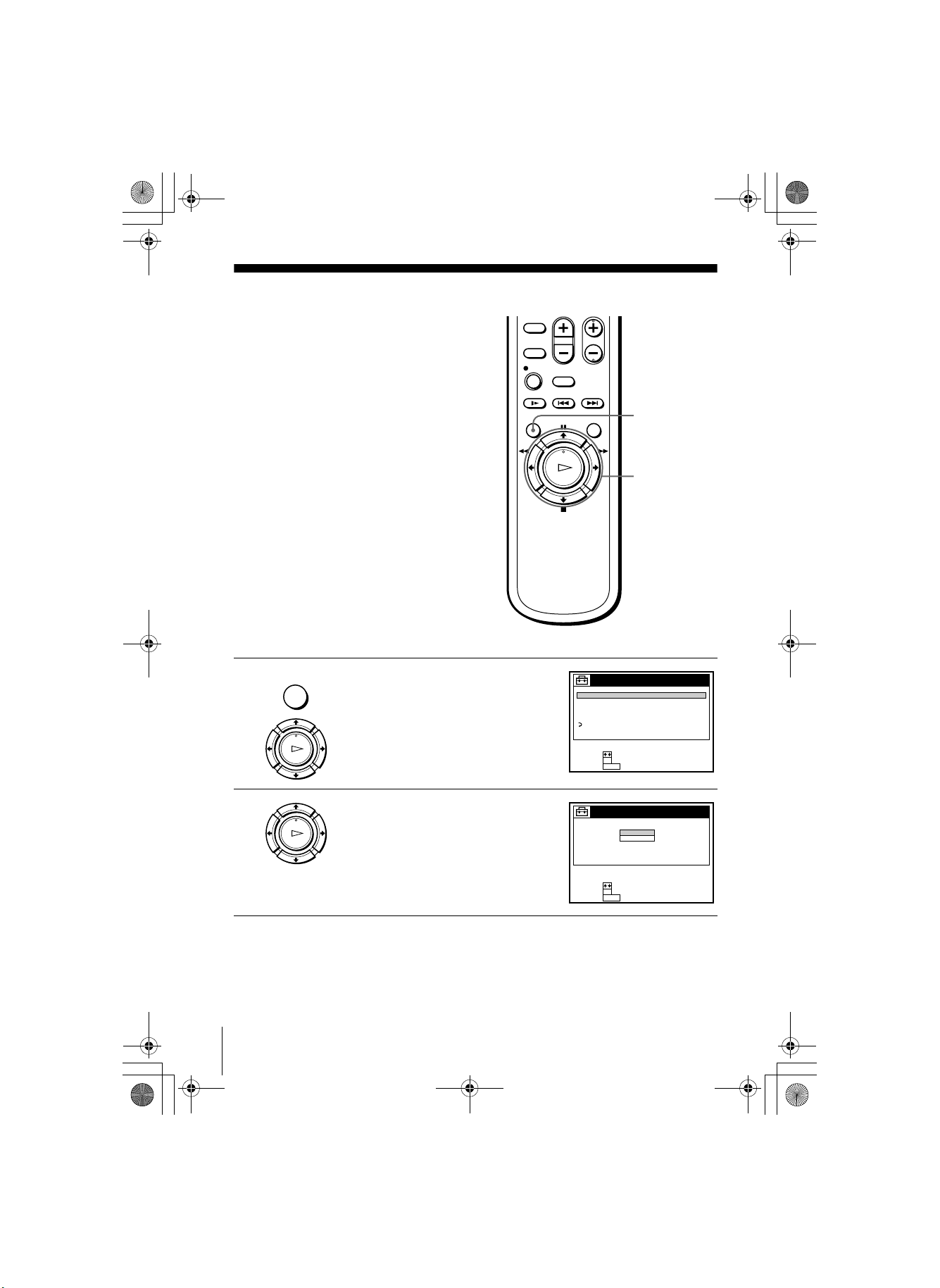

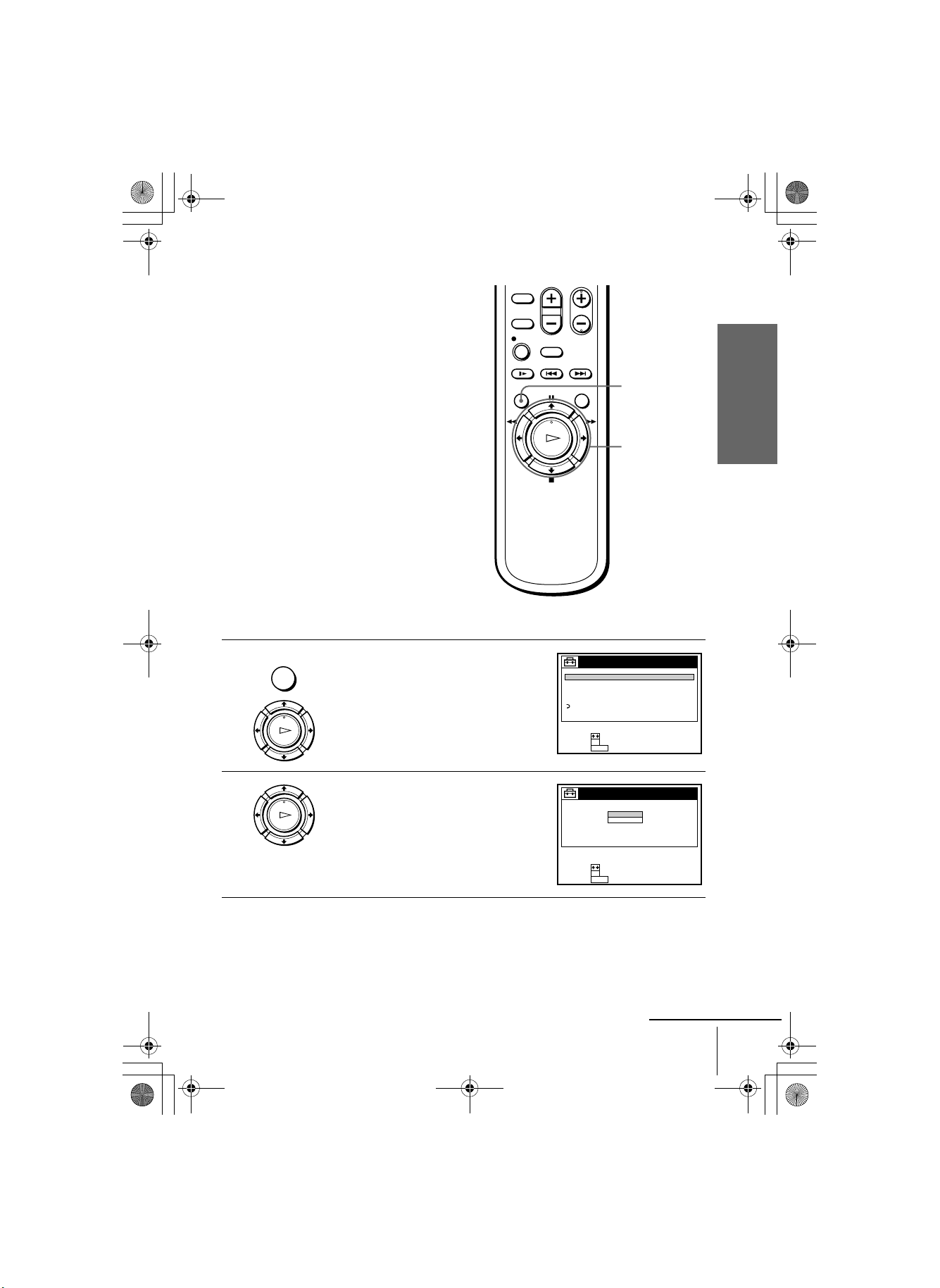

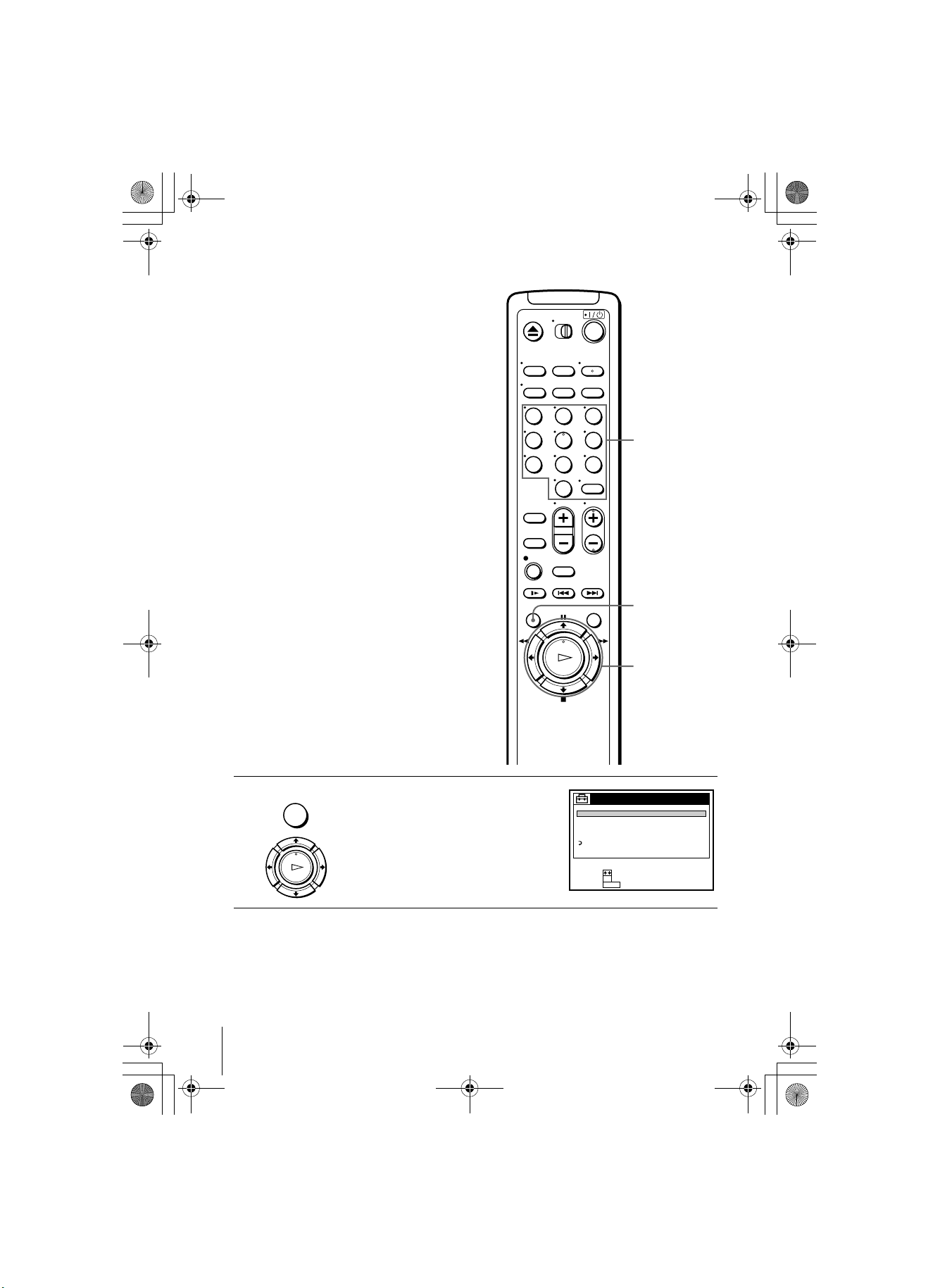

Setting the clock
Using the Auto Clock Set
feature
Some TV and cable channels transmit time
signals with their broadcasts. Your VCR can
pick up this time signal to automatically set
the clock.
The Auto Clock Set feature works only if a
channel in your area is broadcasting a time
signal. If broadcasters in your area are not
yet sending time signals, set the time
manually (page 33).
Before you start…
• Turn on the VCR and the TV.
• Set the TV to the VCR channel (channel 3
or 4). If your TV is connected to the VCR
using A/V connections, set the TV to video
input.
• Press TV/VIDEO to display the VIDEO
indicator in the VCR’s display window.
1
Press MENU, then press
M
/
m
to highlight
SETTINGS and press OK.
When using the EASY SET UP procedure,
skip steps 1 and 2.
2
Press
M
/
m
to highlight CLOCK SET, then
press OK.
M/m
OK
MENU
MENU
OK
PLAY
SETTINGS
TUNER PRESET
SET VCR Plus+ sys. CH
CABLE BOX CONTROL
CLOCK SET
LANGUAGE
RETURN
SET :
SELECT :
OK
MENUQUIT :
OK
PLAY
AUTO
MANUAL
CLOCK SET
SET :
SELECT :
OK
MENUQUIT :
010GET.fm Page 28 Friday, November 30, 2001 1:47 PM
Getting Started
29
Setting the clock
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Tip
• If you want to return to the previous menu, highlight RETURN and press OK.
Notes
• The clock cannot be set automatically if you don’t receive a channel that carries a time signal
in your area. If so, set the clock manually (see page 33).
• If there are only a few channels in your area that carry time signals, setting the clock
automatically may take up to about 30 minutes. If nothing happens even after you wait about
30 minutes, set the clock manually.
• If you use Hookup 1 or 5, make sure you leave the cable box on.
• If the clock is not set, “ACS” will flash in the display window whenever the VCR is turned
off. During this time, the VCR will search for a time signal.

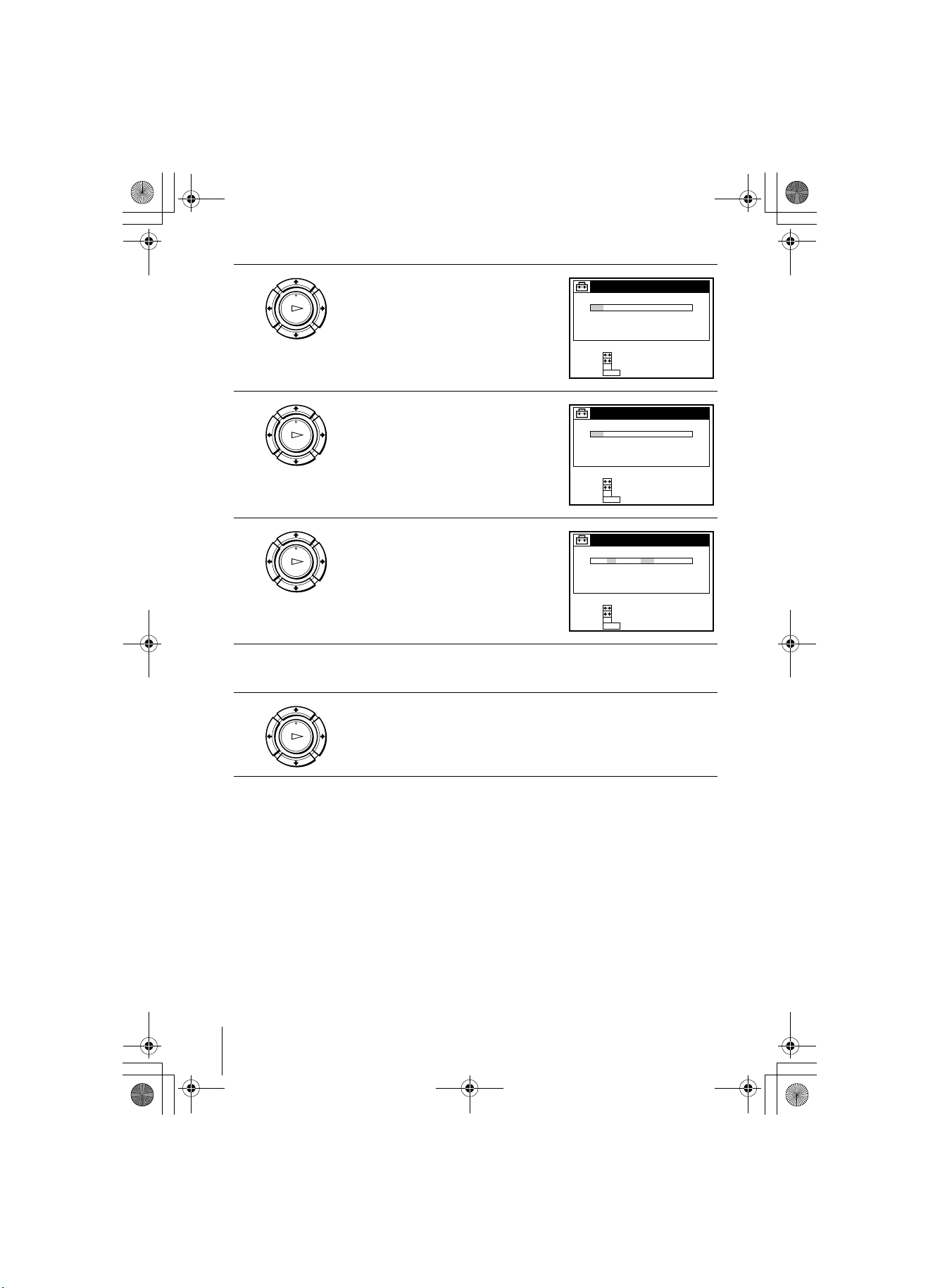

3
Press
M
/
m
to highlight AUTO, then press
OK.
4
Press
M
/
m
to highlight FULL AUTO, then
press OK.
5
Press
M
/
m
to highlight YES, then press OK.
6
Press MENU to exit the menu.
7
To activate the Auto Clock Set function, turn off the VCR. “ACS” will flash
in the display window.
The VCR automatically sets the clock by searching for a channel that
carries a time signal and sets your time zone and Daylight Saving Time (if
applicable).
If your clock is set to the wrong time zone or Daylight Saving Time, you
can adjust these settings without turning off the Auto Clock Set feature
(page 30).
OK
PLAY
AUTO CLOCK SET
FULL AUTO
CLOCK SET CH
TIME ZONE
DAYLIGHT SAVING
RETURN
SET :
SELECT :
OK
MENUQUIT :
YES
OK
PLAY
AUTO CLOCK SET
FULL AUTO
CLOCK SET CH
TIME ZONE
DAYLIGHT SAVING
RETURN
SET :
SELECT :
OK
MENUQUIT :
YES
NO
OK
PLAY
MENU
continued
010GET.fm Page 29 Friday, November 30, 2001 1:47 PM
30
Setting the clock
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]

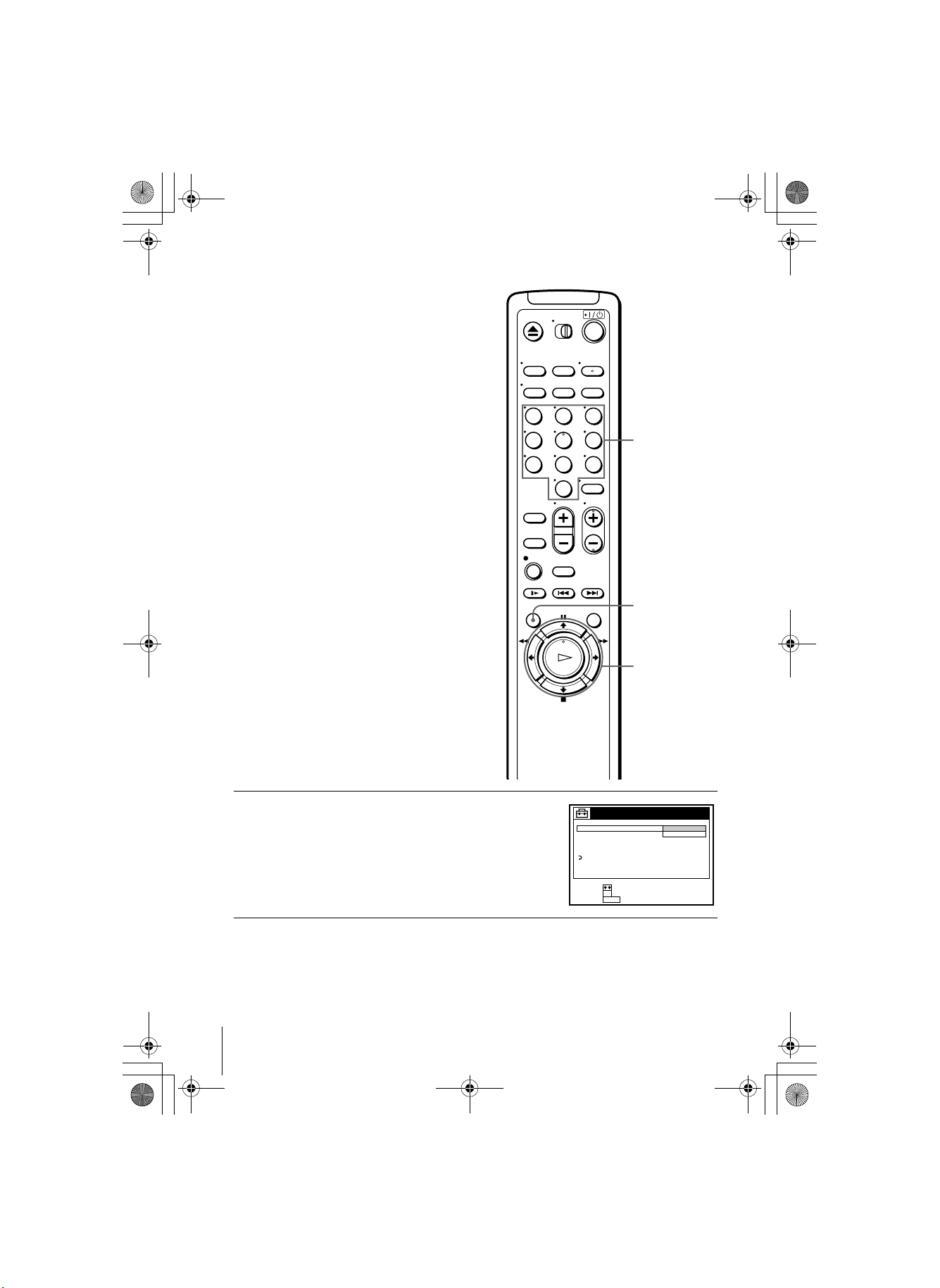

If the clock does not activate
1
Follow steps 1 to 4 in “Using the Auto
Clock Set feature.”
The AUTO CLOCK SET menu is
displayed.
123
456
789
0
MENU
Number
buttons
M/m
OK
AUTO CLOCK SET
FULL AUTO
CLOCK SET CH
TIME ZONE
DAYLIGHT SAVING
RETURN
SET :
SELECT :
OK
MENUQUIT :
YES
NO
010GET.fm Page 30 Friday, November 30, 2001 1:47 PM
Getting Started
31
Setting the clock
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
2
Press
M
/
m
to highlight NO for FULL
AUTO and press OK.
3
Press
M
/
m
to highlight the item you want to
set and press OK. Then press
M
/
m
to make
the setting and press OK.
• For CLOCK SET CH
Leave the setting to “– – –” to have the
VCR automatically search for a channel
that carries a time signal. Press the
number buttons to select a channel that
carries a time signal. Use this option if
you know of a channel that carries a time
signal. Most PBS member stations
broadcast a time signal. For the fastest
response, select your local PBS station.
• For TIME ZONE
Select the time zone of your area, or
select AUTO to have the VCR
automatically set your time zone.
The options are:
AUTO
y
ATLANTIC
y
EASTERN
y
CENTRAL
y
MOUNTAIN
y
PACIFIC
y
ALASKA
y
HAWAII
y
AUTO
• For DAYLIGHT SAVING
Select ON or OFF (standard time), or
AUTO to have the VCR automatically set
the daylight saving time.
4
Press MENU to exit the menu.
5
To activate the Auto Clock Set function, turn off the VCR. “ACS” will flash
in the display window.
OK
PLAY
AUTO CLOCK SET
FULL AUTO
CLOCK SET CH
TIME ZONE
DAYLIGHT SAVING
RETURN
SET :
SELECT :
OK
MENUQUIT :
NO
–––
AUTO
AUTO
OK
PLAY
123
456
789
0
AUTO CLOCK SET
FULL AUTO
CLOCK SET CH
TIME ZONE
DAYLIGHT SAVING
RETURN
SET :
USE :
OK
MENUQUIT :
NO
123
AUTO
AUTO
0–9
AUTO CLOCK SET
FULL AUTO
CLOCK SET CH
TIME ZONE
DAYLIGHT SAVING
RETURN
SET :
:
OK
MENUQUIT :
AUTO
ATLANTIC
HAWAII
ALASKA
PACIFIC
MOUNTAIN
CENTRAL
EASTERN
SELECT
AUTO CLOCK SET
FULL AUTO
CLOCK SET CH
TIME ZONE
DAYLIGHT SAVING
RETURN
SET :
:
OK
MENUQUIT :
NO
123
AUTO
ON
OFF
SELECT
MENU
continued
010GET.fm Page 31 Friday, November 30, 2001 1:47 PM
32
Setting the clock
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Tip
• If you want to return to the previous menu, highlight RETURN and press OK.
Note
• If you use both the cable box control feature and the Auto Clock Set feature, the VCR
automatically changes channels on the cable box until a channel that carries a time signal is
found whenever you turn off the VCR.
If you want to stop the search, change the channel on the cable box with the channel buttons
either on the VCR or on the remote commander.
010GET.fm Page 32 Friday, November 30, 2001 1:47 PM
Getting Started
33
Setting the clock
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Using Manual Clock Set
Before you start…
• Turn on the VCR and the TV.
• Set the TV to the VCR channel (channel 3
or 4). If your TV is connected to the VCR
using A/V connections, set the TV to video
input.
• Press TV/VIDEO to display the VIDEO
indicator in the VCR’s display window.
1
Press MENU, then press
M
/
m
to highlight
SETTINGS and press OK.
When using the EASY SET UP procedure,
skip steps 1 and 2.
2
Press
M
/
m
to highlight CLOCK SET, then
press OK.
MENU
M/m/</,
OK
MENU
OK
PLAY
SETTINGS
TUNER PRESET
SET VCR Plus+ sys. CH
CABLE BOX CONTROL
CLOCK SET
LANGUAGE
RETURN
SET :
SELECT :
OK
MENUQUIT :
OK
PLAY
AUTO
MANUAL
CLOCK SET
SET :
SELECT :
OK
MENUQUIT :
continued
010GET.fm Page 33 Friday, November 30, 2001 1:47 PM
34
Setting the clock
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Tip
• If you want to return to the previous menu, highlight RETURN and press OK.
Note
• The clock set default for this model is year 2001. You have to manually change the clock
setting to the correct year.
3
Press
M
/
m
to highlight MANUAL, then
press OK.
4
Press
M
/
m
to set the month.
5
Press
,
to highlight the day and press
M
/
m
to set the day.
6
Set the year, hour, and minutes in the same way as the day.
The day of the week is set automatically.
7
Press OK to start the clock.
OK
PLAY
END :
SET :
OK
MENU
SELECT :
TUE 1 AM00:221002/1/
CLOCK SET
QUIT :
OK
PLAY
END :
SET :
OK
MENU
SELECT :
SUN 1 AM00:229002/1/
CLOCK SET
QUIT :
OK
PLAY
END :
SET :
OK
MENU
SELECT :
SAT 1 AM00:229002/82/
CLOCK SET
QUIT :
OK
PLAY
010GET.fm Page 34 Friday, November 30, 2001 1:47 PM
Getting Started
35
Setting up the cable box control
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Setting up the cable box control
(Skip this section if you are
using Hookup 3, 4, or 5.)
Your VCR includes a cable box control
feature that allows the VCR to control most
brands of cable boxes or digital satellite
receivers via an optional Cable Mouse. With
the cable box control, the VCR controls
channels on the cable box or digital satellite
receiver for timer recording. You can also
use the VCR’s remote commander to change
channels on the cable box or digital satellite
receiver whenever the cable box or digital
satellite receiver is turned on even if the VCR
is turned off. To use cable box control, you
need to connect the Sony RM-CM101 Cable
Mouse (not supplied) (pages 12 and 15) and
set the code number and output channel.
This VCR is programmed with codes
necessary to control channel selection on
most brands of cable boxes or digital satellite
receivers at the time this VCR was
manufactured. It is possible that new cable
boxes may be introduced that cannot be
controlled with the RM-CM101 Cable
Mouse. If you have a cable box that is
incompatible with this VCR, contact your
cable operator –– they may be able to provide
you with a compatible cable box.
1
Press MENU, then press
M
/
m
to highlight
SETTINGS and press OK.
When using the EASY SET UP procedure,
skip steps 1 and 2.
123
456
789
0
MENU
Number
buttons
M/m
OK
MENU
OK
PLAY
SETTINGS
TUNER PRESET
SET VCR Plus+ sys. CH
CABLE BOX CONTROL
CLOCK SET
LANGUAGE
RETURN
SET :
SELECT :
OK
MENUQUIT :
continued
010GET.fm Page 35 Friday, November 30, 2001 1:47 PM
36
Setting up the cable box control
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
2
Press
M
/
m
to highlight CABLE BOX
CONTROL, then press OK.
3
Press
M
/
m
to highlight CABLE MOUSE, then press OK.
4
Press
M
/
m
to highlight ON, then press OK.
5
Press
M
/
m
to highlight BOX CODE NO.,
then press OK.
When BOX CODE NO. is “– – –,” skip this
step.
6
Press the number buttons to enter the cable
box or digital satellite receiver code
number, then press OK.
Find your cable box or digital satellite
receiver code number from the following
chart.
OK
PLAY
CABLE BOX CONTROL
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
RETURN
SET :
:
OK
MENUQUIT :
OFF
SELECT
OK
PLAY
OK
PLAY
CABLE BOX CONTROL
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
RETURN
SET :
:
OK
MENUQUIT :
ON
079
CH3
SELECT
OK
PLAY
END :
SET :
OK
MENU
SELECT :
SAT 1 AM00:229002/82/
CLOCK SET
QUIT :
CABLE BOX CONTROL
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
RETURN
SET :
:
OK
MENUQUIT :
ON
079
CH3
USE
0–9
OK
PLAY
123
456
789
0
CABLE BOX CONTROL
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
RETURN
SET :
:
OK
MENUQUIT :
ON
021
CH3
SELECT
010GET.fm Page 36 Friday, November 30, 2001 1:47 PM
Getting Started
37
Setting up the cable box control
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Tip
• If you want to return to the previous menu, highlight RETURN and press OK.
Cable box and digital satellite receiver brands and the
corresponding code numbers
If more than one code number is listed, try entering them one by one until you come
to the correct code for your equipment.
Note
• Digital cable boxes cannot be controlled by the cable mouse.
7
Press
M
/
m
to highlight BOX OUTPUT CH,
then press OK.
8
If you want to control a cable box, press
M
/
m
to highlight the cable box
output channel, then press OK.
If you want to control a digital satellite receiver, select LINE, then press
OK.
9
Press MENU to exit the menu.
OK
PLAY
CABLE BOX CONTROL
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
RETURN
SET :
:
OK
MENUQUIT :
ON
CH2
CH3
CH4
LINE
SELECT
OK
PLAY
MENU
Cable box brand Code numbers
ABC 018, 022, 024, 028, 217
Antronix 218
Archer 033, 050, 164, 218, 808
BBT 278
Cable Star 067
Cabletenna 033
Cable time 172, 388, 459
Century 164
Citizen 164, 326, 327
Clyde Cablevision 097
Colour Voice 036, 042
Comband 243, 244
Comtronics 051, 071
Decsat 434
Diamond 046
Eagle Comtronics 051
Eastern 013, 285
Electricord 089
Electus 055
Focus 411
Garrard 164
GC Electronics 027, 067, 341
GE 243, 244
GEC 097
Gemini 026, 068, 081
General Instrument 022, 287, 487
Hamlin 020, 031, 045, 270, 284
Hitachi 022
Jasco 164, 326
Cable box brand Code numbers
continued
010GET.fm Page 37 Friday, November 30, 2001 1:47 PM
38
Setting up the cable box control
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Cable box brand Code numbers
Jerrold 014, 022, 025, 026,
035, 037, 058, 109,
287, 487
Linsay 451
Macom 044
Magnavox 038, 043, 080
Memorex 011
Movie Time 089, 167, 214
Northcoast 325
Novaplex 629
NSC 074, 081, 167, 214
Oak 018, 030, 259
Panasonic 032, 118
Paragon 011
Philips 036, 038, 039, 040,
041, 042, 071, 301
Pioneer 034, 155, 271, 544,
695
Popular Mechanics 411
Pulsar 011
Radio shack 808
RCA 032
Realistic 218
Recoton 411
Regal 031, 270, 284, 290
Regency 013
Rembrandt 081
Samsung 051, 155
Scientific Atlanta 017, 019, 028, 288
Seam 521
Sharp 324
Signal 051
Signature 022
SL Marx 051
Spectravision 069
Sprucer 032, 318
Standard Components 107, 166
Starcom 014, 026, 058, 109
Stargate 026, 051
STS 167
Sylvania 012
T-Cable Teletext 116
Tandy 269
Tatung 108
Teknica 157
TeleCaption 232
Teleservice 292
Texscan 012, 107
TFC 321
Timeless 429
Tocom 023, 024
Toshiba 011
Tudi 297
TV86 074
TV COM 018, 030, 259
Uniden 236
Unika 033, 164, 218
United Artists 018
United Cable 014
Universal 033, 050, 067, 088,
089, 164, 202, 218,
333
Videoway 261
Vidtech 255
Viewstar 038, 071, 074, 122,
222, 269, 300
Zenith 011, 065, 536
Zentek 411
Wave Master 576
Cable box brand Code numbers
010GET.fm Page 38 Friday, November 30, 2001 1:47 PM
Getting Started
39
Setting up the cable box control
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]

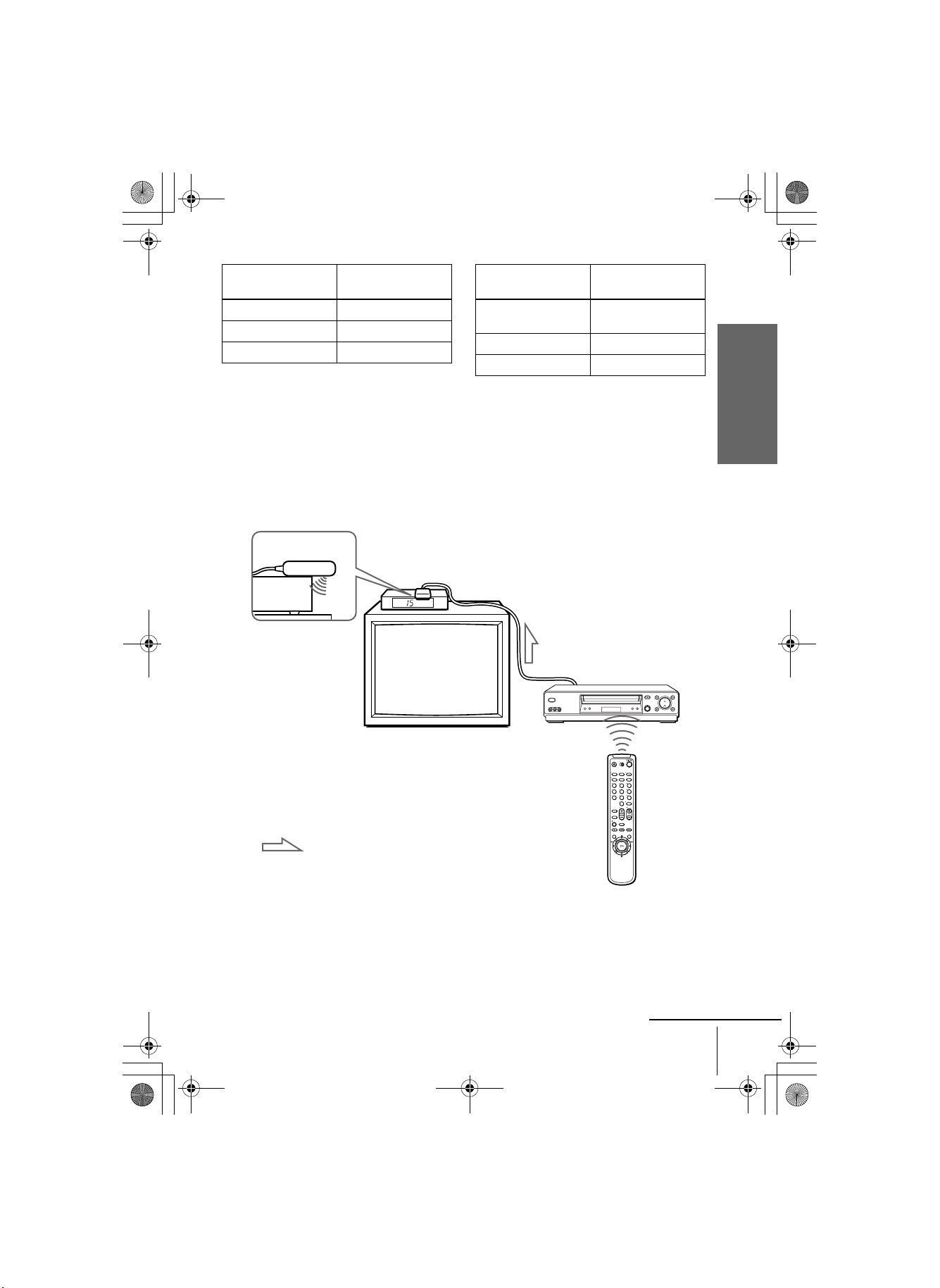

To ensure correct operation
• Place the Cable Mouse so that it hangs out over the front of the remote sensor on
the cable box or digital satellite receiver.
• Do not place the cable box or digital satellite receiver on top of the VCR.
• Position the cable box or digital satellite receiver away from the VCR.
• Point the remote commander at the VCR, not at the cable box or digital satellite
receiver.
Digital satellite
receiver brand
Code numbers
Sony 650
Echo Star 786
HTS 786
Hughes Network
Systems
760
Panasonic 712
RCA 577
Digital satellite
receiver brand
Code numbers
123
456
789
0
Side view
: Signal flow
continued
010GET.fm Page 39 Friday, November 30, 2001 1:47 PM
40
Setting up the cable box control
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
To check the cable box control setting
If the answer to both 1 and 2 is “yes,” you have made the correct setting.
If you cannot get your VCR to control the cable box or digital satellite
receiver
• Check that the Cable Mouse is connected to the CABLE BOX CONTROL jack on
the VCR.
• Check the position of the Cable Mouse.
• Place the cable box or digital satellite receiver and VCR away from each other. Do
not place the cable box or digital satellite receiver on top of the VCR.
• Try the setup again making sure to use the correct control code. If the cable box
still does not respond, try the other codes that are listed.
If your cable box still does not operate with the Cable Mouse, contact your cable
company to see if they can provide you with a compatible cable box.
Note
• Make sure you turn off the VCR when you plug in or unplug the Cable Mouse. If you unplug
the Cable Mouse and plug it in again, turn on the VCR before you use the cable box or digital
satellite receiver control feature.
1
Press CH +/– on the remote commander. Does the channel indicator on the cable
box or digital satellite receiver change? (Point the remote commander at the
VCR, not at the cable box or digital satellite receiver.)
2
Press all 10 number buttons (0 to 9) on the remote commander. Does the channel
indicator on the cable box or digital satellite receiver change?
010GET.fm Page 40 Friday, November 30, 2001 1:47 PM
Getting Started
41
Presetting channels
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Presetting channels
Presetting all receivable channels automatically
(Skip this section if you are
using a cable box or digital
satellite receiver control.)
This VCR is capable of receiving VHF
channels 2 to 13, UHF channels 14 to 69 and
unscrambled CATV channels 1 to 125. First,
we recommend that you preset the receivable
channels in your area using automatic
presetting methods. Then, if there are any
unwanted channels, disable them manually.
If you have already decided which channels
you wish to preset, set them directly using
manual presetting methods.
Before you start…
• Turn on the VCR and the TV.
• Set the TV to the VCR channel (channel 3
or 4). If your TV is connected to the VCR
using A/V connections, set the TV to video
input.
• Press TV/VIDEO to display the VIDEO
indicator in the VCR’s display window.
1
Press MENU, then press
M
/
m
to highlight
SETTINGS and press OK.
When using the EASY SET UP procedure,
skip steps 1 and 2.
2
Press
M
/
m
to highlight TUNER PRESET,
then press OK.
MENU
M/m
OK
MENU
OK
PLAY
SETTINGS
TUNER PRESET
SET VCR Plus+ sys. CH
CABLE BOX CONTROL
CLOCK SET
LANGUAGE
RETURN
SET :
SELECT :
OK
MENUQUIT :
OK
PLAY
TUNER PRESET
CABLE
ADD
ON
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
AFT
FINE TUNING
RETURN
SET :
SELECT :
OK
MENUQUIT :
CH 1
continued
010GET.fm Page 41 Friday, November 30, 2001 1:47 PM
42
Presetting channels
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
3
Press
M
/
m
to highlight ANTENNA/CABLE, then press OK.
4
• To preset cable TV channels:
Press
M
/
m
to set ANTENNA/CABLE to
CABLE, then press OK.
• To preset VHF and UHF channels:
Press
M
/
m
to set ANTENNA/CABLE to
ANT, then press OK.
5
Press
M
/
m
to highlight AUTO PRESET,
then press OK.
All receivable channels are preset in
numerical sequence. When no more
receivable channels can be found, presetting
stops and the picture from the lowest
numbered channel is displayed on the TV
screen.
OK
PLAY
OK
PLAY
OK
PLAY
TUNER PRESET
CABLE
ADD
ON
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
AFT
FINE TUNING
RETURN
SET :
SELECT :
OK
MENUQUIT :
CH 1
TUNER PRESET
ANT
ADD
ON
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
AFT
FINE TUNING
RETURN
SET :
SELECT :
OK
MENUQUIT :
CH 2
OK
PLAY
TUNER PRESET
CABLE
ADD
ON
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
AFT
FINE TUNING
RETURN
CH 1
PLEASE WAIT
010GET.fm Page 42 Friday, November 30, 2001 1:47 PM
Getting Started
43
Presetting channels
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Tips
• When receiving a VHF, UHF, or CATV channel, the display changes as follows each time
you press DISPLAY.
• If you want to return to the previous menu, highlight RETURN and press OK.
Channel number, program name, and station’s call letters
Remaining tape length and time counter
The bar indicator and pointer for searching for a specific place on a tape
No display
continued
010GET.fm Page 43 Friday, November 30, 2001 1:47 PM
44
Presetting channels
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]

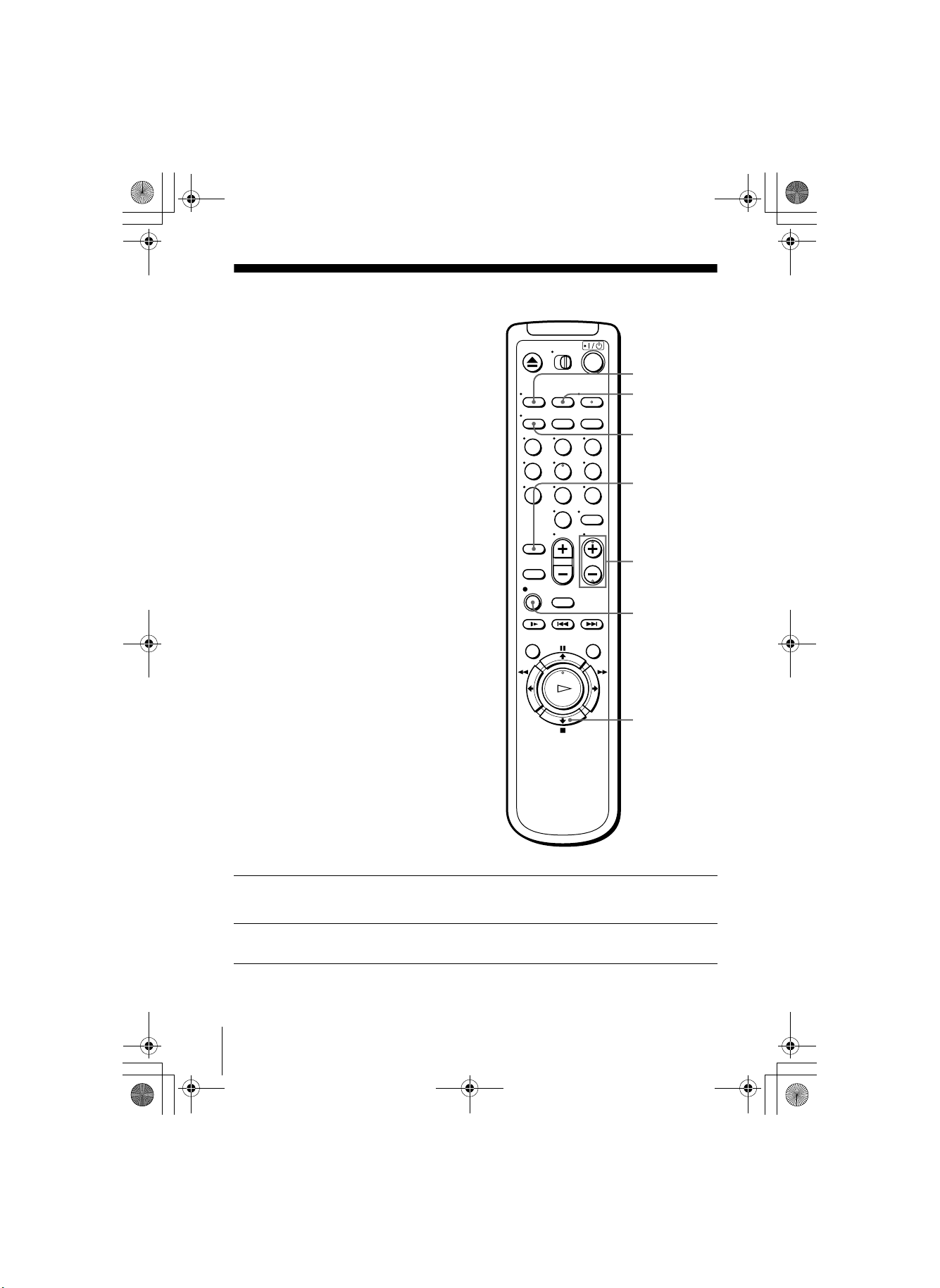

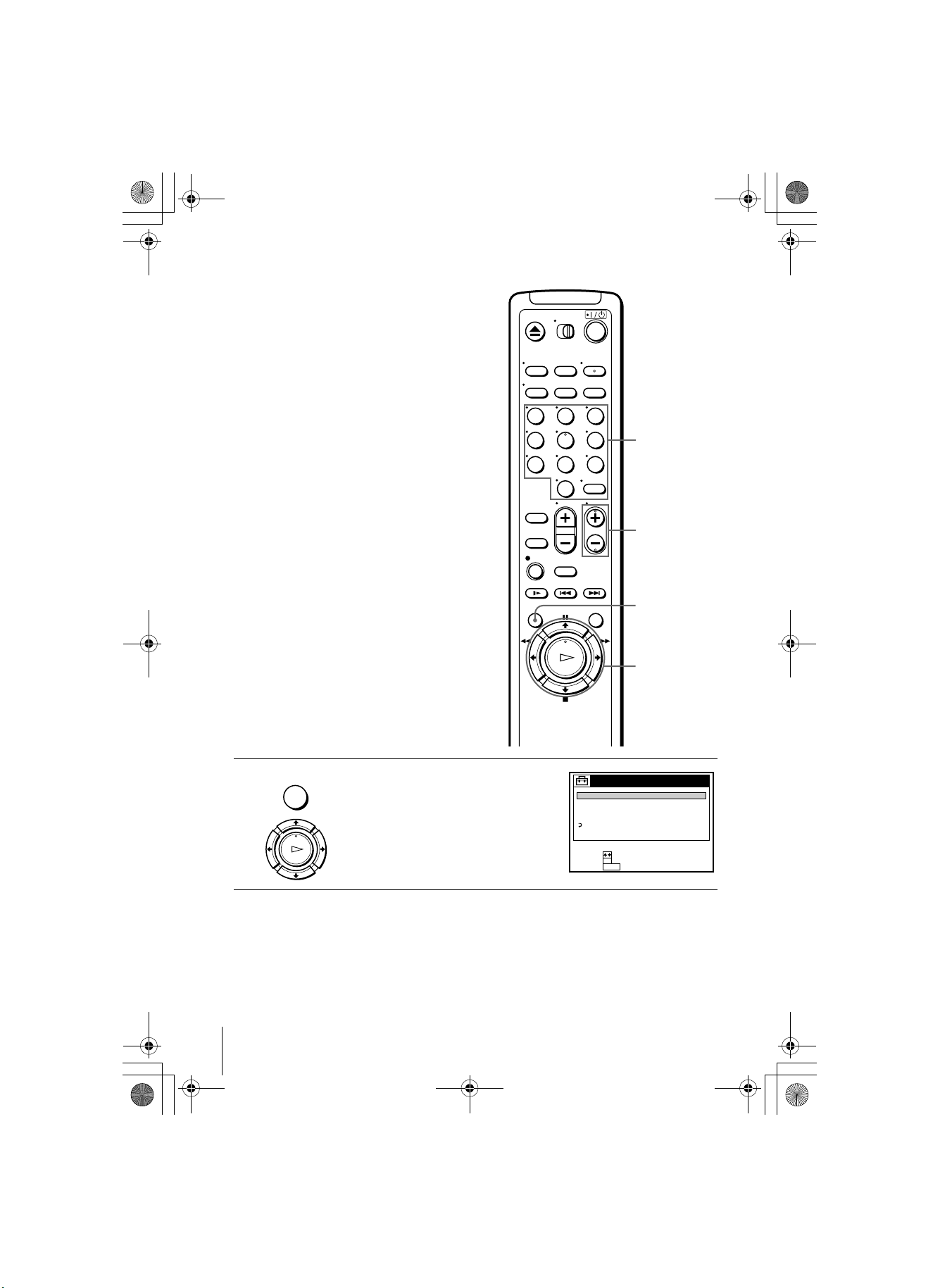

Presetting/disabling channels manually
1
Press MENU, then press
M
/
m
to highlight
SETTINGS and press OK.
123
456
789
0
MENU
CH +/–
Number
buttons,
ENTER
M/m
OK
MENU
OK
PLAY
SETTINGS
TUNER PRESET
SET VCR Plus+ sys. CH
CABLE BOX CONTROL
CLOCK SET
LANGUAGE
RETURN
SET :
SELECT :
OK
MENUQUIT :
010GET.fm Page 44 Friday, November 30, 2001 1:47 PM
Getting Started
45
Presetting channels
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Tip
• If you want to return to the previous menu, highlight RETURN and press OK.
2
Press
M
/
m
to highlight TUNER PRESET,
then press OK.
3
• To preset a channel:
1 Press the number buttons to enter the
channel number, then press ENTER.
2 Press OK.
3 Press
M
/
m
to set MANUAL SET to
ADD, then press OK.
• To disable a channel:
1
Press CH +/– to select the channel
number.
2
Press OK.
3 Press
M
/
m
to set MANUAL SET to
ERASE, then press OK.
4
Repeat step 3 to preset or disable channels as required, then press MENU.
OK
PLAY
TUNER PRESET
CABLE
ADD
ON
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
AFT
FINE TUNING
RETURN
SET :
SELECT :
OK
MENUQUIT :
CH 1
OK
PLAY
OK
PLAY
• CH
123
456
789
0
TUNER PRESET
CABLE
ADD
ON
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
AFT
FINE TUNING
RETURN
SET :
SELECT :
OK
MENUQUIT :
CH 5
Channel to be preset
TUNER PRESET
CABLE
ERASE
ON
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
AFT
FINE TUNING
RETURN
SET :
SELECT :
OK
MENUQUIT :
CH 5
Channel to be disabled
MENU
continued
010GET.fm Page 45 Friday, November 30, 2001 1:47 PM
46
Presetting channels
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
If the picture is not clear
Normally, the Auto Fine Tuning (AFT)
function automatically tunes in channels
clearly. If, however, the picture of a channel
is not clear, you can also use the manual
tuning function.
1
Press MENU, then press
M
/
m
to highlight
SETTINGS and press OK.
123
456
789
0
MENU
M/m/</,
OK
Number
buttons,
ENTER
MENU
OK
PLAY
SETTINGS
TUNER PRESET
SET VCR Plus+ sys. CH
CABLE BOX CONTROL
CLOCK SET
LANGUAGE
RETURN
SET :
SELECT :
OK
MENUQUIT :
010GET.fm Page 46 Friday, November 30, 2001 1:47 PM
Getting Started
47
Presetting channels
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Tips
• To select the channel in step 3 above, you can also use the CH +/– buttons. In this case, you
don’t need to press ENTER.
• If you want to return to the previous menu, highlight RETURN and press OK.
Note
• When adjusting FINE TUNING, the menu may become difficult to read due to interference
from the picture being received.
2
Press
M
/
m
to highlight TUNER PRESET,
then press OK.
3
Press the number buttons to select the
channel you want to fine-tune, then press
ENTER.
4
Press
M
/
m
to highlight FINE TUNING,
then press OK.
The fine tuning meter appears.
5
Press
<
/
,
to adjust to a clearer picture,
then press OK.
Note that the AFT setting switches to OFF.
6
Press MENU to exit the menu.
OK
PLAY
TUNER PRESET
CABLE
ADD
ON
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
AFT
FINE TUNING
RETURN
SET :
SELECT :
OK
MENUQUIT :
CH 1
123
456
789
0
TUNER PRESET
CABLE
ADD
ON
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
AFT
FINE TUNING
RETURN
SET :
SELECT :
OK
MENUQUIT :
CH 5
Selected channel
OK
PLAY
TUNER PRESET
CABLE
ADD
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
AFT
FINE TUNING
RETURN
SET :
SELECT :
OK
MENUQUIT :
CH 5
OK
PLAY
TUNER PRESET
CABLE
ADD
OFF
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
AFT
FINE TUNING
RETURN
SET :
SELECT :
OK
MENUQUIT :
CH 5
MENU
010GET.fm Page 47 Friday, November 30, 2001 1:47 PM
48
Setting up the VCR Plus+® GOLD system
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Setting up the VCR Plus+
®
GOLD system
How the VCR Plus+ GOLD system
works
Whenever you want to record a TV program,
all you need to do is look up the “PlusCode”
number, a number assigned to each program
published in the TV section of most
newspapers, cable TV listings, and even TV
GUIDE magazine. Then, just enter the
PlusCode number of the program you want
and the VCR is automatically programmed to
record that show. It’s that simple.
How to set up your VCR
Setting up your VCR involves coordinating
the TV channel number (the number you turn
to on your TV or VCR to watch a program)
with the guide channel (the number that’s
assigned to that channel in your program
guide).
The VCR can set the guide channels
automatically (see page 49), but you may
have to set the guide channels manually
depending on your area or the way you
hooked up your VCR (see page 52).
To find the guide channel numbers, look at
the “Channel Line-up Chart” in the program
guide for your area that features VCR
PlusCode numbers. It usually looks like the
example to the right.
5:30
6:30
PlusCode
14
2
CNN
23
4
5
SCIENCE AND TECHNOLOGY
(1hr. 15min.) 73457
DRAMA
WS 9974
SPORT
MOVIE Musical (2hrs.)
33044
Golf (1hr. 25min.) 42060
Comedy (2hrs.) 17390
SAMPLE
CABLE TV
AMC
BRV
CNN
CSP
DIS
DSC
ESN
FAM
HBO
LIF
MAX
MTV
NIK
SC
SCA
SHO
TBS
TMC
TNN
TNT
USA
VCR Plus+
GUIDE CH
35
54
42
28
53
37
34
47
33
46
45
48
38
59
70
41
43
58
49
52
44
American Movie Classics
Bravo (program grid only)
Cable News Network
C-SPAN
The Disney Channel
The Discovery Channel
ESPN
The Family Channel
Home Box Office
Lifetime
Cinemax
Music Television
Nickelodeon
Sports Channel
Sports Channel America
Showtime
TBS SuperStation
The Movie Channel
The Nashville Network
Turner Network Television
USA Network
CABLE
CH
16
17
20
21
22
25
34
35
5
27
29
31
38
39
45
17
44
49
50
51
30
Example of “PlusCode”
Example of “Channel Line-up Chart”
010GET.fm Page 48 Friday, November 30, 2001 1:47 PM
Getting Started
49
Setting up the VCR Plus+® GOLD system
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Setting up the VCR Plus+ GOLD system automatically (Smart
Channel Mapping)
The VCR can automatically set the guide
channels in your area from ZIP/POSTAL
CODE you entered in EASY SET UP. The
VCR receives the program information
signal and renews the data everyday after you
complete the following procedure.
If you are having trouble setting the guide
channels, or if you have many scrambled
channels, go to page 52 for manual VCR
Plus+ GOLD system set up. Note that the
VCR Plus+ GOLD system does not work
with a digital satellite receiver.
1
Set up the VCR using the EASY SET UP function.
2
Press MENU, then press
M
/
m
to highlight
SETTINGS and press OK.
123
456
789
0
MENU
M/m
OK
?/1
MENU
OK
PLAY
SETTINGS
TUNER PRESET
SET VCR Plus+ sys. CH
CABLE BOX CONTROL
CLOCK SET
LANGUAGE
RETURN
SET :
SELECT :
OK
MENUQUIT :
continued
010GET.fm Page 49 Friday, November 30, 2001 1:47 PM
50
Setting up the VCR Plus+® GOLD system
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Tips
• After channel setup is finished, you can record TV programs using the VCR Plus+ GOLD
system. For details, see page 66.
• If you want to return to the previous menu, highlight RETURN and press OK.
Note
• If the CHOOSE YOUR CABLE CH MAP menu appears the first time you turn on the VCR
after finishing channel setup, see the following section “To select the channel map”.
3
Press
M
/
m
to highlight SET VCR Plus+
sys. (system) CH, then press OK.
The SMART CHANNEL MAPPING menu
appears.
4
Press
M
/
m
to highlight AUTO, then press
OK.
The instruction shown on the right appears
on the TV screen for a few seconds, then the
screen returns to the normal display.
• If you made Hookup 1: leave your cable
box on for correct channel mapping.
• If you made Hookup 3: turn your cable
box off for correct channel mapping.
Note that channel mapping does not work for Hookup 2 or 5.
If the program information signal in your
area has several channel map patterns, the
CHOOSE YOUR CABLE CH MAP menu
appears, and you must select the channel
map. See the following section “To select
the channel map.”
5
Press
?
/
1
to turn off the VCR.
The VCR sets the program guide channels from 0:00 am to 5:00 am while
the VCR is turned off. (It takes about one hour to complete channel
mapping.)
OK
PLAY
AUTO
MANUAL
SET VCR Plus+ sys. CH
SMART CHANNEL MAPPING
SET :
SELECT :
OK
MENUQUIT :
OK
PLAY
CHANNEL MAPPING SIGNAL
VCR WILL LOOK FOR
AFTER YOU TURN IT OFF
MAP
MAP
1
2
MAP 3
MAP 4
MAP 5
MAP 6
MAP 7
MAP 8
KCET
WNET
ABC
FAM
A&E
KAET
CBS
1
4
1
9
2
2
2
–
5
3
8
0
3
9
4
–––––
SET VCR Plus+ sys. CH
CHOOSE YOUR CABLE CH MAP
SET :
SELECT :
OK
MENUQUIT :
010GET.fm Page 50 Friday, November 30, 2001 1:47 PM
Getting Started
51
Setting up the VCR Plus+® GOLD system
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
To select the channel map
In this case, you have to select the channel map on the CHOOSE YOUR CABLE CH
MAP menu.
Notes
• It takes about one hour to complete channel mapping.
• The VCR can receive the program information signal only while the VCR is turned off and
no timer recordings are set.
• The VCR cannot set the guide channels correctly unless you enter the ZIP/POSTAL CODE in
your area.
• When you move to a different area, you must set up the VCR again and enter your new ZIP/
POSTAL CODE in the EASY SET UP procedure.
If the program information signal
in your area has several channel
map patterns (up to 8), the
CHOOSE YOUR CABLE CH
MAP menu appears:
• the first time you turn on the
VCR after completing channel
mapping
• after selecting AUTO and
pressing OK on the SMART
CHANNEL MAPPING menu
1
Find the VCR Plus+ GOLD system Channel Listing in your program guide. For
details, see page 48.
2
Press
M
/
m
to highlight the channel map number you want by checking the
channel number in the program guide.
3
Press OK.
MAP
MAP
1
2
MAP 3
MAP 4
MAP 5
MAP 6
MAP 7
MAP 8
KCET
WNET
ABC
FAM
A&E
KAET
CBS
1
4
1
9
2
2
2
–
5
3
8
0
3
9
4
–––––
SET VCR Plus+ sys. CH
CHOOSE YOUR CABLE CH MAP
SET :
SELECT :
OK
MENUQUIT :
Channel map
number
Station ID
Channel number
continued
010GET.fm Page 51 Friday, November 30, 2001 1:47 PM
52
Setting up the VCR Plus+® GOLD system
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]

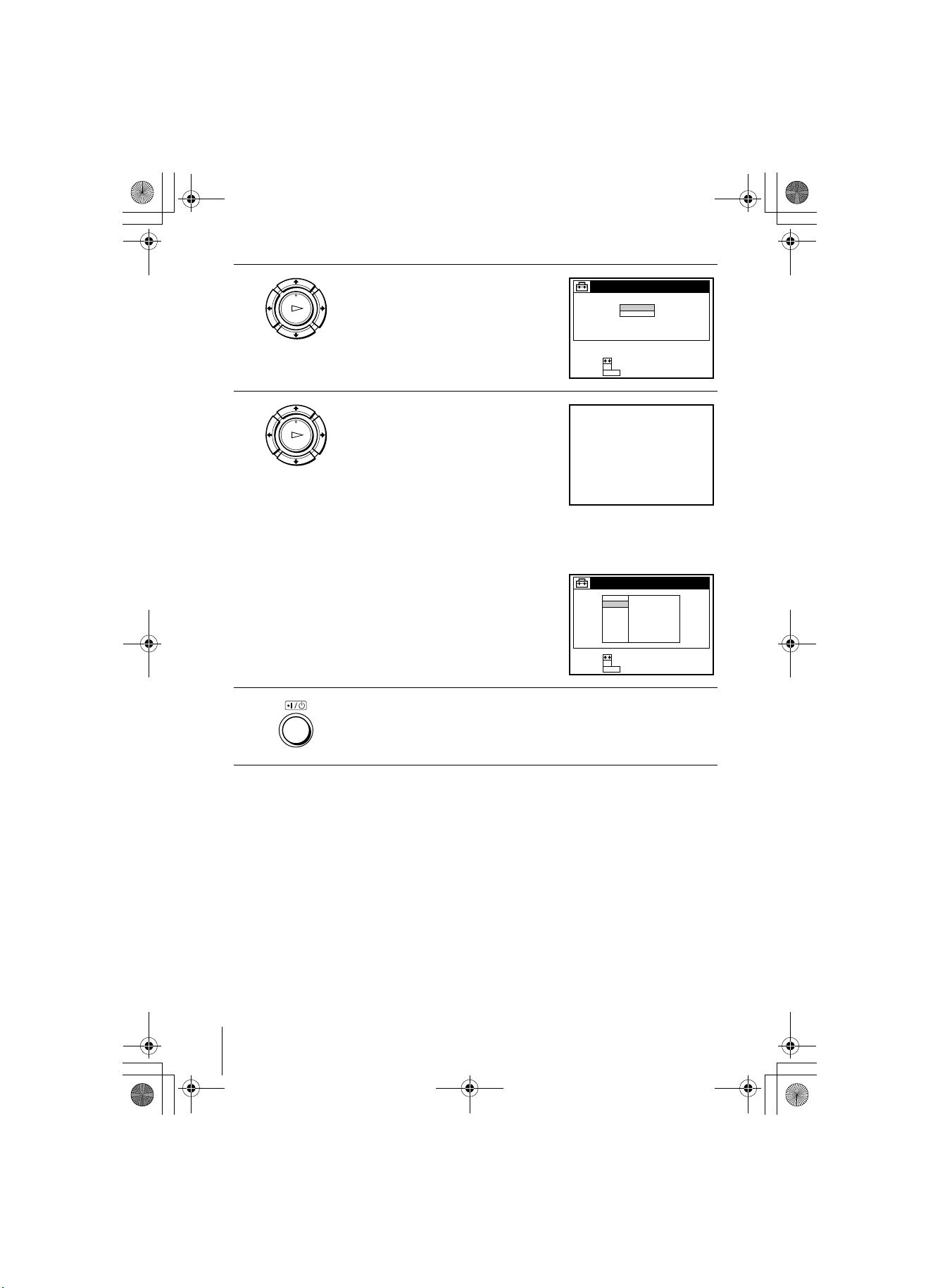

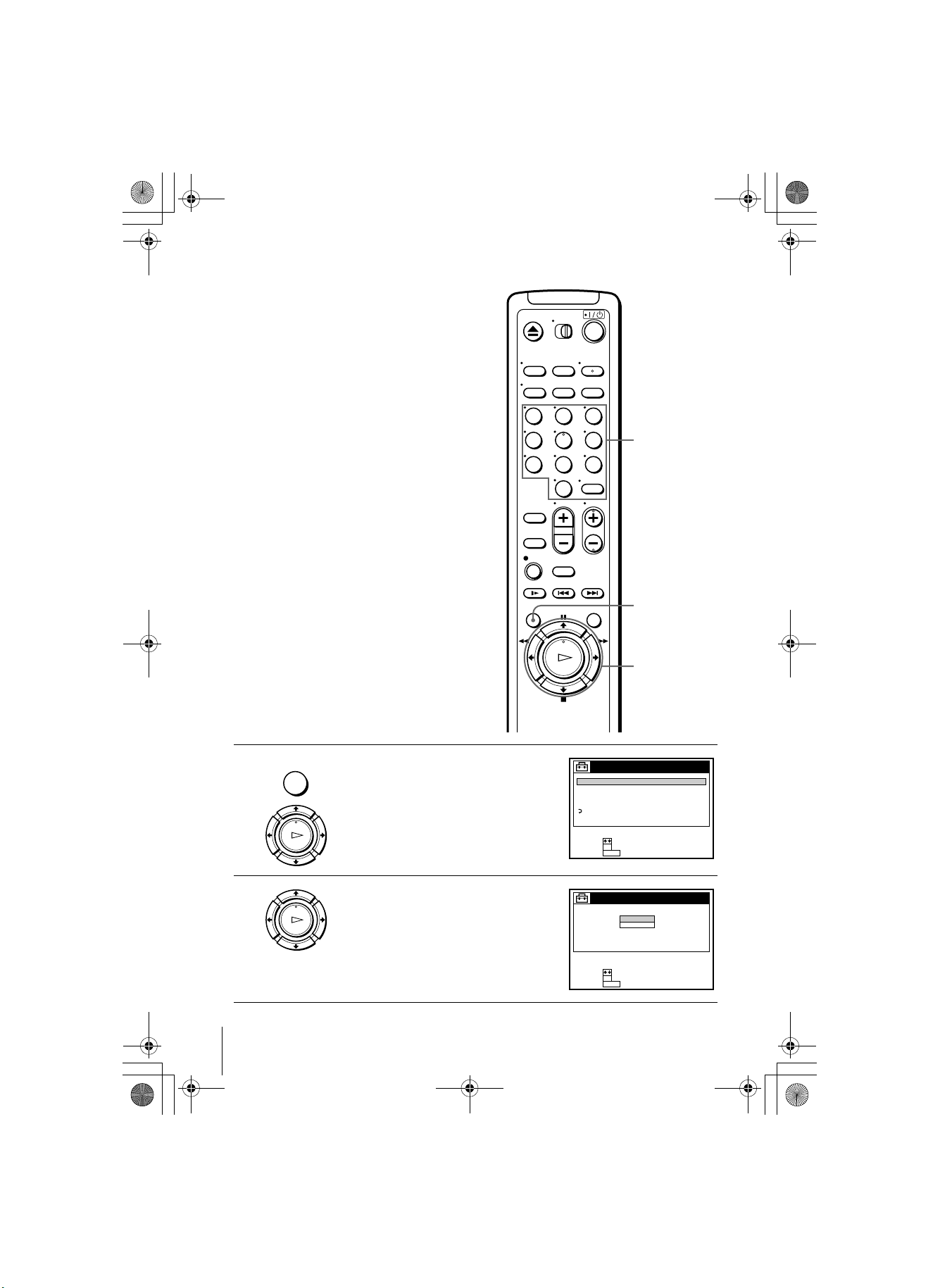

Setting up the VCR Plus+ GOLD system manually
To set the guide channels, use the Channel
Line-up Chart to check that the guide channel
numbers match the TV channel your VCR
receives. For example, if HBO is listed in the
Channel Line-up Chart as channel 33, and
your VCR receives HBO on channel 5, you
need to coordinate these numbers using the
following procedure. If the guide and TV
channel numbers are the same, you can skip
this procedure.
1
Press MENU, then press
M
/
m
to highlight
SETTINGS and press OK.
2
Press
M
/
m
to highlight SET VCR Plus+
sys. (system) CH, then press OK.
123
456
789
0
Number
buttons,
ENTER
M/m/</,
OK
MENU
MENU
OK
PLAY
SETTINGS
TUNER PRESET
SET VCR Plus+ sys. CH
CABLE BOX CONTROL
CLOCK SET
LANGUAGE
RETURN
SET :
SELECT :
OK
MENUQUIT :
OK
PLAY
AUTO
MANUAL
SET VCR Plus+ sys. CH
SMART CHANNEL MAPPING
SET :
SELECT :
OK
MENUQUIT :
010GET.fm Page 52 Friday, November 30, 2001 1:47 PM
Getting Started
53
Setting up the VCR Plus+® GOLD system
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
3
Press
M
/
m
to highlight MANUAL, then
press OK.
4
Enter the guide channel number assigned in
the program guide and press ENTER.
5
• If you made Hookup 1, 3, or 4: Enter the
actual number on your TV (and VCR)
and press ENTER.
• If you made Hookup 5: Enter the cable
box output channel (usually 2, 3, or 4)
and press ENTER.
6
Repeat steps 4 and 5 for each channel number that does not match.
7
When you have set all channels, press OK
to confirm your channel settings.
To return to the previous page, press
<
.
To go to the next page, press
,
.
OK
PLAY
LIST :
SET GUIDE CH :
OK
0–9
GUIDE CH TV CH
–––––
SET VCR Plus+ sys. CH
QUIT :
MENU
123
456
789
0
CHANNEL MAPPING SIGNAL
VCR WILL LOOK FOR
AFTER YOU TURN IT OFF
LIST :
SET TV CH :
OK
0–9
GUIDE CH TV CH
–5252
SET VCR Plus+ sys. CH
QUIT :
MENU
ENTER
123
456
789
0
LIST :
SET GUIDE CH :
OK
0–9
GUIDE CH TV CH
–5285
SET VCR Plus+ sys. CH
QUIT :
MENU
LIST :
SET GUIDE CH :
OK
0–9
GUIDE CH TV CH
–523
SET VCR Plus+ sys. CH
QUIT :
MENU
OK
PLAY
SET VCR Plus+ sys. CH LIST
PAGE :
MENUQUIT :
PAGE1
GUIDE TV
– 5525
GUIDE TV
– 0319
– 6395 – 7839
– 2184 – 2588
– 734 – 8958
– 8693 – 00128
– 51143 – 697
– 8552 – 32147
– 571 – 3617
– 525 – 9586
– 372 – 8466
continued
010GET.fm Page 53 Friday, November 30, 2001 1:47 PM
54
Setting up the VCR Plus+® GOLD system
filename[010GET.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Tip
• If you want to return to the previous menu, highlight RETURN and press OK.
8
After all settings are complete, press MENU to exit the menu.
MENU
010GET.fm Page 54 Friday, November 30, 2001 1:47 PM
55
Playing a tape
filename[010BAS.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Basic Operations
Basic Operations

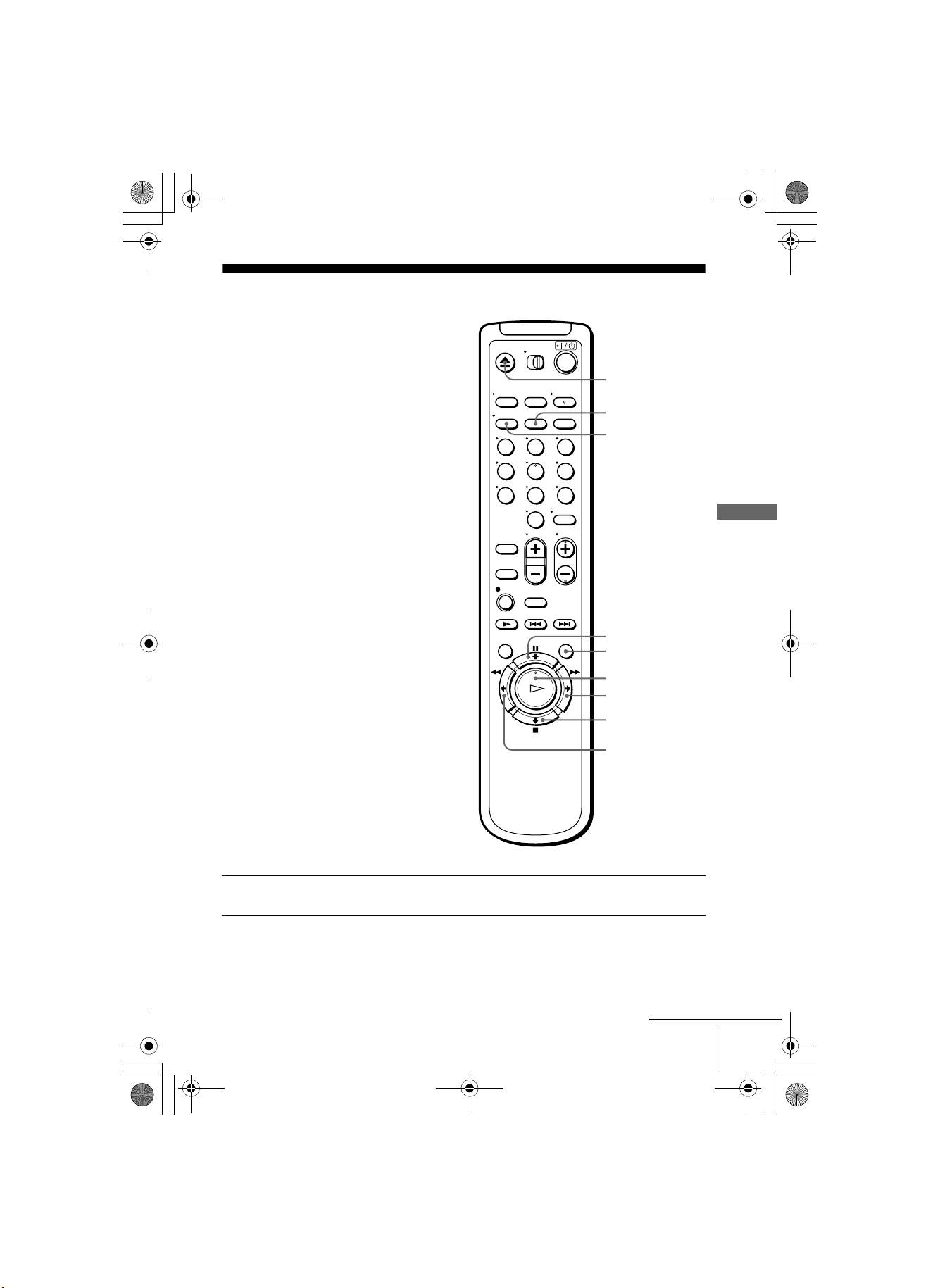

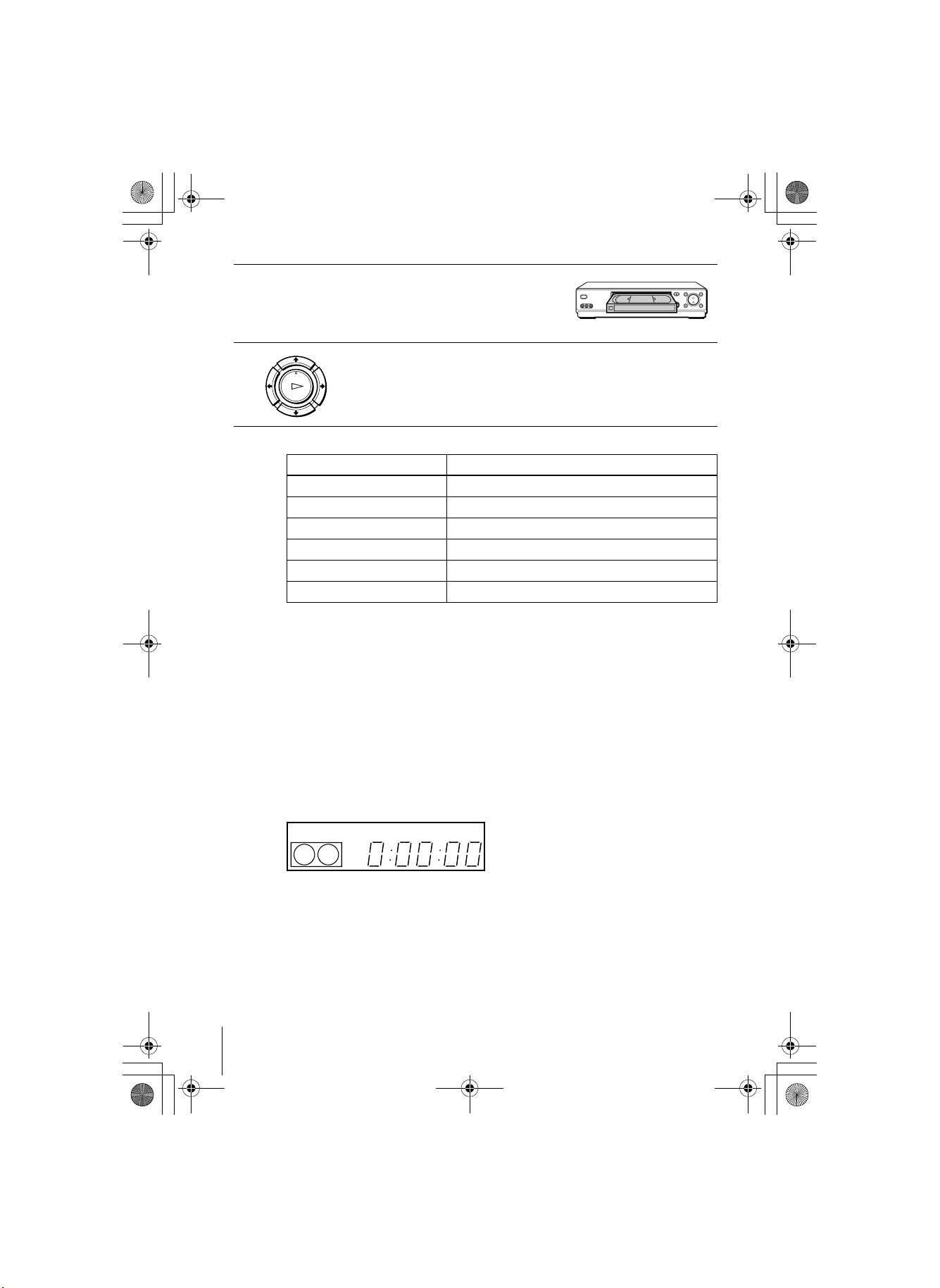

Playing a tape
1
Turn on your TV and set it to the video channel.
123
456
789
0
Z EJECT
DISPLAY
CLEAR
COMMERCIAL
PASS
X PAUSE
M FF
x STOP
m REW
X PAUSE
H PLAY
continued
010BAS.fm Page 55 Friday, November 30, 2001 1:52 PM
56
Playing a tape
filename[010BAS.fm] model name1[SLV-N99]
[3-071-065-11 (1)]

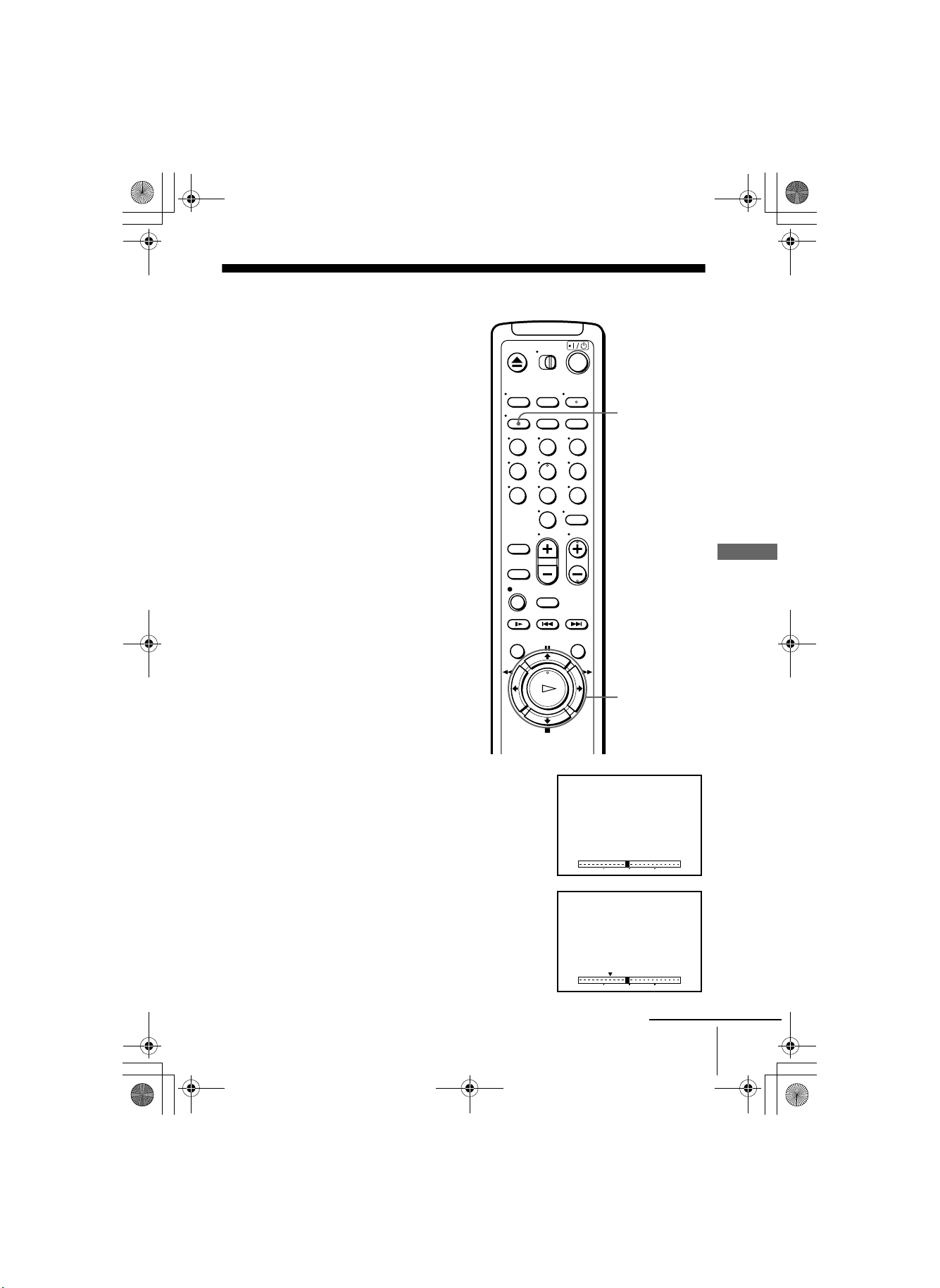

Additional tasks
To skip playback
By pressing a single button, you can skip a portion of playback you don’t want to
watch (such as a commercial) and restart playback.
To use the time counter
Press CLEAR at the point on the tape that you want to find later. The counter in the
display window resets to “0:00:00.” Search for the point afterwards by referring to
the counter.
To display the counter on the TV screen, press DISPLAY.
2
Insert a tape.
The VCR turns on and starts playing
automatically if you insert a tape with its
safety tab removed.
3
Press
H
PLAY.
When the tape reaches the end, it will rewind automatically.
To Press
Stop play x STOP
Pause play X PAUSE
Resume play after pause X PAUSE or H PLAY
Fast-forward the tape M FF during stop
Rewind the tape m REW during stop
Eject the tape Z EJECT
1
Press COMMERCIAL PASS during playback of the scene you want to skip. The
VCR starts searching.
2
Press COMMERCIAL PASS again when you find the scene you want to watch.
The VCR stops searching, rewinds a few seconds, then resumes normal playback.
OK
PLAY
SP
VIDEO
APC
010BAS.fm Page 56 Friday, November 30, 2001 1:52 PM
57
Playing a tape
filename[010BAS.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Basic Operations
Notes
• Tapes recorded in the LP mode on other VCRs can be played back on this VCR but the
picture quality cannot be guaranteed.
• While displaying a menu on the TV screen, you cannot use H PLAY, X PAUSE,
M FF, m REW, or x STOP buttons.
• The counter resets to “0:00:00” whenever a tape is reinserted.
• The counter stops counting when it comes to a portion with no recording.
010BAS.fm Page 57 Friday, November 30, 2001 1:52 PM
58
Recording TV programs
filename[010BAS.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Recording TV programs
1
Turn on your TV and set it to the video channel.
To record from a cable box, turn it on.
2
Insert a tape with its safety tab in place.
123
456
789
0
CH +/–
z REC
SP/EP
x STOP
COUNTER/
REMAIN
DISPLAY
TV/VIDEO
010BAS.fm Page 58 Friday, November 30, 2001 1:52 PM
59
Recording TV programs
filename[010BAS.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Basic Operations
To stop recording
Press
x
STOP.
To check the remaining tape length
Press DISPLAY repeatedly until the remaining tape length and the time counter
appear on the TV screen. Each time you press COUNTER/REMAIN, the time
counter and the remaining tape length with the indicator appear alternately in the
VCR’s display window.
To check the remaining tape length of a T-140 or T-180 tape, set TAPE SELECT in
the ADVANCED OPTIONS menu to 180. (For details, see page 88.)
3
Press CH +/– to select the channel or line input video source you want to
record.
4
Press SP/EP to select the tape speed, SP or EP.
EP (Extended Play) provides recording time three times as long as SP
(Standard Play). However, SP produces better picture and audio quality.
5
Press
z
REC to start recording.
The recording indicator lights up red in the display window.
• CH
EP
VIDEO
APC
SP / EP
SP
VIDEO
APC
REC
SP
VIDEO
APC
Recording indicator
SP 20:00:2
81:3
Time counter
Remaining tape length
continued
010BAS.fm Page 59 Friday, November 30, 2001 1:52 PM
60
Recording TV programs
filename[010BAS.fm] model name1[SLV-N99]
[3-071-065-11 (1)]

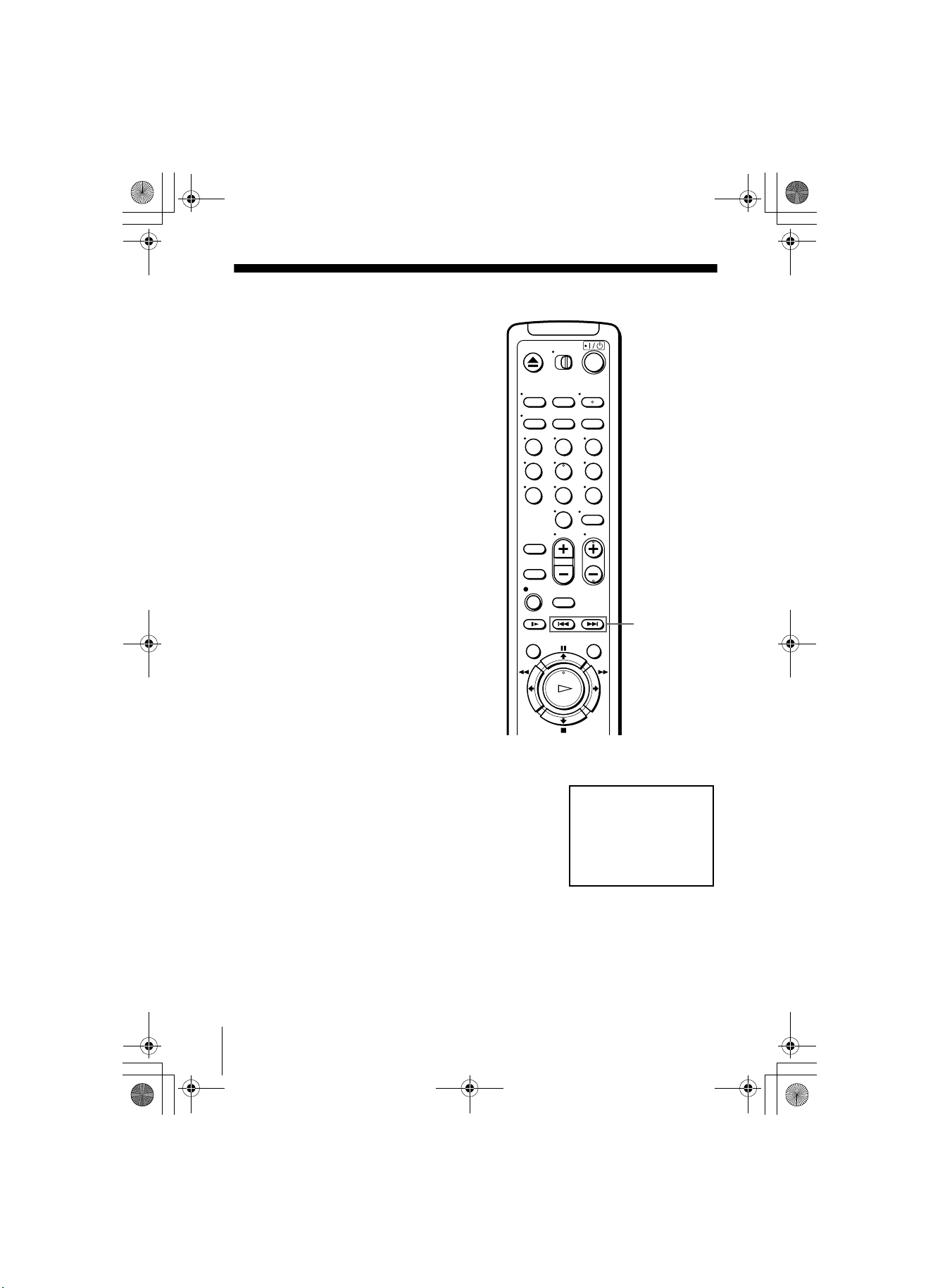

To watch another TV program while recording

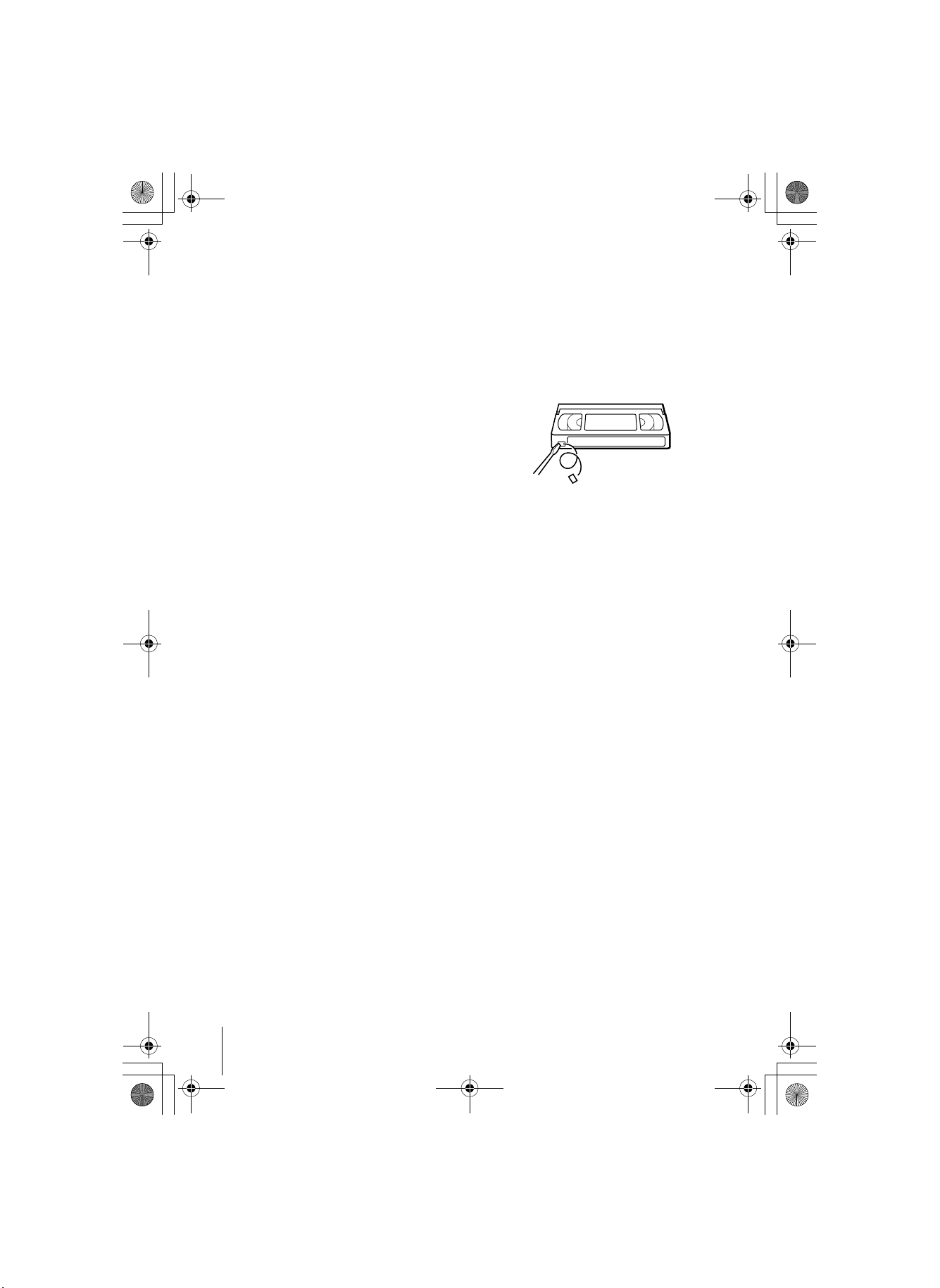

To save a recording
To prevent accidental erasure, break
off the safety tab as illustrated. To
record on the tape again, cover the tab
hole with adhesive tape.
Tips
• To select a channel, you can use the number buttons on the remote commander. Enter the
channel number, then press ENTER.
• You can select a video source from the LINE-1 IN or LINE-2 IN jacks using the INPUT
SELECT button.
• The display appears on the TV screen indicating information about the tape, but the
information won’t be recorded on the tape.
• If you don’t want to watch TV while recording, you can turn off the TV. When using a cable
box, make sure to leave it on.
Notes
• The remaining tape length may not be indicated accurately for short tapes such as T-20 or T-
30, or tapes recorded in the LP mode.
• The display does not appear during still (pause) mode or slow-motion playback.
• It may take up to one minute for the VCR to calculate and display the remaining tape length
after you press DISPLAY.
1
Press TV/VIDEO to turn off the VIDEO indicator in the display window.
2
If the TV is connected to the VCR’s LINE OUT jacks, set the TV to the TV’s
antenna input; if not, skip this step.
3
Select another channel on the TV.
Safety tab
010BAS.fm Page 60 Friday, November 30, 2001 1:52 PM
61
Recording TV programs using the Dial Timer
filename[010BAS.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Basic Operations

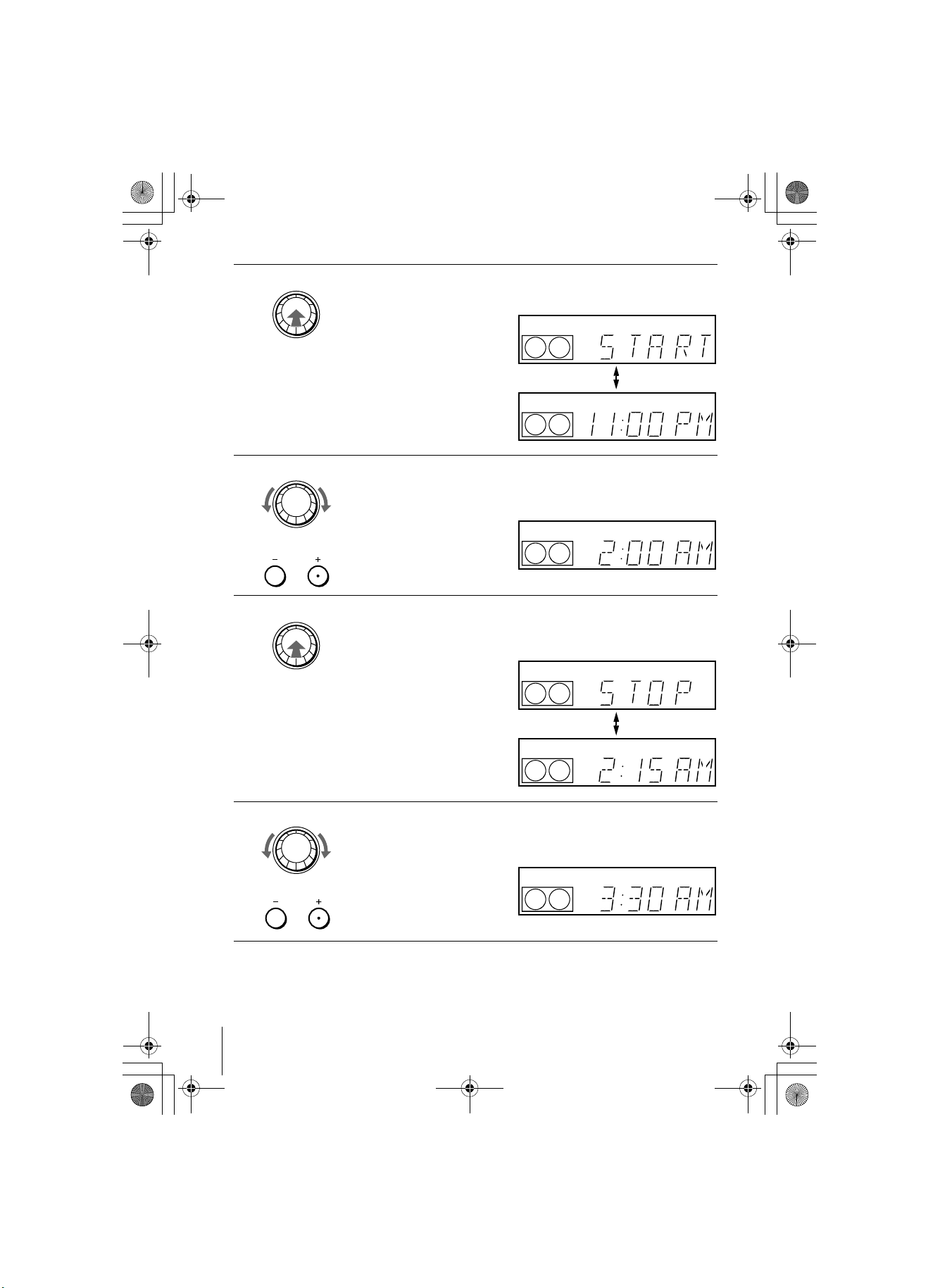

Recording TV programs using the Dial
Timer
The Dial Timer function allows you to make
timer recordings of programs without turning on
your TV. Set the recording timer to record up to
eight programs that will be broadcast within a
month using the DIAL TIMER. The recording
start time and recording stop time can be set at
one minute intervals.
Before you start...
• When using a cable box, turn it on.
• Insert a tape with its safety tab in place. Make sure the tape is longer than the total recording
time.
1
Press DIAL TIMER.
“DATE” and “TODAY” appear alternately in the display window.
If the date and time are not set, “MONTH” will appear. See step 2 in the
following section “To set the clock” to set the date and time.
2
Turn DIAL TIMER to set the recording date.
CHANNEL +/–?/1 POWER
DIAL TIMERINPUT SELECT x STOP
DIAL TIMER
EP
VIDEO
APC
EP
VIDEO
APC
DIAL TIMER
EP
VIDEO
APC
continued
010BAS.fm Page 61 Friday, November 30, 2001 1:52 PM
62
Recording TV programs using the Dial Timer
filename[010BAS.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
3
Press DIAL TIMER.
“START” and the current time appear alternately in the display window.
4
Turn DIAL TIMER to set the recording start time.
You can set the recording start time in 15 minute intervals or adjust the time
in one minute intervals by pressing the CHANNEL +/– buttons.
5
Press DIAL TIMER.
“STOP” and the recording stop time appear alternately in the display
window.
6
Turn DIAL TIMER to set the recording stop time.
You can set the recording stop time in 15 minute intervals or adjust the time
in one minute intervals by pressing the CHANNEL +/– buttons.
DIAL TIMER
EP
VIDEO
APC
EP
VIDEO
APC
DIAL TIMER
CHANNEL
EP
VIDEO
APC
DIAL TIMER
EP
VIDEO
APC
EP
VIDEO
APC
DIAL TIMER
CHANNEL
EP
VIDEO
APC
010BAS.fm Page 62 Friday, November 30, 2001 1:52 PM
63
Recording TV programs using the Dial Timer
filename[010BAS.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Basic Operations
To return to the previous step
To return to the previous step, press the CHANNEL + and – buttons on the VCR at
the same time during any of the Dial Timer settings.
To stop recording
To stop the VCR while recording, press
x
STOP.
To use the VCR after setting the timer
To use the VCR before a timer recording begins, just press
?
/
1
. The indicator
disappears from the display window and the VCR switches on. Remember to press
?
/
1
to reset the VCR to the timer recording standby mode after using the VCR.
You can also do the following tasks while the VCR is recording:
• Reset the counter (page 56).
• Display tape information on the TV screen (page 59).
• Check the timer settings (page 76).
• Watch another TV program (page 60).
7
Press DIAL TIMER.
The channel number or station ID appears in the display window.

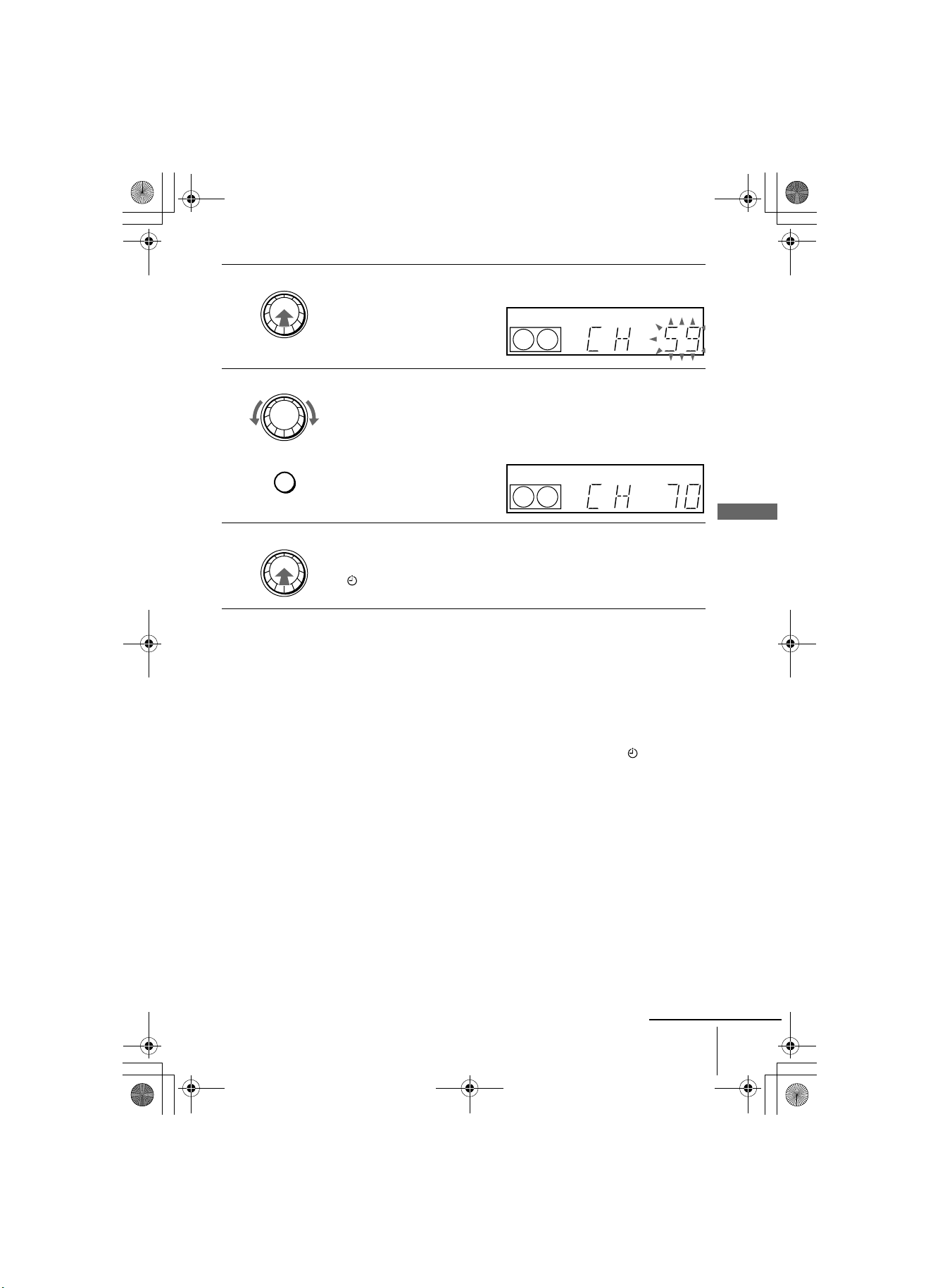

8
Turn DIAL TIMER to set the channel number.
To record from a source connected to the LINE-1 IN or LINE-2 IN jacks,
turn DIAL TIMER or press INPUT SELECT to display “L1” or “L2”.
If the CABLE BOX CONTROL setting is ON, you can change the channel
number in units of 100 by pressing the CHANNEL +/– buttons.
9
Press DIAL TIMER to complete the setting.
“OK” appears in the display window for about five seconds.
The indicator appears in the display window and the VCR stands by for
recording. When using a cable box, leave it on.
DIAL TIMER
EP
VIDEO
APC
DIAL TIMER
INPUT
SELECT
EP
VIDEO
APC
DIAL TIMER
continued
010BAS.fm Page 63 Friday, November 30, 2001 1:52 PM
64
Recording TV programs using the Dial Timer
filename[010BAS.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
To set the clock
Tips
• To cancel a Dial Timer setting, press x STOP on the VCR while you are making the setting.
• The program is recorded in the current tape speed. To change the tape speed, press SP/EP
before you complete the setting in step 9 (page 63).
• When you are recording a program in the SP mode and the remaining tape becomes shorter
than the recording time, the tape speed is automatically changed to the EP mode. Note that
some noise will appear on the picture when the tape speed is changed. If you want to keep
the tape speed, set AUTO TAPE SPEED to OFF in the ADVANCED OPTIONS menu (page
88).
• To check, change, or cancel the program setting, see “Checking/changing/canceling timer
settings” (page 76).
Notes
• If eight programs have already been set using the VIDEO Plus+ GOLD system or the TIMER
SET/CHECK menu, “FULL” appears in the display window for about five seconds.
• If you are using the Cable Mouse, you cannot select “L1” or “L2.”
• If you set the clock using the Auto Clock Set function, the clock will adjust itself to the
incoming time signal regardless of adjustments made with the Dial Timer. Be sure you have
set ACS correctly.
• If you are setting the clock for the first time or “–:– –” appears in the display window, you
cannot set the clock to February 29
th
using the Dial Timer. Please use the Auto Clock Set
function to set the VCR to this day.
•The
indicator flashes in the display window when you complete the setting in step 9
(page 63) with no tape inserted.
• The station ID appears on the TV screen only when you complete Smart Channel Mapping
and the VCR receives the program information signal (see page 49).
1
Turn DIAL TIMER so that “CLOCK” appears in the display window.
2
Press DIAL TIMER.
“MONTH” appears in the display window.
3
Turn DIAL TIMER to set the month.
4
Press DIAL TIMER.
“DAY” appears in the display window.
5
Turn and press DIAL TIMER to set the day and then the year.
After you set the year, “CLOCK” appears in the display window again.
6
Turn and press DIAL TIMER to set the hour and minute.
7
When you have finished setting the time, press DIAL TIMER to start the clock.
010BAS.fm Page 64 Friday, November 30, 2001 1:52 PM
65
Recording TV programs using the Dial Timer
filename[010BAS.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Basic Operations
About the Demonstration Mode
The Dial Timer function has a Demonstration Mode that allows the user, such as a
salesperson, to enter more than eight examples of timer settings when demonstrating
the use of the Dial Timer. It cancels the FULL notice which appears if eight programs
have already been set. Do not use the Demonstration Mode for making timer
recordings. Doing so may cause the settings to be inaccurate.
To activate the Demonstration Mode
Press
X
PAUSE on the VCR while turning the DIAL TIMER. “DEMO” appears in
the display window for a few seconds.
To cancel the Demonstration Mode
Turn the power off and unplug the AC power cord. Although the Demonstration
Mode is canceled, the timer settings entered while using the Demonstration Mode
will remain. Be sure to manually cancel the timer settings before you use the Dial
Timer or any other timer method after reconnecting the AC power cord (see page 76).
010BAS.fm Page 65 Friday, November 30, 2001 1:52 PM
66
Recording TV programs using the VCR Plus+ GOLD system
filename[010BAS.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Recording TV programs using the VCR
Plus+ GOLD system
Just enter the PlusCode number listed in the
TV program guide. The date, time and
channel number of that program are set
automatically. You can preset up to eight
programs together with the DIAL TIMER
and manual timer settings at one time.
Before you start…
• Check that the VCR clock is set to the
correct time.
• Turn on your TV and set it to the video
channel. When using a cable box, turn it
on.
• Insert a tape with its safety tab in place.
Make sure the tape is longer than the total
recording time.
1
Press the VCR Plus+ button.
123
456
789
0
CLEAR
VCR Plus+
SP/EP
M/m
x STOP
Number
buttons
?/1
ENTER
VCR Plus+
VCR Plus+ system
–
PlusCode # SP / EP
– EP––––––
SP / EP :
USE :
SP / EP
0–9
VCR Plus+QUIT :
010BAS.fm Page 66 Friday, November 30, 2001 1:52 PM
67
Recording TV programs using the VCR Plus+ GOLD system
filename[010BAS.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Basic Operations
To stop recording
To stop the VCR while recording, press
x
STOP.
2
Press the number buttons to enter the
PlusCode number.
If you make a mistake, press CLEAR and
re-enter the correct number.
3
Press SP/EP to select the tape speed, SP or
EP.
4
Press
M
/
m
to highlight ONCE, DAILY, or
WEEKLY, then press ENTER:
The date, start and stop time, channel number or station ID, and tape speed
appear on the TV screen. If the information is not correct, press CLEAR to
cancel the setting.
5
To enter another setting, repeat steps 1 to 4.
6
Press
?
/
1
to turn off the VCR.
The indicator appears in the display window and the VCR stands by for
recording. When using a cable box, leave it on.
123
456
789
0
CLEAR
–
SP / EP
1
USE
EP2345––
CANCEL :
CONFIRM :
VCR Plus+QUIT :
ENTER
CLEAR
:
ONCE
DAILY
WEEKLY
VCR Plus+ system
PlusCode #
SP / EP
–
SP / EP
1
USE
SP2345––
CANCEL :
CONFIRM :
VCR Plus+QUIT :
ENTER
CLEAR
:
ONCE
DAILY
WEEKLY
VCR Plus+ system
PlusCode #
OK
PLAY
CLEAR
• ENTER
–
SP / EP
1
RECORDING TIME
SP2345––
CANCEL :
SET TIMER :
POWER
CLEAR
DATE STOP CHSTART
90MON 80
PM
0:90
PM
053SP:3/
VCR Plus+ system
PlusCode #
To record Select
Only once ONCE
Everyday Monday to Friday DAILY
Once a week WEEKLY
continued
010BAS.fm Page 67 Friday, November 30, 2001 1:52 PM
68
Recording TV programs using the VCR Plus+ GOLD system
filename[010BAS.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
To use the VCR after setting the timer
To use the VCR before timer recording begins, just press
?
/
1
. The indicator
disappears from the display window and the VCR switches on. Remember to press
?
/
1
to reset the VCR to the timer recording standby mode after using the VCR.
You can also do the following tasks while the VCR is recording:
• Reset the counter (page 56).
• Display tape information on the TV screen (page 59).
• Check the timer settings (page 76).
• Watch another TV program (page 60).
Tips
• To check, change or cancel the program setting, see “Checking/changing/canceling timer
settings” (page 76).
• When you are recording a program in the SP mode and the remaining tape becomes shorter
than the recording time, the tape speed is automatically changed to the EP mode. Note that
some noise will appear on the picture when the tape speed is changed. If you want to keep
the tape speed, set AUTO TAPE SPEED to OFF in the ADVANCED OPTIONS menu (page
88).
Notes
• If the VCR does not accept the PlusCode number, this means that:
– The PlusCode number is incorrect.
– ONCE, DAILY, or WEEKLY was selected incorrectly. You cannot select DAILY or
WEEKLY for a program that airs more than seven days ahead.
• The station ID appears on the TV screen only when you complete Smart Channel Mapping
and the VCR receives the program information signal (see page 49).
010BAS.fm Page 68 Friday, November 30, 2001 1:52 PM
69

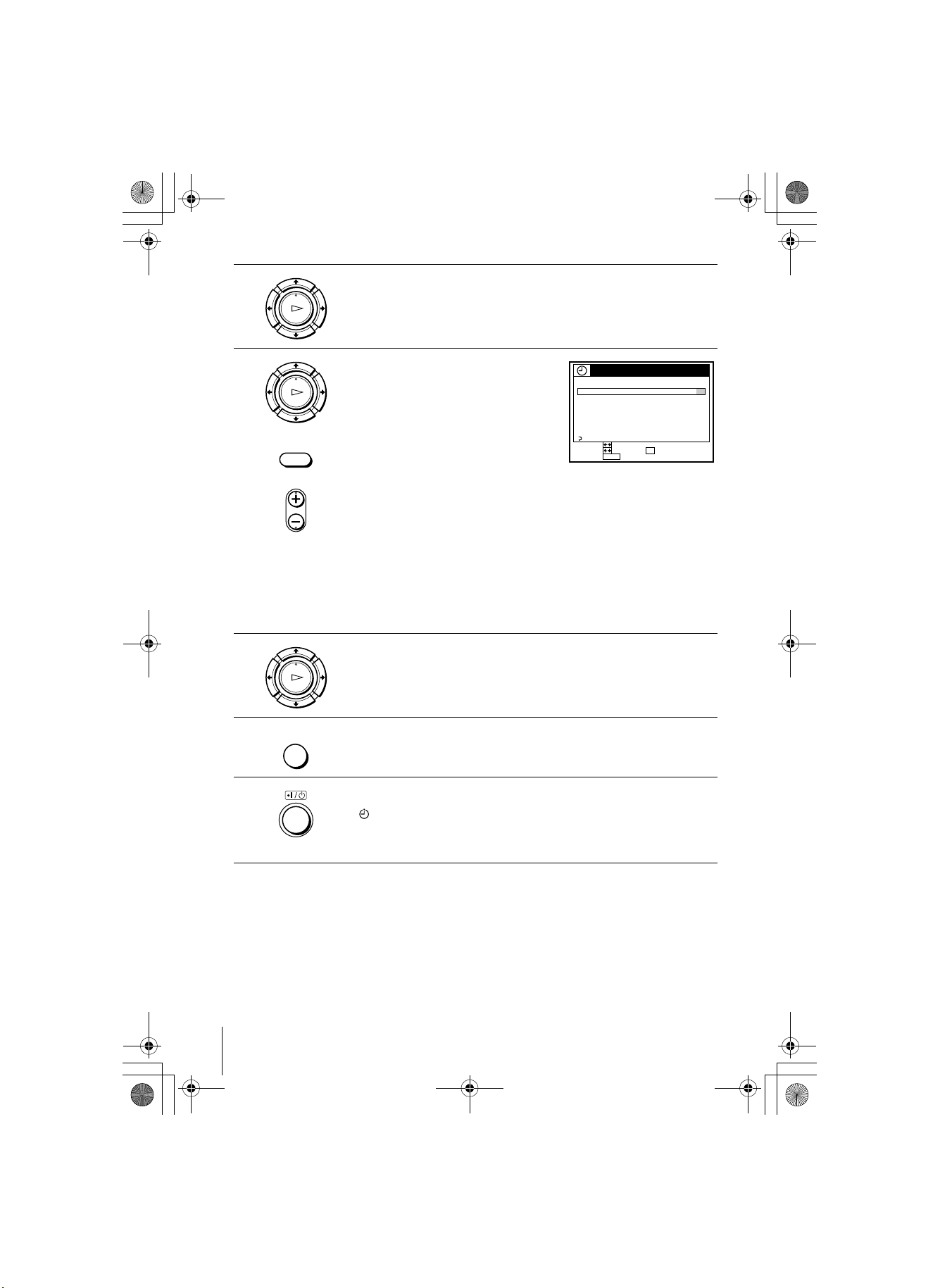

Setting the timer manually
filename[010BAS.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Basic Operations
Setting the timer manually
If the VCR Plus+ GOLD system is not
available in your area, follow the instructions
below to set the timer to record programs.
Before you start…
• Check that the VCR clock is set to the
correct time.
• Turn on your TV and set it to the video
channel. When using a cable box, turn it
on.
• Insert a tape with its safety tab in place.
Make sure the tape is longer than the total
recording time.
1
Press MENU, then press
M
/
m
to highlight
TIMER SET/CHECK and press OK.
123
456
789
0
MENU
INPUT
SELECT
SP/EP
CH +/–
M/m/</,
OK
x STOP
?/1
MENU
OK
PLAY
TIMER SET / CHECK
SAT9/28
DATE STOP CHSTART
–– –––: –––––––:–/
–– –––: –––––––
–
:–/
–– –––: ––––––:–/
–– –––: –––––––:–/
–– –––: –––––––:–/
–– –––: –––––––:–/
–– –––: –––––––:–/
–– –––: –––––––:–/
RETURN
MENUQUIT :
SET :
SELECT :
OK CANCEL : CLEAR
continued
010BAS.fm Page 69 Friday, November 30, 2001 1:52 PM
70
Setting the timer manually
filename[010BAS.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
To stop recording
To stop the VCR while recording, press
x
STOP.
2
Press
M
/
m
to highlight the line that is to be set, then press OK.
3
Set the date, start and stop time, channel
number, and tape speed:
1 Press
M
/
m
to set each item.
2 Press
,
to highlight and set each item
in turn.
To correct a setting, press
<
to return to
that setting and reset.
When you set the channel number, the station ID may appear in the “CH”
position. You can set it while checking the station ID.
To record the same program every day or the same day every week, press
m
while the date is highlighted. For details, see “Daily/weekly recording” on
page 71.
To record from a source connected to the LINE-1 IN or LINE-2 IN jacks,
press INPUT SELECT or CH +/– to display “L1” or “L2” in the “CH”
position.
4
Press OK to confirm the setting.
To enter another setting, press
M
/
m
to highlight the next line and repeat step
3.
5
Press MENU to exit the menu.
6
Press
?
/
1
to turn off the VCR.
The indicator appears in the display window and the VCR stands by for
recording.
When using a cable box, leave it on.
OK
PLAY
OK
PLAY
INPUT
SELECT
• CH
TIMER SET / CHECK
SAT9/28
DATE STOP CHSTART
9 MON080
PM PM
0:90053SP:3/
–– –––: –––––––:–/
–– –––: –––––––:–/
–– –––: –––––––:–/
–– –––: –––––––:–/
–– –––: –––––––:–/
–– –––: –––––––:–/
–– –––: –––––––:–/
RETURN
MENUQUIT :
SET :
SELECT :
END : OK
OK
PLAY
MENU
010BAS.fm Page 70 Friday, November 30, 2001 1:52 PM
71
Setting the timer manually
filename[010BAS.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Basic Operations
Daily/weekly recording
In step 3 on page 70, press
m
to select the recording pattern. Each time you press
m
,
the indication changes as shown below. Press
M
to change the indication in reverse
order.
the current date t SUN-SAT t MON-SAT t MON-FRI t EVERY SAT t ..... t
EVERY MON t EVERY SUN t 1 month later t (dates count down) t the
current date
To use the VCR after setting the timer
To use the VCR before timer recording begins, just press
?
/
1
. The indicator
disappears from the display window and the VCR switches on. Remember to press
?
/
1
to reset the VCR to the timer recording standby mode after using the VCR.
You can also do the following tasks while the VCR is recording:
• Reset the counter (page 56).
• Display tape information on the TV screen (page 59).
• Check the timer settings (page 76).
• Watch another TV program (page 60).
Tips
• To set the channel, you can also use the CH+/– or number buttons.
• To set the tape speed, you can also use the SP/EP button.
• When you are recording a program in the SP mode and the remaining tape becomes shorter
than the recording time, the tape speed is automatically changed to the EP mode. Note that
some noise will appear on the picture when the tape speed is changed. If you want to keep
the tape speed, set AUTO TAPE SPEED to OFF in the ADVANCED OPTIONS menu (page
88).
• To check, change or cancel the program setting, see “Checking/changing/canceling timer
settings” (page 76).
• If you want to return to the previous menu and continue with other operations after setting the
timer, press m to highlight RETURN, then press OK.
The display returns to the MENU screen.
If you are finished using the VCR, turn off the power before timer recording starts.
Notes
• If you are using a Cable Mouse, you cannot select “L1” or “L2.”
• The station ID appears on the TV screen only when you complete Smart Channel Mapping
and the VCR receives the program information signal (see page 49).
010BAS.fm Page 71 Friday, November 30, 2001 1:52 PM
72

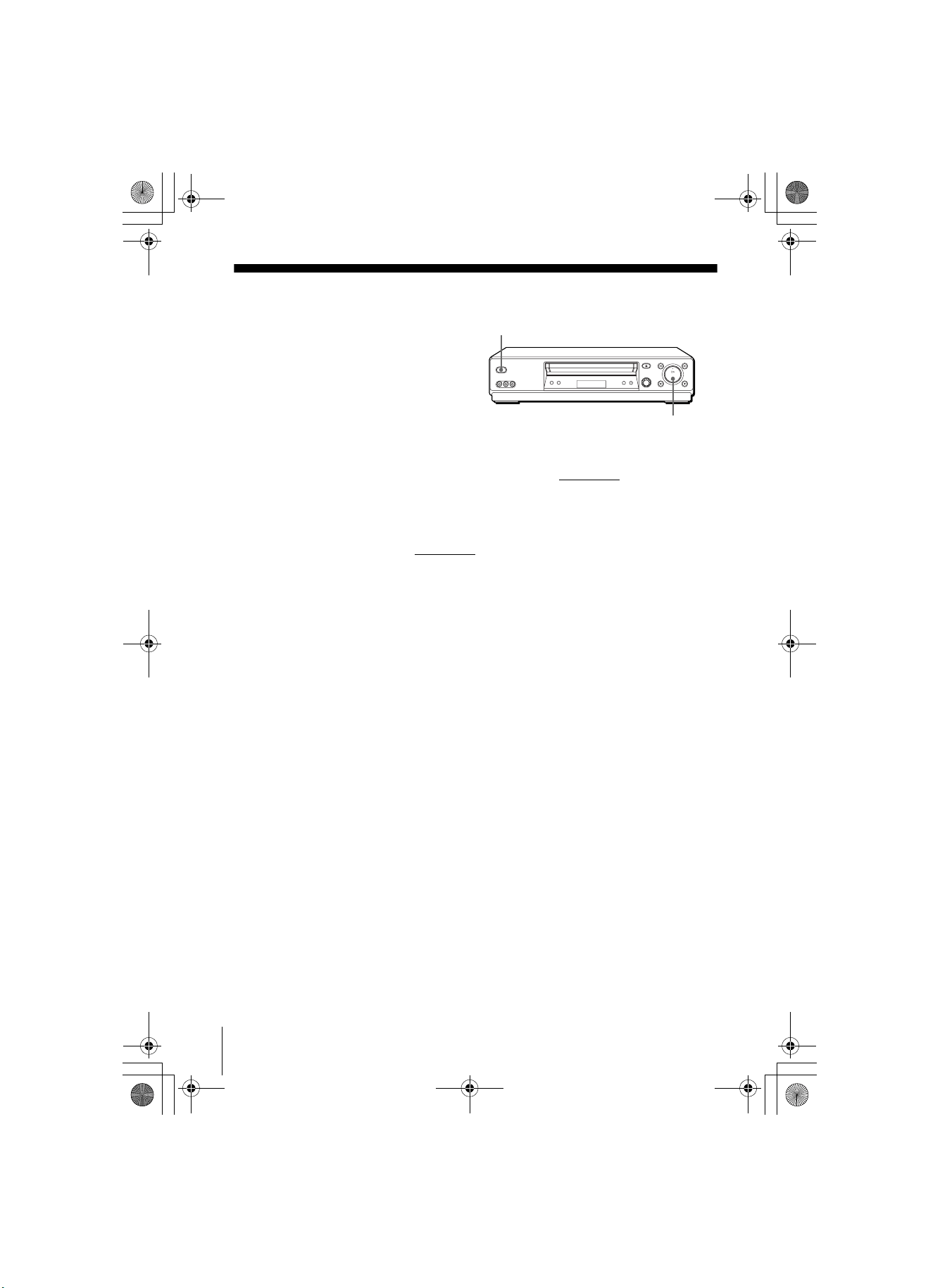

Locking the VCR (Child Lock)
filename[010BAS.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Locking the VCR (Child Lock)
To lock the VCR
When the VCR is turned on, hold down
?
/
1
POWER on the VCR until the
-
indicator appears in the display window. The VCR turns off and the
-
indicator
remains lit. The VCR will not work except for timer recordings.
To unlock the VCR
Hold down
?
/
1
POWER on the VCR until the
-
indicator disappears from the
display window. The VCR is unlocked and turns on.
To stop timer recording while the VCR is locked, press
x
STOP. The recording
stops and the VCR is unlocked.
Note
• The VCR will be unlocked when:
– You stop timer recording by pressing x STOP.
– You insert a tape.
– The AC power cord is disconnected or power supply stops.
After you have set the timer, you can lock all
of the buttons on the VCR so that the settings
are not canceled by mistake.
?/1 POWER
x
STOP
010BAS.fm Page 72 Friday, November 30, 2001 1:52 PM
73

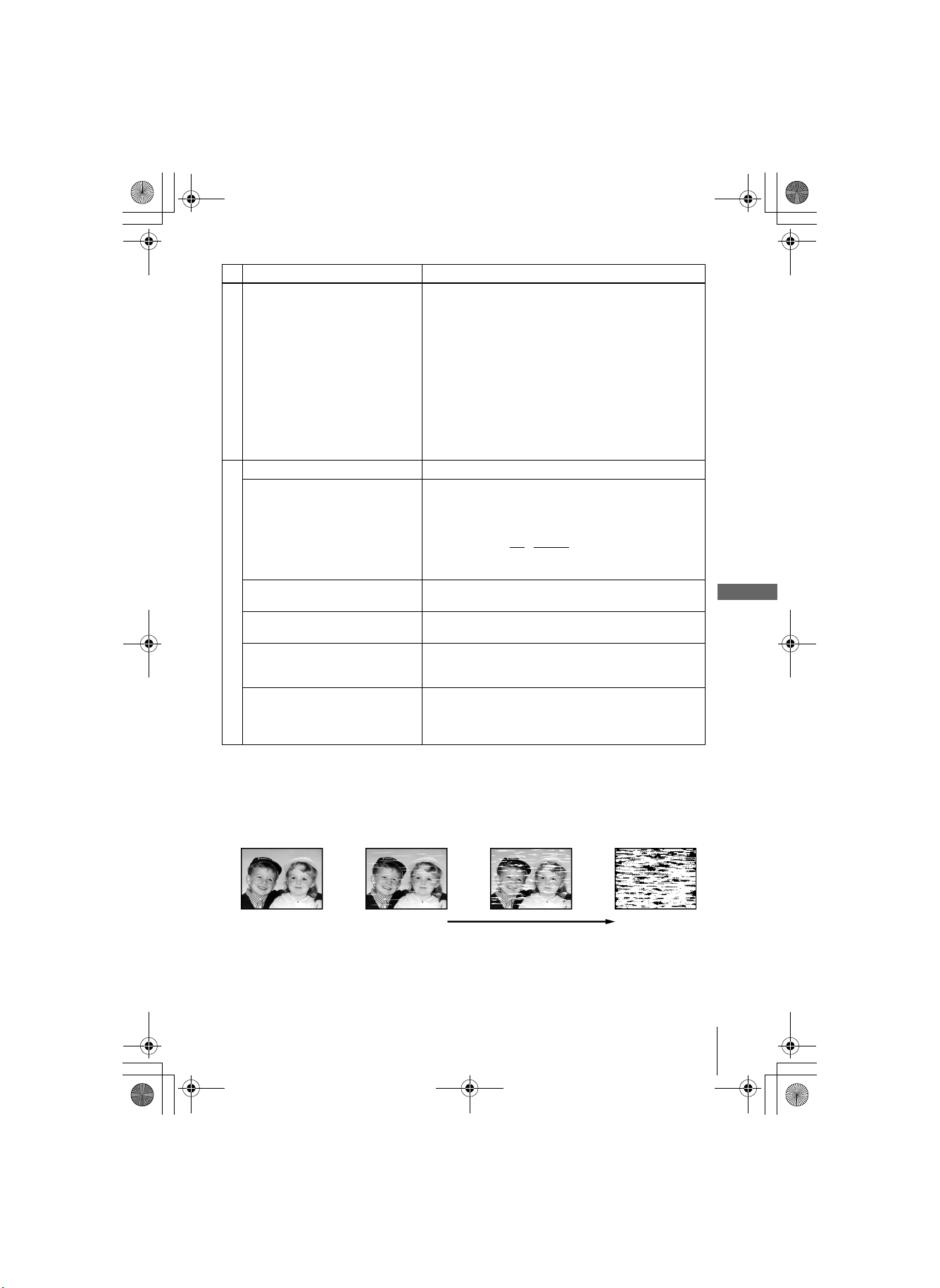

Playing/searching at various speeds
filename[010ADDO.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Additional Operations
Additional Operations
Playing/searching at various speeds
To resume normal playback
Press
H PLAY.
Playback options Operation
View the picture during fast-
forward or rewind
During fast-forward, hold down M FF. During rewind, hold down
m REW.
Play at high speed • During playback, briefly press M FF or m REW on the remote
commander. The tape continues to play at high speed.
• During playback, hold down M FF or m REW. When you
release the button, normal playback resumes.
Play at twice the normal speed During playback, press ×2.
Play in slow motion During playback or pause, press y SLOW.
Play frame by frame During pause, press M FF or m REW on the remote commander
.
Hold down the button to play one frame each second.
Rewind and start play While the tape is stopped, hold down m REW on the VCR
and press
H PLAY on the VCR
.
0
y SLOW
x2
M FF
m REW
H PLAY
m REW
M FF
TRACKING +/–
continued
010ADDO.fm Page 73 Friday, November 30, 2001 1:54 PM
74
Playing/searching at various speeds
filename[010ADDO.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Tip
• Adjust the picture using the TRACKING +/– buttons if:
– Streaks appear while playing in slow motion.
– The picture shakes during pause.
To set tracking to the center position, press both buttons (+/–) at the same time.
Notes
• The sound is muted during these operations.
• Tapes recorded in the LP mode on other VCRs can be played back on this VCR but the
picture quality cannot be guaranteed.
• The picture may show noise when playing at high speed in reverse.
010ADDO.fm Page 74 Friday, November 30, 2001 1:54 PM
75
Setting the recording duration time
filename[010ADDO.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Additional Operations
Setting the recording duration time
To extend the duration
Press
z REC repeatedly to set a new duration time.
To cancel the duration
Press
z
REC repeatedly until the indicator disappears and the VCR returns to
normal recording mode.
To stop while recording
Press
x
STOP.
Note
• You cannot display the current tape time in the display window when setting the recording
duration time.
After you have started recording, you can
have the VCR stop recording automatically
after a specified duration.
1
While recording, press z REC.
The indicator appears in the display window.
2
Press z REC repeatedly to set the duration time.
Each press advances the time in increments of 30 minutes.
The tape counter decreases minute by minute to 0:00, then the VCR stops
recording and turns off automatically.
z REC
SP
VIDEO
APC
0:30 1:00
5:30 6:00
Normal recording
010ADDO.fm Page 75 Friday, November 30, 2001 1:54 PM
76
Checking/changing/canceling timer settings
filename[010ADDO.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Checking/changing/canceling timer
settings
Before you start…
• Turn on your TV and set it to the video
channel.
1
Press ?/1 to turn on the VCR.
2
Press MENU, then press
M
/
m
to highlight TIMER SET/CHECK and press OK.
• If you want to change a setting, go on to the next step.
• If you do not need to change the settings, press MENU, then turn off the VCR
to return to recording standby.
123
456
789
0
?/1
CLEAR
MENU
M
/
m
/
<
/
,
OK
010ADDO.fm Page 76 Friday, November 30, 2001 1:54 PM
77
Checking/changing/canceling timer settings
filename[010ADDO.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Additional Operations
When the timer settings overlap
The program that starts first has priority and the second program starts recording only
after the first program has finished. If the programs start at the same time, the
program listed first in the menu has priority.
3
Press
M
/
m
to highlight the setting you want to
change or cancel.
• To change the setting, press OK and press
<
/
,
to highlight the item you want to change,
then press
M
/
m
to reset it.
• To cancel the setting, press CLEAR.
4
Press OK.
5
Press MENU to exit the menu.
If any timer settings remain, turn off the VCR to return to recording standby.
TIMER SET / CHECK
SAT9/28
DATE STOP CHSTART
9 MON080
PM PM
0:90053SP:3/
–– –––:–––––––:–/
–– –––:–––––––:–/
–– –––:–––––––:–/
–– –––:–––––––:–/
EVERY
603:70024EP:
MON –
SUN
FRI 2 00:30006EP:
010101
AM
PM
AM
AM
PM
AM
0:10302EP:2 WED/
RETURN
MENUQUIT :
SET :
SELECT :
OK CANCEL : CLEAR
Will be cut off
Program 1
Program 2
010ADDO.fm Page 77 Friday, November 30, 2001 1:54 PM
78
Recording stereo and bilingual programs
filename[010ADDO.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Recording stereo and bilingual programs
Recording stereo programs
This VCR automatically receives and records stereo programs. When a stereo
program is received, the STEREO indicator lights up. If there is noise in the stereo
program, set AUTO STEREO in the ADVANCED OPTIONS menu to OFF. The
sound will be recorded in monaural (on both hi-fi and normal audio tracks) but with
less noise. For details, see page 88.
Recording bilingual programs
Normally, this VCR records only the main sound. When a SAP (Second Audio
Program) is received, the SAP indicator lights up. To record only SAP sound, set
TUNER AUDIO in the ADVANCED OPTIONS menu to SAP. For details, see page
88.
Selecting the sound during playback
Press AUDIO MONITOR to select the sound you want.
To listen to On-screen display Display window
Stereo STEREO STEREO
Left channel L STEREO
Right channel R STEREO
Monaural sound on the
normal audio track
No indicator No indicator
010ADDO.fm Page 78 Friday, November 30, 2001 1:54 PM
79
Recording stereo and bilingual programs
filename[010ADDO.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Additional Operations
How sound is recorded on a video tape
The VCR records sound onto two separate tracks. Hi-fi audio is recorded onto the
main track along with the picture. Monaural sound is recorded onto the normal audio
track along the edge of the tape.
Notes
• To play a tape in stereo, you must use the A/V connections.
• When you play a tape recorded in monaural, the sound is heard in monaural regardless of the
AUDIO MONITOR setting.
Normal audio track
Hi-fi audio track
(main track)
Monaural sound
Stereo sound
(left/right channels)
010ADDO.fm Page 79 Friday, November 30, 2001 1:54 PM
80
Searching using the index function
filename[010ADDO.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Searching using the index function
To stop searching
Press
x STOP.
The VCR automatically marks the tape with
an index signal at the point where each
recording begins. Use these signals as
references to find a specific recording.
Note
• Once in recording mode, if the VCR is put in
pause and then released to restart the recording,
no index mark will be inserted. And index mark
will be inserted if the channel is changed while
the VCR is put in pause.
1
Insert an indexed tape into the VCR.
2
Press ./> INDEX SEARCH.
• To search ahead, press
> INDEX SEARCH.
• To search backwards, press
.
INDEX
SEARCH.
The VCR starts searching, and playback starts
automatically from that point.
123
456
789
0
./>
INDEX
SEARCH
SEARCH
INDEX
010ADDO.fm Page 80 Friday, November 30, 2001 1:54 PM
81
Searching for a selected point on the tape
filename[010ADDO.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Additional Operations
Searching for a selected point on the tape
You can easily find a specific point by
moving the pointer on the TV screen.
The VCR fast-forwards or rewinds to the
point you indicate and starts playback
automatically.
1
Press DISPLAY repeatedly until the bar
indication appears on the TV screen.
A cursor (
x) indicating the current position of
the tape appears on the bar indication. If the
cursor does not appear, play the tape a few
moments (by pressing
H
PLAY,
M
FF, or
m
REW) until the cursor appears.
2
Press
<
/
,
to move the pointer (V) to the point
where you want to start playback.
The VCR starts searching and the cursor (
x)
moves toward the pointer. When the VCR locates
the marked point, playback starts.
123
456
789
0
DISPLAY
</,
0 120
0 120
continued
010ADDO.fm Page 81 Friday, November 30, 2001 1:54 PM
82
Searching for a selected point on the tape
filename[010ADDO.fm] model name1[SLV-N99]
[3-071-065-11(1)]
To cancel searching
Press
H PLAY or x STOP.
To turn off the bar indication
Press DISPLAY again.
Notes
• The figure on the bar indication represents the total time length of the inserted tape as shown
below.
The total time length may not be displayed correctly for:
– Tapes other than T-60, T-120, or T-160.
– Tapes recorded in more than one tape speed mode.
• If you move the pointer (V) on the bar indication while searching, the VCR searches for the
new reset point.
• With the bar indication on, the M FF/ , and m REW/ < buttons on the remote
commander work only for moving the pointer (V) and are not used for normal tape operation.
The M FF and m REW buttons on the VCR
are used for normal tape operation. Note,
however, if you press these buttons on the VCR
, searching is canceled.
Tape type
Total time length
SP LP EP
T-60 or shorter 60 120 180
from T-80 to T-140 120 240 360
T-160 or longer 160 320 480
010ADDO.fm Page 82 Friday, November 30, 2001 1:54 PM
83
Locating a channel by Station ID
filename[010ADDO.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Additional Operations

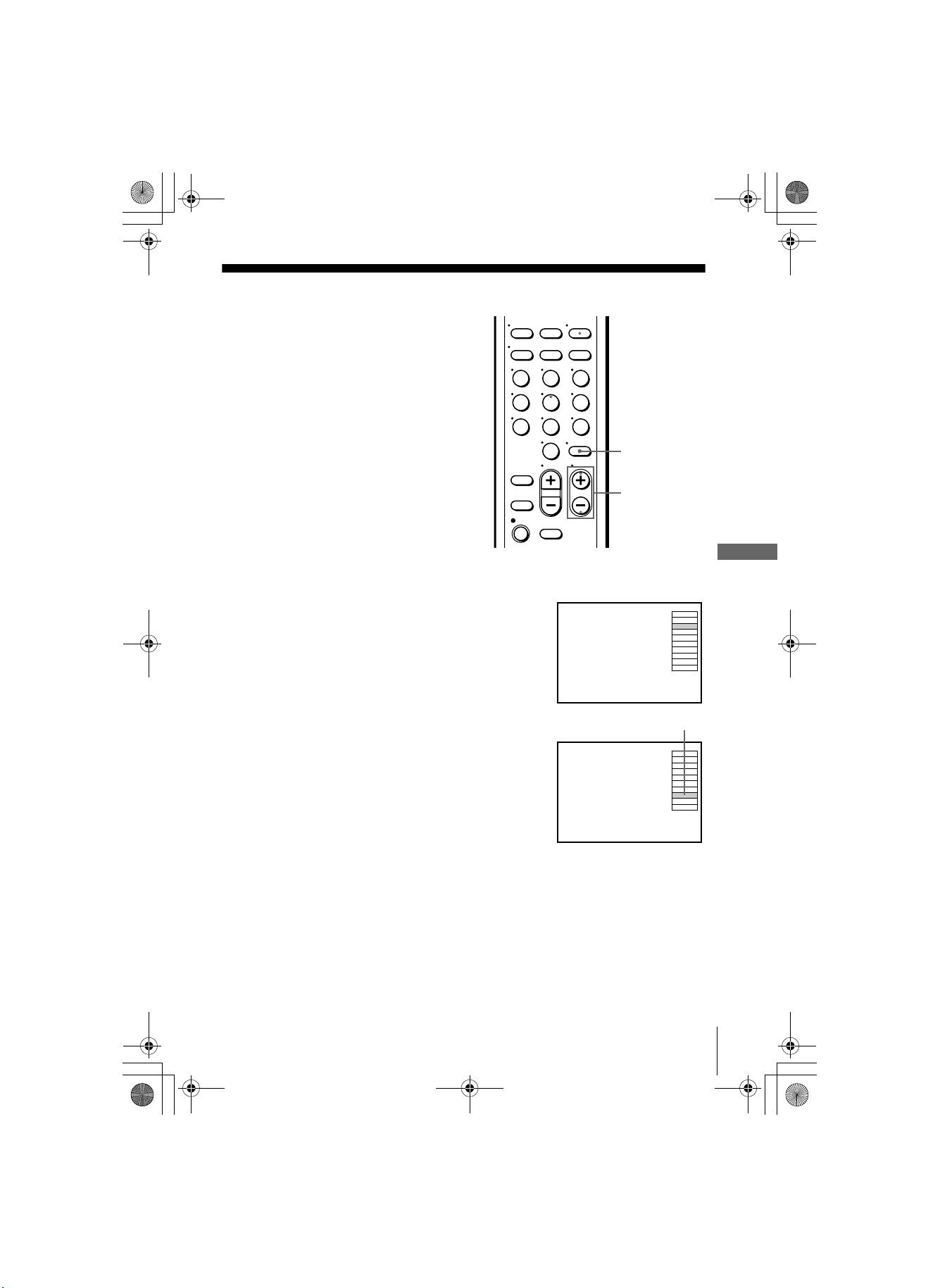

Locating a channel by Station ID
Note
• If the TV channel has no station ID, the channel number appears on the TV screen.
You can select a TV program using the
station’s ID.
Before you start...
• Set FAVORITE CH to OFF in the
ADVANCED OPTIONS menu (page 89).
• If a cable box is connected to your VCR,
turn it on.
1
Turn on your TV and set it to the video channel.
2
Press ENTER.
The station ID appears on the TV screen.
3
Press CH +/– to select the station ID you want.
4
Press ENTER.
123
456
789
0
ENTER
CH +/–
AAB3
CDE9
FGH01
IJK21
LMN31
OPQ51
RST91
UVW22
XYZ34
ABB54
AAB3
CDE9
FGH01
IJK21
LMN31
OPQ51
RST91
UVW22
XYZ34
ABB54
The selected station ID
010ADDO.fm Page 83 Friday, November 30, 2001 1:54 PM
84
Creating a favorite channel list with Station ID
filename[010ADDO.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Creating a favorite channel list with
Station ID
Creating your favorite channel list
You can create your favorite channel list of
TV channels with Station ID. You can store
up to 10 channels with Station ID and select
the channel from your favorite channel list.
Before you start...
• Set FAVORITE CH to ON in the
ADVANCED OPTIONS menu (page 89).
• If a cable box is connected to your VCR,
turn it on.
1
Press ENTER.
The FAVORITE CH screen appears on the TV screen.
2
Press CH +/– to select the station ID you want to
replace.
0
ENTER
CH +/–
</,
FAVORITE CH
AAB2
CDE5
1
1
FGH9
IJK31
LMN91
OPQ3
RST54
UVW34
XYZ22
ABB01
The selected station ID
010ADDO.fm Page 84 Friday, November 30, 2001 1:54 PM
85
Creating a favorite channel list with Station ID
filename[010ADDO.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Additional Operations
Selecting a channel from your favorite channel list
Note
• If the TV channel has no station ID, the channel number appears on the TV screen.
3
Press
<
/
,
to select the station ID you want to
set.
4
Repeat steps 2 and 3 to set the station IDs as needed.
5
Press ENTER.
1
Turn on your TV and set it to the video channel.
To choose a channel from a cable box, turn the cable box on.
2
Press ENTER.
Your FAVORITE CH screen appears on the TV
screen.
3
Press CH +/– to select the station ID you want to
select.
4
Press ENTER.
AAB2
CDE5
1
1
FGH72
IJK31
LMN91
OPQ3
RST54
UVW34
XYZ22
ABB01
FAVORITE CH
AAB
FAVORITE CH
2
CDE5
1
1
FGH72
IJK31
LMN91
OPQ3
RST54
UVW34
XYZ22
ABB01
AAB
FAVORITE CH
2
CDE5
1
1
FGH72
IJK31
LMN91
OPQ3
RST54
UVW34
XYZ22
ABB01
The selected station ID
010ADDO.fm Page 85 Friday, November 30, 2001 1:54 PM
86
Adjusting the picture
filename[010ADDO.fm] model name1[SLV-N99]
[3-071-065-11(1)]

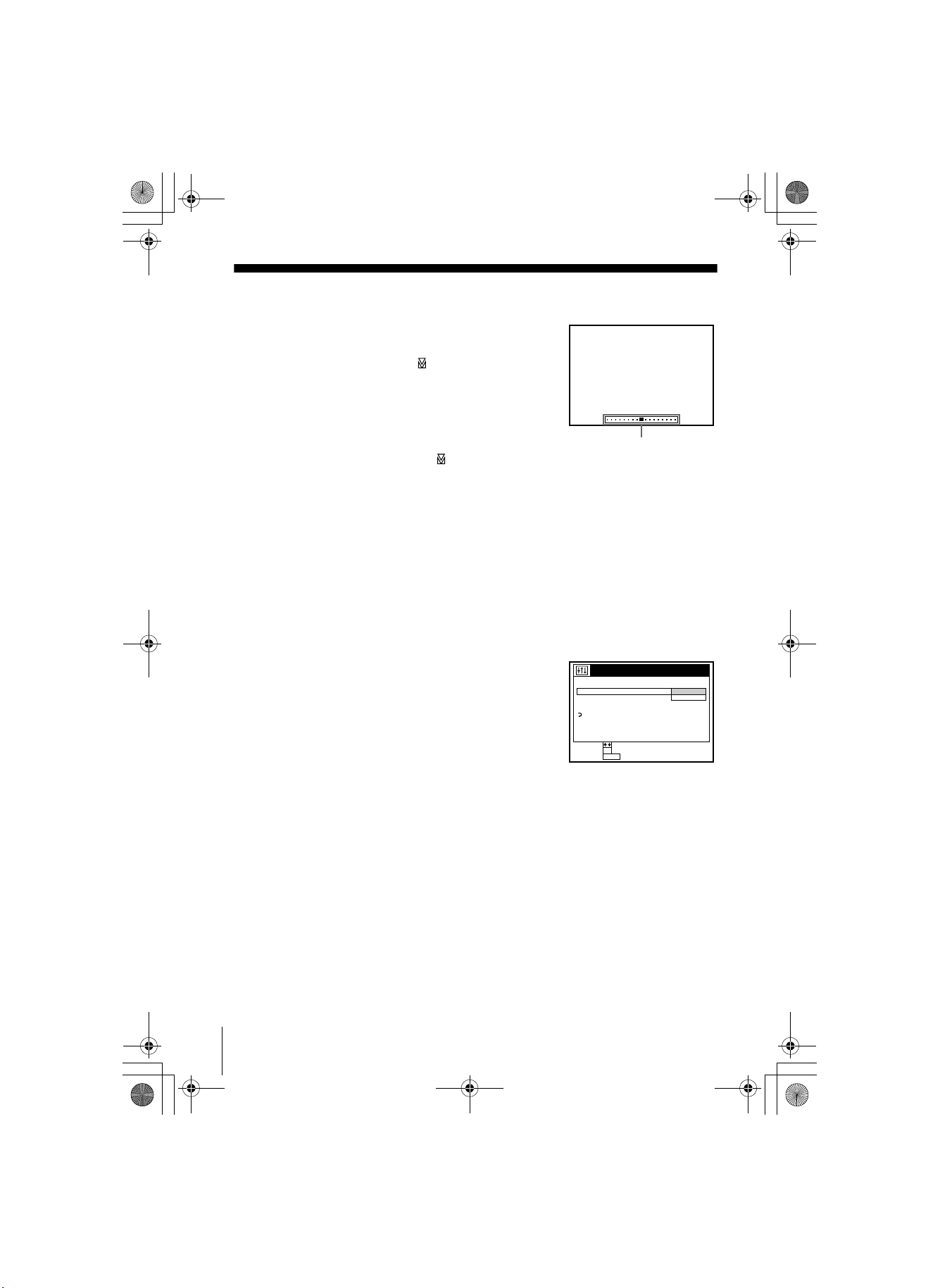

Adjusting the picture
Adjusting the tracking
Although the VCR automatically adjusts the tracking
when playing a tape (the indicator flashes in the
display window, then turns off), distortion may occur
if the recording is in poor condition. In this case,
manually adjust the tracking.
Press TRACKING +/– to display the tracking meter.
The distortion should disappear as you press one of
the two tracking buttons (the indicator lights up).
To resume automatic tracking adjustment, eject the
tape and reinsert it.
About the Reality Regenerator function
The Reality Regenerator function automatically restores the picture to its original
quality during playback.
To use the Reality Regenerator function
To turn it off, select OFF in step 4. The RR indicator turns off in the display window.
1
Press MENU, then select ADVANCED OPTIONS and press OK.
2
Press
M
/
m
to highlight NEXT, then press OK.
3
Press
M
/
m
to highlight REALITY
REGENERATOR on PAGE2 of the ADVANCED
OPTIONS menu, then press OK.
4
Press
M
/
m
to set REALITY REGENERATOR to ON, then press OK.
The RR indicator lights up in the display window.
5
Press MENU to return to the original screen.
NORMAL TRACKING
Tracking meter
SET :
SELECT :
OK
MENUQUIT :
ADVANCED OPTIONS
PAGE2
REALITY REGENERATOR
APC
SHARPNESS
ON
OFF
PREVIOUS
RETURN
010ADDO.fm Page 86 Friday, November 30, 2001 1:54 PM
87
Adjusting the picture
filename[010ADDO.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Additional Operations
About the Adaptive Picture Control (APC) function
The Adaptive Picture Control (APC) function automatically improves recording and
playback quality by adjusting the VCR to the condition of the video heads and tape.
To maintain better picture quality, we recommend that you set APC to ON on PAGE2
of the ADVANCED OPTIONS menu (The APC indicator lights up in the display
window). For details, see page 89.
APC playback
The APC function automatically works on all types of tapes, including rental tapes
and tapes that were not recorded with APC.
APC recording
Whenever you insert a tape and first start recording, the VCR adjusts to the tape using
the APC function (the APC indicator flashes rapidly). This adjustment is retained
until the tape is ejected.
Notes
• The auto tracking adjustment cannot be guaranteed to work with tapes recorded in the LP
mode on other VCRs.
• The APC function does not work if the tape speed is automatically changed from the SP to
EP mode during a timer recording when AUTO TAPE SPEED is set to ON in the
ADVANCED OPTIONS menu, unless the tape has been recorded in the EP mode with the
APC function.
• There is a delay of about ten seconds before the VCR actually starts recording while the VCR
analyzes the tape. To avoid the delay, first set the VCR to recording pause (the APC indicator
flashes slowly) and press z REC to have the VCR analyze the tape (the APC indicator
flashes rapidly) and return to recording pause. After the APC indicator stops flashing, press
X PAUSE to start recording immediately.
If you want to start recording quickly without using the APC function, first set the VCR to
recording pause (the APC indicator flashes slowly) and press X PAUSE again to start
recording.
010ADDO.fm Page 87 Friday, November 30, 2001 1:54 PM
88
Changing menu options
filename[010ADDO.fm] model name1[SLV-N99]
[3-071-065-11(1)]

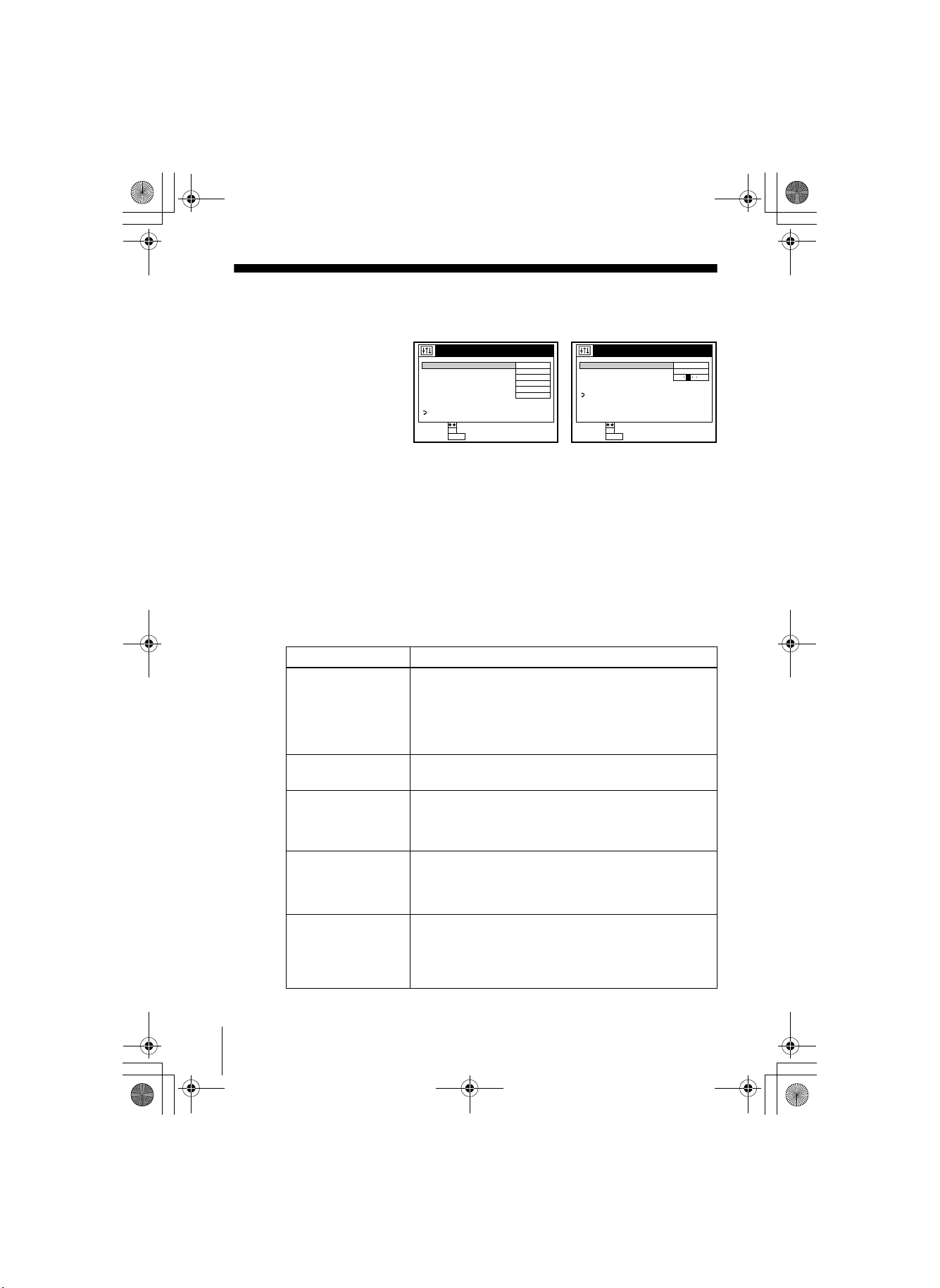

Changing menu options
Menu choices
Initial settings are indicated in bold print.
PAGE 1
1
Press MENU, then select ADVANCED OPTIONS and press OK.
2
Press
M
/
m
to highlight the option to change, then press OK.
To go to PAGE2, highlight NEXT and press OK. To return to PAGE1, highlight
PREVIOUS and press OK.
3
Press
M
/
m
to change the setting, then press OK.
To adjust the sharpness, press
<
/
,
and press OK.
4
Press MENU to return to the original screen.
Menu option Set this option to
AUTO ANT SELECT • ON if your TV is connected only to VHF/UHF OUT on the
VCR. To play a tape, set the TV to the VCR channel (channel
3 or 4).
• OFF if your TV is connected to both VHF/UHF OUT and
LINE OUT on the VCR. To play a tape, set the TV to the VCR
input.
AUTO STEREO • ON to receive stereo programs.
• OFF to reduce noise. The sound changes to monaural.
TUNER AUDIO • MAIN to record the main sound on both hi-fi and normal audio
tracks.
• SAP to record the SAP (Second Audio Program) sound on both
hi-fi and normal audio tracks.
TAPE SELECT • AUTO when using a T-160 length tape or any tape shorter than
a T-140 length tape.
• 180 when using a T-140 or T-180 length tape.
For details, see page 59.
AUTO TAPE SPEED • ON to change the timer recording tape speed automatically to
the EP mode when the remaining tape length becomes shorter
than the recording time. To operate AUTO TAPE SPEED, set
TAPE SELECT correctly.
• OFF to keep the same tape speed.
SET :
SELECT :
OK
MENUQUIT :
ADVANCED OPTIONS
PAGE1
AUTO STEREO
AUTO ANT SELECT
TUNER AUDIO
TAPE SELECT
AUTO TAPE SPEED
ON
MAIN
ON
AUTO
FAVORITE CH
ON
ON
NEXT
RETURN
SET :
SELECT :
OK
MENUQUIT :
ADVANCED OPTIONS
PAGE2
REALITY REGENERATOR
APC
SHARPNESS
LH
ON
ON
PREVIOUS
RETURN
010ADDO.fm Page 88 Friday, November 30, 2001 1:54 PM
89
Changing menu options
filename[010ADDO.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Additional Operations
PAGE 2
FAVORITE CH • ON when using favorite channel list.
• OFF when using station ID list.
For details, see pages 83 and 84.
Menu option Set this option to
APC • ON to switch on the APC (Adaptive Picture Control) function
and improve picture quality.
• OFF to switch off APC.
REALITY
REGENERATOR
• ON to switch on the Reality Regenerator function and restore
the picture to its original quality during playback.
• OFF to switch off Reality Regenerator.
SHARPNESS • L (Low) through H (High) to adjust the sharpness of the
picture. Select L to turn off the sharpness control.
Menu option Set this option to
010ADDO.fm Page 89 Friday, November 30, 2001 1:54 PM
90
Editing with another VCR
filename[010ADDO.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Editing with another VCR
How to connect to record on this VCR
Notes
• Make sure you connect the plugs to jacks of the same color.
• If the other VCR is a monaural type and connected to this VCR’s LINE-2 IN jacks, connect
the audio plug to the AUDIO L (white) jack. The sound is recorded on both right and left
channels. If you connect to the AUDIO R (red) jack, the sound is recorded only on the right
channel.
• If you connected this VCR to both the LINE IN and LINE OUT jacks of the other VCR,
select the input correctly to prevent a humming noise.
• You can use the LINE-1 IN jacks for editing. If the other VCR is a monaural type, the sound
is recorded only on the channel whose jack is connected to the audio plug. To record on both
right and left channels, connect the audio plugs to the AUDIO R/L jacks using a VMC-
910HG audio/video cable (not supplied).
How to record on another VCR that has a CONTROL S OUT jack for
synchronized editing
Connect to record on the other VCR using the audio/video cable, then connect the
VCRs via the CONTROL S jacks using a Control S cable. The CONTROL S
connection lets you control (pause and release pause) both VCRs from the other
VCR. Connect the CONTROL S OUT jack of the other VCR to the CONTROL S IN
jack on this VCR.
Note
• If the CONTROL S IN jack is used for Control S connection with a TV, the CONTROL S
connection cannot be used for editing.
This VCR (Recorder)
Other VCR (Player)
LINE OUT
: Signal flow
LINE-2 IN
TV
Audio/video cable (not supplied)
010ADDO.fm Page 90 Friday, November 30, 2001 1:54 PM
91
Editing with another VCR
filename[010ADDO.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Additional Operations
Operation (when recording on this VCR)
To stop editing
Press the
x
STOP buttons on both VCRs.
Tip
• To cut out unwanted scenes while editing, press X PAUSE on this VCR when an unwanted
scene begins. When it ends, press X PAUSE again to resume recording.
Note
• If you start recording following the procedure above, the VCR won’t start recording with the
APC function. To record a tape with the APC function, press z REC again during recording
pause in step 3 so that the VCR analyzes the tape. Then, press X PAUSE after the APC
indicator stops flashing to start recording. If you press X PAUSE before
the APC indicator
stops flashing, the APC function is canceled.
Before you start editing
• Turn on your TV and set it to the
video channel.
• Press INPUT SELECT or
CHANNEL +/– to display “L2” (or
“L1”) in the display window.
• Press SP/EP to select the tape speed,
SP or EP.
1
Insert a source tape with its safety tab removed into the other (playback) VCR.
Search for the point to start playback and set it to playback pause.
2
Insert a tape into this (recording) VCR. Search for the point to start recording
and press
X
PAUSE.
3
Press
z
REC on this VCR to set it to recording pause.
4
To start editing, press the X PAUSE buttons on both VCRs at the same time.
z REC
X PAUSE
010ADDO.fm Page 91 Friday, November 30, 2001 1:54 PM
92
General setup information
filename[010ADDI.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Additional Information
General setup information
Setting the RF unit
When connecting the VCR to the TV using
only the antenna cable, you must set the RF
UNIT switch on the rear of the VCR so that
the TV can receive the correct signal from
the VCR.
1
Set the RF UNIT switch on the rear of the VCR to CH3 or CH4, whichever
channel is not used in your area. If both are used, set the switch to either channel.
2
Press ?/1 POWER to turn on the VCR.
3
Press TV/VIDEO to turn on the VIDEO indicator in the VCR’s display window.
4
Press CHANNEL +/– to display a channel number in the display window.
Select an active channel number in your area.
5
Turn on your TV and set it to the channel you selected in step 1 (channel 3 or 4).
The channel you selected in step 4 appears on the TV screen. If the channels
change when you press CHANNEL +/–, you have made the correct setting.
Whenever you use the VCR, set the TV to the channel selected in step 1.
CH3
RF UNIT
CH4
TV
CHANNEL +/–?/1 POWER
123
456
789
0
TV/VIDEO
010ADDI.fm Page 92 Friday, November 30, 2001 1:58 PM
93
General setup information
filename[010ADDI.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Additional Information
Attaching the external antenna connector
Attaching a UHF/VHF band mixer
When using a 300-ohm twin lead cable for a
VHF/UHF antenna, use the EAC-32 antenna
connector (not supplied) to connect the
antenna to the VCR.
1
Loosen the screws on the antenna connector.
2
Wind the twin leads around the screws on the antenna connector.
3
Retighten the screws.
When using both a 75-ohm coaxial cable and
a 300-ohm twin lead cable for a VHF/UHF
antenna, use the EAC-66 UHF/VHF band
separator/mixer (not supplied) to connect the
antenna to the VCR.
1
Loosen the screws on the mixer.
2
Wind the twin leads around the screws on the mixer.
3
Retighten the screws.
4
Connect the 75-ohm coaxial cable to the mixer.
300-ohm twin
lead cable
EAC-32 antenna
connector (not
supplied)
300-ohm twin
lead cable
EAC-66
UHF/VHF
band
separator/
mixer (not
supplied)
75-ohm coaxial
cable
010ADDI.fm Page 93 Friday, November 30, 2001 1:58 PM
94
Troubleshooting
filename[010ADDI.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Troubleshooting
If you have any questions or problems not covered below, please consult your nearest Sony
dealer.
Symptom Remedy
Power
The ?/1 switch does not function. • Connect the AC power cord securely.
• Make sure the VCR is not locked. To unlock, hold down
?/1 POWER on the VCR
until the - indicator
disappears.
The power is turned on but the VCR
does not operate.
• Moisture condensation has occurred. Turn the power off,
unplug the AC power cord and leave the VCR to dry for
over three hours.
Clock
The clock has stopped and “–:– –”
appears in the display window.
• The clock stops if the VCR is disconnected from the wall
outlet for more than one hour. Reset the clock (and timer).
“ACS” flashes in the display window. • The VCR is searching for a time signal. If channels in
your area do not carry time signals, set the clock
manually.
Playback
The playback picture does not appear
on the TV screen.
• Make sure the TV is set to the channel for the VCR. If
you are using a monitor, set it to video input.
The picture is not clear. • Adjust the tracking with the TRACKING +/– buttons.
• The video heads are dirty (see the last page of
“Troubleshooting”). Clean the video heads using the Sony
T-25CLD or T-25CLDR video head cleaning cassette. If
these cleaning cassettes are not available in your area,
have the heads cleaned at your nearest Sony dealer (a
standard service fee will be charged). Do not use a
commercially available liquid type cleaning cassette, as it
may damage the video heads.
• The video heads may have to be replaced. Consult your
local Sony dealer for more information.
The picture rolls vertically during
picture search.
• Adjust the vertical hold control on the TV or monitor.
The picture has no sound. • The tape is defective.
• If you made A/V connections, check the audio cable
connection.
Recording
A TV program does not appear on
the TV screen.
• Make sure the TV is set to the channel for the VCR. If
you are using a monitor, set it to video input.
• Select the correct source with the INPUT SELECT or CH
+/– buttons. Select a channel number when recording TV
programs; select “L1” or “L2” when recording from other
equipment.
TV reception is poor. • Adjust the TV antenna.
The tape starts playing as soon as it is
inserted.
• The safety tab has been removed. To record on this tape,
cover the tab hole.
The tape is ejected when you press
z REC.
• Check that the safety tab has not been removed.
Nothing happens when you press
z REC.
• Make sure the tape is not at its end.
010ADDI.fm Page 94 Friday, November 30, 2001 1:58 PM
95
Troubleshooting
filename[010ADDI.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Additional Information
Timer recording
The timer does not operate. • Check that the clock is set.
• Make sure a tape has been inserted.
• Check that the safety tab has not been removed.
• Make sure the tape is not at its end.
• Make sure a program has been set for timer recording.
• Make sure your timer settings are past the current time.
• Check that the cable box is turned on.
• The clock stops if the VCR is disconnected from the wall
outlet for more than one hour. Reset the clock and timer.
• When you use a Cable Mouse, make sure the CABLE
BOX CONTROL option is set to ON.
• Turn the power off and unplug the AC power cord.
Others
A tape cannot be inserted. • Check that a tape isn’t already in the tape compartment.
The remote commander does not
function.
• Make sure you are pointing the remote commander at the
remote sensor on the VCR.
• Replace all the batteries in the remote commander with
new ones if they are weak.
• Make sure the •TV
/ VIDEO switch is set correctly.
• If you are not using Control S, make sure that both
miniplugs are disconnected.
The channels on the VCR cannot be
changed.
• Make sure the CABLE BOX CONTROL option is set to
OFF.
The tracking meter does not appear
on the screen.
• The recording condition of the tape is very poor and
tracking cannot be adjusted.
You cannot control other TVs. • Set your TV’s code number. The code number may
change when you replace the batteries of the remote
commander.
The VCR needs to be cleaned. • Clean the cabinet, panel and controls with a dry, soft
cloth, or a soft cloth slightly moistened with a mild
detergent solution. Do not use any type of solvent, such as
alcohol or benzine.
Symptom Remedy
Symptoms caused by contaminated video heads
•Normal picture •Unclear picture•Rough picture
initial
contamination
terminal
•No picture (or
black & white
screen appears)
010ADDI.fm Page 95 Friday, November 30, 2001 1:58 PM
96
Specifications
filename[010ADDI.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Specifications
System
Format
VHS NTSC standard
Video recording system
Rotary head helical scanning FM system
Video heads
Double azimuth four heads
Video signal
NTSC color, EIA standards
Tape speed
SP: 33.35 mm/s (1
inches/s)
EP: 11.11 mm/s (
inches/s)
LP: 16.67 mm/s (
inches/s),
playback only
Maximum recording/playback time
8 hrs. in EP mode (with T-160 tape)
Fast-forward and rewind time
Approx. 3 min. (with T-120 tape)
Tuner section
Channel coverage
VHF 2 to 13
UHF 14 to 69
CATV A-8 to A-1, A to W, W+1 to W+84
Antenna
75-ohm antenna terminal for VHF/UHF
Inputs and outputs
LINE-1 IN and -2 IN
VIDEO IN, phono jack (1 each)
Input signal: 1 Vp-p, 75 ohms, unbalanced, sync
negative
AUDIO IN, phono jacks (2 each)
Input level: 327 mVrms
Input impedance: more than 47 kilohms
LINE OUT
VIDEO OUT, phono jack (1)
Output signal: 1 Vp-p, 75 ohms, unbalanced, sync
negative
AUDIO OUT, phono jacks (2)
Standard output: 327 mVrms
Load impedance: 47 kilohms
Output impedance: less than 10 kilohms
CONTROL S IN
Mini jack (1)
CABLE BOX CONTROL (CONTROL S OUT)
Stereo mini jack (plug in power) (1)
Timer section
Clock
Quartz locked
Timer indication
12-hour cycle
Timer setting
8 programs (max.)
Power back-up
Built-in self-charging capacitor
Back-up duration: up to 1 hour at a time
General
Power requirements
120 V AC, 60 Hz
Power consumption
22 W
Operating temperature
5°C to 40°C (41°F to 104°F)
Storage temperature
–20°C to 60°C (–4°F to 140°F)
Dimensions
Approx. 430 × 97 × 290 mm (w/h/d)
(Approx. 17 × 3
× 11
inches) including
projecting parts and controls
Mass
Approx. 4.1 kg (9 lb 1 oz)
Supplied accessories
Remote commander (1)
Size AA (R6) batteries (2)
75-ohm coaxial cable with F-type connectors (1)
Design and specifications are subject to change without
notice.
ENERGY STAR
®
is a U.S. registered mark.
As an
ENERGY STAR
®
Partner, Sony Corporation has
determined that this product meets the
ENERGY STAR
®
guidelines for energy efficiency.
3
8
7
16
11
16
7
8
2
5
010ADDI.fm Page 96 Friday, November 30, 2001 1:58 PM
97
Index to parts and controls
filename[010ADDI.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Additional Information
Index to parts and controls
Refer to the pages indicated in parentheses ( ) for details.
Front panel
A ?
/
1
POWER switch (67)
B
Tape compartment
C Z
EJECT button (56)
D m
REW (rewind) button (56) (73)
E H
PLAY button (56) (73)
The
H button has a tactile dot.
F M
FF (fast-forward) button (56) (73)
G z
REC (record) button (59) (75) (91)
H x
STOP button (56) (91)
The
x
button has tactile dots.
I X
PAUSE button (56) (91)
J
DIAL TIMER (61)
K
CHANNEL/TRACKING +/– buttons
(59) (86)
The + button has a tactile dot.
L
Remote sensor (7)
M
INPUT SELECT button (60)
N
EASY SET UP button (13) (16) (19) (22)
(25)
O
LINE-2 IN VIDEO/AUDIO L/R jacks
(90)
continued
010ADDI.fm Page 97 Friday, November 30, 2001 1:58 PM
98
Index to parts and controls
filename[010ADDI.fm] model name1[SLV-N99]
[3-071-065-11 (1)]

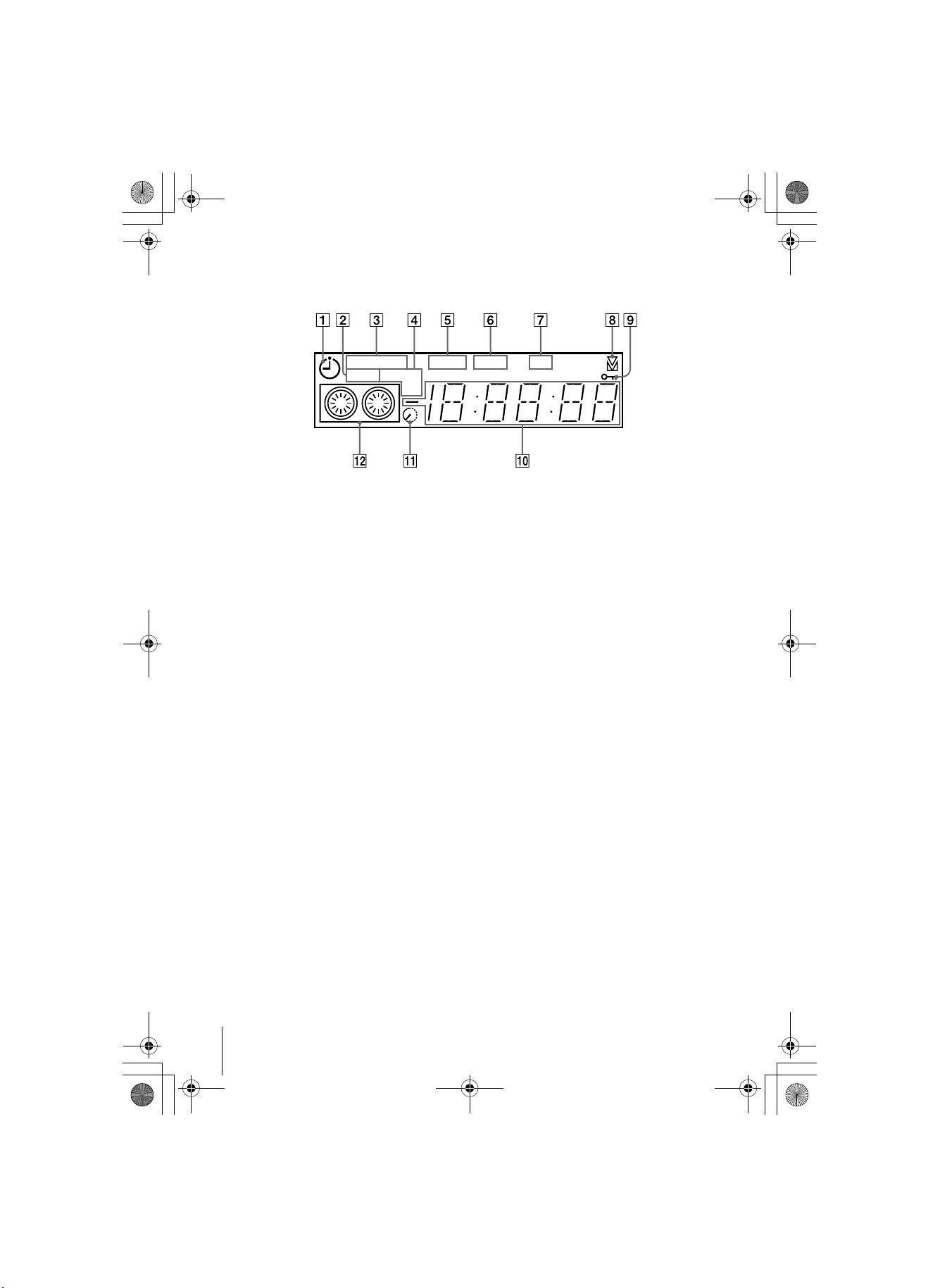

Display window
A
Timer indicator (63) (67) (70)
B
SAP (Second Audio Program) indicator
(78)
C
STEREO indicator (78)
D
Tape speed indicator (59)
E
VIDEO indicator (60) (92)
F
APC (Adaptive Picture Control)
indicator (87)
G
RR (Reality Regenerator) indicator (86)
H
Tracking indicator (86)
I
Child Lock indicator (72)
J
Time counter/clock/line/channel
indicator (56) (59) (91)
K
Remaining tape length indicator (59)
L
Tape/recording indicator (59)
STEREO
SAP LPSP
EP
RR
VIDEO
APC
010ADDI.fm Page 98 Friday, November 30, 2001 1:58 PM
99
Index to parts and controls
filename[010ADDI.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Additional Information
Rear panel
A
AC power cord (9)
B
CONTROL S IN jack (11) (90)
C
CABLE BOX CONTROL (CONTROL S
OUT) jack (12) (15)
D
LINE-1 IN AUDIO R/L/VIDEO jacks
(15) (90)
E
RF (Radio Frequency) UNIT switch (92)
F
VHF/UHF IN connector (12) (15) (18)
(21) (24)
G
VHF/UHF OUT connector (12) (15) (18)
(21) (24)
H
LINE OUT AUDIO R/L/VIDEO jacks
(10)
continued
010ADDI.fm Page 99 Friday, November 30, 2001 1:58 PM
100
Index to parts and controls
filename[010ADDI.fm] model name1[SLV-N99]
[3-071-065-11 (1)]

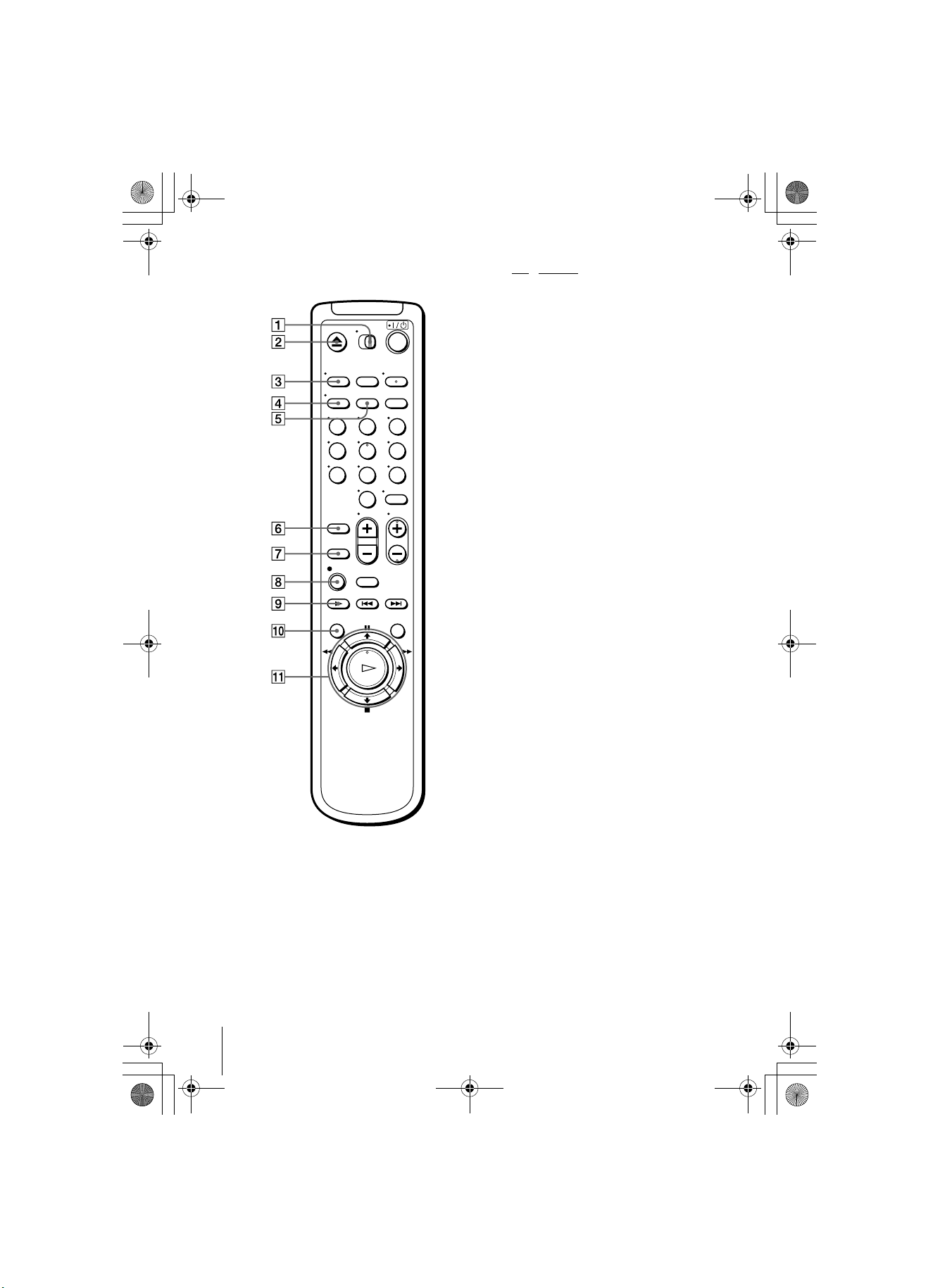

Remote commander
A
•TV / VIDEO switch (7)
B Z
EJECT button (56)
C
TV/VIDEO button (8) (60)
D
DISPLAY button (59) (81)
E
CLEAR button (56) (67) (77)
F
SP (Standard Play)/EP (Extended Play)
button (59)
G
INPUT SELECT button (60) (91)
H z
REC (record) button (59) (75)
I y
SLOW button (73)
J
MENU button (27) (88)
K X
PAUSE/
M
button (27) (56)
x
STOP/
m
button (27) (56)
m REW (rewind)/
<
button (56) (73)
M
FF (fast-forward)/
,
button (56)
(73)
H
PLAY/OK button (27) (56)
The
H button has a tactile dot.
123
456
789
0
010ADDI.fm Page 100 Friday, November 30, 2001 1:58 PM
101
Index to parts and controls
filename[010ADDI.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
Additional Information

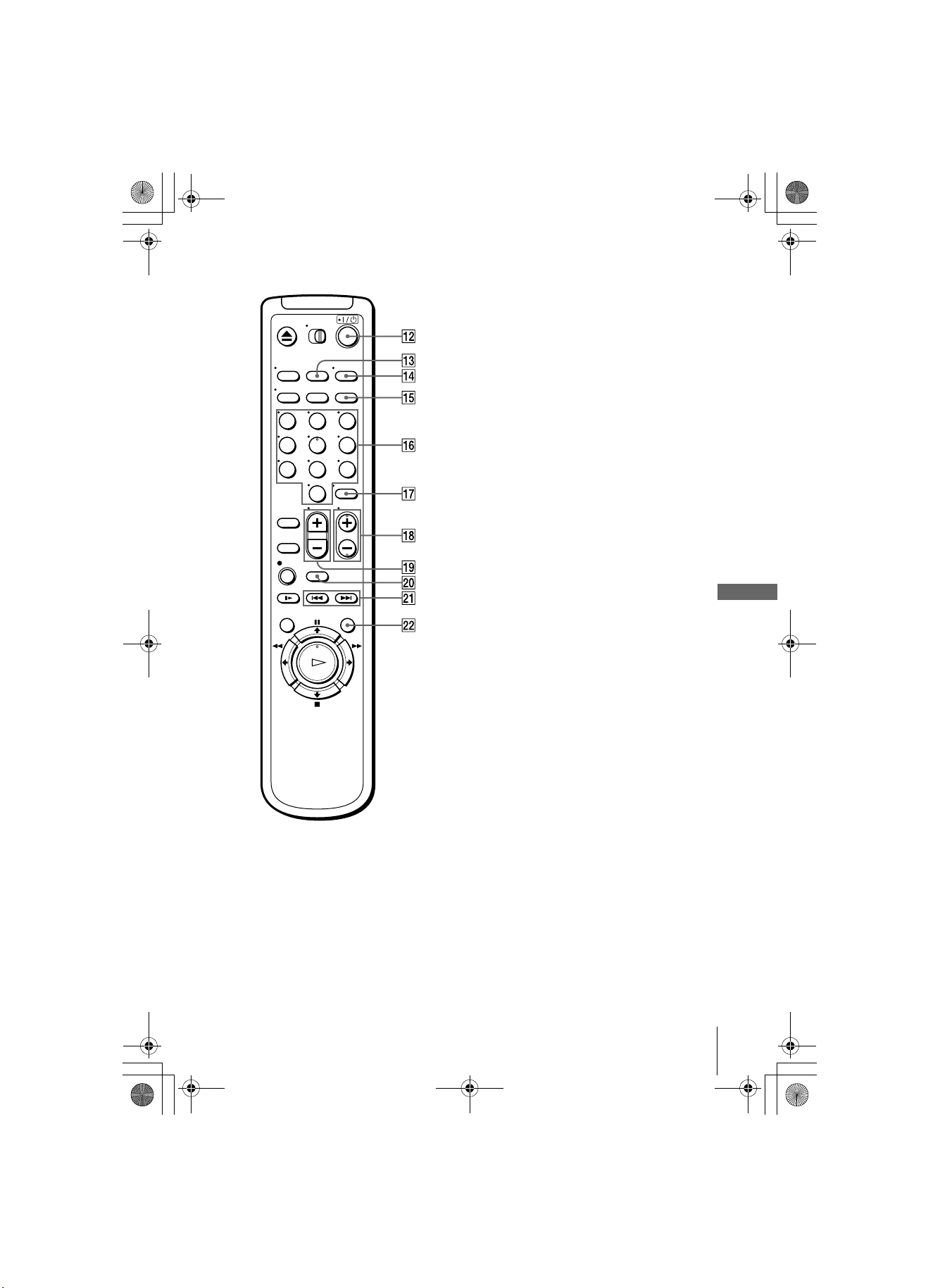

L ?
/1 (power) switch (8) (67)
M
COUNTER/REMAIN button (59)
N
AUDIO MONITOR button (78)
The AUDIO MONITOR button has a
tactile dot.
O
VCR Plus+ button (66)
P
Number buttons (67)
The number 5 button has a tactile dot.
Q
ENTER button (67) (83) (84)
R
CH (channel) +/– buttons (8) (59)
The +/– buttons have tactile dots.
S
VOL (volume) +/– buttons (8)
T
×2 button (73)
U .
/ > INDEX SEARCH buttons
(80)
V
COMMERCIAL PASS button (56)
123
456
789
0
010ADDI.fm Page 101 Friday, November 30, 2001 1:58 PM
filename[010COVIX.fm] model name1[SLV-N99]
[3-071-065-11 (1)]
102
Index
Index
A
Adjusting
46
,
86
tracking
86
Advanced option
88
AFT (Auto Fine Tuning)
46
Antenna hookup
21
APC (Adaptive Picture Control)
87
Audio track
79
Audio/video (A/V) hookup
10
Auto Clock Set
28
Auto Tape Speed
88
C
Cable box control
cable box code number
chart
37
setting
35
Cable hookup
9
Cable Mouse
12
,
15
Channel line-up chart
48
Child Lock
72
Cleaning the video heads
94
Clock setting
28
Connecting
cable TV
12
external antenna connector
93
UHF/VHF band mixer
93
Control S
11
Counter
56
D
Demonstration Mode
65
Dial Timer
61
Digital satellite receiver
15
Disabling channels
44
Dubbing. see Editing
E
Easy Set Up
13
,
16
,
19
,
22
,
25
Editing
90
EP mode
59
F
Favorite channel
84
H
Hi-fi audio track
79
I
Index search
80
L
Language selecting
27
Locking the VCR
72
LP mode
60
M
Monaural
78
Monitoring audio during
playback
78
N
Normal audio track
79
P
Picture adjustment. see
Adjusting
Playback
55
at various speeds
73
frame by frame
73
skip
56
slow motion
73
Presetting channels
41
R
Reality Regenerator
86
Recording
58
bilingual programs
78
SAP broadcasts
78
saving
60
stereo broadcasts
78
timer setting
69
using Dial Timer
61
using the VCR Plus+
GOLD system
66
while watching another
program
60
RF channel
92
S
Safety tab
60
SAP (Second Audio Program)
78
Searching
at various speeds
73
for a selected point
81
using the index function
80
Smart channel mapping
49
SP mode
59
Station ID
83
Stereo
78
T
Timer setting
69
canceling
76
changing
76
checking
76
daily/weekly recording
71
using the VCR Plus+
GOLD system
66
Tracking adjustment. see
Adjusting
Tuner presetting
41
V
VCR Plus+ GOLD system
channel set up
48
recording
66
010COVIX.fm Page 102 Friday, November 30, 2001 2:03 PM
Sony Corporation
Printed in Malaysia
filename[010QUI.fm] model name1[SLV-N99]
[3-071-065-11(1)]
Quick reference to using the VCR
Hookup 1
To play a tape
1 Set the TV to channel 3 or 4
(or to video input, if you
made A/V connections).
2 Insert a tape and press
H PLAY.
To record a program
1 Turn on the cable box.
2 Press VCR Plus+ on the
remote commander.
3 Enter the PlusCode number.
4 Select ONCE, DAILY, or
WEEKLY, then press
ENTER.
5 Insert a tape.
6 Press ?/1 to turn off the
VCR.
7 Leave the cable box on.
To watch TV
1 Turn off your VCR, or press
the VCR’s TV/VIDEO
button until the VIDEO
indicator in the display
window turns off.
2 Turn on your cable box.
3 Set the TV to the cable box
output channel (usually 2, 3,
or 4).
4 Set the cable box to the
channel you want to watch.
Hookup 3
To play a tape
1 If you made A/V
connections, set the TV to
video input. If you didn’t use
A/V hookup:
• Turn on the cable box.
• Set the cable box to channel
3 or 4.
• Set the TV to the output
channel of the cable box
(usually 2, 3, or 4).
2 Insert a tape and press
H PLAY.
To record a program
1 Press VCR Plus+ on the
remote commander.
2 Enter the PlusCode number.
3 Select ONCE, DAILY, or
WEEKLY, then press
ENTER.
4 Insert a tape.
5 Press ?/1 to turn off the
VCR.
To watch TV
1 Turn off your VCR, or press
the VCR’s TV/VIDEO
button until the VIDEO
indicator in the display
window turns off.
2 Select the channel with your
cable box (if you have one)
or with your TV.
Hookup 4
To play a tape
1 Set the TV to channel 3 or 4
(or to video input, if you
made A/V connections).
2 Insert a tape and press
H PLAY. If there’s no
picture on your TV, press the
VCR’s TV/VIDEO button
until the VIDEO indicator
appears in the display
window.
To record a program
1 Press VCR Plus+ on the
remote commander.
2 Enter the PlusCode number.
3 Select ONCE, DAILY, or
WEEKLY, then press
ENTER.
4 Insert a tape.
5 Press ?/1 to turn off the
VCR.
To watch TV
1 Turn off the VCR, or press
the VCR’s TV/VIDEO
button until the VIDEO
indicator in the display
window turns off.
2 Set the TV to the channel you
want to watch.
Hookup 5
To play a tape
1 Set the TV to channel 3 or 4
(or to video input, if you
made A/V connections).
2 Insert a tape and press
H PLAY.
To record a program
1 Turn on the cable box.
2 Set the cable box to the
channel you want to record.
3 Press VCR Plus+ on the
remote commander.
4 Enter the PlusCode number.
5 Select ONCE, DAILY, or
WEEKLY, then press
ENTER.
6 Insert a tape.
7 Press ?/1 to turn off the
VCR.
8 Leave the cable box on.
To watch TV
1 Turn off your VCR, or press
the VCR’s TV/ VIDEO
button until the VIDEO
indicator in the display
window turns off.
2 Turn on your cable box.
3 Set the TV to the cable box
output channel (usually 2, 3,
or 4).
4 Set the cable box to the
channel you want to watch.
010QUI.fm Page 104 Friday, November 30, 2001 2:03 PM
