2
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
3 LICENSES
4 INSTALLATION PROCEDURE
5 ASSEMBLING AND PREPARING
5 Unpacking
7 - Separate purchase
8 Parts and buttons
9 Lifting and moving the TV
10 Setting up the TV
10 - Attaching the Stand
11 - Mounting on a table
12 - Tidying cables
13 - Detaching the Stand
14 WATCHING TV
14 Turning the TV on for the first time
16 MAKING CONNECTIONS

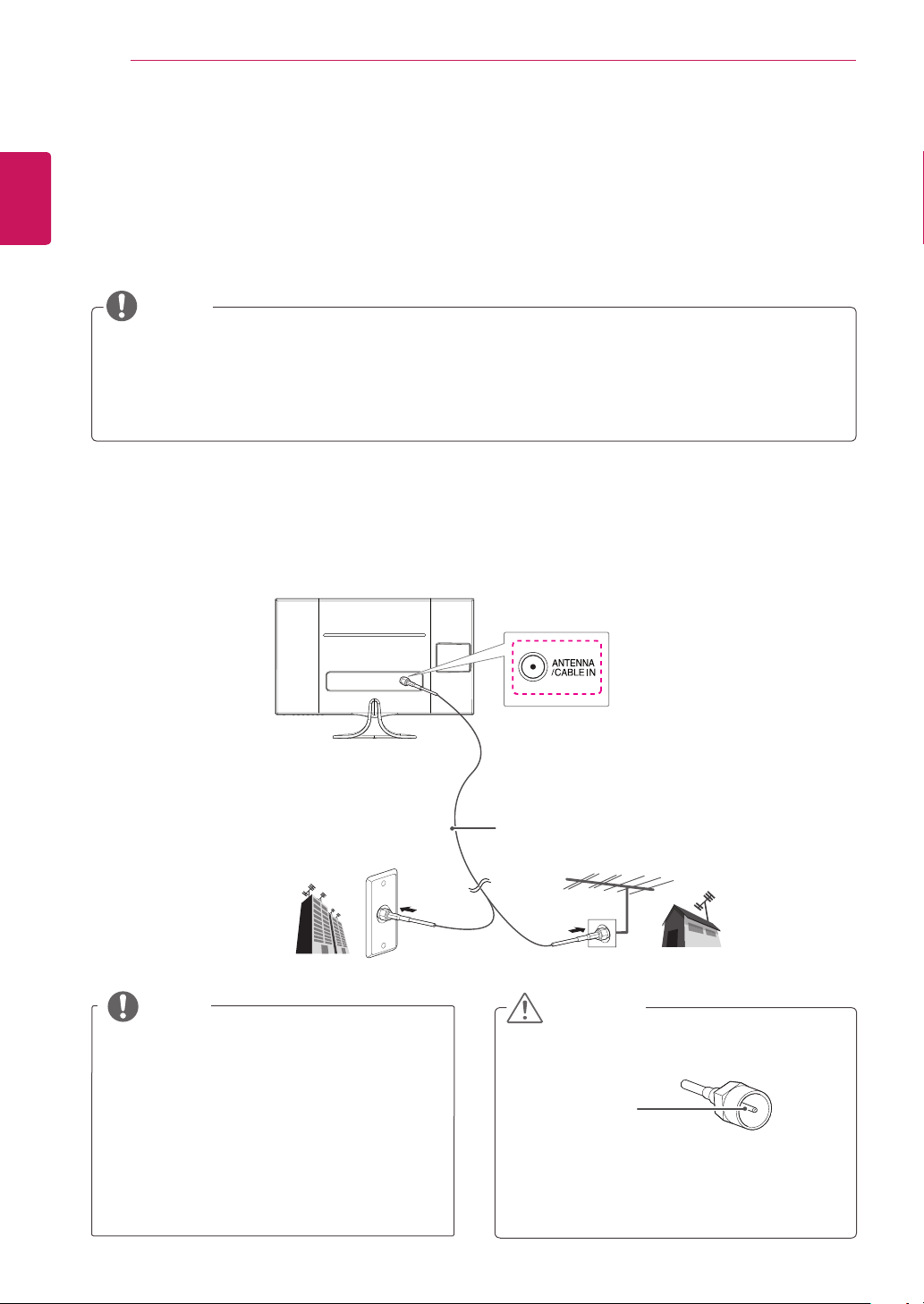

16 Connecting an antenna
17 Connecting to a HD receiver, DVD, VCR
player or Gaming device
17 - HDMI connection
18 - HDMI to DVI connection

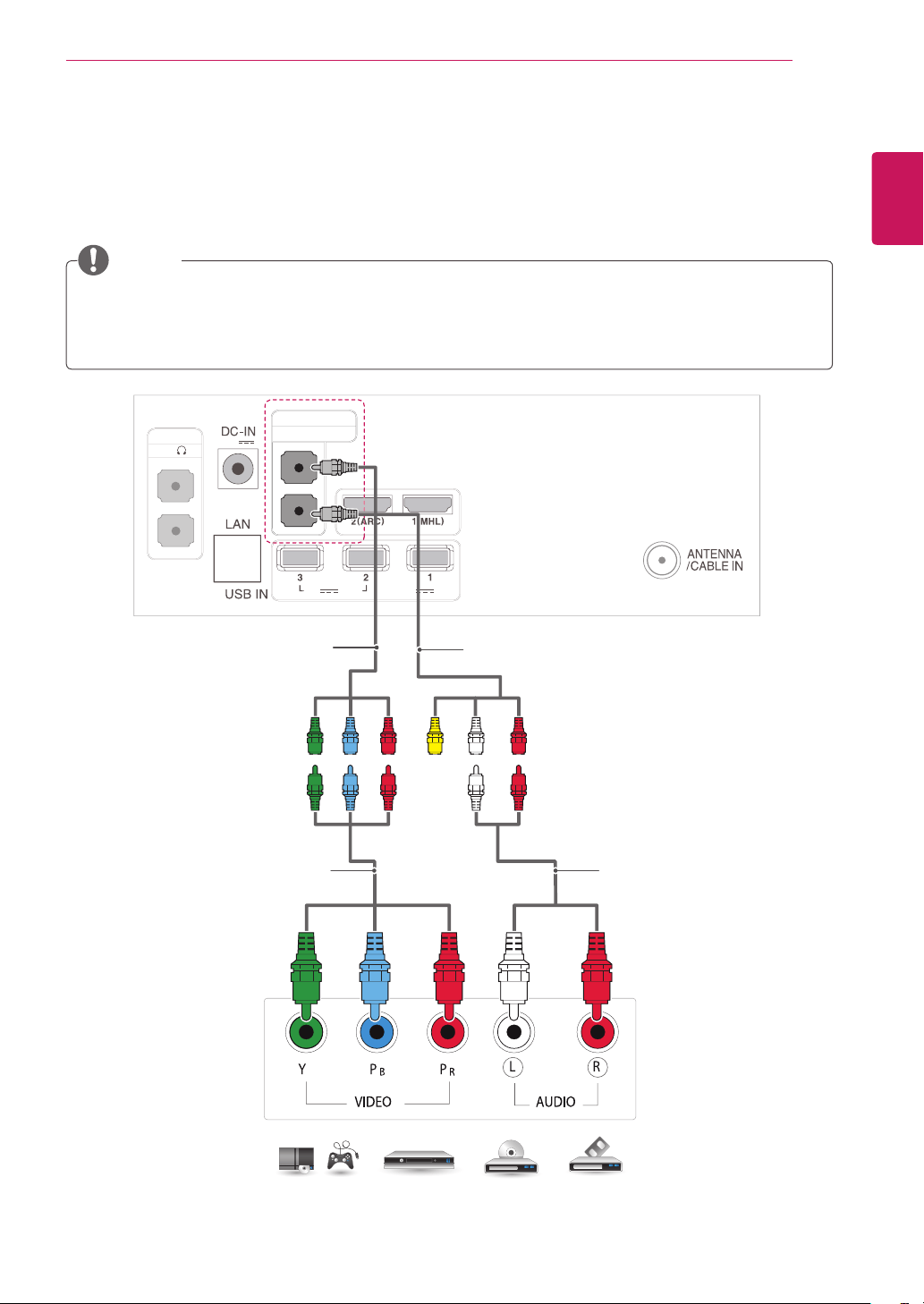

19 - Component connection
20 - Composite connection
21 - Headphone connection

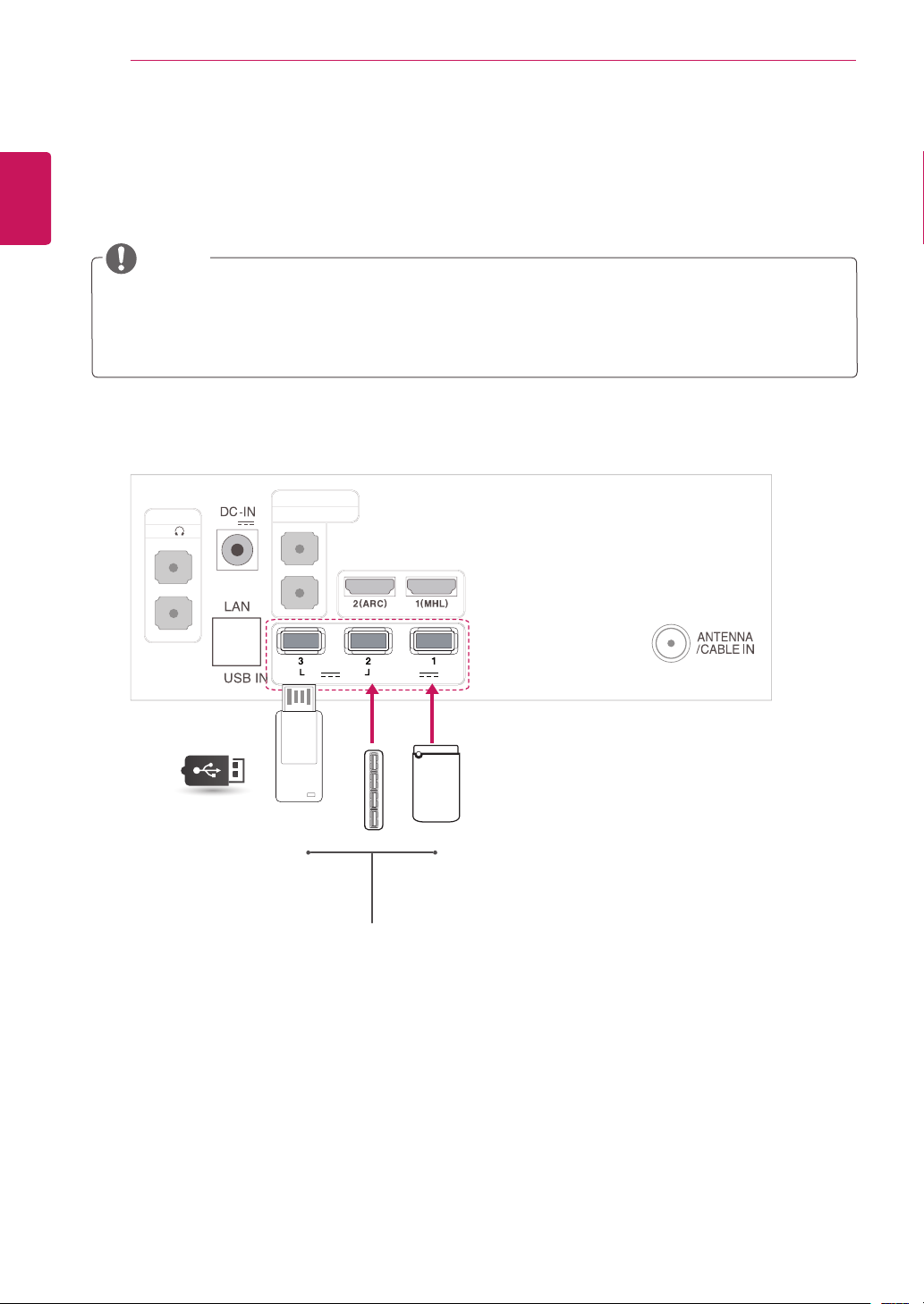

22 Connecting to a USB
23 MHL connection
24 Connecting to a PC
25 - HDMI connection

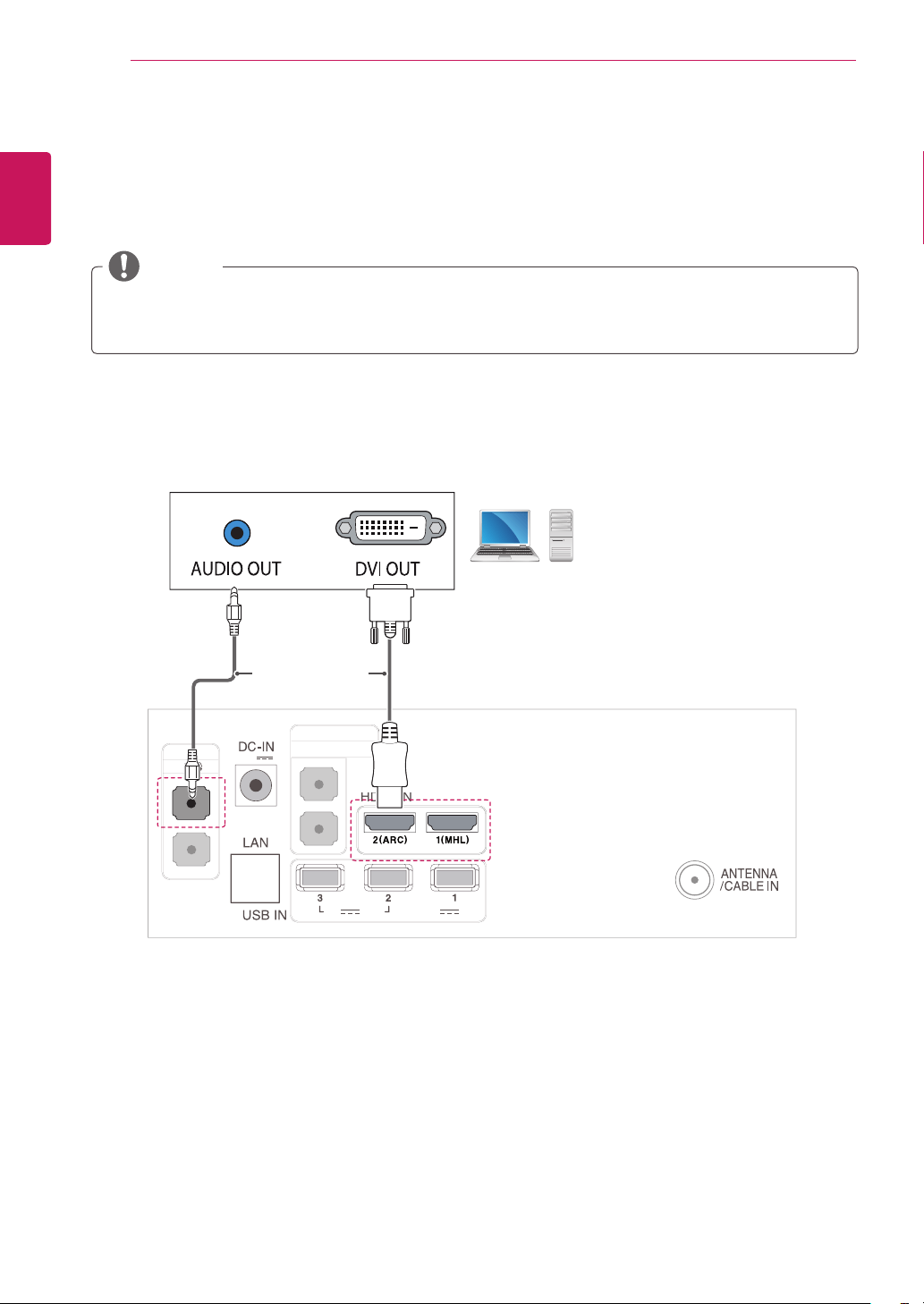

26 - HDMI to DVI connection
27 REMOTE CONTROL
29 MAGIC REMOTE CONTROL
FUNCTIONS
30 Registering Magic Remote Control
30 How to use Magic Remote Control
30 Precautions to Take when Using the
Magic Remote Control
31 USING THE USER GUIDE
32 MAINTENANCE
32 Cleaning Your TV
32 Screen and frame
32 Cabinet and stand
32 Power cord

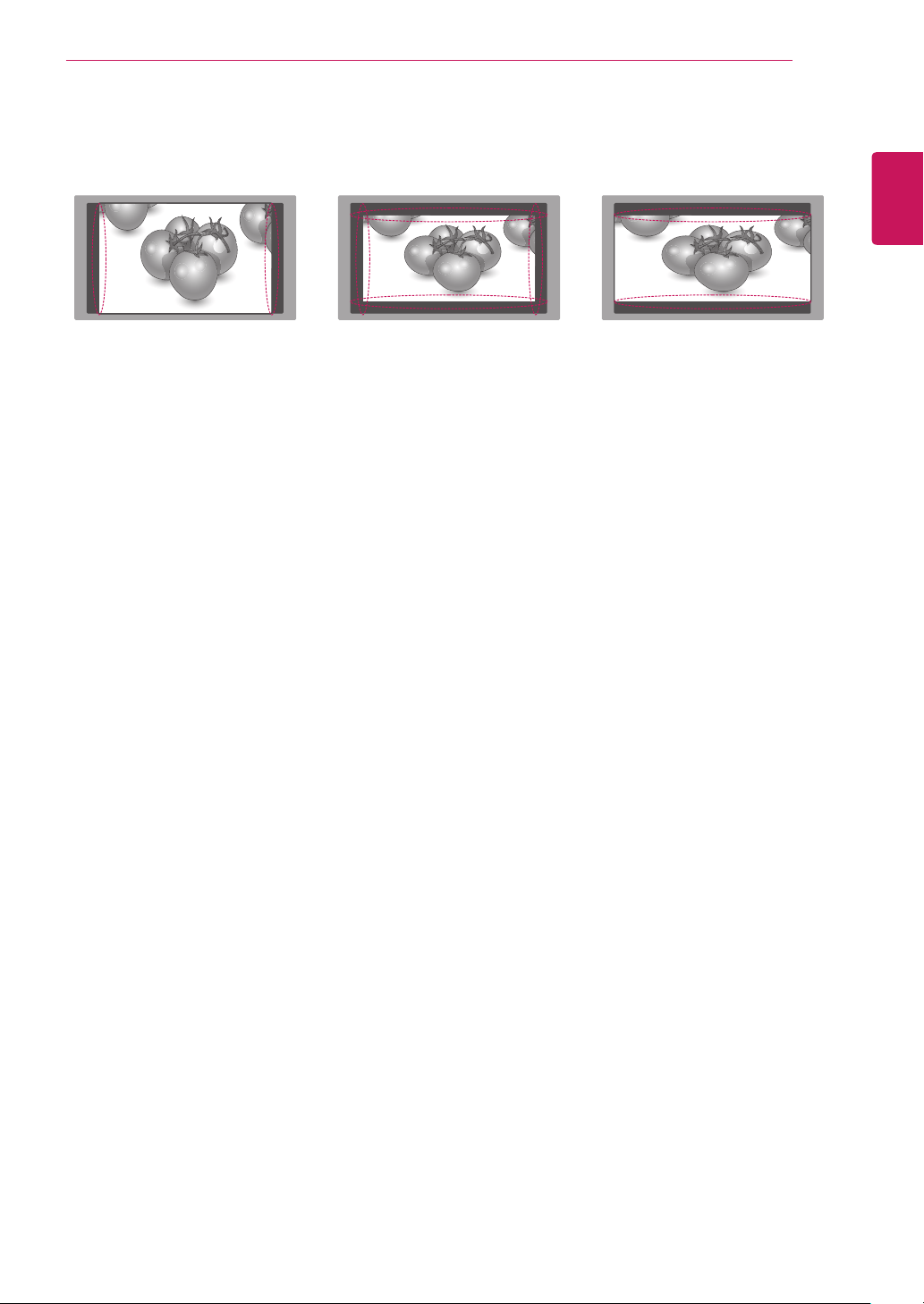

33 Preventing “Image burn” or “Burn-in” on
your TV screen
34 IF THE QUALITY OF THE 3D
IMAGE IS NOT ACCEPTABLE,
CHECK THE FOLLOWING

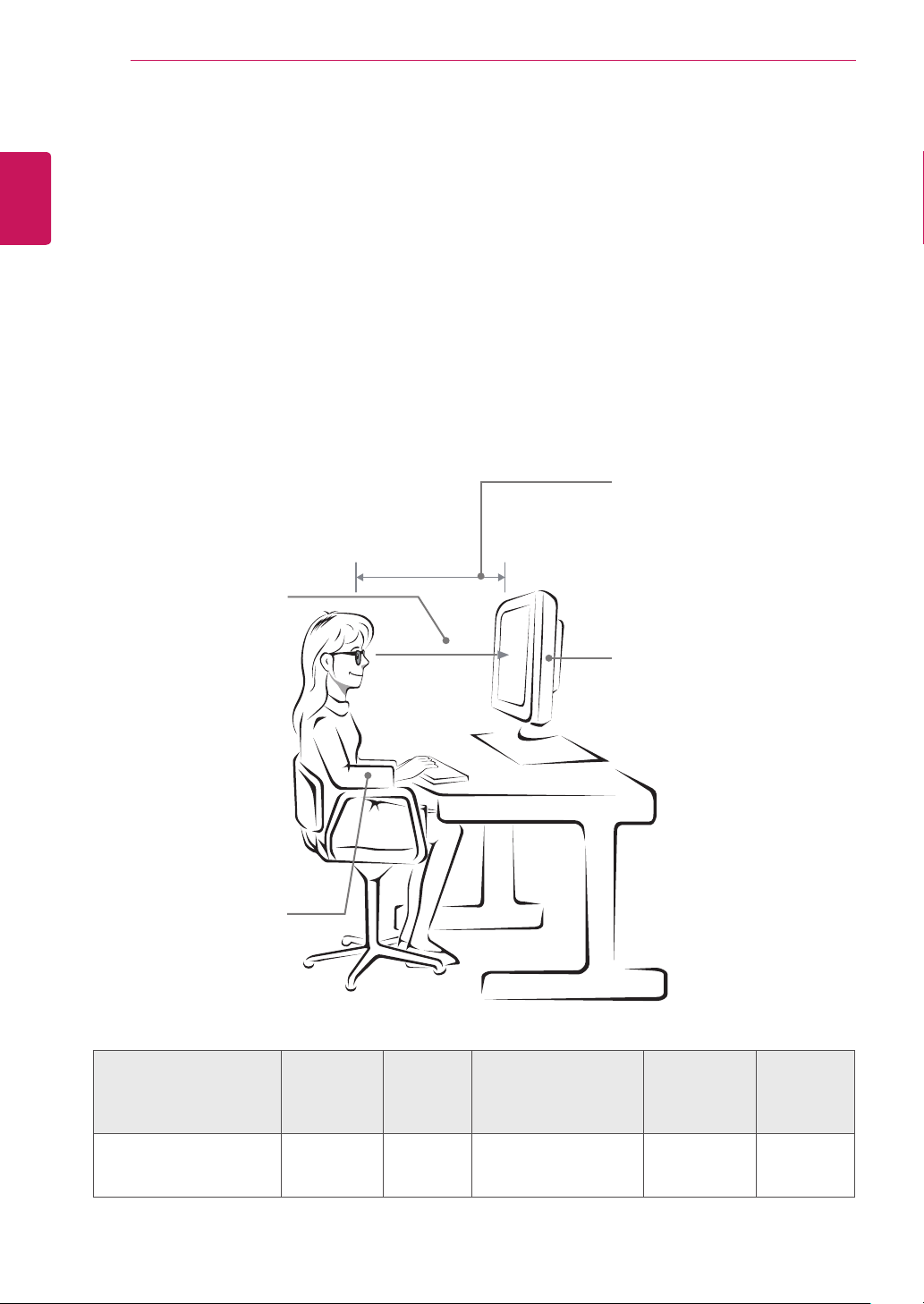

35 VIEWING 3D IMAGING
37 TROUBLESHOOTING
37 General
37 Using 3D mode
38 SPECIFICATIONS
ENGLISH
3
LICENSES
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby “and the
double-D symbol are trademarks of Dolby Laboratories.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified® device that
plays DivX video. Visit divx.com for more information and software tools to
convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be
registered in order to play purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete
your registration.
DivX Certified® to play DivX® video up to HD 1080p, including premium
content.
DivX®, DivX Certified® and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380;
6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the
Symbol, & DTS and the Symbol together are registered trademarks & DTS 2.0
Channel is a trademark of DTS, Inc. Product includes software.
©
DTS, Inc. All Rights Reserved.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
ENGLISH
4
INSTALLATION PROCEDURE
INSTALLATION PROCEDURE
1
Open the package and make sure all the accessories are included.
2
Attach the stand to the TV.
3
Connect an external device to the TV.
Image shown may differ from your TV.
Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
The available menus and options may differ from the input source or product model that you are
using.
New features may be added to this TV in the future.
NOTE
ENGLISH
5
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking

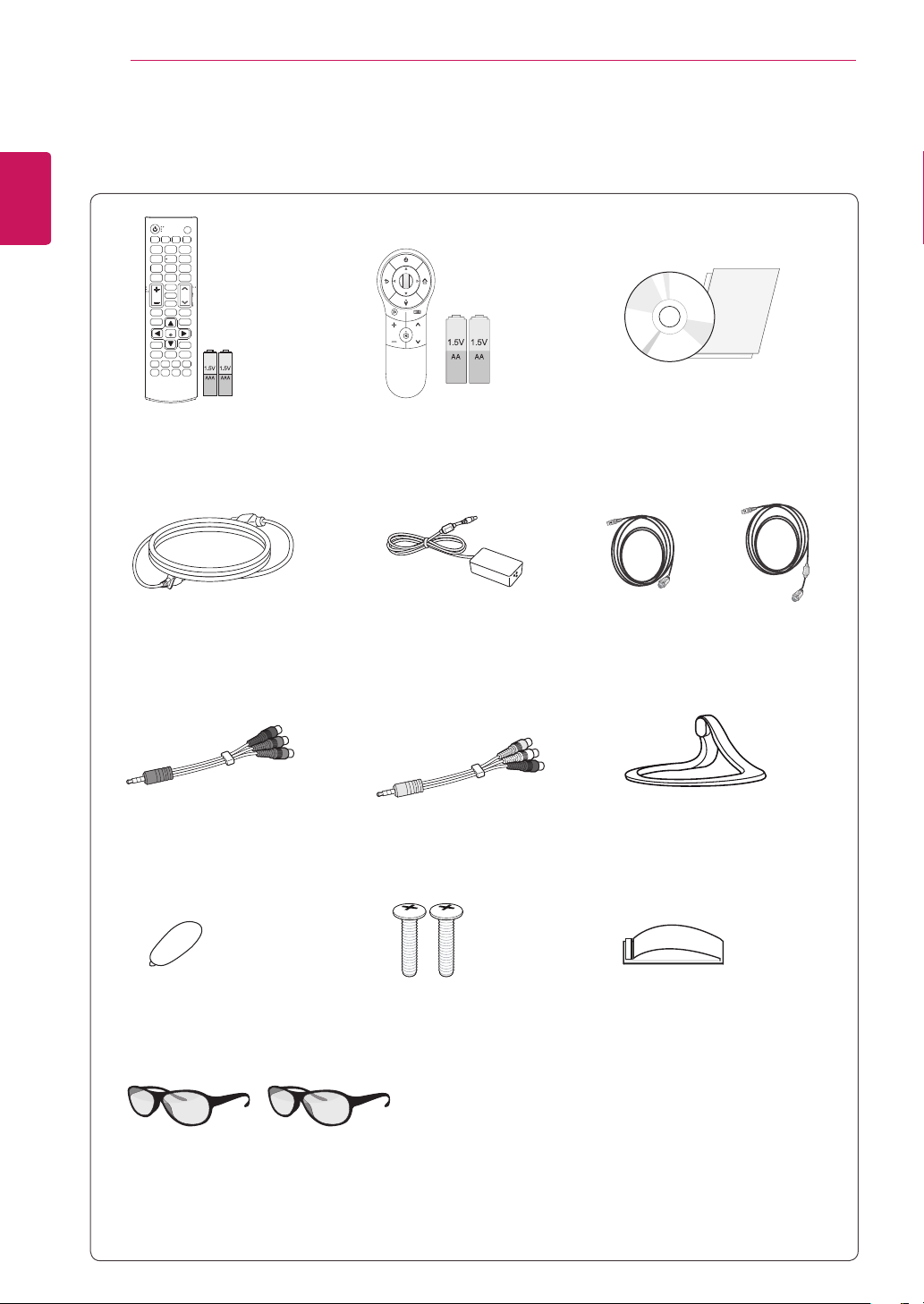

Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and accessories.
The accessories supplied with your product may vary depending on the model.
Product specifications or contents in this manual may be changed without prior notice due to
upgrade of product functions.
NOTE
Do not use any pirated items to ensure the safety and product life span.
Any damages or injuries by using pirated items are not covered by the warranty.
CAUTION
The items supplied with your product may vary depending on the model.
Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick
and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory
stick does not fit into your TV’s USB port.
NOTE
*A 10 mm
*B 18 mm
A
B
A
B
ENGLISH
6
ASSEMBLING AND PREPARING
Magic Remote Control.
Batteries (AA)
CD (Owner's Manual)/Cards
3D Glasses(Normal type 2 EA)
- The number of 3D glasses may differ depending on the
model or country.
- Image shown may differ from your TV.
ㄮᗺ
ⰶᲳ
ⱞⳮ ➎Ẳ㞢
/Q.MENU
FK
YRO
EDFN KRPH
/Q.MENU
Remote control
Batteries (AAA)
Power Cord AC-DC Adapter
Stand Base
Screws 2 EA
Component video cable
Cable holder
MHL passive cable
or
Screw Cover
Composite audio/video cable
ENGLISH
7
ASSEMBLING AND PREPARING

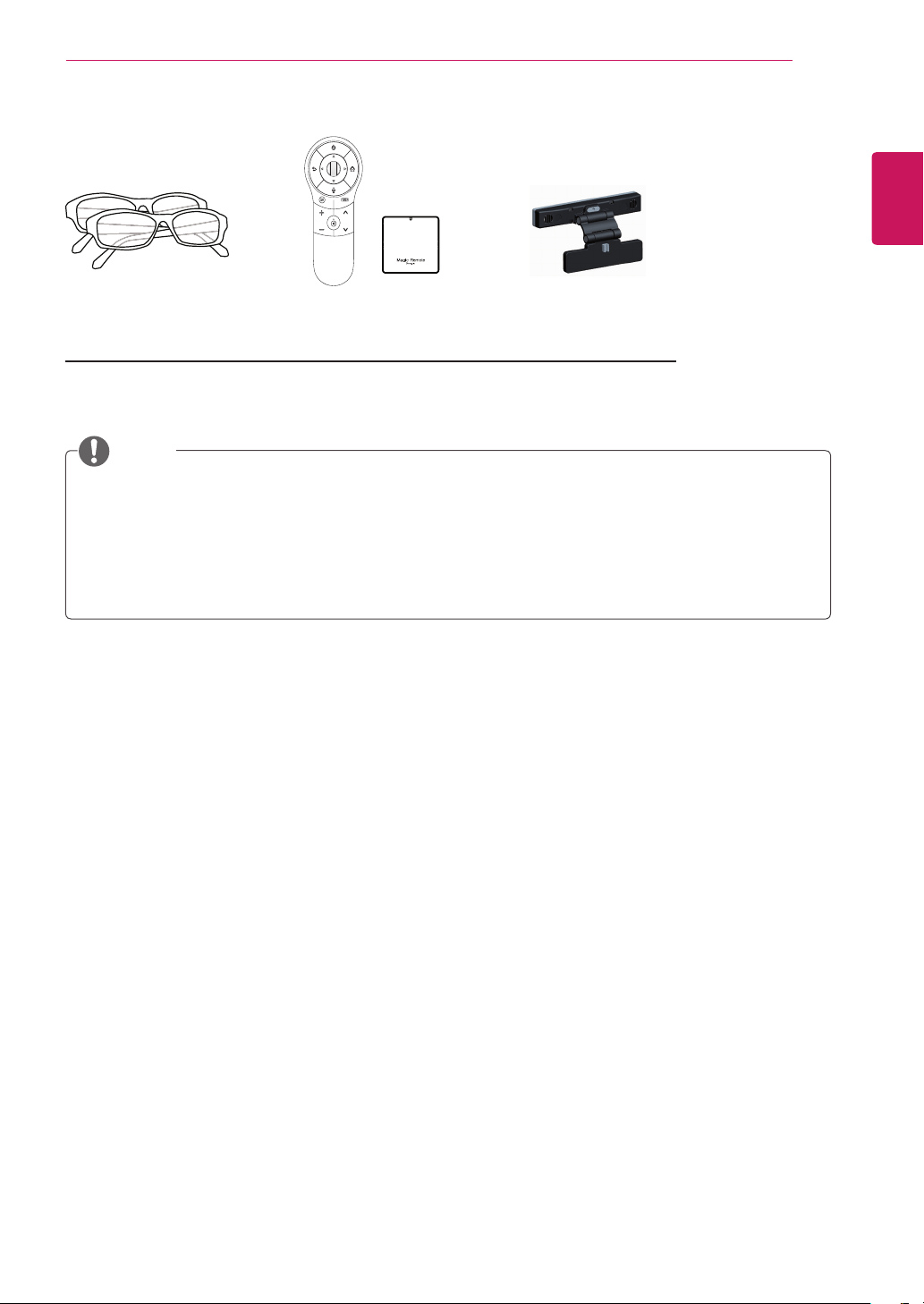

Separate purchase
Dual play glasses
AG-F2**DP, AG-F3**DP
The illustrations in this manual may differ from the actual product and accessories.
Separate purchase items can be changed or modified for quality improvement without any
notification.
Contact your dealer to buying these items.
The model name or design may be changed depending on the upgrade of product
functions,manufacturer’s circumstances or policies.
NOTE
Magic Remote Control
AN-MR400
FK
YRO
EDFN KRPH
/Q.MENU
Video call camera
AN-VC***
ENGLISH
8
ASSEMBLING AND PREPARING

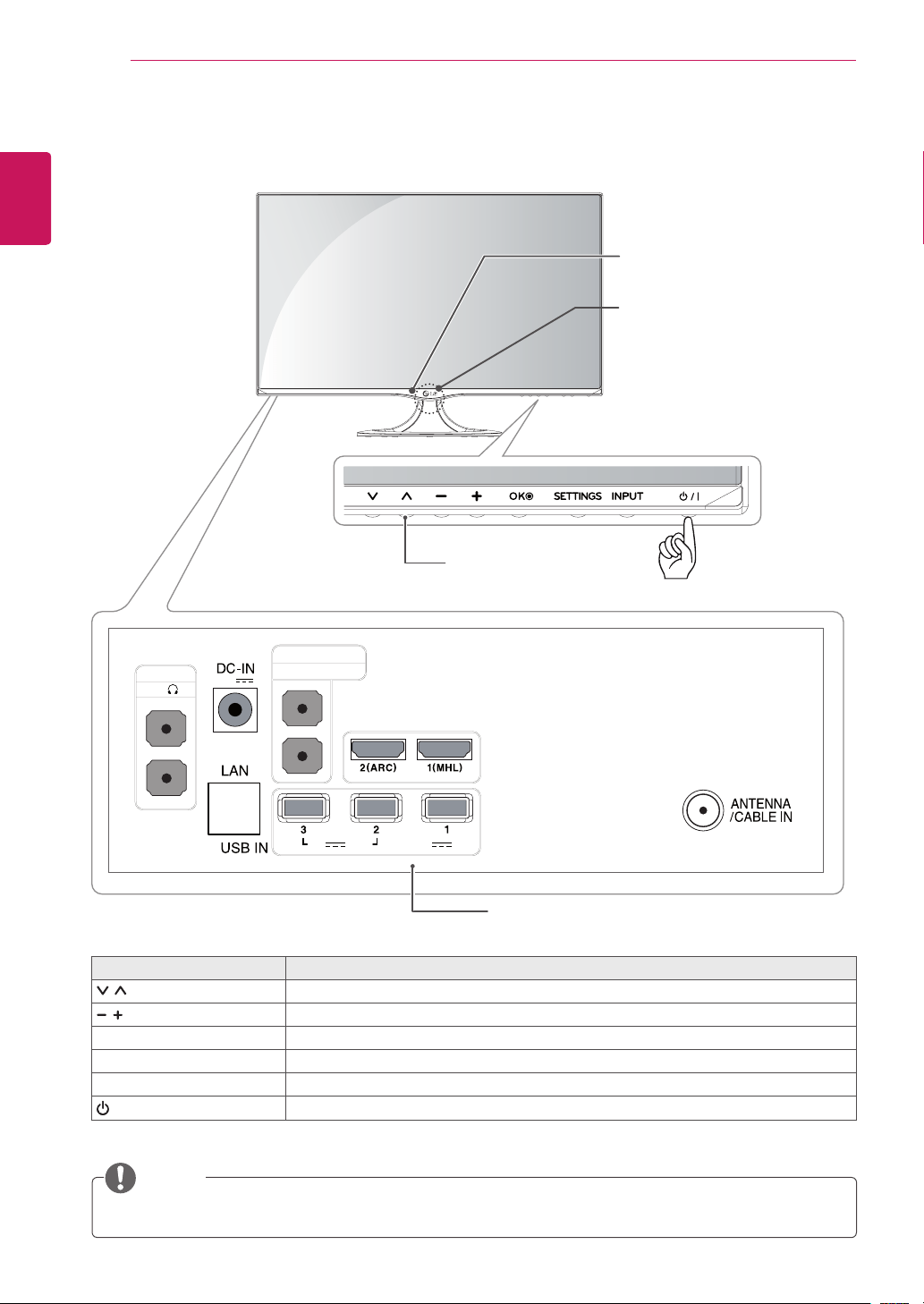

Parts and buttons
All of the buttons are touch sensitive and can be operated through simple touch with your finger.
NOTE
Touch button Description
Scrolls through the saved programmes.
Adjusts the volume level.
OK Selects the highlighted menu option or confirms an input.
SETTINGS Accesses the main menus, or saves your input and exits the menus.
INPUT Changes the input source.
/ I
Turns the power on or off.
(19 V )
COMPONENT IN
AUDIO IN(PC)
HP
AV IN / AUDIO L R
HDMI IN
5 V
5 V
0.5 A
1.0 A
Remote Control Sensor
Standby Light
Lighting On: Turned off
Lighting Off: Turned on
Connection panel (See p.16)
Touch buttons on the
bottom of the TV
ENGLISH
9
ASSEMBLING AND PREPARING
When holding the TV, the screen should face
away from you to prevent the screen from
scratches.
When transporting the TV, do not expose the
TV to jolts or excessive vibration.
When transporting the TV, keep the TV
upright, never turn the TV on its side, or tilt
towards the left or right.
Do not apply excessive pressure to cause
flexing /bending of frame chassis as it may
damage screen.
Lifting and moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for save transportation regardless of
its type and size.
Avoid touching the screen at all times, as
this may result in damage to the screen or
some of the pixels used to create images.
CAUTION
It is recommended to move the TV in the
box or packing material that the TV originally
came in.
Before moving or lifting the TV, disconnect
the power cord and all cables.
Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
ENGLISH
10
ASSEMBLING AND PREPARING
1
Place the TV with the screen side down on a
flat and cushioned surface.
2
Check the orientation (front and rear) of the
stand base and mount the stand base to the
stand hinge as shown in the figure.
3
Fix two screws into the back of the stand base
and close the screw cover.
Tighten the screws firmly to prevent the TV
from tilting forward. Do not over tighten.
CAUTION

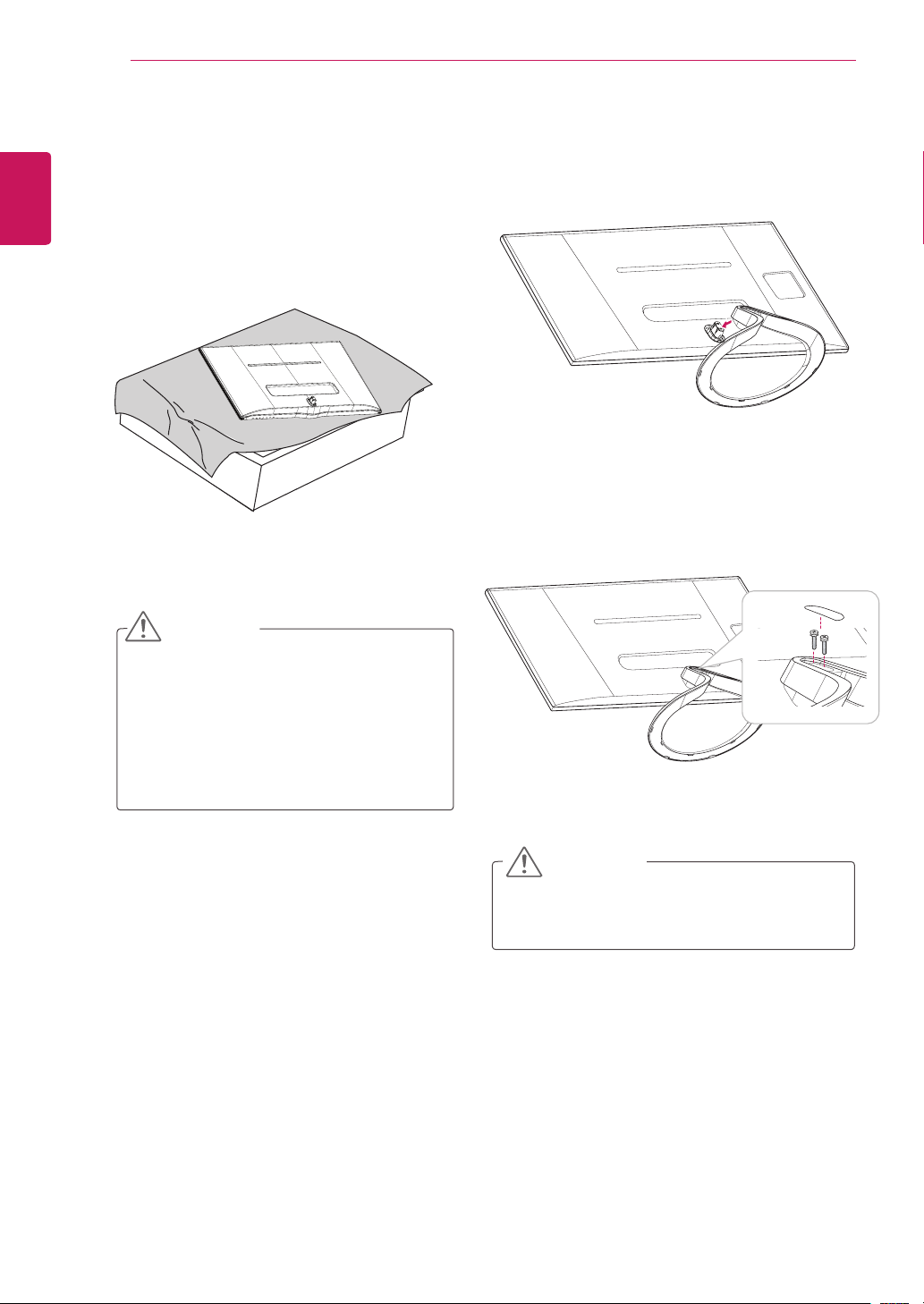

Setting up the TV
Attaching the Stand
CAUTION
Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
When attaching the stand to the TV,
place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
ENGLISH
11
ASSEMBLING AND PREPARING

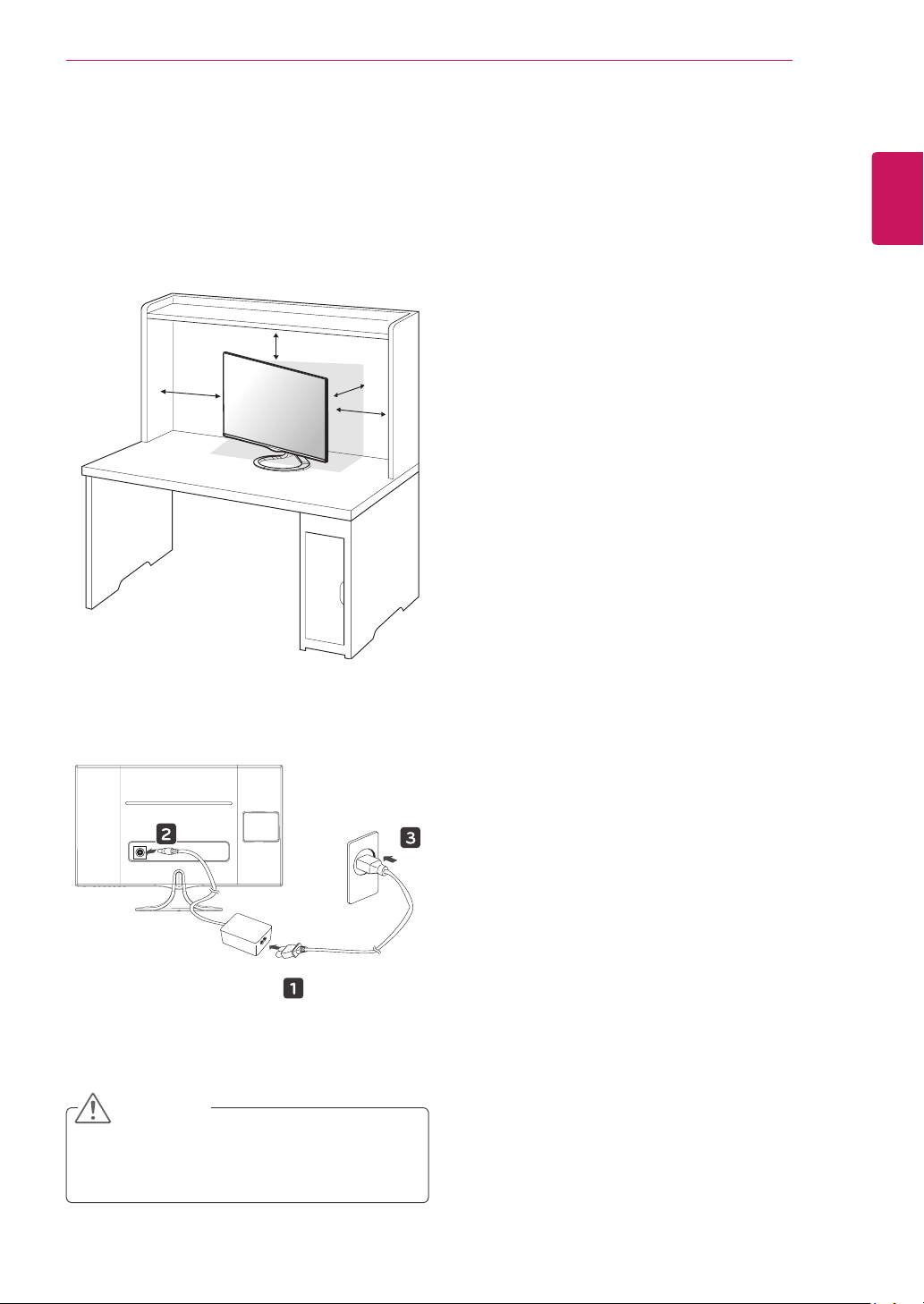

Mounting on a table
1
Lift and tilt the TV into its upright position on a
table.
Leave a 10 cm (4 inches) (minimum) space
from the wall for proper ventilation.
2
Connect the AC-DC Adapter and Power Cord
to a wall outlet.
Do not place the TV near or on sources of
heat, as this may result in fire or other damage.
CAUTION
10 cm
10 cm
10 cm
10 cm
ENGLISH
12
ASSEMBLING AND PREPARING
Disconnect the power cord first, and then move
or install the TV. Otherwise electric shock may
occur.
CAUTION

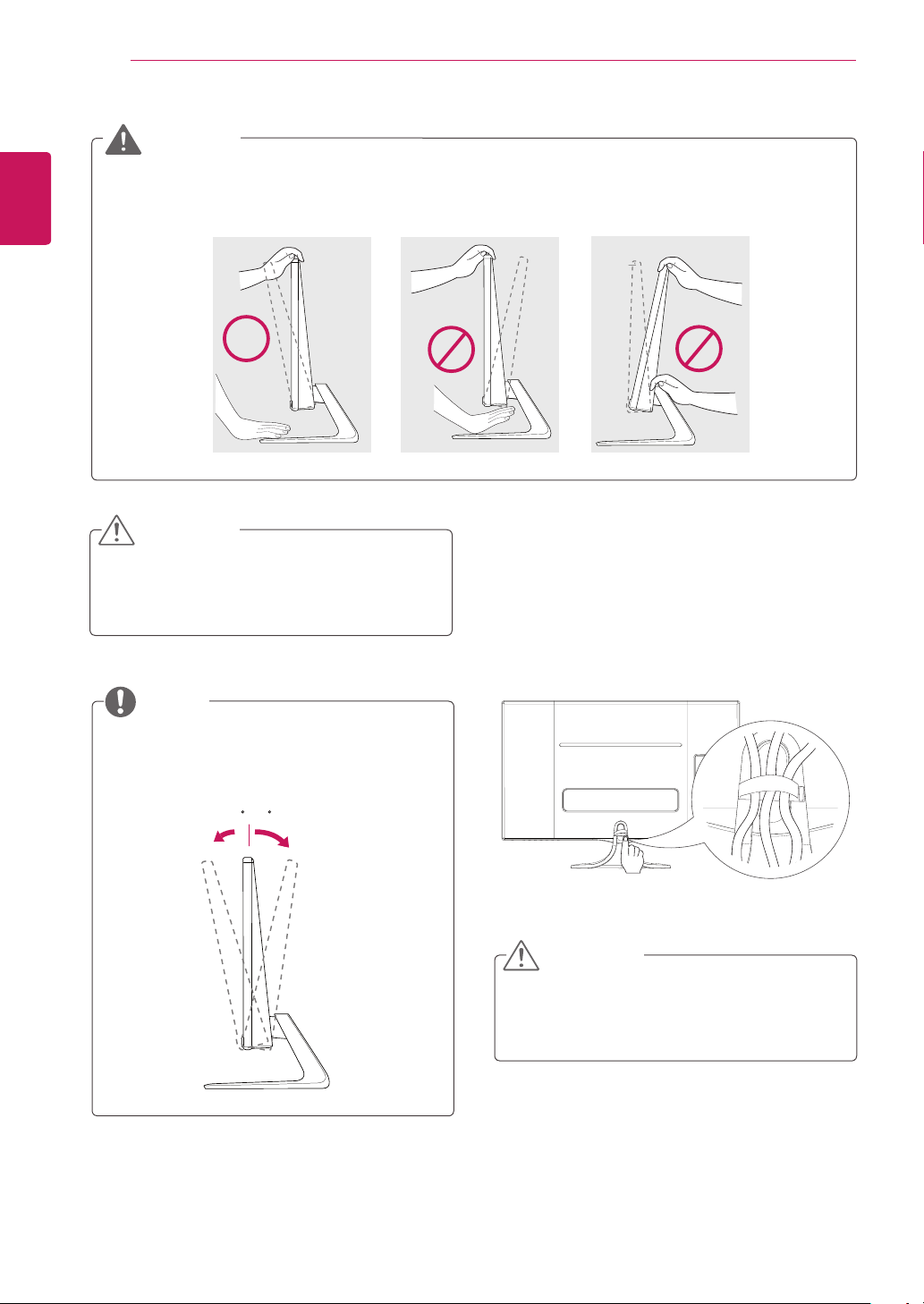

When you adjust the angle, do not hold the buttom of the TV frame as shown on the following
illustration, as may injure your fingers.
WARNING
Tilt from +20 to -5 degrees up or down to
adjust the angle of the TV to suit your view.
NOTE
Front Rear
After attachment, if the cable holder is pulled
with excessive force, it may fall off.
CAUTION
Tidying cables
1
Attach the cable holder to the stand body
securely.
2
Gather and bind the cables with the supplied
cable holder.
-5 20
:
-5 20
:
-5 20
:
-5 20
:
ENGLISH
13
ASSEMBLING AND PREPARING

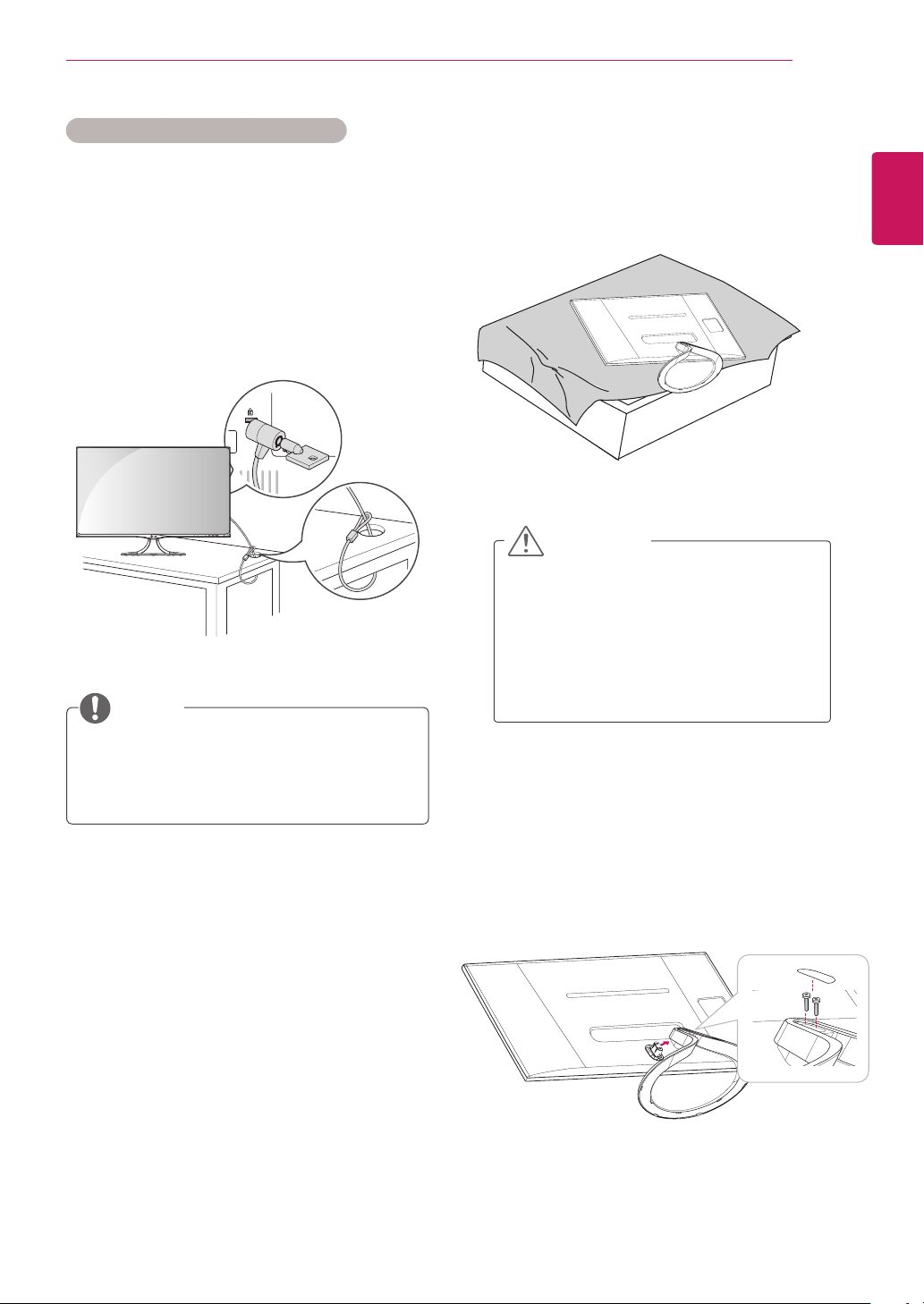

Using the Kensington security system
The Kensington security system connector is
located at the back of the TV. For more information
of installation and using, refer to the manual
supplied with the Kensington security system or
visit
http://www.kensington.com
.
Connect the Kensington security system cable
between the TV and a table.
The Kensington security system is optional.
You can obtain additional accessories from
most electronics stores.
NOTE
Detaching the Stand
1
Place the TV with the screen side down on a
flat and cushioned surface.
2
Open the screw cover on the back of the stand
base and use a screwdriver to remove the two
screws.
Detach the stand base from the stand hinge as
shown in the figure.
Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
When detaching the stand to the TV,
place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
CAUTION
ENGLISH
14
WATCHING TV
Turning the TV on for the first time
When you access the TV for the first time, the initial setting screen appears. Select a language and
customize the basic settings.
1
Connect the power cord to a power outlet.
2
Press on the TV or power button on the remote control to turn the TV on.
The Standby Light is turned off.
3
The initial setting screen appears if you access the TV for the first time.
If you do not operate the TV within 40 seconds when the setting menu screen appears, the setting
menus will disappear.
NOTE
WATCHING TV
4
Follow the on-screen instructions to customize your TV according to your preferences.
For those countries without confirmed DTV broadcasting standards, some DTV features might not
work, depending on the DTV broadcasting environment.
To display images in the best quality for your home environment, select Home Use mode.
Store Demo mode is suitable for the retail environment.
If you select Store Demo mode, the previously customized settings will switch to the default
settings of Store Demo mode in 5 minutes.
NOTE
ENGLISH
15
WATCHING TV
You can also access Factory Reset by accessing OPTION in the main menus.
NOTE
5
When the basic settings are complete, press OK.
6
To turn the TV off, press on the TV.
The Standby Light is turned on.
If you do not complete the initial setting, it will appear whenever you access the TV.
NOTE
Disconnect the power cord from the power outlet when you do not use the TV for a long period of
time.
CAUTION
ENGLISH
16
MAKING CONNECTIONS
Connect various external devices to the TV and switch input modes to select an external device. For more
information about an external device’s connection, refer to the manual supplied with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC,
camcorders or cameras, gaming devices, and other external devices.
If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR. For more information about recording, refer to the
manual supplied with the connected device.
The external device connection may differ from the model.
Connect external devices to the TV regardless of the order of the TV port.
MAKING CONNECTIONS
Connecting an antenna
Connect an antenna, cable or cable box to watch TV referring to the following. The illustrations may differ
from the actual accessories and an RF cable is optional.
Connect the TV to a wall antenna socket with an RF cable (75 Ω).
Use a signal splitter to use more than 2 TVs.
If the image quality is poor, install a signal
amplifier properly to improve the image
quality.
If the image quality is poor with an antenna
connected, aim the antenna to the proper
direction.
Visit
http://AntennaWeb.org
for more
information about the antenna and cable
connection.
NOTE
Make sure not to bend the copper wire of
the RF cable.
Complete all connections instructions
between devices, and then connect the
power cord to the power outlet to prevent
damages to your TV.
CAUTION
Copper wire
Wall Antenna Socket
Outdoor Antenna
VHF Antenna
UHF Antenna
(Not Provided)
NOTE
ENGLISH
17
MAKING CONNECTIONS
Outdoor Antenna
VHF Antenna
UHF Antenna
HDMI
IN
(19 V )
COMPONENT I
N
A
UDI
O
IN
(
P
C)
HP
A
V IN
/
AUDI
O
L
R
5 V
5
V
0.5
A
1.0 A
Connecting to a HD receiver, DVD, VCR player or Gaming device
Connect a HD receiver, DVD, VCR player or Gaming device to the TV and select an appropriate input mode.
HDMI connection
HDMI is the best way to connect a device.
Transmits the digital video and audio signals from an external device to the TV. Connect the external device
and the TV with the HDMI cable as shown on the following illustration.
Choose any HDMI input port to connect.
It does not matter which port you use.
DVD / Blu-Ray / HD Cable Box / HD STB /
Gaming device
Use a High Speed HDMI™ Cable.
High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
Supported DTV Audio: MPEG, Dolby Digital.
Supported HDMI Audio format: DTS, Dolby Digital, PCM (Up to 192 KHz,
32k/44.1k/48k/88k/96k/176k/ 192k.)
NOTE
(Not Provided)
ENGLISH
18
MAKING CONNECTIONS
HDMI I
N
(19 V )
CO
MP
O
NENT I
N
AUDIO IN(PC)
HP
A
V IN
/
A
U
DI
O
L
R
5 V
5
V
0.5 A
1.0 A
HDMI to DVI connection
Transmits the digital video signal from an external device to the TV. Connect the external device and the TV
with the HDMI to DVI cable as shown in the following illustration. To transmit an audio signal, connect an
optional audio cable.
DVD / Blu-Ray / HD Cable Box /
HD STB / Gaming device
If you do not use an optional external speaker, connect the external device to the TV with the optional
audio cable.
NOTE
(Not Provided)
ENGLISH
19
MAKING CONNECTIONS
HDMI IN
(19 V )
COMPONENT IN
A
UDIO IN
(
PC
)
HP
AV IN / AUDIO L R
5 V
5
V
0.5 A
1.0 A
Component connection
Transmits the analog video and audio signals from an external device to the TV. Connect the external
device and the TV with the component cable as shown on the following illustration. To display images by
using progressive scan, make sure to use the component cable.
If cables are installed incorrectly, it could case the image to display in black and white or with distorted
color.
Check to ensure the cable are matched with the corresponding color connection.
NOTE
(Not Provided)
(Use the component
video cable provided.)
(Not Provided)
(Use the composite
audio/video cable provided.)
DVD / Blu-Ray / HD Cable Box /
HD STB / Gaming device
ENGLISH
20
MAKING CONNECTIONS
(19 V )
CO
MP
O
NENT I
N
A
UDIO IN
(
PC
)
HP
AV IN / AUDIO L R
HDMI
IN
5 V
5
V
0
.
5
A
1.0 A
Composite connection
Transmits the analog video and audio signals from an external device to the TV. Connect the external
device and the TV with the composite cable as shown on the following illustration.
DVD / Blu-Ray / HD Cable Box /
HD STB / Gaming device
(Not Provided)
Check to ensure the cable are matched with the corresponding color connection.
NOTE
(Use the composite
audio/video cable provided.)
ENGLISH
21
MAKING CONNECTIONS

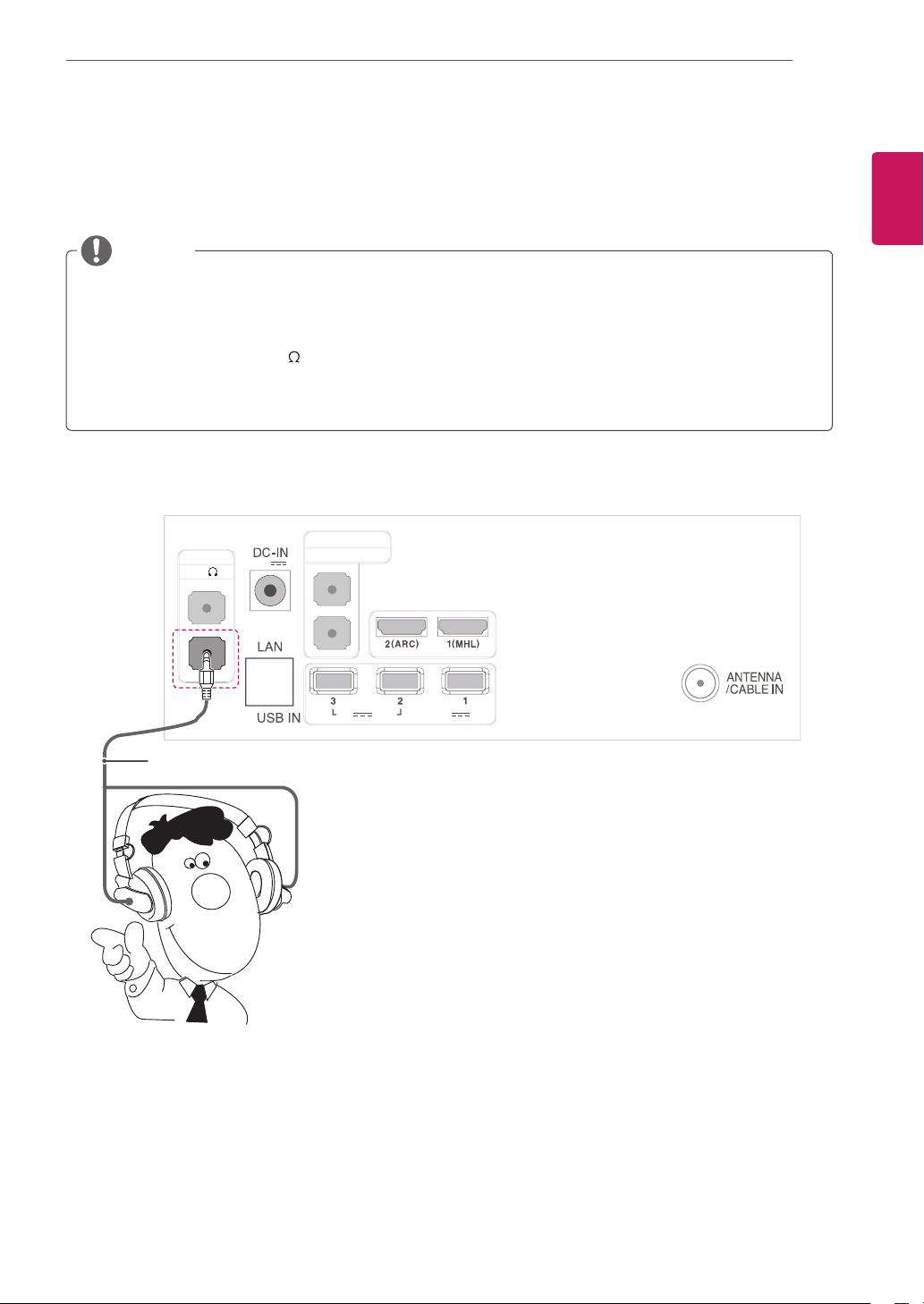

Headphone connection
Transmits the headphone signal from the TV to an external device. Connect the TV with the headphone as
shown on the following illustration.
(19 V )
CO
MP
O
NENT I
N
A
UDIO IN
(
PC
)
HP
A
V IN
/
A
U
DI
O
L
R
HDMI
IN
5 V
5
V
0
.
5
A
1.0 A
Headphone
(Not Provided)
AUDIO menu items are disabled when connecting a headphone.
When changing AV MODE with a headphone connected, the change is applied to video but not to
audio.
Headphone impedance: 16
Max audio output of headphone: 9 mW to 15 mW
Headphone jack size: 0.35 cm
NOTE
ENGLISH
22
MAKING CONNECTIONS
(19 V )
CO
MP
O
NENT I
N
A
UDIO IN
(
PC
)
HP
A
V IN
/
A
U
DI
O
L
R
HDMI
IN
5 V
5 V
0.5 A
1.0 A
Connecting to a USB
Connect a USB storage device such as s USB flash memory, external hard drive, MP3 player or a USB
memory card reader to the TV and access the USB menu to use various multimedia files.
USB
Some USB Hubs may not work. If a USB device connected using a USB Hub is not detected, connect
it to the USB port on the TV directly.
Connect the external power source if your USB is needed.
NOTE
(Not Provided)
or or
ENGLISH
23
MAKING CONNECTIONS
HDMI
IN
(19 V )
CO
MP
O
NENT I
N
A
UDIO IN
(
PC
)
HP
A
V IN
/
A
U
DI
O
L
R
5 V
5
V
0.5 A
1.0 A
MHL connection
Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from mobile
phones to television sets.
Connect the mobile phone to the HDMI IN 1(MHL) port to view the phone screen on the TV.
The MHL passive cable is needed to connect the TV and a mobile phone.
This only works for the MHL-enabled phone.
Some applications can be operated by the remote control.
For some mobile phones supporting MHL, you can control with the magic remote control.
Remove the MHL passive cable from the TV when:
- the MHL function is disabled
- your mobile device is fully charged instandby mode
NOTE
Mobile phone
ENGLISH
24
MAKING CONNECTIONS
Connecting to a PC
Your TV supports the Plug & Play* feature and has the built-in speakers with Virtual Surround that
reproduces sound clearly with a rich bass.
* Plug & Play: The function when a PC recognizes a connected device that users connect to a PC and turn
on, without device configuration or user intervention.
It is recommended to use the TV with the HDMI connection for the best image quality.
If you do not use an optional external speaker, connect the PC to the TV with the optional audio
cable.
If you turn the TV on when the set becomes cold, the screen may flicker. This is normal.
Some red, green, or blue spots may appear on the screen. This is normal.
Do not press the screen with your finger for a long time as this may result in temporary distortion on
the screen.
Avoid displaying a fixed image on the screen for a long period of time to prevent image burn. Use a
screensaver if possible.
If you want to use HDMI-PC mode, you must set the input label to PC mode.
NOTE
ENGLISH
25
MAKING CONNECTIONS
HDMI
IN
(19 V )
CO
MP
O
NENT I
N
A
UDIO IN(PC
)
HP
A
V IN
/
A
U
DI
O
L
R
5 V
5
V
0
.5 A
1.0 A
HDMI connection
Transmits the digital video and audio signals from your PC to the TV. Connect the PC and the TV with the
HDMI cable as shown in the following illustrations. You should set PC as an input label to connect the PC to
the TV with an HDMI connection.
PC
Choose any HDMI input port to connect.
It does not matter which port you use.
(Not Provided)
Use a High Speed HDMI™ Cable.
High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
If you want to use HDMI-PC mode, you must set the input label to PC mode.
Supported DTV Audio: MPEG, Dolby Digital.
Supported HDMI Audio format: DTS, Dolby Digital, PCM (Up to 192 KHz,
32k/44.1k/48k/88k/96k/176k/ 192k.)
NOTE
ENGLISH
26
MAKING CONNECTIONS
HDMI IN
(19 V )
COMPONENT I
N
AUDIO IN(PC)
HP
A
V IN
/
A
U
DI
O
L
R
5 V
5
V
0.5
A
1.0 A
PC
HDMI to DVI connection
Transmits the digital video signal from your PC to the TV. Connect the PC and the TV with the HDMI to DVI
cable as shown the following illustrations. To transmit an audio signal, connect an optional audio cable.
If you want to use HDMI-PC mode, you must set the input label to PC mode.
If you do not use an optional external speaker, connect the PC to the TV with the optional audio cable.
NOTE
(Not Provided)
ENGLISH
27

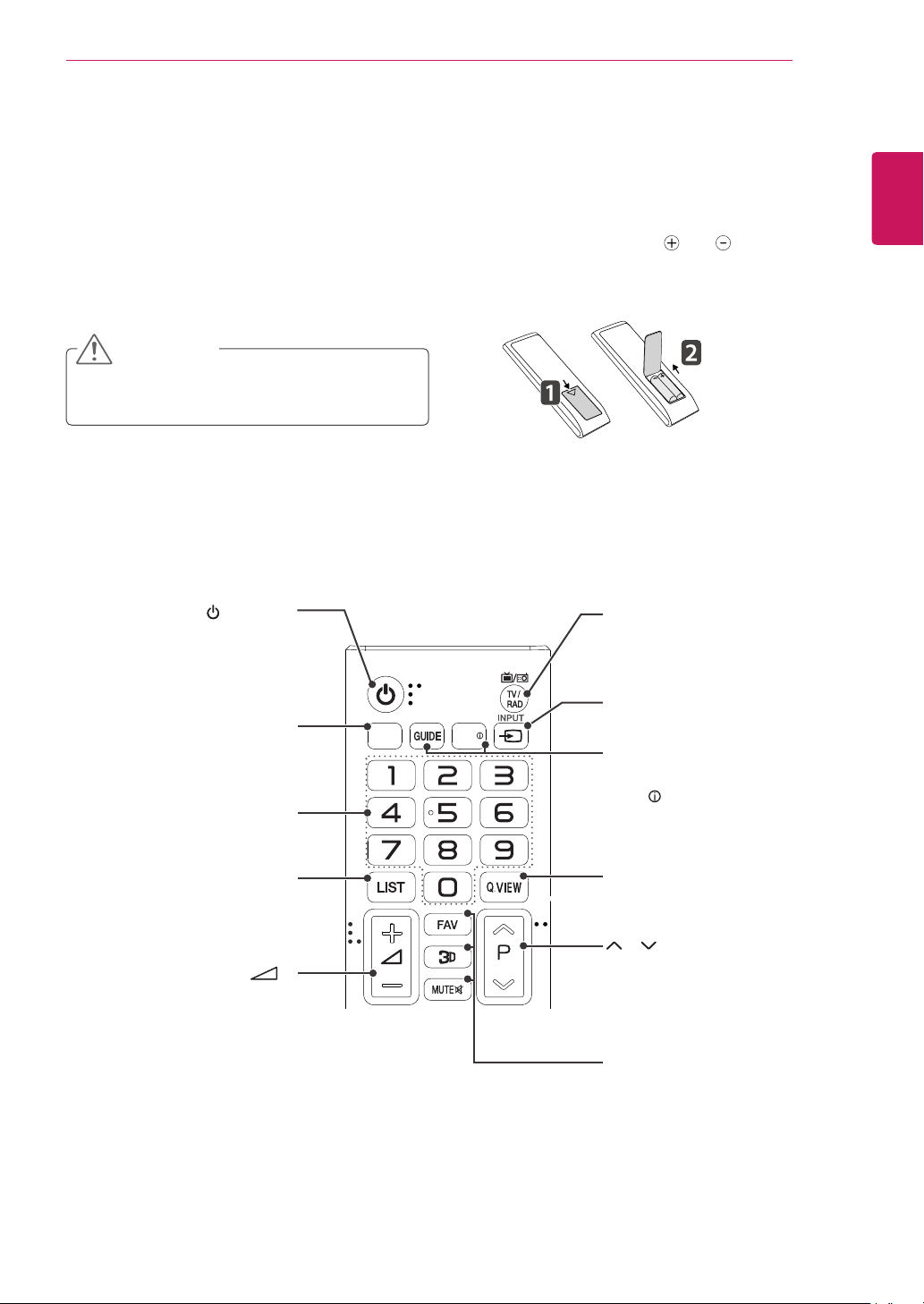

REMOTE CONTROL
The descriptions in this manual are based on the buttons of the remote control. Please read this manual
carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching and ends to the
label inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.
Make sure to point the remote control to the remote control sensor on the TV.
Image shown may differ from your TV.
CAUTION
Do not mix old and new batteries, as this may
damage the remote control.
REMOTE CONTROL
SUBTITLE
2.&/6
*/'0
PAGE
(POWER)
Turns the TV on or off.
LIST
Displays the programme
table.
INPUT
Selects the input mode.
TV/RAD
Selects Radio, TV and DTV
programme.
Q.VIEW
Returns to the previously
viewed programme.
Number buttons
Enters numbers.
FAV
Displays the selected
favourite programme.
3D
Uses for viewing 3D video.
MUTE
Mutes all sounds.
P
Selects a programme.
PAGE
Moves to the previous or next
screen.
+
-
Adjusts the volume level.
Q.MENU
Accesses the quick menus.
GUIDE
Shows programme guide.
INFO
Views the information of the
currently program and the screen.
ENGLISH
28

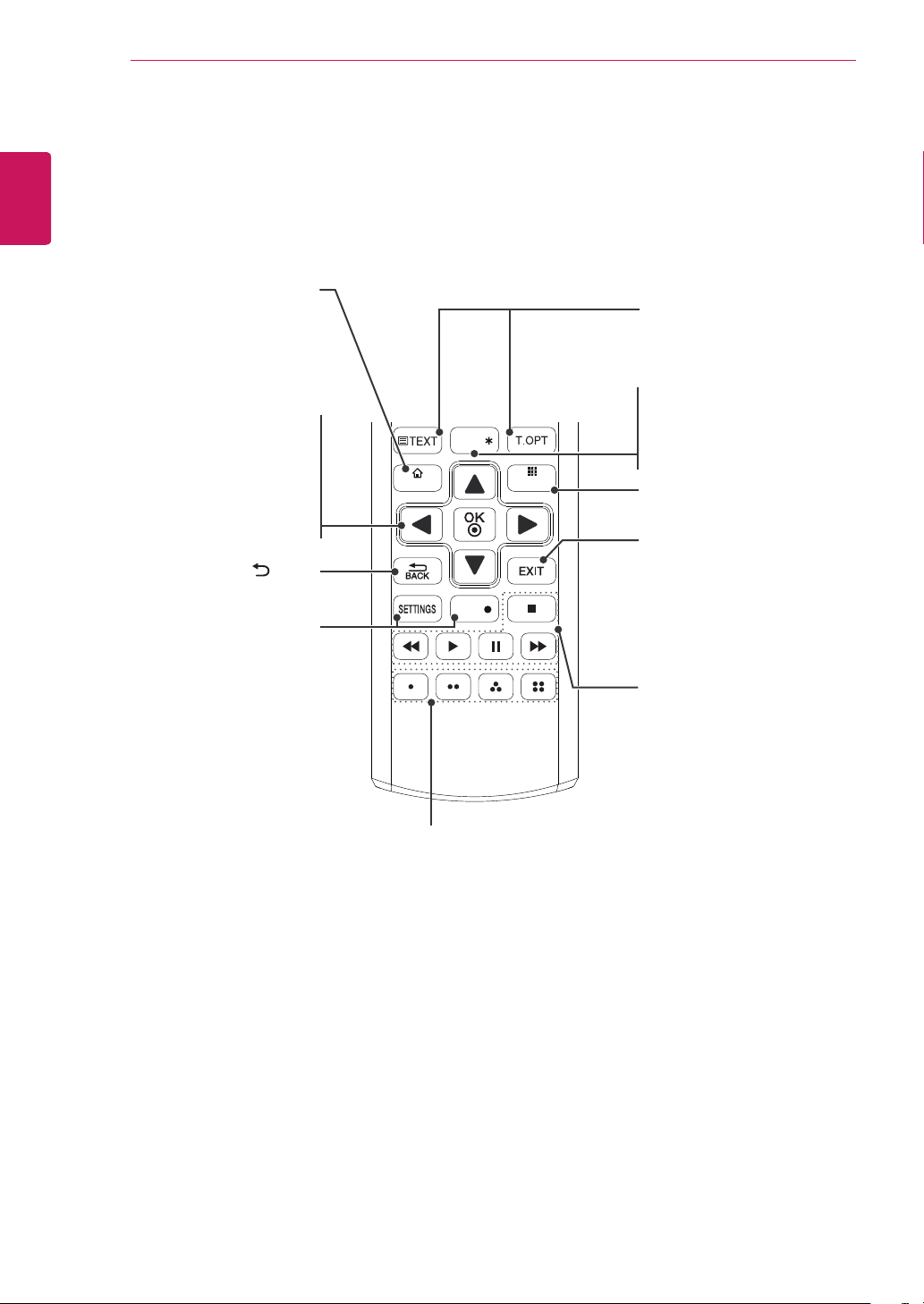

REMOTE CONTROL
4."35
MY APPS
3&$
-*7&57
"11
EXIT
Clears all on-screen displays
and return to TV viewing.
Teletext buttons
These buttons are used for
teletext.
SETTINGS
Accesses the main menus.
REC
Start to record and display
record menu.
Control buttons
Controls the SIMPLINK
compatible devices (USB,
SIMPLINK).
Coloured buttons
These access special
functions in some menus.
OK
Selects menus or options and
confirms your input.
MY APPS
Shows the list of Apps.
SMART
Accesses the HOME menu.
Navigation buttons
Scrolls through menus or
options.
BACK
Returns to the previous level.
APP/*
Select the MHP TV
menu source. (Only Italy)
(Depending on model)
ENGLISH
29

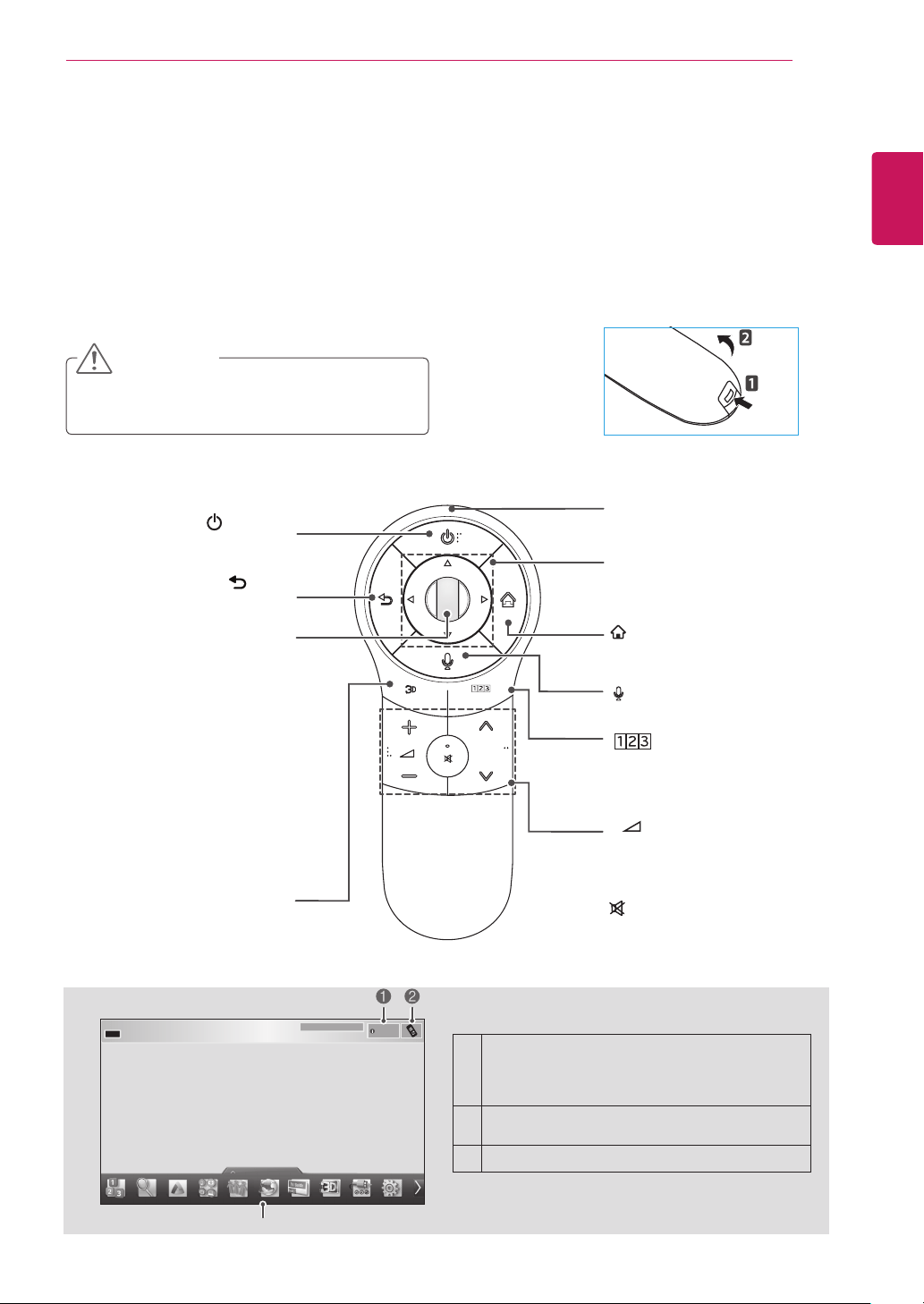

MAGIC REMOTE CONTROL FUNCTIONS
1
If you press
Wheel(OK)
on the Magic Remote
Control, the following screen appears.
Shows information about the current programmes
and screen.
2
Pressing this button will display number keypad
which you can select programme number.
3
You can select My Apps Menu.
3
MAGIC REMOTE CONTROL FUNCTIONS
CAUTION
Do not mix old and new batteries, as this may
damage the remote control.
When the message “Magic Remote Control battery is low. Change the battery.” is displayed, replace the
battery.
To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching
and ends to the label inside the compartment, and close the battery cover. Be sure to point the remote
control toward the remote control sensor on the TV.
To remove the batteries, perform the installation actions in reverse.
P
BACK SMART
/Q.MENU
Voice recognition
/Q.MENU
Accesses the quick menus.
Accesses the Universal Control.
SMART
Accesses the Smart Home menus.
Wheel(OK)
Selects menus or options and
confirms your input.
Scrolls through the saved
programmes.
If you press the navigation button
while moving the pointer on the
screen, the pointer disappears, and
the Magic Remote Control works
as a regular remote control.
To display the pointer again, shake
the Magic Remote Control from
side to side.
(POWER)
Turns the TV on or off.
3D
Used for viewing 3D video.
BACK
Returns to the previous level.
+ -
Adjusts the volume level.
ꕌPꕍ
Scrolls through the saved
programmes or channels.
MUTE
Mutes all sounds.
Navigation buttons (up/down/left/
right)
Scrolls through menus or options.
Pointer (RF transmitter)
ENGLISH
30
MAGIC REMOTE CONTROL FUNCTIONS
Registering Magic Remote
Control
It is necessary to ‘pair’ (register) the magic remote
control to your TV before it will work.
How to register the Magic Remote Control
BACK
HOME
P
MY APPS
1 To register automatically,
turn the TV on and press the
Wheel(OK) button. When
registration is completed, the
completion message appears
on the screen.
2 If registration fails, turn the TV
off and back on, then press
the Wheel(OK) button to
complete registration.
How to re-register the Magic Remote Control
BACK
SMART
1 Press and hold the BACK
and SMART buttons
together for 5 seconds to
reset, then register it by
following “How to register the
Magic Remote Control” above.
2 To re-register the Magic
Remote Control, press and
hold the BACK button for 5
seconds toward the TV. When
registration is completed, the
completion message appears
on the screen.
How to use Magic Remote
Control
1 If the pointer disappears, move
the Magic Remote Control
slightly to left or right. Then,
it will automatically appear on
the screen.
»
If the pointer has not been
used for a certain period of time, it
will disappear.
2 You can move the pointer by
aiming the Pointer Receiver of
the Magic Remote Control at
your TV then move it left, right,
up or down.
»
If the pointer does not work
properly, leave the Magic Remote
Control for 10 seconds then use it
again.
Precautions to Take when
Using the Magic Remote
Control
Use the Magic Remote Control within the
maximum communication distance (10 m).
Using the Magic Remote Control beyond this
distance, or with an object obstructing it, may
cause a communication failure.
A communication failure may occur due to
nearby devices. Electrical devices such as a
microwave oven or wireless LAN product may
cause interference, as these use the same
bandwidth (2.4 GHz) as the Magic Remote
Control.
The Magic Remote Control may be damaged
or may malfunction if it is dropped or
receives a heavy impact.
Take care not to bump into nearby furniture
or other people when using the Magic
Remote Control.
Manufacturer and installer cannot provide
service related to human safety as the
applicable wireless device has possibility of
electric wave interference.
It is recommended that an Access Point (AP)
be located more than 1 m away from the
TV. If the AP is installed closer than 1 m, the
Magic Remote Control may not perform as
expected due to frequency interference.
ENGLISH
31

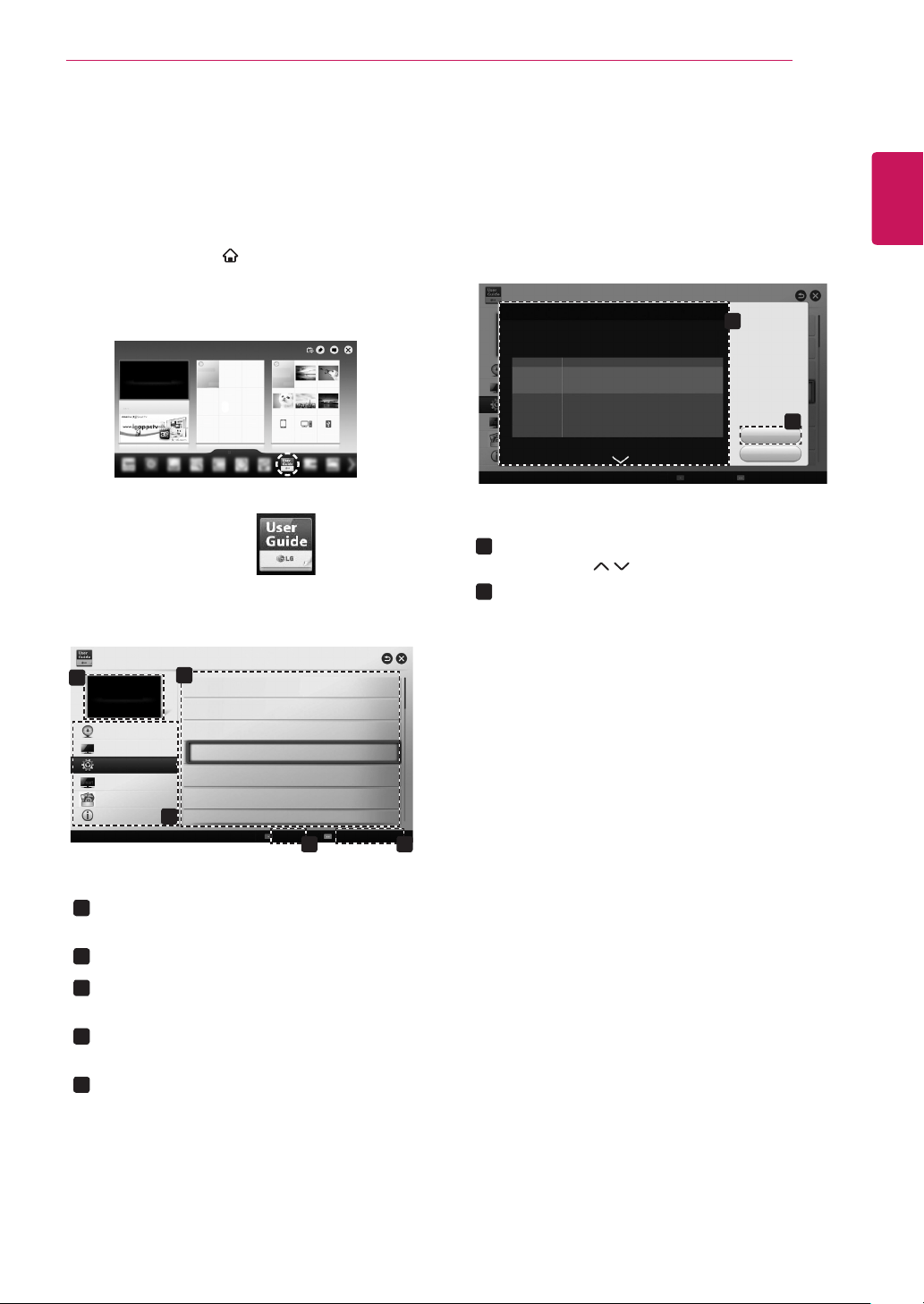

USING THE USER GUIDE
USING THE USER GUIDE
User Guide allows you to more easily access the detailed TV information.
1 Press the SMART button to access the
Smart Home menu.
2 Select User Guide and press Wheel(OK).
1
Shows the current watching programme or
input source screen.
2
Allows to select the category you want.
3
Allows to select the item you want.
You can use
ꕌ
/
ꕍ
to move between pages.
4
Allows to browse the description of the
function you want from the index.
5
Provides the detailed information on the
functions of LG Smart TV when the Internet
is connected.
(It may not be available depending on the
country/language.)
1
Shows the description of the selected menu.
You can use to move between pages.
2
Moves to the selected menu directly from
the User Guide.
User Guide
User Guide
To use input device
To set TV lock options
To set country
Disabled Assisstance
To set Magic remote control
To set language
To set time options
User Guide
3
1
OPTION
PROGRAMME Setting
PICTURE, SOUND Setting
LG SMART Function
Advanced Function
Information
2
4 5
Index
Online User Guide
1
2
OPTION > To set language
SMART Settings OPTION Language
Selects Menu Language and Audio Language displayed on the screen.
Menu Language
Audio Language
Selects a language for the display text.
[In Digital Mode Only]
When watching a digital broadcast containing several audio
languages, you can select the language you want.
Subtitle
Language
[In Digital mode Only]
Use the Subtitle function when two or more subtitle
languages are broadcast.
✎ If subtitle data in a selected language is not broadcast,
the default language subtitle will be displayed.
Try Now
Close
Image shown may differ from your TV.
Check with your remote control right now.
ENGLISH
32
MAINTENANCE
MAINTENANCE
Cleaning Your TV
Clean your TV regularly to keep the best performance and to extend the product lifespan.
Screen and frame
To remove dust, wipe the surface with a dry and soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild
detergent. Then wipe immediately with a clean and dry cloth.
Cabinet and stand
To remove dust, wipe the cabinet with a dry and soft cloth.
To remove major dirt, wipe the cabinet with a soft cloth dampened in a clean water or water containing a
small amount of mild detergent.
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
Make sure to turn the power off and disconnect the power cord and all other cables first.
When the TV is left unattended and unused for a long time, disconnect the power cord from the wall
outlet to prevent possible damage from lightning or power surges.
CAUTION
Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in
scratches on the screen and image distortions.
Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners,
lubricants, as these may damage the screen’s finish and cause discolorations.
CAUTION
Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or
malfunction.
Do not use any chemicals as this may deteriorate the surface.
CAUTION
ENGLISH
33
MAINTENANCE
If a fixed image displays on the TV screen for a long period of time, it will be imprinted and become
a permanent disfigurement on the screen. This is “image burn” or “burn-in” and not covered by the
warranty.
If the aspect ratio of the TV is set to 4:3 for a long period of time, image burn may occur on the
letterboxed area of the screen.
Avoid displaying a fixed image on the TV screen for a long period of time (2 or more hours for LCD)
to prevent image burn.
Preventing “Image burn” or “Burn-in” on your TV screen
ENGLISH
34
IF THE QUALITY OF THE 3D IMAGE IS NOT ACCEPTABLE, CHECK THE FOLLOWING
Remain at the optimal viewing
distance from the Cinema 3D
TV.
Adjust the position of the screen
to minimise reflections.
Adjust the Cinema 3D TV
angle and your position to
achieve the optimal viewing
angle.
Keep your lower arms
horizontal and gently rest
your hands on the keyboard.
IF THE QUALITY OF THE 3D IMAGE IS NOT
ACCEPTABLE, CHECK THE FOLLOWING
1) Viewing distance
For optimal 3D viewing distance, please see the table below.
Please maintain the optimal viewing distance for the best 3D experience.
2) Viewing angle
For optimal 3D viewing angles, see the table below.
3) Check the 3D display sequence (L-R, R-L)
The display method may vary due to the 3D content type. Try changing the display method to L-R or
R-L for a better viewing experience
Model Mode Dimension
Monitor's allowed 3D
viewing distance
Monitor's
optimal
3D viewing
distance
Optimal
viewing
angle
27MT93D
When
viewing 3D
images
69.0 cm 55 cm to 500 cm 100 cm 12 °
ENGLISH
35
VIEWING 3D IMAGING
VIEWING 3D IMAGING
WARNING
Viewing Environment
Viewing Time
-
When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long
period of time may cause headache, dizziness, fatigue or eye strain.
Viewing Age
Infants/Children
-
Usage/ Viewing 3D contents for children under the age of 5 are prohibited.
-
Children under the age of 10 may overreact and become overly excited because their vision is in
development (for example: trying to touch the screen or trying to jump into it. Special monitoring
and extra attention is required for children watching 3D contents.
-
Children have greater binocular disparity of 3D presentations than adults because the distance
between the eyes is shorter than one of adults. Therefore they will perceive more stereoscopic
depth compared to adults for the same 3D image.
Teenagers
-
Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D
contents. Advise them to refrain from watching 3D contens for a long time when they are tired.
Elderly
-
The elderly may perceive less 3D effect compared to the youth. Do not sit closer to the TV than the
recommended distance.
Those that have a photosensitive seizure or chronic illness
Some users may experience a seizure or other abnormal symptoms when they are exposed to a
flashing light or particular pattern from 3D contents.
Do not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy,
cardiac disorder, or blood pressure disease, etc.
3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly.
Double images or discomfort in viewing may be experienced.
If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble
sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than
the average adult.
If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D
contents.
Symptoms which require discontinuation or refraining from watching 3D contents
Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.
When these symptoms are experienced, stop using/watching 3D contents and get enough rest until
the symptom subsides.
-
Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain,
dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.
ENGLISH
36
VIEWING 3D IMAGING
CAUTION
Viewing Environment
Viewing Distance
- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you
feel discomfort in viewing 3D contents, move further away from the TV.
Cautions when using the 3D glasses
Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.
Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.
Using modified 3D glasses may cause eye strain or image distortion.
Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.
The 3D glasses are fragile and are easy to be scratched. Always use a soft, clean piece of cloth when
wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them
with chemicals.
ENGLISH
37
TROUBLESHOOTING
TROUBLESHOOTING
General
Problem Resolution
Cannot control the TV with
the remote control.
Check the remote control sensor on the product and try again.
Check if there is any obstacle between the product and the remote control.
Check if the batteries are still working and properly installed ( to , to ).
No image display and no
sound is produced.
Check if the product is turned on.
Check if the power cord is connected to a wall outlet.
Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.
Check the power control settings. The power supply may be interrupted.
Check if the Auto sleep feature is activated in the Time settings.
If there is no signal while the TV is on, the TV will turn off automatically after
15 minutes of inactivity.
Using 3D mode
Problem Resolution
If you can see a swirling oil-like
pattern on the TV when the TV is
turned off.
This is caused by the interference of external light in the air layer between the
LCD surface and 3D filter. The pattern becomes almost invisible when you turn
on the power again.
If you are not using the glasses
provided with the TV.
When you view 3D images with this TV, it is very important that you use the
glasses provided with the TV. The glasses are designed to compensate optically
for the 3D filter attached to the surface of the TV. If you wear third-party glasses,
you may not see 3D images properly on the TV.
If you view 3D images outside the
optimal viewing angle or distance.
When you view 3D images outside the optimal viewing angle or viewing distance,
the images may look overlapped or not be displayed properly in 3D.
Notes for Viewing 3D Image with 3D Digital Brodcating
*In Analogue Brodcating, 3D Imaging does not work.
Problem Resolution
When switching the 2D image
display to the 3D image display
with the 3D button on the remote
control, the overlapped image may
be displayed.
Disable the 3D imaging mode with the 3D button.
If the screen is divided into left/right
or top/bottom when you change the
channel
This channel supports the 3D imaging mode. Select the 3D imaging type
displayed on the screen by pressing the 3D button on the remote control.
If your eyes are sore or the screen
looks blurry while viewing 3D
images.
Select Left/Right or Right/Left option, which you find better for viewing 3D
images.
ENGLISH
38
SPECIFICATIONS
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
Wireless LAN module(TWFM-B006D) specification
Standard IEEE802.11a/b/g/n
Frequency Range
2400 to 2483.5 MHz
5150 to 5250 MHz
5725 to 5850 MHz
Modulation CCK / OFDM / MIMO
Output Power
(Typical)
802.11a: 11 dBm
802.11b: 15 dBm
802.11g: 13 dBm
802.11n - 2.4GHz: 13 dBm
802.11n - 5GHz: 13 dBm
Data rate
802.11a/g: 54 Mbps
802.11b: 11 Mbps
802.11n: 300 Mbps
Antenna Gain
(Typical)
2400 to 2483.5 MHz: 2.5dBi
5150 to 5250 MHz: 2.2dBi
5725 to 5850 MHz: 2.9dBi
Occupied bandwidth
802.11a/b/g: HT20
802.11n: HT20/40
Because band channel used by the country could be different, the user can not change or adjust the operating
frequency and this product is set for the regional frequency table.
Bluetooth module (BM-LDS401) specification
Standard Bluetooth Version 3.0
Frequency Range 2400 ~ 2483.5 MHz
Output Power (Max.) 10 dBm or lower
Data rate (Max.) 3 Mbps
Communication Distance Line of Open Sight approx. 10 m
ENGLISH
39
SPECIFICATIONS
Digital TV Analogue TV
New Zealand,
Singapore
Television System DVB-T PAL/SECAM-B/G/D/K, PAL-I
Programme
Coverage
UHF 21 to 69
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
Australia Television System DVB-T PAL B/B
Programme
Coverage
VHF 06 to 12
UHF 27 to 69
B/B : VHF/UHF 0 to 75, CATV : 2 to 44
Indonesia, Israel,
Myanmar, Sri
Lanka
Television System DVB-T PAL/SECAM-B/G/D/K, PAL-I, NTSC-M
Programme
Coverage
UHF 21 to 69
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
Vietnam, Malaysia Television System DVB-T PAL/SECAM-B/G/D/K, PAL-I, NTSC-M
Programme
Coverage
VHF 06 to 12
UHF 21 to 69
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
Iran, Algeria,
Tunisia, Digital
model
Television System DVB-T PAL/SECAM-B/G/D/K, PAL-I, NTSC-M
Programme
Coverage
VHF 05 to 12
UHF 21 to 69
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
Analogue model,
India, Thailand,
South Africa, --
Television System - PAL/SECAM-B/G/D/K, PAL-I, NTSC-M
Programme
Coverage
-
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
ENGLISH
40
SPECIFICATIONS
Panel Screen Type 690 mm Wide (27 inch)
Visible diagonal size : 690 mm
Pixel Pitch 0.3114 mm (H) x 0.3114 mm (V)
Video Signal Max. Resolution 1920 × 1080 @ 60 Hz
Recommended Resolution 1920 × 1080 @ 60 Hz
Horizontal Frequency 30 kHz to 83 kHz
Vertical Frequency 58 Hz to 62 Hz
Synchronization Type Digital
Input Connector TV, PC Audio In, Component, CVBS, HDMI*2, USB*3, LAN
JACK
Power Rated Voltage 19 V 3.2 A
Power Consumption On Mode : 38 W (typ.)
Off Mode 0.5 W
AC/DC Adapter Manufacturer: LG Innotek, Model PSAB-L206A
Tilt Tilt Range -5 to 20°
Dimensions (Width x Depth x Height)
Weight
With Stand
622.1 mm x 208.4 mm x 437.8 mm
5.2 kg
Without Stand
622.1 mm x 66.8 mm x 373.7 mm
4.7 kg
Environmental
conditions
Operating Temperature
Operating Humidity
10 °C to 35 °C
20 % to 80 %
Storage Temperature
Storage Humidity
-10 °C to 60 °C
5 % to 90 %
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
ENGLISH
41
SPECIFICATIONS
Signal Component
480i/576i O
480p/576p O
720p/1080i O
1080p O
(50 Hz / 60 Hz only)
Component port connecting information
Component ports on the
TV
Y P
B
P
R
Video output ports
on DVD player
Y P
B
P
R
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
HDMI (DTV) supported mode
Resolution
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
640 x 480 31.469 / 31.5 59.94 / 60
720 x 480 31.469 / 31.5 59.94 / 60
720 x 576 31.25
15.625
50
50
1280 x 720 37.500
44.96 / 45
50
59.94 / 60
1920 x 1080 33.72 / 33.75
28.125
26.97 / 27
33.716 / 33.75
56.250
67.43 / 67.5
59.94 / 60
25/50.00
23.97 / 24
29.976 / 30.00
50
59.94 / 60
HDMI (PC) supported mode
Resolution
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
640 x 350 31.468 70.09
720 x 400 31.469 70.08
640 x 480 31.469 59.94
800 x 600 37.879 60.31
1024 x 768 48.363 60.00
1152 x 864 54.348 60.053
1360 x 768 47.712 60.015
1280 x 1024 63.981 60.020
1920 x 1080 67.500 60.00
ENGLISH
42
SPECIFICATIONS
NOTE
Avoid keeping a fixed image on the set’s screen for prolonged periods of time. The fixed image may
become permanently imprinted on the screen. Use a screen saver when possible.
There may be interference relating to resolution, vertical pattern, contrast or brightness in PC mode.
Change the PC mode to another resolution or change the refresh rate to another rate or adjust the
brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphic
card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic
card.
The synchronization input waveform for Horizontal and Vertical frequencies are separate.
Connect the audio cable from the PC to the Audio input on the TV. (Audio cables are not included
with the TV).
If using a sound card, adjust PC sound as required.
DOS mode may not work depending on the video card if you use an HDMI to DVI cable.
ENGLISH
43
SPECIFICATIONS
3D supported mode
Video, which is input as below media contents is switched into the 3D screen automatically.
The method for 3D digital broadcast may differ depending on the signal environment. If video is not
switched automatically into 3D, manually convert the settings to view 3D images.
3D supported mode automatically
Input Signal
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
Playable 3D video format
HDMI
640 X 480
31.469 / 31.5
59.94 / 60
Top & Bottom,
Side by Side(Half), Side by Side(Full)
62.938 / 63
Frame Packing, Line Alternative
480p
31.469 / 31.5
Top & Bottom,
Side by Side(Half), Side by Side(Full)
62.938 / 63
Frame Packing, Line Alternative
576p
31.25
50
Top & Bottom,
Side by Side(Half), Side by Side(Full)
62.5
Frame Packing, Line Alternative
720p
37.50 50
Top & Bottom,
Side by Side(Half), Side by Side(Full)
44.96 / 45 59.94 / 60
75 50
Frame Packing, Line Alternative
89.91 / 90 59.94 / 60
1080i
28.125 50
Top & Bottom,
Side by Side(Half), Side by Side(Full)
33.72 / 33.75 59.94 / 60
56.25 50
Frame Packing, Field Alternative
67.5 59.94 / 60
1080p
26.97 / 27 23.97 / 24
Top & Bottom,
Side by Side(Half), Side by Side(Full)
28.125 25
33.72 / 33.75 29.976 / 30
43.94 / 54 23.97 / 24
Frame Packing, Line Alternative
56.25 25
67.432 / 67.5 29.976 / 30
56.25 50
Top & Bottom, Side by Side(Half)
67.432 / 67.5 59.94 / 60
USB
1080p 33.75 30
Side by Side(Half), Top & Bottom,
Checker Board, MPO(Photo), JPS(Photo)
DLNA
1080p 33.75 30
Signal Playable 3D video format
DTV Frame Compatible Side by Side(Half), Top & Bottom
ENGLISH
44
SPECIFICATIONS
3D supported mode manually
Input
Signal
Playable 3D video format
Resolution
Horizontal
Frequency
(kHz)
Verticla
Frequency
(Hz)
DTV HD / SD - -
2D to 3D, Side by Side(Half),
Top & Bottom
ATV(CVBS) SD - -
Component HD / SD - -
HDMI-PC
1024X768 48.36
60
1360X768 47.71
1920X1080 67.5
2D to 3D, Side by Side(Half),
Top & Bottom,
Checker Board, Frame
Sequential, Row Interleaving,
Column Interleaving
Others - -
2D to 3D, Side by Side(Half),
Top & Bottom
HDMI-DTV
480P 31.5 60
2D to 3D, Side by Side(Half),
Top & Bottom, Checker Board,
Frame Sequential, Row
Interleaving, Column
Interleaving
576P 31.25 50
720p
37.5 50
45 60
1080i
28.12 50
2D to 3D, Side by Sied(Half),
Top & Bottom
33.75 60
1080p
27 24
2D to 3D, Side by Side(Half),
Top & Bottom,Checker Board,
Row Interleaving, Column
Interleaving
28.12 25
33.75 30
56.25 50
2D to 3D, Side by Side(Half),
Top & Bottom, Checker Board,
Frame Sequential, Row
Interleaving, Column
Interleaving
67.5 60
USB ,DLNA
(Movie)
Under 704x480 - - 2D to 3D
Over 704x480
interlaced
- -
2D to 3D, Side by Side(Half),
Top & Bottom
Over 704x480
progressive
- 50 / 60
2D to 3D, Side by Side(Half),
Top & Bottom,Checker Board,
Row Interleaving, Column
Interleaving, Frame Sequential
Over 704x480
progressive
- others
2D to 3D, Side by Side(Half),
Top & Bottom,Checker Board,
Row Interleaving, Column
Interleaving
USB, DLNA
(Photo)
Under 320x240 - - 2D to 3D
Over 320x240 - -
2D to 3D, Side by Side(Half),
Top & Bottom
Miracast/Widi
1024X768p - 30 / 60
2D to 3D, Side by Side(Half),
Top & Bottom
1280x720p - 30 / 60
1920X1080p - 30 / 60
Others - - 2D to 3D
Make sure to read the Safety Precautions
before using the product.
Keep the Owner’s Manual (CD) in an
accessible place for future reference.
The model and serial number of the TV is
located on the back and one side of the
TV. Record it below should you ever need
service.
To obtain the source code under GPL, LGPL,
MPL and other open source licenses, that is
contained in this product, please visit http://
opensource.lge.com.
In addition to the source code, all referred
license terms, warranty disclaimers and
copyright notices are available for download.
LG Electronics will also provide open source
code to you on CD-ROM for a charge covering
the cost of performing such distribution (such
as the cost of media, shipping and handling)
upon email request to opensource@lge.com.
This offer is valid for three (3) years from the
date on which you purchased the product.
MODEL
SERIAL
