INSTALLATION GUIDE
for the
SB-HY-VELOSTR/10TW3
SKU# 94570
2011 & Up Hyundai Veloster
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.
With proper installation, your new vehicle-specific enclosed subwoofer system
will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized
JL Audio dealer. The installation professionals employed by your dealer have the necessary tools
and experience to disassemble and reassemble your vehicle properly. If you prefer to perform your
own installation, please read this installation guide completely before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox
®
be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
Continued on Next Page
SB-HY-VELOSTR/10TW3 INSTR_SKU# 011355
INSTALLATION
DIFFICULTY:
3
5
OUT
OF
ESTIMATED TIME:
23 HOURS
SPECIFICATIONS
Enclosure Type: Sealed
Driver Type: 10TW3-D4
Nominal Impedance: 2 ohms
Continuous Power Handling: 400 watts (RMS method)
INCLUDED HARDWARE
(2) 3/8 - 16 x 2-1/2” Bolt
(9) 3/8” Fender Washer
(4) 3/8” Flat Washer
(4) 3/8” Lock Washer
(6) 3/8 - 16 Hex Nut
SB-HY-VELOSTR/10TW3 INSTR_SKU# 011355
POWER RECOMMENDATION
JL Audio recommends high quality ampliers such as the JL Audio XD300/1. The diagram below shows the recommended crossover settings for the XD300/1. For a detailed description of the amplier settings, consult the
owner’s manual for the amplier. If another amplier is being used, please reference this illustration and use similar settings on that amplier.
CONNECTIONS
Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your Stealthbox® amplier. Other kits
are available should you be using more than one amplier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for both channels of the amplier. JL Audio
reccomends using 12AWG speaker wire for subwoofers.
Continued on Next Page Page 2 • JL Audio, Inc., 2013
Continued on Next Page
SB-HY-VELOSTR/10TW3 INSTR_SKU# 011355
Page 3 • JL Audio, Inc., 2013
STEP 4
Carefully unclip and remove the hatch sill panel.
STEP 8
Carefully unclip the front of the rear seat cushion, and
remove the cushion.
STEP 3
Unclip the cover on the passenger side rear seat back latch.
STEP 7
Remove the bolts at the back of the rear seat cushion.
STEP 2
Fold the rear seat back forward and remove the trunk floor.
STEP 6
Remove the screws that hold the passenger side panel to
the floor.
STEP 1
Empty the cargo area of the vehicle.
STEP 5
Remove the screw that holds the rear of the passenger side
panel in place.
Continued on Next Page
SB-HY-VELOSTR/10TW3 INSTR_SKU# 011355

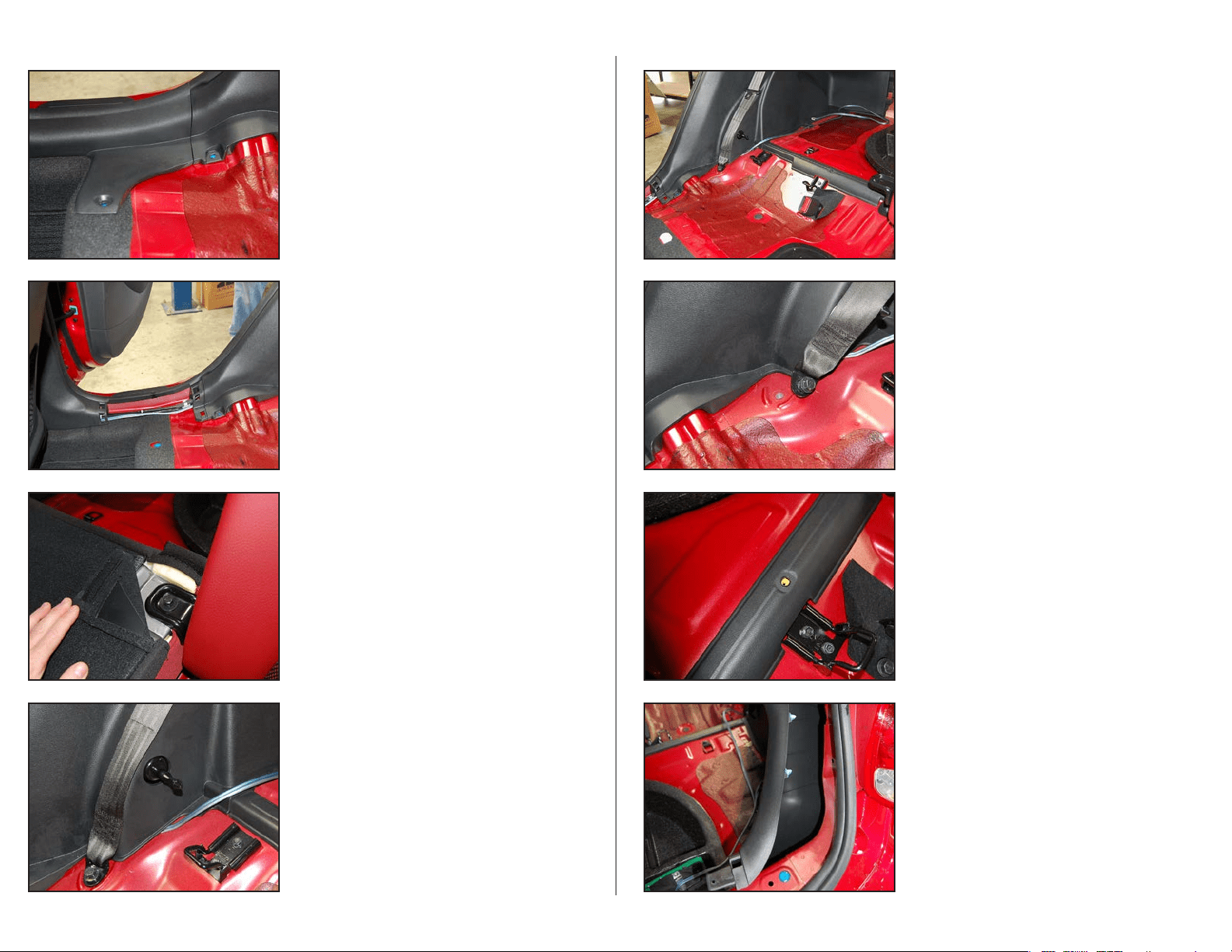

STEP 12
Slide the seat back off of the post and remove the seat.
STEP 16
Starting at the back of the vehicle, carefully unclip the
passenger side panel, and remove the panel.
STEP 11
Unbolt the rear seat back from the vehicle.
STEP 15
Remove the screws that hold in the plastic panel between
the cabin and cargo area, and remove the panel.
STEP 10
Carefully unclip and remove the passenger side rear door sill
panel.
STEP 14
Unbolt the rear passenger side seat belt as shown.
STEP 9
Remove both the clip holding in the passenger side rear
door sill panel and the clip holding down the front of the
passenger side panel.
STEP 13
Pictured is the back of the vehicle after the rear seat has been
completely removed.
Page 4 • JL Audio, Inc., 2013
Continued on Next Page
SB-HY-VELOSTR/10TW3 INSTR_SKU# 011355
Page 5 • JL Audio, Inc., 2013

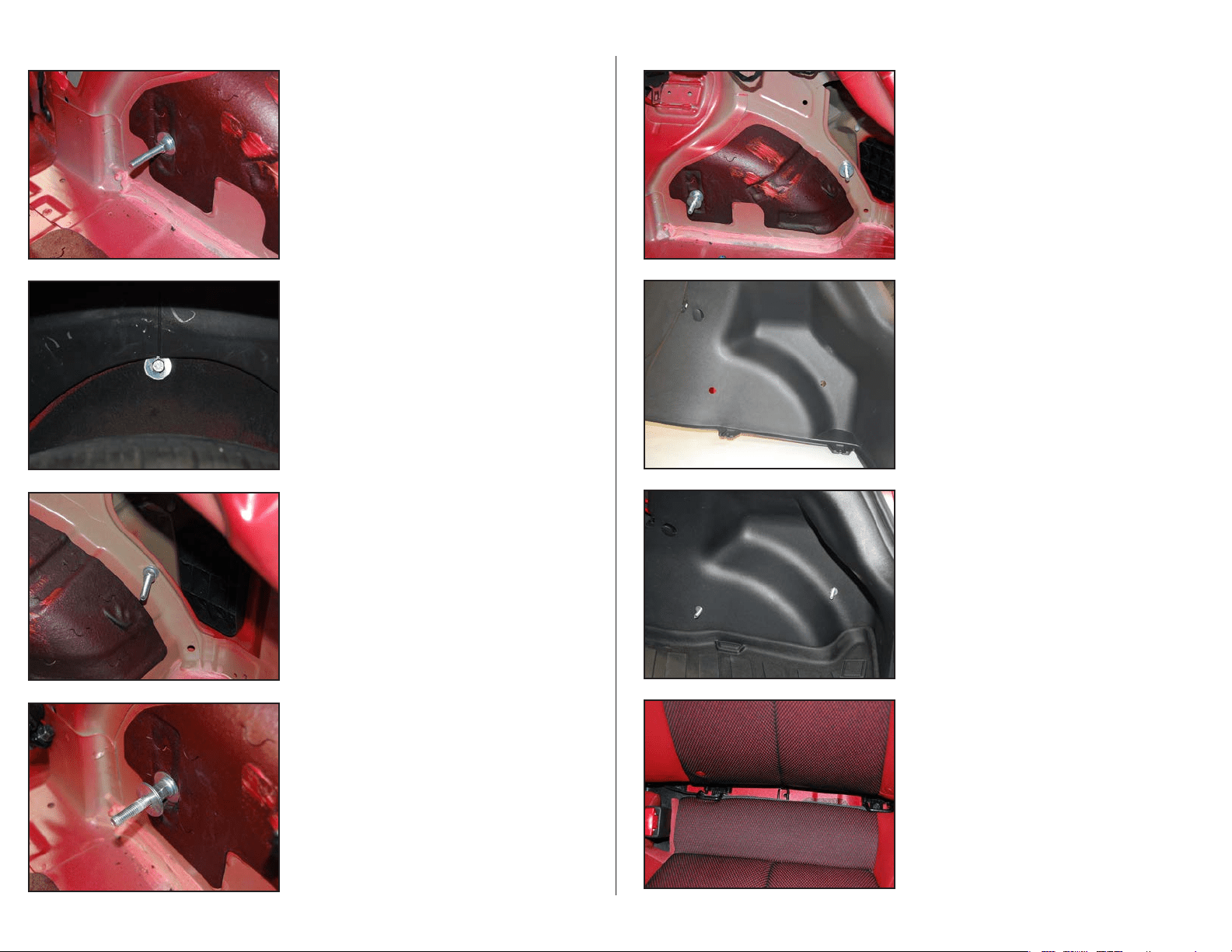

STEP 20
Measure and mark up 4-1/2” from the floor at the center of
the indented section of the wheel wheel as shown.
STEP 24
Reference this illustration for clarity in Steps 25-29.
STEP 19
Drill a 3/8” hole on the mark made in the previous step.
Before drilling, always make sure that you are not
going to be drilling into any gas lines, brake lines,
tires, transmission lines, electrical wiring, exhaust
systems or anything else that might cause a reduction
in your weekly pay.
Always wear eye protection when drilling!
STEP 23
Enlarge the hole made in the previous step to 3/8”.
STEP 18
Measure and mark down 7” from top of the factory hole as
shown.
STEP 22
Drill a 1/8” pilot hole on the mark made in Step 20.
Before drilling, always make sure that you are not
going to be drilling into any gas lines, brake lines,
tires, transmission lines, electrical wiring, exhaust
systems or anything else that might cause a reduction
in your weekly pay.
Always wear eye protection when drilling!
STEP 17
Pictured is the back of the vehicle with the passenger side
panel removed.
STEP 21
Jack up the rear passenger side of the vehicle.
Continued on Next Page
SB-HY-VELOSTR/10TW3 INSTR_SKU# 011355
Page 6 • JL Audio, Inc., 2013
STEP 28
Slide two more 3/8” Fender Washers over the 3/8 - 16 x 2-1/2”
Bolt as shown.
STEP 32
Reinstall the plastic divider panel, rear seat back, rear seat
cushion, rear door sill panel, latch cover, cargo sill panel, and
trunk floor panel.
STEP 27
Slide a 3/8” Fender Washer over a 3/8 - 16 x 2-1/2” Bolt. Slide
the assembly from the back of the brace through the hole
made in Step 19. Slide a 3/8” Flat Washer and a 3/8” Lock
Washer over the 3/8 - 16 x 2-1/4” Bolt from the front of the
brace, then thread on a pair of 3/8 - 16 Hex Nuts.
Reference Step 24 for clarity.
STEP 31
Reinstall the passenger side panel into the vehicle, allowing
the two 3/8 - 16 x 2-1/4” Bolts to pass through the holes
made in the previous step.
STEP 26
Pictured is the installed hardware from the outer fender well.
Lower the vehicle back to the ground.
STEP 30
Using a Phillips head screwdriver, remove the subwoofer
from the Stealthbox®. Place the enclosure over the
passenger side panel, aligning it with the top of the panel.
Mark the locations of the holes in the enclosure onto the
panel. Remove the enclosure and drill 3/8” holes on the
marks.
STEP 25
Slide a 3/8” Flat Washer and a 3/8” Fender Washer over a
3/8 - 16 x 2-1/2” Bolt. Slide the assembly from the outside of
the vehicle through the hole made in Step 23. Slide a 3/8”
Fender Washer and a 3/8” Lock Washer over the 3/8 - 16 x
2-1/2” Bolt from the inside of the vehicle, then thread on a
3/8 - 16 Hex Nut.
Reference Step 24 for clarity.
STEP 29
Pictured is all the hardware after installation.
SB-HY-VELOSTR/10TW3 INSTR_SKU# 011355
Page 7 • JL Audio, Inc., 2013
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will t in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 6-1/2”- Front Doors
Fits JL Audio Models: TR650-CXi, TR650-CSi, C2-650x, C2-650,
C3-650, C5-650x, C5-650, & ZR650-CSi
Rear Speaker Size / Location: 6-1/2”- Rear Door
Fits JL Audio Models: : TR650-CXi, TR650-CSi, C2-650x, C2-650,
C3-650, C5-650x, C5-650, & ZR650-CSi
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc.,. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.,.
JLA-SKU# 94570 03.15.2013 • Printed in USA • ©2011 JL Audio, Inc.,. • U.S. PATENTS: #5,734,734 #5,949,898 #6,118,884 #6,229,902 #6,243,479
#6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431 #6,625,292 #D472,891 #D480,709 Other U.S. & Foreign patents pending.
For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
www.jlaudio.com
10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA

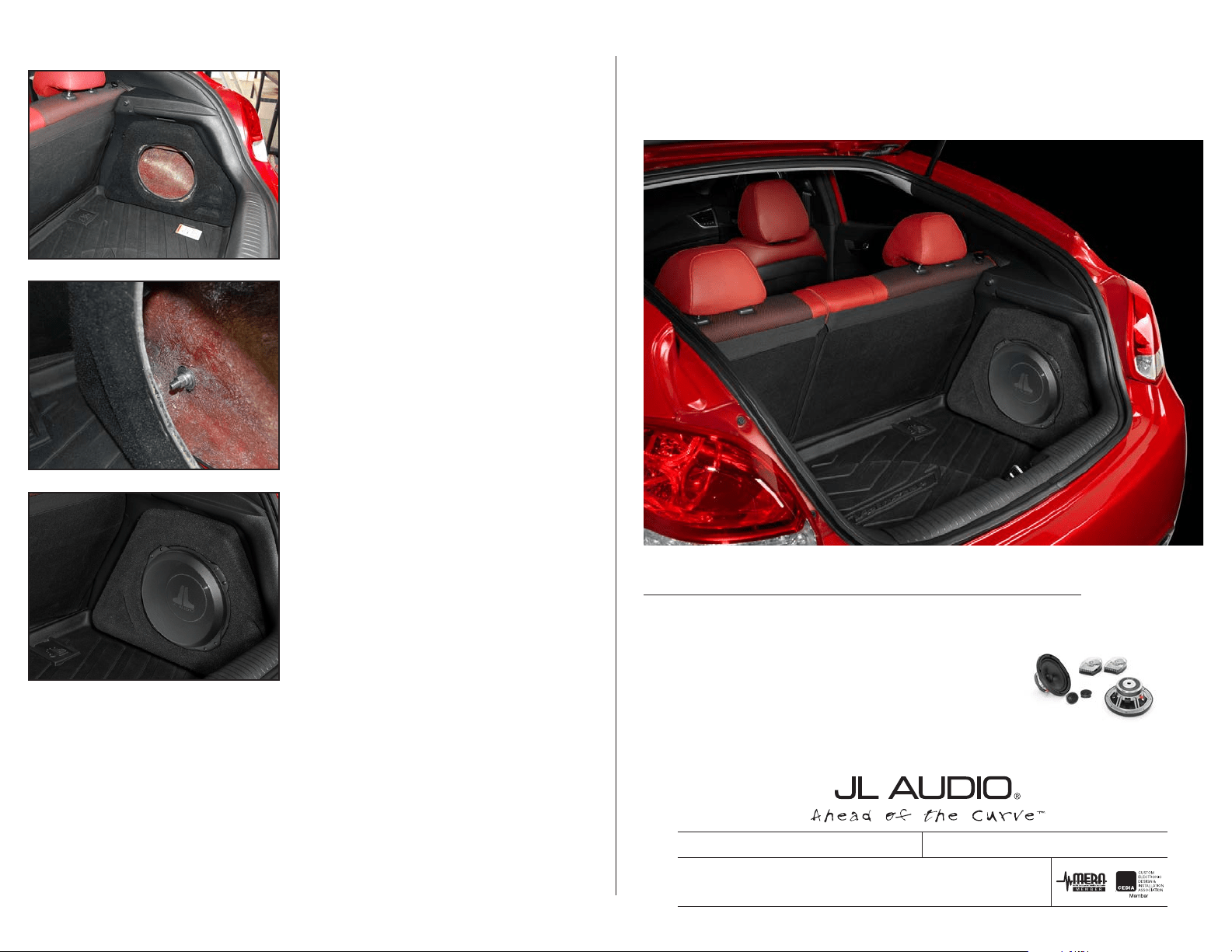

STEP 35
Reinstall the subwoofer.
STEP 34
Slide a 3/8” Fender Washer, a 3/8” Flat Washer, a 3/8” Lock
Washer, and a 3/8 - 16 Hex Nut over each of the 3/8 - 16 x
2-1/4” Bolts, and firmly tighten.
STEP 33
Connect speaker cable to the terminal cup on the
Stealthbox®, and place the enclosure into position in the
vehicle, allowing the two 3/8 - 16 x 2-1/4” Bolts to pass
through the holes in the enclosure.
CONGRATULATIONS!
You have completed the installation for this model. Enjoy your new Stealthbox®!
