MODEL
FO-2080
• INSTALLATION
• INITIAL SETTINGS
• CHOOSING SUITABLE
MEDIA
• HOW TO USE THE FAX
FUNCTION
• SPECIAL FUNCTIONS
• TROUBLESHOOTING
• APPENDIX
11
13
50
52
67
85
92
Page
OPERATION MANUAL
(for facsimile)
FO 2080 OPERATION MANUAL (for facsimile)
!AR-FX13_sec.book 1 ページ ２００９年５月１１日 月曜日 午後２時２４分
Caution
• Use only the line cable that was provided with the machine.
• To reduce the risk of fire, use only UL-Listed No.26 AWG or larger
telecommunication line cord.
Note
• This manual describes how to use the fax function of the machine.
Part names and functions shared with the copy function (for example, the
misfeed indicator and add paper indicator), are described in the Operation
Manual (for general information). For more information, please read the
Operation Manual (for general information).
• This operation manual refers to the Reversing Single Pass Feeder as the
"RSPF".
For users in the USA
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
WARNING:
FCC Regulations state that any unauthorized changes or modifications to this
equipment not expressly approved by the manufacturer could void the user’s
authority to operate this equipment.
Note:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
●
●
●
●
♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠ ♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠
♠
♠
♠
♠
♠♠♠♠♠♠♠♠♠♠♠♠♠♠ ♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠
♠
♠
♠
♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠ ♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠
♠
♠
♠
♠
♠♠♠♠♠♠♠♠♠♠♠♠♠♠ ♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠
♠
♠
♠
This product utilizes a CR coin Lithium battery which contains a Perchlorate
material. Special handling for this material may apply, California residents, See
www.dtsc.ca.gov/hazardouswaste/perchlorate/
Others, consult local environmental officers.
!AR-FX13_sec.book 1 ページ ２００９年５月１１日 月曜日 午後２時２４分
i
INTRODUCTION
TYPE OF SERVICE
This equipment may not be used on coin-operated (pay phone) phone service. Connection to party lines service is
subject to state tariffs. Contact your state's public utility commission, public service commission, or corporation
commission for more information.
ABOUT THE TELEPHONE CONSUMER PROTECTION ACT OF 1991
The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other
electronic device, including FAX machines, to send any message unless such message clearly contains in a margin
at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and
an identification of the business or other entity, or other individual sending the message and the telephone number
of the sending machine or such business, other entity, or individual.
(The telephone number provided may not be a 900 number or any other number for which charges exceed local or
long-distance transmission charges.)
In order to program this information into your FAX machine, you should complete the following steps:
See page 21 of this Operation Manual.
Important safety instructions
• If any of your telephone equipment is not operating properly, you should immediately remove it from your
telephone line, as it may cause harm to the telephone network.
• The AC power outlet shall be installed near the equipment and shall be easily accessible.
• Never install telephone wiring during a lightning storm.
• Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
• Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the
network interface.
• Use caution when installing or modifying telephone lines.
• Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of
electric shock from lightning.
• Do not use a telephone to report a gas leak in the vicinity of the leak.
• Do not install or use the machine near water, or when you are wet. Take care not to spill any liquids on the
machine.
• Save these instructions.
!AR-FX13_sec.book i ページ ２００９年５月１１日 月曜日 午後２時２４分
ii
FCC Notice to users:
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA.
On this equipment is a label that contains, among other information, a product identifier in the format
US:AAAEQ##TXXXX.
If requested, this number must be provided to the telephone company.
The REN is used to determine the number of devices that may be connected to a telephone line.
Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call.
In most but not all areas, the sum of RENs should not exceed five (5.0).
To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the
local telephone company.
For products approved after July 23, 2001, the REN for this product is part of the product identifier that has the
format US:AAAEQ##TXXXX.
The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3).
For earlier products, the REN is separately shown on the label.
If this equipment causes harm to the telephone network, your telephone company may disconnect your service
temporarily. If possible, They will notify you in advance. If advance notice is not practical, you will be notified as soon
as possible. You will also be advised of your right to file a compliant with the FCC.
Your telephone company may make changes in its facilities, equipment, operations, or procedures that could affect
the operation of your equipment. If this happens, the telephone company will provide advance notice in order for you
to make necessary modifications to maintain uninterrupted service. If the equipment is causing harm to the
telephone network, your telephone company may ask you to disconnect the equipment until the problem is resolved.
If you have any questions or problems which cannot be solved by reading this manual, please contact
A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the
applicable FCC Part 68 rules and requirements adopted by the ACTA.
A compliant telephone cord and modular plug is provided with this product.
It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for
details.
This equipment connects to the telephone network through a standard USOC RJ-11C network interface jack.
If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this
equipment does not disable your alarm equipment.
If you have questions about what will disable alarm equipment, consult your telephone company or a qualified
installer.
Sharp Electronics Corporation
1 Sharp Plaza,
Mahwah, New Jersey 07495
Telephone: 1-800-BE-SHARP
!AR-FX13_sec.book ii ページ ２００９年５月１１日 月曜日 午後２時２４分
1
TABLE OF CONTENTS
INTRODUCTION ......................................................................................................................................... i
QUICK REFERENCE GUIDE .................................................................................................................... 3
LIST OF FAX FUNCTIONS........................................................................................................................ 6
1
INSTALLATION
CONNECTIONS .............................................. 11
●
CONNECTING THE TELEPHONE LINE CORD ...11
FINAL PREPARATIONS ................................ 12
● CONNECTING OTHER DEVICES ................12
2
INITIAL SETTINGS

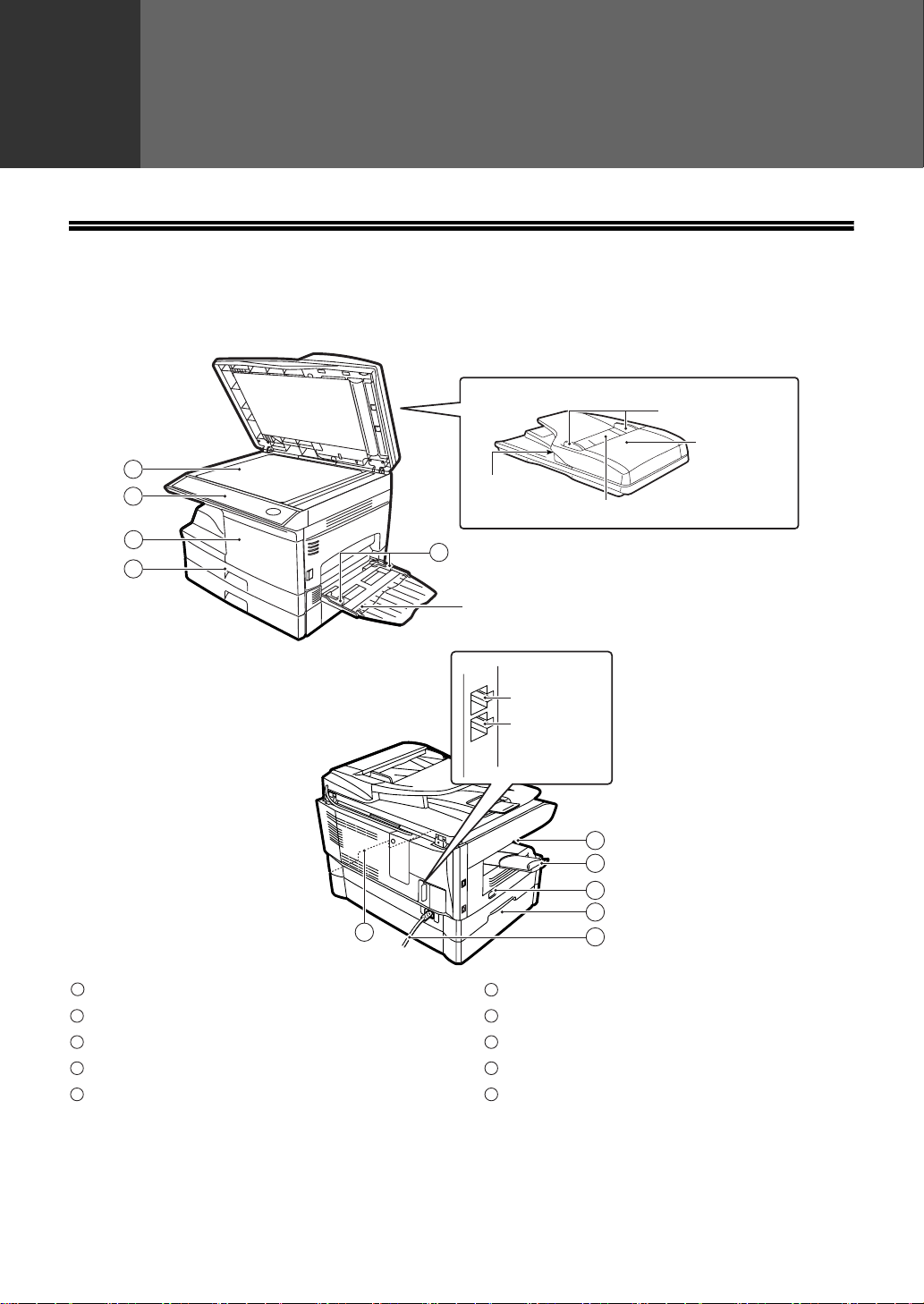

PART NAMES................................................. 13

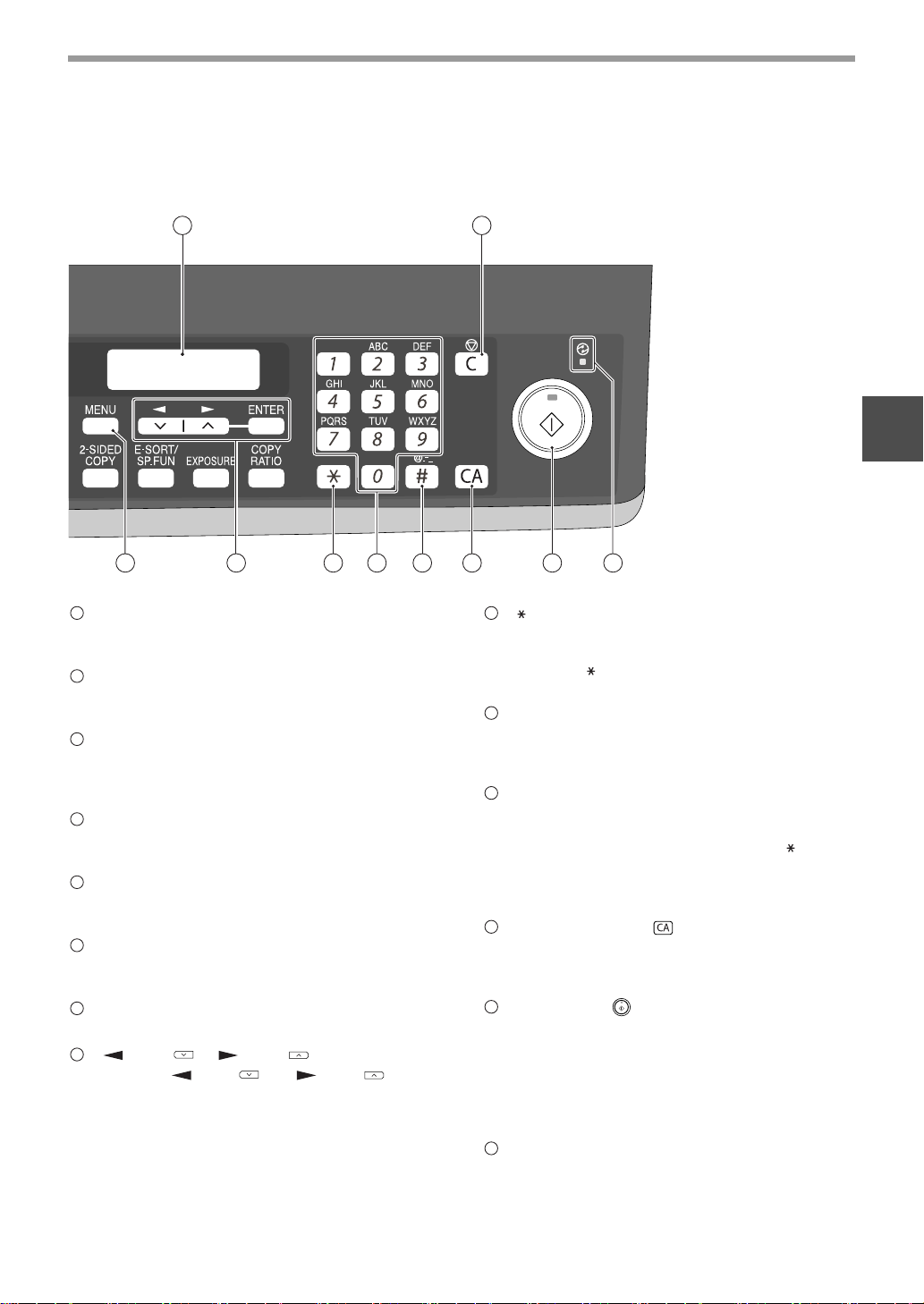

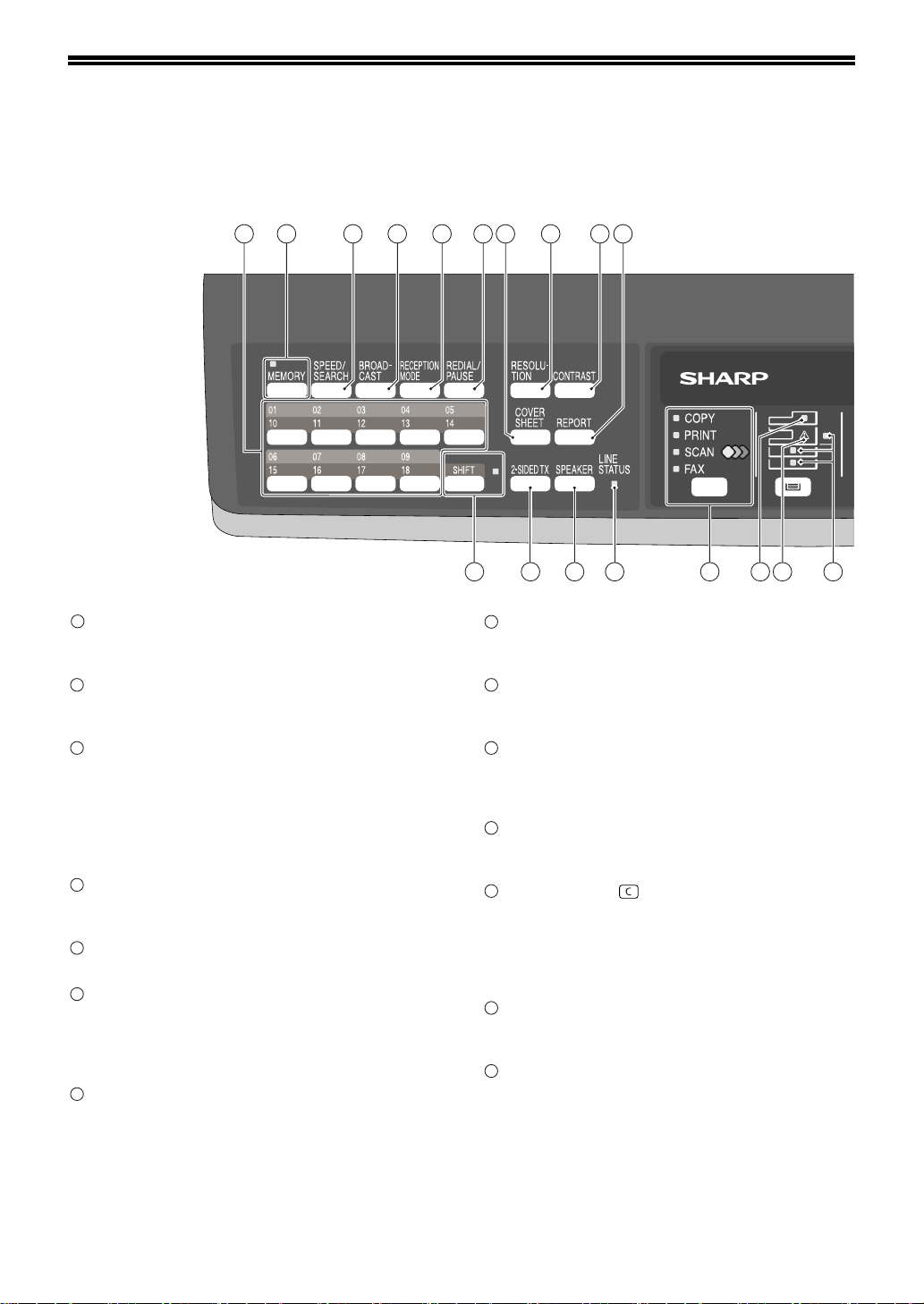

A LOOK AT THE FAX OPERATION PANEL ..... 14
ABOUT THE LIQUID CRYSTAL DISPLAY.... 16
USING THE ARROW KEYS ........................... 16
ADJUSTING THE BEEP VOLUME ................ 16
ADJUSTING THE RINGING VOLUME........... 17
SETTING THE LENGTH OF ALARM BEEPS .... 18
ADJUSTING THE ALARM BEEP VOLUME .. 19
FAX SETUP .................................................... 20
● HOW TO ENTER CHARACTERS .................20
●
ENTERING YOUR NAME AND FAX NUMBER.....21
● SETTING THE DATE AND TIME ..................22
● SELECTING THE TRANSMISSION MODE ..26
● SELECTING THE RECEPTION MODE.........27
● SETTING THE NUMBER OF RINGS FOR
AUTO RECEPTION .......................................28
● SETTING THE NUMBER OF RINGS FOR
MANUAL RECEPTION ..................................29
●
SELECTING THE RECEPTION PAPER SIZE..29
●
SETTING THE TRAY SELECTION...................30
● SETTING THE DIAL MODE ..........................31
●
SETTING THE NUMBER OF RECALL TIMES......32
● SETTING THE RECALL INTERVAL..............34
● SETTING THE INDEX FUNCTION................36
● SETTING RESOLUTION PRIORITY .............37
● SETTING UP THE MACHINE FOR USE WITH
A PC MODEM................................................38
● USING THE REMOTE RECEPTION
FUNCTION ....................................................39
● DISTINCTIVE RINGING ................................41
● STORING NUMBERS FOR AUTOMATIC
DIALING.........................................................42
●
STORING NUMBERS UNDER GROUP KEYS .....45
USING THE MACHINE WITH AN ANSWERING
MACHINE.........................................................48
● QUIET DETECT TIME .................................. 48
● ANSWERING MACHINE BACKUP............... 49
3
CHOOSING SUITABLE MEDIA
ORIGINALS SUITABLE FOR FAXING ...........50
● SIZE AND WEIGHT ...................................... 50
● UNSUITABLE ORIGINALS........................... 51
!AR-FX13_sec.book 1 ページ ２００９年５月１１日 月曜日 午後２時２４分
2
4
HOW TO USE THE FAX FUNCTION
SENDING ORIGINALS ................................... 52
● SETTING THE ORIGINAL .............................52
OPTIONAL TRANSMISSION SETTINGS ...... 54
● ORIGINAL SIZE.............................................54
● RESOLUTION................................................55
● CONTRAST ...................................................55
● COVER SHEET .............................................56
● MESSAGE FUNCTION..................................57
● TWO-SIDED ORIGINAL TRANSMISSION
FUNCTION ....................................................58
DIALING AND TRANSMITTING..................... 59
● DIRECT KEYPAD DIALING...........................59
● RAPID KEY DIALING ....................................59
● SPEED DIALING ...........................................59
● CHAIN DIALING ............................................60
● NORMAL DIALING USING THE [SPEAKER]
KEY................................................................60
● USING THE SEARCH KEY ...........................61
● REDIALING....................................................61
IF THE MEMORY BECOMES FULL WHILE
SCANNING AN ORIGINAL............................. 62
CANCELING (DELETING) A STORED FAX JOB...62
RECEIVING FAXES........................................ 63
● USING AUTO MODE.....................................63
● USING MAN. MODE......................................63
● USING A.M. MODE .......................................63
OPTIONAL RECEPTION SETTINGS ............. 64
● TWO-SIDED RECEPTION ............................64
● RECEIVE REDUCE .......................................65
WHEN USING MANUAL SENDING AND
RECEIVING..................................................... 66
5
SPECIAL FUNCTIONS
MEMORY .........................................................67
DATA TRANSFER...........................................68
TRANSMISSION RESERVATION...................70
BROADCASTING ............................................71
POLLING .........................................................73
● POLLING ...................................................... 73
● SERIAL POLLING......................................... 74
● POLLING TRANSMISSION (MEMORY
POLLING) ..................................................... 75
● RESTRICTING POLLING MACHINES
(POLLING SECURITY)................................. 77
TIMER OPERATIONS .....................................79
●
CANCELING A TIMER TRANSMISSION JOB.. 80
ANTI JUNK FAX ..............................................81
OPERATION IN COPY, PRINTER, SCANNER,
AND FAX MODES ...........................................84
6
TROUBLESHOOTING
PRINTING OUT REPORTS .............................85
● ACTIVITY REPORT AUTO LISTING ............ 88
● PRINTING TRANSACTION REPORTS........ 89
TROUBLESHOOTING.....................................90
MESSAGES AND SIGNALS ...........................91
● DISPLAY MESSAGES.................................. 91
● AUDIBLE SIGNALS ...................................... 91
7
APPENDIX
SPECIFICATIONS ...........................................92
INDEX ..............................................................93
!AR-FX13_sec.book 2 ページ ２００９年５月１１日 月曜日 午後２時２４分
3
QUICK REFERENCE GUIDE
The following quick reference guide provides brief explanations the operation of the machine.
Selecting the transmission mode (p.26)
Memory transmission mode
The indicator lights up when
memory transmission mode
is selected.
Press the
[MEMORY] key
to change modes.
Direct transmission mode
The indicator is off when
direct transmission mode
is selected.
Place the original
Using the RSPF (p.52)
Place the original face up
(up to 50 pages at once)
Using the document glass (p.53)
Place the original face down
!AR-FX13_sec.book 3 ページ ２００９年５月１１日 月曜日 午後２時２４分
4
Sending a fax
Dialing methods
Search by fax numbers.
Speed Dial number or Rapid Key set for
Chain Dialing when stored.
Dial with the numeric keys and then
press the [REDIAL/PAUSE] key.
Direct Dialing
(p.59)
Press the numeric keys to dial.
Search Dialing
(p.61)
Speed Dialing
(p.59)
Enter a two-digit
Speed Dial number.
SPEED/
SEARCH
Rapid Key
Dialing (p.59)
* It is not necessary to press the [START] key
after pressing a Rapid Key.
09
18
01
10
09
18
01
10
REDIAL/
PAUSE
Redial the last number dialed.
REDIAL/
PAUSE
Chain Dialing
(p.60)
SPEED/
SEARCH
Dial the next part of the number
(a Group Key cannot be used).
Enter the first letter of the
stored name.
SPEED/
SEARCH
Select the
destination.
Press when the first character of the
name is a special character or number.
Sending a fax
Using the RSPF
Using the document glass
Dial.
Adjust the resolution
and contrast. (p.55)
CONTRAST
RESOLU-
TION
Place the original. (p.52)
Specify the
original size.
(p.54)
Dial.
Adjust the resolution
and contrast. (p.55)
CONTRAST
RESOLU-
TION
Place the original. (p.53)
Redialing
(p.61)
If you are faxing a
multi-page original,
change pages and
press the [START]
key ( ).
!AR-FX13_sec.book 4 ページ ２００９年５月１１日 月曜日 午後２時２４分
5
BROAD-
CAST
Sending a fax to multiple destinations (Broadcasting) (p.71)
Place the original.
Dial.
Adjust the resolution
and contrast. (p.55)
CONTRAST
RESOLU-
TION
Automatically sending a fax at a specified time (timer transmission)
To set up a timer transmission, see "TIMER OPERATIONS" (p.79).
Storing a fax job while another job is in progress
Place the original.
Fax transmission
or reception in
progress
Dial.
Adjust the resolution
and contrast. (p.55)
CONTRAST
RESOLU-
TION
The fax will be
transmitted after
previous jobs are
completed.
Receiving a fax
Select "POLLING MODE".
Press until the desired
reception mode appears
in the display.
* Another fax machine can also call your fax machine and request automatic transmission of a original placed in
your machine. For this to take place, the reception mode of your machine must be set to "AUTO".
Selecting the reception mode (p.63)
RECEPTION
MODE
"AUTO" :
"MAN." :
"A.M." :
Select this mode when an extension
phone is connected to the machine to
receive phone calls. To receive a fax,
answer the call on the phone and then
press the [START] ( ) key.
Select this mode when an answering
machine is connected to the machine.
Faxes will be received automatically.
Faxes are automatically received.
"AUTO"
"MAN."
"A.M."
Calling a fax machine and requesting automatic transmission of
an original placed in that machine (p.73)
Dial.
!AR-FX13_sec.book 5 ページ ２００９年５月１１日 月曜日 午後２時２４分
6
LIST OF FAX FUNCTIONS
The FAX MAIN MENU is used to configure settings for the fax function and program information such as the fax
number of the machine. The settings in the FAX MAIN MENU are shown below.
The procedure for configuring settings is explained in "SELECTING SETTINGS FOR THE FUNCTION" (p.10).
Menu item Settings (factory default setting appears in bold) Page
0 : RX DATA TRANSFER
1 : DATA TRANSFER Enable transfer of received faxes to another fax machine when
printing is not possible.
69
2 : FAX NUMBER Program the fax number of the machine to which received faxes
will be transferred.
68
1 : TIMER MODE
1 : SET Set up a transmission or polling job to take place automatically
at a specified time.
79
2 : CLEAR Cancel a timer transmission job. 79
2 : ENTRY MODE
1 : FAX NUMBER Store (or delete) fax numbers in Rapid Keys, Speed Dial
numbers, and Group Keys.
1 : RAPID KEY
2 : SPEED #
3 : GROUP KEY
42, 44,
45, 47
2 : DATE&TIME SET Set the date and time in the machine. 22
3 : OWN PASSCODE SET Program the name and phone number of the user of the
machine.
21
4 : PASSCODE # MODE Store fax numbers that are allowed to poll the machine when
polling security is used.
78
5 : DAY LIGHT SAVING Enable automatic adjustment of the clock at the beginning and
end of daylight savings time.
25
3 : MEMORY STATUS Check and delete stored fax jobs waiting for transmission and
automatic recall jobs.
62
4 : USER PROGRAM
1 : DOC. GLASS SIZE Set the size of an original faxed from the document glass.
1 : 8.5x11
2 : 8.5x14
3 : A4
54
2 : FIXED DOC. SIZE Set the default size of originals faxed from the document glass.
1 : 8.5x11
2 : 8.5x14
3 : A4
54
3 : RESO. PRIORITY Set the default resolution for fax transmission.
1 : STANDARD
2 : FINE
3 : SUPER FINE
37
4 : # OF RINGS (AUTO) Set the number of rings on which the machine answers calls in
automatic reception mode.
0 - 9 (2)
28
5 : # OF RINGS (MANUAL) Set the number of rings on which the machine answers calls in
manual reception mode.
0 - 9 (0)
29
!AR-FX13_sec.book 6 ページ ２００９年５月１１日 月曜日 午後２時２４分
7
6 : AUTO LISTING Enable automatic printing of the Activity Report when
information on a total of 50 fax transmissions/receptions
accumulates.
1 : ON
2 : OFF
88
7 : PRINT SELECTION 1 : TRANSMISSION
Select the condition for printing reports on fax transmissions.
1 : ALWAYS PRINTS
2 : ERROR ONLY
3 : NEVER PRINTS
89
2 : BROADCAST
Select the condition for printing reports on broadcast
transmissions.
1 : ALWAYS PRINTS
2 : ERROR ONLY
3 : NEVER PRINTS
89
3 : RECEPTION
Select the condition for printing reports on received faxes.
1 : ALWAYS PRINTS
2 : ERROR ONLY
3 : NEVER PRINTS
89
4 : IMAGE MEM. PRINT
Enable printing of the original image on transaction reports.
1 : ALWAYS PRINTS
2 : ERROR ONLY
3 : NEVER PRINTS
89
8 : RECALL TIMES BUSY Set the number of recall attempts that are made when the line is
busy.
00 - 14 (02)
32
9 : RECALL TIMES ERR Set the number of recall attempts that are made when a
communication error occurs.
0 - 1 (1)
33
10 : RECALL INT. BUSY Set the interval between recall attempts when the line is busy. 1
to 15 minutes can be selected.
01 - 15 min. (03 min.)
34
11 : RECALL INT. ERR Set the interval between recall attempts when a communication
error occurs. 0 to 15 minutes can be selected.
00 - 15 min. (01 min.)
35
12 : SECURITY SELECT Enable the polling security function.
1 : ON
2 : OFF
77
13 : FAX REMOTE
NUMBER
Set the 1-digit number used to activate remote fax reception.
0 - 9 (5)
40
14 : REMOTE RECEPTION Enable the remote reception function.
1 : ON
2 : OFF
39
15 : FAX SIGNAL RCV Enable automatic fax reception when a fax tone is heard after
answering a call on an extension phone.
1 : ON
2 : OFF
38
Menu item Settings (factory default setting appears in bold) Page
!AR-FX13_sec.book 7 ページ ２００９年５月１１日 月曜日 午後２時２４分
8
16 : RCV REDUCE When a fax is received that is larger that the printing paper,
enable reduction of the fax to the size of the paper to avoid the
fax being cut off.
1 : ON
2 : OFF
65
17 : BEEP LENGTH Set the length of the beep that sounds when fax transmission or
reception ends.
1 : 3 SEC
2 : 1 SEC
3 : NO BEEP
18
18 : RINGER VOLUME Set the volume of the ringer.
1 : OFF
2 : LOW
3 : MIDDLE
4 : HIGH
17
19 : BEEPER VOLUME Set the volume of the beep that sounds when a key is pressed.
1 : OFF
2 : LOW
3 : MIDDLE
4 : HIGH
19
20 : DIAL MODE Set the dial mode for the type of line you are on.
1 : TONE
2 : PULSE
31
21 : DISTINCTIVE RING Set the ring pattern for distinctive ring.
1 : OFF
2 : STANDARD
3 : PATTERN 1
4 : PATTERN 2
5 : PATTERN 3
6 : PATTERN 4
7 : PATTERN 5
41
22 : INDEX PRINT Enable printing of a black mark (index) at the top of each
received fax page.
1 : ON
2 : OFF
36
23 : DATE&TIME FORMAT 1 : TIME FORMAT
Select 12-hour or 24-hour format for the time set in the
machine.
1 : 12 HOUR
2 : 24 HOUR
23
2 : DATE FORMAT
Set the format of the date in the display and in printouts.
1 : MMDDYYYY
2 : DDMMYYYY
3 : YYYYMMDD
24
24 : 2-SIDED RX
Print on both sides of the paper when a multi-page fax is received.
1 : ON
2 : OFF
64
25 : TRAY SELECTION Set the tray for printing received faxes.
1 : AUTO
2 : TRAY 1
3 : TRAY 2
30
Menu item Settings (factory default setting appears in bold) Page
!AR-FX13_sec.book 8 ページ ２００９年５月１１日 月曜日 午後２時２４分
9
5 :ANTI JUNK FAX
1 : ANTI JUNK SELECT Enable the anti junk function to block fax reception from
specified fax numbers.
1 : ON
2 : OFF
81
2 : JUNK FAX # Program (or delete) fax numbers from which fax reception is to
be blocked.
1 : SET
2 : CLEAR
82
6 : A.M. MODE
1: QUIET DETECT TIME Activate fax reception when a period of silence longer than the
set time is detected.
00 - 10 (05)
48
2 : AUTO RECEIVE Enable fax reception when the answering machine is full and
cannot receive messages or otherwise fails.
1 : ON
2 : OFF
49
7 : MEMORY POLL MODE
1 : 1 TIME Perform polling transmission once. 75
2 : REPEAT Perform polling transmission repeatedly. 75
8 : POLLING MODE Poll another fax machine. 73
9 : SERIAL POLL MODE Sequentially poll multiple fax machines. 74
Menu item Settings (factory default setting appears in bold) Page
!AR-FX13_sec.book 9 ページ ２００９年５月１１日 月曜日 午後２時２４分
10

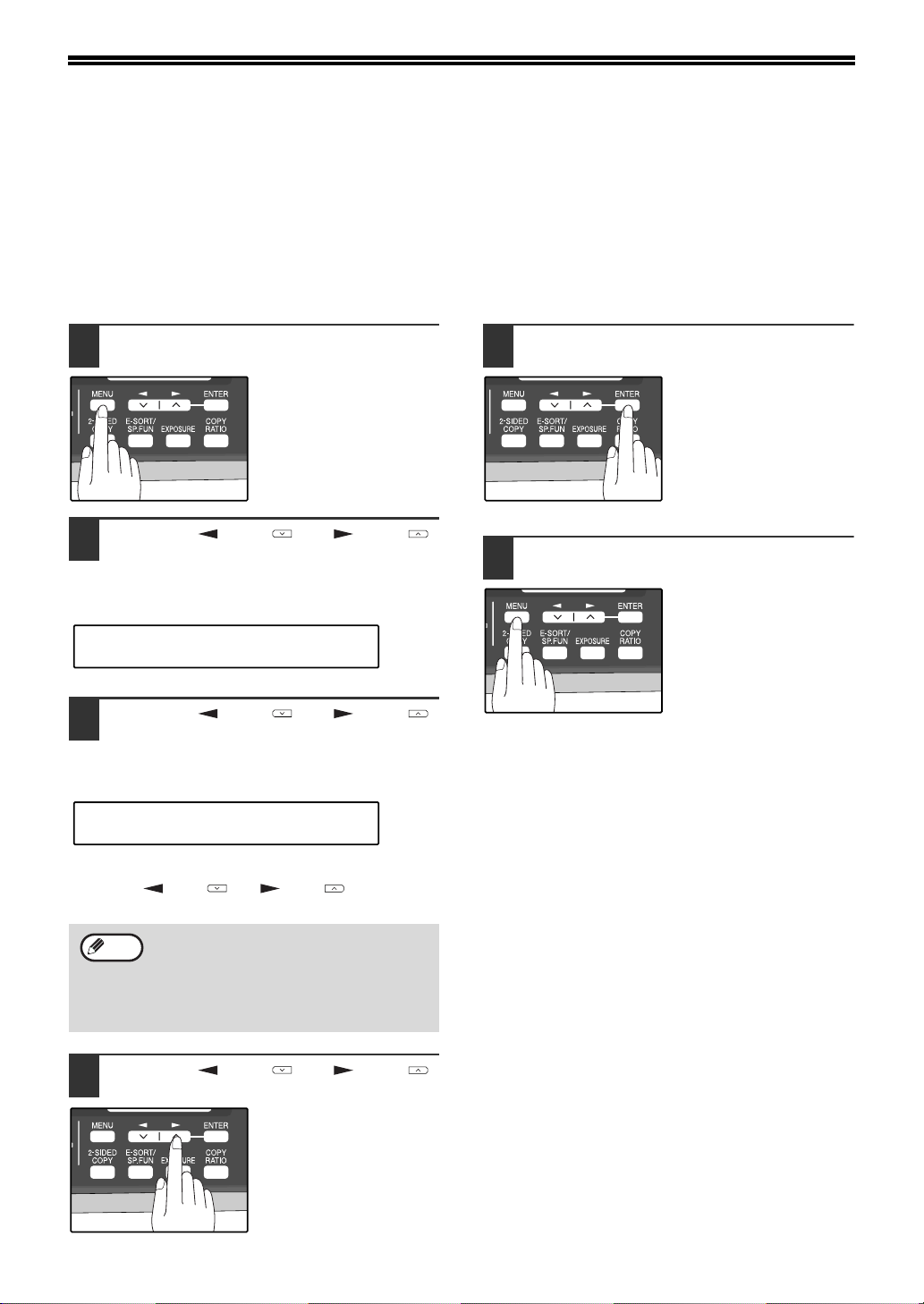

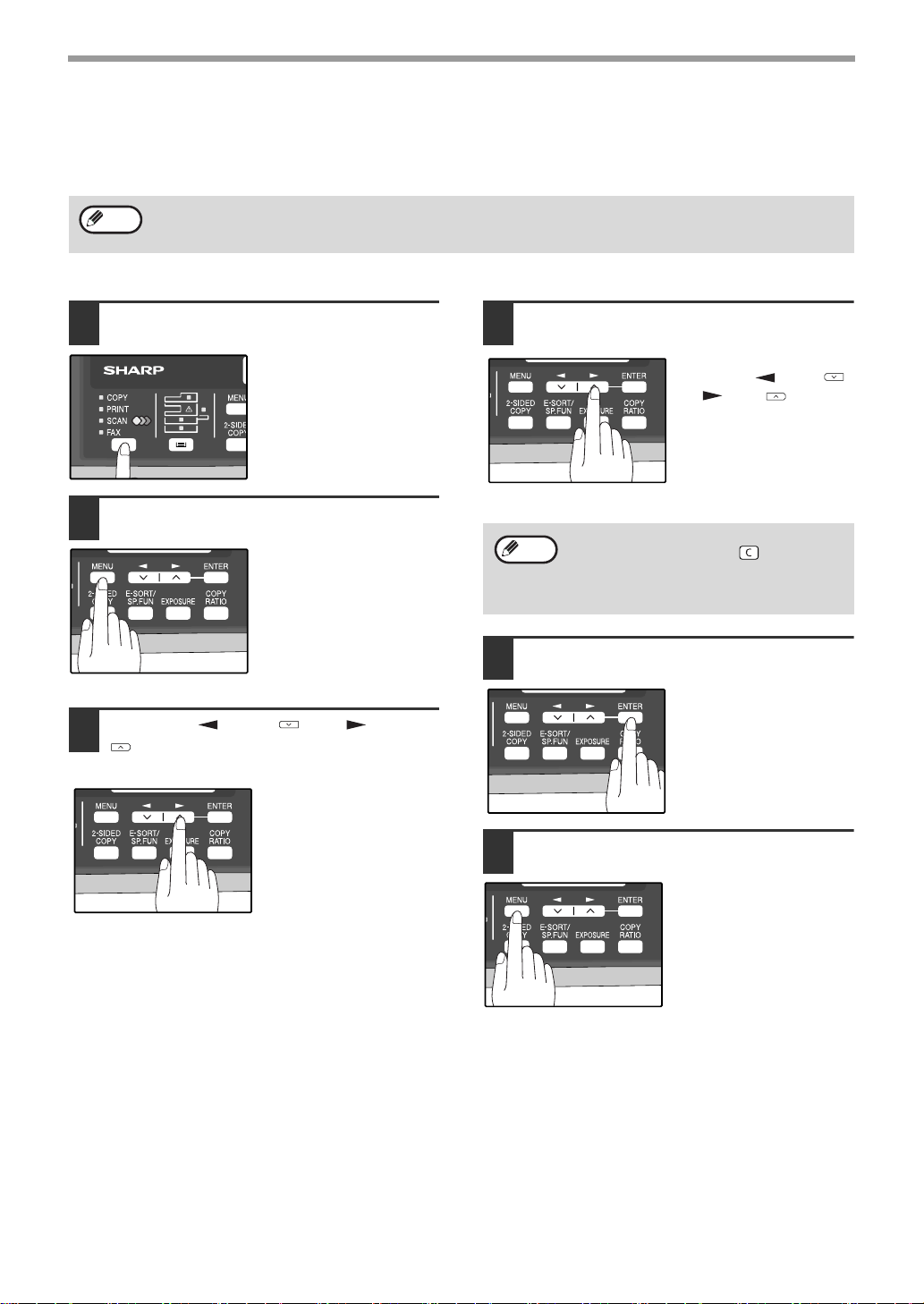

SELECTING SETTINGS FOR THE FUNCTION
The general procedure for configuring settings for the fax function is explained below. Follow this procedure to
configure the settings explained on pages 6 through 9.
1
Press the [MODE SELECT] key to
select fax mode.
The "FAX" indicator lights
up to indicate that fax
mode is selected.
2
Press the [MENU] key.
"FAX MAIN MANU" will
appear in the display.
3
Press the [ ] key ( ) or [ ] key
( ) to select a menu item and press
the [ENTER] key.
The item is selected.
Repeat this step until the
item that you wish to
configure appears.
4
Select a setting or enter information.
To select a setting:
Press the [ ] key ( )
or [ ] key ( ) until the
setting is selected.
To enter information:
Press the numeric keys
to enter characters or
numbers.
5
Press the [ENTER] key.
The setting or information
is entered.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
An item can also be selected after pressing the [MENU] key by pressing the numeric key for the item (the key
corresponding to the number that appears in front of the item). When the numeric key is pressed, the item is
selected or entered.
Note
• If you mistakenly select the wrong item,
press the [CLEAR] key ( ) and repeat
the procedure from step 2.
• To cancel a setting for a fax function,
press the [MENU] key.
Note
!AR-FX13_sec.book 10 ページ ２００９年５月１１日 月曜日 午後２時２４分
11
1
Chapter 1
INSTALLATION
CONNECTIONS
CONNECTING THE TELEPHONE LINE CORD
Plug one end of the telephone line cord into the jack on the machine marked
"LINE." Plug the other side into a standard (RJ11C) single-line telephone
wall jack. Be sure not to plug this telephone line cord into the "TEL" jack.
The "TEL" jack is used to attach an extension telephone or answering
machine to the machine. (See "CONNECTING OTHER DEVICES" (p.12))
ABOUT THE OPERATION MANUALS
The operation manuals for the machine are as follows:
Operation Manual (for facsimile) (this manual)
This manual explains the procedures for using the machine as a fax machine.
This manual only explains the fax functions of the machine. For general information on using the machine, including
safety information, installation, paper loading, removal of paper misfeeds, and peripheral equipment, see the
operation manual for the machine.
Operation Manual (for general information)
Explains the machine and how to use it as a copier. Also explains how to install the software that allows the machine
to be used as a printer and scanner for your computer.
The following information is contained in the operation manual for the machine :
Online Manual (on the CD-ROM)
This manual explains the procedures for using the machine as a printer and a scanner.
If your area experiences a high incidence of lightning or power
surges, we recommend that you install surge protectors for the
power and telephone lines. Surge protectors can be purchased
from your retailer or at most telephone specialty stores.
LINE
TEL
Note
OPERATION MANUAL contents Page
CAUTIONS
3
PART NAMES 9
POWER ON AND OFF 12
LOADING THE PAPER TRAY 15
BYPASS FEED (including special paper) 17
OPERATION MANUAL contents Page
CHANGING A TRAY'S PAPER SIZE
SETTING
19
MISFEED REMOVAL 70
TONER CARTRIDGE REPLACEMENT 74
CHECKING THE TOTAL COUNT 77
CLEANING THE MACHINE 78
!AR-FX13_sec.book 11 ページ ２００９年５月１１日 月曜日 午後２時２４分
12
FINAL PREPARATIONS
CONNECTING OTHER DEVICES
If desired, an answering machine or external telephone can be connected to the machine through the telephone
jack, labeled "TEL," on the rear of the machine.
● Connecting an answering machine to the machine allows you to receive both voice and fax messages when you
are out. To use this feature, first change the outgoing message of your answering machine, and then set the
reception mode of the machine to "A.M." (Answering Machine mode) when you go out.
Comments:
1. It is advisable to keep the length of the message under 10 seconds. If it is too long, you may have difficulty
receiving faxes sent by automatic dialing.
2. Your callers can even leave a voice message and send a fax message on the same call. Modify your outgoing
message to explain that this can be done by pressing their [START] key ( ) after leaving their voice message.
● You can connect an extension phone to the machine to make and receive calls like any other extension phone on
your line. Even if you pick up the extension phone and hear a fax tone, the machine will automatically cut in and
take over the line. Note, however, if you also have a PC modem on the same line, you must turn on the Remote
Reception function, and deactivate the Fax Signal Receive function. See "SETTING UP THE MACHINE FOR
USE WITH A PC MODEM" (p.38) and "USING THE REMOTE RECEPTION FUNCTION" (p.39).
If you are using distinctive ringing with an answering machine, you do not need to follow the procedure described
below. (Please note that when distinctive ringing is used, the answering machine must be distinctive ring
compatible.)
Note
The Remote Reception function is initially set to "ON".
Note
!AR-FX13_sec.book 12 ページ ２００９年５月１１日 月曜日 午後２時２４分
13
2
Chapter 2
INITIAL SETTINGS
PART NAMES
Document glass
Operation panel
Front cover
Paper tray
Bypass tray paper guides
Paper output tray
Paper output tray extension
Power switch
Handles
Power cord
RSPF
Exit area
Original guides
Document feeder tray
Document
feeder cover
LINE
TEL
2
3
4
1
5
6
7
8
9
TEL jack
LINE jack
Bypass tray
10
9
1
2
3
4
5
6
7
8
9
10
!AR-FX13_sec.book 13 ページ ２００９年５月１１日 月曜日 午後２時２４分
14
A LOOK AT THE FAX OPERATION PANEL
Rapid keys
Press one of these keys to dial a fax or telephone
number automatically.
[MEMORY] key / indicator
Used for sending faxes in memory (indicator is lit)
or direct sending (indicator is not lit).
[SPEED/SEARCH] key
Press this key to dial a two digit Speed Dial
number.
During character inputting, use this key to delete
an incorrect entry.
Also, press this key twice to search for an
automatic dialing number.
[BROADCAST] key
Press this key to send originals to a group of
receiving fax machines.
[RECEPTION MODE] key
Press this key to select the mode of reception.
[REDIAL/PAUSE] key
Press this key to automatically redial the last
number you dialed.
Also, press this key to insert a pause when
entering numbers.
[COVERSHEET] key
Press this key to automatically add a cover sheet
and message to a fax.
[RESOLUTION] key
Press this key to adjust the resolution before
sending faxes.
[CONTRAST] key
Press this key to adjust the contrast before sending
faxes.
[REPORT] key
Press this key to print out a report of a fax
transaction and also when receiving a confidential
fax.
Display
Shows various messages during fax operation and
programming.
[CLEAR] key ( )
Press this key to stop an operation before it is
completed, or to delete the number that was last
input.
When a setting menu appears, use this key to
move back to the previous menu level.
[SHIFT] key / indicator
Press this key to switch between upper and lower
case.
[2-SIDED TX] key
Press this key to fax a two-sided original.
1
2
17
3
4
5 6 8 9
10
7
1918 20
16151413
1
2
3
4
5
6
7
8
9
10
11
12
13
14
!AR-FX13_sec.book 14 ページ ２００９年５月１１日 月曜日 午後２時２４分
15
INITIAL SETTINGS
2
[SPEAKER] key
Press this key to begin manual dialing. (To close
the line, press the [SPEAKER] key again.)
LINE STATUS indicator
Lit when sending/receiving faxes, blinking when
receiving data.
[MODE SELECT] key / Mode indicators
Press this key to select the mode. The indicator of
the selected mode lights (copy, printer, scanner,
fax mode indicators).
RSPF indicator
This lights up when an original is placed in the
RSPF.
Error indicator
This lights steadily or blinks when a paper misfeed
or other error occurs.
Tray location indicator
Indicates the selected paper tray. The indicator
blinks when the tray is out of paper or is not closed.
[MENU] key
Press this key to configure a user program.
[ ] key ( ), [ ] key ( ), [ENTER] key
Press the [ ] key ( ) or [ ] key ( ) to
select an item in a function setting menu.
Press the [ENTER] key to enter a selection.
[] key
Press this key to enter symbols during a name
storing procedure.
Press the " " key to change from pulse dialing to
tone dialing mode.
Numeric keys
Press these keys to dial numbers, and enter
numbers and letters during number/name storing
procedures.
[#] key
Press this key to enter symbols during a name
storing procedure. The [#] key scrolls through
symbols in the opposite direction of the [ ] key.
When dialing, press this key after you are finished
scanning originals into memory from the document
glass.
[CLEAR ALL] key ( )
This returns all functions to the default settings.
When pressed in a setting menu, this returns the
settings and display to the initial state.
[START] key ( )/ indicator
Used for the following:
• To begin sending a fax.
• Reading an original into memory from the
document glass.
• Manually receiving a fax.
• Entering and setting information.
Power save indicator
This lights up when the power save function is
activated.
28
11 12
2725 2624
21
22 23
15
16
17
18
19
20
21
22
23
24
25
26
27
28
!AR-FX13_sec.book 15 ページ ２００９年５月１１日 月曜日 午後２時２４分
16
ABOUT THE LIQUID CRYSTAL DISPLAY
The machine is equipped with a two-line liquid crystal display (LCD) on the operation panel for displaying various
messages and settings during operation. This LCD can display up to 20 characters on each line. When the machine
is idle, the LCD shows the date, time, reception mode and the stand-by memory available.
Example:
When an original is placed in the RSPF, the second line
changes from "STAND-BY" to "SEND READY".
When the [MENU] key is pressed to configure a setting, the display appears as shown below.
Example:
The selected setting or entered information appears on the
second line.
USING THE ARROW KEYS
To configure settings and program information, press the [MENU] key and then press the [ ] key ( ) or [ ]
key ( ) to select the item that you wish to configure.
The arrows keys can also be used while entering characters to move the cursor.
Example:
Press the [ ] key ( ) or [ ] key ( ) to change the
item selection that appears on the second line.
ADJUSTING THE BEEP VOLUME
You can adjust the volume of the beep that sounds when a key is pressed.
The key beep volume is adjusted with "KEY TOUCH SOUND" (Program number 15) in the user programs of copy
mode. See "User Programs" in the Operation Manual (for general information).
An item can also be selected after pressing the [MENU] key by pressing the numeric key for the item
(the key corresponding to the number that appears in front of the item). When the numeric key is
pressed, the item is selected or entered.
Note
!AR-FX13_sec.book 16 ページ ２００９年５月１１日 月曜日 午後２時２４分
17
2

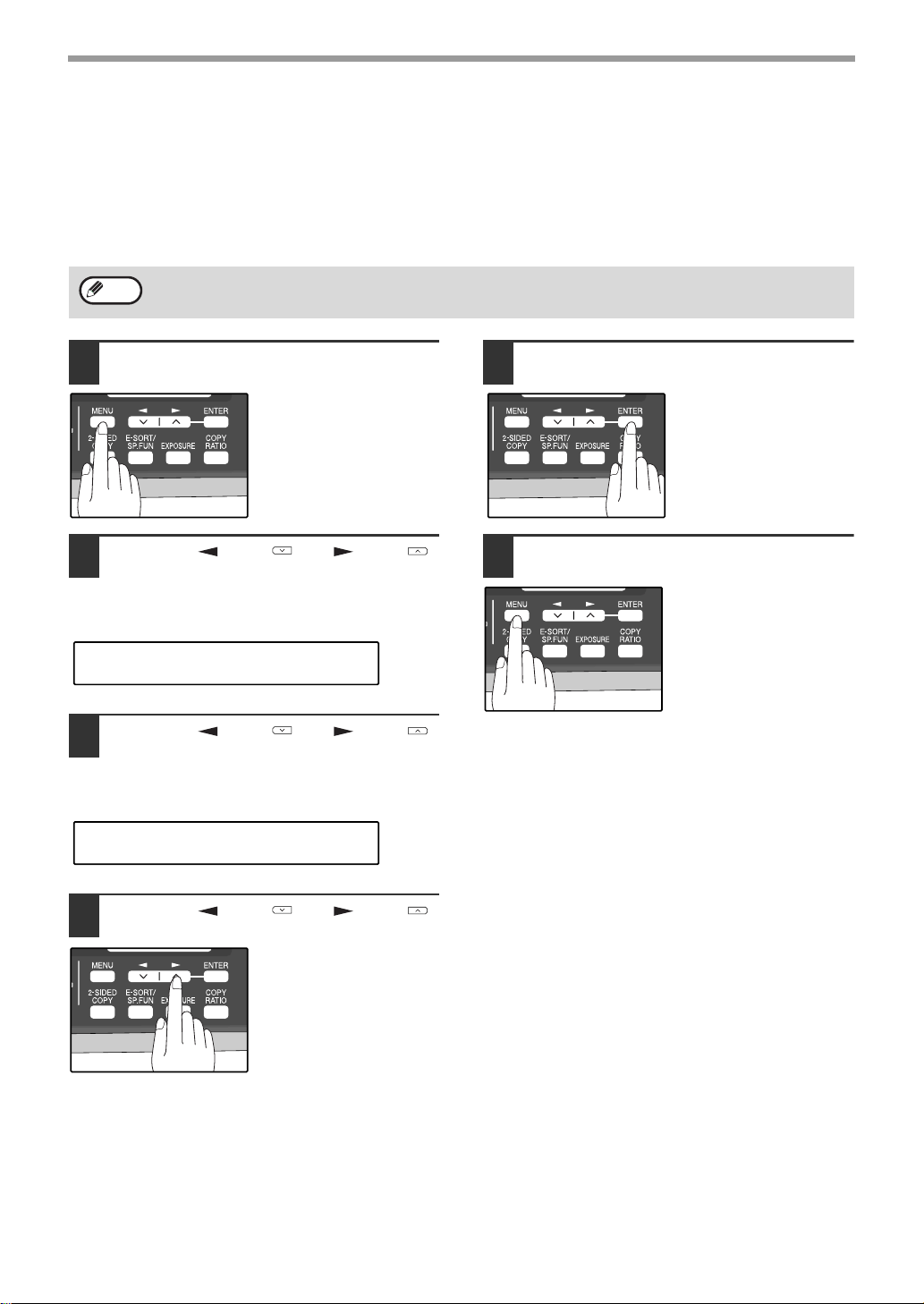

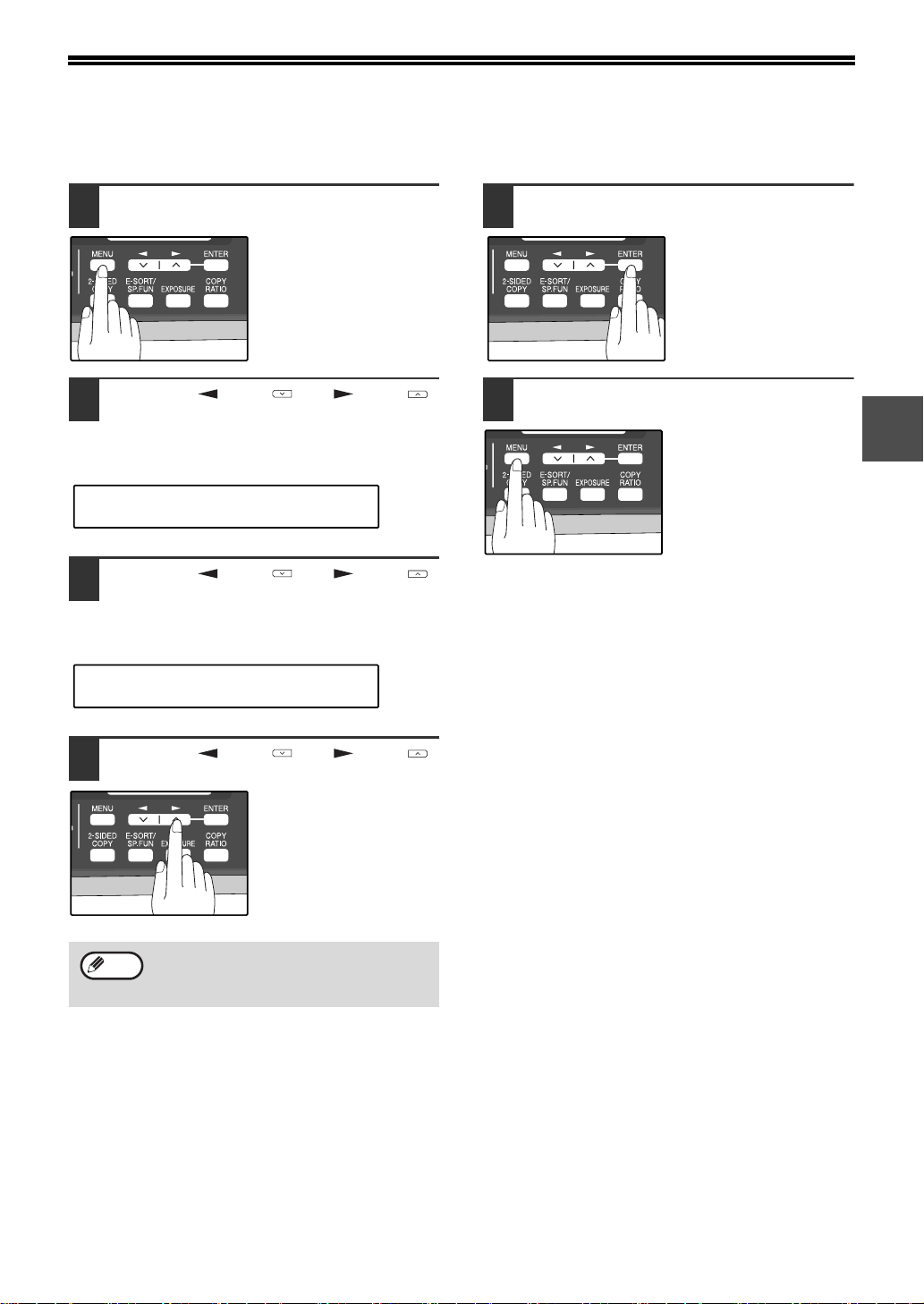

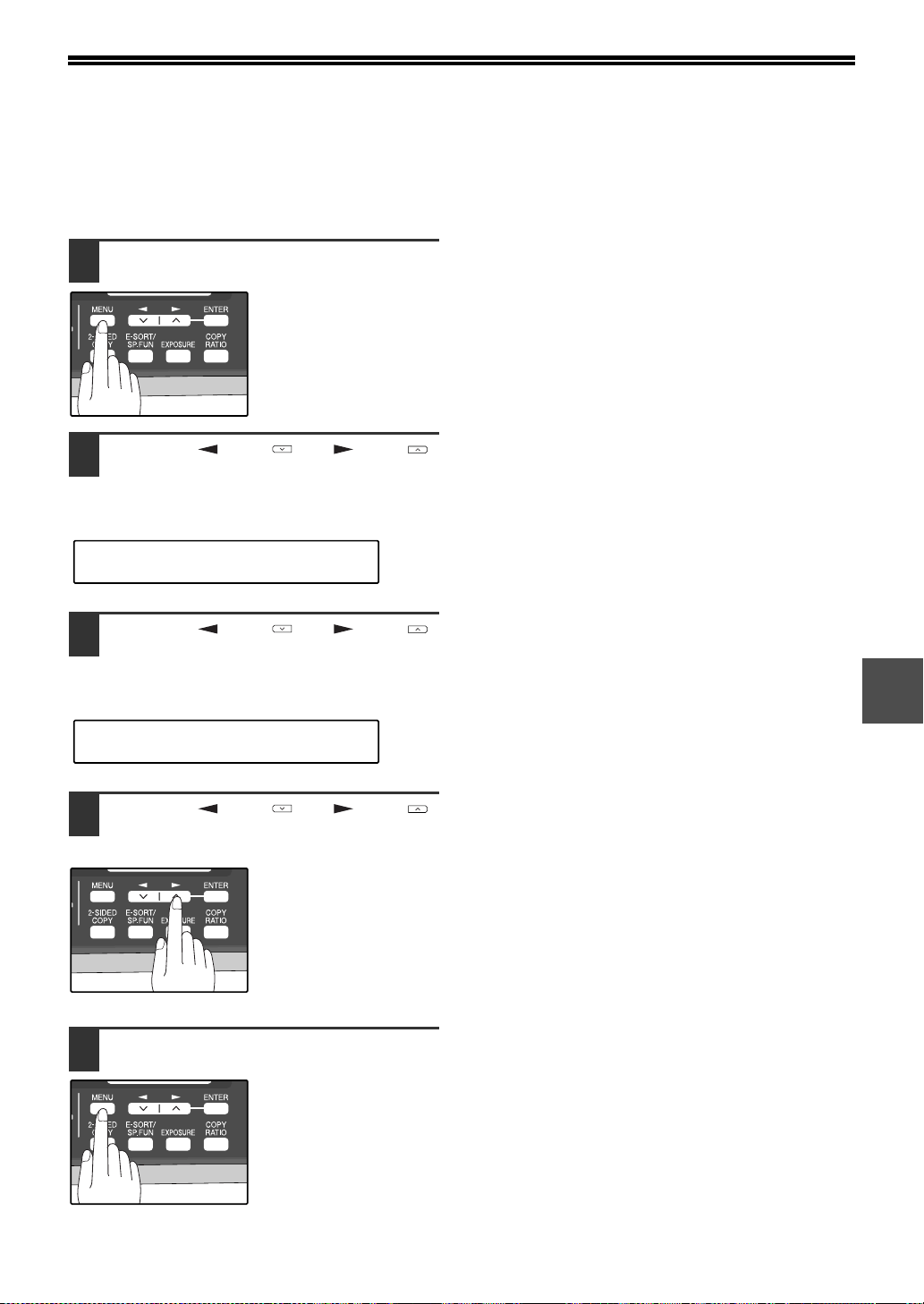

ADJUSTING THE RINGING VOLUME
Adjust the ringing volume of the machine following the procedure below.

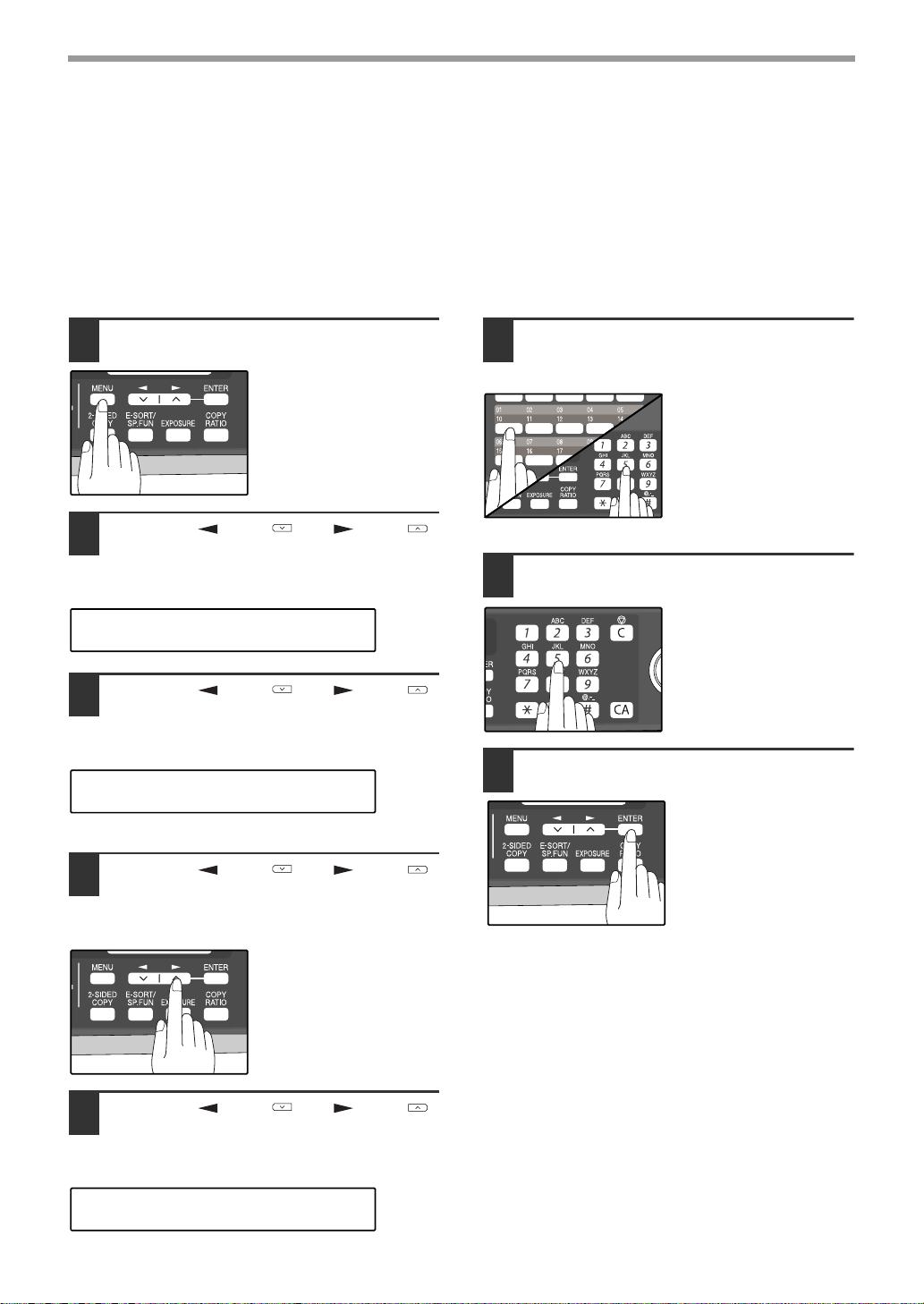

1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "18:RINGER VOLUME" appears,
and then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to set the ringer volume.
The selections are as
follows:
1:OFF
2:LOW
3:MIDDLE
4:HIGH
To turn off the ringer,
select "1:OFF".
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
An extension phone will still ring when the
machine ringer is set to "1:OFF".
"4:USER PROGRAM"
Selection
"18:RINGER VOLUME"
Selection
Note
!AR-FX13_sec.book 17 ページ ２００９年５月１１日 月曜日 午後２時２４分
18

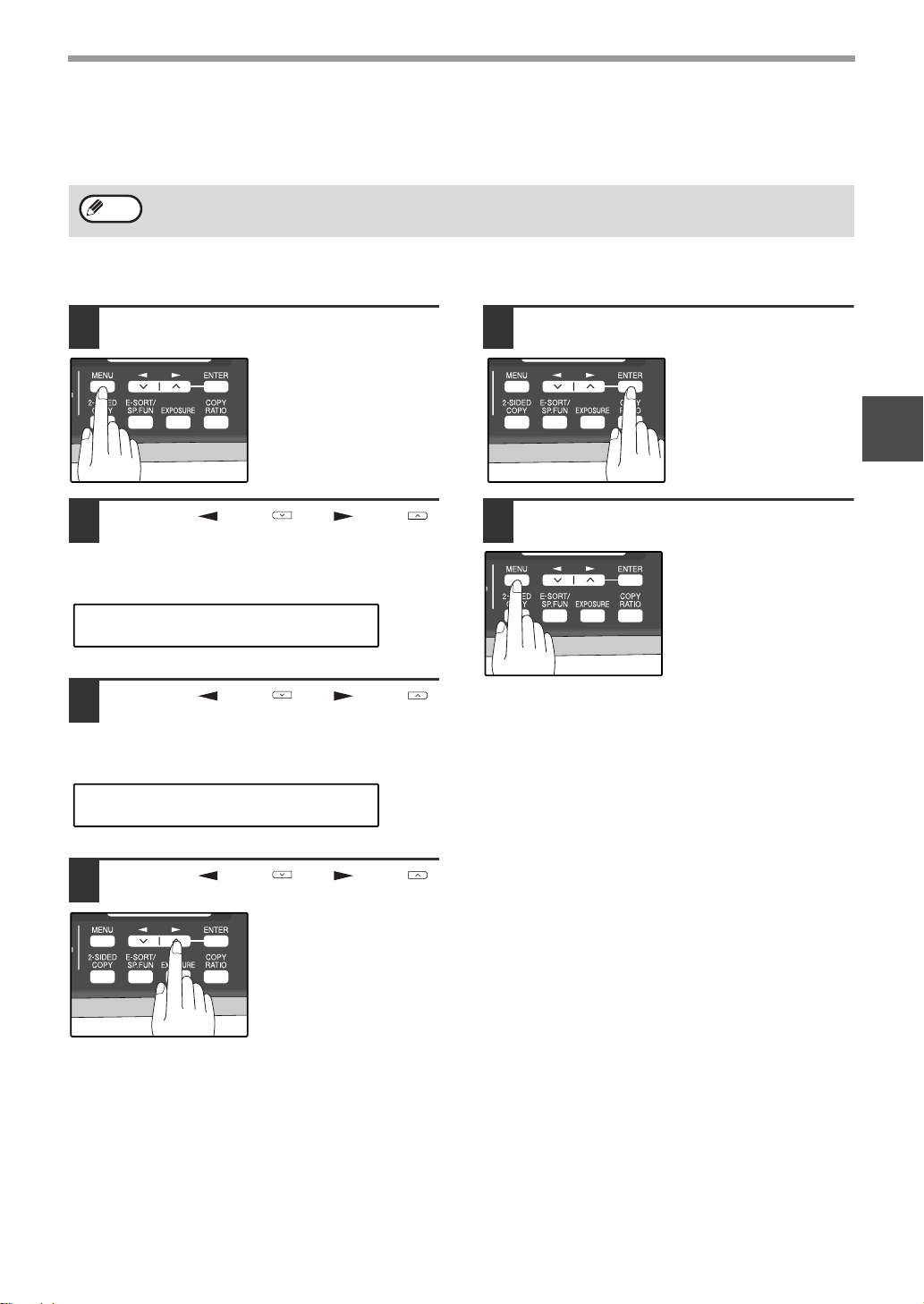

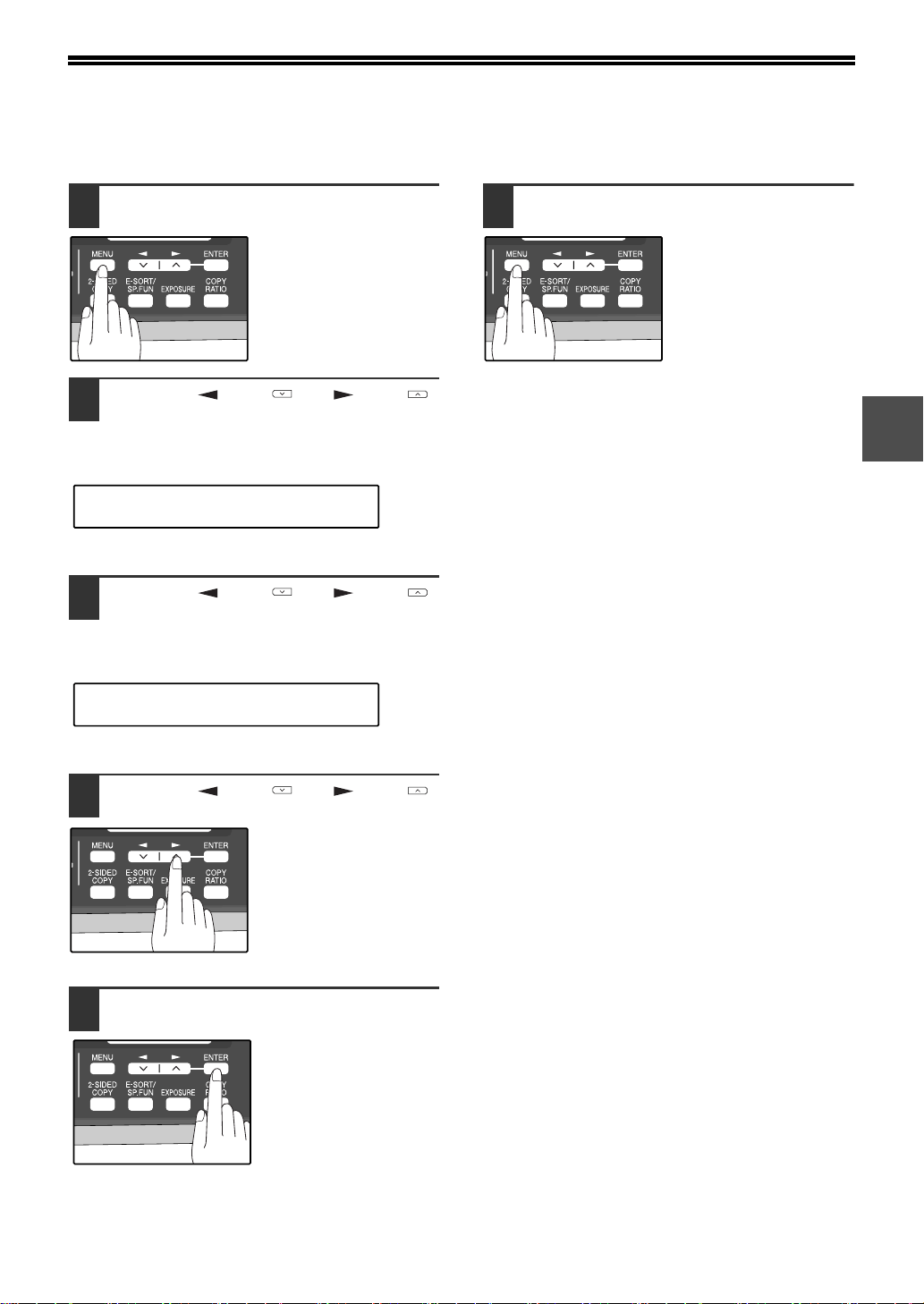

SETTING THE LENGTH OF ALARM BEEPS
You can select the length in seconds of the alarm beeps (emitted at the end of transmission and reception) following
the procedure below.
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "17:BEEP LENGTH" appears,
and then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to set the alarm beeps to the desired
length or to turn them off.
The selections are as
follows:
1:3SEC
2:1SEC
3:NO BEEP
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
"4:USER PROGRAM"
Selection
"17:BEEP LENGTH"
Selection
!AR-FX13_sec.book 18 ページ ２００９年５月１１日 月曜日 午後２時２４分
19
2
ADJUSTING THE ALARM BEEP VOLUME
Adjust the volume of alarm beeps (emitted at the end of transmission and reception) following the procedure below.
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "19:BEEPER VOLUME" appears,
and then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to set the alarm volume.
The selections are as
follows:
1:OFF
2:LOW
3:MIDDLE
4:HIGH
To turn off the alarm,
select "1:OFF".
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
"4:USER PROGRAM"
Selection
"19:BEEPER VOLUME"
Selection
!AR-FX13_sec.book 19 ページ ２００９年５月１１日 月曜日 午後２時２４分
20
FAX SETUP
HOW TO ENTER CHARACTERS
You can enter letters with the numeric keys. Letters are marked above each of the numeric keys [2] through [9]. To
enter a letter, press the appropriate key repeatedly until the desired letter appears (the number of the key appears
first, followed by letters in the order marked above the key). The keys used for entering characters are shown below.
● To enter two characters in succession which require using the same key, press the [ ] key ( ) once after
entering the first character, and then enter the second character.
● If you enter an incorrect character or number, follow these steps to correct the mistake.
1. Press the [ ] key ( ) or [ ] key ( ) to move the cursor to the character immediately following the
incorrect character.
2. Press the [CLEAR] key ( ).
The character in front of the cursor is deleted.
3. Enter the correct character.
The character is inserted in front of the cursor.
1
2
3
4
5
6
7
8
9
0
#
* } { ] [ ? > = ; : , + ) ('& % $"!/_-.@ #
# @.-_/ !"$ % &'( )+ ,: ; = > ? [ ] { } *
The following characters can be entered with the numeric keys:
key Characters that can be entered
Space
1
A
D
G
J
M
P
T
W
0
B
E
H
K
N
Q
U
X
C
F
I
L
O
R
V
Y
2
3
4
5
6
S
8
Z
a
d
g
j
m
7
t
9
b
e
h
k
n
p
u
w
c
f
i
l
o
q
v
x
r
y
s
z
!AR-FX13_sec.book 20 ページ ２００９年５月１１日 月曜日 午後２時２４分
21
INITIAL SETTINGS
2

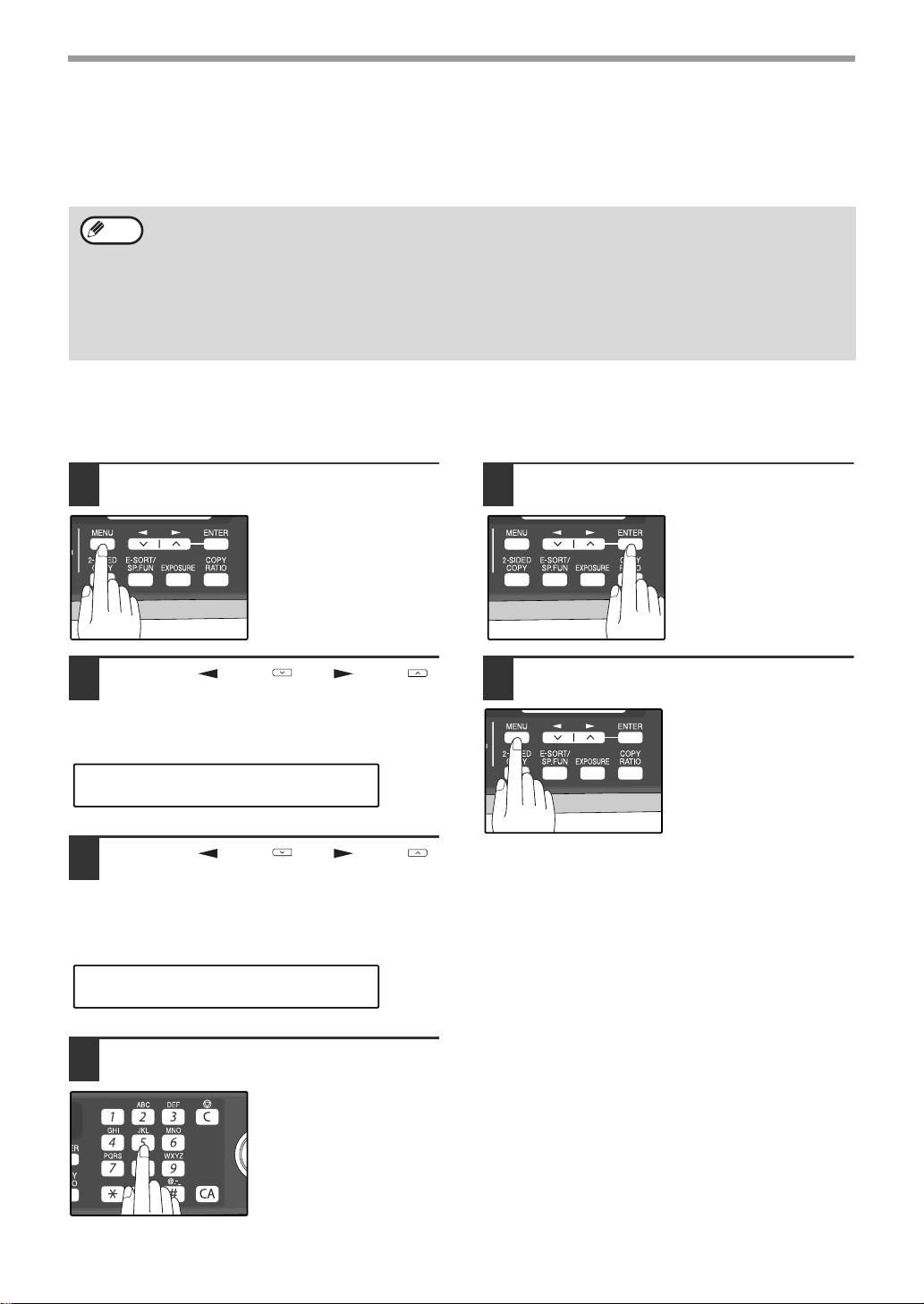

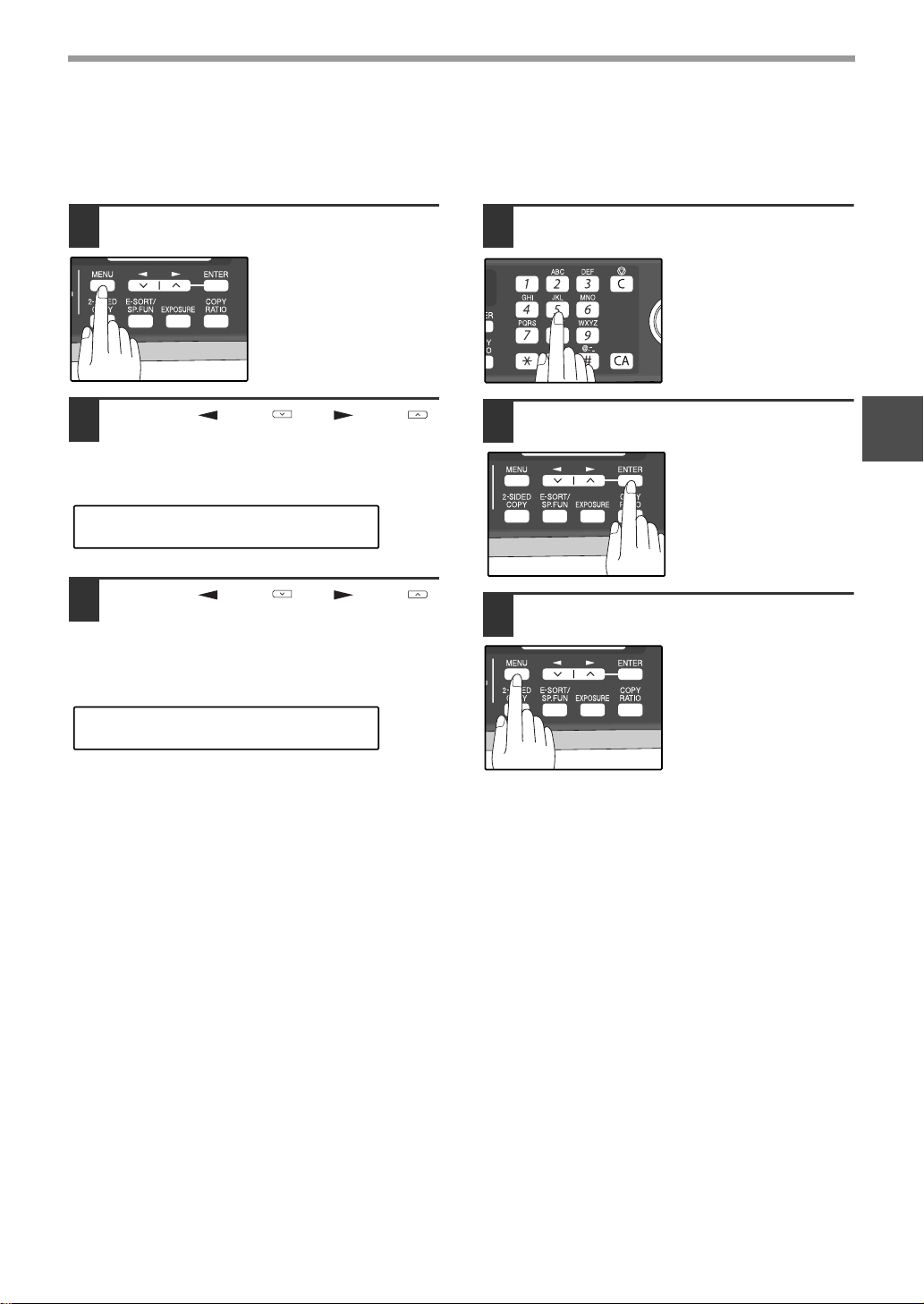

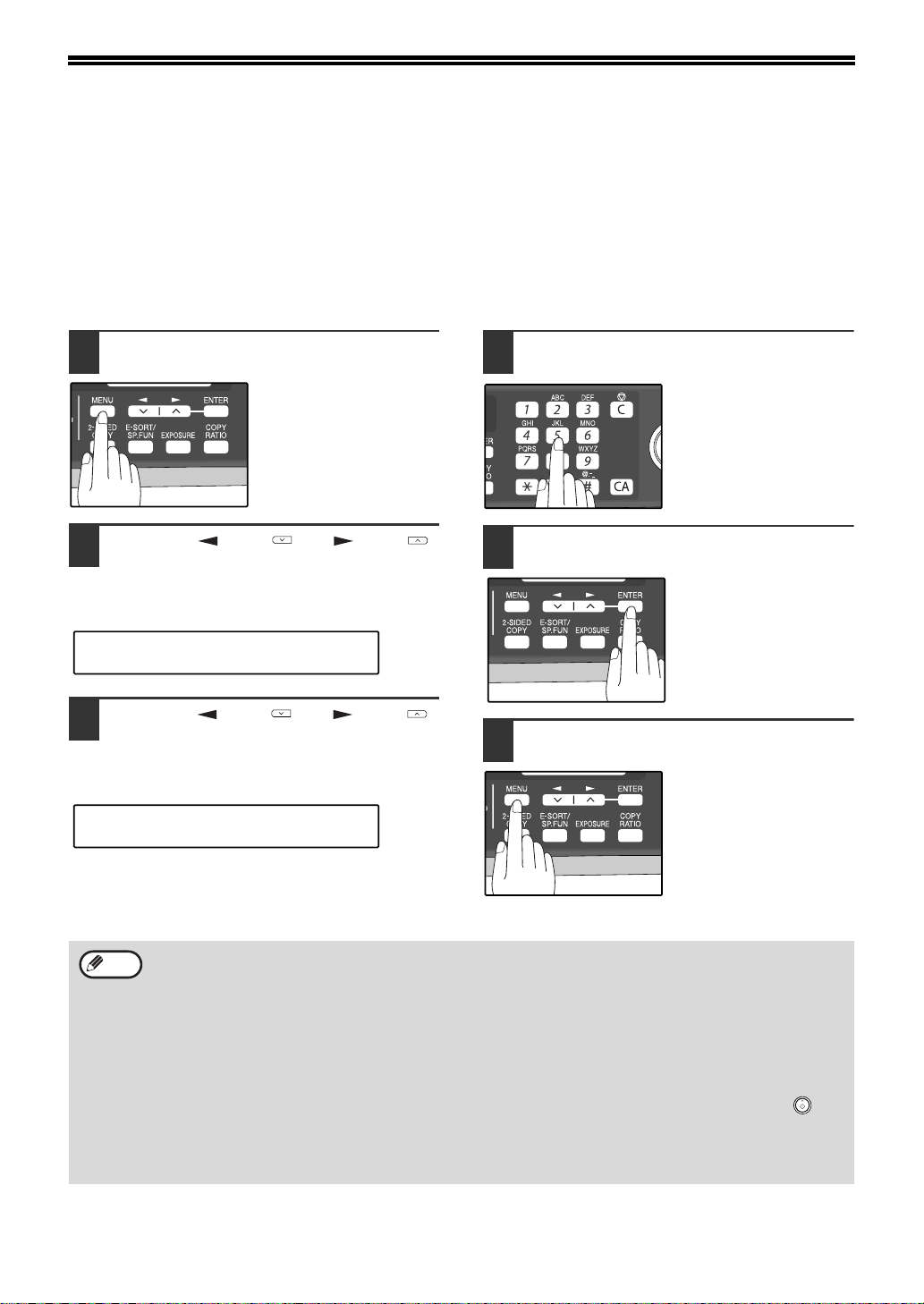

ENTERING YOUR NAME AND FAX NUMBER
To have your name and fax number printed at the top of every page you transmit, program them by pressing the
operation panel keys as shown below.
● If you enter an incorrect character or number, follow these steps to correct the mistake.
1. Press the [ ] key ( ) or [ ] key ( ) to move the cursor to the character immediately following the
incorrect character.
2. Press the [CLEAR] key ( ).The character in front of the cursor is deleted.
3. Enter the correct character.
IMPORTANT
FCC regulations require that your name, telephone/fax number, and the date and time appear on each fax message
you send. Enter your name and fax number here and set the date and time as explained in the following section to
have the fax machine include this information automatically at the top of your fax messages.
Use the following procedure to enter your name and fax number:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "2:ENTRY MODE" appears, and
then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "3:OWN PASSCODE SET" appears,
and then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to select "1:SET" and then press the
[ENTER] key.
5
Enter your fax number with the
numeric keys.
Enter your own fax
number (maximum 20
digits) by pressing the
Numeric keys.
To insert a "+", press the
[ ] key.
6
Press the [ENTER] key.
"ENTER NAME" will
appear in the display.
7
Enter your name with the numeric
keys.
Enter your name by
pressing the appropriate
Numeric keys as shown
on the left. Press each
key repeatedly until the
desired letter appears in
the display (maximum of
36 characters).
To enter a space, press the [1] key twice.
You can view all of the items in the menu display by pressing the [MENU] key, then using the [ ] key ( ) or
[ ] key ( ) to scroll through the function list. Pressing the [ENTER] key chooses the displayed function.
Procedures for inputting various items (name, telephone number, date, etc.) are given as follows.
Note
"2:ENTRY MODE"
Selection
"3:OWN PASSCODE SET"
Selection
"1:SET"
Selection
!AR-FX13_sec.book 21 ページ ２００９年５月１１日 月曜日 午後２時２４分
22
INITIAL SETTINGS
8
Press the [ENTER] key.
9
Press the [MENU] key.
Press the [MENU] key to
exit.

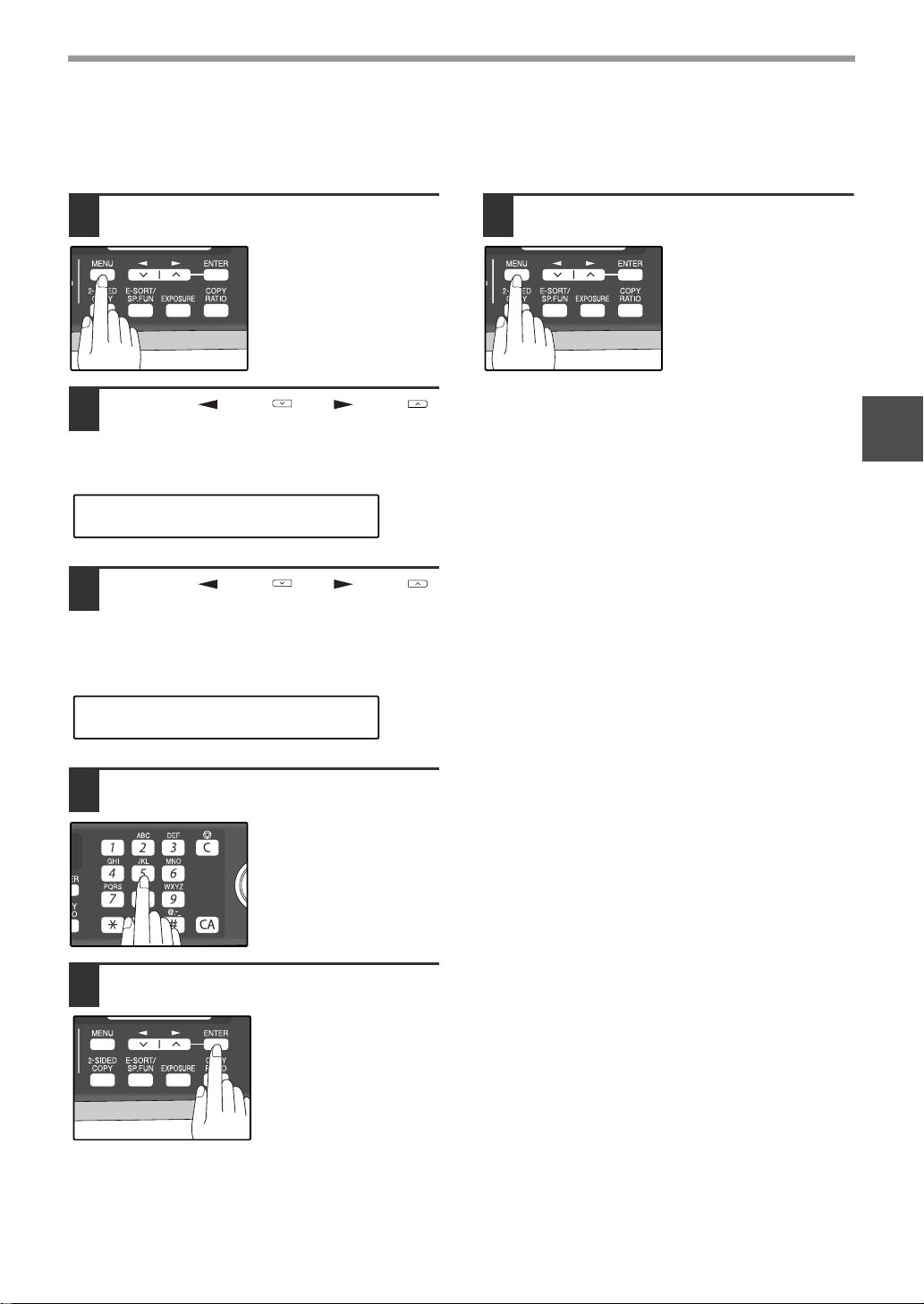

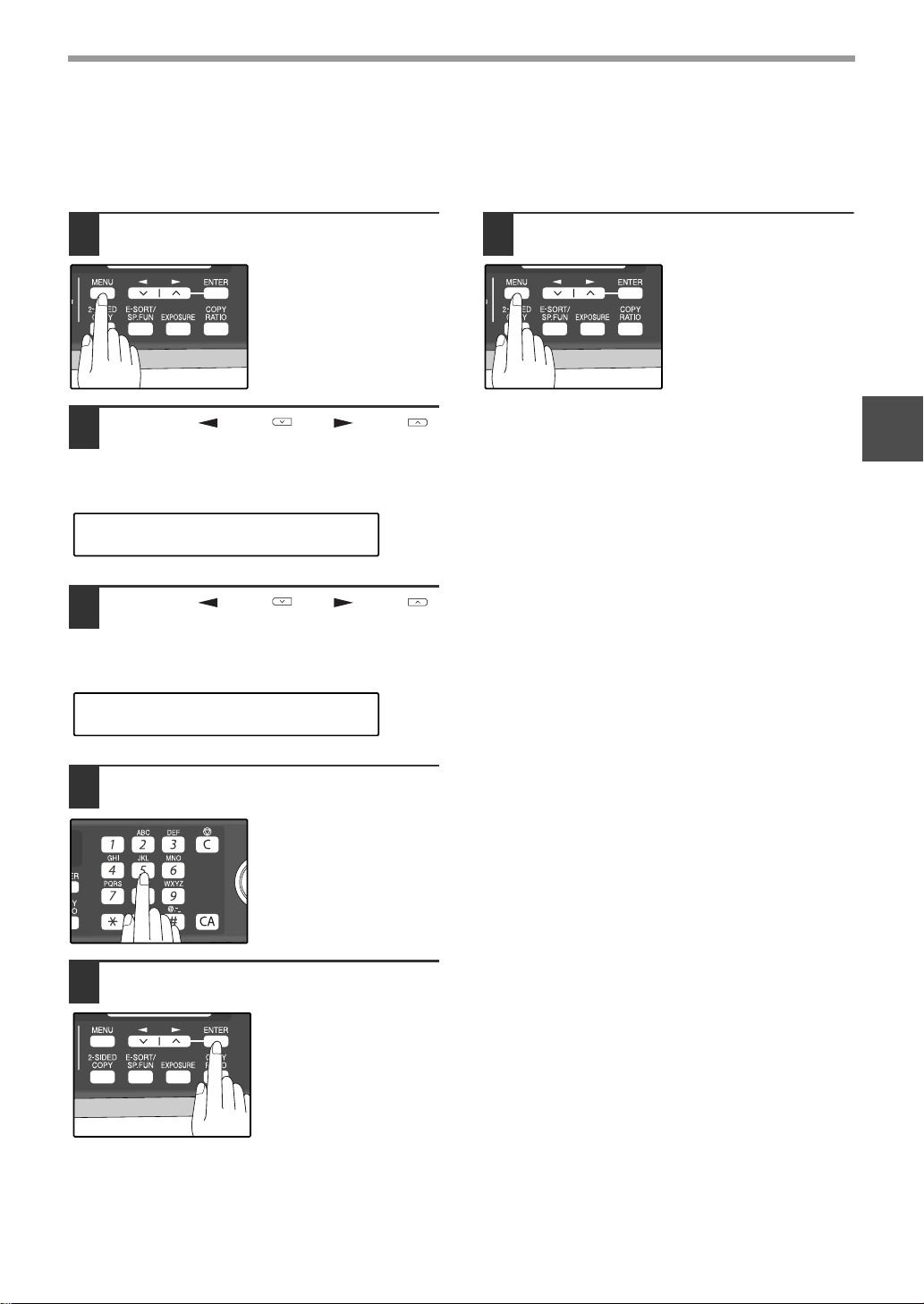

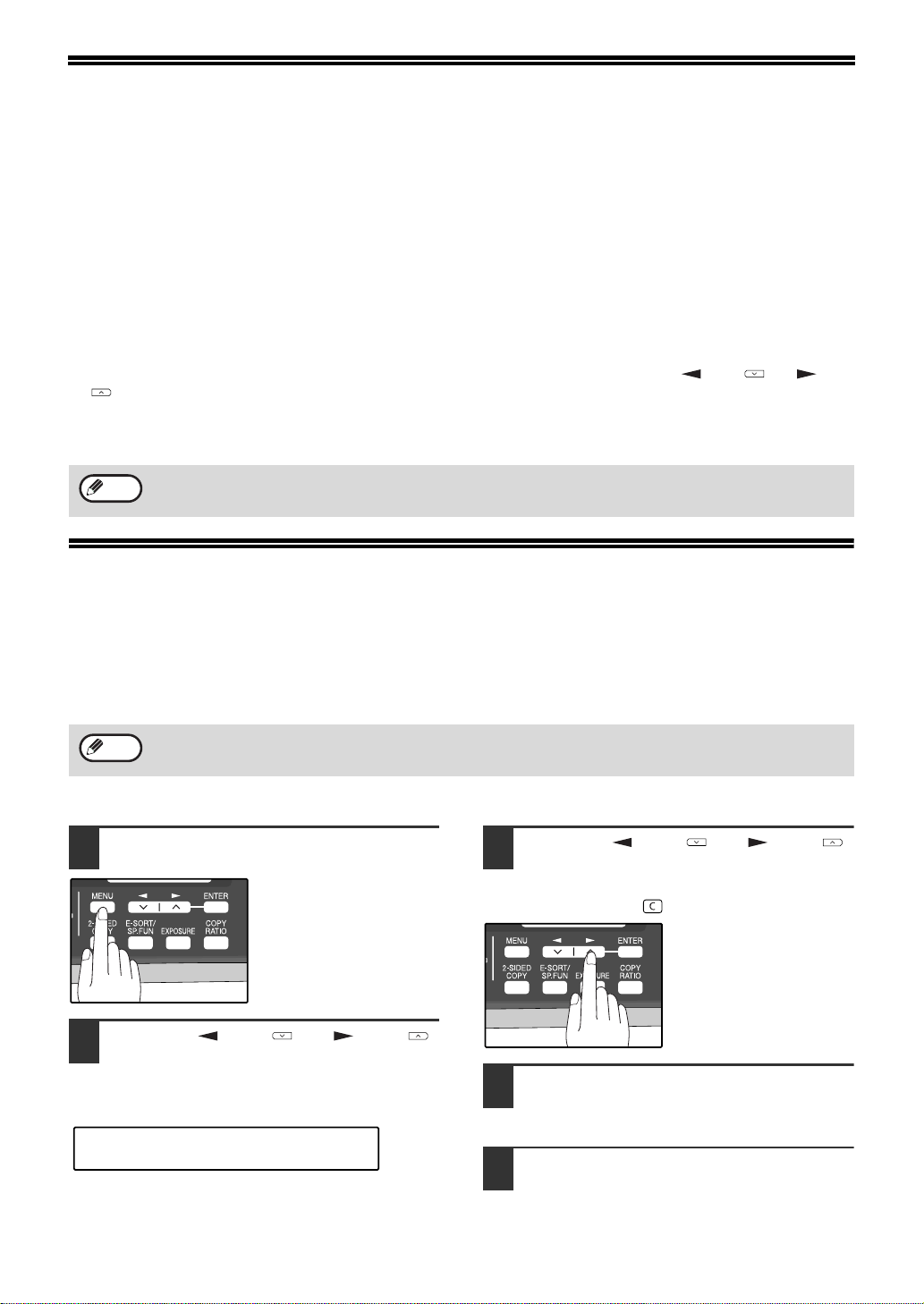

SETTING THE DATE AND TIME
The date and time that appear in the display are printed at the top of each page you transmit. Set the date and time
by pressing the keys on the operation panel as shown below.
If you enter an incorrect number, press the [CLEAR] key ( ) and re-enter the number.
The time can be displayed in 12-hour or 24-hour format. "Month/Day/Year", "Day/Month/Year" or "Year/Month/Day"
can be selected for the order of display of the date.
Use the following procedure to set the date and time:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "2:ENTRY MODE" appears, and
then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "2:DATE&TIME SET" appears,
and then press the [ENTER] key.
4
Enter the year (four digits), month (two
digits), and day (two digits) with the numeric
keys and then press the [ENTER] key.
The year can be entered from 2008.
5
Enter the time (hour (two digits) and
minute (two digits)) with the numeric
keys.
Enter the hour in the following range:
When 12-hour format is selected: 01 to 12
When 24-hour format is selected: 00 to 23
6
Press the [ ] key ( ) or [ ] key ( )
to select "AM" or "PM".
When 24-hour format is
selected, do not perform
this step.
7
Press the [ENTER] key.
8
Press the [MENU] key.
Press the [MENU] key to
exit.
"2:ENTRY MODE"
Selection
"2:DATE&TIME SET"
Selection
ENTER DATE (2008-)
2008/01/02
Year Month Day
!AR-FX13_sec.book 22 ページ ２００９年５月１１日 月曜日 午後２時２４分
23
INITIAL SETTINGS
2
To change the display format to 12-hour or 24-hour format, follow the steps below:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "23:DATE&TIME FORMAT"
appears, and then press the [ENTER]
key.
4
Press the [ ] key ( ) or [ ] key ( )
until "1:TIME FORMAT" appears, and
then press the [ENTER] key.
5
Press the [ ] key ( ) or [ ] key ( )
to select "1:12HOUR" or "2:24HOUR".
6
Press the [ENTER] key.
7
Press the [MENU] key.
Press the [MENU] key to
exit.
"4:USER PROGRAM"
Selection
"23:DATE&TIME FORMAT"
Selection
"1:TIME FORMAT"
Selection
!AR-FX13_sec.book 23 ページ ２００９年５月１１日 月曜日 午後２時２４分
24
INITIAL SETTINGS
To change the order of display of the date, follow the steps below:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "23:DATE&TIME FORMAT"
appears, and then press the [ENTER]
key.
4
Press the [ ] key ( ) or [ ] key ( )
until "2:DATE FORMAT" appears, and
then press the [ENTER] key.
5
Press the [ ] key ( ) or [ ] key ( )
to select the display order.
The selections are as
follows:
1:MMDDYYYY
2:DDMMYYYY
3:YYYYMMDD
6
Press the [ENTER] key.
7
Press the [MENU] key.
Press the [MENU] key to
exit.
This selection does not affect the order of
the date that appears in "2: DATE & TIME
SET" in step 4 on page 22.
The date in this step always appears in the
format "YYYYMMDD".
"4:USER PROGRAM"
Selection
"23:DATE&TIME FORMAT"
Selection
"2:DATE FORMAT"
Selection
Note
!AR-FX13_sec.book 24 ページ ２００９年５月１１日 月曜日 午後２時２４分
25
INITIAL SETTINGS
2
Daylight Saving Time Setting
Enable this setting to have the internal clock automatically move forward and backward at the beginning and end of
Daylight Saving Time.
Follow these steps to enable Daylight Saving Time.
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "2:ENTRY MODE" appears, and
then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "5:DAY LIGHT SAVING" appears,
and then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to select "1:ON" or "2:OFF".
Select "1:ON" to enable
the function.
Select "2:OFF" to disable
the function.
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
If a transmission is in progress when the clock adjustment time for daylight savings time arrives, the clock will not
be adjusted until the transmission ends.
Note
"2:ENTRY MODE"
Selection
"5:DAY LIGHT SAVING"
Selection
!AR-FX13_sec.book 25 ページ ２００９年５月１１日 月曜日 午後２時２４分
26
INITIAL SETTINGS
SELECTING THE TRANSMISSION MODE
The machine has two modes for sending faxes: memory transmission and direct transmission. To change modes,
press the [MEMORY] key. The MEMORY indicator lights up when memory transmission is selected, and goes off
when direct transmission is selected.
Transmission takes place as follows in each mode:
Memory transmission (the MEMORY indicator is lit)
When a fax is sent from the RSPF and there are no previously stored fax jobs and no job in progress (the telephone
line is not being used), dialing and scanning begin at the same time. Each page is transmitted after it is scanned.
This transmission method is called Quick Online transmission.
If there are previously stored fax jobs or a job in progress, or the fax is being sent from the document glass, the fax
is temporarily scanned into memory before transmission.
Direct transmission (the MEMORY indicator is off)
The fax is sent directly after the destination is dialed and the connection established.
The machine memory is not used for direct transmission, and thus direct transmission is possible even when the
memory is full.
When a fax is sent by transmission reservation (p.70), broadcast transmission (p.71), broadcasting using a Group
key (p.72), or timer transmission (p.79), the fax is scanned into memory before transmission.
• A fax job cannot be stored while a direct transmission is in progress.
• Only one page can be sent from the document glass by direct transmission.
• A subsequent function cannot be used while a direct transmission is in progress.
Transmission reservation (p.70), broadcast transmission (p.71), broadcasting using a Group key (p.72), or timer
transmission (p.79)
MEMORY indicator
Note
Note
!AR-FX13_sec.book 26 ページ ２００９年５月１１日 月曜日 午後２時２４分
27
INITIAL SETTINGS
2
SELECTING THE RECEPTION MODE
Your machine has three modes for receiving incoming calls and faxes:
● AUTO mode:
Select this mode when you only want to receive faxes on your telephone line. The machine will automatically
answer all calls and receive incoming faxes.
● MAN. mode:
This is the most convenient mode for receiving phone calls if you have an extension phone. To have true manual
mode, the machine must be set to not answer while in MAN. mode (see "SETTING THE NUMBER OF RINGS
FOR MANUAL RECEPTION" (p.29)). You can also receive faxes; however, all calls must first be answered by
picking up the receiver on the extension phone.
● A.M. mode:
Select this mode when an answering machine is connected to the machine and you want the answering machine
to answer all calls. This allows you to receive both voice messages and faxes while you are out.
To select the reception mode, press the [RECEPTION MODE] key until the desired reception mode appears in the
display.
For more information on reception modes, refer to "RECEIVING FAXES" (p.63)".
If you are using distinctive ringing as described in "DISTINCTIVE RINGING" on page 41, you must set the
reception mode to AUTO. This is true, as well, if you are using an answering machine with distinctive ringing (in
this case, the answering machine must be connected to a separate wall jack, not to your
machine).
Note
The selected reception
mode appears.
NOV 05 WED 8:20 AM
STAD-BY AUTO 100%
!AR-FX13_sec.book 27 ページ ２００９年５月１１日 月曜日 午後２時２４分
28
INITIAL SETTINGS

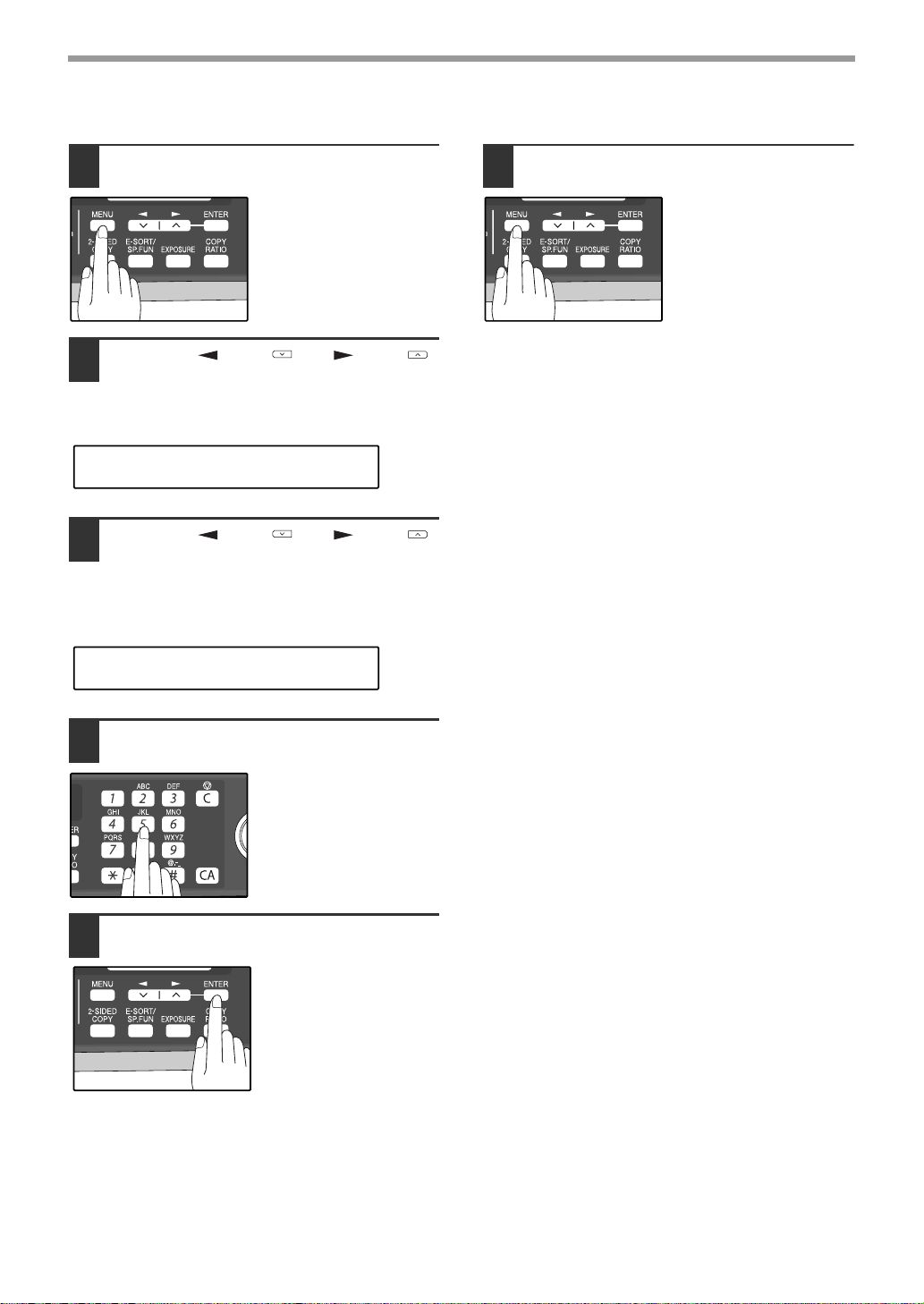

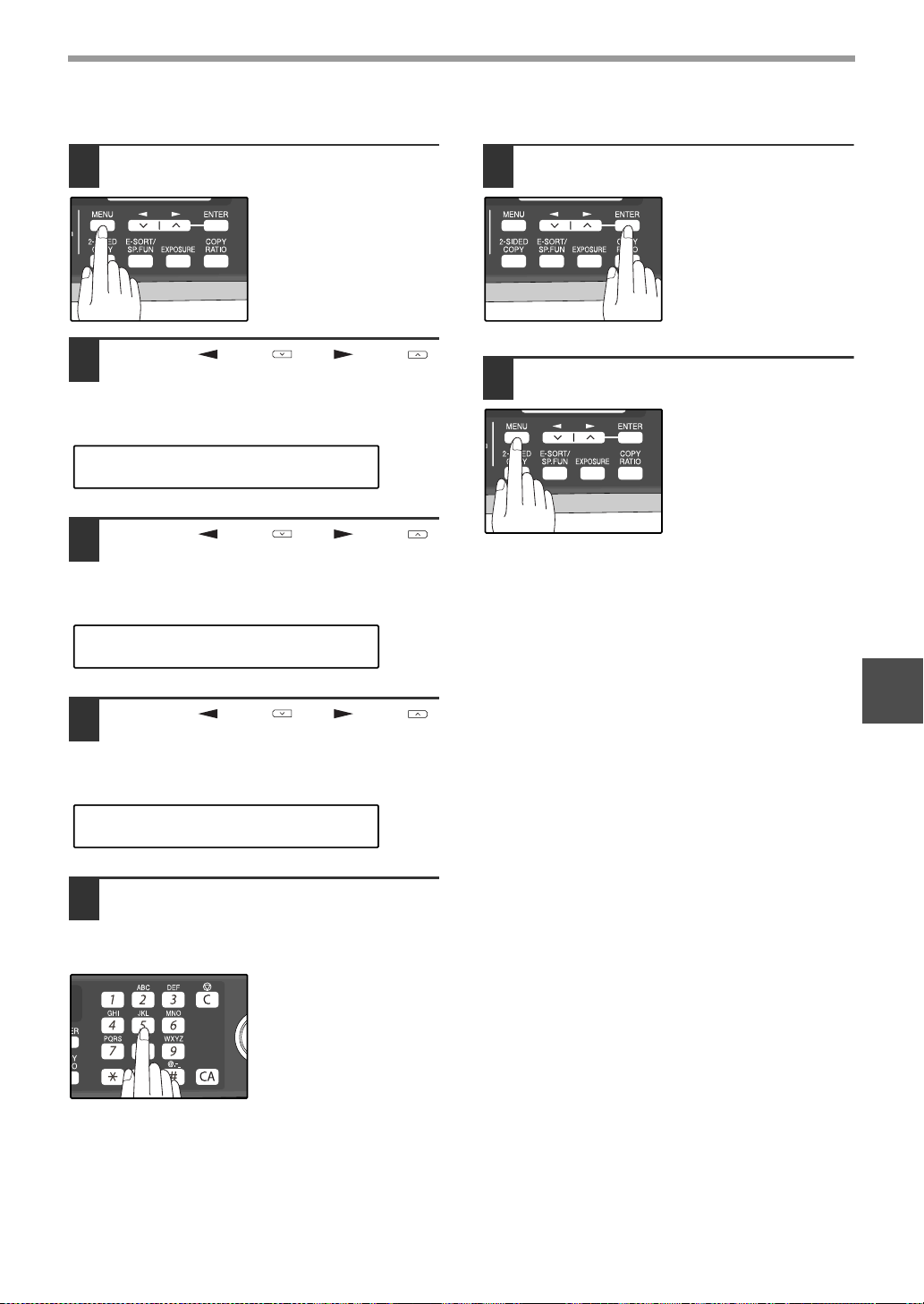

SETTING THE NUMBER OF RINGS FOR AUTO RECEPTION
You can set the number of rings before the machine answers in AUTO mode following the procedure below.
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "4:# OF RINGS (AUTO)" appears,
and then press the [ENTER] key.
4
Press a numeric key to select the
number of rings.
Select the number of
rings you would like to
use (0 to 9).
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
"4:USER PROGRAM"
Selection
"4:# OF RINGS (AUTO)"
Selection
If an external telephone is connected, the
external telephone will ring one time when
auto reception is set to 0 rings.
Note
!AR-FX13_sec.book 28 ページ ２００９年５月１１日 月曜日 午後２時２４分
29
INITIAL SETTINGS
2
SETTING THE NUMBER OF RINGS FOR MANUAL RECEPTION
The number of rings before the machine answers in MANUAL mode can also be set.
If you do not want the machine to answer at all in MANUAL Mode, select "0" in Step 4 below.
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "5:# OF RINGS (MANUAL)"
appears, and then press the [ENTER]
key.
4
Press a numeric key to select the
number of rings.
Select the number of
rings you would like to
use (0 to 9).
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
SELECTING THE RECEPTION PAPER SIZE
Set the size of paper to be used to print received faxes. A size setting other than "A4", "8.5x11", or "8.5x14" is
regarded as out of paper. To set the paper size, see "LOADING PAPER" in the Operation Manual (for general
information).
"4:USER PROGRAM"
Selection
"5:# OF RINGS (MANUAL)"
Selection
!AR-FX13_sec.book 29 ページ ２００９年５月１１日 月曜日 午後２時２４分
30
INITIAL SETTINGS

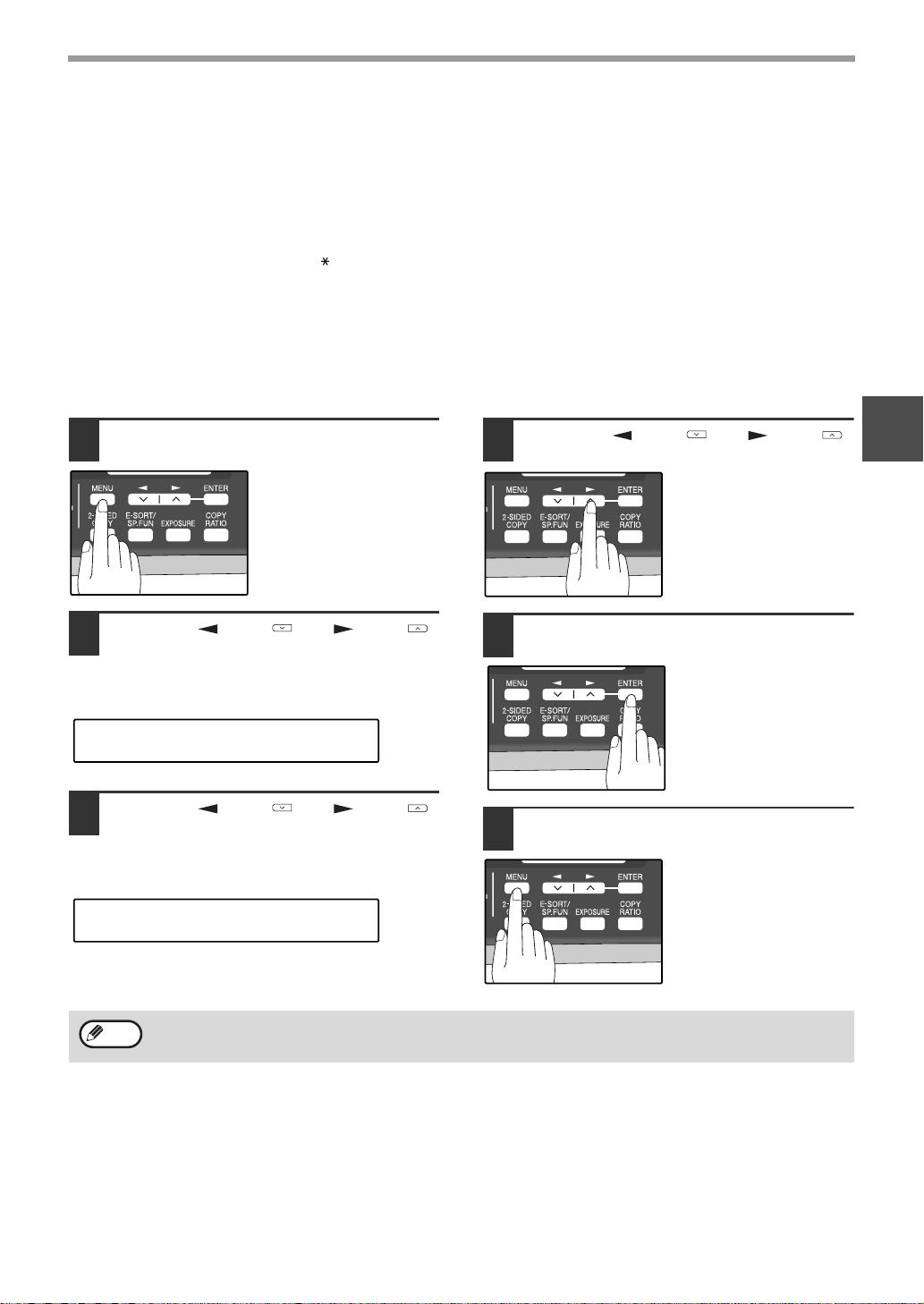

SETTING THE TRAY SELECTION
(when the 250-sheet paper feed unit is installed)
Follow the steps below to select the paper tray for received faxes.
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "25:TRAY SELECTION" appears,
and then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to select the tray selection.
The selections are as
follows:
1:AUTO
2:TRAY 1
3:TRAY 2
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
"4:USER PROGRAM"
Selection
"25:TRAY SELECTION"
Selection
!AR-FX13_sec.book 30 ページ ２００９年５月１１日 月曜日 午後２時２４分
31
INITIAL SETTINGS
2
SETTING THE DIAL MODE
The machine can be used with both touch-tone and pulse telephone lines. Touch-tone uses tones of different
pitches for each numeric key, while pulse lines use a series of pulses. Your machine must be set to match the kind
of telephone line you are using: touch-tone or pulse.
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "20:DIAL MODE" appears, and
then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to select the dial mode.
The selections are as
follows:
1:TONE
2:PULSE
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
"4:USER PROGRAM"
Selection
"20:DIAL MODE"
Selection
!AR-FX13_sec.book 31 ページ ２００９年５月１１日 月曜日 午後２時２４分
32
INITIAL SETTINGS
SETTING THE NUMBER OF RECALL TIMES
The machine will automatically reattempt transmission when a transmission is not successful because the line is
busy or a communication error occurs. This setting is used to select the number of recall attempts that will be made.
When the line is busy
You can select the number of recall attempts made when the line is busy.
If "00" is entered, the machine will not make any recall attempts.
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "8:RECALL TIMES BUSY"
appears, and then press the [ENTER]
key.
4
Press the numeric keys to select the
number of recall attempts.
Enter the number of
recall times ("00" to "14").
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
• If a transmission is still not successful after the set number of recall attempts is made, a report will
print and the document will be cleared from memory.
• If a communication error occurs because the memory becomes full during transmission, no recall
attempts will be made.
• Recall attempts for a direct transmission will only be made when the RSPF is used. Recall attempts
will not be made when the document glass is used.
• When the machine is waiting to make a recall attempt for a direct transmission, other operations
such as storing a transmission or selecting a function cannot be performed.
Note
"4:USER PROGRAM"
Selection
"8:RECALL TIMES BUSY"
Selection
!AR-FX13_sec.book 32 ページ ２００９年５月１１日 月曜日 午後２時２４分
33
INITIAL SETTINGS
2
When a communication error occurs
You can select the number of recall attempts made when a communication error occurs.
If "0" is entered, the machine will not make any recall attempts.
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "9:RECALL TIMES ERR"
appears, and then press the [ENTER]
key.
4
Press the numeric keys to select the
number of recall attempts.
Enter the number of
recall times ("0" or "1").
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
"4:USER PROGRAM"
Selection
"9:RECALL TIMES ERR"
Selection
!AR-FX13_sec.book 33 ページ ２００９年５月１１日 月曜日 午後２時２４分
34
INITIAL SETTINGS
SETTING THE RECALL INTERVAL
The machine will automatically reattempt transmission when a transmission is not successful because the line is
busy or a communication error occurs. This setting is used to select the interval between recall attempts.
When the line is busy
You can select the interval between recall attempts when the line is busy. An interval from 1 to 15 minutes can be
selected.
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "10:RECALL INT. BUSY"
appears, and then press the [ENTER]
key.
4
Press the numeric keys to select the
recall interval.
Enter the recall interval
("01" to "15").
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
• If a transmission is still not successful after the set number of recall attempts is made, a report will
print and the document will be cleared from memory.
• If a communication error occurs because the memory becomes full during transmission, no recall
attempts will be made.
• Recall attempts for a direct transmission will only be made when the RSPF is used. Recall attempts
will not be made when the document glass is used.
• When the machine is waiting to make a recall attempt for a direct transmission, other operations
such as storing a transmission or selecting a function cannot be performed.
Note
"4:USER PROGRAM"
Selection
"10:RECALL INT. BUSY"
Selection
!AR-FX13_sec.book 34 ページ ２００９年５月１１日 月曜日 午後２時２４分
35
INITIAL SETTINGS
2
When a communication error occurs
You can select the interval between recall attempts when a communication error occurs. An interval from 0 to 15
minutes can be selected. If the recall interval is set to 0 minutes, the machine will immediately call again after
breaking the connection due to the communication error.
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "11:RECALL INT. ERR" appears,
and then press the [ENTER] key.
4
Press the numeric keys to select the
recall interval.
Enter the recall interval
("00" to "15").
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
"4:USER PROGRAM"
Selection
"11:RECALL INT. ERR"
Selection
!AR-FX13_sec.book 35 ページ ２００９年５月１１日 月曜日 午後２時２４分
36
INITIAL SETTINGS

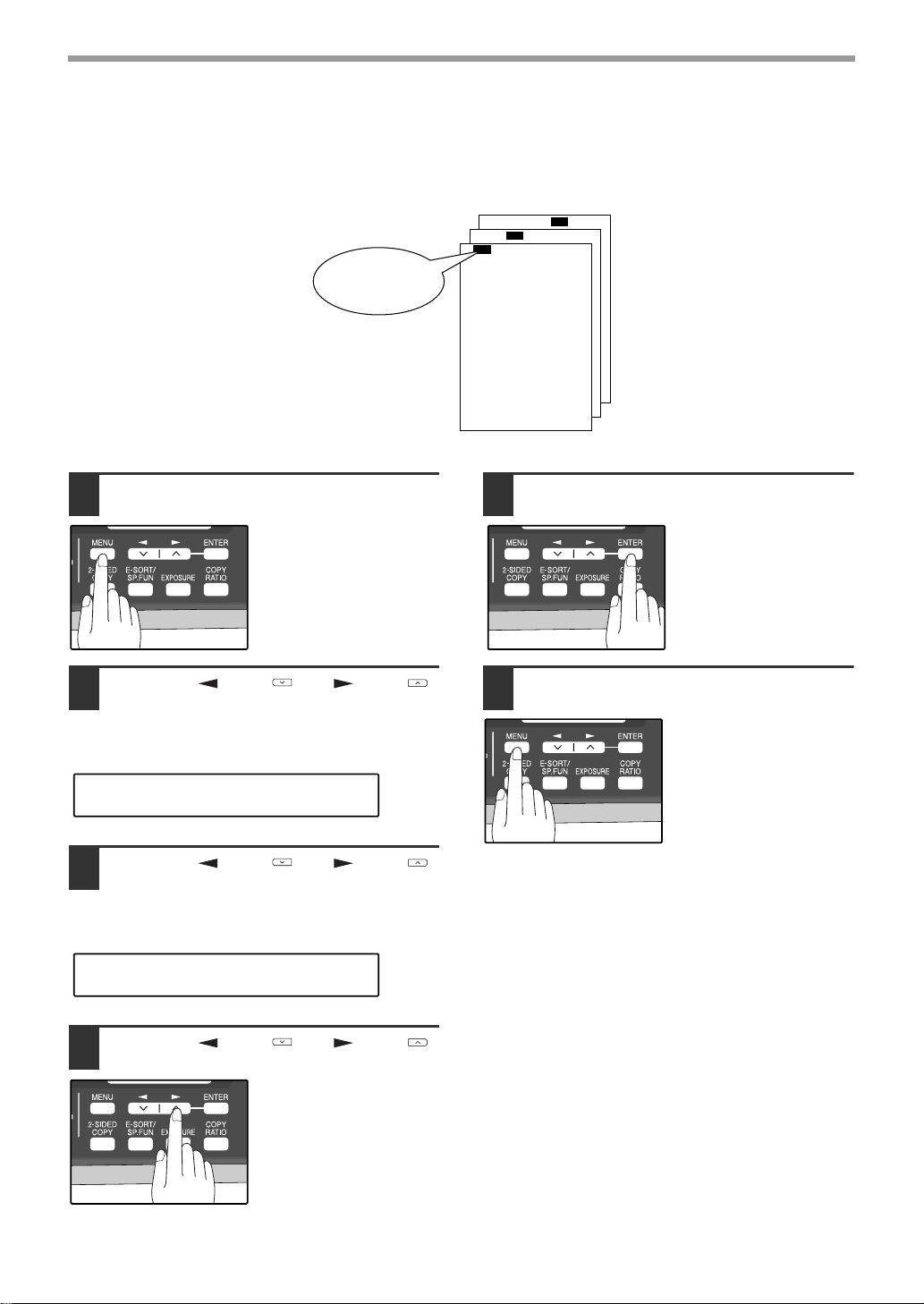

SETTING THE INDEX FUNCTION
You can print an index mark along the edge of the pages in each job. This makes it easy to separate different jobs
on the output tray.
Use the following procedure to set the index function:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "22:INDEX PRINT" appears, and
then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to select "1:ON" or "2:OFF".
Select "1:ON" to enable
the function.
Select "2:OFF" to disable
the function.
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
Separate faxes
with index marks.
"4:USER PROGRAM"
Selection
"22:INDEX PRINT"
Selection
!AR-FX13_sec.book 36 ページ ２００９年５月１１日 月曜日 午後２時２４分
37
INITIAL SETTINGS
2
SETTING RESOLUTION PRIORITY
For most faxing jobs, you will most likely want to specify the resolution. However, you can also set a default
resolution when no setting is made using the [RESOLUTION] key.
To turn on this function, follow the procedure below:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "3:RESO. PRIORITY" appears,
and then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to select the transmission resolution.
The selections are as
follows:
1:STANDARD
2:FINE
3:SUPER FINE
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
"4:USER PROGRAM"
Selection
"3:RESO. PRIORITY"
Selection
!AR-FX13_sec.book 37 ページ ２００９年５月１１日 月曜日 午後２時２４分
38
INITIAL SETTINGS
SETTING UP THE MACHINE FOR USE WITH A PC
MODEM
The machine is set to automatically begin reception if you pick up from an extension telephone and the machine
detects a fax tone. However, if you are using a modem on the same line, you must deactivate this function:
otherwise the machine will mistakenly attempt to receive the transmission from your computer. To turn off the Fax
Signal Receive function, follow the procedure below.
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "15:FAX SIGNAL RCV" appears,
and then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to select "1:ON" or "2:OFF".
Select "1:ON" to enable
the function.
Select "2:OFF" to disable
the function.
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
If you turn off the Fax Signal Receive function, be sure to activate the Remote Reception function. See "USING
THE REMOTE RECEPTION FUNCTION" on page 39 for details on how to do this.
Note
"4:USER PROGRAM"
Selection
"15:FAX SIGNAL RCV"
Selection
!AR-FX13_sec.book 38 ページ ２００９年５月１１日 月曜日 午後２時２４分
39
INITIAL SETTINGS
2

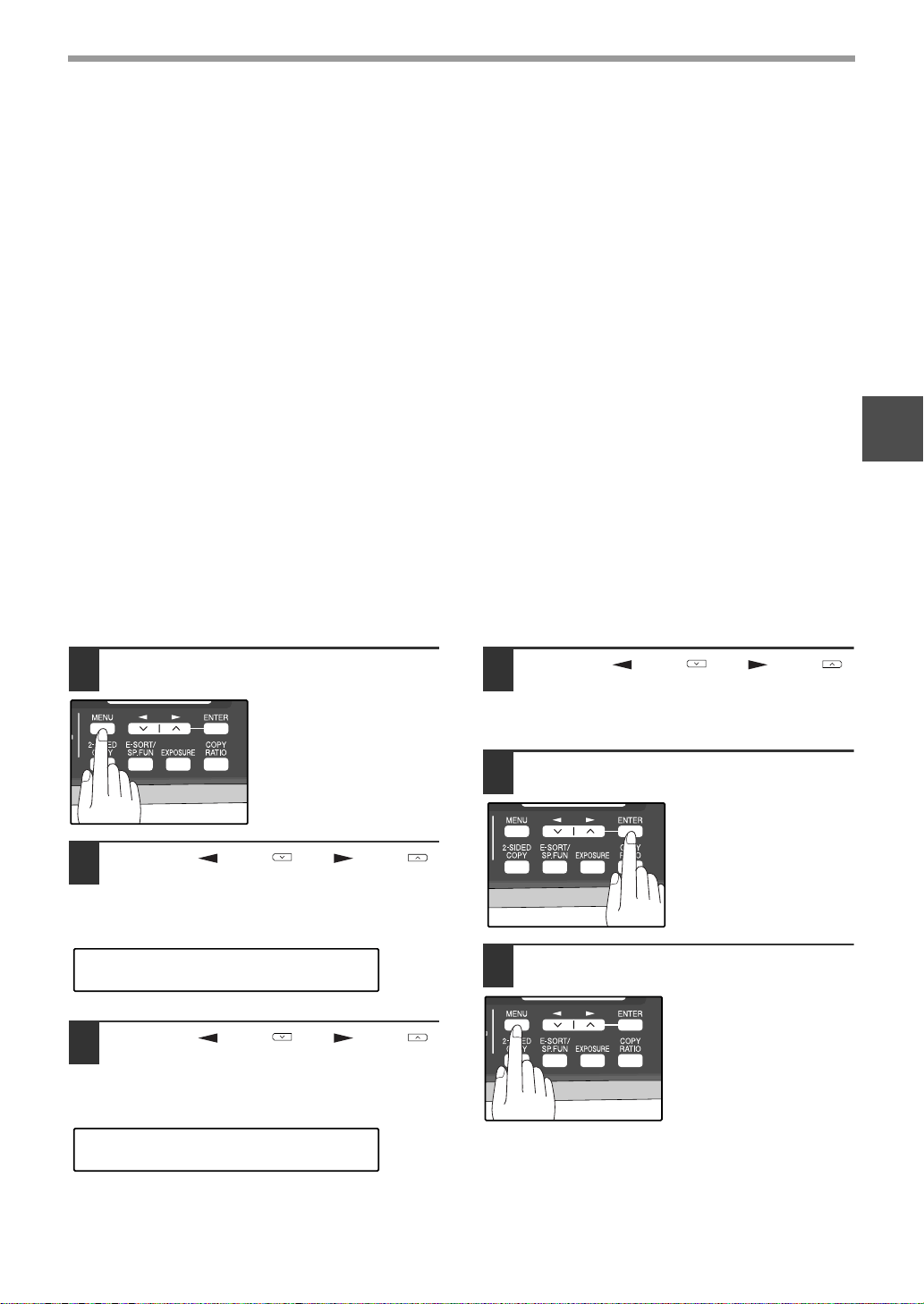

USING THE REMOTE RECEPTION FUNCTION
The machines Remote Reception feature is designed to allow you to activate fax reception from an extension
telephone. The Remote Reception function operates even when the FAX Signal Receive function is turned off. See
"SETTING UP THE MACHINE FOR USE WITH A PC MODEM" on page 38. When you hear the fax tone, simply
press the one-digit Fax Remote Number (Factory setting: 5) and . Follow the procedure below to use this
feature.
Turning on Remote Reception:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "14:REMOTE RECEPTION"
appears, and then press the [ENTER]
key.
4
Press the [ ] key ( ) or [ ] key ( )
to select "1:ON" or "2:OFF".
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
If you are not using a PC modem on the same line as your machine, and have not turned off the Fax Signal
Receive function, you do not need to make any changes to the Remote Reception function. Simply use the
factory settings. The machine will automatically take over the line should you answer from the extension phone
and a fax tone is detected.
Note
"4:USER PROGRAM"
Selection
"14:REMOTE RECEPTION"
Selection
!AR-FX13_sec.book 39 ページ ２００９年５月１１日 月曜日 午後２時２４分
40
INITIAL SETTINGS

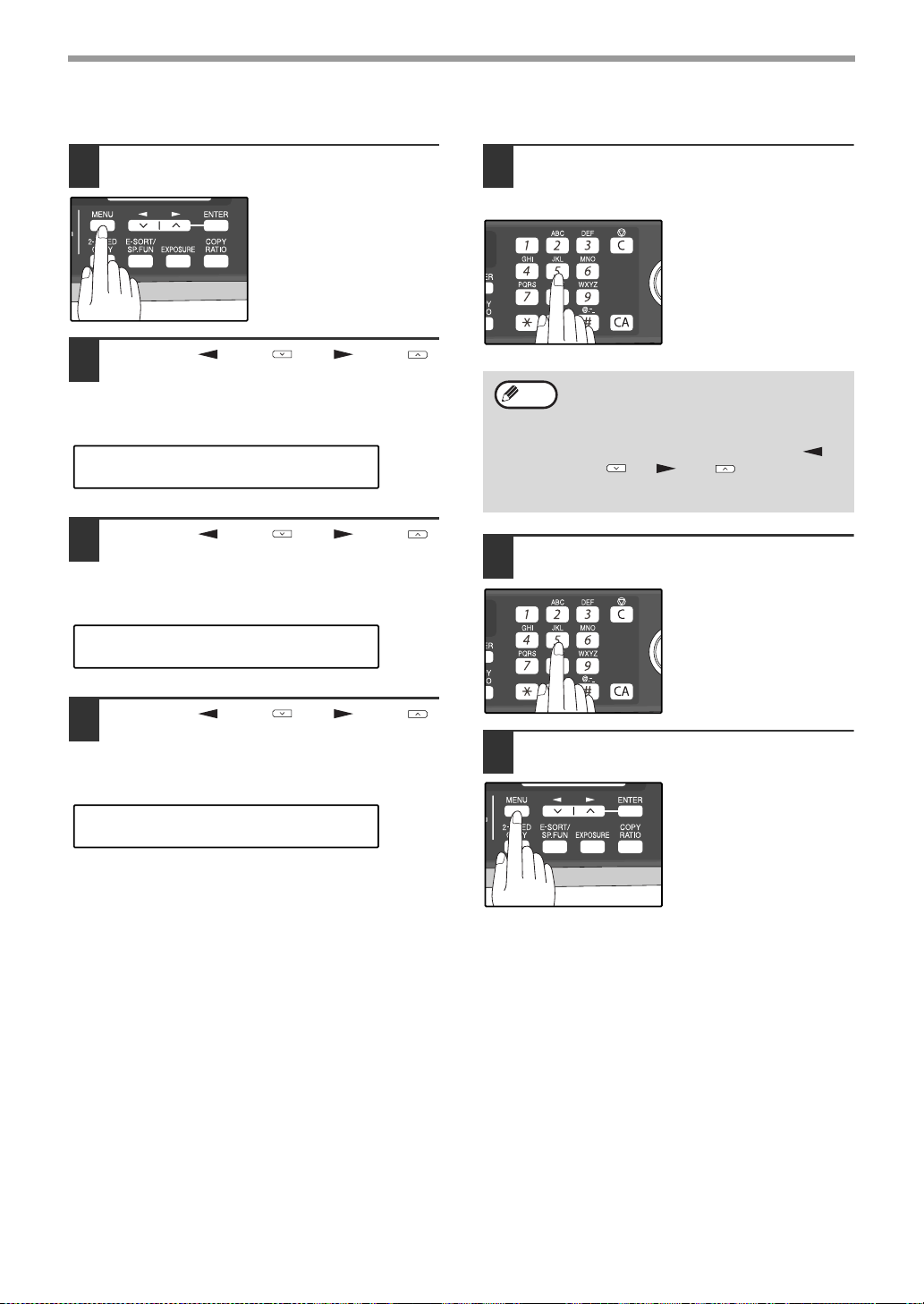

Setting a Fax Remote Number:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "13:FAX REMOTE NUMBER"
appears, and then press the [ENTER]
key.
4

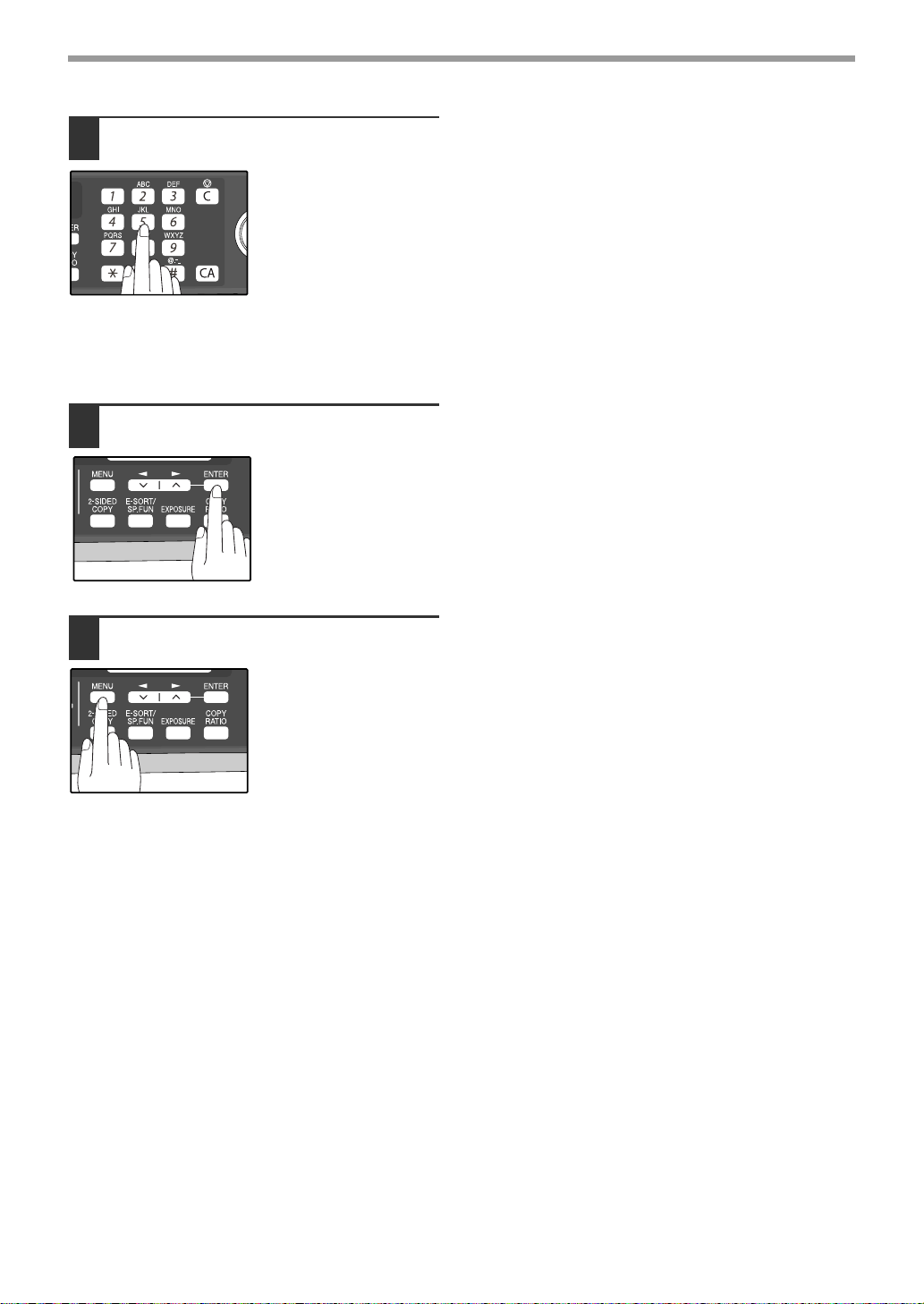

Press a numeric key to enter the Fax
Remote Number.
Enter the number you
would like to use as the
Fax Remote Number ("0"
to "9").
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
"4:USER PROGRAM"
Selection
"13:FAX REMOTE NUMBER"
Selection
!AR-FX13_sec.book 40 ページ ２００９年５月１１日 月曜日 午後２時２４分
41
INITIAL SETTINGS
2
DISTINCTIVE RINGING
Distinctive ringing is a service offered by some telephone companies that allows you to use up to six different
telephone numbers, each with a distinctive ringing pattern, on your regular single line. If you subscribe to a
distinctive ringing service, you can set your fax to automatically answer when it detects one of these ringing patterns,
and use the number corresponding to that pattern as an exclusive fax number.
Important:
● To use distinctive ringing, you must subscribe to your phone company’s distinctive ringing service. Do not use this
setting if you do not subscribe to a distinctive ringing service.
When using this feature, you must set the reception mode of your machine to AUTO (See "SELECTING THE
RECEPTION MODE" (p.27)). When your designated fax number is dialed, the machine will automatically answer
and begin reception. Note that other devices you have connected on the same line will also ring until the machine
answers. If one of your other numbers is dialed, the machine will neither ring nor answer.
To use distinctive ringing, select the ringing pattern to which you want your machine to answer, as shown below.
The selections for ringing are:
1. OFF: Answers all ringing patterns (This turns distinctive ringing off.)
2. STANDARD: Your machine normal ringing pattern
3. PATTERN 1: Two short rings
4. PATTERN 2: One short, one long, and one short ring
5. PATTERN 3: Three short rings
6. PATTERN 4: Three rings
7. PATTERN 5: Two rings
Use the following procedure to change the ringing pattern.
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "21:DISTINCTIVE RING" appears,
and then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to select a ringing pattern.
Select a ringing pattern by scrolling through them
with the arrow keys in the order of the above list.
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
"4:USER PROGRAM"
Selection
"21:DISTINCTIVE RING"
Selection
!AR-FX13_sec.book 41 ページ ２００９年５月１１日 月曜日 午後２時２４分
42
INITIAL SETTINGS
STORING NUMBERS FOR AUTOMATIC DIALING
Automatic Dialing is a quick and convenient way to dial by using only a Rapid key (Rapid Key Dialing), or pressing
the [SPEED/SEARCH] key and select the SPEED and entering a two digit number (Speed Dialing).
To use Automatic Dialing, you must first store the full number. The way you store it depends on whether you want to
use it for Rapid Key Dialing or Speed Dialing:
Storing numbers
Use the following procedure to store numbers for Rapid Key Dialing or Speed Dialing:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "2:ENTRY MODE" appears, and
then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "1:FAX NUMBER" appears, and
then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to select the type of auto-dial number
that you wish to program and then
press the [ENTER] key.
To program a Rapid Key,
select "1:RAPID KEY".
To program a Speed Dial
number, select
"2:SPEED #".
5
Press the [ ] key ( ) or [ ] key ( )
to select "1:SET" and then press the
[ENTER] key.
6
Press the Rapid Key or enter the
Speed Dial number that you wish to
program.
To program a Rapid Key,
press a Rapid key ("01"
to "18").
To program a Speed Dial
number, press two
numeric keys ("00" to
"99") and then press the
[ENTER] key.
7
Enter the fax number with the numeric
keys.
Enter the fax number
(maximum of 40 digits
including pauses) using
the numeric keys.
8
Press the [ENTER] key.
"2:ENTRY MODE"
Selection
"1:FAX NUMBER"
Selection
"1:SET"
Selection
!AR-FX13_sec.book 42 ページ ２００９年５月１１日 月曜日 午後２時２４分

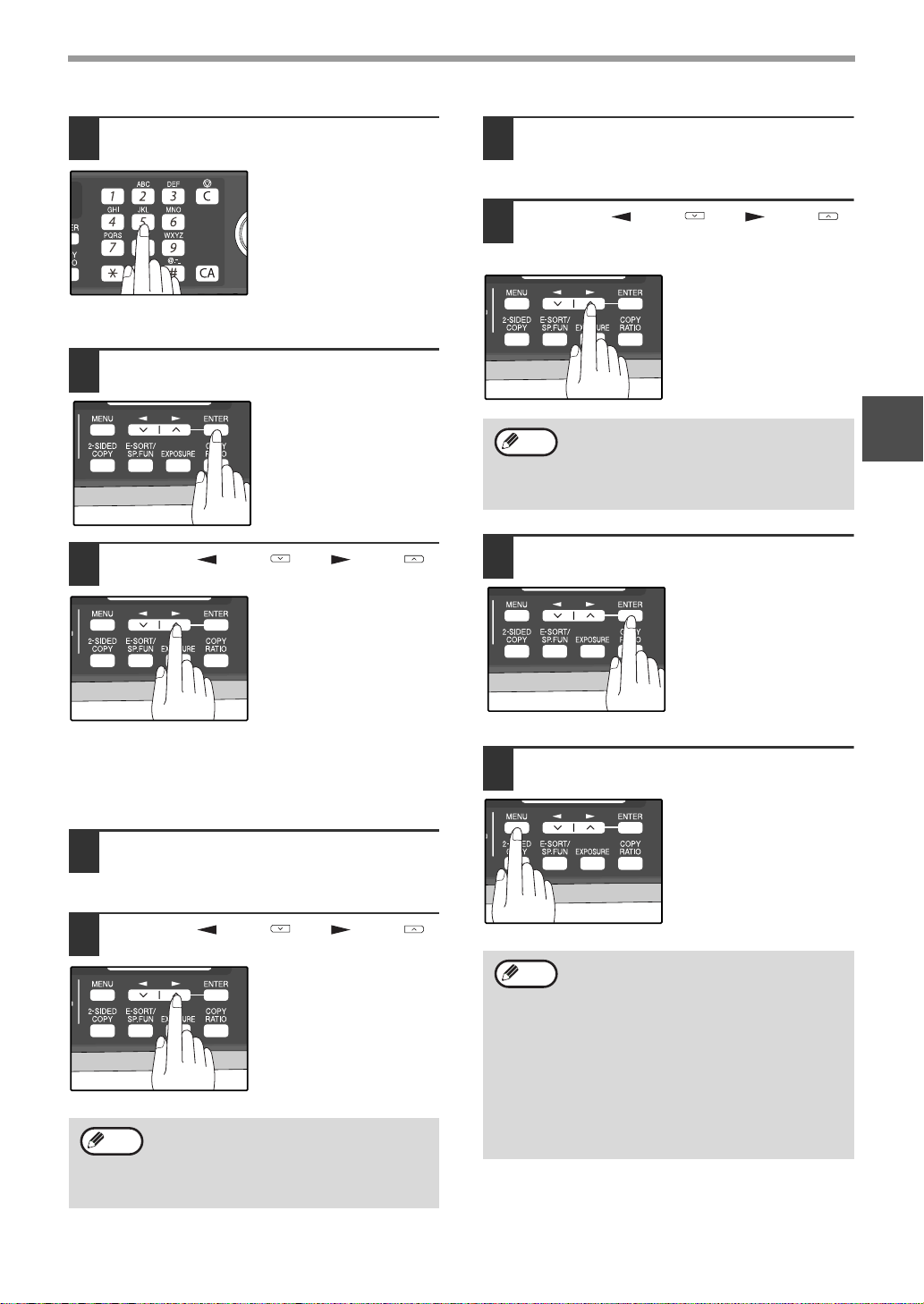

43
INITIAL SETTINGS
2
9
Enter the name of the destination with
the numeric keys.
Enter the name of the
location or party by
pressing numeric keys as
described in "HOW TO
ENTER CHARACTERS"
on page 20 (maximum of
20 characters). If you do
not want to enter a name,
skip this step.
10
Press the [ENTER] key.
11
Press the [ ] key ( ) or [ ] key ( )
to select a Chain Dial setting.
If you wish to set the
number as a Chain Dial
number, select "1:SET".
Otherwise, select
"2:CANCEL".
(See "CHAIN DIALING"
(p.60))
If the number is not set as a chain dial number,
the communication speed and international
communication mode cannot be selected. Press
the [ENTER] key and go to step 17.
12
Press the [ENTER] key.
13
Press the [ ] key ( ) or [ ] key ( )
to select the communication speed.
The selections are as
follows:
1:33600bps
2:14400bps
3:9600bps
4:4800bps
14
Press the [ENTER] key.
15
Press the [ ] key ( ) or [ ] key ( )
to select the international
communication mode.
The selections are as
follows:
1:NO
2:MODE 1
3:MODE 2
4:MODE 3
16
Press the [ENTER] key.
Return to Step 5 to store
another number.
17
Press the [MENU] key.
Press the [MENU] key to
exit.
If the number is a Rapid
key number, you can
write the name on the
label above the
appropriate Rapid key.
For international dialing, if you find that line
noise necessitates a slower transmission
speed, set the appropriate transmission
speed. If you are not sure if a slower speed
is required, set the speed normally.
Note
Sometimes when faxing internationally, line
noise can cause the transmission to stop
momentarily. To reduce these delays,
choose the appropriate international
transmission mode.
You may need to add a pause between
certain digits in the number to allow time for
connection. For example, if you are on a
PBX telephone system that requires an
access number, such as "9", to be dialed to
access an outside line, you will need to
enter a pause between the access number
and the fax number of the other party.
Pauses are entered by pressing the
[REDIAL/PAUSE] key (2 seconds per
pause). If necessary, several pauses can be
entered in a row.
Note
Note
!AR-FX13_sec.book 43 ページ ２００９年５月１１日 月曜日 午後２時２４分
44
INITIAL SETTINGS
Use the following procedure to clear numbers:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "2:ENTRY MODE" appears, and
then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "1:FAX NUMBER" appears, and
then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to select the type of auto-dial number
that you wish to delete.
To delete a Rapid Key,
select "1:RAPID KEY".
To delete a Speed Dial
number, select
"2:SPEED #".
5
Press the [ ] key ( ) or [ ] key ( )
until "2:CLEAR" appears, and then
press the [ENTER] key.
6
Enter the Rapid Key or Speed Dial
number that you wish to delete.
To delete a Rapid Key,
press the appropriate
Rapid key.
To delete a Speed Dial
number, enter the 2-digit
number with the numeric
keys and then press the
[ENTER] key.
7
Press the [ENTER] key.
Return to Step 5 to clear
another number.
8
Press the [MENU] key.
Press the [MENU] key a
number of times until you
exit.
"2:ENTRY MODE"
Selection
"1:FAX NUMBER"
Selection
"2:CLEAR"
Selection
• A Rapid Key or Speed Dial number cannot
be deleted if it has been stored in a Group
Key.
• A Rapid Key or Speed Dial number cannot
be deleted if it is being used for a
transmission that has been stored or is in
progress.
Note
!AR-FX13_sec.book 44 ページ ２００９年５月１１日 月曜日 午後２時２４分
45
INITIAL SETTINGS
2
STORING NUMBERS UNDER GROUP KEYS
Group keys allow you to dial a group of fax numbers by simply pressing the appropriate Group key once. They are
convenient for the Broadcasting function, which is used to transmit an original to a group of fax machines.
All Rapid keys can be programmed as Group keys. To program or clear a group key, follow the steps below. Note
that one key cannot be programmed as both a Rapid key and a Group key at the same time.
● Up to 100 fax numbers can be stored in one Group key.
● Rapid Keys, Speed Dial numbers, and numbers directly entered with the numeric keys can be stored in Group
Keys.
Storing/adding numbers in a Group Key:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "2:ENTRY MODE" appears, and
then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "1:FAX NUMBER" appears, and
then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
until "3:GROUP KEY" appears, and
then press the [ENTER] key.
5
Press the [ ] key ( ) or [ ] key ( )
to select "1:SET" and then press the
[ENTER] key.
6
Press the Rapid key you wish to use
as a Group key .
To add numbers:
After pressing the Group
Key, press the [ ] key
( ) or [ ] key ( ) to
select "1:YES" and then
press the [ENTER] key.
7
Enter the numbers that you wish to
store in the Group Key.
Enter the fax numbers using any of the following
methods:
• Press a Rapid Key and then press the [ENTER]
key.
• Enter a Speed Dial number with the numeric
keys and then press the [ENTER] key.
• Enter a number with the numeric keys and then
press the [ENTER] key.
8
Press the [ENTER] key.
"2:ENTRY MODE"
Selection
"1:FAX NUMBER"
Selection
"3:GROUP KEY"
Selection
"1:SET"
Selection
• One Group Key cannot be stored in
another Group Key.
• A message will appear if you select a
Rapid Key or Speed Dial number that is
already stored in another Group Key.
Note
!AR-FX13_sec.book 45 ページ ２００９年５月１１日 月曜日 午後２時２４分
46
INITIAL SETTINGS
9
Enter a name for the Group Key with
the numeric keys.
Enter the name of the
group by pressing
numeric keys as
described in "HOW TO
ENTER CHARACTERS"
on page 20 (maximum of
20 characters). If you do
not want to enter a name,
skip this step.
To add numbers:
The entered name appears. Edit the name if you need
to make a change.
10
Press the [ENTER] key.
Return to Step 7 to
program another Group
key.
11
Press the [MENU] key.
Press the [MENU] key to
exit.
!AR-FX13_sec.book 46 ページ ２００９年５月１１日 月曜日 午後２時２４分
47
INITIAL SETTINGS
2
Deleting numbers from Group Keys:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "2:ENTRY MODE" appears, and
then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "1:FAX NUMBER" appears, and
then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
until "3:GROUP KEY" appears, and
then press the [ENTER] key.
5
Press the [ ] key ( ) or [ ] key ( )
to select "2:CLEAR" and then press
the [ENTER] key.
To delete a Group, press the appropriate Group key.
6
Press the [ ] key ( ) or [ ] key ( )
to select "1:FAX #" and then press the
[ENTER] key.
To delete all numbers from the Group Key:
Select "2:GROUP" and press the [ENTER] key.
7
Enter the numbers that you wish to
delete.
Enter the fax numbers using any of the following
methods:
• Press a Rapid Key.
• Enter a Speed Dial number with the numeric
keys.
• Enter a number with the numeric keys.
8
Press the [ENTER] key.
9
To exit, press the [ ] key ( ) or [ ]
key ( ) to select "2:END".
To program another Group Key, select
"1:CONTINUE", press the [ENTER] key, and return to
step 7.
10
Press the [ENTER] key.
11
Press the [MENU] key.
Press the [MENU] key to
exit.
"2:ENTRY MODE"
Selection
"1:FAX NUMBER"
Selection
"3:GROUP KEY"
Selection
"2:CLEAR"
Selection
"1:FAX #"
Selection
"2:END"
Selection
!AR-FX13_sec.book 47 ページ ２００９年５月１１日 月曜日 午後２時２４分
48
USING THE MACHINE WITH AN
ANSWERING MACHINE
QUIET DETECT TIME
Quiet Detect Time is the function that enables the machine to be used along with an answering machine for both
phone messages and faxes. After the answering machine has answered, any duration of silence longer than a
certain threshold time will prompt the machine to take over the line and prepare to receive a fax. The Quiet Detect
Time can be set from 00 to 10 seconds, following the procedure below.
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "6:A.M. MODE" appears, and
then press the [ENTER] key.
s
3
Press the [ ] key ( ) or [ ] key ( )
until "1:QUIET DETECT TIME" appears,
and then press the [ENTER] key.
4
Enter the Quiet Detect Time with the
numeric keys.
Enter the Quiet Detect
Time in seconds, from 00
to 10. (setting "00" turns
off Quiet Detect Time)
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
"6:A.M. MODE"
Selection
"1:QUIET DETECT TIME"
Selection
• The machine has been set at the factory for a Quiet Detect Time of 5 seconds, which gives the best
performance for most answering machines. However, you may have to adjust the Quiet Detect Time depending
on your answering machine’s disconnect time, the time before the machine disconnects the line after a period
of silence. If your machine has a short disconnect time, you may have to shorten the Quiet Detect Time.
However, if the machine is interrupting callers in the middle of messages, you should set a longer Quiet Detect
Time.
• If there is a pause at the end of your answering machine message, make sure that the Quiet Detect Time is
longer than this pause.
• Setting Quiet Detect Time to 00 turns the function off. However, the machine will not be able to receive faxes
sent using manual dialing (picking up the receiver, dialing the number, and pressing the [START] key ( )
when the fax tone is heard).
• If your answering machine is set to answer calls after more rings than the machine's number of rings setting,
the machine will always answer first and thereby prevent callers from leaving messages in the answering
machine.
Note
!AR-FX13_sec.book 48 ページ ２００９年５月１１日 月曜日 午後２時２４分
49
INITIAL SETTINGS
2
If Quiet Detect Time is not working properly...
With some answering machines, there is simply no Quiet Detect Time that will allow both reception of faxes and
uninterrupted voice messages. Even in this case, however, you can set up the machine to receive both phone and
fax messages from callers on touch-tone lines. Follow this procedure:
1. Set the Quiet Detect Time to 00.
2. Alter your phone message to tell callers that they can send a fax by pressing the Remote Reception Number
(factory set to 5), followed by the " " key twice.
ANSWERING MACHINE BACKUP
There may be times when the tape on your answering machine becomes full, or
when the answering machine itself malfunctions. It is still possible to receive faxes even under these conditions, by
turning on the Auto Receive function. The machine will automatically answer all calls after five rings. To use this
function, follow the procedure below.
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "6:A.M. MODE" appears, and
then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "2:AUTO RECEIVE" appears, and
then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to select "1:ON" or "2:OFF".
Select "1:ON" to enable
the function.
Select "2:OFF" to disable
the function.
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
"6:A.M. MODE"
Selection
"2:AUTO RECEIVE"
Selection
If you are using Auto Receive, make sure that your answering machine is set to answer on four rings or less.
Otherwise, the machine will take over all calls, preventing callers from leaving voice messages.
Note
!AR-FX13_sec.book 49 ページ ２００９年５月１１日 月曜日 午後２時２４分
50
3
Chapter 3
CHOOSING SUITABLE MEDIA
ORIGINALS SUITABLE FOR FAXING
Make sure that the originals you want to fax meet specifications and guidelines listed in this section.
SIZE AND WEIGHT
The size and weight of originals that you can load in the RSPF depend on whether you load one sheet at a time or
several sheets at once.
When using the RSPF
When using the document glass
14 lbs.
(56 /m
2
)
24 lbs.
(90.3 /m
2
)
5-1/2"
(140 mm)
8-1/2"
(216 mm)
8-1/2"
(216 mm)
One-sided original : 19.7" (500 mm)
Two-sided original : 14" (356 mm)
When feeding in a long original, grasp the original at the edges to guide it into the machine.
When you are using the faxing functions of the machine, your originals are, in effect, being scanned through the
machine. The area of a original that is scanned by the machine while faxing is slightly smaller than the actual
original size. Any text or graphics outside this area will not be scanned.
Note
Maximum
8-1/2"
(216 mm)
14"
(356 mm)
Note
0.04
"
~ 0.16
"
(1 mm ~ 4 mm)
Max. 0.17
"
(4.5 mm)
(along the other edges in totals)
0.16
" or less
(4 mm or less)
Scanning length
and width
!AR-FX13_sec.book 50 ページ ２００９年５月１１日 月曜日 午後２時２４分
51
CHOOSING SUITABLE MEDIA
3
UNSUITABLE ORIGINALS
General guidelines:
● All clips, staples, and pins should be removed from originals before they are used. If these are not removed, they
may damage the machine.
● Ink, glue, and correction fluid on originals must be completely dry before using the originals with the machine.
● Originals that are in some way dangerous to the internal mechanisms of the machine should not be used.
● When faxing, any writing on the originals that is yellow, yellowish-green, or light blue cannot be transmitted.
The following kinds of originals should not be used:
● Originals with a glossy coating
● Originals with static electricity
● Originals with tears, folds, or curls
● Originals that have become stuck together and cannot be easily separated
● Originals with holes, windows, or perforations
● Transparency films, tracing paper, or other transparencies
● Originals with plastic or metallic coatings
• SHARP does not accept any responsibility for the loss or damage of originals.
• Scanning an original that is longer than 500 mm will result in a misfeed.
Note
!AR-FX13_sec.book 51 ページ ２００９年５月１１日 月曜日 午後２時２４分
52
4
Chapter 4
HOW TO USE THE FAX FUNCTION
The machine offers a range of sophisticated features that allow you to control image quality, reception mode,
broadcasting, polling, and transmission priorities. Functions such as sending original(s) from memory and
substituting reception into memory are possible, due to the large memory capacity.

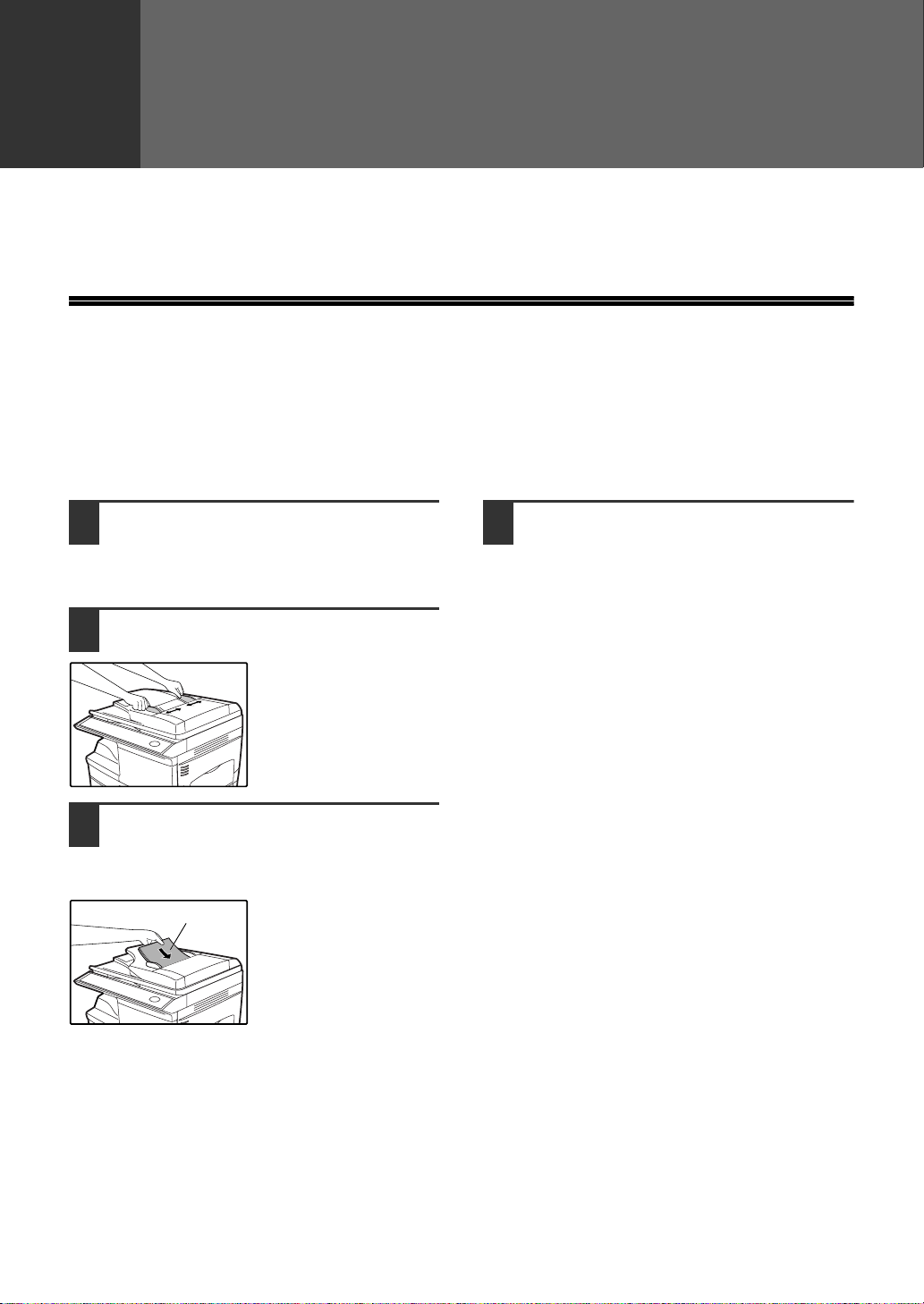

SENDING ORIGINALS
SETTING THE ORIGINAL
This section describes setting original(s) in the RSPF or on the document glass.
When Using the RSPF:
1
Confirm that there are no original(s)
on the document glass and that
copying is not in progress, then
gently close the RSPF.
2
Adjust the original guides to the width
of your original(s).
3
Place the original(s) face up and push
it gently into the document feeder
tray. The top edge of the original(s)
should enter the fax first.
4
There are two ways to send the fax:
• To scan the original into memory, then dial and
transmit, continue with the "DIALING AND
TRANSMITTING" section. (p.59)
• To dial and transmit the original directly without
first scanning it into memory, press the
[MEMORY] key to make the [MEMORY] key
indicator go off. Continue with the "DIALING
AND TRANSMITTING" section. (p.59)
Original face up
!AR-FX13_sec.book 52 ページ ２００９年５月１１日 月曜日 午後２時２４分
53
HOW TO USE THE FAX FUNCTION
4

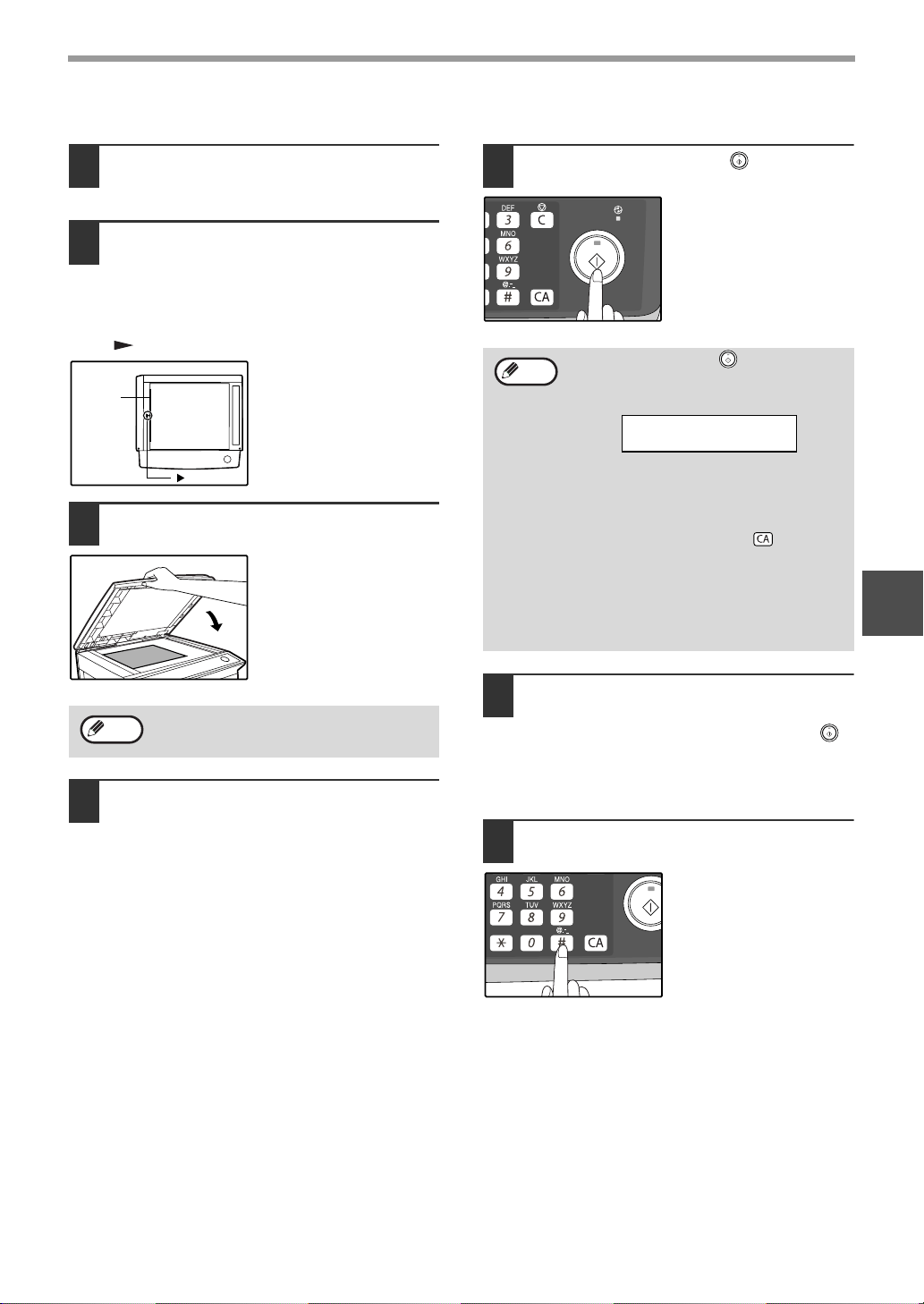

When placing the Original on the document glass:
1
Confirm that there are no original(s) in
the RSPF, and open the RSPF.
2
Place the original face down on the
document glass. Align the original
according to the original scale in the
illustration below. (Line up the center
of the edge of the original with the
( ) mark.)
3
Gently close the RSPF.
4
If needed, set the original size (p.54),
resolution (p.55), and contrast (p.55).
Continue with the "DIALING AND
TRANSMITTING" (p.59) section.
5
Press the [START] key ( ).
The set original size
appears in the display
and then scanning
begins.
6
If you have more than one original to
read into memory, place the next
page, and press the [START] key ( )
to read each page.
Go to step 7 after the last page has been
scanned.
7
Press the [#] key.
Transmission begins.
When using the document glass, do not set
original(s) in the RSPF.
mark
Original
scale
Note
After the [START] key ( ) is pressed, the
set original size appears in the display.
(EX. )
Make sure that the displayed size is the
same as the actual original size. (The
factory default setting for the original size is
"8.5x11".) If the displayed size is not correct,
press the [CLEAR ALL] key ( ) to stop
operation and then change the original size
setting. (See "ORIGINAL SIZE" (p.54))
When faxing from the document glass, if the
size of the original is different from the
specified size, part of the image may be cut
off.
Note
READING #001
8.5x11 100%
!AR-FX13_sec.book 53 ページ ２００９年５月１１日 月曜日 午後２時２４分
54
OPTIONAL TRANSMISSION
SETTINGS
There are several transmission settings that you can make before dialing and transmitting an original.
ORIGINAL SIZE
The original size can be set to "8.5x11", "8.5x14", or "A4". The setting is only effective for one transmission.
If desired, you can set a fixed original size that remains in effect for all transmissions.
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "1:DOC. GLASS SIZE" appears,
and then press the [ENTER] key.
To set a fixed original size for all transmissions:
Press the [ ] key ( ) or [ ] key ( ) to select
"2:FIXED DOC. SIZE".
4
Press the [ ] key ( ) or [ ] key ( )
to select the original size.
The selections are as
follows:
1:8.5x11
2:8.5x14
3:A4
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
To temporarily change the original size
setting when faxing from the document
glass, use the "1: DOC. GLASS SIZE"
setting. To change the permanent original
size setting, use the "2: FIXED DOC. SIZE"
setting.
"4:USER PROGRAM"
Selection
"1:DOC. GLASS SIZE"
Selection
Note
!AR-FX13_sec.book 54 ページ ２００９年５月１１日 月曜日 午後２時２４分
55
HOW TO USE THE FAX FUNCTION
4
RESOLUTION
To do this, press the [RESOLUTION] key one or more times until the desired resolution settings appear in the
display, and then press the [ENTER] key.
Your fax has five resolution settings:
• STANDARD
Use STANDARD for ordinary originals. This setting gives you the fastest transmission.
• FINE
Use FINE for improved reproduction, especially with originals containing small letters or fine drawings.
• SUPER FINE
Use SUPER FINE when you need the highest quality of reproduction.
• FINE (HALF TONE)
Use FINE (HALF TONE) if your original is a photograph or has gradations of color (such as a color original). This
setting will produce a clearer image than Fine used alone.
• S. FINE (HALF TONE)
Use S.FINE (HALF TONE) if your original is a photograph or has gradations of color (such as a color original). This
setting will produce a clearer image than Super fine used alone.
In order to transmit with FINE or SUPER FINE resolution, the receiving fax machine must also have that resolution.
If it doesn't, the next best available setting will be used.
If you do not change the setting, the resolution set using the RESOLUTION PRIORITY (p.37) setting will be
automatically selected.
CONTRAST
The fax automatically controls the contrast, but you can also control it manually. To do this, press the [CONTRAST]
key one or more times until the desired contrast settings appear in the display, and then press the [ENTER] key. The
three contrast levels are MEDIUM, DARK, and LIGHT.
!AR-FX13_sec.book 55 ページ ２００９年５月１１日 月曜日 午後２時２４分
56
HOW TO USE THE FAX FUNCTION

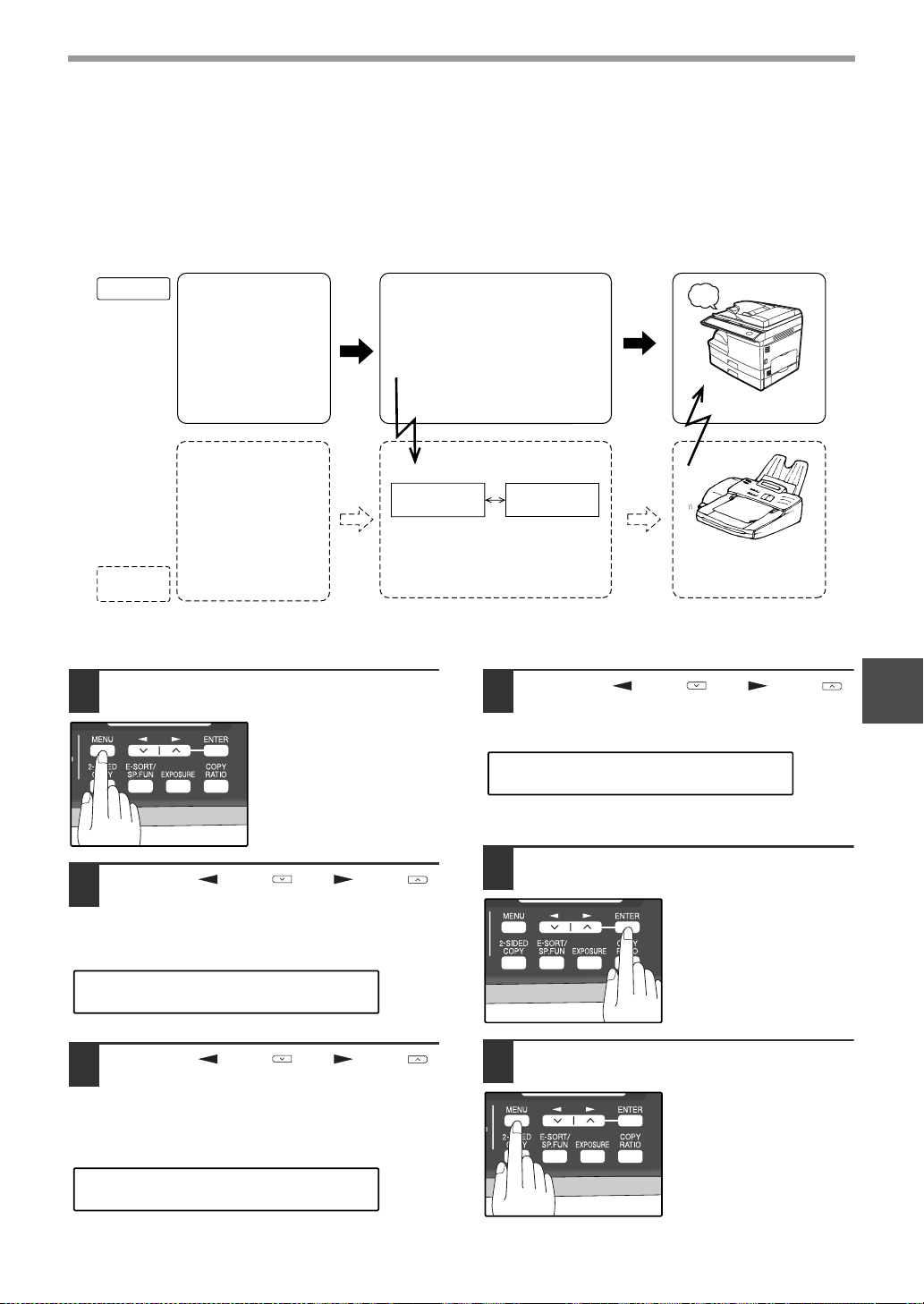

COVER SHEET
You can have your fax generate a cover sheet and send it as the last page of the transmission. The cover sheet
includes the date and time, the sender's name and number, and the receiver's name and number if an automatic
dialing number is used. The total number of pages sent is indicated on the bottom.
One of five messages can also be added to the cover sheet.
To include a cover sheet with a transmission, follow these steps:
1
Press the [COVER SHEET] key until
"1:COVER SHEET SET" appears, and
then press the [ENTER] key.
2
Press the [ ] key ( ) or [ ] key ( )
to select "1:ON" or "2:OFF".
Select "1:ON" to enable
the function.
Select "2:OFF" to disable
the function.
3
Press the [ENTER] key.
Beep
Reception
Transmission
Automatically prints
cover page
Your (transmitting)
machine
Receiving machine
Select cover sheet
and message
functions
If the cover sheet function is not
selected, the message is printed at
the top of the first page received.
If the message function
is selected, a message
is printed. (p.57)
DATE
T O
FAX #
FROM
FAX #
PAGES
: MAY-11-200X FRI 07:30 PM
: SERVICE CENTER
: 0333829161
: SHARP
: 0666211221
: 02PAGES WERE SENT
(INCLUDING THIS PAGE)
IMPORTANT
AUTOMATIC COVER SHEET
• The receiver's name must be programmed in either the Rapid Key or Speed Dial function for it to appear on the
Cover Sheet.
• The cover sheet function must be selected each time you wish to add a cover sheet to a fax transmission.
• To add a message to a cover sheet, the message must be selected using the message function.
Note
"1:COVER SHEET SET"
Selection
!AR-FX13_sec.book 56 ページ ２００９年５月１１日 月曜日 午後２時２４分
57
HOW TO USE THE FAX FUNCTION
4

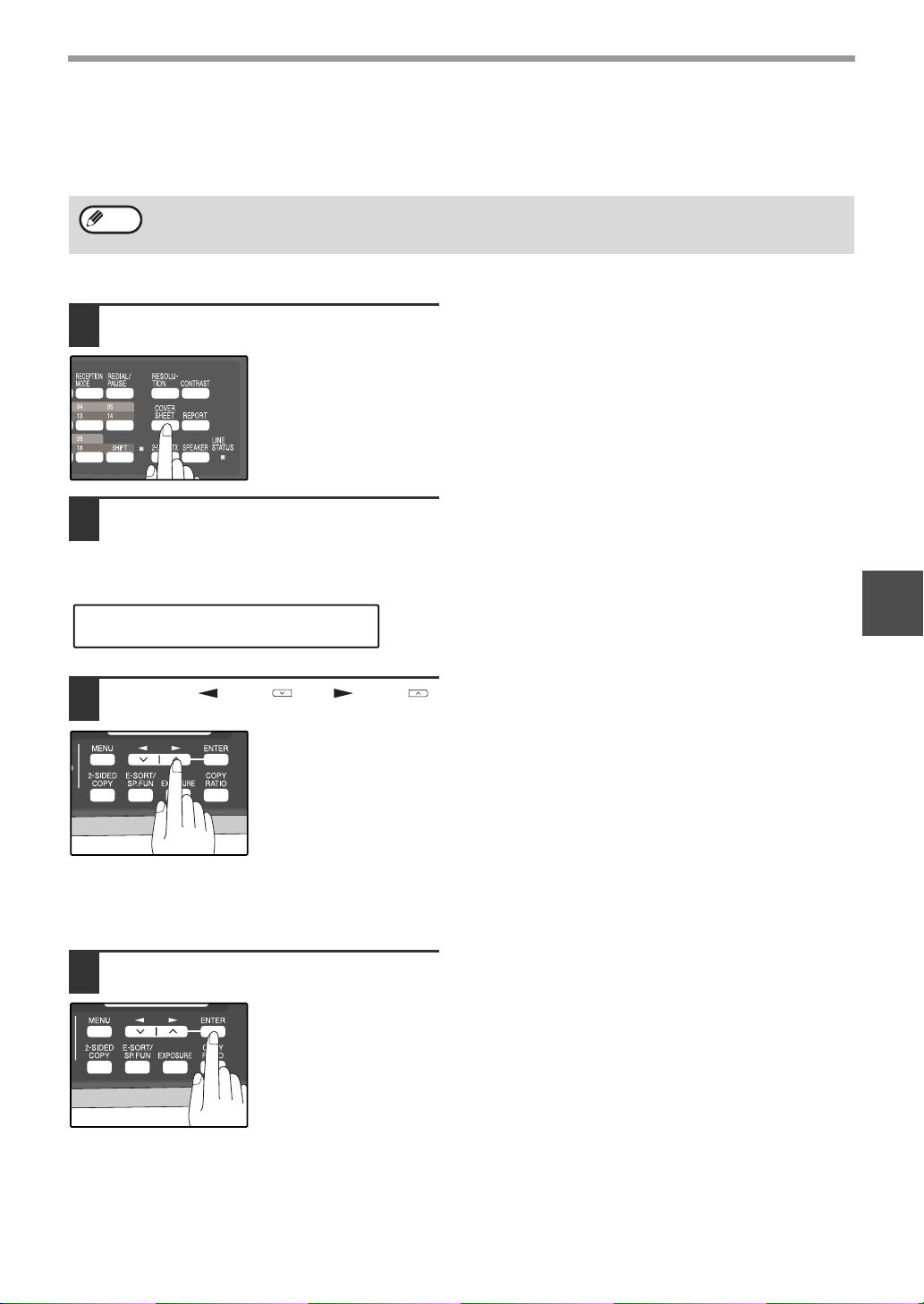

MESSAGE FUNCTION
One of the following messages can be selected: "CONFIDENTIAL", "PLS. DISTRIBUTE", "URGENT", "PLS. CALL
BACK", "IMPORTANT".
To add a message to a cover sheet, follow these steps:
1
Press the [COVER SHEET] key.
2
Press the [COVER SHEET] key until
"2:TX MESSAGE SET" appears, and
then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
to select a message.
The selections are as
follows:
1:NO MASSAGE
2:CONFIDENTIAL
3:PLS. DISTRIBUTE
4:URGENT
5:PLS. CALL BACK
6:IMPORTANT
If you do not wish to add
a message, select "1:NO
MESSAGE".
4
Press the [ENTER] key.
If a message is selected when the cover sheet function is not used, the message will be added to the top of the
first page of the fax.
Note
"2:TX MESSAGE SET"
Selection
!AR-FX13_sec.book 57 ページ ２００９年５月１１日 月曜日 午後２時２４分
58
HOW TO USE THE FAX FUNCTION

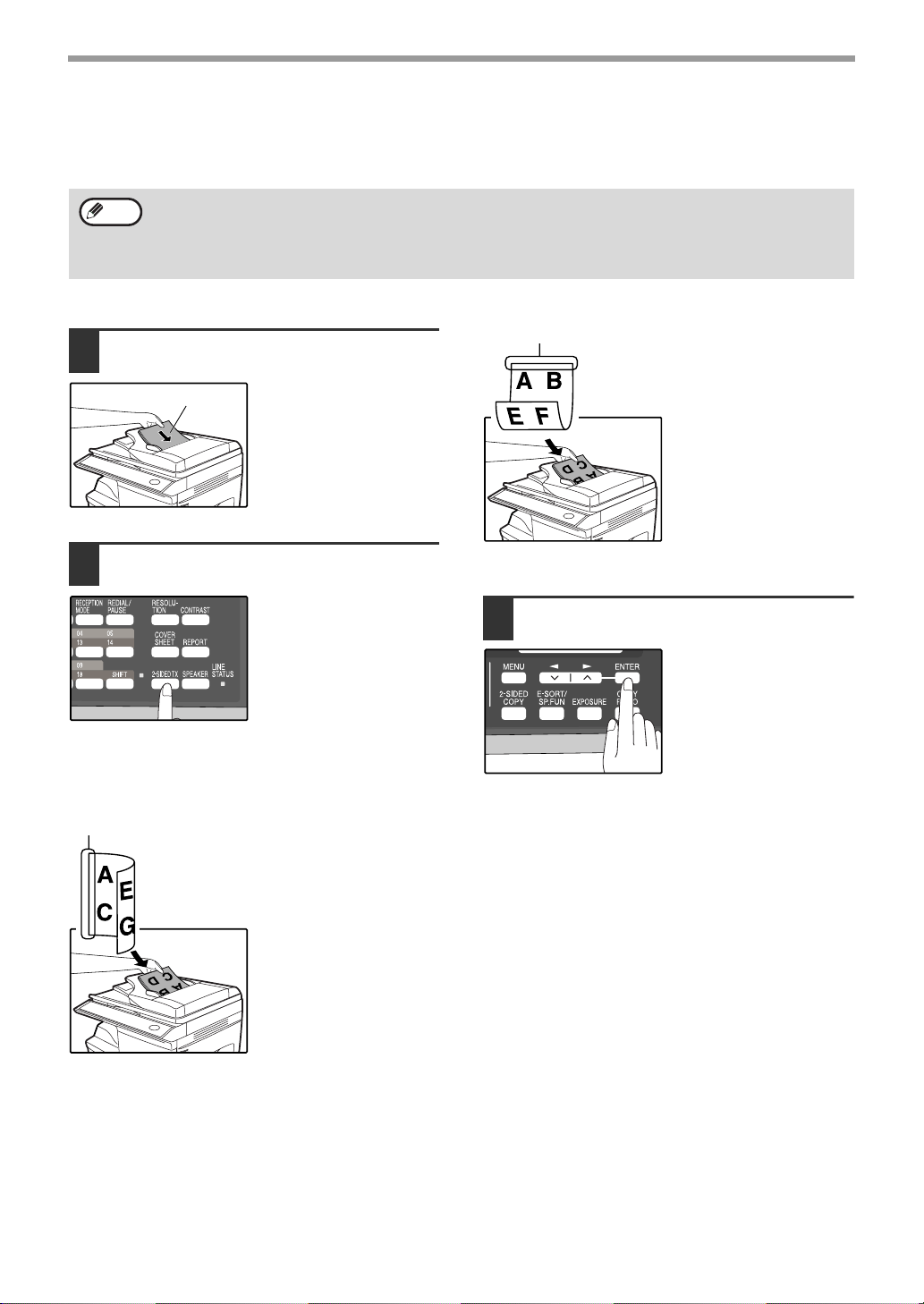

TWO-SIDED ORIGINAL TRANSMISSION FUNCTION
The RSPF can be used to automatically fax a two-sided original. If desired, the back of the original can be rotated
180° before transmission.
Follow these steps to fax a two-sided original:
1
Place the original(s) in the RSPF.
(p.52)
For the size and weight of
two-sided originals that
can be scanned using the
RSPF, see page 50.
2
Press the [2-SIDED TX] key until the
appropriate setting appears.
The selections are as
follows:
OFF
ON (ROTATE)
ON (NON-ROTATE)
Select the setting according to the original type
(booklet or tablet) as indicated below. If the setting is
incorrect, every other page of the received fax will be
inverted.
If you are faxing a
two-sided booklet type
original, select "ON
(ROTATE)".
If you are faxing a
two-sided tablet type
original, select "ON
(NON-ROTATE)".
To cancel this function, select "OFF".
3
Press the [ENTER] key.
• The original must be placed in the RSPF when using the two-sided original transmission function. The
document glass cannot be used.
• The two-sided original transmission function cannot be selected when direct transmission mode is selected.
Likewise, direct transmission mode cannot be selected when the two-sided original transmission function is
selected.
Note
Original face up
Booklet
Tablet
!AR-FX13_sec.book 58 ページ ２００９年５月１１日 月曜日 午後２時２４分
59
4

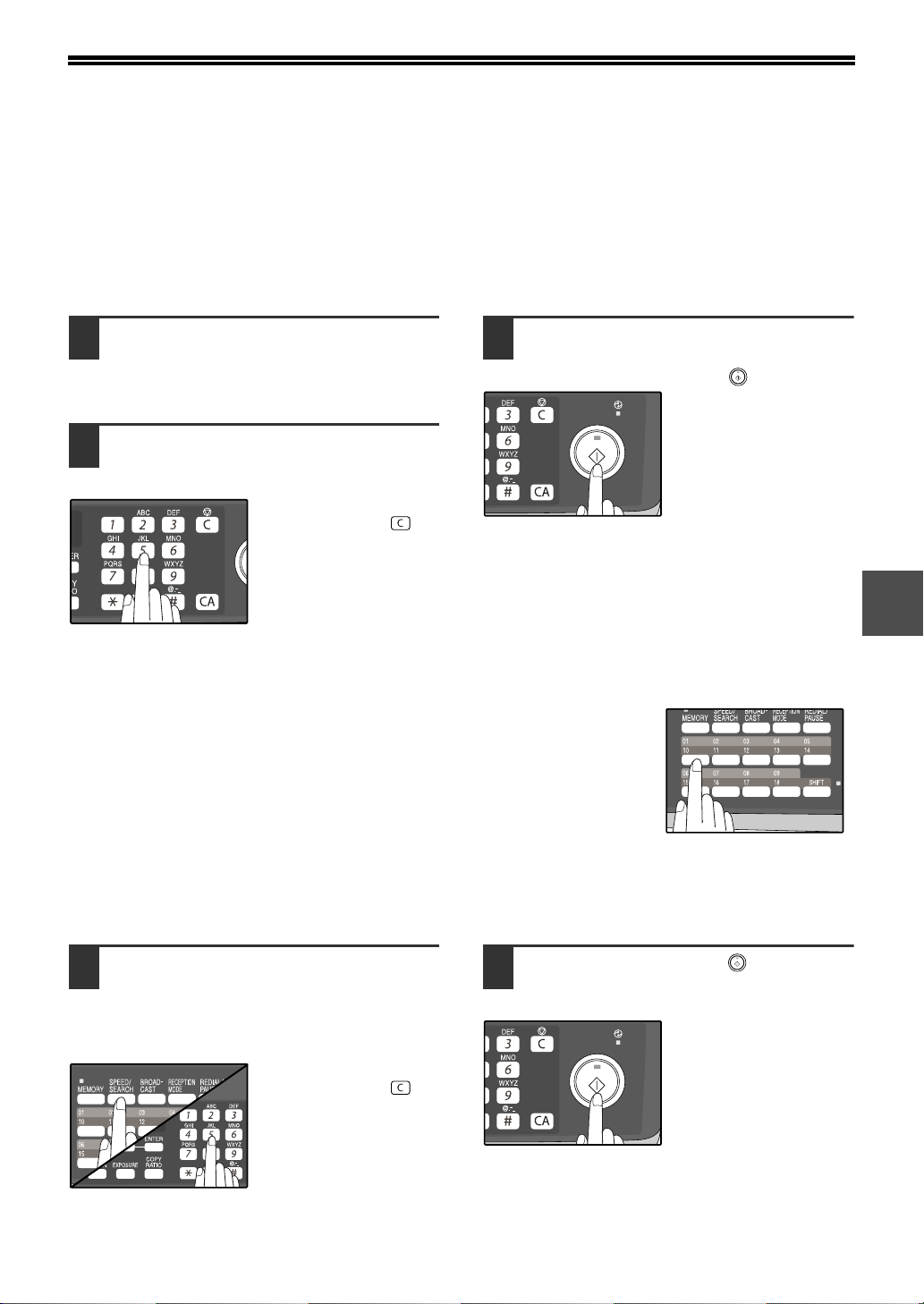

DIALING AND TRANSMITTING
Once you have set the original (either in the RSPF or on the document glass), and have selected the desired
transmission settings, you are ready to dial the number of the receiving fax machine and transmit the original. You
can choose from one of the several ways of dialing that best suit your needs.
DIRECT KEYPAD DIALING
If the number of the fax you want to reach is not a Rapid key or Speed Dial number, use Direct Keypad Dialing to
manually enter it using the following procedure:
1
Confirm that you have correctly set
the original in the RSPF or on the
document glass. (See "SETTING THE
ORIGINAL" (p.52))
2
Enter the number of the fax machine
you want to send to by pressing the
numeric keys.
If it is not correct, press
the [CLEAR] key ( ) to
backspace and clear one
digit at a time, and then
enter the correct number.
3
Check the display. If the number of the
receiving machine is shown correctly,
press the [START] key ( ).
While "SENDING" is
shown in the display, do
not open the RSPF.

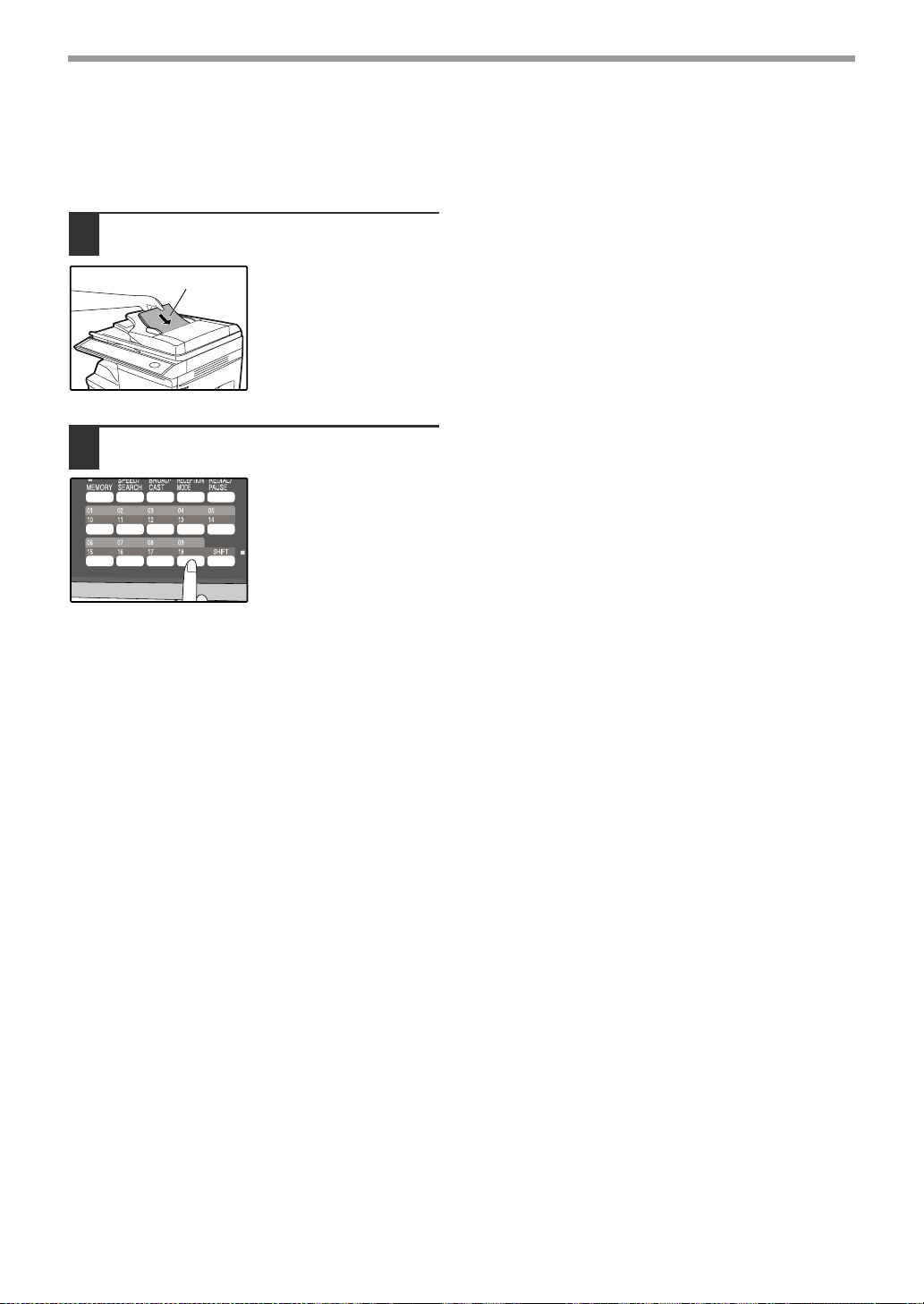

RAPID KEY DIALING
If the number you want to dial has been stored as a Rapid key number (See
"STORING NUMBERS FOR AUTOMATIC DIALING" (p.42)), you can dial it by
pressing the appropriate Rapid key as shown:
SPEED DIALING
If the number you want to dial has been stored as a Speed Dial number, you can dial it using the following
procedure:
1
Press the [SPEED/SEARCH] key and
then enter the two-digit number by
pressing the numeric keys (See
"STORING NUMBERS FOR
AUTOMATIC DIALING" (p.42)).
If it is not correct, press
the [CLEAR] key ( ) to
backspace and clear two
digit at a time, and then
enter the correct number.
2
Press the [START] key ( ) and check
the name or number that appears in
the display.
While "READING" is
shown in the display, do
not open the RSPF.
!AR-FX13_sec.book 59 ページ ２００９年５月１１日 月曜日 午後２時２４分
60
HOW TO USE THE FAX FUNCTION
CHAIN DIALING
The Chain Dialing function allows you to combine a Rapid Key or Speed Dial number (See "STORING NUMBERS
FOR AUTOMATIC DIALING" (p.42)) set for Chain Dialing with another Rapid Key, Speed Dial number, or number
dialed with the numeric keys to dial one fax number up to 50 digits long. The following are some examples of how
this can be done:
• Press Rapid Keys set for Chain Dialing in the correct order for the fax number that you wish to dial. For example,
press Rapid Key 01 followed by Rapid Key 02. The final Rapid Key pressed for the fax number must not be set for
Chain Dialing. Transmission will begin automatically when the final Rapid Key is pressed.
• Enter Speed Dial numbers set for Chain Dialing in the correct order for the fax number that you wish to dial. For
example, press the [SPEED/SEARCH] key and [2] [2], followed by the [SPEED/SEARCH] key and [2] [7]. The final
Speed Dial number entered for the fax number must not be set for Chain Dialing. Transmission will begin when the
[START] key ( ) is pressed after the final Speed Dial number is entered.
• Enter the fax number that you wish to dial with the numeric keys. Press the [REDIAL/PAUSE] key to enter a pause
and then enter the next number. Transmission will begin when the [START] key ( ) is pressed after the final
number is entered.
NORMAL DIALING USING THE [SPEAKER] KEY
When dialing normally with the [SPEAKER] key, press the [SPEAKER] key and dial using the numeric keys. You can
hear the line and fax tones from the other machine through the speaker, allowing you to confirm the response of the
other machine.
1
Set the original in the RSPF and press
the [SPEAKER] key. (See "SETTING
THE ORIGINAL" (p.52))
To adjust the volume,
press the left and [ ]
key ( ) or [ ] key
().
2
Dial the fax number of the receiving
machine.
Dialing with the numeric
keys.
Dialing with a Rapid Key.
Dialing with a Speed Dial
number and then press
the [ENTER] key or
[START] key ( ).
3
When you hear the fax reception tone
of the other machine, press the
[START] key ( ).
4
Press the [ ] key ( ) or [ ] key ( )
to select "1:SEND", and then press
the [ENTER] key or [START] key ( ).
• To use a Rapid Key or Speed Dial number for Chain Dialing, the Rapid Key or Speed Dial number must be set
for Chain Dialing when it is stored (See "STORING NUMBERS FOR AUTOMATIC DIALING" (p.42)).
• When using Chain Dialing, the international communication setting of the final number entered is effective.
International communication mode cannot be used if the final number is entered using a Rapid Key or Speed
Dial number that does not have the setting enabled, or if the final number is entered with the numeric keys.
Note
!AR-FX13_sec.book 60 ページ ２００９年５月１１日 月曜日 午後２時２４分
61
HOW TO USE THE FAX FUNCTION
4
USING THE SEARCH KEY
If you do not remember the Rapid key or Speed Dial number in which you have stored a particular fax number, you
can search for the number by following the steps below:
1
Press the [SPEED/SEARCH] key
twice.
2
Enter the first letter of the stored
name by pressing the appropriate
numeric key (the key below the
marked letter) until the letter appears
in the display.
If the name begins with a special
character or number, press [1] key.
If you do not remember
the first letter, go to Step
3 and scroll through the
list from the beginning.
3
Press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to scroll through the names. Stop
when the desired name appears in the
display.
5
Press the [START] key ( ).
The original will be automatically
transmitted once the connection is
made.

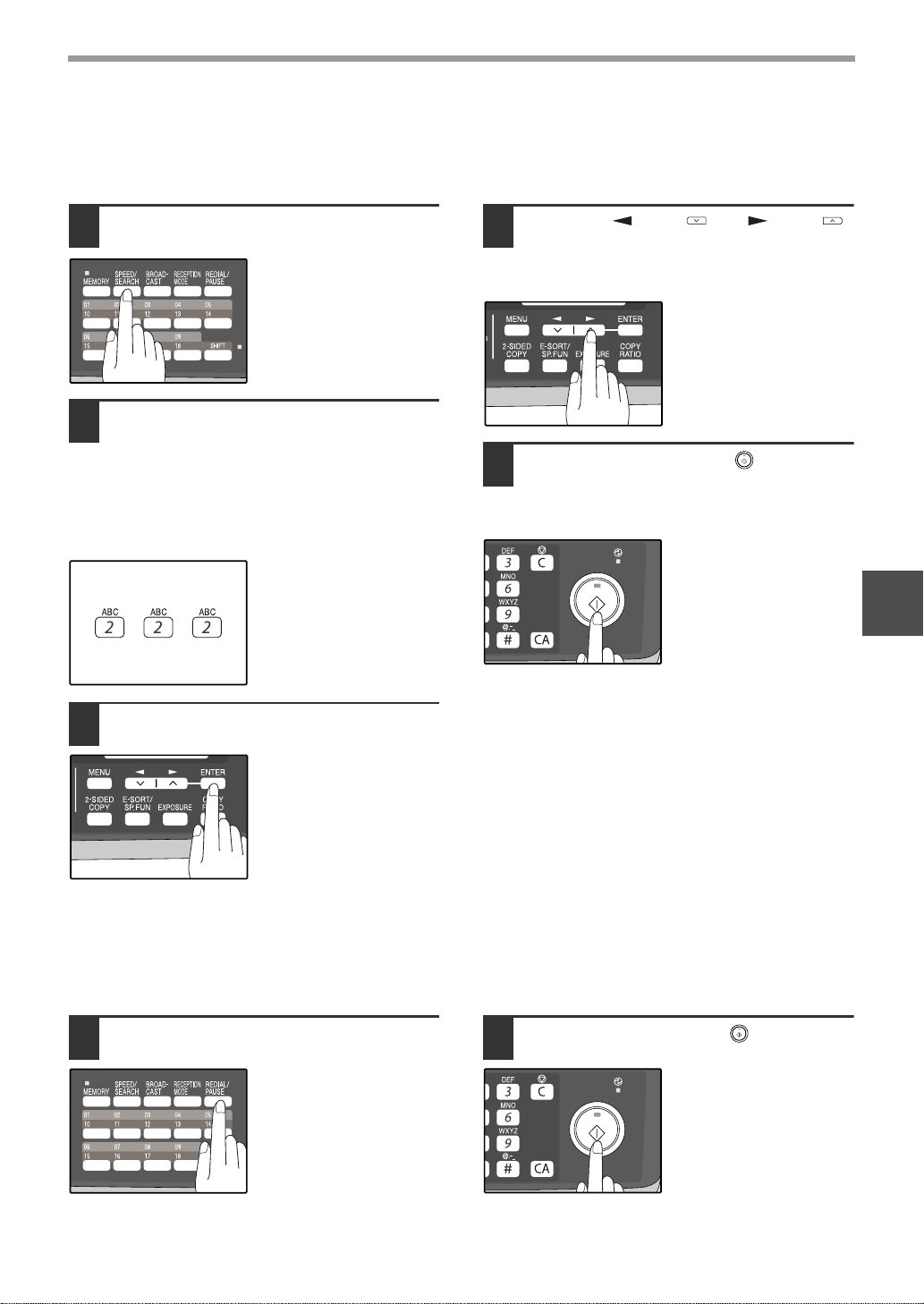

REDIALING
You can send a fax to the number you last dialed, you can redialing it using the following procedure:
1
Press the [REDIAL/PAUSE] key.
2
Press the [START] key ( ).
!AR-FX13_sec.book 61 ページ ２００９年５月１１日 月曜日 午後２時２４分
62
IF THE MEMORY BECOMES FULL
WHILE SCANNING AN ORIGINAL
If the memory becomes full while scanning an original, "MEMORY FULL ERROR" will appear in the display and
scanning will stop.
If the memory becomes full while the first page is being scanned, scanning will stop and the transmission will be
canceled.
If the memory becomes full while scanning a page after the first page, scanning will stop. You can transmit the
pages that have already been scanned, or cancel the transmission and clear the pages from memory.
Follow the steps below to transmit or clear the pages that have already been scanned.
1. The memory becomes full and scanning stops. "MEMORY FULL ERROR" appears in the display.
2. To clear the pages that have already been scanned and cancel transmission, press the [ ] key ( ) or [ ] key
( ) to select "2:CANCEL". To transmit the pages that have already been scanned, select "1:SEND XX?".
3. Press the [ENTER] key
The pages are cleared from memory. If you selected "1:SEND XX?" in step 2, the pages are automatically
transmitted.
CANCELING (DELETING) A
STORED FAX JOB
This procedure is used to check and cancel a fax job that is waiting for transmission, such as an automatic recalling
job, a stored fax job, a remote transmission job, or a timer transmission job.
Follow the steps below to cancel (delete) a fax job:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "3:MEMORY STATUS" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until the job that you wish to cancel
appears in the display and press the
[CLEAR] key ( ).
The job to be canceled is
selected.
4
Press the [ENTER] key.
The selected job is deleted.
5
Press the [MENU] key.
Press the [MENU] key to exit.
If you are using Quick On-line transmission (p.26), the pages that were scanned are automatically transmitted.
Note
A stored fax job cannot be canceled while transmission of another job is in progress. Wait until transmission is
finished and then cancel the stored job.
Note
"3:MEMORY STATUS"
Selection
!AR-FX13_sec.book 62 ページ ２００９年５月１１日 月曜日 午後２時２４分
63
4
RECEIVING FAXES
You can set the machine to one of three modes of reception, AUTO, MAN. , or A.M. (Answering Machine).
To select the reception mode, press the [RECEPTION MODE] key until the desired reception mode appears in the
display.
USING AUTO MODE
Select AUTO mode when you only want to receive faxes on your telephone line. The machine will automatically
answer all calls and receive incoming faxes.
USING MAN. MODE
MAN. is the most convenient mode for receiving phone calls if you have an extension phone. To have true manual
mode, the machine must be set to not answer while in MANUAL mode (See "SETTING THE NUMBER OF RINGS
FOR MANUAL RECEPTION" (p.29)). You can also receive faxes; however, all calls must first be answered by
picking up the receiver on the extension phone or telephone connected to the same line.
USING A.M. MODE
Select this mode when an answering machine is connected to the machine and you want the answering machine to
answer all calls. This allows you to receive both voice messages and faxes when you are out.
NOV 05 WED 8:20 AM
STAD-BY AUTO 100%
!AR-FX13_sec.book 63 ページ ２００９年５月１１日 月曜日 午後２時２４分
64
OPTIONAL RECEPTION SETTINGS
The machine has various optional settings for the reception of faxes.
TWO-SIDED RECEPTION
This function is used to print a received fax consisting of two or more pages of the same size on both sides of the
paper. Even if the pages are in different orientations, the pages are rotated appropriately to enable printing on both
sides of the paper.
To use this feature, follow this procedure:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "24:2-SIDED RX" appears, and
then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to select "1:ON" or "2:OFF".
Select "1:ON" to enable
the function.
Select "2:OFF" to disable
the function.
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
The two-sided reception function cannot be used when printing a transaction report or activity report.
Note
"4:USER PROGRAM"
Selection
"24:2-SIDED RX"
Selection
!AR-FX13_sec.book 64 ページ ２００９年５月１１日 月曜日 午後２時２４分
65
HOW TO USE THE FAX FUNCTION
4
RECEIVE REDUCE
You may on occasion receive faxes that are larger than the paper loaded in the machine. To ensure that you do not
lose any part of the original, you should use the Receive Reduce function, which scales the fax to the printing paper
size.
To use this feature, follow this procedure:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "16:RCV REDUCE" appears, and
then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to select "1:ON" or "2:OFF".
If you "2:OFF" (No
reduction) large faxes will
be printed on two sheets
of paper.
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
In some cases the size or resolution of a received fax may not permit reduction. When this happens the fax will be
printed at full size and divided onto multiple sheets of paper.
Note
"4:USER PROGRAM"
Selection
"16:RCV REDUCE"
Selection
!AR-FX13_sec.book 65 ページ ２００９年５月１１日 月曜日 午後２時２４分
66
WHEN USING MANUAL SENDING
AND RECEIVING
You need to use the [SPEAKER] key or an extension telephone to perform manual sending and receiving. For
information about connecting an extension telephone See "CONNECTING OTHER DEVICES" (p.12).
1
When the extension telephone rings,
pick up the handset and converse.
If the [SPEAKER] key is used to answer a call
you cannot converse.
2
When the handset is off hook or the
[SPEAKER] key is used, press the
[START] key ( ).
Press the [ ] key ( ) or [ ] key ( ) to
select "1:SEND" or "2:RECEIVE", and then press
the [ENTER] key or [START] key ( ).
You cannot use the [SPEAKER] key for fax
transmission/reception while copying is in
progress.
Note
MANUAL MODE
1:SEND, 2:RECEIVE
!AR-FX13_sec.book 66 ページ ２００９年５月１１日 月曜日 午後２時２４分
67
5
Chapter 5
SPECIAL FUNCTIONS
MEMORY
Your machine has a memory area that can be used to store both incoming faxes and outgoing originals.
● Approximately 120 pages of average content can be held in memory for transmission and reception. Less can be
held if any of the pages were scanned using fine or superfine resolution.
Substitute Reception into Memory
This is a back-up function that is automatically activated if your fax runs out of paper, the TD cartridge needs
replacement (See the Operation Manual for general information.), or the paper jams.
• If you received originals in memory because the fax ran out of paper, be sure to add paper which is the same size
as the paper previously used. If not, the original print-out size may not match the size of the printing paper.
Take care that the remaining memory does not become 7% or less, or you cannot receive any more faxes.
When the machine is idle, the LCD shows the stand-by memory available. (See "ABOUT THE LIQUID CRYSTAL
DISPLAY" (p.16))
Note
!AR-FX13_sec.book 67 ページ ２００９年５月１１日 月曜日 午後２時２４分
68

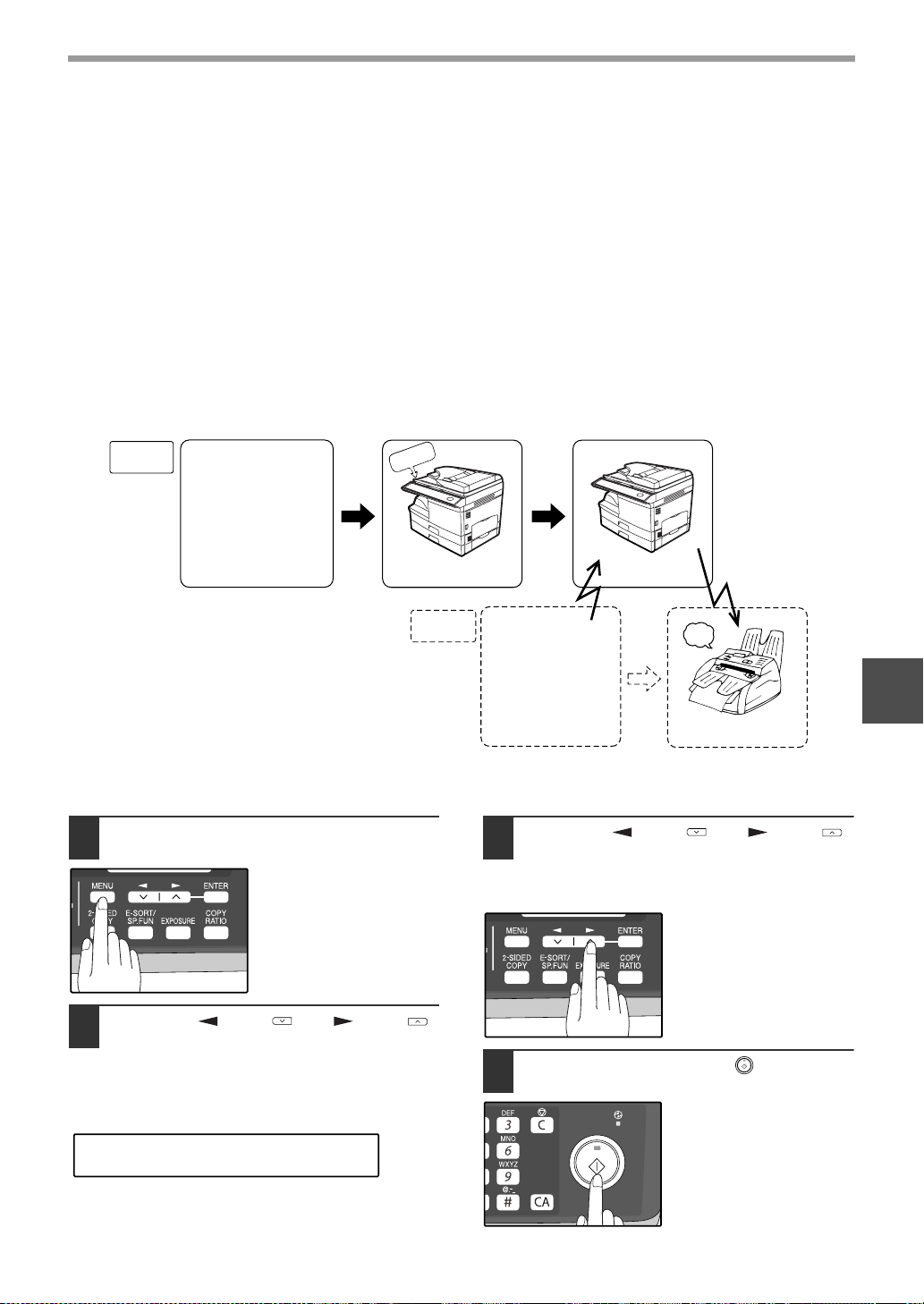

DATA TRANSFER
If there is a problem with the machine, you can use the Data Transfer function to have received faxes read into
memory and then sent to a different fax machine for printing.
This function is used when you cannot print received faxes, for example when the machine runs out of toner, or a
misfeed occurs.
To use this function, the fax number of the transfer destination machine must be programmed.
Follow these steps to program the fax number of the transfer destination machine:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "0:RX DATA TRANSFER"
appears, and then press the [ENTER]
key.
3
Press the [ ] key ( ) or [ ] key ( )
until "2:FAX NUMBER" appears, and
then press the [ENTER] key.
4
Enter the fax number of the transfer
destination machine with the numeric
keys and press the [ENTER] key.
Enter the transferring fax
number (maximum 40
digits) by pressing the
numeric keys.
5
Enter the name of the transfer
destination with the numeric keys and
press the [ENTER] key.
Enter the fax number of
the fax machine your
want to transfer the data to.
[Preparation]
beep
Transferred faxes
are printed
Your fax machine
Receiving fax machine
Select data transfer mode
FW. RX DATA
1=YES 2=NO
Transfer is only possible when a received fax is being held in memory because printing was not possible. In this
case, "0:RX DATA TRANSFER" will appear in the display.
Note
"0:RX DATA TRANSFER"
Selection
"2:FAX NUMBER"
Selection
!AR-FX13_sec.book 68 ページ ２００９年５月１１日 月曜日 午後２時２４分
69

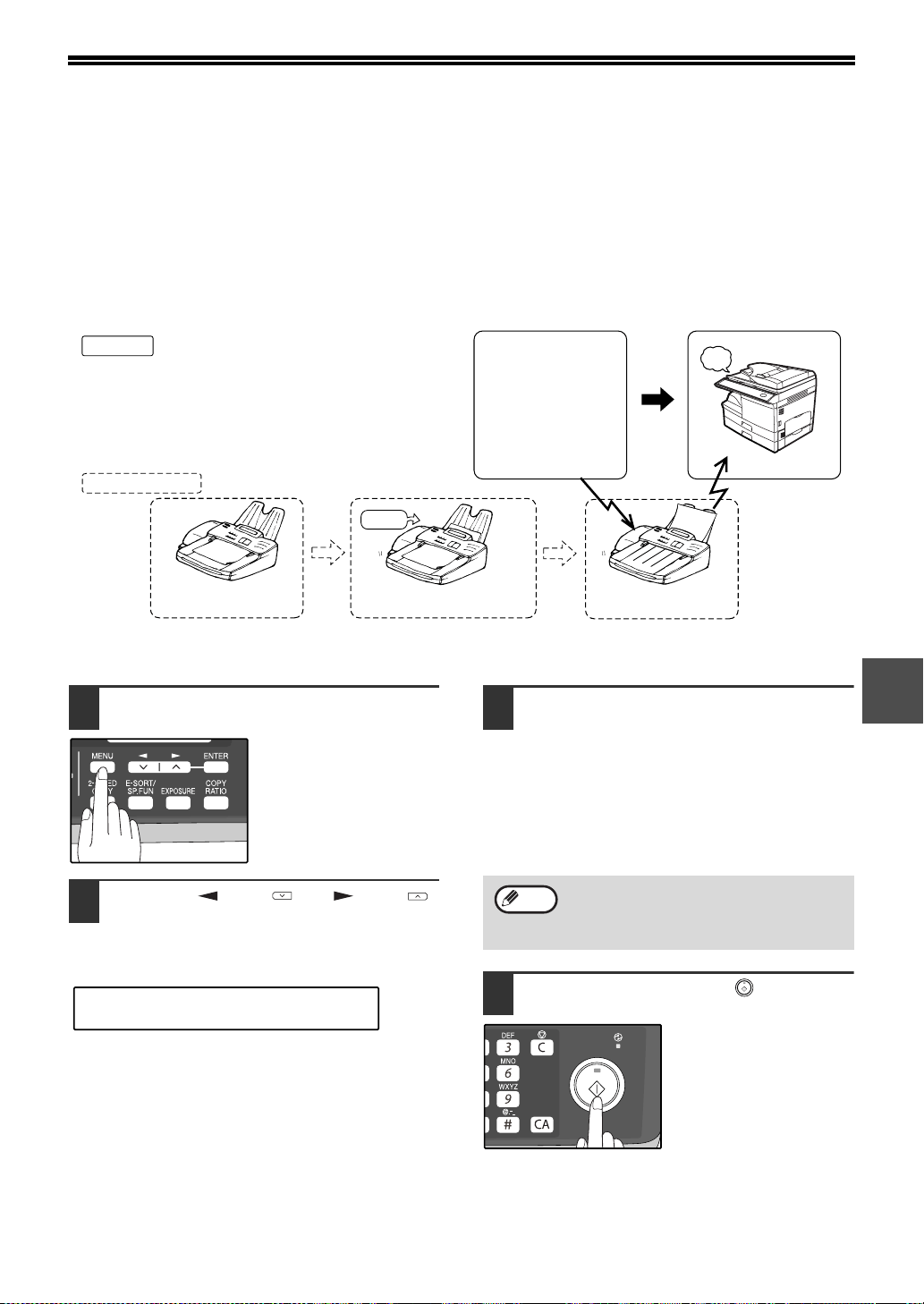

SPECIAL FUNCTIONS
5
Follow these steps to use the fax transfer function:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "0:RX DATA TRANSFER"
appears, and then press the [ENTER]
key.
3
Press the [ ] key ( ) or [ ] key ( )
until "1:DATA TRANSFER" appears,
and then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
until "1:YES" appears, and then press
the [ENTER] key.
The received fax is transferred.
To cancel the transfer, select "2:NO" and press the
[ENTER] key.
If "NOT STORED FW.#" appears:
The transfer destination number has not been
programmed. Program the number and then transfer
the fax.
If you set the data transfer mode, when data
cannot be transferred because the other fax
machine was busy, or when the error
condition on your fax machine is corrected,
the data does not print out. To print the data,
turn off the power to the fax machine, then
turn it on again.
"0:RX DATA TRANSFER"
Selection
"1:DATA TRANSFER"
Selection
"1:YES"
Selection
Note
!AR-FX13_sec.book 69 ページ ２００９年５月１１日 月曜日 午後２時２４分
70
TRANSMISSION RESERVATION
When your fax is busy receiving an original or transmitting an original from memory, you can "reserve" a
transmission by setting the original (either in the RSPF or on the document glass), reading it into memory, and
entering the fax number. Once the current operation is completed, your fax will automatically dial the number and
transmit the original saving you from having to wait.
When Using the RSPF:
1
Confirm that there are no originals on
the document glass and that copying
is not in progress, then gently close
the RSPF.
2
Adjust the original guides to the width
of your original.
3
Place the original face up and push it
gently into the RSPF. The top edge of
the original should enter the fax first.
Adjust the resolution
and/or contrast settings if
desired.
4
Enter the number of the receiving
machine using one of the following
methods:
• Press a Rapid key.
If you press a Rapid Key, the next step is not
necessary.
The number will be dialed once the current
operation is completed, and transmission will
begin once the connection is made.
• Press the [SPEED/SEARCH] key and enter a
Speed Dial number.
• Enter a full number with the numeric keys.
5
Press the [START] key ( ) if you
entered a Speed Dial number or a full
number.
• The number will be dialed once the current
operation is completed, and transmission will
begin once the connection is made.
When placing the Original on the Table:
1
Confirm that there are no original(s) in
the RSPF, and open the RSPF.
2
Place the original face down on the
document glass. Align the original
according to the original scale in the
illustration below. (Line up the center
of the edge of the original with the
( ) mark.)
3
Gently close the RSPF.
4
If needed, set the original size,
resolution, and contrast. (See
"DIALING AND TRANSMITTING"
(p.59))
5
Press the [START] key ( ) to scan
the page into memory. If you have
more than one original to read into
memory, place the next page, and
press the [START] key ( ) to read
each page.
6
Press the [#] key.
Original face up
When using the document glass, do not set
original(s) in the RSPF.
mark
Original
scale
Note
!AR-FX13_sec.book 70 ページ ２００９年５月１１日 月曜日 午後２時２４分
71
5
BROADCASTING
This function allows you to send the same original to as many as 100 different locations with just one operation.
Once the original is loaded, it is scanned and stored in memory. The fax numbers you have entered are then
automatically dialed in succession, and the original is transmitted to each location.
1
Place the original face up and push it
gently into the original feeder tray.
2
Press the [BROADCAST] key.
Adjust the resolution
and/or contrast settings if
desired.
3
Dial the numbers of the receiving
machines using one or more of the
following methods:
• Press one or more Rapid keys.
• Enter Speed Dial numbers with the numeric
keys.
• Press one or more Group keys.
• Enter a number with the numeric keys.
4
Press the [ENTER] key.
To enter another fax number, return to step 3.
5
Press the [START] key ( ).
Transmission will begin.
Your fax machine
Select
broadcast sending
Original is scanned
into memory
Faxes sent
in order
beep
beep
beep
Fax received
Fax received
Fax received
Recipient A
Recipient B
Recipient C
memory
Adjust the resolution and contrast settings
after the [BROADCAST] key has been
pressed.
Original face up
Note
!AR-FX13_sec.book 71 ページ ２００９年５月１１日 月曜日 午後２時２４分
72
SPECIAL FUNCTIONS
Broadcasting using a Group key
If the fax machines to which you want to broadcast have all been programmed into one Group key, you can perform
the broadcasting operation using the following simplified procedure. Refer to "STORING NUMBERS UNDER
GROUP KEYS" (p.45).
1
Place the original face up and push it
gently into the document feeder tray.
Adjust the resolution
and/or contrast settings if
desired.
2
Press the appropriate Group key.
Transmission will begin.
Original face up
!AR-FX13_sec.book 72 ページ ２００９年５月１１日 月曜日 午後２時２４分
73
5
POLLING
Polling allows you to request another fax machine to send an original to your fax machine. In other words, the
receiving fax machine, not the transmitting fax machine, activates the transmission. You can use your fax to both
poll and be polled by others.
Serial polling can be used to poll multiple fax machines (maximum of 100) in a single operation.
POLLING
You can request that another fax machine send you the original that is set in that fax machine. You can perform a
polling operation at a scheduled time. (See "TIMER OPERATIONS" (p.79))
Follow these steps to use the polling function:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "8:POLLING MODE" appears,
and then press the [ENTER] key.
3
Dial the number of the fax machine
you want to poll using one of the
following methods:
• Press a Rapid Key.
If you press a Rapid Key, the next step is not
necessary.
• Press the [SPEED/SEARCH] key and enter a
two-digit Speed Dial number.
• Enter the fax number with the numeric keys.
4
Press the [START] key ( ).
Fax received
Polling fax
Other fax memory
polling
sending
Original is set
Polling is approved
beep
Original is scanned
into memory
memory
Select polling
"8:POLLING MODE"
Selection
A group key can be pressed to perform
serial polling. Fax reception will take place in
the order that the destinations are stored in
the Group Key.
Note
!Chapter05.fm 73 ページ ２００９年５月１４日 木曜日 午後７時３９分
74
SPECIAL FUNCTIONS
SERIAL POLLING
You can poll several fax machines one at a time with a single serial polling operation.
A maximum of 100 fax machines can be polled in one serial polling operation.
Follow these steps to use the serial polling function:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "9:SERIAL POLL MODE" appears,
and then press the [ENTER] key.
3
Dial the number of the fax machine
you want to poll using one of the
following methods:
• Press a Rapid Key or a Group Key.
• Press the [SPEED/SEARCH] key and enter a
two-digit Speed Dial number.
• Enter a fax number with the numeric keys.
4
Press the [ENTER] key.
Repeat steps 3 and 4
until all numbers have
been entered. After
entering the last number,
go to step 5.
5
Press the [START] key ( ).
memory
Polling fax
Other fax A
memory
Other fax B
memory
polling
Original is set
Original is set
sending
Repeated for the
next fax machine
Select serial polling
Fax received
Fax
received
Next fax machine is polled
sending
memory
Polling is approved
Original is scanned
into memory
Original is scanned
into memory
Polling is approved
beep
beep
"9:SERIAL POLL MODE"
Selection
!Chapter05.fm 74 ページ ２００９年５月１４日 木曜日 午後７時３９分
75
SPECIAL FUNCTIONS
5
POLLING TRANSMISSION (MEMORY POLLING)
This function is used to transmit an original that has been scanned into memory to a fax machine that polls your fax
machine. If desired, polling fax machines can be restricted to machines whose fax numbers have been programmed
in your machine ("RESTRICTING POLLING MACHINES (POLLING SECURITY)" on page 77).
To let other fax machines poll your fax machine, the original to be transmitted must be scanned into memory and the
reception mode of your machine must be set to "Auto".
You can select whether polling transmission will take place once or repeatedly. If once is selected, the original that
was scanned into memory will be automatically deleted after polling transmission takes place. If repeated polling
transmission is selected, the original will remain in memory until it is deleted.
More than one original can be scanned into polling memory (all originals will transmitted when your machine is
polled).
Only one memory polling operation can be set up, and the polling machine must be capable of polling reception.
The original(s) in polling memory will be transmitted when a fax machine calls your fax machine and requests polling
transmission. Automatic fax reception is possible while your machine is on polling transmission standby.
Setting up polling transmission:
Place the original in the RSPF or on the document glass and perform the following steps:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "7:MEMORY POLL MODE"
appears, and then press the [ENTER]
key.
3
Press the [ ] key ( ) or [ ] key ( )
to select the number of times polling
transmission will take place and press
the [ENTER] key.
"1:1 TIME" or
"2:REPEAT" can be
selected as the number
of polling operations
allowed.
4
Press the [START] key ( ).
Your fax
machine
polling
beep
Original is sent
from memory
The original is read
into memory
Original is received
Polling fax
machine
Select polling
Select memory polling
memory
Polling is
approved
"7:MEMORY POLL MODE"
Selection
!Chapter05.fm 75 ページ ２００９年５月１４日 木曜日 午後７時３９分

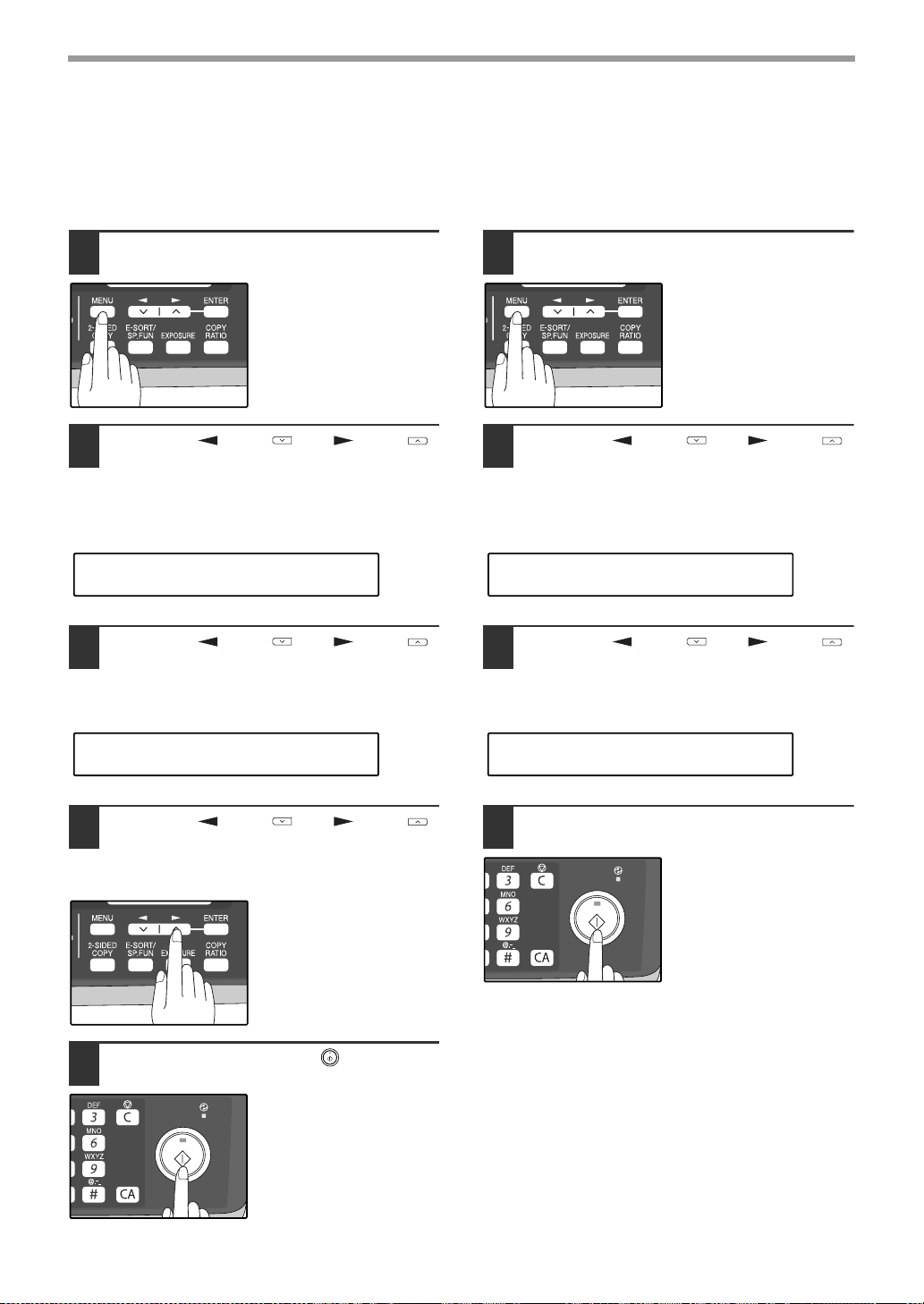

76
SPECIAL FUNCTIONS
Adding a original to polling memory:
Use this procedure to add an original to another
original that has already been scanned into polling
memory. Place the original in the RSPF or on the
document glass and follow the steps below.
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "7:MEMORY POLL MODE"
appears, and then press the [ENTER]
key.
3
Press the [ ] key ( ) or [ ] key ( )
until "1:SET" appears, and then press
the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to select the number of times polling
transmission will take place and press
the [ENTER] key.
"1:1 TIME" or
"2:REPEAT" can be
selected as the number
of polling operations
allowed.
5
Press the [START] key ( ).
Deleting originals from polling memory:
Follow the steps below to delete originals that have
been scanned into polling memory.
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "7:MEMORY POLL MODE"
appears, and then press the [ENTER]
key.
3
Press the [ ] key ( ) or [ ] key ( )
until "2:CLEAR" appears, and then
press the [ENTER] key.
4
Press the [START] key ..
"7:MEMORY POLL MODE"
Selection
"1:SET"
Selection
"7:MEMORY POLL MODE"
Selection
"2:CLEAR"
Selection
!Chapter05.fm 76 ページ ２００９年５月１４日 木曜日 午後７時３９分
77
SPECIAL FUNCTIONS
5
RESTRICTING POLLING MACHINES (POLLING SECURITY)
If you wish to allow only specified fax machines to poll your fax machine, enable polling security and program the fax
numbers of the machines that are to be allowed to poll your machine. When this is done, polling will take place when
the fax number of the polling machine matches one of the fax numbers that have been programmed in your machine.
Up to 10 passcode numbers (fax numbers of machines that are allowed to poll your machine) can be programmed.
To
enable polling security and
program passcode
numbers
, see "
Programming/
deleting passcode numbers:" on page 78.
Follow these steps to enable polling security:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "12:SECURITY SELECT"
appears, and then press the [ENTER]
key.
4
Press the [ ] key ( ) or [ ] key ( )
to select "1:ON".
To turn off polling security, select "2:OFF".
5
Press the [ENTER] key.
6
Press the [MENU] key.
Press the [MENU] key to
exit.
Select polling or serial polling
Fax is received
Polling fax
Fax being
polled
beep
These two numbers are compared
polling allowed
Entered fax
number
Permitted fax
number
Enter the fax number
for your fax machine
[When polling]
[Preparation]
numbers
match
[Preparation]
Enter the fax number of
fax machines you want
to allow to poll your fax
machine
polling
sending
"4:USER PROGRAM"
Selection
"12:SECURITY SELECT"
Selection
"1:ON"
Selection
!Chapter05.fm 77 ページ ２００９年５月１４日 木曜日 午後７時３９分
78
SPECIAL FUNCTIONS
Programming/deleting passcode numbers:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "2:ENTRY MODE" appears, and
then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "4:PASSCODE # MODE"
appears, and then press the [ENTER]
key.
4
Press the [ ] key ( ) or [ ] key ( )
to select "1:SET" and press the
[ENTER] key.
To delete a passcode number:
Select "2:CLEAR" and press the [ENTER] key.
5
Enter a two-digit number that will be
used to identify the passcode number
and then press the [ENTER] key.
To delete a passcode
number:
Enter the two-digit
number that identifies the
passcode number and
press the [ENTER] key.
The passcode is deleted.
6
Enter the passcode (fax number of the
machine to be allowed to poll your
machine) with the numeric keys and
press the [ENTER] key.
7
Press the [MENU] key.
Press the [MENU] key to
exit.
"2:ENTRY MODE"
Selection
"4:PASSCODE # MODE"
Selection
"1:SET"
Selection
!AR-FX13_sec.book 78 ページ ２００９年５月１１日 月曜日 午後２時２４分
79
5
TIMER OPERATIONS
The timer function allows you to set a transmission or polling operation to be performed automatically at a time you
specify. Up to five transmission operations or polling operations can be set at any one time, and the times they will
be performed can be specified up to a week in advance.
You can use this function, for example, to take advantage of lower night time telephone rates without having to be
there when the operation is performed.
● For a timer transmission, scan the original into memory when you set the transmission. Scanning the original into
memory is convenient because you do not have to worry about original mix-ups or forgetting to load the original.
● If the memory becomes full while the original is being scanned, "MEMORY FULL" will appear in the display.
• Press the [START] key ( ) to transmit the pages that have been stored up to that point in memory.
• Press the [CLEAR ALL] key ( ) to cancel the entire transmission.
Setting up a timer transmission job:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "1:TIMER MODE" appears, and
then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
to select "1:SET".
To cancel a timer operation, select "2:CLEAR".
4
Enter the time at which transmission
will take place with the numeric keys.
Enter two digits for the
hour and two digits for
the minute.
5
Press the [ ] key ( ) or [ ] key ( )
to select "AM" or "PM" and press the
[ENTER] key.
Your fax machine
The scheduled
time arrives
Recipient
beep
Transmission begins
Transmission
/reception
• Select the recipient
-sending method
-time
• Select transmission
settings
memory
"1:TIMER MODE"
Selection
"1:SET"
Selection
!AR-FX13_sec.book 79 ページ ２００９年５月１１日 月曜日 午後２時２４分
80
SPECIAL FUNCTIONS
6
Press the [ ] key ( ) or [ ] key ( )
to select the day of the week and
press the [ENTER] key.
7
Press the [ENTER] key.
8
Press the [ ] key ( ) or [ ] key ( )
to select the transmission mode and
press the [ENTER] key.
The selections are as
follows:
1:SEND MODE
2:BROADCAST MODE
3:POLLING MODE
4:SERIAL POLL MODE
9
Enter the fax number of the other
machine using one of the following
methods:
• Press a Rapid key.
If you press a Rapid Key, the next step is not
necessary.
• Enter a Speed Dial number with the numeric
keys.
• Enter the fax number with the numeric keys.
10
Press the [START] key ( ).
CANCELING A TIMER TRANSMISSION JOB
After a timer transmission job is set up, the job goes on standby until the specified time of transmission. If necessary,
the MEMORY STATUS function can be used to cancel a timer transmission job that is on standby ("CANCELING
(DELETING) A STORED FAX JOB" on page 62).
!AR-FX13_sec.book 80 ページ ２００９年５月１１日 月曜日 午後２時２４分
81
5
ANTI JUNK FAX
You can avoid wasting fax paper by using the Anti Junk Fax function. This function blocks reception of faxes from up
to ten specified parties.
To turn the Anti Junk Fax feature on and off, use the following procedure:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "5:ANTI JUNK FAX" appears, and
then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
to select "1:ANTI JUNK SELECT" and
press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to select "1:ON" or "2:OFF" and press
the [ENTER] key.
Select "1:ON" to enable
the function.
Select "2:OFF" to disable
the function.
5
Press the [MENU] key.
Press the [MENU] key to
exit.
"5:ANTI JUNK FAX"
Selection
"1:ANTI JUNK SELECT"
Selection
!AR-FX13_sec.book 81 ページ ２００９年５月１１日 月曜日 午後２時２４分
82
SPECIAL FUNCTIONS
To store junk fax numbers, use the following procedure:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "5:ANTI JUNK FAX" appears, and
then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
to select "2:JUNK FAX #" and press
the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to select "1:SET" and press the
[ENTER] key.
5
Enter a two-digit number from 01 to 10
that will identify the anti junk number
and press the [ENTER] key.
6
Enter the fax number with the numeric
keys and press the [ENTER] key.
7
Press the [MENU] key.
If you wish to store
another fax number,
return to step 5.
Press the [MENU] key to
exit.
"5:ANTI JUNK FAX"
Selection
"2:JUNK FAX #"
Selection
"1:SET"
Selection
If you enter a two-digit number that already
has a fax number stored, "#xx
STORED:CHANGE?" will appear. To
change the fax number that has been stored
under that 2-digit number, press the [ ]
key ( ) or [ ] key ( ) to select "YES",
press the [ENTER] key, and enter the new
fax number.
Note
!AR-FX13_sec.book 82 ページ ２００９年５月１１日 月曜日 午後２時２４分
83
SPECIAL FUNCTIONS
5
To clear junk fax numbers, use the following procedure:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "5:ANTI JUNK FAX" appears, and
then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
to select "2:JUNK FAX #" and press
the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to select "2:CLEAR" and press the
[ENTER] key.
5
Press the numeric keys to enter the
two-digit number (01 to 10) that
identifies the fax number you wish to
delete.
6
Press the [ENTER] key.
If you wish to store
another fax number,
return to step 5.
7
Press the [MENU] key.
Press the [MENU] key to
exit.
"5:ANTI JUNK FAX"
Selection
"2:JUNK FAX #"
Selection
"2:CLEAR"
Selection
!AR-FX13_sec.book 83 ページ ２００９年５月１１日 月曜日 午後２時２４分
84
OPERATION IN COPY, PRINTER,
SCANNER, AND FAX MODES
Some operations cannot be performed simultaneously when the machine is being used in printer mode, copy mode,
scanner mode, and fax mode.
*1 Direct transmission and scanning are not possible.
*2 Manual reception and printing of a received fax are not possible.
*3 Only scanning is possible.
*4 Manual reception is not possible.
Modes
Copy Printer Scanner Fax Extension
phone
Copying Printing Scanning
from a
machine
Scanning
from a
computer
Tra ns mi s-
sion
Reception
Copy Key entry Yes Yes No Yes Yes*1 Yes Yes
During copying No No No Yes*1 Yes*2 Yes
Printer Printing Yes Yes Yes Yes Yes*2 Yes
Scanner During scanning No Yes Yes*1 Yes Yes
Fax
transmission
Key entry No Yes No Yes Yes Yes Yes
During direct
transmission
No Yes No No No No
During scanning No Yes No No Yes*1 Yes*4 Yes
During memory
transmission
Yes Yes Yes Yes No*3 No No
Fax reception During manual
reception
Ye s N o Ye s Ye s N o * 3 N o
During printing
of a received fax
Ye s N o Ye s Ye s Ye s Ye s * 2 Ye s
During memory
reception
Ye s Ye s Ye s Ye s N o * 3 N o
Extension phone Yes Yes Yes Yes No*3 No
!AR-FX13_sec.book 84 ページ ２００９年５月１１日 月曜日 午後２時２４分
85
6
Chapter 6
TROUBLESHOOTING
PRINTING OUT REPORTS
The machine is capable of printing a range of reports on faxing activities as well as various settings you have made.
The reports are described below.
1. TIMER LIST:
You can print a list of timer or dual access operations that are currently set.
2. ACTIVITY REPORT:
You can print out a list of faxes sent and received as well as the sender or recipient and the time of the
operation, etc.
3. TELEPHONE # LIST:
You can print out a list of number stored in rapid dialing and speed dialing.
4. GROUP LIST:
You can print out a list of group dialing numbers.
TIMER LIST
P. 01
RESERVED TYPE
TYPE
TYPE
RES.
RES.
RES.
MSG
MSG
MSG
BOX
BOX
PAGES
PAGES
PAGES
CVR.
CVR.
CVR.
RECEIVER
RECEIVER
01
02
03
04
05
06
07
12:12 PM MON
XX:XX XX XXX
XX:XX XX XXX
XX:XX XX XXX
XX:XX XX XXX
XX:XX XX XXX
XX:XX XX XXX
XXXXXXXXX
XXXXXXXXX
XXXXXXXXX
XXXXXXXXX
XXXXXXXXX
XXXXXXXXX
XXXXXXXXX
XXX
XXX
XXX
XXX
XXX
X
X
X
XX
XX
X
X
X
XXX
XXX
XXX
XXX
XXX
XXX
XXX
XXX XXX XXX
XXX XXX XXX
XXX XXX XXX
XXX XXX XXX
XXX XXX XXX
XXX XXX XXX
XXX XXX XXX
XXX
XXX
1
XXXXXX
XXXXXX
XXX
XXX
XXX
X
X
X
X
XX
XX
#
XXXX XXXX
X
X XXXX
TIMES
TIMER MODE
MEMORY TX
REMOTE TX
FILE
FILE
SEP-10-200X FRI 06:30 PM
SEP-10-200X FRI 06:30 PM
ACTIVITY REPORT (SEND)
P. 0 1
COM.TIME
XX SEP-10 XX:XX PM XX X:XX:XX
X:XX:XX
X:XX:XX
XX
XX
XX
XXXXXXX XXXXX XXX
TOTAL
GRAND TOTAL
#
RECEIVER
START TIME
PAGES
TYPE/NOTE
FILE
DATE
TELEPHONE NUMBER LIST
P. 01
RECEIVER'S FAX #
INTL TX SET
RAPID/SPEED #
RECEIVER'S NAME
XXXXXXXXXXXXXX
XXXXXXXXXXXXXX
XXXXXXXXXXXXXX
RXX
RXX
SXXX
XXXXXXXXXXXXXX
XXXXXXXXXXXXXX
XXXXXXXXXXXXXX
XXXX XXXX
XXXX XXXX
XXXX XXXX
SEP-10-200X FRI 06:30 PM
GROUP LIST
P.01
RAPID # : XX
SPEED # : XXX
FAX # : XXXXXXXXXXXXXXXXXXXXX
FAX # : XXXXXXX
: XXXXXXXX
: XXXXXX
SPEED # : XXX XXX
RECEIVER
#
GROUP NAME
GXX
GXX
GXX
XXXX
XXXX
XXXX
SEP-10-200X FRI 06:30 PM
!Chapter06.fm 85 ページ ２００９年５月１１日 月曜日 午後５時３分
86
TROUBLESHOOTING
5. PASSCODE LIST:
You can print a list of your fax information and polling security information.
6. JUNK FAX # LIST:
Fax numbers designated as Anti Junk Fax numbers.
PASSCODE LIST
POLL SECURITY
SYSTEM #
ID #
PASSCODE #
SENDER'S NAME
SENDER'S #
FW. STA. NAME
FW. STATION #
XXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXX
XXXX
01
02
03
04
05
06
07
08
09
10
01
02
03
04
05
06
07
08
09
10
XXXX
XXXX
XXXXXXXXXX
XXXXXXXXXX
XXXX
SEP-10-200X FRI 06:30 PM
JUNK FAX# LIST
SEP-10-200X FRI 06:30 PM
#
01
02
10
X
XXXXXXXXXX
XXXXXXXXXXXXXXXXXXXX
ANTI JUNK FAX #
!Chapter06.fm 86 ページ ２００９年５月１１日 月曜日 午後５時３分
87
TROUBLESHOOTING
6
7. USER PROGRAM LIST:
Currently activated USER PROGRAM settings.
Use the following procedure to print out reports:
1
Press the [REPORT] key.
2
Press the [REPORT] key to select the
report that you wish to print.
3
Press the [ENTER] key.
USER PROGRAM LIST
SEP-10-200X FRI 06:30 PM
ITEM
SETTING
MENU #
DOC. GLASS SIZE
FIXED DOC. SIZE
RESO. PRIORITY
#OF RINGS AUTO RX
#OF RINGS MANUAL RX
AUTO LISTING
PRINT SELECTION
RECALL TIMES (BUSY)
RECALL TIMES (LINE ERROR)
RECALL INTERVAL (BUSY)
RECALL INTERVAL (LINE ERROR)
SECURITY SELECTION
FAX REMOTE NUMBER
REMOTE RECEPTION
FAX SIGNAL AUTO RECEIVE
AUTO RCV REDUCE
BEEP LENGTH
RINGER VOLUME
BEEPER VOLUME
DIAL MODE
DISTINCTIVE RING
INDEX PRINT
DATE&TIME FORMAT SET
2-SIDED RX
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
8.5x11
8.5x11
STANDARD
02TIME(S)
00TIME(S)
OFF
SEND : ERROR ONLY BD : ALWAYS PRINTS
RCV : NEVER PRINTS IMAGE : ERROR ONLY
02TIME(S)
01TIME(S)
03MIN.
01MIN.
ON
5
ON
ON
ON
3SEC
MIDDLE
LOW
TONE
OFF
OFF
TIME : 12HOUR
DATE : MMDDYYYY
OFF
!Chapter06.fm 87 ページ ２００９年５月１１日 月曜日 午後５時３分
88
TROUBLESHOOTING
ACTIVITY REPORT AUTO LISTING
This setting is used to automatically print the Activity Report for transmissions and receptions. The Activity Report
will automatically print when information on a total of 50 fax transmissions and receptions accumulates. Once
information on 50 transmissions/receptions accumulates, the oldest transaction is deleted each time a new
transaction takes place.
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "6:AUTO LISTING" appears, and
then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to select "1:ON" and press the
[ENTER] key.
To disable automatic printing, select "2:OFF" and
press the [ENTER] key.
5
Press the [MENU] key.
Press the [MENU] key to
exit.
"4:USER PROGRAM"
Selection
"6:AUTO LISTING"
Selection
"1:ON"
Selection
!AR-FX13_sec.book 88 ページ ２００９年５月１１日 月曜日 午後２時２４分
89
TROUBLESHOOTING
6
PRINTING TRANSACTION REPORTS
The machine can be set to print a transaction report after each transmission, reception, and/or error. The printing
condition can be selected separately for three types of transaction reports: "TRANSMISSION LIST", "BROADCAST
LIST", and "RECEPTION LIST". For each type of report, select one of the following printing conditions:
"ALWAYS PRINTS" ...After each transmission, reception, or error.
"ERROR ONLY".........After an error only.
"NEVER PRINTS"......Never prints.
To set the machine to print transaction reports, follow these steps:
1
Press the [MENU] key.
2
Press the [ ] key ( ) or [ ] key ( )
until "4:USER PROGRAM" appears,
and then press the [ENTER] key.
3
Press the [ ] key ( ) or [ ] key ( )
until "7:PRINT SELECTION" appears,
and then press the [ENTER] key.
4
Press the [ ] key ( ) or [ ] key ( )
to select the type of transaction report
and press the [ENTER] key.
The selections are as
follows:
1:TRANSMISSION
2:BROADCAST
3:RECEPTION
4:IMAGE MEM. PRINT
"4: IMAGE MEM. PRINT" can be enabled to have part
of the transmitted fax printed on the transaction report.
5
Press the [ ] key ( ) or [ ] key ( )
to select the printing condition and
press the [ENTER] key.
The selections are as
follows:
1:ALWAYS PRINTS
2:ERROR ONLY
3:NEVER PRINTS
6
Press the [MENU] key.
Press the [MENU] key to
exit.
Part of the transmitted fax can be printed on the transaction report (IMAGE MEM. PRINT setting).
Note
"4:USER PROGRAM"
Selection
"7:PRINT SELECTION"
Selection
!AR-FX13_sec.book 89 ページ ２００９年５月１１日 月曜日 午後２時２４分
90
TROUBLESHOOTING
Problem Cause and solution Page
Dialing cannot be done.
The telephone line cord is not correctly connected to the
machine and the wall telephone jack.
→
Make sure the telephone line cord is securely connected.
11
No transmission takes place.
The receiving machine is out of paper.
→
Check with the operator of the receiving machine.
-
The receiving machine does not support the G3 standard.
→ Check with the operator of the receiving machine.
-
An error is displayed.
→ Check the display of the machine.
91
Nothing is printed at the
receiving end.
If a blank sheet of paper is output together with a normally
received fax, the machine's paper size setting may be different
from the size of paper actually loaded in the machine.
→ Make sure that the paper size setting matches the size of paper
loaded in the machine.
29
A distorted image is received at
the other end.
Noise on the line may cause a distorted image. Try sending the
fax again, or make a copy on your machine and see if the copy
is distorted.
→ If the image is still distorted, consult the retailer or dealer where
you bought the machine.
-
The received original is faint.
The transmitting machine may be using a light contrast setting.
→ Ask the operator of the transmitting machine to send the fax using
a darker contrast setting.
-
Received images are distorted.
Noise on the line may cause a distorted image.
→ Ask the operator of the transmitting machine to send the fax
again.
-
The TD cartridge may be running out of toner.
→ Replace the TD cartridge.
Operation
Manual
(for general
information)
If your problem cannot be solved by carrying out the instructions in the Check and Remedy column above, please
contact your authorized SHARP dealer.
Note
!AR-FX13_sec.book 90 ページ ２００９年５月１１日 月曜日 午後２時２４分
91
6
MESSAGES AND SIGNALS
DISPLAY MESSAGES
AUDIBLE SIGNALS
Message Cause and remedy Page
FRONT OR SIDE COVER OPEN.
CLOSE COVERS.
The cover is open. Close the cover.
See the
OPERATION
MANUAL
(for general
information)
CLOSE THE SPF/RSPF COVER. The RSPF cover is open. Close the RSPF cover.
CLEAR PAPER JAM. A paper misfeed has occurred. Remove the misfeed as
explained in "MISFEED REMOVAL". (See the OPERATION
MANUAL for general information.)
SPF/RSPF JAM.
MEMORY FULL The memory is full. 62
LOAD XXX SIZE PAPER
INTO TRAY1
The setting for the printing paper size is incorrect. Set it
correctly. "8.5x11", "8.5x14", or "A4" will appear in "XXX" in the
message.
29
CAN NOT PRINT
Toner cartridge is empty.
Toner cartridge is not inserted.
See the
OPERATION
MANUAL
(for general
information)
NO XXX SIZE TRAY
CHANGE TRAY SETTING
Paper tray is not set to the appropriate paper size. Change the
paper size setting of the paper tray to the size indicated in the
message, and load that size of paper in the paper tray.
"8.5x11", "8.5x14", or "A4" will appear in "XXX" in the
message.
-
Sound Type Duration Meaning
Continuous tone 3 seconds Indicates the end of transmission, reception, or line error.
Continuous tone 1 second Warning tone
!AR-FX13_sec.book 91 ページ ２００９年５月１１日 月曜日 午後２時２４分
92
7
Chapter 7
APPENDIX
SPECIFICATIONS
* As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification
changes for product improvement without prior notice. The performance specification figures indicated are
nominal values of production machines. There may be some deviations from these values in individual machines.
Applicable telephone line Public switched telephone network
Compression method MH, MR, MMR, JBIG
Transmission modes
Super G3, G3 (the machine can only send faxes to and receive faxes from
machines that support G3 or Super G3)
Scanning method CCD flatbed scanning
Scanning resolution
(supports ITU-T standards)
8 x 3.85 lines/mm (Standard)
8 x 7.7 lines/mm (Fine, Fine + Halftone)
8 x 15.4 lines/mm (Super Fine, Super Fine + Halftone)
Recording method Laser, electrostatic charge method
Transmission speed 33.6 kbps 2.4 kbps Automatic fallback
Transmission time
Approx. 2 seconds (Super G3 mode / 33.6 kbps, JBIG),
Approx. 6 seconds (G3 ECM mode / 14.4 kbps, JBIG)
Paper size 8-1/2" x 11"(Letter), 8-1/2" x 14"(Legal), or A4
Effective recording width 8-1/2" max. (8-1/2" x 14" printing)
Transmittable original size When using the RSPF
Maximum
One-sided original: 8-1/2" x 19.7"
Two-sided original: 8-1/2" x 14"
Minimum
8-1/2" x 5-1/2"
When using the document glass
Maximum 8-1/2" x 14"
Effective scanning width 8-1/2" maximum
Halftone transmission 256 levels
Contrast (exposure) adjustment Light, Medium, Dark
Extension telephone connection Possible (1 telephone)
Auto dialing
Combined total of 18 One-Touch Dial and Group keys; 100 Speed Dial
numbers; redialing (automatic)
Timer transmission Ye s
Automatic document feeding Yes (50 pages)
Memory capacity 2 MB
Error Correction Mode(ECM) Ye s
!AR-FX13_sec.book 92 ページ ２００９年５月１１日 月曜日 午後２時２４分
93
INDEX
A
Alarm beeps
- Alarm beep volume .......................................... 19
- Length of alarm beeps ..................................... 18
Answering machine................................................. 48
- Answering machine backup ............................. 49
- Quiet detect time.............................................. 48
Arrow keys ........................................................ 15, 16
Automatic dialing
- Group keys....................................................... 45
- Rapid key dialing.............................................. 42
- Speed dialing ................................................... 42
B
Beep volume ........................................................... 16
Bypass tray paper guides........................................ 13
C
Clear numbers
- Group keys....................................................... 47
- Rapid key dialing.............................................. 44
- Speed dialing ................................................... 44
Connecting
- Other devices................................................... 12
- Telephone line cord ......................................... 11
Contrast................................................................... 55
Cover sheet............................................................. 56
D
Dialing
- Direct keypad dialing........................................ 59
- Rapid key dialing.............................................. 59
- Redialing .......................................................... 61
- Search.............................................................. 61
- Speed dialing ................................................... 59
- Using the [SPEAKER] key ............................... 60
Display .............................................................. 14, 16
Distinctive ringing .................................................... 41
Document glass ...................................................... 13
E
Entering your name and fax number....................... 21
F
Fax main menu ........................................................ 6
Fax setup
- Date and time.................................................. 22
- Daylight saving time setting ............................ 25
- Dial mode........................................................ 31
- Distinctive ringing............................................ 41
- How to enter characters .................................. 20
- Index function.................................................. 36
- Number of recall times .................................... 32
- Number of rings for auto reception.................. 28
- Number of rings for manual reception............. 29
- Recall interval.................................................. 34
- Reception mode.............................................. 27
- Reception paper size ...................................... 29
- Remote reception............................................ 39
- Resolution priority ........................................... 37
- Transmission mode......................................... 26
- Setting the tray selection................................. 30
- Your name and fax number............................. 21
H
Handles .................................................................. 13
I
Index function......................................................... 36
L
Line jack ................................................................. 13
List of fax functions .................................................. 6
M
Memory .................................................................. 67
Message function ................................................... 57
Messages and signals............................................ 91
O
Operation panel...................................................... 13
Optional transmission settings
- Cover sheet..................................................... 56
- Message function............................................ 57
- Two-sided original ........................................... 58
Originals ................................................................. 50
- Original size .................................................... 54
- Setting the original .......................................... 52
- Size and weight............................................... 50
- Two-sided original ........................................... 58
- Unsuitable originals......................................... 51
P
Paper output tray.................................................... 13
Paper output tray extension ................................... 13
Paper tray............................................................... 13
PC modem ............................................................. 38
Power cord ............................................................. 13
Power switch .......................................................... 13
Q
Quick reference guide .............................................. 3
!AR-FX13_sec.book 93 ページ ２００９年５月１１日 月曜日 午後２時２４分
94
R
Receiving faxes....................................................... 63
- Receive reduce ................................................ 65
- Two-sided reception......................................... 64
Reception mode
- A.M. mode.................................................. 27, 63
- AUTO mode ............................................... 27, 63
- MAN. mode ................................................ 27, 63
Remote reception.................................................... 39
Reports
- Group list.......................................................... 85
- Junk fax # list ................................................... 86
- Passcode list.................................................... 86
- Telephone # list................................................ 85
- Timer list .......................................................... 85
- Transaction reports .......................................... 89
- Transmissions activity report ..................... 85, 88
- User program list.............................................. 87
Resolution ............................................................... 55
Ringing volume ....................................................... 17
RSPF....................................................................... 13
- Document feeder cover.................................... 13
- Document feeder tray ...................................... 13
- Exit area........................................................... 13
- Original guides ................................................. 13
S
Specifications.......................................................... 92
Storing numbers
- Group keys....................................................... 45
- Rapid key dialing.............................................. 42
- Speed dialing ................................................... 42
T
TEL jack .................................................................. 13
Transmission mode
- Direct transmission .......................................... 26
- Memory transmission ....................................... 26
Troubleshooting ...................................................... 90
!AR-FX13_sec.book 94 ページ ２００９年５月１１日 月曜日 午後２時２４分
95
Fax setup
Connecting the telephone line cord......................... 11
Daylight saving time setting .................................... 25
Dial mode ................................................................ 31
Distinctive ringing .................................................... 41
Entering your name and fax number....................... 21
How to enter characters .......................................... 20
Index function.......................................................... 36
Number of recall times ............................................ 32
Number of rings for auto reception.......................... 28
Number of rings for manual reception .....................29
Recall interval ..........................................................34
Reception mode ......................................................27
Reception paper size .............................................. 29
Remote reception.................................................... 39
Resolution priority ................................................... 37
Setting the date and time ........................................ 22
Transmission mode................................................. 26
Tray selection.......................................................... 30
Faxes, sending and receiving
Dialing
- Chain dialing .................................................... 60
- Direct keypad dialing ........................................59
- Redialing .......................................................... 61
- Speed dialing ................................................... 59
- Using the [SPEAKER] key ............................... 60
Receiving faxes....................................................... 63
- Manual receiving.............................................. 66
- Optional reception settings .............................. 64
Sending originals
- Dialing and transmitting ................................... 59
- Manual sending................................................ 66
- Optional transmission settings ......................... 54
- Setting the original ........................................... 52
Special functions
Anti junk fax............................................................. 81
Broadcasting ........................................................... 71
Data transfer ........................................................... 68
Memory polling........................................................ 75
Polling ..................................................................... 73
Polling security........................................................ 77
Reservation............................................................. 70
Serial polling............................................................ 74
Timer operations ..................................................... 79
Storing/settings
Clear numbers
- Group keys...................................................... 47
- Rapid key dialing............................................. 44
- Speed dialing .................................................. 44
Contrast.................................................................. 55
Enter characters..................................................... 20
Original size ........................................................... 54
Resolution .............................................................. 55
Storing numbers
- Group key........................................................ 45
- Rapid key dialing............................................. 42
- Speed dialing .................................................. 42
