Use Manual Bosch PCP6A5B90 Serie 6 Gas Hob 60 cm Stainless steel

Bosch PCP6A5B90 Serie 6 Gas Hob 60 cm Stainless steel - Use Manual - Use Guide PDF download or read online.

Instruction manual Gas hob Bosch PCP6A5B90

Table Of Contents

  • Intended use
  • Important safety information

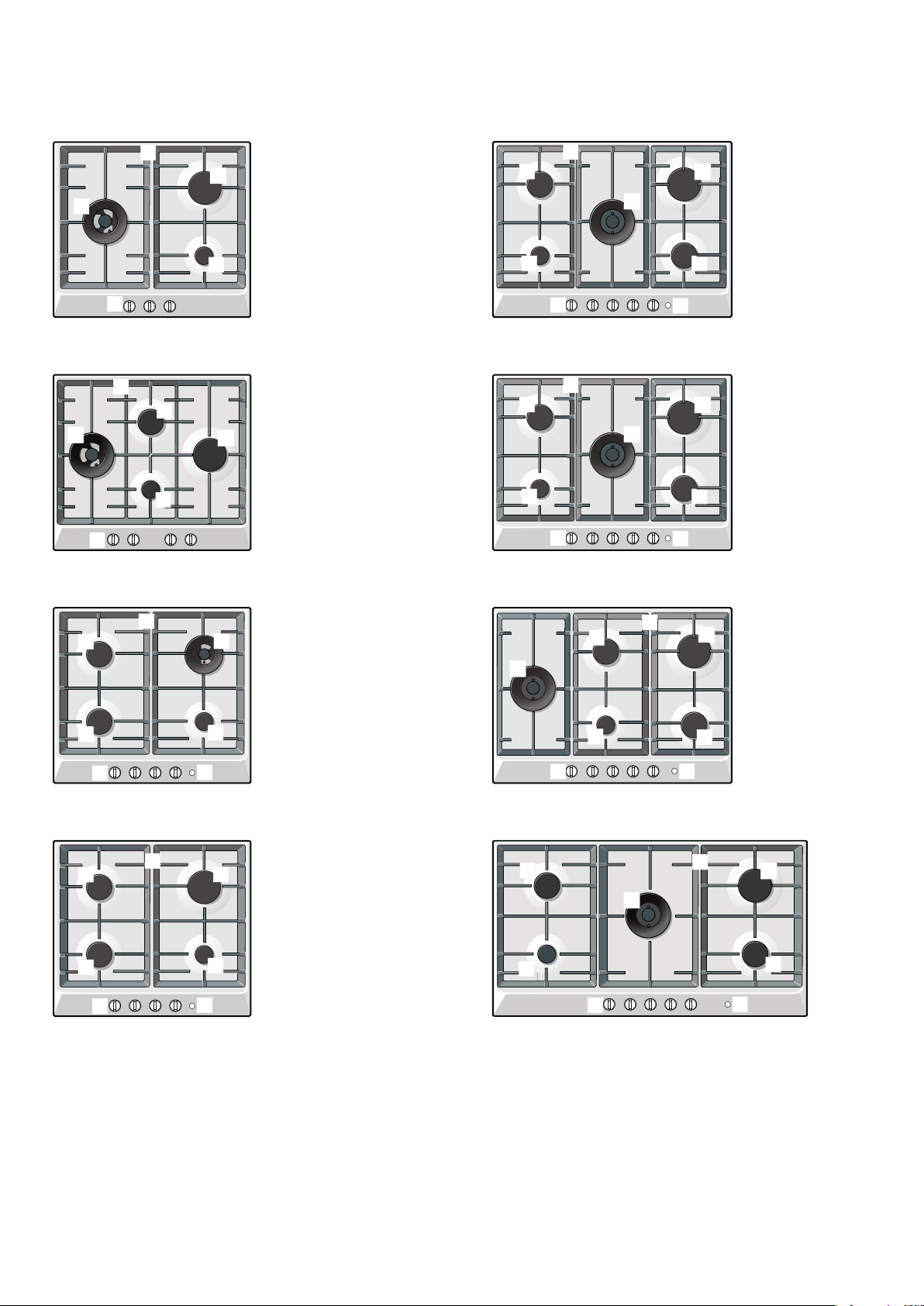

  • Getting to know your appliance
  • Controls and burners
  • Accessories
  • Gas burners
  • Switching on manually
  • Automatic ignition
  • Safety system
  • Switching off a burner
  • Main switch/Hob lock (Main Switch)
  • Warnings
  • Settings table and tips
  • Suitable pans
  • Instructions for use
  • Table of cooking times
  • Cleaning and maintenance
  • Cleaning
  • Maintenance
  • Trouble shooting
  • Customer service
  • Warranty conditions
  • Environmental protection
  • Environmentally-friendly disposal

Gas burners

Switching on manually

  • Press the control knob for the selected burner and turn it anticlockwise to the highest power setting.
  • Hold an igniter or a naked flame (such as a lighter or a match) against the burner.

Automatic ignition

If the hob has automatic ignition (ignition plugs):

  • Press the control knob for the selected burner and turn it anticlockwise to the highest power level. While the control knob is held down, all the burners will generate sparks. The flame ignites. Wait a few seconds.
  • Release the control knob.
  • Turn the control knob to the required position. If the burner does not ignite, switch it off and repeat the steps described above. This time, hold the control knob down for longer (up to 10 seconds).

Safety system

Your hob is equipped with a safety system (thermocouple) that cuts off the gas when the burners are accidentally switched off. To ensure that this device is active:

  • Switch on the burner as usual.
  • Without releasing the control knob, press and hold it down firmly for 4 seconds after lighting the flame.

Cleaning and maintenance

Cleaning

  • Once the appliance is cool, use a sponge to clean it with soap and water.
  • After each use, clean the surface of the respective burner parts once they have cooled down. If any residue is left (baked-on food, drops of grease etc.), however little, it will become stuck to the surface and more difficult to remove later. The holes and grooves must be clean for the flame to ignite


Newest Added: PCP6A6B90 PNP6B6B90 PPP6A6B90 SHP65T56UC/01 SMS46JW09G

Series: Serie 6



Also, These documents are for others Bosch models: PC.6A....., PC.7A....., PC.9A.....

Tags: Bosch Smu46ks01a Installation Manual, Bosch SMU46KS01A, Bosch Gas Hob Manual, Bosch Gas Stove Manual

Bosch PCP6A5B90 | Series: Serie 6 | File type: PDF | Filename: Bosch PCP6A5B90 Serie 6 Gas Hob 60 cm Stainless steel.pdf | Size: 2.52 MB | Language: English

Download User Manual

Bosch PCP6A5B90 Questions and Answers

Find answers or Ask a question.

Hi, I like the look of this hob but I’m concerned about the poor reviews I’m reading here relating to the cast iron pot stands eroding and scratch marks appearing on the stainless steel. Have improvements been made to the manufacture?
We would advise that the steel and pan supports are made to a high quality and as long as the appliance is looked after there should be no issue with the pan supports enamel being scraped off by pans or scratches on the hob.

I have this model purchased recently How many clamping screws are required to fix this hob to a worktop? Does it require a seal between the hob and worktop?
This comes with a fixing pack with all the screws and brackets required. There is also an adhesive strip supplied to apply underneath the hob.


How safe is this hob with children ,dies it have a safety mechanism to stop children turning the gas on?
This model does not have a main switch which cuts the gas supply off. Press the control knob for the selected burner and turn it anticlockwise to the highest power level. While the control knob is held down, all the burners will generate sparks. The flame ignites.


We want to install this hob above HBA5770SOB with 20mm worktops whereas your drawing it says min 30mm due to space requirements of the oven. So if the oven furniture filler panel is placed above rather than below oven that 20mm top is OK?
We would recommend following the installation instructions for both the hob and oven. We are unable to look further into this for you at this time as the model given for the oven is incorrect.

Is this hob fitted with butane gas jets ?
This can be used with LPG jets, however they do not come already attached.


I have 650 mm clearance between the worktop with my existing gas hob and extractor hood, is this sufficient for this hob as mine is faulty and needs to be replaced.
Generally 650 mm is normally recommend for a gas hob however we would ask you to double check the installation with the hood you already have installed.
