Operating Instructions
Model: GCEV130
7L Evaporative Cooler
General Care and Safety Guide
Thank you for choosing this Goldair product. This Goldair appliance has been designed
and manufactured to high standards of engineering and with proper use and care, as
described in this leaflet, will give you years of useful service. Please read these
instructions carefully and keep them for future reference.
1. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
4. Ensure that the fan is switched off from the supply mains before removing the
guard.
5. Use only the voltage specified on the rating plate of the appliance.
6. Keep all objects at least 1 Metre from the front, sides and rear of the appliance
7. This appliance is intended for household use only and not for commercial or
industrial use.
8. Use this appliance only as described in this manual. Any other use is not
recommended by the manufacturer and may cause fire, electric shock or injury.
9. The common cause of overheating is deposits of dust or fluff in the appliance.
Ensure these deposits are removed regularly by unplugging the appliance and
vacuum cleaning the air vents and grills.
10. Always unplug appliance when not in use.
11. When the appliance has been unpacked, check it for transport damage and ensure
all parts have been delivered. If parts are missing or the appliance has been
damaged, contact the Goldair Customer Services Team.
12. If your appliance does not work, or is not working properly, contact the place of
purchase. Repair work on the appliance by unqualified persons can cause serious
risk to the user.
13. Ensure hands are dry before handling the plug or the main unit.
14. Carry out regular checks of the supply cord to ensure no damage is evident.
15. Ensure that the cord is fully extended (not coiled) while in use.
16. Avoid contact with the moving parts. Keep hands, hair, clothing, away from blade
of the fan during operation to reduce the risk of injury to person and/or damage
to the unit.
17. Switch off and use handles provided when moving.
18. It is recommended that this fan is plugged directly into the wall socket.
19. A correctly specified, undamaged extension cord may be used with this fan
provided it is used in a safe manner.
General Care and Safety Guide
20. Never place appliance close to radiant heat source.
21. Never operate in areas where petrol, paint or other flammable liquids are used or
stored.
22. Never use the appliance to dry clothes.
23. Never insert or allow foreign objects to enter any ventilation or exhaust opening,
as this may cause an electric shock, fire or damage to the appliance.
24. Never use abrasive cleaning products on this appliance. Clean with a damp cloth
(not wet) rinsed in hot soapy water only. Always remove plug from the mains
supply before cleaning.
25. Never connect the appliance to mains supply until completely assembled and
adjusted.
26. Never remove plug from power socket until the appliance has been switched off.
27. Never remove plug from power socket by pulling cord – always grip plug.
28. Never twist, kink or wrap the cord around the appliance, as this may cause the
insulation to weaken and split. Always ensure that all cord has been removed from
any cord storage area and is unrolled before use.
29. Never use this appliance in the immediate surrounds of a bath, a shower, or a
swimming pool or other liquids. The appliance must not be immersed in any
liquids.
30. Due to the risk of injury, never use this appliance for any purpose other than its
intended use. This appliance is intended for use in household and similar
applications such as staff kitchen areas in shops, offices and other working
environments; farm houses, by clients in hotels, motels, bed and breakfast type
environments and other residential type environments
31. Never use this appliance outdoors.
32. Never operate the appliance with a damaged cord or plug, after it malfunctions, or
if it has been damaged in any manner. Have the appliance checked and repaired
by a qualified electrician if repair is necessary.
33. Never place the unit in wardrobes or other enclosed spaces as this may cause fire
hazards.
TECHNICAL SPECIFICATION
Model: GCEV130
Supply: 220 - 240VAC 50-60Hz
Wattage: 50W

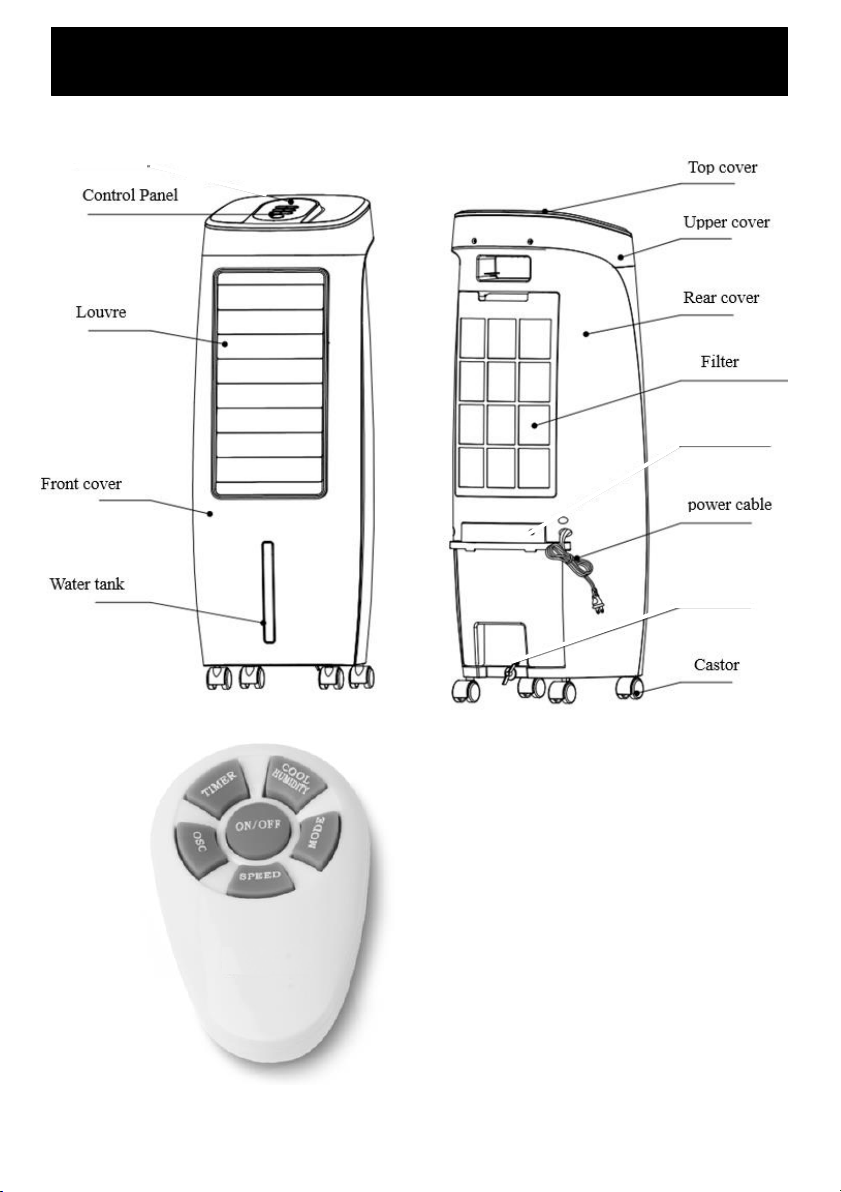

Components
Remote Control
WARNING:Keep all objects at least 1 metre from the front, sides and rear
of the appliance.
For best operating performance position the appliance in a location that will create a “flow
through” air effect. The greatest cooling effect will be felt if the appliance is operated in a partly
opened doorway or window with the “cool” conditioned air directed into the room to be cooled.
It is important to also have a door or window partly opened away from the cooler to create this
“flow through” effect.
On days of high humidity, the cooling effect may be reduced as the air entering the filter may
already be saturated with moisture. On days like this it may be better to switch the cooling
feature OFF and operate the appliance as a fan only.
Filling water tank
Pour clean cold water into the water filler area on the top of the appliance,
observing the water level indicator in the bottom front panel.
CAUTION do not spill or allow water to come in contact with the control panel.
Do not overfill past the MAX water indicator mark. If desired, place ice in the
ice tank in the top of the appliance.
Do not pour water into the ice tank.
Do not allow the combined use of water and ice to overfill the water reservoir.
When moving the appliance, do so with extreme caution, so as not to spill
any water in the reservoir. The appliance should be moved slowly and in a
sideways direction. Always keep the appliance upright.
Always choose a safe location for the appliance, keeping in mind the safety precautions
outlined. Ensure all packaging has been removed from the appliance before use. This
appliance requires no installation, it should be used solely as a portable appliance.
Operating your Fan
Place the unit on a dry, level and sturdy surface.
Ensure the speed control is at OFF position before plugging the
power cord into the socket.
When the power is turned on, the buzzer will sound and the power
icon on the LCD panel will light up.
On/Off
Press this button to start the fan and the Ionizer (the ION function is
set to start ON, shut OFF ON OFF, no indication), Press this button
again to turn off all functions and return to standby.
Speed
Press speed to change fan speed from “low-mid-high”, the relevant
speed indicator LED will light up. The display will show 01, 02 or 03,
and the ambient temperature will be displayed after 3 seconds.
Timer
If you wish to turn the appliance off at a pre-determined time press
the timer button. The appliance can be set to turn off at any time
between 1 hours and 8 hours.
To set the timer, turn the appliance on at the desired speed, press
the timer button until the desired run time is illuminated. The fan
will turn off once the time has expired. If no time is selected, the
appliance will operate continuously.
Cool Mode
To initiate the cooling function press the cool button. This function
blows normal air through a water curtain to cool the air. Press the
button again to switch this function off and the appliance will
operate in fan only mode.
Note: You must have water in the water tank for this function to
work.
Note: It will take a few minutes for the cooler air to come out of the
appliance.
Mode
When the fan is operating, press this button once to start the sleep
wind function. The sleep wind indicator light is on. Press this button
again to change to natural wind. The natural wind indicator light is
on.
OSC (L R)
The vertical louvres can be set to your desired direction or allowed to
oscillate side to side by pressing this button.
OSC (U D)
The horizontal louvres can be set to your desired direction or allowed
to oscillate up and down by pressing this button.
Operating your Fan
Care and Cleaning
Before cleaning the appliance, disconnect the appliance from the mains supply.
When not in use disconnect the appliance from the power outlet and drain all water from the water
reservoir.
To ensure effective humidifying and filtering, it is recommended that the filtering system be cleaned once
every 1-2 weeks.
Remove the filter from the rear cover for cleaning.
Wash the filter in a mild detergent and warm water solution, then rinse in clean water.
Wash the honey comb in clean water. A soft brush can be used for cleaning.
Note: Never use appliance without the air filter.
CAUTION do not immerse or allow the motor or electric cables to come in contact with any liquid.
To clean the exterior surfaces simply wipe over with a soft damp cloth.
Should it be necessary, greasy marks may be removed from the surfaces by using mild soap and a cloth
dampened in hot water. Avoid all other types of detergents, cleaners, or solvents that may contain
chemicals which could damage parts of the appliance.
Thoroughly dry all parts before storage.
Store in a Cool dust free location for next use.
Do not use this appliance with a programmer, timer, separate remote-control system or any other device
that switches the appliance on automatically.
Do not attempt to dismantle the appliance. There are no user serviceable parts. For service or repair,
contact an authorised electrical service technician.
Cleaning and Maintenance
Goldair – New Zealand
Monday – Friday 8am-5pm
Phone +64 (0)9 917 4000
Phone 0800 232 633
Goldair – Australia
Monday – Friday 8am-5pm
Phone +61 (0)3 9365 5100
Phone 1300 465 324
SUPPORT AND TECHNICAL ADVICE
PROOF OF PURCHASE
To receive warranty retain receipt as proof of purchase. (Refer to back of booklet).
Remote Control
Remote control operations are identical to the functions on the control panel
The remote control receiving distance should be 5 meters, the centre angle is
30 degrees -45 degrees
If the remote control is still in close proximity to the machine and still cannot
be controlled, replace the remote control battery please.
The remote control supplied with this appliance uses 2 x AAA batteries (not
included).
IMPORTANT! NEVER COVER THIS APPLIANCE!
Operating your Fan
Thank you for purchasing this Goldair product. Your product is warranted against faults and manufacture when used in normal
domestic use for a period of one year. In non-domestic use Goldair limits the voluntary warranty to three months.
Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the
warranty period.
This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work carried out by anyone
other than a qualified electrical service technician.
PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.
The benefits to you given by this warranty are in addition to other rights and remedies available to you under a law in relation to
the goods or services to which this warranty relates.
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure.
In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).
One Year Warranty
Goldair One Year Warranty (IMPORTANT: Please complete and retain this warranty card)
Name
Address
Place Of Purchase Date of Purchase
Name Of Product Model Number
Attach a copy of the purchase receipt to this warranty card
Due to continual design improvements, the product illustrated in this User Manual may differ slightly from the actual product.
Goldair – New Zealand
CDB Goldair
PO Box 100-707
N.S.M.C
Auckland, 0745
Phone +64 (0)9 917 4000
Phone 0800 232 633
www.goldair.co.nz
Goldair – Australia
CDB Goldair Australia Pty
PO Box 574
South Morang
Victoria, 3752
Phone +61 (0)3 9365 5100
Phone 1300 GOLDAIR (1300 465 324)
www.goldair.com.au
