Rags
1/2" FIP Hose
Installation Guide
R
R
If you have any questions or need help.
1 Fit the gasket onto the underside of the spout. Insert the
spout through the sink opening.
Slide the bracket and washer onto the stud Thread the nut
onto the stud and tighten.
or
1 Place spout with gasket through mounting
hole in sink. Secure spout with bracket and nut. Note: If sink
is uneven, use silicone under the gasket.
2 Loosely attach each handle with a washer and a threaded
ring.
Ensure the handles are in the OFF position Align the handles
as shown.
3 Align tabs (1) and tabs (2) on quick connects (3). Push
tab (1). Pull down moderately to ensure each connection has
been made.
4
Connect To Water Supplies.
5
Turn on the water supplies.Check all connections for leaks.
Hot
Caliente
Eau Chaude
Cold
Fría
Eau Froides
1
3
3
3
2
1
1
quick connects firmly upward and snap onto receiving tube
Rags
1/2" FIP Hose
Installation Guide
R
R
If you have any questions or need help.

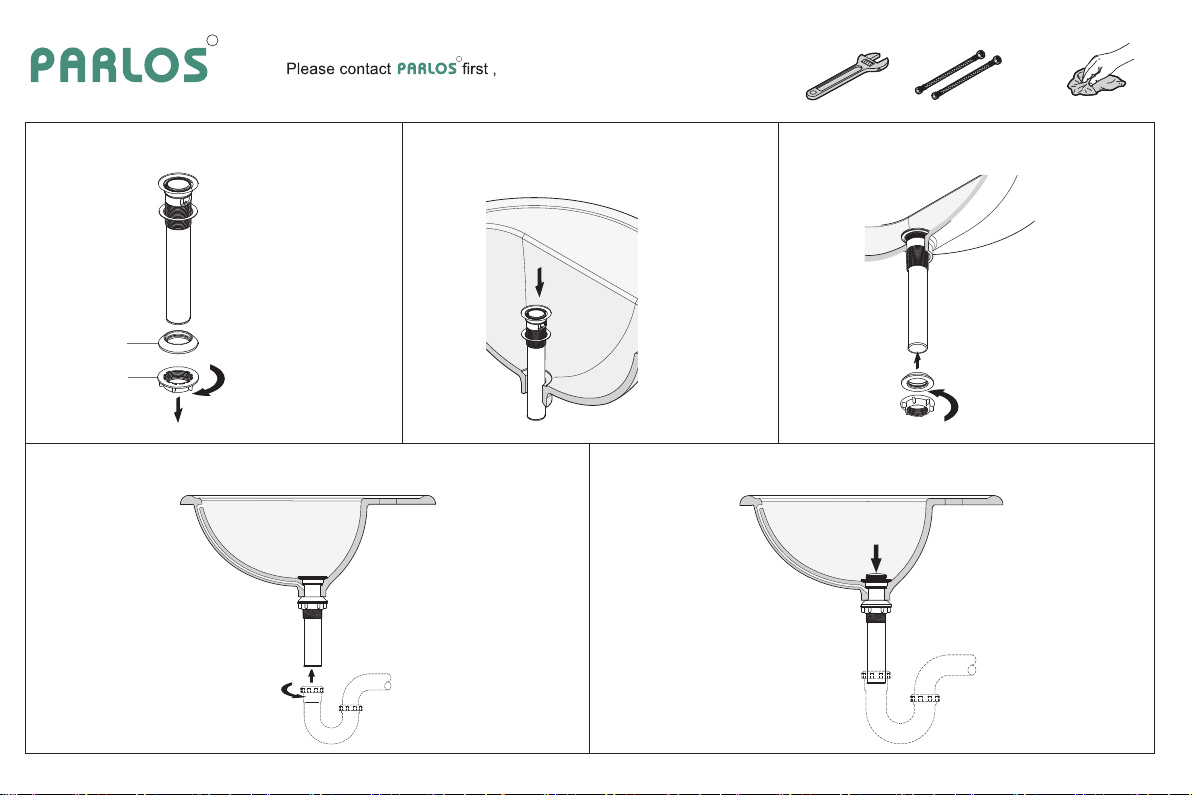

· Please avoid using plumber's putt The seal on top is leak-free. Plumber's putty might cause damage.
1 Unscrew components A & B. to the seal.
4 Connect the rear end of the drain to the Drain Pipe.
2 Silde the drain body(C) through the hole
in the sink.
5 Push to activate.
3 Screw components A & B back on as shown.
A
B
