Digital Still Camera
Operating Instructions
Before operating the unit, please read this manual thoroughly, and retain it
for future reference.
Owner’s Record
The model and serial numbers are located on the bottom. Record the serial
number in the space provided below. Refer to these numbers whenever you
call upon your Sony dealer regarding this product.
Model No. ________________________
Serial No. ________________________
©2000 Sony Corporation
MVC-FD85/FD90
MVC-FD90
01cov.book Page 1 Monday, March 13, 2000 9:21 AM
2
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\02war.fm]
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
.
To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
If you have any questions about this
product, you may call: Sony Customer
Information Center 1-800-222-SONY
(7669) or write to: Sony Customer
Information Center 1 Sony Drive, Mail
Drop #T1-11, Park Ridge, NJ07656
CAUTION
You are cautioned that any changes or
modifications not expressly approved
in this manual could void your
authority to operate this equipment.
Note:
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct
the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the
equipment and receiver.
—Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced
radio/TV technician for help.
DISPOSAL OF LITHIUM ION
BATTERY.
LITHIUM ION BATTERY.
DISPOSE OF PROPERLY.
You can return your unwanted lithium ion
batteries to your nearest Sony Service
Center or Factory Service Center.
Note:
In some areas the disposal of lithium ion
batteries in household or business trash may
be prohibited.
For the Sony Service Center nearest you call
1-800-222-SONY (United States only)
For the Sony Factory Service Center nearest
you call 416-499-SONY (Canada only)
Caution:
Do not handle damaged or leaking lithium
ion battery.
WARNING
For the Customers in the
U.S.A.
This symbol is intended to
alert the user to the presence
of uninsulated “dangerous
voltage” within the
product’s enclosure that
may be of sufficient
magnitude to constitute a
risk of electric shock to
persons.
This symbol is intended to
alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the
appliance.
For the Customers in the
U.S.A. and Canada
01cov.book Page 2 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\02war.fm]
3
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
CAUTION
TO PREVENT ELECTRIC SHOCK, DO
NOT USE THIS POLARIZED AC PLUG
WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE
EXPOSURE.
A moulded plug complying with BS 1363 is
fitted to this equipment for your safety and
convenience.
Should the fuse in the plug supplied need to
be replaced, a 5 AMP fuse approved by
ASTA or BSI to BS 1362, (i.e. marked with
or mark) must be used.
If the plug supplied with this equipment has
a detachable fuse cover, be sure to attach the
fuse cover after you change the fuse. Never
use the plug without the fuse cover. If you
should lose the fuse cover, please contact
your nearest Sony service station.
Directive:EMC Directive 89/336/EEC.92/
31/EEC
This equipment complies with the EMC
regulations when used under the following
circumstances:
•
Residential area
•
Business district
•
Light-industry district
(This equipment complies with the EMC
standard regulations EN55022 Class B.)
The electromagnetic fields at the specific
frequencies may influence the picture and
sound of this camera.
Operating instructions
Before operating the unit, please read this
manual thoroughly, and retain it for future
reference.
The instructions in this manual are for the
two models: MVC-FD85, MVC-FD90.
The MVC-FD90 is the model used for
illustration purposes.
Otherwise, the model name is indicated in
the illustrations. Any differences in
operation are clearly indicated in the text,
for example, “MVC-FD90 only.”
Before you start reading this manual and
operating the unit, check the model number.
As you read through this manual, buttons
and settings on the camera are shown in
capital letters.
e.g. Press DISPLAY.
Trial recording
Before you record one-time events, you may
want to make a trial recording to make sure
that the camera is working correctly.
No compensation for contents of
the recording
Contents of the recording cannot be
compensated for if recording or playback is
not possible due to a malfunction of your
camera, etc.
Precaution on copyright
Television programs, films, video tapes, and
other materials may be copyrighted.
Unauthorized recording of such materials
may be contrary to the provision of the
copyright laws.
Do not shake or strike the camera
In addition to malfunctions and inability to
record images, this may render the floppy
disks unusable or image data breakdown,
damage or loss may occur.
For the Customers in Canada
NOTICE FOR THE
CUSTOMERS IN THE UNITED
KINGDOM
For the Customers in
Germany
Attention
Be sure to read the following
before using your camera
01cov.book Page 3 Monday, March 13, 2000 9:21 AM
4
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\02war.fm]
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
LCD screen and lens
•
The LCD screen is manufactured using
high-precision technology. However, there
may be some tiny black points and/or
bright points (red, blue or green in color)
that constantly appear on the LCD screen.
These points are normal in the
manufacturing process and do not affect
the recording in any way. Over 99.99% of
the pixels are operational for effective use.
•
Be careful when placing the camera near a
window or outdoors. Exposing the LCD
screen or the lens to direct sunlight for
long periods may cause malfunctions.
Do not get the camera wet
When taking pictures outdoors in the rain or
under similar conditions, be careful not to
get the camera wet. If moisture
condensation occurs, refer to page 53 and
follow the instructions on how to remove it
before using the camera.
Back up recommendation
To avoid the potential risk of data loss,
always copy (back up) data to a disk.
01cov.book Page 4 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\01covTOC.fm]
5
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Table of contents
Identifying the parts .........................6
Preparing the power supply .............8
Setting the date and time ...............12
Inserting a floppy disk ...................14
B
Recording
Recording still images ...................15
Recording moving images .............20
B
Playback
Playing back still images ...............21
Playing back moving images .........22
Viewing images using a personal
computer .................................24
Image file storage destinations and
image file names .....................26
How to use the PLAY/STILL/
MOVIE selector .....................28
How to use the control button .......28
How to change the menu settings ..30
B
Various recording
Setting the image size
(IMAGE SIZE) .......................35
Recording still images for e-mail
(E-MAIL) ................................36
Adding audio files to still images
(VOICE) .................................36
Recording text documents (TEXT) 37
Recording images in macro ...........37
Setting the distance to the subject .38
Using the PROGRAM AE
function ...................................39
Adjusting the exposure
(EXPOSURE) .........................40
Adjusting the white balance
(WHITE BALANCE) .............40
Recording the date and time on the
still image (DATE/TIME) .......41
Enjoying picture effects
(PICTURE EFFECT) ..............41
B
Various playback
Playing back six images at once
(INDEX) ..................................42
Enlarging a part of the still image
(Zoom and trimming) .............43
Playing back the still images in order
(SLIDE SHOW) ......................44
Viewing images on a TV screen ....45
B
Editing
Preventing accidental erasure
(PROTECT) ............................46
Deleting images (DELETE) ..........47
Changing the recorded still image size
(RESIZE) ...............................48
Copying images (COPY) ...............48
Copying all the information on your
floppy disk (DISK COPY) ......50
Selecting still images to print
(PRINT MARK) .....................51
Format ............................................52
Precautions ....................................53
Using your camera abroad .............55
Troubleshooting .............................56
Warning and notice messages .......59
Self-diagnosis display ....................61
Specifications ................................62
LCD screen indicators ...................63
Index ............................... Back cover
Getting started
Basic operations
Advanced operations
Before performing
advanced operations
Additional information
01cov.book Page 5 Monday, March 13, 2000 9:21 AM
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\03pre.fm]
masterpage:Left
6
Getting started
Identifying the parts
See the pages in parentheses for details of operation.
A Self-timer lamp (18)
B Flash (19)
C Shutter button (15, 20)
D Zoom lever (17)
E Photocell window for flash
Do not block while recording.
F Tripod receptacle (bottom
surface)
Use a tripod with a screw length of
less than 6.5 mm (7/32 inch). You
will be unable to firmly secure the
camera to tripods having longer
screws, and may damage the
camera.
G Lens
H Built-in microphone
Do not touch while recording.
I Focus ring (38) (MVC-FD90
only)
J FOCUS AUTO/MANUAL switch
(37, 38) (MVC-FD90 only)
K Lens cap (supplied)
L (External flash) jack (MVC-
FD90 only)
M AUDIO (MONO) / VIDEO OUT
jack (45)
Audio output is monaural.
N DC IN cover/DC IN jack (9, 11)
2
1
3
5
6
qf
qd
qs
qa
0
9
8
7
4
01cov.book Page 6 Monday, March 13, 2000 9:21 AM
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\03pre.fm]
Getting started
7
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
A Photocell window for LCD
screen
The LCD screen becomes brighter
when exposed to sunlight.
B VOLUME +/– buttons (23)
C LCD BACKLIGHT switch (16)
D PLAY/STILL/MOVIE selector
(28)
E ON/CHG (Charge) lamp (9)
F (Flash) button (19)
G FOCUS button (37, 38) (MVC-
FD85) / (Macro) button (37)
(MVC-FD90)
H PROGRAM AE button (39)
I Hooks for strap
J LCD screen
K Floppy disk slot (14)
L ACCESS lamp (16)
M DISK EJECT lever (14)
N Speaker
O POWER switch (12)
P Battery cover/PUSH button (8)
Q Control button (28)
R DISPLAY button (18)
Attaching the
shoulder strap
01cov.book Page 7 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\03pre.fm]
8
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]

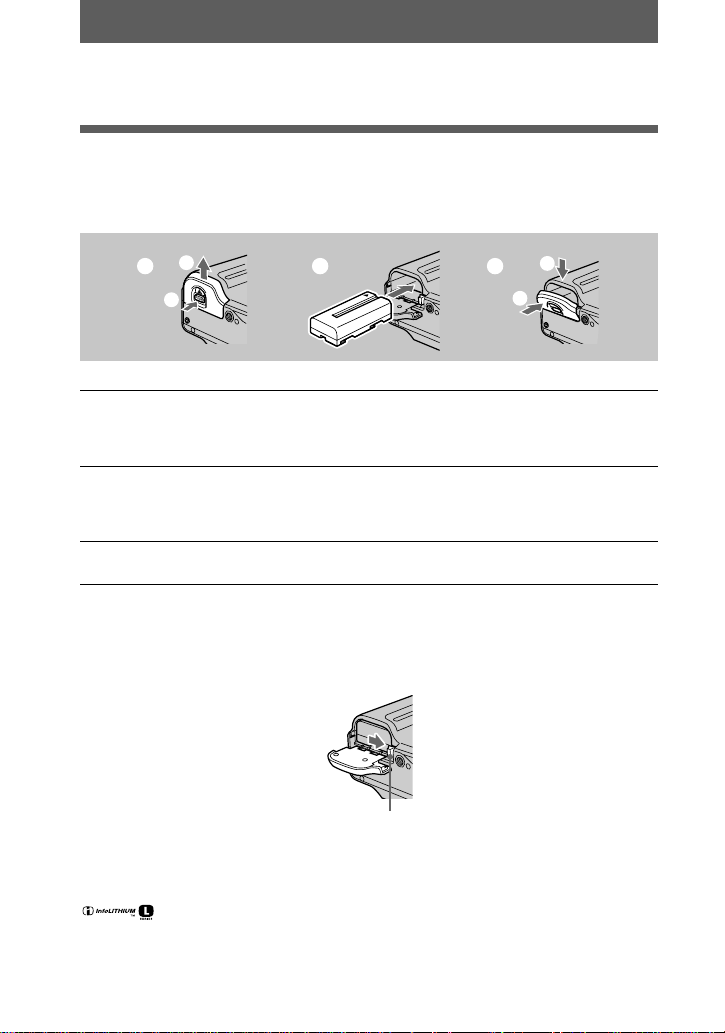

Preparing the power supply
Installing the battery pack
Your camera operates only with the NP-F330 (supplied)/F550 (not supplied)
“InfoLITHIUM” battery pack* (L series).
To remove the battery pack
Open the battery cover. Slide the battery eject lever rightward, and remove
the battery pack.
Be careful not to drop the battery pack when removing it.
* What is “InfoLITHIUM”?
“InfoLITHIUM” is a lithium ion battery pack which can exchange information such as battery
consumption with compatible video equipment. “InfoLITHIUM” L series battery packs have the
mark. “InfoLITHIUM” is a trademark of Sony Corporation.
1
Open the battery cover.
Slide the battery cover in the direction of the arrow while pressing the PUSH
button.
2
Install the battery pack.
Insert the battery pack with the
v
mark facing toward the battery compartment
as illustrated.
3
Close the battery cover.
1 2 3
1
2
1
2
Battery eject lever
01cov.book Page 8 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\03pre.fm]
Getting started
9
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Charging the battery pack
When the camera is turned on, you cannot charge the battery pack. Be sure to turn off
the power of the camera.
Battery remaining indicator
The LCD screen on the camera shows the remaining time for which you can still
record or play back images.
This indication may not be entirely accurate depending on the conditions of use and
the operating environment.
Auto power-off function
If you do not operate the camera for about three minutes during recording, the camera
turns off automatically to prevent wearing down the battery pack. To use the camera
again, slide the POWER switch to the right to turn on the camera again.
1
Insert the battery pack into your camera.
2
Open the DC IN cover and connect the DC connecting plug to the
DC IN jack of your camera with the
v
mark facing up.
3
Connect the power cord (mains lead) to the AC power adaptor and
then to a wall outlet (mains).
The ON/CHG lamp (orange) below the LCD screen lights up when charging
begins. When the ON/CHG lamp goes off,
normal charge
is completed. For
full charge
, which allows you to use the battery longer than usual, leave the
battery pack inserted for about one hour after normal charge is completed.
1
2
3
AC-L10A/L10B/L10C AC
power adaptor
to DC IN jack
Power cord (mains lead)
Battery pack
01cov.book Page 9 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\03pre.fm]
10
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Approximate time to charge a completely discharged battery pack using the AC-L10A/
L10B/L10C AC power adaptor. (Lower temperatures require a longer charging time.)
STILL mode recording/playback
Approximate battery life and number of images that can be recorded/played back
with a fully charged battery pack at a temperature of 25 °C (77 °F), 640×480 image
size and in NORMAL recording mode. Numbers in parentheses indicate the time
when you use a normally charged battery pack.
∗
Recording at about 5-second intervals
∗∗
Playing back single images continuously at about 2-second intervals
MOVIE mode recording
Approximate time that can be recorded with a fully charged battery pack at a
temperature of 25°C (77°F) and 160×112 image size. Numbers in parentheses
indicate the time when you use a normally charged battery pack.
Notes
•
The battery life and number of images will be decreased when using at low temperature, using
the flash, turning the power on/off frequently, or using the zoom.
•
The capacity of the floppy disk is limited. The above figures are a guide when you continuously
record/play back by replacing the floppy disk.
•
If sufficient battery remaining time is indicated but the power runs out soon, fully charge the
battery so that the correct battery remaining time appears.
Charging time
Battery pack Full charge (min.) Normal charge (min.)
NP-F330 (supplied) Approx. 150 Approx. 90
NP-F550 Approx. 210 Approx. 150
Battery life and number of images that can be recorded/played back
NP-F330 (supplied) NP-F550
Battery life
(min.)
Number of
images
Battery life
(min.)
Number of
images
Continuous
recording*
Approx. 70
(65)
Approx. 750
(650)
Approx. 150
(140)
Approx. 1600
(1400)
Continuous
playback**
Approx. 80
(75)
Approx. 2200
(2000)
Approx. 170
(150)
Approx. 4800
(4200)
NP-F330 (supplied) NP-F550
Battery life
(min.)
Number of
images
Battery life
(min.)
Number of
images
Continuous
recording
Approx. 85
(75)
Approx. 65
(55)
Approx. 180
(160)
Approx. 140
(120)
01cov.book Page 10 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\03pre.fm]
Getting started
11
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
•
Do not short the DC plug of the AC power adaptor with a metallic object, as this may cause
malfunction.
•
Do not expose the battery pack to water.
Using the AC power adaptor
Using a car battery
Use Sony DC adaptor/charger.
1
Open the DC IN cover and connect the DC connecting plug to the
DC IN jack of your camera with the
v
mark facing up.
2
Connect the power cord (mains lead) to the AC power adaptor and
then to a wall outlet (mains).
1
2
AC-L10A/L10B/L10C AC
power adaptor
to DC IN jack
Power cord (mains lead)
01cov.book Page 11 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\03pre.fm]
12
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]

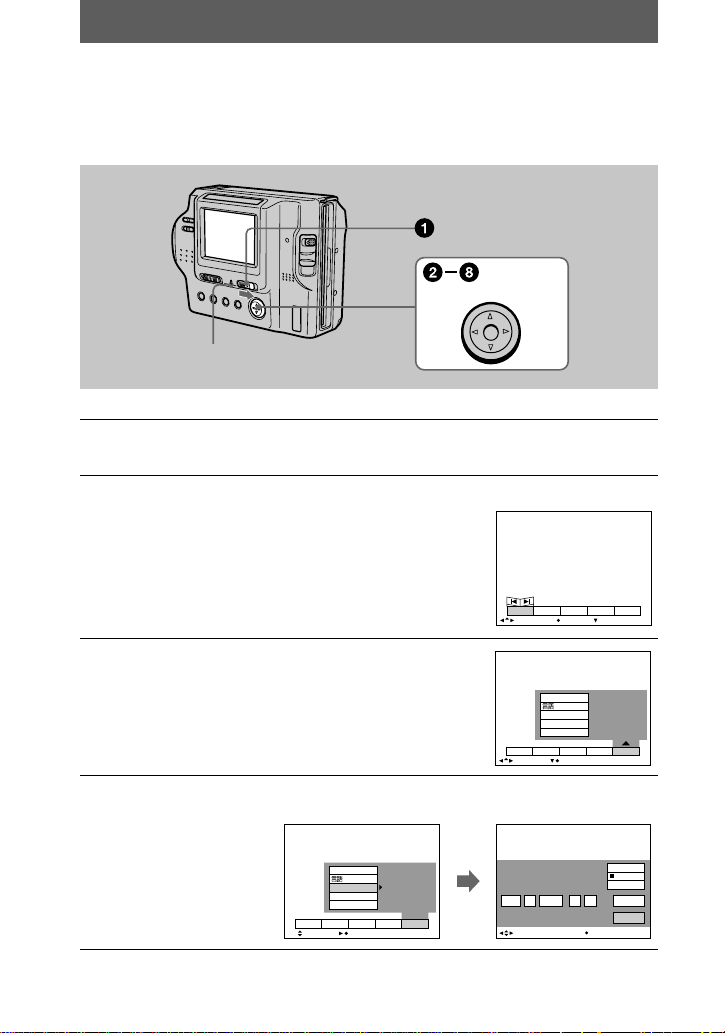

Setting the date and time
When you first use your camera, set the date and time. If these are not set, the
CLOCK SET screen appears whenever you turn on your camera for recording.
1
Slide the POWER switch to the right to turn on the power.
The ON/CHG (green) lamp lights up.
2
Press
v
on the control button.
The menu bar appears on the LCD screen.
3
Select [SETUP] with
B
on the control button,
then press the center
z
.
4
Select [CLOCK SET] with
v
/
V
on the control button, then press the
center
z
.
Control button
ON/CHG lamp
SELECT OK
MENU BAR OFF
DELETE
INDEX FILE SETUPTOOL
LCD BRIGHT
BEEP
CLOCK SET
VIDEO OUT
/LANGUAGE
SELECT CLOSE
DELETE
INDEX FILE SETUPTOOL
D/M/Y
ENTER
CANCEL
M/D/Y
Y/M/D
CLOCK SET
2000JAN / / : 1 12 00AM
LCD BRIGHT
BEEP
CLOCK SET
VIDEO OUT
/LANGUAGE
SELECT OK
DELETE
INDEX FILE SETUPTOOL
12:00:00A
M
JA
N
1 2000
SELECT/ADJUST
OK
01cov.book Page 12 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\03pre.fm]
Getting started
13
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
To cancel the date and time setting
Select [CANCEL] with
v
/
V
/
b
/
B
on the control button, then press the center
z
.
5
Select the desired date display format with
v
/
V
on the control button, then press the
center
z
.
Select from [Y/M/D] (year/month/day), [M/D/Y]
(month/day/year), or [D/M/Y] (day/month/year).
6
Select the year, month, day, hour or minute
item you want to set with
b
/
B
on the control
button.
The item to be set is indicated with
v
/
V
.
7
Set the numeric value with
v
/
V
on the
control button, then press the center
z
to
enter it.
After entering the number,
v
/
V
moves to the next
item. If you selected [D/M/Y] in step
5
, set the
time on a 24-hour cycle.
8
Select [ENTER] with
B
on the control button,
then press the center
z
at the desired
moment to begin clock movement.
The date and time are entered.
2000 : 1 1 12 00AM//
D/M/Y
ENTER
CANCEL
M/D/Y
Y/M/D
CLOCK SET
SELECT/ADJUST
OK
2000 :/ / 1 1 12 00AM
D/M/Y
ENTER
CANCEL
M/D/Y
Y/M/D
CLOCK SET
SELECT/ADJUST
OK
2000/ :/ 1 7 12 00AM
D/M/Y
ENTER
CANCEL
M/D/Y
Y/M/D
CLOCK SET
SELECT/ADJUST
OK
2000/ :/ 4 7 10 30PM
D/M/Y
ENTER
CANCEL
M/D/Y
Y/M/D
CLOCK SET
SELECT/ADJUST
OK
01cov.book Page 13 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\03pre.fm]
14
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]

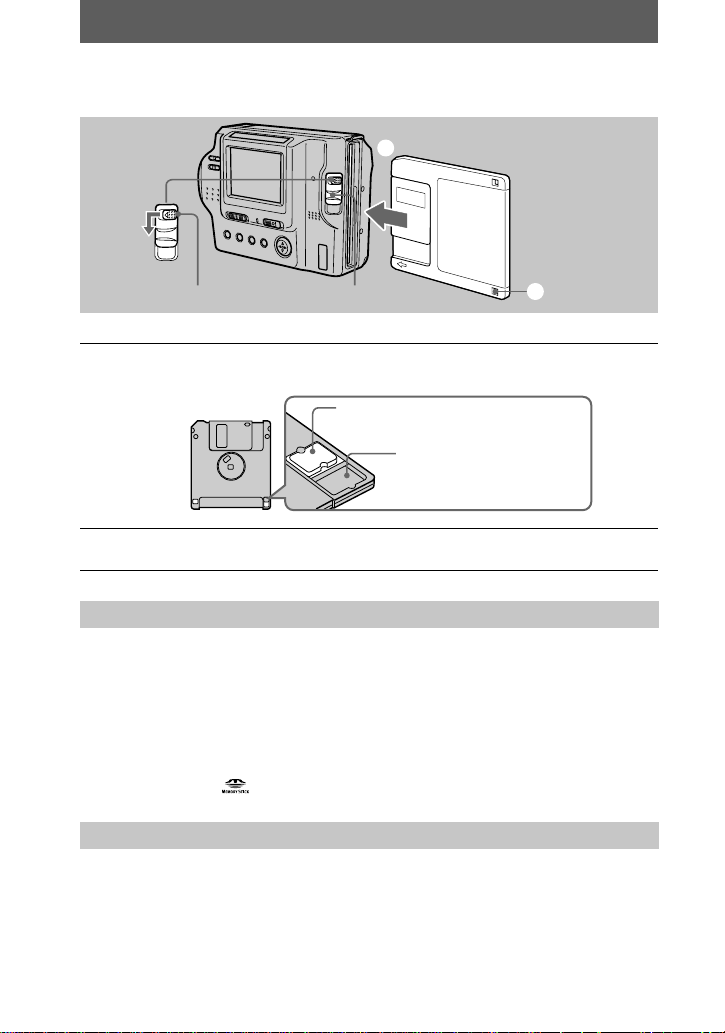

Inserting a floppy disk
•
Size: 3.5 inch
•
Type: 2HD
•
Capacity: 1.44 MB
•
Format: MS-DOS format (512 bytes × 18 sectors)
You can use the “Memory Stick”* (not supplied) with inserting it into the MSAC-
FD2M Floppy Disk Adaptor for Memory Stick (not supplied), other than floppy
disks mentioned above.
∗
“Memory Stick” and are trademarks of Sony Corporation.
While sliding the EJECT lock to the left, slide down the DISK EJECT lever.
1
Check that the write protect tab is set to the recordable position for
recording
.
2
Insert the floppy disk until it clicks.
Usable floppy disks
Removing the floppy disk
1
2
DISK EJECT lever
EJECT lock
Unrecordable/unerasable
Recordable/erasable
01cov.book Page 14 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\04bas.fm]
B
BB
B
Recording
15
model name1[MVC-Fd85/FD90]
[3-060-831-12(1)]
Basic operations
B
Recording
Recording still images
Still images are recorded in JPEG format.
To record still images, slide the POWER switch to the right to turn on the power and
insert a floppy disk.
∗
The exposure and focus are automatically adjusted. The focus is not automatically adjusted
when the camera is in manual focus mode.
For the number of images you can record on a floppy disk
See page 35.

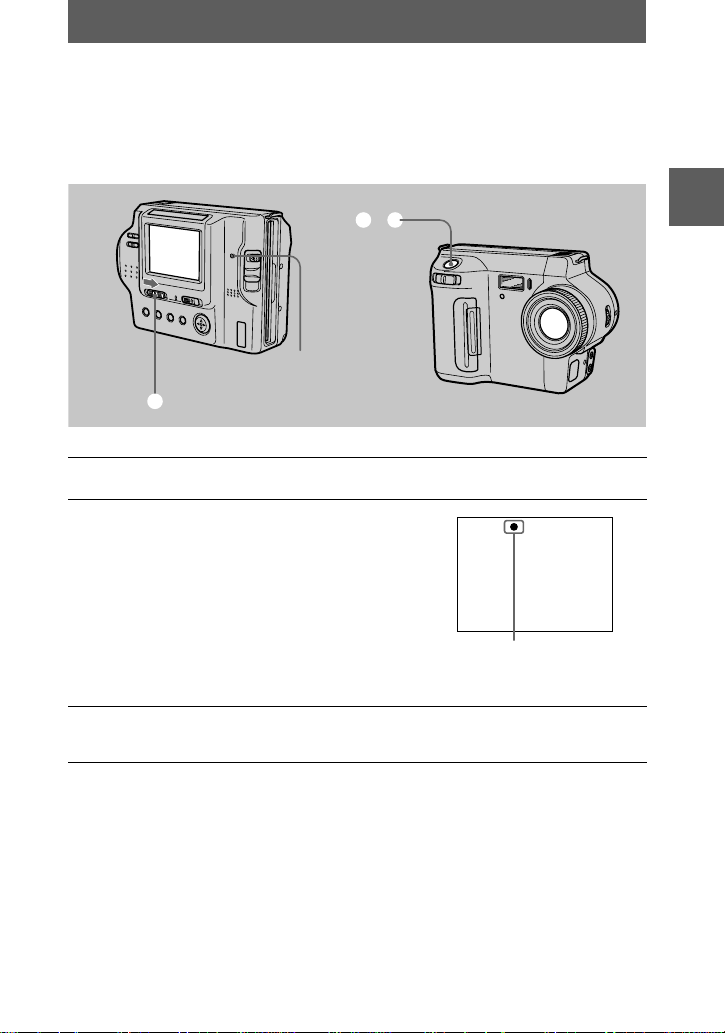

1
Set the PLAY/STILL/MOVIE selector to STILL.
2
Press and hold the shutter button
halfway down and check the image.
While the AE lock indicator
z
(green) is
flashing, the image is frozen, however, the
image is not yet recorded. When the camera
finishes the automatic adjustments*, the AE
lock indicator
z
lights up and the camera is
ready for recording.
To cancel the recording, release the shutter
button.
3
Press the shutter button fully down.
The shutter clicks and the image is recorded on the floppy disk.
1
2, 3
ACCESS lamp
AE lock indicator
01cov.book Page 15 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\04bas.fm]
16
model name1[MVC-Fd85/FD90]
[3-060-831-12(1)]
Notes
•
When recording bright subjects, the color of the LCD screen may change after the
AE is locked, however, this will not affect the recorded image.
•
While the image is being recorded on a floppy disk, the ACCESS lamp lights.
When this lamp is lit, do not shake or strike the camera. Also, do not turn the power
off, or not remove the battery pack/floppy disk. Otherwise, an image data
breakdown may occur and the floppy disk may become unusable.
•
When using a “Memory Stick,” writing and reading images take about twice times
than using a floppy disk.
Clear the menu bar (page 29), and press
b
on the control button. To return to the
normal recording mode, press lightly on the shutter button or select [RETURN] with
b
/
B
on the control button and then press the center
z
. To delete the image, select
[DELETE] on the review screen with
b
/
B
on the control button, then press the center
z
. And select [OK] with
v
on the control button, then press the center
z
.
Adjust the brightness with the [LCD BRIGHT] item in the menu settings (page 34).
This adjustment does not affect the brightness of the images recorded on the floppy disk.
To turn off the LCD backlight
Set the LCD BACKLIGHT switch to OFF to save the battery.
Checking the last recorded image (Review)
Adjusting the brightness of the LCD screen
LCD BACKLIGHT switch
01cov.book Page 16 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\04bas.fm]
B
BB
B
Recording
17
model name1[MVC-Fd85/FD90]
[3-060-831-12(1)]
If you cannot get a sharp focus on a close subject
Slide the zoom lever to the W side and move closer to the subject until the focus is
sharp.
Minimum focal distance to the subject
W side: About 25 cm (9 7/8 inches) or more
T side: About 60 cm (23 5/8 inches) or more (MVC-FD85)
About 90 cm (35 1/2 inches) or more (MVC-FD90)
To record even closer subjects, see page 37.
Digital zoom function
This camera has a digital zoom function.
Digital zoom enlarges the image by digital processing, and it starts to function when
the zoom exceeds 3× (MVC-FD85)/8× (MVC-FD90).
Using digital zoom
•
The maximum zoom magnification is 6
×
(MVC-FD85)/16
×
(MVC-FD90).
•
Digital zooming deteriorates the picture quality. When digital zoom is not necessary, set
[DIGITAL ZOOM] to [OFF] in the menu settings (page 33).
Note
Digital zoom does not work for moving images.
Using the zoom feature
Zoom lever
W side: for wide-
angle (subject
appears farther
away)
T side: for
telephoto
(subject
appears closer)
T
W
The T-side of the bar shows the
digital zooming zone.
01cov.book Page 17 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\04bas.fm]
18
model name1[MVC-Fd85/FD90]
[3-060-831-12(1)]

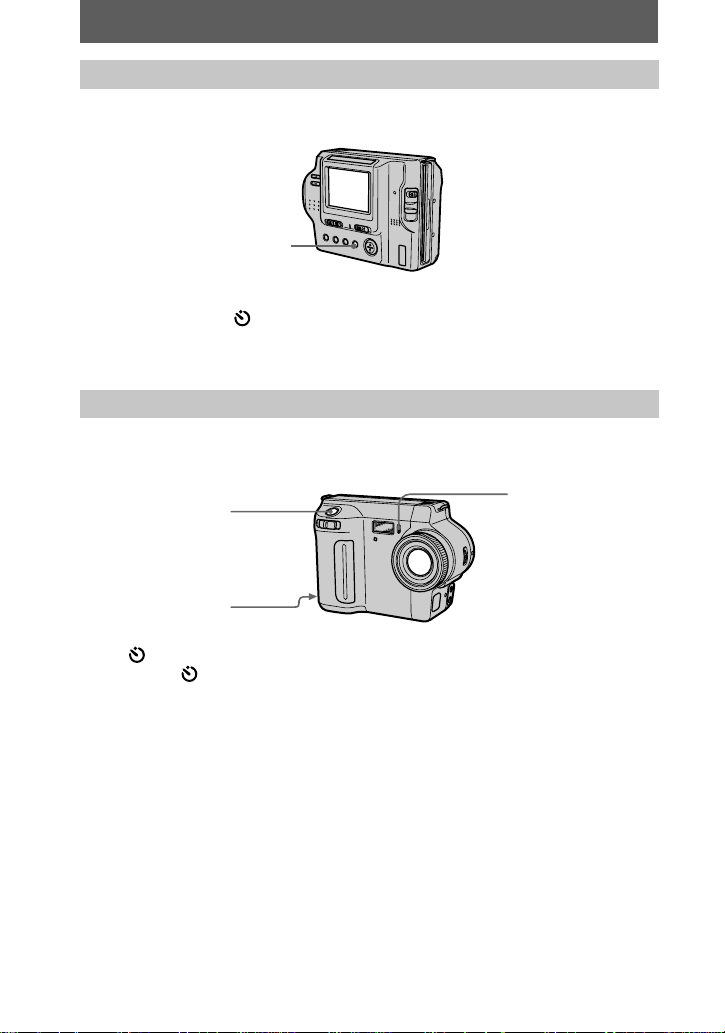

Press DISPLAY to turn on/off the indicators on the LCD screen. See page 63 for a
detailed description of the indicators.
Notes
•
You cannot turn off the
(self-timer) indicator and some of the indicators used in advanced
operations.
•
The indicators on the LCD screen are not recorded.
When you use the self-timer function, the subject is recorded 10 seconds after you
press the shutter button.
Select on the LCD screen with
b
/
B
/
v
/
V
on the control button, then press the
center
z
. The (self-timer) indicator appears on the LCD screen, and the subject is
recorded 10 seconds after you press the shutter button. The self-timer lamp flashes
after you press the shutter button until the image is recorded.
LCD screen indicators during recording
Using the self-timer
DISPLAY
Control button
Self-timer lamp
Shutter button
01cov.book Page 18 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\04bas.fm]
B
BB
B
Recording
19
model name1[MVC-Fd85/FD90]
[3-060-831-12(1)]
The initial setting is AUTO (no indication). In this mode, the flash automatically
strobes when the surroundings become dark. When you change the flash mode, press
(Flash) repeatedly so that the flash mode indicator appears on the LCD screen.
Each time you press the button, the indicator changes as follows.
(No indication) t t t t (No indication)
Auto red-eye reduction : The flash strobes before recording to reduce the red-
eye phenomenon.
Forced flash : The flash strobes regardless of the surrounding brightness.
No flash : The flash does not strobe.
You can change the amount of the flash light with [FLASH LEVEL] in the menu
settings (page 33).
Notes
•
The recommended shooting distance is 0.3 to 2.5 m (1 to 8 1/3 feet).
•
Attaching a conversion lens (not supplied) may block the light from the flash and the recorded
image may be eclipsed.
•
You cannot use the built-in flash and an external strobe at the same time (MVC-FD90 only).
•
Auto red-eye reduction may not produce the desired red-eye reduction effects depending on
individual differences, the distance to the subject, if the subject does not see the pre-strobe, or
other conditions.
•
The flash effect is not obtained easily when you use forced flash in a bright location.
Recording images with the flash
(Flash)
01cov.book Page 19 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\04bas.fm]
20
model name1[MVC-Fd85/FD90]
[3-060-831-12(1)]
Recording moving images
Moving images with audio are recorded in MPEG format.
To record moving images, slide the POWER switch to the right to turn on the power
and insert a floppy disk.
See page 16 to 18.
Press DISPLAY to turn on/off the indicators on the LCD screen.
These indicators are not recorded. See page 63 for a detailed description of the
indicators.
1
Set the PLAY/STILL/MOVIE selector to MOVIE.
2
Press the shutter button fully down.
“REC” appears on the LCD screen, and the image and sound are recorded on
the floppy disk.
If you press the shutter button momentarily
The image and sound are recorded for 5 seconds. The recording time can be set
to 10 or 15 seconds with [REC TIME SET] in the menu settings (page 32).
If you hold the shutter button down
The image and sound are recorded while the shutter button is held down for up
to 60 seconds. However, when [IMAGE SIZE] in the menu settings is set to
[320×240], the maximum recording time is 15 seconds (page 32).
Adjusting the brightness of the LCD screen, zooming or using the self-
timer
LCD screen indicators during recording
1
2
01cov.book Page 20 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\04bas.fm]
B
BB
B
Playback
21
model name1[MVC-Fd85/FD90]
[3-060-831-12(1)]
B
Playback

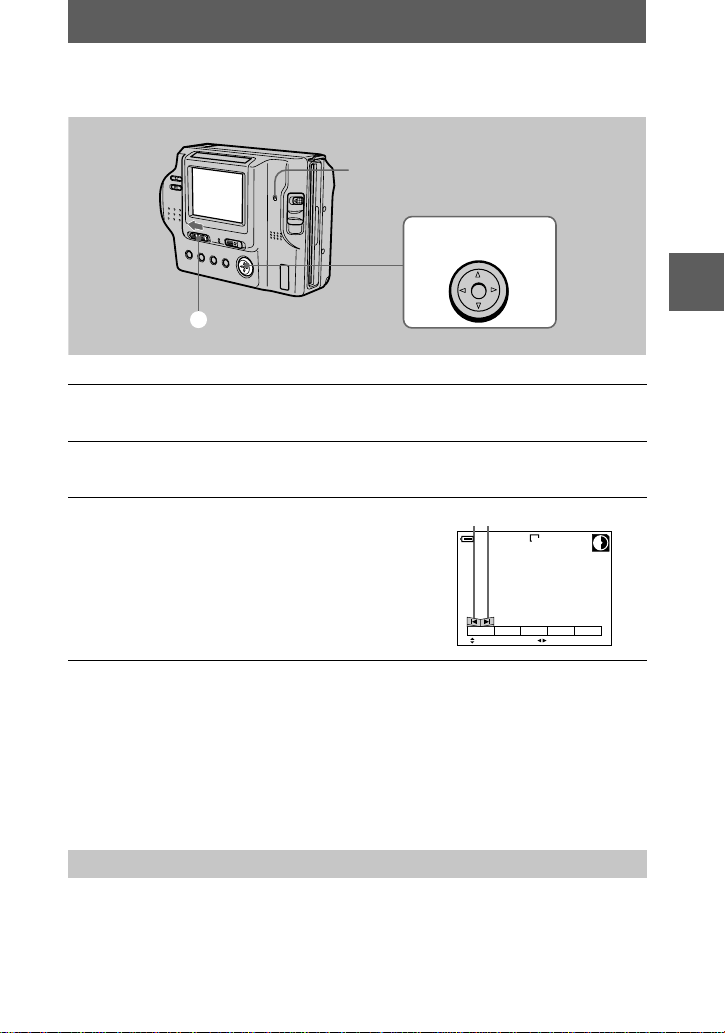

Playing back still images
When the menu bar is not displayed
You can directly select and play back the image with
b
/
B
on the control button.
Notes
•
You might not be able to correctly play back images recorded with this camera on other
equipment.
•
You may not be able to play back images whose image sizes are larger than the maximum
image size that can be used with this camera for recording.
Press DISPLAY to turn on/off the indicators on the LCD screen.
See page 64 for a detailed description of the indicators.
1
Set the PLAY/STILL/MOVIE selector to PLAY.
The last recorded image (still or moving) appears on the LCD screen.
2
Press
v
on the control button to display the menu bar on the LCD
screen.
3
Select the desired still image with the
control button.
Press
v
/
V
/
b
/
B
on the control button to
select
"b
/
B"
on the LCD screen, then press
b
/
B
.
"b
: To display the preceding image.
B"
: To display the next image.
LCD screen indicators during still image playback
1
2, 3
ACCESS lamp
Control button
SELECT FILE BACK/NEXT
DELETE
INDEX FILE SETUPTOOL
120min
6/8
640
"b
/
B"
01cov.book Page 21 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\04bas.fm]
22
model name1[MVC-Fd85/FD90]
[3-060-831-12(1)]

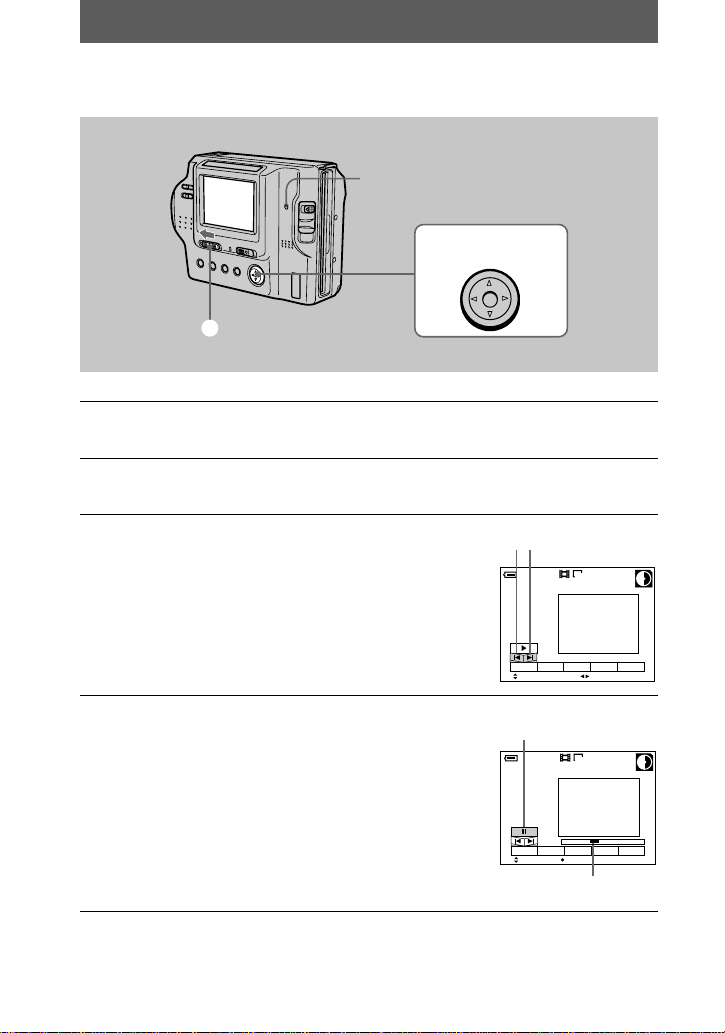

Playing back moving images
1
Set the PLAY/STILL/MOVIE selector to PLAY.
The last recorded image (still or moving) appears on the LCD screen.
2
Press
v
on the control button to display the menu bar on the LCD
screen.
3
Select the desired moving image with the
control button.
Moving images are displayed one size smaller than
still images.
Press
v
/
V
/
b
/
B
on the control button to select
"b
/
B"
on the LCD screen, then press
b
/
B
.
"b
: To display the preceding image.
B"
: To display the next image.
4
Select the
B
(playback) button on the LCD
screen with
v
/
V
/
b
/
B
on the control button,
then press the center
z
.
The moving image and sound are played back.
During playback,
B
(playback) changes to
X
(pause).
1
2
–
4
ACCESS lamp
Control button
160
120min
6/8
SELECT
DELETE
INDEX FILE SETUPTOOL
FILE BACK/NEXT
"b
/
B"
160
120min
6/8
0:05
SELECT OK
DELETE
INDEX FILE SETUPTOOL
B
(playback)/
X
(pause) button
Playback bar
01cov.book Page 22 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\04bas.fm]
B
BB
B
Playback
23
model name1[MVC-Fd85/FD90]
[3-060-831-12(1)]
To pause playback
Select
X
(pause) on the LCD screen with
v
/
V
/
b
/
B
on the control button, then press
the center
z
.
When the menu bar is not displayed
You can directly select the image with
b
/
B
on the control button, and play back the
image and sound by pressing the center
z
. When you press the center
z
during
playback, playback is paused.
Press VOLUME +/– to adjust the volume.
Press DISPLAY to turn on/off the indicators on the LCD screen.
See page 65 for a detailed description of the indicators.
Adjusting the volume
LCD screen indicators during moving image playback
01cov.book Page 23 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\04bas.fm]
24
model name1[MVC-Fd85/FD90]
[3-060-831-12(1)]

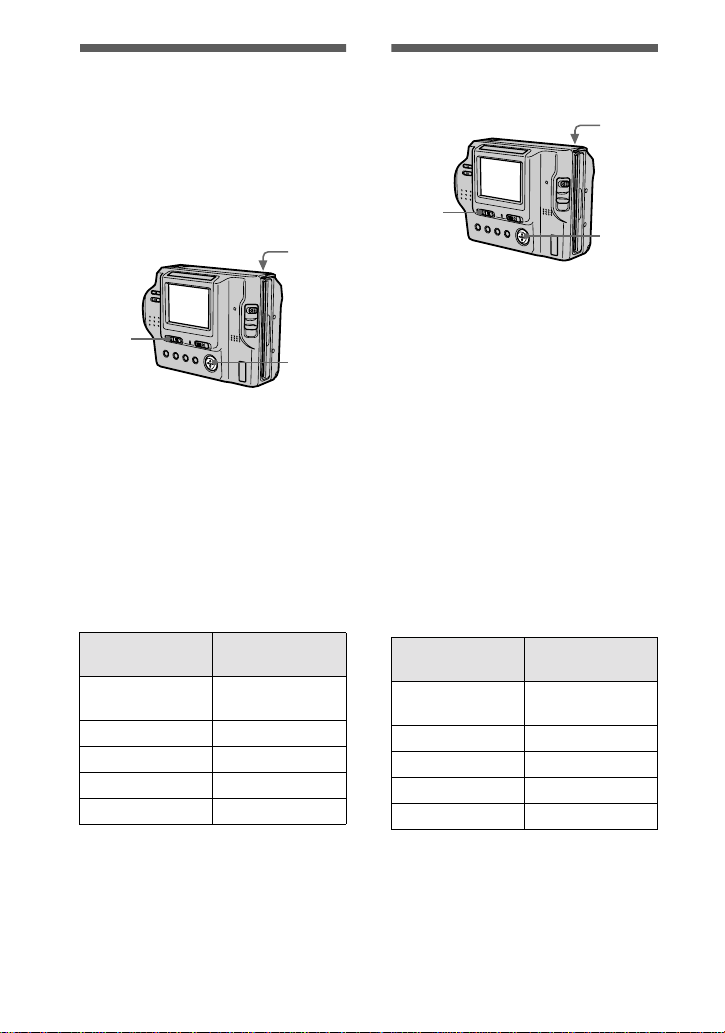

Viewing images using a personal
computer
You can view data with your camera on a personal computer and attach it to e-mail.
This section describes the general method for viewing images on a personal
computer. Be sure to also see the operation manuals for your personal computer and
application software.
Note
Data recorded with your camera is stored in the following formats. Make sure that
applications that support these file formats are installed on your personal computer.
•
Still image (except TEXT mode) : JPEG format
•
Moving image/Voice memo: MPEG format
•
Still image in TEXT mode : GIF format.
OS
Windows 3.1, Windows 95, Windows 98, Windows 98SE, Windows NT 3.51,
Windows NT 4.0
Applications
Microsoft Internet Explorer 4.0 or higher, Netscape Navigator, etc.
To display the image list, double-click [Mavica.htm] in the floppy disk used with this
camera as a medium for recording if you have installed a browser such as Microsoft
Internet Explorer on your personal computer.
Notes
•
To play back an MPEG file, install ActiveMovie (DirectShow).
•
You cannot play back an MPEG file with Windows 3.1.
•
For Macintosh, you can use the floppy disk recorded with this camera using PC Exchange with
Mac OS system 7.5 or higher. A viewing application for Macintosh is also necessary for
viewing images. To play back an MPEG file, install QuickTime 3.0 or higher.
•
When using the MSAC-FD2M Floppy Disk Adaptor for Memory Stick, the recommended OS
is Windows 98, Windows 95, Windows NT 4.0 or Mac OS 7.6 - 8.6.
Recommended OS/applications
01cov.book Page 24 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\04bas.fm]
B
BB
B
Playback
25
model name1[MVC-Fd85/FD90]
[3-060-831-12(1)]
For Windows98 users
•
Windows and ActiveMovie, DirectShow are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
•
Macintosh and Mac OS, QuickTime are trademarks of Apple Computer, Inc.
•
All other product names mentioned herein may be the trademarks or registered trademarks of
their respective companies.
Furthermore, “™” and “®” are not mentioned in each case in this manual.
Viewing images
1
Start up your personal computer and insert the floppy disk into the
disk drive of your personal computer.
2
Open [ My computer] and double click [ 31/2 Floppy (A:)].
3
Double-click the desired data file.
Copying moving image files and audio files to the hard disk of your personal
computer before viewing is recommended. If you play back the file directly
from the floppy disk, the image and sound may break off.
01cov.book Page 25 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\04bas.fm]
26
model name1[MVC-Fd85/FD90]
[3-060-831-12(1)]
Image file storage destinations
and image file names
Image files recorded with your camera are grouped in folders by recording mode.
Images in a floppy disk and ones in a “Memory Stick” have different file names. The
meanings of the file names are as follows.
sss
stands for any number within the range from 001 to 999.
f
stands for one of the following characters below.
S: Still image file recorded at 640×480 size
F: Still image file of more than 640×480 size
V: Moving image file recorded at 160×112 size
W: Moving image file recorded at 320×240 size
For Window98 users (The drive recognizing the floppy disk is [A].)
When using floppy disks
Location File Meaning
31/2 Floppy
[A:]
MVC-
sssf
.JPG
•
Still image file recorded normally
•
Still image file recorded in E-MAIL
mode (page 36)
•
Still image file recorded in VOICE
mode (page 36)
MVC-
sssf
.411
•
INDEX display file
This file can only be played back on
your camera.
MVC-
sssf
.MPG
•
Moving image file
MVC-
sss
•
Still image file recorded in TEXT mode
(page 37)
E-mail folder MVC-
sss
•
Small-size image file recorded in E-
MAIL mode (page 36)
Voice folder MVC-
sss
A.MPG
•
Audio file recorded in VOICE mode
(page 36)
Storage destination containing still or
moving image data
Folder containing E-mail mode image data
Folder containing voice memo audio data
01cov.book Page 26 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\04bas.fm]
B
BB
B
Playback
27
model name1[MVC-Fd85/FD90]
[3-060-831-12(1)]
The numerical portion of the following files are the same.
— An image file recorded in VOICE mode and its corresponding audio file
— An image file recorded in E-MAIL mode and its corresponding small-size
image file
— INDEX display files cannot be played back on other equipment.
ssss
stands for any number within the range from 0001 to 9999.
For Window98 users (The drive recognizing the Floppy Disk
Adaptor for Memory Stick is [A].)
The numerical portion of the following files are the same.
— An image file recorded in VOICE mode and its corresponding audio file
— An image file recorded in E-MAIL mode and its corresponding small-size
image file
When using “Memory Stick”s
Folder File Meaning
100msdcf DSC0
ssss
.JPG
•
Still image file recorded normally
•
Still image file recorded in E-MAIL
mode (page 36)
•
Still image file recorded in VOICE
mode (page 36)
TXT0
ssss
.GIF
•
Still image file recorded in TEXT mode
(page 37)
Imcif 100 DSC0
ssss
.JPG
•
Small-size image file recorded in E-
MAIL mode (page 36)
Moml0001 MOV0
ssss
.MPG
•
Moving image file
Momlv100 DSC0
ssss
.MPG
•
Audio file recorded in VOICE mode
(page 36)
Folder containing still image data
Folder containing E-mail mode image data
Folder containing moving image data
Folder containing voice memo audio data
01cov.book Page 27 Monday, March 13, 2000 9:21 AM
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\05bef.fm]
28
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Advanced operations
Before performing advanced
operations
This section describes the basic control methods that are frequently used for
“Advanced operations” (page 35).

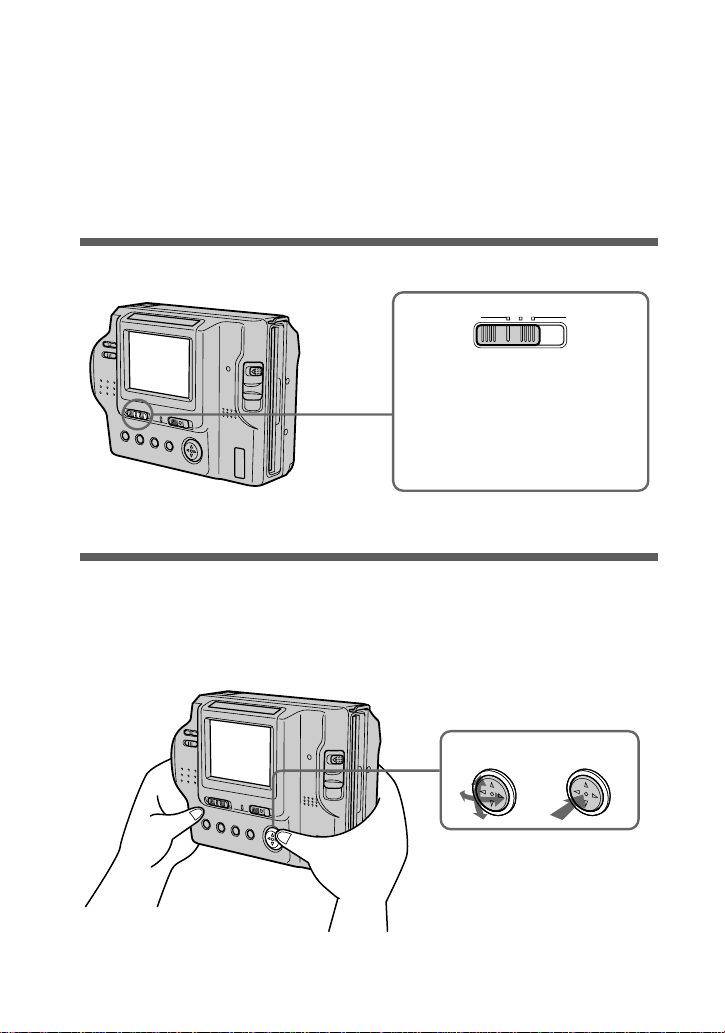

How to use the PLAY/STILL/MOVIE selector
How to use the control button
The control button is used to select the buttons, images and menus displayed on the
LCD screen of your camera and modify the settings. The operation methods that are
frequently used for “Advanced Operations” are described below.
PLAY STILL MOVIE
PLAY: To play back or edit
images
STILL: To record still images
and voice memos
MOVIE: To record moving
images
Select
Set (enter)
01cov.book Page 28 Monday, March 13, 2000 9:21 AM
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\05bef.fm]
Before performing advanced operations
29
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Note
You cannot clear the menu bar on the INDEX screen (page 42).
The “Advanced operations” section of this manual refers to selecting and
entering items by the above procedure as “Select [item name].”
Turning on/off the operation buttons (menu bar) on the LCD screen
Selecting items or images on the LCD screen
1
Press
v
/
V
/
b
/
B
on the control
button to select the item you
want to set or the image you
want to display.
The color of the selected item or the
frame of the selected image
changes from blue to yellow.
2
Press the center
z
to enter
the item.
Repeat steps
1
and
2
to execute
each function.
SELECT OK
MENU BAR OFF
DELETE
INDEX FILE SETUPTOOL
Press
v
to display the menu bar
on the LCD screen.
Press
V
to clear the menu bar
from the LCD screen.
Menu bar
SELECT OK
DELETE
INDEX FILE SETUPTOOL
MENU BAR OFF
LCD BRIGHT
BEEP
CLOCK SET
VIDEO OUT
/LANGUAGE
SELECT CLOSE
DELETE
INDEX FILE SETUPTOOL
01cov.book Page 29 Monday, March 13, 2000 9:21 AM
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\05bef.fm]
30
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]

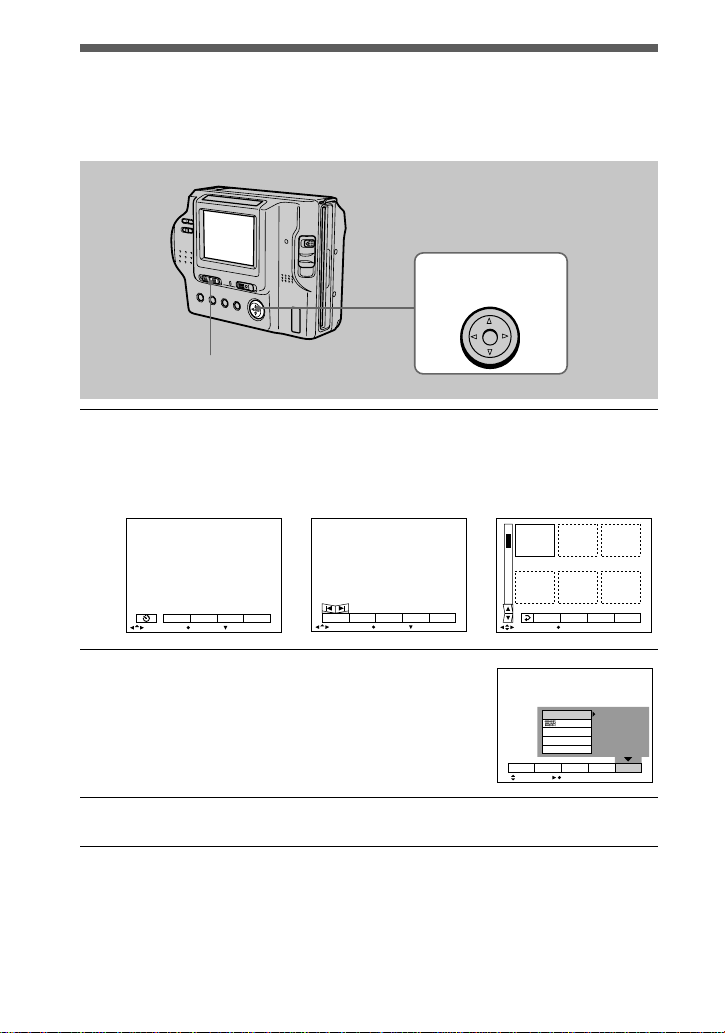

How to change the menu settings
Some of the advanced operations for your camera are executed by selecting menu
items displayed on the LCD screen with the control button.
To cancel the setup
Press
V
on the control button repeatedly until the LCD screen returns to the menu bar
display in step
1
. To clear the menu bar, press
V
again.
1
Press
v
on the control button to display the menu bar.
The menu bar appears as follows according to the position of the PLAY/STILL/
MOVIE selector.
2
Select the desired item with
v
/
V
/
b
/
B
on the
control button, then press the center
z
.
The color of the selected item changes from blue to
yellow, and when you press the center
z
, the settings
that can be set for its item are displayed.
3
Select the desired setting with
v
/
V
/
b
/
B
on the control button, then
press the center
z
.
1
–
3
PLAY/STILL/MOVIE selector
Control button
EFFECT FILE SETUP
CAMERA
SELECT OK
MENU BAR OFF
SELECT OK
MENU BAR OFF
DELETE
INDEX FILE SETUPTOOL
2000 7 4 10:30PMMVC–001F
SELECT SINGLE DISPLAY
DELETE
FILE SETUPTOOL
MOVIE/STILL
PLAY (single mode)
PLAY (INDEX mode)
LCD BRIGHT
BEEP
CLOCK SET
VIDEO OUT
/LANGUAGE
SELECT OK
DELETE
INDEX FILE SETUPTOOL
NTSC
01cov.book Page 30 Monday, March 13, 2000 9:21 AM
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\05bef.fm]
Before performing advanced operations
31
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Menu items that can be modified differ depending on the position of the PLAY/
STILL/MOVIE selector. The LCD screen shows only the items you can operate at the
moment. Initial settings are indicated with
x
.
(self-timer)
Records with the self-timer (page 18).
EFFECT
FILE
Menu settings
Item Setting Description
PLAY/STILL/
MOVIE selector
P. EFFECT SOLARIZE
B&W
SEPIA
NEG.ART
x
OFF
Sets the image special effects (page 41). MOVIE
STILL
DATE/
TIME
DAY &
TIME
Sets whether to insert the date and time
into the image (page 41).
STILL
DATE
x
OFF
Item-1 Item-2 Setting Description
PLAY/STILL/
MOVIE selector
DISK
TOOL
FORMAT OK Formats a floppy disk (page 52). MOVIE
STILL
PLAY
CANCEL Cancels formatting of a floppy
disk.
DISK
COPY
OK
CANCEL
Copies all data stored in a floppy
disk to another disk (page 50).
Cancels the disk copy.
CANCEL Goes back to the [DISK TOOL]
item.
Item Setting Description
PLAY/STILL/
MOVIE selector
FILE
NUMBER
SERIES Assigns numbers to files in sequence
even if the floppy disk is changed.
MOVIE
STILL
x
NORMAL Resets the file number that starts from
001 each time the floppy disk is
changed.
01cov.book Page 31 Monday, March 13, 2000 9:21 AM
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\05bef.fm]
32
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
SIZE
x
1472×1104
(MVC-
FD90 only)
x
1280× 960
1280(3:2)
1024×768
640×480
Selects the image size when recording
still images.
STILL
320×240
x
160×112
Selects the MPEG image size when
recording moving images.
MOVIE
REC MODE TEXT Records a GIF file in black-and-white. STILL
VOICE Records an audio file (with a still image)
in addition to the JPEG file.
E-MAIL Records a small-size (320×240) JPEG
file in addition to the selected image
size.
x
NORMAL Records a JPEG file in the selected
image size.
REC TIME
SET
15 sec
10 sec
x
5 sec
Selects the recording time for moving
images.
MOVIE
SLIDE
SHOW
(Only in
PLAY
(single)
mode)
INTERVAL
Sets the slide show interval.
x
3 sec/5 sec/10 sec/30 sec/1 min
PLAY
REPEAT A slide show can be repeated for up to
approx. 20 minutes.
x
ON/OFF
START Starts the slide show.
CANCEL Cancels the slide show settings or
execution.
PRINT
MARK
— Marks the still images to be printed
(page 51).
PLAY
PROTECT — Protects images against accidental
erasure (page 46).
PLAY
Item Setting Description
PLAY/STILL/
MOVIE selector
01cov.book Page 32 Monday, March 13, 2000 9:21 AM
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\05bef.fm]
Before performing advanced operations
33
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
CAMERA
TOOL
SETUP
Item Setting Description
PLAY/STILL/
MOVIE selector
DIGITAL
ZOOM
x
ON Uses digital zoom. STILL
OFF Does not use digital zoom.
SHARPNESS
+2 to –2 Adjusts the sharpness of the image.
The indicator appears (except when
the setting is 0).
STILL
WHITE
BALANCE
IN DOOR
OUT DOOR
HOLD
x
AUTO
Sets the white balance (page 40). MOVIE
STILL
FLASH
LEVEL
HIGH Makes the flash level higher than
normal.
STILL
x
NORMAL Normal setting.
LOW Makes the flash level lower than normal.
EXPOSURE +2.0EV to
–2.0EV
Adjusts the exposure. MOVIE
STILL
Item Setting Description
PLAY/STILL/
MOVIE selector
COPY OK
x
CANCEL
Copies the images (page 48).
Cancels copying of the image.
PLAY
RESIZE
(Only in
PLAY
(single)
mode)
1472×1104
(MVC-
FD90 only)
1280×960
1024×768
640×480
x
CANCEL
Changes the recorded image size
(page 48).
PLAY
Item Setting Description
PLAY/STILL/
MOVIE selector
DEMO
x
STBY/ON
OFF
Displayed only when you use the AC
power adaptor in MOVIE or STILL
mode. When [ON] is selected, a
demonstration will start if you do not
operate your camera for about 10
minutes. To stop the demonstration, turn
off your camera.
MOVIE
STILL
01cov.book Page 33 Monday, March 13, 2000 9:21 AM
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\05bef.fm]
34
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
INDEX (Only in PLAY (single) mode)
Displays six images at a time (PLAY (INDEX) mode).
DELETE (Only in PLAY (single) mode)
(Return) (Only in PLAY (INDEX) mode)
Returns to PLAY (single) mode.
VIDEO
OUT
x
NTSC Sets the video output signal to NTSC
mode (e.g., Japan, the USA).
MOVIE
STILL
PLAY
PAL Sets the video output signal to PAL
mode (e.g., Europe).
/
LANGUAGE
/JPN Displays the menu items in Japanese. MOVIE
STILL
PLAY
x
ENGLISH Displays the menu items in English.
CLOCK
SET
— Sets the date and time. (page 12) MOVIE
STILL
PLAY
BEEP SHUTTER Turns off the beep only. (The shutter
sound is heard when you press the
shutter button.)
MOVIE
STILL
PLAY
x
ON Turns on the beep/shutter sound (when
you press the control button/shutter
button).
OFF Turns off the beep/shutter sound.
LCD
BRIGHT
Adjusts the LCD screen brightness
using -/+ on the LCD screen.
MOVIE
STILL
PLAY
Setting Description
PLAY/STILL/MOVIE
selector
OK Deletes the displayed image. PLAY
CANCEL Cancels deleting of the image.
Item Setting Description
PLAY/STILL/
MOVIE selector
01cov.book Page 34 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\06adv.fm]
B
BB
B
Various recording
35
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
B
Various recording
Setting the image size
(IMAGE SIZE)
The number of images or the time
that you can record on a floppy
disk
Numbers in parentheses indicate the number
or time when you use the “Memory Stick”
(8 MB) (not supplied).
∗
When REC MODE is set to NORMAL.
Note
If you try to record 55 images or more
on a floppy disk, even if the remaining
disk capacity is sufficient, “DISK
FULL” appears on the LCD screen and
you cannot record any more images.
1
Set the PLAY/STILL/MOVIE
selector to MOVIE or STILL.
2
Select [FILE] and then
[IMAGE SIZE] from the menu.
3
Select the desired image
size.
Still image sizes:
1472×1104 (MVC-FD90 only),
1280×960, 1280 (3:2)*, 1024×768,
640×480
∗
The image is recorded in the ratio of
three to two to fit the printing paper
size.
Moving image sizes:
320×240, 160×112
1
2, 3
Image size Number of
images or time*
1472×1104
(MVC-FD90 only)
Approx. 5 (25)
1280×960 Approx. 6 (32)
1280 (3:2) Approx. 6 (32)
1024×768 Approx. 10 (52)
640×480 Approx. 30 (159)
320×240 Approx. 15 sec
(1 min 25 sec)
160×112 Approx. 60 sec
(5 min 45 sec)
01cov.book Page 35 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\06adv.fm]
36
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Recording still
images for e-mail (E-
MAIL)
The E-MAIL mode records a small-
size (320×240) image at the same time
as a still image. Small-size images are
convenient for e-mail transmission,
etc.
The number of images that you can
record on a floppy disk in E-MAIL
mode
Numbers in parentheses indicate the number
when you use the “Memory Stick” (8 MB)
(not supplied).
To return to normal
recording mode
Select [NORMAL] in step
2
.
Adding audio files to
still images (VOICE)
The number of images that you can
record on a floppy disk in VOICE
mode
Numbers in parentheses indicate the number
when you use the “Memory Stick” (8 MB)
(not supplied).
To return to normal
recording mode
Select [NORMAL] in step
2
.
1
Set the PLAY/STILL/MOVIE
selector to STILL.
2
Select [FILE], [REC MODE],
and then [E-MAIL] from the
menu.
3
Record the image.
Image size Number of
images
1472×1104
(MVC-FD90 only)
Approx. 4 (24)
1280×960 Approx. 5 (30)
1280 (3:2) Approx. 5 (30)
1024×768 Approx. 8 (47)
640×480 Approx. 22 (120)
1
2
3
1
Set the PLAY/STILL/MOVIE
selector to STILL.
2
Select [FILE], [REC MODE],
and then [VOICE] from the
menu.
3
Record the image.
If you press and release the
shutter button,
sound is
recorded for five seconds.
If you hold down the shutter,
sound is recorded until you release
the shutter button for up to
40 seconds.
Image size Number of
images
1472×1104
(MVC-FD90 only)
Approx. 3 (21)
1280×960 Approx. 4 (26)
1280 (3:2) Approx. 4 (26)
1024×768 Approx. 6 (37)
640×480 Approx. 12 (74)
1
2
3
01cov.book Page 36 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\06adv.fm]
B
BB
B
Various recording
37
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]

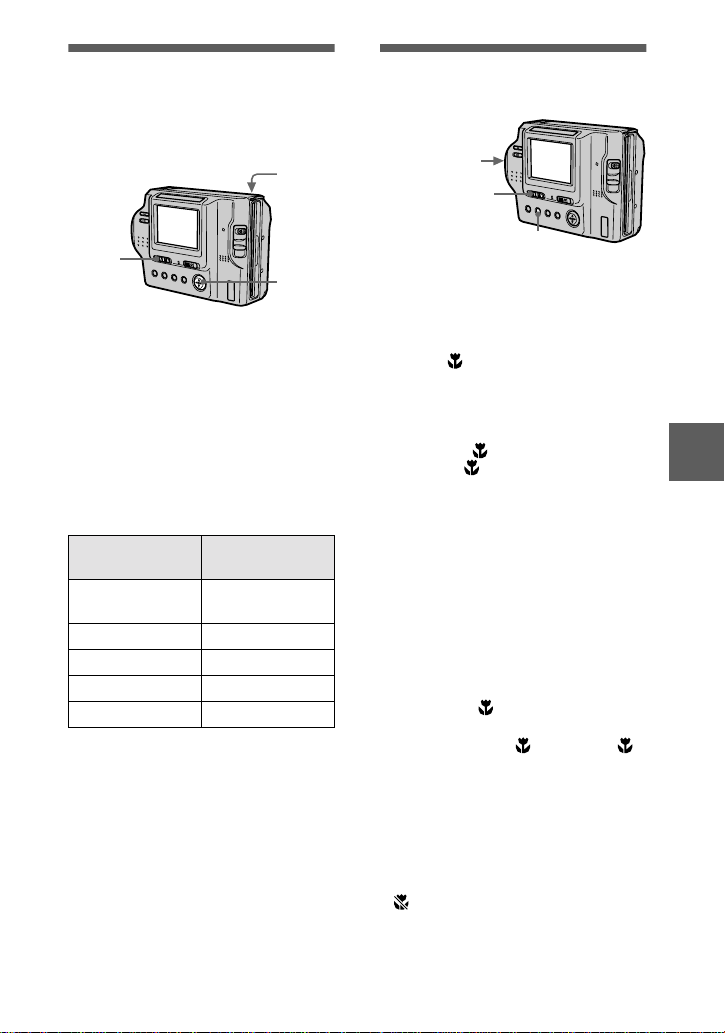

Recording text
documents (TEXT)
Text is recorded in GIF format to
provide a clear image.
The number of images that you can
record on a floppy disk in TEXT mode
Numbers in parentheses indicate the number
when you use the “Memory Stick” (8 MB)
(not supplied).
To return to normal
recording mode
Select [NORMAL] in step
2
.
Notes
•
If the subject is not evenly illuminated, you
may be unable to record a clear image.
•
Writing and reading data take more time
than normal recording.
Recording images in
macro
To return to normal
recording mode
MVC-FD85: Press FOCUS repeatedly
until both the and 9 indicators
disappear.
MVC-FD90: Press again. The
(macro) indicator disappears.
Note
•
You cannot record images in macro with
the following PROGRAM AE modes:
–
Landscape mode
–
Panfocus mode
•
You cannot record images in macro if the
indicator appears.
1
Set the PLAY/STILL/MOVIE
selector to STILL.
2
Select [FILE], [REC MODE],
and then [TEXT] from the
menu.
3
Record the image.
Image size Number of
images
1472×1104
(MVC-FD90 only)
Minimum 5 (29)
1280×960 Minimum 7 (40)
1280 (3:2) Minimum 8 (44)
1024×768 Minimum 11 (61)
640×480
Minimum 28 (160)
1
2
3
1
Set the PLAY/STILL/MOVIE
selector to MOVIE or STILL.
2
• MVC-FD85:
Press FOCUS repeatedly until
the (macro) indicator appears
on the LCD screen.
• MVC-FD90:
1
Set the FOCUS AUTO/MANUAL
switch to AUTO.
2
Press (macro).
The (macro) indicator appears
on the LCD screen.
With the zoom lever set to the W
side, you can shoot a subject that is
about 3 cm (1 3/16 inch) away
from the lens surface in macro
mode.
1
2
FOCUS AUTO/
MANUAL
switch
01cov.book Page 37 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\06adv.fm]
38
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]

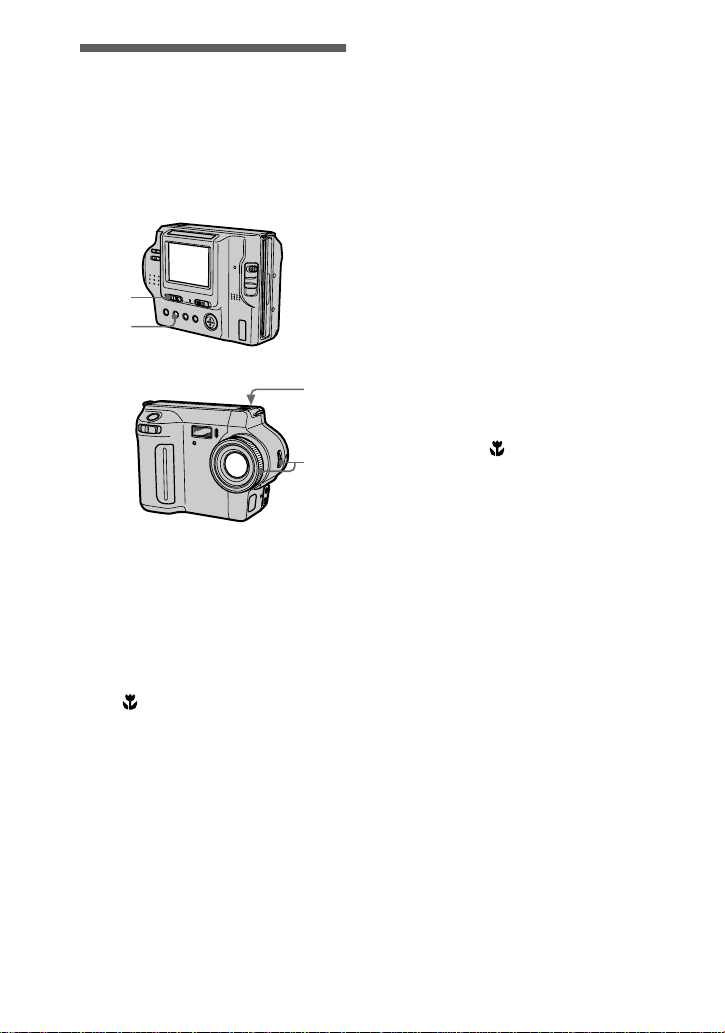

Setting the distance
to the subject
Normally the focus is automatically
adjusted. This function is useful when
the auto focus does not work well such
as in dark places.
To reactivate auto focusing
MVC-FD85: Press FOCUS repeatedly
until both the and 9 indicators
disappear.
MVC-FD90: Set the FOCUS AUTO/
MANUAL switch to AUTO.
Notes
•
Focal point information may not
completely show the correct distance. Use
the information as a guide.
•
Focal point information does not show the
correct distance when attaching the
conversion lens.
•
If you shoot a subject within 0.6 m
(23 5/8 inches) (MVC-FD85)/ 0.9 m
(35 1/2 inches) (MVC-FD90) while the
zoom lever is set to T side, you cannot get
a clear focus. In such cases, the focal point
information flashes. Move the zoom lever
to the W side until the indicator stops
flashing.
•
You cannot use this function if you have
selected the Panfocus mode in the
PROGRAM AE function.
1
Set the PLAY/STILL/MOVIE
selector to MOVIE or STILL.
2
• MVC-FD85:
Press FOCUS repeatedly until a
sharp focus is achieved.
The 9 (manual focus) indicator
appears on the LCD screen. You
can select from six focus settings:
(macro), 0.5 m, 1.0 m, 3.0 m,
7.0 m, and
∞
(infinity)
1
2
MVC-FD85
2
1
MVC-FD90
• MVC-FD90:
1
Set the FOCUS AUTO/MANUAL
switch to MANUAL.
The
9
(manual focus) indicator
appears on the LCD screen.
2
Turn the focus ring to achieve a
sharp focus.
When you shoot still images, the
image on the LCD screen is
enlarged (double*) and the focal
point information appears while the
focus is being adjusted. After
adjusting, the image returns to
normal size. The range is from
3 cm (1 3/16 inches) to
∞
(infinity).
∗
When using the digital zoom
function, the enlarged image will
be less than double size.
01cov.book Page 38 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\06adv.fm]
B
BB
B
Various recording
39
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Using the PROGRAM
AE function
To cancel PROGRAM AE
Press PROGRAM AE repeatedly until
the indicator on the LCD screen goes
out.
Notes
•
You can focus only on distant subjects in
Landscape mode.
•
In Panfocus mode, the zoom position is set
to the W side and focus is fixed.
•
When you record in Twilight plus mode,
we recommend that you use a tripod to
prevent shaking.
•
Set the forced flash when you use the
flash in the following modes:
–
Twilight mode
–
Twilight plus mode
–
Landscape mode
•
You cannot use the PROGRAM AE
function when [REC MODE] is set to
[TEXT].
1
Set the PLAY/STILL/MOVIE
selector to MOVIE or STILL.
2
Press PROGRAM AE
repeatedly to select the
desired PROGRAM AE mode.
Twilight mode
Suppresses the blurring of colors
of a bright subject in a dark place
so that you can record the subject
without losing the dark atmosphere
of the surroundings.
Twilight plus mode
Increases the effectiveness of the
twilight mode function.
Landscape mode
Focuses only on a distant subject to
record landscapes, etc.
Panfocus mode
Changes the focus quickly and
simply from a close subject to a
distant subject.
1
2
Spot light-metering mode
Select this mode when there is
backlight or when there is strong
contrast between the subject and
the background, etc. Position the
point you want to record at the spot
light-metering cross hair.
LCD screen
Spot light-metering
cross hair
01cov.book Page 39 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\06adv.fm]
40
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Adjusting the
exposure
(EXPOSURE)
Note
If a subject is under extremely bright or
dark situations, or the flash is used, the
exposure adjustment may not be
effective.
Adjusting the white
balance (WHITE
BALANCE)
Normally the white balance is
automatically adjusted.
To reactivate auto adjustment
Select [AUTO] in step
3
.
Note
Select [AUTO] when shooting with
fluorescent lighting.
1
Set the PLAY/STILL/MOVIE
selector to MOVIE or STILL.
2
Select [CAMERA] and then
[EXPOSURE] from the menu.
3
Select the desired exposure
value.
Adjust the exposure value while
checking the brightness of the
background. You can select values
ranging from +2.0 EV to -2.0 EV
in steps of 1/3 EV.
1
2, 3
1
Set the PLAY/STILL/MOVIE
selector to MOVIE or STILL.
2
Select [CAMERA] and then
[WHITE BALANCE] from the
menu.
3
Select the desired white
balance setting.
IN DOOR (
n
)
•
Places where the lighting
condition changes quickly
•
Under bright lighting such as
photography studios
•
Under sodium or mercury lamps
OUT DOOR ( )
Recording a sunrise/sunset, night
scene, neon signs, or fireworks
HOLD (HOLD)
Recording a single-colored subject
or background
AUTO (No indicator)
Adjusts the white balance
automatically
1
2, 3
01cov.book Page 40 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\06adv.fm]
B
BB
B
Various recording
41
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Recording the date
and time on the still
image (DATE/TIME)
Enjoying picture
effects (PICTURE
EFFECT)
To cancel picture effect
Select [OFF] in step
3
.
1
Set the PLAY/STILL/MOVIE
selector to STILL.
2
Select [EFFECT] and then
[DATE/TIME] from the menu.
3
Select the date and time.
DAY & TIME
Imposes the date, hour, and
minute.
DATE
Imposes the year, month, and day.
OFF
Does not impose the date and time.
4
Record the image.
The date and time do not appear on
the LCD screen during shooting,
these appear during playback only.
1
2, 3
2000 7 4
1
Set the PLAY/STILL/MOVIE
selector to MOVIE or STILL.
2
Select [EFFECT] and then
[P. EFFECT] from the menu.
3
Select the desired mode.
SOLARIZE
The light contrast is clearer and the
picture looks like an illustration.
B&W
The picture is monochrome (black
and white).
SEPIA
The picture is sepia-toned like an
old photograph.
NEG.ART
The color and brightness of the
picture are reversed as in a
negative.
OFF
Does not use the picture effect
function.
1
2, 3
01cov.book Page 41 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\06adv.fm]
42
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
B
Various playback
Playing back six
images at once
(INDEX)
To display the next
(previous) index screen
Select
v
/
V
at the lower-left of the
LCD screen.
To return to normal playback
(single image)
•
Select the desired image with the
control button.
•
Select (Return).
Note
Images shot in TEXT mode cannot be
displayed on the INDEX screen.
1
Set the PLAY/STILL/MOVIE
selector to PLAY.
2
Select [INDEX] on the LCD
screen.
Six images are displayed at once
(index screen).
The following marks are displayed
on each image according to the
image type and settings.
: Moving image file
: Voice memo file
: E-mail file
: Print mark
-: Protect mark
TEXT: TEXT file
(No mark): Normal recording (no
settings)
1
2
2000 7 4 12:30PMMVC-001F
SELECT SINGLE DISPLAY
DELETE
FILE SETUPTOOL
TEXT
This shows the position of
the currently displayed
images relative to all the
recorded images.
Displays the previous index
screen.
Displays the next index screen
.
01cov.book Page 42 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\06adv.fm]
B
BB
B
Various playback
43
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Enlarging a part of the
still image (Zoom and
trimming)
To return to the normal size
Zoom out with the zoom lever until the
zoom scaling indicator ( ×1.1)
disappears from the screen, or simply
press the center
z
.
To record an enlarged image
(trimming)
1
Enlarge the image.
2
Press the shutter button. The image
is recorded at 640×480 size and the
image on the LCD screen returns to the
normal size after recording.
Notes
•
You cannot use this function on moving
images or TEXT mode images.
•
Zoom scaling is up to 5× regardless of the
original image size.
•
The quality of enlarged images may be
deteriorated.
•
The original data is left even if you enlarge
the image.
•
The enlarged image is recorded as the
newest file.
1
Set the PLAY/STILL/MOVIE
selector to PLAY.
2
Display the image to be
enlarged.
3
Zoom in/out the image with
the zoom lever.
The zoom scaling indicator
appears on the LCD screen.
4
Press the control button
repeatedly to trim the image.
v
: The image moves downward
V
: The image moves upward
b
: The image moves rightward
B
: The image moves leftward
1
4
3
01cov.book Page 43 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\06adv.fm]
44
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Playing back the still
images in order
(SLIDE SHOW)
This function is useful for checking the
recorded images or for presentations,
etc.
To cancel the slide show
Select [CANCEL] in step
2
or
3
.
To skip to the next/previous
image during the slide show
Select
\b
/
B\
at the lower-left of the
LCD screen.
Notes
•
The interval setting time may vary
depending on the image size.
•
When [REPEAT] is set to [ON], the
slide show does not end until all the
images played back, even if it takes
more than 20 minutes.
1
Set the PLAY/STILL/MOVIE
selector to PLAY.
2
Select [FILE] and then [SLIDE
SHOW] from the menu.
Set the following items.
INTERVAL
You can select from 1 min (one
minute), 30 sec (30 seconds),
10 sec (10 seconds), 5 sec
(5 seconds), or 3 sec (3 seconds).
REPEAT
ON: Plays back images in a
continuous loop (approximately 20
minutes) until [RETURN] is
selected.
OFF: After all images have been
played back, the slide show ends.
3
Select [START] with the
control button.
The slide show begins.
1
2, 3
01cov.book Page 44 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\06adv.fm]
B
BB
B
Various playback
45
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Viewing images on a
TV screen
Before connecting your camera, be
sure to turn off the TV.
Note
You cannot use a TV that has an antenna
(aerial) connector only.
1
Connect the A/V connecting
cable to the AUDIO (MONO)/
VIDEO OUT jack of your
camera and to the audio/
video input jacks of the TV.
If your TV has stereo type input
jacks, connect the audio plug of the
A/V connecting cable to the Lch
jack.
2
Turn on the TV and start
playback on your camera.
The playback image appears on the
TV screen.
to AUDIO (MONO)/
VIDEO OUT jack
Set the TV/
VIDEO switch
to “VIDEO”.
A/V
connecting
cable
01cov.book Page 45 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\06adv.fm]
46
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
B
Editing
Preventing accidental
erasure (PROTECT)
The - (protect) indicator appears on
protected images.
To release protection
Select [OFF] in step
2
.
To release protection
If you selected [ALL] in step
2
, select
[OFF]. If you selected [SELECT] in
step
2
, select the images to be
unprotected with the control button,
then select [ENTER].
In single mode
1
Set the PLAY/STILL/MOVIE
selector to PLAY, then display
the image to be protected.
2
Select [FILE], [PROTECT],
and then [ON] from the menu.
The displayed image is protected
and the - indicator appears.
In INDEX mode
1
Set the PLAY/STILL/MOVIE
selector to PLAY, then display
the INDEX screen.
2
Select [FILE], [PROTECT],
and then [ALL] or [SELECT]
from the menu.
1
2, 3
3
When you select [ALL]
Select [ON].
All the images in the floppy disk
are protected.
When you select [SELECT]
Select all the images to be
protected with the control button,
then select [ENTER]. The selected
images are protected.
ENTERPROTECT CANCEL
0001-0006/0040
SELECT OK
01cov.book Page 46 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\06adv.fm]
B
BB
B
Editing
47
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Deleting images
(DELETE)
Protected images cannot be deleted.
To cancel deleting
Select [CANCEL] in step
2
or
3
.
In single mode
1
Set the PLAY/STILL/MOVIE
selector to PLAY, then display
the image to be deleted.
2
Select [DELETE] and then
[OK] from the menu.
The image is deleted.
In INDEX mode
1
Set the PLAY/STILL/MOVIE
selector to PLAY, then display
the INDEX screen.
2
Select [DELETE] and then
[ALL] or [SELECT] from the
menu.
1
2, 3
3
When you select [ALL]
Select [ENTER].
All the unprotected images are
deleted.
When you select [SELECT]
Select all the images to be deleted
with the control button, then select
[ENTER]. The (delete)
indicator appears on the selected
images and these images are
deleted.
0001-0006/0040
ENTERDELETE CANCEL
SELECT OK
01cov.book Page 47 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\06adv.fm]
48
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Changing the
recorded still image
size (RESIZE)
To cancel changing the size
Select [CANCEL] in step
3
.
Notes
•
When you change from a small size to a
large size, the picture quality deteriorates.
•
The original image is retained even after
resizing.
•
You cannot change the size of images
recorded in TEXT mode or moving
pictures.
•
The resized image is recorded as the
newest file.
Copying images
(COPY)
Copies images to another floppy disk.
To continue copying the
image to other floppy disks
After “COMPLETE” appears in step
4
,
select [CONTINUE] and repeat steps
3
and
4
above.
1
Set the PLAY/STILL/MOVIE
selector to PLAY, then display
the image of which you want
to change the size.
2
Select [TOOL] and then
[RESIZE] from the menu.
3
Select the desired size.
1472×1104 (MVC-FD90 only),
1280×960, 1024×768, 640×480.
The resized image is recorded and
the image on the LCD screen
returns to the previous size after
recording.
1
2, 3
In single mode
1
Set the PLAY/STILL/MOVIE
selector to PLAY, then display
the image to be copied.
2
Select [TOOL], [COPY], and
then [OK] from the menu.
[DISK ACCESS] appears.
3
When “CHANGE FLOPPY
DISK” appears, eject the
floppy disk.
“INSERT FLOPPY DISK”
appears.
4
Insert another floppy disk.
“RECORDING” appears. When
copying is completed,
“COMPLETE” appears.
To end copying, select [EXIT].
1
2
3
01cov.book Page 48 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\06adv.fm]
B
BB
B
Editing
49
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
To continue copying the
image to other floppy disks
After “COMPLETE” appears in step
5
,
select [CONTINUE] and repeat steps
4
and
5
above.
To cancel copying part-way
Change the PLAY/STILL/MOVIE
selector position or turn off the power.
Note
If you eject and insert the floppy disk
without selecting [EXIT] after
“COMPLETE” appears, the image will
be copied to the floppy disk.
Notes on the Floppy Disk Adaptor
for Memory Stick
•
You cannot select [ALL] when copying
images in the “Memory stick.”
•
You cannot copy images from a floppy
disk to a “Memory Stick.”
•
When copying from a “Memory Stick” to a
floppy disk, the file information (Exif tag)
is not copied.
In INDEX mode
1
Set the PLAY/STILL/MOVIE
selector to PLAY, then display
the INDEX screen.
2
Select [TOOL], [COPY], and
then [ALL] or [SELECT] from
the menu.
3
When you select [ALL]
Select [OK].
All the images are copied.
When you select [SELECT]
Select the images to be copied with
the control button.
The
mark appears on the
images.
Select all the images to be copied,
then select [ENTER].
“DISK ACCESS” appears.
4
When “CHANGE FLOPPY
DISK” appears, eject the
floppy disk.
“INSERT FLOPPY DISK”
appears.
5
Insert another floppy disk.
“RECORDING” appears. When
copying is completed,
“COMPLETE” appears.
To end copying, select [EXIT].
1
2, 3
4
5
01cov.book Page 49 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\06adv.fm]
50
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Copying all the
information on your
floppy disk (DISK
COPY)
You can copy to another disk not only
the images you have recorded with
your camera but also various files you
have created in other software with
your personal computer.
Notes
•
With copying disk, all information saved
on the recipient floppy disk is erased to be
replaced by newly written data including
the protected image data. Check the
contents of the recipient disk before
copying disk.
•
Be sure to use a formatted floppy disk to
carry out DISK COPY.
To continue copying the
image to other floppy disks
After “COMPLETE” appears in step
4
,
select [CONTINUE] and repeat steps
3
and
4
above.
To cancel copying part-way
Change the PLAY/STILL/MOVIE
selector position or turn off the power.
Note
If you eject and insert the floppy disk
without selecting [EXIT] after
“COMPLETE” appears, DISK COPY
will be carried out onto the floppy disk.
Note on the Floppy Disk Adaptor
for Memory Stick
You cannot do DISK COPY between
“Memory Stick”s and floppy disks.
1
Insert the floppy disk to be
copied.
2
Select [FILE], [DISK TOOL],
[DISK COPY], and then [OK]
from the menu.
“DISK ACCESS” appears.
3
When “CHANGE FLOPPY
DISK” is displayed, eject the
floppy disk.
“INSERT FLOPPY DISK”
appears.
4
Insert another floppy disk.
“RECORDING” appears. When
copying is completed,
“COMPLETE” appears.
To end copying, select [EXIT].
2
3
1, 4
01cov.book Page 50 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\06adv.fm]
B
BB
B
Editing
51
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Selecting still images
to print (PRINT MARK)
You can mark a print mark on still
images recorded with your camera.
This mark is convenient when you
have images printed at a shop that
conforms with the DPOF (Digital Print
Order Format) standard.
To remove the print mark
Select [OFF] in step
2
.
To remove selected print
marks
Select the images to be removed in step
3
with the control button, then select
[ENTER].
To remove all the print
marks
Select [FILE], [PRINT MARK],
[ALL], and then [OFF] from the menu.
The marks on all images are
removed.
To print out using the FVP-1
Mavica Printer
Set PRESET SELECT SW to PC on
the printer.
Note
You cannot mark a print mark on
moving images or TEXT mode
images.
In single mode
1
Set the PLAY/STILL/MOVIE
selector to PLAY and display
the image you want to print.
2
Select [FILE], [PRINT MARK],
and then [ON] from the menu.
The (print) mark is marked on
the displayed image.
In INDEX mode
1
Set the PLAY/STILL/MOVIE
selector to PLAY, then display
the INDEX screen.
2
Select [FILE], [PRINT MARK],
and then [SELECT] from the
menu.
3
Select the images to be
marked with the control
button.
1
2, 3, 4
4
Select [ENTER].
The marks on the selected
images change from green to
white.
0001-0006/0100
ENTERPRINT MARK CANCEL
SELECT OK
01cov.book Page 51 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\06adv.fm]
52
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Format
When you format a floppy disk, all
data stored on the floppy disk will be
deleted. Check the contents of the
floppy disk before formatting.
Note
Even if images are protected, these images
will be deleted.
To cancel formatting
Select [CANCEL] in step
2
.
Notes
•
When you format the disk, be sure to use a
fully charged battery pack or the AC power
adaptor as the power source.
•
If you use the Floppy Disk Adaptor for
Memory Stick, you can format “Memory
Stick”s.
1
Insert the floppy disk you
want to format.
2
Select [FILE], [DISK TOOL],
[FORMAT], and then [OK]
from the menu.
2
1
01cov.book Page 52 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\07add.fm]
Additional information
53
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Additional information
Precautions
Cleaning the LCD screen
Wipe the screen surface with a
cleaning cloth (not supplied) or an
LCD cleaning kit (not supplied) to
remove fingerprints, dust, etc.
Cleaning the camera surface
Clean the camera surface with a soft
cloth slightly moistened with water,
then wipe the surface dry. Do not use
any type of solvent such as thinner,
alcohol or benzene as this may damage
the finish or the casing.
After using your camera at the
seashore or other dusty locations
Clean your camera carefully.
Otherwise, the salty air may corrode
the metal fittings or dust may enter the
inside of your camera, causing a
malfunction.
To protect data recorded on floppy
disks, note the following:
•
Avoid storing floppy disks near
magnets or magnetic fields such as
those of speakers and televisions,
permanent erasure of disk data may
result.
•
Avoid storing floppy disks in areas
subject to direct sunlight or sources
of high temperature, such as a
heating device. Floppy disk warping
or damage may result, rendering the
disk useless.
•
Avoid contact with the disk’s surface
by opening the disk shutter plate. If
the disk’s surface becomes
blemished, data may be rendered
unreadable.
•
Avoid getting liquids on the floppy
disk.
•
Be sure to use a floppy disk case to
ensure protection of important data.
•
Even when you use a 3.5 inch 2HD
floppy disk, image data may not be
recorded and/or displayed depending
on the using environment. In this
case, use an other brand of disks.
Your camera is designed for use
between the temperatures of 0 °C to
40 °C (32 °F to 104 °F). Recording in
extremely cold or hot places that
exceed this range is not recommended.
If the camera is brought directly from a
cold to a warm location, or is placed in
a very damp room, moisture may
condense inside or outside the camera.
Should this occur, the camera will not
operate properly.
Moisture condensation occurs
easily when:
•
The camera is brought from a cold
location such as a ski slope into a
warmly heated room.
•
The camera is taken from an air-
conditioned room or car interior to
the hot outdoors, etc.
How to prevent moisture
condensation
When bringing the camera from a cold
place to a warm place, seal the camera
in a plastic bag and allow it to adapt to
conditions at the new location over a
period of time (about an hour).
On cleaning
On floppy disks
On operating temperature
On moisture condensation
01cov.book Page 53 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\07add.fm]
54
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
If moisture condensation occurs
Immediately eject the floppy disk, then
turn off the camera and wait about an
hour for the moisture to evaporate.
Note that if you attempt to record with
moisture remaining inside the lens, you
will be unable to record clear images.
•
Unplug the unit from the wall outlet
(mains) when you are not using the
unit for a long time. To disconnect
the power cord (mains lead), pull it
out by the plug. Never pull the power
cord (mains lead) itself.
•
Do not operate the unit with a
damaged cord (mains lead) or if the
unit has been dropped or damaged.
•
Do not bend the power cord (mains
lead) forcibly, or place a heavy object
on it. This will damage the cord
(mains lead) and may cause fire or
electrical shock.
•
Prevent metallic objects from coming
into contact with the metal parts of
the connecting section. If this
happens, a short may occur and the
unit may be damaged.
•
Always keep metal contacts clean.
•
Do not disassemble the unit.
•
Do not apply mechanical shock or
drop the unit.
•
While the unit is in use, particularly
during charging, keep it away from
AM receivers and video equipment.
AM receivers and video equipment
disturb AM reception and video
operation.
•
The unit becomes warm during use.
This is not a malfunction.
•
Do no place the unit in locations that
are:
— Extremely hot or cold
— Dusty or dirty
— Very humid
— Vibrating
•
Use only the specified charger with
the charging function.
•
To prevent accident from a short
circuit, do not allow metal objects to
come into contact with the battery
terminals.
•
Keep the battery pack away from fire.
•
Never expose the battery pack to
temperatures above 60 °C (140 °F),
such as in a car parked in the sun or
under direct sunlight.
•
Keep the battery pack dry.
•
Do not expose the battery pack to any
mechanical shock.
•
Do not disassemble nor modify the
battery pack.
•
Attach the battery pack to the camera
securely.
•
Charging while some capacity
remains does not affect the original
battery capacity.
Your camera is supplied with a
vanadium-lithium battery installed so
as to retain the date and time, etc.,
regardless of the setting of the POWER
switch. The vanadium-lithium battery
is always charged as long as you are
using your camera. The battery,
however, will get discharged gradually
if you do not use your camera. It will
be completely discharged in about six
months if you do not use your camera
at all. Even if the vanadium-lithium
battery is not charged, it will not affect
the camera operation. To retain the
date and time, etc., charge the battery if
the battery is discharged.
On AC power adaptor
On battery pack
On vanadium-lithium battery
01cov.book Page 54 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\07add.fm]
Additional information
55
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Charging the vanadium-lithium
battery:
•
Connect your camera to house
current (mains) using the AC power
adaptor supplied with your camera,
and leave your camera with the
power turned off for more than 24
hours.
•
Or install the fully charged battery
pack in your camera, and leave your
camera with the power turned off for
more than 24 hours.
If any problem occurs, unplug your
camera and contact your nearest Sony
dealer.
Using your camera
abroad
Power sources
You can use your camera in any
country or area with the supplied
battery charger within 100 V to 240 V
AC, 50/60 Hz. Use a commercially
available AC plug adaptor
[a]
, if
necessary, depending on the design of
the wall outlet (mains)
[b]
.
Watching the playback picture on
TV
If you want to view the playback
picture on a TV, you need a TV having
a video input jack and a video
connecting cable.
The color system of the TV must be
the same as that of your digital still
camera. TV color systems differ from
country to country. Check the
following list:
NTSC system countries
Bahama Islands, Bolivia, Canada,
Central America, Chile, Columbia,
Ecuador, Jamaica, Japan, Korea,
Mexico, Peru, Surinam, Taiwan, the
Philippines, the U.S.A., Venezuela, etc.
PAL system countries
Australia, Austria, Belgium, China,
Denmark, Finland, Germany, Great
Britain, Holland, Hong Kong, Italy,
Kuwait, Malaysia, New Zealand,
Norway, Portugal, Singapore, Spain,
Sweden, Switzerland, Thailand, etc.
PAL-M system country
Brazil
PAL-N system countries
Argentina, Paraguay, Uruguay
SECAM system countries
Bulgaria, Czech Republic, France,
Guiana, Hungary, Iran, Iraq, Monaco,
Poland, Russia, Slovak Republic,
Ukraine, etc.
AC-L10A/L10B/L10C
01cov.book Page 55 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\07add.fm]
56
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Troubleshooting
If you experience trouble with your camera, first check the following items. Should
your camera still not operate properly after you have made these checks, consult your
Sony dealer or local authorized Sony service facility. If code displays (C:
ss
:
ss
)
appear on the LCD screen, the self-diagnosis display function is working (page 61).
Symptom Cause and/or Solution
Your camera does not
work.
•
You are not using an “InfoLITHIUM” battery pack.
t Use an “InfoLITHIUM” battery pack (page 8).
•
The floppy disk is not inserted properly.
t Eject the disk, and insert it again.
•
The battery level is too low. (The indicator
appears.)
t Charge the battery pack (page 9).
•
The AC power adaptor is not connected securely.
t Connect it securely to the DC IN jack and a wall
outlet (mains) (page 9, 11).
•
The malfunction occurs inside the camera.
t Turn off the power, and turn on after one
minute, then check that the camera works
properly.
Your camera cannot
record images.
•
The PLAY/STILL/MOVIE selector is set to PLAY.
t Set it to MOVIE or STILL (page 15, 20).
•
No floppy disk has been inserted into your camera.
t Insert a floppy disk (page 14).
•
The tab on the disk is set to the non-recording
position.
t Set it to the recording position (page 14).
The picture is noisy.
•
Your camera is placed near a TV or other
equipment that uses strong magnets.
t Move your camera away from the TV, etc.
The picture is too dark.
•
You are shooting a subject with a light source
behind the subject.
t Adjust the exposure (page 40).
•
The brightness of the LCD screen is too low.
t Adjust the brightness of the LCD screen
(page 16).
01cov.book Page 56 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\07add.fm]
Additional information
57
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
The flash does not work.
•
The flash is set to .
t Set the flash to (no indication), , or
(page 19).
•
The camera is in one of the following PROGRAM
AE modes: Twilight, Twilight plus, or Landscape.
t Cancel the PROGRAM AE function or set the
flash to (page 19, 39).
•
The PLAY/STILL/MOVIE selector is set to
MOVIE.
t Set it to STILL.
The read/write time is
slow when using a
“Memory Stick.”
•
When using the Floppy Disk Adaptor for Memory
Stick, writing and reading images take about twice
times than using a floppy disk.
t This is not a malfunction.
The date and time are
recorded incorrectly.
•
The date and time are not set correctly.
t Set the correct date and time (page 12).
Vertical streaks appear
when you are shooting a
very bright subject.
•
This is called the smear phenomenon.
t This is not a malfunction.
The battery life is short.
•
You are recording/playing back images under
extremely cold temperatures.
•
The battery pack is not charged enough.
t Charge the battery pack fully.
•
The battery pack is dead.
t Replace the battery pack with a new one.
The indication of the
battery remaining time is
not proper.
•
You are using the camera for many hours under
extremely hot or cold temperatures.
•
The battery pack is dead.
t Replace the battery pack with a new one
(page 8).
•
The battery level is too low.
t Install the charged battery pack (page 8, 9)
The power is immediately
turned off even if the
battery remaining
indicator indicates that the
battery level is sufficient.
t Charge the battery pack about one hour after the
normal charge is complete (page 9).
The zoom does not work.
•
PROGRAM AE is set to the Panfocus mode.
t Cancel the Panfocus mode (page 39).
Digital zoom does not
function.
•
You cannot use digital zoom to record moving
pictures.
Symptom Cause and/or Solution
01cov.book Page 57 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\07add.fm]
58
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
The image is in
monochrome.
•
You shot the image in TEXT mode.
t Cancel the TEXT mode (page 37).
•
The picture effect is set to B&W.
t Cancel the B&W mode (page 41).
The image and sound
break off when you play
back an image on a
personal computer.
•
You are playing back the file from the floppy disk.
t Copy the file to the hard disk of the personal
computer and then play back the file from the
hard disk (page 25).
The image cannot be
played back on a personal
computer.
t Consult the personal computer or software
manufacturer.
Your camera cannot delete
an image.
•
The image is protected.
t Cancel the protection (page 46).
The power turns off
suddenly.
•
With the PLAY/STILL/MOVIE selector set to
STILL or MOVIE, if you do not operate the camera
for about three minutes while the power is on, the
camera turns off automatically to prevent wearing
down the battery pack.
t Turn on the camera.
•
The battery pack is discharged.
t Replace it with a charged battery pack.
The image does not
appear on the TV screen.
•
The VIDEO OUT setting of your camera is
incorrect.
t Change the setting (page 34).
The slide show function
stops automatically.
•
The slide show function stops after about
20 minutes.
t To continue the slide show, select [START]
again (page 44).
You cannot use the
PROGRAM AE function.
•
The camera is set to TEXT mode.
t Cancel TEXT mode (page 37).
The button does not
work.
•
The camera is in manual focus mode (MVC-FD90
only).
t Set it to auto focus mode (page 38).
•
PROGRAM AE is set to the Panfocus mode.
t Cancel the Panfocus mode (page 39).
You cannot resize the
image.
•
This function does not work on a moving image nor
on a TEXT image.
You cannot mark an image
with the print mark.
•
The print mark cannot be marked on a moving
image nor on a TEXT image.
Symptom Cause and/or Solution
01cov.book Page 58 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\07add.fm]
Additional information
59
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Warning and notice messages
Various messages appear on the LCD screen. Check the corresponding descriptions
in the following list.
Message Meaning
DRIVE ERROR There is trouble with the disk drive.
NO DISK No disk has been inserted.
FORMAT ERROR
•
The floppy disk loaded is not MS-DOS
formatted (512 bytes
×
18 sectors).
•
The battery level of the Floppy Disk
Adaptor for Memory Stick is low.
DISK PROTECT The tab on the disk is set to the non-
recording position.
DISK FULL The disk is full.
NO FILE No image has been recorded on the disk.
FILE ERROR Trouble has occurred during playback.
FILE PROTECT The image is protected.
DISK ERROR A 2DD floppy disk is inserted, or there is
trouble with the disk.
NOT ENOUGH MEMORY The remaining capacity of the floppy
disk is not enough to copy the image.
IMAGE SIZE OVER You tried to play back images with an
image size larger than the maximum
playback size of this camera.
INVALID OPERATION
•
You cannot do DISK COPY between a
“Memory Stick” and a floppy disk.
•
You select [ALL] from [COPY] when
copying images in the “Memory stick.”
for “InfoLITHIUM” battery only
The battery is not the “InfoLITHIUM” type.
-
The image is protected.
The battery level is too low.
NOT ENOUGH FD ADAPTOR’S
BATTERY
The battery level of the Floppy Disk
Adaptor for Memory Stick is low.
COULDN’T RECORD The battery level of the Floppy Disk
Adaptor for Memory Stick is too low to
shoot.
01cov.book Page 59 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\07add.fm]
60
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
INVALID OPERATION The battery level of the Floppy Disk
Adaptor for Memory Stick is too low to
do some operations.
DISK ERROR
•
The battery level of the Floppy Disk
Adaptor for Memory Stick is too low to
operate.
•
Trouble has occurred on the Floppy
Disk Adaptor for Memory Stick.
Message Meaning
01cov.book Page 60 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\07add.fm]
Additional information
61
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Self-diagnosis display
Your camera has a self-diagnosis display. This
function displays the camera condition on the
LCD screen with a combination of a letter and
four digits of numbers. If this appears, check the
following code chart. The code informs you of the
camera’s current condition. The last two digits
(indicated by
ss
) will differ depending on the
state of the camera.
If you are unable to rectify the problem even if you try corrective actions a
few times, contact your Sony dealer or local authorized Sony service facility.
Code Cause and/or Corrective Action
C:32:
ss
•
There is trouble with the disk drive.
t Turn the power off and on again.
C:13:
ss
•
An unformatted floppy disk is inserted.
t Format the floppy disk. (page 52)
•
An disk not compatible with this
camera is inserted.
t Change the disk. (page 14)
•
The battery level of the Floppy Disk
Adaptor for Memory Stick is too low.
t Replace the battery with a new one.
E:61:
ss
E:91:
ss
•
A camera malfunction that you cannot
repair has occurred.
t Contact your Sony dealer or local
authorized Sony service facility and
inform them of the 5-digit service
code. (example: E:61:10)
Self-diagnosis display
•
C:
ss
:
ss
You can repair the camera
yourself.
•
E:
ss
:
ss
Contact your Sony dealer or local
authorized Sony service facility.
01cov.book Page 61 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\07add.fm]
62
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
Specifications
System
Image device
MVC-FD85:1/2.7 type color
CCD
MVC-FD90:1/3.6 type color
CCD
Lens
MVC-FD85: 3× zoom lens
MVC-FD90: 8× zoom lens
MVC-FD85: f = 6.1 –
18.3 mm (1/4 – 3/4 inches)
(39 – 117 mm (1 9/16 –
4 5/8 inches) when
converted into a 35 mm still
camera)
MVC-FD90: f = 4.75 –
38 mm (3/16 – 1 1/2 inches)
(41 – 328 mm (1 5/8 –
13 inches) when converted
into a 35 mm still camera)
MVC-FD85: F = 2.8 – 2.9
MVC-FD90: F = 2.8 – 3.0
Exposure control
Automatic exposure
White balance
Automatic, Indoor, Outdoor,
Hold
Data compression
system
Movie: MPEG1
Still:
Floppy disk: JPEG (JFIF)
“Memory Stick”: JPEG
(Exif2.1)
GIF (in TEXT mode)
Audio (with still image):
MPEG AUDIO (Monaural)
Recording medium
Floppy disk:
3.5 inch 2HD MS-DOS
format (1.44MB)
MSAC-FD2M Floppy Disk
Adaptor for Memory Stick:
DCF98 format
Flash
Recommended recording
distance:
0.3 m to 2.5 m (11 7/8 inches
to 8 1/3 feet)
Input and Output
connector
AUDIO (MONO) /VIDEO
OUT (Monaural)
Minijack Video:
1 Vp-p, 75
Ω
, unbalanced,
sync negative
Audio: 327 mV (at a 47 k
Ω
load)
Output impedance: 2.2 k
Ω
External flash jack
(MVC-FD90 only)
Minijack
LCD screen
Used LCD panel
TFT (Thin Film Transistor
active matrix) drive
Total number of dots
123 200 (560×220) dots
General
Application
Sony battery pack NP-F330
(supplied)/F550
Power requirements
8.4 V
Power consumption
(During shooting)
3.3 W
Operation temperature
0°C to 40°C (32°F to 104°F)
Storage temperature
–20°C to +60°C (–4°F to
+140°F)
Maximum dimensions
MVC-FD85: 143×103×
66 mm (5 3/4×4 1/8×
2 5/8 inches) (w/h/d)
MVC-FD90: 143×103×
77 mm (5 3/4×4 1/8×
3 1/8 inches) (w/h/d)
Mass
MVC-FD85: Approx. 650 g
(1 lb 7 oz) (including battery,
floppy disk and lens cap,
etc.)
MVC-FD90: Approx. 670 g
(1 lb 8 oz) (including battery,
floppy disk and lens cap,
etc.)
Built-in microphone
Electret condenser
microphone
Built-in speaker
Dynamic speaker
AC-L10A/L10B/L10C
AC power adaptor
Power requirements
100 to 240 V AC, 50/60 Hz
Rated output voltage
DC 8.4 V, 1.5 A in operating
mode
Operation temperature
0°C to 40°C (32°F to 104°F)
Storage temperature
–20°C to +60°C (–4°F to
+140°F)
Maximum dimensions
125×39×62 mm (5×1 9/16×
2 1/2 inches) (w/h/d)
Mass
Approx. 280 g (10 oz)
NP-F330 battery pack
Used battery
Lithium ion battery
Maximum voltage
DC 8.4 V
Nominal voltage
DC 7.2 V
Capacity
5.0 Wh (700 mAh)
Accessories
AC-L10A/L10B/L10C AC
power adaptor (1)
Power cord (mains lead) (1)
NP-F330 battery pack (1)
A/V connecting cable (1)
Shoulder strap (1)
Lens cap (1)
Lens cap strap (1)
CD-ROM (1)
Operating instructions (1)
Design and specifications
are subject to change
without notice.
01cov.book Page 62 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\07add.fm]
Additional information
63
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
LCD screen indicators
A AE lock indicator/Focus lock
indicator
B Sharpness indicator
C Focus mode indicator/Macro
indicator
D Battery remaining indicator
E Flash level indicator/Flash
mode indicator
F PROGRAM AE indicator/Zoom
indicator
G White balance indicator
H DATE indicator
I Picture effect indicator
J EV level indicator
K Menu bar and guide menu
They appear by pressing
v
on the
control button and disappear by
pressing
V
.
L Recording mode indicator
M Image size indicator
N Number of recorded images
O Remaining disk capacity
indicator
P Recording time indicator
Q Self-diagnosis function
indicator/Recording time
indicator
R Self-timer indicator
S Spot light-metering indicator
The indicators during recording
+1.0EV
REC 0:03
10
1280
15s
EFFECT FILE SETUP
CAMERA
SELECT
MENU BAR OFF
OK
120min
SOLARIZE
DATE
3:2
6
5
4
2
1
3
7
8
9
0
qa
qg
qf
qd
qs
qh
qj
qk
ql
01cov.book Page 63 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\07add.fm]
64
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
A Recording mode indicator
B Image size indicator
C Image number
D Remaining disk capacity
indicator
E Number of stored images on a
floppy disk
F Print mark indicator
G Protect indicator/Zoom scaling
indicator
H Recording date of the playback
image*
I File name*
∗
When the menu bar is displayed, this
indicator disappears from the screen.
The indicators during still image playback
MVC-011S
120min
1280
12:00AM2000 7 4
11/12
01cov.book Page 64 Monday, March 13, 2000 9:21 AM
masterpage:Right
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\07add.fm]
Additional information
65
model name1[MVC-FD85/FD90]
[3-060-831-12(1)]
A Moving image file indicator
B Image size indicator
C Image number/number of
stored images on a floppy disk
D Remainig disk capacity
indicator
E Counter
F Playback image
G Playback bar
H Menu bar and guide menu
I Image searching buttons
J Playback buttons
B
is displayed during stop, and
X
during playback.
The indicators during moving image playback
0:10
160
120min
6/8
SELECT OK
MENU BAR OFF
DELETE
INDEX FILE SETUPTOOL
01cov.book Page 65 Monday, March 13, 2000 9:21 AM
01cov.book Page 66 Monday, March 13, 2000 9:21 AM
01cov.book Page 67 Monday, March 13, 2000 9:21 AM
masterpage:Left
filename[D:\nakano's\3060831121\3060831121MVCFD85UC\01covIX.fm]
Sony Corporation Printed in Japan
Index
Symbols
“InfoLITHIUM” battery
pack.............................8
A
AC power adaptor..........11
Adjusting brightness
Image.........................33
LCD screen................16
AE (auto exposure)........15
Auto power-off function
.....................................9
B
Battery pack
Charging......................9
Installing......................8
Remaining time...........9
Usable time................10
BEEP..............................34
C
Charging ..........................9
Cleaning.........................53
CLOCK SET..................12
Control button................28
COPY.............................48
D
DELETE ........................47
DEMO............................33
DIGITAL ZOOM .. 17
,
33
DISK COPY..................50
DISK TOOL..................31
DPOF.............................51
E
Editing
COPY........................48
DELETE....................47
PROTECT.................46
E-MAIL.........................36
F
FILE NUMBER.............31
FLASH LEVEL.............33
Floppy disk
Copying.....................50
Format.......................52
Inserting.....................14
Number of recordable
images
..........................35
Usable type................14
FORMAT.......................52
Full charge.......................9
I
Copying.....................48
Deleting.....................47
File name ..................26
Print mark .................51
Protect.......................46
Size ...........................35
INDEX screen...............42
Indicators on the LCD
screen........................63
J
JPEG.......................15
,
24
M
Macro recording............37
Manual focusing............38
Menu..............................30
Moisture condensation ..53
Moving image
Playback....................22
Recording..................20
MPEG.....................20
,
24
N
Normal charge.................9
Number of recordable
images
E-mail mode..............36
Image size.................35
TEXT mode..............37
Voice mode...............36
P
PICTURE EFFECT.......41
PLAY/STILL/MOVIE
selector......................15
Playing back
INDEX screen...........42
Moving images.........22
Slide show.................44
Still images...............21
Viewing images on a
personal computer
.........................24
Viewing images on a TV
screen..............45
Power source
AC power adaptor.....11
Battery pack.................9
PRINT MARK...............51
PROGRAM AE.............39
PROTECT......................46
R
REC MODE...................32
Recording
E-mail mode..............36
In macro.....................37
Moving image ...........20
Still image .................15
TEXT mode...............37
Voice memo ..............36
With flash..................19
RESIZE..........................48
S
Self timer .......................18
Self-diagnosis display....61
Setting the date and time
...................................12
Single display.................42
SLIDE SHOW...............44
Still image
Playback....................21
Recording..................15
T
TEXT mode...................37
U
Using flash.....................19
Using your camera abroad
...................................55
V
Viewing images using a
personal computer .....24
VOICE...........................36
W
Warning messages.........59
White balance................40
Z
Zoom..............................17
01cov.book Page 68 Monday, March 13, 2000 9:21 AM
