3-864-632-14 (2)
©1998 by Sony Corporation
DCR-TRV900
Digital Video
Camera Recorder
Operating Instructions
Before operating the unit, please read this manual thoroughly,
and retain it for future reference.
Owner’s Record
The model and serial numbers are located on the bottom. Record
the serial number in the space provided below. Refer to these
numbers whenever you call upon your Sony dealer regarding this
product.
Model No. DCR-TRV900 Model No. AC-L10A
Serial No. Serial No.
2
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER•SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
For the Customers in the U.S.A.
CAUTION
You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.
Note:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and
receiver.
— Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV
technician for help.
For the Customers in CANADA
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
When you use Memory Sticks (not supplied),
see page 91 for details.
• IBM PC/AT is a registered trademark of International
Business Machines Corporation of the U.S.A.
• MS-DOS and Windows are registered trademarks
licensed to Microsoft Corporation, registered in the
U.S.A. and other countries.
• Macintosh is a trademark licensed to Apple
Computer, Inc., registered in the U.S.A. and other
countries.
• All other product names mentioned herein may be
the trademarks or registered trademarks of their
respective companies.
Furthermore, “” and “” are not mentioned in each
case in this manual.
WARNING
To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
For the Customers in the U.S.A. and
CANADA
DISPOSAL OF LITHIUM ION BATTERY.
LITHIUM ION BATTERY.
DISPOSE OF PROPERLY.
You can return your unwanted lithium ion batteries to
your nearest Sony Service Center or Factory Service
Center.
Note: In some areas the disposal of lithium ion batteries
in household or business trash may be prohibited.
For the Sony Service Center nearest you call
1-800-222-SONY (United States only).
For the SONY Factory Service Center nearest you call
416-499-SONY (Canada only).
Caution: Do not handle damaged or leaking lithium ion
batteries.
Welcome !!
Congratulations on your purchase of this Sony Handycam Vision
ΤΜ
camcorder. With your
Handycam Vision, you can capture life’s precious moments with superior picture and sound
quality. Your Handycam Vision is loaded with advanced features, but at the same time it is very
easy to use. You will soon be producing home video that you can enjoy for years to come.
3
Before you begin
Table of contents
Before you begin
Using this manual.............................................. 4
Checking supplied accessories ........................ 6
Getting started

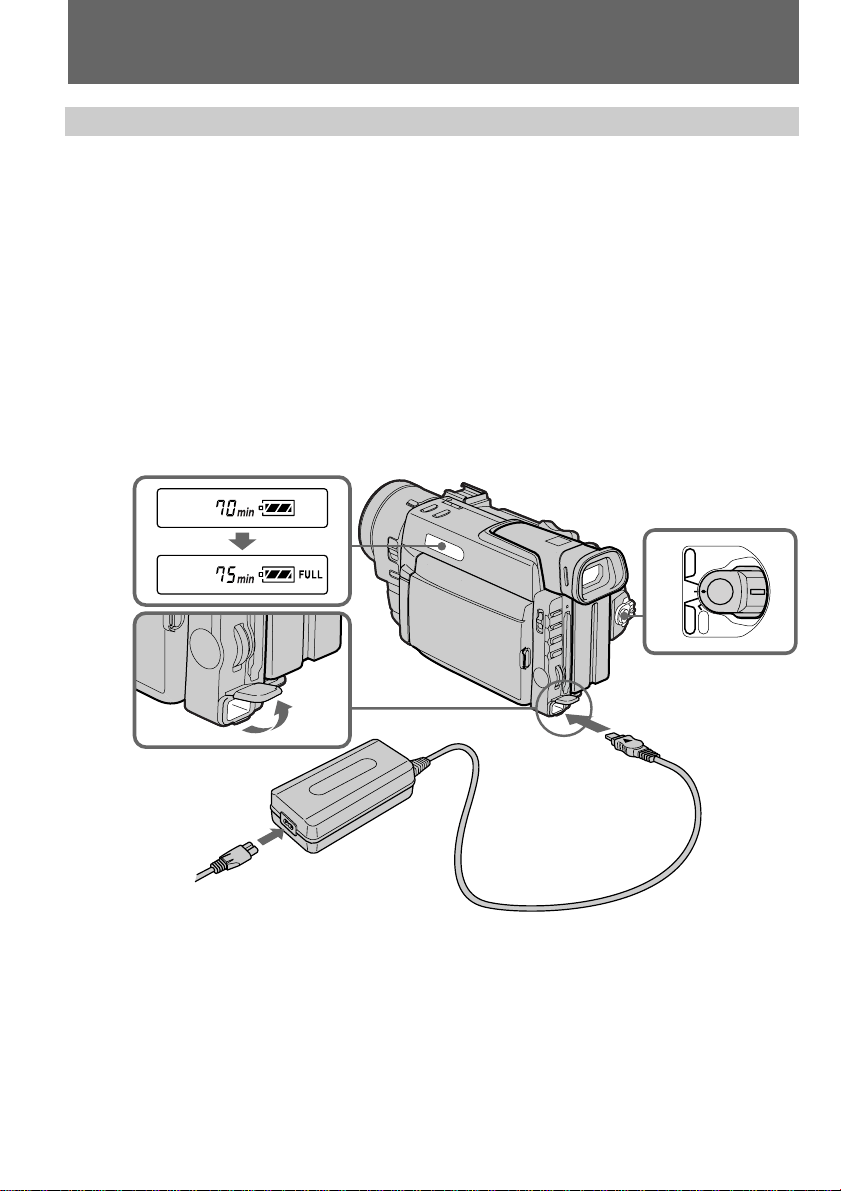

Installing and charging the battery pack ....... 7

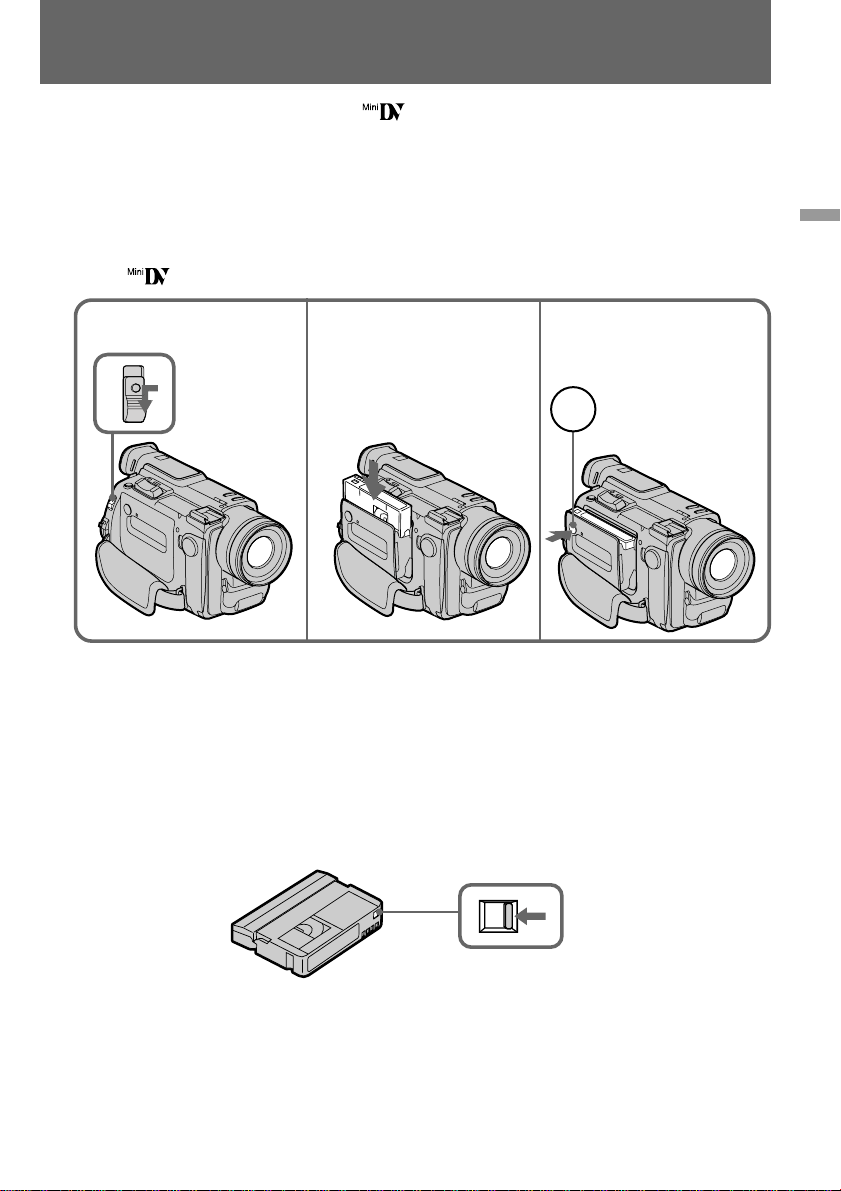

Inserting a cassette........................................... 11
Basic operations
Camera recording ............................................ 12

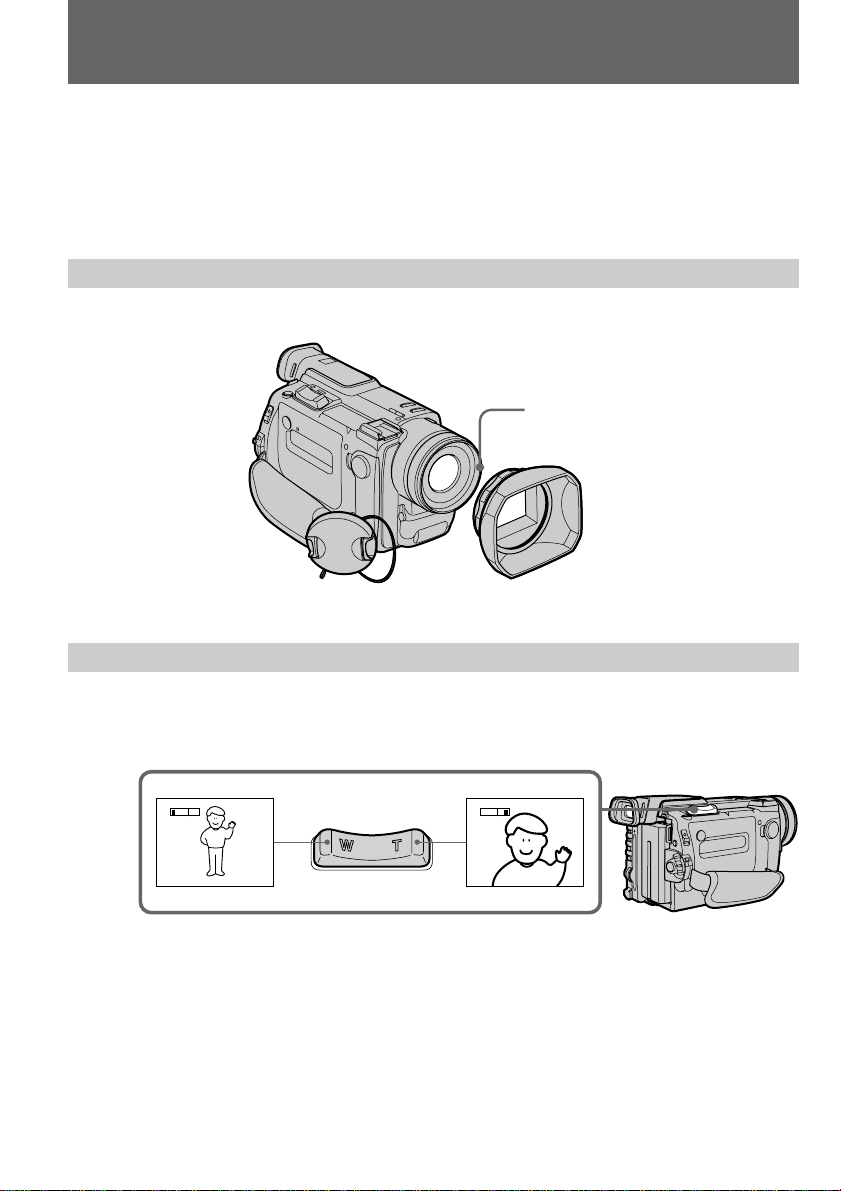

Attaching the lens hood ........................... 14
Using the zoom feature ............................ 14
Selecting the start/stop mode ................. 15

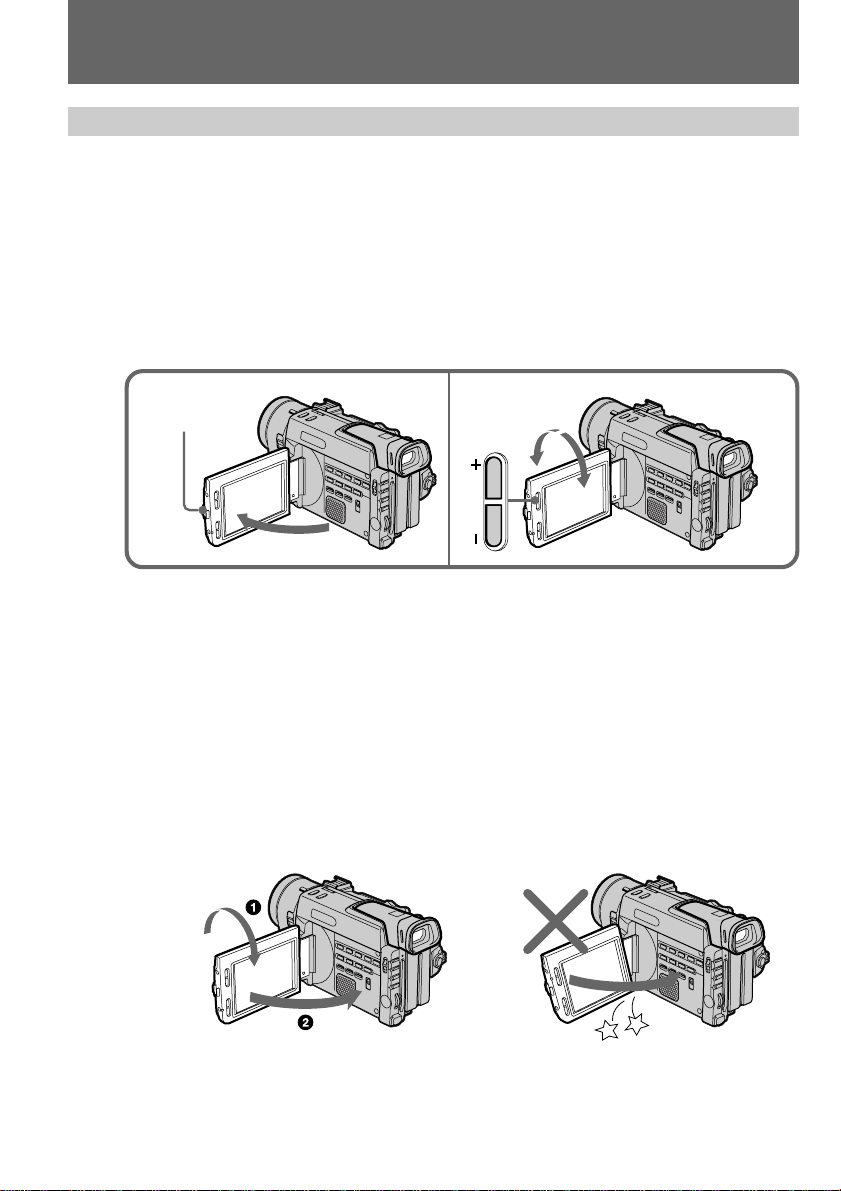

Shooting with the LCD screen ................ 16

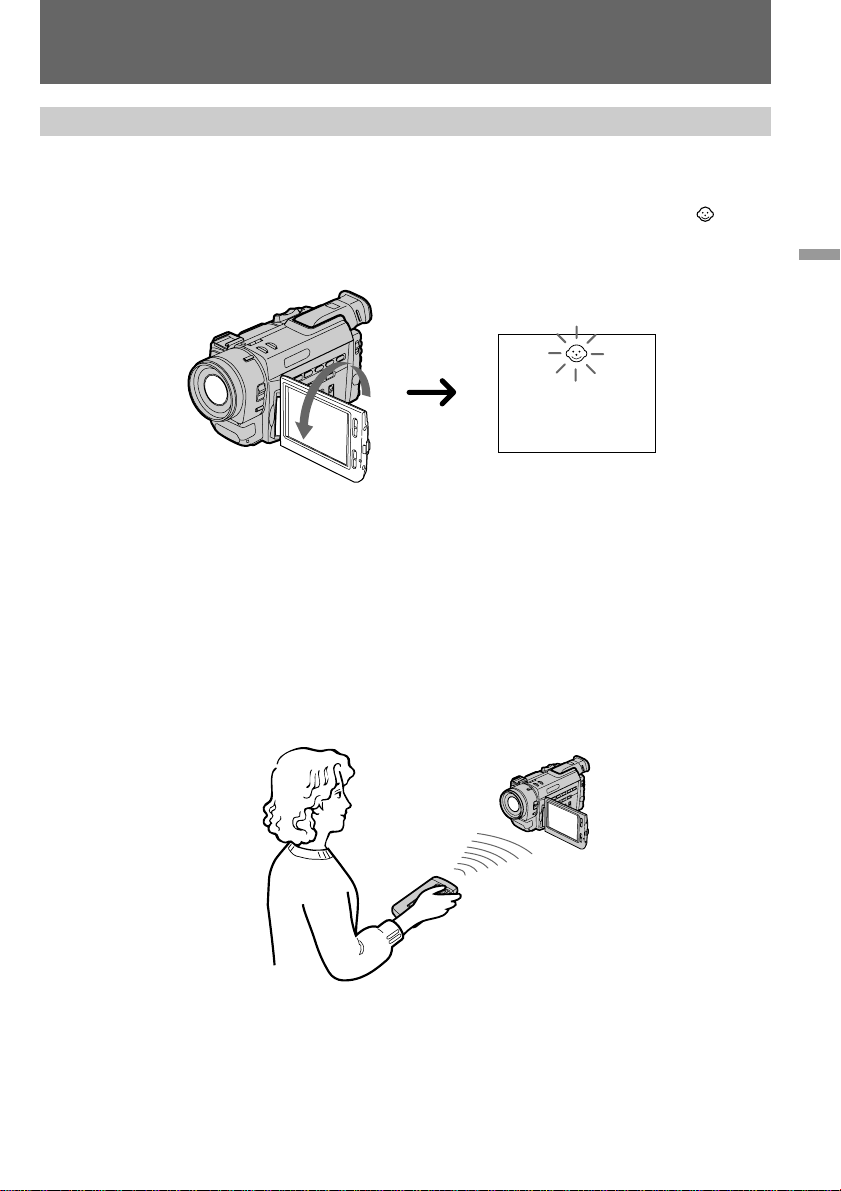

Letting the subject monitor the shot....... 17
Self-timer recording .................................. 18

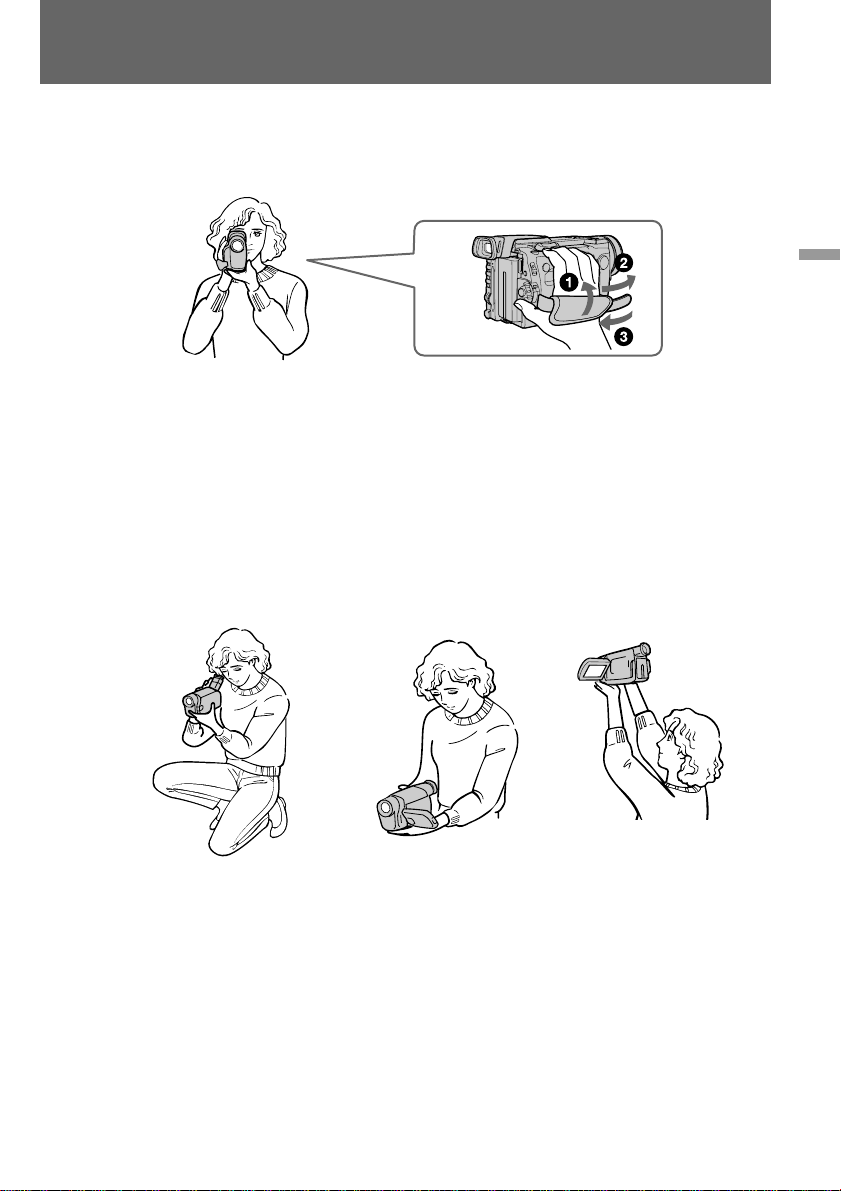

Hints for better shooting ................................ 19
Checking the recorded picture ...................... 21
Playing back a tape.......................................... 22
Searching for the end of the picture.............. 24
Advanced operations
Using alternative power sources ................... 25

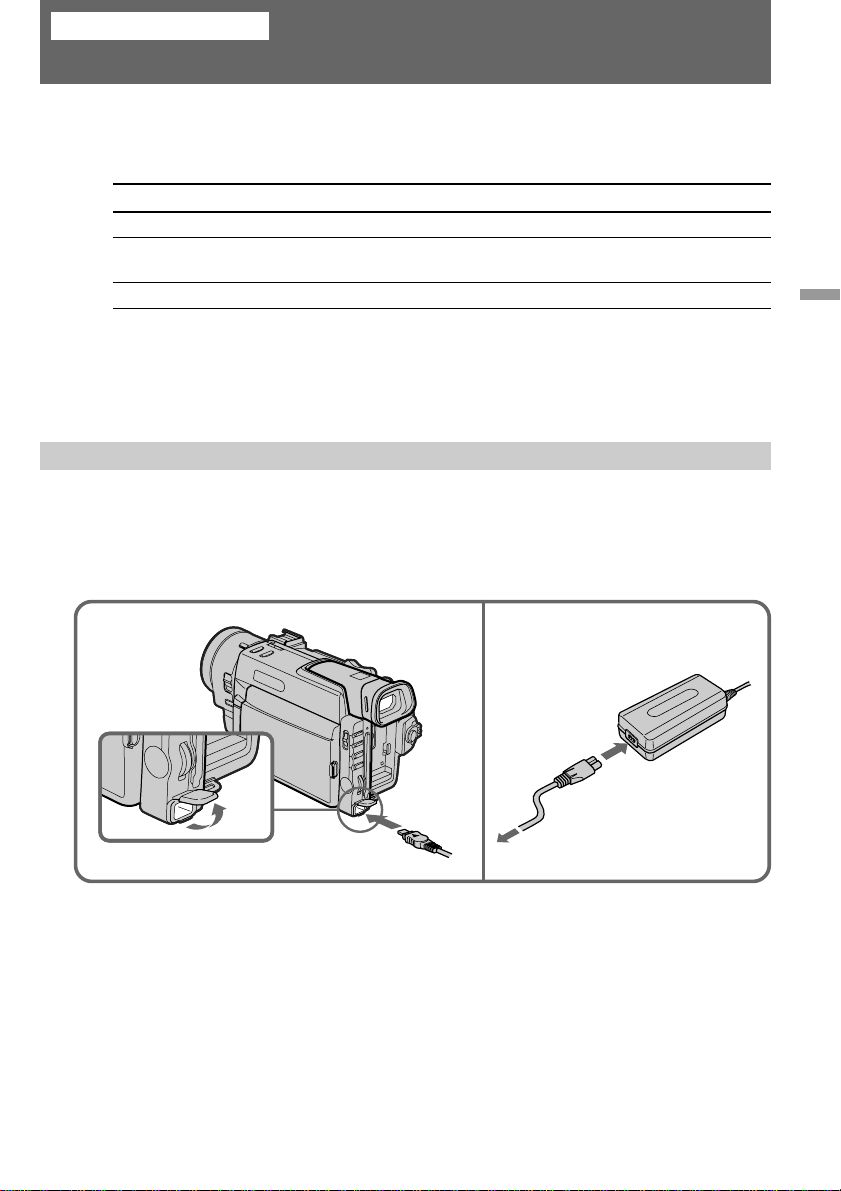

Using the house current ........................... 25
Using a car battery .................................... 26

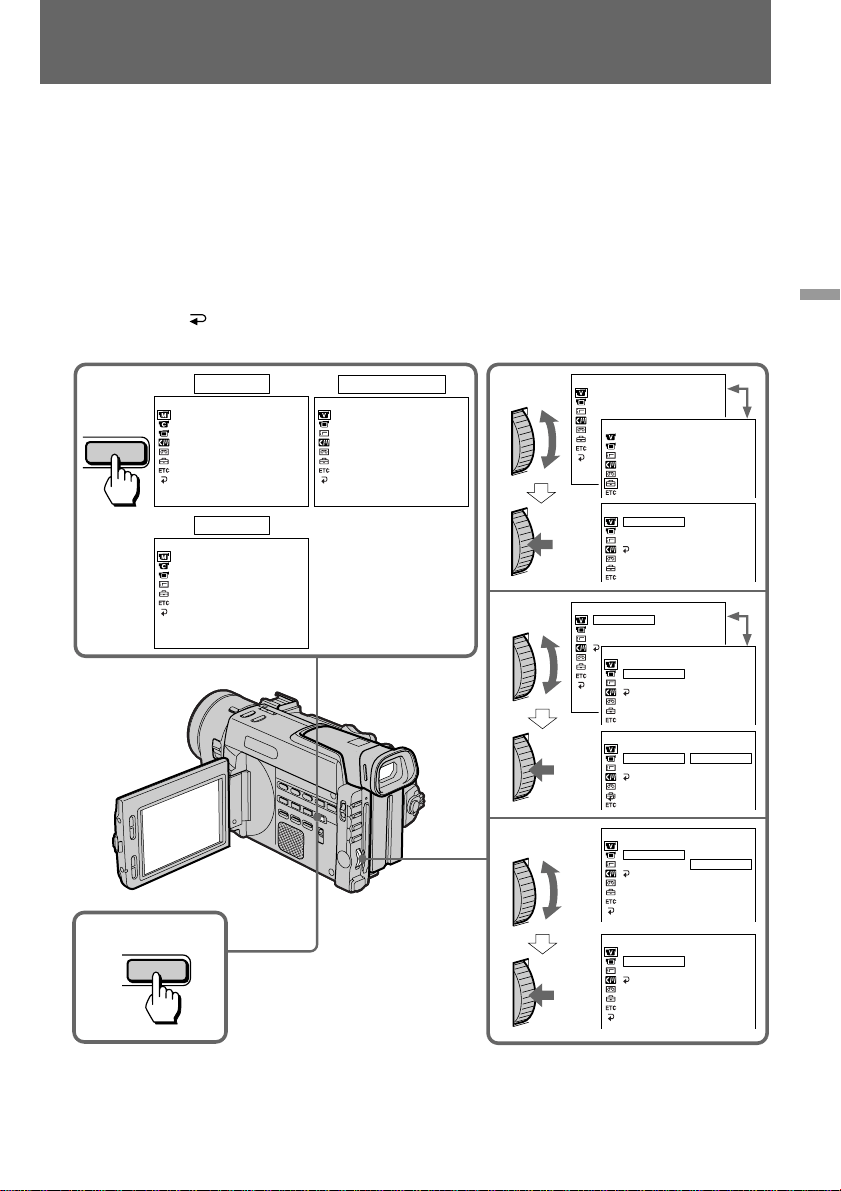

Changing the mode settings .......................... 27
—for camera recording—
Photo recording ............................................... 33
Shooting with all the pixels – PROG. SCAN .. 35
Using the FADER function............................. 36

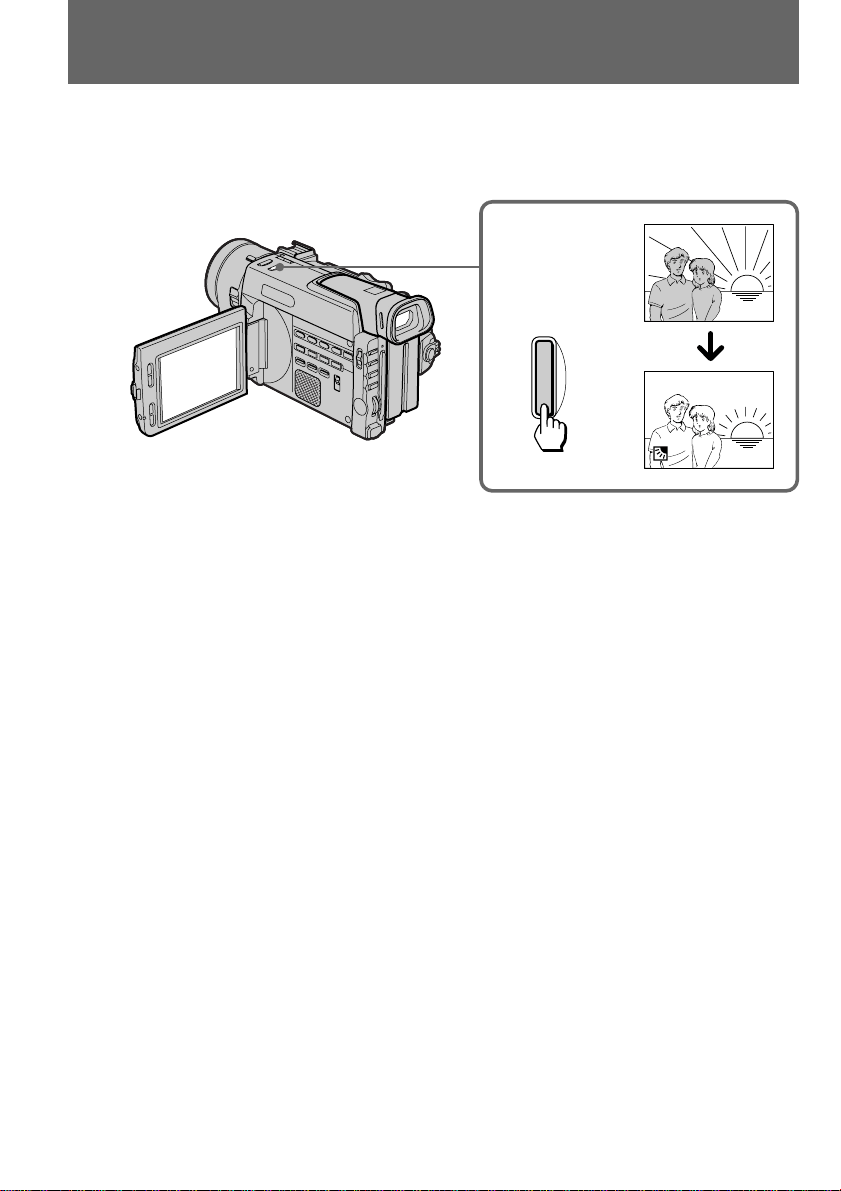

Shooting with backlighting ............................ 38

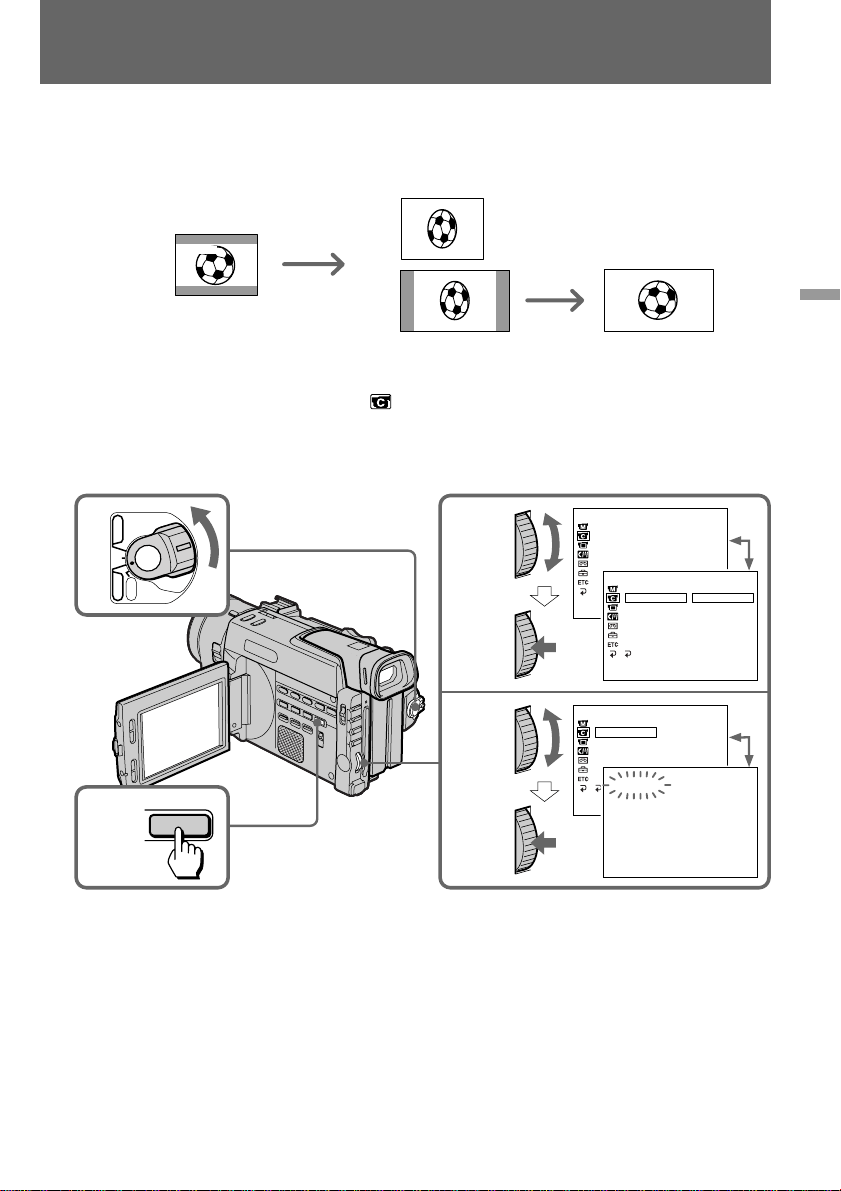

Using the wide mode function ...................... 39
Enjoying picture effect .................................... 40
Recording with various effects
– digital effect ............................................ 42
Shooting with manual adjustment ................ 44

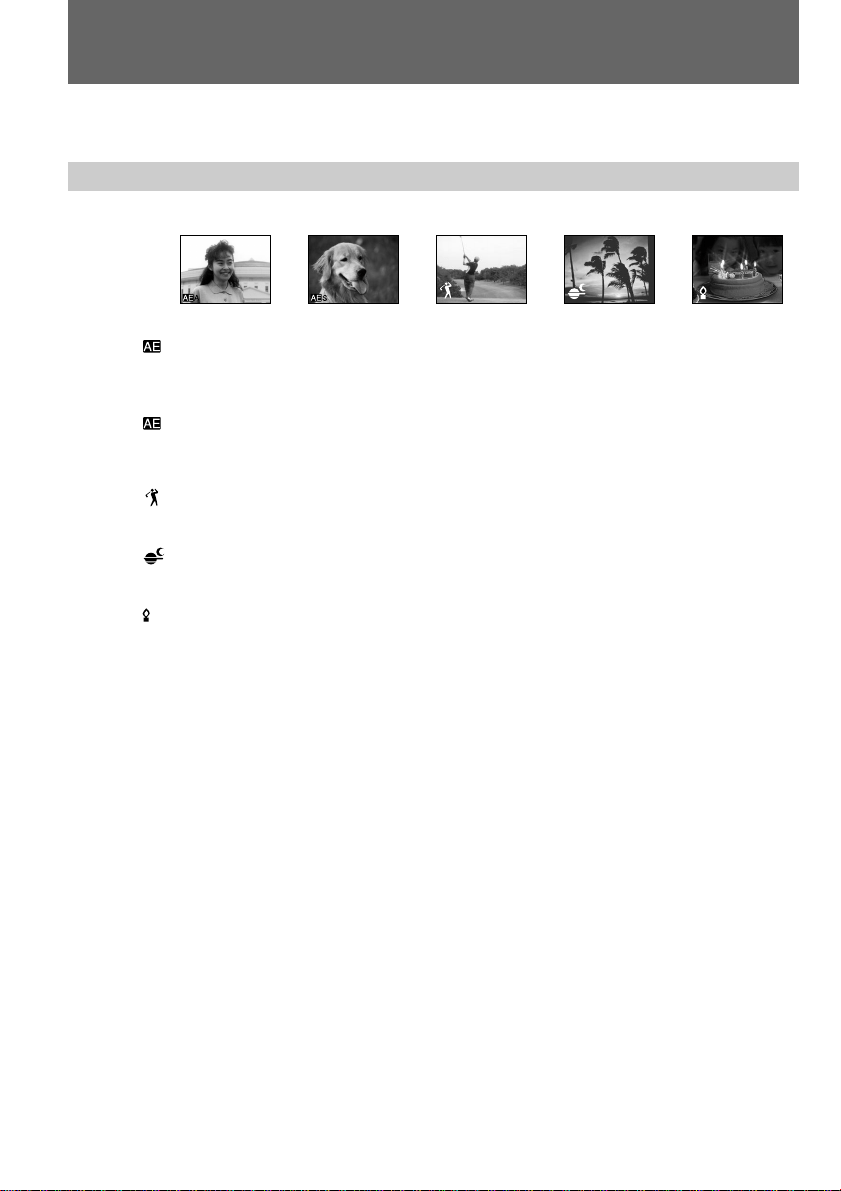

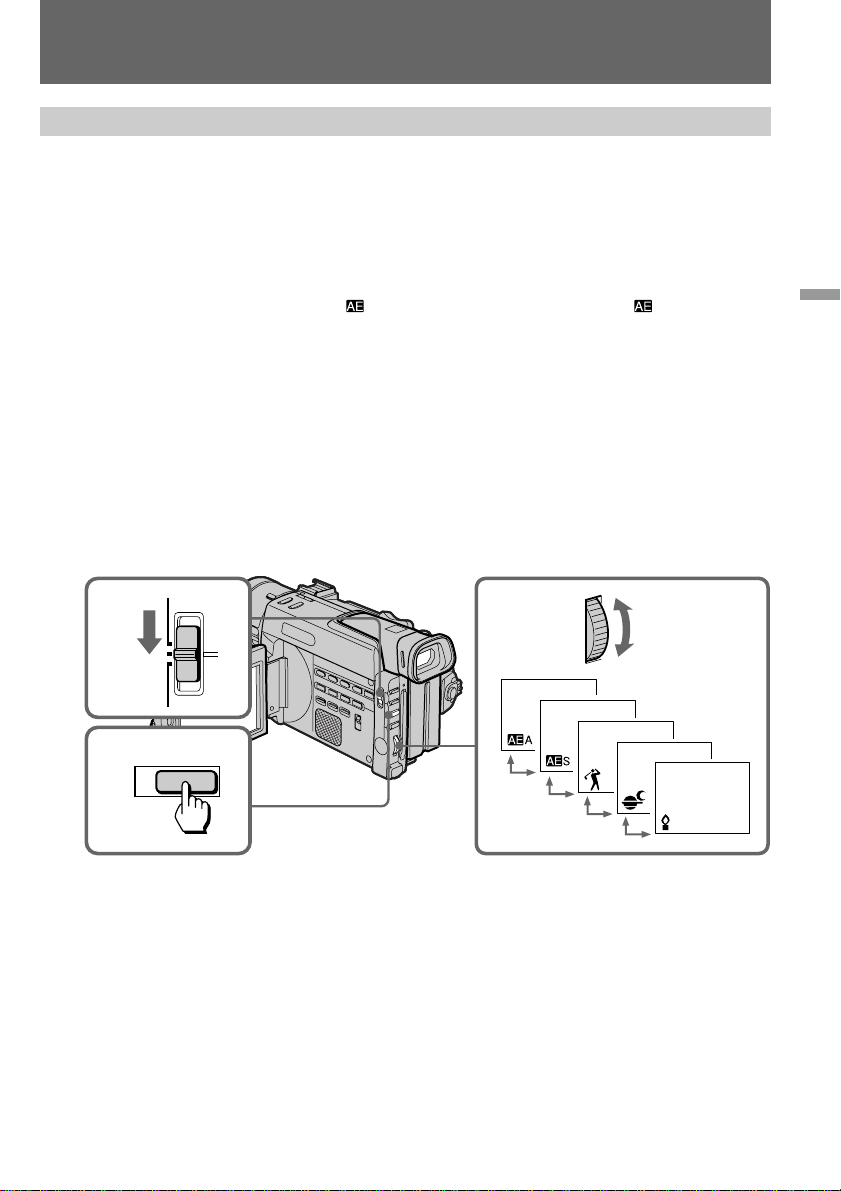

Using the PROGRAM AE function............... 54

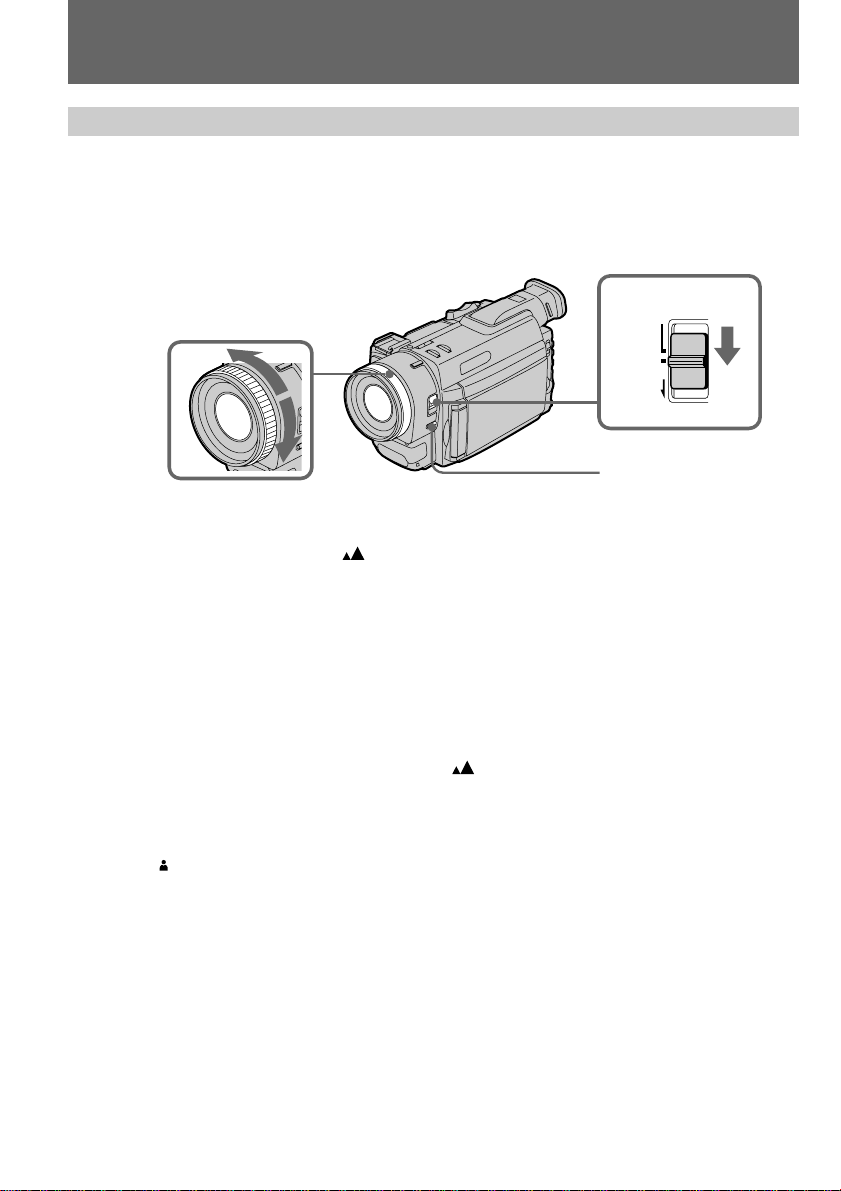

Focusing manually .......................................... 57

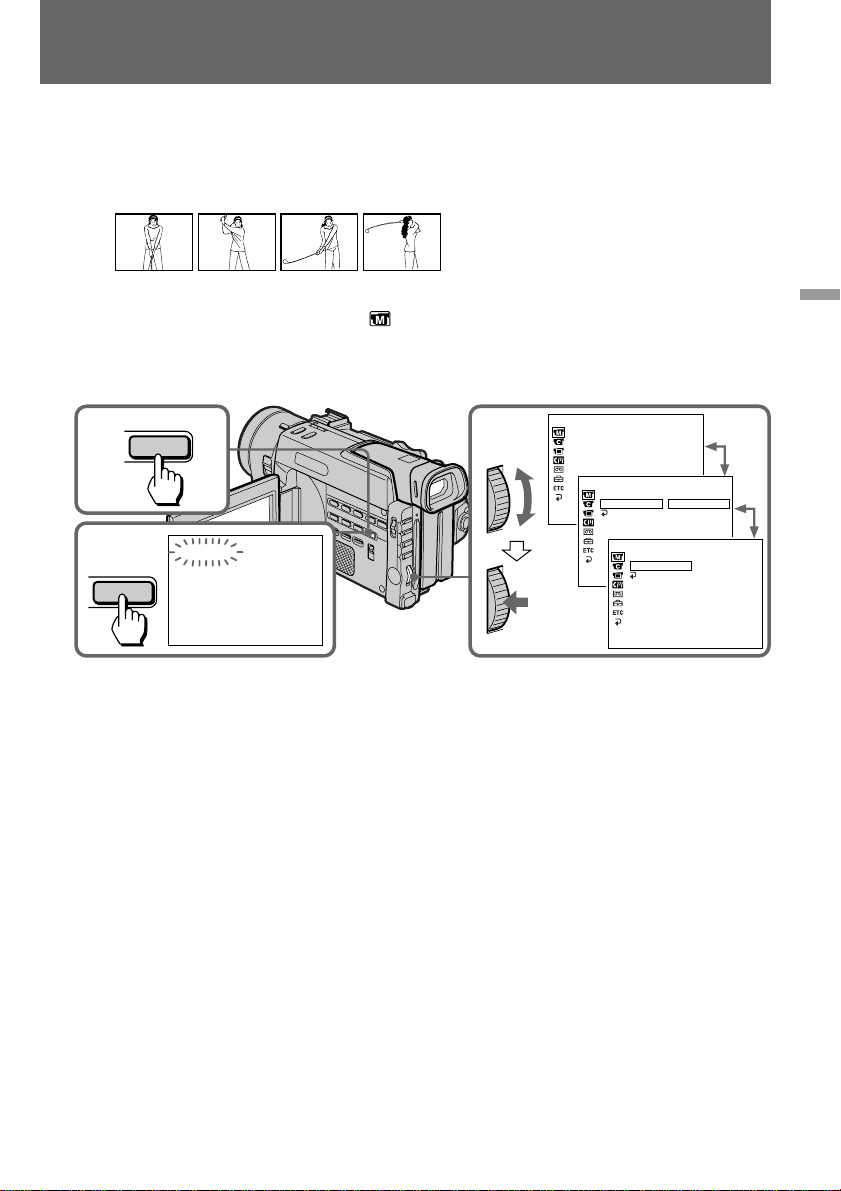

Interval recording ............................................ 59
Cut recording ................................................... 61
Superimposing a title ...................................... 63
Making a custom title...................................... 66
Labeling a cassette ........................................... 68
—for playing back/editing—

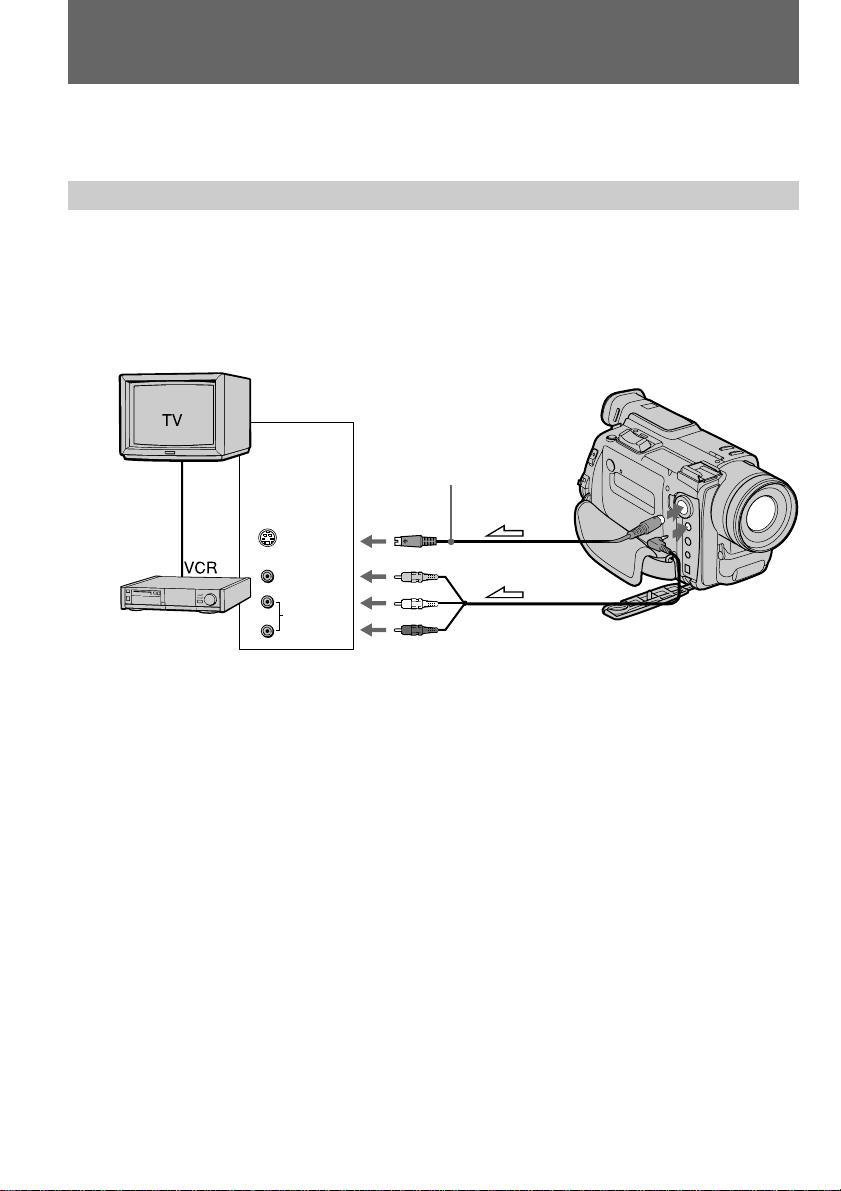

Watching on a TV screen ................................ 70
Viewing the picture with the picture
effect ............................................................ 72
Viewing the picture with the digital
effect ............................................................ 73

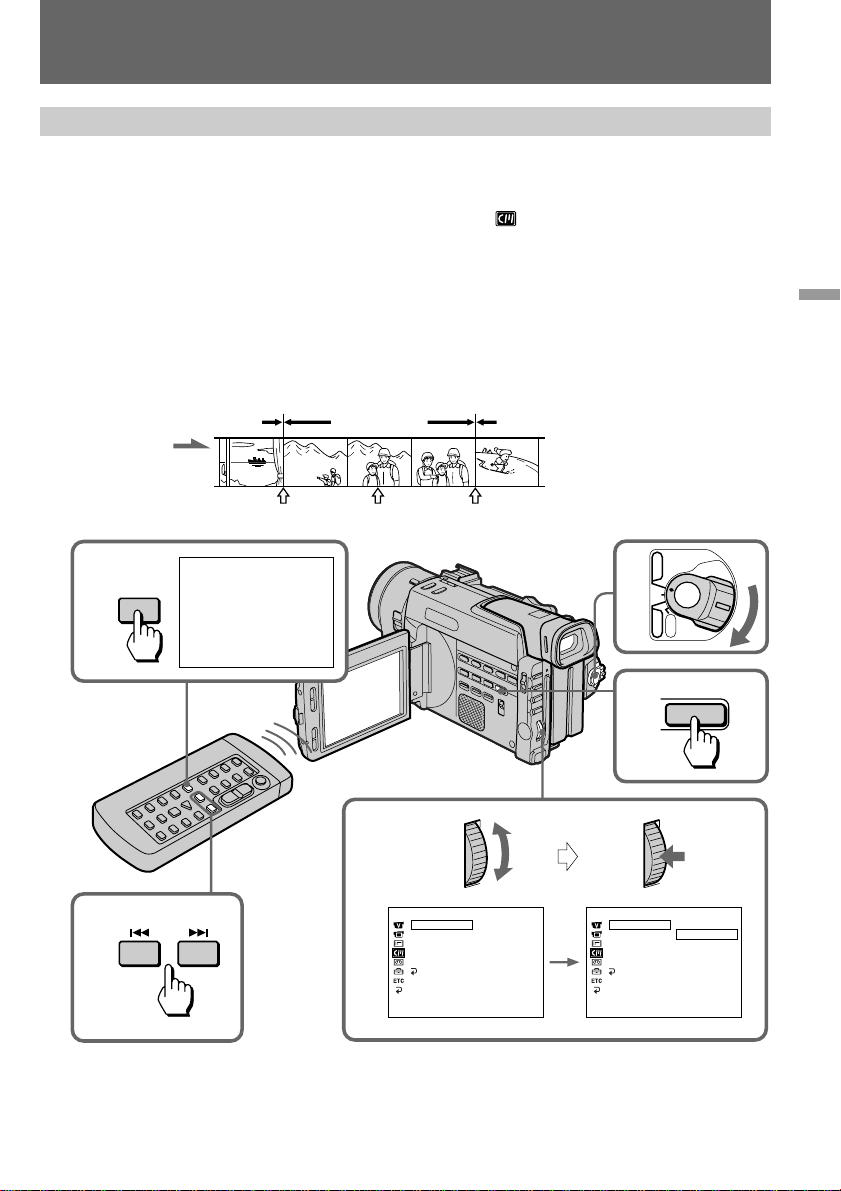

Searching the boundaries of recorded
tape with date – date search ................... 74
Searching the boundaries of recorded
tape with title – title search..................... 76
Searching for a photo
– photo search/photo scan ...................... 77

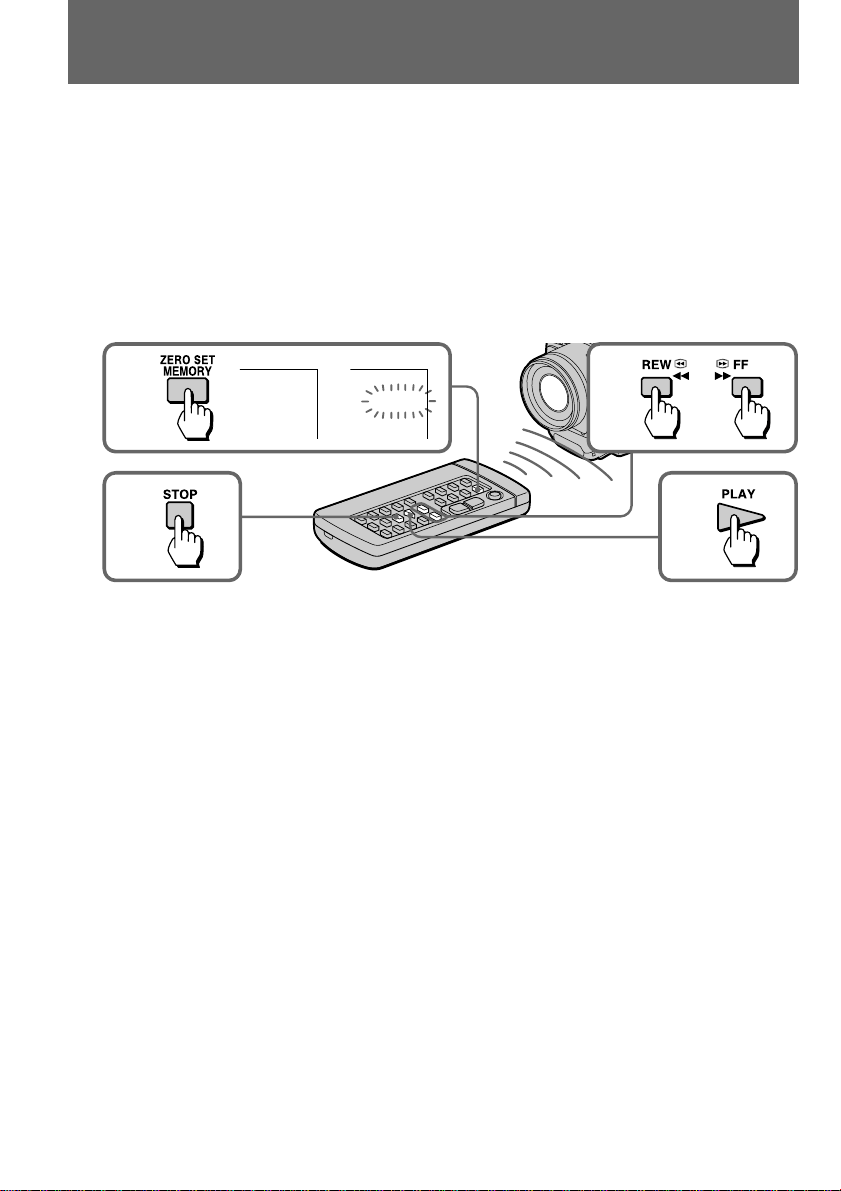

Returning to a pre-registered position ......... 80
Displaying recording data
– data code function ................................. 81

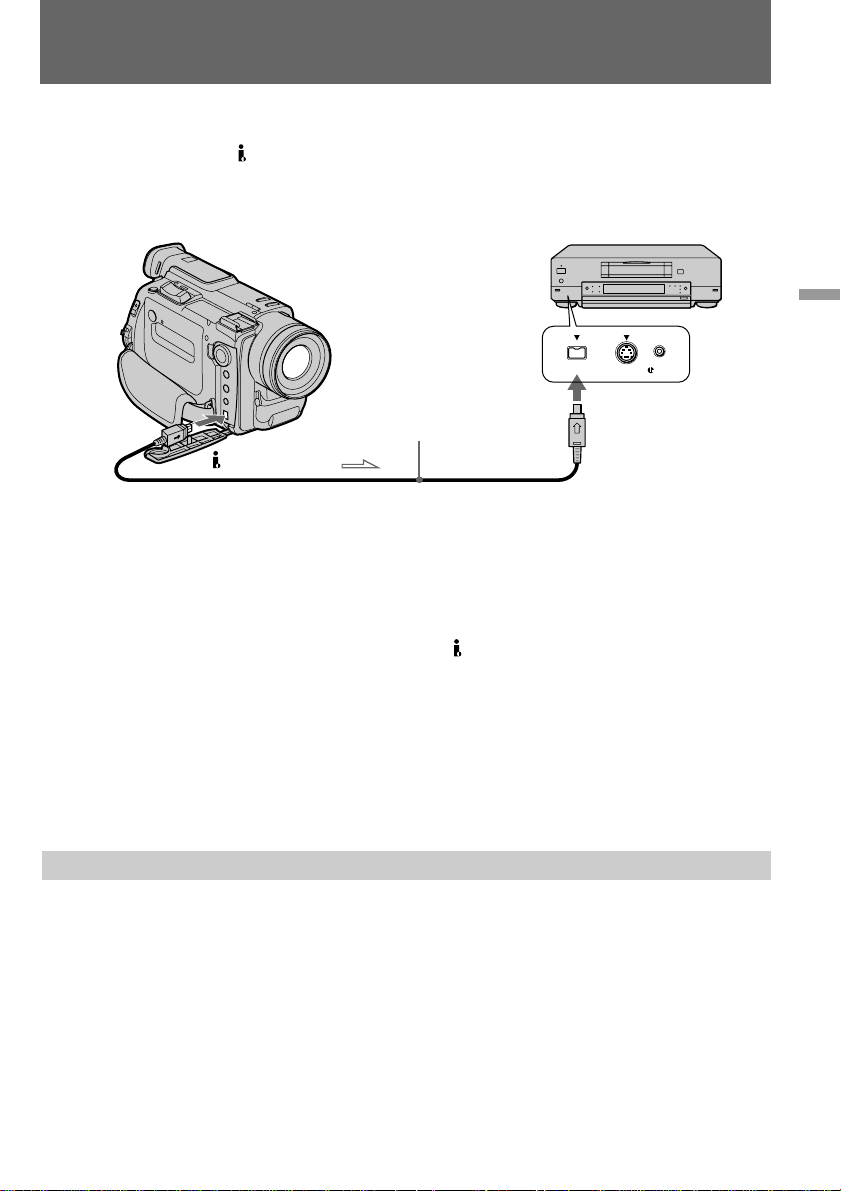

Editing onto another tape............................... 82
Editing partially on a mini DV tape
– DV synchro-editing ............................... 84
Recording from a VCR or TV......................... 86
Replacing recording on a tape
– insert editing .......................................... 87
Audio dubbing................................................. 88
Memory card slot operations
Using the memory card slot
– introduction ............................................ 91
Recording an image from a mini DV tape
as a still image ........................................... 98
Copying still images from a mini DV tape
– photo save ............................................. 100
Recording still images on PC cards (not
supplied) – memory photo recording .. 102
Viewing a still picture
– memory photo playback ..................... 105
Preventing accidental erasure
– PROTECT .............................................. 108
Deleting images ............................................. 109
Copying the image recorded with the
memory card slot to mini DV tapes ..... 112
Playing back images in a continuous loop
– SLIDE SHOW ....................................... 114
Additional information
Usable cassettes and playback modes ........ 116
Charging the vanadium-lithium
battery in the camcorder ........................ 117
Resetting the date and time.......................... 118
Simple setting of clock by time
difference.................................................. 119
Tips for using the battery pack .................... 120
Maintenance information and
precautions............................................... 123
Using your camcorder abroad ..................... 126
Trouble check ................................................. 127
Self-diagnosis function ................................. 132
Specifications.................................................. 133

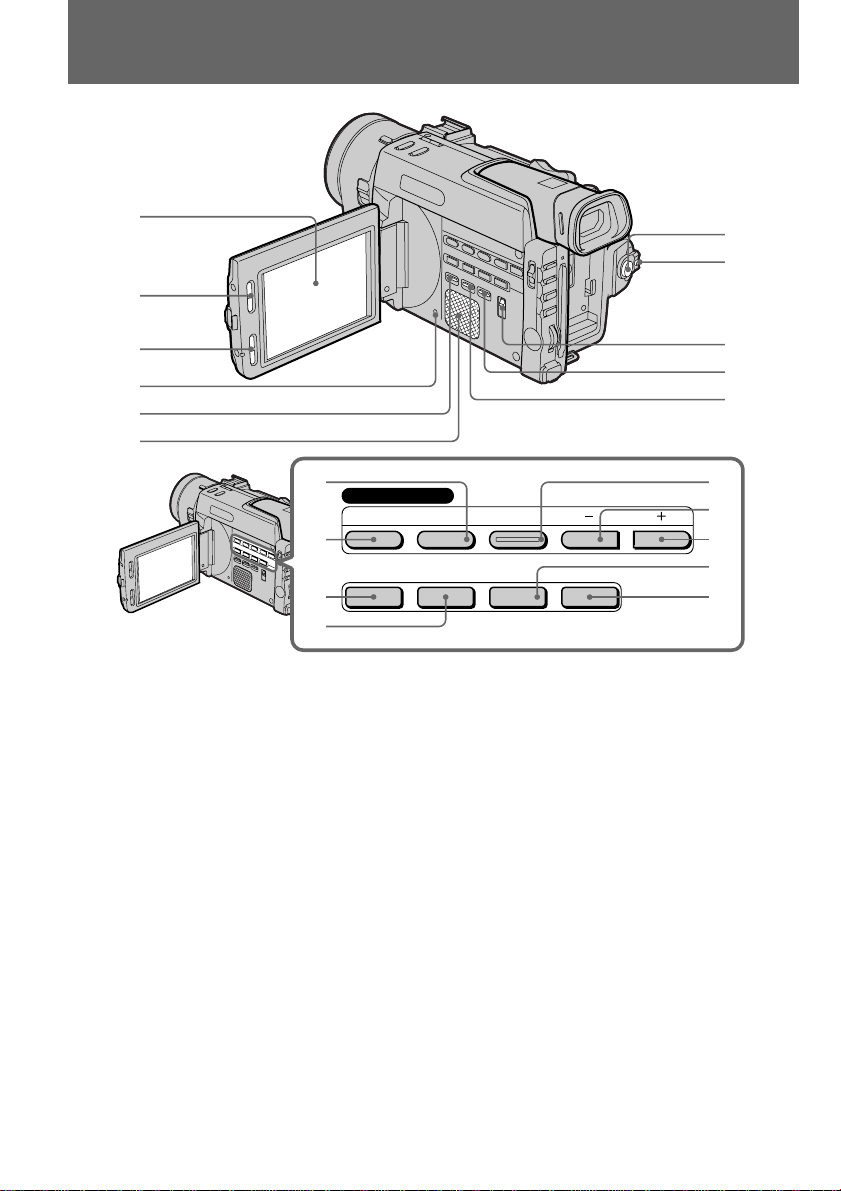

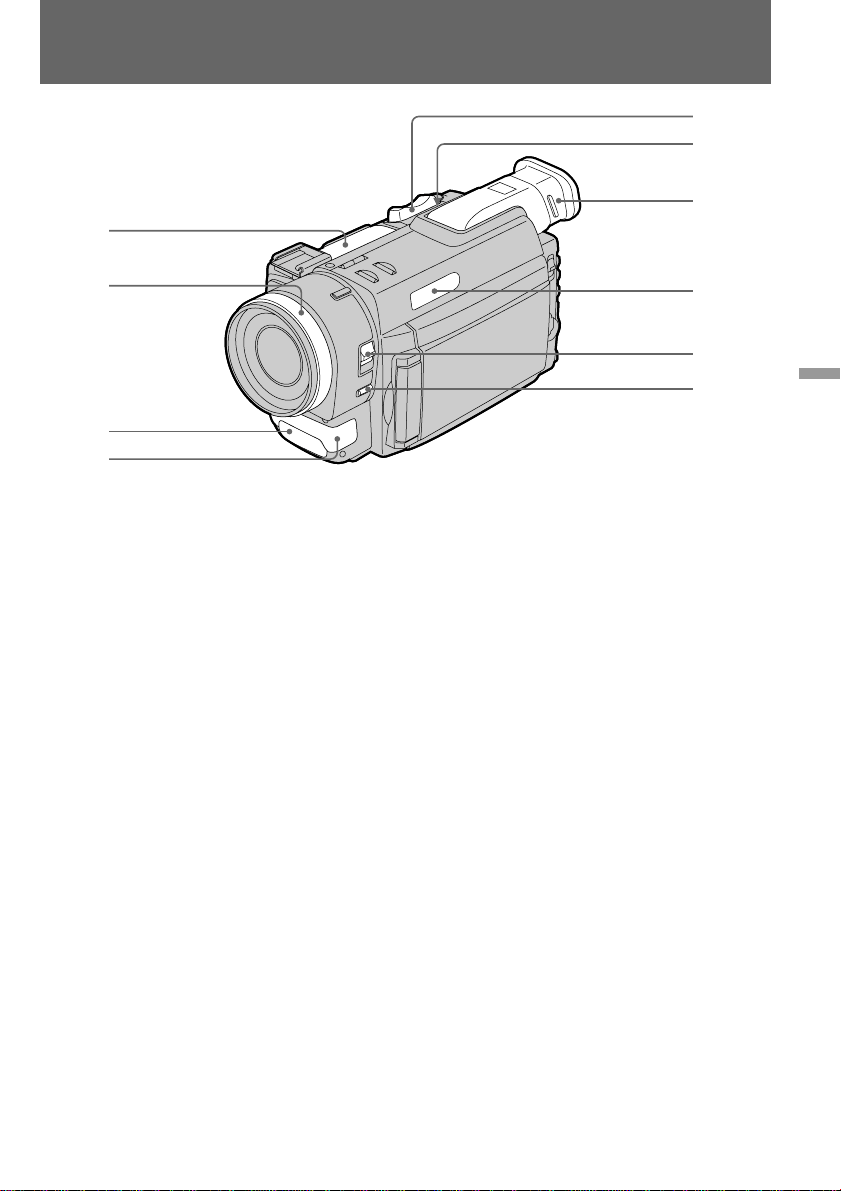

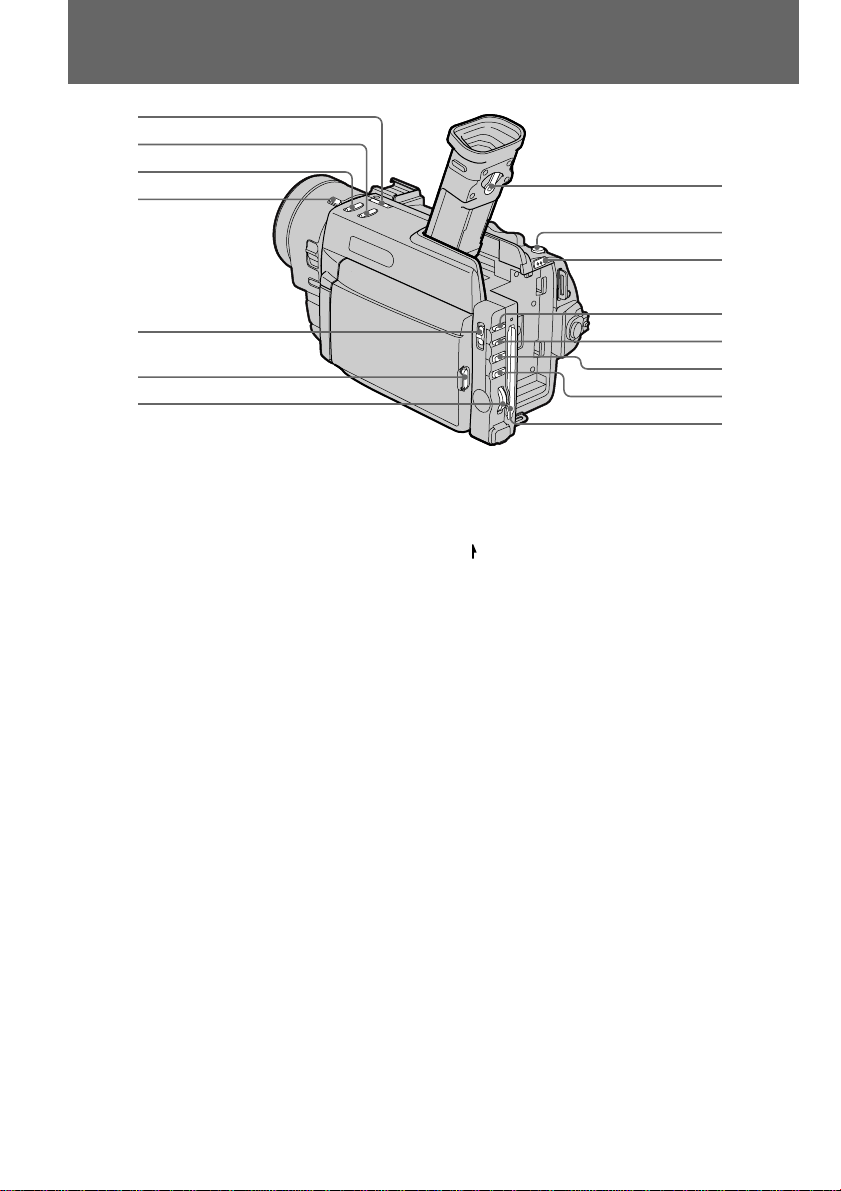

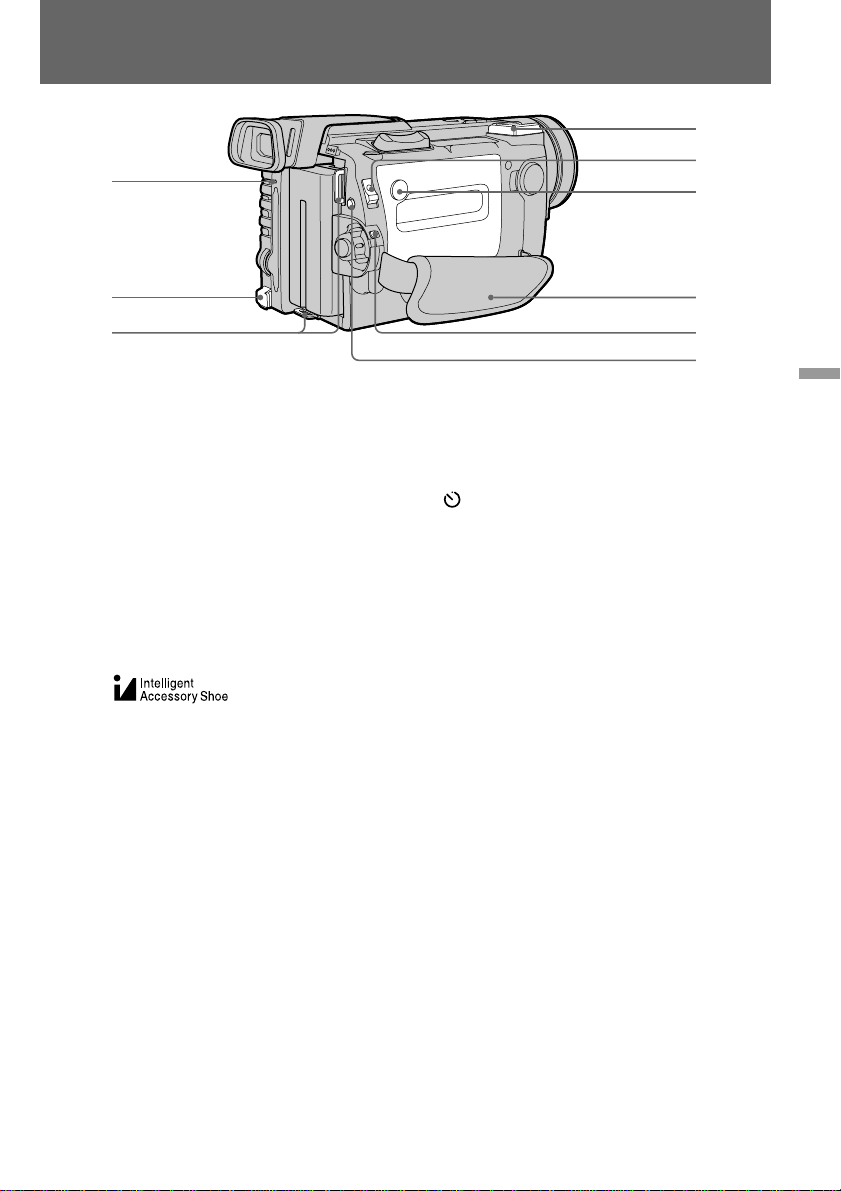

Identifying the parts ...................................... 134
Warning indicators ........................................ 143
Index ................................................................ 145
4
Before you begin
Using this manual
As you read through this manual, buttons and settings on the camcorder are shown in
capital letters.
e.g., Set the POWER switch to CAMERA.
Note on Cassette Memory
This camcorder is based on the DV format. You can only use mini DV cassettes with this
camcorder. We recommend you to use a tape with cassette memory .
The functions which depend on whether the tape has the cassette memory or not are:
•End Search (p. 21, 24)
•Date Search (p. 74)
•Photo Search (p. 77).
The functions you can operate only with the cassette memory are:
•Title Search (p. 76)
•Superimposing a title (p. 63)
•Making a custom title (p. 66)
•Labeling a cassette (p. 68).
For details, see page 116.
Note on TV color systems
TV color systems differ from country to country. To view your recordings on a TV, you need
an NTSC system-based TV.
Precaution on copyright
Television programs, films, video tapes, and other materials may be copyrighted.
Unauthorized recording of such materials may be contrary to the provision of the copyright
laws.
5
Before you begin
Precautions on camcorder care
•The LCD screen and/or the color viewfinder are manufactured using high-precision
technology. However, there may be some tiny black points and/or bright points (red,
blue or green in color) that constantly appear on the LCD screen and/or in the
viewfinder. These points are normal in the manufacturing process and do not affect
the recorded picture in any way. Over 99.99% are operational for effective use.

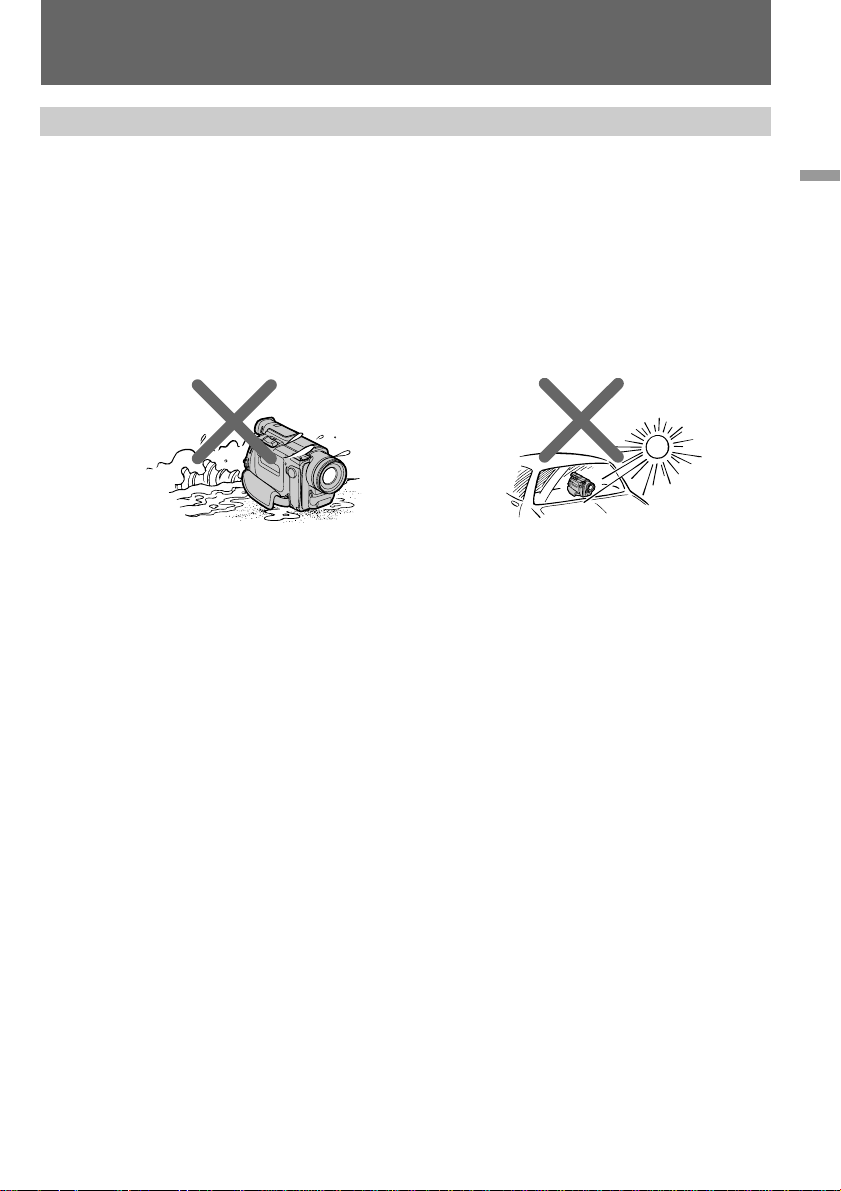

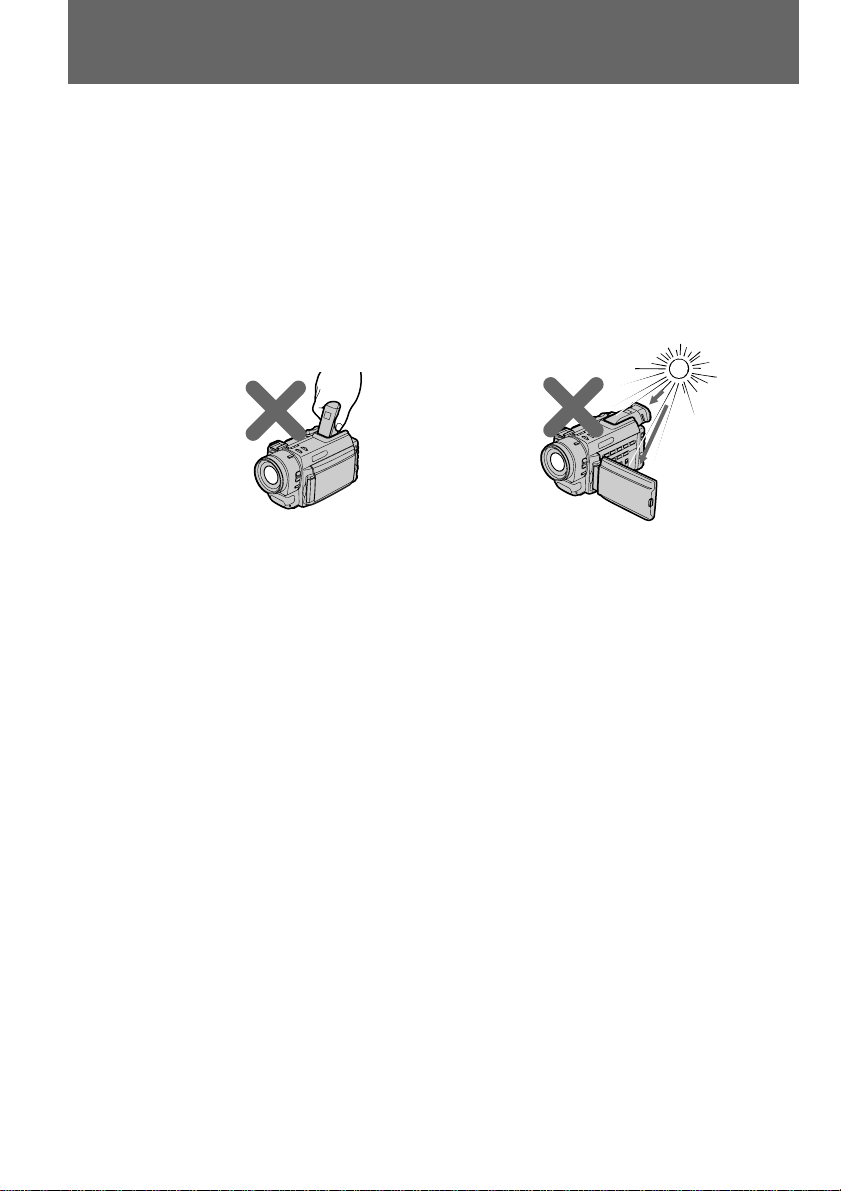

•Do not let the camcorder get wet. Keep the camcorder away from rain and sea water.
Letting the camcorder get wet may cause the unit to malfunction, and sometimes this
malfunction cannot be repaired [a].
•Never leave the camcorder exposed to temperatures above 140°F (60°C ), such as in a car
parked in the sun or under direct sunlight [b].
Using this manual
[a]
[b]
6

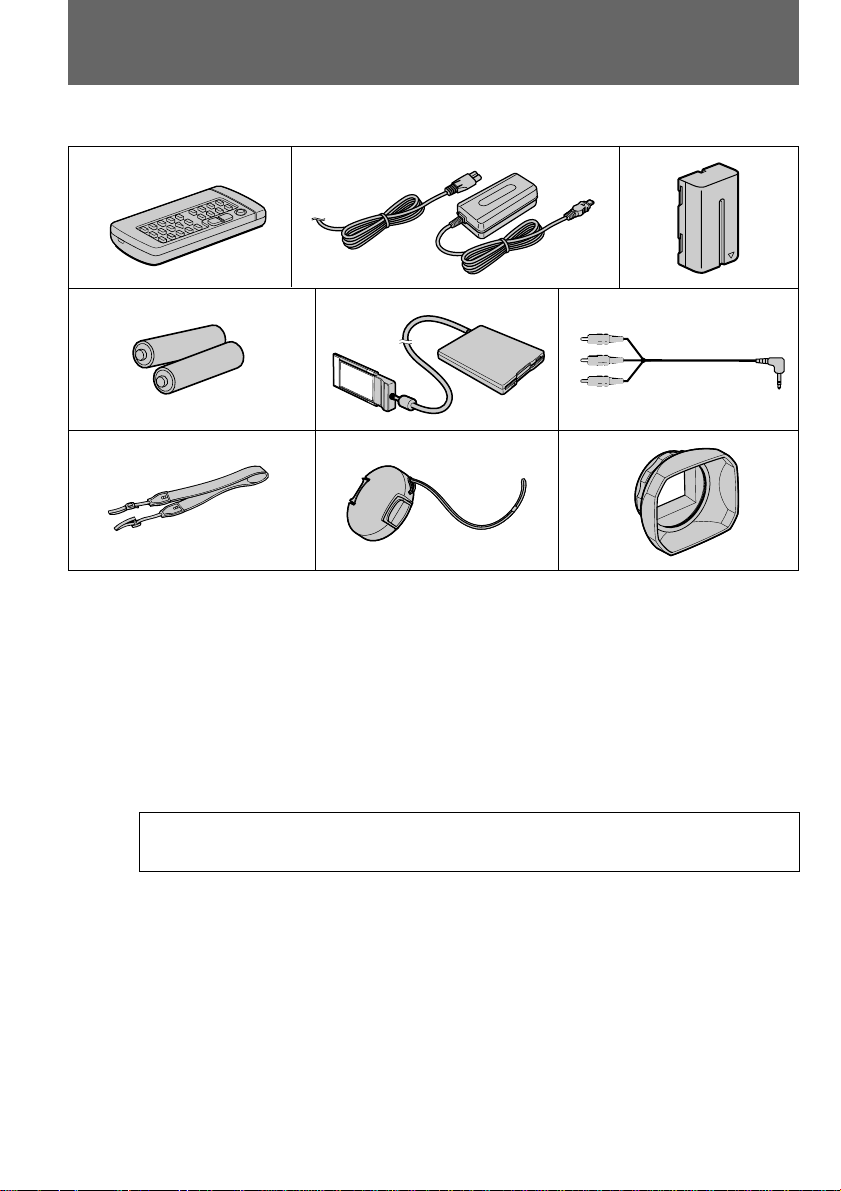

Check that the following accessories are supplied with your camcorder.
Checking supplied accessories

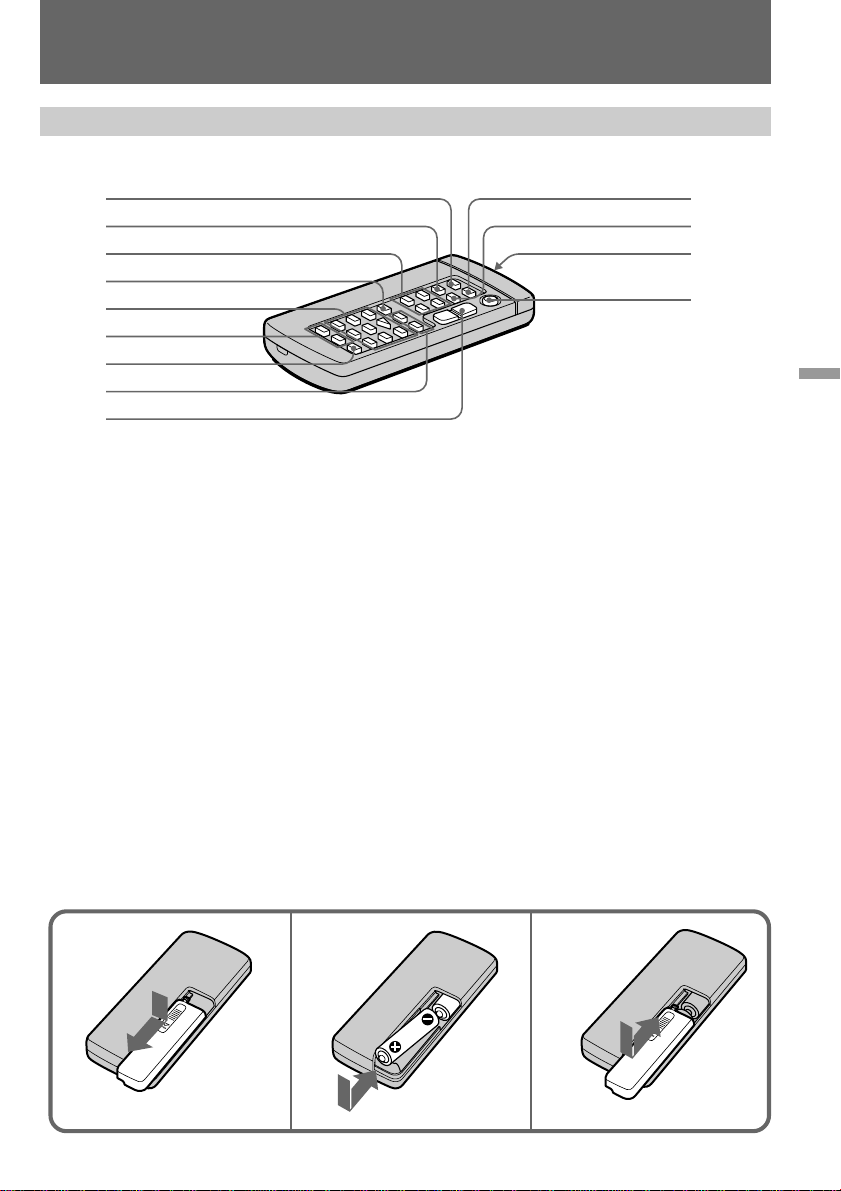

1 Wireless Remote Commander (1) (p. 139)
2 AC-L10A AC power adaptor (1),
Power cord (1) (p. 8, 25)
The shape of the plug varies from region to
region.
3 NP-F330 battery pack (1) (p. 7)
4 Size AA (R6) battery for Remote
Commander (2) (p. 139)

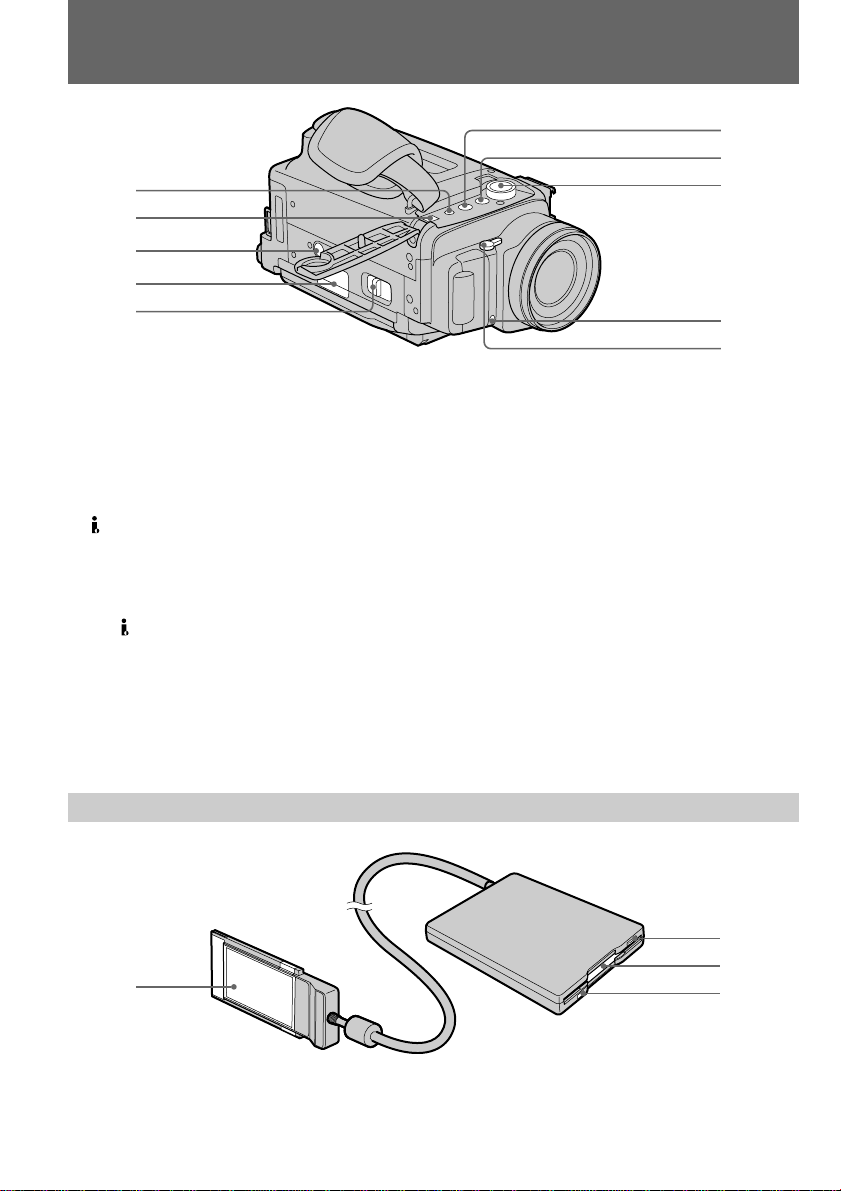

5 Floppy disk adapter (1) (p. 91)
6 A/V connecting cable (1) (p. 70, 82)
7 Shoulder strap (1) (p. 140)
8 Lens cap (1) (p. 12)
9 Lens hood (1) (p. 14)
Contents of the recording cannot be compensated if recording or playback is not made
due to a malfunction of the camcorder, video tape, etc.
2
9
5
1 3
4
6
78
7
Getting started
Getting started
Installing and charging the battery pack
Before using your camcorder, you first need to install and charge the battery pack. To
charge the battery pack, use the supplied AC power adaptor.
This camcorder operates only with the “InfoLITHIUM” battery pack.
“InfoLITHIUM” is a trademark of Sony Corporation.

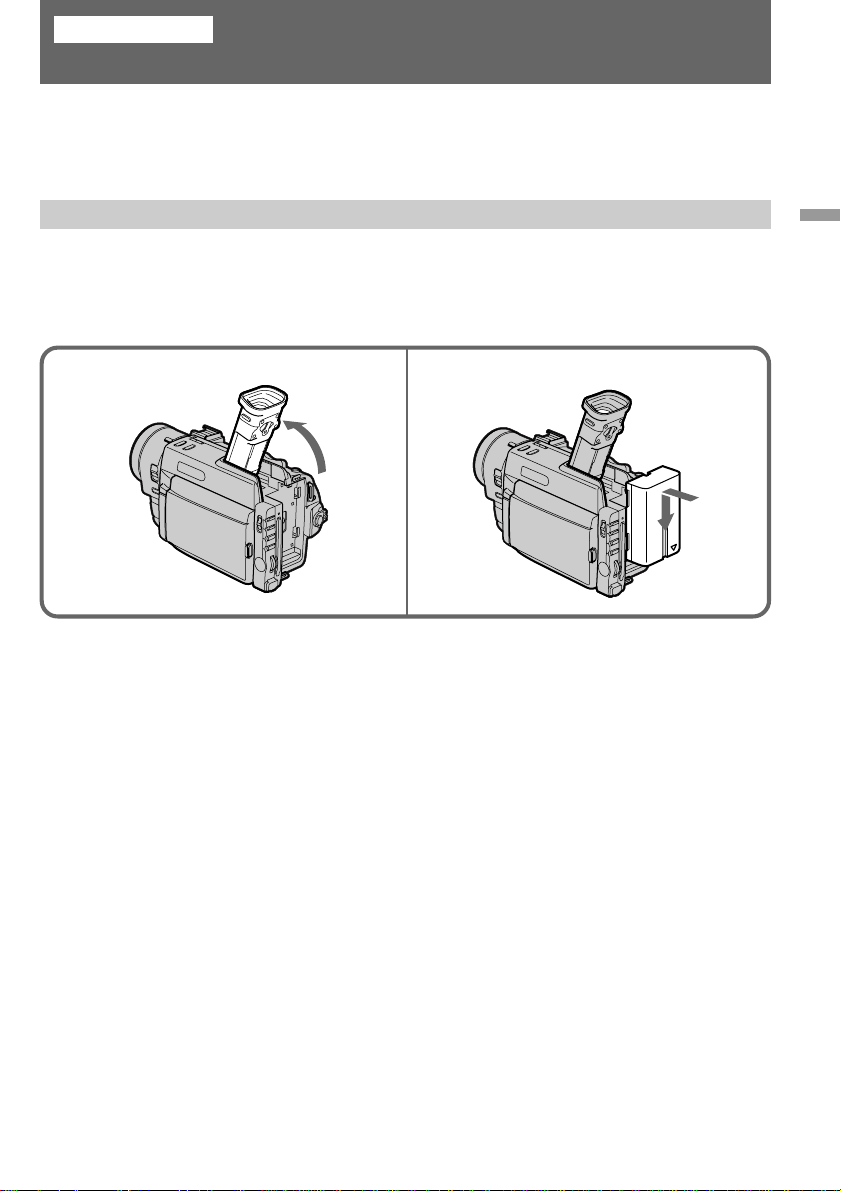

Installing the battery pack
(1) Lift up the viewfinder.
(2) Insert the battery pack in the direction of the $ mark on the battery pack. Slide the
battery pack down until it is locked.
Attach the battery pack to the camcorder securely.
Note on installing the NP-F730/F730H/F750/F930/F950 battery pack
Use the camcorder while stretching out the viewfinder.
Note on the battery pack
Do not carry the camcorder by grasping the battery pack.
1
2
8
Notes
•“– – – min” appears on the display window until the camcorder calculates remaining
battery time.
•Remaining battery time indication on the display window roughly indicates the recording
time with the viewfinder. Use it as a guide. It may differ from the actual recording time.
Installing and charging the battery pack
Charging the battery pack
Charge the battery pack on a flat surface without vibration. The battery pack is charged a
little in the factory.
(1) Open the DC IN jack cover and connect the supplied AC power adaptor to the DC
IN jack with the plug’s 4 mark up.
(2) Connect the power cord to the AC power adaptor.
(3) Connect the power cord to a wall outlet.
(4) Set the POWER switch to OFF. Remaining battery time is indicated by the minutes
on the display window. Charging begins.
When the remaining battery indicator becomes ı, normal charge is completed. For full
charge, which allows you to use the battery longer than usual, leave the battery pack
attached for about 1 hour after normal charge is completed until FULL appears in the display
window.
Before using the camcorder with the battery pack, unplug the AC power adaptor from the
DC IN jack of the camcorder. You can also use the battery pack before it is completely
charged.
POWER
OFF
CAMERA
MEMORY
VTR
9
Getting started
Battery life
While using with viewfinder
Battery pack Continuous recording time * Typical recording time **
NP-F330 (supplied) 75 (70) 40 (35)
NP-F530 120 (110) 60 (55)
NP-F550 150 (135) 75 (70)
NP-F730 270 (245) 140 (130)
NP-F750/NP-F730H*** 315 (275) 165 (145)
NP-F930 420 (375) 220 (195)
NP-F950 485 (440) 255 (230)
While using with LCD
Battery pack Continuous Typical Playing
recording time * recording time ** time with LCD
NP-F330 (supplied) 60 (50) 30 (25) 75 (70)
NP-F530 95 (85) 50 (45) 120 (110)
NP-F550 120 (105) 65 (55) 150 (135)
NP-F730 210(190) 115 (105) 270 (245)
NP-F750/NP-F730H*** 250 (220) 140 (120) 315 (275)
NP-F930 325 (295) 180 (165) 420 (375)
NP-F950 375 (335) 210 (185) 485 (440)
Numbers in parentheses indicate the time when you use a normally charged battery.
Battery life will be shorter if you use the camcorder in a cold environment.
* Approximate continuous recording time indoors.
** Approximate minutes when recording while you repeat recording start/stop, zooming
and turning the power on/off. The actual battery life may be shorter.
*** NP-F730H is sold only in the U.S.A.
Installing and charging the battery pack
Charging time
Battery pack Charging time *
NP-F330 (supplied) 150 (90)
NP-F530 210 (150)
NP-F550 210 (150)
NP-F730 300 (240)
NP-F750/NP-F730H** 300 (240)
NP-F930 390 (330)
NP-F950 390 (330)
The time required for a normal charge is indicated in parentheses.
* Approximate minutes to charge an empty battery pack using the supplied AC power
adaptor. (Lower temperatures require a longer charging time.)
** NP-F730H is sold only in the U.S.A.
10
Installing and charging the battery pack
Notes on remaining battery time indication during recording
•Remaining battery time is displayed on the LCD screen or in the viewfinder. However, the
indication may not be displayed properly, depending on using conditions and
circumstances.
•When you close the LCD panel or open it, it takes about 1 minute for the correct remaining
time to be displayed.

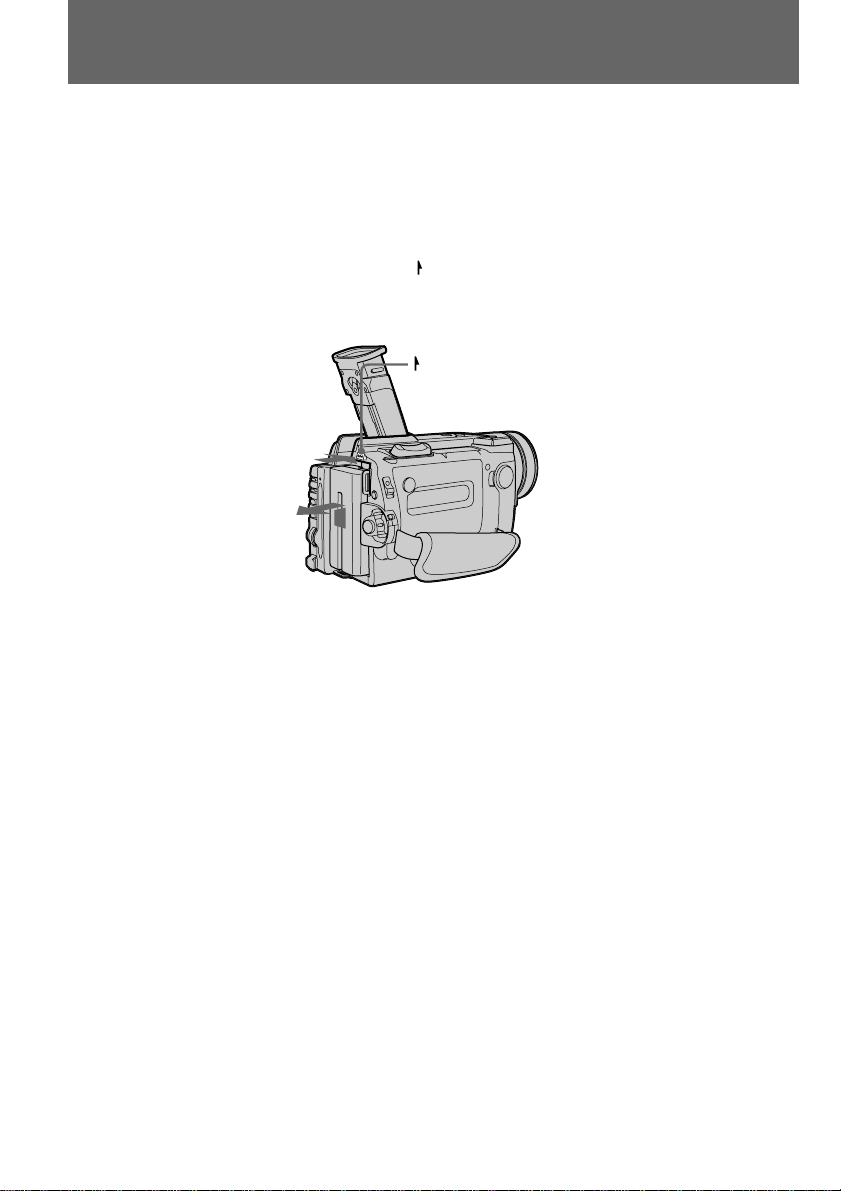

To remove the battery pack
Lift up the viewfinder. While pressing BATT RELEASE, slide the battery pack in the
direction of the arrow.
BATT RELEASE
11
Getting started
Inserting a cassette
You can use mini DV cassette with logo* only.
Make sure that the power source is installed.
(1) While pressing the small blue button on the EJECT switch, slide it in the direction
of the arrow. The cassette compartment automatically opens.
(2) Insert a cassette with the window facing out.
(3) Close the cassette compartment by pressing the “PUSH” mark on the cassette
compartment.
* is a trademark.
To eject the cassette
While pressing the small blue button on the EJECT switch, slide it in the direction of the
arrow.
To prevent accidental erasure
Slide and open the tab on the cassette to expose the red mark. If you try to record with the
red mark exposed, the L and 6 indicators flash on the LCD screen or in the viewfinder,
and you cannot record on the tape. To re-record on this tape, slide and close the tab to cover
the red mark.
1 2
3
PUSH
12
Basic operations

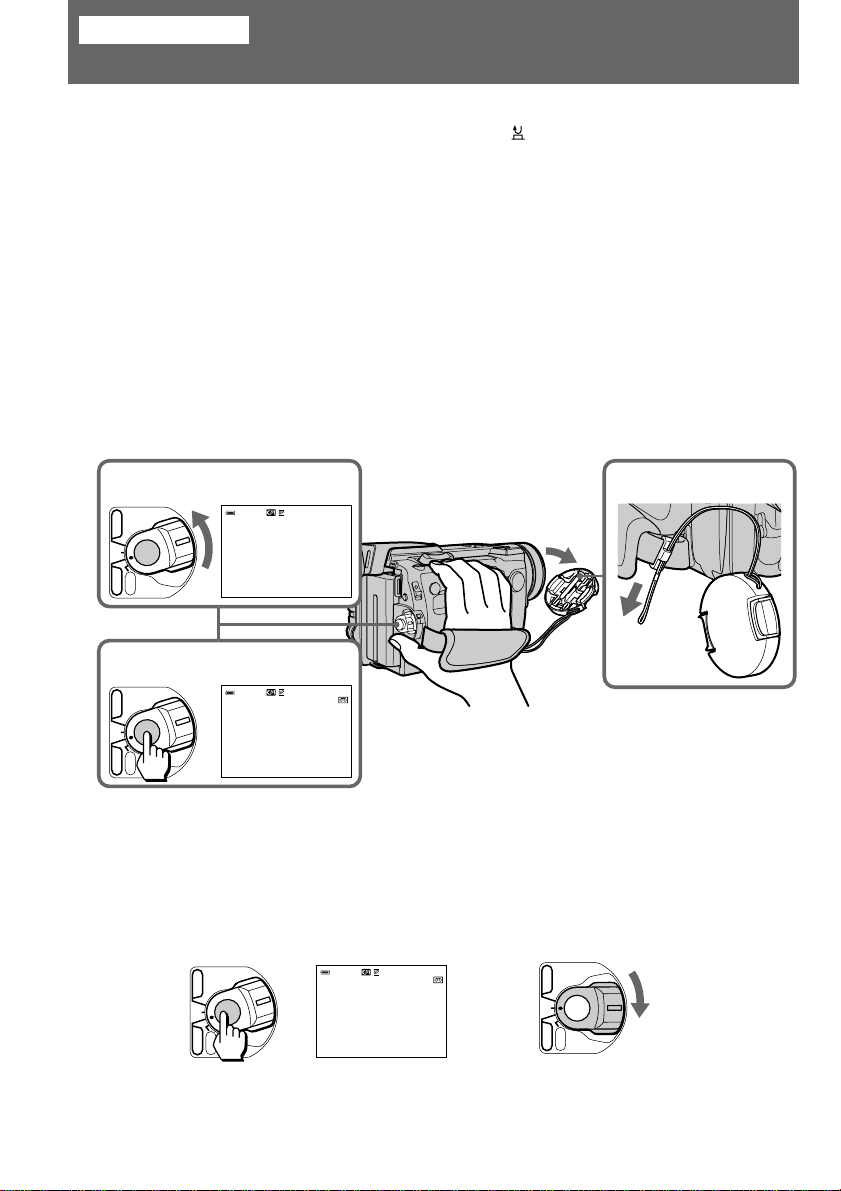

Camera recording
Make sure that the power source is installed and a cassette is inserted and that the START/
STOP MODE selector inside the LCD panel is set to . Before you record one-time events,
you had better make a trial recording to make sure that the camcorder is working correctly.
When you use the camcorder for the first time, power on it and reset the date and time to
your time before you start recording (p. 118).
(1) Remove the lens cap by pressing both knobs on its sides and pull the lens cap string
to fix it.
(2) While pressing the small green button on the POWER switch, set it to CAMERA.
The camcorder is set to Standby mode.
(3) Press START/STOP.
The camcorder starts recording. “REC” appears on the LCD screen or in the
viewfinder. The camera recording lamp on the front of the camcorder also lights
up.
You can also select Recording mode, SP (standard play) mode or LP (long play) mode.
Set REC MODE in the menu system according to the length of your planned recording
before you start.
To stop recording momentarily [a]
Press START/STOP. The “STBY” indicator appears on the LCD screen or in the viewfinder
(Standby mode).
To finish recording [b]
Set the POWER switch to OFF. Then, eject the cassette and remove the battery pack.
1
2
3
POWER
OFF
CAMERA
MEMORY
VTR
POWER
OFF
CAMERA
MEMORY
VTR
70
min
REC
60
min
0:00:00
70
min
STBY
–:––:––
POWER
OFF
CAMERA
MEMORY
VTR
[a]
70
min
STBY
25
min
0:35:20
POWER
OFF
CAMERA
MEMORY
VTR
[b]
13
Basic operations

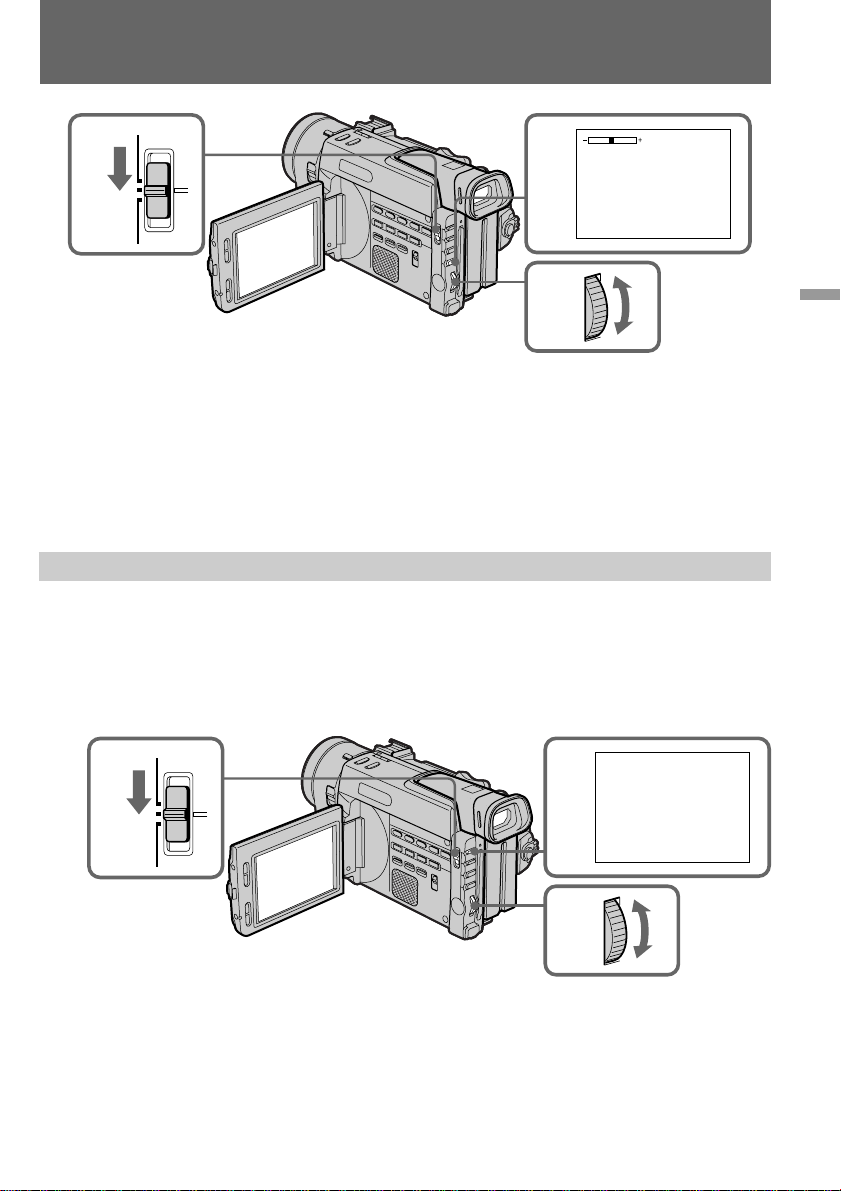

To focus the viewfinder lens
If you cannot see the indicators in the viewfinder clearly, or after someone else has used the
camcorder, focus the viewfinder lens. Move the viewfinder lens adjustment lever so that the
indicators in the viewfinder come into sharp focus.
Note on Standby mode
If you leave the camcorder in Standby mode for 5 minutes while the cassette is inserted, the
camcorder turns off automatically. This prevents wearing down the battery and wearing out
the tape. To resume Standby mode, while pressing the small green button on the POWER
switch, set it to OFF once, and then to CAMERA. To start recording, press START/STOP.
Note on the progressive mode
If you modify the images on your personal computer or play the images back as still
pictures, we recommend you to set PROG. SCAN to ON in the menu system before
shooting. The picture quality may improve in this mode, but if you shoot a moving subject,
the image may shake when it is played back.
Note on the lock knob
When you set the lock knob to the left position, the POWER switch will not be set to
MEMORY accidentally.
Note on Recording mode
This camcorder records and plays back in SP (standard play) mode and in LP (long play)
mode. Select SP or LP in the menu system. In LP mode, you can record 1.5 times as long as in
SP mode.
Notes on LP mode
•We recommend to use this camcorder to play back a tape recorded on this camcorder. If a
tape recorded on other camcorder is played back on this camcorder, or vice versa, mosaic-
pattern noise may appear.
•When you record in SP and LP modes on one tape or you record some scenes in LP mode,
the playback picture may be distorted or the time code may not be written properly
between scenes.
•When you record in LP mode, we recommend you to use a Sony Excellence/Master mini
DV cassette so that you can get the most out of your camcorder.
•You cannot make audio dubbing on a tape recorded in LP mode. Use the SP mode for the
tape to be audio dubbed.
Notes on the time code
•The time code indicates the recording or playback time, “0:00:00” (hours : minutes :
seconds) in CAMERA mode and “0:00:00:00” (hours : minutes : seconds : frames) in VTR
mode.
•Be sure not to make a blank portion when recording, because the time code will start from
“0:00:00:00” again.
•This camcorder uses the drop frame mode.
Camera recording
Lock knob
14
Note on the beep sound
Note that the beep sound is not recorded on the tape. If you do not want to hear the beep
sound, select OFF in the menu system.
Note on remaining tape indicator
The indicator may not be displayed accurately depending on the tape. Though the indicator
does not appear at the time of recording, it will appear in a few seconds.
Attaching the lens hood
To record fine pictures, we recommend you to attach the lens hood, no matter where you
shoot. You can also attach the lens cap when using the lens hood.
If the lens hood is not attached properly
The four corners of the screen may be eclipsed by the lens hood.
Using the zoom feature
Zooming is a recording technique that lets you change the size of the subject in the scene.
For more professional-looking recordings, use the zoom function sparingly.
“T” side: for telephoto (subject appears closer)
“W” side: for wide-angle (subject appears farther away)
Zooming speed (Variable speed zooming)
Press the power zoom lever a little for a relatively slow zoom; press it still more for a high-
speed zoom.
When you shoot a subject using a telephoto zoom
If you cannot get a sharp focus while in extreme telephoto zoom, press the “W” side of the
power zoom lever until the focus is sharp. You can shoot a subject that is at least about
2 5/8 feet (about 80 cm) away from the lens surface in the telephoto position, or about
1/2 inch (about 1 cm) away in the wide-angle position.
Camera recording
W
T
W
T
Align the protruding part
with the groove on the hood.
15
Basic operations
Camera recording
Zooming of more than 12x – digital zoom
• If you set the D ZOOM function to ON in the menu system, you can perform zooming of
more than 12x performed digitally. It is set to OFF at the factory.
•You cannot use the digital zoom when you set PROG. SCAN to ON in the menu system.
•The right side [a] of the power zoom indicator shows the digital zooming zone, and the left
side [b] shows the optical zooming zone. If you set the D ZOOM function to ON, the [a]
zone appears.

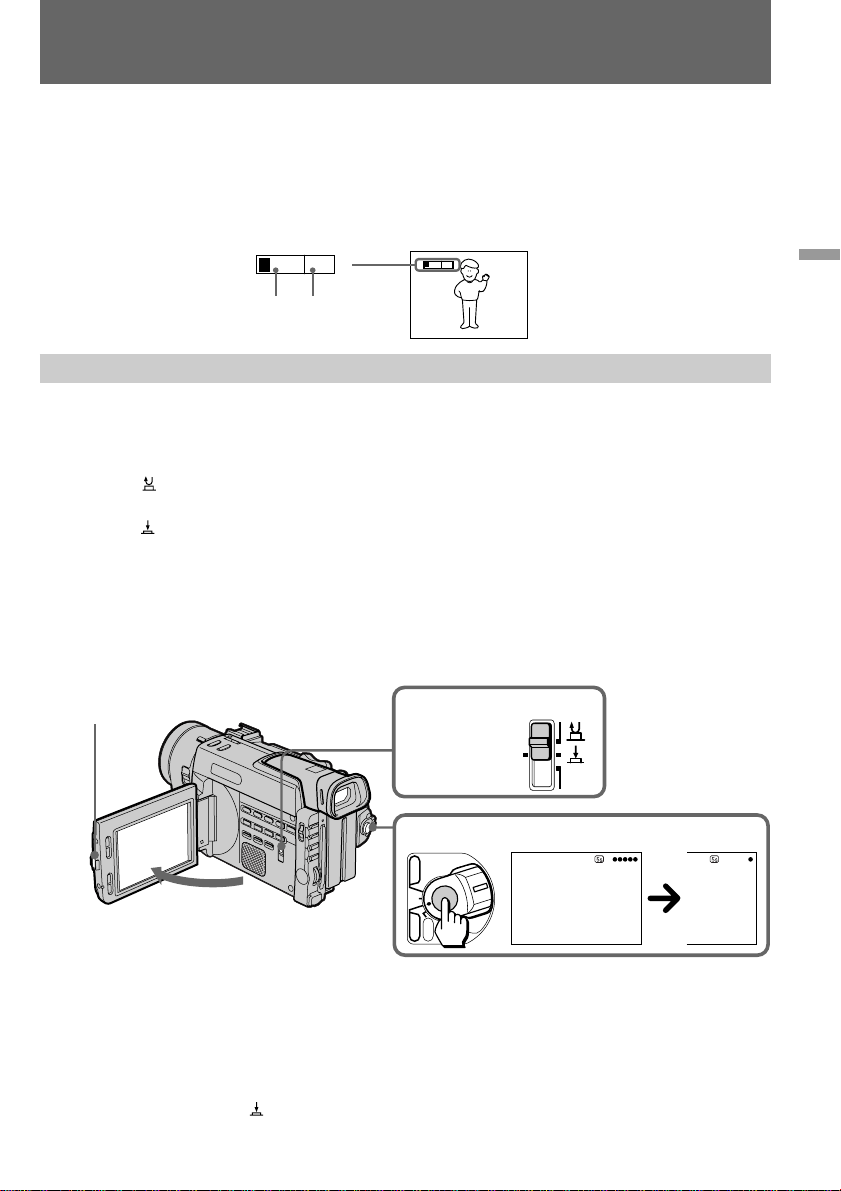

Selecting the start/stop mode
Your camcorder has two modes besides normal start/stop mode. These modes enable you to
take a series of quick shots resulting in a lively video.
(1) While pressing OPEN, open the LCD panel.
(2) Set START/STOP MODE to the desired mode.
: Recording starts when you press START/STOP, and stops when you press it
again (factory setting).
ANTI GROUND SHOOTING : The camcorder records only while you press down
START/STOP so that you can avoid recording unnecessary scenes.
5SEC : When you press START/STOP, the camcorder records for 5 seconds and
then stops automatically.
(3) Press START/STOP. Recording starts.
If you selected 5SEC, five dots appear on the LCD screen or in the viewfinder. The dots
disappear at a rate of one per second as illustrated below. When five seconds elapse and all
the dots disappear, the camcorder switches to Standby mode automatically.
To extend the recording time in 5SEC mode
Press START/STOP again before all the dots disappear. Recording continues for about 5
seconds from the moment you press START/STOP.
Notes on 5SEC recording
•If you have turned off the indicators on the LCD screen, the dots do not appear.
•When selecting “ ANTI GROUND SHOOTING” or “5SEC,” the fader function does not
work.
•When selecting “5SEC,” the time code is not displayed.
W
T
W
T
[a]
[b]
3
1
2
5SEC
ANTI GROUND SHOOTING
START/STOP
MODE
POWER
OFF
CAMERA
MEMORY
VTR
REC REC
16
Shooting with the LCD screen
You can also record the picture while looking at the LCD screen.
When using the LCD screen, the viewfinder turns off automatically except in mirror mode.
You cannot monitor the sound from the speaker during recording.
(1) While pressing OPEN, open the LCD panel.
(2) Adjust angle of the LCD panel.
The LCD panel moves about 90 degrees to this side and about 180 degrees to the
other side.
To adjust the brightness of the LCD screen, press LCD BRIGHT + or –.
The battery life is longer when the LCD panel is closed. Use the viewfinder instead of the
LCD screen to save the battery power.
Backlighting the LCD screen
If the LCD screen is insufficiently illuminated even after adjusting LCD BRIGHT, select LCD
B. L. in the menu system and set to BRIGHT. You can select LCD B. L. only while using the
battery pack as a power source.
Notes on the LCD panel
•When closing the LCD panel, turn it vertically until it clicks [a].
•When turning the LCD panel, turn it always vertically; otherwise, the camcorder body may
be damaged or the LCD panel may not close properly [b].
•Close the LCD panel completely when not in use.
•Do not push nor touch the LCD panel while operating the camcorder.
•You may find it difficult to view the LCD screen due to glare when using the camcorder
outdoors.
Camera recording
180°
90°
90°
LCD BRIGHT
12
[a]
[b]
OPEN
90°
17
Basic operations
Camera recording
Letting the subject monitor the shot
You can turn the LCD panel over so that it faces the other way and you can let the subject
monitor the shot while shooting with the viewfinder.
Turn the LCD panel up vertically. When you turn the LCD panel 180 degrees, the
indicator appears on the LCD screen (mirror mode) and the time code and remaining tape
indicators disappear.
You can also use the Remote Commander.
To cancel mirror mode
Turn the LCD panel down toward the camcorder body.
Notes on mirror mode
•When you turn the LCD panel about 135 degrees to 180 degrees, the camcorder enters
mirror mode.
•Using the mirror mode, you can record yourself while watching yourself on the LCD
screen.
•The picture on the LCD screen looks like a mirror-image while recording in mirror mode.
The STBY indicator appears as Pr and REC as r. Other indicators appear as mirror-
image. Some indicators may not appear in mirror mode.
•While recording in mirror mode, you cannot operate the following functions: MENU,
TITLE, and ZERO SET MEMORY on the Remote Commander.
18
Self-timer recording
You can make a recording with the self-timer. This mode is useful when you want to record
yourself.
(1) Press (self-timer) to display (self-timer) on the LCD screen or in the
viewfinder while the camcorder is in Standby mode.
(2) Press START/STOP.
Self-timer starts counting down to 10 with a beep sound. In the last two seconds of
the countdown, the beep sound gets faster, then recording starts automatically at
the time you set.
To stop self-timer recording
Press START/STOP.
Use the Remote Commander for convenience.
To record still pictures using the self-timer
Press PHOTO in step 2.
To cancel self-timer recording
Press so that the indicator disappears from the LCD or viewfinder screen while the
camcorder is in Standby mode.
Self-timer recording mode is canceled when
•Self-timer recording is finished.
•The POWER switch is set to OFF or VTR.
Note
The display may become darker right after pressing the button. This is not a malfunction.
Camera recording
START/STOP
19
Basic operations
Hints for better shooting
For hand-held shots, you will get better results by holding the camcorder according to the
following suggestions:
•Hold the camcorder firmly and secure it with the grip strap so that you can easily
manipulate the controls with your thumb. [a]
•Place your elbows against your side.
•Place your left hand under the camcorder to support it.
•Place your eye against the viewfinder eyecup.
•Be sure not to touch the built-in microphone.
•Use the LCD panel frame or the viewfinder frame as a guide to determine the horizontal
plane.
•You can also record in a low position to get an interesting angle. Lift the viewfinder up for
record from a low position. [b]
•You can also record in a low position or even in a high position using the LCD panel. [c]
•When you use the LCD screen outdoors in direct sunlight, the LCD screen may be difficult
to see. If this happens, we recommend that you use the viewfinder.
[a]
[b]
[c]
20
Place the camcorder on a flat surface or use a tripod
Try placing the camcorder on a table top or any other flat surface of suitable height. If you
have a tripod for a still camera, you can also use it with the camcorder. When attaching a
non-Sony tripod, make sure that the length of the tripod screw is less than 9/32 inch
(6.5 mm). Otherwise, you cannot attach the tripod securely and the screw may damage the
camcorder.
Cautions on the LCD panel and on the viewfinder
•Do not pick up the camcorder by the viewfinder or the LCD panel. [d]
•Do not place the camcorder so as to point the viewfinder or the LCD panel toward the sun.
The inside of the viewfinder or the LCD panel may be damaged. Be careful when placing
the camcorder under sunlight or by a window. [e]
Hints for better shooting
[d]
[e]
21
Basic operations

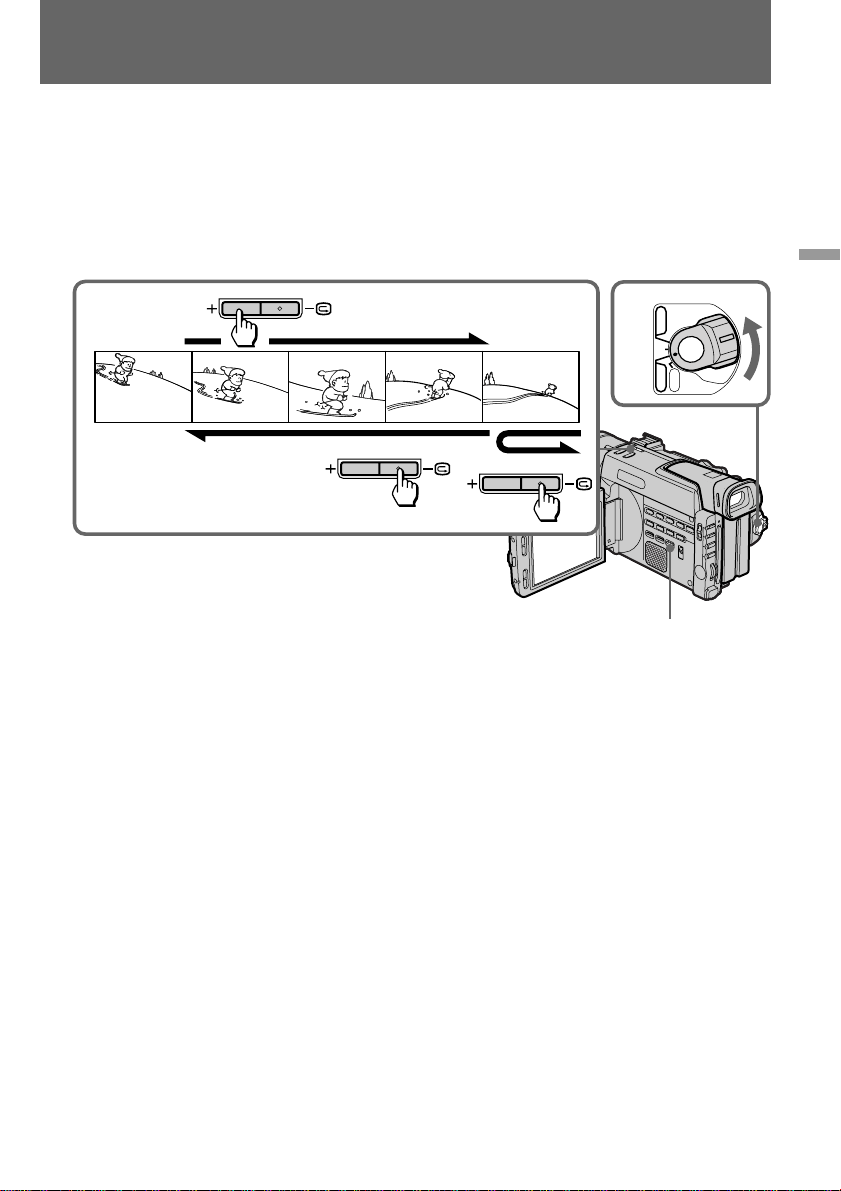

Using the EDITSEARCH, you can review the last recorded scene or check the recorded
picture on the LCD screen or in the viewfinder.
(1) While pressing the small green button on the POWER switch, set it to CAMERA.
(2) Press the РΠside of EDITSEARCH momentarily; the last few seconds of the
recorded portion plays back (Rec Review). Hold down the – side of EDITSEARCH
until the camcorder goes back to the scene you want. The last recorded portion is
played back. To go forward, hold down the + side (Edit Search).
To stop playback
Release EDITSEARCH.
To go back to the last recorded point (END SEARCH)
Press END SEARCH. The last recorded point is played back for about 5 seconds and stops.
Note that when you use a tape without cassette memory, this function does not work once
you eject the cassette after recording.
To begin re-recording
Press START/STOP. Re-recording begins from the point you released EDITSEARCH.
Provided you do not eject the tape, the transition between the last scene you recorded and
the next scene you record will be smooth.
Checking the recorded picture
END SEARCH
21
EDITSEARCH
EDITSEARCH
EDITSEARCH
POWER
OFF
CAMERA
MEMORY
VTR
22

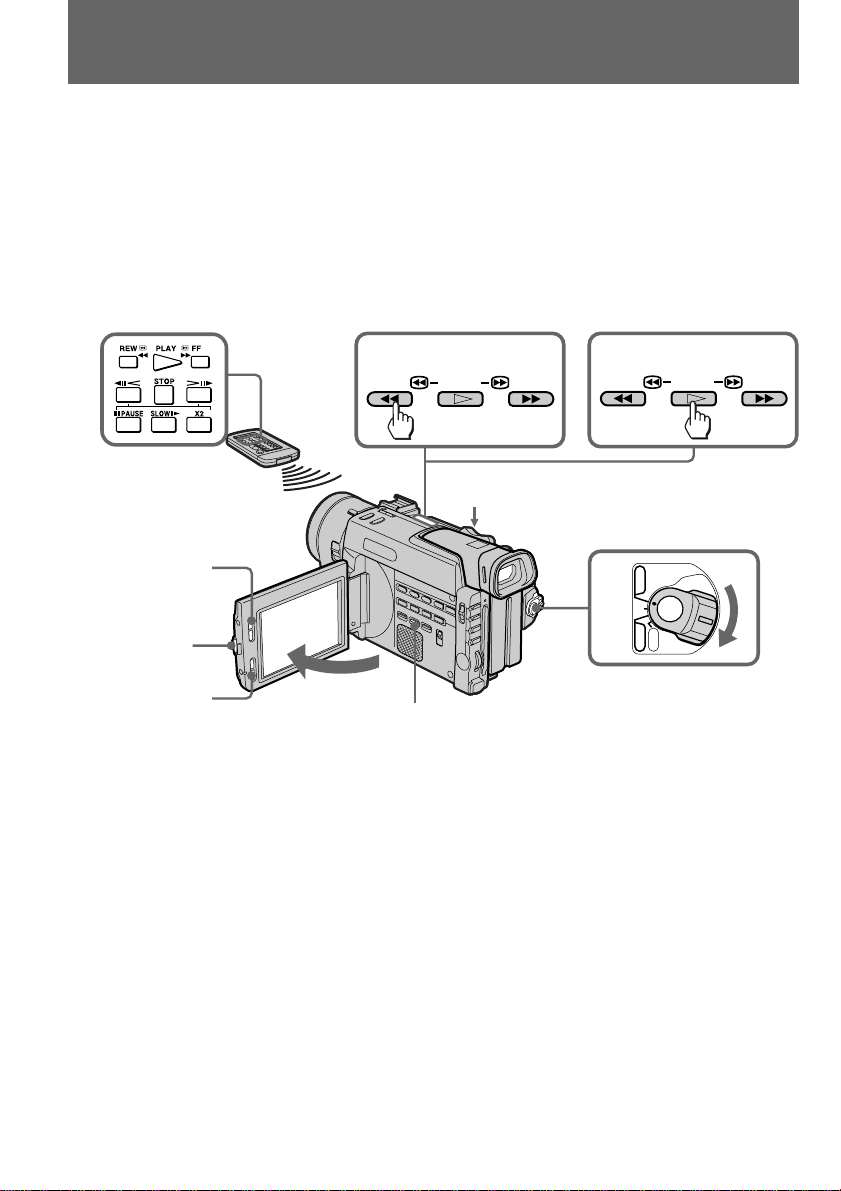

Playing back a tape
You can monitor the playback picture on the LCD screen or in the viewfinder.
(1) Insert the recorded tape with the window facing out.
(2) While pressing OPEN, open the LCD panel.
(3) While pressing the small green button on the POWER switch, set it to VTR.
(4) Press 0 to rewind the tape.
(5) Press · to start playback.
Adjust the volume using VOLUME +/– and the brightness of the LCD screen using
LCD BRIGHT +/–.
You can also monitor the picture on a TV screen, after connecting the camcorder to a TV or
VCR.
To stop playback, press π.
To rewind the tape, press 0.
To fast-forward the tape rapidly, press ).
Using the Remote Commander
You can control playback using the supplied Remote Commander. Before using the Remote
Commander, insert the size AA (R6) batteries.
To display the LCD screen/viewfinder screen indicators
Press DISPLAY.
To erase the indicators, press again.
Notes on screen indicators
•The screen indicator disappears when the title is displayed.
•When you play back a tape using a “InfoLITHIUM” battery, B indicates the remaining
battery capacity. The remaining battery time in minutes is not displayed.
Using headphones
Connect headphones (not supplied) to the 2 jack. You can adjust the volume of the
headphones using VOLUME +/–.
DISPLAY
1
54
3
2
POWER
OFF
CAMERA
MEMORY
VTR
PLAYREW FF
PLAYREW FF
LCD BRIGHT
VOLUME
23
Basic operations
Playing back a tape
To view the playback picture in the viewfinder
Close the LCD panel. The viewfinder turns on automatically.
When using the viewfinder, you can monitor the sound only by using headphones.
To view on the LCD screen again, open the LCD panel. The viewfinder turns off
automatically.
When you cannot see the LCD screen clearly
Pull out the stand at the bottom to adjust the angle.
Various playback modes
To view a still picture (playback pause)
Press P during playback. To resume playback, press P or ·.
To locate a scene (picture search)
Keep pressing 0 or ) during playback. To resume normal playback, release the button.
To monitor the high-speed picture while advancing the tape or
rewinding (skip scan)
Keep pressing 0 while rewinding or ) while advancing the tape. To resume normal
rewinding or fast-forward, release the button.
To view the picture at 1/3 speed (slow playback)
Press & on the Remote Commander during playback. For slow playback in reverse
direction, press <, then press &. To resume normal playback, press ·.
To view the picture at double speed
For double speed playback in the reverse direction, press <, then press ×2 on the Remote
Commander during playback. For double speed playback in the forward direction, press >,
then press ×2 during playback. To resume normal playback, press ·.
To view the picture frame-by-frame
Press ' or 7 on the Remote Commander in playback pause mode. If you keep pressing
the button, you can view the picture at 1/30 speed. To resume normal playback, press ·.
To change the playback direction
Press < on the Remote Commander for reverse direction or > on the Remote Commander
for forward direction during playback. To resume normal playback, press · .
Notes on playback
•The sound is muted in the various playback modes.
•During playback other than normal playback, the previous recording may appear in
mosaic image. This is not malfunction.
•When playback pause mode lasts for 5 minutes, the camcorder automatically enters stop
mode. To resume playback, press ·.
Note on slow playback
The slow playback can be performed smoothly on this camcorder; however, this function
does not work for an output signal from the DV IN/OUT jack.
Stand
24

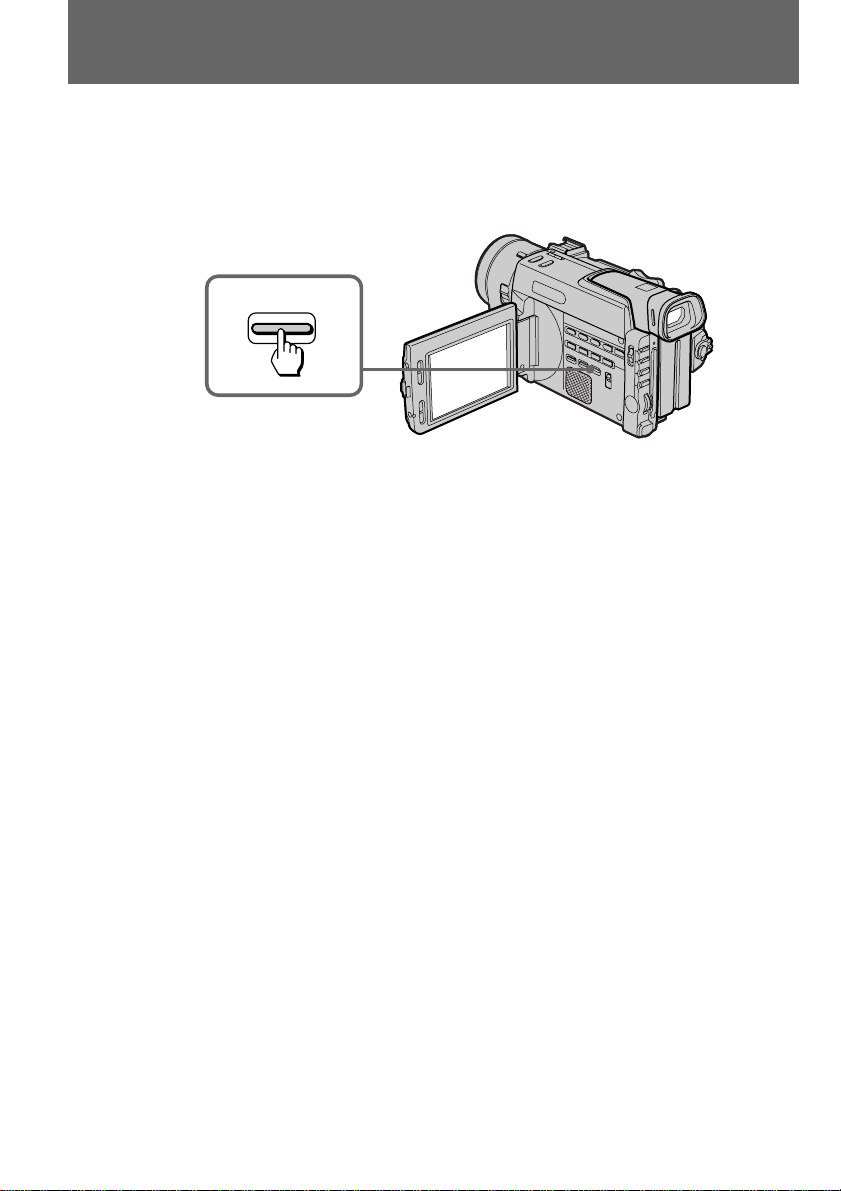

Searching for the end of the picture
You can go to the end of the recorded portion after you record and play back the tape. The
tape starts rewinding or fast-forwarding and the last about 5 seconds of the recorded portion
plays back. Then the tape stops at the end of the recorded picture (End Search).
Open the LCD panel and press END SEARCH during recording standby.
This function works when the POWER switch is set to CAMERA or VTR.
Notes on End Search
•When you use a tape without cassette memory, the End Search function does not work
once you eject the cassette after recording.
•When you use a tape with cassette memory, the End Search function works once you eject
the cassette. When you play back a tape which has a blank portion in the beginning or
between the recorded portions, the End Search function will not work correctly.
END SEARCH
25
Advanced operations
Advanced operations
Using alternative power sources
You can choose any of the following power sources for your camcorder: battery pack, house
current, and 12/24 V car battery. Choose the appropriate power source depending on where
you want to use your camcorder.
Place Power source Accessory to be used
Indoors House current Supplied AC power adaptor
Outdoors Battery pack Battery pack NP-F330 (supplied), NP-F530, NP-F550, NP-
F730, NP-F730H*, NP-F750, NP-F930, NP-F950
In the car 12 V or 24 V car battery Sony DC adaptor/charger DC-V700
* NP-F730H is sold only in the U.S.A.
Note on power sources
Disconnecting the power source or removing the battery pack during recording or playback
may damage the inserted tape. If this happens, restore the power supply again immediately.
Using the house current
To use the supplied AC power adaptor:
(1) Open the DC IN jack cover, and connect the AC power adaptor to the DC IN jack
on the camcorder.
(2) Connect the power cord to the AC power adaptor.
(3) Connect the power cord to a wall outlet.
WARNING
The power cord must be changed only at a qualified service shop.
PRECAUTION
The set is not disconnected from the AC power source (house current) as long as it is
connected to the power cord, even if the set itself has been turned off.
Note
Keep the AC power adaptor away from the camcorder if the picture is disturbed.
2, 3
1
26
Using a car battery
Use a DC adaptor/charger such as Sony DC-V700 (not supplied). Connect the car battery
cord to the cigarette lighter socket of a car (12 V or 24 V). Connect the DC adaptor/charger
and the camcorder using the DK-415 (supplied with DC-V700) connecting cord.
This mark indicates that this product is a genuine accessory for Sony video
product.
When purchasing Sony video products, Sony recommends that you purchase
accessories with this “GENUINE VIDEO ACCESSORIES” mark.
Using alternative power sources
27
Advanced operations

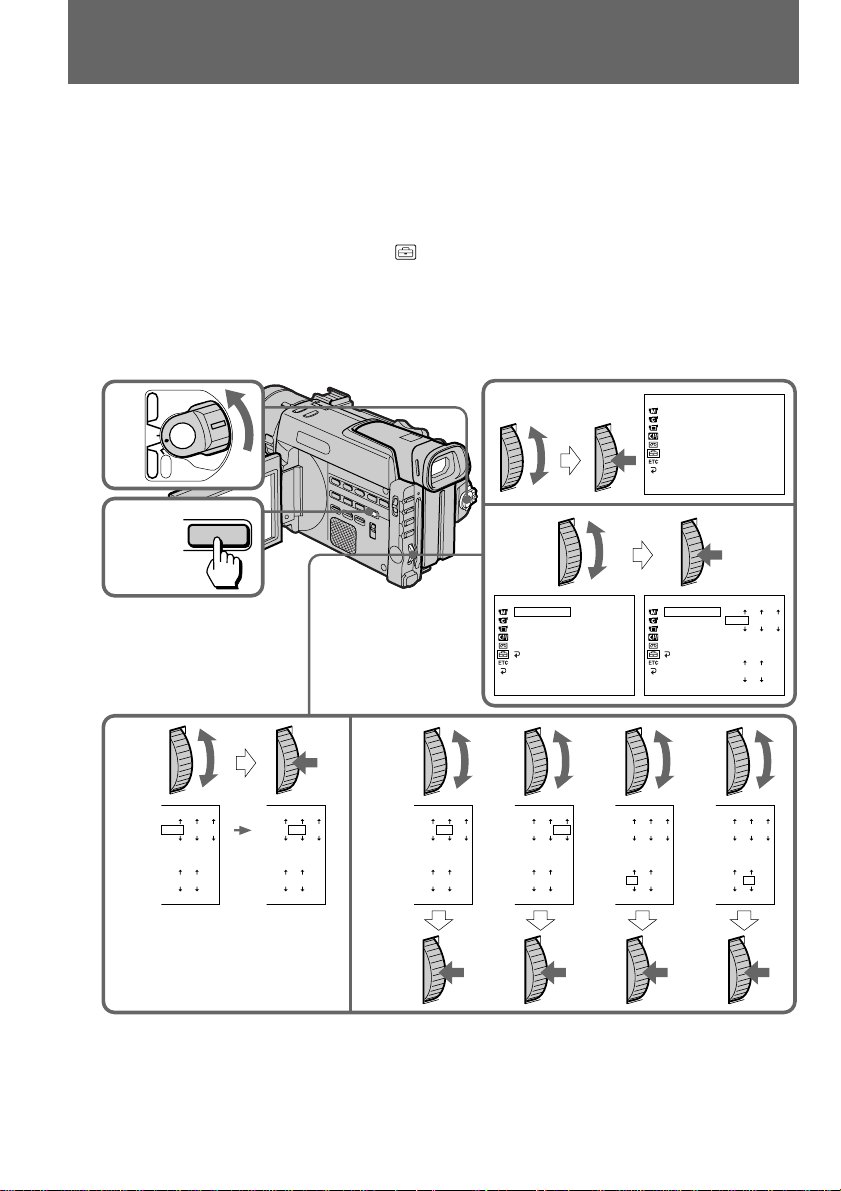

You can change some of the mode settings programed at the factory to further enjoy the
features and functions of the camcorder. Just turn the control dial to select the menu items
displayed on the LCD screen. You can make selections in the following order: the menu
display n icons n items n mode settings.

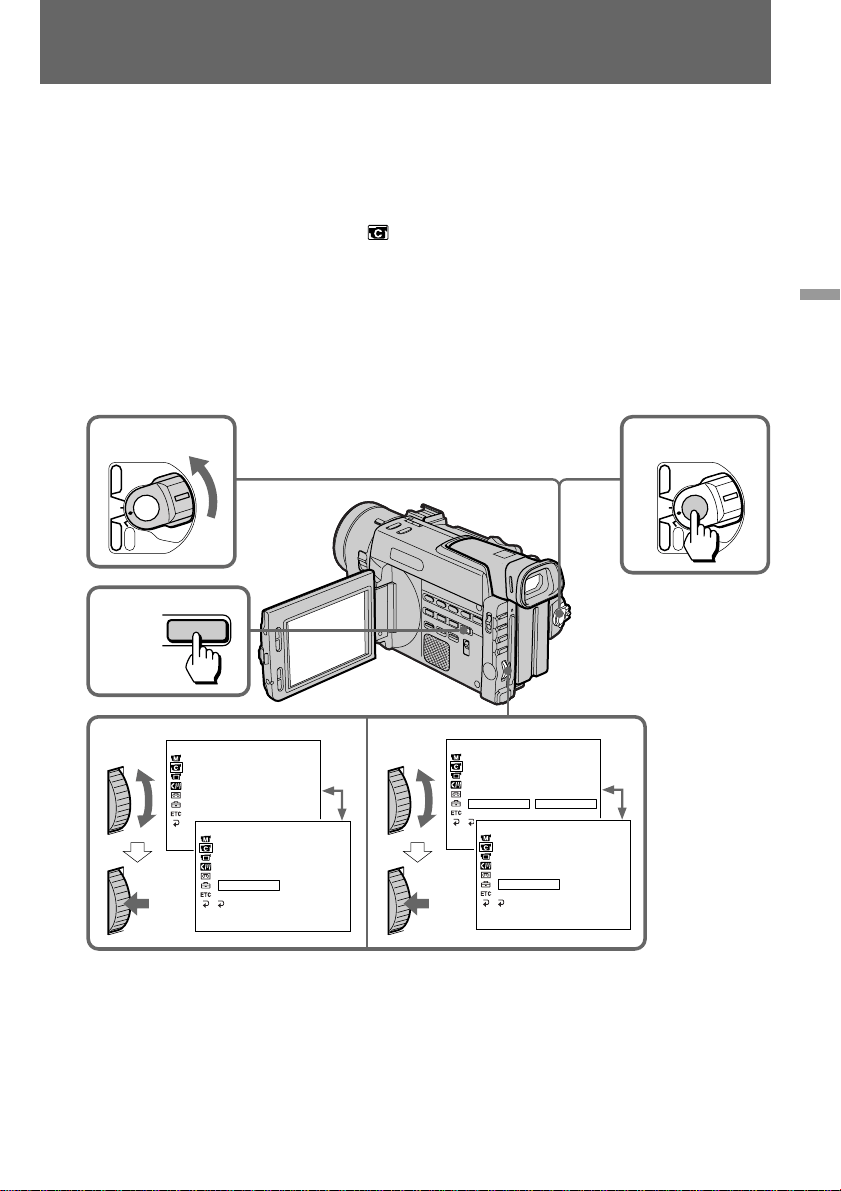

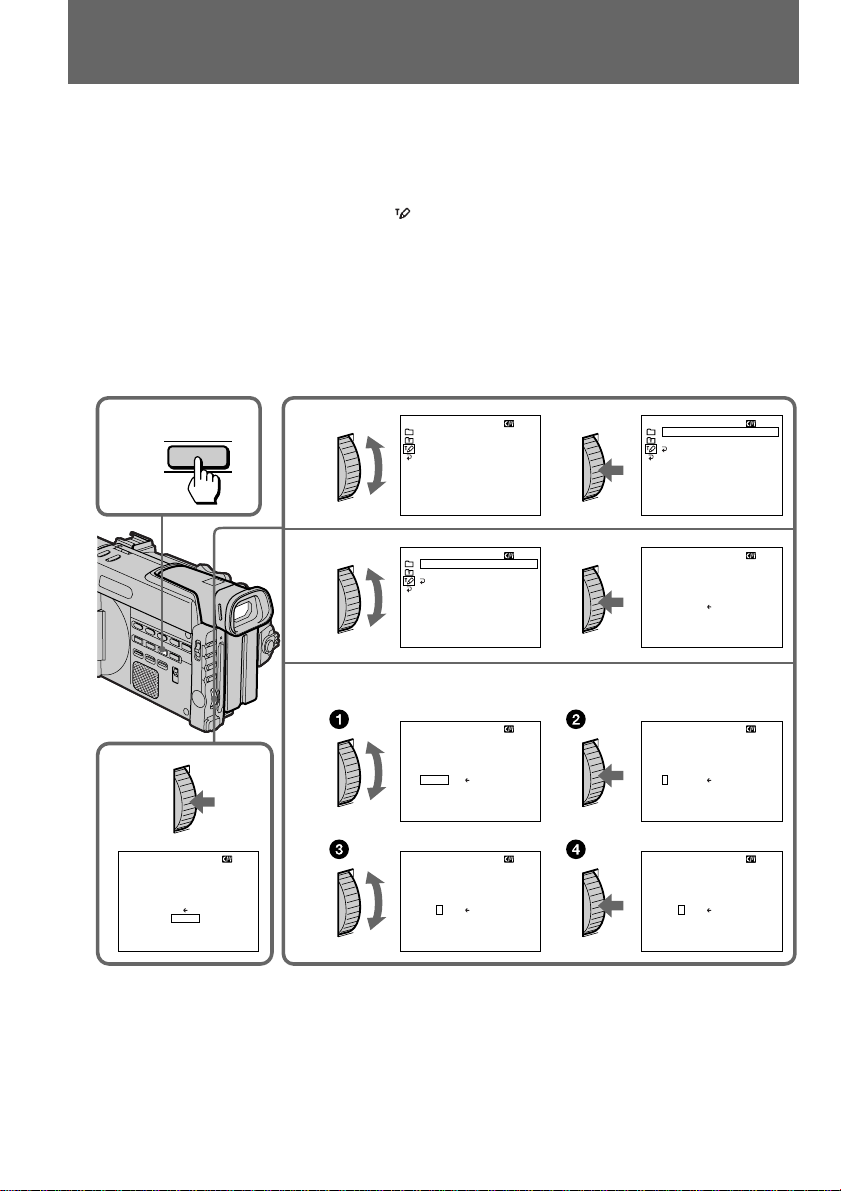

(1) Press MENU to display the menu.
(2) Turn the control dial to select the desired icon on the left side of the menu, then
press the dial.
(3) Turn the control dial to select the desired item, then press the dial.
(4) Turn the control dial to select the desired mode, then press the dial. If you want to
change the other modes, repeat steps 3 and 4. If you want to change the other items,
select
RETURN and press the dial, then repeat steps 2 to 4.
(5) Press MENU to erase the menu display.
Notes on changing the mode settings
•Menu items differ depending on the setting of the POWER switch to VTR, CAMERA or
MEMORY.
•While recording in mirror mode, you cannot operate the menu system.
Changing the mode settings
1
5
CAMERA
2
3
4
MEMORY
VTR
MENU
MENU
MANUAL SET
AUTO SHTR
PROG.SCAN
[MENU] :END
MANUAL SET
AUTO SHTR
[MENU] :END
VTR SET
H i F i SOUND
AUDIO MI X
[MENU] :END
SETUP MENU
AUTO TV ON
TV I NPUT V I DEO1
LTR SIZE VIDEO2
RETURN V I DEO3
OFF
SETUP MENU
AUTO TV ON
TV I NPUT V I DEO2
LTR SIZE
RETURN
SETUP MENU
AUTO TV ON OFF
TV I NPUT
LTR SIZE
RETURN
SETUP MENU
AUTO TV ON
TV I NPUT V I DEO1
LTR SIZE
RETURN
SETUP MENU
AUTO TV ON
TV I NPUT V I DEO1
LTR SIZE VIDEO2
RETURN V I DEO3
OFF
VTR SET
H i F i SOUND
AUDIO MI X
SETUP MENU
AUTO TV ON
TV I NPUT
LTR SIZE
SETUP MENU
AUTO TV ON OFF
TV I NPUT
LTR SIZE
RETURN
28
Changing the mode settings
Selecting the mode setting of each item
Menu items that can be modified differ depending on the setting of the POWER switch. The
LCD screen shows only the items that you can operate at the moment. The menu items are
categorized into nine groups signified by the nine icons described below.
Items for the MANUAL SET menu
AUTO SHTR <ON/OFF>
•Select ON and the electronic shutter functions automatically when shooting in bright
conditions.
•Select OFF and the electronic shutter does not function even in bright conditions.
PROG. SCAN* <OFF/ON>
•Select OFF not to record still/moving pictures with all the pixels.
•Select ON to record still/moving pictures with all the pixels.
Items for the CAMERA SET menu
D ZOOM <OFF/ON>
•Select OFF not to use the digital zoom. The camcorder goes back to 12x optical zoom.
•Select ON to activate digital zooming.
16:9WIDE <OFF/ON>
Select this item to record a 16:9 wide picture. See page 39 for details.
STEADYSHOT <ON/OFF>
•Normally select ON.
•Select OFF when you do not have to worry about camera-shake.
AE SHIFT
Adjust the setting level of AE (Automatic Exposure). See page 52 for details.
GAIN SHIFT <0dB/–3dB>
•Set the gain value to 0dB.
•Set the gain value to –3dB.
FRAME REC <OFF/ON>
•Normally select OFF.
•Select ON for cut recording. See page 61 for details.
When you remove the power source, the setting becomes OFF.
INT.REC <ON/OFF/SET> <INTERVAL/REC TIME>
• Normally select OFF. Select ON to make an interval recording.
• Select INTERVAL to set or change the waiting time for interval recording.
• Select REC TIME to set or change the recording time for interval recording.
When you remove the power source, the setting becomes OFF, but the waiting time and
recording time are retained.
Items for the VTR SET menu
HiFi SOUND* <STEREO/1/2>
•Select STEREO to play back stereo sound or main and sub sound (for dual sound).
•Select 1 to play back the left sound (for stereo sound) or main sound (for dual sound).
•Select 2 to play back the right sound (for stereo sound) or sub sound (for dual sound).
29
Advanced operations
Changing the mode settings
AUDIO MIX*
Select this item to adjust the balance between the stereo 1 and stereo 2 by turning the control
dial.
Items for the LCD/VF SET menu
LCD B.L. <BRT NORMAL/BRIGHT>
•Normally select BRT NORMAL.
•Select BRIGHT when the LCD screen is dark. The battery consumption increases by 10 to
20%.
Even if you adjust the LCD B.L., the recorded picture is not affected.
LCD COLOR
Select this item and change the level of the indicator by turning the control dial up (+) or
down (–) to adjust the color intensity of the picture.
VF BRIGHT
Close the LCD panel.
Select this item to adjust the brightness of the viewfinder. The viewfinder becomes brighter
when you turn the control dial up (+), and darker when you turn it down (–).
ZEBRA <OFF/ON>
•Normally select OFF.
•Select ON to shoot with the zebra pattern displayed on the LCD screen or in the
viewfinder.
Items for the MEMORY SET menu

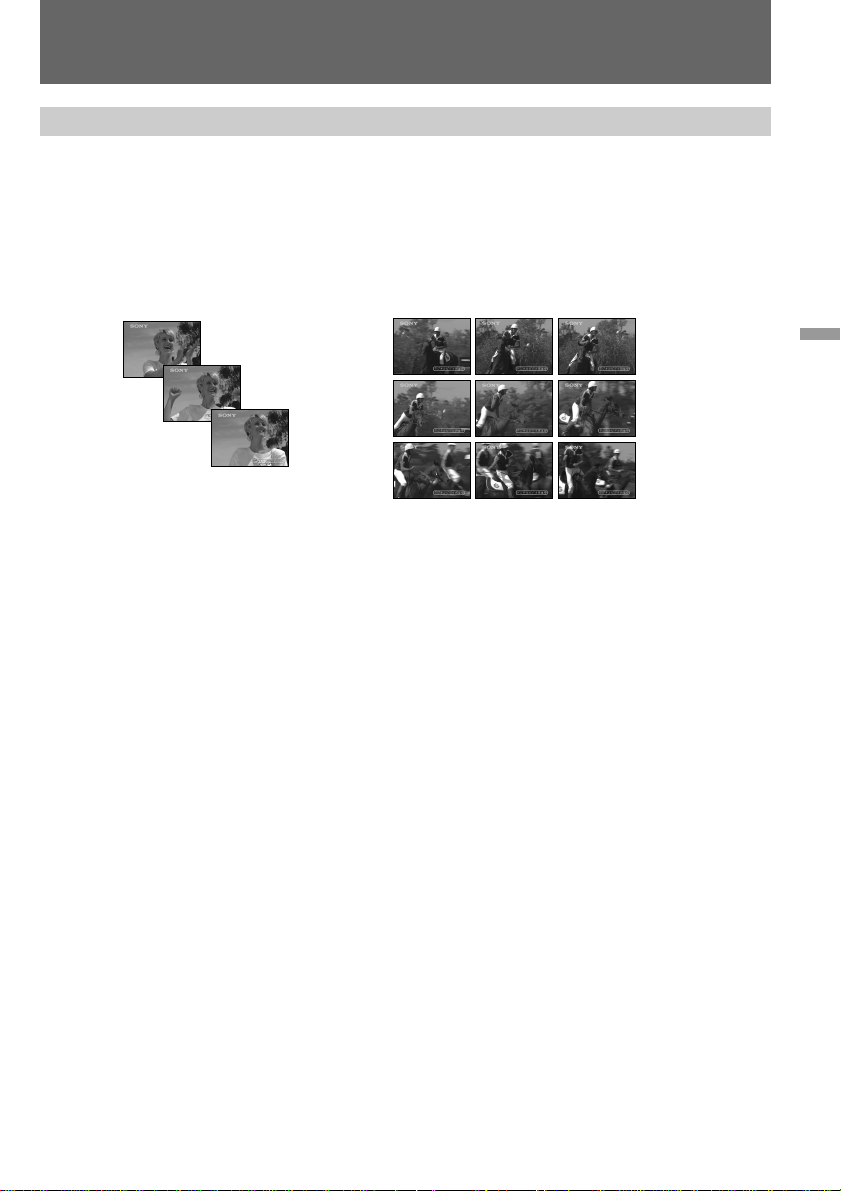

CONTINUOUS <OFF/ON/MULTI SCRN>
•Select OFF not to record continuously.
•Select ON to record 2 to 4 pictures continuously.
•Select MULTI SCRN to record nine pictures continuously.
QUALITY <STANDARD/FINE/SUPER FINE>
•Select STANDARD to record still pictures in the standard image quality mode, using the
memory card slot.
•Select FINE to record still pictures in the fine image quality mode, using the memory card
slot.
•Select SUPER FINE to record still pictures in the superfine image quality mode, using the
memory card slot.
PROTECT <OFF/ON>
•Normally select OFF not to protect still pictures.
•Select ON to protect selected still pictures against accidental erasure. See page 108 for
details.
SLIDE SHOW
Select this item to play back images in a continuous loop. See page 114 for details.
DELETE ALL
Select this item to delete all the images. See page 110 for details.
FORMAT
Select this item to format floppy disks or PC cards. See page 96 for details.
30
Changing the mode settings
PHOTO SAVE
Select this item to duplicate still pictures. See page 100 for details.
Items for the CM SET menu
CM SEARCH <ON/OFF>
•Select ON to search using cassette memory.
•Select OFF to search without using cassette memory.
TITLEERASE
Erase the title you have superimposed.
TITLE DSPL <ON/OFF>
•Select ON to display the title you have superimposed.
•Select OFF not to display the title.
TAPE TITLE
Select this item to label the cassette tape.
ERASE ALL
Select this item to erase all the data in cassette memory.
Items for the TAPE SET menu
REC MODE <SP/LP>
•Select SP when recording in SP (standard play) mode.
•Select LP when recording in LP (long play) mode.
AUDIO MODE <12BIT/16BIT>
•Normally select 12BIT to record two stereo sounds.
•Select 16BIT to record the one stereo sound with high quality.
MIC LEVEL* <AUTO/MANUAL>
•Select AUTO to adjust the recording level automatically.
•Select MANUAL to adjust the recording level manually.
ÒREMAIN <AUTO/ON>
•Select AUTO to display the remaining time of the tape in the following cases:
– With the power on or a tape inside, for eight seconds after the remaining time of the tape
becomes certain.
– For eight seconds after the · or DISPLAY button is pressed.
– During rewinding, fast-forwarding, and searching the picture.
•Select ON to always display the remaining time of the tape.
DATA CODE <DATE/CAM or DATE>
•Select DATE/CAM to display date and recording data during playback.
•Select DATE to display date during playback.
Items for the SETUP menu
CLOCK SET
Select this item to reset the date or time.
AUTO TV ON <OFF/ON>
You can use this feature only with Sony TVs.
•Select OFF not to turn on the TV.
•Select ON to turn on the TV automatically when using the LASER LINK function.
31
Advanced operations
Changing the mode settings
TV INPUT <VIDEO1/VIDEO2/VIDEO3/OFF>
Select 1, 2 or 3 of the video input on the TV which the AV cordless IR receiver (not supplied)
is connected to when using the LASER LINK function.
LTR SIZE <NORMAL/2X>
•Normally select NORMAL.
•Select 2X to display the selected menu item by twice size of the normal.
DEMO MODE <ON/OFF>
•Select ON to glance over the function of camcorder.
•Select OFF not to display demonstration.
Notes on DEMO MODE
•DEMO MODE is set to STBY (Standby) at the factory. The demonstration starts about 10
minutes after you set the POWER switch to CAMERA without inserting a cassette.
You can cancel the demonstration by inserting a cassette, setting the POWER switch to a
position other than CAMERA, or select OFF in the menu system. To select STBY again, set
the POWER switch to OFF when DEMO MODE is set to ON, and set the POWER switch
back to CAMERA.
•You cannot select DEMO MODE when a cassette is inserted in the camcorder.
• If you insert a cassette during the demonstration, the demonstration stops. You can start
recording as usual. DEMO MODE automatically returns to STBY.
• To look at the demonstration at once, eject the cassette, if inserted. Then select ON of
DEMO MODE and erase the menu display. The demonstration will begin.
Items for the OTHERS menu
WORLD TIME
Select this item to set the clock by a time difference. See page 119 for details.
BEEP <MELODY/NORMAL/OFF>
•Normally select MELODY so that a melody sounds when you start/stop recording, etc.
•Select NORMAL so that beeps sound when you start/stop recording, etc.
•Select OFF when you do not want to hear the beep sound.
COMMANDER* <ON/OFF>
•Select ON when using the supplied Remote Commander for the camcorder.
•Select OFF when not using the Remote Commander.
DISPLAY <LCD or V-OUT/LCD >
•Normally select LCD.
•Select V-OUT/LCD to display indicators both on the LCD screen and TV screen.
REC LAMP <ON/OFF>
•Normally select ON.
•Select OFF when you do not want the camera recording lamp on the front of the unit to
light up.
COLOR BAR <OFF/ON>
•Normally select OFF not to display the color bar.
•Select ON to display the color bar.
DV EDITING
Select this item when editing a tape on another equipment connected with the i.LINK cable
(DV connecting cable). See page 84 for details.
32
Changing the mode settings
* These settings return to the default 5 minutes or more after the power source is
disconnected or battery is removed. As far as the other items without an asterisk are
concerned, their settings are retained even when the power source is disconnected or
battery is removed, as long as the vanadium-lithium battery is charged.
When recording a close subject
When REC LAMP is set to ON, the red camera recording lamp on the front of the camcorder
may reflect on the subject if it is close. In this case, we recommend you set REC LAMP to
OFF.
Notes
•When playing back a tape recorded in the 16-bit mode, you cannot adjust the balance in
AUDIO MIX.
•If you select 16BIT in AUDIO MODE, you cannot add an audio sound.
•If you select BRIGHT in LCD B.L., the battery life while recording decreases 10 to 20%.
When you use a power source other than the battery, the menu item LCD B.L. is set to
BRIGHT automatically and the item does not appear on the screen.
33
Advanced operations

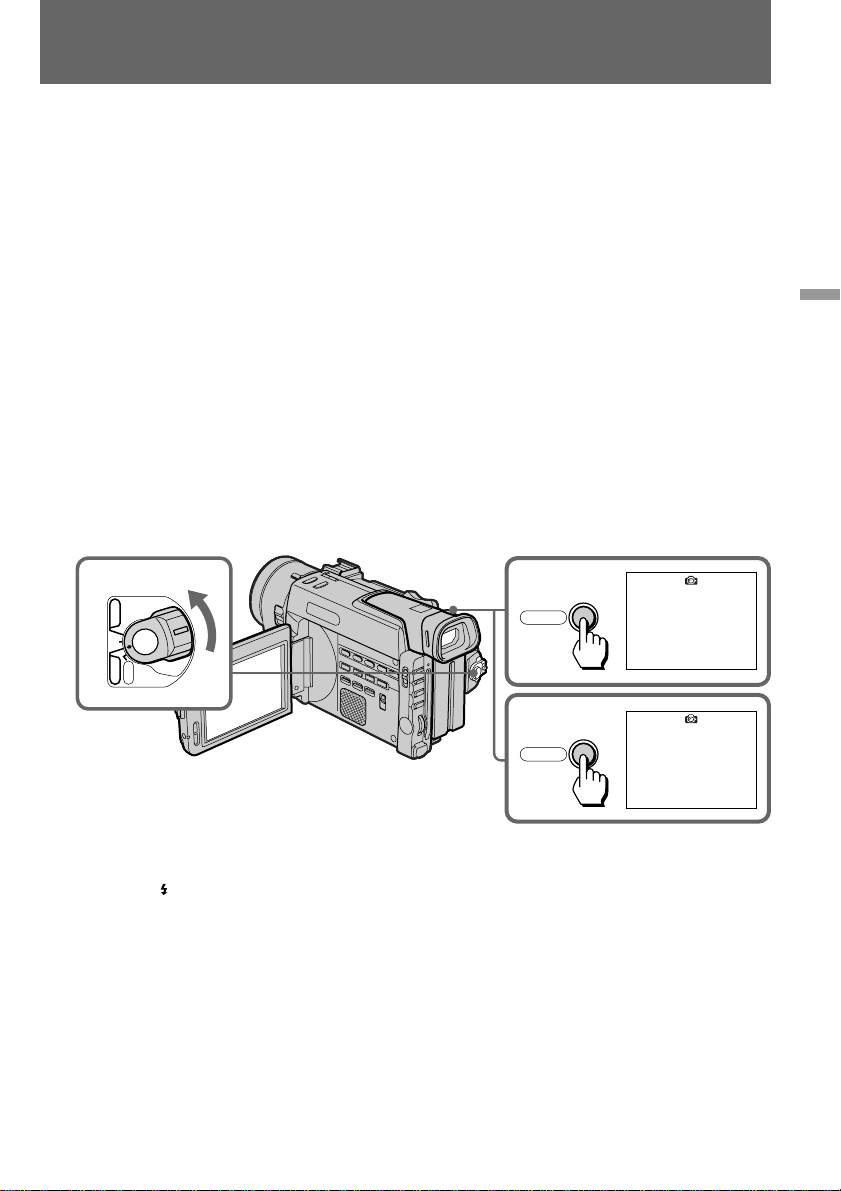

You can record a still picture like a photograph for about seven seconds. This photo
recording is useful when you want to enjoy a picture such as a photograph or when you
print a picture using a video printer (not supplied). You can record about 510 pictures on a
60-minute tape in SP mode.
Besides the operation described here, this camcorder can record a still picture on a PC card
(not supplied), using the memory card slot (see page 102).
You can also record still/moving pictures on a mini DV tape with all the pixels in the
progressive mode. See page 35 for details.
(1) While pressing the small green button on the POWER switch, set it to CAMERA.
(2) Keep pressing PHOTO lightly until a still picture and “CAPTURE” appears on the
LCD screen or in the viewfinder.
Recording does not start yet. To change the still picture, release PHOTO, select still
picture again, and keep pressing PHOTO lightly again.
If you press PHOTO on the Remote Commander when a still picture appears on
the LCD screen or in the viewfinder, the camcorder will record that still picture.
However, you cannot select other still pictures by using this button.
(3) Press PHOTO deeper.
The still picture on the LCD screen or in the viewfinder is recorded for about seven
seconds. The sound during those seven seconds is also recorded.
To record a still picture while normal recording, press PHOTO deeper. Then the
still picture is recorded for about seven seconds and the camcorder returns to
Standby mode.
When shooting in the dark
Install the HVL-FDH2 video flash light (not supplied) to the accessory shoe. If the exposure
is in manual exposure mode, set it to automatic exposure mode.
When appears next to the “CAPTURE” indicator on the LCD screen or in the viewfinder,
the video flash is ready to be used.
Note on the still picture
When the still picture recorded on this camcorder is played back on another VCR, the
picture may be blurred. This is not a malfunction.
When you press PHOTO while recording a photo
The picture on the LCD screen or in the viewfinder whenever you press PHOTO will be
recorded. You cannot check the recorded picture by pressing PHOTO lightly.
After the moving picture is recorded as a still picture for about seven seconds, the camcorder
will go back to Standby mode.
Photo recording
21
POWER
OFF
CAMERA
MEMORY
VTR
3
CAPTURE
•••••••
34
LINE IN
VIDEO S VIDEO

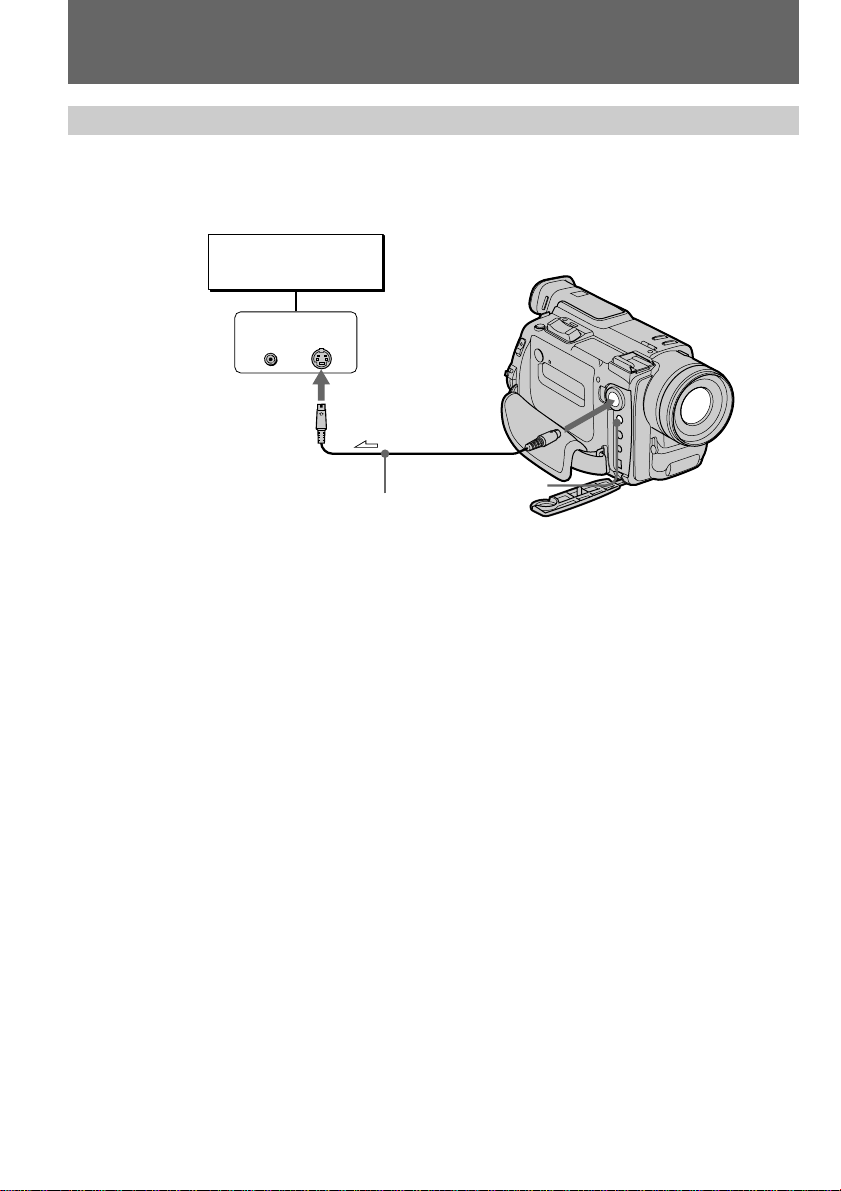

Printing the still picture
You can print a still picture by using the video printer (not supplied). Connect the video
printer using the S video connecting cable (not supplied). Refer to the operating instruction
of the video printer as well.
If the video printer is not equipped with S VIDEO input
Use the supplied A/V connecting cable. Connect it to the AUDIO/VIDEO jack and connect
the yellow plug of the cable to the VIDEO input of the video printer.
Photo recording
AUDIO/VIDEO
S VIDEO
Ç : Signal flow
Video printer
(not supplied)
35
Advanced operations
Shooting with all the pixels – PROG. SCAN
When modifying the digital images on your personal computer, set PROG. SCAN to ON
before shooting. You can record the images on a mini DV tape frame by frame with higher
resolution.
Since the image taken in progressive mode does not go out of focus even in a pause, it is
especially useful when you analyze high-speed actions such as sport scenes.
(1) Press MENU to display the menu in Standby mode.
(2) Turn the control dial to select
, then press the dial.
(3) Turn the control dial to select PROG. SCAN, then press the dial.
(4) Turn the control dial to select ON, then press the dial.
(5) Press MENU to erase the menu display. The PROG. SCAN indicator lights up.
To return to normal mode
Select OFF in step 4, then press the control dial.
Note on the progressive mode
The normal TV broadcast divides the screen into two finer fields and displays them in turns
every 1/60 of a second. Thus, the actual image displayed in an instant covers only half of the
apparent image area. Displaying the whole image simultaneously on a full screen is called
displaying with all the pixels. In this mode the picture is clearer than one in normal mode,
but moving objects appear jerky since the picture is read/output every about 1/15 second.
The setting at the factory
This camcorder is originally programed to record still/moving pictures on a mini DV tape in
the normal TV format (Interlace format).
When shooting under fluorescent light
When shooting in the progressive mode under fluorescent light or light bulb, a rare
phenomenon may happen in which the screen lights up brightly (Flicker phenomenon). This
is not a malfunction. If you want to stop this phenomenon, set PROG. SCAN to OFF in the
menu system.
1
2-4
MENU
MANUAL SET
AUTO SHTR
PROG.SCAN
[MENU] :END
MANUAL SET
AUTO SHTR
PROG.SCAN OFF
RETURN ON
[MENU] :END
MANUAL SET
AUTO SHTR
PROG.SCAN ON
RETURN
[MENU] :END
5
MENU
PROG.SCAN
36

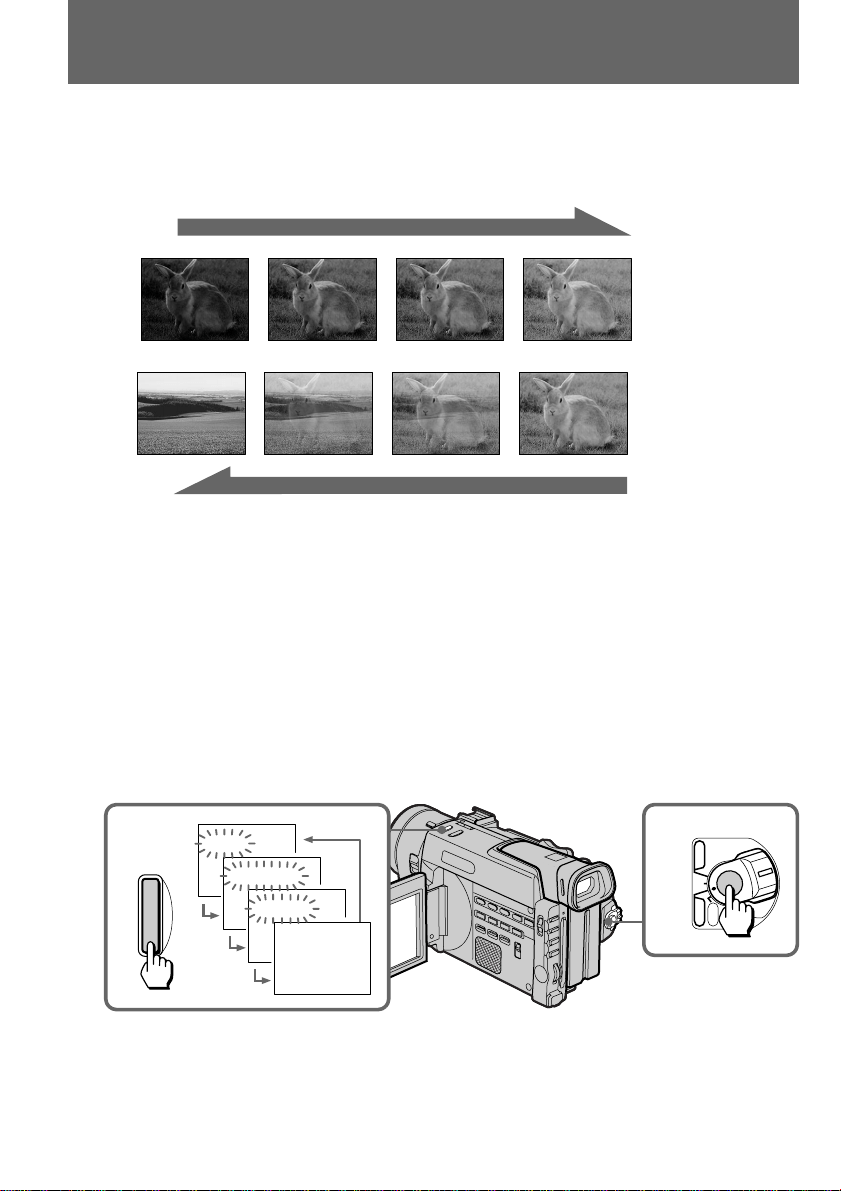

You can fade in or out to give your recording a professional appearance.
When fading in, the picture gradually fades in while the sound increases. When fading out,
the picture gradually fades out while the sound decreases.
FADER
OVERLAP (FADE IN only)
MONOTONE
When fading in, the picture gradually changes from black and white to color.
When fading out, the picture gradually changes from color to black and white.
When fading in [a]
(1)While the camcorder is in Standby mode, press FADER until the desired indicator
flashes.
(2)Press START/STOP to start recording. The fade indicator stops flashing.
When fading out [b]
(1)During recording, press FADER until the desired indicator flashes.
(2)Press START/STOP to stop recording. The fade indicator stops flashing, and then
recording stops.
Using the FADER function
[a]
RECSTBY
[b]
RECSTBY
21
POWER
OFF
CAMERA
MEMORY
VTR
MONOTONE
FADER
OVERLAP
FADER
37
Advanced operations
To cancel the fader function
Before pressing START/STOP, press FADER until the fade indicator disappears.
You cannot use the fader function in the following situations
– The START/STOP MODE selector is set to ANTI GROUND SHOOTING or 5SEC.
– The camcorder is in the photo recording.
– A title is displayed on the LCD screen or in the viewfinder. If the title is not necessary,
erase it before using the fader function.
Note
During fading, you cannot operate the DIGITAL EFFECT button.
The fader function is effective in the following situations
•A big change of scene (FADE IN, FADE OUT)
•The beginning of a story (FADE IN)
•The end of a day (FADE OUT)
•Change the scene while leaving the trace of the previous scene
If you use the fader function repeatedly
The situation the subject is in cannot be seen clearly, thus making the picture difficult to
enjoy.
When the OVERLAP indicator appears
The camcorder automatically memorizes the image recorded on a tape. As the image is
being memorized, the OVERLAP indicator flashes fast, and the playback picture is
displayed. At this stage, the picture may not be recorded clearly, depending on the tape
condition.
Using the FADER function
38
When you shoot a subject with the light source behind the subject or a subject with a light
background, use the BACK LIGHT function.
Press BACK LIGHT. The c indicator appears on the LCD screen or in the viewfinder.
[a]Subject is too dark because of backlight.
[b]Subject becomes bright with backlight compensation.
After shooting
Be sure to release this adjustment condition by pressing BACK LIGHT again. The c
indicator disappears. Otherwise, the picture will be too bright under normal lighting
condition.
This function is also effective under the following conditions:
•A subject with a light source nearby or a mirror reflecting light.
•A white subject against a white background. Especially when you shoot a person wearing
shiny clothes made of silk or synthetic fiber, his or her face tends to become dark if you do
not use this function.
Note on the BACK LIGHT function
When you press EXPOSURE or SHUTTER SPEED, the BACK LIGHT function is canceled.
Shooting with backlighting
[a]
[b]
BACK LIGHT
39
Advanced operations
You can record a 16:9 wide picture to watch on the 16:9 wide-screen TV (16:9WIDE).
The picture with black bands at the top and the bottom on the LCD screen or in the
viewfinder [a] is normal. The picture on a normal TV [b] is horizontally compressed. You
can watch the picture of normal images on a wide-screen TV [c].
(1) Set the POWER switch to CAMERA.
(2) Press MENU to display the menu.
(3) Turn the control dial to select , then press the dial.
(4) Turn the control dial to select 16:9WIDE, then press the dial.
(5) Turn the control dial to select ON, then press the dial.
(6) Press MENU to erase the menu display.
To cancel wide mode
Select OFF in step 5, then press the control dial.
To watch the tape recorded in wide mode
To watch the tape recorded in 16:9WIDE mode, set it to full mode. For details, refer to the
operating instruction of your TV.
Note that the picture recorded in 16:9WIDE mode looks compressed on a normal TV.
Notes on wide mode
•In wide mode, you cannot select the old movie function with DIGITAL EFFECT.
•You cannot select or cancel the wide mode during recording.
•You cannot use the wide mode function when you set PROG. SCAN to ON.
Using the wide mode function
16:9 WIDE
[a]
[b]
[c]
2,6
1
3,4
5
MENU
CAMERA SET
DZOOM
16:9WIDE
STEADYSHOT
AE SHI FT
GA I N SH I FT
FRAME REC
INT .REC
[MENU] :END
CAMERA SET
DZOOM
16:9WIDE ON
STEADYSHOT
AE SHI FT
GA I N SH I FT
FRAME REC
INT .REC
RETURN
[MENU] :END
16:9WIDE
POWER
OFF
CAMERA
MEMORY
VTR
CAMERA SET
DZOOM
16:9WIDE OFF
STEADYSHOT ON
AE SHI FT
GA I N SH I FT
FRAME REC
INT .REC
RETURN
[MENU] :END
40

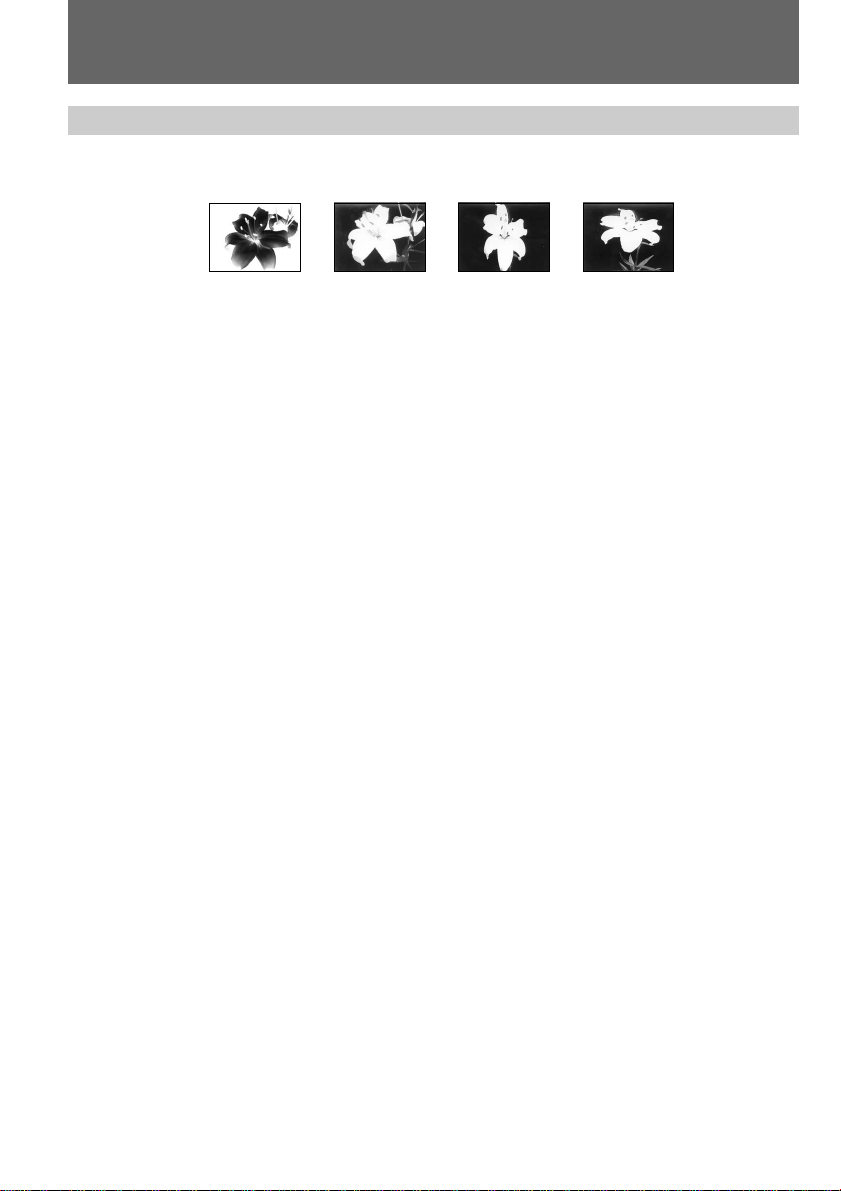

Enjoying picture effect
Selecting picture effect
You can make pictures like those of television with the Picture Effect function.
NEG. ART [a]
The color of the picture is reversed.
SEPIA
The picture is sepia.
B&W
The picture is monochrome (black and white).
SOLARIZE [b]
The light intensity is clearer, and the picture looks like an illustration.
SLIM [c]
The picture expands vertically.
STRETCH [d]
The picture expands horizontally.
[a]
[b]
[d]
[c]
41
Advanced operations

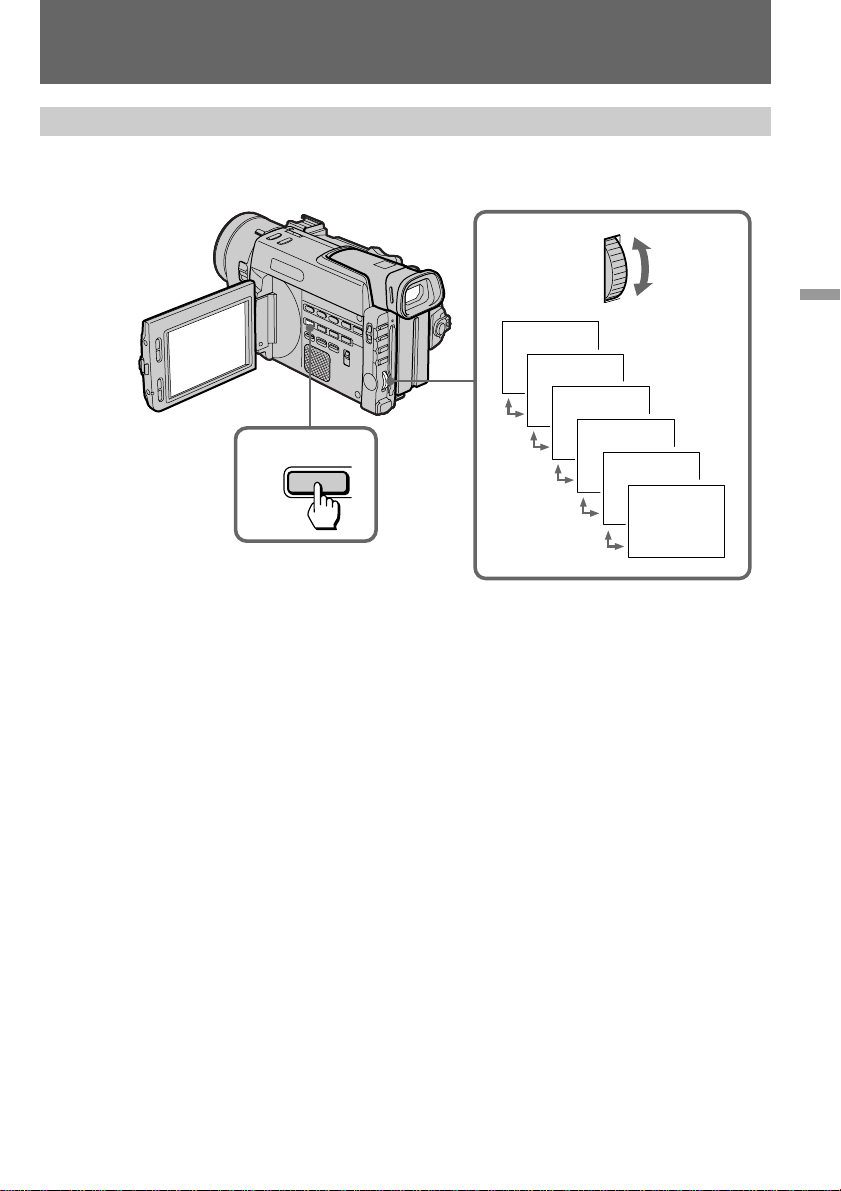

Using picture effect function
(1)While in Standby mode, press PICTURE EFFECT.
(2)Turn the control dial to select the desired picture effect mode.
To return to normal mode
Press PICTURE EFFECT so that the indicator disappears.
Notes on the picture effect
•When you turn the power off, the camcorder returns automatically to normal mode.
•You cannot select SLIM and STRETCH when you set PROG. SCAN to ON.
•While using the picture effect function, you cannot select the old movie function with
DIGITAL EFFECT.
Enjoying picture effect
SEPIA
NEG.ART
B&W
SOLARIZE
SLIM
STRETCH
1
2
EFFECT
42

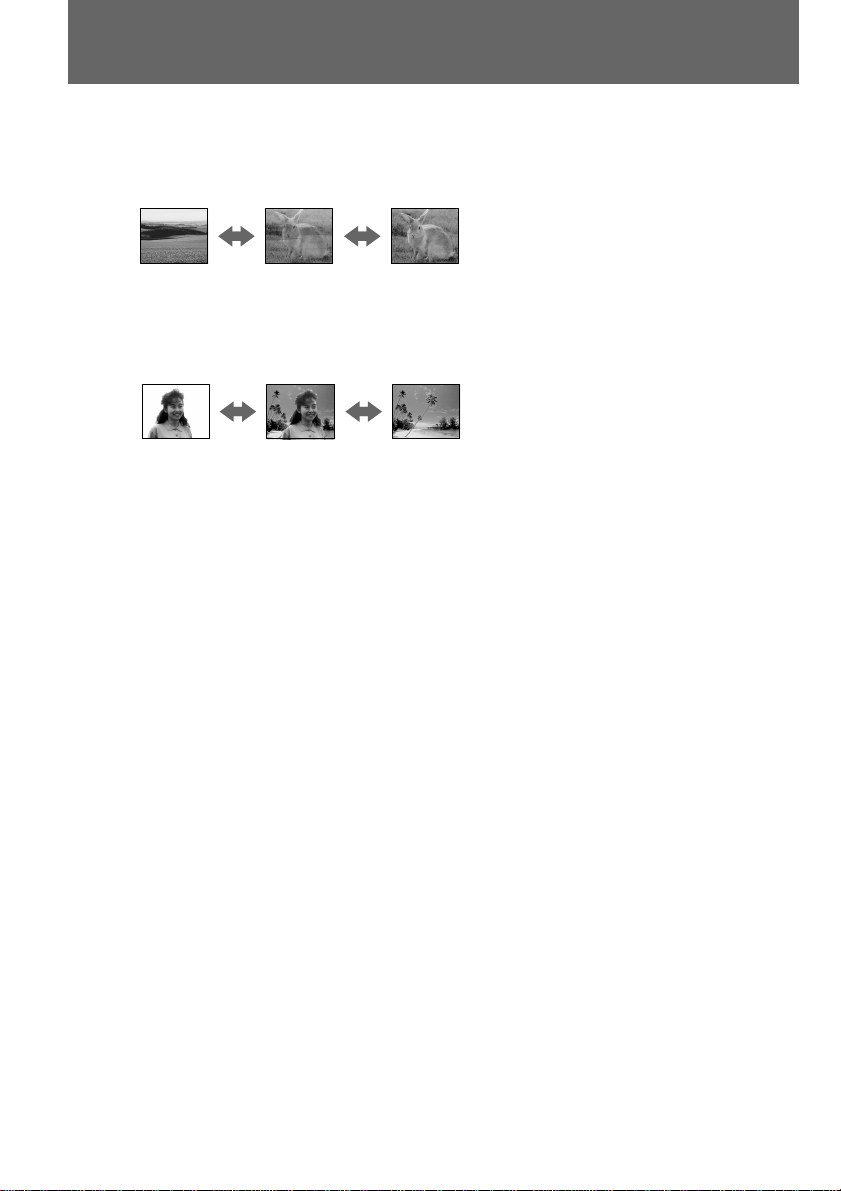

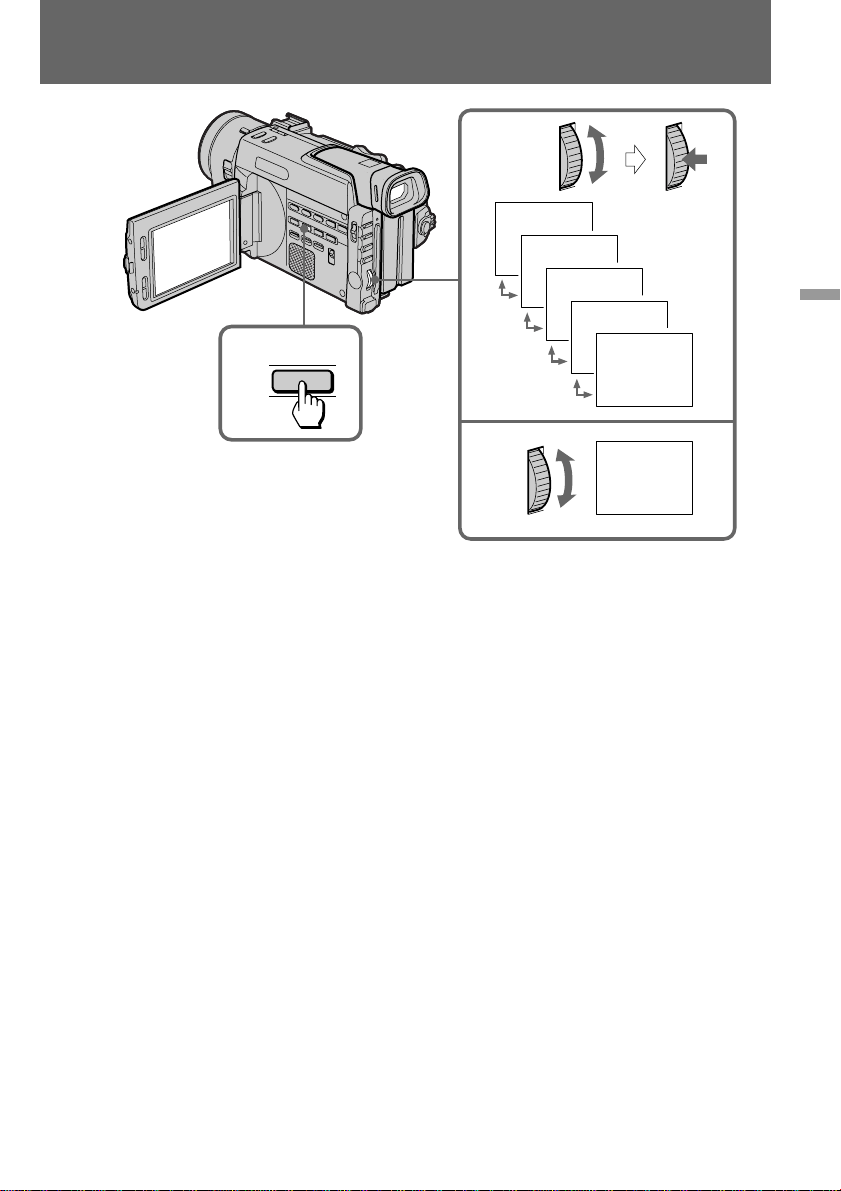

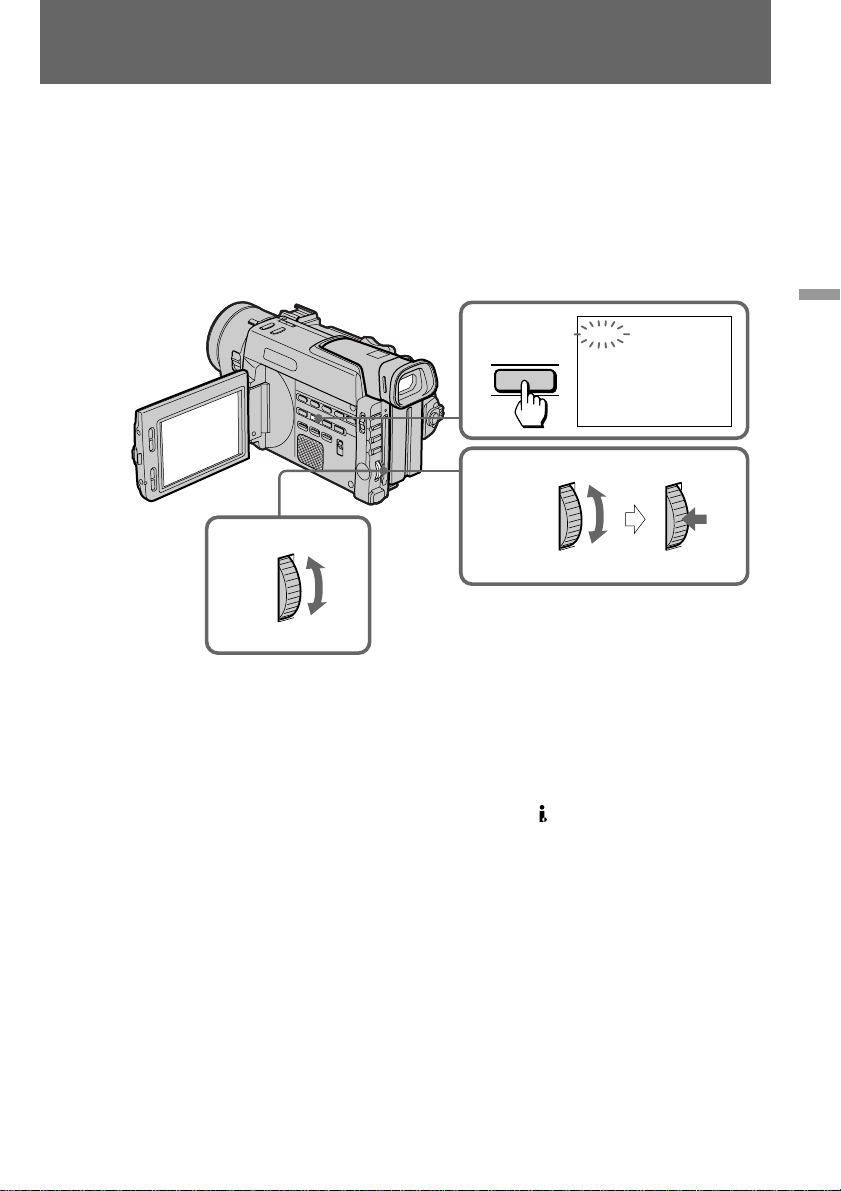

Recording with various effects – digital effect
With the following functions of Digital Effect, you can add various visual effects to the
picture. The sound is recorded normally.
STILL
You can record a still picture to be superimposed on a moving picture.
FLASH
You can record still pictures successively at constant intervals.
LUMI.
You can replace a brighter portion of a still picture with a moving picture.
TRAIL
You can record the picture which leaves an incidental image, such as a trail.
OLD MOVIE
You can record the picture such as an old movie. The camcorder automatically sets the wide
mode to 16:9WIDE, picture effect to SEPIA, and the appropriate shutter speed.
(1) While in Standby mode or Recording mode, press DIGITAL EFFECT.
The digital effect indicator flashes.
(2) Turn the control dial to select the desired digital effect mode.
(3) Press the control dial. The digital effect indicator lights up and the bars appear. The
bar does not appear in the OLD MOVIE mode. The still picture is stored in memory
in the STILL or LUMI. mode.
(4) Turn the control dial to adjust effects.
The longer the bar is, the greater the effects are.
STILL : The proportion of still picture to moving picture.
FLASH : The length of the intervals.
LUMI. : The brightness of the area where you paste the moving picture.
TRAIL : The length of time the incidental image remains.
OLD MOVIE : No adjustment necessary.
43
Advanced operations
To cancel digital effects
Press DIGITAL EFFECT so that the indicator disappears.
Notes on digital effect
•You cannot use the following functions while using the digital effect.
– Functions using the FADER button
– Functions using the PHOTO button
•When you set the POWER switch to OFF, the digital effect will be canceled automatically.
Notes on the OLD MOVIE mode
You cannot use the following functions in the OLD MOVIE mode.
– Functions using the PROGRAM AE button
– 16:9WIDE mode
– Functions using the PICTURE EFFECT button
Recording with various effects – digital effect
FLASH
STILL
LUMI.
TRAIL
OLD MOVIE
1
2,3
DIGITAL
EFFECT
4
STILL
IIIIIIII
44

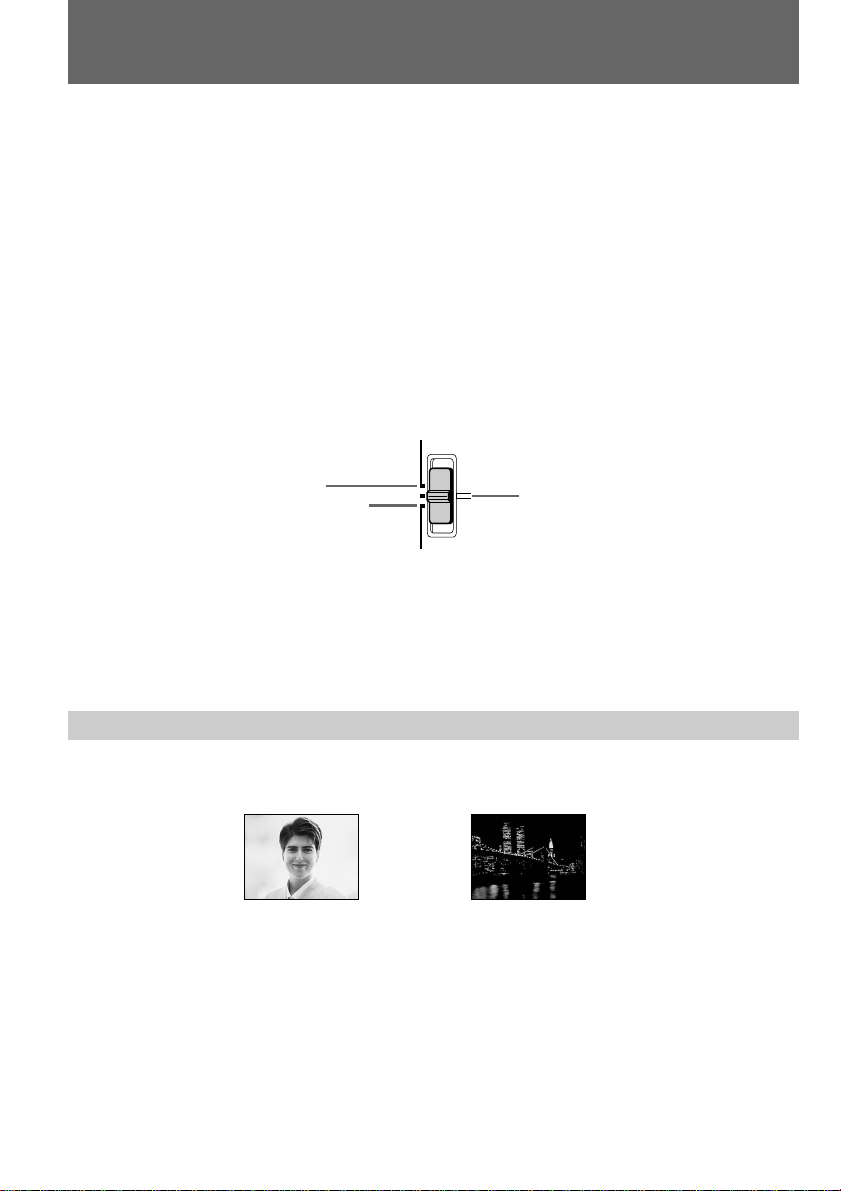

Shooting with manual adjustment
Under normal conditions, this unit automatically makes various adjustments as it shoots.
However, you can adjust manually the following functions to your preference.
Functions you can adjust by setting the AUTO LOCK selector to the center (auto lock
release) position
Brightness (exposure), shutter speed, white balance, and program AE
Functions you can adjust by setting MENU
Zebra pattern, recording level, deactivating the Steady Shot, gain shift, and AE shift
Functions you can adjust by using other buttons/switches
ND filter, focus
The following describes how to adjust all the functions mentioned above except program AE
(see page 54) and focus (see page 57).
AUTO LOCK selector
Set the selector as shown below to maintain or release the settings of the functions.
AUTO LOCK [a]
Select this position to let the unit adjusts all the functions automatically.
HOLD [b]
Select this position after setting the functions manually to maintain the settings.
Manual position [c]
Select this position to adjust manually the functions listed above.
Adjusting exposure
Adjust the exposure manually under the following cases.
[a]
•The background is too bright (back lighting)
•Insufficient light: most of the picture is dark
[b]
•Bright subject and dark background
•To record the darkness faithfully
(1) Set AUTO LOCK selector to the center (auto lock release) position while the
camcorder is in Standby mode.
(2) Press EXPOSURE. The exposure indicator appears on the LCD screen or in the
viewfinder.
(3) Turn the control dial to adjust the exposure.
[a]
[b]
AUTO
LOCK
HOLD
[a]
[b]
[c]
45
Advanced operations
Shooting with manual adjustment
To return to automatic exposure mode
Set AUTO LOCK selector to AUTO LOCK or press EXPOSURE to turn off the exposure
indicator.
Notes
•The control dial does not have a stop position.
•If you press PROGRAM AE, the exposure comes back to automatic adjustment again.
•When you adjust the exposure manually, you cannot use the BACK LIGHT function.
Adjusting the shutter speed
(1) Set AUTO LOCK selector to the center (auto lock release) position while the
camcorder is in Standby mode.
(2) Press SHUTTER SPEED. The shutter speed indicator appears on the LCD screen or
in the viewfinder.
(3) Turn the control dial to select the desired speed. The available shutter speed ranges
from 1/4 to 1/10000.
To return to automatic shutter speed mode
Set AUTO LOCK selector to AUTO LOCK or press SHUTTER SPEED to turn off the shutter
speed indicator.
When shooting at slow shutter speed
At slow shutter speed, automatic focus may be lost. Adjust focus manually using a tripod.
22
F5.6 0dB
1
AUTO
LOCK
HOLD
3
22
60
3
1
AUTO
LOCK
HOLD
46
Shooting with manual adjustment

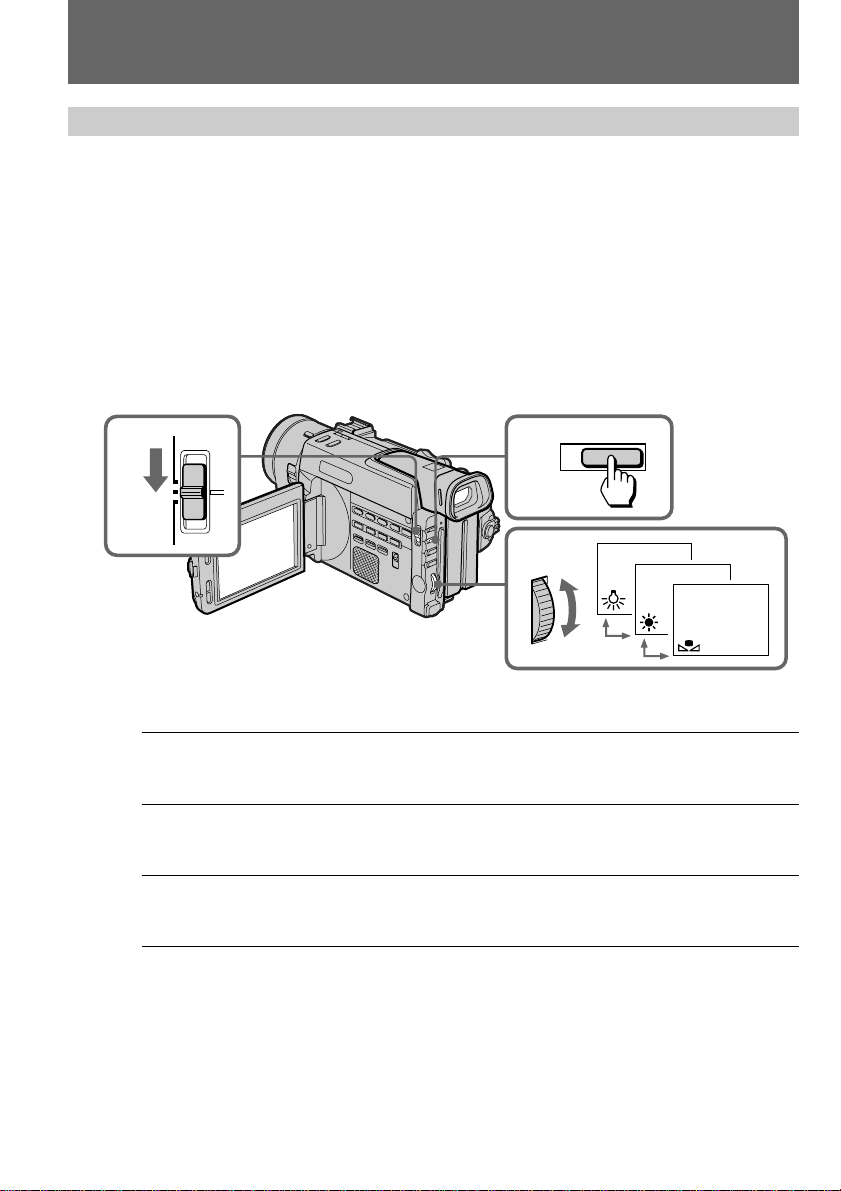

Adjusting the white balance
White balance adjustment makes white subjects look white and allows more natural color
balance for camera recording. Normally white balance is automatically adjusted. You can
obtain better results by adjusting the white balance manually when lighting conditions
change quickly or when recording outdoors: e.g., neon signs, fireworks.
(1) Set AUTO LOCK selector to the center (auto lock release) position while the
camcorder is in Standby mode.
(2) Press WHT BAL. The white balance indicator appears on the LCD screen or in the
viewfinder.
(3) Turn the control dial to select the appropriate white balance mode under the
following conditions. As you turn the dial, the display changes as follows:
∑ (One-push white balance) ˜ w (Outdoor) ˜ e (Indoor).
Display Shooting conditions
∑ •Adjusting the white balance according to the light source.
This operation is not available during recording. Follow the steps
described on the next page to adjust the settings again.
w (Outdoor) •Recording a sunset/sunrise, just after sunset, just before sunrise,
neon signs, or fireworks
•Under a color matching fluorescent lamp
e (Indoor) •Lighting condition changes quickly
•Too bright place such as photography studios
•Under sodium lamps or mercury lamps
1
2
AUTO
LOCK
HOLD
3
WHT BAL
47
Advanced operations
If you have selected ∑ in step 3
When you set the white balance to one-push white balance mode, the setting is locked and
maintained even if lighting conditions change. You can achieve recording with natural
colors without being affected by ambient light.
(With the ∑ indicator on the screen)
(1) Shoot a white object such as paper fully on the LCD screen or in the viewfinder.
(2) Press the control dial.
The ∑ indicator flashes quickly. When the white balance has been adjusted and stored in
the memory, the indicator stops flashing. The setting will be maintained for about one hour
after the battery is detached.
To return to automatic adjustments
Set AUTO LOCK selector to AUTO LOCK or press WHT BAL to turn off the white balance
indicator.
Notes on the ∑ indicator on the screen
•The state of the indicator shows as follows:
Slow flashing: white balance is not adjusted.
Fast flashing: white balance is being adjusted.
Lights up: white balance has been adjusted.
•When the ∑ indicator remains flashing even if you press the control dial, shoot in
automatic white balance mode.
Notes on white balance
•When you shoot with studio lighting or video lighting, use the e (indoor) mode.
•When you shoot with fluorescent lighting, use automatic white balance mode. If you use
the e (indoor) mode, white balance may not be adjusted appropriately.
Shooting when lighting conditions change
•When lighting conditions have changed, readjust the white balance with the control dial
while the camcorder is in Standby mode.
•When you adjust the exposure and shutter speed manually, and move from indoors to
outdoors, or vice versa, adjust the white balance again.
•When you move from indoors to outdoors, or vice versa, or detach the battery for
replacement while shooting in automatic white balance mode or set the POWER switch to
CAMERA, point the camcorder at a white subject for about 10 seconds before you start
recording.
Shooting with manual adjustment
48
Shooting with manual adjustment

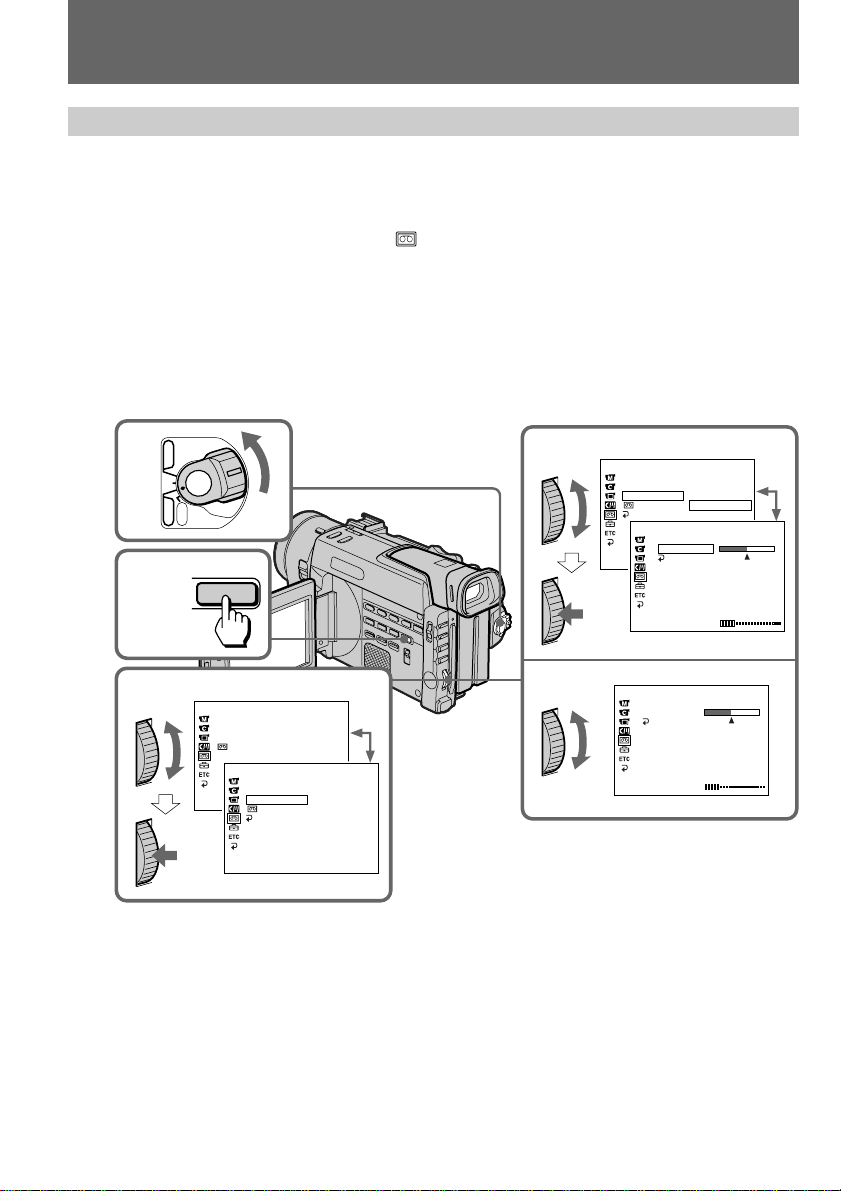

Adjusting recording level
You can adjust the recording sound level. Use headphones to monitor the sound when you
adjust.
(1) Set the POWER switch to CAMERA.
(2) Press MENU to display the menu.
(3) Turn the control dial to select
, then press the dial.
(4) Turn the control dial to select MIC LEVEL, then press the dial.
(5) Turn the control dial to select MANUAL, then press the dial.
(6) Turn the control dial to select LEVEL SET, then press the dial.
(7) Turn the control dial to adjust the microphone level, so that the peak indicator in
the lower-right corner does not light up. It is recommended to use headphones (not
supplied) to monitor the sound when making the adjustment.
(8) Press MENU to erase the menu display.
To adjust the microphone level automatically
Select AUTO in step 5, then press the control dial.
Notes on the adjustment
•The sound level setting is retained as long as the power is on and for about five minutes
after removing the battery.
•Sound level indicator appears at the lower right on the LCD screen or in the viewfinder.
The sound input through the AUDIO/VIDEO jack
You cannot adjust the recording level of the sound.
1
2,8
POWER
OFF
CAMERA
MEMORY
VTR
MENU
5,6
7
3,4
TAPE SET
REC MODE
AUIDO MODE
MIC LEVEL
REMA I N
[MENU] :END
TAPE SET
REC MODE
AUIDO MODE
MIC LEVEL AUTO
REMA I N
RETURN
[MENU] :END
TAPE SET
MIC LEVEL
LEVEL SET
RETURN
[MENU] :END
TAPE SET
REC MODE
AUIDO MODE
MIC LEVEL AUTO
REMA I N MANUAL
RETURN
[MENU] :END
TAPE SET
MIC LEVEL
LEVEL SET
RETURN
[MENU] :END
49
Advanced operations
Shooting with manual adjustment

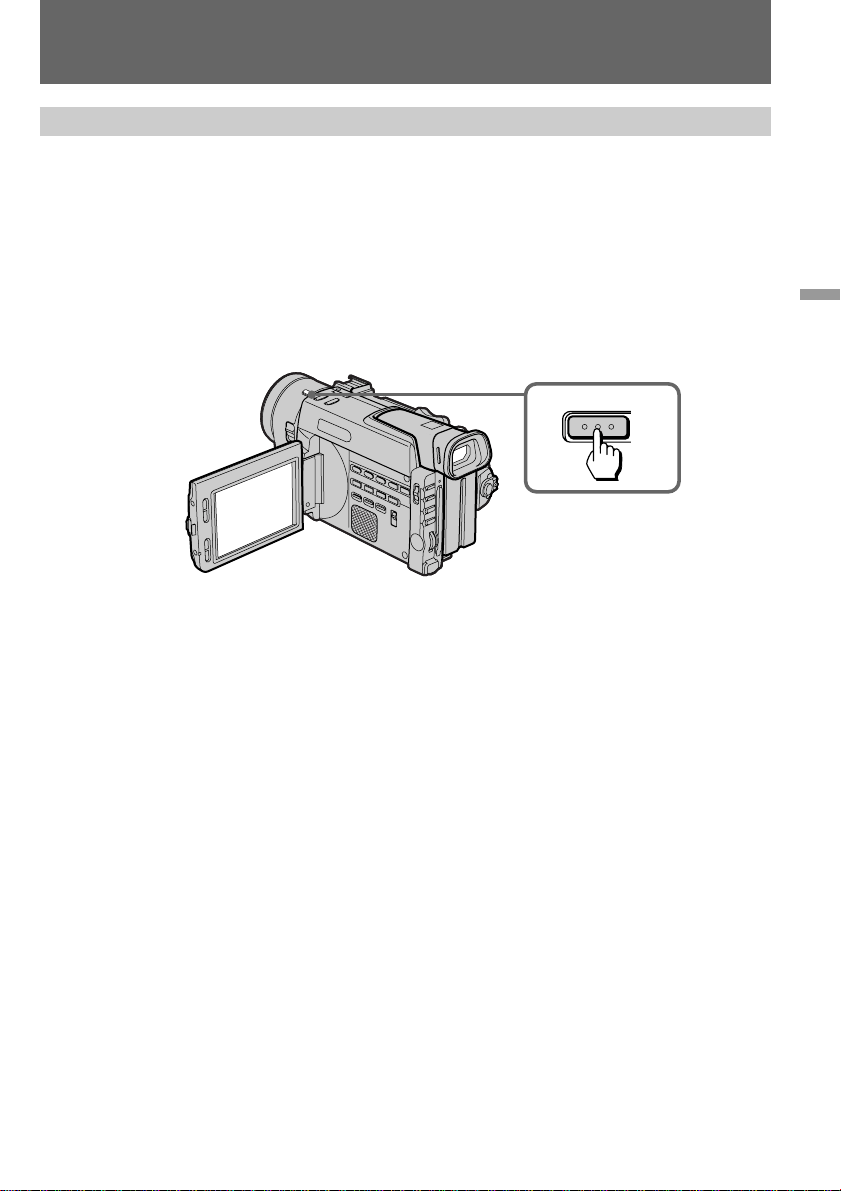

Using the ND filter
Using the ND filter (corresponds to 16% of the quantity of light), you can record a picture
clearly, preventing the picture from going out of focus under bright conditions.
When ND ON flashes on the LCD screen or in the viewfinder
The ND filter is necessary. Press ND FILTER so that the ND ON indicator appears.
The ND filter is now activated.
When ND OFF flashes on the LCD screen or in the viewfinder
The ND filter is not necessary. Press ND FILTER so that the ND OFF indicator stops
flashing.
The ND filter is now deactivated.
ND FILTER
50

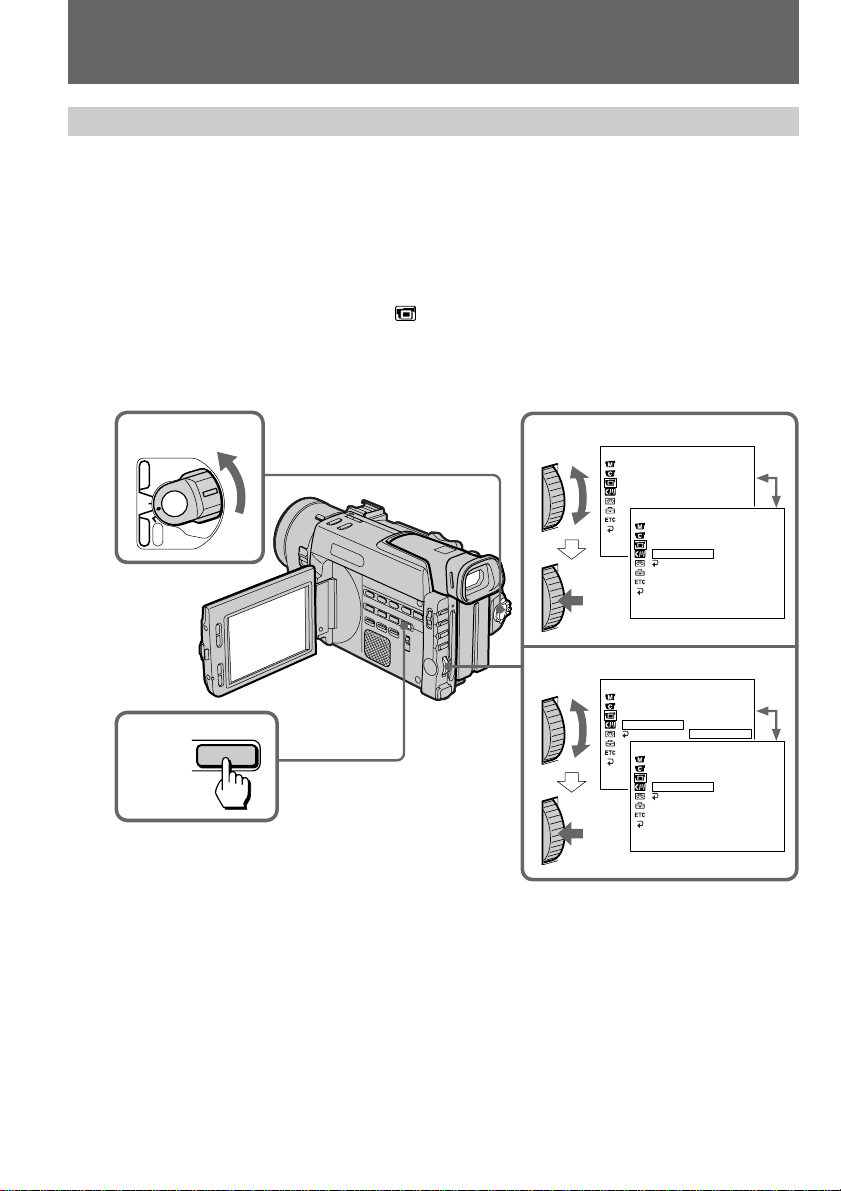

Shooting with the zebra pattern
You can set the camcorder to display a zebra pattern (diagonal stripes) in the portion of the
picture on the LCD screen or in the viewfinder with a subject whose brightness exceeds a
certain level. The portion of the picture where zebra pattern appears is an area of high
brightness and overexposure. You can check the picture level of a subject by displaying the
zebra pattern. Use the zebra pattern as a guide for adjusting the exposure and shutter speed
so that you can get the desired picture.
(1) Set the POWER switch to CAMERA.
(2) Press MENU to display the menu.
(3) Turn the control dial to select
, then press the dial.
(4) Turn the control dial to select ZEBRA, then press the dial.
(5) Turn the control dial to select ON, then press the dial.
(6) Press MENU to erase the menu display.
To erase the zebra pattern
Select OFF in step 5, then press the control dial.
Notes on shooting with the zebra pattern
•A zebra pattern appears at more than 100 IRE.
•Even though you see the zebra pattern on the LCD screen or in the viewfinder, the zebra
pattern is not recorded.
Shooting with manual adjustment
LCD/VF SET
LCD B . L .
LCD COLOR
VF BRIGHT
ZEBRA
[MENU] :END
1
2,6
POWER
OFF
CAMERA
MEMORY
VTR
MENU
3,4
5
LCD/VF SET
LCD B . L .
LCD COLOR
VF BRIGHT
ZEBRA OFF
RETURN
[MENU] :END
LCD/VF SET
LCD B . L .
LCD COLOR
VF BRIGHT
ZEBRA OFF
RETURN ON
[MENU] :END
LCD/VF SET
LCD B . L .
LCD COLOR
VF BRIGHT
ZEBRA ON
RETURN
[MENU] :END
51
Advanced operations

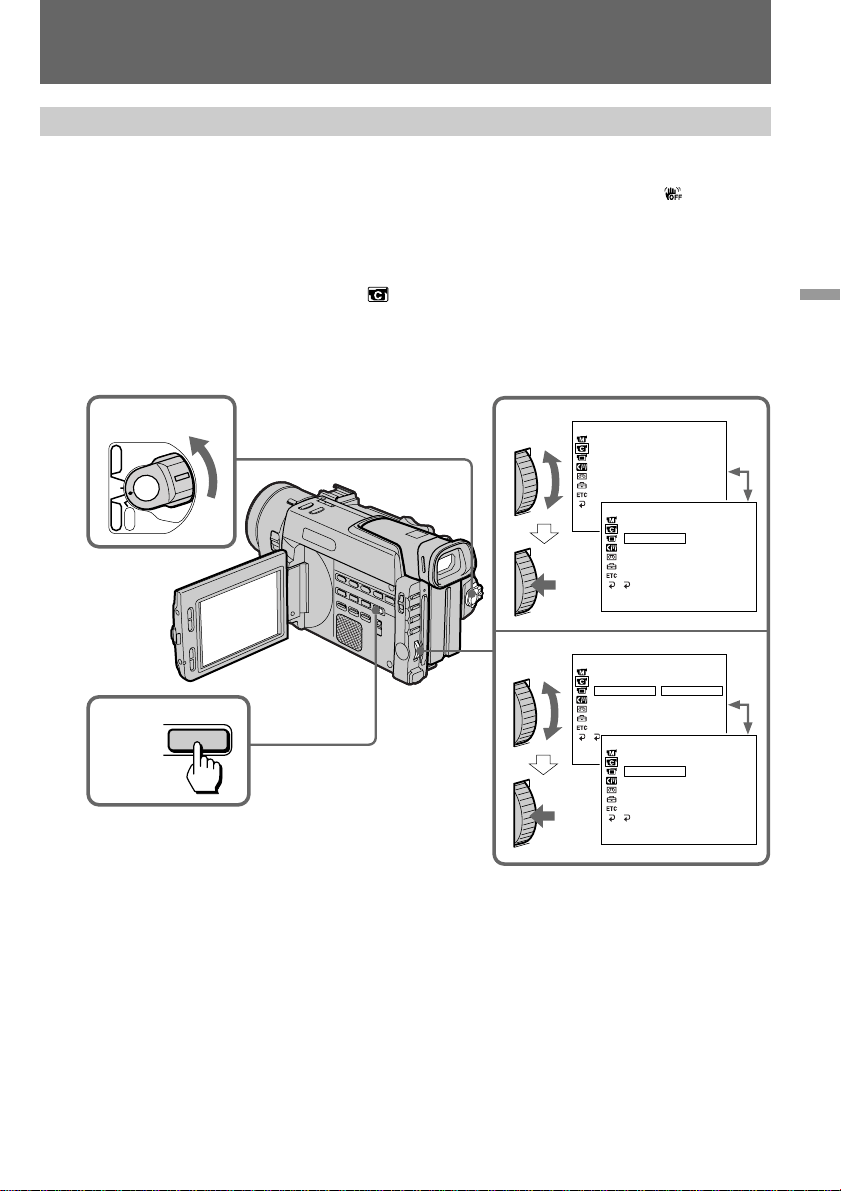

Releasing the Steady Shot function
When the Steady Shot function is working, the camcorder compensates for camera-shake.
You can release the Steady Shot function when you do not need to use it. The indicator
appears on the LCD screen or in the viewfinder. Do not use the Steady Shot function when
shooting a stationary object with a tripod.
(1) Set the POWER switch to CAMERA.
(2) Press MENU to display the menu.
(3) Turn the control dial to select
, then press the dial.
(4) Turn the control dial to select STEADYSHOT, then press the dial.
(5) Turn the control dial to select OFF, then press the dial.
(6) Press MENU to erase the menu display.
To activate the Steady Shot function again
Select ON in step 5, then press the control dial.
Notes on the Steady Shot function
•The Steady Shot function will not correct excessive camera-shake.
•If you use a tele conversion lens (not supplied) or a wide conversion lens (not supplied),
the Steady Shot function may not work.
Shooting with manual adjustment
CAMERA SET
DZOOM
16:9WIDE
STEADYSHOT OFF
AE SHI FT
GA I N SH I FT
FRAME REC
INT .REC
RETURN
[MENU] :END
CAMERA SET
DZOOM
16:9WIDE
STEADYSHOT ON
AE SHI FT
GA I N SH I FT
FRAME REC
INT .REC
RETURN
[MENU] :END
1
2,6
POWER
OFF
CAMERA
MEMORY
VTR
MENU
3,4
5
CAMERA SET
DZOOM
16:9WIDE
STEADYSHOT
AE SHI FT
GA I N SH I FT
FRAME REC
INT .REC
[MENU] :END
CAMERA SET
DZOOM
16:9WIDE
STEADYSHOT ON
AE SHI FT OFF
GA I N SH I FT
FRAME REC
INT .REC
RETURN
[MENU] :END
52

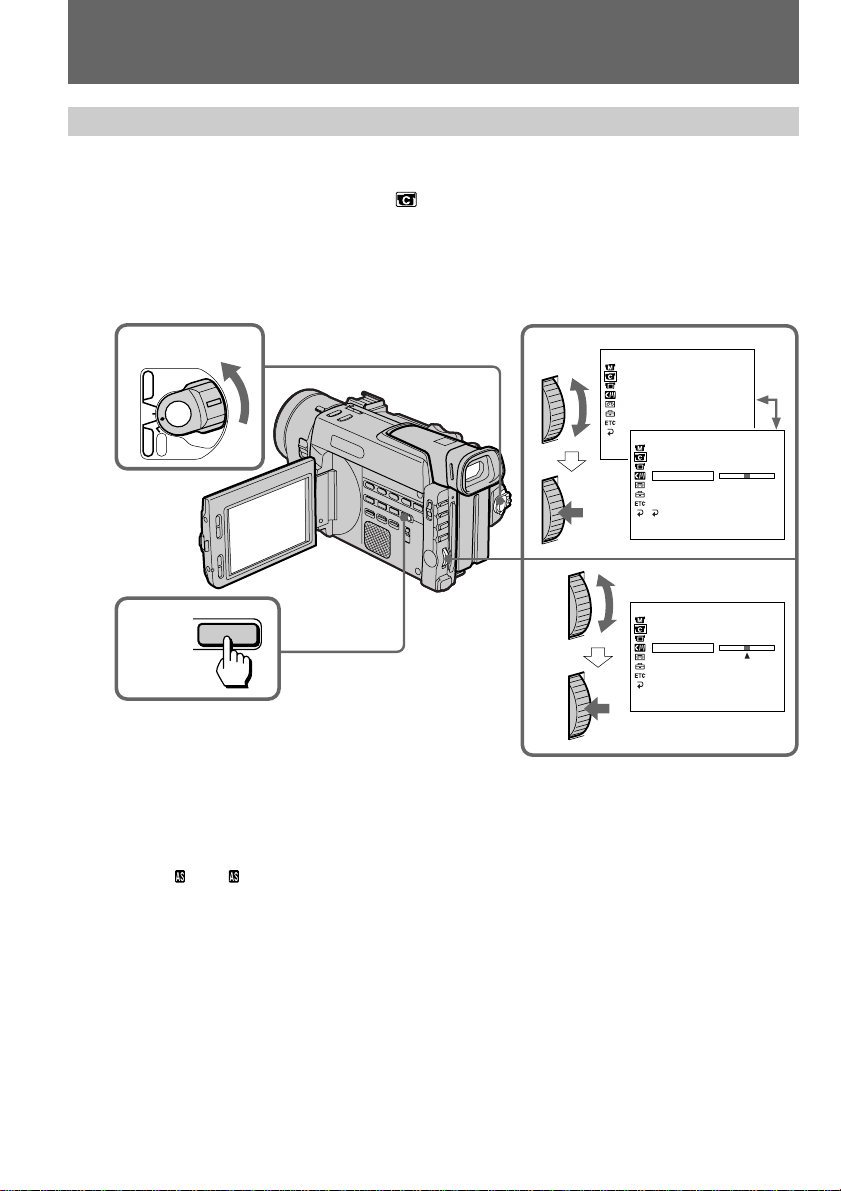

Adjusting AE shift
(1) Set the POWER switch to CAMERA.
(2) Press MENU to display the menu.
(3) Turn the control dial to select
, then press the dial.
(4) Turn the control dial to select AE SHIFT, then press the dial.
(5) Turn the control dial to adjust brightness, then press the dial.
Darker picture ˜ Brighter picture
(6) Press MENU to erase the menu display.
To deactivate AE shift
Set the bar indicator at the center in step 5, then press the control dial.
When you adjust AE shift
The –4 to +4 indicator is displayed on the LCD screen or in the viewfinder. The number
varies corresponding to the AE shift level.
Shooting with manual adjustment
CAMERA SET
DZOOM
16:9WIDE
STEADYSHOT
AE SHI FT
GA I N SH I FT
FRAME REC
INT .REC
[MENU] :END
CAMERA SET
DZOOM
16:9WIDE
STEADYSHOT
AE SHI FT
GA I N SH I FT
FRAME REC
INT .REC
RETURN
[MENU] :END
1
2,6
POWER
OFF
CAMERA
MEMORY
VTR
MENU
3,4
5
CAMERA SET
AE SHI FT
[MENU] :END
53
Advanced operations
Shooting with manual adjustment

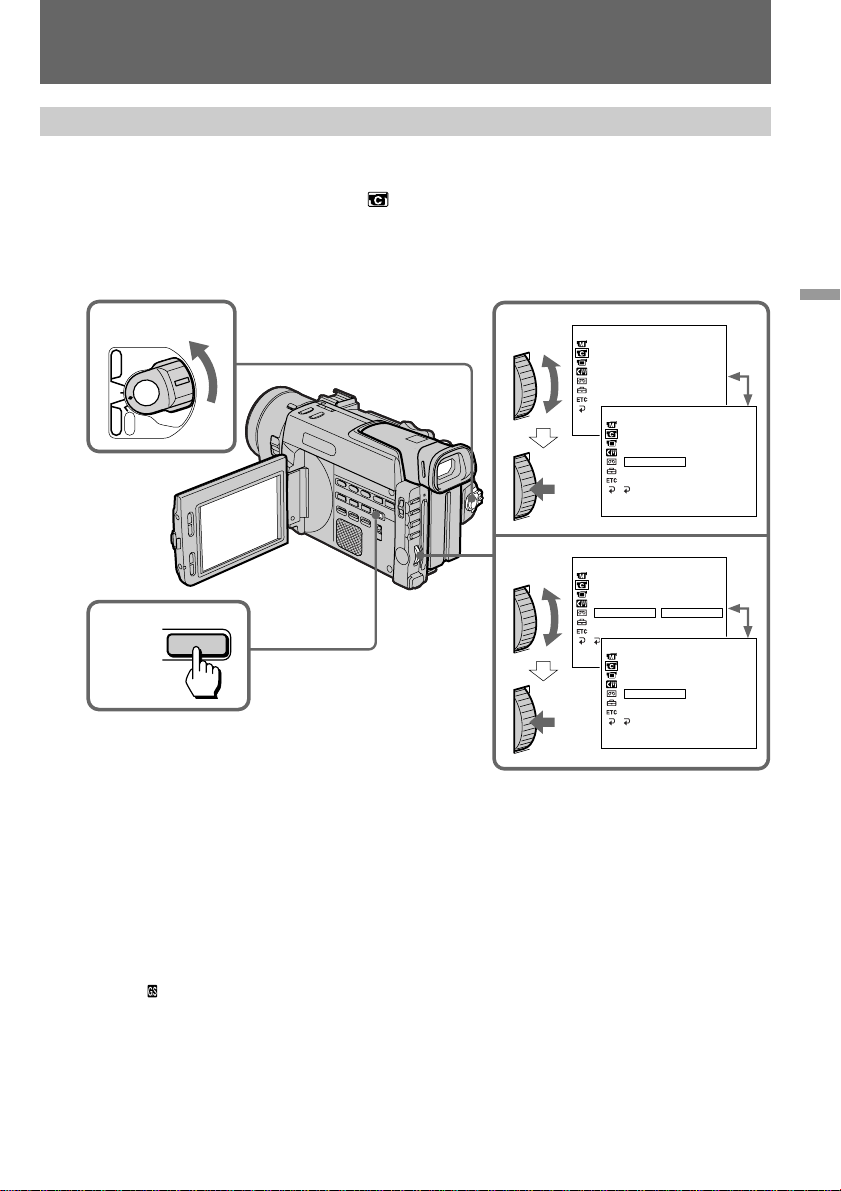

Adjusting gain shift
(1) Set the POWER switch to CAMERA.
(2) Press MENU to display the menu.
(3) Turn the control dial to select
, then press the dial.
(4) Turn the control dial to select GAIN SHIFT, then press the dial.
(5) Turn the control dial to select –3dB, then press the dial.
(6) Press MENU to erase the menu display.
To deactivate gain shift
Select 0dB in step 5, then press the control dial.
What is gain shift
When shooting in bright conditions, the gain shift function automatically adjusts the
automatic exposure control’s gain value to –3dB as much as possible. This helps you shoot
pictures with less noises in a bright condition. In dark conditions, the unit operates as usual.
When you adjust gain shift
The indicator is displayed on the LCD screen or in the viewfinder.
CAMERA SET
DZOOM
16:9WIDE
STEADYSHOT
AE SHI FT
GA I N SH I FT 0dB
FRAME REC –3dB
INT .REC
RETURN
[MENU] :END
CAMERA SET
DZOOM
16:9WIDE
STEADYSHOT
AE SHI FT
GA I N SH I FT
FRAME REC
INT .REC
[MENU] :END
CAMERA SET
DZOOM
16:9WIDE
STEADYSHOT
AE SHI FT
GAIN SHIFT –3dB
FRAME REC
INT .REC
RETURN
[MENU] :END
CAMERA SET
DZOOM
16:9WIDE
STEADYSHOT
AE SHI FT
GA I N SH I FT 0dB
FRAME REC
INT .REC
RETURN
[MENU] :END
1
2,6
POWER
OFF
CAMERA
MEMORY
VTR
MENU
3,4
5
54
Using the PROGRAM AE function
You can select from five PROGRAM AE (Auto Exposure) modes to suit your shooting
situation, referring to the following.
Selecting the best mode
Select a proper PROGRAM AE mode referring to the following description.
A: Aperture priority mode
Selecting the aperture to determine the desired depth of field. Gain and the shutter speed are
automatically set in combination with the aperture value to maintain appropriate exposure.
S: Shutter speed priority mode
Selecting the shutter speed manually. The exposure value changes in accordance with the
selected shutter speed.
: Sports lesson mode
Capturing high-speed action in sports such as golf or tennis
: Sunset & Moon mode
Recording sunset, night views, fireworks or neon signs
: Low lux mode
For recording a subject in insufficient light. Subject becomes bright.
Notes on focus setting
•In the Sports lesson mode, you cannot take close-ups because the camcorder is set to focus
only on subjects in the middle to far distance.
•In the Sunset & Moon mode, the camcorder is set to focus only on distant subjects.
55
Advanced operations
Using the PROGRAM AE function
Using the PROGRAM AE function
(1) Set AUTO LOCK selector to the center (auto lock release) position while the
camcorder is in Standby or Recording mode.
(2) Press PROGRAM AE.
(3) Turn the control dial so that the symbol of the desired PROGRAM AE mode
matches the indicator on the LCD screen or in the viewfinder.
When you select the aperture priority mode or the shutter speed priority mode,
press the control dial.
(4) In aperture priority mode ( A) or shutter speed priority mode ( S), turn the
control dial to select the desired aperture value (F value) or shutter speed.
Aperture priority mode:
Turn the control dial to select the desired aperture value. As you turn the dial, the F
value changes between F1.6 and F11.
For a smaller aperture, select a higher value. Gain and the shutter speed change in
accordance with the selected aperture value.
Shutter speed priority mode:
Turn the control dial to select the desired shutter speed. As you turn the dial,
shutter speed changes between 1/60 and 1/10000.
For a faster shutter speed, select a smaller value indicator on the LCD screen or in
the viewfinder. The gain and aperture values change in accordance with the
selected shutter speed.
To return to automatic adjustment mode
Set AUTO LOCK selector to AUTO LOCK or press PROGRAM AE so that the indicator
disappears.
When you focus in telephoto
You cannot choose F1.6, F2 and F2.4.
3,41
2
AUTO
LOCK
HOLD
PROGRAM
AE
56
About the depth of field
The depth of field is the in-focus range, measured from the distance behind a subject to the
distance in front. The depth of field can vary with the iris (F value) and the focal length.
Lowering the F value (large iris) reduces the depth of field. Raising the F value (small iris)
provides a larger depth of field. Zooming in telephoto position offers a smaller depth of field
while the depth of field in wide-angle position is greater.
The depth of field Shallow Deep
Iris Open (Low F value) Close (High F value)
Zoom Telephoto (T) Wide (W)
Using the PROGRAM AE function
57
Advanced operations
Focusing manually
When to use manual focus
In the following cases you should obtain better results by adjusting the focus manually.
•Insufficient light [a]
•Subjects with little contrast — walls, sky, etc. [b]
•Too much brightness behind the subject [c]
•Horizontal stripes [d]
•Subjects through frosted glass
•Subjects beyond nets, etc.
•Bright subject or subject reflecting light
•Shooting a stationary subject when using a tripod
[a] [b] [c] [d]
58
Focusing manually
Adjusting focus manually
When focusing manually, first focus in telephoto before recording, and then reset the shot
length.
(1)Slide FOCUS down to MANUAL. The f indicator appears on the LCD screen or in the
viewfinder.
(2)Turn the focus ring to focus on the subject.
To focus in infinity
Slide FOCUS to INFINITY. indicator appears on the LCD screen or in the viewfinder.
This function is useful when the nearer subject is focused automatically, and you want to
focus on a faraway subject.
To shoot with auto focusing momentarily
Press PUSH AUTO.
The auto focus functions while you are pressing PUSH AUTO.
Use this button to focus on one subject and then another with smooth focusing.
When you release PUSH AUTO, manual focusing resumes.
To return to the autofocus mode
Slide FOCUS up to AUTO to turn off f or indicator.
To shoot in relatively dark places or to shoot the subject moving quickly outside
Shoot at wide-angle after focusing in the telephoto position.
If lights up
Subject is too close.
2
1
FOCUS
AUTO
MANUAL
INFINITY
PUSH AUTO
59
Advanced operations

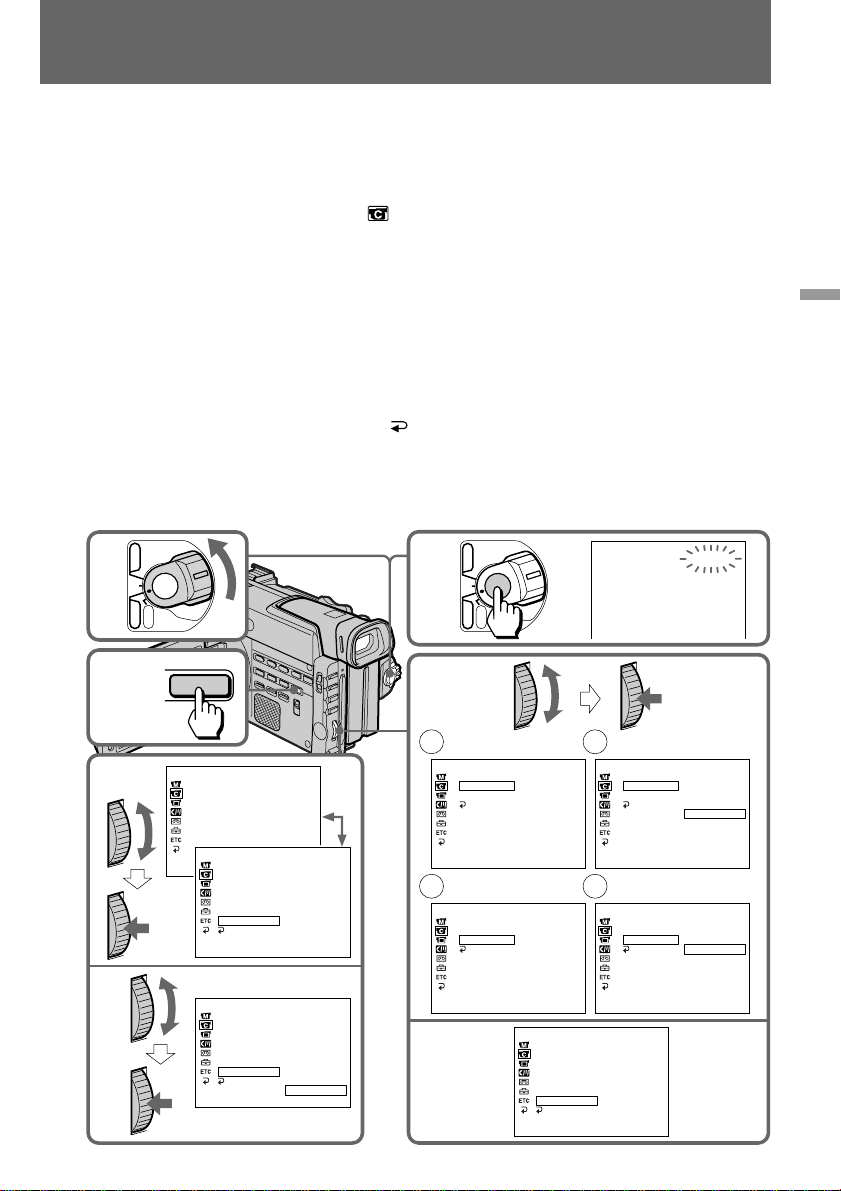

You can make a time-lapse recording by setting the camcorder to automatically record and
standby sequentially. You can achieve an excellent recording for flowering, emergence, etc.,
with this function.
(1) Set the POWER switch to CAMERA.
(2) Press MENU to display the menu.
(3) Turn the control dial to select
, then press the dial.
(4) Turn the control dial to select INT.REC, then press the dial.
(5) Turn the control dial to select SET, then press the dial.
(6) Set INTERVAL and REC TIME.
1 Turn the control dial to select INTERVAL, then press the dial.
2 Turn the control dial to select the desired waiting time, then press the dial.
The time: 30SEC ˜ 1MIN ˜ 5MIN ˜ 10MIN.
3 Turn the control dial to select REC TIME, then press the dial.
4 Turn the control dial to select the desired recording time, then press the dial.
The time: 0.5SEC ˜ 1SEC ˜ 1.5SEC ˜ 2SEC.
5 Turn the control dial to select
RETURN, then press the dial.
(7) Turn the control dial to select ON, then press the dial.
(8) Press MENU to erase the menu display. The interval recording indicator flashes.
(9) Press START/STOP to start interval recording. The interval recording indicator
lights up.
Interval recording
CAMERA SET
INT .REC
INTERVAL 30SEC
REC T IME
RETURN
[MENU] :END
1
2,8
POWER
OFF
CAMERA
MEMORY
VTR
MENU
6
7
CAMERA SET
DZOOM
16:9WIDE
STEADYSHOT
AE SHI FT
GA I N SH I FT
FRAME REC
INT .REC
[MENU] :END
CAMERA SET
DZOOM
16:9WIDE
STEADYSHOT
AE SHI FT
GA I N SH I FT
FRAME REC
INT .REC OFF
RETURN
[MENU] :END
3,4
5
CAMERA SET
DZOOM
16:9WIDE
STEADYSHOT
AE SHI FT
GA I N SH I FT
FRAME REC
INT .REC ON
RETURN OFF
SET
[MENU] :END
CAMERA SET
INT .REC
INTERVAL 30SEC
REC TIME 1MIN
RETURN 5MIN
10MIN
[MENU] :END
CAMERA SET
INT .REC
INTERVAL
REC T IME 0 . 5SEC
RETURN
[MENU] :END
CAMERA SET
INT .REC
INTERVAL
REC T IME 0 . 5SEC
RETURN 1SEC
1.5SEC
2SEC
[MENU] :END
1 2
3 4
CAMERA SET
DZOOM
16:9WIDE
STEADYSHOT
AE SHI FT
GA I N SH I FT
FRAME REC
INT .REC ON
RETURN
[MENU] :END
9
POWER
OFF
CAMERA
MEMORY
VTR
INTERVAL
60
To cancel the interval recording
•Set INT.REC to OFF in the menu system.
•Set the POWER switch to OFF, VTR or MEMORY.
To stop the interval recording momentarily and perform normal
recording
Press START/STOP. You can perform the normal recording only once. To cancel the normal
recording, press START/STOP again.
During the interval recording mode
The INTERVAL indicator appears.
Notes on interval recording
•You cannot do interval recording with photo recording.
•You cannot perform interval recording in the MEMORY mode.
•There may be a discrepancy in recording time of up to +/– 6 frames from the selected time.
Interval recording
61
Advanced operations
You can make a recording with a stop-motion animated effect using cut recording. To create
this effect, alternately move the subject a little and make a cut recording. We recommend
you to use a tripod, and to operate the camcorder using the Remote Commander in steps 6
and 7.
(1) Set the POWER switch to CAMERA.
(2) Press MENU to display the menu.
(3) Turn the control dial to select
, then press the dial.
(4) Turn the control dial to select FRAME REC, then press the dial.
(5) Turn the control dial to select ON, then press the dial.
(6) Press MENU to erase the menu display.
(7) Press START/STOP to start cut recording. The camcorder makes a recording for
about six frames, and returns to recording standby.
(8) Move the subject, and repeat step 7.
Cut recording
CAMERA SET
DZOOM
16:9WIDE
STEADYSHOT
AE SHI FT
GA I N SH I FT
FRAME REC OFF
INT .REC ON
RETURN
[MENU] :END
CAMERA SET
DZOOM
16:9WIDE
STEADYSHOT
AE SHI FT
GA I N SH I FT
FRAME REC
INT .REC
[MENU] :END
CAMERA SET
DZOOM
16:9WIDE
STEADYSHOT
AE SHI FT
GA I N SH I FT
FRAME REC ON
INT .REC
RETURN
[MENU] :END
CAMERA SET
DZOOM
16:9WIDE
STEADYSHOT
AE SHI FT
GA I N SH I FT
FRAME REC OFF
INT .REC
RETURN
[MENU] :END
1
2,6
POWER
OFF
CAMERA
MEMORY
VTR
7,8
POWER
OFF
CAMERA
MEMORY
VTR
MENU
3,4 5
62
To cancel the cut recording
•Set FRAME REC to OFF in the menu system.
•Set the POWER switch to OFF, VTR, or MEMORY.
Notes on cut recording
•The last recorded cut is longer than other cuts.
•The proper remaining tape time is not indicated if you use this function continuously.
Cut recording
63
Advanced operations

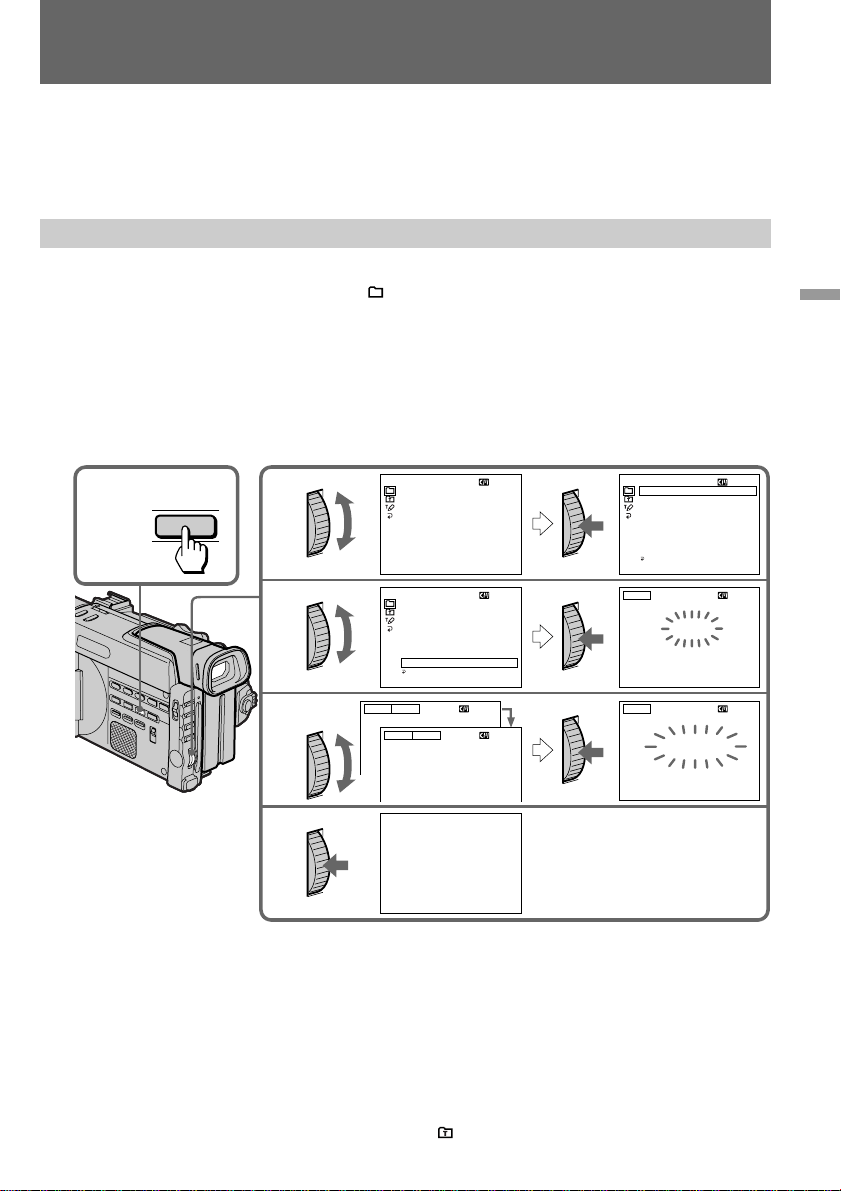

Superimposing a title
If you use a tape with cassette memory, you can superimpose the titles while recording or
after recording. When you play back the tape, the title is displayed for five seconds from the
point where you superimposed it.
You can select from eight preset titles and two original (CUSTOM TITLE) to superimpose
over the picture.
Superimposing titles
(1) Press TITLE to display the title menu.
(2) Turn the control dial to select
, then press the dial.
(3) Turn the control dial to select the desired title, then press the dial. The titles are
displayed.
(4) Turn the control dial to select the color, size, or position, then press the dial.
(5) Turn the control dial to select the desired item, then press the dial.
(6) Repeat steps 4 and 5 until the title is arranged as desired.
(7) Press the control dial again to complete the setting.
(8) When you want to stop recording the title, press TITLE.
To superimpose the title from beginning
After step 7, press START/STOP to start recording.
To superimpose the title while you are recording
After pressing START/STOP to start recording, start from step 1. In this case, beep or
melody is not heard.
To use the custom title
When you want to use the custom title, select in step 2.
SIZE SMALL
1,8
2
3
7
4-6
TITLE
PRESET T I TLE
HELLO !
HAPPY B IRTHDAY
HAPPY HOL IDAYS
CONGRATULAT IONS !
OUR SWEET BABY
WEDDING
VACATION
THE END
[TITLE]:END
PRESET T I TLE
HELLO !
HAPPY B IRTHDAY
HAPPY HOL IDAYS
CONGRATULAT IONS !
OUR SWEET BABY
WEDDING
VACAT ION
THE END
RETURN
[TITLE]:END
TITLE
[TITLE]:END
PRESET T I TLE
HELLO !
HAPPY B IRTHDAY
HAPPY HOL IDAYS
CONGRATULAT IONS !
OUR SWEET BABY
WEDDING
VACATION
THE END
RETURN
[TITLE]:END
THE END
TITLE
[TITLE]:END
THE END
THE END
SIZE LARGE
THE END
64
Superimposing a title
Notes on superimposing a title
•If you have not given any custom title, “– – – – ...” appears on the display.
•The FADER function works while the title is displayed, however, the title does not fade.
•If you display the menu or title menu while superimposing a title, the title is not recorded
while the menu or title menu is being displayed.
Title color changes as follows:
WHITE ˜ YELLOW ˜ VIOLET ˜ RED ˜ CYAN ˜ GREEN ˜ BLUE
Title size changes as follows:
SMALL ˜ LARGE
Title position changes as follows:
When you select the title size “SMALL,” you can choose 9 positions. When you select the
title size “LARGE” you can choose 8 positions.
Notes on the title
•Depending on size or position of the title, both of date and time or either of them is not
displayed.
•If you input 13 characters or more for a LARGE title, the title is automatically reduced into
a SMALL size after the position is set.
•When the title is displayed, LCD BRIGHT and microphone level indicators do not appear.
65
Advanced operations

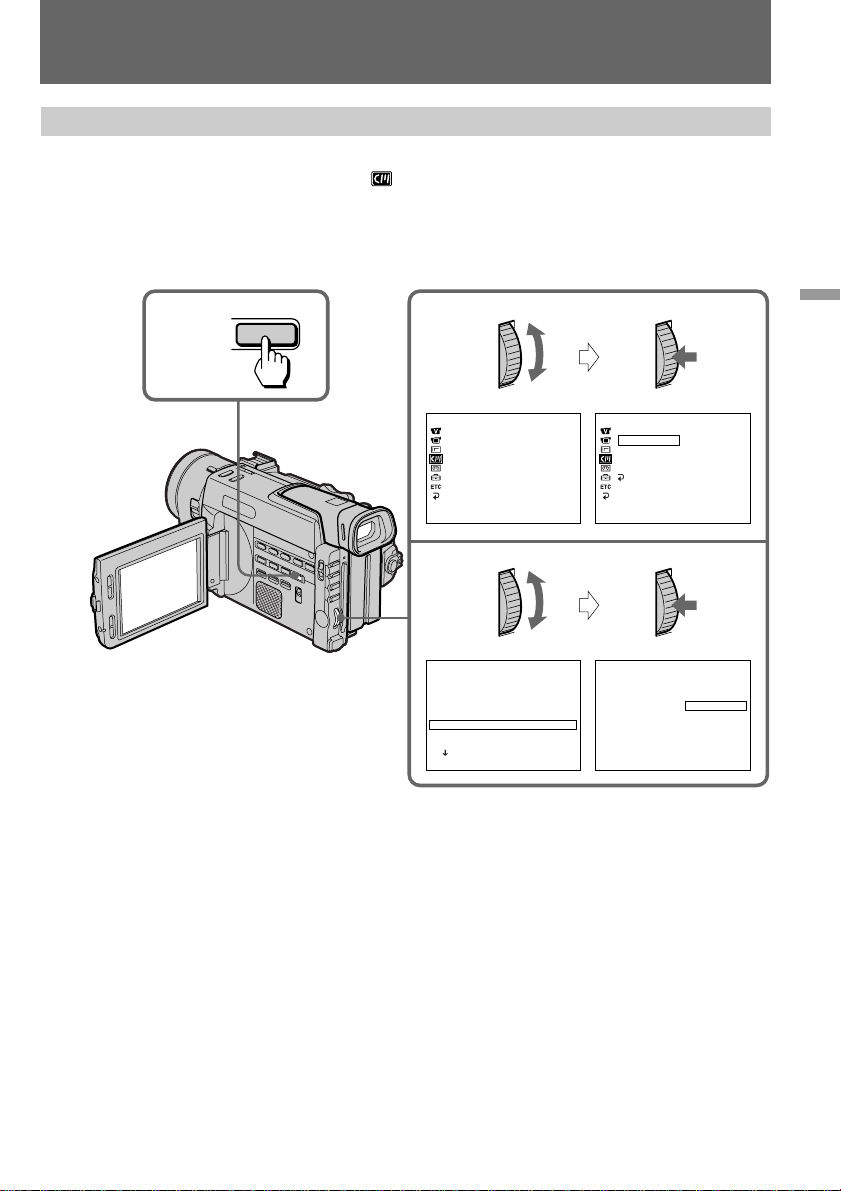

Erasing a title
(1) Press MENU to display the menu.
(2) Turn the control dial to select
, then press the dial.
(3) Turn the control dial to select TITLEERASE, then press the dial.
(4) Turn the control dial to select the title you want to erase, then press the dial.
(5) Make sure the title is the one you want to erase, then press the control dial again.
(6) Press MENU to erase the menu display.
Note
If you use a cassette tape set to prevent accidental erasure, you cannot erase the title. Slide
the protect tab so that the red portion is not visible.
Superimposing a title
MENU
ERASE OK?
1HELLO!
2 CONGRATULAT I ONS !
3 HAPPY NEW YEAR!
4 PRESENT
5 GOOD MORN I NG
6WEDDING
[EXEC] :DELETE [MENU]:END
2,3
4,5
1,6
MENU
CM SET
CM SEARCH
TITLEERASE
TITLE DSPL
TAPE T I TLE
ERASE ALL
[MENU] :END
CM SET
CM SEARCH
TITLEERASE
TITLE DSPL
TAPE T I TLE
ERASE ALL
. RETURN
[MENU] :END
T I TLE ERASE
4 PRESENT
ERASE OK? RETURN
ERASE
66
If you use a tape with cassette memory, you can make up to two titles and store them in the
camcorder. We recommend you to set the POWER switch to VTR or eject the cassette before
you begin.
Your title can have up to 20 characters.
(1) Press TITLE to display the title menu.
(2) Turn the control dial to select
, then press the dial.
(3) Turn the control dial to select the first line (CUSTOM1) or second line (CUSTOM2),
then press the dial.
(4) Turn the control dial to select the column of the desired character, then press the
dial.
(5) Turn the control dial to select the desired character, then press the dial.
(6) Repeat steps 4 and 5 until you finish the title.
(7) To finish the titling work, turn the control dial to select [SET], then press the dial.
Making a custom title
TITLE SET
SUMMER CAMP I N LAKE
––
ABCDE 12345
FGHIJ 67890
KLMNO ',./–
PQRST [ ]
UVWXY [ SET ]
Z& ? !
[TITLE]:END
TITLE SET
––––––––––
–
––––––––––
ABCDE 12345
FGHIJ 67890
KLMNO ',./–
PQRST [ ]
UVWXY [ SET ]
Z& ? !
[TITLE]:END
TITLE SET
––––––––––
–
––––––––––
ABCDE 12345
FGHIJ 67890
KLMNO ',./–
PQRST [ ]
UVWXY [ SET ]
Z& ? !
[TITLE]:END
TITLE SET
S
–––––––––
–
––––––––––
ABCDE 12345
FGHIJ 67890
KLMNO ',./–
PQRST [ ]
UVWXY [ SET ]
Z& ? !
[TITLE]:END
TITLE SET
––––––––––
–
––––––––––
ABCDE 12345
FGHIJ 67890
KLMNO ',./–
PQRST [ ]
UVWXY [ SET ]
Z& ? !
[TITLE]:END
1
2
3
4-6
7
TITLE SET
COSTOM1 "
––––––––––
–
.. "
COSTOM2 "
––––––––––
–
.. "
[TITLE]:END
TITLE SET
––––––––––
–
––––––––––
––––––––––
–
––––––––––
RETURN
[TITLE]:END
TITLE
TITLE SET
––––––––––
–
––––––––––
––––––––––
–
––––––––––
RETURN
[TITLE]:END
TITLE SET
––––––––––
–
––––––––––
ABCDE 12345
FGHIJ 67890
KLMNO ',./–
PQRST [ ]
UVWXY [ SET ]
Z& ? !
[TITLE]:END
67
Advanced operations
Making a custom title
To edit a title you have stored
In step 3, select CUSTOM1 or CUSTOM2, depending on which title you want to edit, then
change the title.
If you take 5 minutes or longer to enter characters while a cassette is in the camcorder
The power goes off automatically. Characters you have entered remain. Set the POWER
switch to OFF once, then to CAMERA, then proceed from step 1.
To erase a character
In step 4, turn the control dial to select [M] then press the dial. The last character is erased.
Repeat this step until all characters are deleted.
68

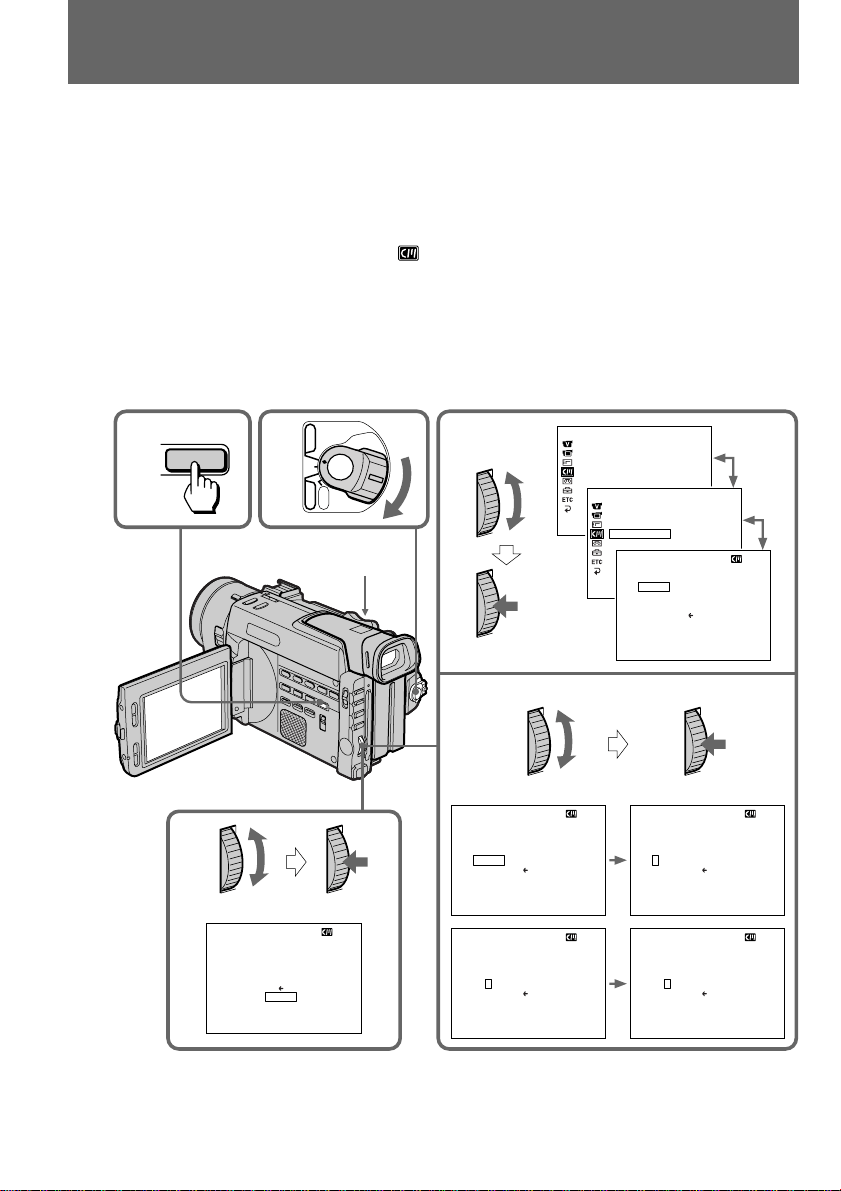

Labeling a cassette
If you use a tape with cassette memory, you can label a cassette. The label can consist of up
to 10 characters and is stored in cassette memory. When you insert the labeled cassette and
turn the power on, the label is displayed on the LCD screen, in the viewfinder, or on the TV
screen.
(1) Insert the cassette you want to label.
(2) Set the POWER switch to VTR.
(3) Press MENU to display the menu.
(4) Turn the control dial to select
, then press the dial.
(5) Turn the control dial to select TAPE TITLE, then press the dial.
(6) Turn the control dial to select the column of the desired character, then press the
dial.
(7) Turn the control dial to select the desired character, then press the dial.
(8) Repeat steps 6 and 7 until you finish the label.
(9) Turn the control dial to select [SET], then press the dial.
MENU TAPE TITLL
M
–––––––––
–
––––––––––
ABCDE 12345
FGHIJ 67890
KLMNO ',./–
PQRST [ ]
UVWXY [SET ]
Z& ? !
[MENU] :END
MENU TAPE TITLL
––––––––––
–
––––––––––
ABCDE 12345
FGHIJ 67890
KLMNO ',./–
PQRST [ ]
UVWXY [SET ]
Z& ? !
[MENU] :END
MENU TAPE T ITLL
––––––––––
–
––––––––––
ABCDE 12345
FGHIJ 67890
KLMNO ',./–
PQRST [ ]
UVWXY [SET ]
Z& ? !
[MENU] :END
MENU TAPE T ITLL
––––––––––
–
––––––––––
ABCDE 12345
FGHIJ 67890
KLMNO ',./–
PQRST [ ]
UVWXY [SET ]
Z& ? !
[MENU] :END
9
23
1
4,5
6-8
MENU TAPE T ITLL
––––––––––
–
––––––––––
ABCDE 12345
FGHIJ 67890
KLMNO ',./–
PQRST [ ]
UVWXY [SET ]
Z& ? !
[MENU] :END
MENU TAPE T ITLL
MUS I C
–––––
–
––––––––––
ABCDE 12345
FGHIJ 67890
KLMNO ',./–
PQRST [ ]
UVWXY [SET ]
Z& ? !
[MENU] :END
POWER
OFF
CAMERA
MEMORY
VTR
MENU
CM SET
CM SEARCH
TITLEERASE
TITLE DSPL
TAPE TITLE
––––––––––
ERASE ALL
[MENU] :END
CM SET
CM SEARCH
TITLEERASE
TITLE DSPL
TAPE T I TLE
ERASE ALL
[MENU] :END
69
Advanced operations
Labeling a cassette
To erase a character
In step 6 turn the control dial to select [ M ], then press the dial. The last character is erased.
To change the label you have made
Insert the cassette to change the label, and operate in the same way to make a new label.
If the mark appears in step 5
The cassette memory is full. If you erase the title in the cassette, you can label it.
If you have superimposed titles in the cassette
When the label is displayed, up to 4 titles also appear.
Note on “-----” indicator displayed on the LCD screen or in the viewfinder
The “-----” indicates the number of characters you can select for the label. When the “-----”
indicator has fewer than 10 spaces, the cassette memory is full.
Note on the cassettes
If you use a cassette tape set to prevent accidental erasure, you cannot label it. Slide the
protect tab so that the red portion is not visible.
70
Connect the camcorder to your TV or VCR to watch the playback picture on the TV screen.
When monitoring the playback picture by connecting the camcorder to your TV, we
recommend you to use house current for the power source.
Connecting directly to a TV or VCR with Audio/Video input jacks
Open the jack cover and connect the camcorder to the inputs on the TV by using the
supplied A/V connecting cable. Set the TV/VCR selector on the TV to VCR.
Turn down the volume of the camcorder.
To get higher quality pictures in DV format, connect the camcorder to your TV using the S
video connecting cable (not supplied).
If you are going to connect the camcorder using the S video connecting cable (not supplied)
[a], you do not need to connect the yellow (video) plug of the A/V connecting cable [b].
If your VCR or TV is a monaural type
Connect only the white plug for audio on both the camcorder and the VCR or the TV. If you
connect the white plug, the sound is L (left) signal. If you connect the red plug, the sound is
R (right) signal.
When you adjust the TV screen
Set COLOR BAR to ON in the menu system. The color bar is displayed on the TV screen.
Watching on a TV screen
(not supplied)
S VIDEO
AUDIO/VIDEO
Ç : Signal flow
S VIDEO
VIDEO
AUDIO
IN
[a]
[b]
71
Advanced operations
Using the AV cordless IR receiver LASER LINK
Once you connect the AV cordless IR receiver (not supplied) having the LASER LINK
mark to your TV or VCR, you can easily view the picture on your TV. For details, refer to the
operating instruction of the AV cordless IR receiver.
LASER LINK is a system which transmits and receives a picture and sound between video
equipment having the mark by using infrared rays.
To play back on a TV
(1)Set the POWER switch on the camcorder to VTR.
(2)After connecting your TV and AV cordless IR receiver, set the POWER switch on the AV
cordless IR receiver to ON.
(3)Turn the TV on and set the TV/VCR selector on the TV to VCR.
(4)Press LASER LINK. The lamp of the LASER LINK button lights up.
(5)Press · on the camcorder to start playback.
(6)Adjust the angle and direction of both the camcorder and AV cordless IR receiver.
To cancel the LASER LINK function
Press LASER LINK.
If you use a Sony TV
•You can turn on the TV automatically when you press LASER LINK or ·. To do so, set
AUTO TV ON to ON in the menu system and turn the TV’s main switch on, then do either
of the following;
– Point the LASER LINK emitter towards the TV’s remote sensor and press LASER LINK.
– Turn on the LASER LINK button and press ·.
•You can switch the video input of the TV automatically to the one which the AV cordless
IR receiver is connected. To do so, set AUTO TV ON to ON and TV INPUT to the same
video input (1, 2, 3) in the menu system. With some models, however, the picture and
sound may be disconnected momentarily when the video input is switched.
•The above features may not work with some TV models.
Notes on LASER LINK
•When LASER LINK is activated (the LASER LINK button is lit), the camcorder consumes
power. Press and turn off the LASER LINK button when it is not needed.
•When the conversion lens (not supplied) is installed, the transmission of infrared rays may
be blocked.
You can use LASER LINK in the following situations:
•The POWER switch is set to VTR.
•The POWER switch is set to CAMERA without cassette inside (For demonstration at
stores).
Watching on a TV screen
72

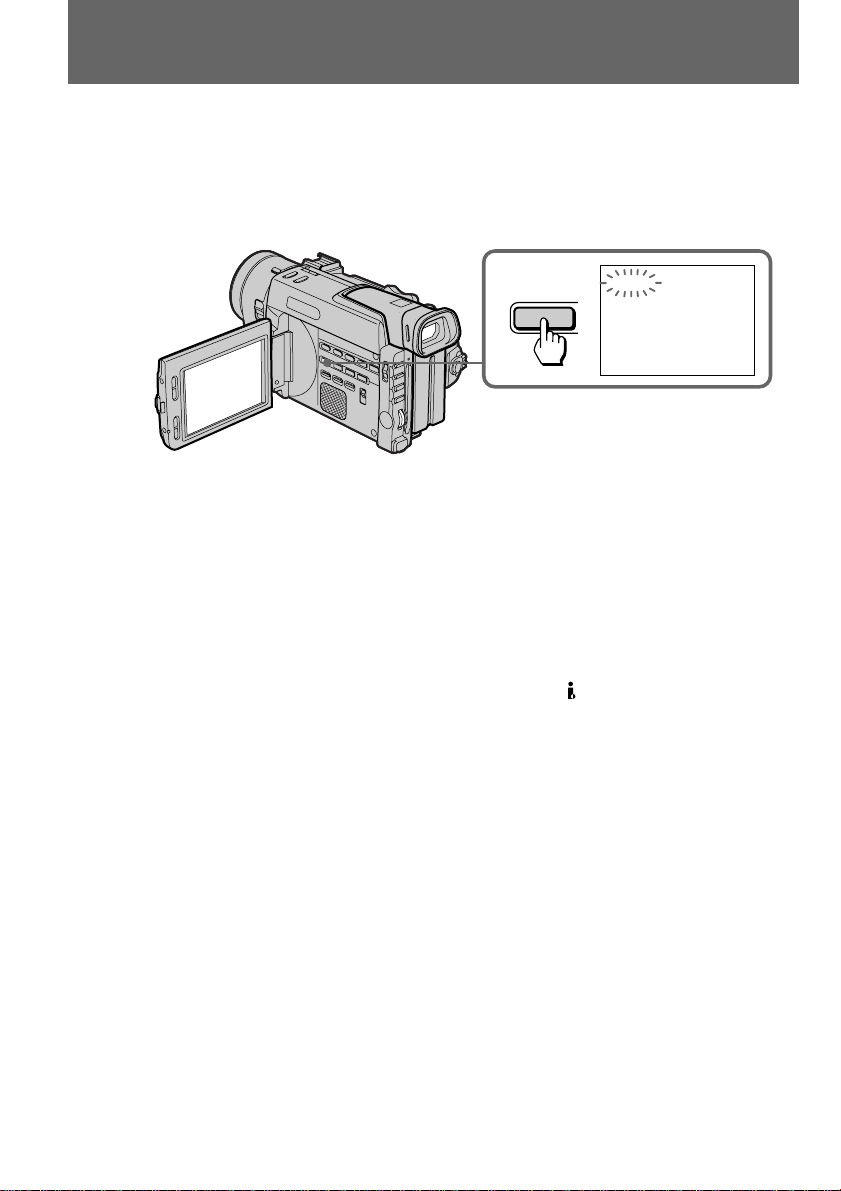

Viewing the picture with the picture effect
You can play back recorded images with the picture effect. The available picture effects are
NEG. ART, SEPIA, B&W and SOLARIZE.
During playback, press PICTURE EFFECT.
See page 40 for details on the picture effect.
To return to normal mode
Press PICTURE EFFECT so that the indicator disappears.
If you turn the power off or stop playing back
The picture effect is automatically canceled.
The picture you apply picture effects to
The picture with the picture effect is not output through the DV IN/OUT jack.
EFFECT
NEG. ART
73
Advanced operations
Viewing the picture with the digital effect
You can play back recorded images with the digital effect.
The available digital effects are STILL, FLASH, LUMI. and TRAIL.
(1)During playback, press DIGITAL EFFECT.
(2)Turn the control dial to select the desired digital effect mode.
(3)Press the control dial. The digital effect indicator lights up and the bars appear. The still
picture is stored in memory in the STILL or LUMI. mode.
(4)Turn the control dial to adjust the effects.
See page 42 for details on the digital effect.
To return to normal mode
Press DIGITAL EFFECT so that the indicator disappears.
If you turn the power off or stop playing back
The digital effect is automatically canceled.
The picture you apply digital effects to
The picture with the digital effect is not output through the DV IN/OUT jack.
1
2,3
STI LL
DIGITAL
EFFECT
4
74

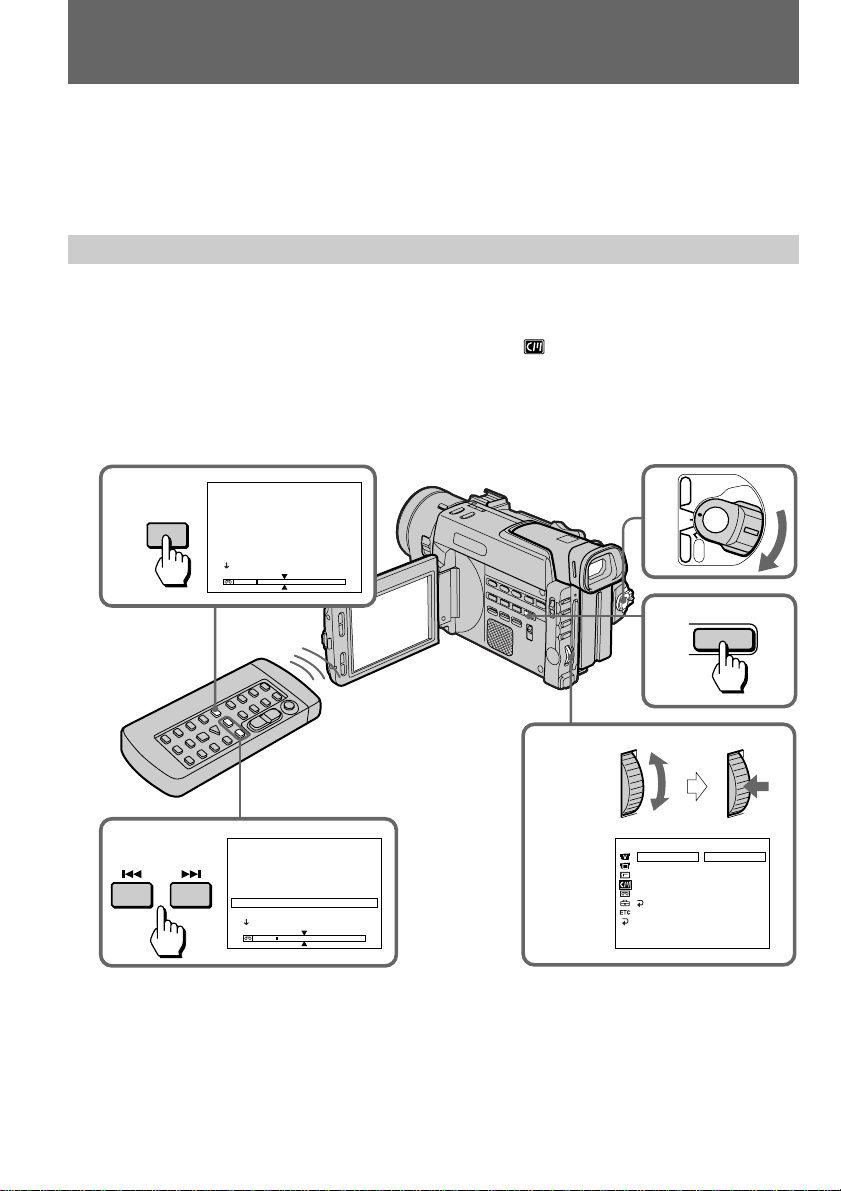

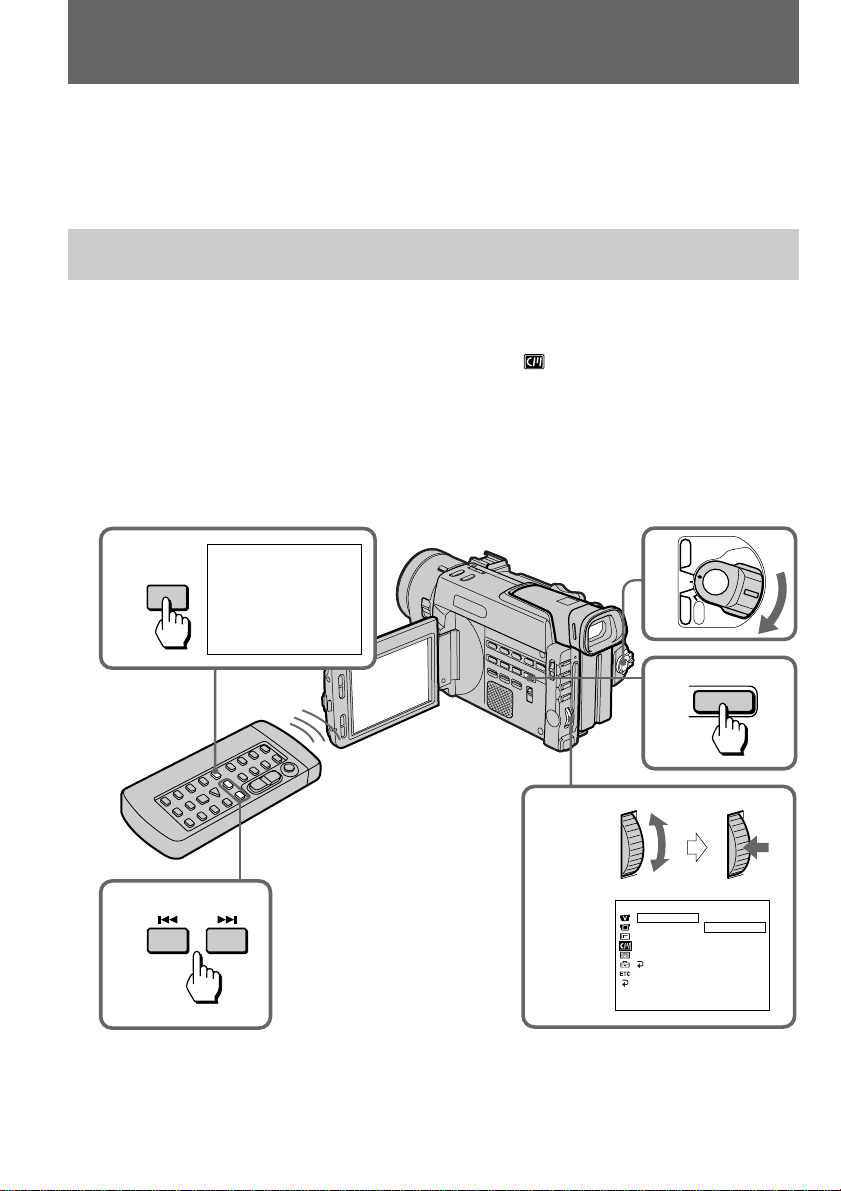

Searching the boundaries of recorded tape with
date – date search
You can search for the boundaries of recorded tape with date – Date Search function. To
search the beginning of the specific date and play back from the point, there are two ways:
•Using cassette memory, you can select the date displayed on the LCD screen.
•Without using cassette memory.
You can only operate with the Remote Commander.
Searching for the date by using cassette memory
You can use this function only when playing back a tape with cassette memory (p. 116).
(1) Set the POWER switch to VTR.
(2) Press MENU to display the menu.
(3) Turn the control dial to select CM SEARCH in
, then press the dial.
(4) Turn the control dial to select ON, then press the dial.
(5) Press SEARCH MODE on the Remote Commander repeatedly, until the date search
indicator appears.
(6) Press = or + to select the date for playback.
Playback starts from the beginning of the selected date automatically.
To stop searching
Press p.
Notes
•The interval of the boundaries between the dates needs more than two minutes. The
camcorder may not search if the beginning of the recorded date is too close to the next one.
•The black cursor on the screen indicates the date that was selected previously.
•If a tape has a blank portion in the beginning or between recorded portions, the date search
function will not work correctly.
•Up to six date data can be stored in a cassette memory.
CM SET
CM SEARCH ON
T I TLEERASE OFF
TITLE DSPL
TAPE T I TLE
ERASE ALL
RETURN
[MENU] :END
1
2
5
3,4
6
SEARCH
MODE
DATE SEARCH
1 SEP/ 5 / 98
2 SEP/ 6 / 98
3DEC/24/98
4JAN/1/99
5FEB/11/99
6APR/29/99
DATE SEARCH
1 SEP/ 5 / 98
2 SEP/ 6 / 98
3DEC/24/98
4JAN/1/99
5FEB/11/99
6APR/29/99
POWER
OFF
CAMERA
MEMORY
VTR
MENU
75
Advanced operations
Searching the boundaries of recorded tape with date
– date search
Searching for the date without using cassette memory
If you use the tape without cassette memory, skip steps 3 and 4.
(1) Set the POWER switch to VTR.
(2) Press MENU to display the menu.
(3) Turn the control dial to select CM SEARCH in
, then press the dial.
(4) Turn the control dial to select OFF, then press the dial.
(5) Press SEARCH MODE on the Remote Commander repeatedly, until the date search
indicator appears.
(6) When the current position is [b], press = to search towards [a] or press + to
search towards [c]. Each time you press = or +, the camcorder searches for
the previous or next date.
Playback starts automatically when date changed.
To stop searching
Press p.
JUL.5.1999JUL.4.1999 DEC.31.1999
[a]
[b]
[c]
CM SET
CM SEARCH ON
T I TLEERASE OFF
TITLE DSPL
TAPE T I TLE
ERASE ALL
RETURN
[MENU] :END
1
2
3,4
6
POWER
OFF
CAMERA
MEMORY
VTR
MENU
CM SET
CM SEARCH ON
TITLEERASE
TITLE DSPL
TAPE T I TLE
ERASE ALL
RETURN
[MENU] :END
5
SEARCH
MODE
DATE SEARCH
76

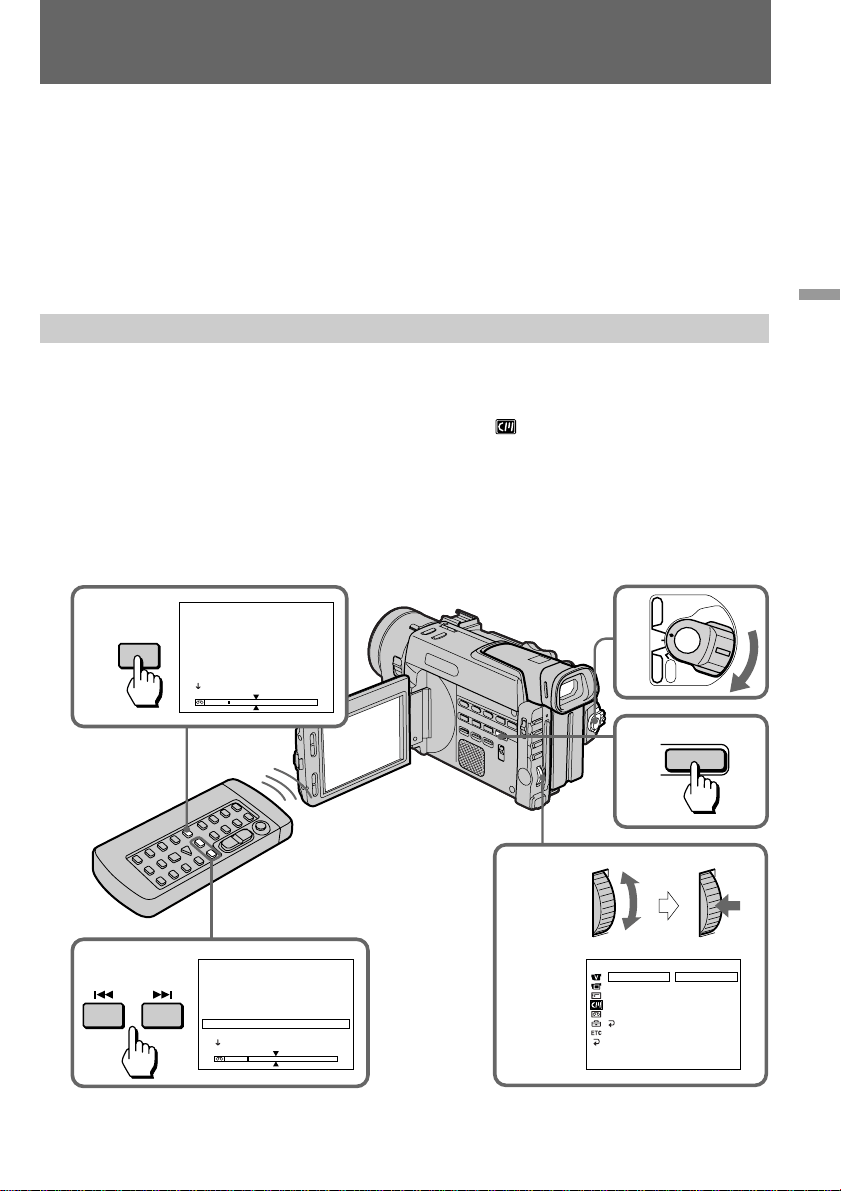

Searching the boundaries of recorded tape with
title – title search
You can search for the boundaries of recorded tape with title – Title Search function. If you
use a tape with cassette memory, you can select the title displayed on the LCD screen.
You can only operate with the Remote Commander.
Searching for the title by using cassette memory
You can use this function only when playing back a tape with cassette memory (p. 116).
(1) Set the POWER switch to VTR.
(2) Press MENU to display the menu.
(3) Turn the control dial to select CM SEARCH in
, then press the dial.
(4) Turn the control dial to select ON, then press the dial.
(5) Press SEARCH MODE on the Remote Commander repeatedly, until the title search
indicator appears.
(6) Press = or + to select the title for playback.
Playback starts from the scene of the selected title automatically.
To stop searching
Press p.
Notes
•You cannot superimpose or search a title, if you use a cassette tape without cassette
memory.
•The camcorder may not search, if a tape has a blank portion in the between of the recorded
portions.
CM SET
CM SEARCH ON
T I TLEERASE OFF
TITLE DSPL
TAPE TITLE
ERASE ALL
RETURN
[MENU] :END
1
2
5
3,4
6
SEARCH
MODE
POWER
OFF
CAMERA
MEMORY
VTR
MENU
TITLE SEARCH
1HELLO!
2 CONGRATULAT I ONS !
3 HAPPY NEW YEAR!
4 PRESENT
5 GOOD MORN I NG
6WEDDING
TITLE SEARCH
3 HAPPY NEW YEAR!
4 PRESENT
5 GOOD MORN I NG
6WEDDING
7NIGHT
8 BASEBALL
77
Advanced operations
Searching for a photo – photo search/photo scan
You can search for the recorded still picture – Photo Search function. There are two modes in
Photo Search:
•Using cassette memory, you can select the recorded date which is displayed on the LCD
screen.
•Without using cassette memory.
You can also search for still pictures one after another and display each picture for five
seconds automatically – Photo Scan function. Even if your tape has no cassette memory, you
can use the Photo Scan function.
You can only operate with the Remote Commander.
Searching for a photo by using cassette memory
– photo search
You can use this function only when playing back a tape with cassette memory (p. 116).
(1) Set the POWER switch to VTR.
(2) Press MENU to display the menu.
(3) Turn the control dial to select CM SEARCH in
, then press the dial.
(4) Turn the control dial to select ON, then press the dial.
(5) Press SEARCH MODE on the Remote Commander repeatedly, until the photo
search indicator appears.
(6) Press = or + to select the date for playback.
Playback starts from the photo of the selected date automatically.
CM SET
CM SEARCH ON
TITLEERASE OFF
TITLE DSPL
TAPE T I TLE
ERASE ALL
RETURN
[MENU] :END
1
2
5
3,4
6
SEARCH
MODE
PHOTO SEARCH
1 SEP/ 5/98 5:30PM
2 SEP/ 6/98 8:50AM
3 DEC/24/98 10:30AM
4JAN/1/9911:25PM
5 FEB/11/99 4:11PM
6 APR/29/99 1:45PM
POWER
OFF
CAMERA
MEMORY
VTR
MENU
PHOTO SEARCH
1 SEP/ 5/98 5:30PM
2 SEP/ 6/98 8:50AM
3 DEC/24/98 10:30AM
4JAN/1/9911:25PM
5 FEB/11/99 4:11PM
6 APR/29/99 1:45PM
78
Searching for a photo – photo search/photo scan
To stop searching
Press p.
Note
When you play back a tape which has a blank portion in the between of the recorded
portions, the photo search function may not work correctly.
Searching for a photo without using cassette memory – photo
search
If you use a tape without cassette memory, skip the steps 3 and 4.
(1) Set the POWER switch to VTR.
(2) Press MENU to display the menu.
(3) Turn the control dial to select CM SEARCH in
, then press the dial.
(4) Turn the control dial to select OFF, then press the dial.
(5) Press SEARCH MODE on the Remote Commander repeatedly, until the photo
search indicator appears.
(6) Press = or + to select the photo for playback. Each time you press = or
+, the camcorder searches for the previous or next scene.
Playback starts from the photo automatically.
To stop searching
Press p.
CM SET
CM SEARCH ON
T I TLEERASE OFF
TITLE DSPL
TAPE T I TLE
ERASE ALL
RETURN
[MENU] :END
1
2
5
3,4
6
SEARCH
MODE
PHOTO SEARCH
POWER
OFF
CAMERA
MEMORY
VTR
MENU
79
Advanced operations

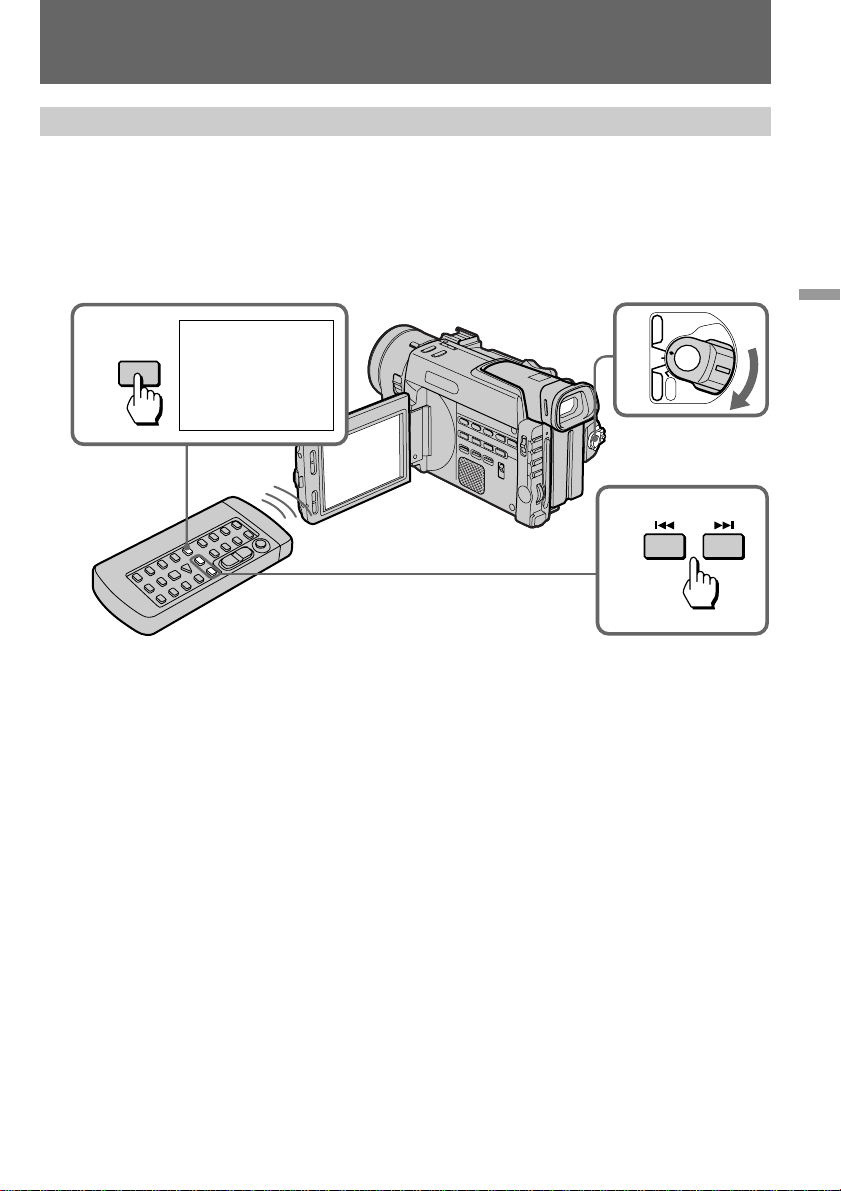

Scanning photo – photo scan
You can use this function whether the tape has cassette memory or not.
(1) Set the POWER switch to VTR.
(2) Press SEARCH MODE on the Remote Commander repeatedly until the photo scan
indicator displayed on the LCD screen.
(3) Press = or +.
Each photo is displayed for about 5 seconds automatically.
To stop scanning
Press p.
Searching for a photo – photo search/photo scan
1
2
3
SEARCH
MODE
PHOTO 00
SCAN
POWER
OFF
CAMERA
MEMORY
VTR
80
Using the Remote Commander, you can easily go back to the desired point on a tape after
playback.
(1) During playback, press ZERO SET MEMORY at the point you later want to locate.
The counter shows “0:00:00” and “ZERO SET MEMORY” appears on the LCD
screen or in the viewfinder.
(2) Press p when you want to stop playback.
(3) Press 0 to rewind or press ) to fast-forward the tape to the counter’s zero
point. The tape stops automatically when the counter reaches approximately zero.
“ZERO SET MEMORY” disappears and the time code appears.
(4) Press ·.
Note on the tape counter
There may be a discrepancy of several seconds from the time code.
Notes on ZERO SET MEMORY
•Press ZERO SET MEMORY again before step 3 to cancel the memory .
•ZERO SET MEMORY may not function when there is a blank portion between pictures on
a tape.
•ZERO SET MEMORY functions in Standby mode.
Returning to a pre-registered position
1
24
3
0:00:00
ZERO SET
MEMORY
0:05:23
81

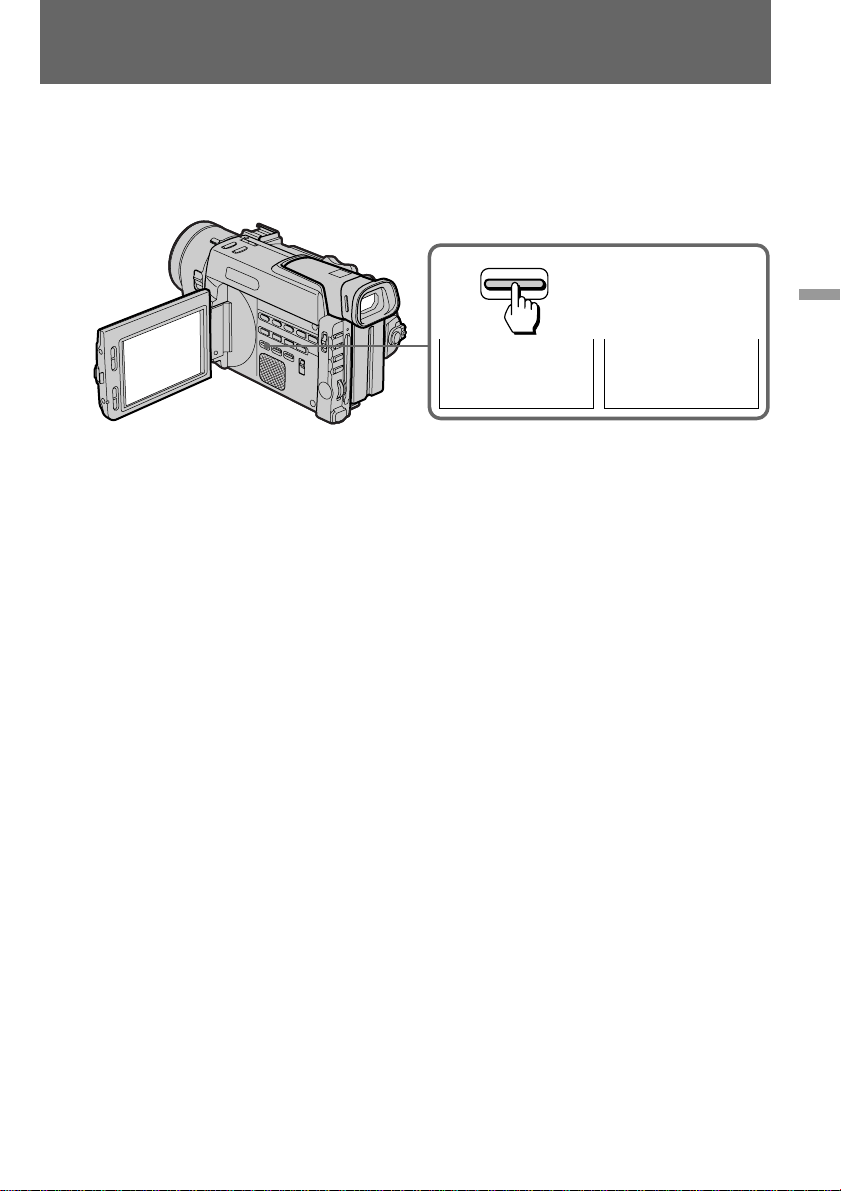

Advanced operations
You can display recording data (date/time or various settings when recorded) on the LCD
screen or in the viewfinder during playback (Data Code). The Data Code is also displayed on
the TV.
Press DATA CODE during playback.
To select the items to be displayed
Set DATA CODE in the menu system, and select the following items:
When DATE/CAM is selected: date n various settings (SteadyShot, PROGRAM AE, shutter
speed, white balance, aperture value, gain) n no indicator.
When DATE is selected: date n no indicator.
When you record a picture with adjusting the exposure to the darkest manually
“CLOSE” appears at the position of the iris indicator on the LCD screen or in the viewfinder.
When bars (-- -- --) appear
•A blank portion of the tape is being played back.
•The tape was recorded by a camcorder without having date and time set.
•The tape is unreadable due to tape damage or noise.
Note
The pictures taken with the memory card slot is not recorded with the camera data.
Displaying recording data – data code
function
DATA CODE
OCT 26 1998
12 : 05 : 56 AM
AUTO
60 AWB
F11 0
dB
82
(not supplied)
Signal flow

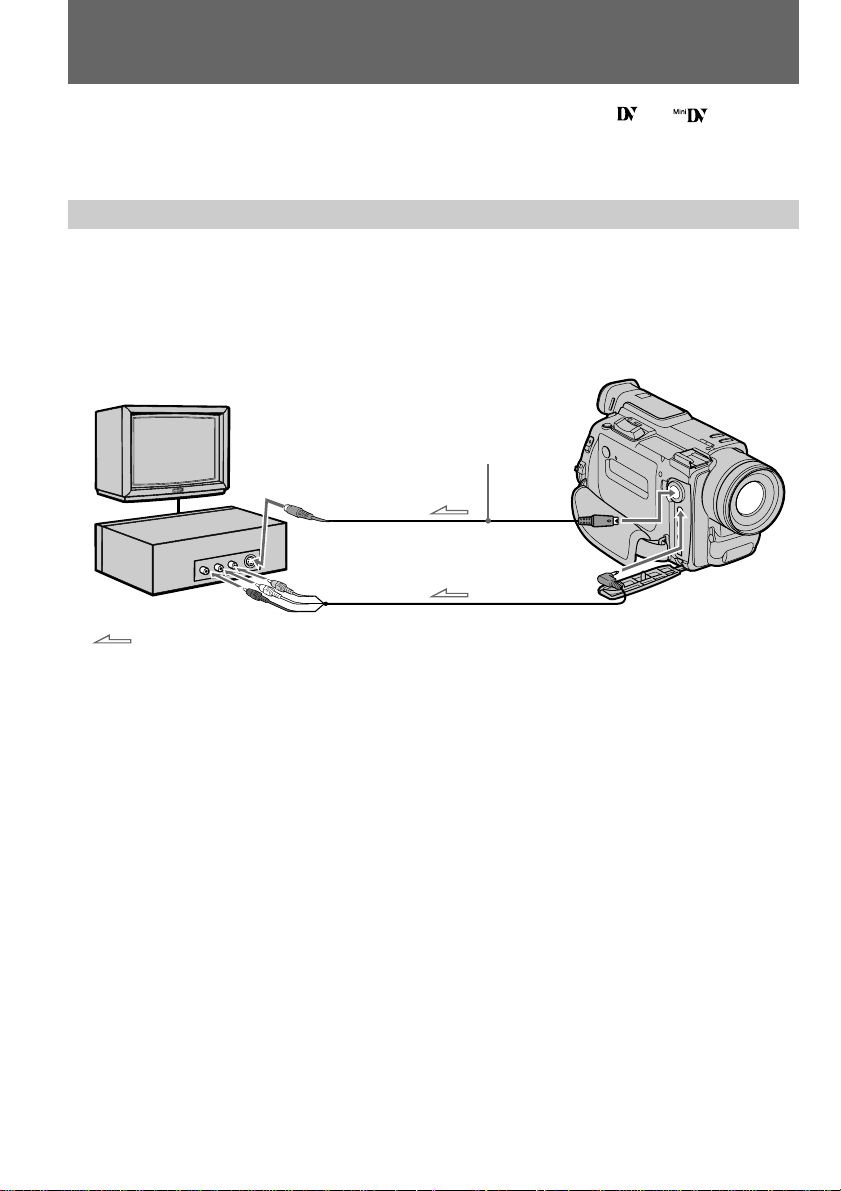

Editing onto another tape
You can create your own video program by editing with any other DV, mini DV,
h 8 mm, H Hi8, j VHS, k S-VHS, VHSC, K S-VHSC, l Betamax or
¬ ED Betamax VCR that has audio/video inputs. You can edit with little deterioration
of picture and sound quality when using the i.LINK cable (DV connecting cable).
Before editing
Connect the camcorder to the VCR using the supplied A/V connecting cable or the VMC-
IL4415/IL4435/2DV/4DV i.LINK cable (DV connecting cable) (not supplied).
Using the A/V connecting cable [a] or S video connecting cable
(not supplied) [b]
Set the input selector on the VCR to LINE.
Notes on editing when using the A/V connecting cable
•Press DATA CODE, SEARCH MODE on the Remote Commander, or DISPLAY to turn off
the display indicators. Otherwise, the indicators will be recorded on the tape.
•If your TV or VCR is a monaural type, connect the yellow plug of the A/V connecting
cable for video to the TV or VCR. Connect only the white or red plug for audio to the TV or
VCR. If you connect the white plug, the sound is L (left) signal. If you connect the red plug,
the sound is R (right) signal.
•You can edit precisely by connecting a LANC cable to this camcorder and other video
equipment having fine synchro-editing function, using this camcorder as a player.
TV
VCR
[b]
[a]
AUDIO IN
VIDEO IN
S VIDEO IN
S VIDEO
:
AUDIO/VIDEO
83
Advanced operations
Using the i.LINK cable (DV connecting cable)
Simply connect the VMC-IL4415/IL4435/2DV/4DV i.LINK cable (DV connecting cable)
(not supplied) to DV IN/OUT and to DV IN/OUT of the DV products. With digital-to-
digital connection, video and audio signals are transmitted in digital form for high-quality
editing.
Notes on editing when using the i.LINK cable (DV connecting cable)
•You can connect one VCR only.
•You can record picture, sound and system data at the same time on the DV products by
using the i.LINK cable (DV connecting cable) only.
•You cannot edit the titles, display indicator or the contents of cassette memory.
•If you record playback pause picture with the DV IN/OUT jack, the recorded picture
becomes rough. And when you play back the picture using the other video equipment, the
picture may jitter.
•You can also use the camcorder as a recorder with this connection. In this case “DV IN”
indicator appears on the screen.
•When you use the camcorder as a recorder, the color balance may be incorrect on the
monitor screen. But this is not recorded on the tape.
To perform a more precise editing
Use DV synchro-editing function (see page 84).
Starting editing
(1)Insert a blank tape (or a tape you want to record over) into the VCR, and insert your
recorded tape into the camcorder.
(2)Play back the recorded tape on the camcorder until you locate the point where you want
to start editing, then press P to set the camcorder in playback pause mode.
(3)On the VCR, locate the recording start point and set the VCR in recording pause mode.
(4)Press P on the camcorder and VCR simultaneously to start editing.
To edit more scenes
Repeat steps 2 to 4.
To stop editing
Press π on both the camcorder and the VCR.
Editing onto another tape
DV IN/OUT
(not supplied)
ç
: Signal flow
S VIDEO LANC
DV
DV IN/OUT
84

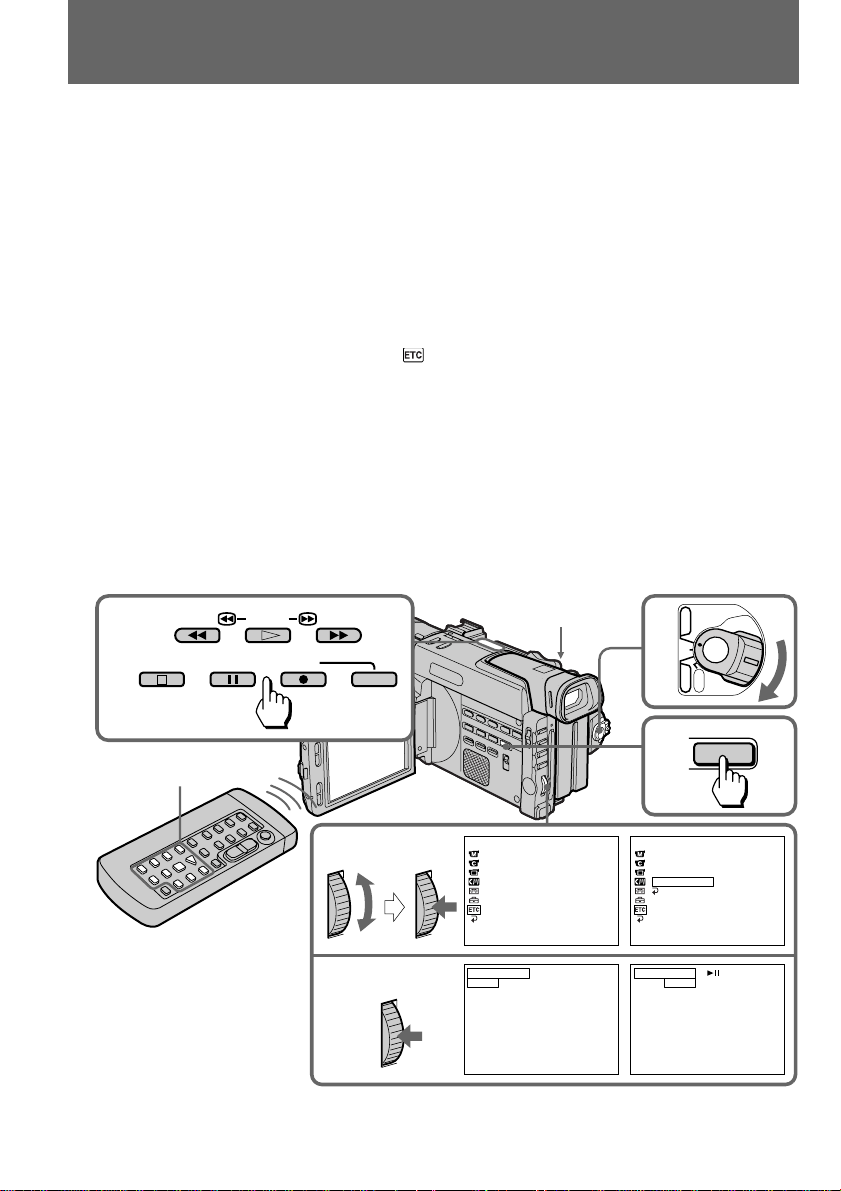

Editing partially on a mini DV tape – DV
synchro-editing
By simply selecting the scenes to edit, you can duplicate the desired portion on a tape, using
other equipment connected with an i.LINK cable (DV connecting cable). The scenes can be
selected by frame. Since the camcorder exchanges digital signals, you can edit with little
audio and video deterioration.
You cannot duplicate titles, display indicators or the contents of cassette memory.
The connection is the same as on page 83.
(1) Insert a recorded tape into the camcorder and insert a blank tape into the DV
product.
(2) Set the POWER switch of the camcorder to VTR.
(3) Set the input selector to DV input on the DV product. If the DV product is another
DV camcorder, set its POWER switch to VTR.
(4) Press MENU to display the menu.
(5) Turn the control dial to select
, then press the dial.
(6) Turn the control dial to select DV EDITING, then press the dial.
(7) Using the tape transport buttons, locate the point where you want to start editing,
then press P to set the camcorder in playback pause mode.
(8) Press the control dial or MARK on the Remote Commander to set DV EDITING
IN.
(9) Using the tape transport buttons, locate the point where you want to end editing,
then press P to set the camcorder in playback pause mode.
(10)Press the control dial or MARK on the Remote Commander to set DV EDITING
OUT. The editing process starts. When the process ends, the camcorder and the
DV product automatically set to pause mode.
27,9
POWER
OFF
CAMERA
MEMORY
VTR
4
MENU
1
7,9
5,6
8,10
DV EDI T ING
0:23:12:01
IN OUT
DV IN
[MARK ] : EXEC [MENU] : END
OTHERS
BEEP
COMMANDER
DISPLAY
DV EDI T ING
[MENU] :END
OTHERS
BEEP
COMMANDER
DISPLAY
DV EDI T ING READY
RETURN
[MENU] :END
DV EDI T ING
0:23:12:01
IN OUT
[MARK ] : EXEC [MENU] : END
PAUSESTOP REC
PLAYREW FF
85
Advanced operations
Notes
•If you use other than Sony DV equipment, you cannot perform DV synchro-editing.
•You cannot set DV EDITING IN or OUT on a blank portion of the tape.
Errors in duplicating
If you connect this camcorder to Sony equipment with DV jack, the range of errors is within
+/– 5 frames. The range may become wider in the following conditions.
•The interval between DV EDITING IN and OUT is less than five seconds.
•DV EDITING IN is set at the beginning of the tape.
•DV synchro-editing is performed repeatedly.
If you do not make connections with i.LINK cable (DV connecting cable)
The screen shows NOT READY, and you cannot select DV EDITING.
Editing partially on a mini DV tape – DV synchro-editing
86

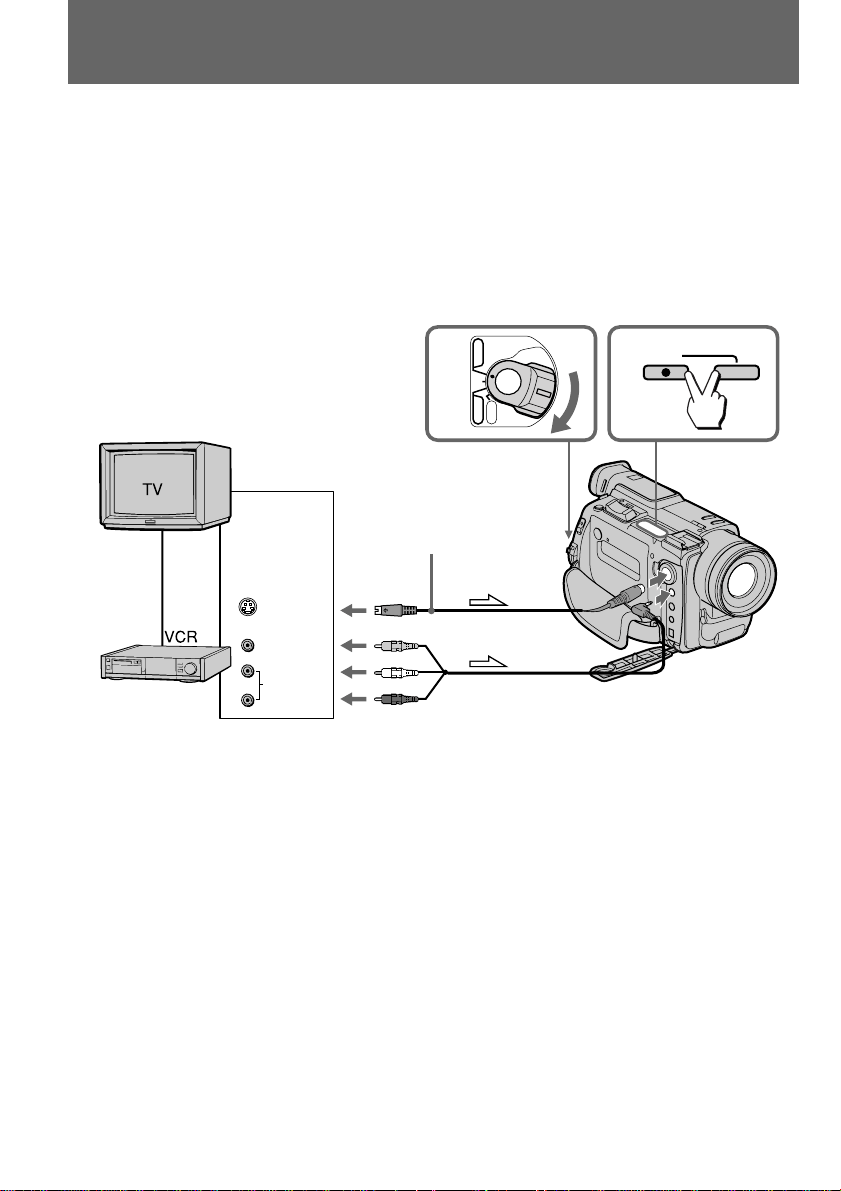

S VIDEO
VIDEO
AUDIO
OUT
[a]
[b]
1 2
POWER
OFF
CAMERA
MEMORY
VTR
REC
You can record a tape from another VCR or a TV program from a TV that has audio/video
outputs. Connect the camcorder to the VCR or TV.
(1) Set the POWER switch to VTR and set DISPLAY to LCD in the menu system.
(2) Press r REC and the button on the right together at the point where you want to
start recording.
In recording and the recording pause mode, S VIDEO and AUDIO/VIDEO jacks
automatically work as input jacks.
If your VCR or TV has an S video jack, connect using the S video cable (not supplied) [a] to
obtain a high quality picture.
If your TV or VCR is a monaural type, connect the yellow plug of the A/V connecting cable
for video to the TV or VCR. Connect only the white or red plug for audio to the TV or VCR.
If you connect the white plug, the sound is L (left) signal. If you connect the red plug, the
sound is R (right) signal.
If you are going to connect the camcorder using the S video cable (not supplied) [a], you do
not need to connect the yellow (video) plug of the A/V connecting cable [b] .
Notes
• If the S video plug is not provided on your TV or VCR, do not connect the S video cable
(not supplied) to the camcorder. Pictures will not appear.
• The dual sound cannot be recorded in this camcorder.
• If you fast-forward or slow-playback on the other equipment, the image being recorded
may turn black and white. When recording from other equipment, be sure to play back the
original tape at normal speed.
To stop recording
Press π.
Recording from a VCR or TV
AUDIO/VIDEO
S VIDEO
S VIDEO
OUT
AUDIO/VIDEO OUT
(not supplied)
87
Advanced operations

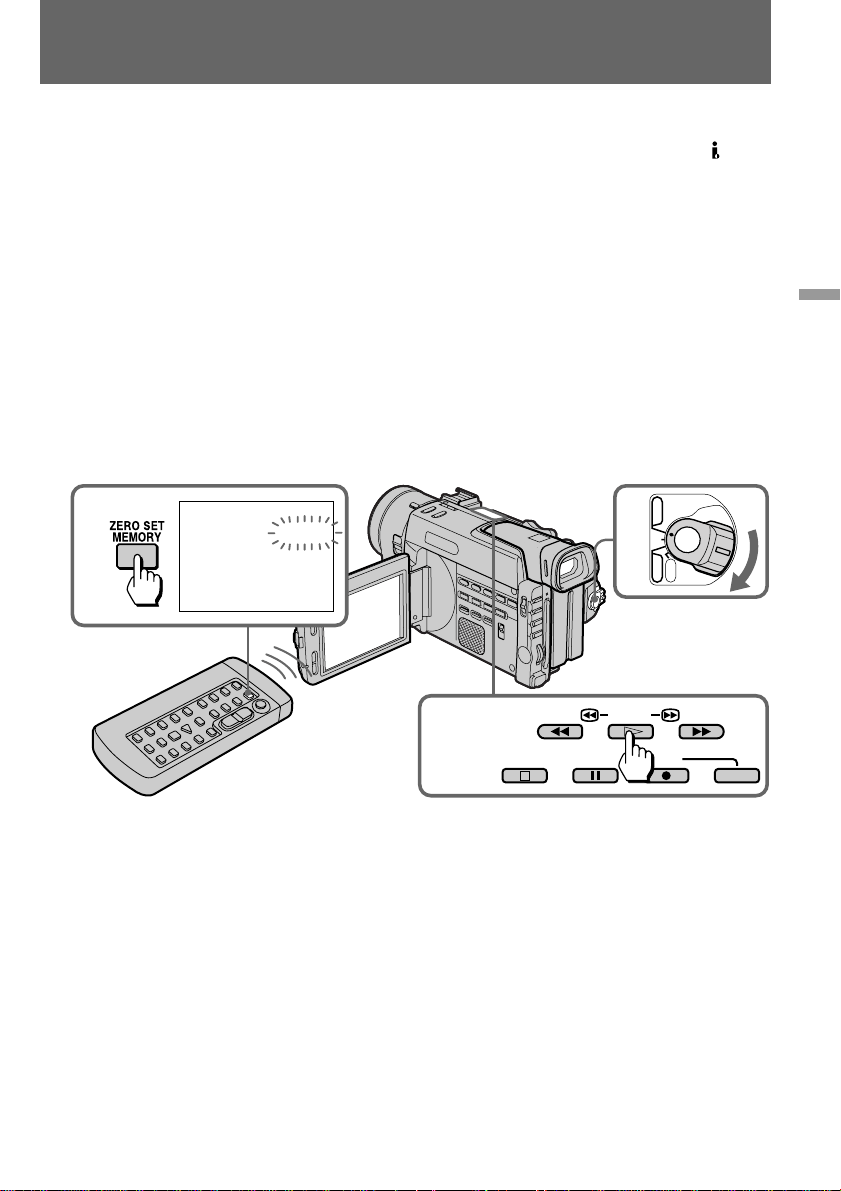

You can insert a new scene from a VCR onto your originally recorded tape by specifying
starting and ending points. After inserting, the previous picture and sound will be erased.
Connection is the same as on page 82 or 83. In recording and recording pause mode, DV
IN/OUT jack automatically works as an input jack.
You can only operate with the Remote Commander.
(1) Set the POWER switch to VTR.
(2) On the VCR, locate the start point to be inserted and set it to playback pause mode.
(3) On the camcorder, press · to set it to playback mode, and then locate the point
where the insert should end by pressing 0 or ). Then press P to set it to
playback pause mode.
(4) Press ZERO SET MEMORY on the Remote Commander. The ZERO SET MEMORY
indicator flashes and the end point of the insert is stored in memory.
(5) On the camcorder, locate the point where the insert should begin by pressing 0,
then press r REC to set it to recording pause mode.
(6) Press P on the camcorder and the VCR simultaneously to start insert editing. The
insert editing stops automatically near the counter's zero point. Press π to set the
camcorder to stop mode.
To change the end point
Press ZERO SET MEMORY on the Remote Commander so that the ZERO SET MEMORY
indicator disappears and begin from step 3.
Note on the inserted picture
The picture may be distorted at the end of the inserted portion when it is played back.
Replacing recording on a tape – insert editing
1
4
0:00:00
ZERO SET
MEMORY
POWER
OFF
CAMERA
MEMORY
VTR
3,5,6
PAUSESTOP REC
PLAYREW FF
88
You can record an audio sound to add to the original sound on a tape by connecting audio
equipment or a microphone. If you connect the audio equipment, you can add sound to your
recorded tape by specifying the starting and ending points. The original sound will not be
erased.
You can only operate with the Remote Commander.

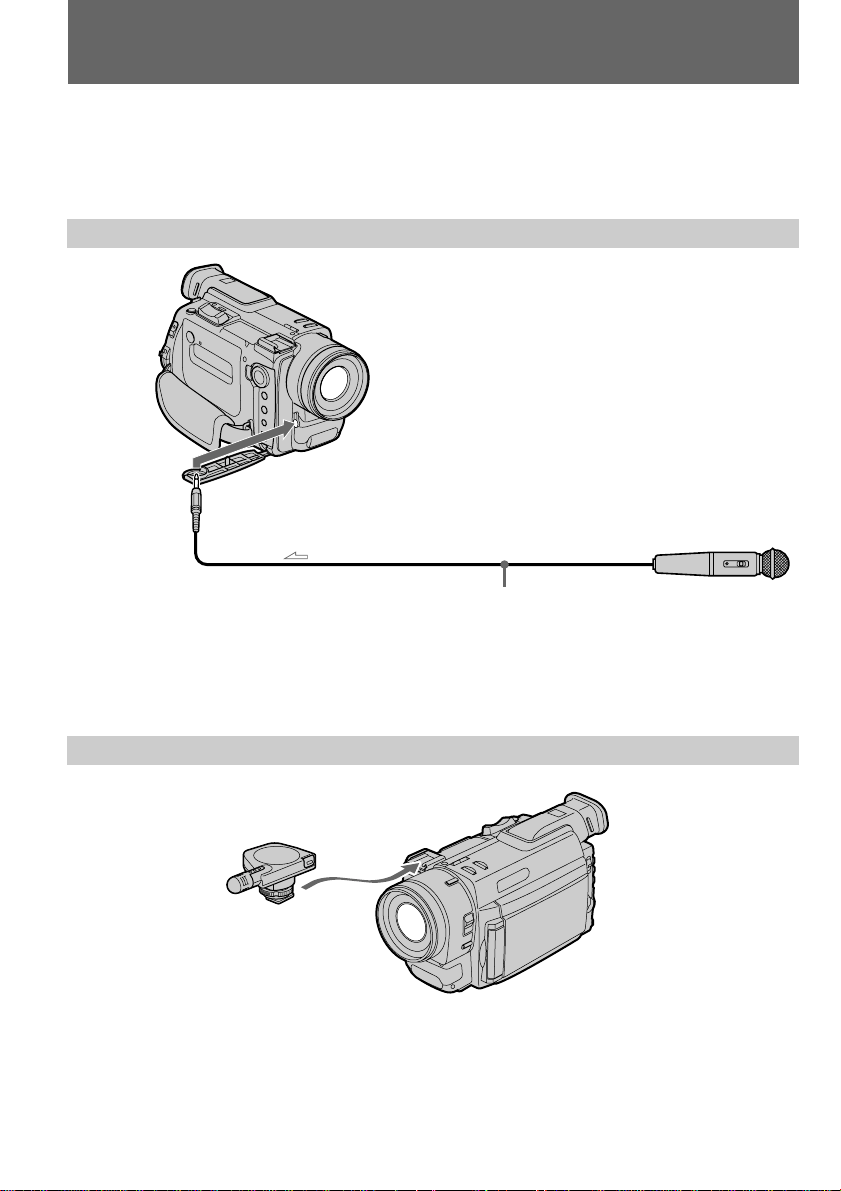

Connecting the microphone with the MIC jack
Note
You can check the recorded picture and sound by connecting the AUDIO/VIDEO jack to a
TV.
The recorded sound is not output from a speaker. Check the sound by using the TV or
headphones.
Connecting the microphone with the intelligent accessory shoe
Audio dubbing
MIC
(PLUG IN
POWER)
Ç
: Signal flow
Microphone (not supplied)
Microphone (not supplied)
89
Advanced operations
LINE OUT
LR
AUDIO L
AUDIO R
Ç
: Signal flow
Audio equipment
A/V connecting cable
AUDIO/
VIDEO
Do not connect the
video (yellow)
plug.
Audio dubbing

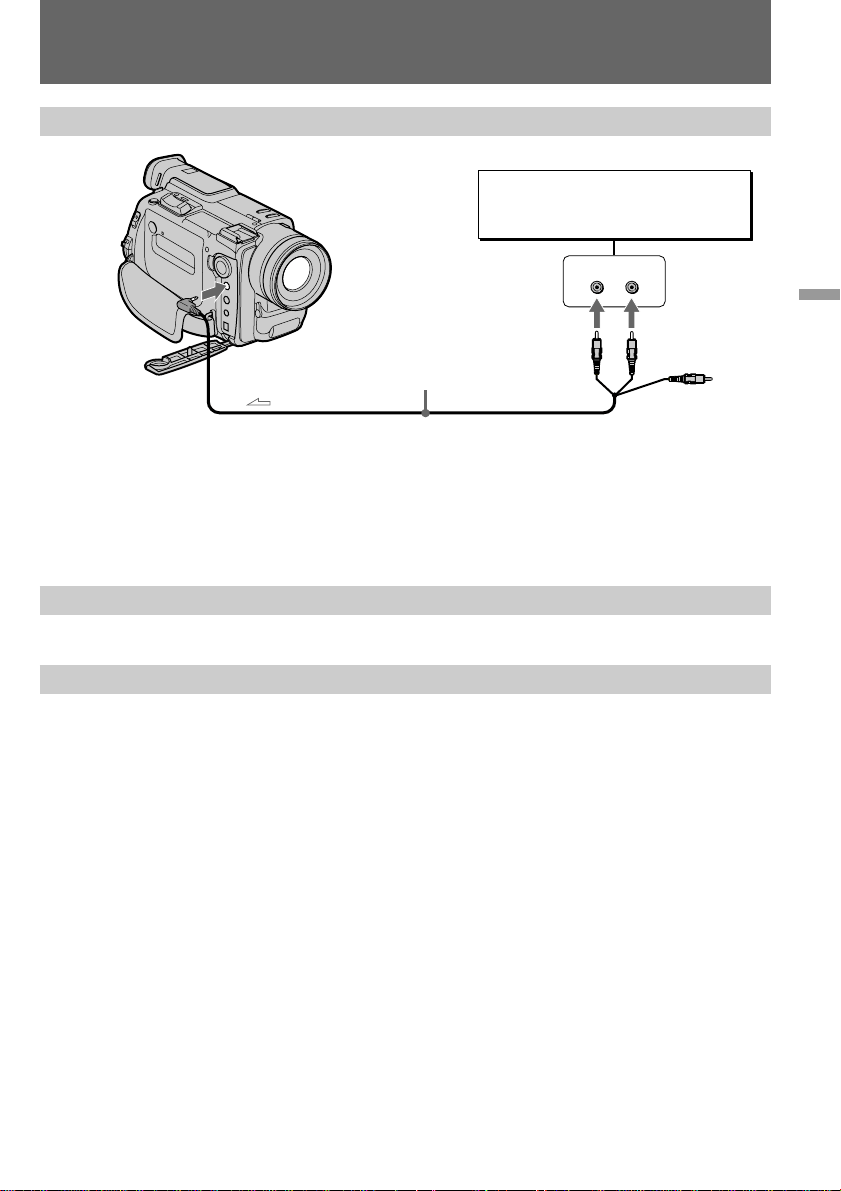

Dubbing with the AUDIO/VIDEO jack
Note
The picture is not output from the AUDIO/VIDEO jack. Check the recorded picture on the
LCD screen or in the viewfinder, as well as check the recorded sound by using a speaker or
headphones.
Dubbing with the built-in microphones
No connection is necessary.
Adding an audio sound on a recorded tape
(1)Insert your recorded tape into the camcorder.
(2)Set the POWER switch to VTR.
(3)On the camcorder, locate the point where the recording should begin by pressing 0 or
). Then press P to set it to playback pause mode.
(4)Press AUDIO DUB on the Remote Commander .
(5)Press P on the Remote Commander and at the same time start playing back the audio
you want to record.
(6)Press p on the Remote Commander at the point where you want to stop recording.
90
Audio dubbing
To play back the new recorded sound
Adjust the balance between the original sound (ST1) and the new sound (ST2) by selecting
AUDIO MIX in the menu system.
Five minutes after when you disconnect the power source or remove the battery pack, the
setting of AUDIO MIX returns to the original sound (ST1) only. The factory setting is
original sound only.
To end audio more precisely
First, press ZERO SET MEMORY on the Remote Commander at the point where you want to
stop recording. Then start recording from step 3, and the recording stops automatically near
the counter’s zero point.
If you make all the connections
The audio input to be recorded will take precedence over others in the following order.
•MIC (PLUG IN POWER) jack
•Intelligent accessory shoe
•AUDIO/VIDEO jack
•Built-in microphone
If an i.LINK cable (DV connecting cable) is connected to this unit
You cannot add a sound to a recorded tape.
If you disconnect or connect a cable to the camcorder during recording
The recording may stop.
Notes on audio dubbing
•A new sound cannot be recorded on a tape already recorded in the 16-bit mode (32 kHz,
44.1 kHz or 48 kHz).
•When an external microphone is not connected, the recording will be made through the
built-in microphone of the camcorder.
•A new sound cannot be recorded on a tape already recorded in the LP mode.
•If you add a new sound on a tape recorded with another camcorder (including DCR-
TRV900), the sound quality may become worse.
•You cannot add audio with the DV IN/OUT jack.
VTR SET
H i F i SOUND
AUDIO MI X
RETURN
[MENU] :END
ST1 ST2
91
Memory card slot operations
Memory card slot operations

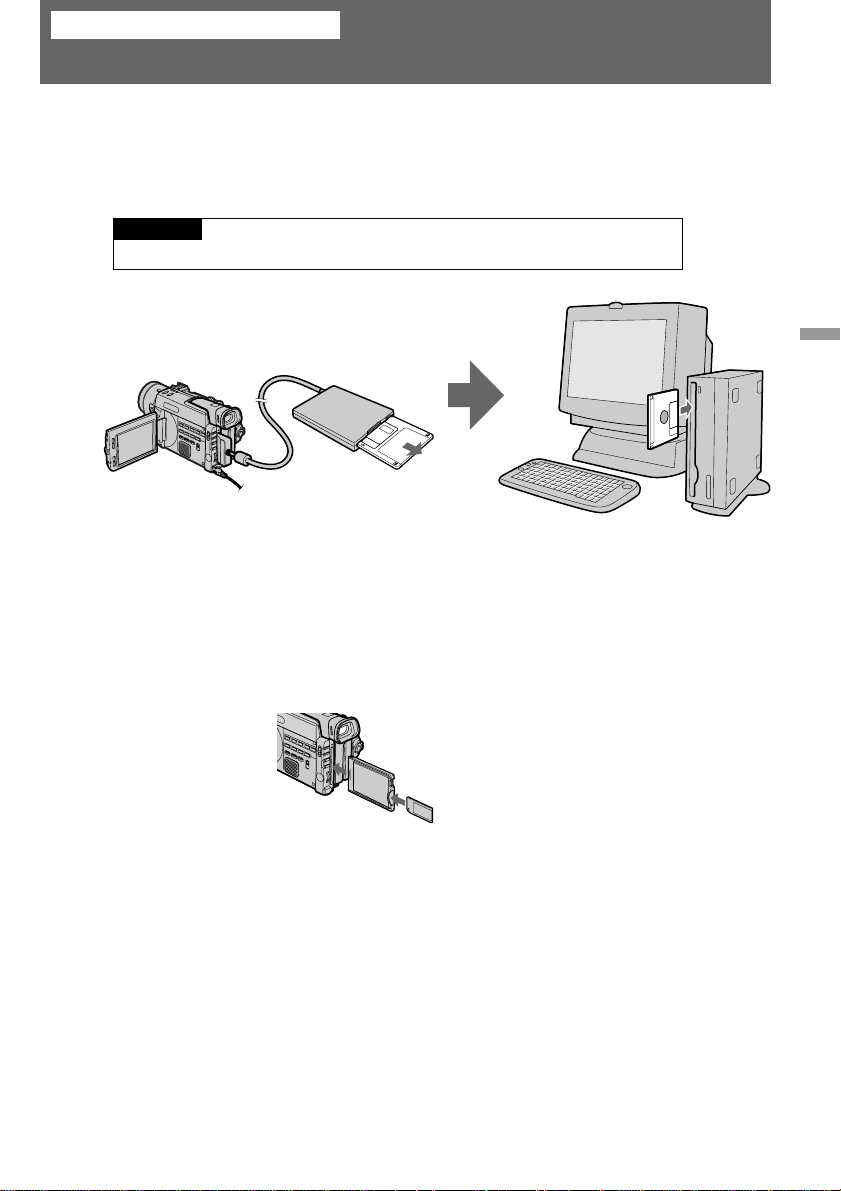

Using the memory card slot – introduction
Record the still image on floppy disk
with the floppy disk adapter. Play
back the picture with your PC.
This camcorder is equipped with a memory card slot that conforms to ATA specification of
PC Card standard.
You can record still images to floppy disks using the supplied floppy disk adapter, Memory
Sticks (not supplied) or PC cards (not supplied). You can exchange image data with other
equipment such as personal computers etc., using floppy disks, Memory Sticks or PC cards.
CAUTION!
Do not carry around this camcorder with the floppy disk adapter connected.
Instruction of functions
The illustrations used in this chapter for the instruction are that of the floppy disk adapter
unless specified otherwise.
Sony recommends Memory Sticks
Sony recommends using the MSAKIT-PC4A Memory Stick/PC card kit (not supplied). The
Memory Stick is a brand new type of recording medium that records images and sounds as
digital data and operates just like a PC card. For detailed instructions, refer to the operating
instruction supplied with Memory Stick/PC card kit.
The types of PC cards you can use
Use TYPE II PC cards that conform to ATA specification of PC card standard. Format the PC
card with this camcorder before use. Once you format the PC card, you can store data of up
to 64 MB in it.
Compatible PC cards
HITACHI
HB286008A3, HB286015A3, HB286030A3, HB286045A3, HB286060A3
Be sure to refer to the instruction manual supplied with the PC card.
Notes on the supplied floppy disk adapter
The floppy disk adapter is designed for use only with this camcorder. The adapter is not
warranted to function properly if used with other equipment.
Memory Stick
PC card adaptor
92
Floppy disks you can use with this unit
•Size : 3.5 inch
•Type : 2HD
•Capacity : 1.44 MB
•Format : MS-DOS format (512 bytes x 18 sector)
When using a 3.5 inch, 2HD floppy disk other than that described above, format it using the
camcorder.
On file format (JPEG)
This unit compresses image data in JPEG format (extension .jpg) and simultaneously records
thumbnail data (extension .411) for the index screen. The index screen data is varies only on
this unit.
Data file names of image
MVC00001.jpg: if saved on a PC card
MVC-0001.jpg: if saved on a floppy disk
Be sure to place the adapter on a stable surface
Placing the floppy disk adapter on an unstable or slanting surface or holding the adapter by
hand during operation may result not only in malfunction of the unit but also in injury.
Do not shake or jar the adapter
Malfunctions, inability to record images or inability to use floppy disks may occur. There
may be also image and memory data breakdown, damage or loss.
Do not get the adapter wet
The floppy disk adapter does not function when it is wet. Be careful not to get the adapter
wet. When moving the adapter from one atmospheric condition to another, moisture
condensation may occur inside or outside the unit. If this occurs, follow the instructions on
page 123 and remove any condensation before use.
Notes on the floppy disk
To protect data recorded on the floppy disks, note the following:
• Avoid storing floppy disks near magnets or magnetic fields such as those of speakers and
televisions, permanent erasure of disk data may result.
• Avoid storing floppy disks in areas subject to direct sunlight or sources of high
temperature, such as heating devices. Floppy disk warping or damage may result, making
the disk useless.
• Avoid contact with the disk surface by opening the disk shutter plate. If the disk surface
becomes blemished, data may be unreadable.
• Keep liquids away from the floppy disk.
• Be sure to use a floppy disk case to protect important data.
• Use only a 2HD type disk head cleaner when cleaning the disk drive.
•Even when you use a 3.5 inch 2HD floppy disk, image data may not be recorded and/or
displayed depending on the using environment. In this case, use another brand of disk.
About the power source
When you use the memory card slot, getting the power from a wall outlet is recommended,
using the AC power adaptor.
Using the memory card slot – introduction
93
Memory card slot operations
Using the memory card slot – introduction
About the remaining battery indicator
This camcorder displays remaining recording/playback time on the LCD screen or in the
viewfinder. This function may not work properly in certain operating conditions. Especially
when using the memory card slot, the correct remaining time may not be indicated due to
increased power consumption. This is not a malfunction.
Power supply
When using a video light (not supplied) or similar equipment connected to the intelligent
accessory shoe of the camcorder, recording an image to a floppy disk or PC card may result
in a temporary power shortage in the accessory shoe, causing the video light to go out. This
does not affect other functions.
When using a battery case
When using a battery case (not supplied) such as the EBP-L7, you cannot perform operations
that require the floppy disk adapter. The screen displays “FOR “InfoLITHIUM” BATTERY
ONLY.”
Note on playback compatibility
This camcorder is not guaranteed to properly play back images shot with other equipment.
The images shot with this camcorder are not guaranteed to be played back properly with
other equipment.
CAUTION
Do not insert your finger or an object into the memory card slot.

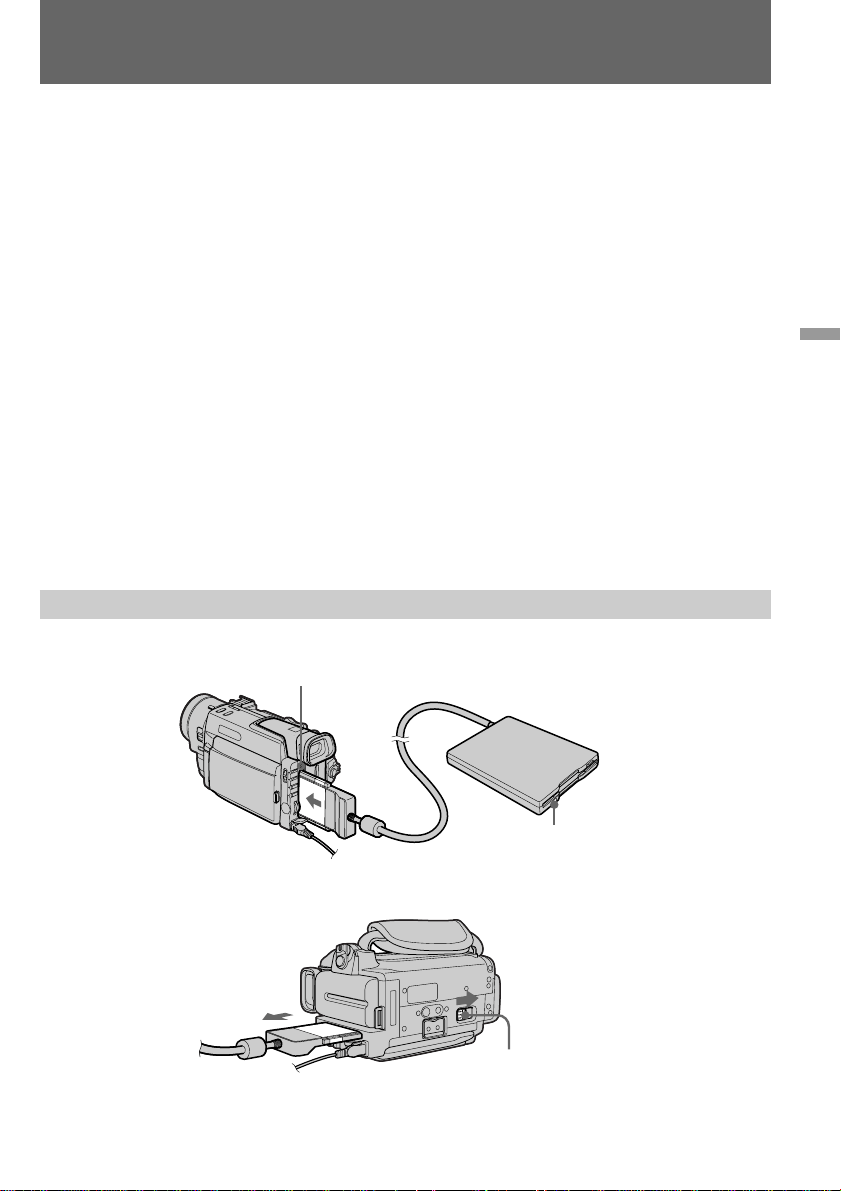

Connecting the floppy disk adapter or PC card
With the upper side of the connector facing the LCD panel, insert the connector until it
clicks.
To eject the floppy disk adapter or PC card
Slide the MEMORY RELEASE lever in the direction of the arrow as illustrated below.
When the access lamp is flashing
Never shake or strike the unit. Do not turn the power off , eject a PC card/floppy disk
adapter or remove the battery pack. Otherwise, the image data breakdown may occur.
Access lamp
Access lamp
MEMORY RELEASE
94
Using the memory card slot – introduction

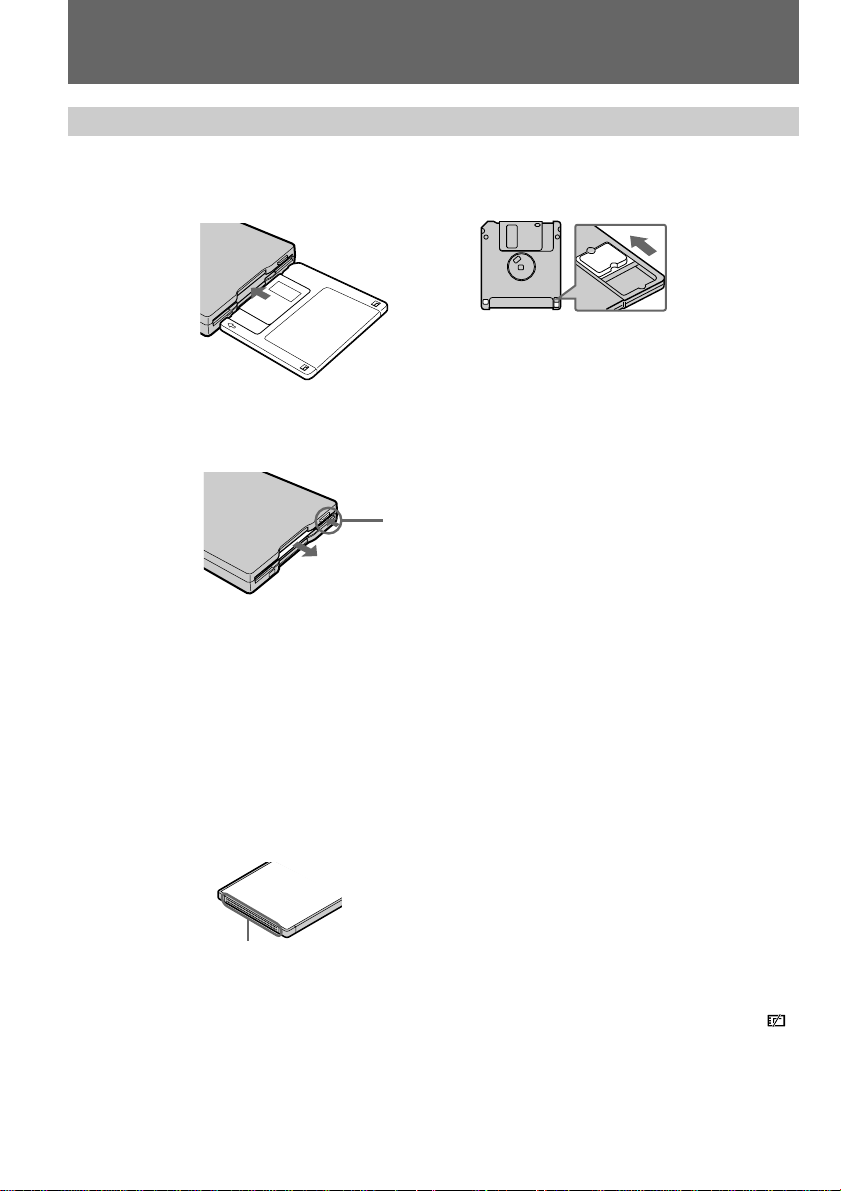

Inserting a floppy disk
Insert a floppy disk until it clicks.
Before inserting, check that the write protect tab is set to the recordable position for
recording a still picture.
To eject the floppy disk
Press the floppy disk eject button.
About the PC card and memory slot connector of the floppy disk adapter
To protect the recorded data, follow the instructions below.
•Do not repair, make alterations, or dismantle them.
•Avoid using them in direct sunlight, in extreme heat or cold, in damp or dusty locations.
•Do not spill liquid on them.
•Do not fold or strike them.
When the PC card does not come out
Remove the battery before ejecting the PC card.
The front edge of the memory slot connector
Do not touch the front edge of the memory slot connector with your hand.
Note
Unless you press any memory operating buttons after inserting another floppy disk, the
indicator may not disappear from the screen.
Floppy disk eject button
Front edge of the memory slot connector
95
Memory card slot operations

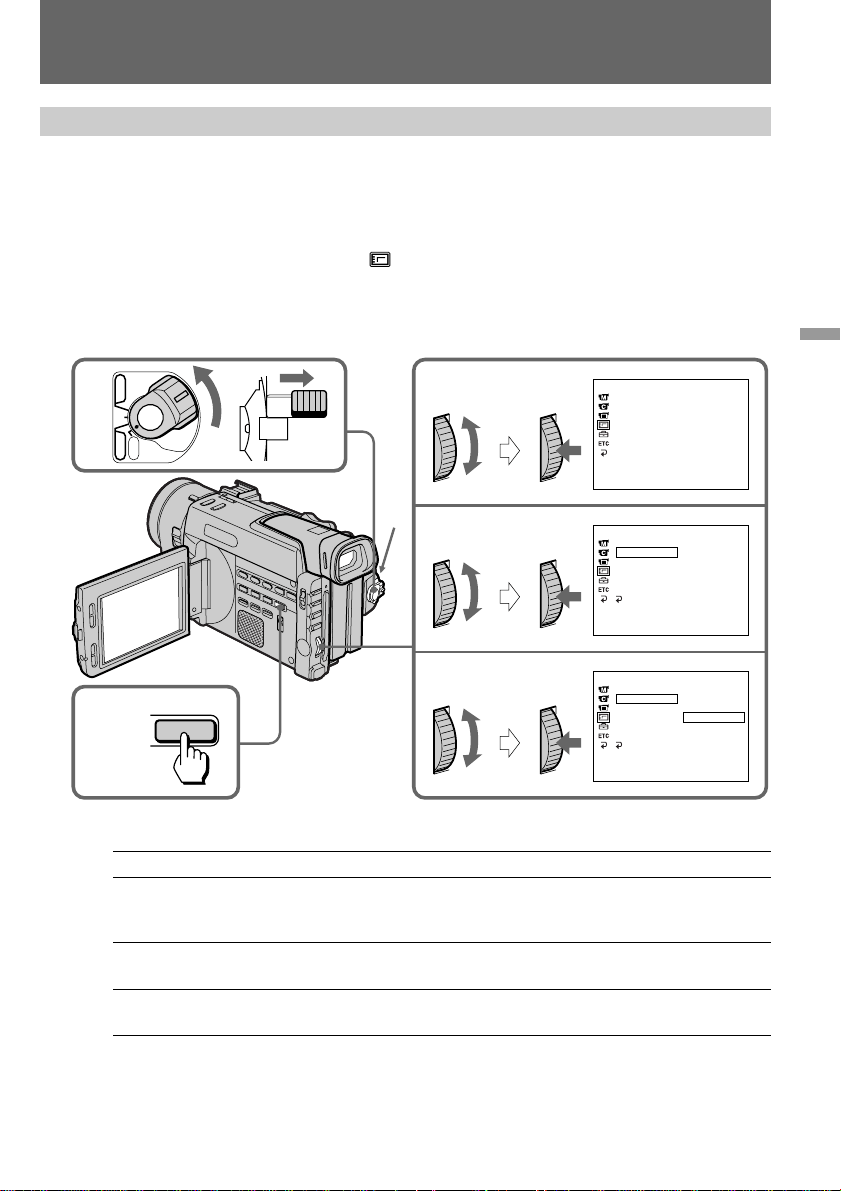

Selecting the image quality mode
You can select one of three image quality modes in still picture recording. If you do not
make any selection, the unit automatically records in SUPER FINE mode.
(1) Set the POWER switch to MEMORY. Make sure that the lock knob is set to the right
(unlock) position.
(2) Press MENU to display the menu.
(3) Turn the control dial to select
, then press the dial.
(4) Turn the control dial to select QUALITY, then press the dial.
(5) Turn the control dial to select desired image quality, then press the dial.
(6) Press MENU to erase the menu display.
Setting image quality
Setting Meaning
SUPER FINE (SFN) This is the highest image quality in this camcorder. The number of still
images you can record is less than FINE. The image is compressed to
about 1/4.
FINE (FIN) Use this mode when you want to record high quality images. The
image is compressed to about 1/6.
STANDARD (STD) This is the standard image quality. The image is compressed to about
1/10.
Using the memory card slot – introduction
MEMORY SET
CONT I NUOUS
QUALITY SUPER FINE
PROTECT
SLIDE SHOW
DELETE ALL
FORMAT
RETURN
[MENU] :END
MEMORY SET
CONT I NUOUS
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL
FORMAT
[MENU] :END
1
2,6
3
POWER
OFF
CAMERA
MEMORY
VTR
MENU
4
5
1
MEMORY SET
CONT I NUOUS
QUAL I TY STANDARD
PROTECT F I NE
SL IDE SHOW SUPER F I NE
DELETE ALL
FORMAT
RETURN
[MENU] :END
96
Using the memory card slot – introduction
The difference in image quality mode
A recorded image is compressed in JPEG format before stored into memory. The memory
capacity allotted to each image varies depending on the selected quality mode. Details are
shown in the table below. (The number of pixel is 640 x 480, regardless of image quality
mode. Data volume before compression is about 600 KB.)
Image quality mode Memory capacity
SUPER FINE About 150 KB
FINE About 100 KB
STANDARD About 60 KB
Approximate numbers of images you can record on a floppy disk
The number of images you can record is different depending on which image quality mode
you select and the complexity of the subject.
SUPER FINE (SFN) about 7 to 8 images
FINE (FIN) about 14 to 16 images
STANDARD (STD) about 23 to 27 images
Note
In some cases, changing image quality mode may not affect the image quality, depending on
the types of images you are shooting.

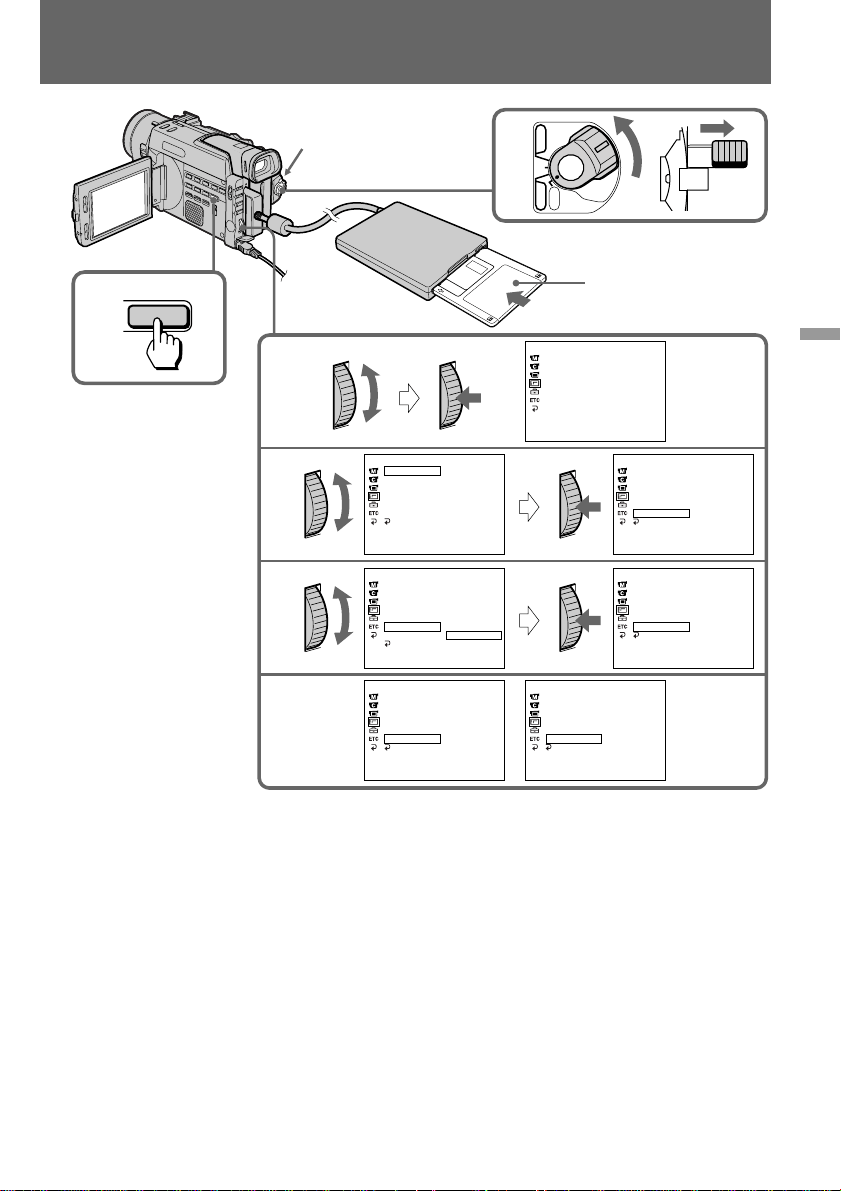

Formatting (initializing) a PC card or a floppy disk
(1) When you format a floppy disk, insert a disk into the floppy disk adapter. When
you format a PC card, insert the card into the memory card slot.
(2) Set the POWER switch to MEMORY. Make sure that the lock knob is set to the right
(unlock) position.
(3) Press MENU to display the menu.
(4) Turn the control dial to select
, then press the dial.
(5) Turn the control dial to select FORMAT, then press the dial.
(6) Turn the control dial again to select OK, then press the dial. The display shows
“EXECUTE.”
(7) Press the control dial again. The display shows “FORMATTING,” and formatting
procedure begins. When formatting is finished, the display shows “COMPLETE.”
97
Memory card slot operations
2
3
POWER
OFF
CAMERA
MEMORY
VTR
MENU
2
1
4
5
7
6
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL
FORMAT
[MENU] :END
MEMORY SET
CONT INUOUS OFF
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL
FORMAT
RETURN
[MENU] :END
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL
FORMAT READY
RETURN
[MENU] :END
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL
FORMAT RETURN
RETURN
OK
[MENU] :END
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL
FORMAT EXECUTE
RETURN
[MENU] :END
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL
FORMAT FORMATT ING
RETURN
[MENU] :END
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL
FORMAT COMPLETE
RETURN
[MENU] :END
Notes on formatting
•Formatting erases all information on the floppy disk or PC card, including the protected
image data. Check the contents of the disk or card before formatting.
• Be sure that the battery is fully charged when formatting a floppy disk or PC card.
Formatting takes about three minutes maximum.
•Do not turn the POWER switch or press any button while the display shows
“FORMATTING.”
Using the memory card slot – introduction
98

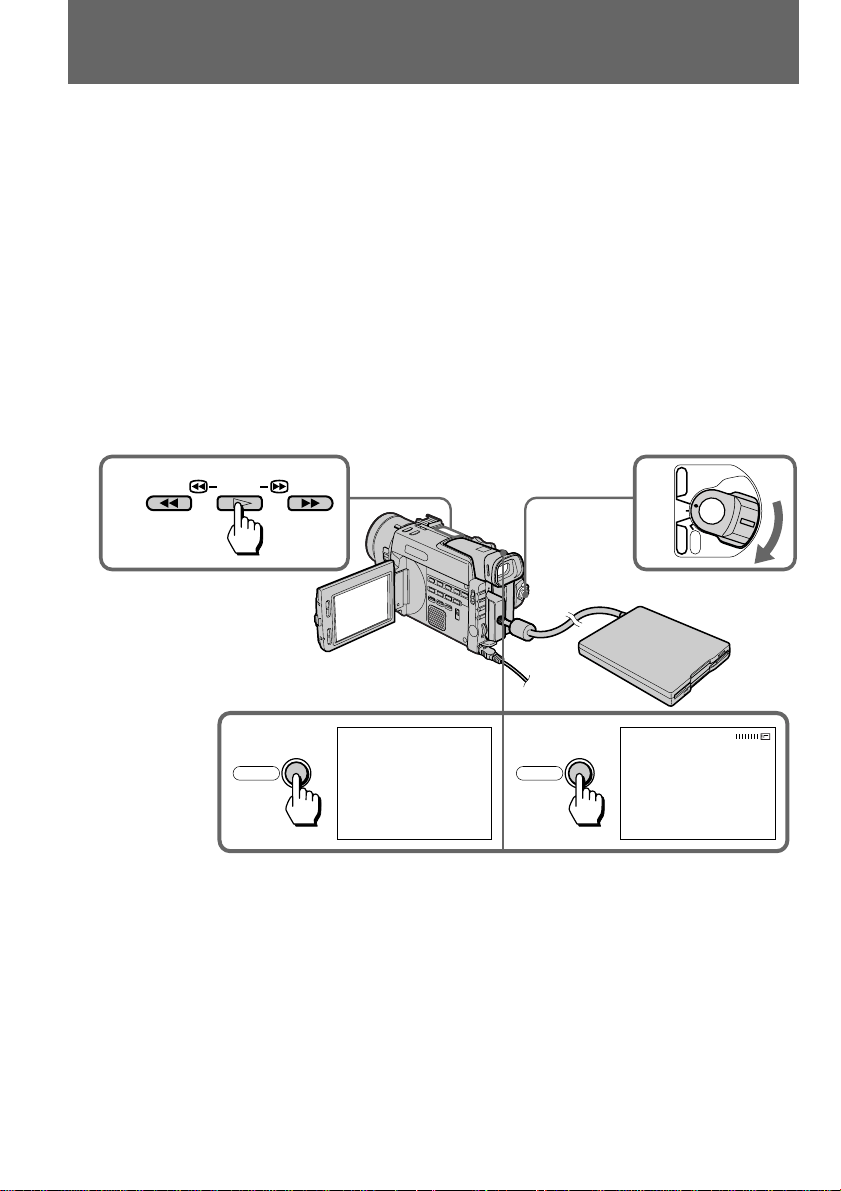

Recording an image from a mini DV tape as a
still image
This camcorder can read moving picture data recorded on a mini DV tape and record it as a
still image on a floppy disk or a PC card. The unit can also take in moving picture data
through the input connector and record it as a still image on a floppy disk or a PC card.
Before operation
•Insert a recorded mini DV tape.
•Connect the floppy disk adapter (with a disk inside) or a PC card into the unit.
(1) Set the POWER switch to VTR.
(2) Press ·. The picture recorded on the mini DV tape is played back.
(3) Keep pressing PHOTO lightly until a picture from the mini DV tape freezes.
“CAPTURE” appears on the LCD screen or in the viewfinder. Recording does not
start yet.
(4) Press PHOTO deeper. The image displayed on the screen will be recorded on a
floppy disk or a PC card. The recording is complete when the bar scroll indicator
disappears.
When the access lamp is flashing
Never shake or strike the unit. As well do not turn the power off , eject a PC card/floppy
disk adapter or remove the battery pack. Otherwise, the image data breakdown may occur.
If “MEMORY FULL” appears on the LCD screen or in the viewfinder
The memory of the PC card or floppy disk is full.
If “CHECK MEMORY” appears on the LCD screen or in the viewfinder
An incompatible PC card or floppy disk is inserted. Be sure to use proper card or disk.
1
POWER
OFF
CAMERA
MEMORY
VTR
2
PLAYREW FF
3
4
CAPTURE
99
Memory card slot operations
Recording a still image from a mini DV tape right after turning on the power
Saving the data may take a little more time than usual. This is not a malfunction.
Sound recorded on a mini DV tape
You cannot record the audio from a mini DV tape.
About titles recorded on the mini DV tape
You cannot record titles. The title is not displayed during recording.

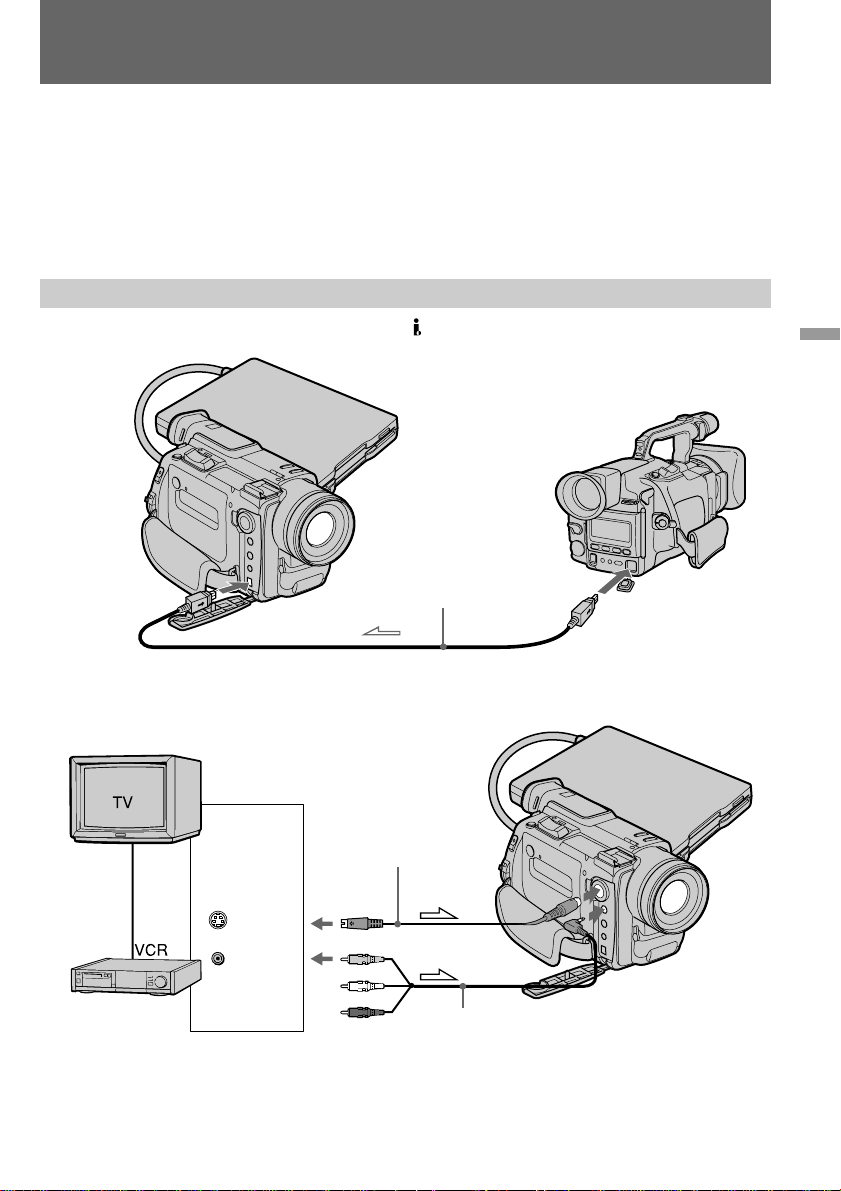

Recording a still image from other equipment
When recording the image through the DV IN/OUT jack
When recording the image through the AUDIO/VIDEO jack
(1) Set the POWER switch to VTR and set DISPLAY to LCD in the menu system.
(2) Play back the recorded tape, or turn the TV on to see the desired program.
(3) Follow the steps 3 and 4 on page 98.
Recording an image from a mini DV tape as a still image
S VIDEO
VIDEO
OUT
i.LINK cable
(DV connecting cable)
(not supplied)
S video connecting cable
(not supplied)
A/V connecting cable
100

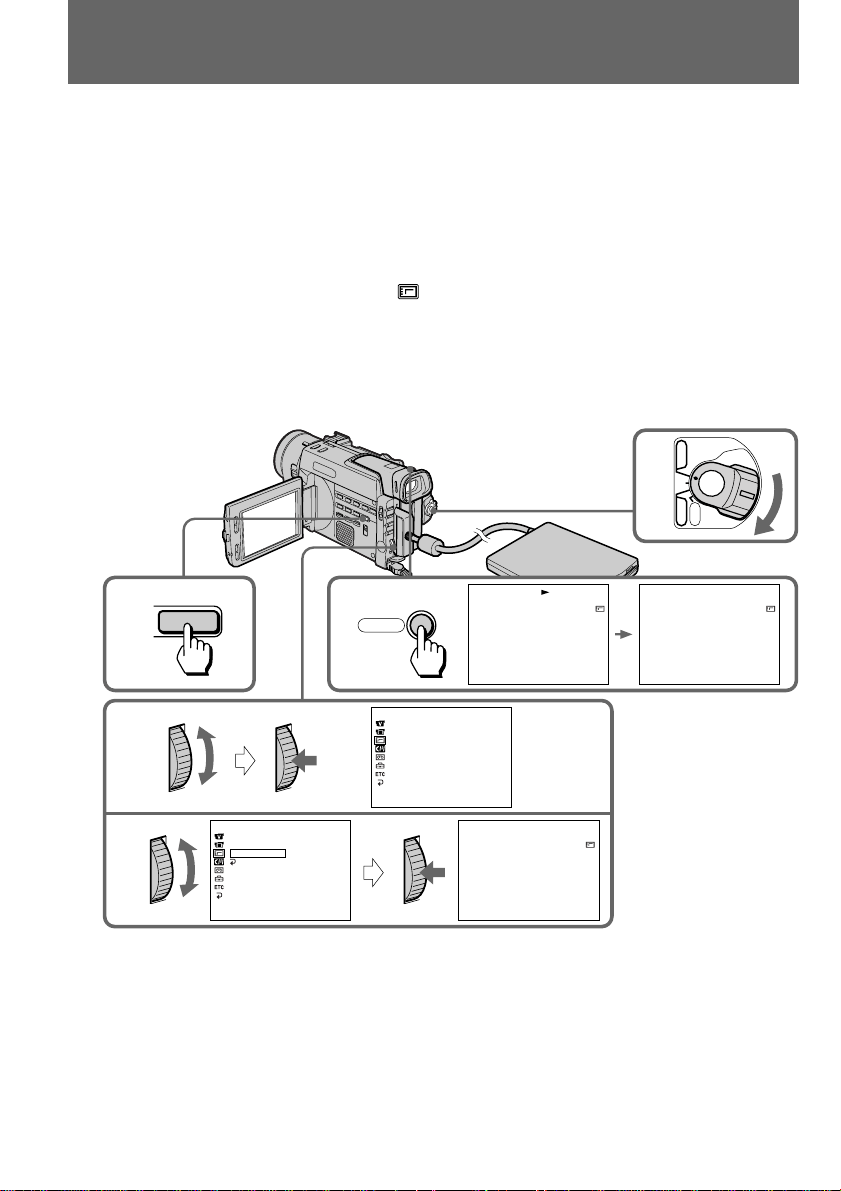

Copying still images from a mini DV tape
– photo save
Using the search function, you can automatically take in only the still images from mini DV
tapes and record them on a floppy disk or a PC card in sequence.
Before operation
•Insert a recorded mini DV tape and rewind the tape.
•Connect the floppy disk adapter (with a disk inside) or insert a PC card to the unit.
(1) Set the POWER switch to VTR.
(2) Press MENU to display the menu.
(3) Turn the control dial to select
, then press the dial.
(4) Turn the control dial to select PHOTO SAVE, then press the dial. “PHOTO
BUTTON” appears on the LCD screen or in the viewfinder.
(5) Press PHOTO deeper. The still image from the mini DV tape is recorded on a
floppy disk or PC card. The number of still images copied is displayed. “END” is
displayed when copying is completed.
To cancel copying
Press MENU to stop copying.
When the memory of the floppy disk or PC card is full
“MEMORY FULL” appears on the screen, and the copying stops. Insert another floppy disk
or PC card and repeat the procedure from step 1.
MEMORY SET
QUAL I TY
PROTECT
PHOTO SAVE READY
RETURN
[MENU] :END
1
2
POWER
OFF
CAMERA
MEMORY
VTR
MENU
3
5
4
MEMORY SET
QUAL I TY
PROTECT
PHOTO SAVE
[MENU] :END
PHOTO SAVE 0 : 00: 00 : 00
4/15
SFN
[ PHOTO] : STRAT [MENU ] : END
PHOTO SAVE 0 : 00: 00 : 00
4/15
SFN
[MENU] :END
SAVING
PHOTO SAVE 0 : 00: 00 : 00
8/15
SFN
[MENU] :END
END
BUTTON
40
101
Memory card slot operations
When the access lamp is flashing
Never shake or strike the unit. As well do not turn the power off, eject a PC card/floppy disk
adapter or remove the battery pack. Otherwise, the image data breakdown may occur.
To record all the images recorded on the mini DV tape
Rewind the tape all the way and start copying.
When you change floppy disks in the middle of copying
The unit resumes copying from the last image recorded on the previous disk.
Copying still images from a mini DV tape – photo save
102

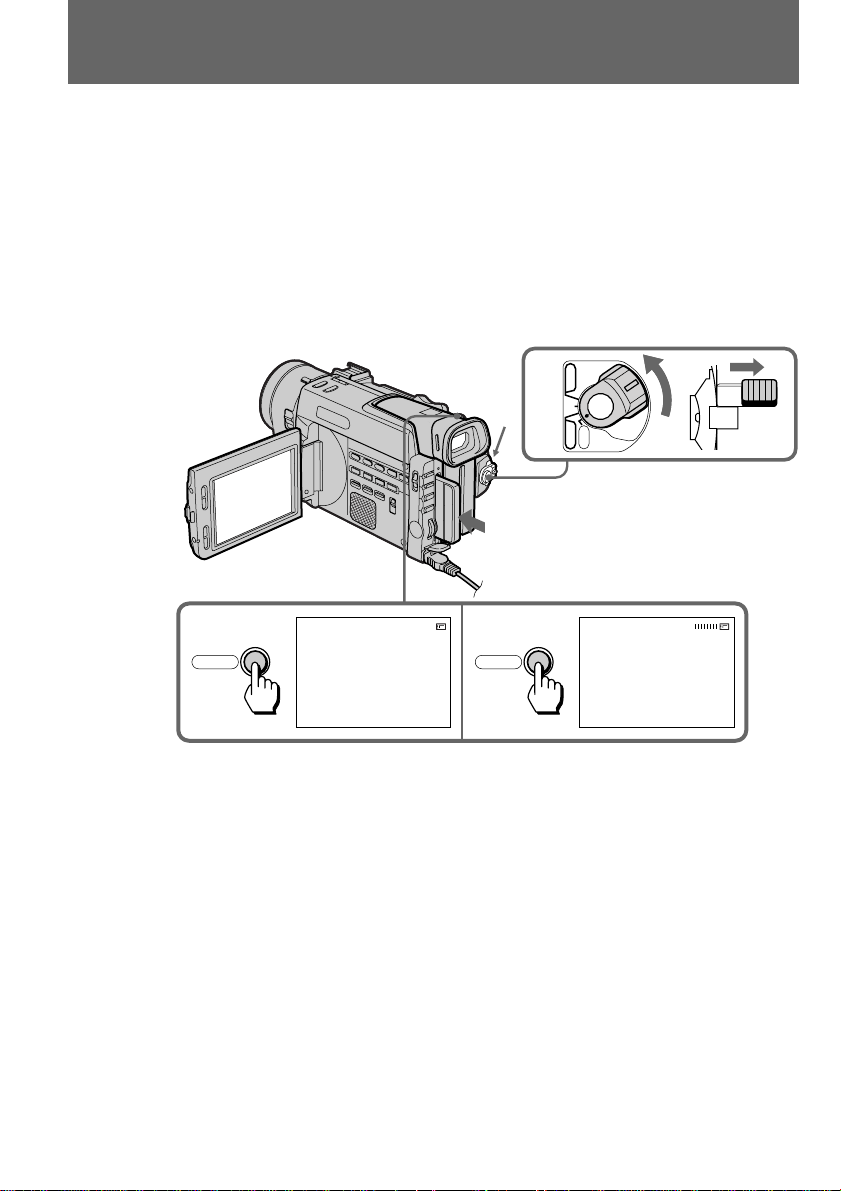

Recording still images on PC cards (not
supplied) – memory photo recording
You can record still images with all the pixels (progressive) on an optional PC card.
Before operation
Insert a PC card into the unit.
(1) Set the POWER switch to MEMORY. Make sure that the lock knob is set to the
right (unlock) position.
(2) Keep pressing PHOTO lightly. A picture freezes and “CAPTURE” appears on the
LCD screen or in the viewfinder. Recording does not start yet.
(3) Press PHOTO deeper. The image displayed on the screen will be recorded on a PC
card. The recording is complete when the bar scroll indicator disappears.
When the POWER switch is set to MEMORY
The following functions do not work:
digital zoom (more than 12x), wide TV mode, digital effect, picture effect, title.
When you are recording a still image
You can neither turn off the power nor press PHOTO.
When you press the PHOTO button on the Remote Commander
The camcorder immediately records the image that is on the screen when you press the
button.
When using a video light (not supplied) or similar equipment mounted on the
intelligent accessory shoe
Recording an image on a PC card may result in a temporary power shortage in the
accessory shoe, causing the video light to go out. This is not a malfunction.
1
POWER
OFF
CAMERA
MEMORY
VTR
2
3
1/100
CAPTURE
1
103
Memory card slot operations
Recording images continuously
You can shoot continuously by selecting one of two modes described below.
Continuous mode [a]
You can record from 2 to 4 pictures continuously.
Multi screen mode [b]
You can record 9 still pictures continuously on a single page.
Recording still images on PC cards (not supplied) – memory photo
recording
[a]
[b]
104

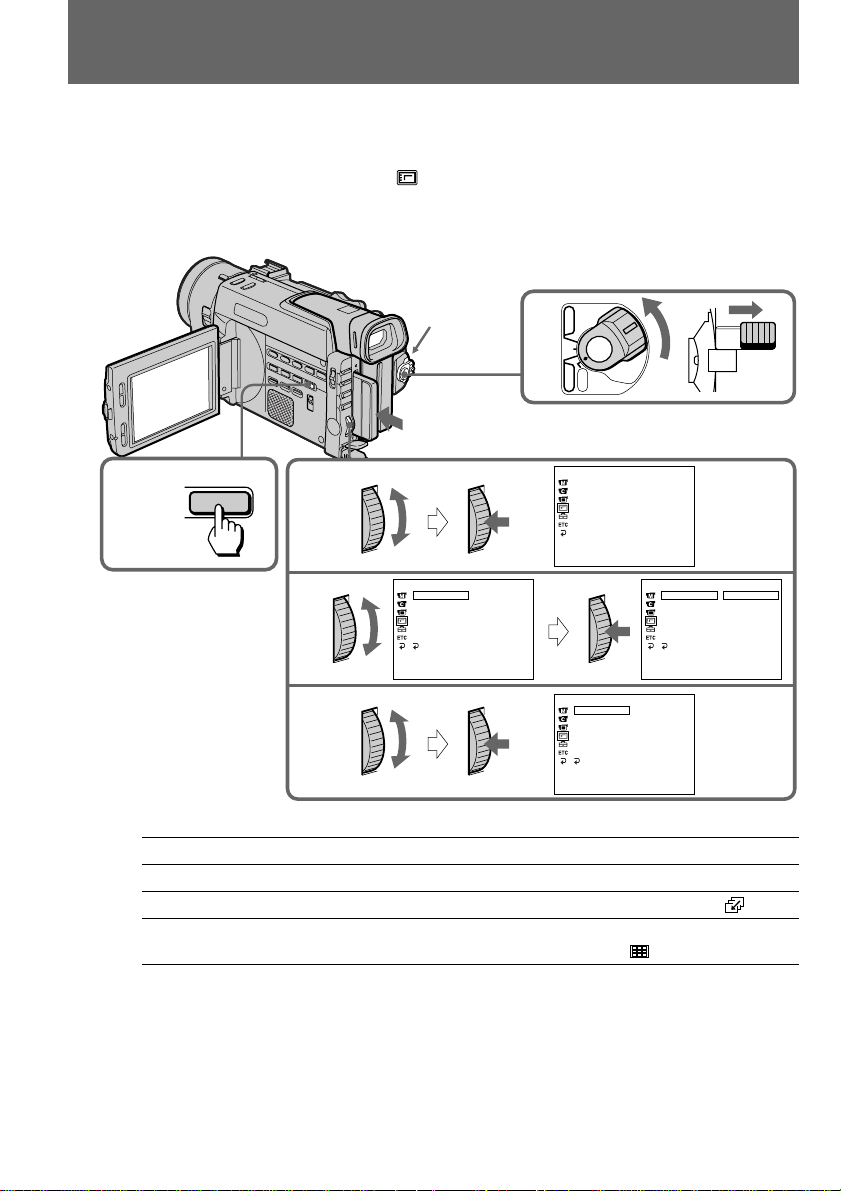

Settings of continuous shooting
Setting Meaning (indicator on the screen)
OFF The unit shoots one image at a time. (no indicator)
ON The unit shoots 2 to 4 still images at about 0.8 sec intervals. ( )
MULTI SCRN The unit shoots 9 still images at about 0.3 sec intervals and displays the
images on a single page divided into 9 boxes. ( )
The number of images in continuous shooting
The number of images you can shoot continuously varies depending on the image quality
mode.
SUPER FINE: 2 images
FINE: 3 images
STANDARD: 4 images
Note on using the video flash light (not supplied)
The video flash light does not work in the continuous or multi screen mode if you install it to
the accessory shoe.
1
2,6
POWER
OFF
CAMERA
MEMORY
VTR
MENU
1
3
4
5
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL
FORMAT
[MENU] :END
MEMORY SET
CONT INUOUS ON
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL
FORMAT
RETURN
[MENU] :END
MEMORY SET
CONT INUOUS OFF
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL
FORMAT
RETURN
[MENU] :END
MEMORY SET
CONT INUOUS OFF
QUAL I TY ON
PROTECT MULT I SCRN
SLIDE SHOW
DELETE ALL
FORMAT
RETURN
[MENU] :END
(1) Set the POWER switch to MEMORY. Make sure that the lock knob is set to the right
(unlock) position.
(2) Press MENU to display the menu.
(3) Turn the control dial to select
, then press the dial.
(4) Turn the control dial to select CONTINUOUS, then press the dial.
(5) Turn the control dial to select the desired setting, then press the dial.
(6) Press MENU to erase the menu display.
Recording still images on PC cards (not supplied) – memory photo
recording
105
Memory card slot operations

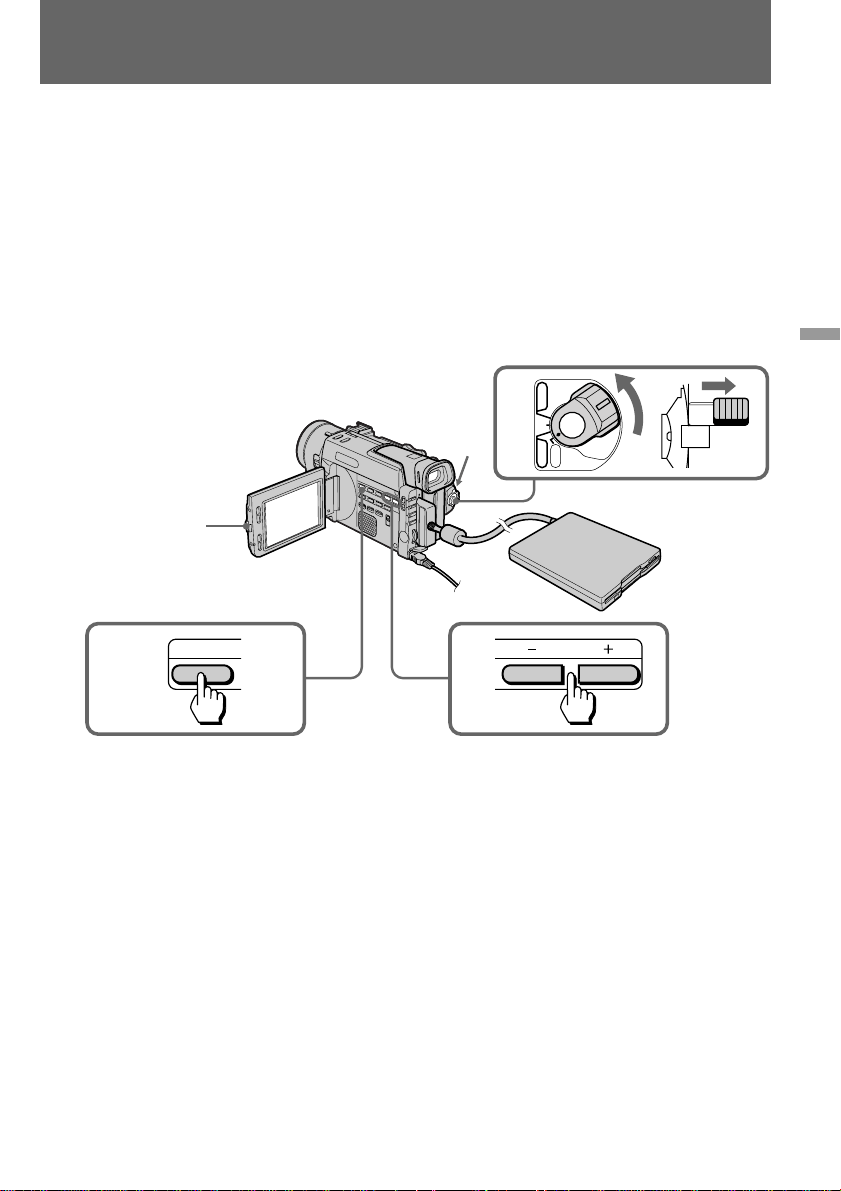

Viewing a still picture – memory photo
playback
You can play back still images recorded on a floppy disk or PC card. You can also play back
6 images at a time by selecting the index screen.
Before operation
Connect the floppy disk adapter (with a disk inside) or insert a PC card into the unit.
(1) Set the POWER switch to MEMORY. Make sure that the lock knob is set to the right
(unlock) position.
(2) While pressing OPEN, open the LCD panel.
(3) Press MEMORY PLAY. The last recorded image is displayed.
(4) Press MEMORY +/– to select the desired still image. To see the previous image,
press MEMORY –. To see the next image, press MEMORY +.
To stop memory photo playback
Press MEMORY PLAY again. Otherwise, the image through the lens will not appear on the
screen.
To play back recorded images on a TV screen
•Connect this camcorder to the TV with the supplied A/V connecting cable before
operation. You cannot play back images using the LASER LINK function.
•When operating memory photo playback on a TV or the LCD screen, the image quality
may appear to have deteriorated. This is not a malfunction. The image data is as good as
ever.
•Turn the audio volume of the TV down before operation, or there may be noise (howling)
coming from the TV speakers.
Image data modified with personal computers or shot with other equipment
You may not be able to play them back with this camcorder.
1
POWER
OFF
CAMERA
MEMORY
VTR
3
1
2
PLAY
4
106
Screen indicators during still image playback
Playing back 6 recorded images at a time (index screen)
You can play back 6 recorded images at a time. This function is especially useful when
searching for a particular image.
Press MEMORY INDEX.
A red ” mark appears above the image that is displayed before changing to index screen
mode.
•To display the following 6 images, keep pressing MEMORY +.
•To display the previous 6 images, keep pressing MEMORY –.
To return to the normal playback screen (single screen)
Press MEMORY +/– to move the ” mark to the image you want to display on full screen,
then press MEMORY PLAY.
Viewing a still picture – memory photo playback
SFN 6/100
MVC00006 MEMORY PLAY
EFFECT
DIGITAL
EFFECT TITLE MENU
PLAY
MEMORY
INDEX DELETE
123
456
MVC00006 6/100
Protect indicator
Image quality mode
Image number/The total numbers of images
already recorded
Data file name
MEMORY INDEX
” mark
107
Memory card slot operations
Viewing a still picture – memory photo playback
Note
When displaying the index screen, the number appears above each image. This indicates the
recording order on the floppy disk or PC card. These numbers are different from the data file
names.
The image quality mode indicator
The indicator may show a different mode in which you recorded. This is not a malfunction.
The indicator shows the volume of the data file. For instance, if the volume of SFN image is
small enough, it may be displayed as FIN or STD.
Image data modified with personal computers or shot with other equipment
Those image data cannot be displayed on the index screen.
Viewing the recorded images using a personal computer
The image data recorded with this camcorder is compressed in the JPEG format. If your
personal computer has an application software that allows you to see JPEG images, you can
see images recorded on a floppy disk or PC card on a computer screen. For detailed
instructions on operation, refer to the operating instruction supplied with the application
software.
Example: Operation on a computer that has Windows 95 installed
(1) Start the Windows 95, and insert the floppy disk into the disk drive of your
computer.
(2) Open “My Computer,” and double-click on “3.5 inch FD.”
(3) Double-click on the file of the desired image.
Examples of recommended OS/application software
OS
•Windows 3.1
•Windows 95
•Windows NT3.51 or newer versions, etc.
Application
•Microsoft Internet Explorer, etc.
Notes
•For Macintosh, you can use the floppy disk recorded with this camcorder using the PC
Exchange with Mac OS system 7.5 or higher. A viewing application for Macintosh is also
necessary for viewing images.
•When you see images recorded with the camcorder on a personal computer, the display
may show lines on the edge of the screen, depending on the status of video input signals at
the moment. This is not a malfunction.
108

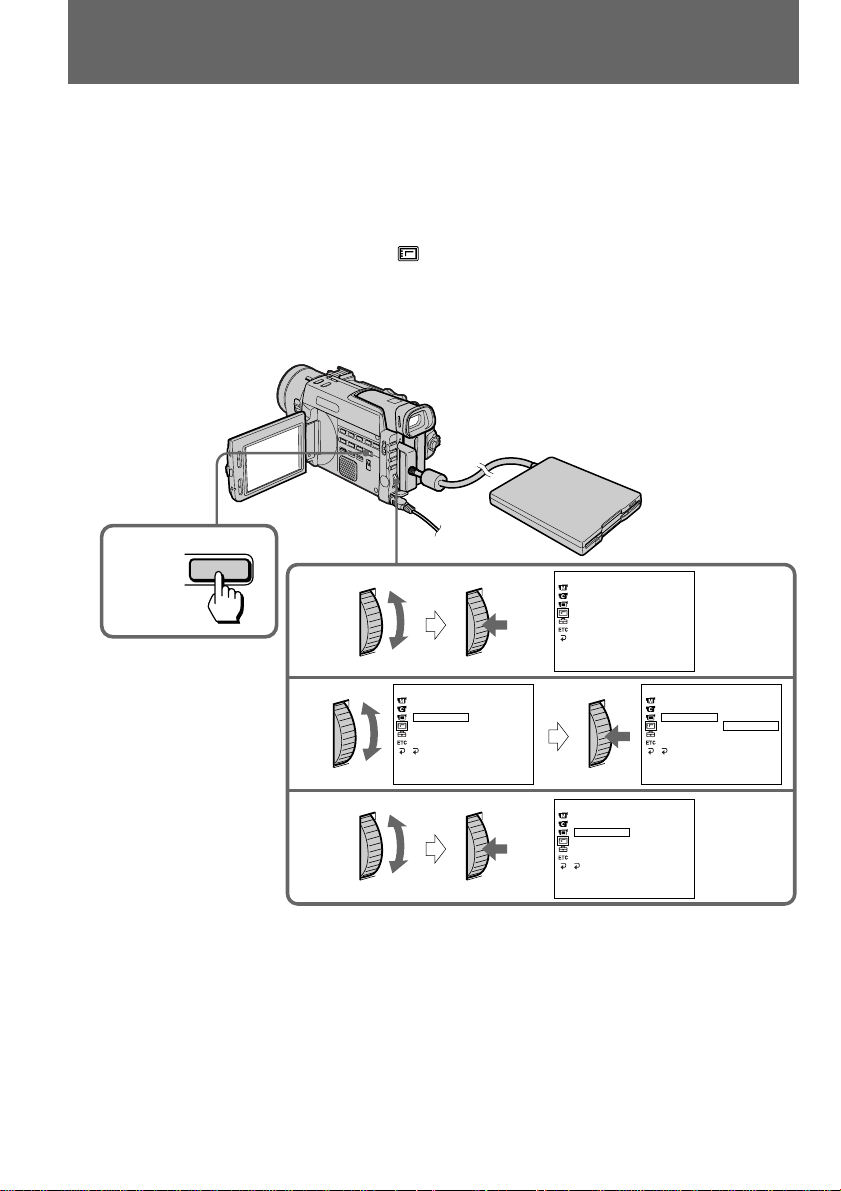

Preventing accidental erasure – PROTECT
To prevent accidental erasure of important images, you can protect selected images.
Before operation
Connect the floppy disk adapter (with a disk inside) or insert a PC card into the unit.
(1) Display the image you want to protect.
(2) Press MENU to display the menu.
(3) Turn the control dial to select
, then press the dial.
(4) Turn the control dial to select PROTECT, then press the dial.
(5) Turn the control dial to select ON, then press the dial.
(6) Press MENU to erase the menu. The “H“ mark is displayed beside the data file
name of the protected image.
To cancel protection of the image
Select OFF in step 5, then press the control dial.
Note
Formatting erases all information on the floppy disk, including the protected image data.
Check the contents of the disk before formatting.
2,6
MENU
3
4
5
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL
FORMAT
[MENU] :END
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT ON
SLIDE SHOW
DELETE ALL
FORMAT
RETURN
[MENU] :END
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT OFF
SLIDE SHOW
DELETE ALL
FORMAT
RETURN
[MENU] :END
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT ON
SLIDE SHOW OFF
DELETE ALL
FORMAT
RETURN
[MENU] :END
109
Memory card slot operations

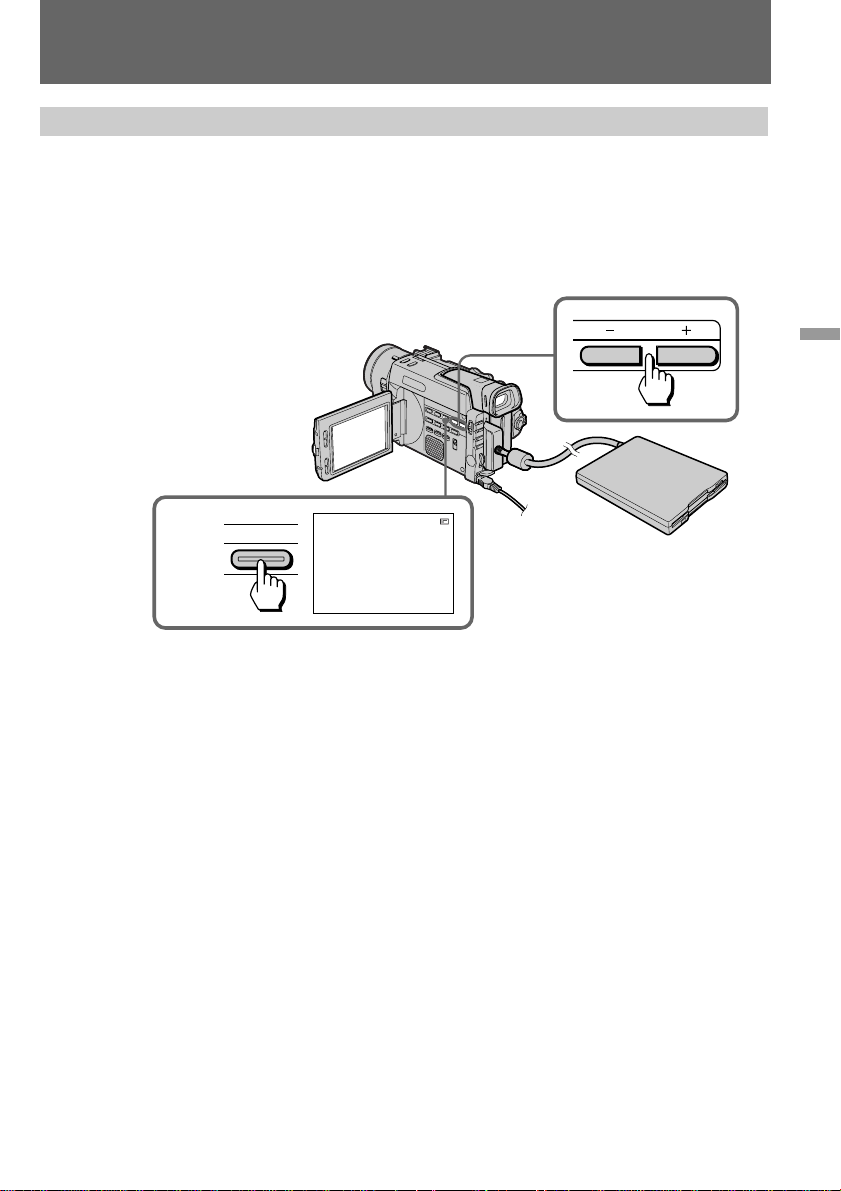

Deleting selected image
Before operation
Connect the floppy disk adapter (with a disk inside) or insert a PC card into the unit.
(1) Display the image you want to erase.
(2) Press MEMORY DELETE. “DELETE?” appears on the LCD screen.
(3) Press MEMORY DELETE again. The selected image is deleted.
To cancel deleting an image
Press MEMORY – in step 3.
To delete an image displayed on the index screen
Press MEMORY +/– to move the ” indicator to the desired image and follow steps 2 and 3.
Notes
•To delete protected image, cancel their protection first.
•Once you delete an image, you cannot restore it. Check the images to delete carefully
before deleting them.
Deleting images
2,3
DELETE
DELETE 89/100
MVC–0010
[DELETE ] : DEL [ – ] :CANCEL
DELETE?
110

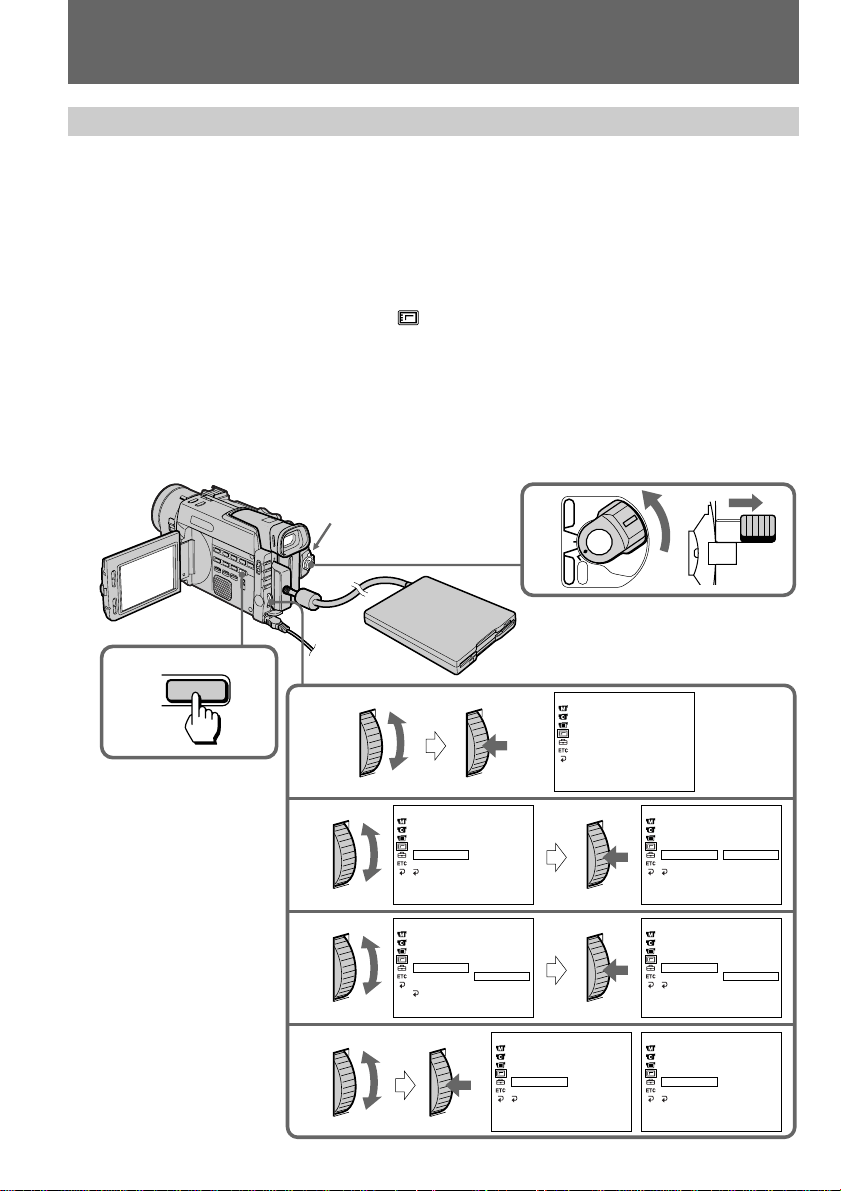

Erasing all the images
You can delete all the unprotected images in a floppy disk or PC card.
Before operation
Connect the floppy disk adapter (with a disk inside) or insert a PC card into the unit.
(1) Set the POWER switch to MEMORY. Make sure that the lock knob is set to the right
(unlock) position.
(2) Press MENU to display the menu.
(3) Turn the control dial to select
, then press the dial.
(4) Turn the control dial to select DELETE ALL, then press the dial.
(5) Turn the control dial to select OK, then press the dial. “OK” changes to
“EXECUTE.”
(6) Turn the control dial to select EXECUTE, then press the dial. “DELETING” appears
on the LCD screen. When all the unprotected images are deleted, “COMPLETE” is
displayed.
1
2
POWER
OFF
CAMERA
MEMORY
VTR
MENU
1
3
4
6
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL
FORMAT
[MENU] :END
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL COMPLETE
FORMAT
RETURN
[MENU] :END
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL READY
FORMAT
RETURN
[MENU] :END
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL RETURN
FORMAT OK
RETURN
[MENU] :END[MENU] :END[M
5
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL RETURN
FORMAT OK
RETURN
[MENU] :END
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL RETURN
FORMAT EXECUTE
RETURN
[MENU] :END
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL DELETING
FORMAT
RETURN
[MENU] :END
Deleting images
111
Memory card slot operations
To cancel deleting all the images on the disk
Select RETURN in step 4, then press the control dial.
While “DELETING” appears
Do not turn the POWER switch or press any buttons.
Deleting images
112

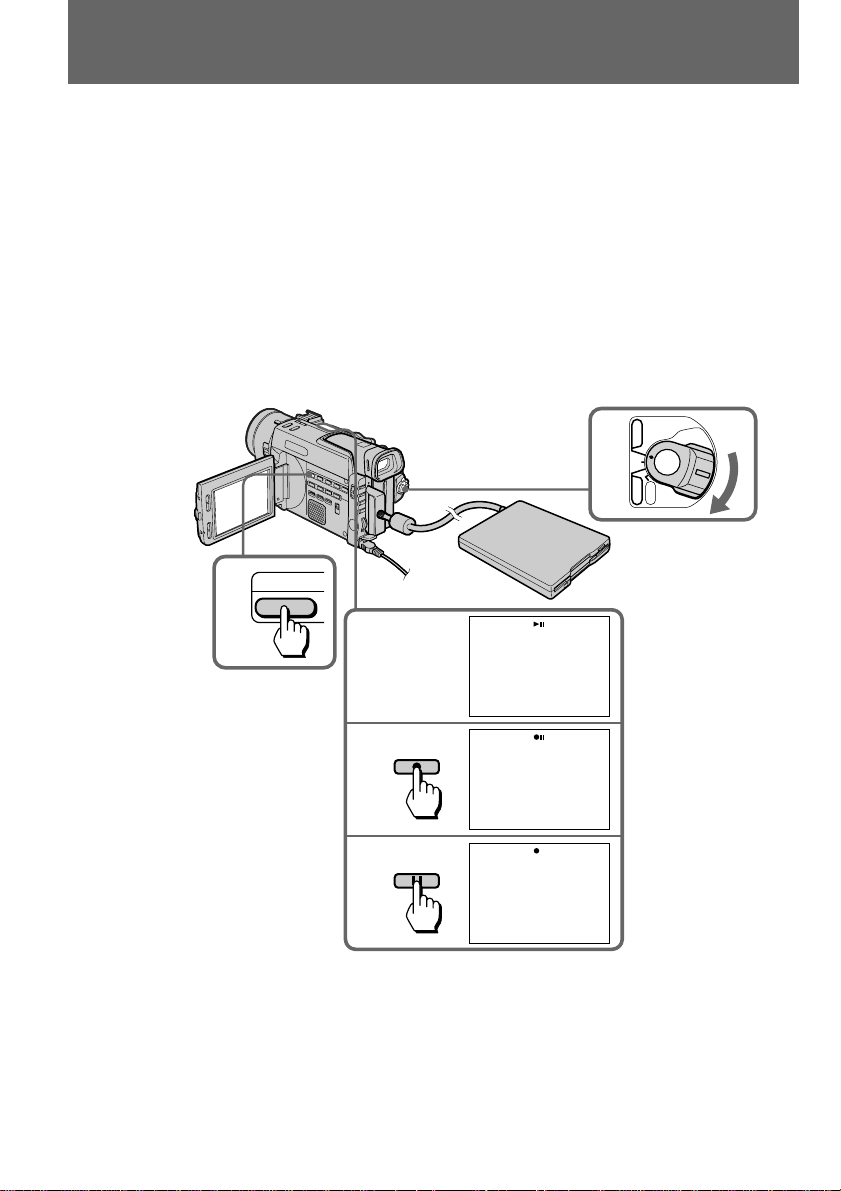

Copying the image recorded with the
memory card slot to mini DV tapes
You can copy still images or titles recorded with the memory card slot and record them to a
mini DV tape.
Before operation
•Insert a mini DV tape for recording.
•Connect the floppy disk adapter (with a disk inside) or insert a PC card into the unit.
(1) Set the POWER switch to VTR.
(2) Using the tape transport buttons, search a point where you want to record the
desired still image. Set the mini DV tape to playback pause mode.
(3) Press r REC to set the mini DV tape to recording pause mode.
(4) Play back the still image you want to copy.
(5) Press P to start recording and press P again to stop.
(6) If you have more to copy, repeat steps 4 and 5.
To stop copying in the middle
Press π.
During copying
You cannot operate the following buttons:
MEMORY PLAY, MEMORY INDEX, MEMORY DELETE, MEMORY +, and MEMORY –.
1
POWER
OFF
CAMERA
MEMORY
VTR
2
3
5
PAUSE
REC
4
PLAY
113
Memory card slot operations
Note on the index screen
You cannot record the index screen.
If you press the EDITSEARCH buttons during pause mode
Memory playback stops.
If you press the DISPLAY button in Standby or Recording mode
You can see memory playback and the file name indicators in addition to the indicators
pertinent to mini DV tapes, such as the time code indicator.
Image data modified with personal computers or shot with other equipment
You may not be able to make copies of those data.
Copying the image recorded with the memory card slot to mini DV
tapes
114

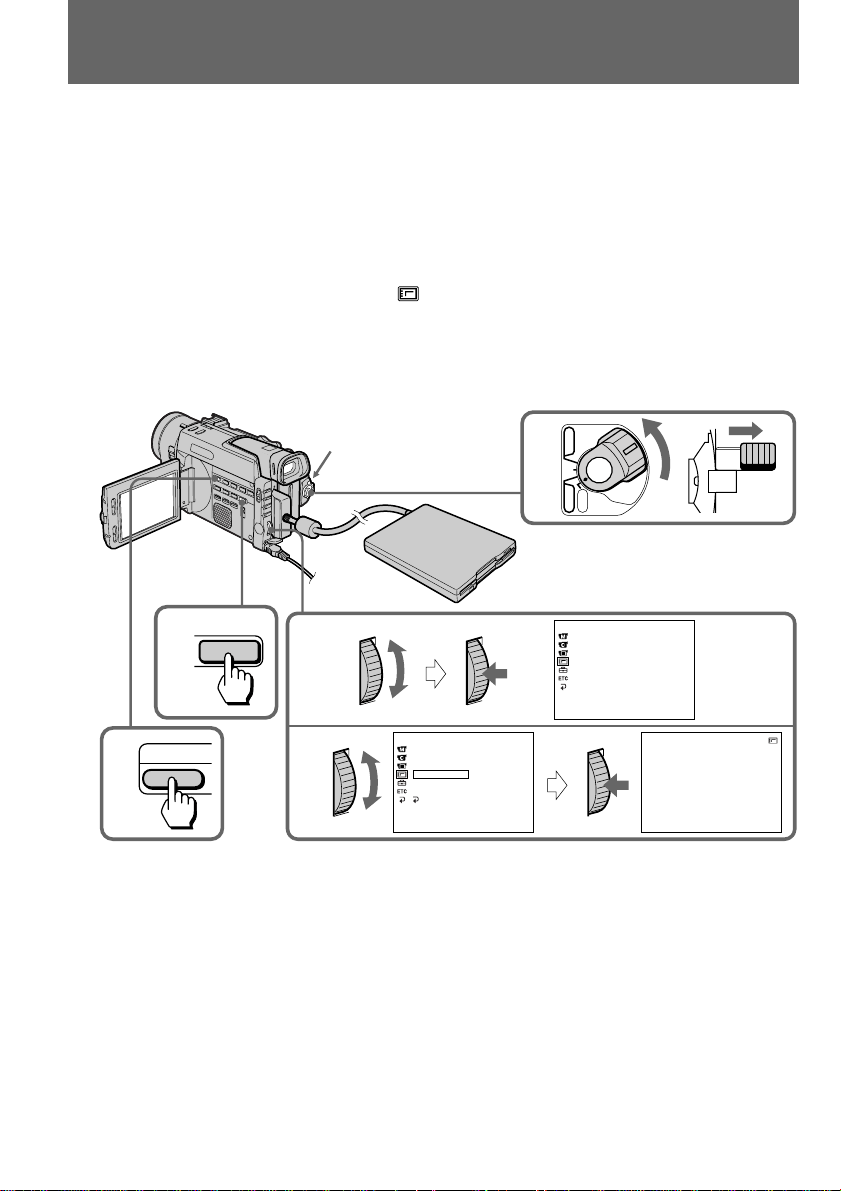

Playing back images in a continuous loop
– SLIDE SHOW
You can automatically play back images in sequence. This function is useful especially when
checking the recorded images or during a presentation.
Before operation
Connect the floppy disk adapter (with a disk inside) or insert a PC card into the unit.
(1) Set the POWER switch to MEMORY. Make sure that the lock knob is set to the right
(unlock) position.
(2) Press MENU to display the menu.
(3) Turn the control dial to select
, then press the dial.
(4) Turn the control dial to select SLIDE SHOW, then press the dial.
(5) Press MEMORY PLAY. The unit plays back the images recorded on a floppy disk
or PC card in sequence. When all the images have been played back, the display
shows the first image again and the slide show ends.
To cancel the slide show
Press MENU to stop the slide show.
To pause during a slide show
Press MEMORY PLAY to set it in a pause.
To start the slide show from a particular image
Select the desired image using MEMORY +/– buttons before step 2.
To view the recorded images on TV
Connect this camcorder to a TV with the supplied A/V connecting cable before operation.
You cannot play back the images using the LASER LINK function.
1
2
5
POWER
OFF
CAMERA
MEMORY
VTR
MENU
1
3
4
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT
SLIDE SHOW
DELETE ALL
FORMAT
[MENU] :END
MEMORY SET
CONT INUOUS
QUAL I TY
PROTECT
SLIDE SHOW READY
DELETE ALL
FORMAT
RETURN
[MENU] :END
PLAY
SLIDE SHOW SFN 1/100
MVC00058
[M PLAY] :START[MENU] :END
115
Memory card slot operations
Note on the slide show
You cannot make copy of the slide show on a mini DV tape.
If you change the floppy disk during operation
The slide show does not operate. If you change the disk, be sure to follow the steps again
from the beginning.
Playing back images in a continuous loop – SLIDE SHOW
116
Additional information
Usable cassettes and playback modes
Selecting cassette types
You can use the mini DV cassette only. You cannot use any other DV, h 8 mm, H
Hi8, j VHS, k S-VHS, VHSC, K S-VHSC, l Betamax or ¬ ED Betamax
cassette.
We recommend mini DV cassette with cassette memory.
There are two types of mini DV cassettes: with cassette memory and without cassette
memory. We recommend you to use the tape with cassette memory. The IC memory is
mounted on this type of mini DV cassette. This camcorder can read and write data such as
dates of recording or titles, etc. to this memory. The functions using the cassette memory
require successive signals recorded on the tape. If the tape has a blank portion in the
beginning or between the recorded portions, a title may not be displayed properly or the
search functions may not work properly. Not to make any blank portion on the tape, operate
the following.
Press END SEARCH to go to the end of the recorded portion before you begin the next
recording if you operate the following:
– you have ejected the cassette while recording.
– you have played back the tape in the VTR mode.
– you have used the Edit Search function.
If there is a blank portion or discontinuous signal on your tape, re-record from the beginning
to the end of the tape concerning above.
The same result may occur when you record using a digital video camera recorder without a
cassette memory function on a tape recorded by one with the cassette memory function.
Tapes with cassette memory have (Cassette Memory) mark. Sony recommends that you
use a tape having mark to enjoy this camcorder fully.
When you play back
Copyright signal
When playing back
Using any other video camera recorder, you cannot record on a tape that has recorded a
copyright control signals for copyright protection of software which is played back in this
camcorder.
When recording
Using this camcorder, you cannot record software that has recorded a copyright control
signals for copyright protection of software. “COPY INHIBIT” appears on the LCD screen, in
the viewfinder or on the TV screen if you try to record such software.
Audio mode
12-bit mode: The original sound can be recorded in stereo 1, and the new sound in stereo 2 in
32 kHz. The balance between stereo 1 and stereo 2 can be adjusted by selecting AUDIO MIX
in the menu system during playback. Both sounds can be played back.
16-bit mode: A new sound cannot be recorded but the original sound can be recorded in
high quality. Moreover, it can also play back sound recorded in 32 kHz, 44.1 kHz or 48 kHz.
When playing back a tape recorded in the 16-bit mode, 16BIT indicator appears on the LCD
screen or in the viewfinder.
117
Additional information
Charging the vanadium-lithium battery in the
camcorder
Your camcorder is supplied with a vanadium-lithium battery installed so as to retain the
date and time, etc., regardless of the setting of the POWER switch. The vanadium-lithium
battery is always charged as long as you are using the camcorder. The battery, however, will
get discharged gradually if you do not use the camcorder. It will be completely discharged
in about a year if you do not use the camcorder at all. Even if the vanadium-lithium battery
is not charged, it will not affect the camcorder operation. To retain the date and time, etc.,
charge the battery if the battery is discharged. The following are charging methods:
•Connect the camcorder to house current using the supplied AC power adaptor, and leave
the camcorder with the POWER switch turned off for more than 24 hours.
•Or install the fully charged battery pack in the camcorder, and leave the camcorder with
the POWER switch turned off for more than 24 hours.
Notes on the mini DV cassette
To prevent accidental erasure
Slide out the protect tab on the cassette so that the red portion is visible. [a]
When affixing a label on the mini DV cassette
Be sure to affix a label only on the locations as illustrated below so as not to cause
malfunction of the camcorder. [b]
After using the mini DV cassette
Rewind the tape to the beginning, put the cassette in its case, and store it in an upright
position.
Note on gold-plated connector
If the gold-plated connector of mini DV cassettes is dirty or dusty, you may not operate the
function using cassette memory. Clean up the gold-plated connector with cotton-wool swab,
about every 10 times ejection of a cassette. [c]
To record
Slide out to prevent accidental erasure
Usable cassettes and playback modes
[b]
[c]
[a]
118
Resetting the date and time
The date and time are set at the factory. Set the time according to the local time in your
country. If you do not use the camcorder for about a year, the date and time settings may be
released (bars may appear) because the vanadium-lithium battery installed in the camcorder
will have been discharged. In this case, first charge the vanadium-lithium battery, then reset
the date and time.
(1) Set the POWER switch to CAMERA.
(2) Press MENU to display the menu.
(3) Turn the control dial to select
, then press the dial.
(4) Turn the control dial to select CLOCK SET, then press the dial.
(5) Turn the control dial to adjust the year, then press the dial.
(6) Set the month, day, hour and minutes by turning and pressing the control dial.
(7) Press MENU to erase the menu display.
1998JAN 1
12 00 AM
1998JAN 1
12 00 AM
1998JUL 1
12 00 AM
1998JUL 4
12 00 AM
1998JUL 4
10 00 AM
1998JUL 4
10 30 AM
65
1
2,7
3
POWER
OFF
CAMERA
MEMORY
VTR
MENU
SETUP MENU
CLOCK SET
AUTO TV ON
TV INPUT
LTR SIZE
DEMO MODE
[MENU] :END
4
SETUP MENU
CLOCK SET JAN 1 1998
AUTO TV ON 12:00:00AM
TV INPUT
LTR SIZE
DEMO MODE
RETURN
[MENU] :END
SETUP MENU
CLOCK SET
AUTO TV ON 1998JAN 1
TV INPUT
LTR SIZE
DEMO MODE
RETURN
12 00 AM
[MENU] :END
119
Additional information
To correct the date and time setting
Repeat steps 2 to 5.
If you do not set the date and time
“--.--.--” is recorded on the tape and “80.1.1” on the PC card or floppy disk.
The year indicator changes as follows:
Note on the time indicator
The internal clock of this camcorder operates on a 12-hour cycle.
•12:00 AM stands for midnight.
•12:00 PM stands for noon.

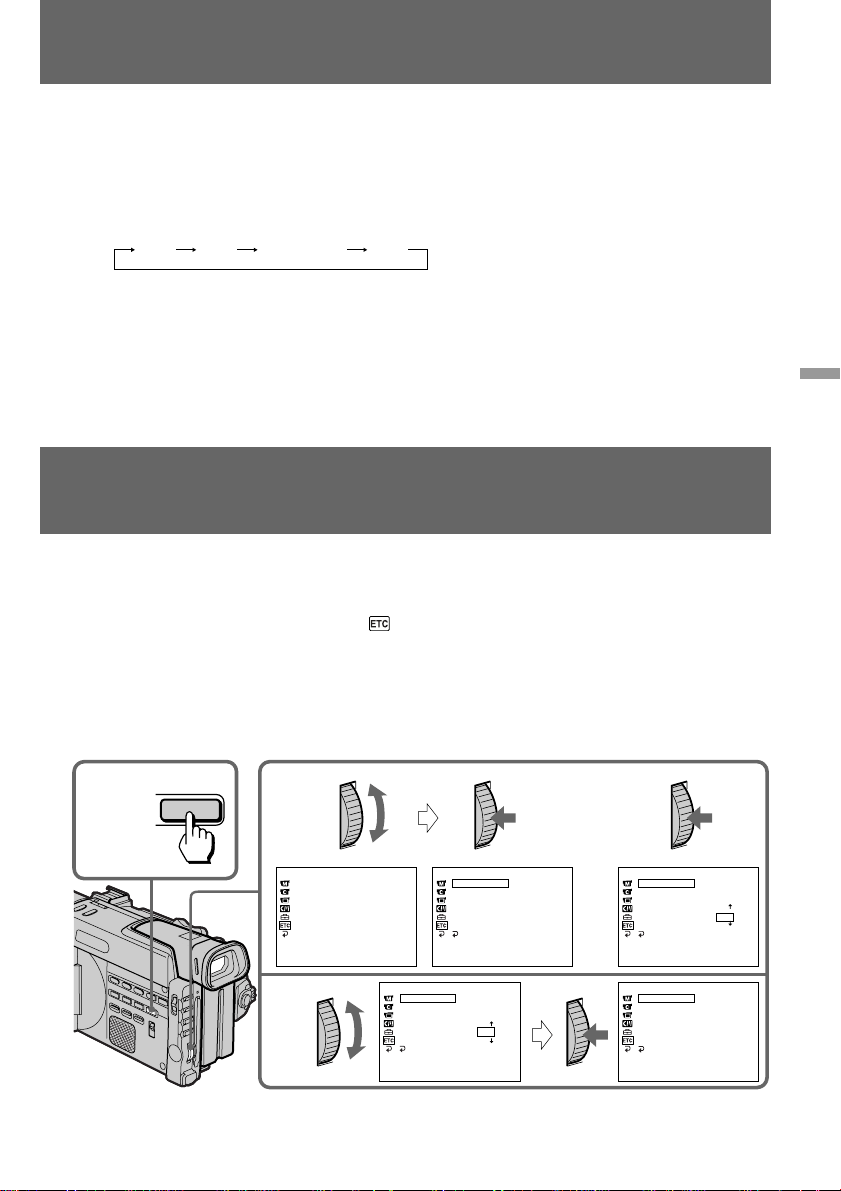

Simple setting of clock by time difference
You can easily set the clock for a local time by a time difference in the menu system.
You can also reset the clock simply by setting the time difference to zero.
(1) While the camcorder is in Standby mode, press MENU to display the menu.
(2) Turn the control dial to select
, then press the dial.
(3) Turn the control dial to select WORLD TIME, then press the dial.
(4) Turn the control dial to set a time difference, and press the dial. The hour of
clock changes in relation to a time difference which you set.
(5) Press MENU to erase the menu display.
Note on WORLD TIME
If the clock is not set, WORLD TIME does not work.
1998 1999 2029
..... 2001 .....
1,5
23
4
OTHERS
WORLD T IME
BEEP
COMMANDER
DISPLAY
REC LAMP
COLOR BAR
[MENU] :END
OTHERS
WORLD T IME 0 HR
BEEP
COMMANDER
DISPLAY
REC LAMP
COLOR BAR
RETURN
[MENU] :END
OTHERS
WORLD T IME – 8 HRS
BEEP
COMMANDER
DISPLAY
REC LAMP
COLOR BAR
RETURN
[MENU] :END
OTHERS
WORLD TIME JUL 4 1998
BEEP 1:30:30PM
COMMANDER
DISPLAY
REC LAMP 0 HR
COLOR BAR
RETURN
[MENU] :END
OTHERS
WORLD TIME JUL 4 1998
BEEP 1: 30:30PM
COMMANDER
DISPLAY
RECLAMP –8HRS
COLOR BAR
RETURN
[MENU] :END
MENU
Resetting the date and time
120
Tips for using the battery pack
This section shows you how you can get the most out of your battery pack.
Preparing the battery pack
Always carry additional batteries
Have sufficient battery pack power to do 2 to 3 times as much recording as you have
planned.
Battery life is shorter in a cold environment
Battery efficiency is decreased, and the battery will be used up more quickly, if you are
recording in a cold environment.
To save battery power
Do not leave the camcorder in Standby mode when not recording to save the battery power.
A smooth transition between scenes can be made even if recording is stopped and started
again. While you are positioning the subject, selecting an angle, or looking at the LCD screen
or through the viewfinder, the lens moves automatically and the battery is used. The battery
is also used when a tape is inserted or removed.
When to replace the battery pack
While you are using your camcorder, the remaining battery indicator on the LCD screen or
in the viewfinder decreases gradually as battery power is used up.
The remaining time in minutes also appears.
When the remaining battery indicator reaches the lowest point, the i indicator appears and
starts flashing on the LCD screen or in the viewfinder.
When the i indicator on the LCD screen or in the viewfinder changes from slow flashing to
rapid flashing while you are recording, set the POWER switch to OFF on the camcorder and
replace the battery pack. Leave the tape in the camcorder to obtain a smooth transition
between scenes after the battery pack has been replaced.
Notes on the rechargeable battery pack
Caution
Never leave the battery pack in temperatures above 140°F (60°C), such as in a car parked in
the sun or under direct sunlight.
The battery pack heats up
During charging or recording, the battery pack heats up. This is caused by energy that has
been generated and a chemical change that has occurred inside the battery pack. This is not
cause for concern, and is normal.
Battery pack care
•Remove the battery pack from the camcorder after using it, and keep it in a cool place.
When the battery pack is installed to the camcorder, a small amount of current flows to the
camcorder even if the POWER switch is set to OFF. This shortens battery life.
•The battery pack is always discharging even when it is not in use after charging. Therefore,
you should charge the battery pack right before using the camcorder.
121
Additional information
Tips for using the battery pack
The life of the battery pack
If the battery indicator flashes rapidly just after turning on the camcorder with a fully
charged battery pack, the battery pack should be replaced with a new fully charged one.
Charging temperature
You should charge batteries at temperatures from 50°F to 86°F (from 10°C to 30°C). Lower
temperatures require a longer charging time.
Notes on the “InfoLITHIUM” Battery Pack
What is the “InfoLITHIUM” battery pack
The “InfoLITHIUM” battery pack is a lithium battery pack which can exchange data with
compatible video equipment about its battery consumption.
When you use this battery pack with video equipment having the mark, the
video equipment will indicate the remaining battery time in minutes.*
* The indication may not be accurate depending on the condition and environment which
the equipment is used under.
How the battery consumption is displayed
The power consumption of the camcorder changes depending on its use, such as whether
the LCD panel is used or not, how the autofocusing is working on or not.
While checking the condition of the camcorder, the “InfoLITHIUM” battery pack measures
the battery consumption and calculates the remaining battery power. If the condition
changes drastically, the remaining battery indication may suddenly decrease or increase by
more than 2 minutes.
Even if 5 to 10 minutes is indicated as the battery remaining time on the LCD screen or in the
viewfinder, the i indicator may also flash under some conditions.
To obtain more accurate remaining battery indication
Set the camcorder to recording standby mode and point towards a stationary object. Do not
move the camcorder for 30 seconds or more.
•If the indication seems incorrect, use up the battery and then recharge it fully (Full
charge
1)
). Note that if you have used the battery in a hot or cold environment for long time,
or you have repeated charging many times, the battery may not be able to show the correct
time even after being fully charged.
•After you have used the “InfoLITHIUM” battery pack with an equipment not having the
mark, make sure that you use up the battery on the equipment having the
mark and then recharge fully.
122
Tips for using the battery pack
Why the remaining battery indication does not match the
continuous recording time in the operating instruction
The recording time is affected by the environmental temperature and conditions. The
recording time becomes very short in a cold environment. The continuous recording time in
the operating instruction is measured under the condition of using a fully charged (or
normal charged
2)
) battery pack in 77 °F (25 °C). As the environmental temperature and
condition are different when you actually use the camcorder, the remaining battery time is
not same as the continuous recording time in the operating instruction.
1)
Full charge: Charging for about 1 hour after the charge lamp of the AC power adaptor goes
off.
2)
Normal charge: Charging just until the charge lamp of the AC power adaptor goes off.
Notes on charging
A brand-new battery pack
A brand-new battery pack is not charged. Before using the battery pack, charge it
completely.
Recharge the battery pack whenever you like
You do not have to discharge it before recharging. If you charged the battery pack fully but
you did not use it for a long time, it becomes discharged. Then recharge the battery pack
before use.
Notes on the terminals
If the terminals (metal parts on the back) are not clean, the battery charge
duration will be shortened
When the terminals are not clean or when the battery pack has not been used for a long time,
repeatedly install and remove the battery pack a few times. This improves the contact
condition. Also, wipe the +, – and C terminals with a soft cloth or paper.
Be sure to observe the following
•Keep the battery pack away from fire.
•Keep the battery pack dry.
•Do not open nor try to disassemble the battery pack.
•Do not expose the battery pack to any mechanical shock.
123
Additional information
Moisture condensation
If the camcorder is brought directly from a cold place to a warm place, moisture may
condense inside the camcorder, on the surface of the tape, on the lens, on the head, or on the
floppy disk. In this condition, the tape may stick to the head drum and be damaged or the
camcorder may not operate correctly. To prevent possible damage under these
circumstances, the camcorder is furnished with moisture sensors. Take the following
precautions.
Inside the camcorder
If there is moisture inside the camcorder, the beep sounds and the { indicator flashes. Eject
the cassette or the floppy disk immediately. If this happens, none of the function except
cassette ejection will work. Open the cassette compartment, turn off the camcorder, and
leave it about 1 hour. When 6 indicator flashes at the same time, the cassette is inserted in
the camcorder. Eject the cassette, turn off the camcorder, and leave also the cassette about 1
hour.
On the lens
If moisture condenses on the lens, no indicator appears, but the picture becomes dim. Turn
off the power and do not use the camcorder for about 1 hour.
How to prevent moisture condensation
When bringing the camcorder from a cold place to a warm place, put the camcorder in a
plastic bag and allow it to adapt to room conditions over a period of time.
(1)Be sure to tightly seal the plastic bag containing the camcorder.
(2)Remove the bag when the air temperature inside it has reached the temperature
surrounding it (after about 1 hour).

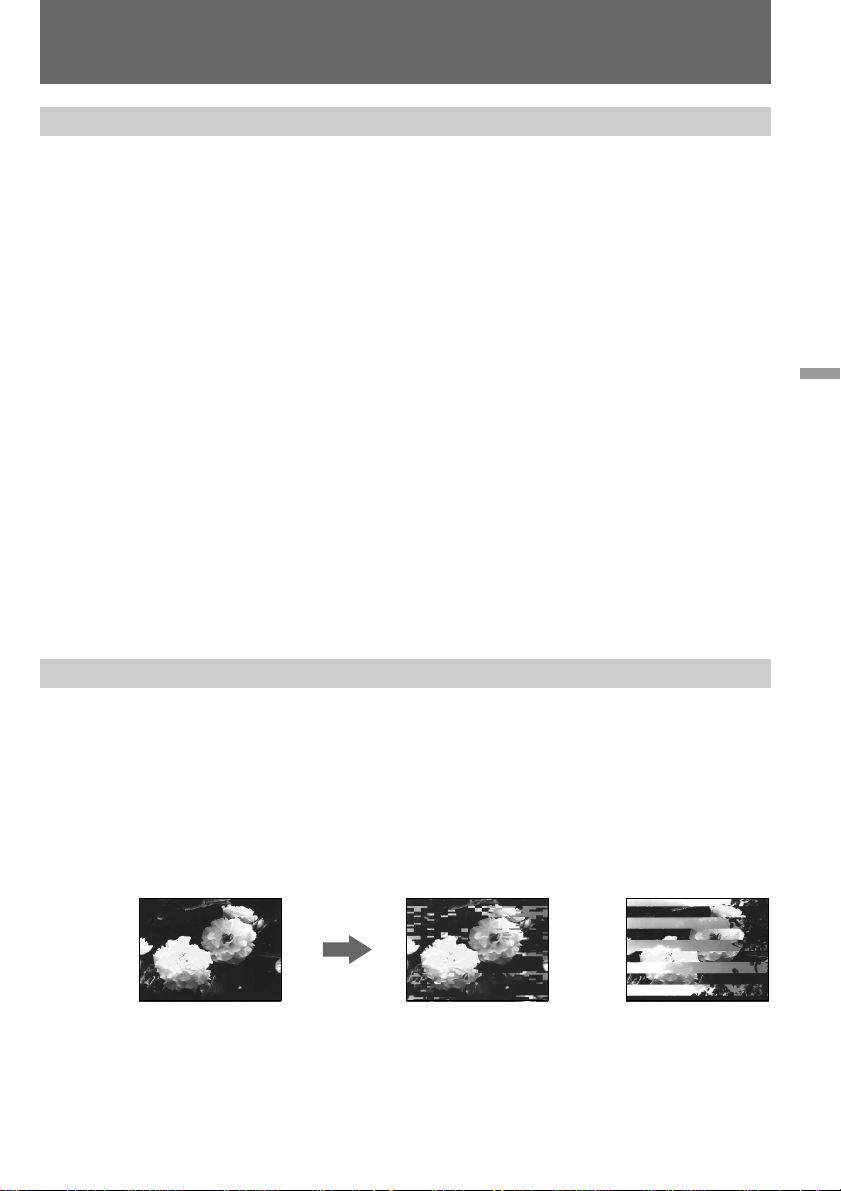

Video head cleaning
To ensure normal recording and clear pictures, clean the video heads.
The video heads may be dirty when:
•mosaic-pattern noise appears on the playback picture
•playback pictures do not move
•playback pictures are hardly visible
•playback pictures do not appear
•the v indicator and “ Ò CLEANING CASSETTE” message appear one after another or
the v indicator flashes on the LCD screen or in the viewfinder.
If [a] or [b] happens, clean the video heads with the Sony DVM12CL cleaning cassette (not
supplied). Check the picture and if the above problem persists, repeat the cleaning. (Do not
repeat cleaning more than 5 times in one session.)
[a] [b]
Maintenance information and precautions
or
124
Maintenance information and precautions
Note
If the DVM12CL cleaning cassette (not supplied) is not available in your area, consult your
nearest Sony dealer.
Precautions
Camcorder operation
•Operate the camcorder on 7.2 V (battery pack) or 8.4 V (AC power adaptor).
•Should any solid object or liquid get inside the casing, unplug the camcorder and have it
checked by Sony dealer before operating it any further.
•Avoid rough handling or mechanical shock. Be particularly careful of the lens.
•Keep the POWER switch set to OFF when not using the camcorder.
•Do not wrap up the camcorder and operate it since heat may build up internally.
•Keep the camcorder away from strong magnetic fields or mechanical vibration.
On handling tapes
•Do not insert anything in the small holes on the cassette.
•Do not open the tape protect cover or touch the tape.
•Avoid touching or damaging the terminals. To remove dust, clean the terminals with a soft
cloth.
Camcorder care
•When the camcorder is not to be used for a long time, disconnect the power source and
remove the tape. Periodically turn on the power, operate the camera and player sections
and play back a tape for about 3 minutes.
•Clean the lens with a soft brush to remove dust. If there are fingerprints on the lens,
remove them with a soft cloth.
•Clean the camcorder body with a dry soft cloth, or a soft cloth lightly moistened with a
mild detergent solution. Do not use any type of solvent which may damage the finish.
•Do not let sand get into the camcorder. When you use the camcorder on a sandy beach or
in a dusty place, protect it from the sand or dust. Sand or dust may cause the unit to
malfunction, and sometimes this malfunction cannot be repaired.
125
Additional information
AC power adaptor
Charging
•Use only an “InfoLITHIUM” type battery pack.
•Place the battery pack on a flat surface without vibration during charging.
•The battery pack will get hot during charging. This is normal.
Others
•Unplug the unit from the wall outlet when not in use for a long time. To disconnect the
power cord, pull it out by the plug. Never pull the cord itself.
•Do not operate the unit with a damaged cord or if the unit has been dropped or damaged.
•Do not bend the AC power cord forcibly, or put a heavy object on it. This will damage the
cord and may cause a fire or an electrical shock.
•Be sure that nothing metallic comes into contact with the metal parts of the connecting
plate. If this happens, a short may occur and the unit may be damaged.
•Always keep the metal contacts clean.
•Do not disassemble the unit.
•Do not apply mechanical shock or drop the unit.
•While the unit is in use, particularly during charging, keep it away from AM receivers and
video equipment because it will disturb AM reception and video operation.
•The unit becomes warm while in use. This is normal.
•Do not place the unit in locations that are:
Extremely hot or cold, Dusty or dirty, Very humid, Vibrating
Note on dry batteries
To avoid possible damage from battery leakage or corrosion, observe the following.
•Be sure to insert the batteries in the correct direction.
•Dry batteries are not rechargeable.
•Do not use a combination of new and old batteries.
•Do not use different types of batteries.
•The batteries slowly discharge while not in use.
•Do not use a battery that is leaking.
If battery leakage occurred
•Wipe off the liquid in the battery case carefully before replacing the batteries.
•If you touch the liquid, wash it off with water.
•If the liquid get into your eyes, wash your eyes with a lot of water and then consult a
doctor.
If any difficulty should arise, unplug the unit and contact your nearest Sony dealer.
Maintenance information and precautions
126
Each country or area has its own electric and TV color systems. Before using your camcorder
abroad, check the following points.
Power sources
You can use your camcorder in any country or area with the supplied AC power adaptor
within 100 V to 240 V AC, 50/60 Hz. Use a commercially available AC plug adaptor [a], if
necessary, depending on the design of the wall outlet [b].
Difference in color systems
This camcorder is an NTSC system-based camcorder. If you want to view the playback
picture on a TV, it must be an NTSC system-based TV.
Check the following list.
NTSC system
Bahama Islands, Bolivia, Canada, Central America, Chile, Colombia, Ecuador, Jamaica,
Japan, Korea, Mexico, Peru, Surinam, Taiwan, the Philippines, the U.S.A., Venezuela, etc.
PAL system
Australia, Austria, Belgium, Czech Republic, China, Denmark, Finland, Germany, Great
Britain, Holland, Hong Kong, Italy, Kuwait, Malaysia, New Zealand, Norway, Portugal,
Singapore, Slovak Republic, Spain, Sweden, Switzerland, Thailand, etc.
PAL-M system
Brazil
PAL-N system
Argentina, Paraguay, Uruguay
SECAM system
Bulgaria, France, Guiana, Hungary, Iran, Iraq, Monaco, Poland, Russia, Ukraine, etc.
[a]
[b]
Using your camcorder abroad
AC-L10A
127
Additional information
Cause and/or corrective actions
• The tape is stuck to the drum.
m Eject the cassette. (p. 11)
• The tape has run out.
m Rewind the tape or use a new one. (p. 22)
• The POWER switch is not set to CAMERA.
m Set it to CAMERA. (p. 12)
• The tab on the cassette is out (red).
m Use a new tape or slide the tab. (p. 11)
• The START/STOP MODE selector is set to 5SEC or
ANTI GROUND SHOOTING.
m Set it to . (p. 15)
• The AC power adaptor is not connected to a wall outlet.
m Connect the AC power adaptor to a wall outlet. (p. 25)
• The battery is dead.
m Use a charged battery pack or the AC power adaptor.
(p. 8, 25)
• Moisture condensation has occurred.
m Remove the cassette and leave the camcorder for at least
1 hour. (p. 123)
• Reset the date and time. (p. 118)
• You did not make a new recording after reinserting the
cassette.
• The tape without cassette memory ejected after recording.
Cause and/or corrective actions
• The battery pack is not installed.
m Install the battery pack. (p. 7)
• The battery is dead.
m Use a charged battery pack. (p. 8)
• The AC power adaptor is not connected to a wall outlet.
m Connect the AC power adaptor to a wall outlet. (p. 25)
• While being operated in CAMERA mode, the camcorder
has been in Standby mode for more than 5 minutes.
m Set the POWER switch to OFF, then to CAMERA. (p. 12)
• The battery is dead.
m Use a charged battery pack. (p. 8)
• The ambient temperature is too low. (p. 120)
• The battery pack has not been charged fully.
m Charge the battery pack again. (p. 8)
• The battery pack is completely dead, and cannot be
recharged.
m Use another battery pack. (p. 25)
Trouble check
If you run into any problem using the camcorder, use the following table to troubleshoot the
problem. Should the difficulty persist, disconnect the power source and contact your Sony
dealer or local authorized Sony service facility.
Camcorder
Power
Symptom
The power cannot be turned on.
The power goes off.
The battery pack is quickly discharged.
Operation
Symptom
START/STOP does not operate.
The cassette cannot be removed from
the holder.
{ and 6 indicators flash and no function
except for cassette ejection works.
“CLOCK SET” appears when the
camcorder is turned on.
The end search function does not work.
Continued to the next page
128
Trouble check
Operation
Symptom
The end search function does not work
correctly.
The tape does not move when a tape
transport button is pressed.
No sound or only a low sound is heard
when playing back a tape.
The new sound added to the recorded
tape is not heard.
The Steady Shot function does not work.
Recording stops in a few seconds.
The autofocus function does not work.
The fader function does not work.
The title is not displayed.
The title is not recorded.
The cassette label is not recorded.
Displaying the recorded date, date search
function does not work.
Cause and/or corrective actions
• The tape has a blank portion in the middle.
• The POWER switch is not set to VTR.
m Set it to VTR. (p. 22)
• The tape has run out.
m Rewind the tape or use a new one. (p. 22)
• The volume is turned to the minimum.
m Open the LCD panel and press VOLUME +. (p. 22)
• AUDIO MIX is set to ST2 side in the menu system.
m Adjust AUDIO MIX in the menu system. (p. 90)
• AUDIO MIX is set to ST1 side in the menu system.
m Adjust AUDIO MIX in the menu system. (p. 90)
• STEADYSHOT is set to OFF in the menu system.
m Set it to ON. (p. 51)
• The START/STOP MODE selector is set to 5SEC or
ANTI GROUND SHOOTING.
m Set it to . (p. 15)
• Focus is set to the manual mode.
m Set it to autofocus. (p. 58)
• Shooting conditions are not suitable for autofocus.
m Set focus to manual mode to focus manually. (p. 58)
• The START/STOP MODE selector is set to 5SEC or
ANTI GROUND SHOOTING.
m Set it to . (p. 15)
• TITLE DSPL is set to OFF in the menu system.
m Set it to ON in the menu system. (p. 30)
• The tape has no cassette memory.
m Use a tape with cassette memory. (p. 63)
• The cassette memory is full.
m Erase another title. (p. 65)
• The tape is set to prevent accidental erasure.
m Slide the protect tab so that red portion is not visible.
(p. 11)
• Nothing is recorded in that position on the tape.
m Superimpose the title to the recorded position. (p. 63)
• The tape has no cassette memory.
m Use a tape with cassette memory. (p. 68)
• The cassette memory is full.
m Erase some titles. (p. 65)
• The tape is set to prevent accidental erasure.
m Slide the protect tab so that red portion is not visible.
(p. 11)
• The tape has no cassette memory.
m Use a tape with cassette memory. (p. 74)
• CM SEARCH is set to OFF in the menu system.
m Set it to ON. (p. 74)
129
Additional information
Trouble check
Continued to the next page
Operation
Symptom
The title search function does not work.
indicator does not appear when using
a tape with cassette memory.
The date search, title search, or end search
does not work correctly.
The click of the shutter does not sound.
Symptom
The image on the viewfinder screen is not
clear.
A vertical band appears when a subject
such as lights or a candle flame is shot
against a dark background.
The picture is “noisy” or does not appear.
v indicator flashes on the LCD screen or
in the viewfinder.
The picture is too bright or too dark on the
LCD screen.
A vertical band appears when shooting a
very bright subject.
The picture does not appear on the LCD
screen or in the viewfinder.
The picture does not appear in the viewfinder.
An unknown picture is displayed on the
LCD screen or in the viewfinder.
A display such as “C:ππ:ππ” appears
on the LCD screen or in the viewfinder.
Cause and/or corrective actions
• The viewfinder lens is not adjusted.
m Adjust the viewfinder lens. (p. 13)
• The contrast between the subject and background is too
high. The camcorder is not malfunctioning.
m Change locations.
• The video heads may be dirty.
m Clean the heads using the Sony DVM12CL (not
supplied) cleaning cassette. (p. 123)
• The video heads may be dirty.
m Clean the heads using the Sony DVM12CL (not
supplied) cleaning cassette. (p. 123)
• LCD BRIGHT is not adjusted properly.
m Press + or – to obtain the brightness you want. (p. 16, 22)
• The camcorder is not malfunctioning.
• Incorporated fluorescent tube is worn out.
m Please contact your nearest Sony dealer.
• The LCD panel is open.
m Close the LCD panel.
• If 10 minutes elapse after you set the POWER switch to
CAMERA without inserting a cassette, the camcorder
automatically starts the demonstration or DEMO MODE is
set to ON in the menu system.
m Insert the cassette and the demonstration stops. You can
deactivate the demonstration. (p. 142)
• The self-diagnosis display function has been activated.
m Check the code and diagnosis the problem by referring
to the code chart. (p. 132)
Cause and/or corrective actions
• The tape has no cassette memory.
m Use a tape with cassette memory. (p. 76)
• CM SEARCH is set to OFF in the menu system.
m Set it to ON. (p. 76)
• There is no title in the tape.
m Superimpose the titles. (p. 63)
• The gold-plated connector of the tape is dirty or dusty.
m Clean the gold-plated connector. (p. 117)
• The tape has a blank portion between the recorded
portions. (p. 116)
• BEEP is set to OFF in the menu system.
m Set it to MELODY or NORMAL. (P. 31)
130
Trouble check
Symptom
The picture seems to be in flash motion.
rrrrr is displayed on the LCD screen
or in the viewfinder.
Remaining tape indicator is not displayed.
The memory card slot does not function.
Recording does not function.
The image cannot be deleted.
Others
Symptom
While editing using the i.LINK cable (DV
connecting cable), recording picture
cannot be monitored.
The camcorder becomes warm.
The supplied Remote Commander does
not work.
Cause and/or corrective actions
• PROG. SCAN is set to ON in the menu system, or the
POWER switch is set to MEMORY. This is caused by
progressive scanning (display with all the pixels) and is
not a malfunction.
• The START/STOP MODE selector is set to 5SEC .
m Set it to . (p. 15)
• The Ò REMAIN in the menu system is set to AUTO.
m If the remaining tape indicator is always displayed, set
it to ON.
• The battery is dead.
m Use a charged battery pack or the AC power adaptor.
• The floppy disk is not inserted correctly.
m Eject the floppy disk and insert it correctly.
• The POWER switch is set to CAMERA.
m Set it to MEMORY or VTR.
• The disk has already been recorded to its full capacity.
m Erase unnecessary images and record again.
• The floppy disk or PC card is not inserted.
m Insert the disk or card.
• Unusable floppy disk is inserted.
m Use 2HD, 1.44MB, MS-DOS format floppy disk.
• Unformatted disk is inserted.
m Format the disk.
• The protect tab on the floppy disk is set to protect.
m Slide the tab to write.
• The image is protected.
m Cancel the protect.
Cause and / or corrective actions
• Remove the i.LINK cable (DV connecting cable), and
connect it again.
• If the power of the camcorder is on for a long time, it
becomes warm, which is not malfunction.
• COMMANDER is set to OFF in the menu system.
m Set it to ON.
• Something is blocking the infrared rays.
m Remove the obstacle.
• The battery is not inserted with the correct polarity.
m Insert the battery with the correct polarity. (p. 139)
• The batteries are dead.
m Insert new ones. (p. 139)
131
Additional information
Trouble check
Others
Symptom
No function works though the power is
on.
DV synchro-editing does not function.
Cause and/or corrective actions
• Disconnect the power cord of the AC power adaptor or
remove the battery pack, then reconnect it in about 1
minute. Turn the power on. If the functions still do not
work, open the LCD panel and press the RESET button
beside the speaker using a sharp-pointed object. (If you
press the RESET button, all the settings including the date
and time return to the default.) (p. 136)
• The input selector on the VCR is not set correctly.
m Set the selector to DV input position. If you use
another DV camcorder, set the power switch to VTR.
• The camcorder is connected to DV equipment of other
than Sony.
m Operate normal editing.
• Setting program on a blank portion of the tape is
attempted.
m Set the program again on a recorded portion.
132
Five-digit display
C:04:ππ
C:21:ππ
C:22:ππ
C:31:ππ
C:32:ππ
E:61:ππ
E:62:ππ
Cause and/or corrective actions
• The battery other than “InfoLITHIUM” is used.
m Use the “InfoLITHIUM” battery.(p. 121)
• Moisture condensation has occurred.
m Remove the cassette and leave the camcorder for at least 1 hour.
(p. 123)
• The video heads are dirty.
m Clean the heads using the Sony DVM12CL cleaning cassette
(not supplied). (p. 123)
• A serviceable situation not mentioned above has occurred.
m Remove the cassette and insert it again, then operate the
camcorder. (p. 11)
m Disconnect the power cord of the AC power adaptor or remove
the battery pack. After reconnecting the power source, operate
the camcorder.
• A camcorder malfunction which you cannot service has occurred.
m Contact your Sony dealer or local authorized Sony service
facility and inform them of the five digits. (example: E:61:10)
Self-diagnosis function
If you are unable to resolve the problem, contact your Sony dealer or local authorized Sony
service facility.
The camcorder has a self-diagnosis display.
This function displays the camcorder’s condition
with five digits (a combination of a letter and
figures) on the LCD screen or in the viewfinder.
If this occurs, check the following code chart. The
five-digit display informs you of the camcorder’s
current condition. The last two digits (indicated
by ππ) will differ depending on the state of the
camcorder.
LCD screen/viewfinder
Self-diagnosis display
•C:ππ:ππ
You can service the camcorder
yourself.
•E:ππ:ππ
Contact your Sony dealer or local
authorized Sony facility.
C : 21: 00
40min
40min
133
Additional information
Specifications
Video camera
recorder
System
Video recording system
Two rotary heads, Helical scanning
system
Audio recording system
Rotary heads, PCM system
Quantization: 12bits (Fs 32kHz,
stereo 1, stereo 2), 16bits (Fs 48kHz,
stereo)
Video signal
NTSC color, EIA standards
Usable cassette
Mini DV cassette with logo printed
Tape speed
SP: Approx. 18.81 mm/s
LP: Approx. 12.56 mm/s
Recording/playback time
SP mode: 1 hour (DVM60)
LP mode: 1.5 hours (DVM60)
Fast forward/rewind time
Approx. 2 min. 30 s (DVM60)
Image device
3CCD (Charge Coupled Device
1/4”)
Viewfinder
Electric viewfinder (color)
Lens
Combined power zoom lens, 48x
(Digital), 12x (Optical)
Focal distance
f =
3
/16 to 2
1
/8 in. (4.3 to 51.6 mm)
(1
11
/16 to 19
5
/8 in. (41.3 to 496 mm)
when converted into a 35 mm still
camera)
F 1.6 – 2.8
TTL autofocus system inner focus
wide macro system
Color temperature
Auto, ∑One push, eIndoor
(3200K), WOutdoor (5800K)
Minimum illumination
4 lux at F 1.6
Illumination range
4 to 100,000 lux
Recommended illumination
More than 100 lux
LCD screen
3.5 inches measured diagonally
2
7
/8 x 2 in. (72.4 x 50.4 mm)
On-screen display
TN LCD/TFT active matrix method
Total dot number
184,580 (839 x 220)
Input and output
connectors
S video input/output
Input/output auto switch
4-pin mini DIN
Luminance signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
Chrominance signal: 0.286 Vp-p,
75 ohms, unbalanced
Audio/Video input/output
Input/output auto switch
AV MINI JACK, 1 Vp-p, 75 ohms,
unbalanced, sync negative
327 mV, (at output impedance
more than 47 kilohms)
Output impedance with less than
2.2 kilohms/Stereo minijack
(ø 3.5mm)
Input impedance more than
47 kilohms
DV input/output
4-pin special connector
Headphones
Stereo minijack (ø 3.5 mm)
MIC input
Stereo minijack (ø 3.5mm):0.388mV,
DC2.5V
Input impedance 6.8 kilohms
lLANC jack
Stereo miniminijack (ø 2.5 mm)
LASER LINK
Video/audio
IR space transmission system
according to EIAJ (Electric
Industries Association of Japan)
standards
Audio carrier wave
Lch : 4.3MHz
Rch : 4.8MHz
General
Power requirements
7.2 V (battery insertion input)
8.4 V (DC IN jack)
Average power consumption
4.1 W during camera recording
using viewfinder
5.2 W during camera recording
using LCD screen
3.9 W during playback using
LASER LINK (when viewfinder is
on and LCD is off)
Operating temperature
32°F to 104°F (0°C to 40°C)
Storage temperature
–4°F to 140°F (–20°C to 60°C)
Dimensions
Approx. 3
3
/4 x 4
1
/8 x 7
5
/8 in. (w/
h/d) (93 x 103 x 193mm)
Mass
Approx. 1 lb 15 oz (880 g) excluding
the battery pack and the cassette
Approx. 2 lb 1 oz (950 g) including
the battery pack NP-F330, lithium
battery and cassette DVM60
Approx. 2 lb 3 oz (1 kg) including
the battery pack NP-F550, lithium
battery and cassette DVM60
Approx. 2 lb 3 oz (1.1 kg) including
the battery pack NP-F750, lithium
battery and cassette DVM60
Approx. 2 lb 3 oz (1.2 kg) including
the battery pack NP-F950, lithium
battery and cassette DVM60
Microphone
Electret condenser microphone, Stereo
type
Speaker
Dynamic-speaker
Supplied accessories
See page 6.
AC power adaptor
Power requirements
100 to 240 V AC, 50/60 Hz
Power consumption
23 W
Output voltage
DC OUT: 8.4 V, 1.5 A in operating
mode
Operating temperature
32°F to 104°F (0°C to 40°C)
Storage temperature
–4°F to 140°F (–20°C to 60°C)
Dimensions (Approx.)
5 x
19
/16 x 2
1
/2 in. (w/h/d) (125 x 39 x
62 mm)
Mass (Approx.)
9.8 oz (280 g) excluding power code
Floppy disk adapter
The number of images you can
record on a floppy disk
SFN mode : Approx. 7 to 8
FIN mode : Approx. 14 to 16
STD mode : Approx. 23 to 27
Memory
3.5 inch, 2HD floppy disk (1.44 MB)
MS–DOS format
Operating temperature
41°F to 104°F (5°C to 40°C)
Dimensions
floppy disk slot : Approx. 4 x
11
/16 x
5
7
/8 in. (w/h/d) (101.5 x 17.2 x
147 mm)
PC card slot : Approx. 2
1
/4 x
7
/16 x
4
3
/4 in. (w/h/d) (54 x 11 x 120 mm)
Mass
Approx. 13.4 oz (380 g)
Power requirements
Supplied from the camcorder.
Design and specifications are subject
to change without notice.
134
Identifying the parts
8 Viewfinder lens adjustment lever (p. 13)
9 PHOTO button (p. 33)
0 BATT (battery) RELEASE button (p. 10)
!¡ SHUTTER SPEED button (p. 45)
!™ WHT BAL (white balance) button (p. 46)
!£ PROGRAM AE button (p. 55)
!¢ EXPOSURE button (p. 44)
!∞ Memory card slot (p. 91)
3
2
1
8
!º
!™
!£
!¢
!∞
!¡
9
4
7
5
6
1 EDITSEARCH buttons (p. 21)
2 BACK LIGHT button (p. 38)
3 FADER button (p. 36)
4 ND FILTER button (p. 49)
5 AUTO LOCK selector (p. 44)
6 OPEN switch (p. 22)
7 Control dial (p. 27)
135
Additional information
Identifying the parts
!§ Tape transport buttons (p. 22)
π STOP (stop)
0 REW (rewind)
· PLAY (playback)
) FF (fast-forward)
P PAUSE (pause)
r REC (record)
!¶ Focus ring (p. 58)
!• LASER LINK transmitter (p. 71) /
Remote sensor (p. 140)
!ª Built-in microphone
@¡
@™
@£
@¢
@∞
@
º
!¶
!•
!ª
!§
@º Power zoom lever (p. 14)
@¡LASER LINK button (p. 71)
@™ Viewfinder (p. 13)
@£ Display window (p. 142)
@¢ FOCUS switch (p. 58)
@∞ PUSH AUTO button (p. 58)
136
Identifying the parts
@§ LCD Screen (p. 16)
@¶ LCD BRIGHT buttons (p. 16, 22)
@• VOLUME buttons (p. 22)
@ª RESET button (p. 131)
#º DATA CODE button (p. 81)
#¡ Speaker
#™ START/STOP button (p. 12)
#£ POWER switch (p. 12, 22)
#¢ START/STOP MODE selector (p. 15)
#∞ END SEARCH button (p. 24)
@§
@¶
@•
@ª
#º
#¡
#£
#¢
#∞
#§
#™
EFFECT
DIGITAL
EFFECT TITLE MENU
PLAY
MEMORY
INDEX DELETE
#¶
#•
#ª
$º
$™
$£
$∞
$¡
$¢
#§ DISPLAY button (p. 22)
#¶ MEMORY INDEX button (p. 106)
#• MEMORY PLAY button (p. 105)
#ª PICTURE EFFECT button (p. 41)
$º DIGITAL EFFECT button (p. 42)
$¡ MEMORY DELETE button (p. 109)
$™ MEMORY – button (p. 105, 109)
$£ MEMORY + button (p. 105, 109)
$¢ TITLE button (p. 63, 66)
$∞ MENU button (p. 27)
137
Additional information
$§
$¶
$•
%™
%¡
%º
$ª
%¢
%£
Note on the intelligent accessory shoe
Supplies power to optional accessories such as a video light or microphone. The intelligent
accessory shoe is linked to the POWER switch, allowing you to turn on and off the power
supplied by the shoe. Refer to the operating instruction of the accessory for further
information. To connect an accessory, press down and push it to the end, and then tighten
the screw. To remove an accessory, loosen the screw, and then press down and pull out the
accessory.
$§ Access lamp (p. 93)
$¶ DC IN jack (p. 8)
$• Hooks for shoulder strap (p. 140)
$ª Intelligent accessory shoe
%º EJECT switch (p. 11)
%¡ PUSH button (p. 11)
%™ Grip strap (p. 19)
%£ Lock knob (p. 13)
%¢ (self-timer) button (p. 18)
Identifying the parts
138
1 Memory slot connector (p. 93)
2 Floppy disk eject button (p. 94)
%∞ LANC l control jack
l stands for Local Application Control Bus
System. The l control jack is used for
controlling the tape transport of video
equipment and peripherals connected to it.
This jack has the same function as the jack
indicated as CONTROL L or REMOTE.
%§ DV IN/OUT jack (p. 83)
This “i.LINK” mark is a trademark of Sony
Corporation and indicates that this product is
in agreement with IEEE 1394-1995
specifications and their revisions.
The DV IN/OUT jack is i.LINK compatible.
%¶ Tripod receptacle (p. 20)
Make sure that the length of the tripod screw
is less than 9/32 inch (6.5 mm). Otherwise,
you cannot attach the tripod securely and the
screw may damage the camcorder.
Identifying the parts
%§
%•
%¶
%ª
%∞
^™
^£
^¢
^¡
^º
3
4
2
1
Floppy disk adapter
3 Floppy disk slot (p. 94)
4 Access lamp (p. 93)
%•Stand
%ª MEMORY RELEASE lever
^º 2 (headphones) jack (p. 22)
^¡ AUDIO/VIDEO jack (p. 70, 82)
^™ S VIDEO jack (p. 34, 70, 82)
^£ Camera recording lamp
^¢ MIC jack (PLUG IN POWER) (p. 88)
Connect an external microphone (not
supplied). This jack also accepts a “plug-in-
power” microphone.
139
Additional information
1 PHOTO button (p. 33)
2 DISPLAY button (p. 22)
3 Memory control buttons (p. 105)
4 SEARCH MODE button (p. 74, 76, 77)
5 Tape transport buttons (p. 22)
6 REC button (p. 87)/MARK button (p. 84)
7 AUDIO DUB button (p. 89)
Identifying the parts
6
7
8
9
5
4
3
2
1
!£
!™
!¡
!º
Remote Commander
The buttons that have the same name on the Remote Commander as on the camcorder
function identically.
To prepare the Remote Commander
To use the Remote Commander, you must insert two size AA (R6) batteries. Use the
supplied size AA (R6) batteries.
(1)Remove the battery cover from the Remote Commander.
(2)Insert both of the size AA (R6) batteries with correct polarity.
(3)Put the battery cover back onto the Remote Commander.
1
2
3
8 =/+ buttons (p. 74, 76, 77)
9 Power zoom button (p. 14)
!º ZERO SET MEMORY button (p. 80)
!¡ DATA CODE button (p. 81)
!™ Transmitter
Point toward the remote sensor to control the
camcorder after turning on the camcorder.
!£ START/STOP button (p. 12)
140
1
2
3
Identifying the parts
Note on battery life
The batteries for the Remote Commander last about 6 months under normal operation.
When the batteries become weak or dead, the Remote Commander does not work.
To avoid damage from possible battery leakage
Remove the batteries when you will not use the Remote Commander for a long time.
Remote control direction
Aim the Remote Commander to the remote sensor.
The operative range of the Remote Commander is about 16.4 feet (5 m) indoors. Depending
on the angle, Remote Commander may not activate the camcorder.
Notes on the Remote Commander
•Keep the remote sensor away from strong light sources such as direct sunlight or
illumination. Otherwise, the remote control may not be effective.
•Be sure that there is no obstacle between the remote sensor on the camcorder and the
Remote Commander.
•This camcorder works in commander mode VTR 2. The commander modes (1, 2 and 3) are
used to distinguish this camcorder from other Sony VCRs to avoid remote control
misoperation. If you use another Sony VCR in commander mode VTR 2, we recommend
you change the commander mode or cover the remote sensor of the VCR with black paper.
Attaching the shoulder strap
Attach the supplied shoulder strap to the hooks for the shoulder strap.
141
Additional information
Identifying the parts
Operation indicators
!§ Recording mode indicator (p. 30)
!¶ Standby/Recording indicator (p. 12)/Tape
transport mode indicator (p. 22)/Image
quality mode indicator (p. 95)
!• Warning indicators (p. 143)
!ª Time code indicator (p. 13) /Self diagnosis
indicator (p. 132)/Image number indicator
(p. 106)
@º Remaining tape indicator (p. 142)/Memory
playback indicator (p. 106)
@¡ ZERO SET MEMORY indicator (p. 80)
@™ END SEARCH indicator (p. 24)
@£ Gain indicator (p. 81)
@¢ Audio mode indicator (p. 30)
@∞ Microphone level indicator (p. 48)
@§ Continuous mode indicator (p. 104)
@¶ ND filter indicator (p. 49)
@• Video flash ready indicator (p. 33)
@ª Self-timer indicator (p. 18)
1 Cassette memory indicator (p. 116)
2 Remaining battery indicator (p. 120)
3 Zoom indicator (p. 14) /Exposure indicator
(p. 44)/ Data file name indicator (p. 92)
4 Digital effect indicator (p. 42)
5 PROG.SCAN indicator (p. 35)/
16:9WIDE indicator (p. 39)
6 Picture effect indicator (p. 40)
7 White balance indicator (p. 46)
8 Gain shift indicator (p. 53)
9 AE shift indicator (p. 52)
0 Shutter speed indicator (p. 45)
!¡ Aperture indicator (p. 55)
!™ Program AE indicator (p. 54)
!£ Back light indicator (p. 38)
!¢ Steady shot OFF indicator (p. 51)
!∞ Manual focus/Infinity indicator (p. 57)
120min STBY 0:12:34
–+
12min
STI LL ZERO SET
PROG. SCAN MEMORY
NEG. ART END
SEARCH
.
–
3
10000
F1.6 12
dB
16BIT
A
AE
8
7
6
5
4
3
2
1
9
0
!¡
!™
!£
!¢
!∞
@£
@™
@¡
@º
!ª
!•
!¶
!§
@¢
@∞
@§
@¶
@•
@ª
142
1 Remaining time in minutes indicator (p. 8) /
Tape counter (p. 78) /
Memory counter (p. 106) /
Time code indicator (p. 12)
Identifying the parts
1 3
2
Display window
2 FULL charge indicator (p. 8)
3 Remaining battery indicator (p. 8, 120)
To watch the demonstration
You can watch a brief demonstration of pictures with special effects. If the demonstration
appears when you turn on the camcorder for the first time, exit the demo mode to use your
camcorder.
To enter demo mode
(1)Eject the cassette and set the POWER switch to VTR.
(2)While holding down ·, set the POWER switch to CAMERA. The demonstration starts.
The demonstration stops when you insert the cassette.
Note that once you enter demo mode, this mode is retained as long as the vanadium
rechargeable battery is in place. Therefore, demonstration starts automatically 10 minutes
later every time you set the POWER switch to CAMERA, and after you eject the cassette.
To exit demo mode
(1)Set the POWER switch to VTR.
(2)While holding down π, set the POWER switch to CAMERA.
143
Additional information
If indicators flash on the LCD screen or in the viewfinder or warning messages appear on
the screen, check the following:
: You can hear the beep sound when BEEP is set to MELODY or NORMAL in the menu
system.
Warning indicators
1
3
0
min
4
5
6
7
8
9
C : 21: 10
40min
40min
1 The battery is weak or dead.
Slow flashing: The battery is weak.
Fast flashing: The battery is dead.
Depending on conditions, the i indicator
may flash, even if there are 5 to 10 minutes
remaining.
2 The tape is near the end.
The flashing is slow.
3 The tape has run out.
The flashing becomes rapid.
4 No tape has been inserted.
5 The tab on the tape is out (red).
6 Moisture condensation has occurred.
(p. 123)
7 The video heads may be contaminated.
(p. 123)
8 The clock is not set.
When this message appears though you set
the date and time, the vanadium-lithium
battery is discharged. Charge the vanadium-
lithium battery. (p. 117)
9 Some other trouble has occurred.
Use the self-diagnosis function (p. 132). If the
display does not disappear, contact your Sony
dealer or local authorized Sony service
facility.
Continued to the next page
2
5
min
144
0 The battery is not the “InfoLITHIUM” type.
!¡ The tape has no cassette memory. (p. 4)
!™ The file cannot be read properly.
!£ The image data file is protected.
The flashing is slow.
!¢ The tape has no memory left or cannot use
the memory.
!∞ The protect tab is set to prevent accidental
erasure.
Warning indicators
!£
!¢
!º
!¡
!™
MVC0001
!∞
145
Additional information
M, N
Manual adjustment ................... 44
Manual focus ..............................57
Memory card ..............................91
Memory card slot.......................91
Memory Stick ............................. 91
Menu system .............................. 27
Microphone level .......................48
Mirror mode ............................... 17
Moisture condensation ........... 123
Normal charge ............................. 8
O, P, Q
PHOTO ....................................... 33
Photo scan ................................... 79
Photo search ...............................77
Playback on a TV .......................70
Playback pause........................... 23
Power sources ............................25
Power zoom................................14
PROGRAM AE........................... 54
Progressive ................................. 35
PROG. SCAN ............................. 35
R
Remaining battery indicator .. 120
Remaining tape indicator ....... 142
Remote Commander ............... 139
S
Self-diagnosis function ........... 132
Self-timer recording ..................18
Slide show.................................114
SP mode ......................................13
Standby mode ............................12
START/STOP MODE
selector .....................................15
SteadyShot .................................. 51
Still image ................................... 98
T, U, V
Time code....................................13
Title (making) ............................. 66
Title (superimposition) ............. 63
Title search..................................76
Tripod mounting .......................20
VOLUME .................................... 22
A, B
Audio mode................................30
AUTO SHTR...............................28
Battery release ............................ 10
BEEP ............................................31
C
Car battery .................................. 26
Cassette memory ......................... 4
Charging battery pack ................ 8
Charging vanadium-lithium
battery .................................... 117
Cleaning video heads .............. 123
Clock set ....................................118
Color TV system .................. 4, 126
Connection............................70, 82
Continuous ............................... 103
COPY INHIBIT ........................ 116
D, E
Data Code ...................................81
Date search ................................. 74
Demo ......................................... 142
DISPLAY ..................................... 22
Digital zoom ...............................15
DV connecting cable..................83
DV format ................................. 116
DV IN/OUT ............................... 83
Editing .........................................82
EJECT ..............................11, 93, 94
END SEARCH......................21, 24
Exposure ..................................... 44
F, G, H
Fade-in/fade-out ....................... 36
FADER ........................................ 36
Floppy disk .................................91
Floppy disk adapter ..................91
Format ......................................... 96
FOCUS.........................................57
Full charge ....................................8
I, J, K, L
i.LINK ........................................138
Image quality mode ..................95
INDEX (Multiple) display ...... 106
InfoLITHIUM ........................... 121
LASER LINK .............................. 71
Lens hood ................................... 14
LCD BRIGHT ....................... 16, 22
LP mode ...................................... 13
W, X, Y, Z
Wide TV mode ........................... 39
Zebra pattern ..............................50
ZERO SET MEMORY................ 80
Zoom ........................................... 14
Index
Sony Corporation Printed in Japan
