This quick start guide provides you
with basic instructions only. For
more complete instructions, refer
to your Abridged user’s manual
provided in the package, or see the
online Complete user’s manual at
www.telephones.att.com/manuals.
Caution: Use only the supplied rechargeable battery or replacement
battery (model BT183342/BT283342).
Caution: Use only the power adapter(s) provided with this product.
To obtain a replacement, visit our website at
www.telephones.att.com or call 1 (800) 222-3111. In
Canada, dial 1 (866) 288-4268.
Notes:
Ì Plug one end of the telephone line cord into a telephone jack or a DSL
lter.
Ì If you have DSL high-speed Internet service, a DSL lter (not included)
is required.
Telephone base
Install Overview
Charger
Battery
Install the battery, as shown below. Charge your handset(s)
before initial use. The battery is fully charged aer ten hours
of continuous charging.
Handset
CHARGE light Ì On when the handset is charging in
the charger.
PUSH TO TALK
Ì Press to initiate a one-to-one or
one-to-group broadcast.
Ì Press and hold to broadcast to a
group of system devices.
REDIAL
PAUSE
MENU
SELECT
Ì Press repeatedly to view the last 10
numbers dialed.
Ì While entering numbers, press and
hold to insert a dialing pause.
Ì When the handset is not in use,
press to show the menu.
Ì While in the menu, press to select
an item or save an entry or setting.
DIR
Ì Press DIR to show directory entries
when the handset is not in use.
Ì Press to scroll up or down while in
menus.
Ì Press to increase or decrease the
listening volume when on a call.
CID
Ì Press CID to show caller ID log
when the handset is not in use.
FLASH
PHONE
CANCEL
OFF
Ì Press to make or answer a call.
Ì During a call, press to answer an
incoming call when you receive a
call waiting alert.
Ì During a call, press to hang up.
Ì While in a menu, press to cancel an
operation, back up to the previous
menu, or exit the menu display; or
press and hold this button to exit
to idle mode.
1
Ì Press and hold to set or dial your
voicemail number.
Ì Press to switch to tone dialing
temporarily during a call if you
have pulse service.
Ì While entering names, press to
change the next letter to upper or
lower case.
Ì Press and hold to enter the
QUIET mode setting screen, or to
deactivate QUIET mode.
Ì Press to make or answer a call
using the speakerphone.
Telephone base
/ FIND HS
VOL / VOL
Ì While the phone is idle, press to
page all handsets.
Ì While in idle mode, press to
adjust the base ringer volume.
Ì During message playback, press
to adjust the listening volume.
IN USE indicator Ì On when the telephone is in use,
or when the answering system is
answering an incoming call.
Ì On when a handset is being
registered.
Ì Flashes when there is an
incoming call or when all
handsets are being deregistered.
Ì Flashes when another telephone
is in use on the same line.
FLASH/PTT
CID
MENU/SELECT
DIR
Ì Press to initiate a one-to-one or
one-to-group broadcast.
Ì Press and hold to broadcast to a
group of system devices.
Ì During a call, press to answer an
incoming call when you receive
a call waiting alert.
Ì Press qCID to show caller ID
log when the telephone is not
in use.
Ì Press to scroll down while in
menus and lists.
Ì While entering names or
numbers, press to move the
cursor to the le.
Ì When the telephone is not in
use, press to show the menu.
Ì While in the menu, press to
select an item or save an entry
or setting.
Ì Press pDIR to show directory
entries when the telephone is
not in use.
Ì Press to scroll up while in menus
and lists.
Ì While entering names or
numbers, press to move the
cursor to the right.

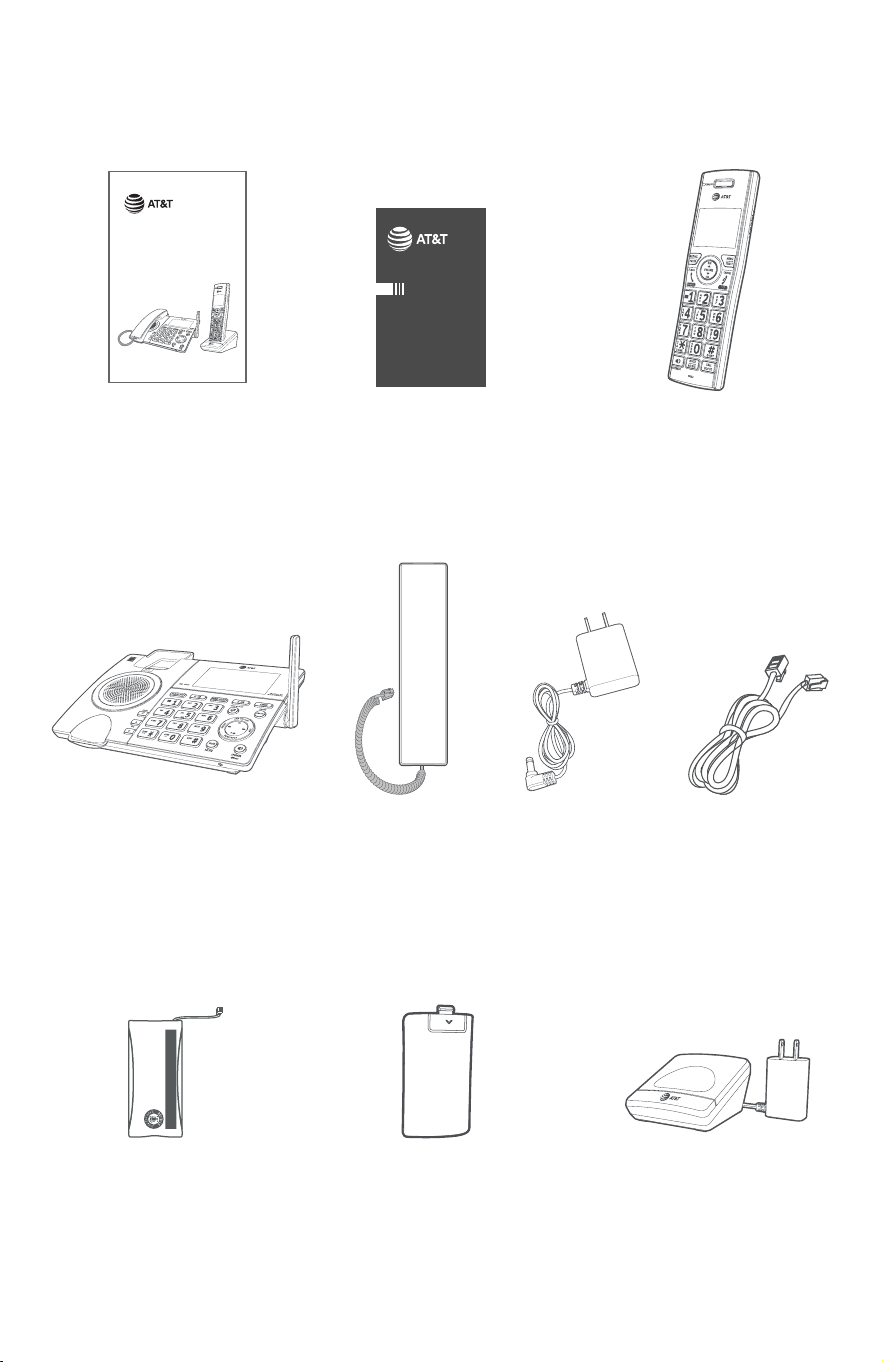

Part lists
Ì 1 for CL84107
Ì 2 for
CL84207/
CL84257
Ì 3 for
CL84307/
CL84327/
CL84347/
CL84357/
CL84367
Quick start guide
CL84107/CL84207/CL84257/
CL84307/CL84327/ CL84347/
CL84357/CL84367
Abridged user’s manual
CL84107/CL84207/CL84257/
CL84307/CL84327/CL84347/
CL84357/CL84367
DECT 6.0 corded/cordless
telephon e/answering system
with caller ID/call waiting
Ì 1 for CL84107
Ì 2 for CL84207/
CL84257
Ì 3 for CL84307/
CL84327/
CL84347/
CL84357/CL84367
THIS SIDE UP /
CE CÔTÉ VERS LE HAUT
Handset
MUTE
DELETE
CALL BLOCK
Ì During a call, press to mute the
microphone.
Ì Press to delete digit or character.
Ì Press to block the incoming call
when the telephone is ringing.
Ì When on a call, press to block the
call.
Ì When the handset is not in use,
press to show the Smart call
blocker menu.
Telephone base
CANCEL
Ì While in a menu, press to cancel
an operation, back up to the
previous menu, or exit the menu
display; or press and hold this
button to exit to idle mode.
Ì When the telephone base is
ringing, press to mute the ringer
temporarily.
Ì Press and hold while the
telephone is not in use to erase
the missed call indicator.
/ CALL BLOCK
REDIAL/PAUSE
/ ANS ON/OFF
/ REPEAT
/ SKIP
/ PLAY/STOP
MUTE/DELETE
/SPEAKER
Ì Press to block the incoming call
when the telephone is ringing or
during the call.
Ì When the telephone base is not
in use, press to show the Smart
call blocker menu.
Ì Press repeatedly to view the last
10 numbers dialed.
Ì While entering numbers, press
and hold to insert a dialing
pause.
Ì Press to turn the built-in
answering system on or o.
Ì During playback, press to repeat
the playing message.
Ì During playback, press twice to
play the previous message.
Ì Press to skip a message.
Ì Press to start or stop message
playback.
Ì During a call, press to mute the
microphone.
Ì When the telephone is ringing,
press to mute the ringer
temporarily.
Ì While reviewing the caller ID log,
directory, redial memory, allow
list, star name list, or block list,
press to delete an individual
entry.
Ì While predialing, press to delete
digits.
Ì During message or
announcement playback, press
to delete the playing message
or announcement.
Ì Press twice to delete all old
messages when the telephone
is not in use.
Ì Press to make or answer a call
using the speakerphone.
MIC
Ì Microphone.
1
TONE /a>A
QUIET #
Ì Press and hold to set or to dial
your voicemail number.
Ì Press to switch to tone dialing
temporarily during a call if you
have pulse service.
Ì While entering names, press to
change the next letter to upper
or lower case.
Ì Press repeatedly to display
other dialing options when
reviewing a caller ID log entry.
Ì Press and hold to enter the
QUIET mode setting screen, or
to deactivate QUIET mode.
Basic initial settings
We recommend you program your telephone system
before use. The following are a few examples of common
features to set before using the telephone. Refer to the
Handset and telephone base settings and Answering
system settings in the Abridged user’s manual or the
online Complete user’s manual for detailed instructions on
setting all telephone features.
Date and time
Note: Set the date/time before using the answering system.
Using a cordless handset or the telephone base:
1. -> or -> Set date/time -> SELECT.
2. Enter the month, day and year using the dialing keys ->
SELECT.
3. Enter the hour and minute using the dialing keys.
4. or to choose AM or PM -> SELECT.
Basic answering system setup via
voice guide
You can follow the voice guide to record your own
announcement, set the number of rings and set the
message alert tone.
Using the telephone base:
1. -> or -> Answering sys -> SELECT.
2. or -> Voice guide -> SELECT.
3. Set up the answering system by inputting the
designated numbers, as instructed.
Record your own announcement
Your outgoing announcement plays when calls are
answered by the answering system. You can use the preset
announcement to answer calls, or replace it with your own
recorded announcement.
Using a cordless handset or the telephone base:
1. -> or -> Answering sys -> SELECT.
2. to select Announcement.
3. to select Record annc.
4. Aer the tone, speak towards the handset or telephone
base to record your announcement. Press 5 to end
recording.
Number of rings
You can set the answering system to answer an incoming
call aer 2, 3, 4, 5, or 6 rings. You can also select toll saver.
If you choose toll saver, the answering system answers
a call aer two rings when you have new messages, and
aer four rings when there are no new messages. This
enables you to check for new messages and avoid paying
unnecessary long distance charges if you are calling from
out of your local area.
If you want the built-in answering system instead of the
voicemail to answer a call, you should set the answering
system to answer a call at least two rings before the
voicemail is set to answer. Contact your telephone service
provider for information on your voicemail settings.
Using a cordless handset or the telephone base:
1. -> or -> Answering sys -> SELECT.
2. or -> Ans sys setup -> SELECT.
3. or -> # of rings -> SELECT.
4. or to choose among 2, 3, 4, 5, 6, or Toll saver ->
SELECT.
Ringer volume
You can set the ringer volume level to one of the six levels,
or turn the ringer o.
Using a cordless handset or the telephone base:
1. -> or -> Ringers -> SELECT.
2. to select Ringer volume.
3. or to choose the desire level -> SELECT.
Quick start guide
CL84107/CL84207/CL84257/
CL84307/CL84327/CL84347/
CL84357
© 2017-2018 Advanced American Telephones. All Rights Reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219.
Printed in China. Issue 4.0 AT&T 11/18
Part lists
Install
Overview
Basic initial settings
Operate
© 2017-2019 Advanced American Telephones. All Rights Reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219.
Printed in China. Issue 6.0 AT&T 08/19
CL84107/CL84207/CL84257/
CL84307/CL84327/CL84347/
CL84357/CL84367
