User manual Window Air Conditioner
Controls
Features and appearance will vary.
Lights beside the touch pads on the air conditioner control panel indicate the selected settings.
Air Conditioner Controls
1. Power Pad
Turns air conditioner on and off. When turned on, the display will show the set temperature.
2. Display
Shows the room temperature or time remaining on the Delay timer. Shows the Set temperature while setting the temperature in Cool, Dry or Eco modes.
3. Temp and Delay Increase ∧ /Decrease ∨ Pads
Use to set temperature or delay time. Temperature can be set in Cool, Dry and Eco mode.
4. Mode Pad
Use to set the air conditioner to Fan Only, Cool, Dry or Eco mode.
5. Fan Speed Pad
In Cool or Eco mode: Use to set the fan speed to Auto, High, Med or Low on the unit.
In Fan Only mode: Use to set the fan speed to High, Med, or Low on the unit.
6. Timer Pad (set by remote control only)
Timer ON — When the air conditioner is off, it can be set to automatically come on in 0.5 to 24 hours at its previous mode and fan settings.
Timer OFF — When the air conditioner is on, it can be set to automatically turn off in 0.5 to 24 hours.
How to set:
Press the Timer pad on the remote control. Each touch of the + / - pads on the remote control will set the timer intervals.
To review the remaining time on the Timer, press the Timer pad on the remote control. Use the + / - pads on the remote control to set a new time if desired.
To cancel the timer, press - pad on the remote control until the set time is zero or press the Timer for 3 seconds.
7. Sleep Pad
The SLEEP mode sets the unit to gradually change settings over an 8 hour period to allow for some increased energy efficiency during sleep hours.
The SLEEP mode is available only in COOL and FAN only settings.
Press the SLEEP mode pad and its light will illuminate. The fan indicator will stay at the same setting but the air conditioner will automatically change the FAN speed to low in either COOL or FAN only mode.
In FAN only mode, the fan will stay in the LOW speed setting for 8 hours. After 8 hours, the air conditioner will resume the settings that were in place before the SLEEP mode pad was pressed.
In COOL mode, the fan will stay in the LOW speed setting for 8 hours from the time the SLEEP mode pad was pressed. The air conditioner will also raise the set point 2°F in 30 minutes and 2°F more in another 30 minutes where it will remain for the next 7 hours. After 8 hours, the air conditionerwill resume the settings that were in place before the SLEEP mode pad was pressed.
While the unit is in SLEEP mode, pressing any pad will return it to the settings that were in place before the SLEEP mode pad was pressed.
8. Filter Reset Pad
This feature automatically notifies you that the air filter must be cleaned. The indicator light will come on after 240 hours of operation. Clean the air filter (refer to page 6), place it back in the front panel, and press the Filter Reset pad. The light will go off.
9. WiFi Connect Pad
Enables connection of the air conditioner to the home WiFi.
10. Turbo Pad
Sets the unit to run in cool mode at the lowest temp setting with high fan speed for 1 hour.
11. Eco Pad (set by the remote control only)
Sets the air conditioner specifically to Eco Mode.
Using the Air Conditioner
Do Not Operate in Freezing Outdoor Conditions
This cool-only air conditioner was not designed for freezing outdoor conditions.
It must not be used when the outdoor temperature is below 64.4°F.
Control Panel Lights On/Off Feature
This air conditioner has a control panel lights on/off feature where its lights will turn off when there is no activity with the controls for over one minute. To wake up the controls, press any pad on the controls and the lights will come on to show the previous settings.
To turn this feature off, press and hold the SLEEP pad, on the unit, for 5 seconds. The unit will beep to signal the successful toggle of the feature on and off.
Remote Control
- To ensure proper operation, aim the remote control at the signal receiver on the air conditioner.
- The remote control signal has a range of up to 20 feet.
- Make sure nothing is between the air conditioner and the remote control that could block the signal.
- Make sure batteries are fresh and installed correctly as indicated on the remote control.
Cool Mode
Use the Cool mode at Low, Med, High or Auto for cooling. Use the Temperature + / - pads to set the desired temperature between 62°F and 86°F in 1°F increments.
An electronic thermostat is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the thermostat at a lower number and the indoor air will become cooler. Set the thermostat at a higher number and the indoor air will become warmer.
NOTE: If the air conditioner is off and is then turned on while set to a Cool setting or if turned from a fan setting to a Cool setting, it may take approximately 3 minutes for the compressor to start and cooling to begin.
Cooling Descriptions
For Normal Cooling—Select the Cool mode and High or Med fan with a middle set temperature.
For Maximum Cooling—Select the Cool mode and High fan with a lower set temperature.
For Quieter and Nighttime Cooling—Select the Cool mode and Low fan with a middle set temperature.
Eco Mode
Controls the fan.
ON—The fan will cycle on and off with the compressor. This may result in wider variations of room temperature and humidity. When the unit first enters the operating ECO mode, either after the unit is turned on, by changing the operating mode, or after a power failure, the fan will run at the set fan speed for a minimum period of 3 minutes, 5 seconds whether the compressor is on. After this 3-minute bellowing, the fan will stop if the compressor stops with 2 cycles 10 mins off and 2 mins on with set speed.
NOTE: the fan may continue to run for a short time or may pulse intermittently after the compressor cycles off to sample the room air.
OFF—The fan runs all the time, while the compressor cycles on and off.
Fan Only Mode
Set to Auto for the fan speed to automatically set to the speed to provide air circulation and filtering without cooling. Since fan-only settings do not provide cooling, a Set temperature cannot be entered. The room temperature will appear in the display.
Air Direction
Use the levers to adjust the air direction left or right. Tilt the louver bank to adjust up and down.
Sound ON/OFF
The Sound ON/OFF Mode will be able to turn On and Off the beep function by the user. Beep will be active when Sound ON. Beep will be unfunctional when Sound OFF.
Sound On/OFF
Pressing and holding Filter button for 3-5 seconds to switch Sound function. Beep will be unfunctional when Sound OFF. When Beep ON, it will beep one time. When Beep OFF active, it will beep three times.
Default Setting
The Default setting for this function was Sound ON.
Unit should memorize latest setting for this function, will access to prior setting when power outage recovered.
Care and Cleaning
Grille and Case
Turn the air conditioner off and remove the plug from the wall outlet before cleaning.
To clean, use water and a mild detergent. Do not use bleach or abrasives.
Air Filter
The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary.
To remove:
Open the inlet grille by pulling downward on the tabs at the top upper corners of the inlet grille until the grille is in a 45º position. Remove the filter.
Clean the filter with warm, soapy water. Rinse and let the filter dry before replacing it. Do not clean the filter in a dishwasher.
CAUTION DO NOT operate the air conditioner without a filter because dirt and lint will clog it and reduce performance.
Outdoor Coils
The coils on the outdoor side of the air conditioner should be checked regularly. If they are clogged with dirt or soot, they may be professionally cleaned.
How to Insert the Battery in the Remote Control
1. Remove the battery cover by sliding it according to the arrow direction.
2. Insert new battery, making sure that the (+) and (–) of battery are installed correctly.
3. Reattach the cover by sliding it back into position.
Note
■ Use 1 lithium button cell.
■ Remove the battery from the remote control if the system is not going to be used for a long time.
Troubleshooting
Problem | Possible Causes | What To Do |
Air conditioner does not start | The air conditioner is unplugged. | Make sure the air conditioner plug is pushed completely into the outlet. |
The fuse is blown/circuit breaker is tripped. | Check the house fuse/circuit breaker box and replace the fuse or reset the breaker. | |
Power failure. | The unit will automatically restart in the settings last used after the power is restored. | |
There is a protective time delay (approximately 3 minutes) to prevent tripping of the compressor overload. For this reason, the unit may not start normal cooling for 3 minutes after it is turned back on. | ||
The current interrupter device is tripped. | Press the RESET button located on the power cord plug. | |
If the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician. | ||
Air conditioner does not cool as it should | Airflow is restricted. | Make sure there are no curtains, blinds or furniture blocking the front of the air conditioner. |
The temp control may not be set correctly. | On models with touch pads: In the Cool mode, press the Decrease - pad. | |
On models with control knobs, turn the temperature knob to a higher number. | ||
The air filter is dirty. | Clean the filter at least every 30 days. See the Care and Cleaning section. | |
The room may have been hot. | When the air conditioner is first turned on, you need to allow time for the room to cool down. | |
Cold air is escaping. | Check for open furnace registers and cold air returns. | |
Cooling coils have iced up. | See “Air conditioner freezing up” below. | |
Air conditioner freezing up | Ice blocks the air flow and stops the air conditioner from cooling the room. | On models with control knobs, set the mode control at High Fan or High Cool with the Temp at 1 or 2. |
On models with touch pads, set the controls at High Fan or High Cool and set the thermostat to a higher temperature. | ||
The remote control is not working | The batteries are inserted incorrectly. | Check the position of the batteries. They should be inserted in the opposite (+) and (-) direction. |
The batteries may be dead. | Replace the batteries. | |
Water drips outside | Hot, humid weather. | This is normal. |
Water drips indoors | The air conditioner is not tilted to the outside. | For proper water disposal, make sure the air conditioner slants slightly from the case front to the rear. |
Water collects in base pan | Moisture removed from air and drains into base pan. | This is normal for a short period in areas with little humidity; normal for a longer period in very humid areas. |
Normal Operating Sounds
- You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve efficiency.
- You may hear the thermostat click when the compressor cycles on and off.
- Water will collect in the base pan during high humidity or on rainy days. The water may overflow and drip from the outdoor side of the unit.
- The fan may run even when the compressor does not.
- Water droplets being thrown against the outside coils can make a pinging noise. This helps cool the condenser. You can reduce this noise by opening the water hole seal located on the lower right side of the unit. Opening this seal will lower the Energy Efficiency of your unit.
NOTE: Do not drill hole in the base pan.
WiFi Setup
GE Appliances SmartHQ (for customers in the United States)

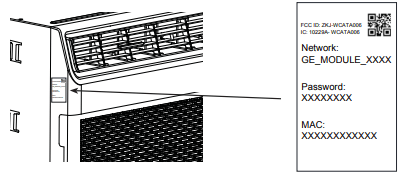

GE Appliances SmartHQ Enabled*. If your Air Conditioner (AC) has a Connected Appliance Information label located on the outside as shown below, your AC is GE Appliances SmartHQ Enabled. A WiFi communication card is built into the product allowing it to communicate with your smart phone for remote monitoring, control and notifications.
WiFi Connectivity: For assistance with the appliance or the ConnectPlus network connectivity (for models that are WiFi enabled or WiFi optional), please call 1-800-220-6899.
How it Works
Getting Started
To connect your room air conditioner, you’ll need the GE Appliances App. The app will walk you through the connection process. Download the app from iTunes or Google Play.
