© 2017 by Snow Joe
®
, LLC
All rights reserved. Original instructions.
SAVE THESE INSTRUCTIONS
1
A Division of Snow Joe
®
, LLC
OPERATOR’S MANUAL
Model SPX202C Form No. SJ-SPX202C-880E-M
R
CORDLESS PRESSURE WASHER
36-VOLT | 725 PSI MAX. | 1.05 GPM
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
mWARNING! This indicates a hazardous situation, which,
if not avoided, could result in death or serious injury.
mCAUTION! This indicates a hazardous situation, which,
if not avoided, could result in minor or moderate injury.
mDANGER! This indicates a hazardous situation, which,
if not followed, will result in death or serious injury.
General Safety
mWARNING! This appliance is not intended for use
by children or by unassisted, unsupervised persons whose
physical, sensory, or mental capabilities prevent them from
using it safely. Children should be supervised to ensure that
they do not play with the appliance.
Before starting up your machine, please check it carefully for
any defects. If you nd any, do not start up your machine.
Contact your authorized Snow Joe
®
+ Sun Joe
®
dealer or
call the Snow Joe
®
+ Sun Joe
®
customer service center at
1-866-SNOWJOE (1-866-766-9563).
mWARNING! When using the pressure washer, basic
safety precautions should always be followed to reduce the
risk of re, electric shock, and personal injury. These include:
• Know your product – Know how to stop the machine and
bleed pressure quickly. Thoroughly familiarize yourself with
the controls.
• Keep bystanders away – All visitors and pets should be
kept a safe distance away from the work area.
• Use the right product – Do not use this machine for any
job except that for which it is intended.
• Dress properly – Do not wear loose clothing or jewelry.
They can get caught in moving parts. Protective rubber
gloves and non-slip footwear are recommended when
working outdoors.
• mCAUTION! – Exercise caution to avoid slipping or falling.
Wear protective footwear that will protect your feet and
improve your footing on slippery surfaces.
• Stay alert – Watch what you are doing. Use common
sense. Do not operate the pressure washer when you are
tired, or under the inuence of alcohol or drugs.
• Do not overreach – Keep proper footing and balance at
all times.
• Avoid unintentional starting – Do not carry a machine with
your nger on the trigger.
• Use safety glasses – Also use safety footwear, snug-
tting clothing, protective gloves, and hearing and head
protection.
• Check the water temperature – This pressure washer is not
meant to pump hot water. NEVER connect it to a hot water
supply as it will signicantly reduce the life of the pump.
• Store indoors – NEVER store the pressure washer
outdoors or where it could freeze. The pump could be
seriously damaged.
mWARNING! Do not use this appliance without reading
this instruction manual.
mWARNING! This pressure washer comes with
a detergent spray bottle attachment. When using this
attachment, be sure to use cleaning agents that are specically
recommended by the manufacturer. The use of other cleaning
agents or chemicals may adversely aect the safety of the
appliance.
mWARNING! Do not use the appliance within range of
other people unless they are wearing protective clothing.
mWARNING! High-pressure jets can be dangerous if
subject to misuse. The jet must not be directed at persons,
pets, live electrical equipment, or the appliance itself.
• Do not direct the jet at yourself or others in order to clean
clothes or footwear.
• Risk of explosion – Do not spray ammable liquids.
• Keep children away – This high-pressure cordless
power washer must not be used by children or untrained
personnel.
• To ensure appliance safety, use only original replacement
parts from the manufacturer or those approved by the
manufacturer.
mWARNING! Water that has owed through backow
preventers is considered to be non-potable.
2
mWARNING! High-pressure hoses, ttings, and
couplings are important for the safe operation of the appliance.
Use only hoses, ttings, and couplings recommended by the
manufacturer.
mWARNING! Electrical Shock Hazard – Before starting
up your machine, please check it carefully for any defects. If
you nd any, do not start up your machine and contact your
distributor.
IMPORTANT: Only use water without any impurities.
If there is a risk of running sand into the inlet water (i.e. from
your own well), an additional lter should be installed.
• Check for damaged parts – Do not use the appliance if
any important parts of the appliance are damaged (e.g.
safety devices, high-pressure hoses, trigger gun).
• This cordless high-pressure power washer must not be
used at temperatures below 32ºF (0°C).
• Keep the machine on a stable, at surface during operation,
handling, transportation, and storage. Sudden overturn of
the machine can cause bodily injury.
• In the event of an accident or breakdown, switch o the
machine immediately. (If contact with detergent occurs,
rinse with an abundance of clean water.)
Electrical Safety
1. If the battery charger cable is damaged, please call the
Snow Joe
®
+ Sun Joe
®
customer service center at
1-866-SNOWJOE (1-866-766-9563).
2. If charging the power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected power supply. The using of an RCD reduces the
risk of electric shock.
3. Do not abuse the charging cord. Never use the cord
for carrying, pulling or unplugging the charger. Keep
cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric
shock.
4. Battery charger is for indoor use only. Do not charge the
pressure washer in rain, or in wet locations.
Battery Safety Warnings
This manual contains important safety and operating
instructions for your battery and charger.
1. Before using the charger, thoroughly read all instructions
and cautionary markings on the charger, the battery, and
the unit.
mWARNING! If the pressure washer housing is cracked
or damaged, do not insert the charging adapter into the power
tool or plug the AC adapter into the mains outlet. There is a
danger of electric shock or electrocution.
2. This charger is ONLY intended to charge this rechargeable
battery. Any other use poses a risk of re, electric shock
or electrocution.
3. Do not place any object on top of the charger or place
the charger on a soft surface that may result in excessive
internal heat. Keep the charger away from any heat
source.
4. To reduce the risk of damaging the electric plug and
cord, pull the plug, not the cord, when disconnecting the
charger from the electric outlet.
5. Make sure the battery charging cable is located in a safe
place so that it will not be stepped on, tripped over or
otherwise subjected to damage or stress.
6. An extension cord should not be used unless absolutely
necessary. Using an improper extension cord poses a risk
of re, electric shock or electrocution.
7. Do not operate the charger if it has received a sharp
blow or has become damaged in any way. Contact
the Snow Joe
®
+ Sun Joe
®
customer service center at
1-866-SNOWJOE (1-866-766-9563) before continuing
use.
8. Do not disassemble the charger. If the charger requires
service or repair, contact an authorized Snow Joe
®
+
Sun Joe
®
dealer or call the Snow Joe
®
+ Sun Joe
®
customer service center at 1-866-SNOWJOE
(1-866-766-9563). Incorrect reassembly poses a risk of
electric shock, electrocution or re.
9. To reduce the risk of electric shock, unplug the charger
from the outlet before cleaning the unit.
10. Never attempt to connect two (2) chargers together.
11. DO NOT store or use the tool and charger in locations
where the temperature may reach or exceed
104 ºF (40 ºC). Dangerous storing locations include
outdoor sheds or metal buildings in the summer.
12. The charger is designed to operate on standard household
electrical power (120 V). Do not attempt to use it with any
other voltage!
NOTE: The integrated battery is not fully charged out of
the carton. Read the safety instructions and then follow
the charging notes and procedures.
3
13. The longest life and best performance can be obtained if
the integrated battery is charged when the air temperature
is between 64.4ºF – 75.2ºF (18ºC – 24ºC). Do not charge
the battery pack when the air temperature falls below
50ºF (10ºC) or above 104ºF (40ºC). Following these safety
measures will prevent damage to the battery pack.
14. Do not incinerate the integrated battery even if it is
seriously damaged or completely worn out. The battery
can explode in a re.
Risk of explosion
• Do not spray ammable liquids.
• Do not use acids, bases, solvents, or any ammable
material in this product. These substances can cause
physical injuries to the operator and irreversible damage to
the machine.
Additional safety instructions
• High-pressure: keep clear of nozzle.
• Injection hazard: equipment can cause serious injury if the
spray penetrates the skin.
• Do not point the gun at anyone or at any part of the body.
• In case of skin penetration, seek medical aid immediately.
• Before servicing, cleaning, or removing any parts, shut o
the power and relieve pressure.
• This machine is not suitable for connection to the potable
water mains.
Product Description
Purpose
• This high-pressure cordless power washer is intended for
residential use only. It is designed for light-to-medium duty
cleaning jobs on boats, motorcycles, RV’s, ATV’s, trailers,
decks, barbecues, siding, patio furniture, and more.
Areas of application
• Never use the machine in potentially explosive areas under
any circumstances!
• The operating temperature must be between 32ºF (0ºC) and
104ºF (40ºC).
• The machine consists of an assembly with a pump, which
is encased in a shock-absorbing housing. To provide the
operator with an optimal working position, the machine is
equipped with a spray wand and a non-slip handle grip,
whose shape and conguration comply with applicable
regulations.
• Do not cover or modify the spray wand or the spray nozzle
in any way.
• The high-pressure cordless power washer is designed to be
used with cold or lukewarm water; higher temperatures can
damage the pump.
• Do not use water that is dirty, gritty, or contains any
chemical products, as such impurities could impair
operation and shorten the life of the machine.
4
Safety Symbols
The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all
instructions on the machine before attempting to assemble and operate.
To reduce the risk of injury, user
must keep all bystanders at least
49 ft (15 m) away.
READ THE OPERATOR'S
MANUAL(S) – Read, understand,
and follow all instructions in the
user manual(s) before attempting
to assemble and operate.
SAFETY ALERT – Indicates a
precaution, a warning, or a danger.
WEAR EYE AND HEARING
PROTECTION – For protection
against injury, wear ear defenders
and safety goggles.
WARNING! Do not expose the unit
to rain or wet conditions. Keep dry.
Machine not suitable for connection
to the potable water mains.
Symbols SymbolsDescriptions Descriptions
Wear non-slip footwear that will
protect your feet and improve your
footing on slippery surfaces.
Wear safety gloves during
use to protect hands.
Store indoors. Never store the
pressure washer outdoors.
If the pump freezes, permanent
damage may result.
Indoor use only. Only use battery
charger indoors.
5
Know Your Cordless Pressure Washer
Read the owner’s manual and safety rules carefully before operating the pressure washer. Compare the illustration below to the
pressure washer in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for
future reference.
1. Transport handle/trigger gun
holder
2. Spray bottle holder
3. Velcro band (2)
4. Charging socket
5. On/O switch
6. Battery capacity indicator
7. Water hose connector
8. Water outlet
9. Garden hose adapter (Female
coupler)
10. Detergent spray bottle
11. Spray bottle nozzle
12. Foam volume adjusting knob
13. Water inlet
14. Adjustable spray wand nozzle
15. Spray wand assembly
16. Trigger gun
17. Safety lock
18. Trigger
19. Release button
20. Water bladder
21. Water hose
22. High-pressure hose
23. Battery charger
24. Needle clean-out tool
Technical Data
Battery Voltage* 36 V D.C.
Battery Capacity 2.0 Ah
Charging Time 1.5 hours (for full charge)
Battery Run Time (Max.) 20 mins
Max. Water Inlet Temperature 104ºF/40ºC
Max. Water Inlet Pressure 0.7 MPa
Rated Flow 0.74 GPM
Max. Flow 1.05 GPM
Rated Pressure 500 PSI
Max. Pressure 725 PSI
Detergent Bottle Capacity 13.5 oz (400 ml)
Water Bladder Capacity 4 gal (15 l)
High Pressure Hose Length 20 ft (6 m)
Weight 9 lbs (4.1 kg)
*Initial no-load voltage, when fully charged, peaks at 42 volts; nominal voltage under typical load is 36 volts.
FRONT BACK
R
1
3
4
5
2
6
7
8
9
13
15
16
1819
14
20
2122
23
24
10
11
12
17
6
Unpacking
Carton Contents
• Cordless pressure washer
• Trigger gun
• Spray wand assembly
• Needle clean-out tool (included with manual packet)
• High-pressure hose
• Garden hose adapter (female coupler)
• Detergent spray bottle
• Water hose
• Water hose connector
• Water bladder
• Battery charger
• Manuals with registration card
1. Carefully remove the pressure washer and check to see
that all of the above items are supplied.
2. Inspect the product carefully to make sure no breakage or
damage occurred during shipping. If you nd damaged or
missing parts, DO NOT return the unit to the store. Please
call the Snow Joe
®
+ Sun Joe
®
customer service center at
1-866-SNOWJOE (1-866-766-9563).
NOTE: Do not discard the shipping carton and packaging
material until you are ready to use your new cordless
pressure washer. The packaging is made of recyclable
materials. Properly dispose of these materials in
accordance with local regulations.
IMPORTANT! The equipment and packaging material are
not toys. Do not let children play with plastic bags, foils,
or small parts. These items can be swallowed and pose a
suocation risk!
mWARNING! Do not turn on the unit until assembly is
complete. Failure to comply could result in accidental starting
and possible serious personal injury.
Assembly
Spray Gun Assembly
1. Fit the two pieces of the spray wand assembly together
and rotate it until the two parts are completely locked
(Fig. 1).
2. Fit the spray wand assembly into the gun and turn the
rotatable end-piece of the wand until the two parts are
completely locked (Fig. 2).
Connect the Spray Gun to the Pressure
Washer
1. Connect the quick-connect end of the high-pressure hose
to the trigger gun (Fig. 3). You will hear a click when it
snaps into place. To release the high-pressure hose from
the trigger gun, push the release button on the trigger gun.
Fig. 1
RELEASE
Spray wand assembly
Trigger gun
Fig. 2
7
2. Connect the other end of the high-pressure hose to
the water outlet on the pressure washer (Fig. 4). First,
push the high-pressure hose end completely onto the
high-pressure water outlet, then screw it on clockwise.
mWARNING! Keep hose away from sharp objects.
Bursting hoses may cause injury. Examine hoses regularly and
replace if damaged. Do not attempt to mend a damaged hose.
Before Using
Charging Procedure
The battery charger supplied matches the lithium-ion battery
installed in the tool. Do not use other battery chargers.
The lithium-ion battery is protected against deep discharging.
When the battery is empty, a protective circuit will
automatically switch OFF the machine.
Charge the battery for up to 1.5 hours then use it until it runs
down. Recharge for up to 1.5 hours again before resuming
operation.
The pressure washer is equipped with a battery capacity
indicator. To check the battery capacity, push the button
(Fig. 5). The charge indicator system indicates the battery
status of the pressure washer as the table shows below.
Battery Charging
The battery in this pressure washer has been designed to
provide maximum trouble-free life. However, like all batteries, it
will eventually wear out. To obtain the longest possible battery
life, we suggest the following:
• Store and charge your pressure washer in a cool area.
Temperatures above or below normal room temperature
will shorten battery life.
• Never store the pressure washer with the battery in a
discharged condition. Recharge the unit before storage.
• All batteries gradually lose their charge. The higher the
temperature is, the faster they lose their charge. If you
store your pressure washer for long periods of time
without using it, recharge the battery every 6 months. This
will extend battery life.
• To increase the battery life, do not recharge the unit
immediately if it's stopped working. Wait for 30 minutes to
begin the charging process.
NOTE: The pressure washer has been shipped in a low charge
condition and should be fully charged before use.
1. Plug the charger into the charging socket of the pressure
washer. Connect the charger plug into an appropriate AC
RELEASE
Push to release
Trigger gun
Fig. 3
High-pressure hose
R
Fig. 4
Water outlet
High-pressure hose
Push the button
to check the
battery capacity
Fig. 5
LED indicator
Charge level button
The battery is at 30% capacity and requires
charging
The battery is at 50% capacity and requires
charging soon
The battery is at 75% capacity and requires
charging soon
The battery is at full capacity
Light IndicatorsLights
8
outlet to start charging (Fig. 6).
2. The charge indicator LED on the charger will illuminate red
to indicate that the charging is in progress.
3. The battery will take approximately 1.5 hours to charge.
The charge indicator LED will become green when the
battery is fully charged, unplug the charger immediately
when the green light is on.
mCAUTION! This charger does not automatically turn o
when the battery is fully charged. Please take care not to leave
the pressure washer plugged into the charger. Switch o or
unplug the charger at the mains when charging is complete.
The charging process starts as soon as the charger is plugged
into both the proper electrical outlet and the tool.
• During the charging procedure, the housing of the tool will
feel slightly warm to the touch. This is normal.
• When no further use is planned for an extended period of
time, disconnect the battery charger from the outlet and the
unit.
• Do not use the tool during the charging procedure.
Operation
Connect to Water Supply
1. Connect the garden hose adapter (female coupler) to the
water inlet of the pressure washer, then thread your garden
hose (male end) into the garden hose adapter (Figs. 7 – 8).
The garden hose must have an internal diameter of at least
13 mm (1/2 in.) and must be reinforced. The water supply
must be at least equal to the washer delivery capacity.
NOTE: The machine is not suitable for connection to
the potable water main.
2. Attach garden hose to water supply (Fig. 9).
mWARNING! Do not connect to potable water system.
mWARNING! If connection is made to a potable water
system, the system shall be protected against backow
R
Fig. 6
Battery charger
Charging socket
Charge
indicator LED
mIMPORTANT!
To maintain optimal charge levels, you must recharge the
device within 30 minutes of use.
Fig. 7
Water inlet
Garden hose
adapter
This end to
water inlet
Garden hose
(male end)
Fig. 8
Garden hose
Fig. 9
Connect to water supply
Garden hose
9
mWARNING! The intake water temperature must
not exceed 104ºF/40ºC. The water supply must not
exceed 0.7 MPa.
3. A water bladder with connection hose is equipped in case
there's no water source close to the working area. Fill the
water bladder and connect it with the water hose
(Figs. 10 – 11).
mCAUTION! The washer must only be used with clean
water; use of unltered water containing corrosive chemicals
will damage the washer.
4. Connect the water bladder with the pressure washer's
water inlet by the water hose connector and the water
hose, as shown (Fig. 12).
NOTE: To avoid gravity aecting the water ow, when
using the water bladder, make sure the water bladder
is placed on a higher or even surface with the pressure
washer. Make sure the water bladder is not lower than the
pressure washer.
Starting + Stopping
mIMPORTANT! This pressure washer is equipped with
a micro-switch sensitive to water ow. This Total Stop System
(TSS) senses water ow in the pump. When the trigger is
released, water stops owing through the pump. The TSS then
automatically turns the motor o to protect the pump from
overheating, thus saving energy and prolonging pump life.
1. Position the washer as CLOSE as possible to the water
supply or the water bladder.
2. The washer must be used on a secure and stable surface
in a standing, upright position (Fig. 13).
3. If connected with tap water, turn the water supply tap on
completely.
4. Unlock the safety lock, then press the trigger for a
few seconds until the water ow is steady. Operating
the pressure washer in this manner will allow air to
escape and discharge residual pressure in the hose
(Fig. 14). Release the trigger after all residual pressure is
discharged.
Fig. 10
Water bladder
Fig. 11
Water bladder
Water hose
Fig. 12
Water hose
Water hose connector
Water inlet
Fig. 13
10
5. Keeping the trigger pressed, turn the switch to the ON (I)
position to start the pressure washer (Fig. 15).
6. When re-starting the motor, always keep the trigger
pressed.
NOTE: The motor only runs when the trigger is depressed
and shuts o when the trigger is released.
Using the Adjustable Spray Wand
mWARNING! High-pressure jets can be dangerous if
subject to misuse. The jet must not be directed at persons,
pets, live electrical equipment, or the appliance itself.
1. The washer is equipped with an adjustable nozzle.
2. The nozzle tip can be adjusted from pencil spray to fan
spray by turning the nozzle tip adjustment knob (Fig. 16).
mWARNING! Do not adjust the nozzle while the trigger
is squeezed. Failure to do so could result in damage.
Recommended cleaning procedure
1. For additional cleaning power, the unit comes equipped
with a detergent spray bottle.
mCAUTION! Only use detergents specically
recommended for use with pressure washers, such as
Sun Joe
®
HOUSE + DECK WASH (SPX-HDC1G), Sun Joe
®
SNOW FOAM AUTO WASH (SPX-FCS1G), or Sun Joe
®
HEAVY
DUTY CLEANER (SPX-APC1G).
2. Load the bottle with a suitable, non-corrosive detergent
and attach it to the spray gun (Fig. 17).

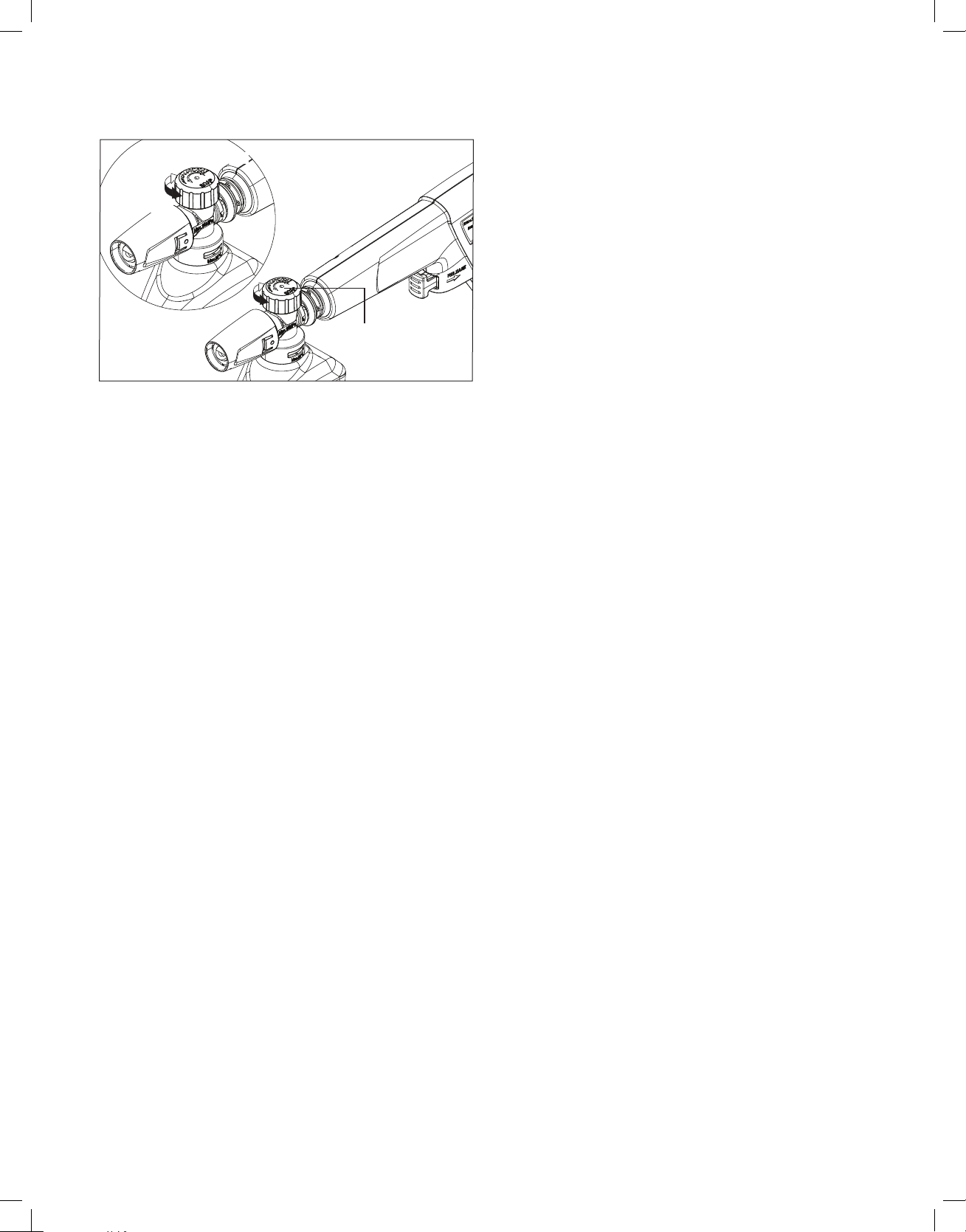

NOTE: The foam spray bottle is featured with a foam-
volume adjustable knob. Follow the instructions as shown
to use the spray bottle (Fig. 18).
RELEASE
Fig. 14
Trigger
Safety lock
Fig. 15
On/O
switch
Fig. 16
Fan spray
Pencil spray
Nozzle tip
adjustment knob
Nozzle tip
Fig. 17
Detergent spray bottle
11
3. Apply detergent from the bottom to the top of the dry
surface to be cleaned. Applying detergent in this manner
will dissolve dirt most eectively.
NOTE: Wetting the surface rst is not recommended as it
dilutes the detergent and reduces its cleaning ability.
4. Allow the detergent to remain on the surface for a short
time before rinsing with the pressure washer. Do not allow
the detergent to dry on the surface.
Shutting down
1. Turn the switch to the OFF (0) position.
2. Turn o the water source.
3. Hold the trigger to release water pressure.
4. Disconnect the garden hose from the water inlet on
the unit. Or disconnect the water hose and the water
bladder.
5. Disconnect the high-pressure hose connection on the
trigger gun handle.
6. Release the trigger and engage the gun safety lock.
mWARNING! Turn o the water supply and squeeze the
trigger to depressurize the unit. Failure to do so could result in
personal injury due to discharge of high-pressure water.
Taking a break
If you are taking a break of ve minutes or more between
cleaning tasks:
1. Engage the gun safety lock (Fig. 12).
2. Turn the switch to the OFF (0) position.
Storage
mCAUTION! Always store your pressure washer in a
location where the temperature will not fall below 32ºF (0ºC).
The pump in this machine is susceptible to permanent damage
if it freezes. FREEZE DAMAGE IS NOT COVERED BY THE
WARRANTY.
• Store the pressure washer indoors in a dry, covered area
where it is not subject to adverse weather conditions.
• It is important to store this product in a frost-free area.
• Always empty water from all hoses, the pump, and the
detergent bottle (if using) before storing.
• Never store the pressure washer with the battery in a
discharged condition. Recharge the unit before storage.
mCAUTION! The use of a pump protector is
recommended to prevent cold weather damage during storage
over the winter months.
Winterizing + long-term storage
If you must store your pressure washer in a location where
the temperature falls below 32ºF (0ºC), you can minimize the
chance of damage to your machine by utilizing the following
procedure:
• Disconnect all water connections.
• Turn on the machine for a few seconds until the remaining
water in the pump exits. Turn o immediately.
• Do not allow the high-pressure hose to become kinked.
• Store the machine and accessories in a room that does
not reach freezing temperatures.
• Do not store near a furnace or other sources of heat that
may dry out the pump seals.
• Operate the pressure washer with non-corrosive/non-toxic
anti-freeze, a pump saver, or a pump protector before
storing for the winter.
mWARNING! Before reusing, completely ush the unit
out with clear water. Anti-freeze products can damage
paintwork, so you must ensure there is no anti-freeze left in the
system before using it again.
Fig. 18
Foam volume
adjusting knob
Volume +
Volume –
12
Maintenance
mCAUTION! Before working on the pressure washer,
switch o the unit.
1. To ensure good performance, check and clean the lter
(Fig. 19). Remove garden hose adapter and the lter. Rinse
the lter with warm water to prevent any foreign matter
from clogging the pump (Fig. 20).
2. Clean the nozzle with the needle clean-out tool provided
(Fig. 21). Remove the spray wand from the gun; remove
any dirt from the nozzle hole and rinse.
Disposal
Recycling the washer
• Do not dispose of electrical appliances as unsorted
municipal waste. Use separate collection facilities.
• Contact your local government agency for information
regarding the collection systems available.
• If electrical appliances are disposed of in landlls
or dumps, hazardous substances can leak into the
groundwater and get into the food chain, damaging your
health and well-being.
• When replacing old appliances with new ones, the retailer
is legally obligated to take back your old appliance for
disposal at least free of charge.
Recycling + Disposal
The product comes in a package that protects it against
damage during shipping. Keep the package until you are
sure that all parts have been delivered and the product is
functioning properly. Recycle the package afterwards or keep
it for long-term storage.
WEEE symbol. Waste electrical products should not
be disposed of with household waste. Please recycle
where facilities exist. Check with your local authority
or local store for recycling regulations.
Battery Caution + Disposal
Always dispose of your battery pack according to federal,
state, and local regulations. Contact a recycling agency in your
area for recycling locations.
mCAUTION! Even discharged battery packs contain
some energy. Before disposing, use electrical tape to cover
the terminals to prevent the battery pack from shorting, which
could cause a re or explosion.
mWARNING! To reduce the risk of injury or explosion,
never burn or incinerate a battery pack even if it is damaged,
dead or completely discharged. When burned, toxic fumes and
materials are emitted into the surrounding atmosphere.
1. Batteries vary according to device. Consult your manual
for specic information.
2. Install only new batteries of the same type in your product
(where applicable).
3. Failure to insert batteries in the correct polarity, as
indicated in the battery compartment or manual, may
shorten the life of the batteries or cause batteries to leak.
4. Do not mix old and new batteries.
5. Do not mix Alkaline, Standard (Carbon-Zinc) or
Rechargeable (Nickel Cadmium, Nickel Metal Hydride, or
Lithium-Ion) batteries.
6. Do not dispose of batteries in re.
Fig. 19
Filter
Garden hose
adapter
Fig. 20
Filter
Fig. 21
Needle clean-out tool
13
7. Batteries should be recycled or disposed of as per state
and local guidelines.
Service + Support
If your Sun Joe
®
SPX202C cordless pressure washer requires
service or maintenance, please call the Snow Joe
®
+
Sun Joe
®
customer service center at 1-866-SNOWJOE
(1-866-766-9563).
Model + Serial Numbers
When contacting the company, reordering parts, or arranging
service from an authorized dealer, you will need to provide the
model and serial numbers, which can be found on the decal
located on the housing of the unit. Copy these numbers into
the space provided below.
SPX202C-CHRG
Federal Communications Commission
(FCC)
mWARNING! Any changes or modications to this
unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the
equipment.
Class B device:
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Record the following numbers from the housing or handle of your
new product:
S P X 2 0 2 C
Model #:
Serial #:
14
Troubleshooting
• Disconnect the unit from the electrical power supply before carrying out maintenance on the machine or when checking that
its parts are in proper working order.
• To avoid unnecessary hassles, consult the following table before contacting customer service with any mechanical issues.
Problems Possible Cause Possible Solution
Machine refuses
to start
• Battery is at.
• The battery protection system is
active.
• Charging the battery.
• Turn o the unit and wait for 5 minutes, then turn on
the unit again
• Check the hoses and connections are airtight.
• Clean or replace valves/seals.
• Please call the Snow Joe
®
+ Sun Joe
®
customer
service center at 1-866-SNOWJOE (1-866-766-9563)
for assistance.
• Charging the battery.
• Clean the nozzle.
• Allow machine to run by holding the trigger until
regular working pressure resumes.
• Check that the water supply corresponds to the
specications required.
• WARNING! Avoid using long, thin hoses
(minimum 1/2 in. diameter).
• Clean the nozzle.
• Clean the water inlet lter.
• Straighten out the hose to remove any kinks/blockages.
• Wait for pump/hoses or accessories to thaw.
• Connect inlet water.
• Clean the lter.
• Clean the nozzle.
• Pump sucking air.
• Valves dirty, worn out, or stuck.
• Pump seals worn out.
• Battery is at.
• Nozzle partially blocked.
• Air in inlet hose.
• Inadequate supply of mains water.
• Nozzle partially blocked.
• Water lter blocked.
• Hose kinked.
• Pump/hoses or accessories frozen.
• No water supply.
• Water inlet lter blocked.
• Nozzle blocked.
Fluctuating pressure
Machine stops
Machine pulsating
Machine starts, but
no water comes out
15
Sun Joe’s complete line of premium pressure washer accessories and attachments
make it easy to get your dirty work done, and also help you get the most out of your model!
SHOP ONLINE now at sunjoe.com
NOTE: Accessories are subject to change without any obligation on the part of Snow Joe
®
+ Sun Joe
®
to provide notice of such
changes. Accessories can be ordered online at snowjoe.com or via phone by contacting the Snow Joe
®
+ Sun Joe
®
customer
service center at 1-866-SNOWJOE (1-866-766-9563).
Optional Accessories
mWARNING! ALWAYS use only authorized Snow Joe
®
+ Sun Joe
®
replacement parts and accessories. NEVER use
replacement parts or accessories that are not intended for use with this cordless pressure washer. Contact Snow Joe
®
+ Sun
Joe
®
if you are unsure whether it is safe to use a particular replacement part or accessory with your pressure washer. The use of
any other attachment or accessory can be dangerous and could cause injury or mechanical damage.
25-Foot Medium-duty Extension Hose for
SPX Pressure Washer Series
Solid Brass Universal Quick Connector
(Garden Hose to Pressure Washer Adapter)
SPX-25H
SPX-UQC
ModelAccessories Item
3
2
4
Sun Joe
®
House + Deck All-Purpose Pressure
Washer Rated Concentrated Cleaner
SPX-HDC1G
Sun Joe
®
Premium Snow Foam Pressure
Washer Rated Car Wash Soap + Cleaner
SPX-FCS1G
Sun Joe
®
All-Purpose Heavy Duty Pressure
Washer Rated Cleaner + Degreaser
SPX-APC1G
1
SPX202C Battery Charger SPX202C-CHRG
16
NOTES
17
NOTES
18
NOTES
19
SNOW JOE
®
+ SUN JOE
®
CUSTOMER PROMISE
PRODUCT REGISTRATION:
Snow Joe
®
, LLC (“Snow Joe
®
+ Sun Joe
®
”) strongly encourages
you to register your purchase. You can register online at
snowjoe.com/ProductRegistration, or by printing and mailing
in a registration card available online from our website, or
calling our Customer Service Department at 1-866-SNOWJOE
Failure to register your product purchase will not diminish your
warranty rights. However, registering your purchase will allow
Snow Joe
®
+ Sun Joe
®
to better serve you with any of your
customer service needs.
WHO CAN SEEK WARRANTY COVERAGE?
This Warranty is extended by Snow Joe
®
+ Sun Joe
®
to the owner
of this Machine (a “Machine” consists of a product powered by
a motor) for residential and personal household use only. This
Warranty does not apply to products used for commercial, rental
or re-sale purposes. Should ownership of this machine change
during the 2-year period, please update the Machine’s owner
information at snowjoe.com/ProductRegistration.
WHAT IS COVERED?
Snow Joe
®
+ Sun Joe
®
warrants to the owner that if this Machine
fails within 2 years from the date of purchase due to a defect in
material or workmanship or as a result of normal wear and tear
from ordinary household use, Snow Joe
®
+ Sun Joe
®
will send a
replacement part or product, as needed, free of charge and with
free shipping to the original purchaser.
If, in Snow Joe
®
+ Sun Joe
®
’s sole discretion, the failed Machine
cannot be repaired with a part, Snow Joe
®
+ Sun Joe
®
will elect to
either (A) send a new Machine at no charge and with free shipping
or (B) refund the full purchase price to the owner.
WHAT IS NOT COVERED?
This Warranty does not apply to the Machines that have been used
commercially or in non-household applications. This Warranty
does not cover cosmetic changes that do not aect performance.
This Warranty is only valid if the Machine is used and maintained
in accordance with the instructions, warnings and safeguards
contained in the owner’s manual. Snow Joe
®
+ Sun Joe
®
will not
be responsible for the cost of any unauthorized warranty repairs.
This warranty does not cover any cost or expense incurred by
the purchaser in providing substitute equipment or service during
reasonable periods of malfunction or non-use of this product
while waiting for a replacement part or unit under this warranty.
Wearing parts like belts, augers, chains and tines are not covered
under this warranty, and can be purchased at snowjoe.com or
by calling 1-866-SNOWJOE (1-866-766-9563). Batteries are
covered in full for 90-days from the date of purchase.
Repair, replacement or refund of the purchase price are the
exclusive remedies of purchaser and the sole liability of Snow Joe
®
+ Sun Joe
®
under this warranty. No employee or representative
of Snow Joe
®
+ Sun Joe
®
is authorized to make any additional
warranty or any modication to this warranty which may be
binding upon Snow Joe
®
+ Sun Joe
®
. Accordingly, purchaser
should not rely upon any additional statements made by any
employee or representative of Snow Joe
®
+ Sun Joe
®
. In no event,
whether based on contract, indemnity, warranty, tort (including
negligence), strict liability or otherwise, shall Snow Joe
®
+
Sun Joe
®
be liable for any special, indirect, incidental, or
consequential damages, including, without limitation, loss of
prot or revenue.
Some states do not allow limits on warranties. In such states, the
above limitations may not apply to you.
Outside the USA, other warranties may apply.
ABOVE ALL ELSE, Snow Joe
®
+ Sun Joe
®
are dedicated to you, our customer. We strive to make your experience as pleasant
as possible. Unfortunately, there are times when a product does not work or breaks under normal operating conditions. We
think it’s important that you know what you can expect from us. That’s why we created the Snow Joe
®
+ Sun Joe
®
promise.
OUR PROMISE: Snow Joe
®
+ Sun Joe
®
warrant new products for two years from the date of purchase. If your product does
not work, or there’s an issue with a specic part, we will x this by either sending you a free replacement part or by sending
you a new or comparable product at no charge. How cool is that! Before you know it, you’ll be back in action cutting,
sawing, mowing, washing and…?
snowjoe.com
mWARNING! This product contains lead, a chemical known to the State of California to cause cancer and birth
defects or other reproductive harm. Wash hands after handling. For more information go to www.P65Warnings.ca.gov.
mWARNING! This product or its power cord contains chemicals, including lead, known to the State of California
to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For more information go to
www.P65Warnings.ca.gov.
mWARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
contains chemicals known [to the State of California] to cause cancer, birth defects, or other reproductive harm. Some
examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks
that are specically designed to lter out microscopic particles. For more information go to www.P65Warnings.ca.gov.
