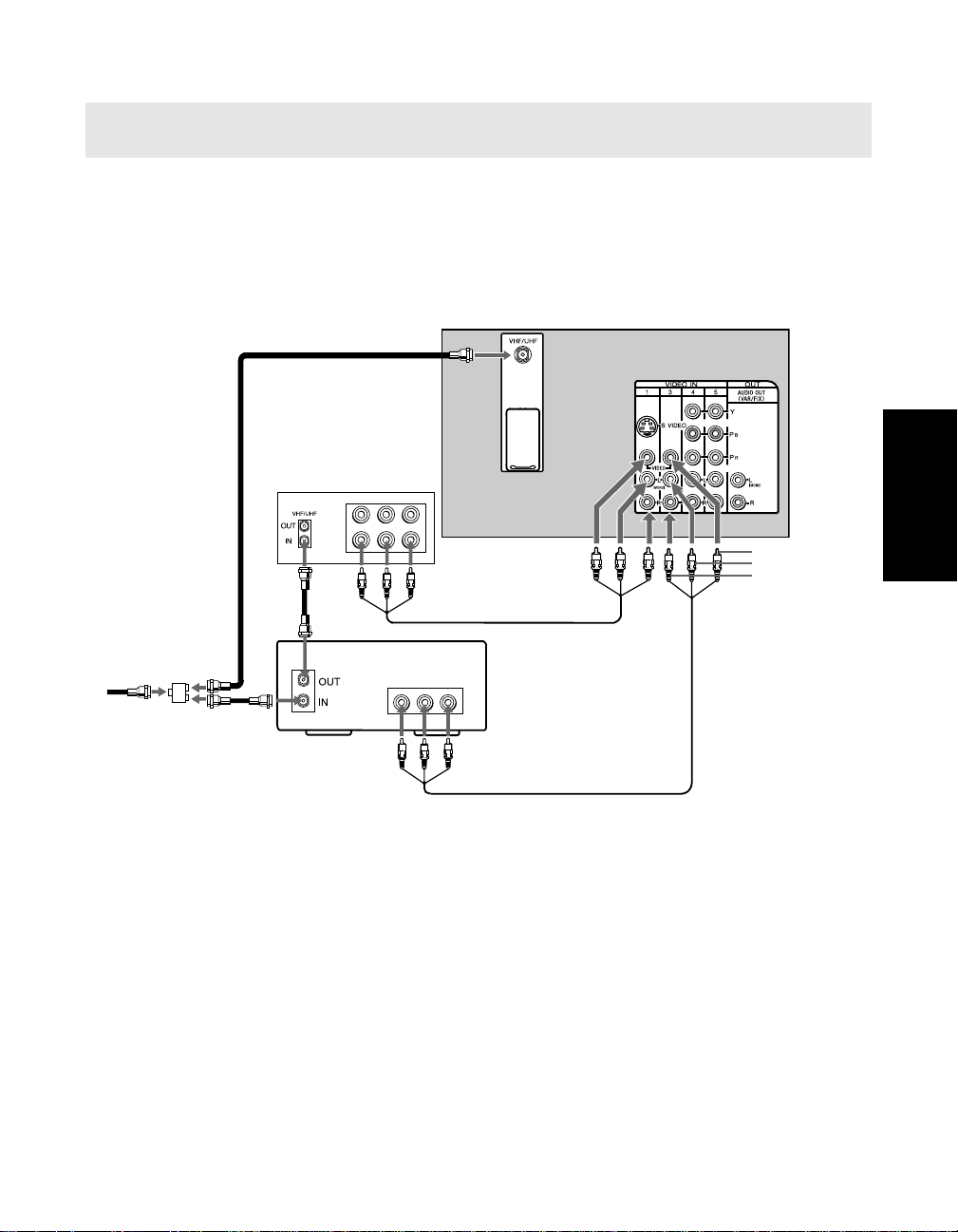

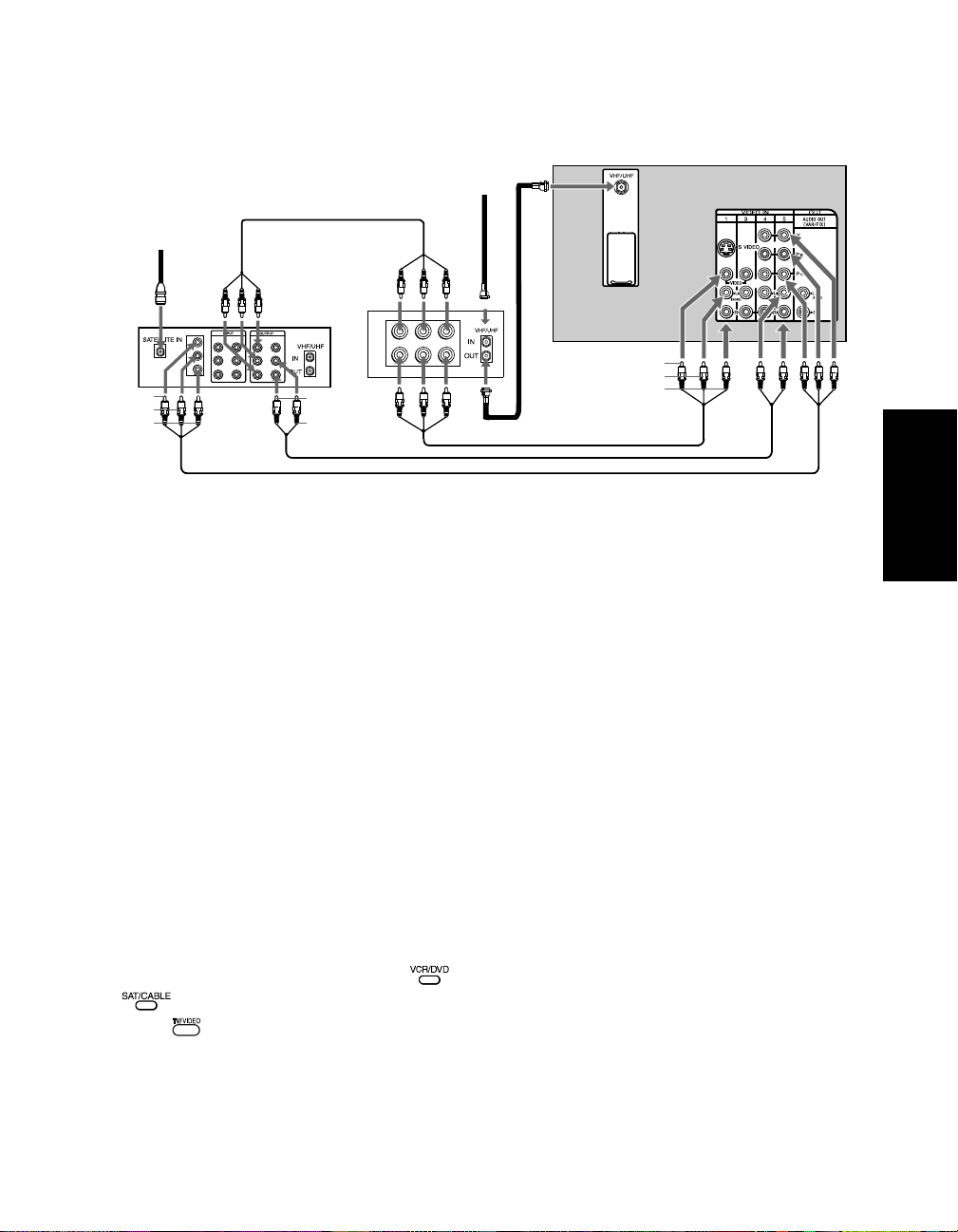

Connecting Additional Equipment
2-591-502-21(1)
KD-32FS130
KD-36FS130
© 2005 by Sony Corporation
Operating Instructions
01US01COV-BR2.book Page 1 Monday, March 28, 2005 1:36 PM
User Guide
01US01COV-BR2.book Page 2 Monday, March 28, 2005 1:36 PM
1
WARNING
To reduce the risk of fire or electric shock, do not expose the
TV to rain or moisture.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
This symbol is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
Note to the CATV Installer
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the
grounding system of the building as close to the point of
cable entry as practical.
SAFETY PRECAUTIONS
❏ Operate the TV only on 120 V AC.
❏ One blade of the power plug is wider than the other for
safety purposes and will fit into the power outlet only one
way. If you are unable to insert the plug fully into the
outlet, contact your dealer.
❏ If any liquid or solid object falls into the TV, unplug it and
have it checked by qualified personnel before operating it
further.
CAUTION
When using TV games, computers, and similar products
with your TV, keep the brightness and contrast functions at
low settings. If a fixed (non-moving) pattern is left on the
screen for long periods of time at a high brightness or
contrast setting, the image can be permanently imprinted
onto the screen. Continuously watching the same channel
can cause the imprint of station logos onto the TV screen.
These types of imprints are not covered by your warranty
because they are the results of misuse.
NOTIFICATION
This equipment has been tested and found to comply with
the limits for a Class B digital device pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference with radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
❏ Reorient or relocate the receiving antennas.
❏ Increase the separation between the equipment and
receiver.
❏ Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
❏ Consult the dealer or an experienced radio/TV technician
for help.
Protecting the TV
❏ To prevent internal heat build-up, do not block the
ventilation openings.
❏ Do not install the TV in a hot or humid place, or in a place
subject to excessive dust or mechanical vibration.
Note on Caption Vision
This television receiver provides display of television closed
captioning in accordance with § 15.119 of the FCC rules.
Use of this television for other than private viewing of
programs broadcast on UHF or VHF or transmitted by cable
companies for the use of the general public may require
authorization from the broadcaster-cable company and/or
program owner.
Owner’s Record
The model and serial numbers are located on the front cover
of this manual and at the rear of your TV.
Note
This television also includes a QAM demodulator which
should allow you to receive unscrambled digital cable
television programming via subscription service to a cable
service provider. Availability of digital cable television
programming in your area depends on the type of
programming and signal provided by your cable service
provider.
To reduce the risk of electric shock, do not use
this polarized plug with an extension cord,
receptacle, or other outlet unless the blades can
be fully inserted to prevent blade exposure.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
ATTENTION
CAUTION
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
NO ABRIR
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
✍
You are cautioned that any changes or modifications
not expressly approved in this manual could void
your authority to operate this equipment.
01US01COV-BR2.book Page 1 Monday, March 28, 2005 1:36 PM
2

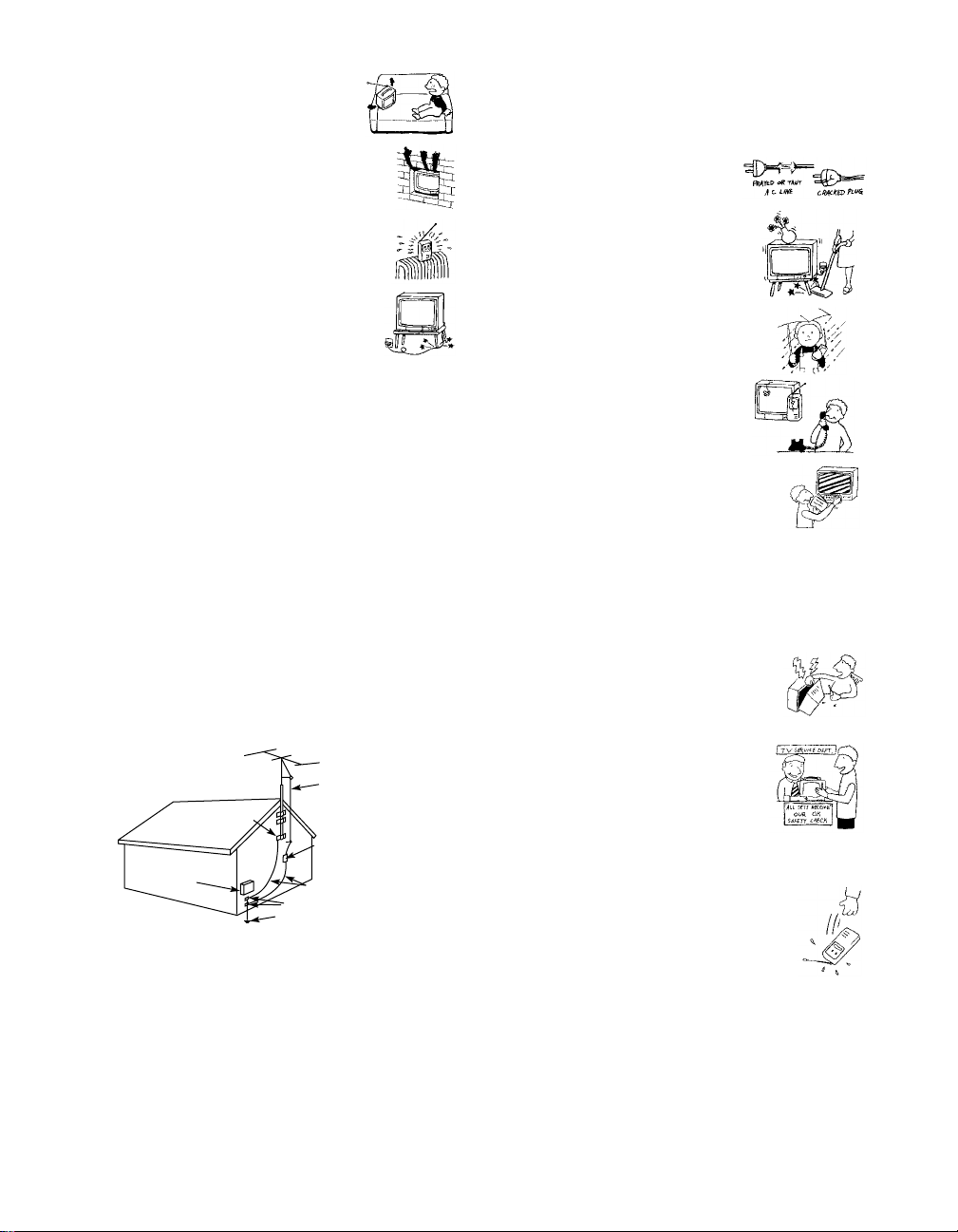

IMPORTANT SAFEGUARDS
For your protection, please read these instructions
completely, and keep this manual for future reference.
Carefully observe and comply with all warnings, cautions
and instructions placed on the set, or described in the
operating instructions or service manual.
WARNING
To guard against injury, the following basic safety
precautions should be observed in the installation, use, and
servicing of the set.
Use
Power Sources
This set should be operated only from
the type of power source indicated on
the serial/model plate. If you are not
sure of the type of electrical power
supplied to your home, consult your
dealer or local power company. For
those sets designed to operate from
battery power, refer to the operating instructions.
Grounding or Polarization
This set may be equipped with a
polarized alternating current line plug
(a plug having one blade wider than
other). This plug will fit into the
power outlet only one way. This is a
safety feature. If you are unable to
insert the plug fully into the outlet, try reversing the plug. If
the plug still fails to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the
polarized plug.
For the set with a three-wire grounding type AC plug
This plug will only fit into a
grounding-type power outlet. This is
a safety feature. If you are unable to
insert the plug into the outlet, contact
your electrician to have a suitable
outlet installed. Do not defeat the
safety purpose of the grounding plug.
Overloading
Do not overload wall
outlets, extension
cords or convenience
receptacles beyond
their capacity, since
this can result in fire
or electric shock.
Always turn the set off when it is not to be used. When the
set is left unattended and unused for long periods of time,
unplug it from the wall outlet as a precaution against the
possibility of an internal malfunction that could create a fire
hazard.
Do not disconnect the antenna or the power cord during a
heavy storm. Lightning may strike while you are holding
the cable or cord, causing serious injury. Turn off your TV
and wait for the weather to improve.
Object and Liquid Entry
Never push objects of any kind into the set
through the cabinet slots as they may touch
dangerous voltage points or short out parts
that could result in a fire or electric shock.
Never spill liquid of any kind on the set.
Attachments
Do not use attachments not recommended
by the manufacturer, as they may cause
hazards.
Do not place any objects, especially heavy
objects, on top of the set. The object may
fall from the set, causing injury.
Cleaning
Unplug the set from the wall outlet before
cleaning or polishing it. Do not use liquid
cleaners or aerosol cleaners. Use a cloth
lightly dampened with water for cleaning
the exterior of the set.
If a snapping or popping sound from a TV set
is continuous or frequent while the TV is
operating, unplug the TV and consult your
dealer or service technician. It is normal for
some TV sets to make occasional snapping or
popping sounds, particularly when being
turned on or off.
Installation
Always use two or more people to lift or move the set. The
set is heavy and the bottom surface is flat. Serious injury can
result from trying to move the set by yourself alone, or from
unsteady handling.
Install the set on a stable, level surface.
Water and Moisture
Do not use power-line
operated sets near water —
for example, near a bathtub,
washbowl, kitchen sink, or
laundry tub, in a wet
basement, or near a
swimming pool, etc.
Accessories
Do not place the set on
an unstable cart, stand,
tripod, bracket, table,
or shelf. The set may
fall, causing serious
injury to a child or an
adult, and serious
damage to the set. Use
only a cart or stand recommended by the manufacturer for the
specific model of TV. Any mounting of the product should
follow the manufacturer’s instructions, and should use a
mounting accessory recommended by the manufacturer. An
appliance and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause
the appliance and cart combination to overturn.
Ventilation
The slots and openings in the cabinet and in the back or
bottom are provided for necessary ventilation. To ensure
reliable operation of the set, and to protect it from
overheating, these slots and openings must never be
blocked or covered.
• Never cover the slots and openings
with a cloth or other materials.
01US01COV-BR2.book Page 2 Monday, March 28, 2005 1:36 PM
3
•
Never block the slots and openings
by placing the set on a bed, sofa, rug
or other similar surface.
•
Never place the set in a confined
space, such as a bookcase or built-in
cabinet, unless proper ventilation is
provided.
• Do not place the set near or over a
radiator or heat register, or where it is
exposed to direct sunlight.
Power-Cord Protection
Do not allow anything to rest on or roll over the
power cord, and do not place the set where the
power cord is subject to wear or abuse.
Antennas
Outdoor Antenna Grounding
If an outdoor antenna is installed, follow the precautions
below. An outdoor antenna system should not be located in
the vicinity of overhead power lines or other electric light or
power circuits, or where it can come in contact with such
power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA
SYSTEM, EXTREME CARE SHOULD BE TAKEN TO KEEP
FROM CONTACTING SUCH POWER LINES OR
CIRCUITS AS CONTACT WITH THEM IS ALMOST
INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide some
protection against voltage surges and built-up static charges.
Section 810 of the National Electrical Code (NEC) in USA and
Section 54 of the Canadian Electrical Code in Canada
provides information with respect to proper grounding of the
mast and supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding conductors,
location of antenna discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.
Antenna Grounding According to the NEC
Antenna Grounding According to the National Electrical
Code, ANSI/NFPA 70.
Lightning
For added protection for this television receiver during a
lightning storm, or when it is left unattended and unused
for long periods of time, unplug it from the wall outlet and
disconnect the antenna. This will prevent damage to the
receiver due to lightning and power-line surges.
Service
Damage Requiring Service
Unplug the set from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
•
When the power cord or plug
is damaged or frayed.
• If liquid has been spilled
into the set or objects have
fallen into the product.
• If the set has been exposed to
rain or water.
• If the set has been subject to
excessive shock by being
dropped, or the cabinet has
been damaged.
•
If the set does not operate
normally when following the operating
instructions. Adjust only those controls
that are specified in the operating
instructions. Improper adjustment of
other controls may result in damage and
will often require extensive work by a
qualified technician to restore the set to normal operation.
• When the set exhibits a distinct change in
performance — this indicates a need for service.
Servicing
Do not attempt to service the set yourself
since opening the cabinet may expose you
to dangerous voltage or other hazards. Refer
all servicing to qualified service personnel.
Replacement Parts
When replacement parts are required, be
sure the service technician certifies in
writing that he has used replacement
parts specified by the manufacturer that
have the same characteristics as the
original parts. Unauthorized
substitutions may result in fire, electric
shock, or other hazards.
Safety Check
Upon completion of any service or repairs to
the set, ask the service technician to perform
routine safety checks (as specified by the
manufacturer) to determine that the set is in
safe operating condition, and to so certify.
When the set reaches the end of its useful life,
improper disposal could result in a picture
tube implosion. Ask a qualified service
technician to dispose of the set.
GROUND
CLAMP
ELECTRIC
SERVICE
EQUIPMENT
NEC - NATIONAL ELECTRIC CODE
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ARTICLE 250, PART H)
01US01COV-BR2.book Page 3 Monday, March 28, 2005 1:36 PM
Trademarks and Copyrights
Manufactured under license from Dolby
Laboratories Licensing Corporation. Dolby
and the double-D symbol are trademarks of
Dolby Laboratories.
As an ENERGY STAR® Partner, Sony
Corporation has determined that this
product meets the ENERGY STAR®
guidelines for energy efficiency. ENERGY
STAR® is a U.S. registered mark.
SRS and the ( )® symbol are trademarks of
SRS Labs, Inc.
Manufactured under license from BBE Sound,
Inc. Licensed by BBE Sound, Inc. under USP
4638258, 5510752 and 5736897. BBE and BBE
symbol are registered trademarks of BBE
Sound, Inc.
WEGA, FD Trinitron and Steady Sound are registered
trademarks of Sony Corporation.
01US01COV-BR2.book Page 4 Monday, March 28, 2005 1:36 PM
5
Contents
Introduction
Introducing the FD Trinitron WEGA
Features ......................................................7
About this Manual ...........................................8
Batteries for the Remote Control ...................8
Front Panel Menu Controls ............................8
Using the Remote Control
Remote Control Description...........................9
Programming the Remote Control ..............11
Using your TV Remote Control with Other
Equipment................................................13
Connecting Your TV
TV Rear Panel ................................................15
Basic Connections ..........................................16

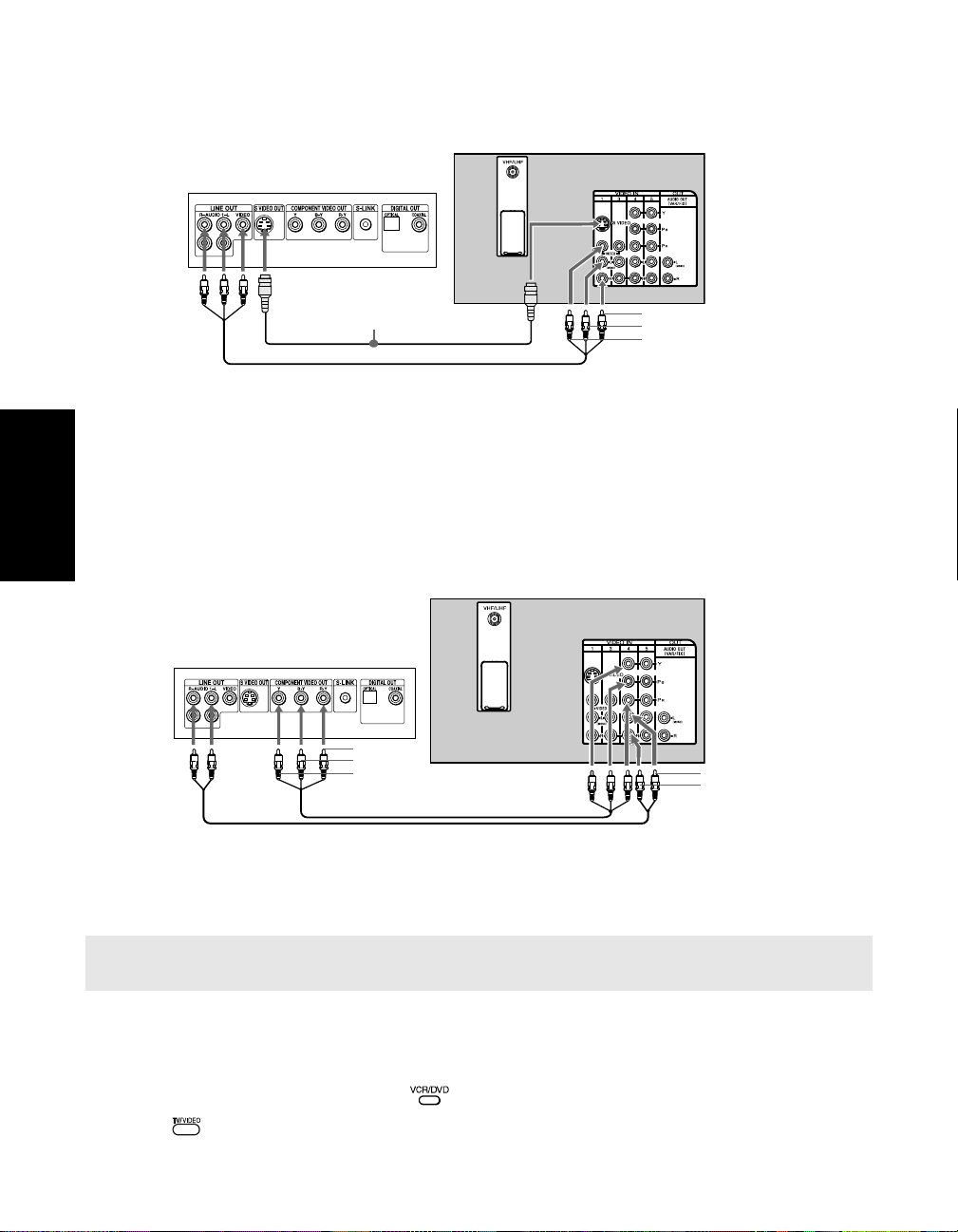

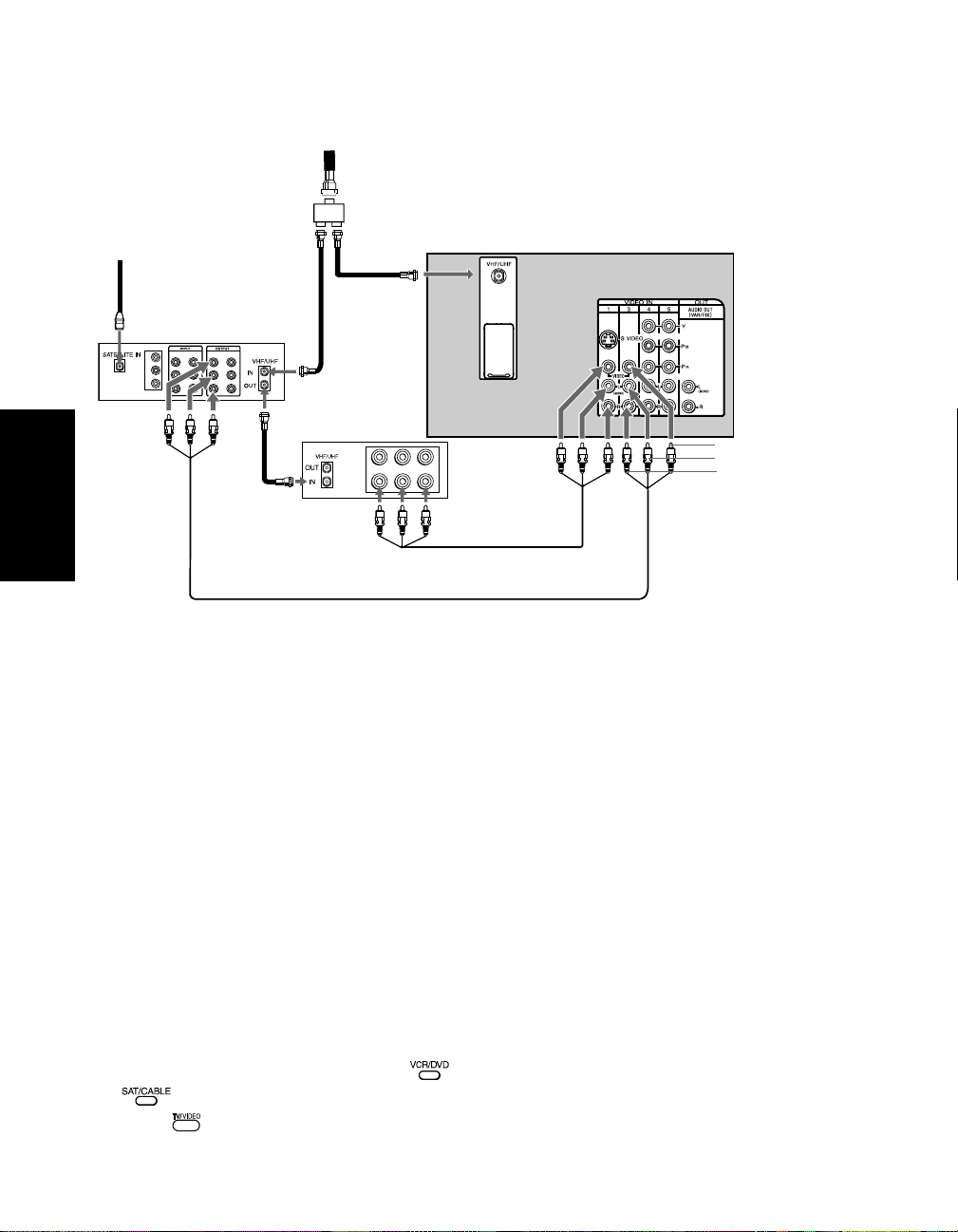

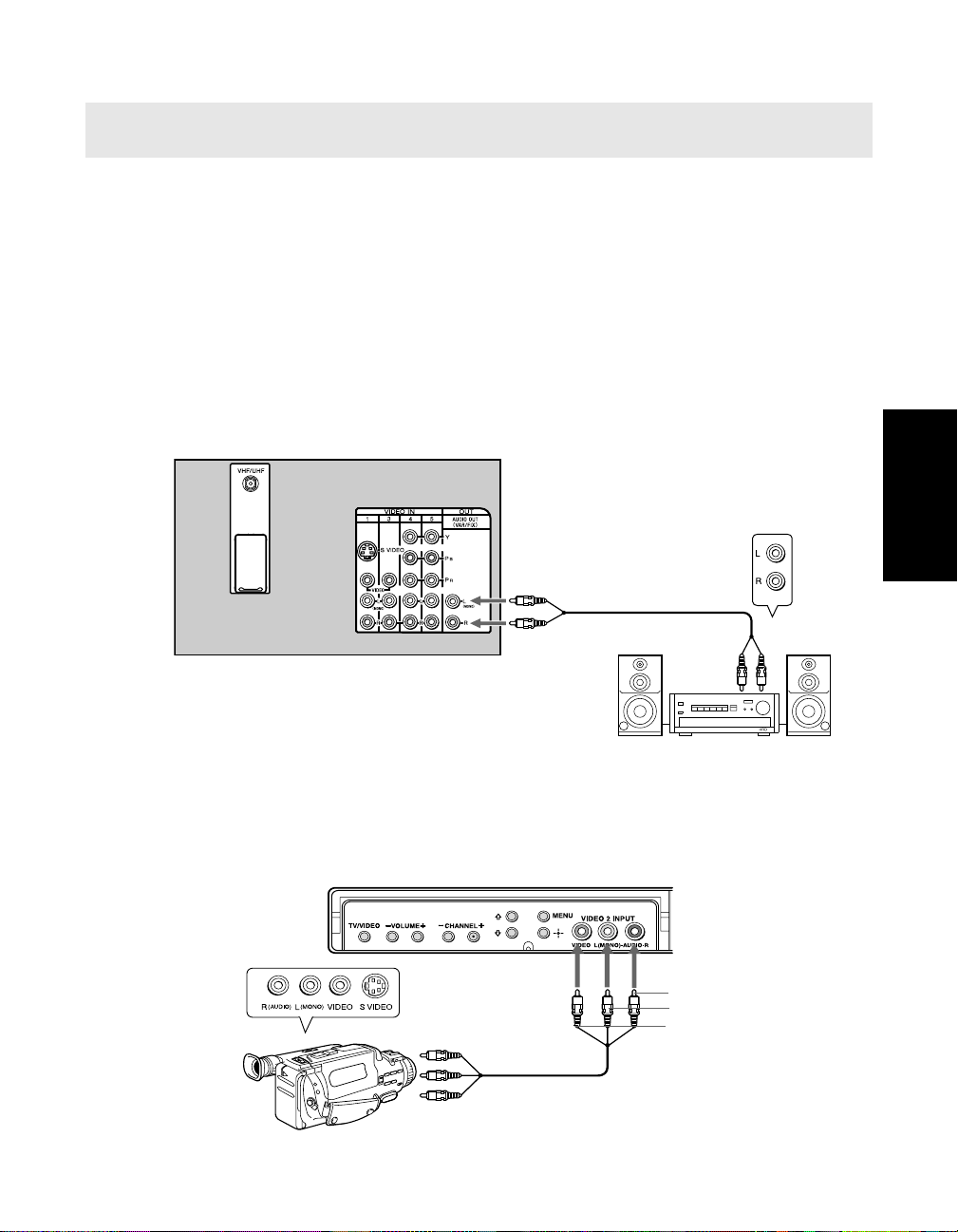

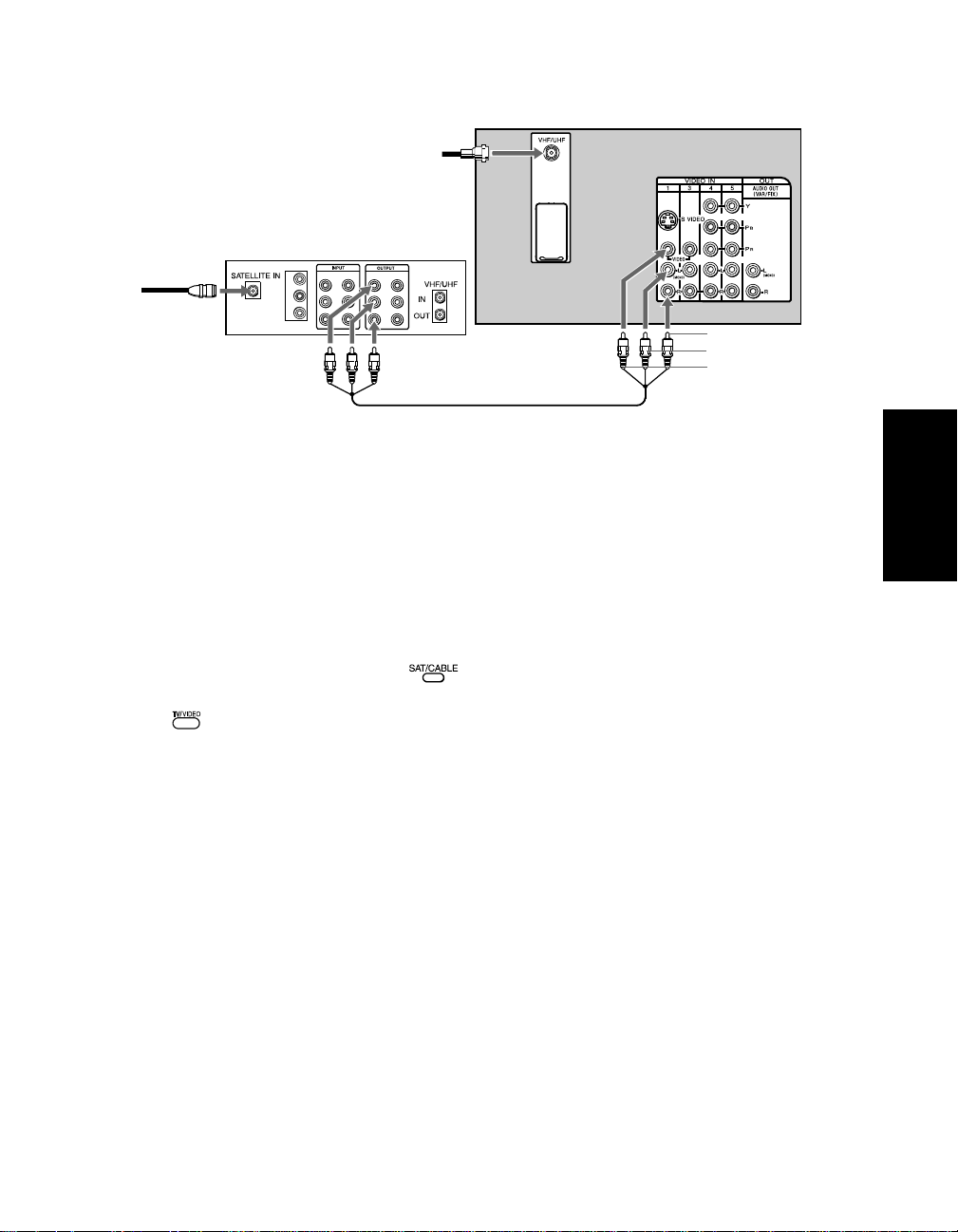

Connecting Additional Equipment .............17
Setting Up the TV ........................................27
Using the Digital Features
Overview .........................................................29
Tuning to a Digital Channel .........................29

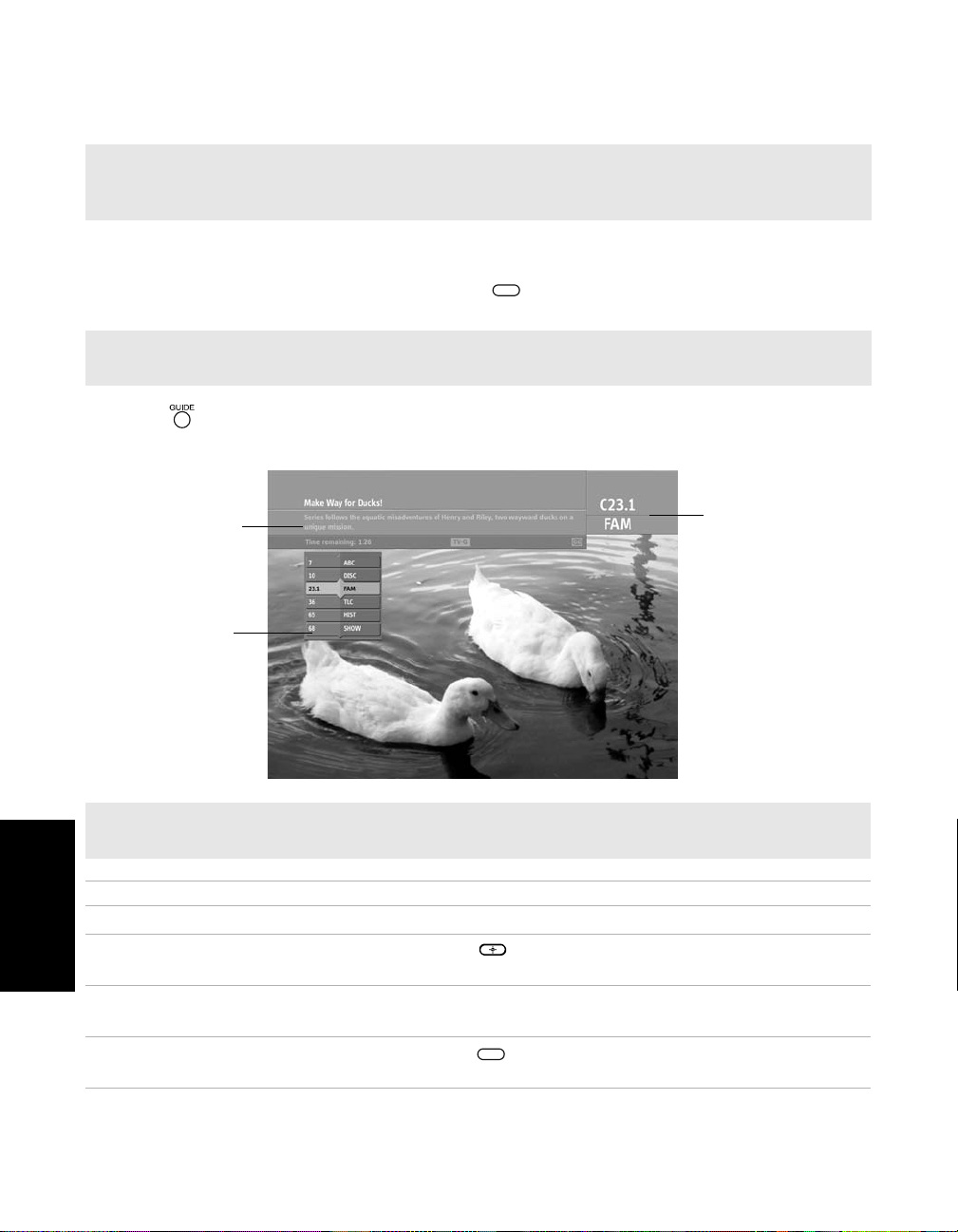

Using the Digital Program Guide................30
Using the Screen Mode Feature ...................32
Using Digital Favorite Channels..................33

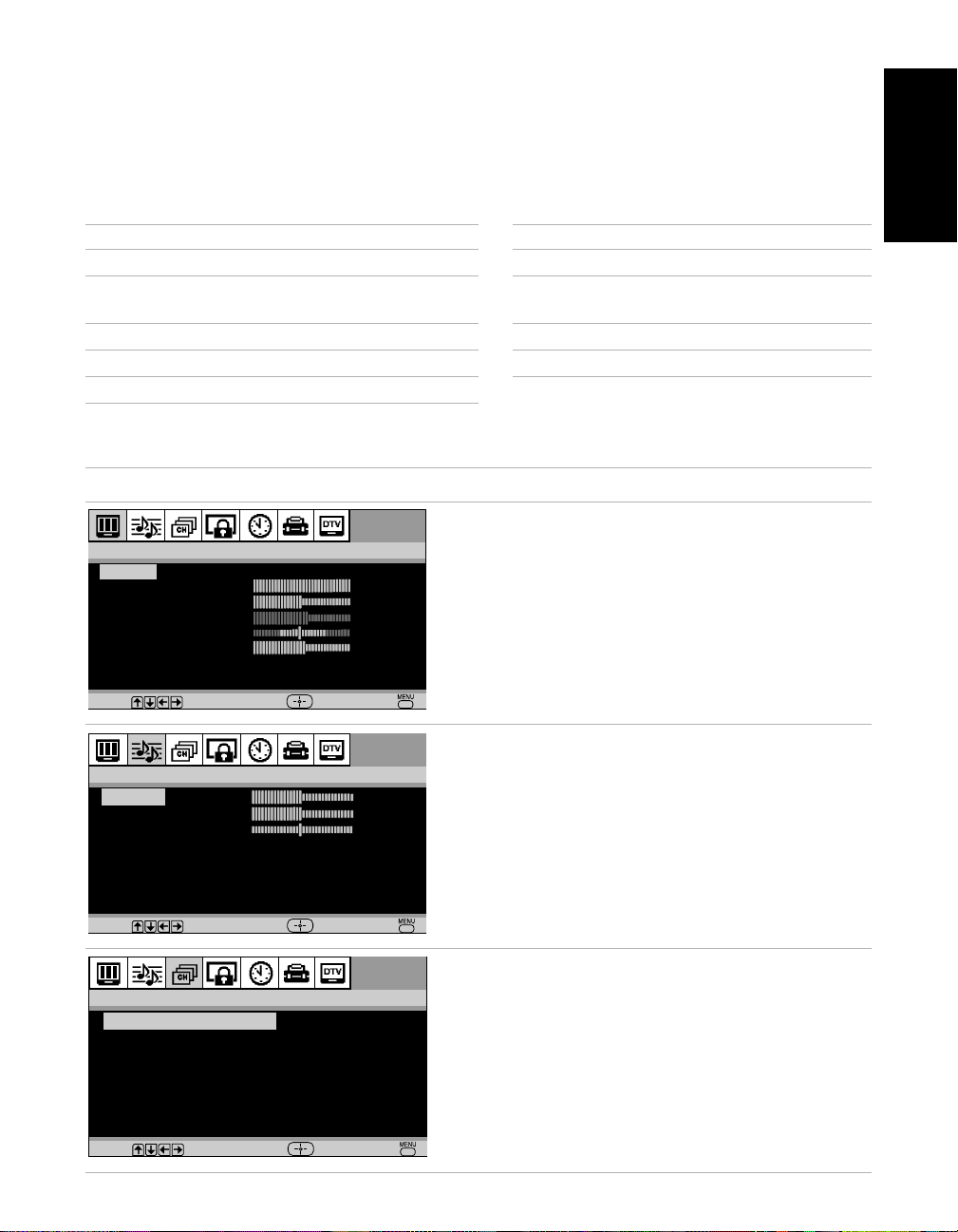

Using the Analog Menus
Overview ........................................................ 35
Menu Descriptions ........................................ 35
Using the Remote Control to
Navigate the On-Screen
Analog Menus......................................... 37

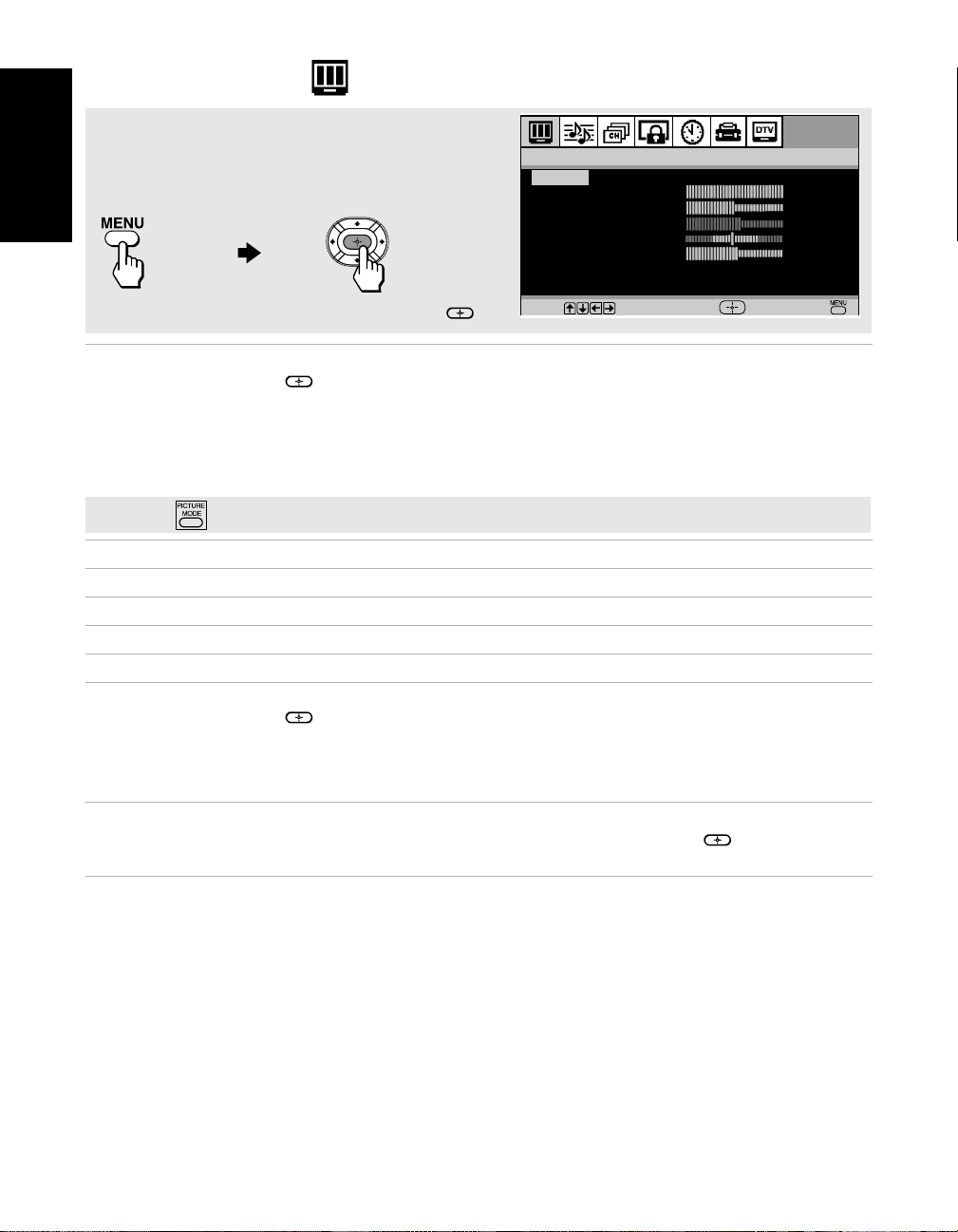

Using the Video Menu ................................. 38
Using the Audio Menu ................................ 39
Using the Channel Setup Menu ................. 41
Using the Parental Control Menu .............. 43
Parental Control ......................................... 44
United States:
Selecting Custom Rating Options .... 46
Canada:
Selecting Custom Rating Options .... 48

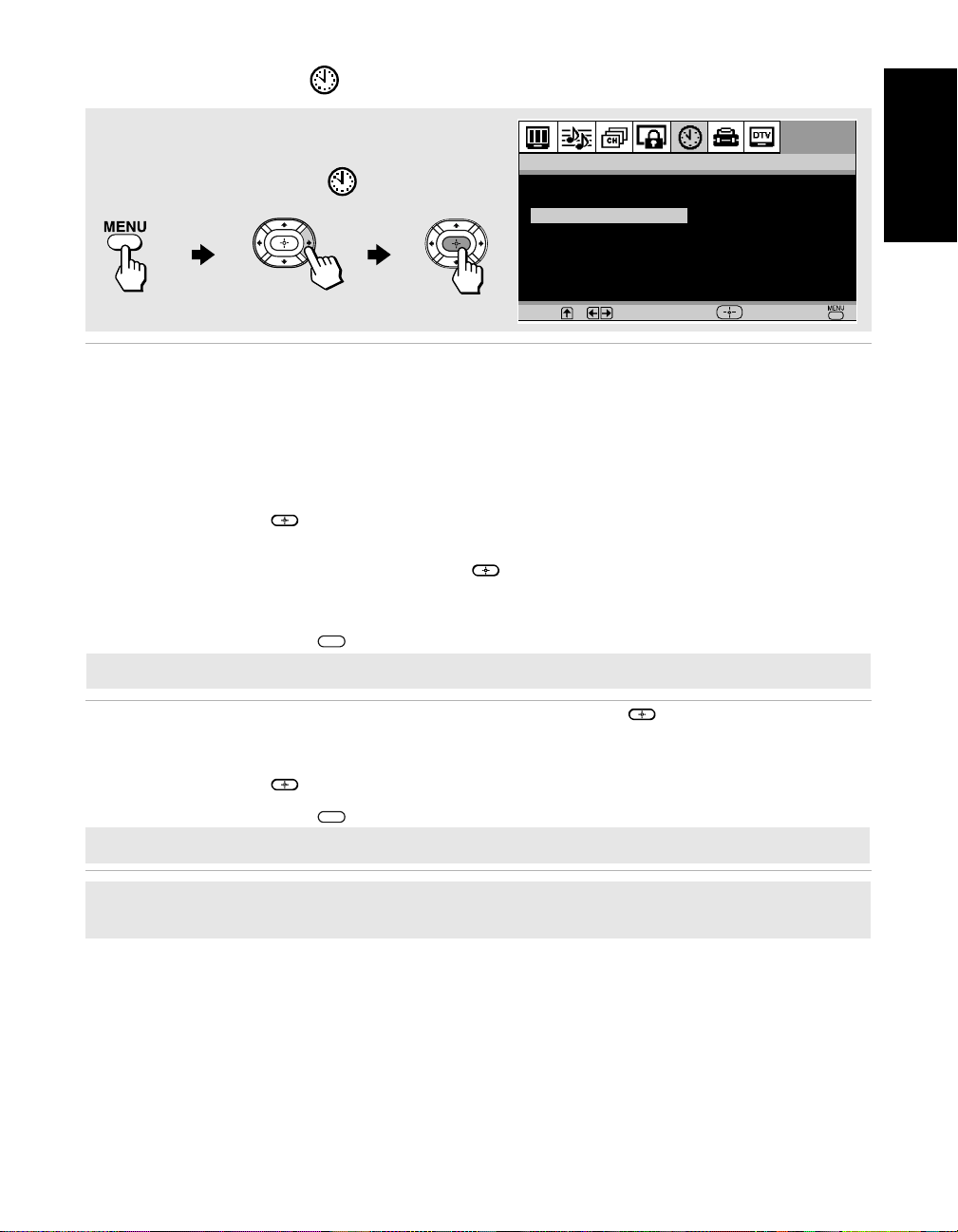

Using the Timer Menu................................. 49

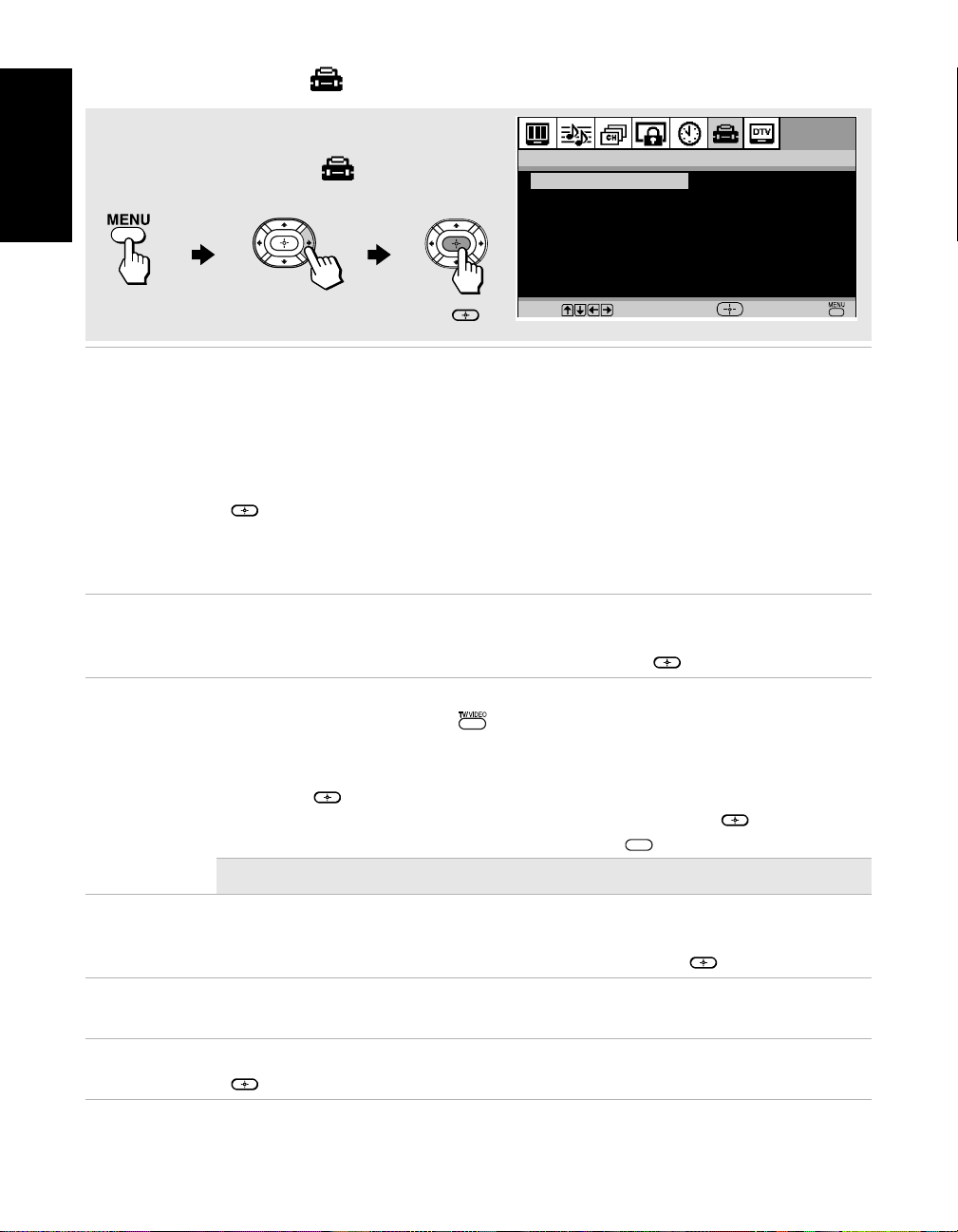

Using the Setup Menu ................................. 50

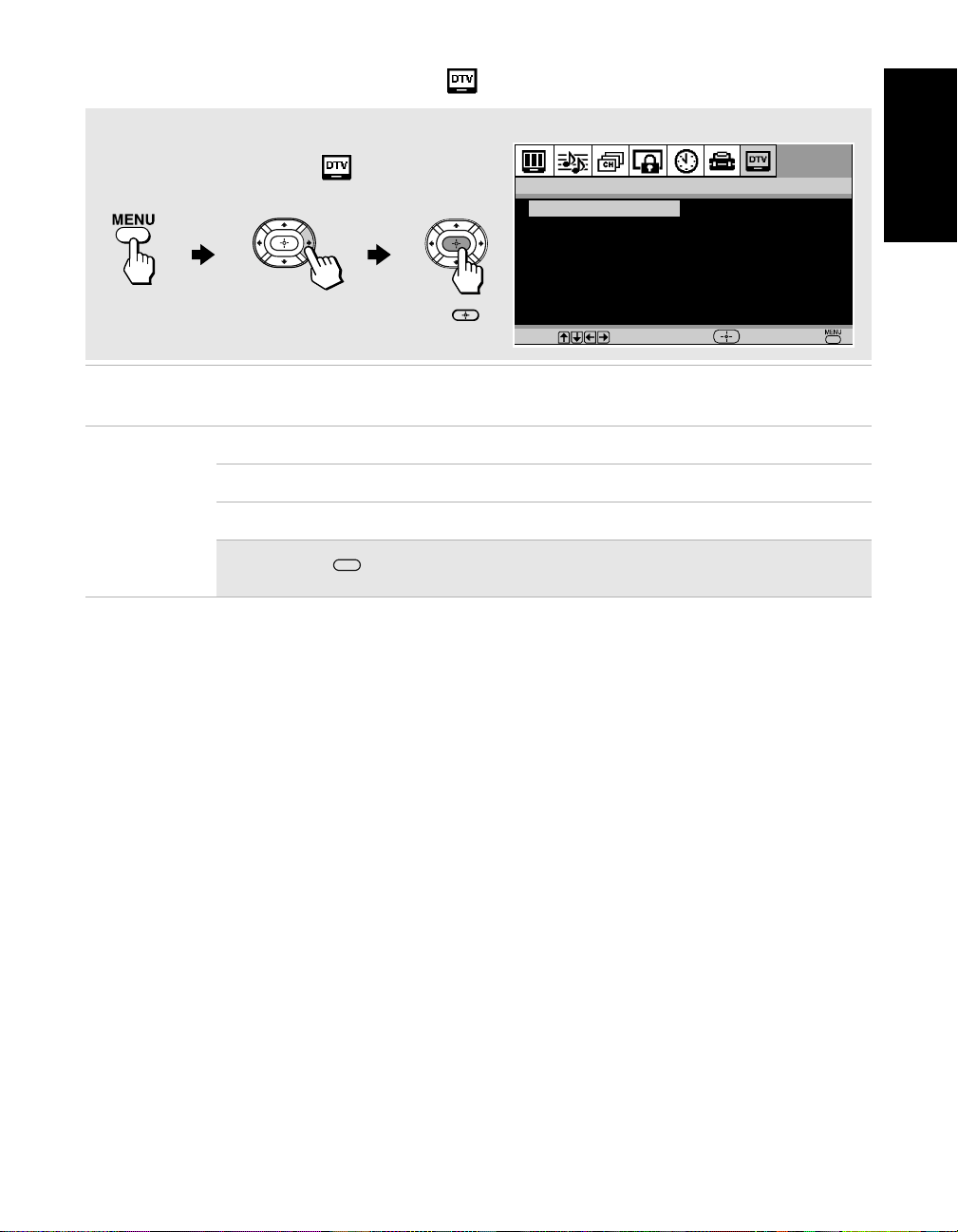

Using the Digital Features Menu ............... 51

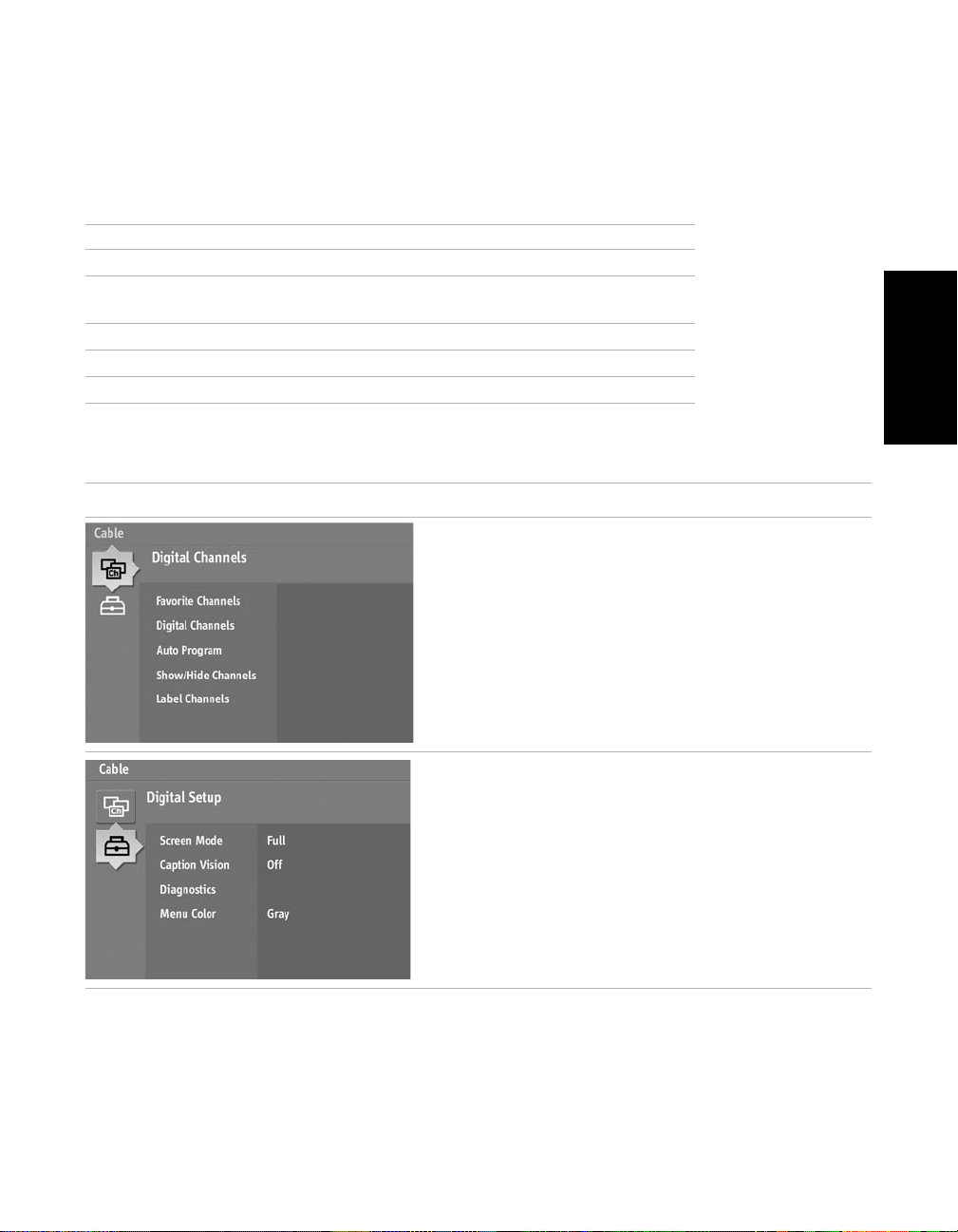

Using the Digital Menus
Overview ........................................................ 53
Menu Descriptions ........................................ 53
Using the Remote Control to
Navigate the On-Screen
Digital Menus.......................................... 54
Displaying Digital Menus ............................ 54

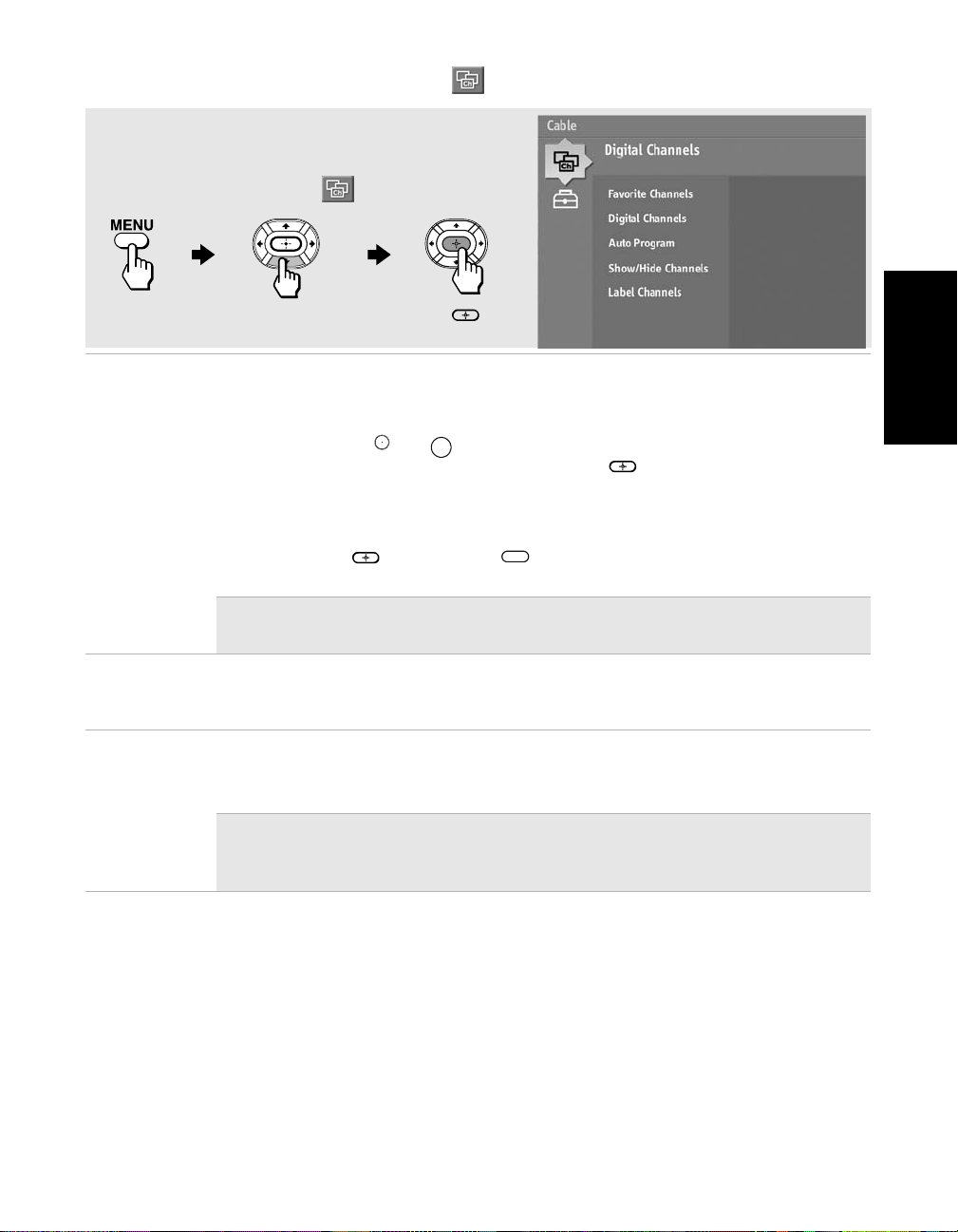

Using the Digital Channels Menu............... 55
Using the Digital Setup Menu .................... 57
Other Information
Troubleshooting............................................. 59
Specifications.................................................. 63
Index....................................................... 65
01US01COV-BR2.book Page 5 Monday, March 28, 2005 1:36 PM
01US01COV-BR2.book Page 6 Monday, March 28, 2005 1:36 PM
7
Introduction
Introduction
Congratulations on your purchase of the Sony FD Trinitron WEGA
®
.
Introducing the FD Trinitron WEGA Features
Some of the features you will enjoy include:
❏ FD Trinitron Flat CRT — Delivers a picture with uncompromising accuracy and
outstanding image detail via a technologically advanced tube.
❏ Analog and Digital Receivers — Built-in tuners allow you to receive both analog (NTSC)
and digital (ATSC and clear-QAM) programming. Digital programming is available via
terrestrial signals (over-the-air) or unscrambled cable signals provided by your cable
company. (Contact your cable provider for details of digital cable programming
availability and restrictions.)
❏ Wide Screen Mode — Watch digital 16:9 (widescreen) broadcasts in their original
widescreen format, or zoom to fill the 4:3 aspect ratio screen.
❏ Y PB PR Inputs — Provides component video inputs for superior picture quality
(480i only).
❏ BBE — Gives sound more impact by using audio technology to compensate for phase
effects in speakers.
❏ SRS — Produces a dynamic three-dimensional sound for stereo programs.
❏ Parental Control (V-Chip) — Helps parents monitor what their children watch on TV by
establishing rating limits.
❏ ClearEdge VM — Sharpens picture definition to give objects a crisp, clean edge.
❏ Favorite Channels — Enables you to set up separate Favorite Channel lists for analog and
digital channels.
❏ Digital Program Guide — Select digital channels from an on-screen program guide.
❏ Universal Remote Control — Operates your connected cable box, VCR, digital satellite
receiver, DVD player, or DVD/VCR combination unit.
❏ Energy Star
®
— Meets the Energy Star guidelines for energy efficiency.
❏ Front Panel Controls — Allows access to the on-screen menus without the use of a remote
control.
❏ Front A/V Inputs — Lets you quickly connect video games, camcorders, or stereo/mono
equipment.
01US01COV-BR2.book Page 7 Monday, March 28, 2005 1:36 PM
8
Introduction
About this Manual
This manual provides instructions to help you enjoy your new TV. It shows you how to
connect to an antenna or cable, cable box, VCR, DVD, satellite receiver, stereo system, or
camcorder. Once your TV is connected, follow the instructions and use the remote control to
access the on-screen menus.
Batteries for the Remote Control
Insert two AA (R6) batteries (supplied) into the remote control using the following illustration
as a guide.
Front Panel Menu Controls
The front Audio/Video panel controls allow you to access the menu without the remote
control.
❏ Press the MENU button to display the on-screen menu.
❏ Use the F and f buttons on the front Audio/Video panel instead of your remote control.
❏ Use the button on the front Audio/Video panel to navigate through the menus, then
select an item. The front panel controls also allow you to change your channels
(
-CHANNEL+), adjust the volume (-VOLUME+), and change video inputs (TV/VIDEO).
✍ Under normal conditions, batteries will last up to six months. If the remote control does not operate
properly, the batteries might be worn out.
✍ If you will not be using the remote control for an extended period of time, remove the batteries to
avoid possible damage from battery leakage.
✍ To navigate the menus with your remote control, see pages 37 and 54.
4-089-016
>
PC
<
01US01COV-BR2.book Page 8 Monday, March 28, 2005 1:36 PM
9
Remote Control
Using the Remote Control
Remote Control Description
Button Description
1
MUTING Press to turn off the sound. Press again or press VOL+
to restore sound.
2
SYSTEM
OFF
Press to turn off the equipment programmed into the
remote control. See “Programming the Remote
Control” on page 11. This button does not work with
DVD/VCR combo units, and may not work with older
Sony equipment.
3
TV/VCR/DVD Press to change the VHF/UHF output of the VCR (or
DVD/VCR combination unit). If you have a non-Sony
VCR or DVD, you will need to program the remote
control to recognize your VCR or DVD. For details, see
“Programming the Remote Control” on page 11.
4
JUMP Press to jump back and forth between the current
channel and the last channel that you selected
. (JUMP
does not switch between analog and digital channels.)
5
SLEEP Press repeatedly until the TV displays the time in
minutes (15, 30, 45, 60, or 90) that you want the TV to
remain on before shutting off automatically. Cancel by
pressing until Sleep Off appears.
6
EXIT Press to exit menus and other on-screen displays.
7
MODE
Press repeatedly to step through the available video
picture modes: Vivid, Standard, Movie, and Pro. Also
available in the Video menu. See “Using the Video
Menu” on page 38 for details.
8
SCREEN
MODE
D
Press to toggle among the Screen Mode options. For
details on using Screen Mode, see page 32. Also available
in the Digital Setup menu (see page 57).
9
D
Use with 0-9 and
ENTER
buttons to select digital
channels (for example, 2.1). For details on selecting digital
channels, see page 29.
0
ANALOG
/DIGITAL
Press to switch between analog and digital tuning
modes.
qa
RESET Press to return to factory settings while in an
on-screen menu.
qs
VOL
(volume)
Press (+) or (-) to adjust the volume.
qd
CODE SET Press to program your remote control to operate
connected video equipment. See “Programming the
Remote Control” on page 11.
D Indicates feature available only in digital tuning mode.
JUMP
SLEEP
ANALOG
/ DIGITAL
SCREEN FAVORITES
EXIT
TV/SAT
MODE
qg
qh
qj
ql
w;
wa
qf
ws
wd
wf
wg
qk
9
0
qa
qs
qd
A
B
C
6
7
D
5
8
01US01COV-BR2.book Page 9 Monday, March 28, 2005 1:36 PM
10
Remote Control
qf
POWER
buttons
Press to turn on and off the TV and other audio/video
equipment you have programmed into the remote
control. For instructions, see “Programming the
Remote Control” on page 11.
qg
FUNCTION
buttons
Press to select the equipment (VCR/DVD, SAT/
CABLE, TV) that you want to operate with the remote
control. The indicator (LED) lights up momentarily
when pressed to show which device the remote
control is operating.
qh
VCR/DVD
(operating)
Press to operate your VCR or DVD. The VCR or DVD
must be programmed into the remote control. For
instructions, see “Programming the Remote Control”
on page 11.
and
(to record)
Press the button and the button at the same
time to record programs with your VCR. The remote
control must be programmed before you can record.
m Rewind.
M Fast-forward.
Play.
x Stop.
X
Pause. Press again to resume normal playback.
qj
TV/VIDEO Press to cycle through available video inputs.
qk
TV/SAT Press to switch between the TV and SAT (satellite)
inputs when in SAT FUNCTION mode.
Press for a direct selection of Effect settings (Simulated,
SRS, Off) when the remote is in TV FUNCTION mode.
See “Using the Audio Menu” on page 39 for details.
ql
DISPLAY Press once to display the current time (if set) and the
program status such as channel number, Channel
Label (if set), video input, Video Label (if set), and Info
Banner (if set). Press again to turn off the display.
w;
FAVORITES
Press to display the analog or digital Favorite Channels
list, depending on the current tuning mode (analog or
digital).
wa
and
ENTER
Press to change channels. The channel changes after
two seconds.
ws
GUIDE D Press to display the digital program guide. For
details, see page 30.
wd
Press the arrow buttons to move the cursor in the on-
screen menus. Press the center button to select an
option. (If no menu or display is shown, pressing the
center button displays the Favorite Channels list.)
wf

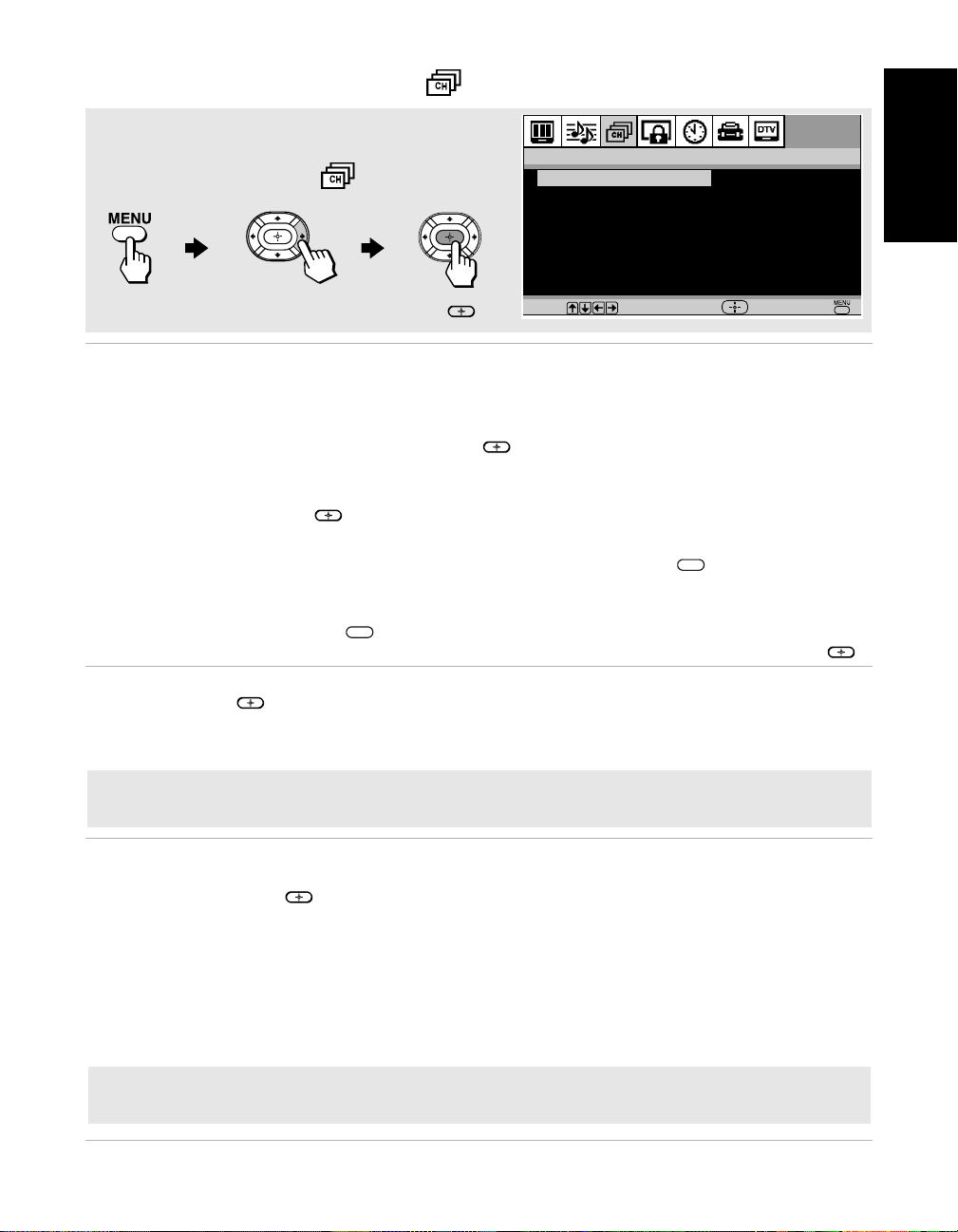

MENU Press to display and exit the analog menu. For details,
see page 35. (To display the digital menu, see page 54.)
wg
CH (channel)
Press to change analog or digital channels, depending on
the current tuning mode (analog or digital). To scan
rapidly through the channels, press and hold down the
CH+
or
CH-
button.
D Indicates feature available only in digital tuning mode.
✍ If you lose your remote control, see page 60.
Button Description
0 9
01US01COV-BR2.book Page 10 Monday, March 28, 2005 1:36 PM
11
Remote Control
Programming the Remote Control
If you have video equipment other than Sony brand (or if you have a Sony DVD/VCR
combination unit) that you want to control with the TV’s remote control, use the following
procedure to program the remote control.
1 Check the list of “Manufacturer’s Codes” on page 12 and find the three-digit code number
for the manufacturer of your component. If more than one code number is listed, use the
number listed first.
2 Press .
3 Press or FUNCTION button to indicate the type of component you want to
program with the remote control.
4 Use the buttons to enter the three-digit manufacturer’s code number.
5 Press .
6 To check if the code number works, aim the TV’s remote control at the component and
press the green
POWER button (VCR/DVD, SAT/CABLE) that corresponds with that
component. If it responds, you are done. If not try using another code listed for that
manufacturer.
✍ The and FUNCTION button flash when you press .
✍ You must do step 4 within 10 seconds of step 3, or you must redo steps 2 and 3.
✍ If you have problems programming your remote control, see the remote control troubleshooting
section on page 60.
0 9
01US01COV-BR2.book Page 11 Monday, March 28, 2005 1:36 PM
12
Remote Control
Manufacturer’s Codes
VCRs
Manufacturer Code
Sony 301, 302, 303
Admiral
(M. Ward)
327
Aiwa 338, 344
Audio Dynamic 314, 337
Broksonic 319, 317
Canon 309, 308
Citizen 332
Craig 302, 332
Criterion 315
Curtis Mathes 304, 338, 309
Daewoo 341, 312, 309
DBX 314, 336, 337
Dimensia 304
Emerson 319, 320, 316, 317,
318, 341
Fisher 330, 335
Funai 338
General Electric 329, 304, 309
Go Video 322, 339, 340
Goldstar 332
Hitachi 306, 304, 305, 338
Instant Replay 309, 308
JC Penney 309, 305, 304, 330,
314, 336, 337
JVC 314, 336, 337, 345,
346, 347
Kenwood 314, 336, 332, 337
LXI (Sears) 332, 305, 330, 335,
338
Magnavox 308, 309, 310
Marantz 314, 336, 337
Marta 332
Memorex 309, 335
Minolta 305, 304
Mitsubishi/
MGA
323, 324, 325, 326
Multitech 325, 338, 321
NEC 314, 336, 337
Olympic 309, 308
Optimus 327
Panasonic 308, 309, 306, 307
Pentax 305, 304
Philco 308, 309
Philips 308, 309, 310
Pioneer 308
Quasar 308, 309, 306
RCA/PROSCAN 304, 305, 308, 309,
311, 312, 313, 310,
329
Realistic 309, 330, 328, 335,
324, 338
Sansui 314
Samsung 322, 313, 321
Sanyo 330, 335
Scott 312, 313, 321, 335,
323, 324, 325, 326
Sharp 327, 328
Shintom 315
Signature 2000
(M. Ward)
338, 327
SV2000 338
Sylvania 308, 309, 338, 310
Symphonic 338
Tashiro 332
Tatung 314, 336, 337
Teac 314, 336, 338, 337
Technics 309, 308
Toshiba 312, 311
Wards 327, 328, 335, 331,
332
Yamaha 314, 330, 336, 337
Zenith 331
Laserdisc Players
Manufacturer Code
Sony 701
Panasonic 704, 710
Pioneer 702
DVD/VCR Combination
Units
Manufacturer Code
Sony 601
Broksonic 605
JVC 604
Panasonic 609
Samsung 603
Toshiba 602
DVD Players
Manufacturer Code
Sony 751
Hitachi 758
JVC 756
Magnavox 757
Mitsubishi 761
Onkyo 762
Oritron 759
Panasonic 753
Philips 757
Pioneer 752
RCA 755
Samsung 758
Toshiba 754
Zenith 760
Cable Boxes
Manufacturer Code
Sony 230
Hamlin/Regal 222, 223, 224, 225,
226
Jerrold/G.I./
Motorola
201, 202, 203, 204,
205, 206, 207, 208,
218
Oak 227, 228, 229
Panasonic 219, 220, 221
Pioneer 211, 214, 215
Scientific Altanta 209, 210, 211
Tocom 216, 217
Zenith 212, 213
Satellite Receivers
Manufacturer Code
Sony 801
DIRECT TV 809
Dish Network 810
Echostar 810
General Electric 802
Hitachi 805
Hughes 804
Mitsubishi 809
Panasonic 803
Philips 811
RCA/PROSCAN 802, 808
Samsung 812
Toshiba 806, 807
01US01COV-BR2.book Page 12 Monday, March 28, 2005 1:36 PM
13
Remote Control
Using your TV Remote Control with Other Equipment
Operating a VCR
Press To
Activate the remote control to operate the VCR (
FUNCTION button)
Power on/off the VCR (
VCR/DVD green button)
or ,
(using tuner)
Change channels
Play video tape
Stop
or
Rewind or Fast-forward a video tape
Pause
and
(Simultaneously)
Record
Switch between VCR and TV inputs
Operating a DVD Player
Press To
Activate the remote control to operate the DVD (
FUNCTION button)
Power on/off the DVD (
VCR/DVD green button)
,
Select chapters
Search chapters forward or backward
Play DVD
Stop
Pause
or
Search the picture forward or backward during playback
Display the DVD menu
Use the arrow buttons to move the cursor in the menu, and the
center button to select an option
Switch between DVD and TV inputs
0 9
ENTER
0 9
ENTER
01US01COV-BR2.book Page 13 Monday, March 28, 2005 1:36 PM
14
Remote Control
Operating a Cable Box or Satellite Receiver
Press To
Activate the remote control to operate the cable box or satellite
receiver (
FUNCTION button)
Power on/off the cable box or satellite receiver (
SAT/CABLE green
button)
or ,
(using tuner)
Change channels
Change back to previous channel
Display channel number (satellite receiver)
Display SAT guide (satellite receiver)
Display SAT menu (satellite receiver)
Use the arrow buttons to move the cursor in the menu, and the
center button to select an option (satellite receiver)
Press to switch between the TV and SAT inputs (satellite receiver)
Operating a DVD/VCR Combination Unit
Press To
Activate the remote control to operate the
DVD/VCR (FUNCTION
button)
Power on/off the DVD/VCR Combination unit (
VCR/DVD green
button)
When the VCR is not playing, this button switches between the
DVD player and VCR’s tuner
Display the DVD menu
Play
Stop
Pause
or
Rewind or fast-forward a video tape (VCR)
Search the picture forward or backward during playback (DVD)
Use the arrow buttons to move the cursor in the menu, and the
center button to select an option (DVD)
and
(Simultaneously)
Record (VCR)
or ,
(using tuner)
Change channels (VCR)
0 9
ENTER
0 9
ENTER
01US01COV-BR2.book Page 14 Monday, March 28, 2005 1:36 PM
15
Connections
Connecting Your TV
Read this section before setting up your TV for the first time. This section explains how to
make the basic connections and how to connect optional equipment.
TV Rear Panel
Jack Description
1 VHF/UHF This input connects to your VHF/UHF antenna or cable.
2 S VIDEO This input connects to the S VIDEO OUT jack on your VCR or
other video equipment that has S VIDEO. S VIDEO provides
better picture quality than the VHF/UHF jacks or the video
input jack. S VIDEO does not provide sound, so you still must
connect the audio cables.
3 VIDEO/AUDIO
L(MONO), R
This input connects to the AUDIO/VIDEO output jacks on your
VCR or other video equipment. A third video input jack
(VIDEO 2) is located on the front panel of the TV. These
AUDIO/VIDEO input jacks provide better picture quality than
the VHF/UHF jack.
4
Y P
B
P
R
/ L, R
This input connects to the component video Y PB PR and AUDIO
L, R jacks on your DVD player or digital set-top box (480i only).
5 AUDIO OUT
(VAR/FIX)
L(MONO), R
This jack connects to the AUDIO input jacks on your audio
equipment. You can listen to your TV’s audio through your
stereo system.
45
1
2
3
01US01COV-BR2.book Page 15 Monday, March 28, 2005 1:36 PM
16
Connections
Basic Connections
TV with Cable, Indoor, or Outdoor Antenna
Depending on the cable system available in your home, choose one of the connections below:
Use option B to connect the TV to a dipole antenna, also known as a “rabbit ears antenna“
(usually found in older homes).
Connecting Two RF Inputs
If you want to watch RF signals for both antenna (over-the-air) and cable broadcast signals,
you’ll need to use an optional A-B switch for RF inputs (not supplied), as shown below.
✍ Converter EAC-25 is commercially known as a 300-to-75 ohm antenna adapter.
✍ If you are connecting to an indoor or outdoor antenna, you may need to adjust the orientation of the
antenna for the best reception.
✍ For best results, be sure to use an RF switch, as shown above, instead of a simple splitter.
Use option A to connect the TV to a cable system or an antenna with a 75-ohm cable
(usually built into newer homes).
A
B
Cable
Antenna
RF Switch
A/B
Use the A-B selector to switch between the
over-the-air signals and the cable signals.
Then set the Cable setting in the Channel
Setup menu to On or Off, as described on
page 41.
01US01COV-BR2.book Page 16 Monday, March 28, 2005 1:36 PM
17
Connections
Connecting Additional Equipment
Connecting a TV and VCR
1 Connect the coaxial cable from your TV antenna or cable service to the IN jack on your
VCR.
2 Connect a coaxial cable (not supplied) from the OUT jack on your VCR to the VHF/UHF
jack on the TV.
Optional connection
❏ If your VCR is equipped with video outputs, you can get better picture quality by
connecting audio/video cables (not supplied) from AUDIO/VIDEO OUT on your VCR to
AUDIO/VIDEO IN on your TV.
❏ For better picture quality, use S VIDEO instead of the yellow video cable. S VIDEO does
not provide sound, so you still must connect the audio cables.
Using your TV with this connection
❏ Program your Sony remote control to operate your VCR (see “Programming the Remote
Control” on page 11).
❏
To activate your remote, press the
FUNCTION
button to operate your VCR. In order to do
this, first program your remote control, then use the Channel Fix feature to set your TV to
channel 3 or 4 (see page 41).
❏ Press repeatedly to switch between VCR input (VIDEO input) and VHF/UHF
(local channels).
VIDEO
LINE
IN
LINE
OUT
AUDIO L AUDIO R
Optional connection
Audio R (red)
Video (yellow)
Audio L (white)
Rear of TV
VCR
2
1
From
cable/antenna
01US01COV-BR2.book Page 17 Monday, March 28, 2005 1:36 PM
18
Connections
Connecting a TV and Cable Box
Some cable TV systems use scrambled or encoded signals that require a cable box to view all
channels. If you subscribe to such type of service, use this connection.
1 Connect the coaxial cable from your cable service to the IN jack on your cable box.
2 Connect a coaxial cable (not supplied) from the OUT jack on your cable box to the
VHF/UHF jack on your TV.
Using your TV with this connection
❏ Program your Sony remote control to operate your cable box.
❏ To activate your remote, press the FUNCTION button to operate your cable box. Then
use
--9 buttons or CH+/- buttons to change the channels. In order to do this, first program
your remote control, then use the Channel Fix feature to set your TV to channel 3 or 4 (see
page 41).
VIDEO
LINE
OUT
AUDIO L AUDIO R
1
2
Rear of TV
Cable box
From cable/
antenna
01US01COV-BR2.book Page 18 Monday, March 28, 2005 1:36 PM
19
Connections
Connecting a TV, VCR, and Cable Box
Use this connection if you subscribe to a cable system that scrambles some channels (pay
channels), but not all of them. This setup allows you to:
❏ change channels through your cable box or VCR when you are receiving a
scrambled signal
❏ change channels through your TV
1 Connect the single input jack of the splitter (not supplied) to your incoming cable
connection.
2 Using coaxial cables (not supplied), connect the two output jacks of the splitter
(not supplied) to:
a) the IN jack on your cable box
b) the VHF/UHF jack on the TV
3 Using a coaxial cable (not supplied), connect the OUT jack on your cable box to the IN jack
on your VCR.
4 Using audio/video cables (not supplied), connect AUDIO/VIDEO OUT on your VCR to
AUDIO/VIDEO IN on your TV.
5 Using audio/video cables (not supplied), connect AUDIO/VIDEO OUT on your cable
box to AUDIO/VIDEO IN on your TV.
✍ DIGITAL CABLE BOX USERS: If you are connecting a digital cable box, you will need a special bi-
directional splitter (5-900 Mhz minimum) that is designed to work with your digital cable box.
VIDEO
LINE
IN
LINE
OUT
AUDIO L AUDIO R
VIDEO
LINE
OUT
AUDIO L AUDIO R
VCR
Rear of TV
2a
1
4
Video (yellow)
Audio L (white)
Audio R (red)
Cable
2b
Splitter
5
Cable box
3
01US01COV-BR2.book Page 19 Monday, March 28, 2005 1:36 PM
20
Connections
Optional connection
❏ For better picture quality, use S VIDEO instead of the yellow video cable. S VIDEO does
not provide sound, so you still must connect the audio cables.
Using your TV with this connection
❏ Program your Sony remote control to operate your VCR or cable box (see page
“Programming the Remote Control” on page 11).
❏ To activate your remote, press the
FUNCTION button to operate your VCR or the
FUNCTION button to operate your cable box. In order to do this, first program your
remote control, then use the Channel Fix feature to set your TV to channel 3 or 4 (see page
41
).
❏ Press repeatedly to switch between VCR input (VIDEO input), VHF/UHF (local
channels or unscrambled), or cable box (cable system or scrambled channels).
01US01COV-BR2.book Page 20 Monday, March 28, 2005 1:36 PM
21
Connections
Connecting a TV and Satellite Receiver
1 Connect the cable from your satellite antenna to SATELLITE IN on your satellite receiver.
2 Connect the coaxial cable from your cable service or antenna to the VHF/UHF jack on
your TV.
3 Using audio/video cables (not supplied), connect AUDIO/VIDEO OUT on your satellite
receiver to AUDIO/VIDEO IN on your TV.
Using your TV with this connection
❏ Program your Sony remote control to operate your satellite receiver (see “Programming
the Remote Control” on page 11).
❏ To activate your remote, press the FUNCTION button to operate your satellite
receiver. See page 14 for details on using other functions.
❏ Press repeatedly to switch to satellite receiver input (VIDEO input).
L
R
L
R
Y
B
P
P
R
VIDEO 1
Satellite receiver
Satellite
antenna
cable
1
2
3
From
cable/
antenna
Audio R (red)
Video (yellow)
Audio L (white)
Rear of TV
01US01COV-BR2.book Page 21 Monday, March 28, 2005 1:36 PM
22
Connections
Connecting a TV, VCR, Cable/Antenna, and Satellite Receiver
using Composite Video (VIDEO/AUDIO L(MONO), R)
1 Connect the cable from your satellite antenna to SATELLITE IN on your satellite receiver.
2
Connect the single input jack of the splitter (not supplied) to your incoming cable/antenna
(optional connection to view local channels or broadcast).
3 Using coaxial cables (not supplied), connect the two output jacks of the splitter
(not supplied) to:
a) the IN jack on your satellite receiver
b) the VHF/UHF jack on the TV
4 Using a coaxial cable (not supplied), connect the OUT jack on your satellite receiver to the
VHF/UHF IN on your VCR.
5 Using audio/video cables (not supplied), connect AUDIO/VIDEO OUT on your VCR to
AUDIO/VIDEO IN on your TV.
6 Using audio/video cables (not supplied), connect AUDIO/VIDEO OUT on your satellite
receiver to AUDIO/VIDEO IN on your TV.
Using your TV with this connection
❏
Program your Sony remote control to operate your VCR or satellite receiver (
see
“Programming the Remote Control” on page 11
).
❏ To activate your remote, press the
FUNCTION button to operate your VCR or the
FUNCTION button to operate your satellite receiver.
❏ Press repeatedly to switch between VCR input (VIDEO input), VHF/UHF
(local channels or unscrambled), or your cable box (cable system or scrambled channels).
VIDEO
LINE
OUT
AUDIO L AUDIO R
LINE
IN
VIDEO 1
VIDEO 2
VIDEO 2
L
R
L
R
Y
B
P
P
R
VIDEO 1
Satellite receiver
1
2
Satellite antenna
cable
VCR
4
5
6
3b
3a
Splitter
From
cable or
antenna
Rear of TV
Video (yellow)
Audio R (red)
Audio L (white)
Optional
For Viewing
For Recording
For Playback
For Viewing
01US01COV-BR2.book Page 22 Monday, March 28, 2005 1:36 PM
23
Connections
Connecting a TV, VCR, and Satellite Receiver using
Component Video (Y PB PR)
1 Connect the coaxial cable from your satellite antenna to SATELLITE IN on the satellite
receiver.
2 Connect the coaxial cable from your cable service or antenna to the IN jack on your VCR.
3 Using a coaxial cables (not supplied), connect the OUT jack on your VCR to the
VHF/UHF jack on your TV.
4 Using audio/video cables (not supplied), connect AUDIO/VIDEO OUT on your satellite
receiver to AUDIO/VIDEO IN on your VCR.
5 Using audio/video cables (not supplied), connect AUDIO/VIDEO OUT on your VCR to
AUDIO/VIDEO IN on your TV.
6 Using component video cables (not supplied), connect Y PB PR OUT on your satellite
receiver to Y P
B PR IN on your TV.
7 Connect AUDIO OUT on your satellite receiver to AUDIO IN on your TV.
Using your TV with this connection
❏
Program your Sony remote control to operate your VCR or satellite receiver (
see
“Programming the Remote Control” on page 11
).
❏ Turn on your VCR to enable your satellite receiver to work with this connection.
❏ To activate your remote, press the
FUNCTION button to operate your VCR or the
FUNCTION button to operate your satellite receiver.
❏ Press repeatedly to switch between VCR input (VIDEO input), VHF/UHF
(local channels or unscrambled), or your cable box (cable system or scrambled channels).
VIDEO
LINE
IN
LINE
OUT
AUDIO L AUDIO R
L
R
L
R
Y
B
P
P
R
VIDEO 1
From
cable/
antenna
VCR
4
2
Rear of TV
3
5
76
1
Satellite
Receiver
Audio L
Audio R (red)
Audio L (white)
Video (yellow)
Audio R
P
R
(red)
P
B
(blue)
Y (green)
(red)
(white)
01US01COV-BR2.book Page 23 Monday, March 28, 2005 1:36 PM
24
Connections
Connecting a DVD Player using Composite Video (VIDEO/AUDIO L(MONO),R)
Using audio/video cables (not supplied), connect AUDIO/VIDEO OUT on your DVD player
to AUDIO/VIDEO IN on your TV.
Optional connection
❏ For better picture quality, use S VIDEO instead of the yellow video cable. S VIDEO does
not provide sound, so you still must connect the audio cables.
Connecting a DVD Player using Component Video (Y PB PR R L)
If your DVD player is equipped with component video outputs (Y PB PR), you can improve the
picture quality by using component video cables (480i only).
1 Make sure your DVD player is set up (see page 59). Using component video cables (not
supplied), connect Y P
B PR OUT on your DVD player to Y PB PR IN on your TV.
2 Connect AUDIO OUT on your DVD player to AUDIO IN on your TV.
Using your TV with this connection
❏ Program your Sony remote control to operate your DVD (see “Programming the Remote
Control” on page 11).
❏ To activate your remote, press the
FUNCTION button to operate your DVD.
❏ Press repeatedly to switch to the DVD player's input (VIDEO input).
✍ The Y PB PR outputs on your DVD player are sometimes labeled Y, CB, and CR or Y, B-Y, and R-Y. If so,
connect the cables to like colors.
Rear of TV
Rear of DVD Player
Audio R (red)
Audio L (white)
Video (yellow)
Optional connection
Rear of DVD Player
2
Rear of TV
Audio L (white)
Audio R (red)
P
R
(red)
P
B
(blue)
Y (green)
1
01US01COV-BR2.book Page 24 Monday, March 28, 2005 1:36 PM
25
Connections
Connecting an Audio System
1 Using audio/video cables (not supplied), connect AUDIO OUT on your TV to one of the
unused line inputs (e.g. TV, AUX, TAPE2) on your stereo.
2 Set the Speaker option to Off. For more instructions, see “Using the Audio Menu” on
page 39-40.
3 After you connect the audio system, you can control the volume level from your TV or
audio system.
❏ To control the volume from the TV, use the front panel controls or the VOL +/- buttons
on the remote.
❏ To control the volume through the connected audio system, open the Audio Out
option on the Audio menu and select Fixed. For more instructions, see “Using the
Audio Menu” on page 39-40.
Connecting a Camcorder (for playback)
To connect your camcorder, you can use the Audio/Video inputs on either the front or rear
panel of the TV. Using the audio/video cables (not supplied), connect AUDIO/VIDEO OUT
on your camcorder to AUDIO/VIDEO IN on your TV.
✍ If you are connecting a Home Theater, please refer to your Home Theater manual for additional
connections.
Rear of TV
AUDIO-L (white)
AUDIO-R (red)
Line
input
4-089-016
>
PC
<
A/V output
Audio R (red)
Audio L (white)
Video (yellow)
Front A/V Panel
01US01COV-BR2.book Page 25 Monday, March 28, 2005 1:36 PM
26
Connections
Connecting for Video Tape Editing (VCR and Camcorder)
1 For video tape editing, connect the VCR to the following sources:
❏ If you are connecting a VCR, use audio/video cables (not supplied) to connect
AUDIO/VIDEO OUT on your first VCR to AUDIO/VIDEO IN on your second VCR
(option 1a).
❏ If you are connecting a camcorder, use audio/video cables (not supplied) to connect
AUDIO/VIDEO OUT on your camcorder to AUDIO/VIDEO IN on your VCR
(option 1b).
2 Using audio/video cables (not supplied), connect AUDIO/VIDEO OUT on the second
VCR to AUDIO/VIDEO IN on your TV.
Using your TV with this connection
❏
Program your Sony remote control to operate your VCR (
see “Programming the Remote
Control” on page 11
).
❏ To activate your remote, press the
FUNCTION button to operate your VCR. See
page 13 for details on using other functions.
VIDEO
LINE
IN
LINE
OUT
AUDIO L AUDIO RVIDEO
LINE
IN
LINE
OUT
AUDIO L AUDIO R
Rear of TV
Video (yellow)
Audio L (white)
Audio R (red)
2
1a
1b
A/V output
Camcorder
(for playback)
VCR (for recording)
VCR (for playback)
or
01US01COV-BR2.book Page 26 Monday, March 28, 2005 1:36 PM
27
Setting Up
Setting Up the TV
After you have finished connecting your TV, use Auto Program to set up your analog and
digital channel lists. During Auto Program, the TV will automatically search for available
channels and program receivable channels.
1 Press the POWER button to turn on the TV.
The Initial Setup screen appears.
2 Press the CH+ button on the remote control or on the TV front panel to start Auto Program,
or press the
CH- button to exit.
Auto Program automatically creates a list of receivable analog channels. When completed,
a screen prompts you to continue searching for digital channels.
Searching for digital channels may take 50 minutes or more to complete. A progress bar is
displayed while the channel list is being created.
3 When Auto Program is finished, the lowest numbered channel is displayed.
To run Auto Program again at a later time
❏ Use the Auto Program feature, using the TV’s menus. For analog channels, see page 42.
For digital channels, see page 55.
To add digital channels
❏ Use the Digital Channels/Add feature, as described on page 55.
To reset the TV to factory settings
1 Turn the TV on.
2 Hold down on the remote control.
3 Press and release the POWER button on the TV front panel. The TV will turn itself off, then
back on.
4 Release .
✍ After starting Auto Program, wait until the process is complete to avoid missing some channels that
are available. To re-program receivable channels, run Auto Program again as described on page 42
(analog channels) and page 55 (digital channels).
✍ The Initial Setup screen appears each time you turn on the TV until you perform Auto Program.
RESET
RESET
01US01COV-BR2.book Page 27 Monday, March 28, 2005 1:36 PM
01US01COV-BR2.book Page 28 Monday, March 28, 2005 1:36 PM
29
Using Features
Using the Digital Features
Overview
This chapter describes how to use the features of your TV that are designed to work with
digital channels.
Tuning to a Digital Channel
This TV is equipped with a built-in digital tuner, which enables you to receive digital
channels. In order to enjoy the digital features of this TV, you need to switch the TV between
analog and digital tuning modes by pressing the button on the remote control, or by
switching between analog and digital tuning modes using the TV's Channel Mode menu
option (see page 51).
To directly tune to a digital channel:
1 If the TV is in analog tuning mode, press on the remote control to enter digital tuning
mode.
2 Press --9, , press --9 again, and then .
For example, to select subchannel 21.13, press
2+1++1+3, and then press .
To p i c P a g e
Tuning to a Digital Channel 29
Using the Digital Program Guide 30
Using the Screen Mode Feature 32
Using Digital Favorite Channels 33
ANALOG
/ DIGITAL
ANALOG
/ DIGITAL
ENTER
ENTER
01US01COV-BR2.book Page 29 Monday, March 28, 2005 1:36 PM
30
Using Features
Using the Digital Program Guide
The digital program guide lets you review program information and select digital channels.
To display the digital program guide:
1 If the TV is in analog tuning mode, press the button on the remote control to switch to
digital tuning mode.
2 Press . The digital program guide appears, with the currently selected program
showing in the background.
✍ The digital program guide cannot be displayed when: the TV is in analog tuning mode, when there are
no digital channels available, when the TV is tuned to one of the video inputs, or when the Channel Fix
option is set to anything other than Off (see page 41).
✍ You can also see the current tuning mode and switch between analog and digital tuning modes using
the Channel Mode menu option (see page 51).
✍ Program information in the guide is provided by the broadcasters. As a result, it may sometimes include
only the channel number, without a program title or description.
To Do This ... Do This ...
Scroll through the channel list Press F or f
Select the currently displayed channel
and exit the guide
Press .
Display additional options Press
g. See “Using Additional Digital Program
Guide Options” on page 31.
Exit the Guide (without changing
channels)
Press
ANALOG
/
DIGITAL
Program title and
description, time
remaining, rating
information, closed-
caption availability,
format, resolution,
aspect ratio
Channel number, call
letters, Auto SAP (if
available
Selectable channel list
EXIT
01US01COV-BR2.book Page 30 Monday, March 28, 2005 1:36 PM
31
Using Features

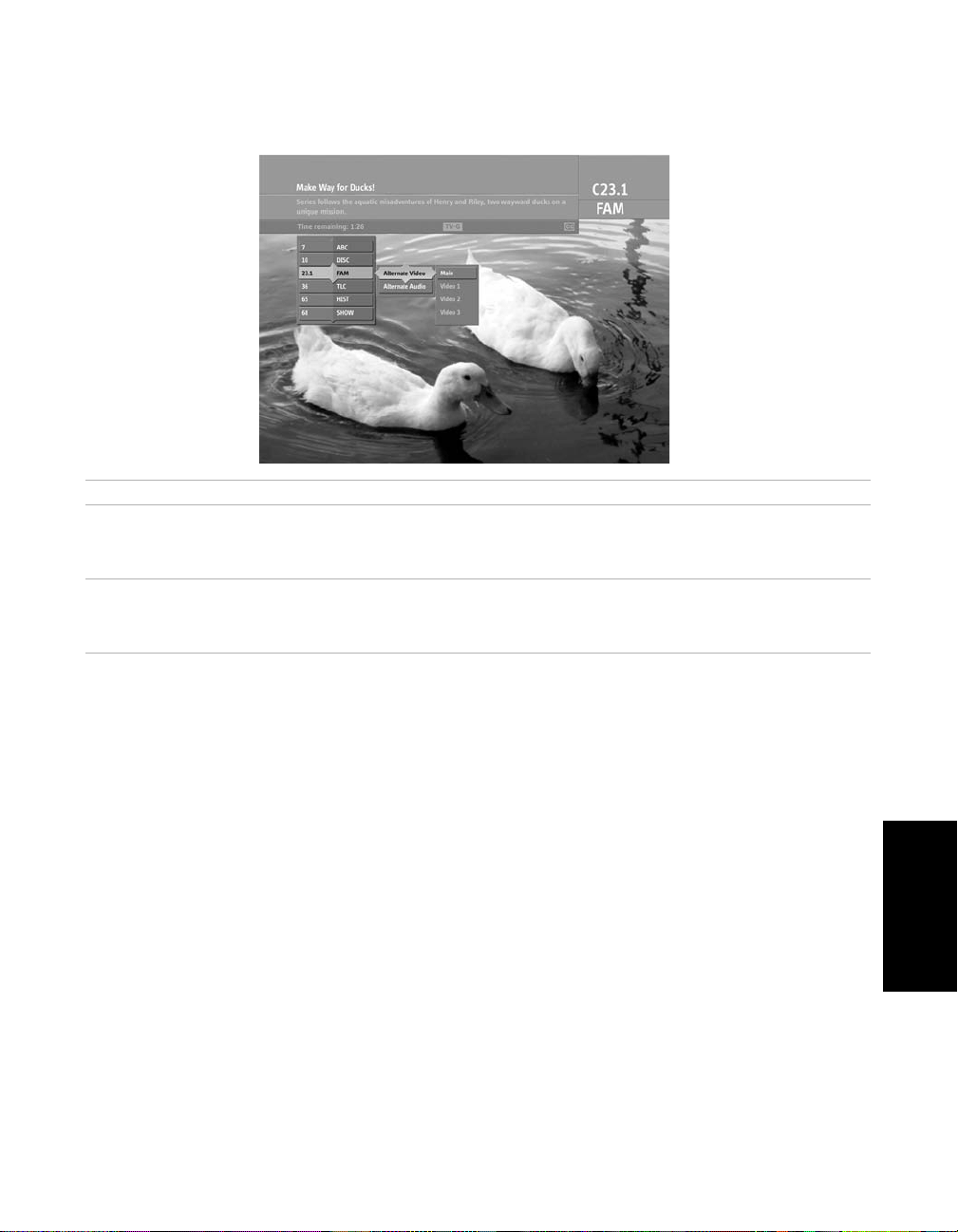

Using Additional Digital Program Guide Options
Press g while in the digital program guide’s channel list to display the following options,
which allow you to customize the settings of the program on the currently tuned channel.
Option Description
Alternate Video
(when available)
Each program has a main video stream (the video that you see when the
channel is first tuned), and may have alternate video streams. This
option allows you to switch among these alternate video streams.
Alternate Audio
(when available)
Each program has a main audio stream (the audio that you hear when
the channel is first tuned). This option allows you to switch among these
alternate audio streams (e.g., for different languages).
01US01COV-BR2.book Page 31 Monday, March 28, 2005 1:36 PM
32
Using Features
Using the Screen Mode Feature
The Screen Mode feature is useful for adjusting a 16:9 (widescreen) program for optimal
viewing on your TV’s 4:3 aspect ratio screen. Using the Screen Mode feature, you can enlarge
pictures so that they better fill the screen (enlarging the picture so that the black bars on the
edges of the screen are clipped off).
Before using the Screen Mode feature
❏ If the TV is in analog tuning mode, press the button to switch to digital tuning mode.
✍ The Screen Mode option is available only for digital 16:9 programming.
Example Description
Full displays the 16:9 program in its
original aspect ratio. If the program
was a 480i 4:3 program that was
upconverted to 720p or 1080i (as
shown at left) , there will be black bars
visible at the left, right, top, and
bottom sides.
m
Zoom enlarges the picture uniformly.
Some clipping may occur.
m
Horizontal Expand stretches the
picture horizontally. Some clipping
may occur.
m
Vertical Expand stretches the picture
vertically. Some clipping may occur.
ANALOG
/
DIGITAL
SCREEN
Full
SCREEN
Zoom
SCREEN
Horizontal Expand
SCREEN
Vertical Expand
01US01COV-BR2.book Page 32 Monday, March 28, 2005 1:36 PM
33
Using Features
Using Digital Favorite Channels
The digital Favorite Channels feature lets you select programs from a list of up to 16 favorite
digital channels that you specify. You can create a list using the Favorite Channels option in
the Digital Channel menu (described on page 55), or by using the Add to Favorites feature in
the Favorite Channels list, as described below.
To use Digital Favorite Channels
1 If the TV is in analog tuning mode, press the button to switch to digital tuning mode.
2 Press the button. The Favorite Channels list appears.
3 Press F or f to highlight the channel you want to watch.
To add the current channel to the list of Favorite Channels, highlight Add to Favorites and
press .
To change your Favorite Channels list, highlight Edit Favorites and press .
4 Press to select the channel you want to watch.
ANALOG
/ DIGITAL
FAVORITES
01US01COV-BR2.book Page 33 Monday, March 28, 2005 1:36 PM
01US01COV-BR2.book Page 34 Monday, March 28, 2005 1:36 PM
35
Analog Menus
Using the Analog Menus
Overview
This chapter describes how to use the analog menu features of your TV.
Menu Descriptions
Topic Page Topic Page
Menu Descriptions 35 Using the Parental Control Menu 43
Using the Remote Control to Navigate
the On-Screen Analog Menus
37 Using the Timer Menu 49
Using the Video Menu 38 Using the Setup Menu 50
Using the Audio Menu 39 Using the Digital Features Menu 51
Using the Channel Setup Menu 41
Analog Menu Description
Video Menu
Adjust your picture settings.
For details, see page 38.
Audio Menu
Change your audio settings.
For details, see page 39.
Channel Setup Menu
(Analog channels only): Customize your
channel settings.
For details, see page 41.
Mode:Vivid
Brightness
Color
Hue
Sharpness
C
olor
Temp:Cool
Video
ClearEdge
VM:High
Move Select End
Treble
Balance
Steady Sound:Off
Effect:SRS
MTS:Stereo
Speaker:On
Bass
Audio
Audio Out:Fixed
Move Select End
Favorite Channels
Channel Fix:Off
Auto Program
Channel Show/Hide
Channel Label
Cable:On
Channel Setup
Move Select End
01US01COV-BR2.book Page 35 Monday, March 28, 2005 1:36 PM
36
Analog Menus

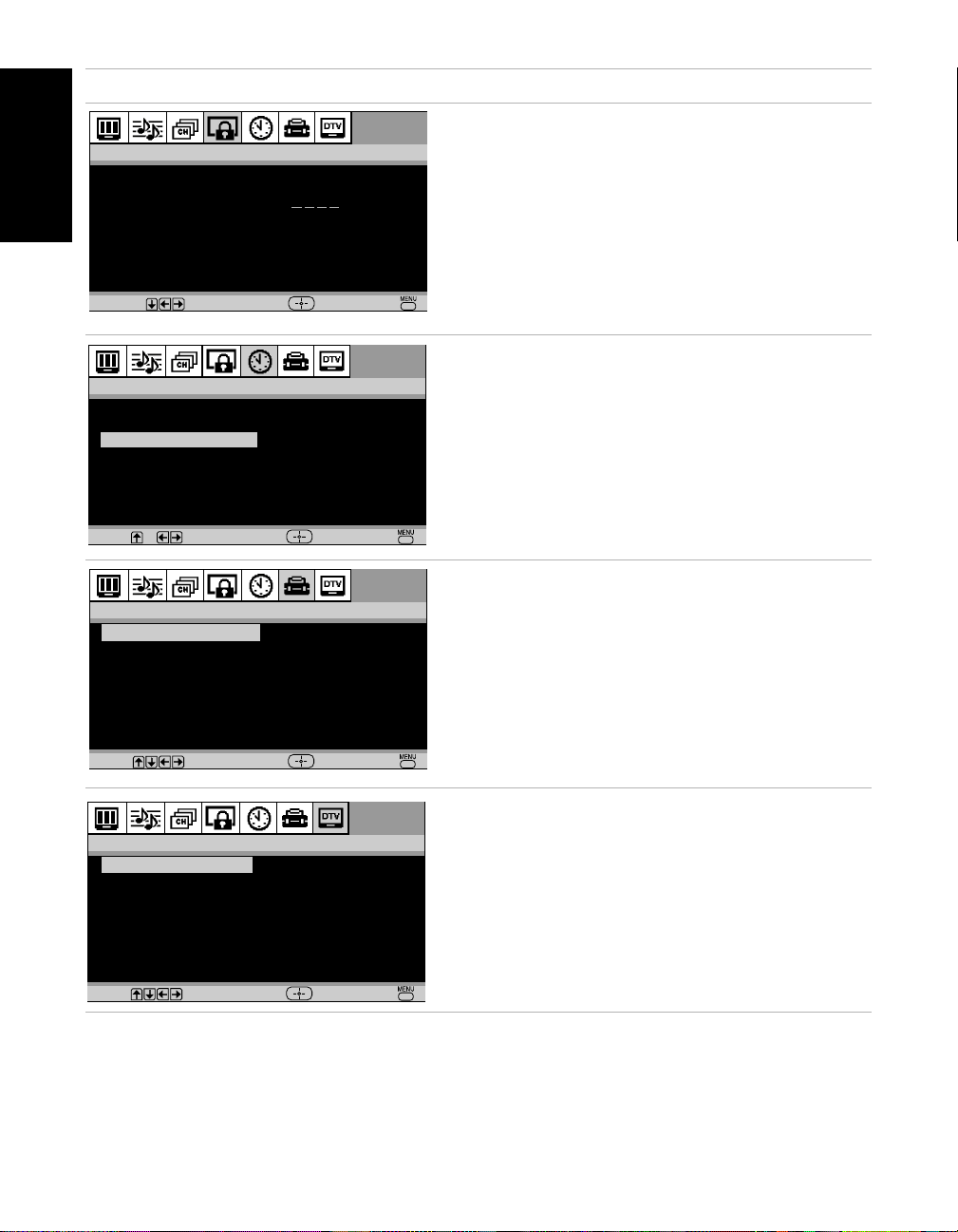

Parental Control Menu
Set rating limits on your TV based on
program rating or content.
For details, see page 43.
Timer Menu
Set the clock on your TV and program
scheduled viewing using Timer 1 and Timer
2 (timers work with analog channels only).
For details, see page 49.
Setup Menu
(Analog channels only): Select analog closed
captioning options (Caption Vision), display
the name of the current program and its
remaining time (Info Banner), label video
inputs, select menu language, , enhance
DVD picture resolution (16:9 Enhanced),
and adjust tilt correction.
For details, see page 50.
Digital Features Menu
Access Digital Menu options and select
analog or digital tuning modes.
For details, see page 51.
Analog Menu Description
Password:
Parental Control
Move Select End
Timer 1:Set
Current Time
Timer 2:Set
Timer
Move Select End
Caption Vision:Off
Info Banner:Off
Setup
Video Label
Tilt Correction
Language:English
16:9 Enhanced:Off
Move Select End
Channel Mode:Digital
Digital Menu
Digital Features
Move Select End
01US01COV-BR2.book Page 36 Monday, March 28, 2005 1:36 PM
37
Analog Menus
Using the Remote Control to
Navigate the On-Screen Analog Menus
To navigate the on-screen analog menus, use the arrow buttons (F , f , G , g) to move the
cursor. Pressing these arrows moves the cursor in the corresponding direction. Press the center
button () to select an option.
Displaying Analog Menus
To display analog menus
1 Press to display the on-screen analog menu.
2 Use the G or g buttons to highlight the desired menu icon. Press to select it.
3 Use the F or f buttons to scroll up and down through the features.
4 Follow the instructions on the screen.
5 Press to exit the menu.
To exit the analog menus
❏ Press (or ).
To display the digital menus
❏ See “Displaying Digital Menus” on page 54.
✍ Press once to display the on-screen menu, and press again to return to normal viewing. If no
buttons are pressed, the menu closes automatically after about 90 seconds.
ANALOG
/ DIGITAL
Move
Select
MENU
MENU
MENU
EXIT
MENU
01US01COV-BR2.book Page 37 Monday, March 28, 2005 1:36 PM
38
Analog Menus
Using the Video Menu
Mode
Customized
picture viewing
Use the
F or f buttons to highlight one of the following options, then
press to select it.
Vivid: Select for enhanced picture contrast and sharpness.
Standard:
Select for a standard picture.
Movie:
Select for a finely detailed picture.
Pro:
Select for natural picture and sharpness.
Press G to decrease the contrast. Press g to increase the contrast.
Brightness
Press G to darken the picture. Press g to brighten the picture.
Color
Press G to decrease color saturation. Press g to increase color saturation.
Hue
Press G to increase the red tones. Press g to increase the green tones.
Sharpness
Press G to soften the picture. Press g to sharpen the picture.
Color Temp.
White tint
adjustment
Use the
F or f buttons to highlight one of the following options, then
press to select it.
Warm: Gives white colors a red tint.
Neutral: Gives white colors a neutral tint.
Cool: Gives white colors a blue tint.
ClearEdge
VM
Sharpens picture definition to give objects a crisp, clean edge. Use the
F
or
f buttons to highlight: High, Low, or Off, then press to select it.
Mode:Vivid
Brightness
Color
Hue
Sharpness
C
olor
Temp:Cool
Video
ClearEdge
VM:High
Move Select End
To Display To Select
To access the Video menu, use the following steps:
Press
f to highlight an option, then press .
✍ Press on the remote control to directly select picture modes (Vivid, Standard, Movie, Pro).
01US01COV-BR2.book Page 38 Monday, March 28, 2005 1:36 PM
39
Analog Menus
Using the Audio Menu
Treble Press G to
decrease the higher pitched sounds. Press
g to increase the higher
pitched sounds.
Bass Press
G to decrease the lower pitched sounds. Press g to increase the lower
pitched sounds.
Balance Press
G to
emphasize the left speaker. Press
g to emphasize the right
speaker.
Steady Sound
Stabilizes volume
Use the
F or f buttons to highlight one of the following options, then
press
to select it.
On: Select to stabilize the volume when changing channels.
Off:
Select to turn Steady Sound off.
Effect Use the F or f buttons to highlight one of the following options, then
press
to select it.
SRS: Produces a dynamic three-dimensional sound for stereo
programs.
Off: Normal stereo or mono reception.
Simulated: Simulates theater-quality sound for mono programs.
MTS
Multi-Channel
TV Sound
(Disabled for digital channels.)
Use the
F or f buttons to highlight one of the following options, then press
to select it.
Stereo: Select when viewing a broadcast in stereo.
Mono: Select to reduce noise in areas of poor reception.
Auto SAP: Select to have the TV automatically switch to a Second
Audio Program (SAP) when a signal is received.
Treble
Balance
Steady Sound:Off
Effect:SRS
MTS:Stereo
Speaker:On
Bass
Audio
Audio Out:Fixed
Move Select End
To access the Audio menu, use the following steps:
To Display To Highlight To Select
Press f to highlight an option, then press .
✍ Press to directly select Effect settings (Simulated, SRS, Off).
TV/SAT
✍ If your TV is set to Auto SAP, some programs may be muted or distorted. If your TV does not output
sound, change your Audio MTS setting to Stereo or Mono.
01US01COV-BR2.book Page 39 Monday, March 28, 2005 1:36 PM
40
Analog Menus
Speaker
Custom selection
of audio output
source
Use the
F or f buttons to highlight one of the following options, then press
to select it.
On: Select to listen to the sound from the TV speakers with or
without a separate stereo system.
Off: Select to turn off the TV speakers and listen to the TV’s sound
only through external audio system speakers.
Audio Out
Use to control
the TV’s volume
through a stereo
Use the
F or f buttons to highlight one of the following options, then
press
to select it.
Variable: Adjust the volume through your TV.
Fixed: Adjust the volume through a connected stereo.
✍ You can only set Audio Out settings when you have set Speaker to Off.
01US01COV-BR2.book Page 40 Monday, March 28, 2005 1:36 PM
41
Analog Menus
Using the Channel Setup Menu
Favorite
Channels
Quick access
to analog favorite
channels
Applies to analog channels only. To set up favorite digital channels, see page 55.
To set up your analog Favorite Channels list:
1
Use the F or f buttons to highlight the position (1-5) where you want to set a
favorite channel, then press .
2 Use the F or f buttons to find the channel you want to add to your favorite
channels.
3 Press to select the channel. The TV will automatically change to the
selected channel and assign it to the selected position (1-5).
4 Press G to return to the Channel Setup menu or press to exit.
To use your analog Favorite Channels list:
1
Press the button while in analog tuning mode.
2 Press F or f to move the cursor to the desired channel number and press .
Cable Use the F or f buttons to highlight one of the following options, then press
to select it.
On: Select if you are receiving cable channels with a CATV cable.
Off: Select if you are using a TV antenna.
Channel Fix Not available when in digital tuning mode.
Use the
F or f buttons to highlight one of the following options, then
press to select it.
Off: Channel Fix is not set.
2-6: “Fix” your TV’s channel setting to 2–6 (VHF/UHF input) and
use the cable box or satellite receiver to change channels.
Video 1:
Select from available video inputs when you have connected
video equipment (e.g., a satellite receiver) and you want your
TV fixed to it.
Favorite Channels
Channel Fix:Off
Auto Program
Channel Show/Hide
Channel Label
Cable:On
Channel Setup
Move Select End
To access the Channel Setup menu, use the
following steps:
To Display To Highlight To Select
Press f to highlight an option, then press .
EXIT
FAVORITES
✍ After changing the Cable setting the first time, you will need to run Auto Program. For analog
channels, see page 42. For digital channels, see page 55.
✍ You cannot use Favorite Channels, Cable, Channel Show/Hide, or Channel Label when Channel Fix is
set.
01US01COV-BR2.book Page 41 Monday, March 28, 2005 1:36 PM
42
Analog Menus
Auto Program Applies to analog channels only. To Auto Program digital channels, see page 55.
Perform Auto Program whenever setting up your TV. Auto Program will
search for available channels and program receivable channels.
Channel
Show/Hide
Applies to analog channels only. To Show/Hide digital channels, see page 56.
Use this feature after you run Auto Program to selectively show or hide
channels.
1 Use the
F or f buttons to highlight the position of the desired channel,
then press .
2 Use the
F or f buttons to highlight Shown or Hidden, then press .
3 Press
G to return to the Channel Setup menu or press to exit.
Channel
Label
Label up to 40
channels with
their call letters
Applies to analog channels only. To label digital channels, see page 56.
1 Press , then use the
F or f buttons until you reach the desired
channel number.
2 Press to activate the channel.
3 Press
f to highlight Label, then press . Use the F or f buttons to
display the first call letter or number of the label. Press to select.
Repeat this process until you finish selecting all the call letters.
4 When finished, press to activate.
5 Press
G to return to the Channel Setup menu or press to exit.
EXIT
..
✍ Press CH + or CH - to skip over channels that have been hidden. You can still use the --9 buttons to
directly tune to hidden channels.
EXIT
01US01COV-BR2.book Page 42 Monday, March 28, 2005 1:36 PM
43
Analog Menus
Using the Parental Control Menu
The Parental Control feature helps parents monitor what their children watch on television.
To use the Parental Control Menu
When you select the Parental Control menu, you are prompted to set a 4-digit password. You
cannot access the Parent menu settings without this password.
1 Use the buttons to enter a 4-digit password.
2 Confirm your password by entering it again.
✍ Parental Control settings control analog and digital programs.
✍ Keep this manual in a safe place. You need your password for any future access to the Parental
Control menu. If you forget your password, see page 59.
Parental Control
Password:
Use [0-9] buttons to
enter new passw ord
Move Select End
To access the Parental Control menu, use the following steps:
To Display To Highlight To Select
0 9
01US01COV-BR2.book Page 43 Monday, March 28, 2005 1:36 PM
44
Analog Menus
Parental Control
Setting the Rating
You can change the Rating by selecting one of the Parental Lock options.
1 With Lock highlighted, press .
If you are not familiar with Parental Guideline rating system, use one of the following preset
categories to simplify the rating selection: Child, Youth, Young Adult.
2 Use the F or f to highlight the desired rating and press .
Changing your Password
1 Use the F or f buttons to highlight Change Password and press .
2 Follow steps 1 and 2 for “Using the Parental Control Menu” on page 43.
Select a Country
Select U.S.A. to use US ratings (see pages 46-47) or select Canada to use Canadian ratings (see
page 48). If you select a Country (U.S. or Canada) that is not where you live, the rating you
select will not be activated.
1 Press f to highlight Country, then press .
2 Use the F or f to highlight the desired country and press .
Country:U.S.A.
Change Password
Parental Control
Lock:Off
Move Select End
Rating TV will allow a maximum rating of
Off No rating limit
Child TV-Y, TV-G, G (U.S.), G, C (Canada)
Youth TV-PG, PG (U.S.), 8 ans + (Canada)
Young Adult TV-14, PG-13 (U.S.), 14+ (Canada)
Custom Select to set more restrictive ratings (see next section)
01US01COV-BR2.book Page 44 Monday, March 28, 2005 1:36 PM
45
Analog Menus
Information for Parents
To view a program that exceeds the TV rating
❏ Press , then use the --9 buttons to enter your password.
Using the Custom Menu
Follow the instructions on the screen to make your custom settings. Select the country desired
for your TV’s rating limit.
For more information see page 46 for (U.S. models) and page 48 for
(Canadian models).
✍ Entering your password to view a blocked program will temporarily turn Lock to Off. To reactivate
your Lock settings, turn the TV off then back on; the TV will return to the settings that you have
selected.
✍
Once you have blocked a rating or content, all higher ratings or content will be automatically blocked.
ENTER
01US01COV-BR2.book Page 45 Monday, March 28, 2005 1:36 PM
46
Analog Menus
United States: Selecting Custom Rating Options
For the United States, the Custom Rating menu includes the following options: Movie Rating,
TV Rating, and Unrated. (For Canada, see page 48.)
Movie Rating
This system defines the rating levels of movies shown in theaters and on prime cable
channels.
TV Rating
The TV rating is divided into two groups: age-based and content-based.
✍ The content ratings will increase depending on the level of the age-based rating. For example, a
program with a TV-PG V (Violence) rating may contain moderate violence, while a TV-14 V (Violence)
rating may contain intense violence.
R:
PG-13:
Movie Rating
Return
PG:
X:
NC-17:
Press to block
G:
Select End
Rating Defined as
G General audience
PG Parental guidance suggested
PG-13 Parents strongly cautioned
R Restricted
NC-17 No one 17 and under admitted
X Adult audience only
TV-PG:
TV-G:
TV Rating
Return
TV-Y7:
TV-MA:
TV-14:
Press to block
TV-Y:
FV
D
D
L
L
S
S
V
V
L
S
V
Select End
Age
Content
Age Defined as
TV-Y All children
TV-Y7 Directed to older children
TV-G General audience
TV-PG Parental guidance
suggested
TV-14 Parents strongly cautioned
TV-MA Mature audience only
Content Defined as
FV Fantasy violence
D Suggestive dialogue
L Strong language
S Sexual situations
V Violence
01US01COV-BR2.book Page 46 Monday, March 28, 2005 1:36 PM
47
Analog Menus
Unrated
You have the option of blocking TV programs or movies that are not rated.
✍ If you choose to block unrated TV programs, please be aware that the following programs may be
blocked: emergency broadcasts, political programs, pro, news, public service announcements,
religious programs, and weather.
Allow Allows all unrated programs
Block Blocks all unrated programs
Custom Rating
Return
TV Rating
Unrated: Allow
Movie Rating
Select End
01US01COV-BR2.book Page 47 Monday, March 28, 2005 1:36 PM
48
Analog Menus
Canada: Selecting Custom Rating Options
For Canada, the Custom Rating menu includes the following options: English Rating, French
Rating, and U.S.A. Rating.
English Rating
These ratings are for Canadian programs that are broadcast in English.
French Rating
These ratings are for Canadian programs that are broadcast in French.
U.S.A. Rating
For programs from the United States, see “TV Rating” on page 46.
PG:
G:
English Rating
Return
C8+:
18+:
14+:
Press to block
C:
Select End
Rating
Defined as
C Children
C8+ Children 8 years and older
G General programming
PG Parental guidance
14+ Viewers 14 and older
18+ Adult programming
Rating Defined as
G General
8 ans+ Not recommended for
younger children
13 ans+ Not recommended for
children under age 13
16 ans+ Not recommended for ages
under 16
18 ans+ This program is restricted to
adults
16 ans+:
13 ans+:
French Rating
Return
8 ans+:
18 ans+:
Press to block
G:
Select End
01US01COV-BR2.book Page 48 Monday, March 28, 2005 1:36 PM
49
Analog Menus
Using the Timer Menu
Timer 1
Timer 2
Scheduled
viewing
Timer functions apply to analog channels only. You cannot set the Timer for
digital channels.
Use the timers to program your TV to turn on and off by day, time,
duration, and channel. The timer duration is a maximum of six hours.
When the channel is fixed, it is not necessary to set the channel.
1 Use the
F or f
buttons
to highlight Timer 1 or Timer 2, then press
.
2 Use the
F or f
buttons
to enter the desired day, start time, duration,
and channel, then press . The timer status should be On when the
Timer has been set, and the timer light on the front panel of the TV
should be on.
3 Press to exit the menu.
Current Time Set your TV to the current day and time. Press
to open the Current
Time menu:
1 Use the F or f buttons to enter the correct day and time, then press
.
2 Press to exit the menu.
✍ When you perform Auto Program, Timer 1 and Timer 2 settings will be cleared. Also, in the event of
any loss of power, Current Time, Timer 1, and Timer 2 settings will be cleared.
Timer 1:Set
Current Time
Timer 2:Set
Timer
Move Select End
To access the Timer menu, use the following steps:
To Display To Highlight To Select
EXIT
✍ Select Off to turn off the Timer. Your previous settings will be saved.
EXIT
✍ You must set the Current Time before you can use Timer 1 or Timer 2.
01US01COV-BR2.book Page 49 Monday, March 28, 2005 1:36 PM
50
Analog Menus
Using the Setup Menu
Caption
Vision
Closed-
Captioning
Applies to analog channels only. To set closed-caption options for digital channels,
see page 57.
Allows you to select from three closed-caption modes for programs that are
broadcast with closed captioning.
Use the
F or f
buttons
to highlight one of the following options, then press
to select it.
Off: Caption Vision is not activated.
CC1, 2, 3, 4: Displays printed dialog and sound effects of a program.
Text1, 2, 3, 4: Displays network/station information.
Info Banner Displays the name of the current program and its remaining time (if
available) when you change the channel or press the
DISPLAY button. Use the
F or f buttons to highlight On or Off. Then press .
Video Label
Label
connected
equipment
Allows you to identify the video components connected to the TV: VCR,
DVD, etc. When you press to switch inputs, the Video Label appears
on-screen.
1 Press the F or f
buttons
to highlight the input you want to label and
press .
2 Press the
F or f
buttons
to highlight a label and press .
3 Press
G to
return to the Setup menu or press
to exit.
✍ If you select Skip, your TV skips this input when you press the TV/VIDEO button.
Language Display all menus in the language of your choice.
Use the
F or f buttons to select from one of the following options: English,
Español (Spanish) and Français (French). Then press .
16:9
Enhanced
Available only when the TV is displaying an external input, such as a DVD player.
Provides enhanced picture resolution for wide-screen sources such as DVD.
Tilt
Correction
Use the
F or f buttons to set the tilt of the picture from –5 to +5, then press
to activate.
Caption Vision:Off
Info Banner:Off
Setup
Video Label
Tilt Correction
Language:English
16:9 Enhanced:Off
Move Select End
To access the Setup menu, use the following steps:
To Display To Highlight To Select
Press f to highlight an option, then press .
EXIT
01US01COV-BR2.book Page 50 Monday, March 28, 2005 1:36 PM
51
Analog Menus
Using the Digital Features Menu
Digital Menu Provides access to the Digital Channels and Digital Setup options. For
details, see “Using the Digital Menus” on page 53.
Channel
Mode
Enables you to switch between analog and digital tuning modes.
Analog Selects analog tuning mode.
Digital Selects digital tuning mode.
✍ Press the button on the remote control to directly switch to analog or digital
Channel Mode.
To access the Digital Features menu, use the following steps:
To Display To Highlight To Select
Press f to highlight an option, then press .
Channel Mode:Digital
Digital Menu
Digital Features
Move Select End
ANALOG
/ DIGITAL
01US01COV-BR2.book Page 51 Monday, March 28, 2005 1:36 PM
01US01COV-BR2.book Page 52 Monday, March 28, 2005 1:36 PM
53
Digital Menus
Using the Digital Menus
Overview
This chapter describes how to use the digital menu features of your TV.
Menu Descriptions
To p i c P a ge
Menu Descriptions 53
Using the Remote Control to Navigate the On-Screen Digital
Menus
54
Displaying Digital Menus 54
Using the Digital Channels Menu 55
Using the Digital Setup Menu 57
Digital Menu Description
Digital Channels Menu
Select favorite digital channels; add, show,
hide, and label digital channels.
For details, see page 55.
Digital Setup Menu
Provides settings for selecting various
screen modes and for Caption Vision. Also
includes diagnostics information and allows
you to change the colors of the digital
menus.
For details, see page 57.
01US01COV-BR2.book Page 53 Monday, March 28, 2005 1:36 PM
54
Digital Menus
Using the Remote Control to
Navigate the On-Screen Digital Menus
To navigate the on-screen digital menus, use the arrow buttons (F , f , G , g) to move the
cursor. Pressing these arrows moves the cursor in the corresponding direction. Press the center
button () to select an option.
Displaying Digital Menus
To display the digital menus
1 Press to display the analog menu.
2 Press g to highlight the Digital Features menu icon and then press . (For details,
see “Using the Digital Features Menu” on page 51.)
3 Press f to highlight Digital Menu and then press .
To exit the digital menus
❏ Press .
To display the analog menu directly from within any digital menu
❏ Press .
✍ If the TV is in analog tuning mode, it will switch to digital tuning mode when displaying the digital
menus.
ANALOG
/ DIGITAL
Move
Select
MENU
EXIT
MENU
01US01COV-BR2.book Page 54 Monday, March 28, 2005 1:36 PM
55
Digital Menus
Using the Digital Channels Menu
Favorite
Channels
Applies to digital channels only. To set up analog channels, see page 41.
To set up digital channels in a Favorite Channels list:
1
Use the --9, and buttons to enter the channel number that you want to
assign to the Favorite Channel number. Press to select that channel as a
Favorite Channel.
2 To add more channels to your favorites list, repeat step 1.
3 To clear a Favorite Channel, press F or f to highlight the channel you want to
clear. Press and then press .
To use the digital Favorite Channels list, see page 33.
✍ You can also add Favorite Channels directly to the Favorite Channels list, as
described on page 33
.
Digital
Channels
Applies to digital channels only.
Add Select to add digital channels.
Auto
Program
Applies to digital channels only. To Auto Program analog channels, see page 42.
Automatically sets up the channel list on the TV for all receivable channels.
✍ Auto Program may take 50 minutes or more to complete. A progress bar will
display the approximate progress of the Auto Program and Digital Channels/Add
sequences.
To use the Digital Channels menu, use the
following steps:
To Display To Highlight To Select
Press f to highlight an option, then press .
ENTER
RESET
01US01COV-BR2.book Page 55 Monday, March 28, 2005 1:36 PM
56
Digital Menus
Show/Hide
Channels
Applies to digital channels only. To Show/Hide analog channels, see page 42.
Allows you to show or hide channels that appear when you use the
CH+/-
buttons to channel surf. Channels that are set to Hidden do not appear on the
Program Guide’s channel list, and are skipped when you use the
CH+/-
buttons.
1
Press F or f to highlight the channel that you want to show or hide.
To move between the Major and Digital subchannel lists, press
G or g.
2 To change a channel’s setting to Shown or Hidden, press .
3 To show or hide more channels, repeat steps 1 and 2.
✍ Channels that you set to Hidden can be accessed only with the --9 buttons.
Label
Channels
Applies to digital channels only. To label analog channels, see page 42.
Allows you to assign labels (such as station call letters) to channel numbers.
1
Press F or f to scroll through the channel numbers. Then press to select
the channel number that you want to assign a label.
2 Press F or f to scroll through the label characters (A-Z, 0-9, etc.). Then press
to select the highlighted character.
3 Repeat to add characters to the label.
4 To assign labels to more channels, repeat steps 1-2.
5 Press G to return to the Channel Setup menu, or press to exit the menus.
EXIT
01US01COV-BR2.book Page 56 Monday, March 28, 2005 1:36 PM
57
Digital Menus
Using the Digital Setup Menu
Screen Mode Applies only to digital channels that have 16:9 or widescreen aspect ratio. You
cannot use Screen Mode for analog channels.
Enables you to change the picture size for digital channels.
Select from: Full, Zoom, Horizontal Expand, Vertical Expand. For
details, see “Using the Screen Mode Feature” on page 32.
✍ In some cases, wide-screen programs will be shown in aspect ratios that require
the display of bars at the top and bottom of your 16:9 screen. For more details,
see page 61.
Caption Vision Applies to digital channels only. To set closed-caption options for analog
channels, see page 50.
Allows you to select from several closed caption modes (for programs that
are broadcast with closed captioning).
On Caption Vision is turned on.
Off Caption Vision is turned off.
Program Allows you to set additional Caption Vision options. See
“Programming Caption Vision” on page 58.
Diagnostics Displays information about the currently tuned channel. For terrestrial
digital signals, displays the strength of the signal to help you adjust your
antenna to optimize signal reception.
Menu Color Applies to digital menus only. You cannot set colors for analog menus.
Enables you to select a specific color for the on-screen menus.
To use the Digital Setup menu, use the following
steps:
To Display To Highlight To Select
Press f to highlight an option, then press .
01US01COV-BR2.book Page 57 Monday, March 28, 2005 1:36 PM
58
Digital Menus
Programming Caption Vision
Applies to digital channels only. To set closed-caption options for analog channels, see page 50.
If you selected the Program option under Caption Vision (page 57), you can change the
following settings:
Basic Allows you to select basic closed caption options (EIA-608).
CC1, CC2,
CC3, CC4
Displays a printed version of the dialog or sound
effects of a program. (Should be set to CC1 for most
programs.)
Text1,Text2,
Text3,Text4
Displays network/station information presented
using either half or the whole screen (if available).
For closed captioning, set to CC1.
Advanced Allows you to select advanced digital (EIA-708) closed caption options.
Select from the available options.
Digital CC Allows you to set digital closed captioning to Basic (digital EIA-608) or
Advanced (digital EIA-708).
Advanced
Settings
Allows you to make additional settings for digital (EIA-708) closed
caption options.
As Broadcast
Small Text
Large Text
Custom ... Allows you to customize the following settings:
Character Size Small, Standard, Large
Character Style
Style 1-7
Character Color
Color 1-8
Character Opacity Solid, Translucent
Edge Color
Color 1-8
Edge Type None, Raised,
Depressed, Outline,
Left shadow,
Right shadow
Background Color None,
Color 1-8
Background Opacity Solid, Translucent
Window Color None,
Color 1-8
Window Opacity Solid, Translucent
01US01COV-BR2.book Page 58 Monday, March 28, 2005 1:36 PM
59
Other Information
Other Information
Troubleshooting
If you have a problem with your TV, try the suggestions below. If the problem persists, see
“Contacting Sony” at the end of this section.
General
Problem Possible Remedies
I want to reset the TV
to the factory
settings
❏ Turn on the TV. While holding down the button on the
remote control, press the
POWER button on the TV front panel.
The TV will turn itself off, then back on again. Release the
button.
The TV is dirty
❏ Clean the TV with a soft dry cloth. Never use strong solvents
such as thinner or benzine, which might damage the finish of
the cabinet.
I lost the parental
control password
❏ In the password screen, enter the following master password:
4357. After using the master password, you must create a new
password. You cannot use the master to unlock currently
blocked channels.
There is a black box
on the screen
❏ You have selected a text option in the Setup menu (page 50) and
no text is available. To turn off this feature, select Off in the
Caption Vision option. If you were trying to select closed
captioning, select CC1-4 instead of Text1-4.
There was a blackout
or power outage, and
now the TV won't turn
on and the timer LED
is flashing
❏ Press the POWER button on your remote control or on the TV
front panel. If the problem persists, see “Contacting Sony” on
page 62.
The digital cable box
does not work
❏ If you are connecting a VCR and digital cable box using a
splitter, as described on page 19, you must use a special bi-
directional splitter (5-900 Mhz minimum) that is designed to
work with your digital cable box.
I can’t connect the
DVD player using
component video
outputs (Y P
B PR)
❏ You must set up your DVD player before you can connect it
using component video outputs (Y P
B PR). Disconnect the DVD
player and set it up, referring to the DVD manual for
instructions. Then, connect it to the TV again following the
instructions on page 24.
RESET
RESET
01US01COV-BR2.book Page 59 Monday, March 28, 2005 1:36 PM
60
Other Information
Remote Control
Programming The Remote Control
Problem Possible Remedies
I cannot operate the
remote control
❏ Press TV (FUNCTION) when operating your TV.
❏ Check the orientation of the batteries.
❏ Batteries could be weak. Replace them (page 8).
❏ Move the TV three to four feet away from fluorescent lights.
I cannot change
channels with the
remote control
❏ Make sure you have not inadvertently switched your TV from
the channel 3 or 4 setting if you are using another device to
change channels.
❏ If you are using another device to control channels, be sure that
you have pressed the
FUNCTION button for that device. For
example, if you are using your VCR to control channels, be sure
to press the
FUNCTION button.
I lost the remote
control
❏ You can use the front panel controls to access your menus,
change channels, adjust the volume, or change video inputs
(page 8). Contact your nearest Sony Dealer to order a
replacement. To find out the nearest dealer, please call our Sony
Direct Accessory and Part Center at 1-800-488-7669 (U.S.
residents only).
Problem Possible Remedies
More than one code
is listed
❏ Try entering them one by one until you come to the correct code
for your component.
I entered the wrong
code number
❏ If you enter a new code number, the code number you
previously entered at that setting is erased. To reenter the
correct code number you must reprogram the remote control.
I cannot operate a
component with the
remote control
❏ Use the component's own remote control.
When I changed the
batteries, the code
numbers changed
back to the factory
settings
❏ Reprogram the remote control.
01US01COV-BR2.book Page 60 Monday, March 28, 2005 1:36 PM
61
Other Information
Video
Problem Possible Remedies
No picture, no
sound
❏ Make sure the power cord is plugged in.
❏ If a red light flashes on the front of your TV for more than a few
minutes, disconnect and reconnect the power cord. If the
problem continues, call your local service center.
❏ Check the TV/VIDEO setting. When watching TV, set it to TV;
when watching video equipment, set it to VIDEO 1, 2, 3 or 4.
❏ Make sure you have inserted the batteries correctly into the
remote control (page 8).
❏ Try another channel to rule out station trouble.
Poor or no picture,
good sound
❏ Adjust the Picture setting in the Video menu (page 38).
❏ Adjust the Brightness setting in the Video menu (page 38).
❏ Check the antenna and/or cable connections (page 16).
No color
❏ Adjust the Color setting in the Video menu (page 38).
Snow on the screen
❏ Check the Cable setting in the Channel Setup menu (page 41).
❏ Check the antenna and/or cable connections (page 16).
❏ Make sure the channel selected is currently broadcasting.
Dotted lines or
stripes
❏ Adjust the antenna.
❏ Move the TV away from other electronic equipment. Some
electronic equipment creates electrical noise, which can interfere
with TV reception.
Double images or
ghosts
❏ Check your outdoor antenna or call your cable service.
Bars appear at the
top and bottom of the
screen
❏ Some wide-screen programs are filmed in aspect ratios that are
greater than 16:9, such as 2.35:1.
(This is especially common
with theatrical releases). Your TV will show these programs
with bars at the top and bottom of the screen. For more details,
check the documentation that came with your DVD (or contact
your program provider).
Cannot cycle through
the other video
equipment connected
to the TV
❏ Be sure the Video Label option is not set to Skip (see page 50).
Screen Mode feature
does not function
❏ Screen Mode is available only for digital 16:9 programming in
digital tuning mode. See page 32 for details.
01US01COV-BR2.book Page 61 Monday, March 28, 2005 1:36 PM
62
Other Information
Audio
Channels
Contacting Sony
Before calling our Customer Information Services Center, reset the TV to factory settings (see page 27). Please have
your TV serial number ready. The number is located on the rear of your TV and on the front cover of this manual.
Our Customer Information Services Center phone number is 1-800-222-SONY (7669) (US residents only) or 1-877-899
SONY (7669) (Canadian residents only).
Problem Possible Remedies
Good picture, no
sound
❏ Press so that Muting disappears from the screen. Check
your Audio settings. Your TV may be set to Auto SAP in the
MTS feature (page 39).
❏ Make sure the Speaker option is set to On in the Audio menu.
❏ Press VOL+ to adjust your TV's volume.
Low or no audio
(TV and cable box)
❏ Some cable boxes have volume level controls. Check and see if
your cable box remote has a volume control.
Problem Possible Remedies
I cannot receive
higher number
channels (UHF) when
using an antenna
❏ Make sure Cable is set to Off in the Channel Setup menu
(page 41).
❏ Perform Auto Program to add channels that are not presently in
memory (page 27).
Cable stations don’t
seem to work
❏ Make sure Cable is set to On in the Channel Setup menu
(page 41).
❏ Perform Auto Program to add channels that are not presently in
memory (page 27).
I have no digital
channels
❏ You may not have any digital channels available. Try running
the Auto Program feature to search for digital channels (see
page 55). If there are none available, press the button to
switch to analog mode.
ANALOG
/
DIGITAL
01US01COV-BR2.book Page 62 Monday, March 28, 2005 1:36 PM
63
Other Information
Specifications
For all models (except as noted)
Design and specifications are subject to change without notice.
Television system NTSC American TV Standard
ATSC (8VSB terrestrial) ATSC compliant 8VSB
QAM on cable ANSI/SCTE 07 2000
(Does not include CableCARD functionality.)
Channel coverage Terrestrial (analog) 2-69
Cable TV (analog) 1-125
Terrestrial (digital) 2-69
Cable TV (digital) 1-135
Antenna 75-ohm external antenna terminal for VHF/UHF
Picture tube FD Trinitron
®
tube
Power requirements 120V, 60 Hz
Supplied accessories Size AA (R6) batteries (2)
Remote Control RM-YD001 (1)
Inputs/outputs Inputs 1 video, 1 audio (front) Outputs
2 video, 2 audio (rear) 1 AUDIO OUT
1 S VIDEO
1 RF
2 Y PB PR, 2 audio
Optional accessories TV Stand: SU-32FS2 for KD-32FS130,
SU-36FS2 for KD-36FS130
KD-32FS130
Screen size Visible screen size: 803 mm (32 inches) measured diagonally
Actual screen size: 863.6 mm (34 inches) measured diagonally
Speaker output 10 W x 2
Power consumption 185 W
Less than 1 W in standby
Dimensions (W/H/D)
898 x 696 x 576 mm (35
3
/
8
x 27
3
/
8
x 22
5
/
8
inches)
Mass 74 kg (163.2 lbs)
KD-36FS130
Screen size Visible screen size: 911 mm (36 inches) measured diagonally
Actual screen size: 965.2 mm (38 inches) measured diagonally
Speaker output 10 W x 2
Power consumption 185 W
Less than 1 W in standby
Dimensions (W/H/D)
985 x 776 x 633 mm (38
3
/
4
x 30
1
/
2
x 24
7
/
8
inches)
Mass 103.2 kg (227.5 lbs)
01US01COV-BR2.book Page 63 Monday, March 28, 2005 1:36 PM
01US01COV-BR2.book Page 64 Monday, March 28, 2005 1:36 PM
65
Index
0-9 buttons 29
16:9 Enhanced 50
A
add digital channels 55
Alternate Audio 31
Alternate Video 31
Audio Out 40
Auto Program 27, 42, 55
Auto SAP 39
B
Balance 39
Bass 39
Batteries, inserting in remote 8
Brightness 38
C
Cable, setting 41
Caption Vision 50, 57, 58
Channel Fix 41
Channel Label 42
