Under-Counter Beverage Cooler
Edition: A (March 2012) - 1 -
Under-Counter Beverage Cooler
Instruction Manual
Series Model No:
GSP0H-840; GSP1H-840; GSP2H-840; GSP2S-840; GSP3H-840;
GSP3S-840; GSP0H-865; GSP1H-865; GSP2H-865; GSP2S-865;
GSP3H-865; GSP3S-865; GSP0H-900; GSP1H-900; GSP2H-900;
GSP2S-900; GSP3H-900; GSP3S-900;
Please read this booklet carefully and keep it in a safe place for
your future reference.
Under-Counter Beverage Cooler
Edition: A (March 2012) - 2 -
Thank you for selecting a Rhino product. This appliance has been
designed using the latest techniques and incorporates the best
components. We hope that you enjoy its use and benefit from its
performance. Please read this manual carefully and keep it in a
safe place for future reference
IMPORTANT
In the event of a breakdown, please consult the re-seller from
whom you purchased this merchandiser
Always insist upon the use of Rhino genuine parts.
For further information please contact:
Rhino Equipment
9 Hunters Walk, Canal Street,
Chester, CH1 4EB, United Kingdom
Telephone: (+44) 01244 321320
Fax: (+44) 01244 322345
Email: [email protected]
www.rhinoequipment.eu
Under-Counter Beverage Cooler
Edition: A (March 2012) - 3 -
TABLE OF CONTENTS
1. Installation……………………………………………………..4
2. Product description……………………………………...……7
3. Pack contents……………………………………………….…7
4. Operation………………………………………………………8
5. Cleaning, care and maintenance……………………… …..10
6. Troubleshooting…………….………………………………..11
7. Technical specifications………………………………..……12

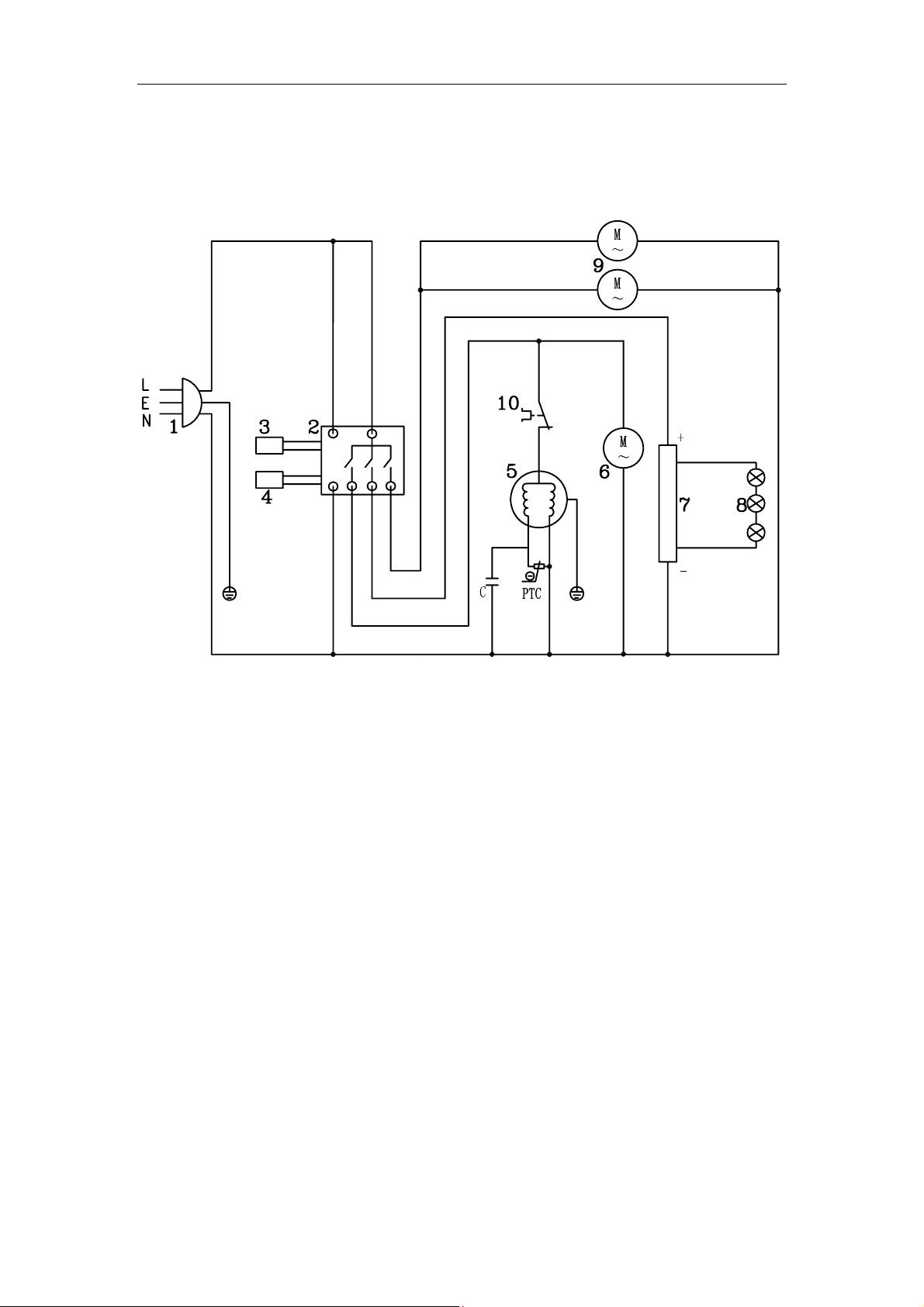

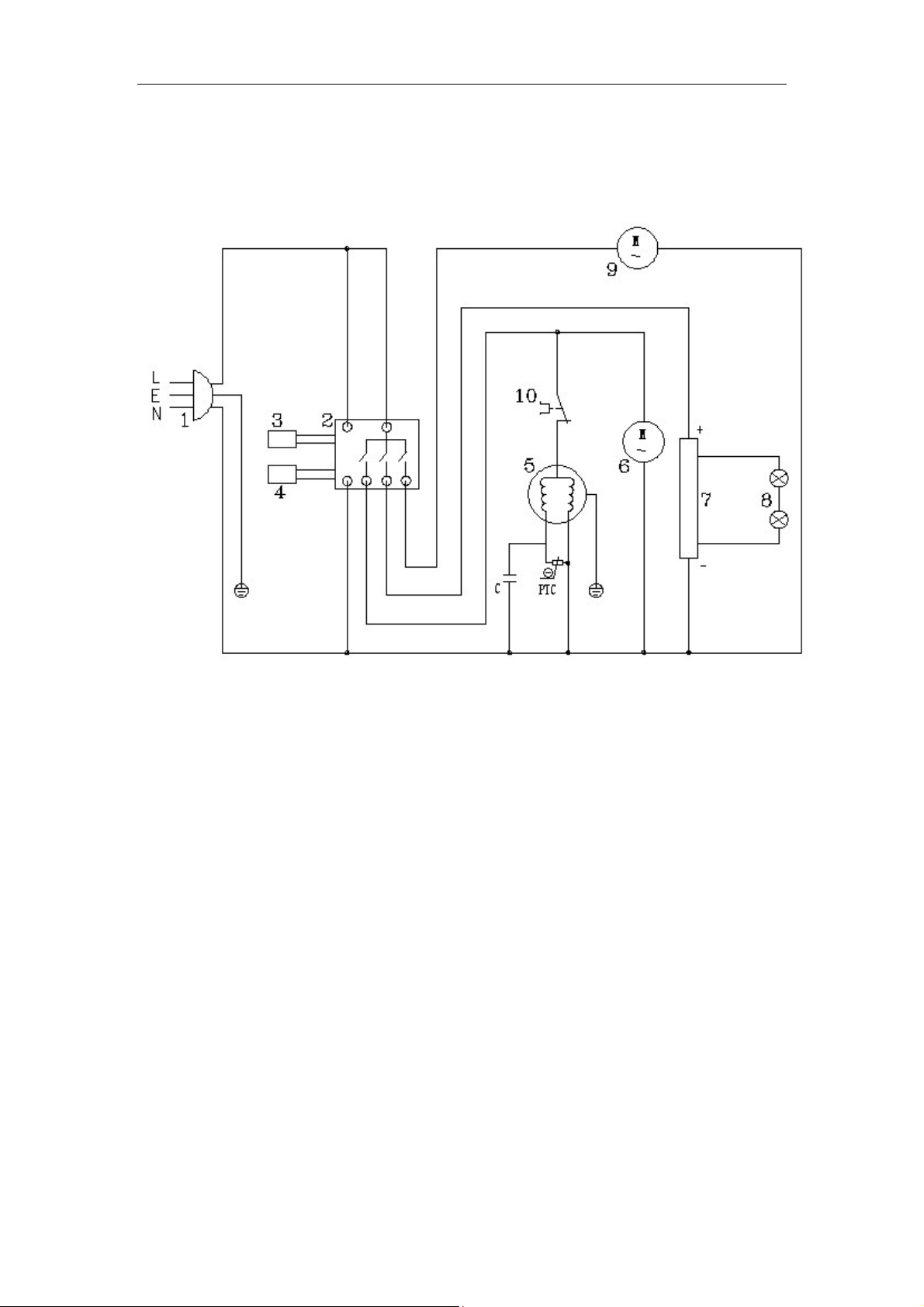

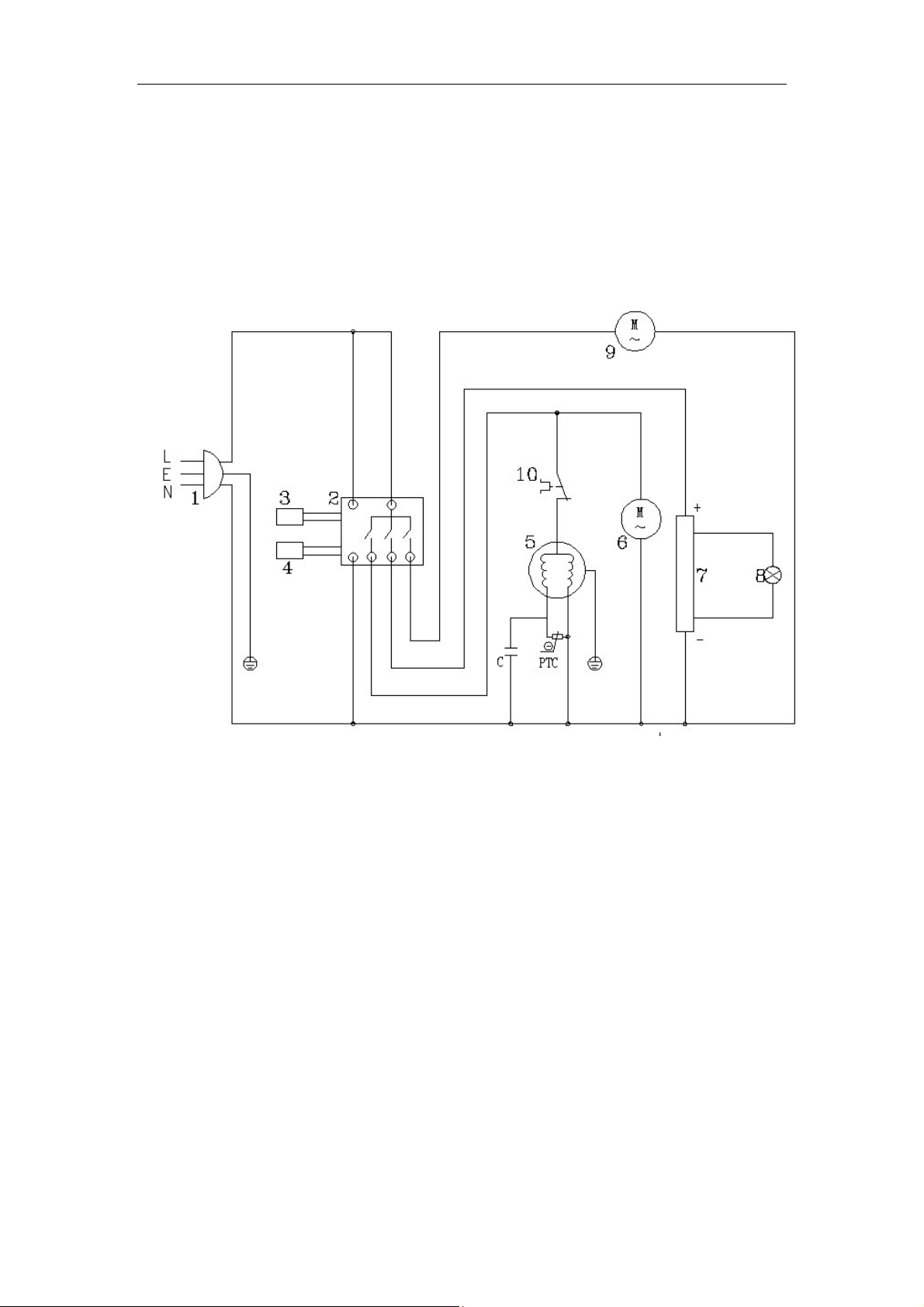

8. Wiring diagram………..……………………………………..16
9. Disposal……………………………………………………...19
10. Compliance………………………………………………..…19

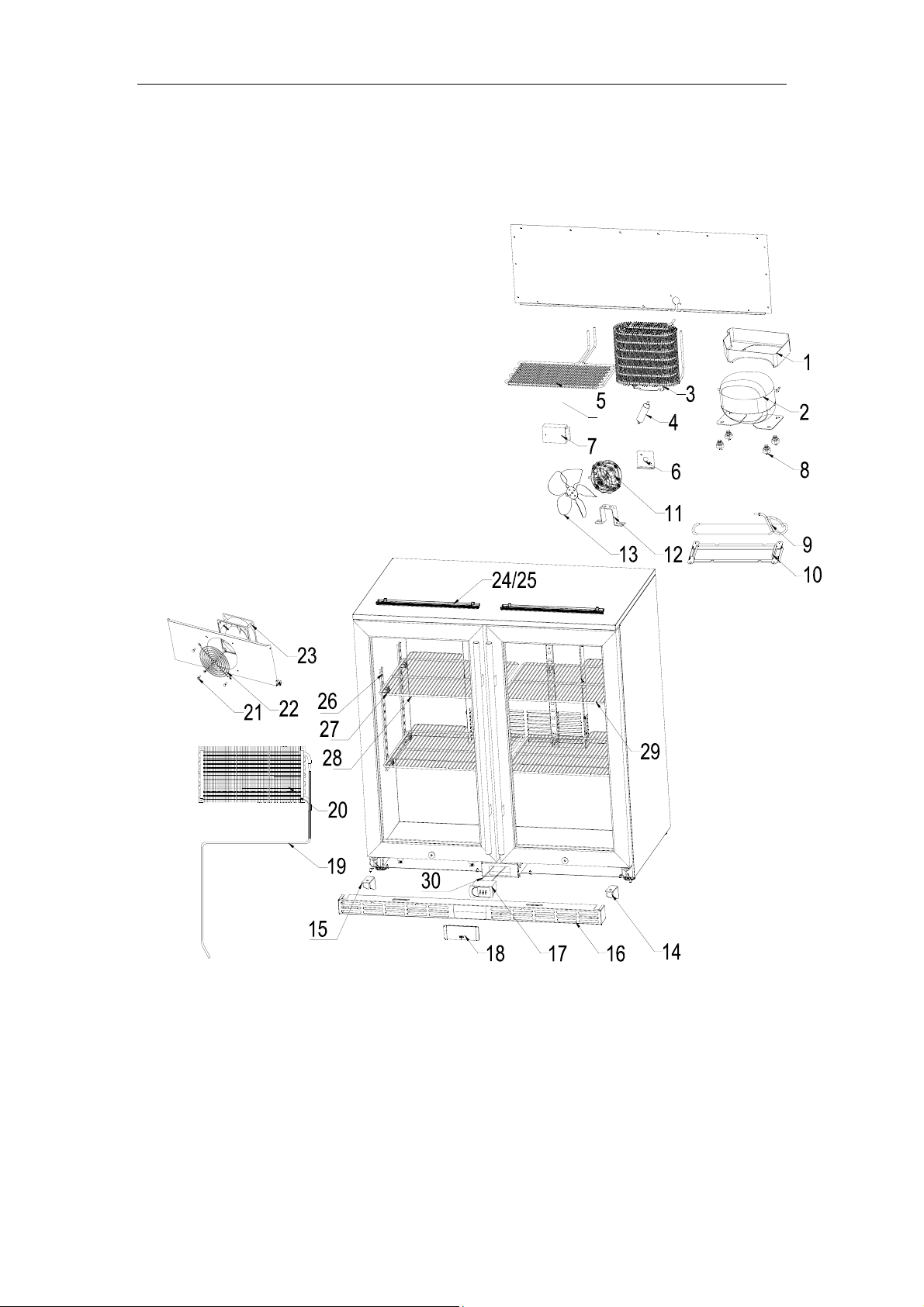

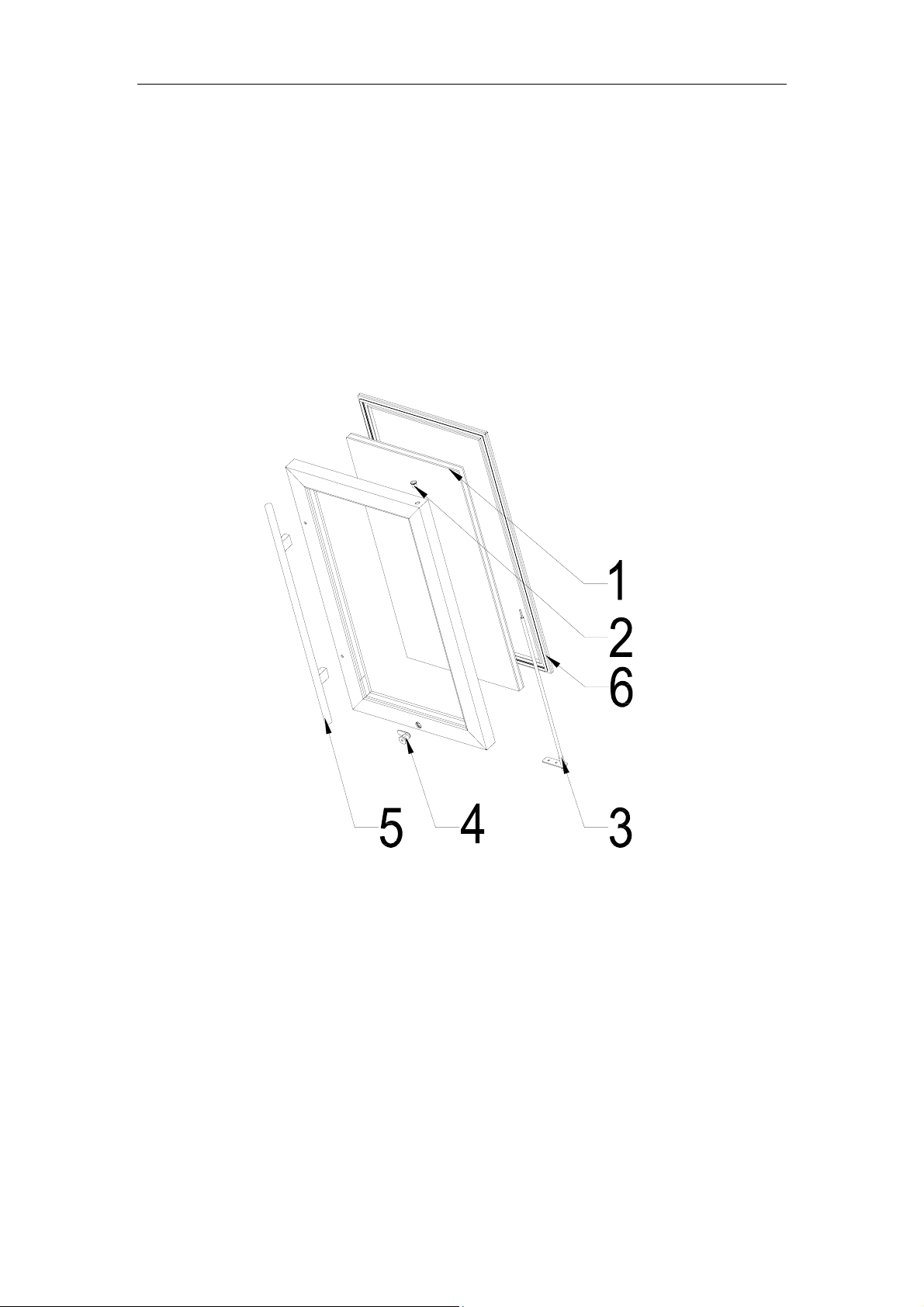

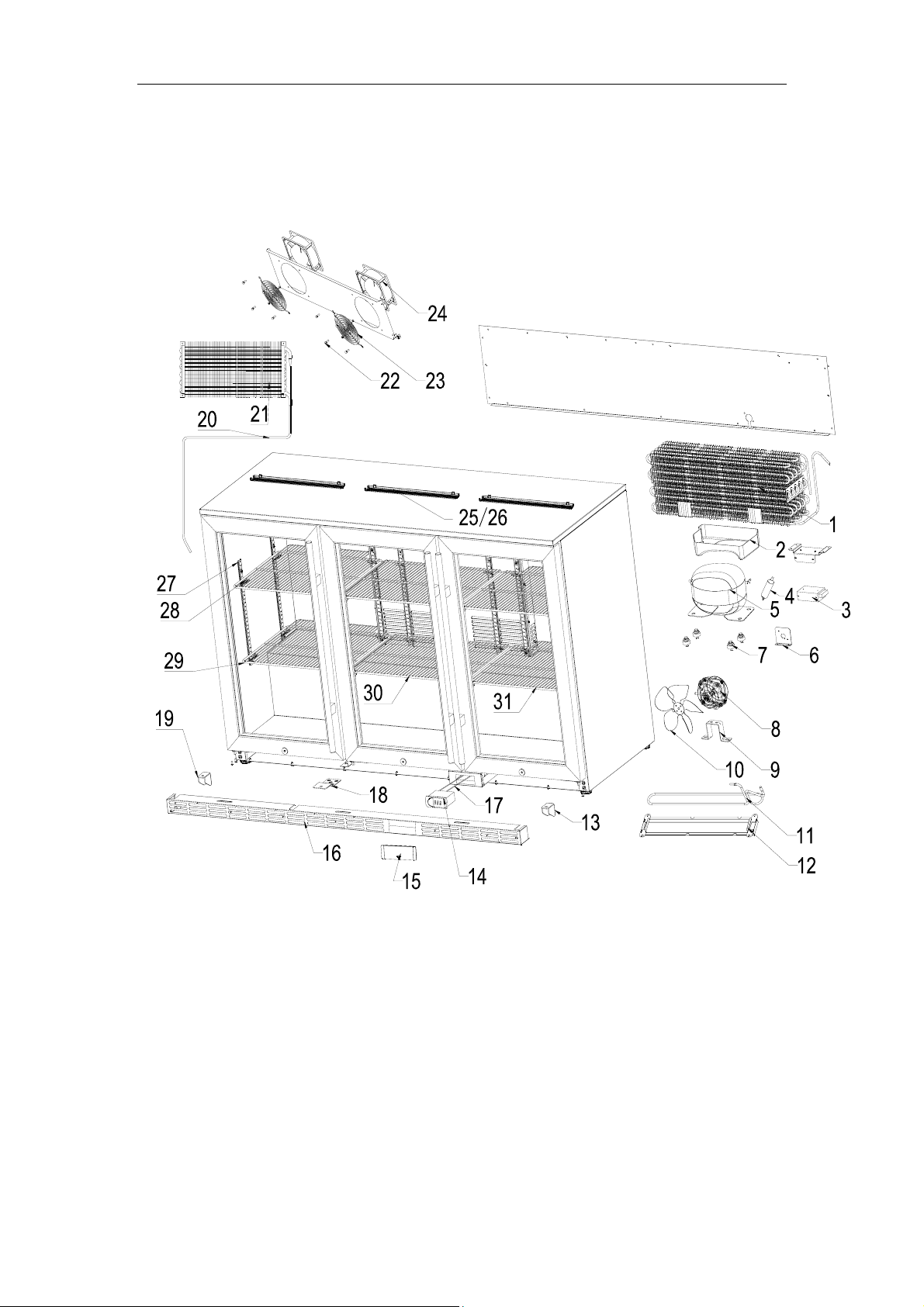

11. Spare Parts……………………………………………..……20
The information within this booklet was correct at the time of printing.
Specifications and information may alter without notice
Under-Counter Beverage Cooler
Edition: A (March 2012) - 4 -
1. INSTALLATION
1.1 Safety information
All electrical work must be carried out by suitably qualified persons
When using any electrical appliance, safety precautions should always be
observed.
• Do NOT use this appliance for other than its intended use. This product is
intended for use as a beverage cooler. It is not suitable for the storage of
foodstuffs.
• When used by, or near, young children or infirm persons, close supervision is
necessary. Young children should be supervised at all times to ensure that
they do not play with this appliance.
• Do NOT cover the front grille or block the rear air entry by placing object up
against the cabinet.
• Ensure adequate ventilation.
• Do NOT probe any openings.
• Be careful not to touch any moving parts or hot surfaces.
• Regulations require that all electrical work be carried out by authorized
persons. For your own safety and that of others please ensure this is done.
• Do NOT overload the power supply. Always ensure that the power supply is
adequate for the electrical requirements specified on the rating label. The
rating label is located inside the merchandiser on the right hand side wall. If in
doubt, please consult a qualified electrician. Caution: Never use extension
leads or multiple adaptors.
• If the mains supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified and skilled persons in order to avoid
hazard. A skilled person is a person having the appropriate technical training
and experience necessary to be aware of hazards to which he or she is
exposed in performing a task and of measures necessary to minimize the
danger to his or herself or other persons.
• Disconnect the mains power supply before attempting any cleaning, removal
of any covers, or maintenance work.
• Do NOT store explosive substances, such as aerosol cans with flammable
propellant, in this merchandiser.
·WARNING: Do not use mechanical devices or other means to accelerate the
defrosting process. Defrosting is performed automatically.
Under-Counter Beverage Cooler
Edition: A (March 2012) - 5 -
·WARNING: Do not damage the refrigeration circuit.
·WARNING: Do not use electrical appliances inside the storage compartment
of this appliance.
1.2 Assembly
·Remove the appliance from the packaging and peel off any protective film
from all surfaces.
·Fit the shelf support clips onto the shelf support strips, making sure that the
clips for each shelf are of the same height and that they are securely engaged
on the support strip.
·Unwrap each shelf carefully, to prevent damaging their protective coating or
surface finish.
·Position the shelves onto the clips.
·Please note the following maximum shelf loading weights：20Kg.
Under-Counter Beverage Cooler
Edition: A (March 2012) - 6 -
1.3 Positioning the chiller
·Please position the cabinet carefully being careful not to bump it.
·The power supply flex exits the chiller at the bottom right hand side (as
viewed from the front). For ease of access, the flex should be retrieved prior to
positioning the chiller in its final location.
·The maximum recommended ambient temperature for this chiller is 42℃.
·Avoid positioning the appliance in direct sunlight or damp areas.
·Allow adequate space for the door(s) to fully open.
·Ensure that this chiller is positioned on a level surface, so as to allow the
door(s) to shut and seal correctly, as well as to allow proper drainage from the
evaporator tray, to prevent any overflow. If necessary, adjust the screw feet of
the appliance to make it level.
·Do NOT overload the power supply. Always ensure that the power supply is
adequate for the electrical requirements specified on the rating label. The
rating label is located inside the chiller, on the right hand side wall. If in doubt,
please consult a qualified electrician. Caution: Never use extension leads or
multiple adaptors.
Note: If the unit has not been stored or moved in an upright position, let it stand
upright for approximately 12 hours before operation. If in doubt allow to stand.
Ventilation
·All models: All models must have clear and unobstructed ventilation from the
entire surface area of the front grille.
·The 2 and 3 door models may be built into an enclosure without the need for
ventilation other than at the front.
·The single door coolers MUST have a minimum ventilation space of 20mm at
sides and rear.
·WARNING:
Failure to provide the minimum ventilation space will
harm the performance of your chiller, could cause fire and will invalidate the
warranty.
·WARNING: Keep clear of obstruction all ventilation openings in the
appliance enclosure or in the structure for building in.
Under-Counter Beverage Cooler
Edition: A (March 2012) - 7 -
2. Product description
Series Model No Door’s quality Door’s type
Lighting
GSP0H-840 Single door Hinged door 1×2Watt(Max.) LED light
GSP1H-840 Single door Hinged door 1×2Watt(Max.) LED light
GSP2H-840 Double door Hinged door 2×2Watt(Max.) LED light
GSP2S-840 Double door Sliding door 2×2Watt(Max.) LED light
GSP3H-840 Triple door Hinged door 3×2Watt(Max.) LED light
GSP3S-840 Triple door Sliding door 3×2Watt(Max.) LED light
GSP0H-865 Single door Hinged door 1×2Watt(Max.) LED light
GSP1H-865 Single door Hinged door 1×2Watt(Max.) LED light
GSP2H-865 Double door Hinged door 2×2Watt(Max.) LED light
GSP2S-865 Double door Sliding door 2×2Watt(Max.) LED light
GSP3H-865 Triple door Hinged door 3×2Watt(Max.) LED light
GSP3S-865 Triple door Sliding door 3×2Watt(Max.) LED light
GSP0H-900 Single door Hinged door 1×2Watt(Max.) LED light
GSP1H-900 Single door Hinged door 1×2Watt(Max.) LED light
GSP2H-900 Double door Hinged door 2×2Watt(Max.) LED light
GSP2S-900 Double door Sliding door 2×2Watt(Max.) LED light
GSP3H-900 Triple door Hinged door 3×2Watt(Max.) LED light
GSP3S-900 Triple door Sliding door 3×2Watt(Max.) LED light
3. Pack contents
The following is included:
All models
·RHINO Back Bar Chiller ·Instruction manual ·2 keys for glass door
Plus…
Single Door model
·2 adjustable shelves ·8 shelf support clips
Double Door model
·4 adjustable shelves ·16 shelf support clips
Triple Door model
·6 adjustable shelves ·24 shelf support clips
RHINO prides itself on quality and service, ensuring that at the time of
packaging the contents are supplied fully functional and free of damage.
Should you find any damage as a result of transit, please contact your RHINO
dealer immediately.
Under-Counter Beverage Cooler
Edition: A (March 2012) - 8 -
4. Operation
This chiller is designed to operate at a recommended ambient temperature of
42℃ and as such, is categorized as a Climate Class 5 product. This
information is recorded on the rating label, which can be found on the inside
right hand wall of the cabinet.
Climate class Temperature(℃) Humidity(％RH)
5 40 40
Control Panel
The control panel is located below the door(s) on the front of the appliance.
Switching on
·Close the door of the appliance.
·Connect the appliance to an appropriate mains power supply.
Working mode
There are two different modes for the electronic thermostat, which are referred
to as Standard Mode and Saving Mode.
·Standard Mode: the chiller is optimised for maximum performance and will
maintain 0-4C.
·Saving Mode: the chiller is optimised for energy saving. In Saving Mode the
interior temperature is allowed to rise to as high as 10C, the air circulating fans
are managed for energy saving and the interior lights are switched off.
Switching Between Modes
When the appliance is powered up for the first time, the default mode is
Standard Mode. To enter Saving Mode, simply press and hold the UP/ES
keypad button for at least 3 seconds. The mode which is about to be entered is
displayed as a preview. EnS is displayed for Saving Mode and NOR is
displayed for Standard Mode. Upon disconnection and subsequent
re-connection to the mains power, the previously selected mode will be
remembered and restored.
Switching the Interior Lights ON and OFF
As mentioned above, the lights are automatically turned off in “Saving Mode”.
To switch the interior lights on or off at any time in either Mode, simply press
Under-Counter Beverage Cooler
Edition: A (March 2012) - 9 -
and hold the DOWN / LIGHT keypad button for at least 0.5 seconds. The light
will be either powered on or off accordingly.
If the compressor light is flashing on the electronic display
The compressor is designed to have a minimum resting period of 6 minutes. If
the electronics command the compressor to start, but it is in resting mode, then
the compressor light will flash. This is normal and nothing to be concerned
about.
Adjusting the temperature of Standard Mode
The appliance is set up to run without interference from the user. It is not
recommended for the user to interfere with the complex electronic set up.
However if the user wishes to change the temperature of the Standard Mode
then it can be done by altering the ST parameter. ST is the lowest temperature
that the user wishes the appliance to run at. The appliance will run at ST plus 2
degrees. For example if you wish to have an average temperature of 6
degrees inside the cabinet then you would select ST at a value of 4:
1. Press the SET keypad button for at least 3 seconds until “ 0 “ is
displayed.
2. Press the UP / ES keypad button 22 times until “ 22 “ is displayed .
3. Press the SET keypad button and the display will change to “PS”
4. Press the UP / ES keypad button 7 times until “ ST “ is displayed.
5. “ 0 “ will appear on the display
6. Using the “Down/Light” or “Up / ES” button, select the ST minimum
temperature value you prefer.
7. Press the “SET” keypad button once again will lock in the parameter
change.
Under-Counter Beverage Cooler
Edition: A (March 2012) - 10 -
5. Cleaning, care and maintenance
·Switch off and disconnect from the power supply before cleaning
·Clean the interior of the appliance using an appropriate sanitising solution in
accordance with local hygiene laws and regulations.
·Do not use abrasive cleaning agents which may scratch and harm the
delicate interior finishes of your appliance.
·Always wipe dry after cleaning.
·A RHINO agent or qualified technician must carry out repairs if required.
Clean the filter of single door back bar chiller
·The filter must be kept clean and free of dust at all times. It is recommended
that the cleaning routine be conducted at intervals appropriate to the speed of
accretion of dust on the filter and in any event at least every month. Failure to
keep the filter clean will damage the refrigeration system and invalidate the
warranty.
·Pull the filter upwards to remove it from its locating place under the glass
door.
·Use a vacuum cleaner, preferably with a brush attachment, to remove built up
dust.
·Refit the filter to its original location to ensure continual efficient operation is
maintained.
Clean the condenser
The condenser must be kept clean and free of dust at all times. It is
recommended that the cleaning routine be conducted at intervals appropriate
to the speed of accretion of dust on the condenser. Failure to keep the
condenser clean will damage the refrigeration system and invalidate the
warranty.
Warning: The condenser is a delicate component and is easily damaged.
Never use a stiff brush or sharp objects to clean it. Never use water.
For full visual details on how to clean your filter and condenser,
please visit : www.cleanme.eu
Under-Counter Beverage Cooler
Edition: A (March 2012) - 11 -
6. Troubleshooting
If your appliance develops a fault, please check the following table before
making a call to the Helpline.
Fault Probable Cause Action
The unit is not plugged
in correctly
Check the unit is plugged in
correctly
Plug or lead is
damaged
Call RHINO agent or qualified
technician
Power supply Check power supply
The appliance
is not working
Internal wiring fault Call RHINO agent or qualified
technician
Filter or condenser
blocked with dust
Clean filter or condenser
Doors are not shut
properly
Check doors are shut and seals
are not damaged
Appliance is located
near a heat source or
air flow to the
condenser is being
interrupted
Move the appliance to a more
suitable location
Ambient temperature is
too high
Increase ventilation or move
appliance to a cooler position
Insufficient airflow to the
fans
Remove any blockages to the fans
Appliance is overloaded Reduce the amount stored in the
appliance
The appliance
turns on, but
the
temperature is
too high/low
Factory default
parameters adjusted
Call RHINO agent or qualified
technician
The appliance is
touching a neighbouring
object
Check installation position and
change if necessary
The appliance
is unusually
loud
The appliance has not
been installed in a level
or stable position
Check installation position and
change if necessary
Under-Counter Beverage Cooler
Edition: A (March 2012) - 12 -
7. Technical specifications
Body Construction
Exterior Stainless steel / Colour coated galvanized steel
Interior Stainless steel / Aluminium
Insulation 40mm thick, injected, polyurethane foam
Foaming agent Cyclopentane
Refrigeration System
Type Integral split system
Airflow Induced airflow condenser and evaporator coils
Refrigerant R600a
Electrical
Supply 220~240 Volt a.c.(50Hz.) Single phase
Series
Model No
Power Current Temperature
range of
standard mode
Temperature
range of Saving
mode
Refrigerant
GSP0H-840
GSP1H-840
GSP0H-865
GSP1H-865
GSP0H-900
GSP1H-900
135W 0.60A 0~4℃ 4~10℃ R600a 60g
GSP2H-840
GSP2S-840
GSP2H-865
GSP2S-865
GSP2H-900
GSP2S-900
140W 0.65A 0~4℃ 4~10℃ R600a 48g
GSP3H-840
GSP3S-840
GSP3H-865
GSP3S-865
GSP3H-900
GSP3S-900
220W 1.2A 0~4℃ 4~10℃ R600a 85g
Under-Counter Beverage Cooler
Edition: A (March 2012) - 13 -
7.1. GSP0H-840/GSP1H-840/GSP0H-865/GSP1H-865/
GSP0H-900/GSP1H-900
Series
Model No
Width Height Depth Gross
Weight
Net
Weight
Gross
Volume
Net
Volume
GSP0H-840 500mm 840mm 542mm 64Kg 43Kg 104L 93L
GSP1H-840 600mm 840mm 542mm 71Kg 48Kg 129L 115L
GSP0H-865 500mm 865mm 542mm 67Kg 46Kg 109L 96L
GSP1H-865 600mm 865mm 542mm 74Kg 51Kg 135L 120L
GSP0H-900 500mm 900mm 542mm 70Kg 49Kg 113L 100L
GSP1H-900 600mm 900mm 542mm 77Kg 54Kg 140L 124L
Under-Counter Beverage Cooler
Edition: A (March 2012) - 14 -
7.2. GSP2H-840 /GSP2H-865/GSP2H-900
Series
Model No
Width Height Depth Gross
Weight
Net
Weight
Gross
Volume
Net
Volume
GSP2H-840 900mm 840mm 542mm 94Kg 65Kg 201L 192L
GSP2H-865 900mm 865mm 542mm 98Kg 69Kg 210L 200L
GSP2H-900 900mm 900mm 542mm 102Kg 73Kg 218L 207L
Under-Counter Beverage Cooler
Edition: A (March 2012) - 15 -
7.3. GSP3H-840 /GSP3H-865/GSP3H-900
Series
Model No
Width Height Depth Gross
Weight
Net
Weight
Gross
Volume
Net
Volume
GSP3H-840 1350mm 840mm 542mm 125Kg 90Kg 312L 304L
GSP3H-865 1350mm 865mm 542mm 130Kg 95Kg 325L 310L
GSP3H-900 1350mm 900mm 542mm 135Kg 100Kg 338L 316L
Under-Counter Beverage Cooler
Edition: A (March 2012) - 16 -
8. Wiring diagram
·GSP0H-840/GSP1H-840/GSP0H-865/GSP1H-865/
GSP0H-900/GSP1H-900
1. Power Plug 2. Electronic Thermostat
3. Sensor 4. Sensor
5. Compressor 6. Condenser Fan
7. Switch Power Supply 8. LED light
9. Evaporator Fan 10. Motor Protector
Under-Counter Beverage Cooler
Edition: A (March 2012) - 17 -
·GSP2H-840 /GSP2H-865/GSP2H-900 /GSP2S-840/
GSP2S-865/GSP2S-900
1. Power Plug 2. Electronic Thermostat
3. Sensor 4. Sensor
5. Compressor 6. Condenser Fan
7. Switch Power Supply 8. LED light
9. Evaporator Fan 10. Motor Protector
Under-Counter Beverage Cooler
Edition: A (March 2012) - 18 -
·GSP3H-840 /GSP3H-865/GSP3H-900/ GSP3S-840/
GSP3S-865/GSP3S-900
1. Power Plug 2. Electronic Thermostat
3. Sensor 4. Sensor
5. Compressor 6. Condenser Fan
7. Switch Power Supply 8. LED light
9. Evaporator Fan 10. Motor Protector
Under-Counter Beverage Cooler
Edition: A (March 2012) - 19 -
9. Disposal
This appliance contains flammable and explosive gas within its sealed system
and its insulation foam. This product must ONLY be disposed of and recycled
by a professional waste handling organisation that is qualified and registered
to recycle refrigeration appliances.
If in any doubt, please consult your Local Authority, contact Rhino or contact
the reseller from whom you purchased the appliance.
10. Compliance
RHINO components have undergone strict product testing in order to comply
with regulatory standards and specifications set by international, independent,
and federal authorities.
RHINO products have been approved to carry the following symbol:
This appliance contains a flammable refrigerant gas called R600a. Please
ensure that the refrigeration engineer is qualified in the safe handling of
flammable refrigerants.
R600a gas is a very efficient refrigerant that is zero ODP (Ozone Depleting)
and has negligible GWP (Global Warming Potential).
All rights reserved. No part of these instructions may be produced or transmitted in any form or
by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior
written permission of RHINO. Every effort is made to ensure all details are correct at the time of
going to press, however, RHINO reserve the right to change specifications without notice.
Under-Counter Beverage Cooler
Edition: A (March 2012) - 20 -
11. Spare Parts
11.1. GSP0H-840/GSP1H-840/GSP0H-865/GSP1H-865/
GSP0H-900/GSP1H-900 Cabinet Assembly
12
8
9
10
11
1314
1516
17
11
18
19
20
21
22
23
25
24
Under-Counter Beverage Cooler
Edition: A (March 2012) - 21 -
11.1. GSP0H-840/GSP1H-840/GSP0H-865/GSP1H-865/
GSP0H-900/GSP1H-900 Cabinet Assembly
Item Part Number Description
1 E00002800 24V switch power
2 P000036B0 plastic drain tray
3 R00001400 drier
4 R31900400 drier tube
5 M31404000 main lead support
6 R00004700 compressor
7 R00004800 compressor accessory
8 R31900300 exhaust tube
9 M31900800 stainless steel drain tray
10 R31900100 condenser
11 E00008600 EC axial fan
12 P41000400 plastic LED lamp cover
13 M31402800 bottom hinge support
14 M31901900 kick panel
15 E00009000 electronic ECO controller
16 P31402100 plastic controller cover
17 M31902300 filter
18 R31900200 suction assembly
19 R31400100 evaporator
20 P000037B0 nylon rivet
21 M000020S0 evaporator fan cover
22 E31000600 LED light
23 M31403400 shelf support
24 M31403500 shelf clip
25 M31902400 shelf
26 E00008900 sensor
Under-Counter Beverage Cooler
Edition: A (March 2012) - 22 -
11.2. GSP2H-840/GSP2S-840/GSP2H-865/GSP2S-865/
GSP2H-900/GSP2S-900 Cabinet Assembly
Under-Counter Beverage Cooler
Edition: A (March 2012) - 23 -
11.2. GSP2H-840/GSP2S-840/GSP2H-865/GSP2S-865/
GSP2H-900/GSP2S-900 Cabinet Assembly
Item Part Number Description
1 P000036B0 plastic drain tray
2 R00004700 compressor
3 R31400400 condenser
4 R00001400 drier
5 M31400300 bottom condenser
6 M31404000 main lead support
7 E00002800 24V switch power
8 R00004800 compressor accessory
9 R31400500 exhaust tube
10 M31403900 stainless steel drain tray
11 E00009200 EBM IQ motor
12 M40102000 motor bracket
13 M00002400 200mm28°fan blade
14 M3140280R right bottom hinge support
15 M3140280L left bottom hinge support
16 M31402500 kick panel
17 E00009000 electronic ECO controller
18 P31402100 plastic controller cover
19 R31400200 suction assembly
20 R31400100 evaporator
21 P000037B0 nylon rivet
22 M000020S0 evaporator fan cover
23 E00008600 EC axial fan
24 E31000600 LED light
25 P41000400 plastic LED lamp cover
26 M31403400 shelf support
27 M31403500 shelf clip
28 M3140370L left shelf
29 M3140370R right shelf
30 E00008900 sensor
Under-Counter Beverage Cooler
Edition: A (March 2012) - 24 -
11.3. GSP3H-840/GSP3S-840/GSP3H-865/GSP3S-865/
GSP3H-900/GSP3S-900 Cabinet Assembly
Under-Counter Beverage Cooler
Edition: A (March 2012) - 25 -
11.3. GSP3H-840/GSP3S-840/GSP3H-865/GSP3S-865/
GSP3H-900/GSP3S-900 Cabinet Assembly
Item Part Number Description
1 R32600300 condenser
2 P000036B0 plastic drain tray
3 E00002800 24V switch power
4 R00001400 drier
5 R00002500 compressor
6 M31404000 main lead support
7 R00002600 compressor accessory
8 E00009200 EBM IQ motor
9 M40102000 motor bracket
10 M00002400 200mm28°fan blade
11 R32600400 exhaust tube
12 M32601800 stainless steel drain tray
13 M3140280R right bottom hinge support
14 E00009000 electronic ECO controller
15 P31402100 plastic controller cover
16 M32601300 kick panel
17 E00008900 sensor
18 M32602200 middle bottom hinge support
19 M3140280L left bottom hinge support
20 R32600200 suction assembly
21 R32600100 evaporator
22 P000037B0 nylon rivet
23 M000020S0 evaporator fan cover
24 E00008600 EC axial fan
25 E31000600 LED light
26 P41000400 plastic LED lamp cover
27 M31403400 shelf support
28 M31403500 shelf clip
29 M3260240L left shelf
30 M32602300 middle shelf
31 M3260240R right shelf
Under-Counter Beverage Cooler
Edition: A (March 2012) - 26 -
11.4. Hinged door models Glass Door Assembly
(GSP0H-840/GSP1H-840/GSP0H-865/GSP1H-865/GSP0H-900/
GSP1H-900/GSP2H-840 /GSP2H-865/GSP2H-900/ GSP3H-840/
GSP3H-865/GSP3H-900)
Under-Counter Beverage Cooler
Edition: A (March 2012) - 27 -
11.4. Hinged door models Glass Door Assembly
(GSP1H-865/GSP2H-865 /GSP3H-865)
GSP1H-865
A3190050L(left door)/A3190050R(right door)
Item Part Number Description
1 A31900700 glass assembly
2 P314010B0 pivot bush
3 A31401000 torsion bar assembly
4 A00000100 door lock
5 M31404600 door handle
6 P319006B0 door gasket
GSP2H-865
A3140090L(left door)/A3140090R(right door)
Item Part Number Description
1 A31401100 glass assembly
2 P314010B0 pivot bush
3 A31401000 torsion bar assembly
4 A00000100 door lock
5 M31404600 door handle
6 P314020B0 door gasket
GSP3H-865
A3140090L(left door)/A3140090R(right door)
Item Part Number Description
1 A31401100 glass assembly
2 P314010B0 pivot bush
3 A31401000 torsion bar assembly
4 A00000100 door lock
5 M31404600 door handle
6 P314020B0 door gasket
Under-Counter Beverage Cooler
Edition: A (March 2012) - 28 -
GSP3H-865
A3260040C(centre door)
Item Part Number Description
1 A31401100 glass assembly
2 P314010B0 pivot bush
3 A31401000 torsion bar assembly
4 A00000100 door lock
5 M31404600 door handle
6 P326004B0 door gasket
Under-Counter Beverage Cooler
Edition: A (March 2012) - 29 -
·NOTES·
Under-Counter Beverage Cooler
Edition: A (March 2012) - 30 -
QUICK REFERENCE
Series Model Number :....................................................................................
Item Number :...................................................................................................
Serial number:...................................................................................................
Date of installation:...........................................................................................
Address of first place of installation:..............................................................
............................................................................................................................
Date of re-installation* :....................................................................................
Address of second place of installation* :......................................................
............................................................................................................................
* If resold or relocated to other premises
Rhino Equipment,
9 Hunters Walk, Canal Street,
Chester, CH1 4EB, United Kingdom
Telephone: (+44) 01244 321320
Fax: (+44) 01244 322345
Email: [email protected]
www.rhinoequipment.eu
Made in China
