Copyright
2003,
Zenith
Electronics
Corporation
Installation
and
Operating
Guide
|

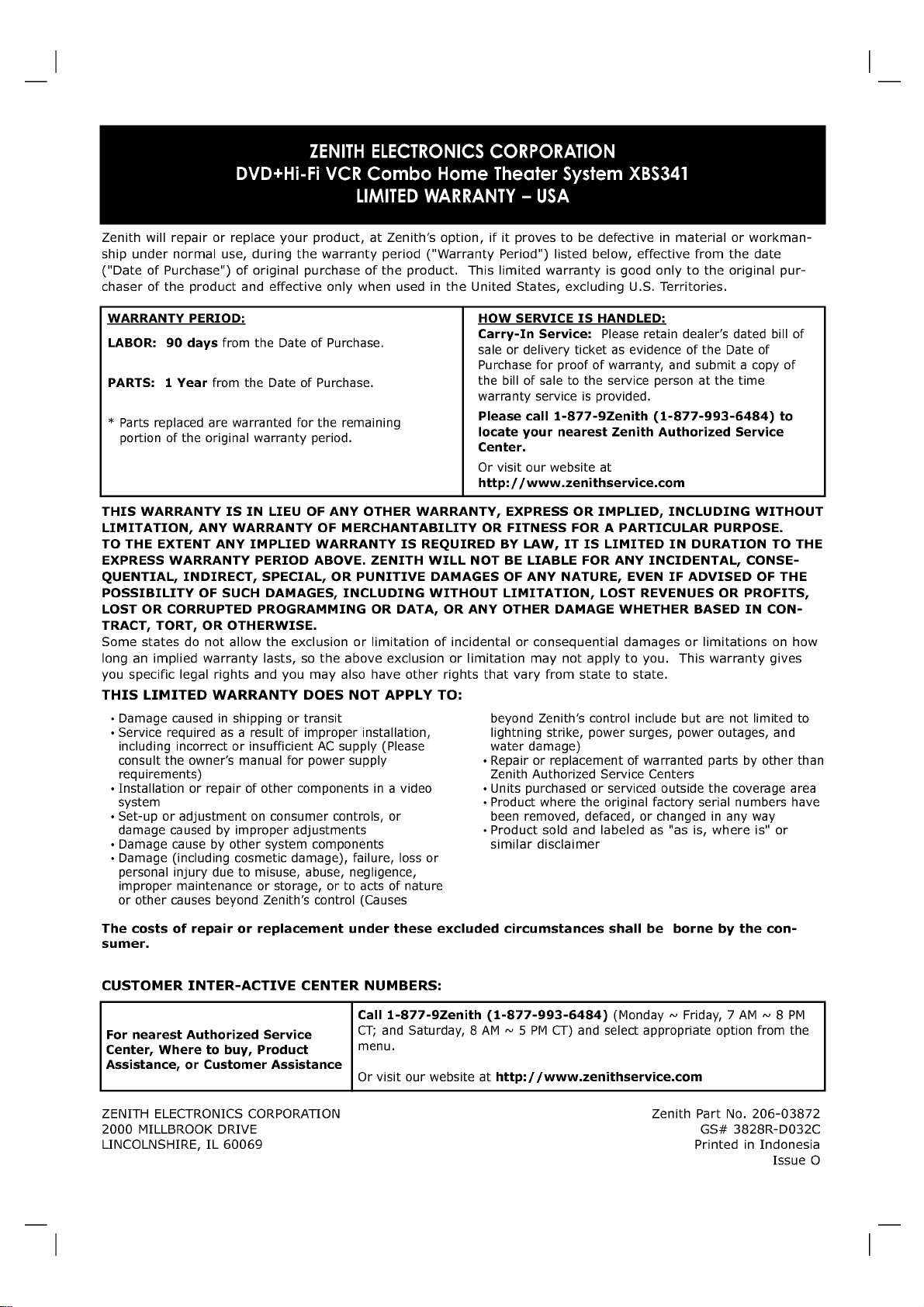

Warranty
Model
Number
|
XBS341
|
DVD+Hi-Fi
VCR
System
(Speakers:
LHS-C6237T/LHS-C6237W)
2
Safety
Precautions
This
lightning
flash
with
arrowhead
symbol
within
an
equilateral
triangle
is
intended
to
alert
the
user
to
the
presence
of
uninsulated
dangerous
voltage
within
the
product's
enclosure
that
may
be
of
sufficient
magnitude
to
constitute
a
risk
of
electric
shock
to
persons.
The
exclamation
point
within
an
equilateral
triangle
is
intended
to
alert
the
user
to
the
presence
of
important operating
and
maintenance
(servicing)
instructions
in
the
literature
accompanying
the
product.
WARNING:
Do
not
install
this
equipment
in
a
confined
space
such
as
a
bookcase
or
similar
unit.
NOTE TO
CABLE/TV
INSTALLER:
This
reminder
is
provided
to
call
the
cable
TV
system
installer's
attention
to
Article
820-40
of
the
National
Electric
Code
(U.S.A.).
The
code
provides
guidelines
for
proper
grounding
and,
in
particular,
specifies
that
the
cable
ground
shall
be
connected
to
the
grounding
system
of
the
building,
as
close
to
the
point
of
the
cable
entry
as
practical.
CAUTION:
This
DVD+Hi-Fi
VCR
System
employs
a
Laser
System.
To
ensure
proper
use
of
this
product,
please
read
this
owner
's
manual
carefully
and
retain for
future
reference.
Should
the
unit
require
maintenance,
contact
an
authorized
service
center
see
back
page
for
instructions.
Use
of
controls,
adjustments,
or
the
performance
of
procedures
other
than
those
specified
herein
may
result
in
hazardous
radiation
exposure.
To
prevent
direct
exposure
to
laser
beam,
do
not
try
to
open
the enclosure.
Visible
laser
radiation
when
open.
DO
NOT
STARE
INTO
BEAM.
CAUTION:
The
apparatus
should not
be
exposed
to
water
(dripping
or
splashing)
and
no
objects
filled
with
liquids,
such
as
vases,
should
be
placed
on
the
apparatus.
FCC
WARNING:
This
equipment
may
generate
or
use
radio
frequency
energy.
Changes
or
modifications
to
this
equipment
may
cause
harmful
interference
unless
the
modifi-
cations
are
expressly
approved
in
the
instruction
manual.
The
user
could
lose
the
authority
to
operate
this
equipment
if
an
unauthorized
change
or
modification
is
made.
FCC
COMPLIANCE:
The
responsible
party
for
this
product's
compliance
is:
Zenith
Electronics
Corporation,
2000
Millbrook
Drive,
Lincolnshire,
IL
60069,
USA
Phone:
1-847-941-8000.
REGULATORY
INFORMATION:
FCC
Part
15
This
product
has
been
tested
and
found
to
comply
with
the
limits
for
a
Class
B
digital
device,
pursuant
to
Part
15
of
the
FCC
Rules.
These
limits
are
designed
to
provide
reasonable
protection
against
harmful
interference
when
the
product
is
operated
in
a
residential
installation.
This
product
generates,
uses,
and
can
radiate
radio
frequency
energy
and,
if
not
installed
and
used
in
accordance
with
the
instruction
manual,
may
cause
harmful
interference
to
radio
communications.
However,
there
is
no
guarantee
that
interference
will
not
occur
in
a
particular
installation.
If
this
product
does
cause
harmful
interference
to
radio
or
television
reception,
which
can
be
determined
by
turning
the
product
off
and
on,
the
user
is
encouraged
to
try
to
correct
the
interference
by
one
or
more
of
the
following
measures:
Reorient
or
relocate
the
receiving
antenna.
Increase
the
separation
between
the
product
and
receiver.
Connect
the
product
into
an
outlet
on a
circuit
different
from
that
to
which
the
receiver
is
connected.
Consult
the
dealer
or
an
experienced
radio/TV
technician
for
help.
OTES
ON
COPYRIGHTS:
It
is
forbidden
by
law
to
copy,
broadcast,
show,
broadcast
via
cable,
play
in
public,
or
rent
copyrighted
material
without
permission.
This
product
uses
copyright
protection
developed
by
Macrovision.
Copy
protection
signals
are
recorded
on
some
discs.
When
recording
and
playing
the
pictures
of
these
discs
on
a
VCR,
noise
will
appear.
This
product
incorporates
copyright
protection
technology
that
is
protected
by
method
claims
of
certain
U.S.
patents
and
other
intellectual
property
rights
owned
by
Macrovision
Corporation
and
other
rights
owners.
Use
of
this
copyright
protection
tech-
nology
must
be
authorized
by
Macrovision
Corporation,
and
is
intended
for
home
and
other
limited
viewing
uses
only
unless
otherwise
authorized
by
Macrovision
Corporation.
Reverse
engineering
or
disassembly
is
prohibited.
SERIAL
NUMBER:
The
serial
number
is
found
on
the
back
of
this
unit.
This
number
is
unique
to
this
unit
and
not
available
to
others.
You
should
record
requested
information
here
and
retain
this
guide
as
a
permanent
record
of
your
purchase.
Model
No.
_________________________________
Serial
No.
_________________________________
CAUTION:
TO
PREVENT
ELECTRIC
SHOCK,
MATCH
WIDE
BLADE
OF
PLUG
TO
WIDE
SLOT,
FULLY
INSERT.
ATTENTION:
POUR
EVITER
LES
CHOC
ELECTRIQUES,
INTRODUIRE
LA
LAME
LA
PLUS
LARGE
DE
LA FICHE
DANS
LA
BORNE
CORRESPONDANTE
DE
LA
PRISE
ET
POUSSER
JUSQU'AU
FOND.
WARNING:
TO
REDUCE
THE
RISK
OF
FIRE
OR
ELEC-
TRIC
SHOCK,
DO
NOT
EXPOSE
THIS
APPARATUS
TO
RAIN
OR
MOISTURE.
CAUTION
RISK
OF
ELECTRIC
SHOCK
DO
NOT
OPEN
CAUTION:
TO
REDUCE
THE
RISK
OF
ELECTRIC
SHOCK
DO
NOT
REMOVE
COVER
(OR
BACK)
NO
USER-SERVICEABLE
PARTS
INSIDE
REFER
SERVICING
TO
QUALIFIED
SERVICE
PERSONNEL.
CD-R/RW
INTRODUCTION
3
IMPORTANT
SAFETY
INSTRUCTIONS
1.
Read
these
instructions.
-
All
these
safety
and
oper-
ating
instructions
should
be
read
before
the
product
is
operated.
2.
Keep
these
instructions.
-
The
safety,
operating
and
use
instructions
should
be
retained
for
future
refer-
ence.
3.
Heed
all
warnings.
-
All
warnings
on
the
product
and
in
the
operating
instructions
should
be
adhered
to.
4.
Follow
all
instructions.
-
All
operating
and
use
instructions
should
be
followed.
5.
Do
not
use
this
product
near
water.
--
For
example:
near a
bath
tub,
wash
bowl,
kitchen
sink,
laundry
tub,
in
a
wet
basement;
or
near
a
swimming
pool;
and
other
areas
located
near
water.
6.
Clean
only
with
dry
cloth.
--
Unplug
this
product
from
the
wall
outlet
before
cleaning.
Do
not
use
liquid
cleaners.
7.
Do
not
block
any
ventilation
openings.
Install
in
accordance
with
the
manufacturer's
instructions.
-
Slots
and
openings
in
the
cabinet
are
provided
for
ventilation
and
to
ensure
reliable
operation
of
the
product
and
to
protect
it
from
over-
heating.
The
open-
ings
should
never
be
blocked
by
placing
the
product
on
a
bed,
sofa,
rug
or
other
similar
surface.
This
prod-
uct
should
not
be
placed
in
a
built-in
installation
such
as a
bookcase
or
rack
unless
proper
ventilation
is
pro-
vided
or
the
manufacturer's
instructions
have
been
adhered
to.
8.
Do
not
install
near
any
heat
sources
such
as
radi-
ators,
heat
registers,
stoves,
or
other
apparatus
(including
amplifiers)
that
produce
heat.
9.
Do
not
defeat the
safety
purpose
of
the
polarized
or
grounding-type
plug.
A
polarized
plug
has
two
blades
with
one
wider
than
the
other.
A
grounding
type
plug
has
two
blades
and
a
third
grounding
prong.
The
wide
blade
or
the
third
prong
are
pro-
vided
for
your
safety.
If
the
provided
plug
does
not
fit
into
your
outlet,
consult
an
electrician
for
replacement
of
the
obsolete
outlet.
10.
Protect
the
power
cord
from
being
walked
on
or
pinched
particularly
at
plugs,
convenience
receptacles,
and
the
point
where
they
exit
from
the
product.
11.
Only
use
attachments/accessories
specified
by
the
manufacturer.
12.
Use
only
with the
cart,
stand,
tripod,
bracket,
or
table
specified
by
the
manufacturer,
or
sold
with
apparatus.
When
a
cart
is
used,
use
caution
when
moving
the
cart/product
combination
to
avoid
injury
from
tip-over.
13.
Unplug
this
product
during
lightning
storms
or
when
unused
for
long
periods
of
time.
14.
Refer
all
servicing
to
qualified
service
personnel.
Servicing
is
required
when
the
product
has
been
damaged
in
any
way,
such
as
power-supply
cord
or
plug
is
damaged,
liquid
has
been
spilled
or
objects
have
fallen
into
the
product,
the
product
has
been
exposed
to
rain
or
moisture,
does
not
operate
normally,
or
has
been
dropped.
CAUTION:
PLEASE
READ
AND
OBSERVE
ALL
WARNINGS
AND
INSTRUCTIONS
IN
THIS
OWNER'S
MANUAL.
AND
THOSE
MARKED
ON
THE
PRODUCT.
RETAIN
THIS
MANUAL
FOR
FUTURE
REFERENCE.
This
product
has
been
designed
and
manufactured
to
assure
personal
safety.
Improper
use
can
result
in
electric
shock
or
fire
hazard.
The
safeguards
incorporated
in
this
product
will
protect
you
if
you
observe
the
following
proce-
dures
for
installation,
use,
and
servicing.
This
product
does
not
contain
any
parts
that
can
be
repaired
by
the
user.
DO
NOT
REMOVE
THE
CABINET
COVER,
OR
YOU MAY
BE
EXPOSED
TO
DANGEROUS
VOLTAGE.
REFER
SERVICING
TO
QUALIFIED
SERVICE
PERSONNEL
ONLY.
4
Table
of
Contents
Introduction
SafetyPrecautions.........................2
IMPORTANTSAFETYINSTRUCTIONS.
. . . . . . . .
.3
TableofContents..........................4
BeforeUse..............................5-6
PlayableDiscs...........................5
Precautions.............................6
NotesonDiscs..........................6
AboutSymbols..........................6
FrontPanelControls........................7
DisplayWindowIndicators...................8
RemoteControlButtons.....................9
RearPanelConnections....................10
Pre-operation
Setup
Connections...........................11-14
Connecting
Antenna/Cable
TV
to
DVD+Hi-Fi
VCRSystem...........................11
BasicTVConnections....................12
Accessory
Audio/Video
(A/V)
Connections
to
DVD+Hi-FiVCRSystem..................13
RadioAntennaConnections................13
SpeakerSystemConnections.
. . . . . . . . . . . .
.14
SpeakerPositions.......................14
Glossary
for
Audio
Stream
&
Surround
mode
. . .
15
VCRPre-operationSetup.................16-18
On-ScreenDisplay(OSD).................16
On-ScreenMenusSetup..................16
VCRSetupMenuOptions.................17
ChannelSelection.......................17
SettingtheClock........................18
DVDpre-operationSetup.................19-22
GeneralExplanation......................19
On-ScreenDisplay.......................19
InitialSettings........................20-22
GeneralOperation....................20
Language..........................20
Picture.............................20
5.1Speakersetup....................21
Others.............................21
ParentalControl......................22
Operation
VCROperation.........................23-28
NormalPlayback........................23
SpecialEffectPlaybacks..................23
Search.............................23
Still
and
Frame-by-Frame
Playback
.
23
SlowMotion.........................23
CMSkip(CommercialSkip).
. . . . . . . . . . .
.23
NormalRecording.......................24
TimerRecording......................24-25
InstantTimerRecording...................26
DubbingandEditing......................26
CopyingfromDVDtoVCR.................26
VHS
Hi-Fi
Stereo
System/MTS
Broadcast
. . . . .
27
TapeCounterMemoryFeature.
. . . . . . . . . . . .
.28
AdditionalInformation....................28
DVDOperation.........................29-30
PlayingDVDs..........................29
GeneralFeatures........................29
ChangingTITLEs.....................29
ChangingChapters...................29
SlowMotion.........................29
Still
and
Frame-by-Frame
Playback
.
30
Search.............................30
Repeat.............................30
RepeatA-B.........................30
TimeSearch........................30
3DSurround........................30
Zoom..............................30
MarkerSearch.......................31
SpecialDVDFeatures....................31
Checking
the
contents
of
DVD
Video
discs:
Menus
.
31
TitleMenu..........................31
DiscMenu..........................31
CameraAngle.......................31
ChangingtheAudioLanguage.
. . . . . . . . .
.31
Subtitles............................31
Audio
CD
or
MP3/WMA
Disc
Operation
. . . . . .
32-33
PlayingAudioCDsorMP3/WMADiscs
. . . . . .
.32
NotesonMP3/WMARecordings.
. . . . . . . . . .
.32
Pause.............................33
ChangingTracks.....................33
RepeatTrack/All/Off..................33
Search.............................33
RepeatA-B.........................33
3DSurround........................33
ChangingtheAudioChannel.
. . . . . . . . . .
.33
JPEGFileOperation.......................34
ProgrammedPlayback.....................35
Programmed
Playback
with
Audio
CDs
andMP3/WMADiscs.....................35
RepeatProgrammedTracks
. . . . . . . . . . .
.35
ErasingaTrackfromtheProgramList.
. . .
.35
ErasingtheentireProgramList.
. . . . . . . .
.35
SpeakerSetup..........................36
RadioOperation........................37-38
PresettingRadioStations..................37
RadioOperation.........................37
ToClearStoredRadioStations
. . . . . . . . . . . .
.37
TuningStationsManually..................38
TuningStationsAutomatically.
. . . . . . . . . . . . .
.38
Mute.................................38
Reference
Troubleshooting........................39-40
LanguageCodeList.......................41
CountryCodeList.........................42
Specifications..........................43-44
Notes..............................45-46-47
About
the
symbols
for
instructions
Indicates
hazards
likely
to
cause
harm
to
the
unit
itself
or
other
material
damage.
Indicates
special
operating
features
of this
unit.
Indicates
tips
and
hints
for
making
the
task
easier.
Manufactured
under
license
from
Dolby
Laboratories.
"Dolby",
"Pro
Logic",
and
the
double-D
symbol
are
trademarks
of
Dolby
Laboratories.
Confidential
Unpublished
works.
Copyright
1992-
1997
Dolby
Laboratories.
All
rights
reserved.
Manufactured
under
license
from
Digital
Theater
Systems,
Inc.
US
Pat.
No.
5,451,942
5,956,674, 5,974,380,
5,978,762
and
other
worldwide
patents
issued
and
pending.
"DTS"
and
"DTS
Digital
Surround"
are
registered
trademarks
of
Digital
Theater
Systems,
Inc.
Copyright
1996,
2000
Digital
Theater
Systems,
Inc.
All
rights
reserved.
INTRODUCTION
5
Before
Use
Playable
Discs
DVD
video
discs
(8cm/12cmdisc)
Audio
CD
(8cm/12cmdisc)
In
addition,
this
unit
can
play
the
following:
DVD-RW,
DVD+RW,
Kodak
CD,
and
CD-R
or
CD-RW
discs
that
contain
audio
titles,
MP3,
or
JPEG
files.
otes
--
Depending
on
the
conditions
of
the
recording
equip-
ment
or
the
CD-R/RW
(or
DVD-RW,
DVD+RW)
disc
itself,
some
CD-R/RW
(or
DVD-RW,
DVD+RW)
discs
cannot
be
played
on
the
unit.
--
Do
not
attach
any
seal
or
label
to
either
side
(the
labeled
side
or
the
recorded
side)
of
a
disc.
--
Do
not
use
irregularly
shaped
CDs
(e.g.,
heart-shaped
or
octagonal).
Doing
so
may
result
in
malfunctions.
otes
on
DVDs
Some
playback
operations
for
DVDs
may
be
intentional-
ly
fixed
by
software
manufacturers.
As
this
unit
plays
DVDs
according
to
disc
content
designed by
the
soft-
ware
manufacturer,
some
playback
features
of
the
unit
may
not
be
available
or
other
functions
may
be
added.
Make
sure
to
also
refer
to
the
instructions
supplied
with
the
DVDs.
Some
DVDs
made
for
business
purposes
may
not
be
able
to
be
played
on
the
unit.
Regional
code
of
the
DVD+Hi-Fi
VCR
and
DVDs
This
DVD+Hi-Fi
VCR
is
designed
and
manufac-
tured
for
playback
of
Region
"1"
encoded
DVD
software.
The
region
code
on
the
labels
of
some
DVDs
indicates
which
type
of
DVD+Hi-Fi
VCR
can
play
those
discs.
This
unit
can
only
play
DVDs
labelled
"1"
or
"ALL".
If
you
try
to
play
any
other
discs,
the
message
"Check
Regional
Code"
will
appear
on
the
TV
screen.
Some DVDs
that
have
no
region
code
label
may
still
be
subject
to
area
restrictions
and
therefore
not
playable.
Disc-related
terms
Title
(DVD
only)
The
main
film
content
or
accompanying
feature
content
or
additional
feature
content,
or
music
album.
Each
title
is
assigned
a
title
reference
number
enabling
you
to
locate
it
easily.
Chapter
(DVD
only)
Sections
of
a
or
a
musical
piece
that
are
smaller
than
titles.
A
title
is
composed
of
one
or
several
chapters.
Each
chapter
is
assigned
a
chapter
number,
enabling
you
to
locate
the
chapter
you
want.
Depending
on
the
disc,
no
chapters
may
be
recorded.
Track
(Audio
CD
only)
Sections
of
a
musical
piece
on
an
audio
CD.
Each
track
is
assigned
a
track
number,
enabling
you
to
locate
the
track
you
want.
Remote
Control
Battery
Installation
Detach
the
battery
cover
on
the
rear
of
the
remote
control,
and
insert
two
R03
(size
AAA)
batteries
with
and
aligned
correctly.
Caution
Do
not
mix
old
and
new
batteries.
Never
mix
different
types
of
batteries
(standard,
alkaline,
etc.).
Remote
Control
Operating
Range
Point
the
remote
control
at
the
remote
sensor
and
press
the
buttons.
Distance:
About
23
ft
(7
m)
from
the
front
of
the
remote
sensor
Angle:
About
30°
in
each
direction
of
the
front
of
the
remote
sensor
1
AAA
AAA
IMPORTANT
NOTE:
SPENT
OR
DISCHARGED
BATTERIES
MUST
BE
RECYCLED
OR
DISPOSED
OF
IN
A
SAFE
MANNER
IN
COMPLIANCE
WITH
ALL
APPLICABLE
LAWS.
FOR
DETAILED
INFORMATION,
CONTACT
YOUR
LOCAL
COUNTY
SOLID
WASTE
AUTHORITY.
6
Before
Use
(Continued)
Precautions
Handling
the
unit
Shipping
the
unit
The
original
shipping
carton
and
packing
materials
come
in
handy.
For
maximum
protection,
re-pack
the
unit
as
it
was
originally
packaged
at
the
factory.
Setting
up
the
unit
The
and
sound
of
a
nearby
TV,
VCR,
or
radio
may
be
distorted
during
playback.
In
this
case,
position
the
unit
away
from
the
TV,
VCR,
or
radio,
or
turn
off
the
unit
after
removing
the
disc.
Keeping
unit
surfaces
clean
Do
not
use
volatile
liquids,
such
as
insecticide
spray,
near
the
unit.
Do
not
leave
rubber
or
plastic
products
in
contact
with
the
unit
for
a
long
period
of
time.
They
will
leave
marks
on
the
surface.
Cleaning
the
unit
Cleaning
the
cabinet
Use
a
soft,
dry
cloth.
If
the
surfaces
are
extremely
dirty,
use
a
soft
cloth
lightly
moistened
with
a
mild
detergent
solution.
Do
not
use
strong
solvents
such
as
alcohol,
benzine,
or
thinner,
as
these
might
damage
the
surface
of
the
unit.
To
obtain
a
clear
The
DVD+Hi-Fi
VCR
is
a
high-tech,
precision
device.
If
the
optical
pick-up
lens
and
disc
drive
parts
are
dirty
or
worn,
the
quality
will
be
poor.
Regular
inspection
and
maintenance
are
recommended
after
every
1,000
hours
of
use.
(This
depends
on
the
operating
environment.)
For
details,
please
contact
your
nearest
dealer.
Notes
on
Discs
Disc
handling
Do
not
touch
the
playback
side
of
the
disc.
Hold
the
disc
by
the
edges
so
that
fingerprints
will
not
get
on
the
surface.
Do
not
stick
paper
or
tape
on
the
disc.
Storing
discs
After
playing,
store
the
disc
in
its
case.
Do
not
expose
the
disc
to
direct
sunlight
or
sources
of
heat,
or
leave
it
in
a
parked
car
exposed
to
direct
sun-
light,
as
there
may
be
a
considerable
temperature
increase
inside
the
car.
Cleaning
discs
Fingerprints
and
dust
on
the
disc
can
cause
poor
pic-
ture
quality
and
sound
distortion.
Before
playing,
clean
the
disc
with
a
clean
cloth.
Wipe
the
disc
from
the
cen-
ter
outward.
Do
not
use
strong
solvents
such
as
alcohol,
benzine,
thinner,
commercially
available
cleaners,
or
anti-static
spray
intended
for
older
vinyl
records.
Disc
Symbols
About
the
symbol
display
may
appear
on
the
TV
screen
during
operation.
This
icon
means
the
function
explained
in
this
owner's
man-
ual
is
not
available
on
that
specific
DVD
video
disc.
About
the
disc
symbols
on
manual
pages
A
section
whose
title
has
one
of
the
following
symbols
are
applicable
only
to
those
discs
represented
by
the
symbol.
DVD
Audio
CDs.
MP3
disc
WMA
disc.
JPEG
disc
JPEG
WMA
MP3
CD
DVD
No
Yes
Selecting
Viewing
Sources
You
must
select
one
of
your
output
sources
(DVD
or
VCR)
to
view
on
the
TV
screen.
?
If
you
want
to
view
DVD
deck
output
source:
Press
CD/DVD
on
the
remote
or
DVD/VCR
on
the
front
panel
until
DVD
indicator
in
the
display
window
lights
and
output
source
of
DVD
deck
is
viewed
on
the
TV
screen.
?
If
you
want
to
view
VCR
deck
output
source:
Press
VCR
on
the
remote
or
DVD/VCR
on
the
front
panel
until
VCR
indicator
in
the
display
window
lights
and
output
source
of
VCR
deck
is
viewed
on
the
TV
screen.
otes
?
If
you
insert
a
disc
while
the
DVD+Hi-Fi
VCR
System
is
in
the
VCR
mode,
the
DVD+Hi-Fi
VCR
System
will
switch
to
DVD
mode
automatically.
?
If
you
insert
a
cassette
tape
without
prevention
tab
while
the
DVD+Hi-Fi
VCR
System
is in
the
DVD
mode,
the
DVD+Hi-Fi
VCR
System
will
switch
to
VCR
mode
automatically.
7
INTRODUCTION
Front
Panel
Control
Functions
PAUSE/STEP(X/C)
Pause
playback
of
a
tape
or
a
disc
in
the
DVD
or
VCR
deck
temporarily/press
repeatedly
for
frame-by-frame
playback.
OPEN/CLOSE
(Z)
Opens
and
closes
the
disc
tray.
Remote
Sensor
Point
the
remote
control
here.
Display
window
Disc
Tray
(DVD
deck)
Insert
a
disc
here.
STANDBY/ON
indicator
Switches
the
DVD+Hi-Fi
VCR
ON
and
OFF.
DVD/VCR
(output
select)
Selects
the
DVD
or
VCR
output
sources
to
view
on
the
TV
screen.
REC/ITR
(z)
Records
normally
or
activates
Instant
Timer
Recording.
PresstocopyaDVDintheDVDdecktoaVHStapein
the
VCR
deck.
STOP
(x)
Stops
playback
of
a
disc
or
tape.
LINE
2
(VIDEO
2/AUDIO
IN
(Left/Right))
Connect
the
audio/video
output
of
an
external
source
(Audio
system,
TV/Monitor,
another
VCR).
Cassette
Compartment
(VCR
deck)
Insert
a
video
cassette
here.
EJECT(Z)
Ejects
a
tape
in
the
VCR
deck.
PLAY
(B)
Plays
back
a
recorded
tape
or
disc.
Forward
SKIP/SCAN
(R/T)
DVD: Goes
to
NEXT
chapter/track.
Press
and
hold
for
two
seconds
for
a
fast
forward
search.
VCR:
Advances
the
tape
from
the
STOP
mode
or
for
fast
forward
search.
Reverse
SKIP/SCAN
(S/Q)
DVD: Goes
to
the
beginning
of
current
chapter/track
or
to
the
previous
chapter/track.
Press
and
hold
for
two
seconds
for
a
fast
reverse
search.
VCR:
Rewinds
the
tape
from
the
STOP
mode
or
for
fast
reverse
search.
TUNING
(4/3)
Tunes
in
the
desired
station
(Radio
Mode).
Scans
up
or
down
through
memorized
channels
(VCR
mode).
DVD/VCR
indicator
Indicates
the
active
deck.
MONO/STEREO
Selects
stereo
or
mono
mode
for
FM
tuning.
FM/AM
Switches
between
AM
and
FM
bands.
VOLUME
Control
Turn
the
knob
clockwise
to
increase
sound
level,
counterclockwise
to
decrease
sound
level.
8
Display
Window
Indicators
MUTE
REC
COPY
CHPTRK
TITLE
RADIO
RPTALLAB
VCR
MP3
TV
DVD
SAP
PROG
PROLOGIC
DIGITAL
PCM
ST
P/SCAN
Hi-Fi
dts
II
MUTE
indicator
MP3
or
WMA
disc
inserted.
Indicates
current
chapter,
track
number
or
channel
number.
Indicates
current
audio
stream.
Indicates
the
current
surround
mode.
Repeat
playback
mode
indicators.
Total
playing
time/Elapsed
time/
Frequency/remaining
time/
Current
deck
status/Surround
mode/Volume
etc.
indicators.
A
cassette
is
loaded
in
the
VCR
deck.
Indicates
the
unit
is
in
the
radio
recording
mode.
JPEG
file
disc
inserted
Lights
up
when
a
stereo
broadcast
is
being
received.
Indicates
the
unit
is
in
the
recording
mode.
Lights
up
when
an
SAP
BILINGUAL
broadcast
is
being
received.
A
disc
is
loaded
in
the
DVD
deck.
(Lights
when
a
disc
is
loaded
in
the
DVD
deck
and
flashes
when
the
disc
tray
is
opened.)
DVD+Hi-Fi
VCR
is
in
VCR
timer
recording
mode
or
a
VCR
timer
recording
is
programmed.
DVD
to
VCR
copy
is in
progress.
DVD+Hi-Fi
VCR
is
Recording
a
tape.
Indicates
the
unit
is
playing
back
a
tape
recorded
in
Hi-Fi.
DVD
disc
inserted.
Indicates
the
unit
is
in
progressive
on
mode.
Programmed
playback
active.
Indicates
the
unit
is
in
the
TV
mode.
9
INTRODUCTION
Remote
Control
Button
Functions
FM/AM
VIDEO
1/2
OPEN/CLOSE
EJECT
MUTE
SOUND
MODE
AUDIO
TITLE
SUBTITLE
ENTER
MEMORY
RETURN
STOP
PAUSE/STEP
PLAY
BACKWARD
FORWARD
REPEAT
A-B
REPEAT
DISC
MENU
DISPLAY
CLK/CNT
/PRESET
SETUP
TUN
-ING
TUN
-ING
VOLUME
INPUT
CH/TRK
TV/VCR
SPEED
REC/ITR
MENU
/PRESET
CH/TRK
CM
SKIP
MARKER
SEARCH
ANGLE
ZOOM
PROGRAM
CLEAR
CD/DVD
VCR
POWER
FM/AM
Tuner
select
Select
FM
or
AM
band
as
the
listening
choice.
(FM
and
AM
bands)
OPEN/CLOSE,
EJECT
(Z)
-
Opens
and
closes
the
disc
tray.
-
Ejects
a
tape
in
the
VCR
deck.
CD/DVD/VCR
select
Selects the
output
source
(CD/DVD
or
VCR)
to
view
on
the
TV
screen.
0-9
Number
Keypad
Selects
numbered
options
in
a
menu.
ANGLE
Selects
a
DVD
camera
angles
if
available.
PROGRAM
Accesses
or
removes
Program
menu.
ZOOM
Enlarges
DVD
video
image.
MARKER
Marks
any
point
during playback.
SEARCH
Displays
MARKER
SEARCH
menu.
DISPLAY,
CLK/CNT
Accesses
On-Screen
display.
Switches
between
the
clock,
tape
counter
and
tape
remaining
modes
on
the
display.
b/B/v/V
(left/right/up/down)
-
Select
menu
options.
-
CH/TRK/PRESET(v/V):
Selects
VCR
or
Tuner
channels.
Manually
adjust
the
tape's
onscreen.
-
TUNING(b/B):
Tunes
in
the
desired
station.
RETURN
Removes
the
Setup
menu.
CM
SKIP
Fast
forwards
search
through
30
seconds
of
recording.
STOP
(x)
Stops
playback.
REC/ITR
(z)
Records
normally
or
activates
Instant
Timer
Recording.
REPEAT/A-B/SPEED
-
Repeat
chapter,
track,
title,
all.
-
Repeats
sequence.
-
Selects
recording
speed.
TV/VCR
Switch
to
view
channels
selected
by
the
VCR
tuner
or
by
the
TV
tuner.
POWER
Switches
DVD+Hi-Fi
VCR ON
and
OFF.
VIDEO
1/2
Select
input
source.
MUTE
Turns
the
sound
on
and
off
temporarily.
SOUND
MODE
Selects
sound
mode.
CLEAR
Removes
a
track
number
on
the
program
menu
or
a
mark
on
the
MARKER
SEARCH
menu.
Clears
preset
stations
from
the
tuner
memory.
AUDIO
Selects
an
audio
language
(DVD)
or
an
audio
channel
(CD).
SUBTITLE
Selects
a
subtitle
language.
TITLE
Displays
the
disc's
Title
menu,
if
available.
INPUT
Selects the
VCR
deck's
source
(Tuner,
LINE
1,
or
LINE
2).
VOLUME
(+/-)
Adjusts
speaker
sound.
SETUP,
MENU
Accesses
or
removes
DVD
Setup
menu
and
VCR
menu.
MEMORY/ENTER
-
Acknowledges
menu
selection.
-
Displays
functions
on
the
TV
screen.
-
Stores
a
radio
station's
frequency
in
the
tuner's
memory.
DISC
MENU
Accesses
menu
on
a
DVD
disc.
PAUSE/STEP
(X/C)
Pause
playback
or
recording
temporarily/press
repeatedly
for
frame-by-frame
playback.
PLAY
(N)
Starts
playback.
BACKWARD
(.)
DVD:
Search
backward*/go
to
begin-
ning
of
current
chapter
or
track
or
go
to
previous
chapter
or
track.
VCR:
Rewinds
the
tape
from
STOP
mode
or
for
fast
reverse
search.
*
Press
and
hold
button
for
about
two
seconds.
FORWARD
(>)
DVD:
Search
forward*/go
to
next
chapter
or
track.
VCR:
Advances
the
tape
from
STOP
mode
or
for
fast
forward
search.
ote
This
remote
control
use
the
same
buttons
for
VCR
and
DVD
functions
(ex.
PLAY).
To
use
the
VCR,
first
press
the
VCR
button.
To
use
the
DVD,
first
press
the
CD/DVD
button.
10
Rear
Panel
Connections
ANTENNA
FM
GND
AM
S-VIDEO
OUT
VIDEO
MONITOR
COMPONENT
VIDEO
OUT
OUT
VIDEO
Y
Pb
Pr
AUDIO
IN
OUT
ANTENNA/CABLE
1
L
R
SPEAKERS
FRONT
(R4
)
(R
4
)
REAR
CENTER
(4
)
REAR
(L4
)
FRONT
(L4
)
SUB
WOOFER
(8)
Do
not
touch
the
inner
pins
of
the
jacks
on
the
rear
panel.
Electrostatic
discharge
may
cause
permanent
damage
to
the
unit.
VIDEO
1
(VIDEO
IN/AUDIO
IN
(Left/Right))
Connect
the
audio/video
output
of
an
external
source
(Audio
system,
TV/Monitor,
another
VCR).
ANTENNA/CABLE
IN
Connect
the
VHF/UHF/CATV
antenna
to
this
terminal.
MONITOR
OUT
Connect
to
a
TV
or
MONITOR
AC
Power
Cord
Plug
into
the
power
source.
S-VIDEO
OUT
(DVD
OUT)
Connect
to
an
S-Video
Input
on
TV.
FOR DVD
VIEWING
ONLY.
ANTENNA/CABLE
OUT
Connect
to
a
TV
with
RF
coaxial
inputs.
SPEAKER
CONNECTORS
Connect
the
six
supplied
speakers
to
these
terminals.
FM
ANTENNA
CONNECTORS
Connect
the
FM
antenna
to
this
terminal.
AM
ANTENNA
CONNECTORS
Connect
the
AM
antenna
to
this
terminal.
COMPONENT
VIDEO
OUT
(Y
Pb
Pr)
(DVD
OUT)
Connect
to
a
TV
with
Y
Pb
Pr
inputs.
SYSTEM SETUP
11
Connections
ips
Depending
on
your
TV
and
other
equipment
you
wish
to
connect,
there
are
various
ways
to
connect
the
DVD+Hi-Fi
VCR.
Use
connections
described
on
pages
11-13.
Please
refer
to
the
manuals
of
your
TV,
VCR,
Stereo
System
or
other
devices
as
necessary
to
make
the
best
connections.
Caution
Make
sure
the
DVD+Hi-Fi
VCR
is
connected
directly
to
the
TV.
Tune
the
TV
to
the
correct
video
input
channel.
Do
not
connect
your
DVD+Hi-Fi
VCR
via
your
VCR.
The
DVD
could
be
distorted
by
the
copy
protection
sys-
tem.
Connecting
Antenna/Cable
TV
to
DVD+Hi-Fi
VCR
1
Disconnect
the
antenna
leads
from
the
rear
of
the
TV.
2
Identify
the
type
of
cable
from
your
antenna.
If
it
is
a
round
cable
as
illustrated,
it
is
a
75
ohm
coaxial
antenna
cable.
This
cable
will
connect
directly
to
the
jack
marked
ANTENNA/CABLE
IN
on
your
DVD+Hi-Fi
VCR.
ip
If
your
antenna
lead wire
is
a
flat
type
antenna
cable,
connect
it
to
an
Antenna
Adapter
(300-ohm
to
75-ohm)
(not
supplied)
and
slip
the
Adapter
onto
the
ANTENNA/
CABLE
IN
jack.
The
Adapter
does
not
screw
on
to
the
DVD+Hi-Fi
VCR,
it
just
slips
over
the
jack.
ote
During
DVD
or
VCR
playback,
THE
DVD+Hi-Fi
VCR
is
designed
so
that
sound
will
be
heard
only
from
the
unit's
5
speakers
and
subwoofer,
(no
sound
output
is
provided
to
the
TV
if
it
is
connected
to
the
S-VIDEO
OUT
or
MONITOR
OUT
on
the
unit
with
a
optional
cables.
Without
Cable
Box
If
your
cable
wire
is
connected
to
your
TV
without
a
converter
or
descrambler
box,
unscrew
the
wire
from
your
TV
and
attach
it
to
the
ANTENNA/CABLE
IN
jack
on
the
DVD+Hi-Fi
VCR.
Use
the
supplied
round
coaxial
cable
to
connect
between
the
DVD+Hi-Fi
VCR's
ANTENNA/CABLE
OUT
jack
and
the
75
ohm
antenna
input
jack
on
the
TV.
With
this
connection,
you
can
receive
all
midband,
super
band,
and
hyperband
channels.
With
Cable
Box
If
a
converter
is
required
in
your
cable
system,
follow
the
instruction
below:
The
cable
hookup
permits
both
TV
and
DVD+Hi-Fi
VCR
opera-
tion.
To
view
or
record
CATV
channel
1
Tune
the
TV
to
the
DVD+Hi-Fi
VCR
output
channel
(CH
3
or
4).
2 Set
the
DVD+Hi-Fi
VCR
channel
selector
to
the
output
chan-
nel
of
the
Cable
Converter
box
by
using
the
CH/TRK
(v/V)
of
your
DVD+Hi-Fi
VCR.
(Example:
CH3)
3
Select the
channel
to
view
at
the
Cable
Converter
Box.
otes
With
this
connection,
you
CANNOT
record
one
program
while
viewing
another.
If
you
are
using
a
cable
box
to
tune
channels,
it
is
not
nec-
essary
to
do
Auto
Channel
Programming
as
indicated
on
page
17.
ANTENNA
FM
GND
AM
S-VIDEO
OUT
IN
OUT
ANTENNA/CABLE
SPEAKERS
FRONT
(R4
)
(R
4
)
REAR
CENTER
(4
)
REAR
(L4
)
FRONT
(L4
)
SUB
WOOFER
(8)
Antenna Antenna
Flat
Wire
(300
ohm)
300/75
ohm
Adapter
(Not
supplied)
Cable
TV
Wall
Jack
OR OR
Rear
of
DVD+Hi-Fi
VCR
VIDEO
MONITOR
COMPONENT
VIDEO
OUT
OUT
VIDEO
Y
Pb
Pr
AUDIO
1
L
R
ANTENNA
FM
GND
AM
S-VIDEO
OUT
IN
OUT
ANTENNA/CABLE
SPEAKERS
FRONT
(R4
)
(R
4
)
REAR
CENTER
(4
)
REAR
(L4)FRNT
(L4
)
SUB
WOOFER
(8)
Cable
TV
Wall
Jack
Back
Panel
of
Typical
Cable
Box
Rear
of
DVD+Hi-Fi
VCR
VIDEO
MONITOR
COMPONENT
VIDEO
OUT
OUT
VIDEO
Y
Pb
Pr
AUDIO
1
L
R
12
Connections
(Continued)
Basic
TV
Connections
Make
one
of
the
following
connections,
depending
on
the
capabilities
of
your
existing
equipment.
RF
coaxial
connection
Connect
the
ANTENNA/CABLE
OUT
jack
on
the
DVD+Hi-Fi
VCR
to
the
ANTENNA
in
jack
on
the
TV
using
the
75-ohm
Coaxial
Cable
supplied
(R).
ote
If
you
use
this
connection,
tune
the
TV
to
the
DVD+Hi-
Fi
VCR's
RF
output
channel
(CH
3
or
4).
How
to
set
the
DVD+Hi-Fi
VCR's
RF
output
channel
1.
While
the
DVD+Hi-Fi
VCR
is
turned
off,
press
and
hold
TUNING
(v/V)
on
the
front
panel
for
about
five
seconds.
The
unit
will
turn
itself
on
and
"RF-03"
or
"RF-04"
appears
in
the
display
window.
2.
Use
TUNING
(v/V)
on
the
front
panel
to
change
the
RF
output
channel
(CH
03
or
CH
04).
3.
Turn
the
DVD+Hi-Fi
VCR
off
and
then
on.
4.
Select
the
TV's
CH
to
3
or
4
depending
on
the
RF
output
channel
you
had
selected.
Now
you
can
watch
the
DVD+Hi-Fi
VCR
playback
on
CH3
or
CH4
of
your
TV.
Video
connection
Connect
the
MONITOR
OUT
jack
on
the
DVD+Hi-Fi
VCR
to
the
VIDEO
IN
jack
on
the
TV
using
the
video
cable
supplied
(V).
otes
If
you
use
this
connection,
set
the
TV's
source
selector
to
VIDEO.
S-Video
connection
Connect
the
S-VIDEO
OUT
jack
on
the
DVD+Hi-Fi
VCR
to
the
S-VIDEO
IN
jack
on
the
TV
using
the
optional
S-
Video
cable
(S).
Component
Video
(Color
Stream)
connection
Connect
the
COMPONENT
VIDEO
OUT
jacks
on
the
DVD+Hi-Fi
VCR
to
the
corresponding
IN
jacks
on
the
TV
using
a
Y
Pb
Pr
cable
(C).
Progressive
Scan
(ColorStream
pro)
connection
If
your
television
is
a
high-definition
or
"digital
ready"
television,
you
may
take
advantage
of
the
DVD+Hi-Fi
VCR's
progressive
scan
output
for
the
highest
video
resolution
possible.
If
your
TV
does
not
accept
the
Progressive
Scan
for-
mat,
the
will
appear
scrambled
if
you
try
Progressive
Scan
on
the
DVD+Hi-Fi
VCR.
Connect
the
COMPONENT
VIDEO
OUT
jacks
on
the
DVD+Hi-Fi
VCR
to
the
corresponding
IN
jacks
on
the
TV
using
an
optional
Y
Pb
Pr
cable
(C).
ote
--
Set
the
Progressive
option
to
"On"
in
the
Setup
menu
for
a
progressive
signal,
see
page
20.
ANTENNA
FM
GD
AM
S-VIDEO
OUT
IN
O
ANTENNA/CABLE
SPEAKERS
FRONT
(R4
)
(R
4
)
REAR
CENTER
(4
)
REAR
(L4
)
FRONT
(L4
)
SUB
WOOFER
(8)
VIDEO
MONITOR
COMPONENT
VIDEO
OUT
OT
VIDEO
Y
Pb
Pr
AUDIO
1
L
R
L
R
AUDIO
INPUT
VIDEO
INPUT
ANTENNA
INPUT
V
S
R
Rear
of
TV
Rear
of
DVD+Hi-Fi
VCR
S-VIDEO
INPUT
Y
Pb
Pr
COMPONENT
VIDEO
/
PROGRESSIVE
SCAN
INPUT
C
SYSTEM SETUP
13
Connections
(Continued)
Accessory
Audio/Video
(A/V)
Connections
to
DVD+Hi-Fi
VCR
Connect
the
VIDEO
1
or
VIDEO
2
jacks
on
the
DVD+Hi-Fi
VCR
to
the
AUDIO/VIDEO
OUT
jacks
on
your
accessory
component,
using
the
optional
audio/video
cables.
Radio
Antenna
Connections
Connect
the
supplied
FM/AM
antennas
for
listening
to
the
radio.
Connect
the
AM
loop
antenna
to
the
AM
antenna
connector.
Connect
he
FM
wire
antenna
to
the
FM
antenna
con-
nector.
otes
To
prevent
noise
pickup,
keep
the
AM
loop
antenna
away
from
the
DVD+Hi-Fi
VCR
and
other
components.
Be
sure
to
fully
extend
the
FM
wire
antenna.
After
connecting
the
FM
wire
antenna,
keep
it
as
horizontal
as
possible.
FM
Wire
antenna
(supplied)
AM
Loop
antenna
(supplied)
ANTENNA
FM
GND
AM
IN
SPEAKERS
FRONT
(R4
)
(R
4
)
REAR
CENTER
(4
)
REAR
(L4
)
FRONT
(L4
)
SUB
WOOF
(8
VIDEO
MONITOR
COMPONENT
VIDEO
OUT
OUT
VIDEO
Y
Pb
Pr
A
DIO
1
L
R
L
R
VIDEO
OUTPUT
AUDIO
OUTPUT
Accessory
Device
Jack
Panel
Rear
of
DVD+Hi-Fi
VCR
Front
of
DVD+Hi-Fi
VCR
OR
S-VIDEO
OUT
IN
OUT
ANTENNA/CABLE
RS
REAR
L4
)
FRONT
(L4
)
SUB
WOOFER
(8)
14
Connections
(Continued)
Front
Speaker
(Right)
Front
Speaker
(Left)
Center
Speaker
Rear
Speaker
(Right
Surround)
Subwoofer
Rear
Speaker
(Left
Surround)
ANTENNA
FM
GND
AM
S-VIDEO
OUT
VIDEO
MONITOR
OUT
VIDEO
AUDIO
IN
OUT
ANTENNA/CABLE
1
L
R
SPEAKERS
FRONT
(R4
)
(R
4
)
REAR
CENTER
(4
)
REAR
(L4
)
FRONT
(L4
)
SUB
WOOFER
(8)
Speaker
System
Connections
Connect
the
speakers
using
the
supplied
speaker
cords.
To
obtain
the
best
possible
surround
sound,
adjust
the
speaker
parameters;
distance,
level,
etc..
otes
Be
sure
to
match
the
speaker
cable
to
the
appropriate
terminal
on
the
connectors:
+
to
+
and
--
to
--.
If
the
cables
are
reversed,
the
sound
will
be
distorted
and
will
lack
bass.
When
making
the
sound
louder,
adjust
the
sound
level
carefully
to
avoid
excessive
volume
output
to
the
speakers.
Only
2-channel
stereo
(Front
Left,
Front
Right
&
Subwoofer)
is
abailable
in
VCR
mode,
thus
sound
might
not
be
heard
from
center
or rear
speakers
during
VCR
playback.
(For
further
details
about
sound
mode,
please
refer
to
next
page.)
Do
not
remove
the
front
covers
of
supplied
speakers.
Speaker
Positioning
For
a
normal
setup,
use
6
speakers
(2
front
speakers,
cen-
ter
speaker,
2
rear
speakers
and
subwoofer).
If
you
want
to
hear
excellent
bass
sound
or
Dolby
Digital
surround,
you
should
connect
a
subwoofer.
?
Front
speakers
From
your
listening
position,
place
the
speakers
an
equal
dis-
tance
away
and
with
an
interval
of
45
degrees
between
speak-
ers.
?
Center
speaker
It
is
ideal
if
the
center
speakers
and
front
speakers
are
at
the
same
height.
You
would
normally
place
the
center
speaker
above
or
below
television
as
shown.
?
Rear
speakers
Place
left
and
right
behind
the
listening
area.
These
speakers
recreate
sound
motion
and
atmosphere
required
for
surround
sound
playback.
For
best
results,
do
not
install
the
rear
speak-
ers
too
far
behind
the
listening
position
and
install
them
at
or
above
the
level
of
the
listener
's
ears.
It
is
also
effective
to
direct
the
rear
speakers
towards
a
wall
or
ceiling
to
further
disperse
the
sound.
For
smaller
room
size,
if
the
audience
is
near
to
the
rear
wall.
place
the
rear
speakers
opposite
each
other,
and
24
-
36
inches
above
the
listeners'
ears.
?
Subwoofer
This
can
be
placed
in
any
front
position.
Center
Speaker
Front
Speaker
(Left)
Speaker
Positioning
Example
Rear
Speaker
(Left)
Rear
Speaker
(Right)
Front
Speaker
(Right)
Subwoofer
SYSTEM SETUP
15
Glossary
for
Audio
Stream
&
Surround
mode
Allows
you
to
enjoy
5.1(or
6)
discrete
channels
of
high
quality
digital
audio
from
DTS
program
sources
such
as
discs,
DVD
and
compact
discs,
etc.
bearing
the
trademark.
DTS
Digital
Surround
delivers
up
to
6
channels
of
transparent
audio
and
results
in
exceptional
clarity
throughout
a
true
360
degree
sound
field.
The
term
DTS
is
a
trademark
of
DTS
Technology,
LLC.
Manufactured
under
license
from
DTS
Technology,
LLC.
The
Dolby
Digital
surround
format
lets
you
enjoy
up
to
5.1
channels
of
digital
surround
sound
from
a
Dolby
Digital
pro-
gram
source.
If
you
play
DVDs
with
"
"
mark,
you
can
enjoy
even
better
sound
quality,
greater
spatial
accuracy,
and
improved
dynamic
range.
Use
this
mode
when
playing
movie
or
Dolby
Digital
2
channel
which
carries
the
"
"
mark.
This
mode
provides
the
effect
of
being
in
a
movie
theatre
or
live
concert
house-an
effect
with
an
intensity
which
can
only
be
obtained
through
DOLBY
PRO
LOGIC
SURROUND.
The
effect
of
the
front/back/left/right
movement
of
the
sound
image,
as
well
as
the
sense
of
fixed
position
in
the
sound
image,
is
much
clearer
and
more
dynam-
ic
than
before.
(II)
Dolby
Pro
Logic
II
creates
five
full-bandwidth
output
channels
from
two-channel
sources.
This
is
done
using
an
advanced,
high-purity
matrix
surround
decoder
that
extracts
the
spatial
properties
of
the
original
recording
without
adding
any
new
sounds
or
tonal
colorations.
MOVIE
mode:
The
Movie
mode
is
for
use
with
stereo
television
shows
and
all
programs
encoded
in
Dolby
Surround.
The
result
is
enhanced
soundfield
directionality
that
approaches
the
quality
of
discrete
5.1-channel
sound.
MUSIC
mode:
The
Music
mode
is
for
use
with
any
stereo
music
recordings.
MATRIX
mode:
The
Matrix
mode
is
the
same
as
the
Music
mode
except
that
the
directional
enhancement
logic
is
turned
off.
It
may
be used
to
enhance
mono
signals
by
making
them
seem
"larger."
The
Matrix
mode
may
also
find
use
in
auto
systems,
where
the
fluctuations
from
poor
FM
stereo
reception
can
otherwise
cause
disturbing
surround
signals
from
a
logic
decoder.
The
ultimate
"cure"
for
poor
FM
stereo
reception
may
be
simply
to
force
the
audio
to
mono.
3D
SURROUND
This
unit
can
produce
a
3D
Surround
effect,
using
3D
Surround
Sound
technology,
which
simulates
multi-channel
audio
play-
back
from
two
conventional
stereo
speakers
instead
of
the
five
or
more
speakers
normally
required
to
listen
to
multi-channel
audio
from
a
home
theatre.
This
feature
works
with
DVD
discs
encoded
with
Dolby
Pro
Logic
and
Dolby
Digital
audio
tracks.
BYPASS
Software
with
multichannel
surround
audio
signals
is
played
accord-
ing
to
the
way
it
was
recorded.
Sound
Mode
You
can
enjoy
surround
sound
simply
by
selecting
one
of
the
pre-programmed
sound
fields
according
to
the
program
you
want
to
listen
to.
Each
time
you
press
the
SOUND
MODE
button,
the
sound
mode
is
changed
in
the
following
order;
PRO
LOGIC
→
PLII
MOVIE
→
PLII
MUSIC
→
PLII
MATRIX
→
3D
SURROUND
→
BYPASS
...
For
DVD
Operation
You
can
change
the
sound
mode
of
DVD
(Dolby
Digital,
DTS,
PRO
LOGIC,
etc.)
by
pressing
the
AUDIO
button
repeatedly
on
the
remote
during playback.
Although
DVD
contents
differ
from
disc
to
disc,
the
following
explains
the basic
operation
when
this
feature
is
used.
Each
time
you
press
AUDIO,
the
DVD+Hi-Fi
VCR
sound
mode
is
changed
in
the
following
order;
→→→
For
your
reference
?
The
DVD/CD
Receiver
memorizes
the
last
mode
setting
for
each
source
individually.
?
You
can
identify
the
encoding
format
of
program
software
by
looking
at
its
packaging.
-
Dolby
Digital
discs
are
labeled
with
the
logo.
-
Dolby
Surround
encoded
programs
are
labeled
with
the
logo.
-
DTS
Digital
Surround
discs
are
marked
with
DTS.
otes
When
you
play
sound
tracks
with
96kHz
sampling
frequen-
cy,
the
output
signals
will
be
converted
to
48kHz
(sampling
frequency).
Sound
Mode
is
not
applicable
when
headphones
are
used.
16
On-Screen
Display
(OSD)
Some
of
these
functions
appear
during
VCR
operated.
TAPE
SPEED
DISPLAY
Shows
the
current
tape
speed.
FUNCTION
DISPLAY
Indicates
the
function
in
progress.
HI-FI
DISPLAY
Indicates
the
unit
is
playing
back
tape
recorded
in
Hi-Fi.
CHANNEL
DISPLAY
Indicates
the
selected
channel
(or
LINE1,
LINE2).
STEREO/SAP
DISPLAY
(MONO
is
not
displayed)
Shows
the
type
of
audio
signal
received
by
the
VCR
tuner.
DATE
DISPLAY
Shows
the
current
date.
(Month/Date/Day
of
the
week
format)
CLOCK/COUNT/REMAIN
DISPLAY
Shows
the
current
time,
the
tape
counter
and
remaining
time
on
the
tape.
Each
press
of
MEMORY/ENTER
changes
the
TV
on-screen
displays
in
the
following
sequence.
otes
The
function
displays
remain
on
the
TV
screen
for
5
seconds.
The
clock
(or
tape
counter,
tape
remaining)
mode
will
continue
to
be
shown
until
you
press
MEMORY/ENTER.
The
tape
counter
and
the
remaining
tape
length
indicator
appear
only
when
a
cassette
is
inserted.
Also,
the
remaining
tape
length
indicator
appears
after
any
tape
operation.
EASY
INFORMATION
If
the
Extended
Data
Service
(XDS)
signals
are
provided
along
with
normal
TV
signal
in
your
area
or
during
play-
back
of
a
tape
recorded
with
Extended
Data
Service
(XDS)
signals,
the
station
ID,
program
title,
and
program
details
are
shown
on
the
TV
screen.
When
viewing
a
channel
with
Extended
Data
Service
(XDS)
signals,
press
MEMORY/ENTER
and
the
station
ID
will
appear
on
the
TV
screen.
Press
MEMORY/ENTER
again
and
the
program
details
will
appear
on
the
TV
screen.
When
viewing
a
tape
recorded
with
Extended
Data
Service
(XDS)
signals,
press
MEMORY/ENTER
twice
and
the
program
title
and
program
details
will
appear
on
the
TV
screen.
PROGRAM
DETAILS
LENGTH:
Indicates
the
run
length
of
a
program.
TIME
REMAINING:
Indicates
the
remaining
time
of
a
program.
RATING:
Indicates
the
rating
of
the
current
program
(N/A,
G,
PG,
PG-13,
R,
NC-17,
X
and
Not
Rated).
The
rating
N/A
means
that
the
motion
ratings
are
not
applicable
to
this
program.
On-Screen
Menus
Setup
The
SETUP,
clock
setting
(CLOCK),
and
timer
recordings
(PROGRAM)
functions
are
accessed
conve-
niently
with
the
on-screen
menus,
that
lead
you
through
each
step.
The
following
pages
describe
the
on-screen
menu
selections
available.
Menu
Selection
Your
VCR
allows
remote
control
adjustment
of
several
features.
1
Press
MENU
and
the
MAIN
menu
will
appear.
2
Select
the
desired
menu
with
v/V
button
and
then
press
MEMORY/ENTER.
ote
Menus
remain
on-screen
for
3
minutes.
3
Press
MENU
when
finished.
VCR
Operation
Setup
PLAY
HI-FI
CH
4
SP
STEREO
JUL
5,SAT
2:15PM
REM
1:58
0:35:40
2:15
PM
STOP
CH4
SP
STEREO
JUL
5,SAT
2:15
PM
Easy
Information
Screen
(Program
details)
Easy
Information
Screen
(Station
ID)
CH4
SP
WABC
STEREO
"Home
video"
JUL
5,SAT
2:15PM
PROGRAM
DETAILS
"Home
video"
LENGTH
01:00
TIME
REMAINING
00:26
RATING
N/A
CLOCK
SET
(page
18)
PROGRAM
(page
24)
TUNING
(page
17)
SETUP
(page
17)
MAIN
MENU
SYSTEM SETUP
17
VCR
Operation
Setup
(Continued)
VCR
Setup
Menu
Options
1
Press
MENU
and
the
MAIN
menu
will
appear.
2
Use
v/V
to
select
the
SETUP
menu,
then
press
MEMORY/ENTER.
The
SETUP
menu
will
appear.
3
Use
v/V
to
choose
a
desired
option
on
the
SETUP
menu.
Then
use
b/B
to
choose
a
desired
setting.
FUNCTION
OSD
The
on-screen
display
of this
DVD+Hi-Fi
VCR
can
be
turned
on
or
off.
FUNCTION
OSD:
Choose
ON
and
OFF
with
b/B.
LANGUAGE
SELECT
The
on-screen
programming
of
this
DVD+Hi-Fi
VCR
can
be
displayed
in
either
English,
Spanish,
or
French.
LANGUAGE
SELECT:
Choose
ENGLISH,
SPANISH,
or
FRENCH
with
b/B.
AUDIO
MODE
The
DVD+Hi-Fi
VCR
has
two
separate
audio
playback
sys-
tems,
the
high
quality
VHS
Hi-Fi
system
and
standard
NOR-
MAL
mono
system.
The
same
audio
is
generally
recorded
on
both
systems.
The
VHS
Hi-Fi
system
plays
on
separate
(left
and
right)
channels,
and
the
NORMAL
system
plays
monaural
sound.
The
normal
track
is
always
played
so
the
cassette
can
be
played
on
a
DVD+Hi-Fi
VCR
that
does
not
have
VHS
Hi-Fi.
AUDIO
MODE:
Choose
Hi-Fi
or
NORMAL
with
b/B.
BROADCAST
TYPE
(STEREO/SAP/MONO)
Multichannel
Television
Sound
(MTS)
carries
stereo
and/or
Second
Audio
Program
(SAP)
bilingual
signals.
Set
this
display
to
the
desired
position
when
both
MTS
stereo
and
SAP
signals
are
received.
When
only
one
of
the
MTS
signal
is
received,
the
DVD+
Hi-Fi
VCR
automatically
selects
the
corresponding
receiving
mode
(Stereo
or
SAP)
regardless
of
the
selected
position.
For
normal
operation,
the
display
should
be
in
the
STEREO
position.
The
DVD+Hi-Fi
VCR
will
then
record
a
STEREO
program
when
available,
and
record
a
mono
program
IF
the
program
is
NOT
IN
STEREO.
For
weak
STEREO
and/or
SAP
broadcasts,
changing
the
dis-
play
to
mono
may
give
clearer
sound.
BROADCAST
TYPE:
Choose
STEREO,
SAP,
or
MONO
with
b/B.
AUDIO
OUTPUT
(STEREO/LEFT/RIGHT)
Used
during
playback
[when
AUDIO
MODE
(HI-FI/NORMAL)
is
in
HI-FI
position]
for
selecting
the
audio
output
signals
from
the
AUDIO
OUT
terminals
(L
ch
and
R
ch),
and
RF.OUT.
This
display
setting
should
normally
be
left in
the
stereo
posi-
tion,
so
that
when
a
stereo
tape
is
played,
the
stereo
sound
will
be
heard
through
the
left
and
right
channels.
If
a
mono
tape
is
played
and
the
audio
output
is
set
to
stereo,
the
same
mono
sound
will
be
heard
from
both
left
and
right
channels.
AUDIO
OUTPUT:
Choose
STEREO,
LEFT,
or
RIGHT
with
b/B.
4
Press
MENU
when
finished.
Channel
Selection
This
DVD+VCR
is
equipped
with
a
frequency
synthesized
tuner
capable
of
receiving
up
to
181
channels.
These
include
VHF
channels
2-13,
UHF
channels
14-69
and
CATV
channels
1-125.
Preparation:
Connect
the
DVD+Hi-Fi
VCR
to
the
desired
type
of
antenna
or
cable
TV
system,
as
shown
in
Connecting
Antenna/Cable
TV
to
DVD+Hi-Fi
VCR
on
page
11.
AUTO
CHANNEL
PROGRAMMING
1
Press
MENU
and
the
MAIN
menu
will
appear.
2
Use
v/V
to
select
the
TUNING
menu,
then
press
MEMORY/ENTER.
The
TUNING
menu
will
appear.
3
Use
V
to
choose
the
SOURCE
SELECT
option,
then
use
b/B
to
select
TUNER.
Press
b/B
repeatedly
to
switch
among
TUNER,
LINE1
or
LINE2.
4
Use
v/V
to
choose
the
AUTO
CHANNEL
SET
option,
then
use
b/B
to
search
for
channels.
The
tuner
will
automatically
cycle
through
all
available
channels
in
the
area
and
place
them
in
the
tuner's
memory.
5
After
the
AUTO
CHANNEL
SET
PROCEEDING
is
complete,
make
sure
the
TUNING
BAND
is
set
appropriately
(TV
or
CATV).
Choose
the
correct
TUNING
BAND
(TV
or
CATV)
with
b/B
while
in
the
TUNING
menu.
Remember,
TV
is
for
the
air
antenna
reception,
CATV
is
for
cable
or
wireless
cable
connection.
6
Press
MENU
to
return
to
the
TV
screen.
7
Use
TUNING
(v/V)
on
the
front
panel
or
CH/TRK
(v/V)
on
the
remote
control
to
cycle
the
DVD+Hi-Fi
VCR
through
the
channels
in
memo-
ry.
TO
ADD
OR
ERASE
CHANNELS
FROM
MEMORY
This
feature
allows
you
to
add
or
erase
channels
from
memory
manually.
1
Use
V
to
choose
the
CH.
ADD/DEL
option
on
the
TUNING
menu.
Use
b/B
to
select
a
channel
to
add
or
erase.
2
Use
MEMORY/ENTER
to
add
or
erase
the
channel.
Repeat
steps
1
and
2
to
add
or
erase
channels.
3 Press
MENU
to
remove
menu.
18
VCR
Operation
Setup
(Continued)
Setting
the
Clock
The
DVD+Hi-Fi
VCR
gives
you
two
ways
to
set
the
time
and
date:
the
Auto
Clock
Feature
or
manually.
The
Auto
Clock
feature
enables
the
DVD+Hi-Fi
VCR
to
set
up
the
clock while
the
DVD+Hi-Fi
VCR
is
turned
off.
Auto
Clock
Set
The
Auto
Clock
Set
feature
is
set
to
ON
at
the
factory.
In
the
ON
setting,
the
DVD+Hi-Fi
VCR
looks
for
a
channel
carrying
XDS
(Extended
Data
Services)
information.
XDS
updates
the
clock
using
the
Coordinated
Universal
Time.
The
Auto
Clock
feature
enables
the
DVD+Hi-Fi
VCR
to
set
up
the
clock while
the
DVD+Hi-Fi
VCR
is
turned
off.
1
Press
MENU
and
the
MAIN
menu
will
appear.
2
Use
v/V
to
choose
the
CLOCK
menu.
Press
MEMORY/ENTER
and
the
CLOCK
menu
will
appear.
3
Use
V
to
choose
the
AUTO
CLOCK
SET
option.
Use
b/B
to
choose
ON.
The
Auto
Clock
Set
feature
is
set
to
ON
at
the
factory.
In
the
ON
setting,
the
DVD+VCR
looks
for
a
channel
carrying
XDS
(Extended
Data
Services)
information.
XDS
updates
the
clock
using
the
Coordinated
Universal
Time.
4
Use
E
to
choose
the
DAYLIGHT
SAVINGS
option.
Use
F
or
G
to
choose
AUTO,
ON,
or
OFF.
If
you
choose
AUTO,
the
VCR
sets
the clock
using
the
DST
information
broadcast
in
the
signal
(channel).
If
you
choose
ON,
the
VCR
adjusts
the
clock
for
Daylight
Saving
Time
automatically.
5
Use
E
to
choose
the
TIME
ZONE
option.
Use
F
or
G
to
choose
the
correct
time
zone
(AUTO,
EASTERN,
CENTRAL,
MOUNTAIN,
PACIFIC,
ALASKA
or
HAWAII).
If
"AUTO"
is
selected
as
the
time
zone,
the
VCR
sets
the
clock
using
the
first
Coordinated
Universal
Time
informa-
tion
it
finds
in
a
broadcast
signal.
6
Press
MENU
when
finished.
7
Turn
off
the
DVD+Hi-Fi
VCR
and
the
auto
clock
set
feature
sets
the
time.
ote
There
are
cases
where
the
TV
station
does
not
send
or
sends
wrong
date and/or time
information
and
the
DVD+Hi-Fi
VCR
sets
the
incorrect
time.
If
this
happens
we
recommend
that
you
set
the
clock
manually.
Manual
Clock
Set
1
Press
MENU
and
the
MAIN
menu
will
appear.
2
Use
v/V
to
choose
the
CLOCK
menu.
Press
MEMORY/ENTER
and
the
CLOCK
menu
will
appear.
3
Use
b/B
to
choose
the
month.
4
Use
V
to
choose
the
DAY
option.
Use
b/B
to
choose
the
date.
The
day
of
the
week
will
display
automatically.
5
Use
V
to
choose
the
YEAR
option.
Use
b/B
to
choose
the
year.
6
Use
V
to
choose
the
TIME
option.
Use
b/B
to
choose
the
time.
Press
and
hold
b/B
to
advance
clock
continuously.
7
Use
E
to
choose
the
DAYLIGHT
SAVINGS
option.
Use
F
or
G
to
choose
AUTO,
ON,
or
OFF.
If
you
choose
AUTO,
the
VCR
sets
the clock
using
the
DST
information
broadcast
in
the
signal
(channel).
If
you
choose
ON,
the
VCR
adjusts
the
clock
for
Daylight
Saving
Time
automatically.
8
Press
MENU
when
finished.
ote
If
setting
the
clock
manually,
"AUTO
CLOCK
SET"
must
set
to
"OFF".
If
set
to
"ON",
an
incorrect
date
and/or
time
will
be
entered
again
when
the
DVD+Hi-Fi
VCR
is
turned
off.
The
clock
uses
the
12-hour
system.
(Be
sure
to
set
AM
and
PM
correctly.)
(AM
does
not
appear.)
The
initial
Clock
Setting
is
JANUARY
1,
2003,
12:00
AM.
Things
to
know
before
starting
SYSTEM SETUP
19
DVD
Operation
Setup
General
Explanation
This
manual
gives
basic
instructions
for
operating
the
DVD+Hi-Fi
VCR.
Some
DVDs
require
specific
operation
or
allow
only
limited
operation
during
playback.
When
this
occurs,
the
symbol
appears
on
the
TV
screen,
indicating
that
the
operation
is
not
permitted
by
the
DVD+Hi-Fi
VCR
or
is
not
available
on
the
disc.
On-Screen
Display
General
playback
status
can
be
displayed
on
the
TV
screen.
Some
menu
options
can
be
changed
on
the
menu.
On-screen
display
operation
1
Press
DISPLAY
during
playback.
2
Use
3/4
to
select
a
menu
option.
The
selected
option
will
be
highlighted.
3
Use
1/2
to
change
the
setting
of
an
option.
The
number
buttons
can
be
also
be
used
for
setting
numbers
(e.g.,
title
number).
For
some
functions,
press
MEMORY/ENTER
to
execute
the
setting.
Temporary
Feedback
Field
Icons
Repeat
Title
Repeat
Chapter
Repeat
A-B
Repeat
Off
Resume
play
from
this
point
Action
prohibited
or
not
available
otes
Some
discs
may
not
provide
all
of
the
features
on
the
on-screen
display
example
shown
below.
If
no
button
is
pressed
for
10
seconds,
the
on-screen
display
disappears.
OFF
AB
CHAPT
TITLE
Menu
Options
Title
Number
Chapter
Number
Time
search
Audio
language
and
Digital
Audio
Output
mode
Subtitle
language
Angle
Sound
Function
(Use
3/4
to
select
desired
option)
Shows
the
current
title
number
and
total
number
of
titles,
and
skips
to
the
desired
title
number.
Shows
the
current
chapter
number
and
total
number
of
chapters,
and
skips
to
the
desired
chapter
number.
Shows
the
elapsed
playing
time,
and
searches
the
point
directly
from
the
elapsed
time.
Shows
the
current
audio
soundtrack
language,
encoding
method,
and
channel
number,
and
changes
the
setting.
Shows
the
current
subtitles
language,
and
changes
the
setting.
Shows
the
current
angle
number
and
total
number
of
angles,
and
changes
the
angle
number.
Shows
the
current
sound
mode,
and
changes
the
setting.
Selection
Method
1/2,or
Numbers,
ENTER
1/2,or
Numbers,
ENTER
Numbers,
ENTER
1/2,or
AUDIO
1/2,or
SUBTITLE
1/2,or
ANGLE
1/2,or
SOUND
MODE
1/3
1
/12
0:20:09
1
ENG
D
5.1
CH
OFF
1/1
BYPASS
ABC
DVD
20
DVD
Operation
Setup
(Continued)
Initial
Settings
You
can
set
your
own
Personal
Preferences
on
the
DVD+Hi-Fi
VCR.
General
Operation
1
Press
SETUP.
The
Setup
menu
appears.
2
Use
3/4
to
select
the
desired
option.
The
screen
will
show
the
current
setting
for
the
selected
option,
as
well
as
alternate
setting(s).
3
While
the
desired
option
is
selected,
press
2,
then
3/4
to
select
the
desired
setting.
4
Press
ENTER
to
confirm
your
selection.
Some
options
require
additional
steps.
5
Press
SETUP,
RETURN,
or
PLAY
to
exit
the
Setup
menu.
Language
Disc
Language
Select
a
language
for
the
disc's
Menu,
Audio,
and
Subtitle.
Original:
The
original
language
set
for
the
disc
is
selected.
Other:
To
select
another
language,
use
the
number
keypad
to
enter
the
corresponding
4-digit
number
according
to
the
lan-
guage
code
list
on
page
41.
If
you
enter
the
wrong
language
code,
press
CLEAR.
Menu
Language
Select
a
language
for
the
Setup
menu.
This
is
the
menu
you
see
when
you
press
SETUP.
TV
Aspect
Ratio
4:3
Letterbox:
Select
when
a
standard
4:3
TV
is
con-
nected.
Displays
theatrical
images
with
masking
bars
above
and
below
the
picture.
4:3
Panscan:
Select
when
a
conventional
TV
set
is
connected.
The
video
material
formatted
in
the
Pan
&
Scan
style
is
played
back
in
that
style
(Both
sides
of
the
are
cut
off).
16:9
Wide:
Select
when
a
16:9
wide
TV
is
connected.
Progressive
Scan
Progressive
Scan
Video
provides
the
highest
quality
pictures
with
less
flickering.
If
you
are
using
the
COMPONENT
VIDEO
OUT
jacks,
but
are
connecting
the
DVD
Player
to
a
standard
(ana-
log)
television,
set
Progressive
Scan
to
Off.
If
you
are
using
the
Component
Video
jacks
for
connection
to
a
TV
or
monitor
that
is
compatible
with
a
progressive
scan
signal,
set
Progressive
Scan
to
On.
Caution
Once
the
setting
for
progressive
scan
output
is
entered,
an
will
only
be
visible
on
a
progressive
scan
compatible
TV
or
monitor.
If
you
set
Progressive
Scan
to
On
in
error,
you
must
reset
the
unit.
Press
STOP
(x)
to
stop
any
disc
that
is
playing.
Next,
press
STOP
again
and
hold
it
for
five
seconds
before
releasing
it.
The
video
output
will
be
restored
to
the
standard
setting,
and
a
will
once
again
be
visible
on
a
conventional
analog
TV
or
monitor.
DVD
DVD
DVD
Disc
Subtitle
Disc
Menu
Rating
Country
Code
TV
Aspect
Menu
Language
Disc
Audio
English
Spanish
French
Disc
Subtitle
Disc
Menu
Rating
Country
Code
TV
Aspect
Menu
Language
Progressive
Scan
5.1
Speaker
Setup
Others
Disc
Audio
4:3
4:3
16:9
Letterbox
Panscan
Wide
Disc
Subtitle
Disc
Menu
Rating
Country
Code
TV
Aspect
Menu
Language
Progressive
Scan
5.1
Speaker
Setup
Others
Disc
Audio
Original
German
Chinese
Italian
Hungarian
Polish
English
French
Spanish
Other------------
Disc
Subtitle
Disc
Menu
Rating
Country
Code
TV
Aspect
Menu
Language
Progressive
Scan
5.1
Speaker
Setup
Others
Disc
Audio
Off
On
Disc
Subtitle
Disc
Menu
Rating
Country
Code
TV
Aspect
Menu
Language
Progressive
Scan
5.1
Speaker
Setup
Others
Disc
Audio
Original
German
Chinese
Italian
Hungarian
Polish
English
French
Spanish
Other------------
SYSTEM SETUP
21
DVD
Operation
Setup
(Continued)
5.1
Speaker
Setup
Select
speaker
settings,
including
volume
balance
and
delay
time,
or
test
the
speaker
settings.
Speaker
settings
are
only
active
on
the
Analog
Multi-
Channel
Output.
(See "Speaker
Setup",
on
page
36.)
Others
The
DRC,
Vocal,
and
Auto
Play
feature
settings
are
adjustable.
Use
3/4
to
select
the
desired
option
and
press
MEMORY/ENTER
repeatedly.
The
selected
option
is
toggled
On
and
Off.
Dynamic
Range
Control
(DRC)
With
the
DVD
format,
you
can
hear
a
program's
sound-
track
in
the
most
accurate
and
realistic
presentation
possible,
thanks
to
digital
audio
technology.
However,
you
may
wish
to
compress
the
dynamic
range
of
the
audio
output
(the
difference
between
the
loudest
sounds
and
the
quietest
ones).
Then,
you
may
listen
to
a
movie
at
a
lower
volume
without
losing
clarity
of
sound. Set
DRC
to
On
for this
effect.
Vocal
Set
Vocal
to
On
only
when
a
multi-channel
karaoke
DVD
is
playing.
The
karaoke
channels
on
the
disc
will
mix
into
normal
stereo
sound.
Auto
Play
You
can
set
up
the
DVD+Hi-Fi
VCR
so
a
DVD
disc
auto-
matically
starts
playing
whenever
the
DVD
is
inserted.
If
Auto
Play
mode
is
set
to
On,
this
DVD+Hi-Fi
VCR
will
search
a
title
that
playback
time
is
longest
and
then
play
back
the
title
automatically.
On:
Auto
Play
function
is
activated.
Off:
Auto
Play
function
is
not
activated.
ote
The
Auto
Play
function
may
not
work
for
some
DVDs.
DVD
DVD
Disc
Subtitle
Disc
Menu
Rating
Country
Code
TV
Aspect
Menu
Language
5.1
Speaker
Setup
Others
Disc
Audio
Vocal
DRC
Auto
Play
On
Off
On
Progressive
Scan
Disc
Subtitle
Disc
Menu
Rating
Country
Code
TV
Aspect
Menu
Language
Progressive
Scan
5.1
Speaker
Setup
Others
Disc
Audio
R R
Front
L
Volume
0
dB
Size
Small
Distance
1 ft
Test
Return
22
DVD
Operation
Setup
(Continued)
Parental
Control
Rating
Movies
on
DVDs
may
contain
scenes
not
suitable
for
children.
Therefore,
discs
may
contain
Parental
Control
information
that
applies
to
the
complete
disc
or
to
certain
scenes
on
the
disc.
These
scenes
are
rated
from
1
to
8,
and
alternatively,
more
suitable
scenes
are
available
for
selection
on
some
discs.
Ratings
are
country-dependent.
The
Parental
Control
feature
allows
you
to
prevent
discs
from
being
played
by
your
children
or
to
have
certain
discs
played
with
alternative
scenes.
1
Select
"Rating"
on
the
Setup
menu
using
the
3/4
buttons.
2
While
"Rating"
is
selected,
press
2.
3
When
you
have
not
entered
a
password.
Enter
a
4-digit
password
using
the
number
buttons
to
create
a
personal
4-digit
security
password.
then
press
MEMORY/ENTER.
Enter
the
4-digit
password
again
and
press
MEMORY/ENTER
to
verify.
When
you
have
already
registered
a
password;
Enter
a
4-digit
password
using
the
numbered
but-
tons
to
confirm
the
personal
4-digit
security
pass-
word,
then
press
MEMORY/ENTER.
If
you
make
a
mistake
before
pressing
MEMORY/ENTER,
press
CLEAR
and
enter
4-digit
security
password
again.
4
Select
a
rating
from
1
to
8
using
the
3/4
but-
tons.
One
(1)
has
the
least
playback
restrictions.
Eight
(8)
has
the
most
playback
restrictions.
Unlock:
If
you
select
Unlock,
Parental
Control
is
not
active.
The
disc
will
play
in
full.
Ratings
1
to
8:
Some
discs
contain
scenes
not
suitable
for
children.
If
you
set
a
rating
for
the
play-
er,
all
disc
scenes
with
the
same
rating
or
lower
will
be
played.
Higher
rated
scenes
will
not
be
played
unless
an
alternative
scene
is
available
on
the
disc.
The
alternative
must
have
the
same
rating
or
a
lower
one.
If
no
suitable
alternative
is
found,
play-
back
will
stop.
You
must
enter
the
4-digit
password
or
change
the
rating
level
in
order
to
play
the
disc.
5
Press
MEMORY/ENTER
to
confirm
your
rating
selection,
then
press
SETUP
to
exit
the
menu.
ote
This
function
may
not
work
for
some
DVDs.
Country
Code
Enter
the
code
of
a
country/area
whose
standards
were
used
to
rate
the
DVD
video
disc,
referring
to
the
list
(See
"Country
Code
List",
page
42.).
1
Select
Country
Code
using
the
3/4
buttons
on
the
setup
menu.
2
While
Country
Code
is
selected,
press
2.
3
Follow
step
3
of
"Rating"
on
left.
4
Select
the
first
character
using
the
3/4
buttons.
5
Shift
the
cursor
using
2
button
and
select
the
second
character
using
3/4
buttons.
6
Press
MEMORY/ENTER
to
confirm
your
country
code
selection,
then
press
SETUP
to
exit
the
menu.
ote
Confirmation
of
the
4-digit
password
is
necessary
when
the
code
is
changed
(see
"Changing
the
4-digit
code"
below.).
Changing
the
4-digit
code
1
Follow
Steps
1-2
as
shown
above
to
the
left
(Rating).
2
Enter
the
old
code,
then
press
MEMORY/ENTER.
3
Select
Change
using
3/4
buttons
then
press
MEMO-
RY/ENTER.
4
Enter
the
new
4-digit
code,
then
press
MEMORY/
ENTER.
5
Enter
exactly
the
same
code
a
second
time
and
veri-
fy
by
pressing
MEMORY/ENTER.
6 Press
SETUP
to
exit
the
menu.
If
you
forget
your
4-digit
code
If
you
forget
your
password,
to
clear
the
current
pass-
word,
follow
the
procedure
below.
(in
the
NO
DISC
mode).
1
Press
SETUP
to
display
the
Setup
menu.
2
Use
the
Number
buttons
to
enter
the
6-digit
number
"210499".
The
4-digit
password
is
cleared.
3
Enter
a
new
code
as
shown
above
to
the
left
(Rating).
DVD
DVD
Disc
Subtitle
Disc
Menu
Rating
Country
Code
TV
Aspect
Menu
Language
5.1
Speaker
Setup
Others
Disc
Audio
Code
Set
US
Progressive
Scan
Disc
Subtitle
Disc
Menu
Rating
Country
Code
TV
Aspect
Menu
Language
5.1
Speaker
Setup
Others
Disc
Audio
8
7
6
5
4
3
2
1
Unlock
Change
Progressive
Scan
OPERATION
23
VCR
Operation
Normal
Playback
Preparation:
Turn
on
the
TV.
Tune
the
TV
to
the
DVD+Hi-Fi
VCR
output
channel
(CH
3
or
4)
or
set
the
TV's
source
selector
to
VIDEO.
If
a
direct
VIDEO
connection
is
made
between
the
DVD+Hi-Fi
VCR
and
the
TV,
set
the
TV's
source
selector
to
VIDEO.
Set
the
Output
Source
to
VCR
as
shown
in
Setting
the
Output
Source
on
page
6.
1
Insert
a
prerecorded
video
cassette.
The
indicator
will
light
and
the
DVD+Hi-Fi
VCR
will
power-up
automatically.
Make
sure
that
the
indicator
in
the
display
window
is
not
lighted.
If
it
is,
press
POWER
once.
If
a
tape
without
a
safety
tab
is
inserted,
the
unit
will
start
playback
automatically.
2
Press
PLAY
(
B)
once.
PLAY
appears
on
the
TV
screen
.
It
is
not
necessary
to
select
the
tape
speed
for
playback.
It
will
be
automatically
selected
by
the
DVD+Hi-Fi
VCR.
In
playback,
the
TV/VCR
selector
switches
to
VCR
mode
automatically.
3
Press
STOP
(x)
to
stop
playback.
STOP
appears
on
the
TV
screen.
If
the
tape
reaches
the
end
before
STOP
(x)
is
pressed,
the
DVD+Hi-Fi
VCR
will
automatically
stop,
rewind
and
eject
the
tape,
and
it
will
turn
itself
off.
Tracking
Control
Auto
Tracking
The
automatic
tracking
function
adjusts
the
to
remove
snow
or
streaks.
The
AUTO
TRACKING
function
works
in
the
following
cases:
A
tape
is
played
back
for
the
first
time.
Tape
speed
(SP,
LP,
SLP)
changes.
Streaks
or
snow
appear
because
of
scratches
on
the
tape.
Manual
Tracking
If
noise
appears
on
the
screen
during
playback,
press
either
CH/TRK
v/V
on
the
remote
control
until
the
noise
on
the
screen
is
reduced.
If
vertical
jitter
is
present,
adjust
tracking
controls
very
carefully.
Tracking
is
automatically
reset
to
normal
when
the
tape
is
ejected
or
the
power
cord
is
unplugged
for
more
than
3
seconds.
ote
Only
2-channel
stereo
(Front
Left,
Front
Right
&
Subwoofer)
is
available
for
VCR
mode,
thus
sound
might
not
be
heard
from
center
or
rear
speakers
during
VCR
playback.
(For
further
details
about
sound
mode,
please
refer
to
page
15.)
Special
Effect
Playbacks
Special
effects
playback
notes
Horizontal
lines
(noise
bars)
will
appear
on
the
TV
screen.
This
is
normal.
The
audio
is
automatically
muted
during
special
effect
modes,
so
there
is
no
sound
during
search.
During
high-speed
search
mode,
a
short
period
is
needed
to
stabilize
tape
speed
when
re-entering
the
PLAY
mode.
Slight
interference
may
be observed
during
this
period.
Search
This
function
lets
you
quickly
and
visually
search
for
a
desired
tape
section
in
either
direction:
forward
or
reverse.
1
Press
BACKWARD
(.)
or
FORWARD
(>)
during
playback.
The
DVD+Hi-Fi
VCR
will
be
activated
in
the
SEARCH
mode.
If
the
DVD+VCR
is
left
in
the
SEARCH
mode
for
more
than
3
minutes,
the
DVD+Hi-Fi
VCR
will
automatically
enter
the
PLAY
mode,
to
protect
the
tape
and
video
heads.
2
To
return
to
playback,
press
PLAY
(
B).
Still
and
Frame-by-Frame
Playback
1
Press
PAUSE/STEP
(X)
during
playback.
movement
will
stop
on
one
frame.
If
the
still
vibrates
vertically,
stabilize
it
using
v/V
on
the
remote
control.
If
the
DVD+Hi-Fi
VCR
is
left in
the
STILL
mode
for
more
than
5
minutes,
the
DVD+Hi-Fi
VCR
will
automatically
enter
the
STOP
mode
to
protect
the
tape
and
video
heads.
2 Press
PAUSE/STEP
(X)
repeatedly
to
advance
the
video
one
frame
at
a
time
while
viewing
a
still
in
Still
mode.
3
To
return
to
playback,
press
PLAY
(
B).
Slow
Motion
1
While
in
Still
mode,
press
FORWARD
(>).
The
tape
will
be
played
back
at
a
speed
1/19
times
slower
than
the
normal
speed.
During
slow
playback,
use
v/V
on
the
Remote
Control
to
minimize
noise
bands.
If
slow
motion
mode
continues
for
more
than
3
minutes,
the
DVD+Hi-Fi
VCR
will
automatically
change
to
playback
mode.
2
To
return
to
playback,
press
PLAY
(
B).
CM
Skip
(Commercial
Skip)
This
is
useful
for
skipping
commercials
or
short
program
segments.
1
Press
CM
SKIP
during
playback.
The
tape
will
fast
forward
search
through
30
seconds
of
recording.
Skipping
time
can
be
extended
by
pressing
CM
SKIP
repeatedly.
Subsequent
presses
result
in
advancing
the
fast
forward
search
time
by
30-second
increments
(maximum
3
minutes).
2
When
the
search
is
complete,
the
DVD+Hi-Fi
VCR
will
go
into
playback
mode
automatically.
24
VCR
Operation
(Continued)
Normal
Recording
Preparation:
Turn
on
the
power
of
both
the
DVD+Hi-Fi
VCR
and
TV.
Tune
the
TV
to
the
DVD+Hi-Fi
VCR
output
channel
(CH
3
or
4)
or
set
the
TV's
source
selector
to
VIDEO.
If
a
direct
VIDEO/AUDIO
connection
is
made
between
the
DVD+Hi-Fi
VCR
and
the
TV,
set
the
TV's
source
selector
to
VIDEO.
1
Insert
a
video
cassette
with the
anti
erasure
safety
tab
intact.
2
Select the
desired
channel
with
v/V.
If
you
are
recording
from
another
source
via
audio/video
input
jacks
(at
the
Rear
or
Front
panel),
select
LINE1
or
LINE2
with
INPUT.
3
Set
the
desired
recording
speed
(SP
or
SLP)
with
SPEED.
This
DVD+Hi-Fi
VCR
is
not
designed
to
record
in
LP
mode.
4
Set
the
MTS
mode
as
desired
(See
page
17,
27).
5
Press
REC/ITR
(z)
once.
Recording
will
start.
(The
REC
indicator
will
light
in
the
display
window.)
REC
indicator
appears
only
when
the
Output
Source
is
set
to
VCR.
If
a
cassette
with
no
anti
erasure
safety
tab
is
loaded,
the
cassette
will
be
ejected
automatically.
6
Press
STOP
(x)
twice
to
stop
recording.
If
the
tape
reaches
the
end
before
STOP
(x)
is
pressed,
the
DVD+Hi-Fi
VCR
will
automatically
stop,
rewind,
eject
the
tape
and
turn
itself
off.
Pausing
the
recording
1
Press
PAUSE/STEP
(X)
to
pause
the
tape
during
recording.
The
REC
indicator
will
flash
in
the
display
window.
2
When
you
want
to
continue
recording,
press
PAUSE/STEP
(X)
or
REC/ITR
(z).
After
5
minutes
in
Pause
mode,
the
tape
will
be
stopped
automatically
to
protect
the
tape
and
the
video
heads.
To
record
one
TV
program
while
watching
another
1
Use
TV/VCR
to
select
the
TV
mode
while
recording.
The
TV
indicator
appears.
2
Using
the
TV,
select
the
channel
to
be
viewed.
ips
Always
use
PAUSE/STEP
(X)
for
best
results
when
making
changes
while
recording.
For
example:
To
change
channels
while
recording,
first
press
PAUSE/STEP
(X)
to
put
the
unit
in
pause
mode.
Select
the
desired
channel
on
the
DVD+Hi-Fi
VCR,
then
press
PAUSE/STEP
(X)
again
to
resume
recording.
Timer
Recording
This
DVD+Hi-Fi
VCR
can
be
programmed
to
record
up
to
8
programs
within
a
period
of
1
year.
For
unattended
recording,
the
timer
needs
to
know
the
channels
to
be
recorded
and
the
starting
and
ending
times.
Preparation:
Turn
on
the
power
of
both
the
DVD+Hi-Fi
VCR
and
the TV.
Be
sure
the
TV
is
set
to
the
DVD+Hi-Fi
VCR
output
channel
(3
or
4).
Make
sure
the
TUNING
BAND
in
the
TUNING
menu
is
set
appropriately
(TV
or
CATV).
1
Press
MENU
and
the
MAIN
menu
will
appear.
2
Use
v/V
to
choose
the
PROGRAM
menu.
3
Press
MEMORY/ENTER
to
go
to
the
PROGRAM
menu.
The
PROGRAM
menu
will
appear.
If
all
8
programs
have
been
entered,
FULLY
PROGRAMMED
message
will
appear
for
a
moment
and
then
PROGRAM
1
will
appear
on
the
TV
screen.
4
Use
b/B
to
choose
the
PROGRAM
No.
(1-8).
5
Use
V
to
choose
the
MONTH
option.
Use
b/B
to
choose
the
desired
month.
6
Use
V
to
choose
the
DAY
option.
Use
b/B
to
choose
the
desired
day.
7
Use
V
to
choose
the
START
option.
Use
b/B
to
choose
the
desired
start
time.
8
Use
V
to
choose
the
STOP
option.
Use
b/B
to
choose
the
desired
stop
time.
9
Use
V
to
choose
the
CHANNEL
option.
Use
b/B
to
choose
the
desired
channel
(Channel,
LINE1
or
LINE2).
Cable
Users:
If
you
have
CABLE
TV
and
used
Cable
Box
in
Connecting
Antenna/Cable
TV
to
DVD+Hi-Fi
VCR
(page
11),
using
a
cable
box
converter,
you
must
set
the
channel
in
this
step
to
match
the
cable
box
output
channel
(usually
CH
3
or
4).
Change
channels
on
the
cable
box
instead
of
with
the
DVD+Hi-Fi
VCR.
If
you
try
to
set
the
program
timer
before
setting
the
clock,
PLEASE
SET
THE
CLOCK
appears
for
a
moment
and
then
CLOCK
menu
appears
on
the
TV
screen.
Set
the
time
and
date
before
proceeding.
Make
sure
a
tape
is in
the
DVD+Hi-Fi
VCR
and
the
anti
erasure
safety
tab
is
in
place
or
the
tape
will
be
automati-
cally
ejected.
Things
to
know
before
starting
OPERATION
25
10
Use
V
to
choose
the
SPEED
option.
Use
b/B
to
choose
the
desired
recording
speed
(AUTO,
SP
or
SLP).
AUTO
mode
determines
how
much
tape
is left
and
switches
speed
from
SP
to
SLP,
if
necessary,
to
complete
recording
the
program.
There
will
be
some
and
sound
distortion
at
the
point
of
the
speed
change.
11
Use
V
to
choose
the
REPEAT
option.
Use
b/B
to
choose
the
desired
repeat
(ONCE,
WEEKLY
or
DAILY).
ONCE
event....for
recording
up
to
8
programs
on
a
single
day
or
over
the
days
within
a
period
of
1
year.
WEEKLY
event....for
recording
up
to
8
programs
on a
certain
day
of
every
week.
DAILY
event....for
recording
up
to
8
programs
at
the
same
time(s)
Monday
through
Friday.
ip
If
the
input
data
is
wrong,
use
v
to
select
the
data
and
correct
it
using
b/B.
12
Press
MENU,
the
program
will
be
memorized
by
the
DVD+Hi-Fi
VCR.
indicator
lights
in
the
display
window.
If
the
program
preset
time
has
past,
the
PAST
TIME
PROGRAMMED
message
will
appear
on
the
TV
screen.
Return
to
the
incorrect
program
and
program
it
with
the
correct
time.
If
you
had
entered
a
past
date,
timer
recording
will
be
performed
on
that
date
of
the
next
year.
Additional
programs
may
be
entered
by
repeating
steps
1-12.
Cable
Users:
If
your
cable
hookup
is
via
a
TV
converter
box,
you
can
program
multiple
recordings
only
on
the
converter
box
output
channel. This
is
because
the
converter
determines
what
channel
you
view
through
your
DVD+Hi-Fi
VCR.
ip
If
you
are
finished
programming
and
you
want
to
set
the
DVD+Hi-Fi
VCR
to
record the
programs
you
have
entered,
MAKE
SURE
YOU
HAVE
INSERTED
A
TAPE
INTO
THE
DVD+VCR.
The
DVD+Hi-Fi
VCR
is
now
set
to
record the
pre-
set
programs.
After
setting
up
a
timer
recording,
recording
will
start
if
no
other
timer
recordings overlap
the
start
time,
see
next
column.
otes
If
the
power
fails
or
the
DVD+Hi-Fi
VCR
is
unplugged
from
the
AC
outlet,
the
correct
clock
time
and
timer
set-
tings
are
kept
in
memory
for
approximately
3
seconds.
After
3
seconds,
the
clock
and
program
timer
must
be
reset
when
power
is
restored.
Reset
the
clock
accord-
ing
to
instructions.
After
timer
recording
is
completed,
the
DVD+Hi-Fi
VCR
will
turn
off
automatically.
To watch
a
TV
program
while timer
recording
is in
progress,
select
Tuner
mode
by
pressing
TV/VCR
repeatedly.
If
you
wish
to
stop
timer
recording
which
has
already
start-
ed,
press
STOP
or
POWER
twice.
Checking
(Erasing)
Timer
Record
Programming
Programming
can
be
checked
whenever
the
DVD+Hi-Fi
VCR
is
turned
on.
1
Press
MENU
and
the
MAIN
menu
will
appear.
2
Use
v/V
to
choose
the
PROGRAM
menu.
Press
MEMORY/ENTER
and
the
PROGRAM
menu
will
appear.
3
Use
b/B
to
select
a
program
you
want
to
check
or
erase.
If
you
want
to
erase
the
program,
press
CLEAR.
4
Press
MENU
to
return
to
the
TV
screen.
Program
Priority
If
the
recording
start
and
end
times
of
preset
programs
overlap
on
the
same
day
(see
the
example
and
diagram
left),
program
number
2
will
not
be
recorded
until
program
number
1
is
finished.
The
first
part
of
program
number
2
will
not
be
recorded.
The
same
thing
will
happen
to
program
number
3.
VCR
Operation
(Continued)
26
VCR
Operation
(Continued)
Instant
Timer
Recording
Instant
Timer
Recording
allows
you
to
make
a
recording
easily
of
a
preset
length
without
using
the
programma-
ble
timer.
Preparation:
Turn
on
the
power
of
both
the
DVD+Hi-Fi
VCR
and
the TV.
Be
sure
the
TV
is
tuned
to
the
DVD+Hi-Fi
VCR
output
channel
(3
or
4).
If
a
direct
VIDEO/AUDIO
connection
is
made
between
the
DVD+Hi-Fi
VCR
and
the
TV,
set
the
TV's
source
selector
to
VIDEO.
1
Insert
a
video
cassette
with the
anti
erasure
safety
tab
intact.
2
Select the
desired
channel
with
v/V
or
number
(0-9).
The
channel
number
appears
on
the
TV
screen.
If
you
are
recording
from
another
source
via
audio/video
input
jacks
(at
the
Rear
or
Front
panel),
select
LINE1
or
LINE2.
with
INPUT.
3
Select the
desired
recording
speed
(SP
or
SLP)
with
SPEED.
The
tape
speed
will
appear
on
the
TV
screen.
4
Press
REC/ITR
(z)
twice.
The
menu
as
illustrated,
will
appear
on
the
TV
screen.
Recording
will
start.
(The
indicator
will
light)
5
Press
REC/ITR
(z)
repeatedly
to
select
the
recording
time
length.
At
the
end
of
the
recording,
the
DVD+Hi-Fi
VCR
will
stop
recording
and
shut
off.
Whlie
Instant
Timer
Recording
is
active,
changing
the
channel
on
the
DVD+Hi-Fi
VCR
will
not
be
possible.
To
stop
the
recording,
press
STOP
or
POWER
twice.
INSTANT
TIMER
RECORD
MENU
Checking
the
Recording
Time
Press
REC/ITR
(z)
once
to
check
the
recording
time.
The
recalled
setting
will
automatically
return
to
the
TV
screen
after
6
seconds.
To
extend
the
Recording
Time
The
recording
time
can
be
extended
anytime
by
press-
ing
REC/ITR
(z).
Subsequent
presses
result
in
advancing
the
recording
time
by
30-minute
increments.
otes
If
you
press
PAUSE/STEP
(X)
while
in
instant
timer
record-
ing
mode,
the
DVD+Hi-Fi
VCR
will
enter
the
recording
pause
mode.
Instant
timer
recording
is
cancelled.
If
the
DVD+Hi-Fi
VCR
is
set
to
"0H00M",
the
DVD+Hi-Fi
VCR
goes
to
normal
recording
mode.
Dubbing
and
Editing
If
you
wish
to
edit
or
dub
your
camcorder
(or
another
VCR)
recordings
to
this
DVD+Hi-Fi
VCR,
the
rear
(or
Front)
panel
mounted
Audio
and
Video
(A/V)
input
jacks
make
the
connections
quick
and
easy.
These
direct
A/V
jacks
will
also
provide
better
results
than
using
the
RF
jack
on
the
rear
panel.
1
Connect
the
camcorder's
(or
another
VCR's)
A/V
outputs
to
your
DVD+Hi-Fi
VCR
as
illustrated
on
page
13.
2
Set
the
input
channel
"LINE2".
(Use
INPUT
to
select
LINE2.)
If
you
have
connected
your
DVD+Hi-Fi
VCR
to
the
A/V
input
jacks
on
the
rear
of
DVD+Hi-Fi
VCR,
you
should
select
the
input
channel
LINE1
by
pressing
INPUT
twice.
3
Play
the
tape
in
the
camcorder
(or
another
VCR).
If
you
have
a
TV
attached
to
your
DVD+Hi-Fi
VCR,
you
can
see
the
video
playing.
4
When
you
desire
the
recording
to
begin,
press
DVD+Hi-Fi
VCR's
REC/ITR
(z)
once
to
start.
otes
Before
recording,
please
confirm
the
recording
start
position.
To
stop
the
editing,
press
STOP
(x)
twice.
Copying
from
DVD
to
VCR
This
unit
is
capable
of
copying
the
contents
of
a
DVD
to
a
VHS
tape.
ote
If
the
DVD
you
are
attempting
to
copy
is
copy
protected,
you
will
not
be
able
to
copy
the
disc.
It
is
not
permitted
to
copy
Macrovision
encoded
DVDs.
"LOCK"
is
displayed
in
the
display
window.
1
Insert
Disc
Insert
the
disc
you
wish
to
copy
in
the
DVD
deck
and
close
the
disc
tray.
2
Insert
VHS
Tape
Insert
a
blank
VHS
video
tape
into
the
VCR
deck.
3
Press
PLAY
(
B)
on
the
DVD
deck.
The
DVD
will
go
into
play
mode
If
the
DVD
disc
menu
appears,
you
may
need
to
press
PLAY
(
B)
manually
to
begin
copying.
4
Press
REC/ITR
(z)
on
the
front
panel
or
remote
control.
The
DVD+Hi-Fi
VCR
will
go
into
Record
mode.
"COPY"
indicator
will
light.
5
Stop
the
Copy
Process
When
the
DVD
is
finished
playing,
press
STOP
(x)
or
POWER
twice
to
end
copying.
You
must
stop
the
Copy
process
manually
when
the
DVD
movie
ends,
or
the
unit
may
replay
and
record
over
and
over
again.
ote
When
you
stop
the
DVD
playback
during copying,
VCR
recording
mode
also
stops
automatically.
INSTANT
TIMER
RECORD
CHANNEL
2
SPEED
SP
START
NOW
LENGTH
0H30M
0H30M
.....
9H00M
0H00M
Length
Display
(each
additional
press
of
REC/ITR
(z)
increases
recording
time
30
minutes)
OPERATION
27
VCR
Operation
(Continued)
VHS
Hi-Fi
Stereo
System/
MTS
Broadcast
This
DVD+Hi-Fi
VCR
is
equipped
with
the
VHS
Hi-Fi
audio
sound
system
for
recording
and
playback.
The
information
below
gives
a
brief
description
of
Hi-Fi
audio
and
how
to
record
and
play
a
tape
in
the
Hi-Fi
audio
mode.
1
Set
the
AUDIO
MODE
option
to
Hi-Fi
on
the
SETUP
menu
.
2
Set
the
AUDIO
OUTPUT
option
to
STEREO
position.
(STEREO)
POSITION:
The
left
channel
sound
(L)
is
heard
from
the
left
speaker
and
the
right
channel
sound
(R)
is
heard
from
the
right
speaker.
(LEFT)
POSITION:
The
left
channel
sound
(L)
is
heard
from
both
speakers.
(RIGHT)
POSITION:
The
right
channel
sound
(R)
is
heard
from
both
speakers.
3
Press
MENU.
4
Insert
a
cassette
and
press
PLAY
(
B).
Adjust
volume
at
your
stereo
system.
MTS
(Multi-Channel
TV
Sound)
This
DVD+Hi-Fi
VCR
will
decode
MTS
stereo
and
bilin-
gual
(SAP)
off-the-air
broadcast
sound
signals.
It
also
decodes
stereo
TV
sound
from
local
cable
companies,
as
long
as
they
operate
on
assigned
cable
frequencies
and
use
the
EIA-recommended
MTS
stereo/bilingual
TV
sound
system.
Multichannel
TV
Sound
Indicator
(MTS)
Shows
onscreen
as
illustrated
below
when
MEMORY/
ENTER
is
pressed.
One
or
both
of
the
indicators
will
light,
depending
on
the
MTS
broadcast.
If
only
STEREO
appears
on
the
TV
screen.
The
DVD+Hi-Fi
VCR
can
record
in
stereo
onto
the
VHS
Hi-Fi
audio
tracks
when
the
BROADCAST
TYPE
option
is
in
the
STEREO
position.
The
DVD+Hi-Fi
VCR
will
also
record
mono
audio
onto
the
mono
audio
track.
If
only
SAP
appears
on
the
TV
screen.
Set
the
BROADCAST
TYPE
option
to
SAP.
If
STEREO/SAP
appears
on
the
TV
screen
Use
the
BROADCAST
TYPE
option
to
select
the
desired
recording
mode
(STEREO
or
SAP).
SAP
(Second
Audio
Program)
Recording
Some
stations
transmit
a
Second
Audio
Program,
which
is
used
for
a
second
language
or
additional
information.
When
the
station
broadcasts
a
Second
Audio
Program,
follow
the
procedure
below
to
record
the
SAP.
1
Insert
a
video
cassette
with the
anti
erasure
safety
tab
intact.
2
Set the
BROADCAST
TYPE
option
to
SAP
(SETUP
menu).
Do
this
if
only
the
SAP
appears
on
the
TV
screen
or
you
know
the
program
will
use
the
SAP.
3
Press
MENU.
4
Select
the
desired
recording
speed
(SP
or
SLP)
with
SPEED.
5
Select
the
desired
channel.
SAP
should
appear
on
the
TV
screen.
6
Press
REC/ITR
(z)
once
You
are
now
recording
the
program
you
see
and
hear
on
the
TV.
7
Press
STOP
(x)
twice
to
stop
recording.
STEREO
Lights
up
when
a
stereo
broadcast
is
being
received.
SAP
Lights
up
when
a
SAP
BILINGUAL
broadcast
is
being
received.
TV
screen
CH4
STEREO/SAP
28
VCR
Operation
(Continued)
Tape
Counter
Memory
Feature
Real-Time
Counter
Shows
length
of
tape
run
in
hours,
minutes,
and
seconds.
Press
CLK/CNT
to
select
the
real-time
counter
display.
Every
press
of
CLK/CNT
changes
the
TV
screen
dis-
play
as
illustrated
below.
Counter
changes
to
"0:00:00"
when
the
cassette
is
ejected.
The
real-time
counter
does
not
operate
if
nothing
is
recorded
on
the
tape.
The
real-time
counter
will
not
work
unless
a
tape
is
inserted.
Counter
Memory
Feature
This
is
useful
if
there
is
a
section
of
tape
you
want
to
view
immediately
after
recording
or
if
you
want
to
return
to
the
same
point
several
times.
1
Begin
recording
or
playing
a
tape.
2
Press
CLK/CNT
repeatedly
to
display
the
real-time
counter
on
the
TV
screen.
3
At
the
point
that
you
want
to
locate
later,
reset
the
real-time
counter
to
"0:00:00"
by
pressing
CLEAR.
4
Continue
to
play
or
record.
5
Press
STOP
(x)
once
or
twice
when
recording
or
playback
finishes.
6
Press
BACKWARD
(.).
The
tape
automatically
stops
when
the
tape
counter
returns
to
about
"0:00:00".
Tape
Remaining
This
function
shows
the
remaining
time
on
the
tape
during
recording
or
playback.
Press
CLK/CNT
repeatedly
until
the
REM
indicator
appears
on
the
TV
screen
during
recording
or
playback.
ote
The
remaining
tape
length
indicator
may
not
be
displayed
correctly
depending
on
the
condition
of
the
tape
and
the
kind
of
the
tape
(T-140,
T-160,
or
T-210
etc.)
Additional
Information
In
manual
recording,
Timer
recording,
Instant
Timer
Recording,
playback,
or
fast
forward
modes,
the
DVD+Hi-Fi
VCR
automatically
starts
rewinding
the
tape
at
the
end
of
the
tape.
The
cassette
will
stop
at
the
beginning
of
the
tape
and
be
ejected,
and
the
DVD+Hi-Fi
VCR
will
turn
itself
off.
After
you
have
finished
using
the
DVD+Hi-Fi
VCR,
rewind,
eject,
and
remove
the
cassette.
Place
the
cassette
in
its
protective
sleeve
to
protect
it
from
dust.
It
is
not
necessary
to
rewind
the
cassette
before
removing
it,
but
if
you
do,
it
will
be
ready
to
play
or
record the
next
time
you
use
it.
Be
sure
the
DVD+Hi-Fi
VCR
Channel
Selector
is
on
the
correct
channel
you
wish
to
record.
The
channel
that
is
being
recorded
can
always
be
checked
by
tuning
the
televi-
sion
to
the
DVD+Hi-Fi
VCR
channel
(3
or
4)
and
using
the
TV/VCR
selector
to
turn
the
DVD+Hi-Fi
VCR's
TV
indicator
off.
Do
not
attempt
to
hook
up
more
than
one
television
set
to
the
DVD+Hi-Fi
VCR
for
either
recording
or
playback.
Auto
Play
System
This
DVD+Hi-Fi
VCR
features
automatic
playback.
Load
a
cassette
(with
the
safety
tab
removed).
The
Output
Source
is
changed
to
VCR
mode
automatically.
The
power
turns
on
automatically
and
playback
begins.
At the
end
of
the
tape,
the
DVD+Hi-Fi
VCR
stops
and
rewinds
the
tape.
The
cassette
is
ejected
after
rewinding
and
the
VCR
turns
itself
off
automatically.
ote
Auto
power
off
does
not
function
during
regular
DVD
play
mode.
(DVD+Hi-Fi
VCR
power
stays
on.)
2:15
AM
0:05:25
REM
1:07
CLOCK
COUNTER
REMAINING
TIME
LOAD
TAPE
AUTO
REWIND
AUTO
POWER
OFF
AUTO
EJECT
AUTO
PLAY
OPERATION
29
DVD
Operation
Playing
a
DVD
Playback
Setup
Turn
on
the
TV
and
select
the
video
input
source
con-
nected
to
the
DVD+Hi-Fi
VCR.
1
Press
OPEN/CLOSE
(Z)
to
open
the
disc
tray.
2
Load
your
chosen
disc
in
the
tray,
with the
label
facing
up.
When
a
double-sided
DVD
is
inserted,
make
sure
the
side
you
want
to
play
is
facing
down.
3
Press
OPEN/CLOSE
(Z)
to
close
the
tray.
"READING"
appears
in
the
display
window,
and
playback
starts
automatically.
If
playback
does
not
start,
press
PLAY
(
B).
In
some
cases,
the
disc
menu
might
appear
instead.
If
a
menu
screen
is
displayed
The
menu
screen
may
be
displayed
first
after
loading
a
DVD
or
Video
CD
which
offers
a
menu.
Use
b/B/v/V
buttons
to
select
the
title/chapter
you
want
to
view,
then
press
MEMORY/ENTER
to
start
playback.
Press
TITLE
or
DISC
MENU
to
return
to
the
menu
screen.
otes
If
Parental
Control
is
set
and
the
disc
is
not
within
the
Rating
settings
(not
authorized),
the
4-digit
password
must
be
entered
and/or
the
disc
must
be
authorized
(see
Parental
Control,
on
page
22).
DVDs
may
have
a
Regional
Code.
Your
DVD+Hi-Fi
VCR
will
not
play
discs
that
have
a
Regional
Code
different
from
your
DVD+Hi-Fi
VCR.
The
Regional
Code
for this
DVD+Hi-Fi
VCR
is
1
(one).
Do
not
keep
a
fixed
displayed
on
the
screen
for
a
long
time.
General
Features
ote
Unless
stated
otherwise,
all
operations
described
use
the
remote
control.
Some
features
may
also
be
available
on
the
Setup
menu.
Changing
TITLEs
When
a
disc
has
more
than
one
title,
you
can
select
another
title
as
follows:
Press
DISPLAY,
then
use
the
appropriate
number
button
(0-9)
to
select
a
title
number.
Use
1 2
to
select
a
title,
then
press
MEMORY/
ENTER.
Changing
Chapters
When
a
title
on
a
disc
has
more
than
one
chapter
or
a
disc
has
more
than
one
track,
you
can
move
to
another
chapter
as
follows:
Press
BACKWARD
(.)
or
FORWARD
(>)
briefly
during
playback
to
return
to
the
beginning
of
the
current
chapter/track
or
to
select
the
next
chapter/
track.
Press
BACKWARD
(.)
twice
briefly
to
step
back
to
the
previous
chapter/track.
To
go
directly
to
any
chapter
during
DVD
playback,
press
DISPLAY.
Then,
use
3/4
to
select
the
chapter/track
icon.
Then,
enter
the
chapter/track
number
using
the
numbered
buttons
(0-9)
or
use
1 2
to
select
the
chapter/track,
then
press
MEMORY/
ENTER.
Slow
Motion
1
Press
PAUSE/STEP
(X)
while
in
Playback
mode.
The
DVD+Hi-Fi
VCR
will
now
go
into
Pause
mode.
2 Press
BACKWARD
(.)
or
FORWARD
(>)
while
in
Playback
mode.
The
DVD+Hi-Fi
VCR
will
enter
SLOW
mode.
3
Use
BACKWARD
(.)
or
FORWARD
(>)
to
select
the
required
speed:
t
1/16,
t
1/8,
t
1/4,
t
1/2
(backward),
or
T
1/16,
T
1/8,
T
1/4,
T
1/2
(forward).
4
To
return
to
playback,
press
PLAY
(
B).
DVD
1/3
1
/12
DVD
1/3
DVD
DVD
DVD
30
DVD
Operation
(Continued)
General
Features
(Continued)
Still
and
Frame-by-Frame
Playback
1
Press
PAUSE/STEP
(X)
while
in
playback
mode.
The
DVD+Hi-Fi
VCR
will
go
into
PAUSE
mode.
2
With
a
DVD,
you
can
advance
the
frame
by
frame
by
pressing
PAUSE/STEP
(X)
repeatedly
on
the
remote
control.
3
To
return
to
playback,
press
PLAY
(
B).
Search
1
Press
and
hold
BACKWARD
(.)
or
FORWARD
(>)
for
about
two
seconds
while
in
playback
mode.
The
DVD+Hi-Fi
VCR
will
now
go
into
SEARCH
mode.
2
Press
and
hold
BACKWARD
(.)
or
FORWARD
(>)
repeatedly
to
select
the
required
speed:
mX2,
mX4,
mX16,
mX100
(backward)
or
MX2,
MX4,
MX16,
MX100
(forward).
3
To
return
to
playback,
press
PLAY
(
B).
Repeat
DVD
Video
Discs
-
Repeat
Chapter/Title/Off
1
To
repeat
the
currently
playing
chapter,
press
REPEAT.
The
Repeat
Chapter
icon
appears
on
the
TV
screen.
2
To
repeat
the
title
currently
playing,
press
REPEAT
a
second
time.
The
Repeat
Title
icon
appears
on
the
TV
screen.
3
To
exit
Repeat
mode,
press
REPEAT
a
third
time.
The
Repeat
Off
icon
appears
on
the
TV
screen.
Repeat
A-B
To
repeat
a
sequence
in
a
title:
1
Press
REPEAT
A-B
at
your
chosen
start
point.
A*
appears
briefly
on
the
TV
screen.
2 Press
REPEAT
A-B
again
at
your
chosen
end
point.
A
B
appears
briefly
on
the
TV
screen,
and
the
repeat
sequence
begins.
3
To
cancel
the
sequence,
press
REPEAT
A-B.
Time
Search
The
Time
Search
function
allows
you
to
start
playing
at
any
chosen
time
on
the
disc.
1
Press
DISPLAY
during
playback.
The
on-screen
dis-
play
appears
on
the
screen.
The
Time
Search
box
shows
the
elapsed
playing
time
of
the
current
disc.
2
Within
10
seconds,
use
v/V
to
select
the
Time
Search
icon
in
the
on-screen
display.
The
"-:--:--"
display
appears
in
the
Time
Search
box.
3
Within
10
seconds,
use
the
numbered
buttons
to
enter
the
required
start
time.
Enter
hours,
minutes
and
seconds
from
left
to
right
in
the
box.
If
you
enter
the
wrong
numbers,
press
CLEAR
to
remove
the
numbers
you
entered.
Then
enter
the
correct
numbers.
4
Within
10
seconds,
press
MEMORY/ENTER.
Playback
starts
from
the
selected
time
on
the
disc.
If
you
enter
an
invalid
time,
playback
will
continue
from
the
current
point.
3D
Surround
This
unit
can
produce
a
3D
Surround
effect,
which
simulates
multi-channel
audio
playback
from
two
conventional
stereo
speakers,
instead
of
the
five
or
more
speakers
normally
required
to
listen
to
multi-
channel
audio
from
a
home
theater
system.
1
Press
DISPLAY
during
playback.
2
Use
v/V
to
select
the
sound
icon.
The
sound
option
will
be
highlighted.
3
Use
b/B
to to
select
"3D
SUR".
To
turn
off
the
3D
Surround
effect,
select
"BYPASS".
Zoom
The
Zoom
function
allows
you
to
enlarge
the
video
and
to
move
through
the
enlarged
image.
1
Press
ZOOM
during
playback
or
still
playback
to
acti-
vate
the
Zoom
function.
If
you
press
ZOOM
repeatedly,
the
magnification
level
increases
up
to
six
steps.
2
Use
b/B/v/V
buttons
to
move
through
the
zoomed
picture.
3 Press
CLEAR
to
resume
normal
playback
or
return
to
the
paused
image.
otes
The
Zoom
function
may
not
work
for
some
DVDs.
The
Zoom
function
may
not
work
on
multi-angle
scenes.
DVD
3D
SUR
BYPASS
DVD
-:--:--
0:20:09
DVD
OFF
AB
A*
DVD
OFF
TITLE
CHAPT
DVD
DVD
DVD
OPERATION
31
DVD
Operation
(Continued)
General
Features
(Continued)
Marker
Search
You
can
start
playback
from
a
memorized
marker.
Up
to
nine
markers
can
be memorized.
To
enter
a
mark,
follow
these
steps.
1
From
Playback
mode,
press
MARKER
when
playback
reaches
the
spot
that
you
want
to
memorize.
The
Marker
icon
will
appear
on
the
TV
screen
briefly.
2
Repeat
step
1
to
enter
up
to
nine
Marker
points
on
a
disc.
To
Recall
a
Marked
Scene
1
From
Playback
mode,
press
SEARCH.
The
Marker Search
menu
will
appear
on
the
screen.
2
Within
10
seconds,
use
1/2
or
number
button
to
select
a
Marker
number
that
you
want
to
recall.
3 Press
MEMORY/ENTER.
Playback
will
start
from
the
Marked
scene.
4
To
remove
the
MARKER
SEARCH
menu,
press
SEARCH.
To
Clear
a
Marked
Scene
1
From
Playback
mode,
press
SEARCH.
The
Marker
Search
menu
will
appear
on
the
screen.
2
Within
10
seconds,
use
1/2
or
number
button
to
select
a
Marker
number
that
you
want
to
erase.
3 Press
CLEAR.
The
Marker
number
will
be
erased
from
the
list.
4
Repeat
steps
2
and
3
to
erase
additional
Marker
numbers.
5
To
remove
the
MARKER
SEARCH
menu,
press
SEARCH.
All
markers
are
erased
when
the
disc
is
ejected.
Special
DVD
Features
Checking
the
contents
of
DVD
Video
discs:
Menus
DVDs
may
contain
menus
that
allow
you
to
access
spe-
cial
features.
To
use
the
disc
menu,
press
DISC
MENU.
Then,
press
the
appropriate
number
button
to
select
an
option.
Or,
use
b/B/v/V
buttons
to
highlight
your
selec-
tion,
then
press
MEMORY/ENTER.
Title
Menu
1
Press TITLE.
If
the
current
title
has
a
menu,
the
menu
will
appear
on
the
screen.
Otherwise,
the
disc
menu
may
appear.
2
The
menu
can
list
camera
angles,
spoken
language
and
subtitle
options,
and
chapters
for
the
title.
3
To
remove
the
title
menu,
press
TITLE
again.
Disc
Menu
1
Press
DISC
MENU.
The
disc
menu
is
displayed.
2
To
remove
the
disc
menu,
press
DISC
MENU
again.
Camera
Angle
If
the
disc
contains
sequences
recorded
from
different
camera
angles,
the
angle
icon
blinks
on
the
TV
screen.
You
can
then
change
the
camera
angle
if
you
wish.
Press
ANGLE
repeatedly
during
playback
to
select
a
desired
angle.
The
number
of
the
current
angle
appears
on
the
display.
Changing
the
Audio
Language
Press
AUDIO
repeatedly
during
playback
to
hear
a
different
audio
language
or
audio
track.
Subtitles
Press
SUBTITLE
repeatedly
during
playback
to
see
the
different
subtitle
languages.
ote
If
appears,
the
feature
is
not
available
on
the
disc.
1
ENG
ABC
DVD
1
ENG
D
5.1
CH
DVD
1/1
DVD
DVD
DVD
MARKER
SEARCH
1/9
DVD
32
Audio
CD
or
MP3/WMA
Disc
Operation
Playing
an
Audio
CD
or
MP3/WMA
Disc
The
DVD/CD
receiver
can
play
MP3/WMA
formatted
recordings
on
CD-ROM,
CD-R
or
CD-RW
discs.
Before
playing
MP3/WMA
recordings,
read
the
notes
on
MP3/WMA
Recordings
on
right.
1
Insert
a
disc
and
close
the
tray.
Audio
CD;
Audio
CD
menu
appears
on
the
TV
screen
go
to
step
4.
MP3/WMA
disc;
The
MP3/WMA-JPEG
choice
menu
appears
on
the
TV
screen.
Go
to
step
2
2
Use
3/4
to
select
the
MP3/WMA
then
press
ENTER.
The
MP3/WMA
menu
appears
on
the
TV
screen.
Press
RETURN
to
move
to
the
MP3/WMA-JPEG
choice
menu.
3
Use
3/4
to
select
a
folder,
and
ENTER.
A
list
of
files
in
the
folder
appears.
4
Use
3/4
to
select
a
track
then
press
PLAY
or
ENTER.
Playback
starts.
During
playback,
the
current
track's
elapsed
playing
time
will
appear
on
the
display
window
and
menu.
Playback
will
stop
at
the
end
of
the
disc.
Press
TITLE
to
move
to
the
next
page.
Press
MENU
to
move
to
the
previous
page.
Audio
CD
Menu
MP3/WMA
Menu
ip
If
you
are
in
a
file
list
and
want
to
return
to
the
Folder
list,
use
the
3/4
to
highlight
and
press
ENTER
to
return
to
the
previous
menu
screen.
5
To
stop
playback
at
any
other
time,
press
STOP.
Notes
on
MP3/WMA
Recordings
About
MP3
An
MP3
file
is
audio
data
compressed
by
using
the
MPEG1
audio
layer-3
file-coding
scheme.
We
call
files
that
have
the
".mp3"
file
extension
"MP3
files".
The
player
can
not
read
an
MP3
file
that
has
a
file
extension
other
than
".mp3".
About
WMA
(Window
Media
Audio)
A
WMA
file
is
Microsoft
audio
compression
technology.
WMA(Windows
Media
Audio)
offers
double
the
audio
compression
of
the
MP3
format.
MP3/WMA
Disc
compatibility
with
this
DVD/CD
receiver
is
limited
as
follows:
1.
Sampling
Frequency
/
only
at
44.1kHz
(MP3),
32
-
44.1kHz
(WMA)
2.
Bit
rate
/
within
32
-
320kbps
(MP3),
32
-
128kbps
(WMA)
3.
CD-R
physical
format
should
be
"ISO
9660"
4.
If
you
record
MP3/WMA
files
using
the
software
which
cannot
create
a
FILE
SYSTEM,
for
example
"Direct-CD"
etc.,
it
is
impossible
to
playback
MP3/WMA
files.
We
recommend
that
you
use
"Easy-
CD
Creator",
which
creates
an
ISO9660
file
system.
5.
A
single
session
disc
requires
MP3/WMA
files
in
the
first
track.
If
there
is
no
MP3/WMA
file
in
the
1st
track,
it
cannot
playback
MP3/WMA
files.
If
you
wish
to
playback
MP3/WMA
files,
format
all
the
data
in
the
disc
or
use
a
new
one.
6. File
names
should
be
named
using
8
letters
or
less
and
must
incorporate
".mp3"
or
".wma"
extension
e.g.
"********.MP3"
or
"********.WMA".
7.
Donotusespecialletterssuchas"/:*?"<>"etc.
8.
Total
number
of
files
on
the
disc
should
be
less
than
650.
This
DVD/CD
receiver
requires
discs/recordings
to
meet
certain
technical
standards
in
order
to
achieve
optimal
playback
quality.
Pre-recorded
DVDs
are
automatically
set
to
these
standards.
There
are
many
different
types
of
recordable
disc
formats
(including
CD-R
containing
MP3
or
WMA
files).
That
require
certain
pre-existing
conditions
(see
above)
to
insure
compatible
playback.
Customers
should
also
note
that
permission
is
required
in
order
to
download
MP3/WMA
files
and
music
from
the
Internet.
Our
company
has
no
right
to
grant
such
permission.
Permission
should
always
be
sought
from
the
copyright
owner.
WMA
MP3
CD
Program
CD
STER.
BYPASS
0:
56:
18
TRACK01
TRACK02
TRACK03
TRACK04
TRACK05
TRACK06
TRACK07
TRACK08
Clear
All
TRACK
1.mp3
TRACK
2.mp3
TRACK
3.mp3
TRACK
4.mp3
TRACK
5.mp3
TRACK
6.mp3
TRACK
7.mp3
TRACK
8.mp3
Program
MP3
WMA
OFF
00:00
1
Clear
All
JPEG
MP3
WMA
Folder1
Folder2
Folder3
Folder4
Folder5
Folder6
Folder7
Folder8
MP3
WMA
OFF
00:00
Program
Clear
All
OPERATION
33
Audio
CD
or
MP3/WMA
Disc
Operation
(Continued)
Pause
1
From
Playback
mode,
press
PAUSE/STEP
(X)
during
playback.
2
To
return
to
playback,
press
PLAY,
PAUSE/STEP
(X)
or
MEMORY/ENTER
again.
Moving
to
another
Track
From
Playback
mode,
press
BACKWARD
(.)
or
press
FORWARD
(>)
briefly
to
return
to
the
begin-
ning
of
the
current
track
or
to
go
to
the
next
track.
Press
BACKWARD
(.)
or
FORWARD
(>)
twice
briefly
to
step
back
to
the
previous
track.
From
Playback
mode
for
audio
CDs,
to
go
directly
to
any
track,
enter
the
track
number
using
the
numbered
buttons
(0-9)
during
playback.
Repeat
Track/All/Off
1
To
repeat
the
track
currently
playing,
press
REPEAT.
The
Repeat
icon
and
"TRACK"
appears
on
the
menu
screen.
2
To
repeat
all
tracks
on a
disc,
press
REPEAT
a
sec-
ond
time.
The
Repeat
icon
and
"ALL"
appear
on
the
menu
screen.
3
To
cancel
Repeat
mode,
press
REPEAT
a
third
time.
The
Repeat
icon
and
"OFF"
appear
on
the
menu
screen.
Search
1
From
Playback
mode,
press
and
hold
BACKWARD
(.)
or
FORWARD
(>)
for
about
two
seconds
during
playback.
The
DVD+Hi-Fi
VCR
will
now
go
into
SEARCH
mode.
2 Press
and
hold
BACKWARD
(.)
or
FORWARD
(>)
repeatedly
to
select
the
required
speed:
mX2,
mX4,
mX8
(backward)
or
MX2,
MX4,
MX8
(forward).
Search
speed
and
direction
are
indicated
on
the
menu
screen.
3
To
return
to
playback,
press
PLAY.
Repeat
A-B
To
repeat
a
sequence.
1
From
Playback
mode,
press
REPEAT
A-B
at
your
chosen
starting
point.
The
Repeat
icon
and
"A
*
"
appear
on
the
menu
screen.
2 Press
REPEAT
A-B
again
at
your
chosen
end
point.
The
Repeat
icon
and
"A
B"
appear
on
the
menu
screen,
and
the
sequence
begins
to
play
repeatedly.
3
To
exit
the
sequence
and
return
to
normal
play,
press
REPEAT
A-B
again.
The
Repeat
icon
and
"OFF"
appear
on
the
menu
screen.
3D
Surround
This
unit
can
produce
a
3D
Surround
effect,
which
simulates
multi-channel
audio
playback
from
two
conventional
stereo
speakers,
instead
of
the
five
or
more
speakers
normally
required
to
listen
to
multi-
channel
audio
from
a
home
theater
system.
1
Press
SOUND
MODE
to
select
"3D
SUR"
during
playback.
2
To
turn
off
the
3D
Surround
effect,
press
SOUND
MODE
again
to
select
"BYPASS".
Changing
the
Audio
Channel
From
Playback
mode,
press
AUDIO
repeatedly
to
hear
a
different
audio
channel
(STER.,
LEFT,
or
RIGHT).
CD
CD
CD
WMA
MP3
CD
WMA
MP3
CD
WMA
MP3
CD
WMA
MP3
CD
34
Viewing
JPEG
files
This
DVD+Hi-Fi
VCR
can
play
discs
with
JPEG
files
and
Kodak
CDs.
Before
playing
JPEG
files,
read
the
notes
on
JPEG
Files
on
right.
1
Insert
a
disc
and
close
the
tray.
The
MP3/WMA-JPEG
choice
menu
appears
on
the
TV
screen.
2
Use
3/4
to
select
the
JPEG
option
then
press
MEMORY/ENTER.
The
JPEG
menu
appears
on
the
TV
screen.
3
Use
3/4
to
select
a
folder,
and
press
MEMO-
RY/ENTER
or
PLAY.
A
list
of
files
in
the
folder
appears.
Press
RETURN
to
move
to
the
MP/WMA-JPEG
choice
menu.
ip
If
you
are
in
a
file
list
and
want
to
return
to
the
Folder
list,
use
the
34
buttons
on
the
remote
to
highlight
"
"
and
press
ENTER
to
return
to
the
previous
menu
screen.
4
If
you
want
to
view
a
particular
file,
use
3/4
to
highlight
a
file
and
press
MEMORY/ENTER
or
PLAY.
Viewing
the
file
proceeding
starts.
During
viewing
a
file
function,
press
RETURN
to
move
to
the
previous
menu
(JPEG
menu).
Press
TITLE
to
move
to
the
next
page.
Press
MENU
to
move
to
the
previous
page.
ip
There
are
three
Slide
Speed
viewing
options:
Fast,
Normal,
Slow,
and
Off.
Use
1/2
to
highlight
the
Slide
Speed
option
then
use
3/4
to
select
the
speed
you
want
to
view
the
slides
at,
and
press
MEMORY/ENTER.
5
To
stop
viewing
at
any
other
time,
press
STOP.
The
JPEG
menu
appears.
Selecting
Files
Press
SKIP/SCAN
.
or
>
once
while
viewing
a
to
advance
to
the
next
file
or
to
the
previous
file.
Still
1
Press
PAUSE/STEP
(X)
during
slide
show.
The
DVD+Hi-Fi
VCR
will
now
go
into
PAUSE
mode.
2
To
return
to
the
slide
show,
press
PLAY
or
press
PAUSE/STEP
(X)
again.
Flipping
the
Press
3/4
while
showing
a
to
flip
the
horizontally
or
vertically.
To
rotate
Press
1/2
during
showing
a
to
rotate
the
clockwise
or
counterclockwise.
Notes
on
JPEG
Files
Depending
upon
the
size
and
number
of
the
JPEG
files,
it
could
take
a
long
time
for
the
DVD+Hi-Fi
VCR
to
read
the
disc's
contents.
If
you
don't
see
an
on-
screen
display
after
several
minutes,
some
of
the
files
are
too
big
---
reduce
the
resolution
of
the
JPEG
files
to
less
than
2
mega
pixels
and
burn
another
disc.
Total
number
of
files
and
folders
on
the
disc
should
be
less
than
650.
Some
disc
may
be
incompatible
due
to
different
recording
format
or
condition
of
disc.
When
you
are
using
software
such
as
"Easy
CD
Creator"
to
burn
the
jpeg
files
into
the
CD-R,
ensure
that
all
the
selected
files
have
the
".jpg"
extensions
when
copying
into
the
CD
layout.
If
the
files
have
".jpe"
or
".jpeg"
extensions,
please
rename
them
as
".jpg"
files.
File
names
without
".jpg"
extension
will
not
be
able
to
be
read
by
this
DVD+Hi-Fi
VCR.
Even
though
the
files
are
shown
as
JPEG
files
in
windows
explorer.
JPEG
JPEG
Disc
Operation
MP3
WMA
JPEG
OPERATION
35
Programmed
Playback
WMA
MP3
CD
Programmed
Playback
with
Audio
CDs
and
MP3/WMA
Discs
The
Program
function
enables
you
to
store
your
favorite
tracks
from
any
disc
in
the
player
memory.
Program
can
contain
30
tracks.
1
From
Playback
or
in
the
Stop
mode,
press
PRO-
GRAM
to
enter
the
Program
Edit
mode.
The
mark
will
appear
to
the
right
of
the
word
Program
on
the
right
side
of
the
menu
display.
ote
Press
PROGRAM
to
exit
the
Program
Edit
mode;
the
mark
will
disappear.
2
Select
a
track,
then
press
ENTER
to
place
the
selected
track
on
the
Program
list.
3
Repeat
step
2
to
place
additional
tracks
on
the
Program
list.
Audio
CD
Menu
MP3/WMA
Menu
4
Press
2.
The
programmed
track
you
selected
last
is
highlighted
on
the
program
list.
5
Use
3/4
to
select
the
track
you
want
to
start
playing.
Press
TITLE
to
move
to
the
next
page.
Press
MENU
to
move
to
the
previous
page.
6
Press
PLAY
to
start.
Playback
begins
in
the
order
in
which
you
programmed
the
tracks
and
"PROG."
appears
on
the
menu
display.
Playback
stops
after
all
of
the
tracks
on
the
Program
list
have
played
once.
7
To
resume
normal
playback
from
pro-
grammed
playback,
select
a
track
from
the
CD
(or
MP3/WMA)
list
and
then
press
ENTER.
"PROG."
indicator
disappears
from
the
menu
display.
Repeat
Programmed
Tracks
To
repeat
the
track
currently
playing,
press
REPEAT.
The
Repeat
icon
and
"TRACK"
appear
on
the
menu
screen.
To
repeat
all
tracks
on
the
program
list,
press
REPEAT
a
second
time.
The
Repeat
icon
and
"ALL"
appear
on
the
menu
screen.
To
cancel
Repeat
mode,
press
REPEAT
a
third
time.
The
Repeat
icon
and
"OFF"
appear
on
the
menu
screen.
Erasing
a
Track
from
Program
List
1
From
Playback
or
in
the
Stop
mode,
(Audio
CD
or
MP3/WMA
disc
only)
press
PROGRAM
to
enter
the
Program
Edit
mode.
The
mark
will
appear.
2 Press
2
to
move
to
the
Program
list.
3
Use
3/4
to
select
the
track
that
you
wish
to
erase
from
the
Program
list.
4
Press
CLEAR.
The
track
will
be erased
from
the
Program
list.
Erasing
the
Complete
Program
List
1
Follow
steps
1-2
of
"Erasing
a
Track
from
Program
List"
as
above.
2
Use
3/4
to
select
"Clear
All",
then
press
ENTER.
The
complete
Program
for
the
disc
will
be
erased.
The
programs
are
also
cleared
when
the
disc
is
removed.
E
E
E
STER.
BYPASS
E
0:
56:
18
TRACK
1
TRACK
2
TRACK
3
TRACK
4
TRACK
12
TRACK
8
TRACK
10
TRACK
3
TRACK
5
TRACK
6
TRACK
7
TRACK
8
Program
CD
Clear
All
E
TRACK
1
TRACK
2
TRACK
3
TRACK
4
TRACK
8
TRACK
2
TRACK
4
TRACK
3
TRACK
5
TRACK
6
TRACK
7
TRACK
8
Program
MP3
WMA
OFF
00:00
3
Clear
All
36
Speaker
Setup
Adjust
the
Speaker
Setup
menu
option
settings
for
the
built-in
5.1
channel
surround
decoder.
(Also
refer
to
page
14,
Speaker
Positioning.)
1
Select
"5.1
Speaker
Setup"
on
the
Setup
menu
using
the
3/4
buttons.
2
While
"5.1
Speaker
Setup"
is
selected,
press
2
button.
3
Use
2
button
to
select
the
desired
speaker.
4
Adjust
options
by
using
341
2
buttons.
Speaker
Selection
Select
a
speaker
that
you
want
to
set
up.
((Front
speak-
ers
(Left),
Front
speakers
(Right),
Center
Speaker,
Rear
speakers
(Left),
Rear
speakers
(Right),
Subwoofer))
ote
Certain
speaker
settings
are
prohibited
by
the
Dolby
Digital
licensing
agreement.
Volume
Use
1
/
2
to
adjust
the
output
level
of
the
selected
speaker.
(-6dB
~
+6dB)
Size
Speaker
size
settings
are
fixed,
you
cannot
change
the
settings.
Distance
If
you
connected
speakers
to
your
DVD+Hi-Fi
VCR,
specify
the
Distance
from
each
speaker
to
the
listener,
you
want
to
make
the
sound
from
each
speaker
reach
the
listener
at
the
same
time.
(1
ft
=
30.48
cm)
ote
You
can
not set
the
distance
of
subwoofer
speaker.
Test
Press
MEMORY/ENTER
to
test
the
signals
of
each
speaker.
Adjust
the
volume
to
match
the
volume
of
test
signals
memorized
in
the
system.
Front
Left
(L)
→
Front
Right
(R)
→
Center
→
Rear
Left
(L)
→
Rear
Right
(R)
→
Subwoofer
Return
Press
MEMORY/ENTER
to
return
to
the
previous
menu.
Disc
Subtitle
Disc
Menu
Rating
Country
Code
TV
Aspect
Menu
Language
Progressive
Scan
5.1
Speaker
Setup
Others
Disc
Audio
R R
Front
L
Volume
0
dB
Size
Small
Distance
1 ft
Test
Return
OPERATION
37
Radio
Operation
Presetting
Radio
Stations
You
can
preset
30
stations
for
FM
and
AM.
Before
tun-
ing,
make
sure
that
you
have
turned
down
the
sound
level.
1
Press
FM/AM
on
the
remote
control
or
on
the
front
panel
until
the
frequency
band
appears
on
the
display
and
TV
screen.
2
Use
3/4
on
the
remote
control
to
find
your
desired
station.
3
Use
FM/AM
on
the
remote
control
or
on
the
front
panel
to
select
the
desired
band.
4
Hold
down
4
TUNING
3
on
the
front
panel
or
hold
down
1
and
2
on
the
remote
control
for
1
or
2
seconds,
and
the
next
station
is
searched
for
automatically.
5
Press
MEMORY/ENTER
on
the
remote
control.
6
Repeat
steps
2
to
5
to
store
other
stations.
Radio
Operation
Preset
radio
stations
in
the
DVD+Hi-Fi
VCR
memory
first
(see
"Presetting
radio
stations"
on
the
left).
1
Press
FM/AM
on
the
remote
control
or
on
the
front
panel
until
the
frequency
band
appears
on
the
display
and
TV
screen.
The
last
received
station
is
tuned
in.
2
Press
3/4
on
the
remote
control
repeatedly
to
select
the
preset
station
you
want.
Each
time
you
press
the
button,
the
DVD+Hi-Fi
VCR
tunes
in
one
preset
station
at
a
time.
3
Adjust
the
sound
level
by
rotating
VOLUME
on
the
front
panel
or
by
pressing
VOLUME
+
or
-
on
the
remote
control
repeatedly.
To
Clear
Stored
Radio
Stations
1
Press
FM/AM
on
the
remote
control
or
on
the
front
panel
until
the
frequency
band
appears
on
the
display
and
TV
screen.
2
Use
3/4
on
the
remote
control
to
select
your
desired
station.
3
Press
CLEAR
the
remote
control
to
remove
the
stored
radio
station.
ote
From
Record
or
Record
Pause
mode,
the
CLEAR
function
is
not
available.
ST
-- - - - - -
RADIO
-- - - - - -
1/6.
FM
87.7MHz
FM
108
.
0MHz
FM
90.7MHz
FM
106
.
7MHz
ADD
:
MEMORY
FM/AM
DEL
:
CLEAR
FM
98.7MHz
-- - - - - -
RADIO
-- - - - - -
2/6.
FM
87.7MHz
FM/AM
ST
ST
-- - - - - -
RADIO
-- - - - - -
2/6.
FM
87.7MHz
ADD
:
MEMORY
FM/AM
FM
108
.
0MHz
DEL
:
CLEAR
ST
-- - - - - -
RADIO
-- - - - - -
1/6.
FM
87.7MHz
FM
108
.
0MHz
FM
90.7MHz
FM
106
.
7MHz
ADD
:
MEMORY
FM/AM
DEL
:
CLEAR
FM
98.7MHz
ST
-- - - - - -
RADIO
-- - - - - -
2/6.
FM
87.7MHz
ADD
:
MEMORY
FM/AM
FM
108
.
0MHz
DEL
:
CLEAR
-- - - - - -
RADIO
-- - - - - -
2/6.
FM
87.7MHz
FM/AM
38
Radio
Operation
(Continued)
Tuning
Stations
Manually
1
Press
FM/AM
on
the
remote
control
or
on
the
front
panel
until
the
frequency
band
appears
on
the
display
and
TV
screen.
2
Use
FM/AM
on
the
remote
control
or
on
the
front
panel
to
select
the
desired
band.
3
Use
4
TUNING
3
on
the
front
panel
or
press
1
and
2
on
the
remote
control
to
tune
in
the
desired
station.
For
your
reference
FM
Stereo
Press
MONO/STEREO
repeatedly
on
the
front
panel
until
"ST"
appears
in
the
display.
Weak
FM
stations
Press
MONO/STEREO
on
the
front
panel
until
the
"ST"
word
disappears
from
the
display.
Background
noise
will
be
reduced
but
the
signal
repro-
duced
will
be
mono.
To
restore
stereo
reception,
press
MONO/STEREO
on
the
front
to
select
STEREO.
To
turn
the
radio
off
Press
POWER
to
turn
the
DVD+Hi-Fi
VCR
off
or
select
another
function
mode
(CD/DVD,
VCR,
LINE
1
or
LINE
2).
Tuning
Stations
Automatically
Hold
down
4
TUNING
3
on
the
front
panel
or
hold
down
1
and
2
on
the
remote
control
for
1
or
2
seconds,
and
the
next
station
is
searched
for
automati-
cally.
ote
The
search
may
not
tune
in
or
stop
at
a
station
with
a
very
weak
signal.
Mute
Press
MUTE
to
remove
the
sound.
You
can
mute
your
unit
in
order,
for
example,
to
answer
the
telephone,
"MUTE"
indicator
flashes
in
the
display.
Press
MUTE
again
to
restore
sound.
REFERENCE
39
Troubleshooting
Symptom
No
power.
The
power
is
on,
but
the
DVD+Hi-Fi
VCR
does
not
work.
No
picture.
No
sound.
The
playback
is
poor.
The
DVD+Hi-Fi
VCR
does
not
start
playback.
The
remote
control
does
not
work
properly.
Cause
The
power
cord
is
disconnected.
No
disc
is
inserted.
No
tape
is
inserted.
The
TV
is
not
set
to
receive
DVD+Hi-Fi
VCR
signal
output.
TV/VCR
mode
for
DVD+Hi-Fi
VCR
is
set
to
TV.
The
video cable
is
not
connected
securely.
The
connected
TV
power
is
turned
off.
The
Digital
Audio
Output
is
set
to
the
wrong
position.
The
disc
is
dirty.
Tape
heads
are
dirty.
Tape
is
a
rental
or
was
recorded
on
another
VCR.
No
disc
is
inserted.
No
tape
is
inserted.
An
unplayable
disc
is
inserted.
The
disc
is
placed
upside
down.
The
disc
is
not
placed
within
the
guide.
The
disc
is
dirty.
The
remote
control
is
not
pointed
at
the
remote
sensor
of
the
DVD+Hi-Fi
VCR.
The
remote
control
is
too
far
from
the
DVD+Hi-Fi
VCR.
There
is
an
obstacle
in
the
path
of
the
remote
control
and
the
DVD+Hi-Fi
VCR.
The
batteries
in
the
remote
control
are
exhausted.
This
remote
control
uses
the
same
buttons
for
VCR
and
DVD
functions
(ex.
PLAY).
Correction
Plug
the
power
cord
into
the
wall
outlet
securely.
Insert
a
disc
or
tape.
(Check
that
the
disc
or
tape
indicator
in
the
display
window
is
lit.)
Select
the
appropriate
video
input
mode
on
the
TV
so
the
from
the
DVD+Hi-Fi
VCR
appears
on
the
TV
screen.
Press
the
TV/VCR
button
on
the
remote
control
repeatedly
to
choose
VCR
mode.
TV
indicator
disappears
from
the
display
window.
Connect
the
video cable
securely.
Turn
on
the
TV.
Set
the
Digital
Audio
Output
to
the
correct
position,
then
turn
on
the
DVD+Hi-Fi
VCR
again
by
pressing
POWER.
Clean
the
disc.
Clean
video
heads.
Use
CH/TRK
(v/V)
for
manual
tracking
adjustment
while
tape
is
playing.
Insert
a
disc
or
tape.
(Check
that
the
disc
or
tape
indicator
in
the
display
window
is
lit.)
Insert
a
playable
disc.
(Check
the
disc
type,
color
system,
and
Regional
code.)
Place
the
disc
with
the
playback
side
down.
Place
the
disc
on
the
disc
tray
correctly
inside
the
guide.
Clean
the
disc.
Point
the
remote
control
at
the
remote
sensor
of
the
DVD+Hi-Fi
VCR.
Operate
the
remote
control
within
23
ft
(7
m).
Remove
the
obstacle.
Replace
the
batteries
with
new
ones.
When
using
a
VCR
tape,
first
press
the
VCR
button.
When
using
a
DVD,
first
press
the
DVD
button.
Check
the
following
guide
for
the
possible
cause
of
a
problem
before
contacting
service.
40
Troubleshooting
(Continued)
Symptom
Some
channels
are
skipped
over
when
using
CH/TRK
(v/V)
and
sound
of
broadcasting
channel
are
weak
or
missing.
Camcorder
is
not
shown.
Camcorder
via
A/V
input
to
DVD+Hi-Fi
VCR
is
not
shown
on
TV
screen.
Timer
recording
is
not
possible.
indicator
appears
after
DVD+Hi-Fi
VCR
is
turned
off.
Stereo
Audio
Record
and/or
Playback
is
not
present.
Cause
Those
channels
were
deleted
with
the
CH.
ADD/DEL
option.
Antenna
or
cables
are
loose.
Wrong
TUNING
BAND
option
is
being
used.
Camcorder
is
off.
DVD+Hi-Fi
VCR
SOURCE
SELECT
is
not
set
to
LINE1
or
LINE2.
Clock
in
DVD+Hi-Fi
VCR
is
not
set
to
correct
time.
Timer
has
been
programmed
incorrectly.
indicator
does
not
appear
after
pro-
gramming
timer.
DVD+Hi-Fi
VCR
is in
Timer
Recording
mode.
TV
is
not
Stereo-compatible.
Broadcast
program
is
not
in
stereo
for-
mat.
DVD+Hi-Fi
VCR
BROADCAST
TYPE
mode
is
set
to
SAP
or
MONO.
Correction
Use
CH.
ADD/DEL.
to
restore
channels.
See
"Channel
Selection"
on
page
17.
Tighten
connections
or
replace
cable.
Try
all
TUNING
BAND
options.
See
"Channel
Selection"
on
page
17
for
details.
Turn
camcorder
on
and
operate
properly.
Use
INPUT
to
select
LINE
input
source
(LINE1
or
LINE2).
Set
clock
to
correct
time.
See
"Setting
the
Clock"
on
page
18.
Reprogram
Timer.
See
"Timer
Recording"
on
pages
24
and
25.
Reprogram
Timer.
This
is
the
normal
indication
that
the
DVD+Hi-Fi
VCR
is in
TIMER
mode.
No
action
is
possible.
No
action
is
possible.
Set
BROADCAST
TYPE
mode
to
STEREO.
See
"Setting
the
VCR
Setup
Menu"
on
page
17.
Moisture
Condensation
Moisture
condensation
can
occur:
?
When
the
DVD+Hi-Fi
VCR
is
moved
from
a
cold
place
to
a
warm
place.
?
Under
extremely
humid
conditions.
In
locations
where
moisture
condensation
may
occur:
?
Keep
the
DVD+Hi-Fi
VCR
plugged
into
an
AC
power
outlet
with
POWER
On.
This
will
help
prevent
conden-
sation.
?
When
condensation
has
occurred,
wait
a
few
hours
for
the
DVD+Hi-Fi
VCR
to
dry
before
using
it.
REFERENCE
41
Language
Code
List
Language
Code
Abkhazian
6566
Afar
6565
Afrikaans
6570
Albanian
8381
Amharic
6577
Arabic
6582
Armenian
7289
Assamese
6583
Aymara
6588
Azerbaijani
6590
Bashkir
6665
Basque
6985
Bengali;
Bangla
6678
Bhutani
6890
Bihari
6672
Breton
6682
Bulgarian
6671
Burmese
7789
Byelorussian
6669
Cambodian
7577
Catalan
6765
Chinese
9072
Corsican
6779
Croatian
7282
Czech
6783
Danish
6865
Dutch
7876
English
6978
Esperanto
6979
Estonian
6984
Faeroese
7079
Language
Code
Fiji
7074
Finnish
7073
French
7082
Frisian
7089
Galician
7176
Georgian
7565
German
6869
Greek
6976
Greenlandic
7576
Guarani
7178
Gujarati
7185
Hausa
7265
Hebrew
7387
Hindi
7273
Hungarian
7285
Icelandic
7383
Indonesian
7378
Interlingua
7365
Irish
7165
Italian
7384
Japanese
7465
Javanese
7487
Kannada
7578
Kashmiri
7583
Kazakh
7575
Kirghiz
7589
Korean
7579
Kurdish
7585
Laothian
7679
Latin
7665
Latvian,
Lettish
7686
Language
Code
Lingala
7678
Lithuanian
7684
Macedonian
7775
Malagasy
7771
Malay
7783
Malayalam
7776
Maltese
7784
Maori
7773
Marathi
7782
Moldavian
7779
Mongolian
7778
Nauru
7865
Nepali
7869
Norwegian
7879
Oriya
7982
Panjabi
8065
Pashto,
Pushto
8083
Persian
7065
Polish
8076
Portuguese
8084
Quechua
8185
Rhaeto-Romance
8277
Romanian
8279
Russian
8285
Samoan
8377
Sanskrit
8365
Scots
Gaelic
7168
Serbian
8382
Serbo-Croatian
8372
Shona
8378
Sindhi
8368
Language
Code
Singhalese
8373
Slovak
8375
Slovenian
8376
Somali
8379
Spanish
6983
Sudanese
8385
Swahili
8387
Swedish
8386
Tagalog
8476
Tajik
8471
Tamil
8465
Tatar
8484
Telugu
8469
Thai
8472
Tibetan
6679
Tigrinya
8473
Tonga
8479
Turkish
8482
Turkmen
8475
Twi
8487
Ukrainian
8575
Urdu
8582
Uzbek
8590
Vietnamese
8673
Volapuk
8679
Welsh
6789
Wolof
8779
Xhosa
8872
Yiddish
7473
Yoruba
8979
Zulu
9085
DVD+Hi-Fi
VCR
memory/enter
the
appropriate
code
number
for
the
initial
settings
"Disc
Audio",
"Disc
Subtitle"
and/or
"Disc
Menu"
(See
page
20).
42
Country
Code
List
Code
Country
AD
Andorra
AE
United
Arab
Emirates
AF
Afghanistan
AG
Antigua
and
Barbuda
AI
Anguilla
AL
Albania
AM
Armenia
AN
Netherlands
Antilles
AO
Angola
AQ
Antarctica
AR
Argentina
AS
American
Samoa
AT
Austria
AU
Australia
AW
Aruba
AZ
Azerbaidjan
BA
Bosnia-Herzegovina
BB
Barbados
BD
Bangladesh
BE
Belgium
BF
Burkina
Faso
BG
Bulgaria
BH
Bahrain
BI
Burundi
BJ
Benin
BM
Bermuda
BN
Brunei
Darussalam
BO
Bolivia
BR
Brazil
BS
Bahamas
BT
Bhutan
BV
Bouvet
Island
BW
Botswana
BY
Belarus
BZ
Belize
CA
Canada
CC
Cocos
(Keeling)
Islands
CF
Central
African
Republic
CG
Congo
CH
Switzerland
CI
Ivory
Coast
CK
Cook
Islands
CL
Chile
CM
Cameroon
CN
China
CO
Colombia
CR
Costa
Rica
CS
Former
Czechoslovakia
CU
Cuba
CV
Cape
Verde
CX
Christmas
Island
CY
Cyprus
CZ
Czech
Republic
DE
Germany
DJ
Djibouti
DK
Denmark
DM
Dominica
DO
Dominican
Republic
DZ
Algeria
EC
Ecuador
EE
Estonia
EG
Egypt
EH
Western
Sahara
Code
Country
ER
Eritrea
ES
Spain
ET
Ethiopia
FI
Finland
FJ
Fiji
FK
Falkland
Islands
FM
Micronesia
FO
Faroe
Islands
FR
France
FX
France
(European
Territory)
GA
Gabon
GB
Great
Britain
GD
Grenada
GE
Georgia
GF
French
Guyana
GH
Ghana
GI
Gibraltar
GL
Greenland
GM
Gambia
GN
Guinea
GP
Guadeloupe
(French)
GQ
Equatorial
Guinea
GR
Greece
GS
S.
Georgia
&
S.
Sandwich
Isls.
GT
Guatemala
GU
Guam
(USA)
GW
Guinea
Bissau
GY
Guyana
HK
Hong
Kong
HM
Heard
and
McDonald
Islands
HN
Honduras
HR
Croatia
HT
Haiti
HU
Hungary
ID
Indonesia
IE
Ireland
IL
Israel
IN
India
IO
British
Indian
Ocean
Territory
IQ
Iraq
IR
Iran
IS
Iceland
IT
Italy
JM
Jamaica
JO
Jordan
JP
Japan
KE
Kenya
KG
Kyrgyzstan
KH
Cambodia6
KI
Kiribati
KM
Comoros
KN
Saint
Kitts
&
Nevis
Anguilla
KP
North
Korea
KR
South
Korea
KW
Kuwait
KY
Cayman
Islands
KZ
Kazakhstan
LA
Laos
LB
Lebanon
Code
Country
LC
Saint
Lucia
LI
Liechtenstein
LK
Sri
Lanka
LR
Liberia
LS
Lesotho
LT
Lithuania
LU
Luxembourg
LV
Latvia
LY
Libya
MA
Morocco
MC
Monaco
MD
Moldavia
MG
Madagascar
MH
Marshall
Islands
MK
Macedonia
ML
Mali
MM
Myanmar
MN
Mongolia
MO
Macau
MP
Northern
Mariana
Islands
MQ
Martinique
(French)
MR
Mauritania
MS
Montserrat
MT
Malta
MU
Mauritius
MV
Maldives
MW
Malawi
MX
Mexico
MY
Malaysia
MZ
Mozambique
NA
Namibia
NC
New
Caledonia
(French)
NE
Niger
NF
Norfolk
Island
NG
Nigeria
NI
Nicaragua
NL
Netherlands
NO
Norway
NP
Nepal
NR
Nauru
NU
Niue
NZ
New
Zealand
OM
Oman
PA
Panama
PE
Peru
PF
Polynesia
(French)
PG
Papua
New
Guinea
PH
Philippines
PK
Pakistan
PL
Poland
PM
Saint
Pierre
and
Miquelon
PN
Pitcairn
Island
PR
Puerto
Rico
PT
Portugal
PW
Palau
PY
Paraguay
QA
Qatar
RE
Reunion
(French)
RO
Romania
RU
Russian
Federation
RW
Rwanda
SA
Saudi
Arabia
SB
Solomon
Islands
Code
Country
SC
Seychelles
SD
Sudan
SE
Sweden
SG
Singapore
SH
Saint
Helena
SI
Slovenia
SJ
Svalbard
and Jan
Mayen
Islands
SK
Slovak
Republic
SL
Sierra
Leone
SM
San
Marino
SN
Senegal
SO
Somalia
SR
Suriname
ST
Saint
Tome
and
Principe
SU
Former
USSR
SV
El
Salvador
SY
Syria
SZ
Swaziland
TC
Turks
and
Caicos
Islands
TD
Chad
TF
French Southern
Territories
TG
Togo
TH
Thailand
TJ
Tadjikistan
TK
Tokelau
TM
Turkmenistan
TN
Tunisia
TO
Tonga
TP
East
Timor
TR
Turkey
TT
Trinidad
and
Tobago
TV
Tuvalu
TW
Taiwan
TZ
Tanzania
UA
Ukraine
UG
Uganda
UK
United
Kingdom
UM
USA
Minor
Outlying
Islands
US
United States
UY
Uruguay
UZ
Uzbekistan
VA
Vatican
City
State
VC
Saint
Vincent
&
Grenadines
VE
Venezuela
VG
Virgin
Islands
(British)
VI
Virgin
Islands
(USA)
VN
Vietnam
VU
Vanuatu
WF
Wallis
and
Futuna
Islands
WS
Samoa
YE
Yemen
YT
Mayotte
YU
Yugoslavia
ZA
South
Africa
ZM
Zambia
ZR
Zaire
ZW
Zimbabwe
DVD+Hi-Fi
VCR
memory/enter
the
appropriate
code
number
for
the
initial
setting
"Country
Code"
(See
page
22).
REFERENCE
43
Specifications
General
Power
requirements
AC
120V,
60
Hz
Power
consumption
130W
Dimensions
(approx.)
430
X
90
X
350
mm
(16.9
x
3.5
x
13.8
inches)
(w
x
h
x
d)
Weight
(approx.)
8
kg
(17.6
lbs)
Operating
temperature
5˚C
to
40˚C
(41˚F
to
104˚F)
Operating
humidity
5
%
to
90
%
Signal
system
NTSC
Inputs
ANTENNA
IN
Antenna
or
CATV
input,
75
ohms
VHS
VIDEO
IN(LINE1,
2)
1
Vp-p
75
ohms,
sync
negative,
RCA
jack
x
2
VHS
AUDIO
IN(LINE1,
2)
-6.0
dBm
more
than
47
ohms,
RCA
jack
(L,
R)
x
2
Outputs
MONITOR
OUT
1
Vp-p
75
ohms,
sync
negative
S-VIDEO
OUT
(Y)
1.0
V
(p-p),
75
ohms,
negative
sync,
Mini
DIN
4-pin
x
1
(C)
0.3
V
(p-p)
75
ohms
Component
Video
output
(Y)
1.0
V
(p-p),
75
Ω,
negative
sync.,
RCA
jack
x
1
(Pb)/(Pr)
0.7
V
(p-p),
75
Ω,
RCA
jack
x
1
VCR
Specifications
Head
system
Four
head
helical
scan
azimuth
system
Timer
12-hour
display
type
with
AM,
PM
Tape
speed
SP:
33.35
mm/sec,
LP:
16.67
mm/sec,
SLP:
11.12
mm/sec
Tape
width
12.7
mm
Maximum
recording
time
SP:
2
HOURS
(T-120),
SLP:
6
HOURS
(T-120)/8
HOURS
(T-160)
Rewind
time
About
3
minutes
(T-120)
Antenna
75
ohms
(VHF/UHF)
VHF
output
signal
Channel
3
or
4
Channel
coverage
VHF:
2-13,
UHF:
14-69,
CATV:
1-125
(4A,
A-W,
W+1
-
W+84,
A-5
-
A-1)
Frequency
range
200Hz
to
8kHz
Signal-to-noise
ratio
More
than
65
dB
(EE
mode)
Dynamic
range
More
than
70
dB
(EE
mode)
Channel
separation
More
than
45
dB
(EE
mode)
DVD
Specifications
Laser
system
Semiconductor
laser,
wavelength
650
nm
Frequency
response
DVD
(PCM
96
kHz):
8
Hz
to
44
kHz,
DVD
(PCM
48
kHz):
8
Hz
to
22
kHz
CD:200Hzto18kHz
Signal-to-noise
ratio
More
than
70
dB
Harmonic
distortion
Less
than
0.5
%
Dynamic
range
More
than
65
dB
(DVD/CD)
Tuner
section
System
PLL
quartz-locked
digital
synthesizer
system
Tuning
range
87.5
~
108.0
MHz
(FM)
530
~
1720
KHz
(AM)
Antenna
Wire
antenna
(FM)
Loop
antenna
(AM)
Specifications
(Continued)
44
Speakers
Satellite
(LHS-C6237T)
Type
1
Way
1
Speaker
Impedance
4Ω
Frequency
Response
130
-
20,000
Hz
Sound
Pressure
Level
83
dB/W
(1m)
Rated
Input
Power
20W
Max
Input
Power
40W
Net
Dimensions
(W
x
H
x
D)
88x100x95mm
Net
Weight
0.54
kg
Passive
Subwoofer
(LHS-C6237W)
Type
1
Way
1
Speaker
Impedance
8Ω
Frequency
Response
50
-
1,500
Hz
Sound
Pressure
Level
82
dB/W
(1m)
Rated
Input
Power
40W
Max
Input
Power
80W
Net
Dimensions
(W
x
H
x
D)
160x350x325mm
Net
Weight
4.12
kg
Accessories:
Video
cable
x
1,
RF
75-ohm
Coaxial
Cable
x
1,
Speaker
cable
x
5,
FM
Antenna
cable
x
1,
AM
Antenna
cable
x
1,
Remote
control
x
1,
Batteries
(AAA)
x
2
Design
and
specifications
are
subject
to
change
without
prior
notice.
Notes
45
Notes
46
Notes
47
ZENITH
ELECTRONICS
CORPORATION
Zenith
Part
No.
206-03872
2000
MILLBROOK
DRIVE
GS#
3828R-D032C
LINCOLNSHIRE,
IL
60069
Printed
in
Indonesia
Issue
O
Zenith
will
repair
or
replace
your
product,
at
Zenith's
option,
if
it
proves
to
be
defective
in
material
or
workman-
ship
under
normal
use,
during
the
warranty
period
("Warranty
Period")
listed
below,
effective
from
the
date
("Date
of
Purchase")
of
original
purchase
of
the
product.
This
limited
warranty
is
good
only
to
the
original
pur-
chaser
of
the
product
and
effective
only
when
used
in
the
United
States,
excluding
U.S.
Territories.
THIS
WARRANTY
IS
IN
LIEU
OF
ANY
OTHER
WARRANTY,
EXPRESS
OR
IMPLIED,
INCLUDING
WITHOUT
LIMITATION,
ANY
WARRANTY
OF
MERCHANTABILITY
OR
FITNESS
FOR
A
PARTICULAR
PURPOSE.
TO
THE
EXTENT
ANY
IMPLIED
WARRANTY
IS
REQUIRED
BY
LAW,
IT
IS
LIMITED
IN
DURATION
TO
THE
EXPRESS
WARRANTY
PERIOD
ABOVE.
ZENITH
WILL
NOT
BE
LIABLE
FOR
ANY
INCIDENTAL,
CONSE-
QUENTIAL,
INDIRECT,
SPECIAL,
OR
PUNITIVE
DAMAGES
OF
ANY
NATURE,
EVEN
IF
ADVISED
OF
THE
POSSIBILITY
OF
SUCH
DAMAGES,
INCLUDING
WITHOUT
LIMITATION,
LOST
REVENUES
OR
PROFITS,
LOST
OR
CORRUPTED
PROGRAMMING
OR
DATA,
OR
ANY
OTHER
DAMAGE
WHETHER
BASED
IN
CON-
TRACT,
TORT,
OR
OTHERWISE.
Some
states
do
not
allow
the
exclusion
or
limitation
of
incidental
or
consequential
damages
or
limitations
on
how
long
an
implied
warranty
lasts,
so
the
above
exclusion
or
limitation
may
not
apply
to
you.
This
warranty
gives
you
specific
legal
rights
and
you
may
also
have
other
rights
that
vary
from
state
to
state.
WARRANTY
PERIOD:
LABOR:
90
days
from
the
Date
of
Purchase.
PARTS:
1
Year
from
the
Date
of
Purchase.
*
Parts
replaced
are
warranted
for
the
remaining
portion
of
the
original
warranty
period.
HOW
SERVICE
IS
HANDLED:
Carry-In
Service:
Please
retain
dealer's
dated
bill
of
sale
or
delivery
ticket
as
evidence
of
the
Date
of
Purchase
for
proof
of
warranty,
and
submit
a
copy
of
the
bill
of
sale
to
the
service
person
at
the
time
warranty
service
is
provided.
Please
call
1-877-9Zenith
(1-877-993-6484)
to
locate
your
nearest
Zenith
Authorized
Service
Center.
Or
visit
our
website
at
http://www.zenithservice.com
?
Damage
caused
in
shipping
or
transit
?
Service
required
as
a
result of
improper
installation,
including
incorrect
or
insufficient
AC
supply
(Please
consult
the
owner's
manual
for
power
supply
requirements)
?
Installation
or
repair
of
other
components
in
a
video
system
?
Set-up
or
adjustment
on
consumer
controls,
or
damage
caused
by
improper
adjustments
?
Damage
cause
by
other
system
components
?
Damage
(including
cosmetic
damage),
failure,
loss
or
personal
injury
due
to
misuse,
abuse,
negligence,
improper
maintenance
or
storage,
or
to
acts
of
nature
or
other
causes
beyond
Zenith's
control
(Causes
beyond
Zenith's
control
include
but
are
not
limited
to
lightning
strike,
power
surges,
power
outages,
and
water
damage)
?
Repair
or
replacement
of
warranted
parts
by
other
than
Zenith
Authorized
Service
Centers
?
Units
purchased
or
serviced
outside
the
coverage
area
?
Product
where
the
original
factory
serial
numbers
have
been
removed,
defaced,
or
changed
in
any
way
?
Product
sold
and
labeled
as
"as
is,
where
is"
or
similar
disclaimer
For
nearest
Authorized
Service
Center,
Where
to
buy,
Product
Assistance,
or
Customer
Assistance
Call
1-877-9Zenith
(1-877-993-6484)
(Monday
~
Friday,
7
AM
~
8
PM
CT;
and
Saturday,
8
AM
~
5
PM
CT)
and
select
appropriate
option
from
the
menu.
Or
visit
our
website
at
http://www.zenithservice.com
THIS
LIMITED
WARRANTY
DOES
NOT
APPLY
TO:
The
costs
of
repair
or
replacement
under
these
excluded
circumstances
shall
be
borne
by
the
con-
sumer.
CUSTOMER
INTER-ACTIVE
CENTER
NUMBERS:
