MiniDisc Deck
Operating Instructions
©2000 Sony Corporation
MDS-JE640
MDS-JE440
masterpage:Left
(3 column)
filename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB02REG-CED.fm]
2
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
WARNING
To prevent fire or shock
hazard, do not expose the unit
to rain or moisture.
This appliance is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT
MARKING is located on the rear exterior.
The following caution label is located
inside the unit.
For customers in the U.S.A.
This symbol is intended to alert the user to
the presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION
You are cautioned that any changes or
modification not expressly approved in
this manual could void your authority to
operate this equipment.
INFORMATION
This equipment has been tested and found
to comply with the limits for a Class B
digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates,
uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user
is encouraged to try to correct the
interference by one or more of the
following measures:
•
Reorient or relocate the receiving
antenna.
•
Increase the separation between the
equipment and receiver.
•
Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
•
Consult the dealer or an experienced
radio/TV technician for help.
Owner’s Record
The model and serial numbers are located
on the rear of the unit. Record the serial
number in the space provided below. Refer
to them whenever you call upon your Sony
dealer regarding this product.
Model No.____________
Serial No.____________
E
NERGY
S
TAR
®
is a U.S. registered
mark.
As an
E
NERGY
S
TAR
®
Partner, Sony
Corporation has determined that this
product meets the
E
NERGY
S
TAR
®
guidelines for energy efficiency.
For customers in Canada
This Class B digital apparatus complies
With Canadian ICES-003.
CAUTION
TO PREVENT ELECTRIC SHOCK, DO
NOT USE THIS POLARIZED AC PLUG
WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE
FULLY INSERTED TO PREVENT
BLADE EXPOSURE.
Welcome!
Thank you for purchasing the Sony
MiniDisc Deck. Before operating the
deck, please read this manual
thoroughly and retain it for future
reference.
About this
manual
The instructions in this manual are for
models MDS-JE640 and MDS-JE440.
The MDS-JE640 is the model used for
illustration purposes. Any difference
in operation is clearly indicated in the
text, for example, “MDS-JE640
only”.
Conventions
•
Controls in these instructions are
those on the deck; these may,
however, be substituted by controls
on the supplied remote that are
similarly named, or, when different,
appear in the instructions within
parentheses.
Example: Turn AMS clockwise (or
press
>
repeatedly).
•
The following icons are used in this
manual:
IN NO EVENT SHALL SELLER BE
LIABLE FOR ANY DIRECT,
INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR
EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR
THE USE OF ANY PRODUCT.
Z
Indicates a procedure that requires
use of the remote.
z
Indicates hints and tips for making
the task easier.
masterpage:Right
(3 column)
filename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB01COV-CEDTOC.fm]
3
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
T
ABLE
OF
C
ONTENTS
Location and Function of
Controls
Front panel description 4
Rear panel description 6
Remote control description 6
Display window description 8
Getting Started
Before you start the hookup 10
Hooking up the audio components 11
Recording to MDs
Recording to an MD 13
Notes on recording 15
Recording for long times 15
Adjusting the recording level 16
Recording tips 17
Marking track numbers while recording (Track
Marking) 19
Starting recording with six seconds of prestored audio
data (Time Machine Recording) 20
Synchro-recording with the audio component of your
choice (Music Synchro-recording) 20
Synchro-recording with a Sony CD player (CD Synchro-
recording) 21
Playing MDs
Playing an MD 23
Playing a specific track 24
Locating a particular point in a track 25
Playing tracks repeatedly (Repeat Play) 26
Playing tracks in random order (Shuffle Play) 27
Creating your own program (Program Play) 27
Tips for recording from MDs to tape (MDS-JE640
only) 29
Editing Recorded MDs
Before you start editing 30
Erasing tracks (ERASE) 31
Dividing tracks (DIVIDE) 33
Combining tracks (COMBINE) 34
Moving tracks (MOVE) 34
Naming a track or MD (NAME) 35
Changing the recorded level after recording
(S.F EDIT) 37
Undoing the last edit (UNDO) 39
Other Functions
Changing the pitch (Pitch Control Function) (MDS-JE640
only) 40
Fading in and fading out 41
Falling asleep to music (Sleep Timer) 42
Using a timer (MDS-JE640 only) 43
Using the CONTROL A1
ΙΙ
control system (MDS-JE640
only) 44
Operating the MD Deck Using
a Keyboard
Setting the keyboard 46
Naming a track or MD using the keyboard 47
Operating the deck using the keyboard 48
Assigning characters to keyboard keys 48
Additional Information
Precautions 50
Handling MDs 51
System limitations 51
Troubleshooting 52
Self-diagnosis function 53
Display messages 54
Specifications 55
Edit menu table 56
Setup menu table 56
Index 58
4
masterpage:L0-Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Front panel description
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Location and
Function of
Controls
This chapter describes the location and
function of the various buttons,
controls, and jacks on the deck and the
supplied remote. Further details are
provided on the pages indicated in the
parentheses.
It also describes the information that
appears in the display window.
Front panel description
A
?/1
(power) switch/STANDBY indicator (13) (23)
Press to turn on the deck. When you turn on the deck,
the STANDBY indicator turns off. When you press the
switch again, the deck turns off and the indicator lights
up.
B
Remote sensor (MDS-JE640 only) (10)
Point the remote toward this sensor ( ) for remote
operations. For MDS-JE440, the remote sensor is
located on the display window.
C
MD insertion slot (13) (23)
Insert an MD as illustrated below.
D
MD LP indicator (15) (23)
Lights when the deck is playing or recording to an MD
in LP2 or LP4 Stereo mode.
E
A
button (14) (23)
Press to eject the MD.
F
MENU/NO button (17) (27) (30) (46) (56)
Press to display the Edit Menu or Setup Menu.
G
YES button (17) (27) (30) (46)
Press to carry out the selected operation.
With the labeled side up
With the arrow pointing toward the deck
5
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Front panel description
Location and Function of Controls
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
KEYBOARD IN
MENU/NO YES
CLEAR
INPUT
REC MODE
LEVEL/
DISPLAY/CHARREPEATPLAY MODE
STANDBY
TIMER
PHONES
LEVEL
PITCH
CONTROL
S.F EDIT TIME
PUSH ENTER
AMS
MD LP
REC OFF PLAY
2 3
qf9
1 6
8
75
wdql wswa wfqk
qjqh
qg
4
w;
qs qd
q; qa
H
H
button (13) (23)
Press to start play.
X
button (13) (23)
Press to pause play or recording. Press again to resume
play or recording.
x
button (14) (23)
Press to stop play or recording, or cancel the selected
operation.
z
button (13) (17) (19)
Press to record to the MD, monitor the input signal, or
mark track numbers.
I
TIMER selector (MDS-JE640 only) (43)
Use to set the timer for recording (REC) or playing
(PLAY). Set to OFF to turn off the timer.
J
PHONES jack (MDS-JE640 only) (23)
Connect headphones to this jack.
K
LEVEL control (MDS-JE640 only) (23)
Turn to adjust the volume of the headphones.
L
KEYBOARD IN jack (MDS-JE640 only) (46)
Connect a keyboard to this jack to operate the deck
using the keyboard.
M
PITCH CONTROL button (MDS-JE640 only) (40)
Press to set the MD playback speed (pitch). When you
have set the pitch to a value other than “0”, the button
lights up during play.
N
S.F EDIT button (MDS-JE640 only) (37)
Press to change the recorded level after recording. The
button lights up during the operation.
O
TIME button (MDS-JE640 only) (17) (21)
Press to display the remaining time.
SCROLL button (MDS-JE440 only) (24)
Press to scroll the name of a track or an MD.
P
Display window (8)
Shows various information.
Q
CLEAR button (27) (35)
Press to cancel the selection.
R
AMS control (13) (23) (30) (40) (46)
Turn to locate tracks, select the input characters, or
select a menu item and a setting value.
S
m
/
M
buttons (25) (27) (30) (35)
Press to locate a portion within a track, change the
contents of a program, or change the input character.
T
PLAY MODE button (27) (43)
Press to select Shuffle Play or Program Play or resume
normal play.
U
REPEAT button (26)
Press to play tracks repeatedly.
V
LEVEL/DISPLAY/CHAR button (9) (14) (16) (24) (27)
(35)
W
INPUT button (13)
Press to select the input jack (or connector) of the
program source to be recorded.
X
REC MODE button (15)
Press to set the REC MODE to stereo, LP2, LP4 or
MONO.
Press while the deck is To
Recording or recording
pause
Adjust the recording level
Stopped
Display disc information or
the contents of a program
Recording
Display information on the
track being recorded
Playing
Display information on the
current track
Editing
Select the type of characters
to be input
6
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Rear panel description/Remote control description
Location and Function of Controls
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Rear panel description
A
ANALOG IN jacks (11) (13)
Use to input analog signals from other components.
B
ANALOG OUT jacks (11)
Use to output analog signals to other components.
C
DIGITAL COAXIAL IN jack (MDS-JE640 European
models only) (11) (13)
Connect a digital coaxial cable to input digital signals
from other components.
D
DIGITAL OPTICAL IN connector (11) (13)
Connect a digital optical cable to input digital signals
from other components. If your deck has IN1 and IN2
connectors, you can use either connector.
E
DIGITAL OPTICAL OUT connector (11)
Connect a digital optical cable to output digital signals
to other components.
F
CONTROL A1
ΙΙ
jacks (11) (44)
Remote control
description
2
3
1
45
6
ANALOG
DIGITAL
IN
IN
OUT
L
R
OPTICAL
2
4
1
MDS-JE640
MDS-JE440
1
2
3
4
6
9
0
qs
7
wf
wd
qa
qh
qk
ql
qj
qd
qf
qg
wa
w;
5
8
ws
. >
m M
z x
X
H
Z
` / 1
>.
7
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]

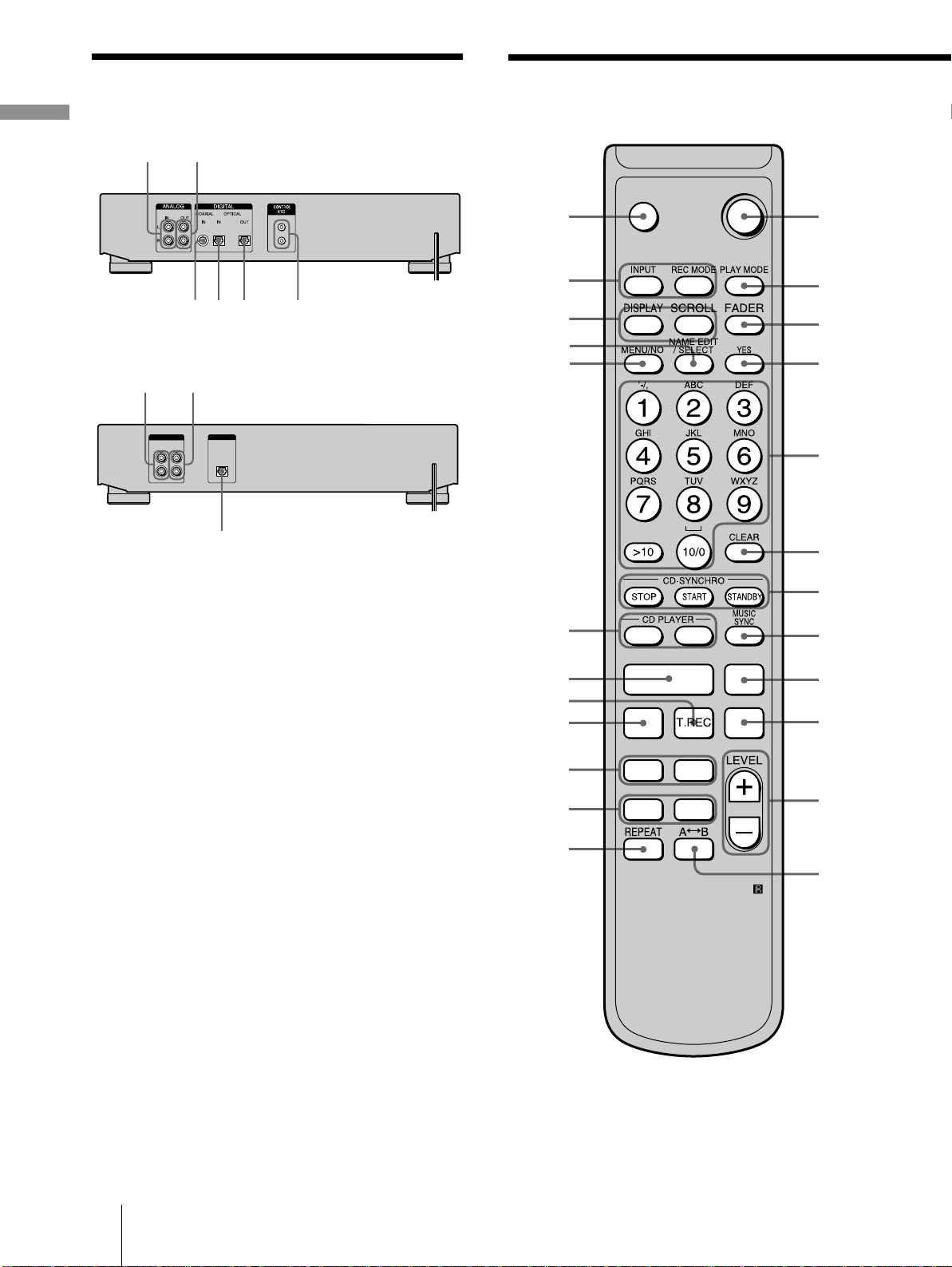

Remote control description
Location and Function of Controls
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
A
?/1
(power) switch (13) (23)
Press to turn on the deck. When you turn on the deck,
the STANDBY indicator on the deck turns off. When
you press the switch again, the deck turns off and the
indicator lights up.
B
PLAY MODE button (27) (43)
Press to select Shuffle Play or Program Play or resume
normal play.
C
FADER button (41)
Z
Press to perform Fade-in Play/Recording or Fade-out
Play/Recording.
D
YES button (17) (27) (30) (46)
Press to carry out the selected operation.
E
Letter/number buttons (24) (35)
Z
Press to input letters or numbers or select a track.
F
CLEAR button (27) (35)
Press to cancel the selection.
G
CD-SYNCRO STOP button (21)
Z
Press to stop CD Synchro-recording.
CD-SYNCRO START button (21)
Z
Press to start CD Synchro-recording.
CD-SYNCRO STANDBY button (21)
Z
Press to enter standby for CD Synchro-recording.
H
MUSIC SYNC button (20)
Z
Press to start Music Synchro-recording.
I
X
button (13) (23)
Press to pause play or recording. Press again to resume
play or recording.
J
x
button (14) (23)
Press to stop play or recording, or cancel the selected
operation.
K
LEVEL +/– buttons (16) (23)
Z
Press to adjust the recording level or analog output
level (MDS-JE640 only).
L
A
y
B button (26)
Z
Press to select Repeat A-B Play.
M
REPEAT button (26)
Press to play tracks repeatedly.
N
m
/
M
buttons (25) (27) (30) (35)
Press to locate a portion within a track, change the
contents of a program, or shift the cursor to the right.
O
.
/
>
buttons (13) (23) (31) (40) (46)
Press to locate tracks, adjust the recording level or
select a menu item.
P
z
button (13) (17) (19)
Press to record to the MD, monitor the input signal, or
mark track numbers.
Q
T.REC button (20)
Z
Press to start Time Machine Recording.
R
H
button (13) (23)
Press to start play.
S
CD PLAYER
.
/
>
buttons (21)
Z
Press to locate tracks on the CD.
T
MENU/NO button (17) (27) (30) (46) (56)
Press to display the Edit Menu or Setup Menu.
U
NAME EDIT/SELECT button (35)
Z
Press to add the name, change the name of a track or
an MD or select the type of characters to be input.
V
DISPLAY button (9) (14) (16) (24) (27)
Press to select the information to be displayed in the
window.
SCROLL button (24)
Z
Press to scroll the name of a track or an MD.
W
INPUT button (13)
Press to select the input jack (or connector) of the
program source to be recorded.
REC MODE button (15)
Press to set the REC MODE to stereo, LP2, LP4 or
MONO.
X
Z
button (14) (23)
Press to eject the MD.
8
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Display window description
Location and Function of Controls
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Display window description
A
REMOTE indicator
Lights when the MD is being controlled by an external
device connected to the deck.
B
Disc name and track name indicators display
DISC indicator
Lights when the disc information (etc.) is shown.
Name display
Displays disc and track names, Edit Menu parameters,
and Setup Menu parameters (etc.).
The track name appears instead of the disc name
during play. When the MD or the track has no name,
“No Name” appears.
TRACK indicator
Lights when the track information (etc.) is shown.
C
Playback indicators
REP indicators (26)
Light when the deck is set to Repeat Play.
•
“REP” lights when the deck is set to repeat the entire
disc.
•
“REP 1” lights when the deck is set to repeat just
one track.
•
“REP A-B” lights when the deck is set to repeat a
specific portion within a track.
SHUF indicator (27)
Lights when the deck is set to Shuffle Play.
PGM indicator (27)
Lights when the deck is set to Program Play.
HS
indicator
Lights during playing or playing pause.
214356
78
4 2 3 5 4 7 83
MDS-JE640
MDS-JE440
9
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Display window description
Location and Function of Controls
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
D
Recording and editing indicators
L.SYNC indicator (19)
Lights when the deck is set to assign track numbers
automatically during analog recording.
Rec mode indicators (15)
These indicators turn off during stereo recording/
playback.
•
“MONO” lights when the deck is set to Monaural
Recording mode or playing an MD recorded in
Monaural Recording mode.
•
“LP2” lights when the deck is set to LP2 Stereo
Recording mode or playing an MD recorded in LP2
Stereo Recording mode.
•
“LP4” lights when the deck is set to LP4 Stereo
Recording mode or playing an MD recorded in LP4
Stereo Recording mode.
SYNC indicator (20)
Lights during synchro-recording.
REC indicator
Lights during recording.
TOC indicators (15) (31)
•
“TOC” lights to indicate the presence of TOC data
that has not been written to the disc. “TOC” flashes
when the TOC data is being written.
•
“TOC EDIT” lights during edit operations.
E
INPUT indicators (13)
•
“OPT” or “D-IN” lights when the program source
connected to the DIGITAL OPTICAL IN connector
is selected. For models with two digital input
connectors, “OPT1 (2)” lights when the program
source connected to the DIGITAL OPTICAL IN1
(2) connector is selected.
•
“COAX” lights when the program source connected
to the DIGITAL COAXIAL IN jack (MDS-JE640
European models only) is selected.
•
“ANALOG” or “A-IN” lights when the program
source connected to the ANALOG IN jacks is
selected.
F
Music calender
Shows all the track numbers within a grid if the MD is
a premastered disc, or without a grid if the MD is a
recordable disc. If the total number of tracks exceeds
15,
B
appears to the right of number 15 in the music
calendar.
G
SLEEP indicator (42)
Lights when the deck is set to turn off automatically
after specified minutes.
H
Level meters
Display the audio signal levels during playing and
recording.
Note
The display format that you have selected in each of the deck
statuses (play, recording, etc.) will appear whenever the deck
enters that status and you press LEVEL/DISPLAY/CHAR (or
DISPLAY) or TIME (MDS-JE640 only) until you change the
format to another (see the following sections for details). If you
disconnect the AC power cord, however, all the displays will
revert to their default (i.e., the factory set display) the next time
you turn on the deck.
To change the display in stop mode
Press LEVEL/DISPLAY/CHAR (or DISPLAY)
repeatedly to change the display.
Each press of the button changes the display as follows:
MDS-JE640
Total number of tracks, total recorded time and
disc name
1)
r
The contents of a program (only when “PGM”
lights up)
r
Level of the input signal (setting value of the
recording level)
MDS-JE440
Total number of tracks and total recorded time
r
Remaining recordable time
2)
on the MD
(recordable MDs only)
r
The contents of a program (only when “PGM”
lights up)
r
Total playing time of the program (only when
“PGM” lights up)
r
Disc name
1)
1) “No Name” appears when the disc has no name.
2) Time shown in the display differs depending on the setting of
REC MODE.
10
masterpage:L0-Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Before you start the hookup
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Getting
Started
This chapter provides information on
the supplied accessories and hookups.
Be sure to read this chapter thoroughly
before you actually connect any
equipment to the deck.
Before you start the
hookup
This MD deck comes with the following items:
•
Audio connecting cords (2)
•
Optical cable (1)
•
Remote commander (remote) (1)
•
R6 (size-AA) batteries (2)
Insert two R6 (size-AA) batteries into the battery
compartment with the + and – properly oriented to the
markings. When using the remote, point it at the remote
sensor on the deck.
z
When to replace the batteries
Under normal conditions, the batteries should last for about six
months. When the remote no longer operates the deck, replace
both batteries with new ones.
Notes
•
Do not leave the remote in an extremely hot or humid place.
•
Do not drop any foreign object into the remote casing,
particularly when replacing the batteries.
•
Do not use a new battery with an old one.
•
Do not expose the remote sensor to direct sunlight or lighting
apparatus. Doing so may cause a malfunction.
•
If you don’t use the remote for an extended period of time,
remove the batteries to avoid possible damage from battery
leakage and corrosion.
Checking the supplied accessories
Inserting batteries into the remote
11
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Hooking up the audio components
Getting Started
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]

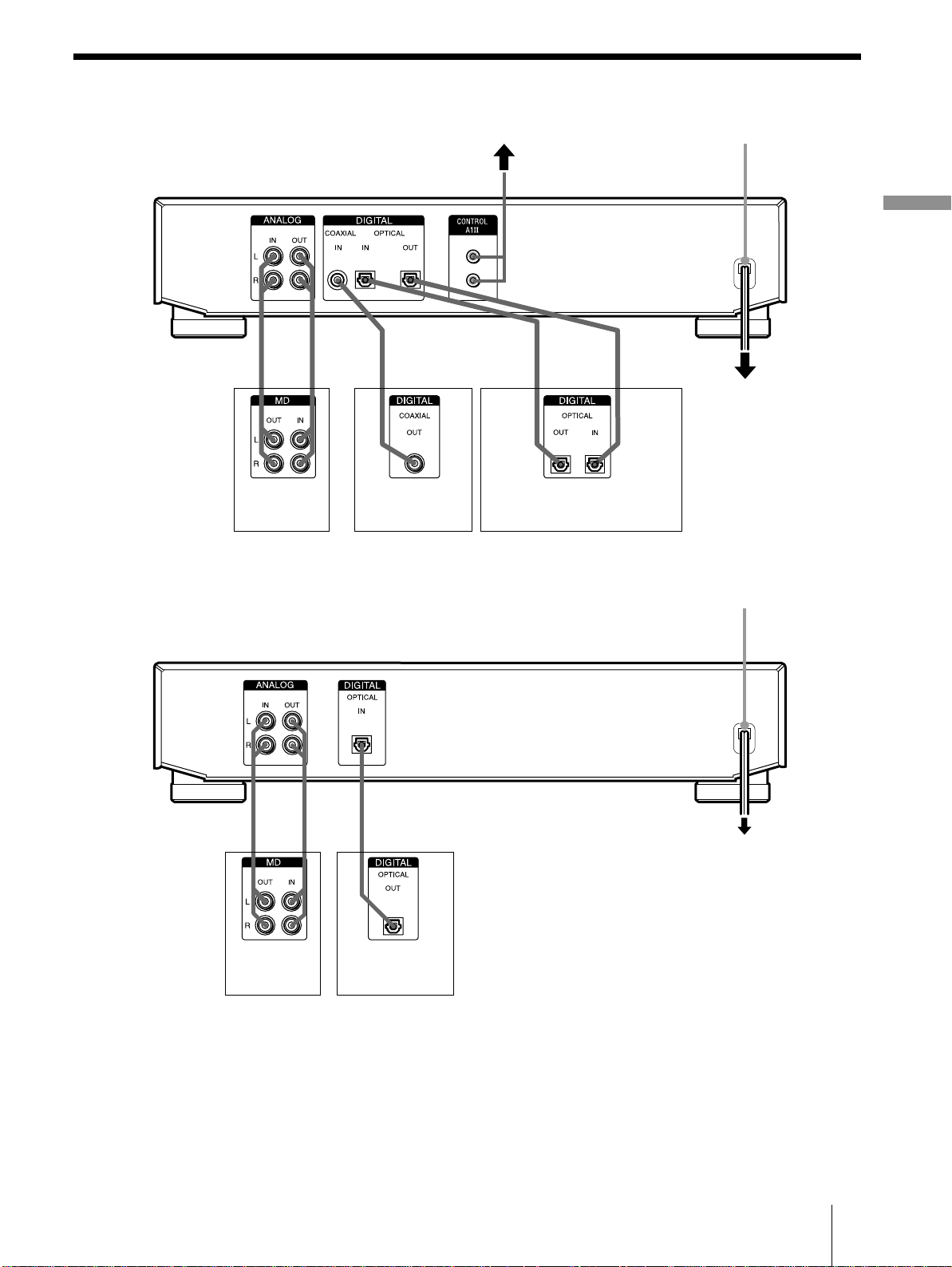

Hooking up the audio components
AC B
D
AB
CONTROL A1
ΙΙ
AC power cord
1) Digital equipment with a DIGITAL OUT connector only
2) Digital equipment with both DIGITAL IN and OUT connectors
Amplifier, etc. CD player, DBS tuner, etc.
1)
,
Digital amplifier, DAT deck, MD
deck, etc.
2)
to a wall outlet
CD player, DBS
tuner
MDS-JE640
AC power cord
Amplifier, etc.
to a wall outlet
CD player, DBS
tuner
MDS-JE440
12
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Hooking up the audio components
Getting Started
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
A
Audio connecting cords (2) (supplied)
When connecting an audio connecting cord, be sure to match the
color-coded pins to the appropriate jacks: white (left) to white
and red (right) to red.
B
Optical cables (2 for MDS-JE640 European models/3
for all other models) (only one supplied)
•
When connecting an optical cable, take the caps off the
connectors and insert the cable plugs straight in until they click
into place.
•
Do not bend or tie the optical cables.
C
Coaxial digital connecting cable (for MDS-JE640
European models only) (1) (not supplied)
•
Turn off the power of all components before making any
connections.
•
Do not connect any AC power cord until all the
connections are completed.
•
Be sure the connections are firm to prevent hum and
noise.
For MDS-JE640 European models
For MDS-JE640 (except for the European
models)
For MDS-JE440
To connect a CONTROL A1
ΙΙ
compatible
component
D
Monaural (2P) mini-plug cables (2) (not supplied)
For details, see “Using the CONTROL A1
ΙΙ
control
system” on page 44.
To connect the AC power cord
Connect the AC power cord of the deck to a wall outlet.
Note
If you use a timer, connect the AC power cord to the outlet of the
timer.
When you turn on the MD deck and there is no MD in the
deck, demonstration mode is activated automatically after
about ten minutes. To deactivate the demonstration mode,
press any button on the deck or on the remote.
z
To turn off the demonstration mode
Press
x
and CLEAR simultaneously when there is no MD in the
deck.
“Demo Off” appears in the display.
To turn on the demonstration mode again, perform the same
procedure described above.
“Demo On” appears in the display.
Required cords
Hookup considerations
Jacks (connectors) for connecting audio
components
Connect To the
Amplifiers ANALOG IN/OUT jacks
CD players or DBS tuners
DIGITAL COAXIAL IN jack
or DIGITAL OPTICAL IN
connector
Digital amplifiers, DAT decks,
or another MD deck
DIGITAL OPTICAL IN/OUT
connectors
White (L)
Red (R)
White (L)
Red (R)
Connect To the
Amplifiers ANALOG IN/OUT jacks
CD players or DBS tuners
DIGITAL OPTICAL IN
1)
connector
1) There is no distinction of IN1 and IN2 connectors.
Digital amplifiers, DAT decks,
or another MD deck
DIGITAL OPTICAL IN
1)
/
OUT connectors
Connect To the
Amplifiers ANALOG IN/OUT jacks
CD players or DBS tuners
DIGITAL OPTICAL IN
connector
Other connections (MDS-JE640 only)
Demonstration mode
13
Recording to an MD
masterpage:L0-Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Recording to MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Recording to
MDs
This chapter explains the various ways
to record to an MD, as well as how to
mark track numbers and perform
synchro-recording with other
components. See also “System
limitations” on page 51 before
recording.
Recording to an MD
If the MD has been partially recorded, recording starts
after the recorded tracks.
1
Turn on the amplifier and program source, and
select the source on the amplifier.
2
Press
?/1
to turn on the deck.
The STANDBY indicator turns off.
3
Insert a recordable MD into the slot.
4
Press INPUT repeatedly to select the input jacks
(connector) connected to the program source.
5
If necessary, locate the point on the MD to start
recording from.
If you want to record to a new MD or start recording
from the end of the recorded portion, skip this step and
go to step 6.
To record over from the beginning of an existing
MD track
Turn AMS (or press
.
/
>
repeatedly) until the
number of the track to be recorded over appears.
To record over from the middle of an MD track
Turn AMS (or press
.
/
>
repeatedly) until the
number of the track to be recorded over appears, then
press
H
to start play. Press
X
at the point you want to
start recording from.
6
Press
z
.
The deck changes to recording pause.
7
If necessary, adjust the recording level.
For details, see “Adjusting the recording level” on
page 16.
8
Press
H
or
X
.
Recording starts.
When the source is connected to
the
Set INPUT to
DIGITAL OPTICAL IN1 or IN2
connector
OPT1 or OPT2
DIGITAL OPTICAL IN connector OPT or D-IN
DIGITAL COAXIAL IN jack
1)
1) MDS-JE640 European models only
COAX
ANALOG IN jacks
ANALOG or A-
IN
AMS
XzH
`/1
AMS INPUT
slot
14
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Recording to an MD
Recording to MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
9
Start playing the program source.
Operations you may want to do during
recording
To change the display while recording
Press LEVEL/DISPLAY/CHAR (or DISPLAY)
repeatedly to change the display.
Each press of the button changes the display as follows:
MDS-JE640
Track number and recorded time of the current
track
r
Level of the input signal (setting value of the
recording level)
r
Sampling frequency indication
“FS -- kHz” appears while the analog signal is input.
MDS-JE440
Track number and recorded time of the current
track
r
Remaining recordable time
1)
on the MD
r
Level of the input signal
r
Track name
2)
1) Time shown in the display differs depending on the setting of
REC MODE.
2) “No Name” appears when the track has no name.
When you pause recording
The track number increases by one. For example, if you
paused recording while recording track 4, the track
number will be 5 when you resume recording.
To prevent accidental erasure of the recorded
material
To protect an MD recording, slide the record-protect tab in
the direction of the arrow (see illustration below) to open
the slot. To enable re-recording, close the slot.
z
You can play the tracks you have just recorded
Press
H
immediately after stopping recording.
The deck starts to play from the first track of the material just
recorded.
z
You can play from the first track of the MD after
recording
1
Press
x
again after stopping recording.
2
Press
H
.
The deck starts to play from the first track of the MD.
Note
You cannot record over existing material when Shuffle Play
(page 27) or Program Play (page 27) has been selected.
“Impossible” appears in the display at this time.
To Press
Stop recording
x
Pause recording
X
Resume recording after
pausing
H
or
X
Eject the MD
A
after stopping recording
Record-protect tab
Slide in the direction
of arrow
15
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Notes on recording/Recording for long times
Recording to MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Notes on recording
When “Tr” flashes in the display
during
recording
The MD deck is recording over existing track(s) (see
“Recording to an MD” on page 13). The indication stops
flashing when the deck reaches the end of the recorded
portion.
When “TOC” lights up in the display after
recording
Recording has finished but the TOC (Table of Contents)
on the MD has not been updated to reflect the recording
results. The recording will be lost if you disconnect the
AC power cord while the indication is on. The TOC will
be updated only when you eject the MD or turn off the
MD deck.
When “TOC Writing” flashes in the display after
recording
The deck is updating the TOC. Do not disconnect the AC
power cord or move the deck while the indication flashes.
A built-in sampling rate converter automatically converts
the sampling frequency of various digital sources to the
44.1 kHz sampling rate of the MD deck. This allows you
to monitor and record sources such as 32- or 48-kHz DAT
tape or satellite broadcasts, as well as the CDs and MDs.
Recording for long times
In addition to normal stereo recording, this deck has two
long time recording modes: LP2 and LP4. When
recording in LP2 Stereo mode, you can record 2 times the
normal recordable time, and in LP4 Stereo mode, you can
record 4 times the normal recordable time. In addition, the
recordable time for monaural recording is approximately
double the stereo recording time.
Note
MDs recorded in MD LP (LP2 or LP4 Stereo) mode cannot be
played back on a deck that does not support MD LP mode. In
addition, you cannot perform S.F Edit for MDs recorded in MD
LP mode.
1
Do steps 1 to 4 of “Recording to an MD” on
page 13.
2
Press REC MODE repeatedly to select the
recording mode you want to record in.
3
Do steps 5 to 9 of “Recording to an MD” on
page 13.
You can automatically add “LP:” at the
beginning of a track name during a long time
recording
The deck is set at the factory to add “LP:” automatically.
This indication is displayed when the track is played on a
deck that does not support long-time recording (page 57).
To turn this function On/Off, press
.
or
>
.
z
When you record to an MD in LP2 or LP4 Stereo mode
The MD LP indicator lights up when you press
z
in step 3
above.
Notes
•
The recorded “LP:” is a confirmation stamp that is displayed to
indicate that the track cannot be played back on a deck that
does not support MD LP mode. It is not displayed on decks
that support MD LP mode.
About indications that appear during/
after recording
Automatic conversion of digital
sampling rates during recording
To record in Set REC MODE to
Stereo Blank (No indicator)
LP2 Stereo LP2
LP4 Stereo LP4
Monaural MONO
AMS
REC MODE
16
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Recording for long times/Adjusting the recording level
Recording to MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
•
If “LPstamp:On” is set, “LP:” is recorded as part of the track
name, so the number of characters that can be input in a single
MD is reduced. Furthermore, “LP:” is automatically copied if
the track name is copied or if the track is divided by using the
Divide function.
•
MDs recorded in MD LP (LP2 or LP4 Stereo) mode should be
played back on a deck that supports MD LP mode. These MDs
cannot be played back on other decks. When you play an MD
recorded in MD LP mode, “STEREO” (for an MD recorded in
LP2 Stereo mode) or “MONO” (for an MD recorded in LP4
Stereo mode) lights up.
•
Even if you press REC MODE during recording or recording
pause, you cannot change the recording mode.
•
Even if you press REC MODE repeatedly to select MONO,
the monitor signal during recording does not become
monaural.
Adjusting the recording
level
You can adjust the recording level for both analog and
digital recordings.
1
Do steps 1 to 6 of “Recording to an MD” on
page 13.
2
Play the portion of the program source with the
strongest output.
3
Press LEVEL/DISPLAY/CHAR (or DISPLAY)
repeatedly until the level of the input signal
appears.
4
MDS-JE640
While monitoring the sound, turn AMS (or press
LEVEL +/– repeatedly) to raise the recording level
to its highest level without turning on the two
rightmost indicators on the peak level meters.
MDS-JE440
While monitoring the sound, turn AMS (or press
.
/
>
repeatedly) to raise the recording level to
its highest level without turning on “OVER” on the
peak level meters.
5
Stop playing the program source.
6
To start recording, continue from step 8 of
“Recording to an MD” on page 13.
z
You can adjust the recording level using the
remote
During recording or recording pause, press LEVEL +/–
repeatedly.
AMS
AMS
LEVEL/DISPLAY/CHAR
Avoid turning on these indicators
MDS-JE640
Avoid turning on these indicators
MDS-JE440
Z
17
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Adjusting the recording level/Recording tips
Recording to MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
z
You can adjust the recording level without changing
the display
In this case, skip step 3 above.
While adjusting the recording level, the level of the input signal
appears for about three seconds.
z
(MDS-JE640 only) You can use Setup Menu to adjust
the recording level
You can adjust the recording level regardless of the source
selected with the INPUT button.
1
During recording or recording pause, press MENU/NO twice.
“Setup Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until “Ain,”
“Coax,” “Opt,” “Opt1,” or “Opt2” appears, then press AMS or
YES.
3
Turn AMS (or press
.
/
>
repeatedly) to adjust the
recording level, then press AMS or YES.
4
Press MENU/NO.
z
You can use the Peak Hold Function
The function freezes the peak level meters at the highest level
reached by the input signal.
1
While the deck is stopped or playing, press MENU/NO twice.
“Setup Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until “P.Hold Off”
(factory setting) appears, then press AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) to select
“P.Hold On”, then press AMS or YES.
4
Press MENU/NO.
To turn off the Peak Hold Function, select “P.Hold Off” in step 3
above.
Note
The volume can only be increased up to +12.0 dB (for analog
recording) or +18.0 dB (for digital recording). Therefore, if the
output level of the connected component is low, it may not be
possible to set the recording level to maximum.
Recording tips
For MDS-JE640:
Press TIME repeatedly.
For MDS-JE440:
Press DISPLAY on the remote repeatedly.
For the information in stop mode, see page 9.
For the information during recording, see page 14.
You can monitor the selected input signal even when you
are not recording it.
1
Press
A
to eject the MD.
2
Press INPUT repeatedly to select the jacks
(connector) where the signal you want to monitor
is being input.
3
Press
z
.
When an analog input is selected
The analog signal input from the ANALOG IN jacks is
output to the DIGITAL OUT connector (MDS-JE640
only) after A/D conversion, and then to the ANALOG
OUT jacks and PHONES jack (MDS-JE640 only)
after D/A conversion. “AD – DA” appears in the
display during this time.
Checking the remaining recordable time
on the MD
While the deck is
The following information
appears
Stopped
Total number of tracks and total
recorded time y Total number of
tracks and remaining recordable time on
the MD
1)
1) Not shown for premasterd discs.
Recording
Track number and recorded time of the
current track y Track number and
remaining recordable time
2)
on the MD
2) Time shown in the display differs depending on the setting of
REC MODE.
Monitoring the input signal
(Input Monitor)
AMS
INPUT
MENU/NO YES
z
A
AMSTIME
18
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Recording tips
Recording to MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
When a digital input is selected
The digital signal input from the DIGITAL IN
connector is output to the DIGITAL OUT connector
(MDS-JE640 only) after passing through the sampling
rate converter, and then to the ANALOG OUT jacks
and PHONES jack (MDS-JE640 only) after D/A
conversion. “ – DA” appears in the display during this
time.
To stop Input Monitor
Press
x
.
The deck can be set to automatically erase any blanks that
are produced when the signal is interrupted during
recording. The function that activates (Smart Space or
Auto Cut) depends on the length of the interruption, as
described below.
Smart Space
If the signal is interrupted for less than 30 seconds, Smart
Space replaces the blank portion with a blank space of
about three seconds, then continues the recording. “Smart
Space” appears in the display during this time.
Auto Cut
If the signal is interrupted for about 30 seconds, Auto Cut
replaces the blank portion with a blank space of about
three seconds, then pauses the recording. “Auto Cut”
appears in the display during this time.
Do the procedure below to turn Smart Space and Auto Cut
on or off.
1
While the deck is stopped, press MENU/NO twice.
“Setup Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until
“S.Space On” appears, then press AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) to select
the setting, then press AMS or YES.
4
Press MENU/NO.
Notes
•
If you start recording with no signal input, Smart Space and
Auto Cut will not operate regardless of the setting.
•
Smart Space does not affect the order of the track numbers
being recorded, even if the blank space occurs in the middle of
a track.
•
Auto Cut is automatically turned on or off in tandem with
Smart Space.
•
If you turn off the deck or disconnect the AC power cord, the
deck will store the last setting (“S.Space On” or “S.Space
Off”) and recall it the next time you turn on the deck.
•
If the deck continues recording pause for about 10 minutes
after the Auto Cut activated, recording stops automatically.
Erasing blank portions automatically
(Smart Space/Auto Cut)
To Select
Turn on Smart Space and
Auto Cut
S.Space On (factory setting)
Turn off Smart Space and
Auto Cut
S.Space Off
19
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Marking track numbers while recording
Recording to MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Marking track numbers
while recording
(Track
Marking)
You can mark track numbers either manually or
automatically while recording. By marking track numbers
at specific points, you can quickly locate the points later
or edit the MD easily.
While recording, press
z
at the point where you want
to add a track number.
When recording from a CD player or MD deck connected
to a DIGITAL IN connector, the deck marks track
numbers in the same sequence as the source. When
recording from other sources connected to the DIGITAL
IN connector or a source connected to the ANALOG IN
jacks, do the procedure below to mark track numbers
automatically. However, you cannot mark track numbers
automatically if the sound source to be recorded is noisy
(e.g., tapes or radio programs).
1
While the deck is stopped, press MENU/NO twice.
“Setup Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until
“T.Mark Lsyn(c)” appears, then press AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) to select
the setting, then press AMS or YES.
4
Press MENU/NO.
When you set Automatic Track Marking to on,
“L.SYNC” lights up.
The deck marks a track number whenever the input
signal level drops to –50 dB (the trigger level for
Automatic Track Marking) or below for at least 1.5
seconds.
To change the trigger level for Automatic Track
Marking
Do the procedure below to change the signal level that
triggers Automatic Track Marking.
1
While the deck is stopped, press MENU/NO twice.
“Setup Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until
“LS(T)” appears, then press AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) to select
the level, then press AMS or YES.
You can set the level at any value between –72 dB and
0 dB, in 2 dB increments.
4
Press MENU/NO.
z
Additional information on Automatic Track Marking
•
When recording from a CD player or an MD deck connected
to the DIGITAL IN connector, the entire material might be
recorded as a single track in the following cases:
—When you consecutively record the same track two or more
times using single-track repeat play.
—When you consecutively record two or more tracks with the
same track number but from different CDs or MDs.
—When you record tracks from certain CD or multi-disc
players.
•
A track number might not be marked for tracks less than
4 seconds long (in Stereo mode, Monaural mode, and LP2
Stereo mode) or 2 seconds long (in LP4 Stereo mode) during
recording.
•
When recording from a component connected to the
ANALOG IN jacks with “T.Mark Off” selected or when
recording from a DAT deck or DBS tuner connected to the
DIGITAL IN connector, the entire material may be recorded as
a single track.
•
When recording from a DAT deck or DBS tuner connected to
the DIGITAL IN connector, the deck will mark a track number
whenever the sampling frequency of the input signal changes,
regardless of the track marking parameter setting (“T.Mark
Lsyn(c)” or “T.Mark Off”).
z
You can mark track numbers even after recording has
finished
See “Dividing tracks” on page 33.
Note
If you turn off the deck or disconnect the AC power cord, the
deck will store the last settings (“T.Mark Lsyn(c)” or “T.Mark
Off” and the trigger level) and recall them the next time you turn
on the deck.
Marking track numbers manually
(Manual Track Marking)
Marking track numbers automatically
(Automatic Track Marking)
To Select
Turn on Automatic Track
Marking
T.Mark Lsyn(c) (factory
setting)
Turn off Automatic Track
Marking
T.Mark Off
AMS
MENU/NO YES
z
AMS
20
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Starting recording with six seconds of prestored audio data/Synchro-recording with the audio component of your choice
Recording to MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Starting recording with six
seconds of prestored
audio data
(Time Machine
Recording)
Whenever the deck is in recording pause, the deck’s buffer
memory continuously stores the latest six seconds worth
of audio data. When you press AMS (or T.REC), the
recording then starts with the data in the buffer memory.
Time Machine Recording thus allows you to avoid
missing the beginning of material recorded live from an
FM or satellite broadcast.
1
Do steps 1 to 6 of “Recording to an MD” on
page 13.
The deck changes to recording pause.
2
Start playing the program source.
3
Press AMS (or T.REC) at the point where you want
to start recording.
Recording starts with the six seconds of prestored data
in the buffer memory, then continues recording via the
buffer memory thereafter.
To stop Time Machine Recording
Press
x
.
Note
The storage of data in the buffer memory starts from the moment
the deck changes to recording pause. Thus, if you start recording
less than six seconds after changing to recording pause, less than
six seconds worth of data will be recorded from the buffer
memory. The same is true if the program source had been
playing for less than six seconds at the time you start recording.
Synchro-recording with
the audio component of
your choice
(Music Synchro-
recording)
The Music Synchro-recording allows you to automatically
synchronize recording to the MD deck with the playing of
the selected program source. The Track Marking
Function, however, will differ according to the program
source. For details, see “Marking track numbers while
recording” on page 19.
1
Do steps 1 to 5 of “Recording to an MD” on
page 13.
2
Press MUSIC SYNC.
The deck changes to recording pause.
3
Start playing the program source.
Recording starts automatically.
To stop Music Synchro-recording
Press
x
.
Note
During Music Synchro-recording, Smart Space and Auto Cut
will operate regardless of their setting (“S.Space On” or
“S.Space Off”).
AMS
AMS
Z
MUSIC SYNC
. >
m M
z x
X
H
Z
` / 1
>.
21
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Synchro-recording with a Sony CD player
Recording to MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Synchro-recording with
a Sony CD player
(CD Synchro-recording)
When the deck is connected to a Sony CD player or Hi-Fi
component system, you can easily copy the contents of
CDs to the MD using the deck’s remote. Because the MD
remote operates both the MD deck and the CD player or
CD player section of the component system, make sure to
place the MD deck and the CD player as close together as
possible.
1
Turn on the amplifier and the CD player, and select
CD on the amplifier.
2
Do steps 2 to 5 of “Recording to an MD” on
page 13.
3
Insert a CD into the CD player and select the
playing mode (Shuffle Play, Program Play, etc.) on
the CD player.
4
Press CD-SYNCRO STANDBY.
The CD player changes to play standby and the MD
deck changes to recording standby.
5
Press CD-SYNCRO START.
The deck starts recording and the CD player starts to
play.
The track number and elapsed recording time of the
track appear in the display.
If the CD player does not start playing
Some CD players may not respond when you press CD-
SYNCRO START. Press
X
on the CD player’s remote
instead to start play on the CD player.
Operations you may want to do during CD
Synchro-recording
z
You can use the remote of the CD player during CD
Synchro-recording
z
During CD Synchro-recording, track numbers are
marked in the following ways:
•
When the CD player is connected to the DIGITAL IN
connector, track numbers are automatically marked as they
appear on the CD.
•
When the CD player is connected to the ANALOG IN jacks,
track numbers are automatically marked when “T.Mark
Lsyn(c)” has been selected (page 19).
•
When you resume recording after recording pause, a new track
number is automatically marked, regardless of the track
marking parameter setting (“T.Mark Lsyn(c)” or “T.Mark
Off”).
z
You can change CDs during CD Synchro-recording
1
Press
x
on the CD player’s remote.
2
Change the CD.
3
Press
H
on the CD player’s remote.
Recording resumes.
z
You can also perform synchro-recording with a Sony
video CD player
By reprograming the MD’s remote, you can use the procedure
above to perform synchro-recording with a Sony video CD
player.
Press number button 2 while pressing down
?/1
on the MD
deck’s remote. You can now operate the MD deck and the video
CD player with the remote. To control the CD player again, press
number button 1 while pressing down
?/1
on the MD deck’s
remote.
z
During CD Synchro-recording, the deck copies CD
text information (CD text and disc memos) as it is to the
MD (Disc Memo Copy Function) (MDS-JE640 only)
The Disc Memo Copy Function operates when you make a CD
Synchro-recording from a Sony CD player connected with a
control A1
ΙΙ
cable (not supplied) to the MD deck.
Z
CD-SYNCRO STANDBY
CD PLAYER ./>
CD-SYNCRO START
CD-SYNCRO STOP
. >
m M
z x
X
H
Z
` / 1
>.
To Press
Stop recording CD-SYNCRO STOP
Pause recording CD-SYNCRO STANDBY
Locate the next track to be
recorded during recording
pause
CD PLAYER
.
/
>
Resume recording after
pausing
CD-SYNCRO START
Check the remaining
recordable time on the MD
TIME on the deck (MDS-
JE640) or DISPLAY (MDS-
JE440) (page 17)
Press To change the deck to
And change the CD
player to
H
Recording Play
x
Recording pause Stop
X
Recording pause Pause
22
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Synchro-recording with a Sony CD player
Recording to MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Notes
•
When performing CD Synchro-recording with a CD player
with a mode selector, be sure to set the selector to CD1.
•
When you record tracks from certain CD or multi-disc players,
the entire material may be recorded as a single track.
•
The Disc Memo Copy Function may not operate for extremely
short CD tracks (MDS-JE640 only).
•
Text information may not be copied for some CDs (MDS-
JE640 only).
1
Do steps 1 to 3 of “Synchro-recording with a Sony
CD player” on page 21.
2
Set the CD player to playing pause mode.
3
Press
z
on the deck.
The MD deck changes to recording pause.
4
Press
H
or
X
on the deck.
The deck starts recording and the CD player starts to
play. When CD play finishes, recording stops.
Making a CD Synchro-recording from a
Sony CD player connected with a control
A1
ΙΙ
cable (MDS-JE640 only)
23
Playing an MD
masterpage:L0-Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Playing MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Playing MDs
This chapter explains the various ways
to play MDs.
Playing an MD
1
Turn on the amplifier and select MD on the
amplifier.
2
Press
?/1
to turn on the deck.
The STANDBY indicator turns off.
3
Insert an MD.
4
If necessary, turn AMS (or press
>
repeatedly) to
locate the track you want to start playing from.
If you want to play from the first track, skip this step
and go to step 5.
5
Press
H
.
The deck starts to play.
6
Adjust the volume on the amplifier.
Operations you may want to do during play
z
When you play an MD recorded in LP2 or LP4 Stereo
mode
The MD LP indicator lights up when you press
H
in step 5
above.
z
(MDS-JE640 only) To use headphones
Connect them to the PHONES jack. Turn LEVEL to adjust the
headphones level.
z
(MDS-JE640 only) You can adjust the analog signal
level output to the PHONES jack and the ANALOG OUT
jacks
1
While the deck is playing, press LEVEL/DISPLAY/CHAR (or
DISPLAY) repeatedly until the line output adjustment display
appears.
2
Turn AMS (or press LEVEL +/– repeatedly) to adjust the
output signal level.
To Press or turn
Stop play
x
Pause play
X
Resume play after pausing
H
or
X
Locate a succeeding track
AMS clockwise (or press
>
repeatedly)
Locate the beginning of the
current track or a preceding
track
AMS counterclockwise (or
press
.
repeatedly)
Eject the MD
A
after stopping play
AMS
H
AMS LEVEL
`/1
24
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Playing an MD/Playing a specific track
Playing MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
z
(MDS-JE640 only) You can use Setup Menu to adjust
the analog output level
1
While the deck is playing, press MENU/NO twice.
“Setup Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until “Aout”
appears, then press AMS or YES.
3
Turn AMS (or press LEVEL +/– repeatedly) to adjust the
output signal level, then press AMS or YES.
4
Press MENU/NO.
Note
When you eject the MD or turn off the deck, the output level is
reset to the factory setting (0.0 dB).
To change the display during playing
Press LEVEL/DISPLAY/CHAR (or DISPLAY)
repeatedly to change the display.
Each press of the button changes the display as follows:
MDS-JE640
Track number and elapsed time of the current
track
r
The contents of a program (only when “PGM”
lights up)
r
Disc name and track name
r
Level of the output signal
MDS-JE440
Track number and elapsed time of the current
track
r
Track number and remaining time of the current
track
r
Remaining time of all recorded tracks
r
The contents of a program (only when “PGM”
lights up)
r
Track name
z
You can check the remaining time
Press TIME during playback (MDS-JE640 only). Each press of
the button changes the display as follows:
Track number and elapsed time of the current
track
r
Track number and remaining time of the current
track
r
Remaining time of all recorded tracks
z
You can check the track name while playing (only
when the track name is recorded)
Z
Press SCROLL.
The track name appears and scrolls. While the track name is
scrolling, press the button again to pause scrolling, and again to
continue scrolling.
For MDS-JE440, you can also use SCROLL on the deck.
Playing a specific track
While the deck is playing or stopped, use the procedure
below to quickly play any track.
1) Automatic Music Sensor
z
You can locate the last track of the MD quickly
While the deck is stopped, turn AMS counterclockwise (or press
.
once).
z
If you locate a track while the deck is stopped or
paused
The deck will still be stopped or paused at the beginning of the
located track.
Press the number button(s) to enter the track number
of the track you want to play.
To enter a track number over 10
1
Press >10.
Locating a track with AMS
1)
To go to Do the following:
The next or a succeeding track
during play
Turn AMS clockwise (or press
>
repeatedly).
A preceding track during play
Turn AMS counterclockwise
(or press
.
repeatedly).
The beginning of the current
track during play
Turn AMS counterclockwise
(or press
.
once).
A specific track while the
deck is stopped
Turn AMS (or press
.
/
>
repeatedly) until the track
number you want to go to
flashes in the display, then
press AMS or
H
.
Playing a track by entering the track
number
Z
>10
./>
. >
m M
z x
X
H
` / 1
>.
Z
AMS
H
AMS
Number buttons
25
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Playing a specific track/Locating a particular point in a track
Playing MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
2
Enter the corresponding digits.
To enter 0, press 10/0 instead.
Examples:
•
To play track number 30, press >10, then 3 and 10/0.
•
To play track number 108, press >10, then 1, 10/0,
and 8.
z
If you enter a track number while the deck is paused
The deck will still be paused at the beginning of the track.
Locating a particular point
in a track
You can locate a particular point in a track during play or
play pause.
During play, press down
m
/
M
until you reach the
point you want.
You will hear intermittent playing as the disc goes forward
or in reverse. When you reach the point you want, release
the button.
Notes
•
If the MD reaches the end while you’re pressing
M
, the deck
stops.
•
Tracks that are only a few seconds long may be too short for
monitoring. For such tracks, play the MD at normal speed.
During play pause, press down
m
/
M
until you reach
the point you want.
When you reach the point you want, release the button. To
start playing, press
H
or
X
. No sound is output during
this time.
z
When “– Over –” appears in the display
The MD has reached the end while you’re pressing
M
. Turn
AMS counterclockwise (or press
.
) or press
m
to go back.
Locating a point while monitoring the
sound
Locating a point by observing the time
indication
AMS
m/M
26
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Playing tracks repeatedly
Playing MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]

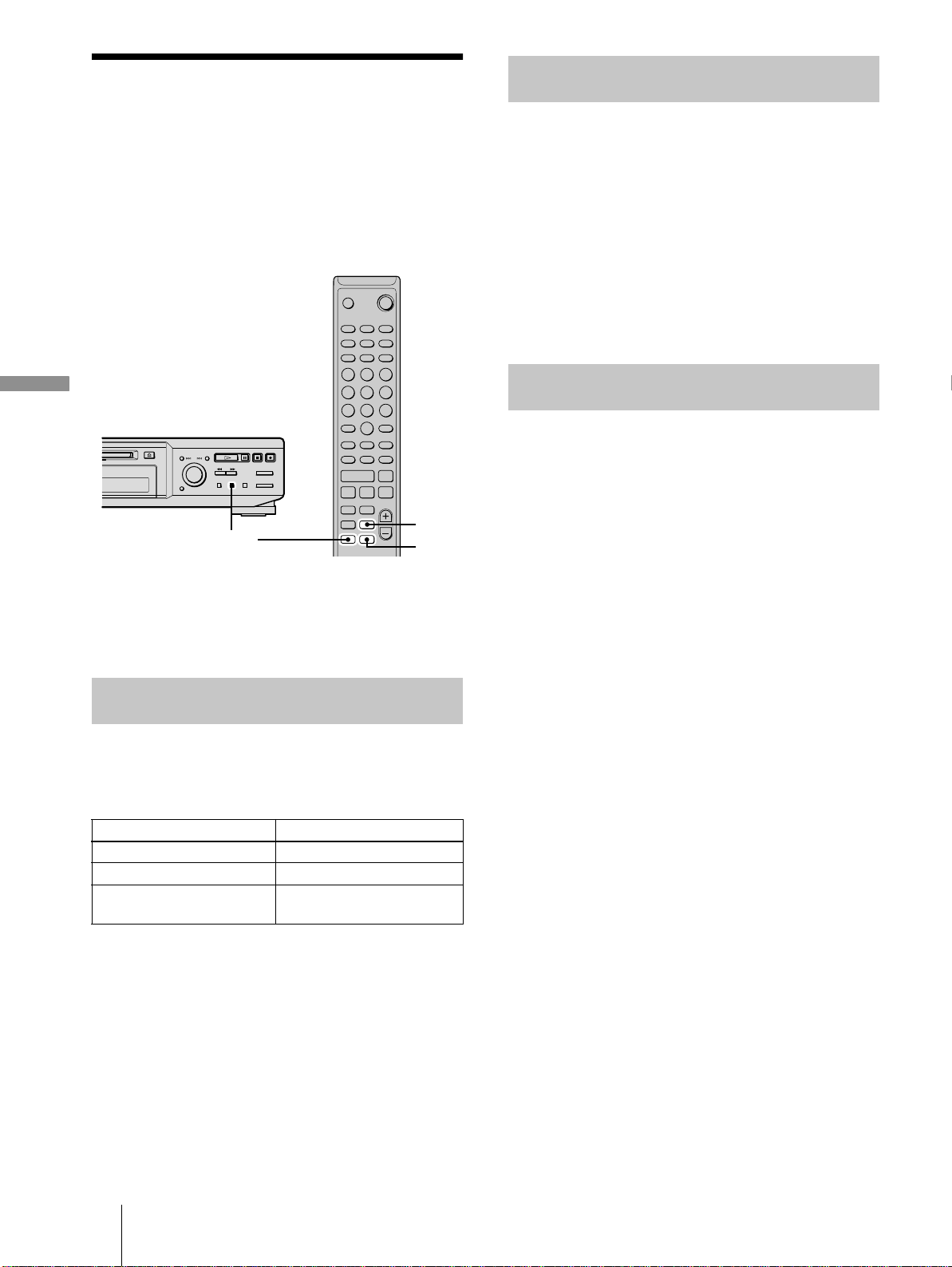

Playing tracks repeatedly
(Repeat Play)
You can play an entire MD repeatedly. This function can
be used with Shuffle Play to repeat all the tracks in
random order (page 27), or with Program Play to repeat
all the tracks in the program you have created (page 27).
You can also repeat a specific track or portion within a
track.
Note
If you turn off the deck or disconnect the AC power cord, the
deck will store the last setting of the repeat play (“Repeat All” or
“Repeat 1”) and recall it the next time you turn on the deck.
Press REPEAT repeatedly until “Repeat All” appears in
the display.
When you play an MD, the deck repeats the tracks as
follows:
To stop Repeat All Play
Press
x
.
To resume normal play
Press REPEAT repeatedly until “Repeat Off” appears in
the display.
While the track you want to repeat is being played,
press REPEAT repeatedly until “Repeat 1” appears in
the display.
Repeat 1 Play starts.
To stop Repeat 1 Play
Press
x
.
To resume normal play
Press REPEAT repeatedly until “Repeat Off” appears in
the display.
You can specify one portion within a track to be played
repeatedly. Note that the portion that you specify must be
within the boundaries of a single track.
1
While the deck is playing, press A
y
B at the
starting point (point A) of the portion to be played
repeatedly.
“REPA-” lights up and “B” flashes in the display.
2
Continue playing the track or press
M
to locate
the ending point (point B), then press A
y
B.
“REPA-B” lights up and Repeat A-B Play starts.
To stop Repeat A-B Play and resume normal
play
Press REPEAT or CLEAR.
z
You can set a new starting point and ending point
during Repeat A-B Play
You can change the current ending point to a new starting point,
then specify a new ending point to repeat a portion right after the
current portion.
1
During Repeat A-B Play, press AyB.
The current ending point changes to the new starting point
(point A).
“REPA-” lights up and “B” flashes in the display.
2
Locate the new ending point (point B) and press AyB.
“REPA-B” lights up and the deck starts to repeat the newly
specified portion.
Repeating all the tracks on the MD
(Repeat All Play)
When the play mode is The deck repeats
Normal play (page 23) All the tracks in sequence
Shuffle Play (page 27) All the tracks in random order
Program Play (page 27)
All the tracks in the program
in sequence
AMS
REPEAT
. >
m
z x
X
H
Z
` / 1
>.
M
M
AyB
Repeating the current track (Repeat 1
Play)
Repeating a specific portion within a
track (Repeat A-B Play)
Z
27
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Playing tracks in random order/Creating your own program
Playing MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Playing tracks in random
order
(Shuffle Play)
When you select Shuffle Play, the deck plays all the tracks
on the MD in random order.
1
While the deck is stopped, press PLAY MODE
repeatedly until “SHUF” lights up in the display.
2
Press
H
.
Shuffle Play starts.
;
appears while the deck is “shuffling” the tracks.
To resume normal play
While the deck is stopped, press PLAY MODE repeatedly
until “SHUF” turns off.
z
You can locate tracks during Shuffle Play
Turn AMS (or press
.
/
>
repeatedly).
•
To locate the next track or a later track to be played, turn AMS
clockwise (or press
>
repeatedly).
•
To locate the beginning of the current track, turn AMS
counterclockwise (or press
.
). Note that you cannot locate
and play the tracks that have already been played once.
Creating your own
program
(Program Play)
You can pick out the tracks that you like and specify the
playing order in a program containing up to 25 tracks.
1
While the deck is stopped, press MENU/NO twice.
“Setup Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until
“Program ?” appears, then press AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) until the
track number you want to add to the program
appears, then press AMS or
M
(or use the number
button(s) to enter the track directly).
If you entered the wrong track number
Press
m
/
M
repeatedly until the wrong track
number flashes, then do step 3 above again or press
CLEAR to erase the track number. If “0” flashes, press
m
so that the last track number flashes, then enter a
correct number.
To enter a track number over 10
Use >10. For details, see page 24.
AMS
H
PLAY MODE
Programing the tracks
AMS
MENU/NO
YES
H
CLEARAMS
LEVEL/DISPLAY/CHAR
m/M
PLAY MODE
>10
DISPLAY
./>
. >
m M
z x
X
H
` / 1
>.
Z
Number buttons
Z
28
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Creating your own program
Playing MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
4
Repeat step 3 to enter other tracks.
The entered track is added to the location where the
“0” flashes.
Each time you enter a track, the total program time
appears in the display.
5
Press YES.
“Complete!!” appears and the program is completed.
6
Press PLAY MODE repeatedly until “PGM” lights up
in the display.
7
Press
H
.
Program Play starts.
To stop Program Play
Press
x
.
To resume normal play
Press PLAY MODE repeatedly until “PGM” turns off.
z
The program remains even after Program Play ends or
is stopped
Press
H
to play the program again.
Notes
•
If you eject the MD, the program will be lost.
•
The display shows “- - - . - -” when the total playing time of
the program exceeds 999 minutes.
•
“ProgramFull(!)” appears when you try to program the 26th
track.
While the deck is stopped and “PGM” lights up, press
LEVEL/DISPLAY/CHAR (or DISPLAY) repeatedly.
The first several tracks in the program appear in the
display. To see the rest of the program, turn AMS (or press
>
repeatedly).
While the deck is stopped and “PGM” lights up, do steps
1 and 2 of “Programing the tracks” on page 27, followed
by one of the procedures below:
Checking the order of the program
Changing the contents of the program
To Do the following:
Erase a track
Press
m
/
M
repeatedly
until the number of the
unwanted track flashes, then
press CLEAR.
Erase all tracks
Press down CLEAR until all
the track numbers disappear.
Add a track at the beginning
of the program
Press
m
repeatedly until “0”
flashes before the first track
number, then do steps 3 to 5 of
“Programing the tracks” on
page 27.
Add a track in the middle of
the program
Press
m
/
M
repeatedly
until the track number which
will precede the new track
flashes. Press AMS to display
flashing “0,” then do steps 3 to
5 of “Programing the tracks”
on page 27.
Add a track to the end of the
program
Press
M
repeatedly until “0”
flashes after the last track
number, then do steps 3 to 5 of
“Programing the tracks” on
page 27.
Replace a track
Press
m
/
M
repeatedly
until the number of the track to
be changed flashes, then do
steps 3 to 5 of “Programing the
tracks” on page 27.
To Do the following:
29
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Tips for recording from MDs to tape
Playing MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Tips for recording from
MDs to tape
(MDS-JE640 only)
The MD deck can be set to automatically insert a three-
second blank between tracks during play. This function is
useful when you’re recording from an MD to an analog
tape. The three-second blank enables you to use the Multi-
AMS function later to locate the beginning of tracks on
the tape.
1
While the deck is stopped, press MENU/NO twice.
“Setup Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until
“Auto Off” appears, then press AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) to select
the setting, then press AMS or YES.
4
Press MENU/NO.
z
When you turn on Auto Space
“Auto Space” appears when the deck is inserting a blank
between tracks.
Notes
•
If you select “Auto Space” and record a selection containing
multiple track numbers (for example, a medley or symphony),
blank spaces will be created on the tape between the various
sections.
•
If you turn off the deck or disconnect the AC power cord, the
deck will store the last setting (“Auto Space” or “Auto Off”)
and recall it the next time you turn on the deck.
You can set the MD deck so that it pauses after each track
to give you time to locate the next track to be recorded.
1
While the deck is stopped, press MENU/NO twice.
“Setup Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until
“Auto Off” appears, then press AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) to select
the setting, then press AMS or YES.
4
Press MENU/NO.
To resume play after pausing
Press
H
.
z
When you turn on Auto Pause
“Auto Pause” appears during pause and disappears when the
deck resumes play.
Note
If you turn off the deck or disconnect the AC power cord, the
deck will store the last setting (“
Auto Pause
” or “
Auto Off
”)
and recall it the next time you turn on the deck.
Inserting blanks between tracks during
play (Auto Space)
To Select
Turn on Auto Space Auto Space
Turn off Auto Space Auto Off (factory setting)
Pausing after each track (Auto Pause)
AMS
MENU/NO YES
AMS
To Select
Turn on Auto Pause Auto Pause
Turn off Auto Pause Auto Off (factory setting)
30
masterpage:L0-Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Before you start editing
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Editing
Recorded
MDs
This chapter explains how to edit the
tracks that have been recorded to an
MD.
Before you start editing
The buttons and control below are used to erase, divide,
move, or combine tracks on the MD.
Note
The operation of these buttons and the control is different when
naming a track or MD. For details, see “Naming a track or MD”
on page 35.
MENU/NO button:
While the deck is stopped, playing,
or paused, press to edit tracks. While editing, press to
cancel editing.
AMS control:
Turn to select an editing operation or
track number, then press to enter your selection. You can
also use the control to specify points in a track for erasure
or track division.
YES button:
Press this button instead of the AMS
control to enter a selection.
m/M
buttons:
Press to specify the unit (minute,
second, or frame) by which the MD is advanced when the
AMS control is turned. You can also use these buttons to
locate the end point of the portion to be erased.
For further details on the function of each button and
control, see the following sections on editing operations.
When “Protected” appears while editing
The record-protect slot is open. To edit the MD, slide the
tab to close the slot. For details, see “To prevent accidental
erasure of the recorded material” on page 14.
Brief descriptions of buttons and control
used to edit MDs
About indication which appears while
editing
AMS
MENU/NO YES
AMS
m/M
31
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Before you start editing/Erasing tracks
Editing Recorded MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
When “TOC” lights up in the display after
editing
Editing has finished but the TOC (Table of Contents) on
the MD has not been updated to reflect the editing results.
The editing will be lost if you disconnect the AC power
cord while the indication is on. The TOC will be updated
only when you eject the MD or turn off the MD deck.
When “TOC Writing” flashes in the display
The deck is updating the TOC. Do not disconnect the AC
power cord or move the deck while the indication flashes.
Erasing tracks
(ERASE)
You can erase a track or part of a track by specifying the
number of the track or the portion within a track to be
erased. You can also erase all the tracks on an MD at one
time.
Specify the number of the track you want to erase.
Example: Erasing the second track (BBB)
When you erase a track, all the tracks after the one erased
are automatically renumbered. For example, if you erase
track number 2, the previous track number 3 becomes
track number 2 and the previous track number 4 becomes
track number 3, and so on.
1
While the deck is stopped, playing, or paused,
press MENU/NO.
“Edit Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until “Tr
Erase ?” appears, then press AMS or YES.
The deck starts to play the track indicated by the
number in the display.
3
Turn AMS (or press
.
/
>
repeatedly) until the
track number you want to erase appears.
4
Press AMS or YES.
“Complete!!” appears for a few seconds and the track
is erased. The track following the erased track starts to
play. If the erased track is the last one on the MD, the
track preceding the erased track starts to play.
To cancel the operation
Press MENU/NO or
x
.
z
If “Erase ???” appears in step 4 above
The track has been record-protected on another MD deck. If you
still want to erase the track, press AMS or YES again while the
indication appears.
z
To avoid confusion when erasing more than one track
Start erasing from the highest numbered track. This way you will
avoid renumbering the tracks that you plan to erase.
About indications which appear after
editing
Erasing a track
AAA BBB CCC DDD
1 2 3 4
AAA CCC DDD
1 2 3
32
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Erasing tracks
Editing Recorded MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Do the procedure below to erase all the tracks, track
names, and disc name at once.
1
While the deck is stopped, playing, or paused,
press MENU/NO.
“Edit Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until “All
Erase ?” appears, then press AMS or YES.
“All Erase ??” appears in the display.
3
Press AMS or YES.
“Complete!!” appears for a few seconds and all the
tracks, track names, and disc name are erased.
To cancel the operation
Press MENU/NO or
x
.
You can easily erase a portion of a track by specifying the
starting and ending points of the erasure.
This is useful for erasing the unnecessary portions of a
track recorded from a satellite or FM broadcast.
Example: Erasing portion “B2” of the second
track
1
While the deck is stopped, playing, or paused,
press MENU/NO.
“Edit Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until “A-B
Erase ?” appears, then press AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) until the
number of the track containing the portion to be
erased appears, then press AMS or YES.
“-Rehearsal-” and “Point A ok?” alternate in the
display and the deck repeatedly plays several seconds
of the track from the point AMS or YES was pressed.
4
While monitoring the sound, turn AMS (or press
.
/
>
repeatedly) to locate the starting point of
the portion to be erased (point A).
You can shift the starting point by 1-frame* intervals
(1 frame = 1/86 second).
The time indication (minute, second, and frame) of the
current point is displayed and the deck plays several
seconds of the track to that point repeatedly.
* When recording in Stereo mode, you can shift the starting
point by 2-frame intervals (in Monaural mode and LP2
Stereo mode) or by 4-frame intervals (in LP4 Stereo
mode)
.
To find a point quickly
Specify a unit (minute, second, or frame) by which the
MD is advanced when you turn AMS (or press
.
/
>
repeatedly).
To do this, press
m
/
M
in step 4 repeatedly to select
minute, second, or frame. The selected unit flashes in
the display.
5
Repeat step 4 until you have located point A.
6
Press AMS or YES to enter point A.
“Point B set” appears and the deck starts playing from
point A until the track ends.
7
Continue playing the track or press
M
to locate
the ending point of the portion to be erased (point
B), then press AMS or YES.
“A-B Ers” and “Point B ok?” alternate in the display
and a few seconds of the track before point A and after
point B play back repeatedly.
8
Repeat step 4 until you have located point B.
9
Press AMS or YES to enter point B.
“Complete!!” appears for a few seconds and the
portion between point A and B is erased.
To cancel the operation
Press MENU/NO or
x
.
Note
If “Impossible” appears in the display, you cannot erase a
portion of a track. This happens when you have edited the same
track many times.
This is due to a technical limitation of the MD system and is not
a mechanical error.
Erasing all the tracks on an MD
Erasing a portion of a track
AAA BBB
B1 B3B2
CCC
1 2 3
AAA
B1 B3
CCC
1 2 3
BBB
33
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Dividing tracks
Editing Recorded MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Dividing tracks
(DIVIDE)
You can divide a recorded track at any point by adding a
track mark at that point. This is especially useful when
you want to divide recorded material that contains
multiple tracks but only one track number, or when you
want to be able to locate a certain point in the track.
Example: Dividing the second track
When you divide a track, the total number of tracks
increases by one and all tracks following the divided track
are automatically renumbered.
1
While the deck is stopped, playing, or paused,
press MENU/NO.
“Edit Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until
“Divide ?” appears, then press AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) until the
number of the track you want to divide appears,
then press AMS or YES.
“-Rehearsal-” appears and the deck repeatedly plays
several seconds of the track from the point AMS or
YES was pressed.
4
While monitoring the sound, turn AMS (or press
.
/
>
repeatedly) to locate the dividing point.
You can shift the starting point by 1-frame* intervals
(1 frame = 1/86 second).
The time indication (minute, second, and frame) of the
current point is displayed and the deck plays several
seconds of the track to that point repeatedly.
* When recording in Stereo mode, you can shift the starting
point by 2-frame intervals (in Monaural mode and LP2
Stereo mode) or by 4-frame intervals (in LP4 Stereo
mode).
To find a point quickly
Specify a unit (minute, second, or frame) by which the
MD is advanced when you turn AMS (or press
.
/
>
repeatedly).
To do this, press
m
/
M
in step 4 repeatedly to select
minute, second, or frame. The selected unit flashes in
the display.
5
Repeat step 4 until you have located the dividing
point.
6
Press AMS or YES.
“Complete!!” appears for a few seconds and the track
is divided. The deck starts to play the newly created
track. Note that new track has no name.
To cancel the operation
Press MENU/NO or
x
.
z
You can divide tracks while recording
For details, see “Marking track numbers while recording” on
page 19.
1
While the deck is playing, press AMS at the point
you want to divide the track.
“- Divide -” and “-Rehearsal-” alternate in the display
and the deck starts to play from the selected point
repeatedly.
2
If necessary, do step 4 of “Dividing a track after
selecting the track” on page 33 to finely adjust the
dividing point.
3
Press YES.
“Complete!!” appears for a few seconds and the track
is divided. The deck starts to play the newly created
track. Note that new track has no name.
To cancel the operation
Press MENU/NO or
x
.
z
You can divide tracks while recording
For details, see “Marking track numbers while recording” on
page 19.
Dividing a track after selecting the track
AAA
B1 B2
CCC
1 2 3
AAA
BBB
BBB
B1 B2
CCC
1 2 3 4
Dividing a track after selecting the
dividing point
34
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Combining tracks/Moving tracks
Editing Recorded MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Combining tracks
(COMBINE)
This function allows you to combine any two tracks into a
single track. The two tracks need not to be consecutive nor
chronological. You can combine several tracks into a
single medley, or several independently recorded portions
into a single track. When you combine two tracks, the
total number of tracks decreases by one and all tracks
following the combined track are renumbered.
You can also use this function when you want to delete
unnecessary track numbers.
Example: Combining the second track and the
fourth track
If both of the combined tracks have a track name, the
name of the second track is erased.
1
While the deck is stopped, playing, or paused,
press MENU/NO.
“Edit Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until
“Combine ?” appears, then press AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) until the
number of the first track of the two to be combined
appears, then press AMS or YES.
The display for selecting a second track appears and
the deck plays the portion where joining will occur
(the end of the first track and the beginning of the
second track following it) repeatedly.
4
Turn AMS (or press
.
/
>
repeatedly) until the
number of the second track of the two to be
combined appears, then press AMS or YES.
“Complete!!” appears for a few seconds and the tracks
are combined. The deck starts to play the combined
track.
To cancel the operation
Press MENU/NO or
x
.
Notes
•
Tracks recorded in different modes (stereo, MONO, LP2 or
LP4) cannot be combined.
•
If “Impossible” appears in the display, the tracks cannot be
combined because repeated editing has been done to the
track(s). This is a technical limitation of the MD system and is
not a mechanical error.
Moving tracks
(MOVE)
This function lets you change the order of any track.
Example: Moving the second track after the
third track
After you move a track, the tracks are renumbered
automatically.
1
While the deck is stopped, playing, or paused,
press MENU/NO.
“Edit Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until
“Move ?” appears, then press AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) until the
number of the track to be moved appears, then
press AMS or YES.
4
Turn AMS (or press
.
/
>
repeatedly) until the
new track position appears, then press AMS or
YES.
“Complete!!” appears for a few seconds and the track
is moved. The deck starts to play the moved track.
To cancel the operation
Press
MENU/NO or
x
.
AAA BBB
BBB
DDD
CCC
1 2 3
AAA BBB DDDCCC
1 2 43
AAA BBB CCC DDD
1 2 3 4
AAA BBBCCC DDD
1 32 4
35
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Naming a track or MD
Editing Recorded MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Naming a track or MD
(NAME)
You can enter a name for a recorded MD as well as for
individual tracks. Names can consist of uppercase and
lowercase letters, numbers, and symbols. A total number
of about 1,700 characters can be stored for all the names
on the MD.
Note
If you name a track while it is being recorded, be sure to finish
the naming operation before the track ends. If the track ends
before you finish, the entered character data will be discarded
and the track will remain unnamed. Also, you cannot name
tracks while the deck is recording over existing material.
1
Press MENU/NO while the deck is in one of the
operating modes listed below, depending on what
you want to name:
“Edit Menu” appears in the display.
To enter a name while the deck is recording, go to step
3.
2
Turn AMS until “Name ?” appears, then press AMS
or YES.
3
Turn AMS until “Nm In ?” appears, then press AMS
or YES.
While the deck is recording, a flashing cursor appears
in the display and you can enter a name for the track
being recorded. In this case, go to step 5.
4
Turn AMS until the track number (when naming a
track) or “Disc” (when naming the MD) flashes,
then press AMS or YES.
A flashing cursor appears.
The deck starts playing and you can name a track
while monitoring the sound.
5
Press LEVEL/DISPLAY/CHAR repeatedly to select
the character type.
To enter a space
Press
M
while the cursor is flashing. You cannot
enter a space as the first character.
6
Turn AMS to select the character.
The selected character flashes.
To change a selected character
Repeat steps 5 and 6.
7
Press AMS.
The selected character is entered and lights
continuously. The cursor shifts to the right, flashes,
and waits for the input of the next character.
8
Repeat steps 5 to 7 to enter the rest of the name.
To change a character
Press
m
/
M
repeatedly until the character to be
changed flashes, then repeat steps 5 to 7.
Naming a track or an MD using the
controls on the deck
To name Press while the deck is
A track or the MD Stopped, playing, or paused
The track being recorded Recording the track
AMS
YES m/MMENU/NO
AMS CLEAR
CLEAR
LEVEL/DISPLAY/CHAR
./>
m/M
. >
M
z x
X
H
` / 1
>.
Z
NAME EDIT/SELECT
m
Letter/number
buttons
To select Press repeatedly until
Uppercase letters “A” appears in the display
Lowercase letters “a” appears in the display
Numbers “0” appears in the display
Symbols
1)
1) You can use the following symbols in titles:
’ – / , . ( ) : ! ? & + < > _ = ” ; # $ % @ * `
“ ’ ” appears in the display
36
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Naming a track or MD
Editing Recorded MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
To erase a character
Press
m
/
M
repeatedly until the character to be
erased flashes, then press CLEAR.
9
Press YES.
The whole name appears in the display, followed by
“Complete!!” to indicate that the labeling procedure is
completed.
To cancel the operation
Press MENU/NO or
x
.
1
Press NAME EDIT/SELECT while the deck is in one
of the operating modes listed below, depending on
what you want to name:
A flashing cursor appears in the display.
2
Press NAME EDIT/SELECT repeatedly to select the
character type.
3
Enter a character using letter/number buttons.
If you have selected uppercase or lowercase letters
1
Press the corresponding letter/number button
repeatedly until the character to be entered flashes.
Or, press the button once and press
.
/
>
repeatedly.
To select symbols, press
.
repeatedly while “A”
is flashing.
2
Press
M
.
The flashing character is entered and lights
continuously and the cursor shifts to the right.
If you have selected numbers
Press the corresponding number button.
The number is entered and the cursor shifts to the
right.
4
Repeat steps 2 and 3 to enter the rest of the name.
To change a character
Press
m
/
M
repeatedly until the character to be
changed flashes, press CLEAR to erase the character,
then repeat steps 2 and 3.
5
Press YES.
The whole name appears in the display, followed by
“Complete!!” to indicate that the labeling procedure is
completed.
To cancel the operation
Press MENU/NO or
x
.
You can copy an existing track or disc name and use it to
name another track on the same disc or the disc itself.
1
While the deck is stopped, playing, or paused,
press MENU/NO.
“Edit Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until
“Name ?” appears, then press AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) until “Nm
Copy ?” appears, then press AMS or YES.
4
Turn AMS (or press
.
/
>
repeatedly) until the
track number (when copying the track name) or
“Disc” (when copying the disc name) flashes, then
press AMS or YES to copy the selected name.
When “No Name” appears in the display
The selected track or disc has no name.
5
Turn AMS (or press
.
/
>
repeatedly) until the
track number (when naming a track) or “Disc”
(when naming a disc) flashes, then press AMS or
YES to enter the copied name.
“Complete!!” appears for a few seconds and the name
is copied.
To cancel the operation
Press MENU/NO or
x
.
z
When “Overwrite ?(?)” appears in step 5 above
The track or the disc selected in step 5 already has a name. If you
wish to replace the name, press AMS or YES again while the
indication appears in the display.
1
Press NAME EDIT/SELECT while the deck is in one
of the operating modes listed below, depending on
what you want to rename:
A track or disc name appears in the display.
2
Press down CLEAR until the selected name is
erased completely.
Naming a track or an MD using the
remote
To name Press while the deck is
A track
Playing, paused, recording, or stopped
with the track number displayed
The MD
Stopped with total number of tracks
displayed
To select Press repeatedly until
Uppercase letters
and symbols
1)
1) Only ’ – / , . ( ) : ! ? can be selected.
“Selected AB(C)” appears in the
display
Lowercase letters
and symbols
1)
“Selected ab(c)” appears in the display
Numbers “Selected 12(3)” appears in the display
Z
Copying a track or disc name
Renaming a track or MD
To rename Press while the deck is
A track
Playing, paused, recording, or stopped
with the track number displayed
The MD
Stopped with total number of tracks
displayed
Z
37
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Naming a track or MD/Changing the recorded level after recording
Editing Recorded MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
3
Do steps 5 to 8 of “Naming a track or an MD using
the controls on the deck” on page 35 or steps 2 to 4
of “Naming a track or an MD using the remote” on
page 36.
4
Press YES.
The whole name appears in the display, followed by
“Complete!!” to indicate that the labeling procedure is
completed.
Use this function to erase the name of a track or disc.
1
While the deck is stopped, playing, recording, or
paused, press MENU/NO.
“Edit Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until
“Name ?” appears, then press AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) until “Nm
Erase ?” appears, then press AMS or YES.
4
Turn AMS (or press
.
/
>
repeatedly) until the
number of the track (when erasing the track name)
or “Disc” (when erasing the disc name) flashes,
then press AMS or YES.
“Complete!!” appears for a few seconds and the name
is erased.
To cancel the operation
Press MENU/NO or
x
.
You can erase all the track names and the disc name on an
MD in a single operation.
1
While the deck is stopped, playing, or paused,
press MENU/NO.
“Edit Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until
“Name ?” appears, then press AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) until “Nm
All Ers?” appears, then press AMS or YES.
“Nm All Ers??” appears in the display.
4
Press AMS or YES.
“Complete!!” appears for a few seconds and all the
names on the MD are erased.
To cancel the operation
Press MENU/NO or
x
.
z
You can erase all the recorded tracks and names on
the MD
For details, see “Erasing all the tracks on an MD” on page 32.
Changing the recorded
level after recording
(S.F EDIT)
You can change the volume of recorded tracks using S.F
(Scale Factor) Edit. The original track is recorded over at
the new recording level. When changing the recording
level, you can select Fade-in Recording to gradually
increase the signal level at the start of recording, or Fade-
out Recording to gradually decrease the signal level at the
end of recording.
1
For MDS-JE640, press S.F EDIT.
“S.F Edit” appears in the display.
For MDS-JE440, do the following:
1
Press MENU/NO.
“Edit Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until “S.F
Edit?” appears, then press AMS or YES.
2
Turn AMS (or press
.
/
>
repeatedly) until “Tr
Level ?” appears, then press AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) until the
track number you want to change the recording
level appears, then press AMS or YES.
“Level 0dB” appears in the display.
4
MDS-JE640
While monitoring the sound, turn AMS (or press
.
/
>
repeatedly) to change the recorded level
without turning on the two rightmost indicators on
the peak level meters.
You can set the level at any value between –12 dB and
+12 dB, in 2 dB increments.
Erasing a track or disc name
Erasing all the names on the MD
Changing the overall recording level
AMS
YES
AMSS.F EDIT
Avoid turning on these indicators
38
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Changing the recorded level after recording
Editing Recorded MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
MDS-JE440
While monitoring the sound, turn AMS (or press
.
/
>
repeatedly) to change the recorded level
without turning on “OVER” on the peak level
meters.
5
Press AMS or YES.
“(S.F) Edit OK?” appears in the display.
6
Press AMS or YES.
The deck starts recording over the existing track.
“S.F Edit(:) ** %” appears while the track is being
recorded. An amount of time that is roughly equal to
or longer than the playback time of the track is
required when recording over the track. When the
recording finishes, “Complete!!” appears in the
display for a few seconds.
1
For MDS-JE640, press S.F EDIT.
“S.F Edit” appears in the display.
For MDS-JE440, do the following:
1
Press MENU/NO.
“Edit Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until “S.F
Edit?” appears, then press AMS or YES.
2
Turn AMS (or press
.
/
>
repeatedly) until
“Fade In ?” or “Fade Out ?” appears, then press
AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) until the
track number you want to change the recording
level appears, then press AMS or YES.
“Time 5.0s” appears in the display.
4
While monitoring the sound, turn AMS (or press
.
/
>
repeatedly) to change the Fade-in or
Fade-out Recording time.
The deck plays the portion that will be recorded over
using Fade-in or Fade-out Recording.
You can set the time at any value between 1 second
and 15 seconds, in 0.1 second increments. You cannot
set the time longer than the track.
5
Press AMS or YES.
“(S.F) Edit OK?” appears in the display.
6
Press AMS or YES.
The deck starts recording over the existing track.
“S.F Edit(:) ** %” appears while the track is being
recorded. When the recording finishes, “Complete!!”
appears in the display for a few seconds.
To cancel the operation
Press MENU/NO or
x
in steps 1 to 5. If you press AMS
or YES in step 6 and recording starts, you cannot interrupt
the operation.
z
(For MDS-JE640) You can use Edit Menu to perform
S.F Edit
1
While the deck is stopped, press MENU/NO.
“Edit Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until “S.F Edit?”
appears, then press AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) until “Tr Level ?,”
“Fade In ?,” or “Fade Out ?” appears, then press AMS or YES.
4
Turn AMS (or press
.
/
>
repeatedly) to adjust the
recording level or Fade-in or Fade-out Recording time.
5
Press AMS or YES.
Notes
•
Do not disconnect the AC power cord or move the deck
while recording is in progress. This may damage the
recording data preventing recording from being performed
properly.
•
You cannot change the recorded level of a track recorded in
LP2 or LP4 Stereo mode.
•
Do not use an MD that is damaged or dirty. This may prevent
recording data from being recorded properly.
•
Repeatedly changing the recording level results in poor sound
quality.
•
The recording level will not return to the exact original level
once the recording level has been changed even if it returned to
the original level.
•
The recording level cannot be changed while the timer is
activated.
Fade-in and Fade-out Recording
Avoid turning on these indicators
39
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Undoing the last edit
Editing Recorded MDs
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Undoing the last edit
(UNDO)
You can undo the last edit operation and restore the
contents of the MD to the condition that existed before the
operation. Note, however, that you cannot undo an edit
operation if you perform any of the following operations
after the edit:
•
Start recording.
•
Press MUSIC SYNC on the remote.
•
Change the recorded level after recording (S.F Edit).
•
Turn off the deck or eject the MD.
•
Disconnect the AC power cord.
1
While the deck is stopped and no track number
appears in the display, press MENU/NO.
“Edit Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until
“Undo ?” appears.
“Undo ?” does not appear if no editing has been done.
3
Press AMS or YES.
One of the following messages appears depending on
the last edit operation.
4
Press AMS or YES.
“Complete!!” appears for a few seconds and the MD is
restored to the condition that existed before the edit
operation.
To restore your edit
Press MENU/NO or
x
.
Last edit operation Message
Erasing a track
Erase Undo?Erasing all the tracks on an MD
Erasing a portion of a track
Dividing a track Divide Undo?
Combining tracks Combin(e)Undo?
Moving a track Move Undo?
Naming a track or MD
Name Undo?
Copying a track or disc name
Renaming a track or MD
Erasing a track or disc name
Erasing all the names on the MD
40
masterpage:L0-Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Changing the pitch
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Other
Functions
This chapter explains other useful
functions that are available on the MD
deck.
Changing the pitch
(Pitch Control Function) (MDS-JE640
only)
You can change the MD playing speed (pitch) when, for
example, you enjoy Karaoke. The tone rises at higher
pitches, and falls at lower pitches.
You can lower the pitch by up to 36 steps
1)
.
1) One octave equals 12 steps.
1
While the deck is playing, press PITCH CONTROL
repeatedly until “Pitch” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until the
desired step value appears.
To recall the factory setting
Press CLEAR while setting the value.
Notes
•
When you change the step value, the playing sound drops out
momentarily.
•
The step value returns to “0” (factory setting) when you turn
off the deck or eject the MD.
•
When a dot (.) appears to the right of the step value in the pitch
display, this indicates that you have performed fine adjustment
(see page 40) and the pitch value is between steps. (The step
and fine control values are linked.)
You can fine control the playing speed in 0.1% increments
from –87.5% to 0.0%.
1
While the deck is playing, press PITCH CONTROL
repeatedly until “Pfine” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until the
desired step value appears.
Setting the pitch automatically in steps
(Auto Step Control Function)
Finely controlling the pitch (Fine Control
Function)
AMS
AMS PITCH CONTROL
41
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Changing the pitch/Fading in and fading out
Other Functions
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
To recall the factory setting
Press CLEAR while setting the value.
z
You can use Setup Menu to change the pitch
1
While the deck is playing, press MENU/NO twice.
“Setup Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until “Pitch” or
“Pfine” appears, then press AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) to adjust the pitch,
then press AMS or YES.
4
Press MENU/NO.
Notes
•
The playing sound drops out momentarily when you change
the fine control value.
•
The fine control value reverts to “0.0%” (factory setting) when
you turn off the deck or eject the MD.
•
The step and fine control values are linked; changing one value
also changes the other.
Fading in and fading out
You can use Fade-in Play to gradually increase the signal
level to the ANALOG OUT jacks and the PHONES jack
(MDS-JE640 only) at the start of playing. Fade-out Play
gradually decreases the signal level at the end of playing.
Fade-in Recording gradually increases the signal level at
the start of recording. Fade-out Recording gradually
decreases the signal level at the end of recording.
Note
The level of the signal output from the DIGITAL OUT connector
does not change during Fade-in Play nor Fade-out Play.
During play pause (for Fade-in Play) or recording
pause (for Fade-in Recording), press FADER.
b
flashes in the display and the deck performs Fade-in
Play or Fade-in Recording for five seconds (factory
setting) until the counter reaches “0.0s.”
During play (for Fade-out Play) or recording (for Fade-
out Recording), press FADER.
B
flashes in the display and the deck performs Fade-out
Play or Fade-out Recording for five seconds (factory
setting) until the counter reaches “0.0s,” then pauses.
Fade-in Play and Fade-in Recording
Fade-out Play and Fade-out Recording
Z
FADER
. >
m M
z x
X
H
Z
` / 1
>.
42
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Fading in and fading out/Falling asleep to music
Other Functions
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
z
You can change the duration of Fade-in and Fade-out
Play/Recording
1
While the deck is stopped, press MENU/NO twice.
“Setup Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) to select the
setting, then press AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) to select the
duration, then press AMS or YES.
Both the Fade-in and Fade-out durations can be set in 0.1
second steps.
4
Press MENU/NO.
Falling asleep to music
(Sleep Timer)
You can set the deck so that it turns off automatically after
a specified duration.
1
While the deck is stopped, press MENU/NO twice.
“Setup Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until
“Sleep Off” appears in the display, then press AMS
or YES.
3
Turn AMS (or press
.
/
>
repeatedly) to select
the setting, then press AMS or YES.
For MDS-JE640, do the following.
4
Turn AMS (or press
.
/
>
repeatedly) until
“Sleep 60min” appears in the display, then press
AMS or YES.
5
Turn AMS (or press
.
/
>
repeatedly) to select
the time to be turned off (“30min,” “60min” (factory
setting), “90min,” or “120min”), then press AMS or
YES.
6
Press MENU/NO.
To turn off Sleep Timer
Repeat the procedure above, selecting “Sleep Off” in step
3.
z
You can check the remaining time
Once you turn on Sleep Timer, the remaining time is displayed
when you select “Sleep” in Setup Menu.
To change the duration of Select
Fade-in Play/Recording F.in
Fade-out Play/Recording F.out
To Select
Turn on Sleep Timer Sleep On
1)
1) For MDS-JE440, the deck turns off automatically after
60 minutes.
Turn off Sleep Timer Sleep Off (factory setting)
AMS
MENU/NO YES
AMS
43
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Using a timer
Other Functions
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Using a timer
(MDS-JE640 only)
By connecting a timer (not supplied) to the deck, you can
start and stop playing/recording operations at specified
times. For further information on connecting the timer or
setting the starting and ending times, refer to the
instructions that came with the timer.
1
Do steps 1 to 3 of “Playing an MD” on page 23.
2
Press PLAY MODE repeatedly to select the play
mode you want.
To play only specific tracks, create a program (see
page 27).
To specify the time for the end of playing, press
H
to
start playing, then go to step 3.
3
Set TIMER on the deck to PLAY.
4
Set the timer as required.
•
When you have set the time for the start of playing,
the deck turns off. When the specified time arrives,
the deck turns on and starts playing.
•
When you have set the time for the end of playing,
play continues. When the specified time arrives, the
deck stops playing and turns off.
•
When you have set the time for both the start and
end of playing, the deck turns off. When the starting
time arrives, the deck turns on and starts playing.
When the ending time arrives, the deck stops
playing and turns off.
5
After you have finished using the timer, set TIMER
on the deck to OFF.
1
Do the following steps of “Recording to an MD” on
page 13 according to how you want to use the
timer.
2
Set TIMER on the deck to REC.
3
Set the timer as required.
•
When you have set the time for the start of
recording, the deck turns off. When the specified
time arrives, the deck turns on and starts recording.
•
When you have set the time for the end of recording,
recording continues. When the specified time
arrives, the deck stops recording and turns off.
•
When you have set the time for both the start and
end of recording, the deck turns off. When the
starting time arrives, the deck turns on and starts
recording. When the ending time arrives, the deck
stops recording and turns off.
4
After you have finished using the timer, set TIMER
on the deck to OFF. Then change the deck to
standby mode by plugging the AC power cord of
the deck into a wall outlet or set the timer to
continuous operation.
•
If TIMER is left at REC, the deck will automatically
start recording the next time you turn on the deck.
•
If you do not change the deck to standby mode for
more than a week after timer recording has finished,
the recorded contents may disappear.
Make sure to change the deck to standby mode
within a week after timer recording is
completed.
The TOC on the MD is updated and recorded contents are
written to the MD when you turn on the deck. If the
recorded contents have disappeared, “Initialize” flashes
when you turn on the deck.
Notes
•
It may take about 30 seconds after the deck is turned on until
recording starts. When recording at a specified time using the
timer, be sure to take this time into account when setting the
recording start time.
•
During timer recording, new material is recorded from the end
of the recorded portion on the MD.
•
Material recorded during timer recording will be saved to the
disc the next time you turn on the deck. “TOC Writing” will
flash in the display at that time. Do not disconnect the AC
power cord or move the deck while the indication flashes.
•
Timer recording will stop if the disc becomes full.
Playing an MD using a timer
Recording to an MD using a timer
To specify the time for Do
The start of recording Steps 1 to 6, then press
x
The end of recording Steps 1 to 9
Both start and end of
recording
Steps 1 to 6, then press
x
AMS
H x
PLAY MODE
TIMER
44
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Using the CONTROL A1
ΙΙ
control system
Other Functions
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Using the CONTROL A1
ΙΙ
control system
(MDS-JE640
only)
This MD deck is compatible with the CONTROL A1II
Control System.
The CONTROL A1
ΙΙ
control system was designed to
simplify the operation of audio systems composed of
separate Sony components. CONTROL A1
ΙΙ
connections
provide a path for the transmission of control signals that
enable automatic operation and control features usually
associated with integrated systems.
Currently, CONTROL A1
ΙΙ
connections between a Sony
MD deck, CD player, amplifier (receiver), and cassette
deck provide automatic function selection and
synchronized recording.
In the future the CONTROL A1
ΙΙ
connection will work as
a multifunction bus allowing you to control various
functions for each component.
Note
The CONTROL A1
ΙΙ
control system is designed to maintain
upward compatibility as the control system is upgraded to handle
new functions. In this case, however, older components will not
be compatible with the new functions.
Connect monaural (2P) mini-plug cables in series to the
CONTROL A1
ΙΙ
jacks on the back of each component.
You can connect up to ten CONTROL A1
ΙΙ
compatible
components in any order. However, you can connect only
one of each type of component (i.e., 1 CD player, 1 MD
deck, 1 tape deck and 1 receiver). (You may be able to
connect more than one CD player or MD deck, depending
on the model. Refer to the operating instructions supplied
with the respective component for details.)
Example
In the CONTROL A1
ΙΙ
control system, the control signals
flow both ways, so there is no distinction of IN and OUT
jacks. If a component has more than one CONTROL A1
ΙΙ
jack, you can use either one, or connect different
components to each jack.
About the connecting cable
When a CONTROL A1
ΙΙ
compatible component is not
supplied with a connecting cable, use a commercially
available monaural (2P) mini-plug cable less than 2
meters (6.6 feet) long, with no resistance (such as the
Sony RK-G69HG).
Automatic function selection
When you connect CONTROL A1
ΙΙ
compatible Sony
components using CONTROL A1
ΙΙ
cables (not supplied),
the function selector on the amplifier (or receiver)
automatically switches to the correct input when you press
the play button on one of the connected components.
(For example, when you press
H
(play button) on the
MD deck while the CD is playing, the function selector on
the amplifier switches from CD to MD.)
Notes
•
This function works only when the components are connected
to the amplifier (or receiver) inputs according to the names on
the function buttons. Certain receivers allow you to switch the
names of the function buttons. In this case, refer to the
operating instructions supplied with the receiver.
•
When recording, do not play any components other than the
recording source. It will cause the automatic function selection
to operate.
CONTROL A1
ΙΙ
and CONTROL A1
compatibility
The CONTROL A1 control system has been updated to
the CONTROL A1
ΙΙ
which is the standard system in
the Sony 300 disc CD changer and other recent Sony
components. Components with CONTROL A1 jacks
are compatible with components with CONTROL A1
ΙΙ
,
and can be connected to each other. Basically, the
majority of the functions available with the
CONTROL A1 control system will be available with
the CONTROL A1
ΙΙ
control system. However, when
making connections between components with
CONTROL A1 jacks and components with
CONTROL A1
ΙΙ
jacks, the number of functions that
can be controlled may be limited depending on the
component. For detailed information, refer to the
operating instructions supplied with the component(s).
Connecting the CONTROL A1
ΙΙ
control
system
Basic functions of the CONTROL A1
ΙΙ
control system
Amplifier
(Receiver)
CD player MD deck Tape deck Other
component
45
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Using the CONTROL A1
ΙΙ
control system
Other Functions
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Synchronized recording
This function lets you conduct synchronized recording
between the MD deck and selected source component.
1
Set the source selector on the amplifier (or
receiver) to the source component.
2
Set the source component to playing pause mode
(make sure both the
H
and
X
indicators light
together).
3
Set the deck to recording pause mode.
4
Press
X
on the deck.
The source component is automatically released from
pause mode, and recording begins shortly thereafter.
When play ends from the source component, recording
stops.
z
You can use a special synchronized recording
This MD deck is equipped with a special synchronized recording
function that uses the CONTROL A1
ΙΙ
Control System (see
“Making a CD Synchro-recording from a Sony CD player
connected with a control A1
ΙΙ
cable (MDS-JE640 only)” on
page 22).
Note
Do not set more than one component to the pause mode.
46
masterpage:L0-Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Setting the keyboard
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Operating the
MD Deck
Using a
Keyboard
(MDS-JE640 only)
This chapter explains simple ways to
name a track or MD using an optional
keyboard, as well as how to operate the
MD deck directly using the keyboard.
Setting the keyboard
You can use any IBM
1)
-compatible keyboard
2)
with a PS/2
interface. You can select a keyboard with either an English
or Japanese keyboard layout. When you use a keyboard
with a different layout, you need to assign characters to
the keys. For details, see “Assigning characters to
keyboard keys” on page 48.
1) IBM is the registered trademark of International Business
Machines Corporation.
2) Power consumption must be 120 mA or less.
Connect the keyboard connector to the KEYBOARD IN
jack on the front panel of the deck.
You can connect or disconnect the keyboard at any time
regardless of whether the deck is turned on or off.
The first time you connect a keyboard, you need to select
the keyboard type.
1
While the deck is stopped, press MENU/NO twice.
“Setup Menu” appears in the display.
2
Turn AMS (or press
.
/
>
repeatedly) until
“Keyboard ?” appears, then press AMS or YES.
3
Turn AMS (or press
.
/
>
repeatedly) until
“Type” appears, then press AMS or YES.
4
Turn AMS (or press
.
/
>
repeatedly) to select
the setting, then press AMS or YES.
5
Press MENU/NO.
Connecting a keyboard to the MD deck
Selecting keyboard type
To use the keyboard with Select
English keyboard layout US (factory setting
1)
)
1) You can also recall the factory setting by pressing
CLEAR.
Japanese keyboard layout JP
AMS
YESMENU/NO
AMSKEYBOARD IN
47
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Naming a track or MD using the keyboard
Operating the MD Deck Using a Keyboard
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Naming a track or MD
using the keyboard
If you use a keyboard, you can quickly enter or edit
names. While editing a name, you can move the cursor in
jumps or scroll the name.
1
Press [Enter] while the deck is in one of the
operating modes listed below, depending on what
you want to name:
A flashing cursor appears in the display.
2
Enter a name.
In addition to letter keys, you can also use the keys
shown in the following table.
3
Press [Enter].
The whole name appears in the display.
Operations you may want to do while naming a
track or MD
1
Press [Esc] while the deck is in one of the
operating modes listed below, depending on what
you want to name:
“Edit Menu” appears in the display.
2
Press [F10]/[F11] repeatedly until “Name ?”
appears, then press [F12].
While the deck is recording, a flashing cursor appears
in the display and you can enter a name for the track
being recorded. In this case, go to step 5.
3
Press [F10]/[F11] repeatedly until “Nm In ?”
appears, then press [F12].
4
Press [F10]/[F11] repeatedly until the track number
(when naming a track) or “Disc” (when naming the
MD) flashes, then press [F12].
A flashing cursor appears.
5
Enter a name.
6
Press [F12].
The whole name appears in the display.
Shortcut to the naming procedure
To name Press while the deck is
A track
Playing, paused, recording, or stopped
with the track number displayed
The MD
Stopped with total number of tracks
displayed
To Press on the keyboard
Cancel the operation [Esc]
Switch between uppercase
and lowercase letters
[Caps Lock]
Move the cursor [T] or [t]
Scroll the name [Page Up] or [Page Down]
Erase the character at the
cursor position
[Delete]
Erase the character preceding
the cursor
[Back Space]
Using the Edit Menu
To name Press while the deck is
A track or the MD Stopped, playing, or paused
The track being recorded Recording the track
48
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Operating the deck using the keyboard/Assigning characters to keyboard keys
Operating the MD Deck Using a Keyboard
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Operating the deck using
the keyboard
You can operate the MD deck by using the keyboard keys.
This allows you to edit MDs and control the deck without
using buttons and control on the deck and on the remote.
For details about each function, see “Front panel
description” on page 4 or “Remote control description” on
page 6.
While a track is selected, you can edit the track directly
with the following numeric keypads.
Note
If you press [/], [*], or [+] when no track is selected, “Cannot
Edit” appears.
Assigning characters to
keyboard keys
If your keyboard layout does not match the system
settings, the display may show the wrong characters or no
characters at all when you press the keys. In this case, you
need to assign characters to the keys.
1
While the deck is stopped, press [Esc] twice.
“Setup Menu” appears in the display.
2
Press [F10]/[F11] repeatedly until “Keyboard ?”
appears, then press [F12].
3
Press [F10]/[F11] repeatedly until “Assign ?”
appears, then press [F12].
4
Press [F10]/[F11] repeatedly until the character you
want to assign appears.
If the character has already been assigned, “User”
appears. If it has not been assigned, “Default” appears.
5
Press [F12].
“<Set Key>” flashes in the display.
6
Press the key to be assigned to on the keyboard.
“Key Change” appears, and the selected character is
assigned to the key.
If “Same Key” appears
The same character is already assigned to the key.
If “Remove old assign?” appears
A different character is already assigned to the key.
Press [F12] to clear the current assignment and assign
the new character. Press [Esc] to cancel.
Notes
•
You can assign a character using [Shift] only for symbol and
number keys.
•
You cannot assign a character to the following keys:
[Esc], [F1] – [F12], [Back Space], [Tab], [Caps Lock], [Enter],
[Shift], [Ctrl], [Alt], [Windows], [Space], [Application], [Print
Screen], [Scroll Lock], [Pause], [Insert], [Delete], [Home],
[End], [Page Up], [Page Down], [Num Lock], [T], [t], [R],
[r], and [/], [*], [–], [+] (of the numeric keypads)
•
“Key Change” does not appear in step 6 if you try to assign a
character to one of the keys listed above or other keys for
which input is not accepted.
You can clear key assignments one at a time or all at once.
To clear a key assignment
1
Do steps 1 to 3 of “Assigning a character” on
page 48.
Operations using the keyboard
As the keyboard substitutes
for the following functions
Press
MENU/NO [Esc]
H
[F1]
X
[F2]
x
[F3]
AMS or
.
[F10]
AMS or
>
[F11]
YES [F12]
m
[T]
M
[t]
CLEAR [Delete]
Operations using numeric keypads
To Press
Divide the track [/]
Move the track [*]
Erase the track [–]
Combine tracks [+]
Assigning a character
Clearing key assignments
49
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Assigning characters to keyboard keys
Operating the MD Deck Using a Keyboard
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
2
Press [F10]/[F11] repeatedly until the character you
want to clear appears, then press [F12].
“<Set Key>” flashes in the display.
3
Press [Delete].
“Key Clear” appears and the key assignment is
cleared.
To clear all key assignments
1
Do steps 1 to 3 of “Assigning a character” on
page 48.
2
Press [Ctrl], [Alt], and [Delete] simultaneously.
“All Reset ?” appears in the display.
3
Press [F12].
“Complete!!” appears, and all assignments are cleared.
To cancel the operation
Press [Esc].
50
masterpage:L0-Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Precautions
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Additional
Information
This chapter provides additional
information that will help you
understand and maintain your MD
deck system.
Precautions
On safety
•
Should any solid object or liquid fall into the cabinet,
unplug the deck and have it checked by qualified
personnel before operating it any further.
•
Caution – The use of optical instruments with this
product will increase eye hazard.
On power sources
•
Before operating the deck, check that the operating
voltage of the deck is identical with your local power
supply. The operating voltage is indicated on the
nameplate at the rear of the deck.
•
The unit is not disconnected from the AC power source
(mains) as long as it is connected to the wall outlet, even
if the unit itself has been turned off.
•
If you are not going to use the deck for a long time, be
sure to disconnect the deck from the wall outlet. To
disconnect the AC power cord, grasp the plug itself;
never pull the cord.
•
AC power cord must be changed only at the qualified
service shop.
On condensation in the deck
If the deck is brought directly from a cold to a warm
location, or is placed in a very damp room, moisture may
condense on the lenses inside the deck. Should this occur,
the deck may not operate properly. In this case, remove
the MD and leave the deck turned on for several hours
until the moisture evaporates.
On the MiniDisc cartridge
•
Do not open the shutter to expose the MD.
•
Do not place the cartridge where it will be subject to
extremes of sunlight, temperature, moisture or dust.
On cleaning
Clean the cabinet, panel and controls with a soft cloth
slightly moistened with a mild detergent solution. Do not
use any type of abrasive pad, scouring powder or solvent
such as alcohol or benzine.
If you have any questions or problems concerning your
deck, please consult your nearest Sony dealer.
51
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Handling MDs/System limitations
Additional Information
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Handling MDs
The MD is enclosed in a cartridge to protect the disc from
debris or fingerprints and to make it easy to handle.
However, the presence of debris or a warped cartridge
may inhibit the disc from operating properly. To ensure
that you can always listen to the highest quality music,
follow the precautions below:
•
Do not touch the internal disc directly. Forcing the
shutter open may damage the internal disc.
•
Be sure to stick the labels supplied with the MD to the
appropriate positions. The shape of the labels may vary
depending on the MD brand.
Where to keep the MDs
Do not place the cartridge where it may be exposed to
direct sunlight or extremely high heat and humidity.
Regular maintenance
Wipe dust and debris from the surface of the cartridge
with a dry cloth.
System limitations
The recording system in your deck is radically different
from those used in cassette and DAT decks and is
characterized by the limitations described below. Note,
however, that these limitations are due to the inherent
nature of the MD recording system itself and not to
mechanical causes.
“Disc Full” appears in the display even before
the MD has reached the maximum recording
time
When 255 tracks have been recorded to the MD,
“Disc Full” appears regardless of the total recorded time.
More than 255 tracks cannot be recorded to the MD. To
continue recording, erase unnecessary tracks or use
another recordable MD.
“Disc Full” appears before the maximum
number of tracks is reached
Fluctuations in emphasis within tracks are sometimes
interpreted as track intervals, incrementing the track count
and causing “Disc Full” to appear.
The remaining recording time does not
increase even after erasing numerous short
tracks
Tracks under 12 seconds* in length are not counted and so
erasing them may not lead to an increase in the recording
time.
* During stereo recording.
In MONO or LP2 mode: about 24 seconds
In LP4 mode: about 48 seconds
The total recorded time and the remaining
recordable time on the MD may not total the
maximum recording time
Recording is done in minimum units of two seconds*
each, no matter how short the material is. The contents
recorded may thus be shorter than the maximum recording
capacity. Disc space may also be further reduced by
scratches.
* During stereo recording.
In MONO or LP2 mode: about 4 seconds
In LP4 mode: about 8 seconds
Limitations when recording over an existing
track
•
The correct remaining recordable time may not be
displayed.
•
You may find it impossible to record over a track if that
track has been recorded over several times already. If
this happens, erase the track (see page 31).
•
The remaining recordable time may be shortened out of
proportion to the total recorded time.
•
Recording over a track to eliminate noise is not
recommended since this may shorten the duration of the
track.
•
You may find it impossible to name a track while
recording over an existing track.
Tracks created through editing may exhibit
sound dropout as you are searching for a point
while monitoring the sound.
Some tracks cannot be combined with others
Tracks may not be combined if they have been edited.
Track numbers are not marked correctly
Incorrect assignment or marking of track numbers may
result when CD tracks are divided into several smaller
tracks during digital recording. Also, when the Automatic
Track Marking is activated during recording, track
numbers may not be marked as in the original, depending
on the program source.
“TOC Reading” appears for a long time
If the inserted recordable MD is brand new, “TOC
Reading” appears in the display longer than for MDs that
have already been used.
Shutter
Proper location
of the labels
52
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
System limitations/Troubleshooting
Additional Information
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
The correct recorded/playing time may not be
displayed during play of MDs recorded in
monaural mode.
Digital audio components, such as CDs, MDs, and DATs,
make it easy to produce high-quality copies of music by
processing music as a digital signal.
To protect copyrighted music sources, this deck uses the
Serial Copy Management System, which allows you to
make only a single copy of a digitally recorded source
through digital-to-digital connections.
You can make only a first-generation copy
1)
through a digital-to-digital connection.
Examples are as follows:
•
You can make a copy of a commercially available
digital sound program (for example, a CD or MD), but
you cannot make a second copy from the first-
generation copy.
•
You can make a copy of a digital signal from a digitally
recorded analog sound program (for example, an analog
record or a music cassette tape) or from a digital
satellite broadcast program, but you cannot make a
second copy from the first-generation copy.
1) A first-generation copy means the first recording of a digital
audio source through the deck’s digital input connector. For
example, if you record from a CD player connected to the
DIGITAL IN connector, that copy is a first-generation copy.
Note
The restrictions of the Serial Copy Management System do not
apply when you make a recording through the analog-to-analog
connections.
Troubleshooting
If you experience any of the following difficulties while
using the deck, use this troubleshooting guide to help you
remedy the problem. Should any problem persist, consult
your nearest Sony dealer.
The deck does not operate or operates poorly.
,
The MD may be dirty or damaged. Replace the MD.
The deck does not play.
,
Moisture has formed inside the deck. Take the MD
out and leave the deck in a warm place for several
hours until the moisture evaporates.
,
The deck is not on. Press
?/1
to turn on the deck.
,
The deck may not be connected to the amplifier
correctly. Check the connection (page 11).
,
The MD is inserted in the wrong direction. Slide the
MD into the disc slot with the label side up and the
arrow pointing toward the slot (page 4).
,
The MD may not be recorded. Replace the disc with
one that has been recorded.
The sound has a lot of static.
,
Strong magnetism from a television or a similar
device is interfering with operations. Move the deck
away from the source of strong magnetism.
The deck does not record.
,
The MD is record-protected. Slide the record-protect
tab and close the slot (page 14).
,
The deck is not connected properly to the program
source. Check the connection (page 11).
,
Select the correct program source using INPUT.
,
The recording level is not adjusted properly. Adjust
the recording level (page 16).
,
A premastered MD is inserted. Replace it with a
recordable MD.
,
There is not enough time left on the MD. Replace it
with another recordable MD with fewer recorded
tracks, or erase unnecessary tracks (page 31).
,
There has been a power failure or the AC power cord
has been disconnected during recording. Data
recorded to that point may be lost. Repeat the
recording procedure.
The deck does not perform Synchro-recording
with a CD player or video CD player.
,
The remote supplied with the MD deck is not set
correctly. Reset the remote.
A message and a three- or five-digit
alphanumeric code alternate in the display.
,
The Self-diagnosis function is on (page 53).
The keyboard does not operate (MDS-JE640
only).
,
Disconnect the keyboard, then re-connect it.
Note
If the deck does not operate properly even after you have
attempted the prescribed remedies, turn off the deck, then re-
insert the plug into the power outlet.
Guide to the Serial Copy Management
System
53
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Self-diagnosis function
Additional Information
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Self-diagnosis function
The deck’s self-diagnosis function automatically checks
the condition of the MD deck when an error occurs, then
issues a three- or five-digit code and an error message on
the display. If the code and message alternate, find them in
the following table and perform the indicated
countermeasure. Should the problem persist, consult your
nearest Sony dealer.
Three- or five-
digit code/
Message
Cause/Remedy
C11/Protected
The inserted MD is record-protected.
, Take out the MD and close the record-
protect slot (page 14).
C12/Cannot Copy
You tried to record a CD with a format
that the external device connected to the
deck does not support, such as CD-ROM
or video CD.
, Remove the disc and insert a music
CD.
C13/REC Error
The recording was not made properly.
, Set the deck in a stable surface, and
repeat the recording procedure.
The inserted MD is dirty (with smudges,
fingerprints, etc.), scratched, or
substandard in quality.
, Replace the disc and repeat the
recording procedure.
C13/Read Error
The deck could not read the TOC on the
MD properly.
, Take out the MD and insert it again.
C14/Toc Error
The deck could not read the TOC on the
MD properly.
, Insert another disc.
, If possible, erase all the tracks on the
MD (page 32).
C41/Cannot Copy
The sound source is a copy of
commercially available music software, or
you tried to record a CD-R (Recordable
CD).
, The Serial Copy Management System
prevents making a digital copy
(page 52). You cannot record a CD-R.
C71/Din Unlock
The sporadic appearance of this message
is caused by the digital signal being
recorded. This will not affect the
recording.
While recording from a digital component
connected through the DIGITAL IN
connector, the digital connecting cable
was unplugged or the digital component
turned off.
, Connect the cable or turn the digital
component back on.
E0001/
MEMORY NG
There is an error in the internal data that
the deck needs in order to operate.
, Consult your nearest Sony dealer.
E0101/
LASER NG
There is a problem with the optical
pickup.
, The optical pickup may have failed.
Consult your nearest Sony dealer.
Three- or five-
digit code/
Message
Cause/Remedy
54
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Display messages
Additional Information
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Display messages
The following table explains the various messages that
appear in the display. Messages are also displayed by the
deck’s Self-diagnosis function (see page 53).
Message Meaning
Auto Cut The Auto Cut Function is on (page 18).
Blank Disc
A new (blank) or erased MD has been
inserted.
Cannot Copy
An attempt was made to make a second
copy from a digitally dubbed MD
(page 52).
Cannot Edit
An attempt was made to edit a
premastered MD, to edit the MD
during Program or Shuffle Play or to
change the recording level of an MD
recorded in LP2 or LP4 Stereo mode.
Disc Full The MD is full (page 51).
Impossible
The deck cannot do the specified
operation (pages 14, 32 and 34).
Incomplete!(!)
The S.F Edit (changing the recording
level after recording, Fade-in, Fade-
out) operation was not performed
properly because the deck was moved
while recording was in progress or the
MD is damaged or dirty.
Initialize (flashing)
The Setup Menu settings have been
lost.
Or the contents recorded by the timer
have disappeared over time and are not
be available for saving to disc, or
Program Play could not be activated
since the program has disappeared over
time.
(The message flashes for about four
seconds when you turn on the deck by
pressing
?/1
.)
Name Full!(!)
The naming capacity of the MD has
reached its limit (about 1,700
characters).
No Change
While attempting to change the
recording level after recording, you
pressed MENU/NO without actually
changing the recording level, so no
change was made.
No Disc There is no MD in the deck.
No Name The track or disc has no name.
No Program!(!)
You tried to start Program Play when
no program exists.
Premastered
An attempt was made to record to a
premastered MD.
ProgramFull(!)
The program contains the maximum
number of tracks. You cannot add any
more tracks.
REMOTE
The MD is being controlled by an
external device connected to the deck.
1)
S.F Edit!
You attempted to perform another
operation while in S.F Edit (changing
the recording level after recording,
Fade-in, Fade-out) mode.
You cannot perform any other
operations while in S.F Edit mode.
(S.F) Edit NOW
You pressed
?/1
while in S.F Edit
(changing the recording level after
recording, Fade-in, Fade-out) mode.
If you turn off the deck while in S.F
Edit mode, any changes that you have
made will not be made properly. Finish
the changes and leave S.F Edit mode
before turning off the deck. If you
accidentally turn off the deck while
changes are being made, press
?/1
while the message is displayed.
Smart Space
The Smart Space Function is on
(page 18).
TOC Reading
The deck is checking the TOC (Table
Of Contents) on the MD.
1) If “REMOTE” appears under other circumstances, turn off
the deck, then turn it on again.
Message Meaning
55
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Specifications
Additional Information
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Specifications
Inputs
Outputs
General
Power requirements
Supplied accessories
See page 10.
US and foreign patents licensed from Dolby Laboratories.
Design and specifications are subject to change without
notice.
System
MiniDisc digital audio system
Disc
MiniDisc
Laser
Semiconductor laser (
λ
= 780 nm)
Emission duration: continuous
Laser output
MAX 44.6 µW
1)
1) This output is the value
measured at a distance of
200 mm from the objective lens
surface on the Optical Pick-up
Block with 7 mm aperture.
Laser diode
Material: GaAlAs
Revolutions (CLV)
400 rpm to 900 rpm
Error correction
ACIRC (Advanced Cross Interleave
Reed Solomon Code)
Sampling frequency
44.1 kHz
Coding
ATRAC (Adaptive TRansform
Acoustic Coding)/ATRAC 3
Modulation system
EFM (Eight-to-Fourteen
Modulation)
Number of channels
2 stereo channels
Frequency response
5 to 20,000 Hz ±0.3 dB
Signal-to-noise ratio
MDS-JE440: Over 96 dB during
play
MDS-JE640: Over 98 dB during
play
Wow and flutter
Below measurable limit
ANALOG IN
Jack type: phono
Impedance: 47 kilohms
Rated input: 500 mVrms
Minimum input: 125 mVrms
DIGITAL IN
Connector type: square optical
Impedance: 660 nm (optical wave
length)
DIGITAL OPTICAL IN
(MDS-JE640 European
models only)
Connector type: square optical
Impedance: 660 nm (optical wave
length)
DIGITAL COAXIAL IN
(MDS-JE640 European
models only)
Jack type: phono
Impedance: 75 ohms
Rated input: 0.5 Vp-p, ±20 %
PHONES (MDS-JE640
only)
Jack type: stereo phone
Rated output: 28 mW
Load impedance: 32 ohms
ANALOG OUT
Jack type: phono
Rated output: 2 Vrms (at 50
kilohms)
Load impedance: over 10 kilohms
DIGITAL OUT
Connector type: square optical
Rated output: –18 dBm
Load impedance: 660 nm (optical
wave length)
DIGITAL OPTICAL OUT
(MDS-JE640 European
models only)
Connector type: square optical
Rated output: –18 dBm
Load impedance: 660 nm (optical
wave length)
Where purchased Power requirements
U.S.A. and Canada 120 V AC, 60 Hz
Europe 220 – 230 V AC, 50/60 Hz
Australia 240 V AC, 50/60 Hz
Hong Kong 220 – 240 V AC, 50/60 Hz
Other countries
110 – 120 or 220 – 240 V AC
selectable, 50/60 Hz
Power consumption
15 W
Dimensions (approx.)
430
×
95
×
285 mm (17
×
3
3
/
4
×
11
1
/
4
in.) (w/h/d) incl. projecting
parts and controls
Mass (approx.)
MDS-JE440: 3.0 kg (6 lbs 10 oz)
MDS-JE640: 3.1 kg (6 lbs 14 oz)
56
masterpage:Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Edit menu table/Setup menu table
Additional Information
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Edit menu table
The following table provides a quick guide to the various editing functions that you can perform using the Edit Menu.
To access the Edit Menu
Press MENU/NO to display “Edit Menu.”
Note
The available menu items may vary according to the current status of the deck.
Setup menu table
The following table provides an overview of the various Setup Menu items, including their parameters, factory settings, and
reference page(s) in the manual.
To access the Setup Menu
While the deck is stopped, press MENU/NO twice to display “Setup Menu.”
Menu item Sub-item Function Reference page
Name ?
Nm In ? Names a track or an MD. 35
Nm Copy ? Copies a name to a track or an MD. 36
Nm Erase ? Erases a name. 37
Nm All Ers? Erases all the names on an MD. 37
Tr Erase ? — Erases a track. 31
Move ? — Moves a track. 34
Combine ? — Combines tracks. 34
Divide ? — Divides a track. 33
A-B Erase ? — Erases a portion of a track. 32
All Erase ? — Erases all the tracks on an MD. 32
Undo ? — Undoes the last edit operation. 39
S.F Edit?
Tr Level ? Changes the overall recorded level after recording. 37
Fade In ? Records over a track using Fade-in Recording. 38
Fade Out ? Records over a track using Fade-out Recording. 38
Setup ? — Enters Setup Menu (below) directly. —
Menu item Sub-item Function Parameters
Factory
setting
Reference
page
Program ? — Creates a program. — — 27
T.Mark — Turns Automatic Track Marking on or off. Lsyn/Off Lsyn 19
LS(T) —
Changes the trigger level for Automatic Track
Marking.
–72 to 0dB
2)
–50dB 19
Auto
1)
— Turns Auto Space and Auto Pause on or off. Off/Space/Pause Off 29
S.Space — Turns Smart Space and Auto Cut on or off. On/Off On 18
P.Hold — Turns Peak Hold on or off. On/Off Off 17
F.in — Sets the duration of Fade-in Play and Recording. 1.0 to 15.0s 5.0s 41
F.out — Sets the duration of Fade-out Play and Recording. 1.0 to 15.0s 5.0s 41
Pitch
1)
— Changes the playing speed by auto steps. –36 to 0 0 40
Pfine
1)
— Fine controls the playing speed. –87.5 to 0.0% 0.0% 40
Ain
1)
—
Adjusts the analog signal level input through the
ANALOG IN jacks.
–
∞
to +12.0dB 0.0dB 17
Opt1 or Coax
1)
—
Adjusts the digital signal level input through the
DIGITAL OPTICAL IN1 connector or DIGITAL
COAXIAL IN jack.
–
∞
to +18.0dB 0.0dB 17
57
masterpage:Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB03OPE-CED.fm]
Setup menu table
Additional Information
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
To recall a factory setting
Press CLEAR while selecting the parameter.
Opt2 or Opt
1)
—
Adjusts the digital signal level input through the
DIGITAL OPTICAL IN(2) connector.
–
∞
to +18.0dB 0.0dB 17
Aout
1)
—
Adjusts the analog signal level output to the
ANALOG OUT and PHONES jacks.
–20.2 to 0.0dB 0.0dB 24
Sleep
1)
— Sets the duration of Sleep Timer.
30/60/90/
120min
60min 42
Sleep — Turns Sleep Timer on or off. On/Off Off 42
Keyboard ?
1)
Type
Selects the type of the keyboard connected to the
deck.
US/JP US 46
Assign ?
Assigns a character to the keyboard connected to the
deck.
——48
LPstamp —
Sets whether to automatically add “LP:” at the
beginning of a track name during a long time
recording.
On/Off On 15
1) MDS-JE640 only
2) Adjustable in 2 dB steps.
Menu item Sub-item Function Parameters
Factory
setting
Reference
page
masterpage:Idx-Leftfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB01COV-CEDIX.fm]
Index
Additional Information
58
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Index
A
AMS 24
Audio connecting cord 12
Auto cut 18
Auto pause 29
Auto space 29
Auto step control 40
Automatic track marking 19
B
Battery 10
Blank
erasing during recording.
See
Smart
space and Auto cut
inserting during play.
See
Auto
space
C
CD Synchro-recording 21
Combining 34
CONTROL A1II control system 44
D
Disc memo copy 21
Disc name 35
Display
disc name 24
messages 54
remaining recordable time 17
total number of tracks 9, 17
total recorded time 9, 17
track name 24
window 8
Dividing 33
E
Erasing
a name 37
a portion of a track 32
a track 31
a track number 34
all names 37
all tracks 32
F
Fade-in 41
Fade-out 41
Fine control 40
H
Headphones 23
Hooking up 11
I
Input monitor 17
K
Keyboard
assigning characters 48
naming a track or MD 47
operating the deck 48
setting 46
L
Level
input signal 9, 14
output signal 24
recording 16
Locating
particular point 25
tracks 24
LP mode 15
M
Manual track marking 19
MD (MiniDisc)
ejecting 14, 23
record-protect tab 14
Menu
edit 56
setup 56
Monitoring input signal.
See
Input
monitor
Moving 34
Music Synchro-recording 20
N
Naming
copying 36
how to 35
renaming 36
using the keyboard 47
O
Optical cable 12
P
Pausing
after each track.
See
Auto pause
play 23
recording 14
Peak hold 17
Peak level meters 17
Pitch control 40
Playing
entering the number 24
from the first track 23
specific track.
See
Locating
Program play
changing the contents 28
checking the contents 28
programing 27
R
Recording
how to 13
level 16
mode 15
over existing tracks 13
Remote control 6
Repeat A-B play 26
Repeat All play 26
Repeat 1 play 26
masterpage:Idx-Rightfilename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB01COV-CEDIX.fm]
Index
Additional Information
59
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
Repeating
a portion.
See
Repeat A-B play
all tracks.
See
Repeat All play
current track.
See
Repeat 1 play
S
Sampling rate converter 15
SCMS.
See
Serial Copy Management
System
Scrolling the name 24
Self-diagnosis function 53
Serial Copy Management System 52
Shuffle play 27
Sleep timer 42
Smart space 18
Supplied accessories 10
System limitations 51
S.F Edit 37
T
Time machine recording 20
Timer
falling asleep to music 42
playing 43
recording 43
TOC 15, 31
Track marking 19
Troubleshooting 52
U
Undoing 39
Sony Corporation Printed in Malaysia
masterpage:Right
filename[\\Win-35\logitecmo\422958711MDSJE640CED\01GB04BCO-CED.fm]
model name1[MDS-JE640] model name2[MDS-JE440]
[4-229-587-11(1)]
