Safety Instructions . . . . . .2–8
Operating Instructions
Aluminum Foil . . . . . . . . . . . .17
Clock and Timer . . . . . . . . . .19
Oven . . . . . . . . . . . . . . . . .12–31
Baking and Roasting . . . . . .17
Broiling, Broiling Guide . . .18
Convection . . . . . . . . . . .22–26
Electric Ignition . . . . . . . . . .16
Oven Control . . . . . . . . . . . .12
Preheating . . . . . . . . . . . . . .17
Probe . . . . . . . . . . . . . . . . . .21
Sabbath Feature . . . . . . . . . .15
Self-Cleaning . . . . . . . . .30, 31
Shelves . . . . . . . . . . . . . . . . .16
Special Features . . . . . . .13, 14
Thermostat Adjustment . . . .27
Timed Baking
and Roasting . . . . . . . . . . . .20
Timed Convection Baking . .26
Surface Cooking . . . . . . . . .9, 10
Control Settings . . . . . . . . . . .9
Warming Zone . . . . . . . . . . .11
Warming Drawer . . . . . . .28, 29
Care and Cleaning
Broiler Pan and Grid . . . . . . .37
Burner Assembly . . . . . . . .32, 33
Burner Grates . . . . . . . . . . . . .34
Control Panel and Knobs . . . .39
Cooktop . . . . . . . . . . . . . .34–36
Glass . . . . . . . . . . . . . . . .35, 36
Porcelain . . . . . . . . . . . . . . .34
Door Removal . . . . . . . . . . . .37
Oven Bottom . . . . . . . . . . . . .37
Oven Light Replacement . . . .40
Oven Vents . . . . . . . . . . . . . . .39
Self-Cleaning . . . . . . . . . .30, 31
Shelves and Racks . . . . . . .38, 40
Stainless Steel Surfaces . . . . . .34
Top Light . . . . . . . . . . . . . . . .40
Warming Drawer . . . . . . . . . .38
Installation
Instructions
. . . . . . . . . .41–52
Air Adjustment . . . . . . . . . . . .51
Anti-Tip Device . . . . . . . . .44, 52
Checking Burner
Ignition . . . . . . . . . . . . . . .49, 50
Connecting the Range
to Gas . . . . . . . . . . . . . . . .45–47
Dimensions and Clearances . .43
Electrical Connections . . .48, 49
Leveling the Range . . . . . . . .51
LP . . . . . . . . . . . . . . . . . . . . . .52
Troubleshooting
Tips
. . . . . . . . . . . . . . . . .53–56
Consumer Support
Consumer Support . .Back Cover
Product Registration . . . . .57, 58
Warranty for Customers
in Canada . . . . . . . . . . . . . . . .63
Warranty for Customers
in the U.S.A. . . . . . . . . . . . . .62
Ranges
183D5580P120 49-85035 02-02 JR 350A4502P275
JGB910
JGB920
Owner’s Manual
& Installation
Instructions
www.GEAppliances.com
XL44
™
Self-Cleaning Gas Convection
Write the model and serial
numbers here:
Model #______________________
Serial # ______________________
You can find them on a label
on the front of the range behind
the warming drawer.
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
2
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
—
WHAT TO DO IF YOU
SMELL GAS
■ Do not try to light any appliance.
■ Do not touch any electrical switch;
do not use any phone in your building.
■ Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
■ If you cannot reach your gas supplier,
call the fire department.
— Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
WARNING:
If the information
in this manual is not followed exactly,
a fire or explosion may result causing
property damage, personal injury
or death.

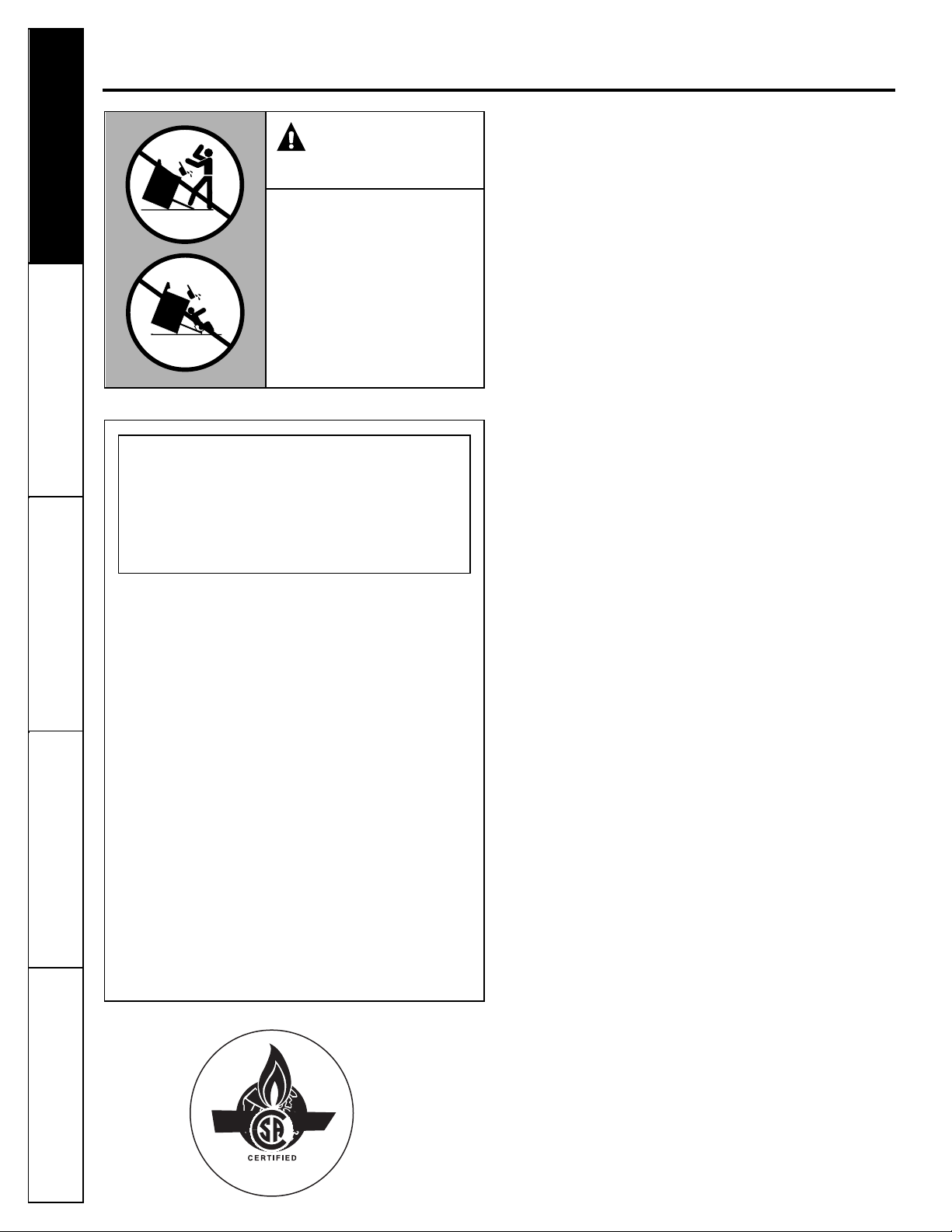

WARNING!
ANTI-TIP DEVICE
■
ALL RANGES CAN TIP
■
INJURY TO PERSONS
COULD RESULT
■
INSTALL ANTI-TIP
DEVICES PACKED WITH
RANGE
■
SEE INSTALLATION
INSTRUCTIONS
Consumer Support
Operating Instructions
Safety Instructions Installation Instructions Troubleshooting Tips
3
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage, personal injury, or loss of life.
All ranges can tip and injury could result.
To prevent accidental tipping of the range, attach it to the wall by installing the Anti-Tip device supplied.
To check if the device is installed and engaged properly, carefully tip the range forward. The Anti-Tip
device should engage and prevent the range from tipping over.
If you pull the range out from the wall for any reason, make sure the device is properly engaged
when you push the range back against the wall. If it is not, there is a possible risk of the range
tipping over and causing injury if you or a child stand, sit or lean on an open door.
Please refer to the Anti-Tip device information in this manual. Failure to take this precaution
could result in tipping of the range and injury.
ANTI-TIP DEVICE
www.GEAppliances.com
Operating Instructions
4
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
Have the installer show you the location of the range gas shut-off valve and how to shut it off if necessary.
■Have your range installed and properly
grounded by a qualified installer, in
accordance with the Installation Instructions.
Any adjustment and service should be
performed only by qualified gas range
installers or service technicians.
■Do not attempt to repair or replace any
part of your range unless it is specifically
recommended in this manual. All other
service should be referred to a qualified
technician.
■Plug your range into a 120-volt grounded
outlet only. Do not remove the round
grounding prong from the plug. If in doubt
about the grounding of the home electrical
system, it is your personal responsibility and
obligation to have an ungrounded outlet
replaced with a properly grounded, three-
prong outlet in accordance with the
National Electrical Code. Do not use an
extension cord with this appliance.
SAFETY PRECAUTIONS
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to
publish a list of substances known to the state to cause birth defects or other reproductive harm, and
requires businesses to warn customers of potential exposure to such substances.
Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon
monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or
LP fuels. Properly adjusted burners, indicated by a bluish rather than a yellow flame, will minimize
incomplete combustion. Exposure to these substances can be minimized by venting with an open
window or using a ventilation fan or hood.
Fluorescent light bulbs and safety valves on standing pilot ranges contain mercury. If your model has
these features, they must be recycled according to local, state and federal codes.
Consumer Support
Operating Instructions
Safety Instructions Installation Instructions Troubleshooting Tips
5
■Locate the range out of kitchen traffic path
and out of drafty locations to prevent pilot
outage (on standing pilot models) and poor
air circulation.
■Be sure all packaging materials are removed
from the range before operating it to
prevent fire or smoke damage should the
packaging material ignite.
■Be sure your range is correctly adjusted by
a qualified service technician or installer for
the type of gas (natural or LP) that is to be
used. Your range can be converted for use
with either type of gas. See the
Installation of
the range
section.
■
WARNING:
These adjustments must
be made by a qualified service technician
in accordance with the manufacturer’s
instructions and all codes and requirements
of the authority having jurisdiction. Failure
to follow these instructions could result in
serious injury or property damage. The
qualified agency performing this work
assumes responsibility for the conversion.
■After prolonged use of a range, high floor
temperatures may result and many floor
coverings will not withstand this kind of use.
Never install the range over vinyl tile or
linoleum that cannot withstand such type
of use. Never install it directly over interior
kitchen carpeting.
■Do not leave children alone or unattended
where a range is hot or in operation.
They could be seriously burned.
■Do not allow anyone to climb, stand or hang
on the oven door, storage drawer, warming
drawer or cooktop. They could damage the
range and even tip it over, causing severe
personal injury.
■
CAUTION:
Items of interest to
children should not be stored in cabinets
above a range or on the backsplash of a
range—children climbing on the range to
reach items could be seriously injured.
■For your safety, never use your appliance
for warming or heating the room.
■Never wear loose fitting or hanging garments
while using the appliance. Be careful when
reaching for items stored in cabinets over the
range. Flammable material could be ignited
if brought in contact with flame or hot oven
surfaces and may cause severe burns.
■Do not store flammable materials in an
oven, a range storage drawer, a warming
drawer or near a cooktop.
■Do not store or use combustible materials,
gasoline or other flammable vapors and
liquids in the vicinity of this or any other
appliance.
■Do not let cooking grease or other flammable
materials accumulate in or near the range.
■Do not use water on grease fires. Never pick
up a flaming pan. Turn the controls off.
Smother a flaming pan on a surface burner
by covering the pan completely with
a well-fitting lid, cookie sheet or flat tray.
Use a multi-purpose dry chemical or
foam-type fire extinguisher.
■Flaming grease outside a pan can be put
out by covering it with baking soda or,
if available, by using a multi-purpose dry
chemical or foam-type fire extinguisher.
■Flame in the oven or warming drawer can be
smothered completely by closing the oven
door or drawer and turning the control to
off or by using a multi-purpose dry chemical
or foam-type fire extinguisher.
■Let the burner grates and other surfaces
cool before touching them or leaving them
where children can reach them.
■Never block the vents (air openings) of the
range. They provide the air inlet and outlet
that are necessary for the range to operate
properly with correct combustion. Air
openings are located at the rear of the
cooktop, at the top and bottom of the oven
door, and at the bottom of the range under
the warming drawer, storage drawer or
kick panel.
■Large scratches or impacts to glass doors
or cooktops can lead to broken or
shattered glass.
SAFETY PRECAUTIONS
www.GEAppliances.com
SURFACE BURNERS
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
Operating Instructions
6
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
Use proper pan size—avoid pans that are unstable or easily tipped. Select cookware having flat bottoms
large enough to cover burner grates. To avoid spillovers, make sure cookware is large enough to contain
the food properly. This will both save cleaning time and prevent hazardous accumulations of food, since
heavy spattering or spillovers left on range can ignite. Use pans with handles that can be easily grasped
and remain cool.
■Always use the
LITE
position (on electric
ignition models) or the
HI
position (on
standing pilot models) when igniting the
top burners and make sure the burners
have ignited.
■Never leave the surface burners unattended
at high flame settings. Boilovers cause smoking
and greasy spillovers that may catch on fire.
■Adjust the top burner flame size so it does
not extend beyond the edge of the
cookware. Excessive flame is hazardous.
■Use only dry pot holders— moist or damp
pot holders on hot surfaces may result in
burns from steam. Do not let pot holders
come near open flames when lifting
cookware. Do not use a towel or other bulky
cloth in place of a pot holder.
■When using glass cookware, make sure it
is designed for top-of-range cooking.
■To minimize the possibility of burns, ignition
of flammable materials and spillage, turn
cookware handles toward the side or back
of the range without extending over
adjacent burners.
■Carefully watch foods being fried at a high
flame setting.
■Always heat fat slowly, and watch as it heats.
■Do not leave any items on the cooktop. The
hot air from the vent may ignite flammable
items and will increase pressure in closed
containers, which may cause them to burst.
■If a combination of oils or fats will be used
in frying, stir together before heating or
as fats melt slowly.
■Use a deep fat thermometer whenever
possible to prevent overheating fat beyond
the smoking point.
■Use the least possible amount of fat for
effective shallow or deep-fat frying. Filling
the pan too full of fat can cause spillovers
when food is added.
■When flaming foods are under the hood,
turn the fan off. The fan, if operating, may
spread the flames.
■Do not use a wok on the cooking surface
if the wok has a round metal ring that is
placed over the burner grate to support the
wok. This ring acts as a heat trap, which may
damage the burner grate and burner head.
Also, it may cause the burner to work
improperly. This may cause a carbon
monoxide level above that allowed by
current standards, resulting in a health
hazard.
■Foods for frying should be as dry as possible.
Frost on frozen foods or moisture on fresh
foods can cause hot fat to bubble up and
over the sides of the pan.
■Never try to move a pan of hot fat, especially
a deep fat fryer. Wait until the fat is cool.
■Do not leave plastic items on the cooktop—
they may melt if left too close to the vent.
■Keep all plastics away from the surface
burners.
■To avoid the possibility of a burn, always be
certain that the controls for all burners are
at the
OFF
position and all grates are cool
before attempting to remove them.
■ If range is located near a window, do not
hang long curtains that could blow over the
surface burners and create a fire hazard.
■If you smell gas, turn off the gas to the range
and call a qualified service technician. Never
use an open flame to locate a leak.
■Always turn the surface burner controls off
before removing cookware.
WARNING!
■The purpose of the warming drawer is
to hold hot cooked foods at serving
temperature. Always start with hot food;
cold food cannot be heated or cooked in
the warming drawer.
■Do not use the warming drawer to dry
newspapers. If overheated, they can catch
on fire.
■Do not leave paper products, cooking
utensils or food in the warming drawer
when not in use.
■Never leave jars or cans of fat drippings in
or near your warming drawer.
■Always keep wooden and plastic utensils
and canned food a safe distance away from
your warming drawer.
■Do not warm food in the warming drawer
for more than two hours.
■
Do not touch the heating element or the
interior surface of the warming drawer.
These surfaces may be hot enough to burn.
REMEMBER:
The inside surface of the
warming drawer may be hot when the
drawer is opened.
■Use care when opening the drawer. Open
the drawer a crack and let hot air or steam
escape before removing or replacing food.
Hot air or steam which escapes can cause
burns to hands, face and/or eyes.
■Do not use aluminum foil to line the
drawer. Foil is an excellent heat insulator
and will trap heat beneath it. This will upset
the performance of the drawer and it could
damage the interior finish.
ELECTRIC WARMING DRAWER
Consumer Support
Operating Instructions
Safety Instructions Installation Instructions Troubleshooting Tips
7
■Avoid scratching the glass cooktop surface.
The glass surface can be scratched with
items such as sharp instruments, rings or
other jewelry and rivets on clothing.
■Do not operate the cooktop if the glass is
broken. Spillovers or cleaning solution may
penetrate a broken cooktop and create a
risk of electrical shock. Contact a qualified
technician immediately should your glass
cooktop surface become broken.
■Never use the glass cooktop surface as
a cutting board.
■Do not place or store items that can melt
or catch fire on the glass cooktop surface,
even when it is not being used.
■Be careful when placing spoons or other
stirring utensils on glass cooktop surface
when it is in use. They may become hot
and could cause burns.
■Clean the cooktop surface with caution.
If a wet sponge or cloth is used to wipe
spills on a hot surface, be careful to avoid
steam burns. Some cleaners can produce
noxious fumes if applied to a hot surface.
NOTE:
We recommend that you avoid
wiping any surface areas until they have
cooled and the indicator light has gone off.
Sugar spills are the exception to this. Please
see
Cleaning the glass cooktop surface
section.
■When the cooktop surface is cool, use only
CERAMA BRYTE
®
Ceramic Cooktop
Cleaner and the CERAMA BRYTE
®
Cleaning Pad to clean the cooktop.
■To avoid possible damage to the cooking
surface, do not apply cleaning cream to the
glass surface when it is hot.
■After cleaning, use a dry cloth or paper
towel to remove all cleaning cream residue.
■Read and follow all instructions and
warnings on the cleaning cream labels.
Use care when touching the glass cooktop surface. The glass surface of the cooktop will retain heat
after the controls have been turned off.
GLASS COOKTOP SURFACE
(on some models)
www.GEAppliances.com
8
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
■Be sure to wipe up excess spillage before
self-cleaning operation.
■Before self-cleaning the oven, remove
the shelves, broiler pan, grid and
other cookware.
■Do not clean the door gasket. The door
gasket is essential for a good seal. Care
should be taken not to rub, damage or
move the gasket.
■Clean only parts listed in this Owner’s
Manual.
■If the self-cleaning mode malfunctions, turn
the oven off and disconnect the power supply.
Have it serviced by a qualified technician.
■Do not use oven cleaners. No commercial
oven cleaner or oven liner of any kind
should be used in or around any part of
the oven. Residue from oven cleaners will
damage the inside of the oven when the
self-clean cycle is used.
SELF-CLEANING OVEN
■Do not use the oven for a storage area.
Items stored in the oven can ignite.
■Keep the oven free from grease buildup.
■Place the oven shelves in the desired
position while the oven is cool.
■Pulling out the shelf to the stop-lock is a
convenience in lifting heavy foods. It is also
a precaution against burns from touching
hot surfaces of the door or oven walls. The
lowest position “R” is not designed to slide.
■Do not heat unopened food containers.
Pressure could build up and the container
could burst, causing an injury.
■Never use aluminum foil to line the oven
bottom. Improper use of foil could start
a fire.
■Do not use aluminum foil anywhere in the
oven except as described in this manual.
Misuse could result in a fire hazard or
damage to the range.
■When using cooking or roasting bags in the
oven, follow the manufacturer’s directions.
■Do not use your oven to dry newspapers.
If overheated, they can catch fire.
■Use only glass cookware that is
recommended for use in gas ovens.
■Always remove the broiler pan from range as
soon as you finish broiling. Grease left in the
pan can catch fire if oven is used without
removing the grease from the broiler pan.
■When broiling, if meat is too close to the
flame, the fat may ignite. Trim excess fat to
prevent excessive flare-ups.
■Make sure the broiler pan is in place correctly
to reduce the possibility of grease fires.
■If you should have a grease fire in the broiler
pan, press the
CLEAR/OFF
pad, and keep
the oven door closed to contain fire until
it burns out.
Stand away from the range when opening the door of a hot oven. The hot air and steam that escape can
cause burns to hands, face and eyes.
OVEN
COOK MEAT AND POULTRY THOROUGHLY…
Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F. and poultry to
at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against
foodborne illness.
9
Throughout this manual, features and appearance may vary from your model.
How to Light a Gas Surface Burner
Push the control knob in and turn it to
the
LITE
position.
You will hear a little
clicking
noise—
the sound of the electric spark igniting
the burner.
Turn the knob to adjust the flame size.
If the knob stays at
LITE,
it will continue
to click.
When one burner is turned to
LITE,
all
the burners spark. Do not attempt to
disassemble or clean around any burner
while another burner is on. An electric
shock may result, which could cause you
to knock over hot cookware.
Push the control knob in and turn it
to the LITE position.
How to Select Flame Size
For safe handling of cookware, never let the flames
extend up the sides of the cookware.
Watch the flame, not the knob, as you
reduce heat. The flame size on a gas burner
should match the cookware you are using.
Any flame larger than the bottom of the
cookware is wasted and only serves to heat
the handle.
In Case of Power Failure
In case of a power failure, you can light the
gas surface burners on your range with a
match. Hold a lit match to the burner, then
push in and turn the control knob to the
LITE
position. Use extreme caution when
lighting burners this way.
Surface burners in use when an electrical
power failure occurs will continue to
operate normally.
Before Lighting a Gas Burner
■ If drip pans are supplied with your range,
they should be used at all times.
■ Make sure all grates on the range are in
place before using any burner.
After Lighting a Gas Burner
■ Do not operate the burner for an
extended period of time without
cookware on the grate. The finish on
the grate may chip without cookware
to absorb the heat.
■ Be sure the burners and grates are cool
before you place your hand, a pot holder,
cleaning cloths or other materials on
them.
Sealed Gas Burners
The smaller burner (right rear position) will
give the best simmer results. It offers precise
cooking performance for delicate foods,
such as sauces or foods which need to cook
over low heat for a long time. It can be
turned down to a very low simmer setting.
The largest burners are higher powered
than the others and will bring liquids to
a boil quicker.
Consumer Support
Operating InstructionsSafety Instructions
Installation Instructions Troubleshooting Tips
Using the gas surface burners.
www.GEAppliances.com
Using the gas surface burners.
Wok This Way
We recommend that you use a flat-bottomed wok.
They are available at your local retail store.
Only a flat-bottomed wok should be used.
Do not use a flat-bottomed wok with a
wok holder.
Do not use a flat-bottomed wok on a
support ring. Placing the ring over the
burner or grate may cause the burner
to work improperly, resulting in carbon
monoxide levels above allowable current
standards. This could be dangerous to
your health.
Use a flat-bottomed wok.
Stove Top Grills
Do not use stove top grills on your sealed
gas burners. If you use the stove top grill
on the sealed gas burner, it will cause
incomplete combustion and can result
in exposure to carbon monoxide levels
above allowable current standards.
This can be hazardous to your health.
Top-of-Range Cookware
Aluminum:
Medium-weight cookware is
recommended because it heats quickly
and evenly. Most foods brown evenly in an
aluminum skillet. Use saucepans with tight-
fitting lids when cooking with minimum
amounts of water.
Cast-Iron:
If heated slowly, most skillets will
give satisfactory results.
Enamelware:
Under some conditions,
the enamel of some cookware may melt.
Follow cookware manufacturer’s
recommendations for cooking methods.
Glass:
There are two types of glass
cookware—those for oven use only and
those for top-of-range cooking (saucepans,
coffee and teapots). Glass conducts heat
very slowly.
Heatproof Glass Ceramic:
Can be used for
either surface or oven cooking. It conducts
heat very slowly and cools very slowly. Check
cookware manufacturer’s directions to be
sure it can be used on gas ranges.
Stainless Steel:
This metal alone has poor
heating properties and is usually combined
with copper, aluminum or other metals for
improved heat distribution. Combination
metal skillets usually work satisfactorily if
they are used with medium heat as the
manufacturer recommends.
Operating Instructions
10
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
Consumer Support
Operating InstructionsSafety Instructions
Installation Instructions Troubleshooting Tips
11
Do not slide cookware across the cooktop
because it can scratch the glass—the glass
is scratch resistant, not scratch proof.
,,
,,,,,
,,,,,,,,,
,,,,,,,,,,,
,,,,,,,,,,
,,,,,,,
,,,,
DRAGGING
About the glass surface (on some models)…
The
WARMING ZONE
features heating units
beneath a smooth glass surface.
The
WARMING ZONE
unit will cycle on
and off to maintain your selected control
setting.
It is safe to place hot cookware on the glass
surface even when the cooktop is cool.
■
Water stains (mineral deposits) are removable
using the cleaning cream or full strength
white vinegar.
■
Use of window cleaner may leave an iridescent
film on the cooktop. The cleaning cream will
remove this discoloration.
■
Don’t store heavy items above the cooktop.
If they drop onto the cooktop, they can cause
damage.
■
Do not use the surface as a cutting board.
NOTE: A slight odor is normal when a new cooktop
is used for the first time. It is caused by the heating
of new parts and insulating materials and will
disappear in a short time.
NOTE: On some models with a light colored glass
cooktop, it is normal for the cooking zones to change
color when hot or cooling down. This is temporary
and will disappear as the glass cools to room
temperature.
,,,,
,,,,,,,,
,,,,,,,,,,,
,,,,,,,,,,
,,,,,,,
,,,
SURFACE
COOKING
Never cook directly on the glass.
Always use cookware.
,
,,,,,,
,,,,,,,,,
,,,,,,,,,,
,,,,,,,,,
,,,,,,,
,,,
OFF CENTER
Always place the pan in the center of
the warming zone.
The
WARMING ZONE
, located in the back
center of the glass surface, will keep hot,
cooked food at serving temperature.
Always start with hot food. Do not use to
heat cold food.
Push and turn the control knob to any
desired setting.
For best results, all foods on the
WARMING
ZONE
should be covered with a lid or
aluminum foil. When warming pastries or
breads, the cover should be vented to allow
moisture to escape.
Always use potholders or oven mitts when
removing food from the
WARMING ZONE
,
as cookware and plates will be hot.
A
HOT
surface indicator light will glow when
the glass surface is hot and will remain on
until the surface is cool enough to touch.
A
WARMING ZONE
indicator light will glow
when the unit is on.
NOTE: The WARMING ZONE cannot be used
during a self-clean cycle.
■
Do not use plastic wrap to cover food. Plastic
may melt onto the surface and be very difficult
to clean.
■
Use only cookware recommended for oven
or top-of-range cooking.
Food Type Control Setting
Breads/Pastries LO
Casseroles LO
Dinner Plates with Food LO
Eggs LO
Gravies LO
Meats Medium
Sauces Medium
Soups (cream) Medium
Stews Medium
Vegetables Medium
Fried Foods HI
Hot Beverages HI
Soups (liquid) HI
The chart above shows initial suggested
settings only. The temperature, type and
amount of food, and the time held will
affect the quality of the food.
CAUTION: Do not warm food on the
WARMING ZONE for more than two hours.
Using the electric glass top warming zone.
(on some models)
www.GEAppliances.com
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
12
Using the oven controls.
Throughout this manual, features and appearance may vary from your model.
Oven Control, Clock and Timer Features and Settings
SELF CLEAN Pad
Touch this pad to select the self-cleaning
function. See the
Using the self-cleaning
oven
section.
PROBE Pad (on some models)
Touch this pad when using the probe to
cook food to the desired internal
temperature.
BAKE Pad
Touch this pad to select the bake function.
BROIL HI/LO Pad
Touch this pad to select the broil function.
CONVECTION ROAST Pad
Touch this pad to select roasting with the
convection function.
Display
Shows the time of day, oven temperature,
whether the oven is in the bake, broil,
convection, or self-cleaning mode and
the times set for the timer or automatic oven
operations.
If “F– and a number or letter” flash in the display and the
oven control signals, this indicates a function error code.
If your oven was set for a timed oven operation and
a power outage occurred, the clock and all programmed
functions must be reset.
The time of day will flash in the display when there has been
a power outage.
If “Err” appears in the display, you have tried to set a time or
temperature outside of the control’s limits. Press CLEAR/OFF
and enter a new setting.
CLOCK Pad
Touch this pad before setting the clock.
COOKING TIME Pad
Touch this pad and then touch the number
pads to set the amount of time you want your
food to cook. The oven will shut off when
the cooking time has run out.
DELAY START Pad
Use along with
COOKING TIME
or
SELF CLEAN
pads to set the oven to start and stop
automatically at a time you set.
TOP LIGHT Pad (on some models)
Touch this pad to turn the surface light
on or off.
OVEN LIGHT Pad
Touch this pad to turn the oven light on
or off.
START Pad
Must be touched to start any cooking or
cleaning function.
KITCHEN TIMER ON/OFF Pad
Touch this pad to select the timer feature.
Number Pads
Use to set any function requiring numbers
such as the time of day on the clock, the
timer, the oven temperature, the internal
food temperature, the start time and
length of operation for timed baking
and self-cleaning.
CONVECTION BAKE Pad
Touch this pad to select baking with the
convection function.
CLEAR/OFF Pad
Touch this pad to cancel
ALL
oven
operations except the clock and timer.
Consumer SupportInstallation Instructions Troubleshooting Tips
Operating InstructionsSafety Instructions
13
Your new touch pad control has additional features that you may choose to use. The following are the features and
how you may activate them.
The special feature modes can only be activated while the display is showing the time of day. They remain in the
control’s memory until the steps are repeated.
When the display shows your choice, touch the START pad. The special features will remain in memory after
a power failure.
12 Hour Shut-Off
With this feature, should you forget and leave the
oven on, the control will automatically turn off the
oven after 12 hours during baking functions or after
3 hours during a broil function.
If you wish to turn
OFF
this feature, follow
the steps below.
Touch the
BAKE
and
BROIL HI/LO
pads
at the same time for 3 seconds until
the display shows
SF.
Touch the
DELAY START
pad. The
display will show
12 shdn
(12 hour
shut-off). Touch the
DELAY START
pad
again and the display will show
no shdn
(no shut-off).
Touch the
START
pad to activate the
no shut-off and leave the control set in
this special features mode.
Fahrenheit or Celsius Temperature Selection
Your oven control is set to use the Fahrenheit
temperature selections but you may change this
to use the Celsius selections.
Touch the
BAKE
and
BROIL HI/LO
pads
at the same time for 3 seconds until
the display shows
SF.
Touch the
BROIL HI/LO
pad. The
display will show
F
(Fahrenheit).
Touch the
BROIL HI/LO
pad again.
The display will show
C
(Celsius).
Touch the
START
pad.
Tones at the End of a Timed Cycle
At the end of a timed cycle, 3 short beeps will
sound followed by one beep every 6 seconds until
the CLEAR/OFF pad is touched. This continual
6 second beep may be canceled.
To cancel the 6 second beep:
Touch the
BAKE
and
BROIL HI/LO
pads
at the same time for 3 seconds until
the display shows
SF.
Touch the
KITCHEN TIMER ON/OFF
pad. The display shows
CON BEEP
(continual beep). Touch the
KITCHEN
TIMER ON/OFF
pad again. The display
shows
BEEP.
(This cancels the one
beep every 6 seconds.)
Touch the
START
pad.
Special features of your oven control.
www.GEAppliances.com
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
14
Special features of your oven control.
12 Hour, 24 Hour or Clock Black-Out
Your control is set to use a 12 hour clock.
If you would prefer to have a 24 hour
military time clock or black-out the clock
display, follow the steps below.
Touch the
BAKE
and
BROIL HI/LO
pads at the same time for 3 seconds
until the display shows
SF.
Touch the
CLOCK
pad once.
The display will show
12 hr.
If this
is the choice you want, touch the
START
pad.
Touch the
CLOCK
pad again to change
to the 24 hour military time clock. The
display will show
24 hr.
If this is the choice
you want, touch the
START
pad.
Touch the
CLOCK
pad again to black-out
the clock display. The display will show
OFF.
If this is the choice you want, touch the
START
pad.
NOTE: If the clock is in the black-out mode you will
not be able to use the Delay Start function.
Control Lockout (on some models)
Your control will allow you to lock out the touch
pads so they cannot be activated when touched or
cleaning the glass panel.
To lock the controls:
Touch the
9
and
0
touch pads at the
same time for 3 seconds until the
control beeps twice. The display will
show
LOC
continuously and the time
of day if not blacked out.
NOTE: All cooking and timing functions will be
cancelled when locking out the control.
To unlock the control, touch the
9
and
0
touch pads at the same time
for 3 seconds until the control beeps
twice, and
LOC
will be removed from
the display.
Cook and Hold
Your new control has a cook and hold feature that
keeps cooked foods warm for up to 3 hours after
the cooking function is finished.
This feature can only be used when timed
cooking.
To activate this feature, follow the steps
below.
Touch the
BAKE
and
BROIL HI/LO
pads
at the same time for 3 seconds until
the display shows
SF.
Touch the
COOKING TIME
pad. The
display will show
Hld OFF.
Touch the
COOKING TIME
pad again
to activate the feature. The display will
show
Hld ON.
Touch the
START
pad to activate the
cook and hold feature and leave the
control set in this special features
mode.
15
Consumer ServiceInstallation Instructions Troubleshooting Tips
Operating InstructionsSafety Instructions
Using the Sabbath Feature.
(on some models)
(Designed for use on the Jewish Sabbath and Holidays)
www.GEAppliances.com
The Sabbath feature can be used for baking/roasting only. It cannot be used for convection, broiling, self-cleaning, or
Delay Start cooking.
NOTE: The oven light comes on automatically (on some models) when the door is opened and goes off when the door is
closed. The bulb may be removed. See the Oven Light Replacement section. On models with a light switch on the control
panel, the oven light may be turned on and left on.
How to Set for Regular Baking/Roasting
Make sure the clock shows the correct time of day
and the oven is off.
Press and hold
both
the
BAKE
and
BROIL
HI/LO
pads,
at the same time
, until the
display shows
SF.
Tap the
DELAY START
pad until
SAb bAtH
appears in the display.
Touch the
START
pad and ⊃ will appear
in the display.
Touch the
BAKE
pad. No signal will
be given.
Using the number pads, enter the desired
temperature between 170° and 550°.
No signal or temperature will be given.
Touch the
START
pad.
After a random delay period of
approximately 30 seconds to 1 minute,
⊃ will appear in the display indicating
that the oven is
baking/roasting.
If ⊃
doesn’t appear in the display, start
again at Step 4.
To adjust the oven temperature, touch the
BAKE
pad, enter the new temperature using
the number pads, and touch the
START
pad.
NOTE:
The
CLEAR/OFF
and
COOKING TIME
pads
are active during the Sabbath feature.
⊃
⊃
How to Set for Timed Baking/Roasting–Immediate Start and Automatic Stop
Make sure the clock shows the correct time of day
and the oven is off.
Press and hold
both
the
BAKE
and
BROIL
HI/LO
pads,
at the same time
, until the
display shows
SF.
Tap the
DELAY START
pad until
SAb bAtH
appears in the display.
Touch the
START
pad and ⊃ will appear in
the display.
Touch the
COOKING TIME
pad.
Touch the number pads to set the desired
length of cooking time between 1 minute
and 9 hours and 99 minutes.The cooking
time that you entered will be displayed.
Touch the
START
pad.
Touch the
BAKE
pad. No signal will
be given.
Using the number pads, enter the desired
temperature. No signal or temperature will
be given.
Touch the
START
pad.
After a random delay period of
approximately 30 seconds to 1 minute, ⊃
will appear in the display indicating that the
oven is
baking/roasting.
If ⊃ doesn’t
appear in the display, start again at Step 7.
To adjust the oven temperature, touch the
BAKE
pad, enter the new temperature using
the number pads, and touch the
START
pad.
When cooking is finished, the display will
change from ⊃ to ⊃ and
0:00
will appear,
indicating that the oven has turned
OFF
but is
still set in Sabbath. Remove the cooked food.
⊃
⊃
⊃
How to Exit the Sabbath Feature
Touch the
CLEAR/OFF
pad.
If the oven is cooking, wait for a random
delay period of approximately 30 seconds
to 1 minute, until only ⊃ is in the display.
Press and hold
both
the
BAKE
and
BROIL
HI/LO
pads,
at the same time
, until the
display shows
SF.
Tap the
DELAY START
pad until
12 shdn
or
no shdn
appears in the display.
12 shdn
indicates that the oven will automatically
turn off after 12 hours.
no shdn
indicates
that the oven will not automatically
turn off.
Touch the
START
pad.
NOTE: If a power outage occurred while the oven was
in Sabbath, the oven will automatically turn off and stay
off even when the power returns. The oven control must
be reset.
When the display shows
⊃
the
oven is set in Sabbath. When the
display shows
⊃
the oven is
baking/roasting.
⊃
When the display shows
⊃
the
oven is set in Sabbath. When the
display shows
⊃
the oven is
baking/roasting.
⊃
Using the oven.
To avoid possible burns, place the shelves in the desired position before you turn the oven on.
Before you begin…
The shelves have stop-locks, so that when
placed correctly on the supports, they will
stop before coming completely out, and
will not tilt.
When placing and removing cookware,
pull the shelf out to the bump on the shelf
support.
To remove a shelf,
pull it toward you, tilt the
front end up and pull it out.
To replace,
place the end of the shelf (stop-
locks) on the support, tilt up the front and
push the shelf in.
NOTE: The shelf is not designed to slide out at the
special low shelf (R) position.
The oven has 5 shelf positions.
It also has a special low shelf
position (R) for extra large items,
such as a large turkey.
Power Outage
CAUTION: Do not make any attempt to operate the
electric ignition oven during an electrical power
failure.
The oven or broiler cannot be lit during a
power failure. Gas will not flow unless the
glow bar is hot.
If the oven is in use when a power failure
occurs, the oven burner shuts off and
cannot be re-lit until power is restored. This
is because the flow of gas is automatically
stopped and will not resume when power is
restored until the glow bar has reached
operating temperature.
Oven Light
Touch the
OVEN LIGHT
pad on the upper
control panel to turn the light on or off.
Oven Vent
Your oven is vented through ducts at the
rear of the range. Do not block these ducts
when cooking in the oven—it is important
that the flow of hot air from the oven and
fresh air to the oven burner be
uninterrupted. Avoid touching the vent
openings or nearby surfaces during oven or
broiler operation—they may become hot.
■
Handles of pots and pans on the cooktop may
become hot if left too close to the vent.
■
Do not leave plastic items on the cooktop—
they may melt if left too close to the vent.
■
Do not leave any items on the cooktop. The hot
air from the vent may ignite flammable items and
will increase pressure in closed containers, which
may cause them to burst.
■
Metal items will become very hot if they are left
on the cooktop, and could cause burns.
Plastic items on the cooktop may
melt if left too close to the vent.
Vent appearance and location vary.
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
16
Consumer SupportInstallation Instructions Troubleshooting Tips
Operating InstructionsSafety Instructions
17
How to Set the Oven for Baking or Roasting
Touch the
BAKE
pad.
Touch the number pads to set the
desired temperature.
Touch the
START
pad.
The word
ON
and
100°
will be displayed.
As the oven heats up, the display will show
the changing temperature. When the oven
reaches the temperature you set, a tone
will sound.
To change the oven temperature during BAKE cycle,
press the BAKE pad and then the number pads to
get the new temperature.
Check food for doneness at minimum
time on recipe. Cook longer if
necessary.
Touch the
CLEAR/OFF
pad when
cooking is complete.
Type of Food Shelf Position
Frozen pies (on cookie sheet) B or C
Angel food cake, A
bundt or pound cakes
Biscuits, muffins, brownies, C
cookies, cupcakes,
layer cakes, pies
Casseroles B or C
Roasting R or A
Preheating and Pan Placement
Preheat the oven if the recipe calls for it.
To preheat, set the oven at the correct
temperature. Preheating is necessary
when convection baking and for good
results when baking cakes, cookies, pastry
and breads.
For ovens without a preheat indicator light or tone,
preheat 10 minutes.
Baking results will be better if baking pans
are centered in the oven as much as
possible. Pans should not touch each other
or the walls of the oven. If you need to use
two shelves, stagger the pans so one is not
directly above the other, and leave
approximately 1
1
⁄2″ between pans, from
the front, back and sides of the wall.
Aluminum Foil
Never cover the oven bottom with
aluminum foil.
You can use aluminum foil to line the
broiler pan and broiler grid. However, you
must mold the foil tightly to the grid and
cut slits in it just like the grid.
Aluminum foil may also be used to catch a spillover.
Never entirely cover a shelf with aluminum
foil. This will disturb the heat circulation
and result in poor baking.
A smaller sheet of foil may be used to catch
a spillover by placing it on a lower shelf
several inches below the food.
Cut slits in the foil just like the grid.
Oven Moisture
As your oven heats up, the temperature
change of the air in the oven may cause
water droplets to form on the door glass.
These droplets are harmless and will
evaporate as the oven continues to heat up.
The oven has a special low shelf (R)
position just above the oven bottom.
Use it when extra cooking space is
needed, for example, when cooking
a large turkey. The shelf is not
designed to slide out at this position.
www.GEAppliances.com
Using the oven.
Broiling Guide
Quantity and/ Shelf First Side Second Side
Food or Thickness Position Time (min.) Time (min.) Comments
Bacon 1/2 lb. C 4 3 Arrange in single layer.
(about 8 thin slices)
Ground Beef 1 lb. (4 patties) D 10–11 7 Space evenly. Up to
Well Done 1/2 to 3/4″ thick 8 patties take about
the same time.
Beef Steaks
Rare
†
1″ thick C 9 7 Steaks less than 1″ thick cook
Medium 1 to 1
1
⁄2 lbs. C 12 5–6 through before browning.
Well Done C 13 8–9 Pan frying is recommended.
Slash fat.
Rare
†
1
1
⁄2″ thick C 10 6–7
Medium 2 to 2
1
⁄2
lbs. C 12–15 10–12
Well Done C 25 16–18
Chicken 1 whole B 30–35 15–20 Brush each side with melted
2 to 2
1
⁄2
lbs., butter. Broil skin-side-down
split lengthwise first.
4 bone-in breasts B 25–30 10–15
Lobster Tails 2–4 C 13–16 Do not Cut through back of shell.
6 to 8 oz. each turn Spread open. Brush with
over. melted butter before broiling
and after half of broiling
time.
Fish Fillets 1/4 to 1/2″ thick D 6 6 Handle and turn very
carefully. Brush with lemon
butter before and during
cooking, if desired. Preheat
broiler to increase browning.
Ham Slices 1″ thick C 8 8
(precooked)
1/2″ thick D 6 6
Pork Chops 2 (1/2″ thick) D 10 8 Slash fat.
Well Done 2 (1″ thick) about 1 lb. D 15 8
Lamb Chops
Medium 2 (1″ thick) about 10 D 8 4–7 Slash fat.
Well Done to 12 oz. D 10 10
Medium 2 (1
1
⁄2″ thick) about 1 lb. D 10 4–6
Well Done D 17 12–14
How to Set the Oven for Broiling
Place the meat or fish on the broiler
grid in the broiler pan.
Follow suggested shelf positions in the
Broiling Guide.
The oven door
must
be closed during
broiling.
Touch the
BROIL HI/LO
pad once for
HI Broil.
To change to
LO Broil,
touch the
BROIL
HI/LO
pad again.
Touch the
START
pad.
When broiling is finished, touch the
CLEAR/OFF
pad.
Serve the food immediately, and leave the
pan outside the oven to cool during the
meal for easiest cleaning.
Use
LO Broil
to cook foods such as poultry
or thick cuts of meat thoroughly without
over-browning them.
Always use the broiler pan and grid
that came with your oven. It is
designed to minimize smoking and
spattering by trapping juices in the
shielded lower part of the pan.
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
18
The size, weight, thickness,
starting temperature, and
your preference of
doneness will affect
broiling times. This guide
is based on meats at
refrigerator temperature.
†The U.S. Department of Agriculture
says “Rare beef is popular, but you
should know that cooking it to only
140°F. means some food poisoning
organisms may survive.” (Source:
Safe Food Book, Your Kitchen
Guide, USDA Rev. June 1985.)
Power Outage
If a flashing time is in the display, you have
experienced a power failure. Reset the clock.
To reset the clock, touch the
CLOCK
pad.
Enter the correct time of day by touching
the appropriate number pads. Touch the
START
pad.
19
Consumer SupportInstallation Instructions Troubleshooting Tips
Operating InstructionsSafety Instructions
Not all features are on all models.
To Set the Clock
The clock must be set to the correct time of
day for the automatic oven timing functions
to work properly. The time of day cannot
be changed during a timed baking or self-
cleaning cycle.
Touch the
CLOCK
pad.
Touch the number pads.
Touch the number pads the same way you
read them. For example, to set 12:34, touch
the number pads
1, 2, 3
and
4
in that order.
If number pads are not touched within one
minute after you touch the
CLOCK
pad, the
display reverts to the original setting. If this
happens, touch the
CLOCK
pad and reenter
the time of day.
Touch the
START
pad until the time of
day shows in the display. This enters
the time and starts the clock.
To check the time of day when the display is
showing other information, simply touch the CLOCK
pad. The time of day shows until another pad is
touched.
Make sure the clock is set to the
correct time of day.
To Set the Timer
The timer does not control oven operations.
The maximum setting on the timer is 9 hours
and 59 minutes.
Touch the
KITCHEN TIMER ON/OFF
pad.
Touch the number pads until the
amount of time you want shows in the
display. The maximum number of
minutes that can be entered is 60. To
set additional time, you will need to set
it by hours and minutes. For example,
to enter 1 hour and 30 minutes, touch
1, 3 and 0
in that order.
If you make a mistake, press the KITCHEN TIMER
ON/OFF pad and begin again.
Touch the
START
pad. After pressing
the
START
pad,
SET
disappears; this
tells you the time is counting down,
although the display does not change
until one minute has passed.
When the timer reaches
:00,
the
control will beep 3 times followed by
one beep every 6 seconds until the
KITCHEN TIMER ON/OFF
pad is touched.
The 6 second tone can be canceled by following
the steps in the Special features of your oven
control section under Tones at the End of
a Timed Cycle.
The timer is a minute timer only.
The CLEAR/OFF pad does not affect
the timer.
To Reset the Timer
If the display is still showing the time
remaining, you may change it by touching
the
KITCHEN TIMER ON/OFF
pad, then touch
the number pads until the time you want
appears in the display.
If the remaining time is not in the display
(clock, delay start or cooking time are in
the display), recall the remaining time by
touching the
KITCHEN TIMER ON/OFF
pad
and then touching the number pads to
enter the new time you want.
To Cancel the Timer
Touch the
KITCHEN TIMER ON/OFF
pad twice.
Using the clock and timer.
www.GEAppliances.com
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
20
Using the timed baking and roasting features.
NOTE: Foods that spoil easily–such as milk, eggs, fish, stuffings, poultry and pork–should not be allowed to sit for more
than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that the oven
light is off because heat from the bulb will speed harmful bacteria growth.
How to Set an Immediate Start and Automatic Stop
The oven will turn on immediately and cook for a
selected length of time. At the end of the cooking
time the oven will turn off automatically.
Touch the
BAKE
pad.
Using the number pads, enter the
desired temperature.
Touch the
COOKING TIME
pad.
NOTE: If your recipe requires preheating, you may
need to add additional time to the length of the
cooking time.
Using the number pads, enter the
desired baking time. The oven
temperature and the cooking time
that you entered will be displayed.
Touch the
START
pad.
The word
ON
and
100°
will be displayed.
The cook time will begin to count down.
As the oven heats up, the display will show
the changing temperature. When the oven
reaches the temperature you set,
3 beeps will sound.
At the end of timed baking, the oven will
turn off. The end of cycle tone will sound.
Touch the
CLEAR/OFF
pad to clear the
display.
How to Set a Delayed Start and Automatic Stop
You can set the oven control to delay-start the oven,
cook for a specific length of time and then turn off
automatically.
Make sure the clock shows the correct time
of day.
Touch the
BAKE
pad.
Using the number pads, enter the
desired temperature.
Touch the
COOKING TIME
pad.
NOTE: If your recipe requires preheating, you may
need to add additional time to the length of the
cooking time.
Using the number pads, enter the
desired baking time.
Touch the
DELAY START
pad.
Using the number pads, enter the
time of day you want the oven to turn
on and start cooking.
Touch the
START
pad.
NOTE: An attention tone will sound if you are using
timed baking and do not touch the START pad after
entering the baking temperature.
If you would like to check the times you
have set, touch the
DELAY START
pad to
check the start time you have set or touch
the
COOKING TIME
pad to check the length
of cooking time you have set.
The oven will turn on automatically.
The word
ON
and
100°
will be displayed.
The cook time will begin to count down.
As the oven heats up, the display will show
the changing temperature. The oven will
cook for the programmed cooking time
and shut off automatically.
At the end of timed baking, the oven will
turn off. The end of cycle tone will sound.
Touch the
CLEAR/OFF
pad to clear the
display.
21
Consumer Support
Operating InstructionsSafety Instructions
Installation Instructions Troubleshooting Tips
For many foods, especially roasts and poultry, internal food temperature is the best test for doneness. The temperature
probe takes the guesswork out of roasting by cooking foods to the exact doneness you want.
Use of probes other than the one provided
with this product may result in damage to
the probe.
Use the handles of the probe and plug
when inserting and removing them from
the food and outlet.
■
To avoid damaging your probe, do not use tongs
to pull on the cable when removing it.
■
To avoid breaking the probe, make sure food is
completely defrosted before inserting.
■
To prevent possible burns, do not unplug the
probe from the outlet until the oven has cooled.
■
Never leave your probe inside the oven during
a self-cleaning cycle.
■
Do not store the probe in the oven.
The temperature probe has a
skewer-like probe at one end and a
plug at the other end that goes into
the outlet in the oven.
After preparing the meat and placing it on
a trivet or on the broiler pan grid, follow
these directions for proper probe
placement.
Insert the probe completely into the meat.
It should not touch the bone, fat or gristle.
For roasts with no bone, insert the probe
into the meatiest part of the roast. For
bone-in ham or lamb, insert the probe into
the center of the lowest large muscle.
Insert the probe into the center of dishes
such as meat loaf or casseroles.
Insert the probe into the meatiest part of
the inner thigh from below and parallel to
the leg of a whole turkey.
How to Set the Oven For Roasting When Using the Probe
Insert the probe into the food.
Plug the probe into the outlet in the
oven. Make sure it’s pushed all the
way in. Close the oven door.
Touch the
PROBE
pad.
Touch the number pads to set the
desired internal food or meat
temperature.
Touch the
BAKE
pad.
Touch the number pads to set the
desired oven temperature.
Touch the
START
pad.
The display will flash if the probe is inserted into the
outlet and you have not set a probe temperature and
touched the START pad.
After the internal temperature of the food
reaches 100°F., the changing internal
temperature will be shown in the display.
When the internal temperature of the
food reaches the number you have set,
the probe and the oven turn off and
the oven control signals. To stop the
signal, touch the
CLEAR/OFF
pad. Use
hot pads to remove the probe from
the food. Do not use tongs to pull on
it—they might damage it.
To change the oven temperature during
the Roast cycle, touch the
BAKE
pad and
then the number pads to set the new
temperature.
■
If the probe is removed from the food before the
final temperature is reached, a tone will sound
and the display will flash until the probe is
removed from the oven.
■
You can use the timer even though you cannot
use timed oven operations while using the
probe.
Plug
Probe
Cable
Handles
Using the probe.
(on some models)
www.GEAppliances.com
22
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
Using the convection oven.
The convection oven fan shuts off when the oven door is opened. DO NOT leave the door open for long periods of time
while using convection cooking.
To help you understand the difference
between convection bake and roast and
traditional bake and roast, here are some
general guidelines.
Convection Bake
■
Preheat the oven. See the Using the Oven–
Preheating and Pan Placement section.
■
Ideal for foods cooked on multiple shelves.
■
Good for large quantities of baked foods.
■
Good results with cookies, biscuits, brownies,
cupcakes, cream puffs, sweet rolls, angel food
cake and bread.
The convection fan circulates the heated
air evenly over and around the food.
Convection Roast
■
Good for large tender cuts of meat, uncovered.
The convection fan circulates the heated
air evenly over and around the food. Using
the grid and broiler pan provided, heated
air will be circulated over and around the
food being roasted. The heated air seals in
juices quickly for a moist and tender
product while, at the same time, creating
a rich golden brown exterior.
Roasts or poultry should be cooked on shelf
position (A).
When you are convection roasting it is
important that you use the broiler pan and
grid for best convection roasting results.
The pan is used to catch grease spills and
the grid is used to prevent grease spatters.
■
Place the shelf in shelf position (A).
■
Place the grid on the broiler pan.
In a convection oven, a fan
circulates hot air over, under and
around the food. This circulating hot
air is evenly distributed throughout
the oven cavity. As a result, foods
are evenly cooked and browned—
often in less time than with regular
heat.
Grid
Broiler pan
Automatic Convection Conversion
You can use your favorite recipes in the
convection oven.
When using CONVECTION BAKE, the oven will
automatically convert the oven temperature from
regular baking to Convection Bake temperatures.
Using the number pads, enter
the temperature recommended
in the recipe.
Touch the
START
pad.
The display will show the
temperature you entered from your
recipe. The oven will automatically
convert it to the convection cooking
temperature.
Touch the
CLEAR/OFF
pad when
baking is finished.
■
Use pan size recommended.
■
Some package instructions for frozen casseroles
or main dishes have been developed using
commercial convection ovens. For best results
in this oven, preheat the oven and use the
temperature on the package.
23
Consumer Support
Operating Instructions
Safety Instructions Installation Instructions Troubleshooting Tips
Cookware for Convection Cooking
Before using your convection oven, check
to see if your cookware leaves room for air
circulation in the oven. If you are baking
with several pans, leave space between
them. Also, be sure the pans do not touch
each other or the walls of the oven.
Paper and Plastic
Heat-resistant paper and plastic containers
that are recommended for use in regular
ovens can be used in convection ovens.
Plastic cookware that is heat-resistant to
temperatures of 400°F. can also be used,
when oven is below 400°F.
Metal and Glass
Any type of cookware will work in your
convection oven. However, metal pans heat
the fastest and are recommended for
convection baking.
■
Darkened or matte-finished pans will bake faster
than shiny pans.
■
Glass or ceramic pans cook more slowly.
When baking cookies, you will get the best
results if you use a flat cookie sheet instead
of a pan with low sides.
For recipes like oven-baked chicken,
use a pan with low sides. Hot air cannot
circulate well around food in a pan with
high sides.
How to Set the Oven for Convection Baking or Roasting
Touch the
CONVECTION BAKE
or
CONVECTION ROAST
pad.
Touch the number pads to set the
desired oven temperature.
Touch the
START
pad.
To change the oven temperature, touch the
CONVECTION BAKE
or
CONVECTION ROAST
pad and then the number pads to set the
new temperature.
When the oven starts to heat the changing
temperature, starting at 100°F., will be
displayed. When the oven reaches the
temperature you set, 3 beeps will sound.
Touch the
CLEAR/OFF
pad when
finished.
NOTE: You will hear a fan while cooking with
convection. The fan will stop when the door is
opened but the heat will not turn off.
The fan will not start until the preheat temperature
is reached.
Multi-Shelf Baking
Because heated air is circulated evenly
throughout the oven, foods can be baked
with excellent results using multiple shelves.
Multi-shelf baking may increase cook times
slightly for some foods but the overall result
is time saved. Cookies, muffins, biscuits, and
other quick breads give very good results
with multi-shelf baking.
When baking larger foods on 3 shelves,
place one shelf in the 2nd (A) position, one
on the 4th (C) position and the third shelf
in the 6th (E) position.
When baking cookies, place the shelves in
the 4th (C), 5th (D), and 6th (E) positions.
When convection baking with only
1 shelf, follow the shelf positions
recommended in the Using the
Oven section.
or
www.GEAppliances.com
24
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
How to Set the Oven for Convection Roasting when Using the Probe
(on some models)
The display will flash
PROBE
and the oven
control will signal if the probe is inserted
into the outlet, and you have not set
a probe temperature and touched the
START
pad.
Place the shelf in the shelf position
(A). Insert the probe completely
into the food.
Plug the probe into the outlet in the
oven. Make sure it is pushed all the
way in. Close the oven door.
Touch the
CONVECTION ROAST
pad.
Touch the number pads to set the
desired oven temperature.
Touch the
PROBE
pad.
Touch the number pads to set the
desired internal food temperature.
To change the oven temperature during
the Convection Roast cycle, touch the
CONVECTION ROAST
pad and then touch
the number pads to set the new desired
temperature.
Touch the
START
pad.
When the oven starts to heat, the word
LO
will be in the display.
After the internal temperature of the food
reaches 100°F., the changing internal
temperature will be shown in the display.
When the internal temperature of the
food reaches the number you have
set, the probe and the oven turn off
and the oven control signals. To stop
the signal, touch the
CLEAR/OFF
pad.
Use hot pads to remove the probe
from the food. Do not use tongs to
pull on it—they might damage it.
CAUTION: To prevent possible burns, do not
unplug the probe from the oven outlet until the oven
has cooled. Do not store the probe in the oven.
NOTE:
■
If the probe is removed from the food before the
final temperature is reached, a tone will sound
and the display will flash until the probe is
removed from the oven.
■
You will hear a fan while cooking with this
feature. The fan will stop when the door is
opened but the heat will not turn off.
■
You can use the timer even though you cannot
use timed oven operations while using the probe.
For best results when roasting large
turkeys and roasts, we recommend
using the probe included in the
convection oven.
Using the convection oven.
25
Consumer Support
Operating InstructionsSafety Instructions
Installation Instructions Troubleshooting Tips
Convection Roasting Guide
Meats Minutes/Lb. Oven Temp. Internal Temp.
Beef Rib (3 to 5 lbs.) Rare
†
20–24 325°F 140°F
Medium 24–28 325°F 160°F
Well 28–32 325°F 170°F
Boneless Rib, Top Sirloin Rare
†
20–24 325°F 140°F
Medium 24–28 325°F 160°F
Well 28–32 325°F 170°F
Beef Tenderloin Rare
†
10–14 325°F 140°F
Medium 14–18 325°F 160°F
Pot Roast (2
1
⁄2 to 3 lbs.) chuck, rump 35–45 300°F 170°F
Pork Bone-in (3 to 5 lbs.) 23–27 325°F 170°F
Boneless (3 to 5 lbs.) 23–27 325°F 170°F
Pork Chops (
1
⁄2 to 1″ thick) 2 chops 30–35 total 325°F 170°F
4 chops 35–40 total 325°F 170°F
6 chops 40–45 total 325°F 170°F
Ham Canned (3 lbs. fully cooked) 14–18 325°F 140°F
Butt (5 lbs. fully cooked) 14–18 325°F 140°F
Shank (5 lbs. fully cooked) 14–18 325°F 140°F
Lamb Bone-in (3 to 5 lbs.) Medium 17–20 325°F 160°F
Well 20–24 325°F 170°F
Boneless (3 to 5 lbs.) Medium 17–20 325°F 160°F
Well 20–24 325°F 170°F
Seafood Fish, whole (3 to 5 lbs.) 30–40 total 400°F
Lobster Tails (6 to 8 oz. each) 20–25 total 350°F
Poultry Whole Chicken (2
1
⁄2 to 3
1
⁄2 lbs.) 24–26 350°F 180°–185°F
Cornish Hens Unstuffed (1 to 1
1
⁄2 lbs.) 50–55 total 350°F 180°–185°F
Cornish Hens Stuffed (1 to 1
1
⁄2 lbs.) 55–60 total 350°F 180°–185°F
Duckling (4 to 5 lbs.) 24–26 325°F 180°–185°F
Turkey, whole*
Unstuffed (10 to 16 lbs.) 8–11 325°F 180°–185°F
Unstuffed (18 to 24 lbs.) 7–10 325°F 180°–185°F
Turkey Breast (4 to 6 lbs.) 16–19 325°F 170°F
* Stuffed birds generally require 30–45 minutes additional roasting time. Shield legs and breast with foil to prevent
overbrowning and drying of skin.
†The U.S. Department of Agriculture says “Rare beef is popular, but you should know that cooking it to only 140°F means
some food poisoning organisms may survive.” (Source: Safe Food Book. Your Kitchen Guide. USDA Rev. June 1985.)
www.GEAppliances.com
26
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
Using the timed convection baking features.
You will hear a fan while cooking with this feature. The fan will stop when the door is opened but the heat will not turn off.
NOTE: Foods that spoil easily–such as milk, eggs, fish, stuffings, poultry and pork–should not be allowed to sit for more
than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that the oven
light is off because heat from the bulb will speed harmful bacteria growth.
How to Set an Immediate Start and Automatic Stop
The oven will turn on immediately and cook for a
selected length of time. At the end of the cooking
time the oven will turn off automatically.
Touch the
CONVECTION BAKE
pad.
Touch the number pads to set the
desired oven temperature.
Touch the
COOKING TIME
pad.
NOTE: If your recipe requires preheating, you may
need to add additional time to the length of the
cooking time.
Touch the number pads to set the
desired length of cooking time. The
minimum cooking time you can set
is 1 minute.
The oven temperature that you set and the
cooking time that you entered will be in
the display.
Touch the
START
pad.
The display shows the oven temperature
that you set and the cooking time
countdown. The display starts changing
once the temperature reaches 100°F.
At the end of timed convection bake
the oven will turn off. The end of cycle
tone will sound. Touch the
CLEAR/OFF
pad to clear the display if necessary.
Remove the food from the oven.
Remember, foods that are left in the
oven continue cooking after the
controls are off.
How to Set a Delayed Start and Automatic Stop
You can set the oven control to delay-start the oven,
cook for a specific length of time and then turn off
automatically.
Make sure the clock shows the correct time
of day.
Touch the
CONVECTION BAKE
pad.
Touch the number pads to set the
desired oven temperature.
Touch the
COOKING TIME
pad.
NOTE: If your recipe requires preheating, you may
need to add additional time to the length of the
cooking time.
Touch the number pads to set the
desired cooking time.
Touch the
DELAY START
pad.
Touch the number pads to set the
time of day you want the oven to turn
on and start cooking.
If you would like to check the times you
have set, touch the
DELAY START
pad to
check the start time you have set or touch
the
COOKING TIME
pad to check the length
of cooking time you have set.
Touch the
START
pad.
NOTE: An attention tone will sound if you are using
timed baking and do not touch the START pad after
entering the baking temperature.
When the oven turns on at the time of
day you have set, the display will show
the changing temperature (starting at
100°F.) and the cooking time countdown.
At the end of timed convection bake the
oven will turn off. The end of cycle tone
will sound.
Touch the
CLEAR/OFF
pad to clear the
display if necessary. When baking is
finished, remove the food from the
oven. Remember, even though the
oven shuts off automatically, foods
continue cooking after the controls
are off.
27
Consumer SupportInstallation Instructions Troubleshooting Tips
Operating InstructionsSafety Instructions
You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks to
become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust the thermostat yourself.
Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven.
These thermometers may vary 20–40 degrees.
NOTE: This adjustment will not affect the broiling or the self-cleaning temperatures. The adjustment will be retained
in memory after a power failure.
To Adjust the Thermostat
Touch the
BAKE
and
BROIL HI/LO
pads
at the same time for 3 seconds until
the display shows
SF.
Touch the
BAKE
pad. A two digit
number shows in the display.
Touch
BAKE
once to decrease (-)
the oven temperature, or twice to
increase (+).
The oven temperature can be adjusted
up as much as 35°F. or down as much
as 35°F. Touch the number pads the
same way you read them. For example,
to change the oven temperature 15°F.,
touch
1
and
5.
When you have made the adjustment,
touch the
START
pad to go back to the
time of day display. Use your oven as
you would normally.
NOTE: The thermostat adjustment for Baking
will also affect Convection Baking or Convection
Roasting.
Most recipes for baking have been developed using high fat products such as butter or margarine (80% fat). If you
decrease the fat, the recipe may not give the same results as with a higher fat product.
Recipe failure can result if cakes, pies, pastries, cookies or candies are made with low fat spreads. The lower the fat
content of a spread product, the more noticeable these differences become.
Federal standards require products labeled “margarine” to contain at least 80% fat by weight. Low fat spreads, on the
other hand, contain less fat and more water. The high moisture content of these spreads affects the texture and flavor
of baked goods. For best results with your old favorite recipes, use margarine, butter or stick spreads containing at least
70% vegetable oil.
Adjust the oven thermostat—Do it yourself!
www.GEAppliances.com
The type of margarine will affect baking performance!
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
28
The warming drawer will keep hot, cooked foods at serving temperature. Always start with hot food. Do not use to
heat cold food other than crisping crackers, chips or dry cereal.
Control Knob
Push and turn the control knob to any
desired setting.
NOTE:
The warming drawer cannot be
used during a self-clean cycle.
ON Signal Light
The
ON
signal light is located above the
control knob and glows when the knob is
in the on position. It stays on until the
knob is moved to the
OFF
position.
WARMING DRAWER
L
O
O
F
F
H
I
Pan
■ For use in the warming drawer only.
Do not use in the oven.
■ Use the side handle edges to lift the
pan in and out of the drawer for ease of
cleaning.
■ Do not put liquid or water in the
warming pan.
Rack
■ For use in the warming drawer only.
Do not use in the oven.
■ Rack will fit from front to back.
■ Preheat with the rack in place.
■ Using the rack allows for double stacking
of items.
When Using the Warming Drawer
The warming drawer will keep hot, cooked
foods at serving temperature. Always start
with hot food. Do not use to heat cold
food other than crisping crackers, chips
or dry cereal.
Do not line the warming drawer or pan with
aluminum foil. Foil is an excellent heat
insulator and will trap heat beneath it. This
will upset the performance of the drawer and
could damage the interior finish.
■ Allow time for the drawer to be
preheated:
LO . . . . . . . . . . . . . . . . .10–15 minutes
Medium (mid-position
on the knob) . . . . . . . . .25–30 minutes
HI . . . . . . . . . . . . . . . . . .25–35 minutes
■ Preheat prior to use according to
recommended times.
■ Do not put liquid or water in the
warming drawer.
■ For moist foods, cover them with a lid
or aluminum foil.
■ For crisp foods, leave them uncovered.
■ Food should be kept hot in its cooking
container or transferred to a heat-safe
serving dish.
CAUTION: Plastic containers or plastic wrap will
melt if in direct contact with the drawer, pan or a hot
utensil. Melted plastic may not be removable and is
not covered under your warranty.
■ Remove serving spoons, etc., before
placing containers in warming drawer.
LO . . . . . . . . . . . . . . . . . . . .140–170°F
Medium (mid-position
on the knob) . . . . . . . . . . . .170–210°F
HI . . . . . . . . . . . . . . . . . . . . .210–250°F
Using the electric warming drawer.
29
Temperature Selection Chart
To keep several different foods hot, set
the temperature to the food needing the
highest setting. Place the items needing the
highest setting on the bottom of the drawer
and items needing less heat on the rack.
■ The temperature, type and amount of
food, and the time held will affect the
quality of the food.
■ Food in heat-safe glass and glass-ceramic
utensils may need a higher thermostat
setting as compared to food in metal
utensils.
■ Repeated opening of the drawer allows
the hot air to escape and the food to cool.
■ Allow extra time for the temperature
inside the drawer to stabilize after
adding items.
■ With large loads it may be necessary to
use a higher thermostat setting and
cover some of the cooked food items.
■ Do not use plastic containers or
plastic wrap.
CAUTION: Do not keep food in the warming drawer
for more than two hours.
Food Type Control Setting
Bacon HI
Eggs HI
Fish HI
Gravy, sauces HI
Ham HI
Onion rings HI
Pies LO
Pizza HI
Potatoes, baked HI
Potatoes, mashed LO
Tortilla Chips LO
To Crisp Stale Items
■ Place food in low-sided dishes or pans.
■ Preheat on
LO
setting.
■ Check crispness after 45 minutes. Add
time as needed.
To Warm Serving Bowls and Plates
To warm serving bowls and plates, set the
control on
LO
.
■ Use only heat-safe dishes.
■ Place empty dishes on the rack to raise
them off the bottom of the drawer.
Placing dishes on the warming drawer
bottom may cause them to become
extremely hot and could damage them.
■ If you want to heat fine china, please
check with the manufacturer of the
dishes for their maximum heat tolerance.
■ You may warm empty serving dishes while
preheating the drawer.
■ When holding hot, cooked foods and
warming empty serving dishes at the
same time, place the serving dishes on
the rack and the food on the bottom of
the drawer.
CAUTION: Dishes will be hot. Use pot holders or
mitts when removing hot dishes.
Consumer SupportInstallation Instructions Troubleshooting Tips
Operating Instructions
Safety Instructions
www.GEAppliances.com
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
30
The oven door must be closed and all controls set correctly for the cycle to work properly.
Before a Clean Cycle
For the first self-clean cycle, we recommend
venting your kitchen with an open window
or using a ventilation fan or hood.
Remove the shelves, broiler pan, broiler
grid, probe, all cookware and any
aluminum foil from the oven.
The oven shelves can be self-cleaned,
but they will darken, lose their luster
and become hard to slide.
Soil on the front frame of the range and
outside the gasket on the door will need to
be cleaned by hand. Clean these areas with
hot water, soap-filled steel-wool pads or
cleansers such as Soft Scrub®. Rinse well
with clean water and dry.
Do not clean the gasket. The fiberglass
material of the oven door gasket cannot
withstand abrasion. It is essential for the
gasket to remain intact. If you notice it
becoming worn or frayed, replace it.
Wipe up any heavy spillovers on the oven
bottom.
Make sure the oven light bulb cover is in
place and the oven light is off.
IMPORTANT:
The health of some birds is
extremely sensitive to the fumes given off
during the self-cleaning cycle of any range.
Move birds to another well ventilated
room.
Wipe up heavy soil on the oven
bottom.
How to Set the Oven for Cleaning
Touch the
SELF CLEAN
pad.
Using the number pads, enter the
desired clean time, if a time other
than 4 hours is needed.
Clean cycle time is normally 4 hours. You
can change the clean time to any time
between 3 hours and 5 hours, depending
on how dirty your oven is.
Touch the
START
pad.
The door locks automatically. The display
will show the clean time remaining. It will
not be possible to open the oven door
until the temperature drops below the
lock temperature and the
LOCKED DOOR
light goes off.
When the
LOCKED DOOR
light is off, open
the door.
The oven shuts off automatically when the
clean cycle is complete.
■ The words
LOCK DOOR
will flash and
the oven control will signal if you set
the clean cycle and forget to close the
oven door.
■ To stop a clean cycle, touch the
CLEAR/OFF
pad. When the
LOCKED DOOR
light goes off indicating the oven has
cooled below the locking temperature,
open the door.
Using the self-cleaning oven.
31
Consumer SupportInstallation Instructions Troubleshooting Tips
Operating Instructions
Safety Instructions
The oven door must be closed and all controls set correctly for the cycle to work properly.

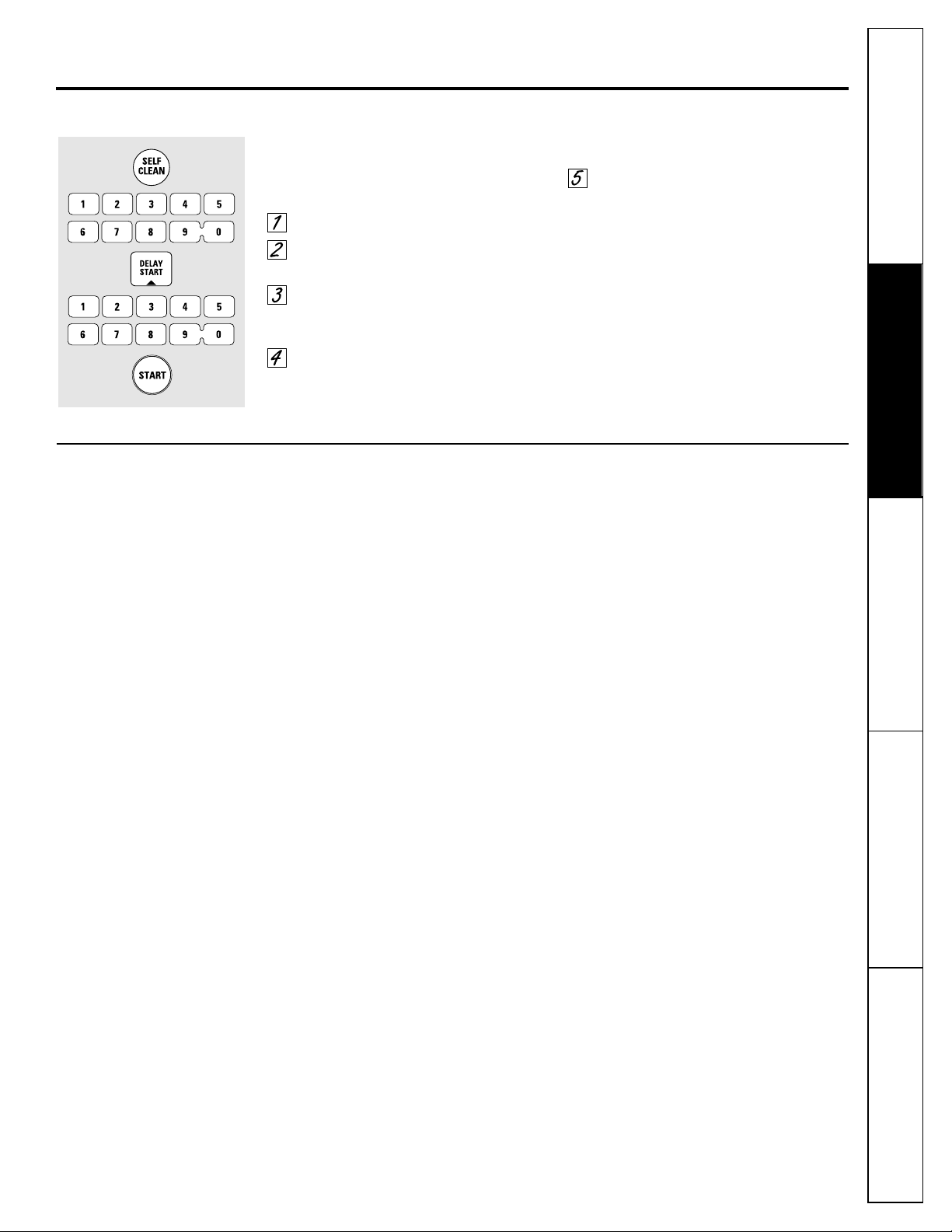

How to Delay the Start of Cleaning
Make sure the clock shows the correct time
of day.
Touch the
SELF CLEAN
pad.
Using the number pads, enter the
desired clean time.
Touch the
DELAY START
pad. The
earliest start time you can set will
appear in the display.
Using the number pads, enter the
time of day you want the clean cycle
to start.
Touch the
START
pad.
The door locks automatically. The display
will show the start time. It will not be
possible to open the oven door until the
temperature drops below the lock
temperature and the
LOCKED DOOR
light
goes off.
When the
LOCKED DOOR
light is off, open
the door.
After a Clean Cycle
You may notice some white ash in the oven.
Wipe it up with a damp cloth after the
oven cools.
If white spots remain, remove them with a soap-
filled steel-wool pad and rinse thoroughly with a
vinegar and water mixture.
These deposits are usually a salt residue
that cannot be removed by the clean cycle.
If the oven is not clean after one clean
cycle, repeat the cycle.
■ You cannot set the oven for cooking until
the oven is cool enough for the door to
unlock.
■ While the oven is self-cleaning, you can
touch the
CLOCK
pad to display the
time of day. To return to the clean
countdown, touch the
COOKING TIME
pad.
■ If the shelves become hard to slide, apply
a small amount of vegetable oil or cooking
oil to a paper towel and wipe the edges of
the oven shelves with the paper towel.
www.GEAppliances.com
Be sure electrical power is off and all surfaces are cool before cleaning any part of the range.
If your range is removed for cleaning, servicing or any reason, be sure the anti-tip device
is re-engaged properly when the range is replaced. Failure to take this precaution could
result in tipping of the range and cause injury.
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
32
Sealed Burner Assemblies—porcelain cooktop models
Turn all controls
OFF
before removing the
burner parts and drip pans (if so equipped).
The burner grates, caps, burner heads and
drip pans (if so equipped) can be lifted off,
making them easy to clean.
CAUTION: Do not operate the burner without
all burner parts and drip pans (if so equipped)
in place.
The electrode of the spark igniter is
exposed when the burner head is
removed. When one burner is turned
to
LITE,
all the burners spark. Do not
attempt to disassemble or clean
around any burner while another
burner is on. An electric shock may
result, which could cause you to
knock over hot cookware.
Burner Heads
For proper ignition, make sure the
small hole in the section that fits over the
electrode is kept open. A sewing needle or
wire twist-tie works well to unclog it.
The slits in the burner heads of your range must be
kept clean at all times for an even, unhampered
flame.
You should clean the surface burners
routinely, especially after bad spillovers,
which could clog these openings.
To remove burned-on food, soak the
burner heads in a solution of mild liquid
detergent and hot water for 20-30 minutes.
For more stubborn stains, use a toothbrush.
Before putting the burner head back, shake
out excess water and then dry it thoroughly
by setting it in a warm oven for 30 minutes.
Replace the burner heads and caps. Make
sure that the heads and caps are replaced
in the correct location. There are 2 large,
one medium and one small head and cap.
NOTE: Before removing the burner heads and
caps, remember their size and location. Replace
them in the same location after cleaning.
Burner Caps
Lift off when cool. Wash burner caps in
hot, soapy water and rinse with clean water.
You may scour with a plastic scouring pad
to remove burned-on food particles.
Dry them in a warm oven or with a cloth—
don’t reassemble them wet. Replace the
burner caps.
Make sure that caps are replaced on the
correct size burner. There are 2 large, one
medium and one small head and cap.
Use a sewing needle or twist-tie to
unclog the small hole in the burner
head.
After cleaning, make sure the slot
in the burner head is positioned
over the electrode.
Small
Medium
Large
Grate
Burner cap
Burner head
Drip pan (on some models)
Care and cleaning of the range.
Electrode
Consumer SupportInstallation Instructions Troubleshooting Tips
Operating InstructionsSafety Instructions
33
Sealed Burner Assemblies—glass cooktop models
Turn all controls
OFF
before removing the
burner parts.
The burner grates, caps and burner heads
can be lifted off, making them easy to
clean.
CAUTION: Do not operate the burner without
all burner parts in place.
When one burner is turned to
LITE,
all the burners spark. Do not attempt
to disassemble or clean around any
burner while another burner is on. An
electric shock may result, which could
cause you to knock over hot cookware.
Burner Heads
The slits in the burner heads of your range must be
kept clean at all times for an even, unhampered
flame.
You should clean the surface burners
routinely, especially after bad spillovers,
which could clog these openings.
To remove burned-on food, soak the
burner heads in a solution of mild liquid
detergent and hot water for 20-30 minutes.
For more stubborn stains, use a toothbrush.
Before putting the burner head back, shake
out excess water and then dry it thoroughly
by setting it in a warm oven for 30 minutes.
Replace the burner heads and caps. Make
sure that the heads and caps are replaced
in the correct location. There are 2 large,
one medium and one small head and cap.
NOTE: Before removing the burner heads and
caps, remember their size and location. Replace
them in the same location after cleaning.
Burner Caps
Lift off when cool. Wash burner caps in hot,
soapy water and rinse with clean water. You
may scour with a plastic scouring pad to
remove burned-on food particles.
Dry them in a warm oven or with a cloth—
don’t reassemble them wet. Replace the
burner caps.
Make sure that caps are replaced on the
correct size burner. There are 2 large,
one medium and one small head and cap.
After cleaning, make sure the
nipple in the burner head is
positioned toward the electrode.
Rotate the burner head around the
burner base until it is level and
securely seated.
Grate
Electrode
Small
Medium
Large
Burner head
Burner cap
Electrode
Burner base
www.GEAppliances.com
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
34
Burner Grates
Lift out when cool. Grates should be
washed regularly and, of course, after
spillovers. Wash them in hot, soapy water
and rinse with clean water. When replacing
the grates, be sure they are positioned
securely over the burners.
Do not operate a burner for an extended
period of time without cookware on the
grate. The finish on the grate may chip
without cookware to absorb the heat.
To remove burned-on food, use a soap-
filled scouring pad.
Although they are durable, the grates will
gradually lose their shine, regardless of the
best care you can give them. This is due
to their continual exposure to high
temperatures. You will notice this sooner
with lighter color grates.
NOTE: Do not clean the grates in a self-cleaning
oven.
For porcelain cooktop models only:
■ After cleaning the grates, dry them
thoroughly by putting them in a warm
oven for a few minutes. Do not put the
grates back on the range while they are
wet. When replacing the grates, make
sure they are positioned securely over
the burners.
■ To prevent rusting on cast iron grates,
apply a light coating of cooking oil on
the bottom of the grates.
Cooktop Surface (on porcelain cooktop models)
To avoid damaging the porcelain enamel
surface of the cooktop and to prevent it
from becoming dull, clean up spills right
away. Foods with a lot of acid (tomatoes,
sauerkraut, fruit juices, etc.) or foods with
high sugar content could cause a dull spot
if allowed to set.
When the surface has cooled, wash and
rinse. For other spills such as fat spatterings,
etc., wash with soap and water once the
surface has cooled. Then rinse and polish
with a dry cloth.
NOTE: Do not store flammable materials in an
oven or near the cooktop. Do not store or use
combustible materials, gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
If your model has single grates,
do not clean them in a dishwasher.
If your model has double grates,
they may be cleaned in a
dishwasher.
Appearance may vary.
Appearance may vary.
Stainless Steel Surfaces
(on some models)
Do not use a steel-wool pad; it will scratch
the surface.
To clean the stainless steel surface, use
warm sudsy water, a stainless steel cleaner
such as Kleen King
®
, or an all-purpose
liquid or spray cleaner. Always scrub
in the direction of the grain. Rinse
thoroughly with a sponge or cloth and
clean water. Dry with a soft, clean cloth.
After cleaning, use a stainless steel polish,
such as Stainless Steel Magic
®
, Revere
Copper and Stainless Steel Cleaner
®
, or
Wenol All Purpose Metal Polish
®
. Follow
the product instructions for cleaning the
stainless steel surface.
Care and cleaning of the range.
35
Normal Daily Use Cleaning
ONLY use CERAMA BRYTE
®
Ceramic
Cooktop Cleaner on the glass cooktop.
Other creams may not be as effective.
To maintain and protect the surface of
your glass cooktop, follow these steps:
Before using the cooktop for the
first time, clean it with CERAMA
BRYTE
®
Ceramic Cooktop Cleaner.
This helps protect the top and makes
clean-up easier.
Daily use of CERAMA BRYTE
®
Ceramic Cooktop Cleaner will help
keep the cooktop looking new.
Remove the burner grates.
Shake the cleaning cream well. Apply
a few drops of CERAMA BRYTE
®
Ceramic Cooktop Cleaner directly to
the cooktop.
Use a paper towel or CERAMA
BRYTE
®
Cleaning Pad for Ceramic
Cooktops to clean the entire cooktop
surface.
Use a dry cloth or paper towel
to remove all cleaning residue.
No need to rinse.
NOTE: It is very important that you DO NOT heat
the cooktop until it has been cleaned thoroughly.
Burned-On Residue
WARNING: DAMAGE to your glass surface may
occur if you use scrub pads other than the pad
included with your cooktop.
Allow the cooktop to cool.
Remove the burner grates. Spread
a few drops of CERAMA BRYTE
®
Ceramic Cooktop Cleaner to the
entire burned residue area.
Using the included CERAMA BRYTE
®
Cleaning Pad for Ceramic Cooktops,
rub the residue area, applying
pressure as needed.
If any residue remains, repeat the
steps listed above as needed.
For additional protection, after all
residue has been removed, polish the
entire surface with CERAMA BRYTE
®
Ceramic Cooktop Cleaner and a
paper towel.
The CERAMA BRYTE
®
Ceramic
Cooktop Scraper and all
recommended supplies are
available through our Parts Center.
See instructions under “To Order
Parts” section on next page.
NOTE: Do not use a dull or
nicked blade.
Clean your cooktop after
each spill. Use CERAMA
BRYTE
®
Ceramic Cooktop
Cleaner.
Heavy, Burned-On Residue
Allow the cooktop to cool.
Remove the burner grates.
Use a single-edge razor blade scraper
at approximately a 45° angle against
the glass surface and scrape the soil.
It will be necessary to apply pressure
to the razor scraper in order to
remove the residue.
After scraping with the razor scraper,
spread a few drops of CERAMA
BRYTE
®
Ceramic Cooktop Cleaner to
the entire burned residue area. Use
the CERAMA BRYTE
®
Cleaning Pad
to remove any remaining residue.
For additional protection, after all
residue has been removed, polish the
entire surface with CERAMA BRYTE
®
Ceramic Cooktop Cleaner and a
paper towel.
Use a CERAMA BRYTE
®
Cleaning
Pad for Ceramic Cooktops or a
Scotch-Brite
®
Multi-Purpose No
Scratch blue scrub pad.
Cleaning the glass cooktop.
www.GEAppliances.com
Consumer SupportInstallation Instructions Troubleshooting Tips
Operating Instructions
Safety Instructions
36
Turn off all surface burners and,
with an oven mitt, remove hot pans
and grates.
Wearing an oven mitt:
a. Use a single-edge razor blade
scraper (CERAMA BRYTE
®
Ceramic Cooktop Scraper) to
move the spill to a cool area on
the cooktop.
b. Remove the spill with paper towels.
Any remaining spillover should be
left until the surface of the cooktop
has cooled.
Don’t use the surface units again until
all of the residue has been completely
removed.
NOTE: If pitting or indentation in the glass surface
has already occurred, the cooktop glass will have to
be replaced. In this case, service will be necessary.
Damage from Sugary Spills and Melted Plastic
Be careful not to slide pots and pans
across your cooktop. It will leave metal
markings on the cooktop surface.
These marks are removable using
the CERAMA BRYTE
®
Ceramic
Cooktop Cleaner with the CERAMA
BRYTE
®
Cleaning Pad for Ceramic
Cooktops.
If pots with a thin overlay of
aluminum or copper are allowed
to boil dry, the overlay may leave
black discoloration on the cooktop.
This should be removed immediately
before heating again or the discoloration
may be permanent.
WARNING: Carefully check the bottom of pans
for roughness that would scratch the cooktop.
Metal Marks and Scratches
To order CERAMA BRYTE
®
Ceramic
Cooktop Cleaner and the cooktop scraper,
please call our toll-free number:
National Parts Center 800.626.2002
CERAMA BRYTE
®
Ceramic Cooktop Cleaner . . . . .# WX10X300
CERAMA BRYTE
®
Ceramic Cooktop Scraper . . .# WX10X0302
Kit . . . . . . . . . . . . . . . . . . . . . . . .# WB64X5027
(Kit includes cream and razor scraper)
CERAMA BRYTE
®
Cleaning Pads
for Ceramic Cooktops . . . . . . . . .# WX10X350
To Order Parts
Cleaning the glass cooktop.
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
Glass surface—potential for permanent damage
.
Our testing shows that if
you are cooking high sugar
mixtures such as jelly or
fudge and have a spillover,
it can cause permanent
damage to the glass surface
unless the spillover is
immediately removed.
Lift-Off Oven Door
The oven door is removable, but it is heavy. You may
need help removing and replacing the door.
To remove the door,
open it a few inches to
the special stop position that will hold the
door open. Grasp firmly on each side and
lift the door straight up and off the hinges.
NOTE: Be careful not to place hands between the
hinge and the oven door frame as the hinge could
snap back and pinch fingers.
To replace the door,
make sure the hinges
are in the special stop position. Position the
slots in the bottom of the door squarely
over the hinges. Then lower the door slowly
and evenly over both hinges at the same
time. If the hinges snap back against the
oven frame, pull them back out.
To clean the inside of the door:
■ Do not allow excess water to run into
any holes or slots in the door.
■ Because the area inside the gasket is
cleaned during the self clean cycle, you
do not need to clean this by hand. Any
soap left on the liner causes additional
stains when the oven is heated.
■ The area outside the gasket can be
cleaned with a soap-filled steel wool or
plastic pad.
To clean the outside of the door:
■ Use soap and water to thoroughly clean
the top, sides and front of the oven door.
Rinse well. You may also use a glass
cleaner to clean the glass on the outside
of the door.
■ Spillage of marinades, fruit juices, tomato
sauces and basting materials containing
acids may cause discoloration and should
be wiped up immediately. When the
surface is cool, clean and rinse.
■ Do not use oven cleaners, cleansing
powders or harsh abrasives on the
outside of the door.
Broiler Pan and Grid
After broiling, remove the broiler pan from
the oven. Remove the grid from the pan.
Carefully pour out grease from the pan into
a proper container. Wash and rinse the
broiler pan and grid in hot water with a
soap-filled or plastic scouring pad.
If food has burned on, sprinkle the grid
with detergent while hot and cover with wet
paper towels or a dishcloth. Soaking the
pan will remove burned-on foods.
The broiler pan and grid may be cleaned
with a commercial oven cleaner.
Both the broiler pan and grid can also be
cleaned in a dishwasher.
Do not store a soiled broiler pan and grid
anywhere in the range.
CAUTION: Do not clean the broiler pan or grid in
a self-cleaning oven.
Lift the door straight up and off the
hinges.
The gasket is designed with a gap
at the bottom to allow for proper air
circulation.
Do not rub or clean the door
gasket—it has an extremely low
resistance to abrasion.
If you notice the gasket becoming
worn, frayed or damaged in any
way or if it has become displaced
on the door, you should have it
replaced.
Grid
Pan
Oven Bottom
The oven bottom has a porcelain enamel
finish. To make cleaning easier, protect the
oven bottom from excessive spillovers by
placing a cookie sheet on the shelf below
the shelf you are cooking on. This is
particularly important when baking a fruit
pie or other foods with a high acid content.
Hot fruit fillings or other foods that are
highly acidic (such as tomatoes, sauerkraut,
and sauces with vinegar or lemon juice)
may cause pitting and damage to the
porcelain enamel surface and should be
wiped up immediately.
We don’t recommend using aluminum foil
on the oven bottom. It can affect air flow if
the holes are blocked and it can concentrate
heat at the bottom of the oven, resulting in
poor baking performance.
To clean up spillovers, use soap and water,
an abrasive cleaner or soap-filled steel-wool
pad. Rinse well to remove any soap before
self-cleaning.
37
Consumer Service
Operating InstructionsSafety Instructions
Installation Instructions Troubleshooting Tips
Care and cleaning of the range.
www.GEAppliances.com
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
38
Warming Drawer Rack
Clean the rack with detergent and water.
After cleaning, rinse the rack with clean
water and dry with a clean cloth.
Warming Drawer Pan
The warming drawer has a removable pan
for easy cleaning.
Remove the pan, using the side edge
handles and clean it with detergent and
water. After cleaning, rinse with clean water
and dry with a clean cloth. Replace the pan
in the warming drawer.
Removable Warming Drawer (on some models)
Most cleaning can be done with the drawer
in place. However, the drawer may be
removed if further cleaning is needed. Use
soap and warm water to thoroughly clean.
To remove the warming drawer:
Pull the drawer straight out until
it stops.
Press the left rail release up and press
the right rail release down, while
pulling the drawer forward and free.
To replace the warming drawer:
Place the left drawer rail around the
inner left rail guide and slide it in
slightly to hook it.
Place the right drawer rail around the
inner right rail guide and slide it in
slightly to hook it.
Slide the drawer all the way in.
NOTE: Before performing any adjustments,
cleaning or service, disconnect the range electrical
power supply at the household distribution panel
by removing the fuse or switching off the circuit
breaker. Make sure the warming drawer heating
element is cool.
Care and cleaning of the range.
Consumer Support
Operating InstructionsSafety Instructions
Installation Instructions Troubleshooting Tips
39
Oven Air Vents
Never block the vents (air openings) of the
range. They provide the air inlet and outlet
that are necessary for the range to operate
properly with correct combustion.
Air openings are located at the rear of
the cooktop, at the top and bottom of the
oven door, and at the bottom of the range,
under the warming drawer.
Upper Control Panel
Lock out the touch pads before cleaning.
See the
Control Lockout
information in the
Special features of your oven control
section
in this manual.
Clean up splatters with a damp cloth.
You may also use a glass cleaner.
Remove heavier soil with warm soapy water.
Do not use abrasives of any kind.
Unlock the touch pads after cleaning.
See the
Control Lockout
information in the
Special features of your oven control
section
in this manual.
Vent appearance and location vary.
Lower Control Panel and Knobs
It’s a good idea to wipe the control panel
after each use of the oven. Clean with mild
soap and water or vinegar and water, rinse
with clean water and polish dry with a soft
cloth.
Do not use abrasive cleansers, strong liquid
cleaners, plastic scouring pads or oven
cleaners on the control panel—they will
damage the finish. A 50/50 solution of
vinegar and hot water works well.
The control knobs may be removed for
easier cleaning. To remove a knob, pull it
straight off the stem. If knob is difficult to
remove, place a towel or dishcloth between
the knob and control panel and pull gently.
Wash the knobs in soap and water or a
vinegar and hot water solution.
Metal parts can be cleaned with soap and
water. Do not use steel wool, abrasives,
ammonia, acids or commercial oven
cleaners. Dry with a soft cloth.
Pull the knob straight off the stem.
www.GEAppliances.com
Oven Shelves
Clean the shelves with an abrasive cleanser
or steel wool. After cleaning, rinse the
shelves with clean water and dry with a
clean cloth.
NOTE: Take the shelves out of the oven before you
begin the self-clean cycle.
Fluorescent Top Light (on some models)
CAUTION: Do not touch the bulb with wet hands or
when the bulb is hot. Never wipe the light area with
a wet cloth. Electrical power must be shut off if you
have to replace the bulb.
Raise the clips on the back, on both
sides, and free the back of the canopy.
Roll the canopy up and off.
Remove the fluorescent light bulb.
Replace the bulb with one of the same
length and wattage.
Replace the canopy by placing the
front in the groove and rolling it back.
Snap it into place over the back clips
on both sides.
Oven Light Replacement
CAUTION: Before replacing your oven light bulb,
disconnect the electrical power to the range at the
main fuse or circuit breaker panel. Be sure to let the
light cover and bulb cool completely.
The oven light bulb is covered with a
removable glass cover that is held in place
with a bail-shaped wire. Remove the oven
door, if desired, to reach cover easily.
To remove:
Hold a hand under the cover so it
doesn’t fall when released. With
fingers of the same hand, firmly push
back the wire cover holder. Lift off the
cover.
Do not remove any screws to remove
the cover.
Do not touch hot bulb with a wet
cloth. Replace bulb with a 40-watt
household appliance bulb.
To replace cover:
Place it into the groove of the light
receptacle. Pull the wire forward to the
center of the cover until it snaps into
place. When in place, the wire holds
the cover firmly. Be certain the wire is
in the depression in the center of the
cover.
Connect electrical power to the range.
Wire cover holder.
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
40
Care and cleaning of the range.
Read these instructions completely and carefully.
BEFORE YOU BEGIN
Installation of this range must conform with local codes, or in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1, latest edition. In Canada, installation must conform with the current
Natural Gas Installation Code, CAN/CGA-B149.1 or the current Propane Installation Code, CAN/CGA-
B149.2, and with local codes where applicable. This range has been design-certified by the American
Gas Association according to ANSI Z21.1, latest edition and Canadian Gas Association according to
CAN/CGA-1.1 latest edition.
As with any appliance using gas and generating
heat, there are certain safety precautions you
should follow. You will find these precautions
in the
Important Safety Information
section in the
front of this manual. Read them carefully.
IMPORTANT: Save these instructions for the local
electrical inspector’s use.
NOTE TO INSTALLER: Leave these instructions
with the appliance after installation is completed.
NOTE TO CONSUMER: Keep this Owner’s Manual
and Installation Instructions for future use.
NOTE: This appliance must be properly grounded.
FOR YOUR SAFETY
Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
If you smell gas:
Open windows.
Don’t touch electrical switches.
Extinguish any open flame.
Immediately call your gas supplier.
TOOLS YOU WILL NEED
■
Phillips and flat-blade screwdrivers
■
Pencil and ruler
■
Two pipe wrenches (one for backup)
■
Open-end or adjustable wrench
■
Nut drivers or wrenches: 3/16
″
and 1/4
″
ADDITIONAL MATERIALS YOU MAY NEED:
■
Gas line shut-off valve
■
Pipe joint sealant or UL-approved pipe thread
tape with Teflon* that resists action of natural
and LP gases
■
Flexible metal appliance connector (1/2
″
I.D.)
A 5-foot length is recommended for ease of
installation but other lengths are acceptable.
Never use an old connector when installing a
new range.
■
Flare union adapter for connection to gas supply
line (3/4
″
or 1/2
″
NPT x 1/2
″
I.D.)
■
Flare union adapter for connection to pressure
regulator on range (1/2
″
NPT x 1/2
″
I.D.)
*Teflon: Registered trademark of DuPont
Consumer Support
Operating InstructionsSafety Instructions
Installation Instructions Troubleshooting Tips
41
Installation of the range.
WARNING!
INSTALLATION SAFETY INSTRUCTIONS
Improper installation, adjustment, alteration, service or maintenance can cause injury or property
damage. Refer to this manual. For assistance or additional information, consult a qualified installer,
service agency, manufacturer (dealer) or the gas supplier.
Never reuse old flexible connectors. The use
of old flexible connectors can cause gas leaks
and personal injury. Always use
NEW
flexible
connectors when installing a gas appliance.
IMPORTANT:
Remove all packing material and
literature from oven before connecting gas and
electrical supply to range.
CAUTION:
Do not attempt to operate the oven
of this range during a power failure (Electric
Ignition models only).
■Have your range installed by a qualified
installer.
■Your range must be electrically grounded
in accordance with local codes or, in the
absence of local codes, in accordance with
the National Electrical Code (ANSI/NFPA
70, latest edition). In Canada, electrical
grounding must be in accordance with the
current CSA C22.1 Canadian Electrical Code
Part 1 and/or local codes. See
Electrical
Connections
in this section.
■Before installing your range on linoleum
or any other synthetic floor covering, make
sure the floor covering can withstand 180°F.
without shrinking, warping or discoloring.
Do not install the range over carpeting
unless a sheet of 1/4″ thick plywood or
similar insulator is placed between the
range and carpeting.
■Make sure the wall coverings around the
range can withstand heat generated by the
range up to 200°F.
■Avoid placing cabinets above the range.
To reduce the hazard caused by reaching
over the open flames of operating burners,
install a ventilation hood over the range that
projects forward at least 5″ beyond the front
of the cabinets.
■The ventilating hood must be constructed
of sheet metal not less than 0.0122″ thick.
Install above the cooktop with a clearance of
not less than 1/4″ between the hood and the
underside of the combustible material or
metal cabinet. The hood must be at least as
wide as the appliance and centered over the
appliance. Clearance between the cooking
surface and the ventilation hood surface
MUST NEVER BE LESS THAN 24 INCHES.
EXCEPTION:
Installation of a listed microwave
oven or cooking appliance over the cooktop
shall conform to the installation instructions
packed with that appliance.
■If cabinets are placed above the range,
allow a minimum clearance of 30″ between
the cooking surface and the bottom of
unprotected cabinets.
■If a 30″ clearance between cooking surface
and overhead combustible material or metal
cabinets cannot be maintained, protect the
underside of the cabinets above the cooktop
with not less than 1/4″ insulating millboard
covered with sheet metal not less than
0.0122″ thick.
■Clearance between the cooking surface and
protected cabinets
MUST NEVER BE LESS
THAN 24 INCHES.
The vertical distance from
the plane of the cooking surface to the
bottom of adjacent overhead cabinets
extending closer than 1″ to the plane of
the range sides must not be less than 18″.
(See the
Dimensions and Clearances
illustration in this section.)
■
CAUTION:
Items of interest to children
should not be stored in cabinets above a
range or on the backsplash of a range—
children climbing on the range to reach
items could be seriously injured.
42
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
Read these instructions completely and carefully.
Installation of the range.
Consumer Support
Operating InstructionsSafety Instructions
Installation Instructions Troubleshooting Tips
43
DIMENSIONS AND CLEARANCES
Provide adequate clearances between the range and adjacent combustible surfaces. These dimensions
must be met for safe use of your range. The location of the electrical outlet and pipe opening (see Gas
Pipe and Electric Outlet Locations) may be adjusted to meet specific requirements.
The range may be placed with 0
″
clearance (flush) at the back wall.
28
1
⁄
4
” to 29”
Depth with door closed (includes door handle)
Depth varies depending on model.
See specifications sheet for your model.
30”
36
1
⁄
4
” ± 1⁄4”
To cabinets below
cooktop and at the
range back
30”
30”
2”
Minimum
13”
To wall on either side
sealed burner models
Maximum depth
for cabinets above
countertops
Front edge of
the range side
panel forward
from cabinet
18”
0”
1/4”
Minimum to
cabinets on
either side of
the range
36”
47
3
⁄
4
”
Depth with door open:
46
3
⁄
8
”
Height
IMPORTANT!
Remove all tape and packaging. Make sure the burners are properly seated and level.
Take the accessory pack out of the oven.
Check to be sure that no range parts have come loose during shipping.
LOCATION
Do not locate the range where it may be subject to strong drafts. Any openings in the floor or wall behind
the range should be sealed. Make sure the openings around the base of the range that supply fresh air
for combustion and ventilation are not obstructed by carpeting or woodwork.
Your range, like many other household items,
is heavy and can settle into soft floor coverings
such as cushioned vinyl or carpeting. Use care
when moving the range on this type of
flooring. It is recommended that the following
simple and inexpensive instructions be
followed to protect your floor.
The range should be installed on a sheet of
plywood (or similar material). When the floor
covering ends at the front of the range, the
area that the range will rest on should be built
up with plywood to the same level or higher
than the floor covering.
This will allow the range to be moved for
cleaning or servicing. Also, make sure your
floor covering will withstand 180°F. (See the
Installation Safety Instructions
section.)
Make sure the wall coverings around your
range can withstand the heat generated
(up to 200°F.) by the range. (See the
Installation Safety Instructions
section.)
All ranges can tip and injury could result.
To prevent accidental tipping of the range, attach an approved Anti-Tip device to the wall. (See Installing
the Anti-Tip Device in this section.) To check if the device is installed and engaged properly, carefully tip
the range forward. The Anti-Tip device should engage and prevent the range from tipping over.
If you pull the range out from the wall for any reason, make sure the Anti-Tip device is engaged when
you push the range back against the wall.
■For your safety, never use your range for warming or heating the room. Your oven and cooktop
are not designed to heat your kitchen. Top burners should not be operated without cookware
on the grate. Such abuse could result in fire and damage to your range and will void your
warranty.
■Do not store or use combustible materials, gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance. Explosions or fires could result.
■Do not use oven for a storage area. Items stored in the oven can ignite.
■Do not let cooking grease or other flammable materials accumulate in or near the range.
WARNING!
ANTI-TIP DEVICE
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
44
Read these instructions completely and carefully.
Installation of the range.
45
Consumer Support
Operating InstructionsSafety Instructions
Installation Instructions Troubleshooting Tips
Provide Adequate Gas Supply
Your range is designed to operate at a pressure of 4
″
of water column on natural gas or, if designed for
LP gas (propane or butane), 10
″
of water column.
Make sure you are supplying your range with the
type of gas for which it is designed.
This range is convertible for use on natural or
propane gas. If you decide to use this range on
LP gas, conversion must be made by a qualified
LP installer before attempting to operate the
range on that gas.
For proper operation, the pressure of natural gas
supplied to the regulator must be between 4″ and
13″ of water column.
For LP gas, the pressure supplied must be between
10″ and 13″ of water column.
When checking for proper operation of the
regulator, the inlet pressure must be at least 1″
greater than the operating (manifold) pressure as
given above.
The pressure regulator located at the inlet of the
range manifold must remain in the supply line
regardless of whether natural or LP gas is being used.
A flexible metal appliance connector used to
connect the range to the gas supply line should
have an I.D. of 1/2″ and be 5 feet in length for ease
of installation. In Canada, flexible connectors must
be single wall metal connectors no longer than
6 feet in length.
Connect the Range to Gas
Shut off the main gas supply valve before disconnecting the old range and leave it off until the new
hook-up has been completed. Don’t forget to relight the pilot on other gas appliances when you turn
the gas back on.
Because hard piping restricts movement of the
range, the use of an A.G.A.-certified flexible metal
appliance connector is recommended unless local
codes require a hard-piped connection.
Never use an old connector when installing a new
range. If the hard piping method is used, you must
carefully align the pipe; the range cannot be moved
after the connection is made.
To prevent gas leaks, put pipe joint compound on,
or wrap pipe thread tape with Teflon* around, all
male (external) pipe threads.
Install a manual gas line shut-off valve in the
gas line in an easily accessed location outside
of the range. Make sure everyone operating
the range knows where and how to shut off
the gas supply to the range.
Install male 1/2″ flare union adapter to the
1/2″ NPT internal thread elbow at inlet of
regulator. On models equipped with standard
twin burners, install the male pipe thread end
of the 1/2″flare union adapter to the 1/2″
NPT internal thread at inlet of pressure
regulator. Use a backup wrench on the
regulator fitting to avoid damage.
When installing the range from the front,
remove the 90° elbow for easier installation.
Install male 1/2″ or 3/4″ flare union adapter
to the NPT internal thread of the manual shut-
off valve, taking care to back-up the shut-off
valve to keep it from turning.
Connect flexible metal appliance connector to
the adapter on the range. Position range to
permit connection at the shut-off valve.
When all connections have been made,
make sure all range controls are in the off
position and turn on the main gas supply
valve. Use a liquid leak detector at all joints
and connections to check for leaks in the
system.
When using test pressures greater than 1/2 psig to
pressure test the gas supply system of the residence,
disconnect the range and individual shut-off valve
from the gas supply piping. When using test
pressures of 1/2 psig or less to test the gas supply
system, simply isolate the range from the gas supply
system by closing the individual shut-off valve.
*Teflon: Registered trademark of DuPont
CAUTION:
DO NOT USE A FLAME TO
CHECK FOR GAS LEAKS.
Gas Pipe and Electrical Outlet Locations
This area allows for flush range
installation with through-the-wall
connection of pipe stub/shut-off
valve and rear wall 120V outlet.
This area allows for flush range
installation with through-the-floor
connection of pipe stub/shut-off valve.
Shortest connection from hard pipe
stub location to range hookup.
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
46
Read these instructions completely and carefully.
Installation of the range.
47
Consumer Support
Operating InstructionsSafety Instructions
Installation Instructions Troubleshooting Tips
Flexible Connector Hookup
Rigid Pipe Hookup
Pressure regulator
Pressure regulator
90° Elbow (provided)
90° Elbow (provided)
Gas Flow into Range
Gas Flow into Range
Flex connector (6 ft. max.)
Adapter
Union
Nipple
1/2″or 3/4″ Gas pipe
1/2″or 3/4″ Gas pipe
Adapter
Gas shut-off valve
Gas shut-off valve
Nipple
Union
Black iron pipe
90° Elbow
Installer: Inform the
consumer of the location
of the gas shut-off valve.
Installer: Inform the
consumer of the location
of the gas shut-off valve.
Electrical Connections
Electrical Requirements
120-volt, 60 Hertz, properly grounded branch
circuit protected by a 15-amp or 20-amp circuit
breaker or time delay fuse.
Extension Cord Cautions
Because of potential safety hazards associated
with certain conditions, we strongly recommend
against the use of an extension cord. However,
if you still elect to use an extension cord, it is
absolutely necessary that it be a UL-listed,
3-wire grounding-type appliance extension cord
and that the current carrying rating of the cord
in amperes be equivalent to, or greater than,
the branch circuit rating.
Grounding
IMPORTANT—(Please read carefully)
FOR PERSONAL SAFETY, THIS APPLIANCE
MUST BE PROPERLY GROUNDED.
The power cord of this appliance is equipped with
a three-prong (grounding) plug which mates with a
standard three-prong grounding wall receptacle to
minimize the possibility of electric shock hazard
from this appliance.
The customer should have the wall receptacle and
circuit checked by a qualified electrician to make
sure the receptacle is properly grounded.
Where a standard two-prong wall receptacle is
encountered, it is the personal responsibility and
obligation of the customer to have it replaced with
a properly grounded three-prong wall receptacle.
DO NOT, UNDER ANY CIRCUMSTANCES,
CUT OR REMOVE THE THIRD (GROUND)
PRONG FROM THE POWER CORD.
A word about GFCI’s – GFCI’s are not required or
recommended for gas range receptacles.
Ground Fault Circuit Interrupters (GFCI’s) are
devices that sense leakage of current in a circuit
and automatically switch off power when a
threshold leakage level is detected. These devices
must be manually reset by the consumer. The
National Electrical Code requires the use of GFCI’s
in kitchen receptacles installed to serve countertop
surfaces. Performance of the range will not be
affected if operated on a GFCI-protected circuit but
occasional nuisance tripping of the GFCI breaker
is possible.
Usage Situations where Appliance
Power Cord will be Disconnected
Infrequently.
An adapter may be used only on a 15-amp circuit.
Do not use an adapter on a 20-amp circuit. Where
local codes permit, a
TEMPORARY CONNECTION
may be made to a properly grounded two-prong
wall receptacle by the use of a UL-listed adapter,
available at most hardware stores. The larger slot in
the adapter must be aligned with the larger slot in
the wall receptacle to provide proper polarity in the
connection of the power cord.
When disconnecting the power cord from the
adapter, always hold the adapter with one hand.
If this is not done, the adapter ground terminal is
very likely to break with repeated use. Should this
happen,
DO NOT USE
the appliance until a proper
ground has again been established.
CAUTION:
Attaching the adapter
ground terminal to the wall receptacle cover
screw does not ground the appliance unless the
cover screw is metal, and not insulated, and the
wall receptacle is grounded through the house
wiring. The customer should have the circuit
checked by a qualified electrician to make sure
the receptacle is properly grounded.
Preferred Method
Temporary Method
Ensure proper ground exists
before use
Ensure proper ground
and firm connection
before use
(Adapter plugs not permitted in Canada)
Align large prongs/slots
Read these instructions completely and carefully.
Operating Instructions
48
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
Installation of the range.
Consumer SupportInstallation Instructions Troubleshooting Tips
Operating InstructionsSafety Instructions
49
Electrical Connections
Usage Situations where Appliance
Power Cord will be Disconnected
Frequently.
Do not use an adapter plug in these situations
because disconnecting of the power cord
places undue strain on the adapter and leads to
eventual failure of the adapter ground terminal.
The customer should have the two-prong wall
receptacle replaced with a three-prong (grounding)
receptacle by a qualified electrician before using
the appliance.
The installation of appliances designed for
mobile home installation must conform with the
Manufactured Home Construction and Safety
Standard, Title 24 CFR, Part 3280 (formerly the
Federal Standard for Mobile Home Construction
and Safety, Title 24, HUD, Part 280) or, when such
standard is not applicable, the Standard for
Manufactured Home Installations, latest edition
(Manufactured Home Sites, Communities and
Set-Ups), ANSI A225.1, latest edition, or with local
codes. In Canada, mobile home installation must
be in accordance with the current CAN/CSA
Z240/MH Mobile Home Installation Code.
Electric Disconnect
■ Locate disconnect plug on the range back.
■ Pinch sides of connector and pull out of range
back.
Seal the Openings
Seal any openings in the wall behind the range and
in the floor under the range when hookups are
completed.
Check Ignition of Surface Burners
Operation of all cooktop and oven burners should
be checked after the range and gas supply lines
have been carefully checked for leaks.
Electric Ignition Models
Select a top burner knob and simultaneously
push in and turn to
LITE
position. You will hear
a
clicking
sound indicating proper operation of the
spark module. Once the air has been purged from
the supply lines, burners should light within
4 seconds. After burner lights, rotate knob out of
the
LITE
position. Try each burner in succession
until all burners have been checked.
Quality of Flames
The combustion quality of burner flames needs to
be determined visually.
If burner flames look like (A), call for service. Normal burner
flames should look like (B) or (C), depending on the type of gas
you use.
With LP gas, some yellow tipping on outer cones
is normal.
(C) Soft blue
flames—Normal for
natural gas
(B) Yellow tips on
outer cones—
Normal for LP gas
(A) Yellow flames—
Call for service
Check Ignition of Oven Burner
The oven is designed to operate quietly and
automatically. To operate the oven, press the
BAKE
pad and then press the number pads until
350°
appears in the display. Touch the
START
pad.
After 30-90 seconds, the oven burner will ignite
and burn until the set temperature is reached.
The oven burner will continue to cycle on and
off as necessary to maintain the oven at the
temperature indicated by the display.
To check ignition of the broil burner, touch the
BROIL HI/LO
pad and then the
START
pad. After
30-90 seconds, the broil burner will ignite.
Electric ignition models
require electrical power to
operate. In case of a power outage, the oven
burners on these models cannot be lit manually
with a match. Gas will not flow unless the glow bar
is hot.
If the oven is in use when a power outage occurs,
the burner will shut off and cannot be re-lit until
power is restored.
Read these instructions completely and carefully.
Operating Instructions
50
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
Installation of the range.
Adjust Broil and Oven Burner Air Adjustment Shutters if Necessary
Air adjustment shutters for the top and bottom burners
regulate the flow of air to the flames.
The air adjustment shutter for the top (broil)
burner is in the center of the rear wall of the oven.
The shutter for the bottom (oven) burner is near
the back wall behind the warming drawer. Remove
the drawer. See the
Care and cleaning of the range
section.
To adjust the flow of air to either burner, loosen the Phillips
head screw and rotate the shutter toward open or closed
position as needed.
The flames for the top (broil) burner should be
steady with approximately 1″ blue cones and should
not extend out over the edges of the burner baffle.
To determine if the bottom burner flames are
burning properly, remove the oven bottom. Flames
should have approximately 1″ blue cones and, if
range is supplied with natural gas, should burn with
no yellow tipping. (With most LP gas, small yellow
tips at the end of outer cones are normal.) Flames
should not lift off burner ports. If lifting is observed,
gradually reduce air shutter opening until flames
are stabilized.
To remove the oven bottom:
Remove the knurled screws holding down
rear of the oven bottom.
Grasp the oven bottom at finger slots on
each side.
Lift the rear of the oven bottom enough to
clear the lip of the range frame, push it back,
and then pull it up and out.
Oven bottom
Air adjustment
shutter
Loosen
Leveling the Range
Install the oven shelves in the oven and
position the range where it will be installed.
Check for levelness by placing a spirit level or
a cup, partially filled with water, on one of the
oven shelves. If using a spirit level, take two
readings—with the level placed diagonally
first in one direction and then the other.
Remove the warming drawer. See the
Care
and cleaning of the range
section. The front
leveling legs can be adjusted from the bottom
and the rear legs can be adjusted from the
top or the bottom.
Use an open-end or adjustable wrench to
adjust the leveling legs until the range is level.
After the range is level, slide the range away
from the wall so that the Anti-Tip device can
be installed.
Air adjustment
shutter
Loosen
Consumer SupportInstallation Instructions Troubleshooting Tips
Operating InstructionsSafety Instructions
51
Leg
leveler
Lower
range
Raise
range
(on some models)
Raise
range
Lower
range
(on some models)
Converting to LP Gas
(or converting back to natural gas from LP)
This range leaves the factory set for use with natural gas.
If you want to convert to LP gas, the conversion must be
performed by a qualified LP gas installer.
The conversion instructions and LP orifices can be
found attached to the range next to the pressure
regulator.
Keep these instructions and the orifices in case you
want to convert back to natural gas.
Installing the Anti-Tip Device
Mark the wall where the
RIGHT EDGE
of the
range is to be located. Be sure to allow for the
countertop overhang if you intend to install
the range next to cabinets.
Locate the outside edge of the device 2
1
⁄8″
toward the center of the range from the
marked edge of the range.
Using the device as a template, mark the
position of the hole for the screw.
For wood construction, drill a pilot hole at an
angle of 20 degrees from the horizontal. A nail
or awl may be used if a drill is not available.
Mount the Anti-Tip device with the screw provided.
For cement or concrete construction, you
will need a 1/4″ x 1
1
⁄2″ lag bolt and a 1/2″ O.D.
sleeve anchor, which are not provided. Drill
the recommended size hole for the hardware.
Install the sleeve anchor into the drilled hole and
then install the lag bolt through the device. The
bolts must be properly tightened as recommended
for the hardware.
Slide the range against the wall, and check for
proper installation by grasping the front edge
of the cooktop and carefully attempting to tilt
the range forward.
WARNING:
■ Range must be secured with an approved
Anti-Tip device.
■ Unless properly installed, the range could be
tipped by you or a child standing, sitting or
leaning on an open door.
■ After installing the Anti-Tip device, verify that
it is in place by carefully attempting to tilt the
range forward.
■ This range has been designed to meet all
recognized industry tip standards for all
normal conditions.
■ The use of this device does not preclude
tipping of the range when not properly
installed.
■ If the Anti-Tip device supplied with the range
does not fit this application, use the universal
Anti-Tip device WB02X7909.
When All Hookups Are Completed:
MAKE SURE ALL CONTROLS ARE LEFT IN THE
OFF POSITION.
MAKE SURE THE FLOW OF COMBUSTION AND
VENTILATION AIR TO THE RANGE IS UNOBSTRUCTED.
Back of rangeWallboard
Wood screw
Anti-Tip
device
Slotted head screw
Wallplate
Approx.
20°
2
1
⁄
8
”
Marked edge of range
Anti-Tip
device
Read these instructions completely and carefully.
Operating Instructions
52
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
Installation of the range.
Consumer SupportInstallation Instructions Troubleshooting Tips
Operating InstructionsSafety Instructions
53
Troubleshooting Tips
Save time and money! Review the charts on the following
pages first and you may not need to call for service.
Problem Possible Causes What To Do
Top burners do not light
Plug on range is not completely • Make sure electrical plug is plugged into a live, properly
or do not burn evenly
inserted in the electrical outlet. grounded outlet.
Burner slits on the side of the • Remove the burner heads and clean them. Check the
burner may be clogged. electrode area for burned-on food or grease. See the
Care and cleaning of the range
section.
Improper burner assembly. • Make sure the burner parts are installed correctly.
See the
Care and cleaning of the range
section.
Burner flames very
Improper air to gas ratio. • If range is connected to LP gas, contact the person
large or yellow
who installed your range or made the conversion.
Surface burners light
The oven gas shut-off valve • To check the oven gas shut-off valve, remove the
but oven does not
may have accidentally been warming drawer (see the
Care and cleaning of the range
moved during cleaning or section) and look for the gas shut-off lever at the back
moving. of the range. Follow the directions in box
A
or
B
that
match your regulator type.
Scratches (may appear
Incorrect cleaning • Scratches are not removable. Tiny scratches will become
as cracks) on cooktop
methods being used. less visible in time as a result of cleaning.
glass surface
Cookware with rough bottoms • To avoid scratches, use the recommended cleaning
being used or coarse particles procedures. Make sure bottoms of cookware are clean
(salt or sand) were between before use, and use cookware with smooth bottoms.
the cookware and the surface
of the cooktop.
Cookware has been slid
across the cooktop surface.
Areas of discoloration
Food spillovers not cleaned • See the
Cleaning the glass cooktop
section.
on the glass cooktop
before next use.
surface
Hot surface on a model with • This is normal. The cooking zones may change color
a light colored glass cooktop. when hot or cooling down. This is temporary and
will disappear as the glass cools to room temperature.
Plastic melted
Hot cooktop came into • See the
Glass surface—Potential for permanent damage
to the glass cooktop
contact with plastic placed
Section
in the
Cleaning the glass surface
section.
surface
on the hot cooktop.
Pitting (or indentation)
Hot sugar mixture spilled • Call a qualified technician for replacement.
of the cooktop
on the cooktop.
Lever is
shown closed.
PULL TO OPEN.
Lever is
shown closed.
PULL TO OPEN.
AB
Before You Call For Service…
www.GEAppliances.com
Problem Possible Causes What To Do
Fluorescent top light
Fluorescent bulb is loose • Adjust or replace. See the
Care and cleaning of the range
does not work
or defective. section.
Switch operating the light • Call for service.
is broken.
Control signals after
You forgot to enter a bake • Touch the
BAKE
pad and desired temperature or
entering cooking time
temperature or cleaning time. the
SELF CLEAN
pad and desired clean time.
or start time
Food does not bake
Oven controls improperly set. • See the
Using the oven
section.
or roast properly
Shelf position is incorrect. • See the
Using the oven
section.
Incorrect cookware or cookware • See the
Using the oven
section.
of improper size being used.
Oven thermostat needs • See the
Adjust the oven thermostat—Do it yourself!
adjustment. section.
Clock not set correctly. • See the
Using the clock and timer
section.
Aluminum foil used improperly • See the
Care and cleaning of the range
section.
in the oven.
Oven bottom not securely • See the
Installation of the range
section.
seated in position.
Food does not
Oven controls improperly set. • Make sure you touch the
BROIL HI/LO
pad.
broil properly
Oven door not closed. • See the
Using the oven
section.
Improper shelf position • See the
Broiling Guide.
being used.
Food being cooked in a hot pan. • Use the broiling pan and grid that came with your
range. Make sure it is cool.
Cookware not suited for broiling. • Use the broiling pan and grid that came with your range.
Aluminum foil used on the • See the
Using the oven
section.
the broiling pan and grid has
not been fitted properly and
slit as recommended.
Oven bottom not securely • See the
Installation of the range
section.
seated in position.
Oven temperature too
Oven thermostat • See the
Adjust the oven thermostat—Do it yourself!
hot or too cold
needs adjustment. section.
Clock and timer
Plug on range is not completely • Make sure electrical plug is plugged into a live, properly
do not work
inserted in the electrical outlet. grounded outlet.
A fuse in your home may be • Replace the fuse or reset the circuit breaker.
blown or the circuit breaker
tripped.
Oven controls improperly set. • See the
Using the clock and timer
section.
Operating Instructions
54
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
Troubleshooting Tips
Before You Call For Service…
Consumer SupportInstallation Instructions Troubleshooting Tips
Operating InstructionsSafety Instructions
55
Problem Possible Causes What To Do
Oven light does not work
Light bulb is loose or defective. • Tighten or replace the bulb.
Plug on range is not completely • Make sure electrical plug is plugged into a live, properly
inserted in the electrical outlet. grounded outlet.
Oven will not self-clean
The oven temperature is too • Allow the range to cool to room temperature and
high to set a self-clean operation. reset the controls.
Oven controls improperly set. • See the
Using the self-cleaning oven
section.
“Crackling” or
This is the sound of the • This is normal.
“popping” sound
metal heating and cooling
during both the cooking and
cleaning functions.
Excessive smoking
Excessive soil. • Touch the
CLEAR/OFF
pad. Open the windows to
rid the room of smoke. Wait until the
LOCKED DOOR
light goes off. Wipe up the excess soil and reset the
clean cycle.
Oven door will not open
Oven too hot. • Allow the oven to cool below locking temperature.
after a clean cycle
Oven not clean after a
Oven controls not properly set. • See the
Using the self-cleaning oven
section.
clean cycle
Oven was heavily soiled. • Clean up heavy spillovers before starting the clean
cycle. Heavily soiled ovens may need to self-clean
again or for a longer period of time.
“LOCK DOOR” flashes
The self-clean cycle has been • Close the oven door.
in the display
selected but the door is not
closed.
LOCKED DOOR light
The oven door is locked • Touch the
CLEAR/OFF
pad. Allow the oven to cool.
is on when you want
because the temperature
to cook
inside the oven has not
dropped below the
locking temperature.
“F—and a number or
You have a function error code. • Touch the
CLEAR/OFF
pad. Allow the oven to cool for
letter” flash in the display
one hour. Put the oven back into operation.
If the function code repeats. • Disconnect all power to the range for 5 minutes
and then reconnect power. If the function error
code repeats, call for service.
“Probe” appears in
This is reminding you to enter a • Enter a probe temperature.
the display
probe temperature after plugging
in the probe.
www.GEAppliances.com
Problem Possible Causes What To Do
Display goes blank
A fuse in your home may be • Replace the fuse or reset the circuit breaker.
blown or the circuit
breaker tripped.
The clock is in the • See the
Special features of your oven control
section.
black-out mode.
Display flashes
Power failure. • Reset the clock.
Unable to get the
Oven control pads were • The
BAKE
and
BROIL HI/LO
pads must be touched at
display to show “SF”
not pressed properly. the same time and held for 3 seconds.
Power outage,
Power outage or surge. • Reset the clock. If the oven was in use, you must reset
clock flashes
it by touching the
CLEAR/OFF
pad, setting the clock
and resetting any cooking function.
“Burning” or “oily”
This is normal in a new oven • To speed the process, set a self-clean cycle for a
odor emitting from
and will disappear in time. minimum of 3 hours. See the
Using the self-cleaning
the vent oven
section.
Strong odor
An odor from the insulation • This is temporary.
around the inside of the oven
is normal for the first few times
the oven is used.
Fan noise
The convection fan may turn on • This is normal. The convection fan will run until the
and off automatically. function is over or the door is opened.
Convection fan
Preheat temperature • Fan will start automatically once the preheat
not working
not reached. temperature is reached.
Drawer does not slide
The drawer is out of alignment. • Fully extend the drawer and push it all the way in.
smoothly or drags
See the
Care and cleaning of the range
section.
Drawer is over-loaded or load • Reduce weight. Redistribute drawer contents.
is unbalanced.
Warming zone or
A fuse in your home may be • Replace the fuse or reset the circuit breaker.
warming drawer
blown or the circuit breaker
will not work
tripped.
The oven is self-cleaning. • Wait for the self-clean cycle to finish and the oven
to cool.
Controls improperly set. • See the
Using the electric glass top warming zone
section.
• See the
Electric warming drawer
section.
Excessive condensation
Liquid in warming drawer. • Remove liquid.
in the warming drawer
Uncovered foods. • Cover food with lid or aluminum foil.
Temperature setting too high. • Reduce temperature setting.
Food dries out in the
Moisture escaping. • Cover food with lid or aluminum foil.
warming drawer
Operating Instructions
56
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
Troubleshooting Tips
Before You Call For Service…
General Electric Company
Warranty Registration Department
P.O. Box 32150
Louisville, KY 40232-2150
GE Service Protection Plus
™
GE, a name recognized worldwide for quality and dependability, offers you
Service Protection Plus
™
—comprehensive protection on all your appliances—
No Matter What Brand!
Benefits Include:
• Backed by GE
• All brands covered
• Unlimited service calls
• All parts and labor costs included
• No out-of-pocket expenses
• No hidden deductibles
• One 800 number to call
You will be completely satisfied with our service protection or you may request your money back
on the remaining value of your contract. No questions asked. It’s that simple.
Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand!
Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemaker
coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable
household products are protected against expensive repairs.
Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224
for more information.
*All brands covered, up to 20 years old, in the continental U.S.
We’ll Cover Any Appliance.
Anywhere. Anytime.*
Please place in envelope and mail to:
✁
Cut here
57
58
Consumer Product Ownership Registration
Important
Mail
Today!
General Electric Company
Louisville, Kentucky
www.GEAppliances.com
First
Name
Mr. ■■ Ms. ■■ Mrs. ■■ Miss ■■
Street
Address
City
State
Date Placed
In Use
Month
Day
Year
Zip
Code
Apt. #
Last
Name
Phone
Number
_
_
Consumer Product Ownership Registration
Dear Customer:
Thank you for purchasing our product and thank you for placing your confidence in us.
We are proud to have you as a customer!
Follow these three steps to protect your new appliance investment:
Important: If you did not get a registration card with your
product, detach and return the form below to
ensure that your product is registered, or register
online at www.GEAppliances.com.
1
23
Model Number Serial Number
✁
Cut here
Complete and mail
your Consumer
Product Ownership
Registration today.
Have the peace of
mind of knowing we
can contact you in
the unlikely event of
a safety modification.
After mailing the
registration below,
store this document
in a safe place. It
contains information
you will need should
you require service.
Our service number is
800.GE.CARES
(800.432.2737).
Read your Owner’s
Manual carefully.
It will help you
operate your new
appliance properly.
Model Number Serial Number
E-mail Address*
* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important
communications from GE Appliances (GEA).
■■ Check here if you do not want to receive communications from GEA’s carefully selected partners.
59
Consumer Support
Operating Instructions
Safety Instructions Installation Instructions Troubleshooting Tips
Notes.
60
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
Notes.
61
Consumer Support
Operating InstructionsSafety Instructions
Installation Instructions Troubleshooting Tips
Notes.
62
Operating Instructions
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
■Service trips to your home to teach you how to use
the product.
■Improper installation.
■Failure of the product if it is abused, misused,
or used for other than the intended purpose or
used commercially.
■Damage to the glass cooktop caused by hardened
spills of sugary materials or melted plastic that
are not cleaned according to the directions in
the Owner’s Manual.
■Damage to the glass cooktop caused by use of cleaners
other than the recommended cleaning creams.
■Replacement of house fuses or resetting of circuit
breakers.
■Damage to the product caused by accident, fire, floods or
acts of God.
■Incidental or consequential damage caused by possible
defects with this appliance.
What GE Will Not Cover:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
For The Period Of: GE Will Replace:
One Year Any part
of the range which fails due to a defect in materials or workmanship. During this
From the date of the full one-year warranty,
GE will also provide,
free of charge,
all labor and in-home service to
original purchase
replace the defective part.
Five Years A replacement glass cooktop
if it should: crack due to thermal shock; discolor; crack at the
From the date of the
rubber seal between the glass cooktop and the porcelain edge; or if the warming zone
original purchase
pattern wears off.
(on glass cooktop
models only)
A replacement warming zone surface unit
if it should burn out.
During this
limited additional four-year warranty,
you will be responsible for any labor or
in-home service.
GE Gas Range Warranty.
(For customers in the United States)
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care
®
technician. To schedule service,
on-line, 24 hours a day, visit us at www.GEAppliances.com, or call
800.GE.CARES (800.432.2737).
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
63
Consumer Support
Operating InstructionsSafety Instructions
Installation Instructions Troubleshooting Tips
All warranty service provided by our Factory Service Centers
or an authorized Customer Care
®
technician. For service,
call 1.800.361.3400.
■Service trips to your home to teach you how to use
the product.
■Improper installation.
■Failure of the product if it is abused, misused,
or used for other than the intended purpose or
used commercially.
■Damage to the glass cooktop caused by hardened
spills of sugary materials or melted plastic that
are not cleaned according to the directions in
the Owner’s Manual.
■Damage to the glass cooktop caused by use of cleaners
other than the recommended cleaning creams.
■Replacement of house fuses or resetting of circuit
breakers.
■Damage to the product caused by accident, fire, floods or
acts of God.
■Incidental or consequential damage caused by possible
defects with this appliance.
What Camco Will Not Cover:
For The Period Of: Camco Will Replace:
One Year Any part
of the range which fails due to a defect in materials or workmanship. During this
From the date of the full one-year warranty,
Camco will also provide,
free of charge,
all labor and in-home service to
original purchase
replace the defective part.
Five Years A replacement glass cooktop
if it should: crack due to thermal shock; discolor; crack at the
From the date of the
rubber seal between the glass cooktop and the porcelain edge; or if the warming zone
original purchase
pattern wears off.
(on glass cooktop
models only)
A replacement warming zone surface unit
if it should burn out.
During this
limited additional four-year warranty,
you will be responsible for any labor or
in-home service.
WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.
Warrantor: CAMCO INC.
GE Gas Range Warranty.
(For customers in Canada)
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
Printed in Mexico
This book is printed on recycled paper.
Consumer Support.
GE Appliances Website
www.GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,
order parts, catalogs, or even schedule service on-line. You can also “Ask Our Team of Experts
™
”
your questions, and so much more...
Schedule Service
www.GEAppliances.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at
your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal
business hours. In Canada, call 1.800.361.3400.
Real Life Design Studio
www.GEAppliances.com
GE supports the Universal Design concept—products, services and environments that can be used by
people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and
mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen
design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call
800.TDD.GEAC (800.833.4322). In Canada, contact: Manager, Consumer Relations, Camco Inc.,
1 Factory Lane, Suite 310, Moncton, N.B., E1C 9M3.
Extended Warranties
www.GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty
is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours.
GE Consumer Home Services will still be there after your warranty expires. In Canada, call 1.800.461.3636.
Parts and Accessories
www.GEAppliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their
homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or
by phone at 800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally
should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause
unsafe operation. In Canada, please consult your yellow pages for your local Camco number.
Contact Us
www.GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details
including your phone number, or write to: General Manager, Customer Relations, GE Appliances,
Appliance Park, Louisville, KY 40225. In Canada, to: Manager, Consumer Relations, Camco Inc.,
1 Factory Lane, Suite 310, Moncton, N.B., E1C 9M3.
Register Your Appliance
www.GEAppliances.com
Register your new appliance on-line—at your convenience! Timely product registration will allow for
enhanced communication and prompt service under the terms of your warranty, should the need arise.
You may also mail in the pre-printed registration card included in the packing material, or detach and
use the form in this Owner’s Manual.
