ENGLISH
IMPORTANT
SAFETY
INSTRUCTIONS
When using an electric product, basic
precautions should always be followed,
including the following:
Read all instructions before using this
product.
DANGER
To reduce the risk of electric shock:
- Do not reach for a corded product that
has fallen into water. Unplug
immediately from the power outlet.
- The power cord and the accessories
connected to it are not for immersion
or for use in shower.
- Do not use an extension cord with
this product.
- Do not place or store the product
where it can fall or be pulled into a tub
or sink. Do not place or drop the
product into water or other liquid.
- Always unplug this product from the
electrical outlet immediately after (re)
charging.
- Unplug and disconnect the power
cord from the product before cleaning
it in water.
- The batteries used in this product may
present a re or chemical burn hazard
if mistreated. Do not disassemble,
heat above 100°C (212°F) or incinerate.
WARNING
To reduce the risk of burns, re,
electric shock, or injury to persons:
- Close supervision is required when this
product is used by, on, or near children,
or persons with limited physical, sensory,
or mental capabilities or invalids.
- Use this product only for its intended
household use as described in this
manual. Do not use attachments not
recommended by Philips North
America LLC.
- Never operate this product if it has a
damaged power cord, if it is not
working properly, if it has been
dropped or damaged, or dropped into
water while plugged in. For assistance
call 1-800-243-3050.
- Keep the power cord away from
heated surfaces.
- Never drop or insert any object into
any opening.
- Do not use the adapter in or near a
power outlet that contains an electric
air freshener to prevent damage to
the adapter.
- Do not charge, clean or plug in product
outdoors or operate where aerosol
(spray) products are being used or
where oxygen is being administered.
- Always check cutters, cutting unit and
guards before using the product. Do
not use the product if cutters, cutting
unit or guards are damaged, as injury
may occur.
- Always attach power cord to product
rst, then to power outlet. Be certain
plug is inserted rmly into product up
to mark indicated on plug. To
disconnect, turn product o then
remove power cord from outlet.
- Keep the power cord dry at all times.
Do not handle with wet hands.
- Never put the product in direct
sunlight or store at a temperature
above 140°F (60°C).
- To prevent possible damage to the
power cord, do not wrap power cord
around the product.
- This product is for use on human hair
only. Do not use the product for any
other purpose.
- Always store the product, attachments
and power cord in a moisture-free
area. Make sure the cord is
disconnected from the product.
- Do not attempt to open the product to
remove or replace the built-in
rechargeable battery.
- Only use the power cord and other
accessories supplied with the product.
SAVE THESE
INSTRUCTIONS
IMPORTANT: The power plug contains a
transformer. Do not cut o the power plug
to replace it with another plug as this will
cause a hazardous condition.
Introduction
Congratulations on your purchase and
welcome to Philips Norelco!
To fully benet from the support that Philips
Norelco oers, register your product at
www.norelco.com/register.
5/64in
2mm
3/16in
5mm
3/64in
1mm
1/8in
3mm
9/32in
7mm
5/32in
4mm
21/32in
16mm
15/32in
12mm
3/8in
9mm
2
11
21
23
13
12
20
22
14
15
3
4
5 16
7
8
9
10
19
18
1
5/32in – 3/8in
4-9mm
24
25
3/16in
5mm
1/8in
3mm
27
26
1/4in
6mm
17
6
3-7 mm
1/8in
-
9/32in
1
MG7770
BC
4222.002.8948.1
www.philips.com
Manufactured for:
Philips Personal Health
a division of Philips North America LLC
P.O. Box 10313, Stamford, CT 06904
This symbol on the product’s nameplate means
it is listed by Underwriters’ Laboratories, Inc.
Norelco is a registered trademark of
Philips North America LLC.
PHILIPS and Philips shield are registered trademarks
of Koninklijke Philips N.V.
©2017 Philips North America LLC.
All rights reserved.
ENGLISH
IMPORTANT
SAFETY
INSTRUCTIONS
When using an electric product, basic
precautions should always be followed,
including the following:
Read all instructions before using this
product.
DANGER
To reduce the risk of electric shock:
- Do not reach for a corded product that
has fallen into water. Unplug
immediately from the power outlet.
- The power cord and the accessories
connected to it are not for immersion
or for use in shower.
- Do not use an extension cord with
this product.
- Do not place or store the product
where it can fall or be pulled into a tub
or sink. Do not place or drop the
product into water or other liquid.
- Always unplug this product from the
electrical outlet immediately after (re)
charging.
- Unplug and disconnect the power
cord from the product before cleaning
it in water.
- The batteries used in this product may
present a re or chemical burn hazard
if mistreated. Do not disassemble,
heat above 100°C (212°F) or incinerate.
WARNING
To reduce the risk of burns, re,
electric shock, or injury to persons:
- Close supervision is required when this
product is used by, on, or near children,
or persons with limited physical, sensory,
or mental capabilities or invalids.
- Use this product only for its intended
household use as described in this
manual. Do not use attachments not
recommended by Philips North
America LLC.
- Never operate this product if it has a
damaged power cord, if it is not
working properly, if it has been
dropped or damaged, or dropped into
water while plugged in. For assistance
call 1-800-243-3050.
- Keep the power cord away from
heated surfaces.
- Never drop or insert any object into
any opening.
- Do not use the adapter in or near a
power outlet that contains an electric
air freshener to prevent damage to
the adapter.
- Do not charge, clean or plug in product
outdoors or operate where aerosol
(spray) products are being used or
where oxygen is being administered.
- Always check cutters, cutting unit and
guards before using the product. Do
not use the product if cutters, cutting
unit or guards are damaged, as injury
may occur.
- Always attach power cord to product
rst, then to power outlet. Be certain
plug is inserted rmly into product up
to mark indicated on plug. To
disconnect, turn product o then
remove power cord from outlet.
- Keep the power cord dry at all times.
Do not handle with wet hands.
- Never put the product in direct
sunlight or store at a temperature
above 140°F (60°C).
- To prevent possible damage to the
power cord, do not wrap power cord
around the product.
- This product is for use on human hair
only. Do not use the product for any
other purpose.
- Always store the product, attachments
and power cord in a moisture-free
area. Make sure the cord is
disconnected from the product.
- Do not attempt to open the product to
remove or replace the built-in
rechargeable battery.
- Only use the power cord and other
accessories supplied with the product.
SAVE THESE
INSTRUCTIONS
IMPORTANT: The power plug contains a
transformer. Do not cut o the power plug
to replace it with another plug as this will
cause a hazardous condition.
Introduction
Congratulations on your purchase and
welcome to Philips Norelco!
To fully benet from the support that Philips
Norelco oers, register your product at
www.norelco.com/register.
5/64in
2mm
3/16in
5mm
3/64in
1mm
1/8in
3mm
9/32in
7mm
5/32in
4mm
21/32in
16mm
15/32in
12mm
3/8in
9mm
2
11
21
23
13
12
20
22
14
15
3
4
5 16
7
8
9
10
19
18
1
5/32in – 3/8in
4-9mm
24
25
3/16in
5mm
1/8in
3mm
27
26
1/4in
6mm
17
6
3-7 mm
1/8in
-
9/32in
1
MG7770
BC
4222.002.8948.1
www.philips.com
Manufactured for:
Philips Personal Health
a division of Philips North America LLC
P.O. Box 10313, Stamford, CT 06904
This symbol on the product’s nameplate means
it is listed by Underwriters’ Laboratories, Inc.
Norelco is a registered trademark of
Philips North America LLC.
PHILIPS and Philips shield are registered trademarks
of Koninklijke Philips N.V.
©2017 Philips North America LLC.
All rights reserved.
General description (Fig. 1)
1 Extra-wide hair trimmer
2 Precision trimmer
3 Nose trimmer
4 Precision shaver
5 Skin protector
6 Body shaver
7 Full-size hair trimmer
8 On/o button
9 Battery status indicator
10 Socket for small plug
11 Stubble guard 3/64in. (1mm)
12 Stubble guard 5/64in. (2mm)
13 Beard guard 1/8in. (3mm)
14 Beard guard 3/16in. (5mm)
15 Beard guard 9/32in. (7mm)
16 Adjustable guard 1/8in. - 9/32 in. (3-7mm)
17 Eyebrow guard 1/4in. (6mm)
18 Power plug
19 Small plug
20 Hair guard 5/32in. (4mm)
21 Hair guard 3/8in. (9mm)
22 Hair guard 15/32in. (12mm)
23 Hair guard 21/32in. (16mm)
24 Fading hair guard 5/32in.-3/8in. (4-9mm)
25 Fading hair guard 5/32in.-3/8in. (4-9mm)
26 Body guard 1/8in. (3mm)
27 Body guard 3/16in. (5mm)
Not shown: cleaning brush, pouch
This symbol indicates that
the product can be used in
the bath or shower.
1
2
7
4
6
2
1
3
1
2
4
2
108 9
= mm
1311 12
222120
1917 18
28
25
26
23
27
24
161514

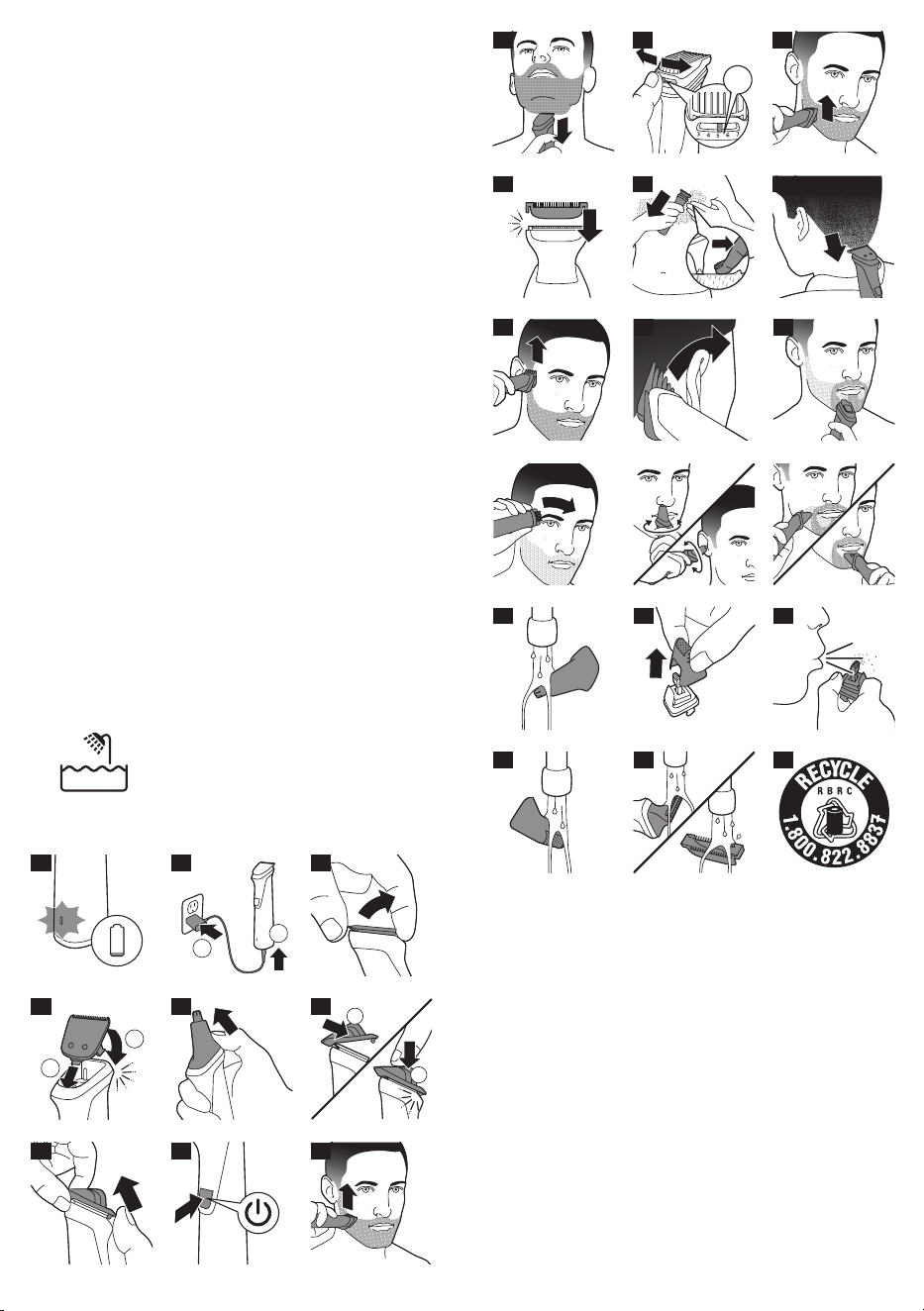

Charging
Battery status indications
- When the battery is almost empty, the
battery status indicator lights up orange
(Fig. 2).
- When the product is charging, the battery
status indicator ashes white slowly.
- During quick charge, the battery status
indicator ashes white quickly. After
approx. 5 minutes of charging, the
battery indicator ashes white slowly.
The product now contains enough power
for one cordless trimming session.
- When the battery is fully charged, the
battery status indicator lights up white
continuously.
Note: After approx. 30 minutes, the light
goes out automatically.
Charging
Charge the product before rst use and
when the display indicates that the battery
is almost empty. When the product has
charged for 3 hours, it has a cordless
operating time of up to 6 hours.
- Charging, recharging or using the product
at temperatures below 40°F (4,5°C) or
higher than 95°F (35°C) adversely aects
the lifespan of the battery.
- If the product is subjected to a major
change in temperature, pressure or
humidity, let the product acclimatize for
30 minutes before use.
1 Make sure the product is turned o.
2 Insert the small plug into the product and
put the power plug in any 120V AC outlet
(Fig. 3).
3 After charging, remove the power plug
from the wall outlet and pull the small
plug out of the product.
Note: An adapter plug may be necessary for
cord usage in some foreign countries. Use
an attachment plug adapter of the proper
conguration for power outlet.
Quick charge
After approx. 5 minutes charging, the product
contains enough power for one cordless
trimming session.
Using the product
Always check the product and all
accessories before using. Do not use the
product or any accessory if it is damaged,
as this may cause injury. Always replace a
damaged part with one of the original type.
Note: This product can only be used without
a cord.
Note: Switch o and clean the product and
attachments after each use.
- Use this product for its intended household
use as described in this manual.
- For hygienic reasons, the product should
only be used by one person.
- Trimming is easier when the skin and hair
are dry.
Detaching and attaching cutting elements
1
To detach a cutting element, push
upwards against the teeth of the cutting
element and take it o the handle (Fig. 4).
2 To attach a cutting element, insert the lug
of the cutting element into the guiding
slot at the front and push the back of the
cutting element onto the product (‘click’)
(Fig. 5).
Detaching the precision shaver and nose trimmer
1 Place your nger on the arrow at the back
of the attachment and push it o the
handle in the direction of the arrow (Fig. 6).
Attaching and detaching guards
1
To attach any type of guard onto a
cutting element, slide the front part of
the guard onto the teeth and push the
projection at the back of the guard into
the product (‘click’) (Fig. 7).
2 To detach any type of guard from the
cutting element, carefully pull its back
part o the product and then slide it o
the cutting element (Fig. 8).
Note: When trimming for the rst time,
start by using the guard with the
maximum trimming length setting to
familiarize yourself with the product.
Switching the product on and o
1
Press the on/o button once to switch
the product on or o (Fig. 9).
Attachments for use on beard
Full-size hair trimmer
Use the full-size hair trimmer without a guard
to trim hair close to the skin (to a length of
1/32in./0.5mm) or to create clean lines
around your beard, neck and sideburns.
General description (Fig. 1)
1 Extra-wide hair trimmer
2 Precision trimmer
3 Nose trimmer
4 Precision shaver
5 Skin protector
6 Body shaver
7 Full-size hair trimmer
8 On/o button
9 Battery status indicator
10 Socket for small plug
11 Stubble guard 3/64in. (1mm)
12 Stubble guard 5/64in. (2mm)
13 Beard guard 1/8in. (3mm)
14 Beard guard 3/16in. (5mm)
15 Beard guard 9/32in. (7mm)
16 Adjustable guard 1/8in. - 9/32 in. (3-7mm)
17 Eyebrow guard 1/4in. (6mm)
18 Power plug
19 Small plug
20 Hair guard 5/32in. (4mm)
21 Hair guard 3/8in. (9mm)
22 Hair guard 15/32in. (12mm)
23 Hair guard 21/32in. (16mm)
24 Fading hair guard 5/32in.-3/8in. (4-9mm)
25 Fading hair guard 5/32in.-3/8in. (4-9mm)
26 Body guard 1/8in. (3mm)
27 Body guard 3/16in. (5mm)
Not shown: cleaning brush, pouch
This symbol indicates that
the product can be used in
the bath or shower.
1
2
7
4
6
2
1
3
1
2
4
2
108 9
= mm
1311 12
222120
1917 18
28
25
26
23
27
24
161514
Charging
Battery status indications
- When the battery is almost empty, the
battery status indicator lights up orange
(Fig. 2).
- When the product is charging, the battery
status indicator ashes white slowly.
- During quick charge, the battery status
indicator ashes white quickly. After
approx. 5 minutes of charging, the
battery indicator ashes white slowly.
The product now contains enough power
for one cordless trimming session.
- When the battery is fully charged, the
battery status indicator lights up white
continuously.
Note: After approx. 30 minutes, the light
goes out automatically.
Charging
Charge the product before rst use and
when the display indicates that the battery
is almost empty. When the product has
charged for 3 hours, it has a cordless
operating time of up to 6 hours.
- Charging, recharging or using the product
at temperatures below 40°F (4,5°C) or
higher than 95°F (35°C) adversely aects
the lifespan of the battery.
- If the product is subjected to a major
change in temperature, pressure or
humidity, let the product acclimatize for
30 minutes before use.
1 Make sure the product is turned o.
2 Insert the small plug into the product and
put the power plug in any 120V AC outlet
(Fig. 3).
3 After charging, remove the power plug
from the wall outlet and pull the small
plug out of the product.
Note: An adapter plug may be necessary for
cord usage in some foreign countries. Use
an attachment plug adapter of the proper
conguration for power outlet.
Quick charge
After approx. 5 minutes charging, the product
contains enough power for one cordless
trimming session.
Using the product
Always check the product and all
accessories before using. Do not use the
product or any accessory if it is damaged,
as this may cause injury. Always replace a
damaged part with one of the original type.
Note: This product can only be used without
a cord.
Note: Switch o and clean the product and
attachments after each use.
- Use this product for its intended household
use as described in this manual.
- For hygienic reasons, the product should
only be used by one person.
- Trimming is easier when the skin and hair
are dry.
Detaching and attaching cutting elements
1
To detach a cutting element, push
upwards against the teeth of the cutting
element and take it o the handle (Fig. 4).
2 To attach a cutting element, insert the lug
of the cutting element into the guiding
slot at the front and push the back of the
cutting element onto the product (‘click’)
(Fig. 5).
Detaching the precision shaver and nose trimmer
1 Place your nger on the arrow at the back
of the attachment and push it o the
handle in the direction of the arrow (Fig. 6).
Attaching and detaching guards
1
To attach any type of guard onto a
cutting element, slide the front part of
the guard onto the teeth and push the
projection at the back of the guard into
the product (‘click’) (Fig. 7).
2 To detach any type of guard from the
cutting element, carefully pull its back
part o the product and then slide it o
the cutting element (Fig. 8).
Note: When trimming for the rst time,
start by using the guard with the
maximum trimming length setting to
familiarize yourself with the product.
Switching the product on and o
1
Press the on/o button once to switch
the product on or o (Fig. 9).
Attachments for use on beard
Full-size hair trimmer
Use the full-size hair trimmer without a guard
to trim hair close to the skin (to a length of
1/32in./0.5mm) or to create clean lines
around your beard, neck and sideburns.
Fading hair guard
Attach the fading hair guards to the extra-
wide hair trimmer to trim the hair around the
ears with a faded result. The product comes
with 2 guards. Use both guards to trim hair
around both ears. Choose a hair guard
based on the preferred trimming direction
of back to front or front to back. Always
make sure that you hold the side of the
guard with the short teeth closest to your
ear.
Guard inch mm
Fading hair guards
5/32in.-3/8in. 4-9mm
1 Attach the guard to the extra-wide hair
trimmer to trim the hair around the ear.
Then attach the other guard to trim the
hair around the other ear.
2 Place the product on your hair at the
back or front of your ear, depending on
the trimming direction you prefer. Always
make sure that the side of the guard with
the short teeth is closest to your ear.
3 Move the trimmer slowly around the ear,
while holding it steady (Fig. 18). For best
results, move the trimmer against the
direction of hair growth (back to front).
Precision attachments for use on face
Precision trimmer
Use the precision trimmer to create ne
lines and contours around your facial style,
close to the skin (to a length of
1/32in./0.5mm).
1 Hold the precision trimming head
perpendicular to the skin and move the
trimming head upwards or downwards
with gentle pressure (Fig. 19).
Eyebrow guard
Use the full-size hair trimmer with
the eyebrow guard attached for tidying up
eyebrows or trimming sideburns to a length of
1/4in./6mm.
1 Slowly move the trimmer against the hair
growth direction. Press lightly and make
sure that the surface of the comb always
stays in contact with the skin (Fig. 20).
Attachments for use on head
Extra-wide hair trimmer
Use the extra-wide hair trimmer without a
guard to clip the hair on your head very
close to the skin (1/32in./0.5mm) or to
contour the neckline and area around the
ears.
1 To contour the hairline around the ears,
comb the hair ends over the ears.
2 Tilt the product in such a way that only
one edge of the cutter blades touches
the hair ends when you shape the
contours around the ears.
3 To contour the nape of the neck or
sideburns, turn the product and make
downward strokes (Fig. 16).
4 Move the product slowly and smoothly
following the natural hairline.
Hair guards
Attach a hair guard to the extra-wide hair
trimmer to evenly trim the hairs on your
head. The product comes with 4 hair
guards. The hair length settings are
indicated on the guards. The settings
correspond to the remaining hair length
after trimming.
Guard inch mm
Hair guard 5/32in. 4mm
Hair guard 3/8in. 9mm
Hair guard 15/32in. 12mm
Hair guard 21/32in. 16mm
1 Attach a guard to the extra-wide hair
trimmer.
2 Move the trimmer slowly over the crown
from dierent directions to achieve an
even result. Make sure the surface of the
guard always stays in contact with the skin.
- Always move the trimmer against the
direction of hair growth (Fig. 17). Press
lightly.
- Make overlapping passes over the
head to ensure that all hair that should
be cut has been cut.
- Since all hairs do not grow in the same
direction, you may want to try dierent
trimming positions (i.e. upwards,
downwards, or across). Practice is best
for optimum results.
- Always make smooth and gentle
movements and be sure the surface of the
guard always stays in contact with your
skin.
- When too many hairs have accumulated
on the product, blow the hairs out before
use, for best trimming results.
Body guards
Attach a body guard to the full-size hair
trimmer to trim hairs below the neckline.
The product comes with 2 body guards. The
hair length settings are indicated on the
guards. The settings correspond to the
remaining hair length after trimming.
Guard inch mm
Body guard (green) 1/8in. 3mm
Body guard (green) 3/16in. 5mm
1 Attach a body guard to the full-size hair
trimmer.
2 To trim in the most eective way, stretch
the skin with your free hand and move the
guard against the direction of hair growth
(Fig. 15). Make sure the surface of the guard
always stays in contact with the skin.
Body shaver
Attach the body shaver to the product,
to shave hairs below the neckline such as
your armpits and chest.
Only use the body shaver with the skin
protector.
1 Attach the body shaver to the product.
2 Attach the skin protector to the full-size
hair trimmer (Fig. 14).
3 To shave in the most eective way,
stretch the skin with your free hand and
move the shaver against the direction of
hair growth (Fig. 15). Make sure the
surface of the shaver always stays in full
contact with the skin.
1 To trim hair close to the skin, place the
at side of the cutting element against
your skin and make strokes against the
direction of hair growth (Fig. 10).
2 For contouring, hold the cutting element
perpendicular to the skin and move it
upwards or downwards with gentle
pressure (Fig. 11).
Beard guards
Attach a beard guard to the full-size hair
trimmer to trim your beard and moustache
evenly. The product comes with 6 beard
guards. The hair length settings are indicated
on the guards. The settings correspond to
the remaining hair length after trimming.
Guard inch mm
Stubble guard 3/64in. 1mm
Stubble guard 5/64in. 2mm
Beard guard 1/8in. 3mm
Beard guard 3/16in. 5mm
Beard guard 9/32in. 7mm
Adjustable
guard
1/8in.-
9/32in.
3mm-7mm
1 Attach the guard to the full-size hair
trimmer.
2 Adjustable guard: Push the length
selector to the left or right to select the
desired hair length setting (Fig. 12).
3 To trim the most eective way, move the
guard against the direction of hair growth
(Fig. 13). Make sure the surface of the guard
always stays in contact with the skin.
Attachments for use on body
- Use the green body guards to trim
body hair.
- When you trim for the rst time, use the
5mm/3/16in. body guard to familiarize
yourself with the product.
- Body hair can be trimmed wet or dry,
however dry is preferable because wet
hair tends to stick to the body. Also when
trimming sensitive areas, always use a
body guard.
Fading hair guard
Attach the fading hair guards to the extra-
wide hair trimmer to trim the hair around the
ears with a faded result. The product comes
with 2 guards. Use both guards to trim hair
around both ears. Choose a hair guard
based on the preferred trimming direction
of back to front or front to back. Always
make sure that you hold the side of the
guard with the short teeth closest to your
ear.
Guard inch mm
Fading hair guards
5/32in.-3/8in. 4-9mm
1 Attach the guard to the extra-wide hair
trimmer to trim the hair around the ear.
Then attach the other guard to trim the
hair around the other ear.
2 Place the product on your hair at the
back or front of your ear, depending on
the trimming direction you prefer. Always
make sure that the side of the guard with
the short teeth is closest to your ear.
3 Move the trimmer slowly around the ear,
while holding it steady (Fig. 18). For best
results, move the trimmer against the
direction of hair growth (back to front).
Precision attachments for use on face
Precision trimmer
Use the precision trimmer to create ne
lines and contours around your facial style,
close to the skin (to a length of
1/32in./0.5mm).
1 Hold the precision trimming head
perpendicular to the skin and move the
trimming head upwards or downwards
with gentle pressure (Fig. 19).
Eyebrow guard
Use the full-size hair trimmer with
the eyebrow guard attached for tidying up
eyebrows or trimming sideburns to a length of
1/4in./6mm.
1 Slowly move the trimmer against the hair
growth direction. Press lightly and make
sure that the surface of the comb always
stays in contact with the skin (Fig. 20).
Attachments for use on head
Extra-wide hair trimmer
Use the extra-wide hair trimmer without a
guard to clip the hair on your head very
close to the skin (1/32in./0.5mm) or to
contour the neckline and area around the
ears.
1 To contour the hairline around the ears,
comb the hair ends over the ears.
2 Tilt the product in such a way that only
one edge of the cutter blades touches
the hair ends when you shape the
contours around the ears.
3 To contour the nape of the neck or
sideburns, turn the product and make
downward strokes (Fig. 16).
4 Move the product slowly and smoothly
following the natural hairline.
Hair guards
Attach a hair guard to the extra-wide hair
trimmer to evenly trim the hairs on your
head. The product comes with 4 hair
guards. The hair length settings are
indicated on the guards. The settings
correspond to the remaining hair length
after trimming.
Guard inch mm
Hair guard 5/32in. 4mm
Hair guard 3/8in. 9mm
Hair guard 15/32in. 12mm
Hair guard 21/32in. 16mm
1 Attach a guard to the extra-wide hair
trimmer.
2 Move the trimmer slowly over the crown
from dierent directions to achieve an
even result. Make sure the surface of the
guard always stays in contact with the skin.
- Always move the trimmer against the
direction of hair growth (Fig. 17). Press
lightly.
- Make overlapping passes over the
head to ensure that all hair that should
be cut has been cut.
- Since all hairs do not grow in the same
direction, you may want to try dierent
trimming positions (i.e. upwards,
downwards, or across). Practice is best
for optimum results.
- Always make smooth and gentle
movements and be sure the surface of the
guard always stays in contact with your
skin.
- When too many hairs have accumulated
on the product, blow the hairs out before
use, for best trimming results.
Body guards
Attach a body guard to the full-size hair
trimmer to trim hairs below the neckline.
The product comes with 2 body guards. The
hair length settings are indicated on the
guards. The settings correspond to the
remaining hair length after trimming.
Guard inch mm
Body guard (green) 1/8in. 3mm
Body guard (green) 3/16in. 5mm
1 Attach a body guard to the full-size hair
trimmer.
2 To trim in the most eective way, stretch
the skin with your free hand and move the
guard against the direction of hair growth
(Fig. 15). Make sure the surface of the guard
always stays in contact with the skin.
Body shaver
Attach the body shaver to the product,
to shave hairs below the neckline such as
your armpits and chest.
Only use the body shaver with the skin
protector.
1 Attach the body shaver to the product.
2 Attach the skin protector to the full-size
hair trimmer (Fig. 14).
3 To shave in the most eective way,
stretch the skin with your free hand and
move the shaver against the direction of
hair growth (Fig. 15). Make sure the
surface of the shaver always stays in full
contact with the skin.
1 To trim hair close to the skin, place the
at side of the cutting element against
your skin and make strokes against the
direction of hair growth (Fig. 10).
2 For contouring, hold the cutting element
perpendicular to the skin and move it
upwards or downwards with gentle
pressure (Fig. 11).
Beard guards
Attach a beard guard to the full-size hair
trimmer to trim your beard and moustache
evenly. The product comes with 6 beard
guards. The hair length settings are indicated
on the guards. The settings correspond to
the remaining hair length after trimming.
Guard inch mm
Stubble guard 3/64in. 1mm
Stubble guard 5/64in. 2mm
Beard guard 1/8in. 3mm
Beard guard 3/16in. 5mm
Beard guard 9/32in. 7mm
Adjustable
guard
1/8in.-
9/32in.
3mm-7mm
1 Attach the guard to the full-size hair
trimmer.
2 Adjustable guard: Push the length
selector to the left or right to select the
desired hair length setting (Fig. 12).
3 To trim the most eective way, move the
guard against the direction of hair growth
(Fig. 13). Make sure the surface of the guard
always stays in contact with the skin.
Attachments for use on body
- Use the green body guards to trim
body hair.
- When you trim for the rst time, use the
5mm/3/16in. body guard to familiarize
yourself with the product.
- Body hair can be trimmed wet or dry,
however dry is preferable because wet
hair tends to stick to the body. Also when
trimming sensitive areas, always use a
body guard.
Online information is available 24 hours a
day, 7 days a week.
Disposal
- This product contains a rechargeable
lithium-ion battery which must be
disposed of properly (Fig. 28). Contact
your local town or city ocials for battery
disposal information. You can also call
1-800-822-8837 or visit
www.call2recycle.org for battery
drop-o locations.
- For assistance, visit our website
www.philips.com/support or call
1-800-243-3050 toll free.
- Your product is designed and
manufactured with high quality materials
and components, which can be recycled
and reused. For recycling information,
please contact your local waste
management facilities or visit
www.recycle.philips.com
Full Ten-Year Warranty
Philips North America LLC warrants this new
product (except foil, cutters and guards)
against defects in materials or workmanship
for a period of ten years from the date of
purchase, and agrees to repair or replace
any defective product without charge.
IMPORTANT: This warranty does not cover
damage resulting from accident, misuse or
abuse, lack of reasonable care, the axing of
any attachment not provided with the
product or loss of parts or subjecting the
product to any but the specied voltage or
batteries.*
NO RESPONSIBILITY IS ASSUMED FOR
ANY SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES.
In order to obtain warranty service, simply go
to www.philips.com/support for assistance.
It is suggested that for your protection you
return shipments of product by insured mail,
insurance prepaid. Damage occurring during
shipment is not covered by this warranty.
NOTE: No other warranty, written or oral, is
authorized by Philips North America LLC.
Cleaning the precision shaver
1
Hold the precision shaver at the grooves
on each side and pull the top part o the
bottom part (Fig. 24).
2 Blow and/or shake out any hair that has
accumulated inside the precision shaver
(Fig. 25).
3 Clean the top part of the precision shaver
under a warm tap (Fig. 26).
4 Carefully shake o excess water and let
all parts air dry completely.
5 Reattach the top part onto the bottom
part of the precision shaver.
Cleaning the body shaver
1
Remove the skin protector upwards o
the shaver.
2 Clean the skin protector and body shaver
under a warm tap (Fig. 27).
3 Carefully shake o excess water and let
both parts air dry completely.
4 Reattach the skin protector onto the
body shaver (Fig. 14).
This product has no other user-serviceable
parts. For assistance call 1-800-243-3050.
Storage
- Store the product in the pouch supplied.
Make sure the product is dry before you
store it in the pouch.
- Be sure the product is switched o.
Remove cord from outlet and the
product before storing it in a safe, dry
location where it will not be crushed,
banged, or subject to damage.
- Do not wrap cord around the product
when storing.
- Store cord in a safe location where it will
not be cut or damaged.
- Do not place or store the product where
it can fall or be pulled into a tub or sink,
water or other liquid while plugged in.
Assistance
For assistance, visit our website:
www.philips.com/support or call toll free
1-800-243-3050.
2 Remove any guard or cutting element
(see ‘Detaching and attaching cutting
elements’) from the product.
3 Rinse the hair chamber under a warm tap.
4 Clean the cutting element and guard
under a warm tap.
5 Carefully shake o excess water and let
all parts air dry completely.
Thorough cleaning
1
Turn o the product and disconnect from
the power outlet.
2 Clean the handle under the tap or wipe
t
he handle clean with a dry or moist cloth.
3 Remove any guard or cutting element
(see ‘Detaching and attaching cutting
elements’) from the product.
4 Remove any hairs that have accumulated
in the hair chamber with the cleaning
brush supplied.
5 Remove any hairs that have accumulated
in the cutting elements and/or guards
with the cleaning brush supplied.
6 Clean the cutting elements under a
warm tap.
7 Clean the guards under a warm tap.
8 Carefully shake o excess water and let
all parts air dry completely.
Cleaning the nose trimmer
Clean the nose trimmer immediately after
use and when a lot of hair or dirt has
accumulated on the nose trimmer head.
1 Rinse the nose trimmer head with hot
water (Fig. 23).
2 Turn on the product and rinse the nose
trimmer head once more to remove any
remaining hairs. Then turn o the product
again.
For a thorough clean, immerse the nose
trimmer head in a bowl with warm water for
a few minutes and then turn on the product
to remove stubborn hair/debris.
3 Carefully shake o excess water and let
all parts air dry completely.
Nose trimmer
Use the nose trimmer to trim your nose hair
and ear hair.
- Make sure nasal passages are clean.
Make sure outer ear channels are clean
and free from wax.
- Do not insert the tip more than 3/16in./5mm.
- Always clean the attachment after each
use.
Trimming nose hair
1 Gently move the tip in and out of nose
while turning it around to remove
unwanted hairs (Fig. 21).
Trimming ear hair
1 Slowly move the tip round the ear to
remove hairs that stick out beyond the
rim of the ear.
2 Gently move the tip in and out of the
outer ear channel to remove unwanted
hairs (Fig. 21).
Precision shaver
Use the precision shaver after trimming, to
shave unwanted hairs on cheeks, chin and
along the beard with precision. Make sure to
pre-trim your beard rst, with the full-size hair
trimmer without guard, to obtain the best result.
Note: Use the precision shaver to remove
remaining hairs and detailing your beard
style. It is not suitable for a full face shave.
1 Gently press the precision shaver onto the
skin and shave along contoured edges to
remove any unwanted hairs (Fig. 22).
Cleaning
Never use scouring pads, abrasive
cleaning agents or aggressive liquids such
as gasoline or acetone to clean the
product.
Never dry the trimmer teeth with a towel or
tissue, as this may damage the trimmer teeth.
After every use: cleaning under the tap
1
Turn o the product and disconnect from
the power outlet.
Online information is available 24 hours a
day, 7 days a week.
Disposal
- This product contains a rechargeable
lithium-ion battery which must be
disposed of properly (Fig. 28). Contact
your local town or city ocials for battery
disposal information. You can also call
1-800-822-8837 or visit
www.call2recycle.org for battery
drop-o locations.
- For assistance, visit our website
www.philips.com/support or call
1-800-243-3050 toll free.
- Your product is designed and
manufactured with high quality materials
and components, which can be recycled
and reused. For recycling information,
please contact your local waste
management facilities or visit
www.recycle.philips.com
Full Ten-Year Warranty
Philips North America LLC warrants this new
product (except foil, cutters and guards)
against defects in materials or workmanship
for a period of ten years from the date of
purchase, and agrees to repair or replace
any defective product without charge.
IMPORTANT: This warranty does not cover
damage resulting from accident, misuse or
abuse, lack of reasonable care, the axing of
any attachment not provided with the
product or loss of parts or subjecting the
product to any but the specied voltage or
batteries.*
NO RESPONSIBILITY IS ASSUMED FOR
ANY SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES.
In order to obtain warranty service, simply go
to www.philips.com/support for assistance.
It is suggested that for your protection you
return shipments of product by insured mail,
insurance prepaid. Damage occurring during
shipment is not covered by this warranty.
NOTE: No other warranty, written or oral, is
authorized by Philips North America LLC.
Cleaning the precision shaver
1
Hold the precision shaver at the grooves
on each side and pull the top part o the
bottom part (Fig. 24).
2 Blow and/or shake out any hair that has
accumulated inside the precision shaver
(Fig. 25).
3 Clean the top part of the precision shaver
under a warm tap (Fig. 26).
4 Carefully shake o excess water and let
all parts air dry completely.
5 Reattach the top part onto the bottom
part of the precision shaver.
Cleaning the body shaver
1
Remove the skin protector upwards o
the shaver.
2 Clean the skin protector and body shaver
under a warm tap (Fig. 27).
3 Carefully shake o excess water and let
both parts air dry completely.
4 Reattach the skin protector onto the
body shaver (Fig. 14).
This product has no other user-serviceable
parts. For assistance call 1-800-243-3050.
Storage
- Store the product in the pouch supplied.
Make sure the product is dry before you
store it in the pouch.
- Be sure the product is switched o.
Remove cord from outlet and the
product before storing it in a safe, dry
location where it will not be crushed,
banged, or subject to damage.
- Do not wrap cord around the product
when storing.
- Store cord in a safe location where it will
not be cut or damaged.
- Do not place or store the product where
it can fall or be pulled into a tub or sink,
water or other liquid while plugged in.
Assistance
For assistance, visit our website:
www.philips.com/support or call toll free
1-800-243-3050.
2 Remove any guard or cutting element
(see ‘Detaching and attaching cutting
elements’) from the product.
3 Rinse the hair chamber under a warm tap.
4 Clean the cutting element and guard
under a warm tap.
5 Carefully shake o excess water and let
all parts air dry completely.
Thorough cleaning
1
Turn o the product and disconnect from
the power outlet.
2 Clean the handle under the tap or wipe
t
he handle clean with a dry or moist cloth.
3 Remove any guard or cutting element
(see ‘Detaching and attaching cutting
elements’) from the product.
4 Remove any hairs that have accumulated
in the hair chamber with the cleaning
brush supplied.
5 Remove any hairs that have accumulated
in the cutting elements and/or guards
with the cleaning brush supplied.
6 Clean the cutting elements under a
warm tap.
7 Clean the guards under a warm tap.
8 Carefully shake o excess water and let
all parts air dry completely.
Cleaning the nose trimmer
Clean the nose trimmer immediately after
use and when a lot of hair or dirt has
accumulated on the nose trimmer head.
1 Rinse the nose trimmer head with hot
water (Fig. 23).
2 Turn on the product and rinse the nose
trimmer head once more to remove any
remaining hairs. Then turn o the product
again.
For a thorough clean, immerse the nose
trimmer head in a bowl with warm water for
a few minutes and then turn on the product
to remove stubborn hair/debris.
3 Carefully shake o excess water and let
all parts air dry completely.
Nose trimmer
Use the nose trimmer to trim your nose hair
and ear hair.
- Make sure nasal passages are clean.
Make sure outer ear channels are clean
and free from wax.
- Do not insert the tip more than 3/16in./5mm.
- Always clean the attachment after each
use.
Trimming nose hair
1 Gently move the tip in and out of nose
while turning it around to remove
unwanted hairs (Fig. 21).
Trimming ear hair
1 Slowly move the tip round the ear to
remove hairs that stick out beyond the
rim of the ear.
2 Gently move the tip in and out of the
outer ear channel to remove unwanted
hairs (Fig. 21).
Precision shaver
Use the precision shaver after trimming, to
shave unwanted hairs on cheeks, chin and
along the beard with precision. Make sure to
pre-trim your beard rst, with the full-size hair
trimmer without guard, to obtain the best result.
Note: Use the precision shaver to remove
remaining hairs and detailing your beard
style. It is not suitable for a full face shave.
1 Gently press the precision shaver onto the
skin and shave along contoured edges to
remove any unwanted hairs (Fig. 22).
Cleaning
Never use scouring pads, abrasive
cleaning agents or aggressive liquids such
as gasoline or acetone to clean the
product.
Never dry the trimmer teeth with a towel or
tissue, as this may damage the trimmer teeth.
After every use: cleaning under the tap
1
Turn o the product and disconnect from
the power outlet.
This warranty gives you specic legal rights,
and you may also have other rights which vary
from state to state. Some states do not allow
the exclusion or limitation of incidental or
consequential damages, so the above
exclusion and limitations may not apply to
you.
*Read enclosed instructions carefully.
45-DAY MONEY-BACK GUARANTEE
If you are not fully satised with your
product send the product back and we’ll
refund you the full purchase price.
The product must be shipped prepaid by
insured mail, insurance prepaid, have the
original sales receipt, indicating purchase
price and date of purchase, and the
money-back guarantee return
authorization form enclosed.
We cannot be responsible for lost mail.
The product must be postmarked no later
than 45 days after the date of purchase.
Philips reserves the right to verify the
purchase price of the product and limit
refunds not to exceed suggested retail
price.
To obtain money-back guarantee return
authorization form, call 1-800-243-3050
for assistance.
Delivery of refund check will occur
6–8 weeks after receipt of returned product.
