2-687-406-11(1)
©2006 Sony Corporation
DVD Home Theatre System
Operating Instructions
2
US
3
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
Caution – The use of optical instruments
with this product will increase eye
hazard.
Do not install the appliance in a confined space, such
as a bookcase or built-in cabinet.
To prevent fire, do not cover the ventilation of the
apparatus with news papers, table-cloths, curtains, etc.
And don’t place lighted candles on the apparatus.
To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the apparatus.
For the customers in the U.S.A
This symbol is intended to alert the user to
the presence of uninsulated “dangerous
voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
Owner’s Record
The model and serial numbers are located at the rear
exterior of the control unit. Record the serial number in
the space provided below. Refer to them whenever you
call upon your Sony dealer regarding this product.
Model No. DAV-LF1H
Serial No.______________
WARNING
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna (aerial).
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
You are cautioned that any changes or modifications
not expressly approved in this manual could void your
authority to operate this equipment.
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
WARNING
3
US
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or
when unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
Note to CATV system installer:
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building, as
close to the point of cable entry as practical.
For the customers in Canada
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
Precautions
On power sources
• AC power cord (mains lead) must be changed only at
the qualified service shop.
• The unit is not disconnected from the AC power
source (mains) as long as it is connected to the wall
outlet (mains), even if the unit itself has been turned
off.
• Install this system so that the AC power cord (mains)
can be unplugged from the wall socket immediately
in the event of trouble.
Thank you for purchasing Sony DVD Home
Theatre System. Before operating this system,
please read this manual thoroughly and retain it
for future reference.
Welcome!
4
US
Welcome!................................................3
About This Manual .................................6

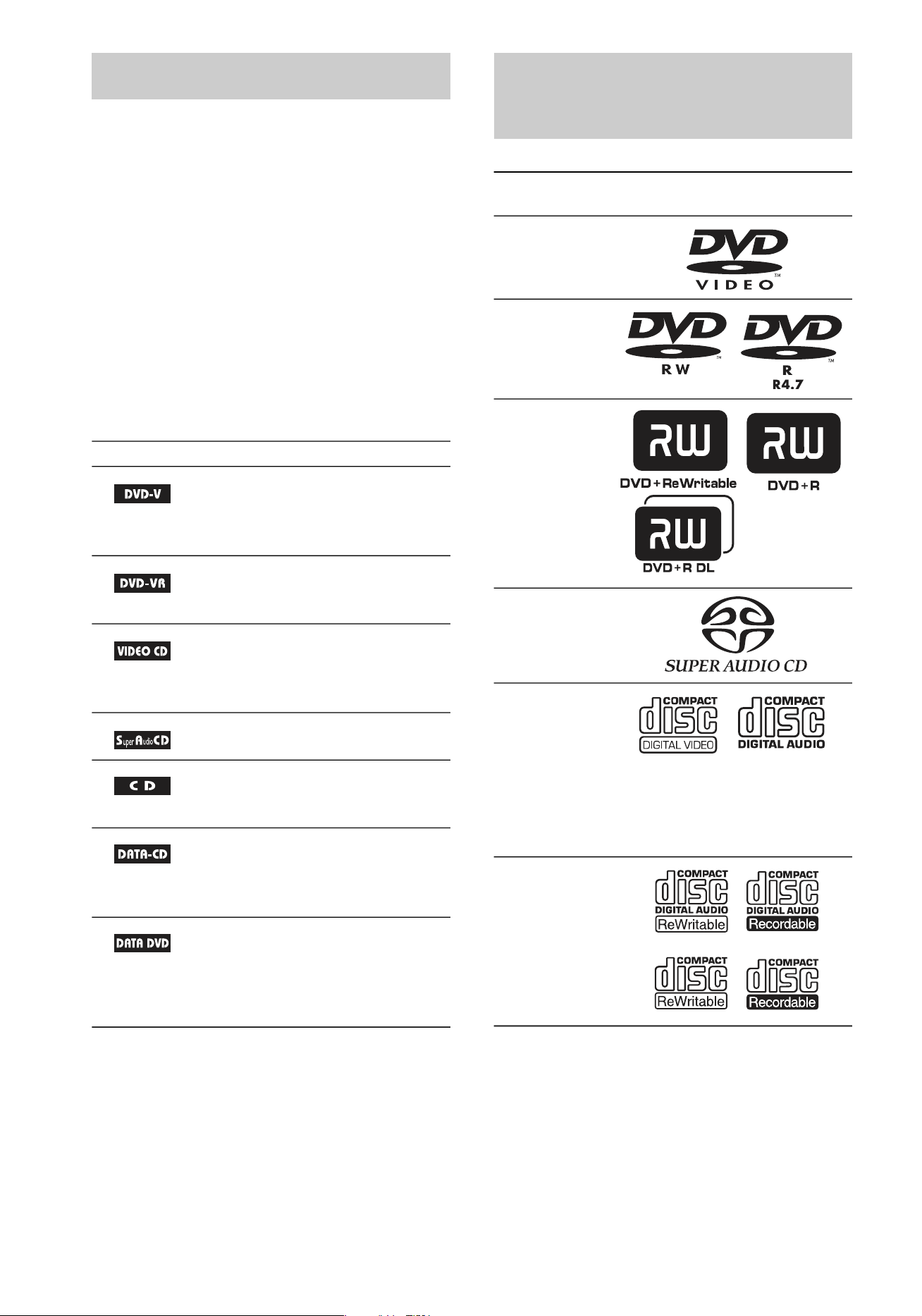

This System Can Play the Following
Discs ................................................. 6
Getting Started – BASIC –

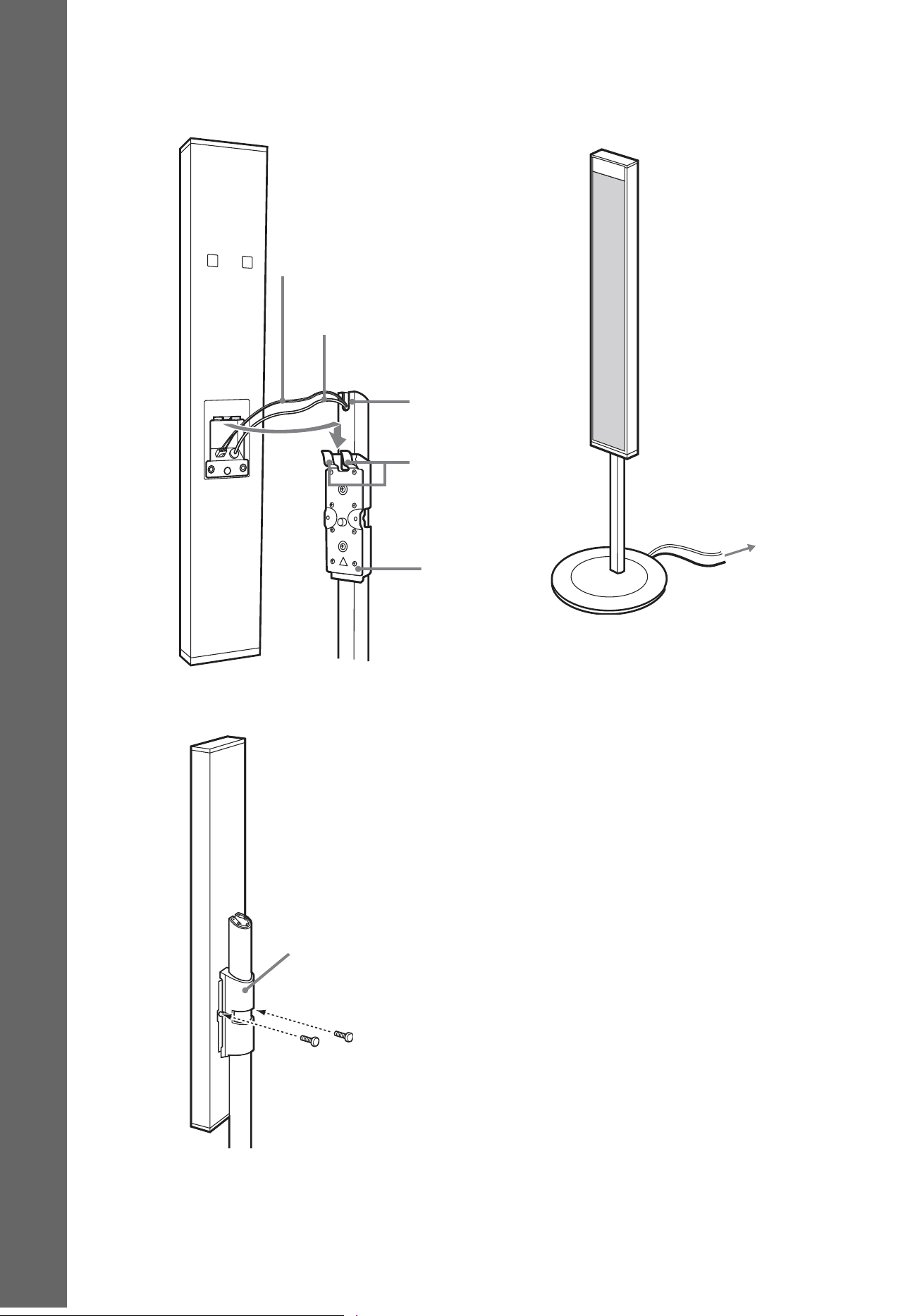

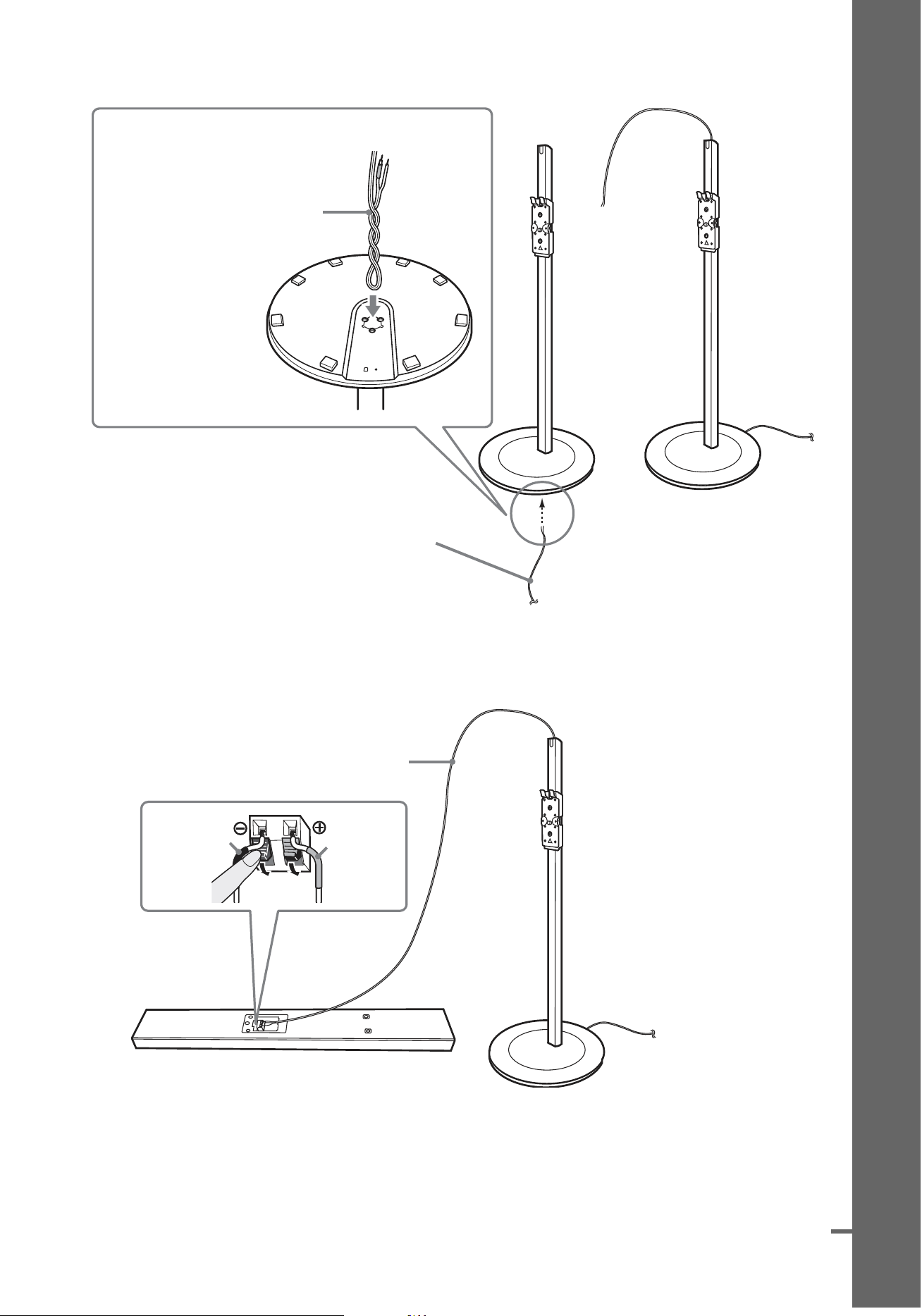

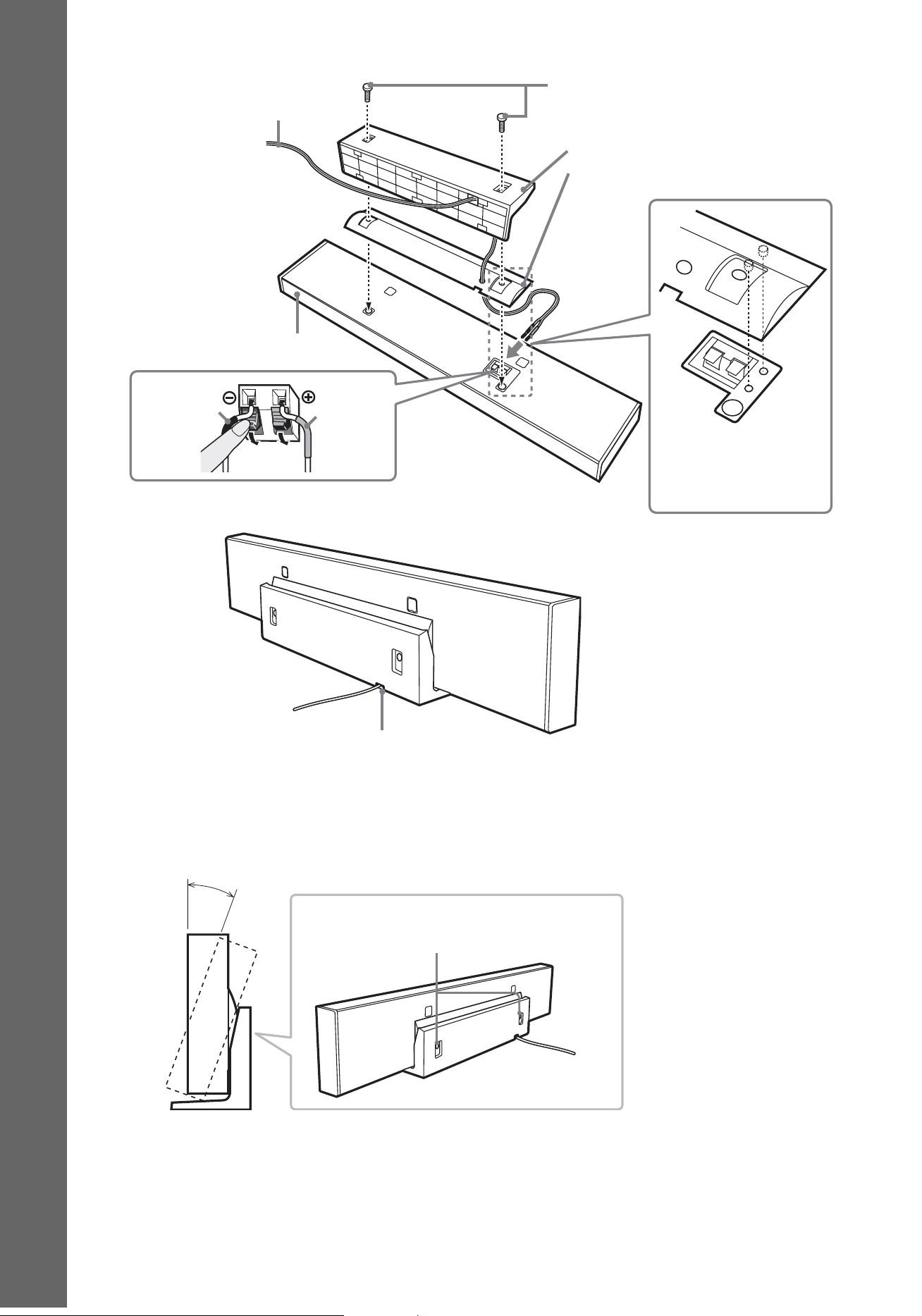

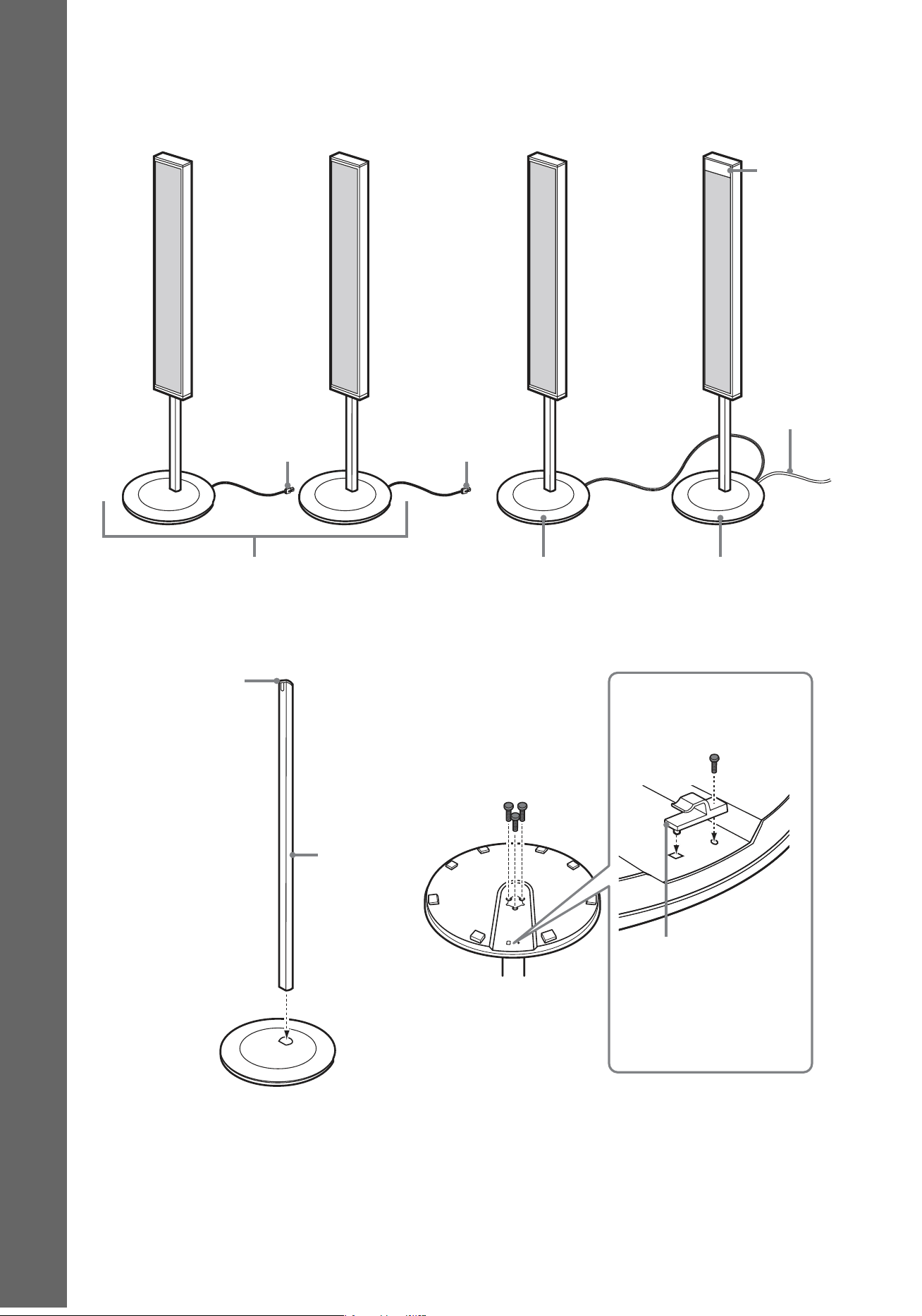

Step 1: Assembling the system...11

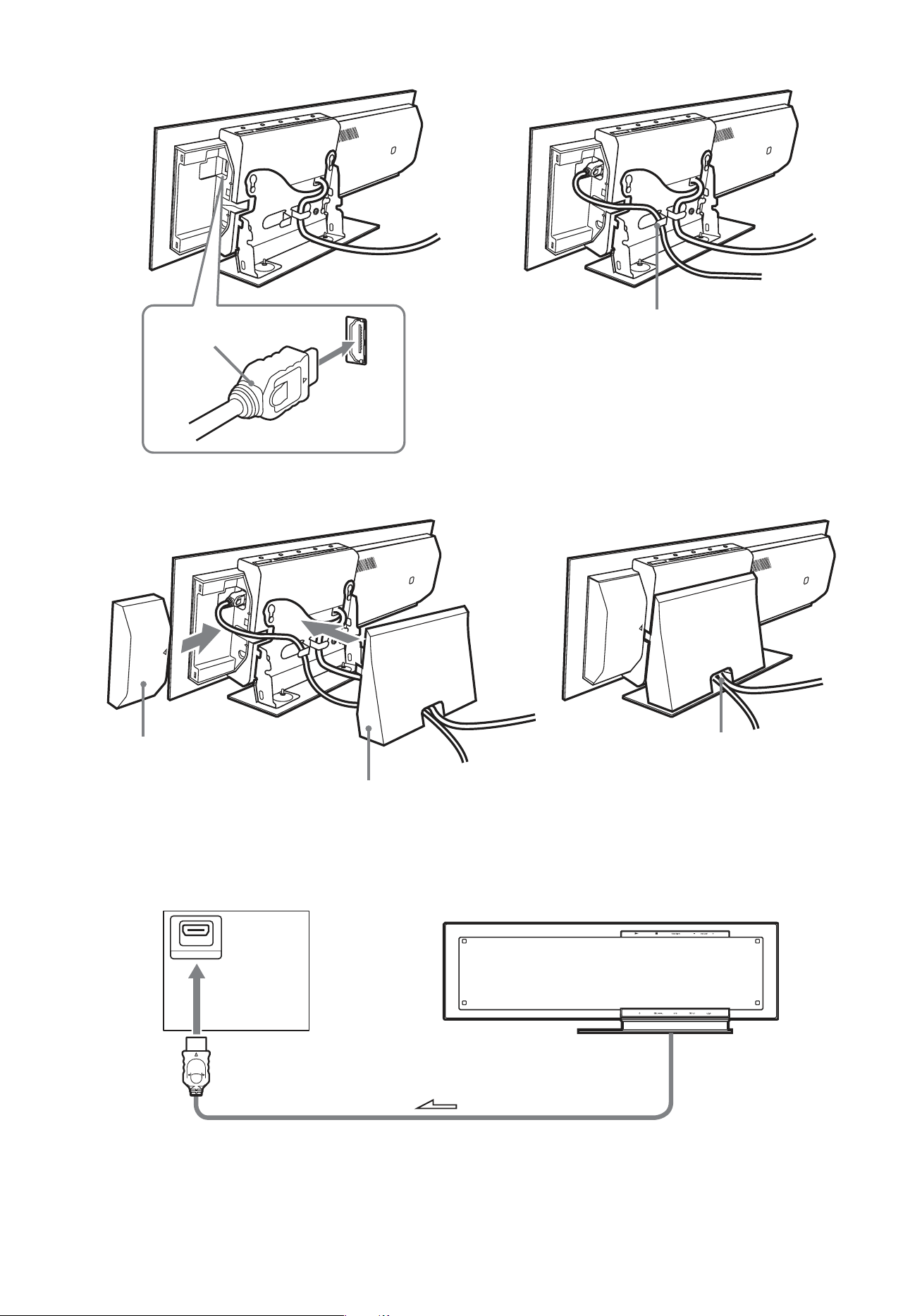

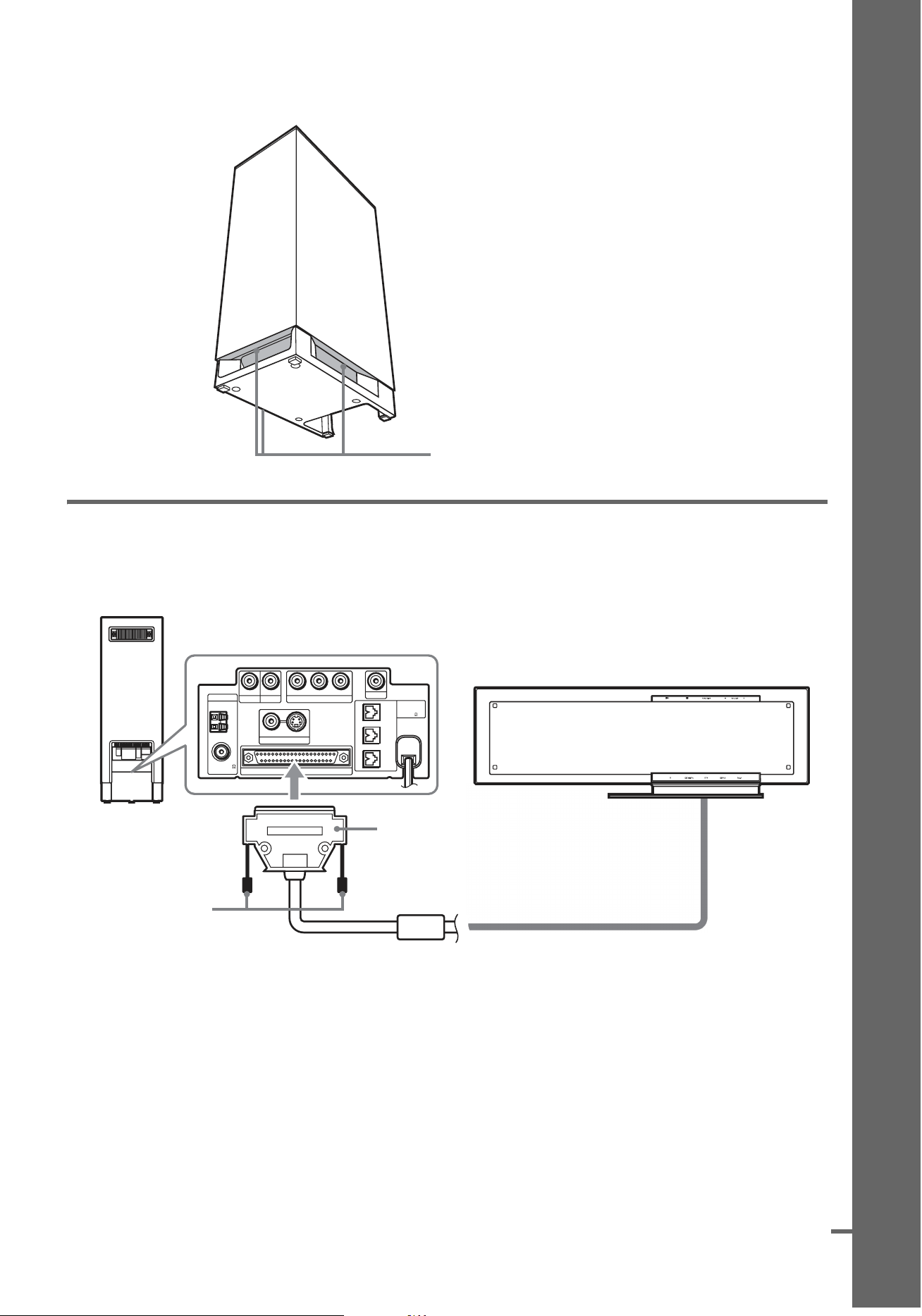

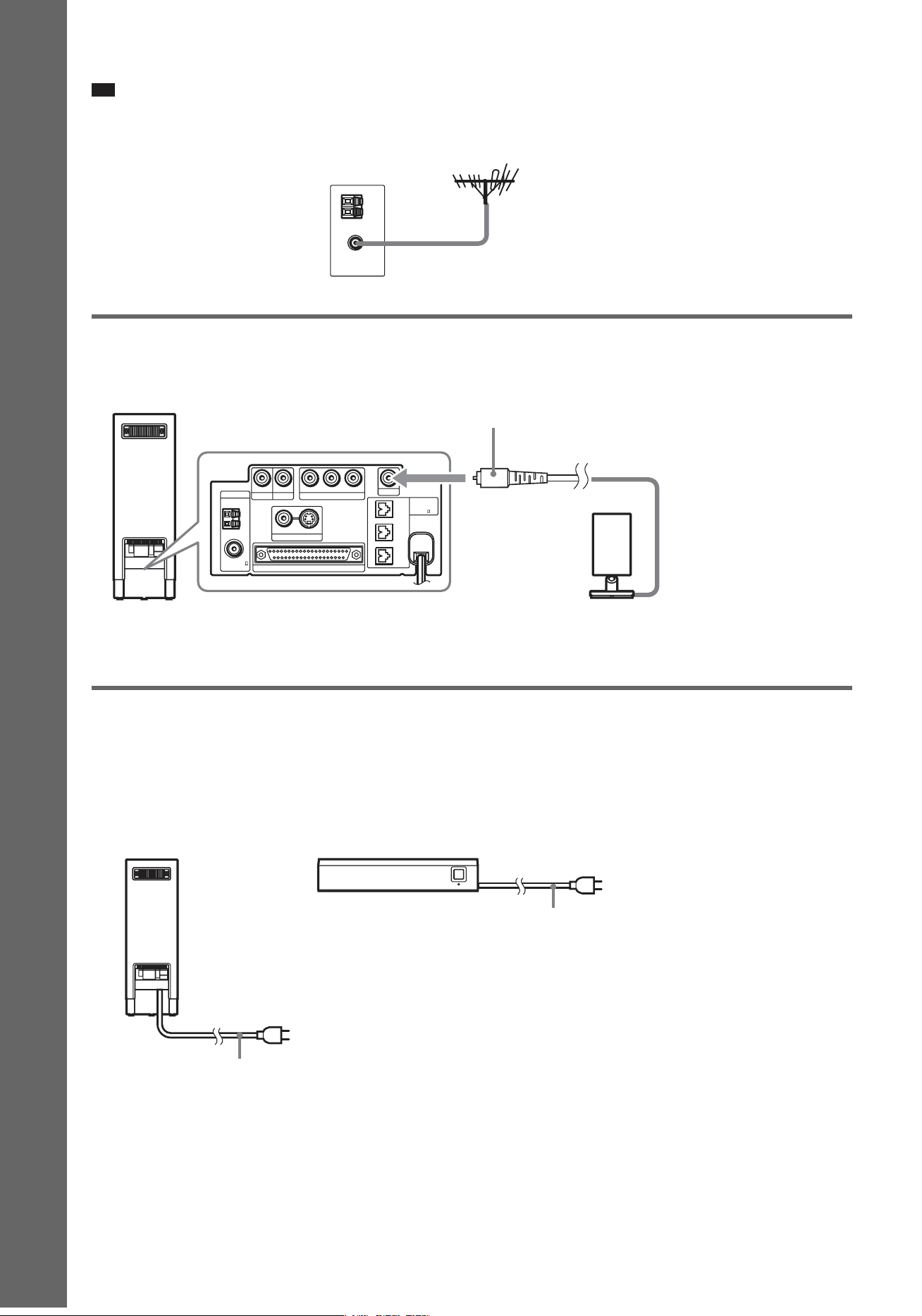

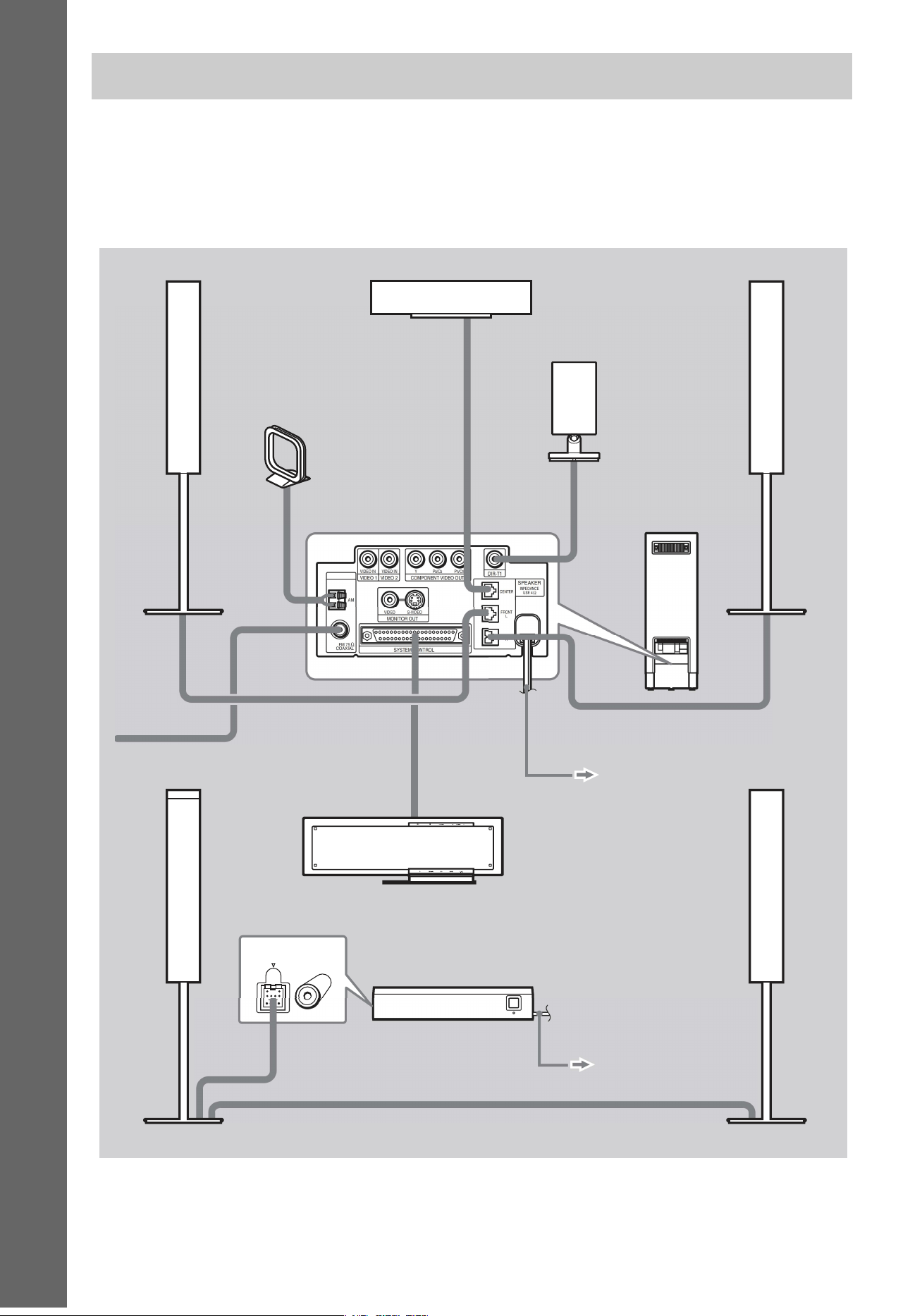

Step 2: Connecting the System...22

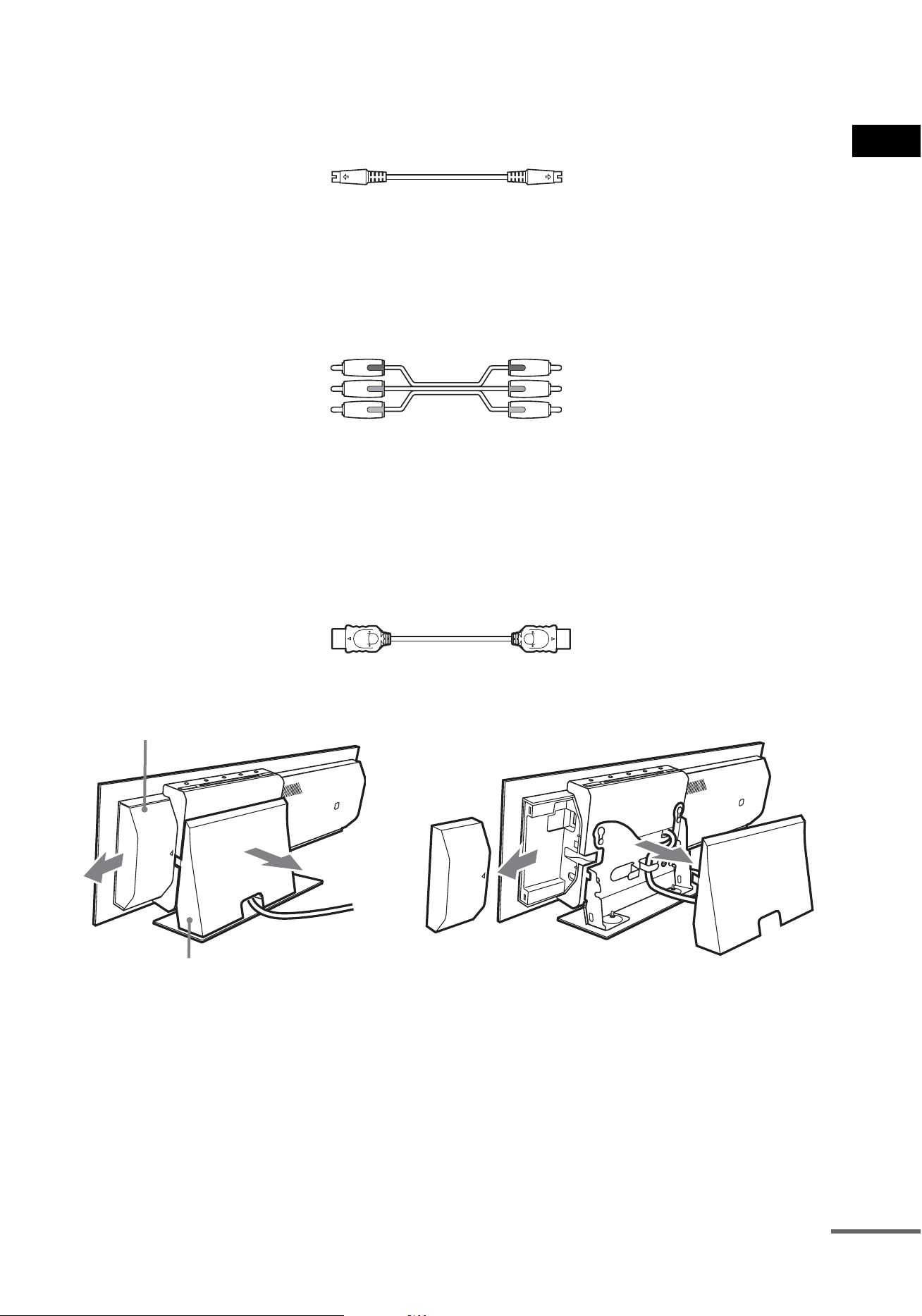

Step 3: Connecting the TV ...........27
Step 4: Positioning the System ...28

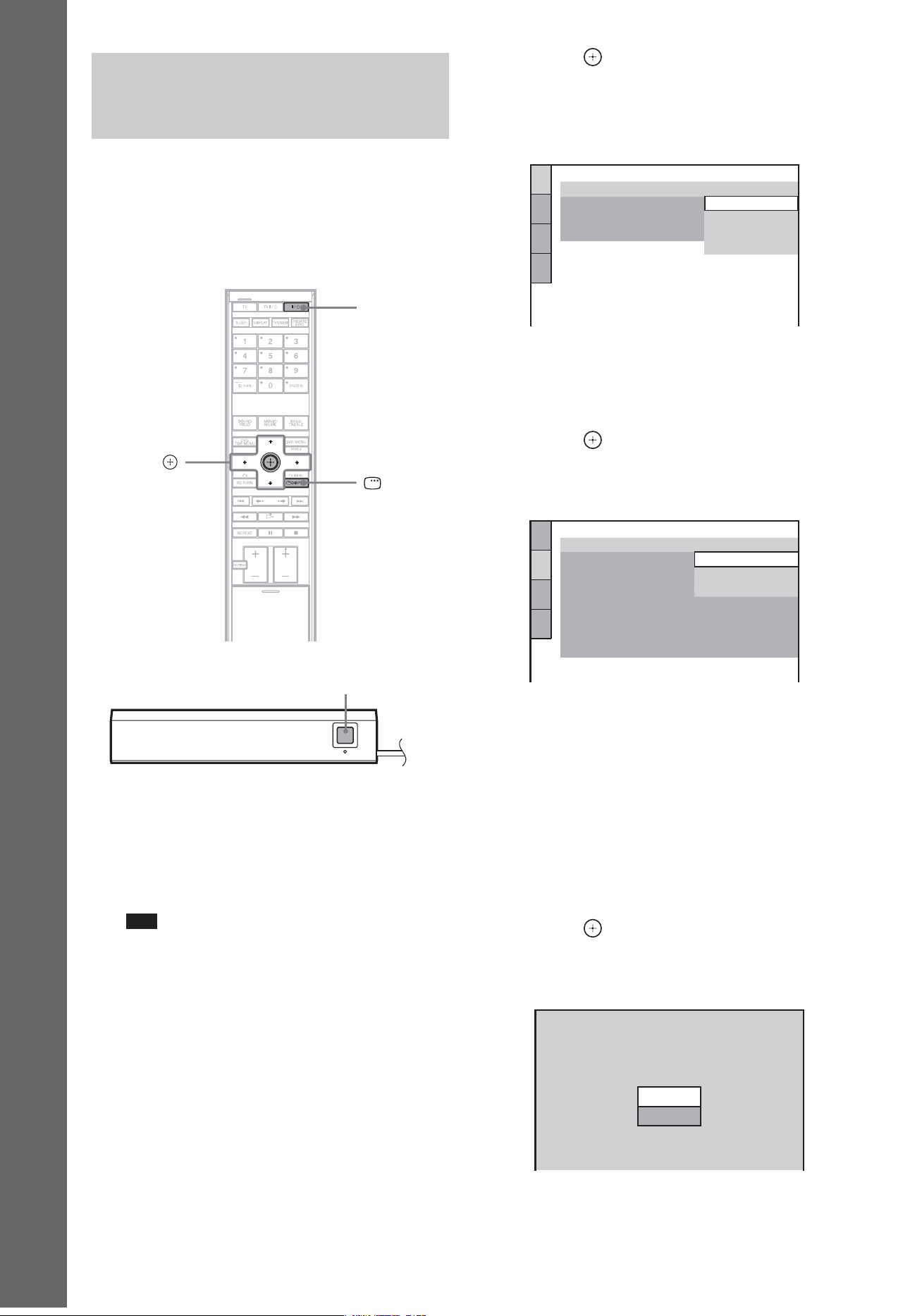

Step 5: Performing the Quick
Setup ........................................30
Getting Started
– ADVANCED –
Using the IR Receiver...........................33

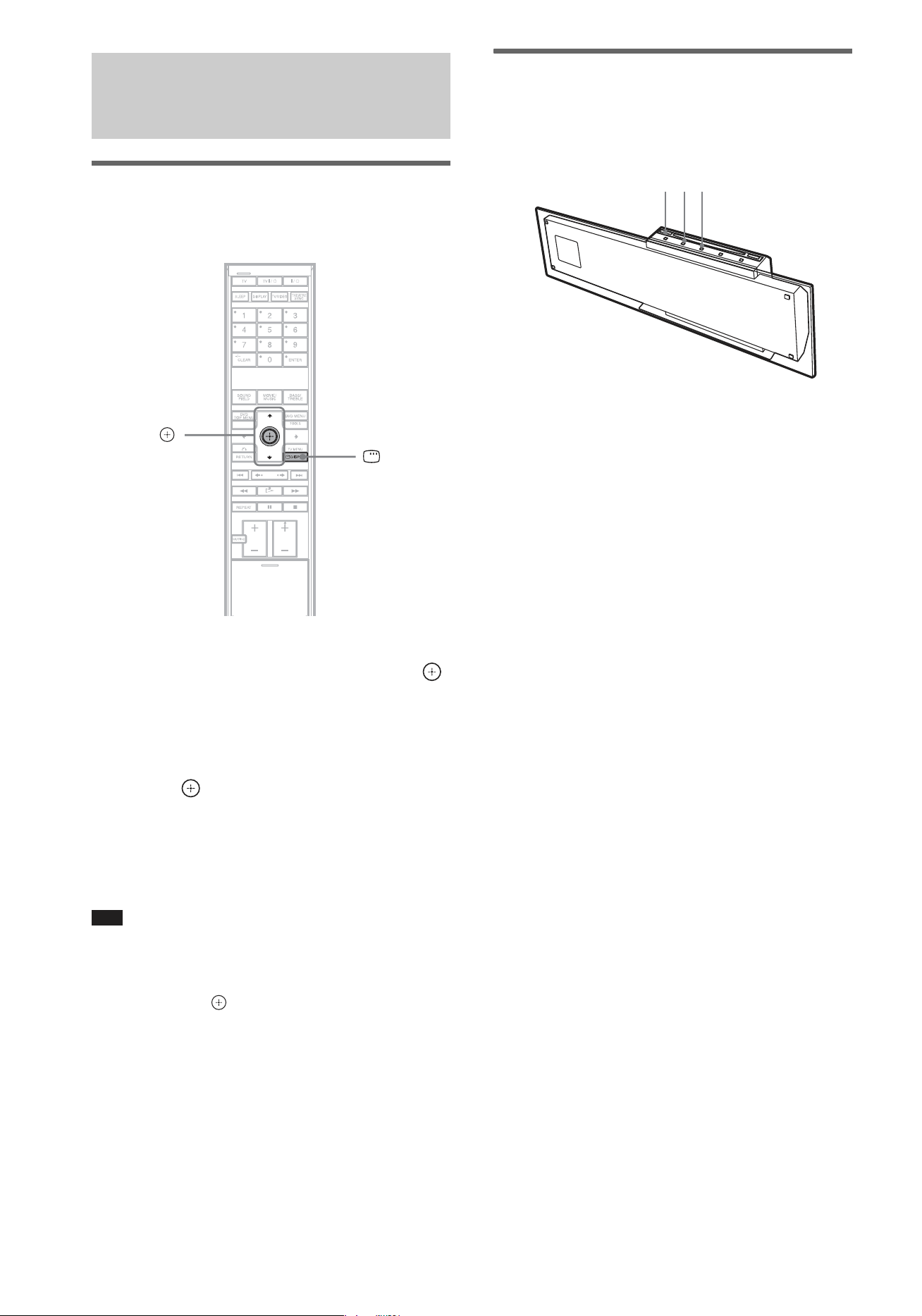

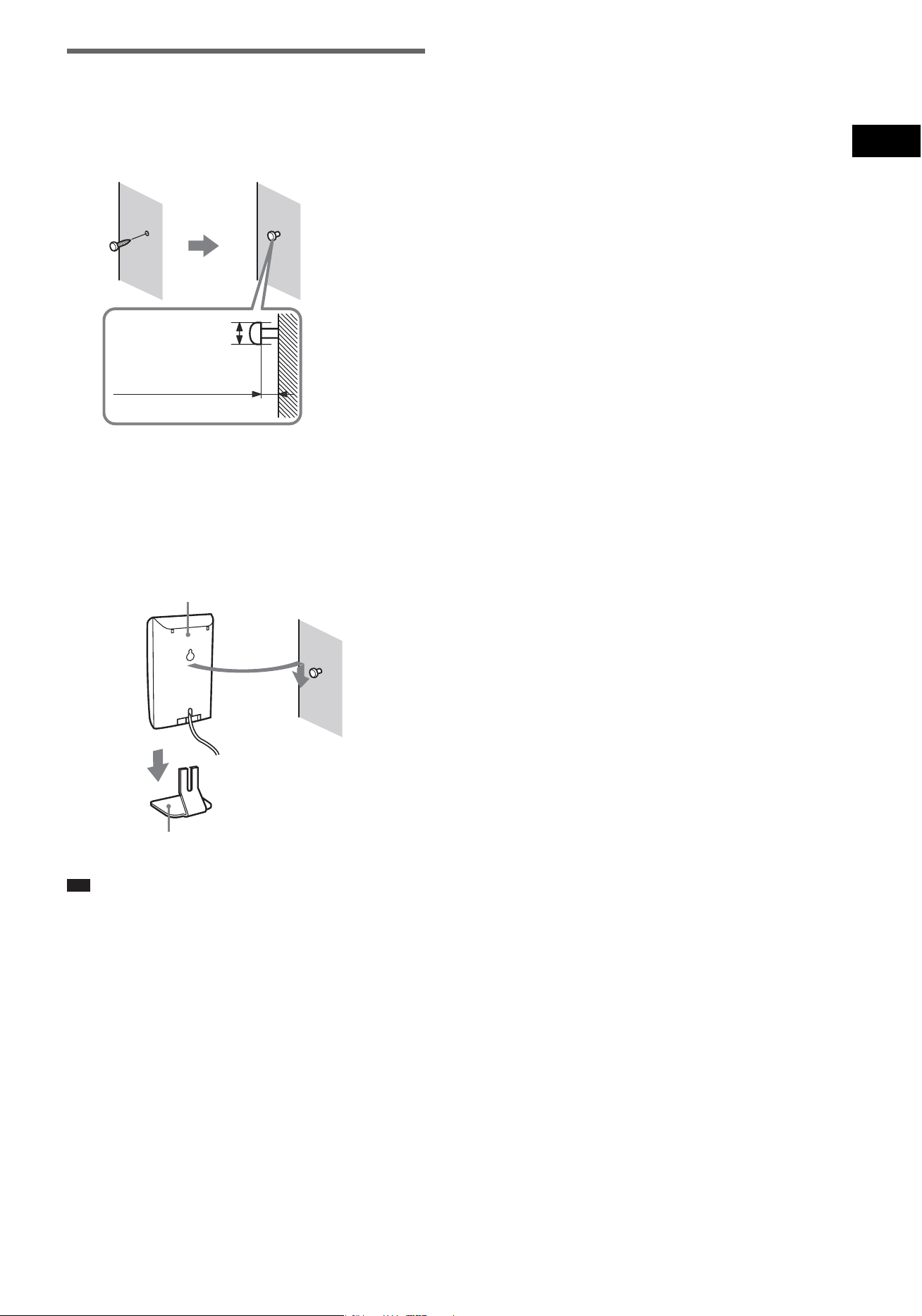

Installing the IR Transmitter and the IR
Receiver on a Wall .........................34
TV Hookup (Advanced) .......................36
Other Component Hookup....................40
Basic Operations

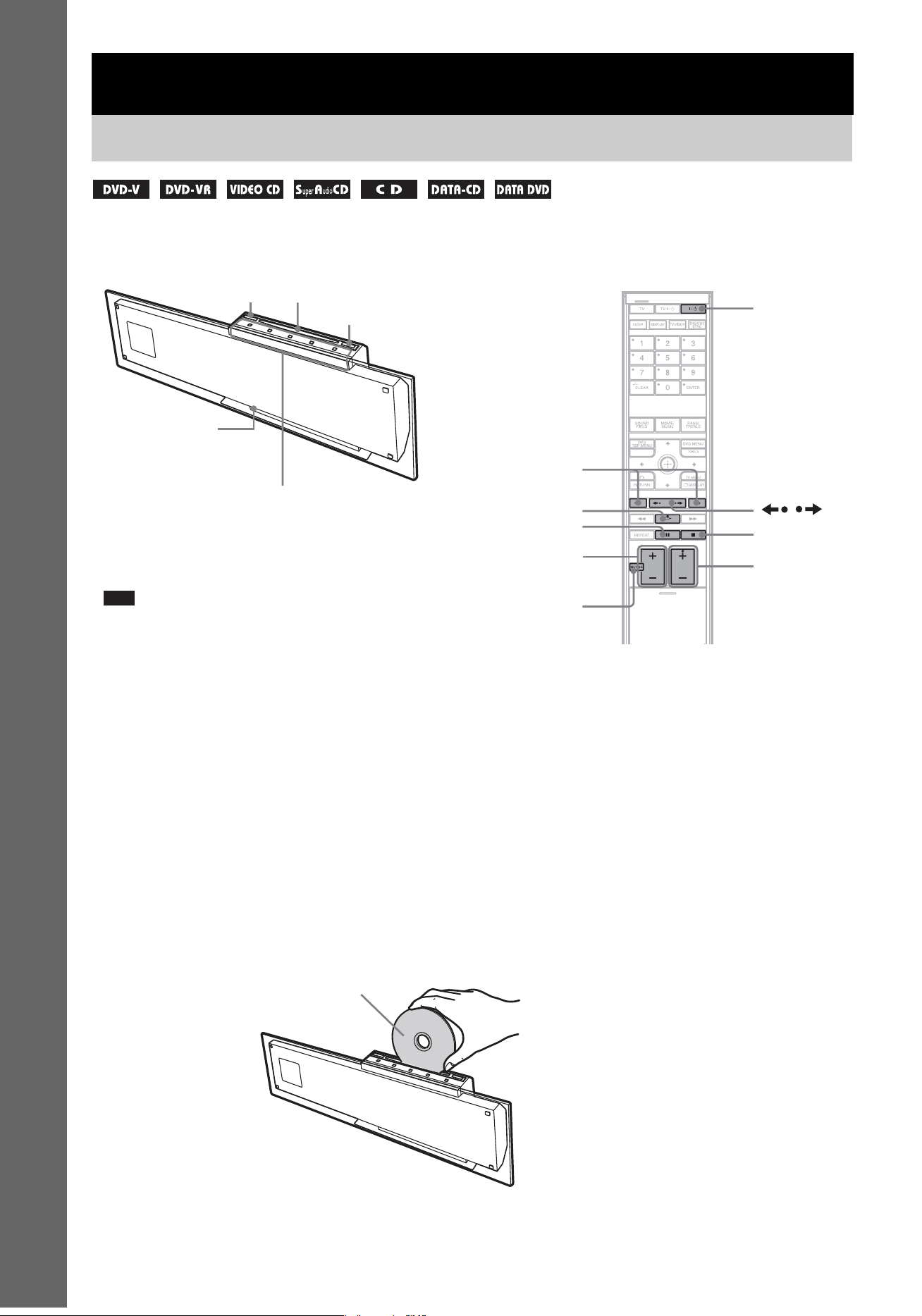

Playing Discs.................................42
Enjoying the Radio or Other
Components ............................44
Enjoying TV or VCR Sound from All
Speakers ..................................46
Selecting the Movie or Music
Mode.........................................47
Sound Adjustments
Enjoying Surround Sound by Using Sound
Field................................................48
Adjusting the Bass and Treble Level....50
Various Functions for Playing
Discs

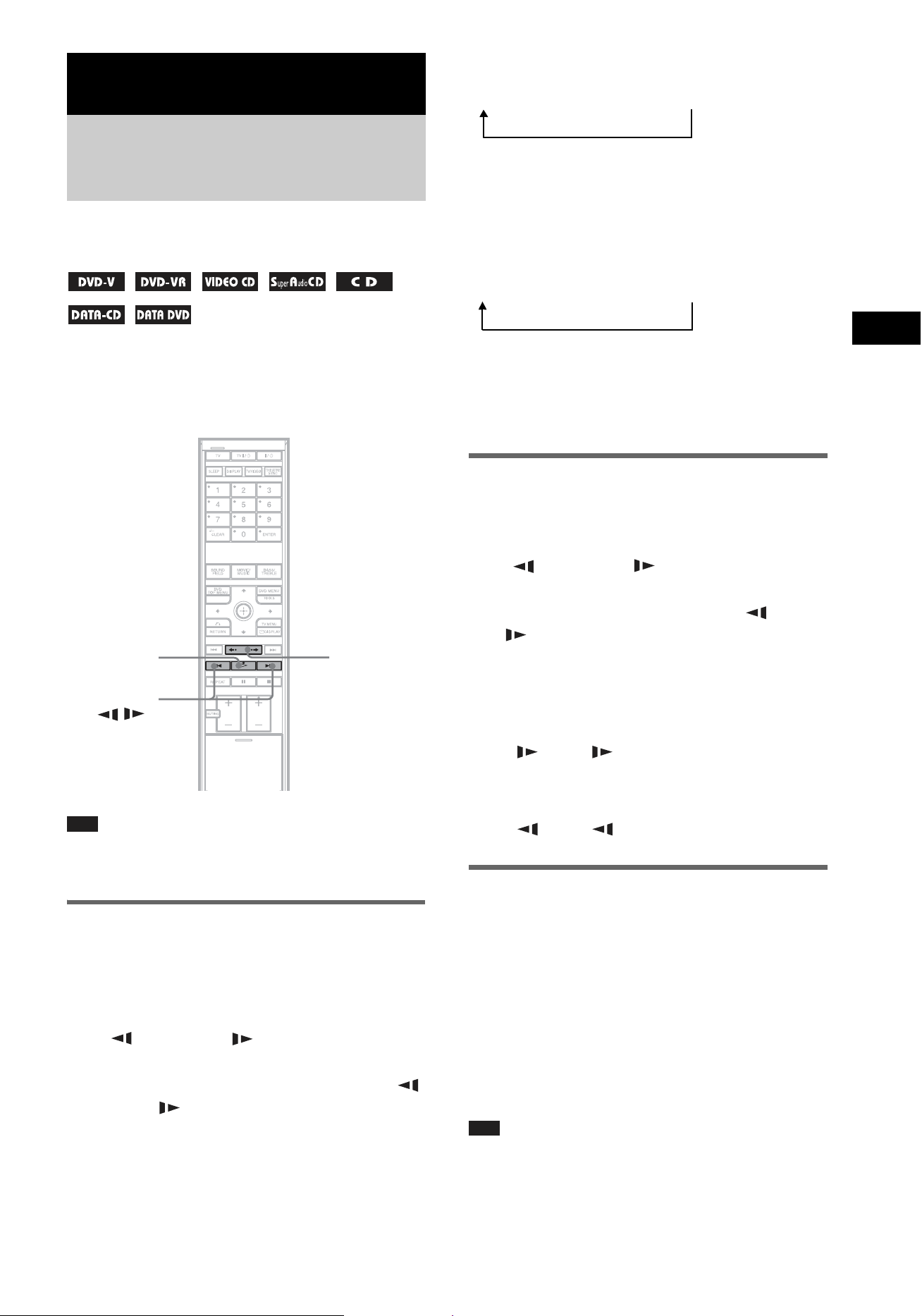

Searching for a Particular Point on
a Disc ..............................................51
(Scan, Slow-motion Play, Freeze
Frame)
Searching for a Title/Chapter/Track/
Scene, etc........................................52
Searching by Scene...............................53
(Picture Navigation)
Resuming Playback from the Point Where
You Stopped the Disc..................... 54
(Resume Play)
Creating Your Own Program................ 55
(Program Play)
Playing in Random Order..................... 57
(Shuffle Play)

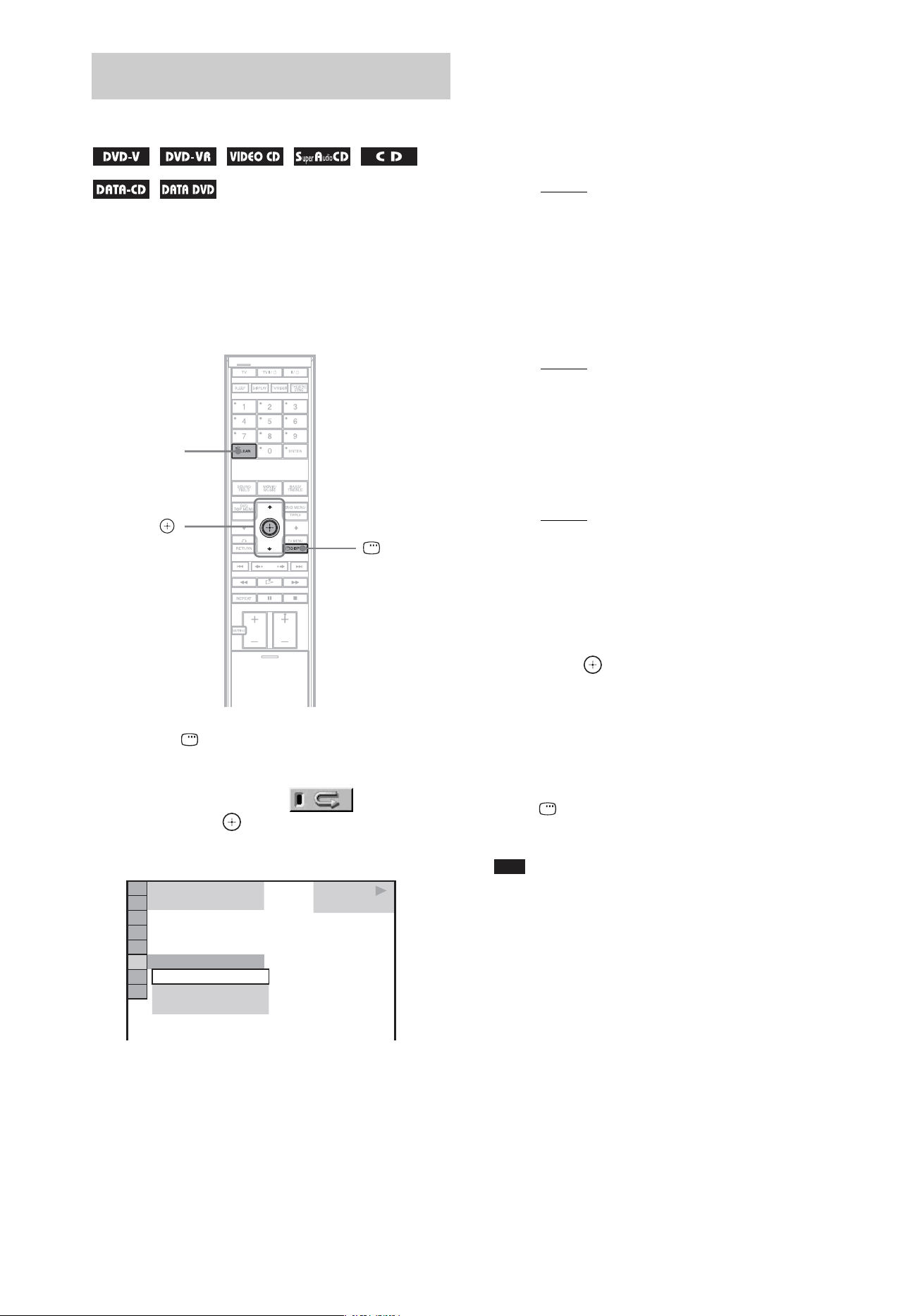

Playing Repeatedly............................... 58
(Repeat Play)
Using the DVD’s Menu........................ 59
Changing the Sound ............................. 59
Selecting [ORIGINAL] or [PLAY LIST]
on a DVD-R/DVD-RW.................. 61
Changing the Display Mode................. 62
(INFORMATION MODE)
Viewing Information About the Disc... 63
Changing the Angles ............................ 65
Displaying the Subtitles........................ 66
Adjusting the Delay Between the Picture
and Sound....................................... 66
(A/V SYNC)

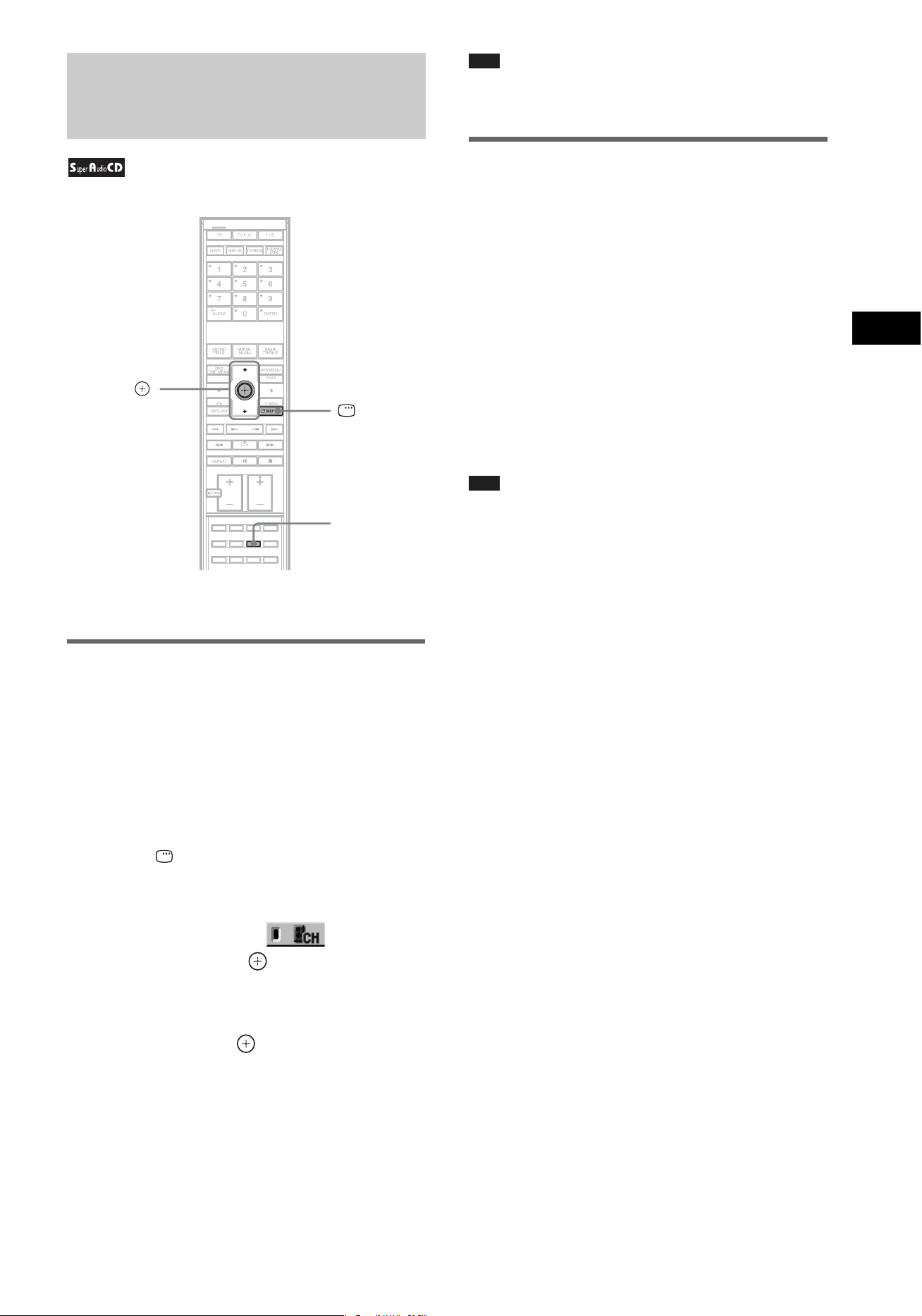

Selecting a Playback Area for a Super
Audio CD ....................................... 67

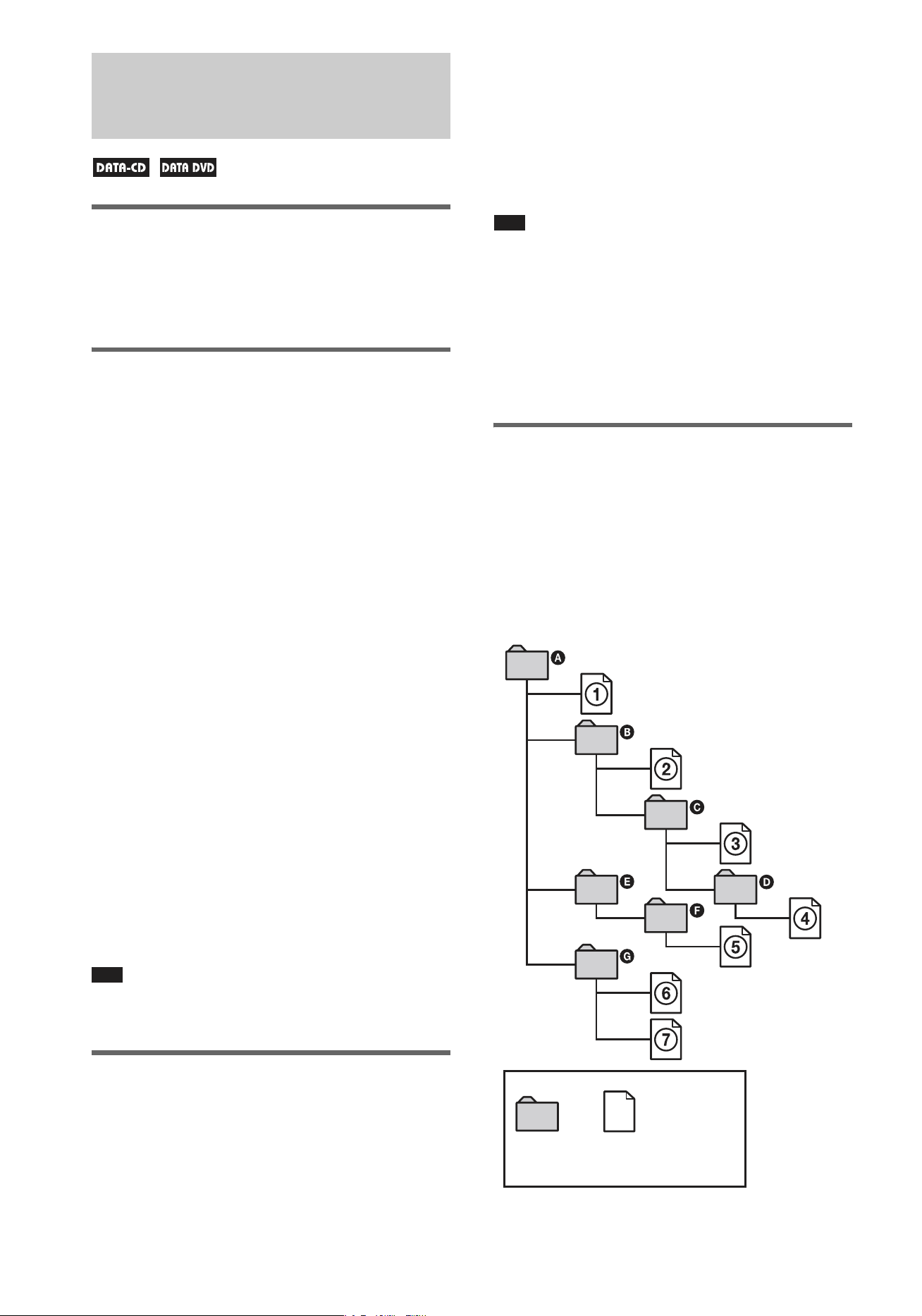

About MP3 Audio Tracks and JPEG
Image Files ..................................... 68

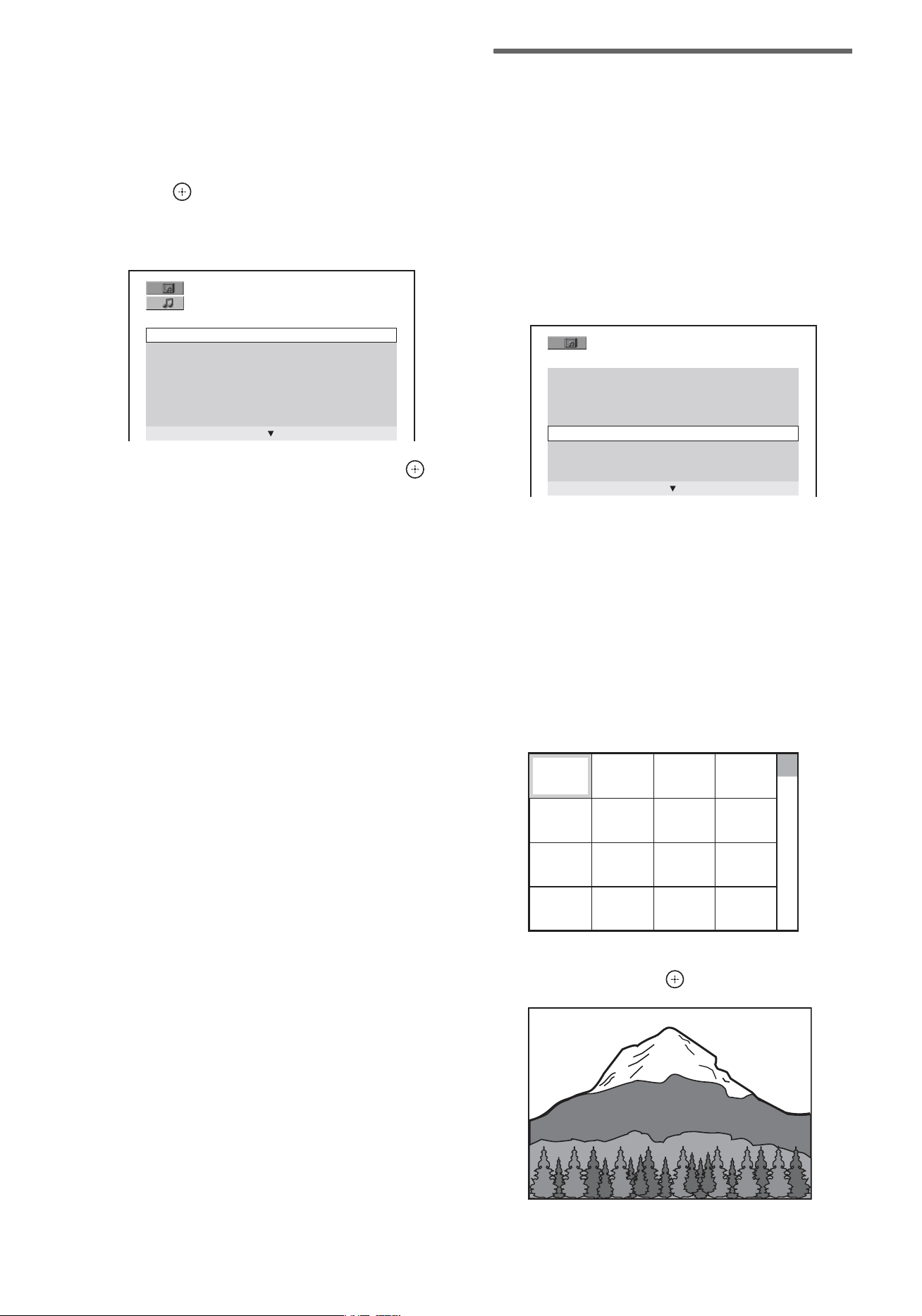

Playing DATA CDs or DATA DVDs with
MP3 Audio Tracks and JPEG Image
Files................................................ 69
Playing Audio Tracks and Images as a
Slide Show with Sound .................. 71
Playing VIDEO CDs with PBC Functions
(Ver.2.0) ......................................... 73
(PBC Playback)
Tuner Functions

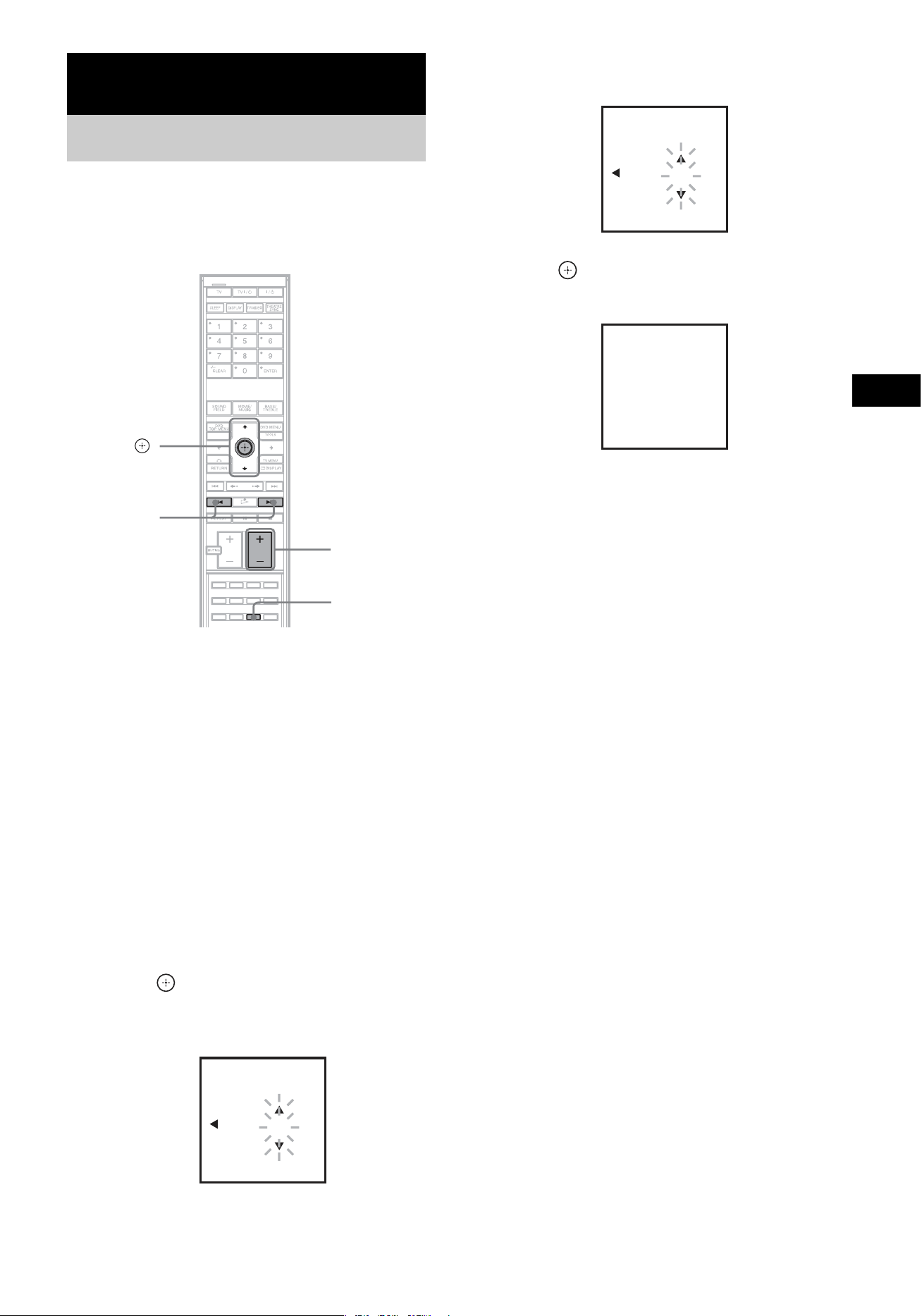

Presetting Radio Stations...................... 75
Listening to the Radio .......................... 76
Table of Contents
5
US
Other Operations
Controlling the TV with the Supplied
Remote............................................78
Using the THEATRE SYNC
Function..........................................80
Enjoying Multiplex Broadcast
Sound..............................................81
(DUAL MONO)
Using the Sound Effect .........................82
Using the Sleep Timer ..........................82
Changing the Brightness of the Front
Panel Display..................................83
Advanced Settings and
Adjustments

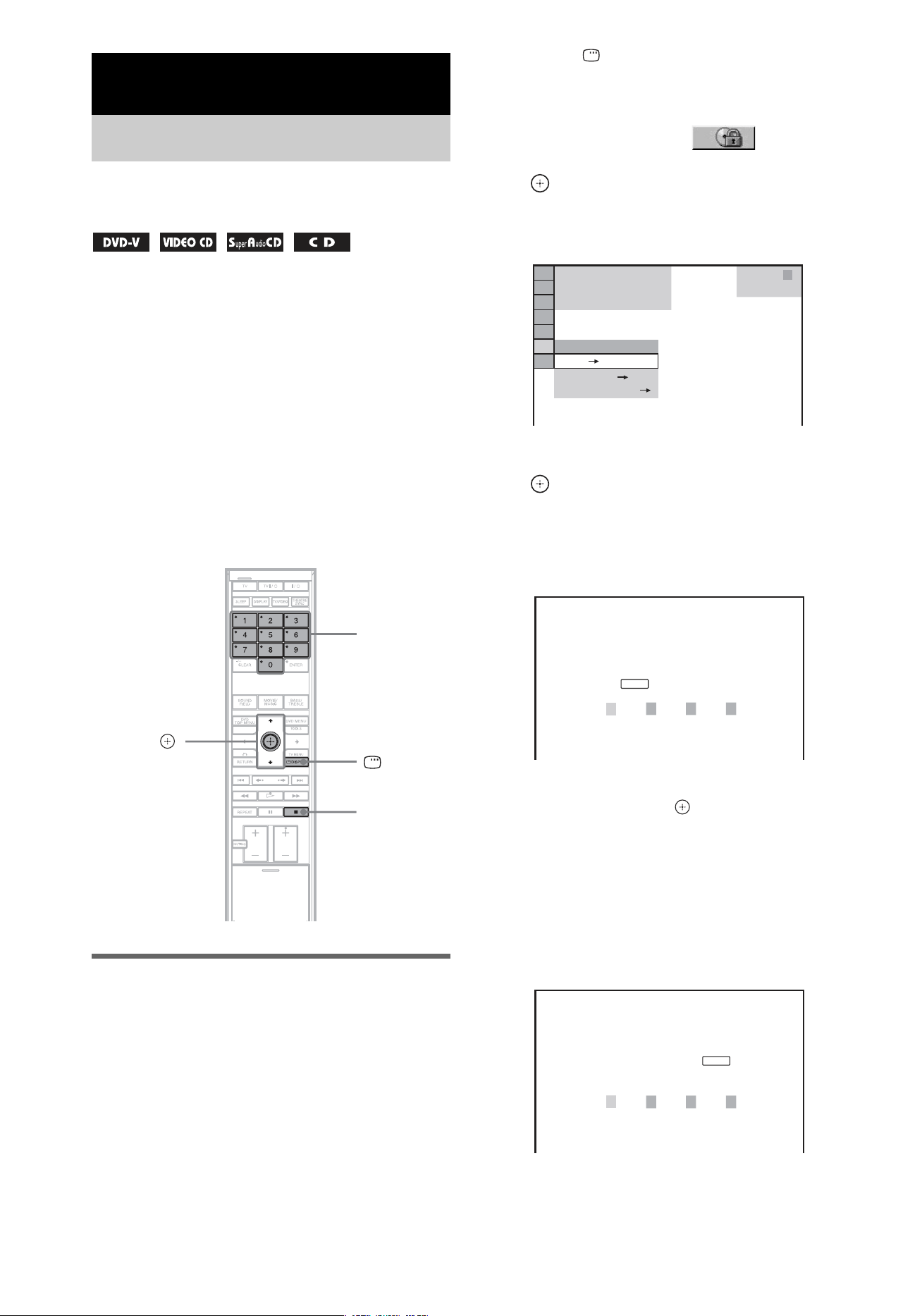

Locking Discs .......................................84
(CUSTOM PARENTAL
CONTROL, PARENTAL
CONTROL)

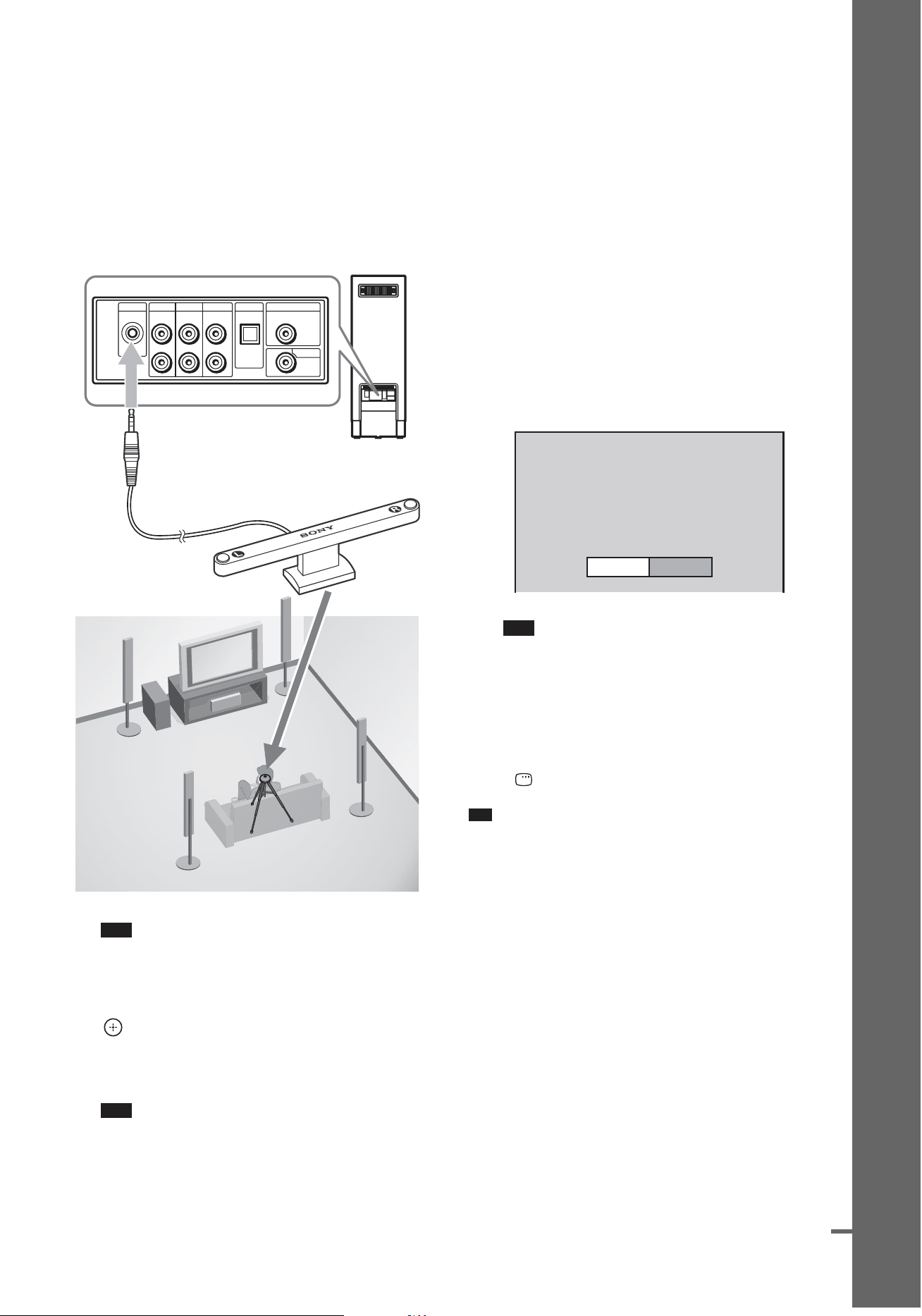

Calibrating the Appropriate Settings
Automatically .................................87
(AUTO CALIBRATION)
Using the Setup Display........................90
Setting the Display or Sound Track
Language ........................................91
[LANGUAGE SETUP]
Settings for the Display.........................92
[SCREEN SETUP]
Custom Settings ....................................95
[CUSTOM SETUP]
Settings for the Speakers.......................97
[SPEAKER SETUP]
Returning to the Default Settings........100
Additional Information
Precautions.......................................... 101
Notes about the Discs ......................... 102
Troubleshooting.................................. 102
Self-diagnosis Function...................... 106
(When letters/numbers appear in
the display)
Specifications...................................... 107
Glossary.............................................. 109
Language Code List............................ 113

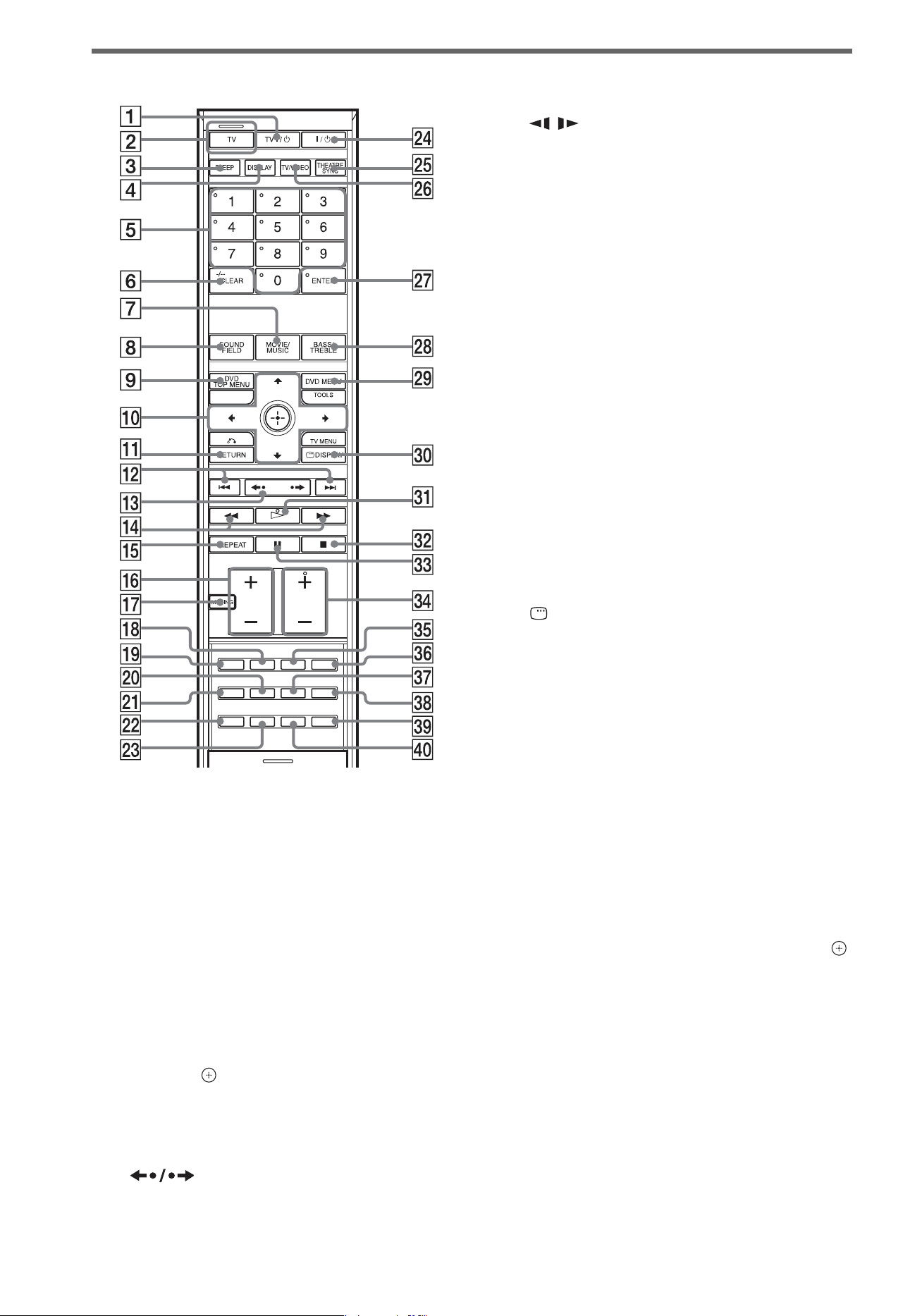

Index to Parts and Controls ................ 114

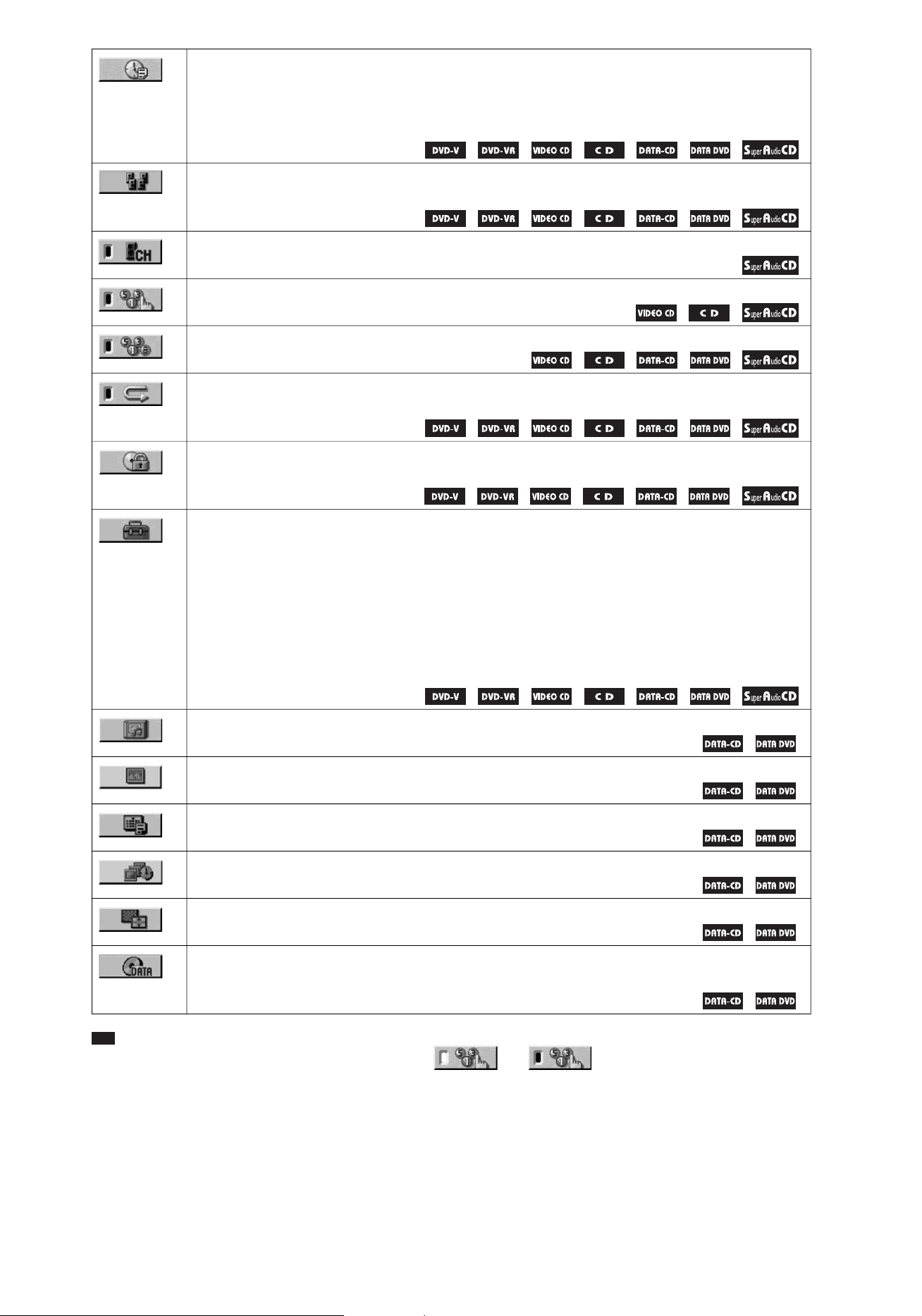

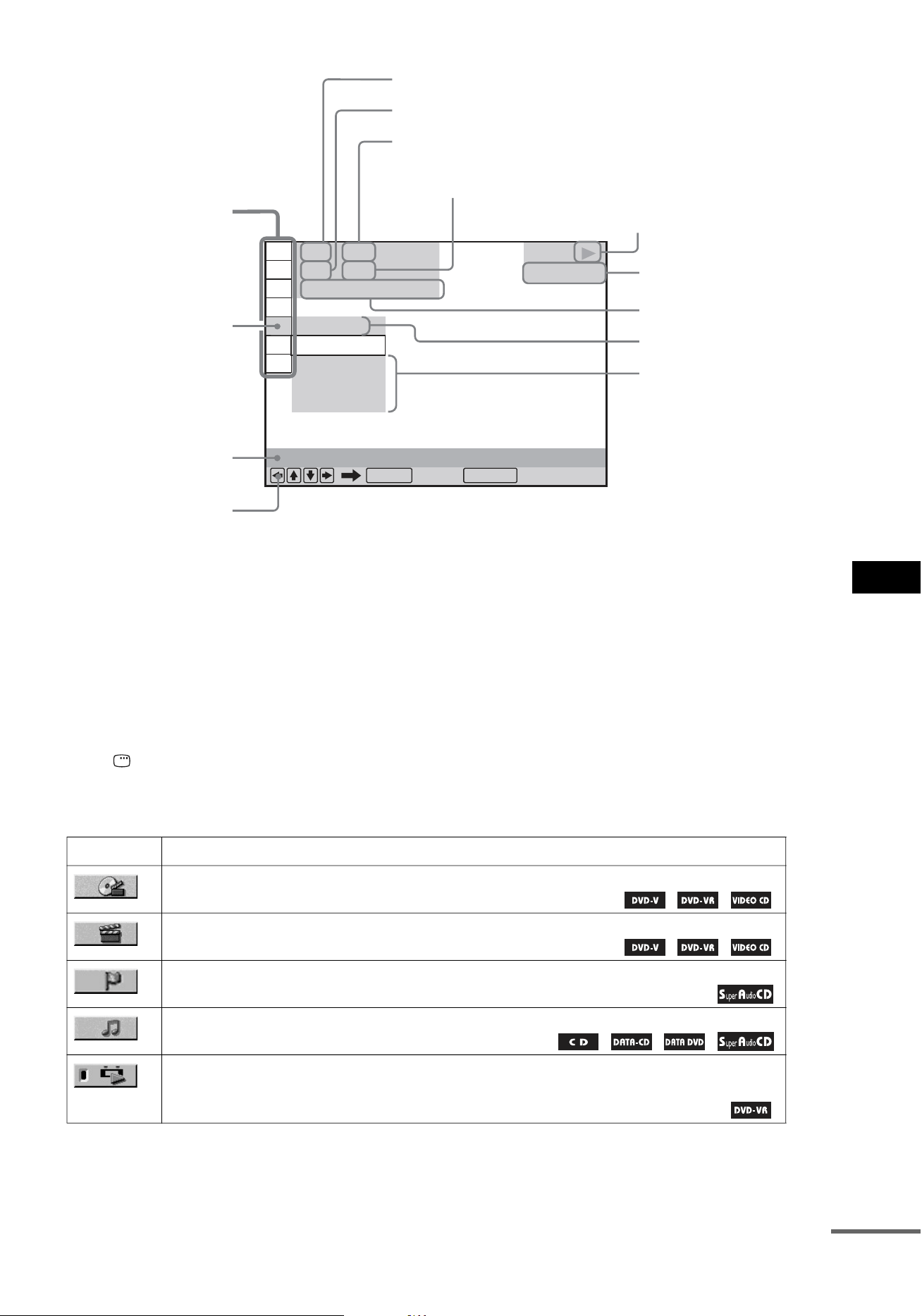

Guide to the Control Menu Display ... 120
DVD Setup Display List..................... 123
AMP Menu List.................................. 124
Index ................................................... 125
6
US
• The instructions in this manual describe the
controls on the remote. You can also use the
controls on the control unit if they have the
same or similar names as those on the remote.
• The Control Menu items may be different
depending on the area.
• “DVD” may be used as a general term for
DVD VIDEOs, DVD+RWs/DVD+Rs, and
DVD-RWs/DVD-Rs.
• Measurements are expressed in feet (ft) for
North American models.
• The following symbols are used in this
manual.
* MP3 (MPEG1 Audio Layer 3) is a standard format
defined by ISO/MPEG which compresses audio
data.
“DVD+RW,” “DVD-RW,” “DVD+R,”
“DVD VIDEO,” and the “CD” logos are trademarks.
About This Manual
Symbol Meaning
Functions available for DVD
VIDEOs, DVD-Rs/DVD-RWs in
video mode, and DVD+Rs/
DVD+RWs
Functions available for DVD-Rs/
DVD-RWs in VR (Video
Recording) mode
Functions available for VIDEO
CDs (including Super VCDs or CD-
Rs/CD-RWs in video CD format or
Super VCD format)
Functions available for Super Audio
CDs
Functions available for music CDs
or CD-Rs/CD-RWs in music CD
format
Functions available for DATA CDs
(CD-ROMs/CD-Rs/CD-RWs)
containing MP3* audio tracks,
JPEG image files
Functions available for DATA
DVDs (DVD-ROMs/DVD-Rs/
DVD-RWs/DVD+Rs/DVD+RWs)
containing MP3* audio tracks,
JPEG image files
This System Can Play the
Following Discs
Format of
discs
Disc logo
DVD VIDEO
DVD-RW/
DVD-R
DVD+RW/
DVD+R
Super Audio
CD
VIDEO CD
(Ver. 1.1 and
2.0 discs)/CD
Graphics
(Latin
American
models only)/
Audio CD
CD-RW/CD-R
(audio data)
(MP3 files)
(JPEG files)
7
US
Note about CDs/DVDs
The system can play CD-ROMs/CD-Rs/CD-
RWs recorded in the following formats:
– audio CD format
– video CD format
– MP3 audio tracks and JPEG image files of
format conforming to ISO 9660 Level 1/
Level 2, or its extended format, Joliet
The system can play DVD-ROMs/DVD+RWs/
DVD-RWs/DVD+Rs/DVD-Rs recorded in the
following formats:
– MP3 audio tracks, JPEG image files of format
conforming to UDF (Universal Disc Format)
Example of discs that the
system cannot play
The system cannot play the following discs:
• CD-ROMs/CD-Rs/CD-RWs other than those
recorded in the formats listed on page 6
• CD-ROMs recorded in PHOTO CD format
• Data part of CD-Extras
• DVD Audios
• DATA DVDs that do not contain MP3 audio
tracks or JPEG image files.
• DVD-RAMs
• A DVD VIDEO with a different region code
(page 9, 111).
• A disc that has a non-standard shape (e.g., card
shaped, heart shaped).
• A disc that has a commercially available
accessory attached, such as a label or ring.
• An adapter to convert an 8 cm disc to standard
size.
• A disc with paper or stickers on it.
• A disc that has the adhesive of cellophane tape
or a sticker still left on it.
Notes about CD-R/CD-RW/DVD-R/
DVD-RW/DVD+R/DVD+RW
In some cases, CD-R/CD-RW/DVD-R/DVD-
RW/DVD+R/DVD+RW cannot be played on
this system due to the recording quality or
physical condition of the disc, or the
characteristics of the recording device and
authoring software.
The disc will not play if it has not been correctly
finalized. For more information, see the
operating instructions for the recording device.
Note that some playback functions may not
work with some DVD+RWs/DVD+Rs, even if
they have been correctly finalized. In this case,
view the disc by normal playback. Also some
DATA CDs/DATA DVDs created in Packet
Write format cannot be played.
Music discs encoded with
copyright protection
technologies
This product is designed to play back discs that
conform to the Compact Disc (CD) standard.
Recently, various music discs encoded with
copyright protection technologies are marketed
by some record companies. Please be aware that
among those discs, there are some that do not
conform to the CD standard and may not be
playable by this product.
Label
Ring
Adapter
cont
i
nue
d
8
US

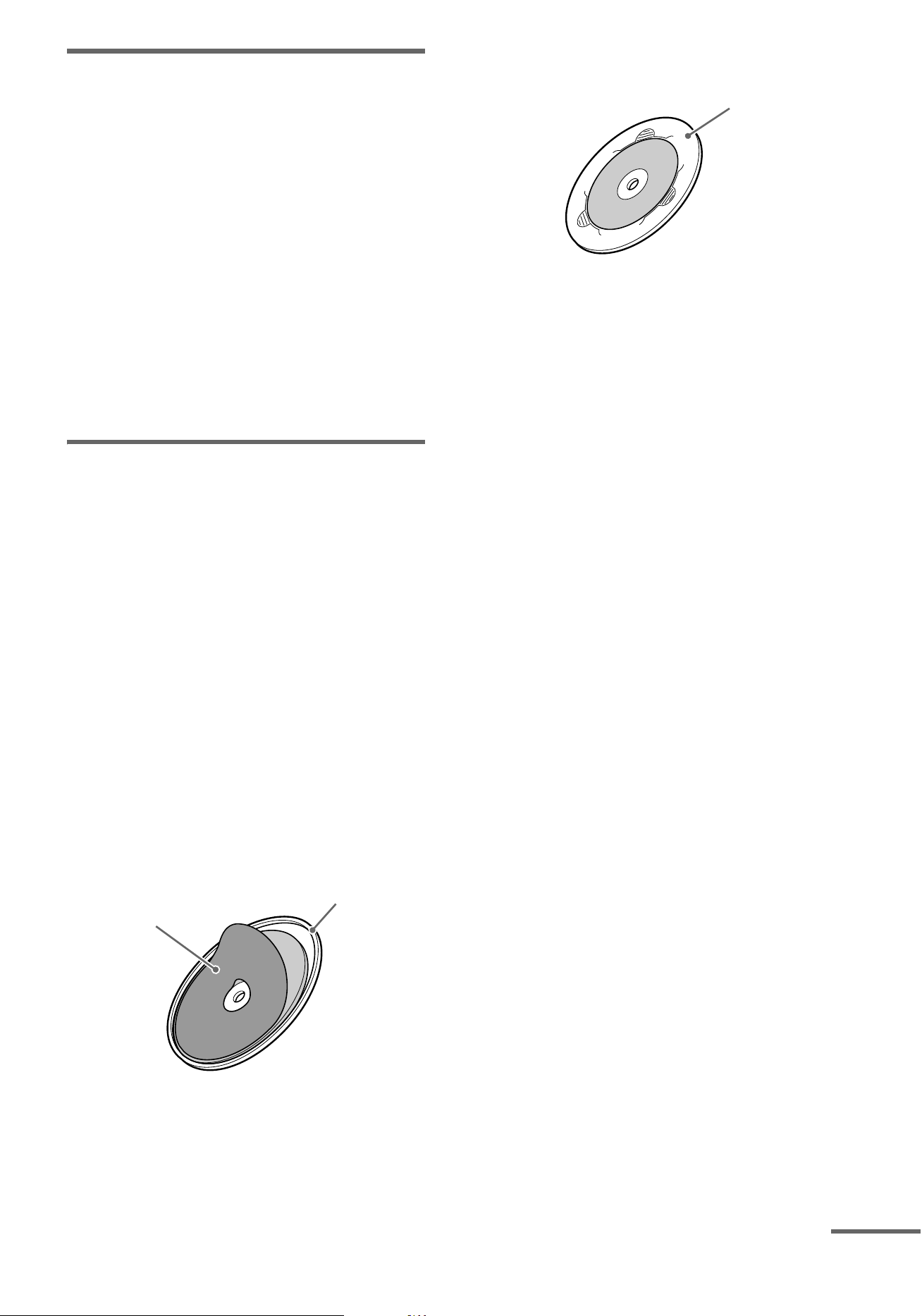

Note on DualDisc
A DualDisc is a two sided disc product which
mates DVD recorded material on one side with
digital audio material on the other side.
However, since the audio material side does not
conform to the Compact Disc (CD) standard,
playback on this product is not guaranteed.
About Multi Session CD
• This system can play Multi Session CDs when
an MP3 audio track is contained in the first
session. Any subsequent MP3 audio tracks
recorded in later sessions can also be played
back.
• This system can play Multi Session CDs when
a JPEG image file is contained in the first
session. Any subsequent JPEG image files
recorded in later sessions can also be played
back.
• If audio tracks and images in music CD format
or video CD format are recorded in the first
session, only the first session will be played
back.
About the Super Audio CD
Super Audio CD is a new high-quality audio
disc standard where music is recorded in the
DSD (Direct Stream Digital) format
(conventional CDs are recorded in the PCM
format). The DSD format, using a sampling
frequency 64 times higher than that of a
conventional CD, and with 1-bit quantization,
achieves both a wide frequency range and a wide
dynamic range across the audible frequency
range, and so provides music reproduction
extremely faithful to the original sound.

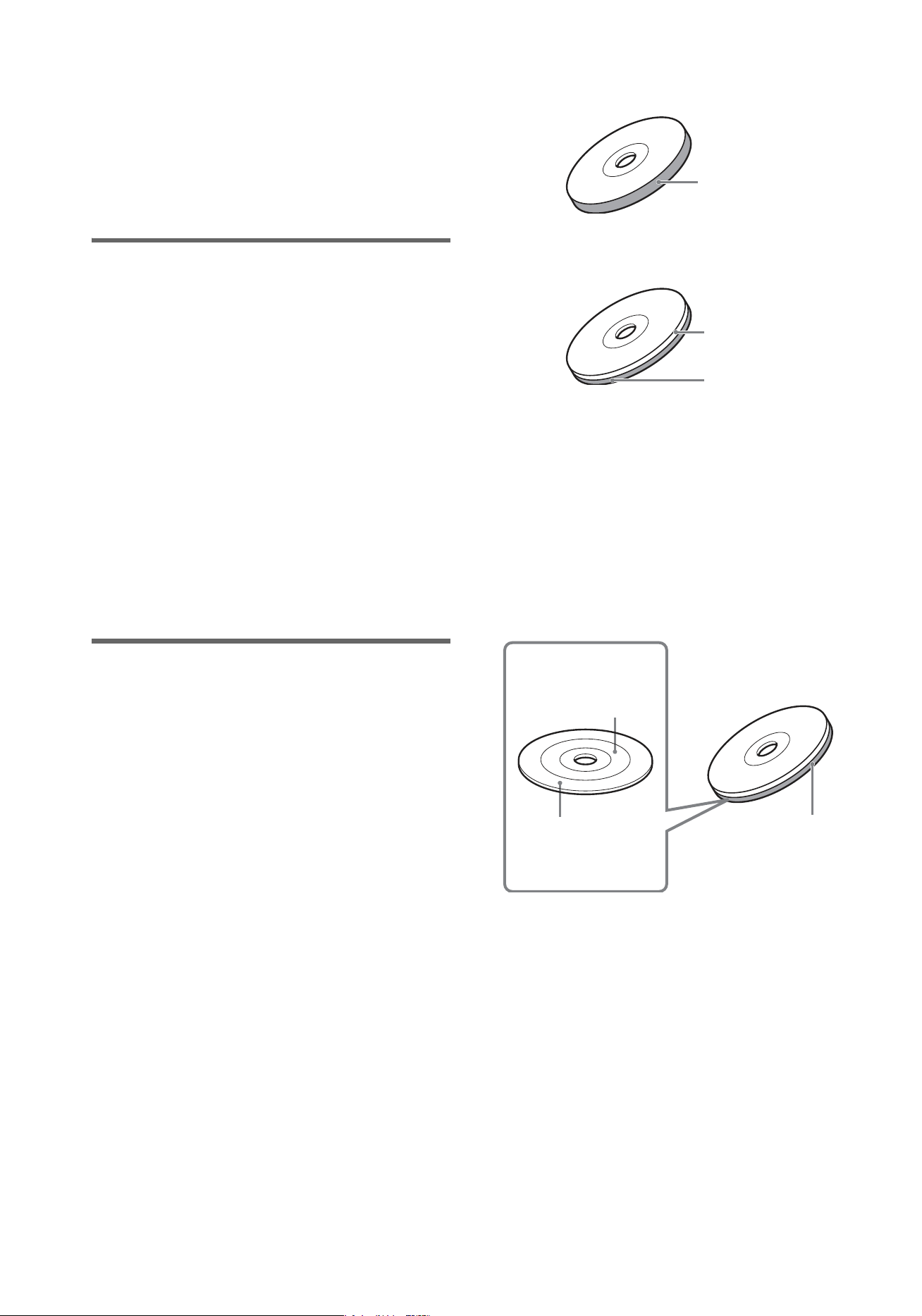

Types of Super Audio CDs
There are two types of discs, depending on the
Super Audio CD layer and CD layer
combination.
• Super Audio CD layer: A high-density
signal layer for Super Audio CD
• CD layer
1)
: A layer that is readable by a
conventional CD player
A Super Audio CD layer consists of the 2
channel area or the multi-channel area.
• 2 channel area: An area in which 2 channel
stereo tracks are recorded
• Multi-channel area: An area in which multi-
channel (up to 5.1 channels) tracks are
recorded
1)
You can play the CD layer on a conventional CD
player.
2)
Since both layers are on one side, it is not necessary
to turn the disc over.
3)
To select a layer, see “Selecting a Playback Area for
a Super Audio CD” (page 67).
4)
To select an area, see “Selecting a Playback Area for
a Super Audio CD” (page 67).
Single layer disc
(a disc with a single Super Audio CD layer)
Super Audio CD
layer
Hybrid disc
2)
(a disc with a Super Audio CD layer and a CD layer)
Super Audio CD
layer
3)
CD layer
3)
Super Audio CD
layer
Multi channel area
4)
2 channel area
4)
9
US
Region code
Your system has a region code printed on the
rear of the unit and will only play DVDs labeled
with the same region code.
DVD VIDEOs labeled will also play on this
system.
If you try to play any other DVD VIDEO, the
message [Playback prohibited by area
limitations.] will appear on the TV screen.
Depending on the DVD VIDEO, no region code
indication may be given even though playing the
DVD VIDEO is prohibited by area restrictions.
Note on playback operations
of DVDs and VIDEO CDs
Some playback operations of DVDs and VIDEO
CDs may be intentionally set by software
producers. Since this system plays DVDs and
VIDEO CDs according to the disc contents the
software producers designed, some playback
features may not be available. Also, refer to the
instructions supplied with the DVDs or VIDEO
CDs.
Copyrights
This product incorporates copyright protection
technology that is protected by U.S. patents and
other intellectual property rights. Use of this
copyright protection technology must be
authorized by Macrovision, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
This system incorporates with Dolby* Digital
and Dolby Pro Logic (II) adaptive matrix
surround decoder and the DTS** Digital
Surround System.
* Manufactured under license from Dolby
Laboratories.
“Dolby,” “Pro Logic,” and the double-D symbol are
trademarks of Dolby Laboratories.
**Manufactured under license from Digital Theater
Systems, Inc. “DTS” and “DTS Digital Surround”
are registered trademarks of Digital Theater
Systems, Inc.
ALL
10
US
Getting Started – BASIC –
See Unpacking in Specifications, page 109.

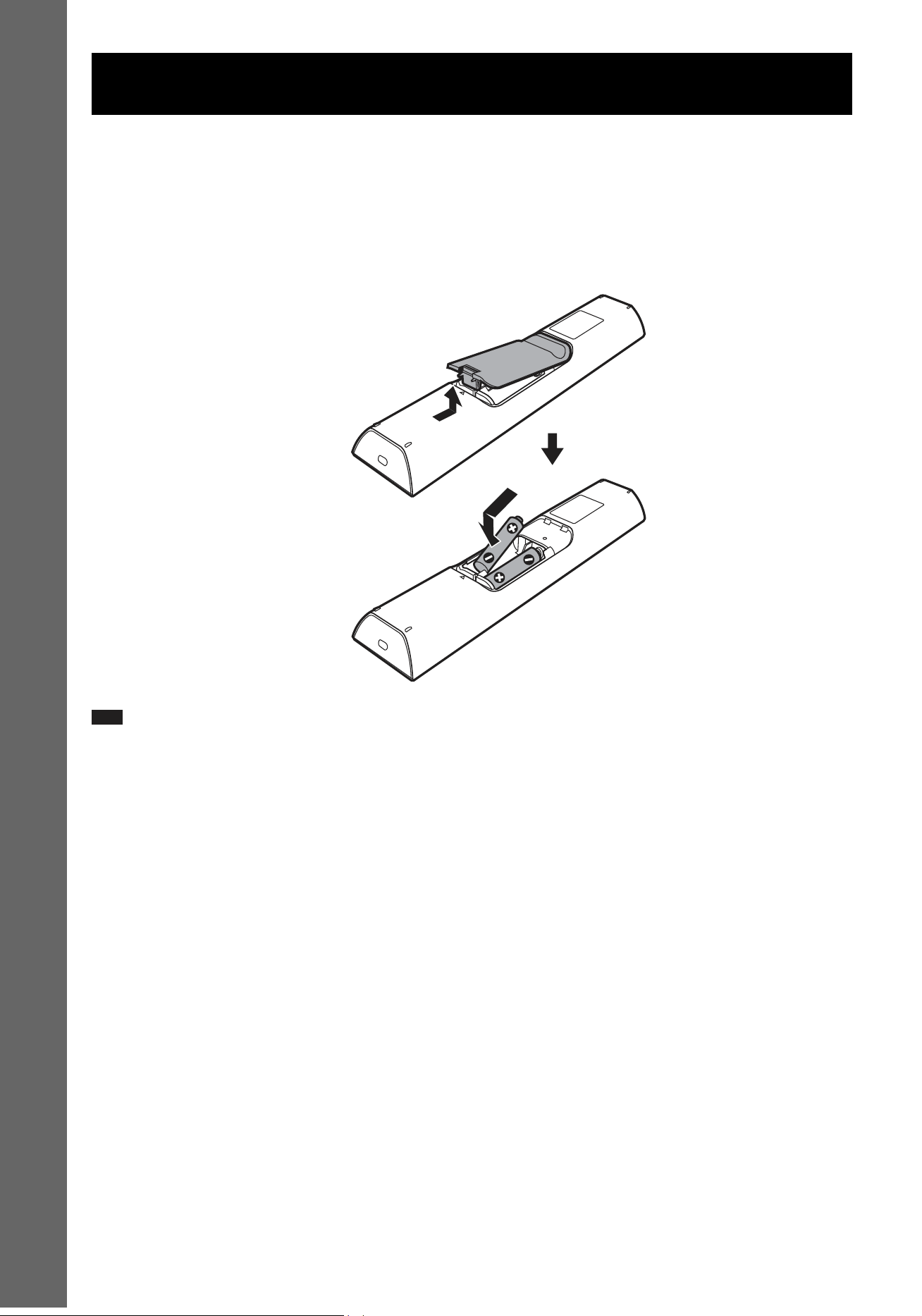

Inserting batteries into the remote
You can control the system using the supplied remote. Insert two R6 (size AA) batteries by matching
the 3 and # ends on the batteries to the markings inside the compartment. When using the remote,
point it at the remote sensor on the control unit.
Note
• Do not leave the remote in an extremely hot or humid place.
• Do not use a new battery with an old one.
• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.
• Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so may cause a
malfunction.
• If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage
from battery leakage and corrosion.
Getting Started – BASIC –
11
US
Getting Started – BASIC –
Before connecting, attach the stands to the control unit and the speakers.
Ti
p
• We recommend that you spread a cloth on the floor to avoid damaging the floor when assembling.

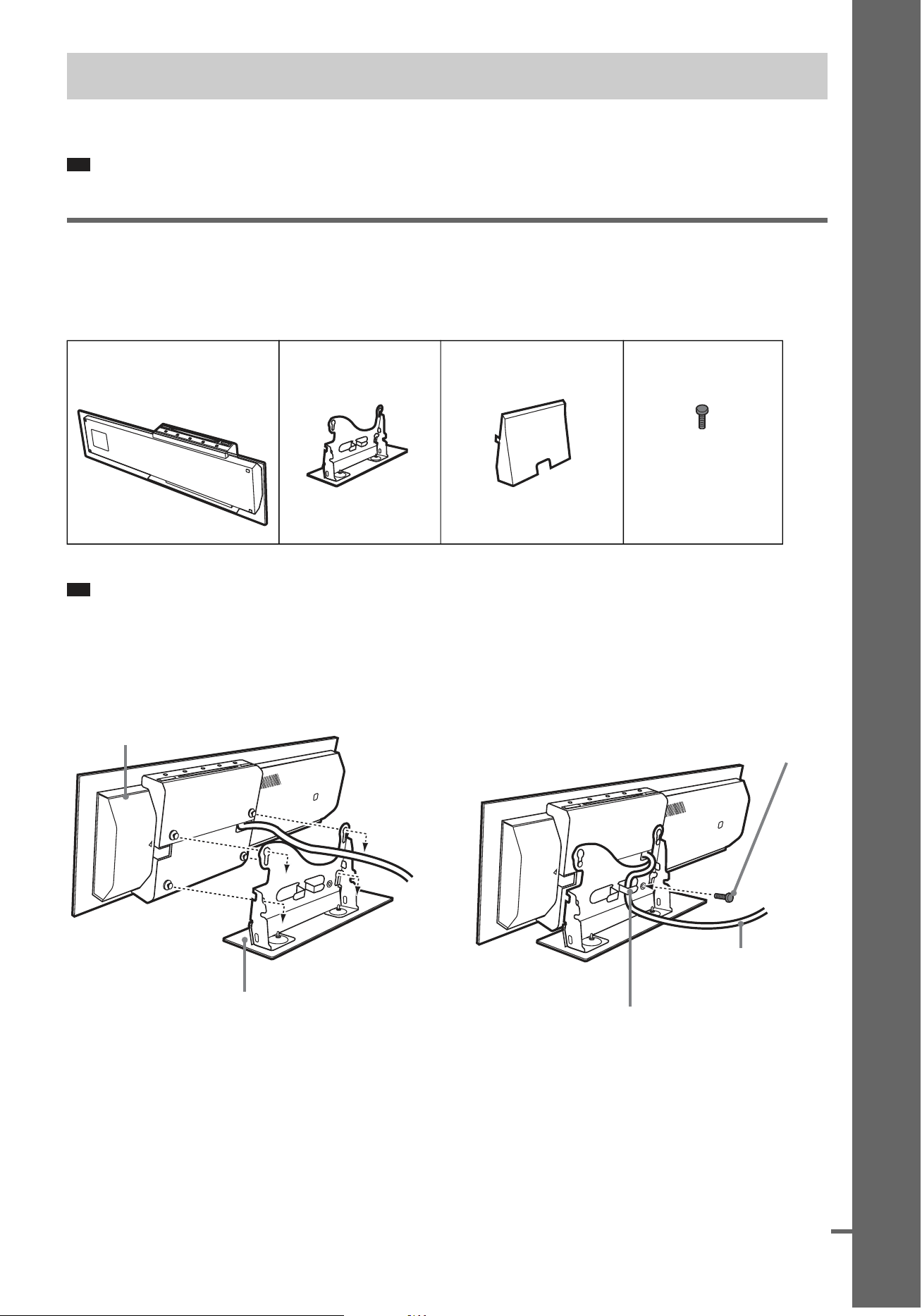

Assembling the control unit
Attach the stand to the control unit.
Use the parts illustrated below.
Ti
p
• You can install the control unit on a wall using an optional kit (not supplied).
1
Hook the studs of the control unit on the keyslots of the control unit stand, then secure
the control unit with the screw.
Step 1: Assembling the system
Control unit (1) Control unit stand (1) Control unit stand cover
(1)
Screw (black, small)
(1)
Control unit
Control unit stand
,
SYSTEM CONTROL cord
Hook the SYSTEM CONTROL
cord in the clamp on the control
unit stand.
Screw (black, small)
cont
i
nue
d
12
US
Getting Started – BASIC –
2

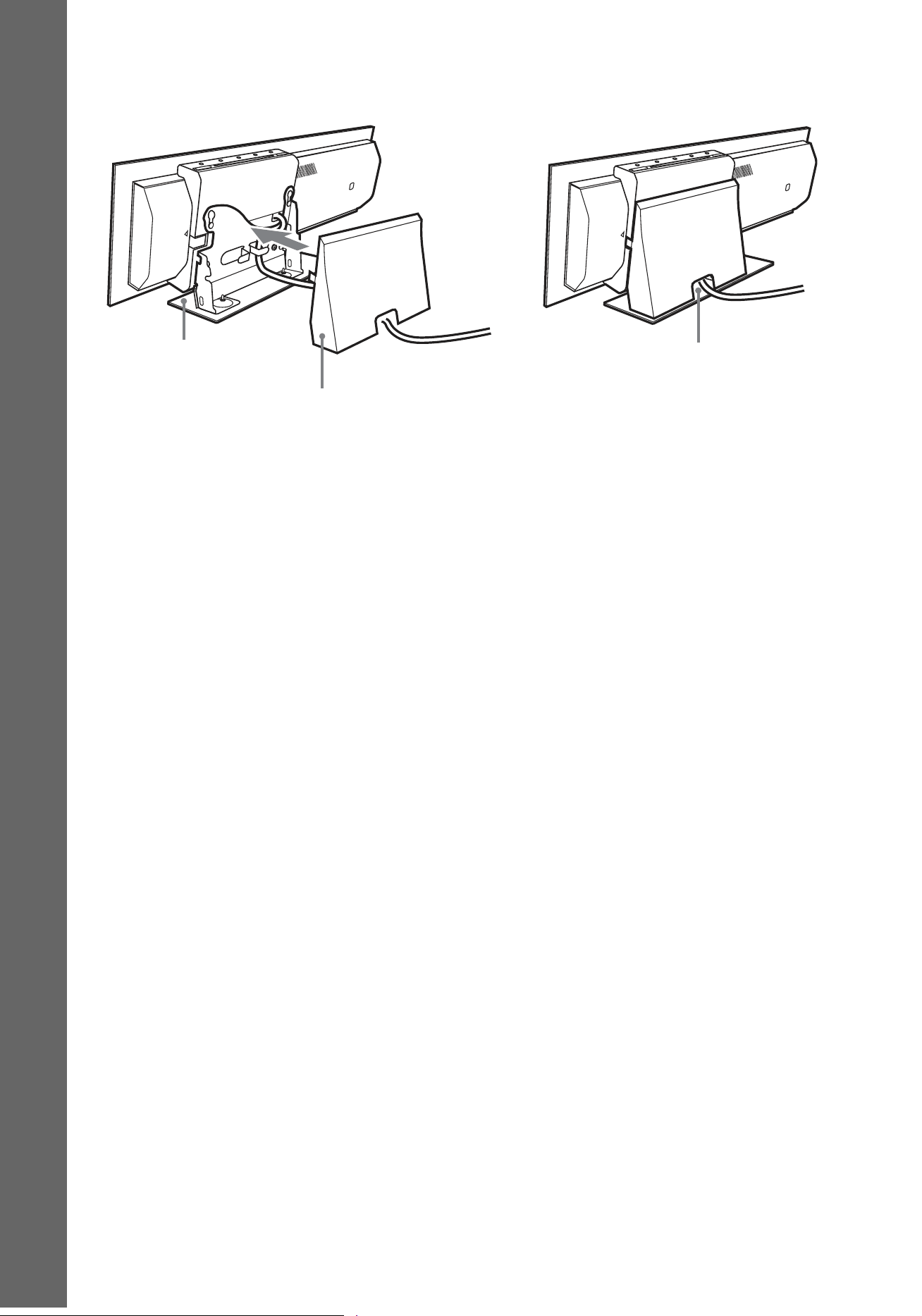

Attach the control unit stand cover to the control unit stand.
Snap the control unit stand cover onto the speaker stand.
Control unit stand cover
Control unit stand
,
Draw the SYSTEM CONTROL cord
through the opening of the control unit
stand cover.
13
US
Getting Started – BASIC –
Assembling the speakers
Attach the stands and connect the speaker cords to the center speaker, front speakers, and surround
speakers.

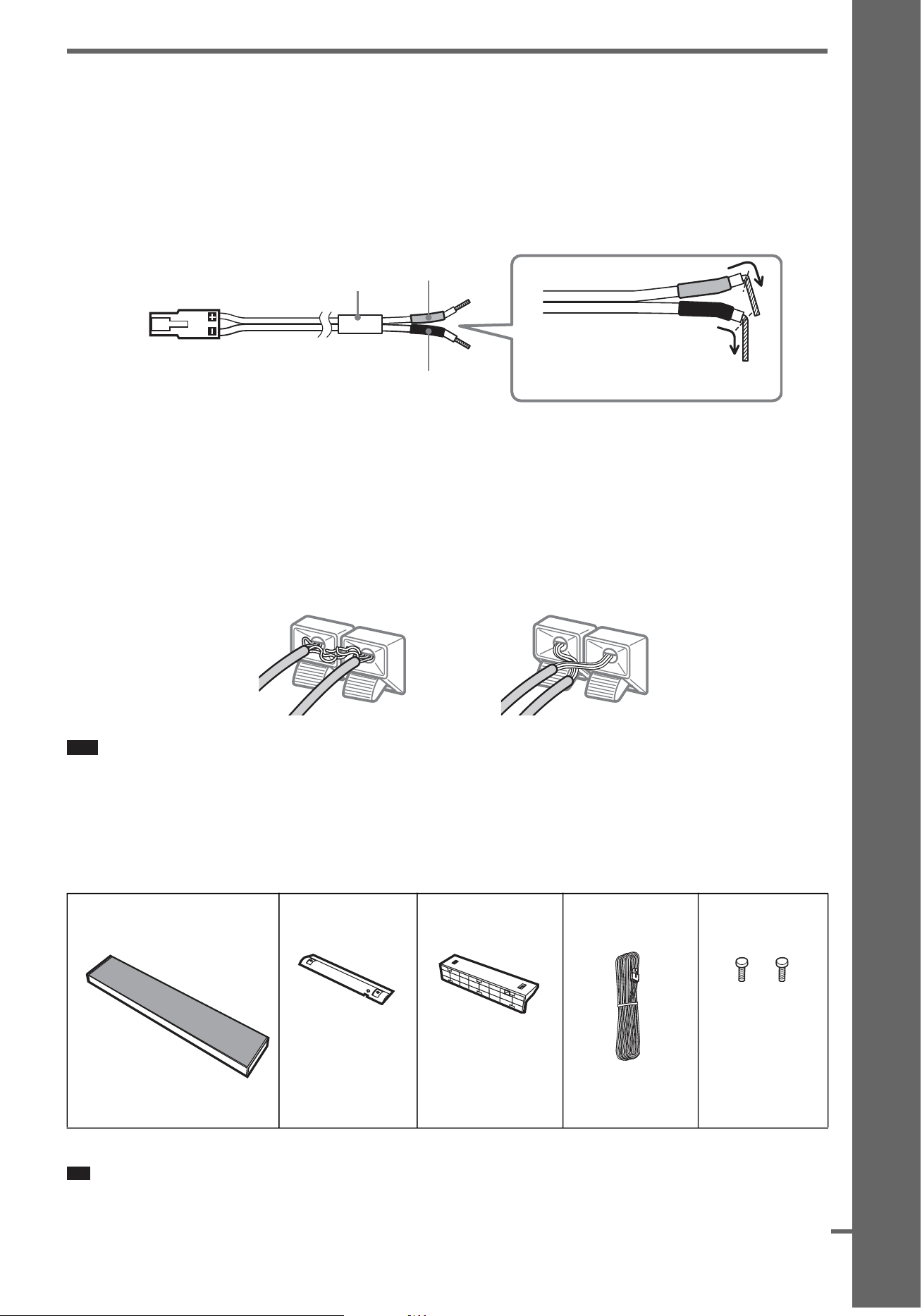

About connecting speaker cord
The connector and color tube of the speaker cords are the same color as the label of the speaker to be
connected.
To avoid short-circuiting the speakers
Short-circuiting of the speakers may damage the system. To prevent this, be sure to follow these
precautions when connecting the speakers. Make sure the bare wire of each speaker cord does not touch
another speaker terminal or the bare wire of another speaker cord, such as shown below.
Note
• Be sure to match the speaker cord to the appropriate terminal on the components: 3 to 3, and # to #. If the cords
are reversed, the sound will lack bass and may be distorted.
To assemble the center speaker
Use the parts illustrated below.
Ti
p
• You can install the center speaker on a wall using an optional kit (not supplied).
Center speaker (1) Adjuster (1) Center speaker
base (1)
Speaker cord
(green) (1)
Screws
(silver, large) (2)
Label on the rear of the
speaker: Green
Color tube
(–)
(+)
Gray
Black
Do not catch the
speaker cord insulation
in the SPEAKER jack.
Stripped speaker cord is
touching another speaker
terminal.
Stripped cords are touching each
other due to excessive removal of
insulation.
cont
i
nue
d
14
US
Getting Started – BASIC –
1
Secure the adjuster and center speaker base with the screws.
To adjust the angle of the center speaker
You can set the angle by adjusting the position of the screws.
Center speaker
Screws (silver, large) (2)
* Adjust the length of
the speaker cord
before securing.
m
Center speaker base
Adjuster
Speaker cord*
(green)
Draw out the speaker cord through the slit on the
center speaker base.
Insert the projections of
the adjuster into the
holes of the center
speaker.
Gray
Black
Screws
12°
15
US
Getting Started – BASIC –

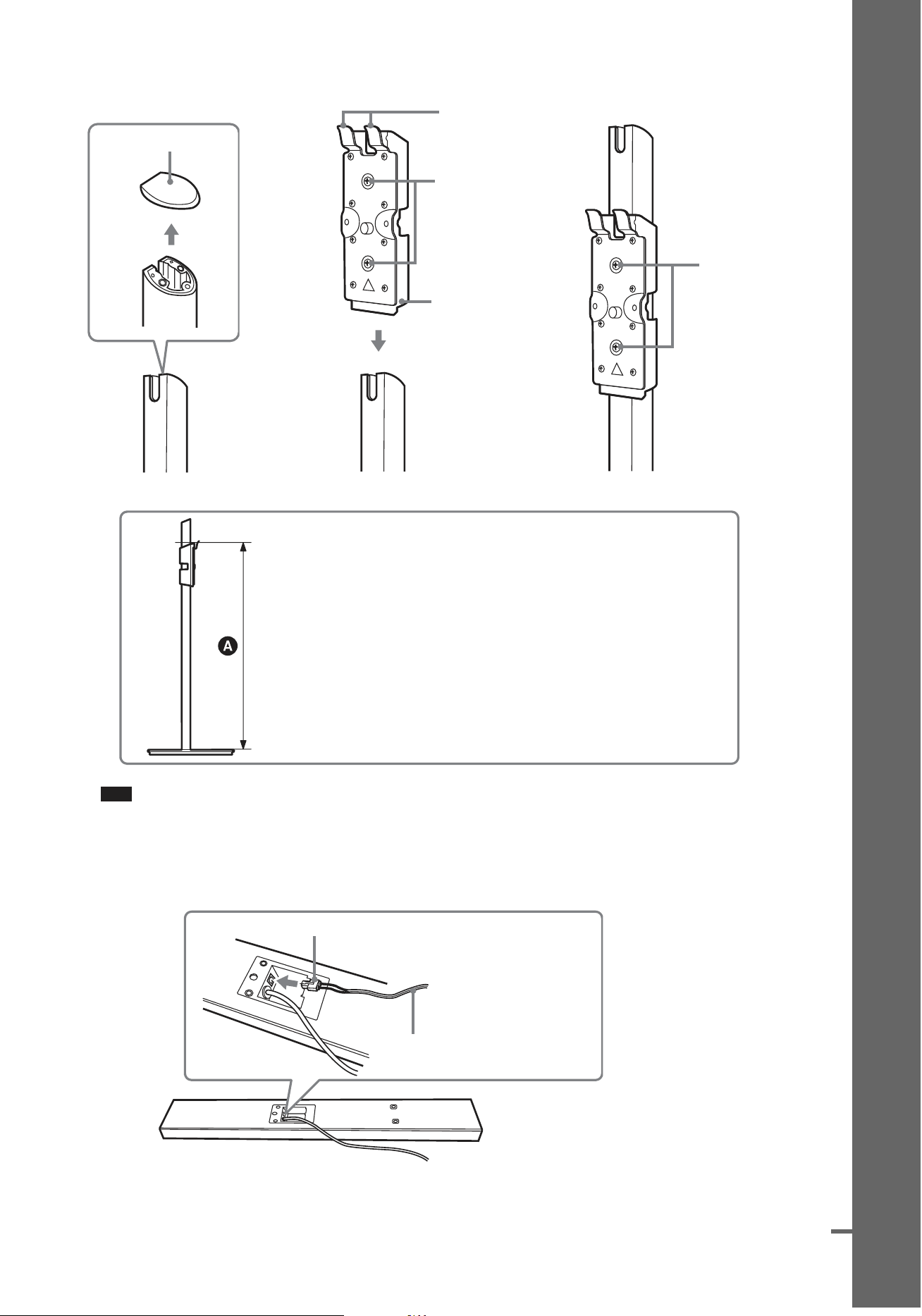

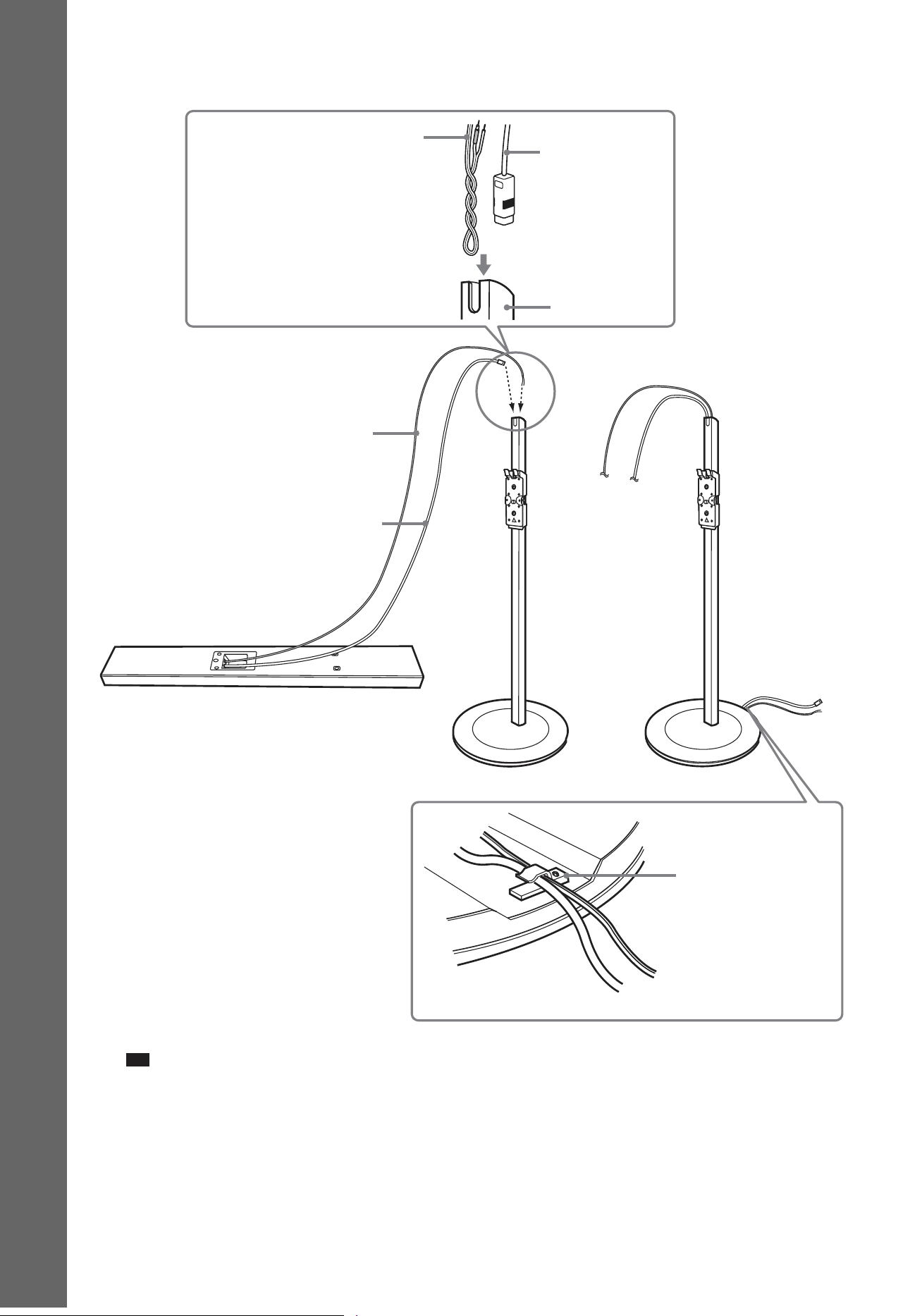

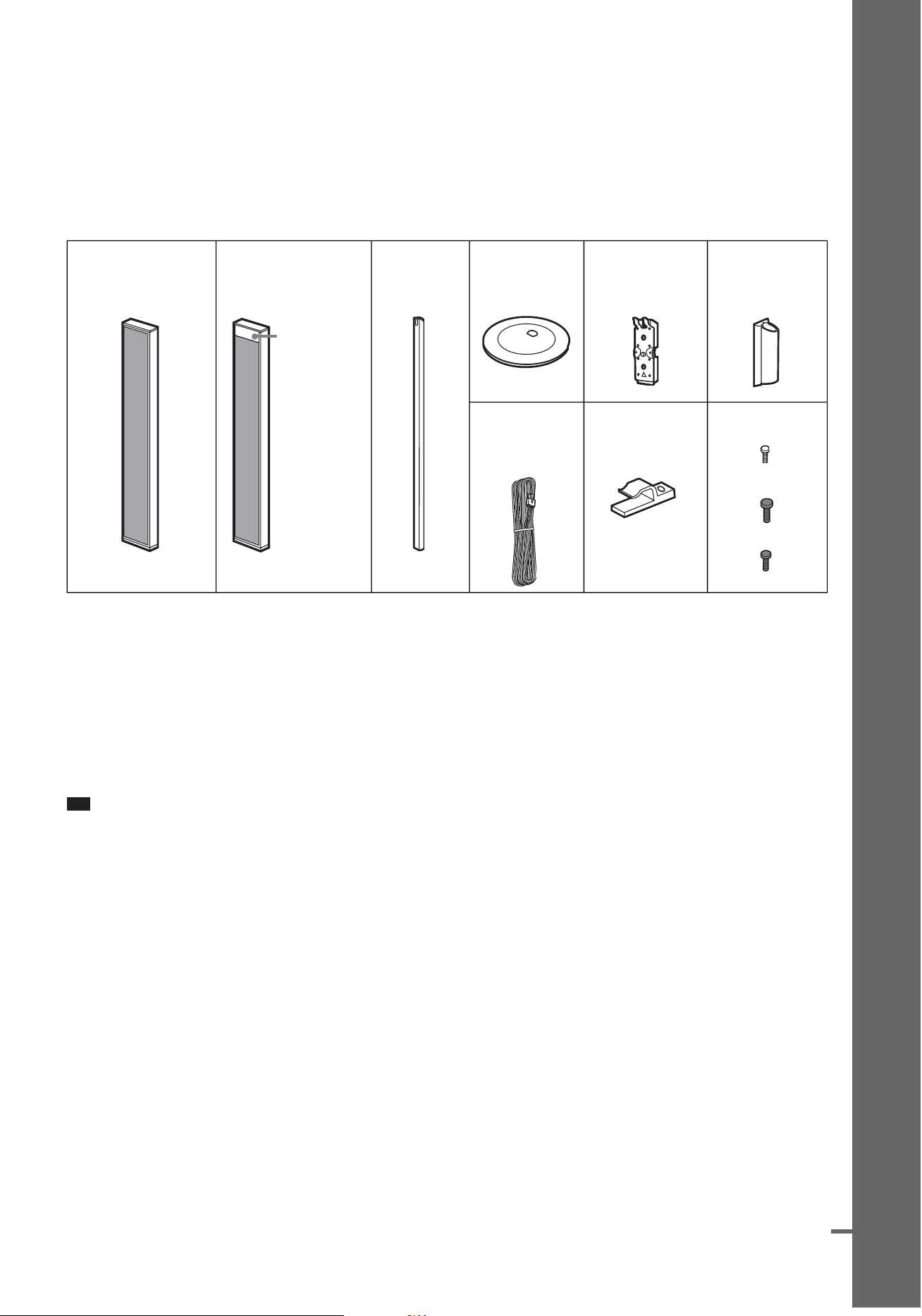

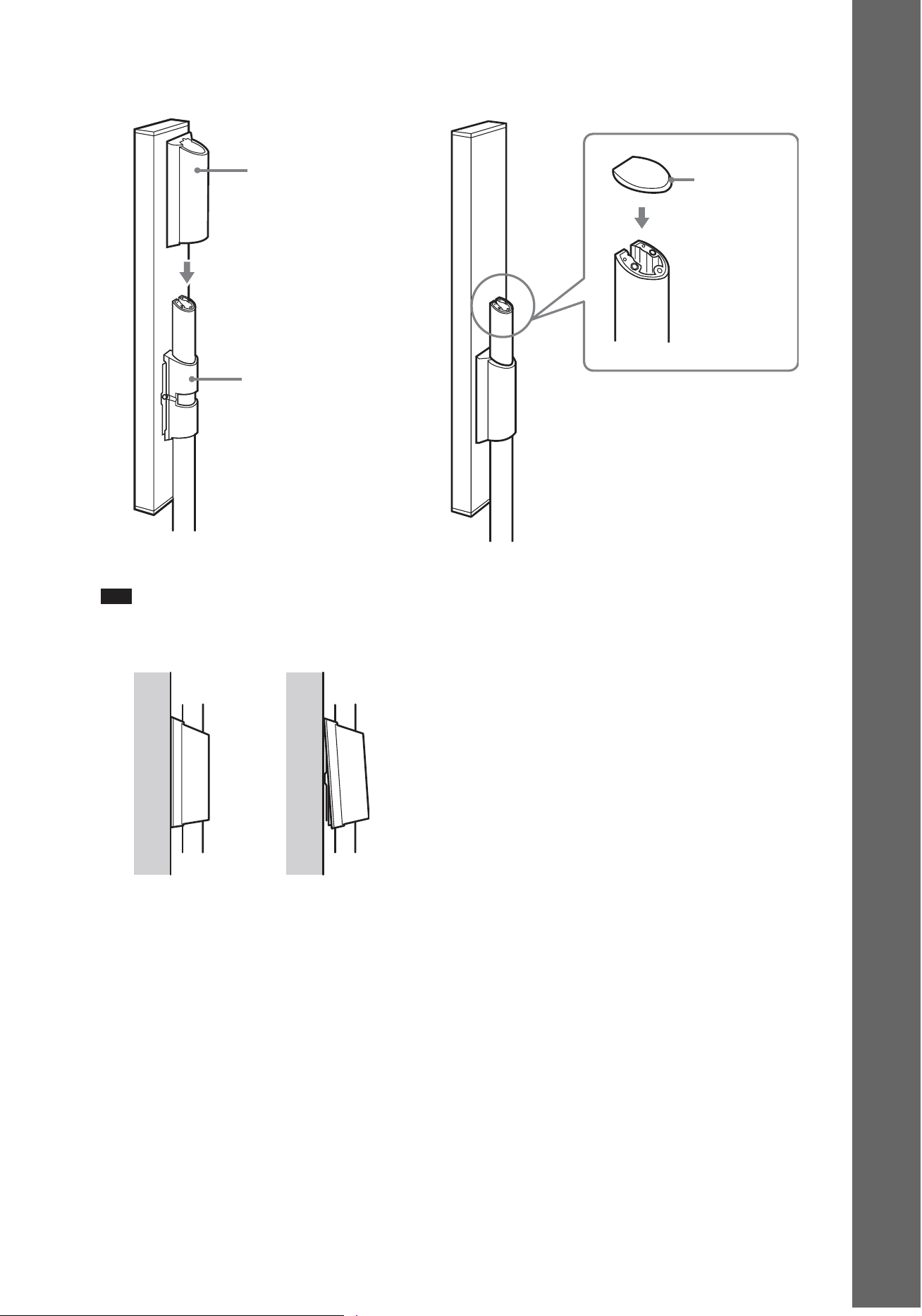

To assemble the front and surround speakers
Attach the speaker stands to the front and surround speakers. The procedure of assembling for the
surround speaker (L) (the left surround speaker) is slightly different from the others. (The surround
speaker (L) has the IR receiver.) Any difference in procedure is clearly indicated in the text, for
example, “For the surround speaker (L).”
Use the parts illustrated below.
1)
The front speakers and surround speaker (R) are identical. To discriminate between the speakers, see the label on
the rear of each speaker.
Front speaker (L) (left front speaker): White label
Front speaker (R) (right front speaker): Red label
Surround speaker (R) (right surround speaker): Gray label
2)
Surround speaker (L) (left surround speaker): Blue label
3)
When unpacking, the speaker adaptor cover is attached to the speaker adaptor.
Ti
p

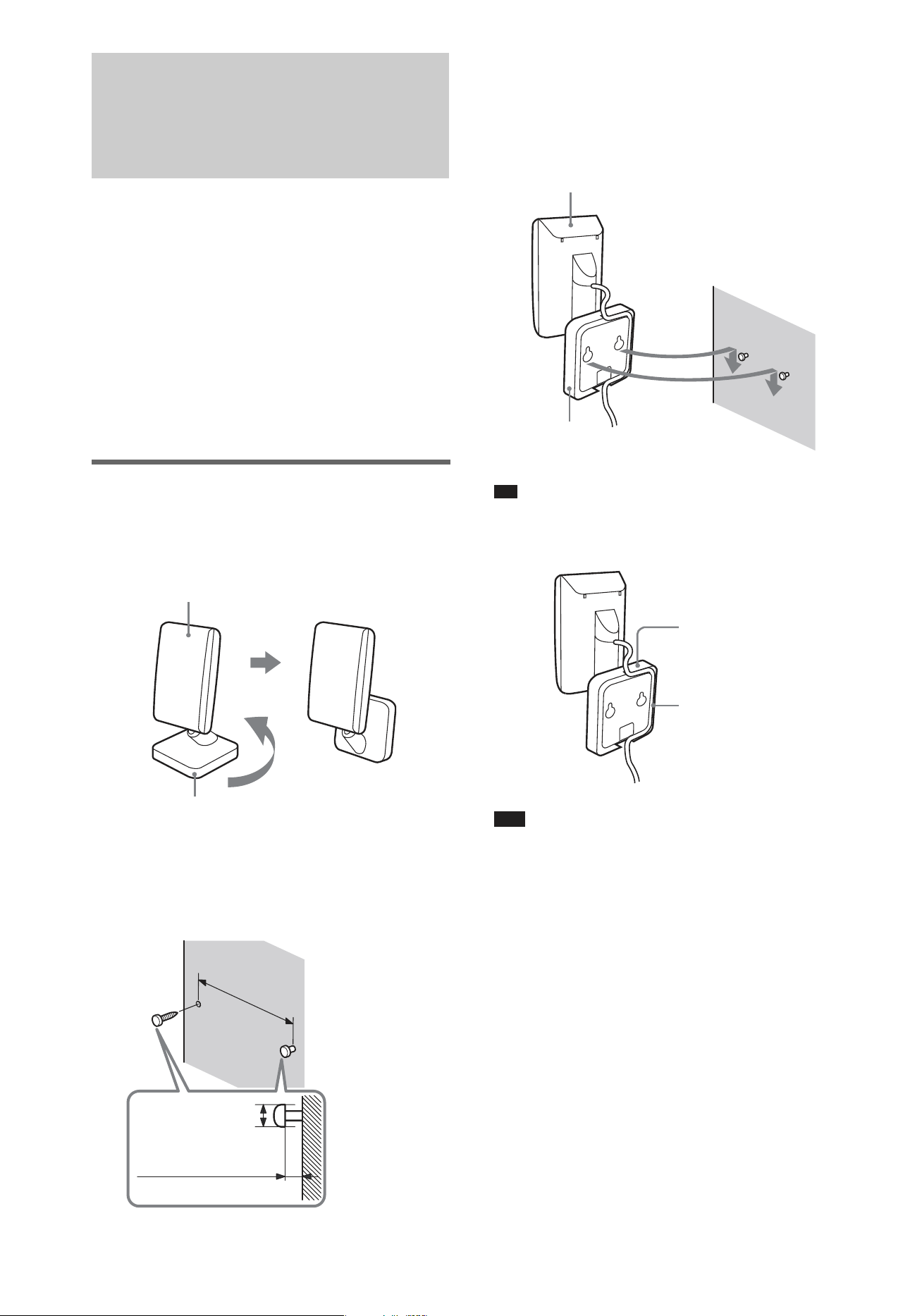

• You can install the front speakers and the surround speakers on a wall using an optional kit (not supplied).
Front speakers
and surround
speaker (R)
1)
(3)
Surround
speaker (L)
2)
(1)
Post (4) Base (4) Speaker
adaptor
3)
(4)
Speaker
adaptor cover
3)
(4)
Speaker cords
(3) (white, red,
gray)
Cord clamp (1) Screws
silver, small (8)
black, large (12)
black, medium (1)
IR
receiver
cont
i
nue
d
16
US
Getting Started – BASIC –
Fully-assembled illustration
The speaker that has the IR receiver is the surround speaker (L) (left surround speaker), the speaker
that is connected to the surround speaker (L) is the surround speaker (R) (right surround speaker),
and others are the front speakers.
1
Insert the post into the base, and secure the base with screws. (for all speakers)
* Do not remove the screw that is attached to the post. The screw is to prevent the speaker from slipping.
IR receiver
Front speaker (L): White label
Front speaker (R): Red label
Surround speaker (R):
Gray label
Speaker
system cord
White Red
Surround speaker (L):
Blue label
Base
Post
Post cover
(upper part)
,
Screws (black, large) (3)
Bottom of the base
Cord clamp
For the surround
speaker (L)
Screw (black, medium)
Screw*
Secure the cord clamp
with the screw.
17
US
Getting Started – BASIC –
2
Remove the post cover, slide the speaker adaptor onto the post, adjust the height of the
speaker adapter, and secure it with the screws. (for all speakers)
Note
• Keep the post cover handy, so you can replace it later.
3
(For the surround speaker (L))
Connect the connector of the speaker cord to the speaker.
Screws
Speaker
adaptor
,
Post
Hook
(upper part)
,
Post cover
Screws
Loosen (but do
not remove) the
screws before
attaching.
About the height of the speaker
The height of the speaker top is A + 390 mm (15
3
/
8
inches).
(A: Between the top of the speaker adaptor and top of the
base.)
• Lowest position: A = 570 mm (22
1
/
2
inches), Speaker top =
960 mm (37
7
/
8
inches)
• Highest position: A = 910 mm (35
7
/
8
inches), Speaker top =
1,300 mm (51
1
/
4
inches)
Rear of the surround speaker (L)
Connector (gray)
Speaker cord
cont
i
nue
d
18
US
Getting Started – BASIC –
4
(For the surround speaker (L))
Draw the speaker cord first, then draw the speaker system cord into the post.
Ti
p
• Tilt the post so that the cords are drawn smoothly.
For the next procedure of the surround speaker (L), skip to step 7.
Speaker cord
Post
Speaker system cord
,
Fold back the speaker cord
about 100 mm (4 inches) and
twist together.
After drawing through, untwist
and straighten out the speaker
cord.
Post
Speaker system
cord
Hook the speaker
cord and speaker
system cord in the
cord clamp.
Bottom of the base
19
US
Getting Started – BASIC –
5
(For the front speakers and surround speaker (R))
Draw the speaker cord into the post.
6
(For the front speakers and surround speaker (R))
Connect the speaker cord to the speaker.
,
Fold back the speaker cord
about 100 mm (4 inches) and
twist together.
After drawing through, untwist
and straighten out the speaker
cord.
Post
About the speaker cords
Use the speaker cord as follows:
• Front speaker (L): White
• Front speaker (R): Red
• Surround speaker (R): Use the speaker cord that is
connected to the surround speaker (L) in step 4.
Bottom of the base
Rear of the speaker
Speaker cord
Gray
Black
cont
i
nue
d
20
US
Getting Started – BASIC –
7
Attach the speaker to the speaker adaptor. (for all speakers)
Hook the speaker on the hooks of the speaker adaptor.
Draw the cord(s) between the hooks of the speaker adaptor and between the slit of the post.
8
Secure the speaker with the screws. (for all speakers)
Speaker cord
Hooks
Do not get caught the
cord(s) in the hooks.
Speaker system cord (surround
speaker (L) only)
,
Adjust the length of the
cord(s).
Slit
Speaker
adaptor
Rear of the speaker
Speaker adaptor
Screws (silver, small) (2)
21
US
Getting Started – BASIC –
9
Attach the speaker adaptor cover to the speaker adaptor until it clicks, and attach the
post cover. (for all speakers)
Note
• Do not insert the speaker adaptor cover at a slant. Insert the speaker adaptor cover straight down so that the
lower part is fixed.
Speaker adaptor
cover
Rear of the speaker
,
Speaker adaptor
Post cover
Correct
Incorrect
22
US
Getting Started – BASIC –
This hookup is the basic connection of the system. For TV connections, see pages 27 and 36. For other
component connection, see page 40.
Refer to the connection diagram below, and read the additional information from 1 to 6 on the
following pages.
Step 2: Connecting the System
CENTER
INPEDANCE
USE 4
FRONT
L
FRONT
R
FM 75
COAXIAL
AM
VIDEO IN Y P
B
/C
B
P
R
/C
R
VID EO IN
VIDEO 1 COMPONENT VIDEO OUT
DIR-T1
VIDEO 2
SPEAKER
VID EO S-VIDEO
MONITOR OUT
SYSTEM CONTROL
SA-TSLF1H DIR-R3
4 AM loop antenna (aerial)
Subwoofer
6 AC power cord
(mains lead)
4 FM wire antenna (aerial)
2 Front speaker (L)
2 Center speaker
Surround speaker (R)
Surround speaker (L)
6 AC power cord
(mains lead)
5 IR transmitter
2 Front speaker (R)
1 Control unit
3 AC adaptor
Bottom of the
subwoofer
23
US
Getting Started – BASIC –
Note on handling the subwoofer
• Do not place your hand into the slit of the subwoofer when lifting it. The speaker driver may be damaged. When
lifting, hold the bottom of the subwoofer.
1 Connecting the Control unit
Connect the system connector of the control unit to the SYSTEM CONTROL jack of the subwoofer.
Insert the plug of the SYSTEM CONTROL cord, then secure the screws of the plug.
Slits
Subwoofer
CENTER
INPEDANCE
USE 4
FRONT
L
FRONT
R
FM 75
COAXIAL
AM
VIDEO IN Y P
B
/C
B
P
R
/C
R
VIDEO IN
VIDEO 1 COMPONENT VIDEO OUT
DIR-T1
VIDEO 2
SPEAKER
VIDEO S- VIDEO
MONITOR OUT
SYSTEM CONTROL
Subwoofer
SYSTEM CONTROL cord
Control unit
Bottom of the subwoofer
Screws
Plug
cont
i
nue
d
24
US
Getting Started – BASIC –

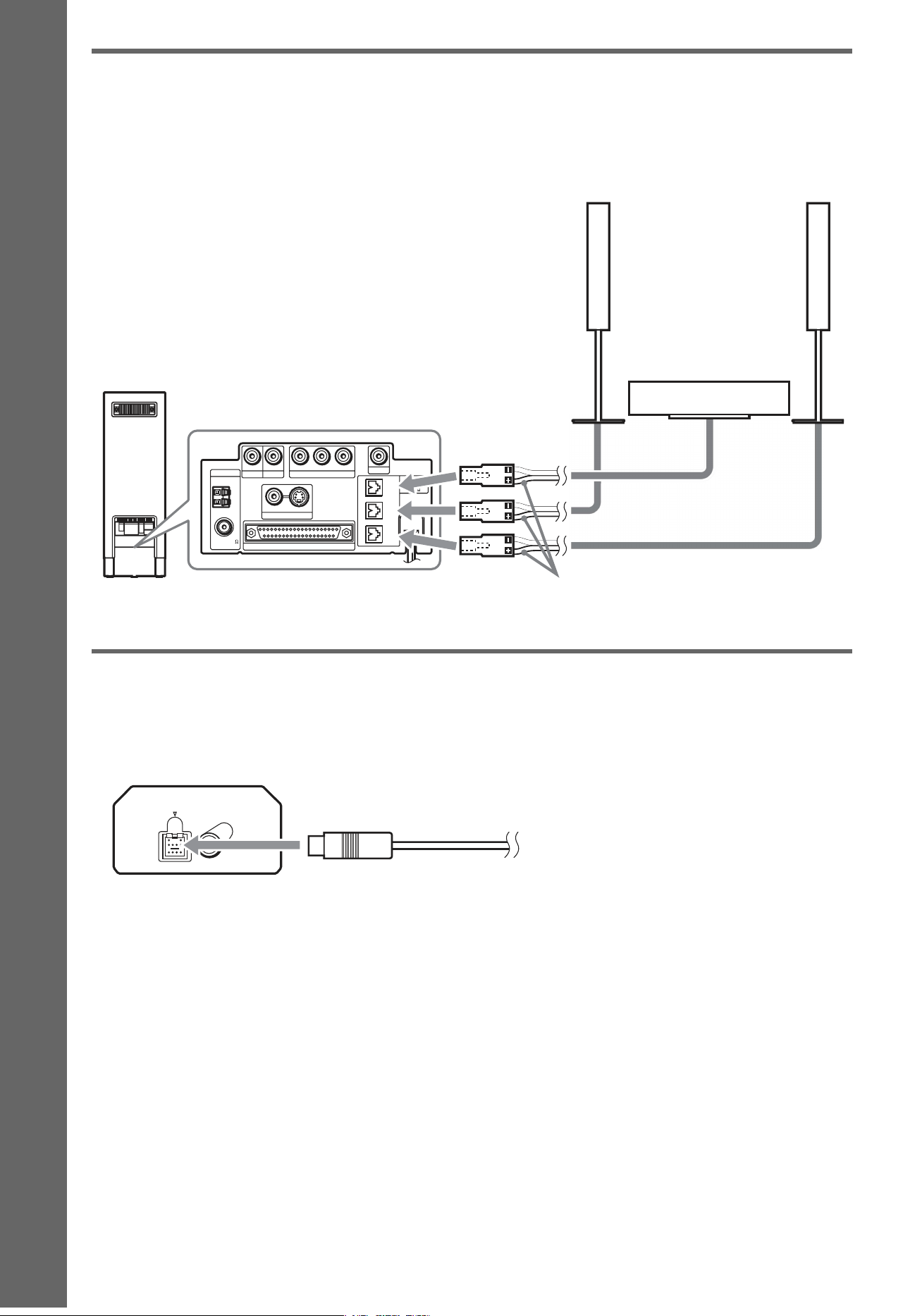

2 Connecting the Speakers
To connect the front and center speakers
Connect the connectors of the speaker cords to the correspond SPEAKER jacks. The connectors of the
speaker cords are the same color as the jacks to be connected.
3 Connecting the AC adaptor
Connect the speaker system cord of the surround speaker (L) to the SA-TSLF1H jack of the AC
adaptor.
CENTER
INPEDANCE
USE 4
FRONT
L
FRONT
R
FM 75
COAXIAL
AM
VIDEO IN Y P
B
/C
B
P
R
/C
R
VID EO IN
VIDEO 1 COMPONENT VIDEO OUT
DIR-T1
VIDEO 2
SPEAKER
VID EO S-VIDEO
MONITOR OUT
SYSTEM CONTROL
Subwoofer
Speaker cords
Bottom of the subwoofer
Center speaker
Front speaker (R)
Front speaker (L)
SA-TSLF1H DIR-R3
Speaker system cord
AC adaptor
25
US
Getting Started – BASIC –

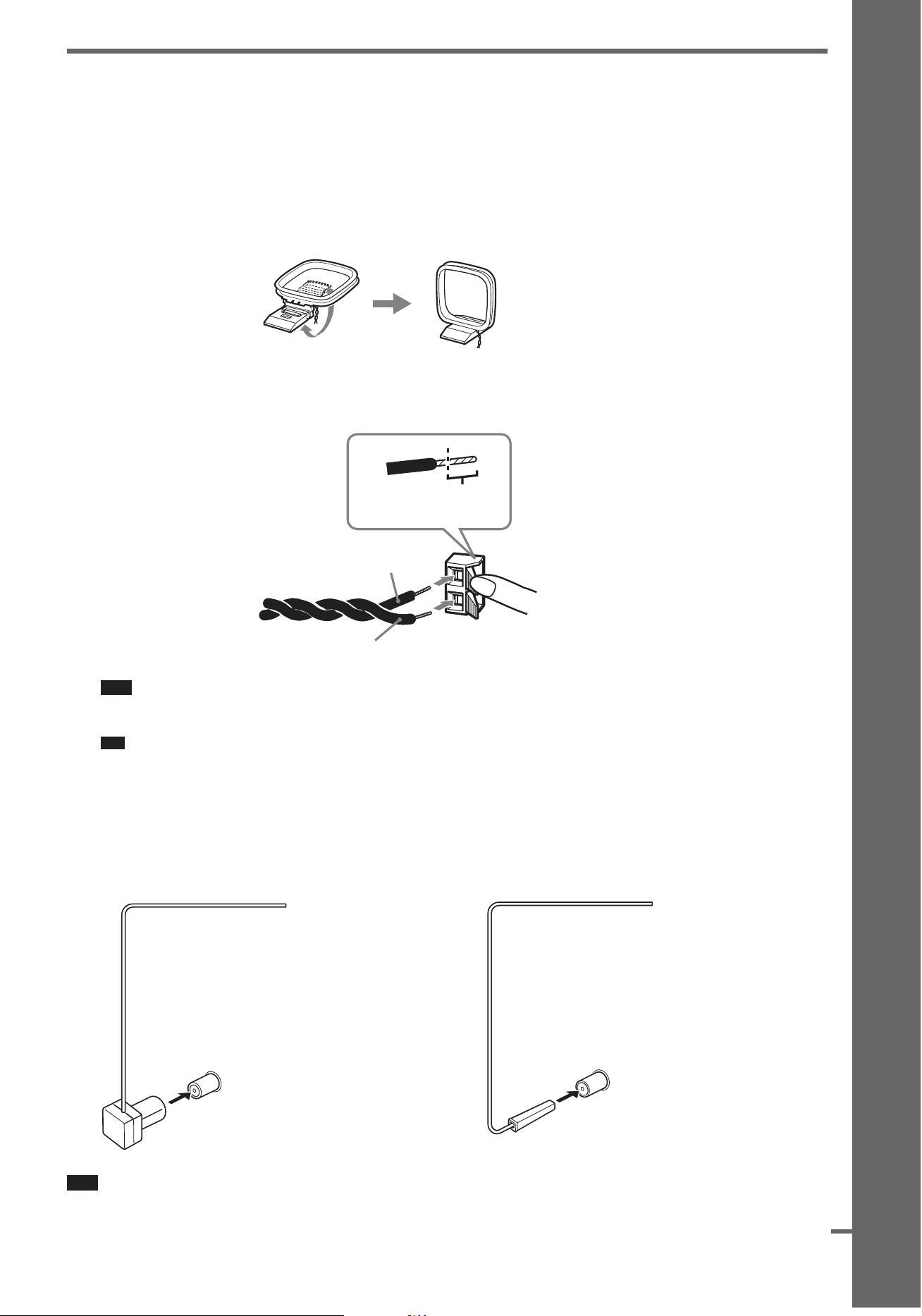

4 Connecting the Antenna (Aerial)
To connect the AM antenna (aerial)
The shape and the length of the antenna (aerial) is designed to receive AM signals. Do not dismantle
or roll up the antenna (aerial).
1
Remove only the loop part.
2
Set up the AM loop antenna (aerial).
3
Connect the cords to the AM antenna (aerial) terminals.
Cord (A) or cord (B) can be connected to either terminal.
Note
• Do not place the AM loop antenna (aerial) near the system or other AV equipment, as noise may result.
Ti
p
• Adjust the direction of the AM loop antenna (aerial) for best AM broadcast sound.
4
Make sure the AM loop antenna (aerial) is connected firmly by pulling softly.
To connect the FM wire antenna (aerial)
Connect the FM wire antenna (aerial) to the FM 75 Ω COAXIAL jack.
Note
• Be sure to fully extend the FM wire antenna (aerial).
AM
A
B
Insert until this
part.
Insert the cords pushing
down the terminal clamp.
FM wire antenna (aerial)
(supplied)
FM 75 Ω COAXIAL jack
or
FM wire antenna (aerial)
(supplied)
FM 75 Ω COAXIAL jack
cont
i
nue
d
26
US
Getting Started – BASIC –
• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.
Ti
p
• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the system to an outdoor FM
antenna (aerial) as shown below.
5 Connecting the IR transmitter
Transmits the sound by the infrared signals. Connect it to the DIR-T1 jack of the subwoofer.
6 Connecting the AC power cords (mains leads)
Before connecting the AC power cords (mains leads) of the subwoofer and the AC adaptor to a wall
outlet (mains), connect the front and center speakers to the subwoofer and surround speaker (R) to the
surround speaker (L) (page 22).
Outdoor FM antenna (aerial)
System
CENTER
INPEDANCE
USE 4
FRONT
L
FRONT
R
FM 75
COAXIAL
AM
VIDEO IN Y P
B
/C
B
P
R
/C
R
VIDEO IN
VIDEO 1 COMPONENT VIDEO OUT
DIR-T1
VIDEO 2
SPEAKER
VIDEO S-VIDEO
MONITOR OUT
SYSTEM CONTROL
Subwoofer
IR transmitter
Bottom of the subwoofer
Pink
Subwoofer
AC adaptor
AC power cord
(mains lead)
AC power cord
(mains lead)
To a wall outlet
(mains)
To a wall outlet
(mains)
27
US
Getting Started – BASIC –

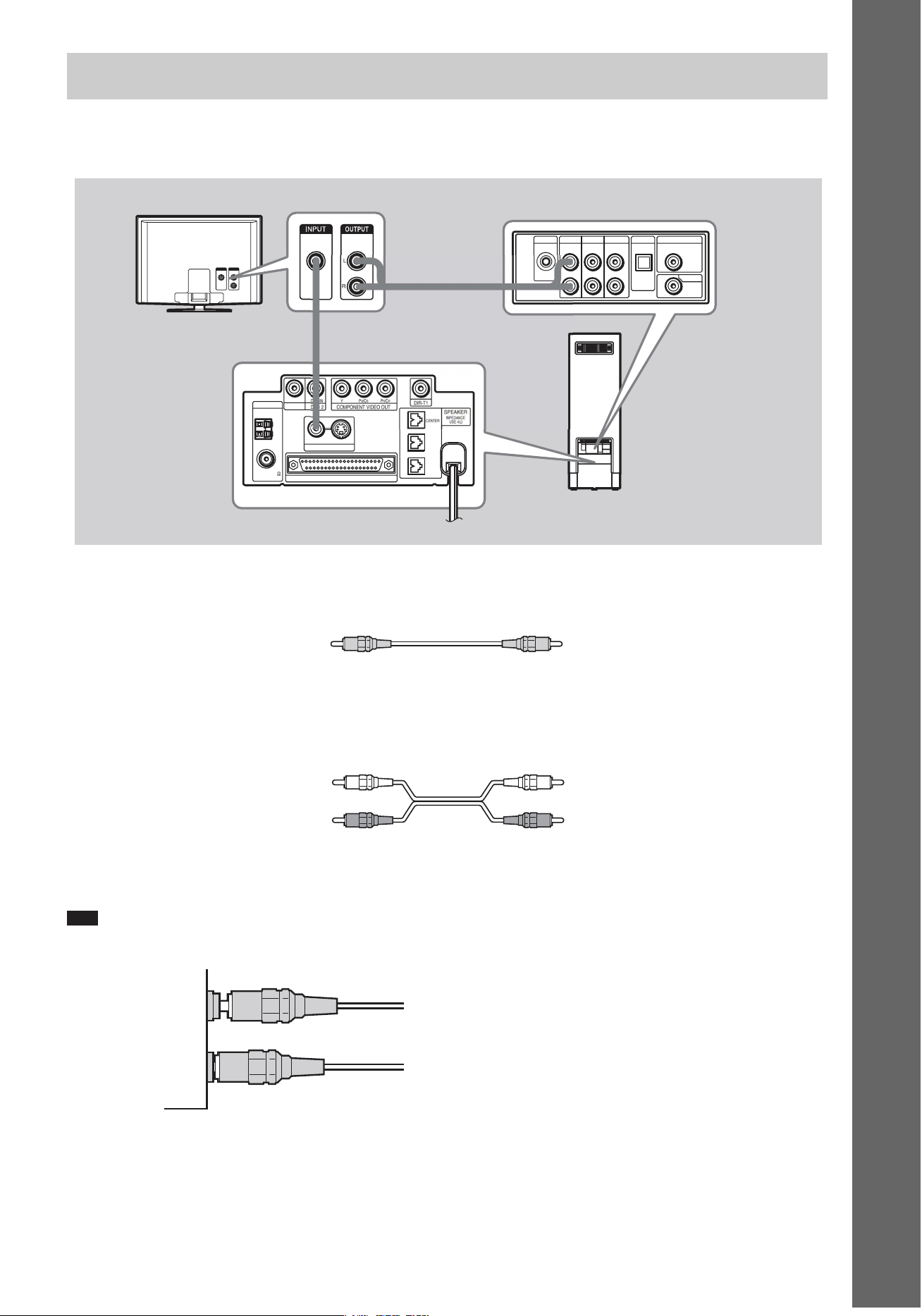

This hookup is the basic connection of the system and TV. For other TV connections, see page 36. For
other component connection, see page 40.
Required cords
A
Video cord
.
This connection sends the image to the TV. Connect the MONITOR OUT (VIDEO) jack of the
subwoofer to the VIDEO IN jack of the TV.
B
Audio cord (not supplied)
This connection sends TV sound to the system. You can enjoy TV sound from the speakers with the
connection. Connect the TV (AUDIO IN) jacks of the subwoofer to the AUDIO OUT jacks of the TV.
Note
• When connecting the jack, insert the plug into the jack as far as it will go.
Step 3: Connecting the TV
R
AUDIO
OUT
L
VIDEO
IN
CENTER
INPEDANCE
USE 4
FRONT
L
FRONT
R
FM 75
COAXIAL
AM
VIDEO IN Y P
B
/C
B
P
R
/C
R
VIDEO IN
VIDEO 1 COMPONENT VIDEO OUT
DIR-T1
VIDEO 2
SPEAKER
VIDEO S- VIDEO
MONITOR OUT
SYSTEM CONTROL
VIDEO 1 VIDEO 2
VIDEO 2
TV VIDEO 1TV
AUDIO IN AUDIO IN AUDIO IN DIGITAL IN
OPTOCAL
L
R
DIGITAL IN
DIGITAL
IN
COAXIAL
COAXIAL
ECM-AC1
Subwoofer
TV
A
B
Rear of the subwoofer
Bottom of the subwoofer
Yellow
White (L/audio)
Red (R/audio)
Example
Correct
Incorrect
28
US
Getting Started – BASIC –

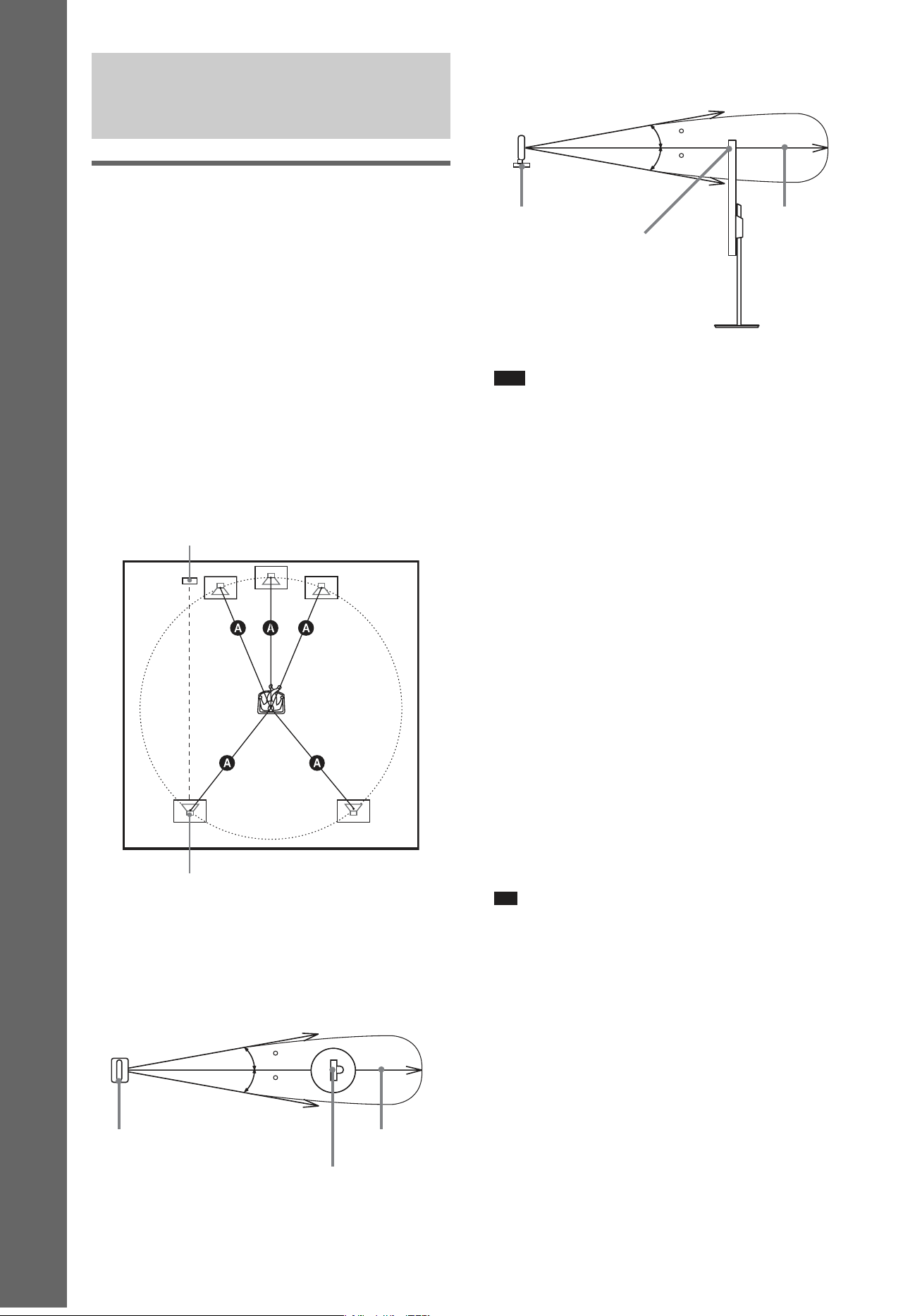

Positioning the speakers
For the best possible surround sound, all the
speakers other than the subwoofer should be the
same distance from the listening position (A).
All the speakers can be placed from 0.0 to 6.9
meters (0 to 23 ft) (A) from the listening
position.

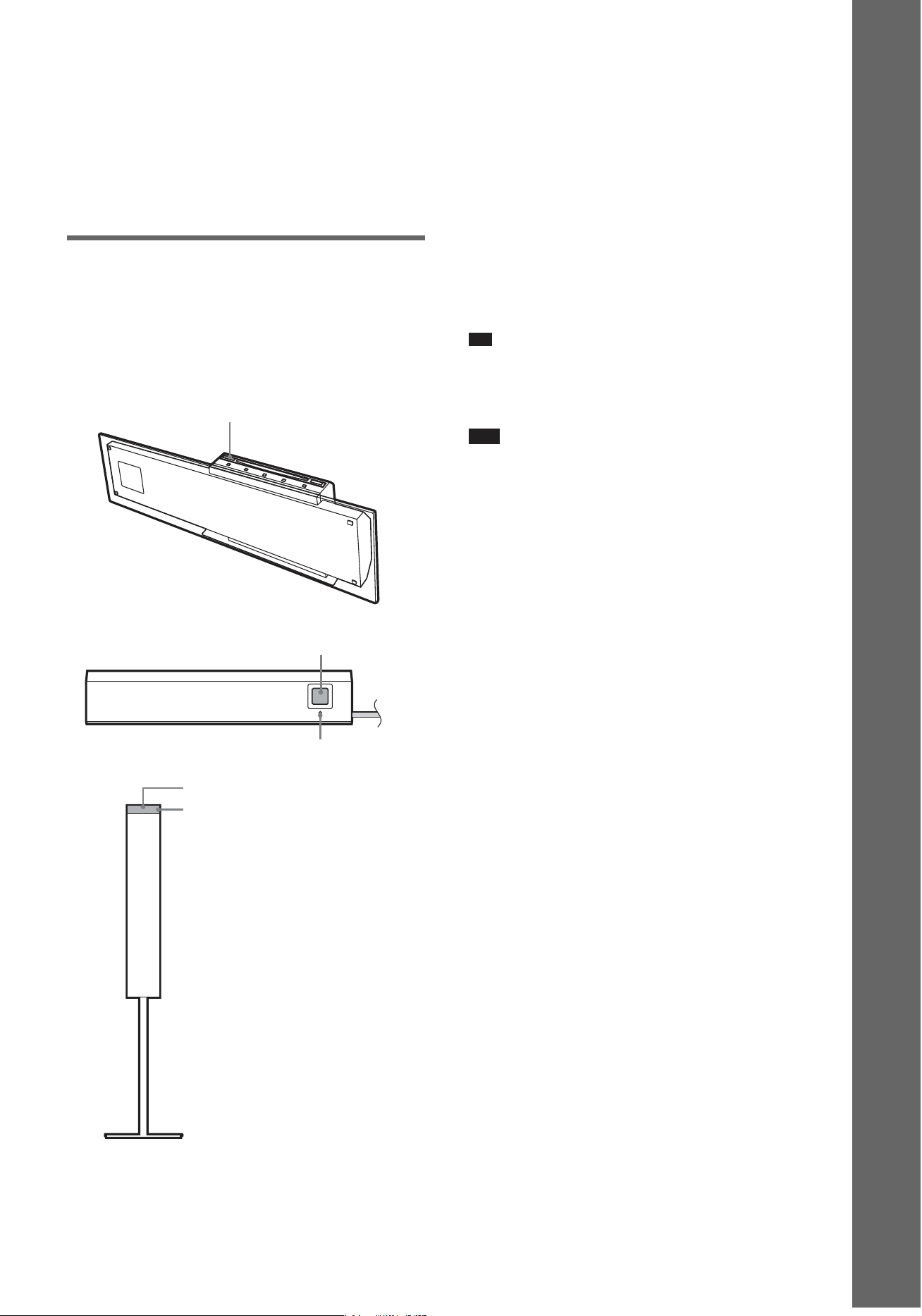

Install the IR transmitter and IR receiver of the
surround speaker (L) in direct line with each
other. For details, see “Adjusting the IR
transmitter and IR receiver of the surround
speaker (L)” (page 29).
Place speakers as illustrated below.
The following diagram indicates the infrared
transmission area (the range that the infrared
rays can reach).
Note
• Do not install the surround speaker (L) in a place
exposed to direct sunlight or strong light such as an
incandescent lamp.
• The cord of the IR transmitter is for this system only.
• Do not set the speakers in an inclined position.
• Do not place the speakers in locations that are:
– Extremely hot or cold
– Dusty or dirty
– Very humid
– Subject to vibrations
– Subject to direct sunlight
• Use caution when placing the speakers and/or
speaker stands (not supplied) that are attached with
the speakers on a specially treated (waxed, oiled,
polished, etc.) floor, as staining or discoloration may
result.
• When cleaning, use a soft cloth such as a cleaning
cloth for glasses.
• Do not use any type of abrasive pad, scouring
powder, or solvent such as alcohol or benzine.
• Do not lean or hang on the speaker, as the speaker
may fall down.
Ti
p
• You can install the IR transmitter on a wall for better
positioning. For details, see page 34.
• You can swap the surround speaker (L) and (R)
positions, depending on the wall outlet and speaker
layout (page 99).
• When you change the positions of the speakers, it is
recommended that you change the settings. For
details, see “Calibrating the Appropriate Settings
Automatically” (page 87).
Step 4: Positioning the
System
IR transmitter
IR receiver of the surround speaker (L)
10
10
Infrared signal
IR transmitter
Pyrex. 10m
(33 ft)
Top view
Surround speaker (L)
10
10
Infrared signal
IR transmitter
Side view
Approx. 10m
(33 ft)
Surround speaker (L)
IR receiver
29
US
Getting Started – BASIC –
• Depending on the speaker layout (i.e. when placing
the surround speaker (L) toward the listening
position, etc.), or when there is obstruction, such as a
person or object between the IR transmitter and the IR
receiver of the surround speaker (L), you can use the
external IR receiver (supplied) instead. The IR
receiver is compact and easy to install. For details, see
“Using the IR Receiver” (page 33).
Adjusting the IR transmitter
and IR receiver of the
surround speaker (L)
Adjust the wireless system for good
transmission.
1
Press POWER on the AC adaptor, then
press "/1 on the control unit.
The AC adaptor and system turn on.
The POWER indicator of the AC adaptor
lights up and the IR status indicator of the
surround speaker (L) turns orange.
2
Orient the IR transmitter and the IR
receiver of the surround speaker (L) to
face each other.
Adjust the position until the IR status
indicator turns green.
Ti
p
• The IR transmitter is movable for easy reorientation.
• You can install the IR transmitter on a wall for better
positioning. For details, see page 33.
Note
• Make sure that there is no obstruction such as a
person or object between the IR transmitter and the IR
receiver of the surround speaker (L). Otherwise, the
sound from the surround speakers may be interrupted.
• If the IR status indicator turns orange, transmission is
not occuring. Adjust the position of the IR transmitter
and surround speaker (L) until the IR status indicator
turns green.
• If the IR status indicator flashes orange, the IR
receiver is receiving an infrared ray from another
Sony’s wireless product. Move the IR transmitter
and/or the surround speaker (L) so that the IR status
indicator turns green.
"/1
Control unit
POWER
POWER indicator
AC adaptor
Surround speaker (L)
IR receiver
IR status indicator
30
US
Getting Started – BASIC –
Follow the steps below to make the minimum
number of basic adjustments for using the
system.
When using the remote, point it at the remote
sensor on the control unit.
1
Turn on the TV.
2
Press [/1 on the remote and POWER
on the AC adaptor.
The system and AC adaptor turn on.
Note
• Make sure that the function is set to “DVD.”
3
Switch the input selector on your TV so
that the signal from the system
appears on the TV screen.
[Press [
ENTER
] to run QUICK SETUP.]
appears at the bottom of the screen. If this
message does not appear, display the Quick
Setup and perform again (page 32).
4
Press without inserting a disc.
The Setup Display for selecting the
language used in the on-screen display
appears.
5
Press X/x to select a language.
The system displays the menu and subtitles
in the selected language.
6
Press .
The Setup Display for selecting the aspect
ratio of the TV to be connected appears.
7
Press X/x to select the setting that
matches your TV type.
x If you have a wide-screen TV or a 4:3
standard TV with a wide-screen mode
[16:9] (page 92)
x If you have a 4:3 standard TV
[4:3 LETTER BOX] or [4:3 PAN SCAN]
(page 92)
8
Press .
The [AUTO CALIBRATION] display
appears.
Step 5: Performing the
Quick Setup
"/1
C/X/x/c,
DISPLAY
POWER
AC adaptor
LANGUAGE SETUP
OSD:
MENU:
AUDIO:
SUBTITLE:
PORTUGUESE
FRENCH
ENGLISH
ENGLISH
SPANISH
SCREEN SETUP
TV TYPE:
16:9
4:3 PAN SCAN
4:3 LETTER BOX
JACKET PICTURE
ON
OFF
HDMI RESOLUTION:
SCREEN SAVER:
YC
B
C
R
/RGB (HDMI):
BACKGROUND:
BLACK LEVEL:
BLACK LEVEL
(COMPONENT OUT)
:
FULL
4:3 OUTPUT:
16:9
Connect calibration mic. Start
measurement?
YES
AUTO CALIBRATION
NO
31
US
Getting Started – BASIC –

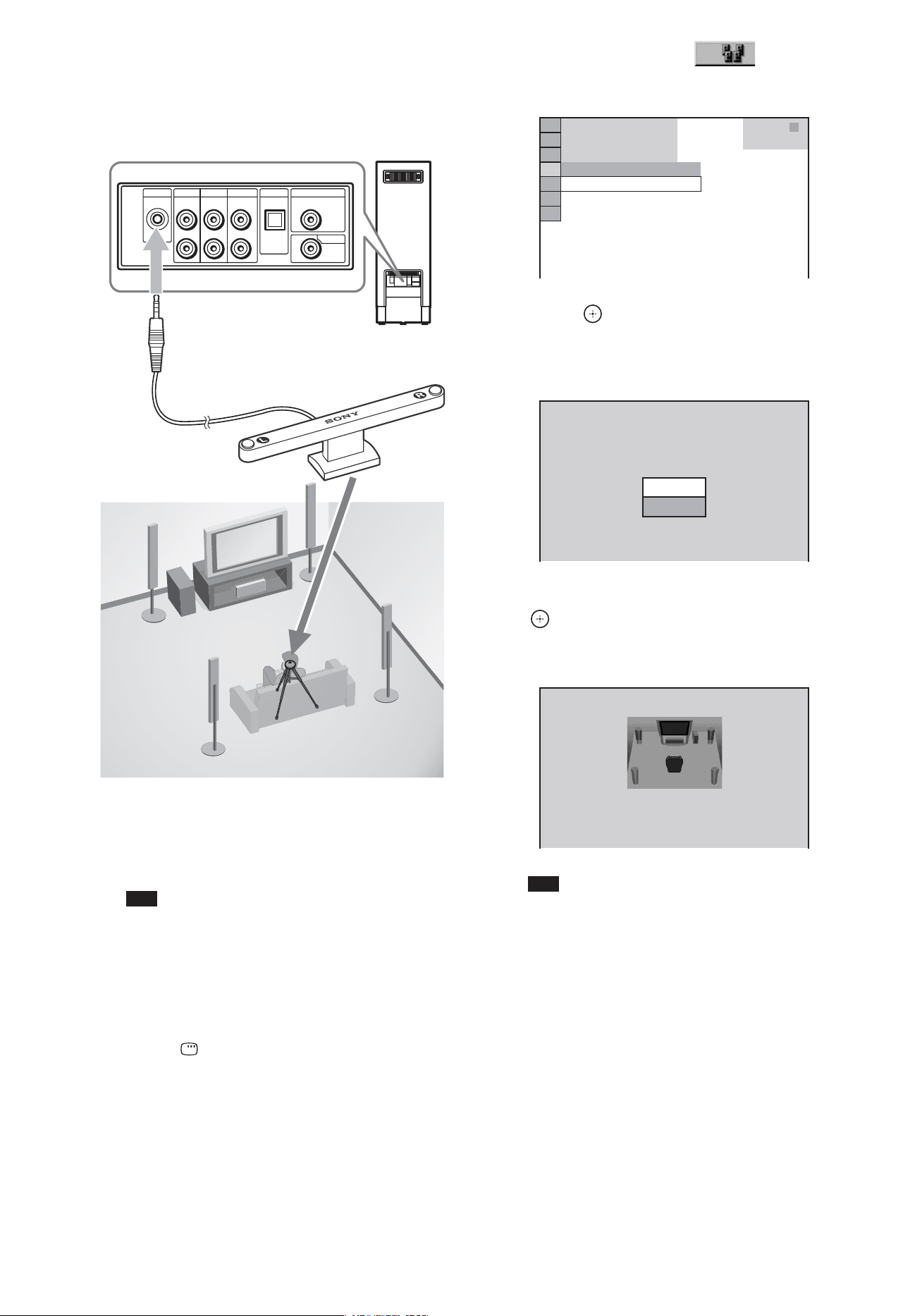

9
Connect the calibration mic to the
ECM-AC1 jack on the rear of the
subwoofer and set up the calibration
mic at the ear level using a tripod, etc.
(not supplied).
The front of each speaker should face the
calibration mic, and there should be no
obstruction between the speakers and the
calibration mic.
Note
• Place the calibration mic so that the “FRONT”
side of it is pointed toward the front speakers.
10
Press X/x to select [YES], then press
.
[AUTO CALIBRATION] starts. Be quiet
during the measurement.
Note
• Loud test sound is output when [AUTO
CALIBRATION] starts. You cannot turn the
volume down. Give consideration to children
and neighbor.
• Avoid being in the measurement area and
making noise during the measurement (which
takes about 1 minute), as it may interfere with
measurement.
• If the sound of the surround speakers is not
output, adjust the wireless system. See
“Adjusting the IR transmitter and IR receiver of
the surround speaker (L)” (page 29).
• When you install the surround speaker (L) to the
right position, the system sets the “SL SR
REVERSE” setting (page 99) to “ON”
automatically.
11
Unplug the calibration mic and press C/
c to select [YES].
Quick Setup is finished. All connections
and setup operations are complete.
Note
• Reflections from walls or the floor may affect
measurements.
• If measurement fails, follow the message then
retry [AUTO CALIBRATION].
To quit the Quick Setup
Press DISPLAY in any Step.
Ti
p
• If you cancel [AUTO CALIBRATION], perform the
speaker settings in “Settings for the Speakers”
(page 97).
• If you change the position of the speakers, reset the
speaker settings. See “Calibrating the Appropriate
Settings Automatically” (page 87).
• If you want to change any of the settings, see “Using
the Setup Display” (page 90).
• For details on [AUTO CALIBRATION] and the error
messages of [AUTO CALIBRATION], see
“Calibrating the Appropriate Settings Automatically”
(page 87).
VIDEO 1 VIDEO 2
VIDEO 2
TV VIDEO 1TV
AUDIO IN AUDIO IN AUDIO IN DIGITAL IN
OPTOCAL
L
R
DIGITAL IN
DIGITAL
IN
COAXIAL
COAXIAL
ECM-AC1
Calibration mic
Rear of the subwoofer
FRONT L :
FRONT R :
CENTER :
SUBWOOFER :
SURROUND L :
SURROUND R :
If OK, unplug calibration mic and select
YES.
YES
16ft 4.8m 0.0dB
16ft 4.8m 0.0dB
16ft 4.8m + 1.0dB
16ft 4.8m + 4.0dB
10ft 3.0m
-
2.0dB
10ft 3.0m
-
2.0dB
Measurement complete.
NO
cont
i
nue
d
32
US
Getting Started – BASIC –
To recall the Quick Setup display
1
Press DISPLAY when the system is in
stop mode.
The Control Menu appears.
2
Press X/x to select [SETUP], then
press .
The options for [SETUP] appear.
3
Press X/x to select [QUICK], then press .
The Quick Setup display appears.
1 2
(
2 7
)
QUICK
QUICK
RESET
DVD VIDEO
BNR
1 8
(
3 4
)
CUSTOM
T
0 : 0 0 : 0 2
Getting Started – ADVANCED –
33
US
Depending on the speaker layout (i.e. when
placing the surround speaker (L) toward the
listening position, etc.), or when there is
obstruction, such as a person or object between
the IR transmitter and the IR receiver of the
surround speaker (L), you can use the external
IR receiver (supplied) instead. The IR receiver is
compact and easy to install.
When using the IR receiver stand, attach the
stand so that both delta marks on the IR receiver
and stand are aligned.
To connect the IR receiver
Connect the cord of the IR receiver to the DIR-
R3 jack of the AC adaptor.
Note
• When you connect the IR receiver to the AC adaptor,
the IR receiver is activated and the IR receiver of the
surround speaker (L) is not activated automatically.
• When using the IR receiver, install it following the
guidelines of the IR receiver of the surround speaker
(L).
Getting Started – ADVANCED –
Using the IR Receiver
IR receiver
IR receiver stand
Delta marks
SA-TSLF1H DIR-R3
AC adaptor
IR receiver
Light blue
34
US
You can hang the IR transmitter and IR receiver
on a wall when:
– there is an obstruction between the IR
transmitter and the IR receiver.
– people often pass between the IR transmitter
and the IR receiver.
When hanging both the IR transmitter and IR
receiver, adjust the position of the IR transmitter
after deciding the position of the IR receiver.
Installing the IR transmitter
on a wall
1
Rotate the stand of the IR transmitter.
2
Install 2 commercially available screws in
the wall so that it protrudes 4 mm (
3
/
16
inches).
Install the screws 30 mm (1
3
/
16
inches) apart.
3
Hang the IR transmitter via hole on the
bottom of the stand on the screw.
Make sure that the IR transmitter does not
move after installation.
Ti
p
• You can store the cords in the troughs in the bottom
of the stand.
Note
• Use screws suitable for the material and strength of
the wall.
• Do not install the IR transmitter to a wall of low
strength.
• Sony is not liable for any damage or accident incurred
by incorrect installation (i.e. low strength wall, etc.),
incorrect use of this product, or natural disaster.
• When connecting/disconnecting the cord, detach the
IR transmitter from the wall first.
Installing the IR
Transmitter and the IR
Receiver on a Wall
Stand
IR transmitter
30 mm
(1
3
/
16
inches)
4 mm (
3
/
16
inches)
5 – 7 mm
(
7
/
32
–
9
/
32
inches)
IR transmitter
Stand
Troughs
Stand
Getting Started – ADVANCED –
35
US
Installing the IR receiver on a
wall
1
Install a commercially available screw in the
wall so that it protrudes 4 mm (
3
/
16
inches).
2
Detach the IR receiver stand and hang it via
hole on the rear side of the IR receiver on
the screw.
Make sure that the IR receiver does not move
after installation.
Ti
p
• When reattaching the IR receiver stand to the IR
receiver, attach the stand so that both delta marks on
the IR receiver and stand are aligned (page 33).
4 mm (
3
/
16
inches)
5 – 7 mm
(
7
/
32
–
9
/
32
inches)
IR receiver
IR receiver stand
36
US

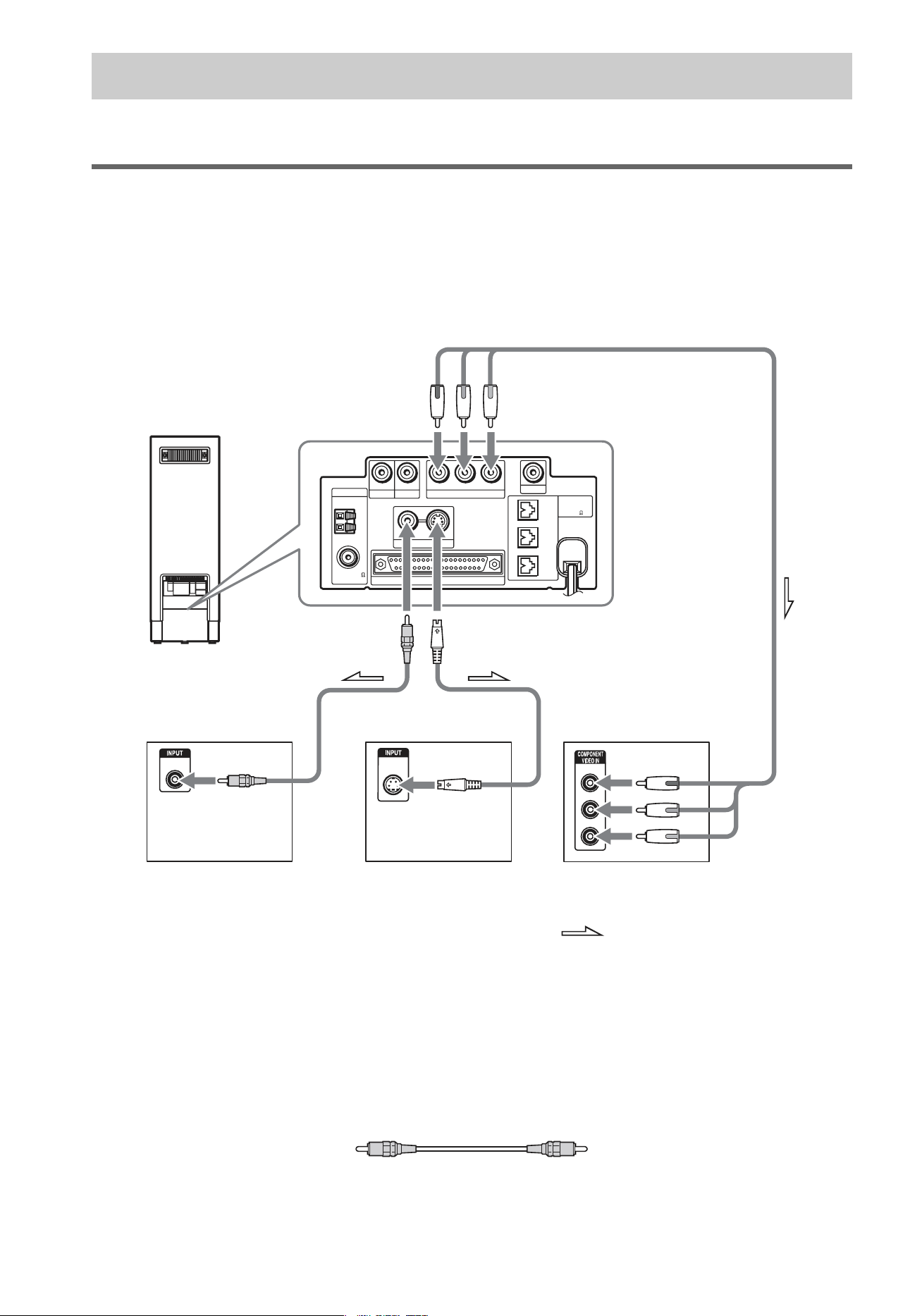

Select a hookup suitable for the jacks on your TV.
Connecting the video/HDMI* cords
Sends a played back DVD image to a TV.
Check the jacks of your TV, and choose connection method A, B, or C. Picture quality improves in
order from A (standard) to C (component).
For the TV that has the HDMI jack, connect the TV and the control unit with the HDMI cord (not
supplied).
* HDMI (high-definition multimedia interface)
The system is based on version 1.1 of High-Definition Multimedia Interface Specifications.
The system incorporates High-Definition Multimedia Interface (HDMI
TM
) technology.
HDMI, the HDMI logo and High-Definition Multimedia Interface trademarks or registered trademarks of HDMI
Licensing LLC.
A
To connect to a TV with the VIDEO IN jack
Connect the video cord.
.
TV Hookup (Advanced)
Y
PB/CB
PR/CR
VIDEO
IN
S VIDEO
IN
CENTER
INPEDANCE
USE 4
FRONT
L
FRONT
R
FM 75
COAXIAL
AM
VIDEO IN Y P
B
/C
B
P
R
/C
R
VIDEO IN
VIDEO 1 COMPONENT VIDEO OUT
DIR-T1
VIDEO 2
SPEAKER
VIDEO S-VIDEO
MONITOR OUT
SYSTEM CONTROL
TV with COMPONENT
VIDEO IN jacks
TV with S VIDEO IN jack
A
B
C
To the component
video input jacks
To the video
input jack
TV with VIDEO IN jack
Bottom of the
subwoofer
To the S video
input jack
: Signal flow
Yellow
Getting Started – ADVANCED –
37
US
B
To connect to a TV with the S VIDEO IN jack
Connect an S video cord (not supplied). When using the S video jack instead of the video jacks, your
TV monitor must also be connected via an S video jack. S video signals are on a separate bus from the
video signals and will not be output through the video jacks.
C
To connect to a TV with the COMPONENT VIDEO IN jacks
Connect a component video cord (not supplied). To use the COMPONENT VIDEO OUT jacks (Y, P
B
/
C
B
, P
R
/C
R
) instead of the video jacks, your TV monitor must be equipped with via COMPONENT
VIDEO IN jacks (Y, P
B
/C
B
, P
R
/C
R
). If your TV accepts progressive format signals, you must use this
connection and set the output channel of the system to progressive format (page 94).
To connect to a TV with the HDMI (high-definition multimedia
interface)/DVI (digital visual interface) IN jack
Use a certified HDMI (high-definition multimedia interface) cord (not supplied) to enjoy high quality
digital picture and sound through the HDMI OUT (high-definition multimedia interface out) jack.
Note that Super Audio CD sound is not output from the HDMI OUT (high-definition multimedia
interface out) jack.
1
Remove the control unit stand cover and the HDMI jack cover from the control unit.
Green
Blue
Red
Control unit stand cover
,
HDMI jack cover
cont
i
nue
d
38
US
2
Connect the HDMI cord.
3
Attach the control unit stand cover and the HDMI jack cover to the control unit.
4
Connect the HDMI cord to the TV.
Hook the HDMI cord in the clamp
on the control unit stand.
HDMI cord
,
Control unit stand cover
,
Draw the SYSTEM CONTROL cord and
the HDMI cord through the opening of the
control unit stand cover.
HDMI jack cover
HDMI IN
TV with HDMI jack
To HDMI IN
Control unit
Getting Started – ADVANCED –
39
US
To connect to a TV with DVI (digital visual interface) input
Use an HDMI (high-definition multimedia interface)-DVI (digital visual interface) converter cord (not
supplied) with an HDMI (high-definition multimedia interface)-DVI (digital visual interface) adaptor
(not supplied). The DVI (digital visual interface) jack will not accept any audio signals. Furthermore,
you cannot connect the HDMI OUT (high-definition multimedia interface out) jack to DVI (digital
visual interface) jacks that are not HDCP (high-bandwidth digital content protection) compliant (e.g.,
DVI (digital visual interface) jacks on PC displays).

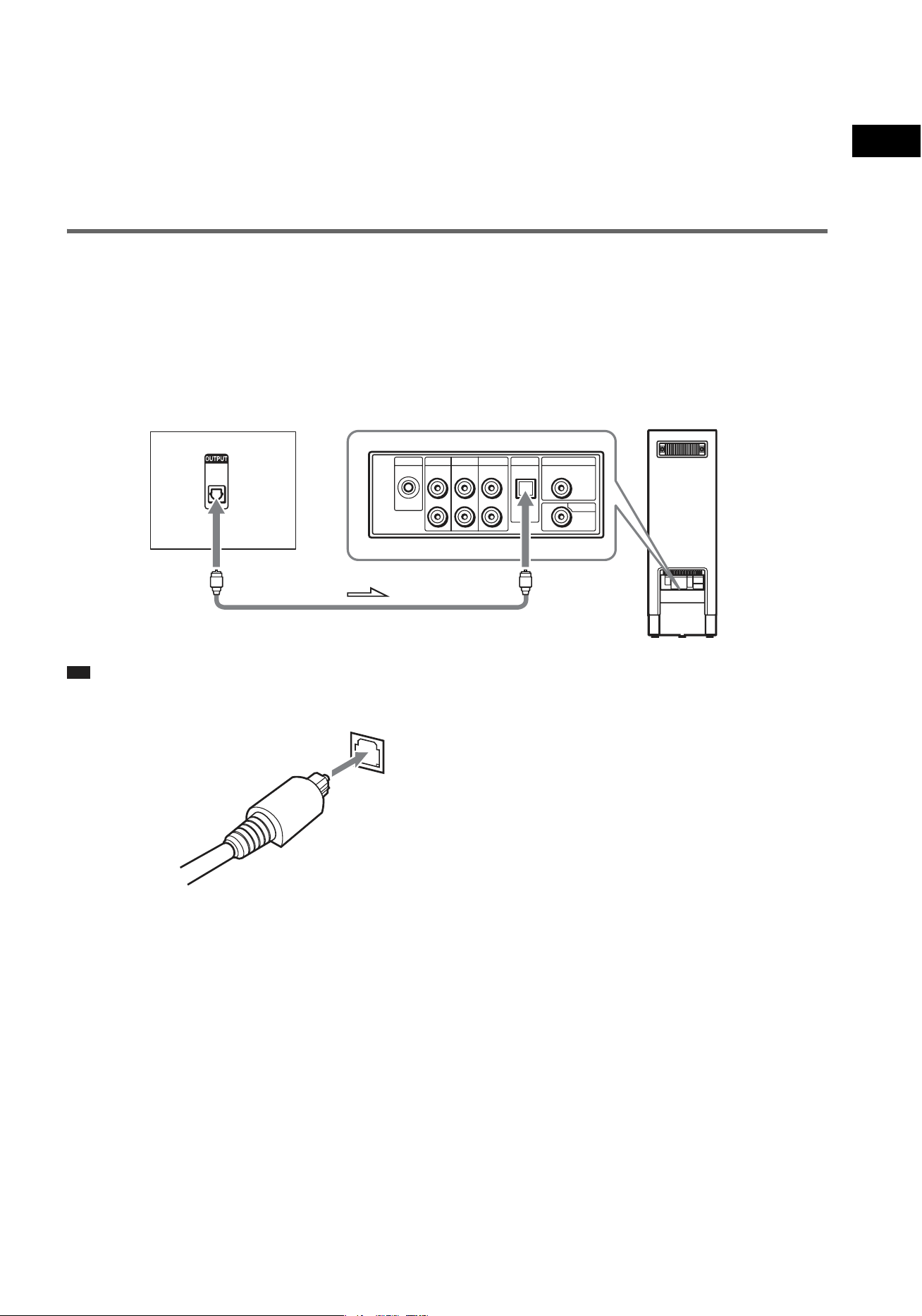

Connecting the TV with the digital optical cord
The TV with the digital optical out jack (such as the TV that has digital satellite tuner, etc.) can be
connected to the TV (DIGITAL IN OPTICAL) jack instead of the TV (AUDIO IN) jacks of the rear of
the subwoofer.
The system can accept both the digital and analog signals. Digital signals have priority over analog
signals. If the digital signal ceases, the analog signal will be processed after 2 seconds.
Ti
p
• When connecting the digital optical cord, insert the connector until it clicks.
OPTICAL
DIGITAL
OUT
VIDEO 1 VIDEO 2
VIDEO 2
TV VIDEO 1TV
AUDIO IN AUDIO IN AUDIO IN DIGITAL IN
OPTOCAL
L
R
DIGITAL IN
DIGITAL
IN
COAXIAL
COAXIAL
ECM-AC1
TV with the optical digital jack
Rear of the subwoofer
To the optical
digital output jack
40
US

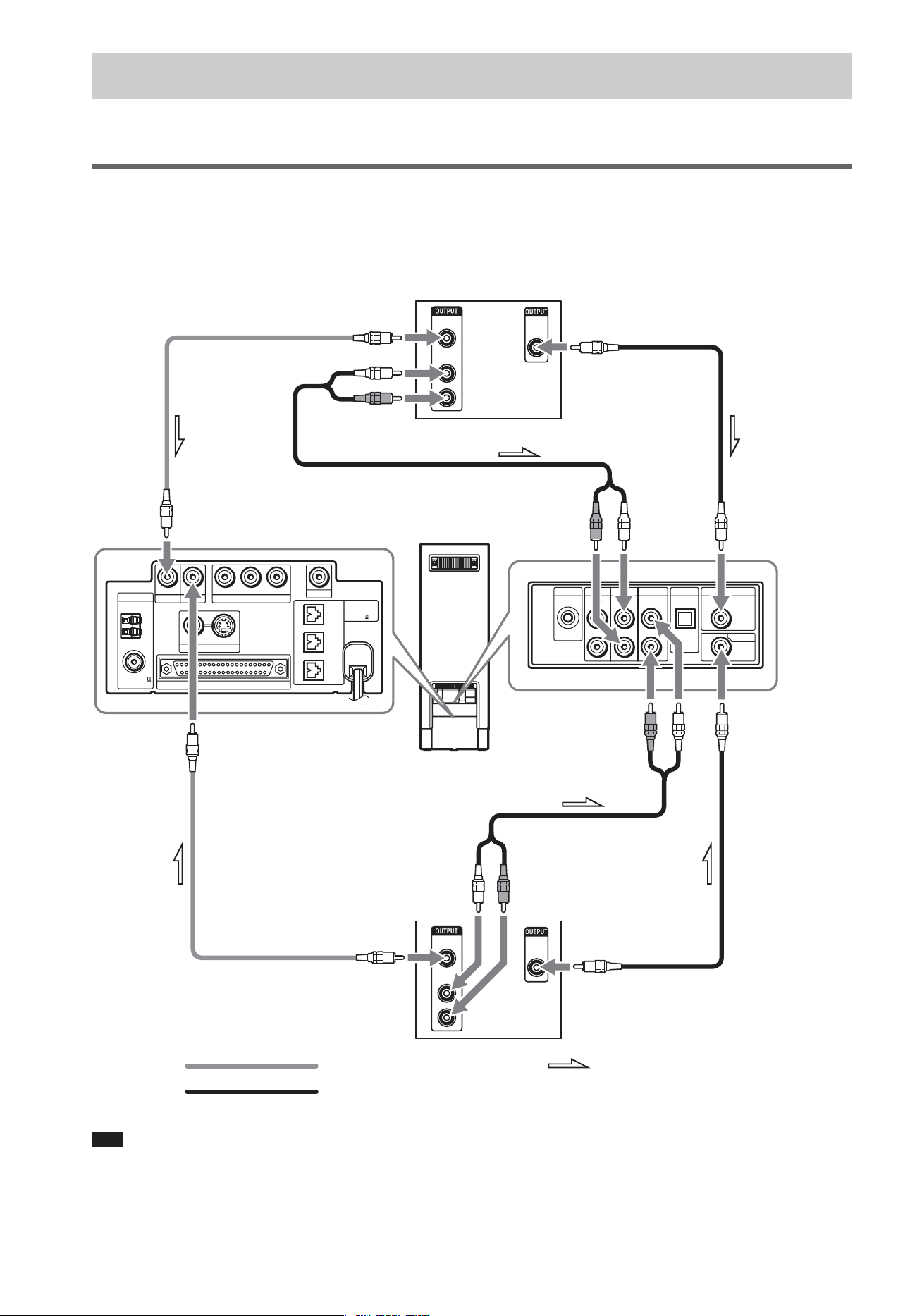

You can enjoy other component by connecting the VIDEO/AUDIO OUT jacks of another component.
Connecting the system and the other component
Outputs the other component through the speakers of this system.
Note
• Make sure that the connected jack combinations are correct; if you connect the audio cords to VIDEO 1 (AUDIO
IN), you should connect the video cord to VIDEO 1 (VIDEO IN).
Other Component Hookup
R
AUDIO
OUT
L
VIDEO
OUT
COAXIAL
DIGITAL
OUT
R
AUDIO
OUT
L
VIDEO
OUT
COAXIAL
DIGITAL
OUT
CENTER
INPEDANCE
USE 4
FRONT
L
FRONT
R
FM 75
COAXIAL
AM
VIDEO IN Y P
B
/C
B
P
R
/C
R
VIDE O IN
VIDEO 1 COMPONENT VIDEO OUT
DIR-T1
VIDEO 2
SPEAKER
VIDEO S-VIDEO
MONITOR OUT
SYSTEM CONTROL
VIDEO 1 VIDEO 2
VIDEO 2
TV VIDEO 1TV
AUDIO IN AUDIO IN AUDIO IN DIGITAL IN
OPTOCAL
L
R
DIGITAL IN
DIGITAL
IN
COAXIAL
COAXIAL
ECM-AC1
VCR, digital satellite receiver
or PlayStation 2, etc.
To the digital coaxial
output jack
Subwoofer
To the audio
output jacks
VCR, digital satellite receiver
or PlayStation 2, etc.
Video signal
Audio signal
To the video
output jack
To the audio
output jacks
To the digital coaxial
output jack
To the video
output jack
: Signal flow
Getting Started – ADVANCED –
41
US
Ti
p
• When you connect both the analogue and digital cord for the VIDEO 1 or 2 connection, the digital signals have
priority over the analogue signals.
To connect the VIDEO OUT jacks of other component to the VIDEO 1 or
2 (VIDEO IN) jacks of this system
Connect the VCR or other components to the VIDEO 1 or 2 (VIDEO IN) jacks using the video cord.
Note
• The video signal that is input from the VIDEO IN jack is not output from the S VIDEO OUT jack.
To connect the AUDIO OUT jacks of other component to the VIDEO 1 or
2 (AUDIO IN) jacks of this system
Connect the VCR or other components to the VIDEO 1 or 2 (AUDIO IN) jacks using the audio cord
(not supplied). When connecting a cord, be sure to match the color-coded sleeves to the appropriate
jacks on the components.
If you connect a digital satellite receiver with an DIGITAL OUT
(COAXIAL) jack
The digital satellite receiver can be connected to the VIDEO 1 or 2 (DIGITAL IN COAXIAL) jack
instead of the VIDEO 1 or 2 (AUDIO IN) jacks of the system.
The system can accept both the digital and analog signals. Digital signals have priority over analog
signals. If the digital signal ceases, the analog signal will be processed after 2 seconds.
If you connect a digital satellite receiver without an DIGITAL OUT jack
Connect the digital satellite receiver to the VIDEO 1 or 2 jacks only of the system.
Note
• Be sure to make connections securely to avoid hum and noise.
Yellow (Video)
White (L/audio)
Red (R/audio)
42
US
Basic Operations
Depending on the DVD or VIDEO CD, some operations may be different or restricted.
Refer to the operation details supplied with your disc.
1
Turn on your TV.
2
Switch the input selector on the TV to this system.
3
Press "/1 on the control unit.
The system turns on.
Unless the mode of the system is set to “DVD,” press FUNCTION +/– on the remote or
FUNCTION (soft-touch button) on the control unit to select “DVD.”
“No Disc” appears in the front panel display and the system is ready for loading the disc.
4
Load a disc.
Push the disc into the disc slot until the disc is pulled in automatically.
Basic Operations
Playing Discs
"/1
Z
"/1
H
Disc slot
FUNCTION
+/–
VOLUME
+/–
x
Soft-touch buttons/indicators
(N/x/FUNCTION/VOLUME –/+)
These buttons function when the soft-touch button
indicators are lit. When any soft-touch button is touched,
the indicators light up, then touch the desired button.
Note
• These buttons work by touching lightly. Do not press
them strongly.
• The soft-touch button indicators turn off when you do not
press the soft-touch buttons for several seconds.
1 (standby)
indicator
MUTING
./>
X
/
Labeled side facing to the front
43
US
Basic Operations
The disc is drawn into the control unit automatically and the following indication appears in the
front panel display.
5
Press H on the remote or H (soft-touch button) on the control unit.
The system starts playback (continuous play).
Adjust the volume on the remote or touch VOLUME +/– (soft-touch button) on the control unit.
To save the power in standby mode
Press "/1 while the system turns on. To cancel standby mode, press "/1 once.
Additional operations
* DVD VIDEOs/DVD-RWs/DVD-Rs only.
** DVD VIDEOs/DVD-RWs/DVD-Rs/DVD+RWs/DVD+Rs only.
Note
• You may not be able to use the Instant Replay or Instant Advance function with some scenes.
To Press
Stop x on the remote or x (soft-touch button) on the control
unit.
Pause X
Resume play after pause X or H
Go to the next chapter,
track, or scene
> (except for JPEG)
Go back to the preceding
chapter, track, or scene
. (except for JPEG)
Mute the sound MUTING. To cancel muting, press it again or VOLUME
+ to adjust the sound volume.
Stop play and remove the
disc
Z
Replay the previous scene* (instant replay) during playback.
Briefly fast forward the
current scene**
(instant advance) during playback.
44
US
Basic Operations
Selecting the connected component
You can use a TV, VCR, or other components connected to the TV, VIDEO 1, or VIDEO 2 jacks on
the subwoofer. Refer to the operation manual supplied with the components for further information on
the operation.
Press FUNCTION +/– repeatedly until “TV,” “VIDEO 1,” or “VIDEO 2”appears in the front
panel display.
Each time you press FUNCTION +/–, the mode of the system changes in the following sequence.
DVD t FM t AM t TV t VIDEO 1 t VIDEO 2 t DVD t …
Note
• When you use both the TV (AUDIO IN) jacks (analog connection) and TV (DIGITAL IN OPTICAL) jack (digital
connection), or the VIDEO 1 or 2 (AUDIO IN) jacks (analog connection) and VIDEO 1 or 2 (DIGITAL IN
COAXIAL) jack (digital connection) at the same time, the digital connection takes priority.

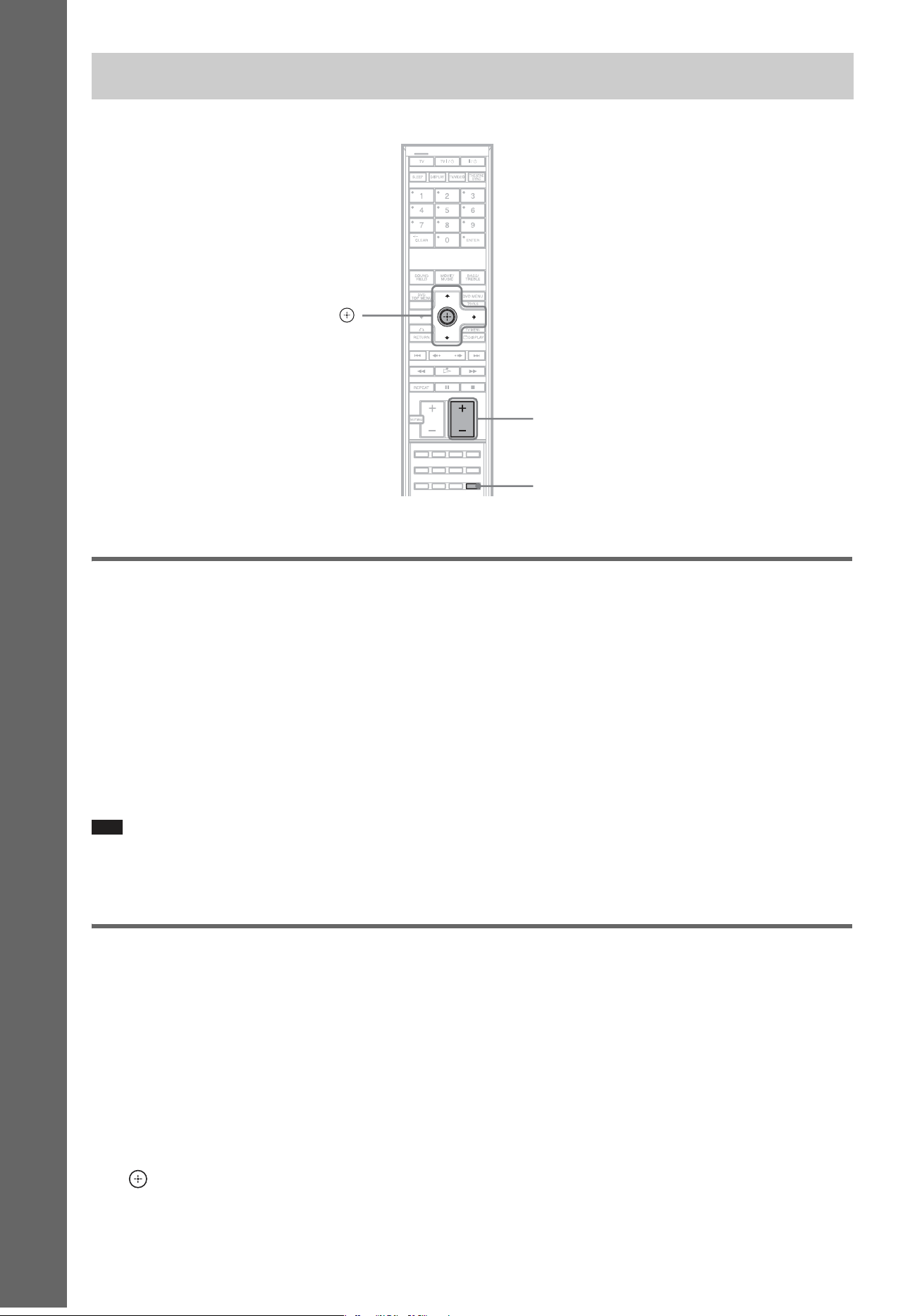

Changing the input level of the sound from connected
components
You can change the input sensitivity of the AUDIO IN (VIDEO 1, VIDEO2, TV) jacks on the rear
panel.
1
Press FUNCTION +/– repeatedly until “TV,” “VIDEO 1,” or “VIDEO 2” appears in the front
panel display.
2
Press AMP MENU.
3
Press X/x repeatedly until “ATTENUATE” appears in the front panel display, then press
or c.
Enjoying the Radio or Other Components
AMP MENU
X/x/c,
FUNCTION
+/–
With the cover opened.
45
US
Basic Operations
4
Press X/x to select a setting.
The default setting is underlined.
• ON: attenuates the input level. Set this if distortion occurs during listening.
• OFF: normal input level. Set this if the input level is low.
5
Press .
6
Press AMP MENU.
The AMP menu turns off.
46
US
Basic Operations

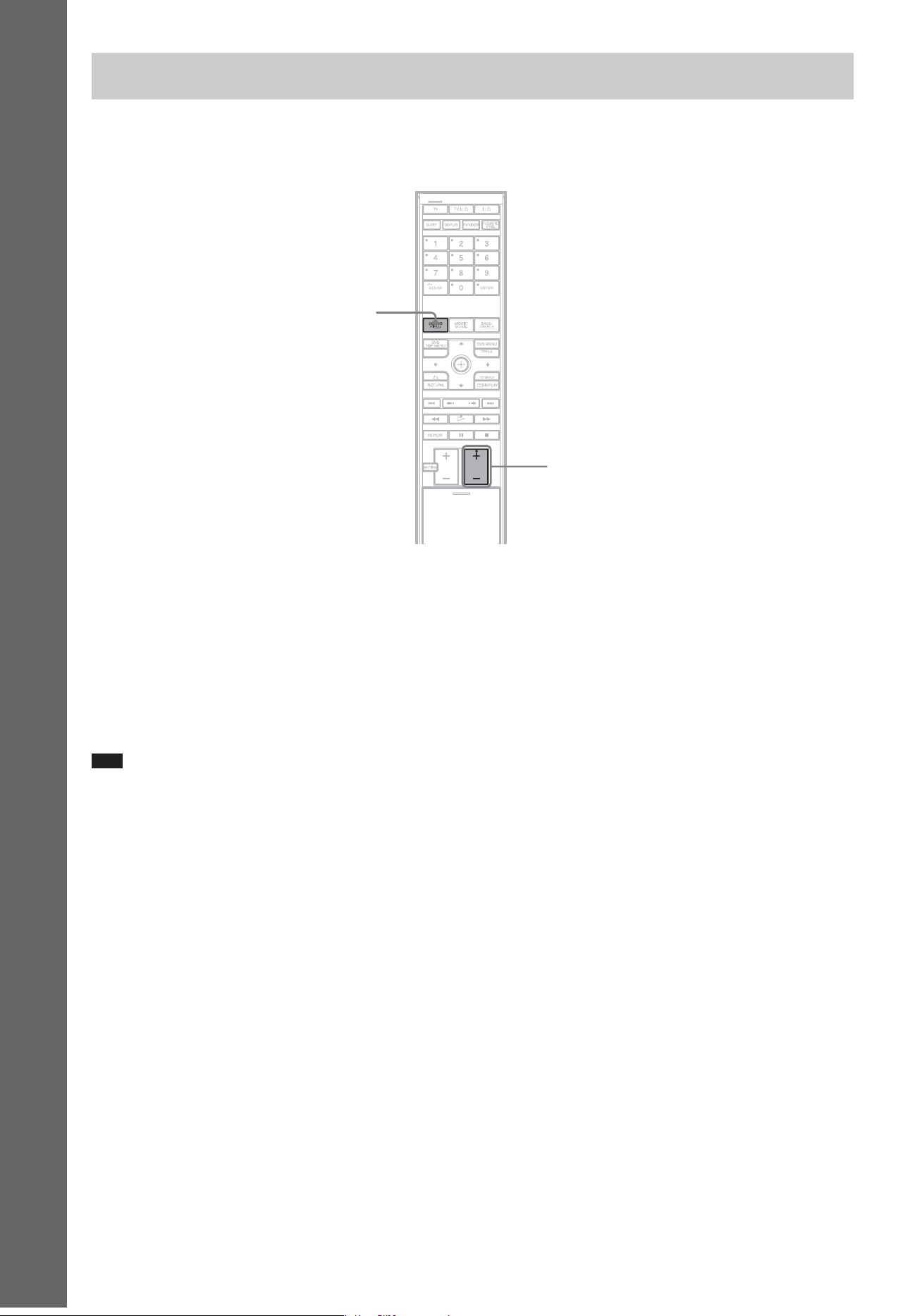

You can enjoy TV or VCR sound from all the speakers in this system.
For details, see “TV Hookup (Advanced)” (page 36) and “Other Component Hookup” (page 40).
1
Press FUNCTION +/– repeatedly until “TV,” “VIDEO 1,” or “VIDEO 2” appears in the front
panel display.
2
Press SOUND FIELD repeatedly until the sound field you want appears in the front panel
display.
When you want to output the TV sound or stereo sound of a 2 channel source from the 6 speakers,
select the “Pro Logic II Movie” or “Pro Logic II Music” sound field.
For details of sound field, see page 48.
Note
• When you use both the TV (AUDIO IN) jacks (analog connection) and TV (DIGITAL IN OPTICAL) jack (digital
connection), or the VIDEO 1 or 2 (AUDIO IN) jacks (analog connection) and VIDEO 1 or 2 (DIGITAL IN
COAXIAL) jack (digital connection) at the same time, the digital connection takes priority.
Enjoying TV or VCR Sound from All Speakers
SOUND
FIELD
FUNCTION
+/–
47
US
Basic Operations

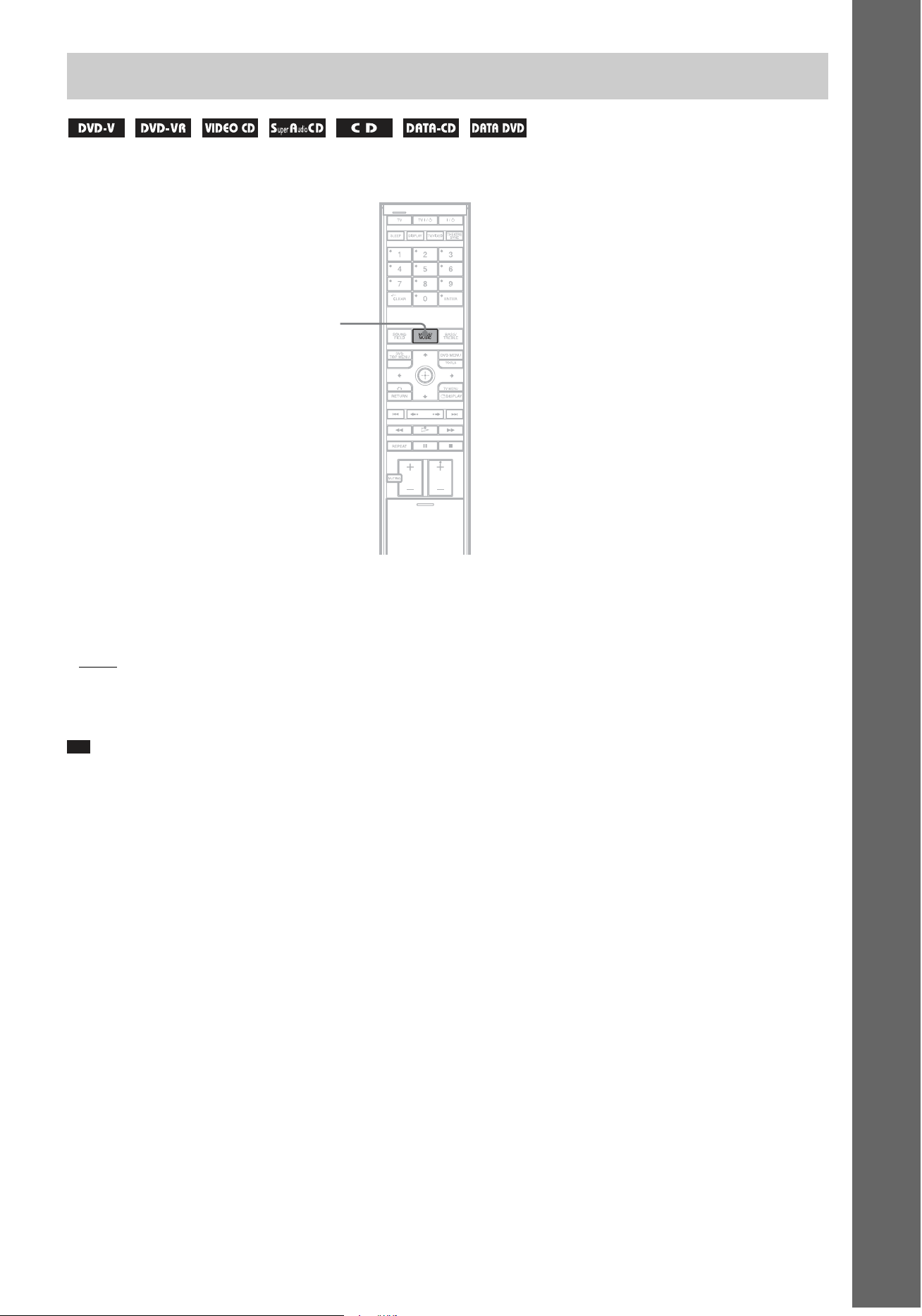

You can choose a suitable sound mode for movies or music.
Press MOVIE/MUSIC during playback.
Press MOVIE/MUSIC repeatedly until the mode you want appears in the front panel display. The
default setting is underlined.
• Auto: selects the mode automatically to produce the sound effect depending on the disc.
• Movie: provides the sound for movies.
• Music: provides the sound for music.
Ti
p
• When the movie or music mode is selected, “MOVIE” or “MUSIC” is displayed in the front panel display.
Selecting the Movie or Music Mode
MOVIE/
MUSIC
48
US

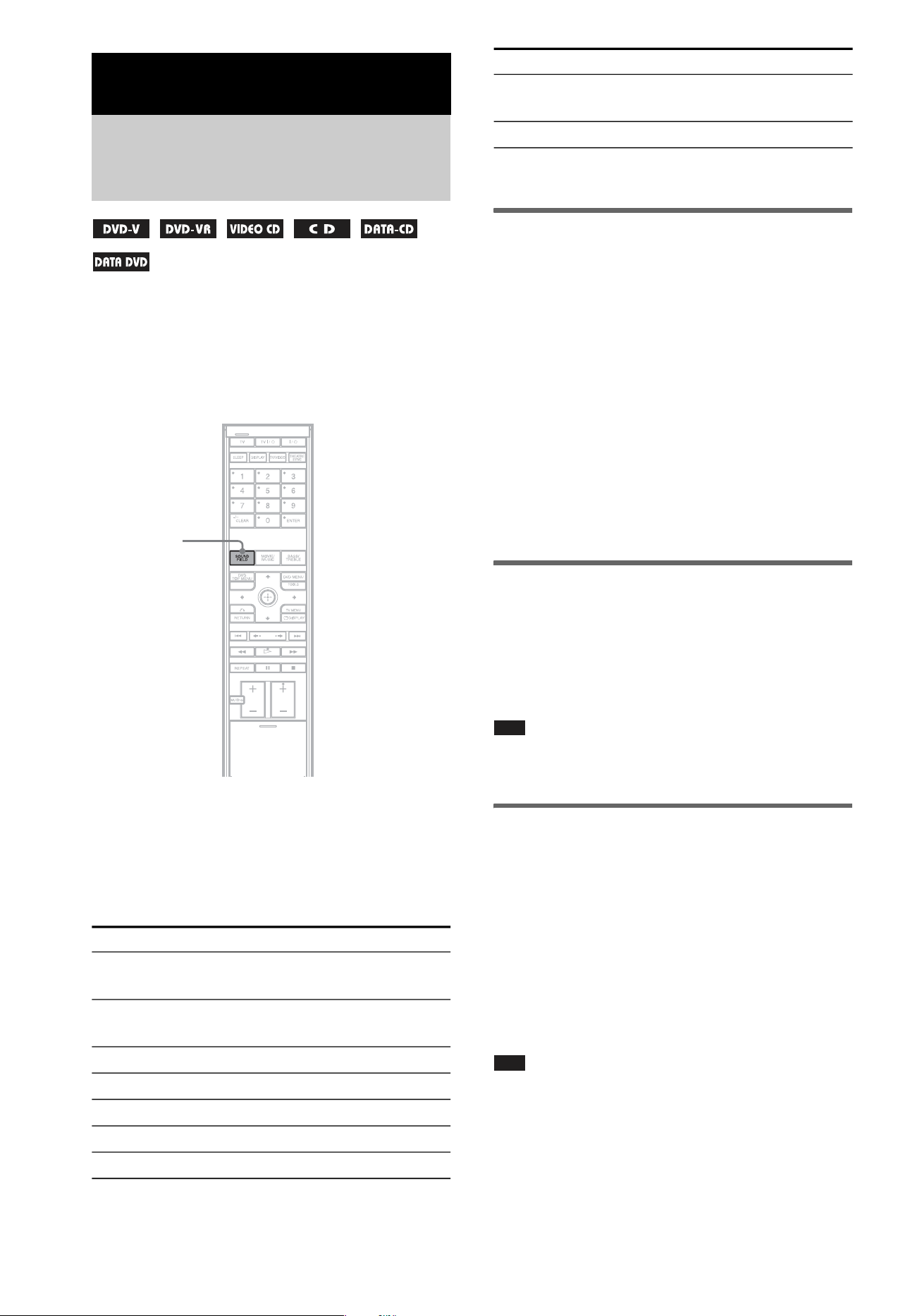

You can take advantage of surround sound
simply by selecting one of system’s pre-
programmed sound fields. They bring the
exciting and powerful sound of movie theaters
into your home.
Press SOUND FIELD.
Press SOUND FIELD repeatedly until the sound
field you want appears in the front panel display.
All sound field
* Use DCS Technology
Automatic outputting of the
original sound
x AUTO FORMAT DIRECT STANDARD
The auto decoding function automatically
detects the type of audio signal being input
(Dolby Digital, DTS, or standard 2 channel
stereo) and performs the proper decoding if
necessary. This mode presents the sound as it
was recorded/encoded, without adding any
effects (e.g. reverberation).
However, if there are no low frequency signals
(Dolby Digital LFE, etc.), it will generate a low
frequency signal for output to the subwoofer.
Outputting the sound from
multiple speakers
x AUTO FORMAT DIRECT MULTI
This mode lets you enjoy audio playback of all
types of discs from multiple speakers.
Note
• The sound is not output from multiple speakers
depending on the source.
Outputting 2 channel sources
like CDs by 5.1channel
x Dolby Pro Logic II MOVIE/MUSIC
Dolby Pro Logic II produces five full-bandwidth
output channels from 2 channel sources. This is
done using an advanced, high-purity matrix
surround decoder that extracts the spatial
properties of the original recording without
adding any new sounds or tonal colorations.
Note
• When the input signal is multi channel source,
“Dolby Pro Logic II Movie/Music” are canceled and
the multi channel source is output directly.
• When the bilingual broadcast sound is input, “Dolby
Pro Logic II Movie/Music” are not effective.
Sound Adjustments
Enjoying Surround Sound
by Using Sound Field
Sound field Display
AUTO FORMAT DIRECT
STANDARD
Auto Format Direct
Standard
AUTO FORMAT DIRECT
MULTI
Auto Format Direct
Multi
Dolby Pro Logic II MOVIE Pro Logic II Movie
Dolby Pro Logic II MUSIC Pro Logic II Music
CINEMA STUDIO EX Cinema Studio EX*
LIVE CONCERT Live Concert
SPORTS STADIUM Sports Stadium
SOUND
FIELD
PORTABLE AUDIO
ENHANCER
Portable Audio
Enhancer
2 CHANNEL STEREO 2Channel Stereo
Sound field Display
Sound Adjustments
49
US
Enjoying Digital Cinema
Sound
About DCS (Digital Cinema
Sound)
In collaboration with Sony Pictures
Entertainment, Sony measured the sound
environment of their studios and integrated the
data of the measurement and Sony’s own DSP
(Digital Signal Processor) technology to
develop “Digital Cinema Sound.” “Digital
Cinema Sound” simulates in a home theater an
ideal movie theater sound environment based on
the preference of the movie director.
x CINEMA STUDIO EX
Reproduces the sound characteristics of the
Sony Pictures Entertainment “Kim Novak
Theater” cinema production studio. This mode
is ideal for watching science-fiction or action
movies with lots of sound effects.
About Cinema Studio EX
Cinema Studio EX is ideal for enjoying the
movie software encoded with multi channel
format, such as the Dolby Digital DVD. This
mode reproduces the sound characteristics of
Sony Pictures Entertainment’s studios.
Cinema Studio EX consists of the following 3
elements.
• Virtual Multi Dimension
Creates 5 sets of virtual speakers surrounding
the listener from a single pair of actual
surround speakers.
• Screen Depth Matching
In a movie theater, sound seems to come from
inside the image reflected on the movie screen.
This element creates the same sensation in
your listening room by shifting the sound of
the front speakers “into” the screen.
• Cinema Studio Reverberation
Reproduces the reverberations peculiar to a
movie theater. Cinema Studio EX is the
integrated mode which operates these
elements simultaneously.
Note
• The virtual speaker effect may cause increased noise
in the playback signal.
• When listening with sound fields that employ virtual
speakers, you will not be able to hear any sound
coming directly from the surround speakers.
Enjoying the surround sound
x LIVE CONCERT
This mode reproduces the acoustics of a 300-
seats live house.
x SPORTS STADIUM
This mode reproduces the feeling of a large
open-air stadium.
x PORTABLE AUDIO ENHANCER
This mode reproduces a clear enhanced sound
image from your portable audio device. This
mode is ideal for MP3 and other compressed
music.
Using only the front speaker
and subwoofer
x 2 CHANNEL STEREO
This mode outputs the sound from the front left
and right speakers and subwoofer. Standard 2
channel (stereo) sources completely bypass the
sound field processing. Multi channel surround
formats are downmixed to two channels.
This allows you to play any source using only
the front left and right speakers and subwoofer.
To turn the surround effect off
Press SOUND FIELD repeatedly until “Auto
Format Direct Standard” or “2Channel Stereo”
appears in the front panel display.
Ti
p
• The system memorizes the last sound field selected
for each function mode.
50
US
You can adjust the bass and treble level easily.
1
Press BASS/TREBLE repeatedly until
“Bass Level” or “Treble Level” appears
in the front panel display.
• Bass Level: adjusts the bass level
(–6 – +6, 1 increments).
• Treble Level: adjusts the treble level
(–6 – +6, 1 increments).
2
Press X/x to adjust.
The adjusted value appears in the front
panel display.
3
Press .
Adjusting the Bass and
Treble Level
BASS/
TREBLE
X/x,
Various Functions for Playing Discs
51
US

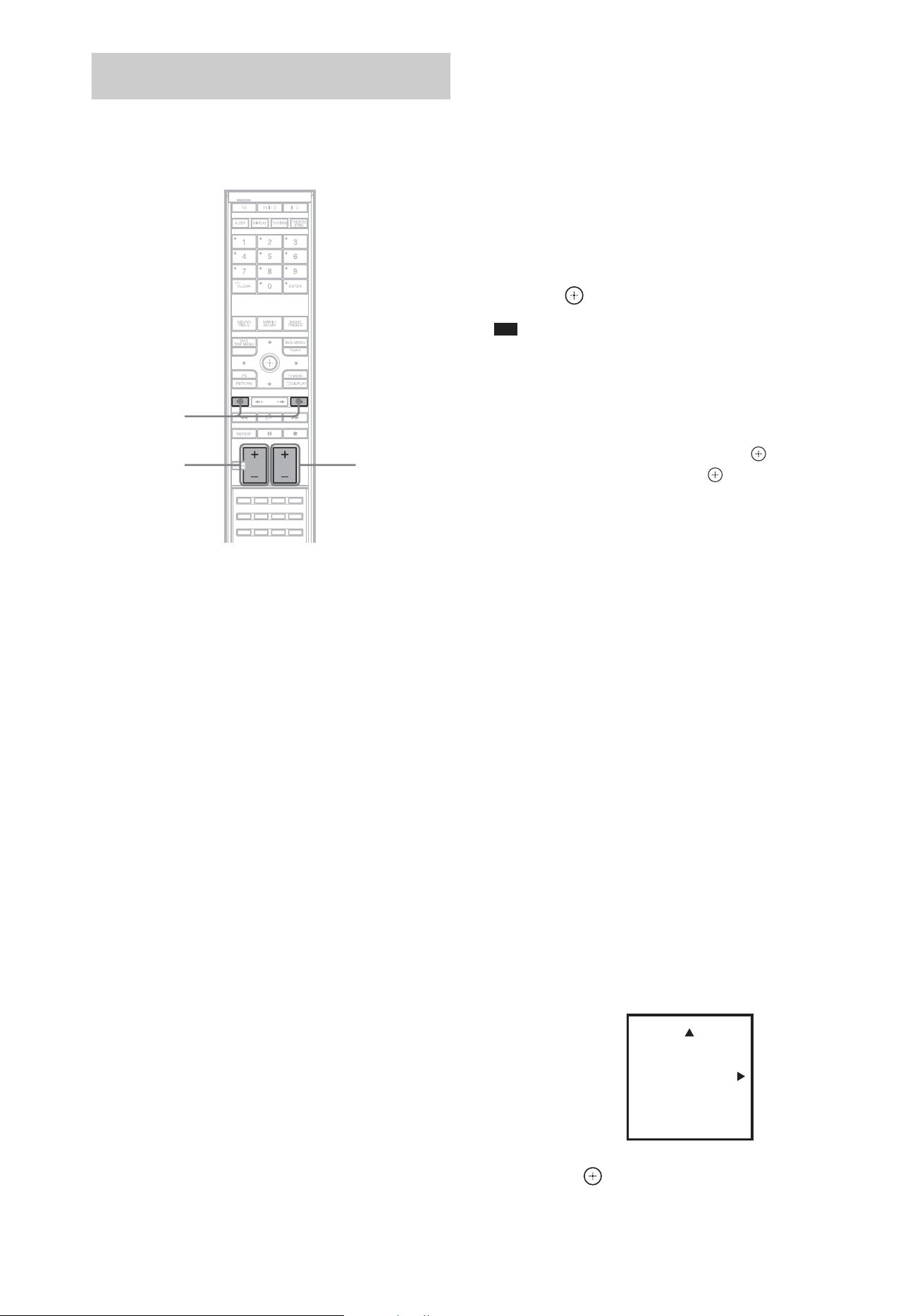

You can quickly locate a particular point on a
disc by monitoring the picture or playing back
slowly.
Note
• Depending on the DVD/VIDEO CD, you may not be
able to do some of the operations described.
Locating a point quickly by
playing a disc in fast forward
or fast reverse (Scan)
(except for JPEG)
Press /m or M/ while playing a disc.
When you find the point you want, press H to
return to normal speed. Each time you press /
m or M/ during scan, the playback speed
changes. With each press the indication changes
as shown below. Actual speeds may differ with
some discs.
Playback direction
Opposite direction
With each press, playback speed becomes faster.
Watching frame by frame
(Slow-motion Play)
(DVD VIDEO, DVD-RW, VIDEO CD only)
Press /m or M/ when the system is in
pause mode. To return to the normal playback
speed, press H. Each time you press /m or
M/ during Slow-motion Play, the playback
speed changes. Two speeds are available. With
each press the indication changes as follows:
Playback direction
2 y 1
Opposite direction (DVD VIDEO/DVD-RW
only)
2 y 1
Playing one frame at a time
(Freeze Frame)
(except for Super Audio CD, CD, MP3,
and JPEG)
When the system is in the pause mode, press C
STEP to go to the next frame. Press c STEP
to go to the preceding frame (DVD VIDEO/
DVD-RW only). To return to normal playback,
press H.
Note
• You cannot search for a still picture on a DVD-R/
DVD-RW in VR mode.
Various Functions for Playing Discs
Searching for a Particular
Point on a Disc
(Scan, Slow-motion Play, Freeze
Frame)
H
c/C
STEP
m/M
/
×2B t 1M t 2M t 3M
3M (DVD VIDEO/DVD-VR mode/VIDEO CD
only)
×2B (DVD VIDEO/Super Audio CD/CD only)
×2b t 1m t 2m t 3m
3m (DVD VIDEO/DVD-VR mode/VIDEO CD
only)
× 2b (DVD VIDEO only)
52
US

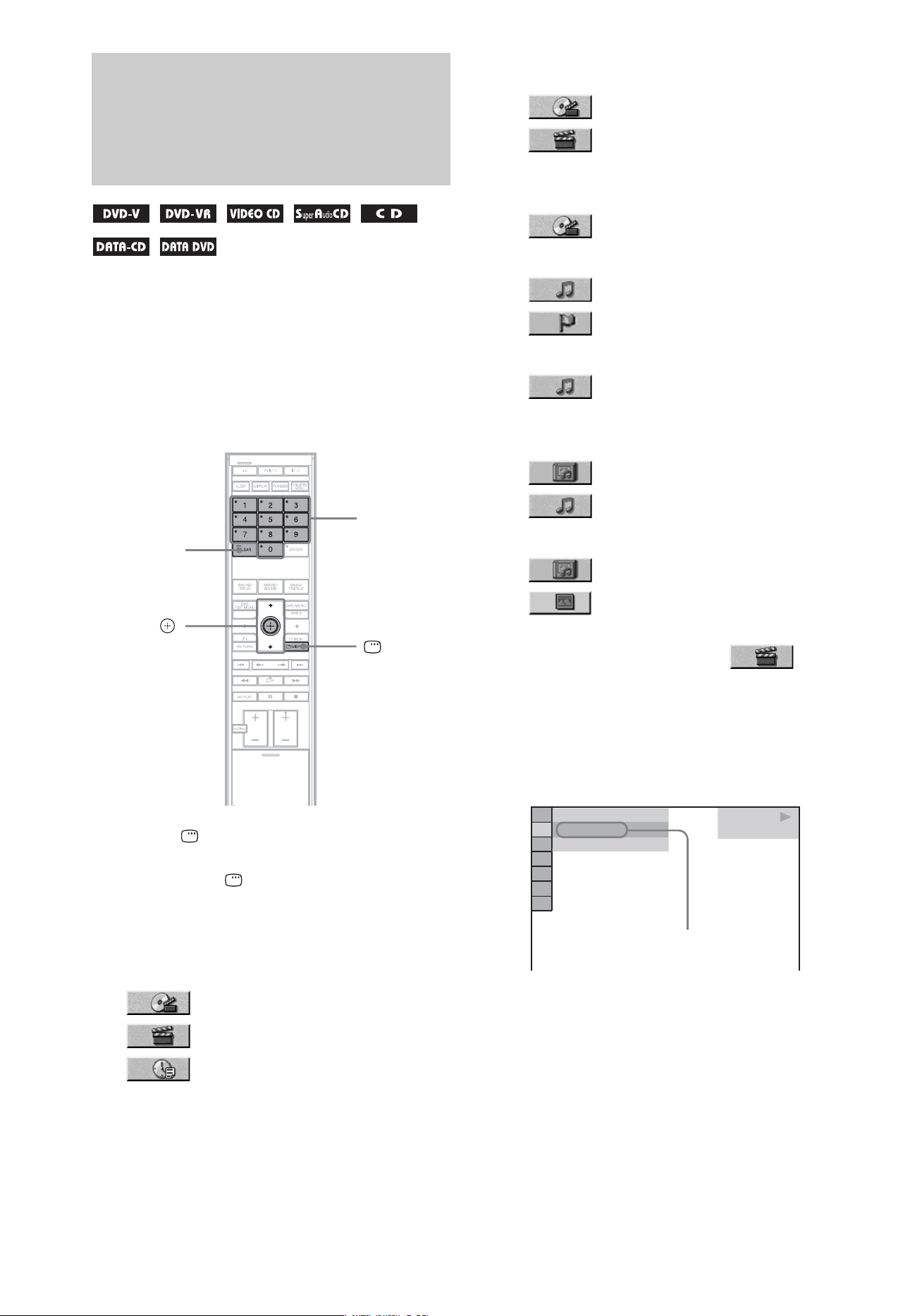

You can search a DVD by title or chapter, and
you can search a VIDEO CD/Super Audio CD/
CD/DATA CD/DATA DVD by track, index, or
scene. As titles and tracks are assigned unique
numbers on the disc, you can select the desired
one by entering its number. Or, you can search
for a scene using the time code.
1
Press DISPLAY. (When playing a
DATA CD/DATA DVD with JPEG image
files, press DISPLAY twice.)
The Control Menu appears.
2
Press X/x to select the search method.
x When playing a DVD VIDEO/DVD-RW
[TITLE]
[CHAPTER]
[TIME/TEXT]
Select [TIME/TEXT] to search for a
starting point by inputting the time code.
x When playing a VIDEO CD/Super
VCD without PBC Playback
[TRACK]
[INDEX]
x When playing a VIDEO CD/Super
VCD with PBC Playback
[SCENE]
x When playing a Super Audio CD
[TRACK]
[INDEX]
x When playing a CD
[TRACK]
x When playing a DATA CD (MP3
audio)
[ALBUM]
[TRACK]
x When playing a DATA CD (JPEG file)
[ALBUM]
[FILE]
Example: when you select
[CHAPTER]
[** (**)] is selected (** refers to a number).
The number in parentheses indicates the
total number of titles, chapters, tracks,
indexes, scenes, albums or files.
Searching for a Title/
Chapter/Track/Scene,
etc.
CLEAR
X/x,
DISPLAY
Number
buttons
DVD VIDEO
1 8
(
3 4
)
1 2
(
2 7
)
T
1 : 3 2 : 5 5
Selected row
Various Functions for Playing Discs
53
US

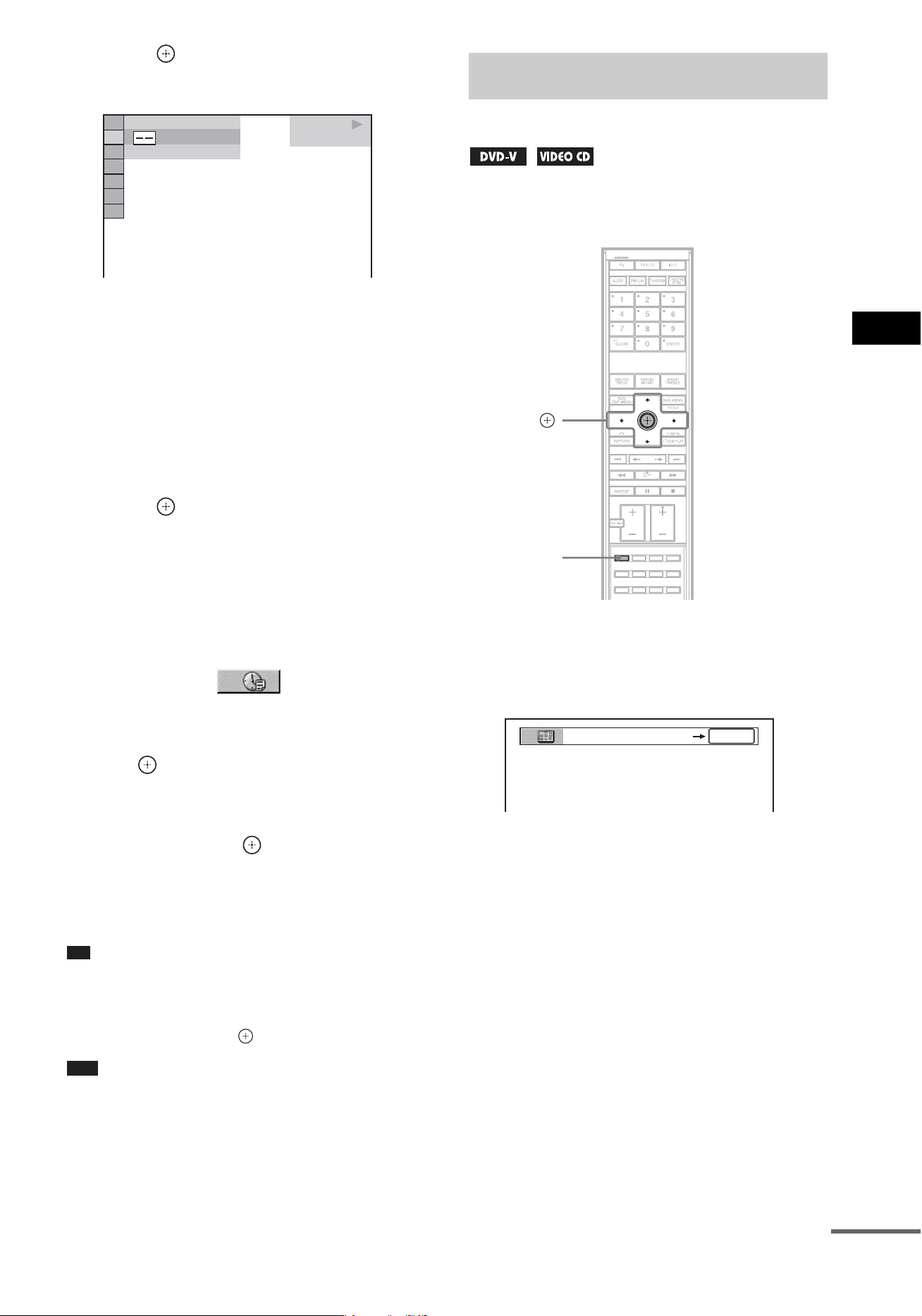

3
Press .
[** (**)] changes to [– – (**)].
4
Press X/x or the number buttons to
select the title, chapter, track, index,
scene, etc., number you want to search
for.
If you make a mistake
Cancel the number by pressing CLEAR,
then select another number.
5
Press .
The system starts playback from the
selected number.
To search for a scene using the
time code (DVD VIDEO and
DVD-VR mode only)
1
In Step 2, select [TIME/TEXT].
[T **:**:**] (playing time of the current title)
is selected.
2
Press .
[T **:**:**] changes to [T --:--:--].
3
Input the time code using the number
buttons, then press .
For example, to find the scene at 2 hours, 10
minutes, and 20 seconds after the beginning,
just enter [2:10:20].
Ti
p
• When the Control Menu display is turned off, you can
search for a chapter (DVD VIDEO/DVD-RW) or
track (VIDEO CD/Super Audio CD/CD) by pressing
the number buttons and .
Note
• You cannot search for a scene on a DVD+RW/
DVD+R using the time code.

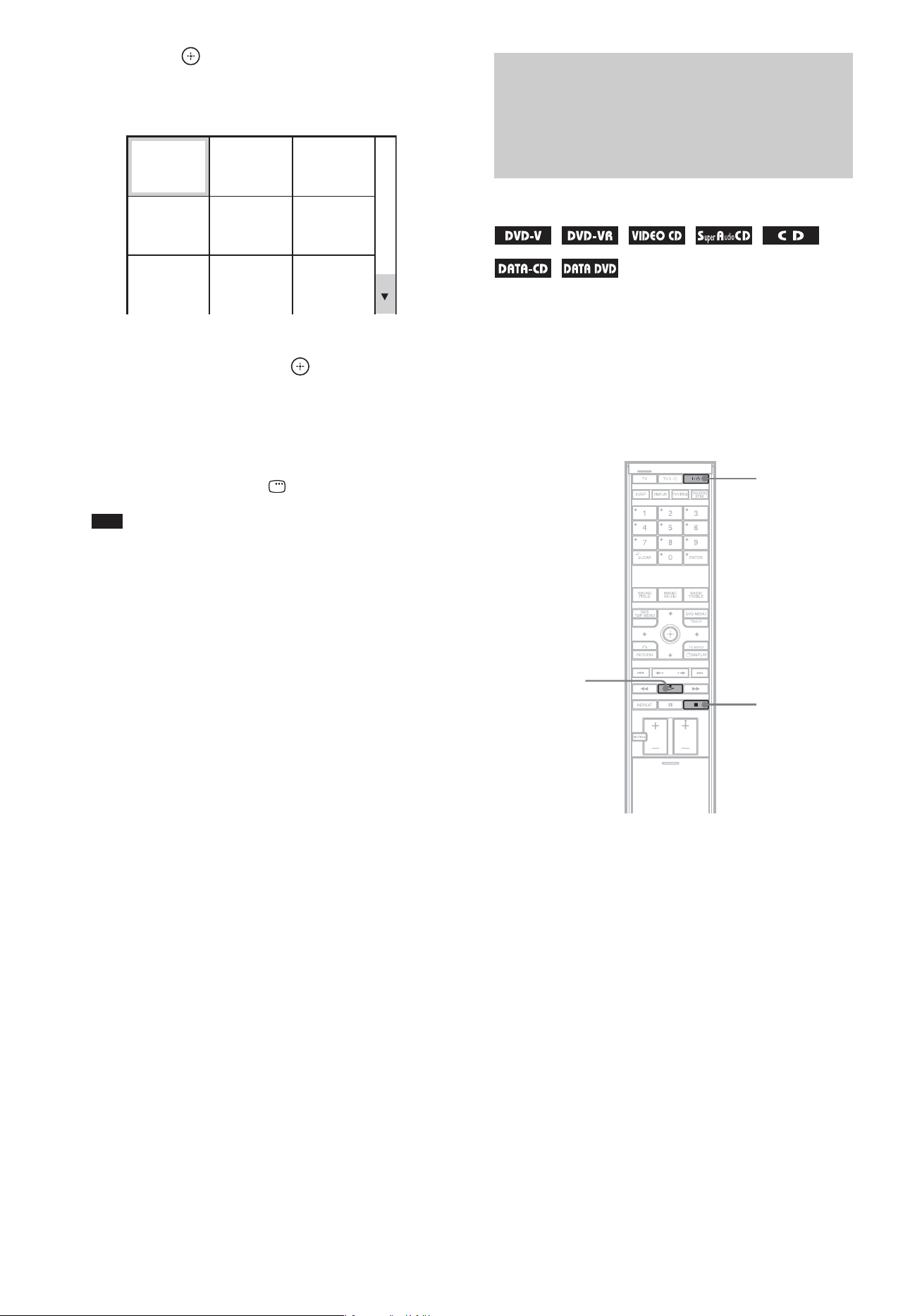

You can divide the screen into 9 subscreens and
find the desired scene quickly.
1
Press PICTURE NAVI during playback.
The following display appears.
2
Press PICTURE NAVI repeatedly to
select an item.
• [TITLE VIEWER] (DVD VIDEO only)
• [CHAPTER VIEWER] (DVD VIDEO
only)
• [TRACK VIEWER] (VIDEO CD/
Super VCD only)
DVD VIDEO
(
3 4
)
1 2
(
2 7
)
T
1 : 3 2 : 5 5
Searching by Scene
(Picture Navigation)
NAVI
C/X/x/c,
With the cover opened.
CHAPTER VIEWER
ENTER
cont
i
nue
d
54
US
3
Press .
The first scene of each title, chapter, or
track appears as follows.
4
Press C/X/x/c to select a title, chapter,
or track, and press .
Playback starts from the selected scene.
To return to normal play during
setting
Press O RETURN or DISPLAY.
Note
• Depending on the disc, you may not be able to select
some items.
When you stop the disc, the system remembers
the point where you pressed x and “Resume”
appears in the front panel display. As long as
you do not remove the disc, Resume Play will
work even if the system enters standby mode by
pressing "/1.
1
While playing a disc, press x to stop
playback.
“Resume” appears in the front panel
display.
If “Resume” does not appear, Resume Play
is not available.
2
Press H.
The system starts playback from the point
where you stopped the disc in Step 1.
1
4
7
2
5
8
3
6
9
Resuming Playback from
the Point Where You
Stopped the Disc
(Resume Play)
"/1
H
x
Various Functions for Playing Discs
55
US
To enjoy a disc that is played
before by resume playback
(Multi-disc Resume)
(DVD VIDEO, VIDEO CD only)
This system stores the point where you stopped
the disc for up to 40 discs and resumes playback
the next time you insert the same disc. If you
store a resume playback point for the 41st disc,
the resume playback point for the first disc is
deleted.
To activate this function, set [MULTI-DISC
RESUME] in [CUSTOM SETUP] to [ON]. For
details, see “[MULTI-DISC RESUME] (DVD
VIDEO/VIDEO CD only)” (page 96).
Ti
p
• To play from the beginning of the disc, press x twice,
then press H.
Note
• If [MULTI-DISC RESUME] in [CUSTOM SETUP]
is set to [OFF] (page 96), the resume point is cleared
when you change the function by pressing
FUNCTION +/–.
• Depending on where you stop the disc, the system
may not resume playback from exactly the same
point.
• The point where you stopped playing may be cleared
when:
– you eject the disc.
– the system enters standby mode (DATA CD/
DATA DVD only).
– you change or reset the settings on the Setup
Display.
– you change the function by pressing FUNCTION
+/–.
– you disconnect the AC power cord (mains lead).
• For DVD-Rs/DVD-RWs in VR mode, VIDEO CDs,
CDs, Super Audio CDs, DATA CDs, and DATA
DVDs, the system remembers the resume playback
point for the current disc.
• Resume Play does not work during Program Play and
Shuffle Play.
• This function may not work properly with some
discs.

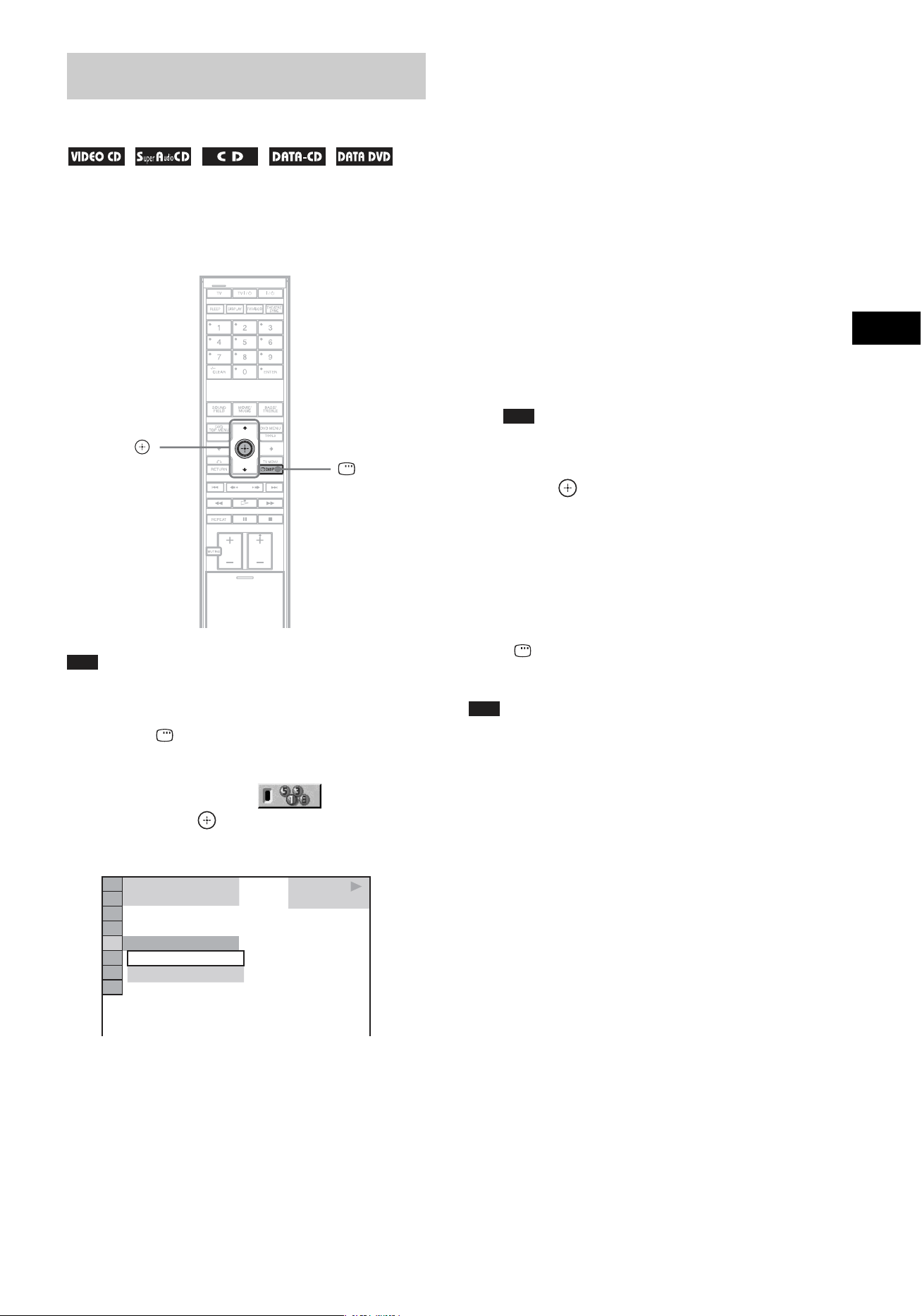

You can play the contents of a disc in the order
you want by arranging the order of the tracks on
the disc to create your own program. You can
program up to 99 tracks.
1
Press DISPLAY.
The Control Menu appears.
2
Press X/x to select
[PROGRAM], then press .
The options for [PROGRAM] appear.

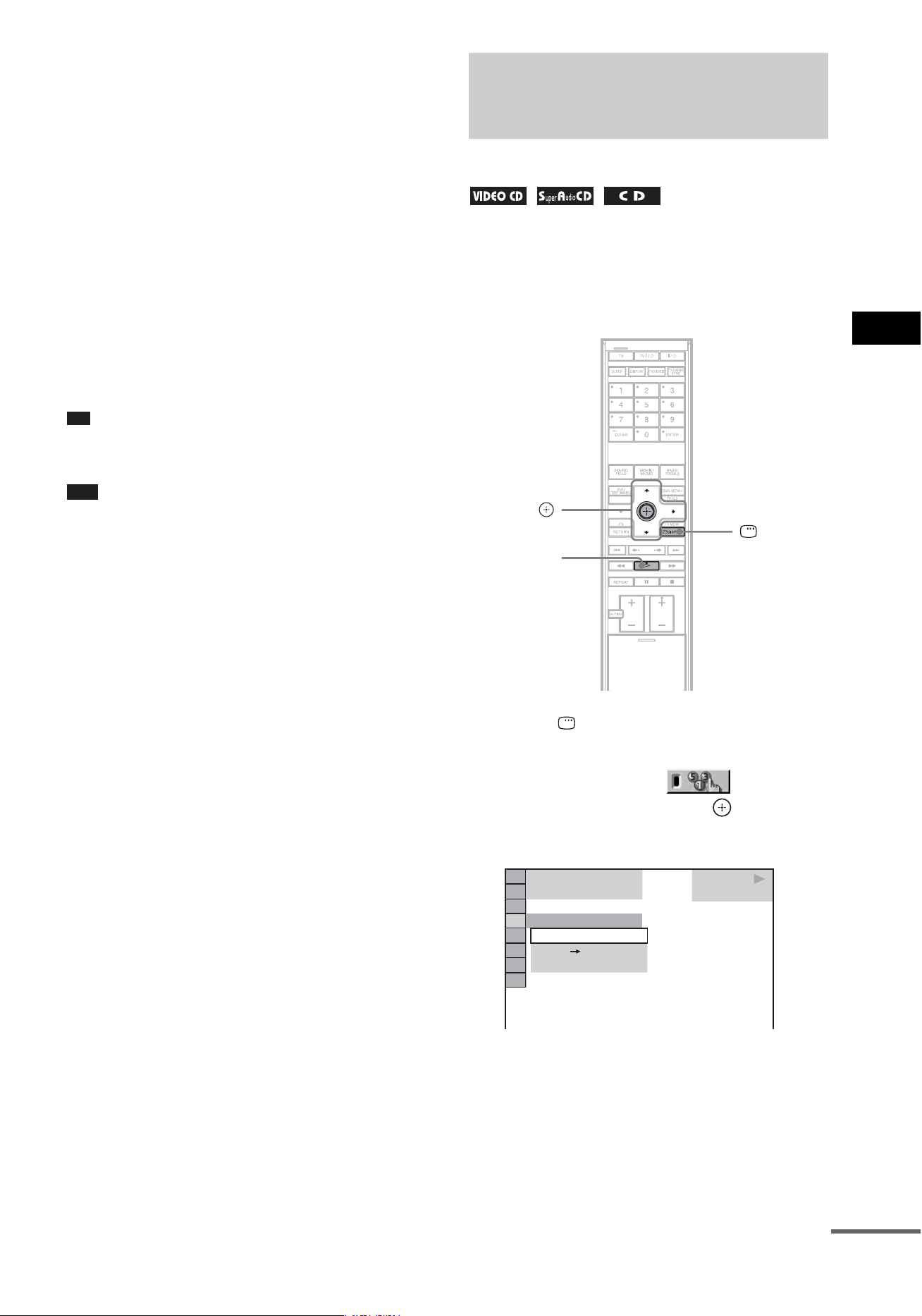

Creating Your Own
Program
(Program Play)
X/x/c,
H
DISPLAY
PLAY
6 (14)
T
2 : 5 0
OFF
SET
ON
OFF
CD
cont
i
nue
d
56
US
3
Press X/x to select [SET
t
], then
press .
4
Press c.
The cursor moves to the track row [T] (in
this case, [01]).
5
Select the track you want to program.
For example, select track [02].
Press X/x to select [02] under [T], then
press . The track number may be
displayed in 3 digits for a Super Audio CD.
6
To program other tracks, repeat steps 4
to 5.
The programmed tracks are displayed in the
selected order.
7
Press H to start Program Play.
Program Play starts.
When the program ends, you can restart the
same program again by pressing H.
To return to normal play
Press CLEAR, or select [OFF] in Step 3. To play
the same program again, select [ON] in Step 3
and press .
To turn off the Control Menu
Press DISPLAY repeatedly until the Control
Menu is turned off.
To change or cancel a program
1
Follow steps 1 to 3 of “Creating Your Own
Program.”
2
Select the program number of the track you
want to change or cancel using X/x. If you
want to delete the track from the program,
press CLEAR.
3
Follow Step 5 for new programming. To
cancel a program, select [--] under [T], then
press .
To cancel all of the tracks in the
programmed order
1
Follow steps 1 to 3 of “Creating Your Own
Program.”
2
Press X and select [ALL CLEAR].
3
Press .
PROGRAM
1. TRACK
ALL CLEAR
2. TRACK
– –
3. TRACK
– –
4. TRACK
– –
5. TRACK
– –
6. TRACK
– –
7. TRACK
– –
T
0:00:00
– –
01
02
03
04
05
06
[TRACK] is displayed when you play a
VIDEO CD, Super Audio CD, or CD.
Tracks recorded
on a disc
Total time of the
programmed tracks
PROGRAM
1. TRACK
– –
ALL CLEAR
2. TRACK
– –
3. TRACK
– –
4. TRACK
– –
5. TRACK
– –
6. TRACK
– –
7. TRACK
– –
T
– –
02
03
04
05
0:00:00
06
01
PROGRAM
1. TRACK 0 2
ALL CLEAR
2. TRACK
– –
3. TRACK
– –
4. TRACK
– –
5. TRACK
– –
6. TRACK
– –
7. TRACK
– –
0:15:30
T
– –
02
03
04
05
06
01
Selected track
Total time of the programmed tracks
Various Functions for Playing Discs
57
US
You can have the system “shuffle” tracks.
Subsequent “shuffling” may produce a different
playing order.
Note
• Same song may be played repeatedly during MP3
playback.
1
Press DISPLAY during playback.
The Control Menu appears.
2
Press X/x to select [SHUFFLE],
then press .
The options for [SHUFFLE] appear.
3
Press X/x to select the item to be
shuffled.
x When playing a VIDEO CD, Super
Audio CD, or CD
• [TRACK]: shuffles tracks on the disc.
x When Program Play is activated
• [ON]: shuffles tracks selected in Program
Play.
x When playing a DATA CD or DATA
DVD
• [ON]: shuffles MP3 audio tracks in the
album on the current disc. When no album
is selected, the first album will play in
random order.
Note
• A track already played is also selected in
random order.
4
Press .
Shuffle Play starts.
To return to normal play
Press CLEAR, or select [OFF] in Step 3.
To turn off the Control Menu
Press DISPLAY repeatedly until the Control
Menu is turned off.
Note
• You cannot use this function with VIDEO CDs and
Super VCDs with PBC playback.
Playing in Random Order
(Shuffle Play)
X/x,
DISPLAY
PLAY
6 (14)
T
2 : 5 0
OFF
TRACK
OFF
CD
58
US
You can play all the titles, tracks or albums on a
disc or a single title, chapter, track, or album
repeatedly.
You can use a combination of Shuffle or
Program Play modes.
1
Press DISPLAY during playback.
The Control Menu appears.
2
Press X/x to select [REPEAT],
then press .
The options for [REPEAT] appear.
3
Press X/x to select the item to be
repeated.
The default setting is underlined.
x When playing a DVD VIDEO or DVD-
VR
• [OFF]: does not play repeatedly.
• [DISC]: repeats all of the titles on the disc.
• [TITLE]: repeats the current title on a
disc.
• [CHAPTER]: repeats the current chapter.
x When playing a VIDEO CD, Super
Audio CD, or CD
• [OFF]: does not play repeatedly.
• [DISC]: repeats all of the tracks on the
disc.
• [TRACK]: repeats the current track.
x When playing a DATA CD or DATA
DVD
• [OFF]: does not play repeatedly.
• [DISC]: repeats all of the albums on the
disc.
• [ALBUM]: repeats the current album.
• [TRACK] (MP3 audio tracks only):
repeats the current track.
4
Press .
The item is selected.
To return to normal play, press CLEAR, or
select [OFF] in Step 3.
To turn off the Control Menu
Press DISPLAY repeatedly until the Control
Menu is turned off.
Note
• You can quickly display the [REPEAT] status.
Press REPEAT on the remote.
• You cannot use this function with VIDEO CDs and
Super VCDs with PBC playback.
• When playing a DATA CD/DATA DVD which
contains MP3 audio track and JPEG image files, and
their playing time are not the same, the audio sound
will not match the image.
• When [MODE (MP3, JPEG)] is set to [IMAGE
(JPEG)] (page 71), you cannot select [TRACK].
Playing Repeatedly
(Repeat Play)
X/x,
DISPLAY
CLEAR
PLAY
6 (14)
T
2 : 5 0
OFF
DISC
TRACK
OFF
CD

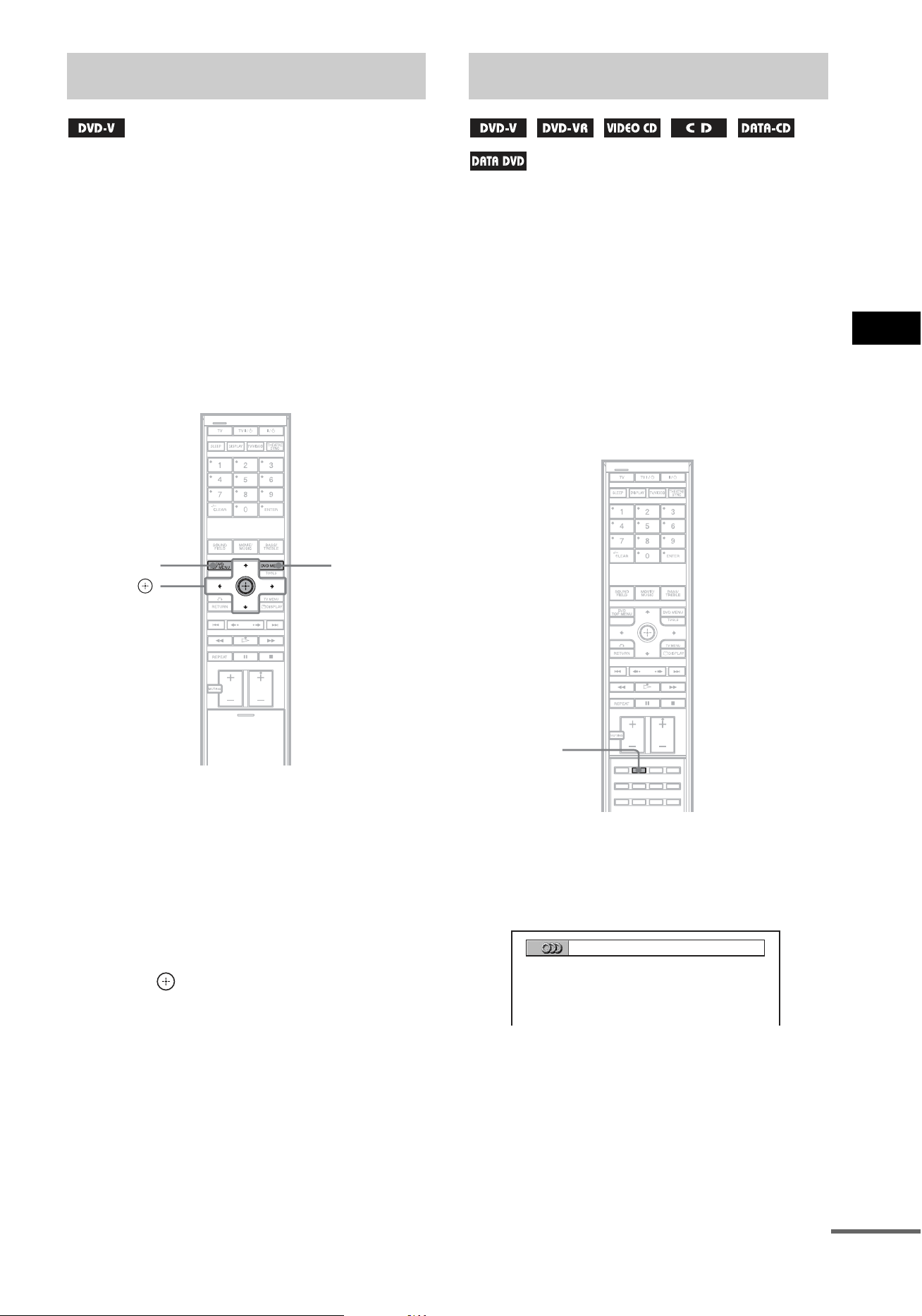

Various Functions for Playing Discs
59
US
A DVD is divided into a lot of sections, which
make up a picture or music feature. These
sections are called “titles.” When you play a
DVD which contains several titles, you can
select the title you want using DVD TOP
MENU.
When you play DVDs that allow you to select
items such as the language for the subtitles and
the language for the sound, select these items
using DVD MENU.
1
Press DVD TOP MENU or DVD MENU.
The disc’s menu appears on the TV screen.
The contents of the menu vary from disc to
disc.
2
Press C/X/x/c or the number buttons to
select the item you want to play or
change.
3
Press .
When playing a DVD VIDEO recorded in
multiple audio formats (PCM, Dolby Digital,
MPEG audio, or DTS), you can change the
audio format. If the DVD VIDEO is recorded
with multilingual tracks, you can also change the
language.
With VIDEO CDs, CDs, DATA CDs, or DATA
DVDs, you can select the sound from the right or
left channel and listen to the sound of the
selected channel through both the right and left
speakers.
1
Press AUDIO during playback.
The following display appears.
2
Press AUDIO repeatedly to select the
desired audio signal.
x When playing a DVD VIDEO
Depending on the DVD VIDEO, the choice
of language varies.
Using the DVD’s Menu
DVD
TOP MENU
C/X/x/c,
DVD MENU
Changing the Sound
AUDIO
With the cover opened.
1
:
ENGLISH DOLBY DIGITAL 3/2.1
cont
i
nue
d
60
US
When 4 digits are displayed, they indicate a
language code. Refer to “Language Code
List” (page 113) to see which language the
code represents. When the same language is
displayed two or more times, the DVD
VIDEO is recorded in multiple audio
formats.
x When playing a DVD-VR
The types of sound tracks recorded on a disc
are displayed. The default setting is
underlined.
Example:
• [1: MAIN] (main sound)
• [1: SUB] (sub sound)
• [1: MAIN+SUB] (main and sub sound)
• [2: MAIN]
• [2: SUB]
• [2: MAIN+SUB]
Note
• [2: MAIN], [2: SUB], and [2: MAIN+SUB] do
not appear when one audio stream is recorded on
the disc.
x When playing a VIDEO CD, CD, DATA
CD (MP3 audio), or DATA DVD (MP3
audio)
The default setting is underlined.
• [STEREO]: the standard stereo sound
• [1/L]: the sound of the left channel
(monaural)
• [2/R]: the sound of the right channel
(monaural)
x When playing a Super VCD
The default setting is underlined.
• [1:STEREO]: the stereo sound of the
audio track 1
• [1:1/L]: the sound of the left channel of
the audio track 1 (monaural)
• [1:2/R]: the sound of the right channel of
the audio track 1 (monaural)
• [2:STEREO]: the stereo sound of the
audio track 2
• [2:1/L]: the sound of the left channel of
the audio track 2 (monaural)
• [2:2/R]: the sound of the right channel of
the audio track 2 (monaural)
Note
• While playing a Super VCD on which the audio track
2 is not recorded, no sound will come out when you
select [2:STEREO], [2:1/L], or [2:2/R].
• You cannot change the sound for Super Audio CDs.
Checking the audio signal
format
(DVD VIDEO only)
If you press AUDIO repeatedly during
playback, the format of the current audio signal
(PCM, Dolby Digital, DTS, etc.) appears as
shown below.
x When playing a DVD
Example:
Dolby Digital 5.1 ch
Example:
Dolby Digital 3 ch
L RC
LFE
LS RS
1
:
ENGLISH DOLBY DIGITAL
3 / 2 .1
Surround (L/R)
Front (L/R) +
Center
LFE (Low
Frequency Effect)
Currently playing
program format
L R
S
2
:
SPANISH DOLBY DIGITAL
2 / 1
Front (L/R)
Surround
(Monaural)
Currently playing
program format

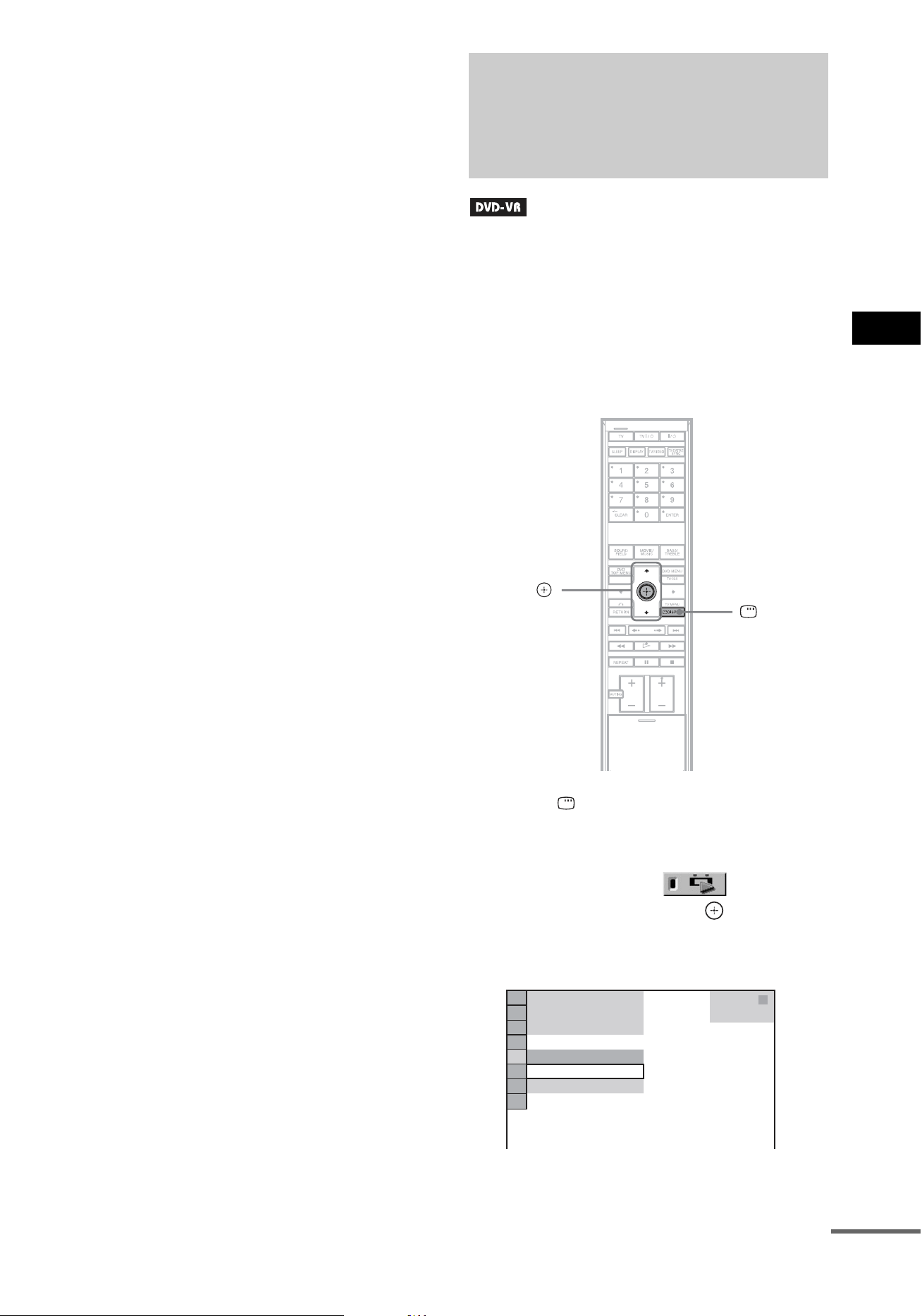

Various Functions for Playing Discs
61
US
About audio signals
Audio signals recorded in a disc contain the
sound elements (channels) shown below. Each
channel is output from a separate speaker.
• Front (L)
• Front (R)
• Center
• Surround (L)
• Surround (R)
• Surround (Monaural): This signal can be either
the Dolby Surround Sound processed signals
or the Dolby Digital sound’s monaural
Surround audio signals.
• LFE (Low Frequency Effect) signal
Some DVD-Rs/DVD-RWs in VR (Video
Recording) mode have two types of titles for
playback: originally recorded titles
([ORIGINAL]) and titles that can be created on
recordable DVD players for editing ([PLAY
LIST]). You can select the type of title to be
played.
1
Press DISPLAY when the system is
in stop mode.
The Control Menu appears.
2
Press X/x to select [ORIGINAL/
PLAY LIST], then press .
The options for [ORIGINAL/PLAY LIST]
appear.
Selecting [ORIGINAL] or
[PLAY LIST] on a DVD-R/
DVD-RW
X/x,
DISPLAY
3
(
2 8
)
1
(
4 4
)
DVD-VR
T
1 : 3 0 : 5 0
PLAY LIST
PLAY LIST
ORIGINAL
cont
i
nue
d
62
US
3
Press X/x to select a setting.
The default setting is underlined.
• [PLAY LIST]: plays the titles created
from [ORIGINAL] for editing.
• [ORIGINAL]: plays the titles originally
recorded.
4
Press .
You can change the displayed information in the
front panel display.
1
Press AMP MENU.
2
Press X/x repeatedly until
“INFORMATION MODE” appears in the
front panel display, then press or c.
3
Press X/x to select a setting.
The default setting is underlined.
• DETAIL: displays information fully such
as the kind of disc, track number, repeat
mode information, radio frequency, etc.,
for the selected function. For details of the
displayed information, see “Front Panel
Display” (page 115).
• STANDARD: displays information such
as the kind of disc, track number, etc., for
the selected function (more basic than
DETAIL).
• SIMPLE: displays the selected function
name only.
4
Press .
5
Press AMP MENU.
The AMP menu turns off.
Changing the Display
Mode
(INFORMATION MODE)
AMP MENU
X/x/c,
With the cover opened.

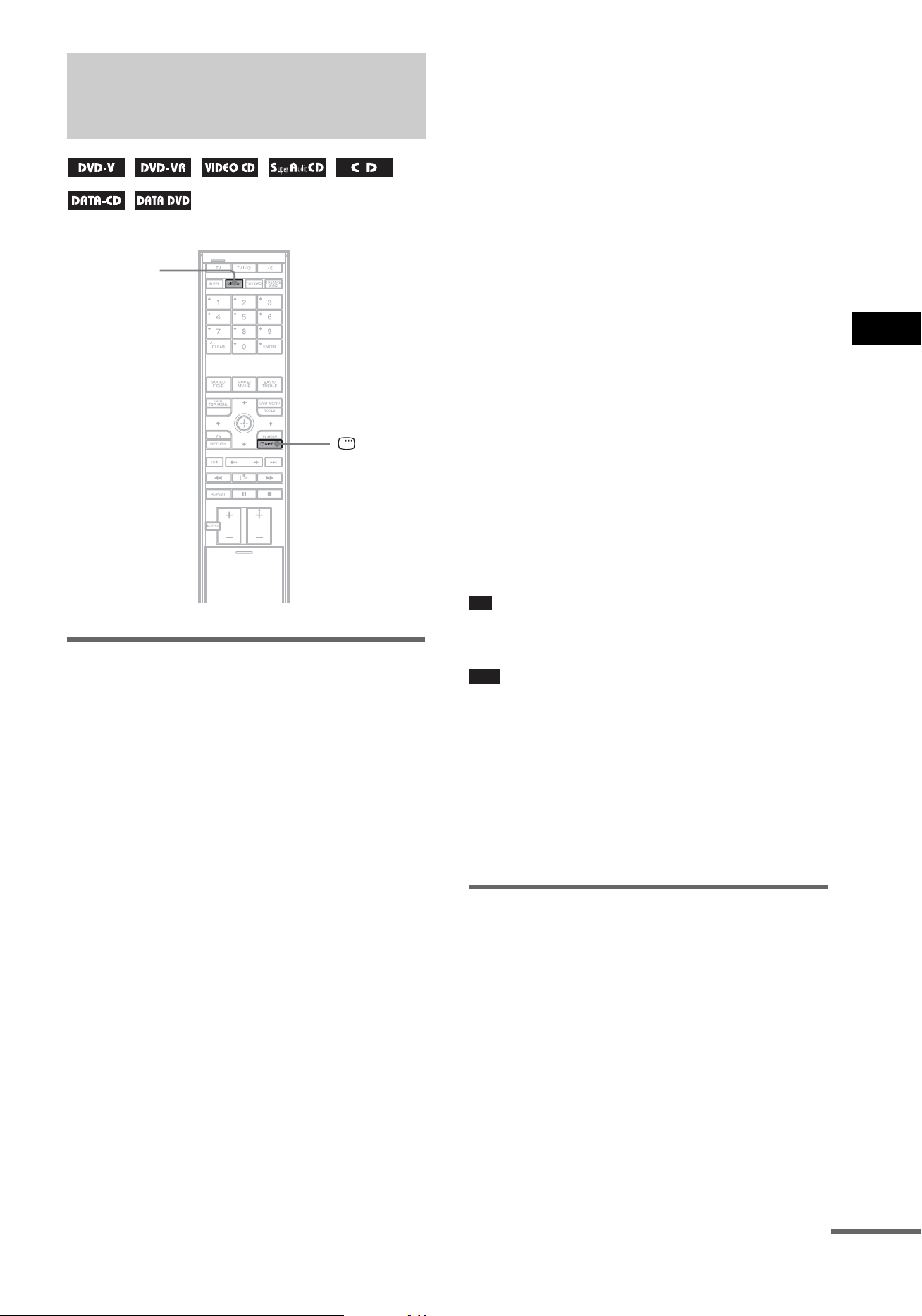

Various Functions for Playing Discs
63
US
Viewing the playing time and
remaining time in the front
panel display
You can check disc information, such as the
remaining time, total number of titles in a DVD,
tracks in a VIDEO CD, Super Audio CD, CD, or
MP3 using the front panel display (page 115).
Information appears only when
“INFORMATION MODE” is set to “DETAIL”
(page 62).
Press DISPLAY.
Each time you press DISPLAY while playing
the disc, the display changes 1 t 2 t ...
t 1 t ...
Some displayed items may disappear after a few
seconds.
When playing a DVD VIDEO or
DVD-RW
1 Playing time and number of the current title
2 Remaining time and number of the current
title
3 Playing time and number of the current
chapter
4 Remaining time and number of the current
chapter
5 Disc name
6 Title and chapter
When playing a VIDEO CD
(without PBC functions), Super
Audio CD, or CD
1 Playing time and number of the current track
2 Remaining time and number of the current
track
3 Playing time of the disc
4 Remaining time of the disc
5 Disc name
6 Track and index*
* VIDEO CD only.
When playing a DATA CD (MP3
audio) or DATA DVD (MP3 audio)
1 Playing time and number of the current track
2 Track (file) name
Ti
p
• When playing VIDEO CDs with PBC functions, the
playing time is displayed.
Note
• The system can only display the first level of the
DVD/CD text, such as the Disc name or title.
• If an MP3 file name cannot be displayed, “*” will
appear in the front panel display instead.
• The disc name or track name may not be displayed
depending on the text.
• Playing time of MP3 audio tracks may not be
displayed correctly.
Checking the playing time and
remaining time
You can check the playing time and remaining
time of the current title, chapter, or track, and the
total playing time or remaining time of the disc.
You can also check the DVD text and MP3
folder name/file name recorded on the disc.
Viewing Information About
the Disc
DISPLAY
DISPLAY
cont
i
nue
d
64
US
1
Press DISPLAY during playback.
The following display appears.
2
Press DISPLAY repeatedly to change
the time information.
The display and the kinds of time that you
can check depend on the disc you are
playing.
x When playing a DVD VIDEO or DVD-
RW
• T **:**:**
Playing time of the current title
• T–**:**:**
Remaining time of the current title
• C **:**:**
Playing time of the current chapter
• C–**:**:**
Remaining time of the current chapter
x When playing a VIDEO CD (with PBC
functions)
• **:**
Playing time of the current scene
x When playing a VIDEO CD (without
PBC functions), Super Audio CD, or CD
• T **:**
Playing time of the current track
• T–**:**
Remaining time of the current track
• D **:**
Playing time of the current disc
• D–**:**
Remaining time of the current disc
x When playing a DATA CD (MP3
audio) or DATA DVD (MP3 audio)
• T **:**
Playing time of the current track
Note
• Only alphabetical letters and numbers can be
displayed.
• Depending on the type of disc being played, the
system can only display a limited number of
characters. Also, depending on the disc, not all text
characters will be displayed.
Checking the play information
of the disc
To check DVD/Super Audio CD/CD
text
Press DISPLAY repeatedly in Step 2 to display
text recorded on the DVD/Super Audio CD/CD.
The DVD/Super Audio CD/CD text appears
only when text is recorded in the disc. You
cannot change the text. If the disc does not
contain text, “NO TEXT” appears.
To check DATA CD/DATA DVD
(MP3 audio) text
By pressing DISPLAY while playing MP3
audio tracks on a DATA CD/DATA DVD, you
can display the name of the album/track, and the
audio bit rate (the amount of data per second of
the current audio) on your TV screen.
* Appears when:
– playing an MP3 audio track on DATA CDs/DATA
DVDs.
T 1:01:57
Time information
BRAHMS SYMPHONY
17:30T
JAZZ
RIVER SIDE
128k
Bit rate*
Album name Track name
Various Functions for Playing Discs
65
US

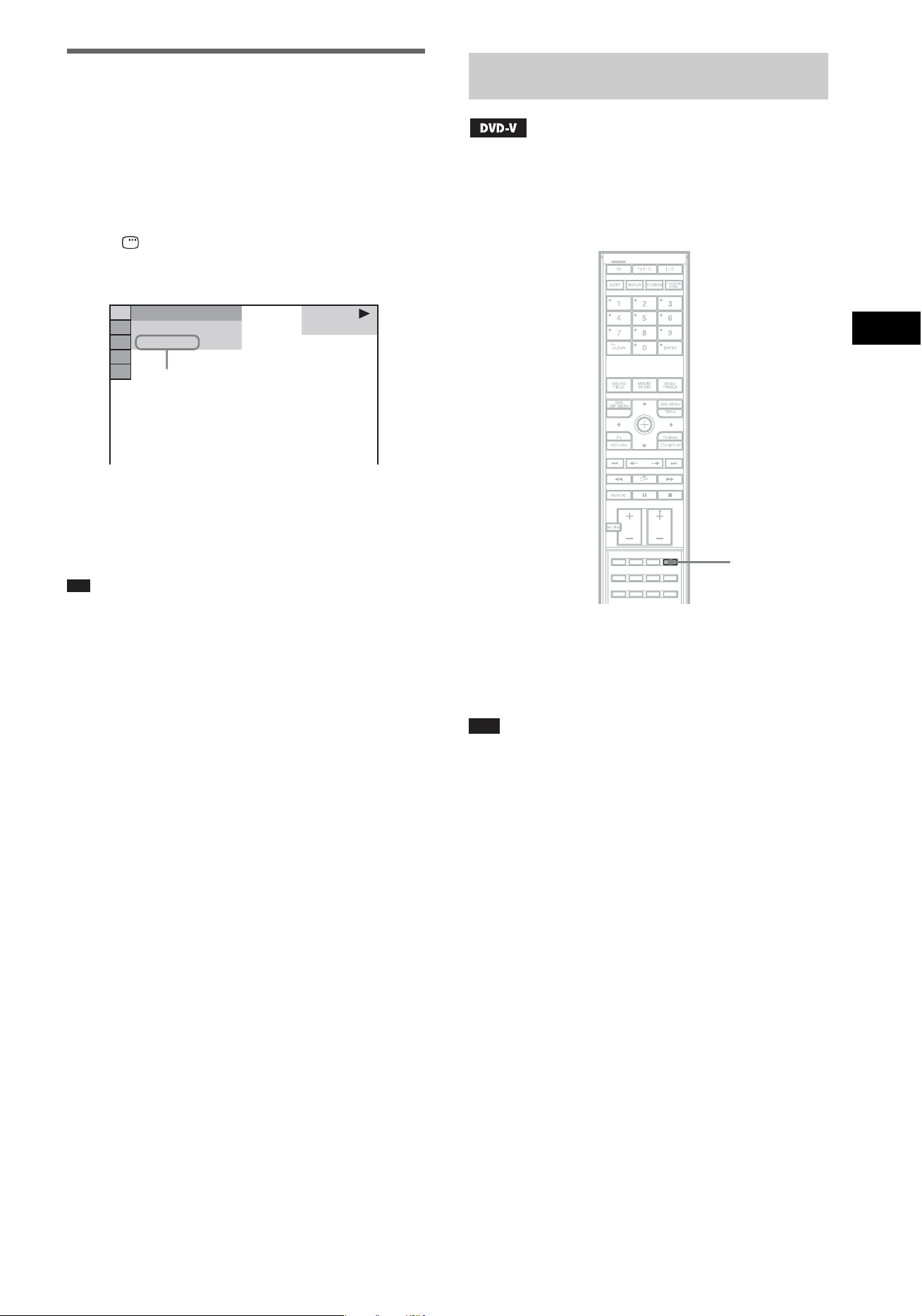

Checking the date
information
(JPEG only)
You can check the date information during
playback when the Exif* tag is recorded in the
JPEG image data.
Press DISPLAY twice during playback.
The Control Menu appears.
* “Exchangeable Image File Format” is a digital
camera image format defined by the Japan
Electronics and Information Technology Industries
Association (JEITA).
Ti
p
• Date information is [MM/DD/YYYY].
MM: Month
DD: Day
YYYY: Year
• Date information differs depending on the area.
If various angles (multi-angles) for a scene are
recorded on a DVD VIDEO, you can change the
viewing angle.
Press ANGLE during playback.
Each time you press ANGLE, the angle changes.
Note
• Depending on the DVD VIDEO, you may not be able
to change the angle even if multi-angles are recorded
on the DVD VIDEO.
1
(
8
)
1
(
2 0
)
01/ 01/ 2006
DATA CD
JPEG
Date information
Changing the Angles
ANGLE
With the cover opened.
66
US

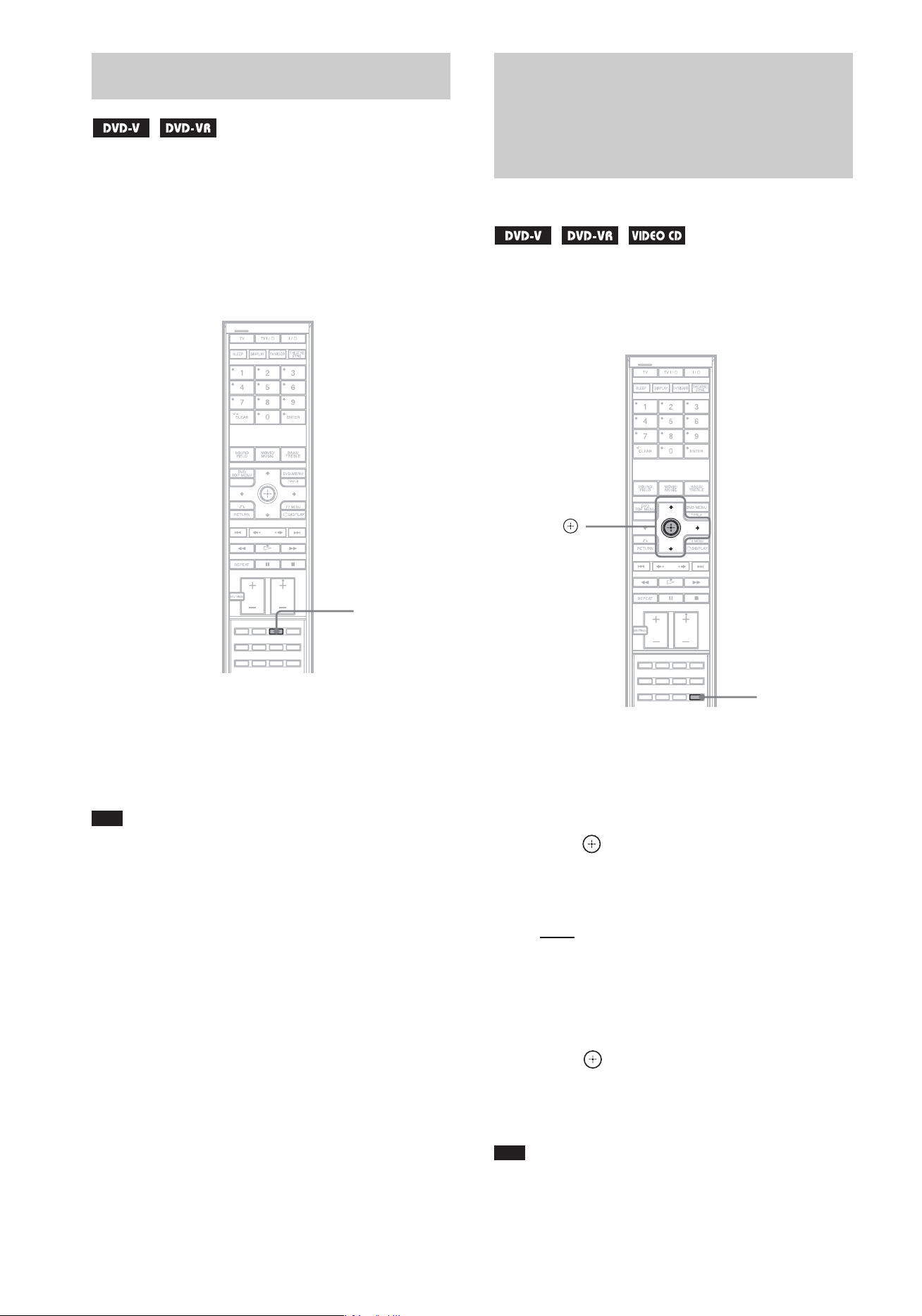

If subtitles are recorded on a disc, you can turn
the subtitles on or off while playing. If
multilingual subtitles are recorded on the disc,
you can change the subtitle language while
playing, or turn the subtitles on or off whenever
you want.
Press SUBTITLE during playback.
Each time you press SUBTITLE, the subtitle
language changes.
Note
• Depending on the DVD VIDEO, you may not be able
to change the subtitles even if multilingual subtitles
are recorded on it. You also may not be able to turn
them off.
When the sound does not match the pictures on
the screen, you can adjust the delay between the
picture and sound.
1
Press AMP MENU.
2
Press X/x repeatedly until “A/V SYNC”
appears in the front panel display, then
press or c.
3
Press X/x to select a setting.
The default setting is underlined.
• OFF: does not adjust.
• SHORT: adjusts the difference between
picture and sound by 70 msec.
• LONG: adjusts the difference between
picture and sound by 140 msec.
4
Press .
5
Press AMP MENU.
The AMP menu turns off.
Note
• Depending on the input stream, this function may not
be effective.
Displaying the Subtitles
SUBTITLE
With the cover opened.
Adjusting the Delay
Between the Picture and
Sound
(A/V SYNC)
AMP MENU
X/x/c,
With the cover opened.
Various Functions for Playing Discs
67
US
Selecting a playback area on
a 2 channel + Multi-channel
Super Audio CD
Some Super Audio CDs consist of a 2 channel
playback area and a multi-channel playback
area. You can select the playback area you want
to listen to.
1
Press DISPLAY when the system is
in stop mode.
The Control Menu appears.
2
Press X/x to select
[MULTI/
2CH], then press .
The options for [MULTI/2CH] appear.
3
Press X/x to select the setting you
want and press .
• [MULTI]: plays the multi-channel
playback area.
• [2CH]: plays the 2 channel playback area.
“MULTI” lights up in the front panel
display when playing the multi-channel
playback area.
Note
• You cannot change the playback area during
playback.
Selecting a playback layer
when playing a hybrid Super
Audio CD
Some Super Audio CDs consist of an HD layer
and a CD layer. You can select the playback
layer you want to listen to.
Press SA-CD/CD when the system is in
stop mode.
Each time you press the button, an HD layer or a
CD layer is alternately selected. When playing a
CD layer, “CD” lights up in the front panel
display.
Note
• Each play mode function works only within the
selected layer or playback area.
• When you select a CD layer, you cannot change a
playback area.
• Super Audio CD audio signals are not output from the
HDMI OUT (high-definition multimedia interface
out) jack.
Selecting a Playback Area
for a Super Audio CD
X/x,
DISPLAY
SA-CD/CD
With the cover opened.
68
US
What is MP3/JPEG?
MP3 is audio compression technology that
satisfies the ISO/MPEG regulations. JPEG is
image compression technology.
Discs that the system can
play
You can play back DATA CDs (CD-ROMs/CD-
Rs/CD-RWs) or DATA DVDs (DVD-Rs/DVD-
RWs/DVD+Rs/DVD+RWs/DVD-ROMs)
recorded in MP3 (MPEG1 Audio Layer 3) or
JPEG format. However, the DATA CDs must be
recorded according to ISO 9660 Level 1, Level
2 or Joliet format and DATA DVDs of Universal
Disk Format (UDF) for the system to recognize
the tracks (or files). You can also play discs
recorded in Multi Session.
See the instructions supplied with the CD-R/
CD-RW or DVD-R/DVD-RW drives and the
recording software (not supplied) for details on
the recording format.
About the Multi-Session disc
If MP3 audio tracks or JPEG image files are
recorded in the first session, the system will also
play MP3 audio tracks or JPEG image files in
other sessions. If audio tracks and images in
audio CD format or video CD format are
recorded in the first session, only the first
session will be played back.
Note
• The system cannot play some DATA CDs/DATA
DVDs created in the Packet Write format.
MP3 audio track or JPEG
image file that the system can
play
The system can play the MP3 audio tracks or
JPEG image files:
• which have the extension “.MP3” (MP3 audio
track) or “.JPG”/“.JPEG” (JPEG image file)
• which conform to the DCF* image file format
* “Design rule for Camera File system”: Image
standards for digital cameras regulated by Japan
Electronics and Information Technology Industries
Association (JEITA).
Note
• The system will play any data with the
extension “.MP3,” “.JPG,” or “.JPEG” even if
they are not in MP3 or JPEG format. Playing
this data may generate a loud noise which
could damage your speaker system.
• The system does not conform to audio in
MP3PRO format.
Playback order of MP3 audio
tracks or JPEG image files
The playback order of MP3 audio tracks or
JPEG image files recorded on a DATA CD or
DATA DVD is as follows:
x Structure of disc contents
About MP3 Audio Tracks
and JPEG Image Files
ROOT
Tree 1 Tree 2 Tree 3 Tree 4 Tree 5
Album
Track (MP3 audio) or
File (JPEG image)
Various Functions for Playing Discs
69
US
When you insert a DATA CD or DATA DVD,
the numbered tracks (or files) are played
sequentially, from 1 through 7. Any sub-
albums/tracks (or files) contained within a
currently selected album take priority over the
next album in the same tree. (Example: C
contains D so 4 is played before 5.)
When you press DVD MENU and the list of
album names appears (page 69), the album
names are arranged in the following order:
A t B t C t D t F t G. Albums
that do not contain tracks (or files) (such as
album E) do not appear in the list.
Ti
p
• If you add numbers (01, 02, 03, etc.) to the front of the
track (or file) names when you store the tracks (or
files) in a disc, the tracks (or files) will be played in
that order.
• A disc with many trees takes longer to start playback.
Note
• Playback order may differ from the illustration
depending on the software you use to create the
DATA CD or DATA DVD, or if there are more than
200 albums and 300 files in each album.
• The system can recognize up to 200 albums, and will
not play any albums beyond the 200th.
• The system may take longer time to playback, when
progressing to the following album or jump to other
album.
• Some type of JPEG files cannot be played.

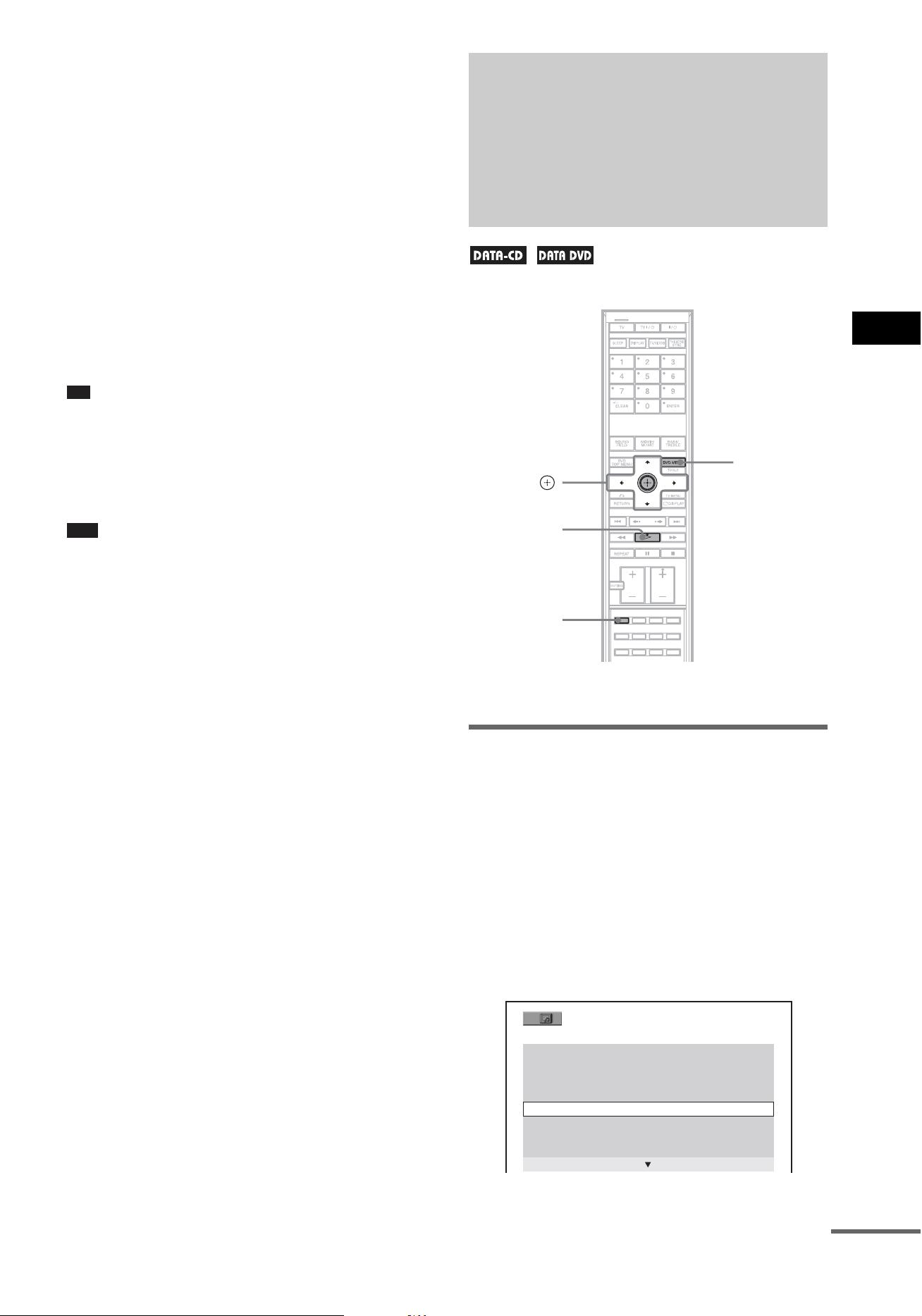

Selecting an MP3 audio track
or album
1
Load a DATA CD or DATA DVD.
The system starts playing from the first
album.
2
Press DVD MENU.
The albums recorded on the DATA CD or
DATA DVD appear. When an album is
being played, its title is shaded.
Playing DATA CDs or
DATA DVDs with MP3
Audio Tracks and JPEG
Image Files
C/X/x/c,
DVD MENU
H
NAVI
With the cover opened.
5
(
3 0
)
B O S S A N O V A
C L A S S I C
J A Z Z
K A R A O K E
M Y F A V O U R I T E S O N G
R & B
R O C K B E S T H I T
S A L S A O F C U B A
cont
i
nue
d
70
US
3
Press X/x to select an album.
x When selecting an album
Press H to start playing the selected
album.
x When selecting a track
Press .
The list of tracks contained in the album
appears.
Press X/x to select a track and press .
The selected track starts playing. You can
turn the track list off by pressing DVD
MENU. Pressing DVD MENU again will
display the album list.
To stop playback
Press x.
To play the next or previous MP3
audio track
Press ./>. Note that you can select the
next album by continuing to press > after the
last track on the current album, but that you
cannot return to the previous album by pressing
.. To return to the previous album, select the
album from the album list.
To return to the previous display
Press O RETURN.
To turn off the display
Press DVD MENU.
Selecting a JPEG image file or
album
1
Load a DATA CD or DATA DVD.
The system starts playing from the first
album.
2
Press DVD MENU.
The albums recorded on the DATA CD or
DATA DVD appear. When an album is
being played, its title is shaded.
3
Press X/x to select an album.
x When selecting an album
Press H to start playing the selected
album.
x When selecting an image
Press PICTURE NAVI.
Images of files in the album appear in 16
subscreens.
Press C/X/x/c to select the image you want
to view and press .
M Y F A V O U R I T E S O N G
1
(
2 5 6
)
A L L B L U E S
A U T U M L E A V E S
M I L E S T O N E S
M Y F U N N Y V A L E N T I N E
M Y R O M A N C E
S O M E D A Y M Y P R I N C E W...
W A L T Z F O R D E B B Y
5
(
3 0
)
B O S S A N O V A
C L A S S I C
J A Z Z
K A R A O K E
M Y F A V O U R I T E S O N G
R & B
R O C K B E S T H I T
S A L S A O F C U B A
1 2 3 4
5 6 7 8
13 14 15 16
9 10 11 12
Various Functions for Playing Discs
71
US
To play the next or previous JPEG
image file
Press C/c when the Control Menu is not
displayed. Note that you can select the next
album by continuing to press c after the last
image on the current album, but that you cannot
return to the previous album by pressing C. To
return to the previous album, select the album
from the album list.

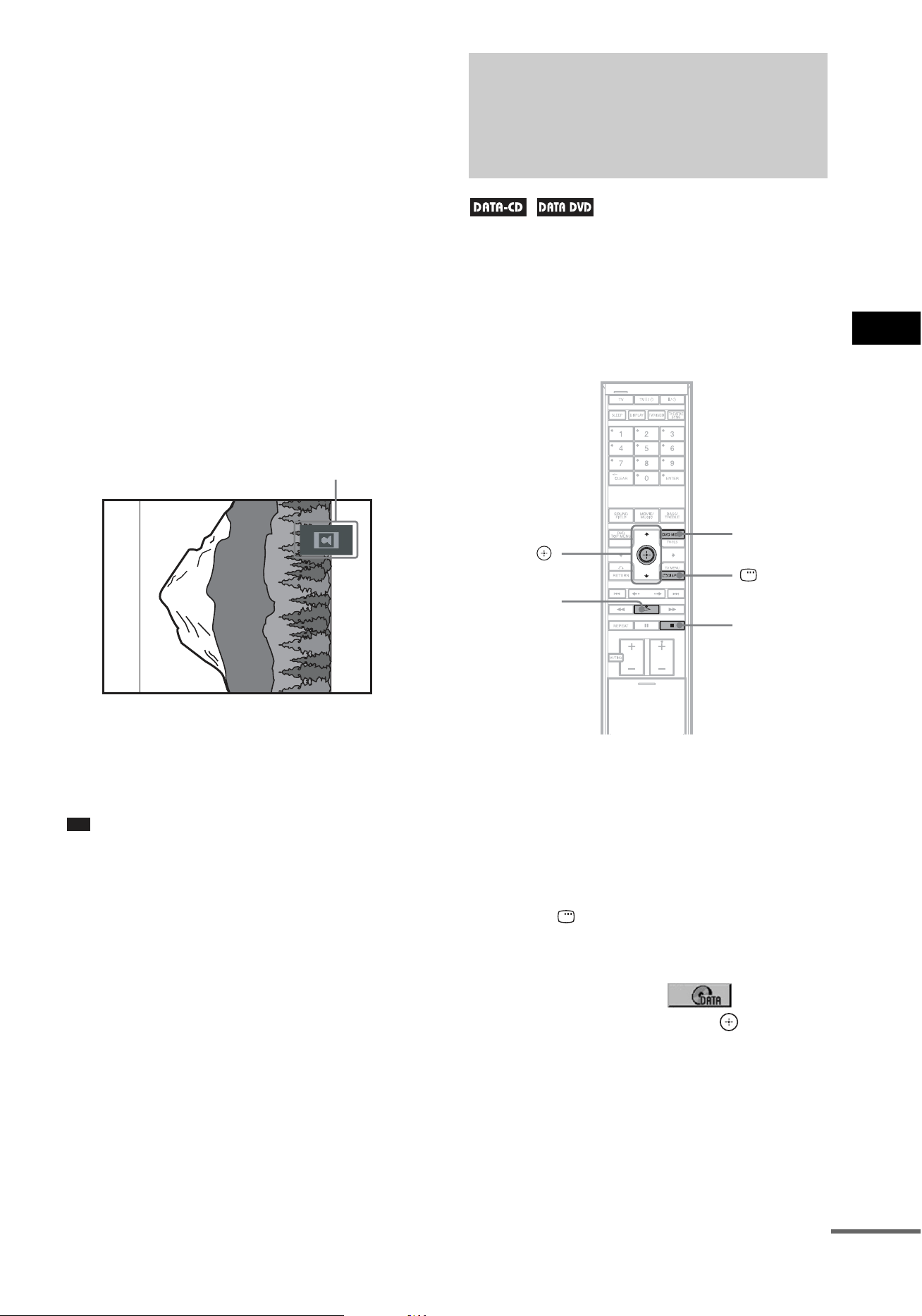

To rotate a JPEG image
When a JPEG image file is displayed on the
screen, you can rotate the image by 90 degrees.
Press X/x while viewing an image. Each time
you press X, the image rotates counterclockwise
by 90 degrees.
Example of when you press X once:
Press CLEAR to return to normal view.
To stop playback
Press x.
Ti
p
• A scroll box is displayed at the right side of the
screen. To display the additional image files, select
the bottom image and press x. To return to the
previous image, select the top image and press X.
You can play a slide show with sound by first
placing both MP3 and JPEG files in the same
album on a DATA CD or DATA DVD. When
you play back the DATA CD or DATA DVD,
select [AUTO] mode as explained below.
1
Load a DATA CD or DATA DVD.
The system starts playing from the first
album.
2
Press x.
The system stops playback.
3
Press DISPLAY when the system is
in stop mode.
The Control Menu appears.
4
Press X/x to select
[MODE
(MP3, JPEG)], then press .
The options for [MODE (MP3, JPEG)]
appear.
Rotating direction
Playing Audio Tracks and
Images as a Slide Show
with Sound
X/x,
H
DISPLAY
DVD MENU
x
cont
i
nue
d
72
US
5
Press X/x to select the setting you
want and press .
The default setting is underlined.
• [AUTO]: plays both the JPEG image files
and MP3 audio tracks in the same album
as a slide show.
• [AUDIO (MP3)]: plays only MP3 audio
tracks continuously.
• [IMAGE (JPEG)]: plays only JPEG
image files as a slide show.
6
Press DVD MENU.
The list of albums recorded on the DATA
CD or DATA DVD appears.
7
Press X/x to select the album you want
and press H.
The system starts playing the selected
album.
You can turn the album list on and off by
pressing DVD MENU repeatedly.
Ti
p
• When you select [AUTO], the system can recognize
up to 300 MP3 tracks and 300 JPEG files in a single
album. When you select [AUDIO (MP3)] or [IMAGE
(JPEG)], the system can recognize up to 600 MP3 and
600 JPEG files in a single album. A maximum of 200
albums can be recognized regardless of the selected
mode.
Note
• If you set [MODE (MP3, JPEG)] to [IMAGE
(JPEG)] on a disc that contains MP3 tracks only or
[AUDIO (MP3)] on a disc that contains JPEG files
only, you may not be able to change the [MODE
(MP3, JPEG)] setting.
• PICTURE NAVI does not work when [AUDIO
(MP3)] is selected.
• If you play large MP3 track data and JPEG image
data at the same time, the sound may skip. It is
recommended that you set the MP3 bit rate to 128
kbps or lower when creating the file. If the sound still
skips, then reduce the size of the JPEG file.
Specifying the slide show
duration
(JPEG only)
When you play JPEG image files using slide
show, you can specify the duration for slides to
appear on the screen.
1
Press DISPLAY twice.
The Control Menu for JPEG appears.
2
Press X/x to select
[INTERVAL], then press .
The options for [INTERVAL] appear.
3
Press X/x to select the setting you
want.
The default setting is underlined.
• [NORMAL]: sets the duration to about 6
to 9 seconds. (Images that are four million
pixels or more will lengthen the duration.)
• [FAST]: sets the duration shorter than
[NORMAL].
• [SLOW1]: Sets the duration longer than
[NORMAL].
• [SLOW2]: Sets the duration longer than
[SLOW1].
4
Press .
The selected setting takes effect.
Note
• Some JPEG files may take longer to display than
others, which may make the duration seems longer
than the option you selected. Especially progressive
JPEG files or JPEG files of 3,000,000 pixels or more.
DATA CD
MP3
1 8
(
3 4
)
1 2
(
2 7
)
T
2 : 5 5
IMAGE (JPEG)
AUDIO (MP3)
AUTO
AUTO
10 / 29 / 2 004
1(
NORMAL
DATA CD
JPEG
NORMAL
FAST
SLOW1
SLOW2
4)
3 ( 12)
Various Functions for Playing Discs
73
US

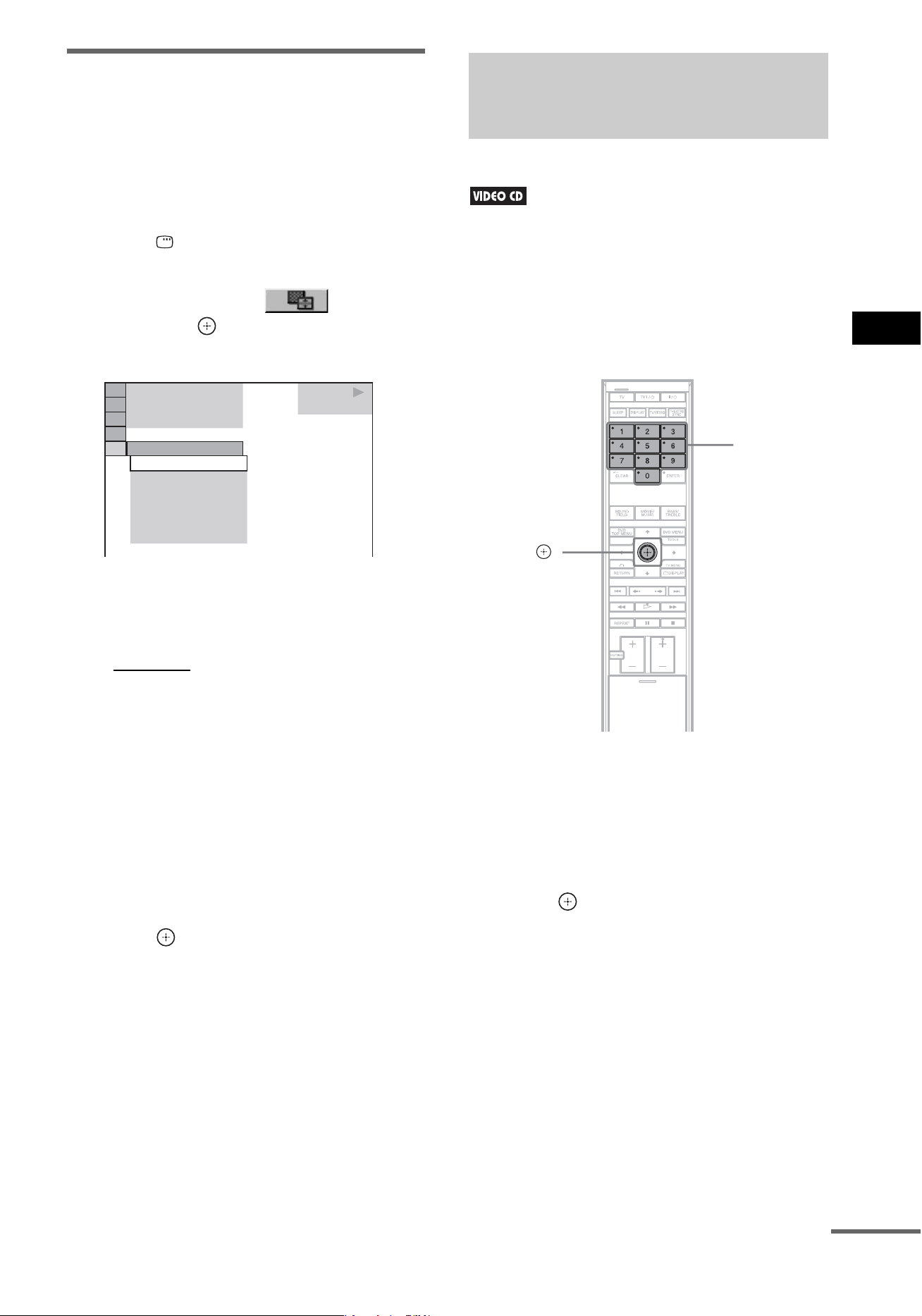

Selecting an effect for image
files in the slide show
(JPEG only)
When you play a JPEG image file, you can
select the effect to be used when viewing the
slide show.
1
Press DISPLAY twice.
The Control Menu for JPEG appears.
2
Press X/x to select [EFFECT],
then press .
The options for [EFFECT] appear.
3
Press X/x to select the setting you
want.
The default setting is underlined.
• [MODE1]: The image sweeps in from top
to bottom.
• [MODE2]: The image stretches out from
left to right of the screen.
• [MODE3]: The image stretches out from
the center of the screen.
• [MODE4]: The images randomly cycle
through the effects.
• [MODE5]: The next image slides over the
previous image.
• [OFF]: Turns off this function.
4
Press .
The selected setting takes effect.
With PBC (Playback Control) functions, you
can enjoy simple interactive operations, search
functions, and other such operations.
PBC playback allows you to play VIDEO CDs
interactively by following the menu on the TV
screen.
1
Start playing a VIDEO CD with PBC
functions.
The menu for your selection appears.
2
Select the item number you want by the
number buttons.
3
Press .
4
Follow the instructions in the menu for
interactive operations.
Refer to the operation details supplied with
the disc, as the operating procedure may
differ depending on the VIDEO CD.
To go back to the menu
Press O RETURN.
1 0 / 2 3 / 2 0 0 4
1(
MODE1
DATA CD
JPEG
MODE1
MODE2
MODE3
MODE4
MODE5
OFF
4)
3 ( 12)
Playing VIDEO CDs with
PBC Functions (Ver.2.0)
(PBC Playback)
Number
buttons
cont
i
nue
d
74
US
Note
• Depending on the VIDEO CD, [Press ENTER] in
Step 3 may appear as [Press SELECT] in the
instructions supplied with the disc. In this case, press
H.
Ti
p
• To play without using PBC, press ./> or the
number buttons while the system is stopped to select
a track, then press H or . The system starts
continuous play. You cannot play still pictures such
as a menu. To return to PBC playback, press x twice,
then press H.
Tuner Functions
75
US
You can preset 20 FM stations, and 10 AM
stations. Before tuning, make sure to turn down
the volume to minimum.
1
Press FUNCTION +/– repeatedly until
“FM” or “AM” appears in the front
panel display.
2
Press and hold TUNING + or – until the
auto scanning starts.
Scanning stops when the system tunes in a
station. “TUNED” and “ST” (for stereo
program) appear in the front panel display.
3
Press TUNER MENU.
4
Press X/x repeatedly until “Memory?”
appears in the front panel display.
5
Press .
A preset number appears in the front panel
display.
6
Press X/x to select the preset number
you want.
7
Press .
The station is stored.
8
Press TUNER MENU.
9
Repeat 1 to 8 to store other stations.
To change the preset number
Restart from Step 1.
To change the AM tuning interval
The AM tuning interval can be set to either
10 kHz or 9 kHz.
To change the AM tuning interval, first tune in
any AM station, then turn off the system by
pressing "/1 on the control unit. While holding
down FUNCTION on the control unit, press "/1
on the control unit to turn on the power. If you
change the interval, AM preset stations will be
erased.
To reset the interval, repeat the same procedure.
Tuner Functions
Presetting Radio Stations
X/x,
TUNER
MENU
FUNCTION
+/–
With the cover opened.
TUNING
+/–
Memory
108.0MHz
FM 4
Memory
108.0MHz
FM 7
Complete
76
US
Preset radio stations in the system’s memory
first (see “Presetting Radio Stations” (page 75)).
1
Press FUNCTION +/– repeatedly until
“FM” or “AM” appears in the front
panel display.
The last received station is tuned in.
2
Press PRESET + or – repeatedly to
select the preset station you want.
Each time you press the button, the system
tunes in one preset station.
3
Adjust the volume by pressing
VOLUME +/–.
To turn off the radio
Press "/1.
To listen to non-preset radio
stations
Use manual or automatic tuning in Step 2.
For manual tuning, press TUNING + or –
repeatedly.
For automatic tuning, press and hold TUNING +
or –. The automatic tuning stops automatically
when the system receives the radio station. To
stop the automatic tuning manually, press
TUNING + or –.
To listen to radio stations when
you know the frequencies
Use direct tuning in Step 2.
1
Press DIRECT TUNING.
2
Press the number buttons to select the
frequency number you want to listen to.
For example, to input “98.0MHz,” press the
number buttons in the following order.
9
t
8
t
0
3
Press .
Ti
p
• If an FM program is noisy, press FM MODE so that
“MONO” appears in the front panel display. There
will be no stereo effect, but the reception will
improve. Press the button again to restore the stereo
effect. (Or press TUNER MENU and select “FM
Mode?” by pressing
X/x
, then press . Press
X/x
to select “MONO,” then press . To return, select
“STEREO.”)
• To improve reception, reorient the supplied antennas
(aerials).
Naming preset stations
You can enter a name for preset stations. These
names (for example, “XYZ”) appear in the
system’s front panel display when a station is
selected.
Note that no more than one name can be entered
for each preset station.
1
Press FUNCTION +/– repeatedly until
“FM” or “AM” appears in the front
panel display.
The last received station is tuned in.
2
Press PRESET + or – repeatedly to
select the preset station you want to
create an index name for.
3
Press TUNER MENU.
4
Press X/x repeatedly until “Name In?”
appears in the front panel display.
5
Press .
Listening to the Radio
FUNCTION
+/–
With the cover opened.
PRESET
+/–
VOLUME
+/–
Name In?
Tuner Functions
77
US
6
Create a name by using
C
/X/x/
c
.
Press X/x to select a character, then press c
to move the cursor to the next position.
Letters, numbers, and other symbols can be
input for a radio station name.
If you make a mistake
Press C/c repeatedly until the character to
be changed flashes, then press X/x to select
the desired character.
To erase the character, press C/c
repeatedly until the character to be erased
flashes, then press CLEAR.
7
Press .
“Complete” appears in the front panel
display, and the station name is stored.
8
Press TUNER MENU.
78
US
By adjusting the remote signal, you can control
your TV with the supplied remote.
Note
• When you replace the batteries of the remote, the
code number may reset itself to the default (SONY)
setting. Reset the appropriate code number.
Controlling TVs with the
remote
Press and hold TV [/1 while entering your
TV’s manufacturer’s code (see the table)
using the number buttons. Then release TV
[/1.
If you set successfully the manufacturer’s code,
the TV button flashes twice slowly. If the setting
is unsuccessful, the TV button flashes 5 times
quickly.
Code numbers of controllable TVs
If more than one code number is listed, try
entering them one at a time until you find the one
that works with your TV.
TV
Other Operations
Controlling the TV with the
Supplied Remote
TV CH +/–
RETURN
TV VOL +/–
TV MENU
TOOLS
TV/VIDEO
Number
buttons
-
TV
TV "/1
TV mode
indicator
Manufacturer Code number
SONY 501 (default), 502
ADMIRAL 510, 535, 542
AIWA 501, 536, 539
AKAI 503
AOC 503
BCLL&HOWELL 535, 542
BROKSONIC 503
CROSLEX 518
CURTIS-MATHES 503, 551, 566, 567
DAEWOO 503, 504, 505, 506, 507, 515
DAYTRON 517
EMERSON 503, 517
FISHER 508, 545
FUJITSU 528
FUNAI 548
GENERAL
ELECTRIC
503, 509, 510
GOLDSTAR/LG 503, 512, 515, 517, 568, 576
GRUNDIG 511, 533
HITACHI 503, 513, 514, 515, 517, 557
ITT/NOKIA 521, 522
J.C.PENNY 503, 510, 566
JVC 516, 552
KTV 503, 517
LOEWE 515, 556
LXI (Sears) 503, 508, 510, 517, 518, 551
MAGNAVOX 503, 515, 517, 518, 566
MARANTZ 527
MITSUBISHI/MGA 503, 519, 527, 566, 568
NEC 503, 520, 527, 554
PANASONIC 509, 524, 553, 572
PHILCO 503, 504, 514, 517, 518
PHILIPS 515, 518, 557
PIONEER 509, 525, 526, 551, 555
PORTLAND 503
QUASAR 509, 535
RADIO SHACK 503, 510, 527, 565, 567
RCA/PROSCAN 503, 510, 523, 529
SAMSUNG 503, 515, 517, 531, 532, 534,
556, 557, 566, 569, 574
SANYO 508, 545, 546, 567
SCOTT 503, 566
Other Operations
79
US
CATV
To control the TV
You can control the TV by using following
buttons.
* These buttons change to the TV operation buttons
when the remote is in TV mode. The remote is in TV
mode when the TV mode indicator (above the TV
button) lights up by pressing the TV button.
- is for selecting a channel number greater than
10. (For example, for channel 25, press -, then
2 and 5.)
Note
• Depending on the TV, you may not be able to control
your TV or to use some of the buttons above.
• The TV mode turns off when you do not operate the
remote for 10 seconds.
SHARP 517, 535, 550, 565
SIGNATURE 535, 542, 550
SYLVANIA 503, 518, 566
TELEFUNKEN/
SABA
530, 537, 538, 547, 549, 558
THOMSON 530, 537, 547, 549
TOSHIBA 535, 539, 540, 541, 551
VIDECH 503, 514
WARDS 503, 517, 566
ZENITH 542, 543, 567
Manufacturer Code number
SONY 802, 821, 822, 823, 824, 825,
865
AMSTRAD 845, 846
BSKYB 862
GRUNDING 859, 860
HAMLIN/REGAL 836, 837, 838, 839, 840
HUMAX 846, 847
JERROLD 830, 831
JERROLD/GI 806, 807, 808, 809, 810, 811,
812, 813, 814
MOTOROLA 807, 819
NOKIA 851, 853, 854, 864
OAK 841, 842, 843
PACE 848, 849, 850, 852, 862, 863,
864
PANASONIC 816, 826, 833, 834, 835, 855
PHILIPS 830, 831, 856, 857, 858, 859,
860, 864
PIONEER 828, 829
SCIENTIFIC
ATLANTA
815, 816, 817, 844
THOMSON 830, 831, 857, 861, 864, 876
ZENITH 826, 827
Manufacturer Code number
By pressing You can
TV [/1 Turn the TV on or off.
TV/VIDEO Switch the TV’s input source
between the TV and other input
sources.
TV VOL +/–* Adjust the TV volume.
TV CH +/–* Select the TV channel.
Number buttons* Select the TV channel.
TOOLS* Displays the operation menu for
the current display
RETURN* Return to the previous channel.
TV MENU* Display the menu of the TV.
80
US
THEATRE SYNC allows you to turn on your
SONY TV and this system, changes the system
mode to “DVD,” and then switches the TV’s
input source you set with one button push.
Preparing for the THEATRE
SYNC function
Register the TV’s input source connected to this
system.
Press and hold TV/VIDEO while entering
the code for the TV’s input source
connected to this system (see the table)
using the number buttons.
The TV’s input source is selected.
If you successfully set the TV’s input source
code, the TV button flashes twice slowly. If the
setting is unsuccessful, the TV button flashes 5
times quickly.
Set your TV’s input to the input you used to
connect the system. For details, see the
instructions of your TV.
* Except for North American models.
Using the THEATRE SYNC
Function
TV CH +
BASS/
TREBLE
TV/VIDEO
Number
buttons
CLEAR
TV
THEATRE
SYNC
SOUND
FIELD
MOVIE/
MUSIC
./>
/
By pressing Number TV’s input source
TV/VIDEO 0 No input source
(Default)
1 VIDEO1
2 VIDEO2
3 VIDEO3
4 VIDEO4
5 VIDEO5
6 VIDEO6
7 VIDEO7
8 VIDEO8
9* COMPONENT 1
CLEAR* COMPONENT 2
SOUND
FIELD*
COMPONENT 3
MOVIE/
MUSIC*
COMPONENT 4
BASS/
TREBLE*
HDMI 1
.* HDMI 2
* HDMI 3
* HDMI 4
>* HDMI 5
Other Operations
81
US
Operating for the THEATRE
SYNC function
Point the remote to the direction of TV and
this system, then press THEATRE SYNC
once.
While transmitting the code from the remote, the
TV button flashes.
If this function does not work, change the
transmit time. The transmit time varies
depending on the TV.
To change the transmit time
Press and hold TV CH +* while entering the
code for transmit time (see the table) using
the number buttons.
The transmit time from the remote is selected.
If you successfully set the transmit time code,
the TV button flashes twice slowly. If the setting
is unsuccessful, the TV button flashes 5 times
quickly.
* Functions as both TV CH + and FUNCTION +
button.
Note
• This function is only for SONY TVs. (This function
may not work on some SONY TVs.)
• If distance between TV and this system is too far, this
function may not work. Install the system near the
TV.
• Keep the remote pointed in the direction of the TV
and this system while the TV button is flashing.
• Keep the remote pointed in the direction of the TV
and this system while entering the code.
You can enjoy multiplex broadcast sound when
the system receive the Dolby Digital multiplex
broadcast signal.
Press AUDIO.
Press AUDIO repeatedly until the signal you
want appears in the front panel display. The
default setting is underlined.
• MAIN: Sound of the main language will be
output.
• SUB: Sound of the sub language will be
output.
• MAIN+SUB: Mixed sound of both the main
and sub languages will be output.
Note
• To receive the Dolby Digital signal, you need to
connect a digital satellite tuner to the system with a
digital cord (pages 39, 40) and set the digital output
mode of the digital satellite tuner to Dolby Digital.
By pressing Number Transmit time
TV CH + 1 0.5 (Default)
2 1
3 1.5
4 2
5 2.5
6 3
7 3.5
8 4
Enjoying Multiplex
Broadcast Sound
(DUAL MONO)
AUDIO
With the cover opened.
82
US

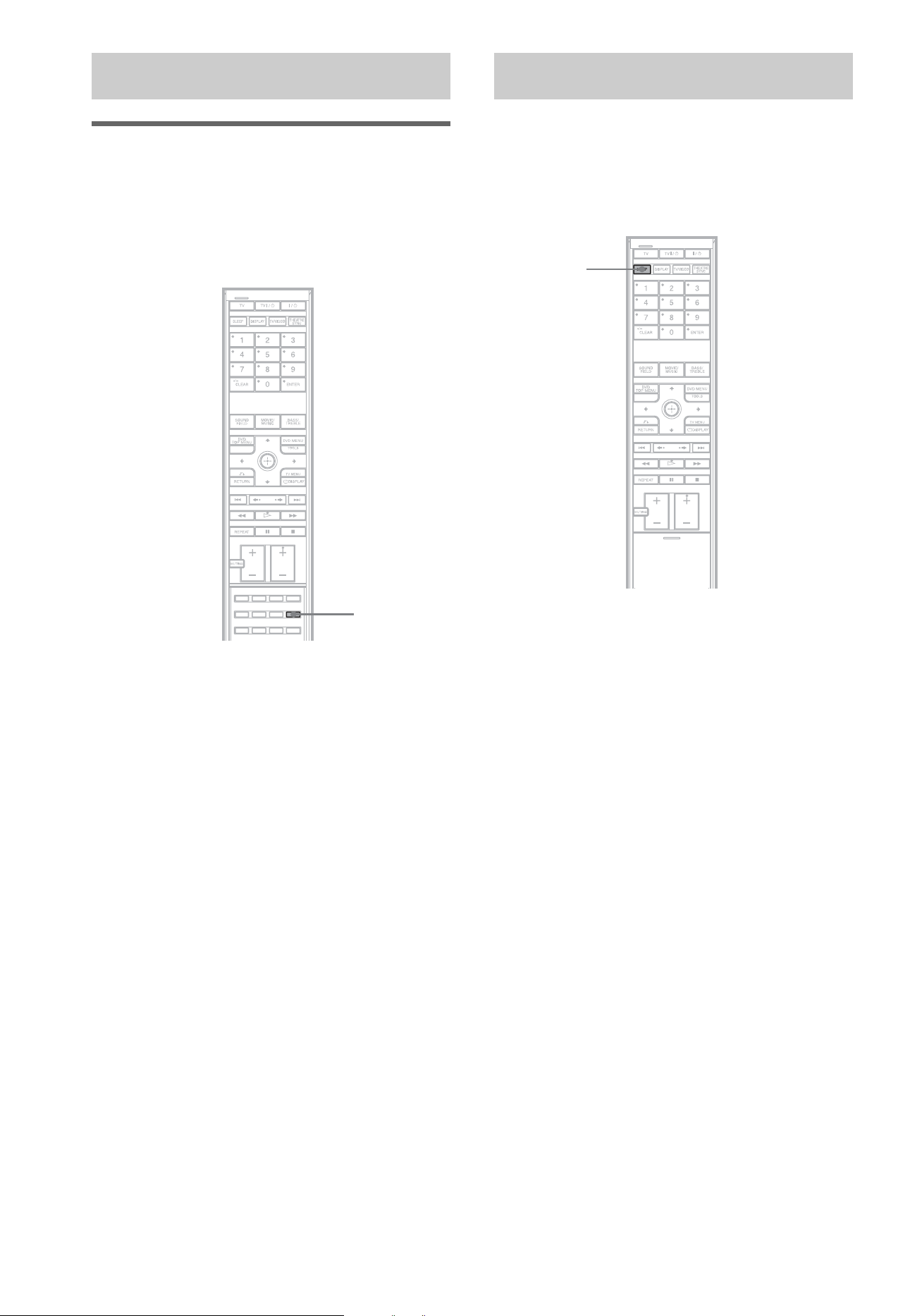

Enjoying the sound at low
volume
You can enjoy sound effects or dialogue, as you
would in a movie theater, even at low volume. It
is useful for watching movies at night.
Press NIGHT.
“Night Mode On” appears in the front panel
display and the sound effect is activated.
To turn off the sound effect
Press NIGHT again.
You can set the system to turn off at a preset
time, so you can fall asleep listening to music.
You can preset the time in 10 minutes
decrements.
Press SLEEP.
Each time you press this button, the minutes
display (the remaining time) changes as follows:
When you set timer, “c” appears in the front
panel display.
To check the remaining time
Press SLEEP once.
To change the remaining time
Press SLEEP repeatedly to select the desired
time.
To cancel the Sleep Timer
function
Press SLEEP repeatedly until “Sleep Off”
appears in the front panel display.
Using the Sound Effect
NIGHT
With the cover opened.
Using the Sleep Timer
SLEEP
Sleep Off t Sleep 90 min t Sleep 80 min
R r
Sleep 10 min ..... Sleep 60 min T Sleep 70 min
Other Operations
83
US
You can change the brightness of the front panel
display.
Press DIMMER.
Each time you press DIMMER, the brightness of
the front panel changes as follows:
Changing the Brightness
of the Front Panel Display
DIMMER
With the cover opened.
t
Dimmer off (off)
r
Dimmer 1
(Medium brightness)
r
Dimmer 2
(Minimum brightness)
84
US
You can set 2 kinds of playback restrictions for
the desired disc.
• Custom Parental Control
You can set playback restrictions so that the
system will not play inappropriate discs.
• Parental Control
Playback of some DVD VIDEOs can be
limited according to a predetermined level
such as the age of the users. Scenes may be
blocked or replaced with different scenes.
The same password is used for both Custom
Parental Control and Parental Control.
Preventing playback of
specific discs [CUSTOM
PARENTAL CONTROL]
You can set the same Custom Parental Control
password for up to 40 discs. When you set the
41st-disc, the first disc is canceled.
1
Insert the disc you want to lock.
If the disc is playing, press x to stop
playback.
2
Press DISPLAY while the system is
in stop mode.
The Control Menu appears.
3
Press X/x to select
[PARENTAL CONTROL], then press
.
The options for [PARENTAL CONTROL]
appear.
4
Press X/x to select [ON t], then press
.
x If you have not entered a password
The display for registering a new password
appears.
Enter a 4-digit password using the number
buttons, then press .
The display for confirming the password
appears.
x When you have already registered a
password
The display for entering the password
appears.
Advanced Settings and Adjustments
Locking Discs
(CUSTOM PARENTAL CONTROL,
PARENTAL CONTROL)
x
X/x,
DISPLAY
Number
buttons
OFF
PASSWORD
PLAYER
ON
DVD VIDEO
T
1 : 3 2 : 5 5
1 8
(
3 4
)
1 2
(
2 7
)
PARENTAL CONTROL
Enter a new 4-digit password,
then press
.
ENTER
PARENTAL CONTROL
Enter password, then press
.
ENTER
Advanced Settings and Adjustments
85
US
5
Enter or re-enter your 4-digit password
using the number buttons, then press
.
[Custom parental control is set.] appears
and the screen returns to the Control Menu.
To turn off the Custom Parental
Control function
1
Follow steps 1 through 3 of “Preventing
playback of specific discs [CUSTOM
PARENTAL CONTROL].”
2
Press X/x to select [OFF t], then press
.
3
Enter your 4-digit password using the
number buttons, then press .
To play a disc for which Custom
Parental Control is set
1
Insert the disc for which Custom Parental
Control is set.
The [CUSTOM PARENTAL CONTROL]
display appears.
2
Enter your 4-digit password using the
number buttons, then press .
The system is ready for playback.
Ti
p
• If you forget your password, enter the 6-digit number
“199703” using the number buttons when the
[CUSTOM PARENTAL CONTROL] display asks
you for your password, then press . The display
will ask you to enter a new 4-digit password.
Limiting playback for children
[PARENTAL CONTROL]
(DVD VIDEO only)
Playback of some DVD VIDEOs can be limited
according to a predetermined level such as the
age of the users. The [PARENTAL CONTROL]
function allows you to set a playback limitation
level.
1
Press DISPLAY while the system is
in stop mode.
The Control Menu appears.
2
Press X/x to select
[PARENTAL CONTROL], then press
.
The options for [PARENTAL CONTROL]
appear.
3
Press X/x to select [PLAYER t], then
press .
x If you have not entered a password
The display for registering a new password
appears.
Enter a 4-digit password using the number
buttons, then press .
The display for confirming the password
appears.
CUSTOM PARENTAL CONTROL
Custom parental control is already
set. To play, enter your password
and press
.
ENTER
OFF
PASSWORD
PLAYER
ON
DVD VIDEO
T
1 : 3 2 : 5 5
1 8
(
3 4
)
1 2
(
2 7
)
PARENTAL CONTROL
Enter a new 4-digit password,
then press
.
ENTER
cont
i
nue
d
86
US
x When you have already registered a
password
The display for entering the password
appears.
4
Enter or re-enter your 4-digit password
using the number buttons, then press
.
The display for setting the playback
limitation level appears.
5
Press X/x to select [STANDARD], then
press .
The selection items for [STANDARD] are
displayed.
6
Press X/x to select a geographic area
as the playback limitation level, then
press .
The area is selected.
When you select [OTHERS t], select and
enter a standard code in the table of
“Parental Control Area Code List”
(page 113) using the number buttons.
7
Press X/x to select [LEVEL], then press
.
The selection items for [LEVEL] are
displayed.
8
Press X/x to select the level you want,
then press .
Parental Control setting is complete.
The lower the value, the stricter the
limitation.
To turn off the Parental Control
function
Set [LEVEL] to [OFF] in Step 8.
To play a disc for which Parental
Control is set
1
Insert the disc and press H.
The display for entering your password
appears.
2
Enter your 4-digit password using the
number buttons, then press .
The system starts playback.
Ti
p
• If you forget your password, remove the disc and
repeat steps 1 to 3 of “Preventing playback of specific
discs [CUSTOM PARENTAL CONTROL].” When
you are asked to enter your password, enter “199703”
using the number buttons, then press . The display
will ask you to enter a new 4-digit password. After
you enter a new 4-digit password, replace the disc in
the system and press H. When the display for
entering your password appears, enter your new
password.
PARENTAL CONTROL
Enter password, then press
.
ENTER
PARENTAL CONTROL
LEVEL: OFF
USA
STANDARD:
PARENTAL CONTROL
LEVEL: OFF
USA
STANDARD:
USA
OTHERS
PARENTAL CONTROL
LEVEL: OFF
OFF
STANDARD:
8:
7:
6:
5:
NC17
R
PARENTAL CONTROL
LEVEL:
STANDARD: USA
4: PG13
Advanced Settings and Adjustments
87
US

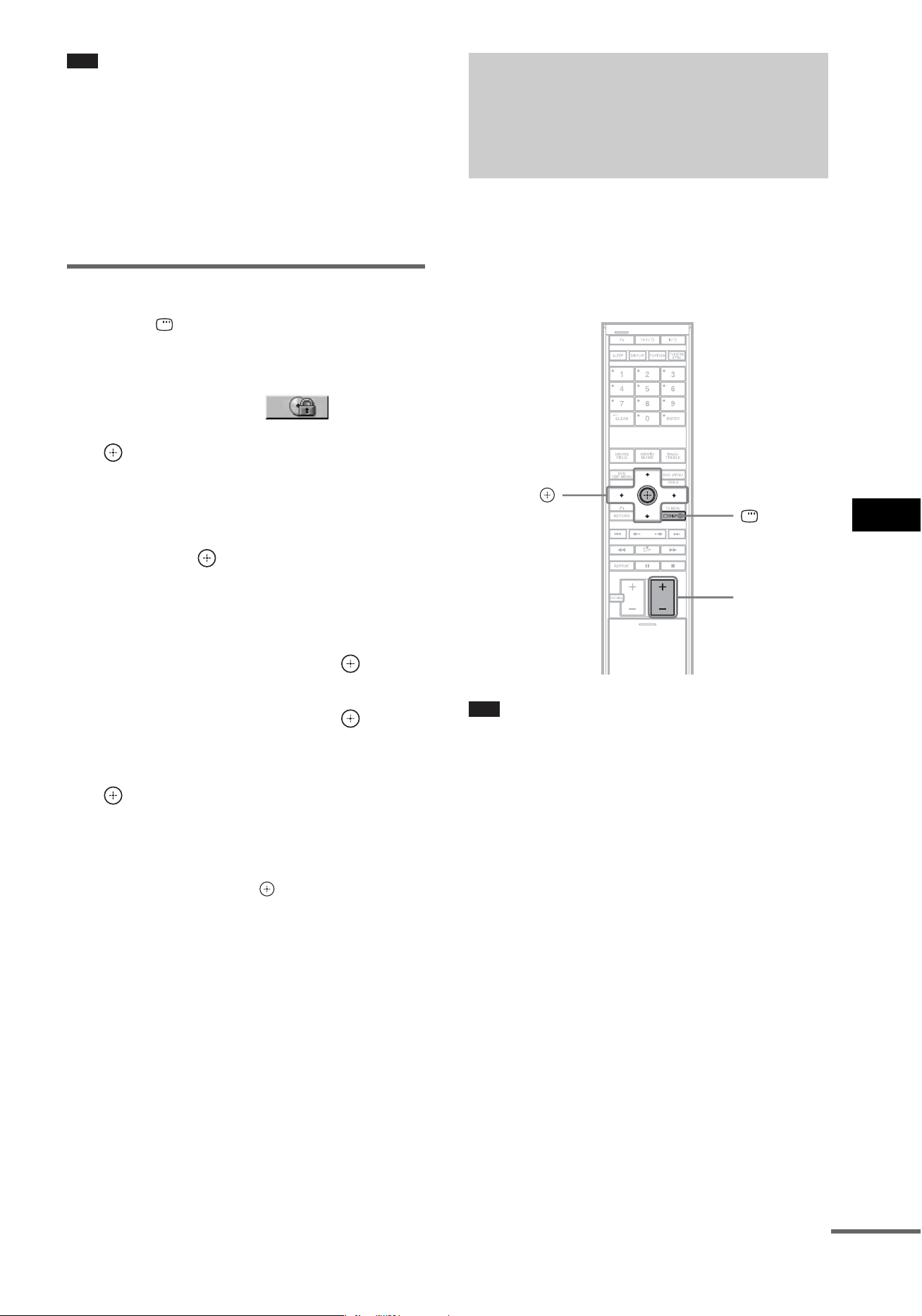

Note
• When you play discs which do not have the Parental
Control function, playback cannot be limited on this
system.
• Depending on the disc, you may be asked to change
the parental control level while playing the disc. In
this case, enter your password, then change the level.
If the Resume Play mode is canceled, the level returns
to the previous level.
Changing the password
1
Press DISPLAY while the system is
in stop mode.
The Control Menu appears.
2
Press X/x to select
[PARENTAL CONTROL], then press
.
The options for [PARENTAL CONTROL]
appear.
3
Press X/x to select [PASSWORD t],
then press .
The display for entering the password
appears.
4
Enter your 4-digit password using the
number buttons, then press .
5
Enter a new 4-digit password using the
number buttons, then press .
6
To confirm your password, re-enter it
using the number buttons, then press
.
If you make a mistake entering
your password
Press C before you press and input the
correct number.
D. C. A. C. (Digital Cinema Auto Calibration)
can set the appropriate surround sound
automatically.
Note
• Loud test sound is output when [AUTO
CALIBRATION] starts. You cannot turn the volume
down. Give consideration to children and neighbor.
Calibrating the
Appropriate Settings
Automatically
(AUTO CALIBRATION)
C/X/x/c,
DISPLAY
FUNCTION
+/–
cont
i
nue
d
88
US
1
Connect the calibration mic to the
ECM-AC1 jack on the rear of the
subwoofer, and set it up at the ear level
using a tripod, etc. (not supplied).
The front of each speaker should face the
calibration mic, and there should be no
obstruction between the speakers and the
calibration mic.
Note
• Place the calibration mic so that the “FRONT”
side of it is pointed toward the front speakers.
2
Press FUNCTION +/– repeatedly until
“DVD” appears in the front panel
display.
3
Press DISPLAY when the system is
in stop mode.
The Control Menu appears.
4
Press X/x to select [AUTO
CALIBRATION].
5
Press .
The [AUTO CALIBRATION] display
appears.
6
Press X/x to select [YES], then press
to start [AUTO CALIBRATION].
Be quiet during the measurement.
Note
• Avoid being in the measurement area and
making noise during the measurement (about 1
minute), to avoid measurement failure. During
the measurement, test signals are output from
the speakers.
• Reflections from walls or the floor may affect
measurements.
• When you install the surround speaker (L) to the
right position, the system set the “SL SR
REVERSE” setting (page 99) to “ON”
automatically.
VIDEO 1 VIDEO 2
VIDEO 2
TV VIDEO 1TV
AUDIO IN AUDIO IN AUDIO IN DIGITAL IN
OPTOCAL
L
R
DIGITAL IN
DIGITAL
IN
COAXIAL
COAXIAL
ECM-AC1
Calibration mic
Rear of the subwoofer
START
T
0 : 0 3 : 0 4
3
(
2 8
)
1
(
4 4
)
DVD VIDEO
AUTO CALIBRATION
Connect calibration mic. Start
measurement?
YES
AUTO CALIBRATION
NO
Measuring. Please wait a moment.
Advanced Settings and Adjustments
89
US
• If an error message appears, follow the message,
then select [YES].
An error message appears when:
– the calibration mic is not connected.
– front speakers are not correctly connected.
– surround speakers are not correctly
connected.
– front and surround speakers are not correctly
connected.
– subwoofer is not connected.
7
Press C/X/x/c to select [YES] or [NO],
then press .
x The measurement is OK.
Disconnect the calibration mic, then select
[YES]. The result is implemented.
x The measurement is not OK.
Follow the message, then select [YES] to
retry.
Ti
p
• You can check the distance between the listening
position and each speaker. See page 97.
Note
• While [AUTO CALIBRATION] works:
– do not turn off the power.
– do not press any button.
– do not change the volume.
– do not change the function.
– do not change the disc.
– do not insert or eject a disc.
– do not disconnect the calibration mic.
About error messages for the
auto calibration
If the following message appears during [AUTO
CALIBRATION], check “Symptoms and
remedies” and retry the auto calibration.
* If the sound of the surround speakers is not output,
adjust the wireless system. See “Adjusting the IR
transmitter and IR receiver of the surround speaker
(L)” (page 29).
FRONT L :
FRONT R :
CENTER :
SUBWOOFER :
SURROUND L :
SURROUND R :
If OK, unplug calibration mic and select
YES.
YES
16ft 4.8m 0.0dB
16ft 4.8m 0.0dB
16ft 4.8m + 1.0dB
16ft 4.8m + 4.0dB
10ft 3.0m
-
2.0dB
10ft 3.0m
-
2.0dB
Measurement complete.
NO
Check speaker connection.
Retry?
YES
Measurement failure.
NO
Error
message
Symptoms and remedies
Check
calibration mic
connection.
No channel sound can be detected.
Check that the calibration mic is
connected properly.
If the calibration mic is connected
properly, the calibration mic or
calibration mic cord may be
damaged.
Mic input level
overloaded.
The calibration mic or system may
be damaged.
Contact your Sony dealer or local
authorized Sony service facility.
Check front
speaker
connection.
Front speakers are not connected.
Check that the front speakers are
connected properly (page 22).
Check surround
speaker
connection.*
Only one surround speaker is
connected. Check that the surround
speakers are connected properly
(page 22).
Check front and
surround
speaker
connection.
Front speakers are not connected
and only one surround speaker is
connected. Check that the speakers
are connected properly (page 22).
Check
subwoofer
connection.
The subwoofer is not connected.
Check that the subwoofer is
connected properly (page 22).
Front left and
right speakers
are reversed.
Front speakers are not installed
properly or front left and right
speakers are reversed. Check the
front speakers are installed properly
(page 22).
If the calibration mic is left/right
reversed, place the calibration mic
properly.
90
US

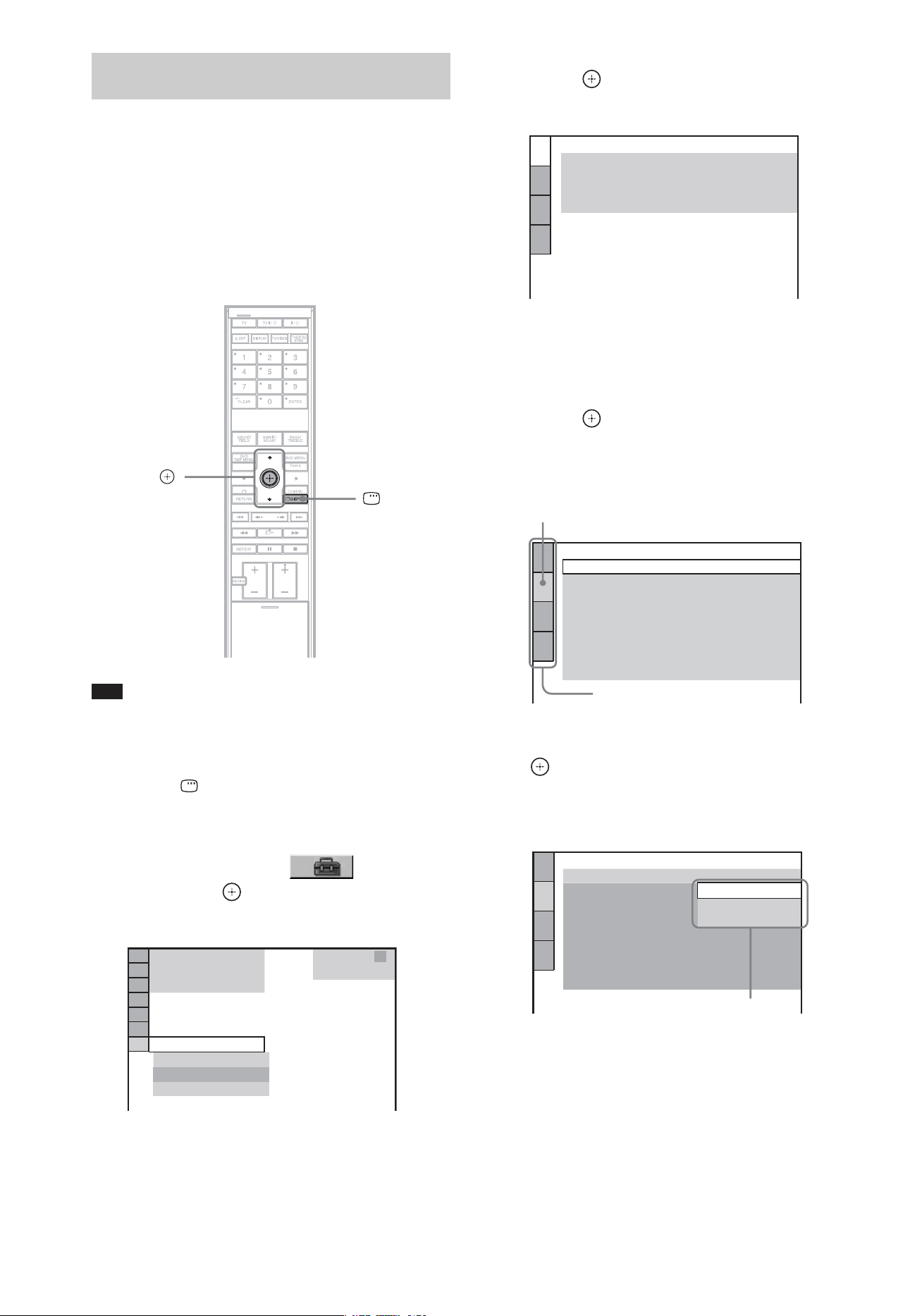

By using the Setup Display, you can make
various adjustments to items such as picture and
sound.
For an overall list of Setup Display items, see
page 123.
Displayed items differ depending on the country
model.
Note
• Playback settings stored in the disc take priority over
the Setup Display settings and not all the functions
described may work.
1
Press DISPLAY when the system is
in stop mode.
The Control Menu appears.
2
Press X/x to select [SETUP],
then press .
The options for [SETUP] appear.
3
Press X/x to select [CUSTOM], then
press .
The Setup Display appears.
4
Press X/x to select the setup item from
the displayed list: [LANGUAGE
SETUP], [SCREEN SETUP], [CUSTOM
SETUP], or [SPEAKER SETUP]. Then
press .
The Setup item is selected.
Example: [SCREEN SETUP]
5
Select an item using X/x, then press
.
The options for the selected item appear.
Example: [TV TYPE]
Using the Setup Display
X/x,
DISPLAY
1 2
(
2 7
)
QUICK
QUICK
RESET
DVD VIDEO
BNR
1 8
(
3 4
)
CUSTOM
T
0 : 0 0 : 0 2
LANGUAGE SETUP
MENU:
AUDIO:
SUBTITLE:
ORIGINAL
ENGLISH
OSD:
ENGLISH
ENGLISH
SCREEN SETUP
TV TYPE:
HDMI RESOLUTION:
YC
B
C
R
/RGB (HDMI):
16:9
AUTO
YC
B
C
R
SCREEN SAVER:
BACKGROUND: JACKET PICTURE
BLACK LEVEL:
ON
BLACK LEVEL
(COMPONENT OUT)
: OFF
4:3 OUTPUT:
FULL
ON
Selected item
Setup items
SCREEN SETUP
TV TYPE:
HDMI RESOLUTION:
YC
B
C
R
/RGB (HDMI):
16:9
16:9
4:3 LETTER BOX
4:3 PAN SCAN
SCREEN SAVER:
BACKGROUND:
BLACK LEVEL:
JACKET PICTURE
ON
BLACK LEVEL
(COMPONENT OUT)
:
OFF
4:3 OUTPUT:
FULL
Options
Advanced Settings and Adjustments
91
US
6
Select a setting using X/x, then press
.
The setting is selected and setup is
complete.
[LANGUAGE SETUP] allows you to set
various languages for the on-screen display or
sound track.
Select [LANGUAGE SETUP] in the Setup
Display. To use the display, see “Using the
Setup Display” (page 90).
x [OSD] (On-Screen Display)
Switches the display language on the screen.
x [MENU] (DVD VIDEO only)
You can select the desired language for the
disc’s menu.
x [AUDIO] (DVD VIDEO only)
Switches the language of the sound track.
When you select [ORIGINAL], the language
given priority in the disc is selected.
x [SUBTITLE] (DVD VIDEO only)
Switches the language of the subtitle recorded
on the DVD VIDEO.
When you select [AUDIO FOLLOW], the
language for the subtitles changes according to
the language you selected for the sound track.
Ti
p
• If you select [OTHERS t] in [MENU], [AUDIO],
and [SUBTITLE], select and enter a language code
from “Language Code List” (page 113) using the
number buttons.
Note
• When you select a language in [MENU], [AUDIO],
or [SUBTITLE] that is not recorded on the DVD
VIDEO, one of the recorded languages will be
automatically selected (depending on the disc, the
language may not be selected automatically).
SCREEN SETUP
TV TYPE:
HDMI RESOLUTION:
YC
B
C
R
/RGB (HDMI):
4:3 LETTER BOX
AUTO
YC
B
C
R
SCREEN SAVER:
BACKGROUND: JACKET PICTURE
BLACK LEVEL:
ON
BLACK LEVEL
(COMPONENT OUT)
: OFF
4:3 OUTPUT:
FULL
ON
Selected setting
Setting the Display or
Sound Track Language
[LANGUAGE SETUP]
LANGUAGE SETUP
OSD:
MENU:
AUDIO:
SUBTITLE:
ENGLISH
ENGLISH
ORIGINAL
ENGLISH
92
US

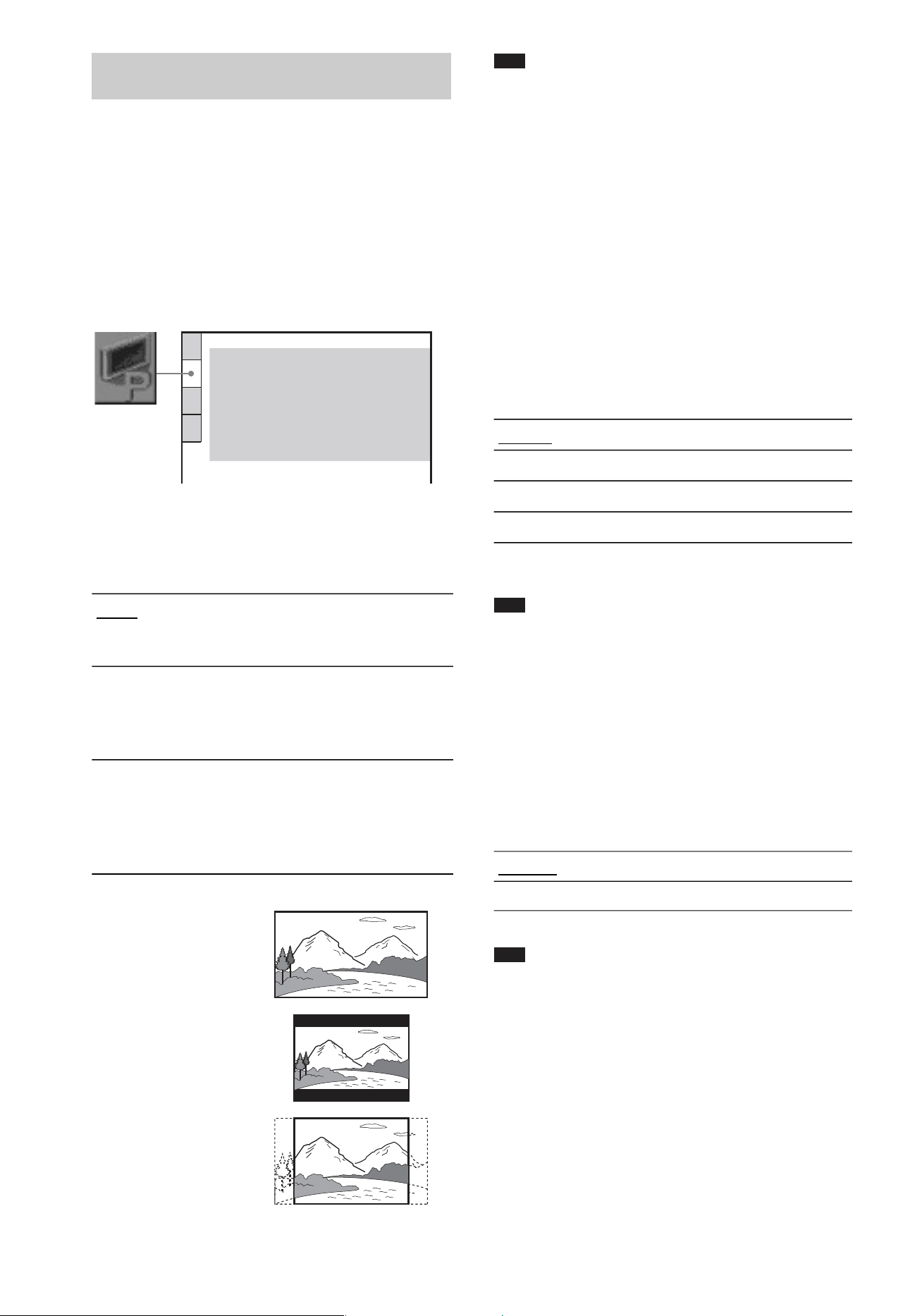

Choose settings according to the TV to be
connected.
Select [SCREEN SETUP] in the Setup Display.
To use the display, see “Using the Setup
Display” (page 90).
The default settings are underlined.
x [TV TYPE]
Selects the aspect ratio of the connected TV (4:3
standard or wide).
Note
• Depending on the DVD, [4:3 LETTER BOX] may be
selected automatically instead of [4:3 PAN SCAN] or
vice versa.
x [HDMI RESOLUTION]
Selects the type of video signals output from the
HDMI OUT (high-definition multimedia
interface out) jack. When you select [AUTO]
(default), the system outputs video signals of the
highest resolution acceptable for your TV.
If the picture is not clear, natural or to your
satisfaction, try another option that suits the disc
and your TV/projector, etc. For details, refer
also to the instruction manual supplied with the
TV/projector, etc.
* i: interlace, p: progressive
Note
• Even when a setting other than [AUTO] is selected
and the connected TV cannot accept the resolution,
the system automatically adjusts the video signals
that are suitable for the TV.
• When the HDMI indicator on the front panel lights
up, images from the S VIDEO OUT jack is enlarged
vertically. (Except when [720 × 480p] is selected.)
x [YC
B
C
R
/RGB (HDMI)]
Selects the type of HDMI signal output from
HDMI OUT jack.
Note
• If the playback picture becomes distorted, set
[YC
B
C
R
] to [RGB].
• If the HDMI OUT jack is connected to equipment
with a DVI jack, [RGB] signals will be automatically
output even when you select [YC
B
C
R
].
Settings for the Display
[SCREEN SETUP]
[16:9]
Select this when you connect a
wide-screen TV or a TV with a
wide mode function.
[4:3 LETTER
BOX]
Select this when you connect a 4:3
screen TV. Displays a wide picture
with bands on the upper and lower
portions of the screen.
[4:3 PAN SCAN]
Select this when you connect a 4:3
screen TV. Automatically displays
the wide picture on the entire
screen and cuts off the portions
that do not fit.
SCREEN SETUP
TV TYPE:
HDMI RESOLUTION:
YC
B
C
R
/RGB (HDMI):
16:9
AUTO
YC
B
C
R
SCREEN SAVER: ON
JACKET PICTURE
BACKGROUND:
BLACK LEVEL: ON
OFF
BLACK LEVEL
(COMPONENT OUT):
FULL
4:3 OUTPUT:
[4:3 PAN SCAN]
[4:3 LETTER BOX]
[16:9]
[AUTO]
Normally, select this.
[1920
×
1080i*]
Sends 1920 × 1080i video signals.
[1280
×
720p*]
Sends 1280 × 720p video signals.
[720
×
480p*]
Sends 720 × 480p video signals.
[YC
B
C
R
]
Outputs YC
B
C
R
signals.
[RGB]
Outputs RGB signals.
Advanced Settings and Adjustments
93
US
x [SCREEN SAVER]
The screen saver image appears when you leave
the system in pause or stop mode for 15
minutes,
or when you play back a Super Audio CD, CD,
DATA CD (MP3 audio), or DATA DVD for more
than 15 minutes. The screen saver will help
prevent your display device from becoming
damaged (ghosting). Press any button (e.g.,
H
button) to cancel the screen saver.
x [BACKGROUND]
Selects the background color or picture on the
TV screen in stop mode or while playing a Super
Audio CD, CD, DATA CD (MP3 audio)
, or
DATA DVD
.
x [BLACK LEVEL]
Selects the black level (setup level) for the video
signals output from the jacks other than
COMPONENT VIDEO OUT/HDMI OUT.
x [BLACK LEVEL (COMPONENT OUT)]
Selects the black level (setup level) for the video
signals output from the COMPONENT VIDEO
OUT jacks.
You cannot select this and the setting is not
effective when the system outputs progressive
signal.
x [4:3 OUTPUT]
This setting is effective only when you set [TV
TYPE] in [SCREEN SETUP] to [16:9]
(page 92). Adjust to watch 4:3 aspect ratio
progressive signals. If you can change the aspect
ratio on your progressive format compatible TV,
change the setting on your TV, not the system.
Note that this setting is effective only for HDMI
connection or progressive signals output from
the COMPONENT VIDEO OUT jacks.
Note
• This setting is effective only when “PROGRE AUTO
(PROGRESSIVE AUTO)” or “PROGRE VIDEO
(PROGRESSIVE VIDEO)” is selected by using
PROGRESSIVE (page 94).
[ON]
Turns on the screen saver.
[OFF]
Turns off the screen saver.
[JACKET
PICTURE]
The jacket picture (still picture)
appears, but only when the jacket
picture is already recorded on the
disc (CD-EXTRA, etc.). If the
disc does not contain a jacket
picture, the [GRAPHICS] picture
appears.
[GRAPHICS]
A preset picture stored in the
system appears.
[BLUE]
The background color is blue.
[BLACK]
The background color is black.
[ON]
Sets the black level of the output
signal to the standard level.
[OFF]
Lowers the standard black level.
Use this when the picture becomes
too white.
[OFF]
Sets the black level of the output
signal to the standard level.
[ON]
Raise the standard black level.
Use this when the picture becomes
too black.
[FULL]
Select this when you can change
the aspect ratio on your TV.
[NORMAL]
Select this when you cannot
change the aspect ratio on your
TV. Shows a 16:9 aspect ratio
signal with black bands on left and
right sides of the image.
16:9 aspect ratio TV
cont
i
nue
d
94
US
Does your TV accept progressive
signals?
Progressive is the method for displaying TV
images which reduces flickering, and sharpens
the image. To display using this method, you
need to connect to a TV that accepts progressive
signals.
“PROGRE” lights up in the front panel display
when the system outputs progressive signals.
1
Press FUNCTION +/– repeatedly to select
“DVD.”
2
Press PROGRESSIVE.
Each time you press PROGRESSIVE, the
display changes as follows:
x PROGRE AUTO (PROGRESSIVE AUTO)
Select this setting when:
– your TV accepts progressive signals, and,
– the TV is connected to the COMPONENT
VIDEO OUT jacks.
Normally select this under the above condition.
This automatically detects the software type,
and selects the appropriate conversion method.
Note that the picture will not be clear or no
picture will appear if you select these settings
when either of the above conditions are not met.
x PROGRE VIDEO (PROGRESSIVE VIDEO)
Select this setting when:
– your TV accepts progressive signals, and,
– the TV is connected to the COMPONENT
VIDEO OUT jacks, and,
– you want to fix the conversion method to
PROGRESSIVE VIDEO for video-based
software.
Select this if the image is not clear when you
select PROGRESSIVE AUTO.
Note that the picture will not be clear or no
picture will appear if you select these settings
when either of the above conditions are not met.
x INTERLACE
Select this setting when:
– your TV does not accept progressive signals,
or,
– your TV is connected to jacks other than the
COMPONENT VIDEO OUT jacks
(MONITOR OUT (VIDEO/S VIDEO)).
You cannot select INTERLACE while “HDMI”
lights up in the front panel display.
PROGRESSIVE
With the cover opened.
FUNCTION
+/–
t
PROGRE AUTO
(PROGRESSIVE AUTO)
r
PROGRE VIDEO
(PROGRESSIVE VIDEO)
r
INTERLACE
Advanced Settings and Adjustments
95
US
About DVD software types and
the conversion method
DVD software can be divided into 2 types: film-
based software and video-based software.
Video-based software is derived from TV, such
as dramas and sit-coms, and displays images at
30 frames/60 fields per second. Film-based
software is derived from film and displays
images at 24 frames per second. Some DVD
software contains both video and film.
In order for these images to appear natural on
your screen when output in progressive format,
the progressive signals need to be converted to
match the type of DVD software that you are
watching.
Note
• When you play video-based software in progressive
signal format, sections of some types of images may
appear unnatural due to the conversion process when
output through the COMPONENT VIDEO OUT
jacks. Even though you set to “PROGRESSIVE
AUTO” or “PROGRESSIVE VIDEO,” images from
the MONITOR OUT (VIDEO or S VIDEO) jack are
unaffected as they are output in the interlace format.
Use this to set up playback related and other
settings.
Select [CUSTOM SETUP] in the Setup Display.
To use the display, see “Using the Setup
Display” (page 90).
The default settings are underlined.
x [PAUSE MODE] (DVD VIDEO/DVD-RW
only)
Selects the picture in pause mode.
x [TRACK SELECTION] (DVD VIDEO only)
Gives the sound track which contains the highest
number of channels priority when you play a
DVD VIDEO on which multiple audio formats
(PCM, DTS, MPEG audio, or Dolby Digital
format) are recorded.
Note
• When you set the item to [AUTO], the language may
change. The [TRACK SELECTION] setting has
higher priority than the [AUDIO] settings in
[LANGUAGE SETUP] (page 91). (Depending on
the disc, this function may not work.)
Custom Settings
[CUSTOM SETUP]
[AUTO]
The picture, including subjects
that move dynamically, is output
with no jitter. Normally select this
position.
[FRAME]
The picture, including subjects
that do not move dynamically, is
output in high resolution.
[OFF]
No priority given.
[AUTO]
Priority given.
MULTI-DISC RESUME:
CUSTOM SETUP
AUTO
PAUSE MODE:
OFF
TRACK SELECTION:
ON
AUDIO DRC:
OFF
AUDIO (HDMI):
OFF
cont
i
nue
d
96
US
• If PCM, DTS, Dolby Digital sound, and MPEG audio
tracks have the same number of channels, the system
selects PCM, DTS, Dolby Digital sound, and MPEG
audio tracks in this order.
x [MULTI-DISC RESUME] (DVD VIDEO/
VIDEO CD only)
Switches the Multi-disc Resume setting on or
off.
x [AUDIO DRC] (DVD VIDEO only)
Narrows the dynamic range of the sound track.
Useful for watching movies at low volume late
at night.
x [AUDIO (HDMI)]
Selects the type of audio signal output from the
HDMI OUT jack.
Note
• A loud noise (or no sound) will be output if you
connect the system to a TV that is not compatible
with DOLBY DIGITAL/DTS (digital theater system)
signals and [AUTO] is selected. In this case, select
[PCM].
• When you connect the system and TV with the HDMI
cord and [AUTO] or [PCM] is selected, AUDIO
DRC, A/V SYNC, BASS/TREBLE, MOVIE/
MUSIC, and sound field are not applied to the sound
that is output from the TV.
[ON]
Stores the resume settings in
memory for up to 40 discs.
[OFF]
Does not store the resume settings
in memory. Playback restarts at
the resume point only for the
current disc in the system.
[OFF]
No compression of dynamic
range.
[STANDARD]
Reproduces the sound track with
the kind of dynamic range that the
recording engineer intended.
[MAX]
Compresses dynamic range fully.
[OFF]
The sound is not output from the
HDMI OUT jack.
[AUTO]
Outputs audio signals that is
matched to the requested audio
stream from the connected TV.
[PCM]
Converts Dolby Digital, DTS
(digital theater system), or 96
kHz/24 bit PCM (pulse code
modulation) signals to 48 kHz/ 16
bit PCM (pulse code modulation).
Advanced Settings and Adjustments
97
US

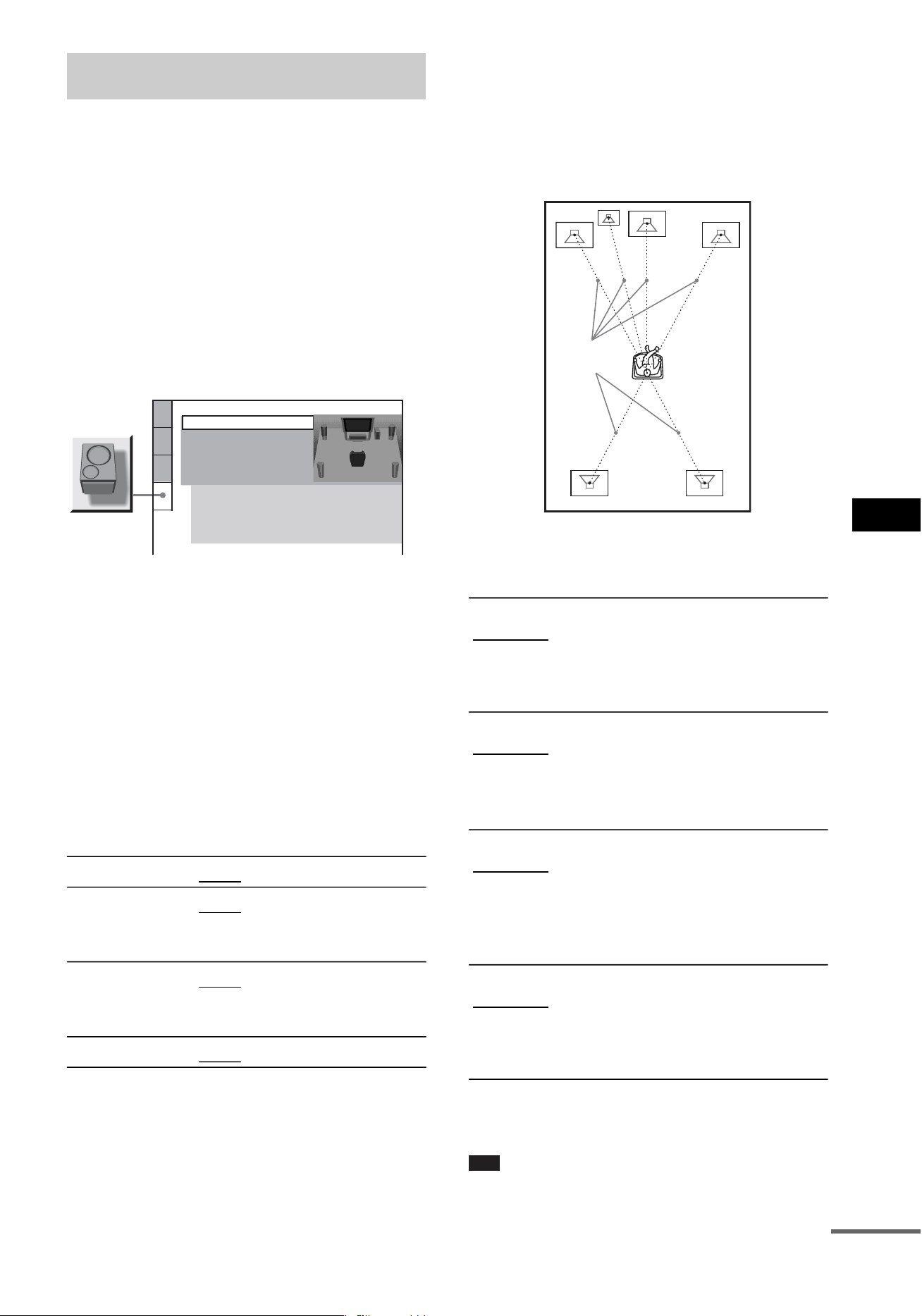

To obtain the best possible surround sound, set
for the size of the speakers you have connected
and their distance from your listening position.
Then use the test tone to adjust the level and the
balance of the speakers to the same level.
Select [SPEAKER SETUP] in the Setup
Display. For details, see “Using the Setup
Display” (page 90).
The default settings are underlined.
To return to the default setting
when changing a setting
Select the item, then press CLEAR. Note that
only the [CONNECTION] setting does not
return to the default setting.
x[CONNECTION]
If you do not connect center or surround
speakers, or move the surround speakers, set the
parameters for [CENTER] and [SURROUND].
Since the front speaker and subwoofer setting is
fixed, you cannot change them.
x [DISTANCE]
The default distance setting for the speakers in
relation to the listening position is shown below.
When you set the distance using the Quick Setup
(page 30), the settings is automatically
displayed.
Be sure to change the value in the Setup Display
when you move the speakers.
* When you perform the Quick Setup (page 30), the
default settings are changed.
Note
• When you set the distance, the sound cuts off for a
moment.
Settings for the Speakers
[SPEAKER SETUP]
[FRONT]
[YES]
[CENTER]
[YES]: Normally select this.
[NONE]: Select this if no center
speaker is used.
[SURROUND]
[YES]: Normally select this.
[NONE]: Select this if no
surround speaker is used.
[SUBWOOFER]
[YES]
SPEAKER SETUP
DISTANCE:
LEVEL(FRONT):
LEVEL(SURROUND):
TEST TONE:
OFF
CONNECTION:
FRONT:
CENTER:
YES
YES
YES
YES
SURROUND:
SUBWOOFER:
[FRONT L/R]
3.0 m/10 ft
*
Front speaker distance from
the listening position can be
set in 0.2 meter (1 ft)
increments from 0.0 to 6.9
meters (0 to 23 ft).
[CENTER]
3.0 m/10 ft
*
(appears when you set
[CENTER] to [YES] in
the [CONNECTION]
setting.)
Center speaker distance from
the listening position can be
set in 0.2 meter (1 ft)
increments from 0.0 to 6.9
meters (0 to 23 ft).
[SURROUND L/R]
3.0 m/10 ft
*
(appears when you set
[SURROUND] to
[YES] in the
[CONNECTION]
setting.)
Surround speaker distance
from the listening position can
be set in 0.2 meter (1 ft)
increments from 0.0 to 6.9
meters (0 to 23 ft).
[SUBWOOFER]
3.0 m/10 ft
*
Subwoofer distance from the
listening position can be set in
0.2 meter (1 ft) increments
from 0.0 to 6.9 meters (0 to 23
ft).
0.0 - 6.9 m/
0 - 23 ft
cont
i
nue
d
98
US

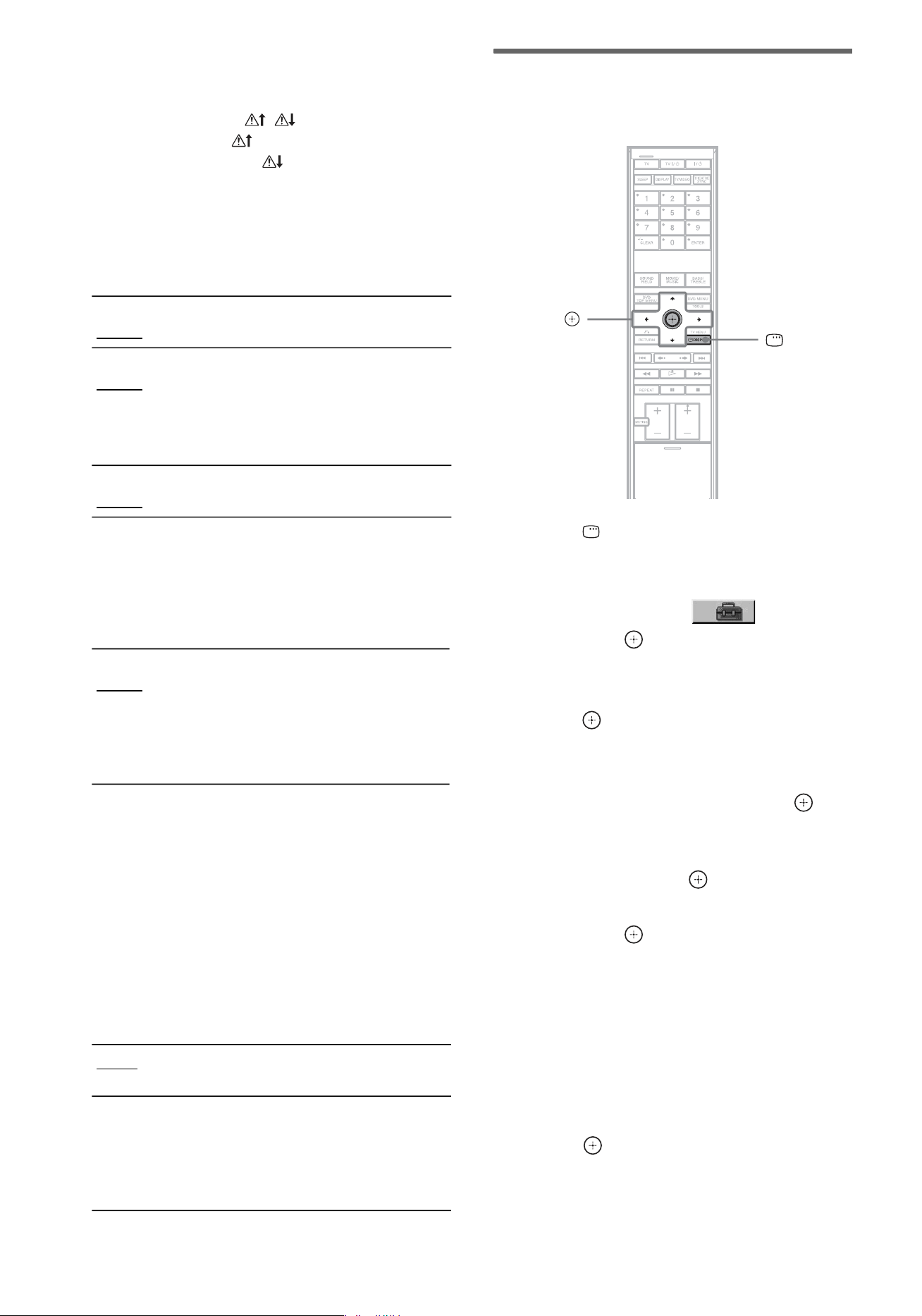

• Depending on the input stream, the [DISTANCE]
setting may not be effective.
• When the speaker distance setting is not in the
recommended range, /
** m is displayed (**
being the number). indicates over the
recommended distance. indicates below.
x [LEVEL (FRONT)]
You can vary the level of front speakers as
follows. Be sure to set [TEST TONE] to [ON]
for easy adjustment.
x [LEVEL (SURROUND)]
You can vary the level of surround speakers as
follows. Be sure to set [TEST TONE] to [ON]
for easy adjustment.
To adjust the volume of all the
speakers at one time
Press VOLUME +/– on the remote or touch
VOLUME +/– (touch panel button) on the
control unit.
x [TEST TONE]
The speakers will emit a test tone to adjust
[LEVEL (FRONT)] and [LEVEL
(SURROUND)].
Adjusting the speaker level by
using the test tone
1
Press DISPLAY when the system is
in stop mode.
The Control Menu appears.
2
Press X/x to select [SETUP],
then press .
The options for [SETUP] appear.
3
Press X/x to select [CUSTOM], then
press .
The Setup Display appears.
4
Press X/x repeatedly to select
[SPEAKER SETUP], then press or
c.
5
Press X/x repeatedly to select [TEST
TONE], then press or c.
6
Press X/x repeatedly to select [ON],
then press .
You will hear the test tone from each
speaker in sequence.
7
From your listening position, adjust the
value of [LEVEL (FRONT)] or [LEVEL
(SURROUND)] using C/X/x/c.
The test tone is emitted from only the
speaker which you are adjusting.
8
Press when you have finished
making adjustments.
[L/R]
0.0 dB
Set this between –15.0 dB and
+10.0 dB in 1.0 dB increments.
[CENTER]
0.0 dB
(appears when you set
[CENTER] to [YES] in
the [CONNECTION]
setting.)
Set this between –15.0 dB and
+10.0 dB in 1.0 dB increments.
[SUBWOOFER]
0.0 dB
Set this between –15.0 dB and
+10.0 dB in 1.0 dB increments.
[L/R]
0.0 dB
(appears when you set
[SURROUND] to
[YES] in the
[CONNECTION]
setting.)
Set this between –15.0 dB and
+10.0 dB in 1.0 dB increments.
[OFF]
The test tone is not emitted from the
speakers.
[ON]
The test tone is emitted from each speaker
in sequence while adjusting level. When
you select one of the [SPEAKER SETUP]
items, the test tone is emitted from each
speaker in sequence.
C/X/x/c,
DISPLAY
Advanced Settings and Adjustments
99
US
9
Press X/x repeatedly to select [TEST
TONE], then press .
10
Press X/x repeatedly to select [OFF],
then press .
Note
• When you adjust the speaker settings, the sound cuts
off for a moment.
• The test tone signals are not output from the HDMI
OUT jack.
Placing the surround speaker
(L) in the (R) position
Depending on the location of the wall outlet
(mains), you can also place the surround speaker
(L) (with the IR receiver) in the (R) position if
necessary.
1
Press AMP MENU.
2
Press X/x repeatedly until “SL SR
REVERSE” appears in the front panel
display, then press or c.
3
Press X/x to select the setting.
The default setting is underlined.
• OFF: Sets the surround speaker (L) (with
the IR receiver) in the (L) position.
• ON: Sets the surround speaker (L) (with
the IR receiver) in the (R) position.
4
Press .
5
Press AMP MENU.
The AMP menu turns off.
AMP MENU
X/x/c,
With the cover opened.
100
US
Returning the settings on the
Setup Display to the default
1
Select [RESET] in Step 3 of “Using the
Setup Display” (page 90) and press .
2
Select [YES] using X/x.
You can also quit the process and return to
the Control Menu by selecting [NO] here.
3
Press .
All the settings explained on pages 91 to 99
return to the default settings. Do not press
[/1 while resetting the system as it takes a
few seconds to complete.
Note
• When you turn the system on after resetting and no
disc is in the control unit, the guide message appears
on the TV screen. To perform the Quick Setup
(page 30), press , to return to normal screen, press
CLEAR.
Returning the sound field
settings or radio settings to
the default
1
Press "/1 to turn on the system.
2
While pressing x, press FUNCTION
and "/1 on the control unit at the same
time.
“COLD RESET” appears in the front panel
display and the default settings are returned.
Returning to the Default
Settings
X/x,
DISPLAY
x
FUNCTION
"/1
Additional Information
101
US
On power sources
• Unplug the unit from the wall outlet if you do not
intend to use it for an extended period of time. To
disconnect the cord, pull it out by the plug, never by
the cord.
On placement
• Place the system in a location with adequate
ventilation to prevent heat build-up in the system.
• At high volume, over long periods of time, the cabinet
becomes hot to the touch. This is not a malfunction.
However, touching the cabinet should be avoided. Do
not place the unit in a confined space where
ventilation is poor as this may cause overheating.
• Do not block the ventilation slots by putting anything
on the system. The system is equipped with a high
power amplifier. If the ventilation slots are blocked,
the unit can overheat and malfunction.
• Do not place the unit on surfaces (rugs, blankets, etc.)
or near materials (curtains, draperies) that may block
the ventilation slots.
• Do not install the unit near heat sources such as
radiators, or air ducts, or in a place subject to direct
sunlight, excessive dust, mechanical vibration, or
shock.
• Do not install the unit in an inclined position. It is
designed to be operated in a horizontal position only.
• Keep the unit and discs away from equipment with
strong magnets, such as microwave ovens, or large
loudspeakers.
• Do not place heavy objects on the unit.
On operation
• If the system is brought directly from a cold to a warm
location, or is placed in a very damp room, moisture
may condense on the lenses inside the control unit.
Should this occur, the system may not operate
properly. In this case, remove the disc and leave the
system turned on for about half an hour until the
moisture evaporates.
• When you move the system, take out any disc. If you
don’t, the disc may be damaged.
• If anything falls into the cabinet, unplug the unit and
have it checked by qualified personnel before
operating it any further.
On adjusting volume
• Do not turn up the volume while listening to a section
with very low level inputs or no audio signals. If you
do, the speakers may be damaged when a peak level
section is suddenly played.
On cleaning
• Clean the cabinet, panel, and controls with a soft cloth
slightly moistened with a mild detergent solution. Do
not use any type of abrasive pad, scouring powder or
solvent such as alcohol or benzine.
If you have any questions or problems concerning
your system, please consult your nearest Sony dealer.
On cleaning discs, disc/lens
cleaner
• Do not use a commercially available cleaning disc
or disc/lens cleaner (wet or spray type). These may
cause apparatus to malfunction.
On your TV’s color
• If the speakers should cause the TV screen to have
color irregularity, turn off the TV then turn it on after
15 to 30 minutes. If color irregularity should persist,
place the speakers further away from the TV set.
On moving the system
When you carry the system, use the following
procedure to protect the inner mechanism.
1
Press FUNCTION +/– repeatedly until
“DVD” appears in the front panel display.
2
Make sure that a disc is removed from the
control unit.
3
Press x, Z, and "/1 simultaneously.
“MECHA LOCK” appears in the front panel
display after “STANDBY.”
4
Remove the AC power cord (mains lead)
from the wall outlet (mains).
Additional Information
Precautions
IMPORTANT NOTICE
Caution: This system is capable of holding a still
video image or on-screen display image on your
television screen indefinitely. If you leave the still
video image or on-screen display image displayed
on your TV for an extended period of time you risk
permanent damage to your television screen.
Projection televisions are especially susceptible to
this.
102
US
On handling discs
• To keep the disc clean, handle the disc by its
edge. Do not touch the surface.
• Do not stick paper or tape on the disc.
• Do not expose the disc to direct sunlight or
heat sources such as hot air ducts, or leave it in
a car parked in direct sunlight as the
temperature may rise considerably inside the
car.
• After playing, store the disc in its case.
On cleaning
• Before playing, clean the disc with a cleaning
cloth.
Wipe the disc from the center out.
• Do not use solvents such as benzine, thinner,
commercially available cleaners, or anti-static
spray intended for vinyl LPs.
If you experience any of the following
difficulties while using the system, use this
troubleshooting guide to help remedy the
problem before requesting repairs. Should any
problem persist, consult your nearest Sony
dealer.
Note that if service personnel changes some
parts during repair, these parts may be retained.
In the event of a problem, have a Sony dealer
check the entire system together (system, IR
transmitter, and surround speaker (L)).
Power
The power is not turned on.
• Check that the AC power cords (mains leads) of
the subwoofer and the AC adaptor is connected
securely.
The "/1 indicator on the control unit flashes.
Press "/1 to turn off the system, and check the
following items.
• Are the + and – speaker cords short-circuited?
• Are you using only the specified speakers?
• Is anything blocking the ventilation holes of the
system?
After checking the above items and fixing any
problems, turn on the system. If the cause of the
problem cannot be found even after checking all the
above items, consult your nearest Sony dealer.
The IR status indicator on the surround
speaker (L) does not turn on.
• Press POWER to turn the AC adaptor off, connect
the speakers properly, and then press POWER to
turn the AC adaptor on.
There is no picture.
• The video connecting cords are not connected
securely.
• The video connecting cords are damaged.
• The system is not connected to the correct TV
input jack (page 22, 36).
• The video input on the TV is not set so that you
can view pictures from the system.
• You have set progressive format but your TV
cannot accept the signal in progressive format. In
this case, return the setting to interlace format (the
default setting) (page 94).
Notes about the Discs Troubleshooting
Additional Information
103
US
• The system outputs the video signal, only when
the function is set to “DVD.”
• Even if your TV is compatible with progressive
format (525p) signals, the image may be affected
when you set progressive format. In this case,
return the setting to interlace format (the default
setting) (page 94).
• The system is connected to an input device that is
not HDCP (high-bandwidth digital content
protection) compliant (“HDMI” on the front panel
does not light up). See page 115.
• If the HDMI OUT jack is used for video output,
changing the [HDMI RESOLUTION] setting in
[SCREEN SETUP] may solve the problem
(page 92).
Connect the TV and the system using a video jack
other than the HDMI OUT, and switch the TV’s
input to the connected video input so that you can
see the on-screen displays. Change the [HDMI
RESOLUTION] setting in [SCREEN SETUP],
and switch the TV’s input back to HDMI. If the
picture still does not appear, repeat the steps and
try other options.
• You have selected “PROGRESSIVE AUTO” or
“PROGRESSIVE VIDEO” using the
PROGRESSIVE button on the remote
(“PROGRE” lights up in the front panel display)
even though your TV cannot accept the
progressive signal. In this case, disconnect the
HDMI cord from the system and then select
“INTERLACE” so that the PROGRESSIVE
indicator turns off.
• If the signal from the video output jack (except for
the HDMI jack) is distorted, change the [HDMI
RESOLUTION] setting in [SCREEN SETUP] to
[720 × 480p].
• When connecting to the TV with the HDMI cord,
you need the proper setting for the HDMI input
depending on the TV. Check the HDMI setting of
the TV.
Picture noise appears.
• The disc is dirty or flawed.
• If the picture output from your system goes
through your VCR to get to your TV, the copy-
protection signal applied to some DVD programs
could affect picture quality. If you still experience
problems even when you connect your system
directly to your TV, try connecting your system to
your TV’s video input (except for the HDMI jack)
(page 36).
Even though you set the aspect ratio in [TV
TYPE] of [SCREEN SETUP], the picture does
not fill the screen.
• The aspect ratio on the disc is fixed.
Color irregularity occurs on the TV screen.
All speakers in this system are magnetically
shielded to prevent magnetic leakage. However,
some leakage may occur, as a high-strength magnet
is employed. If this happens, check the following
items:
• If the speakers are used with a CRT-based TV or
projector, install the speakers at least 0.3 m (1.0 ft)
from the TV set.
• If the color irregularity persists, turn off the TV set
once, then turn it on after 15 to 30 minutes.
• If howling occurs, reposition the speakers further
away from the TV set.
• Make sure that no magnetic object (magnetic latch
on a TV stand, health care device, toy, etc.) is
placed near the speakers.
Sound
There is no sound.
• The speaker cord is not connected securely.
• Press MUTING on the remote if “Muting On” is
displayed in the front panel display.
• The system is in pause mode or in Slow-motion
Play mode. Press H to return to normal play
mode.
• Fast forward or fast reverse is performed. Press
H to return to normal play mode.
• Check the speaker settings (page 97).
• If the connected component’s sound is not output,
check the audio output settings of it.
No sound is output from the HDMI OUT jack.
• Set [AUDIO (HDMI)] in [CUSTOM SETUP] to
[AUTO] or [PCM] (page 96).
• The HDMI OUT jack is connected to a DVI
(digital visual interface) device (DVI (digital
visual interface) jacks do not accept audio
signals).
• The HDMI OUT jack does not output Super
Audio CD signals.
• Try the following: 1 Turn the system off and on
again. 2 Turn the connected equipment off and
on again. 3 Disconnect and then connect the
HDMI cord again.
• The equipment connected to the HDMI OUT jack
does not conform to the audio signal format, in
this case set [AUDIO (HDMI)] in [CUSTOM
SETUP] to [PCM] (page 96).
cont
i
nue
d
104
US
The left and right sounds are unbalanced or
reversed.
• Check that the speakers and components are
connected correctly and securely.
• Perform [AUTO CALIBRATION] (page 87).
Severe hum or noise is heard.
• Check that the speakers and components are
connected securely.
• Check that the connecting cords are away from a
transformer or motor, and at least 3 meters (10 ft)
away from your TV set or a fluorescent light.
• Move your TV away from the audio components.
• The plugs and jacks are dirty. Wipe them with a
cloth slightly moistened with alcohol.
• Clean the disc.
The sound loses stereo effect when you play a
VIDEO CD, a CD, or an MP3.
• Set [AUDIO] to [STEREO] by pressing AUDIO
(page 59).
• Make sure the system is connected properly.
The surround effect is difficult to hear when
you are playing a Dolby Digital, DTS, or MPEG
audio sound track.
• Make sure the sound field is not “2Channel
Stereo”
(page 48)
.
• Check the speaker connections and settings (page
22, 97).
• Depending on the DVD, the output signal may not
be the entire 5.1 channel. It may be monaural or
stereo even if the sound track is recorded in Dolby
Digital or MPEG audio format.
The sound comes from the center speaker
only.
• Depending on the disc, the sound may come from
the center speaker only.
No sound is heard from the center speaker.
• Check the speaker connections and settings.
• Make sure the sound field is not “2Channel
Stereo”
(page 48)
.
• Depending on the source, the effect of the center
speaker may be less noticeable.
No sound or only a very low-level sound is
heard from the surround speakers.
• Check the speaker connections and settings.
• Make sure the sound field is not “2Channel
Stereo”
(page 48)
.
• Depending on the source, the effect of the
surround speakers may be less noticeable.
• Wireless setting of the surround speaker is not
correct (page 29).
• The plasma display may interfere with
transmission, in which case, adjust the position of
the IR transmitter and IR receiver of the surround
speaker (L) (page 29).
• Do not install the surround speaker (L) in a place
exposed to direct sunlight or strong light such as
an incandescent lamp.
• Clean the surface of the IR transmitter and IR
receiver of the surround speaker (L).
Operation
Radio stations cannot be tuned in.
• Check that the antenna (aerial) is connected
securely. Adjust the antenna (aerial) or connect an
external antenna (aerial) if necessary.
• The signal strength of the stations is too weak
(when tuning in with automatic tuning). Use direct
tuning.
• No stations have been preset or the preset stations
have been cleared (when tuning by scanning
preset stations). Preset the stations (page 75).
• Press DISPLAY so that the frequency appears in
the front panel display.
The remote does not function.
• There are obstacles between the remote and the
control unit.
• The distance between the remote and the control
unit is too far.
• The remote is not pointed at the remote sensor on
the control unit.
• The batteries in the remote are weak.
The IR status indicator on the surround
speaker (L) momentarily turns orange.
• The indicator momentarily turns orange. This is
not a malfunction.
• There is obstruction, such as a person or object
between the IR transmitter and the IR receiver of
the surround speaker (L). Adjust the IR
transmitter and the IR receiver of the surround
speaker (L) (page 29).
The disc does not play.
• There is no disc inserted.
• The disc is upside down.
Insert the disc with the playback side facing down.
• The system cannot play CD-ROMs, etc. (page 6).
• The region code on the DVD does not match the
system.
• Moisture has condensed inside the system and
may cause damage to the lenses. Remove the disc
and leave the system turned on for about half an
hour.
Additional Information
105
US
The MP3 audio track cannot be played.
• The DATA CD is not recorded in the MP3 format
that conforms to ISO 9660 Level 1/Level 2, or
Joliet.
• The DATA DVD is not recorded in an MP3
format that conforms to UDF (Universal Disk
Format).
• The MP3 audio track does not have the extension
“.MP3.”
• The data is not formatted in MP3 even though it
has the extension “.MP3.”
• The data is not MPEG1 Audio Layer 3 data.
• The system cannot play audio tracks in MP3PRO
format.
• The [MODE (MP3, JPEG)] setting has been set to
[IMAGE (JPEG)] (page 71).
• If you cannot change the [MODE (MP3, JPEG)]
setting, re-load the disc or turn the system off, then
on.
The JPEG image file cannot be played.
• The DATA CD is not recorded in a JPEG format
that conforms to ISO 9660 Level 1/Level 2, or
Joliet.
• The DATA DVD is not recorded in a JPEG format
that conforms to UDF (Universal Disk Format).
• It has an extension other than “.JPEG” or “.JPG.”
• It is larger than 3,072 (width) × 2,048 (height) in
normal mode, or more than 2,000,000 pixels in
Progressive JPEG which is mainly used on the
Internet WEB site.
• It does not fit the screen (those images are
reduced).
• The [MODE (MP3, JPEG)] setting has been set to
[AUDIO (MP3)] (page 71).
• If you cannot change the [MODE (MP3, JPEG)]
setting, re-load the disc or turn the system off, then
on.
The MP3 audio tracks and JPEG image file
starts playing simultaneously.
• [AUTO] has been selected in [MODE (MP3,
JPEG)] (page 71).
The titles of album/track/file name are not
displayed correctly.
• The system can only display numbers and letters
of the alphabets. Other characters are displayed as
[*].
A disc does not start playing from the
beginning.
• Program Play, Shuffle Play, or Repeat Play has
been selected.
Press CLEAR to cancel these functions before
playing a disc.
• Resume Play has been selected.
During stop, press x on the control unit or the
remote and then start playback (page 54).
• The title, DVD or PBC menu automatically
appears on the TV screen.
The system starts playing the disc
automatically.
• The DVD features an auto playback function.
Playback stops automatically.
• Some discs may contain an auto pause signal.
While playing such a disc, the system stops
playback at the auto pause signal.
You cannot perform some functions such as
Stop, Search, Slow-motion Play, or Repeat
Play.
• Depending on the disc, you may not be able to
perform some of the operations above. See the
operating manual that came with the disc.
Messages do not appear on the screen in the
language you want.
• In the Setup Display, select the desired language
for the on-screen display in [OSD] under
[LANGUAGE SETUP] (page 91).
The language for the sound track cannot be
changed.
• Multilingual tracks are not recorded on the DVD
being played.
• The DVD prohibits changing the language for the
sound track.
The subtitle language cannot be changed.
• Multilingual subtitles are not recorded on the
DVD being played.
• The DVD prohibits changing the subtitles.
The subtitle cannot be turned off.
• The DVD prohibits turning off subtitles.
The angles cannot be changed.
• Multi-angles are not recorded on the DVD being
played (page 65).
• The DVD prohibits changing the angles.
A disc cannot be ejected and “LOCKED”
appears in the front panel display.
• Contact your Sony dealer or local authorized Sony
service facility.
[Data error] appears on the TV screen when
playing a DATA CD or DATA DVD.
• The MP3 audio track/JPEG image file you want to
play is broken.
• The data is not MPEG1 Audio Layer 3 data.
• The JPEG image file format does not conform to
DCF.
cont
i
nue
d
106
US
• The JPEG image file has the extension “.JPG” or
“.JPEG,” but is not in JPEG format.
The system does not work normally.
• Disconnect the AC power cord (mains lead) from
the wall outlet (mains), then reconnect after
several minutes.
“DEMO PLAY” appears in the front panel
display.
• Contact your Sony dealer or local authorized Sony
service facility.
When the self-diagnosis function is activated to
prevent the system from malfunctioning, a 5-
character service number (e.g., C 13 50) with a
combination of a letter and 4 digits appears on
the screen or the front panel display. In this case,
check the following table.
When displaying the version
number on the screen
When you turn on the system, the version
number [VER.X.XX] (X is a number) may
appear on the screen. Although this is not a
malfunction and for Sony service use only,
normal system operation will not be possible.
Turn off the system, and then turn on the system
again to operate.
Self-diagnosis Function
(When letters/numbers appear in the
display)
First 3
characters of
the service
number
Cause and/or corrective action
C 13 The disc is dirty.
,Clean the disc with a soft cloth
(page 102).
C 31 The disc is not inserted correctly.
,Restart the system, then re-insert
the disc correctly.
E XX
(xx is a number)
To prevent a malfunction, the
system has performed the self-
diagnosis function.
,Contact your nearest Sony
dealer or local authorized Sony
service facility and give the 5-
character service number.
Example: E 61 10
C:13:50
TV screen example
VER.X.XX
Additional Information
107
US
AUDIO POWER SPECIFICATIONS
for the US model
POWER OUTPUT AND
TOTAL HARMONIC
DISTORTION
(FTC Output Power): Front L/Front R/Center:
60 W/ch 4 ohms at 170 -
20,000 Hz, 0.7 % THD
Surround L/Surround R:
60 W/ch 3.5 ohms at 170 -
20,000 Hz, 0.7 % THD
Subwoofer: 110 W/ch 1.5
ohms at 40 - 170 Hz, 0.7 %
THD
Amplifier section
Surround mode (reference)Front: 100 W + 100 W
(
RMS OUTPUT POWER,
10 % THD 1 kHz, 4 ohms)
Center*: 100 W (
RMS
OUTPUT POWER, 10 %
THD 1 kHz, 4 ohms)
Surround*: 100 W +
100 W (
RMS OUTPUT
POWER, 10 % THD 1 kHz,
3.5 ohms)
Subwoofer*: 280 W (
RMS
OUTPUT POWER, 10 %
THD 100 Hz, 1.5 ohms)
* Depending on the sound field settings and the source,
there may be no sound output.
Inputs (Analog)
TV, VIDEO 1, VIDEO 2 (AUDIO IN)
Sensitivity: 450/250 mV
Inputs (Digital)
VIDEO 1, VIDEO 2 (COAXIAL)
impedance: 75 ohms
Super Audio CD/DVD system
Laser Semiconductor laser
(Super Audio CD/DVD:
λ = 645 – 660 nm)
(CD: λ = 770 – 800 nm)
Emission duration:
continuous
Signal format system NTSC
Tuner section
System PLL quartz-locked digital
synthesizer system
FM tuner section
Tuning range 87.5 – 108.0 MHz
(100 kHz step)
Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range 530 – 1,710 kHz (with the
interval set at 10 kHz)
531 – 1,710 kHz (with the
interval set at 9 kHz)
Antenna (aerial) AM loop antenna (aerial)
Intermediate frequency 450 kHz
Video section
Outputs VIDEO: 1 Vp-p 75 ohms
S VIDEO:
Y: 1 Vp-p 75 ohms
C: 0.286 Vp-p 75 ohms
COMPONENT:
Y: 1 Vp-p 75 ohms
P
B
/C
B
, P
R
/C
R
: 0.7 Vp-p
75 ohms
Inputs VIDEO 1: 1 Vp-p 75 ohms
VIDEO 2: 1 Vp-p 75 ohms
Speakers
Front
Speaker system Closed, magnetically
shielded
Speaker unit Woofer: 70 × 120 mm
(2
7
/
8
× 4
3
/
4
inches) cone
type
Tweeter: 25 mm (1 inch)
dome type
Rated impedance 4 ohms
Dimensions (approx.) 105 × 705 × 35 mm
(4
1
/
4
× 27
7
/
8
× 1
7
/
16
inches)
(w/h/d)
302 × 1,300 (max) ×
302 mm
(12 × 51
1
/
4
(max) ×
12 inches)
(w/h/d) with stand
Mass (approx.) 2.1 kg (4 lb 11 oz)
5.9 kg (13 lb 1 oz) with
stand
Surround (R)
Speaker system Closed, magnetically
shielded
Speaker unit Woofer: 70 × 120 mm
(2
7
/
8
× 4
3
/
4
inches) cone
type
Tweeter: 25 mm (1 inch)
dome type
Rated impedance 3.5 ohms
Specifications
cont
i
nue
d
108
US
Dimensions (approx.) 105 × 705 × 35 mm
(4
1
/
4
× 27
7
/
8
× 1
7
/
16
inches)
(w/h/d)
302 × 1,300 (max) ×
302 mm
(12 × 51
1
/
4
(max) ×
12 inches)
(w/h/d) with stand
Mass (approx.) 2.0 kg (4 lb 7 oz)
5.8 kg (12 lb 13 oz) with
stand
Surround (L)
Speaker system Closed, magnetically
shielded
Speaker unit Woofer: 70 × 120 mm
(2
7
/
8
× 4
3
/
4
inches) cone
type
Tweeter: 25 mm (1 inch)
dome type
Rated impedance 3.5 ohms
Dimensions (approx.) 105 × 705 × 35 mm
(4
1
/
4
× 27
7
/
8
× 1
7
/
16
inches)
(w/h/d)
302 × 1,300 (max) ×
302 mm
(12 × 51
1
/
4
(max) ×
12 inches)
(w/h/d) with stand
Mass (approx.) 2.5 kg (5 lb 9 oz)
6.3 kg (13 lb 15 oz) with
stand
Center
Speaker system Closed, magnetically
shielded
Speaker unit Woofer: 70 × 120 mm
(2
7
/
8
× 4
3
/
4
inches) dia.
cone type
Tweeter: 25 mm
(1 inch) dome type
Rated impedance 4.0 ohms
Dimensions (approx.) 545 × 105 × 35 mm
(21
1
/
2
× 4
1
/
4
× 1
7
/
16
inches)
(w/h/d)
545 × 116 × 60 mm
(21
1
/
2
× 4
5
/
8
× 2
3
/
8
inches)
(w/h/d) with stand
Mass (approx.) 1.9 kg (4 lb 4 oz)
2.1 kg (4 lb 11 oz) with
stand
Subwoofer
Speaker system Bass reflex, magnetically
shielded
Speaker unit 150 mm (6 inches) cone
type
Rated impedance 1.5 ohms
Dimensions (approx.) 188 × 573 × 318 mm
(7
1
/
2
× 22
5
/
8
× 12
5
/
8
inches) (w/h/d)
Mass (approx.) 14.5 kg (32 lb)
Power requirements 120 V AC, 60 Hz
Power consumption 130 W
0.3 W (at the Power Saving
mode)
Control unit
Dimensions (approx.) 570 × 168 × 56 mm
(22
1
/
2
× 6
5
/
8
× 2
1
/
4
inches)
(w/h/d)
570 × 188 × 99 mm
(22
1
/
2
× 7
1
/
2
× 4 inches)
(w/h/d) with stand
Mass (approx.) 4.2 kg (9 lb 5 oz)
4.7 kg (10 lb 6 oz) with
stand
AC adaptor
Power requirements 120 V AC, 60 Hz
Power consumption 45 W
Dimensions (approx.) 219 × 44 × 82 mm
(8
5
/
8
× 1
3
/
4
× 3
1
/
4
inches)
(w/h/d)
Mass (approx.) 0.7 kg (1 lb 9 oz)
Design and specifications are subject to change
without notice.
Additional Information
109
US
Unpacking
• Control unit (1)
• Speakers (5)
• Subwoofer (1)
• AC adaptor (1)
• AM loop antenna (aerial) (1)
• FM wire antenna (aerial) (1)
• Speaker cords (5 m × 2, 3.5 m × 1, 10 m × 1)
(16.5 ft. × 2, 11.5 ft. × 1, 33 ft. × 1)
• Video Cord (1)
• Remote Commander (remote) (1)
• R6 (size AA) batteries (2)
• Calibration mic (1)
• Posts (4)
• Bases (4)
• Speaker adaptors (4)
• Speaker adaptor covers (4)
• Cord clamp (1)
• Adjuster (1)
• Center speaker base (1)
• Control unit stand (1)
• Control unit stand cover (1)
• Screws (24)
• IR transmitter (1)*
• IR receiver (1)**
• IR receiver stand (1)**
• Operating Instructions
• Quick Start Guide (card) (1)
* The IR receiver cord and IR transmitter are for this
system only. You cannot use a commercially
available extension cord.
**Used when the IR receiver of the surround speaker
(L) cannot receive infrared ray because of the
position. For details, see “Using the IR Receiver”
(page 33).
Album
Section of a music piece or an image on a data
CD containing MP3 audio tracks or JPEG files.
Chapter
Subdivision of a title on a DVD. A title is
composed of several chapters.
Digital Cinema Auto Calibration
Digital Cinema Auto Calibration was developed
by Sony to automatically measure and adjusts
the speaker settings to your listening
environment in a short period of time.
Digital Direct Twin Drive Subwoofer
Utilizing Sony's proprietary S-Master
technology, the Digital Direct Twin Drive
Subwoofer features two S-Master Digital
Amplifiers that provide dedicated power to a
strategically located subwoofer for astounding
sound performance. Easy to set up, Digital
Direct Twin Drive Subwoofer provides a stable
sound field over a much larger listening area
without having to adjust frequency levels.
Digital Infrared Audio Transmission
Recent times have been witness to the rapid
spread of DVDs, Digital Broadcasting Satellite
Receiver and other high-quality media. In order
to ensure that the subtle nuances endowed by
these high-quality media would be transmitted
with no accompanying deterioration, Sony
developed a technology called “Digital Infrared
Audio Transmission” for the infrared
transmission of digital audio signals using no
compression, and it introduced it into the
system.
This technology transfers digital audio signals
using no compression inside the subcarrier
frequency band allocated by the IEC
(International Electronic Committee) and
JEITA (Japan Electronics and Information
Technology Industries Association) for hi-fi
audio transmission applications. (See Fig. 1)
Glossary
cont
i
nue
d
110
US
Dolby Digital
This movie theater sound format is more
advanced than Dolby Surround Pro Logic. In
this format, the surround speakers output stereo
sound with an expanded frequency range, and a
subwoofer channel for deep bass is
independently provided. This format is also
called “5.1” with the subwoofer channel
designed as the 0.1 channel (since it functions
only when a deep bass effect is needed). All six
channels in this format are recorded separately
for superior channel separation. Furthermore,
since all the signals are processed digitally, less
signal degradation occurs.
Dolby Pro Logic II
Dolby Pro Logic II creates five full-bandwidth
output channels from 2 channel sources. This is
done using an advanced, high-purity matrix
surround decoder that extracts the spatial
properties of the original recording without
adding any new sounds or tonal colorations.
x Movie mode
The Movie mode is for use with stereo television
shows and all programs encoded in Dolby
Surround. The result is enhanced soundfield
directionality that approaches the quality of
discrete 5.1-channel sound.
x Music mode
The Music mode is for use with any stereo music
recordings, and provides a wide and deep sound
space.
DTS
Digital audio compression technology
developed by Digital Theater Systems, Inc. This
technology conforms to 5.1-channel surround.
This format comprises of stereo rear channel and
there is discrete subwoofer channel in this
format. DTS provides the same 5.1 discrete
channels of high quality digital audio. The good
channel separation is realized due to the all
channel data being recorded discretely and
processed in digitally.
DVD
A disc that contains up to 8 hours of moving
pictures even though its diameter is the same as
a CD.
The data capacity of a single-layer and single-
sided DVD, at 4.7 GB (Giga Byte), is 7 times
that of a CD. Furthermore, the data capacity of a
dual-layer and single-sided DVD is 8.5 GB, a
single-layer and double-sided DVD 9.4 GB, and
a dual-layer and double-sided DVD 17 GB.
The picture data uses the MPEG 2 format, one of
a worldwide standard of digital compression
technology. The picture data is compressed to
about 1/40 of its original size. The DVD also
uses the variable rate coding technology that
processes allocated data according to the status
of the picture.
The audio data is recorded in Dolby Digital as
well as in PCM, allowing you to enjoy more
realistic audio presence.
Furthermore, various advanced functions such
as the multi-angle, multilingual, and Parental
Control functions are provided with the DVD.
DVD-RW
A DVD-RW is a recordable and rewritable disc
that is the same size as a DVD VIDEO. The
DVD-RW has two different modes: VR mode
and Video mode. DVD-RWs created in Video
mode have the same format as a DVD VIDEO,
while discs created in VR (Video Recording)
mode allow the contents to be programmed or
edited.
DVD+RW
A DVD+RW (plus RW) is a recordable and
rewritable disc. DVD+RWs use a recording
format that is comparable to the DVD VIDEO
format.
L
R
5432
6
[MHz]
Analog
transmission
Digital transmission (Digital
infrared Audio Transmission)
Fig. 1 Signal spectrum for digital infrared audio
transmission
Additional Information
111
US
File
A JPEG image recorded on a DATA CD/DATA
DVD. (“File” is an exclusive definition for this
system.) A single file consists of a single image
or movie.
Film based software, Video based
software
DVDs can be classified as Film based or Video
based software. Film based DVDs contain the
same images (24 frames per second) that are
shown at movie theaters. Video based DVDs,
such as television dramas or sit-coms, displays
images at 30 frames (or 60 fields) per second.
HDMI (high-definition multimedia
interface)
HDMI is an interface that supports both video
and audio on a single digital connection. The
HDMI connection carries standard to high
definition video signals and multi-channel audio
signals to AV components such as HDMI
equipped TVs, in digital form without
degradation. Since the video signals are
compatible with the current DVI (digital visual
interface) format, HDMI jacks can be connected
to DVI (digital visual interface) jacks by way of
an HDMI -DVI (digital visual interface)
converter cord. The HDMI specification
supports HDCP (high-bandwidth digital
contents protection), a copy protection
technology that incorporates coding technology
for digital video signals.
Interlace format
(Interlaced scanning)
The Interlace format is the NTSC standard
method for displaying TV images at 30 frames
per second. Each frame is scanned twice -
alternately between the even numbered scanning
lines and then odd numbered scanning lines, at
60 times per second.
Mica-reinforced-cellular-diaphragm
The Mica-reinforced-cellular-diaphragm is
made of a light weight and highly rigid
composite material that consists of Mica flake
and synthetic fiber.
It is constructed with layers of Mica flake. This
construction realizes diaphragm with low
density and high rigidity at the same time.
In this system, a Mica-reinforced-cellular-
diaphragm is used for the subwoofer.
Multi-angle function
Various angles of a scene, or viewpoints of the
video camera are recorded on some DVDs.
Multilingual function
Several languages for the sound or subtitles in a
picture are recorded on some DVDs.
Parental Control
A function of the DVD to limit playback of the
disc by the age of the users according to the
limitation level in each country. The limitation
varies from disc to disc; when it is activated,
playback is completely prohibited, violent
scenes are skipped or replaced with other scenes
and so on.
Playback Control (PBC)
Signals encoded on VIDEO CDs (Version 2.0)
to control playback.
By using menu screens recorded on VIDEO
CDs with PBC functions, you can enjoy playing
simple interactive programs, programs with
search functions, and so on.
Progressive format
(sequential scanning)
In contrast to the Interlace format, the
progressive format can reproduce 50 - 60 frames
per second by reproducing all scanning lines
(525 lines for the NTSC system). The overall
picture quality increases and still images, text
and horizontal lines appear sharper. This format
is compatible with the 525 or 625 progressive
format.
Region Code
This system is used to protect copyrights. A
region number is allocated on each DVD system
or DVD disc according to the sales region. Each
region code is shown on the system as well as on
the disc packaging. The system can play discs
that match its region code. The system can also
play discs with the “ ” mark. Even when the
region code is not shown on the DVD, the region
limit may still apply.
ALL
cont
i
nue
d
112
US
Scene
On a VIDEO CD with PBC (playback control)
functions, the menu screens, moving pictures
and still pictures are divided into sections called
“scenes.”
Title
The longest section of a picture or music feature
on a DVD, movie, etc., in video software, or the
entire album in audio software.
Track
Section of a picture or a music piece on a
VIDEO CD, CD, Super Audio CD, or MP3. An
album is composed of several tracks (MP3
only).
VIDEO CD
A compact disc that contains moving pictures.
The picture data uses the MPEG 1 format, one of
a worldwide standard of digital compression
technology. The picture data is compressed to
about 1/140 of its original size. Consequently, a
12 cm VIDEO CD can contain up to 74 minutes
of moving pictures.
VIDEO CDs also contain compact audio data.
Sounds outside the range of human hearing are
compressed while sounds we can hear are not
compressed. VIDEO CDs can hold 6 times the
audio information of conventional audio CDs.
There are 2 versions of VIDEO CDs.
• Version 1.1: You can play only moving
pictures and sounds.
• Version 2.0: You can play high-resolution still
pictures and enjoy PBC functions.
This system conforms to both versions.
Additional Information
113
US
The language spellings conform to the ISO 639: 1988 (E/F) standard.
Parental Control Area Code List
Language Code List
Code Language Code Language Code Language Code Language
1027 Afar
1028 Abkhazian
1032 Afrikaans
1039 Amharic
1044 Arabic
1045 Assamese
1051 Aymara
1052 Azerbaijani
1053 Bashkir
1057 Byelorussian
1059 Bulgarian
1060 Bihari
1061 Bislama
1066 Bengali;
Bangla
1067 Tibetan
1070 Breton
1079 Catalan
1093 Corsican
1097 Czech
1103 Welsh
1105 Danish
1109 German
1130 Bhutani
1142 Greek
1144 English
1145 Esperanto
1149 Spanish
1150 Estonian
1151 Basque
1157 Persian
1165 Finnish
1166 Fiji
1171 Faroese
1174 French
1181 Frisian
1183 Irish
1186 Scots Gaelic
1194 Galician
1196 Guarani
1203 Gujarati
1209 Hausa
1217 Hindi
1226 Croatian
1229 Hungarian
1233 Armenian
1235 Interlingua
1239 Interlingue
1245 Inupiak
1248 Indonesian
1253 Icelandic
1254 Italian
1257 Hebrew
1261 Japanese
1269 Yiddish
1283 Javanese
1287 Georgian
1297 Kazakh
1298 Greenlandic
1299 Cambodian
1300 Kannada
1301 Korean
1305 Kashmiri
1307 Kurdish
1311 Kirghiz
1313 Latin
1326 Lingala
1327 Laothian
1332 Lithuanian
1334 Latvian;
Lettish
1345 Malagasy
1347 Maori
1349 Macedonian
1350 Malayalam
1352 Mongolian
1353 Moldavian
1356 Marathi
1357 Malay
1358 Maltese
1363 Burmese
1365 Nauru
1369 Nepali
1376 Dutch
1379 Norwegian
1393 Occitan
1403 (Afan)Oromo
1408 Oriya
1417 Punjabi
1428 Polish
1435 Pashto;
Pushto
1436 Portuguese
1463 Quechua
1481 Rhaeto-
Romance
1482 Kirundi
1483 Romanian
1489 Russian
1491 Kinyarwanda
1495 Sanskrit
1498 Sindhi
1501 Sangho
1502 Serbo-
Croatian
1503 Singhalese
1505 Slovak
1506 Slovenian
1507 Samoan
1508 Shona
1509 Somali
1511 Albanian
1512 Serbian
1513 Siswati
1514 Sesotho
1515 Sundanese
1516 Swedish
1517 Swahili
1521 Tamil
1525 Telugu
1527 Tajik
1528 Thai
1529 Tigrinya
1531 Turkmen
1532 Tagalog
1534 Setswana
1535 Tonga
1538 Turkish
1539 Tsonga
1540 Tatar
1543 Twi
1557 Ukrainian
1564 Urdu
1572 Uzbek
1581 Vietnamese
1587 Volapük
1613 Wolof
1632 Xhosa
1665 Yoruba
1684 Chinese
1697 Zulu
1703 Not specified
Code Area Code Area Code Area Code Area
2044 Argentina
2047 Australia
2046 Austria
2057 Belgium
2070 Brazil
2079 Canada
2090 Chile
2092 China
2115 Denmark
2165 Finland
2174 France
2109 Germany
2248 India
2238 Indonesia
2254 Italy
2276 Japan
2304 Korea
2363 Malaysia
2362 Mexico
2376 Netherlands
2390 New Zealand
2379 Norway
2427 Pakistan
2424 Philippines
2436 Portugal
2489 Russia
2501 Singapore
2149 Spain
2499 Sweden
2086 Switzerland
2528 Thailand
2184 United
Kingdom
114
US
For more information, refer to the pages indicated in parentheses.
Front Panel (control unit)
Top Panel
A Soft-touch button indicators (42)
B Front panel display (115)
C 1 (standby) indicator (42)
D DOLBY DIGITAL indicator
E DTS indicator
F DOLBY PRO LOGIC II indicator
G D.C.S. indicator
H (remote sensor) (10)
I [/1 (on/standby) (42)
J Disc slot (42)
K
Z
(eject)/DISC indicator (42)
L HDMI OUT jack (36)
M Soft-touch buttons (
N
/
x
/FUNCTION/
VOLUME –/+) (42)
When you press the soft-touch buttons qd,
the soft touch indicators 1 light up.
Index to Parts and Controls
Additional Information
115
US
Front Panel Display
When playing back a DVD
When playing back a Super Audio CD, CD, VIDEO CD (without PBC
functions), or MP3
DVD
11
MOVIE REP1
PROGRE
HDMI
TITLE
0.01.11
DVD
11
REP1
PROGRE
TITLE
0.01.11
Playing status
Current title/chapter number Playing time/remaining time
Current mode
Lights up when the MOVIE
or MUSIC mode is selected
(page 47).
Lights up when the system
outputs the progressive
signals (page 94).
Lights up when the sleep
timer is set (page 82).
Lights up when the HDMI
OUT jack is correctly
connected to HDCP (high-
bandwidth digital content
protection) compliant device
with HDMI or DVI (digital
visual interface) input
(page 36).
SA-CD
20
MULTI PBC
MUSIC REP1
TRK
28.11
Playing status
Current track number Playing time/remaining time
Current mode
Lights up when the MOVIE
or MUSIC mode is selected
(page 47).
Lights up when the sleep
timer is set (page 82).
Playing disc
Lights up during MULTI
channel playback. (Super
Audio CD only) (page 67)
PBC playback
(VIDEO CD only)
cont
i
nue
d
116
US
When listening to the radio
When playing back a JPEG file
FM 10
TUNED MONO
AUTO
108.0MHz
Monaural/Stereo effect
(page 76).
Lights up when the sleep
timer is set (page 82).
Lights up when a
station is received.
Current band and preset number
Current station
Lights up during the Auto
tuning (page 76).
CD
REP1
No Audio
Playing status
Current mode
Playing disc
Additional Information
117
US

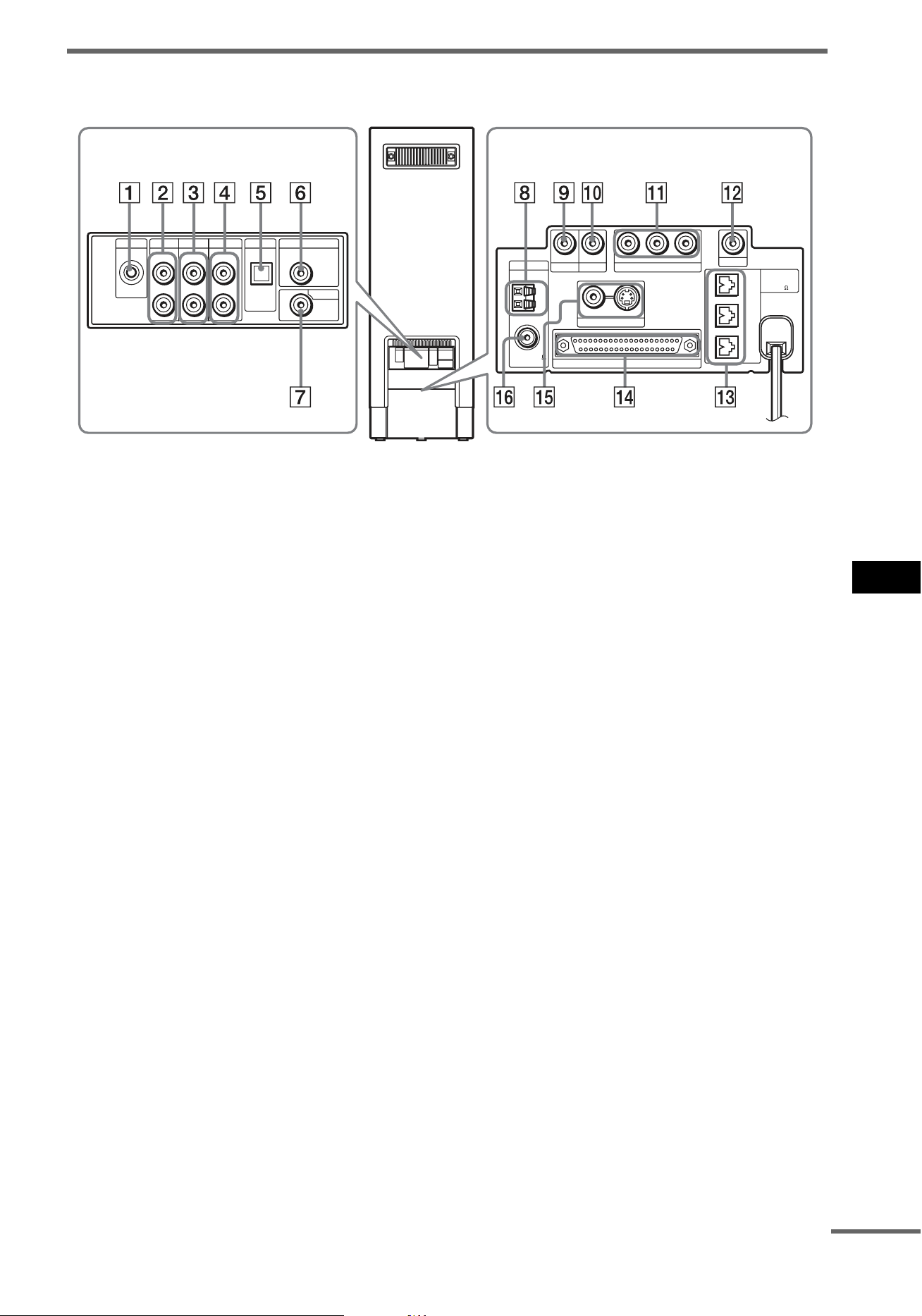

Subwoofer
A ECM-AC1 jack (30, 87)
B TV (AUDIO IN L/R) jacks (36)
C VIDEO 1 (AUDIO IN L/R) jacks (40)
D VIDEO 2 (AUDIO IN L/R) jacks (40)
E TV (DIGITAL IN OPTICAL) jack (36)
F VIDEO 1 (DIGITAL IN COAXIAL) jack
(40)
G VIDEO 2 (DIGITAL IN COAXIAL) jack
(40)
H AM terminal (22)
I VIDEO 1 (VIDEO IN) jack (40)
J VIDEO 2 (VIDEO IN) jack (40)
K COMPONENT VIDEO OUT jacks (36)
L DIR-T1 jack (22)
M SPEAKER jacks (22)
N SYSTEM CONTROL jack (22)
O MONITOR OUT (VIDEO/S VIDEO) jacks
(36)
P FM 75Ω COAXIAL jack (22)
CENTER
INPEDANCE
USE 4
FRONT
L
FRONT
R
FM 75
COAXIAL
AM
VIDEO IN Y P
B
/C
B
P
R
/C
R
VIDEO IN
VIDEO 1 COMPONENT VIDEO OUT
DIR-T1
VIDEO 2
SPEAKER
VIDEO S-VIDEO
MONITOR OUT
SYSTEM CONTROL
VIDEO 1 VIDEO 2
VIDEO 2
TV VIDEO 1TV
AUDIO IN AUDIO IN AUDIO IN DIGITAL IN
OPTOCAL
L
R
DIGITAL IN
DIGITAL
IN
COAXIAL
COAXIAL
ECM-AC1
Rear of the subwoofer
Bottom of the subwoofer
cont
i
nue
d
118
US
Remote control
A TV [/1 (on/standby) (79)
B TV button/TV mode indicator (79)
C SLEEP (82)
D DISPLAY (63)
E Number buttons
2) 3)
(52, 76, 78, 84)
F CLEAR (53, 77, 80)
-/--
3)
(78)
G MOVIE/MUSIC (47)
H SOUND FIELD (48)
I DVD TOP MENU (59)
J C/X/x/c, (ENTER) (30, 44, 52, 75, 84)
K O RETURN
3)
(54)
L ./> (42)
PRESET –/+ (76)
M (42)
c/C STEP (51)
N m/M (51)
/ (51)
TUNING –/+ (75)
O REPEAT (58)
P VOLUME +/– (42, 76, 98)
TV VOL +/–
3)
(79)
Q MUTING (42)
R AUDIO (59)
S PICTURE NAVI (53)
T PROGRESSIVE (94)
U DIMMER (83)
V FM MODE (76)
W DIRECT TUNING (76)
X [/1 (on/standby) (30, 42, 54, 76)
Y THEATRE SYNC (81)
Z TV/VIDEO (79)
wj ENTER
1) 3)
(30, 44, 52, 75, 84)
wk BASS/TREBLE (50)
wl DVD MENU (59)
TOOLS
3)
(79)
e; DISPLAY (31, 52, 84, 120)
TV MENU
3)
(79)
ea H (play)
2)
(42, 54)
es x (stop) (43, 54, 84)
ed X (pause) (43)
ef FUNCTION +/–
2)
(42, 44, 75)
TV CH +/–
3)
(79)
eg SUBTITLE (66)
eh ANGLE (65)
ej SA-CD/CD (67)
ek NIGHT (82)
el AMP MENU (44, 99, 124)
r; TUNER MENU (75)
1)
The ENTER wj button is the same function as the
(ENTER) 0 button.
2)
The 5, H, and FUNCTION + buttons have tactile
dots. Use the tactile dots as references when
operating the system.
3)
These buttons change to the TV operation buttons
when the remote is in TV mode. The remote is in TV
mode when the TV mode indicator 2 lights up by
pressing the TV button 2.
With the cover opened.
Additional Information
119
US
AC adaptor
A SA-TSLF1H jack (24)
B DIR-R3 jack (33)
C POWER indicator (29)
D POWER (29)
Surround speaker (L)
A IR receiver (29)
B IR status indicator (29)
SA-TSLF1H DIR-R3
120
US
Use the Control Menu to select a function and to view related information. Press DISPLAY
repeatedly to turn on or change the Control Menu display as follows:
Control Menu display
The Control Menu display 1 and 2 will show different items depending on the disc type. For details
about each item, see the pages in parentheses.
Example: Control Menu display 1 when playing a DVD VIDEO.
Guide to the Control Menu Display
DISPLAY
Control Menu display 1
m
Control Menu display 2 (appears for certain discs only)
m
Control Menu display off
,
Additional Information
121
US
1)
Displays the scene number for VIDEO CDs (PBC is on), track number for VIDEO CDs/Super Audio CDs/CDs,
album number for DATA CDs/DATA DVDs.
2)
Displays the index number for VIDEO CDs/Super Audio CDs, MP3 audio track number, or JPEG image file
number for DATA CDs/DATA DVDs.
3)
Displays Super VCD as “SVCD.” Displays “MP3” in the Control Menu display 1 or “JPEG” in the Control Menu
2 for DATA CDs/DATA DVDs.
4)
Displays the date for JPEG files.
To turn off the display
Press DISPLAY.
List of Control Menu items
Item Item Name, Function, Relevant Disc Type
[TITLE] (page 52)/[SCENE] (page 52)/[TRACK] (page 52)
Selects the title, scene, or track to be played.
[CHAPTER] (page 52)/[INDEX] (page 52)
Selects the chapter or index to be played.
[INDEX] (page 52)
Displays the index and selects the index to be played.
[TRACK] (page 52)
Selects the track to be played.
[ORIGINAL/PLAY LIST] (page 61)
Selects the type of titles (DVD-RW/DVD-R) to be played, the [ORIGINAL] one, or an edited
[PLAY LIST].
OFF
T
1 : 3 2 : 5 5
1 8
(
3 4
)
1 2
(
2 7
)
DVD VIDEO
Quit:
REPEAT
ENTER DISPLAY
DISC
TITLE
CHAPTER
OFF
Currently playing title number
1)
Playing time
4)
Total number of chapters
2)
Options
Current setting
Total number of titles
1)
Playback status
(N Playback,
X Pause,
x Stop, etc.)
Function name of
selected Control
Menu item
Operation message
Selected item
Control Menu items
Type of disc being
played
3)
Currently playing chapter number
2)
cont
i
nue
d
122
US
Ti
p
• The Control Menu icon indicator lights up in green when you select any item except [OFF]
([PROGRAM], [SHUFFLE], and [REPEAT] only). The [ORIGINAL/PLAY LIST] indicator lights up in green
when you select [PLAY LIST] (default setting). The [MULTI/2CH] indicator lights up in green when you select
the multi-channel playback area on a Super Audio CD.
[TIME/TEXT] (page 52)
Checks the elapsed time and the remaining playback time.
Input the time code for picture and music searching.
Displays the DVD/CD text or the MP3 track name.
[AUTO CALIBRATION] (page 87)
Adjust the level of each speaker automatically.
[MULTI/2CH] (page 67)
Selects the playback area on Super Audio CDs when available.
[PROGRAM] (page 55)
Selects the track to play in the order you want.
[SHUFFLE] (page 57)
Plays the track in random order.
[REPEAT] (page 58)
Plays the entire disc (all titles/all tracks/all albums) repeatedly or one title/chapter/track/album
repeatedly.
[PARENTAL CONTROL] (page 84)
Sets to prohibit playback on this system.
[SETUP] (page 90)
[QUICK] Setup (page 30)
Use Quick Setup to choose the desired language of the on-screen display, the aspect ratio of
the TV, choose [YES] or [NO] to start the [AUTO CALIBRATION].
[CUSTOM] Setup
In addition to the Quick Setup setting, you can adjust various other settings.
[RESET]
Returns the settings in [SETUP] to the default setting.
[ALBUM] (page 52)
Selects the album to be played.
[FILE] (page 52)
Selects the JPEG image file to be played.
[DATE] (page 65)
Displays the date the picture was taken by a digital camera.
[INTERVAL] (page 72)
Specifies the duration for which the slides are displayed on the screen.
[EFFECT] (page 73)
Selects the effects to be used for changing slides during a slide show.
[MODE (MP3, JPEG)] (page 71)
Selects the data type; MP3 audio track (AUDIO), JPEG image file (IMAGE) or both (AUTO)
to be played when playing a DATA CD/DATA DVD.
t
Additional Information
123
US
You can set the following items with the DVD Setup Display.
The order of the displayed items may be different from the actual display.
The default settings are underlined.
DVD Setup Display List
CUSTOM SETUP
TRACK
SELECTION AUTO
MULTI-DISC
RESUME
ON
OFF
PAUSE
MODE
AUTO
FRAME
OFF
AUDIO DRC
OFF
STANDARD
MAX
SCREEN SETUP
TV TYPE
SCREEN SAVER
BACKGROUND
16:9
4:3 LETTER
BOX
4:3 PAN SCAN
ON
OFF
BLUE
BLACK
JACKET
GRAPHICS
4:3 OUTPUT
FULL
NORMAL
HDMI
RESOLUTION
720
×
480p
AUTO
1280
×
720p
1920
×
1080i
YC
B
C
R
/RGB (HDMI)
YC
B
C
R
RGB
BLACK LEVEL
ON
OFF
BLACK LEVEL
(COMPONENT
OUT)
OFF
ON
LANGUAGE SETUP
OSD*
MENU*
SUBTITLE*
AUDIO*
SPEAKER SETUP
CONNECTION
DISTANCE
FRONT
CENTER
SURROUND
YES
YES
NONE
YES
SUBWOOFER
YES
FRONT L 0 ft – 23 ft
0.0 m – 6.9 m
FRONT R
CENTER
LEVEL
(FRONT)
L
CENTER
–15.0 dB – +10.0 dB
TEST TONE
OFF
ON
R
–15.0 dB – +10.0 dB
NONE
SUBWOOFER
LEVEL
(SURROUND)
L
–15.0 dB – +10.0 dB
R
–15.0 dB – +10.0 dB
–15.0 dB – +10.0 dB
SURROUND L
SURROUND R
0 ft – 23 ft
0.0 m – 6.9 m
0 ft – 23 ft
0.0 m – 6.9 m
0 ft – 23 ft
0.0 m – 6.9 m
0 ft – 23 ft
0.0 m – 6.9 m
SUBWOOFER
0 ft – 23 ft
0.0 m – 6.9 m
* Select the language you want to use from the displayed language list.
AUDIO
(HDMI)
OFF
AUTO
PCM
–15.0 dB – +10.0 dB
124
US
You can set the following items with AMP MENU on the remote.
The default settings are underlined.
* “ATTENUATE” may not appear depending on the selected function.
AMP Menu List
AMP menu
SL SR REVERSE OFF
ON
ATTENUATE* ON
OFF
INFORMATION MODE DETAIL
STANDARD
A/V SYNC OFF
SHORT
LONG
SIMPLE
125
US
Numerics
16:9 92
4:3 LETTER BOX 92
4:3 OUTPUT 93
4:3 PAN SCAN 92
5.1 Channel Surround 60
A
A/V SYNC 66
ALBUM 52
Album 109
AMP MENU 44, 62, 66, 99
AMP menu list 124
ANGLE 65
ATTENUATE 44
AUDIO 91
AUDIO (HDMI) 96
AUDIO DRC 96
Auto Calibration 87, 109
B
BACKGROUND 93
BASS 50
Batteries 10
BLACK LEVEL 93
BLACK LEVEL
(COMPONENT OUT) 93
C
CHAPTER 52
Chapter 109
CINEMA STUDIO EX 49
COAXIAL (Digital Out) 41
COMPONENT VIDEO OUT
94
Continuous play 42
Control Menu Display 120
Control unit 114
Controlling the TV 78
CUSTOM 90
CUSTOM PARENTAL
CONTROL 84
CUSTOM SETUP 95
D
D. C. A. C. 87, 109
DATA CD 69
DATA DVD 69
Digital Cinema Auto
Calibration 87, 109
Digital connection 41
Digital Direct Twin Drive
Subwoofer 109
Digital Infrared Audio
Transmission 109
DIMMER 83
Dolby Digital 59, 110
Dolby Pro Logic II 110
DTS 59, 110
DUAL MONO 81
DVD 110
DVD+RW 110
DVD’s menu 59
DVD-RW 61, 110
DVI 39
E
EFFECT 73
F
Fast forward 51
Fast reverse 51
FILE 52
File 111
Film based software 111
Freeze Frame 51
Front panel display 63, 115
H
Handling discs 102
HDMI
HDMI RESOLUTION 92
YC
B
C
R
/RGB (HDMI) 92
HDMI (high-definition
multimedia interface) 37, 111
I
INDEX 52
INFORMATION MODE 62
Installing the speakers and the
IR Devices on a wall 34
Instant Advance 43
Instant Replay 43
INTERLACE 94
Interlace format 111
INTERVAL 72
IR transmitter 29, 34
J
JPEG 68, 69
L
Language Code List 113
LANGUAGE SETUP 91
Listening to other components
44
Listening to TV sound 46
Locating a specific point by
watching the TV screen 51
M
MENU 91
Mica-reinforced-cellular-
diaphragm 111
MODE (MP3, JPEG) 71
MOVIE/MUSIC 47
MP3 68, 69
Multi Session CD 8
Multi-angle function 65, 111
MULTI-DISC RESUME 96
Multilingual function 111
Multiplex broadcast sound 81
MUTING 43
N
Naming preset stations 76
NIGHT 82
O
ORIGINAL 61
OSD 91
Other Component Hookup 40
P
PARENTAL CONTROL 85
Parental Control 111
PAUSE MODE 95
PBC Playback 73
PICTURE NAVI 53, 70
PLAY LIST 61
Playback Control (PBC) 111
Program Play 55
PROGRESSIVE AUTO 94
Progressive format 94, 111
PROGRESSIVE VIDEO 94
Q
Quick Setup 30
Index
cont
i
nue
d
126
US
R
Radio 76
Radio Stations 75
Rear Panel 117
Region Code 9, 111
Remote 10, 78
Remote control 118
Repeat Play 58
RESET 100
Resume Play 54
S
S VIDEO 37
Scan 51
SCENE 52
Scene 112
SCREEN SAVER 93
SCREEN SETUP 92
Searching 51
Selecting 47
SETUP 90
Setup Display 90, 123
Shuffle Play 57
SL SR REVERSE 99
SLEEP 82
Slide Show 71
Slow-motion Play 51
Soft-touch button 42
Sound Field 48
SPEAKER SETUP 97
CONNECTION 97
DISTANCE 97
LEVEL 98
SUBTITLE 66, 91
Super Audio CD 8, 67, 112
T
TEST TONE 98
THEATRE SYNC 80
TIME/TEXT 53
TITLE 52
Title 112
TRACK 52
Track 112
TRACK SELECTION 95
TREBLE 50
Troubleshooting 102
TV Hookup 36
TV TYPE 92
U
Unpacking 109
Usable discs 6
V
VIDEO CD 112
W
Wireless 29
