Westinghouse WBE5300SC-L 528L Stainless Steel Bottom Mount Fridge

User Manual

For WBE5300SC-L. Additionally, the document applies to other Westinghouse models: WTB4600, WTB4604, WTB5400, WTB5404, WBE4500, WBE4502, WBE4504, WBE5300, WBE5304, WRB5004, WFB4204, WHE5204, WHE5264, WQE6060, WQE6000, WHE6060, WHE6000

PDF File Manual, 36 pages, Read Online | Download pdf file

background
00000000000
00000000000
USER MANUAL
REFRIGERATION
WTB4600, WTB4604, WTB5400, WTB5404, WBE4500, WBE4502,
WBE4504, WBE5300, WBE5304, WRB5004, WFB4204, WHE5204,
WHE5264, WQE6060, WQE6000, WHE6060, WHE6000
REGISTER YOUR FRIDGE
WITH YOUR SMARTPHONE
Locate the label
on the inside of
your fridge
1
2
0488 446 622
Photograph the
camera icon, including
the 4 dots
( )
Text image to
(Australia only)
3
00000000000
© 2017 Electrolux Home Products Pty Ltd. EST_PhotoRegister_Fridge_70x70_Dec17
Easy register with your smartphone
1. Photograph the camera icon,
including the 4 dots( ).
2. Then text it to 0488 446 622
(Australia only)
00000000000
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...
Loading page 17...
Loading page 18...
Loading page 19...
Loading page 20...
Loading page 21...
Loading page 22...
Loading page 23...
Loading page 24...
Loading page 25...
Loading page 26...
Loading page 27...
Loading page 28...
Loading page 29...
Loading page 30...
Loading page 31...
Loading page 32...
Loading page 33...
Loading page 34...
Loading page 35...
Loading page 36...

Other documents for Westinghouse WBE5300SC-L

The following documents are available:
User Manual Specification Photos

Specifications

User Manual - Transcript

  • Page 1 - English - : USER MANUAL REFRIGERATION WTB4600 WTB4604 WTB5400 WTB5404 WBE4500 WBE4502 WBE4504 WBE5300 WBE5304 WRB5004 WFB4204 WHE5204 WHE5264 WQE6060 WQE6000 WHE6060 WHE6000 REGISTER YOUR FRIDGE WITH YOUR SMARTPHONE Locate the label on the inside of your fridge 0488 446 622 Photograph the camera icon including the 4 dots Text image to Australia only 2017 Electrolux Home Products Pty Ltd ESTPhotoRegisterFridge70x70Dec17 Easy register with your smartphone 1 Photograph the camera icon including the 4 dots 2 Then text it to 0488 446 622 Australia only
  • Page 2 - English - : CONTENTS CONGRATULATIONS Dear customer Congratulations and thank you for choosing our refrigerator We are sure you will find your new refrigerator a pleasure to use Before you use the refrigerator we recommend that you read through the relevant sections of this manual which provides a description of your refrigerator and its functions To avoid the risks that are always present when you use an electric appliance it is important that the refrigerator is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards We recommend that you keep this instruction booklet for future reference and pass it on to any future owners After unpacking the refrigerator please check it is not damaged If in doubt do not use the refrigerator but contact your local customer care centre The symbols you will see in this booklet have these meanings WARNING This symbol indicates information concerning your personal safety CAUTION This symbol indicates information on how to avoid damaging the refrigerator IMPORTANT This symbol indicates tips and information about use of the refrigerator ENVIRONMENT This symbol indicates tips and information about economical and ecological use of the refrigerator Conditions of use This refrigerator is designed and intended to be used in normal domestic applications only Record model and serial number here Model number Serial number Important safety instructions 3 Refrigerator Features Top mount refrigerator features 4 Bottom mount refrigerator features 5 French door features 6 French door with ice amp water features 7 Single door refrigerator features 11 Single door freezer features 12 Quattro French door refrigerator 9 Quattro French door with ice amp water refrigerator 10 Installing your new refrigerator Unpacking your refrigerator 13 Locating your refrigerator 13 Installing your refrigerator 13 Fitting the handles 14 Ice and Water Installation Water filter 14 Water supply amp plumbing 14 Replacing the water filter 16 Using your refrigerator Removing Features 17 LED Lighting 17 Crisper Bin 17 SpillSafe glass shelves 17 Freezer Shelves 17 Drawers with telescopic slides 18 Twist amp Serve ice 18 Temperature control 19 About the User Interface Top mount amp single door models 20 Bottom mountFrench door models 21 French door Ice amp Water 22 Single door freezer models 24 General information Error Codes 25 Cleaning the refrigerator 26 Food storage guide 27 Troubleshooting 28 Ice amp water troubleshooting 31 Warranty 32 2 CONTENTS
  • Page 3 - English - : IMPORTANT SAFETY INSTRUCTIONS Note You must read these warnings carefully before installing or using the refrigerator If you need assistance contact your customer care centre The manufacturer will not accept liability should these instructions or any other safety instructions incorporated in this book be ignored WARNING This appliance is not intended for use by persons including children with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety Children should be supervised to ensure that they do not play with the appliance It is essential the power point is properly earthed to ground Consult a qualified electrician if you are unsure Do not use electrical appliances inside the food storage compartments of the appliance unless they are of the type recommended by the manufacturer Unplug the refrigerator before cleaning or moving it to avoid electric shock Never unplug the refrigerator by pulling the electrical cord as this may damage it Grip the plug firmly and pull straight out If the power cord is damaged it must be replaced by the manufacturer its service agent or similarly qualified persons in order to avoid a hazard Dont use a steam cleaner If live components come into contact with condensing steam they may shortcircuit or cause an electric shock Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance If pressurised aerosol containers bear the word flammable andor a small flame symbol do not store them inside any refrigerator or freezer If you do so you may cause an explosion Do not damage the refrigerant circuit This appliance contains insulation formed with flammable blowing gases Avoid safety hazards by carefully disposing of this appliance If you wish to discard this refrigerator please contact your local authorities and ask for the correct method of disposal When you dispose of your old refrigerators and freezers remove any doors Children can suffocate if they get trapped inside The plug must be accessible when the appliance is in position Never try to repair the refrigerator yourself only use a qualified or authorised service person for repairs When positioning the appliance ensure the supply cord is not trapped or damaged Do not locate multiple portable socketoutlets or portable power supplies at the rear of the appliance When positioning the appliance ensure the supply cord is not trapped or damaged Do not locate multiple portable socketoutlets or portable power supplies at the rear of the appliance WARNING R600a refrigerant warning This appliance contains flammable R600a refrigerant Avoid safety hazards by carefully installing handling servicing and disposing of this appliance Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation Leaking refrigerant may cause eye injuries or ignite The room for installing appliance must be at least 1m per 8g of refrigerant The amount of refrigerant in the appliance can be found on the rating plate inside the appliance If you are unsure of the refrigerant check the rating plate inside the refrigerator compartment It is hazardous for anyone other than an Authorised Service Person to service this appliance In Queensland Australia the Authorisation Service Person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants to carry out servicing or repairs which involve the removal of covers Keep ventilation openings in the appliance enclosure or in the builtin structure clear of obstruction Do not use mechanical devices or other means to accelerate the defrosting process other than those recommended by the manufacturer SAFETY 3
  • Page 4 - English - : Features may vary depending on model Not all models will have features listed Refrigerator control panel From this panel you can control the temperature of the refrigerator compartment as well as setting the quick chill function or resetting the door alarm For further information on how to use this feature refer to the section About the User Interface Freezer control This is a simple slide control to adjust the temperature of your freezer compartment how use to this feature refer For further information on to the section Using your Refrigerator TOP MOUNT REFRIGERATOR FEATURES WTB5400 illustrated Freezer temperature control Refer to the section Temperature control for details on using this feature Twist amp Serve Ice Refer to the section Using your Refrigerator for details on removing relocating and using this feature Chiller drawer Use the chiller drawer to store foods like small goods fresh or cooked meat and cheese To remove the chiller drawer pull it forward then lift it up and pull it further forward FlexSpace Deodoriser Humidity control Change the humidity by sliding the humidity control Less humid conditions are recommended for fruit while more humid conditions are recommended for vegetables FreshSeal crisper Use the crisper to store vegetables fruit or small goods Change the humidity by sliding the humidity control FamilySafe lockable compartment This compartment can be used to store dairy and is also lockable for storing items like cosmetics and medicines To operate the lock turn the knob located on the front of the bin FlexStor door bins Slide FlexStor bins to meet different storage needs To remove lift and tilt To replace tilt the top and push down until locked in place Door storage bin The door bin can be removed by lifting it up over the support lugs To replace push down over the support lugs to lock in place Bottle storage bin with fingers Use the bottle bin for tall bottle storage The bottle bin can be removed by lifting it up over the support lugs To replace push down over the support lugs to lock in place 4

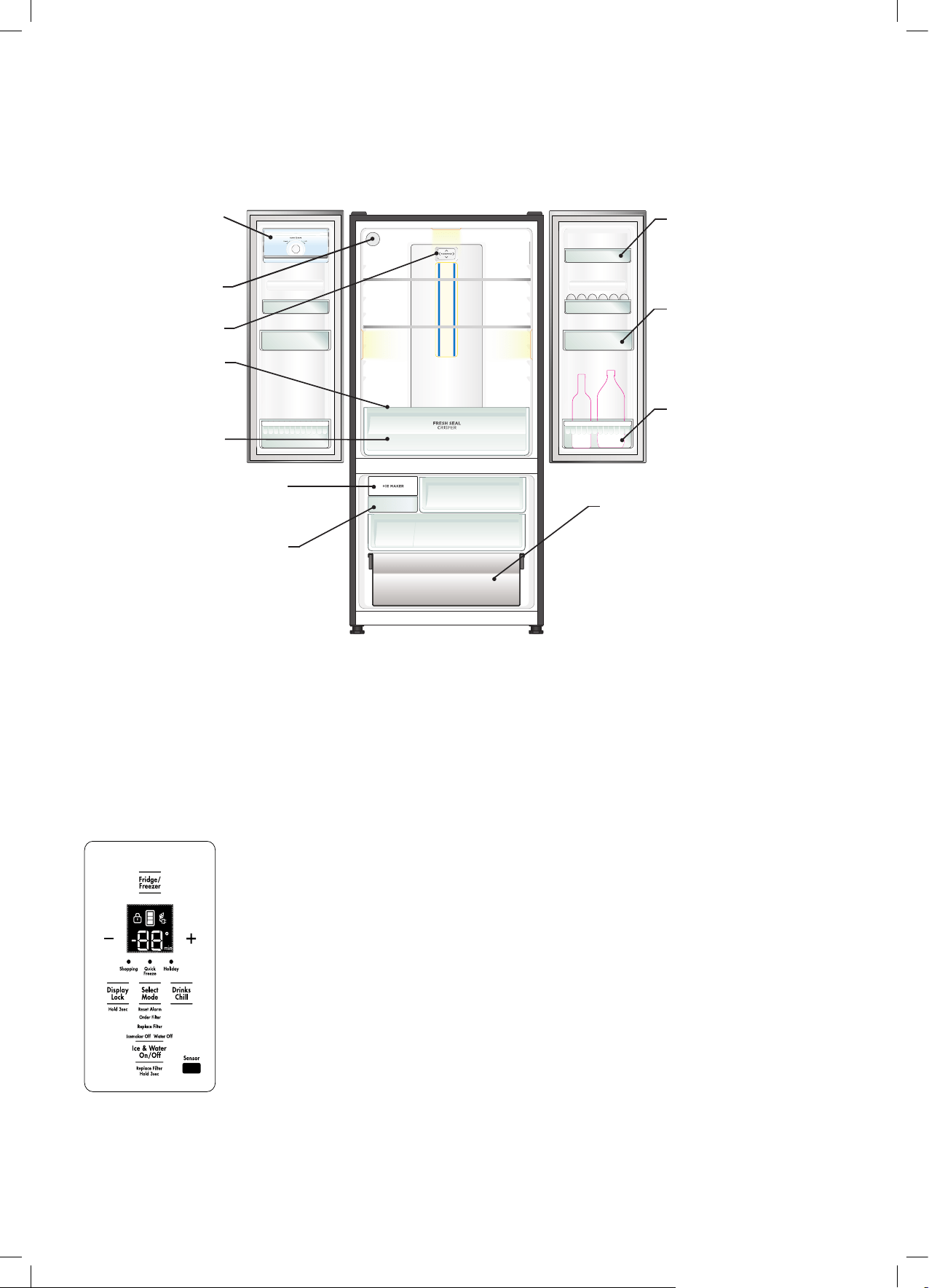

  • Page 5 - English - : BOTTOM MOUNT REFRIGERATOR FEATURES Refrigeratorfreezer control panel From this panel you can control the temperature of the refrigerator and freezer compartments as well as setting the quick freeze function or resetting the door alarm For further information on how to use this feature refer to the section About the User Interface Features may vary depending on model Not all models will have features listed W BE5300 illustrated FlexSpace Deodoriser FamilySafe lockable compartment This compartment can be used to store dairy and is also lockable for storing items like cosmetics and medicines To operate the lock turn the knob located on the front of the bin FlexStor door bins Slide FlexStor bins to meet different storage needs To remove lift and tilt To replace tilt the top and push down until locked in place Door storage bin The door bin can be removed by lifting it up over the support lugs To replace push down over the support lugs to lock in place Bottle storage bin with fingers Use the bottle bin for tall bottle storage The bottle bin can be removed by lifting it up over the support lugs To replace push down over the support lugs to lock in place Humidity control Change the humidity by sliding the humidity control Less humid conditions are recommended for fruit while more humid conditions are recommended for vegetables FreshSeal crisper Use the crisper to store vegetables fruit or small goods Change the humidity by sliding the humidity control Twist amp Serve Ice Refer to the section Using your Refrigerator for details on removing relocating and using this feature Freezer storage bins Refer to the section Using your Refrigerator for details on removing and using this feature 5

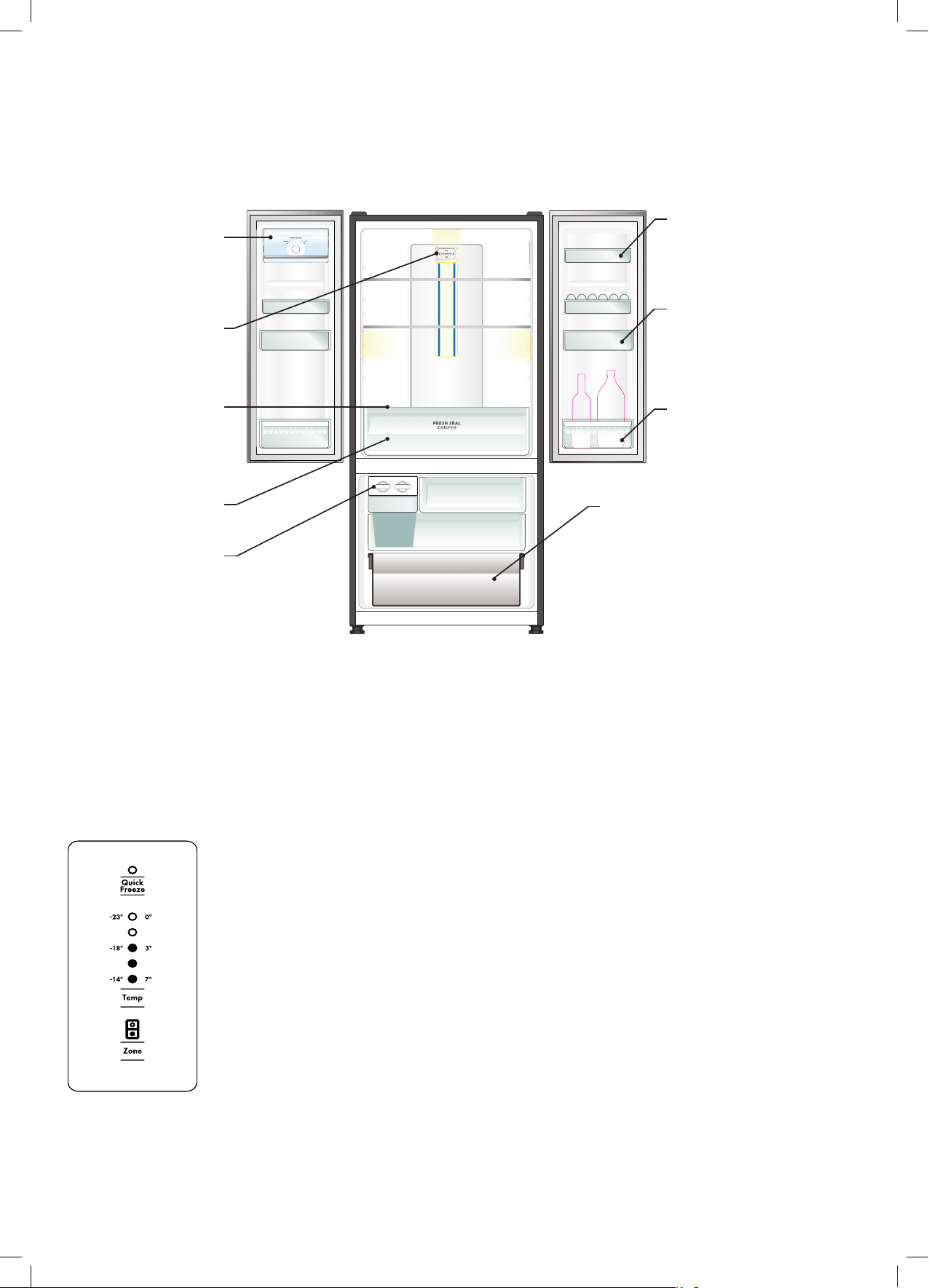

  • Page 6 - English - : FRENCH DOOR REFRIGERATOR FEATURES Refrigeratorfreezer control panel From this panel you can control the temperature of the refrigerator and freezer compartments as well as setting the quick freeze function or resetting the door alarm For further information on how to use this feature refer to the section About the User Interface Features may vary depending on model Not all models will have features listed WHE5204 illustrated Humidity control Change the humidity by sliding the humidity control Less humid conditions are recommended for fruit while more humid conditions are recommended for vegetables FreshSeal crisper Use the crisper to store vegetables fruit or small goods Change the humidity by sliding the humidity control Twist amp Serve Ice Refer to the section Using your Refrigerator for details on removing relocating and using this feature FlexStor door bins Slide FlexStor bins to meet different storage needs To remove lift and tilt To replace tilt the top and push down until locked in place Door storage bin The door bin can be removed by lifting it up over the support lugs To replace push down over the support lugs to lock in place Bottle storage bin with fingers Use the bottle bin for tall bottle storage The bottle bin can be removed by lifting it up over the support lugs To replace push down over the support lugs to lock in place FamilySafe lockable compartment This compartment can be used to store dairy and is also lockable for storing items like cosmetics and medicines To operate the lock turn the knob located on the front of the bin FlexSpace Deodoriser Freezer storage bins Refer to the section Using your Refrigerator for details on removing and using this feature 6
  • Page 7 - English - : FRENCH DOOR ICE amp WATER REFRIGERATOR FEATURES WHE5264 illustrated Refrigeratorfreezer control panel From this panel you can control the temperature of the refrigerator and freezer compartments as well as setting the quick freeze function controlling the Ice Maker or resetting the door alarm For further information on how to use this feature refer to the section About the User Interface Features may vary depending on model Not all models will have features listed FamilySafe lockable compartment This compartment can be used to store dairy and is also lockable for storing items like cosmetics and medicines To operate the lock turn the knob located on the front of the bin Humidity control Change the humidity by sliding the humidity control Less humid conditions are recommended for fruit while more humid conditions are recommended for vegetables FreshSeal crisper Use the crisper to store vegetables fruit or small goods Change the humidity by sliding the humidity control FlexStor door bins Slide FlexStor bins to meet different storage needs To remove lift and tilt To replace tilt the top and push down until locked in place Door storage bin The door bin can be removed by lifting it up over the support lugs To replace push down over the support lugs to lock in place Bottle storage bin with fingers Use the bottle bin for tall bottle storage The bottle bin can be removed by lifting it up over the support lugs To replace push down over the support lugs to lock in place Water filter FlexSpace Deodoriser Automatic ice maker Refer to the section Using your Refrigerator for details on using this feature Ice Bin amp Ice Scoop Use the ice bin for ice storage Use ice scoop to gather ice from bin Freezer storage bins Refer to the section Using your Refrigerator for details on removing and using this feature FEATURES 7
  • Page 8 - English - : FlexStor bins FlexStor bins to meet different storage needs To remove lift and tilt To replace tilt the top and push down until locked in place Door storage bin The door bin can be removed by lifting it up over the support lugs To replace push down over the support lugs to lock in place Bottle storage bin with fingers Use the bottle bin for tall bottle storage The bottle bin can be removed by lifting it up over the support lugs To replace push down over the support lugs to lock in place Freezer storage bins Refer to the section Using your Refrigerator for details on using this feature FRENCH DOOR ICE amp WATER REFRIGERATOR FEATURES Refrigeratorfreezer control panel From this panel you can control the temperature of the refrigerator and freezer compartments as well as setting the quick freeze function controlling the Ice Maker or resetting the door alarm For further information on how to use this feature refer to the section About the User Interface Features may vary depending on model Not all models will have features listed Water Filter FamilySafe lockable compartment This compartment can be used to store dairy and is also lockable for storing items like cosmtices and medicines To operate the lock turn the knob located on the front of the bin Bottle Rack Available in selected models only Humidity control Change the humidity by sliding the humidity control Less humid conditions are recommended for fruit while more humid conditions are recommended for vegetables FreshSeal crisper Use the crisper to store vegetables fruit or small goods Change the humidity by sliding the humidity control toati ie aer Refer to the section Using your Refrigerator for details on using this feature e Bin e Soo Use the ice bin for ice storage Use ice scoop to gather ice from bin WHE6060 illustrated 8 FEATURES

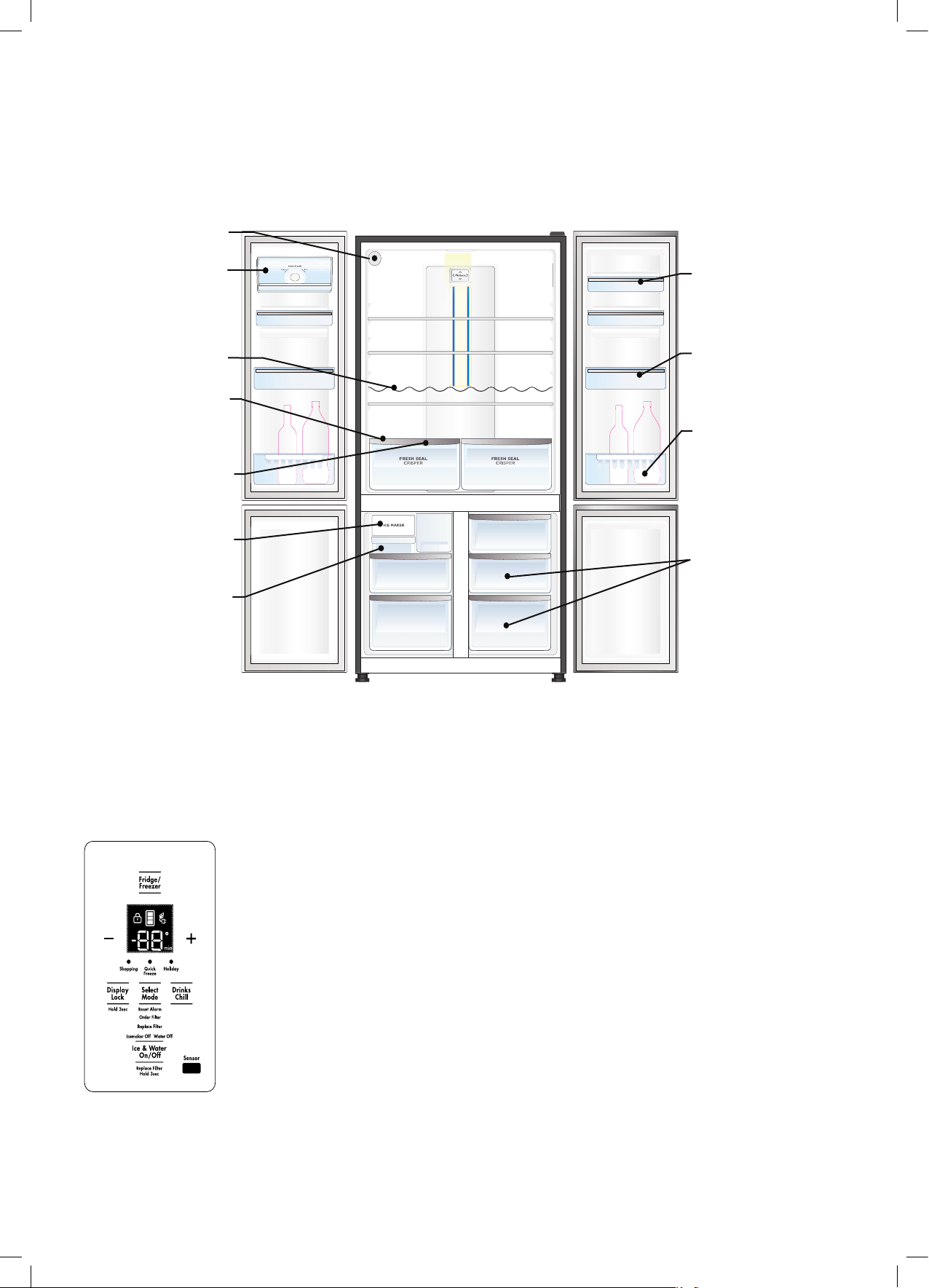

  • Page 9 - English - : QUATTRO FRENCH DOOR REFRIGERATOR FEATURES WQE6000 illustrated Refrigeratorfreezer control panel From this panel you can control the temperature of the refrigerator and freezer compartments as well as setting the quick freeze function or resetting the door alarm For further information on how to use this feature refer to the section About the User Interface Features may vary depending on model Not all models will have features listed FamilySafe lockable compartment This compartment can be used to store dairy and is also lockable for storing items like cosmtices and medicines To operate the lock turn the knob located on the front of the bin Bottle Rack Available in selected models only Humidity control Change the humidity by sliding the humidity control Less humid conditions are recommended for fruit while more humid conditions are recommended for vegetables FreshSeal crisper Use the crisper to store vegetables fruit or small goods Change the humidity by sliding the humidity control Twist amp Serve Ice Refer to the section Using your Refrigerator for details on removing and using this feature FlexStor bins FlexStor bins to meet different storage needs To remove lift and tilt To replace tilt the top and push down until locked in place Door storage bin The door bin can be removed by lifting it up over the support lugs To replace push down over the support lugs to lock in place Bottle storage bin with fingers Use the bottle bin for tall bottle storage The bottle bin can be removed by lifting it up over the support lugs To replace push down over the support lugs to lock in place Freezer storage bins Refer to the section Using your Refrigerator for details on using this feature FEATURES 9
  • Page 10 - English - : VIRONMENTAL TIPS QUATTRO FRENCH DOOR WITH ICE amp WATER REFRIGERATOR FEATURES Refrigeratorfreezer control panel From this panel you can control the temperature of the refrigerator and freezer compartments as well as setting the quick freeze function controlling the Ice Maker or resetting the door alarm For further information on how to use this feature refer to the section About the User Interface Features may vary depending on model Not all models will have features listed WQE6060 illustrated FamilySafe lockable compartment This compartment can be used to store dairy and is also lockable for storing items like cosmtices and medicines To operate the lock turn the knob located on the front of the bin Bottle Rack Available in selected models only Humidity control Change the humidity by sliding the humidity control Less humid conditions are recommended for fruit while more humid conditions are recommended for vegetables FreshSeal crisper Use the crisper to store vegetables fruit or small goods Change the humidity by sliding the humidity control Automatic ice maker Refer to the section Using your Refrigerator for details on using this feature FlexStor bins FlexStor bins to meet different storage needs To remove lift and tilt To replace tilt the top and push down until locked in place Door storage bin The door bin can be removed by lifting it up over the support lugs To replace push down over the support lugs to lock in place Bottle storage bin with fingers Use the bottle bin for tall bottle storage The bottle bin can be removed by lifting it up over the support lugs To replace push down over the support lugs to lock in place Freezer storage bins Refer to the section Using your Refrigerator for details on using this feature Ice Bin amp Ice Scoop Use the ice bin for ice storage Use ice scoop to gather ice from bin Water Filter 10 FEATURES
  • Page 11 - English - : Features may vary depending on model Not all models will have features listed FamilySafe lockable compartment This compartmen t can be used to store dairy and is also lockable for storing items like cosmetics and medicines To operate the lock turn the knob located on the front of the bin FlexStor bins Slide FlexStor bins to meet different storage needs To remove lift and tilt To replace tilt the top and push down until locked in place Door storage bin The door bin can be removed by lifting it up over the support lugs To replace push down over the support lugs to lock in place Bottle storage bin with fingers Use the bottle bin for tall bottle storage The bottle bin can be removed by lifting it up over the support lugs To replace push down over the support lugs to lock in place FlexF resh cr ispe r U se the crisper to store vegetabl es frui t or sma ll goods Humid ity control Change th e humidity by slid ing the humidity con trol Less hum id conditions are recommended for fruit while more humid conditions are recommended for vege tables WRB5004 illustrated SINGLE DOOR REFRIGERATOR FEATURES Refrigerator control panel From this panel you can control the temperature of the refrigerator compartment as well as setting the quick chill function or resetting the door alarm For further information on how to use this feature refer to the section About the User Interface FEATURES 11 Deli drawer U se the chiller drawer to store foods like small goods fresh or cooked meat and cheese To remove the chiller drawer pull it forward then lift it up and pull it further forward

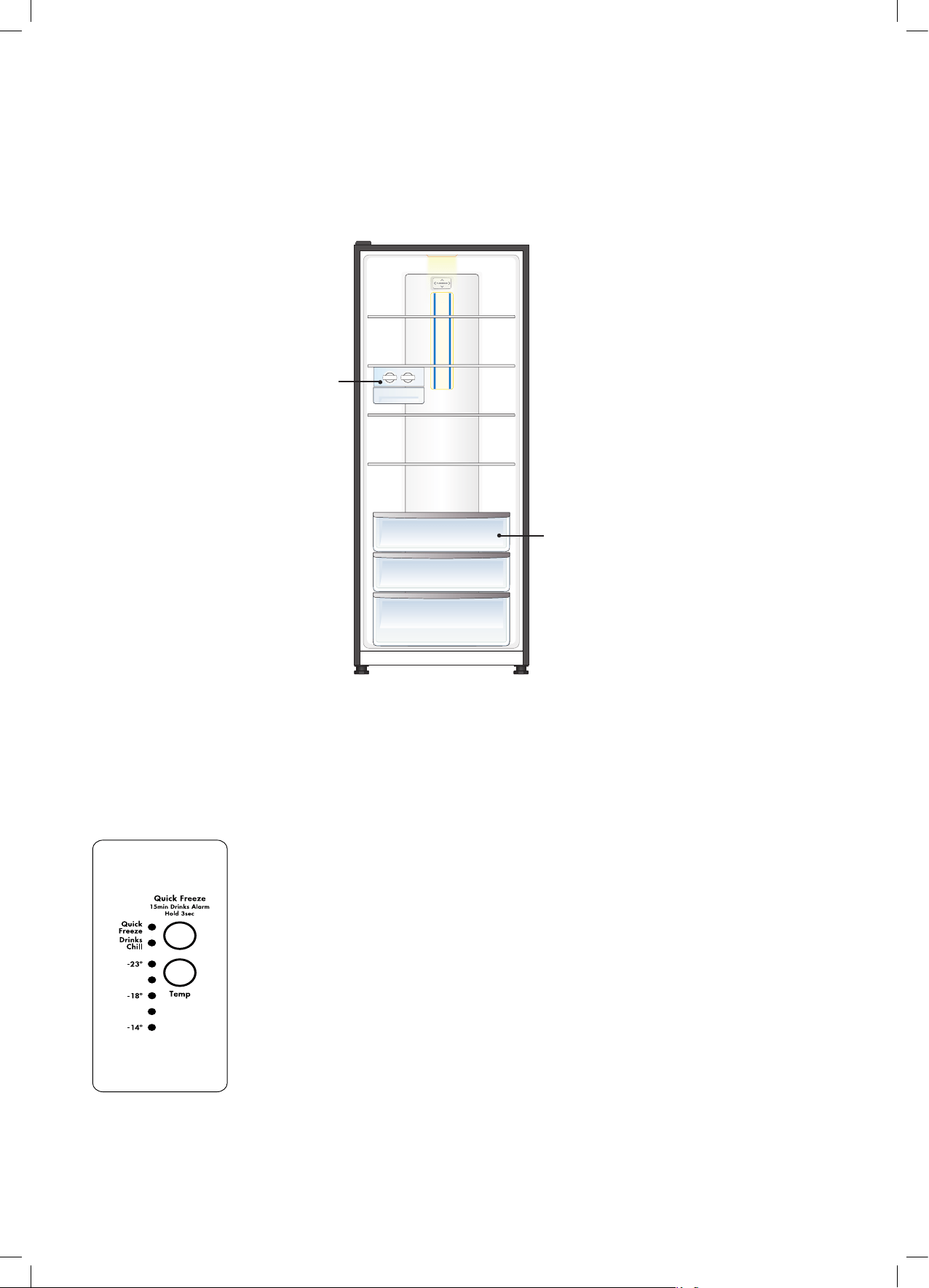

  • Page 12 - English - : Freezer control From this panel you can control the temperature of the freezer as well as setting the quick freeze and drinks chill functions or reset the door alarm For further information on how to use this feature refer to the section Controlling your Refrigerator Features may vary depending on model Not all models will have features listed SINGLE DOOR FREEZER FEATURES Storage bins Refer to the section Using your Refrigerator for details on removing and using this feature WFB4204 illustrated Twist amp serve ice Refer to the section Using your Refrigerator for details on removing relocating and using this feature 12 FEATURES

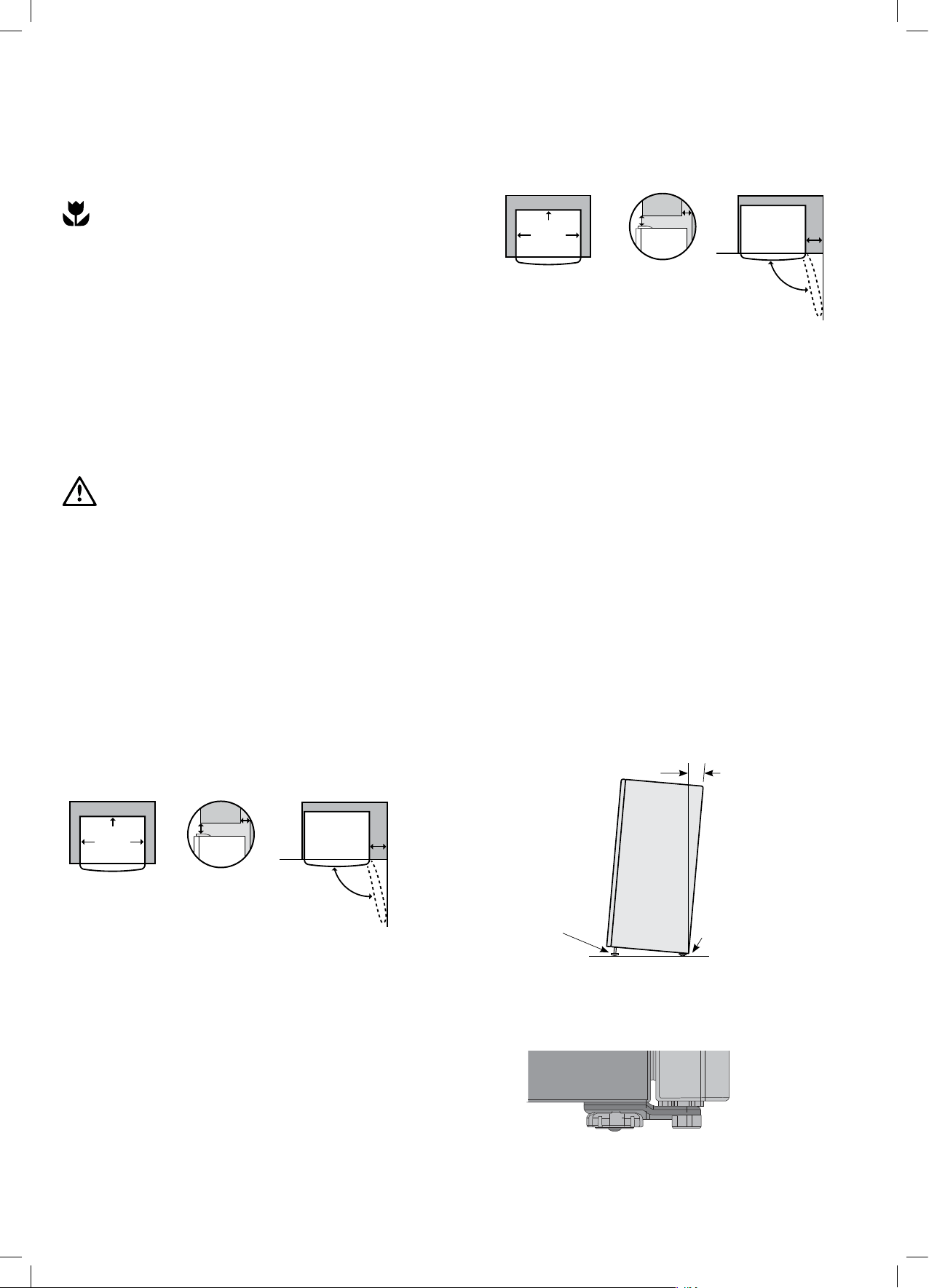

  • Page 13 - English - : INSTALLING YOUR NEW APPLIANCE Unpacking Most of the packing materials are recyclable Please dispose of those materials through your local recycling depot or by placing them in appropriate collection containers Important check for any damages or marks If you find the refrigerator is damaged or marked you must report it within 7 days should you wish to claim for damage marks under the manufacturers warranty This does not affect your statutory rights Clean your refrigerator thoroughly following the instructions in the Cleaning section and wipe off any dust that has accumulated during shipping Locating the refrigerator Automatic aerosol systems such as insect control should not be located adjacent to the product as the spray may cause long term damage to the external plastics of the appliance Do not put the refrigerator in a location that is too cold or is unprotected for example in a garage or on a veranda The ambient temperature should be above 10C Put the refrigerator in a dry place avoiding areas of high moisture or humidity Ensure the refrigerator is located on an even surface Adequate ventilation around your refrigerator with the exception of WHE6000 WHE6060 WQE6000 and WQE6060 The diagram below shows the recommended airspace to allow for ventilation of your refrigerator 350mm 50mm Recommended minimum airspace CABINET DOOR 30mm 30mm X Y If you have a cupboard above the refrigerator with a rear gap of less than 100 mm Y recommended clearance at the top of the refrigerator increases from 30mm to 70mm X minimum Adequate ventilation around your refrigerator WHE6000 WHE6060 WQE6000 and WQE6060 The diagram below shows the recommended airspace to allow for ventilation of your refrigerator 350mm X Y 50mm Recommended minimum airspace CABINET DOOR 5mm 5mm If you have a cupboard above the refrigerator with a rear gap of less than 100 mm Y recommended clearance at the top of the refrigerator increases from 30mm to 70mm X minimum When positioned in a corner area spacing of at least 350mm on the hinge side will allow the doors to open enough to enable the removal of bins and shelves NOTE Doors are designed to sit proud of cabinetry not flush The clearances shown above are the recommended minimum clearances The clearance at the rear should not exceed 75mm Installing your refrigerator 1 Roll the refrigerator into place The rollers are designed for forward or backward movement only They are not castors Moving the refrigerator sideways may damage your floor and the rollers Before moving your refrigerator ensure height adjusting nut and the stability foot are fully wound up off the floor 2 Wind the large height adjusting nut under door hinge down until the refrigerator is tilted back by 10mm see diagram Height adjusting nut Fixed rear rollers 10 15mm 3 Wind the large height adjusting nut on the handle side down until the refrigerator is level and stable If you have difficulty winding the nut or height adjusting foot down have someone tilt the refrigerator back so you have better access stability foot wound up ENVIRONMENT CAUTION INSTALLATION 13
  • Page 14 - English - : INSTALLING YOUR NEW APPLIANCE 4 Check the alignment of the refrigerator to the surrounding cupboards to see if it is level You can adjust the level as detailed in step 2 and 3 aligned to cupboards ie even gap top of refrigerator is level ie horizontal adjust front feet for uneveness of floor eg wind this foot down or up 5 If you find your refrigerator rocks from corner to corner it means your floor is uneven Find a piece of plastic or hardboard etc and pack it firmly under the roller 6 You may now need to finetune the installation by repeating steps 3 4 and 5 7 When you have the appliance in its final position it needs to be stabilised Wind the stability foot under the door hinge down to the floor until it just makes contact with the floor Lift the front of the appliance to take the weight off the stability foot then turn it half a turn further to ensure firm contact with the floor Wind the large height adjusting nut back up to ensure all the weight is now on the front stability foot Wind the large height adjusting nut back up to ensure all the weight is now on the front stability foot 8 Repeat step 7 for the stability foot on the handle side Whenever you need to move the appliance be sure to wind the feet back up so that the appliance can roll freely and be sure to reset it when reinstalling stability foot wound down front view 9 Plug your refrigerator straight into its own power point and never use a double adapter If you need to roll the refrigerator to get to the plug remember to raise the stability foot first 10 Before you put any food in your refrigerator its recommended you leave it on for 2 or 3 hours to check it is running properly WARNING Connect to potable water supply only If using tank or bore water it is recommended to also use an external filter not supplied The new hosesets supplied with the appliances must be used and old hosesets should not be reused Never connect the appliance to a hot water supply Do not use with water that is microbiologically unsafe or with water of unknown quality without adequate disinfection Water Filter It should not be used on water that is micro biologically unsafe or with water of unknown quality The service life of the filter may be reduced in water supplies that contain an excess of particles or other impurities Reduced flow rate is an indication that a new filter is required Failure to replace the filter when required can affect the function of the ice maker Service calls caused by a failure to replace the filter are not covered by warranty Replacement water filters are available from Electrolux Home Products Spare Parts Centres and can be posted to you for your convenience refer to spare parts contact numbers on the warranty page Conteentsntsof tallation kit 4 metres of water tubing 1 x 12 tap fitting Water supply and plumbing A drinkable water supply to suit a 12 tap fitting is required adjacent to the refrigerator It is recommended that a licensed plumber install a new water supply outlet nearer to the appliance should the tubing supplied not be long enough It is not recommended that the tubing be extended as this could adversely affect the flow of water to the ice maker or water dispenser The water dispenser and automatic ice maker require a drinkable water supply with a pressure range of between 206kPa and 689kPa 30psi and 100psi If the water supply is above 100psi a pressure limiting valve should be installed It is recommended that a noise reduction valve also be fitted in the water supply line This will reduce water hammer and its effects from quick action household taps and fast acting valves on appliances The refrigerator water valve is prefitted with a pushfit connector for inserting the water tube When the tap connection is other than 12 adapters can be purchased from plumbing supply stores or good hardware stores ICE A ND WATER INSTALLATION Fitting the handles For models with Pole handles the handles are supplied prepackaged inside your refrigerator and will require fitting Refer to the instructions provided in the pack Congratulations Y ou have successfully installed your new refrigerator 14 INSTALLATION

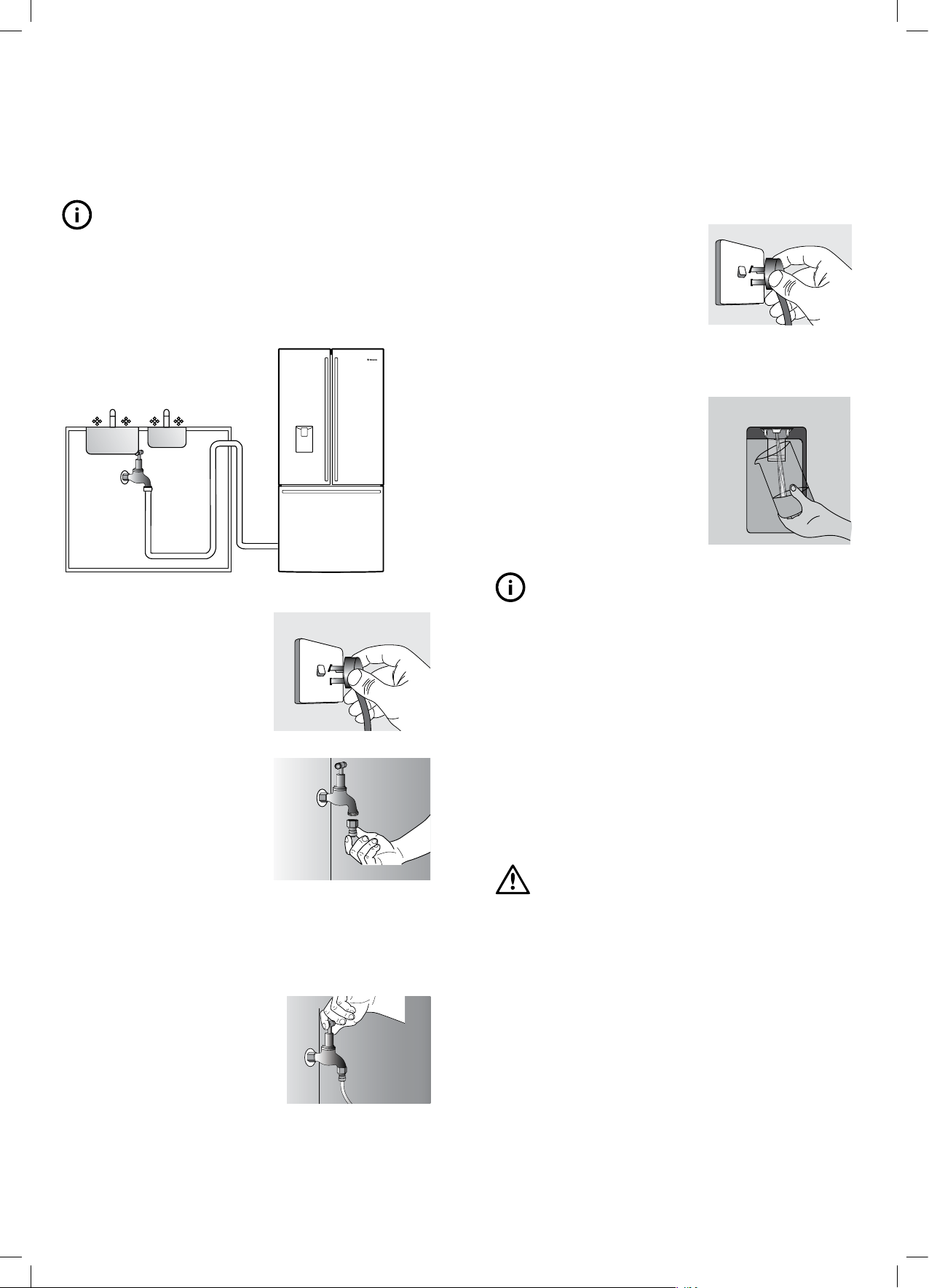

  • Page 15 - English - : Please read before beginning installation The water connection to your ice and water product can be self installed However it is recommended that you seek advice from a licensed plumber before commencing the installation IMPORTANT Check for water leaks at all water connection points in the first 2 to 3 hours after installation and correct it in case of any water leak Recheck after 24 hours if leak still occurs it is recommended to contact a licensed plumber for advice Water is to be connected as per diagram below WHE5264 shown Step 6 Reconnect the power Step 7 Move the refrigerator back into place being careful not to kink or split the tubing Step 8 Switch ON Water Dispenser By referring to Ice amp Water onoff function on page no21 Using a large container run the water dispenser to clear air from lines This may take a few minutes Purge and dispense a minimum of 2 litres of water Initial water may be black in colour This is residual carbon dust from the filter and is nontoxic If the water is slow to shut off or the dispenser is dripping air may still be in the lines Either purge more water through the system to remove this air or allow some time for the air to be removed over subsequent dispensing For normal use water dispenser will automatically shut off after 2 minutes of continuous operation IMPORTANT As the water cut off is not instant leave glass under dispenser briefly until water has stopped flowing to avoid spills Clean and empty the dispenser drip tray regularly to avoid overflow If you have not used the dispenser for some time discard the first seven or eight cups of water contaminants could have settled in the water pipes Step 9 Switch ON Ice Maker Once the refrigerator has been running for at least 24 hours remove the ice bin and dispose of the first few batches of ice to ensure that impurities have been flushed from the system CAUTION Water dispenser should not be used for extended periods of time After 2 minutes of continuous use the water dispenser will automatically shut off Party Ice When the Ice Bin is removed from the cabinet the Auto Ice Maker will continue to dispense ice into the top freezer drawer Step 1 Ensure that the refrigerator is disconnected from power supply Step 2 Connect tap fitting to water supply tap Tap must be close to the refrigerator Step 3 Push the tube into tap fitting past insertion mark Step 4 Connect other end of tube to inlet on rear of refrigerator Step 5 Turn on water and check all joints and tubes for leaks INSTALLATION 15

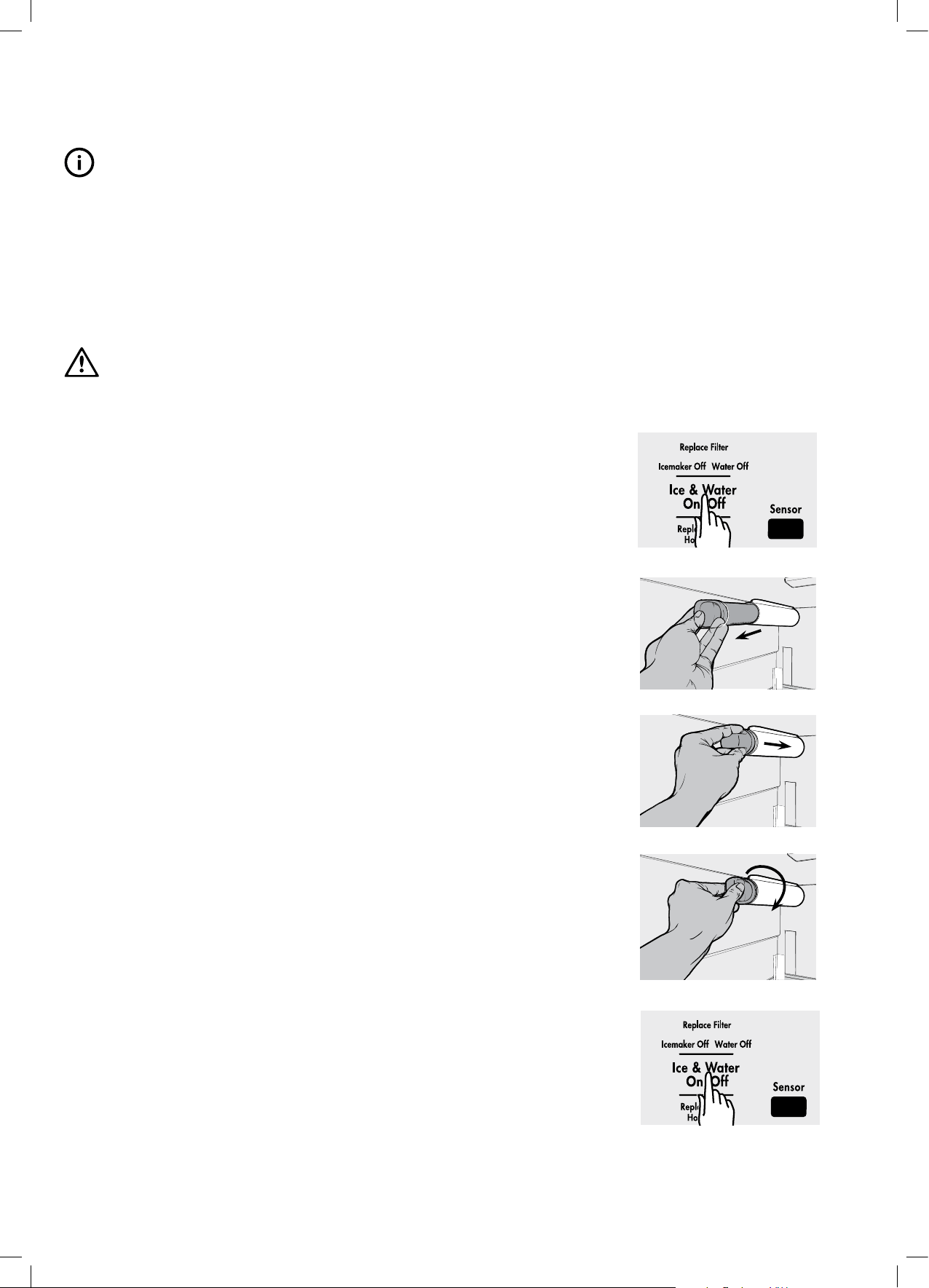

  • Page 16 - English - : PureSou rce U l t r a 2 Ice amp Water Filtration System PureSou rce U l t r a 2 Ice amp Water Filtration System PureSou rce U l t r a 2 Ice amp Water Filtration System ICE AND WATER INSTALLATION IMPORTANT Always fit the filter as per manufacturers instructions If you need to replace water tube only use approved water quality piping that meets the pressure requirements Make sure your refrigerator is level to avoid uneven ice cubes Replace filter at suggested intervals to avoid waterice reduction and irregularities in taste Remove and clean ice bin once a month discarding unused ice cubes This will ensure fresh clean ice and smooth operation of your ice maker Clean and empty the dispenser drip tray regularly to avoid overflow WARNING If you have not used the dispenser for some time discard the first seven or eight cups of water and any ice that the ice maker produces in the first 24 hours contaminants could have settled in the water pipes Wa t er filter The water filter is located at the top left side of the fresh food compar tment Replacing the water filter Y ou should change the water filter every six months to ensure the highest possible water qualit y If your refrigerator has not been used for a period of time during a house move for example change the filter before reinstalling the refrigerator It is not necessary to turn the water supply off to change the filter Be ready to wipe up any small amounts of water released during the filter replacement Ensure that the ice maker is turned off Diagram 1 2 Remove the filter by turning anticlockwise 180 3 Slide the old water filter cartridge straight out of the housing and discard it Diagram 2 4 Unwrap the new filter cartridge and using the alignment guide slide it gently into filter housing until it stops against the filter connection at the back of the housing Diagram 3 5 Engage the filter by firmly rotating clockwise until the filter snaps into position once engaged the filter cannot be rotated further Diagram 4 6 Press a drinking glass against the water dispenser while checking for any leaks at the filter housing Any spurts and sputters that occur as the system purges air out of the dispenser system are normal 7 After filling one glass of water continue flushing the system for about four minutes 8 Turn on the ice maker Diagram 5 9 When the filter has been replaced press and hold the Ice and Water button for three seconds to reset the filter replace timer 16 INSTALLATION Diagram 1 Diagram 2 Diagram 3 Diagraammm Diagram 5
  • Page 17 - English - : USING YOUR REFRIGERATOR Refrigerators work by transferring heat from the food inside to the outside air This operation makes the back and sides of the refrigerator feel warm or even hot particularly at startup and on warm days this is normal Avoid placing food against the air vents in the refrigerator as it affects efficient circulation If the door is opened frequently a light frosting will occasionally occur on the freezers interior This is normal and will clear after a few days If the freezer door is accidentally kept open a heavy frost will coat the inside walls and should be removed Your new refrigerator uses a highspeed compressor along with other energyefficient components which may make unusual sounds and be more noticeable at night and quieter times These sounds simply indicate your refrigerator is working how it should They include Compressor running noises Air movement noise from the small fan motor A gurgling sound similar to water boiling A popping noise heard during automatic defrosting and A clicking noise prior to compressor startup Further details can be found in the Troubleshooting Guide IMPORTANT For top mount refrigerators where the freezer is on top of the fresh food compartment Ribs For bottom mount refrigerators where freezer is below the fresh food compartment Ensure all freezer drawers and shelves are pushed back completely to prevent them from keeping the door open REMOVING FEATURES Crisper Bin Removal standard Crisper Bins 1 Empty food from the crisper On some models it will be necessary to remove the bottle storage bins 2 Remove the crisper bins by pulling forward then up and forward again 3 For top mount and single door remove the crisper shelf by lifting the catches on the left and right underside of the shelf and pulling the shelf forward SpillSafe glass shelves To remove the shelves gently pull them forward until the shelf comes clear of the shelf guides To return the shelf make sure there is nothing behind that may obstruct movement Gently push the shelf into the cabinet and back into position CATC H Dont place food forward of the ribs on the freezer floor as it will keep the door open Freezer shelf Remove the freezer shelf by lifting the catches on the right and left underside of the shelf to release the shelf then pull the shelf toward you CAUTION LED lighting Your appliance is fitted with long life LED lighting In the unlikely event the LED lights should fail then the LED lights should be serviced by the service agent to avoid a safety hazard Refer to the warranty page for contact details REMOVING FEATURES 17

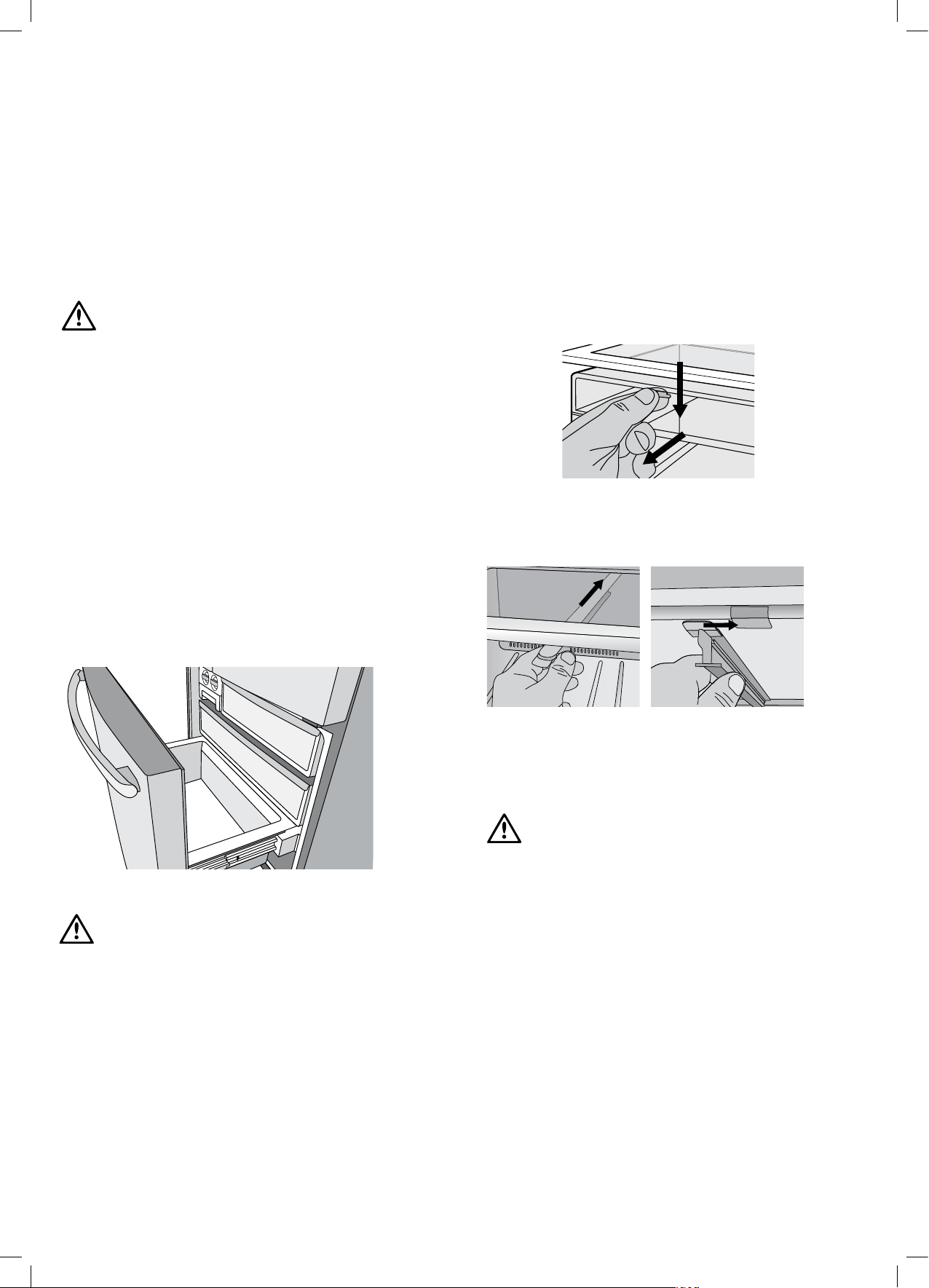

  • Page 18 - English - : 1 Empty food from the drawer 2 Remove the drawer by pulling it forward and lifting the front to unhook it from the slides Once you have removed the drawer ensure the slides are pushed back so they are fully closed WARNING Never close the door while the telescopic slides are extended This may damage the slide andor refrigerator or cause the slide to become disengaged from the refrigerator To replace the drawer 1 Ensure the telescopic slides are pushed in all the way 2 Slide the drawer into place over the slides and push the bin in until it stops 3 Drop drawer into position Freezer bottom bin To remove the bin pull the drawer out until it is open all the way then lift bin out from the front of the bin When refitting insert the rear of the bin first then lower into position When replacing the bins after cleaning we recommend fitting the lower bin first CAUTION Never close the door while the telescopic slides are extended It may damage the slide andor the refrigerator or cause the slide to become disengaged from the refrigerator T wist and Serve Ice Mounting the twist amp serve dispenser t o the other side of the freeze r NOTE this is only possible on Top mount models 2 Before you remove the ice carriage remember to disengage it from the glass shelf as it may result in damage to the assembly 3 Remove the centre runner by disengaging it at the front of the shelf and removing it from the rear 4 Refit the runner into the rear of the shelf on the right hand side and then engage the front Insert into the slot at the rear of the shelf Then engage into the front of the shelf 5 Fit the carriage by sliding it into the runners until the front if the carriage engages with the shelf 6 Refit the ice tray and ice bin WARNING Fill the ice cube tray with potable water only 1 Remove the ice bin and ice cube tray If the ice tray assembly is frozen too the carriage simply squeeze the tray and shelf together to break the ice REMOVING FEATURES Drawers fitted with telescopic slides To remove the drawer for cleaning 18 REMOVING FEATURES
  • Page 19 - English - : TEMPERATURE CONTROL The factory default settings Top mount Refrigerator Mid Freezer Mid Bottom mount amp French door Refrigerator 3C Freezer 18C All Refrigerator Mid All Freezer 18C If you want to change the temperature follow the instructions in the section about the user interface for your model Ensure that you make only small adjustments and wait 24 hours to see if its correct to your liking IMPORTANT NOTE When you set a temperature you set an average temperature for the whole refrigerator cabinet Checking the softness of ice cream is a good indication that your freezer is the right temperature while checking the temperature of water kept in the refrigerator is a good way of checking the temperature of the food compartment Temperatures inside each compartment may vary depending on how much food you store and where you place it High or low room temperature may also affect the actual temperature inside the refrigerator Set to less coldSummer gt35c Normal Winter lt15c Set to colder T OP MOUNT FREEZER TEMPERATURE ADJUSTMENT Freezer temperature setting recommendation TEMPERATURE CONTROL 19

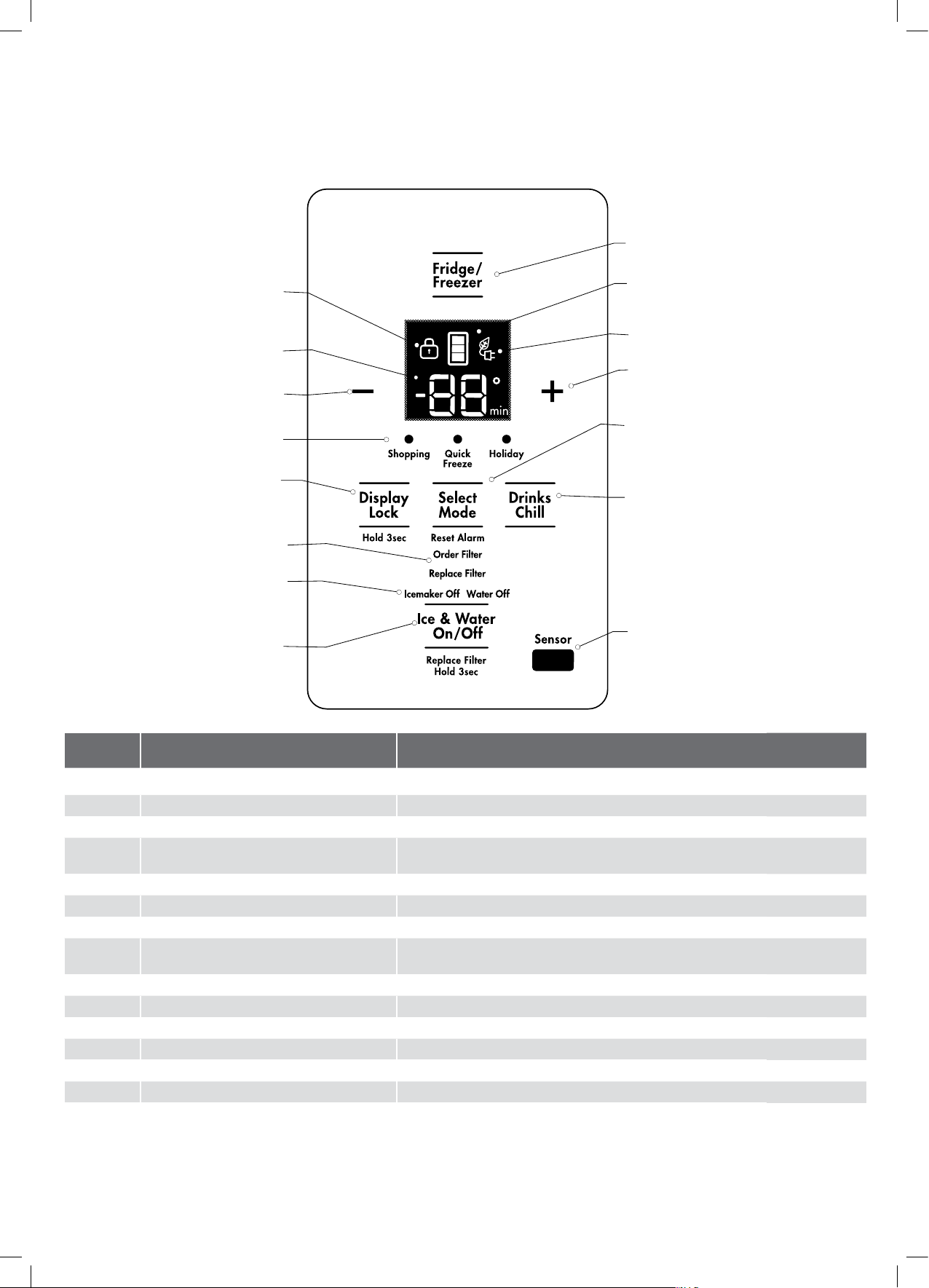

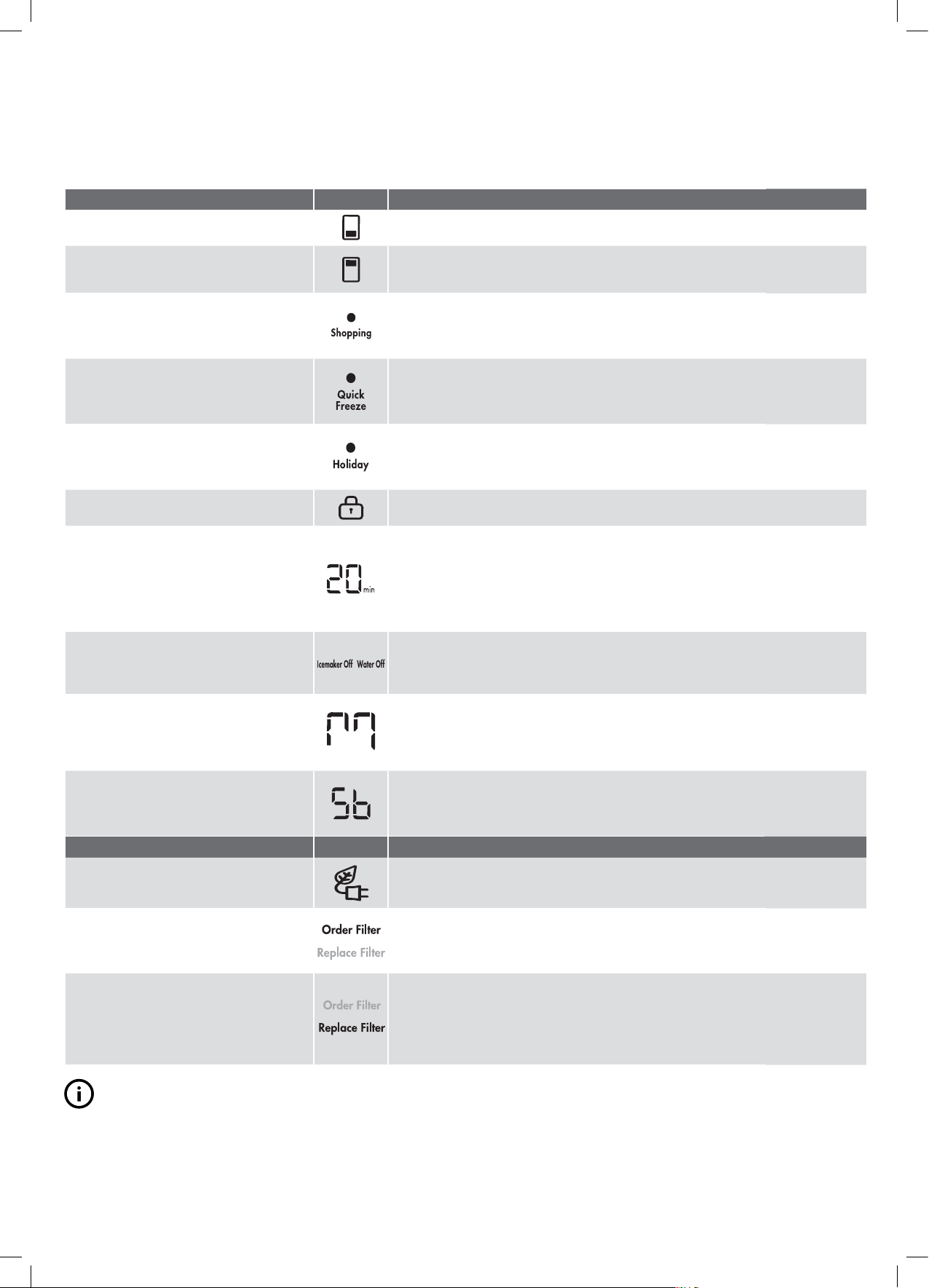

  • Page 20 - English - : ABOUT THE USER INTERFACE Controls Top mount and single door refrigerator models Refrigerator temperature scale icons Quick chill on off icon Temperature adjustquick chill onoff button DESCRIPTION OPERATION PRIMARY FUNCTION Refrigerator temperature scale icons Indicates the temperature setting of the refrigerator compartment Quick Chill On Off icon Indicates the status of the Quick Chill function Temperature adjust quick chill on off button Temperature Control Touch the Temp button to awaken control Touch the Temp button to decrease the refrigerator temperature There are 8 temperature settings indicated by the illumination sequence on the display Once the coldest temperature is reached the display will return to the warmest setting with the next press Quick Chill Use the quick chill function when you add a large amount of food to the refrigerator compartment Press and hold the Temp button for 3 seconds The Quick Chill icon will flash indicating that the Quick Chill is active Your refrigerator will run at 2C for 90 minutes then automatically return to normal mode The Quick Chill function can be cancelled anytime by pressing the Temp button again IMPORTANT The factory default settings for the refrigerator is Mid If you want to change the temperature remember to make only small adjustments and wait 24 hours to see if its correct 20 USER INTERFACE
