DVD/VCR Receiver
Home Theater System
©2003 Sony Corporation
HT-V600DP
4-251-501-11(2)
Operating Instructions
2
Safety Precautions
This lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to
the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
product.
WARNING: Do not install this equipment in a confined space
such as a bookcase or similar unit.
NOTE TO CABLE/TV INSTALLER: This reminder is provided to
call the cable TV system installer’s attention to Article 820-40 of
the National Electric Code (U.S.A.). The code provides guidelines
for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the
building, as close to the point of the cable entry as practical.
CAUTION:
The use of optical instruments with
this product will increase eye hazard.
As the laser beam used in this
DVD/VCR Receiver is harmful to eye,
do not attempt to disassemble the
cabinet. Refer servicing to qualified
personal only.
This label is located on the rear panel
of your receiver.
CAUTION:
This DVD/VCR Receiver employs a Laser System.
To ensure proper use of this product, please read this owner’s
manual carefully and retain for future reference. Should the
unit require maintenance, contact an authorized service
location.
Use of controls, adjustments, or the performance of proce-
dures other than those specified herein may result in haz-
ardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open
the enclosure. Visible laser radiation when open. DO NOT
STARE INTO BEAM.
CAUTION: The apparatus should not be exposed to water
(dripping or splashing) and no objects filled with liquids, such
as vases, should be placed on the apparatus.
FCC WARNING: This equipment may generate or use radio
frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the modifi-
cations are expressly approved in the instruction manual. The
user could lose the authority to operate this equipment if an
unauthorized change or modification is made.
REGULATORY INFORMATION: FCC Part 15
This product has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the product is
operated in a residential installation. This product generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this product does cause harmful
interference to radio or television reception, which can be
determined by turning the product off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the product and
receiver.
Connect the product into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
Copyrights
This product incorporates copyright protection technology that
is protected by U.S. patents and other intellectual property
rights. Use of this copyright protection technology must be
authorized by Macrovision, and is intended for home and other
limited viewing uses only unless otherwise authorized by
Macrovision.Reverse engineering or disassembly is prohibited.
SERIAL NUMBER: The serial number is found on the back of
this unit. This number is unique to this unit and not available to
others. You should record requested information here and
retain this guide as a permanent record of your purchase.
Model No. ___________________________________
Serial No. ___________________________________
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE
DANS LA BORNE CORRESPONDANTE DE LA PRISE ET
POUSSER JUSQU’AU FOND.
WARNING: TO REDUCE THE RISK OF FIRE OR ELEC-
TRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO
RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
INTRODUCTION
3
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions. - All these safety and oper-
ating instructions should be read before the product is
operated.
2. Keep these instructions. - The safety, operating and
use instructions should be retained for future refer-
ence.
3. Heed all warnings. - All warnings on the product and
in the operating instructions should be adhered to.
4. Follow all instructions. - All operating and use
instructions should be followed.
5. Do not use this product near water. – For example:
near a bath tub, wash bowl, kitchen sink, laundry tub,
in a wet basement; or near a swimming pool; and
other areas located near water.
6. Clean only with dry cloth. – Unplug this product from
the wall outlet before cleaning. Do not use liquid
cleaners.
7.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions. -
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over-heating. The open-
ings should never be blocked by placing the product
on a bed, sofa, rug or other similar surface. This prod-
uct should not be placed in a built-in installation such
as a bookcase or rack unless proper ventilation is pro-
vided or the manufacturer’s instructions have been
adhered to.
8. Do not install near any heat sources such as radi-
ators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9.
Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A ground-
ing
type plug has two blades and a third ground-
ing prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the product.
11. Only use attachments/accessories specified by
the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
apparatus. When a cart is used, use caution
when moving the cart/product combination to
avoid injury from tip-over.
13. Unplug this product during lightning storms or
when unused for long periods of time.
14.
Refer all servicing to qualified service personnel.
Servicing is required when the product has been
damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled or
objects have fallen into the product, the product
has been exposed to rain or moisture, does not
operate normally, or has been dropped.
CAUTION:
PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANUAL.
AND THOSE MARKED ON THE PRODUCT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
This product has been designed and manufactured to assure personal safety. Improper use can result in electric
shock or fire hazard. The safeguards incorporated in this product will protect you if you observe the following proce-
dures for installation, use, and servicing.
This product does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.
4
Table of Contents
Introduction
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . 3
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

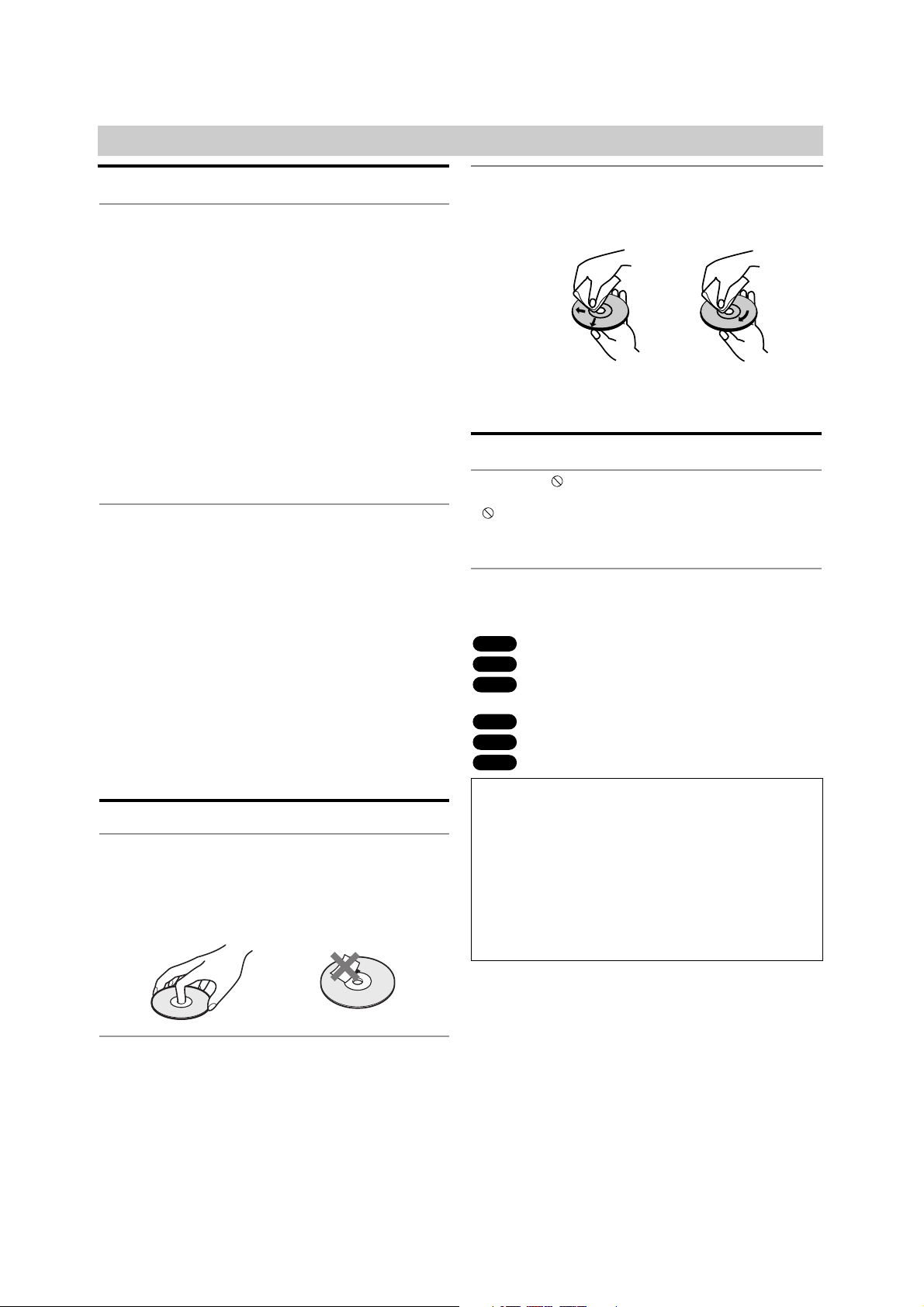

Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . 6
About Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 6

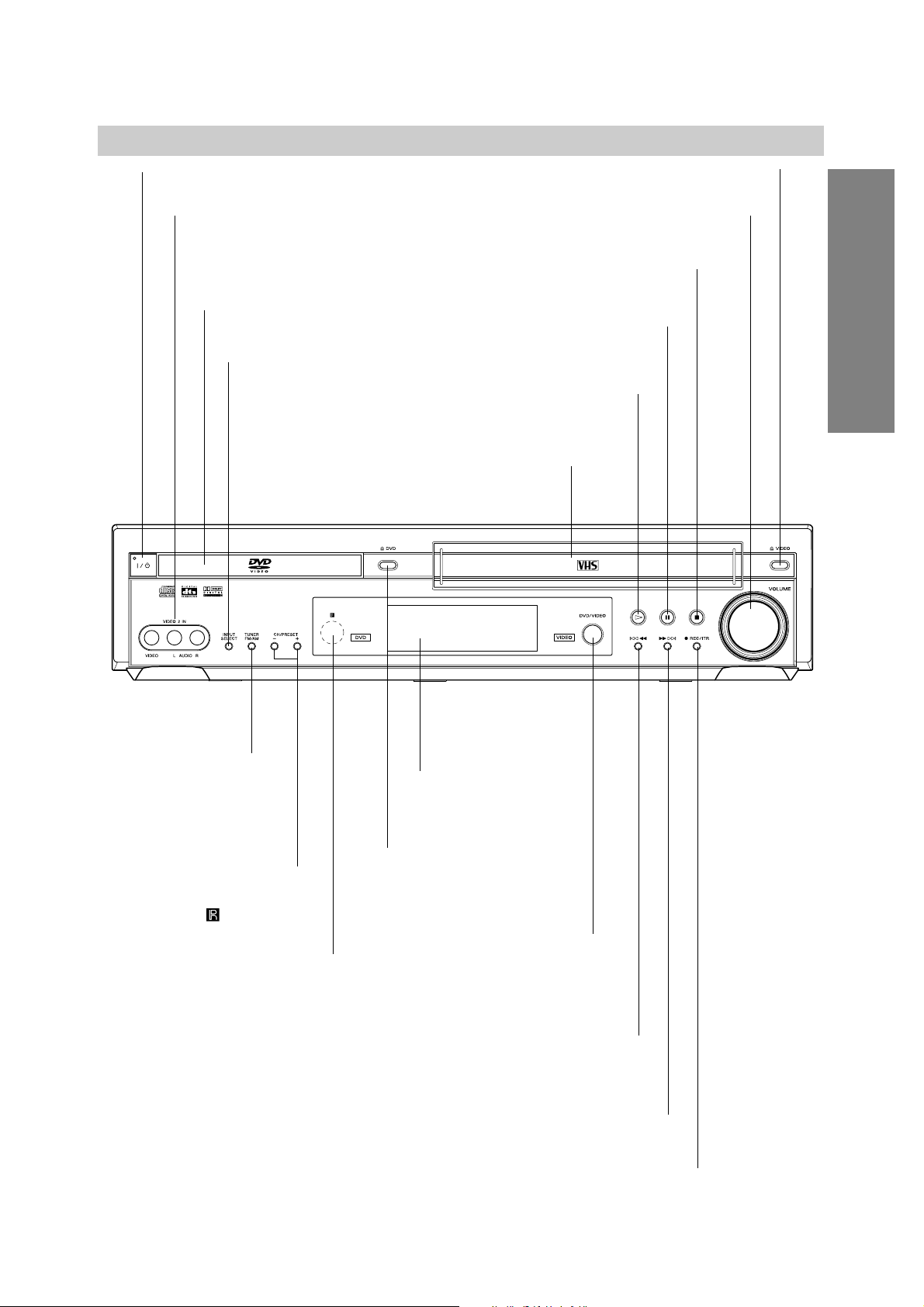

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Display Window. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

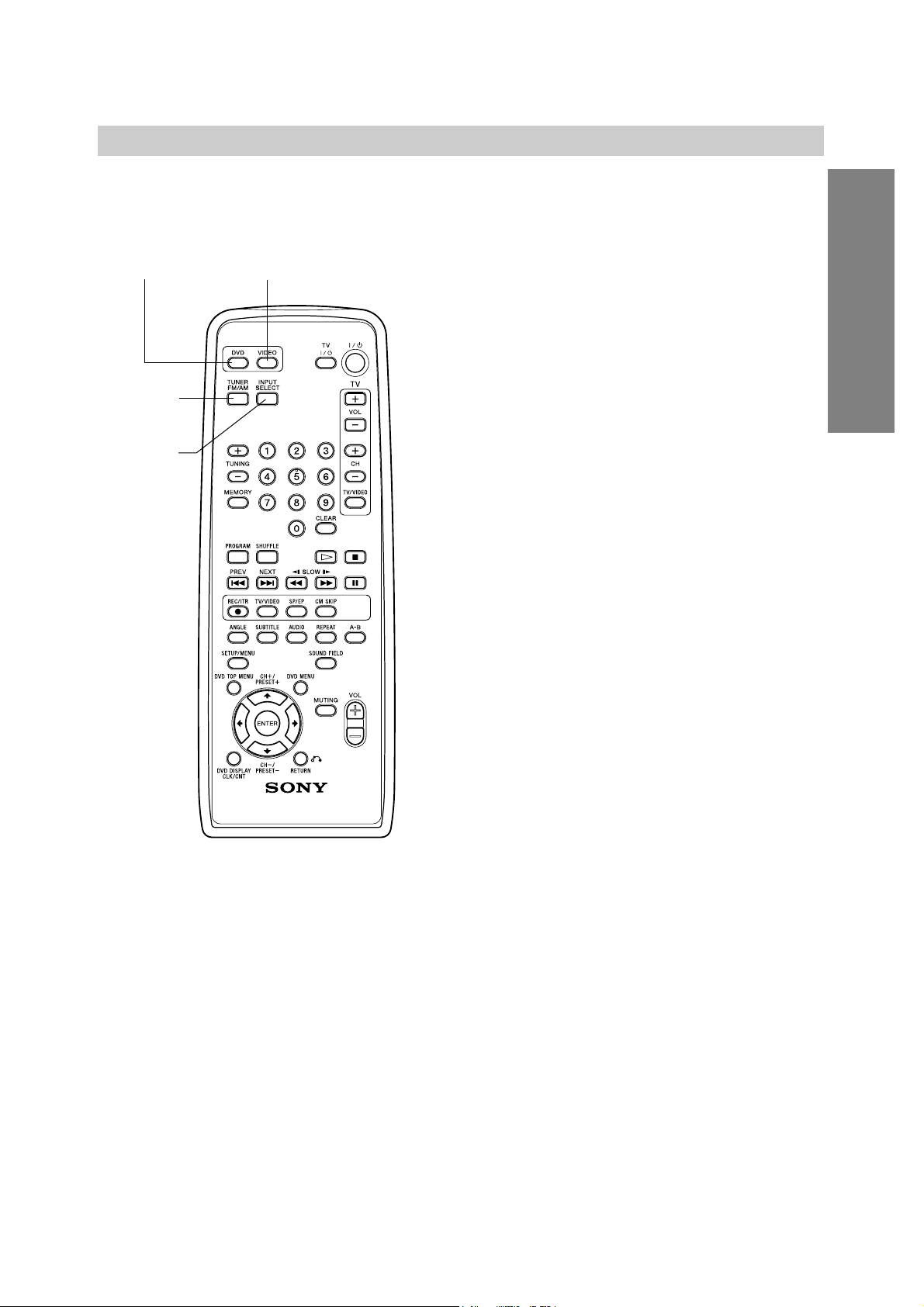

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

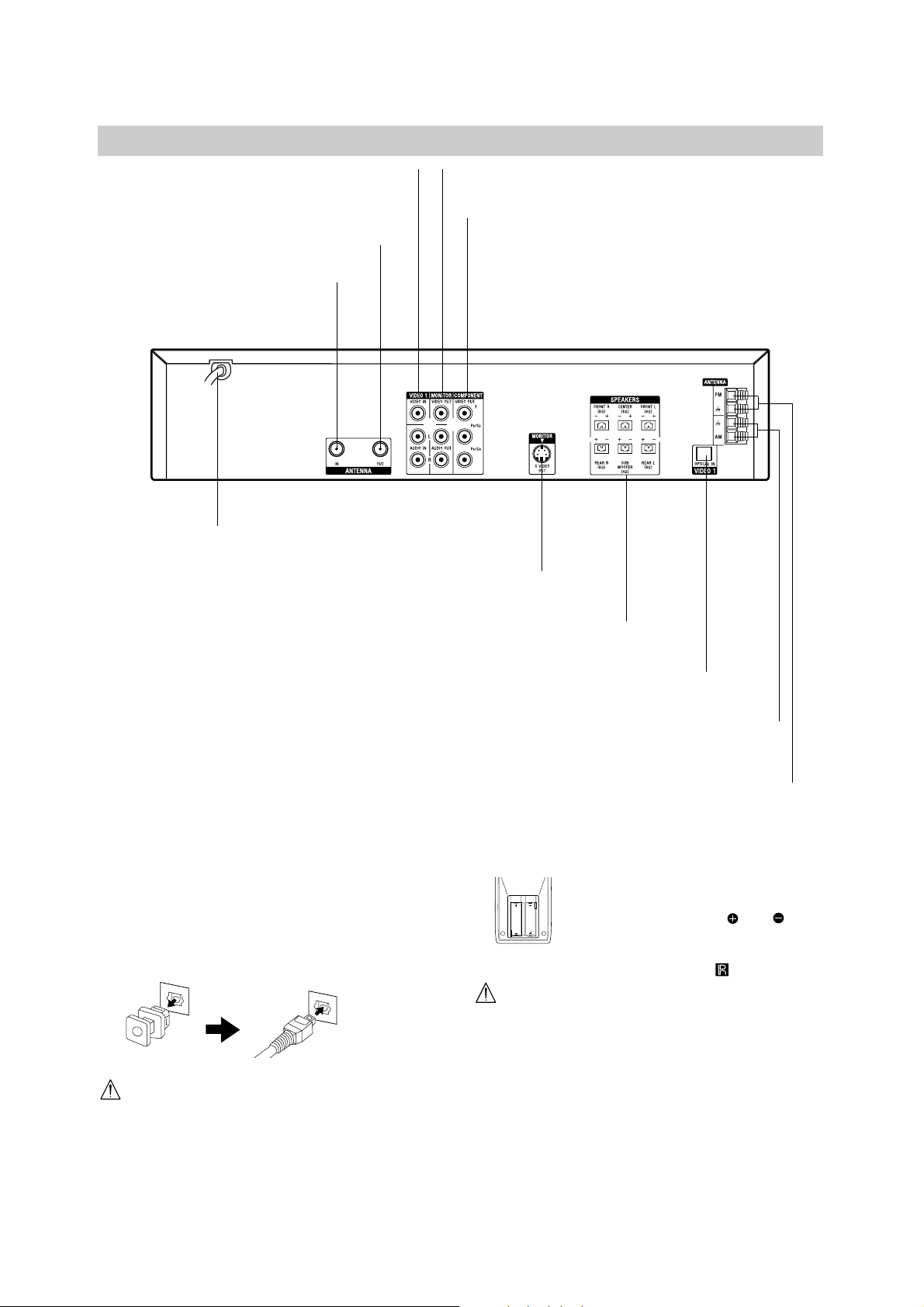

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Preparation
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-14

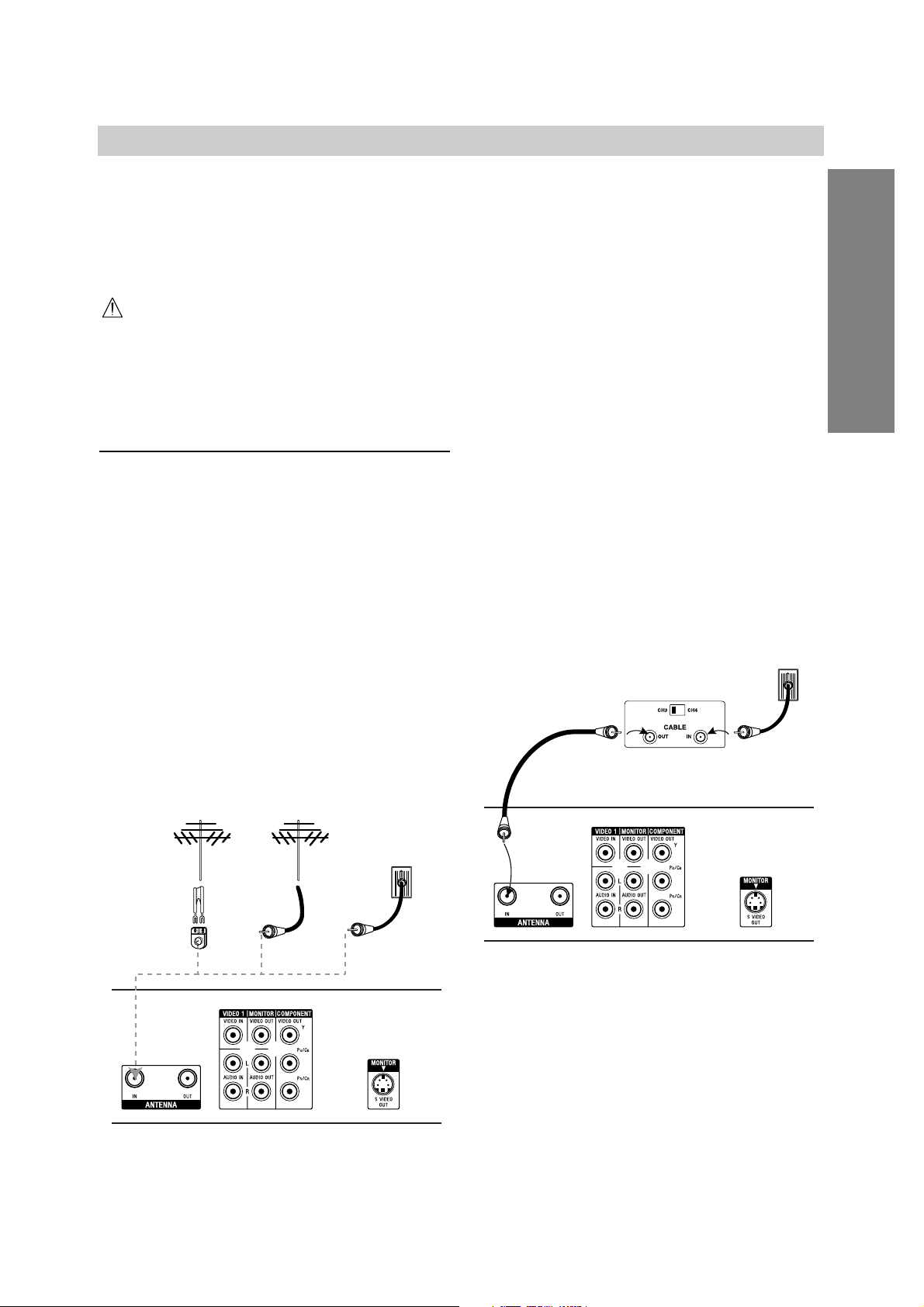

Connecting Antenna/Cable TV to
DVD/VCR Receiver . . . . . . . . . . . . . . . . . . . . . . 11

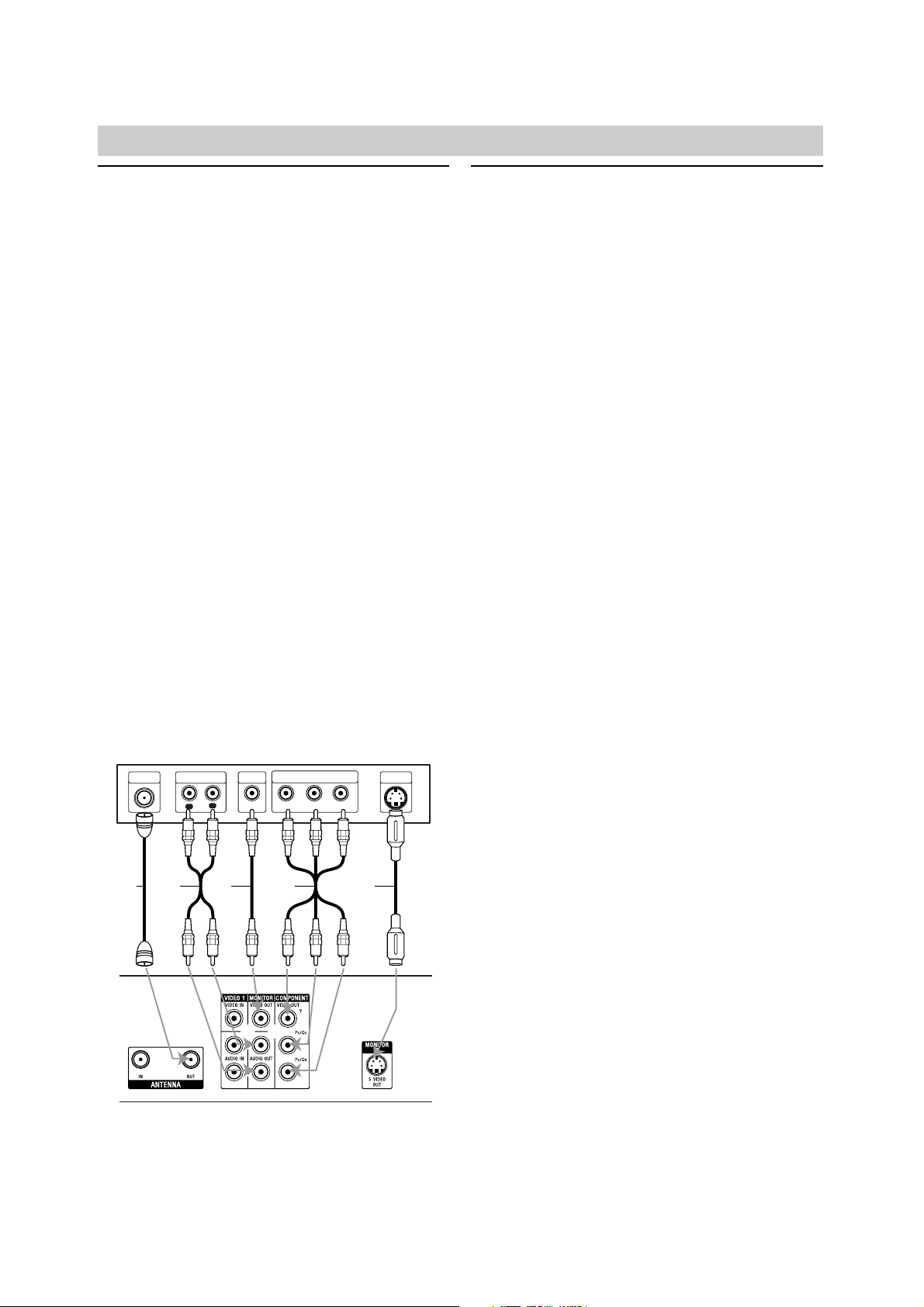

Basic TV Connections . . . . . . . . . . . . . . . . . . . . 12
Optional TV Connections . . . . . . . . . . . . . . . . . . 12

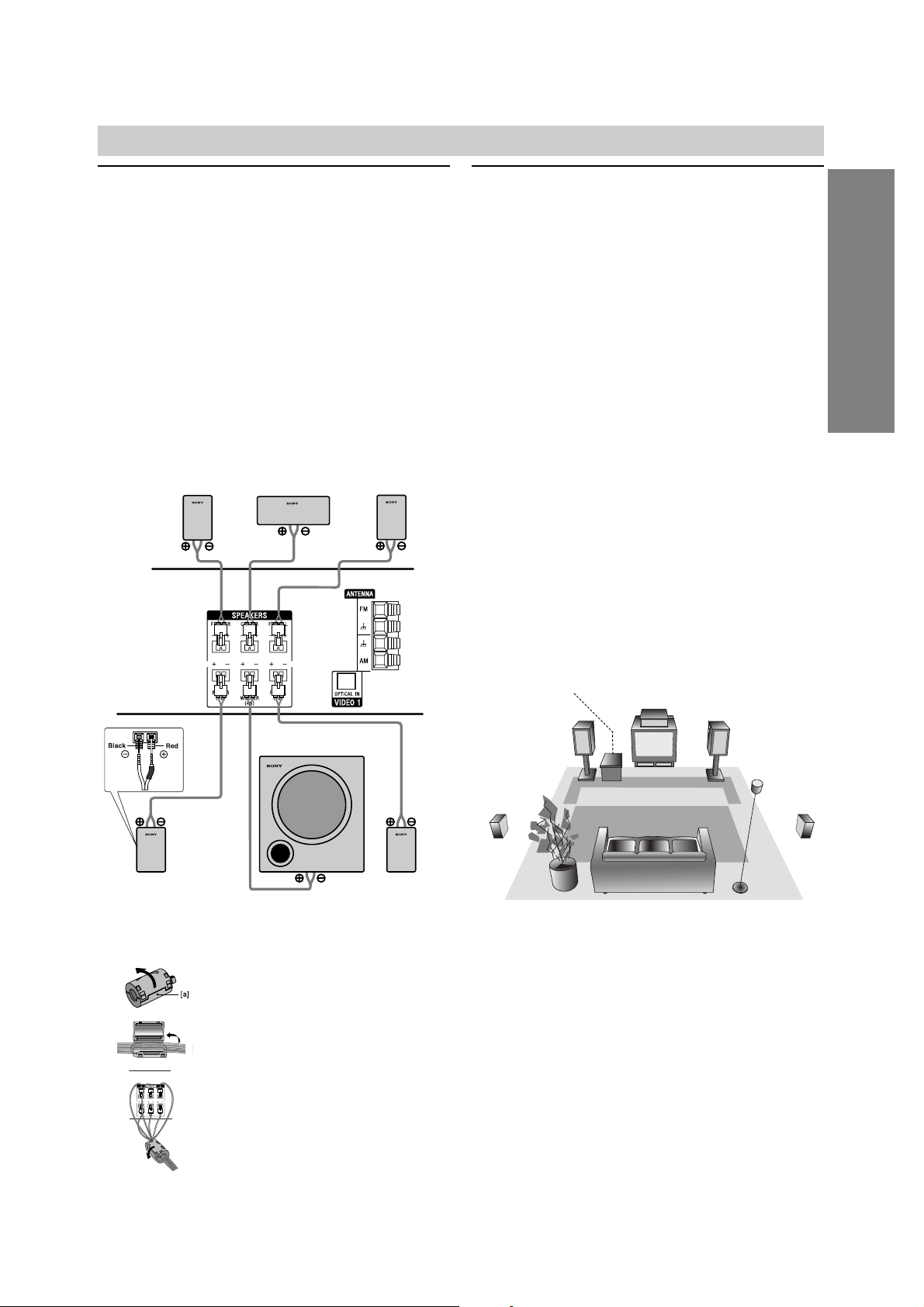

Speaker System Connections . . . . . . . . . . . . . . 13
Speaker Positioning . . . . . . . . . . . . . . . . . . . . . . 13

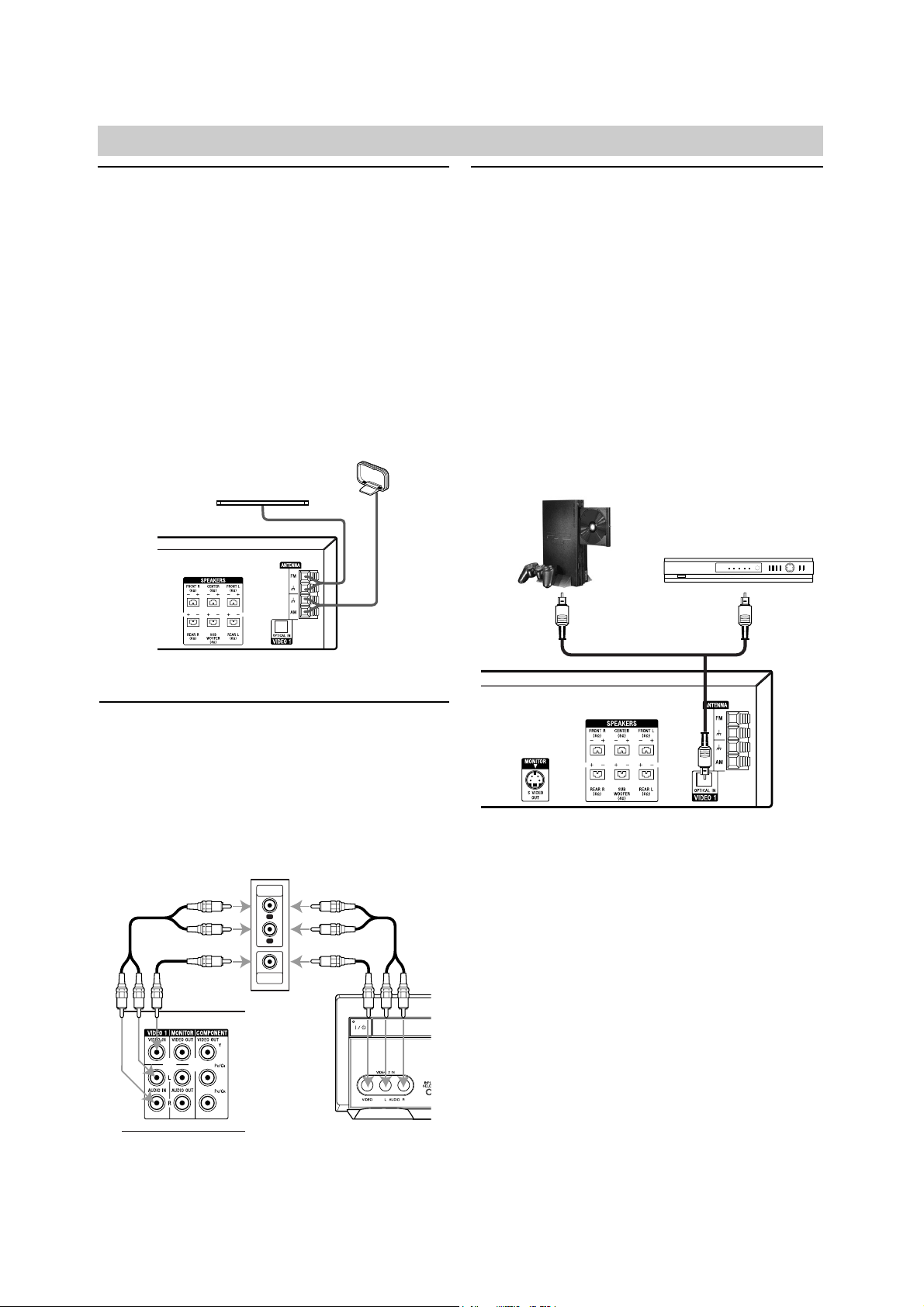

Radio Antenna Connections . . . . . . . . . . . . . . . . 14
Accessory Audio/Video (A/V) Connections to
DVD/VCR Receiver . . . . . . . . . . . . . . . . . . . . . . 14
Digital Device Connections. . . . . . . . . . . . . . . . . 14
Selecting the Output/Input Source . . . . . . . . . . . . 15
Before Operation - Sound Mode Descriptions . . . 16
Mini Glossary for Audio Stream
& Surround Mode. . . . . . . . . . . . . . . . . . . . . . . . 16
Sound Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
VIDEO Operation Setup . . . . . . . . . . . . . . . . . . 17-19
On-Screen Display(OSD) . . . . . . . . . . . . . . . . . . 17
On-Screen Menus Setup . . . . . . . . . . . . . . . . . . 17
Using the VIDEO Setup Menu . . . . . . . . . . . . . . 18
Channel Selection . . . . . . . . . . . . . . . . . . . . . . . 18

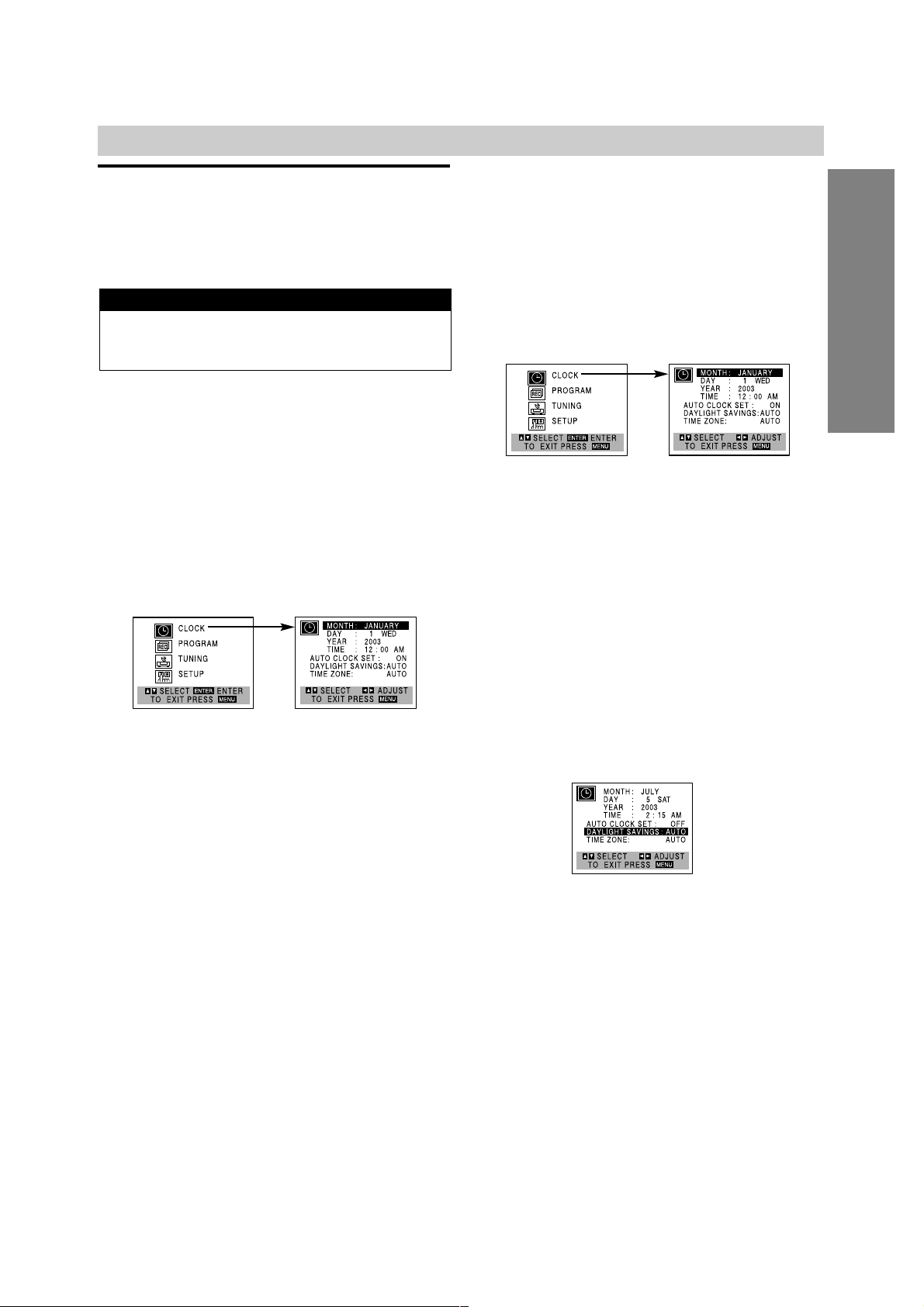

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . 19
DVD Operation Setup . . . . . . . . . . . . . . . . . . . . 20-23
General Explanation. . . . . . . . . . . . . . . . . . . . . . 20
On-Screen Display. . . . . . . . . . . . . . . . . . . . . . . 20

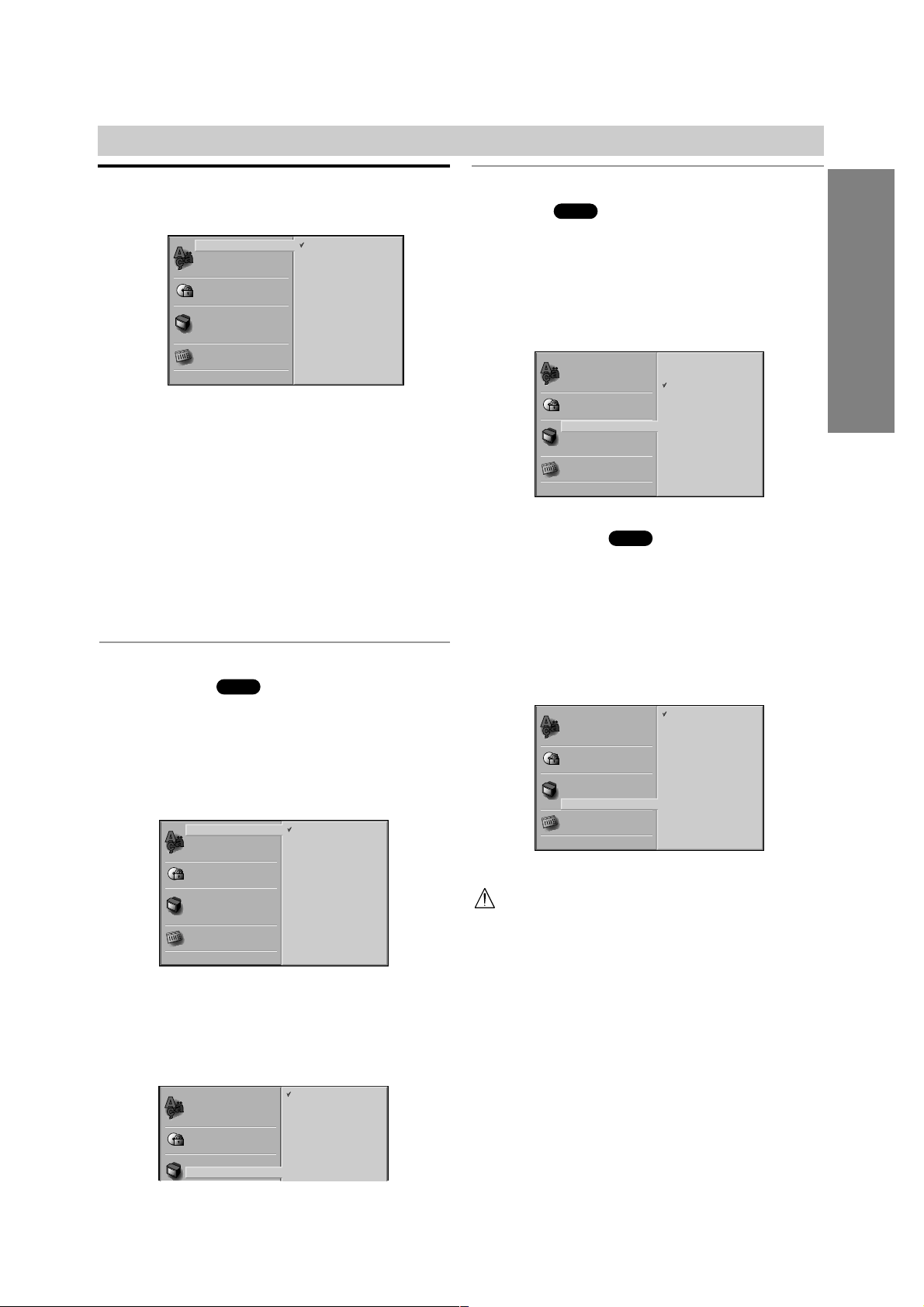

Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . 21-23
General Operation . . . . . . . . . . . . . . . . . . . . 21
Language . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Progressive Scan. . . . . . . . . . . . . . . . . . . . . 21
Speaker Setup . . . . . . . . . . . . . . . . . . . . . . . 22
Others(DRC/PBC) . . . . . . . . . . . . . . . . . . . . 22
Parental Control. . . . . . . . . . . . . . . . . . . . . . 23
Operation
VIDEO Operation . . . . . . . . . . . . . . . . . . . . . . . 24-29
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Special Effect Playbacks . . . . . . . . . . . . . . . . . . 24
Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Still Picture and Frame-by-Frame Playback . 24
Slow Motion . . . . . . . . . . . . . . . . . . . . . . . . . 24
CM SKIP (Commercial Skip) . . . . . . . . . . . . 24
Normal Recording . . . . . . . . . . . . . . . . . . . . . . . 25

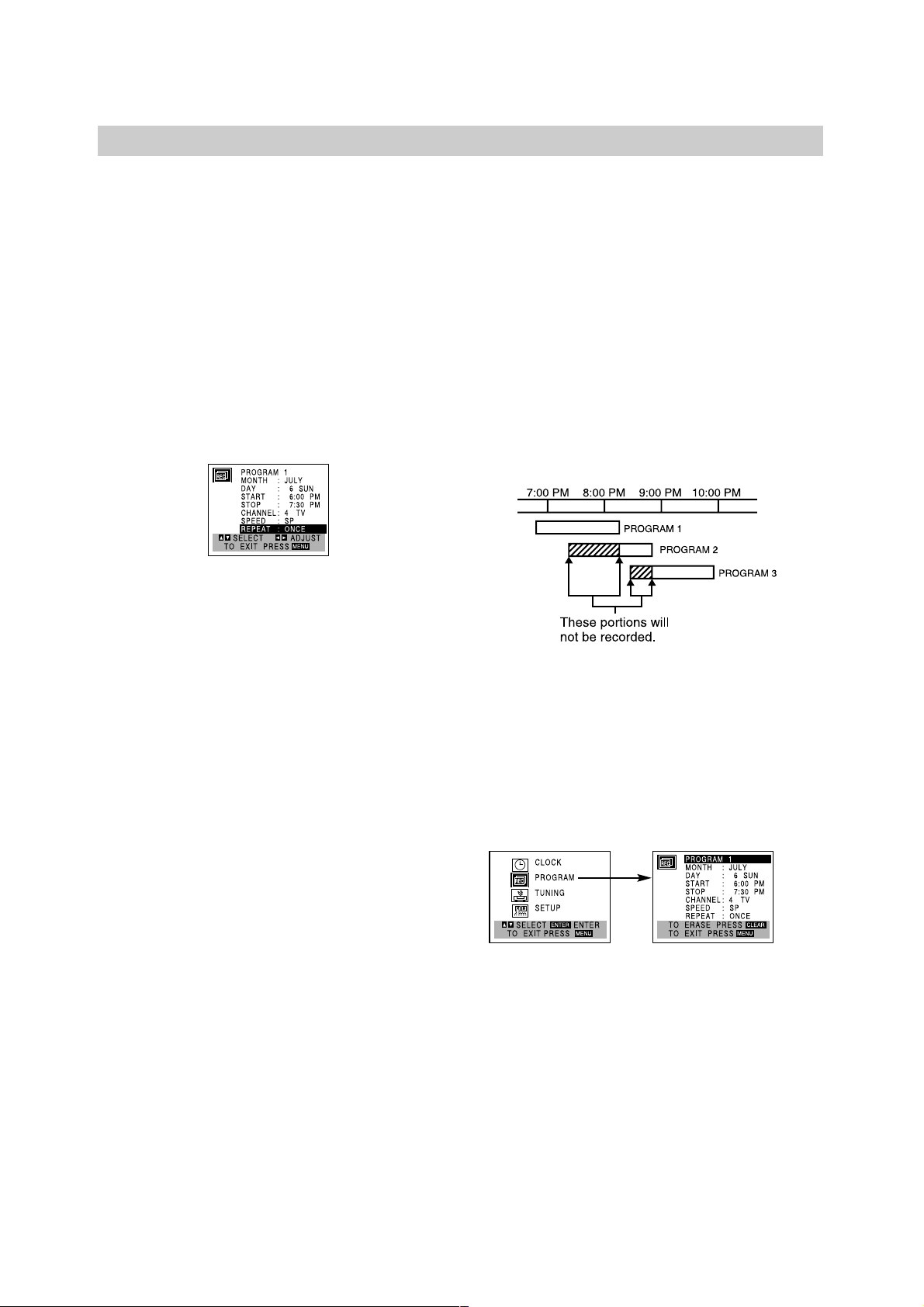

Timer Recording . . . . . . . . . . . . . . . . . . . . . . 25-26
Instant Timer Recording (ITR) . . . . . . . . . . . . . . 27
Dubbing and Editing. . . . . . . . . . . . . . . . . . . . . . 27
Copying from DVD to VIDEO . . . . . . . . . . . . . . . 27

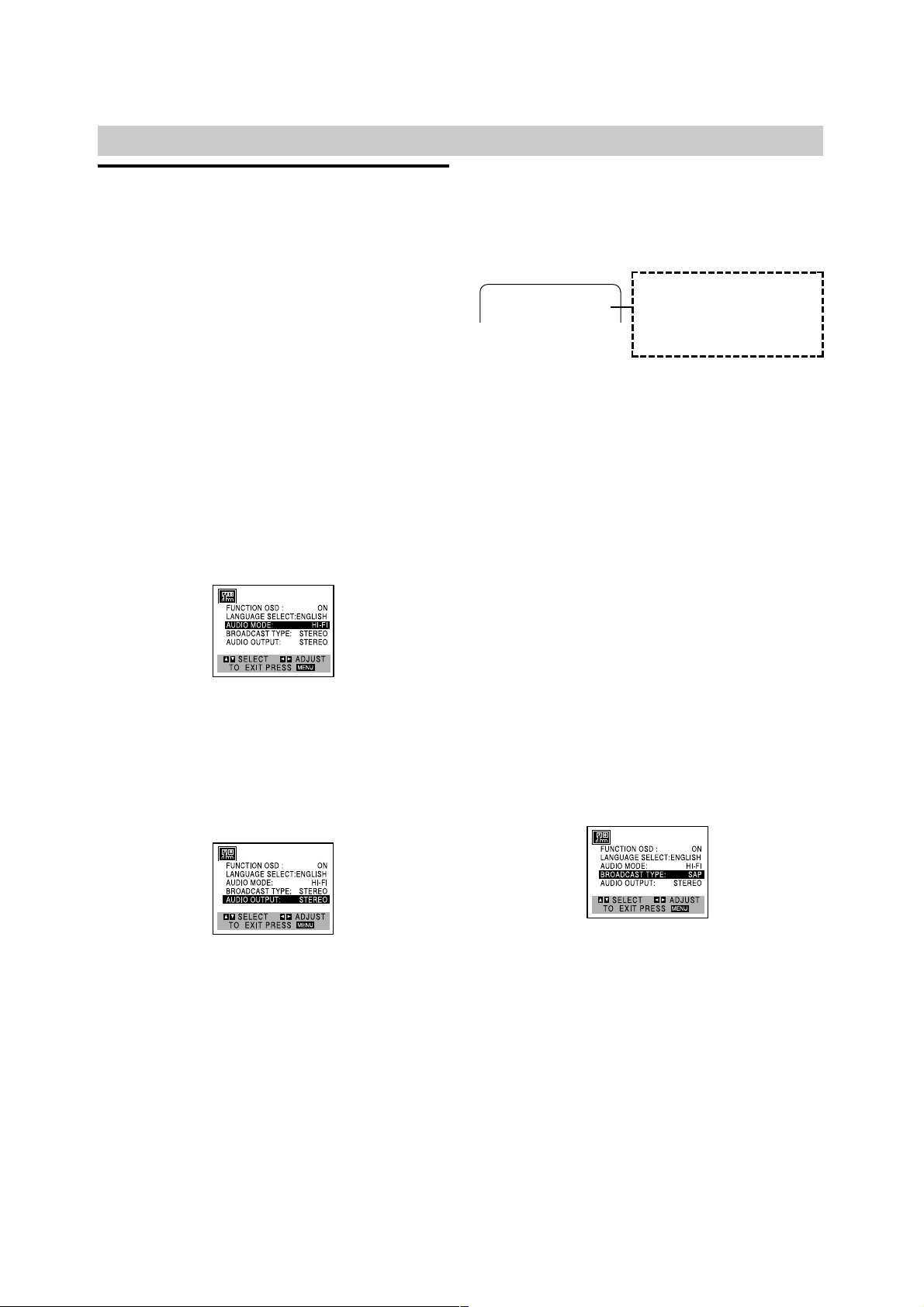

VHS Hi-Fi Stereo System/MTS Broadcast . . . . . 28
Tape Counter Memory Feature. . . . . . . . . . . . . . 29
Additional Information . . . . . . . . . . . . . . . . . . . . 29
DVD and Video CD Operation . . . . . . . . . . . . . 30-32
Playing a DVD and Video CD. . . . . . . . . . . . . . . 30
General Features . . . . . . . . . . . . . . . . . . . . . 30-32
Resuming Playback . . . . . . . . . . . . . . . . . . . 30
Selecting Another TITLE . . . . . . . . . . . . . . . 30
Selecting Another CHAPTER/TRACK. . . . . . 30
Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Still Picture . . . . . . . . . . . . . . . . . . . . . . . . . 30
Slow Motion . . . . . . . . . . . . . . . . . . . . . . . . . 31
Shuffle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Repeat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . 31
Time Search . . . . . . . . . . . . . . . . . . . . . . . . 31
3D Surround . . . . . . . . . . . . . . . . . . . . . . . . 31
Changing Video Mode . . . . . . . . . . . . . . . . . 32
Special DVD Features . . . . . . . . . . . . . . . . . . . . 32
Checking the contents of
DVD Video discs: Menus . . . . . . . . . . . . . . . 32
Title Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 32
DVD Menu. . . . . . . . . . . . . . . . . . . . . . . . . . 32
Camera Angle . . . . . . . . . . . . . . . . . . . . . . . 32
Changing the Audio Language . . . . . . . . . . . 32
Changing the Audio Channel . . . . . . . . . . . . 32
Subtitle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Screen Saver. . . . . . . . . . . . . . . . . . . . . . . . 32
Audio CD and MP3 Disc Operation . . . . . . . . . 33-34
Playing an Audio CD and MP3 Disc . . . . . . . . . . 33
Notes on MP3 Files . . . . . . . . . . . . . . . . . . . . . . 33
Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Selecting Another Track . . . . . . . . . . . . . . . . 34
Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Shuffle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . 34
3D Surround . . . . . . . . . . . . . . . . . . . . . . . . 34
Changing the Audio Channel . . . . . . . . . . . . 34

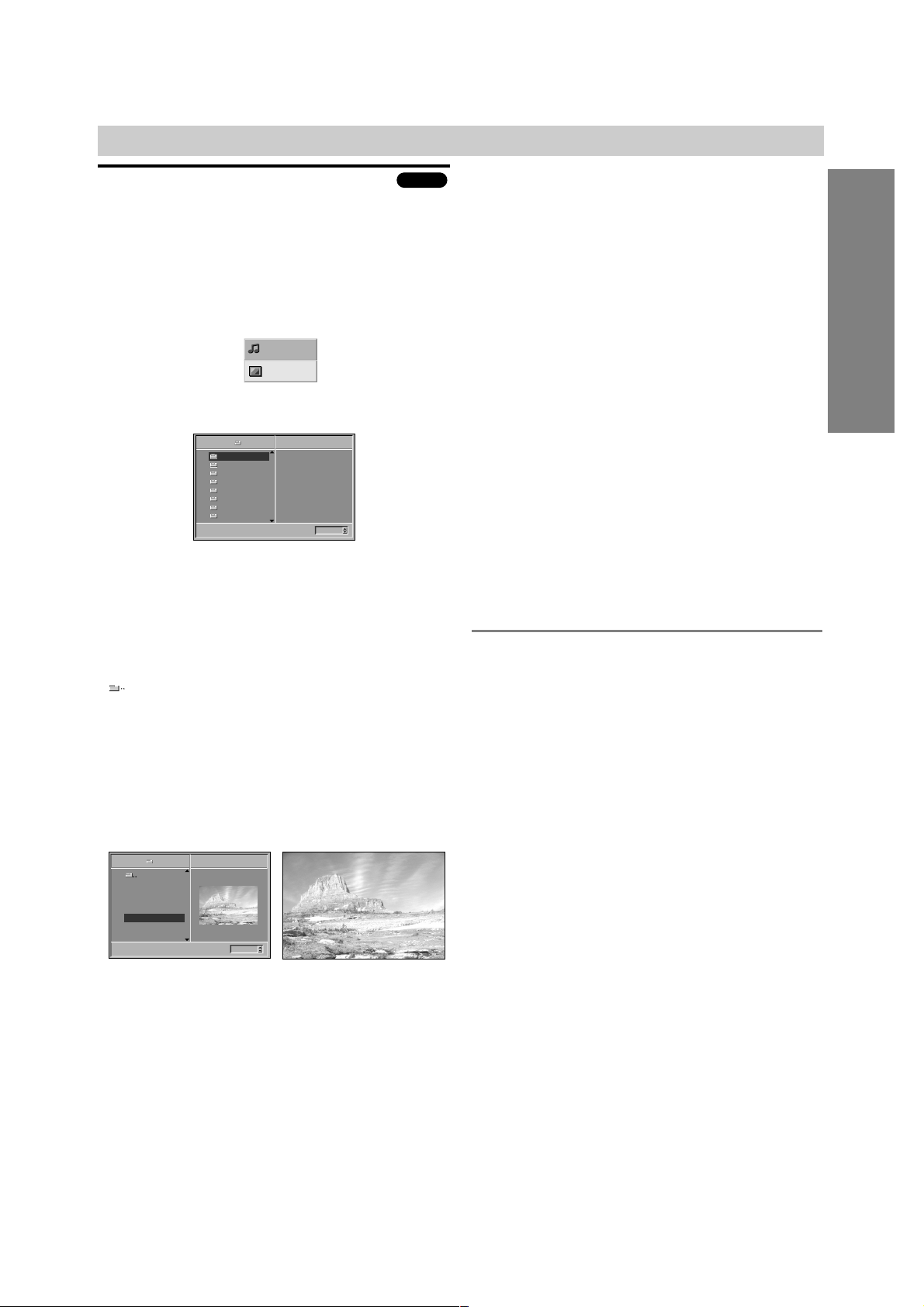

JPEG File Operation . . . . . . . . . . . . . . . . . . . . . . . 35
Viewing JPEG Files on a Disc . . . . . . . . . . . . . . 35
Selecting another Files . . . . . . . . . . . . . . . . 35
Still Picture . . . . . . . . . . . . . . . . . . . . . . . . . 35
To flip the picture . . . . . . . . . . . . . . . . . . . . . 35
To rotate picture. . . . . . . . . . . . . . . . . . . . . . 35
To record the picture slide show. . . . . . . . . . 35
Notes on JPEG Files . . . . . . . . . . . . . . . . . . . . . 35
Programmed Playback . . . . . . . . . . . . . . . . . . . . . 36
Programmed Playback with Audio CD
and MP3 Disc . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Programmed Playback with Video CD . . . . . . . . 36
Repeat Programmed Tracks . . . . . . . . . . . . 36
Erasing a Track from Program List. . . . . . . . 36
Erasing the whole Program List . . . . . . . . . . 36
Speaker Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Radio Operation . . . . . . . . . . . . . . . . . . . . . . . . 38-39
Presetting the Radio Stations . . . . . . . . . . . . . . . 38
Listening to the Radio . . . . . . . . . . . . . . . . . . . . 38
To Clear the Stored Radio Stations . . . . . . . . . . 38
Tuning into a Station Automatically. . . . . . . . . . . 39
Labeling Stations . . . . . . . . . . . . . . . . . . . . . . . . 39

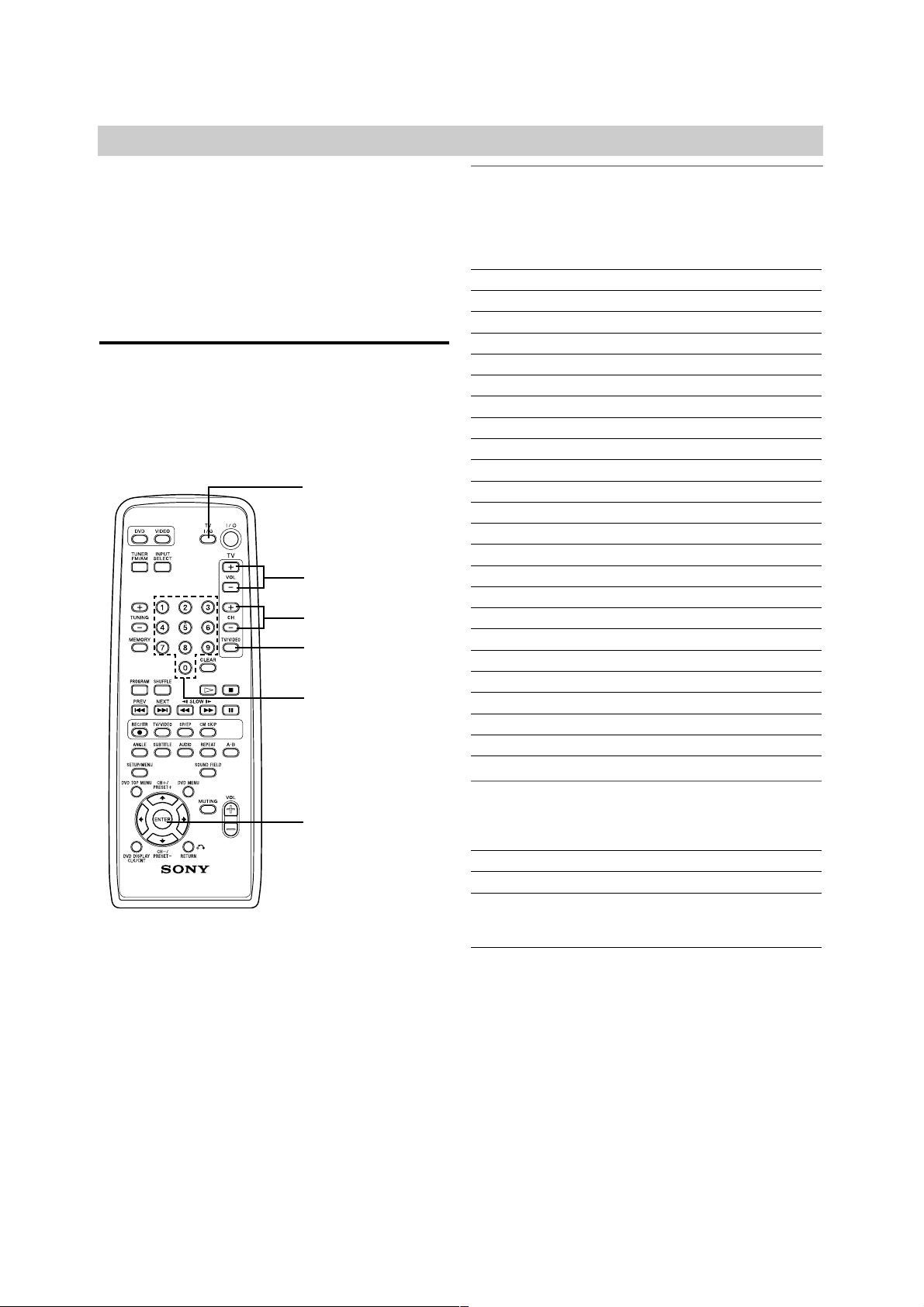

Controlling the TV with the Supplied Remote . . . 40
Reference
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 41-43
Language Code List . . . . . . . . . . . . . . . . . . . . . . . 44
Area Code List. . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 46-47
About the symbols for instructions
Indicates hazards likely to cause harm to the unit
itself or other material damage.
Note Indicates special operating features of this unit.
Tip Indicates tips and hints for making the task easier.
INTRODUCTION
5
Before Use
Playable Discs
DVD
(8 cm / 12 cm disc)
Video CD (VCD)
(8 cm / 12 cm disc)
Audio CD
(8 cm / 12 cm disc)
In addition, this unit can play a DVD-R/±RW, SVCD and
CD-R or CD-RW that contains audio titles, MP3, or
JPEG files.
Notes
Depending on the conditions of the recording equip-
ment or the CD-R/RW (or DVD-R/±RW) disc itself,
some CD-R/RW (or DVD-R/±RW) discs cannot be
played on the unit.
Do not attach any seal or label to either side (the
labeled side or the recorded side) of a disc.
Do not use irregularly shaped CDs (e.g., heart-
shaped or octagonal). It may result in malfunctions.
Notes on DVDs and Video CDs
Some playback operations of DVDs and Video CDs
may be intentionally fixed by software manufacturers.
As this unit plays DVDs and Video CDs according to
disc content designed by the software manufacturer,
some playback features of the unit may not be available
or other functions may be added.
Make sure to also refer to the instructions supplied with
the DVDs and Video CDs. Some DVDs made for busi-
ness purposes may not be able to be played on the
unit.
Regional code of the DVD/VCR Receiver and DVDs
This DVD/VCR Receiver is designed and manu-
factured for playback of region “1” encoded
DVD software. The region code on the labels of
some DVDs indicates which type of DVD/VCR
Receiver can play those discs. This unit can only play
DVDs labelled “1” or “ALL”. If you try to play any other
discs, the message “Check Regional Code” will appear
on the TV screen. Some DVDs that have no region
code label may still be subject to area restrictions and
therefore not playable.
Disc-related terms
Title (DVD only)
The main film content or accompanying feature content
or additional feature content, or music album.
Each title is assigned a title reference number enabling
you to locate it easily.
Chapter (DVD only)
Sections of a picture or a musical piece that are smaller
than titles. A title is composed of one or several chap-
ters. Each chapter is assigned a chapter number,
enabling you to locate the chapter you want. Depending
on the disc, chapters may not be recorded.
Track (Video CD and audio CD only)
Sections of a picture or a musical piece on a video CD
or an audio CD. Each track is assigned a track number,
enabling you to locate the track you want.
Scene
On a video CD with PBC (Playback control) functions,
moving pictures and still pictures are divided into sec-
tions called “Scenes”. Each scene is displayed in the
menu screen and assigned a scene number, enabling
you to locate the scene you want.
A scene is composed of one or several tracks.
Types of video CDs
There are two types of video CDs:
Video CDs equipped with PBC (Version 2.0)
PBC (Playback control) functions allow you to interact
with the system via menus, search functions, or other
typical computer-like operations. Moreover, still pictures
of high resolution can be played if they are included in
the disc.
Video CDs not equipped with PBC (Version 1.1)
Operated in the same way as audio CDs, these discs
allow playback of video pictures as well as sound, but
they are not equipped with PBC.
1
IMPORTANT NOTE:
SPENT OR DISCHARGED BATTERIES MUST BE RECY-
CLED OR DISPOSED OF IN A SAFE MANNER IN COM-
PLIANCE WITH ALL APPLICABLE LAWS.
FOR DETAILED INFORMATION, CONTACT YOUR LOCAL
COUNTY SOLID WASTE AUTHORITY.
6
Before Use (Continued)
Precautions
Handling the unit
When shipping the unit
The original shipping carton and packing materials
come in handy. For maximum protection, re-pack the
unit as it was originally packaged at the factory.
When setting up the unit
The picture and sound of a nearby TV, VCR, or radio
may be distorted during playback. In this case, position
the unit away from the TV, VCR, or radio, or turn off the
unit after removing the disc.
To keep the surface clean
Do not use volatile liquids, such as insecticide spray,
near the unit. Do not leave rubber or plastic products in
contact with the unit for a long period of time. They will
leave marks on the surface.
Cleaning the unit
To clean the cabinet
Use a soft, dry cloth. If the surfaces are extremely dirty,
use a soft cloth lightly moistened with a mild detergent
solution. Do not use strong solvents such as alcohol,
benzine, or thinner, as these might damage the surface
of the unit.
To obtain a clear picture
The DVD/VCR Receiver is a high-tech, precision
device. If the optical pick-up lens and disc drive parts
are dirty or worn, the picture quality will be poor.
Regular inspection and maintenance are recommended
after every 1,000 hours of use. (This depends on the
operating environment.)
For details, please contact your nearest dealer.
Notes on Discs
Handling discs
Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints will not
get on the surface.
Do not stick paper or tape on the disc.
Storing discs
After playing, store the disc in its case.
Do not expose the disc to direct sunlight or sources of
heat, or leave it in a parked car exposed to direct sun-
light, as there may be a considerable temperature
increase inside the car.
Cleaning discs
Fingerprints and dust on the disc can cause poor picture
quality and sound distortion. Before playing, clean the disc
with a clean cloth. Wipe the disc from the center out.
Do not use strong solvents such as alcohol, benzine,
thinner, commercially available cleaners, or anti-static
spray intended for older vinyl records.
About Symbols
About the symbol display
“ ” may appear on the TV screen during operation. This
icon means the function explained in this owner’s manual
is not available at that moment or with that specific DVD.
About the disc symbols for instructions
Asection whose title has one of the following symbols are
applicable only to those discs represented by the symbol.
DVD
Video CDs with the PBC (playback control) function.
Video CDs without the PBC (playback control)
function.
Audio CDs.
MP3 Discs.
JPEG Files.
Notes
If you insert a cassette tape without an erasure pre-
vention tab intact while the DVD/VCR Receiver is in
the DVD mode, the DVD/VCR Receiver will switch to
VIDEO function mode automatically.
You can always view the DVD playback using
S VIDEO and COMPONENT VIDEO OUT connec-
tions although DVD/VCR Receiver is set to other
function mode (VIDEO, Radio, etc.)
JPEG
MP3
CD
VCD1.1
VCD2.0
DVD
Selecting the Viewing Source
You must select one of your output sources (DVD or
VIDEO) to view on the TV screen.
• If you want to view DVD deck output source:
Press DVD on the remote or DVD/VIDEO on the front panel
until DVD indicator in the display window lights and output
source of DVD deck is viewed on the TV screen.
• If you want to view VIDEO deck output source:
Press VIDEO on the remote or DVD/VIDEO on the front
panel until VIDEO indicator in the display window lights and
output source of VIDEO deck is viewed on the TV screen.
Yes
No
7
INTRODUCTION
Front Panel
ML
DVD: Go to NEXT chapter/track. Press and hold for a fast forward search.
VIDEO: Advances the tape from STOP mode or for fast forward picture search.
X (PAUSE)
Pause playback or recording
temporarily.
z REC/ITR
To record normally or to activate Instant Timer Recording.
A DVD
Opens or closes
the disc tray.
Remote Sensor
Point the DVD/VCR Receiver remote
control here.
Display window
Shows the current sta-
tus of the DVD/VCR
Receiver.
Disc Tray (DVD deck)
Insert a disc here.
@ / 1
Switches the DVD/VCR Receiver ON and OFF.
lm
DVD: Go to beginning of current chapter/track or to previous chapter/track.
Press and hold for a fast reverse search.
VIDEO: Rewinds the tape from STOP mode or for fast reverse picture search.
H (PLAY)
To play back a disc or
a recorded tape.
x (STOP)
Stops playback or recording.
INPUT SELECT
Selects the VIDEO deck’s
source (Tuner, VIDEO 1
or VIDEO 2).
CH/PRESET (+/–)
Scans up or down through
memorized channels or radio
frequencies (stations).
TUNER FM/AM
Selects Radio opera-
tion mode.
VIDEO 2 IN(VIDEO/AUDIO IN (Left/Right))
Connect the audio/video output of an
external source (Audio system, TV/ Monitor,
another VCR).
Video Cassette Compartment (VIDEO deck)
Insert a video cassette here.
A VIDEO
Ejects the tape in the VIDEO deck.
VOLUME
Adjusts sound level of speakers.
DVD/VIDEO
Toggles control
between the DVD deck
and the VIDEO deck.
8
EP
SP
OPTTIMER
VIDEO
TRK SAP
AM
CHAP
TITLE
REPEAT
MP3
DVD
VCD
CH
PBC
SHUFFLE
PGM
STEREO
PCM
D
PL
ANGLE
1
A
B
REC
HI-FI
STEREO Indicates a stereo broadcast is being received.
DVD DVD inserted.
CD Audio CD inserted.
VCD Video CD inserted
MP3 MP3 disc inserted
Indicates repeat mode
ANGLE active
SHUFFLE Random playback active
A cassette is in the VIDEO deck.
SP EP Displays the recording
and playback speed.
HI-FI Indicates the unit is playing
back a tape recorded in Hi-Fi.
OPT Indicates source of DVD/VCR
Receiver is OPTICAL IN.
Indicates clock, total playing time, elapsed time, chapter number, track number,
channel, radio frequency, volume, channel or current deck status (Playback,
Pause, etc).
VIDEO DVD/VCR Receiver is recording.
SAP Indicates when a SAP BILINGUAL broadcast
is being received.
PBC Indicates PBC On mode
Indicates playback or pause mode.
TIMER DVD/VCR Receiver is in timer
recording or a timer recording is pro-
grammed.
REC DVD/VCR Receiver is
Recording.
PGM Programmed playback active.
Indicates encoding format of the
current disc.
Indicates sound mode is
DOLBY PROLOGIC II.
Display Window
9
INTRODUCTION
VIDEO
Select the output source to VIDEO.
DVD
Sets the output source to DVD.
INPUT SELECT
Selects the VIDEO deck’s source
(L1 OPT, LINE1, LINE2, Tuner).
TUNER FM/AM
Selects the DVD/VCR Receiver’s tuner as
the listening choice. (FM and AM bands)
0-9 numerical buttons
Selects numbered options in a menu.
TUNING (+/–)
To tune in the desired station.
MEMORY
Memorize a radio station frequency into
the tuner.
SHUFFLE
Plays tracks in random order.
PROGRAM
Enters to the program edit mode or exits
from that.
z REC/ITR
Records normally or activates Instant
Timer Recording.
TV/VIDEO
To view channels selected by the VIDEO
tuner or by the TV tuner.
SP/EP
Selects recording speed.
CM SKIP
Fast forwards picture search through 30
seconds of recording.
ANGLE
Selects a DVD camera angle if available.
SUBTITLE
Selects a subtitle language.
AUDIO
Selects an audio language (DVD) or an
audio channel (CD).
REPEAT
Repeat chapter, track, title, all.
A-B
Repeats sequence.
SETUP/MENU
Accesses or returns DVD setup menu
and VIDEO setup menu.
TV @ / 1
Switches TV ON and OFF.
@ / 1
Switches DVD/VCR Receiver ON and OFF.
TV Control Buttons (see page 40)
• VOL +/–: Adjusts TV’s volume.
• CH +/–: Selects TV’s channel.
• TV/VIDEO: Selects the TV’s source.
CLEAR
Removes a track number on the program
menu. To clear preset stations from the
tuner memory.
Playback Control Buttons
• H (PLAY)
Starts playback.
• x (STOP)
Stops playback.
• . (PREV) (DVD mode only)
Go to beginning of current chapter or
track or go to previous chapter or track.
• > (NEXT) (DVD mode only)
Go to next chapter or track.
• m/M (SLOW t/T)
DVD: For picture search or slow play-
back backward or forward.
VIDEO: Rewinds or advances the tape
in STOP mode or for picture search.
• X (PAUSE)
Pause playback or recording temporari-
ly.
SOUND FIELD
Selects sound mode between BYPASS,
PRO LOGIC, PRO LOGIC II (MOVIE,
MUSIC, MATRIX) and 3D SURROUND.
VOL (+/-)
Adjusts speaker volume.
MUTING
Momentarily silence the speaker of the
DVD/VCR Receiver.
DVD TOP MENU
Displays the disc’s Title menu, if available.
DVD MENU
Accesses menu on a DVD disc.
B/b/V/v (left/right/up/down)
Selects an option in the menu.
CH/PRESET(+/–): Selects a program of
VIDEO or Tuner. Adjusts manually the
tape’s picture onscreen.
ENTER
Acknowledges menu selection.
DVD DISPLAY, CLK/CNT
Accesses On-Screen display. Switches
among the clock and tape counter.
RETURN
Returns the setup menu.
Note
This remote control uses the same buttons for VIDEO and DVD
functions (ex. PLAY).
To use the VIDEO, first press the VIDEO button.
To use the DVD, first press the DVD button.
Remote Control
Rear Panel
10
Do not touch the inner pins of the jacks on the rear
panel. Electrostatic discharge may cause permanent
damage to the unit.
VIDEO 1 (VIDEO/AUDIO IN (Left/Right))
Connect the audio/video output of an external
source (Audio system, TV/Monitor, Another VCR).
ANTENNA IN
Connect the VHF/UHF/CATV
antenna to this terminal.
MONITOR (VIDEO / AUDIO OUT (Left/Right))
Connect to a TV with video and audio inputs.
AC Power Cord
Plug into the power source.
MONITOR S VIDEO OUT (DVD OUT)
Connect to a S Video Input on TV. FOR DVD VIEWING ONLY.
OPTICAL IN
Connect to a digital audio output on a digital device.
COMPONENT VIDEO OUT (Y P
B/CB PR/CR)
(DVD OUT)
Connect to a TV with Y P
B/CB PR/CR inputs. FOR DVD
VIEWING ONLY.
ANTENNA OUT (DVD/VIDEO OUT)
Connect to a TV with RF coaxial inputs.
AM ANTENNA Connectors
Connect the AM antenna to this terminal.
FM ANTENNA Connectors
Connect the FM antenna to this terminal.
SPEAKERS Connectors
Connect the six supplied speakers to these terminals.
Dust Protection Cap
Remove the dust protection cap from the OPTICAL IN
jack and connect the optical digital cable (not supplied)
securely so that the configurations of both the cable and
the connector match. Keep the dust protection cap and
always reattach the cap when not using the connector to
protect against dust intrusion.
Remote control battery installation
Detach the battery cover on the rear of
the remote control, and insert two R6
(size AA) batteries with and
aligned correctly.
When using the remote control, point it
at the remote sensor on the unit.
Caution
Do not mix old and new batteries. Never mix different
types of batteries (standard, alkaline, etc.).
AA
AA
Connections
11
PREPARATION
Tips
Depending on your TV and other equipment you wish to
connect, there are various ways you could connect the
DVD/VCR Receiver. Use connections described on pages
11-14.
Please refer to the manuals of your TV, VCR, Stereo
System or other devices as necessary to make the best
connections.
Caution
Make sure the DVD/VCR Receiver is connected directly to
the TV. Tune the TV to the correct video input channel.
Do not connect the DVD/VCR Receiver’s AUDIO OUT jack
to the phono in jack (record deck) of your audio system.
Do not connect your DVD/VCR Receiver via your VCR. The
DVD image could be distorted by the copy protection sys-
tem.
Connecting Antenna/Cable TV to
DVD/VCR Receiver
1
Disconnect the antenna leads from the rear of the
TV.
2
Identify the type of cable from your antenna. If it is
a round cable as illustrated, it is a 75 ohm coaxial
antenna cable. This cable will connect directly to
the jack marked ANTENNA IN on your DVD/VCR
Receiver.
Tip
If your antenna lead wire is a flat type antenna cable,
connect it to an Antenna Adaptor (300-ohm to 75-ohm)
(not supplied) and slip the Adaptor onto the ANTENNA
IN jack. The Adaptor does not screw on to the
DVD/VCR Receiver, it just slips over the jack.
Without Cable Box
If your cable wire is connected to your TV without a converter
or descrambler box, unscrew the wire from your TV and attach
it to the ANTENNA IN jack on the DVD/VCR Receiver. Use the
supplied round coaxial cable to connect between the
DVD/VCR Receiver’s ANTENNA OUT jack and the 75 ohm
antenna input jack on the TV. With this connection, you can
receive all midband, super band, and hyperband channels.
With Cable Box
If a converter is required in your cable system, follow the
instruction below:
The cable hookup permits both TV and DVD/VCR Receiver
operation.
To view or record a CATV channel
1 Tune the TV to the DVD/VCR Receiver output channel (CH
3 or 4).
2 Set the DVD/VCR Receiver channel selector to the output
channel of the Cable Converter box using CH/PRESET (+/–)
or number (0-9) of your DVD/VCR Receiver. (Example: CH3)
3 Select the channel to view at the Cable Converter Box.
Notes
With this connection, you can not record one program while
viewing another.
If you are using a cable box to tune channels, it is not nec-
essary to do Auto Channel Programming, (Auto Channel
Search) as indicated on page 18.
Antenna Antenna
Flat Wire
(300 ohm)
300/75 ohm
Adaptor
(Not supplied)
Cable TV
Wall Jack
OR OR
Rear of DVD/VCR Receiver
Cable TV
Wall Jack
Back Panel of
Typical Cable Box
Rear of DVD/VCR Receiver
12
Connections (Continued)
Basic TV Connections
Make one of the following connections, depending on
the capabilities of your TV.
RF coaxial connection
Connect the ANTENNA OUT jack on the DVD/VCR
Receiver to the antenna in jack on the TV using the
75-ohm Coaxial Cable supplied (R).
Note
If you use this connection, tune the TV to the DVD/VCR
Receiver’s RF output channel (CH 3 or 4).
How to set the DVD/VCR Receiver’s RF output
channel
When the DVD/VCR Receiver is turned off,
press and
hold CH/PRESET(+/–) on the front panel for about five
seconds to change the RF output channel (CH 03 or
CH 04). “RF-03” or “RF-04” appears in the display win-
dow.
Audio/Video connection
1
Connect the VIDEO OUT jack on the DVD/VCR
Receiver to the video in jack on the TV using the
supplied video cable (V).
2
Connect the Left and Right AUDIO OUT jacks on
the DVD/VCR Receiver to the audio left/right in
jacks on the TV (A) using the supplied audio
cables.
Note
If you use this connection, set the TV’s source selector
to VIDEO.
Optional TV Connections
Note
DVD playback can ONLY be done using the S VIDEO
OUT and COMPONENT VIDEO OUT connection options
below.
The tuner and VIDEO will still output through the
ANTENNA OUT (R) or AUDIO/VIDEO OUT (A, V) jack.
(See left)
S Video Connection
1
Connect the S VIDEO OUT jack on the DVD/VCR
Receiver to the S Video in jack on the TV using the
supplied S Video cable (S).
2
Connect the Left and Right AUDIO OUT jacks on
the DVD/VCR Receiver to the audio left/right in
jacks on the TV using the supplied audio cables
(A).
Component Video (Color Stream
®
) connection
1
Connect the COMPONENT VIDEO OUT jacks on
the DVD/VCR Receiver to the corresponding in
jacks on the TV using a component video cables
(C).
2
Connect the Left and Right AUDIO OUT jacks of
the DVD/VCR Receiver to the audio left/right in
jacks on the TV (A) using the supplied audio
cables.
Progressive Scan (ColorStream
®
pro) connection
If your television is a high-definition or “digital ready”
television, you may take advantage of the DVD/VCR
Receiver’s progressive scan output for the highest
video resolution possible.
If your TV does not accept the Progressive Scan for-
mat, the picture will appear scrambled if you try
Progressive Scan on the DVD/VCR Receiver.
1
Connect the COMPONENT VIDEO OUT jacks on
the DVD/VCR Receiver to the corresponding in
jacks on the TV using a component video cables
(C).
2
Connect the Left and Right AUDIO OUT jacks of
the DVD/VCR Receiver to the audio left/right in
jacks on the TV (A) using the supplied audio
cables.
Notes
Set the Progressive Scan to “On” on the DVD setup
menu for progressive signal, see page 21.
Progressive scan does not work with the analog video
connections (yellow VIDEO OUT jack).
ANTENNA
INPUT
R
L
R
Y
Pb
Pr
COMPONENT/PROGRESSIVE
SCAN VIDEO INPUT
AUDIO INPUT
L
VIDEO
INPUT
S VIDEO
INPUT
Rear of TV
Rear of DVD/VCR Receiver
SA V C
13
PREPARATION
Connections (Continued)
Speaker System Connections
Connect the speakers using the supplied speaker cords
by matching the colors of the terminals and those of the
cords. To obtain the best possible surround sound,
adjust the speaker parameters (distance, level, etc.).
Notes
Be sure to match the speaker cord to the appropriate
terminal on the components: 3 to 3 and # to #. If
the cords are reversed, the sound will be distorted
and lack bass.
If you use front speakers with low maximum input rat-
ing, adjust the volume carefully to avoid excessive
volume output to the speakers.
Do not disassemble the front covers of supplied speakers.
Speaker Positioning
For a normal setup use 6 speakers (2 front speakers,
center speaker, 2 rear speakers and subwoofer).
•Front Speakers
Based on your listening position, set up the speakers
at equal distance. And by hearing position, set up an
interval between speakers of 45 degree.
• Center Speaker
It is ideal that the center speakers and front speakers
are same height. But normally place it above or below
the television as shown below.
• Rear Speakers
Place the rear surround speakers to the left and right
behind the primary listening area. These speakers
recreate sound motion and atmosphere required for
surround playback. For best results, do not install the
rear speakers too far behind the listening position,
install them at or above the level of the listener’s ears.
It is also effective to direct the rear speakers towards
a wall or ceiling to further disperse the sound.
In the case of a smaller room size, if the audience is
near to the rear wall set the rear speakers opposite
each other, and set the rear speakers 60 - 90 cm
above the listener’s ears.
• Subwoofer
This can be placed in any front position.
Note
Speaker stand is optional.
Front Speaker
(Right)
Front Speaker
(Left)
Center
Speaker
Rear speaker
(Left surround)
Subwoofer
Rear speaker
(Right surround)
Center Speaker
Front
Speaker
(Left)
Speaker Positioning Example
Rear
Speaker
(Left)
Rear
Speaker
(Right)
Front
Speaker
(Right)
Subwoofer
Be sure to attach the ferrite core to
the speaker cables (for connecting to
this unit).
This ferrite core can reduce noises.
How to attach the ferrite core.
1 Push the stopper [a] of the ferrite core
to open.
2
Wind the Center and Subwoofer Speaker
cables once on the ferrite core.
Pass the others straight on the ferrite core.
3
Close the ferrite core until it clicks.
About Ferrite Core
1
2
3
14
Radio Antenna Connections
Connect the supplied FM/AM antennas for radio listen-
ing.
1
Connect the AM loop antenna to the AM antenna
connectors.
2
Connect the FM wire antenna to the FM antenna
connectors.
Notes
To prevent noise pickup, keep the AM loop antenna
away from the DVD/VCR Receiver and other compo-
nents.
Be sure to fully extend the FM wire antenna.
After connecting the FM wire antenna, keep it as hori-
zontal as possible.
Accessory Audio/Video (A/V)
Connections to DVD/VCR Receiver
Connect the VIDEO 1 or VIDEO 2 jacks on the
DVD/VCR Receiver to the audio/video out jacks on your
accessory component, using optional audio/video
cables.
Digital Device Connections
Connect the OPTICAL IN jacks on the DVD/VCR
Receiver to the digital audio out (optical) jacks on your
digital device (Game device, Digital Set Top Box, etc.),
using optional optical audio cable.
To select source of DVD/VCR Receiver to OPTICAL IN,
press INPUT SELECT repeatedly on the remote control
until “L1 OPT” appears in the display window.
Notes
If the audio format of the digital output does not
match the capabilities of your DVD/VCR Receiver, the
DVD/VCR Receiver will produce a strong, distorted
sound or no sound at all.
The Optical input function is available only when the
other unit’s Sampling Frequency is 32 - 48kHz.
Rear of DVD/VCR Receiver
AM loop antenna (supplied)
FM wire antenna (supplied)
Connections (Continued)
L
R
VIDEO
OUTPUT
AUDIO
OUTPUT
Jack Panel of Accessory Component
(VCR, Camcorder, etc.)
Rear of
DVD/VCR Receiver
Front of
DVD/VCR Receiver
OR
Rear of DVD/VCR Receiver
Digital Set Top Box
Game Device
OR
15
Follow these guidelines to select and switch among the
various DVD/VCR Receiver input and output sources:
• DVD
To view output from the DVD deck:
Press DVD on the remote or DVD/VIDEO on the
front panel until the DVD indicator on the front panel
lights and output from the DVD deck is viewed on the
TV screen.
• VIDEO
To view output from the VIDEO deck:
Press VIDEO on the remote or DVD/VIDEO on the
front panel until the VIDEO indicator on the front
panel lights and output from the VIDEO deck is
viewed on the TV screen.
• TUNER FM/AM
To listen to AM/FM radio broadcasts:
Press TUNER FM/AM to toggle between AM and FM
radio. The selected frequency appears in the display
window.
• INPUT SELECT
To listen and view to an audio source connected
to the OPTICAL IN jack with video from VIDEO 1:
Press INPUT SELECT on the remote control once.
The “L1 OPT” and “LINE 1” appears in the display
window and TV screen. Audio will come from an
external source connected to the OPTICAL IN jack
and video will come from an external source con-
nected to the VIDEO IN jack of
VIDEO 1 (for rear panel).
To listen and view to an audio source connected
to the AUDIO IN jack of VIDEO 1 with video from
VIDEO 1:
Press INPUT SELECT on the remote control a sec-
ond time. The “L1” and “LINE 1” appears in the dis-
play window and TV screen. Audio will come from an
external source connected to the AUDIO IN jacks of
VIDEO 1 (for rear panel) and video will come from an
external source connected to the VIDEO IN jack of
VIDEO 1 (for rear panel).
To listen and view to an audio source connected
to the AUDIO IN jack of VIDEO 2 with video from
VIDEO 2:
Press INPUT SELECT on the remote control a third
time. The “L2” and “LINE 2” appears in the display
window and TV screen. Audio will come from an
external source connected to the AUDIO/VIDEO IN
jacks of VIDEO 2 (for front panel).
Selecting the Output/Input Source
PREPARATION
DVD VIDEO
TUNER
FM/AM
INPUT
SELECT
16
Before Operation - Sound Mode Descriptions
Mini Glossary for Audio Stream &
Surround mode
(DTS)
Allows you to enjoy 5.1(or 6) discrete channels of high quality
digital audio from DTS program sources such as discs, DVD
and compact discs, etc.bearing the trademark. DTS Digital
Surround delivers up to 6 channels of transparent audio(which
means identical to the original masters) and results in excep-
tional clarity throughout a true 360 degree sound field. The
term DTS is a trademark of DTS Technology, LLC.
Manufactured under license from DTS Technology, LLC.
(Dolby Digital)
The Dolby Digital surround format lets you enjoy up to 5.1
channels of digital surround sound from a Dolby Digital pro-
gram source. If you play DVDs with “ ” mark, you can
enjoy even better sound quality, greater spatial accuracy, and
improved dynamic range.
(Dolby Pro Logic)
Use this mode when playing movie or Dolby Digital 2 channel
which carries the “ ” mark. This mode provides the effect
of being in a movie theatre or live concert house-an effect with
an intensity which can only be obtained through DOLBY PRO
LOGIC SURROUND. The effect of the front/back/left/right
movement of the sound image, as well as the sense of fixed
position in the sound image, is much clearer and more
dynamic than before.
(Dolby Pro Logic II)
Dolby Pro Logic II creates five full-bandwidth output channels
from two-channel sources. This is done using an advanced,
high-purity matrix surround decoder that extracts the spatial
properties of the original recording without adding any new
sounds or tonal colorations.
MOVIE mode:
The Movie mode is for use with stereo television shows and
all programs encoded in Dolby Surround. The result is
enhanced soundfield directionality that approaches the quali-
ty of discrete 5.1-channel sound.
MUSIC mode:
The Music mode is for use with any stereo music recordings,
and provides a wide and deep sound space. The Music
mode includes controls that allow the sound to be tailored to
individual listening tastes.
MATRIX mode:
The Matrix mode is the same as the Music mode except that
the directional enhancement logic is turned off. It may be
used to enhance mono signals by making them seem “larg-
er.” The Matrix mode may also find use in auto systems,
where the fluctuations from poor FM stereo reception can
otherwise cause disturbing surround signals from a logic
decoder. The ultimate “cure” for poor FM stereo reception
may be simply to force the audio to mono.
3D SURROUND
This unit can produce a 3D Surround effect, using 3D Surround
Sound technology, which simulates multi-channel audio play-
back from two conventional stereo speakers instead of the five
or more speakers normally required to listen to multi-channel
audio from a home theatre. This feature works with DVD discs
encoded with Dolby Pro Logic and Dolby Digital audio tracks.
BYPASS
Software with multichannel surround audio signals is played
according to the way it was recorded.
Sound Mode
You can enjoy surround sound simply by selecting one
of the pre-programmed sound fields according to the
program you want to listen to.
Press SOUND FIELD on the remote control repeatedly
until the sound mode you want appears in the display
window as below.
Each time you press SOUND FIELD button, the sound
mode is changed in the following order;
BYPASS → PRO LOGIC → MOVIE → MUSIC → MATRIX →
3D SURROUND
When DVD is inserted.
You can change the sound mode of DVD (Dolby Digital, DTS,
PRO LOGIC, etc) by pressing the AUDIO button on the remote
during playback.
Although the DVD contents differ from disc to disc, the follow-
ing explains the basic operation when this feature is used.
Each time you press AUDIO button, the sound mode of DVD is
changed as the following order;
→→→
For your reference
•
The DVD/VCR Receiver memorizes the last mode
settings for each source individually.
•
You can identify the encoding format of program
software by looking at its packaging.
- Dolby Digital discs are labelled with the logo.
- Dolby Surround encoded programs are labelled
with the logo.
- DTS Digital Surround discs are marked with
logo
.
Note
When you play sound tracks with 96kHz sampling frequency,
the output signals will be converted to 48kHz (sampling
frequency).
Volume Control
You can adjust the volume by rotating VOLUME on the
front panel or by pressing VOL (+/–) on the remote con-
trol repeatedly.
Muting
Press MUTING to mute your unit.
You can mute your unit in order, for example, to answer
the telephone, “MUTING” indicator in the display win-
dow. To exit mute mode, press MUTING again.
17
PREPARATION
VIDEO Operation Setup
On-Screen Display (OSD)
Some of these functions appear during VIDEO operat-
ed.
❶❷ ❸ ❹ ❺
❻❼
❶ TAPE SPEED DISPLAY
Shows the current tape speed.
❷ FUNCTION DISPLAY
Indicates the function in progress.
❸ HI-FI DISPLAY
Indicates the unit is playing back tape recorded in Hi-Fi.
❹ CHANNEL DISPLAY
I
ndicates the selected channel (or LINE1(L1), LINE2(L2)).
❺ STEREO/SAP DISPLAY (MONO is not displayed)
Shows the type of audio signal received by the VIDEO tuner.
❻ DATE DISPLAY
Shows the current date. (Month/Date/Day of the week
format)
❼ CLOCK/COUNT/REMAIN DISPLAY
Shows the current time, the tape counter and remaining time
on the tape.
Each press of the ENTER changes the TV on-screen
displays in the following sequence.
Notes
The function displays remain on the TV screen for 5
seconds.
The clock (or tape counter, tape remaining) mode will remain
on the screen until you press ENTER.
The tape counter and the remaining tape length indicator
appear only when a cassette is inserted. Also, the remaining
tape length indicator appears after any tape operation.
EASY INFORMATION
If the Extended Data Service (XDS) signals are provided
along with normal TV signal in your area or during play-
back of a tape recorded with Extended Data Service
(XDS) signals, the station ID, program title, and program
details are shown on the TV screen.
When viewing a channel with Extended Data Service
(XDS) signals, press ENTER and the station ID will
appear on the TV screen. Press ENTER again and the
program details will appear on the TV screen.
When viewing a tape recorded with Extended Data
Service (XDS) signals, press ENTER twice and the pro-
gram title and program details will appear on the TV
screen.
PROGRAM DETAILS
LENGTH: Indicates the run length of a program.
TIME REMAINING: Indicates the remaining time of a
program.
RATING: Indicates the rating of the current program
(N/A, G, PG, PG-13, R, NC-17, X and Not Rated). The
rating N/A means that the motion picture ratings are not
applicable to this program.
On-Screen Menus Setup
The SETUP, clock setting (CLOCK), and timer
recordings (PROGRAM) are accessed conveniently with
the on-screen menus, that lead you through each step.
The following pages describe the on-screen menu
selections available.
Menu Selection
Your VIDEO allows remote control adjustment of several
features.
1
Press SETUP/MENU and the MAIN menu will
appear.
2
Select the desired menu with V/v button and
then press ENTER.
Note
Menus remain on-screen for 3 minutes.
3
Press SETUP/MENU to return to the TV screen.
PLAY HI-FI CH 4
SP STEREO
JUL 5 , SAT 2:15 PM
REM 1:58
0:35:40
2:15 PM
STOP CH 4
SP STEREO
JUL 5 , SAT 2:15 PM
Easy Information Screen
(Program details)
Easy Information Screen
(Station ID)
CH 4
SP WABC STEREO
“Home video”
JUL 5 , SAT 2:15 PM
PROGRAM DETAILS
“Home video”
LENGTH 01:00
TIME REMAINING 00:26
RATING N/A
CLOCK SET (page 19)
PROGRAM (page 25)
TUNING (page 18)
SETUP (page 18)
MAIN MENU
18
VIDEO Operation Setup (Continued)
Using the VIDEO Setup Menu
1
Press SETUP/MENU and the MAIN menu will
appear.
2
Use V/v to select the SETUP menu, then press
ENTER.
The SETUP menu will appear.
3
Use V/v to select a desired option on the
SETUP menu. Then use B/b to select a desired
setting.
FUNCTION OSD
The on-screen display of this DVD/VCR Receiver can be turned
on or off.
FUNCTION OSD can be switched between ON and OFF
using B/b.
LANGUAGE SELECT
The on-screen programming of this DVD/VCR Receiver can be
displayed in either English, Spanish, or French.
LANGUAGE SELECT can be switched between ENGLISH,
SPANISH and FRENCH using B/b.
AUDIO MODE
The DVD/VCR Receiver has two separate audio playback sys-
tems, the high quality VHS Hi-Fi system and standard NOR-
MAL mono system. The same audio is generally recorded on
both systems. The VHS Hi-Fi system plays on separate (left
and right) channels, and the NORMAL system plays monaural
sound. The normal track is always played so the cassette can
be played on a DVD/VCR Receiver that does not have VHS
Hi-Fi.
AUDIO MODE can be switched between HI-FI and
NORMAL using B/b.
BROADCAST TYPE (STEREO/SAP/MONO)
Multichannel Television Sound (MTS) carries stereo and/or
Second Audio Program (SAP) bilingual signals. Set this display to
the desired position when both MTS stereo and SAP signals are
received. When only one of the MTS signal is received, the
DVD/VCR Receiver automatically selects the corresponding
receiving mode (Stereo or SAP) regardless of the selected posi-
tion. For normal operation, the display should be in the STEREO
position.
The DVD/VCR Receiver will then record a STEREO pro-
gram when available, and record a mono program IF the program is
NOT IN STEREO.
For weak STEREO and/or SAP broadcasts, changing the dis-
play to mono may give clearer sound.
BROADCAST TYPE can be switched between STEREO,
SAP, and MONO using B/b.
AUDIO OUTPUT (STEREO/LEFT/RIGHT)
Used during playback [when AUDIO MODE (HI-FI/NORMAL) is
in HI-FI position] for selecting the audio output signals from the
AUDIO OUT terminals (L ch and R ch), and ANTENNA OUT.
This display setting should normally be left in the stereo posi-
tion, so that when a stereo tape is played, the stereo sound will
be heard through the left and right channels. If a mono tape is
played and the audio output is set to stereo, the same mono
sound will be heard from both left and right channels.
AUDIO OUTPUT can be switched between STEREO, LEFT,
and RIGHT using B/b.
4
Press SETUP/MENU to return to the TV screen.
Channel Selection
This DVD/VCR Receiver is equipped with a
frequency synthesized tuner capable of receiving up to
181 channels. These include VHF channels 2-13, UHF
channels 14-69 and CATV channels 1-125.
Preparation:
Connect the DVD/VCR Receiver to the desired type of
antenna or cable TV system, as shown in Connecting
Antenna/Cable TV to DVD/VCR Receiver on page 11.
AUTO CHANNEL PROGRAMMING
1
Press SETUP/MENU and the MAIN menu will
appear.
2
Use V/v to select the TUNING menu, then press
ENTER.
The TUNING menu will appear.
3
Use v to select the SOURCE SELECT option,
then use B/b to select TUNER.
Press B/b repeatedly to switch between TUNER,
LINE1(L1) and LINE2(L2).
4
Use V/v to select the AUTO CHANNEL SET option,
then use B/b to search for channels.
The tuner will automatically cycle through all
available channels in the area and place them in
the tuner’s memory.
5
After the AUTO CHANNEL SET PROCEEDING is
complete, make sure the TUNING BAND is set
appropriately (TV or CATV) using V/v and
choosing the correct TUNING BAND (TV or
CATV) by using B/b while in the TUNING menu.
Remember, TV is for the air antenna reception,
CATV is for cable or wireless cable connection.
6
Press SETUP/MENU to return to the TV screen.
7
Use CH/PRESET(+/–) on the front panel or
remote control to cycle the DVD/VCR Receiver
through the channels in memory.
Note
Channel Selection will not be activated during playback.
TO ADD OR ERASE CHANNELS FROM MEMORY
This feature allows you to add or erase channels in
memory manually.
1 Use v to select the CH. ADD/DEL option on the
TUNING menu. Use B/b to select a channel to add
or erase.
2 Use ENTER to add or erase the channel.
Repeat steps 1 and 2 to add or erase channels.
3 Press SETUP/MENU to return to the TV screen.
19
PREPARATION
VIDEO Operation Setup (Continued)
Setting the Clock
The DVD/VCR Receiver gives you two ways to set the
time and date: the Auto Clock Feature or manually. The
Auto Clock feature enables the DVD/VCR Receiver to
set up the clock while the DVD/VCR Receiver is turned
off.
Auto Clock Set
The Auto Clock Set feature is set to ON at the factory. In the
ON setting, the DVD/VCR Receiver looks for a channel carry-
ing XDS (Extended Data Services) information. XDS updates
the clock using the Coordinated Universal Time.
The Auto Clock feature enables the DVD/VCR Receiver
to set up the clock while the DVD/VCR Receiver is
turned off.
1
Press SETUP/MENU and the MAIN menu will
appear.
2
Use V/v to select the CLOCK menu.
Press ENTER and the CLOCK menu will appear.
3
Use
v to select the AUTO CLOCK SET option.
Use B/b to select ON.
The Auto Clock Set feature is set to ON at the factory. In
the ON setting, the DVD/VCR Receiver looks for a chan-
nel carrying XDS (Extended Data Services) information.
XDS updates the clock using the Coordinated Universal
Time.
4
Use
v
to select the DAYLIGHT SAVINGS option.
Use B/b to select AUTO, ON, or OFF.
If you select AUTO, the DVD/VCR Receiver sets the clock
using the DST information broadcast in the signal (chan-
nel). If you select ON, the DVD/VCR Receiver adjusts the
clock for Daylight Saving Time automatically.
5
Use
v
to select the TIME ZONE option.
Use B/b to select the correct time zone (AUTO,
EASTERN, CENTRAL, MOUNTAIN, PACIFIC,
ALASKA or HAWAII).
If “AUTO” is selected as the time zone, the DVD/VCR
Receiver sets the clock using the first Coordinated
Universal Time information it finds in a broadcast signal.
6
Press SETUP/MENU to return to the TV screen.
7
Turn off the DVD/VCR Receiver and the auto
clock set feature sets the time.
Note
There are cases where the TV station does not send or sends
the wrong time. Therefore, the incorrect time will be set. If this
happens we recommend that you set the clock manually.
Manual Clock Set
1
Press SETUP/MENU and the MAIN menu will
appear.
2
Use V/v to select the CLOCK menu.
Press ENTER and the CLOCK menu will appear.
3
Use B/b to select the month.
4
Use v to select the DAY option.
Use B/b to select the date.
The day of the week will display automatically.
5
Use v to select the YEAR option.
Use B/b to select the year.
6
Use v to select the TIME option.
Use B/b to select the time.
Press and hold B/b to advance clock
continuously.
7
Use
v
to select the DAYLIGHT SAVINGS option.
Use B/b to select AUTO, ON, or OFF.
If you select AUTO, the VIDEO sets the clock using the
DST information broadcast in the signal (channel).
If you select ON, the VIDEO adjusts the clock for Daylight
Saving Time automatically.
8
Press SETUP/MENU to return to the TV screen.
Notes
If setting the clock manually, “AUTO CLOCK SET”
must set to “OFF”. If set to “ON”, an incorrect date
and/or time will be entered again when the DVD/VCR
Receiver is turned off.
“--:-- --” appears in the display window during clock
setting.
The clock uses the 12-hour system. (Be sure to set AM
and PM correctly.)
The initial Clock Setting is JANUARY 1, 2003, 12:00 AM.
Things to know before starting
20
DVD Operation Setup
General Explanation
This manual gives basic instructions for operating the
DVD/VCR Receiver. Some DVDs require specific opera-
tion or allow only limited operation during playback.
When this occurs, the symbol appears on the TV
screen, indicating that the operation is not permitted by
the DVD/VCR Receiver or is not available on the disc.
On-Screen Display
General playback status can be displayed on the TV
screen. Some items can be changed on the menu.
On-screen display operation
1
Press DVD DISPLAY during playback.
2
Press V/v to select an item.
The selected item will be highlighted.
3
Press B/b to change the setting of an item.
The number buttons can be also be used for setting
numbers (e.g., title number). For some functions,
press ENTER to execute the setting.
Temporary Feedback Field Icons
Repeat Title
Repeat Chapter
Repeat Track (non-PBC Video CDs only)
Repeat All Tracks (non-PBC Video CDs only)
Repeat A-B
Repeat Off
Resume play from this point
Action prohibited or not available
Notes
Some discs may not provide all of the features on the
on-screen display example shown below.
If no button is pressed for 10 seconds, the on-screen
display disappears.
RESUME
OFF
A B
A—B
ALL
TRACK
CHAPT
TITLE
Items
Title Number
Chapter Number
Time search
Audio language
and Digital Audio
Output mode
Subtitle language
Angle
Sound
Function (Press V/v to select desired item)
Shows the current title number and total number of titles,
and skips to the desired title number.
Shows the current chapter number and total number of
chapters, and skips to the desired chapter number.
Shows the elapsed playing time, and
searches the point directly from the elapsed time.
Shows the current audio soundtrack language,
encoding method, and channel number, and
changes the setting.
Shows the current subtitles language, and
changes the setting.
Shows the current angle number and total number of
angles, and changes the angle number.
Shows the current sound mode, and
changes the setting.
Selection Method
B
/
b
,or
Numbers, ENTER
B
/
b
,
.
/
>
or
Numbers, ENTER
Numbers, ENTER
B
/
b
,or
AUDIO
B
/
b
,or
SUBTITLE
B
/
b
,or
ANGLE
B
/
b
,or
SOUND FIELD
1 /3
1 /12
0:20:09
1 ENG
D
5.1 CH
OFF
1 /1
BYPASS
Items
Track Number
Time
Audio Channel
Sound
Function (Press V/v to select desired item)
Shows the current track number, total number of tracks and
PBC On mode, and skips to the desired track number.
Shows the elapsed playing time (Display only)
Shows the audio channel, and
changes the audio channel.
Shows the current sound mode, and
changes the setting.
Selection Method
B
/
b
,or
Numbers, ENTER
–
B
/
b
,or
AUDIO
B
/
b
,or
SOUND FIELD
1 /3
BYPASS
0:20:09
ST
VCD2.0
VCD1.1
DVD
21
PREPARATION
DVD Operation Setup (Continued)
Initial Settings
You can set your personal preferences on the DVD func-
tion mode.
General Operation
1
Press SETUP/MENU.
The Setup menu appears.
2
Use V/v to select the desired option.
The screen will show the current setting for the
selected option, as well as alternate setting(s).
3
While the desired option is selected, press b,
then V/v to select the desired setting.
4
Press ENTER to confirm your selection.
Some options require additional steps.
5
Press SETUP/MENU, RETURN, or H (PLAY) to
exit the setup menu.
Language
Disc Language
Select a language for the disc’s Menu, Audio, and
Subtitle features.
O
riginal : The original language set for the disc is selected.
Other : To select another language, use number buttons to
enter the corresponding 4-digit number according to the
language code list on page 44. If you enter the wrong
language code, press CLEAR.
Note
Disc Language selection may not work for some DVDs.
Menu Language
Select a language for the Setup menu. This is the menu
you see when you press SETUP/MENU.
TV Aspect
4:3 Letterbox: Select when a standard 4:3 TV is con-
nected. Displays pictures with masking bars above and
below the picture.
4:3 Panscan: Select when a standard 4:3 TV is con-
nected. Displays pictures cropped to fill your TV screen.
Both sides of the picture are cut off.
16:9 Wide: Select when a 16:9 wide TV is connected.
Progressive Scan
Progressive Scan Video provides the highest resolution
pictures with less flicker and line structure.
If you are using the COMPONENT VIDEO OUT jacks,
but are connecting the DVD/VCR Receiver to a stan-
dard (analog) television, set Progressive Scan to Off.
If you are using the Component Video jacks for
connection to a TV or monitor that is compatible with a
progressive scan signal, set Progressive Scan to On.
Caution
Once the setting for progressive scan output is entered, an
image will only be visible on a progressive scan compatible
TV or monitor. If you set Progressive Scan to On in error,
you must reset the unit. Pointing the remote at the
DVD/VCR Receiver, press the
x (STOP)
key to stop any
disc that is playing. Next, press the
x (STOP)
key again
and hold it for five seconds before releasing it. The video
output will be restored to the standard setting, and a pic-
ture will once again be visible on a conventional analog TV
or monitor.
DVD
DVD
DVD
Original
German
Chinese
Italian
Hungarian
Other — — — —
Polish
English
French
Spanish
Disc Subtitle
Disc Menu
Rating
Area Code
TV Aspect
Menu Language
Progressive Scan
5.1 Speaker Setup
Others
Disc Audio
English
Spanish
French
Disc Subtitle
Disc Menu
Rating
Area Code
TV Aspect
Menu Language
Disc Audio
4:3
4:3
16:9
Letterbox
Panscan
Wide
Disc Subtitle
Disc Menu
Rating
Area Code
TV Aspect
Menu Language
Progressive Scan
5.1 Speaker Setup
Others
Disc Audio
Original
German
Chinese
Italian
Hungarian
Other — — — —
Polish
English
French
Spanish
Disc Subtitle
Disc Menu
Rating
Area Code
TV Aspect
Menu Language
Progressive Scan
5.1 Speaker Setup
Others
Disc Audio
Off
On
Disc Subtitle
Disc Menu
Rating
Area Code
TV Aspect
Menu Language
Progressive Scan
5.1 Speaker Setup
Others
Disc Audio
22
DVD Operation Setup (Continued)
Speaker setup
5.1 Speaker settings
Select speaker settings, including volume balance and
distance, or test the speaker settings.
Speaker settings are only active on the Analog Multi-
Channel Output. (See “Speaker Setup”, page 37.)
Others
The DRC and PBC settings can be changed.
Press V/v to select the desired item and press
ENTER. The setting of the selected item is changed
between On and Off.
Dynamic Range Control (DRC)
With the DVD format, you can hear a program’s sound-
track in the most accurate and realistic presentation
possible, thanks to digital audio technology. However,
you may wish to compress the dynamic range of the
audio output (the difference between the loudest sounds
and the quietest ones). Then, you may listen to a movie
at a lower volume without losing clarity of sound. Set
DRC to On for this effect.
Playback Control (PBC)
On: Video CDs with PBC are played according to the PBC.
Off: Video CDs with PBC are played the same way as Audio
CDs.
DVD
DRC
PBC
On
On
Disc Subtitle
Disc Menu
Rating
Area Code
TV Aspect
Menu Language
Progressive Scan
5.1 Speaker Setup
Others
Disc Audio
Disc Subtitle
Disc Menu
Rating
Area Code
TV Aspect
Menu Language
Progressive Scan
5.1 Speaker Setup
Others
Disc Audio
R R
Front L
Volume 0 dB
Size Small
Distance 1 ft
Test
Return
23
PREPARATION
DVD Operation Setup (Continued)
Parental Control
Rating
Movies on DVDs may contain scenes not suitable for
children. Therefore, discs may contain Parental Control
information that applies to the complete disc or to
certain scenes on the disc. These scenes are rated
from 1 to 8, and alternatively, more suitable scenes are
available for selection on some discs. Ratings are
country dependent. The Parental Control feature allows
you to prevent discs from being played by your children
or to have certain discs played with alternative scenes.
1
Select Rating on the Setup menu using V/v
buttons on the setup menu.
2
While Rating is selected, press b.
3
When you have not entered a password yet.
Enter a 4-digit password using the number buttons
to create a personal 4-digit security password, then
press ENTER. Enter the 4-digit password again and
press ENTER to verify.
When you have already entered a password;
Enter a 4-digit password using the numerical
buttons to confirm the personal 4-digit security
password, then press ENTER.
If you make a mistake before pressing ENTER, press
CLEAR and enter 4-digit security password again.
4
Select a rating from 1 to 8 using V/v buttons.
One (1) has the least playback restrictions.
Eight (8) has the most playback restrictions.
Unlock: If you select Unlock, Parental Control is
not active. The disc will play in full.
Ratings 1 to 8: Some discs contain scenes not
suitable for children. If you set a rating for the DVD,
all disc scenes with the same rating or lower will be
played. Higher rated scenes will not be played
unless an alternative scene is available on the disc.
The alternative must have the same rating or a
lower one. If no suitable alternative is found, play-
back will stop. You must enter the 4-digit password
or change the rating level in order to play the disc.
5
Press ENTER to confirm your rating selection,
then press SETUP/MENU to exit the menu.
Area Code
Enter the code of an area whose standards were used
to rate the DVD video disc, referring to the list (See
“Area Code List”, page 45.).
1
Select the Area Code option using the V/v but-
tons on the setup menu.
2
While Area Code is selected, press b.
3
Follow step 3 of “Rating” on left.
4
Select the first character using the V/v buttons.
5
Press b to shift to second character and select
the second character using V/v buttons.
6
Press ENTER to confirm your Area Code selec-
tion, then press SETUP/MENU to exit the menu.
Note
Confirmation of the 4-digit password is necessary when
the password is changed (see Changing the 4-digit
password below ).
Changing the 4-digit password
1 Follow Steps 1-2 as shown above to the left (Rating).
2 Enter the old password, then press ENTER.
3 Select Change using V/v buttons then press ENTER.
4 Enter the new 4-digit password, then press ENTER.
5 Enter exactly the same password a second time and
verify by pressing ENTER.
6 Press SETUP/MENU to exit the menu.
If you forget your 4-digit password
If you forget your password, to clear the current pass-
word follow the procedure below.
1 Press SETUP/MENU to display the setup menu.
2 Enter the 6-digit number “210499”.
The 4-digit password is cleared.
3 Enter a new password as shown
above to the left
(Rating).
DVD
DVD
Code Set
U SDisc Subtitle
Disc Menu
Rating
Area Code
TV Aspect
Menu Language
Progressive Scan
5.1 Speaker Setup
Others
Disc Audio
8
7
6
5
4
3
2
1
Unlock
Change
Disc Subtitle
Disc Menu
Rating
Area Code
TV Aspect
Menu Language
Progressive Scan
5.1 Speaker Setup
Others
Disc Audio
24
VIDEO Operation
Playback
Preparation:
Turn on the TV.
Tune the TV to the DVD/VCR Receiver output channel
(CH 3 or 4) or set the TV’s source selector to VIDEO.
If a direct VIDEO/AUDIO connection is made between the
DVD/VCR Receiver and the TV, set the TV’s source selector
to VIDEO.
Set the Output Source to VIDEO as shown in “Selecting the
Output/Input Source” on page 15.
Note
If you select “L1 OPT”, this unit can not activate the playback
mode.
1
Insert a prerecorded video cassette.
The indicator will light and the DVD/VCR Receiver
will power-up automatically.
You have to set the DVD/VCR Receiver to the VIDEO
function mode manually.
Make sure that the TIMER indicator in the display
window is not lighted. If it is, press @ / 1 once.
If a tape without a safety tab is inserted, the unit will
start playback automatically.
2
Press H (PLAY).
PLAY appears on the TV screen .
It is not necessary to select the tape speed for
playback. It will be automatically selected by the
DVD/VCR Receiver.
In playback, the TV/VIDEO selector switches to VIDEO
mode automatically.
3
Press x (STOP) to stop playback.
STOP appears on the TV screen.
If the tape reaches the end before x (STOP) is
pressed, the DVD/VCR Receiver will automatically stop,
rewind and eject the tape, and it will turn itself off.
Tracking Control
Auto Tracking
The automatic tracking function adjusts the picture to
remove snow or streaks.
The Auto Tracking function works in the following cases:
A tape is played back for the first time.
Tape speed (SP, EP) changes.
Streaks or snow appear because of scratches on the tape.
Manual Tracking
If noise appears on the screen during playback, press
either CH/PRESET (+/–) on the remote control or front
panel until the noise on the screen is reduced.
If vertical jitter is present, adjust tracking controls very
carefully.
Tracking is automatically reset to normal when the tape is eject-
ed or the power cord is unplugged for more than 3 seconds.
Special Effect Playbacks
Special effects playback notes
Horizontal lines (noise bars) will appear on the TV screen.
This is normal.
The audio is automatically muted during special effect modes,
so there is no sound during search.
During high-speed picture search mode, a short period is
needed to stabilize tape speed when re-entering the PLAY
mode. Slight interference may be observed during this period.
Search
This function lets you quickly and visually search for a
desired tape section in either direction: forward or
reverse.
1 Press
m or M during playback. The DVD/VCR
Receiver will be activated in the SEARCH mode.
If the DVD/VCR Receiver is left in the SEARCH mode for
more than 3 minutes, the DVD/VCR Receiver will auto-
matically enter the PLAY mode, to protect the tape and
video heads.
2 To return to playback, press H (PLAY).
Still Picture and Frame-by-Frame Playback
1 Press X (PAUSE) during playback.
Still picture will appear on the TV screen.
If a still picture vibrates vertically, stabilize it using
V/v
on the remote control.
If the DVD/VCR Receiver is left in the STILL mode for
more than 5 minutes, the DVD/VCR Receiver will auto-
matically enter the STOP mode to protect the tape and
video heads.
2
Press X (PAUSE) repeatedly to advance the
video picture one frame at a time while viewing a still
picture.
3 To return to playback, press H (PLAY).
Slow Motion
1 While in still mode, press SLOW T.
The tape will be played back at a speed 1/19 times
slower than the normal speed.
During slow playback, use V/v on the Remote Control to
minimize noise bands.
If slow motion mode continues for more than 3 minutes,
the DVD/VCR Receiver will automatically change to play-
back mode.
2 To return to playback, press H (PLAY).
CM Skip (Commercial Skip)
This is useful for skipping commercials or short program
segments.
1 Press CM SKIP during playback.
The tape will fast forward picture search through 30
seconds of recording.
Skipping time can be extended by pressing CM SKIP
repeatedly.
Subsequent presses result in advancing the fast forward
picture search time by 30-second increments (maximum 3
minutes).
2 When the search is complete, the DVD/VCR Receiver
will go into playback mode automatically.
25
OPERATION
VIDEO Operation (Continued)
Normal Recording
Preparation:
Turn on the power of both the DVD/VCR Receiver and TV.
Tune the TV to the DVD/VCR Receiver output channel (CH 3
or 4) or set the TV’s source selector to VIDEO.
If a direct VIDEO/AUDIO connection is made between the
DVD/VCR Receiver and the TV, set the TV’s source selector
to VIDEO.
1
Insert a video cassette with the safety tab intact.
2
Select the desired channel with CH/PRESET
(+/–) or number (0-9) buttons.
If you are recording from another source via audio/video
input jacks (at the Rear or Front panel), select LINE1 (L1),
LINE2 (L2).
3
Set the desired recording speed (SP or EP) with
the SP/EP button.
4
Set the MTS mode as desired (See page 18, 28).
5
Press z REC/ITR once.
Recording will start. (The REC indicator will light in
the display window.)
REC indicator appears only when the Output Source is
set to VIDEO.
If a cassette with no safety tab is loaded, the cassette
will be ejected automatically.
6
Press x (STOP) to stop recording.
If the tape reaches the end before x (STOP) is pressed,
the DVD/VCR Receiver will automatically stop, rewind,
eject the tape and turn itself off.
To pause recording
1 Press X (PAUSE) to pause the tape during record-
ing.
The REC indicator will flash and RECP appears in the dis-
play window.
2 When you want to continue recording, press
X (PAUSE) or z REC/ITR.
After 5 minutes in Pause mode, the tape will be stopped
automatically to protect the tape and the video heads.
To record one TV program while
watching another
1 Use TV/VIDEO button on the remote to select the TV
mode during recording.
“TV MODE” appears in the display window.
2 Using the TV, select the channel to be viewed.
Tip
Always use X (PAUSE) for best results when making changes
during recording.
For example: To change channels during recording, first press
X (PAUSE) to put the unit in pause mode. Select the desired
channel on the DVD/VCR Receiver, then press X (PAUSE)
again to resume recording.
Timer Recording
This DVD/VCR Receiver can be programmed to record
up to 8 programs within a period of 1 year. For unattend-
ed recording, the timer needs to know the channels to be
recorded and the starting and ending times.
Preparation:
Turn on the power of both the DVD/VCR Receiver and the
TV.
Be sure the TV is set to the DVD/VCR Receiver output channel
(CH3 or CH4).
Make sure the TUNING BAND in the TUNING menu is set
appropriately (TV or CATV).
1
Insert a video cassette with the safety tab intact.
2
Press SETUP/MENU and the MAIN menu will
appear.
3
Use V/v to select the PROGRAM menu.
4
Press ENTER to go to the PROGRAM menu.
The PROGRAM menu will appear.
If all 8 programs have been entered, FULLY
PROGRAMMED message will appear for a moment
and then PROGRAM 1 will appear on the TV screen.
5
Use B/b to select the PROGRAM No. (1-8).
6
Use v to select the MONTH option.
Use B/b to select the desired month.
7
Use v to select the DAY option.
Use B/b to select the desired day.
8
Use v to select the START option.
Use B/b to select the desired start time.
9
Use v to select the STOP option.
Use B/b to select the desired stop time.
10
Use v to select the CHANNEL option.
Use B/b to select the desired channel (Channel,
LINE1(L1) or LINE2(L2)).
Cable Users: If you have Cable TV and used Cable Box in
Connecting Antenna/Cable TV to DVD/VCR Receiver
(page 11), using a cable box converter, you must set the
channel in this step to match the cable box output channel
(usually CH 3 or 4). Change channels on the cable box
instead of with the DVD/VCR Receiver.
If you try to set the program timer before setting the clock,
PLEASE SET THE CLOCK appears for a moment and
then CLOCK menu appears on the TV screen. Set the time
and date before proceeding.
Make sure a tape is in the DVD/VCR Receiver and the
safety tab is in place or the tape will be automatically
ejected.
Things to know before starting
26
VIDEO Operation (Continued)
11
Use v to select the SPEED option.
Use B/b to select the desired recording speed
(AUTO, SP or EP).
AUTO mode determines how much tape is left and switch-
es speed from SP to EP, if necessary, to complete record-
ing the program. There will be some picture and sound
distortion at the point of the speed change.
12
Use v to select the REPEAT option.
Use B/b to select the desired repeat (ONCE,
WEEKLY or DAILY).
ONCE: for recording up to 8 programs on a single day or
over the days within a period of 1 year.
WEEKLY: for recording up to 8 programs on a certain day
of every week.
DAILY: for recording up to 8 programs at the same time(s)
Monday through Friday.
Tip
If the input data is wrong, use V/v to select the data
and correct it using B/b.
13
Press SETUP/MENU, the program will be memo-
rized by the DVD/VCR Receiver.
TIMER indicator lights in the display window.
If the program preset time has past, the PAST TIME
PROGRAMMED message will appear on the TV
screen. Return to the incorrect program and program it
with the correct time.
If you had entered a past date, timer recording will be
performed on that date of the next year.
Additional programs may be entered by repeating steps
1-12.
Cable Users: If your cable hookup is via a TV
converter box, you can program multiple recordings only
on the converter box output channel. This is because the
converter determines what channel you view through your
DVD/VCR Receiver.
Tip
If you are finished programming and you want to set the
DVD/VCR Receiver to record the programs you have entered,
make sure you have inserted a tape into the DVD/VCR
Receiver. The DVD/VCR Receiver is now set to record the
preset programs.
Notes
If the power fails or the DVD/VCR Receiver is unplugged
from the AC outlet, the correct clock time and timer settings
are kept in memory for approximately 3 seconds. After 3
seconds, the clock and program timer must be reset when
power is restored. Reset the clock according to instructions.
After setting up a timer recording, recording will start if no
other timer recordings are scheduled to occur at the same
time (see “Program Priority” at right).
The timer recording will not start during other program is
recording.
Program Priority
Do not overlap programs, since overlapping portions of
the conflicting programs will not be recorded. Earlier
recording times have priority over later recording times
as shown in the diagram.
Checking, Editing or Erasing Timer
Record Programming
Programming can be checked whenever the DVD/VCR
Receiver is turned on.
1 Press SETUP/MENU and the MAIN menu will
appear.
2 Use V/v to select the PROGRAM menu.
Press ENTER and the PROGRAM menu will appear.
3 Use B/b to select a program you want to check, edit
or erase. To edit the data, use V/v option to edit then
edit it using B/b. To erase the program, press
CLEAR on PROGRM number is selected.
4 Press SETUP/MENU to return to the TV screen.
27
OPERATION
VIDEO Operation (Continued)
Instant Timer Recording (ITR)
Instant Timer Recording allows you to make a recording
easily of a preset length without using the programma-
ble timer.
Preparation:
Turn on the power of both the DVD/VCR Receiver and the
TV.
Be sure the TV is set to the DVD/VCR Receiver output channel
(CH3 or CH4).
If a direct VIDEO/AUDIO connection is made between the
DVD/VCR Receiver and the TV, set the TV’s source selector
to VIDEO.
1
Insert a video cassette with the safety tab intact.
2
Select the desired channel with CH/PRESET
(+/–) or number (0-9) buttons.
The channel number appears on the TV screen.
If you are recording from another source via audio/video
input jacks (at the Rear or Front panel), select
LINE 1(L1) or LINE 2(L2).
3
Select the desired recording speed (SP or EP)
with the SP/EP button.
The tape speed will appear on the TV screen.
4
Press z REC/ITR twice.
The menu as illustrated, will appear on the TV screen.
Recording will start. (The TIMER indicator will light)
5
Press z REC/ITR repeatedly to select the
recording time length.
At the end of the recording, the DVD/VCR Receiver
will stop recording and shut off.
During Instant Timer Recording, changing the channel
on the DVD/VCR Receiver will not be possible.
Press x (STOP) to stop recording.
INSTANT TIMER RECORD MENU
Checking the Recording Time
Press z REC/ITR once to check the recording time.
The recalled setting will automatically return to the TV
screen after 6 seconds.
To extend the Recording Time
The recording time can be extended anytime by press-
ing z REC/ITR.
Subsequent presses result in advancing the recording
time by 30-minute increments.
Notes
If you press X (PAUSE) during instant timer recording, the
DVD/VCR Receiver will enter the recording pause mode.
Instant timer recording is cancelled.
If the DVD/VCR Receiver is set to “0H00M”, the DVD/VCR
Receiver goes to normal recording mode.
Dubbing and Editing
If you wish to edit or dub your camcorder (or another
VCR) recordings to this DVD/VCR Receiver, the rear
or Front panel mounted Audio and Video (A/V) input
jacks make the connections quick and easy. These
direct A/V jacks will also provide better picture results
than using the RF jack on the rear panel.
1
Connect the camcorder’s (or another VCR’s) A/V
outputs to your DVD/VCR Receiver as illustrated
on page 14.
2
Insert a video cassette with the safety tab intact.
3
Select the appropriate input mode on the
DVD/VCR Receiver
by pressing INPUT SELECT
.
LINE1 (L1) is for VIDEO 1 on the rear panel.
LINE2 (L2) is for VIDEO 2 on the front panel.
4
Play the tape in the camcorder (or another VCR).
If you have a TV attached to your DVD/VCR
Receiver, you can see the video playing.
5
When you desire the recording to begin, press
DVD/VCR Receiver’s z REC/ITR to start.
6
Press x (STOP) to stop recording.
Note
Before recording, please confirm the recording start position.
Copying from DVD to VIDEO
This unit allows you to copy the contents of a DVD to a
VHS tape.
1
Insert the disc you wish to copy in the DVD
deck and close the disc tray.
2
Insert a video cassette with the safety tab intact.
3
Press H (PLAY) on the DVD deck.
The DVD will go into play mode
If the DVD disc menu appears, you may need to press
the H (PLAY) manually to begin copying.
4
Press z REC/ITR.
The DVD/VCR Receiver will go into Record mode.
5
Stop the Copy Process.
When the DVD is finished playing, press x (STOP)
to end the copy.
You must stop the Copy process manually when the
DVD movie ends, or the unit may replay and record
over and over again.
Notes
If the DVD you are attempting to copy is copy protected, you
will not be able to copy the disc. It is not permitted to copy
Macrovision encoded DVDs. “LOCK” and “DISC IS COPY
PROTECTED” will appear in the display window and TV
screen.
When you stop the DVD playback during copying, VCR
recording mode also stops automatically.
You must set Progressive Scan to Off to copy process.
INSTANT TIMER RECORD
CHANNEL 2
SPEED SP
START NOW
LENGTH 0H30M
0H30M ..... 9H00M ➝ 0H00M
Length Display
(each additional press of
z REC/ITR increases recording
time 30 minutes)
28
VIDEO Operation (Continued)
VHS Hi-Fi Stereo System/MTS Broadcast
This DVD/VCR Receiver is equipped with the VHS Hi-Fi
audio sound system for recording and playback. The
information below gives a brief description of Hi-Fi audio
and how to record and play a tape in the Hi-Fi audio
mode.
Playback with Hi-Fi Stereo Audio Sound
A stereo TV with AUDIO/VIDEO input jacks or a stereo
audio system is required for true stereo playback. To
experience the full and rich stereo sound available with
Hi-Fi recorded tapes, we recommend the connection of
this unit to a home stereo audio system.
1
Insert a prerecorded video cassette with Hi-Fi
stereo audio.
2
Press SETUP/MENU and the MAIN menu will
appear.
3
Use V/v to select the SETUP menu then press
ENTER to go to the SETUP menu.
4
Set the AUDIO MODE option to HI-FI on the
SETUP menu.
5
Set the AUDIO OUTPUT option to STEREO
position.
STEREO: The left channel sound (L) is heard from the left
speaker and the right channel sound (R) is heard from the
right speaker.
LEFT: The left channel sound (L) is heard from both
speakers.
RIGHT: The right channel sound (R) is heard from both
speakers.
6
Press SETUP/MENU.
7
Press H (PLAY).
Adjust volume at your stereo system.
MTS (Multi-Channel TV Sound)
This DVD/VCR Receiver will decode MTS stereo and
bilingual (SAP) off-the-air broadcast sound signals. It
also decodes stereo TV sound from local cable compa-
nies, as long as they operate on assigned cable fre-
quencies and use the EIA-recommended MTS
stereo/bilingual TV sound system.
Multichannel TV Sound Indicator (MTS)
Shows onscreen as illustrated below when ENTER is
pressed.
One or both of the indicators will light, depending on the
MTS broadcast.
If only STEREO appears on the TV screen.
The DVD/VCR Receiver can record in stereo onto the VHS Hi-
Fi audio tracks when the BROADCAST TYPE option is in the
STEREO position. The DVD/VCR Receiver will also record
mono audio onto the mono audio track.
If only SAP appears on the TV screen.
Set the BROADCAST TYPE option to SAP.
If STEREO/SAP appears on the TV screen
Use the BROADCAST TYPE option to select the desired
recording mode (STEREO or SAP).
SAP (Second Audio Program) Recording
Some stations transmit a Second Audio Program, which
is used for a second language or additional information.
When the station broadcasts a Second Audio Program,
follow the procedure below to record the SAP.
1
Insert a video cassette with the safety tab intact.
2
Press SETUP/MENU and the MAIN menu will
appear.
3
Use V/v to select the SETUP menu then press
ENTER to go to the SETUP menu.
4
Set the BROADCAST TYPE option to SAP on
the SETUP menu.
Do this if only the SAP appears on the TV screen or you
know the program will use the SAP.
5
Press SETUP/MENU.
6
Select the desired recording speed (SP or EP)
with the SP/EP button.
7
Select the desired channel. SAP should appear
on the TV screen.
8
Press z REC/ITR once.
You are now recording the program you see and hear on the
TV.
9
Press x (STOP) to stop recording.
STEREO
Lights up when a stereo broadcast
is being received.
SAP
Lights up when a SAP BILINGUAL
broadcast is being received.
TV screen
CH 4
STEREO/SAP
29
OPERATION
VIDEO Operation (Continued)
Tape Counter Memory Feature
Real-Time Counter
Shows length of tape run in hours, minutes, and
seconds. Press CLK/CNT to select the real-time
counter display.
Every press of CLK/CNT changes the TV screen as
illustrated below.
Counter changes to “0:00:00” when the cassette is
ejected.
The real-time counter does not operate if nothing is
recorded on the tape.
The real-time counter will not work unless a tape is
inserted.
Note
During the “L1 OPT” mode, the OSD(On Screen
Display) can not be changed.
Counter Memory Feature
This is useful if there is a section of tape you want to
view immediately after recording or if you want to return
to the same point several times.
1
Begin recording or playing a tape.
2
Press CLK/CNT repeatedly to display the
real-time counter on the TV screen.
3
At the point that you want to locate later, reset
the real-time counter to “0:00:00” by pressing
CLEAR.
4
Continue to play or record.
5
Press x (STOP) when recording or playback
finishes.
6
Press m.
The tape automatically stops when the tape counter
returns to about “0:00:00”.
Tape Remaining
This function shows the remaining time on the tape
during recording or playback.
Press CLK/CNT repeatedly until the REM indicator
appears on the TV screen during recording or playback.
Note
The remaining tape length indicator may not be displayed
correctly depending on the condition of the tape and the kind of
the tape (T-140, T-160, or T-210 etc)
Additional Information
In manual recording, Timer recording, Instant Timer
Recording, playback, or fast forward modes, the DVD/VCR
Receiver automatically starts rewinding the tape at the end
of the tape. The cassette will stop at the beginning of the
tape and be ejected, and the DVD/VCR Receiver will turn
itself off.
After you have finished using the DVD/VCR Receiver,
rewind, eject, and remove the cassette. Place the cassette
in its protective sleeve to protect it from dust. It is not nec-
essary to rewind the cassette before removing it, but if you
do, it will be ready to play or record the next time you use it.
Be sure the DVD/VCR Receiver Channel Selector is on the
correct channel you wish to record. The channel that is
being recorded can always be checked by tuning the televi-
sion to the DVD/VCR Receiver channel (3 or 4) and press-
ing the TV/VIDEO button to set the DVD/VCR Receiver to
VIDEO mode (VCR MODE appears in the display window).
Do not attempt to hook up more than one television set to
the DVD/VCR Receiver for either recording or playback.
Auto Play System
This DVD/VCR Receiver features automatic playback.
Load a cassette (with the safety tab removed).
The power turns on automatically and playback
begins.
Note
If you insert the tape during the DVD/VCR Receiver
is set to DVD function mode, the Output Source is
changed to VIDEO function mode automatically.
At the end of the tape, the DVD/VCR Receiver stops
and rewinds the tape.
The cassette is ejected after rewinding and the
VIDEO turns itself off automatically.
Note
Auto power off does not function during regular DVD
play mode. (DVD/VCR Receiver power stays on.)
2:15 AM 0:05:25 REM 1:07
CLOCK COUNTER REMAINING TIME
30
DVD and Video CD Operation
Playing a DVD and Video CD
Playback Setup
Turn on the TV and select the video input source con-
nected to the DVD/VCR Receiver.
Audio system: Turn on the audio system and select the
input source connected to the DVD/VCR Receiver.
Set the Output Source to DVD as shown in Selecting the
Output/Input Source on page 15.
1
Press A DVD to open the disc tray.
2
Place a disc on the tray, with the label facing up.
When a double-sided DVD is inserted, make sure the
side you want to play is facing down.
3
Press A DVD to close the tray.
“READING” appears in the display window, and play-
back starts automatically. If playback does not start,
press H (PLAY).
In some cases, the disc menu might appear instead.
If a menu screen is displayed
A menu screen may appear automatically after loading a
DVD.
Use B/b/V/v buttons to select the title/chapter you want to
view, then press ENTER to start playback.
Press DVD TOP MENU or DVD MENU to return to the
menu screen.
Use the number buttons to select the track you want to
view. Press RETURN to return to the menu screen.
Menu setting and the exact operating procedures for
using the menu may differ depending on the disc. Follow
the instructions on the each menu screen.
You also may set PBC to Off under setup. See page 22.
Notes
If Parental Control is set and the disc is not within the
Rating settings (not authorized), the 4-digit password
must be entered and/or the disc must be authorized (see
Parental Control, on page 23).
DVDs may have a Region Code.
Your DVD/VCR Receiver will not play discs that have a
Region Code different from your DVD/VCR Receiver.
The Region Code for this DVD/VCR Receiver is 1 (one).
Do not keep a fixed image displayed on the screen for a
long time.
General Features
Note
Unless stated otherwise, all operations described use the
remote control. Some features may also be available on
the Setup menu.
Resuming Playback
When you stop the disc. the player remembers the point
where you pressed x (STOP) and “RESUME x” appears
on the TV screen. Press H (PLAY) and play will resume
from this point.
Tip
To play from the beginning of the disc, press x twice, then
press H.
Notes
Depending on where you stopped the disc, the recorder
may not resume playback from exactly the same point.
The point where you stopped playing is cleared when:
- Press x in the STOP mode.
Selecting Another TITLE
If a disc has more than one title, you can select another
title as follows:
Press DVD DISPLAY, then press the appropriate num-
ber buttons (0-9), then use ENTER to select a title num-
ber.
Press DVD DISPLAY, then use B/b to select a title num-
ber, then press ENTER.
Selecting Another CHAPTER/TRACK
If a title on a disc has more than one chapter or a disc has
more than one track, you can move to another
chapter/track as follows:
Press . or > briefly during playback to return to
the beginning of the current chapter/track or to select the
next chapter/track.
Press . twice briefly to step back to the previous
chapter/track.
To go directly to any chapter during playback,
press DVD DISPLAY. Use V/v to select chapter/track
icon. Then, enter the chapter/track number with the num-
ber buttons (0-9) or use B/b to select chapter. Then,
press ENTER.
Notes
For two-digit numbers, press the number buttons
(0-9) in rapid succession.
On a Video CD with PBC, you must set PBC to Off on
the setup menu to use this function. See page 22.
Search
1 Press m or M for about two seconds during play-
back.
The DVD/VCR Receiver will now go into SEARCH mode.
2 Press m or M repeatedly to select the required
speed: X2 b, 1 m, 2 m, 3 m (backward) or
X2 B, 1 M, 2 M, 3 M (forward).
With a Video CD, the Search speed changes: 1 m, 2
m, 3 m (backward) or 1 M, 2 M, 3 M (forward).
3 To return to playback, press H (PLAY).
Still Picture
1 Press X (PAUSE) during playback.
The DVD/VCR Receiver will go into PAUSE mode.
2 To return to playback, press or X (PAUSE) again or H
(PLAY).
VCD1.1VCD2.0
DVD
VCD1.1VCD2.0
DVD
1 /3
1 /12
VCD1.1
VCD2.0
DVD
1 /3
DVD
CD
VCD1.1VCD2.0
DVD
VCD2.0
DVD
VCD1.1VCD2.0
DVD
31
OPERATION
DVD and Video CD Operation (Continued)
General Features (Continued)
Slow Motion
1 Press X (PAUSE) during playback.
The DVD/VCR Receiver will now go into PAUSE
mode.
2 Press SLOW t or T during pause mode.
The DVD/VCR Receiver will enter SLOW mode.
3 Use SLOW t or T to select the required speed:
4 t, 3 t, 2 t or 1 t (backward), or 4 T, 3 T,
2 T or 1 T (forward).
4 To return to playback, press H (PLAY).
Note
Slow motion playback in reverse is not applicable for
Video CD.
Shuffle
1 Press SHUFFLE during playback or in Stop mode.
The unit automatically begins Shuffle Playback and
“SHUFFLE” appears on the TV screen.
2 To return to normal playback, press SHUFFLE until
“NORMAL” appears on the TV screen.
Tip
By pressing > during Shuffle playback, the unit
selects another title (track) and resumes Shuffle play-
back.
Notes
This function only works with DVD Karaoke discs and
Video CD without PBC.
On a Video CD with PBC, you must set PBC to Off on
the setup menu to use the Shuffle function. See page
22.
After finishing the Shuffle playback mode, Shuffle
function is canceled.
Repeat
DVD Video Discs - Repeat Chapter/Title/Off
1 Press REPEAT when playing a disc.
The Repeat icon appears on the TV screen.
2 Press REPEAT to select a desired repeat mode.
• CHAPT: repeats the current chapter.
• TITLE: repeats the current title on a disc.
• OFF: does not play repeatedly.
Video CDs - Repeat Track/All/Off
1 Press REPEAT when playing a disc.
The Repeat icon appears on the TV screen.
2 Press REPEAT to select a desired repeat mode.
• TRACK: repeats the current track
• ALL: repeats all the tracks on a disc.
• OFF: does not play repeatedly.
Notes
On a Video CD with PBC, you must set PBC to Off on
the setup menu to use the Repeat function. See page
22.
By pressing > during Random playback, the unit
selects another title and resumes Random playback.
When you press . twice or > during Repeat
mode to go to previous track or next track, repeat
mode is canceled.
Repeat A-B
To repeat a sequence in a title(track):
1 During disc playback, Press A-B at your chosen start
point.
“A * ” appears briefly on the TV screen.
2 Press A-B again at your chosen end point.
“A B” appears briefly on the TV screen, and the repeat
sequence begins.
3 To cancel the sequence and return to normal play,
press A-B.
Note
Repeat A-B play may not work with some scene of the
DVD.
Time Search
The Time Search function allows you to start playing at
any chosen time on the disc.
1 Press DVD DISPLAY during playback. The on-screen
display appears on the screen.
The Time Search box shows the elapsed playing time of the
current disc.
2 Within 10 seconds, use V/v to select the Time Search
icon in the on-screen display.
The “-:--:--” appears in the Time Search box.
3 Within 10 seconds, use the number buttons to enter
the required start time. Enter hours, minutes and sec-
onds from left to right in the box.
If you enter the wrong numbers, press CLEAR to remove the
numbers you entered. Then enter the correct numbers.
4 Within 10 seconds, press ENTER.
Playback starts from the selected time on the disc. If you enter
an invalid time, playback will continue from the current point.
3D Surround
This unit can produce a 3D Surround effect, which
simulates multi-channel audio playback from two
conventional stereo speakers, instead of the five or
more speakers normally required to listen to multi-
channel audio from a home theater system.
1 Press SOUND FIELD to select “3D SUR” during
playback.
2 To turn off the 3D Surround effect, press SOUND
FIELD again to select “BYPASS”.
Note
On DVD, you can select “3D SUR” only during playing
2 channel audio.
3D SUR
BYPASS
VCD1.1VCD2.0
DVD
-:--:--
0:20:09
DVD
A B
A—B
A *
A—B
VCD1.1VCD2.0
DVD
OFF
ALL
TRACK
OFF
TITLE
CHAPT
VCD1.1VCD2.0
DVD
VCD1.1VCD2.0
Karaoke DVD
VCD1.1VCD2.0
DVD
32
DVD and Video CD Operation (Continued)
General Features (Continued)
Changing Video Mode
With certain discs, the playback picture may be flick-
ering or Dot Crawl is shown on straight lines. That
means Vertical interpolation or De-interlace is not
perfectly matched with the disc. In this case, the
picture quality may be improved by changing the
video mode.
To change the video mode, press and hold DVD DIS-
PLAY about 3 seconds during disc playback. The new
video mode number selected is displayed on the TV
screen. Check whether the video quality has
improved. If not, repeat the above procedure until pic-
ture quality is improved.
Video mode sequence:
MODE1 → MODE2 → MODE3 → MODE1
If you turn off the power, the video mode will return to
initial default state (MODE1).
Detailed Description of each Video Mode
MO
DE1 : The source material of the DVD video (film materi-
al or video material) is determined from disc information.
MODE2 : Suitable for playing film based content or video
based material recorded by the progressive scan method.
MODE3 : Suitable for playing video based content with
comparatively little moti
on.
Note
The video mode setting only works when the
Progressive Scan mode is set to “On” in the Setup
menu.
Special DVD Features
Checking the contents of DVD Video
discs: Menus
DVDs may contain menus that allow you to access spe-
cial features. To use the disc menu, press DVD DIS-
PLAY. Then, press the appropriate number button to
select an option. Or, use B/b/V/v buttons to highlight
your selection, then press ENTER.
Title Menu
1 Press DVD TOP MENU.
If the current title has a menu, the menu will appear on the
screen. Otherwise, the disc menu may appear.
2 The menu can list camera angles, spoken language
and subtitle options, and chapters for the title.
3 To remove the title menu, press DVD TOP MENU
again.
DVD Menu
1 Press DVD MENU.
The disc menu is displayed.
2 To remove the disc menu, press DISC MENU again.
Camera Angle
If the disc contains sequences recorded from different
camera angles, the angle icon appears on the TV
screen. You can then change the camera angle if you
wish.
Press ANGLE repeatedly during playback to select a
desired angle.
The number of the current angle appears on the display.
Changing the Audio Language
Press AUDIO repeatedly during playback to hear a
different audio language or audio track.
Changing the Audio Channel
Press AUDIO repeatedly during playback to hear a dif-
ferent audio channel (ST, LEFT or RIGHT).
Subtitle
Press SUBTITLE repeatedly during playback to see the
different subtitle languages.
Note
If appears, the feature at that moment or with that
specific DVD.
Screen Saver
The screen saver picture appears when you leave the
DVD/VCR Receiver in Stop mode for about 5 minutes.
1 ENG
DVD
RIGHT
LEFT
ST
VCD1.1VCD2.0
1 ENG
D
5.1 CH
DVD
1 /1
DVD
DVD
DVD
DVD
33
OPERATION
Audio CD and MP3 Disc Operation
Playing an Audio CD and MP3
Disc
The DVD/VCR Receiver can play MP3 formatted
recordings on CD-ROM, CD-R or CD-RW discs.
Before playing MP3 disc, read the notes on MP3 files
on right.
1
Insert a disc and close the tray.
Audio CD: Audio CD menu appears on the TV
screen go to step 4.
MP3 disc: The MP3/JPEG select menu appears on
the TV screen. Go to step 2
2
Use V/v to select the MP3 then press ENTER.
The MP3 disc Menu appears on the TV screen.
Press RETURN to move to the MP3/JPEG select
menu.
3
Use V/v to select a folder, and ENTER.
A list of files in the folder appears.
If a list of files contains another folder, repeat step 3
once more.
Tip
If you are in a file list and want to return to the Folder
list, use the V/v to highlight and press ENTER to
return to the previous menu screen.
4
Use V/v to select a track then press H (PLAY)
or ENTER.
Playback starts.
During playback, the current track’s elapsed playing
time will appear in the display window and menu.
Playback will stop at the end of the disc.
Press DVD TOP MENU to move to the next page.
Press DVD MENU to move to the previous page.
Audio CD Menu MP3 disc Menu
5
press x (STOP) to stop playback.
Notes on MP3 Files
About MP3
An MP3 file is audio data compressed by using the
MPEG1 audio layer-3 file-coding scheme. We call
files that have the “.mp3” file extension “MP3 files”.
The DVD/VCR Receiver can not read an MP3 file
that has a file extension other than “.mp3”.
MP3 Disc compatibility with this DVD/VCR
Receiver is limited as follows:
Sampling Frequency : only at 44.1kHz
Bit rate : within 32 - 320kbps
CD-R physical format should be “ISO 9660”
If you record MP3 files using the software which can-
not create a FILE SYSTEM, for example “Direct-CD”
etc., it is impossible to playback MP3 files. We rec-
ommend that you use “Easy-CD Creator”, which cre-
ates an ISO9660 file system.
A single session disc requires MP3 files in the first
track. If there is no MP3 file in the 1st track, it cannot
playback MP3 files. If you wish to playback MP3
files, format all the data in the disc or use a new one.
File names should be named using 8 letters or less
and must incorporate “.mp3” extension
e.g. “********.mp3”.
Do not use special letters such as “/ : * ? “ < > ” etc.
Total number of files on the disc should be less than
650.
This DVD/VCR Receiver requires discs/recordings to
meet certain technical standards in order to achieve
optimal playback quality. Pre-recorded DVDs are auto-
matically set to these standards. There are many differ-
ent types of recordable disc formats (including CD-R
containing MP3 files). That require certain pre-existing
conditions (see above) to insure compatible playback.
Customers should also note that permission is
required in order to download MP3 files and music
from the Internet. Our company has no right to
grant such permission. Permission should always
be sought from the copyright owner.
MP3CD
Program
CD
ST BYPASS
0: 56: 18
TRACK01
TRACK02
TRACK03
TRACK04
TRACK05
TRACK06
TRACK07
TRACK08
Clear All
MP3
JPEG
Folder1
Folder2
Folder3
Folder4
Folder5
Folder6
Folder7
Folder8
MP3
OFF00:00
Program
Clear All
TRACK 1.mp3
TRACK 2.mp3
TRACK 3.mp3
TRACK 4.mp3
TRACK 5.mp3
TRACK 6.mp3
TRACK 7.mp3
TRACK 8.mp3
Program
MP3
OFF00:00
1
Clear All
34
Audio CD and MP3 Disc Operation (Continued)
Pause
1 Press X (PAUSE) during playback.
2 To return to playback, press X (PAUSE) again or
press H (PLAY).
Selecting Another Track
If a disc has more than one track, you can move to
another track as follows:
Press . or > briefly during playback to go to the
next track or to return to the beginning of the current
track.
Press . twice briefly to step back to the previous
track.
On Audio CDs, to go directly to any track, enter the
track number using the number buttons (0-9) during
playback.
Note
For two-digit numbers, press the number buttons (0-9)
in rapid succession.
Search
1 Press m or M for about two seconds during
playback.
The DVD/VCR Receiver will now go into SEARCH mode.
2 Press m or M repeatedly to select the required
speed: 1 m, 2 m, 3 m (backward) or 1 M, 2
M, 3 M (forward).
Search speed and direction are indicated on the menu
screen.
3 To return to playback, press H (PLAY).
Shuffle
1 Press SHUFFLE during playback or in Stop mode.
The unit automatically begins Shuffle Playback and
“SHUFFLE” and “SHUF” appears in the display
window and menu screen.
2 To return to normal playback, press SHUFFLE
repeatedly until “SHUFFLE” and “SHUF” disappears
from the display window and menu screen.
Tip
By pressing > during Shuffle playback, the unit
selects another track and resumes Shuffle playback.
Note
After finishing the Shuffle playback mode, Shuffle func-
tion is canceled.
Repeat
1 Press REPEAT when playing a disc.
The Repeat icon appears on the TV screen.
2 Press REPEAT to select a desired repeat mode.
• TRACK: repeats the current track
• ALL: repeats all the tracks on a disc.
• OFF: does not play repeatedly.
Note
When you press . twice or > during Repeat mode
to go to previous track or next track, repeat mode is
canceled.
Repeat A-B
To repeat a sequence in a track.
1 During disc playback, press A-B at your chosen start-
ing point.
The Repeat icon and “
A
* ” appears on the menu screen.
2 Press A-B again at your chosen end point.
“A B” appears on the menu screen, and the repeat
sequence begins.
3 To cancel the sequence and return to normal play,
press A-B again.
The Repeat icon and “OFF” appears on the menu screen.
3D Surround
This unit can produce a 3D Surround effect, which
simulates multi-channel audio playback from two
conventional stereo speakers, instead of the five or
more speakers normally required to listen to multi-
channel audio from a home theater system.
1 Press SOUND FIELD to select “3D SUR” during play-
back.
2 To turn off the 3D Surround effect, press SOUND
FIELD again to select “BYPASS”.
Changing the Audio Channel
Press AUDIO repeatedly during playback to hear a
different audio channel (ST, LEFT, or RIGHT).
CD
CD
CD
OFF
ALL
TRACK
MP3CD
MP3CD
MP3CD
MP3CD
MP3CD
35
JPEG File Operation
OPERATION
Viewing JPEG Files on a Disc
This DVD/VCR Receiver can play discs with JPEG files.
Before playing JPEG files, read the notes on JPEG
Files on right.
1
Insert a disc and close the tray.
The MP3/JPEG select menu appears on the TV
screen.
2
Use V/v to select the JPEG then press ENTER.
The JPEG menu appears on the TV screen.
3
Use V/v to select a folder, and ENTER.
A list of files in the folder appears.
Press RETURN to move to the MP3/JPEG select
menu.
Tip
If you are in a file list and want to return to the Folder
list, use the V/v buttons on the remote to highlight
“
”
and press ENTER to return to the previous menu
screen.
4
Use V/v to select a file then press ENTER or
H (PLAY).
Viewing the file function starts.
While viewing a file, press RETURN to move to the
previous menu (JPEG menu).
Press DVD TOP MENU to move to the next page.
Press DVD MENU to move to the previous page.
Tip
There are three viewing Slide Speed options: Fast,
Normal, Slow, and Off. Use B/b to highlight the Slide
Speed then use V/v to select the option you want to
use, and press ENTER.
5
Press x (STOP) to stop viewing.
The JPEG menu appears.
Selecting another Files
Press . or > once while viewing a picture to
advance to the next file or to the previous file.
Still Picture
1 Press X (PAUSE) during slide show.
The DVD/VCR Receiver will now go into PAUSE
mode.
2 To return to the slide show, press H (PLAY) or
X (PAUSE) again.
To flip the picture
Press V/v while showing a picture to flip the
picture horizontally or a vertically.
To rotate picture
Press B/b while showing a picture to rotate the
picture clockwise or counter clockwise.
To record the picture slide show
Press z REC/ITR to record.
Notes on JPEG Files
Depending upon the size and number of the JPEG
files, it could take a long time for the DVD/VCR
Receiver to read the disc’s contents. If you don’t see
an on-screen display after several minutes, some of
the files are too big — reduce the resolution of the
JPEG files to less than 2 mega pixels and burn anoth-
er disc.
Total number of files and folders on the disc should
be less than 650.
Some disc may be incompatible due to different
recording format or condition of disc.
When you are using software such as “Easy CD
Creator” to burn the jpeg files into the CD-R, ensure
that all the selected files have the “.jpg” extensions
when copying into the CD layout.
If the files have “.jpe” or “.jpeg” extensions, please
rename them as “.jpg” files.
File names without “.jpg” extension will not be able to
be read by this DVD/VCR Receiver, even though the
files are shown as JPEG image files in windows
explorer.
JPEG
Slide Speed
5/32 1024X768
JPEG
Off
Folder1
5/32 Picture5.jpg1024X768
Slide Speed
Off
Folder1
Folder2
Folder3
Folder4
Folder5
Folder6
Folder7
Folder8
JPEG
MP3
JPEG
36
Programmed Playback
MP3
VCD1.1VCD2.0
CD
Programmed Playback with Audio CD
and MP3 Disc
The Program function enables you to store your favorite
tracks from any disc in the DVD/VCR Receiver memory.
Program can contain 30 tracks.
1
Press PROGRAM during playback or in the stop
mode to enter the Program Edit mode.
The mark will appear to the right of the word
Program on the right side of the menu screen.
Note
Press PROGRAM to exit the Program Edit mode;
the mark will disappear.
2
Select a track, then press ENTER to place the
selected track on the Program list.
3
Repeat step 2 to place additional tracks on the
Program list.
Audio CD menu MP3 disc Menu
4
Press b.
The programmed track you selected last is highlighted on
the program list.
5
Press V/v to select the track you want to start
playing.
Press DVD TOP MENU to move to the next page.
Press DVD MENU to move to the previous page.
6
Press H (PLAY) or ENTER to start.
Playback begins in the order in which you programmed
the tracks and “PGM” appears on the menu screen.
Playback stops after all of the tracks on the Program list
have played once.
7
To return normal playback from pro-
grammed playback, press PROGRAM to
exit the Program Edit mode. Select a track
of CD (or MP3) list and then press ENTER
or
H (PLAY).
“PGM” indicator disappears in the display window.
Programmed Playback with Video CD
Note
On a Video CD with PBC, you must set PBC to Off on the
setup menu to use the Program function. See page 22.
1
Insert Video CD and close the tray.
2
Press PROGRAM while playback is stopped.
The VCD Program menu will appear.
Note
Press RETURN, PROGRAM or H (PLAY) to exit the
Program menu.
3
Follow steps 2-6 of “Programmed Playback with
Audio CD and MP3 disc” on left.
“PGM” and “PROGRAM” appears in the display window
and TV screen.
4
To return normal playback from
programmed playback, press PROGRAM.
“PGM” indicator disappears in the display window.
Repeat Programmed Tracks
1 Press REPEAT when playing the programmed tracks.
The Repeat icon appears on the TV screen.
2 Press REPEAT to select a desired repeat mode.
• TRACK: repeats the current track
• ALL: repeats all tracks on the program list.
• OFF: does not play repeatedly.
Erasing a Track from Program List
1 Press PROGRAM during playback (Audio CD and
MP3 disc only) or stop to enter the Program Edit
mode.
The mark will appear.
2 Press b to move to the Program list.
3 Use V/v to select the track that you wish to erase
from the Program list.
4 Press CLEAR.
The track will be erased from the Program list.
Erasing the whole Program List
1 Follow steps 1-2 of “Erasing a Track from Program
List” as above.
2 Use V/v to select “Clear All”, then press ENTER.
The complete Program for the disc will be erased
Notes
The programs are cleared when the disc is removed.
The programs are cleared when another function mode
(VIDEO, radio etc.) is selected.
OFF
ALL
TRACK
TRACK 1
TRACK 2
TRACK 3
TRACK 4
TRACK 5
TRACK 6
TRACK 7
TRACK 8
Program
VCD
Clear All
TRACK 1.mp3
TRACK 2.mp3
TRACK 3.mp3
TRACK 4.mp3
TRACK 8.mp3
TRACK 2.mp3
TRACK 4.mp3
TRACK 3.mp3
TRACK 5.mp3
TRACK 6.mp3
TRACK 7.mp3
TRACK 8.mp3
Program
MP3
OFF00:00
3
Clear All
ST0: 56: 18
TRACK 1
TRACK 2
TRACK 3
TRACK 4
TRACK 12
TRACK 8
TRACK 10
TRACK 3
TRACK 5
TRACK 6
TRACK 7
TRACK 8
Program
CD
Clear All
BYPASS
37
Speaker Setup
OPERATION
You can set your personal preferences on the DVD func-
tion mode.
Adjust the following settings for the built-in 5.1 channel
surround decoder.
1
Press SETUP/MENU.
The Setup menu appears.
2
Select “5.1 Speaker Setup” using the V/v
buttons on the setup menu.
3
While “5.1 Speaker Setup” is selected,
press b button.
4
Press b buttons to select the desired speaker.
5
Adjust options by using V/v/B/b buttons.
Speaker selection
Select a speaker that you want to adjust. ((Front speak-
er (Left), Front speaker (Right), Center Speaker, Rear
speaker (Left), Rear speaker (Right), or Subwoofer))
Note
Certain speaker settings are prohibited by the Dolby
Digital licensing agreement.
Volume
Press B / b to adjust the output level of the selected
speaker. (-6dB ~ 6dB)
Size
Since the speaker settings are fixed, you cannot change
the settings.
Subwoofer’s size is fixed “Large” and the other
speaker’s size are fixed “small”.
Distance
If you connected speakers to your DVD/VCR Receiver,
setting the Distance lets the speakers (except sub-
woofer) know how far the sound has to travel to reach
your set listening point. This allows the sound from each
speaker to reach the listener at the same time.
(1 - 20 ft, 1 ft = 0.30 m)
Note
You can not set the distance of subwoofer speaker.
Test
Press ENTER to test the signals of each speaker.
Adjust the volume to match the volume of test signals
memorized in the system.
Front Left (L) → Center → Front Right (R) →
Rear Right (R) → Rear Left (L) → Subwoofer
You can stop the test using V/v.
Return
Press ENTER to return to the previous menu.
Disc Subtitle
Disc Menu
Rating
Area Code
TV Aspect
Menu Language
Progressive Scan
5.1 Speaker Setup
Others
Disc Audio
R R
Front L
Volume 0 dB
Size Small
Distance 1 ft
Test
Return
38
Radio Operation
Presetting the Radio Stations
You can preset 30 stations for FM and AM. Before tun-
ing, make sure that you have turned down the volume.
1
Press TUNER FM/AM on the remote control or
on the front panel until the frequency band
appears on the display and TV screen.
2
Press CH/PRESET (+/–) on the remote control or
front panel to select the desired Station.
If you select a blank column, R-SKIP appears in the dis-
play window.
3
Press TUNER FM/AM on the remote control or
front panel to select the desired band.
4
Press TUNING (+/–) on the remote control to
search station.
5
Press MEMORY on the remote control.
The station is stored.
6
Repeat steps 2 to 5 to store other stations.
Listening to the Radio
Preset radio stations in the DVD/VCR Receiver memory
first (see “Presetting Radio Stations” on the left).
1
Press TUNER FM/AM on the remote control or
on the front panel until the frequency band
appears on the display and TV screen.
The last received station is tuned in.
2
Press CH/PRESET (+/–) on the remote control or
front panel repeatedly to select the preset sta-
tion you want.
Each time you press the button, the DVD/VCR Receiver
tunes in one preset station at a time.
3
Adjust the volume by rotating VOLUME on the
front panel or by pressing VOL (+/–) on the
remote control repeatedly.
T
o Clear the Stored Radio Stations
1
Press TUNER FM/AM on the remote control or
on the front panel until the frequency band
appears on the display and TV screen.
2
Press CH/PRESET (+/–) on the remote control or
front panel to select your desired station.
3
Press CLEAR the remote control to clear the
stored radio station.
Note
While record or record pause mode, the CLEAR func-
tion may not be operated.
- - - - - - - RADIO - - - - - - - 1/6.
AM 530kHz
AM 1720kHz
AM 600kHz
AM 1400kHz
AM 1000kHz
TUNER/BAND TUNING +/-
MEMORY/CLEAR
- - - - - - - RADIO - - - - - - - 2/6.
TUNER/BAND TUNING +/-
MEMORY/CLEAR
FM 87 . 5MHz
FM 108 . 0MHz
FM 90 . 0MHz
FM 106 . 0MHz
FM 98 . 0MHz
- - - - - - - RADIO - - - - - - - 1/6.
AM 530kHz
AM 1720kHz
AM 600kHz
AM 1400kHz
AM 1000kHz
TUNER/BAND TUNING +/-
MEMORY/CLEAR
- - - - - - - RADIO - - - - - - - 2/6.
TUNER/BAND TUNING +/-
MEMORY/CLEAR
FM 87 . 5MHz
FM 108 . 0MHz
FM 90 . 0MHz
FM 106 . 0MHz
FM 98 . 0MHz
- - - - - - - RADIO - - - - - - - 2/6.
FM 87 . 5MHz
FM 90 . 0MHz
FM 106 . 0MHz
FM 98 . 0MHz
TUNER/BAND TUNING +/-
39
OPERATION
Radio Operation (Continued)
For your reference
Weak FM stations
“STEREO” may flash when the weak FM stereo signal
is received, select another station.
To turn off the radio
Press @ / 1 to turn the DVD/VCR Receiver off or select
another function mode (DVD, VIDEO, etc).
To improve reception
Realign the antenna.
Tuning into a Station Automatically
1
Press TUNER FM/AM on the remote control or
on the front panel until the frequency band
appears on the display and TV screen.
2
Press CH/PRESET (+/–) on the remote control or
front panel to select the desired column.
If you select a blank column, R-SKIP appears in the
display window.
3
Press TUNER FM/AM on the remote control or
front panel to select the desired band.
4
Hold down TUNING (+/–) on the remote control
for 1 or 2 seconds, and a station is searched for
automatically.
5
Press MEMORY.
Note
The search may not stop at a station with a very weak
signal.
Labeling Stations
1
Press b to move to the station name column.
2
Use the V/v buttons to select the character then
use the B/b buttons to shift to the next or previ-
ous character.
3
Press ENTER to confirm the station name.
4
Press MEMORY on the remote control.
The station name is stored.
- - - - - - - RADIO - - - - - - - 2/6.
TUNER/BAND TUNING +/-
MEMORY/CLEAR
FM 87 . 5MHz
FM 108 . 0MHz
FM 90 . 0MHz
FM 106 . 0MHz
FM 98 . 0MHz
40
Controlling the TV with the Supplied Remote
By adjusting the remote signal, you can control your TV
with the supplied remote.
Notes
If you enter a new code number, the code number
previously entered will be erased.
When you replace the batteries of the remote, the
code number may be reset to the default (SONY)
setting. Reset the appropriate code number.
Controlling TVs with the remote
Press and hold TV @ / 1 while entering your TV’s
manufacturer’s code (see the table) using the num-
ber buttons and press ENTER. Then release
TV @ / 1.
Code numbers of controllable TVs
If more than one code number is listed, try entering
them one at a time until you find the one that works with
your TV.
Manufacturer Code Number
SONY 501
AIWA 553, 501
DAEWOO 504, 505, 506, 507, 515, 544
FISHER 508
GOLDSTAR/LG 503, 511, 512, 515, 534, 544
GRUNDIG 517, 534
HITACHI 513, 514, 515, 544
JVC 516
MAGNAVOX 503, 518, 544
MITSUBISHI/MGA 503, 519, 544
NEC 503, 520, 544
PANASONIC 509, 524
PHILIPS 515, 518
PIONEER 509, 525, 526, 540
RCA/PROSCAN 510, 527, 528, 529, 544
SAMSUNG 503, 515, 531, 532, 533, 534, 544
SANYO 508, 545, 546, 547
SHARP 535
TELEFUNKEN 523, 536, 537, 538
THOMSON 537, 539
TOSHIBA 535, 540, 541
ZENITH 542, 543
Controlling the TV
You can control your TV using the buttons below.
By pressing You can
TV @ / 1 Turn the TV on or off.
TV/VIDEO Switch the TV’s input source
between the TV and other input
sources.
Note
Depending on the TV, you may not be able to control
your TV or to use some of the buttons above.
TV @ / 1
TV VOL +/–
TV CH +/–
TV/VIDEO
Number Buttons
ENTER
REFERENCE
41
Symptom
No power.
The power is on, but the
DVD/VCR Receiver
does not work.
No picture.
No sound.
The playback picture is
poor.
The DVD/VCR Receiver
does not start playback.
Cause
The power cord is disconnected.
No disc is inserted.
No tape is inserted.
The TV is not set to receive DVD/VCR
Receiver signal output.
TV/VIDEO mode for DVD/VCR Receiver
is set to TV MODE.
The video cable is not connected
securely.
The connected TV power is turned off.
The equipment connected with the
audio cable is not set to receive
DVD/VCR Receiver signal output.
The audio cables are not connected
securely.
The power of the equipment connected
with the audio cable is turned off.
The audio connecting cord is damaged.
The disc is dirty.
Tape heads are dirty.
Tape is a rental or was recorded on
another VCR.
No disc is inserted.
No tape is inserted.
An unplayable disc is inserted.
The disc is placed upside down.
The disc is not placed within the guide.
The disc is dirty.
The Rating level is set.
Correction
Plug the power cord into the wall outlet
securely.
Insert a disc or tape. (Check that the
disc or tape indicator in the display
window is lit.)
Select the appropriate video input mode
on the TV so the picture from the
DVD/VCR Receiver appears on the TV
screen.
Press the TV/VIDEO button on the
remote control repeatedly to select
VIDEO mode. VCR MODE appears in
the display window.
Connect the video cable securely.
Turn on the TV.
Select the correct input mode on the
audio receiver so you can listen to the
sound from the DVD/VCR Receiver.
Connect the audio cable securely.
Turn on the equipment connected with
the audio cable.
Replace it with new one.
Clean the disc.
Clean video heads.
Use
CH/PRESET(+/–)
for manual track-
ing adjustment while tape is playing.
Insert a disc or tape. (Check that the
disc or tape indicator in the display
window is lit.)
Insert a playable disc. (Check the disc
type, color system, and Regional code.)
Place the disc with the playback side down.
Place the disc on the disc tray correctly
inside the guide.
Clean the disc.
Cancel the Rating function or change
the rating level.
Troubleshooting
Check the following guide for the possible cause of a problem before contacting service.
42
Troubleshooting (Continued)
Symptom
Some channels are
skipped over when using
CH/PRESET(+/–).
Picture and sound of
broadcasting channel are
weak or missing.
Camcorder image is not
shown.
Camcorder image via
A/V input to
DVD/VCR
Receiver is not shown on
TV screen.
Timer recording is not
possible.
Stereo Audio Record
and/or Playback is not
present.
Cause
Those channels were deleted with the
CH. ADD/DEL option.
Antenna or cables are loose.
Wrong CHANNEL SOURCE option is
being used.
Camcorder is off.
DVD/VCR Receiver INPUT SELECT is
not set to LINE1(L1) or LINE2(L2).
Clock in DVD/VCR Receiver is not set
to correct time.
Timer has been programmed
incorrectly.
TIMER indicator light does not appear
after programming timer.
TV is not Stereo-compatible.
Broadcast program is not in stereo for-
mat.
DVD/VCR Receiver A/V Out jacks are
not connected to TV A/V In jacks.
DVD/VCR Receiver Audio/Video Out is
not selected for viewing at the TV.
DVD/VCR Receiver BROADCAST
TYPE mode is set to SAP or MONO.
Correction
Use CH. ADD/DEL option on the TUN-
ING menu to restore channels. See
“Channel Selection” on page 18.
Tighten connections or replace cable.
Try all CHANNEL SOURCE options.
See “Channel Selection” on page 18 for
details.
Turn camcorder on and operate
properly.
Use INPUT SELECT to select LINE
input channel (LINE1(L1) or LINE2(L2)).
Set clock to correct time. See “Setting
the Clock” on page 19.
Reprogram Timer. See “Timer
Recording” on pages 25 and 26.
Reprogram Timer and turn
DVD/VCR
Receiver off to enable timer.
No action is possible.
No action is possible.
Make A/V connections. Stereo is
available only via A/V output from
DVD/VCR Receiver.
Select A/V source as TV input.
Set BROADCAST TYPE mode to
STEREO. See “Using the VIDEO Setup
Menu” on page 18.
43
REFERENCE
Troubleshooting (Continued)
Symptom
Severe hum or noise is
heard.
Radio stations cannot
be tuned in.
No sound from OPTI-
CAL IN jack.
The remote control
does not work properly.
Cause
The plugs and jacks are dirty.
The disc is dirty.
The speakers and components are
connected poorly.
The DVD/VCR Receiver is located too
close to the TV.
The antenna is positioned or connected
poorly.
The signal strength of the stations is too
weak (when tuning in with automatic
tuning).
No stations have been preset or preset
stations have been cleared (when
tuning by scanning preset stations).
DVD/VCR Receiver source is not set to
OPTICAL IN.
The remote control is not pointed at the
remote sensor of the DVD/VCR
Receiver.
There is an obstacle in the path of the
remote control and the DVD/VCR
Receiver.
The batteries in the remote control are
exhausted.
This remote control uses same buttons
for VIDEO and DVD (ex. H (PLAY)).
Correction
Wipe them with a cloth slightly mois-
tened with alcohol.
Clean the disc.
Connect the speakers and components
securely.
Move your TV away from the audio
components.
Connect the antenna securely.
Adjust the antennas and connect an
external antenna if necessary.
Tune in the station manually.
Preset the stations (see page 38).
Select L1 OPT by pressing INPUT
SELECT.
Point the remote control at the remote
sensor of the DVD/VCR Receiver.
Remove the obstacle.
Replace the batteries with new ones.
When using a VIDEO, first press the
VIDEO button. When using a DVD, first
press the DVD button.
Moisture Condensation
Moisture condensation can occur:
• When the DVD/VCR Receiver is moved from a cold
place to a warm place.
• Under extremely humid conditions.
In locations where moisture condensation may occur:
•
Keep the DVD/VCR Receiver plugged into an AC
power outlet with POWER On. This will help prevent
condensation.
• When condensation has occurred, wait a few hours
for the DVD/VCR Receiver to dry before using it.
Video Head Cleaning
The dirt accumulating on the head after a long period of time can cause the playback picture to become blurred or
broken up. High quality video cassette tapes will not normally deposit dirt onto the video head, but old or damaged
tapes might.
44
Language Code List
Code Language
6566 Abkhazian
6565 Afar
6570 Afrikaans
8381 Albanian
6577 Amharic
6582 Arabic
7289 Armenian
6583 Assamese
6588 Aymara
6590 Azerbaijani
6665 Bashkir
6985 Basque
6678 Bengali; Bangla
6890 Bhutani
6672 Bihari
6682 Breton
6671 Bulgarian
7789 Burmese
6669 Byelorussian
7577 Cambodian
6765 Catalan
9072 Chinese
6779 Corsican
7282 Croatian
6783 Czech
6865 Danish
7876 Dutch
6978 English
6979 Esperanto
6984 Estonian
7079 Faeroese
Code Language
7074 Fiji
7073 Finnish
7082 French
7089 Frisian
7176 Galician
7565 Georgian
6869 German
6976 Greek
7576 Greenlandic
7178 Guarani
7185 Gujarati
7265 Hausa
7387 Hebrew
7273 Hindi
7285 Hungarian
7383 Icelandic
7378 Indonesian
7365 Interlingua
7165 Irish
7384 Italian
7465 Japanese
7487 Javanese
7578 Kannada
7583 Kashmiri
7575 Kazakh
7589 Kirghiz
7579 Korean
7585 Kurdish
7679 Laothian
7665 Latin
7686 Latvian, Lettish
Code Language
7678 Lingala
7684 Lithuanian
7775 Macedonian
7771 Malagasy
7783 Malay
7776 Malayalam
7784 Maltese
7773 Maori
7782 Marathi
7779 Moldavian
7778 Mongolian
7865 Nauru
7869 Nepali
7879 Norwegian
7982 Oriya
8065 Panjabi
8083 Pashto, Pushto
7065 Persian
8076 Polish
8084 Portuguese
8185 Quechua
8277 Rhaeto-Romance
8279 Romanian
8285 Russian
8377 Samoan
8365 Sanskrit
7168 Scots Gaelic
8382 Serbian
8372 Serbo-Croatian
8378 Shona
8368 Sindhi
Code Language
8373 Singhalese
8375 Slovak
8376 Slovenian
8379 Somali
6983 Spanish
8385 Sudanese
8387 Swahili
8386 Swedish
8476 Tagalog
8471 Tajik
8465 Tamil
8484 Tatar
8469 Telugu
8472 Thai
6679 Tibetan
8473 Tigrinya
8479 Tonga
8482 Turkish
8475 Turkmen
8487 Twi
8575 Ukrainian
8582 Urdu
8590 Uzbek
8673 Vietnamese
8679 Volapük
6789 Welsh
8779 Wolof
8872 Xhosa
7473 Yiddish
8979 Yoruba
9085 Zulu
Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu”
(See page 21).
45
REFERENCE
Code Area
AD Andorra
AE United Arab Emirates
AF Afghanistan
AG Antigua and Barbuda
AI Anguilla
AL Albania
AM Armenia
AN Netherlands Antilles
AO Angola
AQ Antarctica
AR Argentina
AS American Samoa
AT Austria
AU Australia
AW Aruba
AZ Azerbaidjan
BA Bosnia-Herzegovina
BB Barbados
BD Bangladesh
BE Belgium
BF Burkina Faso
BG Bulgaria
BH Bahrain
BI Burundi
BJ Benin
BM Bermuda
BN Brunei Darussalam
BO Bolivia
BR Brazil
BS Bahamas
BT Bhutan
BV Bouvet Island
BW Botswana
BY Belarus
BZ Belize
CA Canada
CC Cocos (Keeling) Islands
CF Central African Republic
CG Congo
CH Switzerland
CI Ivory Coast
CK Cook Islands
CL Chile
CM Cameroon
CN China
CO Colombia
CR Costa Rica
CS Former Czechoslovakia
CU Cuba
CV Cape Verde
CX Christmas Island
CY Cyprus
CZ Czech Republic
DE Germany
DJ Djibouti
DK Denmark
DM Dominica
DO Dominican Republic
DZ Algeria
EC Ecuador
EE Estonia
EG Egypt
EH Western Sahara
Code Area
ER Eritrea
ES Spain
ET Ethiopia
FI Finland
FJ Fiji
FK Falkland Islands
FM Micronesia
FO Faroe Islands
FR France
FX France (European
Territory)
GA Gabon
GB Great Britain
GD Grenada
GE Georgia
GF French Guyana
GH Ghana
GI Gibraltar
GL Greenland
GM Gambia
GN Guinea
GP Guadeloupe (French)
GQ Equatorial Guinea
GR Greece
GS S. Georgia & S. Sandwich
Isls.
GT Guatemala
GU Guam (USA)
GW Guinea Bissau
GY Guyana
HK Hong Kong
HM Heard and McDonald
Islands
HN Honduras
HR Croatia
HT Haiti
HU Hungary
ID Indonesia
IE Ireland
IL Israel
IN India
IO British Indian Ocean
Territory
IQ Iraq
IR Iran
IS Iceland
IT Italy
JM Jamaica
JO Jordan
JP Japan
KE Kenya
KG Kyrgyzstan
KH Cambodia6
KI Kiribati
KM Comoros
KN
Saint Kitts & Nevis Anguilla
KP North Korea
KR South Korea
KW Kuwait
KY Cayman Islands
KZ Kazakhstan
LA Laos
LB Lebanon
Code Area
LC Saint Lucia
LI Liechtenstein
LK Sri Lanka
LR Liberia
LS Lesotho
LT Lithuania
LU Luxembourg
LV Latvia
LY Libya
MA Morocco
MC Monaco
MD Moldavia
MG Madagascar
MH Marshall Islands
MK Macedonia
ML Mali
MM Myanmar
MN Mongolia
MO Macau
MP Northern Mariana Islands
MQ Martinique (French)
MR Mauritania
MS Montserrat
MT Malta
MU Mauritius
MV Maldives
MW Malawi
MX Mexico
MY Malaysia
MZ Mozambique
NA Namibia
NC New Caledonia (French)
NE Niger
NF Norfolk Island
NG Nigeria
NI Nicaragua
NL Netherlands
NO Norway
NP Nepal
NR Nauru
NU Niue
NZ New Zealand
OM Oman
PA Panama
PE Peru
PF Polynesia (French)
PG Papua New Guinea
PH Philippines
PK Pakistan
PL Poland
PM Saint Pierre and Miquelon
PN Pitcairn Island
PR Puerto Rico
PT Portugal
PW Palau
PY Paraguay
QA Qatar
RE Reunion (French)
RO Romania
RU Russian Federation
RW Rwanda
SA Saudi Arabia
SB Solomon Islands
Code Area
SC Seychelles
SD Sudan
SE Sweden
SG Singapore
SH Saint Helena
SI Slovenia
SJ Svalbard and Jan Mayen
Islands
SK Slovak Republic
SL Sierra Leone
SM San Marino
SN Senegal
SO Somalia
SR Suriname
ST Saint Tome and Principe
SU Former USSR
SV El Salvador
SY Syria
SZ Swaziland
TC Turks and Caicos Islands
TD Chad
TF French Southern
Territories
TG Togo
TH Thailand
TJ Tadjikistan
TK Tokelau
TM Turkmenistan
TN Tunisia
TO Tonga
TP East Timor
TR Turkey
TT Trinidad and Tobago
TV Tuvalu
TW Taiwan
TZ Tanzania
UA Ukraine
UG Uganda
UK United Kingdom
UM USA Minor Outlying
Islands
US United States
UY Uruguay
UZ Uzbekistan
VA Vatican City State
VC Saint Vincent &
Grenadines
VE Venezuela
VG Virgin Islands (British)
VI Virgin Islands (USA)
VN Vietnam
VU Vanuatu
WF Wallis and Futuna Islands
WS Samoa
YE Yemen
YT Mayotte
YU Yugoslavia
ZA South Africa
ZM Zambia
ZR Zaire
ZW Zimbabwe
Area Code List
Enter the appropriate code number for the initial setting “Area Code” (See page 23).
46
Specifications
General
Power requirements AC 120V, 60 Hz
Power consumption 74W
Dimensions (approx.) 430 x 97 x 386 mm (17 x 3
7
/8 x 15
1
/4 inches) (W x H x D)
Mass (approx.) 6.3 kg (13.15 lbs)
Operating temperature 5˚C to 35˚C (41˚F to 95˚F)
Operating humidity 5 % to 90 %
Signal system NTSC
DVD Section
Laser system Semiconductor laser, wavelength 650 nm
Frequency response DVD (PCM 48 kHz): 8 Hz to 22 kHz, CD: 8 Hz to 20 kHz
Signal-to-noise ratio More than 80 dB (AUDIO OUT jacks)
Harmonic distortion Less than 0.3%
Dynamic range More than 85 dB (AUDIO OUT jacks)
Inputs
ANTENNA IN Antenna or CATV input, 75 ohms
VIDEO IN 1 Vp-p 75 ohms, sync negative, RCA jack x 1
AUDIO IN -6.0 dBm more than 47 kohms, RCA jack (L, R) x 1
FM ANTENNA IN FM antenna input, 300 ohms
AM ANTENNA IN AM antenna input, 300 ohms
OPTICAL IN Optical connector x 1
Outputs
VIDEO OUT 1 Vp-p 75 ohms, sync negative
S VIDEO OUT (Y) 1.0 V (p-p), 75 ohms, negative sync, Mini DIN 4-pin x 1
(C) 0.286 V (p-p) 75 ohms
COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 ohms, negative sync, RCA jack x 1
(PB/CB)/(P
R/CR
) 0.7 V (p-p), 75 ohms, RCA jack x 2
Audio output (analog audio) 2.0 Vrms (1 KHz, 0 dB), 330 ohms, RCA jack (L, R) x 1
ANTENNA OUT Channel 3 or 4 (Switchable)
VIDEO Section
Head system 4 heads helical scan azimuth system
Timer 12-hour display type with AM, PM
Tape speed SP: 33.35 mm/sec, EP: 11.12 mm/sec
Tape width 12.7 mm
Maximum recording time SP: 2 HOURS (T-120), EP: 6 HOURS (T-120)/8 HOURS (T-160)
Rewind time About 150 seconds (T-120)
Antenna 75 ohms (VHF/UHF)
Channel coverage VHF: 2-13, UHF: 14-69, CATV: 1-125 (4A, A-W, W+1 - W+84, A-5 - A-1)
Frequency range 20Hz to 20kHz
Signal-to-noise ratio More than 43dB
Dynamic range More than 85 dB (AUDIO OUT jacks)
Channel separation More than 55 dB (AUDIO OUT jacks)
FM Tuner
Tuning Range 87.5 - 108.0 MHz
Intermediate Frequency 10.7 MHz
AM Tuner
Tuning Range 530 - 1,720 kHz
Intermediate Frequency 450 kHz
(AVD-K600P)
47
REFERENCE
Specifications (Continued)
AUDIO POWER SPECIFICATION
POWER OUTPUT AND TOTAL HARMONIC DISTORTION:
With 6 ohm loads, both channels driven, from 120 - 20,000 Hz; rated 70 watts
per channel minimum RMS power, with no more than 10 % total harmonic
distortion from 250 milli watts to rated output (USA model only).
Amplifier
Stereo mode 70W + 70W (6Ω at 1 kHz, THD 10 %)
Surround mode Front: 70W/ch (6Ω at 1 kHz, THD 10 %)
Center*: 70W (6Ω at 1 kHz, THD 10 %)
Surround*: 70W/ch (6Ω at 1 kHz, THD 10 %)
Subwoofer*: 100W (4Ω at 30 Hz, THD 10 %)
*
Depending on the sound mode settings and the source, there may be no sound output.
Inputs VIDEO 1, VIDEO 2, OPTICAL IN
Speaker Section
Front/Surround (SS-MSP76)
Speaker system Bass reflex
Impedance 6 Ω
Rated Input Power 70W
Dimensions (approx.) 90 x 150 x 124.5 mm (3
5
/8 x 6 x 5 inches)
Mass (approx.) 0.8 kg (1.13 lbs)
Center (SS-CNP76)
Speaker system Bass reflex
Impedance 6 Ω
Rated Input Power 70W
Dimensions (approx.) 230 x 90 x 127 mm (9
1
/8
x 3
5
/8
x 5 inches)
Mass (approx.) 1.0 kg (2.4 lbs)
Passive Subwoofer (SS-WMSP81)
Speaker system Bass reflex
Impedance 4 Ω
Rated Input Power 100W
Dimensions (approx.) 270 x 325 x 333 mm (10
6
/8
x 12
7
/8
x 13
1
/8
inches)
Mass (approx.) 6.5 kg (14.6 lbs)
Accessories
Video cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Audio cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
RF 75-ohm Coaxial Cable . . . . . . . . . . . . . . . . . . . . .1 Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Speaker cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Speaker color label . . . . . . . . . . . . . . . . . . . . . . . . .1
Speaker foot (for satellite speaker) . . . . . . . . . . . . .20 AM loop antenna . . . . . . . . . . . . . . . . . . . . . . . . . . .1
FM antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Ferrite core . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Design and specifications are subject to change without notice.
Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks
of Dolby Laboratories. Confidential unpublished works. Copyright 1992-1997 Dolby Laboratories. All rights reserved.
DTS and DTS Digital Surround are registered trademarks of Digital Theater Systems, Inc.
Sony Corporation Printed in Indonesia
http://www.sony.net
