Compact Hi-Fi
Stereo System
© 2002 Sony Corporation
Operating Instructions
4-238-809-11 (4)
LBT-XGR80
LBT-XGR60
LBT-XGR6
Owner’s Record
The model and serial numbers are located on the rear panel of the unit. Record the
serial number in the space provided below. Refer to them whenever you call upon your
Sony dealer regarding this product.
Model No. Serial No.
2
GB

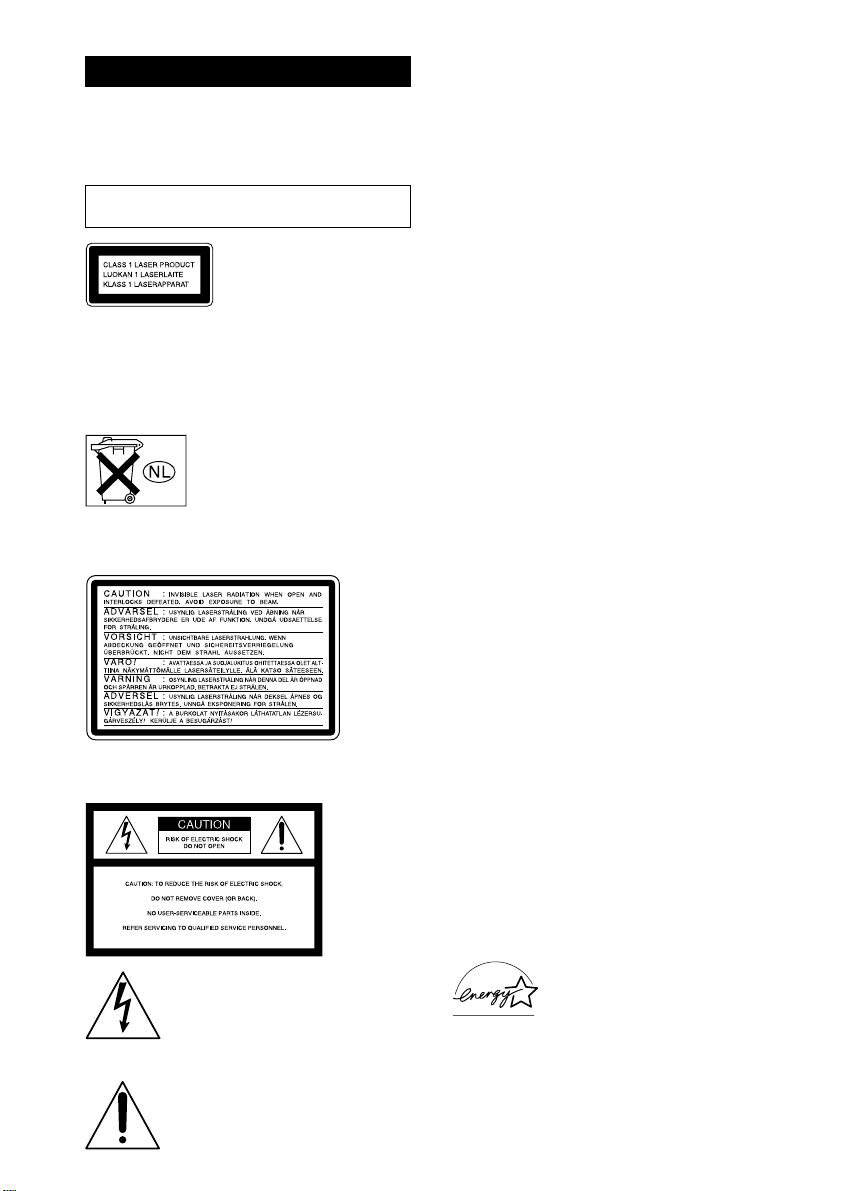

WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
Do not install the appliance in a confined space,
such as a bookcase or built-in cabinet.
To prevent fire, do not Cover the ventilation of the
apparatus with newspapers, table-cloths, curtains, etc.
And don’t place lighted candles on the apparatus.
To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the apparatus.
Except for American model:
The following caution label is located inside the
apparatus.
NOTICE FOR THE CUSTOMERS IN THE
U.S.A.
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
CAUTION
The use of optical instruments with this product will
increase eye hazard.
WARNING
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
You are cautioned that any changes or modifications
not expressly approved in this manual could void
your authority to operate this equipment.
Note on CATV system installer:
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building, as
close to the point of cable entry as practical.
NOTICE FOR THE CUSTOMERS IN
CANADA
CAUTION:
TO PREVENT ELECTRIC SHOCK, DO NOT USE
THIS POLARIZED AC PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER
OUTLET UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE EXPOSURE.
For the customers in North America
ENERGY STAR
®
is a U.S.
registered mark.
As an
ENERGY STAR
®
partner,
Sony Corporation has determined
that this product meets the
ENERGY STAR
®
guidelines for
energy efficiency.
Don’t throw away the battery with
general house waste, dispose of it
correctly as chemical waste.
This appliance is classified as
a CLASS 1 LASER product.
This label is located on the
rear exterior.
3
GB
Table of Contents
List of Button Locations and
Reference Pages
Main unit ............................................... 4
Remote control ......................................5
Getting Started
Hooking up the system .......................... 6
Inserting two size AA (R6) batteries
into the remote ................................ 8
Setting the clock .................................... 8
CD
Loading the CD ..................................... 9
Playing the CD
–– Normal Play/Shuffle Play/Repeat
Play.................................................. 9
Programming the CD tracks
–– Program Play ................................. 10
Tuner
Presetting radio stations.......................11
Listening to the radio........................... 12
Tape
Loading a tape ..................................... 13
Playing a tape ...................................... 13
Recording to a tape
–– CD Synchro Recording/High Speed
Dubbing/Recording Manually/
Program Edit ................................. 14
Timer-recording radio programs ......... 15
Sound Adjustment
Adjusting the sound............................. 16
Selecting the audio emphasis effect .... 17
Making a personal audio emphasis file
–– Personal File.................................. 17
Selecting the surround effect ............... 18
Timer
Falling asleep to music
— Sleep Timer ................................... 18
Waking up to music
— Daily Timer ................................... 19
Other Features
Changing the spectrum analyzer
display ........................................... 20
Singing along: Karaoke ....................... 20
Playing a guitar.................................... 21
Enhancing video game sound
–– Game Sync .................................... 22
Mixing video game sound with other
sound source
— Game Mixing ................................22
Display
Turning off the display
— Power Saving Mode ...................... 23
Using the CD display .......................... 23
Optional Components
Hooking up optional components........ 24
Listening to audio from a connected
component ..................................... 26
Recording audio from a connected
component ..................................... 27
Recording on a connected
component ..................................... 27
Troubleshooting
Problems and remedies........................ 28
Messages ............................................. 30
Additional Information
Precautions .......................................... 30
Specifications ...................................... 32
4
GB
ALPHABETICAL ORDER
E – G
EDIT ea (15)
EFFECT 5 (17)
ENTER 5 (8, 15, 17, 19)
FM MODE 8 (12)
FUNCTION qd (7, 9, 10, 14, 20,
22, 26)
GAME qf (22)
GAME INPUT AUDIO L/R wd
(25)
GAME INPUT VIDEO wd (25)
GAME MIXING qg (22)
GROOVE ek (16)
GUITAR DISTORTION wl (21)
GUITAR jack ed (21)
GUITAR LEVEL ef (21)
H – R
H SPEED DUB ql (14)
MIC LEVEL ef (20)
MIX GUITAR/KAROKE wl (20,
21)
MIX MIC jack ed (20)
P FILE 5 (17)
PHONES jack w;
PLAY MODE es (9, 10)
POWER SAVE/DEMO
(STANDBY) 3 (23)
Power stream indicator 6
PUSH OPEN wj (9)
REPEAT es (10)
List of Button Locations and Reference Pages
How to use this page
Use this page to find the location of buttons and other
parts of the system that are mentioned in the text.
Illustration number
r
PLAY MODE es (9, 10)
RR
Name of button/part Reference page

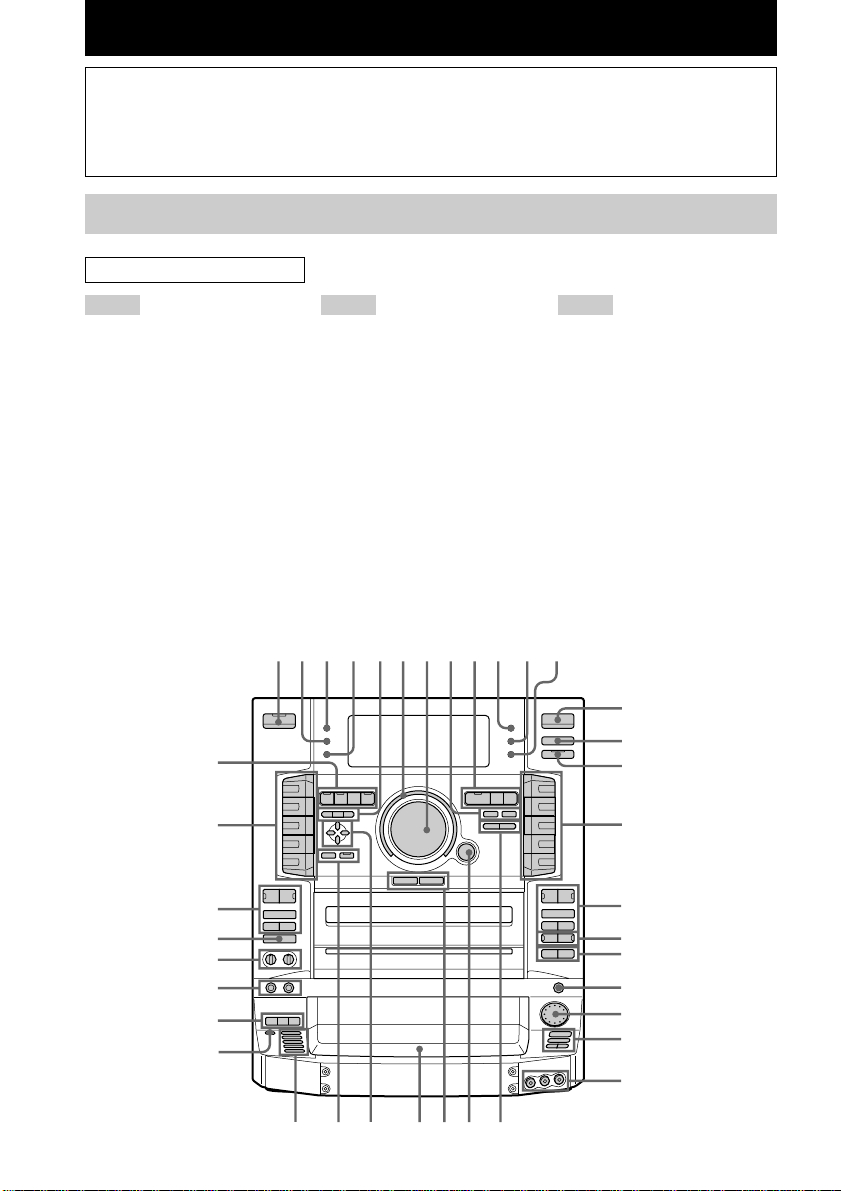

Main unit
wfwgwhwjwle;
ea
es
ed
ef
eg
eh
ek
ej
wk
qf
qd
2345 76 890 qa qs
qg
qh
qj
qk
ql
w;
wa
ws
wd
1
A – D
A EJECTZ/Z B EJECT wh (13)
AMS./> wa (9, 10)
CD SYNC ql (14, 15)
Direct equalizer qh ej (17)
GUITAR/ROCK/JAZZ/DANCE/
GAME
SALSA/REGGAE/TANGO/
SAMBA/MOVIE
DIRECTION eg (13, 14, 15, 20)
DISC SKIP es (9, 10)
DISC 1 to 5 e; (9)
DISPLAY 2 (23)
List of Button Locations and Reference Pages
5
GB

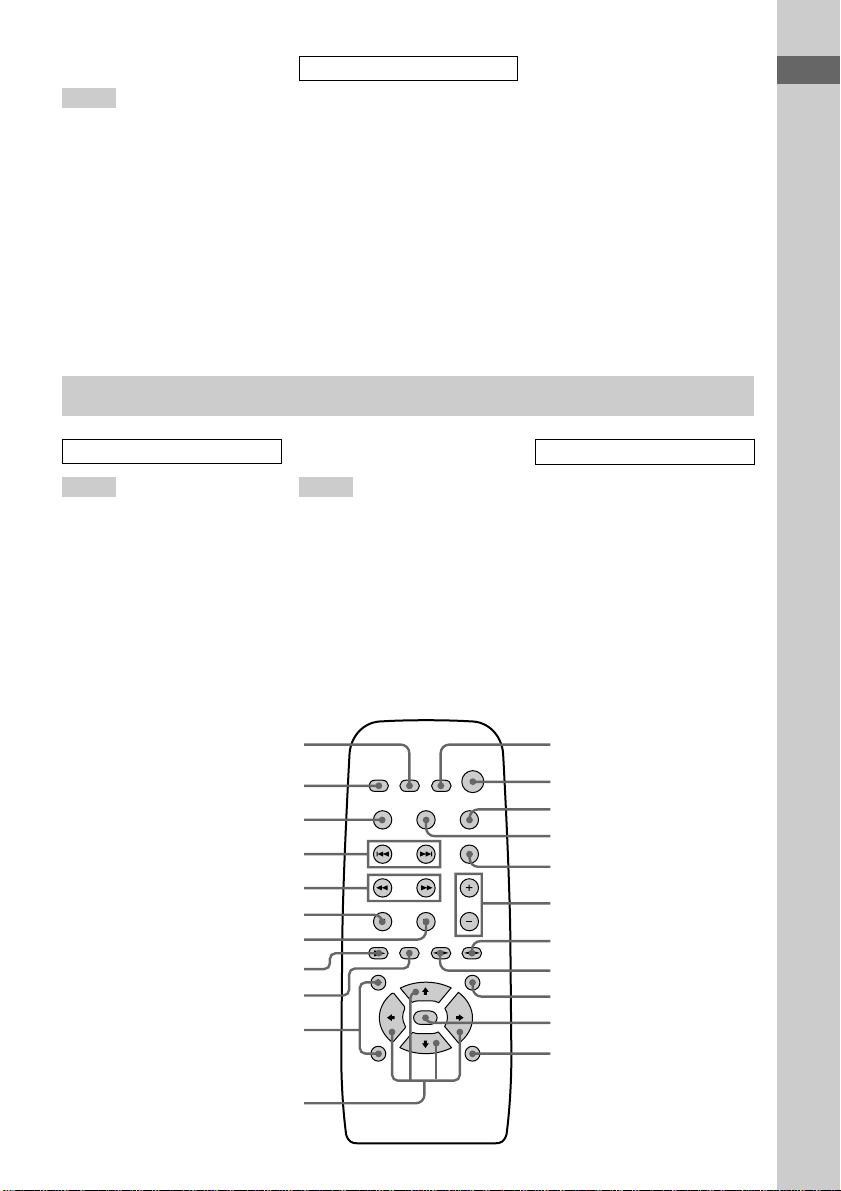

Remote control
ALPHABETICAL ORDER
ql
qk
qj
qh
qg
qf
ws
wa
w;
5
6
7
9
8
q;
3
2
1
4
qd
qs
qa
S – X
SLEEP 0 (18)
SPECTRUM ANALYZER 4 (20)
SUPER WOOFER ek (16)
SUPER WOOFER MODE ek (16)
SURROUND ek (18)
TIMER SELECT qa (16, 19)
TUNER/BAND 9 (11, 12)
TUNER ENTER wf (11)
TUNER MEMORY wf (11)
TUNING MODE 8 (11, 12)
TUNING –/+ 9 (11, 12)
VOLUME control 7 (10)
X-GROOVE wg (16)
BUTTON DESCRIPTIONS
@/1 1
c/CLOCK SET qs
h/H qj eh
x qj eh
.m /M> qj eh
X qk
z REC qk
HX ws
x ws
m /M ws
R/r/T/t (cursor) wk
C – F
CD N qg (9)
CLEAR 4 (10)
CLOCK/TIMER SELECT ws (16,
19)
CLOCK/TIMER SET 1 (8, 15,
19)
DISC SKIP w; (9, 10)
DISPLAY qa (23)
EFFECT 9 (17)
ENTER 0 (8, 15, 17, 19)
FILE SELECT +/– qd (17)
FUNCTION 3 (7, 9, 10, 14, 20,
22, 26)
P – V
PRESET –/+ ql
SLEEP wa (18)
SURROUND 5 (18)
TUNER/BAND qf (11, 12)
TUNING –/+ qk (11, 12)
VOL +/– 6 (10)
BUTTON DESCRIPTIONS
@/1 2
nN 78
R/r/T/t (cursor) qs
x qh
X qj
m/M qk
./> ql
6
GB
Getting Started

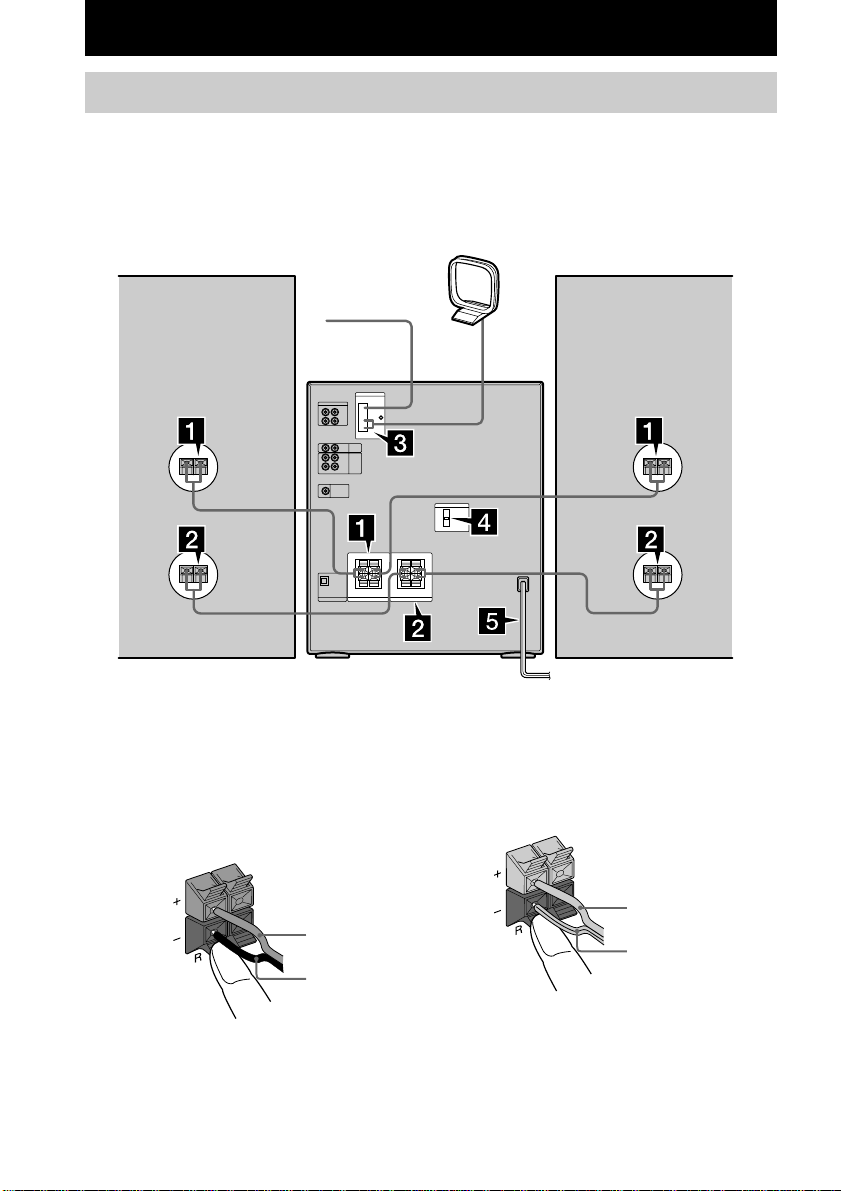

Hooking up the system
Do the following procedure 1 to 5 to hook up your system using the supplied cords and
accessories.
AM loop antenna
FM antenna
1 Connect the speakers.
Connect the speaker cords to the FRONT
SPEAKER jacks for LBT-XGR60 and
LBT-XGR6 or TWEETER & WOOFER
jacks for LBT-XGR80 as below.
Insert only the stripped portion.
Black (#)
Red (3)
2 Connect the speakers for
biamplification system (LBT-XGR80
only)
Connect the speaker cord to the SUPER
WOOFER jacks as below.
Note
Keep the speaker cords away from the antennas to
prevent noise.
Front speaker (right) Front speaker (left)
Stripe (#)
Solid (3)
Getting Started
7
GB
A
M
COAXIAL
FM 75
FM 75
AM
Extend the FM lead
antenna horizontally.
AM loop antenna
Extend the FM lead
antenna horizontally.
AM loop antenna
Jack type B
Jack type A
VOLTAGE SELECTOR
120V
220V
230
~
240V

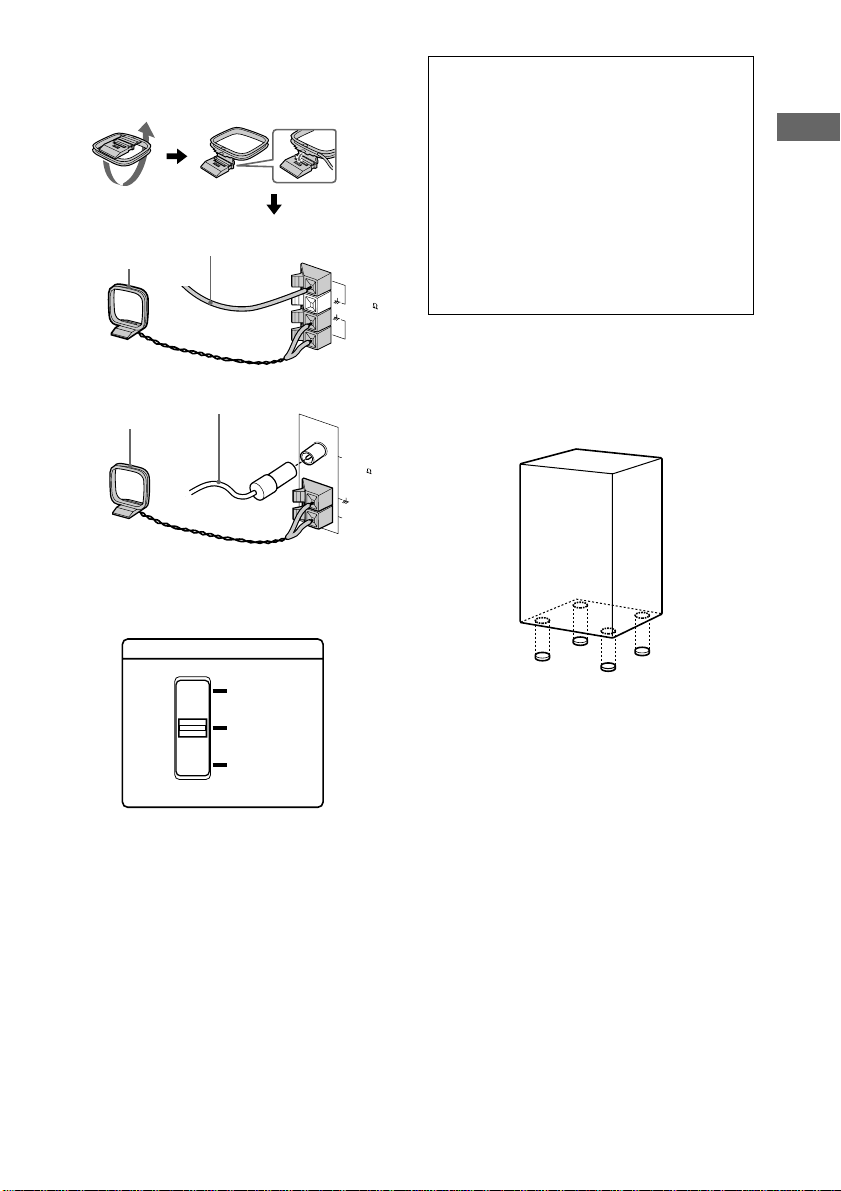

3 Connect the FM/AM antennas.
Set up the AM loop antenna, then connect
it.
4 For models with a voltage selector, set
VOLTAGE SELECTOR to the position of
your local power line voltage.
5 Connect the power cord to a wall outlet.
The demonstration appears in the display.
When you press ?/1, the system turns on
and the demonstration automatically ends.
If the supplied adaptor on the plug does not
fit your wall outlet, detach it from the plug
(only for models equipped with the
adaptor).
When carrying this system
Do the following to protect the CD
mechanism.
1 Make sure that all discs are removed
from the unit.
2 Press FUNCTION repeatedly until “CD”
appears.
3 Hold down EDIT and then press ? /1 until
“LOCK” appears.
4 Unplug the AC power cord.
Before connecting the Front speaker
Stick the supplied front speaker pads to the
bottom of the front speakers to stabilize the
speakers and prevent them from slipping.
8
GB
Inserting two size AA (R6)
batteries into the remote
Tip
When the remote no longer operates the system,
replace both batteries with new ones.
Note
If you do not use the remote for a long period of time,
remove the batteries to avoid possible damage from
battery leakage.
Setting the clock
1 Turn on the system.
2 Press c/CLOCK SET (or CLOCK/TIMER
SET on the remote).
3 Press R/r repeatedly to set the hour.
4 Press ENTER.
The minute indication flashes.
5 Press R/r repeatedly to set the minute.
6 Press ENTER.
The clock starts working.
If you make a mistake
Press T/t repeatedly until the incorrect item
flashes, then set it again.
To adjust the clock
1 Press c/CLOCK SET (or CLOCK/TIMER
SET on the remote).
2 Press R/r to select “CLOCK SET,” then
press ENTER.
3 Do the same procedures as step 3 to 6
above.
Notes
• The clock settings are canceled when you
disconnect the power cord or if a power failure
occurs.
• You cannot set the clock in the Power Saving
Mode.
CD
9
GB
Loading the CD
1 Press PUSH OPEN.
The front cover opens.
2 Place a CD with the label side up on the
disc tray.
To insert additional discs, press DISC SKIP
to rotate the disc tray.
3 Close the front cover.
Playing the CD
––Normal Play/Shuffle Play/Repeat
Play
This unit lets you play the CD in different play
modes.
1 Press FUNCTION repeatedly until “CD”
appears.
2 Press PLAY MODE repeatedly in stop
mode until the mode you want appears.
3 Press HX (or CD N on the remote).
Other Operations
CD
Disc number in the playing position
Track number Playing time
Select
ALL DISCS
1 DISC
ALL DISCS
SHUFFLE
1 DISC
SHUFFLE
PROGRAM
To play
All CDs in the disc tray
continuously.
The CD you selected in the
original order.
The tracks on all CDs in random
order.
The tracks on the CD you
selected in random order.
The tracks on all CDs in the
order you want them to be
played (see “Programming the
CD tracks” on page 10).
When you play
a CD single,
place it on the
inner circle of
the tray.
To
Stop playback
Pause
Select a track
Find a point in a track
Select a CD
Do this
Press x.
Press HX (or X on the
remote). Press again to
resume play.
During play or pause, turn
. AMS > clockwise
(to go forward) or
counterclockwise (to go
backward) (or press >
(to go forward) or . (to
go backward) on the
remote).
Press and hold M or m
during playback, and
release at the desired point.
Press DISC 1 to 5 or DISC
SKIP.
continued
10
GB
To
Switch to CD function
from another source
Play repeatedly
(Repeat Play)
Remove the CD
Adjust the volume
* You cannot select “REPEAT” and “ALL DISC
SHUFFLE” at the same time.
Tip
You can change the CD in the loading position during
playback of the CD in the playing position.
Programming the CD
tracks
–– Program Play
You can make a program of up to 25 tracks
from all the CDs in the order you want them to
be played.
1 Press FUNCTION repeatedly until “CD”
appears, then load a CD.
2 Press PLAY MODE repeatedly until
“PROGRAM” appears.
3 Press DISC SKIP to select a CD.
Do this
Press DISC 1 to 5 or HX
(or CD N on the remote)
(Automatic Source
Selection).
Press REPEAT during
playback until “REPEAT”
or “REPEAT1” appears.
REPEAT*: For all the
tracks on the CD up to five
times.
REPEAT1: For a single
track only.
To cancel playing
repeatedly, press REPEAT
until “REPEAT” or
“REPEAT1” disappears.
Press PUSH OPEN.
Turn VOLUME (or press
VOL +/– on the remote).
4 Turn . AMS > until the track you
want appears.
5 Press PLAY MODE once.
The track is programmed. First the
programmed playing order and “STEP”
appear, then the total playing time appears.
6 To program additional tracks, repeat
steps 3 to 5.
Skip step 3 to select tracks from the same
disc.
7 Press HX.
To
Cancel Program Play
Clear a track from
the end
Add a track to the end
of the program in stop
mode
Tips
• The program you made remains in the CD player
after it has been played back. Press HX to play
the same program again.
• “--.--” appears when the total CD program time
exceeds 100 minutes, or when you select a CD track
whose number is 21 or over.
Press
PLAY MODE repeatedly
until “PROGRAM,” “ALL
DISCS SHUFFLE” or “1
DISC SHUFFLE”
disappears.
CLEAR on the remote in
stop mode.
Perform step 3 to 5.
Playing the CD (continued)
Tuner
11
GB
Tuner
Presetting radio stations
You can preset up to 20 FM stations and 10
AM stations. You can then tune in any of those
stations simply by selecting the corresponding
preset number.
There are two ways to store the station presets.
6 Press TUNER ENTER.
“COMPLETE” appears.
7 Repeat steps 1 to 6 to store other
stations.
Setting presets through
manual tuning
1 Press TUNER/BAND repeatedly to
select “FM” or “AM.”
2 Press TUNING MODE repeatedly until
“MANUAL” appears.
3 Press TUNING –/+ repeatedly to tune in
the desired station.
4 Press TUNER MEMORY.
5 Press TUNING –/+ repeatedly to select
the desired preset number.
6 Press TUNER ENTER.
“COMPLETE” appears.
7 Repeat steps 1 to 6 to store other
stations.
Other Operations
Preset number
To
Automatically tune all of
the stations that can be
received in your area and
then store them manually
Manually tune and store
the radio frequency of
your favorite stations
Setting presets through
automatic tuning
1 Press TUNER/BAND repeatedly to
select “FM” or “AM.”
2 Press TUNING MODE repeatedly until
“AUTO” appears.
3 Press TUNING –/+.
The frequency indication changes and the
scanning stops when the system tunes in a
station. “TUNED” and “STEREO” (for a
FM stereo program) appear.
If “TUNED” does not appear and
the scanning does not stop
Set the frequency of the desired radio
station as described in steps 2 through 6 of
“Setting presets through manual tuning.”
4 Press TUNER MEMORY.
5 Press TUNING –/+ repeatedly to select
the desired preset number.
Method
Automatic Tuning preset
Manual Tuning Preset
Preset number
To
Tune in a station with a
weak signal
Stop scanning
Change the preset
number
Change the preset station
Cancel presetting
continued
Do this
Follow the procedure
described in “Setting
presets through manual
tuning.”
Press TUNING MODE.
Start over from step 1.
Start over from step 1.
Press TUNER MEMORY.
12
GB
Listening to the radio
You can listen to a radio station either by
selecting a preset station, or by manually tuning
in the station.
Listening to a preset station
— Preset Tuning
Preset radio stations in the tuner's memory first
(see “Presetting radio stations” on page 11).
1 Press TUNER/BAND repeatedly to
select “FM” or “AM.”
2 Press TUNING MODE repeatedly until
“PRESET” appears.
3 Press TUNING –/+ repeatedly to select
the desired preset station.
Listening to non-preset radio
station
— Manual Tuning
1 Press TUNER/BAND repeatedly to
select “FM” or “AM.”
2 Press TUNING MODE repeatedly until
“MANUAL” appears.
3 Press TUNING –/+ repeatedly to tune in
the desired station.
Tips
• To improve broadcast reception, adjust the supplied
antennas, or connect a commercially available
external antenna.
• When an FM stereo program has static noise, press
FM MODE repeatedly until “MONO” appears.
There will be no stereo effect, but the reception will
improve.
• Press TUNING MODE repeatedly until “AUTO”
appears in step 2 above, then press TUNING –/+.
The frequency indication changes and scanning
stops when the system tunes in a station (Automatic
Tuning).
• To record from the radio, see “Recording to a tape”
on page 14.
To change the AM tuning interval
(Except for the Middle Eastern
model)
The AM tuning interval is factory-set to 9 kHz
(10 kHz in some areas). To change the AM
tuning interval, tune in any AM station first,
then turn off the system. While holding down
TUNER ENTER, press ?/1 to turn the system
back on. When you change the interval, all the
AM preset stations will be erased. To reset the
interval, repeat the same procedure.
Note
You cannot change the AM tuning interval in the
Power Saving Mode.
Tips
• The preset stations are retained for half a day even
if you unplug the power cord or if a power failure
occurs.
• To improve broadcast reception, reorient or mode
the supplied antennas near a window or outdoors.
Presetting radio stations (continued)
Tape
13
GB
Loading a tape
1 Press A EJECT Z or Z B EJECT.
2 Insert a tape in deck A or B.
Playing a tape
You can use TYPE I (normal) tape.
1 Load a recorded tape.
2 Press DIRECTION repeatedly to select
g to play one side. Select j to play
both sides. Select RELAY (Relay Play)*
to play both decks in succession.
3 Press H (or nN on the remote).
Press h (or nN on the remote again)
to play the reverse side. The tape starts
playing.
* Relay Play always follow this cyclic sequence:
Deck A (front side) t Deck A (reverse side) t
Deck B (front side) t Deck B (reverse side)
To
Stop play
Pause
(deck B only)
Fast-forward
Rewind
Remove the
cassette
Insert with the side
you want to play/
record facing
forward.
Tip
The deck stops automatically after repeating the
sequence five times.
Searching for the beginning of a
track (AMS)
During playback, press .m or M>
(or press . or > on the remote)
repeatedly for the number of songs you want to
skip forward (or backward).
The search direction, + (forward) or – (back),
and number of songs being skipped (1 to 9)
appear.
Note
The AMS function may not operate correctly under
the following circumstances:
– When the unrecorded space between songs is less
than 4 seconds long.
– When the unit is placed near a television.
Note on the tape decks
Do not press A EJECT Z or Z B EJECT while
playing a tape, otherwise the tape could be
damaged.
Tape
Do this
Press x.
Press X.
Press again to resume play.
Press M> or .m (or
press M or m on the remote)
in stop mode.
Press .m or M> (or
press m or M on the remote)
in stop mode.
Press A EJECT Z (or Z B
EJECT ) in stop mode.
Example: searching forward 2 songs
14
GB
Recording to a tape
–– CD Synchro Recording/High Speed Dubbing/Recording Manually/
Program Edit
You can record from a CD, tape (or connected components) or radio. You can use TYPE I (normal)
tape. The recording level is adjusted automatically.
Recording from a tape
(High-Speed Dubbing)
Recording from a CD
(CD Synchro Recording)
Recording Manually
Insert a recordable tape into deck B.
Press FUNCTION or
TUNER/BAND
repeatedly until the
source or band you
want to record appears,
and then load the CD/
tape (or other music
source), or tune to the
station you want to
record.
Insert the tape you want to
record into deck A.
Insert the CD you want to
record.
Press CD SYNC.
Press z REC.
Press DIRECTION repeatedly to select g to record on one side.
Select j (or RELAY) to record on both sides.
Press X.
Recording starts.
Tips
• When you record on both sides, be sure to start
from the front side. If you start from the reverse
side, recording stops at the end of the reverse side.
• For recording from the tape:
If you set the direction to j when the tapes you
use have different lengths, the tapes in each deck
reverses independently. If you select RELAY, the
tapes in both decks reverse together.
1
2
3
4
5
• To record with the surround effect, press
SURROUND so that “SUR ” appears.
The equalizer settings will not be recorded.
• For recording from the radio:
If noise is heard while recording from the radio,
move the respective antenna to reduce the noise.
Press H SPEED DUB.
Steps
DECK B stands by for recording.
When you want to record on the reverse side, press h.
Press X, then start
playing the source to
be recorded.
To stop recording
Press x.
Tape
15
GB
Recording a CD by specifying
track order
— Program Edit
1 Load CDs and a recordable tape.
2 Program CD and tracks following step 1
to 6 in “Programming the CD tracks” on
page 10.
3 Press CD SYNC.
Deck B stands by for recording.
4 Press DIRECTION repeatedly to select
g to record on one side.
Select j (or RELAY) to record on
both sides.
5 Press X.
Recording starts.
Tip
To check the required tape length for recording a CD,
press EDIT after you have loaded a CD and switched
function to CD. The required tape length for the
currently selected CD appears, followed by the total
playing time for side A and side B respectively (Tape
Select Edit).
Notes
• You cannot use Tape Select Edit for discs
containing over 20 tracks.
• You cannot use this function when Program Play
mode has been set. After clearing the entire
program, follow the above procedure.
Timer-recording radio
programs
To timer-record, you must preset the radio
station (see “Presetting radio stations” on page
11) and set the clock (see “Setting the clock”
on page 8) beforehand.
1 Tune in the preset radio station (see
“Listening to the radio” on page 12).
2 Press c/CLOCK SET (or CLOCK/TIMER
SET on the remote).
3 Press R/r repeatedly to select “REC
SET,” then press ENTER.
“ON” appears and the hour indication
flashes in the display.
4 Set the time to start recording.
Press R/r to set the hour, then press ENTER.
The minute indication starts flashing.
Press R/r to set the minute, then press
ENTER.
5 Set the time to stop recording following
the above procedure.
The start time appears, followed by the stop
time, the preset radio station to be recorded
(e.g., “TUNER FM 5”), then the original
display appears.
6 Insert a recordable tape into deck B.
continued
16
GB
Timer-recording radio programs
(continued)
7 Turn off the power.
When the recording starts, the volume level
is set to the minimum.
To
Check the setting
Cancel timer
operation
Notes
• The system turns on 15 seconds before the preset
time.
• If the system is on at the preset time, the Timer
recording will not be made.
• When you use the Sleep Timer, Timer recording
will not turn on the system until the Sleep Timer
turns it off.
• Recording starts from the front side.
Do this
Press TIMER SELECT (or
CLOCK/TIMER SELECT on
the remote). Press R/r to select
“REC SELECT”. Then, press
ENTER. To change the
setting,
start over from step 1.
Press TIMER SELECT (or
CLOCK/TIMER SELECT on
the remote). Press R/r to select
“TIMER OFF”. Then, press
ENTER.
Adjusting the sound
To reinforce lower bass sound
(SUPER WOOFER)
Press SUPER WOOFER.
Each time you press this button, the super
woofer level display changes cyclically as
follows:
SUPER WOOFER FLAT t LOW t HIGH
Tip
SUPER WOOFER button lights up when super
woofer mode is activated.
To select the super woofer mode
Press SUPER WOOFER MODE while the
super woofer is on.
Each time you press this button, the super
woofer mode display changes as follows:
MODE MOVIE y MODE MUSIC
For a powerful sound (GROOVE)
The volume switches to power mode and the
equalizer curve changes.
Press GROOVE.
Press GROOVE again to return to the previous
volume.
For a powerful and vivid sound (X-
GROOVE)
The middle frequency of the music you are
listening to is powerfully reinforced, the
equalizer curve changes and loudness is
increased.
Press X-GROOVE.
Press X-GROOVE again to cancel the
reinforcement.
Note
Canceling the Groove mode cancels the equalizer
curve and super woofer level. Adjust the equalizer
settings to obtain the desired effect.
Sound Adjustment
Sound Adjustment
17
GB
Selecting the audio
emphasis effect
Selecting the preset effect from the
music menu
Press a direct equalizer button you want.
The preset effect name appears.
See the chart “Music menu options.”
Music menu options
“SUR ” appears if you select an effect
with surround effects.
For
standard music sources
soundtracks and special
listening situations
Effect
SALSA
REGGAE
TANGO
SAMBA
MOVIE
ROCK
JAZZ
DANCE
GUITAR
GAME
Other operations
To
Select a personal file
Cancel the effect
Tip
You can also select the preset effect including the
P FILE by pressing FILE SELECT +/– on the remote
repeatedly.
Making a personal audio
emphasis file
–– Personal File
You can create a personal file of audio patterns
(surround effect and graphic equalizer) and
store them in the system’s memory. Later, you
can call up an audio pattern when playing a
favorite tape, CD, or radio program.
Before operating, first select the basic audio
emphasis you want for your sound.
1 Press T/t to select the frequency
range, and then press R/r to adjust the
level.
2 Press ENTER.
This setting is automatically stored as
P FILE.
The setting previously stored at this
memory location is erased and replaced by
the new settings.
Frequency level
ALL 1DISCS
Frequency range
To
Call up a personal file
Cancel a personal file
Press
P FILE.
EFFECT repeatedly until
“EFFECT OFF” appears.
Press
P FILE.
EFFECT repeatedly until
“EFFECT OFF” appears.
18
GB
Selecting the surround
effect
Press SURROUND.
Each time you press the button, the display
changes as follows:
SURROUND ON (SUR
)
Y
SURROUND OFF
Timer
Press
SLEEP once.
SLEEP to select the time
you want.
SLEEP repeatedly until
“SLEEP OFF” appears.
Falling asleep to music
— Sleep Timer
You can have the system turn off at a preset
time, so you can fall asleep to music.
Press SLEEP.
Each time you press the button, the minute
display (the turn-off time) changes as follows:
AUTO t 90 t 80 t 70 t … t 10 t
OFF t AUTO* …
* The power turns off when the current CD or tape
finishes playback (for up to 100 minutes).
To
Check the remaining
time**
Change the time to turn
off
Cancel the Sleep Timer
function
**You cannot check the remaining time when AUTO
is selected.
19
GB
Timer
7 Press R/r repeatedly until the music
source you want appears.
The indication changes as follows:
t TUNER y CD PLAY T
t TAPE PLAY T
8 Press ENTER.
The start time, stop time, and the music
source appear, then the original display
appears.
9 Turn off the system.
Waking up to music
— Daily Timer
You can wake up to music at a preset time
every day. Make sure you have set the clock
(see “Setting the clock” on page 8).
1 Prepare the music source you want to
play.
• CD: Load a CD. To start from a specific
track, make a program (see “Programming
the CD tracks” on page 10).
• Tape: Load a tape with the side you want
to play facing forward.
• Radio: Tune in the preset station you
want (see “Presetting radio stations” on
page 11).
2 Adjust the volume.
3 Press c/CLOCK SET (or CLOCK/TIMER
SET on the remote).
“SET” appears and “DAILY SET” flashes
in the display.
4 Press ENTER.
“ON” appears and the hour digits flash in
the display.
5 Set the time to start playback.
Press R/r repeatedly to set the hour, then
press ENTER.
The minute indication starts flashing.
Press R/r repeatedly to set the minute, then
press ENTER.
6 Set the time to stop playback following
the above procedure.
To
Check the setting
Change the setting
Cancel the timer
operation
Notes
• When you use the Sleep Timer, Daily Timer will
not turn on the system until the Sleep Timer turns it
off.
• You cannot activate the Daily Timer and the
recording timer at the same time.
Tip
The power turns on 15 seconds before the preset time.
Do this
Press TIMER SELECT (or
CLOCK/TIMER SELECT
on the remote). Press R/r to
select “DAILY SELECT”.
Then, press ENTER.
Start from step 1.
Press TIMER SELECT (or
CLOCK/TIMER SELECT
on the remote). Press R/r to
select “TIMER OFF”.
Then, press ENTER.
20
GB
Changing the spectrum
analyzer display
Press SPECTRUM ANALYZER.
Each time you press the button, the display
changes cyclically as follows:
PATTERN1 t PATTERN2 t
PATTERN3 t PATTERN4
Singing along: Karaoke
You can sing along with any stereo CD or tape
by turning down the singer’s voice. You need
to connect an optional microphone.
1 Turn MIC LEVEL to MIN to turn down
the microphone control level.
2 Connect an optional microphone to MIX
MIC.
3 Press MIX GUITAR/KARAOKE.
Each time you press the button, the display
changes as follows:
MIX GUITAR/KARAOKE
y EFFECT
OFF* or audio emphasis name*
The m indicator appears when karaoke mode is
activated.
* Karaoke mode is canceled.
4 Start playing the music.
5 Adjust the microphone volume by
turning MIC LEVEL.
Other Features
After you have finished
Turn MIC LEVEL to MIN and disconnect the
microphone from MIX MIC, then press MIX
GUITAR/KARAOKE repeatedly until “m”
disappears.
Notes
• With some songs, vocals may not be canceled when
you select “MIX GUITAR/KARAOKE.”
• During MIX GUITAR/KARAOKE, equalizer and
surround settings cannot be changed.
• If you select a sound effect, the karaoke mode is
canceled.
• The instrumental sound may be reduced as well as
the singer’s voice when the sound is recorded in
monaural.
• The singer’s voice may not be reduced when:
— only a few instruments are playing.
— a duet is being played.
— the source has strong echoes or chorus.
— the singer’s voice deviates from the center.
— the voice on the source is singing in high
soprano or tenor.
Mixing and recording sounds
1 Do the procedure for “Singing along”
(steps 1 through 5). Then, load a
recordable tape in deck B.
2 Press FUNCTION repeatedly to select
the source you want to record and set it
to pause mode.
3 Press z REC.
4 Press DIRECTION repeatedly to select
g to record on one side. Select j
(or RELAY) to record on both sides.
5 Press X.
6 Press HX to start playing the CD (or
H on deck A to start playing the tape).
Start singing along with the music.
To stop recording
Press x.
Other Features
21
GB
Tips
• If acoustic feedback (howling) occurs, move the
microphone away from the speakers or change the
direction of the microphone.
• If you want to record your voice through the
microphone only, you can do so by selecting the
CD function and not playing a CD.
• When high level sound signals are input, the unit
automatically adjusts the recording level to prevent
distortion of the recorded sound signal (Auto Level
Control Function).
Playing a guitar
You can enjoy playing the guitar by connecting
an electric guitar to the GUITAR jack on the
front panel.
When you select “MIX GUITAR/KARAOKE”
by pressing MIX GUITAR/KARAOKE, you
can play along with any stereo CD or tape.
You can select your preferred sound
characteristics by adjusting GUITAR LEVEL.
Using the Guitar distortion
effect
Press GUITAR DISTORTION.
The indicator on the GUITAR DISTORTION
button lights up.
Once GUITAR DISTORTION is activated, it
will remain active while the power is on even if
the function is changed.
To turn off GUITAR DISTORTION, press
GUITAR DISTORTION again, the indicator
on this button goes off.
Note
Playing a guitar with this unit may cause distortion or
howling. To avoid this, do the followings:
— Move the guitar away from the speakers.
— Turn down the guitar volume.
22
GB
Enhancing video game
sound
–– Game Sync
You can enjoy the sound effect of video games.
1 Connect a video game player (see
“Hooking up optional components” on
page 24).
2 Press GAME in the upper-right corner
on the front panel (see qf, “List of
Button Locations and Reference
Pages” on page 4).
Mixing video game sound
with other sound source
— Game Mixing
1 Connect a video game player (see
“Hooking up optional components” on
page 24).
2 Press FUNCTION repeatedly to select
your desired sound source.
3 Press GAME MIXING.
Each time you press this button, the level of the
game sound changes cyclically as follows:
MIXING LOW t MIXING MID t
MIXING HIGH t MIXING OFF
Tips
• The indicator on the GAME MIXING button lights
up when GAME MIXING is activated.
• Once GAME MIXING is activated, it will remain
active while the power is on even if the function is
changed.
Note
If you start recording while GAME MIXING is
activated, GAME MIXING is canceled. To record the
mixed sound, press GAME MIXING after step 4 of
“Recording Manually” on page 14, and then press X
to start recording.
Display
23
GB
Turning off the display
— Power Saving Mode
The demonstration display (display window
and buttons lighting and flashing even when
the system power is off) and the clock display
can be turned off to minimize the amount of
power consumed during standby (Power
Saving Mode).
Press POWER SAVE/DEMO (STANDBY)
repeatedly while the system is off until the
demonstration display disappears.
To cancel Power Saving Mode
Press POWER SAVE/DEMO (STANDBY)
repeatedly while the system is off. Each time
you press the button, the display switches as
follows:
Demonstration display y No display (Power
Saving Mode)
Tips
• `/1 indicator lights up even in the Power Saving
Mode.
• The timer continues to operate in Power Saving
Mode.
• Each time you press DISPLAY while the system is
off, the display switches as follows:
Demonstration display y Clock display*
* The clock is displayed only if you set the clock.
Using the CD display
You can check the remaining time of the
current track or that of the CD.
When a CD TEXT disc is loaded, you can
check the information stored on the disc, such
as the titles or artist names. When the unit
detects CD TEXT discs, the “CD-TEXT”
indication appears.
Press DISPLAY.
Display
During normal playback
Playing time on the current track t
Remaining time on the current track t
Remaining time on current CD (1 DISC mode)
or “--.-- ” display (ALL DISCS mode) t Title
name of the current track* t Clock display
(for a few seconds) t Effect status
In stop mode
Total number of tracks and total playing time
t Disc title* t Clock display (for a few
seconds) t Effect status
* With CD TEXT discs only (certain characters
cannot be displayed). When the CD contains more
than 20 tracks, CD TEXT is not displayed from
track 21 on.
Notes
• The display may not show all the characters
depending on the disc.
• This player can only display the disc titles and track
titles from CD TEXT discs. Other information
cannot be displayed.
24
GB
Hooking up optional components
To enhance your system, you can connect optional components. Refer to the operating instructions
provided with each component.
Optional Components
C
D
F
G
E
B
A
Optional TV Optional mixer Optional turntable
To the video
input of a TV
To the inputs
of a mixer
From the outputs
of a mixer
From the outputs
of a turntable
To the input of a
digital component
Optional digital
component
To the inputs of an
analog component
Optional analog
component
From the
outputs of
an analog
component
Optional analog
component
A CD DIGITAL OUT jack
Use a digital optical cable (square, not
supplied) to connect an optional digital
component (such as an MD deck) to this jack.
You can then output digital audio to that
component from this system.
B MD (VIDEO) OUT jacks
Use audio cords (not supplied) to connect an
optional component (such as an MD deck or a
VCR) to these jacks. You can then output audio
to that component from this system.
C MD (VIDEO) IN jacks
Use audio cords (not supplied) to connect an
optional component (such as an MD deck or a
VCR) to these jacks. You can then record or
listen to analogue audio from that component
through this system.
D VIDEO OUT jack
Use a video cord (not supplied) to connect an
optional component (such as a TV) to this jack.
You can then output video to that component
from the connected video game through this
system.
Optional Components
25
GB
E PHONO IN jacks
Use audio cords (not supplied) to connect an
optional component (such as a turntable) to
these jacks. You can then record or listen to
analogue audio from that component through
this system.
F DJ MIX SEND jacks (mixer for
North American and Mexican
models only)
Before connecting these jacks, remove the pre-
installed jumper for connecting the DJ MIX
RETURN and SEND jacks. Use audio cords
(not supplied) to connect an optional
component (such as a mixer) to these jacks.
You can then output audio to that component
from this system.
G DJ MIX RETURN jacks (mixer for
North American and Mexican
models only)
Before connecting these jacks, remove the pre-
installed jumper for connecting the DJ MIX
RETURN and SEND jacks. Use audio cords
(not supplied) to connect an optional
component (such as a mixer) to these jacks.
You can then record or listen to analogue audio
from that component through this system.
H
I
Optional video game
From the video
output of a video
game
From the audio
outputs of a video
game
H GAME INPUT AUDIO L/R jacks
Use audio cords (not supplied) to connect an
optional component (such as a video game or
camcorder, etc.) to these jacks. You can then
record or listen to analogue audio from that
component through this system.
I GAME INPUT VIDEO jack
Use video cord (not supplied) to connect an
optional component (such as a video game or
camcorder, etc.) to this jack. You can then
output video to the connected TV from that
component through this system.
Notes
• Be sure to match the color of the plugs and the
connectors.
• Using a turntable at high volume may cause
distortion or howling. This is often caused by the
bass sound from the speakers. The bass sound may
produce the distortion or howling. To avoid this, do
the following:
1 Keep some distance from speakers to the
turntable.
2 Stop using the surround effect.
3 Install the speakers or the turntable on a firm and
stable surface.
4 Press SUPER WOOFER repeatedly until the
indicator on this button goes off.
• Replace the jumpers when the mixer is not in use.
Otherwise, no sound will be heard. Be sure to
connect the jumpers from the RETURN jack to the
SEND jack of the unit.
Two jumpers are pre-installed connecting the DJ
MIX RETURN and SEND jacks.
26
GB
Listening to audio from a
connected component
Listening to an MD deck or
VCR, etc.
1 Connect the audio cords.
See “Hooking up optional components” on
page 24.
2 Press FUNCTION repeatedly until “MD”
or “VIDEO” appears.
Start playing the connected component.
Notes
• Holding down FUNCTION, and then pressing
`/1 while the power is off automatically turns the
power on and selects “VIDEO” as the function.
When the system is in power saving mode, this
function does not work.
• If the sound is distorted or too loud when “VIDEO”
is selected or you want to switch back to “MD,”
repeat the operation described above to switch to
“MD.”
Listening to a turntable, etc.
1 Connect the audio cords.
See “Hooking up optional components” on
page 24.
2 Press FUNCTION repeatedly until
“PHONO” appears.
Start playing the connected component.
Listening to a video game or
camcorder, etc.
1 Connect the audio cords.
See “Hooking up optional components” on
page 24.
2 Press FUNCTION repeatedly until
“GAME” appears or press GAME in the
right corner of the front panel.
Start playing the connected component.
Listening to an audio from
mixer, etc.
1 Connect the audio cords.
See “Hooking up optional components” on
page 24.
2 Press FUNCTION repeatedly until “CD”
appears.
Start playing the connected component.
Optional Components
27
GB
Recording audio from a
connected component
Making an analogue
recording from an analogue
component on a tape
1 Connect the audio cords.
See “Hooking up optional components” on
page 24.
2 Start recording manually.
See “Recording to a tape” on page 14.
Recording on a connected
component
Making a digital recording
1 Connect the digital optical cord.
See “Hooking up optional components” on
page 24.
2 Start recording.
Refer to the operating instructions provided
with connected component.
Making an analogue
recording
1 Connect the audio cords.
See “Hooking up optional components” on
page 24.
2 Start recording.
Refer to the operating instructions provided
with connected component.
28
GB
Problems and remedies
If you run into any problem using this unit, use
the following check list.
First, check that the power cord is connected
firmly and the speakers are connected correctly
and firmly.
Should any problem persist, consult your
nearest Sony dealer.
General
“--:--” appears in the display.
• A power interruption occurred. Set the clock and
timer settings again.
The display starts flashing as soon as you plug
in the power cord even though you haven’t
turned on the power.
• Refer to demonstration (see page 23).
The clock setting is canceled.
• The power cord is disconnected or a power
failure occurs. Redo “Setting the clock” (on page
8). If you have set the timer, redo “Waking up to
music” (on page 19) and “Timer-recording radio
programs” (on page 15).
The radio presetting/timer setting is canceled.
• The power cord is disconnected or a power
failure occurs for longer than half a day. Redo
“Presetting radio stations” (on page 11).
Troubleshooting
There is no sound.
• The jumpers for the DJ MIX jacks are not
connected (for North American and Mexican
models only).
• Turn VOLUME clockwise.
• The headphones are connected.
• Insert only the stripped portion of the speaker
cord into the SPEAKER jack. Inserting the vinyl
portion of the speaker cord will obstruct the
speaker connections.
• The protective device on the amplifier has been
activated because of a short circuit.
(“PROTECT” and “PUSH POWER” flash
alternately.) Turn off the unit, eliminate the
short-circuit problem and turn on the power
again.
• There is no audio output during timer recording.
There is no microphone sound.
• Turn VOLUME or MIC LEVEL to adjust the
microphone volume.
• Make sure the microphone is connected to the
MIX MIC jack correctly.
There is no guitar sound.
• Turn VOLUME or GUITAR LEVEL to adjust
the guitar volume.
• Make sure the guitar is connected to the
GUITAR jack correctly.
• Select “MIX GUITAR/KARAOKE” by pressing
MIX GUITAR/KARAOKE.
There is severe hum or noise.
• A TV or VCR is placed too close to the stereo
system. Move the stereo system away from the
TV or VCR.
The sound from the connected source is
distorted.
• If “VIDEO” appears in the display when you
press FUNCTION repeatedly, switch the display
to “MD” (see “Notes” in “Listening to audio
from a connected component” on page 26).
The timer does not function.
• Set the clock correctly
• Set the timer correctly
Troubleshooting
29
GB
CD Player
The CD tray does not close.
• The CD is not placed properly.
The CD will not play.
• The CD is not lying flat in the disc tray.
• The CD is dirty (see “Notes on CDs ” on page
31).
• The CD is inserted label side down.
• The CD is moist.
Play does not start from the first track.
• The player is in program or shuffle mode. Press
PLAY MODE repeatedly until “PROGRAM,”
“ALL DISCS SHUFFLE,” or “1 DISC
SHUFFLE” disappears.
Tape Deck
The tape does not record.
• The tab has been removed from the cassette (see
“To save a tape permanently” on page 31).
• The tape has reeled to the end.
The tape does not record nor play, or there is a
decrease in sound level.
• The heads are dirty (see “Cleaning the tape
heads” on page 32).
• The record/playback heads are magnetized (see
“Demagnetizing the tape heads” on page 32).
The tape does not erase completely.
• The record/playback heads are magnetized (see
“Demagnetizing the tape heads” on page 32).
There is excessive wow or flutter, or the sound
drops out.
• The capstans or pinch rollers are dirty (see
“Cleaning the tape heads” on page 32).
Noise increases or the high frequencies are erased.
• The record/playback heads are magnetized (see
“Demagnetizing the tape heads” on page 32).
DAILY and REC do not appear when you press
the c/CLOCK SET button.
• Set the timer correctly.
• Set the clock.
The remote does not function.
• There is an obstacle between the remote and the
system.
• The remote is not pointing in the direction of the
system’s sensor.
• The batteries have run down. Replace the
batteries.
There is acoustic feedback.
• Decrease the volume level.
• Move the microphone away form the speakers or
change the direction of the microphone.
The color irregularity on a TV screen persists.
• Turn off the TV set once, then turn it on after 15
to 30 minutes. If the color irregularity still
persists, place the speakers farther away from the
TV set.
Speakers
“PROTECT” and “PUSH POWER” appear
alternately.
• A strong signal was input. Press ?/1 to turn off
the power, leave the system turned off for a
while, then press ?/1 again to turn on the power.
• Check the speaker cables in case “PROTECT”
and “PUSH POWER” appear alternately again
after you turn the system on.
Sound comes from one channel or unbalanced
left and right volume.
• Check the speaker connection and speaker
placement.
Sound lacks bass.
• Check that the speaker’s + and – jacks are
connected correctly.
continued
30
GB
Tuner
Severe hum or noise (“TUNED” or “STEREO”
flashes in the display).
• Adjust the antenna.
• The signal strength is too weak. Connect the
external antenna.
A stereo FM program cannot be received in stereo.
• Press STEREO/MONO so that “STEREO”
disappears.
If other troubles not described above
occur, reset the system as follows:
1 Press c/CLOCK SET, TUNER ENTER
and ?/1 at the same time.
2 Unplug the power cord.
3 Plug the power cord back in.
4 Press ?/1 to turn on the power.
The unit is reset to factory settings. All the
settings you made are cleared.
Messages
CD
NO STEP
You have cleared all the tracks you programed.
OVER
You have reached the end of the CD. Press m.
STEP FULL
You tried to program 26 or more tracks (steps).
Problems and remedies (continued)
Additional Information
Precautions
On operating voltage
Before operating the unit, check that the operating
voltage of your unit is identical with the voltage of
your local power supply.
On safety
• The unit is not disconnected from the AC power
source (mains) as long as it is connected to the wall
outlet, even if the unit itself has been turned off.
• Unplug the unit from the wall outlet (mains) if it is
not to be used for an extended period of time. To
disconnect the cord (mains lead), pull it out by the
plug. Never pull the cord itself.
• Should any solid object or liquid fall into the
component, unplug the unit and have the
component checked by qualified personnel before
operating it any further.
• The AC power cord must be changed only at the
qualified service shop.
On placement
• Do not place the unit in an inclined position.
• Do not place the unit in locations where it is:
— extremely hot or cold
— dusty or dirty
— very humid
— vibrating
— subject to direct sunlight
• Use caution when placing the unit or speakers on
surfaces that have been specially treated (with wax,
oil, polish, etc.) as staining or discoloration of the
surface may result.
On heat buildup
• Although the unit heats up during the operation,
this is not the malfunction.
• Place the unit in a location with adequate
ventilation to prevent heat build-up in the unit.
If you continuously use this unit at a large volume,
the cabinet temperature of the top, side and bottom
rises considerably. To avoid burning yourself, do not
touch the cabinet.
To prevent a malfunction, do not cover the ventilation
hole for cooling fan.
Additional Information
31
GB
Tab of side B Tab of side A
Break off the
cassette tab of
side A
On operation
• If the unit is brought directly from a cold to a warm
location, or is placed in a very damp room, moisture
may condense on the lens inside the CD player.
Should this occur, the unit will not operate properly.
Remove the CD and leave the unit turned on for
about an hour until the moisture evaporates.
• When you move the unit, take out any discs.
If you have any questions or problems concerning
your unit, please consult your nearest Sony dealer.
Notes on CDs
• Before playing, clean the CD with a cleaning cloth.
Wipe the CD from the center out.
• Do not use solvents.
• Do not expose the CD to direct sunlight or heat
sources.
• Discs with non- standard shapes (e.g., heart, square,
star) cannot be played on this unit. Do not use such
discs.
Note on CD-R/CD-RW playback
Discs recorded on CD-R/CD-RW drives may not be
played back because of scratches, dirt, recording
conditions or the drive’s characteristics. Besides, the
discs, which are not yet finalized at the end of
recording, cannot be played back.
Cleaning the cabinet
Use a soft cloth slightly moistened with mild
detergent solution.
To save a tape permanently
To prevent a tape from being accidentally recorded
over, break off the cassette tab from side A or B as
illustrated.
If you later want to reuse the tape for recording, cover
the broken tab with adhesive tape. However, be
careful not to cover the detector slots which allow the
tape player to automatically detect the type of tape.
Before placing a cassette in the tape
deck
Take up any slack in the tape. Otherwise the tape may
get entangled in the parts of the tape deck and become
damaged.
When using a tape longer than 90
minutes
The tape is very elastic. Do not change the tape
operations such as play, stop, and fast-winding, etc.
frequently. The tape may get entangled in the tape
deck.
continued
32
GB
Specifications
AUDIO POWER SPECIFICATIONS
(LBT-XGR6 USA models only)
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
With 6 ohm loads, both channels driven, from
120-10,000 Hz; rated 140 watts per channel
minimum RMS power, with no more than 10%
total harmonic distortion from 250 milli watts
to rated output.
Amplifier section
North American models:
LBT-XGR6
Continuous RMS power output (reference)
160 + 160 watts (6 ohms at
1 kHz, 10% THD)
Total harmonic distortion less than 0.07%
(6 ohms at 1 kHz, 70 W)
Other models:
LBT-XGR80
The following measured at AC 120/220/240V, 50 Hz
DIN power output (rated) 125W × 2 + 125W × 2
watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
170 W × 2 + 170 W × 2
(6 ohms at 1 kHz, 10% THD)
LBT-XGR60
The following measured at AC 120/220/240V, 50 Hz
DIN power output (rated) 150 + 150 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
200 + 200 watts
(6 ohms at 1 kHz, 10% THD)
Cleaning the tape heads
Clean the tape heads after every 10 hours of use.
Make sure to clean the tape heads before you start an
important recording or after playing an old tape. Use
separately sold dry-type or wet-type cleaning cassette.
For details, refer to the instructions of the cleaning
cassette.
Demagnetizing the tape heads
Demagnetize the tape heads and the metal parts that
have contact with the tape every 20 to 30 hours of use
with a separately sold demagnetizing cassette. For
details, refer to the instructions of the demagnetizing
cassette.
Precautions (continued)
Additional Information
33
GB
CD player section
System Compact disc and digital
audio system
Laser Semiconductor laser
(λ=795 nm), Emission
duration: continuous
Frequency response 2 Hz – 20 kHz (±0.5 dB)
Signal-to-noise ratio More than 90 dB
Dynamic range More than 90 dB
CD OPTICAL DIGITAL OUT
(Square optical connector jack, rear panel)
Wavelength: 660 nm
Output level –18 dBm
Tape player section
Recording system 4-track 2-channel stereo
Frequency response 40 – 13,000 Hz (±3 dB),
using Sony TYPE I cassette
Wow and flutter ±0.15% W.Peak (IEC)
0.1% W.RMS (NAB)
±0.2% W.Peak (DIN)
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range
North American models: 87.5 – 108.0 MHz
(100 kHz step)
Other models: 87.5 – 108.0 MHz
(50 kHz step)
Antenna FM lead antenna
Antenna terminals 75 ohms unbalanced
Intermediate frequency 10.7 MHz
Inputs
DJ MIX RETURN*:
(phono jacks) sensitivity 250 mV,
impedance 47 kilohms
GUITAR:
(phone jack) sensitivity 75 mV,
impedance 470 kilohms
PHONO IN:
(phono jacks) sensitivity 3 mV,
impedance 47 kilohms
MIX MIC:
(phone jack) sensitivity 1 mV,
impedance 10 kilohms
GAME INPUT:
(phono jacks) sensitivity 250 mV,
impedance 47 kilohms
MD (VIDEO) IN:
(phono jack) sensitivity 450 mV
(250 mV), impedance
47 kilohms
Outputs
DJ MIX SEND*:
(phono jacks) sensitivity 250 mV,
impedance 1 kilohms
PHONES:
(stereo phone jack) accepts headphones of
8 ohms or more
MD (VIDEO) OUT:
(phono jacks) voltage 250 mV
impedance 1 kilohms
FRONT SPEAKER:
LBT-XGR80: accepts impedance of 6 to
16 ohms (SUPER
WOOFER)
accepts impedance of 6 to
16 ohms (TWEETER &
WOOFER)
LBT-XGR60/XGR6: accepts impedance of 6 to
16 ohms
* North American and Mexican models only
continued
34
GB
AM tuner section
Tuning range
Pan- American models: 530 – 1,710 kHz
(with the interval set at
10 kHz)
531 – 1,710 kHz
(with the interval set at
9 kHz)
Other models: 531 – 1,602 kHz
(with the interval set at
9 kHz)
530 – 1,710 kHz
(with the interval set at
10 kHz)
Antenna AM loop antenna
Antenna terminals External antenna terminal
Intermediate frequency 450 kHz
Speakers
North American models:
SS-XGR6 for LBT-XGR6
Speaker system 3-way BUILT IN SW,
bass-reflex type
Speaker units
Super Woofer/Woofer: 17 cm/17 cm, cone type
Tweeter: 2.5 cm, horn type
Rated impedance 6 ohms
Dimensions (w/h/d) Approx. 255 × 530 ×
330 mm
Mass Approx. 9.0 kg net per
speaker
Other models
speaker SS-XGR60 for LBT-XGR60
Speaker system 3-way BUILT IN SW,
bass-reflex type,
magnetically shielded type
Speaker units
Super Woofer/Woofer: 17 cm/17 cm, cone type
Tweeter: 2.5 cm, horn type
Rated impedance 6 ohms
Dimensions (w/h/d) Approx. 255 × 530 ×
375 mm
Mass Approx. 10.0 kg net per
speaker
SS-XGR80 for LBT-XGR80
Speaker system 3-way BUILT IN SW,
bass-reflex type,
magnetically shielded type
Speaker units
Super Woofer: 22 cm, cone type
Rated impedance 6 ohms
Woofer: 20 cm, cone type
Tweeter: 2.5 cm, horn type
Rated impedance 6 ohms
Dimensions (w/h/d) Approx. 290 × 615 ×
440 mm
Mass Approx. 15.5 kg net per
speaker
Specifications (continued)
Additional Information
35
GB
General
Power requirements
North American models: 120 V AC, 60 Hz
Mexican model: 120 V AC, 60 Hz
Other models: 120 V, 220 V or 230 –
240 V AC, 50/60 Hz
Adjustable with voltage
selector
Power consumption
U.S.A. models:
LBT-XGR6 240 watts
Other models:
LBT-XGR80 320 watts
LBT-XGR60 180 watts
Dimensions (w/h/d) Approx. 355 × 425 ×
451 mm
Mass :
LBT-XGR6 Approx. 13.0 kg
LBT-XGR80 Approx. 16.4 kg
LBT-XGR60 Approx. 14.7 kg
Supplied accessories: AM loop antenna (1)
FM lead antenna (1)
Speaker cords
(MHC-XGR80:4,
MHC-XGR60/XGR6:2)
Speaker pads (8)
Remote commander (1)
Batteries (2)
Design and specifications are subject to change
without notice.
36
GB
Sony Corporation Printed in Indonesia
