SAFETY INSTRUCTIONS

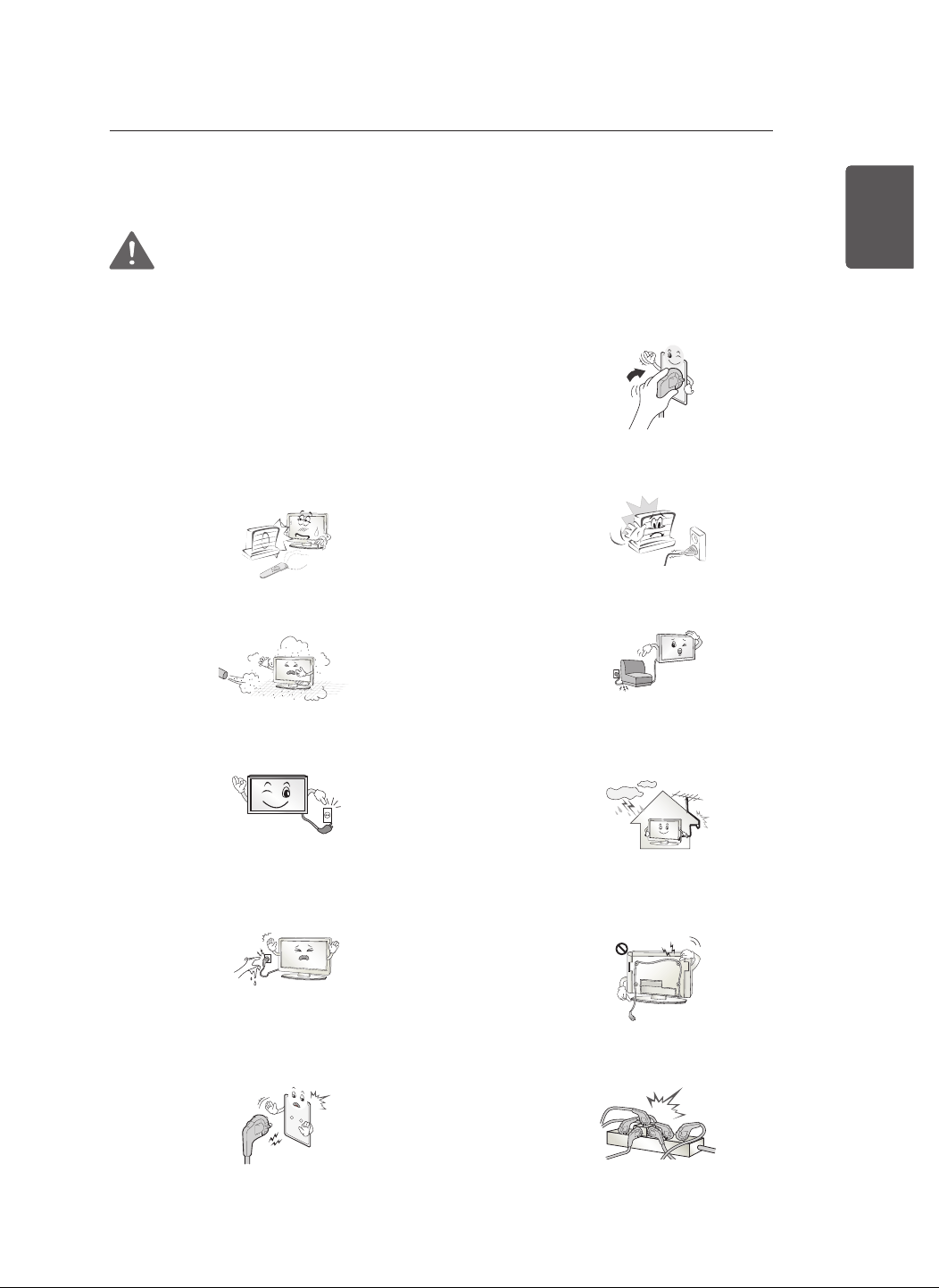

y
Do not place the TV and/or remote control
in the following environments:
- A location exposed to direct sunlight
- An area with high humidity such as a
bathroom
- Near any heat source such as stoves
and other devices that produce heat
- Near kitchen counters or humidifiers
where they can easily be exposed to
steam or oil
- An area exposed to rain or wind
- Near containers of water such as vases
Otherwise, this may result in fire, electric
shock, malfunction or product deformation.
y
Do not place the product where it might
be exposed to dust.
This may cause a fire hazard.
y
Mains Plug is the TV connecting/
disconnecting device to AC mains electric
supply. This plug must remain readily
attached and operable when TV is in use.
y
Do not touch the power plug with wet
hands. Additionally, if the cord pin is wet
or covered with dust, dry the power plug
completely or wipe dust off.
You may be electrocuted due to excess
moisture.
y
Make sure to connect Mains cable to
compliant AC mains socket with Grounded
earth pin. (Except for devices which
are not grounded on earth.) Otherwise
possibility you may be electrocuted or
injured.
y
Insert power cable plug completely into
wall socket otherwise if not secured
completely into socket, fire ignition may
break out.
y
Ensure the power cord does not come into
contact with hot objects such as a heater.
This may cause a fire or an electric shock
hazard.
y
Do not place a heavy object, or the
product itself, on power cables.
Otherwise, this may result in fire or electric
shock.
y
Bend antenna cable between inside and
outside building to prevent rain from
flowing in.
This may cause water damaged inside the
Product and could give an electric shock.
y
When mounting TV onto wall make sure
to neatly install and isolate cabling from
rear of TV as to not create possibility of
electric shock /fire hazard.
y
Do not plug too many electrical devices
into a single multiple electrical outlet.
Otherwise, this may result in fire due to
over-heating.
SAFETy INSTRUCTIONS
Please read these safety precautions carefully before using the product.
WARNING
4
ENG
ENGLISH

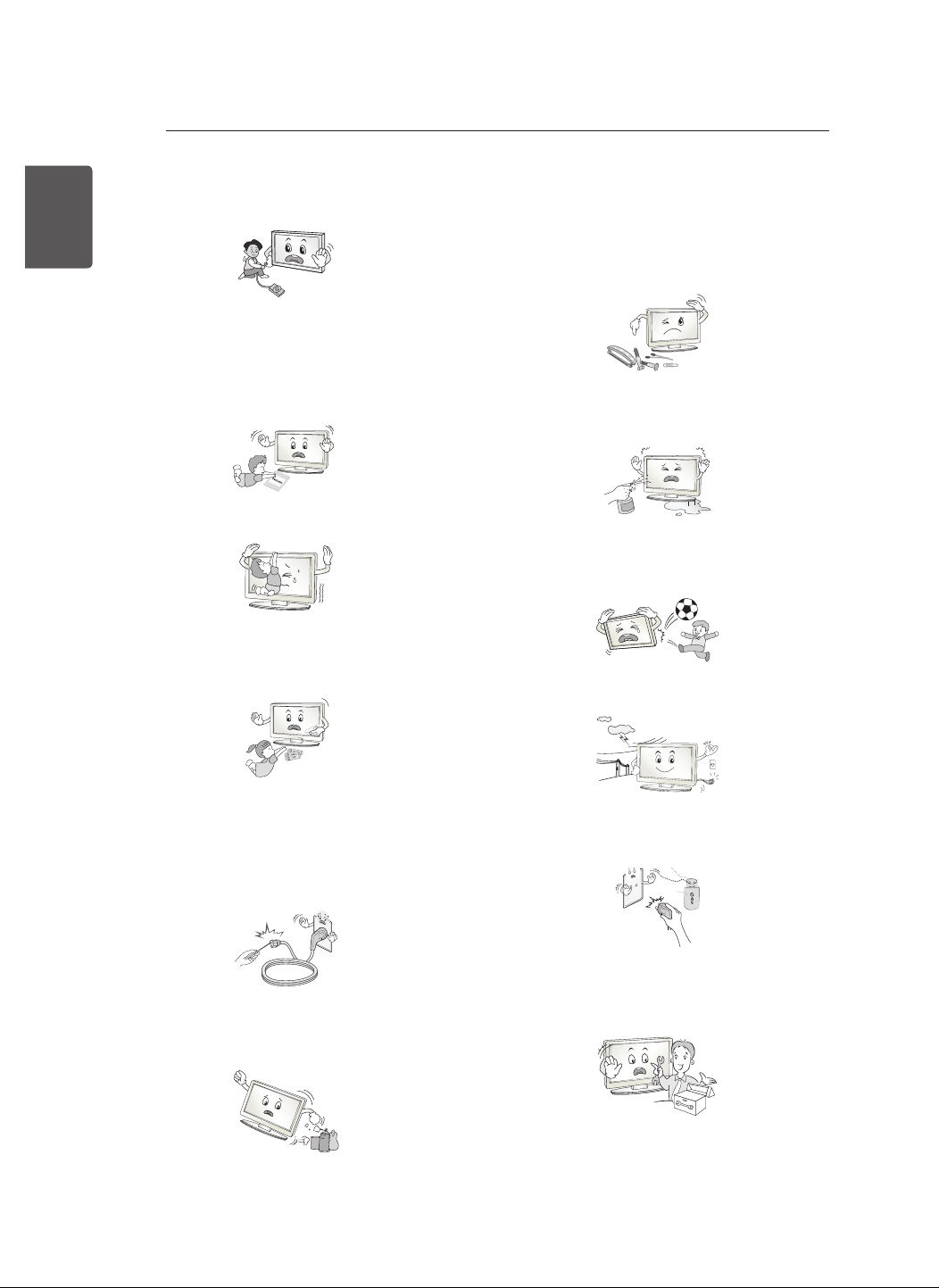

SAFETY INSTRUCTIONS
y
Do not drop the product or let it fall over
when connecting external devices.
Otherwise, this may result in injury or
damage to the product.
y
Keep the anti-moisture packing material or
vinyl packing out of the reach of children.
Anti-moisture material is harmful if
swallowed. If swallowed by mistake, force
the patient to vomit and visit the nearest
hospital. Additionally, vinyl packing can
cause suffocation. Keep it out of the reach
of children.
y
Do not let your children climb or cling onto
the TV. Otherwise, the TV may fall over,
which may cause serious injury.
y
Dispose of used batteries carefully
to ensure that a small child does not
consume them. Please seek Doctor-
Medical Attention immediately if child
consumes batteries.
y
Do not insert any metal objects/conductors
(like a metal chopstick/cutlery/screwdriver)
between power cable plug and input Wall
Socket while it is connected to the input
terminal on the wall. Additionally, do not
touch the power cable right after plugging
into the wall input terminal. You may be
electrocuted. (Depending on model)
y
Do not put or store inflammable
substances near the product. There is a
danger of combustion/explosion or fire due
to careless handling of the inflammable
substances.
y
Do not drop metallic objects such as
coins, hair pins, chopsticks or wire into
the product, or inflammable objects such
as paper and matches. Children must
pay particular attention. Electrical shock,
fire or injury can occur. If a foreign object
is dropped into the product, unplug the
power cord and contact the service centre.
y
Do not spray water on the product or
scrub with an inflammable substance
(thinner or benzene). Fire or electric shock
accident can occur.
y
Do not allow any impact, shock or any
objects to fall into the unit, and do not
drop anything onto the screen.
You may be injured or the product can be
damaged.
y
Never touch this product or antenna
during a thunder or lighting storm.
You may be electrocuted.
y
Never touch the wall outlet when there is
leakage of gas, open the windows and
ventilate.
It may cause a fire or a burn by a spark.
y
Do not disassemble, repair or modify the
product at your own discretion.
Fire or electric shock accident can occur.
Contact the service centre for check,
calibration or repair.
5
ENGENGLISH

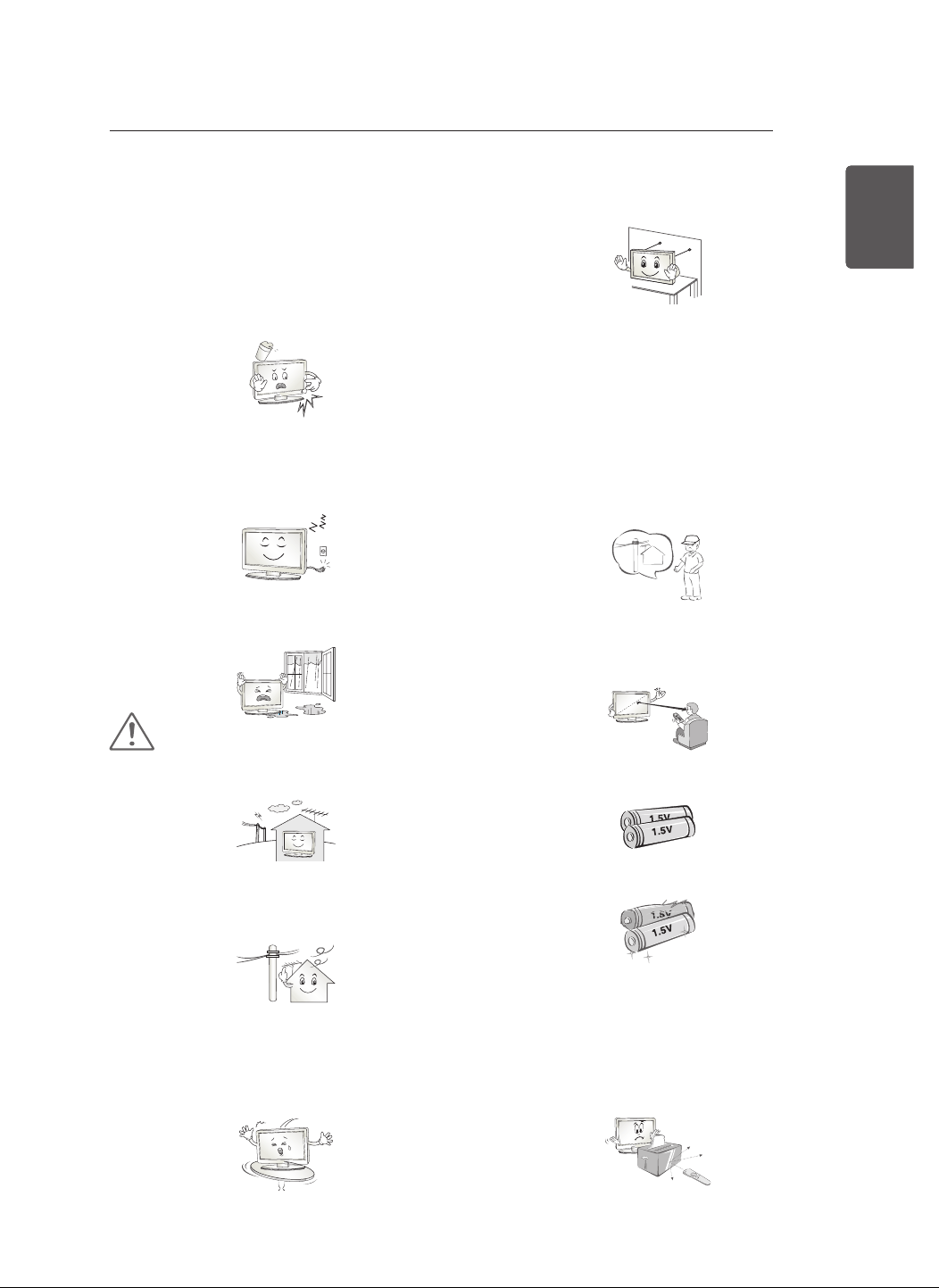

SAFETY INSTRUCTIONS
y
If any of the following occur, unplug the
product immediately and contact your
local service centre.
- The product has been impacted by
shock
- The product has been damaged
- Foreign objects have entered the
product
- The product produced smoke or a
strange smell
This may result in fire or electric shock.
y
Unplug the TV from AC mains wall socket
if you do not intend to use the TV for a
long period of time. Accumulated dust
can cause fire hazard and insulation
deterioration can cause electric leakage/
shock/fire.
y
Apparatus shall not be exposed to
dripping or splashing and no objects
filled with liquids, such as vases, shall be
placed on the apparatus.
CAUTION
y
Install the product where no radio wave
occurs.
y
There should be enough distance between
an outside antenna and power lines to
keep the former from touching the latter
even when the antenna falls.
This may cause an electric shock.
y
Do not install the product on places such
as unstable shelves or inclined surfaces.
Also avoid places where there is vibration
or where the product cannot be fully
supported. Otherwise, the product may
fall or flip over, which may cause injury or
damage to the product.
y
If you install the TV on a stand, you need
to take actions to prevent the product from
overturning. Otherwise, the product may
fall over, which may cause injury.
y
If you intend to mount the product to a
wall, attach VESA standard mounting
interface (optional parts) to the back of the
product. When you install the set to use
the wall mounting bracket (optional parts),
fix it carefully so as not to drop.
y
Only use the attachments / accessories
specified by the manufacturer.
y
When installing the antenna, consult
with a qualified service technician. If not
installed by a qualified technician, this
may create a fire hazard or an electric
shock hazard.
y
We recommend that you maintain a
distance of at least 2 to 7 times the
diagonal screen size when watching TV.
If you watch TV for a long period of time,
this may cause blurred vision.
y
Only use the specified type of battery.
This could cause damage to the remote
control.
y
Do not mix new batteries with old
batteries. This may cause the batteries to
overheat and leak.
y
Batteries should not be exposed to
excessive heat. For example, keep away
from direct Sunlight, open fireplace and
electric heaters.
y
Do not place non-rechargeable batteries
in charging device.
y
Make sure there are no objects between
the remote control and its sensor.
6
ENG
ENGLISH
SAFETY INSTRUCTIONS
y
Signal from Remote Control can be
interrupted due to external/internal lighting
eg Sunlight, fluorescent lighting.If this
occurs turn off lighting or darken viewing
area.
y
When connecting external devices such
as video game consoles, make sure the
connecting cables are long enough.
Otherwise, the product may fall over,
which may cause injury or damage the
product.
y
Do not turn the product On/Off by
plugging-in or unplugging the power plug
to the wall outlet. (Do not use the power
plug for switch.)
It may cause mechanical failure or could
give an electric shock.
y
Please follow the installation instructions
below to prevent the product from
overheating.
- The distance between the product and
the wall should be more than 10 cm.
- Do not install the product in a place with
no ventilation (e.g., on a bookshelf or in
a cupboard).
- Do not install the product on a carpet or
cushion.
- Make sure the air vent is not blocked by
a tablecloth or curtain.
Otherwise, this may result in fire.
y
Take care not to touch the ventilation
openings when watching the TV for long
periods as the ventilation openings may
become hot. This does not affect the
operation or performance of the product.
y
Periodically examine the cord of your
appliance, and if its appearance indicates
damage or deterioration, unplug it,
discontinue use of the appliance, and
have the cord replaced with an exact
replacement part by an authorized
servicer.
y
Prevent dust collecting on the power plug
pins or outlet.
This may cause a fire hazard.
y
Protect the power cord from physical or
mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or
walked upon. Pay particular attention to
plugs, wall outlets, and the point where
the cord exits the appliance.
y
Do not press strongly upon the panel with
a hand or sharp object such as nail, pencil
or pen, or make a scratch on it, as it may
cause damage to screen.
y
Avoid touching the screen or holding your
finger(s) against it for long periods of time.
Doing so may produce some temporary or
permanent distortion/damage to screen.
y
When cleaning the product and its
components, unplug the power first
and wipe it with a soft cloth. Applying
excessive force may cause scratches or
discolouration. Do not spray with water
or wipe with a wet cloth. Never use glass
cleaner, car or industrial shiner, abrasives
or wax, benzene, alcohol etc., which can
damage the product and its panel.
Otherwise, this may result in fire, electric
shock or product damage (deformation,
corrosion or breakage).
y
As long as this unit is connected to the AC
wall outlet, it is not disconnected from the
AC power source even if you turn off this
unit by SWITCH.
7
ENGENGLISH

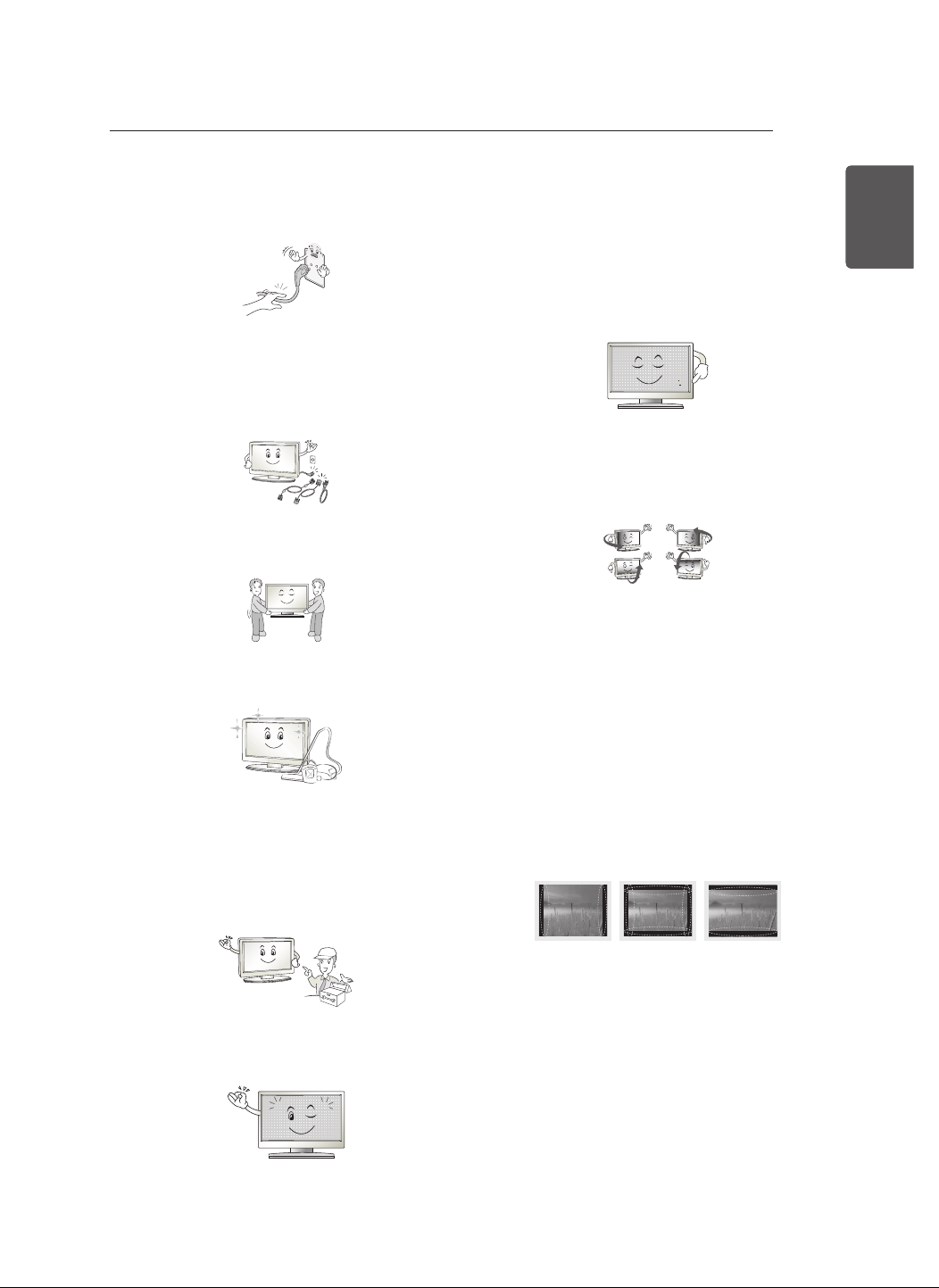

SAFETY INSTRUCTIONS
y
When unplugging the cable, grab the plug
and unplug it, by pulling at the plug. Don’t
pull at the cord to unplug the power cord
from the power board, as this could be
hazardous.
y
When moving the product, make sure
you turn the power off first. Then, unplug
the power cables, antenna cables and all
connecting cables.
The TV set or power cord may be
damaged, which may create a fire hazard
or cause electric shock.
y

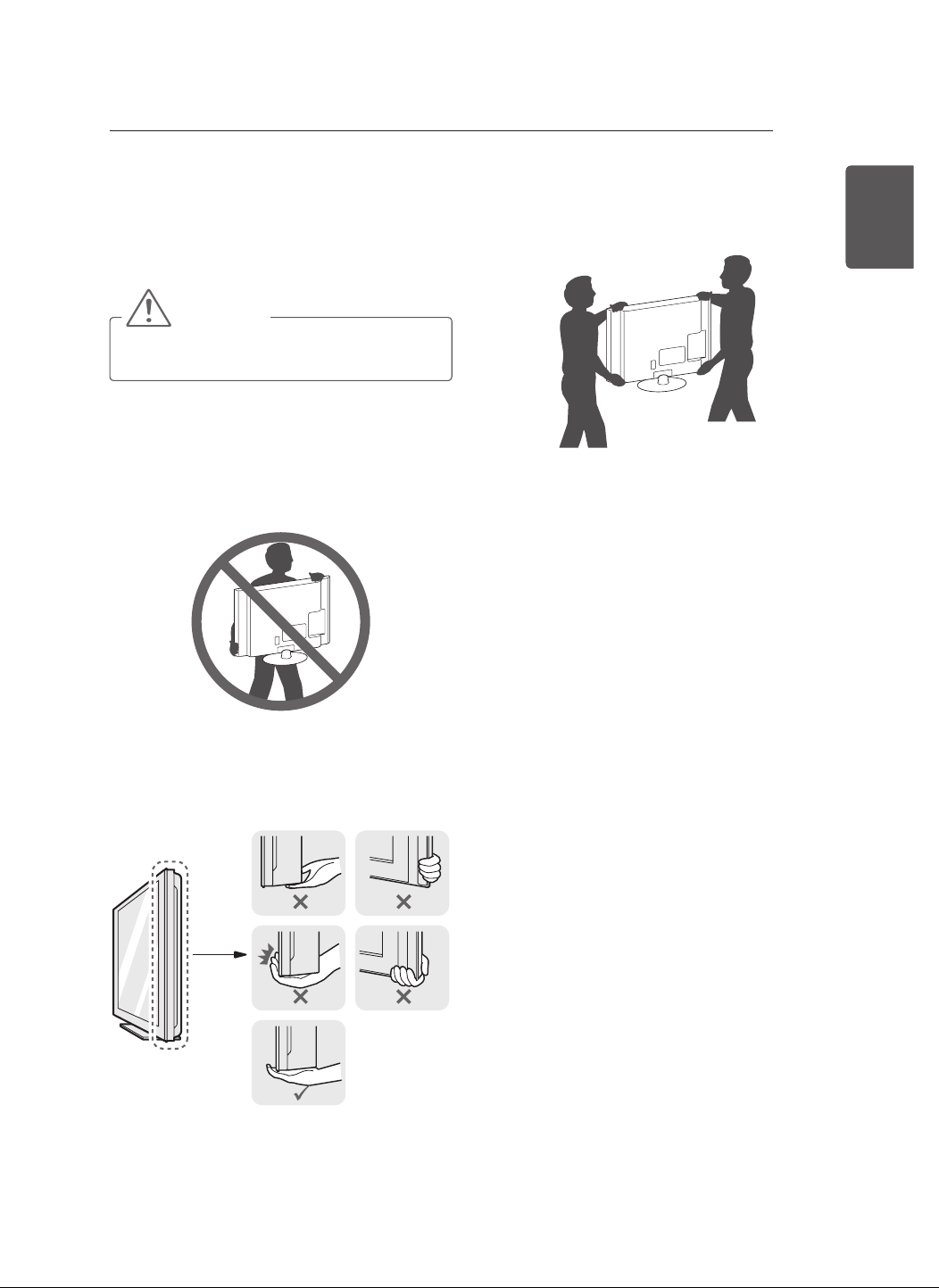

When moving or unpacking the product,
work in pairs because the product is
heavy.
Otherwise, this may result in injury.
y
Contact the service centre once a year to
clean the internal parts of the product.
Accumulated dust can cause mechanical
failure.
y
Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
y
If the product feels cold to the touch, there
may be a small “flicker” when it is turned
on. This is normal, there is nothing wrong
with product.
y
The panel is a high technology display
product with resolution of two million to six
million pixels. You may see tiny black dots
and/or brightly coloured dots (red, blue or
green) at a size of 1 ppm on the panel.
This does not indicate a malfunction and
does not affect the performance and
reliability of the product.
This phenomenon also occurs in third-
party products and is not subject to
exchange or refund.
y
You may find different brightness and
colour of the panel depending on your
viewing position(left/right/top/down).
This phenomenon occurs due to the
characteristic of the panel. It is not related
with the product performance, and it is not
malfunction.
y
Displaying a still image (e.g., broadcasting
channel logo, on-screen menu, scene
from a video game) for a prolonged
time may cause damage to the screen,
resulting in retention of the image, which
is known as image sticking. The warranty
does not cover the product for image
sticking.
Avoid displaying a fixed image on your
television’s screen for a prolonged period
(2 or more hours for LCD, 1 or more hours
for Plasma).
Also, if you watch the TV at a ratio of 4:3
for a long time, image sticking may occur
on the borders of the panel.
This phenomenon also occurs in third-
party products and is not subject to
exchange or refund.
y
Generated Sound
“Cracking” noise: A cracking noise that
occurs when watching or turning off the TV
is generated by plastic thermal contraction
due to tempera-ture and humidity. This
noise is common for products where
thermal deformation is required. Electrical
circuit humming/panel buzzing: A low level
noise is generated from a high-speed
switching circuit, which supplies a large
amount of current to operate a product. It
varies depend-ing on the product.
This generated sound does not affect the
performance and reliability of the product.
8
ENG
ENGLISH
SAFETY INSTRUCTIONS
viewing 3d Imaging
(Only 3d models)
WARNING
viewing Environment
y
Viewing Time
- When watching 3D contents, take 5 - 15
minute breaks every hour. Viewing 3D
contents for a long period of time may
cause headache, dizziness, fatigue or
eye strain.
Those that have a photosensitive seizure or
chronic illness
y
Some users may experience a seizure or
other abnormal symptoms when they are
exposed to a ashing light or particular
pattern from 3D contents.
y
Do not watch 3D videos if you feel nausea,
are pregnant and/ or have a chronic illness
such as epilepsy, cardiac disorder, or blood
pressure disease, etc.
y
3D Contents are not recommended to those
who suffer from stereo blindness or stereo
anomaly. Double images or discomfort in
viewing may be experienced.
y
If you have strabismus (cross-eyed),
amblyopia (weak eyesight) or astigmatism,
you may have trouble sensing depth and
easily feel fatigue due to double images. It
is advised to take frequent breaks than the
average adult.
y
If your eyesight varies between your right
and left eye, revise your eyesight prior to
watching 3D contents.
Symptoms which require discontinuation or
refraining from watching 3d contents
y
Do not watch 3D contents when you feel
fatigue from lack of sleep, overwork or
drinking.
y
When these symptoms are experienced,
stop using/watching 3D contents and get
enough rest until the symptom subsides.
- Consult your doctor when the symptoms
persist. Symptoms may include
headache, eyeball pain, dizziness,
nausea, palpitation, blurriness,
discomfort, double image, visual
inconvenience or fatigue.
CAUTION
viewing Environment
y
Viewing Distance
- Maintain a distance of at least twice the
screen diagonal length when watching
3D contents. If you feel discomfort in
viewing 3D contents, move further away
from the TV.
viewing Age
y
Infants/Children
- Usage/ Viewing 3D contents for children
under the age of 5 are prohibited.
- Children under the age of 10 may
overreact and become overly excited
because their vision is in development
(for example: trying to touch the
screen or trying to jump into it. Special
monitoring and extra attention is
required for children watching 3D
contents.
- Children have greater binocular
disparity of 3D presentations than adults
because the distance between the eyes
is shorter than one of adults. Therefore
they will perceive more stereoscopic
depth compared to adults for the same
3D image.
y
Teenagers
- Teenagers under the age of 19 may
react with sensitivity due to stimulation
from light in 3D contents. Advise them
to refrain from watching 3D contens for
a long time when they are tired.
y
Elderly
- The elderly may perceive less 3D
effect compared to the youth. Do not sit
closer to the TV than the recommended
distance.
Cautions when using the 3d glasses
y
Make sure to use LG 3D glasses. Otherwise,
you may not be able to view 3D videos
properly.
y
Do not use 3D glasses instead of your
normal glasses, sunglasses or protective
goggles.
y
Using modied 3D glasses may cause eye
strain or image distortion.
y
Do not keep your 3D glasses in extremely
high or low temperatures. It will cause
deformation.
y
The 3D glasses are fragile and are easy
to be scratched. Always use a soft, clean
piece of cloth when wiping the lenses. Do
not scratch the lenses of the 3D glasses
with sharp objects or clean/wipe them with
chemicals.
9
ENGENGLISH
INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING
NOTE
y
Image shown may differ from your TV.
y
Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
y
The available menus and options may differ from the input source or product model that you
are using.
y
New features may be added to this TV in the future.
y
The TV can be placed in standby mode in order to reduce the power consumption. And the
TV should be turned off if it will not be watched for some time, as this will reduce energy
consumption.
y
The energy consumed during use can be significantly reduced if the level of brightness of the
picture is reduced, and this will reduce the overall running cost.
INSTALLATION PROCEdURE
1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
ASSEMBLING ANd PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
CAUTION
y
Do not use any unapproved items to ensure the safety and product life span.
y
Any damages or injuries by using unapproved items are not covered by the manufacturer’s
warranty.
y
Some models have a thin film attached on to the screen and this must not be removed.
NOTE
y
The items supplied with your product may vary depending on the model.
y
Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
y
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm
thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB
memory stick does not fit into your TV’s USB port.
A
B
A
B
*A
<
=
10 mm
*B
<
=
18 mm
10
ENG
ENGLISH
ASSEMBLING AND PREPARING

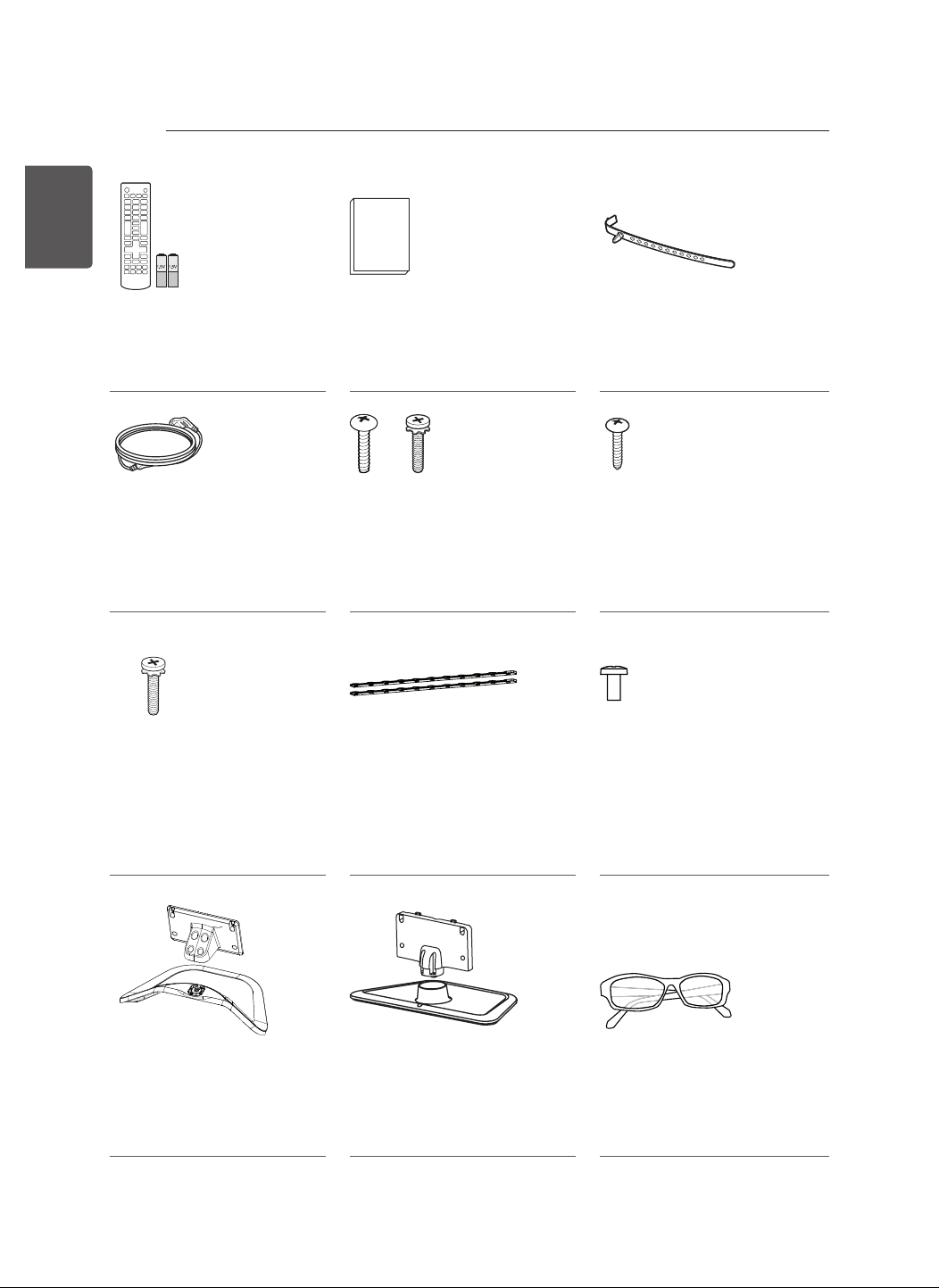

Remote control and
batteries (AAA)
(Depending on model)
(See p.24, 25, 26)
Owner’s manual Cable holder
(Depending on model)
(See p.19)
Power Cord Stand Screws
3EA, P5 x 25
4EA, M4 x 14
(Only LN54**, LN565*)
(See p.14)
Desk-mount Screw
(2EA : Only LA61**)
(1EA : Only
32/37/39/42/47/50/60LN54**,
LN565*)
(See p.16)
Stand Screws
8EA, M4 x 14
(Only LA61**)
(See p.14)
Desk-mount Cable
2EA
(Only LA61**)
(See p.16)
Bracket Screw
2EA, M4 x 8
(Only 32/42LA61**)
2EA, P4 x 8
(Only 50LA61**)
(See p.16)
Stand Body /
Stand Base
(Only LA61**)
(See p.14)
Stand Body /
Stand Base
(Only LN54**, LN565*)
(See p.14)
Cinema 3D Glasses
The number of 3D glasses
may differ depending on the
model or country.
(Only LA61**)
11
ENGENGLISH

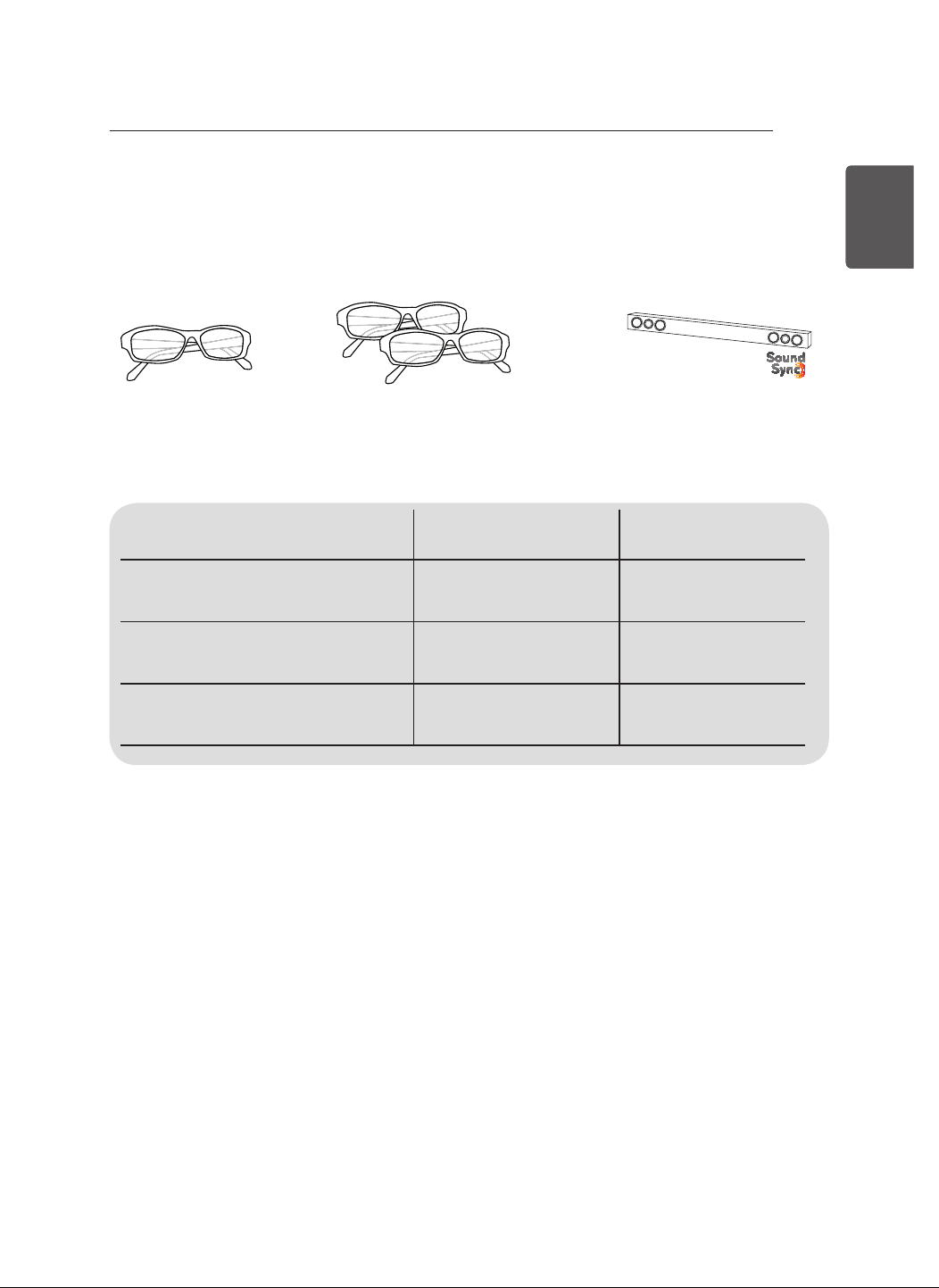

ASSEMBLING AND PREPARING
Separate purchase
Separate purchase items can be changed or modified for quality improvement without any notification.
Contact your dealer to buy these items.
These devices only work with certain models.
AG-F***
Cinema 3D glasses
AG-F***dP
Dual play glasses
LG Audio Device
Compatibility
LA61** LN54**, LN565*
AG-F***
Cinema 3D glasses
•
AG-F***dP
Dual play glasses
•
LG Audio Device •
The model name or design may be changed depending on the upgrade of product functions,
manufacturer’s circumstances or policies.
12
ENG
ENGLISH
ASSEMBLING AND PREPARING

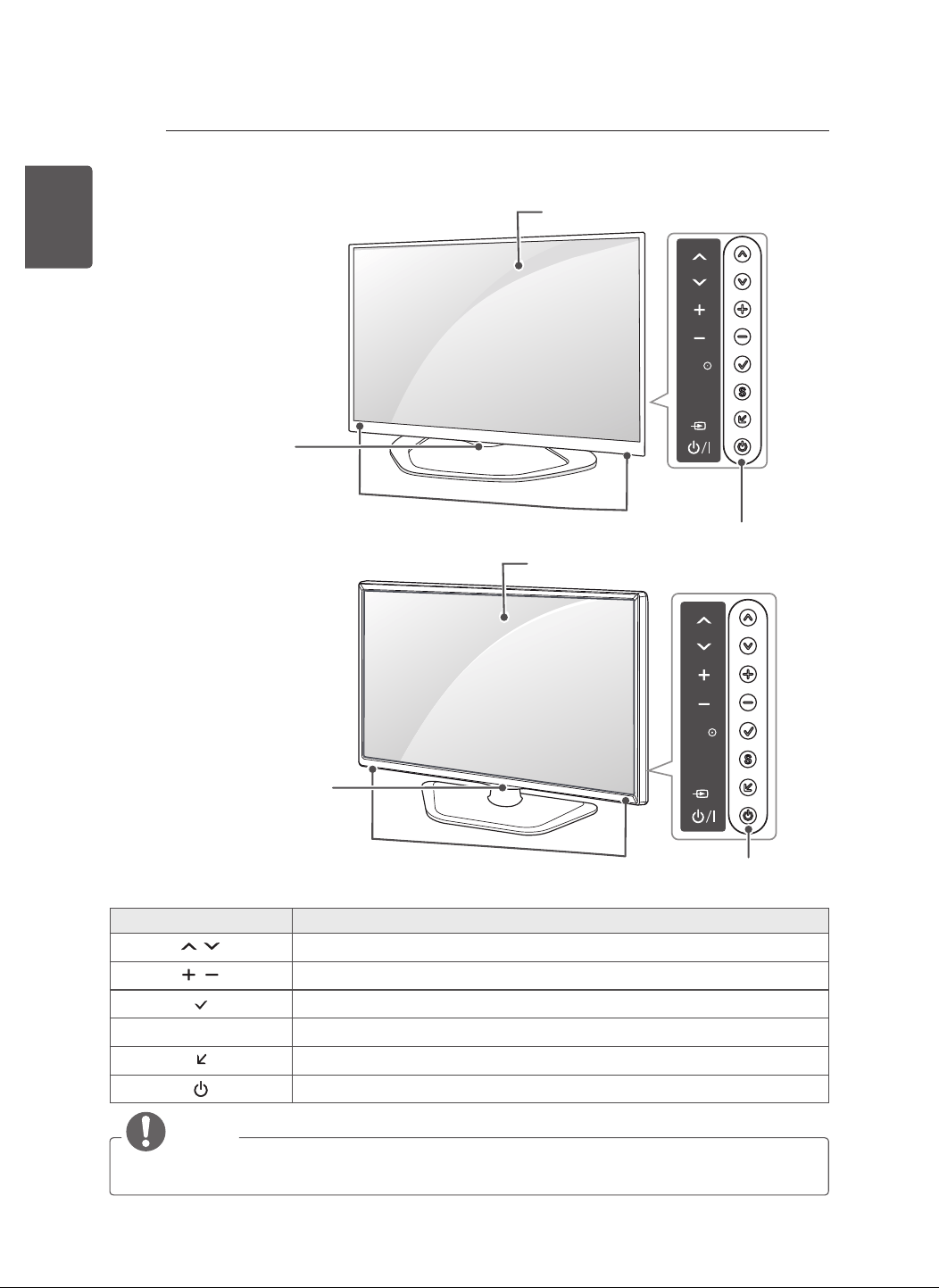

Parts and buttons
Button description
H
Scrolls through the saved programmes.
H
Adjusts the volume level.
H
Selects the highlighted menu option or confirms an input.
S
Accesses the main menu, or saves your input and exits the menus.
H
Changes the input source.
Turns the power on or off.
Only LA61**
LAN
(PC)
RGB IN
(RGB/HDMI-PC)
AUDIO
IN IN OUT
OPTICAL
DIGITAL
AUDIO
H/P
IN/OUT
(RGB)
AV1
IN
HDD IN USB Hub
USB Appps
USB IN
11(ARC) 2 3 4(PC) 2
USB IN
3
ANTENNA
/CABLE
13/18V
700mA MAx
LNB IN
Satellite
IN
COMPONENT
AV
PR
PB Y
VIDEO
AUDIO
SETTINGS
INPUT
OK
SETTINGS
INPUT
OK
Buttons
Speakers
Screen
Power indicator and
Remote control sensor
Only LN54**, LN565*
SETTINGS
OK
INPUT
Speakers
Screen
Power indicator and
Remote control sensor
Buttons
NOTE
y
You can set the power indicator light to on or off by selecting OPTION in the main menus.
13
ENGENGLISH
ASSEMBLING AND PREPARING
NOTE
y
You can set the power indicator light to on or off by selecting OPTION in the main menus.
Lifting and moving the Tv
Please note the following advice to prevent the
TV from being scratched or damaged and for
safe
transportation regardless of its type and size.
CAUTION
y
Avoid touching the screen at all times, as
this may result in damage to the screen.
y
It is recommended to move the TV in the
box or packing material that the TV originally
came in.
y
Before moving or lifting the TV, disconnect
the power cord and all cables.
y
When holding the TV, the screen should face
away from you to avoid damage.
y
Hold the top and bottom of the TV frame
rmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
y
When transporting a large TV, there should
be at least 2 people.
y
When transporting the TV by hand, hold the
TV as shown in the following illustration.
y
When transporting the TV, do not expose the
TV to jolts or excessive vibration.
y
When transporting the TV, keep the TV
upright, never turn the TV on its side or tilt
towards the left or right.
y
Do not apply excessive pressure to cause
exing /bending of frame chassis as it may
damage screen.
14
ENG
ENGLISH
ASSEMBLING AND PREPARING
Setting up the Tv
Image shown may differ from your TV.
Attaching the stand
2
3
1
LN54**, LN565*
1
2
LA61**
3
Stand Body
Stand Base
P5 x 25
3EA
M4 x 14
4EA
Stand Base
M4 x 14
4 EA
Stand Body
4EA
M4 x 14
15
ENGENGLISH
ASSEMBLING AND PREPARING
LA61**
CAUTION
y
When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
y
Make sure that the screws are inserted
correctly and fastened securely. (If they
are not fastened securely enough, the TV
may tilt forward after being installed.)
Do not use too much force and over
tighten the screws; otherwise screw may
be damaged and not tighten correctly.
NOTE
y
Remove the stand before installing the
TV on a wall mount by performing the
stand attachment in reverse.

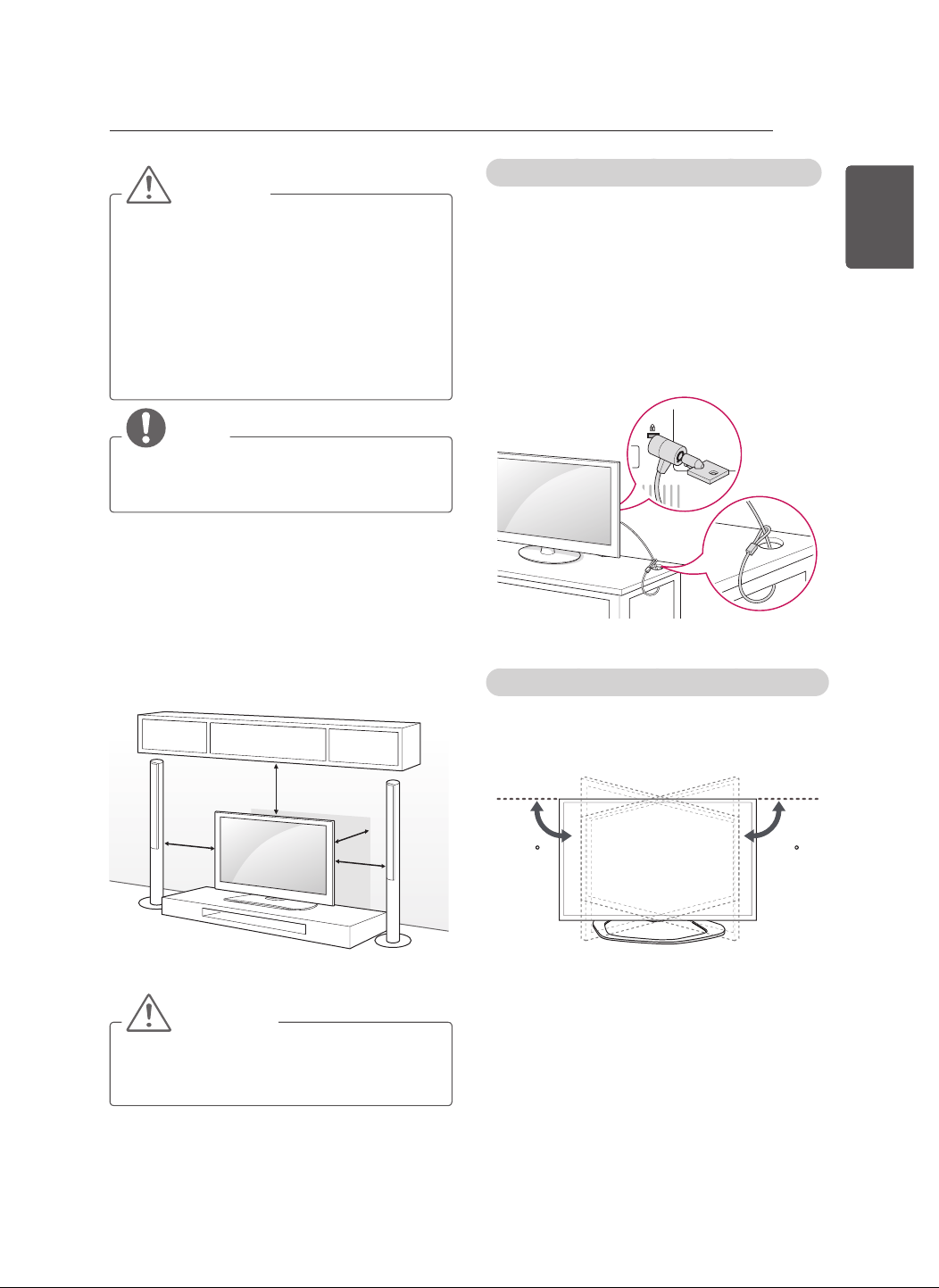

Mounting on a table
1 Lift and tilt the TV into its upright position on
a table.
- Leave a 10 cm (minimum) space from
the wall for proper ventilation.
10 cm
10 cm
10 cm
10 cm
2 Connect the power cord to a wall outlet.
CAUTION
y
Do not place the TV near or on sources
of heat, as this may result in fire or other
damage.
Using the Kensington security system
(This feature is not available for all models.)
The Kensington security system connector
is located at the rear of the TV. For more
information of installation and using, refer to the
manual provided with the Kensington security
system or visit http://www.kensington.com.
Connect the Kensington security system cable
between the TV and a table.
Adjusting the angle of the Tv to suit view
(Only LA61**)
Swivel 15 degrees to the left or right and adjust
the angle of the TV to suit your view.
1515
16
ENG
ENGLISH
ASSEMBLING AND PREPARING
CAUTION
y
When adjusting the angle of the product,
watch out for your fingers.
»
Personal injury may occur if hands or
fingers are pinched. If the product is tilted
too much, it may fall, causing damage or
injury.
<Rear> <Front>
Securing the TV to a table
Fix the TV to a table to prevent from tilting
forward, damage, and potential injury.
To secure the TV to a table, insert and tighten
the supplied screw on the rear of the stand.
(Only 32/37/39/42/47/50/60LN54**, LN565*)
(Only LA61**)
P4 x 8
(Only 50LA61**)
M4 x 8 (Only 32/42LA61**)
2EA
CAUTION
(Only LA61**)
How to fix the TV to a table
1. Connect the Desk-mount Cables to the
Stand Base using the Bracket Screws.
2. Fix the Desk-mount Cables to a table
using the Desk-mount Screws.
3. Once the TV is fixed, move the table
close to the wall. Children may go in,
causing injuries.
WARNING
y
To prevent TV from falling over, the TV
should be securely attached to the floor/
wall per installation instructions. Tipping,
shaking, or rocking the TV may cause
injury.
17
ENGENGLISH
ASSEMBLING AND PREPARING

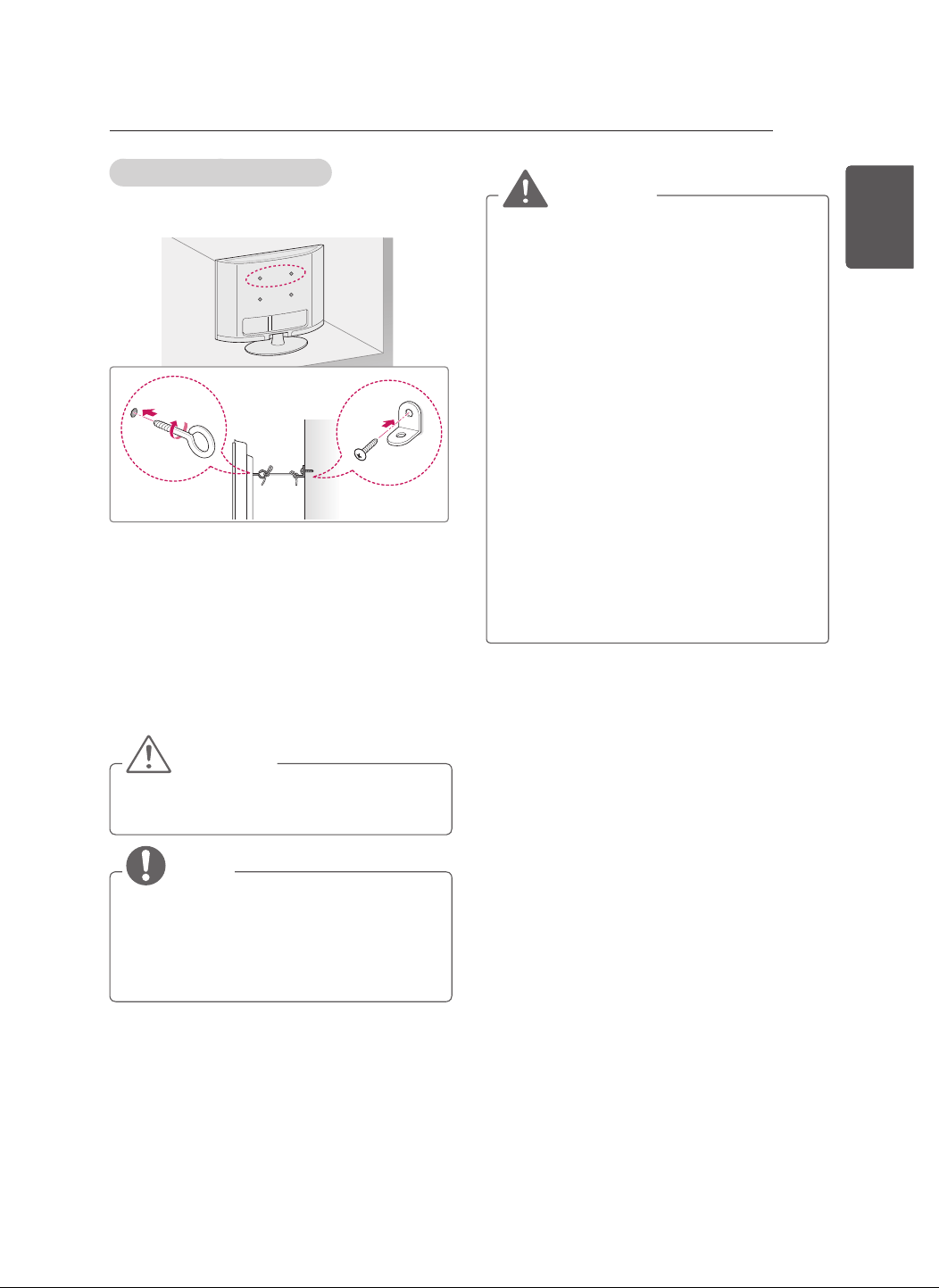

Securing the Tv to a wall
(This feature is not available for all models.)
1 Insert and tighten the eye-bolts, or TV
brackets and bolts on the back of the TV.
- If there are bolts inserted at the eye-
bolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and
the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets
tightly with a sturdy rope.
Make sure to keep the rope horizontal with
the flat surface.
CAUTION
y
Make sure that children do not climb on
or hang on the TV.
NOTE
y
Use a platform or cabinet that is strong
and large enough to support the TV
securely.
y
Brackets, bolts and ropes are not
provided. You can obtain additional
accessories from your local dealer.
WARNING
y
If a television is not positioned in a
sufficiently stable location, it can be
potentially hazardous due to falling. Many
injuries, particularly to children, can be
avoided by taking simple precautions
such as:
»
Using cabinets or stands
recommended by the manufacturer
of the television.
»
Only using furniture that can safely
support the television.
»
Ensuring the television is not
overhanging the edge of the
supporting furniture.
»
Not placing the television on tall
furniture (for example, cupboards or
bookcases) without anchoring both
the furniture and the television to a
suitable support.
»
Not standing the televisions on cloth
or other materials placed between
the television and supporting
furniture.
»
Educating children about the dangers
of climbing on furniture to reach the
television or its controls.
18
ENG
ENGLISH
ASSEMBLING AND PREPARING

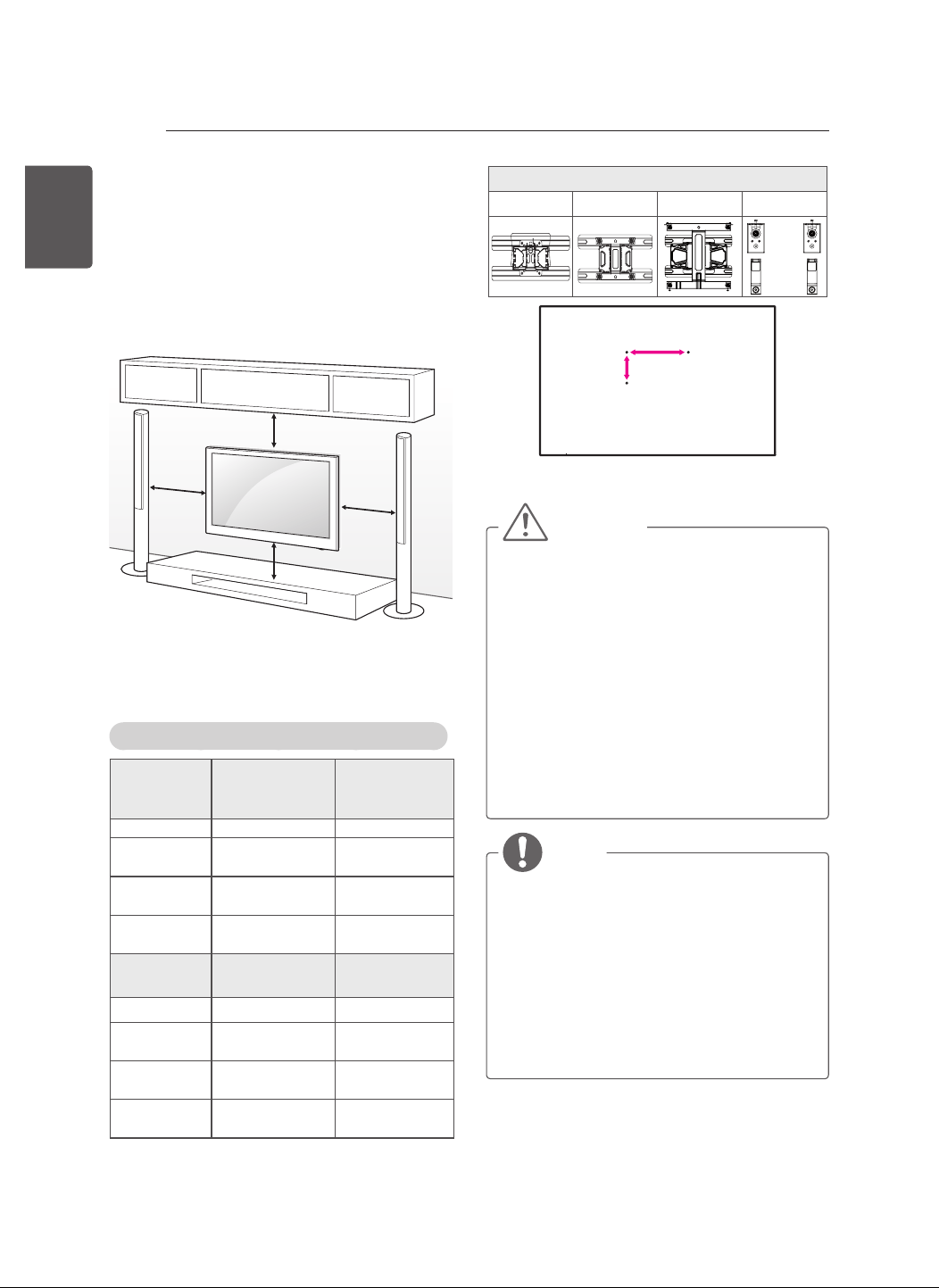

Mounting on a wall
Attach an optional wall mount bracket at the rear
of the TV carefully and install the wall mount
bracket on a solid wall perpendicular to the
floor. When you attach the TV to other building
materials, please contact qualified personnel.
LG recommends that wall mounting be
performed by a qualified professional installer.
10 cm
10 cm
10 cm
10 cm
Make sure to use screws and wall mount
bracket that meet the VESA standard. Standard
dimensions for the wall mount kits are described
in the following table.
Separate purchase(Wall Mounting Bracket)
Model 32LN54**
32LN565*
32LA61**
37/39/42LN54**
42LA61**
vESA (A x B) 200 x 100 200 x 200
Standard
screw
M4 M6
Number of
screws
4 4
Wall mount
bracket
LSW130B LSW230B
MSW240
Model
47/50/55LN54**
50LA61**
60LN54**
vESA (A x B)
400 x 400 400 x 400
Standard
screw
M6 M6
Number of
screws
4 4
Wall mount
bracket
LSW430B
MSW240
LSW430B
Wall mount bracket
LSW130B LSW230B LSW430B MSW240
A
B
CAUTION
y
Disconnect the power first, and then
move or install the TV. Otherwise electric
shock may occur.
y
If you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorized LG wall mount and
contact the local dealer or qualified
personnel.
y
Do not over tighten the screws as this
may cause damage to the TV and void
your warranty.
y
Use the screws and wall mounts that
meet the VESA standard. Any damages
or injuries by misuse or using an
improper accessory are not covered by
the manufacturer’s warranty.
NOTE
y
Use the screws that are listed on the
VESA standard screw specifications.
y
The wall mount kit includes an installation
manual and necessary parts.
y
The wall mount bracket is not provided.
You can obtain additional accessories
from your local dealer.
y
The length of screws may differ
depending on the wall mount. Make sure
to use the proper length.
y
For more information, refer to the manual
supplied with the wall mount.
19
ENGENGLISH
ASSEMBLING AND PREPARING / MAKING CONNECTIONS

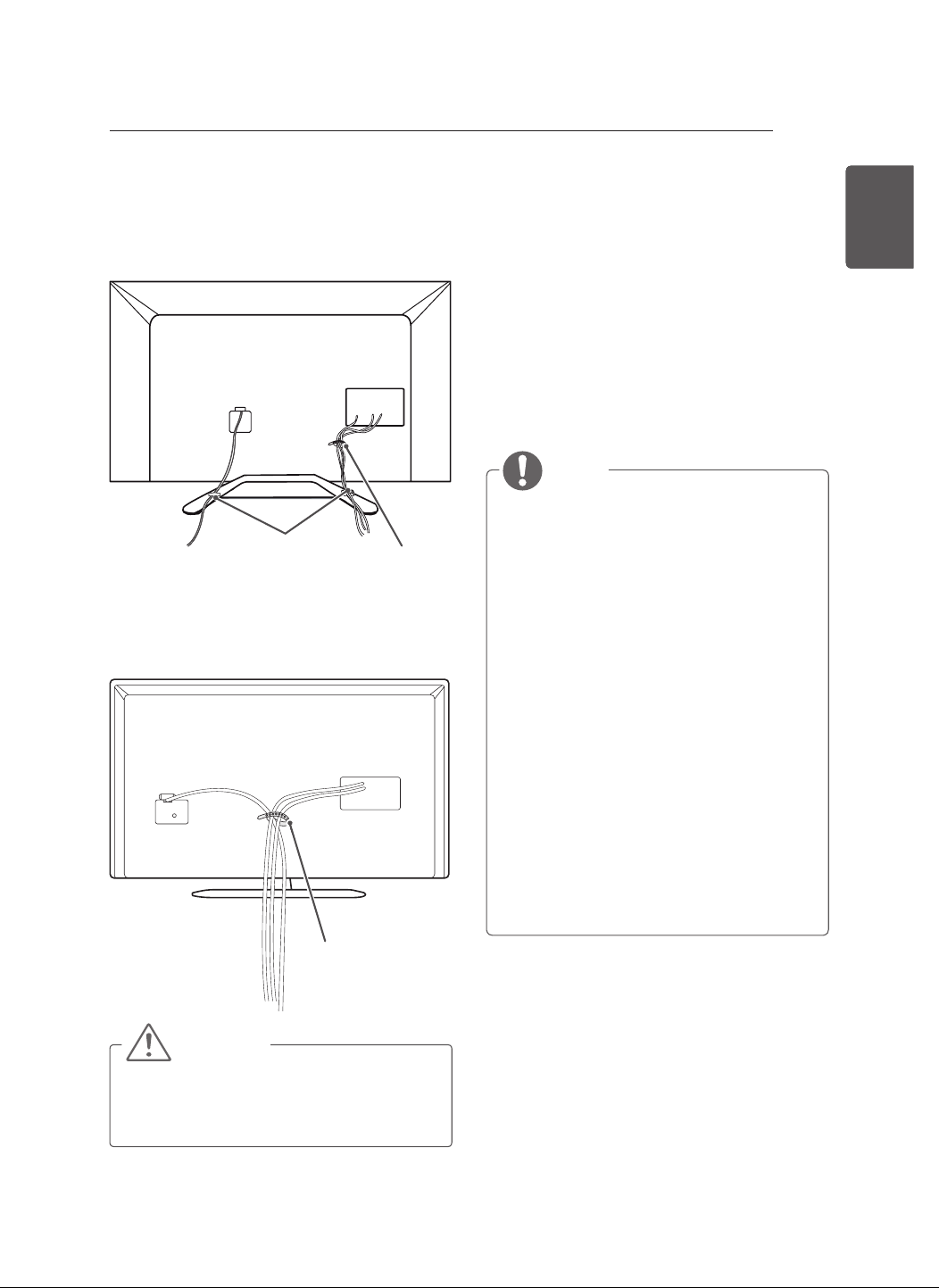

Tidying cables
(Only LA61**)
1 Use Cable Holder to neatly secure and
position cables together.
2 Fix the Cable Management firmly to the TV.
Cable Holder
Cable Management
(Only LN54**, LN565*)
Use Cable Holder to neatly secure and position
cables together.
Cable Holder
CAUTION
y
Do not move the TV by holding the cable
holder, as the cable holders may break,
and injuries and damage to the TV may
occur.
MAKING CONNECTIONS
This section on MAKING CONNECTIONS
mainly uses diagrams for the LN54** models.
Connect various external devices to the TV
and switch input modes to select an external
device. For more information of external device’s
connection, refer to the manual provided with
each device.
Available external devices are: HD receivers,
DVD players, VCRs, audio systems, USB
storage devices, PC, gaming devices, and other
external devices.
NOTE
y
The external device connection may differ
from the model.
y
Connect external devices to the TV
regardless of the order of the TV port.
y
If you record a TV programme on a
DVD recorder or VCR, make sure to
connect the TV signal input cable to the
TV through a DVD recorder or VCR. For
more information of recording, refer to
the manual provided with the connected
device.
y
Refer to the external equipment’s manual
for operating instructions.
y
If you connect a gaming device to the TV,
use the cable supplied with the gaming
device.
y
In PC mode, there may be noise
associated with the resolution, vertical
pattern, contrast or brightness. If noise is
present, change the PC output to another
resolution, change the refresh rate to
another rate or adjust the brightness and
contrast on the PICTURE menu until the
picture is clear.
y
In PC mode, some resolution settings
may not work properly depending on the
graphics card.
20
ENG
ENGLISH
MAKING CONNECTIONS
Antenna connection
Connect the TV to a wall antenna socket with an
RF cable (75 Ω).
ANTENNA/
CABLE IN
NOTE
y
Use a signal splitter to use more than 2
TVs.
y
If the image quality is poor, install a signal
amplifier properly to improve the image
quality.
y
If the image quality is poor with an
antenna connected, try to realign the
antenna in the correct direction.
y
An antenna cable and converter are not
supplied.
y
Supported DTV Audio: MPEG, Dolby
Digital, Dolby Digital Plus, HE-AAC
HdMI connection
Transmits the digital video and audio signals
from an external device to the TV. Connect the
external device and the TV with the HDMI cable
as shown.
(*Not
Provided)
DVD/ Blu-Ray / HD Cable
Box / HD STB / PC
HDMI
IN
NOTE
y
It is recommended to use the TV with
the HDMI connection for the best image
quality.
y
Use the latest High Speed HDMI™ Cable
with CEC (Customer Electronics Control)
function.
y
High Speed HDMI™ Cables are tested
to carry an HD signal up to 1080p and
higher.
y
Supported HDMI Audio format : Dolby
Digital, DTS, PCM (Up to 192kHz, 32kHz
/44.1kHz/48kHz/88kHz/96kHz/176kHz/
192kHz) (Only LA61**, LN565*)
y
Supported HDMI Audio format : Dolby
Digital, PCM (Up to 192kHz, 32kHz/
44.1kHz/48kHz/88kHz/96kHz/176kHz/
192kHz)
*DTS Not Supported. (Only LN54**)
y
If you use DVI to HDMI cable for PC,
you have to use external speaker for PC
audio sound.
21
ENGENGLISH
MAKING CONNECTIONS

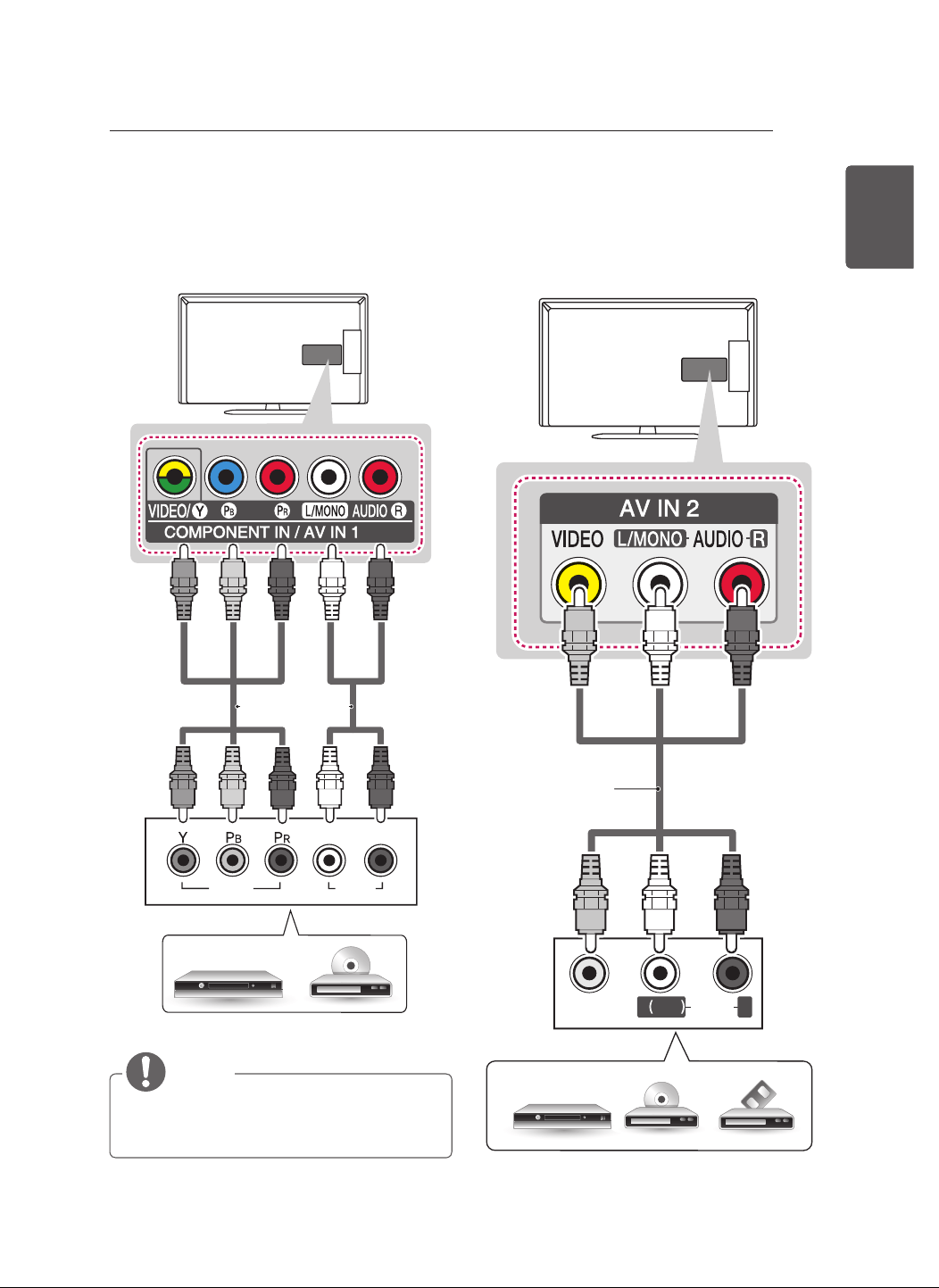

Component connection
Transmits analog video and audio signals
from an external device to the TV. Connect the
external device and the TV with a component
cable as shown.
AUDIO
VIDEO
L R
DVD/ Blu-Ray / HD Cable Box
GREEN
BLUE
RED
RED
WHITE
GREEN
BLUE
RED
RED
WHITE
(*Not Provided)
NOTE
y
If cables are not installed correctly, it
could cause this image to display in black
and white or with distorted colours.
Composite connection
Transmits analog video and audio signals
from an external device to the TV. Connect the
external device and the TV with the composite
cable as shown.
VIDEO
MONO
( )
AUDIOL R
YELLOW
WHITE
RED
RED
YELLOW
WHITE
(*Not Provided)
DVD/ Blu-Ray / HD Cable Box / VCR
22
ENG
ENGLISH
MAKING CONNECTIONS

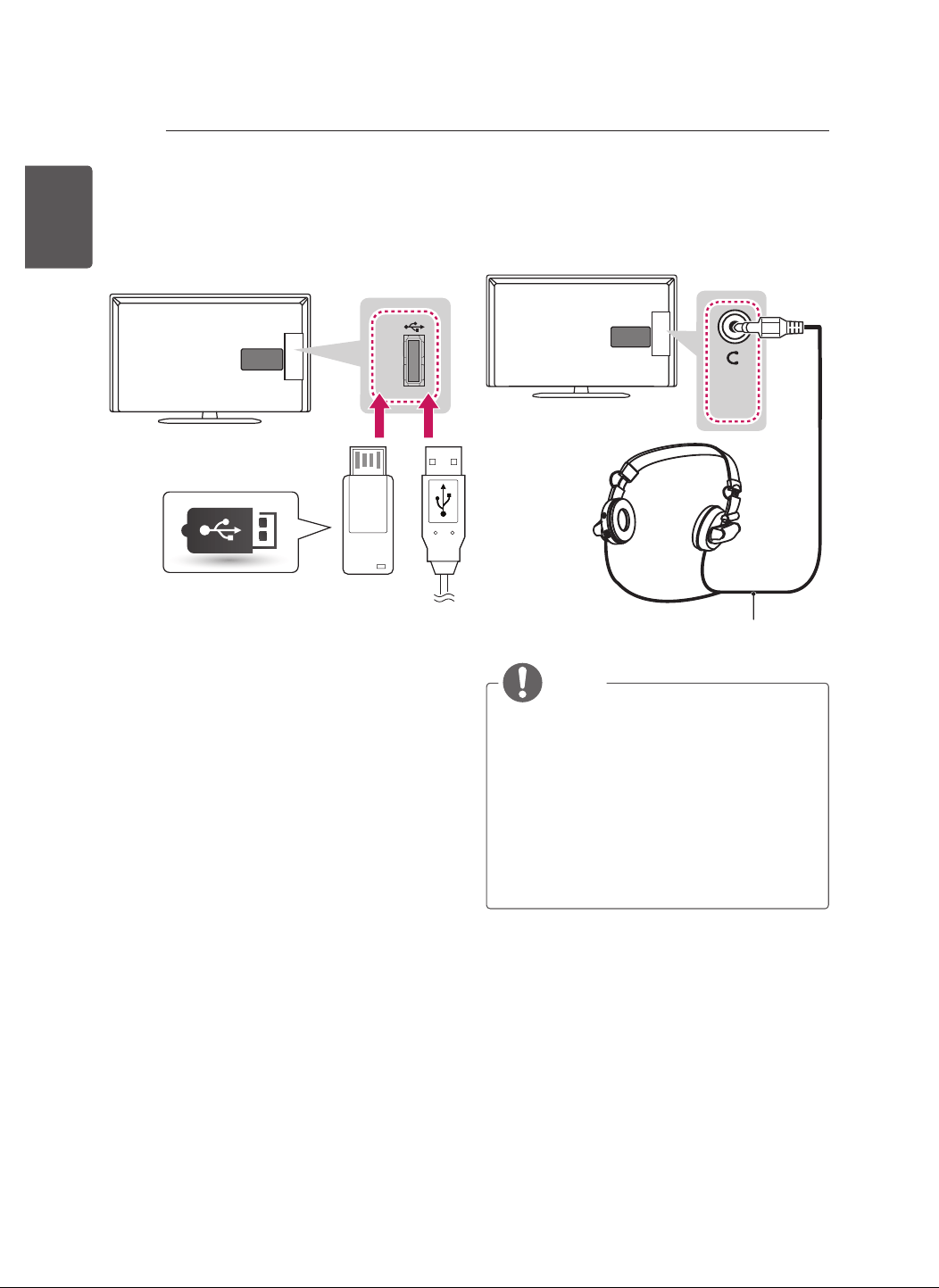

USB connection
Connect a USB storage device such as a USB
flash memory, external hard drive, or a USB
memory card reader to the TV and access the
My media menu to use various multimedia files.
USB IN
USB
(*Not Provided)
Headphone connection
Transmits the headphone signal from the TV to
an external device. Connect the external device
and the TV with the headphone as shown.
H/P OUT
(*Not Provided)
NOTE
y
AUdIO menu items are disabled when
connecting a headphone.
y
When changing Av MOdE with a
headphone connected, the change is
applied to video but not to audio.
y
Optical digital Audio Out is not
available when connecting a headphone.
(Only LA61**)
y
Headphone impedance: 16 Ω
y
Max audio output of headphone: 9 mW to
15 mW
y
Headphone jack size: 0.35 cm
23
ENGENGLISH
MAKING CONNECTIONS
Audio Connection
(Only LA61**, 60LN54**)
You may use an optional external audio system
instead of the built-in speaker.

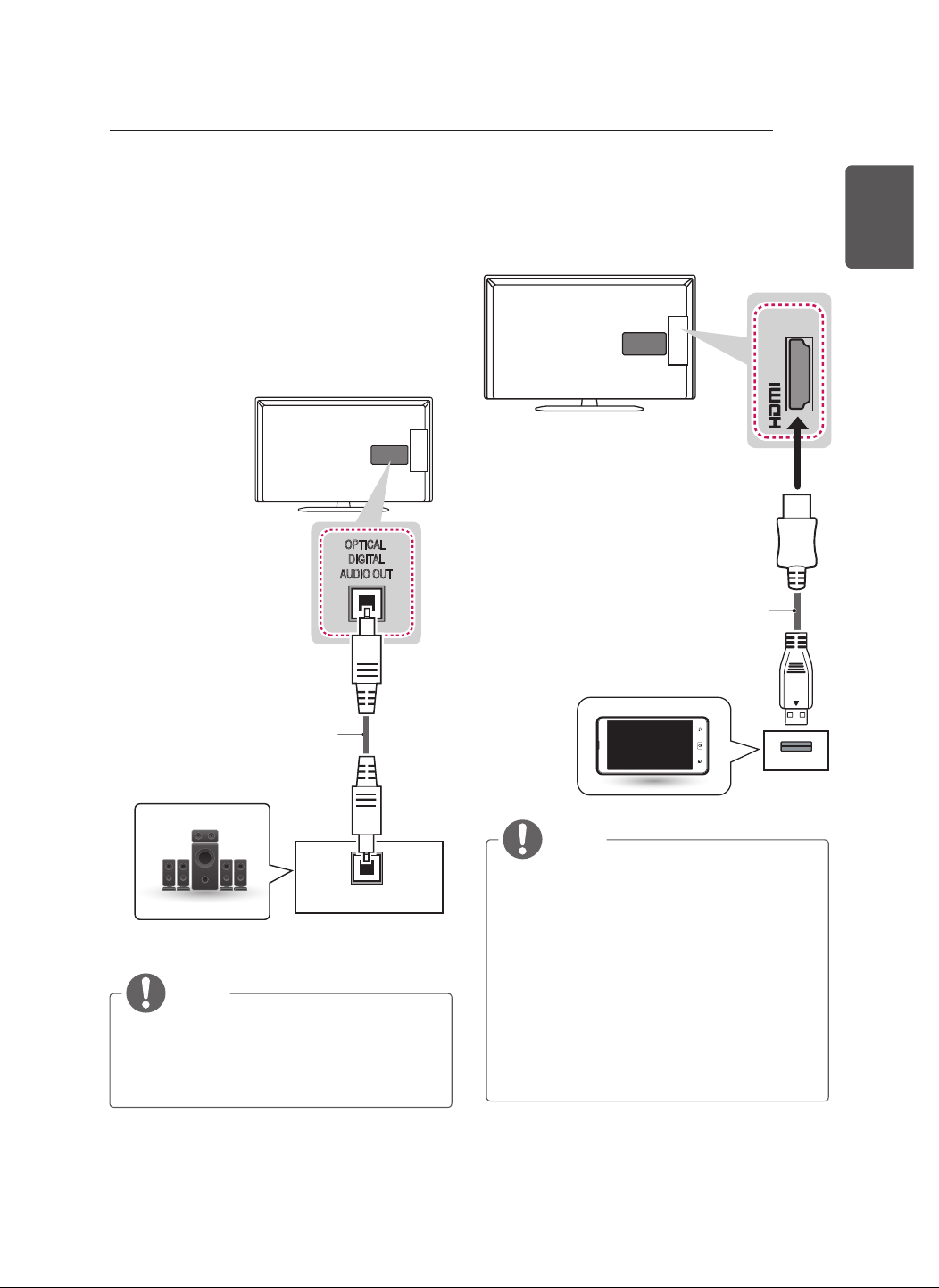

Digital optical audio connection
Transmits a digital audio signal from the TV to an
external device. Connect the external device and
the TV with the optical audio cable as shown.
Digital Audio System
(*Not Provided)
OPTICAL
DIGITAL
AUDIO OUT
OPTICAL
AUDIO IN
NOTE
y
Do not look into the optical output port.
Looking at the laser beam may damage
your vision.
y
Audio with ACP (Audio Copy Protection)
function may block digital audio output.
MHL connection
Mobile High-definition Link (MHL) is an interface
for transmitting digital audiovisual signals from
mobile phones to television sets.
IN 2 (MHL)
MHL passive cable
(*Not Provided)
Mobile phone
NOTE
y
Connect the mobile phone to the HDMI
IN 2 (MHL) port to view the phone screen
on the TV.
y
The MHL passive cable is needed to
connect the TV and a mobile phone.
y
This only works for the MHL-enabled
phone.
y
Some applications can be operated by
the remote control.
y
Remove the MHL passive cable from the
TV when:
- The MHL function is disabled.
- Your mobile device is fully charged in
standby mode.
24
ENG
ENGLISH

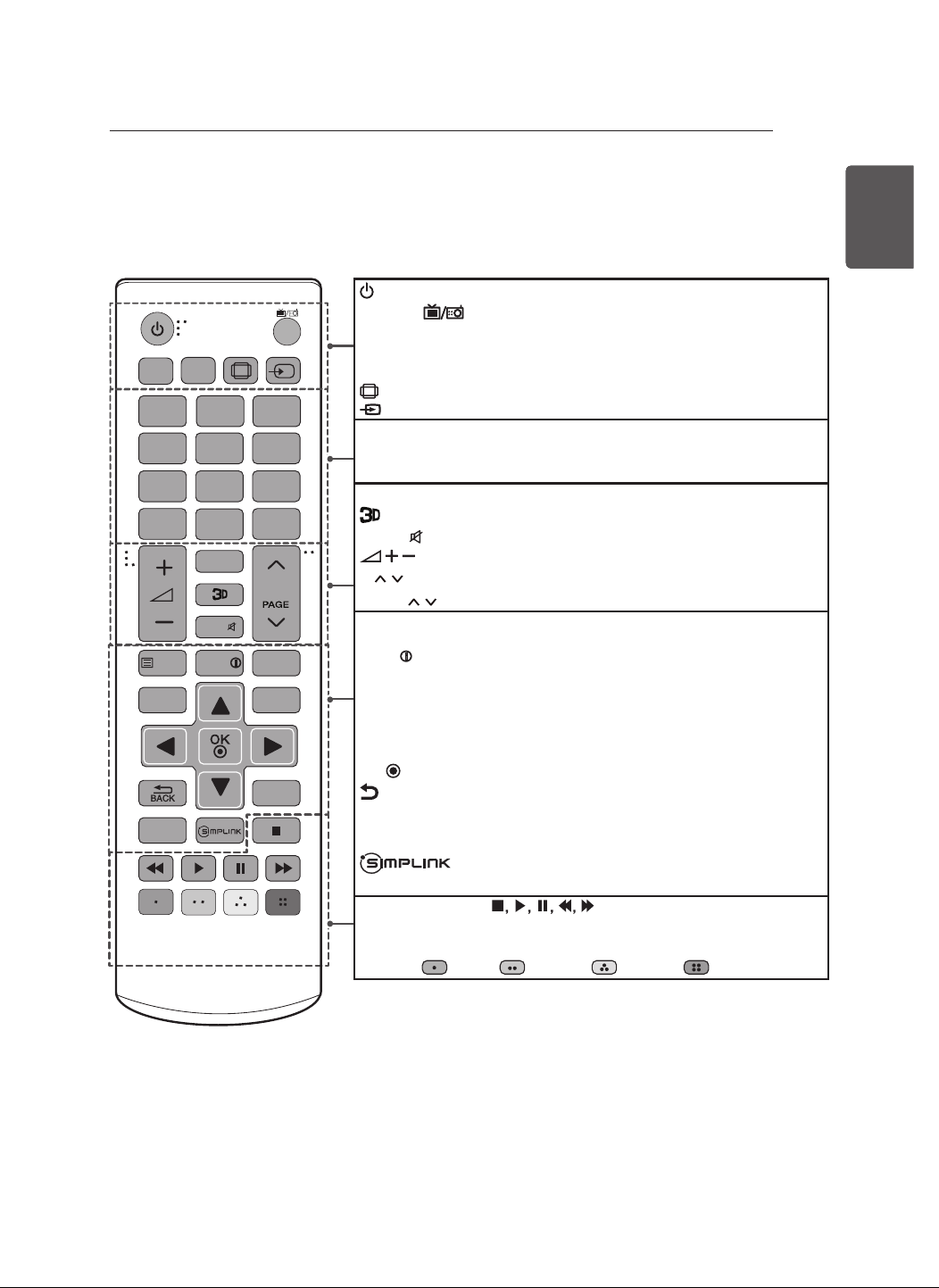

REMOTE CONTROL

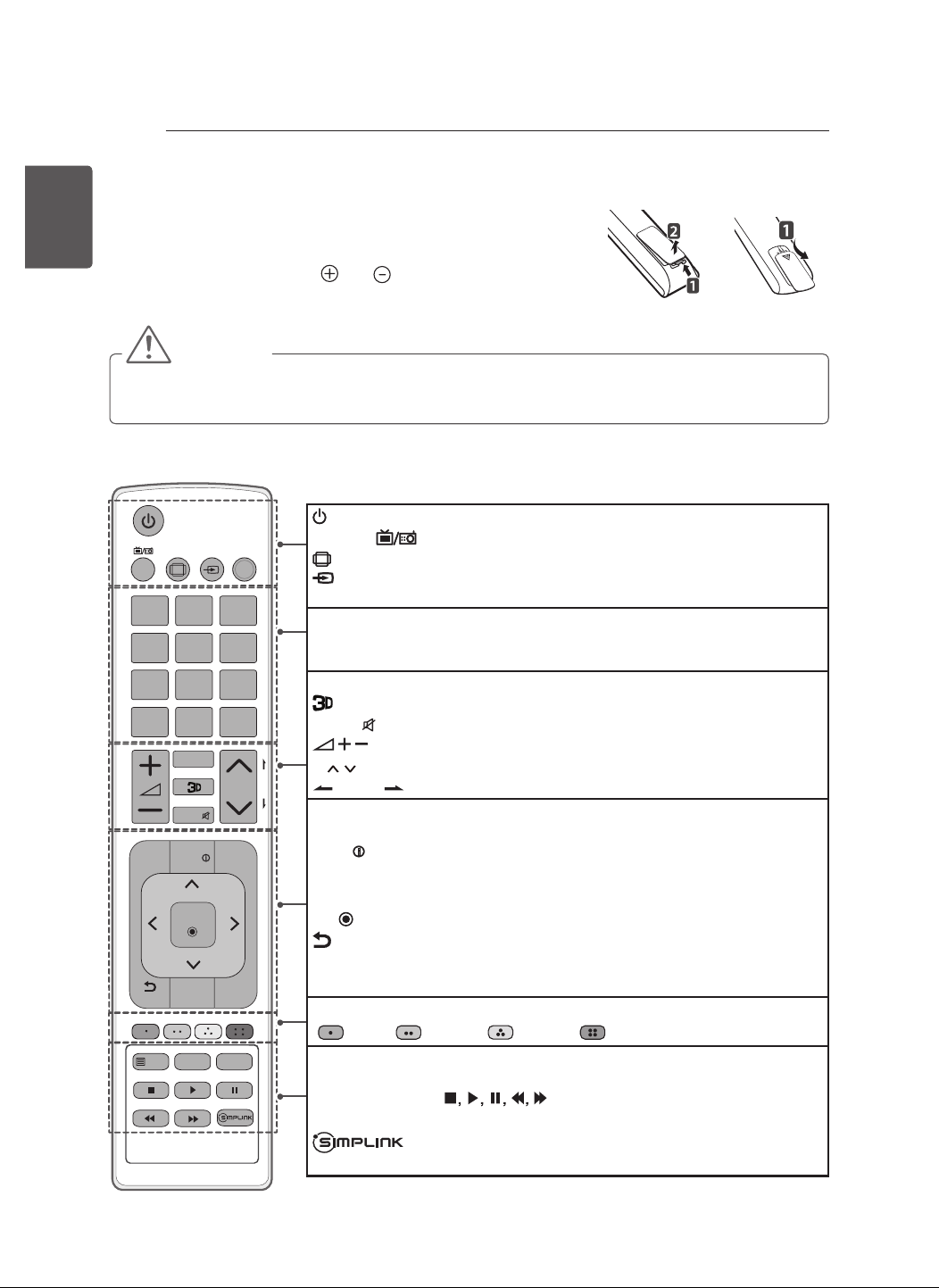

REMOTE CONTROL
The descriptions in this manual are based on the buttons on the
remote control. Please read this manual carefully and use the TV
correctly. To replace batteries, open the battery cover, replace batter-
ies (1.5 V AAA) matching the and ends to the label inside the
compartment, and close the battery cover. To remove the batteries,
perform the installation actions in reverse.
CAUTION
y
Do not mix old and new batteries, as this may damage the remote control.
y
In Analogue TV and some countries, some remote control buttons may not work.
Make sure to point the remote control toward the remote control sensor on the TV.
(Depending on model)
RATIO
INPUT
TV/
RAD
21 3
4 5 6
7 8 9
0
LIST
Q.VIEW
FAV
MUTE
P
P
A
G
E
TEXT
OK
GUIDE
AV MODE
INFO
SETTINGS
Q.MENU
EXIT
3D OPTION
BACK
T.OPT
SUBTITLE
(POWER) Turns the TV on or off.
TV/RAD
Selects Radio, TV and DTV programme.
RATIO Resizes an image.
INPUT Changes the input source.
AV MODE Selects an AV mode.
Number buttons Enters numbers.
LIST Accesses the saved programme list.
Q.VIEW Returns to the previously viewed programme.
FAV Accesses your favourite programme list.
Used for viewing 3D video.
MUTE
Mutes all sounds.
Adjusts the volume level.
P
Scrolls through the saved programmes.
PAGE Moves to the previous or next screen.
3D OPTION Use this to view 3D video.
SETTINGS Accesses the main menus.
INFO
Views the information of the current programme and screen.
Q.MENU Accesses the Quick menus.
Navigation buttons(up/down/left/right)
Scrolls through menus or options.
OK
Selects menus or options and confirms your input.
BACK Returns to the previous level.
GUIDE Shows programme guide.
EXIT Clears on-screen displays and return to TV viewing.
Coloured buttons These access special functions in some menus.
(
: Red, : Green, : Yellow, : Blue)
TELETEXT BUTTONS (TEXT, T.OPT)
These buttons are used for teletext.
SUBTITLE Recalls your preferred subtitle in digital mode.
Control buttons
( )
Controls the MY MEDIA menus, or
the SIMPLINK compatible devices (USB,SIMPLINK).
Accesses the AV devices connected with the HDMI cable
through HDMI-CEC. Opens the SIMPLINK menu.
or
25
ENGENGLISH
REMOTE CONTROL

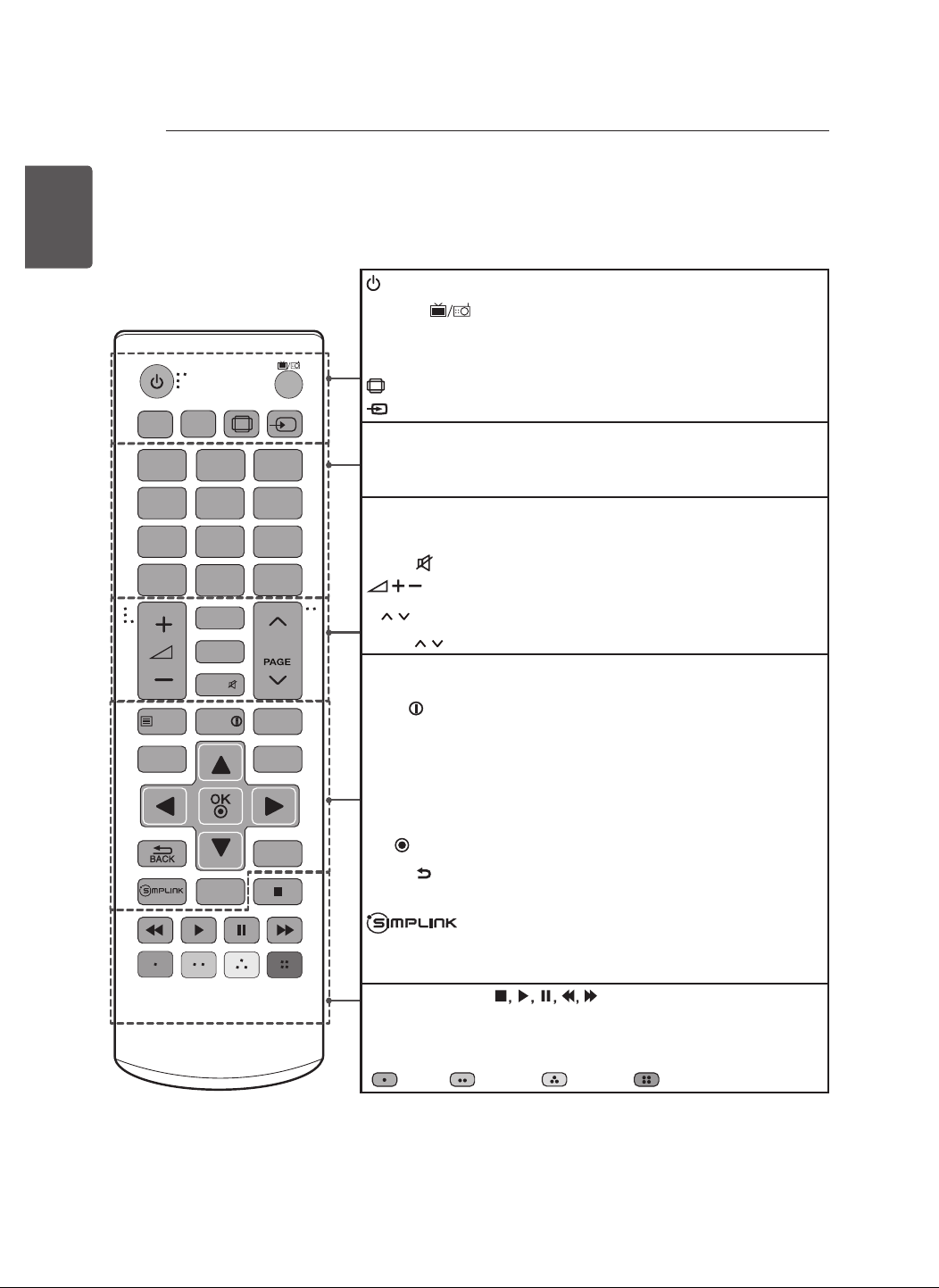

(Depending on model)
1
4 5 6
7 8 9
LIST
Q.MENU
TEXT
SETTINGS
EXIT
AV MODE
INFO
T.OPT
Q.VIEW
P
0
FAV
MUTE
2 3
RATIO
INPUT
TV/
RAD
GUIDE
3D OPTION
SUBTITLE
(POWER) Turns the TV on or off.
TV/RAD
Selects Radio, TV and DTV programme.
3D OPTION Use this to view 3D video.
Q.MENU Accesses the Quick menus.
AV MODE Selects an AV mode.
RATIO Resizes an image.
INPUT Changes the input source.
Number buttons Enters numbers.
LIST Accesses the saved programme list.
Q.VIEW Returns to the previously viewed programme.
FAV Accesses your favourite programme list.
Used for viewing 3D video.
MUTE
Mutes all sounds.
Adjusts the volume level.
P
Scrolls through the saved programmes.
PAGE
Moves to the previous or next screen.
TELETEXT BUTTONS (TEXT, T.OPT)
These buttons are used for
teletext.
INFO
Views the information of the current programme and
screen.
SETTINGS Accesses the main menus.
GUIDE Shows programme guide.
Navigation buttons(up/down/left/right)
Scrolls through menus or
options.
OK
Selects menus or options and confirms your input.
BACK Returns to the previous level.
EXIT Clears on-screen displays and return to TV viewing.
SUBTITLE Recalls your preferred subtitle in digital mode.
Accesses the AV devices connected with the HDMI
cable through HDMI-CEC. Opens the SIMPLINK menu.
Control buttons
( )
Controls the MY MEDIA
menus, or the SIMPLINK compatible devices (USB,SIMPLINK).
Coloured buttons These access special functions in some
menus. (
: Red, : Green, : Yellow, : Blue)
26
ENG
ENGLISH
REMOTE CONTROL
(Depending on model)
(POWER) Turns the TV on or off.
TV/RAD
Selects Radio, TV and DTV programme.
SUBTITLE Recalls your preferred subtitle in digital mode.
AV MODE Selects an AV mode.
RATIO Resizes an image.
INPUT Changes the input source.
Number buttons Enters numbers.
LIST Accesses the saved programme list.
Q.VIEW Returns to the previously viewed programme.
FAV Accesses your favourite programme list.
GUIDE Shows programme guide.
MUTE
Mutes all sounds.
Adjusts the volume level.
P
Scrolls through the saved programmes.
PAGE
Moves to the previous or next screen.
TELETEXT BUTTONS
(TEXT, T.OPT)
These buttons are used for
teletext.
INFO
Views the information of the current programme and
screen.
SETTINGS Accesses the main menus.
Q.MENU Accesses the Quick menus.
Navigation buttons (up/down/left/right) Scrolls through menus
or options.
OK
Selects menus or options and confirms your input.
BACK
Returns to the previous level.
EXIT Clears on-screen displays and return to TV viewing.
Accesses the AV devices connected with the
HDMI cable through HDMI-CEC. Opens the SIMPLINK menu.
SLEEP Sets the sleep timer.
Control buttons (
) Controls the MY MEDIA
menus, or the SIMPLINK compatible devices (USB,SIMPLINK).
Coloured buttons These access special functions in some
menus.
(
: Red, : Green, : Yellow, : Blue)
1
4 5 6
7 8 9
LIST
SUBTITLE
TEXT
SETTINGS
Q.MENU
EXIT
AV MODE
SLEEP
INFO
T.OPT
Q.VIEW
P
0
FAV
GUIDE
MUTE
2 3
RATIO
INPUT
TV/
RAD
27
ENGENGLISH

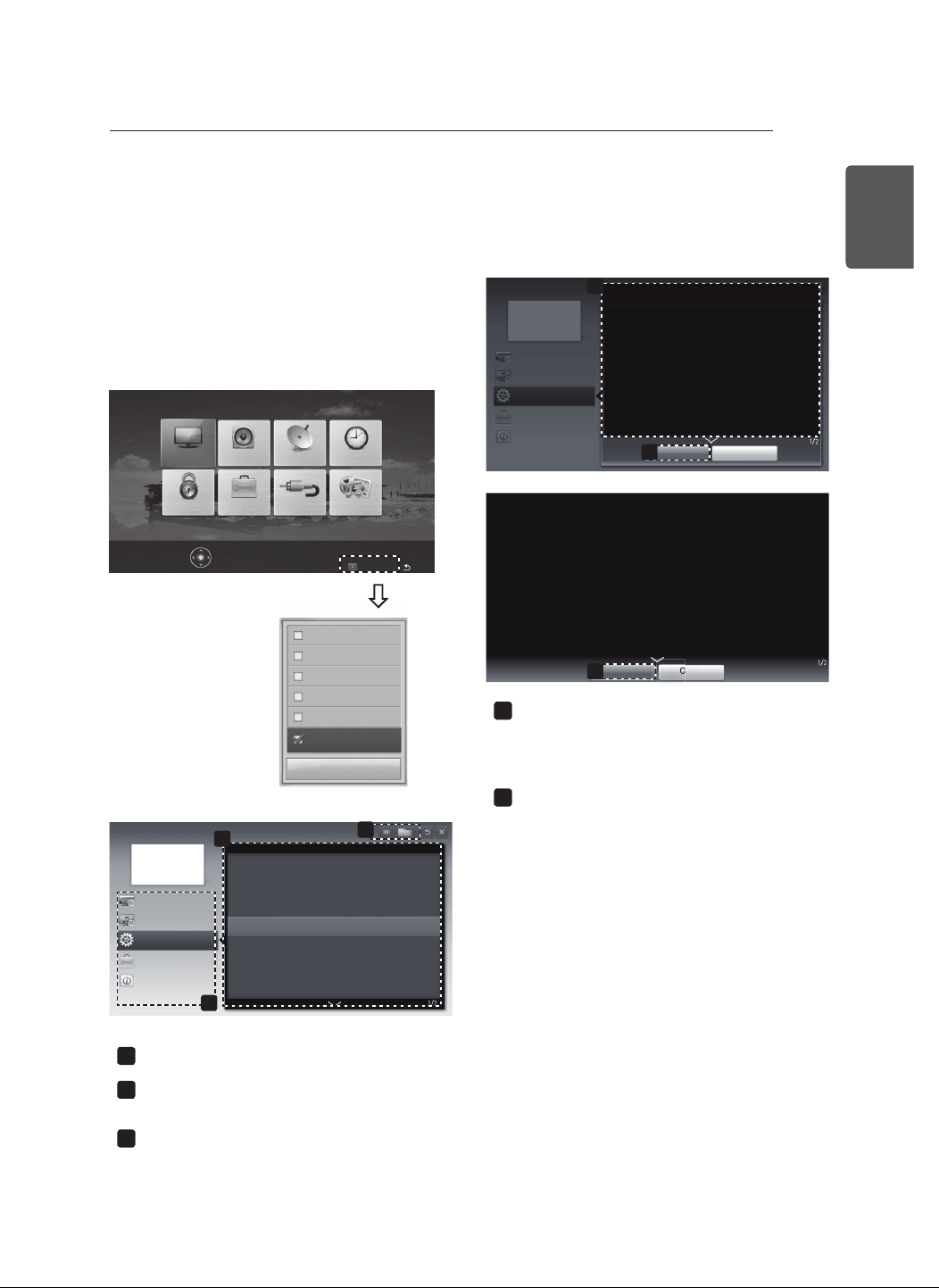

USING THE USER GUIDE
1 Press SETTINGS to access the main
menus.
2 Press the REd button to access the
Customer Support menus.
3 Press the Navigation buttons to scroll to
User Guide and press OK.
PICTURE AUDIO SETUP TIME
MY MEDIAINPUTOPTIONLOCK
Press OK(
) to set picture settings.
Customer Support Exit
Software Update
Picture Test
Sound Test
Signal Test
Product/Service Info.
User Guide
Close
2
User Guide
OPTION
PROGRAMME Setting
PICTURE, SOUND Setting
Advanced Function
To use input device
To set TV lock options
To set country
To set subtitle
To set other options
To set language
To set time options
3
Information
1
1
Allows to select the category you want.
2
Allows to select the item you want.
You can use
ꕌ
/
ꕍ
to move between pages.
3
Allows to browse the description of the
function you want from the index.
1
2
User Guide
OPTION > To set language
SETTINGS OPTION Language
You can select the language of the menu displayed on the screen and the digital
sound broadcasting.
y
Menu Language : Selects a language for the display text.
y
Audio Language [In Digital mode Only] : Select the desired language when
watching digital broadcasting containg several voice languages.
y
Subtitle Language [In Digital mode Only] : Use the Subtitle function when two
or more subtitle languages are broadcast.
✎ If subtitle data in a selected language is not broadcast, the default
language subtitle will be displayed.
Close
Zoom In
OPTION
PROGRAMME Setting
PICTURE, SOUND Setting
Advanced Function
Information
2
Close
Zoom Out
SETTINGS OPTION Language
You can select the language of the menu displayed on the screen and the digital
sound broadcasting.
y
Menu Language : Selects a language for the display text.
y
Audio Language [In Digital mode Only] : Select the desired language when
watching digital broadcasting containg several voice languages.
y
Subtitle Language [In Digital mode Only] : Use the Subtitle function when two
or more subtitle languages are broadcast.
✎ If subtitle data in a selected language is not broadcast, the default
language subtitle will be displayed.
Close
1
Shows the description of the selected
menu.
You can use
ꕌ
/
ꕍ
to move between
pages.
2
Zooms in or out the screen.
USING THE USER GUIdE
User Guide allows you to more easily access the detailed TV information.
28
ENG
ENGLISH
MAINTENANCE / TROUBLESHOOTING
MAINTENANCE
Cleaning your TV
Clean your TV regularly to keep the best performance and to extend the product lifespan.
CAUTION
y
Make sure to turn the power off and disconnect the power cord and all other cables first.
y
When the TV is left unattended and unused for a long time, disconnect the power cord from the
wall outlet to prevent possible damage from lightning or power surges.
Screen, frame, cabinet and stand
To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild
detergent. Then wipe immediately with a dry cloth.
CAUTION
y
Avoid touching the screen at all times, as this may result in damage to the screen.
y
Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may
result in scratches and image distortions.
y
Do not use any chemicals as this may damage the product.
y
Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock,
or malfunction.
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
TROUBLESHOOTING
Problem Solution
Cannot control the TV with the
remote control.
y
Check the remote control sensor on the product and try
again.
y
Check if there is any obstacle between the product and
the remote control.
y
Check if the batteries are still working and properly
installed (
to , to ).
No image display and no sound
is produced.
y
Check if the product is turned on.
y
Check if the power cord is connected to a wall outlet.
y
Check if there is a problem in the wall outlet by connecting
other products.
The TV turns off suddenly.
y
Check the power control settings. The power supply may
be interrupted.
y
Check if the Auto sleep or Off time feature is activated in
the Time settings.
y
If there is no signal while the TV is on, the TV will turn off
automatically after 15 minutes of inactivity.
When connecting to the PC
(HDMI), ‘No signal’ or ‘Invalid
Format’ is displayed.
y
Turn the TV off/on using the remote control.
y
Reconnect the HDMI cable.
y
Restart the PC with the TV on.
29
ENGENGLISH

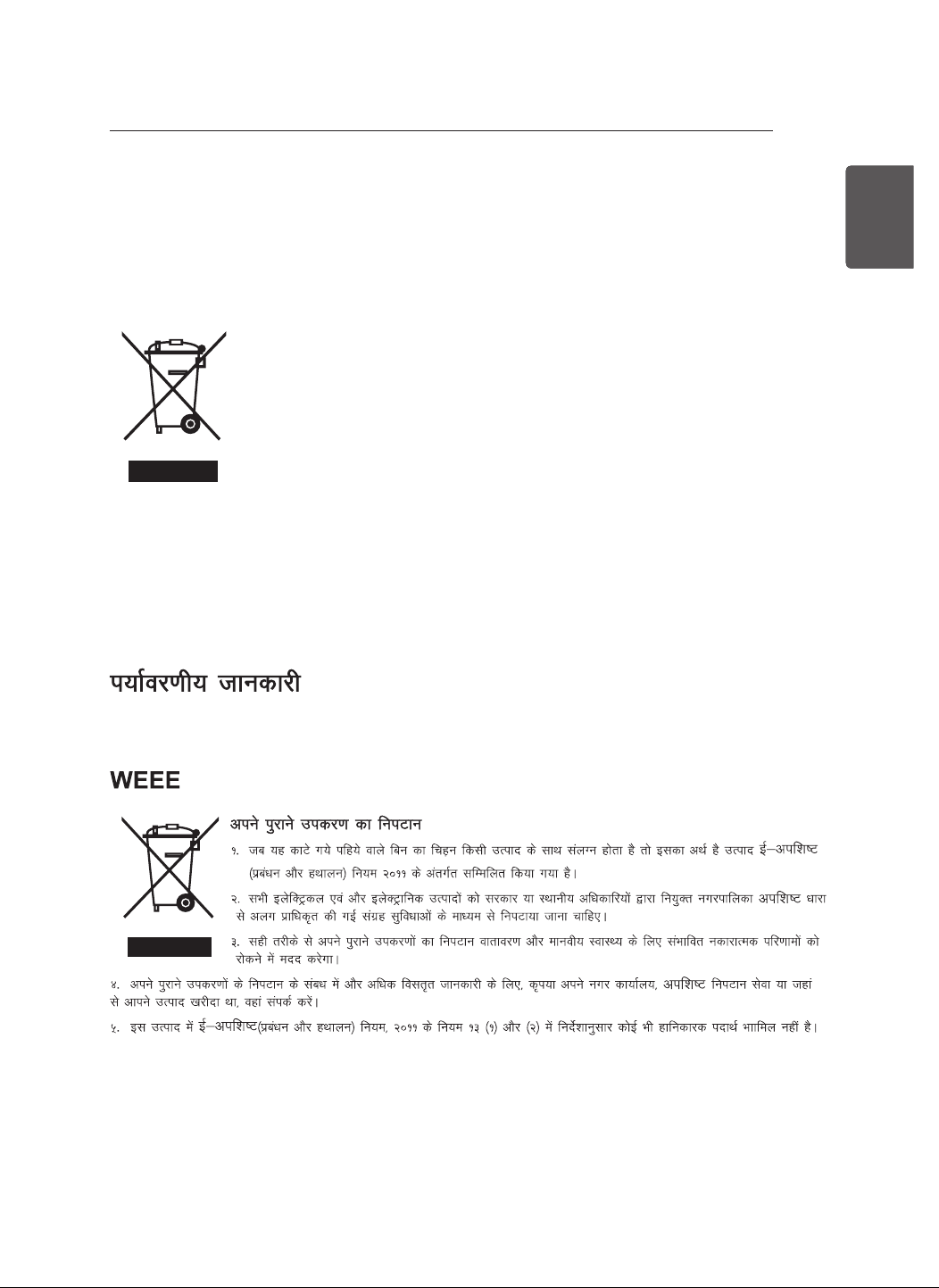

ENVIRONMENTAL INFORMATION
ENvIRONMENTAL INFORMATION
(India only)
WEEE
disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product it means the
product is covered by the e-waste (Management and Handling) Rules, 2011.
2. All electrical and electronic products should be disposed of separately from
the municipal waste stream via designated collection facilities appointed by the
government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office,
waste disposal service or the shop where you purchased the product.
5. This product does not contain any of the hazardous substances as specified in the rule 13 (1) and (2)
of the e-waste (Management and Handling) Rules, 2011.
30
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
For the power supply and power consumption, refer to the label attached to the product.
MOdELS
32LN54** 37LN54** 39LN54**
32LN5400-TA
32LN541B-TB
32LN5420-TC
32LN542B-TC
32LN5430-TD
32LN543B-TD
32LN5440-TJ
32LN544B-TJ
32LN542Y-TC
32LN542Z-TC
32LN543Y-TD
32LN543Z-TD
32LN544Y-TJ
32LN544Z-TJ
32LN541B-TC
32LN541Y-TC
32LN540B-TA
37LN5400-TA
37LN541B-TB
37LN5420-TC
37LN542B-TC
37LN5430-TD
37LN543B-TD
37LN5440-TJ
37LN544B-TJ
37LN542Y-TC
37LN542Z-TC
37LN543Y-TD
37LN543Z-TD
37LN544Y-TJ
37LN544Z-TJ
37LN541B-TC
37LN541Y-TC
37LN540B-TA
39LN5400-TA
39LN541B-TB
39LN5420-TC
39LN542B-TC
39LN5430-TD
39LN543B-TD
39LN5440-TJ
39LN544B-TJ
39LN542Y-TC
39LN542Z-TC
39LN543Y-TD
39LN543Z-TD
39LN544Y-TJ
39LN544Z-TJ
39LN541B-TC
39LN541Y-TC
39LN540B-TA
Dimensions
(W x H x D)
With stand (
mm
)
738.0 x 497.0 x 207.0 849.0 x 561.0 x 236.0 894.0 x 587.0 x 236.0
Without stand(
mm)
738.0 x 449.0 x 79.0 849.0 x 512.0 x 79.0 894.0 x 537.0 x 79.0
Weight With stand (kg)
7.0 9.1 9.7
Without stand (kg)
6.4 8.0 8.6
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MOdELS
42LN54** 47LN54** 50LN54**
42LN5400-TA
42LN541B-TB
42LN5420-TC
42LN542B-TC
42LN5430-TD
42LN543B-TD
42LN5440-TJ
42LN544B-TJ
42LN542Y-TC
42LN542Z-TC
42LN543Y-TD
42LN543Z-TD
42LN544Y-TJ
42LN544Z-TJ
42LN541B-TC
42LN541Y-TC
42LN540B-TA
47LN5400-TA
47LN541B-TB
47LN5420-TC
47LN542B-TC
47LN5430-TD
47LN543B-TD
47LN5440-TJ
47LN544B-TJ
47LN542Y-TC
47LN542Z-TC
47LN543Y-TD
47LN543Z-TD
47LN544Y-TJ
47LN544Z-TJ
47LN541B-TC
47LN541Y-TC
47LN540B-TA
50LN5400-TA
50LN541B-TB
50LN5420-TC
50LN542B-TC
50LN5430-TD
50LN543B-TD
50LN5440-TJ
50LN544B-TJ
50LN542Y-TC
50LN542Z-TC
50LN543Y-TD
50LN543Z-TD
50LN544Y-TJ
50LN544Z-TJ
50LN541B-TC
50LN541Y-TC
50LN540B-TA
Dimensions
(W x H x D)
With stand (mm)
968.0 x 629.0 x 236.0 1080.0 x 694.0 x 264.0 1136.0 x 727.0 x 264.0
Without stand(mm)
968.0 x 579.0 x 79.0 1080.0 x 642.0 x 80.5 1136.0 x 673.0 x 82.1
Weight With stand (kg)
10.7 14.7 15.6
Without stand (kg)
9.6 13.4 14.2
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
31
ENGENGLISH
SPECIFICATIONS
MOdELS
55LN54** 60LN54** 32LN565*
55LN5400-TA
55LN541B-TB
55LN5420-TC
55LN542B-TC
55LN5430-TD
55LN543B-TD
55LN5440-TJ
55LN544B-TJ
55LN542Y-TC
55LN542Z-TC
55LN543Y-TD
55LN543Z-TD
55LN544Y-TJ
55LN544Z-TJ
55LN541B-TC
55LN541Y-TC
55LN540B-TA
60LN5400-TA
60LN541B-TB
60LN5420-TC
60LN542B-TC
60LN5430-TD
60LN543B-TD
60LN5440-TJ
60LN544B-TJ
60LN542Y-TC
60LN542Z-TC
60LN543Y-TD
60LN543Z-TD
60LN544Y-TJ
60LN544Z-TJ
60LN541B-TC
60LN541Y-TC
60LN540B-TA
32LN5650-TA
Dimensions
(W x H x D)
With stand (mm)
1250.0 x 790.0 x 297.0 1359.0 x 852.0 x 297.0 743.0 x 499.0 x 206.0
Without stand(mm)
1250.0 x 737.0 x 79.1 1359.0 x 799.0 x 67.2 743.0 x 451.0 x 96.0
Weight With stand (kg)
21.2 26.3 8.9
Without stand (kg)
19.1 24.2 8.3
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MOdELS
32LA61** 42LA61** 50LA61**
32LA6130-TB
32LA6150-TC
32LA615B-TC
32LA613B-TB
32LA615Y-TC
32LA613Y-TB
32LA6160-TD
32LA616B-TD
32LA6170-TE
32LA617B-TE
32LA616Y-TD
32LA613Z-TB
42LA6130-TB
42LA6150-TC
42LA615B-TC
42LA613B-TB
42LA615Y-TC
42LA613Y-TB
42LA6160-TD
42LA616B-TD
42LA6170-TE
42LA617B-TE
42LA616Y-TD
42LA613Z-TB
50LA6130-TB
50LA6150-TC
50LA615B-TC
50LA613B-TB
50LA615Y-TC
50LA613Y-TB
50LA6160-TD
50LA616B-TD
50LA6170-TE
50LA617B-TE
50LA616Y-TD
50LA613Z-TB
Dimensions
(W x H x D)
With stand (mm)
733.0 x 499.0 x 242.0 964.0 x 631.0 x 294.0 1131.0 x 725.0 x 327.0
Without stand(mm)
733.0 x 444.0 x 78.0 964.0 x 573.0 x 78.0 1131.0 x 667.0 x 80.9
Weight With stand (kg)
7.6 11.8 17.0
Without stand (kg)
6.4 10.0 14.5
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
32
ENG
ENGLISH
SPECIFICATIONS
Environment
condition
Operating Temperature 0 °C to 40 °C
Operating Humidity Less than 80 %
Storage Temperature -20 °C to 60 °C
Storage Humidity Less than 85 %
Digital TV
(Depend on Country)
Analogue TV
(Depend on Country)
Television System DVB-T
PAL B/B, PAL B/G, PAL D/K, PAL-I
SECAM B/G, SECAM D/K
NTSC-M
Programme Coverage VHF, UHF VHF, UHF, CATV
Maximum number of
storable programmes
DVB-T& Analogue TV : 1,500
External Antenna Impedance 75 Ω
33
ENGENGLISH
SPECIFICATIONS
HdMI-dTv supported mode
Resolution
Horizontal
Frequency
(kHz)
vertical
Frequency
(Hz)
720x480 31.469
31.5
59.94
60
720x576 31.25 50
1280x720 37.5
44.96
45
50
59.94
60
1920x1080 33.72
33.75
28.125
26.97
27
33.716
33.75
56.25
67.43
67.5
59.94
60
50
23.97
24
29.976
30.00
50
59.94
60
HdMI-PC supported mode
Resolution
Horizontal
Frequency
(kHz)
vertical
Frequency
(Hz)
640x350 31.468 70.09
720x400 31.469 70.08
640x480 31.469 59.94
800x600 37.879 60.31
1024x768 48.363 60.00
1152x864 54.348 60.053
1360x768 47.712 60.015
1280x1024 63.981 60.020
1920x1080 67.50 60.00
Component port connecting information
Component ports on the
Tv
Y P
B
P
R
video output ports on
dvd player
Y P
B
P
R
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
Signal Component
480i/576i O
480p/576p O
720p/1080i O
1080p
O
(50 Hz / 60 Hz only)
(Except for 32LN565*, 32LN541B,
32LN542B, 32LN543B, 32LN544B,
32LN542Z, 32LN543Z, 32LN544Z,
32LN540B, 32LA613B, 32LA613Z)
34
ENG
ENGLISH
SPECIFICATIONS
3d supported mode (Only 3d model)
y
Video, which is input as below media contents is switched into the 3D screen automatically.
y
The method for 3D digital broadcast may differ depending on the signal environment. If video is
not switched automatically into 3D, manually convert the settings to view 3D images.
3d supported mode automatically
Input Signal Resolution
Horizontal
Frequency (kHz)
vertical
Frequency (Hz)
Playable 3d video
format
HdMI
720p 1280X720
37.5 50
Side by Side(half),
Top and Bottom
45 60
75 50
Frame packing
89.9 / 90 59.94 / 60
1080i 1920X1080
33.7 60
Side by Side(half),
Top and Bottom
28.1 50
1080p 1920X1080
27 24
Side by Side(half),
Top and Bottom
33.7 30
67.5 60
56.3 50
53.95 / 54 23.98 / 24 Frame packing
3d supported mode manually
Input Signal Resolution
Horizontal
Frequency (kHz)
vertical
Frequency (Hz)
Playable 3d video
format
HdMI
720p 1280X720
37.5 50
Side by Side,
Top and Bottom
45 60
1080i 1920X1080
33.75 60
Side by Side,
Top and Bottom
28.125 50
1080p 1920X1080
27 24
Side by Side,
Top and Bottom
33.75 30
67.5 60
Side by Side,
Top and Bottom,
Single frame sequen-
tial
56.25 50
dTv
720p 1280X720 37.5 50
Side by Side, Top and
Bottom
1080i 1920X1080 28.125 50
USB 1080p 1920X1080 33.75 30
Side by Side, Top
and Bottom,
MPO(Photo),
JPS(Photo)
35
ENGENGLISH
LICENSES / OPEN SOURCE SOFTWARE NOTICE / EXTERNAL CONTROL DEVICE SETUP
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby” and the
double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Denition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC,
a subsidiary of Rovi Corporation. This is an ofcial DivX Certied® device
that plays DivX video. Visit divx.com for more information and software
tools to convert your les into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be
registered in order to play purchased DivX Video-on-Demand (VOD) mov-
ies. To obtain your registration code, locate the DivX VOD section in your
device setup menu. Go to vod.divx.com for more information on how to
complete your registration.
“DivX Certied® to play DivX® video up to HD 1080p, including premium
content.”
“DivX®, DivX Certied® and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.”
“Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274”
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380;
6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the
Symbol & DTS and the Symbol together are registered trademarks & DTS
2.0+Digital Out is a trademark of DTS, Inc. Product includes software. ©
DTS, Inc. All Rights Reserved.
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380;
6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the
Symbol, & DTS and the Symbol together are registered trademarks & DTS
2.0 Channel is a trademark of DTS, Inc. Product includes software. © DTS,
Inc. All Rights Reserved.
(Only LA61**)
(Only LN565*)
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained
in this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices
are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost
of performing such distribution (such as the cost of media, shipping and handling) upon email request
to [email protected]. This offer is valid for three (3) years from the date on which you purchased
the product.
EXTERNAL CONTROL dEvICE SETUP
To obtain the external control device setup information, please visit www.lg.com
Record the model number and serial
number of the TV.
Refer to the label on the back cover and
quote this information to your dealer
when requiring any service.
MODEL
SERIAL
(Only DTV)
OWNER’S MANUAL
EXTERNAL CONTROL
DEVICE SETUP
Please read this manual carefully before operating the set and retain it for
future reference.
www.lg.com
2
ENG
ENGLISH
2
KEY CODES
KEY CODES
• This feature is not available for all models.
Code
(Hexa)
Function Note
Code
(Hexa)
Function Note
00
CH +, PR + R/C Button
45 Q.Menu
R/C Button
01 CH -, PR -
R/C Button
4C List, - (ATSC Only)
R/C Button
02 Volume +
R/C Button
53 List
R/C Button
03 Volume -
R/C Button
5B Exit
R/C Button
06 >
(Arrow Key / Right Key)
R/C Button
61 Blue R/C Button
07 <
(Arrow Key / Left Key)
R/C Button
63 Yellow
R/C Button
08 Power
R/C Button
71 Green
R/C Button
09 Mute
R/C Button
72 Red
R/C Button
0B Input
R/C Button
79 Ratio / Aspect Ratio
R/C Button
0E SLEEP
R/C Button
91 AD (Audio Description)
R/C Button
0F TV, TV/RAD
R/C Button
7A User Guide
R/C Button
10 - 19 * Number Key 0 - 9
R/C Button
7C Smart/ Home
R/C Button
1A Q.View / Flashback
R/C Button
7E Simplink
R/C Button
1E
FAV
(Favorite Channel)
R/C Button
8E
►►(Forward) R/C Button
20 Text (Teletext)
R/C Button
8F
◄◄(Rewind) R/C Button
21 T. Opt (Teletext Option)
R/C Button
AA Info
R/C Button
28 Return (BACK)
R/C Button
AB Program Guide
R/C Button
30 AV (Audio/ Video) Mode
R/C Button
B0 ►(Play)
R/C Button
39 Caption/Subtitle
R/C Button
B1
ꕗ
(Stop/ Live TV)
R/C Button
40
Λ
(Arrow Key/ Cursor Up)
R/C Button
BA
ꕘ
(
Freeze/Slow Play/Pause)
R/C Button
41
V
(Arrow Key/ Cursor Down)
R/C Button
BD
●
(REC)
R/C Button
42 My Apps
R/C Button
DC 3D
R/C Button
43
Menu / Settings
R/C Button
9F App/ *
R/C Button
44 OK / Enter
R/C Button
* Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel.
(For South Korea, Japan, North America, Latin America except Colombia models)
3
ENGENGLISH
3
EXTERNAL CONTROL DEVICE SETUP
EXTERNAL CONTROL DEVICE SETUP
• Image shown may differ from your TV.
Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer
or an A/V control system) to control the product’s functions externally.
Note: There are several ways to connect TV based on model’s support port.
* Please be advised that not all models support these connectivity.
* Cable is not provided.
USB to Serial converter with USB Cable
USB Type
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter
which is not made nor provided by LG.
• It can be purchased from computer stores that carry accessories for IT support professionals.
RS-232C With RS232C Cable
DE9 (D-Sub 9pin) Type
• You need to purchase the RS-232C (DE9, D-Sub 9pin female-to-female type) to RS-232C cable required
for the connection between the PC and the TV, which is specified in the manual.
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
• This connection can only be used for the following models: 55/65/LA97**, 84LA98**
4
ENG
ENGLISH
4
EXTERNAL CONTROL DEVICE SETUP

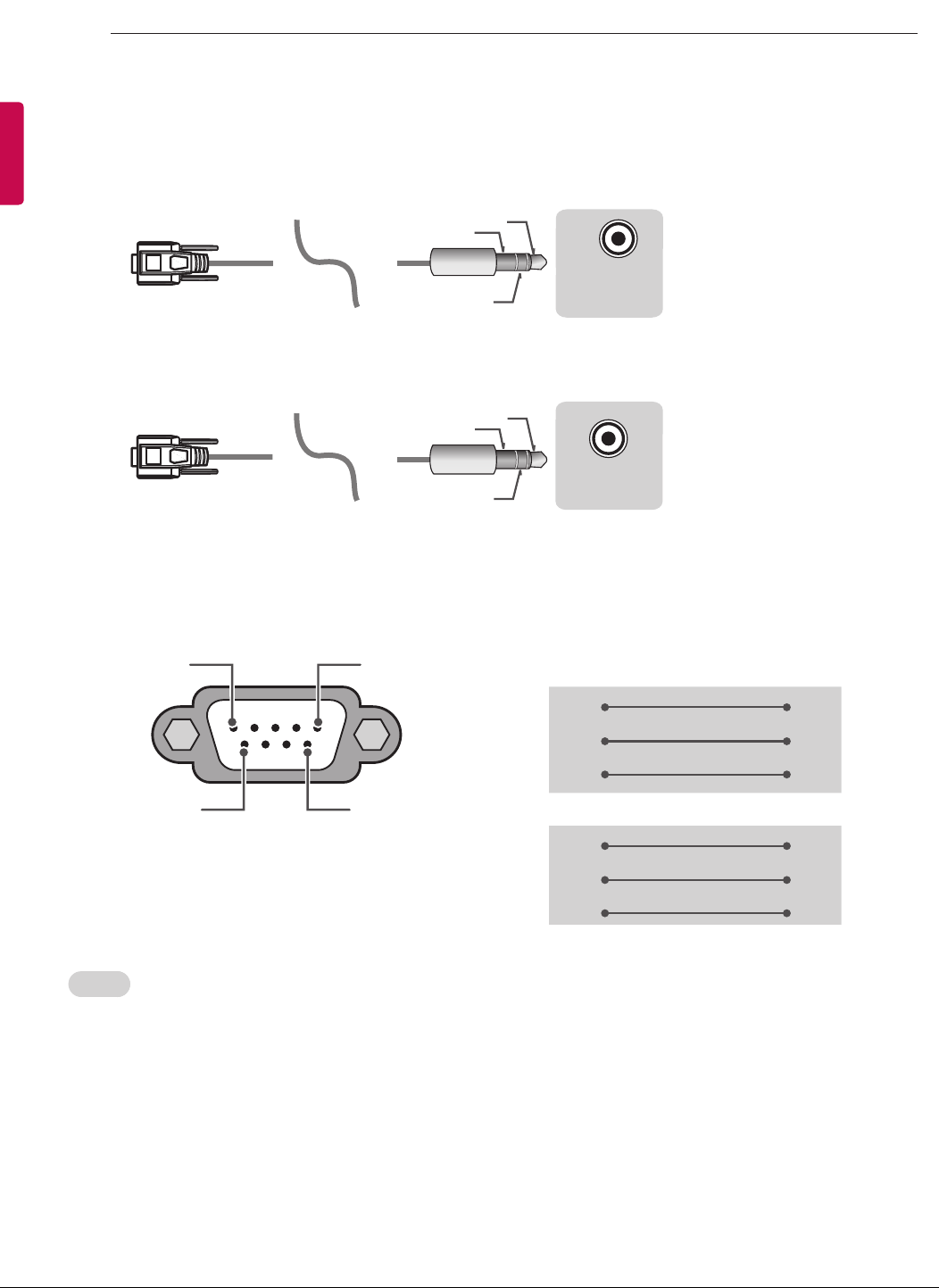

Phone jack Type
• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and
the TV, which is specified in the manual.
* For other models, connect to the USB port.
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- This connection can only be used for the following models: 55/47/39LN5450-UA, 55/50/47/42LN5400-
UA, 42/39/32LN5300-UA, and 37/32LN530B-UA.
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC
)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- This connection can only be used for the following models: 60PN6550-UA, 50/60PN6500-UA,
50/60PN5300-UF, and 42/50PN4500-UA.
Customer Computer RS-232C configurations
3-Wire Configurations(Not standard)
1
6
5
9
PC TV
RXD 2 2 TXD
TXD 3 1 RXD
GND 5 3 GND
OR
RXD 3 2 TXD
TXD 2 1 RXD
GND 5 3 GND
D-Sub 9 Phone
RS-232C
(Serial port)
Set ID
For Set ID number, see "Real Data Mapping" on p. 6
1. Press SETTINGS to access the main menus.
2. Press the Navigation buttons to scroll to OPTION and press OK.
3. Press the Navigation buttons to scroll to SET ID and press OK.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.
5
ENGENGLISH
5
EXTERNAL CONTROL DEVICE SETUP
Communication Parameters
• Baud rate : 9600 bps (UART)
• Data length : 8 bits
• Parity : None
• Stop bit : 1 bit
• Communication code : ASCII code
• Use a crossed (reverse) cable.
Command reference list
(Depending on model)
COMMAND1 COMMAND2
DATA
(Hexadecimal)
COMMAND1 COMMAND2
DATA
(Hexadecimal)
01. Power* k a 00 to 01 13. Balance k t 00 to 64
02. Aspect
Ratio
k c (See p.7)
14. Color
(Colour)
Temperature
x u 00 to 64
03. Screen
Mute
k d (See p.7)
15. ISM
Method (Only
Plasma TV)
j p (See p.8)
04. Volume
Mute
k e 00 to 01
16. Energy
Saving
j q 00 to 05
05. Volume
Control
k f 00 to 64
17. Tune
Command
m a (See p.8)
06. Contrast k g 00 to 64
18.
Channel
(Programme)
Add/Del(Skip)
m b 00 to 01
07.
Brightness
k h 00 to 64 19. Key m c
Key
Codes
08. Color/
Colour
k i 00 to 64
20. Control
Back Light,
Control
Panel
Light
m g 00 to 64
09. Tint k j 00 to 64
21. Input
select (Main)
x b (See p.10)
10.
Sharpness
k k 00 to 32
22. 3D
(Only 3D
models)
x t (See p.11)
11. OSD
Select
k l 00 to 01
23. Extended
3D (Only 3D
models)
x v (See p.11)
12. Remote
Control
Lock Mode
k m 00 to 01
* Note: During USB operations such as DivX or EMF, all commands except Power(ka) and Key(mc) are
not executed and treated as NG.
With RS232C cable, TV can communicate "ka command" in power-on or power-off status. but with
USB-to-Serial converter cable, the command works only if TV is on.
6
ENG
ENGLISH
6
EXTERNAL CONTROL DEVICE SETUP
Transmission / Receiving Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command 1] : First command to control the TV. (j, k, m or x)
[Command 2] : Second command to control the TV.
[Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu.
Adjustment range in TV is 1 to 99. If [Set ID] value is selected to ‘0’, every connected set
can be controlled.
* [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on
transmission/receiving protocol.
[DATA] : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command.
[Cr] : Carriage Return - ASCII code ‘0x0D’
[ ] : Space – ASCII code ‘0x20’
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,
if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the
data of the PC computer.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-
viable functions or communication errors.
Data 00: Illegal Code
Real data mapping (Hexadecimal b Decimal)
* When you enter the [data] in hexadecimal, refer to following conversion table.
* Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.
00 : Step 0 32 : Step 50 (Set ID 50) FE : Step 254
01 : Step 1 (Set ID 1) 33 : Step 51 (Set ID 51) FF : Step 255
... ... ...
0A : Step 10 (Set ID 10) 63 : Step 99 (Set ID 99) 01 00 : Step 256
... ... ...
0F : Step 15 (Set ID 15) C7 : Step 199 27 0E : Step 9998
10 : Step 16 (Set ID 16) C8 : Step 200 27 0F : Step 9999
... ... ...
7
ENGENGLISH
7
EXTERNAL CONTROL DEVICE SETUP
* Commands may work differently depending on model and signal.
01. Power (Command: k a)
► To control Power *On or Off of the set.
Transmission[k][a][ ][Set ID][ ][Data][Cr]
Data 00 : Power Off 01 : *Power On
Ack [a][ ][Set ID][ ][OK/NG][Data][x]
► To Show TV is Power On or *Off
Transmission [k][a][ ][Set ID][ ][FF][Cr]
Ack [a][ ][Set ID][ ][OK][Data][x]
* Similarly, if other functions transmit ‘FF’ data
based on this format, Acknowledgement feedback
presents status about each function.
* With RS232C cable, TV can communicate "ka command"
in power-on or power-off status. but with USB-to-Serial
converter cable, the command works only if TV is on.
02. Aspect Ratio (Command: k c)
(Main Picture Size)
► To adjust the screen format. (Main picture format)
You can also adjust the screen format using the
Aspect Ratio in the Q.MENU. or PICTURE menu.
Transmission [k][c][ ][Set ID][ ][Data][Cr]
Data 01 : Normal screen
(4:3)
02 : Wide screen
(16:9)
04 : Zoom
05 : Zoom 2
(Latin America
except Colombia
Only)
06 : Set by Program/
Original
07 : 14:9
(Europe, Colombia, Mid-
East, Asia except South
Korea and Japan)
09 : * Just Scan
0B : Full Wide
(Europe, Colombia, Mid-
East, Asia except South
Korea and Japan)
10 to 1F : Cinema Zoom 1
to 16
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
* Using the PC input, you select either 16:9 or 4:3
screen aspect ratio.
* In DTV/HDMI/Component mode (high-definition),
Just Scan is available.
* Full wide mode may work differently based on model
and is supported for DTV fully, and ATV, AV partially.
03. Screen Mute (Command: k d)
► To select screen mute on/off.
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Data 00 : Screen mute off (Picture on), Video mute off
01 : Screen mute on (Picture off)
10 : Video mute on
Ack [d][ ][Set ID][ ][OK/NG][Data][x]
* In case of video mute on only, TV will display On
Screen Display(OSD). But, in case of Screen mute
on, TV will not display OSD.
04. Volume Mute (Command: k e)
► To control volume mute on/off.
You can also adjust mute using the MUTE button
on remote control.
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Data 00 : Volume mute on (Volume off)
01 : Volume mute off (Volume on)
Ack [e][ ][Set ID][ ][OK/NG][Data][x]
05. Volume Control (Command: k f)
► To adjust volume.
You can also adjust volume with the volume
buttons on remote control.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [f][ ][Set ID][ ][OK/NG][Data][x]
06. Contrast (Command: k g)
► To adjust screen contrast.
You can also adjust contrast in the PICTURE
menu.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
07. Brightness (Command: k h)
► To adjust screen brightness.
You can also adjust brightness in the PICTURE
menu.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [h][ ][Set ID][ ][OK/NG][Data][x]
08. Color/Colour (Command: k i)
► To adjust the screen Color(Colour).
You can also adjust colour in the PICTURE menu.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [i][ ][Set ID][ ][OK/NG][Data][x]
8
ENG
ENGLISH
8
EXTERNAL CONTROL DEVICE SETUP
09. Tint (Command: k j)
► To adjust the screen tint.
You can also adjust tint in the PICTURE menu.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Data Red : 00 to Green : 64
Ack [j][ ][Set ID][ ][OK/NG][Data][x]
10. Sharpness (Command: k k)
► To adjust the screen sharpness.
You can also adjust sharpness in the PICTURE
menu.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 32
Ack [k][ ][Set ID][ ][OK/NG][Data][x]
11. OSD Select (Command: k l)
► To select OSD (On Screen Display) on/off when
controlling remotely.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 00 : OSD off 01 : OSD on
Ack [l][ ][Set ID][ ][OK/NG][Data][x]
12. Remote control lock mode (Command: k m)
► To lock the front panel controls on the monitor and
remote control.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 00 : Lock off 01 : Lock on
Ack [m][ ][Set ID][ ][OK/NG][Data][x]
* If you are not using the remote control, use this
mode.
When main power is off & on (plug-off and plug-in,
after 20 - 30 seconds), external control lock is
released.
* In the standby mode (DC off by off timer or ‘ka’,
‘mc’ command), and if key lock is on, TV will not
turn on by power on key of IR & Local Key.
13. Balance (Command: k t)
► To adjust balance.
You can also adjust balance in the AUDIO menu.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [t][ ][Set ID][ ][OK/NG][Data][x]
14. Color(Colour) Temperature (Command: x u)
► To adjust colour temperature. You can also adjust
Color(Colour) Temperature in the PICTURE menu.
Transmission [x][u][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
15. ISM Method (Command: j p) (Only Plasma TV)
► To control the ISM method. You can also adjust
ISM Method in OPTION menu.
Transmission [j][p][ ][Set ID][ ][Data][Cr]
Data Min : 02: Orbiter
08: Normal
20: Color(Colour) Wash
Ack [p][ ][Set ID][ ][OK/NG][Data][x]
16. Energy Saving (Command: j q)
► To reduce the power consumption of the TV. You
can also adjust Energy Saving in PICTURE menu.
Transmission [j][q][ ][Set ID][ ][Data][Cr]
Data
00 : Off
01 : Minimum
02 : Medium
03 : Maximum
04 : Auto
05 : Screen off
* (Depending on model)
Ack [q][ ][Set ID][ ][OK/NG][Data][x]
17. Tune Command (Command: m a)
* This command may work differently depending on
model and signal.
• For Europe, Mid-East, Colombia, Asia except
South Korea and Japan Model
► Select channel to following physical number.
Transmission [m][a][ ][Set ID][ ][Data 00][ ][Data 01]
[ ][Data 02][Cr]
* Analogue Terrestrial/Cable
[Data 00][Data 01] Channel Data
Data 00 : High byte channel data
Data 01 : Low byte channel data
- 00 00 ~ 00 C7 (Decimal : 0 ~ 199)
Data 02 : Input Source (Analogue)
- 00 : Terrestrial TV (ATV)
- 80 : Cable TV (CATV)
9
ENGENGLISH
9
EXTERNAL CONTROL DEVICE SETUP
* Digital Terrestrial/Cable/Satellite
[Data 00][Data 01]: Channel Data
Data 00 : High Channel data
Data 01 : Low Channel data
- 00 00 ~ 27 0F (Decimal: 0 ~ 9999)
Data 02 : Input Source (Digital)
- 10 : Terrestrial TV (DTV)
- 20 : Terrestrial Radio (Radio)
- 40 : Satellite TV (SDTV)
- 50 : Satellite Radio (S-Radio)
- 90 : Cable TV (CADTV)
- a0 : Cable Radio (CA-Radio)
* Tune Command Examples:
1. Tune to the analogue terrestrial (PAL) Channel 10.
Set ID = All = 00
Data 00 & 01 = Channel Data is 10 = 00 0a
Data 02 = Analogue Terrestrial TV = 00
Result = ma 00 00 0a 00
2. Tune to the digital terrestrial (DVB-T) Channel 01.
Set ID = All = 00
Data 00 & 01 = Channel Data is 1 = 00 01
Data 02 = Digital Terrestrial TV = 10
Result = ma 00 00 01 10
3. Tune to the satellite (DVB-S) Channel 1000.
Set ID = All = 00
Data 00 & 01 = Channel Data is 1000 = 03 E8
Data 02 = Digital Satellite TV = 40
Result = ma 00 03 E8 40
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01][Data 02][x]
[a][ ][Set ID][ ][NG][Data 00][x]
• For South Korea, North/Latin America except
Colombia Model
► To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
Digital channels have a Physical, Major, and Minor
channel number. The Physical number is the actual
digital channel number, the Major is the number that
the channel should be mapped to, and the Minor is
the sub-channel. Since the ATSC tuner automatically
maps the channel from the Major / Minor number,
the Physical number is not required when sending a
command in Digital.
* Analogue Terrestrial/Cable
Data 00 : Physical Channel Number
- Terrestrial (ATV) : 02~45 (Decimal: 2 ~ 69)
- Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125)
[Data 01 ~ 04]: Major/Minor Channel Number
Data 01 & 02: xx (Don't care)
Data 03 & 04: xx (Don't care)
Data 05: Input Source (Analogue)
- 00 : Terrestrial TV (ATV)
- 01 : Cable TV (CATV)
* Digital Terrestrial/Cable
Data 00 : xx (Don't care)
[Data 01][Data 02]: Major Channel Number
Data 01 : High byte Channel Data
Data 02 : Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04]: Minor Channel Number
Data 03 : High byte Channel Data
Data 04 : Low byte Channel Data
Data 05 : Input Source (Digital)
- 02 : Terrestrial TV (DTV) – Use Physical Channel
Number
- 06 : Cable TV (CADTV) – Use Physical Channel
Number
- 22 : Terrestrial TV (DTV) – Don’t Use Physical
Channel Number
- 26 : Cable TV (CADTV) - Don’t Use Physical
Channel Number
- 46 : Cable TV (CADTV) – Use Major Channel
Number Only (One Part Channel)
Two bytes are available for each major and minor
channel data, but usually the low byte is used alone
(high byte is 0).
* Tune Command Examples:
1. Tune to the analogue cable (NTSC) channel 35.
Set ID = All = 00
Data 00 = Channel Data is 35 = 23
Data 01 & 02 = No Major = 00 00
Data 03 & 04 = No Minor = 00 00
Data 05 = Analogue Cable TV = 01
Total = ma 00 23 00 00 00 00 01
2. Tune to the digital terrestrial (ATSC) channel 30-3.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Minor is 3 = 00 03
Data 05 = Digital Terrestrial TV = 22
Total = ma 00 00 00 1E 00 03 22
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][Data 03][Data 04][Data 05]
[x][a][ ][Set ID][ ][NG][Data 00][x]
• For Japan Model
► To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
* Digital Terrestrial/Satellite
Data 00: xx (Don't care)
10
ENG
ENGLISH
10
EXTERNAL CONTROL DEVICE SETUP
[Data 01][Data 02]: Major Channel Number
Data 01: High byte Channel Data
Data 02: Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04]: Minor/Branch Channel Number
(Don’t care in Satellite)
Data 03: High byte Channel Data
Data 04: Low byte Channel Data
Data 05 : Input Source (Digital/Satellite for Japan)
- 02 : Terrestrial TV (DTV)
- 07 : BS (Broadcasting Satellite)
- 08 : CS1 (Communication Satellite 1)
- 09 : CS2 (Communication Satellite 2)
* Tune Command Examples:
1
Tune to the digital terrestrial (ISDB-T) channel 17-1
.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 17 = 00 11
Data 03 & 04 = Minor/Branch is 1 = 00 01
Data 05 = Digital Terrestrial TV = 02
Total = ma 00 00 00 11 00 01 02
2. Tune to the BS (ISDB-BS) channel 30.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Don’t Care = 00 00
Data 05 = Digital BS TV = 07
Total = ma 00 00 00 1E 00 00 07
* This feature is varied based on the model.
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][Data 03][Data 04][Data 05]
[x][a][ ][Set ID][ ][NG][Data 00][x]
18. Channel(Programme) Add/Del(Skip)
(Command: m b)
► To skip current channel(programme) for next time.
Transmission [m][b][ ][Set ID][ ][Data][Cr]
Data 00 : Del(ATSC,ISDB)/Skip(DVB) 01 : Add
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* Set the saved channel status to del(ATSC, ISDB)/
skip(DVB) or add.
19. Key (Command: m c)
► To send IR remote key code.
Transmission [m][c][ ][Set ID][ ][Data][Cr]
Data Key code - See p.2.
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
20. Control Back Light (Command: m g)
• For LCD TV / LED TV
► To control the back light.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
Control Panel Light (Command: m g)
• For Plasma TV
► To control the panel light.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
21. Input select (Command: x b)
(Main Picture Input)
► To select input source for main picture.
Transmission [x][b][ ][Set ID][ ][Data][Cr]
Data
00 : DTV
02 : Satellite DTV
ISDB-BS (Japan)
03 : ISDB-CS1 (Japan)
04 : ISDB-CS2 (Japan)
11 : CATV
01 : CADTV
10 : ATV
20 : AV or AV1 21 : AV2
40 : Component1 41 : Component2
90 : HDMI1
92 : HDMI3
91 : HDMI2
93 : HDMI4
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* This function depends on model and signal.
11
ENGENGLISH
11
EXTERNAL CONTROL DEVICE SETUP
22. 3D(Command: x t) (only 3D models)
(Depending on model)
► To change 3D mode for TV.
Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01]
[ ][Data 02][ ][Data 03][Cr]
Data Structure
[Data 00] 00 : 3D On
01 : 3D Off
02 : 3D to 2D
03 : 2D to 3D
[Data 01] 00 : Top and Bottom
01 : Side by Side
02 : Checker Board
03 : Frame Sequential
04 : Column interleaving
05 : Row interleaving
[Data 02] 00 : Right to Left
01 : Left to Right
[Data 03] 3D Effect(3D Depth): Min : 00 - Max : 14
(*transmit by Hexadecimal code)
* If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data
01], [Data 02] and [Data 03] have no meaning.
* If [Data 00] is 03(2D to 3D), [Data 01] have no
meaning.
* If [Data 00] is 00 (3D On) or 03 (2D to 3D), [Data
03] works when 3D Mode (Genre) is manual only
* All 3D pattern options ([Data 01]) may not be
available according to broadcasting/video signal.
[Data 00] [Data 01] [Data 02] [Data 03]
00 O O O
01 X X X
02 X X X
03 X O O
X : don’t care
Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02]
[Data03][x]
[t][ ][Set ID][ ][NG][Data00][x]
23. Extended 3D(Command: x v) (only 3D models)
(Depending on model)
► To change 3D option for TV.
Transmission [x][v][ ][Set ID][ ][Data 00][ ]
[Data 01][Cr]
[Data 00] 3D option
00 : 3D Picture Correction
01 : 3D Depth (3D Mode is Manual Only)
02 : 3D Viewpoint
06 : 3D Color Correction
07 : 3D Sound Zooming
08 : Normal Image View
09 : 3D Mode (Genre)
[Data 01] It has own range for each 3D option
determined by [Data 00].
1) When [Data 00] is 00
00 : Right to Left
01 : Left to Right
2) When [Data 00] is 01, 02
Data Min: 0 - Max: 14 (*transmit by Hexadecimal
code)
Data value range(0 - 20) converts Viewpoint range
(-10 - +10) automatically (Depending on model)
* This option works when 3D Mode (Genre) is manual
only.
3) When [Data 00] is 06, 07
00 : Off
01 : On
4) When [Data 00] is 08
00 : Revert to 3D video from 3D-to-2D
converted 2D video
01 : Change 3D video to 2D video, except
2D-to-3D video
* If conversion condition doesn’t meet, command is
treated as NG.
5) When [Data 00] is 09
00 : Standard
02 : Cinema
04 : Manual
01 : Sport
03 : Extreme
Ack [v][ ][Set ID][ ][OK][Data00][Data01][x]
[v][ ][Set ID][ ][NG][Data00][x]
