2-023-044-11(1)
Digital Still Camera
Operating Instructions
Before operating the unit, please read this manual thoroughly, and
retain it for future reference.
Owner’s Record
The model and serial numbers are located on the bottom. Record the
serial number in the space provided below. Refer to these numbers
whenever you call upon your Sony dealer regarding this product.
Model No. DSC-F88
Serial No.
DSC-F88
© 2004 Sony Corporation
Getting started_______________________
_
Shooting still images_________________
_
Viewing still images__________________
_
Deleting still images _________________
_
Before advanced operations____________
_
Advanced still image shooting __________
_
Advanced still image viewing ___________
_
Still image editing _____________________
_
Still image printing ____________________
_
(PictBridge printer)
Enjoying movies ______________________
_
Enjoying images on your computer
_
_____
_
Troubleshooting ______________________
_
Additional information__________________
_
Index _____________________________
_
2
To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
If you have any questions about this product,
you may call:
Sony Customer Information Services Center
1-800-222-SONY (7669)
The number below is for the FCC related
matters only.
Regulatory Information
CAUTION
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
Note:
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the
equipment and receiver.
—Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced
radio/TV technician for help.
The supplied interface cable must be used
with the equipment in order to comply with
the limits for a digital device pursuant to
Subpart B of Part 15 of FCC Rules.
WARNING
For the Customers in the U.S.A.
This symbol is intended to
alert the user to the presence
of uninsulated “dangerous
voltage” within the product’s
enclosure that may be of
sufficient magnitude to
constitute a risk of electric
shock to persons.
This symbol is intended to
alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
Declaration of Conformity
Trade Name: SONY
Model No.: DSC-F88
Responsible Party:Sony Electronics Inc.
Address: 16450 W. Bernardo Dr,
San Diego, CA 92127
U.S.A.
Telephone No.: 858-942-2230
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
3
RECYCLING LITHIUM-ION
BATTERIES
Lithium-Ion batteries are
recyclable.
You can help preserve our
environment by returning your
used rechargeable batteries to
the collection and recycling location nearest
you.
For more information regarding recycling of
rechargeable batteries, call toll free
1-800-822-8837, or visit
http://www.rbrc.org/
Caution:Do not handle damaged or leaking
Lithium-Ion batteries.
A moulded plug complying with BS 1363 is fitted
to this equipment for your safety and
convenience.
Should the fuse in the plug supplied need to be
replaced, a fuse of the same rating as the supplied
one and approved by ASTA or BSI to BS 1362,
(i.e., marked with or mark) must be used.
If the plug supplied with this equipment has a
detachable fuse cover, be sure to attach the
fuse cover after you change the fuse. Never
use the plug without the fuse cover. If you
should lose the fuse cover, please contact your
nearest Sony service station.
This product has been tested and found compliant
with the limits sets out in the EMC Directive for
using connection cables shorter than 3 meters
(9.8 feet).
Attention
The electromagnetic field at the specific
frequencies may influence the picture and sound
of this camera.
Notice
If static electricity or electromagnetism causes
data transfer to discontinue midway (fail), restart
the application or disconnect and connect the
USB multi cable again.
For the Customers in the U.S.A.
THIS DEVICE COMPLIES WITH PART 15
OF THE FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO
CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE
HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION.
For the Customers in Canada
THIS CLASS B DIGITAL APPARATUS
COMPLIES WITH CANADIAN ICES-003.
Certain countries and regions may regulate
disposal of the battery used to power this product.
Please consult with your local authority.
For the Customers in the U.S.A.
and Canada
Notice for the customers in the
United Kingdom
Attention for the Customers in
Europe
“Memory Stick”
Notice
N50
4
Read this first
Trial recording
Before you record one-time events, you may
want to make a trial recording to make sure
that the camera is working correctly.
No compensation for contents of the
recording
Contents of the recording cannot be
compensated for if recording or playback is
not possible due to a malfunction of your
camera or recording medium, etc.
Back up recommendation
To avoid the potential risk of data loss, always
copy (back up) data to a disk.
Notes on image data compatibility
• This camera conforms with the Design rule
for Camera File system universal standard
established by the JEITA (Japan Electronics
and Information Technology Industries
Association).
• Playback of images recorded with your
camera on other equipment and playback of
images recorded or edited with other
equipment on your camera are not
guaranteed.
Precaution on copyright
Television programs, films, video tapes, and
other materials may be copyrighted.
Unauthorized recording of such materials may
be contrary to the provision of the copyright
laws.
Do not shake or strike the camera
In addition to malfunctions and inability to
record images, this may render the “Memory
Stick” unusable or image data breakdown,
damage or loss may occur.
LCD screen, LCD finder (only models
with an LCD finder) and lens
• The LCD screen and the LCD finder are
manufactured using extremely high-
precision technology so over 99.99% of the
pixels are operational for effective use.
However, there may be some tiny black
points and/or bright points (white, red, blue
or green in color) that constantly appear on
the LCD screen and the LCD finder. These
points are normal in the manufacturing
process and do not affect the recording in
any way.
• Be careful when placing the camera near a
window or outdoors. Exposing the LCD
screen, the finder or the lens to direct
sunlight for long periods may cause
malfunctions.
• Do not press the LCD screen hardly. The
screen may be uneven and that may cause a
malfunction.
• Images may be trailed on the LCD screen in
a cold location. This is not a malfunction.
Remove dirt from the surface of the
flash
If the dirt changes color or sticks to the
surface of the flash due to the heat of the flash,
sufficient light may not be emitted.
Do not get the camera wet
When taking pictures outdoors in the rain or
under similar conditions, be careful not to get
the camera wet. If water gets inside of the
camera, it may cause the camera to
malfunction, sometimes beyond repair. If
moisture condensation occurs, see page 119
and follow the instructions on how to remove
it before using the camera.
Do not expose the camera to sand or
dust
Using the camera in sandy or dusty locations
may cause a malfunction.
Do not aim the camera at the sun or
other bright light
This may cause irrecoverable damage to your
eyes or the malfunction of your camera.
Note on locations where you can
use the camera
Do not use the camera near a location that
generates strong radio waves or emits
radiation. The camera may not be able to
record or play back properly.
Carl Zeiss lens
This camera is equipped with a Carl Zeiss
lens which is capable of reproducing sharp
images with excellent contrast.
The lens for this camera has been produced
under a quality assurance system certified
by Carl Zeiss in accordance with the
quality standards of Carl Zeiss in Germany.
5
The pictures used in this manual
The photographs used as examples of pictures
in this manual are reproduced images, and are
not actual images shot using this camera.
Trademarks
• is a trademark of Sony
Corporation.
• “Memory Stick,” , “Memory Stick
PRO,” , “Memory Stick
Duo,” , “Memory Stick
PRO Duo,” ,
“MagicGate,” are
trademarks of Sony Corporation.
• “InfoLITHIUM” is a trademark of Sony
Corporation.
• Picture Package is a trademark of Sony
Corporation.
• Microsoft, Windows, Windows Media, and
DirectX are either registered trademarks or
trademarks of Microsoft Corporation in the
United States and/or other countries.
• Macintosh, Mac OS, QuickTime, iMac,
iBook, PowerBook, Power Mac, and eMac
are trademarks or registered trademarks of
Apple Computer, Inc.
• Macromedia and Flash are trademarks or
registered trademarks of Macromedia, Inc. in
the United States and/or other countries.
• Intel, MMX, and Pentium are trademarks or
registered trademarks of Intel Corporation.
• In addition, system and product names used
in this manual are, in general, trademarks or
registered trademarks of their respective
developers or manufacturers. However, the
™
or ® marks are not used in all cases in this
manual.
6
Table of contents
Read this first............................................4
Identifying the parts..................................8
Mode dial............................................10

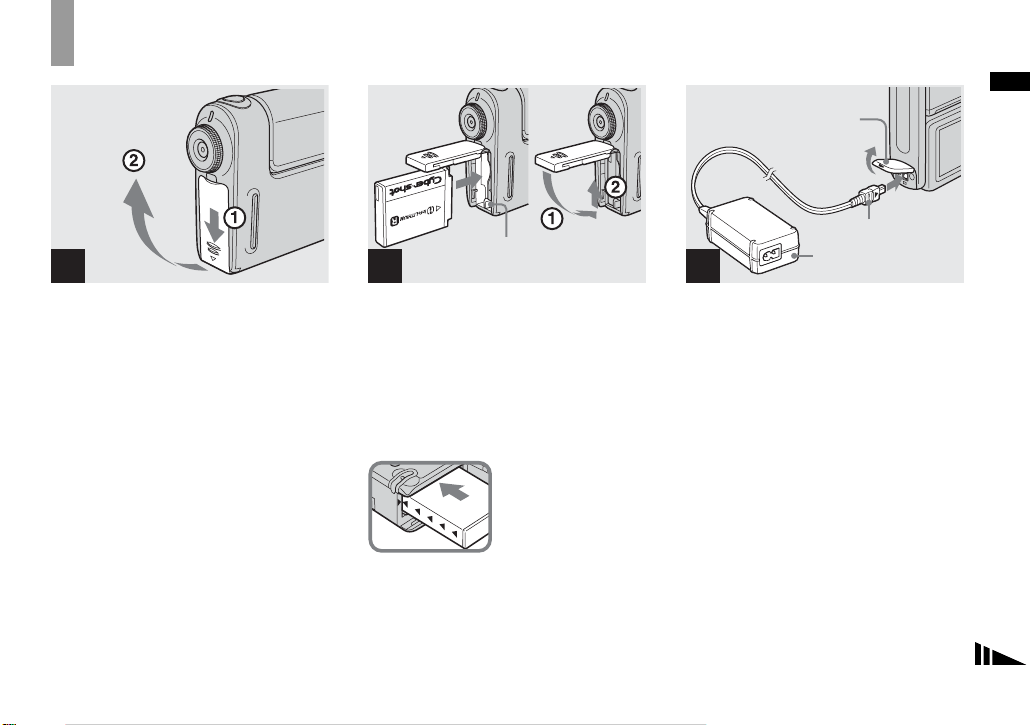

Charging the battery pack.......................11
Using the AC Adaptor ............................14
Using your camera abroad......................14
Turning your camera on/off....................15
How to use the control button.................16
Setting the date and time.........................17
Inserting and removing a
“Memory Stick” .............................19
Setting the still image size ......................20
Image size and quality ............................21
Basic still image shooting
– Using auto mode..........................23
Checking the last image shot
– Quick Review..............................25
Using the zoom feature.......................25

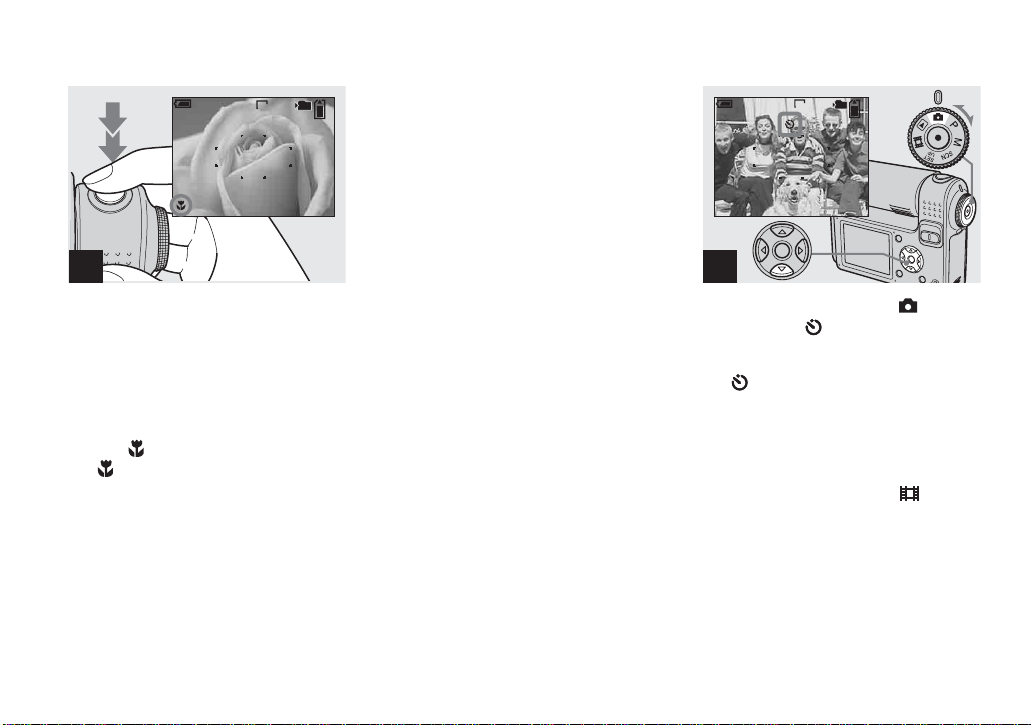

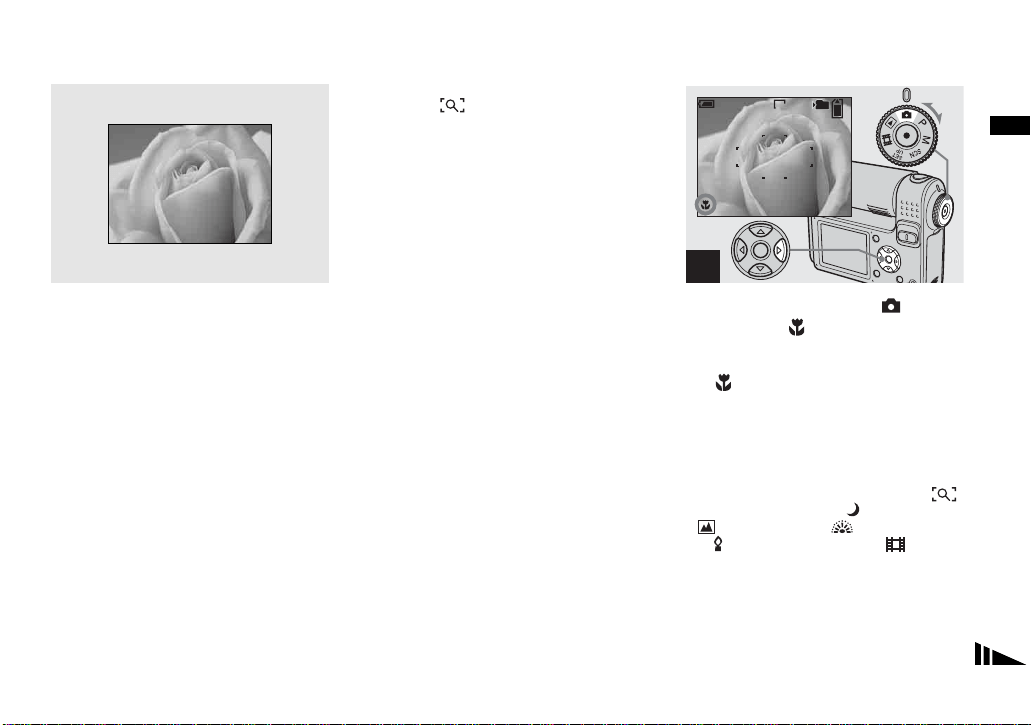

Shooting close-ups – Macro...............27
Using the self-timer............................28
Rotating the lens
– Mirror mode ................................29
Selecting a flash mode........................29
Shooting images with the finder.........32
Inserting the date and time on a still
image.............................................. 33

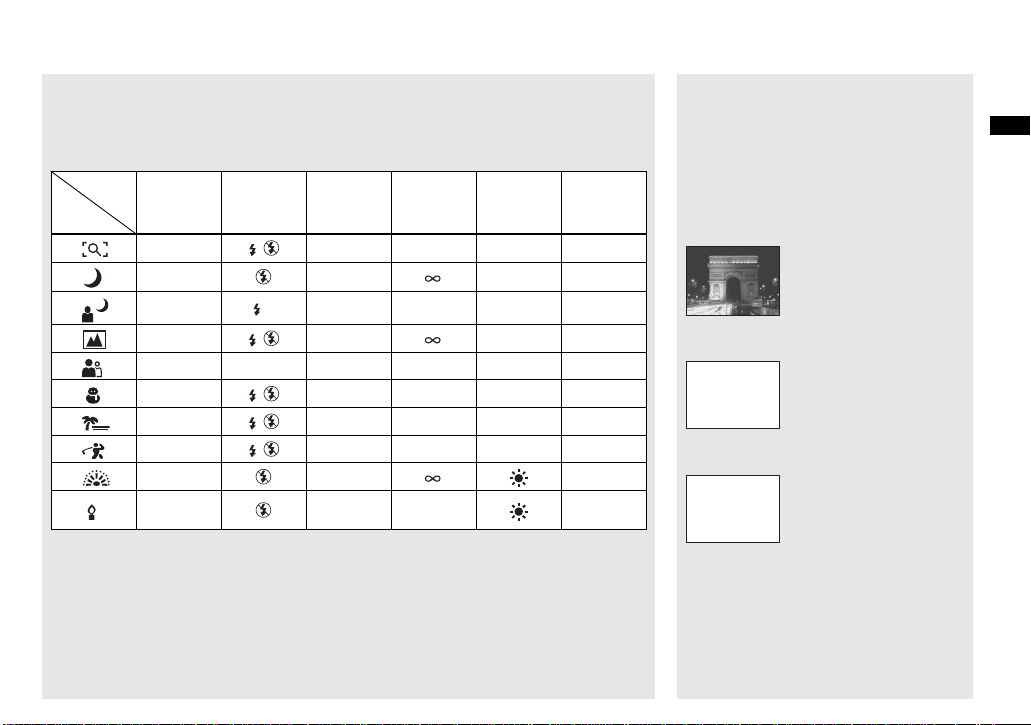

Shooting according to scene conditions
– Scene Selection........................... 34

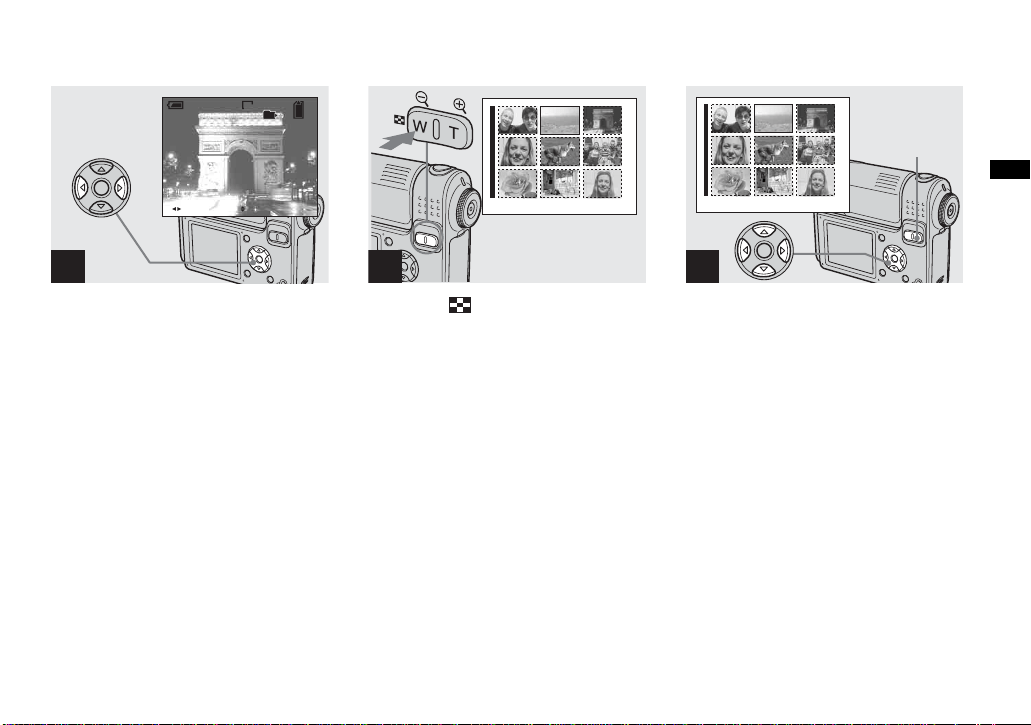

Viewing images on the LCD screen of your
camera............................................ 38

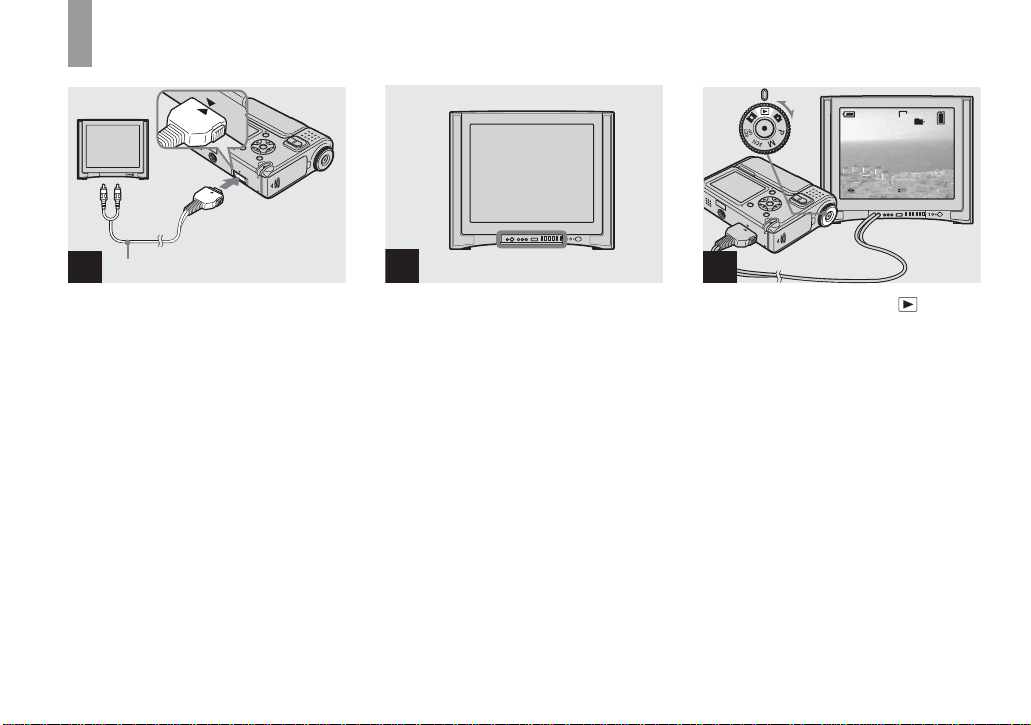

Viewing images on a TV screen............. 40
Deleting images...................................... 42
Formatting a “Memory Stick”................ 44
How to setup and operate your camera .. 46
Changing menu settings..................... 46
Changing items in the SET UP
screen ............................................. 47
Deciding the still image quality.............. 47
Creating or selecting a folder ................. 48
Creating a new folder......................... 48
Selecting the recording folder............ 48
Choosing an auto focus method..............49
Choosing a focus range finder frame
– AF range finder............................49
Choosing a focus operation
– AF Mode......................................50

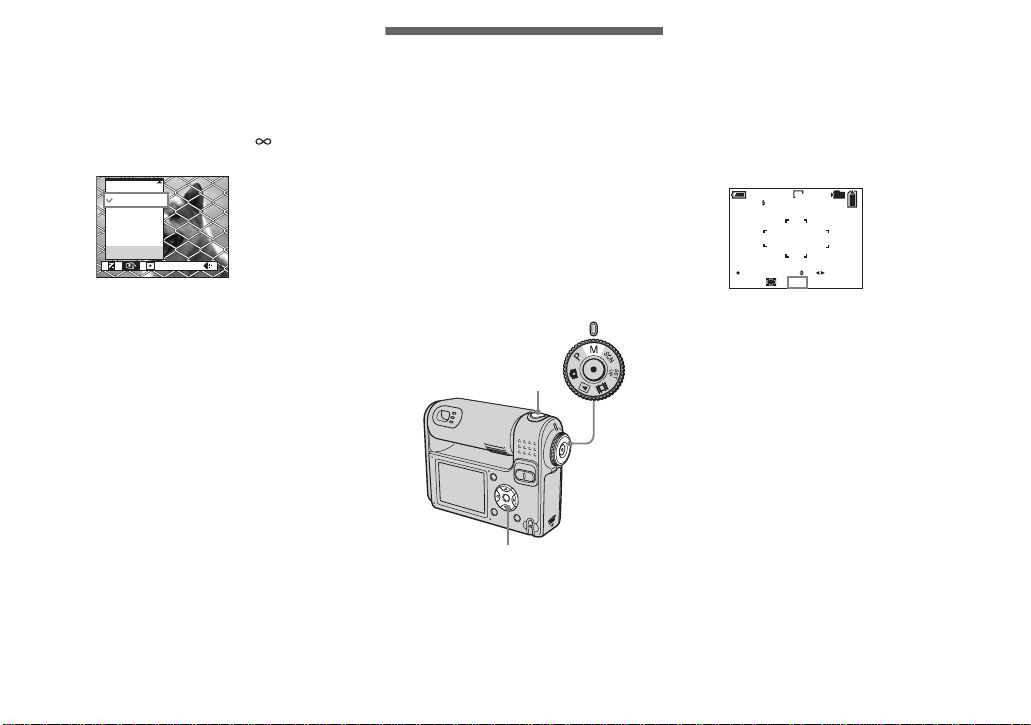

Setting the distance to the subject
– Focus preset.................................51
Shooting with manual shutter speed and
aperture settings
– Manual Exposure.........................52

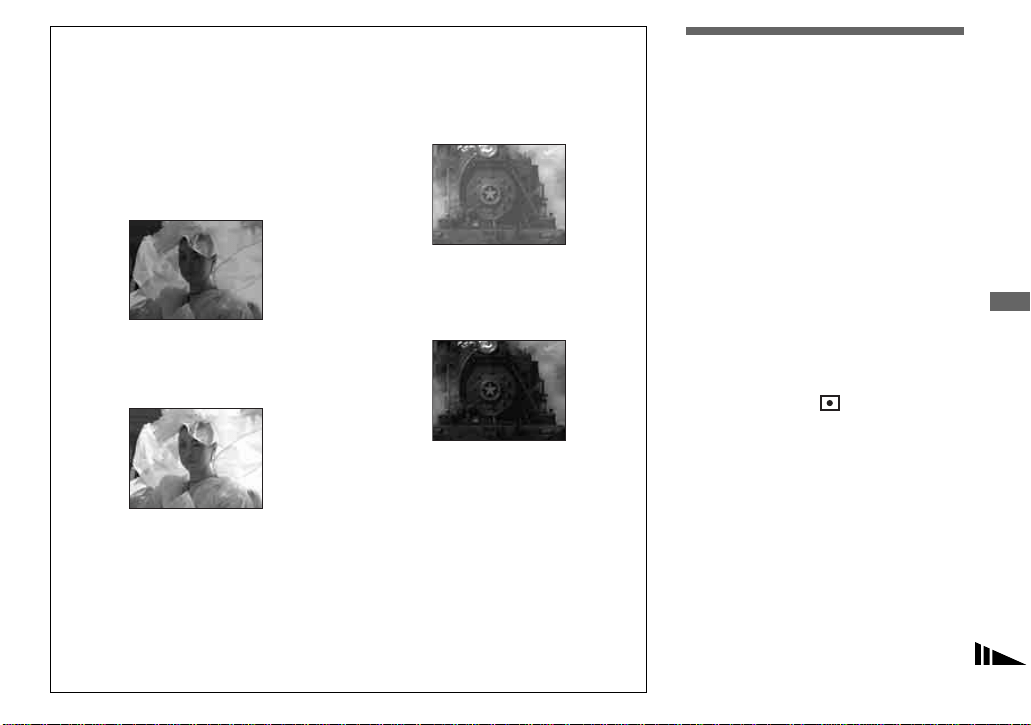

Adjusting the exposure
– EV adjustment.............................55
Displaying a histogram.......................56
Selecting the metering mode...................57
Adjusting color tones
– White Balance .............................58
Adjusting the flash level
– Flash Level ..................................59
Shooting images in succession................60
Shooting in Multi Burst mode
– Multi Burst...................................61
Shooting with special effects
– Picture Effect...............................62
Using the Cyber-shot Station..................62
Getting started
Shooting still images
Viewing still images
Deleting still images
Before advanced operations
Advanced still image
shooting
7
Selecting the folder and playing back
images – Folder ..............................63
Enlarging a portion of a still image.........64
Enlarging an image
– Playback zoom.............................64
Recording an enlarged image
– Trimming.....................................65
Playing back successive images
– Slide show....................................65

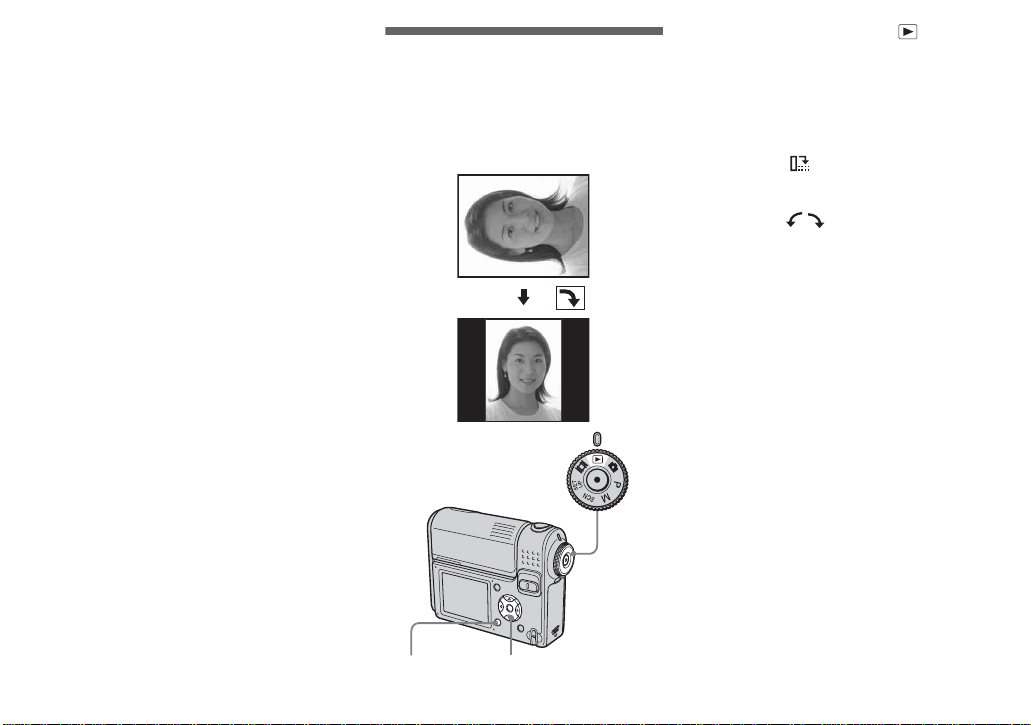

Rotating still images – Rotate.................66
Playing back images shot in Multi Burst
mode ...............................................67
Playing back continuously..................67
Playing back frame by frame..............67
Protecting images – Protect.....................69
Changing image size – Resize.................70
Choosing images to print
– Print (DPOF) mark ......................71

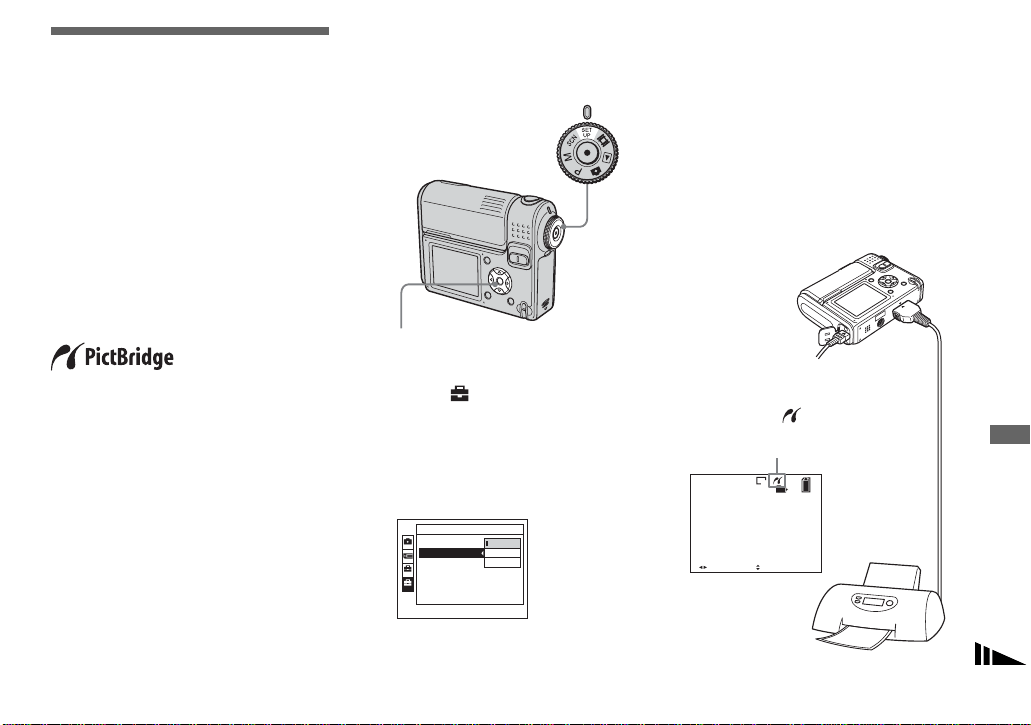

Connecting to a PictBridge compliant
printer..............................................73
Printing images........................................74
Printing index-images.............................76

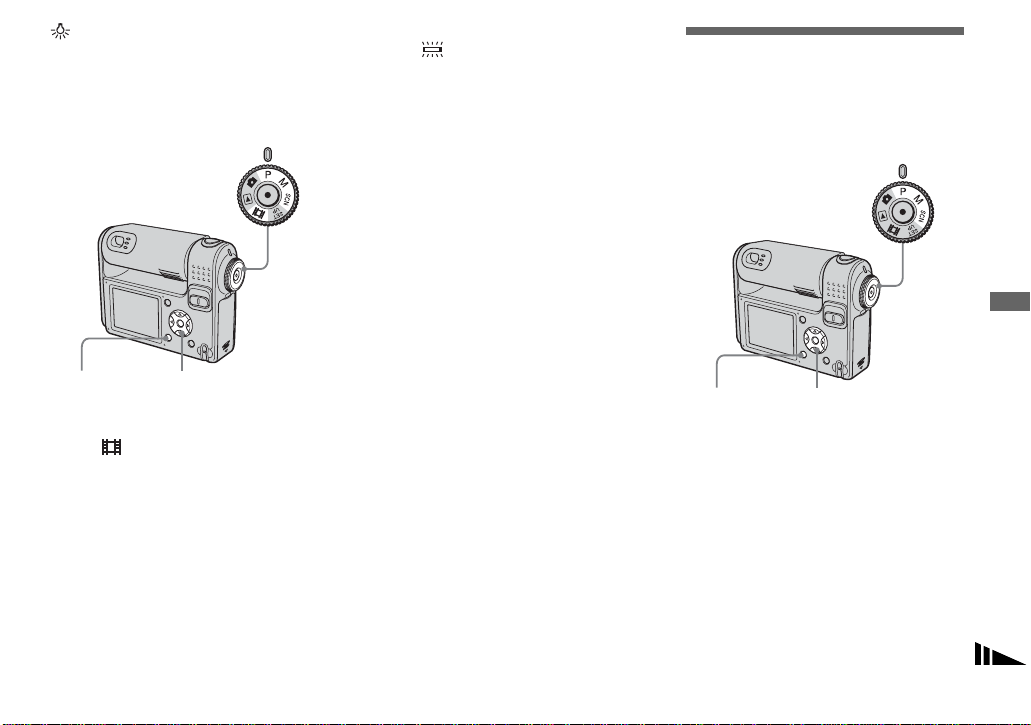

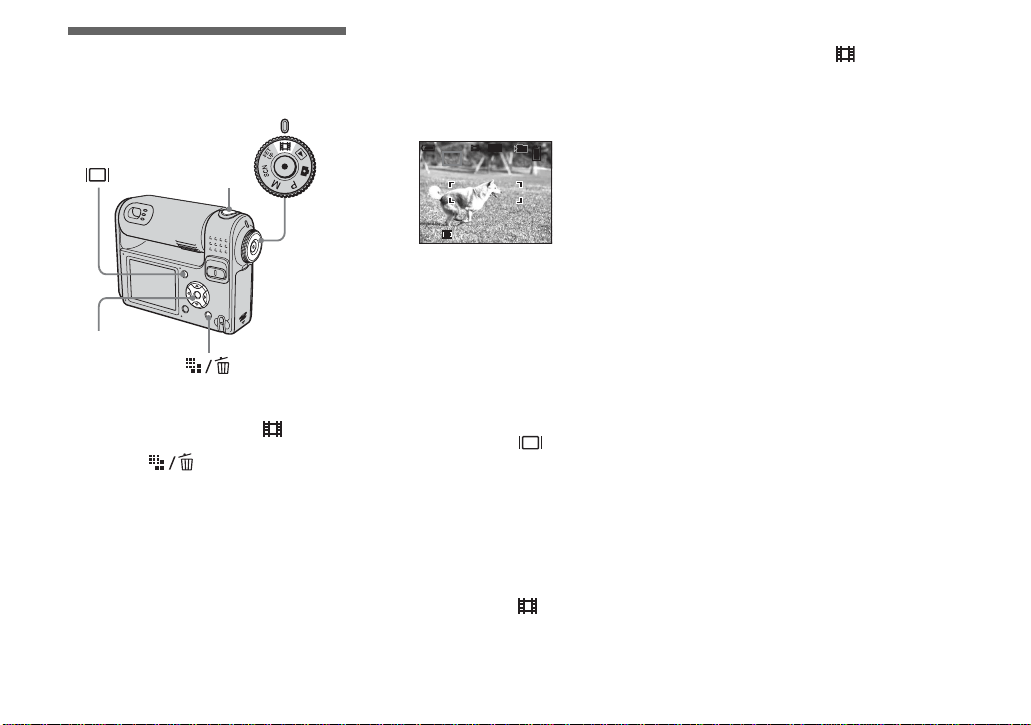

Shooting movies .....................................80
Viewing movies on the LCD screen.......81
Deleting movies......................................82
Cutting movies........................................83
Copying images to your computer
– For Windows users......................85
Installing the USB driver....................86
Connecting the camera to your
computer.........................................87
Copying images..................................88
Viewing the images on your
computer.........................................90
Image file storage destinations and file
names..............................................91
Viewing an image previously copied
to a computer..................................93
Installing “Picture Package”...............93
Copying images using
“Picture Package”...........................95
Using “Picture Package” ....................96
Copying images to your computer
– For Macintosh users....................97
Using “ImageMixer VCD2” ...............98
Troubleshooting ....................................100
Warnings and messages ........................110
Self-diagnosis display
– If a code starting with an alphabet
letter appears.................................112
The number of images that can be
saved/shooting time ......................113
Menu items............................................114
SET UP items........................................117
Precautions ............................................119
The “Memory Stick”.............................120
The “InfoLITHIUM” battery pack........121
Specifications........................................122
The LCD screen ....................................124
Index......................................................128
Advanced still image viewing
Still image editing
Still image printing
(PictBridge printer)
Enjoying movies
Enjoying images on your
computer
Troubleshooting
Additional information
Index
8
K Speaker (bottom surface)
• Use a tripod with a screw length of less than
5.5 mm (7/32 inch). You will be unable to
firmly secure the camera to tripods having
longer screws, and may damage the camera.
Identifying the parts
See the pages in parentheses for details of
operation.
A Shutter button (24)
B Flash (29)
C Multi connector (bottom surface)
D Tripod receptacle (bottom
surface)
E Finder window
F Self-timer lamp (28)/
AF illuminator (31, 117)
G Lens
H Microphone
I DC IN jack cover (11, 14)
J DC IN jack (11, 14)
5
6
7
8
9
q;
qa
1
2
3
4
9
C LCD screen
For details on the items on the LCD screen,
see pages 124 to 127.
D (Display/LCD on/off) button
(32)
E MENU button (46, 114)
F (Image Size/Delete)
button (20, 42)
G For shooting: Zoom (W/T)
buttons (25)
For viewing: / (Playback
zoom) buttons (64)/ (Index)
button (39)
H POWER lamp (15)
I Mode dial (10, 114)
J POWER button (15)
K Battery/“Memory Stick” cover
L Access lamp (19)
M RESET button (100)
N Battery eject lever (11)
O Hook for wrist strap
7
8
9
q;
qa
qs
qd
qf
qg
1
2
3
4
5
6
Attaching the wrist strap
A Control button
Menu on: v/V/b/B/z (16)
Menu off: / /7/ (29/28/25/27)
Mode dial “M”: Shutter speed/
aperture value (52)
B Finder (32)
Self-timer/recording
lamp (red) (28/24)
AE/AF lock lamp
(green) (24)
/CHG lamp
(orange) (29)
10
Mode dial
Before using your camera, set the desired
mark on the mode dial to .
(Auto adjustment mode)
The focus, exposure and white balance are
automatically adjusted to allow easy
shooting. The image quality is set to [Fine]
(page 47).
P (Program auto shooting)
Shooting adjustment is automatically
carried out just as in the auto adjustment
mode. However, you can intentionally
adjust the focus, etc. In addition, you can set
the desired functions using the menu (pages
46 and 114).
M (Manual exposure shooting)
You can manually adjust the shutter speed
and the aperture value (page 52). In
addition, you can set the desired shooting
functions using menus (pages 46 and 114).
SCN (Scene Selection)
You can easily shoot an effective photo
based on the scene conditions in the scene
(page 34). In addition, you can set the
desired shooting functions using menus
(pages 46 and 114).
SET UP (Set up)
You can change the settings of the camera
(pages 17 and 47).
(Movie shooting)
You can shoot movies (page 80).
(Playback/editing)
You can play back or edit still images or
movies (pages 38, 63, 69 and 81).
11
Getting started
Charging the battery pack
, Open the battery/“Memory
Stick” cover.
Slide the cover in the direction of the arrow.
• Be sure to turn off your camera when
charging the battery pack (page 15).
• Your camera operates with the
“InfoLITHIUM” NP-FR1 battery pack (R type)
(supplied). You can use only R type battery
pack (page 121).
, Install the battery pack, then
close the battery/“Memory
Stick” cover.
Make sure the battery pack is firmly
inserted all the way, then close the cover.
Battery insertion slot
Insert the battery pack so
that tip of the
v marks
on the side of the battery
pack face the tip of the
v
mark on the battery
insertion slot.
• The battery pack is easily inserted by pushing
the battery eject lever at the front of the battery
compartment toward the front of the camera.

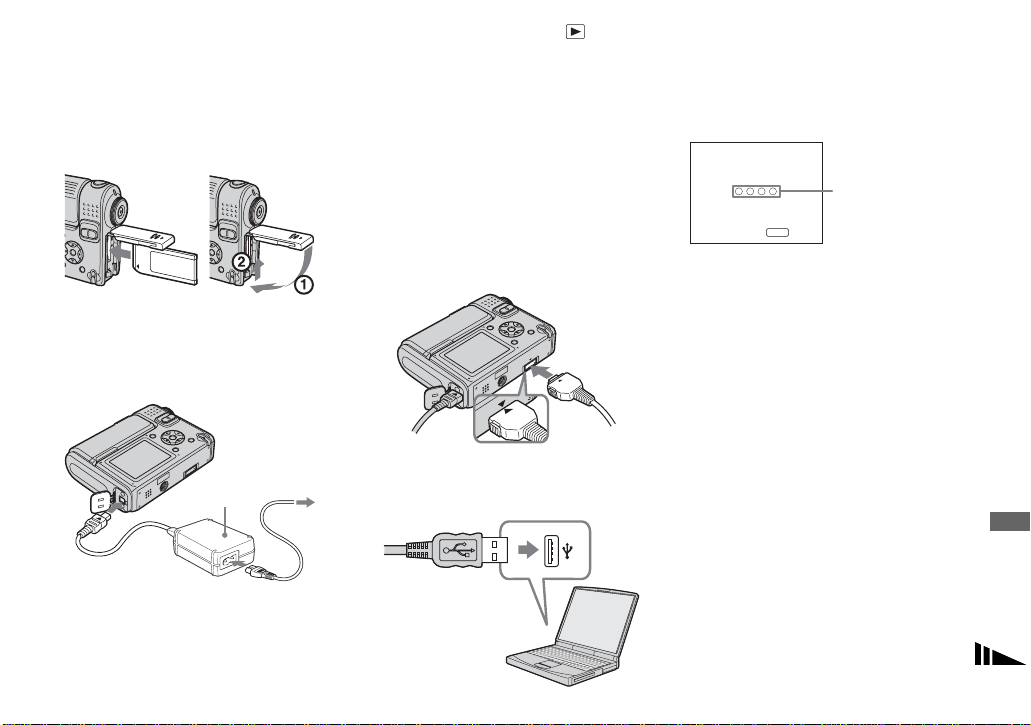

, Open the DC IN jack cover and
connect the AC Adaptor
(supplied) to the DC IN jack of
your camera.
Open the cover in the arrow direction as
illustrated above. Connect the DC plug with
the v mark facing the LCD screen side.
• Do not short the DC plug of the AC Adaptor
with a metallic object, as this may cause
malfunction.
• Clean the DC plug of the AC Adaptor with a
dry cotton bud. Do not use the dirty plug. Use
of the dirty plug may not properly charge the
battery pack.
1
2
Battery eject lever
3
DC plug
AC Adaptor
DC IN jack cover
G
e
tti
ng s
t
ar
t
e
d
12

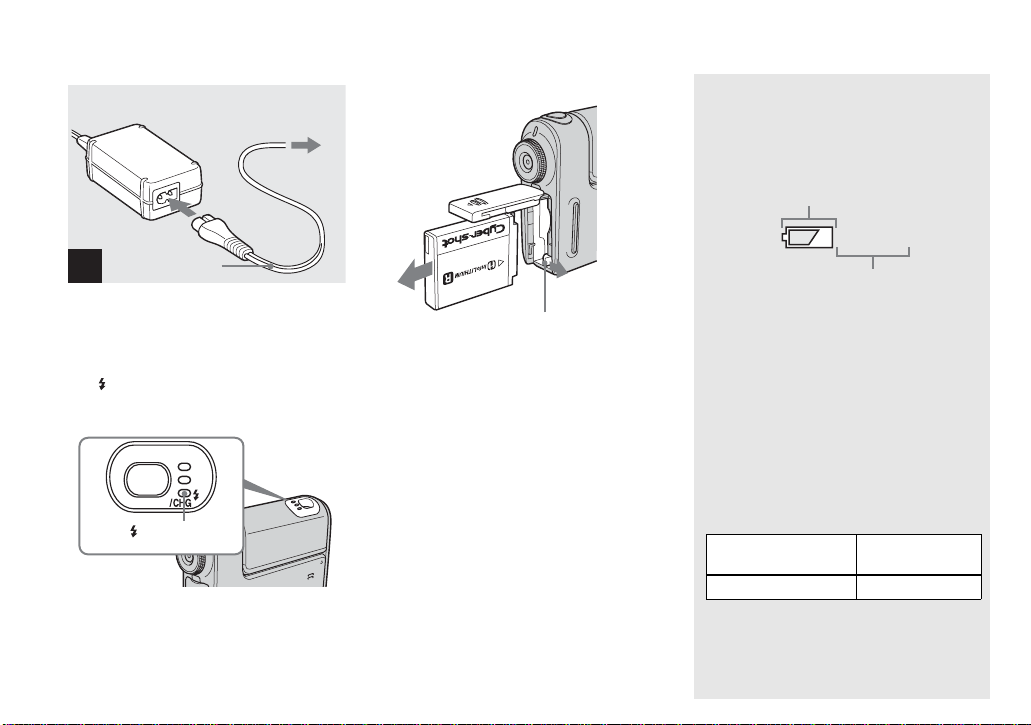

, Connect the power cord (mains
lead) to the AC Adaptor and to
a wall outlet (wall socket).
The /CHG lamp lights up when charging
begins, and goes off when charging is
completed.
• After charging the battery pack, disconnect the
AC Adaptor from the DC IN jack of your
camera.
To remove the battery pack
Open the battery/“Memory Stick” cover.
Slide the battery eject lever in the direction
of the arrow, and remove the battery pack.
• Be careful not to drop the battery pack when
removing it.
Battery remaining indicator
The battery remaining indicator on the LCD
screen shows the remaining shooting or
viewing time.
• When you switch the LCD screen on/off, it
takes about one minute for the correct battery
remaining time to appear.
• The displayed time remaining may not be
correct under certain circumstances or
conditions.
Charging time
Approximate time to charge a completely
discharged battery pack using the AC
Adaptor at a temperature of 25°C (77°F).
• The charging time may become longer under
certain circumstances or conditions.
4
Power cord
(mains lead)
2 To wall outlet (wall socket)
1
/CHG lamp
Battery eject lever
Battery pack
Charging time
(min.)
NP-FR1 (supplied) Approx. 200
60min
Remaining indicator
Remaining time
13
Getting started
Number of images and battery
life that can be recorded/
viewed
The tables show the approximate number of
images and the battery life that can be
recorded/viewed when you shoot images in
normal mode with a fully charged battery
pack (supplied) at a temperature of 25°C
(77°F). The numbers of images that can be
recorded or viewed take into account
changing the “Memory Stick” as necessary.
Note that the actual numbers may be less
than indicated depending on the conditions
of use.
• The battery capacity decreases little by little as
you use it more and more, and as time
passes
(page 121).
Shooting still images
Under the average conditions
1)
1) Shooting in the following situations:
– (P. Quality) is set to [Fine]
– Shooting one time every 30 seconds
– The zoom is switched alternately between
the W and T ends
– The flash strobes once every two times
– The power turns on and off once every ten
times
– [AF Mode] is set to [Single] in the SET UP
settings
The measurement method is based on CIPA
standard. (CIPA: Camera & Imaging Products
Association)
Viewing still images
2)
2) Viewing single images in order at about three
second intervals
Shooting movies
3)
3) Shooting movies continuously with the image
size [160]
• The number of images and the battery life that
can be recorded/viewed are decreased under the
following conditions:
– The surrounding temperature is low
– The flash is used
– The camera has been turned on and off many
times
– The zoom is used frequently
– [LCD Backlight] is set to [Bright] in the SET
UP settings
– [AF Mode] is set to [Monitor]
– The battery power is low
size
NP-FR1 (supplied)
LCD
screen
No. of
images
Battery life
(min.)
5M
On Approx. 330 Approx. 165
Off Approx. 420 Approx. 210
VGA
(E-Mail)
On Approx. 330 Approx. 165
Off Approx. 420 Approx. 210
Image size
NP-FR1 (supplied)
No. of
images
Battery life
(min.)
5M Approx. 8000 Approx. 400
VGA (E-Mail)
Approx. 8000 Approx. 400
NP-FR1 (supplied)
LCD screen On LCD screen Off
Approx. 180 min. Approx. 250 min.
14
Using the AC Adaptor
, Open the DC IN jack cover,
then connect the AC Adaptor
(supplied) to the DC IN jack of
the camera.
Open the cover in the arrow direction as
illustrated above.
Connect the DC plug
with the v mark facing
the LCD screen
side
.
• Connect the AC Adaptor to an easily accessible
wall outlet (wall socket) close by. If some
trouble occurs while using the adaptor,
immediately shut off the power by
disconnecting the plug from the wall outlet
(wall socket).
1
AC Adaptor
DC plug
DC IN jack cover
, Connect the power cord (mains
lead) to the AC Adaptor and to
a wall outlet (wall socket).
• When you have finished using the AC Adaptor,
disconnect it from the DC IN jack of the
camera and from a wall outlet (wall socket).
• The set is not disconnected from the AC power
source (mains) as long as it is connected to the
wall outlet (wall socket), even if the unit itself
has been turned off.
2
2 To a wall outlet
(wall socket)
Power cord
(mains lead)
1
Using your camera
abroad
Power sources
You can use your camera in any country or
region with the AC Adaptor (supplied)
within 100 V to 240 V AC, 50/60 Hz. Use a
commercially available AC plug adaptor
[a], if necessary, depending on the design of
the wall outlet (wall socket) [b].
• Do not use an electrical transformer (travel
converter), as this may cause a malfunction.
AC-LS5/LS5B
15
Getting started
Turning your camera on/off
There are following two ways to turn on the
camera.
Press POWER.
The POWER lamp lights in green and the
power is on. When you turn on the camera
for the first time, the Clock Set screen
appears (page 17).
To turn off the power
Press POWER again, the POWER lamp
goes out, and the camera turns off.
Rotate the lens portion.
Rotating the lens portion in the arrow
direction turns on the camera. To turn off
the power, rotate it back.
The Auto Power Off function
If no tasks are performed for about three
minutes when shooting, viewing images, or
setting up the camera while using the
battery pack, power is automatically shut
off to preserve battery power.
However, in the following circumstances,
even if the
battery pack is being used to
power the camera, the Auto Power Off
function will not work.
• Movies are being played back
• A slide show is being shown
• The USB multi cable or the A/V multi
cable is connected to the multi connector
POWER
POWER lamp
16
How to use the
control button
To change the current settings of the
camera, bring up the menu or the SET UP
screen (pages 46 and 47), and use the
control button to make the changes.
When setting up the menu, press v/V/b/B
to select the item or the setting and make the
setting.
When setting up the SET UP, press v/V/b/
B to select the item or the setting and press
z to make the setting.
2
1
Camera
AF Mode:
Digital Zoom:
Date/Time:
Red Eye Reduction:
AF Illuminator:
Auto Review:
Single
Smart
Off
Off
Auto
Off
SELECT
Cancel
OK
Setup 2
File Number:
USB Connect:
Video Out:
Clock Set:
1
17
Getting started
Setting the date and time
, Set the mode dial to .
• You can carry out this operation even when the
mode dial is set to P, M, SCN, or .
, Press POWER to turn on the
power.
The POWER lamp lights in green and the
Clock Set screen appears on the LCD
screen.
, Select the desired date format
with v/V on the control button,
then press z.
You can select from [Y/M/D] (year/month/
day), [M/D/Y], and [D/M/Y].
• If the rechargeable button battery, which
provides the power for saving the time data, is
ever fully discharged (page 120), the Clock Set
screen will appear again. When this happens,
reset the date and time by starting from Step 3
above.
• To set the time and the date again, set
the mode dial to SET UP, select
[Clock Set] in (Setup 2) (pages 47
and 118), then proceed from Step 3.
1
Mode dial
2
2
2004
/:
/
1 1
12 00
AM
OK
Cancel
Clock Set
D/M/Y
M/D/Y
Y/M/D
POWER
3
2004
/:
/
1 1
12 00
AM
OK
Cancel
Clock Set
D/M/Y
M/D/Y
Y/M/D
18
, Select the year, month, day,
hour, or minute item you want
to set with b/B on the control
button.
v is shown above and V is shown below the
selected item.
, Set the desired numerical
value with v/V on the control
button, then press z.
After setting the current numerical value,
set the next item. Repeat Steps 4 and 5
until all of the items have been set.
• If you select [D/M/Y] in Step 3, set the time
on a 24- hour cycle.
• 12:00 AM stands for midnight and 12:00 PM
stands for noon.
, Select [OK] with B on the
control button, then press z.
The date and time are set and the clock will
start to keep time.
• To cancel the setting process, select [Cancel],
then press z.
4
2004
/:
/
1 1
12 00
AM
OK
Cancel
Clock Set
D/M/Y
M/D/Y
Y/M/D
5
2005
/:
/
1 1
10 00
AM
OK
Cancel
Clock Set
D/M/Y
M/D/Y
Y/M/D
6
2005
/:
/
1 1
10 30
AM
OK
Cancel
Clock Set
D/M/Y
M/D/Y
Y/M/D
19
Shooting still images
Inserting and removing a “Memory Stick”
, Open the battery/“Memory
Stick” cover.
Slide the cover in the direction of the arrow.
• For details on “Memory Stick,” see page 120.
, Insert the “Memory Stick.”
Insert the “Memory Stick” all the way in
until it clicks as shown in the illustration.
• Whenever you insert a “Memory Stick,” push it
as far as it can go. If you do not insert it
correctly, a proper recording or playback may
not be carried out.
, Close the battery/“Memory
Stick” cover.
To remove the “Memory Stick”
Open the battery/“Memory Stick” cover,
then push the “Memory Stick” to pop it out.
• Whenever the access lamp is lit, the
camera is recording or reading out an
image. Never open the battery/“Memory
Stick” cover or turn off the power at this
time. The data may be corrupted.
1 2
Label side
Terminal side
3
Access lamp
Sh
oo
ti
ng s
till
i
mage
s
20
Setting the still image size
, Set the mode dial to , and
rotate the lens portion to turn
on your camera.
• You can carry out this operation even when the
mode dial is set to P, M or SCN.
, Press (Image Size).
The Image Size setup item appears.
• For more information about the image size, see
page 21.
, Select the desired image size
with v/V on the control button.
The image size is set.
After the setting is completed, press
(Image Size). The Image Size setup item
disappears from the LCD screen.
• This setting is maintained even when the power
is turned off.
1
Mode dial
2
VGA (E-Mail)
1M
3M
3:2
5M
5M
Image Size
3
VGA
(E-Mail)
1M
3M
3:2
5M
VGA
Image Size
21
Shooting still images
Image size and quality
You can choose image size (number of
pixels) and image quality (compression
ratio) based on the kind of images you want
to shoot. The image size is shown by the
number of pixels (dots) (horizontal ×
vertical), which compose an image. For
example, a 5M (2592×1944) size image
indicates that there are 2,592 pixels
horizontally 1,944 vertically. The larger the
number of pixels, the larger the image size.
You can select an image quality level from
Fine (high quality) or Standard.
Each has a different compression ratio.
When you select Fine and make the image
size larger, you get better quality. However,
the amount of data needed to preserve your
image is larger and the number of images
recordable in the “Memory Stick” is fewer.
Choose an image size and quality level
appropriate to the kind of images you want
to shoot by checking the table below.
1)
The default setting is [5M]. This size can give
the highest image quality using the camera.
2)
This option records images in a horizontal to
vertical proportion of 3:2 to match the size of
the print paper used or postcards.
Short description of the image size
The following illustration shows a brief image using the maximum image size and the
minimum one.
Examples based on the image size and image quality
Image size Examples
5M
1)
(2592×1944)
• For saving important images, printing A4 size or fine A5 size
images.
3:2
2)
(2592×1728)
3M (2048×1536)
1M (1280×960)
• For printing postcard size images.
VGA (E-Mail)
(640×480)
• For shooting a lot of images.
• For attaching images to e-mail or creating home pages.
2592
1944
480
640
Display size: 5M
Image size: 5M
2,592 pixels × 1,944 pixels = 5,038,848
Display size: VGA (E-Mail)
Image size: VGA
640 pixels × 480 pixels = 307,200
Larger
Smaller
22
The number of images that can be saved in a “Memory Stick”
3)
The number of images that can be saved in Fine (Standard)
4)
mode are shown below. (Units:
number of images)
3)
When [Mode] (REC Mode) is set to [Normal]
For the number of images that can be saved in other modes, see page 113.
4)
For more information about the image quality (compression ratio) setup, see page 47.
Image quality Examples
Fine
• To shoot or print with better quality.
Standard
• To shoot more images.
Capacity
16MB 32MB 64MB 128MB MSX-256 MSX-512 MSX-1G
size
5M 6 (11) 12 (23) 25 (48) 51 (96) 92 (174) 188 (354) 384 (723)
3:2 6 (11) 12 (23) 25 (48) 51 (96) 92 (174) 188 (354) 384 (723)
3M 10 (18) 20 (37) 41 (74) 82 (149) 148 (264) 302 (537) 617 (1097)
1M 24 (46) 50 (93) 101 (187) 202 (376) 357 (649) 726 (1320) 1482 (2694)
VGA (E-
Mail)
97 (243) 196 (491) 394 (985) 790 (1975) 1428 (3571) 2904 (7261)
5928
(14821)
Low compression
(looks better)
High compression
(normal)
• When the images recorded using other Sony
devices are played back, the image size
indication may be different from the actual
image size.
• When the images are viewed on the LCD
screen of the camera, they all look the same
size.
• Number of shooting images can differ from
these values according to shooting conditions.
• When the remaining number of images
recordable is more than 9,999, “>9999” is
indicated.
• You can resize the images later (Resize
function, see page 70).
23
Shooting still images
Basic still image shooting – Using auto mode
Holding the camera correctly
When shooting pictures with the camera, be
careful so that your fingers do not block the
lens, finder window, flash emitter,
speaker,
or microphone (page 8)
.
, Set the mode dial to , and
rotate the lens portion to turn
on your camera.
• You can create a new folder in the “Memory
Stick” and select the folder for storing images
(page 48).
, Hold the camera steadily with
both hands and position a
subject in the center of the
focus frame.
• The minimum focal distance to a subject is
approx. 50 cm (19 3/4 inches). To shoot
subjects at distances closer than this, use the
macro mode (page 27).
• The frame indicated on the LCD screen shows
the focus adjustment range. (AF range finder,
see page 49.)
1
Mode dial
2
24
, Press and hold the shutter
button halfway down.
When the focus is achieved, the camera
beeps. When the AE/AF lock indicator
stops flashing and remains on, the camera is
ready for shooting.
• If you release your finger from the shutter
button, shooting will be canceled.
• When the camera does not beep, the AF
adjustment is not complete. You can continue to
shoot, but the focus is not set properly.
, Press the shutter button fully
down.
The shutter clicks, the shooting is
completed, and the still image is saved in
the “Memory Stick.” When the recording
lamp (page 9) goes out, you can shoot the
next image.
• When you are shooting with a battery pack, if
no tasks are performed for a while with the
camera turned on, power is automatically shut
off to preserve battery power (page 15).
About Auto Focus
When you try to shoot a subject that is hard
to focus on, the AE/AF lock indicator will
change to flashing slowly and the AE lock
beep does not sound.
The Auto Focus function may be difficult to
use with in the following subjects. In such
cases, release the shutter button, then try to
recompose the shot and focus again.
• The subject is distant from the camera
and dark
• The contrast between the subject and its
background is poor
• The subject is seen through glass, such as
a window
• A fast-moving subject
• The subject has a reflection, such as that
from a mirror, or there is a luminous body
and a lustrous subject
• A flashing subject
• A backlit subject
There are two Auto Focus functions: “AF
range finder frame” which sets the focus
position according to the subject position
and size, and “AF mode” which sets when
the camera starts and stops focusing on.
See page 49 for details.
3
96
60
min
VGA
FINE
101
F3.530
S
AF
AE/AF lock indicator
Flashes in green
t
Remains on
4
95
60
min
VGA
101
S
AF
25
Shooting still images
Checking the last image
shot – Quick Review
, Press b (7) on the control
button.
To return to shooting mode, press the
shutter button lightly or press b (7) on the
control button again.
To delete the image displayed on the
LCD screen
1 Press (Delete).
2 Select [Delete] with v on the control
button, then press z.
The image is deleted.
• The image may appear rough right after
playback starts due to the image processing.
10:30
PM
2005 1 1101
-
0029
Review
60min
8/8
101
VGA
RETURN
Using the zoom feature
, Press the zoom buttons to
choose the desired zoom
position, and shoot your
image.
The minimum focal distance to the
subject
Approx. 50 cm (19 3/4 inches) from the
lens surface
• You cannot change the zoom scaling while
shooting movies (page 80).
T
W
T
W
60
min
60
min
101 101
96
VGA
S AF
96
VGA
1.1
5.0
S AF
W (wide-angle)
T (telephoto)
Zoom
Your camera is equipped with zoom
functions that enlarge the image using
optical zoom and two types of digital
processing. Digital zoom can be selected
from smart zoom or precision digital zoom.
When digital zoom is set, the zoom method
switches from optical zoom to digital zoom
when the zoom scale exceeds 3×.
To use only the optical zoom, set [Digital
Zoom] to [Off] in the SET UP settings
(page 117). In this case, the digital zoom
area does not appear in the zoom scale
display bar on the LCD screen, and the
maximum zoom is 3×.
The enlargement method and the zoom
scale differ according to the image size and
the zoom type, so select the zoom to match
the shooting purpose.
When you press the zoom button, the zoom
scaling indicator appears on the LCD screen
as follows.
26
• The zoom scaling indicator differs according to
the zoom type.
Optical zoom:
Smart zoom:
Precision digital zoom:
• The AF range finder frame does not appear
when using the digital zoom. The or
indicator flashes, and AF operates with priority
on subjects located near the center.
Smart zoom
The image is enlarged with almost no
distortion. This lets you use smart zoom
with the same feeling as optical zoom. To
set smart zoom, set [Digital Zoom] to
[Smart] in the SET UP settings (page 117).
The default setting is smart zoom.
The maximum zoom scale depends on the
selected image size as follows.
Smart zoom cannot be used when
the image size is set to [5M] or [3:2].
The default setting of the image size
is [5M].
• When using the smart zoom, the image on the
LCD screen may look rough. However, this has
no effect on the recorded image.
• You cannot use the smart zoom in the Multi
Burst mode.
Precision digital zoom
All image sizes are enlarged up to a
maximum 6×. This function cuts out and
enlarges a certain portion of the image, so
the image quality deteriorates. To set
precision digital zoom, set [Digital Zoom]
to [Precision] in the SET UP settings
(page 117).
The W side of this line is optical zoom
area, and the T side is digital zoom area
Zoom
scaling
indicator
Optical zoom
Smart zoom
Image size Maximum zoom scale
3M 3.8×
1M 6.1×
VGA (E-Mail) 12×
Optical zoom Precision digital
zoom
27
Shooting still images
Shooting close-ups – Macro
For close-ups of subjects like flowers or
insects, shoot using the macro feature. You
can shoot subjects approaching up to 8 cm
(3 1/4 inches) when the zoom is set to its W-
end. However, the available focus distance
depends on the zoom position. We
recommend that you set the zoom to its W-
end during shooting.
When the zoom is set all the way to
the W side:
Approx. 8 cm (3 1/4 inches) from the end of
the lens
When the zoom is set all the way to
the T side:
Approx. 25 cm (9 7/8 inches) from the end
of the lens
• To shoot at even closer distances than in macro
mode, use (Magnifying glass mode)
(page 34).
, Set the mode dial to , and
press B ( ) on the control
button.
The (macro) indicator appears on the
LCD screen.
• If the menu is currently displayed, press MENU
first to make the menu disappear.
• You can carry out this operation even when the
mode dial is set to P, M, SCN (other than
(Magnifying glass mode), (Twilight mode),
(Landscape mode), (Fireworks mode)
or (Candle mode), page 34) or .
1
60
min
96
VGA
101
S
AF
28

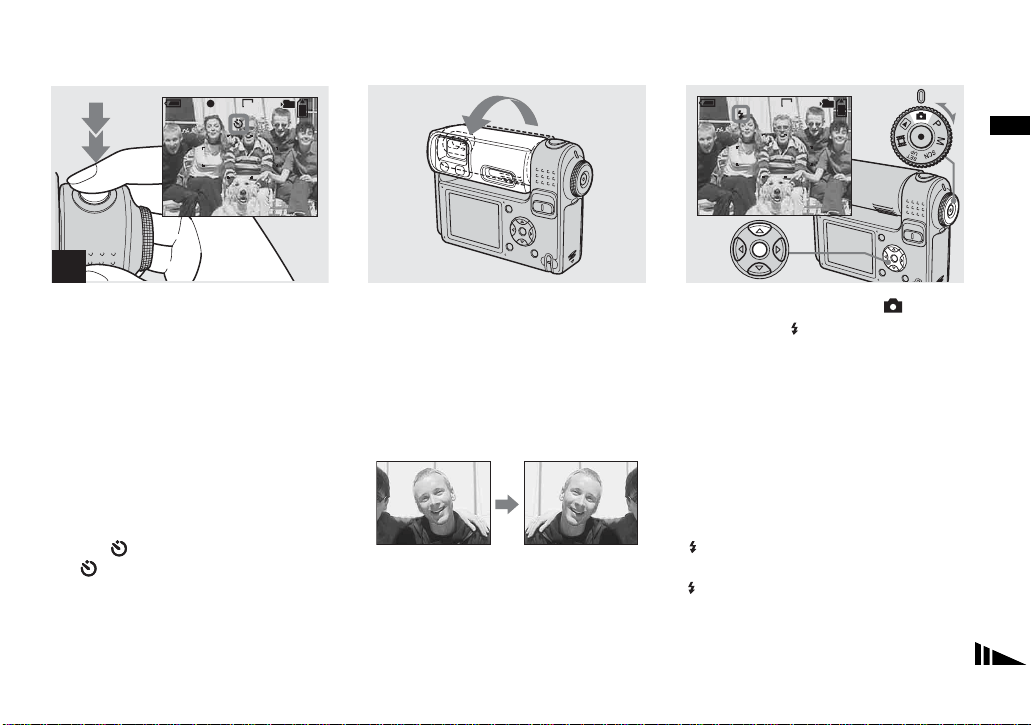

, Center the subject in the frame.
Press and hold the shutter
button halfway down to focus
on, then press the shutter
button fully down.
To return to normal shooting
Press B ( ) on the control button again.
The indicator disappears from the LCD
screen.
60
min
95
VGA
101
S
AF
2
• When shooting in macro mode, use the LCD
screen. If you use the finder, the limits of what
you see and what you actually shoot may be
different. This is due to the parallax effect.
• When shooting in macro mode, the focus range
is very narrow and you may not be able to focus
on the whole of the subject.
• When shooting in macro mode, the focus
adjustment becomes slower to accurately focus
on a close subject.
Using the self-timer
, Set the mode dial to , and
press V ( ) on the control
button.
The (self-timer) indicator appears on the
LCD screen.
• If the menu is currently displayed, press MENU
first to make the menu disappear.
• You can carry out this operation even when the
mode dial is set to P, M, SCN or .
1
60min
VGA
101
96
S
AF
29
Shooting still images
, Center the subject in the frame.
Press and hold the shutter
button halfway down to focus
on, then press the shutter
button fully down.
The self-timer lamp (page 8) will flash, and
you will hear a beeping sound. The image
will be shot after approximately 10 seconds.
To cancel the self-timer during the
operation
Press V ( ) on the control button again.
The indicator disappears from the LCD
screen.
• If you stand in front of the camera and press the
shutter button, the focus and the exposure may
not be correctly set.
2
60min
VGA
FINE
101
96
F3.530
S
AF
Rotating the lens
– Mirror mode
, Adjust the lens portion angle.
When shooting in mirror mode, turn over
the lens portion as illustrated above. The
image on the LCD screen is a mirror-image.
However, the image can be normal when
recorded.
Image on the
LCD screen
Recorded image
Selecting a flash mode
, Set the mode dial to , and
press v ( ) on the control
button repeatedly to select a
flash mode.
The flash mode has the following features.
No indicator (Auto): The camera decides
to use the flash based on lighting
conditions. The flash will be used when
there is not enough light. The default setting
is Auto.
(Forced flash): The flash will be used
regardless of the amount of ambient light.
(Slow synchro): The flash will be
used regardless of the amount of ambient
light. In this mode, the shutter speed is
slower under dark conditions, so you can
60min
VGA
101
96
S
AF
SL
30
clearly shoot a background that is out of the
flash-lit area.
(No flash): The flash will not be used.
• If the menu is currently displayed, press MENU
first to make the menu disappear.
• You can carry out this operation even when the
mode dial is set to P, M or SCN (other than
(Twilight mode), (Twilight portrait mode),
(Fireworks mode) or (Candle mode)).
• The recommended distance using the flash is as
follows (when [ISO] is set to [Auto]): Approx.
0.15 m (6 inches) to 2.2 m (7 feet 2 5/8 inches)
(W)/Approx. 0.25 m (9 7/8 inches) to 2 m
(6 feet 6 3/4 inches) (T)
• The flash fires twice. First pre-emission is to
adjust the amount of flash light, and second
emission is to shoot the image.
• You can change the brightness of the flash
using [ ] (Flash Level) in the menu settings
(page 115). (When the mode dial is set to ,
you cannot change the brightness of the flash.)
• Because the shutter speed is slower under dark
conditions when (Slow synchro) or (No
flash) is selected, it is recommended that you
use a tripod.
• While the flash is being charged, the /CHG
lamp flashes. After charging is completed, the
lamp goes out.
• This setting is maintained even when the power
is turned off.
To reduce “red-eye” when
shooting live subjects
The flash pre-strobes before shooting to
reduce the red-eye phenomenon. Set [Red
Eye Reduction] to [On] in the SET UP
settings (page 117). appears on the
LCD screen.
• The amount of red-eye reduction possible
varies according to the individual. In addition,
the distance to the subject, and whether or not
the subject has seen pre-strobe light begin to
strobe may also reduce the effectiveness of the
red-eye reduction process.
• When [Red Eye Reduction] is set to [On], the
flash fires twice or more.
SL
m
31
Shooting still images

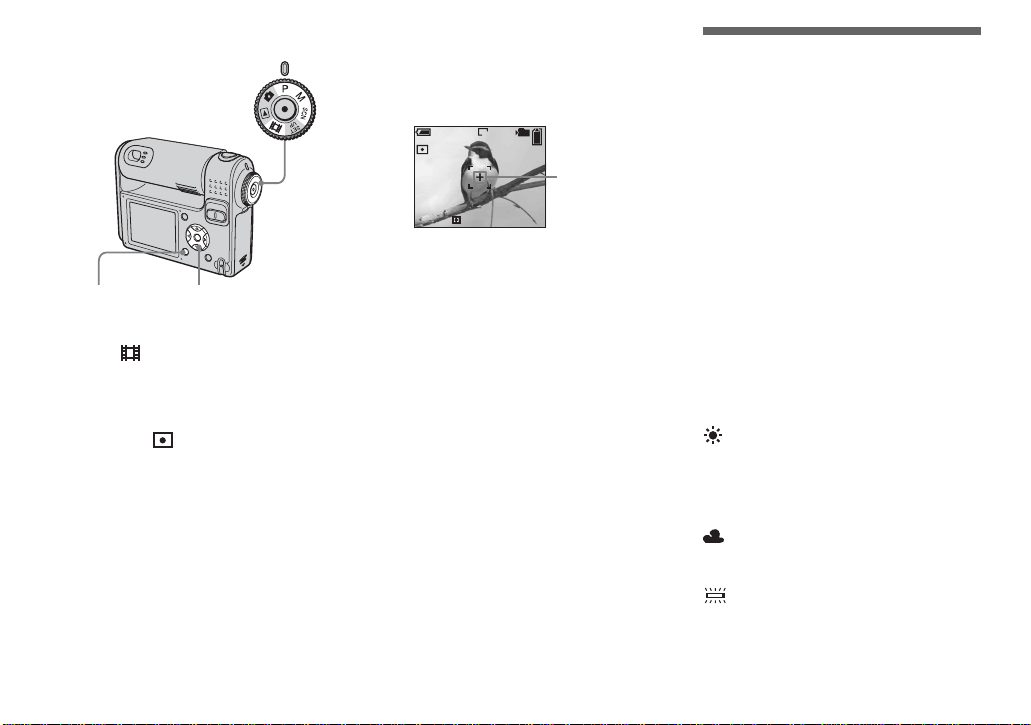

Shooting images with the AF
illuminator
The AF illuminator is fill light to focus
more easily on a subject in dark
surroundings. The appears on the LCD
screen and the AF illuminator emits red
light when the shutter button is pressed
halfway until the focus is locked.
When this function is not needed, set [AF
Illuminator] to [Off] in the SET UP settings
(page 117).
• If AF illuminator light does not reach the
subject sufficiently or the subject has no
contrast, focus will not be achieved. (A distance
up to approximately 3.0 m (9 feet 10 1/8
inches) is recommended.)
• Focus is achieved as long as AF illuminator
light reaches the subject, even if the light is
slightly off the center of the subject.
• When the focus preset distance is set (page 51),
the AF illuminator does not function.
• The AF range finder frame does not appear.
The or indicator flashes, and AF
operates with priority on subjects located near
the center.
• The AF illuminator does not operate when SCN
is set to (Twilight mode), (Landscape
mode), (Fireworks mode) in the menu
settings (page 34).
• The AF illuminator emits very bright light.
Although there are no problems with safety,
directly looking into the AF illuminator emitter
at close range is not recommended.
ON
VGA
60min
101
96
ON
FINE
F3.530
S
AF
32
Shooting images with the finder
The finder is convenient when you want to
save battery power, or when it is difficult to
confirm the image using the LCD screen.
Each time you press , the display
changes in the following order.
Histogram on
(Image information can also be
displayed during playback)
r
Indicators off
r
LCD screen off
r
Indicators on
• The image through the finder does not indicate
the actual recordable range. This is due to the
parallax effect. To confirm the recordable
range, use the LCD screen.
• Just as with the AE/AF lock indicator on the
LCD screen, when the AE/AF lock lamp of the
finder section stops flashing and remains on,
you can start shooting (page 23).
• When the LCD screen is turned off
– The digital zoom does not function (page 25).
– AF mode is set to [Single] (page 50).
– If you press (Flash mode)/ (Self-timer)/
(Macro) with the LCD screen turned off,
the image will be displayed on the screen for
approximately two seconds so you can check
or change the setting.
• When shooting/viewing movies, the status of
the LCD screen changes as follows: Indicators
off t LCD screen off t Indicators on
• For details on the items displayed, see page
124.
• For a detailed description of the histogram, see
page 56.
• This setting is maintained even when the power
is turned off.
Finder
VGA
101
96
S AF
60min
S AF
VGA
101
96
S AF
60min
33
Shooting still images

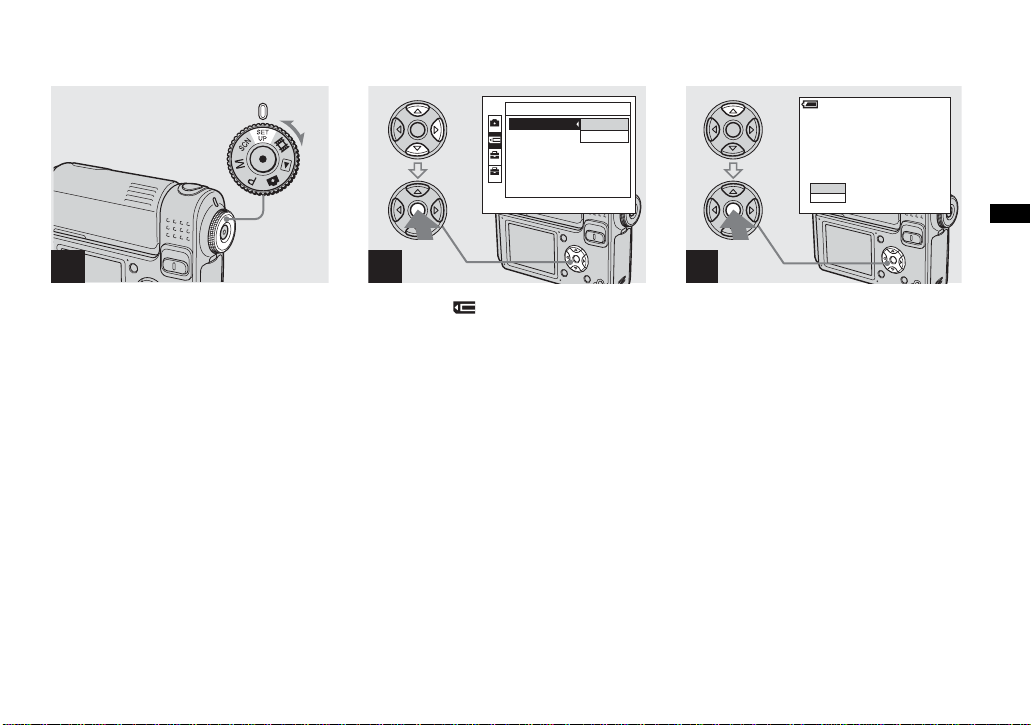

Inserting the date and time on a still image
, Set the mode dial to SET UP.
The SET UP screen appears.
• The date and time cannot be inserted in Multi
Burst mode.
• When images are shot with the date and time
inserted, the date and time cannot be removed
later.
• When shooting images with the date and time
inserted, the actual date and time are not
displayed on the LCD screen, and is
displayed on the LCD screen instead. The
actual date and time are indicated in red on the
lower-right corner when the image is played
back.
, Select (Camera) with v on
the control button, then press
B.
Select [Date/Time] with v/V on
the control button, then press
B.
, Select the date and time setting
with v/V on the control button,
then press z.
Day&Time: Inserts the date and the time of
shooting into the image
Date: Inserts the year, the month and the
date of shooting into the image
Off: Does not insert date/time data into the
After the setting has been completed, set the
mode dial to to shoot your image.
• You can shoot even when the mode dial is set to
P, M or SCN.
• When you chose [Date], the date will be
inserted in the order set in “Setting the date and
time” (page 17).
• This setting is maintained even when the power
is turned off.
1
2
1
SELECT
Camera
AF Mode:
Digital Zoom:
Date/Time:
Red Eye Reduction:
AF Illuminator:
Auto Review:
Single
Smart
Off
Off
Auto
Off
2
Day&Time
Date
Off
2
1
Camera
AF Mode:
Digital Zoom:
Date/Time:
Red Eye Reduction
:
AF Illuminator:
Auto Review:
3
2
1
PAGE SELECT
Camera
AF Mode:
Digital Zoom:
Date/Time:
Red Eye Reduction
:
AF Illuminator:
Auto Review:
Single
Smart
Day&Time
Off
Auto
Off
34
Shooting according to scene conditions – Scene Selection
Select one of the following modes, then
shoot by pressing the shutter button and this
will have a positive effect on your photo.

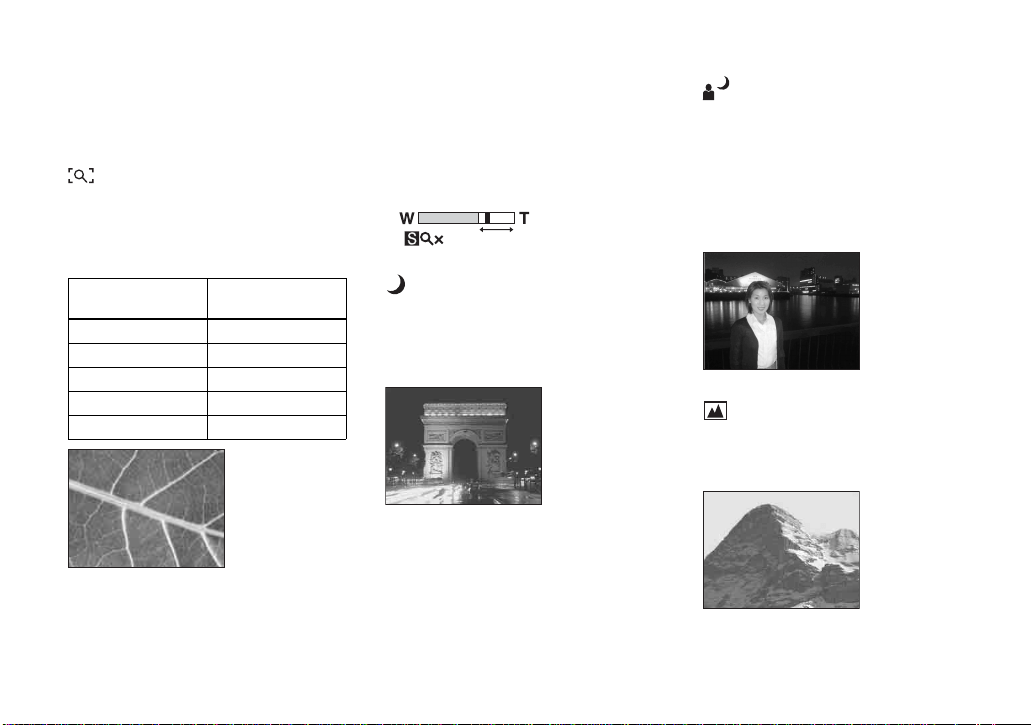

Magnifying glass mode
The subject appears on the LCD screen
magnified by up to 2.1×. This lets you see
details that would otherwise be difficult to
confirm with the naked eye.
• The focal distance to the subject is from
approx. 1 cm to 20 cm (13/32 inch to 7 7/8
inches).
• The optical zoom is locked to the W side and
cannot be used.
• When you press the zoom button, the image is
enlarged using the digital zoom.
Twilight mode
Under dark lighting conditions, you can
shoot a distant night view. Because the
shutter speed is slow, it is recommended
that you use a tripod.
Twilight portrait mode
Use this mode when shooting people in the
foreground at night. This mode allows you
to shoot images of people in the foreground
with distinct outlines without losing the
feeling that you are shooting at night.
Because the shutter speed is slow, it is
recommended that you use a tripod.
Landscape mode
Focuses on images far away, so is
convenient for shooting landscapes at a
distance.
Distance to the
subject
Magnification
scale
1 cm (13/32 inch) 2.1×
2 cm (13/16 inch) 1.4×
5 cm (2 inches) 0.7×
10 cm (4 inches) 0.4×
20 cm (7 7/8 inches) 0.2×
1.1
35
Shooting still images
Soft snap mode
You can shoot the color of a person’s skin
beautifully with a bright, warm color tone.
This mode also has an effect on soft-focus,
so an image such as that of a person or a
flower is shot in the proper atmosphere.
Snow mode
When shooting snowy scenes or other
places where the whole screen appears
white, use this mode to prevent sunken
colors and record clear images.
Beach mode
When shooting seaside or lakeside scenes,
the blue of the water is clearly recorded.
High-speed shutter mode
Use this mode to shoot moving subjects
outdoors or in other bright places.
• The shutter speed becomes faster, so images
shot in dark places become darker.
Fireworks mode
You can record fireworks in all their
splendor. The focus distance is set to
infinity and the shutter speed becomes
slower, so using a tripod is recommended.
• You can change the shutter speed by setting an
EV adjustment value (page 55).
Candle mode
At a party, a candlelight service, and so on,
you can shoot without spoiling the
atmosphere effected by the candlelight.
Because the shutter speed is slow, it is
recommended that you use a tripod.
36
, Set the mode dial to SCN, then
press MENU.
The menu appears.
, Select SCN (Scene) with b on
the control button, then select
the desired mode with v/V.
To return to normal mode
Set the mode dial to a different mode.
• The setting is maintained even when the power
is turned off.
1
WB
ISOSCN
Scene
MENU
WB
ISOSCN
Scene
2
37
Shooting still images
Shooting with Scene Selection
When shooting with the Scene Selection function, the combination of functions such as the
flash mode is predetermined to make the optimum settings to match the scene. See the table
below for the function setting of each shooting mode.
• a indicates that the function can be set to your preference.
Function
Macro
Flash
mode
AF range
finder
frame
Focus
preset
White
balance
Burst/
Multi Burst
Shooting
mode
—
/
a — a —
— a a —
a a a
Auto
—
—
/
a a a
a a a a a a
a
/
a a a a
a
/
a a a a
a
/
a a a a
— — —
— Center AF
0.5m/1.0m/
3.0m/7.0m
—
SL
NR slow shutter
The NR slow shutter function reduces noise
from recorded images, providing clear
images. When the shutter speed is set to 1/6
second or slower, the NR slow shutter
function automatically works and “NR” is
indicated next to the shutter speed indicator.
Press the shutter button
fully down.
Then the screen turns
black.
Finally, when “Processing”
disappears, the image has
been recorded.
• To eliminate the effects of vibration, it is
recommended that you use a tripod.
• When a slow shutter speed is set, processing
may take some time.
Capturing
Processing
r
r
38
Viewing images on the LCD screen of your
camera
You can view images shot with the camera almost immediately on the LCD screen. You can
select the following two methods for viewing images.
Single screen
You can view one image at a time, occupying the entire screen.
Index screen
Nine images are displayed simultaneously in separate panels on the screen.
• For details on the movies, see page 81.
• For a detailed description of the LCD screen indicators, see page 126.
BACK/NEXT VOLUME
VGA
60min
10:30
PM
2005 1 1101
-
0008
8/9
101
•
SINGLE DISPLAY
Single screen
Index screen
Viewing on the single-image
screen
, Set the mode dial to , and
turn on the camera.
The newest image in the selected recording
folder (page 63) is displayed.
• The image may appear rough right after
playback starts due to the image processing.
1
BACK/NEXT
10:30
PM
2005 1 1101
-
0008
VOLUME
VGA
60min
8/9
101
Vi
ew
i
ng s
till
i
mage
s
39
Viewing still images
, Select the desired still image
with b/B on the control button.
b : Displays the previous image.
B : Displays the next image.
2
BACK/NEXT
10:30
PM
2005 1 1101
-
0003
VOLUME
VGA
60min
3/9
101

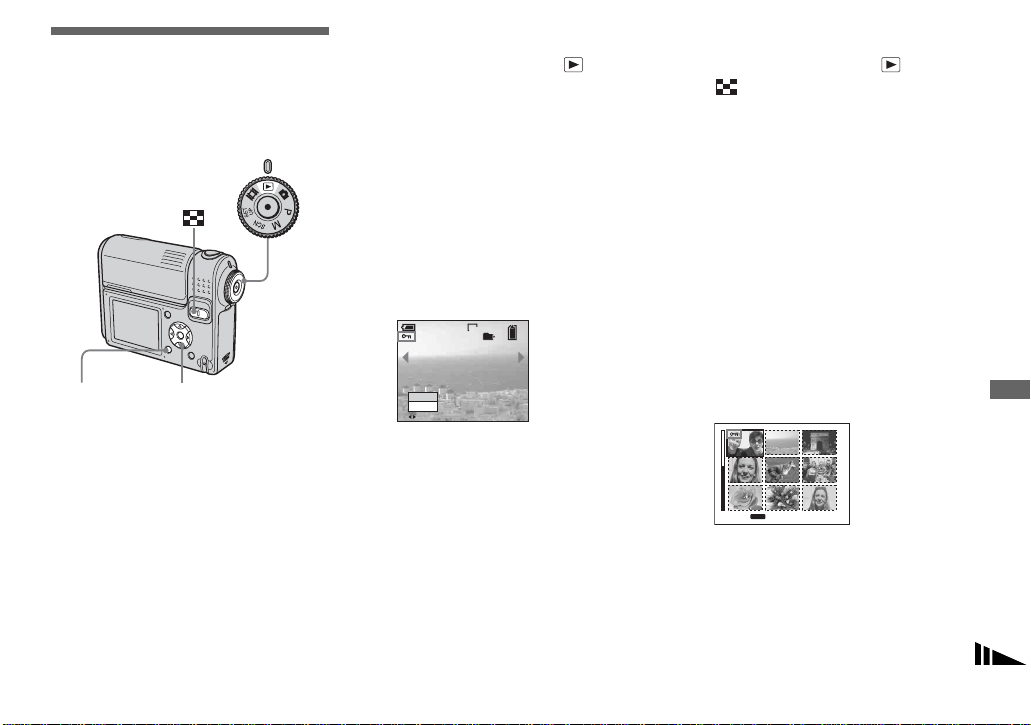

Viewing on the index screen
, Press (index).
The display switches to the Index screen.
To display the next (previous) index
screen
Press v/V/b/B on the control button to
move the yellow frame up/down/ left/right.
•
SINGLE DISPLAY
1
, Press v/V/b/B on the control
button to select an image.
The image in the yellow frame is selected.
To return to the single-image screen
Press the zoom T button, or press z on the
control button.
2
•
SINGLE DISPLAY
Zoom T
40
Viewing images on a TV screen
, Connect the supplied A/V multi
cable to the multi connector of
the camera and the audio/video
input jacks of the TV.
Rotate the lens portion back to the
original position and place the camera
with the LCD screen facing upwards.
If
your TV has stereo type input jacks,
connect the audio plug (black) of the A/V
multi cable to the Lch audio input jack.
• Turn off both the camera and the TV before
connecting the camera and the TV with the A/V
multi cable.
, Turn on the TV, and set the TV/
Video switch to “Video.”
• The name and location of this switch may differ
depending on your TV. For details, refer to the
operating instructions supplied with the TV.
, Set the mode dial to , and
turn on the camera.
Press b/B on the control button to select the
desired image.
• When using the camera abroad, it may be
necessary to switch the video output signal to
match that of your TV system (page 118).
1
To multi
connector
A/V multi cable
2
TV/Video switch
BACK/NEXT
10:30
PM
2005 1 1101-0002
VOLU ME
VGA
60min
2/9
101
3
41
Viewing still images
Watching images on a TV screen
If you want to view images on a TV, you
need a TV having a video input jack and the
A/V multi cable (supplied).
The color system of the TV must match as
that of your digital still camera. Check the
following list:
NTSC system
Bahama Islands, Bolivia, Canada, Central
America, Chile, Colombia, Ecuador,
Jamaica, Japan, Korea, Mexico, Peru,
Surinam, Taiwan, the Philippines, the
U.S.A., Venezuela, etc.
PAL system
Australia, Austria, Belgium, China, Czech
Republic, Denmark, Finland, Germany,
Holland, Hong Kong, Hungary, Italy,
Kuwait, Malaysia, New Zealand, Norway,
Poland, Portugal, Singapore, Slovak
Republic, Spain, Sweden, Switzerland,
Thailand, United Kingdom, etc.
PAL-M system
Brazil
PAL-N system
Argentina, Paraguay, Uruguay
SECAM system
Bulgaria, France, Guiana, Iran, Iraq,
Monaco, Russia, Ukraine, etc.
42
Deleting images
, Set the mode dial to , and
turn on the camera.
Select the image you want to
delete with b/B on the control
button.
• Note that the images once deleted cannot be
recovered.
, Press (delete).
The image has not yet been deleted at this
point.
• You cannot delete protected images (page 69).
, Select [Delete] with v on the
control button, then press z.
“Access” appears on the LCD screen and
the image will be deleted.
To delete other images continuously
Select the image you want to delete with b/
B on the control button. Next, select
[Delete] with v on the control button, then
press z.
To cancel the deletion
Select [Exit] with V on the control button,
then press z.
1
BACK/NEXT
10:30
PM
2005 1 1101-0002
2/9
VOLUME
VGA
60min
101
2
Delete
Exit
VGA
60min
2/9
101
BACK/NEXT
3
Delete
Exit
BACK/NEXT
VGA
60min
2/9
101
D
e
l
e
ti
ng s
till
i
mage
s
43
Deleting still images

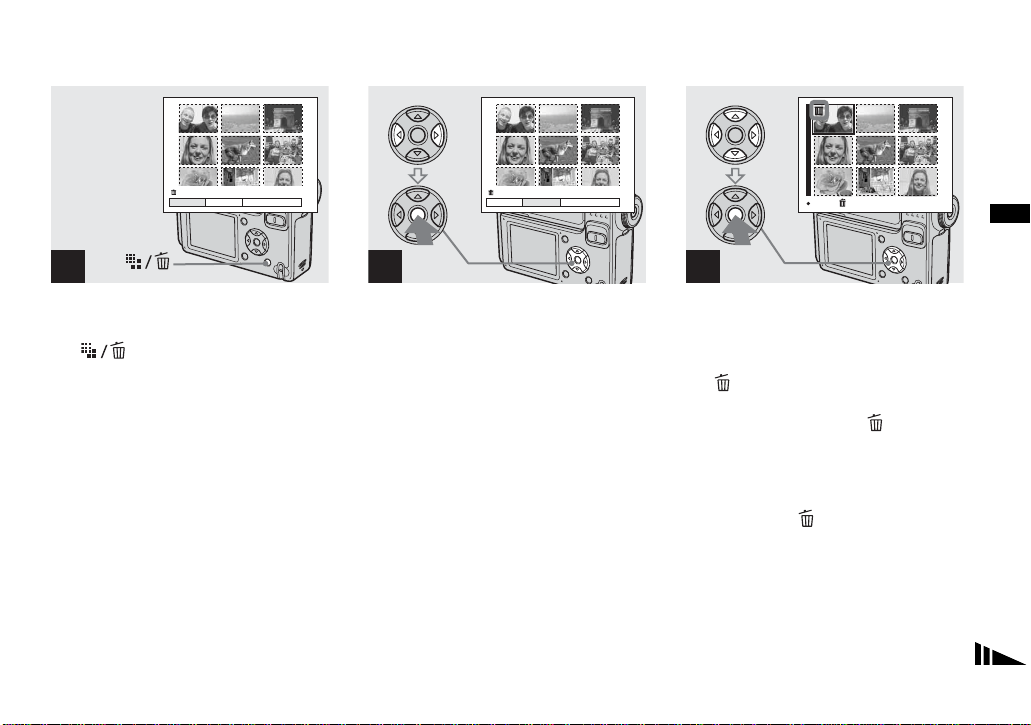

Deleting on the Index screen
, While an Index screen
(page 39) is displayed, press
(delete).
• Note that the images once deleted cannot be
recovered.
, Select [Select] with b/B on the
control button, then press z.
, Select the image you want to
delete with v/V/b/B on the
control button, then press z.
The (delete) mark is indicated on the
selected image. The image has not yet been
deleted at this point. Put the mark on all
of the images you want to delete.
• To cancel your selection, select images you
want to cancel and press z on the control
button again. The mark disappears.
1
Delete
SelectExit
All In This Folder
2
Delete
SelectExit
All In This Folder
3
TO NEXTSELECT
44
, Press (delete).
Select [OK] with B on the
control button, then press z.
“Access” appears on the LCD screen and all
of the images with marks will be deleted.
To cancel the deletion
Select [Exit] with b on the control button,
then press z.
4
Delete Exit OK
To delete all the images in the folder
In Step 2, Select [All In This Folder] with
B on the control button, then press z. Next,
select [OK], then press z. All of the
unprotected images in the folder are
deleted. To cancel the deletion, select
[Cancel], then press z.
Formatting a
“Memory Stick”
,
Insert the “Memory Stick” you
want to format into the camera.
• The term “formatting” means preparing a
“Memory Stick” to record images; this process
is also called “initialization.”
• The supplied “Memory Stick” and those
available commercially, are already formatted,
and can be used immediately.
• When you format a “Memory Stick,” be
aware that all of the data in the “Memory
Stick” will be permanently erased.
Protected images are also erased.
1
45
Deleting still images
,
Set the mode dial to
SET UP
,
and turn on the camera.
, Select (Memory Stick Tool)
with v/V on the control button.
Select [Format] with B on the
control button, then press B.
Select [OK] with v on the
control button, then press z.
To cancel the formatting
Select [Cancel] with V on the control
button, then press z.
, Select [OK] with v on the
control button, then press z.
The “Formatting” message appears on the
LCD screen. When this message
disappears, the format is complete.
2 3
2
1
Memory Stick Tool
Format:
Create REC. folder:
Change REC. folder:
OK
Cancel
4
Format
All data will be erased
60min
Ready?
OK
Cancel
46
How to setup and
operate your camera
This section describes how to operate the
menu and the SET UP screen.
• For details on the mode dial, see page 10.
Changing menu settings
a Set the mode dial to , P, M,
SCN, or .
b Press MENU.
The menu appears.
• The displayed items differ depending on
the position of the mode dial.
c Select the setting item you
want to change with b/B on
the control button.
• When the mode dial is set to , press z
on the control button after you select a
setting.
d Select the desired setting with
v/V on the control button.
The frame of the selected setting is
scaled up, and the setting is entered.
When the v mark is indicated
above the item or the V mark is
indicated below the item
All of the available items are not displayed.
Pressing v/V on the control button displays
the hidden items.
To turn off the menu display
Press MENU.
• You cannot select the dim items.
• For details on the menu items, see page 114.
Mode dial
Control button
MENU
EV
WB
ISO
0EV
0EV
100
200
400
Auto
ISO
WB
ISO
B
e
f
ore a
d
vance
d
opera
ti
ons
47
Before advanced operations
Changing items in the SET
UP screen
a Set the mode dial to SET UP.
The SET UP screen appears.
b Select the setting item you
want to change with v/V/b/B
on the control button.
The frame of the item you select turns
yellow.
c Press z on the control button
to enter the setting.
To turn off the SET UP screen
display
Set the mode dial to any position other than
SET UP.
• For details on the SET UP items, see page 117.

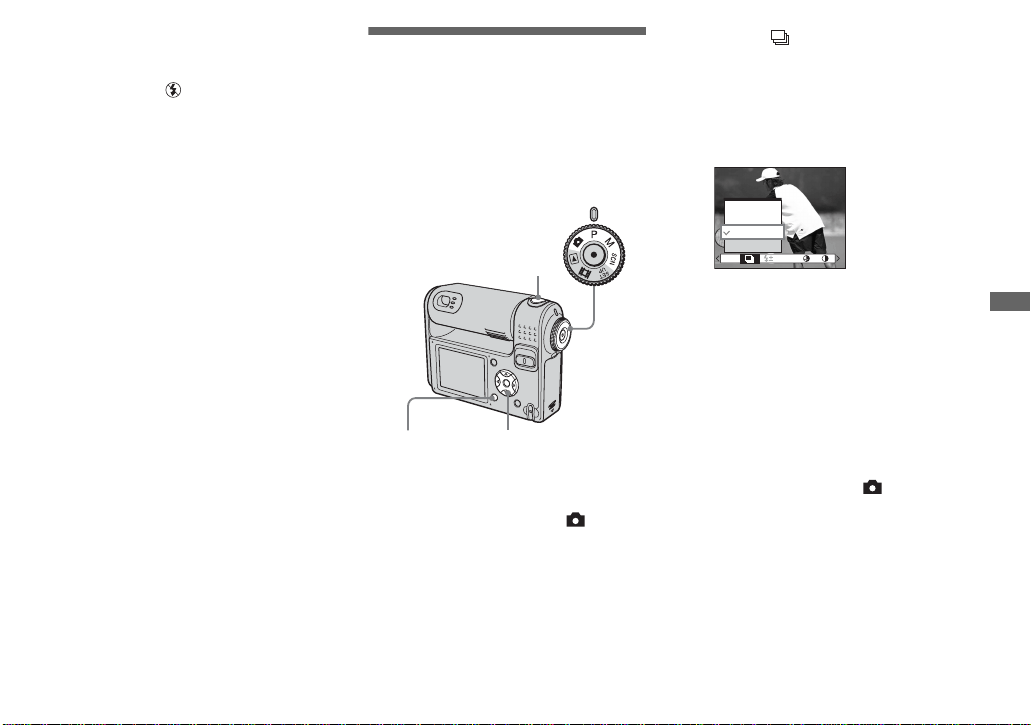

Deciding the still
image quality
You can select the still image quality from
[Fine] or [Standard].
a Set the mode dial to P, M or
SCN.
b Press MENU.
The menu appears.
c Select (P. Quality) with b/B,
then select the desired image
quality with v/V.
2
1
SELECT
Camera
AF Mode:
Digital Zoom:
Date/Time:
Red Eye Reduction
:
AF Illuminator:
Auto Review:
Single
Smart
Off
Off
Auto
Off
Cancel
OK
Setup 2
File Number:
USB Connect:
Video Out:
Clock Set:
1
Mode dial
Control button
MENU
FINE
Standard
P.Quality
Fine
WB
ISO
48
Creating or selecting
a folder
Your camera can create multiple folders
within a “Memory Stick.” You can select
the folder used to store images. When not
creating a new folder, “101MSDCF” folder
is selected as the recording folder.
You can create folders up to “999MSDCF.”
• Up to 4,000 images can be stored in one folder.
When the folder capacity is exceeded, a new
folder is automatically created.
Creating a new folder
a Set the mode dial to SET UP.
b Select (Memory Stick Tool)
with v/V, [Create REC. Folder]
with B/v/V, and [OK] with B/v ,
then press z.
The creating folder screen appears.
c Select [OK] with v , then press
z.
A new folder is created with a number
one higher than the largest number in
the “Memory Stick,” and the folder
becomes the recording folder.
To cancel folder creation
In Step 2 or 3, select [Cancel].
• Once you create a new folder, you cannot delete
the new folder with the camera.
• Images are recorded in the newly created folder
until a different folder is created or selected.
Selecting the recording
folder
a Set the mode dial to SET UP.
b Select (Memory Stick Tool)
with v/V, [Change REC.
Folder] with B/V, and [OK] with
B/v , then press z.
The recording folder selection screen
appears.
c Select the desired folder with
b/B, and [OK] with v , then
press z.
To cancel changing the
recording folder
In Step 2 or 3, select [Cancel].
• You cannot select the “100MSDCF” folder as a
recording folder (page 91).
• The image is stored in the newly selected
folder. You cannot move images to other
folders using the camera.
Mode dial
Control button
Create REC. Folder
Creating REC. folder 102MSDCF
Ready?
OK
Cancel
60
min
BACK/NEXT
Select REC. Folder
Cancel
OK
Folder Name:
102 2/2
Created:
No. Of Files:
2005
102MSDCF
0
111::05:34
AM
49
Advanced still image shooting
Choosing an auto
focus method
You can set the AF range finder frame and
the AF mode.
AF range finder frame
The AF range finder frame selects the focus
position according to the subject position
and size.
AF Mode
The AF mode is set automatically when the
camera starts and stops focusing on a
subject.
Choosing a focus range
finder frame
– AF range finder
Multipoint AF ( )
The camera calculates the distance in five
areas to the top, the bottom, the left, the
right, and in the center of the image, letting
you shoot using the auto focus function
without worrying about the image
composition. This is useful when it is
difficult to focus on the subject because it is
not in the center of the frame. You can
check the position where the focus was
adjusted using the green frame.
The default setting is Multipoint AF.
Center AF ( )
The AF range finder is only the center of the
frame. You can shoot in desired image
composition using the AF lock method.
a Set the mode dial to P, M, SCN
or .
b Press MENU.
The menu appears.
c Select 9 (Focus) with b/B,
then select [Multi AF] or
[Center AF] with v/V.
When you press and hold the shutter
button halfway down, and the focus is
adjusted, the color of the AF range
finder frame changes from white to
green.
Multipoint AF
Center AF
Mode dial
Control button
MENU
60min
VGA
FINE
98P
101
S AF
250 F3.5
AF range
finder frame
AF range
finder frame
indicator
60min
VGA
FINE
98
101
P
S AF
250 F3.5
AF range
finder frame
AF range
finder frame
indicator
Ad
vance
d
s
till
i
mage s
h
oo
ti
ng
50
• When you are shooting movies and you choose
Multipoint AF, the distance to the center of the
LCD screen is estimated as an average, so the
AF works even with a certain amount of
vibration. The AF range finder frame indicator
is . Center AF automatically focuses only
on selected frame, so this is convenient when
you want to focus only on what you aim at.
• When you use the digital zoom or AF
illuminator, priority AF movement is given to
subjects in or near the center of the frame. In
this case, or flashes and the AF range
finder frame is not displayed.
• The AF range finder frame selection is limited
according to the Scene Selection mode
(page 10).
Choosing a focus operation
– AF Mode
Single AF ( )
This mode is useful for shooting stationary
subjects. The focus is not adjusted before
you press and hold the shutter button
halfway down. After you press and hold the
shutter button halfway down and AF lock is
complete, the focus is locked.
The default setting is Single AF.
Monitoring AF ( )
This shortens the time needed for focusing.
The camera automatically adjusts the focus
before you press and hold the shutter button
halfway down, letting you compose images
with the focus already adjusted. After you
press and hold the shutter button halfway
down and AF lock is complete, the focus is
locked.
• Battery consumption may be higher than in
Single AF mode.
a Set the mode dial to SET UP.
b Select (Camera) with v ,
then select [AF Mode] with
B/v.
c Select the desired mode with
B/v/V, then press z.
• When shooting using the finder with the LCD
screen off, the camera operates in Single AF
mode.
S AF
M AF
51
Advanced still image shooting
Shooting techniques
When shooting with the subject at the edge of
the frame, or when using Center AF, the
camera may focus on the center instead of on
the subject at the edge of the frame. In a case
like this, use AF lock to focus on the subject,
and then recompose the picture and shoot.
Compose the shot so that the subject is
centered in the AF range finder frame, and
press the shutter button halfway down.
When the AE/AF lock indicator stops flashing
and remains on, return to the fully composed
shot, and press the shutter button fully down.
• When you are using AF lock, you can
capture an image with the correct focus even
if the subject is at the edge of the frame.
• You can carry out the AF lock adjustment
process before you press the shutter button
fully down.
VGA
60min FINE
98
101
S AF
P
F3.5 30
F3.5 30
VGA
60min FINE
98P
101
S AF
m
AF range finder frame
AE/AF lock indicator
Setting the distance
to the subject
– Focus preset
When shooting an image using a previously
set distance to the subject, or when shooting
a subject through a net or through window
glass, it is difficult to get the proper focus in
auto focus mode. In these cases, use of the
Focus preset is convenient.
a Set the mode dial to P, M, SCN
or .
b Press MENU.
The menu appears.
Mode dial
Control buttonMENU
52
c Select 9 (Focus) with b/B,
then select the distance to the
subject with v/V.
You can select from the following
distance settings.
0.5m, 1.0m, 3.0m, 7.0m, (unlimited
distance)
To return to auto focus mode
In Step 3, select [Multi AF] or [Center
AF].
• Focal point information may not show the exact
distance. Use it as a guide.
• If you point the lens up or down, the error
increases.
• The distance selection is limited according to
the Scene Selection mode (page 10).
Shooting with manual
shutter speed and
aperture settings
– Manual Exposure
You can manually adjust the shutter speed
and aperture values.
The difference between the set value and
the appropriate exposure determined by the
camera is displayed on the LCD screen as
the EV value (page 55). 0EV indicates the
most suitable value set by the camera.
a Set the mode dial to M.
b Press z.
“Set” indicated on the lower-left
corner of the LCD screen changes to
“Return” and the camera enters the
manual exposure setup mode.
c Select a shutter speed with v/
V.
A shutter speed can be selected
between 1/500 of a second and 30
seconds.
If you select 1/6 second or slower
shutter speeds, the NR slow shutter
function (page 37) is automatically
activated. In such cases, “NR” is
indicated at the next to shutter speed
indicator.
1.0m
3.0m
0.5m
1.0m
WB
ISO
Multi AF
Focus
Center AF
Mode dial
Shutter button
Control button
250 0
EV
98
FINE
SAF
101
F3.5
VGA
60min
Return
M
53
Advanced still image shooting
d Select an aperture value with
b/B.
Three different aperture values can be
selected, depending on the zoom
position.
When the zoom is set all the way to the
W side: F3.5/F5.6/F8.0
When the zoom is set all the way to the
T side: F4.2/F6.3/F9.0
e Shoot the image.
To use the Quick review, macro,
or self-timer function or change
the flash mode
After Step 4, press z to cancel the manual
exposure setup mode. “Return” changes to
“Set.”
To cancel the manual exposure
mode
Set the mode dial to other than M.
• When the shutter speed is set to one second or
slower, ["] is indicated after the value, e.g., 1".
• If the proper exposure is not obtained after
making the settings, the EV value on the LCD
screen flashes when the shutter button is
pressed halfway down. You can shoot in this
condition, but we recommend that you adjust
the flashing values again.
• The flash mode is automatically set to
(Forced flash) or (No flash).
200 0
EV
98
FINE
SAF
101
F3.5
VGA
M
60min
Return
54

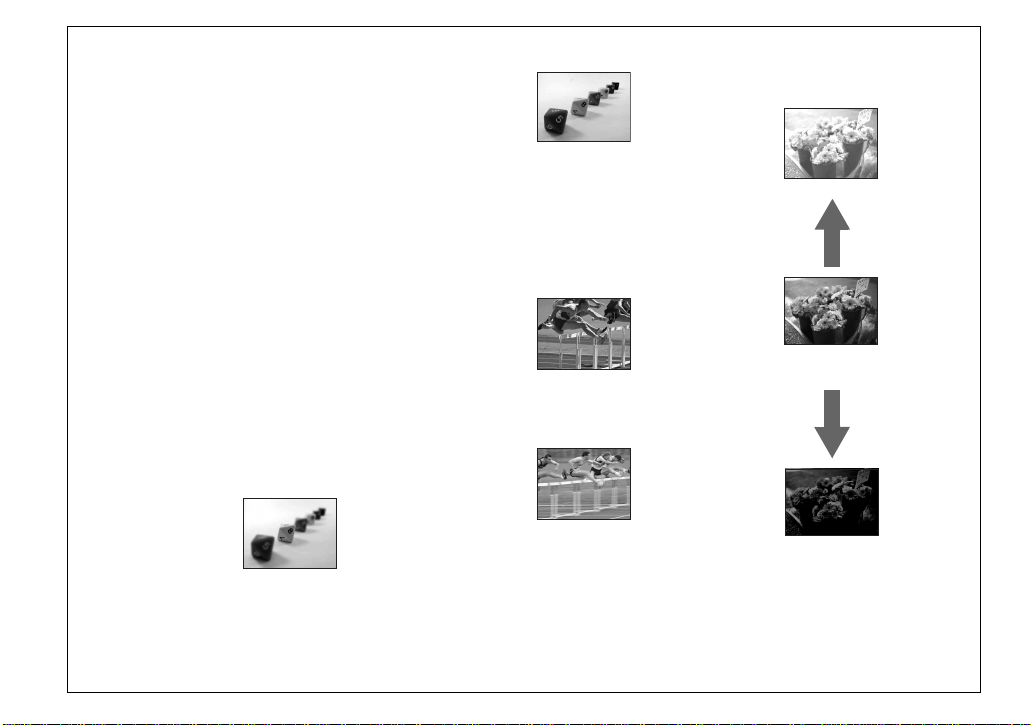

Exposure
In addition to the focus and other settings, it is
also important to adjust the exposure in order to
take beautiful pictures.
Exposure is the amount of light that the CCD of
the digital still camera is able to receive. This
value changes according to the combination of
aperture and shutter speed. When the amount of
light is larger, the image becomes brighter
(whitish), and when it is smaller, the image
becomes darker. The proper amount of light is
called “correct exposure.”
The correct exposure can be maintained by
setting a faster shutter speed when the aperture
value is reduced, or a slower shutter speed when
the aperture value is increased from the correct
exposure.
Aperture
Aperture is the opening in the diaphragm of the
lens part which adjusts the amount of light
entering the camera. The aperture setting value
is called the “aperture value (F value).”
Open (smaller F value)
Close (larger F value)
Adjustment by shutter speed
Shutter speed adjusts the time during which
light enters the camera.
Faster
Slower
When setting a slower shutter speed, it is
recommended that you use a tripod to prevent
shaking.
Overexposure
• Open the aperture
• Set a slower shutter speed
Correct exposure
Underexposure
• Close the aperture
• Set a faster shutter speed
• The image tends
toward overexposure
(brighter).
• The in-focus range
narrows.
• The image tends
toward underexposure
(darker).
• The in-focus range
widens.
• The image tends
toward underexposure
(darker).
• Moving objects
appear stopped.
• The image tends
toward overexposure
(brighter).
• Moving objects
appear to flow.
55
Advanced still image shooting
Adjusting the
exposure
– EV adjustment
You can manually shift the exposure value
determined by the camera. Use this mode
when you do not get the proper exposure,
for instance, the subject and its background
have high contrast (light and dark). The
value can be set a range from +2.0EV to
–2.0EV, in 1/3EV increments.
a Set the mode dial to P, SCN or
.
b Press MENU.
The menu appears.
c Select (EV) with b.
The value of the exposure adjustment
is displayed.
d Select the desired exposure
adjustment value with v/V.
Make your adjustment while
confirming the brightness of the
background of the subject on the LCD
screen.
To cancel the EV adjustment
In Step 4, return the exposure adjustment
value to 0EV.
• When the subject is extremely bright or
extremely dark, or when you are using the
flash, the adjustment may not work.
Adjust
toward –
Adjust
toward +
Mode dial
Control button
MENU
0EV
0EV
EV
WB
ISO
56
Displaying a histogram
A histogram is a graph showing the
brightness of an image. The horizontal axis
shows the brightness, and the vertical axis
shows the number of pixels. The graph
display indicates a dark image when
skewed to the left side, and a bright image
when skewed to the right side. The
histogram is a useful reference for checking
the exposure during recording and playback
when the LCD screen is hard to be seen.
a Set the mode dial to P or SCN.
b Press to display the
histogram.
c Adjust the exposure based on
the histogram.
• The histogram also appears when the mode dial
is set to or M, but the EV adjustment is
deactivated.
• The histogram also appears when you press
while playing back a single image
(page 38) or during Quick Review (page 25).
• The histogram does not appear in the following
cases:
– When the menu is displayed
– When using playback zoom
– When shooting or playing back movies
• appears and the histogram does not appear
in the following cases:
– When recording in the digital zoom area
– When the image size is [3:2]
– When playing back Multi Burst mode images
– When a still image is rotated
• The histogram before recording represents the
histogram of the image displayed on the LCD
screen at that time. A difference occurs in the
histogram before and after you press the shutter
button. When this happens, check the histogram
while playing back a single-image or during
Quick Review.
In particular a large difference may appear in
the following cases:
– When the flash strobes
– When the shutter speed is slow or high
• The histogram may not appear for images
recorded using other cameras.
80
4
FINE
101
0
EV
VGA
Number of pixels
Dark
Bright
Brightness
57
Advanced still image shooting
Shooting techniques
While shooting images, the camera
automatically determines the exposure. When
shooting a whitish overall image such as a
backlit subject or a snowy scene, the camera
judges that the subject is bright and may set a
darker exposure for the image. In such cases,
adjustment of the exposure in the + plus
direction is effective.
When shooting a darker overall image, the
camera judges that the subject is dark and may
set a brighter exposure for the image. In such
cases, adjustment of the exposure in the –
minus direction is effective.
You can check the exposure referring to the
histogram chart. Be careful not to overexpose
or underexpose your subject (giving a whitish
or darkish image).
You can try to adjust the exposure to suit your
taste.
m
Adjust in the + direction
m
Adjust in the – direction
Selecting the
metering mode
You can select a metering mode to
determine the exposure, depending on what
part of the subject is used to measure.
Multi-pattern metering (No
indicator)
The image is split up into multiple zones,
each of which are evaluated individually.
The camera calculates the best-fit exposure
based on the subject’s position and
background brightness.
The default setting is multi-pattern
metering.
Spot metering ( )
Spot metering allows you to meter for the
subject directly in a small area of the whole
image. This lets you adjust the exposure to
the subject even when the subject is backlit
or there is strong contrast between the
subject and the background.
58
a Set the mode dial to P, M, SCN
or .
b Press MENU.
The menu appears.
c Select (Metering Mode)
with b/B, then select the
desired metering mode with
v/V.
d When selecting [Spot] in Step
3, position the spot metering
cross hair on one point of the
subject you want to shoot.
• When using spot metering, to focus on the same
spot as used for metering, we recommend that
you set 9 (Focus) to [Center AF] (page 49).
Adjusting color tones
– White Balance
You can select the following modes
according to your shooting situations. The
color of the subject that you see will be
captured according to the lighting
conditions. When you want to fix the
conditions under which the image is
captured, or when the color of the entire
image seems to be a bit unnatural, it is
recommended that you adjust the white
balance.
Auto (No indicator)
The white balance is adjusted
automatically.
The default setting is Auto.
(Daylight)
Used when shooting outdoors, and for
shooting at night, under neon lights, for
fireworks, sunrise, and twilight gloom.
(Cloudy)
Used when shooting under a cloudy sky.
(Fluorescent)
Used when shooting under fluorescent
lights.
Mode dial
Control buttonMENU
60min
VGA
F3.5250
98
FINE
SAF
101
P
Spot
metering
cross hair
59
Advanced still image shooting
(Incandescent)
• Used when shooting, for example, at a
party, where the lighting conditions
change often.
• Used in a studio, or under video lights.
a Set the mode dial to P, M, SCN
or .
b Press MENU.
The menu appears.
c Select [WB] (White Bal) with b/
B, then select the desired
setting with v/V.
To return to automatic settings
In Step 3, select [Auto].
• Under fluorescent lights that flicker, even if you
choose , the white balance may not be
properly adjusted.
• When the flash strobes, the manual setting is
canceled, and the image is recorded in [Auto]
mode.
• The white balance selection is limited
according to the Scene Selection mode
(page 37).
Adjusting the flash
level
– Flash Level
You can adjust the amout of flash light.
a Set the mode dial to P, M or
SCN.
b Press MENU.
The menu appears.
Mode dial
Control buttonMENU
Mode dial
Control buttonMENU
60
c Select [ ] (Flash Level) with
b/B, then select the desired
setting with v/V.
+: Makes the flash level higher than
normal.
Normal: Normal setting.
–: Makes the flash level lower than
normal.
Shooting images in
succession
Used to shoot images continuously. The
maxium number of images you can shoot
per one shooting depends on the image size
and image quality settings.
• When the battery level is insufficient or the
capacity of the “Memory Stick” is used up,
recording stops even if you press and hold the
shutter button.
a Set the mode dial to , P, M or
SCN.
b Press MENU.
The menu appears.
c Select [Mode] (REC Mode) with
b/B, then select [Burst] with
v/V.
d Shoot the image.
You can shoot images until the
maximum number of images are shot
when you press and hold the shutter
button. The recording stops if you
release the shutter button in the midst
of the shooting.
You can do the next shooting after
“Recording” disappears from the LCD
screen.
The maximum number of images
shot continuously
(Units: images)
Mode dial
Control buttonMENU
Shutter button
Fine Standard
5M 9 15
3:2 9 15
3M 13 24
1M 32 59
VGA (E-Mail) 100 100
61
Advanced still image shooting
To return to normal mode
In Step 3, select [Normal].
• The flash is set to (No flash).
• When using the self-timer, pressing the shutter
button records up to five images in succession.
• When the mode dial is set to M, you cannot
select shutter speeds of 1/6 second or slower.
• You may not be able to shoot images in
succession depending on the Scene Selection
mode (page 34).
Shooting in Multi
Burst mode
– Multi Burst
Pressing the shutter button once records 16
frames in a row. This is convenient for
checking your form in sports, for example.
a Set the mode dial to , P, M
or SCN.
b Press MENU.
The menu appears.
c Select [Mode] (REC Mode) with
b/B, then select [Multi Burst]
with v.
d Select (Interval) with b/B,
then select the desired
between-frame interval with
v/V.
You can choose from [1/7.5], [1/15],
[1/30].
e Shoot the image.
16 frames in a row will be recorded in
a single image (image size: 1M).
• If you rotate the lens portion during shooting,
the shot image may be upside down.
• The following functions cannot be used in
Multi Burst mode:
– Smart zoom
– Shooting with the flash
– Inserting the date and time
• When the mode dial is set to , frame
interval is automatically set to [1/30].
• When the mode dial is set to M, you cannot set
the shutter speed to lower than 1/30 second.
• You may not be able to shoot images in Multi
Burst mode depending on the Scene Selection
mode (page 34).
• When you play back images recorded in Multi
Burst mode on the camera, see page 67.
• For the number of images that can be recorded,
see page 113.
Mode dial
Control buttonMENU
Shutter button
M
1/30
1/15
1/7.5
Interval
1/30
Mode PFX
M
62
Shooting with special
effects
– Picture Effect
You can add special effects to bring out the
contrast in your images.
a Set the mode dial to P, M, SCN
or .
b Press MENU.
The menu appears.
c Select [PFX] (P.Effect) with
b/B, then select the desired
mode with v/V.
d Shoot the image.
To cancel Picture Effect
In Step 3, select [Off].
Using the Cyber-shot
Station
Charging starts automatically when you set
the camera in the Cyber-shot Station (not
supplied). This lets you easily charge the
camera so that it is ready for use at any time.
The remote controller supplied with the
Cyber-shot Station lets you enjoy image
playback on a TV from a remote location. In
addition, when a PictBridge compliant
printer is connected, images can be printed
by simple remote controller operations.
For more detailed information, refer to the
operating instructions supplied with the
Cyber-shot Station.
B&W
Sepia
Colored to look like
an old photograph
In black and white
Mode dial
Control button
MENU
Shutter button
63
Advanced still image viewing
Selecting the folder
and playing back
images
– Folder
Select the folder that images you want to
play back are stored.
a Set the mode dial to .
b Press MENU.
The menu appears.
c Select (Folder) with b, then
press z.
d Select the desired folder with
b/B.
e Select [OK] with v , then press
z.
To cancel the selection
In Step 5, select [Cancel].
When multiple folders are
created in the “Memory Stick”
When the first or last image in the folder is
displayed, the following icons are indicated
on the LCD screen.
: Moves to the previous folder.
: Moves to the next folder.
: Moves to both the previous and next
folders.
On the single screen
On the Index screen
• When no images are stored in the folder, “No
file in this folder” appears.
Mode dial
Control button
MENU
BACK/NEXT
Select Folder
Cancel
OK
Folder Name:
102 2/2
Created:
No. Of Files:
2005
102MSDCF
9
111::05:34
AM
VGA
60min
10:30
PM
2005 1 1101-0009
9/9
101
BACK/NEXT VOLUME
•
SINGLE DISPLAY
Ad
vance
d
s
till
i
mage v
i
ew
i
ng
64
Enlarging a portion of
a still image
You can enlarge an image up to five times
the size of the original image. You can also
record the magnified image as a new file.
Enlarging an image
– Playback zoom
a Set the mode dial to .
b Display the image you want to
enlarge with b/B.
c Press (playback zoom) to
enlarge the image.
d Press v/V/b/B repeatedly to
select the portion of the image
you want to enlarge.
e Adjust the zoom with /
(playback zoom).
To cancel enlarged viewing
Press z.
• You cannot use Playback zoom with movies or
images recorded in Multi Burst mode.
• If you press (playback zoom) when you are
viewing images that have not been enlarged, the
Index screen will appear (page 38).
• The images displayed in Quick Review
(page 25) can be enlarged using the procedures
outlined in Steps 3 to 5.
Mode dial
Control buttonMENU
/
Press v
Press V
Press
b
Press
B
v: To view a portion of the top of the
V: To view a portion of the bottom of
the image
b:To view a portion of the left side
of the image
B:To view a portion of the right side
of the image
65
Advanced still image viewing
Recording an enlarged
image – Trimming
a Press MENU after playback
zoom.
The menu appears.
b Select [Trimming] with B, then
press z.
c Select the image size with v/V,
then press z.
The image is recorded, and the image
on the LCD screen returns to the
normal size after recording.
• The trimmed image is recorded as the newest
file in the selected recording folder, and the
original image is retained.
• The quality of trimmed images may deteriorate.
• You cannot trim to an image size of 3:2.
• You cannot trim images displayed with Quick
Review.
Playing back
successive images
– Slide show
You can play back recorded images in
succession, one after another. This is useful
for checking your images, or for giving a
presentation.
a Set the mode dial to .
b Press MENU.
The menu appears.
c Select (Slide) with b/B,
then press z.
Set the following items with v/V/b/B.
Interval settings
3 sec/5 sec/10 sec/30 sec/1 min
Folder:Plays back all the images in
the selected folder.
All: Plays back all the images in
the “Memory Stick.”
Repeat
On: Plays the images back
repeatedly.
Off: Plays through the images one
time and then stops.
d Select [Start] with V/B, then
press z.
The slide show begins.
To cancel the slide show setting
In Step 3, select [Cancel].
To stop slide show playback
Press z, select [Exit] with B, then press z.
Mode dial
Control button
MENU
66
To skip to the next/previous
image during slide show
Press B (next) or b (previous).
• The interval setting time is approximate, and
may vary according to the playback image size.
Rotating still images
– Rotate
Images shot when holding the camera
vertically can be rotated and displayed
horizontally.
a Set the mode dial to , and
display the image you want to
rotate.
b Press MENU.
The menu appears.
c Select (Rotate) with b/B,
then press z.
d Select with v , and rotate
the image with b/B.
e Select [OK] with v/V, then
press z.
To cancel the rotation
In Step 4 or 5, select [Cancel].
• You cannot rotate protected images, movies,
and Multi Burst images.
• You may not be able to rotate images shot with
other cameras.
• When viewing images on a computer, the
image rotation information may not be
reflected depending on the application
software.
Mode dial
Control button
MENU
67
Advanced still image viewing
Playing back images
shot in Multi Burst
mode
You can play back Multi Burst images
continuously or play them back frame by
frame. This function is used for checking
the images.
• When Multi Burst images are played back on a
computer or on a camera without the Multi
Burst function, the 16 frames you shot will be
displayed at the same time as part of one image.
• You cannot divide the Multi Burst image.
Playing back continuously
a Set the mode dial to .
b Select the Multi Burst image
with b/B.
The selected Multi Burst image is
played back continuously.
To pause
Press z. To resume playback, press z
again. The playback starts from the frame
displayed on the LCD screen.
Playing back frame by frame
a Set the mode dial to .
b Select the Multi Burst image
with b/B.
The selected Multi Burst image is
played back continuously.
c Press z when the desired
frame is displayed.
“Step” appears.
d Advance the frame with b/B.
B:The next frame is displayed. When
you press B and hold it, the frame
advances.
b:The previous frame is displayed.
When you press b and hold it, the
frame advances in the reverse
direction.
To return to normal playback
In Step 4, press z. The playback starts
from the frame displayed on the LCD
screen.
Mode dial
Control button
10:30
PM
2005 1 1101-0014
14/14
101
M
PAUSE BACK/NEXT VOLUME
60min
1M
10:30
PM
2005 1 1101-0014
14/14
101
60min
12/16
M
Step
PLAY FRAME BACK/NEXT VOLUME
1M
68
To delete shot images
When using this mode, you cannot delete
only certain frames. When you delete
images, all 16 of the frames are deleted at
the same time.
1 Display the Multi Burst image you want
to delete.
2 Press (delete).
3 Select [Delete], then press z.
All of the frames are deleted.
69
Still image editing
Protecting images
– Protect
To prevent accidental erasure of an
important image, you can protect it.
• Note that formatting the “Memory Stick”
erases all the data in the “Memory Stick” even
if images are protected, and these images
cannot be recovered.
• It may take some time to protect the images.
On the single screen
a Set the mode dial to .
b Display the image you want to
protect with b/B.
c Press MENU.
The menu appears.
d Select - (Protect) with b/B,
then press z.
The image currently being displayed is
now protected, and the - (Protect)
mark is indicated on the screen.
e To protect other images,
display the image you want to
protect with b/B, then press
z.
To cancel the protection
In Step 4 or 5, press z again. The -
mark disappears.
On the Index screen
a Set the mode dial to , press
(index) to switch to the
Index screen.
b Press MENU.
The menu appears.
c Select - (Protect) with b/B,
then press z.
d Select [Select] with b/B, then
press z.
e Select the image you want to
protect with v/V/b/B, then
press z.
The green - (Protect) mark is
indicated on the selected image.
f To protect other images,
repeat Step 5.
g Press MENU.
Mode dial
Control button
MENU
60min
VGA
101
2/9
Protect
Exit
BACK/NEXT
TO NEXT
MENU
•
SELECT
Still
i
mage e
diti
ng
70
h Select [OK] with B, then press
z.
The - mark turns white and the
selected image is protected.
To cancel the protection
In Step 4, select [Cancel], or in Step 8,
select [Exit].
To release protection
In Step 5, select an image for which you
want to release protection with v/V/b/B
and press z. The - mark turns gray and
repeat this operation for all the images for
which you want to release protection. Then,
press MENU, select [OK], and press z.
To protect all the images in the
folder
In Step 4, select [All In This Folder], then
press z. Next, select [On], then press z.
To release protection of all the
images in the folder
In Step 4, select [All In This Folder], and
press z. Then select [Off], and press z.
Changing image size
– Resize
You can change the image size of a
recorded image, and save it as a new file.
You can resize to the following sizes.
5M, 3M, 1M, VGA
The original image is retained even after
resizing.
a Set the mode dial to .
b Display the image you want to
resize with b/B.
c Press MENU.
The menu appears.
d Select (Resize) with b/B,
then press z.
e Select the new size with v/V,
then press z.
The resized image is recorded in the
recording folder as the newest file.
To cancel the resizing
In Step 5, select [Cancel].
• Movies or images recorded in Multi Burst
mode cannot be resized.
• When images are resized from a smaller to a
larger size, the image quality will deteriorate.
• You cannot resize to 3:2-sized image.
• If you try to resize a 3:2-sized image, black
bands will appear at the top and bottom of the
image.
Mode dial
Control button
MENU
71
Still image editing
Choosing images to
print
– Print (DPOF) mark
You can designate certain images to be
printed.
This function is convenient when you want
to print images at a shop or using a printer
that conforms with the DPOF (Digital Print
Order Format) standard or using PictBridge
compliant printers.
• You cannot mark movies.
• When you mark images shot in Multi Burst
mode, all the images are printed on one sheet
divided into 16 panels.
• You cannot set the number of print sheets.
On the single screen
a Set the mode dial to .
b Display the image you want to
print with b/B.
c Press MENU.
The menu appears.
d Select (DPOF) with b/B,
then press z.
The mark is indicated on this
image.
e To mark other images, display
the image you want to mark
with b/B, then press z.
To delete the mark
In Step 4 or 5, press z again. The
mark disappears.
On the Index screen
a Set the mode dial to and
press (index) to switch to
the Index screen.
b Press MENU.
The menu appears.
c Select (DPOF) with b/B,
then press z.
d Select [Select] with b/B, then
press z.
• You cannot mark using the [All In This
Folder] option.
e Select the images you want to
mark with v/V/b/B, then press
z.
The green mark is indicated on the
selected image.
f To mark other images, repeat
Step 5 for each of them.
Mode dial
Control button
MENU
VGA
60min
101
2/9
DPOF
Exit
BACK/NEXT
TO NEXT
MENU
•
SELECT
72
g Press MENU.
h Select [OK] with B, then press
z.
The mark turns white and the
setting is completed.
To delete the mark
In Step 5, select the image you want to
delete the mark with v/V/b/B, and
press z.
To delete all the marks from
the images in the folder
In Step 4, select [All In This Folder], then
press z. Next, select [Off], then press z.
To cancel the marking
In Step 4, select [Cancel], or in Step 8,
select [Exit].
73
Still image printing (PictBridge printer)
Connecting to a
PictBridge compliant
printer
Even if you do not have a computer, you
can easily print images shot using your
camera by connecting the camera to a
PictBridge compliant printer. For
preparation, you only need to select the
USB connection in the SET UP settings and
connect the camera to the printer
using a
USB multi cable.
Using a PictBridge compliant printer allows
you to easily print the Index prints*.
* An Index print function may not be provided
depending on the printer.
• When printing images, we recommend that you
use the fully charged battery pack or AC
Adaptor to prevent the camera turning off.
Preparing the camera
Set the USB mode on the camera to connect
the camera with a printer.
a Set the mode dial to SET UP.
b Select (Setup 2) with V, then
select [USB Connect] with
B/v/V.
c Select [PictBridge] with B/v,
then press z.
The USB mode is set.
Connecting the camera to
the printer
Connect the multi connector on the camera
and the USB connector on the printer using
a USB multi cable, and turn on the camera
and the printer.
The camera turns to playback mode
regardless of the mode dial position and an
image in the selected playback folder is
displayed on the LCD screen.
Mode dial
Control button
2
2
1
Setup 2
Video Out:
Clock Set:
File Number:
USB Connect:
PictBridge
Normal
PTP
2/9
101
1M
10:30
AM
2005 1 1101-0002
BACK/NEXT VOLUME
After the connection
is made, the
mark is indicated on
the LCD screen.
Printer
Still
i
mage pr
i
n
ti
ng
(Pi
c
tB
r
id
ge pr
i
n
t
er
)
74
When [USB Connect] is not set
to [PictBridge] in the SET UP
settings
You cannot use the PictBridge function,
even when you turn on the camera.
Disconnect the USB multi cable and set
[USB Connect] to [PictBridge] (page 73).
Printing images
You can select an image and print it. Set up
the camera following the procedure on page
73, and then connect the printer.
• You cannot print movies.
• If an error message is sent from the connected
printer during the connection, flashes for
about five seconds. In such cases, check the
printer.
On the single screen
a Display the image you want to
print with b/B.
b Press MENU.
The menu appears.
c Select (Print) with b/B, then
press z.
d Select [This image] with v/V,
then press z.
The Print screen appears.
• Setting items not available for a particular
printer are not displayed.
e Select [Quantity] with v/V,
select the number of images
with b/B.
You can select the number up to 20.
Control button
MENU
101
2/9
1M
Exit
OK
1
Off
Off
Index
Date
Quantity
Print
75
Still image printing (PictBridge printer)
f Select [OK] with V/B, then
press z.
The image is printed.
Do not disconnect the USB multi cable
while the (Not disconnect USB
multi cable) mark is indicated on the
LCD screen.
To cancel printing
In Step 4, select [Cancel] or in Step 6,
select [Exit].
To print other images
After Step 6, select another image, then
select [Print] with v .
To print all the images indicated
with the mark
In Step 4, select [DPOF image]. All the
images indicated with the mark are
printed in the specified number, regardless
of the image displayed.
To insert the date and time on
images
In Step 5, select [Date], then select the
date format with b/B. You can select from
[Day&Time] or [Date]. When you chose
[Date], the date will be inserted in the order
set in “Setting the date and time” (page 17).
However, this function may not be provided
depending on the printer.
On the Index screen
a Press (index) to switch to
the Index screen.
b Press MENU.
The menu appears.
c Select (Print) with B, then
press z.
d Select [Select] with b/B, then
press z.
e Select the image you want to
print with v/V/b/B, then press
z.
The mark is indicated on the
selected image.
f To print other images, repeat
Step 5.
Exit
Printing
1/3
TO NEXT
MENU
SELECT
76
g Press MENU.
The Print screen appears.
• Setting items not available for a particular
printer are not displayed.
h Select [Quantity] with v/V,
select the number of images
with b/B.
You can select the number up to 20.
All the images selected are printed in
the specified number.
i Select [OK] with V/B, then
press z.
The images are printed.
Do not disconnect the USB multi cable
while the mark is indicated on
the LCD screen.
To cancel printing
In Step 4, select [Cancel] or in Step 9,
select [Exit].
To print all the images indicated
with the mark
In Step 4, select [DPOF image]. All the
images indicated with the mark are
printed in the specified number, regardless
of the image displayed.
To print all the images in the
folder
In Step 4, select [All In This Folder], then
press z.
To insert the date and time on
images
In Step 8, select [Date], then select the
date format with b/B. You can select from
[Day&Time] or [Date]. When you chose
[Date], the date will be inserted in the order
set in “Setting the date and time” (page 17).
However, this function may not be provided
depending on the printer.
Printing index-images
You can print some images side-by-side.
We refer to this function as an index print*.
You can lay single images side-by-side in a
specified number and print them (see “On
the single screen”), or lay different images
side-by-side to make a set by combining
multiple different images and print the set in
the specified number of copies (see “On the
Index screen”).
Set up the camera following the procedure
on page 73, and connect the printer.
* An index print function may not be provided
depending on a printer.
Exit
OK
1
Off
Off
Index
Date
Quantity
Print
Exit
Printing
2/3
Control button
MENU
77
Still image printing (PictBridge printer)
• You cannot print movies.
• If an error message is sent from the connected
printer during the connection, flashes for
about five seconds. In such cases, check the
printer.
On the single screen
a Display the image you want to
print with b/B.
b Press MENU.
The menu appears.
c Select (Print) with b/B, then
press z.
d Select [This image] with v/V,
then press z.
The Print screen appears.
• Setting items not available for a particular
printer are not displayed.
e Select [Index] with v , select
[On] with b/B.
f Select [Quantity] with v/V,
select the number of images
laid side-by-side with b/B.
You can select the number up to 20.
You can lay the specified number of
images side-by-side.
g Select [OK] with V/B, then
press z.
The image is printed.
Do not disconnect the USB multi cable
while the (Not disconnect USB
multi cable) mark is indicated on the
LCD screen.
To cancel printing
In Step 4, select [Cancel] or in Step 7,
select [Exit].
To print other images
After Step 7, select another image, then
select [Print] with v . Then repeat from
Step 4.
101
2/9
1M
Exit
OK
1
Off
Off
Index
Date
Quantity
Print
Exit
Printing Index
1/1
78
To print all the images indicated
with the mark
In Step 4, select [DPOF image]. All the
images indicated with the mark are
printed, regardless of the image displayed.
To insert the date and time on
images
In Step 6, select [Date], then select the
date format with b/B. You can select from
[Day&Time] or [Date]. When you chose
[Date], the date will be inserted in the order
set in “Setting the date and time” (page 17).
However, this function may not be provided
depending on the printer.
• All the images may not be laid on a sheet
depending on the number of images.
On the Index screen
a Press (index) to switch to
the Index screen.
b Press MENU.
The menu appears.
c Select (Print) with B, then
press z.
d Select [Select] with b/B, then
press z.
e Select the desired image with
v/V/b/B, then press z.
The mark is indicated on the
selected image.
f To print other images, repeat
Step 5.
g Press MENU.
h Select [Index] with v , then
select [On] with b/B.
i Select [Quantity] with v/V,
select the number of copies
you want to print with b/B.
You can select the number up to 20.
j Select [OK] with V/B, then
press z.
The images are printed.
Do not disconnect the USB multi cable
while the mark is indicated on
the LCD screen.
To cancel printing
In Step 4, select [Cancel] or in Step 0,
select [Exit].
TO NEXT
MENU
•
SELECT
Exit
Printing Index
1/3
79
Still image printing (PictBridge printer)
To print all the images indicated
with the mark
In Step 4, select [DPOF image]. All the
images indicated with the mark are
printed, regardless of the image displayed.
To print all the images in the
folder
In Step 4, select [All In This Folder], then
press z.
To insert the date and time on
images
In Step 9, select [Date], then select the
date format with b/B. You can select from
[Day&Time] or [Date]. When you chose
[Date], the date will be inserted in the order
set in “Setting the date and time” (page 17).
However, this function may not be provided
depending on the printer.
80
Shooting movies
You can shoot movies with audio.
a Set the mode dial to .
b Press (Image Size).
The Image Size setup item appears.
c Select the desired mode with
v/V.
You can choose from [640 (Standard)]
or [160].
d Press the shutter button fully
down.
“REC” appears on the LCD screen and
the camera starts recording the image
and sound.
• When the capacity of the “Memory Stick”
is used up, recording stops.
e Press the shutter button fully
down again to stop recording.
Indicators on the LCD screen
while you are shooting movies
These indicators are not recorded.
Each time you press , the status of the
LCD screen changes as follows: Indicators
off t LCD screen off t Indicators on.
A histogram is not displayed.
See page 125 for a detailed description of
the indicated items.
To shoot close-ups (Macro)
Set the mode dial to and follow the
procedure on page 27.
To shoot with a self-timer
Set the mode dial to and follow the
procedure on page 28.
• Be careful not to touch the microphone (page 8)
during shooting.
• The following functions cannot be used.
– Changing the zoom scaling
– Shooting with the flash
– Inserting date and time
• See page 113 for the recording time allowed for
each image size.
Mode dial
Control button
Shutter button
REC
00:00:02[00:10:48]
60min
101
STD
640
E
n
j
oy
i
ng mov
i
es
81
Enjoying movies
Viewing movies on
the LCD screen
You can view movies on the LCD screen of
the camera and hear sounds from the
speaker of the camera.
a Set the mode dial to .
b Select the desired movie with
b/B.
Movies with the image size [640
(Standard)] are displayed on the full
screen.
Movies with the image size [160] are
displayed a size smaller than still
images.
c Press z.
The movie images and sound are
played back.
B (playback) appears on the LCD
screen while a movie is playing back.
To stop playback
Press z again.
To adjust the volume
Adjust the volume with v/V.
To fast-forward / rewind
Press B (next) or b (previous) while
playing back a movie.
To return to normal playback, press z.
Indicators on the LCD screen
while you are viewing movies
Each time you press , the status of the
LCD screen changes as follows: Indicators
off t LCD screen off t Indicators on.
A histogram is not displayed.
See page 127 for a detailed description of
the indicated items.
• The procedure for viewing movies on a TV is
the same as that for viewing still images
(page 40).
• A movie recorded using other Sony devices
may be displayed a size smaller than still
images.
Mode dial
Speaker
Control button
10/10
00:00:00
60min
101
10:30PM2005 1 1101
_
0010
STD
640
PLAY BACK/NEXT VOLUME
00:00:03
60min
10:30PM2005 1 1101
_
0010
10/10
101
STD
640
STOP REV/CUE VOLUME
Playback bar
82
Deleting movies
You can delete unwanted movies.
• You cannot delete the protected movies.
• Note that the movies once deleted cannot be
recovered.
On the single screen
a Set the mode dial to .
b Select the movie you want to
delete with b/B.
c Press (delete).
The movie has not yet been deleted at
this point.
d Select [Delete] with v , then
press z.
“Access” appears on the LCD screen
and the movie is deleted.
e To delete other movies, display
the movie you want to delete
with b/B, then repeat Step 4.
To cancel the deletion
In Step 4 or 5, select [Exit].
On the Index screen
a Set the mode dial to and
press (index) to switch to
the Index screen.
b Press (delete).
c Select [Select] with b/B, then
press z.
d Select the movies you want to
delete with v/V/b/B, then
press z.
The (delete) mark is indicated on
the selected movie.
The movie has not yet been deleted at
this point.
e Repeat Step 4 to delete other
movies.
f Press (delete).
g Select [OK] with B, then press
z.
“Access” appears on the LCD screen
and the movie will be deleted.
Mode dial
Control button
TO NEXTSELECT
83
Enjoying movies
To cancel the deletion
In Step 3 or 7, select [Exit].
To delete all the images in the
folder
In Step 3, select [All In This Folder], then
press z. Next, select [OK], then press z.
To cancel the deletion, select [Cancel] with
b, then press z.
Cutting movies
You can cut movies, or delete unnecessary
portions of movies (page 42). This is the
recommended function to use when the
“Memory Stick” capacity is insufficient, or
when you attach movies to your e-mail
messages.
Note that the original movie is deleted after
you cut it.
The file numbers assigned when
movies are cut
The cut movies are assigned new numbers
and recorded as the newest files in the
recording folder. The original movie is
deleted and its file number is skipped.
<Example> Cutting the movie numbered
101_0002
1
2
101_0002
101_0003
3
101_0001
1
2
3AB
101_0002
101_0004
123 BA
101_0005
13
2
101_0006
101_0004 101_0007
AB
13
2
101_0006
1. Cutting scene A.
3. Deleting scenes A and B if they are
unnecessary.
2. Cutting scene B.
4. Only the desired scenes remain.
Divide point
Divide
point
Delete Delete
84
a Set the mode dial to .
b Select the movie you want to
cut with b/B.
c Press MENU.
The menu appears.
d Select (Divide) with B, then
press z. Next, select [OK] with
v , then press z.
The playback of the movie starts.
e Decide on a cutting point.
Press z at the desired cutting point.
When you want to adjust the cutting
point, select [c/C] (frame rewind/
forward) and adjust the cutting point
with b/ B. If you want to change the
cutting point, select [Cancel]. The
playback of the movie starts again.
f When you have decided on a
cutting point, select [OK] with
v/V, and press z.
g Select [OK] with v , then press
z.
The movie is cut.
To cancel cutting
In Step 5 or 7, select [Exit]. The movie
appears on the LCD screen again.
• You cannot cut the following images.
– Still images
– Movies not long enough to cut
– Protected movies
• You cannot restore movies once you cut them.
• The cut movie is recorded in the selected
recording folder as the newest file.
Mode dial
Control button
MENU
00:00:02
60min
10/10
101
STD
6 40
Divide
Dividing
Point
O K
Cancel
Exit
85
Enjoying images on your computer
Copying images to
your computer
– For Windows users
Recommended computer
environment
OS: Microsoft Windows 98, Windows
98SE, Windows 2000 Professional,
Windows Millennium Edition, Windows
XP Home Edition, or Windows XP
Professional
The above OS must be installed at the
factory. Operation is not assured in an
environment upgraded to the operating
systems described above or in a multi-boot
environment.
CPU: MMX Pentium 200 MHz or faster
USB connector: Provided as standard
Display: 800 × 600 dots or more
High Color (16-bit color, 65,000 colors) or
more
• This camera is compatible with Hi-Speed USB
(USB 2.0 compliant).
• Connecting with a USB interface that is
compatible with Hi-Speed USB (USB 2.0-
compliant) allows advanced transfer (high-
speed transfer).
• If you connect two or more USB equipment to
a single computer at the same time, some
equipment, including your camera, may not
operate depending on the type of USB
equipment.
• Operations are not guaranteed when using a
USB hub.
• Operations are not guaranteed for all the
recommended computer environments
mentioned above.
USB mode
There are two modes for a USB connection
when connecting with a computer,
[Normal] and [PTP]* modes. The default
setting is the [Normal] mode. This section
describes the [Normal] mode as an
example.
* Compatible only with Windows XP. When
connected to a computer, only the data in the
folder selected by the camera is copied to the
computer. To select the folder, follow the
procedure on page 63.
Communication with your
computer
When your computer resumes from the
suspend or sleep mode, communication
between your camera and your computer
may not recover at the same time.
When a USB connector is not
provided on your computer
When neither a USB connector nor a
“Memory Stick” slot is provided, you can
copy images using an additional device. See
the Sony Website for details.
http://www.sony.net/
Contents of the CD-ROM
x USB Driver
This driver is needed in order to connect the
camera to a computer.
When using Windows XP, you need not
install the USB driver.
x Picture Package
This application is used to transfer images
from the camera to a computer easily. It also
allows you to utilize the various functions.
When you install “Picture Package,” the
USB driver will be installed at the same
time.
• The required operations may differ
depending on your OS.
• Close down all applications
running on the computer before
installing the USB driver and
application.
• When using Windows XP or Windows
2000, log on as Administrator.
E
n
j
oy
i
ng
i
mages on your compu
t
er
86
Installing the USB driver
When using Windows XP, you need not
install the USB driver.
Once the USB driver is installed, you need
not install the USB driver.
a Turn on your computer, and
insert the supplied CD-ROM
into the CD-ROM drive.
The install menu screen appears. If it
does not appear, double-click (My
Computer) t
(PICTUREPACKAGE) in that
order.
• If you are going to use the “Picture
Package” application software, click
“Picture Package.” The USB driver will be
installed when “Picture Package” is
installed (page 93).
• When the computer is in use, shut down
all application software currently running
before you install the USB driver.
b Click [USB Driver] on the title
screen.
The “InstallShield Wizard” screen
appears.
c Click [Next].
The USB driver installation starts.
When the installation is completed, the
screen informs you of completion.
d Click [Yes, I want to restart my
computer now], then click
[Finish].
Your computer restarts. Then, you can
establish USB connection.
e Remove the CD-ROM.
Do not connect your camera to
your computer at this time.
87
Enjoying images on your computer
Connecting the camera to
your computer
a Insert the “Memory Stick” with
the images you want to copy
into the camera, then close the
battery/“Memory Stick” cover.
b Open the DC IN jack cover, and
connect the AC Adaptor, then
plug the adaptor into a wall
outlet (wall socket).
• When you copy images to your computer using
the battery pack, copying may fail or the data
may be corrupted by battery shutoff. We
recommend that you use the AC Adaptor.
c Set the mode dial to and
turn on the camera and your
computer.
• You can carry out this operation even when the
mode dial is set to SET UP.
d Connect the USB multi cable
to the multi connector of the
camera.
Rotate the lens portion back to the
original position and place the camera
with the LCD screen facing upwards.
e Connect the USB multi cable
to your computer.
• When using a desktop computer, connect the
USB multi cable to the USB connector on the
rear panel.
• When using Windows XP, the AutoPlay wizard
automatically appears on the desktop. Proceed
to page 89.
“USB Mode Normal” appears on the LCD
screen of the camera. When a USB
connection is established for the first time,
your computer automatically runs the used
program to recognize the camera. Wait for a
while.
* During communication, the access indicators
turn red. Do not operate the computer until the
indicators turn white.
• If “USB Mode Normal” does not appear in Step
5, press MENU, select [USB Connect], and
set it to [Normal].
AC Adaptor
1 To a wall
outlet
(wall socket)
2
USB Mode
MENU
Switch on
Normal
Access
indicators*
88
P Disconnecting the USB multi
cable, removing the “Memory
Stick,” or turning off the
camera during a USB
connection
For Windows 2000, Me, or XP users
1 Double-click on the tasktray.
2 Click (Sony DSC), then click [Stop].
3 Confirm the device on the confirmation
window, then click [OK].
4 Click [OK].
Step 4 is unnecessary for Windows XP
users.
5 Disconnect the USB multi cable, remove
the “Memory Stick,” or turn off the
camera.
For Windows 98 or 98SE users
Confirm that the access indicators (page 87)
on the screen are turned white and carry out
only Step 5 above.
Copying images
– Windows 98/98SE/2000/Me
a Double-click [My Computer],
then double-click [Removable
Disk].
The contents of the “Memory Stick”
inserted in your camera appear.
• This section describes an example of copying
images to the “My Documents” folder.
• When the “Removable Disk” icon is not shown,
see page 89.
• When using Windows XP, see page 89.
b Double-click [DCIM], then
double-click the folder that the
image files you want to copy
are stored.
c Right-click the image file to
display the menu, then select
[Copy] from the menu.
d Double-click the “My
Documents” folder and right-
click on the “My Documents”
window to display the menu,
then select [Paste] from the
menu.
The image files are copied to the “My
Documents” folder.
When an image with the same
file name exists in the copy
destination folder
The overwrite confirmation message
appears. When you overwrite the existing
image with the new one, the original file
data is deleted.
To change the file name
To copy an image file to the computer
without overwriting, change the file name
to the desired name before you copy it.
However, note that if you change the file
name, you may not be able to play back that
image with your camera. To play back
images with the camera, perform the
operation on page 93.
Double-click here
89
Enjoying images on your computer
When a removable disk icon is
not shown
1 Right-click [My Computer] to display
the menu, then click [Properties].
The “System Properties” screen appears.
2 Display [Device Manager].
1 Click [Hardware].
2 Click [Device Manager].
• For Windows 98, 98SE, Me users,
Step 1 is unnecessary. Click the
[Device Manager] tab.
3 If [ Sony DSC] is displayed, delete it.
1 Right-click [ Sony DSC].
2 Click [Uninstall].
The “Confirm Device Removal”
screen appears.
• For Windows 98, 98SE, Me users,
click [Remove].
3 Click [OK].
The device is deleted.
Try the USB driver installation again using
the CD-ROM (page 86).
– Windows XP
Copying images using the
Windows XP AutoPlay wizard
a Make a USB connection
(page 87). Click [Copy pictures
to a folder on my computer
using Microsoft Scanner and
Camera Wizard], then click
[OK].
The “Scanner and Camera Wizard”
screen appears.
b Click [Next].
The images stored on the “Memory
Stick” are displayed.
c Click the checkbox of images
that you do not want to copy to
your computer to remove the
checkmark, then click [Next].
The “Picture Name and Destination”
screen appears.
d Select a name and destination
for your pictures, then click
[Next].
Image copying starts. When the
copying is completed, the “Other
Options” screen appears.
e Select [Nothing. I’m finished
working with these pictures],
then click [Next].
The “Completing the Scanner and
Camera Wizard” screen appears.
f Click [Finish].
The wizard closes.
• To continue copying other images, follow the
procedure given under P on page 88 to
disconnect the USB multi cable and reconnect
it. Then, perform the procedure from Step 1
again.
90
Viewing the images on your
computer
a Click [Start], then click [My
Documents].
The “My Documents” folder contents
are displayed.
• This section describes the procedure for
viewing copied images in the “My Documents”
folder.
• When not using Windows XP, double-click
[My Documents] on the desktop.
b Double-click the desired image
file.
The image is displayed.
91
Enjoying images on your computer
Image file storage destinations and file names
The image files recorded with your camera
are grouped as folders in the “Memory
Stick.”
Example: when viewing folders on
Windows XP
• You cannot record any images to
“100MSDCF” or “MSSONY” folders.
The images in these folders are available
only for viewing.
• For more information about the folder,
see pages 48 and 63.
Folder containing image data which was
recorded using the camera not equipped
with the folder creating function.
Folder containing image data which was
recorded using your camera. When not
creating any folders, there is only the
“101MSDCF” folder.
Folder containing movie data, etc., which
was recorded using the camera not
equipped with the folder creating
function.
92
• ssss stands for any number within the range from 0001 to 9999.
• The numerical portions of a movie file recorded in movie mode and its corresponding index
image file are the same.
Folder File name File meaning
101MSDCF to
999MSDCF
DSC0ssss.JPG • Still image files shot in
– Normal mode (page 23)
– Burst mode (page 60)
– Multi Burst mode (page 61)
MOV0ssss.MPG • Movie files (page 80)
MOV0ssss.THM • Index image files recorded in movie mode (page 80)
93
Enjoying images on your computer
Viewing an image previously
copied to a computer
This operation is required for viewing
image files that have been copied
previously to a computer and already
deleted from the “Memory Stick” using the
camera.
Copy the image files stored on your
computer to a “Memory Stick” and view
them on the camera.
• Skip Step 1 if you have not changed the file
name assigned by this camera.
• You may not be able to view the image
depending on the image size.
• Images modified with a computer or images
shot using other than this camera may not be
able to be played back on the camera.
• If the warning message for overwriting the data
appears, enter other numbers in Step 1.
• If there is no folder to store the image file,
create a new folder, then copy the image file.
For details on how to create the folder, see
page 48.
a Right-click the image file, then
click [Rename]. Change the file
name to “DSC0ssss”.
ssss stands for any number within
the range from 0001 to 9999.
• A file extension may be indicated
depending on the setup of the computer.
The extension of a still image is “JPG”
and that of a movie is “MPG”. Do not
change the extension.
b Copy the image file to a folder
on the “Memory Stick.”
1 Right-click the image file, then
click [Copy].
2 Select and double-click the [DCIM]
folder from [Removable Disk] or
[Sony MemoryStick] in [My
Computer].
3 Right-click the [sssMSDCF]
folder in the [DCIM] folder, then
click [Paste].
sss stands for any number
within the range from 100 to 999.
Installing “Picture Package”
“Picture Package” is only for
Windows computers.
You can use the “Picture Package” software
on your Windows computer to manage the
images shot with your camera. Installing
the “Picture Package” software installs the
USB driver at the same time.
• When the computer is in use, shut down all
application software currently running before
you install “Picture Package.”
For computer environment
See page 85 for the basic Windows
operating environment.
Other system requirements are as follows.
Software: Macromedia Flash Player 6.0 or
later, Windows Media Player 7.0 or later,
and DirectX 9.0b or later.
Sound card: 16-bit stereo sound card with
speakers
Memory: 64 MB or more (128 MB or
more is recommended)
Hard Disk: Disk space required for
installation: approximately 200 MB
Display: A video card equipped with
4 MB VRAM (DirectDraw driver
compliant)
• When automatically creating slide shows
(page 96), a Pentium III 500 MHz or faster
CPU is required.
94
• This software is compatible with the DirectX
technology. “DirectX” must be installed before
using.
• A separate environment for operating the
recording device is required in order to write to
CD-Rs.
a Turn on your computer, and
insert the supplied CD-ROM
into the CD-ROM drive.
The installation menu screen appears.
• If you have not yet installed the USB
driver (page 86), do not connect the
camera to the computer before you install
the “Picture Package” software (except
Windows XP).
b Click [Picture Package].
The “Choose Setup Language” screen
appears.
c Select the desired language,
then click [Next].
• This section describes the English screen.
d Click [Next].
The “License Agreement” screen
appears.
Read the agreement carefully. If you
accept the terms of the agreement,
check the “I accept the terms of the
license agreement” checkbox, then
click [Next].
e Click [Next].
95
Enjoying images on your computer
f Click [Install] on the “Ready to
Install the Program” screen.
The installation starts.
If the “Welcome to setup for DirectX”
screen appears after you install the
application software, follow the
instructions.
g Confirm if the checkbox of
“Yes, I want to restart my
computer now” is checked,
then click [Finish].
Your computer restarts.
The shortcut icons of [Picture Package
Menu] and [Picture Package
destination Folder] are displayed.
h Remove the CD-ROM.
Copying images using
“Picture Package”
Connect the camera and your
computer with the USB multi cable.
“Picture Package” starts up automatically
and the images in the “Memory Stick” are
copied to the computer automatically. After
the images are copied, “Picture Package
Viewer” starts up and the images copied are
displayed.
• Normally “Picture Package” and “Date” folders
are created inside the “My Documents” folder,
and all of the image files recorded with the
camera are copied into these folders.
• Windows XP is set so that the OS AutoPlay
Wizard activates.
If you deactivate the OS AutoPlay Wizard,
cancel the activation using [Settings] on the
“Picture Package Menu.”
• If “Picture Package” cannot copy images
automatically, start up “Picture Package Menu”
and check [Settings] in [Copy automatically].
96
Using “Picture Package”
Start up the [Picture Package Menu] on the
desktop to use the various functions.
• The default screen may differ depending on
your computer. You can change the order of the
buttons using [Settings] in the lower-right
corner of the screen.
• For details on the use of the application
software, click on the upper-right corner of
each screen to show the on-line help.
Viewing images on a computer
Click [Viewing video and pictures on PC]
on the left side of the screen.
Click [Viewing video and pictures on PC]
in the lower-right corner of the screen.
The screen used for viewing images
appears.
Saving images on a CD-R
Click [Save the images on CD-R] on the left
side of the screen.
Click [Save the images on CD-R] in the
lower-right corner of the screen.
The screen used for saving images on a CD-
R appears.
• A CD-R drive is required to save images on a
CD-R.
For further information on compatible drives,
see the following home page of the Pixela User
Support Center.
http://www.ppackage.com/
Creating a slide show
Click [Automatic Slideshow Producer] on
the left side of the screen.
Click [Automatic Slideshow Producer] in
the lower-right corner of the screen.
The screen used for creating a slide show
appears.
Technical support of “Picture Package” is
provided by the Pixela User Support Center.
For more information, refer to the enclosed
information with the CD-ROM.
97
Enjoying images on your computer
Copying images to
your computer
– For Macintosh users
Recommended computer
environment
OS: Mac OS 9.1, 9.2, or Mac OS X (v10.0/
v10.1/v10.2/v10.3)
The above OS must be installed at the
factory.
USB connector: Provided as standard
• If you connect two or more USB equipment to
a single computer at the same time, some
equipment, including your camera, may not
operate depending on the type of USB
equipment.
• Operations are not guaranteed when using a
USB hub.
• Operations are not guaranteed for all the
recommended computer environments
mentioned above.
USB mode
There are two modes for a USB connection
when connecting with a computer,
[Normal] and [PTP]* modes. The default
setting is the [Normal] mode. This section
describes the [Normal] mode as an
example.
* Compatible only with Mac OS X. When
connected to a computer, only the data in the
folder selected by the camera is copied to the
computer. To select the folder, follow the
procedure on page 63.
Communication with your
computer
When your computer resumes from the
suspend or sleep mode, communication
between your camera and your computer
may not recover at the same time.
When a USB connector is not
provided on your computer
When neither a USB connector nor a
“Memory Stick” slot is provided, you can
copy images using an additional device. See
the Sony Website for details.
http://www.sony.net/
a Connecting your camera to
your computer
For details, see page 87.
Disconnecting the USB multi cable,
removing the “Memory Stick,” or
turning off the camera during a USB
connection
Drag and drop the drive icon or the icon of
the “Memory Stick” to the “Trash” icon,
then remove the USB multi cable, remove
the “Memory Stick,” or turn off the camera.
• If you are using Mac OS X v10.0, remove the
USB multi cable etc., after you have turned
your computer off.
b Copying images
1 Double-click the newly recognized icon
on the desktop.
The contents of the “Memory Stick”
inserted in your camera appear.
2 Double-click “DCIM.”
3 Double-click the folder that the images
you want to copy are stored.
4 Drag and drop the image files to the hard
disk icon.
The image files are copied to your hard
disk.
For details on the storage location of the
images and file names, see page 91.
98
c Viewing the images on your
computer
1 Double-click the hard disk icon.
2 Double-click the desired image file in
the folder containing the copied files.
The image file opens.
• “Picture Package” cannot be used with
Macintosh.
Using “ImageMixer VCD2”
“ImageMixer VCD2” is only for
Macintosh computers (Mac OS X
(v10.1.5) or later one).
Using “ImageMixer VCD2” on the CD-
ROM supplied with your camera, you can
create a video CD using the image or movie
materials that are stored in your computer.
You can create an image file that is
compatible with the video CD creation
function of Toast by Roxio (not supplied).
• When the computer is in use, shut down all
other application software currently running
before you install “ImageMixer VCD2.”
Required computer environment
OS: Mac OS X (v10.1.5 or later)
The above OS must be installed at the
factory
CPU: iMac, eMac, iBook, PowerBook,
Power Mac G3/G4 series
Memory: 128 MB or more (256 MB or
more is recomended)
Hard Disk: Disk space required for
installation: approximately 250 MB
Display: 1,024 × 768 dots or more, 32,000
colors or more
• QuickTime 4 or later must be pre-installed
(QuickTime 5 is recommended).
• Operations are not guaranteed for all
recommended computer environments
mentioned above.
Technical support of “ImageMixer VCD2” is
provided by the Pixela User Support Center.
For more information, refer to the enclosed
information with the CD-ROM.
99
Enjoying images on your computer
a Installing “ImageMixer VCD2”
1 Turn on your computer.
• The display settings should be 1,024 × 768
dots or higher and 32,000 colors or higher.
2 Insert the supplied CD-ROM into the
CD-ROM drive.
3 Double-click the CD-ROM icon.
4 Copy the [IMXINST.SIT] file in the
[MAC] folder to the hard disk icon.
5 Double-click the [IMXINST.SIT] file in
the copy-to folder.
6 Double-click the [ImageMixer
VCD2_Install] extracted file.
7 After the user information screen
appears, enter the desired name and
password.
The installation of the software starts.
b Creating a video CD
1 Open the [ImageMixer] folder in
[Application].
2 Click [ImageMixer VCD2].
3 Click [Video CD].
The video disc mode starts up.
• You cannot create a DVD Video.
4 Select the folder in which the desired
images are stored.
1 Select the desired folder on the left
frame, then click [Add]. The selected
folder moves to the right frame.
2 Click [Next].
5 Set up the menu background, buttons,
titles, and so on, then click [Next].
Confirm the set up according to your
preferences.
6 Confirm the preview of the Video CD
file.
1 Click the file you want to preview on
the left frame.
2 Click [B] to preview the file.
7 Click [Next] and enter the disk name and
its destination.
The preparation for storing the file on a
CD-R is completed.
• “ImageMixer VCD2” can create only the disk
image to store the image file on a CD-R in the
video CD format. Toast by Roxio (not supplied)
is required to create a video CD.
100
Troubleshooting
If you have trouble with your camera, try
the following solutions.
1 First, check the items on pages 100 to
109. If the LCD screen shows
“C:ss:ss,” the self-diagnosis
function is working. Please see
page 112.
2 Should your camera still not work
properly, press the RESET button inside
the battery/“Memory Stick” cover using
a fine-tipped object, then turn on the
camera again. (This will clear the date
and time settings, etc.)
3 Should your camera still not work
properly, consult your Sony dealer or
local authorized Sony service facility.
Battery pack and power
RESET
Symptom Cause Solution
You cannot charge the
battery pack.
• The camera is turned on. p Turn the camera off (page 15).
The battery pack cannot
be installed.
• The battery pack is not installed correctly. p Install the battery pack while pushing the battery eject lever
toward the front of the camera using the front edge of the battery
pack (page 11).
p Install the battery pack correctly (page 11).
The /CHG lamp flashes
when charging a battery
pack.
• The battery pack is not installed correctly.
• The battery pack has malfunctioned.
• The battery pack is discharged.
p Install the battery pack correctly (page 11).
p Consult your Sony dealer or local authorized Sony service
facility.
p Disconnect the AC Adaptor from the DC IN jack of your camera
and from the wall outlet (wall socket), and connect it again.
Then charge the battery pack (page 11).
T
rou
bl
es
h
oo
ti
ng
101
Troubleshooting
The /CHG lamp does not
light up when charging a
battery pack.
• The AC Adaptor is disconnected.
• The AC Adaptor has malfunctioned.
• The battery pack is not installed correctly.
• The battery pack is completely charged.
• The battery pack is discharged.
p Properly connect the AC Adaptor (page 11).
p Consult your Sony dealer or local authorized Sony service
facility.
p Install the battery pack correctly (page 11).
—
p Disconnect the AC Adaptor from the DC IN jack of your camera
and from the wall outlet (wall socket), and connect it again.
Then charge the battery pack (page 11).
The battery remaining
indicator is incorrect. Or
the sufficient battery
remaining indicator is
displayed but the power
soon runs out.
• You have used the camera in an extremely cold
location.
• A deviation has occurred in the remaining
battery time.
• The battery pack is discharged.
• The battery pack is dead (page 121).
p See page 121.
p Fully discharge and then charge the battery pack so that the
battery remaining indicator functions correctly (page 12).
p Install a charged battery pack (page 11).
p Replace the battery pack with a new one.
The battery pack runs
down too quickly.
• You are using in an extremely cold location.
• The DC plug is dirty so the battery pack is not
charged enough.
• The battery pack is dead (page 121).
p See page 121.
p Clean the pins of the DC plug with a cotton swab, etc., and
charge the battery pack (page 11).
p Replace the battery pack with a new one.
The power cannot be
turned on.
• The battery pack is not installed properly.
• The AC Adaptor is disconnected.
• The AC Adaptor has malfunctioned.
• The battery pack is discharged.
• The battery pack is dead (page 121).
p Properly install the battery pack (page 11).
p Connect it securely to your camera (page 14).
p Consult your Sony dealer or local authorized Sony service
facility.
p Install a charged battery pack (page 11).
p Replace the battery pack with a new one.
The power turns off
suddenly.
• If you do not operate the camera for about three
minutes while the power is on, the camera turns
off automatically to prevent wearing down the
battery (page 15).
• The battery pack is discharged.
p Turn on the camera again or use the AC Adaptor (page 15).
p Install a charged battery pack (page 11).
Symptom Cause Solution
102
Shooting still images / movies
Symptom Cause Solution
The LCD screen is not
turned on even when the
power is turned on.
• The power was turned off with the LCD screen
turned off the last time you used the camera.
p Turn on the LCD screen (page 32).
The subject is not visible
on the LCD screen.
• The mode dial is not set to , P, M, SCN or
.
p Set it to , P, M, SCN or (pages 23 and 80).
The image is out of focus. • The subject is too close.
• (Magnifying glass mode), (Twilight
mode), (Landscape mode) or (Fireworks
mode) is selected for the Scene Selection
function.
• You have set the focus preset distance.
p Use the macro recording mode and set the lens portion farther
away from the subject than the shortest shooting distance
(page 27). Or select (Magnifying glass mode) as the Scene
Selection function and shoot the image within the recommended
distance (page 34).
p Set it to other modes than (Magnifying glass mode),
(Twilight mode), (Landscape mode) or (Fireworks
mode) (page 37).
p Set to the auto focus mode (page 51).
Optical zoom does not
function.
• You cannot change the zoom scaling while
shooting a movie.
• (Magnifying glass mode) is selected for the
Scene Selection function when shooting still
images.
—
p Set it to other modes than (Magnifying glass mode)
(page 34).
Precision digital zoom
does not function.
• [Digital Zoom] is set to [Smart] or [Off] in the
SET UP settings.
• This function cannot be used when you shoot a
movie.
p Set [Digital Zoom] to [Precision] (pages 25, 47 and 117).
—
Smart zoom does not
function.
• [Digital Zoom] is set to [Precision]or [Off] in the
SET UP settings.
• The image size is set to [5M] or [3:2].
• You are shooting in Multi Burst mode.
• This function cannot be used when you shoot a
movie.
p Set [Digital Zoom] to [Smart] (pages 25, 47 and 117).
p Set image size to other settings except [5M] and [3:2] (pages 20
and 26).
p The smart zoom cannot be used in Multi Burst mode (pages 25
and 61).
—
103
Troubleshooting
The image is too dark. • You are shooting a subject with a light source
behind the subject.
• The brightness of the LCD screen is too low.
p Select the metering mode (page 57).
p Adjust the exposure (pages 54, 55, 114 and 116).
p Adjust the brightness of the LCD backlight (pages 47 and 118).
The image is too bright. • You are shooting a spot lighted subject in a dark
location such as on a stage.
• The brightness of the LCD screen is too high.
p Adjust the exposure (pages 54, 55, 114 and 116).
p Adjust the brightness of the LCD backlight (pages 47 and 118).
The image is
monochrome (black and
white).
• [PFX] (P.Effect) is set to [B&W]. p Set it to the other modes than [B&W] (page 62).
Vertical streaks appear
when you are shooting a
very bright subject.
• The smear phenomenon is occurring. p This is not a malfunction.
When looking at the LCD
screen in a dark place,
some noise may show up
on the LCD screen.
• The camera temporarily brightens the LCD
screen to allow you to check the image being
displayed while you are using the camera in a
dark place.
p This will have no effect on the image you shoot.
You cannot shoot images. • No “Memory Stick” is inserted.
• The capacity of the “Memory Stick” is full.
• The write-protect switch on the “Memory Stick”
is set to the LOCK position.
• You cannot shoot while the flash is charging.
• When you shoot a still image, the mode dial is
not set to , P, M or SCN.
• The mode dial is not set to
when you want to
shoot a movie.
p Insert a “Memory Stick” (page 19).
p Delete the images saved in the “Memory Stick” (page 42).
p Change the “Memory Stick.”
p Set it to the recording position (page 120).
—
p Set the mode dial to , P, M or SCN (page 23).
p Set the mode dial to (page 80).
Recording takes a long
time.
• NR slow shutter function is activated. p See page 37.
Symptom Cause Solution
104
Cannot shoot images with
the flash.
• The mode dial is set to , SET UP or .
• The flash is set to (No flash).
• (Twilight mode), (Fireworks mode) or
(Candle mode) is selected for the Scene
Selection function when shooting still images.
• (Magnifying glass mode), (Landscape
mode), (Snow mode), (Beach mode) or
(high-speed shutter mode) is selected for the
Scene Selection function when shooting still
images.
• The camera is in Multi Burst or Burst mode.
p Set the mode dial to , P, M or SCN (pages 23 and 37).
p Set the flash to “Auto” (No indicator), (Forced flash), or
(Slow synchro) (page 29).
p Select other modes than (Twilight mode), (Fireworks
mode) or (Candle mode) (page 34).
p Set the flash to (Forced flash) (page 29).
p Cancel the Multi Burst or Burst mode.
The macro mode does not
function.
• (Magnifying glass mode), (Twilight
mode), (Landscape mode), (Fireworks
mode) or (Candle mode) is selected for the
Scene Selection function when shooting still
images.
p Select other modes than (Magnifying glass mode),
(Twilight mode), (Landscape mode), (Fireworks mode)
or (Candle mode) (page 34).
You cannot shoot images
in succession.
• The capacity of the “Memory Stick” is full.
• The battery level is low and you can shoot only
one image.
p Delete unnecessary images saved in the “Memory Stick” (pages
42 and 82).
p Install a charged battery pack (page 11).
The eyes of the subject
come out red.
— p Set [Red Eye Reduction] to [On] (page 30).
The date and time are
recorded incorrectly.
• The date and time are not set correctly. p Set the correct date and time (page 17).
The aperture value and
shutter speed flash when
you press and hold the
shutter button halfway
down.
• The exposure is incorrect. p Adjust the exposure (page 55).
Unknown horizontal line
appears on the finder.
• This is due to the structure of the finder. p This is not a malfunction.
Symptom Cause Solution
SL
105
Troubleshooting
Viewing images
Deleting/editing an image
Symptom Cause Solution
The image cannot be
played back.
• The mode dial is not set to .
• You changed the folder/file name on a computer.
• You cannot play back the image on the camera if
you modify the image on a computer.
• The camera is in USB mode.
p Set the mode dial to (page 38).
p See page 93.
—
p Cancel USB communication (page 88).
The image is coarse right
after being played back.
• The image momentarily becomes rough for
image processing.
p This is not a malfunction.
The images cannot be
played back on a TV.
• The [Video Out] setting for the camera in SET
UP is incorrect.
• The connection is not correct.
p Set [Video Out] to [NTSC] or [PAL] (pages 47 and 118).
p Check the connection (page 40).
The images cannot be
played back on a
computer.
— p See page 106.
Symptom Cause Solution
Your camera cannot
delete an image.
• The image is protected.
• The write-protect switch on the “Memory Stick”
is set to the LOCK position.
p Cancel the protection (page 69).
p Set it to the recording position (page 120).
You have deleted the
image by mistake.
• Once you have deleted an image, you cannot
restore it.
p Protecting the image can prevent accidental erasure (page 69).
p The write-protect switch on the “Memory Stick” will prevent
you from deleting images by mistake (page 120).
The resizing function
does not work.
• You cannot resize movies or Multi Burst images. —
You cannot attach a print
(DPOF) mark.
• Print (DPOF) marks cannot be attached to
movies.
—
You cannot cut an image. • The movie is not long enough to cut.
• Protected movies cannot be cut.
• Still images cannot be cut.
—
p Cancel the protection (page 69).
—
106
Computers
Symptom Cause Solution
You do not know whether
or not your OS can be
used with the camera.
— p Check “Recommended computer environment” (pages 85 and
97).
You cannot install the
USB driver.
— p In Windows 2000, log on as Administrator (authorized
Administrators) (page 85).
Your computer does not
recognize your camera.
• The camera is turned off.
• The battery level is too low.
• You are not using the supplied USB multi cable.
• The USB multi cable is not connected securely.
• [USB Connect] is not set to [Normal] in the SET
UP settings.
• The USB connectors on your computer are
connected to other equipment besides the
keyboard, the mouse.
• The camera is not directly connected to your
computer.
• The USB driver is not installed.
• Your computer does not properly recognize the
device because you connected the camera and
your computer with the USB multi cable before
you installed the “USB Driver” from the
supplied CD-ROM.
p Turn on the camera (page 15).
p Use the AC Adaptor (page 14).
p Use the supplied USB multi cable (page 87).
p Disconnect the USB multi cable, and securely connect it again.
Make sure that “USB Mode” is displayed on the LCD screen
(page 87).
p Set it to [Normal] (page 118).
p Disconnect the USB cables except for those connected to the
keyboard and the mouse (page 85).
p Directly connect the camera and your computer without using a
USB hub (page 85).
p Install the USB driver (page 86).
p Delete the erroneously recognized device from your computer
(page 89), then install the USB driver (page 86).
You cannot copy images. • The camera is not correctly connected to your
computer.
• The copy procedure differs depending on your
OS.
• You shot with a “Memory Stick” that was
formatted using a computer.
p Connect the camera and your computer correctly using the
supplied USB multi cable (page 87).
p Follow the copy procedure for your OS (pages 88, 89 and 97).
p Use a “Memory Stick” that was formatted using the camera.
After making a USB
connection, “Picture
Package” does not
automatically start.
—
—
p Run “Picture Package Menu” and check [Settings].
p Make a USB connection when the computer is turned on
(page 87).
107
Troubleshooting
“Memory Stick”
The image cannot be
played back on a
computer.
—
—
p If you are using the “Picture Package” software, see the help on
the upper-right corner of each screen.
p Consult the computer or software manufacturer.
The image and sound are
affected by noise when
you play back a movie on
a computer.
• You are playing back the movie directly from
the “Memory Stick.”
p Copy the movie to the hard disk of the computer and then play
the movie file back from the hard disk (pages 88, 89, 95 and 97).
You cannot print an
image.
— p Check the printer settings.
Images previously copied
from a computer cannot
be viewed on the camera.
• Copied to a wrong folder. p Copy them to an available folder, such as “101MSDCF”
(page 91).
Symptom Cause Solution
You cannot insert a
“Memory Stick.”
• You are inserting it backwards. p Insert it from the right side (page 19).
You cannot record on a
“Memory Stick.”
• The write-protect switch on the “Memory Stick”
is set to the LOCK position.
• The “Memory Stick” is full.
p Set it to the recording position (page 120).
p Delete unnecessary images (pages 42 and 82).
You cannot format a
“Memory Stick.”
• The write-protect switch on the “Memory Stick”
is set to the LOCK position.
p Set it to the recording position (page 120).
You have formatted a
“Memory Stick” by
mistake.
• All the data on the “Memory Stick” are erased by
formatting. You cannot restore them.
p We recommend that you set the “Memory Stick” write-protect
switch to the LOCK position to protect accidental erasure
(page 120).
Symptom Cause Solution
108
PictBridge compliant printer
Symptom Cause Solution
The connection cannot be
established.
• The printer is not PictBridge-compliant.
• The printer is not set for the connection with the
camera.
• [USB Connect] is not set to [PictBridge] in the
SET UP settings.
• Depending on the circumstances, the connection
may not be established.
p Consult with the printer manufacturer.
p Check that the printer is turned on and can connect with the
camera.
p Set it to [PictBridge] (page 118).
p Disconnect and connect the USB multi cable again. If an error
message is indicated on the printer, refer to the operating
instructions supplied with the printer.
You cannot print images. • The camera is not connected to the printer.
• The printer is not turned on.
• If you select [Exit] during printing, you may not
print again depending on your printer.
• Movies cannot be printed.
• Images modified with a computer or images shot
using other than this camera may not be able to
be printed.
p Check that the camera and the printer are properly connected
using the USB multi cable.
p Turn on the printer. For further information, refer to the
operating instructions supplied with it.
p Disconnect and connect the USB multi cable again. If you
cannot print still, disconnect the USB multi cable, turn off and
on the printer, then connect the USB multi cable again.
—
—
Printing is canceled. • You disconnected the USB multi cable before
the (Not disconnect USB multi cable)
mark disappears.
—
You cannot insert the date
or print images in the
index mode.
• The printer does not provide these functions.
• The date may not be inserted in the index mode
depending on the printer.
p Consult with the printer manufacturer whether the printer
provides these function or not.
p Consult with the printer manufacturer.
“---- -- --”is printed on the
date-inserted part.
• The recording date data is not recorded on the
image.
p The images that do not have the recording date data cannot be
printed with the date inserted. Set [Date] to [Off] and print it.
109
Troubleshooting
Others
Symptom Cause Solution
The camera does not
work, no operations can
be performed.
• You are not using an “InfoLITHIUM” battery
pack.
• The battery level is low or zero (The
indicator appears.).
• The AC Adaptor is not connected securely.
p Use an “InfoLITHIUM” battery pack (page 121).
p Charge the battery pack (page 11).
p Connect it securely to the DC IN jack of the camera and to a wall
outlet (wall socket) (page 14).
The power is on, but the
camera does not work.
• The internal system is not working properly. p Disconnect, and then, after one minute, reconnect all power
sources and turn on the camera. If this does not work, press the
RESET button located inside the battery/“Memory Stick” cover
with a pointed object, then turn the power on again. (This will
clear the date and time settings, etc.)
You cannot identify the
indicator on the LCD
screen.
— p Check the indicator (pages 124 to 127).
The lens gets fogged. • Condensation is occurring. p Turn off the camera, leave the camera for about an hour and then
try to use it again (page 119).
The camera gets hot if you
use it for a long time.
— p This is not a malfunction.
110
Warnings and
messages
The following messages appear on the LCD screen.
Message Meaning/ Corrective Action
No Memory Stick • Insert a “Memory Stick” (page 19).
System error • Turn the power off and on again (page 15).
Memory Stick error • The inserted “Memory Stick” cannot be used with your camera (page 120).
• The “Memory Stick” is damaged.
• The terminal section of the “Memory Stick” is dirty.
• Insert the “Memory Stick” correctly (page 19).
Memory Stick type error • The inserted “Memory Stick” cannot be used with your camera (page 120).
Format error • The “Memory Stick” format failed. Format the “Memory Stick” again (page 44).
Memory Stick locked • The write-protect switch on the “Memory Stick” is set to the LOCK position. Set it to the recording position
(page 120).
No memory space
• The capacity of the “Memory Stick” is insufficient. You cannot record images. Delete unnecessary images or data (pages
42 and 82).
Read only memory • You cannot record or delete images on the “Memory Stick” with this camera.
No file in this folder • No images have been recorded in this folder.
Folder error • A folder with the same first three digits number already exists on the “Memory Stick.” (For example: 123MSDCF
and 123ABCDE) Select other folders, or create a new folder.
Cannot create more folders • The folder whose first three digits of the name is “999” exists on the “Memory Stick.” You cannot create any more
folders.
Cannot record • You attempted to select the folder that is available only for viewing with your camera. Select other folders (page 48).
File error • An error occurred while playing back the image.
File protect • The image is protected against erasure. Release the protection (page 69).
For “InfoLITHIUM” battery
only
• The battery pack is not the “InfoLITHIUM” type.
Image size over • You are playing back an image of a size that cannot be played back on your camera.
111
Troubleshooting
Cannot divide • The movie is not long enough to be divided.
• The file is not a movie.
Invalid operation • You are playing back a file that was created on equipment other than your camera.
• The battery level is low or zero. Charge the battery pack (page 11). Depending on the conditions of use or the type
of battery pack, the indicator may flash even though there are still 5 to 10 minutes of remaining battery time left.
• Camera shake may occur due to insufficient light. Use the flash, mount the camera on a tripod, or otherwise secure
the camera in place.
Rotate the lens portion • The lens portion is falling downward. Rotate the lens portion.
Enable printer to connect • [USB Connect] is set to [PictBridge], however the camera is connected to a non-PictBridge compliant device. Check
the device.
• Depending on the circumstances, the connection may not be established. Disconnect and connect the USB multi
cable again. If an error message is indicated on the printer, refer to the operating instructions supplied with the
printer.
Connect to device • You tried to print images before the printer connection was established. Connect to a PictBridge compliant printer.
No printable image • You tried to execute [DPOF image] without checking the mark.
• You tried to execute [All In This Folder] while selecting the folder that stores only movies. You cannot print movies.
Printer busy • Since the printer is busy, it cannot receive print requests. Check the printer.
Paper error • A paper error occurred, such as paper-out, paper-jam, etc. Check the printer.
Ink error • An ink error occurred. Check the printer.
Printer error • The camera received an error from the printer. Check the printer, or check if the image you want to print is corrupted.
• The data transmission to the printer may not be completed yet. Do not disconnect the USB multi cable.
Message Meaning/ Corrective Action
112
Self-diagnosis display
– If a code starting with an
alphabet letter appears
Your camera has a self-diagnosis display.
This function displays the condition of the
camera on the LCD screen using a
combination of a letter and four numerical
digits. If this occurs, check the following
code chart and take the corresponding
countermeasure. The last two digits
(indicated by ss) will differ depending on
the state of the camera.
C:32:ss
Self-diagnosis display
If your camera is not still functioning well
after trying the countermeasure a couple of
times, the camera may need to be repaired.
Contact your Sony dealer or local
authorized Sony service facility.
Code Cause Countermeasure
C:32: ss There is trouble with your
camera’s hardware.
Turn the power off and on again (page 15).
C:13: ss The camera cannot read or write
data on the “Memory Stick.”
Re-insert the “Memory Stick” several
times.
An unformatted “Memory Stick”
is inserted.
Format the “Memory Stick” (page 44).
The inserted “Memory Stick”
cannot be used with your camera,
or the data is damaged.
Insert a new “Memory Stick” (page 19).
E:61: ss
E:91: ss
A camera malfunction that you
cannot reverse has occurred.
Press the RESET button (page 100) located
inside the battery/“Memory Stick” cover,
then turn on the camera again.
113
Additional information
The number of images
that can be saved/
shooting time
The number of images that can be saved and
the shooting time are different, depending
on the capacity of the “Memory Stick,” the
image size, and the image quality. Refer to
the following charts when you choose a
“Memory Stick.”
• The number of images is listed in Fine
(Standard) order.
• The values for the number of images that
can be saved and the shooting time may
vary, depending on the shooting
conditions.
• For normal shooting times and numbers
of images that can be saved, see page 22.
• When the remaining number of images
recordable is more than 9,999, “ >9999 ”
is indicated.
Multi Burst (Units: images)
Movie
The numbers indicate the recording time. For example: “1:31:33” indicates “1 hour, 31 minutes, 33
seconds.”
• The image size is as follows:
640 (Standard): 640×480
160: 160×112
16MB 32MB 64MB 128MB MSX-256 MSX-512 MSX-1G
1M 24 (46) 50 (93) 101(187) 202 (376) 357 (649) 726 (1320) 1482 (2694)
16MB 32MB 64MB 128MB MSX-256 MSX-512 MSX-1G
640
(Standard)
0:00:42 0:01:27 0:02:56 0:05:54 0:10:42 0:21:47 0:44:27
160 0:11:12 0:22:42 0:45:39 1:31:33 2:51:21 5:47:05 11:44:22
Additi
ona
l
i
n
f
orma
ti
on
114
Menu items
Menu items that can be changed differ
depending on the position of the mode dial
or the settings of the camera. Default
settings are indicated with x.
When the mode dial is set to
When the mode dial is set to P, M or SCN
Item Setting Description
Mode (REC Mode) Multi Burst
Burst
xNormal
– Records a continuous burst of 16 frames within a single still image (page 61).
– Records images in succession (page 60).
– Records an image using the normal recording mode.
Item Setting Description
SCN
1)
/ / / / / /
/ / x /
Sets the Scene Selection mode (page 34).
(EV)
2)
+2.0EV / +1.7EV / +1.3EV /
+1.0EV / +0.7EV / +0.3EV / x0EV
/ − 0.3EV / − 0.7EV / −1.0EV /
−1.3EV / −1.7EV / −2.0EV
Adjusts the exposure (page 55).
9 (Focus) / 7.0m / 3.0m / 1.0m / 0.5m /
Center AF / x Multi AF
Chooses the auto focus method (page 49), or sets the focus preset distance (page 51).
(Metering Mode) Spot / x Multi Adjusts the exposure to the subject you are shooting (page 57). Sets the metering
region.
WB (White Bal) / / / / xAuto Sets the white balance (page 58).
115
Additional information
1)
This does not appear when mode dial is set to P or M.
2)
This does not appear when mode dial is set to M.
3)
This does not appear when (Magnifying glass mode), (Twilight mode), (Twilight portrait mode), (Fireworks mode) or (Candle mode) is
selected in SCN.
4)
This does not appear when (Twilight mode), (Fireworks mode) or (Candle mode) is selected in SCN.
5)
This does not appear when mode dial is set to SCN.
Item Setting Description
ISO (ISO) 400 / 200 / 100 / xAuto Selects the ISO sensitivity. When shooting under dark conditions or shooting a fast-
moving subject, use a high-number setting. When recording high-quality images, use
a low-number setting.
• The higher the number you select, the more the noise increases.
(P.Quality) xFine / Standard Records images with fine image quality mode. / Records images in the standard
image quality mode (page 47).
Mode (REC Mode) Multi Burst
Burst
xNormal
– Records a continuous burst of 16 frames within a single still image (page 61).
– Records images in succession (page 60).
– Records an image using the normal recording mode.
(Interval)
3)
1/7.5 / 1/15 / x1/30 Selects the Multi Burst between-frame shutter interval (Only when [Mode] (REC
Mode) is set to [Multi Burst]) (page 61).
(Flash Level)
4)
+ / xNormal / – Selects the amount of flash light (page 59).
PFX (P.Effect) B&W / Sepia / xOff Sets the special effects for the image (page 62).
(Saturation)
5)
+ / xNormal / – Adjusts the saturation of the image. The indicator appears (except when the
setting is Normal.)
(Contrast)
5)
+ / xNormal / – Adjusts the contrast of the image. The indicator appears (except when the setting
is Normal.)
(Sharpness)
5)
+ / xNormal / – Adjusts the sharpness of the image. The indicator appears (except when the
setting is Normal.)
M
116
When the mode dial is set to
When the mode dial is set to
Item Setting Description
(EV) +2.0EV / +1.7EV / +1.3EV /
+1.0EV / +0.7EV / +0.3EV / x0EV
/ − 0.3EV / − 0.7EV / −1.0EV /
−1.3EV / −1.7EV / −2.0EV
Adjusts the exposure (page 55).
9 (Focus) / 7.0m / 3.0m / 1.0m / 0.5m /
Center AF / x Multi AF
Chooses the auto focus method (page 49), or sets the focus preset distance (page 51).
(Metering Mode) Spot / x Multi Adjusts the exposure to the subject you are shooting (page 57). Sets the metering
region.
WB (White Bal) / / / / xAuto Sets the white balance (page 58).
PFX (P.Effect) B&W / Sepia / xOff Sets the special effects for the image (page 62).
Item Setting Description
(Folder) OK/Cancel Selects the folder that contains the images you want to play back (page 63).
- (Protect) — Protects/unprotects images against accidental erasure (page 69).
(DPOF) — Selects still images you want to attach/cancel the print (DPOF) mark (page 71).
(Print) — Prints images using a PictBridge compliant printer (page 73).
(Slide) Interval
Repeat
Start
Cancel
– Sets the slide show interval (page 65). (For single-image screen only.)
x3 sec/ 5 sec/ 10 sec/ 30 sec/ 1 min
– Selects images from either folder or recording media.
xFolder/All
– Repeats the slide show.
xOn/Off
– Starts the slide show.
– Cancels the settings and execution of the slide show.
(Resize) 5M / 3M / 1M / VGA / Cancel Changes the recorded image size (page 70). (For single-image screen only.)
(Rotate) (counter-clockwise) /
(clockwise) / OK / Cancel
Rotates the still image (page 66). (For single-image screen only.)
(Divide) OK / Cancel Divides a movie (page 83). (For single-image screen only.)
117
Additional information
SET UP items
(Camera)
(Memory Stick Tool)
Item Setting Description
AF Mode
xSingle / Monitor Selects the focus operation mode (page 50).
Digital Zoom
xSmart / Precision /
Off
Selects the digital zoom mode (page 25).
Date/Time Day&Time
/ Date /
x
Off
Selects whether to insert the date and time into the image (page 33). When shooting movies or images
recorded in Multi Burst mode, the date and time cannot be inserted in the image. Also, the date and time
will not be displayed when shooting. The date and time will be displayed when the image is played back.
Red Eye
Reduction
On /
xOff Reduces the red-eye phenomenon when using a flash (page 30).
AF Illuminator
xAuto / Off Selects whether to emit an AF fill light in the dark. Helps when it is hard to focus on the subject under
dark lighting (page 31).
Auto Review On /
xOff When shooting still images, selects whether to display the image just after you shoot a still image.
Setting this to [On] displays the recorded images for about two seconds. During this time, you cannot
shoot the next image.
Item Setting Description
Format OK / Cancel Formats the “Memory Stick.” Note that formatting erases all data on a “Memory Stick,” including even
protected images (page 44).
Create REC.
Folder
OK / Cancel Creates a folder for recording images (page 48).
Change REC.
Folder
OK / Cancel Changes a folder for recording images (page 48).
Set the mode dial to SET UP. The SET UP
screen appears.
Default settings are indicated with x.
118
(Setup 1)
(Setup 2)
Item Setting Description
LCD Backlight Bright/
xNormal/
Dark
Selects the brightness of the LCD backlight. Selecting [Bright] makes the LCD screen bright and easy
to see when using the camera outdoors or in other bright locations, but also uses up the battery charge
faster. Displayed only when you are using the camera with the battery pack.
Beep Shutter
x On
Off
– Turns on the shutter sound when you press the shutter button.
– Turns on the beep/shutter sound when you press the control button/the shutter button.
– Turns off the beep/shutter sound.
Language — Displays the menu items, warnings and messages in selected language.
Item Setting Description
File Number
x Series
Reset
– Assigns numbers to files in sequence even if the “Memory Stick” is changed or the recording folder
is changed.
– Resets the file numbering and starts from 0001 each time the folder is changed. (When the recording
folder contains a file, a number one higher than the largest number is assigned.)
USB Connect PictBridge/PTP/
xNormal
Switches the USB mode when connecting with a computer or a PictBridge compliant printer using the
USB multi cable.
Video Out NTSC
PAL
– Sets the video output signal to NTSC mode (e.g., USA, Japan).
– Sets the video output signal to PAL mode (e.g., Europe).
Clock Set OK / Cancel Sets the date and time (pages 17 and 47).
1
2
119
Additional information
Precautions
Do not leave the camera in the
following places
• In extremely hot place, such as in a car
parked in the sun. The camera body may
become deformed or this may cause a
malfunction.
• Under direct sunlight or near a heater.
The camera body may become deformed
or this may cause a malfunction.
• On rocking vibration
• Near strong magnetic place
• On sandy or in dusty place
Do not let sand get into the camera. Sand
or dust may cause the camera to
malfunction and sometimes this
malfunction cannot be repaired.
Cleaning
Cleaning the LCD screen
Clean the screen surface with an LCD
cleaning kit (not supplied) to remove
fingerprints, dust, etc.
Cleaning the lens
Wipe the lens with a soft cloth to remove
fingerprints, dust, etc.
Cleaning the DC plug
Clean the DC plug of the AC Adaptor with
a dry cotton bud. Do not use the dirty plug.
Use of the dirty plug may not properly
charge the battery pack.
Cleaning the camera surface
Clean the camera surface with a soft cloth
slightly moistened with water, then wipe the
surface with a dry cloth. Do not use the
following as this may damage the finish or
the casing.
– Thinner, benzine, alcohol, disposable
cloth, or chemical such as insecticide
– Touch the camera with the above on your
hand
– Contact with rubber or vinyl for a long
time
Note on operating temperature
The camera is designed for use within a
temperature range of 0°C to 40°C (32°F to
104°F). Shooting in extremely cold or hot
locations that exceed this range is not
recommended.
On moisture condensation
If the camera is brought directly from a cold
to a warm location, or is placed in a very
damp room, moisture may condense inside
or outside the camera. This moisture
condensation may cause a malfunction of
the camera.
Moisture condensation occurs easily
when:
• The camera is brought from a cold
location such as a ski slope into a warmly
heated room.
• The camera is taken from an air-
conditioned room or car interior to the hot
outdoors, etc.
To prevent moisture condensation
When bringing the camera from a cold
place to a warm place, seal the camera in a
plastic bag and leave it in the new location
for about an hour. Remove the plastic bag
when the camera has adapted to the new
temperature.
If moisture condensation occurs
Turn off the camera and wait about an hour
for the moisture to evaporate. Note that if
you attempt to shoot with moisture
remaining inside the lens, you will be
unable to record clear images.
120
The internal rechargeable button
battery
This camera has an internal rechargeable
button battery for maintaining the date and
time and other settings regardless of
whether the power is on or off.
This rechargeable button battery is
continually charged as long as you are using
the camera. However, if you use the camera
for only short periods it discharges
gradually, and if you do not use the camera
at all for about one month it becomes
completely discharged. In this case, be sure
to charge this rechargeable button battery
before using the camera.
Note that even if this rechargeable button
battery is not charged, you can still use the
camera as long as you do not record the date
and time.
How to charge
Connect the camera to a wall outlet (wall
socket) using the AC Adaptor, or install a
charged battery pack, and leave the camera
for 24 hours or more with the power turned
off.
• The internal rechargeable button battery is
located inside the cover beside the tripod
receptacle on the bottom of the camera. Never
remove the rechargeable button battery.
The “Memory Stick”
“Memory Stick” is a new compact, portable
and versatile IC “Memory Stick” with a
data capacity that exceeds the capacity of a
floppy disk.
The “Memory Stick” that can be used with
this camera is as follows. However, we have
no guarantee of proper operation.
1)
When using it with this camera, be sure to
insert into the Memory Stick Duo Adaptor.
2)
“MagicGate Memory Stick” and “Memory
Stick PRO
” are equipped with the MagicGate
copyright protection technology. MagicGate is
copyright protection technology that uses
encryption technology. However, because your
camera does not support the MagicGate
standards, data recorded with your camera is
not subject to MagicGate copyright protection.
3)
Supports high-speed data transmission using
the parallel interface.
•
The “Memory Stick” formatted with a computer
is not guaranteed to operate with this camera.
•
The data read/write time differs depending on
the combination of the “Memory Stick” and a
device.
Notes on use of the “Memory Stick”
(supplied)
• You cannot record, edit, or delete images when
the write-protect switch is set to LOCK.
The position or the shape of the write-protect
switch may differ depending on the “Memory
Stick” you use.
• Do not remove the “Memory Stick” while
reading or writing data.
• Data may be damaged in the following cases:
– Removing the “Memory Stick” or turning off
the camera while reading or writing data.
– Using the
“Memory Stick” in a location
subject to the effects of static electricity or
noise.
• We recommend you back up any important
data.
• Do not attach any other material than the
supplied label on the labeling position.
“Memory Stick”
Recording/
playback
Memory Stick Yes
Memory Stick Duo
1)
Yes
Memory Stick Duo (MagicGate/
High-speed data transfer
compatible)
1)
Yes
2)3)
MagicGate Memory Stick Yes
2)
MagicGate Memory Stick Duo
1)
Yes
2)
Memory Stick PRO Yes
2)3)
Memory Stick PRO Duo
1)
Yes
2)3)
Terminal
Write-protect
switch
Labeling position
121
Additional information
• When you attach the supplied label, be sure to
attach it to the labeling position. Be careful that
the label does not stick out.
• When you carry or store the “Memory Stick,”
put it in the case supplied with it.
• Do not touch the terminals of a “Memory
Stick” with your hand or a metal object.
• Do not strike, bend or drop a “Memory Stick.”
• Do not disassemble or modify a “Memory
Stick.”
• Do not expose the “Memory Stick” to water.
• Avoid using or storing the “Memory Stick” in
the following places:
– In a car parked in the sun, or at a high
temperature.
– Under direct sunlight.
– In a humid place or near corrosive material.
Notes on use of the “Memory Stick
Duo” (not supplied)
• Be sure to insert the “Memory Stick Duo” into
the Memory Stick Duo Adaptor when using the
“Memory Stick Duo” with the camera. If you
insert the “Memory Stick Duo” into the camera
without attaching the Memory Stick Duo
Adaptor, you may not be able to remove the
“Memory Stick Duo.”
• Verify that you are inserting the “Memory Stick
Duo” in the proper direction when inserting it
into the Memory Stick Duo Adaptor.
• Verify that you are inserting the Memory Stick
Duo Adaptor in the proper direction when
inserting it into the camera. Inserting it in the
wrong direction may cause a malfunction.
• Do not insert a “Memory Stick Duo” that is not
inserted into a Memory Stick Duo Adaptor into
a “Memory Stick”-compatible unit. This may
cause a malfunction of the unit.
• When formatting the “Memory Stick Duo,”
insert the “Memory Stick Duo” into the
Memory Stick Duo Adaptor.
• When the “Memory Stick Duo” is equipped
with the write protect switch, release its lock.
Note on use of the “Memory Stick
PRO” (not supplied)
“Memory Stick PRO” with a capacity of up to
1 GB is verified for this camera.
The “InfoLITHIUM”
battery pack
What is the “InfoLITHIUM”
battery pack?
The “InfoLITHIUM” battery pack is a
lithium-ion battery pack that has functions
for communicating information related to
operating conditions between your camera
and the AC Adaptor.
The “InfoLITHIUM” battery pack
calculates the power consumption
according to the operating conditions of
your camera, and displays the remaining
battery time in minutes.
Charging the battery pack
We recommend charging the battery pack
in an ambient temperature of between 10°C
to 30°C (50° F to 86° F). You may not be
able to efficiently charge the battery pack
outside of this temperature range.
122
Effective use of the battery pack
• Battery performance decreases in low-
temperature surroundings. So, the time that
the battery pack can be used is shorter in
cold places. We recommend the following
to ensure longer battery pack use:
– Put the battery pack in a pocket close to
your body to warm it up, and insert it in
your camera immediately before you
start shooting.
• Frequently operating the zoom or flash
wears out the battery charge faster.
• We recommend having spare battery
packs handy for two or three times the
expected shooting time, and making trial
shots before taking the actual shots.
• Do not expose the battery pack to water.
The battery pack is not water-resistant.
Remaining battery time indicator
The power may go off although the battery
remaining indicator shows there is enough
power to operate. Use the battery pack up
and charge the battery pack fully again so
that the indication on the battery remaining
indicator is correct. Note, however, that the
correct battery indication sometimes will
not be restored if the camera is used in high
temperatures for a long time or left in a fully
charged state, or the battery pack is
frequently used.
How to store the battery pack
• Even if the battery pack will not be used
for a long time, fully charge it and use it
up once per year. Remove the battery
pack from your camera, then store it in a
dry, cool place. This is to maintain the
battery pack’s functions.
• To use the battery pack up on your
camera, leave the POWER button to on in
slide show playback mode (page 65) until
the power goes off.
• Always carry and store the battery pack in
the battery case to prevent the battery
terminals from becoming dirty or short
circuited.
Battery life
• The battery life is limited. Battery
capacity decreases little by little as you
use it more and more, and as time passes.
When the battery operating time is
shortened considerably, a probable cause
is that the battery pack has reached the
end of its life. Buy a new battery pack.
• The battery life varies according to how it
is stored and the operating conditions and
environment for each battery pack.
Specifications
x Camera
[System]
Image device 7.66 mm (1/2.4 type) color
CCD
Primary color filter
Total pixels number of camera
Approx. 5 255 000 pixels
Effective pixels number of camera
Approx. 5 090 000 pixels
Lens Carl Zeiss Vario-Tessar
3× zoom lens
f=6.7 to 20.1 mm (35 mm camera
conversion: 38 to 114 mm)
F3.5-4.2
Exposure control
Automatic, Manual exposure, Scene
selection (10 modes)
White balance
Automatic, Daylight, Cloudy,
Fluorescent, Incandescent
File format (DCF compliant)
Still images: Exif Ver. 2.2, JPEG
compliant, DPOF compatible
Movies: MPEG1 compliant
(Monaural)
Recording medium
“Memory Stick”
Flash Recommended distance (when ISO
sensitivity is set to Auto)
0.15 to 2.2 m (6 inches to
7 feet 2 5/8 inches) (W)
0.25 to 2 m (9 7/8 inches to
6 feet 6 3/4 inches) (T)
123
Additional information
[Input and Output connectors]
Multi connector
USB communication
Hi-Speed USB (USB 2.0 compliant)
[LCD screen]
LCD panel used
4.6 cm (1.8 type) TFT drive
Total number of dots
134 000 (560×240) dots
[Power, general]
Used battery pack
NP-FR1
Power requirements
3.6 V
Power consumption (during shooting with LCD
screen on)
1.4 W
Operating temperature range
0° to +40°C (32° to +104°F)
Storage temperature range
−20° to +60°C (− 4° to +140°F)
Dimensions 97.8 × 74.4 × 25.6 mm
(3 7/8 × 3 × 1 1/16 inches)
(W/H/D, protruding portions not
included)
Mass Approx. 163 g (5.7 oz) (battery pack
NP-FR1, “Memory Stick,” wrist
strap, and so on included)
Microphone Electret condenser microphone
Speaker Dynamic speaker
Exif Print Compatible
PRINT Image Matching II
Compatible
PictBridge Compatible
x AC-LS5/LS5B AC Adaptor
Input rating 100 V to 240 V AC, 50/60 Hz, 11 W,
0.16 A to 0.09 A
Output rating 4.2 V DC, 1.5 A
Operating temperature range
0° to +40°C (32° to +104°F)
Storage temperature range
−20° to +60°C (−4° to +140°F)
Dimensions (excluding projecting parts)
Approx. 48 × 29 × 81 mm
(1 15/16 × 1 3/16 × 3 1/4 inches)
(W/H/D)
Mass Approx. 130 g (5 oz) excluding
power cord (mains lead)
x NP-FR1 battery pack
Used battery Lithium-ion battery
Maximum voltage
DC 4.2 V
Nominal voltage
DC 3.6 V
Capacity 4.4 Wh (1 220 mAh)
Accessories
• AC-LS5/LS5B AC Adaptor (1)
• Power cord (mains lead) (1)
• NP-FR1 battery pack (1)
• Battery case (1)
• USB multi cable (1)
• A/V multi cable (1)
• Wrist strap (1)
• “Memory Stick” (32MB) (1)
• CD-ROM (USB driver: SPVD-012) (1)
• Operating Instructions (1)
Design and specifications are subject to change
without notice.
124
The LCD screen
For shooting still images
A Recording mode indicator
(60, 61)/Image size indicator (20)
B Self-timer indicator (28)
C AE/AF lock indicator (24)
D Battery remaining indicator (12)
E White balance indicator (58)/
Mode dial indicator/
Flash mode (29)/
Red-eye reduction (30)
F Sharpness indicator (115)/
Saturation indicator (115)/
Contrast indicator (115)/
AF illuminator indicator (31)
G Metering mode indicator (57)/
Picture effect indicator (62)
H Low battery warning (111)
I Manual exposure setup mode
indicator (52)
60min
Return
C:32:00
F3.5125
1/30”
101
VGA
S
AF
+
+2.0EV
1
2
3
4
5
6
qf
qg
qh
qj
qk
7
8
0
9
qa
qs
qd
ql
w;
wa
wf
ws
wg
wd
J Macro (27)
K AF mode (50)/
AF range finder frame indicator
(49)/Focus preset value (51)
L Spot metering cross hair (57)
M NR slow shutter indicator (37)/
Shutter speed indicator (52)
N Multi Burst between-frame
interval indicator (61)
O Image quality indicator (47)
P Recording folder indicator (48)
Q Remaining number of recordable
images indicator (22)
R Remaining “Memory Stick”
capacity indicator
S Self-diagnosis display (112)/
Date/time indicator (33)
T ISO sensitivity (115)
U Histogram indicator (56)
V Menu/guide menu (46)
W Aperture value indicator (53)/
EV adjustment indicator (55)
X Vibration warning indicator (111)
Y AF range finder frame (49)
• Pressing the MENU button switches the menu/
guide menu on/off.
The page numbers in parentheses indicate
the location of additional important
information.
125
Additional information
For shooting movies
A Recording mode indicator (80)
B Battery remaining indicator (12)
C White balance indicator (58)
D Low battery warning (111)
E Metering mode indicator (57)/
Picture effect indicator (62)
F Spot metering cross hair (57)
G Macro (27)
H AF range finder frame indicator
(49)/Focus preset value (51)
I Image size indicator (80)
J Recording time [Maximum
recordable time] indicator (80)
K Recording folder indicator (48)
L Remaining “Memory Stick”
capacity indicator
M Self-diagnosis display (112)
N Self-timer indicator (28)
O Menu/guide menu (46)
P EV adjustment indicator (55)
Q AF range finder frame (49)
• Pressing the MENU button switches the menu/
guide menu on/off.
101
[
00:28:25
]
00:00:00
STBY
60min
STD
6 40
+
C:32:00
1
2
3
4
5
6
7
8
9
q;
qa
qs
qd
qf
qg
qh
qj
The page numbers in parentheses indicate
the location of additional important
information.
126
For still image playback
A Image size indicator (20)
B Recording mode indicator
(60–61)
C Change folder indicator (63)
D Protect mark indicator (69)/
Print (DPOF) mark indicator (71)
E Playback indicator (67)
F Zoom indicator (64)/
Frame by frame playback
indicator (67)
G Not disconnect USB multi cable
indicator (111)
H EV adjustment indicator (55)/
ISO sensitivity (115)
I Folder-file number (91)
J PictBridge connecting indicator
(73)
K Playback folder indicator (63)
L Recording folder indicator (48)
M Remaining “Memory Stick”
capacity indicator
N Image number/Number of
images recorded in the playback
folder
O Self-diagnosis display (112)
P Metering mode indicator (57)/
Flash indicator/
White balance indicator (58)
101
C:32:00
+2.0EV
F3.5
500
12/12
VGA
60min
101
1.3
VOLUMEBACK/NEXT
M
1
2
3
4
7
6
5
8
9
q
;
qa
qs
qd
qg
qf
qh
qj
qk
ql
Q Shutter speed indicator (52)/
Aperture value indicator (52)
R Histogram indicator (56)
S Recording date/time of the
image (33)/
Menu/guide menu (46)
• Pressing the MENU button switches the menu/
guide menu on/off.
The page numbers in parentheses indicate
the location of additional important
information.
127
Additional information
For movie playback
A Image size indicator (81)
B Recording mode indicator (81)
C Playback indicator (81)
D Volume indicator (81)
E Change folder indicator (63)
F Playback folder indicator (63)
G Image number
H Recording folder indicator (48)
I Number of images recorded in
the playback folder
J Remaining “Memory Stick”
capacity indicator
K Counter (81)
L Playback screen (81)
M Playback bar (81)
N Menu/guide menu (46)
• Pressing the MENU button switches the menu/
guide menu on/off.
00:00:12
60min
8/8
101
160
DPOF
1
2
3
4
5
6
VOL.
101
7
8
9
0
qa
qs
qd
qf
The page numbers in parentheses indicate
the location of additional important
information.
128
Index
A
AC Adaptor ................................................ 11, 14
Access lamp ..................................................... 19
AE/AF lock ...................................................... 24
AF .................................................................... 24
AF illuminator ................................................. 31
AF Mode .......................................................... 50
AF range finder ................................................ 49
Aperture value ................................................. 52
Auto adjustment mode ..................................... 23
Auto Focus ................................................. 24, 49
Auto Power Off function ................................. 15
Auto Review .................................................. 117
A/V multi cable ............................................... 40
B
B&W ............................................................... 62
Battery life ............................................... 13, 122
Battery remaining indicator ..................... 12, 122
Beach ............................................................... 35
Beep/shutter sound ........................................ 118
Burst ................................................................ 60
C
Candle .............................................................. 35
CD-ROM ......................................................... 86
Center AF ........................................................ 49
Charging battery pack .............................. 11, 121
Charging time .................................................. 12
Cleaning ......................................................... 119
Clock Set ............................................ 17, 47, 118
Cloudy .............................................................58
Contrast .......................................................... 115
Control button .................................................. 16
Copying images to your computer ....... 88, 95, 97
Cutting movies .................................................83
Cyber-shot Station ........................................... 62
D
Daylight ...........................................................58
DC plug ...................................................... 11, 14
Deleting movies ...............................................82
Deleting still images ........................................ 42
Digital zoom .................................................... 25
Divide ..............................................................83
DPOF ...............................................................71
E
EV adjustment ................................................. 55
F
File names ........................................................91
File storage destinations ..................................91
Finder ............................................................... 32
Fireworks ......................................................... 35
Flash ................................................................. 29
Flash Level ....................................................... 59
Fluorescent ....................................................... 58
Focus preset ..................................................... 51
Folder ......................................................... 48, 63
Format .............................................................. 44
H
High-speed shutter ...........................................35
Histogram ........................................................56
I
Image quality ...................................................47
Image size ..................................................20, 21
ImageMixer VCD2 ..........................................98
Incandescent ....................................................59
Index screen .....................................................38
“InfoLITHIUM” battery pack ........................121
Inserting a “Memory Stick” .............................19
Inserting the date and time ............................... 33
Installation .................................................86, 93
ISO .................................................................115
J
JPG ...................................................................92
L
Landscape ........................................................34
LCD backlight ...............................................118
M
Macro ...............................................................27
Magnifying glass .............................................34
Manual exposure ..............................................52
Memory Stick ................................................120
Menu ........................................................46, 114
Metering mode .................................................57
Mirror mode .....................................................29
Mode dial .........................................................10
Moisture condensation ...................................119
I
n
d
ex
129
Index
Monitoring AF ..................................................50
MPG .................................................................92
Multi Burst .................................................61, 67
Multi-pattern metering .....................................57
Multipoint AF ...................................................49
N
NR slow shutter ................................................37
NTSC ..............................................................118
Number of images that can be saved or shooting
time .................................................22, 113
Number of images that can be shot or
viewed .....................................................13
P
PAL .................................................................118
PictBridge .........................................................73
Picture Effect ....................................................62
Picture Package ................................................93
Playback zoom .................................................64
Power on/off .....................................................15
Precautions .....................................................119
Precision digital zoom ......................................26
Print (DPOF) mark ...........................................71
Program auto shooting .....................................10
Protect ...............................................................69
PTP .....................................................85, 97, 118
Q
Quick Review ...................................................25
R
Red Eye Reduction ...........................................30
Remaining shooting/viewing time ........... 12, 113
RESET button ................................................ 100
Resize .............................................................. 70
Rotate ............................................................... 66
S
Saturation ....................................................... 115
Scene Selection ................................................ 34
Screen display ........................ 124, 125, 126, 127
Self-diagnosis display .................................... 112
Self-timer ......................................................... 28
Sepia ................................................................ 62
SET UP .................................................... 47, 117
Sharpness ....................................................... 115
Shooting movies .............................................. 80
Shooting still images ....................................... 23
Shutter speed ................................................... 52
Single AF ......................................................... 50
Single screen .................................................... 38
Slide show ....................................................... 65
Smart zoom ...................................................... 26
Snow ................................................................ 35
Soft snap .......................................................... 35
Spot metering .................................................. 57
T
Trimming ......................................................... 65
TV color system .............................................. 41
Twilight ............................................................ 34
Twilight portrait ............................................... 34
U
USB ........................................................... 87, 97
USB driver ....................................................... 86
USB mode .................................................. 85, 97
USB multi cable ................................... 40, 73, 87
Using your camera abroad ............................... 14
V
Viewing images on TV ....................................40
Viewing movies on the LCD screen ................81
Viewing the images on the LCD screen .......... 38
Viewing the images on your computer ...... 90, 97
W
Warnings and messages .................................110
White balance .................................................. 58
Z
Zoom ................................................................ 25
