User Manual

Installing the Stand or Wall Mount Bracket

CAUTION

• Be sure to disconnect the AC power cord before removing a base stand or installing wall mount brackets.
• The display on your TV is fragile. Make sure the TV screen is not scratched or damaged by hard objects or from pressure.
• After the installation is complete, make sure the TV is steady on a table or firmly attached to a wall mount, before removing all protective film, if any.

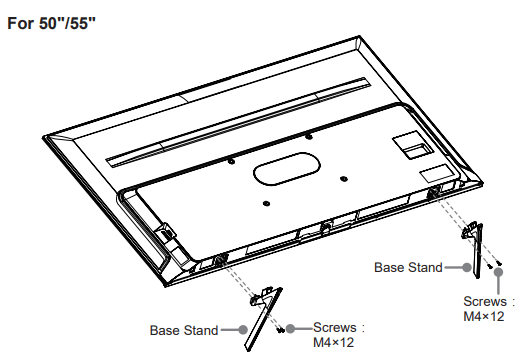

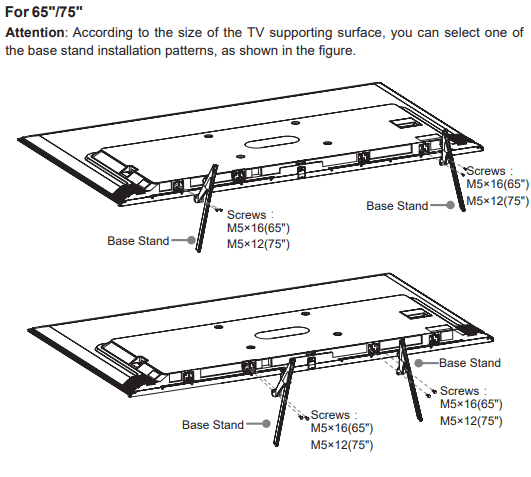

Installing the Stand

Follow the illustrations and textual instructions below to complete the installation steps:

1. Carefully place your TV facedown on a soft, flat surface to prevent damage to the TV or scratching to the screen.
2. Take out the 2 stands from the accessory bag and then insert the stands into the bottom slots of the TV.
3. Secure the Base Stand to the TV with the 4 screws in the accessory bag tightly.

Installing the Wall Mount Bracket

Before mounting the TV, remove the TV stand if you have already attached it, and make sure the wall mount bracket supports the weight of your TV.

• Place spacers between the TV and bracket.
• Make sure the tilt angle between the TV screen and the vertical surface is no more than 15 degrees.
• Standard dimensions are shown below.

NOTES

• The diameter and length of the screws differ depending on the wall mount bracket model.
• Wall mount bracket is optional, your device may not have wall mount bracket, please refer to the actual accessories.

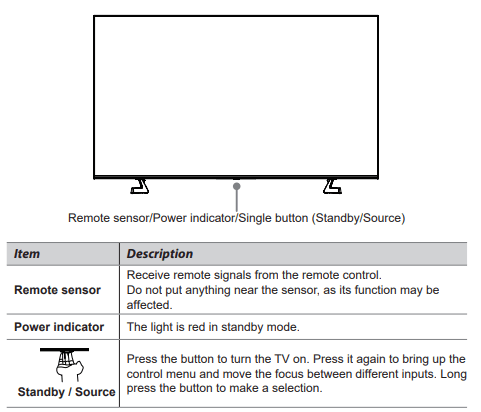

TV Front

NOTES

• The Picture is Only for Reference.
• Powering on the TV requires several seconds to load programs. Do not rapidly turn the TV off as it may cause the TV work abnormally.

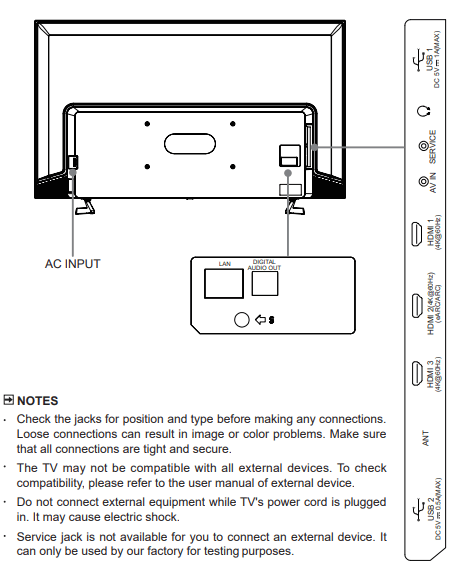

TV Rear

Making Connections

ANT Connect an outdoor VHF/UHF antenna or cable.

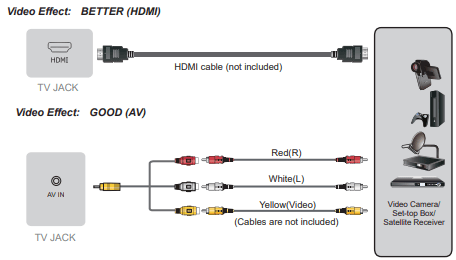

HDMI / AV

Connect a HDMI / AV cable from an external AV equipment. No sound connection is needed for HDMI to HDMI connection. If the signal resolution does not match the specification table, you need to change the setting of device according to the table.

Please consult your device user manual for instruction.

• To select the HDMI / AV

Press the [INPUT] button, when the list of input Source appears, press the [ / < / >] buttons to select the source HDMI / AV, then press the [OK] button to connect.

HEADPHONE Connect Headphone for audio out of the TV

DIGITAL AUDIO OUT Connect to an external digital audio system.

Before connecting a digital audio system to the DIGITAL AUDIO OUT jack, you should decrease the volume of both the TV and the system to avoid that the volume suddenly becomes bigger.

eARC/ARC Connect an HDMI cable from an external digital audio system.

eARC/ARC enables the TV to directly output the digital sound through an HDMI cable. Please note that it works only when the TV is connected to the audio receiver that supports the eARC/ARC (Audio Return Channel) function.

When this port is used as the eARC/ARC function, it can't be used as signal input at the same time

USB

Connect the USB1.1 and USB2.0 devices such as hard drives, USB sticks and digital cameras for browsing photos, listening music and watching movies.

NOTES

• When connecting a hard disk or a USB hub, always connect the mains adapter of the connected device to the power supply. If a USB 1.1 or USB2.0 device requires more than 500mA or 5V, the USB device may not be supported. Max supported current for USB 3.0 device is 1A (only for some models). Exceeding the max supported current may result in damage or data loss.
• Certain digital cameras may not be compatible with the TV.

LAN (Wired setup)

Connect your TV to your network by connecting the LAN port on the back of your TV to an external modem or router using a LAN (Ethernet/Cat 5) cable. See the illustration below.

• We recommend you to use a modem or router that supports Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS, so you don’t have to enter them manually. Most home networks already have DHCP.

Wireless setup

Connect your TV to your wireless network, you need a wireless router or modem. See the illustration below.

• The TV’s built-in Wireless LAN Adapter supports the IEEE 802.11 a/b/g/n/ac communication protocols.

NOTES

• You must use the built-in Wireless LAN Adapter to use a wireless network because the set doesn’t support external USB network adapters.
• If the wireless router supports DHCP, your TV can connect more easily to the wireless network.
• If you apply a security system which is not listed below, it will not work with the TV.Security system : WPA, WEP, WPA2.
• In order to guarantee smooth network, the distance between router and TV should be less than 10 meters.

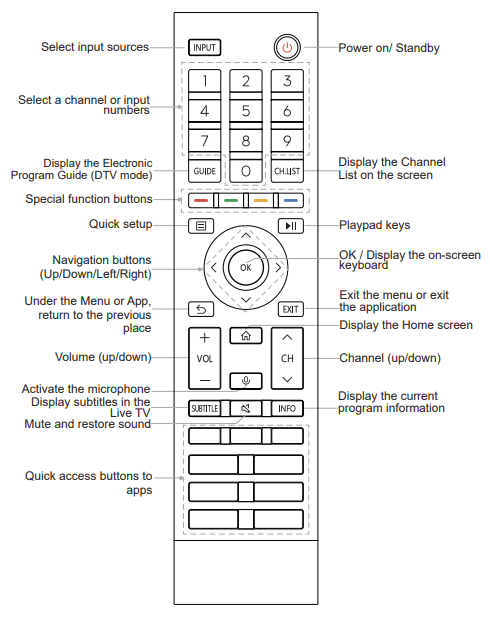

Remote Control

Installing Batteries in the Remote Control

NOTES

• Product image is only for reference, actual product may vary in appearance.
• Dispose of your batteries in a designated disposal area. Do not throw the batteries into fire.
• Do not mix battery types or combine used batteries with new ones.
• Remove depleted batteries immediately to prevent battery acid from leaking into the battery compartment.
• If you do not intend to use the remote control for a long time, remove the batteries.
• Batteries should not be exposed to excessive heat, such as sunshine, heat registers, or fire.
• Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment with a cloth. If chemicals touch your skin, wash immediately.

1. Slide the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends of the batteries with the (+) and ( - ) ends indicated in the battery compartment.
3. Close the battery compartment with the cover.

Pairing the Remote Control (only for Bluetooth remote control)

Pair the remote to the TV after you power it on. Keep the remote control within 3 metres from the TV. Press any button (except power and mic button) to pair.

NOTES

• In special cases, press and hold [ ] button to pair.
• If an unknown error occurred with the remote, then it could have been caused by interference. Try to remove what's causing the interference and pair it again.
• If an unknown error occurred in the remote control while the battery power is normal, you can take out the batteries, press any key for 1~2 seconds, and insert them back. Then the remote control will work normally.
• The remote cannot be paired to the TV while the TV is in standby mode.

Remote Control Operation Range

1. The remote control can work at a distance of up to 8 meters in front of the TV set.
2. The remote control angle: taking the remote sensor as an apex, 6 meters away, its controlled horizontal angle is within ±30°, while the vertical angle is within ±15°.
3. The operating distance may vary depending on the brightness of the room.

Disposal of this unit

Product should not be damaged, dismantled or thrown in municipal waste.

It should be packed and handed over to authorised re-cycler.

Turning the TV on for the First Time

1. Connect the mains cable to the mains socket after you have completed all the connections.
2. The first time you turn the TV on, it will go straight into the Installation Guide.
3. Press the [ / < / > ] buttons to navigate the menu and change the settings. Press the [OK] button to confirm.

Select your Language

Select your desired language to be displayed on the menu.

Press menu button to set up your TV for store mode.

Connect to the Internet

If your TV does not automatically detect an Ethernet connection, then use a wireless network, select your network from the list that displays, also you can add a hidden network.

Select your Country

Select the Country where you will operate the TV.

Terms & Conditions, Privacy Policy

Your use of this device is subject to the End User License Agreement, and lack of your acceptance of the End User License Agreement will turn off all smart features of this device. Please read the details carefully before you choose.

Enhanced Viewing

Enhanced viewing can automatically adjust the picture mode and sound mode so as to match with the current content displayed on this device in case it is recognized by the automatic content recognition service.

Sign in your VIDAA Account

Link your TV with VIDAA account.

Name your TV

Give your TV a name.

Select your Voice Assistant

Select a voice assistant that you want to use on the TV.

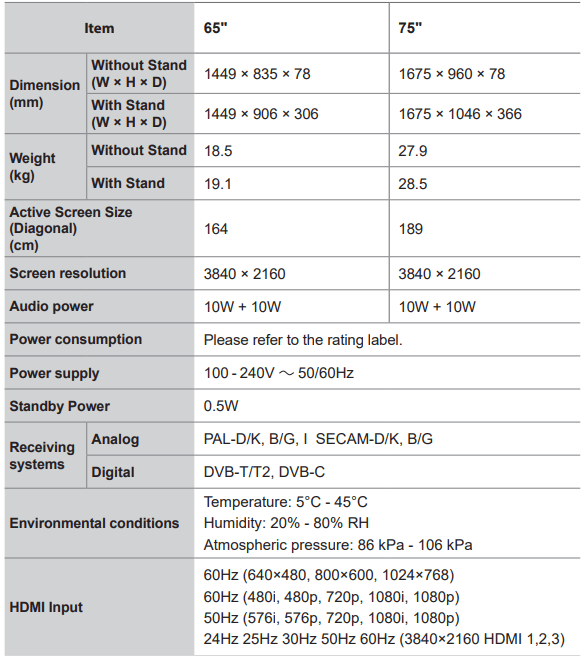

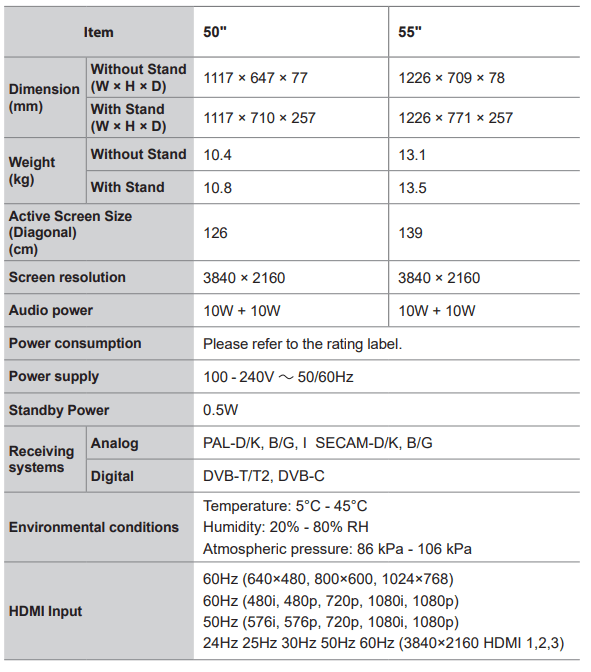

Specifications
