BMIG3825
25 Litre Built-in Combination
Microwave Oven with Grill
User Manual for your Baumatic
BMIG3825
25 Litre combination microwave oven
with grill
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 12/08/15
2
Contents
Environmental note 4
Important safety information 5 – 9
Specifications 10 – 13
Product specifications 10
Electrical details 11
Description of the appliance 11
Control panel 12
The turntable 12
LED display 13
Using your microwave 14 – 27
The adjustment dial 14
Setting the clock 14
Before first use 14
Microwave cooking 15
+30 second (Quick start) 16
Microwave power level chart 16
Time setting chart 16
Grill cooking 17
Combination cooking 18
Combination cooking chart 18
Interrupting a cooking cycle 19
Cancelling a cooking cycle 19
Enquiry mode 19
Defrost by weight 20
Defrost by time 20
Setting multiple cooking phases 20
The kitchen timer 21
Auto menu function 22
Auto menu chart 23
Safety lock 24
Microwave cooking guidelines 24 – 25
Materials you can use in a microwave oven 25 – 26
Materials not to be placed in a microwave oven 26
Utensils table 26 - 27
Cleaning and maintenance 27 – 28
The appliance exterior 27
The appliance interior 27
Turntable and turntable support 27
General cleaning advice 27 - 28
Installation 29 – 33
Electrical connection 28 – 29
Aperture and ventilation requirements 30
Built under installation requirements 31
Installing 32-33
34-35 Troubleshooting
Contact details 40
3

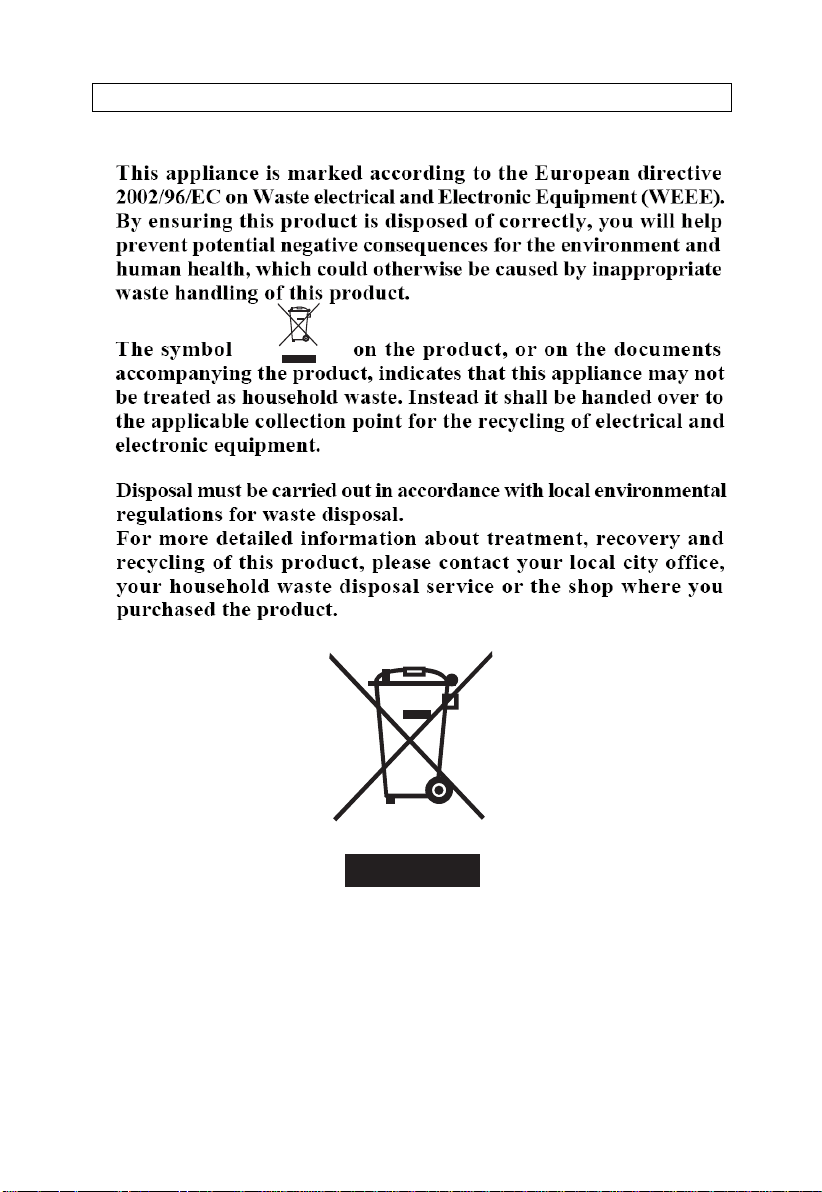

Environmental note
o The packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
all packaging material with due regard for the
environment.
o Please discard
4
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic. Please
make sure that you read this instruction booklet before
attempting to install or use the appliance. If you are unsure
of any of the information contained in this booklet, please
aumatic Customer Care Department.
eneral Information
housing unit (see the section entitled
liance when the turntable and
nly use ovenware that is suitable for being used in a
microwave should be wiped dry
le materials. If left unattended, they could pose a
your microwave oven, if you
by Baumatic and outlined in this manual should be
the microwave, to
ambient temperature
of the room it is located in, whilst in use.
contact the B
G
o This appliance is designed for domestic household use for
heating food and beverages. It can NOT be used as a
freestanding microwave and must be built in to a standard
kitchen cabinet or
“Installation” below).
o You should only operate the app
turntable support are in position.
o You should o
microwave.
o To prevent corrosion occurring due to moisture/condensation,
the cavity and the door of the
after each use of the appliance.
o The appliance must not be left unattended if you are heating or
cooking food in containers that are made of paper, plastic or
other flammab
fire hazard.
o If you notice smoke coming from the appliance, you should keep
the door of the microwave closed and then disconnect it from
your mains supply. DO NOT use
think it is not operating correctly.
Installation
o IMPORTANT: Only the built in installation
sanctioned
followed.
A separate building in kit will be supplied witho
allow you to complete a built in installation.
o IMPORTANT: The adjacent furniture or housing and all
materials used in the installation must be able to withstand a
minimum temperature of 85°C above the
5
o Certain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or discolouration at
temperatures below the guidelines given above.
o Any damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer than 4mm to the appliance, will be the
liability of the owner.
o For use in leisure accommodation vehicles, please refer to
the appropriate information given in the installation instructions
for this appliance.
o The use of this appliance for any other purpose or in any other
environment without the express agreement of Baumatic
will invalidate any warranty or liability claim.
o Your new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of Guarantee. The foregoing does not
affect your statutory rights.
Service
o Your microwave complies with all relevant safety standards. In
order for it to continue to operate safely, only an engineer that
is approved by the Baumatic Customer Care Department
should work on the appliance.
o IMPORTANT: It is dangerous for a non qualified person to work
on the appliance, in particular if they remove the cover that
provides protection against exposure to microwave energy.
o If you notice that the door seal, door surfaces, power cord and
plug are damaged. You should stop using the appliance,
disconnect it from the mains supply and contact the Baumatic
Customer Care Department.
o Only genuine Baumatic spare parts should be fitted to your
appliance. These can be obtained from the Baumatic Spares
Department.
6
Warning and safety instructions
o This appliance complies with all current European safety
legislation. Baumatic do wish to emphasise that this compliance
does not remove the fact that the appliance surfaces will
become hot during use and retain heat after operation.
o DO NOT place anything between the door and the door frame.
o DO NOT store anything that is flammable inside of the
microwave. When it is switched on, the items could catch fire.
o DO NOT switch the appliance on if there is no food or liquid
inside of the microwave. If you run the microwave whilst it is
empty, there is a chance that it will overload.
o The door seals and the door surfaces should ALWAYS be kept
clean and free from debris.
Child Safety
o Baumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at any time.
o If it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
at all times.
o IMPORTANT: This appliance should only be operated by adults.
You SHOULD NOT allow young children to use the microwave
without supervision. Older children should only operate the
appliance if they have been thoroughly instructed on how to use
the microwave and the consequences of improper usage.
General Safety
o Do not allow electrical fittings or cables to come into contact
with areas on the appliance that get hot.
o Do not use the appliance to heat the room it is located in.
o Do not use the appliance to dry paper, textiles or animals.
o Do not install the appliance next to curtains or soft furnishings.
o Do not use the appliance to heat unopened bottles or cans etc.
7
o Do not heat cooking oil or liquid containing alcohol, as there is
the chance of spontaneous combustion.
o Do not boil eggs or similar foods in their shells, otherwise they
may burst. It is possible to poach eggs in your microwave,
providing you prick the yolks first.
o Do not attempt to lift or move cooking appliances by using the
oven door, as this may cause damage to the appliance or result
in injury to the person lifting the appliance.
Cleaning
o Cleaning of the oven should be carried out on a regular basis.
o Great care should be taken whilst using this appliance and when
following the cleaning procedure.
o IMPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.
Installation
This appliance must be correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions.
o Baumatic declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance.
o Heat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
required.
o Please consult with your qualified installer if you are in any doubt
about the amount of ventilation that you will require.
8
Declaration of conformity
o CE: Appliance conforming to the European directives
89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions
and “RoHS” directive 2002/95/CE.*
o The manufacturer declares that the oven is built using certified
materials and requires the appliance to be installed in
accordance with the standards currently in force. This appliance
must be used by a trained person for domestic purposes only.
* The RoHS directive stands for “the restriction of the use of
certain hazardous substances in electrical and electronic
equipment”. This directive bans the placing on the EU market of
new electrical and electronic equipment containing more than
the agreed levels of lead, cadmium, mercury, hexavalent
chromium, polybrominated biphenyl (PBB) and polybrominated
diphenyl ether (PBDE) flame retardants.
9
Specifications
Product specifications
o
Beverage
8 functions:
Vegetables
Fish
Meat
Pasta
Potato
Pizza
Popcorn
o Quick start
o LED minute minder with temperature and function display
o Pushbutton control operation
o Safety lock
o Stainless steel exterior and cavity
o Capacity: 25 litres
o Microwave output: 900 W
o Grill output: 1000 W
o Turntable size: Ø 315 mm
10
Electrical details
Rated Voltage: 230 Vac 50 Hz
Supply Connection: 13 A (double pole switched fused
outlet with 3mm contact gap)
Max Rated Inputs: 2.50 kW
Mains Supply Lead: 3 x 1.5 mm²
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate for your oven can be
located by opening the microwave oven door and looking on the right
hand side of the chassis.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

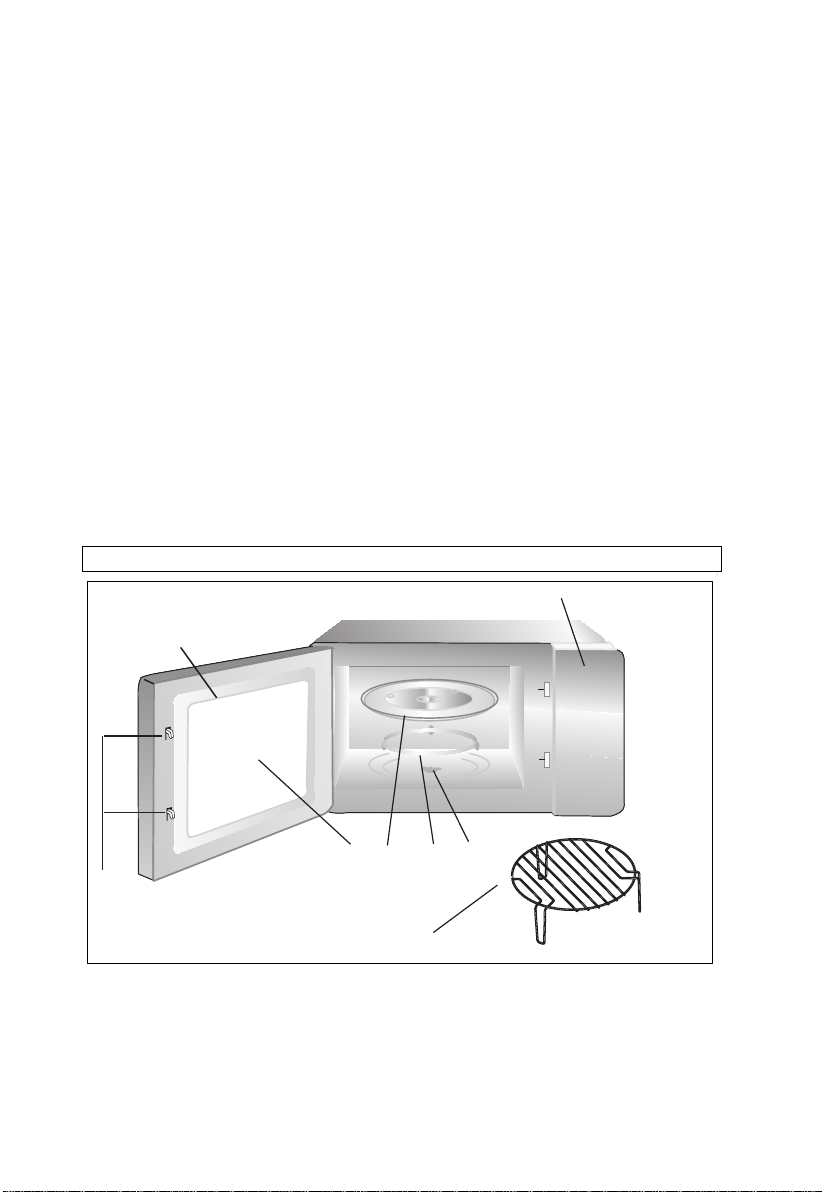

Description of the appliance
A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Viewing window
F) Door
G) Safety interlock system
H) Grill rack
F
G
A
C B
E
D
H
~
11

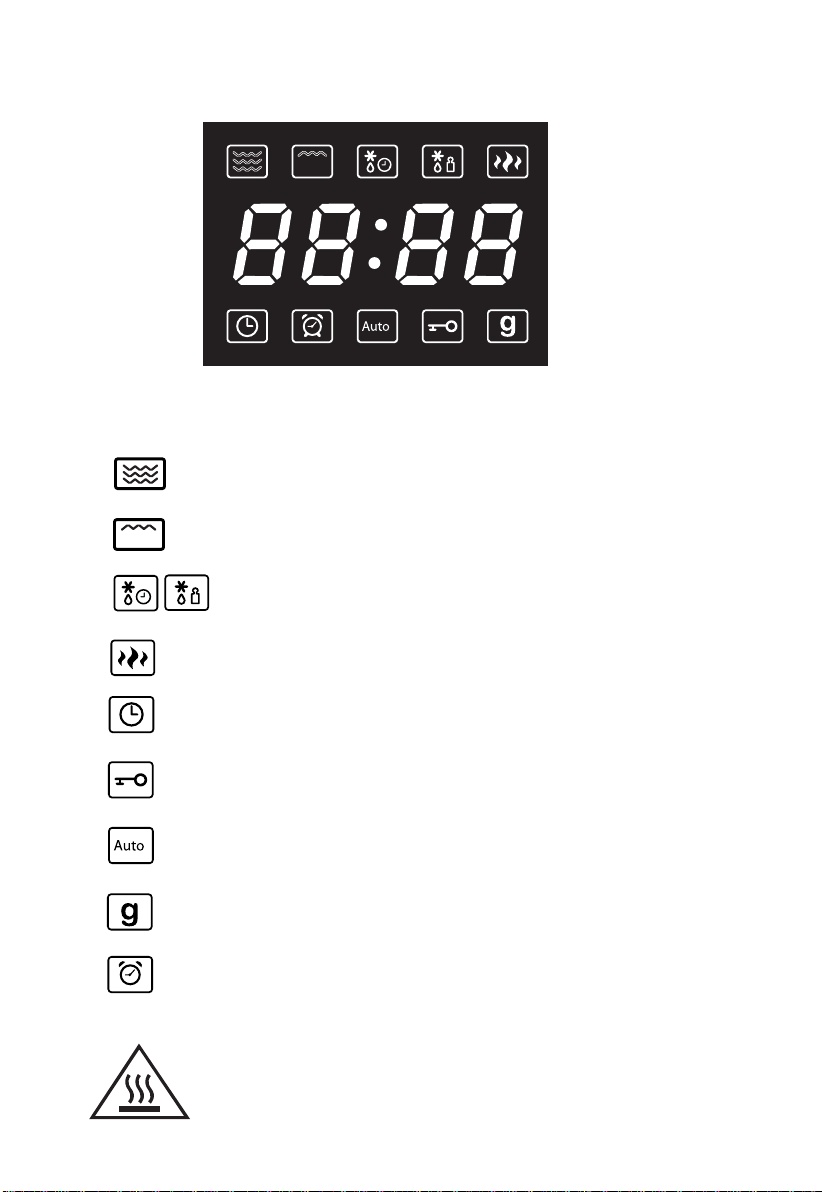

Control panel
A) LED display
E) Stop/Clear button
Second/Confirm button
H) Start/+30
G) Adjustment dial
I) Door button
button
D) Kitchen timer/Clock
button
F) Defrost by Weight/Time
)
MicrowaveB
button
C) Grill/
Combination button
The turntable
o Never place the glass
tray upside down.
o The glass tray and
turntable ring assembly
MUST always be used
during cooking.
o All food and food
containers must ALWAYS
be placed on the glass
tray during cooking.
o If the glass tray or turntable ring assembly cracks or breaks, it
must be replaced immediately. Genuine Baumatic parts can be
obtained from the Baumatic Spares Department.
F
Hub (on the underside)
Glass tray
Turntable shaft
Turntable ring assembly
G
H
B
C
D
A
E
I
12
LED display
o The LED display will show the time of day, or if the microwave is
in use, it will show the cooking time.
Indicates that microwave cooking is taking place.
Indicates that grilling is taking place.
WARNING: The accessible surface may be hot
during operation and for a period of time
afterwards.
ndicates that defrosting is taking place.
I
Indicates that a power level is selected.
me of day is shown on the display.
ndicates that the safety lock is engaged.
ndicates that the auto menu function has been selected.
ndicates that grams are shown on the LED display.
Indicates that the ti
I
I
I
me of kitchen timer is shown on the display. Indicates that the ti
13
Using your microwave
The adjustment dial
o The adjustment dial (G) should only
b e turned clockwise
(towards the book symbol) if you want to use the auto menu
function.
o For all other purposes and settings, the adjustment dial (G)
should be turned anti-clockwise (towards the clock symbol).
Setting the clock
o When your appliance is connected to the power supply for the
first time, the LED display (A) will show 0:00 and an audible
signal will sound once.
o Press the
clock
/
kitchen timer
button (D) t wice to enter the
clock
setting mode.
o Use the adjustment dial (G) to adjust the hour time. You can
adjust the hour time between 0 – 23 in 24 hour clock mode.
o Press the button (D) to confirm the hour
time. The minute digits will flash.
o Turn the adjustment dial (G) to adjust the minute time.
o Press the button (D) to confirm the minute
time. The “:” symbol will flash and the time of day will light on
the LED display (A).
o If during the clock setting process the stop/clear button (E) is
pressed, the microwave will return to the previous step.
Before first use
o To remove any residue from the oven that may have been left
from the manufacturing process, you should place a cup that is
half filled with water in the microwave.
o Set the microwave on its highest power level for 2 minutes.
o The oven cavity a
nd outside of the appliance should be cleaned
with warm soapy water, using either a sponge or soft cloth. No
abrasive cleaners should be used. The appliance should be
thoroughly dried afterwards.
clock
/
kitchen timer
clock
/
kitchen timer
14
Microwave cooking
o Once the clock has been set, your microwave is then ready to
use.
o Use the door button (I) to open the door of the microwave.
o Check that the turntable shaft, turntable ring assembly and glass
tray are correctly assembled in the cavity.
o Place whatever you are cooking in the centre of the microwave
cavity and then close the microwave door. IMPORTANT: You
should make sure that the door of the microwave is shut
securely.
o Press the microwave button (B) once and the LED display (A)
will show “P100”, indicating that the appliance will cook at its
highest power level.
o To adjust the power level, turn the adjustment dial (G) or keep
pressing the microwave button (B). “P100”, “P80”, “P50”, “P30”
or “P10” will appear on the LED display
o Once the power level that you require appears on the LED
display (A), press the confirm button (H).
o Turn the adjustment dial (G) to set the cooking time that you
require. The maximum cooking time that you can set is 95
minutes.
o Press the start button (H) and your microwave will start to heat.
o If you have set the incorrect power level or time, press the
stop/clear button (E) and the LED display (A) will return to
showing the time of day.
o At the end of the cooking time, your microwave will give an
audible signal and the LED display (A) will return to showing the
time of day.
o Use the door button (I) to open the door of the microwave.
o IMPORTANT: The inside of the microwave and the food that
you have been cooking may be extremely hot. So care should be
taken when removing items from the microwave. We would
recommend that you use an oven glove.
o After the food has been removed from the microwave, you
should make sure that the door is closed.
15
+ 30 second button (Quick start)
o If you want to cook on the highest power level setting for a
period of time, then you can use the +30 second button (H).
o Press the +30 second button (H) once and your microwave will
operate on full power for 30 seconds.
o Each time you press the +30 second button (H) the cooking
time will increase by 30 seconds.
o If a microwave, grill or combination cooking program is in
process, pressing the +30 second button will extend the cooking
time by 30 seconds.
o IMPORANT: You cannot use the quick start feature in defrost
and auto menu modes or if you have set multiple cooking
phases.
o Alternatively you can just turn the adjustment dial (G) a nd
select the cooking time, then press the start button (H). The
microwave will cook on the highest power level setting for the
period of time that you have set.
Microwave power level chart
Power High Medium
high
Medium Medium
low
Low
Display
shows
P100 P80 P50 P30 P10
Time setting chart
When you are setting a cooking time, the clock will count in the
following time intervals.
Time period being set Time intervals
0 – 1 minute 5 seconds
1 – 5 minutes 10 seconds
5 – 10 minutes 30 seconds
10 – 30 minutes 1 minute
30 – 95 minutes 5 minutes
16
Grill cooking
o Press the grill button (C) once and the LED display (A) will show
“G”.
o Once “G” appears on the LED display (A), press the confirm
button (H).
o Turn the adjustment dial (G) to set the cooking time that you
require. The maximum cooking time that you can set is 95
minutes.
o Press the start button (H) and your microwave will start to grill.
o If you have set the incorrect power level or time, press the
stop/clear button (E) and the LED display (A) will return to
showing the time of day.
o Halfway through the cooking time, an audible signal will sound.
To achieve even grilling results, you should open the door of the
microwave and turn the food over.
o After closing the door, you should press the start button (H) and
the microwave will continue to grill.
o At the end of the cooking time, your microwave will give an
audible signal and the LED display (A) will return to showing the
time of day.
o Use the door button (I) to open the door of the microwave.
o IMPORTANT: The inside of the microwave and the food that
you have been cooking may be extremely hot. So care should be
taken when removing items from the microwave. We would
recommend that you use an oven glove.
o After the food has been removed from the microwave, you
should make sure that the door is closed.
17
Combination cooking
o Press the combination button (C) once and the LED display (A)
will show “G”.
o Turn the adjustment dial (G) or keep pressing the combination
button (C) until “C-1”, or “C-2” appears on the LED
display
(see the table below to see the various combination
cooking modes that can be selected).
o Once the combination mode that you require appears on the LED
display (A), press the confirm button (H).
o Turn the adjustment dial (G) to set the cooking time that you
require. The maximum cooking time that you can set is 95
minutes.
o Press the start button (H) and your microwave will start to cook.
o If you have set the incorrect combination mode or time, press
the stop/clear button (E) and the LED display (A) will return to
showing the time of day.
Combination cooking chart
o The chart below shows the combination cooking modes that can
be selected.
LED display Microwave Grill
C-1
C-2
55%
45%
36%
64%
18
Interrupting a cooking cycle
o If you wish to temporarily interrupt a cooking cycle when it is in
progress (for example to stir what you are heating), you should
press the door button (I).
o The door of the microwave will open and it will stop heating
immediately.
o To restart the cooking cycle, close the microwave door and then
press the start button (H).
Cancelling a cooking cycle
o If you wish to cancel a cooking cycle when it is in progress, you
should press the stop/clear button (E).
o The microwave will stop heating immediately, give an audible
signal and the LED display (A) will return to showing the time of
day.
o Use the door button (I) to open the door of the microwave.
o IMPORTANT: The inside of the microwave and the food that
you have been cooking may be extremely hot. So care should be
taken when removing items from the microwave.
o After the food has been removed from the microwave, you
should make sure that the door is closed.
Enquiry mode
o Whilst the microwave is in use, the LED display (A) will
countdown the cooking time that you have set.
o To check the power level that the microwave is cooking at, press
the microwave button
(B) and the power level will
appear on the LED display (A) for a few seconds.
o To check the time of day, press the kitchen timer/clock button
(D) and the time of day will flash on the LED display (A) for a
few seconds.
19
Defrost by weight
o Press the defrost by weight/time button (F) once and the LED
display (A) will show “dEF1”.
o Turn the adjustment dial (G) to select the weight of the food
that you want to defrost. The letter “g” will appear on the LED
display (A) to indicate grams.
o The microwave will automatically calculate the defrost time,
based on the weight that you have selected.
o Press the start button (H) and your microwave will start to
defrost the food.
Defrost by time
o Press the defrost by weight/time button (F) twice and the LED
display (A) will show “dEF2”.
o Turn the adjustment dial (G) to set the defrost time that you
require.
o Press the start button (H) and your microwave will start to
defrost the food.
Setting multiple cooking phases
o It is possible to set the microwave to cook at different power
levels within a single cooking time. A maximum number of 2
cooking phases can be set at once.
o Press the microwave button (B) and set the power
level/cooking mode for the first cooking phase, using the
adjustment dial (G).
o Once the power level/cooking mode that you require for the first
phase appears on the LED display (A), press the
(H).
o Turn the adjustment dial (G) to set the cooking time for the first
cooking phase.
start button
20
o Press the microwave button (B) and then follow the
same procedure for the second cooking phase (if required).
o Press the start button (H) and the microwave will proceed with
the cooking phases that you have set.
o If you have set the incorrect power level or time, press the
stop/clear button (E) and the LED display (A) will return to
showing the time of day.
o At the end of the cooking time, your microwave will give an
audible signal and the LED display (A) will return to showing the
time of day.
The kitchen timer
The kitchen timer will countdown a set time and a buzzer will sound
when the required time is reached. The kitchen timer is to be used
separately from the microwave functions and cannot be used at the
same time.
o IMPORTANT: You must make sure that the clock is set to the
correct time before using this feature.
o Press the kitchen timer/clock button (D) t wice and the LED
display will show “00:00”.
o Use the adjustment dial (G) to set the desired countdown time.
The maximum programmable time is 95 minutes.
o Press the start/confirm button (H) to set the displayed time.
During the countdown, the LED display will show the remaining
time.
o When the countdown is complete, a buzzer will sound five times.
21
Auto menu function
o Your microwave has menus pre-programmed into it, where it will
cook particular types of food on pre-set power levels and for pre-
set periods of time.
o Turn the adjustment dial (G) clockwise to access the auto menu
function, the LED display (A) will show “A1”.
o Turn the adjustment dial (G) clockwise to select the food type
that you want to cook.
o Press the confirm button (H) to confirm the food type.
o Turn the adjustment dial (G) clockwise to select the weight of
the food that you want to cook. The letter “g” will appear on the
LED display (A) to indicate grams.
o Press the start button (H) and your microwave will start to heat.
The gram symbol will go out and the cooking time will start
counting down on the LED display (A).
22
Auto menu chart
Menu
Weight
Display
A-1
Pizza
200g
200
400g
400
A-2
Meat
250g
250
350g
350
450g
450
A-3
Vegetable
200g
200
300g
300
400g
400
A-4
Pasta
50 (with water 450ml)
50
100 (with water 800ml)
100
A-5
Potato
200g
200
400g
400
600g
600
A-6
Fish
250g
250
350g
350
450g
450
A-7
Beverage
1 cup (120ml)
1
2 cups (240ml)
2
3 cups (360ml)
3
A-8
Popcorn
50g
50
100g
100
23
Safety lock
o When the microwave is not heating, it is possible to switch on
the safety lock.
o Press and hold down the stop/clear button (E) for 3 seconds.
o The microwave will emit a long audible signal and the LED
display (A) will display a padlock symbol.
o Until the safety lock is switched off, all buttons on the microwave
will be disabled.
o To switch off the safety lock, press and hold down the stop/clear
button (E) for 3 seconds. The microwave will emit a long audible
signal and the padlock symbol will disappear from the LED
display (A).
Microwave cooking guidelines
o If you are heating liquid in the microwave, then you must also
place a teaspoon in the container. This will ensure that the liquid
does not boil suddenly after being removed from the microwave
cavity.
o This phenomenon is called “delayed boiling”, this means that a
liquid can be close to boiling point, even if there is no steam
coming off the liquid or the liquid is not bubbling. If the liquid
container is even gently shaken, then the liquid can without
warning boil over or even spurt. This could scald the end user.
o If the food you are cooking has a skin or peel (e.g. sausages,
tomatoes, potatoes etc), then you should pierce the skin or peel
with a fork. This will ensure that if steam is created during the
heating process, it can escape and the food will not burst.
o When heating baby food, the bottle or jar containing the food
should NEVER have a top or lid on. After cooking, to ensure that
the food has been heated uniformly, you should stir or shake the
food. IMPORTANT: You must check the temperature of the food
before feeding it to a child.
o When heating food in a microwave, it will transmit the heat to
the container that the food is in or on. You should ALWAYS use
oven gloves when removing items from the microwave.
o You should make sure that you do not cook food for too long or
at too high a power level. This could cause certain areas of the
food to dry out or even ignite.
24
o You should not use ceramic or porcelain crockery, or porous
earthenware inside of your microwave. These dishes could
absorb moisture from the food whilst it is cooking, which could
cause pressure to build up and shatter the dish.
o If you are heating certain foods and any liquid, moisture will
evaporate and condensation may occur. This does not indicate
that the appliance is faulty and it can be particularly noticeable if
the ambient temperature of the room is high.
o IMPORTANT: Any condensation should be wiped up with a soft
cloth as soon as you have finished using the microwave.
o After the cooking time has completed, you should let the food
stand for a few minutes. This is called “standing time” and will
allow the heat generated by the microwave to spread evenly
throughout the food.
Materials you can use for microwave cooking
Material Remarks
Aluminium foil To be used for shielding only. Small smooth pieces can
be used to cover thin parts of meat or poultry to
prevent overcooking. Arcing can occur if foil is too
close to the cavity walls. The foil should be at least 2.5
cm away from the cavity walls.
Browning dish Follow the manufacturer’s instructions. The bottom of
the browning dish must be at least 5 mm thick above
the turntable. Incorrect usage may cause the
turntable to break.
Dinnerware Microwave-safe only. Follow the manufacturer’s
instructions. Do not use cracked or chipped dishes.
Glass jars Always remove the lid. Use only to heat food until just
warm. Most glass jars are not heat resistant and may
break.
Glassware Heat-resistant oven glassware only. Make sure there is
no metallic trim. Do not use cracked or chipped
dishes.
Oven cooking
bags
Follow the manufacturer’s instructions. Do not close
with a metal tie. Make slits in the bag to allow steam
to escape.
Paper plates
and cups
Use for short-term cooking/warming only. Do not
leave the oven unattended whilst cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use
under supervision and for short-term cooking only.
Parchment
paper
Use as a cover to prevent splattering or as a wrap for
steaming
25
Plastic Microwave-safe only. Follow the manufacturer’s
instructions. It should be labelled as “microwave safe”.
Some plastic containers soften as the food inside gets
hot. “Boiling bags” and tightly closed plastic bags
should be slit, pierced or vented, as described by the
package.
Plastic wrap Microwave-safe only. Use to cover food during cooking
to retain moisture. Do not allow the plastic wrap to
touch the food.
Thermometers Microwave-safe only. Meat and candy thermometers.
Wax paper Use as a cover to prevent splattering and to retain
moisture.
Materials you cannot use for microwave cooking
Material Remarks
Aluminium tray May cause arcing. Transfer food into a
microwave-safe dish.
Food carton with
metal handle
May cause arcing. Transfer food into a
microwave-safe dish.
Metal or metal-
trimmed utensils
Metal shields the food from microwave energy.
The metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the
oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid
inside when exposed to a high temperature.
Wood Wood will dry out when used in the microwave
oven and may split or crack.
Utensils table
Cookware Microwave Grill Combination*
Heat-resistant
glass
Yes Yes Yes
Non heat-
resistant glass
No No No
Heat-resistant
ceramics
Yes Yes Yes
Microwave-safe
plastic dish
Yes No No
Kitchen paper Yes No No
Metal tray No Yes No
Metal rack No Yes No
Aluminium foil
and foil
containers
No Yes No
26
* Combination mode applies to microwave + grill.
Cleaning and maintenance
Cleaning operations must only be carried out
when the oven is cool.
The appliance should be disconnected from your
mains supply before commencing any cleaning
process.
The appliance exterior
o You should wipe over the front of the appliance with a soft cloth
and warm water mixed with a little washing up liquid.
o DO NOT use abrasive cleaners or sharp objects to clean the
front surface of the microwave.
The appliance interior
o You should wipe over the inside of the appliance with a soft cloth
and warm water mixed with a little washing up liquid.
o You should pay particular attention to the door seal and the
surrounding area.
o DO NOT use abrasive cleaners or sharp objects to clean the
inside of the microwave.
Turntable and turntable support
o The glass tray and turntable ring assembly should be removed
from the microwave for cleaning purposes after each use.
o Clean the glass tray and turntable ring assembly in warm water
mixed with a little washing up liquid.
General cleaning advice
o IMPORTANT: Any condensation should be wiped up with a soft
cloth as soon as you have finished using the microwave.
o To remove odours from inside of the microwave, you should boil
one cup of water mixed with several tablespoons of lemon juice
inside of the cavity.
27
o The microwave should be thoroughly cleaned before it is
operated for the first time and after each use. This will avoid
residual food stuffs becoming baked on the oven cavity. After
residues have been baked on several times, they are far more
difficult to remove.
o Never clean the oven surfaces by steam cleaning.
o If you use any form of oven cleaner on your appliance, then you
must check with the manufacturer of the cleaner that it is
suitable for use on your appliance.
o DO NOT use abrasive cleaners or sharp objects to clean the
glass of the microwave as this can damage the glass and lead to
shattering.
o Any damage that is caused to the appliance by a cleaning
product will not be fixed by Baumatic free of charge, even
if the appliance is within the guarantee period.
Installation
The installation must be carried out by a suitably
qualified person, in accordance with the current
version of the following.
o UK Regulations and Safety Standards or their European
Norm Replacements.
o Building Regulations (issued by the Department of the
Environment).
o Building Standards (issued by the Scottish Development
Department).
o IEE Wiring Regulations.
o Electricity At Work Regulations.
Electrical connection
YOUR MICROWAVE IS INTENDED FOR FITTED AND
PERMANENT INSTALLATION.
o Before connecting the appliance, make sure that the supply
voltage marked on the rating plate corresponds with your mains
supply voltage.
o We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will
comply with the I.E.E. and local regulations.
28
o WARNING: THIS APPLIANCE MUST BE EARTHED.
o This appliance is supplied with a moulded plug, which must be
connected to an earthed socket.
o If in future you need to change the fuse in this plug, then a 13
amp ASTA approved (BS 1362) fuse must be used.
o If the earthed socket is not accessible after the appliance is
installed. Then the microwave must be wired into a 13 A double
pole switched fused spur outlet, having 3 mm contact separation
and placed in an easily accessible position adjacent to the
appliance. The spur outlet must still be accessible even when
your microwave is located in its housing.
o The wiring in the mains lead is coloured as follows:
Brown Live
Blue Neutral
Green and yellow Earth
o As the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals
in your spur box, please proceed as follows:
The brown wire must be connected to the terminal marked “L”
(live), or coloured red.
The blue wire must be connected to the terminal marked “N”
(neutral), or coloured black.
The green and yellow wire must be connected to the terminal
marked “E” (earth), or by the earth symbol, or coloured green
and yellow.
o When the connection is completed, no stray strands or cut wire
should be present. The cord clamp must be secured over the
outer sheath.
o Broken or damaged power leads must only be replaced by a
suitably qualified person. A power lead of a similar type must be
used in replacement.
Before beginning to install your appliance, check that
there is no sign of damage (on the inside or the
outside of the microwave), and that there are no
packing materials or accessories inside the cavity.
Remove any protective film on the microwave.
29

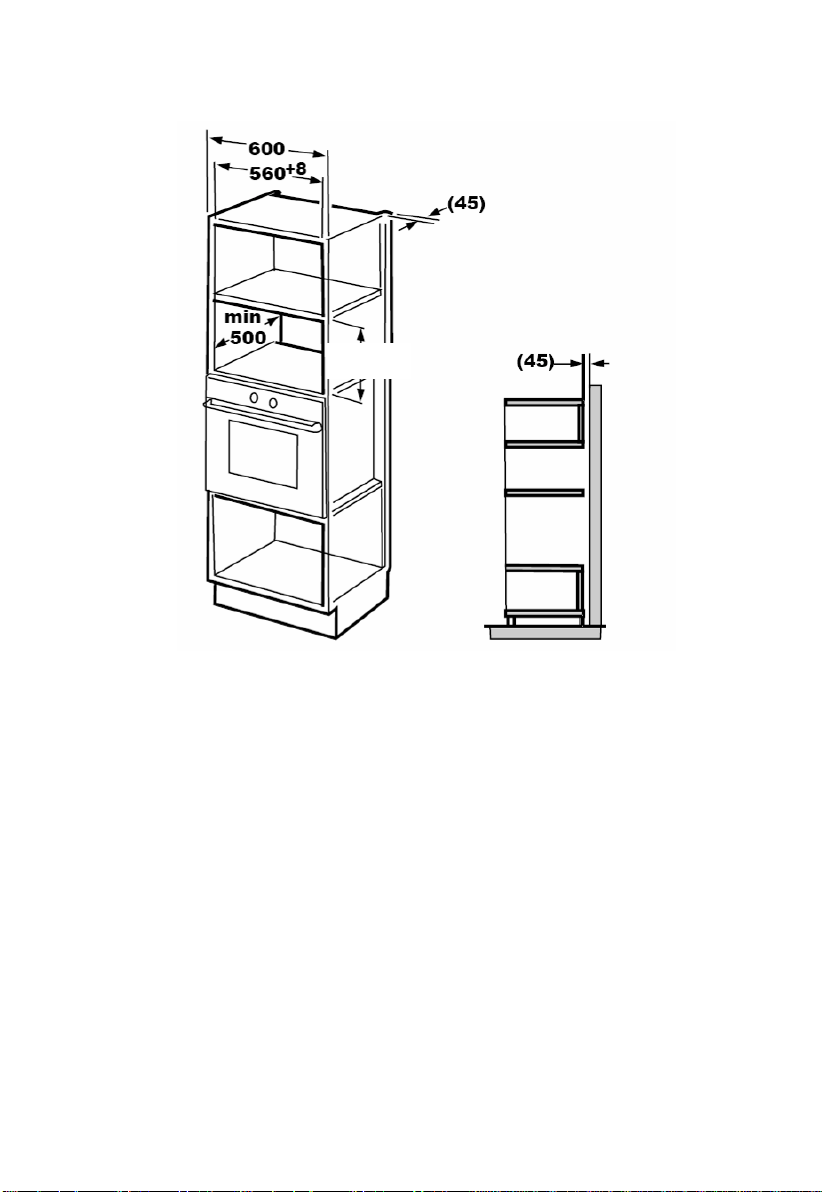

Aperture and ventilation requirements
o The diagram above shows the aperture and ventilation
requirements that you require to build the appliance into a
housing unit.
o Ensure that the rear panel of the furniture housing unit has been
removed.
o This oven may be installed without any additional ventilation cut
outs being made in the housing unit. However the ventilation cut
shown in the diagram MUST be present, otherwise the
microwave oven may not function correctly.
o Do not cover the ventilation slots or air intake points.
380+2
30
Installation requirements
IMPORTANT: NO OTHER METHODS OF BUILDING UNDER THE
MICROWAVE ARE SANCTIONED BY BAUMATIC.
o The rear wall of the housing unit MUST be removed to allow
there to be the correct amount of ventilation.
o The minimum installation height is 850 mm to allow sufficient
ventilation.
o An induction hob MUST NOT be fitted above the microwave.
o WARNING: The microwave will get hot during operation;
care should be taken not to accidentally come into contact
with the outer surface.
o WARNING: Children should not be allowed near to the
appliance unsupervised.
31

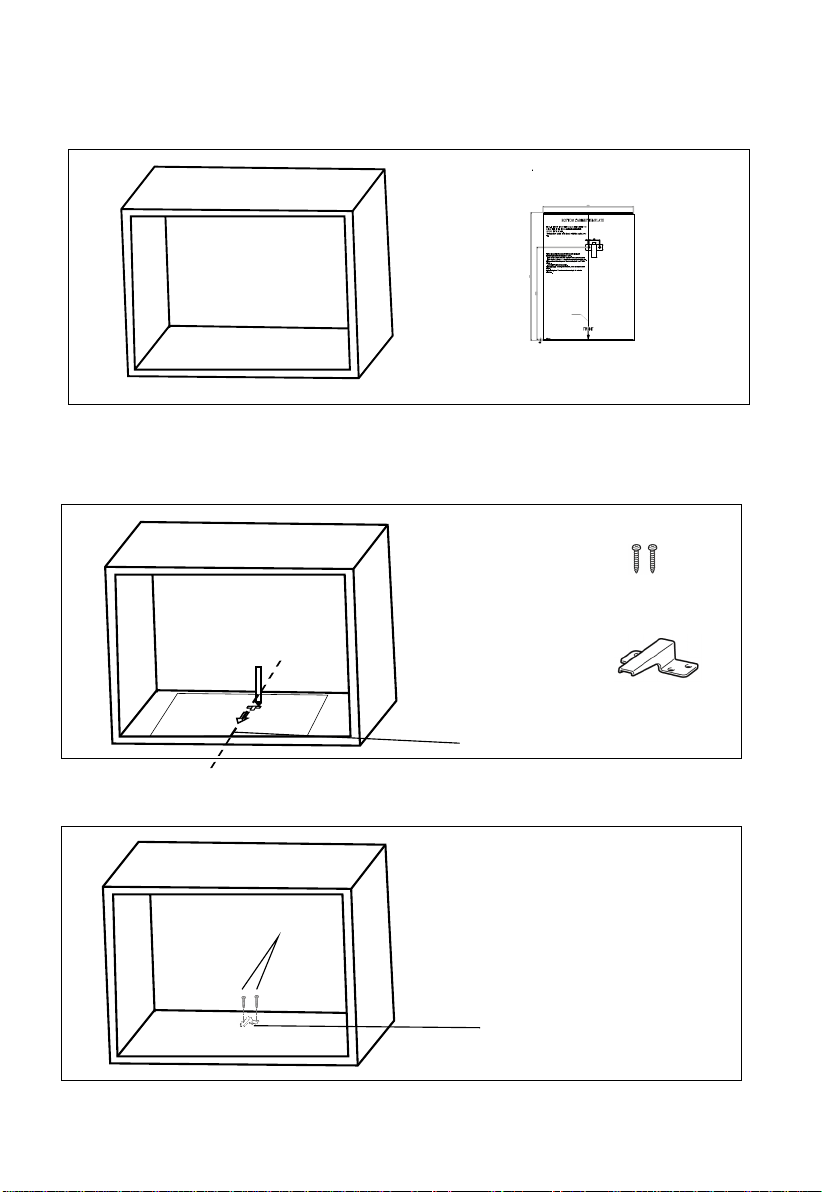

put the template on the bottom plane of cabinet.
1. Read the instruction on the BOTTOM CABINET TEMPLATE ,
a
a
CENTER LINE
FRONT EDGE
LEFT EDGE
T EDGE RIGH
2. Make the marks on the bottom plane of cabinet according to marks
"
a
" of
of the template
3. Remove the bottom cabinet template and fix the bracket with screw A.
a
a
Screw A
Bracket
Bracket
Screw A
Centre line
32
Prepare the cabinet
""
“ ”

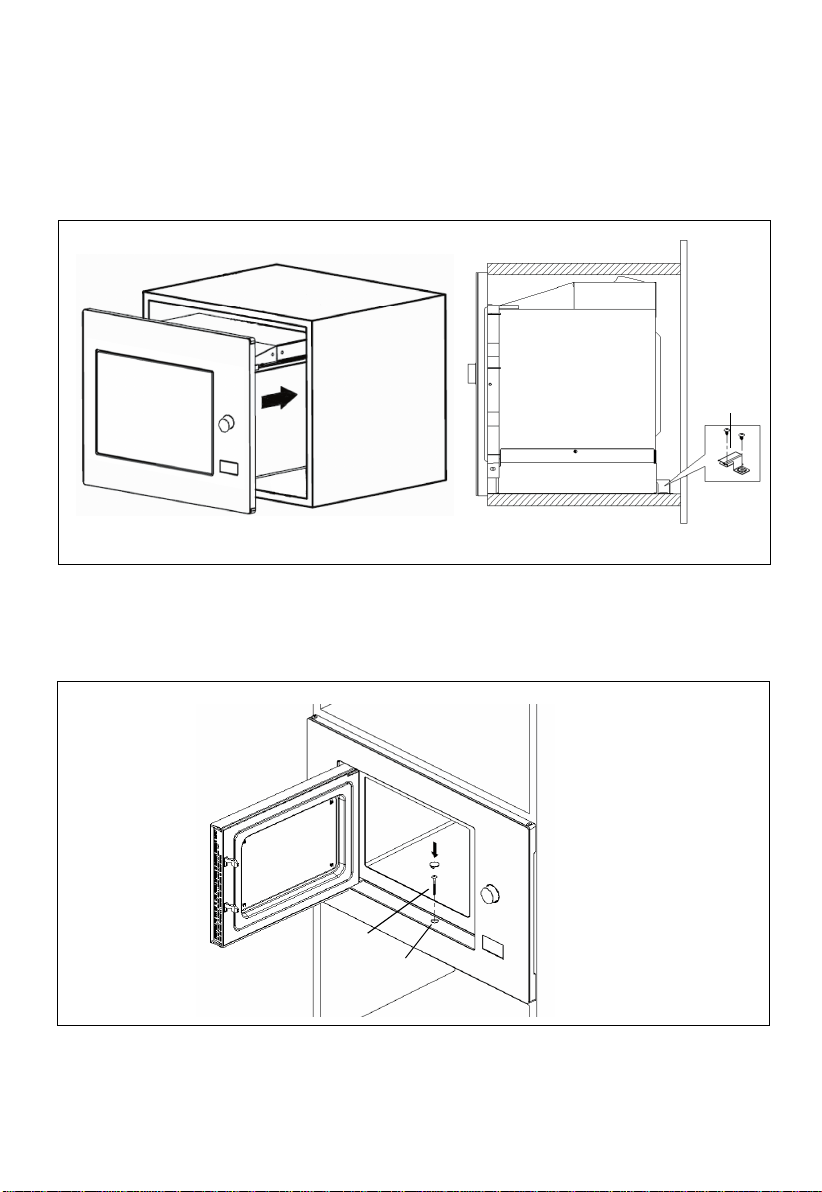

4. Install the oven to the cabinet
- Make sure the back of the oven is locked by bracket.
- Do not trap or kink the power cord.
5. Open the door, fix the oven to the cabinet wi
th Screw B, at the installation hole.
bracket
Then fix the Trim-kit plastic cover to the installation hole.
Installation Hole
Screw B
33
Install the oven
Troubleshooting
o The microwave will not switch on.
* Check that the appliance has been connected to the mains
supply correctly.
* Check that the fuse in the moulded plug has not blown.
* Check that the fuses in your fuse box have not blown.
* If fuses blow on a regular basis, then we would recommend that
you consult with a qualified electrician.
* Check that there has not been a power cut.
o The microwave will not start cooking.
* Check that the door is properly shut.
* Check that the door seal and surrounding area are clean.
* Check that you have pressed Quick Start/Start button.
o The turntable is not turning.
* Check that the turntable shaft is connected to the drive motor
correctly.
* Check that the ovenware is not larger than the turntable glass.
* Check that the food you are cooking does not extend beyond the
turntable glass.
o Check that there is nothing underneath the turntable that is
preventing it from turning.
o The microwave does not switch off.
* Isolate the microwave from your mains supply and then contact
the Baumatic Customer Care Department.
o The interior light bulb is not working.
* Call the Baumatic Customer Care Department. The interior light
bulb can only be replaced by a trained service technician.
o My food is not cooking properly
* Check that the power level and cooking time that you have set,
is appropriate for the food that you are cooking.
* If you are cooking a double amount of food, then you will
normally need to almost double the cooking time.
* If the food that you have placed in the cavity is colder than
normal, then the power level and cooking time may need to be
increased.
34
o I am getting condensation in my oven
* Steam and condensation are a natural by product of cooking in a
microwave.
* Do not leave food in the oven to cool after it has been cooked
and the oven has been switched off.
* Use a covered container, where practical, when cooking to
reduce the amount of condensation that forms.
* You should wipe over any condensation that has formed, as soon
as the food has stopped cooking.
IMPORTANT: If your appliance appears not to be
operating correctly, then you should disconnect it
from your mains supply and then contact
Baumatic Customer Care on telephone number
DO NOT ATTEMPT TO REPAIR THE APPLIANCE
YOURSELF.
Please note that if an engineer is asked to attend whilst the product is
under guarantee and finds that the problem is not the result of an
appliance fault, then you may be liable for the cost of the call out
charge.
The appliance must be accessible for the engineer to perform
any necessary repair. If your appliance is installed in such a
way that an engineer is concerned that damage will be caused
to the appliance or your kitchen, then he will not complete a
repair.
This includes situations where appliances have been tiled in,
sealed in with sealant, have wooden obstructions placed in
front of the appliance, like plinths. Or any installation other
than the one specified by Baumatic has been completed.
Please refer to the conditions of guarantee that appear on the
warranty card that you receive with the appliance.
IMPORTANT: Baumatic operates a policy of continuous
improvement and reserves the right to adjust and modify its
products without prior notification.
0844 692 3605.
35
36
To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven
energy when using your appliance, follow basic
precautions, including the following:
1. Warning: Liquids and other foods must not be heated
in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved.Children shall not
play with the appliance.Cleaning and user maintenance
shall not be made by children unless they are older than
8 and supervised.
4. Keep the appliance and its cord out of reach of
children less than 8 years.
5. Only use utensils that are suitable for use in
microwave
6. The oven should be cleaned regularly and any food
deposits should be removed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
ovens.
37
7. Read and follow the specific:
""
P
RECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
8. When heating food in plastic or paper containers,
9. If smoke is emitted, switch off or unplug the
appliance
and keep the door closed in order to stifle
any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes.
Do not store items, such as bread, cookies, etc. inside
the oven.
12. Remove wire twist-ties and metal handles from
paper or plastic containers/bags before placing them
in
the oven.
13. Install or locate this oven only in accordance with
the
installation instructions provided.
keep an eye on the oven due to the possibility of
ignition.
14. Eggs in their shell and whole hard-boiled eggs
should
not be heated in microwave ovens since
they
may
explode, even after microwave heating
has ended.
15.This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
-by clients in hotels, motels and other residential type
environments;
-farm houses;
-bed and breakfast type environments.
16. If the supply cord is damaged, it must be
replaced by
the manufacturer, its service agent or
persons in order to avoid a hazard.
similarly qualified
38
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet
basement
or near a swimming pool.
19. The temperature of accessible surfaces may be
high
when the appliance is operating. The surfaces are
liable
to get hot during use. Keep cord away from
heated
20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition
could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly
result in a hazardous situation.
surface, and do not cover any vents on the
oven.
22.The contents of feeding bottles and baby food jars
shall be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in
delayed eruptive boiling, therefore care must be taken
when handling the container.
24.The appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge,
unless they have been given supervision
or instruction
concerning use of the appliance by a
person responsible
for their safety.
25.Children should be supervised to ensure that
they do
not play with the appliance.
26.The appliances are not intended to be operated by
means of an external timer or separate remote-control
system.
39
27. Accessible parts may become hot during use.
Young children should be kept away.
28.Steam cleaner is not to be used.
29.During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside the
oven.
30.Only use the temperature probe recommended for
this oven.(for ovens provided with a facility to use a
31.WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years of
age shall be kept away unless continuously supervised.
32.The microwave oven must be operated with the
decorative door open.(for ovens with a decorative door.)
33.Surface of a storage
can get hot.
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
34.The microwave oven is intended for heating food and
beverages.Drying of food or clothing and heating of
warming pads,slippers,sponges,damp cloth and similar
may lead to risk of injury,ignition or fire.
temperature-sensing probe.)
drawer
Customer Care Telephone
0844 692 3605
Spare Parts Telephone
0844 692 3606
Part of the Hoover Group
11 Beacontree Plaza
Gillette Way
Reading
RG2 0BS
Part of the Hoover Group
11 Beacontree Plaza
Gillette Way
Reading
RG2 0BS
www.baumatic.co.uk
PN:16170000A15835
