PREFACE
Thank you for choosing a general gasoline engine by our company.
Based on the latest engine technology at home and abroad, our Co. has individually developed general gasoline
engines with 4-stroke single cylinder, OHV and forced-air cooling. The engines are characterized by advanced
design, compact structure, reliable performance, convenient service low fuel consumption and easy speed
adjustment. They are widely used as ideal power in many fields such as generating set, tour, open working, public
place of entertainment, construction machine, agricultural machinery, etc. the vital part bodies including cylinder
cover, crankcase, etc, are all cast formed with aluminum alloy. Laser-scanning technology, 3D shaping technology
and CN program processing technology used in the mould production upgrade the engine surface and
manufacturing accuracy obviously. Applying auto-press reducing system and centrifugal fly hammer regulating
system assure that assemblies equipped with the engine function smoothly and reliably as well as the engine start
easily. Besides, the introduction of the lubricant film-sensing protection system prevents accidental damage of the
engine for poor lubrication.
The manual gives information with respect to operation and maintenance of the general gasoline engine
160F-A, and be sure to read it carefully first before operating. All the materials and diagrams of this manual are in
accordance with the newest products at the publishing time. Due to revision and other change, the information
descried in this manual may be a little different form the actual status. The copyright of this manual belongs to our
Co., any group or individual is forbidden to reprint or copy any it. The manual is subject to change without notice.
Please pay special attention to statements preceded by the following words:
2
△
!
WARNING
● A warning is used to alert the user to fact that hazardous operation and maintenance procedures may result
in injury to or death of personnel if not strictly observed.
CAUTION
● A caution is used to alert the user to fact that hazardous operation and maintenance procedures may result
in injury to or death of personnel if not strictly observed.
NOTE
● A note is used to give helpful information.
This manual book is the part of engine; it must be along with the engine.
3
CONTENTS
Safety Precautions…………………………………………………………………………………………...5
Parts Description…………………………………………………………………………………………….6
Pre-Operate Inspection………………………………………………………………………………………7
I. Engine Oil…………………………………………………………………………………..………….7
II. Oil in the reduction gearbox (only for equipped model)………………………………………..…….8
III. Air cleaner…………………………………………………………………………………………....9
IV. Fuel………………………………………………………………………………..….………………9
Starting of the Engine……………………………………………………………………………………....11
Operation……………………………………………………………………………………………………13
Engine Oil Alarm…………………………………………………………………………………………14
Breaker（electric start type）………………………………………………………………………..….14
Operating on Highlands………………………………………………………………………………….15
Stop…………………………………………………………………………………………………………16
Exhaust Control System…………………………………………………………………………………….17
Maintenance……………………………………………………………………………………………......19
I. Maintenance schedule…………………………………………………………………………….....19
II. Maintenance method……………………………………………………………………………......20
4
1) Replacement of the Oil…………………………………………………………………….20
2) Maintenance of the air cleaner………………………………………………………….....21
3) Washing of Deposit Cup……………………………………………………………...……22
4) Maintenance of the spark plug……………………………………………………………..22
5) Maintenance of the Spark Plug（Option）………………………………………………..24
6) Adjustment of Carburetor Idling………………………………………...……..25
Transport and Storage…………………………………………………………………………………..…26
Troubleshooting……………………………………………………………………………………..…….36
Specifications……………………………………………………………………………………...………37
Electric Diagram………………………………………………………………………………………......39
5
SAFETY PRECAUTIONS
△
!
WARNING
Before operating the engine, be sure to read and familiar with the manual carefully, otherwise injury to
personnel or damage to equipment may occur.
Please pay special attention to the following:
1. Running the engine in a well-ventilated place, keep it at least one meter away from building walls
or other equipments; keep away from inflammables such as gasoline, matches and so on to avoid
possibility of fire.
2. Keep the engine out of reach of children and pets to avoid accidents.
3. Operator on the engine has been specially trained.]
4. Refuel in a well-ventilated area with the engine stopped, and in places refueling or storing
gasoline, no smoking and any flames or sparks.
5. Refuel the fuel tank not too full so as to avoid fuel’s spilling out. If there is spilled fuel around, be
sure to clean it thoroughly before starting.
6. Locate the engine on a level-working platform to avoid fuel’s spilling out.
7. Mack sure the fuel filler cap is tightened securely.
The exhaust muffler is very hot during running the engine even after the engine stops. Never touch it,
or you may get burns. Transport or store the engine with it cooling down entirely.
6
PARTS DESCRIPTION
7
PRE-OPERATE INSPECTION
Ⅰ.ENGINE OIL
CAUTION
● Engine oil is a key factor in deciding the engine’s performance. Do not apply engine oil with
additives or 2-stroke gasoline oil, as they haven’t enough lubrication, which may shorten the
engine’s service life.
● Check the engine with it stopped on a level ground.
Engine oil recommended: SAE10W-30。 As viscosity varies with regions
and temperatures, so the Lubricant has to be selected in accordance with
our recommendation. (Pic.1)
(Pic.1)
Inspect step:
1. Remove the dipstick and clean it. (Pic. 2)
2. Reinsert the dipstick into the oil filler without
Screwing in, and check oil level.
3. If the oil level is too low, add recommended engine oil to the filler neck (Pic.2)
8
4. Reinstall the dipstick.
CAUTION
Run with insufficient engine oil may damage the engine severely.
Ⅱ. OIL IN THE REDUCTION GEAR BOX (only for the model equipped with it)
1/2 Reduction gearbox with an auto-centrifugal clutch.

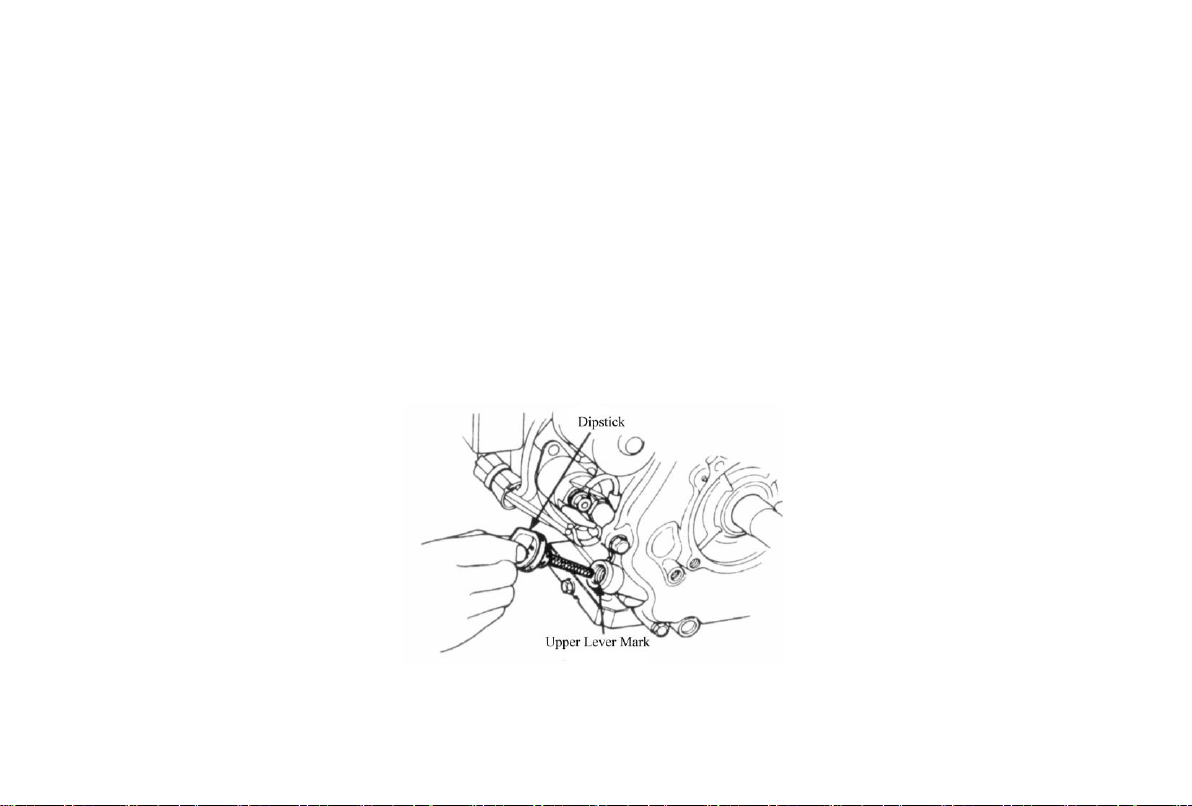

1. Remove the dipstick and clean it. (Pic. 3.)
2. Reinsert the dipstick without screwing it in, and then take out it and check oil level.
3. If the oil level is too low, and recommended engine oil until it arrives the upper level mark.
Brand of the oil is the same as that of engine oil.
Oil capacity: 0.50 liters
（Pic.3）
9
Ⅲ. AIR CLENANER(Pic. 4)
CAUTION
Never run the engine without an air cleaner, or severe wear of the engine may occur.
(Pic. 4)
Dismantle the air cleaner housing and check its filter element, make sure it is clean and intact, otherwise
clean or replace it.
Ⅳ. FUEL
1. Gasoline is extremely flammable and may explosive under certain conditions.
2. Refueling in a well – ventilation area with the engine stopped. Do mot smoke and allow flames or sparks
In the area where gasoline is stored or where the fuel tank is refueled.
3. Do not overfill the tank (there should be no fuel in the filler neck). After refueling, make sure the fuel tank cap is
set back securely.
10
4.Be careful not to spill fuel when refueling. Spilled fuel or fuel vapor may ignite. If any fuel is spilled, make sure
the area is dry enough before starting the engine.
5. Avoid repeated or prolonged contact with skin or breathing of fuel vapor. Keep out of reach of children.
Fuel tank capacity: 3.6liters
The engine must apply unleaded gasoline with an octane number over 86.Using unleaded gasoline will decrease
the possibility of producing carbon deposit and prolong the engine’s service life.
Never apply used or polluted gasoline or a mixture of gasoline and engine oil. Make sure the fuel is free of dirt
and water.
CAUTION
●Handle fuel with care because it can damage plastic and painted surfaces. It is not in our guarantee range of
damage by fuel spilling.
●It is normal when you hear occasionally light spark knock or pinking with the engine running under heavy load.
● Should spark knock or pinking be heard at a speed under normal load, change brand of gasoline; If such
phenomenon still happens, consult your dealer for help, otherwise, the engine may be damaged.
CAUTION
The engine would be damage when it is running with constantly knock or pinking noise. It is not in our warranty
range that its damage by misusage the engine
11
STARTING OF THE ENGINE
1.Push the fuel switch to “ON”. (Pic.5) 2.Push the chock lever to “OFF”. (Pic.6)
(Pic.5) (Pic.6)
NOTE
If the engine is hot, closing the choke is unnecessary.
3.Move left the throttle lever a little. (Pic.7)
(Pic.7)
12
4.Start the engine
a). Rope handle Starter.
Push the engine switch to “ON”. (Pic. 8) Pull slightly the starting rope handle up until feeling anti-action, and
then make a rapid pull. (Pic. 9)
(Pic. 8) (Pic. 9)
CAUTION
Releasing the handle suddenly may make it hitting the engine. Release the handle slowly conforming to its
recoiling force.
13
CAUTION
Use the engine switch not more than 5 second each time to avoid damage of the engine. Try once more 10
second later after last attempt failures.
Once the engine starts, reset the engine switch to “ON”.
OPERATION
1. Preheat the engine and push back the 2. Set the throttle lever in proper position to ensure
choke lever to “ON”.(Pic.10) the engine runs at required velocity.(Pic.11)
(Pic .10) (Pic .11)
14
Engine Oil Alarm
The engine oil alarm is designed to alarm the user the fact that the engine oil in the crankcase in insufficient.
Run with insufficient engine oil may damage the engine. Once oil level in the crankcase is too low, the engine oil
alarm will stall the engine automatically to make it free of damage while the engine switch is still at “ON”.
CAUTION
If the engine still fails to work, check the engine oil level first before go to other check items.
Operating on Highlands
On highlands, the standard mixture ratio is relatively too big so the engine performance may be impaired
while the fuel consumption may increase. This problem can be solved as follows: replace the main jet of carburetor
with a smaller one, then, adjust the idly screw. If always using on highlands with a height above sea level of 1830
meters, ask your dealer for doing the job.
The engine power will decrease by about 3.5% with every 305 meters up in height; even the proper main jet is used.
The output would be much lower if not adjust the jet.
CAUTION
The engine equipped with the main jet applicable to highlands may be damaged seriously in area below specified
altitude, because its mixture ratio is too thin, output drops and the engine overheats for operation in low altitude
area. In the case, ask your dealer to recover the engine to its normal technical status.
15
STOP
In an emergency, push the engine switch to “OFF” to stall the engine. Stop it in normal in the following sequence:

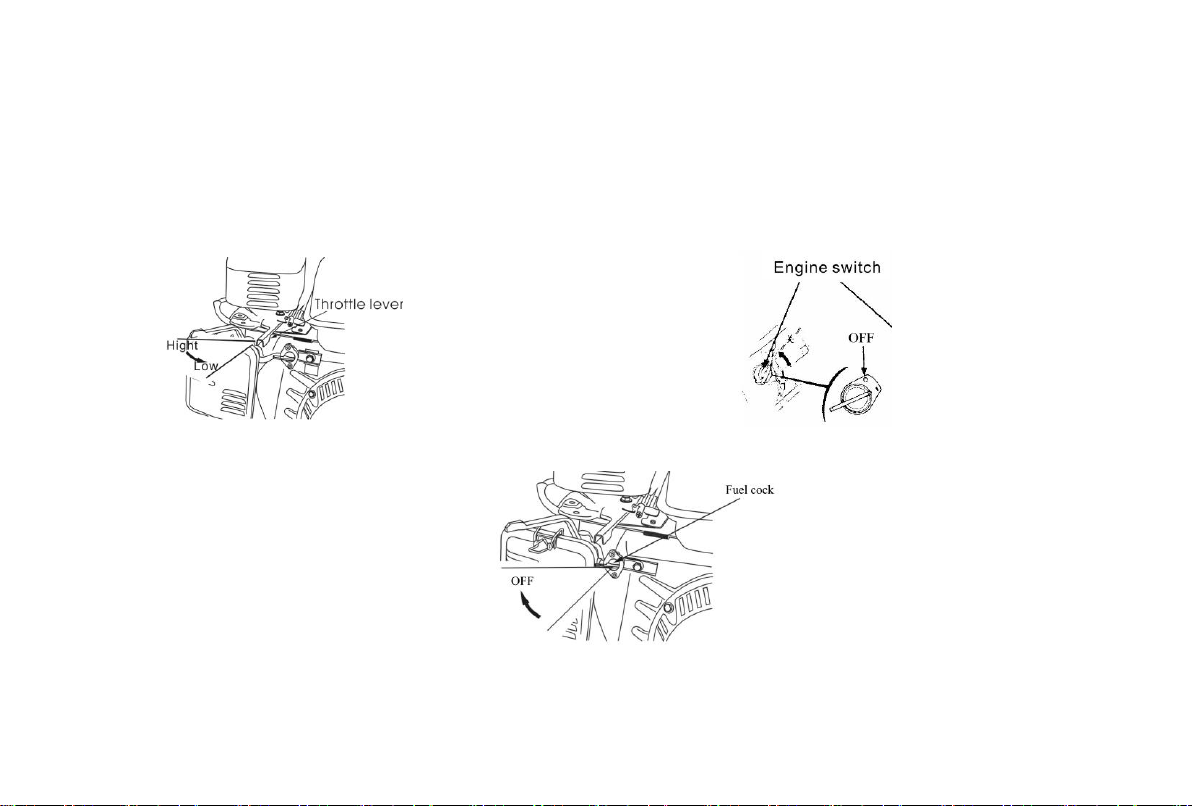

1. Push right the throttle valve lever to the bottom (Pic. 12). 2. Push the engine switch to “OFF” (Pic. 13)
(Pic. 12) (Pic. 13)
3. Set the fuel switch to “OFF” (Pic. 14)
(Pic. 14)
16
EXHAUST CONTROL SYSTEM
With the engine running, carbon monoxide, oxide of nitrogen and hydrocarbon will produce, and in certain
conditions, oxide of nitrogen and hydrocarbon will react chemically each other to make smoke while carbon
monoxide is toxic, so exhaust control of them is very important. The company decreases the exhaust emissions by
introducing poor-fuel carburetors and other devices into the engine to solve the problem.
To keep the exhaust of your engine within the standard exhaust emission values, pay attention to the following:
I. MAINTENANCE
Maintain the engine periodically in accordance with the Maintenance Schedule in the manual. The maintenance
schedule is made out on the base of normal use in normal conditions, if using under heavy load, dusty or wet
circumstances or in high temperature, more frequents maintenance will be necessary.
II. REPLACEMENT OF PARTS
We recommend that you should choose such parts, which are manufactured by our Co. or equivalent to these in
quality as replacement ones. Replacement without so high quality may impair the exhaust control system in
effectiveness.
III. MODIFYING
Modifying the exhaust control system may make actual exhaust emissions exceeding statutory limit values. Illegal
modification is as follows:
1.Dismantle or modify any part of air inlet or outlet system.
2.Modify or take off speed-adjusting connection device or speed adjustment device to result in the engine’s running
17
or outside the set parameters.
Ⅳ.PROBLEMS AFFECTING EXHAUST EMISSIOS
1. Difficult starting or difficult stopping.
2.Unstable idling.
3.Give off black smoke or consume too much fuel.
4.Poor ignition sparks or sparks returned.
5.Ignition is too advanced.
Once you find any of above problems, contact your dealer for help.
18
MAINTENANCE
I. MAINTENANCE SCHEDULE
To keep the engine in a sound condition, the user should maintain it according to the table below:
Frequency Items
Each time
Initial 1 month
or 20 Hrs
Initial 3 month
or 50 Hrs
Every 6 month
or 100 Hrs
Every 1 years
or 300 Hrs
Engine oil
Check oil level
△
Replace
△
△
Reduction
Gear oil
Oil level check
△
Replace
△
△
Air cleaner
Check
△
Clean
△①
△①
Replace-clean
△
Deposit cup
Clean
△
Spark plug
Clean, adjust
△
Replace
△
Spark eliminator
Clean
△
Idling
Check-adjust
△②
Valve clearance
Check-adjust
△②
Fuel tank ＆Fuel filter
Clean
△②
Fuel supply line
Check
Every two years (do a replacement if necessary)
19
NOTES
: Only for inside-ventilating double-core carburetors.
: Only for paper core air cleaners.
① More often than that in the schedule if in dusty circumstances.
② The items should be done by your dealer you are specially trained and is well equipped with
tools.
Ⅱ. METHOD
1. Replacement of Engine Oil
A still hot engine is helpful to drain out the engine oil in the crankcase rapidly and entirely. (Pic. 15)
1) Turn off the oil filler cap and drain plug to drain engine oil thoroughly. Reinstall the drain plug and screw in
securely.
2) Fill the specified engine oil to the upper lever mark..
3) Reinstall the oil filler cap.
Engine oil capacity of the crankcase is 0.6 liters.
Engine oil capacity of the 1/2 reduction gearbox is 0.5 liters.
Engine oil capacity of the 1/6 reduction gearbox is 0.15 liters.
(Pic. 15)
20
NOTE
Do not dump oil containers or discarded engine oil into rubbish boxes or onto the ground. For the sake of
environmental protection, we suggest you take in discarded engine oil with a closed container and bring to local
recycling station.
2. Service of Air Cleaner
A dirty air cleaner may block enough air’s flowing into the carburetor. To keep the carburetor in
Good working conditions, please service the air cleaner periodically. If operating the engine in extremely dusty area,
the job should the done more often.
△
!
WARNING
Never clean the air cleaner core in gasoline or low flash-point detergents, or explosion may happen.
CAUTION
Never run the engine without an air cleaner, or air with dirt and dust may enter the engine so speed the engine’s
wear.
1)Turn off the air cleaner’s cap, and then separate the filter to check the air clearer filter weather worn out or broken.
If there is something wrong with it, please replace it.
2)Clean with home detergents and warm water (or non-flammable of high flash-point cleaning solvents) and dryup.
3)Sock in clean engine oil until saturated. Squeeze out excess oil, otherwise, the engine will discharge smoke in
starting stage.
21
4)Empty the oil in the air cleaner, Use non-flammable or high flash-point cleaning solvents to clean the dusty, and
then dry-up the air cleaner box.
5)install the air cleaner filter and cover to original position.
3.Washing of Deposit Cup.
Set the fuel switch at “OFF”, remove the deposit cup and O-ring. Wash them in non-flammable or high flash-point
cleansing solvents, and then dry them up, at last, carry out reinstallation. Set the fuel switch to “ON” and check for
leaks. (Pic. 19)
△
!
WARNING (Pic. 19)
Gasoline is extremely flammable and explosive in certain conditions.
Keep cigarette, sparks and open flames away.
After reinstalling the deposit cup, check it for leakage and make sure
the area around the engine is dry enough.
4. Spark Plug
Spark plug type: BP6ES, BPR6ES (NGK) or NHSPLD F6RTCU
(Pic. 20)
22
Proper spark plug clearance and without deposit around the spark plug ensure the engine’s normal running.
1) Remove the spark plug by means of spark plug wrench. (Pic. 20)
△
!
WARNING
Be careful not to touch the muffler during or just after running the engine.
2) Clean the spark plug with a steel brush. If the insulator is damaged, replace the spark plug instead.
3) Measure the spark plug clearance with a feeler. The clearance should be 0.7～0.8mm,If adjustment is necessary,
bend the side electrode carefully. (Pic. 21)
4) Check if the spark plug gasket is in good conditions, or replace with a new one.
5) Screw on the spark plug to the bottom first by hand and then tighten it up by a spark plug wrench.
(Pic. 22)
If a new spark plug is used, twist 1/2 more turns after impacting the gasket; if reinstall the original
one, just twist 1/8～1/4 more turns.
(Pic. 21) (Pic. 22)
23
CAUTION
The spark plug must be tightened securely, or it may become very hot to damage the engine.
Only use recommended spark plug or the equivalent. Incorrect heat range of the spark plug
may damage the engine.
5. Spark Eliminator (Option) (Pic. 23)
The spark eliminator should be serviced at least once every
100 hour’s operation so as to keep it in a sound condition.
△
!
WARNING (Pic. 23)
The muffler is very hot during running the engine and even a long
Time after stopping. Never touch it, or you may get burns. Service
After the engine cools down.
a) Unscrew two nuts M4, and remove the exhaust elbow from the engine body.
b) Turn off five screws M5 from the muffler guard and take out the latter.
c) Turn off screw M4 from the spark eliminator and separate it from the muffler.
d) Clear away carbon deposit from the spark eliminator mesh with a brush.
24
e) Reinstall the spark eliminator in reverse order of removal. (Pic. 24)
CAUTION
Be careful not to damage the mesh of the spark eliminator.
Never use a damaged spark eliminator.
6.Adjustment of Carburetor Idling (Pic. 24)
a) Start and preheat the engine until arriving at its normal working temperature.
b) Obtain standard idling by adjusting the throttle fixing screw under the engine runs at a low speed.
(Pic. 25)
Standard idling: 1700±150rpm
(Pic. 25) (Pic. 26)
25
TRANSPORT, STORAGE AND REMOVAL FROM STORAGE
I.TRANSPORT
Transport with the fuel switch turned off. Transport or store the engine it is cool so as to avoid getting burns or fire.
If the engine is not kept in use for a long time, be sure to store it properly.
1) Make sure the storage area is dry and free of dust.
2) Make sure to put the oil (which in the gasoline tank and carburetor) into another proper container.
CURTION
Fuel is extremely flammable and explosive under certain conditions. Keep cigarette, open flames and sparks away
from operating site.
1) Replace the engine oil. (Pic. 26)
2) Disconnect the spark plug. Fill a spoon of fresh engine oil from the spark plug mount hole into the cylinder.
Rotate the engine to distribute engine oil evenly, followed by fitting the spark plug to original position.
3) Pull the starting rope slowly until feel a slight anti-action, and then keep pulling so as to align the arrow of the
starting sleeve with the hole of the starter. At this time, both the inlet and outlet valves are closed so to help prevent
the engine inside from rusting.
4) Electric starter: disconnect the battery and store in dry and cool area. Charge once every month.
5) Cover the engine so keep dust away.
26
TROUBLESHOOTING
Ⅰ. STARTING ENGINE DIFFICULTLY
TROUBLE
CAUSE
REMEDY
1. Something wrong with
the fuel system
2. Fuel supply is blocked
or on fuel.
Normal cylinder
compression
Normal spark
There is no enough fuel in fuel tank or
fuel cock is closed
Fill fuel, open fuel cock
Air vent in the filler cap is clogged.
Dredge air vent
Fuel cock is clogged.
Clean first and then dredge
Improper or clogged main jet
Readjust or clean, blow to get
through
Needle valve is closed improperly or
start hole is clogged
Dismantle needle valve and
repair, clean, blow to get
through
Floater is damaged or sticking
Repair floater
TROUBLE
CAUSE
REMEDY
1. Something wrong with the
fuel system
Normal cylinder compression
Normal spared
Fuel is filthy or deteriorated
Replace
There is filthy or deteriorated
Replace
Too much fuel in engine
cylinder
Drain extra fuel, dry up spark
plug electrodes
27
Fuel flows easily and smoothly
Wrong fuel brand
Select proper fuel brand
corresponding with
Requirements
1. Spark plug is in bad condition
Normal cylinder compression
Normal fuel supply
Normal high-pressure coil
spark
Too much carbon fouling and
dirt around electrodes
Clear away
Electrodes are burn damaged
seriously or insulators
damaged
Replace spark plug
Improper electrodes gap
Adjust to proper value
1. No high-pressure coil spark
Normal cylinder compression
Normal fuel supply
Normal spark plug
High-pressure coil is
damaged
Replace
Ignition coil damaged
Replace
△
!
WARNING
When testing the spark plug, never hold the high- voltage wire of the spark plug with wet hand.
Make sure there is no spilled fuel outside the engine and that the spark plug isn’t dipped with fuel.
To prevent fire, keep sparks for away from the spark plug mount hole.
Once you find any of above problems, contact the authorization entitle to the dealer of the privilege
helps for you.
28
TROUBLE
CAUSE
REMEDY
1. Poor cylinder compression
Normal fuel supply system
Normal ignition system
Piston ring is so worn to over
its wear limit
Replace a set of piston rings
Piston ring is sticking
Clear up carbon fouling
Piston ring is broken
Replace
Spark plug is not installed
tighten or without a gasket
Tighten with a gasket in
Air leakage between cylinder
block and cylinder
Check cylinder gasket and the
flatness of the surface by which
cylinder black on-tacting with
cylinder head; tighten cylinder bolts
in the order to stipulated torque
Air leakage in valve
Check valve clearance and tightness,
repair if necessary
29
Ⅱ. LOW GASOLINE ENGINE POWER OUTPUT
TROUBLE
CAUSE
REMEDY
When turning throttle
greater, speed increase
responds slowly or speed is
decreased even engine stops
Ignition
Incorrect ignition time
Readjust ignition
advance angle
Fuel supply
system
Air in fuel line of fuel line
clogged.
Exhaust air or dredge
fuel line
Main jet is not adjusted
Properly.
Readjust
In carburetor, needle valve
hole and main jet clogged
Clean and blow to
get through
Fuel cock is clogged up
Clean, replace
Damage part.
Too much carbon fouling in
combusting chamber
Clear away
Air cleaner is clogged up.
Clean filter element
30
TROUBLE
CAUSE
REMEDY
Do.
Do.
Intake pipe is leaking
Replace or replace it
Poor
compression
Piston or cylinder or piston ring is
worn.
Replace it with a new
one
Air leakage from the surface
by which cylinder block contacting
with cylinder head.
Replace cylinder gasket
Too big or too small valve
clearance.
Adjust it
Valve tightness is poor
Repair
31
Ⅲ. GASOLINE ENGINE CANNOT RUN SMOOTHLY
TROUBLE
CAUSE
REMEDY
Engine is pinking
Piston, cylinder or piston ring is worn
excessively.
Replace the worn
Piston pin and piston pin hole are worn
excessively.
Replace piston or piston
pin
Tie rod small head is worn excessively.
Replace tie rod
Do.
Roller bearing for crankshaft main shaft is worn
Replace roller bearing
TROUBLE
CAUSE
REMEDY
Abnormal
combustion
Engine is too hot
Shoot trouble
Too much carbon fouling in combustion chamber
Clear away
Improper gasoline brand or low gasoline quality
Replace with qualified
gasoline
Engine cannot start
because of spark
lacking
There is water in floater room
Clean
Improper spark plug electrodes
Clearance
Adjust
Incorrect ignition time
Readjust
Something wrong with induced coil,
And so on
Check and replace
Damaged parts
32
Ⅳ. STOP SUDDENLY WHEN RUNNING
TROUBLE
CAUSE
REMEDY
Stop suddenly
Fuel supply system
Fuel is used up
Fill fuel
When running
Do.
Carburetor is clogged
Check fuel line and dredge
Floater is leaking
Repair
Needle valve sticks
Dismantle floater chamber
And eliminate it
TROUBLE
CAUSE
REMEDY
When running
Ignition system
Spark plug is struck through,
or short-circuited by carbon
deposit
Replace spark plug
Side electrode of spark plug
is dropped out
Replace spark plug and remove
the dropped object
Hi-voltage wire is dripped
out
Connect it
Engine oil in the crankcase is
insufficient
Add engine oil until it arrives
the upper level
Do.
Do.
Ignition coil is struck
through to be short-circuited
Replace ignition coil with new
one
33
Parking wire is located on
the engine body
Find out meeting and insulate
The other
Cylinder is pulled
considerably, valve falls off
Repair or replace damaged
parts
34
Ⅴ. GASOLINE ENGINE IS EXCESSIVEL HOT
TROUBLE
CAUSE
REMEDY
Gasoline engine is
excessively
Improper ignition time
Adjust ignition advance angle
properly
Insufficient engine oil supply
Refill sufficient engine oil
Exhaust pipe is clogged
Dredge exhaust pipe
Do.
Flow guard is leaking
Repair leakages
Dirt or something like the fill up
among air cooling fins
Clear away dirt or something like
this
Cooling fan is loosen, losing function
Reinstall it well
Cylinder, piston or piston ring is worn,
Resulting in air flow between cylinder
and crankcase
Replace tie rod
Tie rod deformation makes piston and
Cylinder bushing side wear.
Replace tie worn part
Improper adjustment of engine speed
produces excessive rotational speed
Readjust engine speed to proper
value
by speed regulator
Bearing of crankshaft is burn out
Replace main bearing
NOTE: The gasoline engine should run under certain temperature. Generally, permitting temperature
at the flow guard outlet is between 80～110℃, while the temperature of the crankcase is about 60℃
35
under the magneto. If temperatures surpass the limits, it is an indication that gasoline engine is
excessive hot.
Ⅵ. THERE IS ABNORMAL NOISE WHEN ENGINE RUNNING
TROUBLE
CAUSE
REMEDY
There is noise of
beating or piston
slap is heard
Piston or piston ring or cylinder is worn
Replace the worn
Tie rod or piston pin and piston pin
hole is worn
Replace the worn
Main bearing of crankshaft is worn
Replace
Piston ring is broken
Replace
There is metal-beaten
noise in abnormal
combustion
Too much carbon deposit in
combusting chamber
Clear away carbon deposit
Too small electrodes clearance
of spark plug
Adjust electrodes
clearance properly
Engine is flooded with fuel
Check relative parts such as
carburetor
Improper fuel brand
Replace fuel
Engine is excessively hot
Shoot trouble
TROUBLE
CAUSE
REMEDY
The other
Improper valve clearance
Readjust valve clearance properly
Fly wheel is not connected to crankshaft
Tightly
Connect tightly
36
SPECIFICATIONS
Ⅰ. MAIN SPECIFICATIONS
Model
Items
160F-A
L × W × H (mm)
300×345×320mm
Dry weight (kg)
12Kg
Engine type
4-stroke, OHV, single cylinder tilt 25°
Displacement (cm
3
)
118cm
3
Bore × stroke (mm)
62×42mm
Max. Power in theory (kW/r/min)
4hp/3,600rpm
Power recommended (KW/r/min)
3.5hp/3600rpm
Max. Torque (N· m /r/min)
0.75kg-m/2,500rpm
Fuel consumes. (g/kWh)
313g/kwh
Cooling system
Force air - cooled
Ignition system
Non – transistorized ignition (TCI)
Spark plug type
BRP6ES (NGK), NHSP LD F6TC
Out direction of power shaft
Counterclockwise
37
Date relating to Adjustment
Item
Date
Spark plug clearance
0.7～0.8mm
Carburetor idling
1400±150rpm
Valve clearance (cold engine)
Intake: 0.15±0.02mm; Exhaust: 0.20±0.02mm
NOTES
Technical data vary with type of engine; therefore, they are subject to change without notice.
Data in﹤﹥are suitable for engine which is equipped with reducer.
Ⅱ. TIMING OF DISTRIBUTION
Intake valve opening: BTDC10°;
Intake valve closing: ABDC20°;
Exhaust valve opening: BBDC30°;
Exhaust valve closing: ATDC10°
Ⅲ. TIGHTENING TORQUE OF IMPORTANT BOLTS
S/N
Item
Torque Value (N · m)
1
Cylinder head bolt
24
2
Flywheel bolt
70～80
3
Crankcase cover bolt
24
4
Tie – rod bolt
12
38
十二、 Electric Diagram（electric start）
Except Electric Start Model, Different Model have different electric diagram.
39
