IMPORTANT: Please read this manual before commencing
assembly of this product.
IMPEX
®
INC.
2801 South Towne Avenue, Pomona, California 91766
Tel: (800) 999-8899 Fax: (626) 961-9966
www.marcypro.com
©IMPEX INC. www. marcypro.com
1
TABLE OF CONTENTS
BEFORE YOU BEGIN
Thank you for selecting the MARCY OLYMPIC PLATE TREE STORAGE
RACK PT-5757 by IMPEX
®
INC. For your safety and benefit, read this
manual carefully before using the equipment. As a manufacturer, we are
committed to provide you complete customer satisfaction. If you have any
questions, or find there are missing or damaged parts, we guarantee you
complete satisfaction through direct assistance from our factory. To avoid
unnecessary delays, please call our TOLL-FREE customer service
number. Our Customer Service Agents will provide immediate assistance
to you.
Toll-Free Customer Service Number
1-800-999-8899
Mon. – Fri. 9 a.m. – 5 p.m. PST
www.marcypro.com
BEFORE YOU BEGIN
1
IMPORTANT SAFETY NOTICES
2
WARNING LABEL PLACEMENT
3
ASSEMBLY INSTRUCTION
4
CARE AND MAINTENANCE, WEIGHT CAPACITY & DIMS.
4
PARTS LIST
5
EXPLODED DIAGRAM
6
WARRANTY
7
ORDERING PARTS
7
©IMPEX INC. www. marcypro.com
2
IMPORTANT SAFETY NOTICE
This exercise equipment is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your equipment. In particular, note the following safety
precautions:
1. Keep children and pets away from the equipment at all times. DO NOT
leave children unattended in the same room with the equipment.
2. Only one person at a time should use the equipment.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
4. Position the equipment on a clear, leveled surface. DO NOT use the equipment
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the equipment. Running
or aerobic shoes are also required when using the equipment.
7. Use the equipment only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the equipment.
9. Disabled person should not use the equipment.
10. Before using the equipment to exercise, always do stretching exercises to
properly warm up.
11. Never operate the equipment if the equipment is not functioning properly.
12. A spotter is recommended during exercise.
13. This equipment is designed and intended for home and consumer use only, not
for
commercial use.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE
AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.
ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY
DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
©IMPEX INC. www. marcypro.com
3
WARNING LABEL PLACEMENT

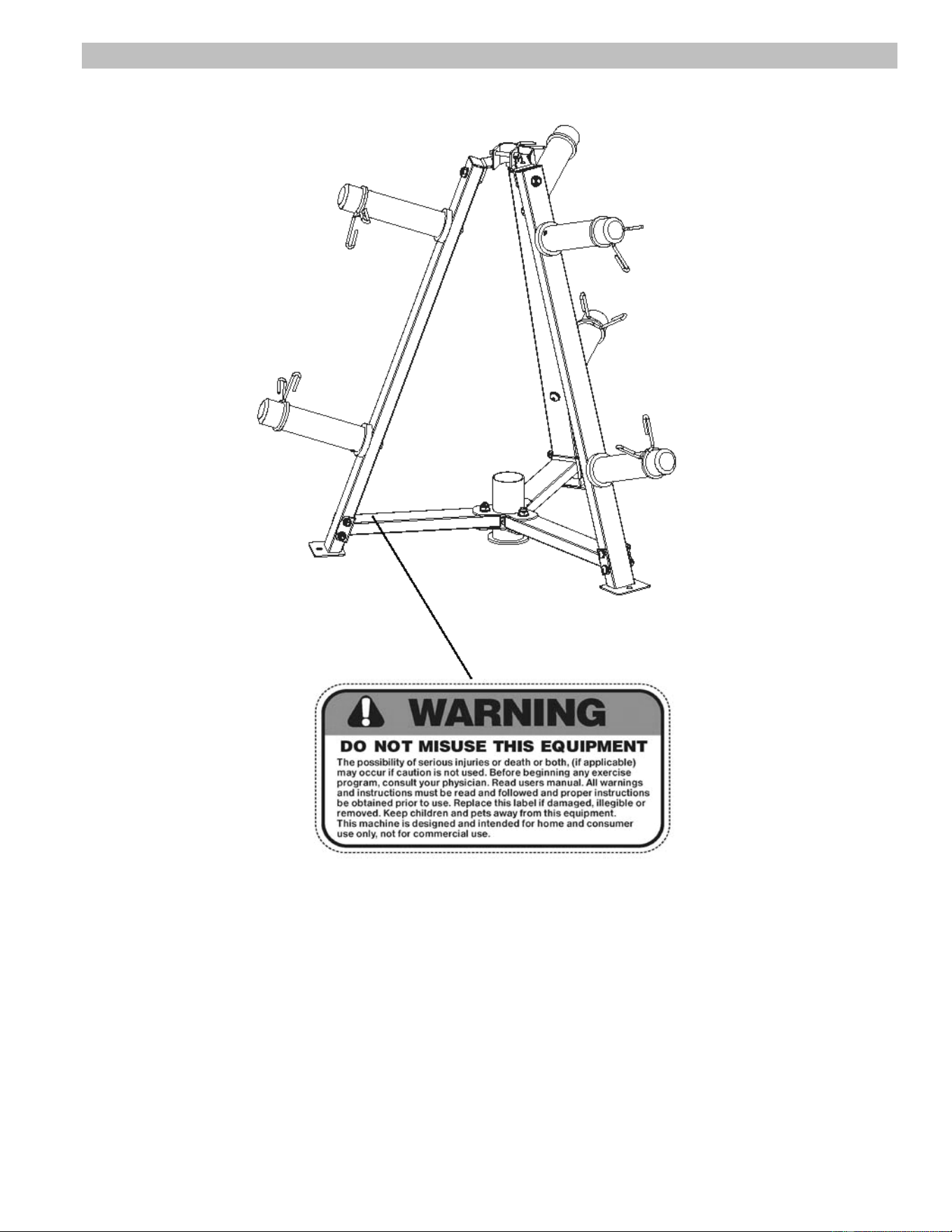

The warning labels shown here have been placed on the Cross Brace. If the labels are missing or illegible,
please call customer service at 1-800-999-8899 for replacements. Apply the labels in the location shown.
©IMPEX INC. www. marcypro.com
4
IMPORTANT ASSEMBLY INFORMATION

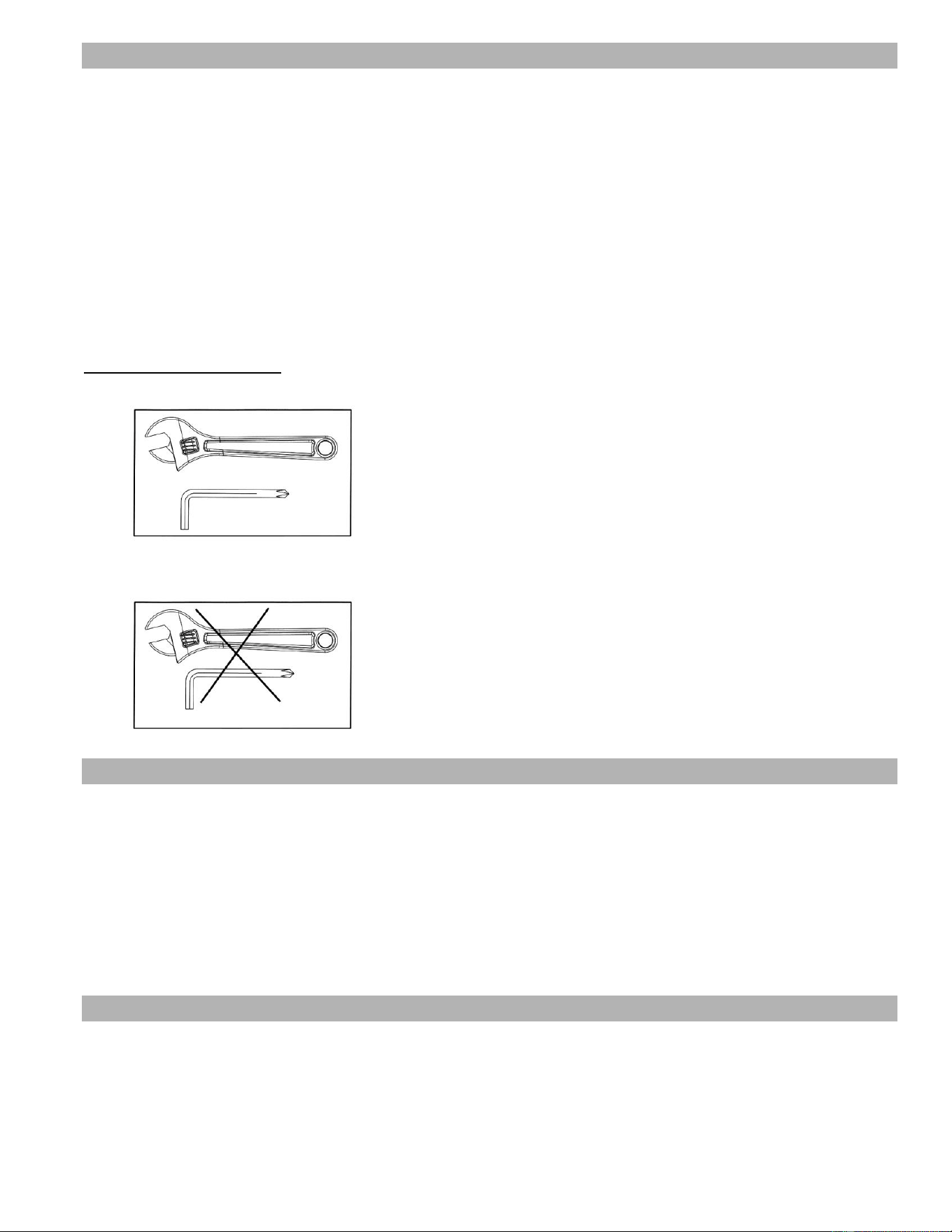

❖ Tools Required for Assembling the Bench: Two Adjustable Wrenches and Allen
Wrenches.
❖ NOTE: It is strongly recommended that this equipment is assembled by two or more
people to avoid possible injury.
❖ Ensure Carriage Bolts are inserted through the SQUARE holes on components that need
to be assembled. Attach washer only to end of the Carriage Bolt.
❖ Use Allen Bolts or Hex Bolts inserted through the ROUND hole on components that
need to be assembled.
❖ Always wait until all bolts are assembled onto the bench before tightening the bolts. Do not
tighten each bolt right after it is installed
Fasten Nuts and Bolts
Securely tighten all Nuts and Bolts after all
components have been assembled in current and
previous steps.
NOTE: Do not over tighten any component with
pivoting function.
Make sure all pivoting components are able to move
freely.
Do not tighten all Nuts and Bolts in this step.
CARE AND MAINTENANCE
1. Lubricate moving parts with WD-40 or light oil periodically.
2. Inspect and tighten all parts before using the equipment.
3. The equipment can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.
4. Examine the equipment regularly for signs of damages or wear.
5. Replace any defective components immediately and/or keep the equipment out of use until
repair.
6. Failure to examine regularly may affect the safety level of the equipment.
WEIGHT CAPACITY AND DIMENSION
1. Maximum weight on Storage Pegs: 300 lbs.
2. Assembled Dimension: 34”x30”x32”
©IMPEX INC. www. marcypro.com
5

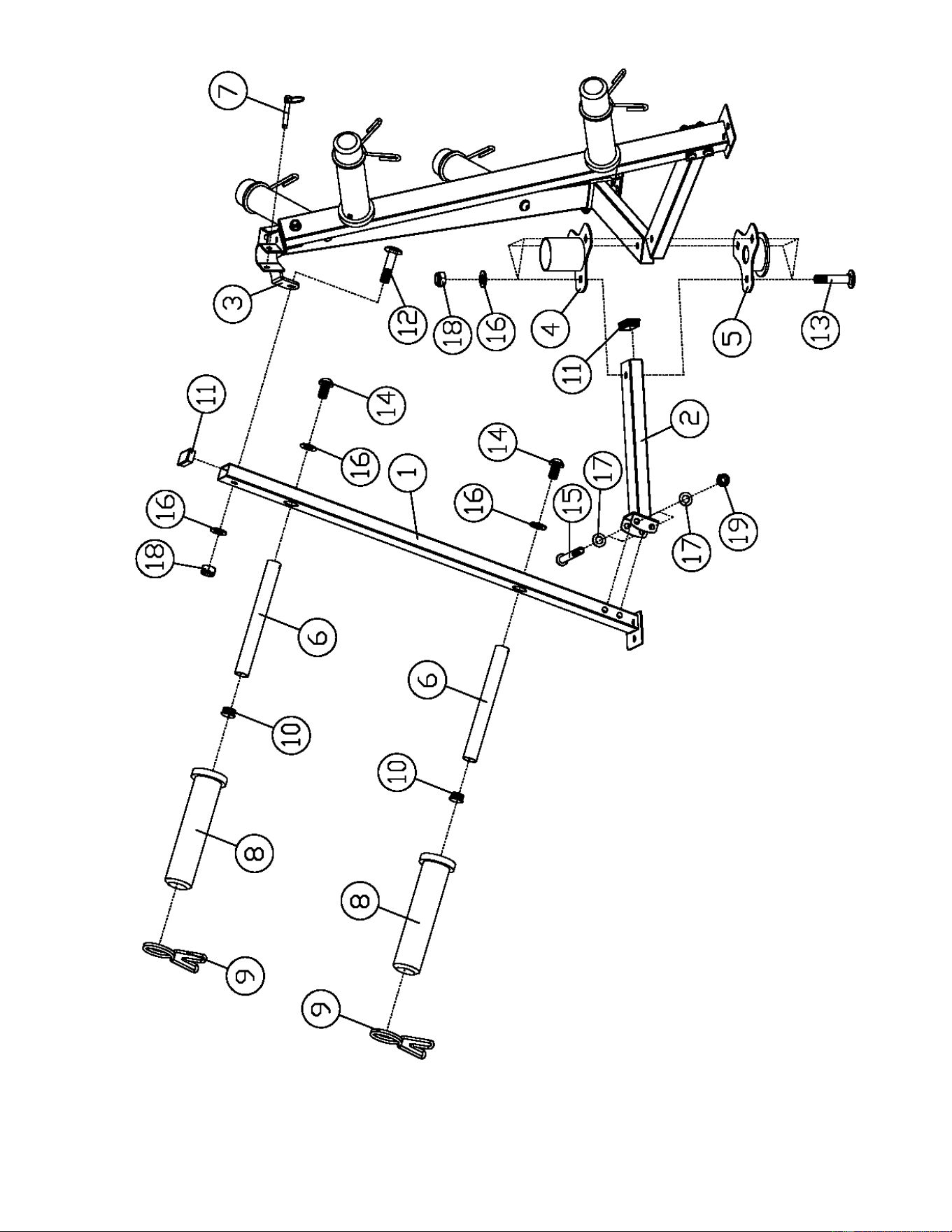

PT-5757 PARTS LIST
PART NO.
DESCRIPTION
SIZE
QUANTITY
1
Upright Support
3
2
Base Frame
3
3
Bracket
1
4
Bar Holder
1
5
Base Frame Support
1
6
Storage Peg
6
7
Locking Pin
1
8
Olympic Sleeve
6
9
Spring Collar
φ2"
6
10
End Cap
φ1"
6
11
Base Frame End Cap
1"×2"
6
12
Carriage Bolt
M10×1 5/8"
3
13
Carriage Bolt
M10×1 3/4"
3
14
Allen Bolt
M10×5/8"
6
15
Allen Bolt
M8×2 3/4"
6
16
Washer
φ3/4"
12
17
Washer
φ5/8"
12
18
Aircraft Nut
M10
6
19
Aircraft Nut
M8
6
Allen Key
4#
1
Allen Key
5#
1
Allen Key
6#
1
©IMPEX INC. www. marcypro.com
6
©IMPEX INC. www. marcypro.com
7
IMPEX
®
INC.
LIMITED WARRANTY
IMPEX Inc. ("IMPEX
®
") warrants this product to be free from defects in workmanship and material, under
normal use and service conditions, for a period of two years on the Frame from the date of purchase. This
warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to
replacing or repairing, at IMPEX's option.
All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX
Customer Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be
prepaid by the customer. This warranty does not extend to any product or damage to a product caused by
or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an
IMPEX authorized service center or for products used for commercial or rental purposes. No other warranty
beyond that specifically set forth above is authorized by IMPEX.
IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in
connection with the use or performance of the product or other damages with respect to any economic loss,
loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other
consequential damages or whatsoever natures. Some states do not allow the exclusion or limitation of
incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal right. You may also have other rights which vary from state to state.
Register on-line at www.marcypro.com
IMPEX
®
INC.
2801 South Towne Avenue
Pomona, CA 91766
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-999-8899
during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.
When ordering replacement parts, always give the following information.
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase
