4 Playing a CD
6 Listening to the radio
The CD Player
8 Using the display
9 Locating a specific point in a
track
10 Playing tracks repeatedly
(Repeat Play)
11 Playing tracks in random order
(Shuffle Play)
12 Creating your own program
(Program Play)
14 Preventing sound from skipping
(ESP)
The Radio
15 Presetting radio stations
16 Playing preset radio stations
The Timer
17 Setting the clock
18 Waking up to music
20 Falling asleep to music
21 Using the countdown timer
Setting Up

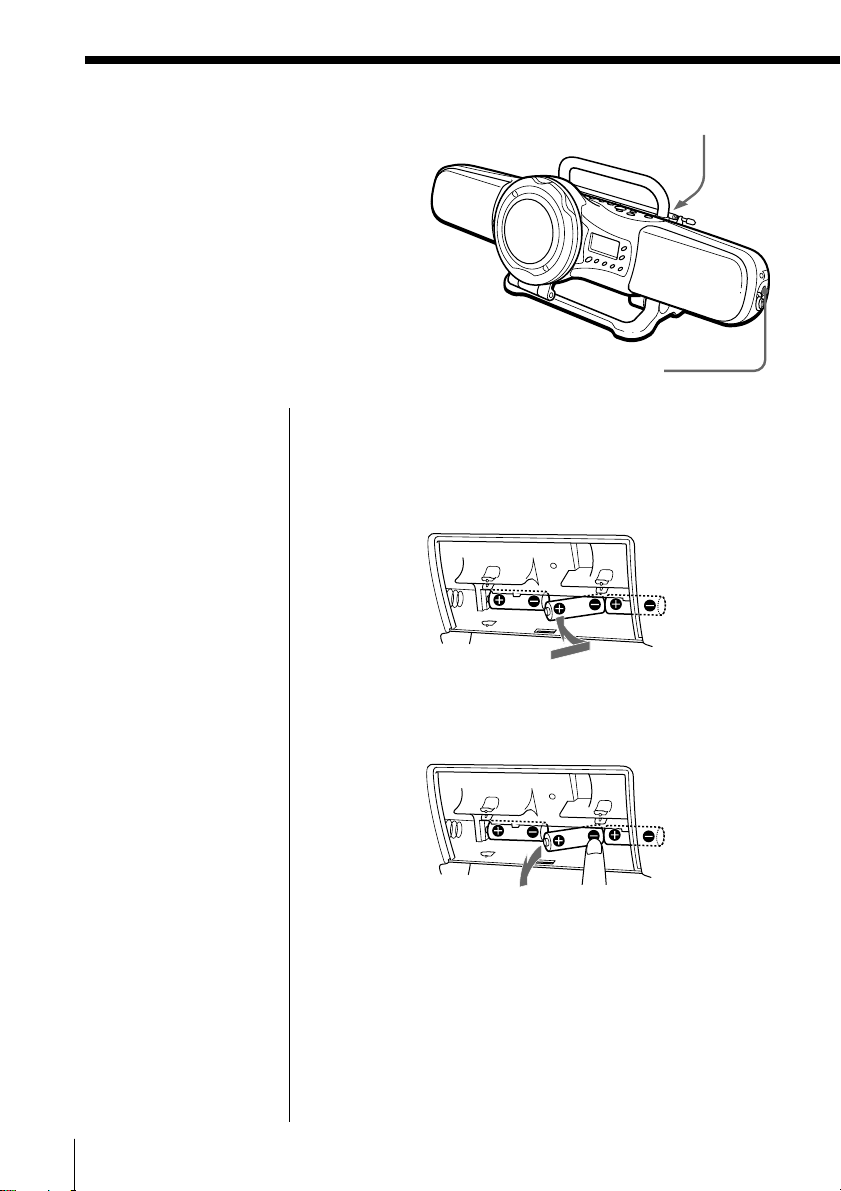

22 Preparing the power sources
25 Using the shoulder strap
26 Selecting the audio emphasis
(SOUND/MEGA BASS)
Additional Information
27 Precautions
29 Troubleshooting
31 Maintenance
32 Specifications
33 Index
Basic Operations4
Playing a CD
Basic Operations

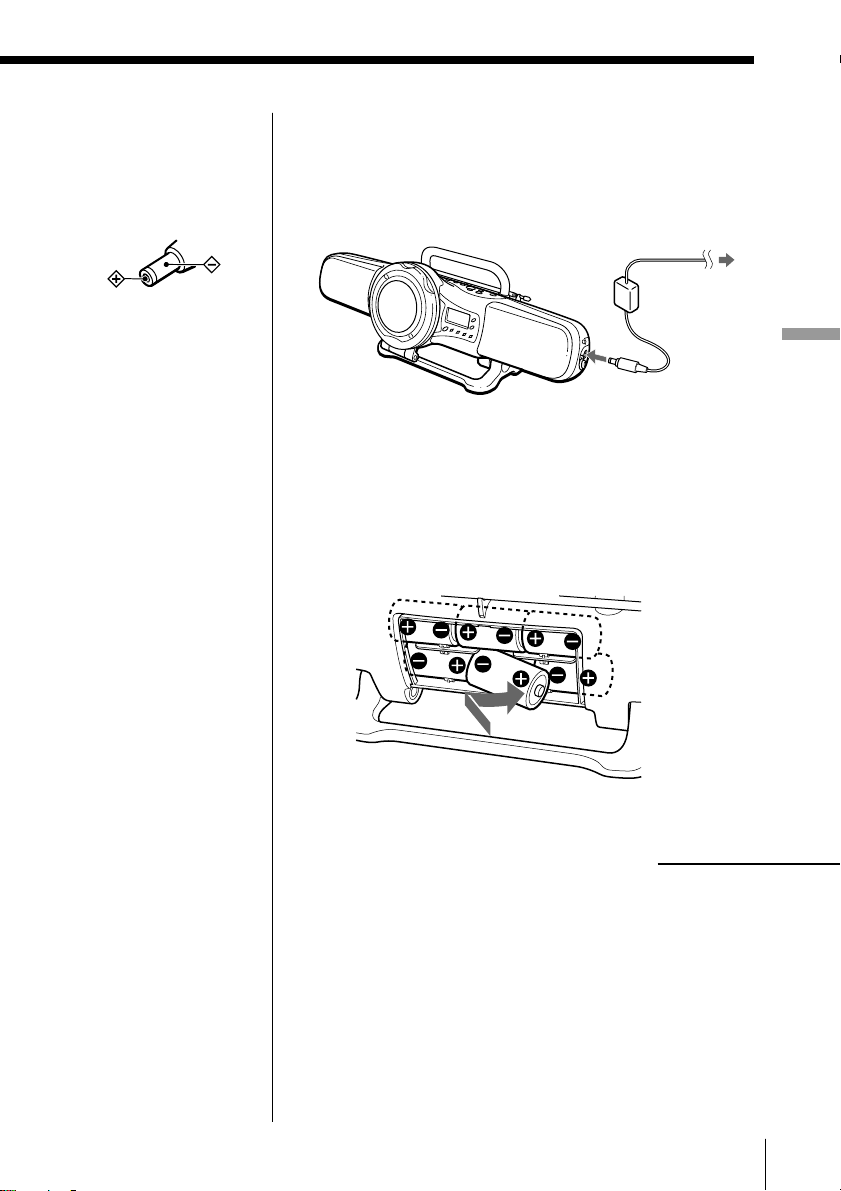

Connect the supplied AC power adaptor (see page 23).

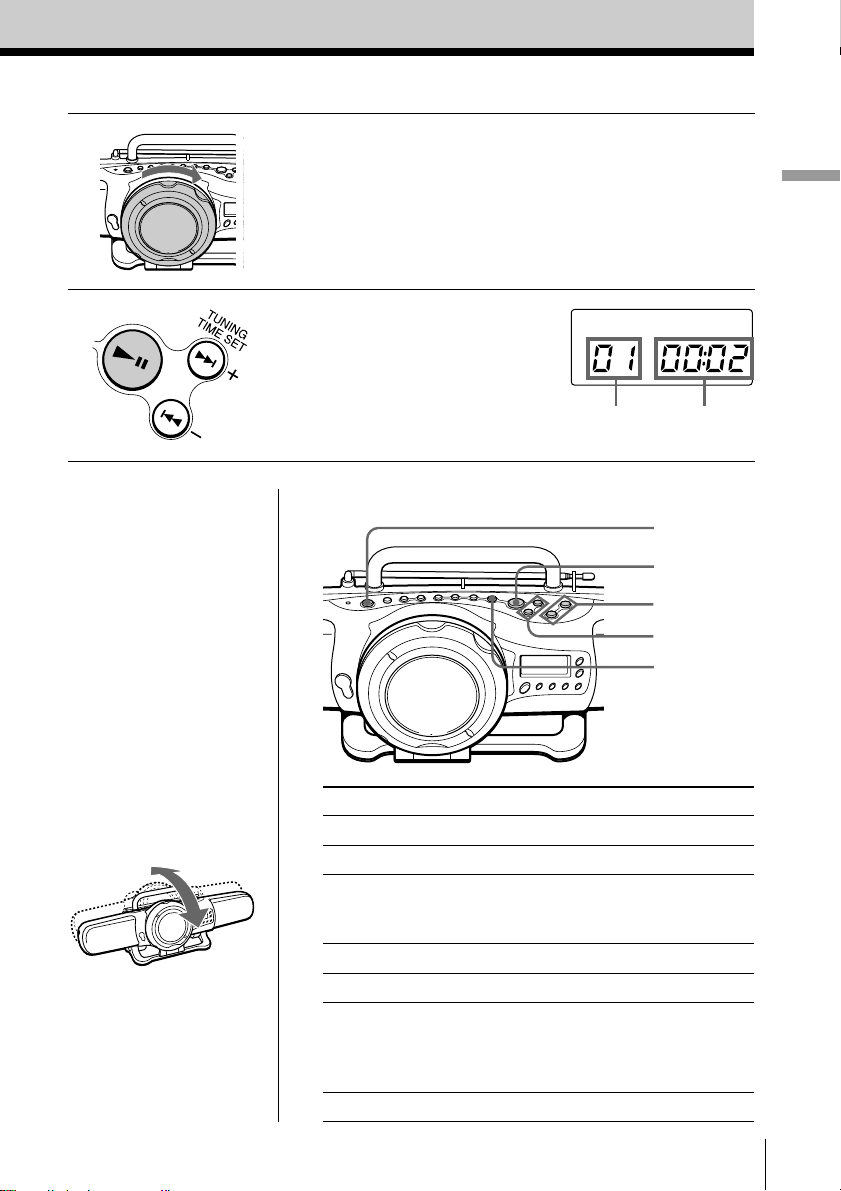

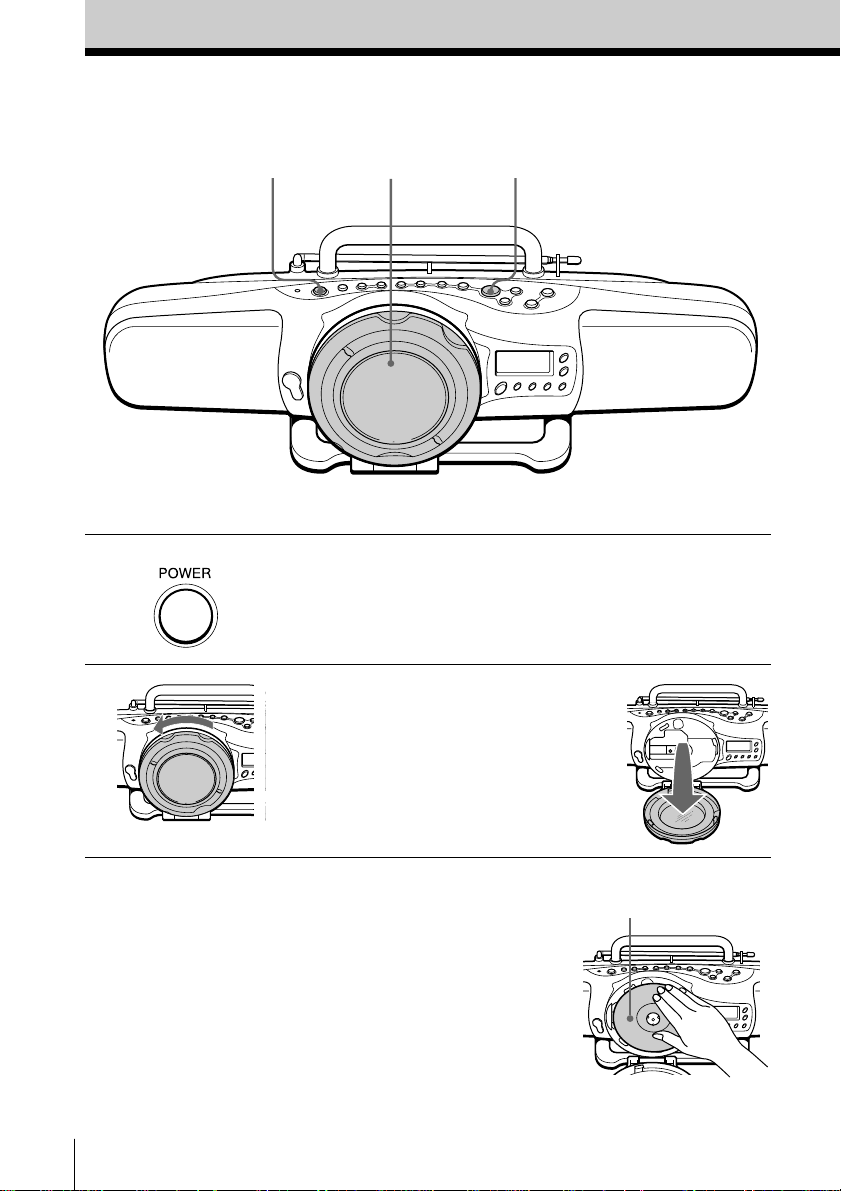

1 Press POWER to turn on the
player.
2 Turn the lid of the CD
compartment counterclockwise
and open it.
3 Place the CD on the CD
compartment until it clicks into
place.
With the label side
facing to you
2, 3, 4
1
5
Basic Operations
Basic Operations
5
Use these buttons for additional operations
To Do this
adjust the volume Press VOL +, –.
stop playback Press x.
pause playback Press u.
Press the button again to
resume play after pause.
go to the next track Press >.
go back to the previous track Press ..
remove the CD Turn the lid of the CD
compartment
counterclockwise and
open it.
turn on/off the player Press POWER.
Tip
You can change the
angle of your player.
4 Close the lid of the CD
compartment and turn it
clockwise until the
z mark on the
player and the
z mark on the lid
align.
5 Press u.
The player plays all the tracks
once.
POWER
x
u
., >
VOL –, +
Track number
Playing time
Basic Operations6
Listening to the radio
Connect the supplied AC power adaptor (see page 23).
1 Press POWER to turn on the
player.
2 Press BAND until the band you
want appears in the display.
3 Hold down TUNING•TIME SET
+ or – until the frequency digits
begin to change in the display.
The player automatically scans
the radio frequencies and stops
when it finds a clear station.
If you can't tune in a station,
press the button repeatedly to
change the frequency step by
step.
Display
31
2
Indicates an FM stereo
broadcast
Basic Operations
Basic Operations
7
Use these buttons for additional operations
To Press
adjust the volume VOL +, –
turn on/off the radio POWER

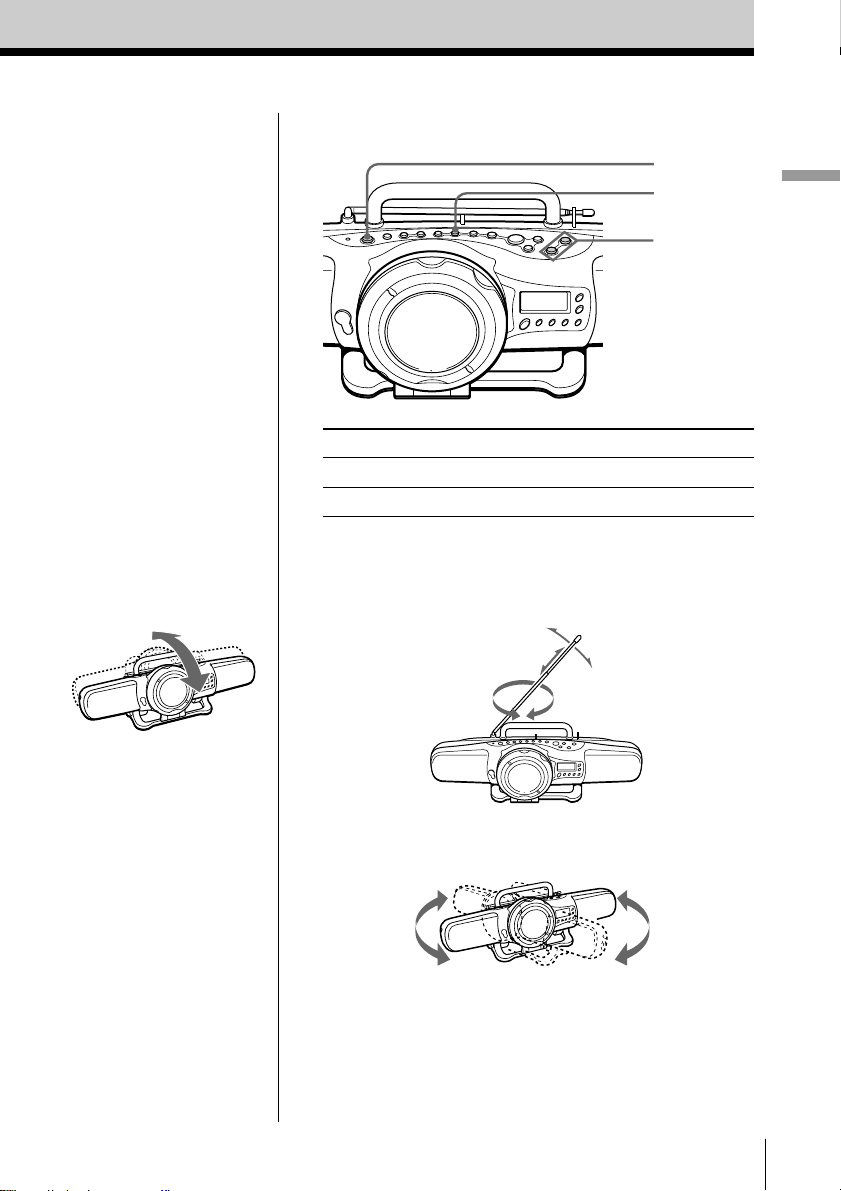

To improve broadcast reception
Reorient the antenna for FM. Reorient the player itself
for AM.
for FM
for AM
Tips
• If the FM broadcast is
noisy, press PLAY
MODE•MONO/ST
until “Mono” appears in
the display and the
radio will play in
monaural.
• You can change the
angle of your player.
POWER
VOL –, +
PLAY MODE
MONO/ST
The CD Player8
Using the display
You can check information about the CD
using the display.
The CD Player

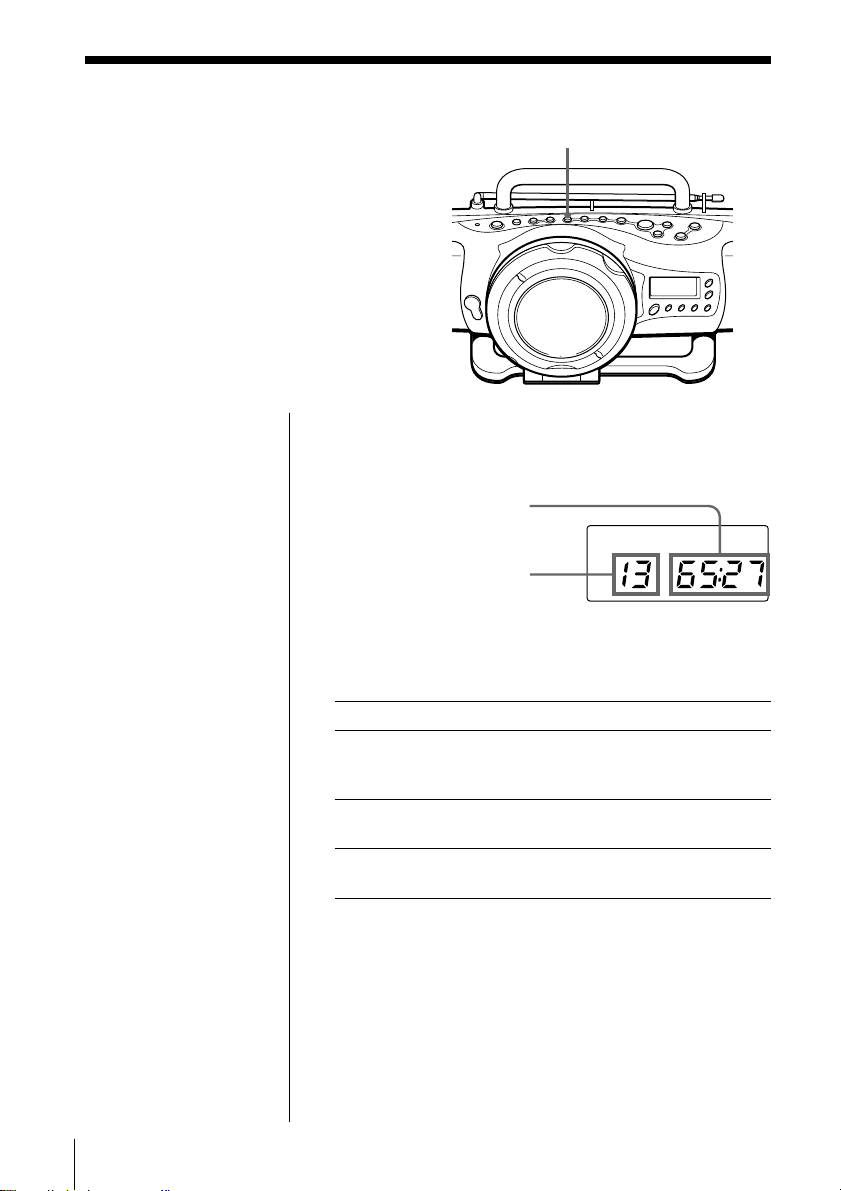

Checking the remaining time
Press DISPLAY•ENT MEM while playing a CD.
To display
Press
DISPLAY•ENT MEM
the current track number once
and the remaining time
on the current track*
the number of tracks left twice
and remaining time on the CD
the current track number three times
and playing time
* For a track whose number is more than 20, the remaining
time appears as “– –:– –”.
Total playing time
Total track number
Checking the total track number and playing
time
Press DISPLAY•ENT MEM in stop mode.
DISPLAY
ENT MEM
The CD Player
The CD Player 9

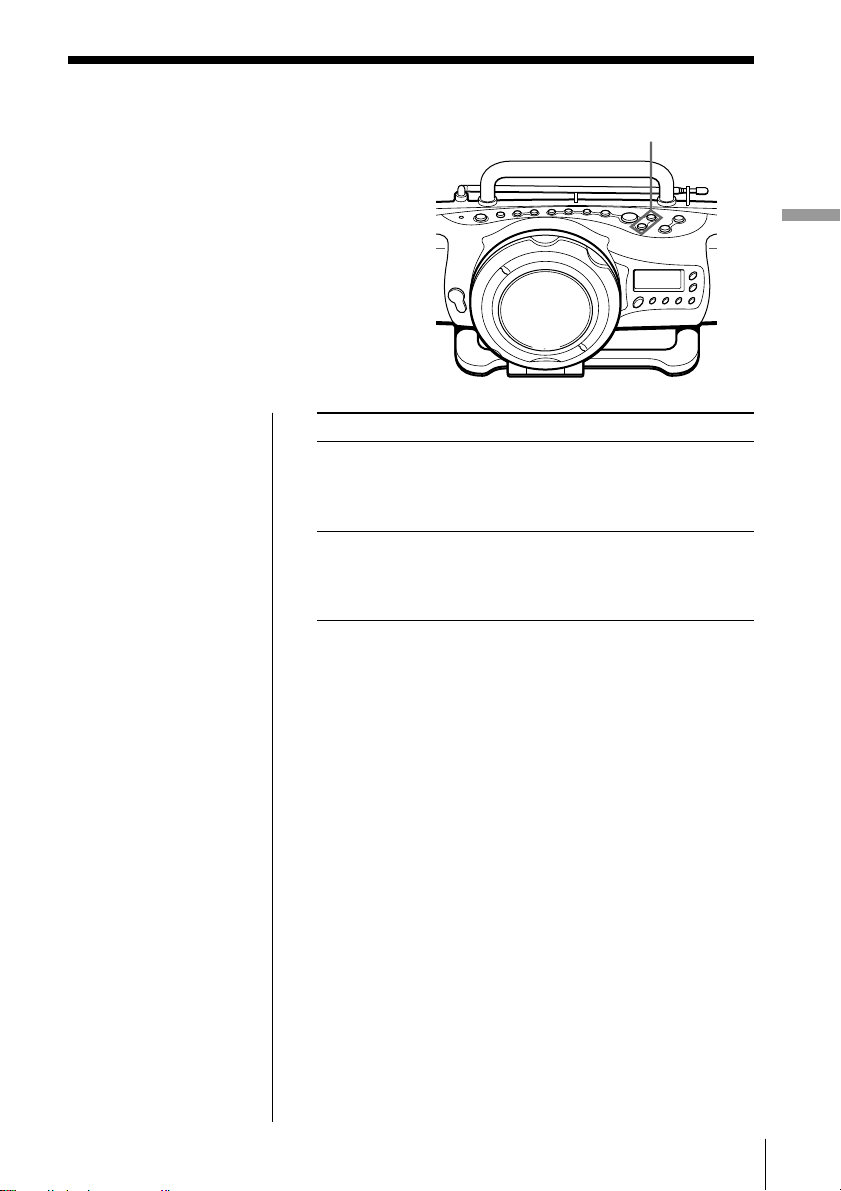

Locating a specific
point in a track
You can quickly find a specific point in
a track while playing a CD.
To locate Press
a point while listening to > (forward) or .
the sound (backward) while playing
and hold down until you
find the point
a point while observing > (forward) or .
the display (backward) in pause and
hold down until you find
the point
., >
The CD Player10

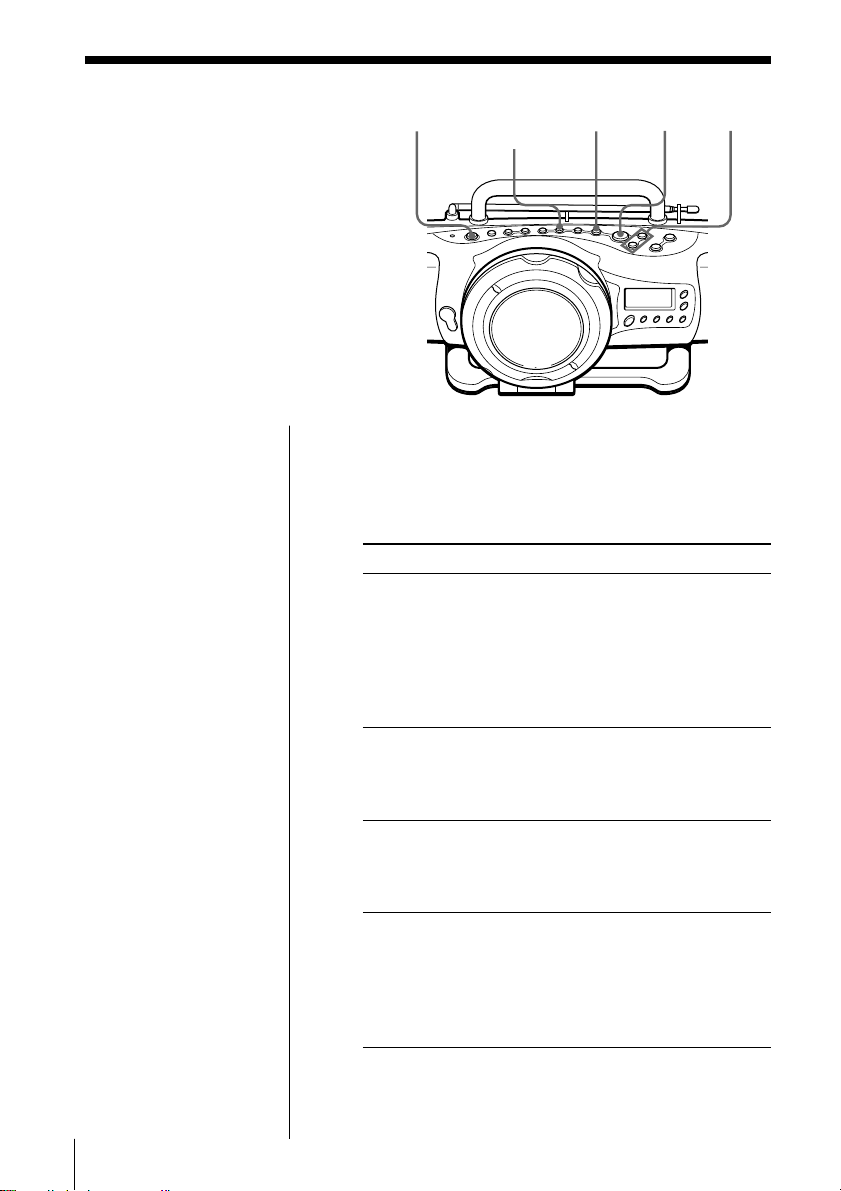

Playing tracks
repeatedly
(Repeat Play)
You can play tracks repeatedly in
normal, shuffle or program play
modes (see pages 11 - 13).
1 Press POWER to turn on the player.
2 Press x.
“Cd” appears in the display.
3 Proceed as follows.
To repeat Do this
a single track 1 Press PLAY MODE•
MONO/ST until “REP 1”
appears.
2 Press . or > to select
the track that you want to
repeat.
3 Press u.
all the tracks 1 Press PLAY MODE•
MONO/ST until “REP
ALL” appears.
2 Press u.
tracks in random order 1 Press PLAY MODE•
MONO/ST until “SHUF
REP” appears.
2 Press u.
programed tracks 1 Press PLAY MODE•
MONO/ST until “PGM
REP” appears.
2 Program tracks (see step 4
on page 12).
3 Press u.
To cancel Repeat Play
Press PLAY MODE•MONO/ST until “REP”
disappears from the display.
POWER x., >u
PLAY MODE
MONO/ST
The CD Player
The CD Player 11
Playing tracks in
random order
(Shuffle Play)
You can play tracks in random order.
1 Press POWER to turn on the player.
2 Press x.
“Cd” appears in the display.
3 Press PLAY MODE•MONO/ST until “SHUF”
appears in the display.
4 Press u to start shuffle play.
To cancel Shuffle Play
Press PLAY MODE•MONO/ST until “SHUF”
disappears from the display.
POWER xu
PLAY MODE
MONO/ST
The CD Player12
1 Press POWER to turn on the player.
2 Press x.
“Cd” appears in the display.

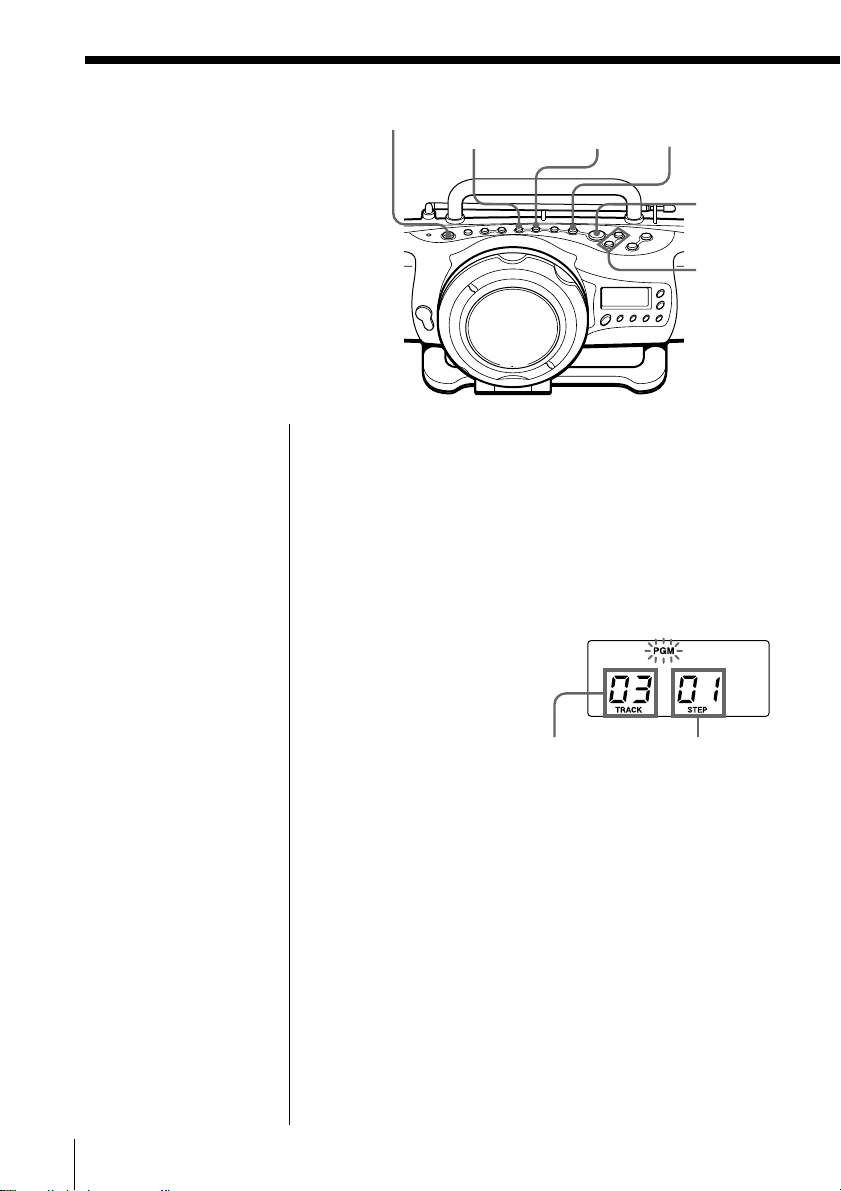

3 Press PLAY MODE•MONO/ST until “PGM”
appears in the display.
4 Press . or > then press DISPLAY•ENT
MEM for the tracks you want to program in the
order you want.
5 Press u to start program play.
Creating your
own program
(Program Play)
You can arrange the playing
order of up to 20 tracks on a
CD.
Programed track Playing order
POWER
., >
x
u
PLAY MODE
MONO/ST
DISPLAY
ENT MEM
The CD Player
The CD Player 13
Tip
You can play the same
program again, since
the program is saved
until you open the CD
compartment.
To cancel Program Play
Press PLAY MODE•MONO/ST until “PGM”
disappears from the display.
To check the order of tracks before play
Press DISPLAY•ENT MEM.
Every time you press the button, the track number
appears in the programed order.
To change the current program
Press x once if the CD is stopped and twice if the CD
is playing. The current program will be erased. Then
create a new program following the programing
procedure.
The CD Player14
1 Press POWER.
2 Press x.
“Cd” appears in the display.
3 Press ESP.
The ESP indication appears in the display.
To cancel the ESP function
Press ESP again.

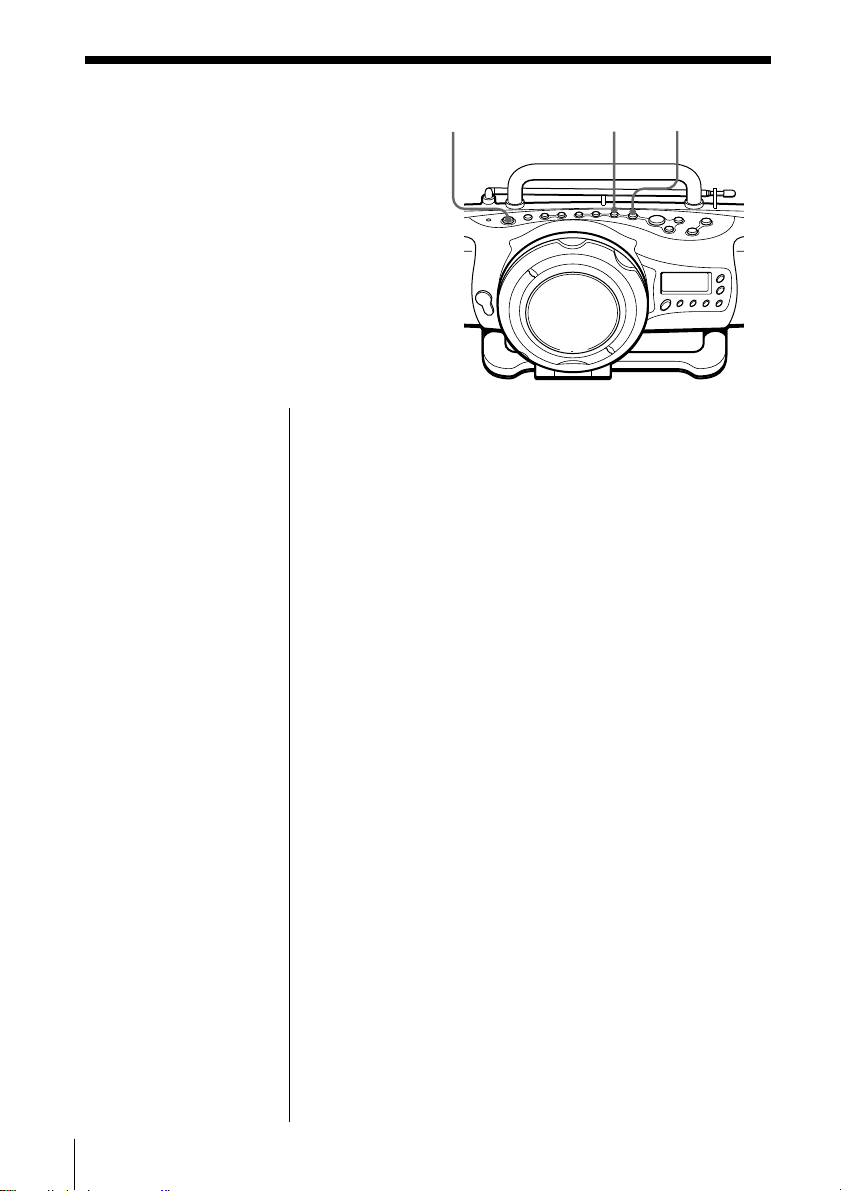

Preventing sound
from skipping
(ESP)
The ESP (Electronic Shock Protection)
function prevents the sound from
skipping by using a buffer memory that
stores music data for about 10 seconds.
Notes
• Playing may stop when
the player gets a strong
shock even with the
ESP function on.
• You may hear a noise
or sound skip:
– when you listen to a
dirty or scratched
CD.
– when you listen to
an audio test CD.
– when the player
receives continuous
shock.
• Sound may drop for a
while if you press ESP
during play.
ESP
POWER x
The Radio
The Radio
15
The Radio
Presetting radio
stations
You can store radio stations into the
player’s memory. You can preset up
to 20 radio stations, 10 for each band
in any order.

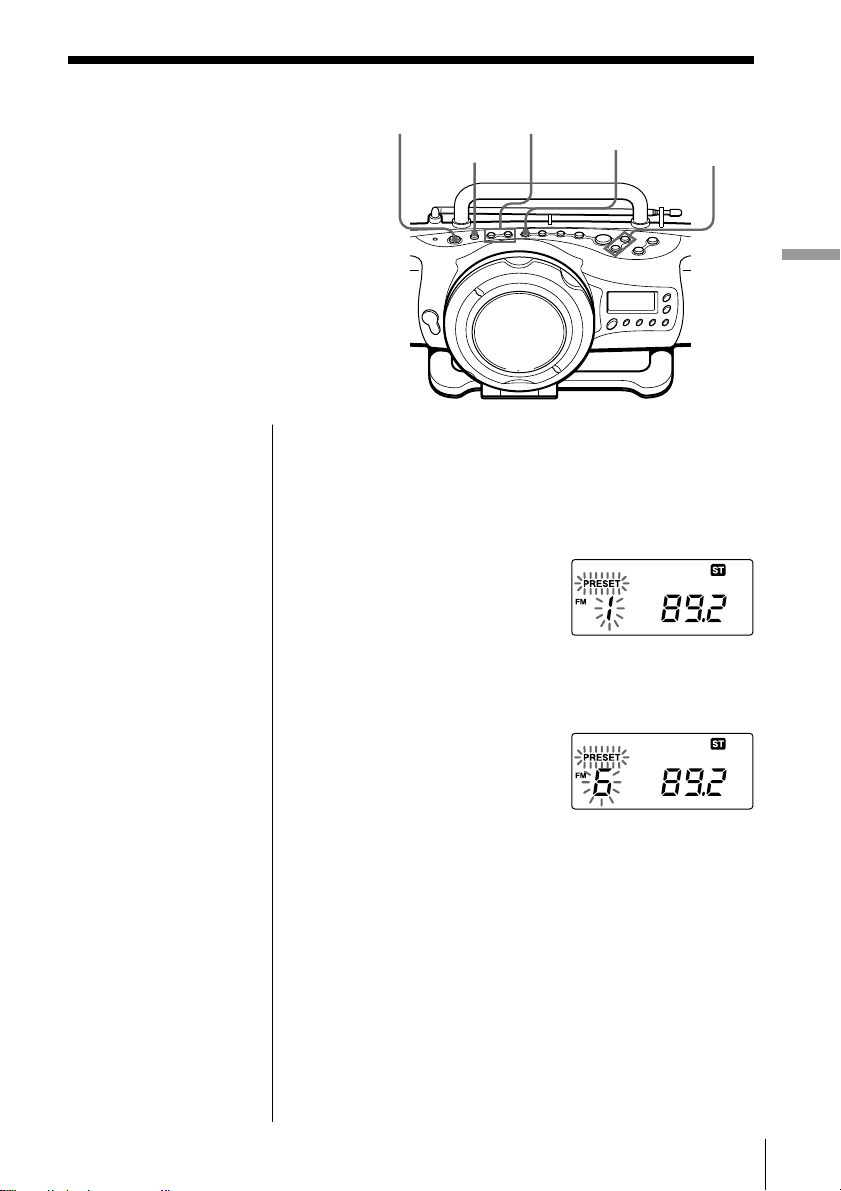

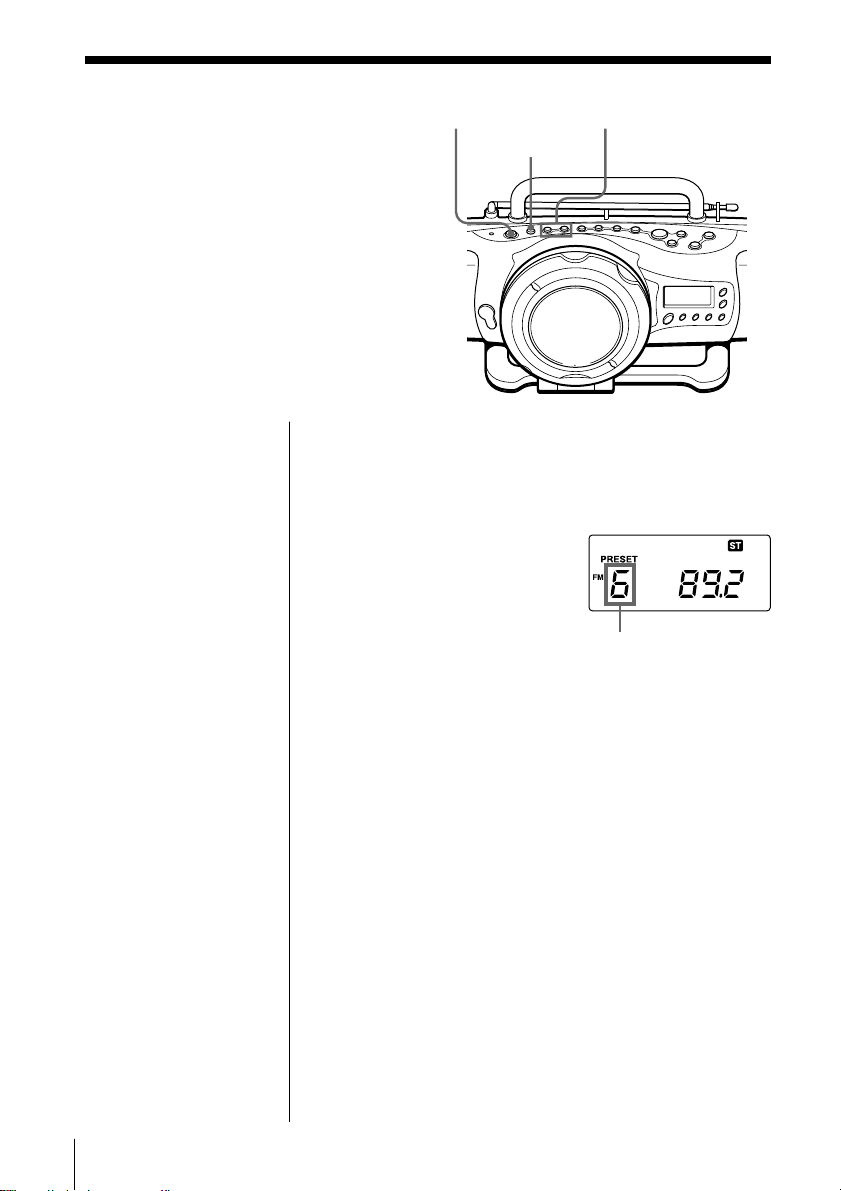

1 Press POWER to turn on the player.
2 Press BAND to select the band.
3 Tune in a station you want.
4 Hold down DISPLAY•ENT MEM for 2 seconds.
5 Press PRESET + or – until the preset number (1 to
10) you want for the station flashes.
6 Press DISPLAY•ENT MEM.
The new station replaces the old one.
PRESET –, +
BAND
POWER
TUNING
TIME SET
–, +
DISPLAY
ENT MEM
The Radio16
Playing preset
radio stations
Once you've preset the stations, use
PRESET + or – to tune in your favorite
stations.
1 Press POWER to turn on the player.
2 Press BAND to select the band.
3 Press PRESET + or – to tune in the stored station.
PRESET –, +
BAND
POWER
Preset number
The Timer 17
The Timer
Before you set the clock, connect the power source (see
page 23).

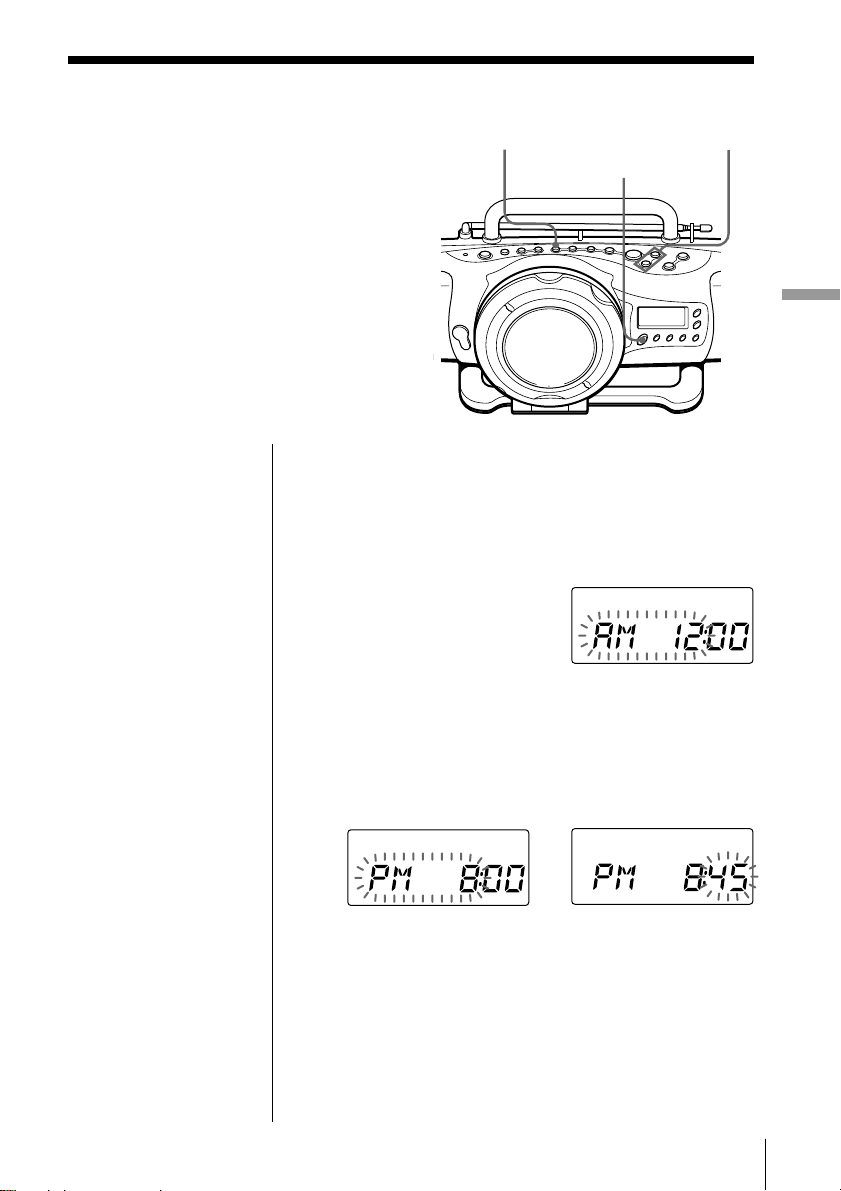

1 Press CLOCK for 2 seconds until the hour digit
flashes.
2 Press TUNING•TIME SET + or – until you set the
current hour. Then press DISPLAY•ENT MEM.
The minute digits flash. Set the minutes by
pressing TUNING•TIME SET + or – until the
correct minute is displayed.
3 Press DISPLAY•ENT MEM.
The clock starts from 00 seconds.
Setting the clock
“– –:– –” indication appears in the
display until you set the clock.
The Timer
Tip
The time display
system:
12-hour system
AM 12:00 = midnight
PM 12:00 = noon
,
DISPLAY
ENT MEM
CLOCK
TUNING
TIME SET
–, +
The Timer18

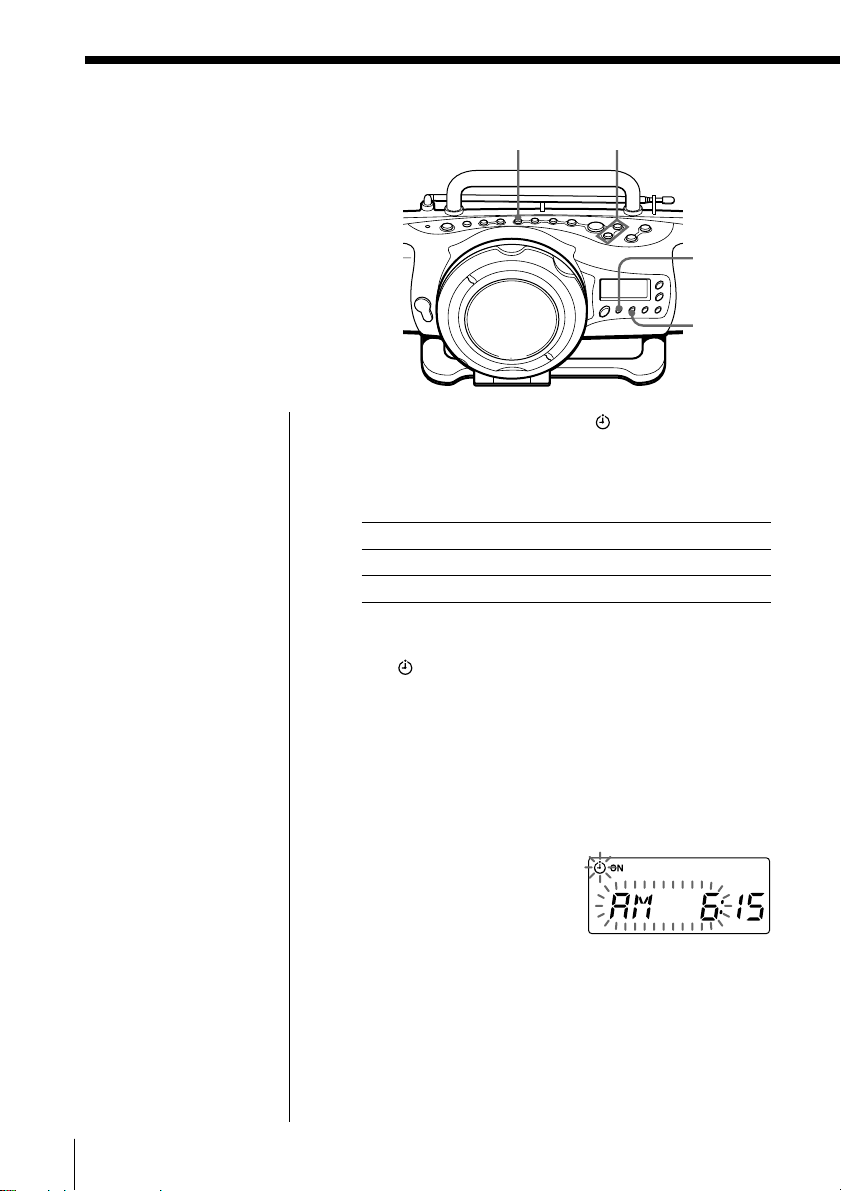

Waking up to
music
You can wake up to music or a radio
program at a preset time. Make sure
you have set the clock (see “Setting
the clock” on page 17).
Before you begin, make sure the
(clock) indication is
not lit in the display. If it is lit, press STANDBY.
1 Prepare the music source you want to play.
To play Do this
the radio Tune in a station
a CD Insert a CD
2 Press TIMER.
The (clock) and the music source (“Cd” or
“RAdIO”) flash.
3 Select the music source (“Cd” or “RAdIO”) by
pressing TUNING•TIME SET + or –, then
DISPLAY•ENT MEM.
4 Set the timer to the hour you want the music to
start by pressing TUNING•TIME SET + or –, then
DISPLAY•ENT MEM.
Set the minutes, then press DISPLAY•ENT MEM.
STANDBY
TIMER
TUNING
TIME SET
–, +
DISPLAY
ENT MEM

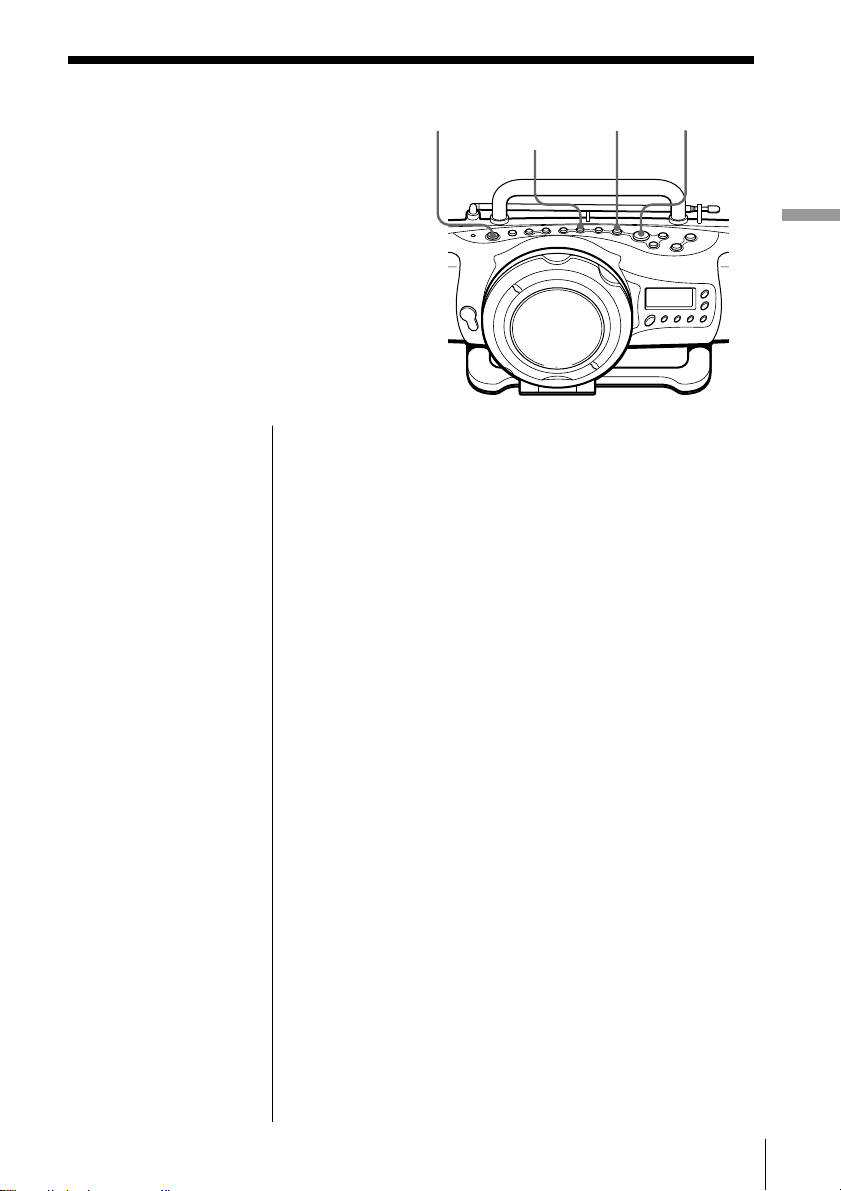

The Timer 19
The Timer
5 Press TUNING•TIME SET + or – to set the
volume, then press DISPLAY•ENT MEM.
6 Press STANDBY.
The
indication lights up and the power goes off.
At the preset time, the power will go on, and the
music will play. Then the power will go off 2 hours
after the preset time, and the player will enter into
the standby mode.
To check/change when the playback will start
Press TIMER, then DISPLAY•ENT MEM. Each time
you press DISPLAY•ENT MEM, a stored setting is
displayed in the set order. To change the setting,
display the setting you want to change and re-enter it.
To use the player before a timer playback starts
Just turn on the player, and then you can use it.
If you turn off the player before the preset time, timer
playback will start at the preset time.
In case of the radio, however, if you listen to the
station which is different from the one you tuned in
in step 1 on page 18, you will hear that station at the
preset time. Make sure to tune in the station you want
to listen to before you turn off the player.
To stop play
Press POWER to turn off the power.
Tips
• To exit the standby
mode, press STANDBY
to make disappear
from the display.
• The preset settings
remain until you reset
them.
The Timer20

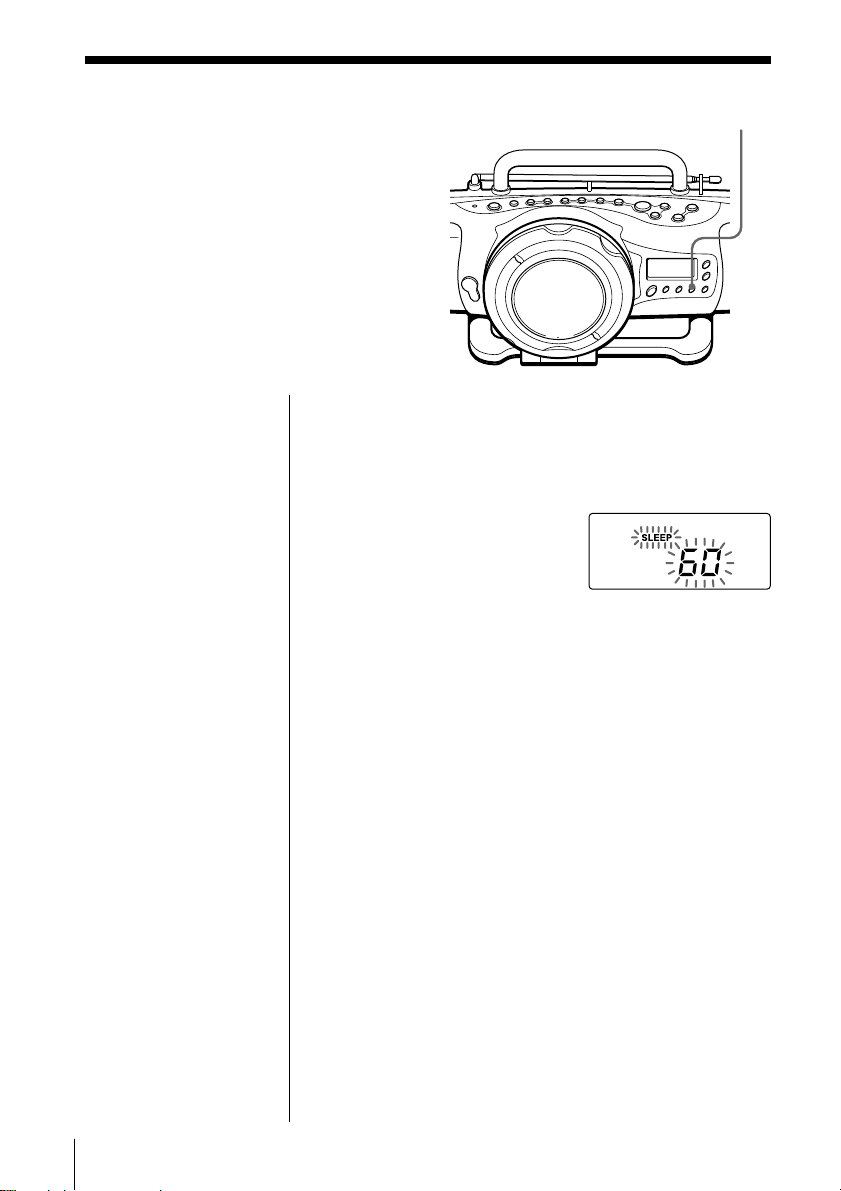

Falling asleep to
music
You can set the player to turn off
automatically after 10, 20, 30, 60, 90, and
120 minutes, allowing you to fall asleep
while listening to music.
Tips
• You can fall asleep and
wake up to different
music. Set the waking
up timer first (see page
18), turn on the power,
and then set the
sleeping timer.
However, you cannot
store different radio
stations.
• You can set different
volume for the waking
up timer and the
sleeping timer. For
instance, you can sleep
at lower volume and
wake up at higher
volume.
1 Play the music source you want.
2 Press SLEEP to display “SLEEP.”
3 Press SLEEP to select the minutes until the player
goes off automatically.
Each time you press the
button, the indication
changes as follows:
“60” t “90” t “120” t
no indication t “10” t
“20” t “30.”
To cancel the sleep function
Press POWER to turn off the power.
SLEEP
The Timer 21
The Timer

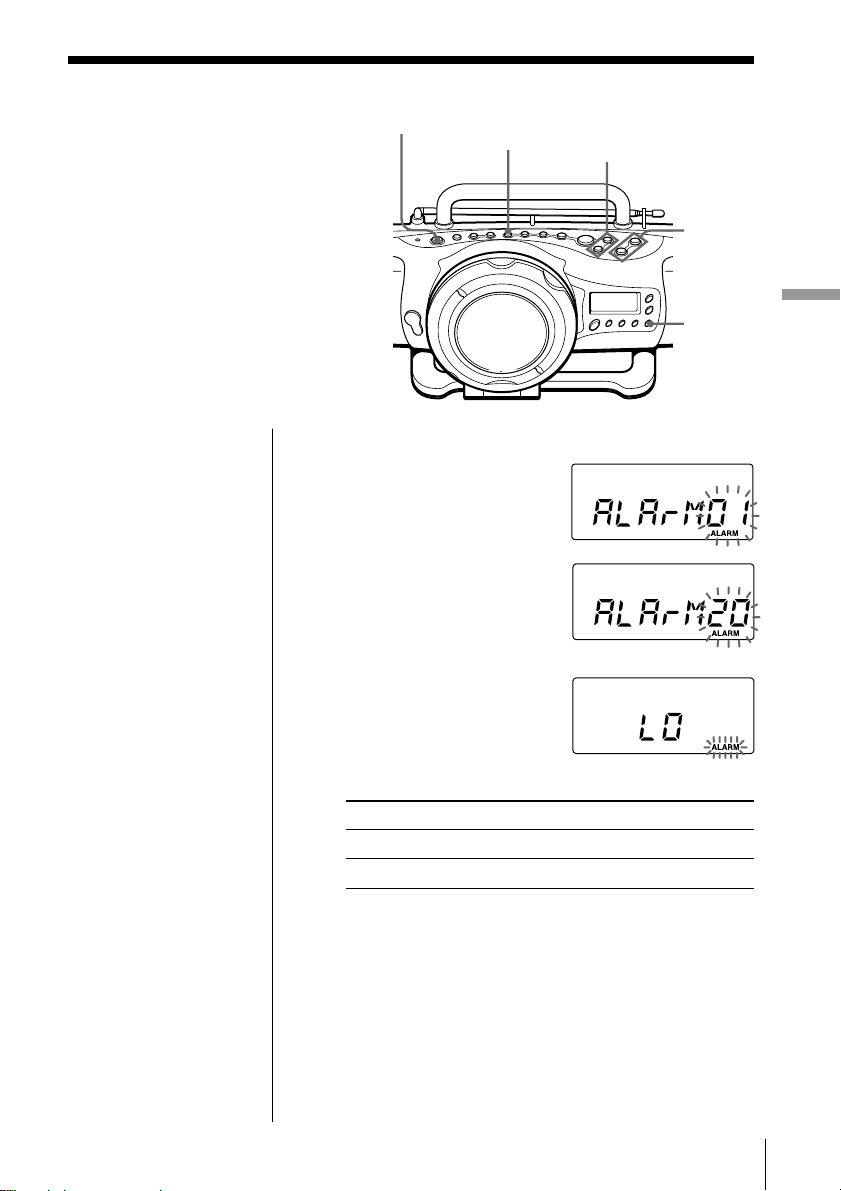

Using the
countdown
timer
You can set the player to sound beep
after a preset period of time, which is
useful as a kitchen timer, etc.
1 Press POWER to turn on the player.
2 Press ALARM.
The time display flashes.
3 Press TUNING•TIME
SET + or – to display the
time (1 to 60 minutes) for
the alarm.
4 Press VOL + or – to
select the volume of
the alarm.
The alarm sounds at
the selected volume.
Indication Volume
LO low
HI high
5 Press DISPLAY•ENT MEM to turn on the
countdown timer.
After the preset period of time, the alarm will
sound for about 1 minute.
To stop the alarm
Press any button on the player.
ALARM
VOL –, +
POWER
DISPLAY
ENT MEM
TUNING
TIME SET
+, –
Setting Up22
Setting Up
Preparing the
power sources
You can use the AC power, batteries
or the car battery as a power source.
1 Inserting the back-up batteries
Insert three size AA (R6) batteries (not supplied) into
the battery compartment. These batteries work to save
the memory data.
24 DC IN 10.6 – 12 V
Tip
When you operate the
player on batteries,
replace the back-up
batteries when the time
display dims or when
you cannot operate the
timer. Replace all the
batteries with new
ones. With normal use,
the batteries should last
for about 6 months. To
save the memory data,
replace the batteries
with the AC power
adaptor connected.
Replacing batteries
Take out the batteries as illustrated.
13 Battery compartment
Setting Up 23
Setting Up
2 Connecting the AC power adaptor
Insert one end of the supplied AC power adaptor (AC-
E700) to the DC IN 10.6 – 12 V socket located on the
side of the player, and the other end to the wall outlet.
3 Using the player on batteries
Insert 6 size D (R20) batteries (not supplied) into the
battery compartment.
To use the player on batteries, disconnect the AC
power adaptor from the player.
to a wall outlet
DC IN 10.6 – 12 V
Tip
Replace the batteries
when the OPR/BATT
indicator dims or when
the player stops
operating. Replace all
the batteries with new
ones.
Note
Use only the supplied
AC power adaptor
(AC-E700). Do not use
any other AC power
adaptor.
Polarity of the plug
continued
Setting Up24

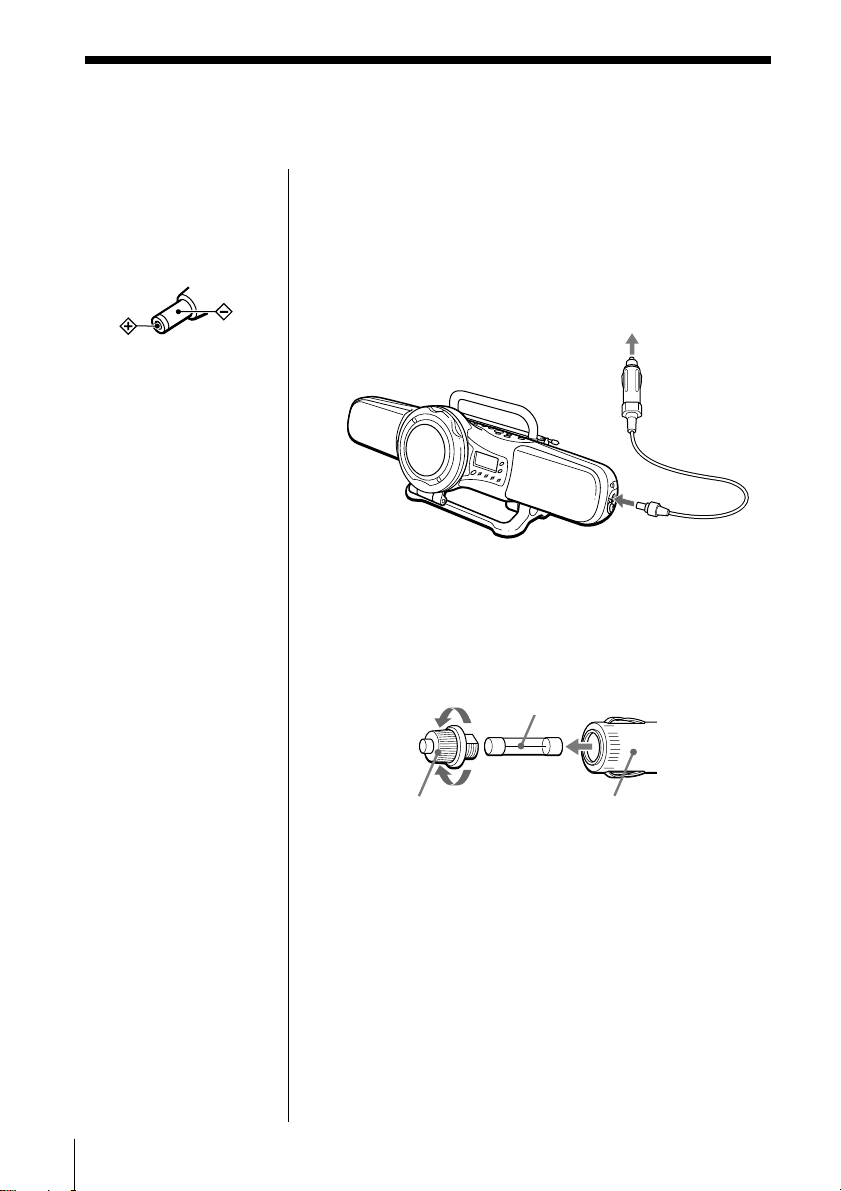

4 Using the player on car battery
Insert one end of the supplied car battery cord (DCC-
EC12) to the DC IN 10.6 – 12 V socket located on the
side of the player, and the other end to a cigarette
lighter socket.
To replace the fuse of the car battery cord
Be sure to use the fuse with the correct amperage.
(4 A, 125 V, length 31.75 mm)
Notes
• Use only the supplied
car battery cord (DCC-
EC12). Do not use any
other car battery cord.
Polarity of the plug
• Use the supplied car
battery cord only with
a negative # grounded
car that uses a 12 V
battery.
• If the inside of the
cigarette lighter socket
is dirty with ashes, etc.,
the plug of the car
battery cord may
become heated due to a
bad contact. Before
connecting the cord, be
sure to clean the socket.
• When listening to the
radio on this player, the
car battery cord may
cause noise. Extend it
as long as possible, and
keep it as far away as
possible from the
player.
to a cigarette lighter socket
DC IN 10.6 – 12 V
Remove
Plug end
Tighten
Cigarette lighter plug
Fuse
Preparing the power sources (continued)
Setting Up 25
Setting Up

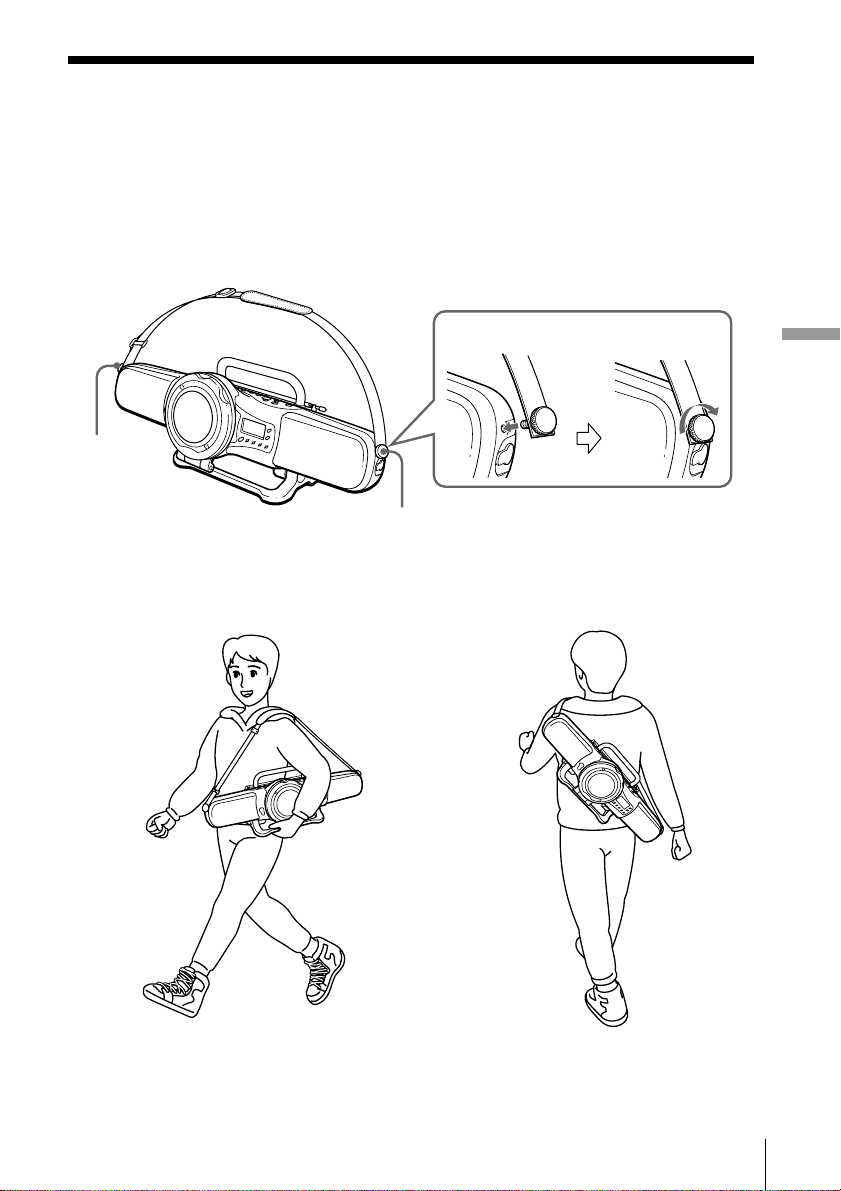

Using the shoulder strap
You can carry your player safely using the supplied shoulder strap.
Attaching the supplied shoulder strap
Attach the shoulder strap using the screws (supplied).
Carrying your player using the shoulder strap
Tighten the screw securely.
Screw
Screw
Note
If you carry the player during play, sound may skip.
Setting Up26
Selecting the sound characteristic
Press SOUND repeatedly to select the audio emphasis
you want.
Choose To get
ROCK powerful, clean sounds, emphasizing
low and high range audio
POP light, bright sounds emphasizing
high and middle range audio
JAZZ clear bass audio and powerful
sounds of instruments such as piano
or guitar
VOCAL the presence of vocals, stressing
middle range audio
OFF the whole dynamic range for music
such as classical music
Reinforcing the bass sound
Press MEGA BASS.
”MEGA BASS” appears in the display.
To return to normal sound, press the button again.

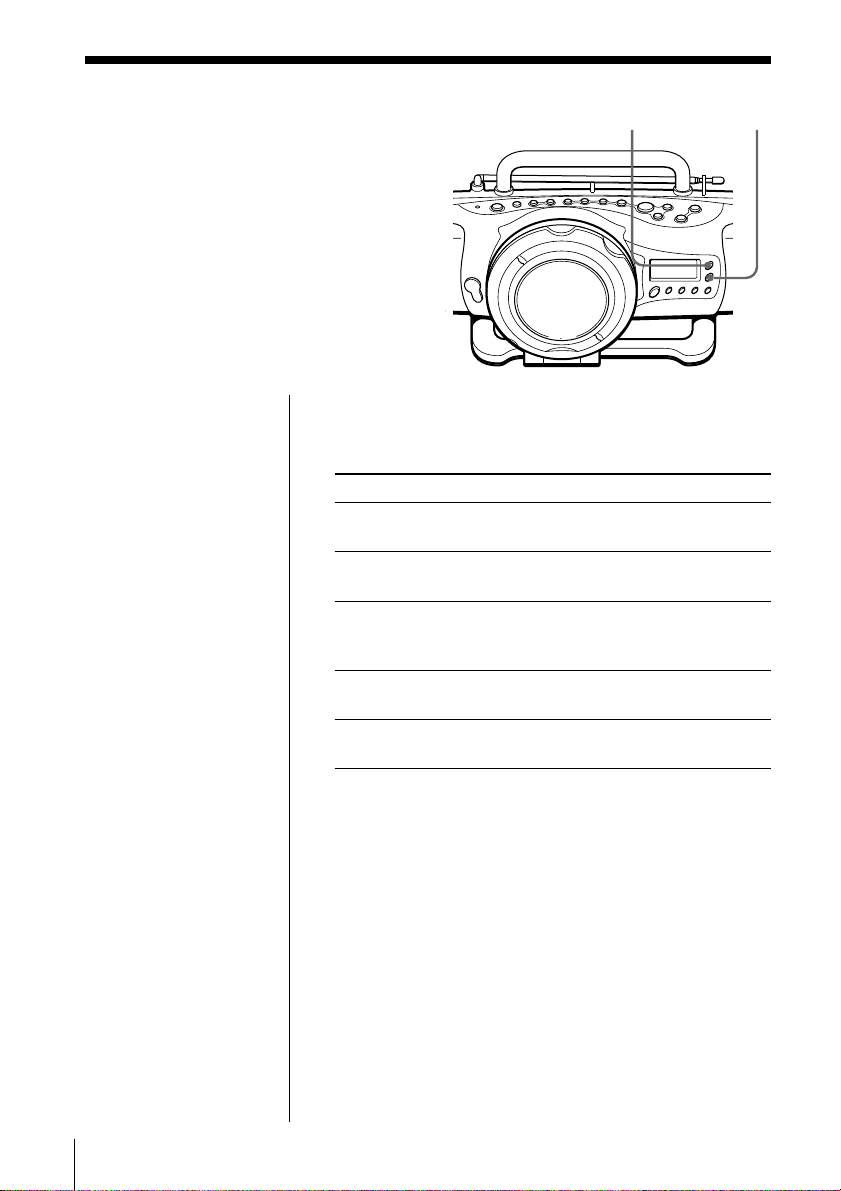

Selecting the
audio emphasis
(SOUND/MEGA BASS)
You can adjust the audio emphasis of
the sound you are listening to.
MEGA BASSSOUND
Additional Information 27
Precautions
Additional Information
On safety
• As the laser beam used in the CD
player section is harmful to the eyes,
do not attempt to disassemble the
casing. Refer servicing to qualified
personnel only.
• Should any solid object or liquid fall
into the player, unplug the player, and
have it checked by qualified personnel
before operating it any further.
On power sources
• For AC operation, use the supplied
AC power adaptor (AC-E700); do not
use any other type.
• The player is not disconnected from
the AC power source (mains) as long
as it is connected to the wall outlet,
even if the player itself has been
turned off.
• Unplug the player from the wall outlet
when it is not be used for an extended
period of time.
• For battery operation, use six size D
(R20) batteries.
• When the batteries are not to be used,
remove them to avoid damage that
can be caused by battery leakage or
corrosion.
• For car battery operation, use the
supplied car battery cord (DCC-EC12);
do not use any other cord.
• The nameplate indicating operating
voltage, power consumption, etc. is
located at the bottom.
On placement
• Do not leave the player in a location
near heat sources, or in a place subject
to direct sunlight, excessive dust or
mechanical shock.
• Do not place the player on an inclined
or unstable place.
• Do not place anything within 10 mm
of the side of the cabinet. The
ventilation holes must be
unobstructed for the player to operate
properly and prolong the life of its
components.
• If the player is left in a car parked in
the sun, be sure to choose a location in
the car where the player will not be
subjected to the direct rays of the sun.
• Since a strong magnet is used for the
speakers, keep personal credit cards
using magnetic coding or spring-
wound watches away from the player
to prevent possible damage from the
magnet.
continued
Additional Information28
Notes on CDs
• Before playing, clean the CD with a
cleaning cloth. Wipe the CD from the
center out.
• Do not use solvents such as benzine,
thinner, commercially available
cleaners or anti-static spray intended
for vinyl LPs.
• Do not expose the CD to direct
sunlight or heat sources such as hot
air ducts, nor leave it in a car parked
in direct sunlight as there can be a
considerable rise in temperature
inside the car.
• Do not stick paper or sticker on the
CD, nor scratch the surface of the CD.
• After playing, store the CD in its case.
If there is a scratch, dirt or fingerprints
on the CD, it may cause tracking error.
Do not immerse in water
This product is not meant to be
immersed in water or come in
continuous contact with water.
• Before opening or shutting the CD
compartment or battery compartment
lid, be sure to wipe off water, dust or
sand on the outside of the player.
• Water in the headphones jack may
cause rusting. Cover the jack with the
attached rubber cap when the
headphones is not used.
• If the player is splashed with salt
water, wipe clean with a damp cloth,
then dry with a soft dry cloth. Do not
wash under running water; do not use
soap or detergent; do not dry with an
electric hair dryer.
• The supplied AC power adaptor and
car battery cord are not water
resistant. To prevent shock hazard,
avoid using the player near water
during AC or car battery operation.
On operation
• If the player is brought directly from a
cold to a warm location, or is placed in
a very damp room, moisture may
condense on the lens inside the CD
player section. Should this occur, the
player will not operate properly. In
this case, remove the CD and wait
about an hour for the moisture to
evaporate.
If you have any questions or problems
concerning your player, please consult
your nearest Sony dealer.
Precautions (continued)
Additional Information 29
Troubleshooting
Symptom
The power is not on.
The power is not on, and “bAttErY”
and “CHECK” are displayed
alternately.
There is no audio.
Noise is heard.
“no diSC“ lights in the display even
when a CD is in place.
The CD does not play.
The sound drops out.
Noise is heard
Remedy
• Connect the AC power adaptor to a wall outlet
securely.
• Make sure the batteries are inserted correctly.
• Make sure the batteries are inserted correctly.
• Replace all the batteries with new ones if they
are weak.
• Make sure the function you want to use appears
in the display window.
• Adjust the volume.
• Unplug the headphones when listening through
speakers.
• Someone is using a portable telephone or other
equipment that emits radio waves near the
player. t Move the portable telephone, etc.,
away from the player.
• Place the CD with the label surface facing to
you.
• Place the CD until it clicks into place.
• Make sure that the CD compartment is closed
securely.
• Place the CD until it clicks into place.
• Place the CD with the label surface facing to
you.
• Clean the CD.
• Take out the CD and leave the CD compartment
open for about an hour to dry moisture
condensation.
• Make sure “Cd” appears in the display.
• Reduce the volume.
• Clean the CD, or replace it if the CD is badly
damaged.
• Place the player in a location free from
vibration.
• The sound may drop out or noise may be heard
if the CD is recorded using a personal computer
(CD-R, etc.)
General
CD Player
continued
Additional Information30
Symptom
The audio is weak or has poor
quality.
The picture of your TV becomes
unstable.
The timer does not operate.
Remedy
• Replace all the batteries with new ones if they
are weak.
• Move the player away from the TV.
• If you are listening to an FM program near the
TV with an indoor antenna, move the player
away from the TV.
• Make sure the time on the clock is correct.
• Check to see if the AC power had been cut off.
• Make sure the (clock) indication is displayed.
Timer
The player uses a built-in micro computer for its various operations. Due to change in power
supply conditions, etc., operation may sometimes become unstable. After trying the above
remedies, if the player still does not function properly, press RESET in the battery compartment
with a pointed material. If the problem persists, please consult your nearest Sony dealer.
Radio
Troubleshooting (continued)
RESET
Additional Information 31
Maintenance

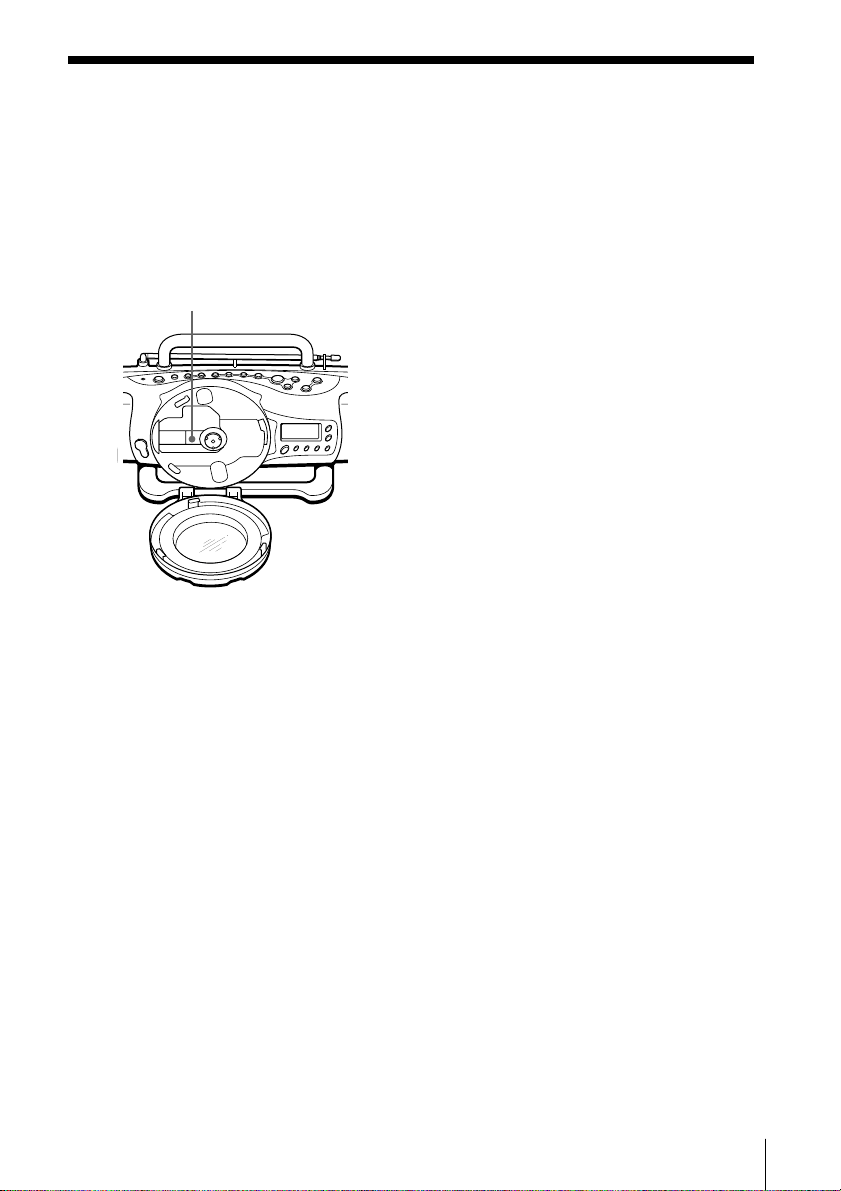

Cleaning the lens
If the lens becomes dirty, it may cause a
skipping of sound during CD operation.
Clean with a commercially available
blower.
Cleaning the cabinet
Clean the cabinet, panel and controls
with a soft cloth slightly moistened with
a mild detergent solution. Do not use
any type of abrasive pad, scouring
powder, or solvent, such as alcohol or
benzine.
Lens
Additional Information32
Specifications
General
Speaker
Full range: 8 cm (3
1
⁄4
inches) dia.,
6 ohms, cone type (2)
Passive radiator: 12 × 6 cm (4
3
⁄4 × 2
3
⁄8 inches)
Outputs
Headphones jack (stereo minijack)
For 16 - 68 ohms impedance headphones
Power output (excluding US model)
4.5 W + 4.5 W (at 6 ohms, 10 % harmonic distortion
in DC operation)
Power requirements
For personal audio system:
DC IN 10.6 – 12 V jack accepts:
Supplied AC power adaptor (AC-E700) for use
with 120 V AC, 60 Hz
Supplied car battery cord (DCC-EC12) for use
with 12 V car battery
9 V DC, 6 size D (R20) batteries
For memory back-up:
4.5 V DC, 3 size AA (R6) batteries
Power consumption
AC 18 W
Battery life
For personal audio system:
FM playing
Sony manganese SUM-1 (N): approx. 10 h
Sony alkaline AM-1 (N): approx. 24 h
CD playback
Sony manganese SUM-1 (N): approx. 1.5 h
Sony alkaline AM-1 (N) : approx. 3.5 h
Dimensions
Approx. 576 × 195 × 183 mm (w/h/d)
(22
3
⁄4 × 7
3
⁄4 × 7
1
⁄4
inches)
(incl. projecting parts)
Mass
Approx. 3.2 kg (7 lb. 1 oz.) (incl. batteries)
Supplied accessories
AC power adaptor AC-E700 (1)
Car battery cord DCC-EC12 (1)
Spare fuse (1)
Shoulder strap (1)
Screws (2)
Design and specifications are subject to change without
notice.
Optional accessories
Sony MDR headphones series
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION
With 6-ohm loads, both channels driven from
100 - 15,000 Hz; rated 2.3 W per channel-
minimum RMS power, with no more than
10 % total harmonic distortion in AC
operation.
Other Specifications
CD player section
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wave length: 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW
(This output is the value measured at a distance of
about 200 mm from the objective lens surface on
the optical pick-up block with 7 mm aperture.)
Spindle speed
200 r/min (rpm) to 500 r/min (rpm) (CLV)
Number of channels
2
Frequency response
20 - 20,000 Hz +0/–0.5 dB
Wow and flutter
Below measurable limit
Radio section
Frequency range
FM: 87.6 - 108 MHz
AM: 530 - 1,710 kHz
Antennas
FM: Telescopic antenna
AM: Built-in ferrite bar antenna
Additional Information 33
Index
A
Alarm 21
Audio emphasis 26
B
Batteries
for player 23
memory back-up 22
C
CD player 8
Cleaning
cabinet 31
lens 31
Connecting AC power
adaptor 23
Countdown timer 21
Creating your own program
12
D, E, F, G, H
Display 8
I, J, K
Improving broadcast
reception 7
L
Listening to the radio 6
Locating a specific point 9
M, N, O
MEGA BASS 26
P, Q
Playing
a CD 4
preset radio stations 16
tracks repeatedly 10
Power sources 22
Preparing power sources 22
Presetting radio stations 15
Program Play 12
R
Radio stations
playing 16
presetting 15
Repeat Play 10
S
Selecting
audio emphasis 26
tracks 5
Setting the clock 17
Setting up 22
Shuffle Play 11
SOUND 26
T
Timer
Falling asleep to music
20
Waking up to music 18
Using the countdown
timer 21
Troubleshooting 29
U, V, W, X, Y, Z
Using
display 8
shouler strap 25
Additional Information34
Additional Information 35
Additional Information36
Sony Corporation Printed in China
