PTC HEATER USER MANUAL
MODEL: KPT-8110AP-R
Thank you for choosing TRUSTECH PTC heater!
This user manual will provide you with valuable information necessary for the proper care and
maintenance of your new product. Please take a few moments to thoroughly read it and start enjoying
your warm winter!
Always here to help you
For any questions or help, please email us: Support@trustechproducts.com
2
INTRODUCTION .
Please take a few minutes to read this manual carefully.
Proper maintenance and operation of this machine can provide better service.
WARNINGS
1. Read ALL instructions before using this unit.
2. CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater yourself.
3. This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided,
use handles when moving this heater.
4. Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and curtains at least 3 feet
from all side of the heater. DO NOT place towels or other objects on the heater.
5. Extreme caution is necessary when any heater is used by or near children or the disabled, or when the
heater is left operating and unattended.
6. DO NOT operate any heater with a damaged cord or plug, after the heater malfunctions, or has been
dropped or damaged in any manner. Return the product to a facility service for examination, electrical or
mechanical adjustment, or repair.
7. This heater is not intended for use in bathrooms, laundry areas, and similar indoor locations. NEVER locate
heater where it may fall into a bathtub or other water container. To protect against electrical hazards, DO
NOT immerse in water or other liquids.
8. DO NOT touch the control panel or plug with a wet hand.
9. DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar coverings.
Arrange cord away from the traffic area and where it will not be tripped over.
10. DO NOT insert or allow foreign objects to enter any opening on the heater as this may cause an electric
shock, fire, or product damage.
11. To prevent a possible fire, DO NOT block the air intakes or exhaust in any manner. DO NOT use on soft
surfaces, like bed, where openings may become blocked.
12. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint, explosive
or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames.
13. Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or
relocatable power tap (outlet/power strip).
14. To avoid fire or shock hazard, plug the unit directly into a 120 V AC electrical outlet.
15. To disconnect the heater, turn controls to OFF, then remove the plug from the outlet. Pull firmly on the
plug, DO NOT unplug by pulling on the cord.
16. Always unplug the unit before moving or cleaning, or whenever the heater is not in use.
17. Use this heater only as described in this manual. Any other use not recommended by the manufacturer
may cause fire, electric shock, or injury to persons. The use of attachments not recommended or sold by
unauthorized dealers may cause hazards.
18. Always use on a dry, level surface.
19. DO NOT use outdoors.
3
20. WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any solid-state speed
control device.
21. DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void
your warranty. The inside of the unit contains no user serviceable parts. Qualified personnel should perform
all servicing only.
22. Connect to properly grounded outlets only.
23. Save these instructions.
. SPECIFICATION . .
Voltage Rating
120 V (60Hz)
Power Consumption
1500W
Unit Size
7.1in. (W)× 7.1 in. (D) × 18.3in. (H)
Unit Weight
6.3lbs
. SAFETY FEATURES .
Tip-Over Protection
This heater is equipped with a tip-over safety feature. Once the heater is tipped over, an internal switch will
automatically shut the heater off. Once the restored an upright position, the heater will reset. To continue
operation, turn on the heater using the supplied remote control or the control panel on the heater.
Overheating Protection
This heater is equipped with an overheat safety feature. When the heaters internal components reach a
certain temperature that could cause overheat and possible fire, the heater will automatically shut off.
WARNING: It is normal for the power cord to feel warm to the touch; however, a loose fit between the
outlet and the plug may cause overheating of the plug. If this occurs, try inserting the plug into a different
outlet. Contact a qualified electrician to inspect the original outlet for damage.
4
. PRODUCT DIAGRAM .
Air Outlet
Control Panel
Swing base
Remote Control
Air Intake
Power Switch
Temp Sensor
5

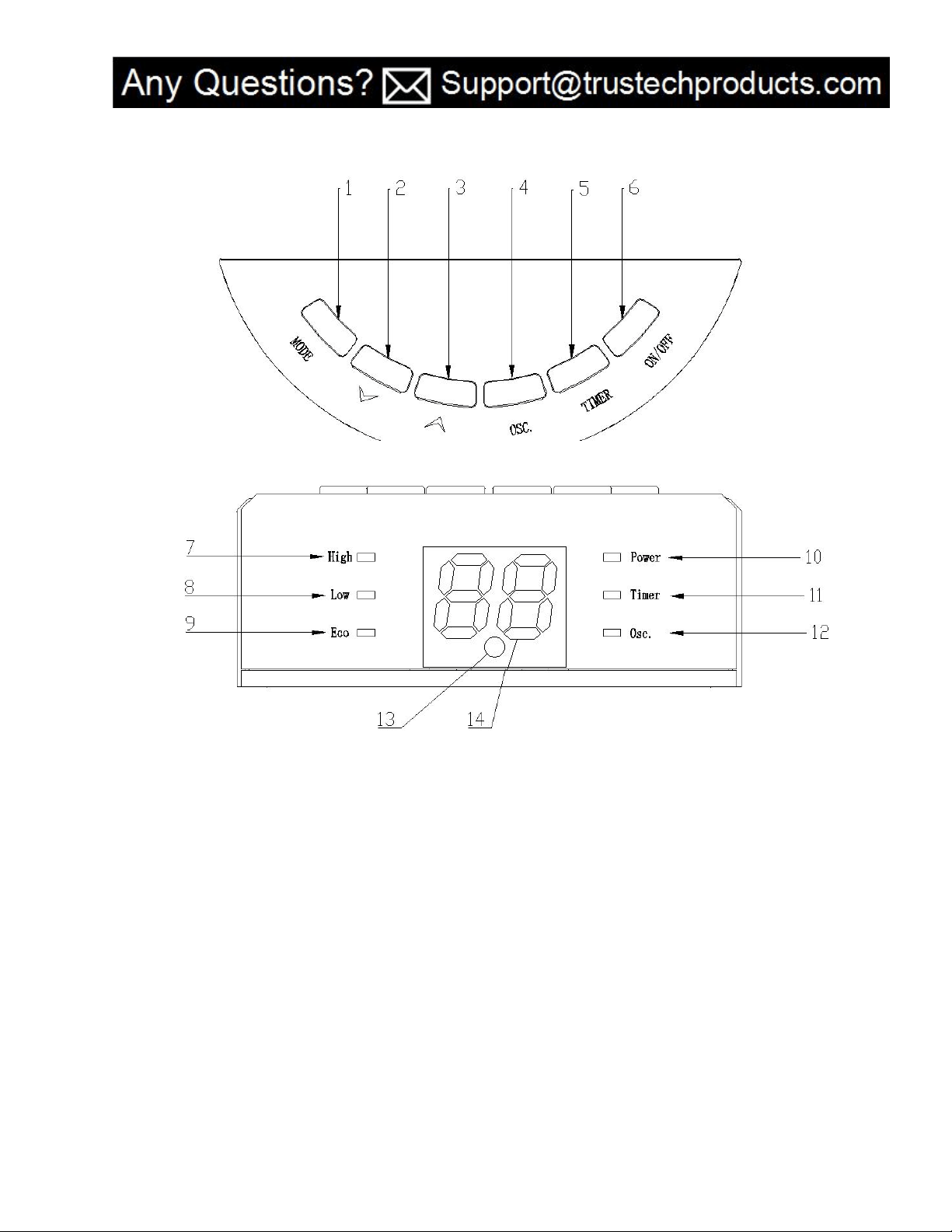

1. Mode button:To select between High, Low and Eco modes.
2. Temp down button: To decrease the desired temperature.
3. Temp up button: To increase the desired temperature.
4. Radiating swing function button.
5. Timer button: Used to engage timer mode and to set hour value for the timer.
6. ON/OFF button: Powers the display on and off.
7. High Mode indicator light: Will be lit when High Heat mode is engaged.
8. Low Mode indicator light: Will be lit when Low Heat mode is engaged.
9. Energy-saving mode indicator: Will be lit when the energy-saving mode is engaged.
10. Power indicator light: Indicates that the heater is receiving power from the outlet. Will flash when
powered “ON”.
11. Timer indication light：Will be lit when the Timer mode is engaged.
12. Radiating swing function indicator.
13. Signal receiving window: For receiving the remote control signal.
14. Digital display: Indicate set room temperature or time.
Control Panel
6
PREPARATION
Place the heater on a firm, level surface, and plug into a grounded 120V 60Hz power outlet. And turn on the
power switch in the rear of the unit. Only operate the heater in an upright position with caster wheels
attached.
Insert 2 AAA batteries into the remote control before using (Batteries Not Included).
Remote Control
OSC.: Radiating swinging function
ON/OFF button: Used for power-on or power-off
Temp up button: to make the set temperature rise
Temp down button: to make set temperature decline
Timer button: Used for setting a timer and adjust time value of timing
Mode button: Used for mode selection
7
. OPERATING INSTRUCTIONS .
1. Start and select working mode
Or
Turn the heater on by pressing the ON/OFF button on the control
panel or by pressing the Power button on the supplied remote
control.
Once power is off, the heating element will stop working at first.
The fan will prolong working for 1 min to emit plenty of heat inside.
Or
Select a heat Mode
Press the MODE button to toggle between the three heat modes.
High Mode uses 1500W; Low Mode uses 750W. ECO mode is an
Economic Energy Saving Function. When ECO mode is chosen, the
heater will manage itself from less to more heating power (watts) in
an attempt to maintain a constant warm 68℉.
2. Setting Desired Temperature
Or
Or
Adjust the desired temperature by pressing the Up/Down arrows
on the control panel or remote control.
Desired temperature options vary from 59
℉
to 86
℉
. Once you
have chosen the desired temperature, the heater will remain on
until the room temperature increases to the temperature on the
digital display. The heater will cycle on and off to maintain the
desired room temperature.
8
3. Setting the POWER OFF TIMER Function
Note: The Power-Off-Timer Function will allow for the heater to power OFF after a certain set time, and can
only be set while the heater
’
s display is in the
“
On
”
position.
Or
Turn the heater to the
“
ON
”
position. Press the Timer button on
the heater’s control panel or the remote.
The digital display changes from the
“
temperature
”
to the
“
hours
”
option for the timer. Continue to press the timer button to change
the number of hours that you would like the heater to run before
powering itself off. The hour options for the timer are from 0 to 12
hrs. (in 1 hr increments).
The selected hour increments will flash for a few seconds, then
revert to the set desired temperature. The Timer indicator light
will remain lit as long as the Timer is set. The heater will power
OFF when the internal heater clock counts down the hour
increments you set.
4. Setting the POWER-ON-TIMER Function
(Note: The Power-ON-Timer Function will allow for the heater to power ON after a certain set time, and can
only be set while the heater’s display is in the “Off” position.)
Or
Turn the heater to the “OFF” position. Press the Timer button on
the heater’s control panel or the remote.
The digital display shows the
“
hours
”
option for the timer.
Continue to press the timer button to change the number of
hours you that would like the heater’s internal clock to count
down before powering itself on. The hour options for the timer
are from 0 to 12 hrs. (in 1 hr increments).
The Timer indicator light will remain lit as long as the Timer is set.
The heater will power itself ON when the internal heater clock
counts down the hour increments you set.
5. Setting electro lock
The Electro Lock can help avoiding the heater from being accidentally engaged by children. The locking
mechanism can be set in both the ON and OFF modes.
9
. MAINTENANCE .
1. Turn off the power switch in the rear of the unit.
2. Unplug the unit and let it cool completely.
3. To keep the heater clean, clean the outer shell with a soft, damp cloth. You may use a mild detergent if
necessary. After cleaning, dry the unit with a soft cloth. CAUTION: DO NOT let the liquid enter the heater.
4. DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the heater.
These may cause damage or deterioration to the surface of the heater.
5. DO NOT immerse the heater in water.
6. Wait until the unit is completely dry before use.
7. The Air filter needs cleaning after used 3 months of use. Please take off the filter with the 2 steps in the
drawing below. Flush and clean the filter with water, Then, dry it out and reassemble.
And
Press Temp Up and Temp Down buttons at the same time for 3
seconds. Locking is completed when you hear a beep. When locked,
the functions of the control panel and remote will be locked for
use.
And
When you need to unlock it, press Temp Up and Temp Down
buttons at the same time for 3 seconds. You will hear a beep. The
control panel and remote control will become functional again.
10
8. If you do not use the device for a long period, put back the unit and the instruction manual to the original
carton and store in a dry and ventilated place.
. TROUBLESHOOTING .
If the heater does not operate, please check it according to the following steps before seeking repair advice:
1. Check if the power cord is plugged into an electrical outlet, if not, plug in.
2. Check if electricity to the main power switch (in the back) is working.
3. Check if the battery on the remote is placed correctly, undamaged.
NOTE: For the heater to function properly, the desired temperature on the heater must be set a few degrees
higher than the temperature in the room. If the seems to not be heating, increase the desired temperature
on the heater to engage the heat elements.
. STORAGE .
Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the original
packaging to repack the unit.
. WARRANTY ...
TRUSTECH warrants this product against defects in materials and/or workmanship under normal use for ONE
(1) YEAR from the date of purchase by the original purchaser (“Warranty Period”). If a defect arises and a
valid claim is received within the Warranty Period, at its option, TRUSTECH will either 1) repair the defect at
no charge, using new or refurbished replacement parts, or 2) replace the product with a new product that is
at least functionally equivalent to the original product, or provide a store credit in the amount of the
purchase price of the original product. A replacement product or part, including a user-installable part
installed in accordance with instructions provided by TRUSTECH, assumes the remaining warranty of the
original product. When a product or part is exchanged, any replacement item becomes your property, and
the replaced item becomes TRUSTECH’ s property. When a store credit is given, the original product must be
returned to TRUSTECH and becomes TRUSTECH
’
s property. To obtain warranty service, e-mail TRUSTECH
Limited Warranty Service at Support@trustechproducts.com. Please be prepared to describe the product
that needs service and the nature of the problem.
PUSH
lid
Battery
11
This warranty does not apply to:
1. damage caused by failure to follow instructions relating to product
’
s use or the installation of components;
2. damage caused by accident, abuse, misuse, fire, floods, earthquake or other external causes ;
3. damage caused by service performed by anyone who is not a representative of TRUSTECH ;
4. accessories used in conjunction with a covered product ;
5. a product or part that has been modified to alter functionality or capability ;
6. items intended to be periodically replaced by the purchaser during the normal life of the product including,
without limitation, batteries or light bulbs ;
7. any product sold “as is” including, without limitation, floor demonstration models and refurbished
items ;
8. a product that is used commercially or for a commercial purpose.
. CONTACT US .
Thank you for choosing TRUSTECH product.
For any customer product questions or honor your warranty, please write to
Support@trustechproducts.com. Our usual response time is within 12 hours!
