2003 Sony Corporation
KE-37XS910
KE-42XS910
KE-50XS910
Flat Panel Color TV
Operating Instructions
4-097-685-13 (1)
Flat Panel Color TV KE-37XS910/KE-42XS910/KE-50XS910
Printed in Japan
Printed on 100% recycled paper.
1
WARNING
To reduce the risk of fire or shock hazard, do not expose the TV to rain or
moisture.
This symbol is intended to alert the user to the presence
of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to the presence
of important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
CAUTION
To prevent electric shock, do not use this polarized AC plug with an
extension cord, receptacle or other outlet unless the blades can be fully
inserted to prevent blade exposure.
Owner’s Record
The model and serial numbers are located at the rear of the TV, below the
Sony logo, on the sticker, and also on the TV box (white label). Record
these numbers in the spaces provided below. Refer to them whenever you
call upon your Sony dealer regarding this product.
Model No.________________________________
Serial No. ________________________________
Note on Caption Vision
This television receiver provides display of television closed captioning in
accordance with §15.119 of the FCC rules.

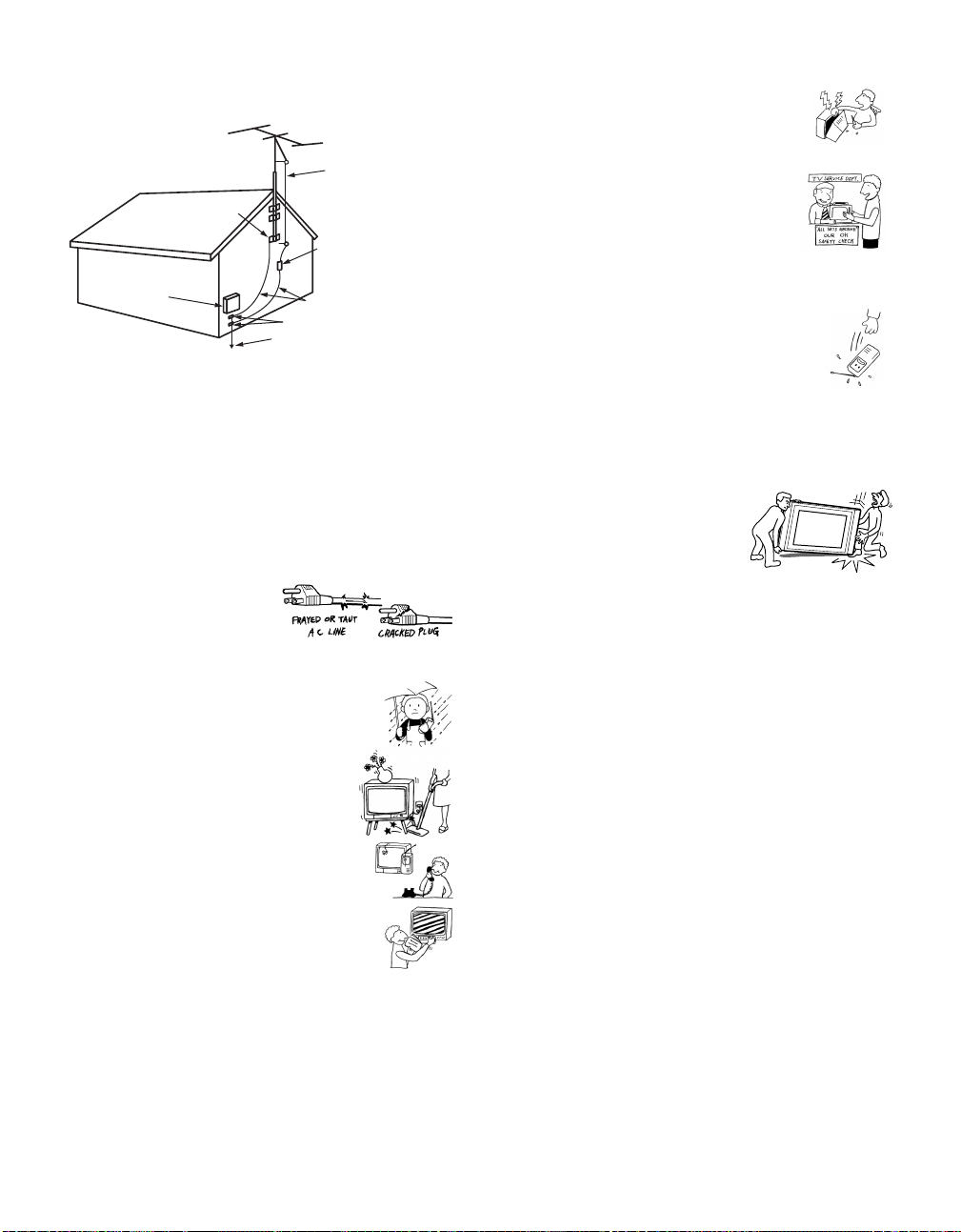

Note to CATV System Installer
This reminder is provided to call the CATV system installer’s attention to
Article 820-40 of the National Electrical Code (NEC) that provides
guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close
to the point of cable entry as practical.
Use of this television receiver for other than private viewing of programs
broadcast on UHF or VHF or transmitted by cable companies for the use
of the general public may require authorization from the broadcaster/cable
company and/or program owner.
NOTIFICATION
This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference with radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
s Reorient or relocate the receiving antennas.
s Increase the separation between the equipment and receiver.
s Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
s Consult the dealer or an experienced radio/TV technician for help.
Safety
s Operate the TV only on 120 V AC.
s The plug is designed, for safety purposes, to fit into the wall outlet
only one way. If you are unable to insert the plug fully into the outlet,
contact your dealer.
s If any liquid or solid object should fall inside the cabinet, unplug the
TV immediately and have it checked by qualified service personnel
before operating it further.
s If you will not be using the TV for several days, disconnect the
power by pulling the plug itself. Never pull on the cord.
s For details concerning safety precautions, see “Important
Safeguards” on page 3.
Important Notice
s When used at an altitude of greater than 2300 m or 7546 feet (air
pressure less than 760 hPa), this Plasma Display Panel may generate
a low buzzing sound as a result of the difference between the interior
and exterior air pressure of the panels. This is not considered a defect
and is not covered under by the Limited Warranty.
CAUTION
When using TV games, computers, and similar products with your TV,
or viewing a TV station whose logo always stays on the screen, keep
the brightness and contrast functions at low settings. If a fixed
(non-moving) pattern such as a station logo is left on the screen for
long periods of time, especially at a high brightness or contrast setting,
the image can be permanently imprinted onto the screen. These types
of imprints are not covered by your warranty.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
ATTENTION
CAUTION
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
NO ABRIR
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.
2

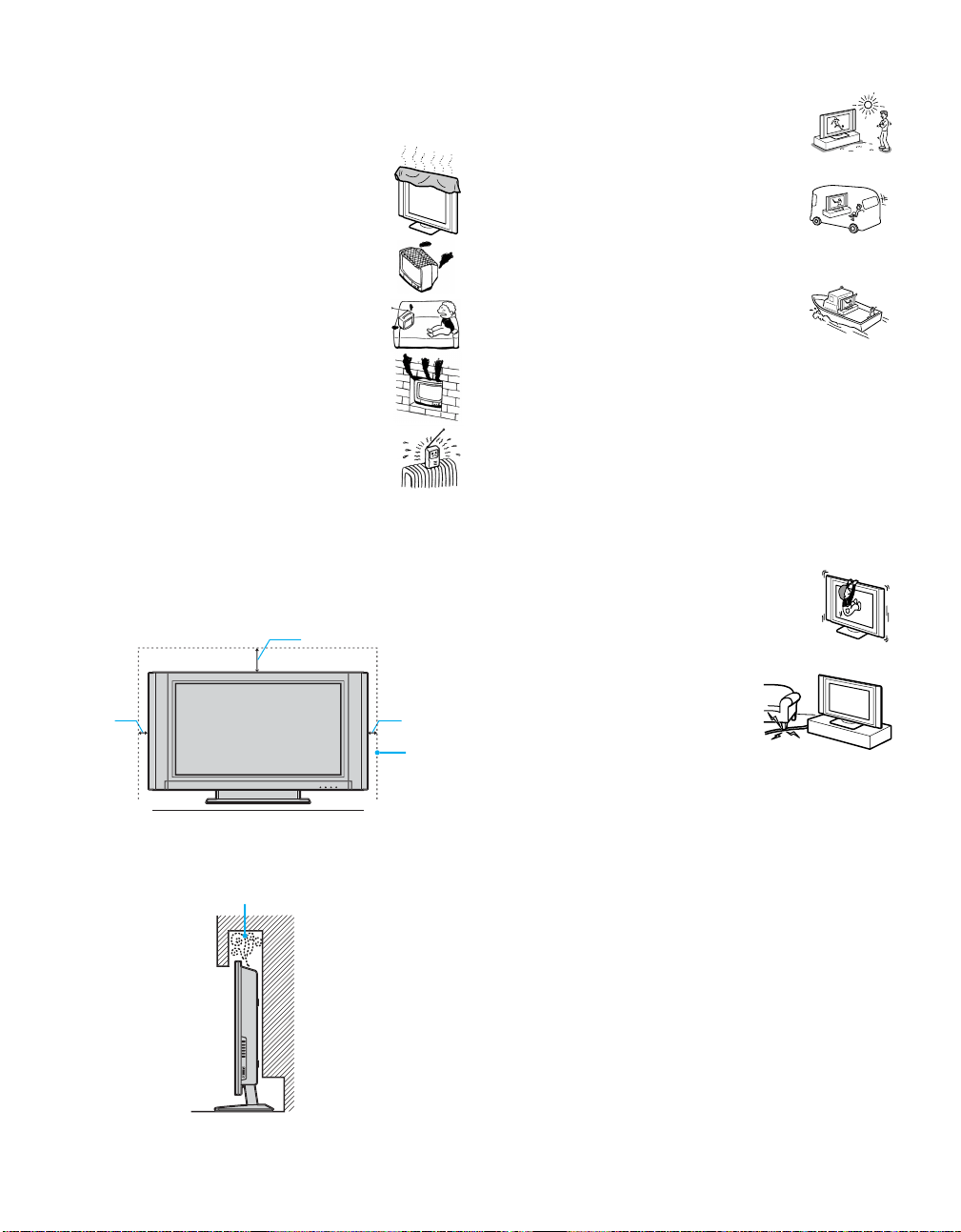

Installing
s To prevent internal heat buildup, do not block the ventilation
openings.
s Do not install the TV in a hot or humid place, or in a place subject to
excessive dust or mechanical vibration.
s Avoid operating the TV at temperatures below 5°C (41°F).
s If the TV is transported directly from a cold to a warm location, or if
the room temperature changes suddenly, the picture may be blurred
or show poor color due to moisture condensation. In this case, please
wait a few hours to let the moisture evaporate before turning on the
TV.
s To obtain the best picture, do not expose the screen to direct
illumination or direct sunlight. It is recommended to use spot
lighting directed down from the ceiling or to cover the windows that
face the screen with opaque drapery. It is desirable to install the TV
in a room where the floor and walls are not of a reflective material.
E
NERGY
S
TAR
®
is a U.S. registered mark.
CAUTION
The following SONY appliance(s) for use only with the following TV
STAND or WALL-HANGING RACK UNIT. Use with other TV STAND
or WALL-HANGING RACK UNIT is capable of resulting in instability
causing possible injury.
SONY APPLIANCE MODEL NO.
KE-37XS910
KE-42XS910
KE-50XS910
SONY WALL MOUNT BRACKET MODEL NO.
SU-PW2
SONY FLOATING STAND MODEL NO.
SU-PF2
To Customers
Sufficient expertise is required for installing the specified product. Be sure
to subcontract the installation to Sony dealers or contractors and pay
adequate attention to safety during the installation.
Trademark Information
TruSurround, SRS and the symbol are trademarks of SRS Labs, Inc.
TruSurround technology is incorporated under license from SRS Labs, Inc.
BBE and BBE Symbol are trademarks of BBE Sound, Inc. and are licensed
by BBE Sound, Inc. under U.S. Patent No. 4,638,258 and 4,482,866.
Steady Sound, Digital Reality Creation, Caption Vision, CineMotion,
Memory Stick, and Twin View are registered trademarks of Sony
Corporation. ClearEdge VM, HD Detailer, and Uniform Brightness Screen
are trademarks of Sony Corporation.
CAUTION
How to reduce the risk of “Image Retention” on your TV
Bright, stationary images such as TV station logos displayed on your
TV can cause permanent damage to your TV, resulting in retention of
the image in the picture. Please take the following steps to reduce the
risk of causing image retention:
View a variety of program sources or programming material.
Image retention can occur when bright stationary images such as TV
station logos are viewed. Changing the program material viewed
reduces the possibility that a single image will become imprinted on
the picture tubes in your TV.
When viewing programs with stationary images, adjust the picture
setting to reduce the “Picture” and “Brightness” levels. Image
retention is accelerated by higher “Brightness” and higher “Picture”
settings.
Please see page 84 for instructions on adjusting picture settings.
This will help you reduce the risk of causing image retention.
IMAGE RETENTION IS NOT COVERED BY YOUR WARRANTY
As an E
NERGY
S
TAR
®
Partner, Sony
Corporation has determined that this product
meets the E
NERGY
S
TAR
®
guidelines for
energy efficiency.
3

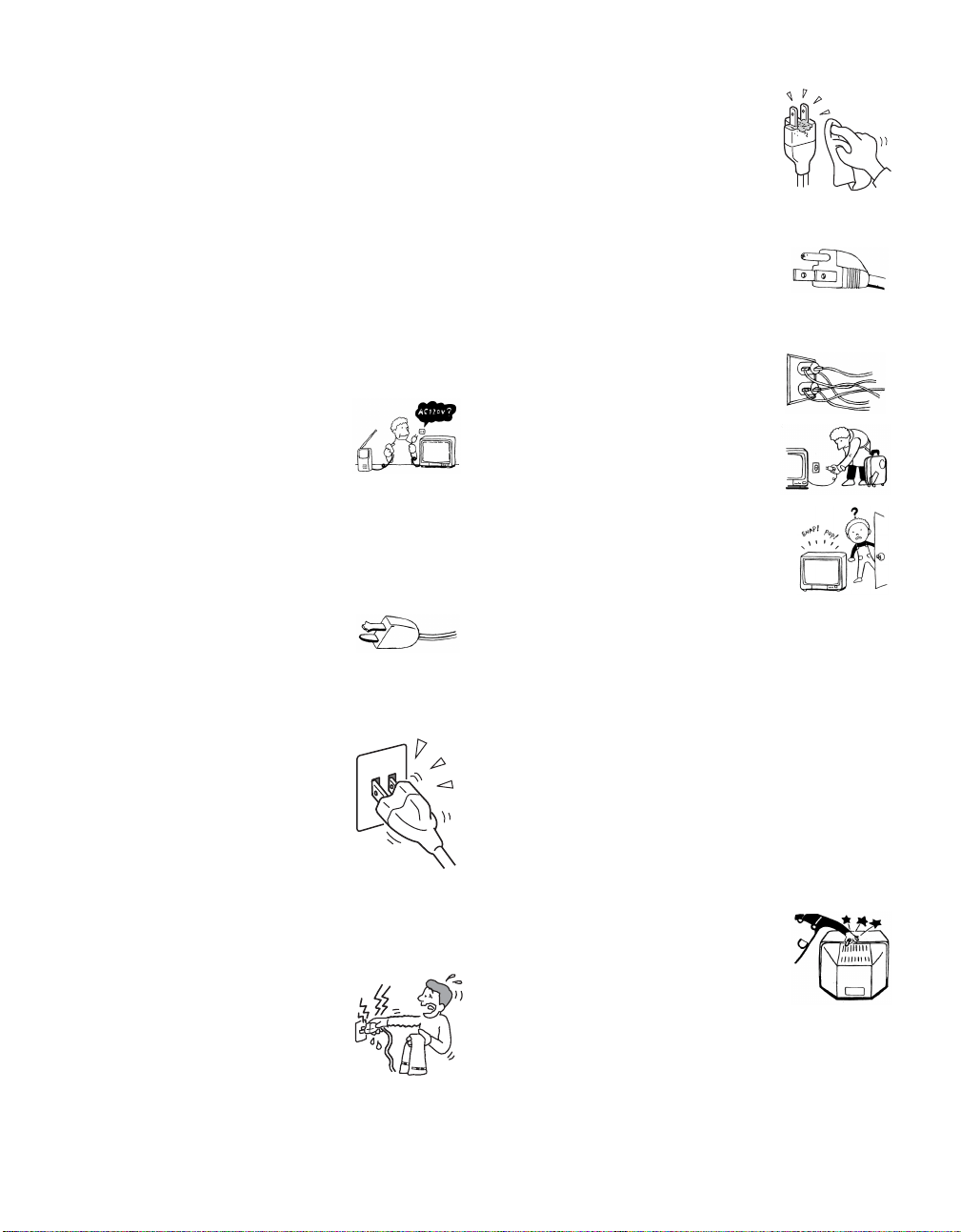

Important
Safeguards
Before using your TV, please read these instructions completely, and keep
this manual for future reference.
Carefully observe and comply with all warnings, cautions and instructions
placed on the set or described in the operating instructions or service
manual.
WARNING
To guard against injury, the following basic safety precautions should be
observed in the installation, use and servicing of the set.
Use
Power Sources
This set should be operated only from the type of
power source indicated on the serial/model plate.
If you are not sure of the type of electrical power
supplied to your home, consult your dealer or local
power company. For those sets designed to operate
from battery power, refer to the operating
instructions.
Grounding or Polarization
This set is equipped with a polarized AC power cord plug (a plug having
one blade wider than the other), or with a three-wire grounding type plug
(a plug having a third pin for grounding).Follow the instructions below:
For the set with a polarized AC power cord plug
This plug will fit into the power outlet only one way.
This is a safety feature. If you are unable to insert the
plug fully into the outlet, try reversing the plug.
If the plug still fails to fit, contact your electrician to have a suitable outlet
installed. Do not defeat the safety purpose of the polarized plug by forcing
it in.
Wall outlet
Do not use a poor fitting outlet.
Insert the plug fully into the outlet. If it is loose, it
may cause arcing and result in fire.
Contact your electrician to have the outlet changed.
Wiring
Unplug the AC power cord when wiring cables.
Be sure to unplug the AC power cord for your safety, when hooking up.
Moisture
Do not touch the AC power cord with a wet hand.
If you plug/unplug the AC power cord with a wet
hand, it may cause electric shock.
Cleaning
Clean the AC power plug regularly.
If the plug is covered with dust and it picks up
moisture, its insulation may deteriorate and result in
fire. Unplug the AC power plug and clean it
regularly.
For the set with a three-wire grounding type AC
plug
This plug will only fit into a grounding-type power
outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact your electrician
to have a suitable outlet installed. Do not defeat the
safety purpose of the grounding plug.
Overloading
Do not overload wall outlets, extension cords or
convenience receptacles beyond their capacity, since
this can result in fire or electric shock.
Always turn the set off when it is not being used.
When the set is left unattended and unused for long
periods of time, unplug it from the wall outlet as a
precaution against the possibility of an internal
malfunction that could create a fire hazard.
If a snapping or popping sound from a TV set is
continuous or frequent while the TV is operating,
unplug the TV and consult your dealer or service
technician. It is normal for some TV sets to make
occasional snapping or popping sounds, particularly
when being turned on or off.
AC power cord
If you damage the AC power cord, it may result in fire or electric shock.
s Do not pinch, bend, or twist the cable excessively. The core lines
may be bared and cut, and cause short-circuit, resulting in fire or
electric shock.
s Do not convert or damage the AC power cord.
s Do not put anything heavy on the AC power cord. Do not pull the
AC power cord.
s Keep the AC power cord away from heat sources.
s Be sure to grasp the plug when disconnecting the AC power cord.
If the AC power cord is damaged, stop using it and ask your dealer or Sony
service center to exchange it.
Cleaning
Unplug the AC power cord when cleaning this unit. If not, it may result in
electric shock.
Object and Liquid Entry
Never push objects of any kind into the set through the
cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the
set.
(Continued)
4

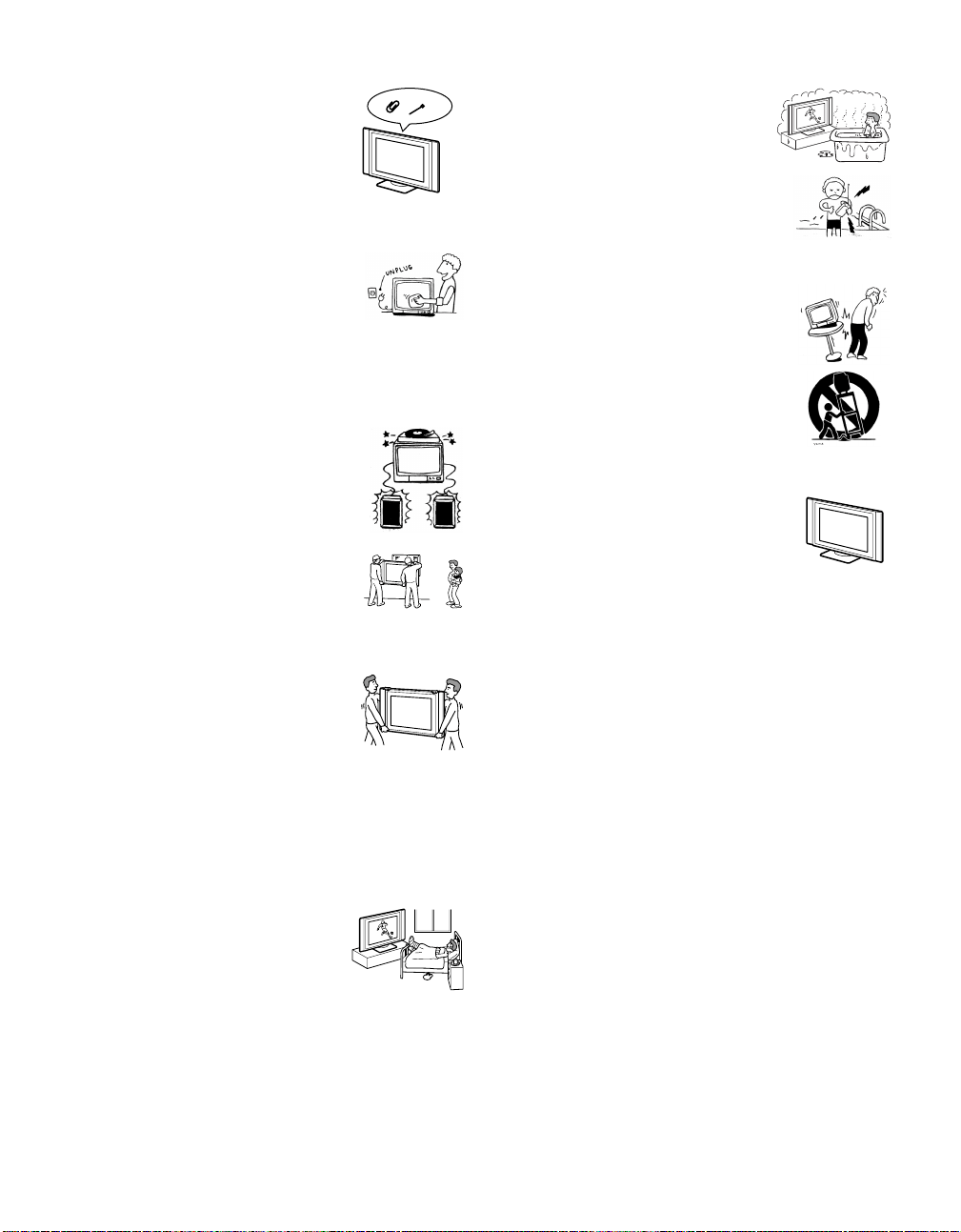

Ventilation holes
Do not insert anything in the ventilation holes. If
metal or something flammable enters, it may result in
fire or electric shock.
Cleaning
Clean the cabinet of the TV with a dry soft cloth. To
remove the dust from the slots, the openings and the
screen, wipe it gently with a soft cloth. Stubborn stains
may be removed with the cloth slightly dampened
with a solution of mild soap and warm water. Never
use strong solvents such as thinner or benzine for cleaning.
If the picture becomes dark after using the TV for a long period of time, it
may be necessary to clean the inside of the TV. Consult qualified service
personnel.
Attachments
Do not use attachments not recommended by the
manufacturer, as they may cause hazards.
Installation
When installing the display unit on the wall, be sure to
have assemblers install and keep away from the unit.
If a person other than the assemblers install the display
unit on the wall using a wall mount unit, the unit may
fall and cause serious injury when an earthquake
occurs or when the unit is not installed securely.
Carrying
Carrying the set requires two or more people.
If you carry the set in a manner other than that
specified, it may drop and a serious injury may be
caused. Be sure two or more people carry the set.
When transporting, do not subject the set to shocks or
vibration excessive force. The set may fall and damage the set, causing
serious injury.
AC power cord
Unplug the AC power cord when moving the set.
Do not move the set with the AC power cord plugged in. It may damage
the AC power cord and result in fire or electric shock.
Medical institution
Do not place this unit in a place where medical
equipment is in use.
It may cause malfunction of medical instruments.
Water and Moisture
Do not use power-line operated sets near
water — for example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet basement, or
near a swimming pool, etc. It may result in fire or
electric shock.
Accessories
Do not place the set on an unstable cart, stand, table or
shelf. The set may fall, causing serious injury to a child
or an adult and serious damage to the set. Use only a
cart or stand recommended by Sony for the specific
model of TV. No part of the TV set should overhang
any edge of the TV cart or stand; any overhanging edge
is a safety hazard. An appliance and cart combination
should be moved with care. Quick stops, excessive
force, and uneven surfaces may cause the appliance and
cart combination to overturn.
Installation and moving
Optional accessories
Observe the following when installing the TV using a
stand or wall mount unit. If not, the unit may fall and
cause serious injury.
s Be sure to follow the operating instructions
supplied with your stand when installing the unit.
s Be sure to attach the brackets supplied with your
stand.
Protruding location
Do not install the TV in protruding locations. If you install the unit in the
following locations, injury may result.
s Do not install the unit in a location where the unit protrudes, such as
pillars.
s Do not install the unit in a location that may cause facial injury.
Oils
Do not install this unit in restaurants where oily vapours occur. Dust
absorbing oil may enter into the unit and damage the unit.
Corrosion
If you use this unit near the seashore, salt may corrode metal parts of the
unit and cause internal damage or fire.
It may also shorten the life of the unit.
Accessories
Secure the TV from falling down.
If the TV is not secured properly, it may fall and cause injury. Take
measures against it using a stand or other apparatus on the floor or wall in
the specified manner, referring to the operating instructions supplied with
your stand.
5
Ventilation
The slots and openings in the TV are provided for necessary ventilation. To
ensure reliable operation of the set, and to protect it from overheating, these
slots and openings must never be blocked or covered.
Unless proper ventilation is provided, the unit may gather
dust and get dirty. For proper ventilation, Observe the
following:
s Do not install the unit turned backward or sideways.
s Do not install the unit turned over or upside down.
s Never cover the slots and openings with a cloth or
other materials.
s Never block the slots and openings by placing the set
on a bed, sofa, rug or other similar surface.
s Never place the set in a confined space, such as a
bookcase or built-in cabinet, unless proper ventilation
is provided.
s Do not place the set near or over a radiator or heat
register, or where it is exposed to direct sunlight.
s Do not leave the slots and openings until they are
covered thickly with dust. Clean the slots and the
openings occasionally for proper ventilation.
Ventilation
Leave some space around the unit. Otherwise, adequate air-circulation may
be blocked causing overheating and cause fire or damage the unit.
Outdoor use
Do not install this unit outdoors. If the unit is exposed to
rain, it may result in fire or electric shock. If the unit is
exposed to direct sunlight, the unit may heat up and it may
damage the unit.
Vehicle and ceiling
Do not install this unit in a vehicle or hung from the
ceiling.
Bumping of the vehicle may cause the set to fall down and
cause injury.
Ship and vessel
Do not install this unit in a ship or vessel. If the unit is
exposed to seawater, it may cause fire or damage the unit.
Carrying
Carrying the set requires two or more people.
If you carry the set in a manner other than that specified, it may drop and a
serious injury may be caused. Be sure two or more people carry the set.
When transporting, do not subject the set to shocks or vibration, or
excessive force. The set may fall and be damaged, causing serious injury.
AC power cord
Unplug the AC power cord when moving the set.
Do not move the set with the AC power cord plugged in. It may damage
the AC power cord and result in fire or electric shock.
Fall
Do not hang anything on the unit.
The unit may fall from the stand or wall mount unit, causing
damage or serious injury.
Power-Cord Protection
Do not allow anything to rest on or roll over the
power cord, and do not place the set where the
power cord is subject to wear or abuse.
Antennas
Outdoor Antenna Grounding
If an outdoor antenna is installed, follow the precautions below. An
outdoor antenna system should not be located in the vicinity of overhead
power lines or other electric light or power circuits, or where it can come
in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM,
EXTREME CARE SHOULD BE TAKEN TO KEEP FROM
CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT
WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide some protection
against voltage surges and built-up static charges.
Section 810 of the National Electrical Code (NEC) in USA and Section 54
of the Canadian Electrical Code in Canada provides information with
respect to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge unit, connection to
grounding electrodes, and requirements for the grounding electrode.
Leave
this
space at
least.
30 cm (11
7
/
8
in)
10 cm
(4 in)
10 cm
(4 in)
Never install the unit as follows:
Air circulation is blocked.
(Continued)
6
Antenna Grounding According to the National
Electrical Code, ANSI/NFPA 70
Lightning
For added protection for this television receiver during a lightning storm,
or when it is left unattended and unused for long periods of time, unplug it
from the wall outlet and disconnect the antenna. This will prevent damage
to the receiver due to lightning and power-line surges.
Service
Damage Requiring Service
Unplug the set from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
s When the power cord or plug
is damaged or frayed.
s If liquid has been spilled into
the set.
s If the set has been exposed to rain or water.
s If the set has been subject to excessive shock by
being dropped, or the cabinet has been
damaged.
s If the set does not operate normally when
following the operating instructions. Adjust only
those controls that are specified in the operating
instructions. Improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the set to normal operation.
s When the set exhibits a distinct change in
performance, it indicates a need for service.
Servicing
Do not attempt to service the set yourself since opening the
cabinet may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
Replacement Parts
When replacement parts are required, be sure the service
technician certifies in writing that he has used
replacement parts specified by the manufacturer that
have the same characteristics as the original parts.
Unauthorized substitutions may result in fire, electric
shock or other hazards.
Safety Check
Upon completion of any service or repairs to the set, ask the
service technician to perform routine safety checks (as
specified by the manufacturer) to determine that the set is in
safe operating condition, and to so certify. When the set
reaches the end of its useful life, improper disposal could
result in a picture tube implosion. Ask a qualified service
technician to dispose of the set.
For Safety
Be careful when moving the TV
When you place the TV in position, be careful
not to drop it on your foot or fingers.
Watch your footing while installing the TV.
Carry the TV in the specified manner
If you carry the TV in a manner other than specified and without the
specified number of persons, it may drop and a serious injury may be
caused. Be sure to follow the instructions mentioned below.
s Carry the TV with the specified number of persons.
s Do not carry the TV holding the speaker grill.
s Hold the TV tightly when carrying it.
Others
Damage requiring service
If the surface of the display unit cracks, do not touch it until you unplug the
AC power cord.
Otherwise electric shock may result.
Moisture
Do not let this unit get wet. It may result in electric shock or damage the
unit.
Electric shock
Do not touch the unit with a wet hand.
Doing so may cause electric shock or damage to the unit.
Broken pieces
Do not throw anything at the unit.
The screen glass may explode by the impact and cause serious injury.
Cable wiring
Take care not to catch your feet on the cables. It may damage the unit.
Heat
Do not touch the display surface.
It remains hot, even for some time after the TV unit is turned off.
Antenna lead-in wire
Antenna discharge unit
(NEC Section 810-20)
Grounding conductors
(NEC Section 810-21)
Ground clamps
Power service grounding
electrode system
(NEC Art 250 Part H)
Ground clamps
Electric service
equipment
NEC: National Electrical Code
7
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from
the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13) Unplug this apparatus during lightning storms or when unused for
long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has been dropped.
9
Contents
Introducing the TV
Welcome...............................................................................................13
Package Contents..........................................................................13
Features.........................................................................................13
Setting Up the TV
Overview ..............................................................................................15
TV Controls and Connectors..............................................................16
Front Panel.....................................................................................16
Right Side Panel ............................................................................17
Left Side Panel...............................................................................18

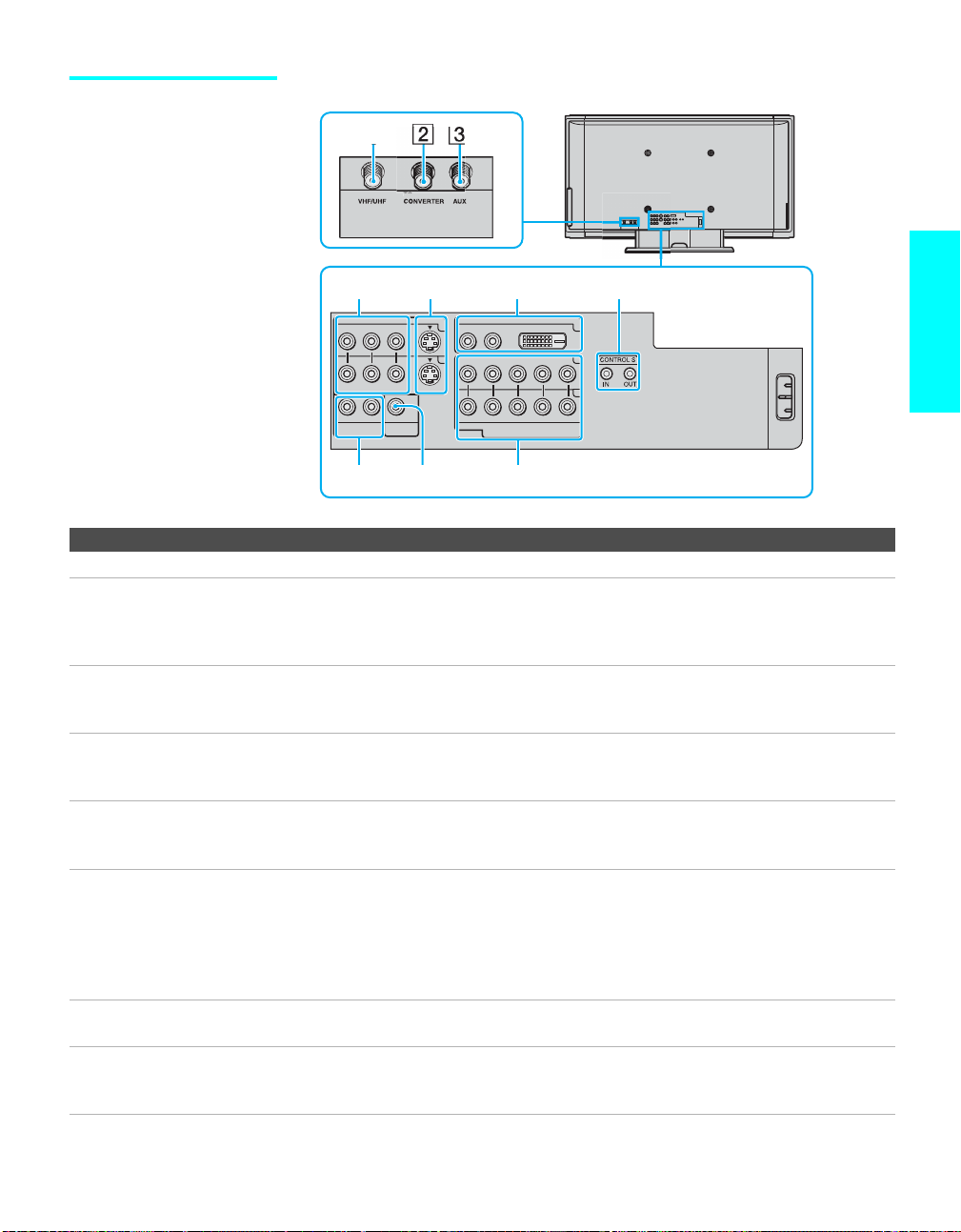

Rear Panel.....................................................................................19
Installing the TV...................................................................................21

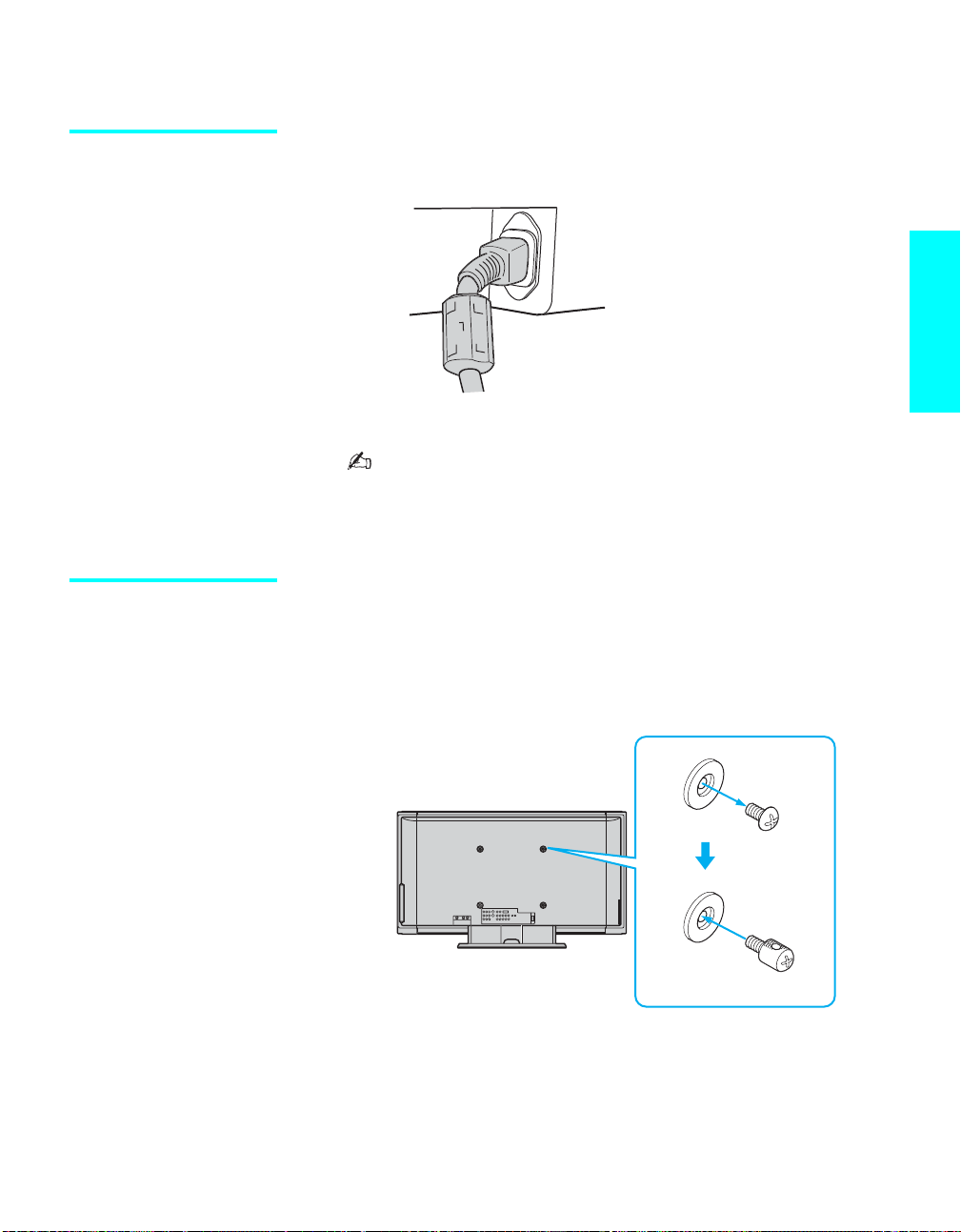

Connecting the AC Power Cord.....................................................21
Preventing the TV from Falling Down ............................................21

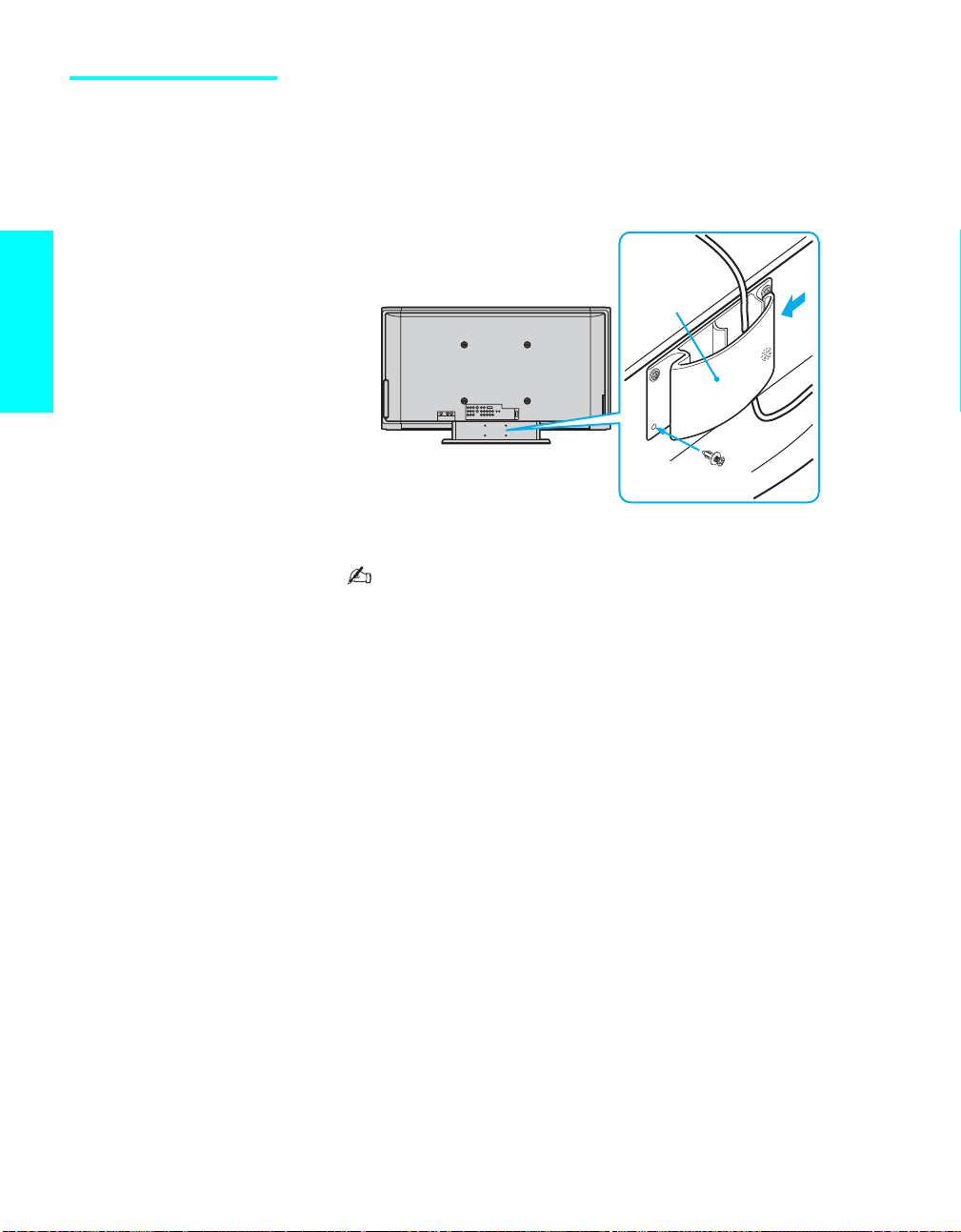

Storing the Cables in the Cord Clamp............................................22
Basic Connections: Connecting a Cable or Antenna ......................23
Cable or Antenna Only...................................................................23
Cable and Antenna Only................................................................24
Cable Box and Cable Only.............................................................25
Cable Box Only..............................................................................27
Connecting Optional Equipment .......................................................29
About Using S VIDEO....................................................................29

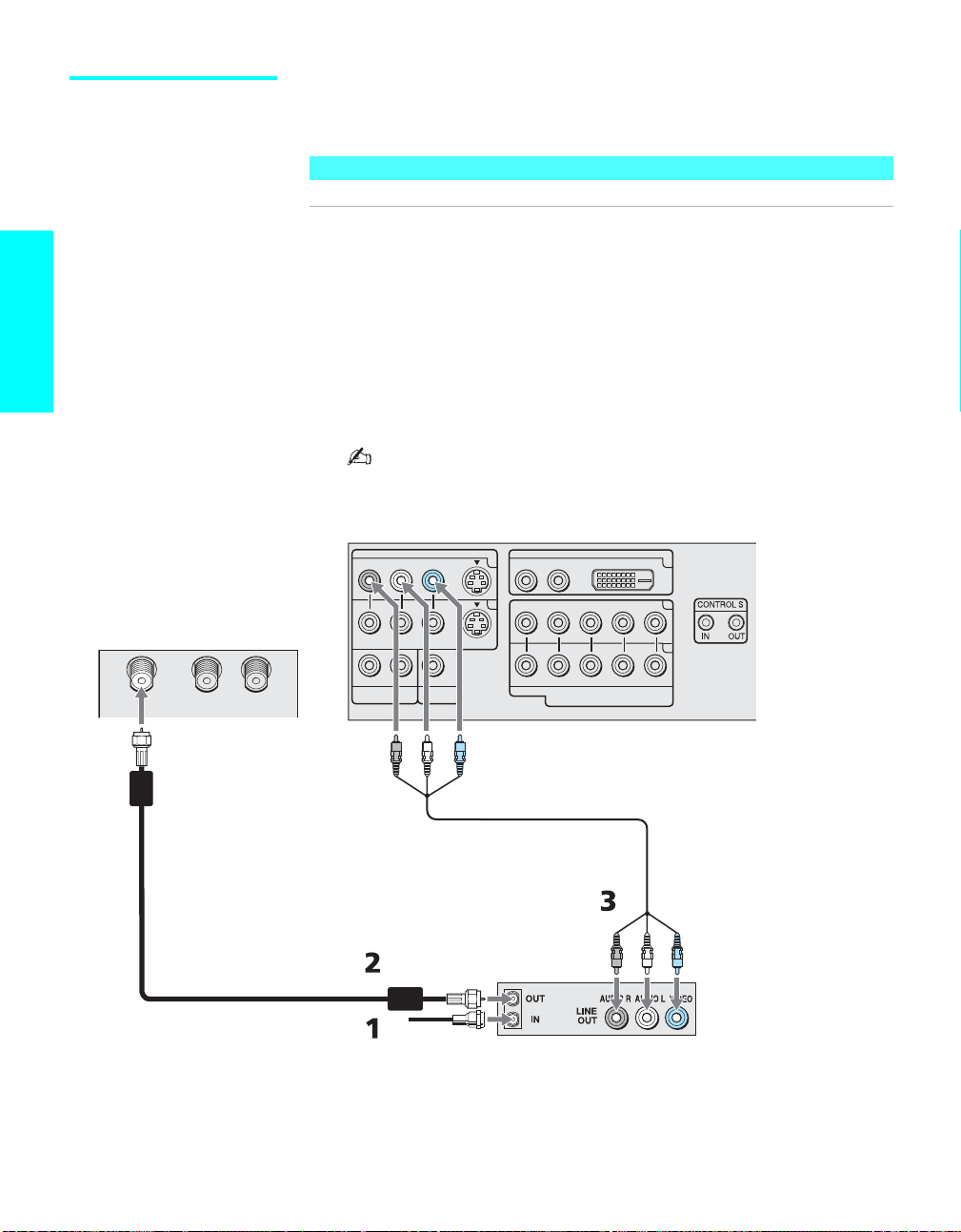

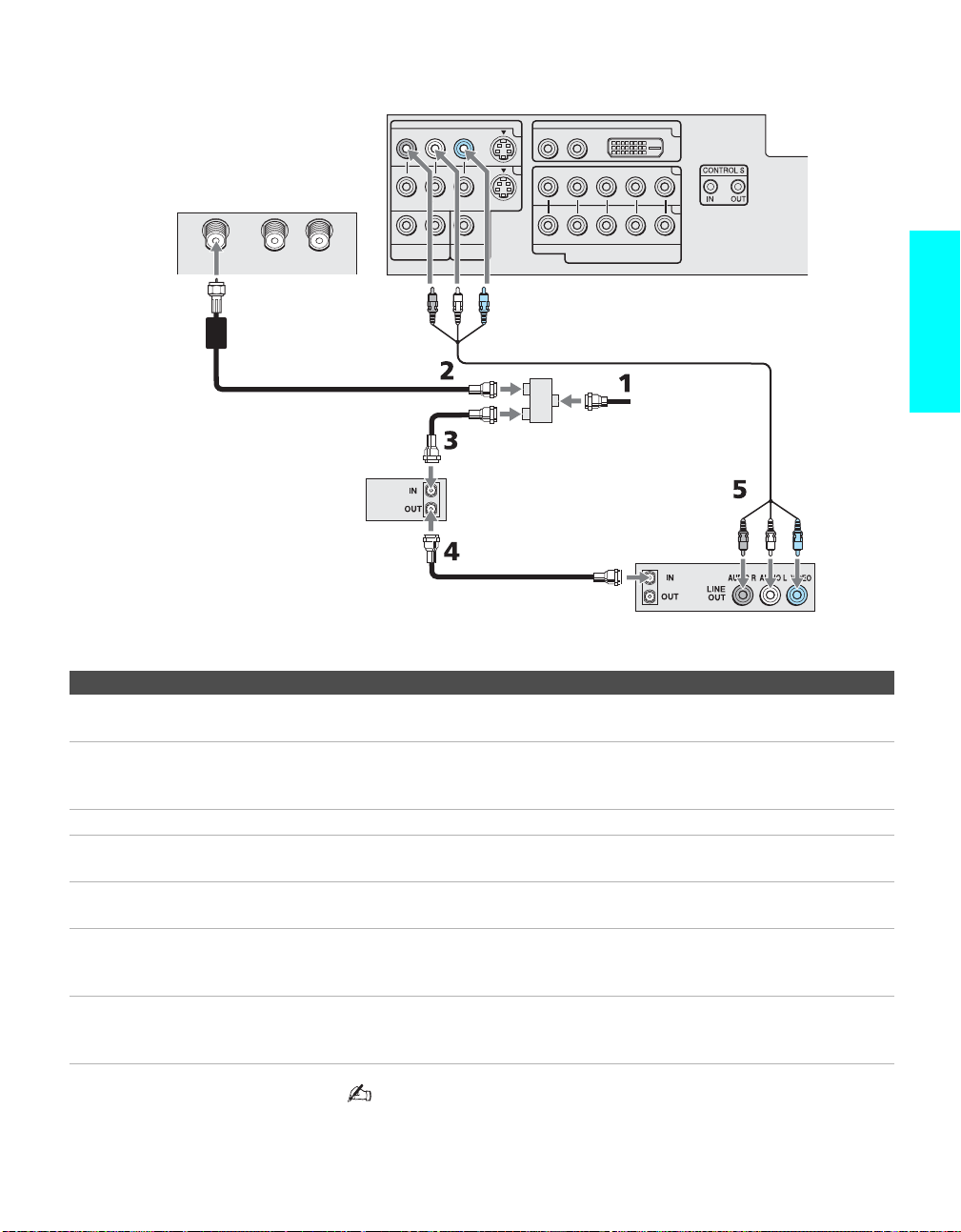

VCR and Cable ..............................................................................30
VCR and Cable Box.......................................................................32

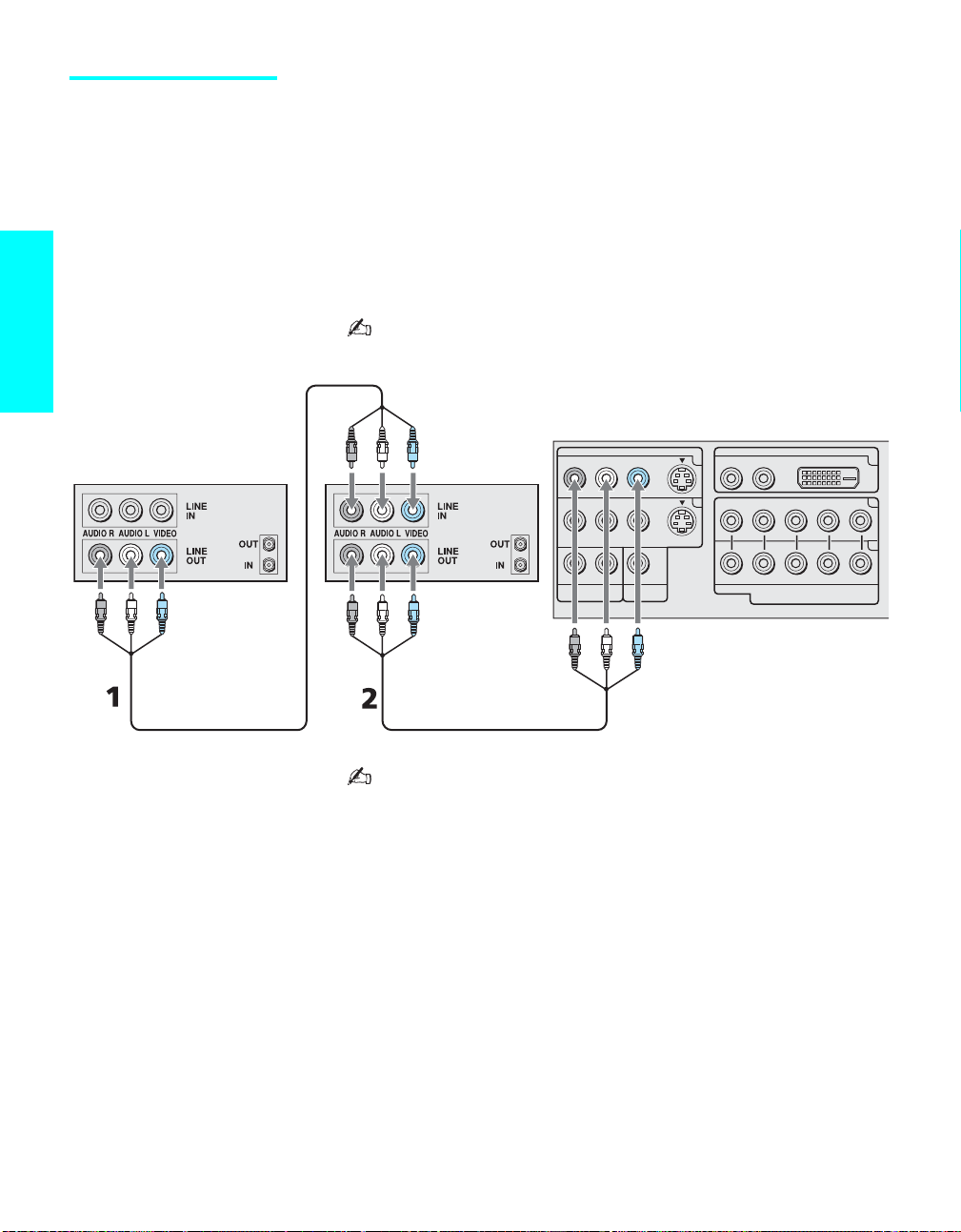

Two VCRs for Tape Editing............................................................34

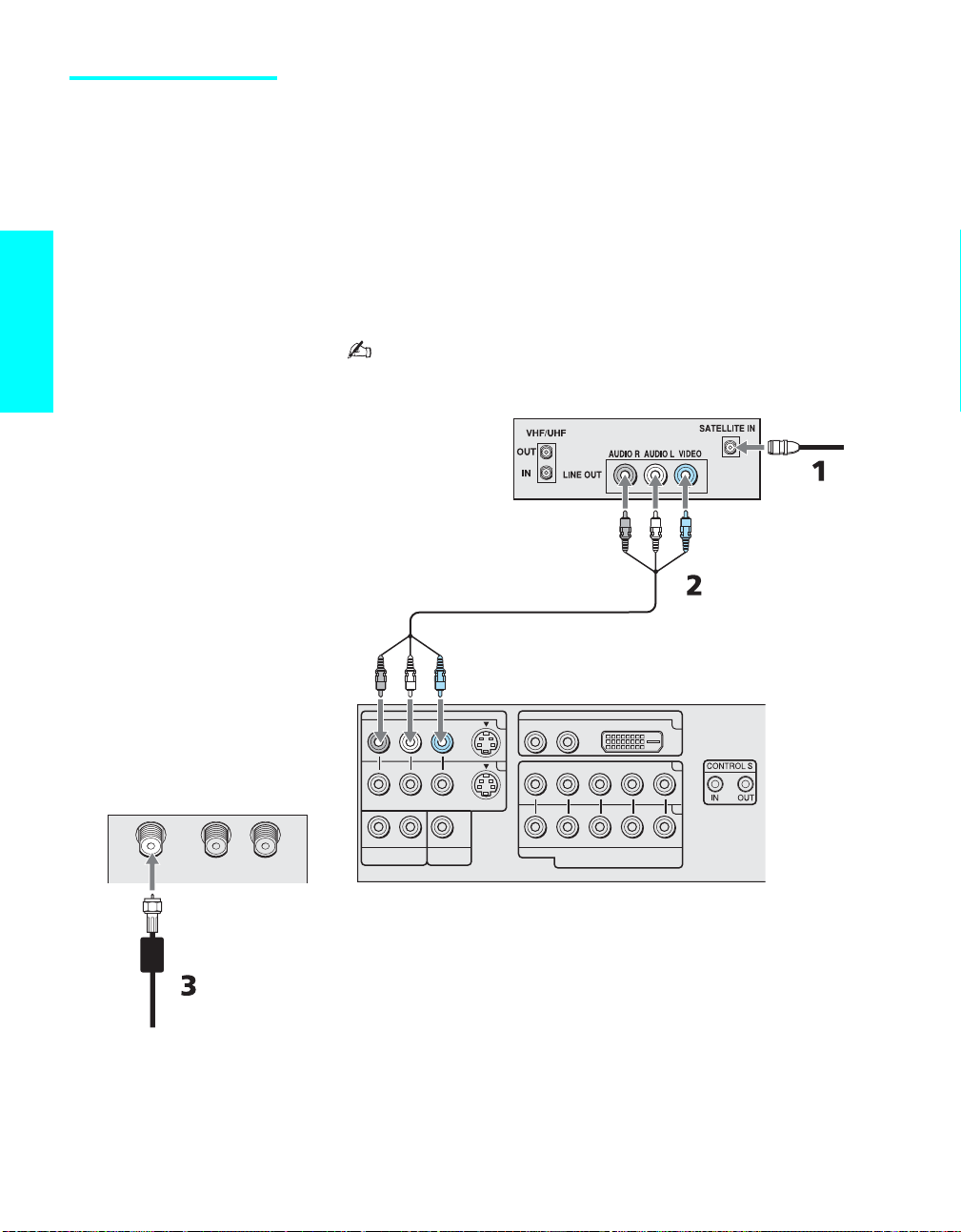

Satellite Receiver...........................................................................36
Satellite Receiver and VCR............................................................38
DVD Player with Component Video Connectors............................40
DVD Player with S VIDEO and Audio Connectors.........................42
Digital TV Set-Top Box with Component Video Connectors..........43
Digital Satellite Receiver with DVI-HDTV Connector.....................44
Camcorder .....................................................................................45
Audio Receiver...............................................................................46
Sub Woofer ....................................................................................47
Using the CONTROL S Feature.....................................................47
Setting Up the Channel List ...............................................................48
Using Auto Setup...........................................................................48
Using the Remote Control
Overview ..............................................................................................49

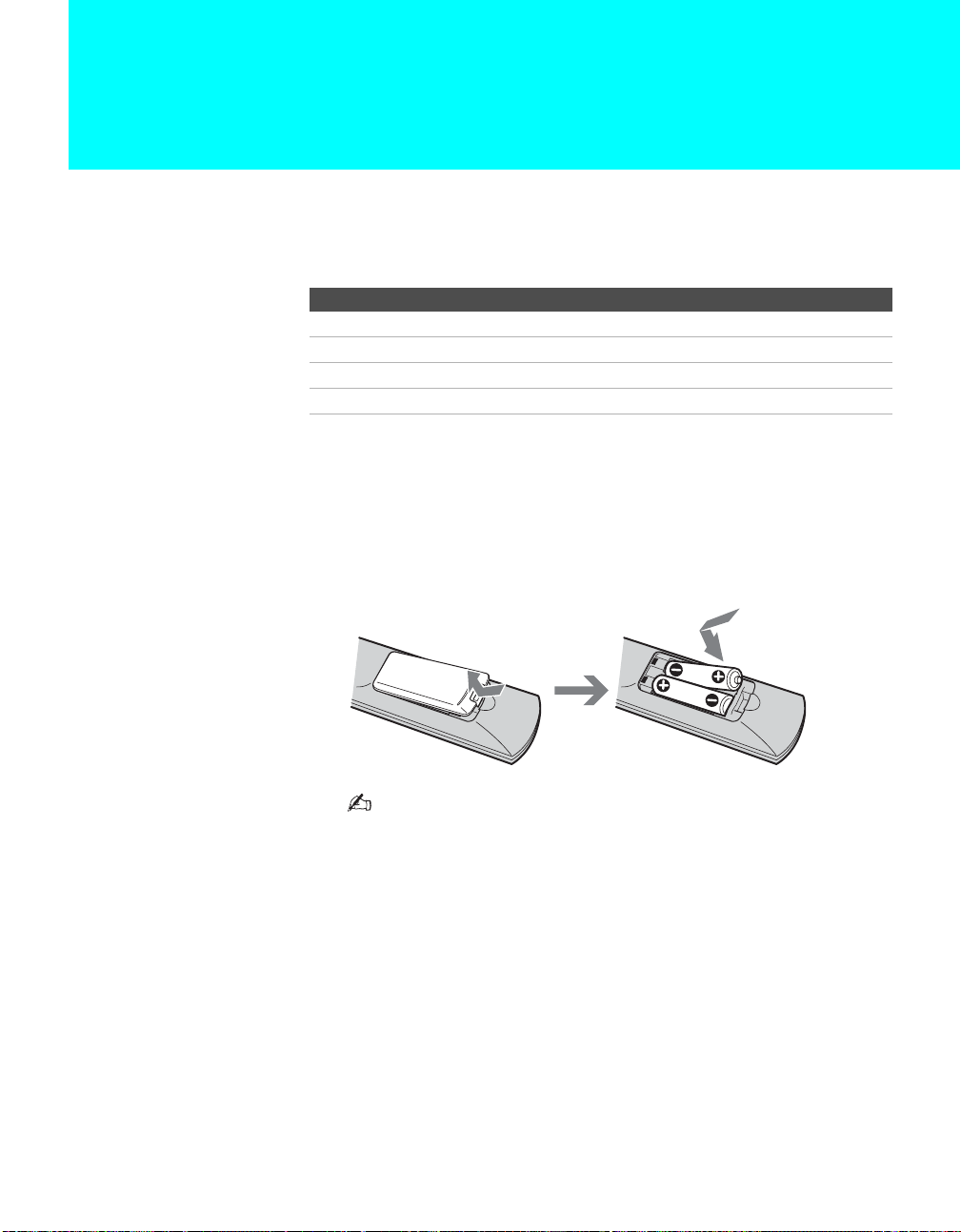

Inserting Batteries...............................................................................49

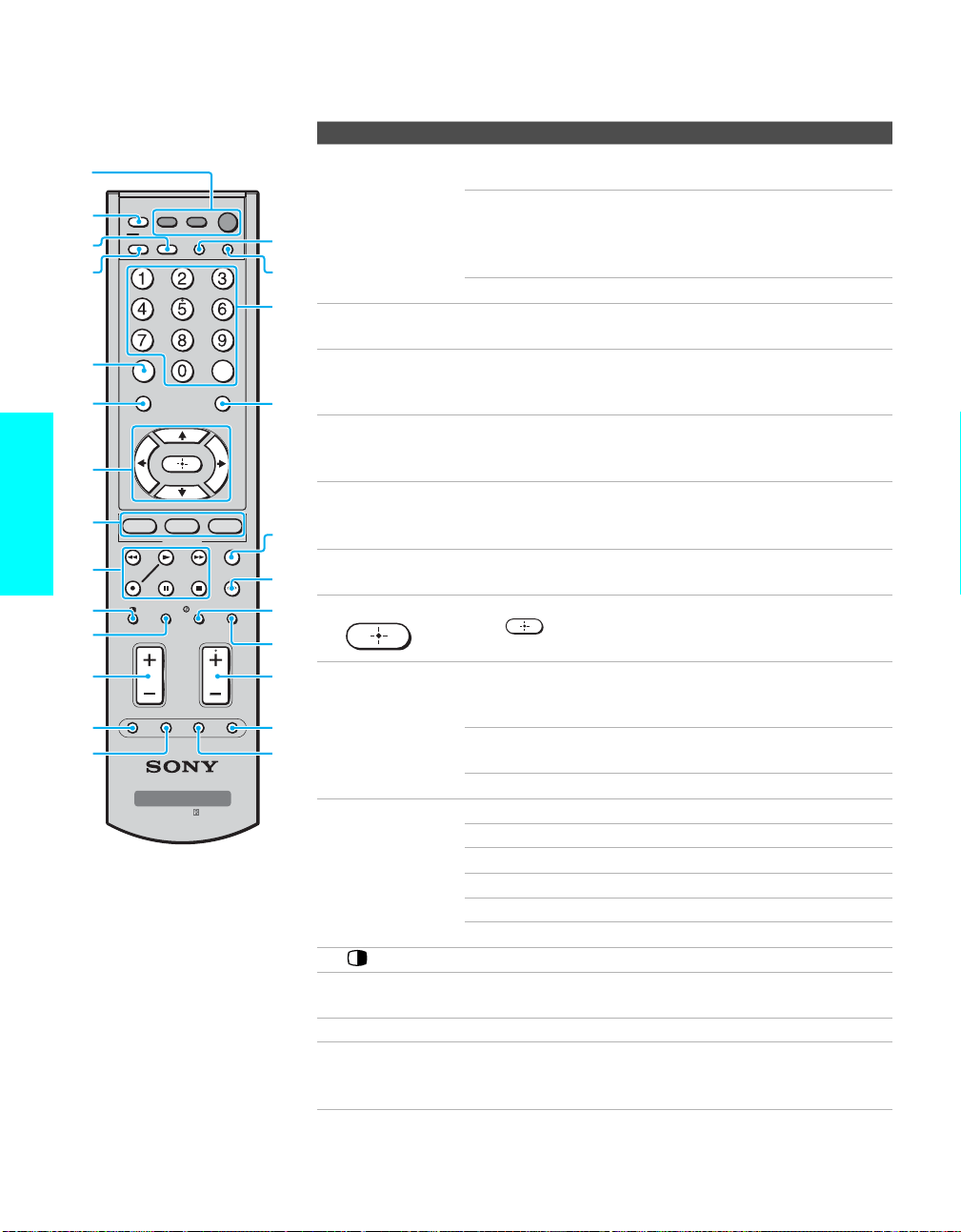

Button Descriptions............................................................................50
Programming the Remote Control.....................................................52
Using Other Equipment with Your TV Remote Control ...................54
All Equipment.................................................................................54
10
Operating a VCR............................................................................54
Operating a Satellite Receiver .......................................................54
Operating a Cable Box...................................................................55
Operating a DVD Player.................................................................55
Using the Features
Overview ..............................................................................................57
Watching TV.........................................................................................58
Using Wide Mode ................................................................................59
Using Twin View..................................................................................60
Displaying Twin Pictures................................................................60
Activating the Picture .....................................................................61

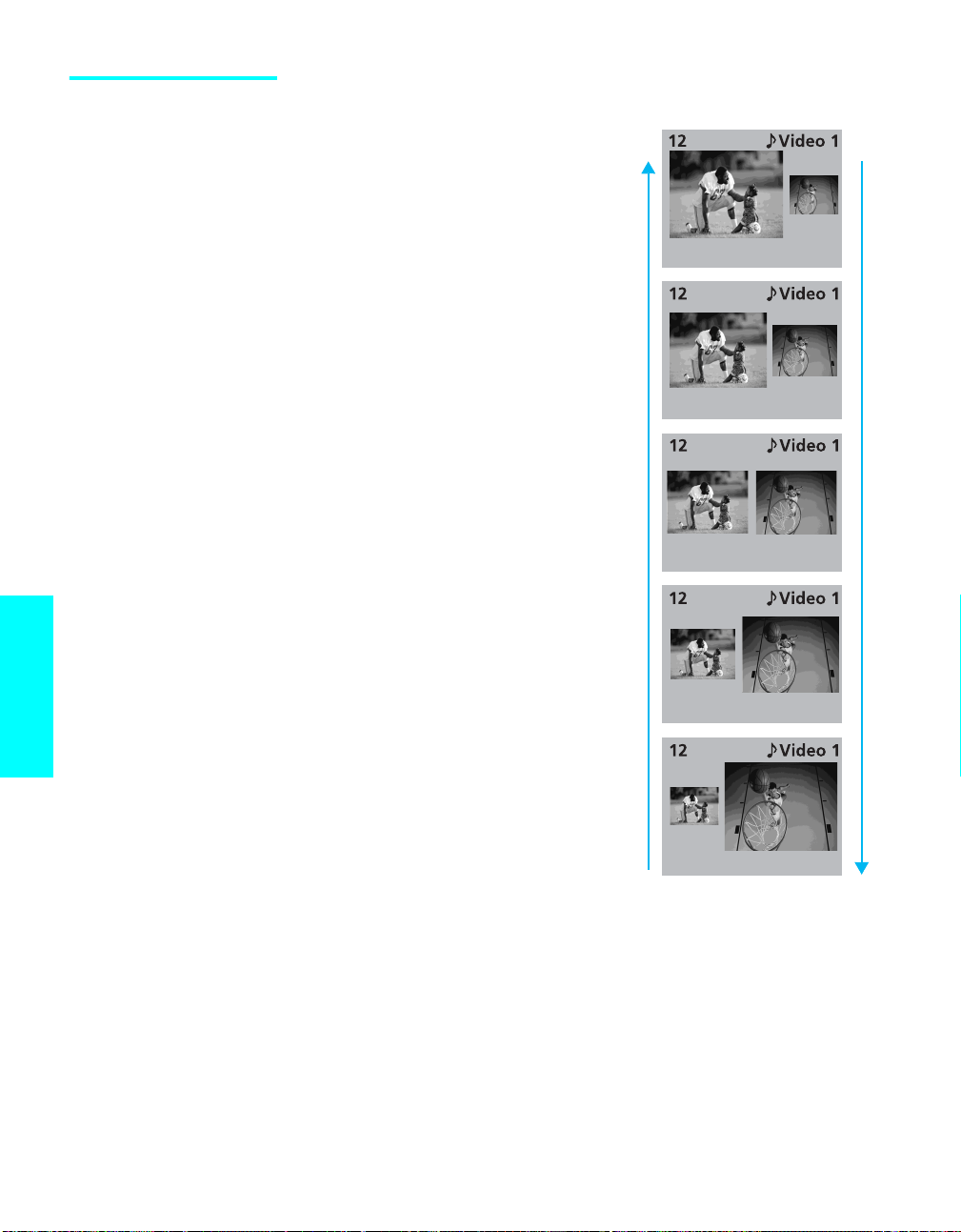

Changing the Picture Size..............................................................62
Using Favorite Channels ....................................................................63
Creating a List of Favorite Channels..............................................63
Displaying a List of Favorite Channels...........................................63

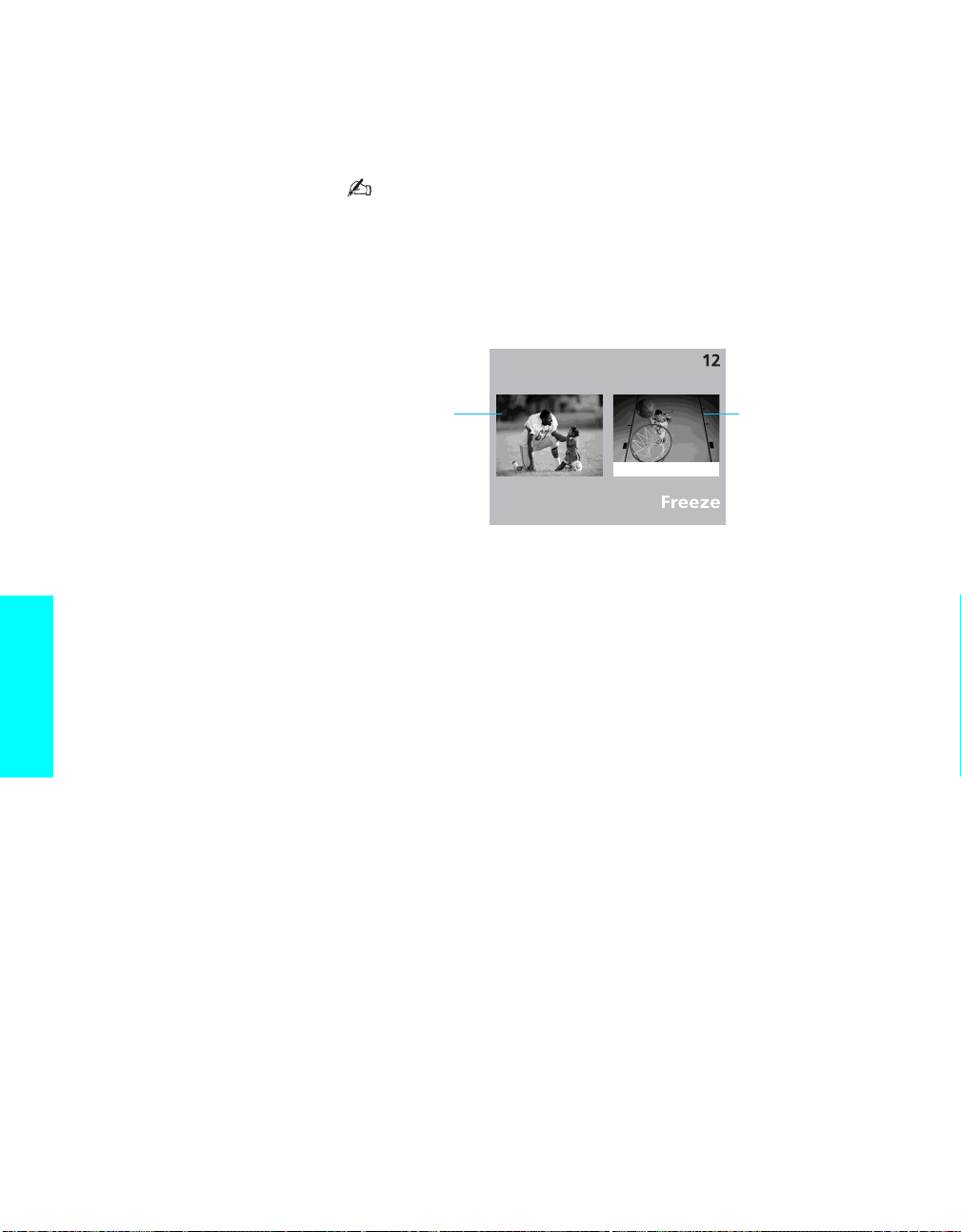

Using the Freeze Function .................................................................64
Using Picture Off.................................................................................65
Using the Memory Stick Viewer
About Memory Stick............................................................................67
Supported Image Types.................................................................67
About Directory and File Names....................................................68
Unsupported Image Types.............................................................68
Inserting and Removing a Memory Stick..........................................69

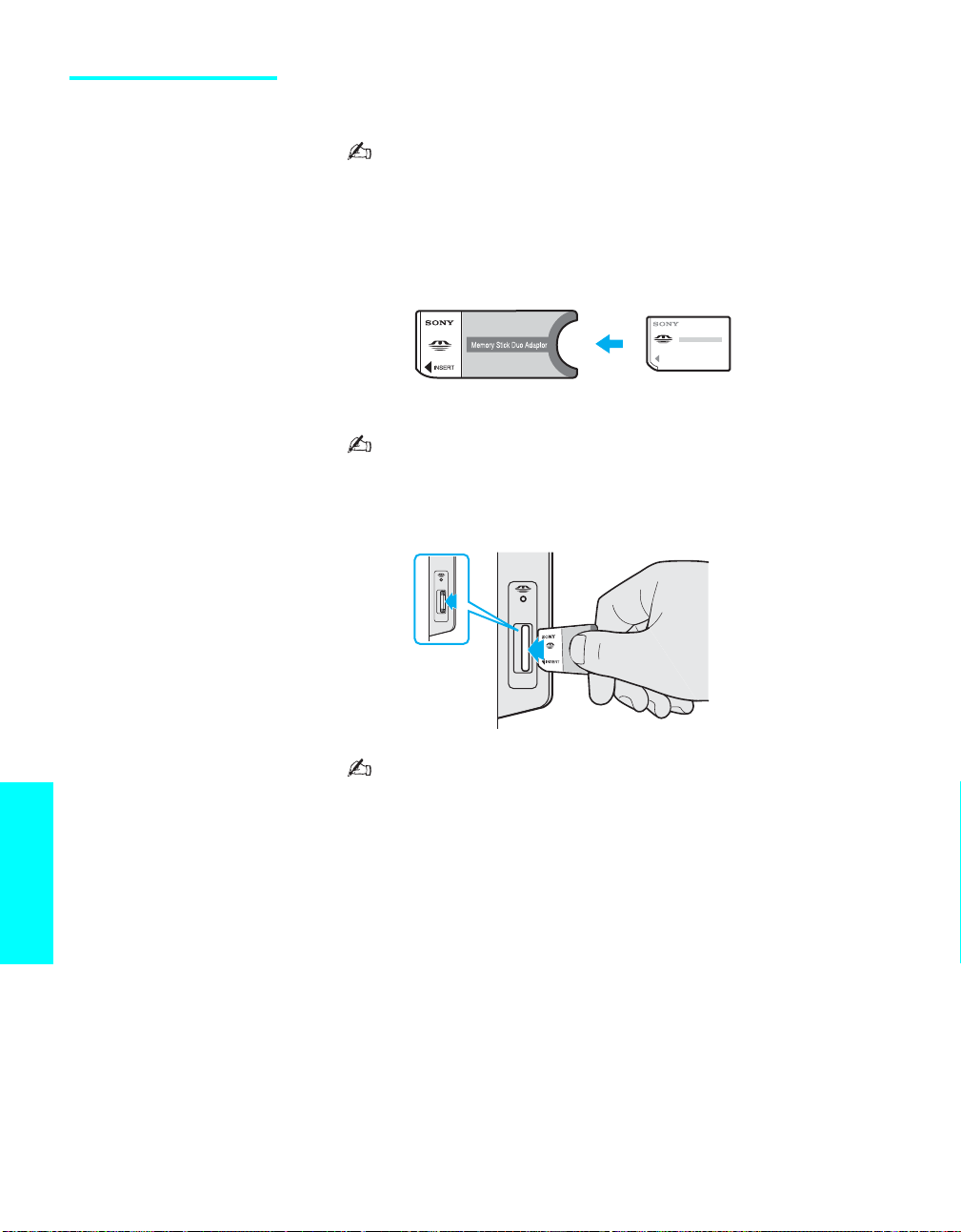

Inserting a Memory Stick................................................................69
Inserting the Memory Stick Duo.....................................................70
Removing a Memory Stick.............................................................71
Displaying the Memory Stick Home (Memory Stick Index) .............72
Using the Memory Stick Home...........................................................73

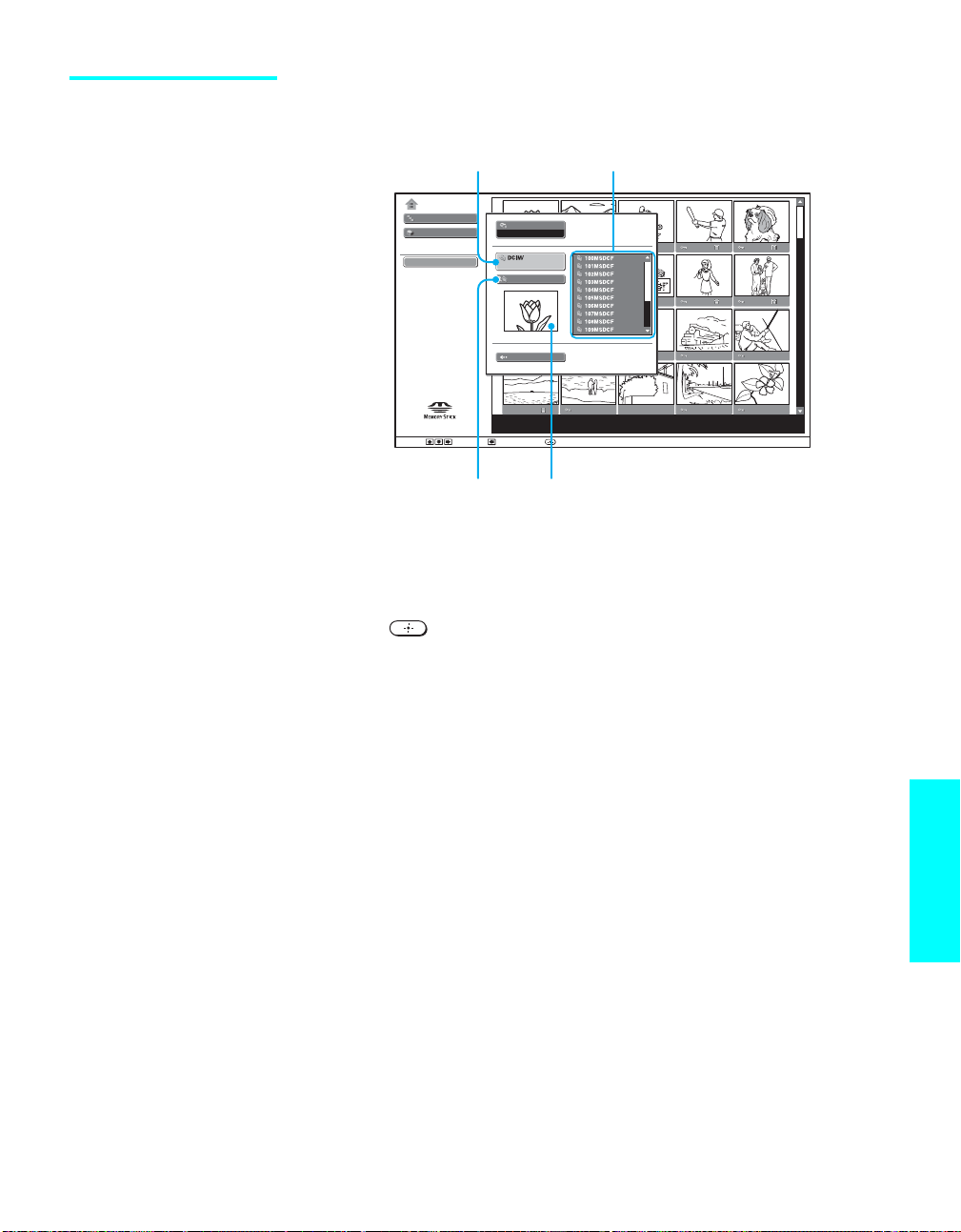

Using the Index Menu....................................................................73
Viewing Still Images............................................................................75
Image Setup Menu Options ...........................................................75
Playing Movies ....................................................................................77
Movie Setup Menu Options............................................................78
Memory Stick Home Menu Options...................................................79
Slide Show Menu Options..............................................................79

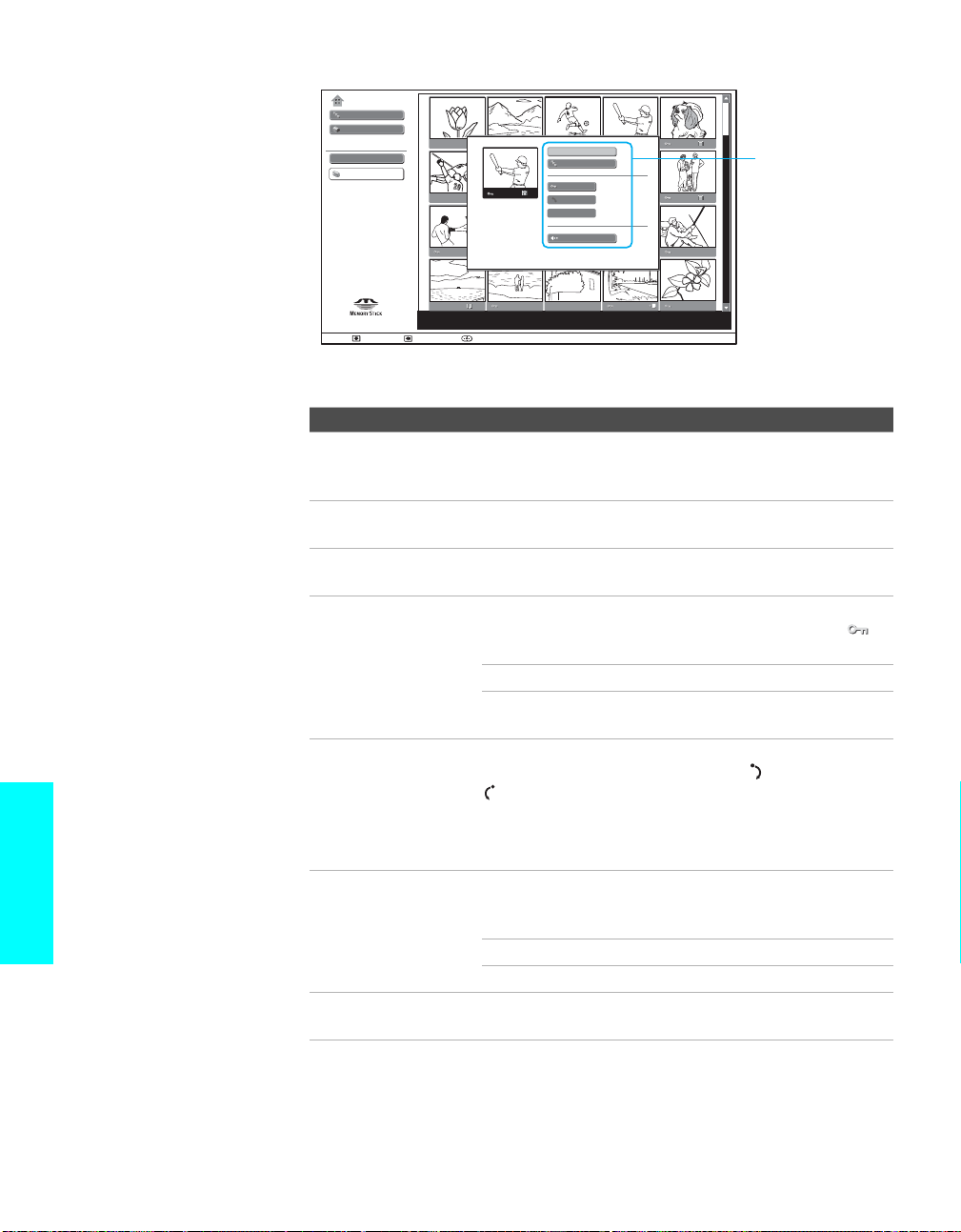

Options Menu Options ...................................................................80
Select Folder Menu Options...........................................................80
Using Select Folder Menu..............................................................81
Precautions on Memory Stick, Memory Stick PRO........................82
Using the Menus
Overview ..............................................................................................83
Navigating Through Menus................................................................83
Using the Video Menu.........................................................................84
Selecting Video Options.................................................................84
Using the Audio Menu ........................................................................86
Selecting Audio Options.................................................................86
Using the Screen Menu.......................................................................88
Selecting Screen Mode Options.....................................................88
Using the Channel Menu ....................................................................90
Selecting Channel Options.............................................................90
11
Using the Parent Menu .......................................................................92
Selecting Parent Options ...............................................................92
US Models: Selecting Custom Rating Options...............................93
Viewing Blocked Programs ............................................................93
Canadian Models: Selecting Custom Rating Options ....................94
Viewing Blocked Programs ............................................................94
Using the Setup Menu.........................................................................95
Selecting Setup Options.................................................................95
Other Information
Overview ..............................................................................................99
Glossary.............................................................................................100
Contacting Sony................................................................................101
Troubleshooting................................................................................101
Twin View.....................................................................................101
Remote Control............................................................................102
Memory Stick ...............................................................................102
Video............................................................................................104
Audio............................................................................................105
Channels......................................................................................105
General ........................................................................................106
Specifications....................................................................................107
Optional Accessories........................................................................109
Index...................................................................................................110
13
Introducing the TV
Welcome
Thank you for purchasing the Sony Flat Panel Color TV. This manual is to
be used with the following models:
s KE-37XS910
s KE-42XS910
s KE-50XS910
Package Contents
The package contains the following:
s Flat panel display unit
s Remote control (RM-Y1001) and two size AA batteries
s AC power cord
s Antenna cable
s Cord clamp and four clamp rivets
s Two clamp screws
s Cleaning cloth
s Operating Instructions
These items are all you need to set up and operate the TV in its basic
configuration.
Most components (VCRs, DVD players, etc.) come with the necessary
cables to connect them. If you want to set up a complex system, you may
need to buy extra cables, connectors, etc. Be sure to have these on hand
before you start to connect your system.
Features
Some of the features that you will enjoy with your new TV include:
s WEGA Engine
™
: Delivers superb picture quality from any video
source by minimizing the signal deterioration caused by digital-to-
analog conversion and stabilizing the signal processing. This engine
features unique Sony technology, including:
• The first step in the digital processing system, Composite
Component Processor (CCP), which enhances input signal to noise
ratio by chroma decoder digital processing;
• DRC
®
(Digital Reality Creation) Multifunction V1: Unlike
conventional line doublers, the DRC Multifunction feature replaces
the signal’s NTSC waveform with the near-HD equivalent by digital
(Continued)
14
Welcome
mapping processing. The DRC Palette option lets you customize the
level of detail (Reality) and smoothness (Clarity) to create up to three
custom palettes.

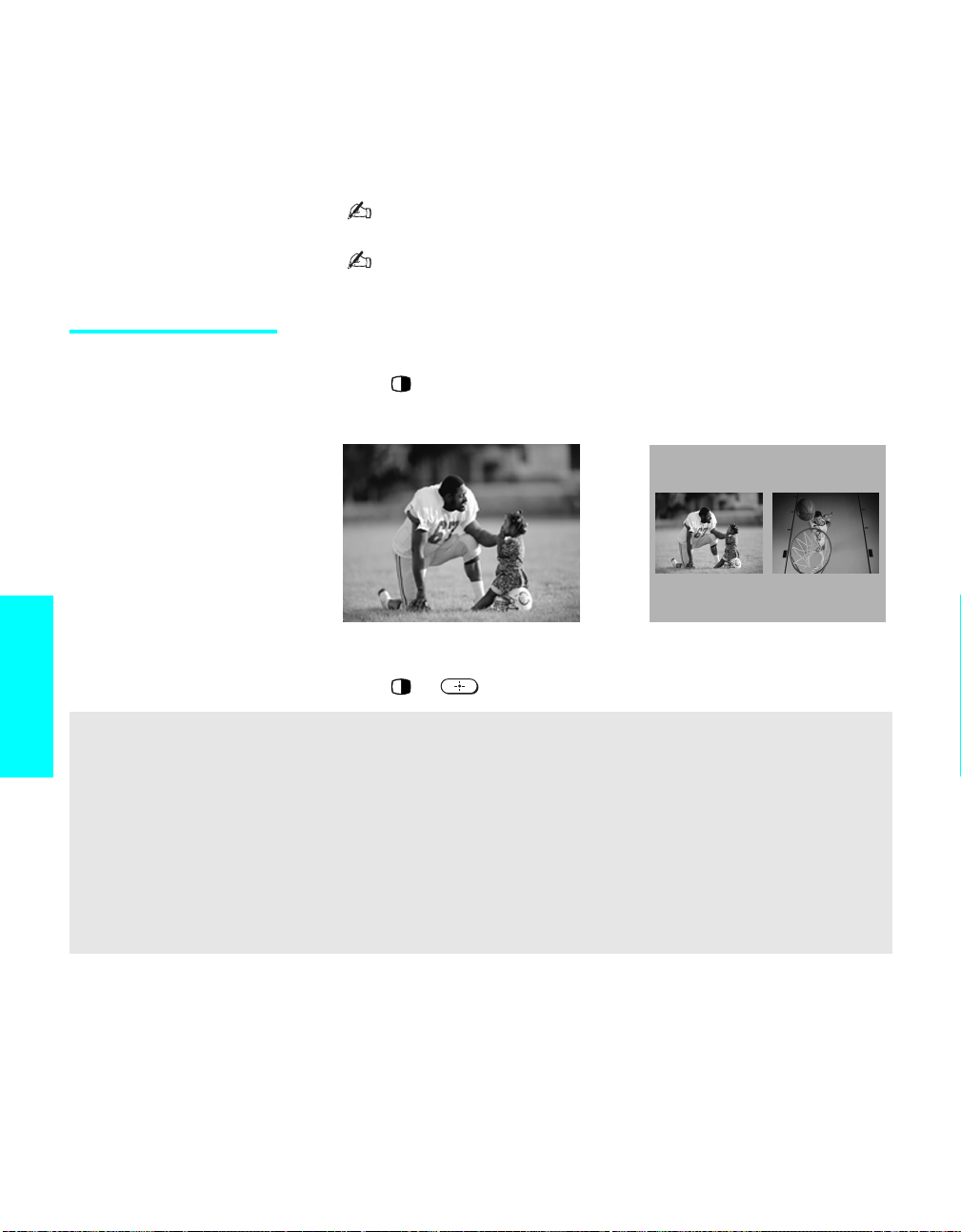

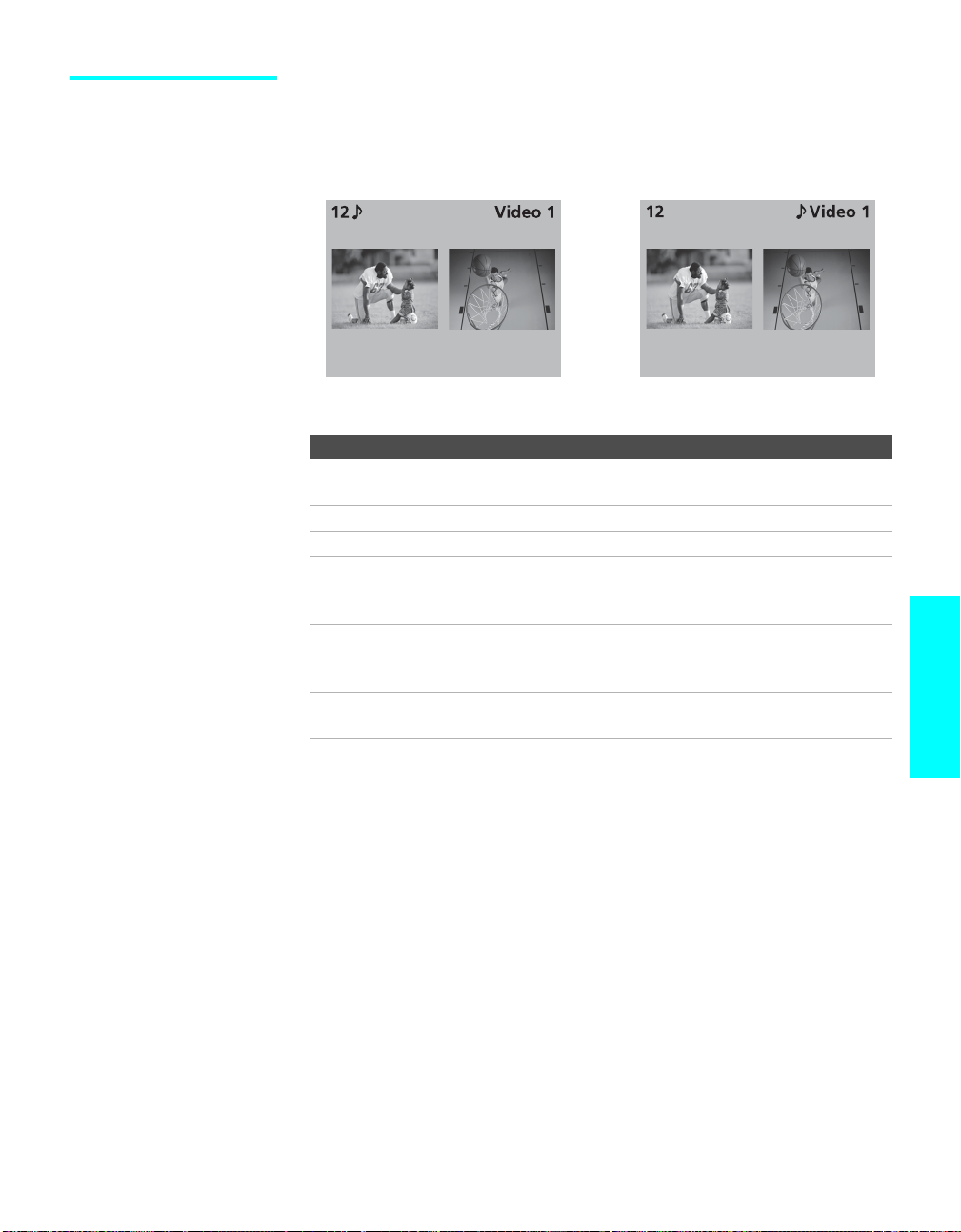

• Multi-Image Driver (MID
™
-XU): (Twin View
™
) Allows you to
watch two programs side by side. You can watch pictures from two
different sources (1080i, 720p, 480p, and 480i) simultaneously.
(Only the left Twin View window can display 1080i, 720p, and 480p
sources.)
• CineMotion
™
: Provides an optimized display by automatically
detecting film content and applying a reverse 3-2 pulldown process.
Moving pictures will appear clearer and more natural-looking.
• Newly developed PDP driver IC: Achieves high-precision gamma
characteristics, using Sony’s unique digital technology. Fine
gradation of dark scenes, which is not possible with conventional
PDP, is realized by greatly enhancing resolution in the low brightness
range.

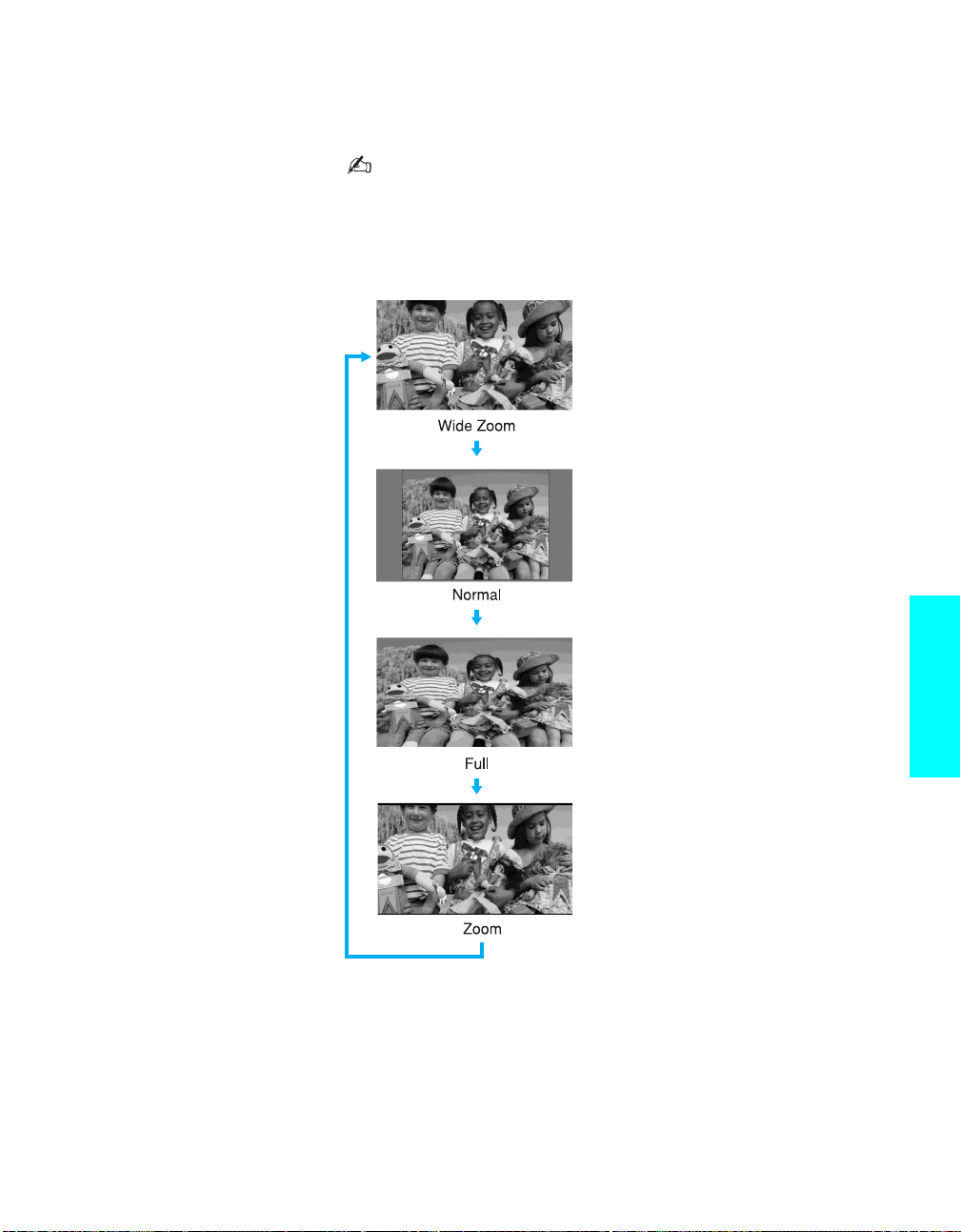

s Wide Screen Mode: Watch conventional 4:3 aspect ratio broadcasts in
wide screen (16:9) mode.
s Favorite Channels: Allows you to preview and select from 16 of your
favorite channels.
s Steady Sound
®
: Equalizes volume levels so there is consistent output
between programs and commercials.

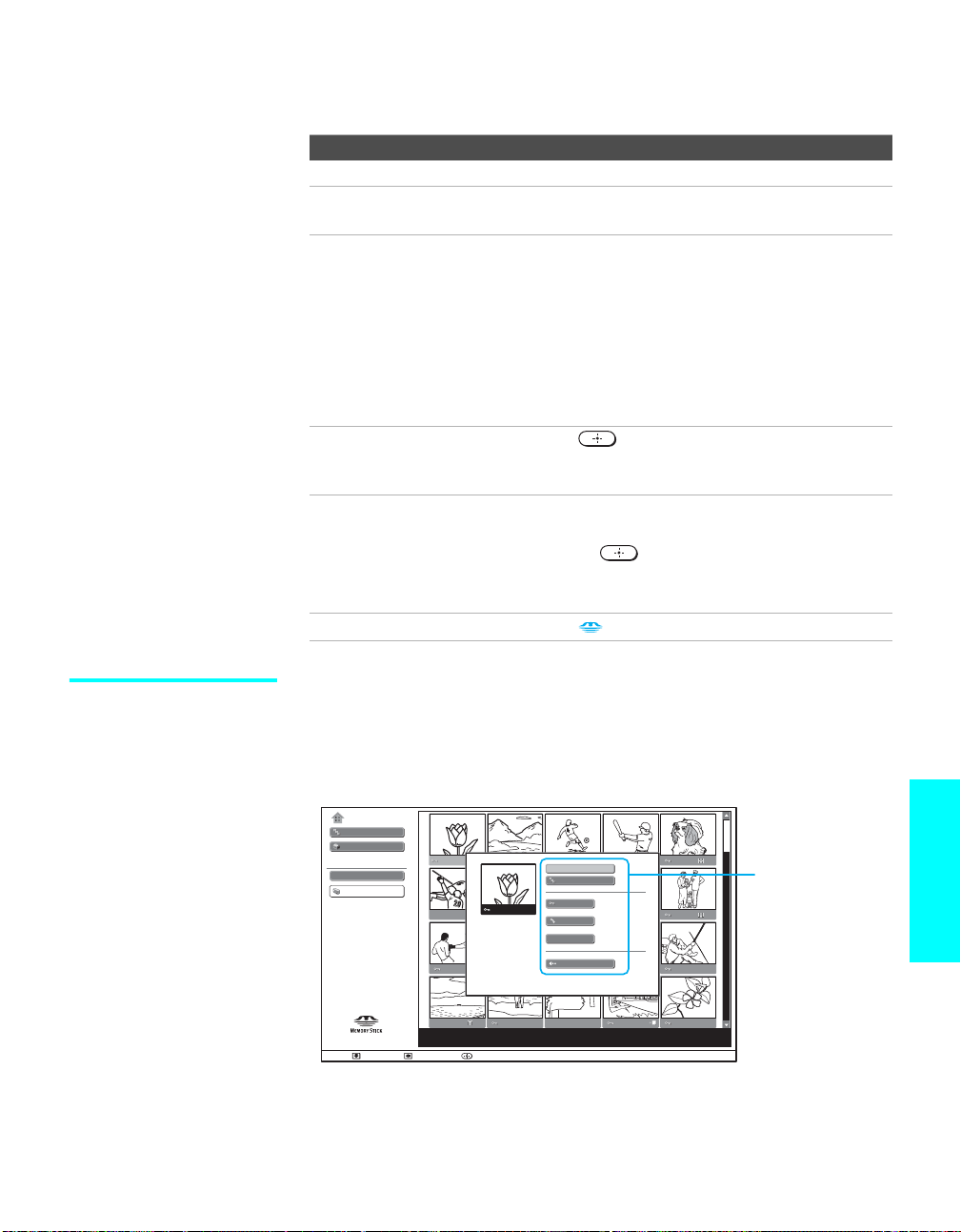

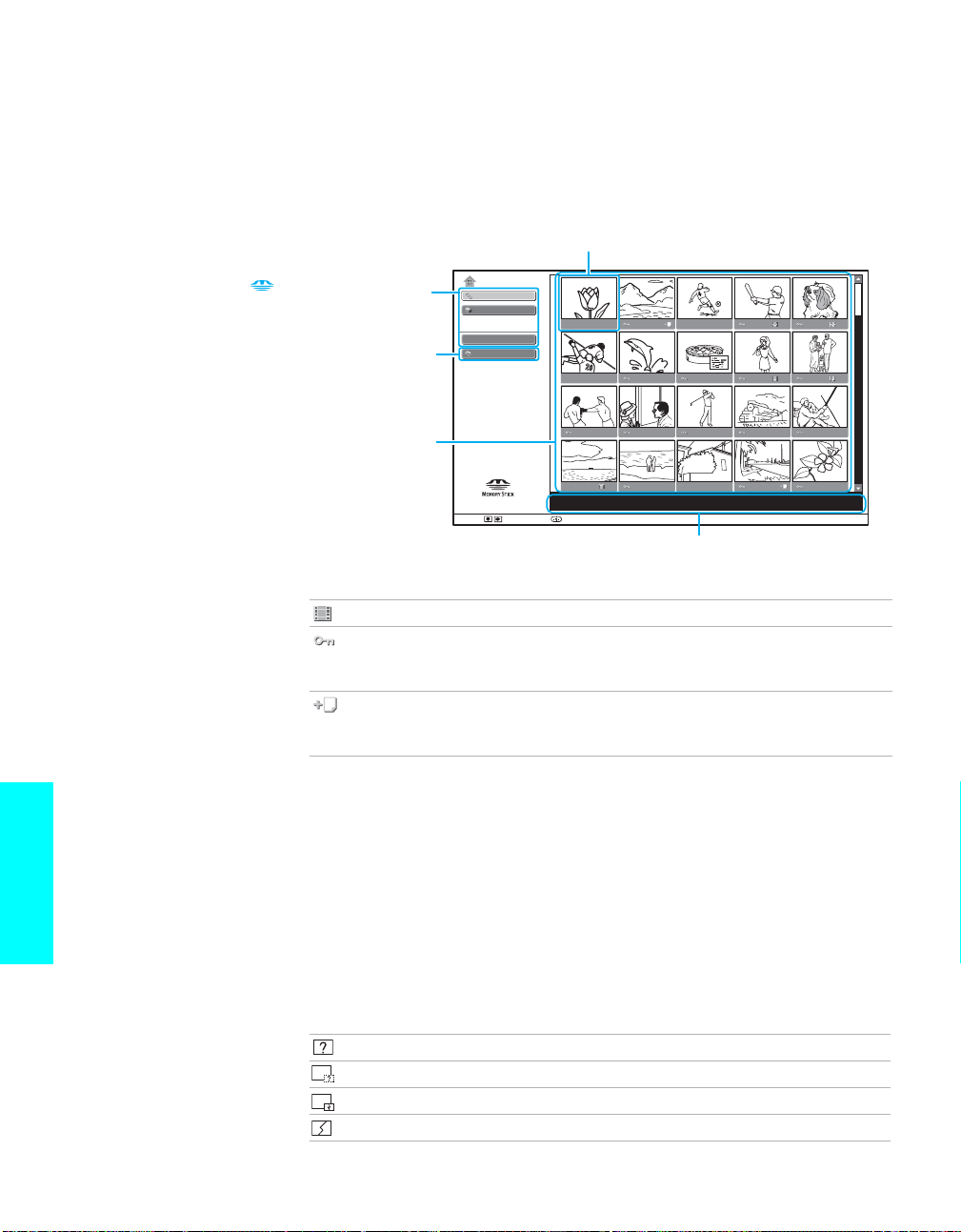

s Memory Stick
®
Viewer: Allows you to view on your TV screen digital
images (JMEG) and movies (MPEG1) that are stored on Memory Stick
media.
s Component Video Inputs: Offers the best video quality for DVD
(480p, 480i), and digital set-top box (HD1080i, 720p) connections.
s Parental Control: V-Chip technology allows parents to block
unsuitable programming from younger viewers.
s Digital Visual Interface (DVI-HDTV): Can accommodate a copy-
protected digital connection (HDCP
*
) to other devices (such as digital
set-top boxes) that have compatible interfaces. The DVI-HDTV input
terminal is compliant with the EIA-861 standard and is not intended for
use with personal computers.
.........................................................................................................................
High-bandwidth Digital Content Protection
15
Setting Up the TV
Overview
This chapter includes illustrated instructions for setting up your TV.
Topic Page(s)
TV Controls and Connectors 16-19
Installing the TV 21
Basic Connections: Connecting a Cable or Antenna 23-28
Connecting Optional Equipment
VCR and Cable
VCR and Cable Box
Two VCRs for Tape Editing
Satellite Receiver
Satellite Receiver and VCR

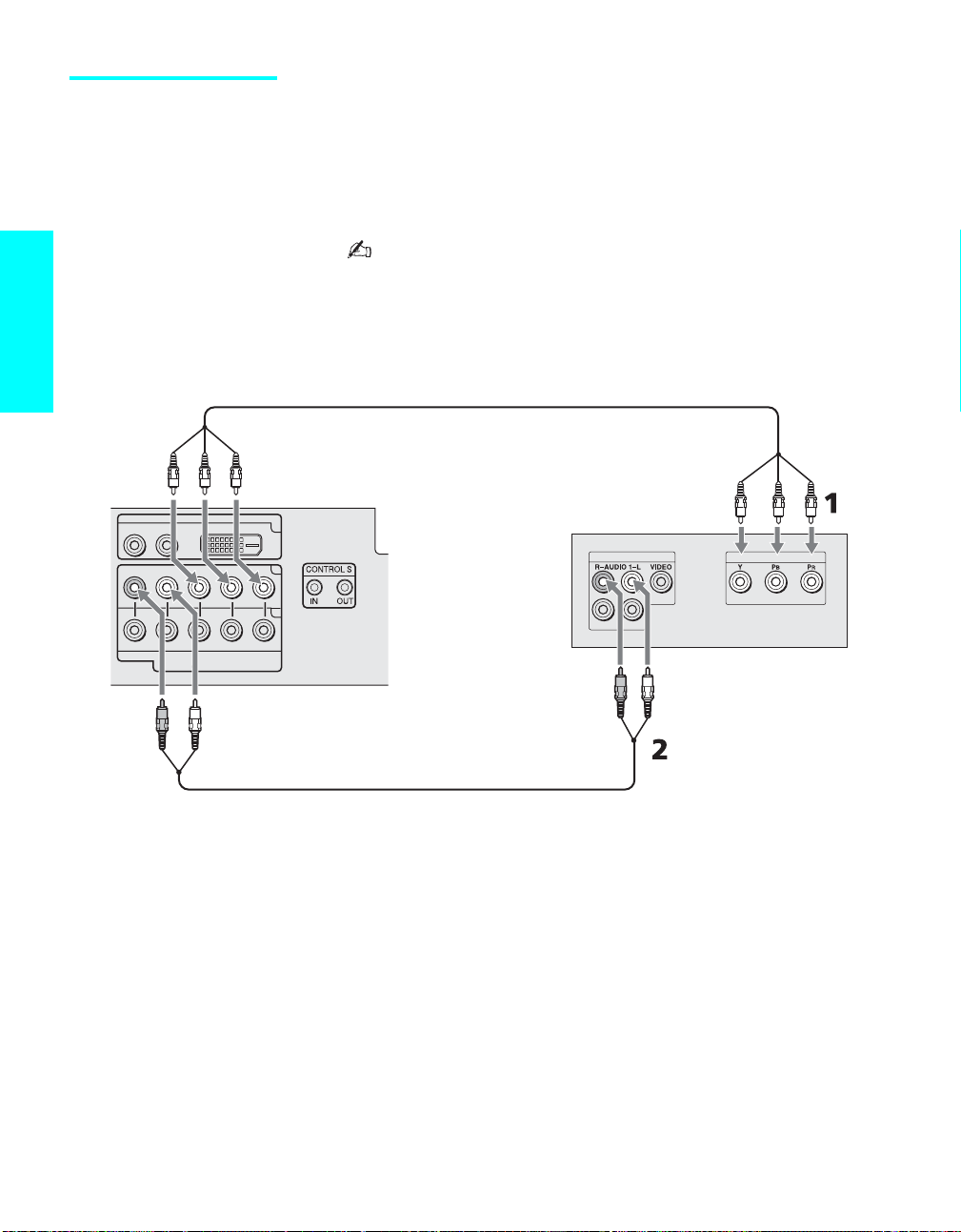

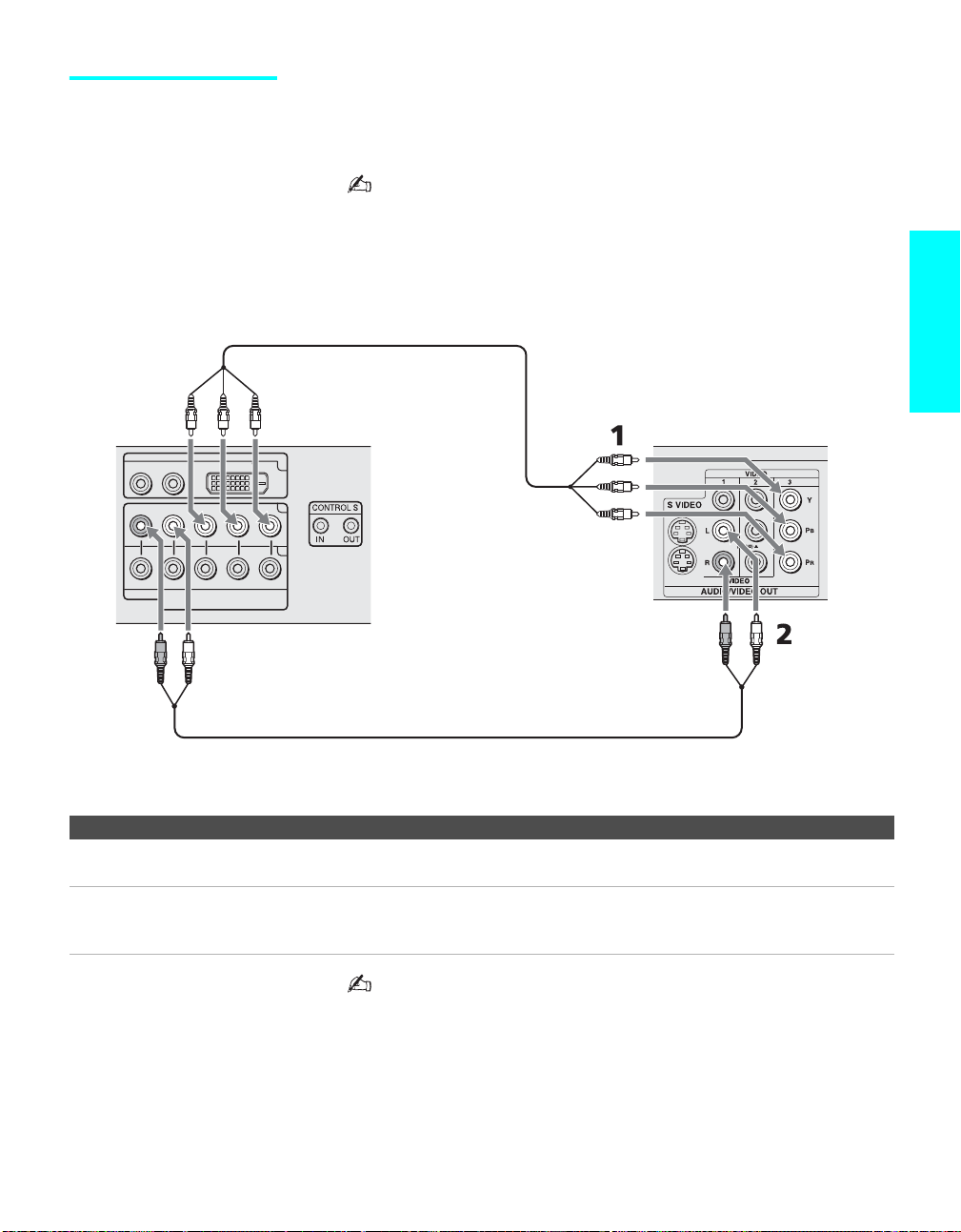

DVD Player with Component Video Connectors
DVD Player with S VIDEO and Audio Connectors
Digital TV Set-Top Box with Component Video Connectors

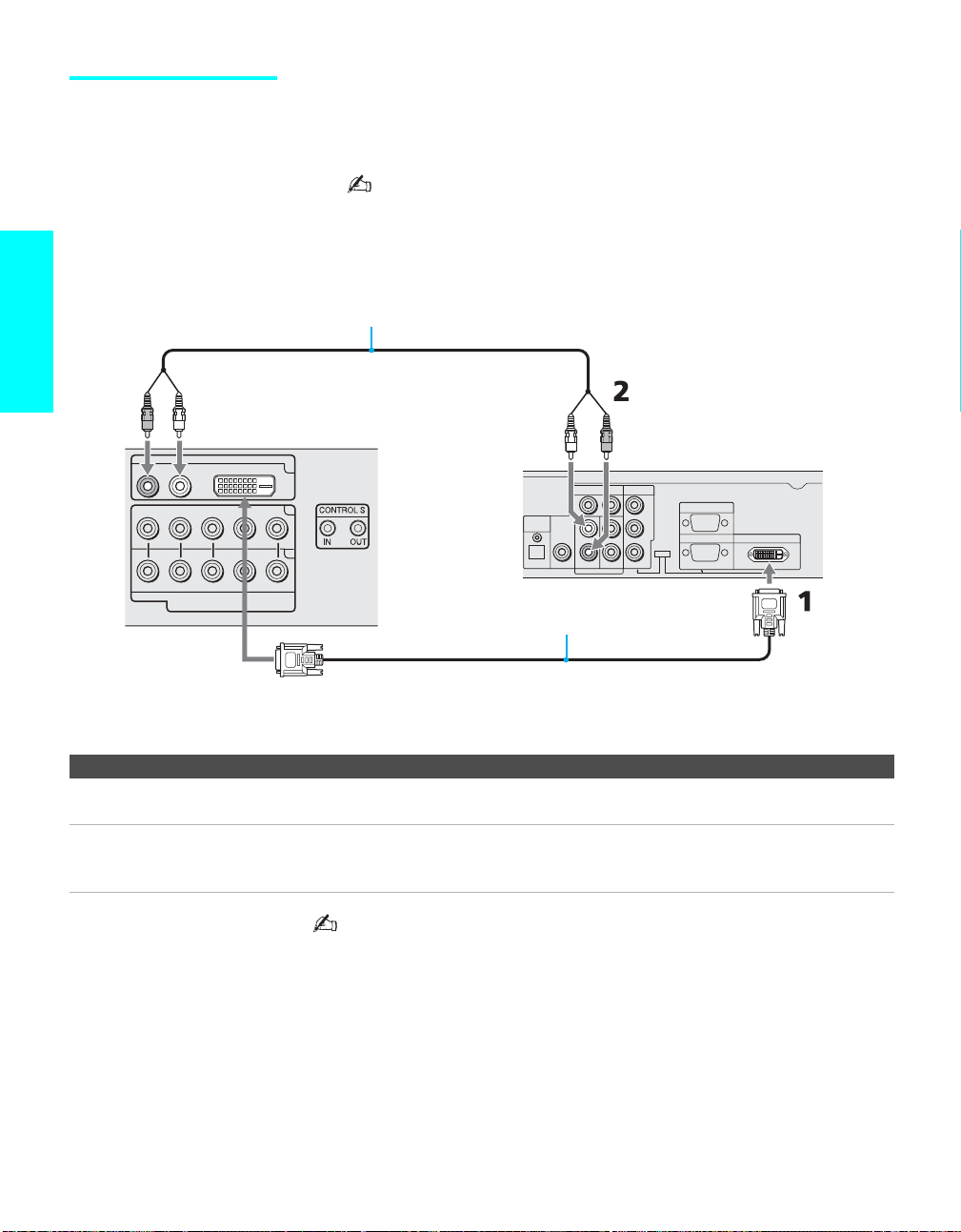

Digital Satellite Receiver with DVI-HDTV Connector
Camcorder
Audio Receiver
Sub woofer
30
32
34
36
38
40
42
43
44
45
46
47

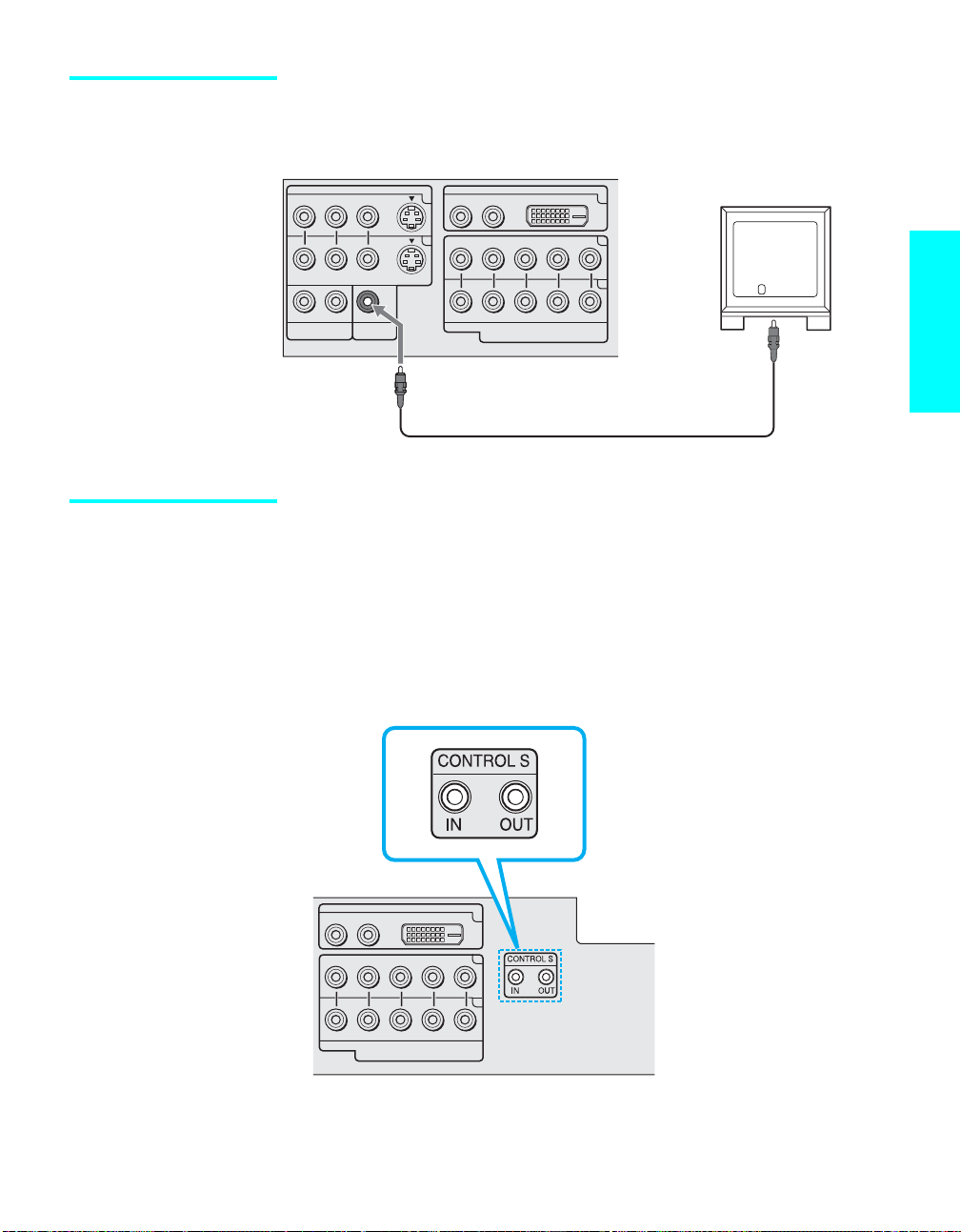

Using the CONTROL S Feature 47
Setting Up the Channel List 48
16
Setup
TV Controls and Connectors
Front Panel
Item Description
1 PICTURE OFF
LED
When lit, indicates that the Picture Off feature is activated.
For details, see page 65.
2 TIMER LED When lit, indicates one of the timers is set. When the timer
is set, this LED will remain lit even if the TV set is turned
off. For details, see page 97.
3 STANDBY LED Lights up in red when the TV is in standby mode. The LED
does not light up when the main power is turned off. If the
LED blinks continuously, this may indicate the display unit
needs servicing (see “Contacting Sony” on page 101).
4 POWER LED Lights up in green when the TV set is turned on.
5 Infrared
Receiver (IR)
Receives IR signals from the TV’s remote control.
PICTURE OFF TIMER STANDBY POWER
1234 5
17
Setup
Right Side Panel
Item Description
1 Main POWER Press to turn on and off the main power of the TV Set.
2 – CHANNEL + Press to scan through channels. To scan quickly through
channels, press and hold down either CHANNEL.
3 – VOLUME + Press to adjust the volume.
4 INPUT Press repeatedly to cycle through the video equipment
connected to the TV’s video inputs.
5 Memory Stick
access indicator
When lit, indicates that the Memory Stick is being read.
(Do not remove the Memory Stick when the indicator is lit.)
6 (Memory
Stick slot)
Memory Stick insertion slot. For details, see “Inserting and
Removing a Memory Stick” on page 69.
POWER
CHANNEL
VOLUME
INPUT
PRO
1
4
3
2
5
6
18
Setup
Left Side Panel
Item Description
1 S VIDEO
VIDEO IN 2
Connects to the S VIDEO OUT jack on your camcorder or
other video equipment that has S VIDEO. Provides better
picture quality than composite video (2).
2 VIDEO/
L (MONO)/R
AUDIO
VIDEO IN 2
Connects to the composite A/V output jacks on your
camcorder or other video equipment.
If you connect a monaural VCR or camcoder, connect the
audio output to the AUDIO L (MONO) jack on the TV.
VIDEO
IN 2
L
(MONO)
R
S VIDEO
VIDEO
AUDIO
1
2
To open the slide cover
19
Setup
Rear Panel
VIDEO IN
TO
AUDIO OUT
1
DVI-HDTV IN
DVI-HDTVR -
AUDIO
- L
R -
AUDIO
- L
R -
AUDIO
- L
(MONO)
R -
AUDIO
- L
WOOFER OUT
(VAR/FIX)
(VAR)
YPB PR
6
3
VIDEO S VIDEO
HD/DVD IN
(1080i/720p/480p/480i)
4
5
0
4
5 6 7
8
1
1
1
3
2
9
Jack Description
1 VHF/UHF RF input that connects to your VHF/UHF antenna or cable box.
2 TO CONVERTER Connects to your cable box input jack. This VHF/UHF output jack lets you set up your TV
to switch between scrambled channels (coming through a cable box) and unscrambled cable
channels. Use this jack instead of a splitter to get better picture quality when you need to
switch between scrambled and unscrambled cable channels. For details, see page 25.
3 AUX Auxiliary RF input that connects to your antenna, CATV cable, or cable box output jack.
This is convenient if you are using two VHF/UHF sources (antenna, CATV cable, or cable
box). For details, see pages 24 and 25.
4 VIDEO IN 1/3
VIDEO/
R-AUDIO-L (MONO)
Connect to the composite A/V output jacks on your VCR or other video component. A third
composite A/V input jack (VIDEO IN 2) is located on the left side panel. These video
connections provide better picture quality than the VHF/UHF (1) connections.
5 S VIDEO IN 1/3 Connects to the S VIDEO OUT jack of your VCR or other video equipment that has S
VIDEO. S VIDEO provides better picture quality than either composite video (4) or
VHF/UHF (1) connections.
6 DVI-HDTV IN
DVI-HDTV
AUDIO R/L
Can accommodate a copy-protected digital connection (HDCP*) to other devices (such as
digital set-top boxes) that have compatible interfaces. The DVI-HDTV input terminal is
compliant with the EIA-861 standard and is not intended for use with personal computers.
See the instruction manual that came with your equipment for details about connecting and
using it with the TV.
Use a DVI-D single link cable.
7 CONTROL S
IN/OUT
Allows the TV to receive (IN) and send (OUT) remote control signals to other Sony
infrared-controlled audio or video equipment that has the CONTROL S function.
8 HD/DVD IN
(1080i/720p/480p/
480i)
Connect to your DVD player’s or digital set-top box’s component video (Y, P
B
, P
R
) and
audio (L/R) jacks. Component video provides better picture quality than 1, 4, or 5.
20
Setup
9 WOOFER OUT
(VAR)
Connects to the input jack of your sub woofer.
q; AUDIO OUT
(VAR/FIX) L/R
Connects to the left and right audio input jacks of your audio or video equipment. You can
use these outputs to listen to your TV’s audio through your stereo system.
* High-bandwidth Digital Content Protection
Jack Description
21
Setup
Installing the TV
Connecting the AC
Power Cord
1
Secure the AC power plug to the AC IN jack.
2
Connect the AC power cord (supplied) to wall outlet.
Be sure to use the supplied AC power cord.
When connecting optional components, do not connect the AC
power cord to wall outlet until you have completed making all
connections.
Preventing the TV
from Falling Down
After connections with antennas and other equipment are completed, be sure
to attach the supplied clamp screws to the rear of the TV, and pass a sturdy
cord or chain and attach it to a wall or pillar.
1
Remove one of the upper two screws at the rear of the TV, then attach
the supplied clamp screw to the screw hole.
2
Repeat step 1 to attach the other clamp screw.
3
Attach a sturdy cord or chain securely to each clamp screw, and attach
the cord or chain to a wall or pillar.
AC power cord
(supplied)
Clamp screw (supplied)
Rear of the TV
Attached screw
22
Setup
Storing the Cables
in the Cord Clamp
You can attach the supplied cord clamp to the rear of the TV to store the
connecting cables.
1
Attach the supplied cord clamp to the TV stand with four supplied
clamp rivets.
Push the rivet head to attach the cord clamp to the TV stand.
2
Pass the connecting cables from the right through the cord clamp.
To remove the cord clamp, turn to remove the four rivets using
a phillips screwdriver.
Clamp rivet
Cord clamp
23
Setup
Basic Connections: Connecting a Cable or Antenna
The way in which you will connect your TV varies, depending on how your
home receives a signal (cable, cable box, antenna) and whether or not you
plan to connect a VCR.
If you are connecting a VCR
s See the connections described on pages 30 and 32.
Cable or Antenna
Only
For best results, use this connection if you are connecting a cable or an
antenna and you:
s Do not need a cable box to unscramble channels. (If you have a cable
box, see pages 25 and 27.)
s Do not intend to connect a VCR. (If you have a VCR, see pages 30 and
32.)
For antenna connection, use the supplied antenna cable.
When using an indoor antenna, such as rabbit-ear or dipole-
antenna, keep the antenna away from the TV. If not, noise may
appear on the screen.
If You Are Connecting See Page
Cable or Antenna Only
s No cable box or VCR
23
Cable and Antenna Only
s No cable box or VCR
24
Cable Box and Cable Only
s Cable box unscrambles only some channels
(usually premium channels)
s No VCR
25
Cable Box Only
s Cable box unscrambles all channels
s No VCR
27
Cable Type Connect As Shown
VHF Only or
combined
VHF/UHF or Cable
VHF/UHF
Antenna
cable
(supplied)
24
Setup
Cable and Antenna
Only
For best results, use this connection if you:
s Have a cable and an antenna.
(This is convenient if you are using a separate rooftop antenna to receive
additional channels that are not provided by your cable company.)
s Do not have a cable box or VCR. (If you have a cable box, see pages 25
and 27. If you have a VCR, see pages 30 and 32.)
For antenna connection, use the supplied antenna cable.
When using an indoor antenna, such as rabbit-ear or dipole-
antenna, keep the antenna away from the TV. If not, noise may
appear on the screen.
Notes on Using This Connection
Cable Type Connect As Shown
Cable TV (CATV)
and Antenna
About Using This Connection with Dual Picture (Twin View, etc.) Features
With this connection, you cannot view antenna channels in the right dual picture
window.
VHF/UHF
TO
CONVERTER AUX
Antenna cable
(supplied)
CATV cable
(No connection to
TO COVERTER)
To Do This ... Do This ...
Switch the TV’s input between
the cable and antenna
Press ANT to switch back and forth between the TV’s VHF/UHF and AUX inputs.
Receive channels using an
antenna, instead of the cable
1
Press ANT to switch to the AUX input.
2
Set the Cable option to Off. For details, see “Selecting Channel Options” on
page 90.
3
Run the Auto Setup program, as described in “Setting Up the Channel List” on
page 48.
25
Setup
Cable Box and Cable
Only
For best results, use this connection if:
s Your cable company scrambles some channels, such as premium
channels (which requires you to use a cable box), but does not scramble
all channels.
s You do not have a VCR. (If you have a VCR, see pages 30 and 32.)
With this connection you can:
s Use the TV remote control to change channels coming through the cable
box to the TV’s AUX input jack. (You must first program the remote
control for your specific cable box; see “Programming the Remote
Control” on page 52.)
s Use the TV remote control to change channels coming directly into the
TV’s VHF/UHF input. (The TV’s tuner provides a better signal than the
cable box.)
To connect the cable box and cable
1
Connect your cable company to the TV’s VHF/UHF jack using the
supplied antenna cable.
2
Use a coaxial cable to connect the TV’s TO CONVERTER jack to the
cable box’s input jack. (The TV’s internal converter lets you switch
between unscrambled signals coming straight into the TV and
scrambled signals coming in through the cable box, eliminating the need
for an external splitter.)
3
Use a coaxial cable to connect the cable box’s output jack to the TV’s
AUX jack.
4
Run the Auto Setup program, as described in “Setting Up the Channel
List” on page 48.
VHF/UHF
TO
CONVERTER AUX
Antenna cable
(supplied)
IN
Cable box
OUT
Coaxial cable
(not supplied)
26
Setup
Notes on Using This Connection
Do not leave the display indication of the cable box turned on.
To Do This ... Do This ...
Use the cable box Tune the TV to the channel the cable box is set to (usually channel 3 or 4) and then
use the cable box to switch channels.
Set up the TV remote control to
operate the cable box
Program the remote control. See “Programming the Remote Control” on page 52.
Activate the remote control to
operate the cable box
Press SAT/CABLE FUNCTION.
Prevent the accidental switching
of TV channels
When using the cable box, you need the TV to stay on the channel the cable box is
set to (usually channel 3 or 4). You can use the TV’s Channel Fix feature to lock in a
specific channel. For details, see “Using the Channel Menu” on page 90.
Switch
the TV’s input between
the cable box and cable
Press ANT to switch back and forth between the TV’s VHF/UHF (unscrambled
channels) and AUX (scrambled) inputs.
27
Setup
Cable Box Only
For best results, use this connection if:
s Your cable company scrambles all channels, which requires you to use a
cable box.
s You do not have a VCR. (If you have a VCR, see pages 30 and 32.)
With this connection you can:
s Use the TV remote control to change channels coming through the cable
box to the TV’s VHF/UHF jack. (You must first program the remote
control for your specific cable box.)
To connect the cable box
1
Connect the CATV cable to the cable box’s input jack.
2
Use the supplied antenna cable to connect the cable box’s output jack to
the TV’s VHF/UHF jack.
3
Run the Auto Setup program, as described in “Setting Up the Channel
List” on page 48.
About Using This Connection with Dual Picture (Twin View, etc.) Features
With this connection, all channels come into the TV through your cable box and
only one unscrambled signal is sent to the TV, so you cannot use the dual picture
features. If some of your channels are scrambled, but others are not, consider using
the “Cable Box and Cable Only” on page 25 instead.
VHF/UHF
Antenna cable
(supplied)
OUT
IN
Cable box
CATV
cable
Rear of TV
28
Setup
Notes on Using This Connection
Do not leave the display indication of the cable box turned on.
To Do This ... Do This ...
Use the cable box Tune the TV to the channel the cable box is set to (usually channel 3 or 4) and then
use the cable box to switch channels.
Set up the TV remote control to
operate the cable box
Program the remote control. See “Programming the Remote Control” on page 52.
Activate the remote control to
operate the cable box
Press SAT/CABLE FUNCTION.
Prevent the accidental switching
of TV channels
When using the cable box, you need the TV to stay on the channel the cable box is
set to (usually channel 3 or 4). You can use the TV’s Channel Fix feature to lock in a
specific channel. For details, see “Using the Channel Menu” on page 90.
29
Setup
Connecting Optional Equipment
Use the directions in this section to connect the following optional
equipment:
About Using
SVIDEO
If the optional equipment you are connecting has an S VIDEO jack
(shown at left), you can use an S VIDEO cable for improved picture
quality (compared to an A/V cable). Because S VIDEO carries only
the video signal, you also need to connect audio cables for sound, as
shown below.
Example of an S VIDEO Connection
If You Are Connecting See Page
VCR and Cable 30
VCR and Cable Box 32
Two VCRs for Tape Editing 34
Satellite Receiver 36
Satellite Receiver and VCR 38
DVD Player with Component Video Connectors 40
DVD Player with S VIDEO and Audio Connectors 42
Digital TV Set-Top Box with Component Video Connectors 43
Digital Satellite Receiver with DVI-HDTV connector 44
Camcorder 45
Audio Receiver 46
Sub Woofer 47
VIDE
O
I
N
AUDIO OU
T
1
DVI-HDTV IN
DVI-HDTVR -
AUDIO
- L
R -
AUDIO
- L
R -
AUDIO
- L
(
MONO
)
R -
W
OO
FER
OUT
(
VAR/FIX
)
()
(
VAR
)
()
YPB PR
6
3
VIDEO S VIDEO
4
5
HD/DVD IN
(1080i/720p/480p/480i)
S VIDEO cable
Audio cable
Rear of TV
Equipment with S VIDEO
30
Setup
VCR and Cable
For best results, use this connection if:
s Your cable company does not require you to use a cable box.
To connect the VCR and cable
1
Connect the CATV cable to the VCR’s VHF/UHF input jack.
2
Use the supplied antenna cable to connect the VCR’s VHF/UHF output
jack to the TV’s VHF/UHF jack.
3
Use an A/V cable to connect the VCR’s A/V output jacks to the TV’s
A/V input jacks.
4
Run the Auto Setup program, as described in “Setting Up the Channel
List” on page 48.
Using S VIDEO jacks? See page 29.
About Using This Connection with Dual Picture (Twin View, etc.) Features
With this connection, you can use all the dual picture features.
VIDEO IN
AUDIO OUT
1
DVI-HDTV IN
DVI-HDTVR -
AUDIO
- L
R -
AUDIO
- L
R -
AUDIO
- L
(MONO)
R -
AUDIO
- L
WOOFER OUT
(VAR/FIX)
(VAR)
YPB PR
6
3
VIDEO S VIDEO
4
5
VHF/UHF
TO
CONVERTER AUX
HD/DVD IN
(1080i/720p/480p/480i)
Rear of TV
A/V cable
Antenna cable
(supplied)
VCR
CATV cable
31
Setup
Notes on Using This Connection
Do not leave the display indication of the VCR turned on.
To Do This ... Do This ...
Watch the VCR Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the illustration).
Watch cable channels Press TV/VIDEO repeatedly to select the cable input (VHF/UHF in the illustration).
Set up the TV remote control to
operate the VCR
If you have a non-Sony VCR, you must program the remote control. See
“Programming the Remote Control” on page 52.
Activate the TV remote control to
operate the VCR
Press VCR/DVD FUNCTION.
Control VCR functions with the
TV remote control
See “Operating a VCR” on page 54.
Label video inputs to easily
identify equipment connected to
the TV
See the instructions for setting up Video Labels on page 96.
32
Setup
VCR and Cable Box
For best results, use this connection if:
s Your cable company scrambles some channels, such as premium
channels (which requires you to use a cable box), but does not scramble
all channels.
With this connection you can:
s Use the TV remote control to change channels coming through the cable
box. (You must first program the remote control for your specific cable
box; see “Programming the Remote Control” on page 52.)
s Use the TV remote control to change channels coming directly into the
TV’s VHF/UHF jack. (The TV’s tuner provides a better signal than the
cable box.)
s Record channels coming through the cable box and channels coming
directly into the TV.
To connect a VCR and cable box, you need:
s A splitter, which is a small, inexpensive device that you can purchase at
your local electronics store.
s Three coaxial cables.
s One A/V cable or one S VIDEO cable with audio cables.
To connect the VCR and cable box
1
Connect the CATV cable to the single (input) jack of the splitter.
2
Use the supplied antenna cable to connect one of the splitter’s two
output jacks to the TV’s VHF/UHF jack.
3
Use a coaxial cable to connect the splitter’s other output jack to the
cable box’s input jack.
4
Use a coaxial cable to connect the cable box’s output jack to the VCR’s
RF input jack.
5
Use an A/V cable to connect the VCR’s A/V output jacks to the TV’s
A/V input jacks.
6
Run the Auto Setup program, as described in “Setting Up the Channel
List” on page 48.
Using S VIDEO jacks? See page 29.
About Using This Connection with Dual Picture (Twin View, etc.) Features
With this connection, you can use all the dual picture features.
33
Setup
Notes on Using This Connection
Do not leave the display indication of the cable box and VCR
turned on.
VIDEO IN
AUDIO OUT
1
DVI-HDTV IN
DVI-HDTVR -
AUDIO
- L
R -
AUDIO
- L
R -
AUDIO
- L
(MONO)
R -
AUDIO
- L
WOOFER OUT
(VAR/FIX)
(VAR)
YPB PR
6
3
VIDEO S VIDEO
4
5
VHF/UHF
TO
CONVERTER AUX
HD/DVD IN
(1080i/720p/480p/480i)
Rear of TV
VCR
Antenna cable
(supplied)
Cable box
A/V cable
Splitter
(not supplied)
Coaxial cable
To Do This ... Do This ...
Watch cable (unscrambled)
channels
Press TV/VIDEO repeatedly to select the cable input (CABLE in the illustration).
Watch cable box (scrambled)
channels
Turn on the VCR and tune it to the channel the cable box is set to (usually channel 3
or 4). Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the
illustration). Use the cable box to change channels.
Watch the VCR Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the illustration).
Set up the TV remote control to
operate the cable box or VCR
If you have a non-Sony VCR, you must program the remote control. See
“Programming the Remote Control” on page 52.
Activate the remote control to
operate the cable box or VCR
For the cable box, press SAT/CABLE FUNCTION.
For the VCR, press VCR/DVD FUNCTION.
Control specific cable box and
VCR functions with the TV
remote control
See “Operating a Cable Box” on page 55 and “Operating a VCR” on page 54.
Label video inputs to easily
identify equipment connected to
the TV
See the instructions for setting up Video Labels on page 96.
34
Setup
Two VCRs for Tape
Editing
Connecting two VCRs lets you record from one VCR to the other. By
connecting them as shown below, you can view (monitor) what is being
recorded.
To connect two VCRs for tape editing
1
Use an A/V cable to connect the playback VCR’s A/V output jacks to
the recording VCR’s A/V input jacks.
2
Use an A/V cable to connect the recording VCR’s A/V output jacks to
the TV’s AUDIO and VIDEO IN jacks.
Using S VIDEO jacks? See page 29.
When connecting two VCRs for tape editing;
– you cannot edit a tape with copy protection.
– do not connect the TV’s A/V input jack and output jack to your
VCRs at the same time to avoid looping the signal.
VIDEO IN
AUDIO OUT
1
DVI-HDTV IN
DVI-HDTVR -
AUDIO
- L
R -
AUDIO
- L
R -
AUDIO
- L
(MONO)
R -
AUDIO
- L
WOOFER OUT
(VAR/FIX)
(VAR)
YPB PR
6
3
VIDEO S VIDEO
4
5
HD/DVD IN
(1080i/720p/480p/480i)
Rear of TV
Recording VCR
A/V cable
A/V cable
Playback VCR
35
Setup
Notes on Using This Connection
To Do This ... Do This ...
Set up the TV remote control to
operate the VCR(s)
If you have a non-Sony VCR, you must program the remote control. See
“Programming the Remote Control” on page 52.
Activate the TV remote control to
operate the VCR(s)
Press VCR/DVD FUNCTION.
Control VCR functions with the
TV remote control
See “Operating a VCR” on page 54.
Label video inputs to easily
identify equipment connected to
the TV
See the instructions for setting up Video Labels on page 96.
36
Setup
Satellite Receiver
To connect a satellite receiver
1
Connect the satellite antenna cable to the satellite receiver’s satellite
input jack.
2
Use an A/V cable to connect the satellite receiver’s A/V output jacks to
the TV’s A/V input jacks.
3
Connect the supplied antenna cable from your cable or antenna to the
TV’s VHF/UHF jack.
4
Run the Auto Setup program, as described in “Setting Up the Channel
List” on page 48.
Using S VIDEO jacks? See page 29.
VIDEO IN
AUDIO OUT
1
DVI-HDTV IN
DVI-HDTVR -
AUDIO
- L
R -
AUDIO
- L
R -
AUDIO
- L
(MONO)
R -
AUDIO
- L
WOOFER OUT
(VAR/FIX)
(VAR)
YPB PR
6
3
VIDEO S VIDEO
4
5
VHF/UHF
TO
CONVERTER AUX
HD/DVD IN
(1080i/720p/480p/480i)
Rear of TV
A/V cable
Satellite receiver
Antenna cable
(supplied)
Satellite
antenna cable
37
Setup
Notes on Using This Connection
Do not leave the Electric Program Guide and display indication
turned on.
To Do This ... Do This ...
Watch the satellite receiver Press TV/VIDEO repeatedly to select the satellite receiver input (VIDEO 1 in the
illustration).
Set up the TV remote control to
operate the satellite receiver
If you have a non-Sony satellite receiver, you must program the remote control. See
“Programming the Remote Control” on page 52.
Activate the TV remote control
to operate the satellite receiver
Press SAT/CABLE FUNCTION.
Control satellite receiver
functions with the TV remote
control
See “Operating a Satellite Receiver” on page 54.
Label video inputs to easily
identify equipment connected to
the TV
See the instructions for setting up Video Labels on page 96.
38
Setup
Satellite Receiver
and VCR
To connect a satellite receiver and VCR
1
Connect the satellite antenna cable to the satellite receiver’s satellite
input jack.
2
Connect the CATV cable to the VCR’s VHF/UHF input jack.
3
Use the supplied antenna cable to connect the VCR’s VHF/UHF output
jack to the TV’s VHF/UHF jack.
4
Use an A/V cable to connect the satellite receiver’s A/V output jacks to
the VCR’s A/V input jacks.
5
Use an A/V cable to connect the VCR’s A/V output jacks to the TV’s
A/V input jacks.
6
Run the Auto Setup program, as described in “Setting Up the Channel
List” on page 48.
Using S VIDEO jacks? See page 29.
VIDEO IN
AUDIO OUT
1
DVI-HDTV IN
DVI-HDTVR -
AUDIO
- L
R -
AUDIO
- L
R -
AUDIO
- L
(MONO)
R -
AUDIO
- L
WOOFER OUT
(VAR/FIX)
(VAR)
YPB PR
6
3
VIDEO S VIDEO
4
5
VHF/UHF
TO
CONVERTER AUX
HD/DVD IN
(1080i/720p/480p/480i)
A/V cable
Satellite receiver
Antenna cable
(supplied)
Satellite
antenna
cable
CATV cable
A/V cable
VCR
Rear of TV
39
Setup
Notes on Using This Connection
Do not leave the Electric Program Guide and display indication
turned on.
To Do This ... Do This ...
Watch the satellite receiver Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the illustration).
The VCR may need to be turned on and set to the satellite receiver input.
Watch the VCR Press TV/VIDEO repeatedly to select the input to which the VCR is connected
(VIDEO 1 in the illustration).
Set up the TV remote control to
operate the satellite receiver or
VCR
If you have a non-Sony VCR or satellite receiver, you must program the remote
control. See “Programming the Remote Control” on page 52.
Activate the TV remote control to
operate the satellite receiver or
VCR
For the satellite receiver, press SAT/CABLE FUNCTION.
For the VCR, press VCR/DVD FUNCTION.
Control satellite receiver and
VCR functions with the TV
remote control
See “Operating a Satellite Receiver” on page 54 and “Operating a VCR” on page 54.
Label video inputs to easily
identify equipment connected to
the TV
See the instructions for setting up Video Labels on page 96.
40
Setup
DVD Player with
Component
Video Connectors
For best results, use this connection if your DVD player has component
video (Y, P
B
, P
R
) jacks.
To connect a DVD player with component video connectors
1
Use three separate component video cables to connect the DVD player’s
Y, P
B
and P
R
jacks to the Y, P
B
and P
R
jacks (HD/DVD IN) on the TV.
The Y, P
B
and P
R
jacks on your DVD player are sometimes
labeled Y, C
B
and C
R
, or Y, B-Y and R-Y. If so, connect the
cables to their matching color jacks.
2
Use an audio cable to connect the DVD player’s audio output jacks to the
TV’s HD/DVD IN AUDIO input jacks.
DVI-HDTV IN
DVI-HDTVR -
AUDIO
- L
R -
AUDIO
- L Y PB PR
6
4
5
HD/DVD IN
(1080i/720p/480p/480i)
COMPONENT VIDEO OUT
LINE OUT
Rear of TV
DVD player
Component video cable
Audio cable
41
Setup
Notes on Using This Connection
You cannot record the signal from any equipment connected
into the Y, P
B
, P
R
jacks.
Do not leave a still image, such as the DVD menu, displayed on
the screen.
To Do This ... Do This ...
Watch the DVD player Press TV/VIDEO repeatedly to select the DVD input (VIDEO 4 in the illustration).
Set up the TV remote control to
operate the DVD player
If you have a non-Sony DVD player, you must program the remote control. See
“Programming the Remote Control” on page 52.
Activate the TV remote control to
operate the DVD player
Press VCR/DVD FUNCTION.
Control DVD functions with the
TV remote control
See “Operating a DVD Player” on page 55.
Label video inputs to easily
identify equipment connected to
the TV
See the instructions for setting up Video Labels on page 96.
42
Setup
DVD Player with
S VIDEO and Audio
Connectors
Use this connection if your DVD player does not have component video (Y,
P
B
, P
R
) jacks.
To connect a DVD player with A/V connectors
1
Use an audio cable to connect the DVD player’s audio output jacks to
the TV’s audio input jacks.
2
Use an S VIDEO cable to connect the DVD player’s S VIDEO jack to
the TV’s S VIDEO jack.
Notes on Using This Connection
Do not leave a still image, such as the DVD menu, displayed on
the screen.
To Do This ... Do This ...
Watch the DVD player Press TV/VIDEO repeatedly to select the DVD input (VIDEO 1 in the illustration).
Set up the TV remote control to
operate the DVD player
If you have a non-Sony DVD player, you must program the remote control. See
“Programming the Remote Control” on page 52.
Activate the TV remote control to
operate the DVD player
Press VCR/DVD FUNCTION.
Control DVD functions with the
TV remote control
See “Operating a DVD Player” on page 55.
Label video inputs to easily
identify equipment connected to
the TV
See the instructions for setting up Video Labels on page 96.
VIDE
O
I
N
A
U
DI
O
OUT
1
DVI-HDTV IN
DVI-HDTVR -
AUDIO
- L
R -
AUDIO
- L
R -
AUDIO
- L
(
MONO
)
R -
W
OO
FER
OUT
(
VAR/FIX
)
()
(
VAR
)
()
YPB PR
6
3
VIDE
O
S VIDEO
4
5
HD/DVD IN
(1080i/720p/480p/480i)
Rear of TV
DVD player
Audio cable
S VIDEO cable
43
Setup
Digital TV Set-Top
Box with
Component
Video Connectors
To connect a digital TV set-top box with component video connectors
1
Use three separate component video cables to connect the set-top box’s
Y, P
B
and P
R
jacks to the Y, P
B
and P
R
jacks (HD/DVD IN) on the TV.
The Y, P
B
and P
R
jacks on your set-top box are sometimes
labeled Y, C
B
and C
R
, or Y, B-Y and R-Y. If so, connect the
cables to their matching color jacks.
2
Use an audio cable to connect the set-top box’s audio output jacks to the
TV’s HD/DVD IN AUDIO input jacks.
Notes on Using This Connection
You cannot record the signal from any equipment connected
into the Y, P
B
, P
R
jacks.
Do not leave a still image or display indication, such as the
Electric Program Guide, displayed on the screen.
To Do This ... Do This ...
Watch the digital TV set-top box Press TV/VIDEO repeatedly to select the digital TV set-top box input (VIDEO 4 in
the illustration).
Label video inputs to easily
identify equipment connected to
the TV
See the instructions for setting up Video Labels on page 96.
DVI-HDTV IN
DVI-HDTVR -
AUDIO
- L
R -
AUDIO
- L Y PB PR
6
4
5
HD/DVD IN
(1080i/720p/480p/480i)
Rear of TV
Audio cable
Digital TV Set-Top Box
Component video cable
44
Setup
Digital Satellite
Receiver with
DVI-HDTV
Connector
To connect a digital Satellite Receiver with DVI-HDTV connector
1
Use a DVI-D single link cable to connect the Digital Satellite Receiver’s
DVI-HDTV connector to the TV’s DVI-HDTV connector.
The DVI-HDTV VIDEO connector does not provide audio, so
audio cables must be connected to provide sound.
2
Use an audio cable to connect the Digital Satellite Receiver’s audio
output jacks to the TV’s DVI-HDTV AUDIO jacks.
Notes on Using This Connection
Do not leave a still image or display indication, such as the Electric
Program Guide, displayed on the screen.
To Do This ... Do This ...
Watch the digital satelite receiver Press TV/VIDEO repeatedly to select the digital satellite receiver input (VIDEO 6 in
the illustration).
Label video inputs to easily
identify equipment connected to
the TV
See the instructions for setting up Video Labels on page 96.
DVI-HDTV IN
DVI-HDTVR -
AUDIO
- L
R -
AUDIO
- L Y PB PR
6
4
5
HD/DVD IN
(1080i/720p/480p/480i)
VIDEO OUT
(480i)
VIDEO OUT
(1080i/720p/480p)
AUTHORIZED
SERVICES ONLY
RGB OUT
TYPE
1
L1 L2
Y
P
B
PR
R1
AUDIO OUT
S. VIDEOOPTICAL
OPTICAL
AUDIO
OUT
R2
2
(1080i/720p/480p) (1080i/720p/480p)
DVI-HDTV OUT
Rear of TV
Audio cable
Digital Satellite Receiver
DVI-D single link cable
45
Setup
Camcorder
For easy connection of a camcorder, the TV has the A/V input jacks on the
left side. If you prefer, however, you can connect the camcorder to the TV’s
rear A/V input jacks.
To connect a camcorder
Use an A/V cable to connect the camcorder’s A/V output jacks to the TV’s
A/V input jacks.
Using S VIDEO jacks? See page 29.
Notes on Using This Connection
Do not leave a still image of the camcorder or digital camera
displayed on the screen.
To Do This ... Do This ...
Watch the camcorder Press TV/VIDEO repeatedly to select the camcorder input (VIDEO 2 in the
illustration).
Label video inputs to easily
identify equipment connected to
the TV
See the instructions for setting up Video Labels on page 96.
VIDEO
IN 2
L
(MONO)
R
S VIDEO
VIDEO
AUDIO
A/V cable
Left side of TV
Camcorder
To A/V output
46
Setup
Audio Receiver
For improved sound quality, you may want to play the TV’s audio through
your stereo system.
To connect an audio system
1
Use an audio cable to connect the TV’s audio output jacks to the audio
receiver’s line input jacks.
2
Using the TV’s Audio Menu, set the Speaker option to
Off
. Then set
the Audio Out option to Fixed or Variable, depending on how you want
to control the volume. For details, see “Using the Audio Menu” on page
86.
3
Turn on the audio receiver, and then set the receiver’s line input to the
jack into which you connected the TV.
VIDEO IN
AUDIO OUT
1
R -
AUDIO
- L
(MONO)
R -
AUDIO
- L
WOOFER OUT
(VAR/FIX)
(VAR)
3
VIDEO S VIDEO
Rear of TV
Audio cable
Receiver
To line input
47
Setup
Sub Woofer
Use a monaural audio cable to connect the TV’s WOOFER OUT jack to the
sub woofer’s input jack.
Using the CONTROL
S Feature
CONTROL S allows you to control your system and other Sony equipment
with one remote control. In addition to allowing you to control multiple
devices with one remote control, the CONTROL S feature allows you to
always point your remote control at your TV, instead of having to point it at
the other equipment, which might be hidden or out of direct line of sight.
Use CONTROL S IN to send signals to the TV.
Use CONTROL S OUT to send signals to connected equipment.
VIDEO IN
AUDIO OUT
1
DVI-HDTV IN
DVI-HDTVR -
AUDIO
- L
R -
AUDIO
- L
R -
AUDIO
- L
(MONO)
R -
AUDIO
- L
WOOFER OUT
(VAR/FIX)
(VAR)
YPB PR
6
3
VIDEO S VIDEO
4
5
HD/DVD IN
(1080i/720p/480p/480i)
Rear of TV
Sub woofer
Monaural audio cable (not supplied)
Sub woofer
input
DVI-HDTV IN
DVI-HDTVR -
AUDIO
- L
R -
AUDIO
- L Y PB PR
6
4
5
HD/DVD IN
(1080i/720p/480p/480i)
Rear of TV
48
Setup
Setting Up the Channel List
After you finish connecting your TV, you need to run Auto Setup, which
automatically set up available channels. The Auto Program screen appears
when you turn on your TV for the first time after hooking it up.
The Auto Setup feature does not apply for installations that use
a cable box for all channel selection.
Using Auto Setup
To run Auto Setup the first time you turn on your TV
1
Press
POWER
to turn on the TV.
The Initial Setup screen appears.
2
Press TV FUNCTION on the remote control.
3
Press V or v to select the desired on-screen display language and press
.
“Start Auto Program Now ?” appears.
4
Press V or v to select “Yes” and press .
Auto Setup automatically creates a list of receivable channels. When
finished, the lowest numbered channel is displayed.
To run Auto Setup again at a later time
s Use the Auto Program feature as described on page 90.
49
Using the Remote Control
Overview
This chapter describes how to set up, program, and use the TV’s remote
control.
Inserting Batteries
1
Open the battery compartment as illustrated below.
2
Insert two size AA batteries (supplied) by matching the e and E
terminals on the batteries to the diagram inside the battery compartment.
3
Close the battery compartment.
Remove the batteries to avoid damage from possible battery
leakage whenever you anticipate that the remote control will
not be used for an extended period.
Handle the remote control with care.
Avoid dropping it, getting it wet, placing it in direct sunlight,
near a heater, or where the humidity is high.
Topic Page
Inserting Batteries 49
Button Descriptions 50
Programming the Remote Control 52
Using Other Equipment with Your TV Remote Control 54
50
Remote Control
Button Descriptions
Button Description
1 Power
Buttons
VCR/DVD: Press to turn on and off the VCR or DVD player
you have programmed into the remote control.
SAT/CABLE: Press to turn on and off the satellite receiver or
cable box you have programmed into the remote control. For
instructions, see “Programming the Remote Control” on page
52.
POWER: Press to turn on and off the TV.
2 MUTING Press to mute the sound. Press again or press VOL+ to restore
the sound.
3 WIDE MODE Press repeatedly to step through the Wide Mode settings:
Wide Zoom, Normal, Full, Zoom. Also available in the
Screen menu. For details, see pages 59 and 88.
4 PICTURE
MODE
Press repeatedly to cycle through the available video picture
modes: Vivid, Standard, Pro. Also available in the Video
Menu. For details, see “Selecting Video Options” on page 84.
5 JUMP Press to jump back and forth between two channels. The TV
alternates between the current channel and the last channel
that was selected.
6 FAVORITES Press to display the Favorite Channels list. For details, see
page 63.
7 V v B b Press V v B b to move the on-screen cursor. To select an item,
press .
8 FUNCTION
buttons
VCR/DVD: Press to have the remote control operate video
equipment or DVD player you have programmed into the
remote control.
SAT/CABLE: Press to have the remote control operate the
satellite receiver or cable box.
TV: Press to have the remote control operate the TV.
9 Video Transport
Buttons
m Rewind
N Play
M Fast forward
z Record (press together with N)
X Pause
x Stop
q; (Twin View)Press to turn on and off Twin View. For details, see page 60.
qa FREEZE Press to freeze the picture. Press again to restore the picture.
For details, see “Using the Freeze Function” on page 64.
qs VOL +/– Press to adjust the volume.
qd
CODE SET
Press to program the remote control to operate non-Sony video
equipment. For details, see “Programming the Remote
Control” on page 52.
POWER
DISPLAYPIC OFF
ENT
TV
TV/VIDEO
MENU
JUMP
FAVORITES
FREEZE
CODE SET
RESET SLEEP MTS/SAP
/TV/SAT ANT
GUIDE
CHVOL
SAT/
CABLE
FUNCTION
VCR/DVD
MUTING
VCR/
DVD
MODE
SAT/
CABLE
PICTURE MODE WIDE MODE
TV
RM-Y1001
4
5
6
7
8
9
0
qa
qs
qd
qf
3
2
1
qh
qj
qk
ql
w;
wa
ws
wd
wf
wg
qg
51
Remote Control
qf RESET Press to reset the settings to the factory defaults. See pages 84
and 86. Also used to clear Favorite Channels (see page 63).
qg PIC OFF Press to have the TV screen turn off. For details, see page 65.
qh DISPLAY Press once to display the current channel number, current time,
and channel label. If set, the current channel number will
display for 10 seconds.
qj 0-9, ENT Press 0-9 to select a channel; the channel changes after 2
seconds. Press ENT to change channels immediately.
qk MENU Press to display the Menu. Press again to exit from the Menu.
For details, see page 83.
ql TV/VIDEO Press repeatedly to cycle through the video equipment
connected to the TV’s video inputs.
w;
(Memory Stick)
Press to display the Memory Stick Menu. For details, see
“Using the Memory Stick Viewer” on page 67.
wa Press repeatedly to step through the available audio effect
modes: TruSurround, Simulated, and off.
For details, see “Selecting Audio Options” on page 86.
TV/SAT If SAT/CABLE FUNCTION is pressed.
Press to switch between the TV and the satellite receiver.
ws ANT Press to switch between the sources connected to the TV’s
VHF/UHF and AUX inputs.
GUIDE If SAT/CABLE FUNCTION is pressed.
Press to display the program guide of your satellite program
provider.
wd CH +/– Press to scan through channels. To scan quickly through
channels, press and hold down either CH.
wf MTS/SAP Press repeatedly to cycle through the Multi-channel TV Sound
(MTS) options: Stereo, Auto SAP, and Mono. For details on
each option, see page 86.
wg SLEEP Press repeatedly until the TV displays the time in minutes (15,
30, 45, 60 or 90) that you want the TV to remain on before
shutting off. To cancel Sleep Timer, press SLEEP repeatedly
until SLEEP OFF appears.
Button Description
52
Remote Control
Programming the Remote Control
The remote control is preset to operate Sony brand video equipment.
If you have video equipment other than Sony brand that you want to control
with the TV’s remote control, use the following procedure to program the
remote control.
The equipment must have infrared (IR) remote capability in
order to be used with the remote control.
1
Turn to the list of “Manufacturer’s Codes” on page 53, and find the
three-digit code number for the manufacturer of your equipment. (If
more than one code number is listed, use the number listed first.)
2
Press CODE SET.
3
Press the desired FUNCTION button.
4
Enter the three-digit manufacturer’s code number.
5
Press ENT.
You must do step 4 within 30 seconds of step 3, or you must
redo steps 3 through 4.
6
To check if the code number works, aim the TV’s remote control at the
equipment and press POWER that corresponds with that equipment. If
it responds, you are done. If not, try using another code listed for that
manufacturer.
Notes
s If more than one code number is listed, try entering them one by one
until you come to the correct code for your equipment.
s If you enter a new code number, the code number you previously
entered at that setting is erased.
s In some cases, you may not be able to operate your equipment with the
supplied remote control. In such cases, use the equipment’s own remote
control unit.
s Whenever you remove the batteries to replace them, the code numbers
may revert to the factory setting and must be reset.
Sony Equipment Programmable Code Number
Beta, ED Beta VCRs 303
8 mm VCR 302
VHS VCR 301
DVD player 751
53
Remote Control
Manufacturer’s Codes
VCRs
Manufacturer Code
Sony 301
Admiral
(M. Ward)
327
Aiwa 338, 344
Audio Dynamic 314, 337
Broksonic 319, 317
Canon 309, 308
Citizen 332
Craig 302, 332
Criterion 315
Curtis Mathes 304, 338, 309
Daewoo 341, 312, 309
DBX 314, 336, 337
Dimensia 304
Emerson 319, 320, 316,
317, 318, 341
Fisher 330, 335
Funai 338
General Electric 329, 304, 309
Go Video 322, 339, 340
Goldstar 332
Hitachi 306, 304, 305,
338
Instant Replay 309, 308
JC Penney 309, 305, 304,
330, 314, 336,
337
JVC 314, 336, 337,
345, 346, 347
Kenwood 314, 336, 332,
337
LXI (Sears) 332, 305, 330,
335, 338
Magnavox 308, 309, 310
Marantz 314, 336, 337
Marta 332
Memorex 309, 335
Minolta 305, 304
Mitsubishi/
MGA
323, 324, 325,
326
Multitech 325, 338, 321
NEC 314, 336, 337
Olympic 309, 308
Optimus 327
DVD Players
Panasonic 308, 309, 306,
307
Pentax 305, 304
Philco 308, 309
Philips 308, 309, 310
Pioneer 308
Quasar 308, 309, 306
RCA/
PROSCAN
304, 305, 308,
309, 311, 312,
313, 310, 329
Realistic 309, 330, 328,
335, 324, 338
Sansui 314
Samsung 322, 313, 321
Sanyo 330, 335
Scott 312, 313, 321,
335, 323, 324,
325, 326
Sharp 327, 328
Shintom 315
Signature 2000
(M. Ward)
338, 327
SV2000 338
Sylvania 308, 309, 338,
310
Symphonic 338
Tashiro 332
Tatung 314, 336, 337
Teac 314, 336, 338,
337
Technics 309, 308
Toshiba 312, 311
Wards 327, 328, 335,
331, 332
Yamaha 314, 330, 336,
337
Zenith 331
Manufacturer Code
Manufacturer Code
Sony 751
Panasonic 753
Pioneer 752
RCA 755
Toshiba 754
Cable Boxes
Satellite Receivers
AV Receiver
*1
5.1 DVD AV System (DAV)
*2
*1
This manufacturer code might not
work for the past obsolete models.
The following FY03 STR & AVD
models are capable of functioning
with this code.
STR-DA9000ES/DA5000ES/
DA3000ES/DA2000ES/DA1000ES/
DE995/DE895/DE695/DE595
HT-C800DP
AVD-S500ES/S700ES
*2
This manufacturer code might not
work for the past obsolete models.
The following FY03 DAV models are
capable of functioning with this code.
DAV-FC7/FC8/FC9
Manufacturer Code
Sony 230
Hamlin/Regal 223, 224, 225,
226
Jerrold/G. I. 201, 202, 203,
204, 205, 206,
207, 208, 218,
222
Oak 227, 228, 229
Panasonic 219, 220, 221
Pioneer 214, 215
Scientific Atlanta 209, 210, 211
Tocom 216, 217
Zenith 212, 213
Manufacturer Code
Sony 801
General Electric 802
Hitachi 805
Hughes 804
Panasonic 803
RCA/
PROSCAN
802, 808
Toshiba 806, 807
Manufacturer Code
Sony 764
Manufacturer Code
Sony 763
54
Remote Control
Using Other Equipment with Your TV Remote Control
All Equipment
Operating a VCR
Operating a Satellite
Receiver
To Do This ... Do This ...
Switch the TV’s input to the
VCR, DVD player, or other
connected equipment
Press TV/VIDEO repeatedly to cycle through the
video equipment connected to the TV’s video
inputs.
Set up the TV remote control to
operate non-Sony equipment
You must program the remote control the first time
you use it. See “Programming the Remote Control”
on page 52.
To Do This ... Press
Activate the remote control to
operate the VCR
VCR/DVD FUNCTION
Turn on/off VCR/DVD (POWER)
Change channels CH +/–
Record N and z simultaneously
Play N
Stop x
Fast forward M
Rewind the tape m
Pause X
Search the picture forward or
backward
M or m during playback
(release to resume normal playback)
To Do This ... Press
Activate the remote control to
operate the satellite receiver
SAT/CABLE FUNCTION
Turn on/off SAT/CABLE (POWER)
Select a channel 0-9, ENT
Change channels CH +/–
Back to previous channel JUMP
Display channel number DISPLAY
Display SAT Guide GUIDE
Display SAT Menu MENU
Move highlight (cursor) V v B b
Select item
55
Remote Control
Operating a Cable
Box
Operating a DVD
Player
To Do This ... Press
Activate the remote control to
operate the cable box
SAT/CABLE FUNCTION
Turn on/off SAT/CABLE (POWER)
Select a channel 0-9, ENT
Change channels CH +/–
Back to previous channel JUMP
To Do This ... Press
Activate the remote control to
operate the DVD
VCR/DVD FUNCTION
Turn on/off VCR/DVD (POWER)
Play N
Stop x
Pause X
Step through different
tracks of the disc
M to step forward or m to step backward
Step through different chapters
of a video disc
CH+ to step forward or CH– to step backward
58
Features
Watching TV
z
For a complete list of all
t
he functions of the remote
control, see page 50.
To Do This ... Do This ...
Activate the remote control to
operate the TV
Press TV FUNCTION
Turn on/off the TV Press POWER
Tune directly to a channel Press 0-9 and then ENT (or wait 2 seconds)
Or
Press CH+/–
Adjust the volume Press VOL +/–
Mute the volume Press MUTING (press again to unmute)
Alternate back and forth between
two channels
Press JUMP
The TV alternates between the current channel
and the last channel tuned.
Display the current channel
number (and other information)
Press DISPLAY once to display the channel
number, current time, wide mode, and channel
label (if set)
Press DISPLAY again to turn Display off
Switch the TV’s input to the VCR,
DVD player, or other connected
equipment
Press TV/VIDEO repeatedly to cycle through
the video equipment connected to the TV’s
video inputs
Change video and audio options,
customize the TV’s setup, set
parental controls, and more
Press MENU to display the Menu. For details,
see “Using the Menus” on page 83
Switch the TV’s input between
sources connected to the TV’s
VHF/UHF and AUX inputs
Press ANT to alternate between sources
connected to the TV’s VHF/UHF and AUX
inputs
59
Features
Using Wide Mode
Wide Screen mode lets you watch 4:3 normal broadcasts in several Wide
Screen modes (16:9 aspect ratio).
When viewing high-definition programs broadcast in
720p/1080i, it is not possible to change between Wide Screen
modes.
s Press WIDE MODE repeatedly to toggle through the following Wide
Mode settings.
z Wide Zoom is
recommended for 4:3 picture
to prevent image retention.
z You can also access the
Wide Mode settings in the
Screen menu. For details,
see page 88.
Wide Zoom enlarges the 4:3 picture,
while the upper and lower parts of the
picture are condensed to fit the 16:9
screen. The picture has a normal
appearance, as much as possible.
Normal returns the 4:3 picture to its
original size. Gray bars are visible at left
and right sides to fill the 16:9 screen.
Full Mode stretches the 4:3 picture
horizontally only, to fill the 16:9 screen.
The picture has an elongated appearance.
Zoom Mode enlarges the 4:3 picture
horizontally and vertically to an equal
aspect ratio that fills the 16:9 screen.
Useful for watching Letterbox movies.
z When you change
channels or inputs, the Wide
Mode settings revert to the 4:3
Default setting in the Screen
menu. To retain the current
Wide Mode setting as
channels and inputs are
changed, set 4:3 Default to
Off. For details, see page 89.
60
Features
Using Twin View
Twin View lets you see two pictures from two sources — from an antenna,
VCR, DVD, etc. — on the screen at the same time. You hear the sound from
only one of the sources at a time, but you can choose which source’s sound is
selected. You can also change the relative size of each of the pictures.
The picture from an antenna will appear in the left window, but
not in the right.
Using Twin View for an extended period of time may result in
image retention.
Displaying Twin
Pictures
1
Tune the TV to a working channel.
2
Press .
A second picture appears.
To cancel Twin View and watch the active picture
s Press or .
,
<
Factors Affecting Twin View
s If you use a cable box, you can view the cable box output in one window and view a different source
(such as a VCR or DVD player) in the second window by using TV/VIDEO. For details, see
“Connecting Optional Equipment” on page 29.
s TV channels as well as any sources connected to the AUX, VIDEO 4, VIDEO 5, and VIDEO 6
inputs, display in the left window, but not the right.
s If you are viewing a 4:3 source and a 16:9 enhanced source (such as a DVD) side by side, the 4:3
source appears larger.
s Twin View does not display channels that are blocked by parental settings (see page 92).
61
Features
Activating the
Functions Available in the Active Window
To activate the picture in the
right window
s Press b.
To activate the picture in the left
window
s Press B.
To Do This ... Do This ...
Tune to a channel
(left window only)
Press 0-9 and then ENT (or wait 3 seconds) or
Press CH+/–
Adjust the volume Press VOL +/–
Mute the volume Press MUTING (press again to unmute)
Switch the TV’s input between
sources connected to the TV’s
VHF/UHF and AUX inputs
Press ANT
Switch
the TV’s input between
sources connected to the TV’s
A/V inputs
Press TV/VIDEO
Change the picture size Press V or v. (For details, see “Changing the
Picture Size” on page 62.)
,
<
62
Features
Changing the
Picture Size
The zoom feature lets you vary the relative size of the left and right pictures.
When you adjust the picture sizes, the TV memorizes the change. The next
time you use the Twin View function, the memorized sizes appear.
1
Press B or b to activate the picture
that you want to resize.
2
Press V to enlarge the picture.
3
Press v to make the picture
smaller.
63
Features

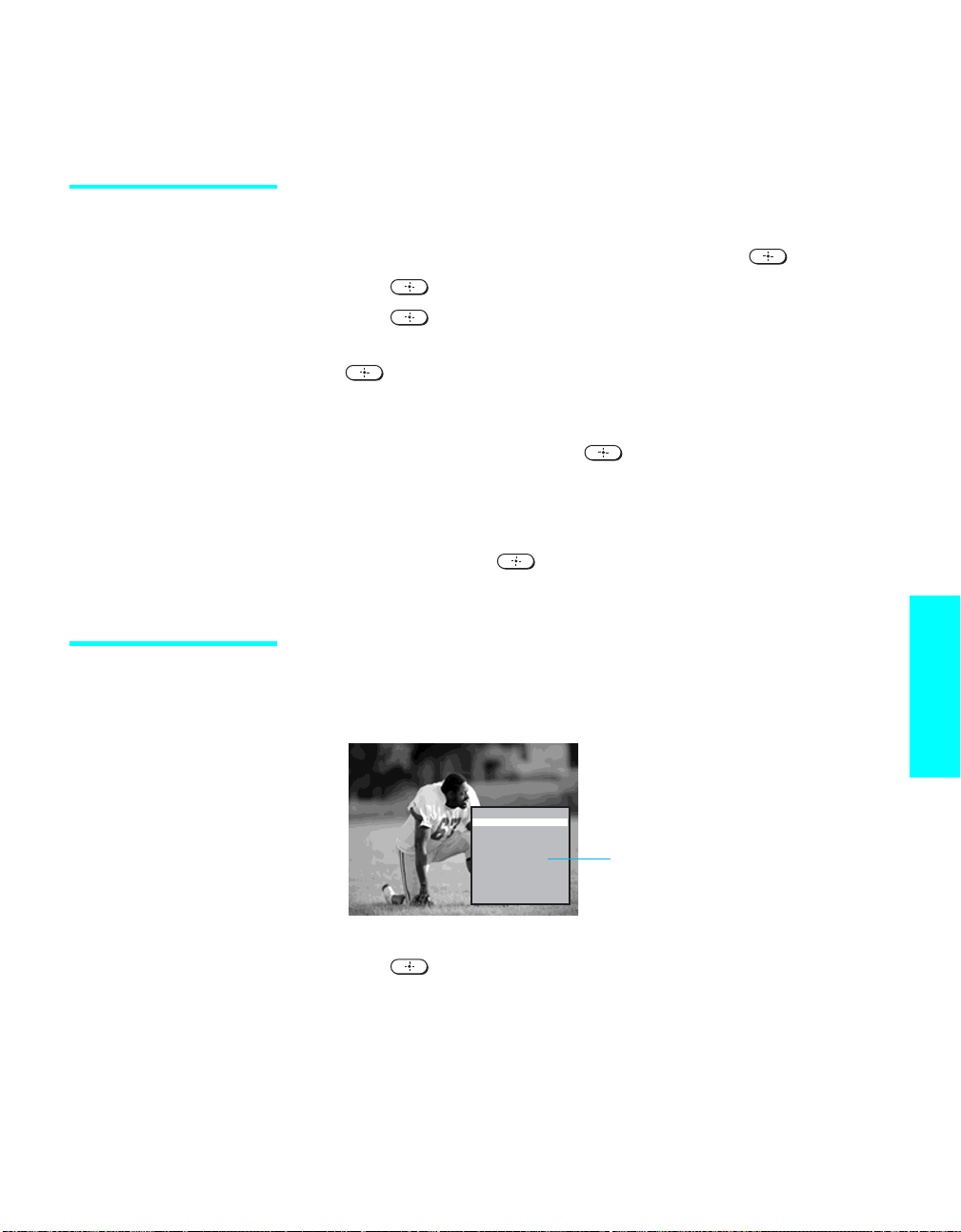

Using Favorite Channels
The Favorite Channels feature lets you select programs from a list of up to
16 favorite channels that you specify.
Creating a List of
Favorite Channels
1
Press MENU to display the Menu.
2
Press B or b to highlight the Channel icon and press .
3
Press to select Favorite Channels.
4
Press to select Program.
5
Press V or v to highlight a Favorite Channel number (1-16) and press
.
6
Press V or v to highlight a channel you want to assign to the Favorite
Channel number. A preview of the highlighted channel appears in the
upper right of the screen. Press to select that channel as a Favorite
Channel.
7
To add more channels to your favorites list, repeat steps 5-6.
To clear a Favorite Channel, press V or v to highlight the channel you
want to clear. Press and then press RESET.
8
Press MENU to exit the Menu.
Displaying a List of
Favorite Channels
1
Press FAVORITES. The Favorite Channels list appears.
2
Press V or v to highlight the channel you want to watch.
3
Press to select the channel you want to watch.
The Favorite Channels list disappears after 90 seconds if you do not
operate the TV.
z For details on using the
Channel Menu, see page
90.
z To assign Channel
Labels (e.g., ABC, HBO,
MTV, etc.) to channel
numbers, as shown at right,
use the Channel Label
feature in the Channel
Menu (see page 91).
Favorites
10 ABC
20 HBO
36 MTV
6 FOX
8CBS
37 COMED
40
9
v
Favorite Channels
64
Features
Using the Freeze Function
FREEZE allows you to temporarily capture a program’s picture. You can
use this feature to write down information such as phone numbers, recipes,
etc.
The Freeze feature is not available while you are using the Twin
View feature.
1
When the program information you want to capture is displayed, press
FREEZE.
2
The TV switches to Twin View mode and displays the “frozen” picture
on the right, while the current program continues on the left.
3
To cancel and return to normal viewing, press FREEZE (or just tune to
another channel).
The “frozen” picture disappears automatically after 5 minutes.
Call 555-1234
Current program
in progress
Frozen picture
65
Features
Using Picture Off
The Picture Off feature lets you enjoy music from radio programs of digital
broadcasts or DVDs with the TV screen turned off.
1
Press PIC OFF.
The PICTURE OFF LED lights up in blue and the screen turns off.
To cancel and return to normal viewing, press any button except for
VOL +/–, POWER, MUTING and MTS/SAP.
67
Using the Memory Stick Viewer
About Memory Stick
Memory Stick (sold separately) is a new, compact, portable, and versatile
Integrated Circuit recording medium with a data capacity that exceeds that of
a floppy disk. Memory Stick is specially designed for sharing digital data
among Memory Stick compatible products such as digital cameras and
digital video cameras. Because it is removable, Memory Stick can also be
used for external data storage.
For more information about handling Memory Stick media, see “Precautions
on Memory Stick, Memory Stick PRO” on page 82.
“Memory Stick”, “Memory Stick PRO”, “Memory Stick Duo” and
“ ” are registered trademarks of Sony Corporation.
Supported Image
Types
This TV’s Memory Stick viewer can display still images and movies that
have been recorded on Memory Stick media.
You can view:
s Image files compressed in the JPEG format (DCF compliant) (with an
extension, .jpg)
s MPEG1 files, MPEG MOVIE, MPEG MOVIE AD, MPEG MOVIE EX,
MPEG MOVIE HQ, MPEG MOVIE HQX, MPEG MOVIE CV, VAIO
Giga Pocket MPEG1.
JPEG stands for “Joint Photographic Experts Group,” which is
the organization that implemented this format. DCF stands for
“Design Rules for Camera File Systems,” which are
specifications established by the Japan Electronics and
Information Technology Industries Association (JEITA: former
JEIDA).
MPEG1 stands for “Motion Picture Experts Group” which is the
organization that implemented this format and is the typical
compression format for movie files.
68
Memory Stick
About Directory and
File Names
Most Sony brand digital still and video cameras automatically record still
images using DCF compliant directory and file names, or record movies
using the directory and file names as shown in the following examples:
Still image files
Example:
Directory Name: /DCIM/100MSDCF
File Name: DSC00001.JPG
Movie files
Example:
Directory Name: /MS SONY/MOML0001
File Name: MOV00001.MPG
Unsupported Image
Types
This TV’s Memory Stick viewer cannot display any of the following:
s
Images stored in TIFF or any other non-JPEG or non-MPEG
compression format
s
Images with less than 16 horizontal and/or vertical dots per line
s
Images with more than 4096 horizontal and/or vertical dots per lines
s An image processed by a computer may not be displayed correctly.
100MSDCF
DSC00001
DSC00002
DSC00003
Image Directory Name
Image File Names
69
Memory Stick
Inserting and Removing a Memory Stick
If you are using a Memory Stick Duo, see “Inserting the Memory Stick Duo”
on page 70.
Inserting a Memory
Stick
1
Locate the Memory Stick slot and insert the Memory Stick into the
Memory Stick slot as illustrated below. When inserted properly, it
should slide in with little resistance and click into place.
Be sure to insert the Memory Stick in the correct direction. If
the Memory Stick is forced in the wrong way, it may become
damaged.
Insert only Memory Stick media into the Memory Stick slot.
Attempting to insert other objects into the slot may damage the
TV.
To remove the Memory Stick, see “Removing a Memory Stick” on page 71.
PRO
70
Memory Stick
Inserting the
Memory Stick Duo
Memory Stick Duo is a new, compact version of the standard-sized Memory
Stick recording medium.
CAUTION: Inserting the Memory Stick Duo incorrectly may
result in permanent damage to the Memory Stick Duo and the
TV.
1
Before inserting a Memory Stick Duo into the TV’s Memory Stick slot,
you must first insert the Memory Stick Duo into an adapter (sold
separately).
CAUTION: Inserting the Memory Stick Duo into the Memory
Stick slot without the adapter may result in permanent damage
to the Memory Stick Duo and the TV.
2
Insert the Memory Stick Duo and adapter as shown below.
CAUTION: Inserting the Memory Stick adapter backwards or
upside down may result in permanent damage to the Memory
Stick adapter and the TV.
To remove the Memory Stick Duo, see “Removing a Memory Stick” on page
71.
Memory Stick Duo Adapter
Memory Stick Duo
PRO
71
Memory Stick
Removing a Memory
Stick
1
Check that the Memory Stick indicator is off. (When the light is on, this
indicates that the TV is reading data from the Memory Stick.)
Removing the Memory Stick while a file is being accessed
(when the Memory Stick indicator on the TV’s right side panel is
lit) may damage the Memory Stick or its contents.
2
Push the Memory Stick gently into the slot, and then release it. The
Memory Stick media is ejected.
3
Pull the Memory Stick completely out of the slot.
To protect small children from injury from Memory Stick Media,
remove all Memory Stick media from the TV’s Memory Stick slot
and store it in a safe location when it is not in use.
P
R
O
P
R
O
P
R
O
z When removing the
Memory Stick, do not
attempt to just pull it from
its slot. Follow steps 1-3
(right).
72
Memory Stick
Displaying the Memory Stick Home (Memory Stick Index)
Turn on your TV and insert a Memory Stick that contains the still image or
movie files you want to view. For details on inserting a Memory Stick,
“Inserting a Memory Stick” on page 69.
The Memory Stick Home appears, which displays thumbnails of still image
and movie files stored on the Memory Stick.
About the Icons on the Thumbnail Images
About the Digi. Cam. Mode (Digital Camera Mode)
Digi. Cam. Mode displays all JPEG and MPEG1 files recorded with the
DCF compliant digital cameras. When you set Digi. Cam. Mode to Off, the
data of selected files or all files with the extension .jpg or .mpg can be
displayed. The Memory Stick viewer of this TV sets Digi. Cam. Mode to
On at the factory. When Digi. Cam. Mode is set to On, the maximum 2000
pieces of still images and/or movies can be displayed. When you want to
diplay more than 2000 pieces of still images and/or movies, set Digi. Cam.
Mode to Off. To set Digi. Cam. Mode to Off, see “Select Folder Menu
Options” on page 80.
About caution displays
(Movie) Indicates the thumbnail is a movie (MPEG1) file.
(Protect) Indicates the thumbnail is protected. Protected files
cannot be changed or deleted. For details, see “Using
the Index Menu” on page 73.
(Relative file) Indicates another file named the same in the last four
digits exists in the Memory Stick. Appears only when
the Digi. Cam. Mode is selected.
This image data is the JPEG or MPEG1 format that is not-compatible.
There is the thumbnail but it is not DCF-compatible.
There is the image data but the thumbnail is broken.
The image data is broken.
z If the Memory Stick Home
does not appear, press
(Memory Stick) on the remote
control.
z The display of the Memory
Stick viewer will automatically
disappear if you do not
operate the TV for five
minutes.
Memory Stick Home
Slide Show
Options
Digi. Cam. Mode
Select Folder
Filter : Still
Size :
No :
Date :
File :
Select : Move :
Digi. Cam.
Mode (Digital
Camera Mode)
indication
Information on the highlighted image or movie
Memory
Stick menus
Thumbnails of
still images and
movies
Highlighted thumbnail
73
Memory Stick
Using the Memory Stick Home
Using the Index
Menu
When you select a still image or movie from the Memory Stick Home (see
page 72), the Index menu appears with the following options. Press V or v to
select the desired option.
Still Image Index Menu
To Do This … Do This …
Select the thumbnails Press b.
Move the highlight to an image
or movie thumbnail
Press V v B b.
Display the previous or next
page of thumbnails
1
Select a file in the bottom row.
2
Press v. To go back to the previous page, press
V.
or
1
Select a file in the right-most column.
2
Press b to select a slider.
3
Press v. To go back to the previous page, press
V.
Display the Index menu of the
highlighted image or movie file
to access additional options
Press . For details on each Index menu, see
“Using the Index Menu” on page 73.
Move the highlight to the
Memory Stick menus to access
additional options
1
Press V or v to select Slideshow, Options or
Select Folder.
2
Press .
For details on these options, see “Memory Stick
Home Menu Options” on page 79.
Exit Memory Stick Viewer Press (Memory Stick) on the remote control.
Memory Stick Home
Slide Show
Options
Select Folder
Filter : Still
Size : 1024x768
No : 123/1234
Date : MAY/31/2003 1:08PM
File : 100MSDCF/SJP0001.JPG
Digi. Cam. Mode
Select : Move : Back :
Startup
Full Screen
Slide Show
Protect
Rotate
Delete
Close
Still Image
Index Menu
74
Memory Stick
Movie Index Menu
Option Description
Full Screen (Still
image index menu
only)
Displays the highlighted image file full screen. For details,
see “Viewing Still Images” on page 75.
Movie Player (Movie
index menu only)
Display the Movie Player. For details, see “Playing
Movies” on page 77.
Slide Show Starts the slide show from the highlighted still image or
movie.
Protect Allows you to protect the JPEG or MPEG1 file from any
changes. Files that are protected are indicated by the
icon.
On Protects the highlighted file.
Off Unlock the protect of the
highlighted file.
Rotate (Still image
index menu only)
Allows you to rotate a still image in 90 degree increments
clockwise or counterclockwise. Select (clockwise) or
(counterclockwise).
You cannot rotate a still image that has been protected (or
if the Memory Stick is locked). This option is not available
for a movie file.
Delete Deletes the JPEG or MPEG1 file from the Memory Stick.
You cannot delete a file that has been protected (or if the
Memory Stick is locked).
Selected Deletes the highlighted file.
After you select the option, the dialog appears. Select Ye s .
Close Displays the Memory Stick Home. Pressing B also returns
to the Memory Stick Home.
Select : Move : Back :
Memory Stick Home
Slide Show
Options
Select Folder
Filter : Still
Size : 320x240
No : 124/1234
Date : MAY/31/2003 1:08PM
File : 100MSDCF/BASEBALL.MPG
Digi. Cam. Mode
Movie Player
Slide Show
Protect
Rotate
Delete
Close
Movie Index
Menu
75
Memory Stick
Viewing Still Images
When you select Full Screen from the Still image index menu and press
, it displays as shown below.
Image Setup Menu
Options
To access the Image setup menu
1
Press
V
or
v
to select the menu option.
2
Press
.
3
Press
V
or
v
to select the desired option.
To Do This … Do This …
Display the next or previous file
on the Memory Stick
Press b to go to the next file, or B to go to the
previous file.
Access additional options Press . For details, see “Image Setup Menu
Options” on page 75.
Exit Memory Stick Viewer Press (Memory Stick) on the remote control.
Size : 1024x768
No : 1/1234
Date : MAY/31/2003 1:08PM
File : 100MSDCF/SJP0001.JPG
Next : Menu : Prev. :
Size : 1024x768
No : 1/1234
Date : MAY/31/2003 1:08PM
File : 100MSDCF/SJP0001.JPG
Next :
Menu : Prev. :
Size : 1024x768
No : 1/1234
Date : MAY/31/2003 1:08PM
File : 100MSDCF/SJP0001.JPG
Move :
Back : Select :
Return
Information
Protect
Rotate
Delete
Close
On
Image setup menu
76
Memory Stick
Option Description
Return Displays the Memory Stick Home.
Information Allows you to turn on or off the display of file information. Select
On or Off.
Protect Allows you to protect this file from any changes. Selecting Off
unlocks the protect.
Rotate Allows you to rotate a still image in 90 degree increments
clockwise or counterclockwise. If the file has been protected (or if
the Memory Stick is locked), it cannot be rotated. Select
(clockwise) or (counterclockwise).
Delete Deletes the displayed file from the Memory Stick. Select
Selected Items and press . When the dialog appears,
select Ye s . If the file has been protected (or if the Memory Stick is
locked), it cannot be deleted.
77
Memory Stick
Playing Movies
When you select Movie Player from the Movie index menu, it displays as
shown below.
The rewind and fast-forward may not work due to the movie file.
To Do This … Do This …
Play (or pause) the movie.
1
Press V or v to select B/X.
2
Press .
Display the previous file on
the Memory Stick
Press B during movie stop mode.
During playback or pause mode the control changes to
m (Rewind).
Display the next file on the
Memory Stick
Press b during movie stop mode.
During playback or pause mode the control changes to
M (Fast-forward).
Stop playback. Press V or v to select x and press .
Display the movie full
screen
Press V or v to select Full Screen and press .
To display the Movie Player window, press .
Display the Movie setup
menu to access additional
options
1
Press V or v to select Menu.
2
Press .
For details, see “Movie Setup Menu Options”.
Displays the Memory Stick
Home.
1
Press V or v to select Return.
2
Press .
Size : 320x240
Prev. :
No : 124/1234
Date : MAY/31/2003 1:08PM
File : SJP0001.MPG
Select : Next : Move :
Full Screen
Return
Menu
z When displaying a
large file, it will take longer
time.
78
Memory Stick
Movie Setup Menu
Options
To access the Movie setup menu
1
Press V or v to select the menu option.
2
Press
.
3
Press V or v to select the desired option.
Option Description
Information Allows you to turn on or off the display of file information.
Select On or Off.
Audio Select Switches the sound to be heard. Select L (left sound), R (right
sound) or L/R (left and right sounds) to hear the respective
sound(s). The setting affects all movie files.
Protect Allows you to protect the file from any changes. Select On to
protect. Select Off to unlock the protect.
Delete Deletes the displayed file from the Memory Stick. Select
Selected Items and press . When the dialog appears,
select Yes . If the file has been protected (or if the Memory
Stick is locked), it cannot be deleted.
Full Screen
Menu
Return
Size : 320x240
No : 124/1234
Date : MAY/31/2003 1:08PM
File : SJP0001.MPG
Information
On
Audio Select
Protect
Delete
Close
L/R
Select : Move : Back :
Movie Setup Menu
79
Memory Stick
Memory Stick Home Menu Options
The Memory Stick Home lets you select the Slide Show, Options and Select
Folder menus that include additional options for each menu.
To access the Memory Stick Home menu
1
Press V or v to select Slide Show, Options or Select Folder.
2
Press . The setup menu appears.
3
Press V or v to select the desired option and press .
Slide Show Menu
Options
The Slide Show menu includes the following menu options.
Option Description
Start Starts the slide show. Slide show plays all still and movie files. To
stop the slide show, press .
Advance Auto Advances slides automatically. Slide show
repeats after all files are displayed. Press
to stop the slide show.
Manual Advances slides manually. Press
b
or
B
on
the remote control to go to the next or
previous still or movie image file. Select
B/X to play movie files in the Movie Player
window.
Interval (only
for still images)
Allows you to specify a timed slide advance after a selected time
interval. Select from 5 sec, 10 sec, 30 sec, 1 min and 5 min.
Close Displays the Memory Stick Home.
80
Memory Stick
Options Menu
Options
The Options Menu includes the following options.
Select Folder Menu
Options
The Select Folder Menu includes the following options.
Option Description
File The File option is available when Digi. Cam. Mode is set to Off.
For details, see “Using Select Folder Menu” on page 81.
Sort Allows you to change the order in which the
Memory Stick files are displayed. Select from
Name Order (in alphabetical order by file
name), Name Order (in reverse alphabetical
order by file name), Date Order (in
chronological order by recording or modification
date) and Date Order (in reverse
chronological order by recording or modification
date).
The Sort function works only when fewer
than 2000 files are saved.
Filter Allows you to selectively display specific file types
within the selected folder.
Select from Show Stills (only still image files),
Show Movies (only movie files), and Off (all
readable files).
Memory Stick Displays the current status of the Memory Stick, including
Memory Stick type, total capacity, used capacity, and free
capacity.
Option Description
Digi. Cam. Mode On Displays only JPEG and MPEG1 files
defined by the DCF rules and JPEG and
MPEG1 files recorded on a Sony digital still
camera or digital video camera.
Off Displays all folders within the directories.
JPEG and MPEG1 files in those directories
are recognized even if they do not conform to
the DCF file naming rules.
81
Memory Stick
Using Select Folder
Menu
Allows you to select different folders to view in the Memory Stick Viewer
when you set Digi. Cam. Mode to Off.
1
Select Off in Digi. Cam. Mode.
2
Press b to select the folder list.
3
Press V v B b to select the folder which includes the file you want, and
press .
Select : Move : Back :
Memory Stick Home
Slide Show
Options
Select Folder
Filter : Still
Size :
No :
Date :
File :
Digi.Camera Mode
Off
Close
Current folder
Folder list
To upper stage
First image or movie file in the
current folder
z To select the hidden
folders, press b to select
the slider and press V or v.
82
Memory Stick
Precautions on
Memory Stick,
Memory Stick PRO
When using Memory Stick media, Memory Stick PRO, follow these
precautions:
s To avoid permanent damage to still image data, do not turn off the TV or
remove Memory Stick media from the insertion slot while data is being
read (as indicated by the Memory Stick indicator light being on).
s Avoid touching the terminal of Memory Stick media or bringing it into
contact with a metal object.
s Do not drop, bend, or submit Memory Stick media to external shock.
s Do not disassemble or modify Memory Stick media.
s Avoid getting liquid on Memory Stick media.
s Apply labels only within the designated label area.
s To avoid permanent damage to still image data, do not use or store
Memory Stick media in a location subject to:
❑
High temperature (such as near a heater or inside a hot car)
❑
High humidity
❑
Direct sunlight
❑
Corrosive substances
❑
Magnetic fields
❑
Excessive dust
❑
Static electricity or electric noise
❑
Electric surges
s Store and carry Memory Stick media in its original case to ensure
protection of stored data.
s Save a backup of stored data.
s Memory Stick PRO of maximum 1GB-memory can be used for this
unit.
Label Area
83
Using the Menus
Overview
The Menu gives you access to the following features:
Navigating Through Menus
Menu Icon Description Page
Allows you to make adjustments to your picture settings. It
also allows you to customize the Picture Mode based on
the type of program you are viewing, select Advanced
Video options, and more.
84
Offers enhanced audio options such as listening to second
audio programming (SAP) or customizing the Effect of the
sound on your TV.
86
Allows you to make Wide Mode adjustments and make
changes to the screen’s vertical center, and more.
88
Allows you to set up a Favorite Channel list, run the Auto
Program function, skip and label channels, and more.
90
Lets you control the viewing of programs based on their
ratings.
92
Provides options for setting up your system, including
setting the Timer, selecting closed caption modes, labeling
video inputs, selecting the language of the on-screen
menus, and more.
95
z Press MENU to enter
and exit Menus.
To Do This ... Press
Display the Menu MENU
Move through the Menus B b
Move through the Menu options V v
Select an option to change
Change an option’s settings V v B b
Select (confirm) changed setting or B
Exit the Menu MENU
z Menus include
navigation help text that
appears at the bottom of
each Menu.
84
Menus
Using the Video Menu
To select the Video Menu
1
Press MENU.
2
Press B or b to highlight the
Video icon and press .
3
Press V v B b to highlight an
option. Press to select an
option.
4
Press V v B b to change
settings. Press to select
the changed setting.
5
Press MENU to exit the Menu.
To restore the factory default settings for the Video settings (excluding
Advanced Video) of the Mode (Vivid, Standard, Pro.) the TV is set to:
s Press RESET on the remote control when in the Video Menu.
Selecting Video
Options
The Video Menu includes the following options:
Option Description
Mode
Customized
viewing
Vivid Select for enhanced picture contrast and sharpness.
Standard Select for standard picture settings. Recommended
for home entertainment.
Pro Select for professional monitor like appearance
settings.
Picture Adjust to increase picture contrast and deepen the color, or decrease
picture contrast and soften the color.
Brightness Adjust to brighten or darken the picture.
Color Adjust to increase or decrease color intensity.
Hue Adjust to increase or decrease the green tones.
Sharpness Adjust to sharpen or soften the picture.
Color Temp.
White intensity
adjustment
Cool Select to give the white colors a blue tint.
Neutral Select to give the white colors a neutral tint.
Warm Select to give the white colors a red tint.
NR
Noise
Reduction
Select to reduce the noise level of connected equipment. It is also
effective on the signal from the VHF/UHF jack. Select from High,
Medium, Low, Off.
Mild Mode On Select for a natural, soft picture.
Off Select to turn off the Mild Mode.
z To change from one
Mode to another, use
PICTURE button on the
remote control.
z You can alter the Video
Menu settings (Picture,
Brightness, Color, etc.) for
each Mode.
z To prevent image
retention, do not use the
Vivid mode for a long time.
85
Menus
Advanced
Video
Select Program to choose among the DRC Mode, DRC Palette
and BN Smoother options while viewing NTSC sources.
DRC Mode Creates a high-resolution picture with 4× density, for
high quality sources (i.e., DVD player, satellite
receiver).
High Dens. Recommended for moving pictures.
Progressive Recommended for still images and
text.
CineMotion Provides an optimized display by
automatically detecting film content
and applying a reverse 3-2 pulldown
process. Moving pictures will appear
clearer and more natural-looking.
DRC Palette Allows you to customize the level of detail (Reality)
and smoothness (Clarity) for up to three input
sources. For example, you can create one Custom
setting to optimize your cable input’s picture, and
create another to optimize your DVD player’s
picture. You can switch among the three Custom
settings in the menu.
1
Press V v B b to highlight Custom 1, Custom
2, or Custom 3 and then press . The
DRC palette appears.
2
Press V v B b to adjust the position of the
marker ( ). As you move the higher along
the Reality axis, the picture becomes more
detailed. As you move the to the right, along
the Clarity axis, the picture becomes smoother.
3
To save the setting, press .
To return the Custom options to the default factory
settings, press RESET.
BN Smoother Select to reduce noise caused by video encoding and
decoding process. It is especially effective for
watching a DVD or HDTV picture. Select from
High, Medium, Low and Off.
Option Description
z
DRC Mode and DRC
Palette are not available
when watching 480p,
720p, and 1080i sources.
z DRC Palette is not
available when Mild Mode
is set to On.
Clarity [ 1]
Reality
[25]
Custom 1
z For best results, adjust
the Reality by pressing V v
until you are satisfied with
the level of detail. Then
adjust the Clarity by
pressing B b until you
have a smooth image.
86
Menus
Using the Audio Menu
To select the Audio Menu
1
Press MENU.
2
Press B or b to highlight the
Audio icon and press .
3
Press V v B b to highlight an
option. Press to select an
option.
4
Press V v B b to change
settings. Press to select
the changed setting.
5
Press MENU to exit the Menu.
To restore the factory default settings for Treble, Bass, and Balance
s Press RESET on the remote control when in the Audio Menu.
Selecting Audio
Options
The Audio Menu includes the following options:
Option Description
Treble Adjust to decrease or increase higher-pitched sounds.
Bass Adjust to decrease or increase lower-pitched sounds.
Balance Adjust to emphasize left or right speaker balance.
Steady Sound Auto Select to stabilize the volume.
Off Select to turn off Steady Sound.
Effect TruSurround Select for surround sound (for stereo programs
only).
Simulated Adds a surround-like effect to mono programs.
Off Normal stereo or mono reception.
MTS
Enjoy stereo,
bilingual and
mono programs
Stereo Select for stereo reception when viewing a
program broadcast in stereo.
Auto SAP Select to automatically switch the TV to second
audio programs when a signal is received. (If no
SAP signal is present, the TV remains in Stereo
mode.)
Mono Select for mono reception. (Use to reduce noise
during weak stereo broadcasts.)
z To change quickly from
one MTS to another, use
MTS/SAP on the remote
control.
87
Menus
Speaker On Select to turn on the TV speakers.
Off Select to turn off the TV speakers and listen to the
TV’s sound only through your external audio
system speakers.
Audio Out
Easy control of
volume
adjustments
This option can be set only when the Speaker option is set to
Off.
Variable The TV’s speakers are turned off, but the audio
output from your audio system can still be
controlled by the TV’s remote control.
Fixed The TV’s speakers are turned off and the audio
output of the TV is fixed. Use your audio
receiver’s remote control to adjust the volume
(and other audio settings) through your audio
system.
Option Description
88
Menus
Using the Screen Menu
To select the Screen Menu
1
Press MENU.
2
Press B or b to move to the
Screen icon and press .
3
Press V or v to move to an
option. Press to select an
option.
4
Press B b V v to change
settings. Press to select
the changed setting.
5
Press MENU to exit the Menu.
Selecting Screen
Mode Options
The Screen menu includes the following options:
Option Description
Wide Mode
Select a Wide
Mode to use for
4:3 sources.
Wide Zoom Select to enlarge the 4:3 size picture, while the
upper and lower parts of the picture are
condensed to fit the wide screen.
Normal Select to return the 4:3 picture to normal mode.
Full Select to enlarge the 4:3 picture horizontally
only, to fill the wide screen.
Zoom Select to enlarge the 4:3 picture horizontally
and vertically to an equal aspect ratio that fills
the wide screen.
Wide Mode is unavailable while in Twin View, or when
viewing HD (1080i, 720p) sources.
In some cases, wide-screen programs will be
shown in aspect ratios that require the
display of black bands at the top and bottom
of your 16:9 screen. For more details, see
page 104.
z To change from one
Wide Mode to another,
use WIDE MODE on the
remote control.
z Wide Zoom is
recommended for 4:3
picture to prevent image
retention.
z For Wide Zoom and
Zoom modes, you can
adjust the vertical position
and size of the picture. For
details, see page 89.
89
Menus
4:3 Default
Select the default
Screen Mode to
use for 4:3 sources
Wide Zoom Select to enlarge the 4:3 size picture, while the
upper and lower parts of the picture are
condensed to fit the wide screen.
Normal Select to return the 4:3 picture to normal mode.
Full Select to enlarge the 4:3 picture horizontally
only, to fill the wide screen.
Zoom Select to enlarge the 4:3 picture horizontally
and vertically to an equal aspect ratio that fills
the wide screen.
Off Select to continue using the current Wide Mode
setting when the channel or input is changed.
Vertical Center Adjust Allows you to move the position of the picture
up and down in the window. (Available only in
Wide Zoom and Zoom modes.)
Press V or v and press to choose a
correction between +15 and –15 (Zoom mode),
and +5 and –5 (Wide Zoom mode).
Vertical Size Adjust Allows you to adjust the vertical size of the
picture. (Available only in Wide Zoom and
Zoom modes.)
Press V or v and press to choose a
correction between +7 and –7.
Screen Saver Orbit Moves the picture position to reduce image
retention. This does not prevent image retention
completely if the same picture is displayed for
an extended period of time.
All White Displays a white screen to reduce image
retention.
Option Description
z
If 4:3 Default is set to
anything but Off, the Wide
Mode setting changes only
for the current channel.
When you change
channels (or inputs), Wide
Mode is automatically
replaced with the 4:3
Default setting. To retain
the current Wide Mode
setting as channels and
inputs are changed, set
4:3 Default to Off.
90
Menus
Using the Channel Menu
To select the Channel Menu
1
Press MENU.
2
Press B or b to highlight the
Channel icon and press .
3
Press V v B b to highlight an
option. Press to select an
option.
4
Press V v B b to change
settings. Press to select
the changed setting.
5
Press MENU to exit the Menu.
Selecting Channel
Options
The Channel Menu includes the following options:
Option Description
Favorite
Channels
Lets you set up a list of your favorite channels. For details, see
“Using Favorite Channels” on page 63.
Cable On Select if you are receiving cable channels with a
CATV cable.
Off Select if you are using an antenna.
You should run Auto Program after changing
this option.
Channel Fix
Useful when you
have a cable box
or satellite
receiver connected
Off Turns off Channel Fix.
2-6 “Fix” your TV’s channel setting to 2-6 and use
the cable box or satellite receiver to change
channels. Select one of these settings if you
connected the equipment to the VHF/UHF jack.
AUX 2-6 Same as 2-6, except you select one of these
settings if you connected the equipment to the
AUX jack (see page 19).
Video 1 Use this setting if you have connected the
equipment to the A/V input jacks.
Auto Program Automatically sets up the channel list on the TV for all
receivable channels.
91
Menus
Channel
Skip/Add
Allows you to customize the channel list that appears when you
use the CH+/– buttons.
1
Press V or v to scroll through the channels until you find
the channel you want to skip or add. Then press to
select it.
2
Press V or v to toggle between Add or Skip. Then press
to select.
3
To add or skip more channels, repeat steps 1 and 2.
4
Press B to return to the Channel Menu, or press MENU to
exit the Menus.
Channel Label Allows you to assign labels (such as station call letters) to
channel numbers. You can label up to 40 channels.
1
Press
V v B b
to highlight Channel and press .
2
Press V v to scroll through the channel numbers (1-125).
Then press to select the channel number that you
want to assign a label.
3
Press
V v B b
to highlight Label and press .
4
Press V v to scroll through the label characters (A-Z, 0-9,
etc.). Then press to select the highlighted character.
5
Repeat to add up to 5 characters to the label.
6
To assign labels to more channels, repeat steps 1-4.
7
Press B to return to the Channel Menu, or press MENU to
exit the Menus.
Option Description
z Channels that you set
to be skipped can be
accessed only with the
0-9 buttons.
z Channel Label is not
available (grayed out)
when watching 480p,
720p, and 1080i sources.
92
Menus
Using the Parent Menu
The Parent Menu allows you to set
up the TV to block programs
according to their content and
rating levels.
To select the Parent Menu
1
Press MENU.
2
Press B or b to highlight the
Parent icon and press .
3
Use 0-9 on the remote control to enter a four-digit password.
4
If this is the first time you are creating this password, confirm the
password by entering it again. (The Parent Menu options appear.)
5
Press V v B b to change settings. Press to select the changed
setting.
6
Press MENU to exit the Menu.
You need your password for any future access into the Parent
Menu. If you lose your password, see “Lost password” on page
106.
Selecting Parent
Options
The Parent Menu includes the following options:
Option Description
Parental Lock
Turn ratings on/off
and select a rating
system
Off Parental lock is off. No programs are blocked
from viewing.
Child Maximum ratings permitted are:
s US: TV-Y, TV-G, G
s Canada: C, G, TV-Y
Yo u th Maximum ratings permitted are:
s US: TV-PG, PG
s Canada: C8+, PG, 8 ans+, TV-PG
Y. Adult Maximum ratings permitted are:
s US: TV-14, PG-13
s Canada: 14+, 13 ans+, TV-14
Custom Select to set ratings manually.
s US: See page 93 for details.
s Canada: See page 94 for details.
Change
Password
For changing your password.
Select Country U.S.A. Select to use USA ratings (see page 93).
Canada Select to use Canadian ratings (see page 94).
z If you are not familiar
with the Parental Guideline
rating system, you should
select Child, Yo u th , or
Y. Adult to help simplify the
rating selection. To set
more specific ratings,
select Custom.
z
For descriptions of
Child, Yo u t h, and Y. Adult
ratings, see page 93.
93
Menus
US Models:
Selecting Custom
Rating Options
For US models, the Custom Rating Menu includes the following options.
(For Canadian models, see page 94.)
Viewing Blocked
Programs
You can view blocked programs by entering the password. Press ENTER
when tuned to a blocked program, then enter the password. This temporarily
switches off the Parental Lock. To reactivate the Parental Lock settings, turn
off the TV. When the TV is turned on again, your Parental Lock settings are
reactivated.
Option Description
Movie Rating G All children and General Audience.
PG Parental Guidance suggested.
PG-13 Parental Guidance for children under 13.
R Restricted viewing, parental guidance is suggested
for children under 17.
NC-17
and X
No one 17 or under allowed.
TV Rating
Block programs by
their rating,
content or both
Age-Based Ratings
TV-Y All children.
TV-Y7 Directed to children age 7 and older.
TV-G General Audience.
TV-PG Parental Guidance suggested.
TV-14 Parents Strongly cautioned.
TV-MA Mature Audience only.
Content-Based Ratings
FV Fantasy Violence.
D Suggestive Dialogue.
L Strong Language.
S Sexual situations.
V Violence.
Unrated
Block programs or
movies that are
broadcast without
a rating
Allow Allows programs and movies that are broadcast
without a rating.
Block Blocks all programs and movies that are broadcast
without a rating.
z The Content-Based
Ratings are linked to the
level of the Age-Based
Rating. For example, a
program with an Age-
Based Rating of TV-PG V
(Violence) rating may
contain moderate
violence, while a TV-14 V
(Violence) rating may
contain more intense
violence.
z To ensure maximum
blocking capability, set the
Age-Based Ratings.
z If you block unrated TV
programs, be aware that
the following types of
programs may be blocked:
programs broadcast from
another country,
emergency broadcasts,
political programs, sports,
news, public service
announcements, religious
programs and weather.
94
Menus
Canadian Models:
Selecting Custom
Rating Options
For Canadian models, the Custom Rating Menu includes the following
options. (For US models, see page 93
.)
Viewing Blocked
Programs
You can view blocked programs by entering the password. Press ENTER
when tuned to a blocked program, then enter the password. This temporarily
switches off the Parental Lock. To reactivate the Parental Lock settings, turn
off the TV. When the TV is turned on again, your Parental Lock settings are
reactivated.
Option Description
English Rating C All children.
C8+ Children 8 years and older.
G General programming.
PG Parental Guidance.
14+ Viewers 14 and older.
18+ Adult programming.
French Rating G General programming.
8 ans+ Not recommended for young children.
13 ans+ Not recommended for ages under 13.
16 ans+ Not recommended for ages under 16.
18 ans+ Programming restricted to adults.
U.S.A. Rating See “US Models” on page 93 for details.
95
Menus
Using the Setup Menu
To select the Setup Menu
1
Press MENU.
2
Press B or b to highlight the
Setup icon and press .
3
Press V v B b to highlight an
option. Press to select an
option.
4
Press V v B b to change
settings. Press to select
the changed setting.
5
Press MENU to exit the Menu.
Selecting Setup
Options
The Setup Menu includes the following options:
z To move from within one
Menu to the main Menu of
icons, press B.
Option Description
Caption Vision Allows you to select from three closed caption modes (for
programs that are broadcast with closed caption).
Off Turns off Caption Vision.
CC1, CC2, CC3, CC4 Displays a printed version of the dialog
or sound effects of a program. (Should
be set to CC1 for most programs.)
Text1, Text2, Text3,
Text4
Displays network/station information
presented using either half or the whole
screen (if available). For closed
captioning, set to CC1.
Info Displays the program name and the
time remaining in the program (if the
broadcaster offers this service).
Displays when the channel is changed
or DISPLAY is pressed.
(Continued)
96
Menus
Video Label Allows you to identify A/V equipment you connected to the TV,
such as a VCR, DVD, etc. For example, if you have a DVD
player connected to the VIDEO 4 jack, you can select the label
DVD for the VIDEO 4 input. Then when you press TV/VIDEO
to change inputs, the Video Label you assigned to that input
appears on screen.
1
Press V or v to highlight the video input (VIDEO 1-6) to
which you want to assign a label. Then press to
select the input.
2
Press V or v to highlight one of the displayed labels. Then
press to select the label.
You can select from the following labels for each input:
Video 1-3 VHS, DVD, Receiver, Satellite,
Cable Box, 8mm, DTV, Game, LD,
Web, Beta, Skip
Video 4-6 DVD, Satellite, Cable Box, DTV,
HD, Game, Skip
If you select Skip, your TV skips this input
when you press the TV/VIDEO button.
Game Picture Adjust Allows you to move the position of the
picture left and right in the window.
(Available for the picture of connected
equipment.) Select while watching the
picture to be adjusted. The TV stores
the position in memory for each input.
Language Select to display all on-screen Menus in your language of
choice; English, French or Spanish.
Option Description
z When selecting Game,
or Web, the TV decreases
brightness to prevent
image retention.
z The Skip label is useful
for inputs that do not have
equipment connected to
them.
97
Menus
Clock/Timers Lets you set the clock on your TV and allows you to program
your TV for scheduled viewing using the Timers.
Sleep Allows you to select the time in
minutes (15, 30, 45, 60, or 90) that you
want the TV to remain on before
shutting off automatically.
Timer 1
Timer 2
You can use the Timers to program the
TV to turn on and off and tune to a
specific channel at two scheduled
viewing times.
Timer 1 & 2 are not available to be set
until you set the Current Time.
1
Press V or v to highlight Timer 1
or Timer 2. To set the timer, press
b.
2
Press V or v to highlight one of
the following options, then press
.
Program: Select to set the Timer
by day, time, duration, and
channel.
Off: Select to turn off the Timer.
(Your previous settings are
saved.)
3
If you selected Program in step
2, press V and v to set the day(s),
hour, minute, duration, and
channel number. Press or
press b to confirm each setting
and move to the next setting.
Press B to go back to the previous
setting.
4
Press MENU to exit the Menu.
An LED on the front panel will
light, indicating the timer has
been set.
Current Time
1
Press V and v to highlight
Current Time and then press
.
2
Press V and v to set the current
time (day, hour, and minute).
Press (or press b) to
confirm each setting and move to
the next setting. Press B to go
back to the previous setting.
3
Press MENU to exit the Menu.
Option Description
z To go directly to
programming Timer 1 or 2,
press instead of
pressing b.
98
Menus
Illuminated Allows you to illuminate the Sony logo on the front panel of the
TV.
Ye s Illuminates the Sony logo while the
power is turned on.
No Illuminates the Sony logo only when
the power is switched to on or off.
Option Description
100
Other Info Other Info

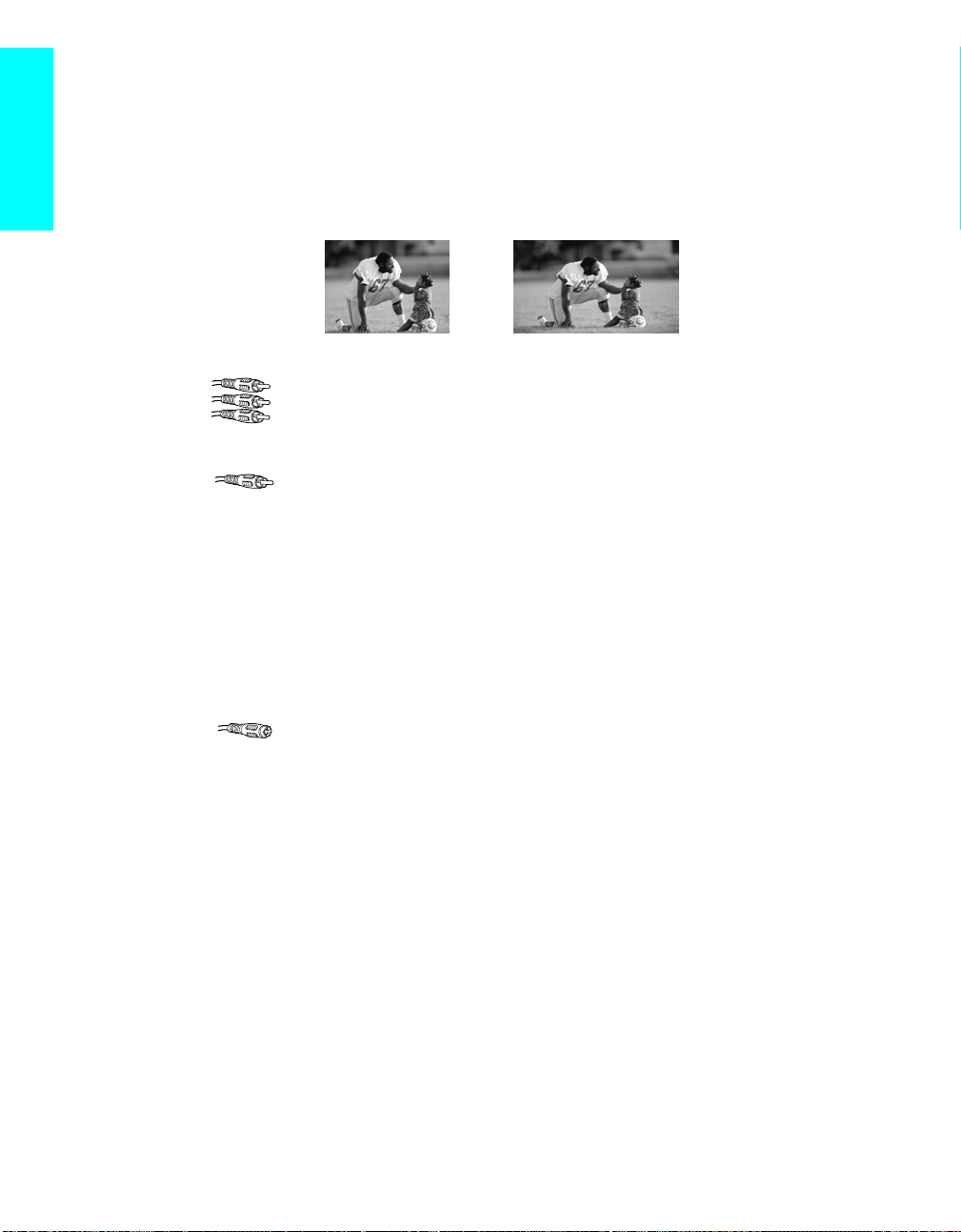

Glossary
analog signal A signaling method that uses continuous changes in the amplitude or frequency of an
electronic transmission to convey information.
aspect ratio Refers to the ratio between the width and height of the screen. This TV has a 16:9
(widescreen) aspect ratio, as opposed to a 4:3 aspect ratio.
component video Component video is sent through three cables: two color shade (chrominance) signals
and one brightness (luminance) signal. Component video achieves greater color
accuracy than composite video or S VIDEO by splitting chrominance into two
separate portions.
composite video Composite video is sent through a single cable. Composite video combines the color
shade (chrominance) and brightness (luminance) information into one video signal.
digital television (DTV) A new technology for transmitting and receiving broadcast television signals. DTV
provides higher resolution and improved sound quality over analog television.
National Television
System Committee
(NTSC)
A unit of the Federal Communications Commission, Washington, DC, that
establishes television standards in the United States, such as NTSC Color, the
standard used in this TV.
RF Radio Frequency. That part of the frequency spectrum that is used to transmit TV and
radio signals.
S VIDEO S VIDEO requires a single cable, which carries the brightness (luminance) and color
(chrominance) signals of the picture separately. S VIDEO provides better resolution
than composite video, which carries the signals together.
VHF/UHF VHF (Very High Frequency) is the part of the frequency spectrum from 30 to 300
megahertz. UHF (Ultra High Frequency) is the part of the frequency spectrum from
300 to 3,000 megahertz.
480i Provides 480 lines of resolution. Displays images using interlaced scanning, which
first transmits all the odd lines on the TV screen and then the even lines.
480p Provides 480 lines of resolution. Displays images using progressive scanning, which
transmits each line from top to bottom.
720p Provides 720 lines of resolution. Displays images using progressive scanning, which
transmits each line from top to bottom.
1080i Provides 1080 lines of resolution. Displays images using interlaced scanning, which
first transmits all the odd lines on the TV screen and then the even lines. 1080i is one
of the formats used by HDTV (High Definition TV).
4:3 aspect ratio
16:9 aspect ratio
101
Other Info Other Info
Contacting Sony
If, after reading these operating instructions, you have additional questions
related to the use of your Sony television, please call our Customer
Information Services Center at 1-800-222-SONY (7669) (US residents only)
or (416) 499-SONY (7669) (Canadian residents only).
Troubleshooting
Twin View
Problem Possible Remedies
I cannot get Twin View to work s If you are using a cable box to unscramble all channels (as shown on page 27),
you cannot use the Twin View feature. This is because the cable box can
unscramble only one channel at a time.
s You can use Twin View to view a signal from a different source that is connected
to the TV’s A/V jacks (such as a VCR or DVD player) in the second window by
pressing TV/VIDEO while in Twin View.
s Sources connected to the CABLE, VIDEO 4, VIDEO 5, and VIDEO 6 inputs, as
well as digital sources, display in the left Twin View window, but not the right.
There is no Twin View window,
or it is just static
s Be sure the Twin View window is set to a video input or channel that has a signal
airing.
s You might be tuned to a video input with nothing connected to it. Try cycling
through the video inputs by pressing TV/VIDEO.
Twin View cannot display
anything but TV channels
s Try cycling through the video inputs by pressing TV/VIDEO. Check that the
Video Label option is not set to Skip. (See the Setup Menu on page 96.)
Twin View displays the same
program in both windows
s Both Twin View windows might be set to the same channel. Try changing
channels in either window.
102
Other Info Other Info
Remote Control
Memory Stick
Problem Possible Remedies
Remote control does not
operate
s The batteries could be weak. Replace the batteries.
s Check the orientation of the batteries.
s Press TV FUNCTION. You may have inadvertently pressed SAT/CABLE
FUNCTION, which changes the remote control to SAT or CABLE mode.
s Make sure this unit’s power cord is connected securely to the wall outlet.
s Locate the unit at least 3-4 feet away from fluorescent lights.
Cannot change channels with
the remote control
s If you are using the TV to change channels, first press TV FUNCTION.
s If you are using another device to change channels, be sure you have not
inadvertently switched your TV from the channel 3 or 4 setting. Use the Channel
Fix option to “fix” the channel based on the hookup you used (see page 90).
s If you are using another device to change channels, be sure to press FUNCTION
for that device. For example, if you are using your cable box to change channels,
be sure to press SAT/CABLE FUNCTION.
Remote control does not
operate non-Sony video
equipment
s If you replaced the batteries to the remote recently, the code numbers for the video
equipment may need to be reset.
s There may be more than one code for the equipment that you are attempting to
operate.
s There is a possibility that some non-Sony equipment cannot be operated by your
Sony TV remote. You may need to use the equipment’s original remote control.
Problem Possible Remedies
Image does not display s Make sure the Memory Stick is inserted properly (see page 69).
s Memory Stick functions are not available while using Twin View, Freeze or
Favorite Channel functions.
s Press the MEMORY STICK button (see page 72).
s Make sure that the photo or movie files are contained in the Memory Stick.
s Set Digi. Cam Mode to Off and select the folder when the still image or movie is
processed by the computer.
“No Memory Stick” is
displayed.
s Make sure the Memory Stick is inserted properly (see page 69).
“Memory Stick error” is
displayed.
s The Memory Stick is not correct. Remove the Memory Stick and insert it again
(see page 69).
s The Memory Stick may be broken. Insert another Memory Stick.
“File error” is displayed. s A name of the selected file is not correct.
“Format error” is displayed. s The Memory Stick is not formatted correctly. Format correctly with other
equipment such as a digital camera or insert another Memory Stick formatted
correctly.
“Cannot play” is displayed. s Make sure that the still image or movie files to be played back are contained in the
Memory Stick.
s Set Digi. Cam Mode to Off and select the folder.
103
Other Info Other Info
“Memory Stick type error” is
displayed.
s A Memory Stick not available for use with this TV is inserted.
“No files that can be displayed”
is displayed.
s The still image or movie image to be played back is not contained when the Digi.
Cam Mode is set to On.
“No files in this folder that can
be displayed” is displayed.
s The still imge or movie image is not contained in the selected folder when the
Digi. Cam Mode is set to Off.
“Memory Stick Locked” is
displayed.
s The Memory Stick is locked. Unlock the Memory Stick.
“No movie file” is displayed. s Show Movies is selected from Filter of the Option menu. However there is no
movie file in the folder.
“No still file” is displayed. s Show Stills is selected from Filter of the Option menu. However there is no still
file in the folder.
Cannot use Memory Stick Duo s Check that the Memory Stick Duo and adaptor are inserted correctly.
Blank square appears instead of
a thumbnail image
s This indicates that the image does not support a thumbnail view. Selecting the
icon, however, displays the full-size image on the screen. It could also indicate
that both the thumbnail and full-size images are corrupted or not supported.
Cannot rotate image, no
thumbnail appears
s Be sure the LOCK switch on the Memory Stick is set to off.
s If a blank square appears instead of the thumbnail image, this indicates that the
image does not support a thumbnail view and cannot be rotated.
Cannot hear audio while using
Memory Stick
s There is no audio available while using Memory Stick.
Image file name does not
appear; instead, dashes (---)
appear
s Dashes appear instead of the file name if the image was recorded using equipment
that is not DCF-compliant. Dashes also appear if a DCF-compliant file was
renamed.
Problem Possible Remedies
104
Other Info Other Info
Video
Problem Possible Remedies
No picture (screen not lit), no
sound
s If your TV does not turn on, and a red light keeps flashing, your TV may need
service. Call your local Sony Service Center.
s Make sure the power cord is plugged in.
s Press POWER on the right side of the TV.
s Press TV/VIDEO to cycle through the connected video sources.
s Try another channel; it could be station trouble.
s Press PIC OFF so that the PICUTRE OFF LED on the display unit goes off.
Dark, poor or no picture
(screen lit), good sound
s Adjust the Picture option in the Video Menu (see page 84).
s Adjust the Brightness option in the Video Menu (see page 84).
s Check the antenna/cable connections.
No color s Adjust the Color option in the Video Menu (see page 84).
Only snow and noise appear on
the screen
s Check the antenna/cable connections.
s Try another channel; it could be station trouble.
s Press ANT to change the input mode (see page 51).
Dotted lines or stripes s Adjust the antenna.
s Move the TV away from noise sources such as cars, neon signs, or hair-dryers.
Double images or ghosts s Using a highly directional outdoor antenna or a cable may solve the problem.
“Black box” on screen s You have selected a text option in the Setup Menu and no text is available. To turn
off this feature, set the Caption Vision option to Off. If you were trying to select
closed captioning, select CC1 instead of Text 1-4.
Black bands appear at the top
and bottom of the screen
s Some wide-screen programs are filmed in aspect ratios that are greater than 16:9
(this is especially common with theatrical releases). Your TV will show these
programs with black bands at the top and bottom of the screen. For more details,
check the documentation that came with your DVD (or contact your program
provider).
Striped noise during
playback/recording of a VCR
s Video head interference. Keep your VCR away from the TV.
s Leave a space of 30 cm (11 7/8 inches) between your VCR and the TV to avoid
noise.
s Avoid installing your VCR in front of the TV or at the side of the TV.
The screen flickers when
turning on the TV
s This is caused by feature of the Plasma Display Panel, and does not indicate a
malfunction of the TV.
Certain programs on DVD or
other digital sources display a
loss of detail, especially during
fast-motion or dark scenes
s The compression used by certain digital broadcasts and DVDs may cause your
TV’s screen to display less detail than usual, or cause artifacts (small blocks or
dots, pixelations) to appear on your screen. This is due to your TV’s large screen
and ability to show very fine detail, and is normal for certain digitally recorded
programs. Adjust the reality/clarity in the DRC Palette menu (see page 85) to
optimize the picture while viewing these sources.
105
Other Info Other Info
Audio
Channels
Problem Possible Remedies
Good picture, no sound s Press MUTING so that Muting disappears from the screen (see page 50).
s Make sure the Speaker option is set to On in the Audio Menu (see page 87).
Audio noise s Communication problems may occur if the infrared communication equipment
(e.g., infrared cordless headphones) is used near the TV. Please use headphones
other than infrared cordless headphones. Also, if you use the infrared
communication equipment other than infrared cordless headphones, move the
infrared transceiver away from the TV until the noise is eliminated, or move the
transmitter and receiver of the infrared communication equipment closer together.
Cannot gain enough volume
when using a cable box
s Increase the volume of the cable box using the cable box’s remote control. Then
press TV FUNCTION and adjust the TV’s volume.
Sound seems weak or
insufficient
s The TV’s audio might be set to Auto SAP or Mono, when it might be better set to
Stereo. In the Audio Menu (see page 86), set the MTS setting to Stereo. If
already set to Stereo, switch to Mono (which may reduce background noise
during weak stereo broadcasts).
Cannot raise the volume on
external speakers
s If the Speaker option is set to Off and the Audio Out option is set to Fixed (in
order to output the sound to your audio system) use your audio receiver to adjust
the sound (see page 87). Or, to use the TV remote control, set the Audio Out
option to Variable.
s To turn on the TV speakers, set the Speaker option to On (see page 87).
Problem Possible Remedies
Cannot receive upper channels
(UHF) when using an antenna
s Change the Cable option to Off (see page 90).
s Use Auto Program in the Channel Menu to add receivable channels that are not
presently in the TV’s memory (see page 90).
TV is fixed to one channel s Use Auto Program in the Channel Menu to add receivable channels that are not
presently in the TV’s memory (see page 90).
s Check your Channel Fix settings (see page 90).
Cannot receive any channels
when using cable TV
s Use Auto Program in the Channel Menu to add receivable channels that are not
presently in the TV’s memory (see page 90).
s Make sure the Cable option is set to On in the Channel Menu (see page 90).
Cannot receive or select
channels
s Use Auto Program in the Channel Menu to add receivable TV channels that are
not presently in TV memory (see page 90).
106
Other Info Other Info
General
Problem Possible Remedies
How to restore Video settings
to factory settings
s Press RESET on the remote control while in the Video Menu (see page 84).
How to restore Audio settings
to factory settings
s Press RESET on the remote control while in the Audio Menu (see page 86).
Cannot cycle through the other
video equipment connected to
the TV
s Be sure the Video Label option is not set to Skip (see page 96).
Cannot operate Menu s If a menu option appears in gray, this indicates that the menu option is not
available.
Lost password s In the password screen (see page 92), enter the following master password: 4357.
The master password clears your previous password; it cannot be used to
temporarily unblock channels.
LED on the TV is lit s The STANDBY LED (see page 16) lights up when the TV is in standby mode. If
the LED blinks continuously, this may indicate the TV needs a service.
s The TIMER LED (see page 16) indicates that the timer is set. When the timer is
set, this LED will remain lit even when the TV is turned off.
107
Other Info Other Info
Specifications
Panel System Plasma Display panel
Resolution KE-37XS910/KE-42XS910 1024 pixels (horizontal) × 1024 pixels (vertical)
KE-50XS910
1280 pixels (horizontal) × 768 pixels (vertical)
Antenna 75 ohm external terminal for VHF/UHF
Television System NTSC, American TV Standard
Channel Coverage VHF 2-13
UHF 14-69
CATV 1-125
Power Requirements 120V, 60 Hz
Inputs/Outputs
DVI-HDTV 1 terminal, 3.3V T.M.D.S., 50 ohms
The DVI-HDTV input terminal is compliant with the EIA-861 standard and is not
intended for use with personal computers.
Video (IN) 3 total (1 on side panel) 1 Vp-p, 75 ohms unbalanced, sync negative
S Video (IN) 3 total (1 on side panel) Y: 1 Vp-p, 75 ohms unbalanced, sync negative
C: 0.286 Vp-p (Burst signal), 75 ohms
Audio (IN) 6 total (1 on side panel) 500 mVrms (100% modulation)
Impedance: 47 kilohms
Component Video Input 2 (Y, P
B
, P
R
) Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative;
P
B
: 0.7 Vp-p, 75 ohms
P
R
: 0.7 Vp-p, 75 ohms
CONTROL S (IN/OUT) 1
Variable/Fixed Audio (OUT) 1 More than 408 mVrms at the maximum volume
setting (Variable)
More than 408 mVrms (Fixed)
Impedance (output): 2 kilohms
Sub woofer (OUT) 1 phono jack
RF Inputs 2
Screen Size (measured diagonally) KE-37XS910 37 inches
KE-42XS910 42 inches
KE-50XS910 50 inches
Speaker Output 15W × 2
Dimensions (W × H × D) KE-37XS910 1135 × 692 × 286 mm
(44
3
/
4
× 27
1
/
4
× 11
3
/
8
in)
KE-42XS910 1229 × 753 × 286 mm
(48
3
/
8
× 29
3
/
4 × 11
3
/
8
in)
KE-50XS910 1435 × 881 × 347 mm
(56
1
/
2
× 34
3
/
4 × 13
3
/
4
in)
Mass KE-37XS910 39.5 kg (86 lbs 1 oz)
KE-42XS910 44.5 kg (98 lbs 2 oz)
KE-50XS910 61.0 kg (134 lbs 8 oz)
Power Consumption In Use KE-37XS910: 390 W
KE-42XS910: 430 W
KE-50XS910: 430 W
In Standby Under 1.5 W
(Continued)
108
Other Info Other Info
Design and specifications are subject to change without notice.
Supplied Accessories Remote Control (1) RM-Y1001
AA Batteries (2)
AC power code (1)
Antenna cable (1)
Cord clamp (1)
Clamp rivets (4)
Clamp screws (2)
Cleaning cloth (1)
109
Other Info Other Info
Optional Accessories
s A/V Cable (VC-810S/820S/830S)
s Component Video Cable (VMC-10/30)
s Control S Cable (RK-G69)
s Wall mount bracket: SU-PW2
s Floating stand: SU-PF2
110
Index
16:9 aspect ratio 59
4:3 aspect ratio 59
4:3 Default settings 89
A
ANT button 51, 58
Audio Menu 83, 86
Audio Out 87
audio receiver, connecting 46
Auto Program (channel setup) 48, 90
Auto SAP, MTS setting 86
AUX jack described 19
B
balance, adjusting 86
bass, adjusting 86
batteries, inserting in remote 49
bilingual audio 86
blocking programs.
See ratings.
BN Smoother 85
brightness, adjusting 84
C
cable
setting On/Off 90
with VCR, connecting 30
cable box
connecting with VCR 32
Twin View issues 60
using with TV remote control 55
Caption Vision 95
CATV.
See cable
CH buttons 17, 51
changing picture size, in Twin View 62
Channel Label 91
Channel Menu 83, 90
Channel Skip/Add 91
channels
creating labels 91
setting up 48
CineMotion 14, 85
clearing, Favorite Channels 63
Clock/Timers 97
closed caption modes 83, 95
color, adjusting 84
CONTROL S 47
CONTROL S IN/OUT jack, described 19
Cool, Color Temp. 84
D
Digi. Cam. Mode 80
Digital Reality Creation 13
DISPLAY button 58
Display unit
connecting 21
controls 16
DRC Function 85
DRC Mode 85
DRC Palette 85
DRC.
See Digital Reality Creation.
DVD player
using with TV remote control 55
with A/V connectors, connecting 42
DVI.
See Digital Visual Interface.
DVI-HDTV 107
F
Fast-forward button 50
Favorite Channels
clearing 63
in Channel Menu 90
using 63
FAVORITES button 50
features 13
Fixed audio setting 87
FREEZE button 50, 64
Freeze, using 64
Full mode, setting 88
FUNCTION buttons 50
G
Game Picture 96
111
Other InfoOther InfoOther Info
H
hue, adjusting 84
I
Illuminated 98
interlaced 100
J, K
JUMP button 50, 58
L
label
channels 91
Language, setting 96
M
Memory Stick
Close 74
delete a picture 74
Digi. Cam. Mode 80
Duo 70
Full Screen 74
Index Menu 73
inserting 69
Memory Stick Home 72
Movie Player 74
Playing Movies 77
precautions 82
Protect 74, 76, 78
removing 71
Rotate 74, 76
Slide Show 74
Still Images 75
troubleshooting 102
MENU button 51, 58, 83
Menus
Audio 83, 86
Channel 83, 90
Parent 83, 92
Screen 83, 88
Setup 95
Video 83, 84
Mild Mode 84
Mono, MTS setting 86
MTS 86
MTS/SAP button 51
MUTING button 50, 58
N
Neutral, Color Temp. 84
Normal mode, setting 88
NR 84
O
off, turning off the TV 17
on, turning on the TV 17
P, Q
Parent Menu 83, 92
parental control, described 14
password, changing 92
Pause button 50
PIC OFF button 51
picture contrast, adjusting 84
PICTURE MODE button 50
Play button 50
POWER button 16, 17, 50, 58
POWER LED 16
powering on/off, the TV 17
presetting channels 90
Pro (Video) mode 84
problems, troubleshooting 101–106
progressive 100
R
ratings, setting 92–94
ratings, viewing blocked programs 93, 94
remote control
inserting batteries 49
programming 52–53
removing, Favorite Channels 63
RESET button 51
resetting
Audio options 86
Rewind button 50
S
S VIDEO jack, described 18, 19
SAT/CABLE FUNCTION button 50
SAT/CABLE power button 50
satellite receiver, using with TV remote control 54
Screen Saver 89
setting up channels 48
Setup Menu 95
sharpness, adjusting 84
Simulated, Effect 86
sizing, picture in Twin View 62
speakers
(Continued)
112
Other Info Other Info Other Info
turning on/off 87
using external speakers 87
specifications 107
Standard mode 84
STANDBY LED 16, 106
Steady Sound, described 14
Steady Sound, setting 86
Stereo, MTS setting 86
Stop button 50
surround sound 86
T, U
TIMER indicator 16, 106
TO CONVERTER jack, described 19
transport buttons 50
treble, adjusting 86
troubleshooting 101–106
TruSurround 86
TruSurround, Effect 86
turning on/off the TV 17
TV FUNCTION button 58
TV power button 50
TV/VIDEO button 51, 58
Twin View
described 14
using 60–62
Twin View button 50
V
Variable audio setting 87
VCR
using with TV remote control 54
with cable box, connecting 32
with cable, connecting 30
with satellite receiver, connecting 38
VCR/DVD FUCTION button 50
VCR/DVD power button 50
Vertical Center, adjusting 89
Vertical Size 89
VHF/UHF jack, described 19
VIDEO (L/R)/AUDIO jacks, described 19
Video Label 96
Video Menu 83, 84
Video modes, selecting 84
Vivid mode 84
VOL buttons 17, 50, 58
W, X, Y
Warm, Color Temperature 84
Wide Mode 88
WIDE MODE button 50
Wide Screen, described 14
Wide Zoom mode, setting 88
WOOFER OUT jack, described 19
Z
zoom feature, with Twin View 62
Zoom mode, setting 88
