Please read this manual before using the product!
Dear Customer,
We'd like you to make the best use of our product, which has been manufactured in modern facilities
with care and meticulous quality controls.
Thus, we advice you to read the entire user manual before you use the product. In case the product
changes hands, do not forget to hand the guide to its new owner along with the product.
This guide will help you use the product quickly and safely.
• Please read the user guide carefully before installing and operating the product.
• Always observe the applicable safety instructions.
• Keep the user guide within easy reach for future use.
• Please read any other documents provided with the product.
Keep in mind that this user guide may apply to several product models. The guide clearly indicates any
variations of different models.
C
Important information and use-
ful tips.
A
Risk of life and property.
B
Risk of electric shock.
The product’s packaging is made of
recyclable materials, in accordan-
ce with the National Environment
Legislation.
2 /30 EN
Refrigerator / User Manual
1 Important instructions for safety and
environment 3
1.1 General safety . . . . . . . . . . . . . . . . . . . . . .3
1.1.1 HCA warning . . . . . . . . . . . . . . . . . . . . . . .4
1.1.2 For products with a water dispenser . . . . . .4
1.2 Intended use . . . . . . . . . . . . . . . . . . . . . . .4
1.3 Children's safety . . . . . . . . . . . . . . . . . . . .4
1.4 Compliance with WEEE Directive and Disposing
of the Waste Product: . . . . . . . . . . . . . . . .5
1.5 Compliance with RoHS Directive:. . . . . . . . . .5
1.6 Package information. . . . . . . . . . . . . . . . . . .5
2 Your Refrigerator 6
3 Installation 7
3.1 Appropriate installation location . . . . . . . . .7
3.2 Installing the plastic wedges. . . . . . . . . . . .7
3.3 Electrical connection . . . . . . . . . . . . . . . . .7
3.4 Adjusting the feet. . . . . . . . . . . . . . . . . . . .8
3.5 Illumination lamp . . . . . . . . . . . . . . . . . . . .8
3.6 Door open warning. . . . . . . . . . . . . . . . . . .8
3.7 Water connection. . . . . . . . . . . . . . . . . . . .8
3.7.1 Before Installation . . . . . . . . . . . . . . . . . . .9
3.8 Connecting the water hose to the refrigerator 9
3.9 Connecting the water line to the water
supply . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3.10 Water filter . . . . . . . . . . . . . . . . . . . . . . . .10
3.10.1 Attaching the internal filter into the
refrigerator . . . . . . . . . . . . . . . . . . . . . . .10
3.11 Before starting to use the water/ice
dispenser . . . . . . . . . . . . . . . . . . . . . . . .11
3.12 Transportation of the product . . . . . . . . . .12
4 Preparation 13
4.1 Things to be done for energy saving . . . . .13
4.2 Recommendations for the fresh food
compartment. . . . . . . . . . . . . . . . . . . . . .13
4.3 Initial use. . . . . . . . . . . . . . . . . . . . . . . . .14
5 Operating the product 18
5.1 Indicator panel. . . . . . . . . . . . . . . . . . . . .18
5.2 Dual cooling system. . . . . . . . . . . . . . . . .20
5.3 Freezing fresh food . . . . . . . . . . . . . . . . .20
5.4 Recommendations for preserving the frozen
food . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
5.5 Placing the food. . . . . . . . . . . . . . . . . . . .20
5.6 Deep-freeze information. . . . . . . . . . . . . .20
5.7 Removing door shelves . . . . . . . . . . . . . .22
5.8 Moving door rack . . . . . . . . . . . . . . . . . . . .22
5.9 Glass shelves. . . . . . . . . . . . . . . . . . . . . .22
5.10 Chiller compartment. . . . . . . . . . . . . . . . .22
5.11 Crisper . . . . . . . . . . . . . . . . . . . . . . . . . .23
5.12 Ice container . . . . . . . . . . . . . . . . . . . . . .23
5.13 Butter & Cheese section . . . . . . . . . . . . .24
5.14 Egg holder. . . . . . . . . . . . . . . . . . . . . . . .24
5.15 Movable middle section . . . . . . . . . . . . . .24
5.16 Blue light. . . . . . . . . . . . . . . . . . . . . . . . .25
5.17 Ion . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
5.18 Odour filter . . . . . . . . . . . . . . . . . . . . . . .25
5.19 Using internal water dispenser . . . . . . . . .25
5.20 Dispensing Water . . . . . . . . . . . . . . . . . . .25
5.21 Refrigerator Shelf Weight Limitations. . . . .26
6. Maintenance and cleaning 27
6.1 Avoiding bad odours. . . . . . . . . . . . . . . . .27
6.2 Protecting the plastic surfaces . . . . . . . . .27
7 Troubleshooting 28
3 / 30 EN
Refrigerator / User Manual
1 Important instructions for safety and environment
This section contains safety instructions that will
help protect from risk of personal injury or property
damage. Failure to follow these instructions shall
void any warranty.
1.1 General safety
•Thisproductcanbeusedbychildrenatand
above 8 years old and by persons whose
physical, sensory or mental capabilities were
not fully developed or who lack experience and
knowledge provided that they are supervised or
trained on the safe usage of the product and the
risks it brings out. Children must not play with
the product. Cleaning and maintenance works
should not be performed by children unless they
are supervised by someone.
•Unplugtheproductifafailureoccurswhileitis
in use.
•Iftheproducthasafailure,itshouldnotbe
operated unless it is repaired by the Authorised
Service Agent. There is the risk of electric shock!
•Connecttheproducttoagroundedoutlet
protected by a fuse complying with the values in
the rating plate. Have the grounding installation
made by a qualified electrician. Our company
shall not be liable for any damages that will
arise when the product is used without ground-
ing in accordance with the local regulations.
•Unplugtheproductwhennotinuse.
•Neverwashtheproductbyspreadingorpouring
water onto it! There is the risk of electric shock!
•Nevertouchtheplugwithwethands!Never
unplug by pulling on the cable, always pull out
by grabbing the plug.
•Itisrecommendedtocleanthetipoftheplug
regularly with a dry cloth.
•Donotplugtherefrigeratorifthewalloutletis
loose.
•Neverconnectyourrefrigeratortoelectricity-
saving systems. Such systems are harmful for
the product.
•Unplugtheproductduringinstallation,mainte-
nance, cleaning and repairing procedures.
•Alwayshavetheinstallationandrepairing
procedures carried out by the Authorised
Service Agent. Manufacturer shall not be
held liable for damages that may arise from
procedures carried out by unauthorised persons.
•Donoteatconeicecreamandicecubesim-
mediately after you take them out of the freezer
compartment! This may cause frostbite in your
mouth!
•Donottouchfrozenfoodbyhand!Theymay
stick to your hand!
•Donotputbottledandcannedliquidbeverages
in the freezer compartment. They may burst!
•Neverusesteamandsteamassistedcleaning
materials to clean or defrost the refrigerator.
Steam will cause short circuit or electric shock
since it would get into contact with the electrical
parts in the refrigerator!
•Donotusemechanicaldevicesorothermeth-
ods to accelerate the defrosting process, other
than those recommended by the manufacturer.
•Neverusethepartsonyourrefrigeratorsuchas
the door and drawer as a means of support or
step. This will cause the product to tip over or
parts of it get damaged.
•Donotdamagethecoolingcircuit,wherethe
refrigerant is circulating, with drilling or cutting
tools. The refrigerant that might blow out when
the gas channels of the evaporator, pipe exten-
sions or surface coatings are punctured may
cause skin irritations and eye injuries.
•Donotcoverorblocktheventilationholeson
the refrigerator with any material.
•Placethebeveragewithhigherproofstightly
closed and vertically.
•Donotusegaseousspraysneartheproduct
since there is the risk of fire or explosion!
•Flammableitemsorproductsthatcontainflam-
mable gases (e.g. spray) as well as the explosive
materials should never be kept in the appliance.
4 /30 EN
Refrigerator / User Manual
Important instructions for safety and environment
•Donotplacecontainersfilledwithliquidontop
of the product. Spilling water on an electrical
component may cause electric shocks or risk of
fire.
•Donotstoreproducts(vaccines,heat-sensitive
medicines, scientific materials and etc.) that
require a precise temperature control in the
refrigerator.
•Ifyouwillnotoperatetheproductforalong
period of time, unplug and unload the food in it.
•Iftheproductisequippedwithbluelight,donot
look at the blue light with optical tools.
•Exposingtheproducttorain,snow,sunand
wind is dangerous with respect to electrical
safety.
•Inproductswithmechanicalcontrol(thermo-
stat), wait for minimum 5 minutes to plug in the
product again after unplugging it.
•Donotoverloadtheproduct.Itmayfallwhen
the door is opened, and cause injury or damage.
Similar problems may occur in case of putting
things on top of the product.
•Iftheproduct'sdoorisequippedwithahandle,
do not pull by the handle when changing the
place of the product. Handle may get loose.
•Payattentionnottohaveyourhandoranypart
of your body get caught by the moving parts
inside the product.
1.1.1 HCA warning
•If your product’s cooling system contains R600a:
This gas is flammable. Therefore, pay attention to
not damaging the cooling system and piping during
usage and transportation. In the event of damage,
keep your product away from potential fire sources
that can cause the product catch a fire and venti-
late the room in which the unit is placed.
Ignore this warning if your product’s cooling
system contains R134a.
Type of gas used in the product is stated in the
type plate which is on the left wall inside the
refrigerator.
Never throw the product in fire for disposal.
C
If the product is equipped with a cooling
system containing R134a gas, ignore this
warning.
C
You can learn the gas used in production of
your product on the rating plate located on
the left inner part of it.
A
WARNING: Never dispose the product
in fire.
1.1.2 For products with a
water dispenser
• Pressure for cold water inlet shall be maximum
90 psi (6.2 bar). If your water pressure exceeds
80 psi (5.5 bar), use a pressure limiting valve
in your mains system. If you do not know how
to check your water pressure, ask for the help
of a professional plumber.
• If there is risk of water hammer effect in
your installation, always use a water hammer
prevention equipment in your installation.
Consult Professional plumbers if you are not
sure that there is no water hammer effect in
your installation.
• Do not install on the hot water inlet. Take
precautions against of the risk of freezing
of the hoses. Water temperature operating
interval shall be 33°F (0.6°C) minimum and
100°F (38°C) maximum.
•Useonlypotablewater.
1.2 Intended use
•Thisproducthasbeendesignedfordomestic
use. It is not suitable for commercial use and it
must not be used out of its intended use.
•Productmustbeusedonlyforstoringfood.
•Themanufacturerwaivesanyresponsibility
arisen from incorrect usage or transportation.
•Theservicelifeofyourproductis10years.
During this period, original spare parts will be
available to operate the appliance properly.
1.3 Children's safety
• If the door has a lock, the key should be kept
away from reach of children.
5 / 30 EN
Refrigerator / User Manual
Important instructions for safety and environment
•Childrenmustbesupervisedtopreventthem
from tampering with the product.
A
DANGER: Risk of child entrapment.
Before you throw away your old
refrigerator or freezer:
•Takeoffthedoors.
•Leavetheshelvesinplacesothat
children may not easily climb inside.
1.4 Compliance with WEEE
Directive and Disposing
of the Waste Product:
This product complies with EU
WEEE Directive (2012/19/EU). This
product bears a classification symbol
for waste electrical and electronic
equipment (WEEE).This product
has been manufactured with high
quality parts and materials which
can be reused and are suitable for recycling. Do
not dispose of the waste product with normal
domestic and other wastes at the end of its
service life. Take it to the collection center
for the recycling of electrical and electronic
equipment. Please consult your local authorities
to learn about these collection centers.
1.5 Compliance with RoHS Directive:
The product you have purchased complies with EU
RoHS Directive (2011/65/EU). It does not contain
harmful and prohibited materials specified in the
Directive.
1.6 Package information
•Packagingmaterialsoftheproductare
manufactured from recyclable materials in
accordance with our National Environment
Regulations. Do not dispose of the packaging
materials together with the domestic or other
wastes. Take them to the packaging material
collection points designated by the local
authorities.
I
A
DANGER: Risk Of Fire or Explosion.
Flammable Refrigerant Used. Do
Not Use Mechanical Devices To
Defrost Refrigerator. Do Not Puncture
Refrigerant Tubing”.
A
DANGER: Risk Of Fire Or Explosion.
Flammable Refrigerant Used.
To Be Repaired Only By Trained
Service Personnel. Do Not Puncture
Refrigerant Tubing”.
A
CAUTION : Risk Of Fire Or
Explosion. Flammable Refrigerant
Used. Consult Repair Manual/
Owner’s Guide Before Attempting
To Service This Product. All Safety
Precautions Must be Followed.
A
CAUTION : Risk Of Fire Or
Explosion. Dispose Of Properlty In
Accordance With Federal Or Local
Regulations. Flammable Refrigerant
Used.
A
CAUTION : Risk Of Fire Or
Explosion Due To Puncture Of
Refrigerant Tubing; Follow Handling
Instructions Carefully. Flammable
Refrigerant Used”.
6 /30 EN
Refrigerator / User Manual
2 Your Refrigerator
1- Fridge compartment
2- ButFreezer compartment
3- Display/indicator panel
4- Butter & cheese section
5- Fridge compartment door shelf
6- Eggy tray
7- Bottle shelf
8- Chiller compartment
9- Crispers
10- İnner water dispenser
11- Adjustable glass shelf
12- Blower
13- Water filter
14- Ice container
15- Frozen food storage compartment (upper)
16- Frozen food storage compartment (upper)
17- Seperator
2
*3
1
*7
*5
*8
*9
10
12
*13
*11
6
*4
14 15
16
*17
C
Figures in this user manual are schematic and may not match the product exactly. If the subject parts
are not included in the product you have purchased, then those parts are valid for other models.
7 / 30 EN
Refrigerator / User Manual
3 Installation
Refer to the nearest Authorised Service Agent for
installation of the product. To make the product
ready for use, make sure that the electricity
installation is appropriate before calling the
Authorised Service Agent. If not, call a qualified
electrician to have any necessary arrangements
carried out.
C
Preparation of the location and electrical
installation at the place of installation is
under customer's responsibility.
B
Product must not be plugged in during
installation. Otherwise, there is the risk of
death or serious injury!
B
WARNING: Installation and electrical
connections of the product must be carried
out by the Authorised Service Agent.
Manufacturer shall not be held liable for
damages that may arise from procedures
carried out by unauthorised persons.
A
WARNING: Prior to installation, visually
check if the product has any defects on
it. If so, do not have it installed. Damaged
products cause risks for your safety.
C
Make sure that the power cable is not
pinched or crushed while pushing the
product into its place after installation or
cleaning procedures.
3.1 Appropriate installation location
A
WARNING: If the door of the room where
the product will be placed is too small for
the product to pass, then the product's
doors must be removed and the product
must be turned aside to pass it through.
•Chooseaplaceatwhereyouwouldusethe
product comfortably.
•Installtheproductatleast30cmawayfrom
heat sources such as hobs, ovens, heater
cores and stoves and at least 5 cm away from
electrical ovens. Product must not be subjected
to direct sun light and kept in humid places after
installation.
•Appropriateairventilationmustbeprovided
around your product in order to achieve an
efficient operation. If the product is to be placed
in a recess in the wall, pay attention to leave at
least 5 cm distance with the ceiling and side
walls.
•Donotplacetheproductonthematerialssuch
as rugs or carpets.
•Placetheproductonanevenfloorsurfaceto
prevent jolts.
•Donotinstalltheproductinplaceswherethe
temperature falls below 10ºC /50°F.
C
If two coolers are to be installed side
by side, there should be at least 4 cm
distance between them.
3.2 Installing the plastic wedges
Plastic wedges are used to create the distance
for the air circulation between the product and
the rear wall. Insert the 2 plastic wedges onto the
rear ventilation cover as illustrated in the figure.
To install the wedges, remove the screws on the
product and use the screws given in the same
pouch with the wedges.
3.3 Electrical connection
Connect the product to a grounded outlet
protected by a fuse complying with the values in
the rating plate. Our company shall not be liable
for any damages that will arise when the product
is used without grounding in accordance with the
local regulations.
•Electricalconnectionmustcomplywithnational
regulations.
•Powercableplugmustbewithineasyreach
after installation.
•Thevoltageandallowedfuseorbreaker
protection are specified in the Rating Plate
which is affixed to interior of the product. If
the current value of the fuse or breaker in the
house does not comply with the value in the
rating plate, have a qualified electrician install a
suitable fuse.
•Thespecifiedvoltagemustbeequaltoyour
mains voltage.
•Donotmakeconnectionsviaextensioncables
or multi-plugs.
8 /30 EN
Refrigerator / User Manual
Installation
B
WARNING: Damaged power cable must
be replaced by the Authorised Service
Agents.
B
WARNING: If the product has a failure, it
should not be operated unless it is repaired
by the Authorised Service Agent! There is
the risk of electric shock!
3.4 Adjusting the feet
If the product stands unbalanced after installation
adjust the feet. Taking help from someone to
slightly lift the refrigerator will facilitate this
process.
B
WARNING: First unplug the product.
Product must not be plugged in when
adjusting the feet. There is the risk of
electric shock!
Turn the front feet to balance the product. The
corner where the foot exists is lowered when you
turn in the direction of arrow and raised when you
turn it in the opposite direction.
3.6 Door open warning
(This feature may vary depending on the door
of the product and may not exist in some
models.)
An audio warning signal will be given when the
door of your product is left open for 1 minute. This
warning will be muted when the door is closed or
any of the display buttons (if any) are pressed.
3.7 Water connection
Depending on the model of the refrigerator, you
can connect it either to a demijohn or water mains.
First you must connect the water hose to the
refrigerator.
C
In cases where a demijohn is used, a
separate pump must also be used.
A
WARNING: Refrigerator and the pump, if
any, must be unplugged during connection.
C
Following parts may not be supplied with
your product since they are not required
when using a demijohn.
Check that following part have been delivered
together with the product:
External water filter. (If there is a demijohn
connection; it is not necessary to use a water
filter.)
3.5 Illumination lamp
Do not attempt to repair yourself but call the
Authorised Service Agent if the LED illumination
lamps do not go on or are out of order.
The lamp(s) used in this appliance is not suitable
for household room illumination. The intended
purpose of this lamp is to assist the user to place
foodstuffs in the refrigerator/freezer in a safe and
comfortable way.
9 / 30 EN
Refrigerator / User Manual
Installation
3.7.1 Before Installation
Make sure that you have everything necessary
to ensure proper installation before proceeding,
including:
Your product comes with an internal water filter for
use inside the fridge. Part number of the filter is
4918450200 and you can use this part number
when ordering replacement filters.
3.9 Connecting the water line
to the water supply
Connect the water line to a water supply valve. If a
valve is not present or you are not sure, consult a
qualified plumber.
3.8 Connecting the water
hose to the refrigerator
1. Slip the union (B) onto the water hose (A).
2. Push the water hose downwards firmly to slip it
onto the water inlet valve (C).
3. Tighten the union (C) by hand to secure it onto
the water inlet valve.
C
Normally, you are not required to tighten
the union with a tool. However, you can use
a spanner or pliers to tighten the union if
there is a leakage.
10 /30 EN
Refrigerator / User Manual
Installation
3.10 Water filter
(in some models)
Your refrigerator may be equipped with an external
or internal filter depending on its model. To fit the
water filter, follow the instructions below referring
to the figures supplied:
3.10.1 Attaching the internal
filter into the refrigerator
1. Pull the water filter cover slowly.
2. Remove the water filter bypass cover by turning
it downwards.
A
WARNING: Ensure that the Ice Off mode
is enabled before removing the by-pass
cover.
C
It is normal that a few drops of water drip
after the cover has been removed.
3. Seat the water filter cover into the mechanism
and push forwards to lock it in place.
4. Press “Ice Off” button on the display again to
exit this mode.
11 / 30 EN
Refrigerator / User Manual
Installation
C
Water filter must be replaced every 6
months. When replacing the water filter
or if you will not use the filter anymore,
remove it as illustrated in the figure and
install the bypass cover. Make sure that the
"Ice Off" mode is enabled before removing
the filter.
A
WARNING: Water filter cleans some
foreign particles in the water. It does not
purify water from microorganisms.
A
WARNING: Ice Off button must be
pressed before replacing the water filter or
installing the by-pass cover.
A
WARNING: Unplug the product during the
replacement of the filter.
3.11 Before starting to use the
water/ice dispenser
• If the water pressure is below 1 bar or a
demijohn will be used, than a separate must be
used as well.
• Water system of the refrigerator must be
connected to the cold water line. It must not
be connected to hot water line.
• No water may be obtained in the initial start-
up of the refrigerator. Because there is air in
the system. To discharge air from the system,
press dispenser latch for 1-2 minutes until
water comes from the dispenser. Water flow
may be irregular at the beginning. After the
air in the system is discharged, water flow will
return to normal.
• During initial use, you will have to wait
approximately 12 hours for the water to cool
down.
• It will take around 1-2 days for the system to
produce required amount of ice.
• Water pressure must be between 1-8 bars for
the operation of ice/water dispenser smoothly.
For this, check that 1 glass of water (200 cc)
can be filled in 10 seconds.
• The first 10 glasses of water should not be
consumed.
• First several glasses of water may be turbid
when the filter is used for the first time.
Therefore, do not consume the first several
glasses of water.
• If the water dispenser is not used for a long
period of time, first 1-2 glasses of water can
be hot.
12 /30 EN
Refrigerator / User Manual
Installation
• If a power outage or a temporary failure occurs
while the refrigerator is operating, ice can melt
down a little bit and then get frozen again. In
such a case, ice cubes can stick to each other. If
the outage or failure prolongs, ice can melt down
causing water leakage. If you experience such a
problem, empty and clean the ice container.
• Ice cubes can stick to each other if they are left
in the container for a long time.
• Water system installation of the refrigerator must
be performed by the Authorised Service Agent.
• If the product is to be connected to the water
mains, make sure that you use potable water.
• Water system of the product is designed to
operate only with water. Do not use beverage
such as soft drinks and/or juices in the water
system.
• It is recommended that the water is
disconnected if you will not be using the
refrigerator for a long period of time due to
vacation or similar reasons.
• Do not attempt to dismantle the ice container
group assembly parts.
• Do not attempt to clean the ice container
assembly without removing it from the
refrigerator.
• When taking water from the water dispenser,
remove the glass from the opening 1 second
after releasing the trigger. Thus, water in the
system will not drip into the drip tray.
3.12 Transportation of the product
1. Unplug the product before transporting it.
2. Remove water connections.
3. Secure the shelves, accessories, crisper and
etc. in the refrigerator by adhesive tape before
repackaging it.
C
Packaging must be tied with thick tapes or
strong ropes and the rules of transportation
printed on the package must be followed.
C
Original packaging and foam materials
should be kept for future transportations.
A
WARNING: Packaging materials
are dangerous for the children. Keep
packaging materials in a safe place away
from reach of the children.
13 / 30 EN
Refrigerator / User Manual
4 Preparation
4.2 Recommendations for the
fresh food compartment
• Do not allow the food to touch the temperature
sensor in fresh food compartment. To allow the
fresh food compartment keep its ideal storage
temperature, sensor must not be hindered by
food.
• Do not put hot food and beverages inside the
product.
4.1 Things to be done for
energy saving
A
Connecting the product to electric energy
saving systems is risky as it may cause
damage on the product.
• Do not leave the doors of your refrigerator open
for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload the refrigerator. Cooling
capacity will fall when the air circulation inside
is hindered.
• Do not place the refrigerator in places subject
to direct sunlight. Install the product at least
30 cm away from heat sources such as hobs,
ovens, heater cores and stoves and at least 5
cm away from electrical ovens.
• Pay attention to store your food in refrigerator
in closed containers.
• You can load maximum amount of food to the
freezer compartment of the refrigerator by
removing the freezer compartment shelf of
drawer. Declared energy consumption value
of the refrigerator was determined with the
freezer compartment shelf or drawer removed
and with maximum amount of food loaded.
There is no risk in using a shelf or drawer
suitable for the shapes and sizes of the foods
to be frozen.
• Thawing frozen food in fridge compartment will
both provide energy saving and preserve the
food quality.
C
The ambient temperature of the room
where you install the refrigerator should
at least be 10ºC /50°F. Operating your
refrigerator under cooler conditions than
this is not recommended.
C
Inside of your refrigerator must be cleaned
thoroughly.
C
If two coolers are to be installed side
by side, there should be at least 4 cm
distance between them.
14 /30 EN
Refrigerator / User Manual
Preparation
4.3 Initial use
Before starting to use the product, check that all
preparations are made in accordance with the
instructions in sections "Important instructions for
safety and environment" and "Installation".
• Clean the interior of the refrigerator as
recommended in the “Maintenance and
cleaning” section. Check that inside of it is dry
before operating it.
• Plug the refrigerator into the grounded wall
outlet. When the door is opened the interior
illumination will turn on.
• Run the refrigerator without putting any food
for 6 hours and do not open its door unless
certainly required.
C
You will hear a noise when the compressor
starts up. The liquids and gases sealed
within the refrigeration system may also
give rise to noise, even if the compressor is
not running and this is quite normal.
C
Front edges of the refrigerator may
feel warm. This is normal. These areas
are designed to be warm to avoid
condensation.
15 / 30 EN
Refrigerator / User Manual
Preparation

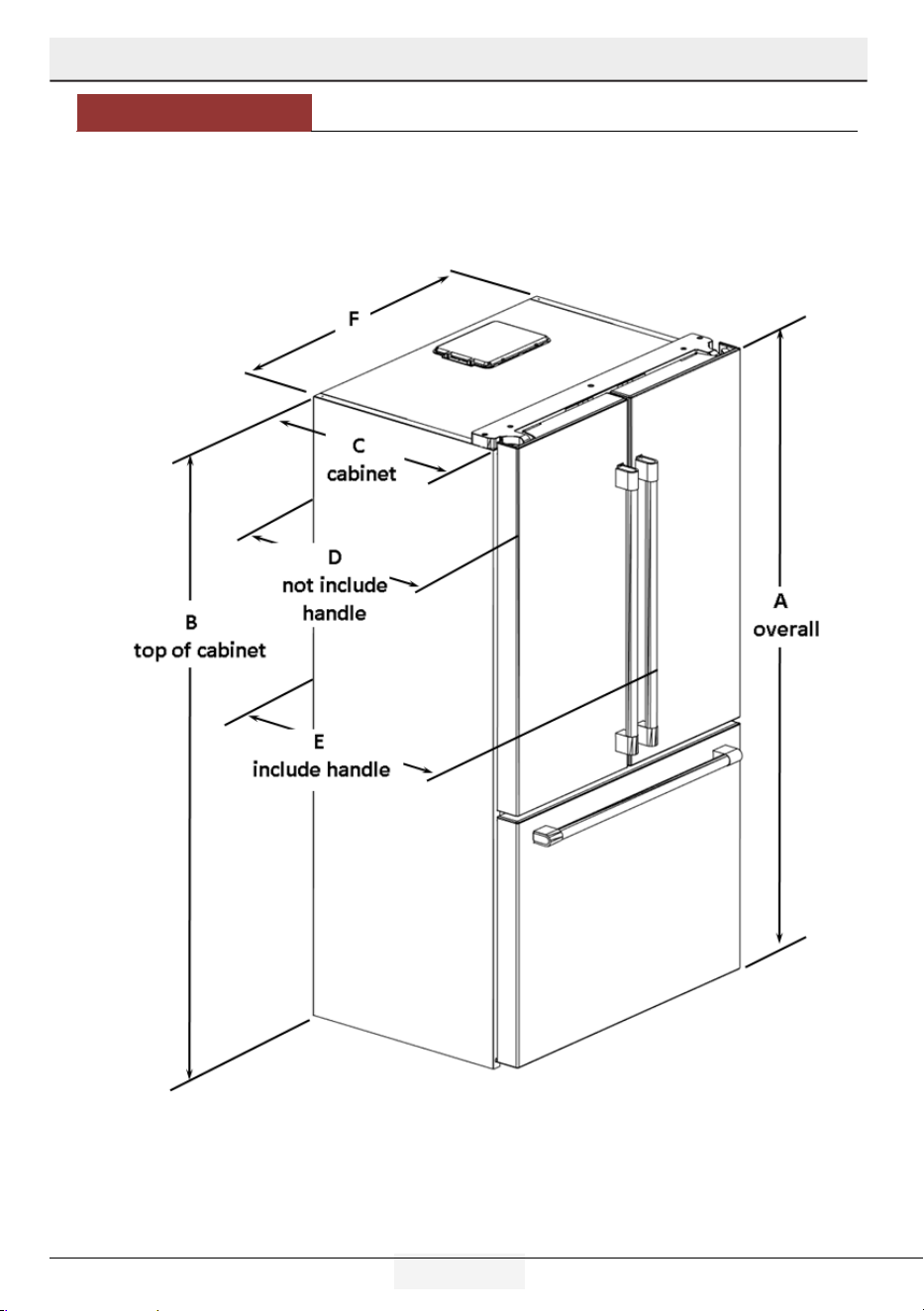

DIMENSIONS [36”FRENCHREFRIGERATOR]
1
PRODUCTDIMENSIONS
16 /30 EN
Refrigerator / User Manual
Preparation
DIMENSIONS [36”FRENCHREFRIGERATOR]
2
FreezerDoorOpenMax(Drawer)
Height
Overall
"A"
Height
TopOfCabinet
"B"
DepthCabinetOnly
"C""O"
DepthWithoutHandles
"D"
1771mm(69,72") 1710mm(67,32") 600mm(23,62") 680,5mm(26,79")
Depth
WithHandles
"E"
Width
Cabinet
"F"
Depth
DrawerOpen
"G"
TotalDepthDrawerOpen
"H"
737mm(29,01") 908mm(35,74") 1157mm(45,55") 1178,5mm(46,40”)
Depth
DoorsOpen90°
"I"
TotalDepthDoors
Open90°"J"
WidthDoors
Open90°WithHandles
"K"
WidthDoorsOpen90°
FromCabinetToHandle
"L"
1072,6mm(42,22") 1094mm(43,07") 1059,2mm(41,70") 75,6mm(2,97")
WidthDoorsOpen130°
FromHandleToHandle
"M"
WidthDoorsOpen130°
FromCabinetToHandle
"N"
DepthDoorsOpen130°
"P"
DepthDoorsOpen130°
"R"
1530.2mm(41,70") 311,2mm(12,25") 391mm(15,39") 991mm(39.01")
17 / 30 EN
Refrigerator / User Manual
Preparation

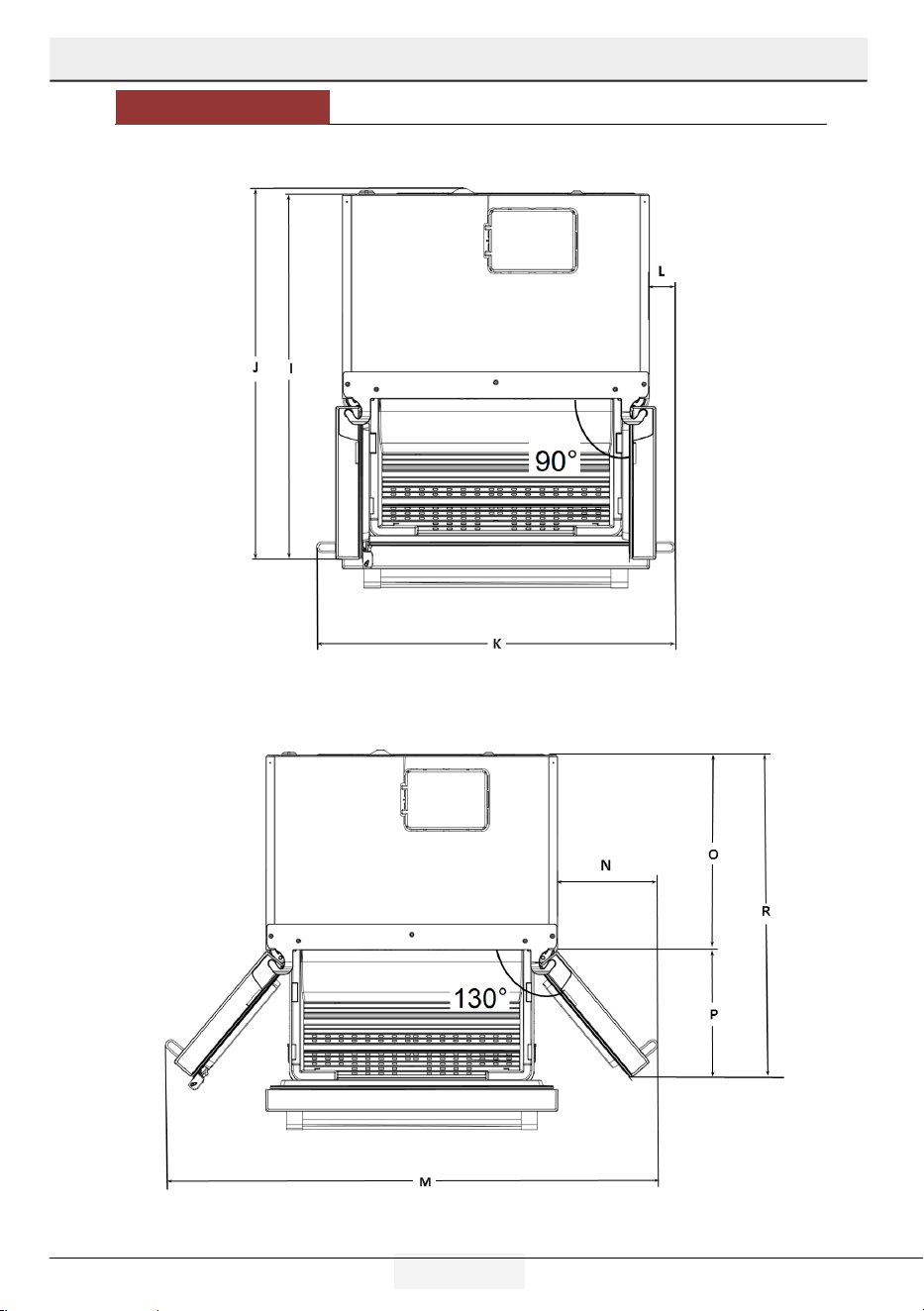

DIMENSIONS [36”FRENCHREFRIGERATOR]
3
FreshFoodDoorOpen90°
FreshFoodDoorOpen130°(Max)
18 /30 EN
Refrigerator / User Manual
5 Operating the product
5.1 Indicator panel
Touch-control indicator panel allows you to set the temperature and control the other functions related
to the product without opening the door of the refrigerator. Just press the relevant buttons for function
settings.
1
2
3
4 5 6
7
8
9
10
11
12
13
14 15 16
1-On/Off function
Press the On/Off button for 3 seconds to turn off or
turn on the fridge.
2-Quick Fridge Function
When you press Quick Fridge button, the tempe-
rature of the compartment will be colder than the
adjusted values.
This function can be used for food placed in the
fridge compartment and required to be cooled
down rapidly.
If you want to cool large amounts of fresh food, it
is recommended to active this feature before put-
ting the food into the fridge. Quick Fridge indica-
tor will remain lit when the Quick Fridge function is
enabled. To cancel this function press Quick Fridge
button again. Quick Fridge indicator will turn off
and return to its normal settings.
If you do not cancel it, Quick Fridge will cancel it-
self automatically after 2 hours or when the fridge
compartment reaches to the required temperature.
This function is not recalled when power restores
after a power failure.
3-Vacation Function
Press the Quick Fridge\Vacation button for 3 se-
conds to activate Vacation function.”--” icon comes
on when the function is active. Function is deac-
tivated by pressing the same button for 3 seconds
again or by pressing Fridge set button.
4-Fridge Set Function
This function allows you to make the fridge com-
partment temperature setting. Press this button to
set the temperature of the fridge compartment to
47, 45, 43, 41, 39, 37, 35 or 33° respectively.
5-Off Indicator
Off Indicator lits when the fridge is “Off” mode.
6-Quick Fridge Indicator
This icon lits when the Quick Fridge function is ac-
tive.
7-Fridge Compartment Temperature Setting
Indicator
Indicates the temperature set for the Fridge
Compartment.
C
Figures in this user manual are schematic and may not match the product exactly. If the subject parts
are not included in the product you have purchased, then those parts are valid for other models.
19 / 30 EN
Refrigerator / User Manual
Operating the product
5.1 Indicator panel
Touch-control indicator panel allows you to set the temperature and control the other functions related
to the product without opening the door of the refrigerator. Just press the relevant buttons for function
settings.
1
2
3
4 5 6
7
8
9
10
11
12
13
14 15 16
8-Vacation Indicator
This icon lits when the Vacation function is active.
9-High Temperature Error / Warning
Indicator
This icon comes on during high temperature failu-
res and error warnings.
10-Freezer Compartment
Temperature Setting Indicator Indicates the tempe-
rature set for the Freezer Compartment.
11-Eco-Extra Indicator
Eco-Extra Indicator lits when the Eco Extra functi-
on is active.
12-Quick Freeze Indicator
This indicator lits when the Quick Freezer functi-
on is active.
13-Freezer Set Function
This function allows you to make the freezer com-
partment temperature setting. Press this button to
set the temperature of the freezer compartment to
0, -2, -4, -6, -8, -10 and -12 respectively.
14-Quick Freeze Function
Quick Freeze indicator turns on when the Quick
Freeze function is on. To cancel this function press
Quick Freeze button again. Quick Freeze indicator
will turn off and return to its normal settings. If you
do not cancel it, Quick Freeze will cancel itself au-
tomatically after 4 hours or when the freezer com-
partment reaches to the required temperature.
If you want to freeze large amounts of fresh food,
press the Quick Freeze button before putting the
food into the freezer compartment. If you press the
Quick Freeze button repeatedly with short inter-
vals, the electronic circuit protection will be activa-
ted immediately.
This function is not recalled when power restores
after a power failure.
15-Eco-Extra (Special Economic Usage)
Function
Press the Quick Freeze\Eco Extra button for
3 seconds to activate the Eco Extra Function.
Refrigerator will start operating in the most eco-
nomic mode at least 6 hours later and the econo-
mic usage indicator will turn on when the function
is active. Press the Quick Freeze button for 3 se-
conds again to deactivate the Eco Fuzzy Function.
16-Alarm Off
When the fridge door is opened for 2 minutes or
when there a sensor failure, a sound alarm turns
on. Alarm can be turned off by pressing “Alarm
Off” button.
Sensor failure alarm will not sound till power
failure. If you close the door and then open again
“Door open alarm” will be activated again after 2
minutes later .
20 /30 EN
Refrigerator / User Manual
Operating the product
5.2 Dual cooling system
Your refrigerator is equipped with three
separate cooling systems to cool the fresh food
compartment, frozen food compartment and multi
zone compartment. Thus, air and odour in the fresh
food compartment and frozen food compartment
do not get mixed. Thanks to these two separate
cooling systems, cooling speed is much higher
then other refrigerators. Also additional power
saving is provided since the defrosting is
performed individually.
5.3 Freezing fresh food
•Wrapthefoodorplacetheminacovered
container before putting them in the refrigerator.
•Hotfoodandbeveragesmustcooldowntothe
room temperature before putting them in the
refrigerator.
•Thefoodthatyouwanttofreezemustbefresh
and in good quality.
•Dividedthefoodintoportionsaccordingtoyour
family’s daily or meal based consumption needs.
•Packthefoodinanairtightmannertoprevent
them from drying even if they are going to be
stored for a short time.
•Materialstobeusedforpackagingmustbe
tear-proof and resistant to cold, humidity, odour,
oils and acids and they must also be airtight.
Moreover, they must be well closed and they
must be made from easy-to-use materials that
are suitable for deep-freezers.
•Frozenfoodmustbeusedimmediatelyafter
they are thawed and they should never be re-
frozen.
•Donotfreezetoolargequantitiesoffoodatone
time. The quality of the food is best preserved
when it is frozen right through to the core as
quickly as possible.
•Placingwarmfoodintothefreezercompartment
causes the cooling system to operate
continuously until the food is frozen solid.
5.4 Recommendations for
preserving the frozen food
•Frozenfoodthatyouhavepurchasedshould
be stored in accordance with the frozen food
manufacturer's instructions for a
( 4 star) frozen food storage compartment.
•Notethefollowingtoensurethatthehighquality
achieved by the frozen food manufacturer and
the food retailer is maintained:
1. Put packets in the freezer as quickly as possible
after purchase.
2. Make sure that contents of the package are
labelled and dated.
3. Check whether the "Use By" and "Best Before"
dates on the packaging are exceed or not.
5.5 Placing the food
Freezer
compartment
shelves
Various frozen food such
as meat, fish, ice cream,
vegetables and etc.
Egg holder Egg
Fridge
compartment
shelves
Food in pans, covered plates
and closed containers
Fridge
compartment
door shelves
Small and packaged food or
beverage (such as milk, fruit
juice, beer and etc.)
Crisper Vegetables and fruits
Fresh zone
compartment
Delicatessen products (cheese,
butter, salami and etc.)
5.6 Deep-freeze information
Food must be frozen as rapidly as possible when
they are put in a refrigerator in order to keep them
in good quality.
You can keep the freshness of food for many
months (at -18°C / 0°F or lower temperatures in
the deep freeze).
21 / 30 EN
Refrigerator / User Manual
Operating the product
Freezer
Compartment
Setting
Fridge
Compartment
Setting
Explanations
-18°C / 0°F 4°C / 39°F This is the normal recommended setting.
-20°C / -4°F 3°C / 37°F
These settings are recommended when the ambient temperature
exceeds 30°C/86°F.
Quick Freeze 4°C / 39°F
Use when you wish to freeze your food in a short time. Your
refrigerator will return to its previous mode when the process is
over.
-24°C / -12°F 2°C / 35°F
Use these settings if you think that your fridge compartment is not
cold enough because of the hot ambient conditions or frequent
opening and closing of the door.
-18°C / 0°F or
colder
Quick Fridge
Use this function when you place too much into the fridge
compartment or when you need to cool your food quickly. It is
recommended that you activate Quick Fridge function 4-8 hours
before placing the food.
C
Divided the food into portions according
to your family’s daily or meal based
consumption needs.
C
Pack the food in an airtight manner to
prevent them from drying even if they are
going to be stored for a short time.
•Materialsnecessaryforpackaging:
•Coldresistantadhesivetape
•Selfadhesivelabel
•Rubberrings
•Pen
Materials to be used for packaging the foodstuff
must be tear-proof and resistant to cold, humidity,
odour, oils and acids.
Foods to be frozen should not be allowed to come
in contact with the previously frozen items to
prevent them from getting thawed partially.
C
Frozen food must be used immediately
after they are thawed and they should
never be re-frozen.
Recommended Using Temparature: FF: 4°C / 39°F Frz : -18°C / 0°F
22 /30 EN
Refrigerator / User Manual
Operating the product

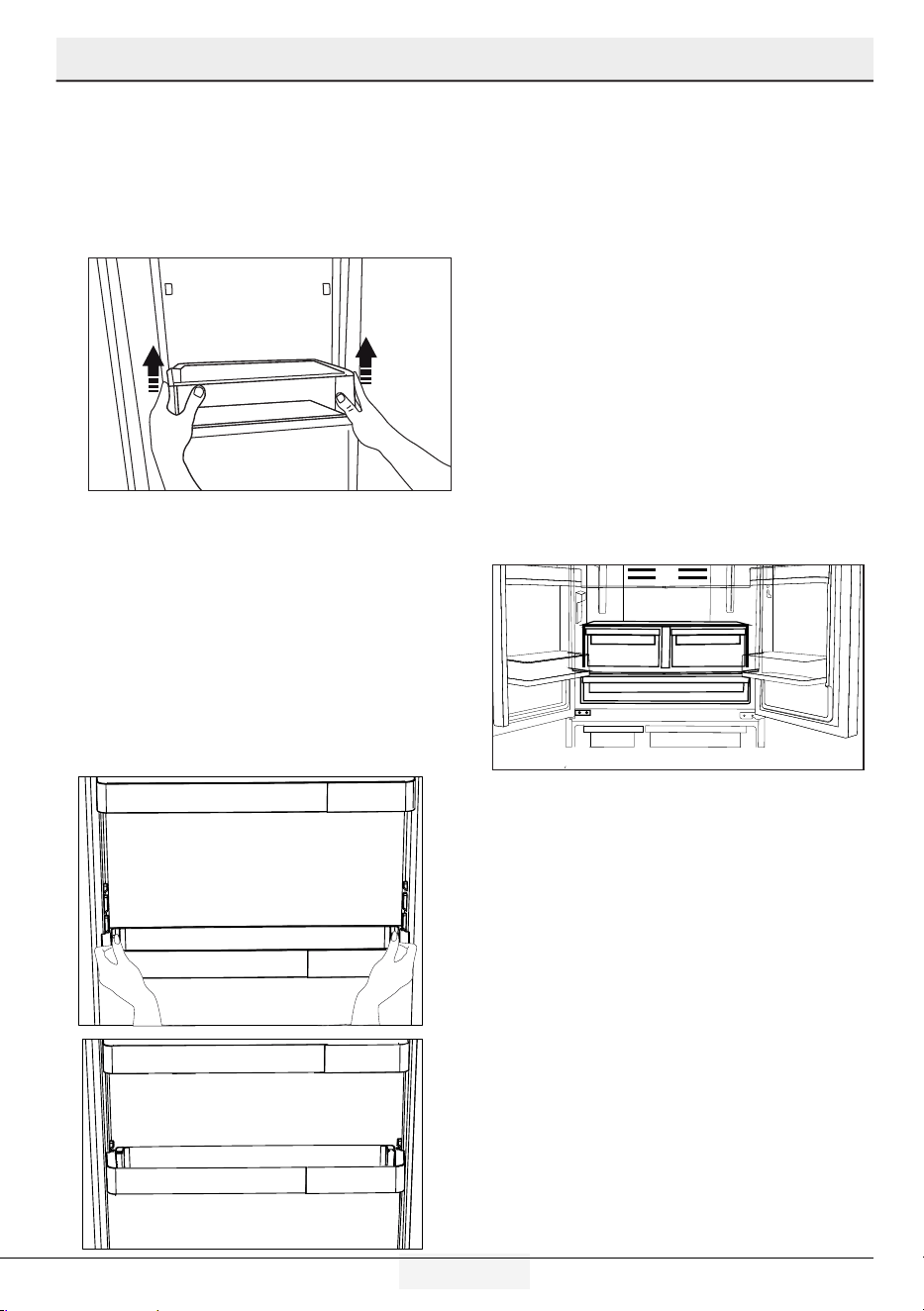

5.7 Removing door shelves
You can remove the door shelves to clean them.
Push the desired shelf up to remove it.
Do not remove the door shelf when there is food
in it.
First empty the materials inside in.
5.9 Glass shelves
You can remove the glass shelves to clean them.
Be careful when removing the shelves since they
are heavy.
5.10 Chiller compartment
(in some models)
Chiller compartments allow you to prepare the food
for freezing. You can also use these compartments
to store your food at a temperature a few degrees
below the fridge compartment.
You can increase the inner volume of your
refrigerator by removing any of the chiller
compartments:
1. Pull the compartment towards yourself until it
stops.
2. Lift the compartment about 1 cm up and pull
towards yourself to remove it from its seating.
5.8 Moving door rack
*optional
Moving door rack can be fixed in 3 different
positions.
In order to move the rack, push the buttons on the
side evenly. Rack will be movable.
Move the rack up or down.
When the rack is in the position that you want,
release the buttons. Rack will be fixed again in the
position where you have released the buttons.
23 / 30 EN
Refrigerator / User Manual
Operating the product
5.11 Crisper
Crisper of the refrigerator is designed specially
to keep the vegetables fresh without loosing their
humidity. For this purpose, cool air circulation is
intensified around the crisper in general. Remove
the door shelves that stand against the crisper
before removing the crispers.
5.12 Ice container
The ice container is used for ice collection poured
ice machine. Do not put water in it to make ice
as it may break. The ice container is not used for
storing foods.
C
The ice machine may pour ices
when the ice container is opened.
24 /30 EN
Refrigerator / User Manual
Operating the product
5.13 Butter & Cheese section
(in some models)
Store food such as butter, cheese and margarine in
this section.
a
a
a
a
5.14 Egg holder
You can install the egg holder to the desired door
or body shelf.
Never keep the egg holder in the freezer
compartment.
5.15 Movable middle section
Movable middle section is intended to prevent
the cold air inside the refrigerator from escaping
outside. Sealing is provided when the gaskets on
the door presses on the surface of the movable
middle section while the fridge compartment doors
are closed.
C
Movable middle section is closed when
the left door of the fridge compartment
is open. Movable middle section moves
with the aid of the plastic part on the body
while closing the door. Do not try to open
by hand.
A
When the rotating storage container
is open, do not close the door of the
refrigerator.
A
Do not overload the rotating storage con-
tainer by placing a lot of materials in it.
25 / 30 EN
Refrigerator / User Manual
Operating the product
5.16 Blue light
(in some models)
Crispers of the refrigerator are illuminated with
blue light. Food stored in the crispers continue
their photosynthesis by means of the wavelength
effect of blue light and thus, preserve their
freshness and increase their vitamin content.
5.17 Ion
(in some models)
Air is ionized by means of the ionizer system in
the fridge compartment air duct. Thanks to this
system, air-borne bacteria and odorising molecules
are eliminated.
5.18 Odour filter
(in some models)
Odour filter in the air duct of the fridge
compartment prevents build-up of unpleasant
odours in the refrigerator.
5.19 Using internal water dispenser
(in some models)
After connecting the refrigerator to a water source
or replacing the water filter, flush the water
system. Use a sturdy container to depress and
hold the water dispenser lever for 5 seconds,
then release it for 5 seconds. Repeat until water
begins to flow. Once water begins to flow, continue
depressing and releasing the dispenser paddle
(5 seconds on, 5 seconds off) until a total of 4
gal. (15L) has been dispensed. This will flush air
from the filter and water dispensing system, and
prepare the water filter for use. Additional flushing
may be required in some households. As air is
cleared from the system, water may spurt out of
the dispenser.
Allow 24 hours for the refrigerator to cool down
and chill water. Dispense enough water every week
to maintain a fresh supply.
C
After 5 minutes of continuous
dispensing, the dispenser will stop
dispensing water to avoid flooding.
To continue dispensing, press the
dispenser paddle again.
5.20 Dispensing Water
Hold a container under the dispenser spout while
pressing the dispenser pad.
Release the dispenser pad to stop dispensing.
C
It is normal for the first few glasses of
water taken from the dispenser to be
warm.
C
If the water dispenser is not used for a long
period of time, dispose of first few glasses
of water to obtain fresh water.
During initial use, you will have to wait
approximately 12 hours for the water to cool down.
Take out the glass a little while after you pull the
trigger.
26 /30 EN
Refrigerator / User Manual
Operating the product
25 kg=(55.11 pound)
15 kg=(33.06 pound)
6 kg=(13.22 pound)
4 kg=(8.80 pound)
10 kg=(22.04 pound)
Up to 5 kg/11 pound day ice production
22 kg=(48,50 pound)
30 kg=(66.13 pound)
20 kg=(44.01 pound)
48 kg=(105.82 pound)
4 kg=(8.80 pound)
5.21 Refrigerator Shelf
Weight Limitations
Freshfood compartment centilever shelves, those
that only have rear supports, are tested for max
25kg (55pounds) per each part.
Crispers will hold up to 15kg (33pounds) per each
one. Chiller zone will hold up to 20kg (44pounds).
These are dynamic loads for crispers and chiller
zone.
Ice container bin holds up to 10kg (22pounds), it is
for usage without ice. Upper frezer bin will hold up
to 24kg (53 pounds) and drawer holds up to 30kg
(66pounds). These are dynamic loads for ice bin,
upper frezer bin and drawer.
27 / 30 EN
Refrigerator / User Manual
6. Maintenance and cleaning
Service life of the product extends and frequently
faced problems decrease if cleaned at regular
intervals.
B
WARNING: Unplug the product before
cleaning it.
• Never use gasoline, benzene or similar
substances for cleaning purposes.
• Never use any sharp and abrasive tools, soap,
household cleaners, detergent and wax polish
for cleaning.
• Dissolve one teaspoon of carbonate in half
litre of water. Soak a cloth with the solution
and wrung it thoroughly. Wipe the interior of
the refrigerator with this cloth and the dry
thoroughly.
• Make sure that no water enters the lamp
housing and other electrical items.
• If you will not use the refrigerator for a long
period of time, unplug it, remove all food inside,
clean it and leave the door ajar.
• Check regularly that the door gaskets are clean.
If not, clean them.
• To remove door and body shelves, remove all of
its contents.
• Remove the door shelves by pulling them up.
After cleaning, slide them from top to bottom to
install.
• Never use cleaning agents or water that
contain chlorine to clean the outer surfaces and
chromium coated parts of the product. Chlorine
causes corrosion on such metal surfaces
6.1 Avoiding bad odours
Materials that may cause odour are not used in
the production of our refrigerators. However, due
to inappropriate food preserving conditions and
not cleaning the inner surface of the refrigerator as
required can bring forth the problem of odour. Pay
attention to following to avoid this problem:
• Keeping the refrigerator clean is important.
Food residuals, stains, etc. can cause odour.
Therefore, clean the refrigerator with carbonate
dissolved in water every 15 days. Never use
detergents or soap.
• Keep the food in closed containers.
Microorganisms spreading out from uncovered
containers can cause unpleasant odours.
• Never keep the food that have expired best
before dates and spoiled in the refrigerator.
6.2 Protecting the plastic surfaces
Do not put liquid oils or oil-cooked meals in your
refrigerator in unsealed containers as they damage
the plastic surfaces of the refrigerator. If oil is
spilled or smeared onto the plastic surfaces, clean
and rinse the relevant part of the surface at once
with warm water.
28 /30 EN
Refrigerator / User Manual
7 Troubleshooting
Please review this list before calling the service. It will save your time and money. This list includes
frequent complaints that are not arising from defective workmanship or material usage. Some of the
features described here may not exist in your product.
The refrigerator does not operate.
• The plug is not inserted into the socket correctly. >>> Insert the plug into the socket securely.
• The fuse of the socket which your refrigerator is connected to or the main fuse have blown out.
>>> Check the fuse.
Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL
and FLEXI ZONE).
• Ambient is very cold. >>> Do not install the refrigerator in places where the temperature falls
below 10 °C.
• Door has been opened frequently. >>> Do not open and close the door of refrigerator
frequently.
• Ambient is very humid. >>> Do not install your refrigerator into highly humid places.
• Food containing liquid is stored in open containers. >>> Store food with liquid content in
closed containers.
• Door of the refrigerator is left ajar. >>> Do not leave the doors of your refrigerator open for a
long time.
• Thermostat is set to a very cold level. >>> Set the thermostat to a suitable level.
Compressor is not running
• Protective thermic of the compressor will blow out during sudden power failures or plug-out
plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been
balanced yet. The refrigerator will start running approximately after 6 minutes. Please call the
Authorised Service Agent if the refrigerator does not start at the end of this period.
• The fridge is in defrost cycle. >>> This is normal for a full-automatically defrosting refrigerator.
Defrosting cycle occurs periodically.
• The refrigerator is not plugged into the socket. >>> Make sure that the plug is fit into the
socket.
• Temperature settings are not made correctly. >>> Select the suitable temperature value.
• There is a power outage. >>> Refrigerator returns to normal operation when the power
restores.
The operation noise increases when the refrigerator is running.
• The operating performance of the refrigerator may change due to the changes in the ambient
temperature. It is normal and not a fault.
The refrigerator is running frequently or for a long time.
29 / 30 EN
Refrigerator / User Manual
Troubleshooting
• New product may be wider than the previous one. Larger refrigerators operate for a longer
period of time.
• The room temperature may be high. >>> It is normal that the product operates for longer
periods in hot ambient.
• The refrigerator might be plugged in recently or might be loaded with food. >>> When the
refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set
temperature. This is normal.
• Large amounts of hot food might be put in the refrigerator recently. >>> Do not put hot food
into the refrigerator.
• Doors might be opened frequently or left ajar for a long time. >>> The warm air that has
entered into the refrigerator causes the refrigerator to run for longer periods. Do not open the
doors frequently.
• Freezer or fridge compartment door might be left ajar. >>> Check if the doors are closed
completely.
• The refrigerator is adjusted to a very low temperature. >>> Adjust the refrigerator temperature
to a warmer degree and wait until the temperature is achieved.
• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. >>>
Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer
period of time in order to maintain the current temperature.
Freezer temperature is very low while the fridge temperature is sufficient.
• The freezer temperature is adjusted to a very low value. >>> Adjust the freezer temperature to
a warmer degree and check.
Fridge temperature is very low while the freezer temperature is sufficient.
• The fridge temperature is adjusted to a very low value. >>> Adjust the fridge temperature to a
warmer degree and check.
Food kept in the fridge compartment drawers is frozen.
• The fridge temperature is adjusted to a very high value. >>> Adjust the fridge temperature to a
lower value and check.
Temperature in the fridge or freezer is very high.
• The fridge temperature is adjusted to a very high value. >>> Fridge compartment temperature
setting has an effect on the temperature of the freezer. Change the temperatures of the fridge
or freezer and wait until the relevant compartments attain a sufficient temperature.
• Doors are opened frequently or left ajar for a long time. >>> Do not open the doors frequently.
• Door is ajar. >>> Close the door completely.
• The refrigerator is plugged in or loaded with food recently. >>> This is normal. When the
refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set
temperature.
• Large amounts of hot food might be put in the refrigerator recently. >>> Do not put hot food
into the refrigerator.
Vibrations or noise.
30 /30 EN
Refrigerator / User Manual
Troubleshooting
• The floor is not level or stable. >>> If the refrigerator rocks when moved slowly, balance it by
adjusting its feet. Also make sure that the floor is strong enough to carry the refrigerator, and
level.
• The items put onto the refrigerator may cause noise. >>> Remove the items on top of the
refrigerator.
There are noises coming from the refrigerator like liquid flowing, spraying, etc.
• Liquid and gas flows occur in accordance with the operating principles of your refrigerator.
>>>It is normal and not a fault.
Whistle comes from the refrigerator.
• Fans are used in order to cool the refrigerator. It is normal and not a fault.
Condensation on the inner walls of refrigerator.
• Hot and humid weather increases icing and condensation. It is normal and not a fault.
• Doors are opened frequently or left ajar for a long time. >>> Do not open the doors frequently.
Close them if they are open.
• Door is ajar. >>> Close the door completely.
Humidity occurs on the outside of the refrigerator or between the doors.
• There might be humidity in the air; this is quite normal in humid weather. >>> When the
humidity is less, condensation will disappear.
• If moisture forms in the area between the two refrigerator doors, disable the “Energy Saving”
mode.
Bad odour inside the refrigerator.
• No regular cleaning is performed. >>> Clean the inside of the refrigerator regularly with a
sponge, lukewarm water or carbonate dissolved in water.
• Some containers or package materials may cause the smell. >>> Use a different container or
different brand packaging material.
• Food is put into the refrigerator in uncovered containers. >>> Keep the food in closed
containers. Microorganisms spreading out from uncovered containers can cause unpleasant
odours.
• Remove the foods that have expired best before dates and spoiled from the refrigerator.
The door is not closing.
• Food packages are preventing the door from closing. >>> Replace the packages that are
obstructing the door.
• The refrigerator is not completely even on the floor. >>> Adjust the feet to balance the
refrigerator.
• The floor is not level or strong. >>> Also make sure that the floor is level and strong enough to
carry the refrigerator.
Crispers are stuck.
• The food is touching the ceiling of the drawer. >>> Rearrange food in the drawer.
A
WARNING: If you cannot eliminate the problem although you follow the instructions in
this section, consult your dealer or the Authorised Service Agent. Never try to repair a non-
functional product yourself.
www.blomberginternational.com
