Café
™
36" Gas Rangetop
CGU366P2MS1
ADA
COMPLIANT
Keep your kitchen sparkling, even when there's a spill with
sealed cooktop burners that contain messes for easy cleanup.
Enjoy a full range of heat settings from ultra-low simmers to
intense boils, with six sealed 18K BTU dual stack burners.
Experiment with every cuisine with reversible burner grates that
are flat on one side and contoured on the other to accommodate
round-bottom cookware like woks.
Easily move heavy cookware across the surface without worry,
thanks to continuous, cast-iron burners.
Confidently cook over a steady flame with the electronic
ignition’s automatic reignition feature that instantly revives any
accidentally extinguished flames.
FEATURES & BENEFITS
FEATURES
Cooktop Burner Type 6 Sealed, Dual Flame Stacked
Cooktop Surface Porcelain-Enamel
Ignition System Electronic
Burner - Left Front 18,000 BTU
Burner - Left Rear 18,000 BTU
Burner - Right Front 18,000 BTU
Burner - Right Rear 18,000 BTU
Burner - Center 18,000 BTU Front / 18,000 BTU Rear
Control Type Manual Simmer (1-9) Hi
Control Location Upfront
Cooktop Burner Grate Features
Continuous Grates
Dishwasher Safe
Matte Black
Porcelainized Cast Iron 3-Piece Reversible (Flat/
Wok) Grates
Self-Clean
Cooktop Burner Grate Material Heavy Cast
Fuel Type Natural Gas (factory set)
Valves (Degree of Turn) 270
Automatic Re-Ignition Ye s
140 Deg. Simmer Burner All Burners - Adjustable
Configuration 6 Burners
Burner Indicator Light Yes
Dishwasher Safe Knobs Ye s
POWER/RATINGS
Burner BTU Ratings (000's/BTU) -
LP Gas
(6) 15.0
140 Degree simmer
Burner BTU Ratings (000's/BTU) -
Natural Gas
(6) 18.0
140 Degree simmer
Volts/Hertz/Amps
120v
60Hz
15A

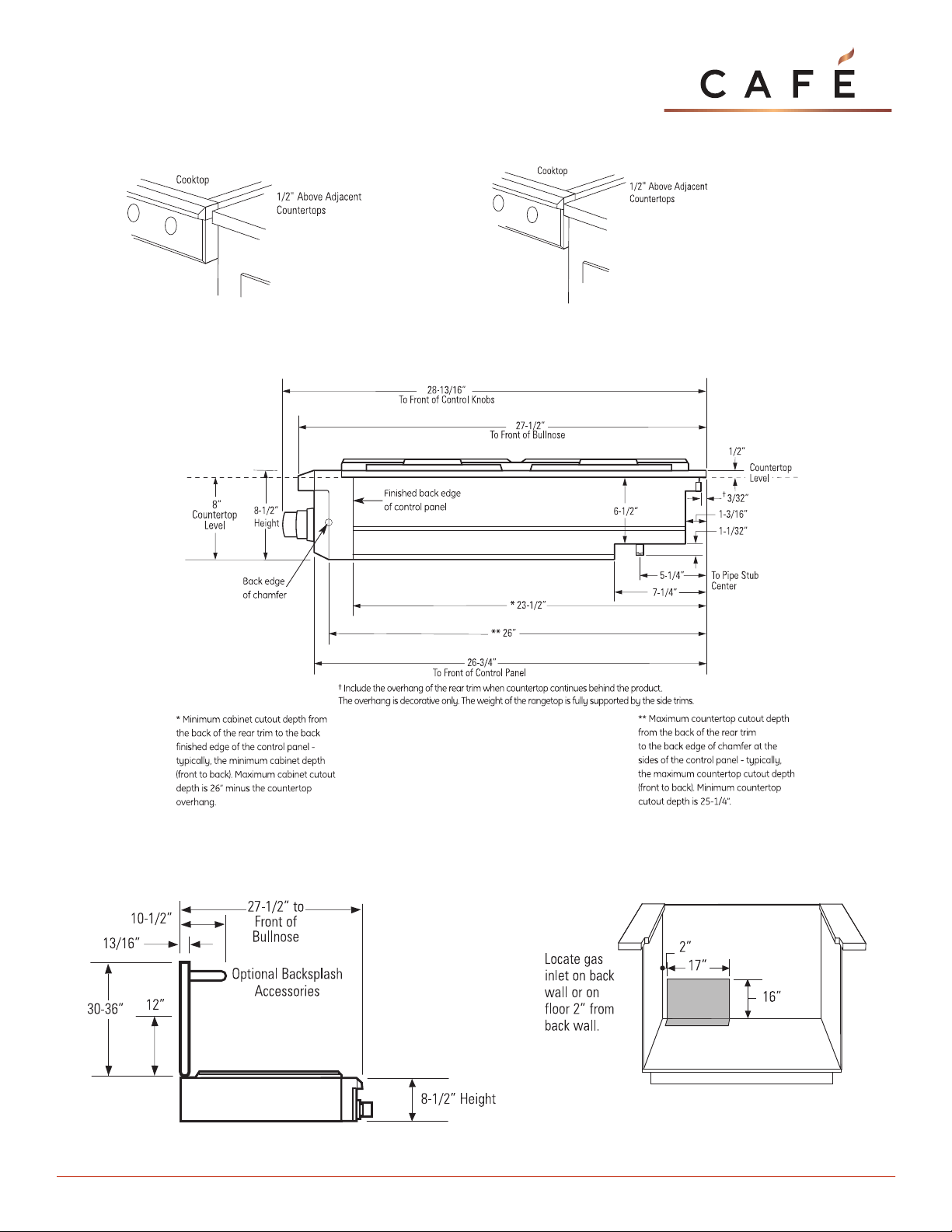

WEIGHTS & DIMENSIONS
Approximate Shipping Weight 163 lb
Cabinet Width 36 in
Net Weight 135 lb
Overall Depth 27 1/2 in
Overall Height 8 1/2 in
Overall Width 35 7/8 in
ACCESSORIES
Conversion Kit Included - Nat. Gas to LP
Factory-installed island back guard Ye s
High Altitude Kit WB28K10553
Optional Back guard
12" stainless steel backsplash (ZX12B36PSS)
30"-36" adjustable stainless steel backsplash with
warming shelf (ZXADJB36PSS)
APPEARANCE
Color Appearance Stainless Steel
Control Knobs
Dishwasher Safe
Professional-Style
Stainless Steel Appearance
Design Style Professional Stainless Steel
Installation Flush Installation Capable
