©2016 Hestan Commercial Corporation
1
EN
OUTDOOR CABINETS
Installation Instructions
AGAD / AGSD / AGSDR / AGSR / AGDR
IMPORTANT - READ ALL INSTRUCTIONS BEFORE YOU BEGIN
INSTALLER SHOULD LEAVE THESE INSTRUCTIONS WITH THE HOMEOWNER
Some parts have sharp edges. Care must be taken when handling the various components to avoid
personal injury. Wear gloves when handling.
TOOLS REQUIRED:
Work gloves
Safety glasses
Electric drill with assorted bits for mounting hardware, masonry anchors, etc. where needed
Phillips screwdriver
Flat-blade screwdriver
Level
Tape measure
Inspect the product to verify that there is no shipping damage. If any damage is detected, call the shipper
and initiate a damage claim. Hestan Commercial Corp. is not responsible for shipping damage. DO NOT
discard any packing material (box, pallet, straps) until the unit has been inspected.
Remove all exterior packaging materials, banding, tape, etc. Remove all protective film from the inside of
your cabinets. You may leave any exterior protective film on until after installation is complete.
ACCESS
DOOR
FRAME
PRY UP HERE TO
REMOVE DAMPER
DOOR
MOUNTING
BASE
STRUCTURE
(DOOR JAMB)
DAMPER
ACCESS
DOOR
FRAME
DOOR
MOUNTING
BASE
STRUCTURE
(DOOR JAMB)
PINCH HERE
TO UN-CLIP
HINGE

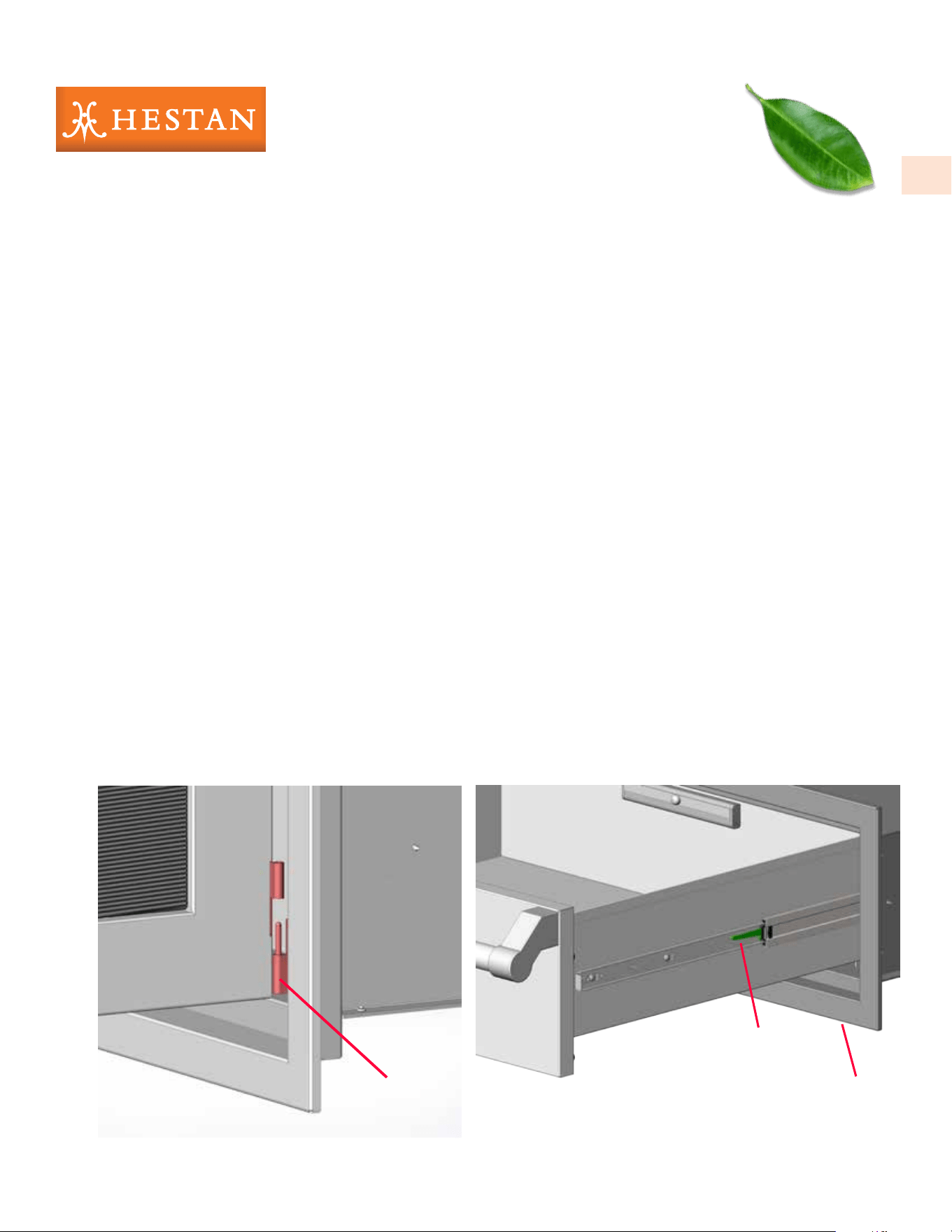

CABINET DOOR INSTALLATION (AGAD, AGSD, AGDR, AGSDR)
1. Your new Hestan cabinets come with doors pre-installed in their frames. It will be necessary to detach
them before installing the frame in your island structure. As shown below, remove the dampers, then
pinch the back of the hinge to un-clip it from the mounting base. The door may now be removed.
