WARNING
To prevent fire or shock hazard, do not
expose the LCD Projection TV to rain or
moisture.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION
To prevent electric shock, do not use this polarized AC
plug with an extension cord, receptacle or other outlet
unless the blades can be fully inserted to prevent blade
exposure.
Note on Caption Vision
This television receiver provides display of television
closed captioning in accordance with §15.119 of the FCC
rules.
Note to CATV system installer
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building, as
close to the point of cable entry as practical.
Use of this television receiver for other than private
viewing of programs broadcast on UHF, VHF,
transmitted by cable companies or satellite for the
use of the general public may require authorization
from the broadcaster/cable company and/or
program owner.
NOTIFICATION
This equipment has been tested and found to comply with
the limits for a Class B digital device pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference with radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
❑ Reorient or relocate the receiving antennas.
❑ Increase the separation between the equipment and
receiver.
❑ Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
❑ Consult the dealer or an experienced radio/TV
technician for help.

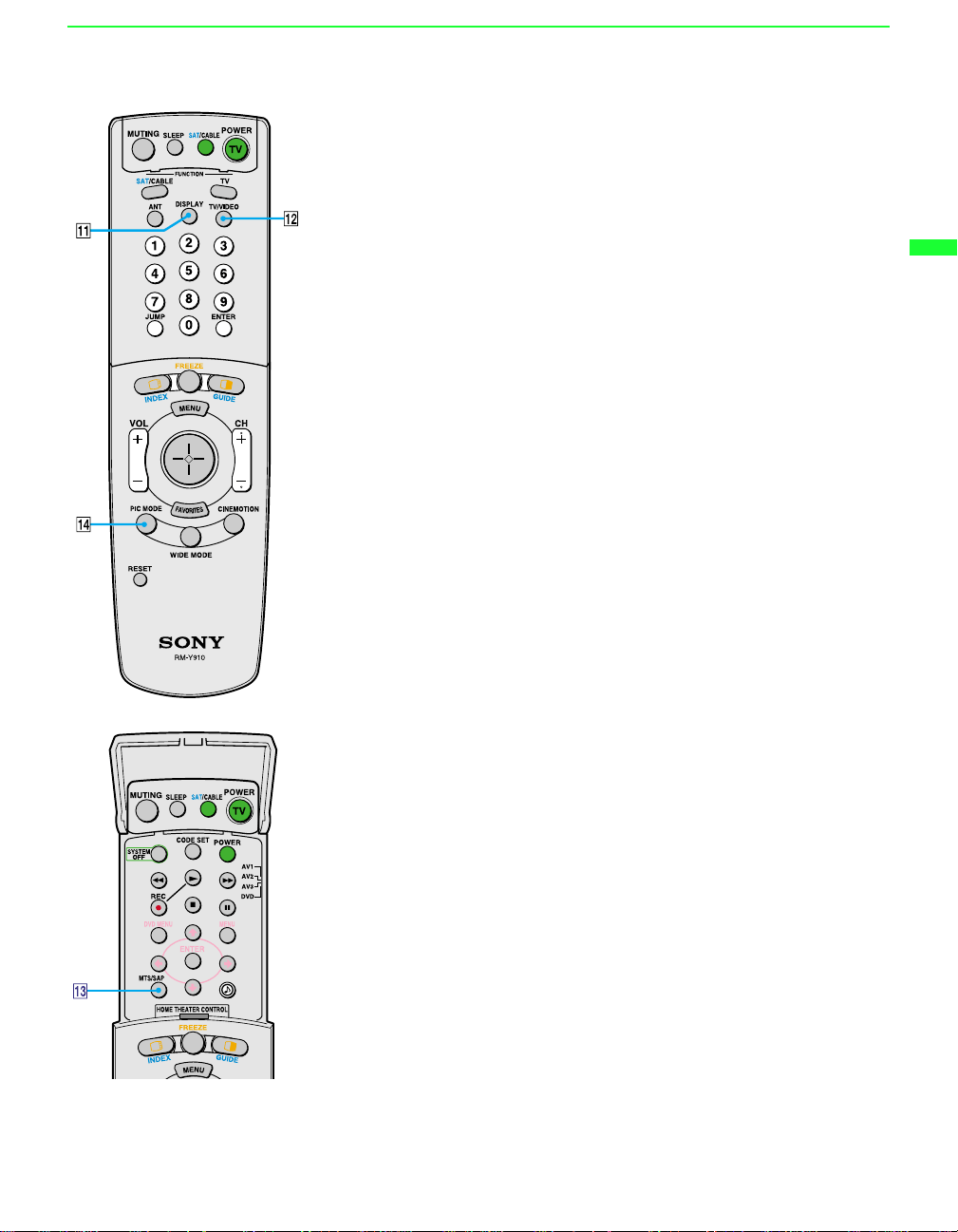

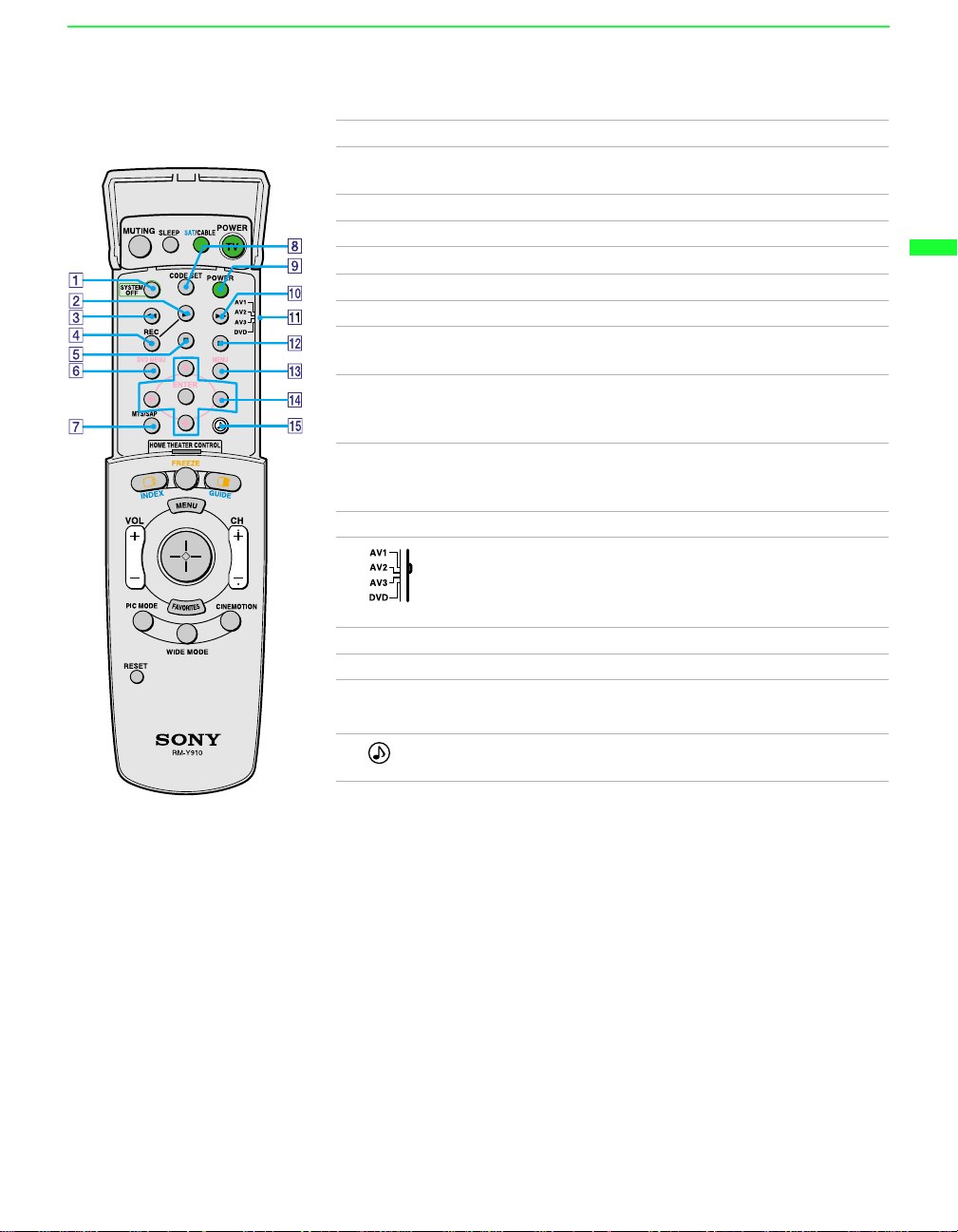

This document is for the remote control RM-Y910.
MODEL: KF-60DX100
Please keep this notice with the instruction manual.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER
(
OR BACK
)
.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
NO ABRIR
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your warranty and
your authority to operate this equipment.
3
Safety
❑ Operate the LCD Projection TV only on 120 V AC.
❑ The plug is designed, for safety purposes, to fit into
the wall outlet only one way. If you are unable to
insert the plug fully into the outlet, contact your
dealer.
❑ If any liquid or solid object should fall inside the
cabinet, unplug the LCD Projection TV immediately
and have it checked by qualified service personnel
before operating it further.
❑ If you will not be using the LCD Projection TV for
several days, disconnect the power by pulling the plug
itself. Never pull on the cord.
For details concerning safety precautions, see
“Important Safeguards” on page 4.
Installing
❑ To prevent internal heat buildup, do not block the
ventilation openings.
❑ Do not install the LCD Projection TV in a hot or
humid place, or in a place subject to excessive dust or
mechanical vibration.
❑ Avoid operating the LCD Projection TV at
temperature below 41°F (5°C).
❑ If the LCD Projection TV is transported directly from
a cold to a warm location, or if the room temperature
changes suddenly, the picture may be blurred or show
poor color. In this case, please wait a few hours to let
the moisture evaporate before turning on the LCD
Projection TV.
❑ To obtain the best picture, do not expose the screen to
direct illumination or direct sunlight. It is
recommended to use spot lighting directed down from
the ceiling or to cover the windows that face the
screen with opaque drapery. It is desirable to install
the LCD Projection TV in a room where the floor and
walls are not of a reflective material.
ENERGY STAR
®
is a U.S. registered mark.
TruSurround and the ( ) symbol are trademarks of SRS
Labs, Inc.
TruSurround technology is incorporated under license
from SRS Labs, Inc.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
Confidential unpublished works. © 1992-1997 Dolby
Laboratories. All rights reserved.
CineMotion is trademark of Sony.
BBE and BBE Symbol are trademarks of BBE Sound, Inc.
and are licensed by BBE Sound, Inc. under U.S. Patent No.
4,638,258 and 4,482,866.
ATTENTION
Pour prévenir les chocs électriques, ne pas utiliser cette
fiche polarisée avec un prolongateur, une prise de courant
ou une autre sortie de courant, sauf si les lames peuvent tre
inserées à fond sans en laisser aucune partie à decouvert.
Owner’s Record
The model and serial numbers are located at the rear of the
LCD Projection TV, below the Sony logo, on the sticker,
and also on the TV box (white label). Record these
numbers in the spaces provided below. Refer to them
whenever you call upon your Sony dealer regarding this
product.
Model No.
Serial No.
As an ENERGY STAR
®
Partner,
Sony Corporation has determined
that this product meets the
ENERGY STAR
®
guidelines for
energy efficiency.
4
Important Safety Instruction
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Following all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of
the obsolete outlet.
10) Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during lightning storms or
when unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
15) Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases, shall be placed on the apparatus.
Important Safeguards
For your protection, please read these instructions
completely, and keep this manual for future reference.
Carefully observe and comply with all warnings, cautions
and instructions placed on the set or described in the
operating instructions or service manual.
WARNING
To guard against injury, the following basic safety
precautions should be observed in the installation, use
and servicing of the set.
Use
Power Sources
This set should be operated only from
the type of power source indicated on
the serial/model plate. If you are not sure
of the type of electrical power supplied
to your home, consult your dealer or
local power company. For those sets designed to operate
from battery power, refer to the operating instructions.
Grounding or Polarization
This set is equipped with a polarized AC power cord plug
(a plug having one blade wider than the other), or with a
three-wire grounding type plug (a plug having a third pin
for grounding). Follow the instructions below:
For the set with a polarized AC power cord
plug
This plug will fit into the power outlet
only one way. This is a safety feature. If
you are unable to insert the plug fully
into the outlet, try reversing the plug. If
the plug still fails to fit, contact your electrician to have a
suitable outlet installed. Do not defeat the safety purpose
of the polarized plug by forcing it in.
Alternate Warning for the set with a three-
wire grounding type AC plug
This plug will only fit into a grounding-
type power outlet. This is a safety
feature. If you are unable to insert the
plug into the outlet, contact your
electrician to have a suitable outlet
installed. Do not defeat the safety purpose of the
grounding plug.
5
Overloading
Do not overload wall outlets, extension
cords or convenience receptacles
beyond their capacity, since this can
result in fire or electric shock.
Always turn the set off when it is not
being used. When the set is left
unattended and unused for long
periods of time, unplug it from the
wall outlet as a precaution against the
possibility of an internal malfunction that could create a
fire hazard.
If a snapping or popping sound from a TV
set is continuous or frequent while the TV
is operating, unplug the TV and consult
your dealer or service technician. It is
normal for some TV sets to make
occasional snapping or popping sounds,
particularly when being turned on or off.
Object and Liquid Entry
Never push objects of any kind into the
set through the cabinet slots as they may
touch dangerous voltage points or short
out parts that could result in a fire or
electric shock. Never spill liquid of any
kind on the set.
Attachments
Do not use attachments not
recommended by the manufacturer, as
they may cause hazards.
Cleaning
Clean the cabinet of the LCD Projection
TV with a dry soft cloth. To remove dust
from the screen, wipe it gently with a soft
cloth. Stubborn stains may be removed
with a cloth slightly dampened with
solution of mild soap and warm water. Never use strong
solvents such as thinner or benzine for cleaning.

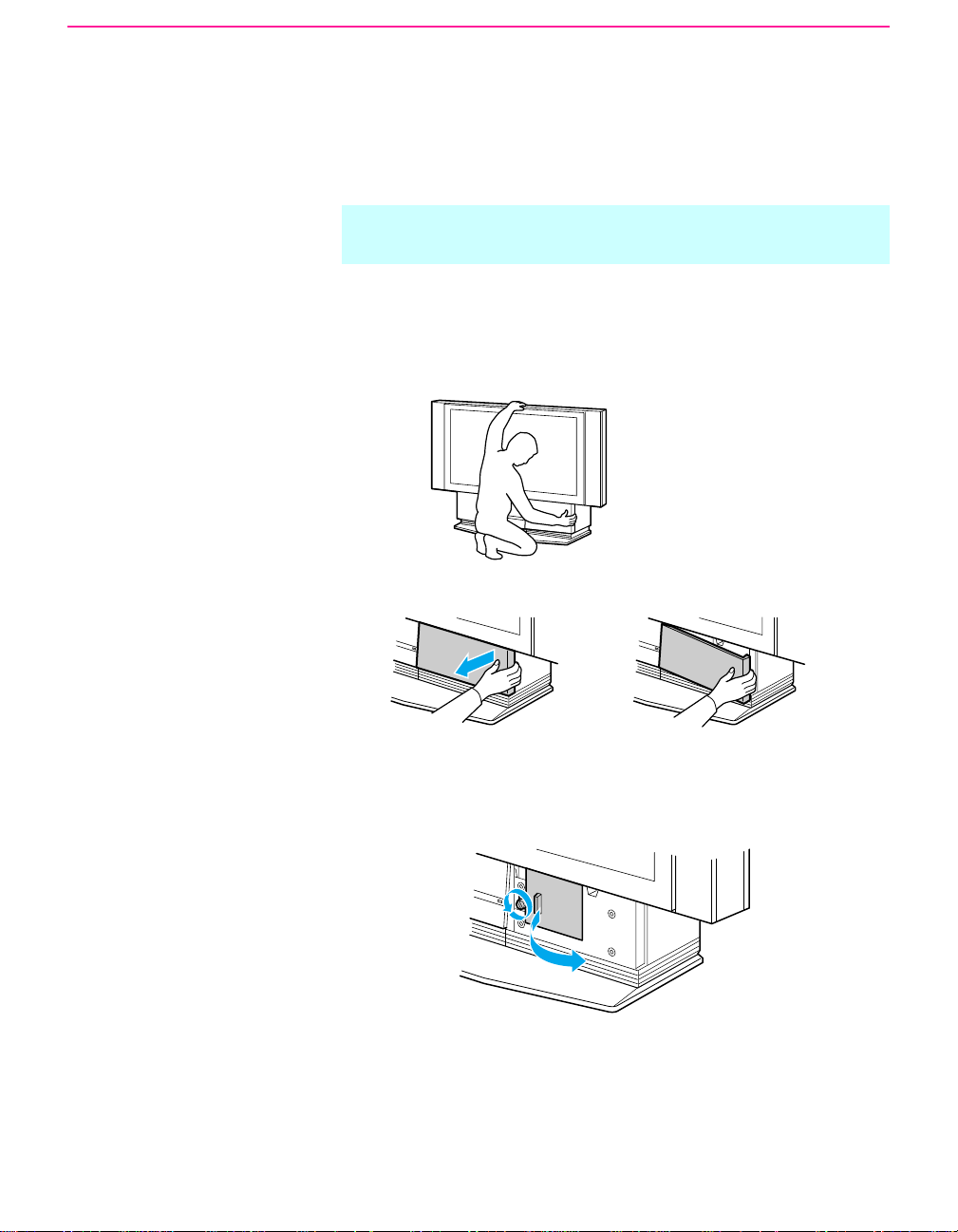

If the picture becomes dark after using the LCD
Projection TV for a long period of time, it may be
necessary to clean the inside of the LCD Projection TV.
Consult qualified service personnel.
Installation
Water and Moisture
Do not use power-line operated sets
near water — for example, near a
bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or
near a swimming pool, etc.
Accessories
Do not place the set on an unstable
cart, stand, table or shelf. The set
may fall, causing serious injury to a
child or an adult and serious damage
to the set. Use only a cart or stand
recommended by the manufacturer
for the specific model of LCD
Projection TV. An appliance and cart
combination should be moved with
care. Quick stops, excessive force,
and uneven surfaces may cause the appliance and cart
combination to overturn.
Ventilation
The slots and openings in the cabinet and in the back or
bottom are provided for necessary ventilation. To ensure
reliable operation of the set, and to protect it from
overheating, these slots and openings must never be
blocked or covered.
❑ Never cover the slots and openings
with a cloth or other materials.
❑ Never block the slots and openings
by placing the set on a bed, sofa, rug
or other similar surface.
❑ Never place the set in a confined
space, such as a bookcase or built-in
cabinet, unless proper ventilation is
provided.
❑ Do not place the set near or over a
radiator or heat register, or where it is
exposed to direct sunlight.
6
Power-Cord Protection
Do not allow anything to rest on or roll
over the power cord, and do not place the
set where the power cord is subject to
wear or abuse.
Antennas
Outdoor Antenna Grounding
If an outdoor antenna is installed, follow the precautions
below. An outdoor antenna system should not be located
in the vicinity of overhead power lines or other electric
light or power circuits, or where it can come in contact
with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA
SYSTEM, EXTREME CARE SHOULD BE TAKEN TO
KEEP FROM CONTACTING SUCH POWER LINES
OR CIRCUITS AS CONTACT WITH THEM IS
ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide
some protection against voltage surges and built-up static
charges.
Section 810 of the National Electrical Code (NEC) in
USA and Section 54 of the Canadian Electrical Code in
Canada provides information with respect to proper
grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
Antenna Grounding According to the NEC
Refer to section 54-300 of Canadian Electrical Code for
Antenna Grounding.
Lightning
For added protection for this television receiver during a
lightning storm, or when it is left unattended and unused
for long periods of time, unplug it from the wall outlet
and disconnect the antenna. This will prevent damage to
the receiver due to lightning and power-line surges.
Service
Damage Requiring Service
Unplug the set from the wall outlet and refer servicing to
qualified service personnel under the following
conditions:
❑ When the power cord or
plug is damaged or frayed.
❑ If liquid has been spilled into
the set.
❑ If the set has been exposed
to rain or water.
❑ If the set has been subject to
excessive shock by being
dropped, or the cabinet has
been damaged.
❑ If the set does not operate
normally when following the
operating instructions.
Adjust only those controls
that are specified in the
operating instructions.
Improper adjustment of
other controls may result in
damage and will often
require extensive work by a
qualified technician to restore the set to normal
operation.
❑ When the set exhibits a distinct change in
performance, it indicates a need for service.
Servicing
Do not attempt to service the set by yourself
since opening the cabinet may expose you to
dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
Replacement Parts
When replacement parts are required, be sure the service
technician certifies in writing that he has used
replacement parts specified by the manufacturer that have
the same characteristics as the original parts.
Unauthorized substitutions may result in fire, electric
shock or other hazards.
Antenna lead-in wire
Ground clamps
Antenna lead-in wire
(NEC Section 810-20)
Grounding conductors
(NEC section 810-21)
Power service grounding
electrode system (NEC Art
250 Part H)
Ground clamp
Electrical
service
equipment
NEC: National
Electrical Code
7
Safety Check
Upon completion of any service or repairs
to the set, ask the service technician to
perform routine safety checks (as specified
by the manufacturer) to determine that the
set is in safe operating condition, and to so
certify. When the set reaches the end of its
useful life, improper disposal could result
in a picture tube implosion. Ask a qualified
service technician to dispose of the set.
For Safety
Be careful when moving
the LCD Projection TV
When you place the LCD Projection
TV in position, be careful not to
drop it on your foot or fingers.
Watch your footing while installing the LCD Projection
TV.
Carry the LCD Projection TV in
the specified manner
If you carry the LCD Projection TV in a
manner other than the specified manner
and without the specified number of
persons, it may drop and a serious injury
may be caused. Be sure to follow the instructions
mentioned below.
❑ Carry the LCD Projection TV with the specified
number of persons (see page 18).
❑ Do not carry the LCD Projection TV holding the
speaker grill.
❑ Hold the LCD Projection TV tightly when carrying
it.
About the LCD Projection TV
Although the LCD projection TV is made with high-
precision technology, black dots may appear or bright
points of light (red, blue, or green) may appear constantly
on the LCD screen. This is a structural property of the
LCD panel and is not a malfunction.
Installation
❑ If direct sunlight or other strong illumination shines
on the screen, part of the screen appears white due to
reflections from behind the screen. This is a
structural property of the LCD Projection TV.
Do not expose the screen to direct illumination or
direct sunlight.
❑ The picture quality may be affected by your viewing
position. If you view the TV close to you, you may
suffer from eye fatigue.
For the best picture quality, install your LCD
projection TV according to the operating
instructions.
Sit at least 2.2 m (approx. 7 ft.) away from your
LCD projection TV, and within 60° of the vertical
viewing area, and 130° of the horizontal viewing
area.
❑ When installing your LCD Projection TV against a
wall, keep it at least 10 cm (4 inches) from the wall.
Projection lamp
❑ Your LCD projection TV uses a projection lamp as
its light source. When the projection lamp wears out
after using the LCD projection TV for a long period
of time, the screen image becomes dark, or no image
will appear on the display. If the lamp replacement
indicator of the front panel blinks in red, replace the
lamp with a new one (not supplied). In some cases,
the lamp bursts inside the lamp unit noisily, but the
lamp unit is securely designed so that the pieces of
broken glass remain inside the lamp unit. (See
“Replacing the Lamp” on page 13.)
Cooling fan
❑ This LCD projection TV uses a cooling fan to
prevent the internal temperature from heating up.
You might hear the noise from the cooling fan,
depending on the place you install the LCD
projection TV.
8
Contents
Introducing the Sony LCD Projection
TV
Presenting the Sony LCD Projection TV.................9
Using This Manual.................................................10
Enjoying Your LCD Projection TV.......................11
Replacing the Lamp...............................................13
Installing and Connecting the LCD
Projection TV
Contents .................................................................17
Inserting Batteries into the Remote Control..........17
Carrying Your LCD Projection TV .......................18
To Prevent the LCD Projection TV from
Falling Down .................................................19
When Installing Your LCD Projection TV
Against a Wall ...............................................19
Recommended Viewing Area................................20
Connector Types....................................................21
LCD Projection TV Controls and Connectors.......22
Basic Connections (Connecting Cable TV or
Antenna).........................................................25

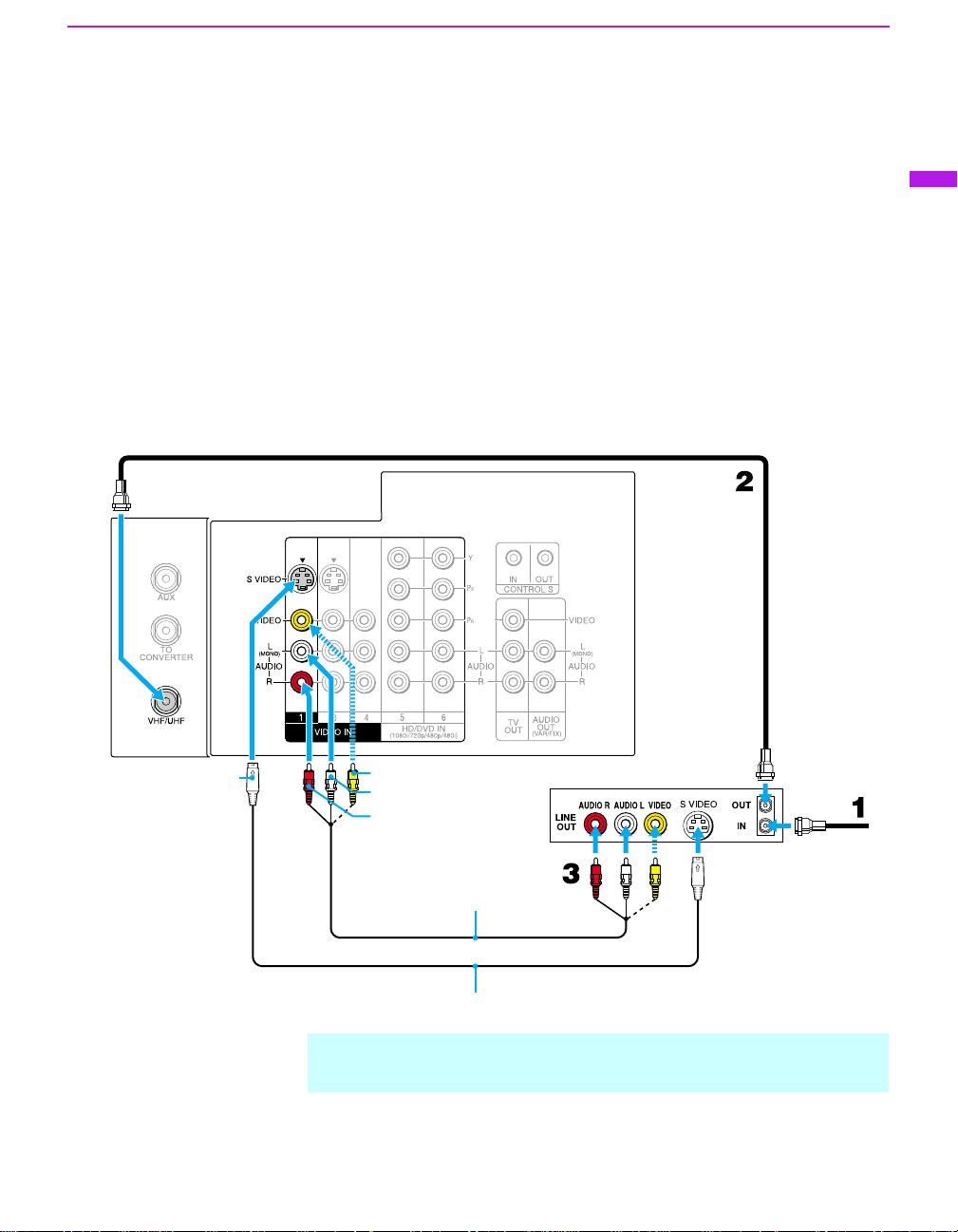

Connecting a VCR and Cable................................29

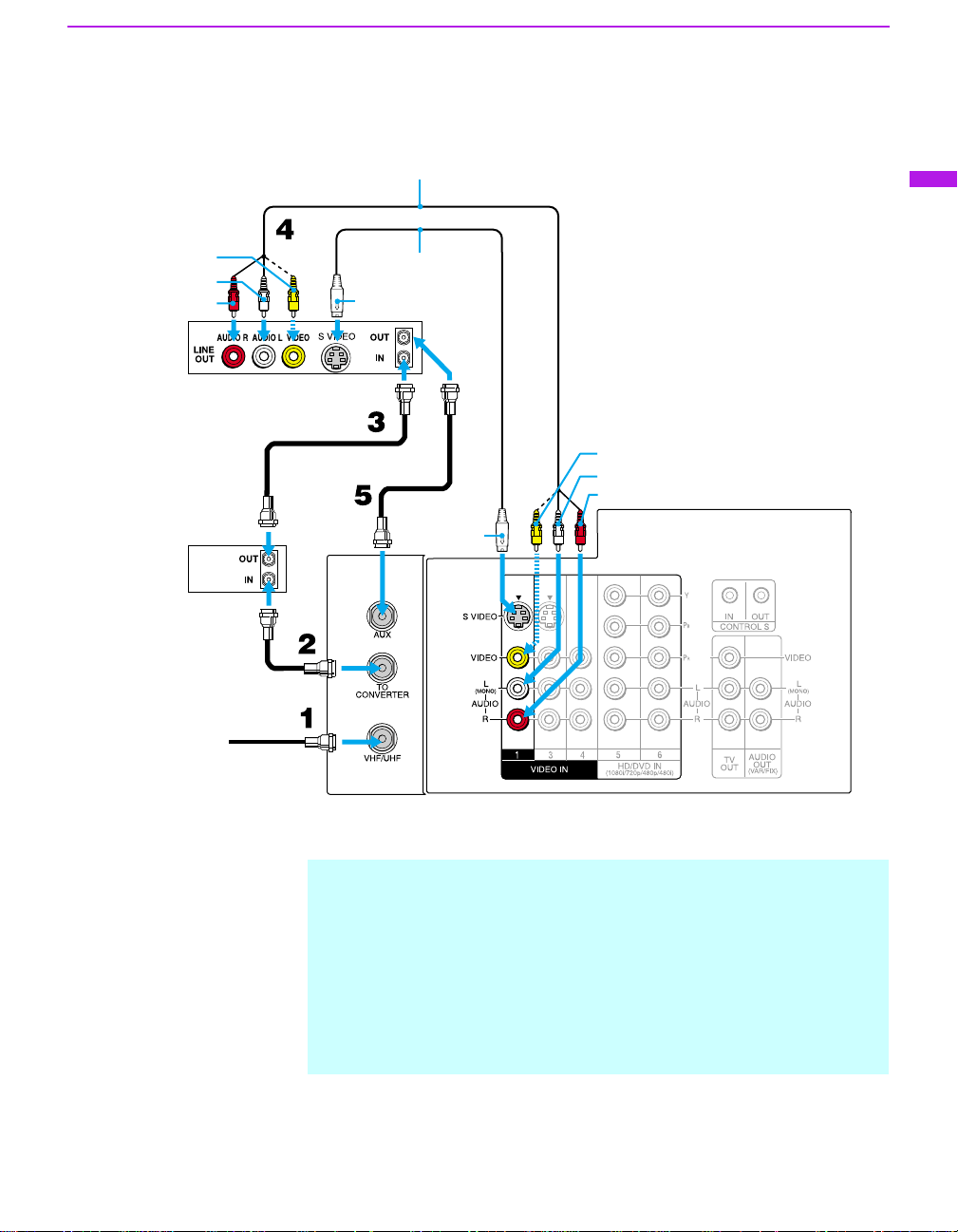

Connecting a VCR and Cable Box ........................30

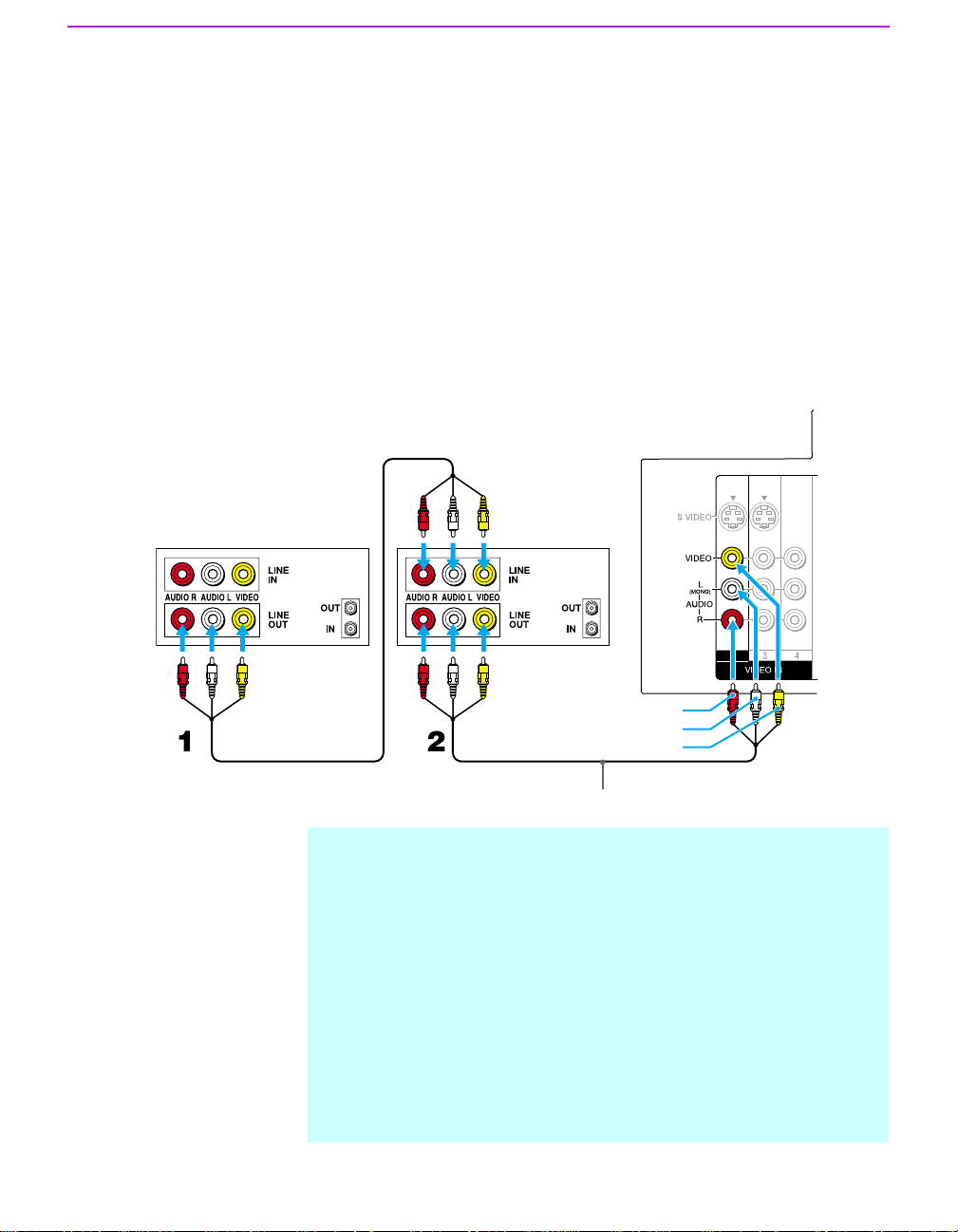

Connecting Two VCRs for Tape Editing ..............32

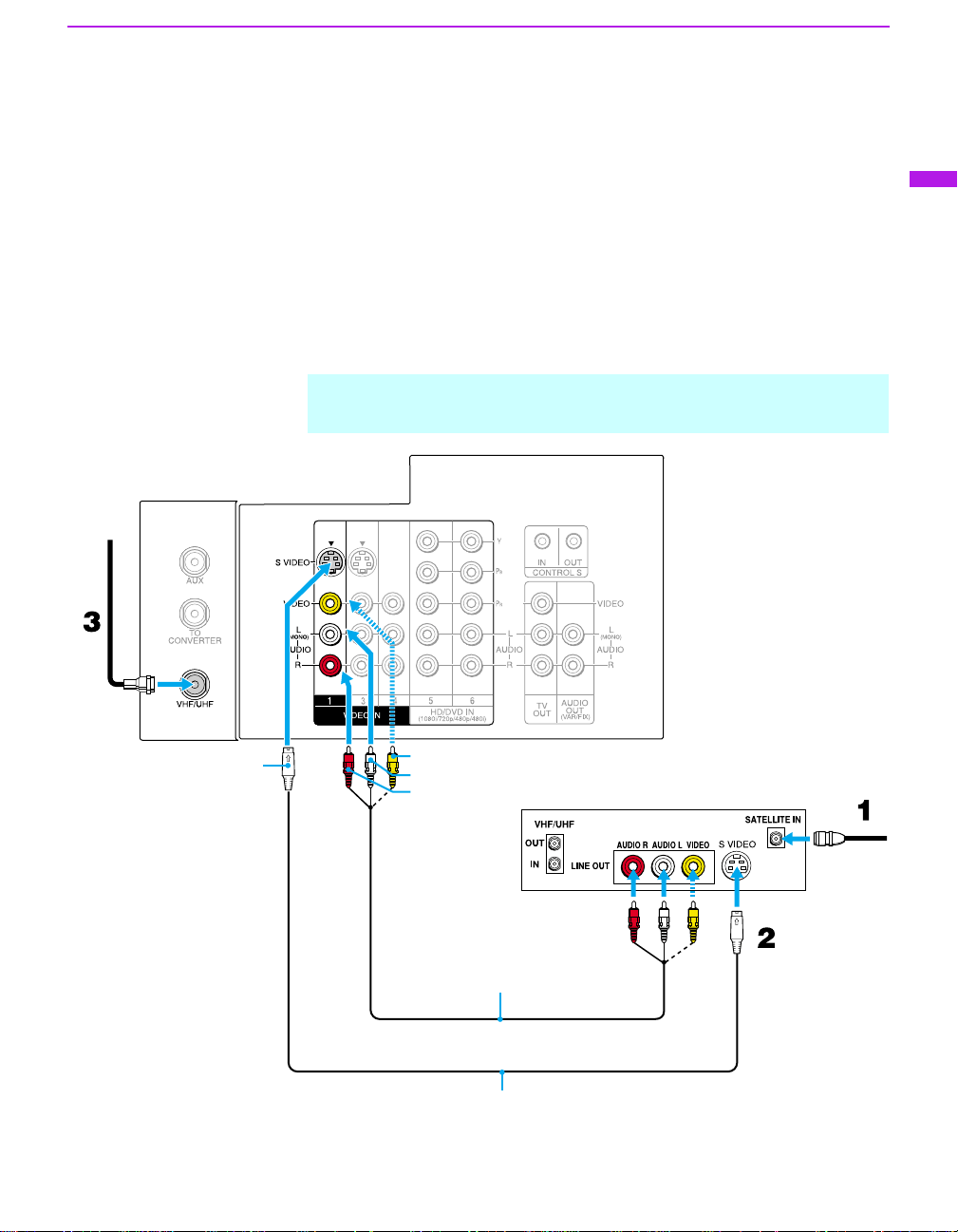

Connecting a Satellite Receiver.............................33
Connecting a Satellite Receiver with a VCR.........34

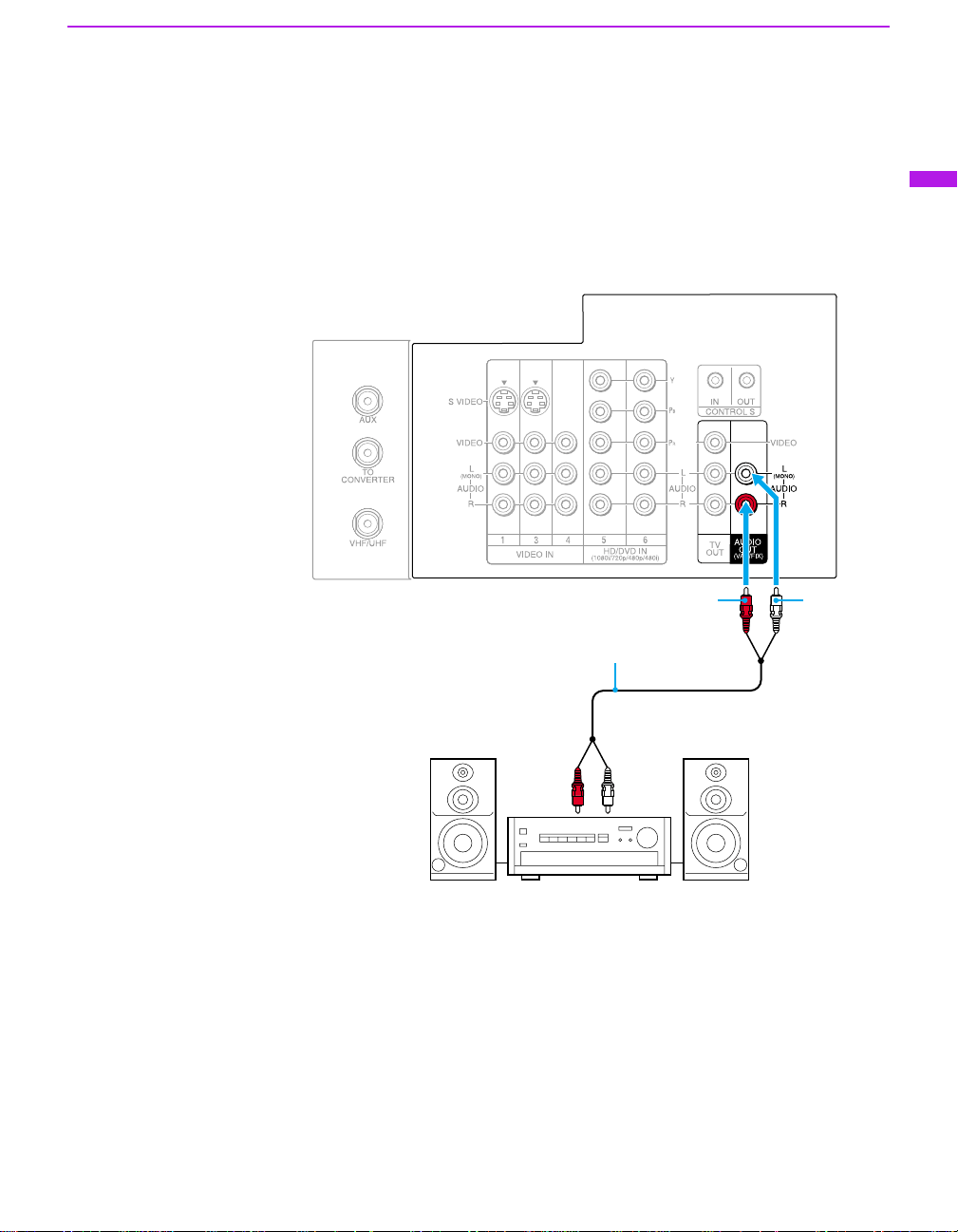

Connecting an Audio Receiver..............................35
Connecting a DVD Player
with Component Video Connectors...............36
Connecting a DVD Player
with A/V Connectors.....................................37
Connecting a Digital TV Receiver.........................38
Connecting a Camcorder .......................................39
Connecting an AV Receiver..................................40

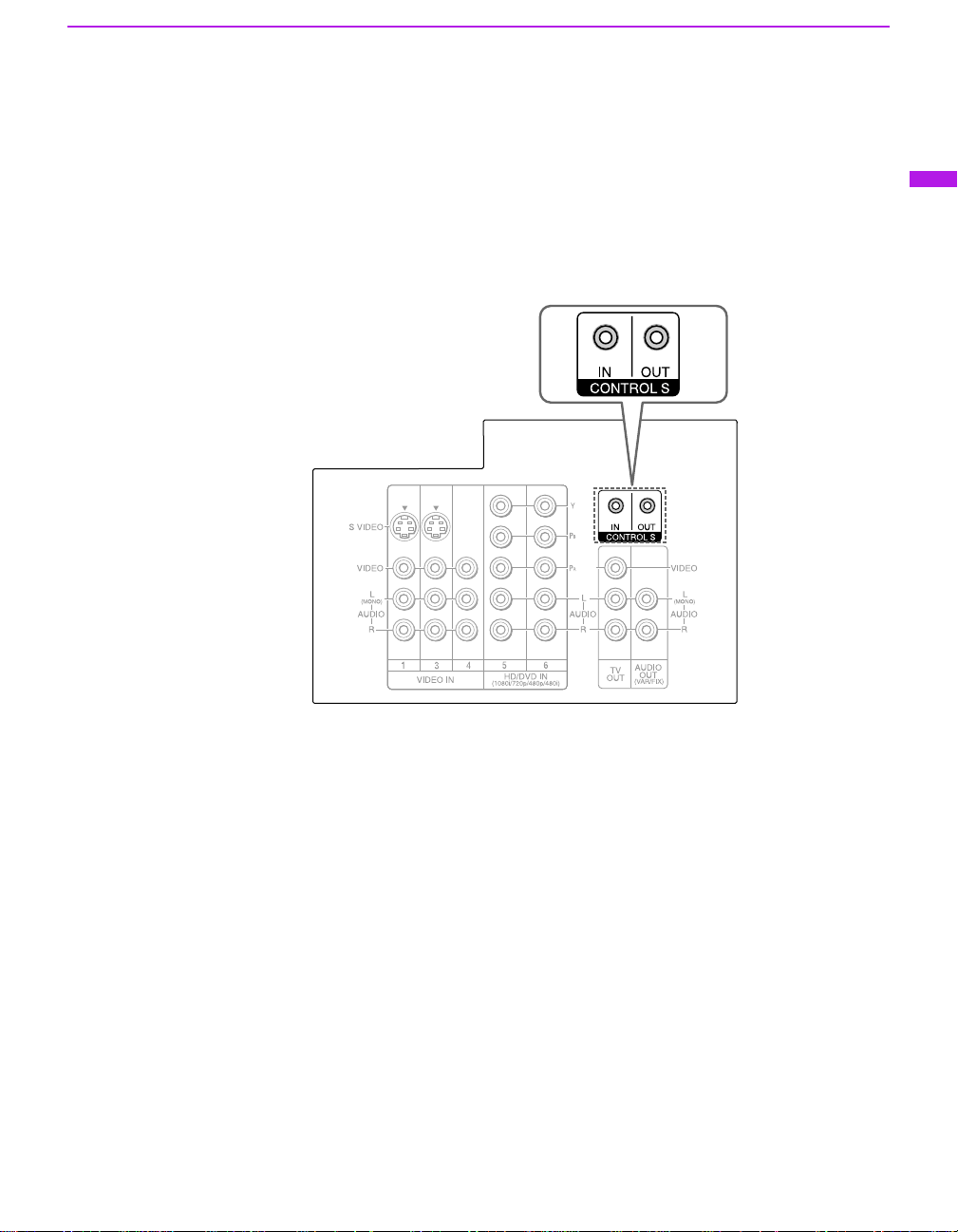

Using the CONTROL S Feature............................41
Setting Up the LCD projection TV
Automatically.................................................42
Using the Features

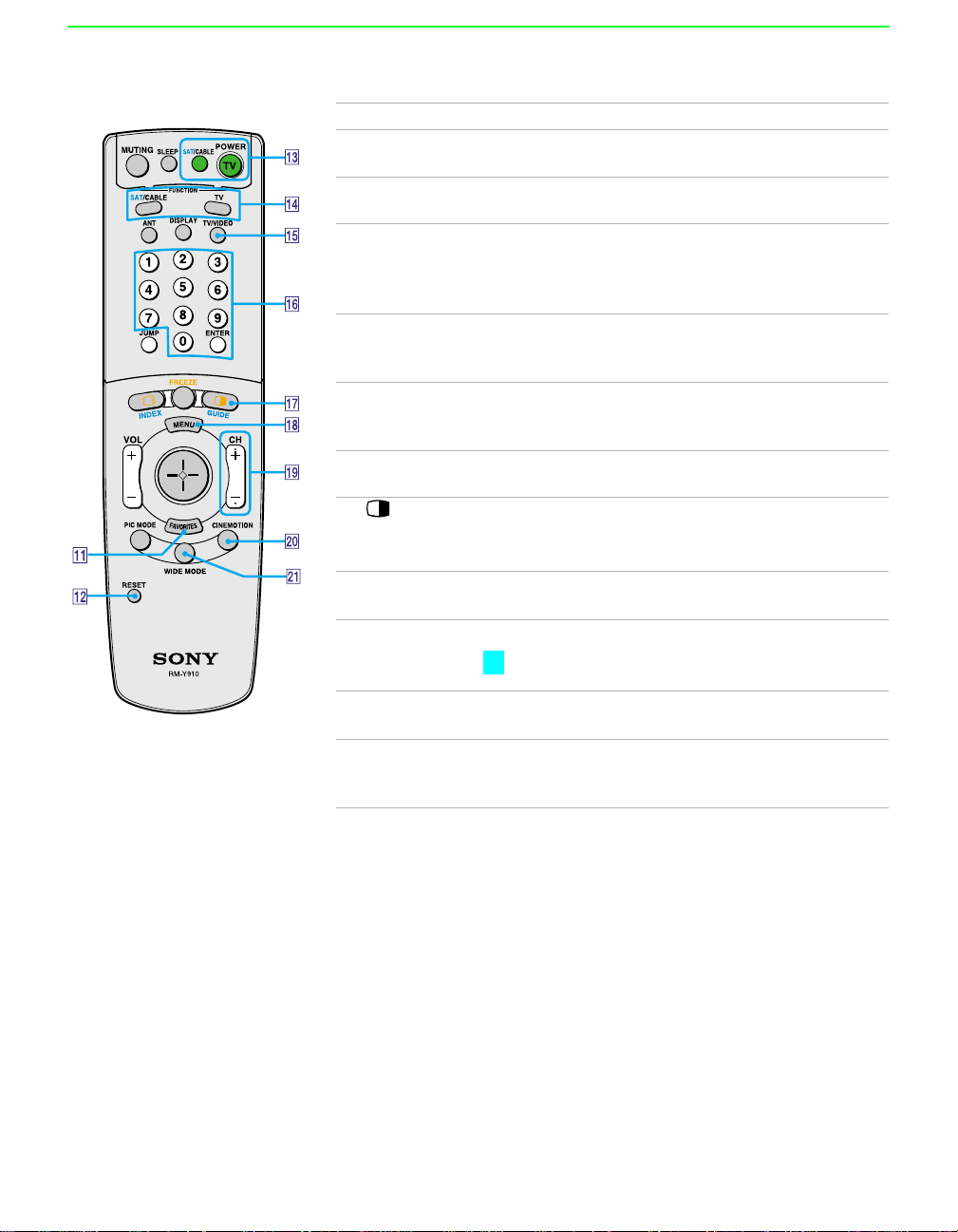

Using the Remote Control .....................................43
Watching the TV....................................................46
Watching the Digital TV .......................................48
Using Favorite Channels........................................49

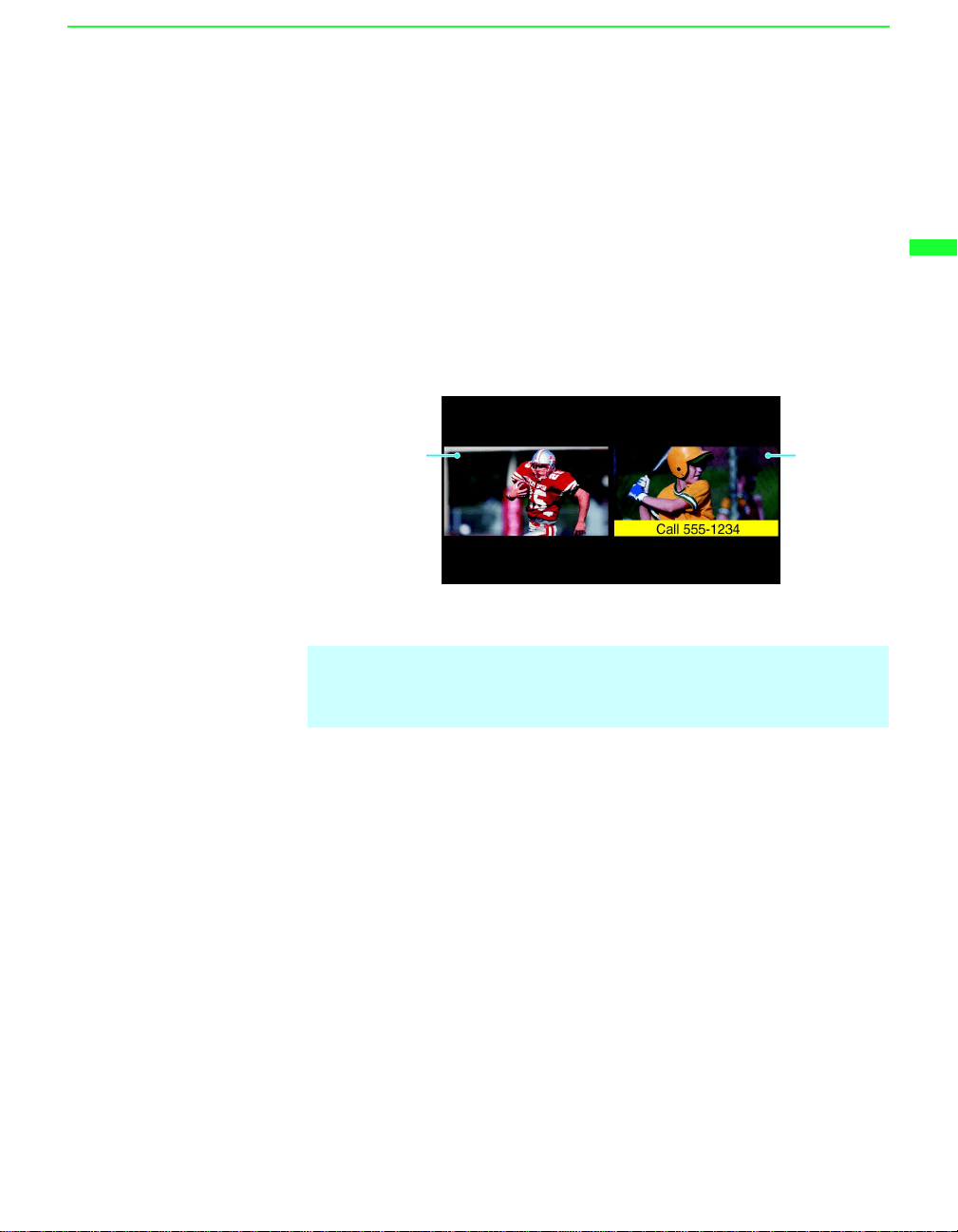

Using Twin View™...............................................50
Using the Freeze Function.....................................53

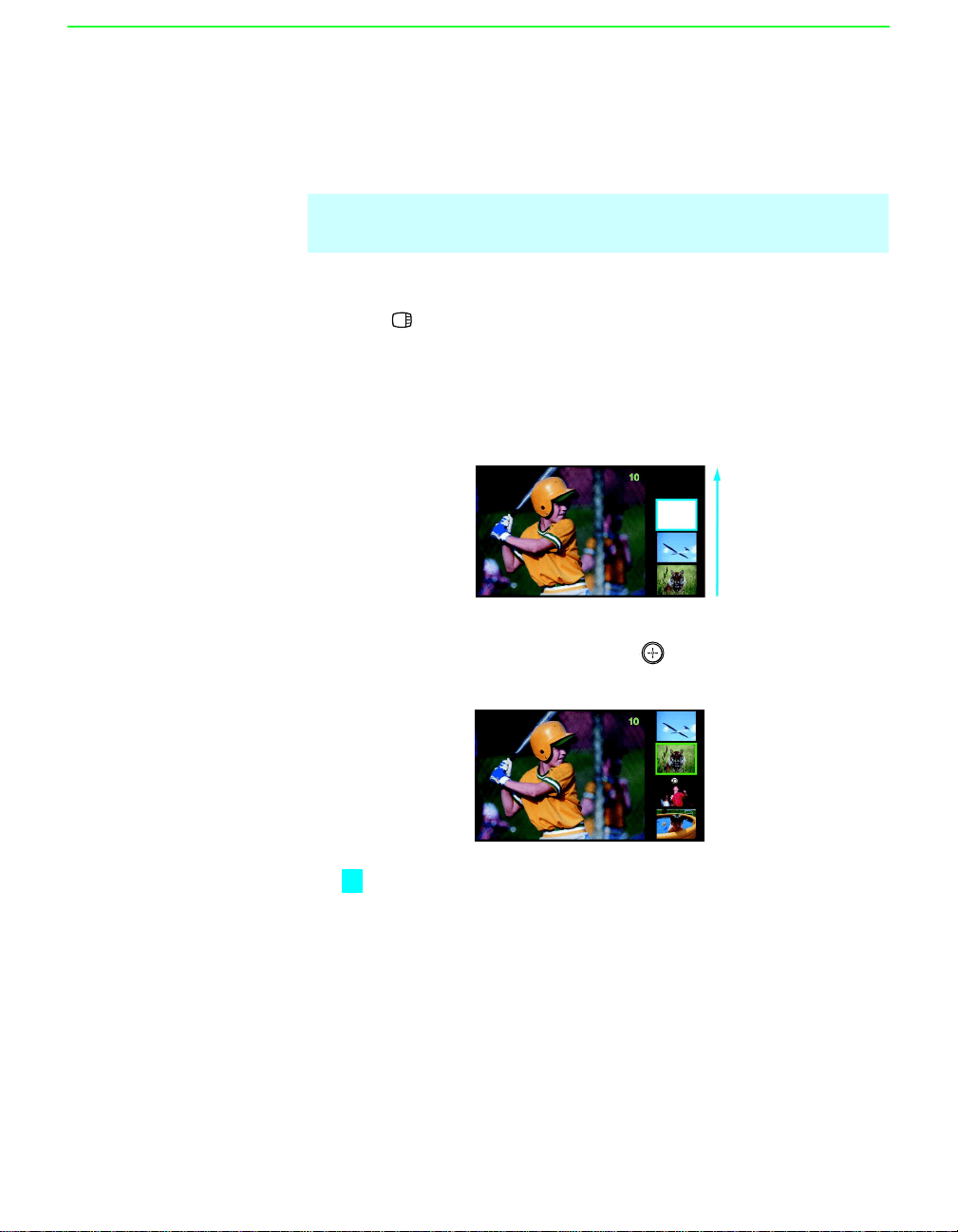

Using Scrolling Channel Index..............................54
Using Wide Screen Mode......................................56
Using the Menus
Overview................................................................57
Using the Video Menu..........................................58
Using the Audio Menu..........................................60
Using the Channel Menu......................................62
Using the Wide Menu...........................................64
Using the Timer Menu..........................................66
Using the Setup Menu ..........................................67
Other Information

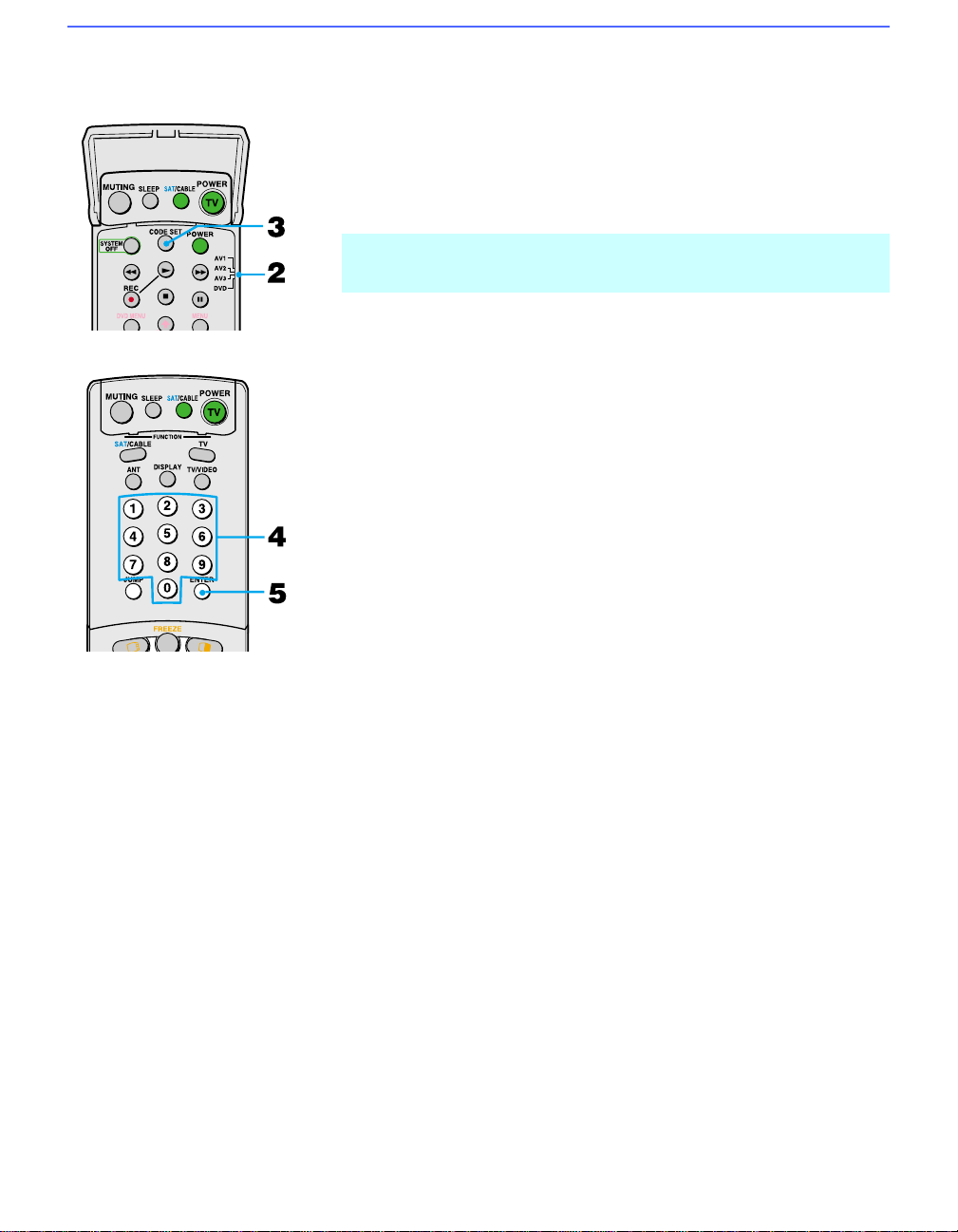

Programming the Remote Control.........................77
Operating Other Components with Your LCD
Projection TV Remote Control......................80
Troubleshooting.....................................................82
What Flashing of the Indicators on
the Front of the Monitor Means.....................85
Specifications.........................................................86
9
Introducing the Sony LCD Projection TV
Introducing the Sony LCD Projection
TV
Presenting the Sony LCD Projection TV
Thank you for purchasing the Sony LCD Projection TV.
This manual is for model KF-60DX100.
Features
Some of the features that you will enjoy with your new LCD projection TV
include:
❑
HD-Monitor: Enables you to receive the 1080i, 720p*, 480p and 480i
digital TV format signals.
By using the HD/DVD IN jacks, you can connect a DTV (digital
television) receiver to view DTV programs.
❑
DRC
™
: Unlike conventional line doublers, the DRC (Digital Reality
Creation) feature converts frames reproduced every 1/60th of a second
in real time, minimizing the blur or ghost of the motion images (for
NTSC signals only).
❑
CineMotion
™
: Using the reverse 3-2 pull down technology, the
CineMotion feature allows you to obtain a smooth picture movement
when playing back movies or other video sources on film.
❑
Twin View
™
: Using Multi-Image Driver (MID-X), Twin View allows
you to watch two programs side by side with the ability to zoom in on
one picture and listen to the program in the selected window. You can
watch pictures from two different sources (1080i, 720p*, 480p or 480i)
simultaneously.
❑
Parental Control: V-Chip technology allows parents to block
unsuitable programming for younger viewers.
❑
Component Video Inputs: Offers the best video quality for DVD
(480p, 480i) and Digital Set-top box (1080i, 720p*, 480p, 480i)
connections.
❑
S-VIDEO Inputs: Provides a high-quality image for connected
equipment.
❑
Favorite Channel Preview: Preview up to eight favorite channels
without leaving the current channel.
❑
Scrolling Channel Index: Allows you to view and choose channels
from scrolling pictures without leaving the current channel.
* This LCD projection TV is not capable of displaying a native 720p format
signal. Therefore, when a native 720p format signal is received, it is converted
into a 480p format signal.
(Continued)
Introducing the Sony LCD Projection TV
10
❑
Wide Screen Mode: Allows you to watch 4:3 normal broadcasts in
wide screen mode (16:9 aspect ratio).
❑
Auto Wide: Allows you to select the wide screen mode automatically.
Using This Manual
We recommend that you carefully review the contents of the following three
sections in the order shown to ensure that you fully understand the operation
of your new LCD projection TV.
1
11
1
Installing and Connecting the LCD Projection TV
This section guides you through your initial setup. It shows you how to
install your LCD projection TV, to connect your new components and to
connect the antenna and cable.
2
22
2
Using the Features
This section shows you how to begin using your new LCD projection TV. It
also shows you how to use your remote control functions.
3
33
3
Using the menus
This section teaches you how to access on-screen menus and adjust your
LCD projection TV settings.
Instructions in this manual are written for the remote control. Similar
controls are also found on the LCD projection TV console.
Introducing the Sony LCD Projection TV
11
Introducing the Sony LCD Projection TV
Enjoying Your LCD Projection TV
Indicators
The indicators show the current status of your LCD projection TV. If the
LAMP indicator flashes, see “What Flashing of the Indicators on the Front
of the Monitor Means” on page 85.
Screen
To minimize screen reflection, its surface has a special coating. Read the
instructions “Use of the Cleaning Cloth” on page 12 carefully before
cleaning.
Inappropriate cleaning methods could damage the finishing.
Projection lamp
Your LCD projection TV uses a projection lamp as its light source. Note the
following:
❑
After turning on your LCD projection TV, it may take a while before the
normal screen appears (1 minute or less).
❑
When the projection lamp wears out, the screen image becomes dark.
Replace the lamp with a new Sony XL-2000U replacement lamp (not
supplied).
✍
Be sure to attach the lamp cover securely; otherwise, your LCD
projection TV will not turn on. For details on lamp replacement, see
“Replacing the Lamp” on page 13.
✍
The light emitted from the lamp is quite bright when your LCD projection
TV is in use. To avoid eye discomfort or injury, do not look into the
housing when the power is on.
Indicators
Projection lamp
Screen
Introducing the Sony LCD Projection TV
12
Notes on the LCD
Projection TV
To enjoy clear pictures
❑
Be sure not to allow sunlight or light from a lamp to shine directly onto
the screen.
❑
The screen surface is easily scratched. Do not rub, touch, or tap it with a
sharp or abrasive object (see “Use of the Cleaning Cloth” below).
On moisture condensation
❑
If your LCD projection TV is transported directly from a cold to a warm
location, is placed in a humid room, or if the room temperature changes
suddenly, the picture may be blurred or show poor color. This is
because moisture has condensed on the lenses inside. If this happens,
leave the power on and let the moisture evaporate before using your
LCD projection TV.
When the LCD projection TV will not be used for a long period of time
❑
Turn off the main power of your LCD projection TV before going to
sleep or going out.
When turning off the power
❑
Be sure to turn off the power switch on the main unit or on the remote
control. After turning off the power, the fan will continue to blow for
about two minutes. Be sure to wait for several minutes after turning the
power off when unplugging from the outlet or switching the breaker off.
Use of the Cleaning
Cloth
To remove dust from the front of the screen, wipe with the supplied Cleaning
Cloth.
✍
Do not use any type of abrasive pad, alkaline cleaner, scouring powder,
or solvent such as alcohol or benzene. Otherwise, this type of contact
may result in a damaged screen.
✍
To clean the screen, please use the supplied Cleaning Cloth lightly
moistened with water diluted mild detergent solution.
✍
The supplied Cleaning Cloth is washable with warm water and a mild
detergent solution, and can be used repeatedly.
Introducing the Sony LCD Projection TV
13
Introducing the Sony LCD Projection TV
Replacing the Lamp
The projection lamp has a limited life.
If the screen becomes dark, the color looks unusual, or the LAMP indicator
on the front of the LCD projection TV flashes, it is time to replace the lamp
with a new one (not supplied).
❑
Use a Sony XL-2000U replacement lamp (not supplied) for
replacement. Failure to do so may damage the LCD projection TV.
❑
Do not remove the lamp for any purpose other than replacement.
Failure to do so may cause fire or a skin burn.
❑
Before replacing the lamp, turn the power off on the main unit, then
several minutes later, unplug the power cord. (The cooling fan will
continue to blow for about two minutes after turning the power off.)
❑
Before replacing the lamp, let it cool down completely, as the surface of
the lamp remains extremely hot for at least 30 minutes after the power
has been turned off.
❑
Do not leave the removed lamp near flammable materials or within the
reach of children.
❑
Do not pour water onto the removed lamp, or put any object inside the
lamp. Doing so may cause the lamp to burst.
❑
Do not put flammable materials and metal objects inside the lamp
receptacle of the LCD projection TV after removing the lamp. Doing so
may cause fire or electrical shock. Also, be sure not to touch the
receptacle, because it may cause a skin burn.
❑
Mount the new lamp securely, otherwise the screen may become dark,
or it may cause a fire.
Collecting the used lamp
For environmental conservation, Sony collects the used lamps. Please put the
used lamp in the lamp box and give it to your Sony dealer where you bought
the lamp.
✍
Do not touch the front glass of a new lamp or the glass of the lamp
receptacle. This may reduce picture quality or lamp life.
WARNING
Electric appliances can cause fire or high temperature, resulting in injury
or death. Be sure to follow the instructions below.
(Continued)
Introducing the Sony LCD Projection TV
14
1
11
1
Turn off the power switch on the LCD projection TV and after several
minutes, unplug the power cord.
(The cooling fan will continue to blow for about two minutes after
turning the power off.)
2
22
2
Unplug the power cord after turning off the main power. Wait at least 30
minutes to allow the lamp to cool down before replacing it.
Take the new lamp out of the box.
3
33
3
Remove the front panel.
4
44
4
Loosen the screw with a coin or similar object to remove the lamp cover.
✍
Do not touch the front glass of a new lamp or the glass of the lamp
receptacle. This may reduce picture quality or lamp life.
Hold the LCD
projection TV firmly so
that it does not move.
Grasping the right end of the front panel with
your fingers, pull the panel towards you.
Introducing the Sony LCD Projection TV
15
Introducing the Sony LCD Projection TV
5
55
5
Loosen the two screws that secure the lamp, then pull out the lamp.
The lamp is very hot immediately after use. Never touch the front glass
of the lamp or the surrounding parts.
6
66
6
Mount the new lamp.
Be sure to attach the new lamp securely.
7
77
7
Mount the lamp cover and tighten the screw.
Make sure that the lamp cover is mounted securely, otherwise the power
will not turn on.
✍
After it has cooled, place the removed lamp into the empty box of the
replacement lamp. Never put the removed lamp into a plastic bag.
✍
If the lamp cover is not mounted securely, the self-diagnostic
function works and the TIMER/STAND BY indicator flashes for three
times (See page 85).
Loosen the two screws with the
hex key supplied with the lamp.
Hold the handle and pull
straight out.
Mount the new lamp securely
into the lamp receptacle.
Tighten the two screws securely in the
order of 1
11
1 to 2
22
2, as shown in the
illustration using the supplied hex key.
Match the projection of the right
side of the lamp cover with the
hole of the unit, and replace the
lamp cover as it was.
(Continued)
Introducing the Sony LCD Projection TV
16
8
88
8
Mount the front panel in the order of 1 to 2, as shown in the
illustration.
✍
Consult your Sony dealer for a Sony XL-2000U replacement lamp.
✍
Take great care when replacing the lamp or plugging in/unplugging
the connecting cords. If you handle them roughly, the LCD
projection TV may fall or be moved, and the TV stand or floor
surfaces may be scratched.
17
Installing and Connecting the LCD Projection TV
Installing and Connecting the LCD
Projection TV
Contents
The box contains your new LCD projection TV, a remote control and two
AA batteries. No peripheral cables are included. If you intend to add
additional equipment to your LCD projection TV, please check the hookup
instructions for your desired setup before you begin. You may need to
purchase cables and/or splitters to complete the hookup properly.
Inserting Batteries into the Remote Control
Insert two size AA batteries (supplied) by matching the + and – on the
batteries to the diagram inside the battery compartment.
✍
Remove the batteries to avoid damage from possible battery leakage
whenever you anticipate that the remote control will not be used for an
extended period.
✍
Handle the remote control with care. Avoid dropping it, getting it wet, or
placing it in direct sunlight, near a heater, or where the humidity is high.
✍
Your remote control can be programmed to operate most video
equipment. (See “Programming the Remote Control” on page 77.)
e
e
E
E
Installing and Connecting the LCD Projection TV
18
Carrying Your LCD Projection TV
Carrying the LCD projection TV requires at least two people. Do not grasp
the pedestal or the front panel of the LCD projection TV, otherwise these
parts might break off.
When moving the LCD projection TV, support the screen bottom with one
hand while grasping the top part with the other hand, as shown in the
illustration below.
Do not grasp the
pedestal or the front
panel of the LCD
projecttion TV.
Installing and Connecting the LCD Projection TV
19
Installing and Connecting the LCD Projection TV
To Prevent the LCD Projection TV from Falling Down
Pay special attention to children around the LCD projection TV. If children
should climb onto or push the LCD projection TV or its stand, it may fall
down.
As a protective measure, secure the LCD projection TV as follows.
Using supplied brackets
1
Mount the two brackets with the screws (supplied) to the upper rear
sides of the LCD projection TV (left and right sides).
2
Pass a strong cord or chain (not supplied) through each bracket and then
secure it to a wall or a pillar, etc.
Using the LCD projection TV stand with support belts
❑
You can also use the LCD projection TV stand SU-60DX (not supplied)
with support belts.
When Installing Your LCD Projection TV Against a Wall
Keep your LCD projection TV at least 10 cm (4 inches) from the wall.
Bracket with
the screw
Installing and Connecting the LCD Projection TV
20
Recommended Viewing Area
The picture quality may be affected by your viewing position.
For the best picture quality, install your LCD projection TV within the areas
shown below.
Sit at least 2.2 m (approx. 7 ft.) away from your LCD projection TV, and
within 60° of the vertical viewing area, and 130° of the horizontal viewing
area.
Horizontal Viewing
Area
65˚
65˚
m
in. 2.2 m (approx. 7 ft.)
30
˚
20
˚
30
˚
min. 2.2 m
(approx. 7 ft.)
Vertical Viewing
Area
Installing and Connecting the LCD Projection TV
21
Installing and Connecting the LCD Projection TV
Connector Types
You may find it necessary to use some of the following connector types
during set up.
Coaxial cable
Standard TV cable and antenna cable
S Video cable
High quality video cable for enhanced picture quality
Audio/Video cable
Video - Yellow
Audio (Left) - White
Audio (Right) - Red
Some DVD Players are equipped with the following three video connectors:
Y - Green
P
B
(C
B
, C
b
or B–Y) - Blue
P
R
(C
R
, C
r
or R–Y) - Red
CONTROL S cable
CONTROL S connections are exclusive to Sony products and allow greater
control of all Sony equipment.
Plug Type
Screw-on Type
Push into connection.
Screw into connection.
Align guides and push into
connection.
Push into connection.
Push into connection.
Installing and Connecting the LCD Projection TV
22

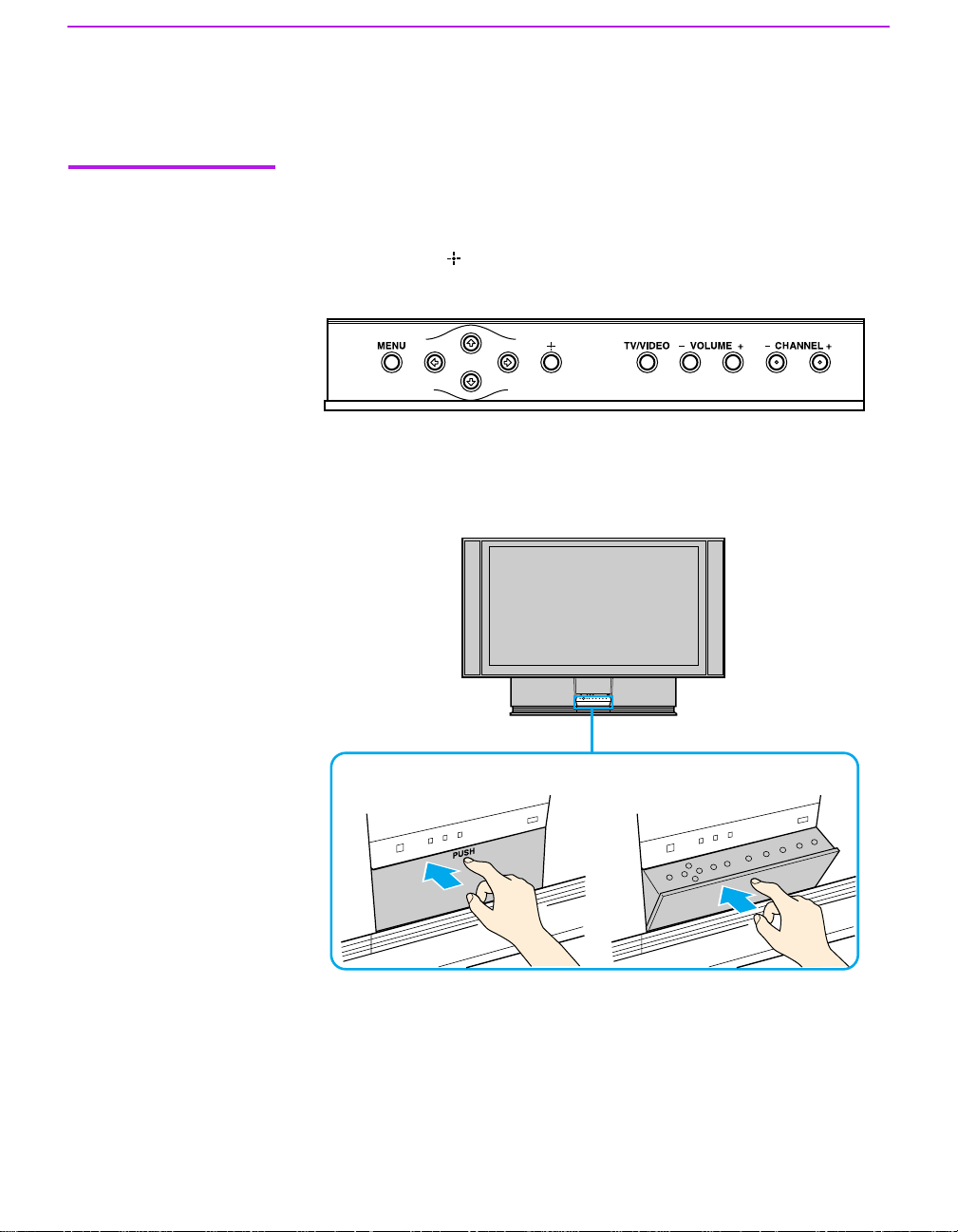

LCD Projection TV Controls and Connectors
Front Panel Menu
Controls
The front panel menu controls allow access to the on-screen menus without
the use of a remote control. Pressing MENU
brings up the on-screen menus.
The arrow buttons move the on-screen cursor in the menus and by pressing
the Select button ( ) selects the menu item.
How to open and close the front panel
To open
To close
Installing and Connecting the LCD Projection TV
23
Installing and Connecting the LCD Projection TV
LCD Projection TV
Rear and Side Panel
Connectors
S VIDEO
VIDEO
VIDEO 2 IN
L
(MONO)
AUDIO
R
Rear of LCD projection TV
Left side of LCD projection TV
(Continued)
Installing and Connecting the LCD Projection TV
24
Connection Description
1 AUX Allows you to view local and cable channels if your cable
provider does not feature local channels. You can switch
between local and cable channels easily by pressing ANT
on the remote control. Devices connected to the AUX
input cannot be viewed in Twin View.
2 TO CONVERTER This is a VHF/UHF OUT jack that lets you set up your
LCD projection TV to switch between scrambled channels
(through a cable box) and normal cable channels (CATV).
Use this jack instead of a splitter to get better picture
quality when switching between scrambled and
unscrambled cable channels.
3 VHF/UHF Connects to your VHF/UHF antenna or cable.
4 S VIDEO
(Rear and side)
Connects to the S VIDEO OUT jack of your VCR or other
S VIDEO-equipped video component. Provides better
picture quality than the VHF/UHF jacks or the Video IN
jack.
5 VIDEO
(L/R)/AUDIO
(Rear and side)
Connects to the audio and video OUT jacks on your VCR
or other video component. A fourth video input (VIDEO
2) is located on the side panel of the LCD projection TV.
6 HD/DVD IN (1080i,
720p, 480p, 480i)
Connects to your DVD player’s or Digital Set-top box’s
component video (Y, P
B, PR) and audio (L/R) jacks.
7 TV OUT Connects to an AV receiver for greater control of all audio
and video equipment (see page 40). For detailed
information about connection, refer to the operating
manual supplied with the AV receiver.
8 AUDIO OUT
(VAR/FIX)
L (MONO)/R
Connects to the left and right audio inputs of your audio or
video component.
9 CONTROL S
IN/OUT
To control other Sony equipment with the LCD projection
TV's remote control, connect the CONTROL S IN jack of
the equipment to the CONTROL S OUT jack on the LCD
projection TV with the CONTROL S cable.
To control the LCD projection TV with a remote control
for another Sony product, connect the CONTROL S OUT
jack of the equipment to the CONTROL S IN jack on the
LCD projection TV with the CONTROL S cable.
Installing and Connecting the LCD Projection TV
25
Installing and Connecting the LCD Projection TV
Basic Connections (Connecting Cable TV or Antenna)
Connecting Directly
to Cable or an
Antenna
The connection you choose depends on the cable found in your home. Newer
homes are equipped with standard coaxial cable (see A
AA
A); older homes
probably have 300-ohm twin lead cable (see B
BB
B); other homes may contain
both (see C
CC
C).
A VHF Only or VHF/UHF or Cable
B VHF Only or UHF Only or VHF/UHF
C VHF and UHF
✍
It is strongly recommended to connect the antenna using a 75-ohm
coaxial cable to get optimum picture quality. A 300-ohm twin lead cable
can be easily affected by radio noise and the like, resulting in signal
deterioration. If you use a 300-ohm twin lead cable, keep it away as far
as possible from the LCD projection TV.
✍
Do not use an indoor antenna because it is especially susceptible to
radio noise.
75-ohm coaxial
cable
Rear of LCD projection TV
VHF/UHF
Rear of LCD projection TV
Antenna connector
300-ohm twin lead cable
VHF/UHF
Rear of LCD projection
TV
75-ohm coaxial cable
VHF/UHF
U/V Splitter
(not supplied)
300-ohm twin lead cable
Installing and Connecting the LCD Projection TV
26
Cable and Antenna
If your cable provider does not feature local channels, you may find this set
up convenient.
Select CABLE or antenna (ANT) mode by pressing
ANT
on the remote
control.
Cable Box
Connections
Cable Box and Cable
This is the preferred basic cable TV hookup to use if:
❑
Your cable TV company scrambles some channels, but not all of them
(pay channels vs. regular cable channels) and you need to use a cable
box, and
❑
You want to enjoy the Twin View feature.
With this setup you can:
❑
Use the LCD projection TV remote control to change channels using
your cable box when the signal is scrambled.
❑
Use the LCD projection TV remote control to change channels using
your LCD projection TV when the signal is not scrambled. (Your LCD
projection TV’s tuner provides a better signal than the cable box.)
❑
Use the Twin View feature. (When all channels are routed through your
cable box, only one channel is sent to the LCD projection TV, so you
can not use the Twin View or Channel Index features for your cable
box.)
1
Connect the Cable TV cable to the LCD projection TV’s VHF/UHF
jack.
2
Using a coaxial cable, connect the LCD projection TV’s TO
CONVERTER jack to the cable box’s IN jack. The LCD projection
TV’s internal converter allows you to switch between unscrambled
signals coming straight into the LCD projection TV and scrambled
signals coming in through the cable box, eliminating the need for an
external splitter.
✍
To receive channels with an antenna, you need to turn your Cable to OFF
(see page 62) and perform the Auto Program function (see page 63).
CATV cable
Rear of LCD projection TV
TO
CONVERTER
(No connection to
TO CONVERTER)
VHF/UHF
Antenna cable
AUX
Installing and Connecting the LCD Projection TV
27
Installing and Connecting the LCD Projection TV
3
Using a coaxial cable, connect the cable box’s OUT jack to the LCD
projection TV’s AUX jack.
✍
Pressing ANT on the remote control switches between the channels
coming in through the cable box (scrambled) and those coming directly
to the TV (unscrambled).
Rear of LCD
projection TV
TO
CONVERTER
VHF/UHF
AUX
Cable box
OUT
IN
Signal
75-ohm coaxial cable (not supplied)
CATV cable (unscrambled channels)
Installing and Connecting the LCD Projection TV
28
Cable Box Only
Use this hookup if:
❑
You subscribe to a cable TV system that uses scrambled or encoded
signals requiring a cable box to view all channels, and
❑
You do not intend to hook up any other audio or video equipment to
your LCD projection TV.
When all channels are routed through your cable box, only one unscrambled
channel is sent to the LCD projection TV, so you cannot use the Twin View
feature. If some channels are scrambled, but others are not, consider using
the hookup on page 26 instead.
1
Connect the coaxial connector from your cable service to the cable
box’s IN jack.
2
Using a coaxial cable, connect the cable box’s OUT jack to the LCD
projection TV’s VHF/UHF jack.
Also, set Cable to ON in the Channel menu (see page 62).
Setting the Channel Fix feature in the Channel menu (see “Using the
Channel Menu” on page 62), ensures that you do not accidentally switch
the channels using your LCD projection TV.
✍
Your Sony remote control can be programmed to operate your cable box
(see “Programming the Remote Control” on page 77).
✍
To change channels using the cable box, set your LCD projection TV to
channel 3 or 4 depending on the cable box channel output. If you will be
controlling all channel selection through your cable box, consider using
the Channel Fix feature to set your LCD projection TV to channel 3 or 4
(see page 63).
VHF/UHF
Rear of LCD projection TV
Cable
IN
OUT
Cable box
z
Installing and Connecting the LCD Projection TV
29
Installing and Connecting the LCD Projection TV
Connecting a VCR and Cable
Use this hookup if:
❑
You have cable TV that does not require a cable box.
Disconnect all power sources before making any connections.
1
Connect the cable TV cable to the VCR’s IN jack.
2
Using a coaxial cable, connect the VCR’s OUT jack to the LCD
projection TV’s VHF/UHF jack.
3
Using AUDIO and S VIDEO cables, connect the VCR’s Audio and
S Video OUT jacks to the LCD projection TV’s AUDIO and S VIDEO
IN jacks.
Coaxial cable
Rear of LCD projection TV
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)
Cable
VCR
VMC-810S/820S
(not supplied)
S VIDEO
YC-15V/30V (not supplied)
✍
If your VCR is not equipped with S VIDEO, use a VIDEO cable (yellow)
instead of the S VIDEO cable.
Installing and Connecting the LCD Projection TV
30
Connecting a VCR and Cable Box
Use this hookup if:
❑
Your cable TV company scrambles some channels, but not all of them
(pay channels vs. regular cable channels) and you need to use a cable
box, and
❑
You want to enjoy the Twin View feature.
With this setup you can:
❑
Use the LCD projection TV remote control to change channels on your
cable box when the signal is scrambled. To program your Sony remote
control to operate your cable box, see “Programming the Remote
Control” on page 77.
❑
Use the LCD projection TV remote control to change channels using
your LCD projection TV when the signal is not scrambled. Your LCD
projection TV’s tuner provides a better signal than the cable box.
❑
Use the Twin View feature. (When all channels are routed through your
cable box, only one signal is sent to the LCD projection TV, so you
cannot use the Twin View feature.)
Disconnect all power sources before making any connections.
1
Connect the Cable TV cable to the LCD projection TV’s VHF/UHF
jack.
2
Using a coaxial cable, connect the LCD projection TV’s TO
CONVERTER jack to the cable box’s IN jack. The LCD projection
TV’s internal converter allows you to switch between unscrambled
signals coming straight into the LCD projection TV and scrambled
signals coming in through the cable box, eliminating the need for an
external splitter.
3
Using a coaxial cable, connect the cable box’s OUT jack to the VCR’s
IN jack.
4
Using AUDIO and S VIDEO cables, connect the VCR’s AUDIO and S
VIDEO OUT jacks to the LCD projection TV’s AUDIO and S VIDEO
IN jacks.
5
Using a coaxial cable, connect the VCR’s OUT jack to the LCD
projection TV’s AUX jack.
✍
To view scrambled channels, set your LCD projection TV to AUX 3 or 4
(depending on your cable box output). Change channels using your
cable box.
Installing and Connecting the LCD Projection TV
31
Installing and Connecting the LCD Projection TV
Coaxial
cable
Cable box
VCR
Rear of LCD projection TV
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)
VMC-810S/820S
(not supplied)
Coaxial cable
YC-15V/30V
(not supplied)
S VIDEO
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)
S VIDEO
✍
If your VCR is not equipped with S VIDEO, use a VIDEO cable (yellow)
instead of the S VIDEO cable.
✍
You will not be able to change channels on the VCR. Set your LCD
projection TV and VCR to channel 3 or 4, depending on your cable box
channel output.
✍
Pressing ANT on the remote control switches between the channels
coming in through the cable box (scrambled) and those coming directly
to the LCD projection TV (unscrambled).
Installing and Connecting the LCD Projection TV
32
Connecting Two VCRs for Tape Editing
If you connect two VCRs, you can record from one VCR to the other while
using your LCD projection TV to monitor what is being recorded.
Disconnect all power sources before making any connections.
1
Using AUDIO and VIDEO cables, connect the playback VCR’s Audio
and Video OUT jacks to the recording VCR’s Audio and Video IN
jacks.
2
Using AUDIO and VIDEO cables, connect the recording VCR’s
AUDIO and Video OUT jacks to the LCD projection TV’s AUDIO and
VIDEO IN jacks.
Rear of LCD projection TV
VCR (playback)
VCR (recording)
VMC-810S/820S (not supplied)
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
✍
To perform tape editing, set the LCD projection TV to the video input
intended for playback by pressing TV/VIDEO on the remote control.
✍
You may need to change the video input on your VCR. Consult your
VCR’s operating manual for instructions.
✍
If your VCRs have an S VIDEO jack: For best picture quality, use an
S VIDEO connection instead of the yellow video cable on your combined
A/V cable.
Using an S VIDEO cable, connect the playback VCR’s S VIDEO OUT jack
to the recording VCR’s S VIDEO IN jack. S VIDEO does not provide audio,
so audio cables must be connected to provide sound.
✍
You cannot record signals from equipment connected to the Y, P
B
, P
R
input.
Installing and Connecting the LCD Projection TV
33
Installing and Connecting the LCD Projection TV
Connecting a Satellite Receiver
Disconnect all power sources before making any connections.
1
Connect the satellite antenna cable to the satellite receiver’s
SATELLITE IN jack.
2
Using AUDIO and S VIDEO cables, connect the satellite receiver’s
AUDIO and S VIDEO OUT jacks to the LCD projection TV’s AUDIO
and S VIDEO IN jacks.
3
Connect a coaxial cable from your cable or antenna to the LCD
projection TV’s VHF/UHF jack.
✍
If your satellite receiver is not equipped with S VIDEO, use a VIDEO cable
(yellow) instead of the S VIDEO cable.
Coaxial
cable
Satellite receiver
VMC-810S/820S (not supplied)
Rear of LCD projection TV
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)
Satellite
antenna
cable
S VIDEO
YC-15V/30V (not supplied)
Installing and Connecting the LCD Projection TV
34
Connecting a Satellite Receiver with a VCR
Disconnect all power sources before making any connections.
1
Connect the satellite antenna cable to the satellite receiver’s
SATELLITE IN jack.
2
Connect the CATV cable to the VCR’s VHF/UHF IN jack.
3
Using a coaxial cable, connect the VCR’s OUT jack to the LCD
projection TV’s VHF/UHF jack.
4
Using AUDIO and S VIDEO cables, connect the satellite receiver’s
AUDIO and S VIDEO OUT jacks to the VCR’s AUDIO and S VIDEO
IN jacks.
5
Using AUDIO and S VIDEO cables, connect the VCR’s AUDIO and S
VIDEO OUT jacks to the LCD projection TV’s AUDIO and S VIDEO
IN jacks.
Coaxial cable
Rear of LCD projection TV
S VIDEO
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
Satellite receiver
VCR
YC-15V/30V
(not supplied)
VMC-810S/
820S (not
supplied)
VMC-810S/820S
(not supplied)
Satellite
antenna
cable
Cable
YC-15V/30V (not supplied)
✍
Be sure your VCR’s video input is set correctly. Consult your VCR’s
operating manual for instructions.
✍
Use TV/VIDEO to select
- VIDEO 1 to watch satellite TV or the VCR (your VCR must be turned on).
- VHF/UHF to watch cable TV.
✍
If your VCR or satellite receiver is not equipped with S VIDEO, use a
VIDEO cable (yellow) instead of the S VIDEO cable.
Installing and Connecting the LCD Projection TV
35
Installing and Connecting the LCD Projection TV
Connecting an Audio Receiver
Disconnect all power sources before making any connections.
Using audio cables, connect the LCD projection TV’s AUDIO OUT (VAR/
FIX) jacks to the audio receiver’s audio LINE IN jacks.
Rear of LCD projection TV
AUDIO-R (red)
AUDIO-L
(white)
Line
input
RK-74A
(not supplied)
Installing and Connecting the LCD Projection TV
36
Connecting a DVD Player with Component
Video Connectors
This is the preferred hookup to use if:
❑
Your DVD player has component (Y, B-Y, R-Y) jacks.
Disconnect all power sources before making any connections.
1
Using three separate component video cables, connect the DVD player’s
Y, B-Y and R-Y jacks to the Y, P
B and PR jacks on the LCD projection
TV. Use the HD/DVD IN 5 or 6 connections.
2
Using an audio cable, connect the DVD player’s Audio OUT jacks to
the LCD projection TV’s AUDIO IN jacks. Be sure to use the same row
of inputs that you used for the video connection (HD/DVD IN 5 or 6).
✍
The Y, B-Y and R-Y jacks on your DVD player are sometimes labeled
Y, C
B
and C
R
, or Y, P
B
and P
R
. If so, connect the cables to like colors.
VMC-10HG (not supplied)
Rear of LCD projection TV
RK-74A (not supplied)
DVD player
AUDIO-R (red)
AUDIO-L (white)
P
R
P
B
Y
✍
To take advantage of the Wide Screen modes, set the TV’s aspect
ratio to 16:9 on your DVD player. For details, refer to the operating
instructions supplied with your DVD player.
Installing and Connecting the LCD Projection TV
37
Installing and Connecting the LCD Projection TV
Connecting a DVD Player with A/V Connectors
Use this hookup if:
❑
Your DVD player does not have component (Y, PB, PR) jacks.
Disconnect all power sources before making any connections.
1
Using audio cables, connect the DVD player’s Audio OUT jacks to the
LCD projection TV’s AUDIO IN jacks.
2
Using an S VIDEO cable, connect the DVD player’s S VIDEO jack to
the LCD projection TV’s S VIDEO jack.
✍
If your DVD player has video component output connectors: for best
picture quality use the connection described on page 36.
Rear of LCD projection TV
YC-15V/30V
(not supplied)
DVD player
RK-74A (not supplied)
AUDIO-R (red)
AUDIO-L (white)
S VIDEO
✍
To take advantage of the Wide Screen modes, set the TV’s aspect ratio to
16:9 on your DVD player. For details, refer to the operating instructions
supplied with your DVD player.
✍
Use TV/VIDEO on the remote control to switch between the VCR, DVD
player and cable TV inputs.
✍
If your VCR is not equipped with S VIDEO, use a VIDEO cable (yellow)
instead of the S VIDEO cable.
Installing and Connecting the LCD Projection TV
38

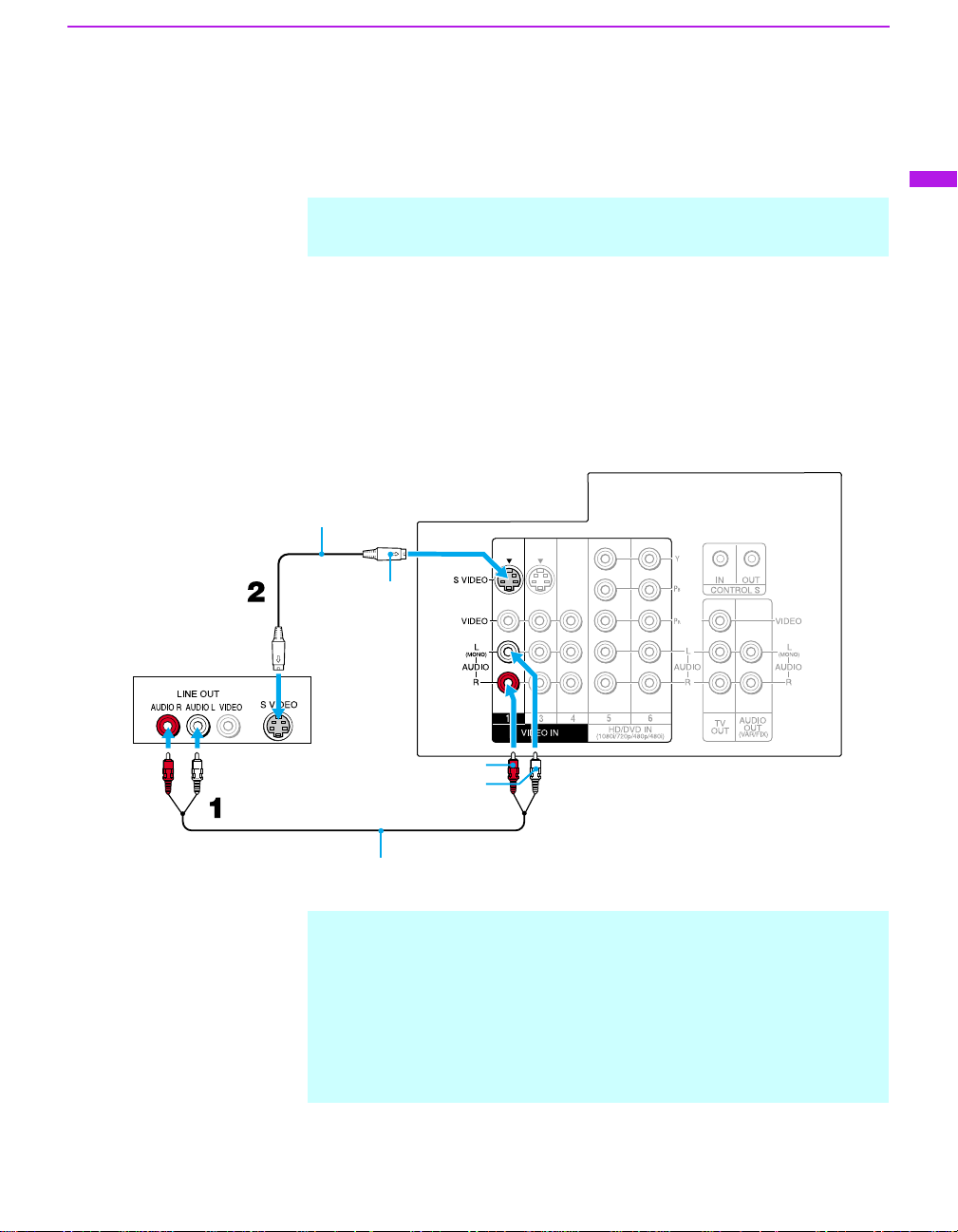

Connecting a Digital TV Receiver
Disconnect all power sources before making any connections.
1
Using three separate component video cables, connect the Digital TV
Set-top box’s Y, PB
and P
R
jacks to the LCD projection TV.
2
Using an audio cable, connect the Digital TV Set-top box’s Audio OUT
jacks to the LCD projection TV’s AUDIO IN jacks.
✍
The Y, P
B
and P
R
jacks do not provide audio, so audio cables must
be connected to provide sound.
✍
Component video connection is necessary to view 480i, 480p, 720p,
and 1080i formats. You may also use the S VIDEO or Composite
Video connections, however, component video (Y, P
B
, P
R
) will
provide the best picture quality for all format types.
Be sure to read the
Set-top box manual.
z
VMC-10HG (not supplied)
Digital TV Set-top box
RK-74A (not supplied)
AUDIO-R (red)
AUDIO-L (white)
Rear of LCD projection TV
P
R
P
B
Y
✍
You cannot record the signal from any equipment connected into the
Y, P
B
and P
R
connectors.
✍
This LCD projection TV is not compatible with digital TV receivers
configured with RGB or VGA output connectors.
Installing and Connecting the LCD Projection TV
39
Installing and Connecting the LCD Projection TV

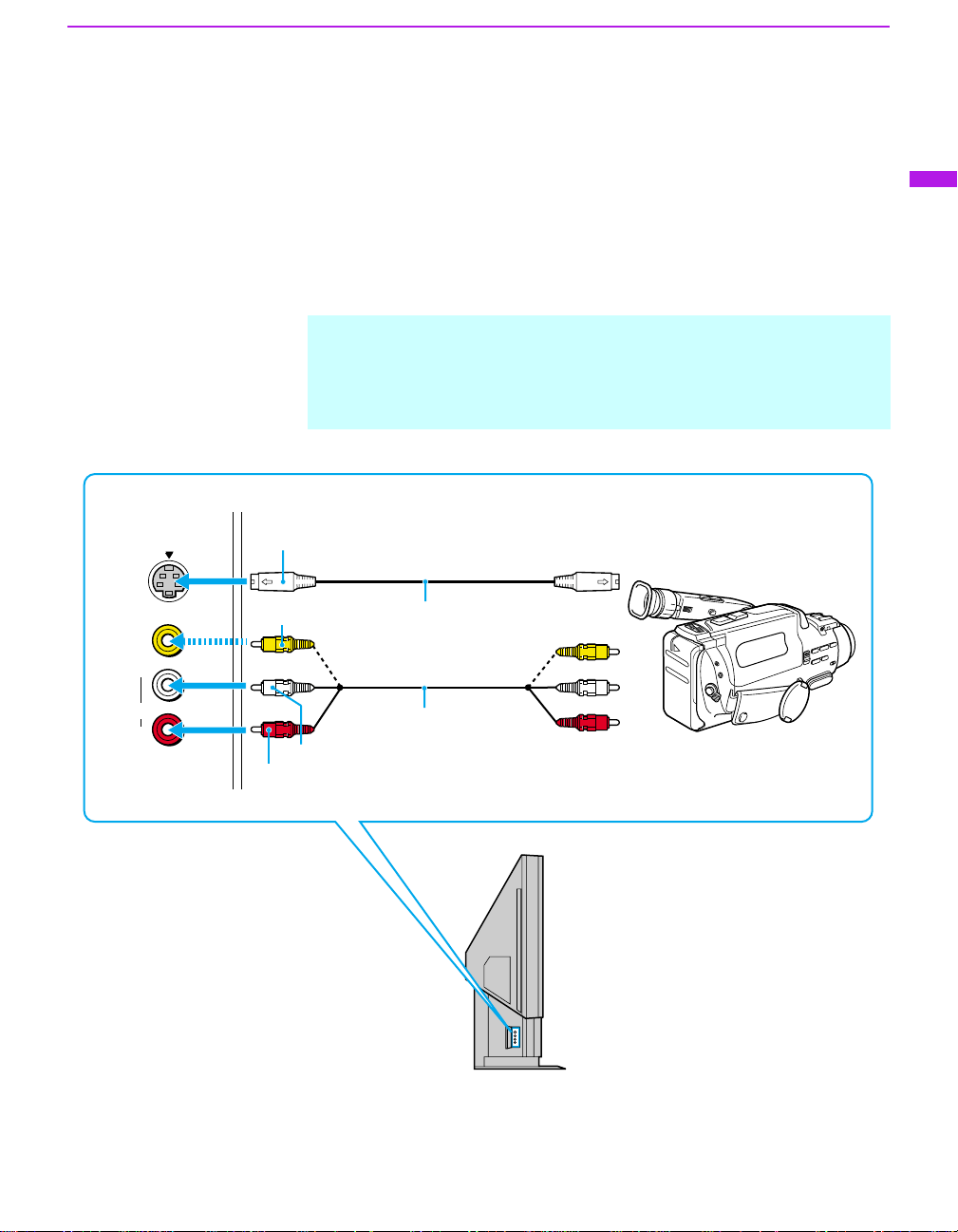

Connecting a Camcorder
For easy connection of the camcorder, the LCD projection TV has side
Audio and Video inputs (shown below). However, if you prefer, you can also
connect the camcorder to the LCD projection TV’s rear Audio and Video IN
jacks.
Using AUDIO and S VIDEO cables, connect the camcorder’s Audio and
S VIDEO OUT jacks to the LCD projection TV’s AUDIO and S VIDEO IN
jacks.
✍
If you have a mono camcorder, connect its left audio output to the LCD
projection TV’s AUDIO L (MONO) jack.
✍
If your camcorder is not equipped with S VIDEO, use a VIDEO cable
(yellow) instead of the S VIDEO cable.
S VIDEO
VIDEO
VIDEO 2 IN
L
(MONO)
AUDIO
R
VIDEO (yellow)
A/V output
AUDIO-L (white)
AUDIO-R (red)
S VIDEO
YC-15V/30V (not supplied)
VMC-810S/820S
(not supplied)
Installing and Connecting the LCD Projection TV
40
Connecting an AV Receiver
For greater control of all audio and video equipment, connect an AV receiver.
Disconnect all power sources before making any connections.
1
Connect the coaxial cable from the incoming cable connection or
antenna to IN on the VCR.
2
Using a coaxial cable, connect OUT on the VCR to VHF/UHF on the
LCD projection TV.
3
Using a VIDEO cable, connect VIDEO of VIDEO 1 IN on the LCD
projection TV to MONITOR OUT on the AV receiver.
4
Using an AUDIO/VIDEO cable, connect TV OUT on the LCD
projection TV to AUDIO/VIDEO 2 IN on the AV receiver.
5
Using an AUDIO/VIDEO cable, connect the video equipment to the AV
receiver.
6
Select the Setup menu and set “Video Label” to “Receiver” to fix your
LCD projection TV’s input to AV receiver (see “Video Label” on page
68).
✍
Change “Video Label” for the VIDEO 1 input to “Receiver” (see page 68).
Rear of LCD projection TV
AUDIO-L
AUDIO-R
VMC-10HG (not supplied)
Cable/
Antenna
Coaxial cable (not supplied)
VMC-810S/820S
(not supplied)
VMC-810S/820S
(not supplied)
AUDIO/
VIDEO 1 IN
AUDIO/VIDEO 1 OUT
AV receiver
VMC-810S/820S (not supplied)
MONITOR
OUT
VIDEO
VIDEO
VCR
AUDIO/
VIDEO 2 IN
Installing and Connecting the LCD Projection TV
41
Installing and Connecting the LCD Projection TV
Using the CONTROL S Feature
CONTROL S allows you to control your LCD projection TV system and
other Sony equipment with one remote control. In addition to allowing you
to control multiple devices with one remote control, the CONTROL S
feature allows you to always point your remote control at your LCD
projection TV, instead of having to point it at the other equipment, which
might be hidden or out of direct line of sight.
Rear of LCD projection TV
Installing and Connecting the LCD Projection TV
42
Setting Up the LCD projection TV Automatically
After you finish connecting your LCD projection TV, you can run Auto
Setup to set up your channels. The Auto Setup screen appears when you turn
your LCD projection TV on for the first time after installing it. If you do not
want to set up the channels at this time, you can do it later by using the Auto
Program feature in the Channel menu (see page 63).
Using Auto Setup
1
Press POWER on the front panel of your LCD projection TV or on the
remote control to turn on the LCD projection TV.
2
Press the TV (FUNCTION) button on your remote control. Red light will
briefly appear.
3
Press CH+ on your LCD projection TV to run Auto Setup, or press CH–
to exit. If you use the channel buttons on your remote control, be sure to
use the main set of buttons ( ).
✍
The Auto Setup feature does not apply for installations that use a cable
box for all channel selection.
✍
You can run Auto Program by selecting it in the Channel menu, as
described on page 63.
TIMER/STAND BYSTEREOLAMP
LCD projection TV front panel
43
Using the Features
Using the Features
Using the Remote Control
The following table describes the buttons on the remote control that are for
more advanced functions.
Button Descriptions
Outside Panel
Button Description
1 MUTING Press to mute the sound. Press again or press VOL + to
restore the sound.
2 SLEEP
Press repeatedly until the LCD projection TV displays the
time in minutes (15, 30, 45, 60, or 90) that you want the
LCD projection TV to remain on before shutting off
automatically. To cancel Sleep timer, press SLEEP
repeatedly until SLEEP OFF appears.
Pressing down
POWER
also cancels the Sleep timer and turns off
the power. While the Sleep feature is set, press once
to view the remaining time.
3 ANT Changes between the VHF/UHF input and the AUX input.
4 DISPLAY Press once to display the current time and channel label (if
set) and channel number. Press again to turn Display off.
See page 66 for details on setting the time.
5 JUMP Press to jump back and forth between two channels. The
LCD projection TV alternates between the current channel
and the last channel that was selected.
6 FREEZE Freezes the window picture. Press again to restore the
picture.
7 INDEX Press to enter the Scrolling Channel Index mode. You can
view and select from all receivable channels scrolling on
the screen without leaving the current one.
8 The joystick allows for movement of the on-screen cursor.
Pressing down on the center of the joystick selects the item.
9 VOL +/– Adjusts the volume.
q; PIC MODE Press repeatedly to step through the available video picture
modes: Vivid, Standard, Movie and Mild. Also available
in the Video menu. For details, see “Selecting Video
Options” on page 58.
(Continued)
Using the Features
44
qa FAVORITES Displays the Favorite Channels list. For details, see “Using
Favorite Channels” on page 49.
qs RESET Press when in a menu to reset the settings to the factory
defaults.
qd POWER
buttons
(GREEN)
Turn on and off the LCD projection TV and other audio/
video equipment you have programmed into the remote
control. For instructions, see “Programming the Remote
Control” on page 77.
qf FUNCTION
buttons
Select the equipment (TV, SAT/CABLE) that you want to
operate. The indicator lights up momentarily when pushed
to show which device the remote control is operating.
qg TV/VIDEO
Cycles through the video equipment connected to your
LCD
projection TV
’s video inputs:
TV
,
VIDEO 1
,
VIDEO 2
,
VIDEO 3
,
VIDEO 4
,
VIDEO 5
and
VIDEO 6
.
qh 0 – 9 and
ENTER
Press 0 - 9 to select a channel, the channel changes after 2
seconds. Press ENTER to select immediately.
qj
GUIDE
Turns on/off Twin View. For details, see “Using Twin
View™” on page 50.
Displays the program guide of your satellite.
qk MENU Press to display the LCD projection TV on-screen menu.
Press again to exit from the menu.
ql CH +/– Scan through channels.
To scan rapidly through the channels, press and
hold down CH+ or CH–.
w; CINEMOTION Press to turn on and off the CineMotion mode. For details,
see “Using the Video Menu” on page 58.
wa WIDE MODE Press to step through the wide screen modes: Wide Zoom,
Normal, Full and Zoom. For details, see “Using Wide
Screen Mode” on page 56.
Button Description
z
Using the Features
45
Using the Features
Inside Panel
Button Description
1 SYSTEM OFF Press to turn off the LCD projection TV and all equipment
connected with S-Link.
2 N Play
3 m Rewind
4 REC Record
5 x Stop
6 DVD MENU Displays the DVD menu.
7 MTS/SAP Press to scroll through the Multi-channel TV Sound (MTS)
options: Stereo, Auto SAP, and Mono.
8 CODE SET Used for programming the remote control to operate non-
Sony video equipment. For details, see “Programming the
Remote Control” on page 77.
9 POWER Press to turn on the DVD/VCR player you have
programmed into the remote control. For instructions, see
“Programming the Remote Control” on page 77.
q; M Fast-forward
qa Use to switch control for connected video equipment. You
can program one video source for each switch position. For
details, see “Programming the Remote Control” on page
77.
qs X Pause (Press again to resume normal playback)
qd MENU Displays the Video equipment menu.
qf M, m, <, ,,
and ENTER
Use to operate the DVD menu.
qg Press to select an audio option: Steady Sound ON or
OFF.
Using the Features
46
Watching the TV
Many TV features can be accessed directly through the remote control. The
following will explain the function of some of the buttons found on your
remote control.
Buttons for LCD
Projection TV
Operations
1 TV (FUNCTION)
Activates the remote control for use with the LCD projection TV.
2 ANT— (AUX input)
Press to change between the VHF/UHF input and the AUX input.
3 TV (POWER)
Turns the LCD projection TV on and off. If a video input indication (e.g.,
VIDEO 1, VIDEO 2) appears on the screen, press
TV/VIDEO
or
CH +/ –
until
a channel number appears.
4 0-9 and ENTER
Use for direct channel selection. Press
0-9
to select a channel (for example,
to select channel 10, press 1
and
0
). The channel will change after 2 seconds,
or you can press ENTER
for immediate selection.
5 CH +/–
Press to scan through the channels (+ up or – down).
6 VOL +/–
Press to adjust the volume (+ up or – down).
7 JUMP
Press to alternate or jump back and forth between two channels. The LCD
projection TV will jump between the current channel and the last channel
selected.
8 MUTING
Press to mute the sound. “MUTING” will appear on the screen and will dim
three seconds later. To restore the sound, press again or press VOL +
.
9 FREEZE — (yellow labeled button)
This is useful when you need to copy down information that appears on the
LCD projection TV’s screen (see “Using the Freeze Function” on page 53).
q; SLEEP
Press repeatedly until the LCD projection TV displays the approximate time
in minutes (15, 30, 45, 60, or 90) that you want the LCD projection TV to
remain on before shutting off automatically.
Cancel by pressing
SLEEP
until “SLEEP OFF” appears.
Using the Features
47
Using the Features
qa DISPLAY
Press to display the channel number, current time and channel label (if set).
To turn the display off, press
DISPLAY
again.
qs TV/VIDEO
Press repeatedly to scroll through available video inputs: TV, VIDEO 1,
VIDEO 2, VIDEO 3, VIDEO 4, VIDEO 5 and VIDEO 6.
If you select
Skip
as a
Video Label
in the Setup menu, your LCD projection
TV will skip the video input you selected (see “Video Label” on page 68).
qd MTS/SAP
Press to scroll through the Multi-channel TV Sound (MTS) options (see
“MTS” on page 61).
qf PIC MODE
Press
PIC MODE
repeatedly to directly choose one of four different video
modes that best suits the program you are watching.
Vivid
: Select for enhanced picture contrast and sharpness.
Standard
: Select to display a standard picture for normal viewing
environments.
Movie
: Select to smooth the outline of digital image.
Mild
: Select to display a picture with minimum enhancements.
When you select each mode, you can also adjust the picture quality (such as
Brightness, Color, etc.) to suit your taste. For details, see “Mode” on page
58.
Using the Features
48
Watching the Digital TV
When you have connected the DTV receiver, you can enjoy digital TV
programs. This LCD projection TV is capable of receiving the 1080i, 720p*,
480p and 480i digital TV formats.
* This LCD projection TV is not capable of displaying a native 720p format
signal. Therefore, when a native 720p format signal is received, it is converted
into a 480p format signal.
To view a digital TV program
1
11
1
Connect the DTV receiver to HD/DVD IN 5 or 6 on the LCD projection
TV (for details, see page 38).
2
22
2
Press
TV/VIDEO
to select HD/DVD IN 5 or 6.
3
33
3
Select a digital channel on the DTV receiver. For details, see the
Operating Manual of the DTV receiver.
4
44
4
Adjust the volume of the LCD projection TV as necessary.
Using the Features
49
Using the Features
Using Favorite Channels

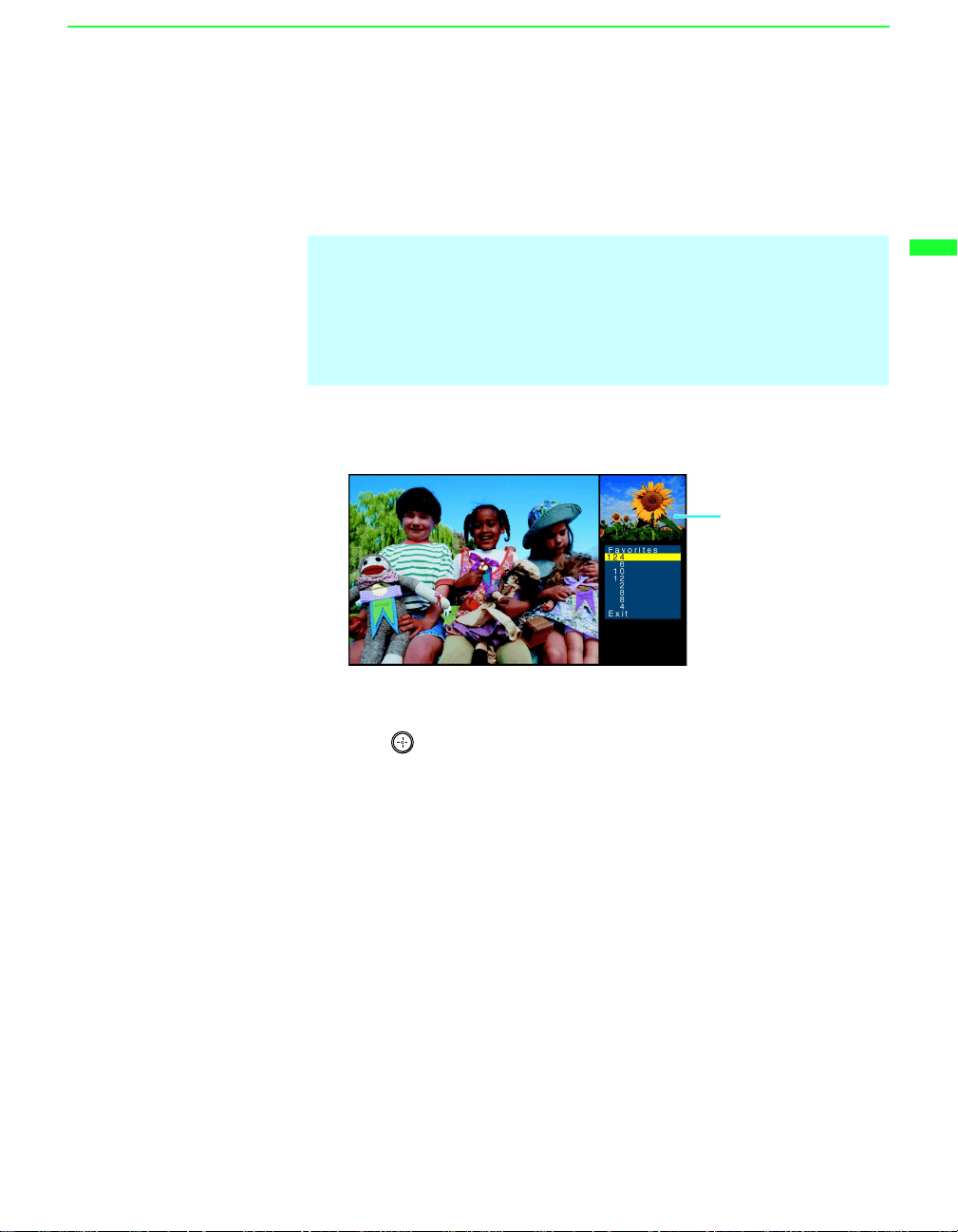

The Favorite Channel feature lets you select programs from a list of favorite
channels that you preset.
To display a list of your favorite channels:
1
11
1
Press
FAVORITES
.
The Favorite Channel options appear.
2
22
2
Move the joystick up or down to highlight the channel you want to
watch. The program of that channel appears in the preview window.
Press to select.
✍
Your Favorite Channel options can be set automatically or manually. The
factory setting for Favorite Channel is Auto.
When Favorite Channel is set to Auto, the last eight channels selected
with 0-9 buttons will be set as Favorite Channel options. If you want to
input your own selections as Favorite Channel settings, see “Favorite
Channel” on page 62.
Preview window
Using the Features
50
Using Twin View™
Twin View enables you to watch two programs at the same time. You can
also change the size of both the left and right pictures.
Activating Twin
Pictures
To display twin pictures
1
11
1
Make sure your LCD projection TV is tuned to
a working channel.
2
22
2
Press .
To cancel twin pictures
❑
Press again (or press ).
Activating the
Although two pictures appear on the screen at the same time, only one
picture is active. Change the picture size by using the joystick. For an active
picture, you can:
❑
Change channels.
❑
Adjust the volume.
❑
Switch the input sources from VHF/UHF to cable by pressing
ANT
or
TV/VIDEO
to switch the video input.
To activate the right picture
❑
Move the joystick to the right.
To activate the left picture
❑
Move the joystick to the left.
Using the Features
51
Using the Features
✍
Hookups that affect your ability to use Twin View:
- If you are viewing all channels through the cable box, the Twin
View feature will not work. The cable box only unscrambles one
signal at a time, so the right picture will be the same as the left
picture.
- You can watch a scrambled cable channel and another video
source. Be sure your DVD player, VCR or satellite receiver are
connected to one of the VIDEO IN 1-6 and AUX inputs on the rear
of the LCD projection TV. Pictures from equipment connected to
HD/DVD IN 5 and 6, and AUX will only appear in the left picture,
not in the right.
✍
The active picture is highlighted in cyan.
Using the Features
52
Changing the
Picture Size

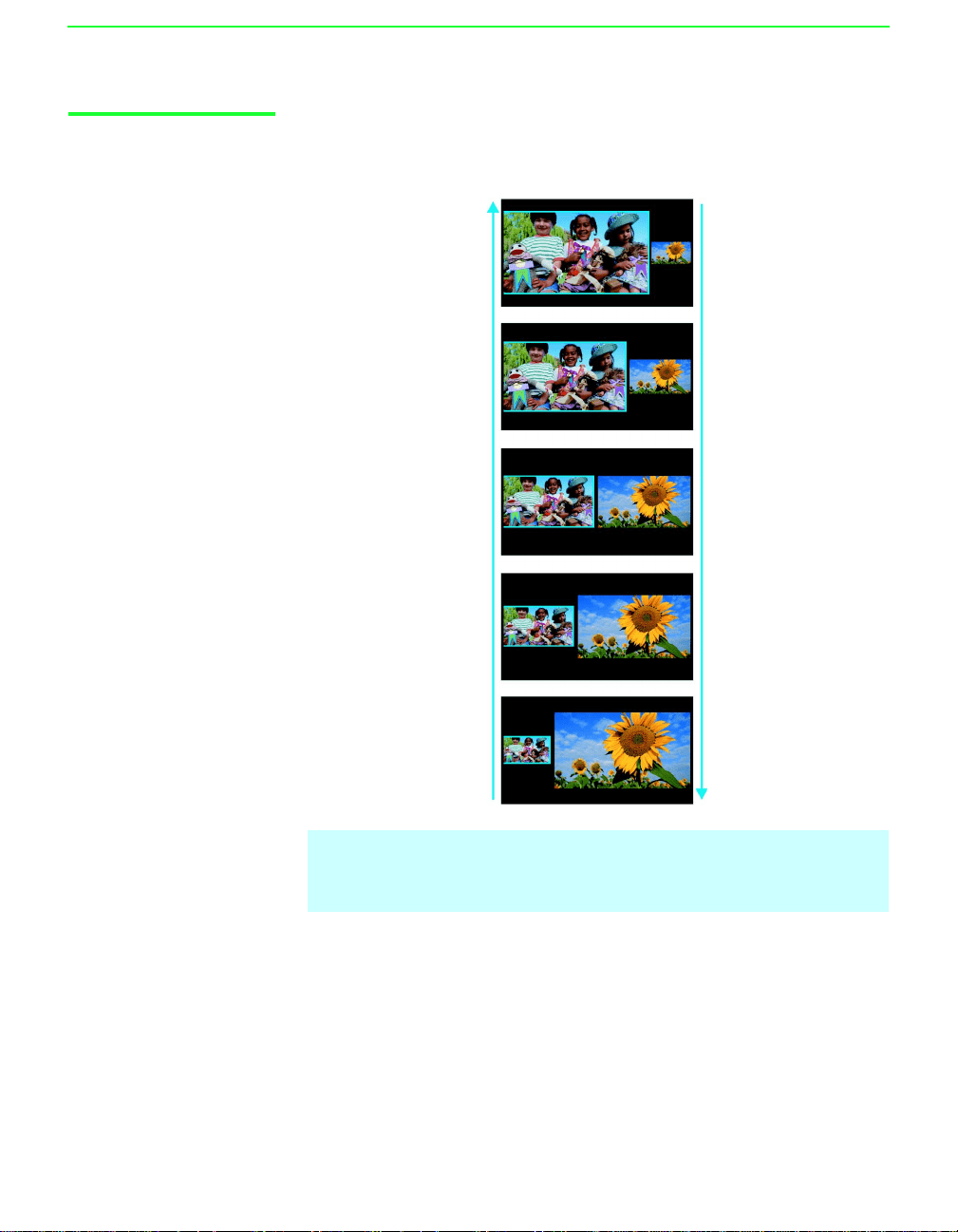

The zoom feature lets you change the size of the left and right pictures.
To enlarge the left
picture (reduce the
right)
1
11
1
Move the
joystick left to
activate the left
picture (if not
already
activated).
2
22
2
Move the
joystick up to
enlarge the
picture and move
the joystick down
to reduce the
picture.
To enlarge the right
picture (reduce the
left)
1
11
1
Move the joystick
right to activate
the right picture
(if not already
activated).
2
22
2
Move the joystick
up to enlarge the
picture and move
the joystick down
to reduce the
picture.
✍
When you adjust the twin screen sizes, the LCD projection TV memorizes
the change. The next time you use the Twin View function, the
memorized sizes appear.
Using the Features
53
Using the Features
Using the Freeze Function
The
FREEZE
button allows you to temporarily capture a program’s picture.
You can use this feature to write down information such as phone numbers,
recipes, etc.
To use the Freeze function
1
11
1
When the program information you want to capture is displayed, press
FREEZE
.
2
22
2
The LCD projection TV switches to Twin View mode and displays the
“frozen” picture on the right, while the current program continues on the
left.
3
33
3
To cancel and return to normal viewing, press
FREEZE.
✍
Freeze feature is not available if you are already in Favorite Channel (see
page 49), Twin View™ (see page 50), or Channel Index (see page 54)
mode.
Current program
in progress
Frozen picture
Using the Features
54
Using Scrolling Channel Index
Scrolling Channel Index allows you to view and select from all receivable
channels scrolling on the screen without leaving the current channel.
To use the Scrolling Channel Index function
1
11
1
Press .
The current channel will be reduced in size and displayed on the left in
normal motion picture format. The first channel is briefly displayed on
the bottom-right side of the screen, then frozen. It scrolls up and the next
channel appears on the bottom-right, and the process is repeated with
the other channels.
2
22
2
Move the joystick up and down so that the channel you wish to view is
displayed in the cyan frame, and press .
To return to scrolling, move the joystick up and down again.
To change the direction of scrolling, move the joystick up or down
once.
To increase scrolling speed, hold the joystick up or down.
✍
Scrolling Channel Index will not function when Parental Lock is
activated.
z
Using the Features
55
Using the Features
3
33
3
To enlarge the selected channel into the left frame, press again.
The selected channel will be displayed in normal motion picture, and
the sound also switches to this channel.
4
44
4
Press .
The selected channel will be enlarged for normal viewing.
To cancel Scrolling Channel Index
Press again to resume normal viewing.
Using the Features
56
Using Wide Screen Mode
Wide Screen Mode lets you watch 4:3 normal broadcasts in several Wide
Screen Modes (16:9 aspect ratio).
❑
Press WIDE MODE repeatedly to toggle through the following Screen
Mode settings.
You can also access the Screen Mode settings in the Wide menu. For
details, see page 64.
Wide Zoom enlarges the 4:3 picture to
fill the 16:9 screen, keeping the original
image as much as possible.
Normal returns the 4:3 picture to its
original size.
Full Mode stretches the 4:3 picture
horizontally only, to fill the 16:9 screen.
Zoom Mode enlarges the 4:3 picture
horizontally and vertically to an equal
aspect ratio that fills the 16:9 screen.
Useful for watching Letterbox movies.
When you change channels or inputs, the Screen Mode settings
revert to Wide Zoom (or the 4:3 Default setting in the Wide menu). To
retain the current Screen Mode setting as channels and inputs are
changed, set 4:3 Default to Off. For details, see page 65.
z
z
57
Using the Menus
Using the Menus
Overview
Opening and choosing a menu
1
11
1
Press
MENU
to display the menu screen.
2
22
2
Move the joystick to the desired menu icon and press to select it.
3
33
3
Use the joystick to scroll through the features.
4
44
4
See the specific menu page for instructions on moving through the
menu.
To end a menu session
❑
Press MENU again
.
To end one menu session and move to another
❑
Press the joystick V to return to the menu icons.
Move the joystick B or b to choose the next menu icon and press to
select it.
The menu gives you access to the following features:
Menu Icon Description Page
Allows you to make adjustments to your picture settings.
It also allows you to customize the Picture Mode based on
the type of program you are viewing.
58
Offers enhanced audio options such as listening to second
audio programming (SAP), or customizing the Effect of
the sound on your LCD projection TV.
60
Allows you to set up a Favorite Channel list, run the Auto
Program function, and more.
62
Allows you to set the wide screen mode, adjust the
vertical center in wide mode, and set the 4:3 Default
mode.
64
Lets you set the clock on your LCD projection TV and
allows you to program your LCD projection TV for
scheduled viewing using the Timers.
66
Provides several options for setting up your channels,
labeling your Video inputs, and selecting the language of
the on-screen menus.
67
Using the Menus
58
Using the Video Menu
To select the Video Menu
1
11
1
Press
MENU
.
2
22
2
Move the joystick to the Video
icon and press .
3
33
3
Use the joystick to scroll
through the features.
4
44
4
Press to select a feature.
That feature’s adjustment
appears.
5
55
5
Use the joystick to make the desired adjustments.
6
66
6
Press to select/set.
7
77
7
Press
MENU
to exit the menu screen.
To restore the factory default settings for Picture, Brightness, Color,
Hue, Sharpness and Color Temp
❑
Press
RESET
on the remote control when in the Video menu.
Selecting Video
Options
The Video menu includes the following options.
Option Description
Mode
Customized
viewing
Vivid Select for enhanced picture contrast and
sharpness.
Standard Recommended for Normal viewing conditions.
Movie Select for soft, film like, picture.
Mild Select to smooth the outline of digital image.
✍
You can alter the Video menu settings (Picture, Brightness,
Color, etc.) for each Mode.
To quickly and easily change from one Video Mode to
another, use PIC MODE on the remote control.
Picture Adjust to increase picture contrast and deepen the color or decrease
picture contrast and soften the color.
Brightness Adjust to brighten or darken the picture.
Color Adjust to increase or decrease color intensity.
Hue Adjust to increase or decrease the green tones.
Sharpness Adjust to sharpen or soften the picture.
z
Using the Menus
59
Using the Menus
Color Temp
White
intensity
adjustment
Choose from three color temperatures:
Cool Select to give the white colors a blue tint.
Neutral Select to give the white colors a neutral tint.
Warm Select to give the white colors a red tint.
CineMotion Obtains a smooth picture movement that approaches the original
film-like quality when reproducing movies or other video sources
on 24 frame per second films.
ON The LCD projection TV automatically detects the
signal type of a film and processes it
appropriately.
OFF Select to turn off the CineMotion mode.
✍
When the Video Mode is set to Mild (page 58), you cannot set
CineMotion to ON.
Option Description
Using the Menus
60
Using the Audio Menu
To select the Audio Menu
1
11
1
Press
MENU
.
2
22
2
Move the joystick to the
Audio icon and press .
3
33
3
Use the joystick to scroll
through the options.
4
44
4
Press to select an option.
That option’s settings appear.
5
55
5
Use the joystick to scroll through the settings.
6
66
6
Press to select the desired setting.
7
77
7
Press
MENU
to exit the menu screen.
To restore the factory default settings for Treble, Bass and Balance
❑
Press
RESET
on the remote control when in the Audio menu.
Selecting Audio
Options
The Audio menu includes the following options:
Option Description
Treble Adjust to increase or decrease higher-pitched sounds.
Bass Adjust to increase or decrease lower-pitched sounds.
Balance Adjust to emphasize left or right speaker balance.
Steady
Sound
ON Select to stabilize the volume.
OFF Select to turn off Steady Sound.
Effect ; Virtual Select for surround sound (for stereo programs
only).
A virtual surround system attempts to create the same
surround effect produced by a multichannel system using
only the left and right speakers. Most effective for
programs encoded in Dolby Surround.
Simulated Adds a surround-like effect to mono programs.
OFF Normal stereo or mono reception.
z
Using the Menus
61
Using the Menus
MTS
Enjoy stereo,
bilingual and
mono
programs
Stereo Select for stereo reception when viewing a program
broadcast in stereo.
Auto-SAP Select to automatically switch the LCD projection
TV to second audio programs when a signal is
received. (If no SAP signal is present, the LCD
projection TV remains in Stereo mode.)
Mono Select for mono reception. (Use to reduce noise
during weak stereo broadcasts.)
Speaker ON Select to turn on the LCD projection TV speakers.
OFF Select to turn off the LCD projection TV speakers
and listen to the LCD projection TV's sound only
through your external audio system speakers.
Audio Out
Easy control
of volume
adjustments
Variable The LCD projection TV’s speakers are turned off,
but the volume output from your audio system can
still be controlled by the LCD projection TV’s
remote control.
Fixed The LCD projection TV’s speakers are turned off
and the volume, bass and treble output of the LCD
projection TV is fixed. Use your audio receiver’s
volume control to adjust the volume through your
audio system.
Option Description
Using the Menus
62
Using the Channel Menu
To select the Channel Menu
1
11
1
Press
MENU
.
2
22
2
Move the joystick to the
Channel icon and press
.
3
33
3
Use the joystick to scroll
through the features.
4
44
4
Press to select a feature.
That feature’s options appear.
5
55
5
Use the joystick to scroll through the options.
6
66
6
Press to select the desired option.
7
77
7
Press
MENU
to exit the menu screen.
Selecting Channel
Options
The Channel menu includes the following options:
Option Description
Favorite Channel Auto Select if you want Favorite Channel options to
be set automatically to the last eight channels
selected with the 0-9 buttons.
Manual Select if you want to input your own selections
as Favorite Channel options.
1
11
1
Press to select a favorite channel
number.
2
22
2
Use the joystick to scroll through the
channels until you find the channel you
want to add to your favorites.
3
33
3
Press to select it.
Cable ON Select if you are receiving cable channels with a
CATV cable.
OFF Select if you are using an antenna.
✍
You should run Auto Program after changing the Cable
setting.
Using the Menus
63
Using the Menus
Channel Fix
Useful when you
have a cable box
or satellite
receiver connected
2-6 “Fix” your LCD projection TV’s channel
setting to 3 or 4 and use the cable box, VCR or
satellite receiver to change channels. Select one
of these settings if you have connected the
device to the VHF/UHF jack.
AUX 2-6 Same as 2-6, except you select one of these
settings if you have connected the device to the
AUX jack (see page 24).
VIDEO 1 Use when connecting a cable box. TV output
should be connected through the cable box.
Auto Program Automatically programs the LCD projection TV for all
receivable channels.
Channel
Skip/Add
Removes and adds viewable channels.
1
11
1
Use the joystick to scroll through the channels until you
find the channel you want to skip/add.
2
22
2
Press to select it.
3
33
3
Press the joystick up or down to toggle between “Add” and
“Skip.”
4
44
4
Press to select.
Channel Label Label up to 20 channels with their station call letters.
Option Description
Using the Menus
64
Using the Wide Menu
To select the Wide menu
1
11
1
Press
MENU
.
2
22
2
Use the joystick to move to the
Wide icon and press .
3
33
3
Move the joystick to scroll
through the features.
4
44
4
Press to select a feature.
That feature’s options appear.
5
55
5
Use the joystick to scroll through the options.
6
66
6
Press to select the desired option.
7
77
7
Press
MENU
to exit the menu screen.
Selecting Wide
Options
The Wide menu includes the following options:
To change from one Screen Mode to another, use WIDE MODE on the
remote control.
Option Description
Wide Mode
Select a Screen
Mode to use for
4:3 sources.
Wide Zoom Select to enlarge the 4:3 picture, to fill the 16:9
screen, keeping the original image as much as
possible.
Normal Select to return the 4:3 picture to normal
mode.
Full Select to enlarge the 4:3 picture horizontally
only, to fill the wide screen.
Zoom Select to enlarge the 4:3 picture horizontally
and vertically to an equal aspect ratio that fills
the wide screen.
Wide Mode is unavailable while in Twin View (page
50), Freeze (page 53), or Channel Index (page 54) mode.
z
z
Using the Menus
65
Using the Menus
4:3 Default
Select the default
Screen Mode to
use for 4:3
sources.
Wide Zoom Select to enlarge the 4:3 picture, to fill the 16:9
screen, keeping the original image as much as
possible.
Normal Select to return the 4:3 picture to normal
mode.
Full Select to enlarge the 4:3 picture horizontally
only, to fill the wide screen.
Zoom Select to enlarge the 4:3 picture horizontally
and vertically to an equal aspect ratio that fills
the wide screen.
Off Select to continue using the current Screen
Mode setting when the channel or input is
changed.
The 4:3 Default functions only when the LCD
projection TV receives 480i signals.
If 4:3 Default is set to anything but Off, the Screen
Mode setting changes only for the current channel.
When you change channels (or inputs), Screen Mode
is automatically replaced with the 4:3 Default setting.
To retain the current Screen Mode setting as channels
and inputs are changed, set 4:3 Default to Off.
Vertical Center Allows you to move the position of the picture up and down in
the window. (Available only in Wide Zoom and Zoom modes.)
Move the joystick up or down to choose a position and press
.
Option Description
z
z
Using the Menus
66
Using the Timer Menu
To select the Timer menu
1
11
1
Press
MENU
.
2
22
2
Move the joystick to the
Timer icon and press .
To set the Current Time
1
11
1
Use the joystick to select
“Current Time”, then press
.
2
22
2
If it is currently Daylight Saving Time, be sure to set the mode to “ON”
first.
3
33
3
Use the joystick to enter the correct time, then press .
4
44
4
Press
MENU
to exit the menu screen.
To set the Timer
Before setting the timer, be sure to set your LCD projection TV’s clock to
the current time and Daylight Saving Mode.
1
11
1
Move the joystick to “Timer 1” or “Timer 2”, then press .
2
22
2
Use the joystick to enter your day, time and channel preferences, then
press to select each one.
3
33
3
Press
MENU
to exit the menu screen.
To reset the Clock or Timers
❑
Press
RESET
on the remote control after selecting that option in the
Timer menu.
Selecting Timer
Options
The Timer menu includes the following options:
Option Description
Timer 1
Timer 2
Program Select to set the Timer by day, time, duration,
and channel.
OFF Select to turn off the Timer. (Your previous
settings will be saved.)
Current Time Set the current time.
Daylight Saving ON Select in the Spring to adjust the time during
Daylight Saving Time.
OFF Select in the Fall to adjust the time at the end
of Daylight Saving Time.
Using the Menus
67
Using the Menus
Using the Setup Menu
To select the Setup Menu
1
11
1
Press
MENU
.
2
22
2
Move the joystick to the Setup
icon and press .
3
33
3
Use the joystick to scroll
through the features.
4
44
4
Press to select a feature.
That feature’s options appear.
5
55
5
Use the joystick to scroll through the options.
6
66
6
Press to select the desired option.
7
77
7
Press
MENU
to exit the menu screen.
Selecting
Setup Options
The Setup menu includes the following options:
Option Description
Parental Control Allows you to set up the LCD projection TV to block programs
according to their content and rating levels. For details about
setting, see “Using the Parent Menu” on page 69.
Caption Vision Allows you to select from three closed caption modes (for
programs that are broadcast with closed captioning).
OFF Turns off Caption Vision.
CC1, CC2,
CC3, CC4
Displays a printed version of the
dialog or sound effects of a program.
(Should be set to CC1 for most
programs.)
TEXT1, TEXT2,
TEXT3, TEXT4
Displays network/station information
presented using either half or the
whole screen (if available). For closed
captioning, set to CC1.
XDS
(Extended Data
Service)
Displays a network name, program
name, program length, and time of the
show if the broadcaster offers this
service.
(Continued)
Using the Menus
68
Video Label Allows you to label the audio/video components you connected
to the LCD projection TV so you can identify them when using
TV/VIDEO. When in the Setup menu’s Video Label feature,
use the joystick to highlight an input to label, then press to
select it. Use the joystick to scroll through the labels. Press
to select the component you connected to each of the input
jacks on the back of your LCD projection TV. Select “Skip” if
you do not have a component connected to a particular set of
input jacks.
VIDEO 1/2/3/4 VHS, 8mm, Beta, LD, Game, SAT,
DVD, Web, Receiver, DTV, Skip
VIDEO 5/6 DVD, DTV, HD, Skip
If you select “Skip,” your LCD projection TV skips this
connection when you press TV/VIDEO.
✍
When you select “Receiver” on Video Label, your LCD
projection TV’s input is fixed (for VIDEO 1 only).
Language Select to display all on-screen menus in your language of
choice: English, Español, Français.
Image Revision The factory setting is Auto and your LCD projection TV
automatically adjusts the doubled images, ghosts, or merged
colors. If the “Auto” setting does not take effect, use the
joystick to select the value from 0 to 3 with which the
symptoms mentioned above are most improved.
Option Description
Using the Menus
69
Using the Menus

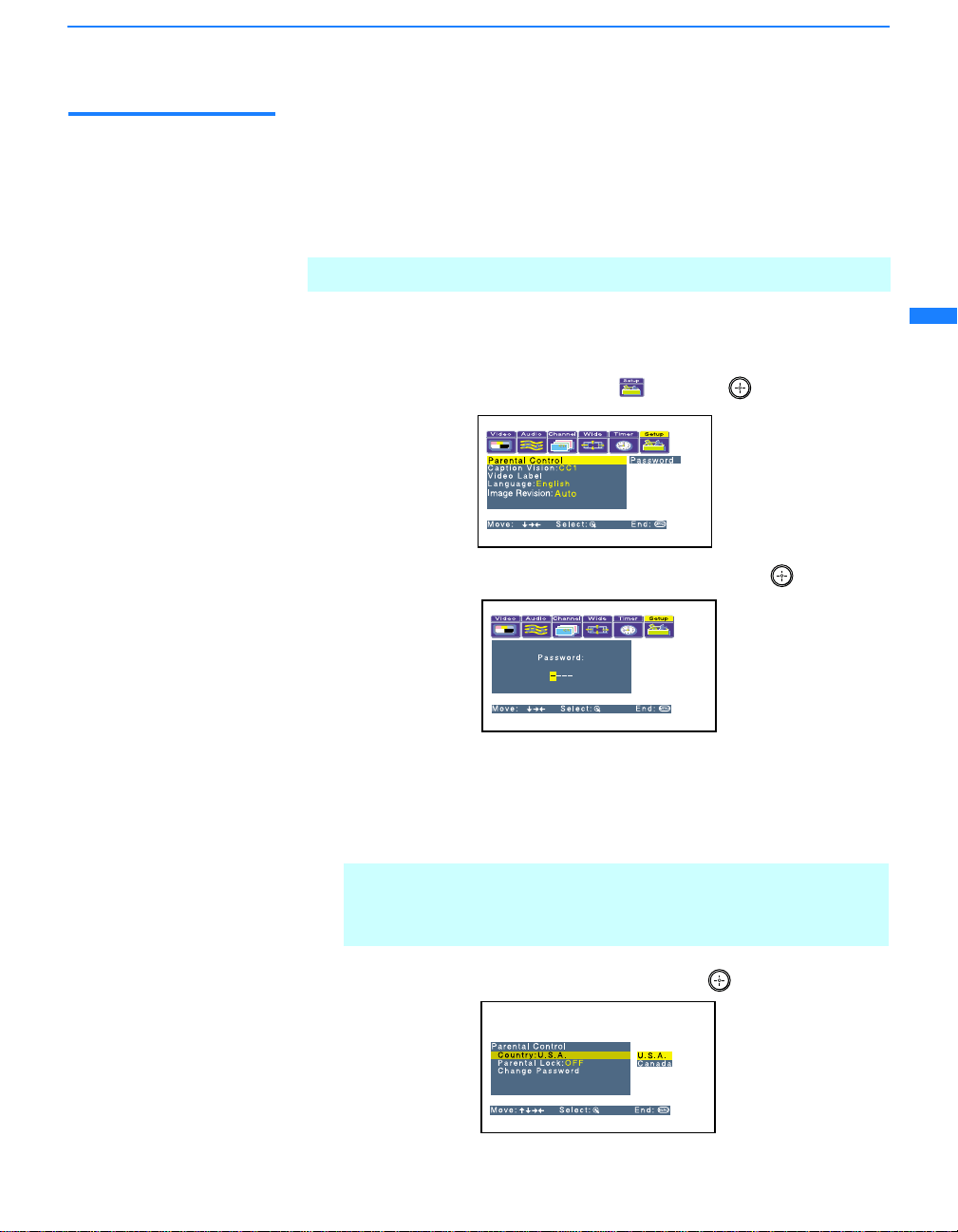

Using the Parent
Menu
The Parent menu allows you to set up the LCD projection TV to block
programs according to their content and rating levels.
These ratings are assigned by a federal rating board. Not all programs are
rated. Using the Parental Lock blocks programs with a specific rating, but it
does not block an entire channel.
To select the rating
1
11
1
Press
MENU
.
2
22
2
Move the joystick to the Setup icon and press .
3
33
3
Make sure that “Parental Control” is selected, and press .
4
44
4
Use the
0-9
buttons
on the remote control to enter your four-digit
password.
5
55
5
Confirm your password by entering it again. Your password is stored
and the Parent menu options appear.
6
66
6
Make sure that “Country” is selected, and press .
✍
Scrolling Channel Index will not function when Parental Lock is activated.
✍
You need the password entered here for any future access into the Parent
menu. If you lose your password, see “Lost password” on page 83.
✍
If you want to change the password, see page 71.
(Continued)
Using the Menus
70
7
77
7
Move the joystick up or down to select U.S.A. or Canada according to
the country you reside in, and press .
8
88
8
Move the joystick down to select “Parental Lock”, and press .
9
99
9
Move the joystick up or down to select a desired rating, and press .
If you select Child, Youth, Young Adult or Custom, the Parental Control
is activated automatically.
If you want to select the ratings from Custom, see “Using Custom
Rating Options” on page 72.
10
1010
10
Press
MENU
to exit the menu screen.
Using the Menus
71
Using the Menus
The Parent menu includes the following options.
To deactivate the Parental Control feature
❑
Set
Parental Lock
to
OFF
when in the Parent menu.
To change the password
1
11
1
Select
Change Password
option when in the Parent menu using the
joystick, and press .
2
22
2
Enter a new four-digit password using the
0-9
buttons.
3
33
3
Confirm the new password by entering it again.
4
44
4
Press
MENU
to exit the menu screen.
Viewing Blocked
Programs
You can view a blocked program by entering the password.
1
11
1
Press
ENTER
when tuned to a blocked program.
2
22
2
Enter your password using the
0-9
buttons.
Parental Control will be canceled temporarily until you turn your LCD
projection TV off.
Option Description
Parental Lock
Turn ratings on/
off and select a
rating system
OFF Parental lock is off. No programs are blocked
from viewing.
Child Maximum ratings permitted are:
❏ US: TV-Y, TV-G, G
❏ Canada: TV-Y, C, G
Yo u th Maximum ratings permitted are:
❏ US: TV-PG, PG
❏ Canada: TV-PG, PG, 8 ans+
Young Adult Maximum ratings permitted are:
❏ US: TV-14, PG-13
❏ Canada: TV-14, 14+, 13 ans+
Custom Select to set ratings manually.
❏ US: See page 75 for details.
❏ Canada: See page 76 for details.
Change
Password
For changing your password. (see below)
If you are not familiar
with the Parental Guideline
rating system, you should
select Child, Youth, or
Young Adult to help
simplify the rating
selection. To set more
restrictive ratings, select
Custom.
For descriptions of
Child, Youth, and Young
Adult ratings, see pages
75 and 76.
z
z
Using the Menus
72

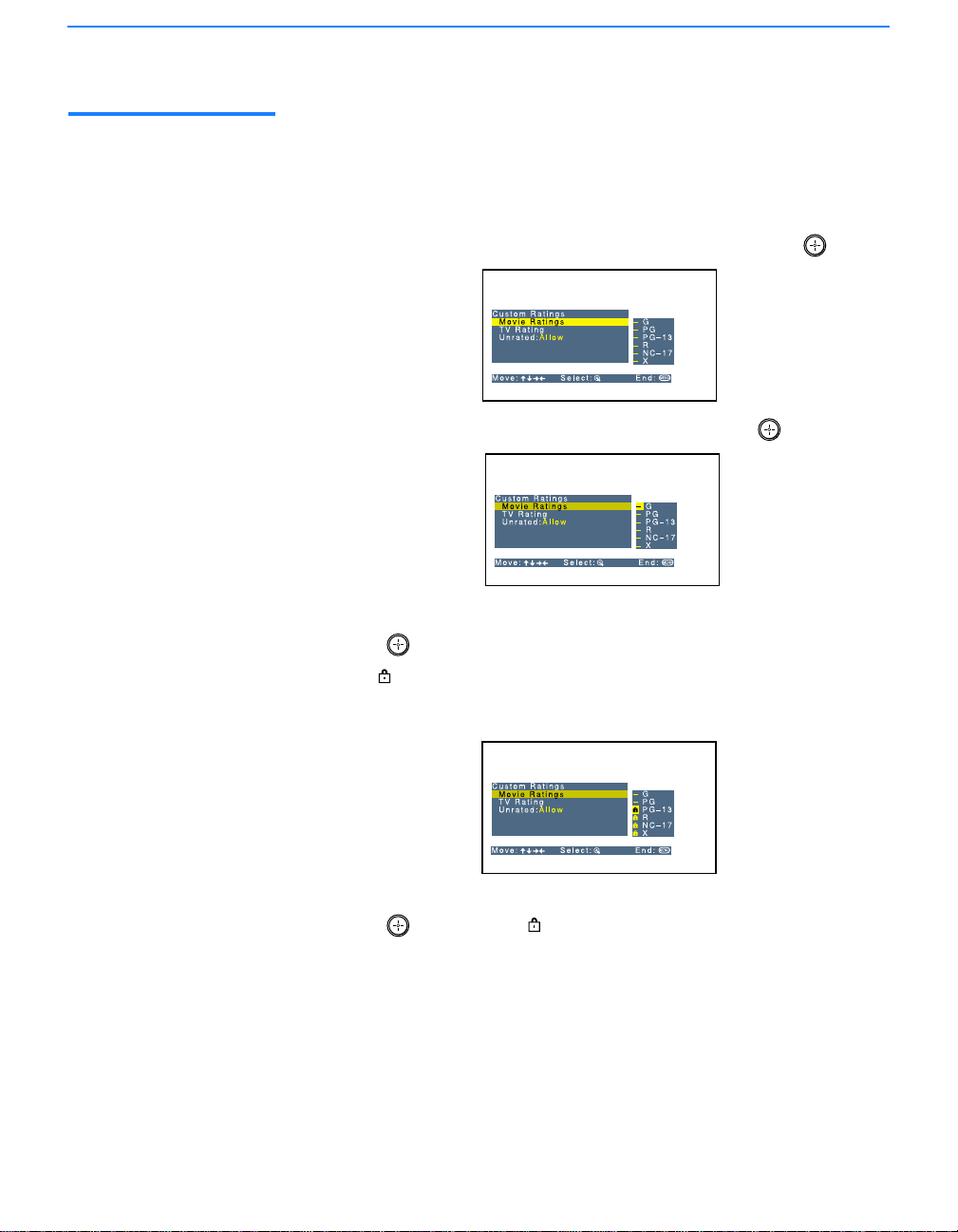

Using Custom
Rating Options
If you want to select the ratings to be blocked from Custom, follow the
procedure below.
1
11
1
Perform the steps 1 to 8 in “To select the rating” on page 69 to display
the Parental Lock options.
2
22
2
Move the joystick up or down to select “Custom,” and press .
3
33
3
Make sure that “Movie Ratings” is selected, and press .
4
44
4
Move the joystick up or down to select the rating to be blocked, and
press .
The indicator automatically appears beside the selected rating and all
“higher” ratings, indicating that the programs that match the ratings will
be blocked.
To unblock a rating, select it by moving the joystick up or down, then
press . The indicator changes into “-” and all “lower” ratings are
unblocked.
Using the Menus
73
Using the Menus
5
55
5
Move the joystick left, then down, to select “TV Rating” or “Program,”
and press .
6
66
6
The “TV Rating” setting menu appears.
7
77
7
Move the joystick up or down to select the rating to be blocked, and
press .
The indicator automatically appears beside the selected rating and all
“higher” ratings, indicating that the programs that match the ratings will
be blocked.
To unblock a rating, select it by moving the joystick up or down, then
press . The indicator changes into “-” and all “lower” ratings are
unblocked.
Some TV ratings have additional content ratings called “extenders.” The
extenders are defined as follows: D (sexually suggestive Dialog), FV
(Fantasy Violence), L (Coarse Language), S (Sexual situations) and V
(Violence). By setting the extenders, you can define additional viewing
limits. All of the extenders included in the selected ratings will be
blocked. If you wish to allow any of them to be viewed, go to step 8.
(Continued)
Using the Menus
74
8
88
8
Move the joystick left or right to select the extender to be viewed, and
press .
“-” appears beside the selected extender, indicating that the programs
that match the extender can be viewed.
If you press again, is displayed to show that the programs that
match the extender will be blocked again.
9
99
9
Repeat step 8 for other extenders.
All programs that match the ratings you select and higher, except for the
extenders that were canceled, will be blocked.
10
1010
10
Press
MENU
to exit the menu screen.
Using the Menus
75
Using the Menus
US custom rating options
If you selected U.S.A. as the country of residence on page 70, the Custom
Rating Menu includes the following options. (If you selected Canada, see
page 76.)
To ensure maximum blocking capability, the age-based ratings should be
blocked.
Option Description
Movie Rating G All children and General Audience.
PG Parental Guidance suggested.
PG-13 Parental Guidance for children under 13.
R Restricted viewing, parental guidance is suggested
for children under 17.
NC-17
and X
No one 17 and under allowed.
TV Rating
Block programs
by their rating,
content or both
Age-Based Options
TV-Y All children.
TV-Y7 Directed to older children.
TV-G General Audience.
TV-PG Parental Guidance suggested.
TV-14 Parents Strongly cautioned.
TV-MA Mature Audience only.
Content-Based Options
FV Fantasy Violence.
D Suggestive Dialogue.
L Strong Language.
S Sexual situations.
V Violence.
Unrated
Block programs
or movies that are
broadcast without
a rating
Block Blocks all programs and movies that are broadcast
without a rating.
Allow Allows programs and movies that are broadcast
without a rating.
If you select “Block,” please be aware that the
following programs may be blocked: emergency
broadcasts, political programs, sports, news, public
service announcements, religious programs and
weather.
✍
The content ratings will increase depending on the level of the age-based rating.
For example, a program with a TV-PG V (Violence) rating may contain moderate
violence, while a TV-14 V (Violence) rating may contain more intense violence.
z
z
(Continued)
Using the Menus
76
Canadian custom rating options
If you selected Canada as the country of residence on page 70, the Custom
Rating Menu includes the following options. (If you selected U.S.A., see
page 75.)
Option Description
English Rating C All children.
C8+ Children 8 years and older.
G General programming.
PG Parental Guidance.
14+ Viewers 14 and older.
18+ Adult programming.
French Rating G General programming.
8 ans+ Not recommended for young children.
13 ans+ Not recommended for ages under 13.
16 ans+ Not recommended for ages under 16.
18 ans+ Programming restricted to adults.
USA Rating See “TV Rating” on page 75 for details.
77
Other Information
Other Information
Programming the Remote Control
The remote control is preset to operate Sony brand video equipment.
If you have video equipment other than Sony brand that you want to control
with the LCD projection TV’s remote control, use the following procedures
to program the remote control.
From the “Manufacturer’s Codes” listed on page 79, select the three-digit
code number for the manufacturer’s code for your component. If more than
one code number is listed, start with the number listed first. Use the code
number to complete the following procedure.
To program a cable box or a satellite receiver
1
11
1
Open the panel of the remote control.
2
22
2
Press
CODE SET
inside the panel.
3
33
3
Close the panel and press
SAT/CABLE (FUNCTON)
.
4
44
4
Enter the three-digit manufacturer’s code number using the
0-9
buttons.
5
55
5
Press
ENTER
.
6
66
6
To check if the code number works, aim the LCD projection TV’s
remote control at the component and press the green POWER
button
that corresponds with that component. If it responds, the programming
is completed. If not, try using the other codes listed for that
manufacturer.
Sony
Equipment
Switch Position
on Remote Control
Programmable
Code Number
Beta, ED Beta VCRs AV1 303
8 mm VCR AV2 302
VHS VCR AV3 301
DVD Player DVD 751
✍
The equipment must have infrared (IR) remote capability in order to be
used with the remote control.
(Continued)
Other Information
78
To program video equipment
1
11
1
Open the panel of the remote control.
2
22
2
Move the slide switch to the desired component type.
3
33
3
Press
CODE SET
inside the panel.
4
44
4
Close the panel and enter the three-digit manufacturer’s code number
using the
0-9
buttons.
5
55
5
Press
ENTER
.
6
66
6
To check if the code number works, aim the LCD projection TV’s
remote control at the component, open the panel, and press the green
POWER
button. If it responds, the programming is completed. If not, try
using the other codes listed for that manufacturer.
Tips
❑
If more than one code number is listed, try entering them one by one
until you come to the correct code for your component.
❑
If you enter a new code number, the code number you previously
entered at that setting is erased.
❑
In some rare cases, you may not be able to operate your component with
the Sony remote control. In this case, use the component’s own remote
control unit.
✍
You must perform step 4 within 10 seconds of step 3, or you must
start again from step 3.
Other Information
79
Other Information
Manufacturer’s Codes
VCRs
DVD Players
Cable Boxes
Satellite Receivers
Manufacturer Code
Sony 301
Admiral
(M. Ward)
327
Aiwa 338, 344
Audio Dynamic 314, 337
Broksonic 319, 317
Canon 309, 308
Citizen 332
Craig 302, 332
Criterion 315
Curtis Mathes 304, 338, 309
Daewoo 341, 312, 309
DBX 314, 336, 337
Dimensia 304
Emerson 319, 320, 316,
317, 318, 341
Fisher 330, 335
Funai 338
General Electric 329, 304, 309
Go Video 322, 339, 340
Goldstar 332
Hitachi 306, 304, 305,
338
Instant Replay 309, 308
JC Penney 309, 305, 304,
330, 314, 336,
337
JVC 314, 336, 337,
345, 346, 347
Kenwood 314, 336, 332,
337
LXI (Sears) 332, 305, 330,
335, 338
Magnavox 308, 309, 310
Marantz 314, 336, 337
Marta 332
Memorex 309, 335
Minolta 305, 304
Mitsubishi/
MGA
323, 324, 325,
326
Multitech 325, 338, 321
NEC 314, 336, 337
Olympic 309, 308
Optimus 327
Panasonic 308, 309, 306,
307
Pentax 305, 304
Philco 308, 309
Philips 308, 309, 310
Pioneer 308
Quasar 308, 309, 306
RCA/
PROSCAN
304, 305, 308,
309, 311, 312,
313, 310, 329
Realistic 309, 330, 328,
335, 324, 338
Sansui 314
Samsung 322, 313, 321
Sanyo 330, 335
Scott 312, 313, 321,
335, 323, 324,
325, 326
Sharp 327, 328
Shintom 315
Signature 2000
(M. Ward)
338, 327
SV2000 338
Sylvania 308, 309, 338,
310
Symphonic 338
Tashiro 332
Tatung 314, 336, 337
Teac 314, 336, 338,
337
Technics 309, 308
Toshiba 312, 311
Manufacturer Code
Wards 327, 328, 335,
331, 332
Yamaha 314, 330, 336,
337
Zenith 331
Manufacturer Code
Sony 751
Panasonic 753
Pioneer 752
RCA 755
Toshiba 754
Manufacturer Code
Hamlin/Regal 222, 223, 224,
225, 226
Jerrold/G. I. 201, 202, 203,
204, 205, 206,
207, 208, 218
Oak 227, 228, 229
Panasonic 219, 220, 221
Pioneer 214, 215
Scientific
Atlanta
209, 210, 211
Tocom 216, 217
Zenith 212, 213
Manufacturer Code
Sony 801
General
Electric
802
Hitachi 805
Hughes 804
Panasonic 803
RCA/
PROSCAN
802, 808
Toshiba 806, 807
Manufacturer Code
Other Information
80
Operating Other Components with Your LCD Projection TV
Remote Control
Operating a VCR
Open the panel and move the slide switch to the AV input you coded for this
device.
Operating a DVD
Player
Open the panel and move the slide switch to the DVD input you coded for
this device.
To Do This ... Press
Turn on/off green POWER button (inside the panel)
Change channels CH +/–
Record N and REC simultaneously
Play N
Stop x
Fast forward M
Rewind the tape m
Pause X (press again to resume normal playback)
Search the picture
forward or backward
M or m during playback
(release to resume normal playback)
Change input mode Slide switch
To Do This ... Press
Turn on/off green POWER button (inside the panel)
Play N
Stop x
Pause X (press again to resume normal playback)
Step through different tracks of
an audio disc
M to step forward or m to step backward
Step through different chapters
of a video disc
CH+ to step forward or CH– to step backward
Display the DVD menu DVD MENU
Display the menu (Setup) MENU
Operate the DVD menu M, m, <, ,, ENTER
Other Information
81
Other Information
Operating a Cable
Box
Operating a Satellite
Receiver
To Do This ... Press
Turn on/off SAT/CABLE (POWER)
Select Cable Box SAT/CABLE (FUNCTION)
Select a channel 0-9 buttons, ENTER
Change channels CH +/–
Back to previous channel JUMP
To Do This ... Press
Turn on/off SAT/CABLE (POWER)
Select Satellite Receiver SAT/CABLE (FUNCTION)
Select a channel 0-9 buttons, ENTER
Change channels CH +/–
Back to previous channel JUMP
Display channel number DISPLAY
Display DBS guide GUIDE
Display DBS menu MENU
Move highlight (cursor) Joystick or arrows
Select item
Other Information
82
Troubleshooting
If, after reading these operating instructions, you have additional questions related to the use of your
Sony television, please call our Customer Information Services Center at 1-800-222-SONY (7669) (U.S.
residents only) or (416) 499-SONY (7669) (Canadian residents only).
Problem Possible Remedies
No picture
(screen not lit),
no sound
❏ Make sure the LCD projection TV’s power cord is connected securely to the wall
outlet.
❏ Push the power button on the front of the LCD projection TV.
❏ Check to see if the TV/VIDEO setting is correct: when watching TV, set to TV,
and when watching connected equipment, set to VIDEO 1, 2, 3, 4, 5 or 6.
❏ Try another channel. It could be station trouble.
❏ The Parental Control feature is activated (see “Using the Parent Menu” on page
69).
❏ If your LCD projection TV does not turn on, and a red light keeps flashing, your
LCD projection TV may need service. Call your local Sony Service Center.
Remote control
does not operate
❏ Batteries could be weak. Replace the batteries.
❏ Press TV (FUNCTION) when operating your LCD projection TV.
❏ Make sure the LCD projection TV’s power cord is connected securely to the wall
outlet.
❏ Locate the LCD projection TV at least 3-4 feet away from fluorescent lights.
❏ Check the orientation of the batteries.
Dark, poor or no
picture (screen lit),
good sound
❏ Adjust the Picture setting in the Video menu (see page 58).
❏ Adjust the Brightness setting in the Video menu (see page 58).
❏ Check antenna/cable connections.
It is strongly recommended to connect the antenna using a 75-ohm coaxial cable
to get optimum picture quality. A 300-ohm twin lead cable can be easily affected
by radio noise and the like, resulting in signal deterioration. If you use a 300-ohm
twin lead cable, keep it away as far as possible from the LCD projection TV.
Do not use an indoor antenna because it is especially susceptible to radio noise (see
page 25).
Good picture,
no sound
❏ Press MUTING so that “MUTING” disappears from the screen (see page 43).
❏ Make sure Speaker is set to ON in the Audio menu (see page 61).
❏ Check the MTS setting in the Audio menu (see “MTS” on page 61).
Cannot receive digital channels
(when a DTV receiver is
connected)
❏ Check the connections between the DTV receiver and the LCD projection TV (see
page 38).
❏ Check your local listings to find out if you can receive digital broadcasts in your
area.
Cannot receive upper channels
(UHF) when
using an antenna
❏ Change Cable to OFF (see page 62).
❏ Use Auto Program in the Channel menu to add receivable channels that are not
presently in TV memory (see page 63).
No color ❏ Adjust the Color settings in the Video menu (see page 58).
Only snow and noise
appear on the screen
❏ Check the Cable setting in the Channel menu (see “Cable” on page 62).
❏ Check the antenna/cable connections.
❏ Make sure the channel is broadcasting programs.
❏ Press ANT to change the input mode (see page 46).
Other Information
83
Other Information
Dotted lines
or stripes
❏ Adjust the antenna.
❏ Move the LCD projection TV away from noise sources such as cars, neon signs, or
hair-dryers.
LCD projection TV is fixed to
one channel
❏ Use Auto Program in the Channel menu to add receivable channels that are not
presently in TV memory (see page 63).
❏ Check your Channel Fix settings (see page 63).
Double images, ghosts, or
merged colors
❏ Use a highly directional outdoor antenna or a cable (when the problem is caused by
reflections from nearby mountains or tall buildings).
❏ Set the Image Revision to an appropriate value. The default setting is Auto. If
ghosts, doubled images, or merged colors appear with Auto, select the best value
from 0 to 3 (see page 68).
Cannot operate menu ❏ If the item you want to choose appears in gray, you cannot select it.
❏ Turn the LCD projection TV’s power off and on again.
Cannot receive any channels
when using cable TV
❏ Use Auto Program in the Channel menu to add receivable channels that are not
presently in TV memory (see page 63).
❏ Check your cable settings.
❏ Make sure Cable is set to ON in the Channel menu (see page 62).
Cannot gain enough volume
when using a cable box
❏ Increase the volume of the cable box using the cable box’s remote control. Then
press TV (FUNCTION) and adjust the LCD projection TV’s volume.
Channel Index does not display
all available channels
❏ Make sure Cable is set to ON in the Channel menu (see “Cable” on page 62).
❏ Use Auto Program in the Channel menu to add receivable TV channels that are
not presently in TV memory (see page 63).
Cannot receive channels
Unable to select a channel
❏ Use Auto Program in the Channel menu to add receivable TV channels that are
not presently in TV memory (see page 63).
Lost password ❏ In the password screen (see page 69), enter the following master password: 4357.
The master password clears your previous password; it cannot be used to
temporarily unblock channels.
Cannot change channels with
the remote control
❏ Be sure you have not inadvertently switched your LCD projection TV from
channel 3 or 4 setting if you are using another device to change channels.
❏ If you are using another device to control channels, be sure the “function” button
for that device has been pressed, or the slide switch is set correctly. For example, if
you are using your cable to control channels, be sure to press SAT/CABLE.
Cannot cycle through the other
video equipment connected to
the LCD projection TV
❏ Be sure the Video Label feature has not been set to Skip (see page 68).
There is a black box on the
screen
❏ You have selected a text option in the Setup menu and no text is available. (see
page 67 to reset Setup selections) To turn this feature off, select OFF in the
Caption Vision option. If you were trying to get closed captioning, select CC1
instead of Text 1-4.
Problem Possible Remedies
(Continued)
Other Information
84
There is no twin picture or it is
just static
❏ Be sure your twin picture is set to a video source/channel that has a program airing.
❏ You may be tuned to a video input with nothing connected to it. Try cycling
through your video inputs using TV/VIDEO.
❏ Twin View is not set to receive a signal from the AUX input. If you have
connected a VCR, DVD player or satellite receiver to the AUX input on the LCD
projection TV, it will not show in the second picture.
You get the same program in the
window picture as in the main
❏ Both may be set to the same channel. Try changing channels in either the main
picture or the window picture.
❏ You may be running all your channels through a cable box. The cable box will
only unscramble one signal at a time, so you cannot use the Twin View feature. If
possible, run a direct cable to your LCD projection TV’s VHF/UHF input (this will
only work if your cable system provides an unscrambled signal.)
You cannot get anything but TV
channels in your second picture
❏ Be sure the video label has not been set to skip your video inputs. See the Setup
menu on page 68.
Favorite Channel does not
display your choices
❏ Verify that Favorite Channel is set to Manual in the Channel menu (see
“Favorite Channel” on page 62).
Some video sources do not
appear when you press TV/
VIDEO
❏ Ensure that Video Label is not set to “Skip” (see “Video Label” on page 68).
Problem Possible Remedies
Other Information
85
Other Information
What Flashing of the Indicators on the Front of the Monitor
Means
The TIMER/STAND BY (red) and/or LAMP (red) indicators indicate the
conditions of the LCD projection TV and warnings by lighting or flashing,
as follows.
The TIMER/STAND BY indicator flashes.
❑
The lamp for the light source is ready to turn on.
The TIMER/STAND BY indicator flashes three times.
❑
The lamp cover is not attached securely. When you correct, the TIMER/
STAND BY indicator goes out and the LCD projection TV enters the
standby mode (see page 13).
The LAMP indicator flashes.
❑
The lamp for the light source burns out.
Replace it with new one (see page 13).
If the LCD projection TV is not recovered after correcting the problems,
contact with qualified Sony personnel.
TIMER/STAND BYSTEREOLAMP
Other Information
86
Specifications
Projection System 3 LCD Panels, 1 lens projection system
LCD Panel 1.35 inch TFT LCD panel Approx. 3.15 million dots (1,049,088 pixels)
Projection Lens High Performance, large diameter hybrid lens F2.4
Antenna 75 ohm external terminal for VHF/UHF
Lamp UHP lamp, 100W
XL-2000U
Television System NTSC, American TV Standard
Screen Size (measured diagonally) 60 inches
Channel Coverage
VHF 2-13
UHF 14-69
CATV 1-125
Power Requirements 120V, 60 Hz
Number of Inputs/Outputs
Video (IN) 4 1 Vp-p, 75 ohms unbalanced, sync negative
S Video (IN) 3 Y: 1 Vp-p, 75 ohms unbalanced, sync
negative
C: 0.286 Vp-p (Burst signal), 75 ohms
Audio (IN) 6 500 mVrms (100% modulation)
Impedance: 47 kiloohms
AUDIO (VAR/FIX) 1 500 mVrms at the maximum volume setting
(Variable)
500 mVrms (Fixed)
Impedance (output): 2 kiloohms
TV Out 1 Video: 1 Vp-p 75 ohms unbalanced, Sync
negative
Audio: 500 mVrms (100% modulation)
Impedance (output): 1 kiloohms
CONTROL S (IN/OUT) 1 minijacks
Component Video Input 2 (Y, P
B
, P
R
) Y: 1.0 Vp-p, 75 ohms unbalanced, sync
negative
P
B
: 0.7 Vp-p, 75 ohms
P
R
: 0.7 Vp-p, 75 ohms
RF Inputs 2
Converter 1
Speaker Output 15 W × 2
Dimensions (W × H × D) 1,618 × 1,103 × 542 mm (63
3
/
4
× 43
1
/
2
× 21
3
/
8
inches)
Mass 63 kg (138 lb 14 oz)
Power Consumption
In Use 220 W
In Standby Under 1 W
Other Information
87
Other Information
Design and specifications are subject to change without notice.
Supplied Accessories
Remote Control RM-Y910
AA Batteries 2 supplied for remote control
Cleaning Cloth 1
Hex key wrench 1
Brackets with screws 2
Optional Accessories
TV Stand SU-60DX
Lamp XL-2000U
AV Cable VMC-810/820/830 HG
Audio Cable RKC-515HG
Control S Cable RK-G69HG
Component Video Cable VMC-10/30 HG
AV Receiver STR-V555ES or equivalent
88
Index
A
Activating a Twin View screen
50
Adding channels to the channel list
63
Adjusting audio, Steady Sound
60
ANT button
43
Antenna, connecting
25
Audio menu
57, 60
Audio receiver, connecting
35
Audio/Video cable
21
Auto Program (channel setup)
42, 63
Auto Setup
42, 63
AV receiver, connecting to TV OUT
24
B
Balance, adjusting
60
Bass, adjusting
60
Batteries, inserting in remote
17
Bilingual audio
61
Brightness, adjusting
58
C
Cable
connecting
25–28
setting ON/OFF
63
with VCR, connecting
29
Cable box
connecting with VCR
30
using with TV remote control
81
Camcorder, connecting
39
Caption Vision
67
CATV. See Cable.
Channel list, adding channels
63
Channel menu
57, 62
Channel Skip/Add
63
Channels
Auto Program
63
creating labels
63
setting up
42
CineMotion
44
CINEMOTION button
44
Cleaning Cloth
12
Closed caption modes
67
CODE SET button
45
Color temperature, adjusting
59
Color, adjusting
58
Connecting
Audio receiver
35
AV receiver
40
Cable box
26–28, 30–31
Cable or antenna
25
Camcorder
39
Digital TV Receiver
38
DVD player
36, 37
Satellite receiver
33, 34
VCR
30–32, 34
Connector Types
21
Contents of box
17
CONTROL S
41
D
Daylight saving
66
Digital Reality Creation
59
Digital TV
connecting
38
watching
48
Digital TV program
48
Digital TV receiver, connecting
38
DISPLAY button
43
Display, turning off
43
DRC (Digital Reality Creation) Mode, described
9
DVD MENU button
45
DVD player
using with TV remote control
80
with A/V connectors, connecting
37
with component video connectors, connecting
36
E
Enlarging pictures, in Twin View
52
Extended Data Service
67
F
Favorite Channel
auto
62
described
9
manual
62
setting up
62
using
49
FAVORITES button
44
Features
9
FREEZE button
43
Freeze, using
46, 53
89
Other Information
Front Panel Controls
22
FUNCTION buttons (WHITE)
44
H
Hookups
25
Hue, adjusting
58
I
Image Revision
68
Inputs, labeling
68
Installation of the projection TV
25–41
J
JUMP button
43
Jump, using
46
L
Label
channels
63
video inputs
68
Lamp, replacing
13–16
M
MENU button
44
MENU button (inside panel)
45
Menus
Audio
57, 60
Channel
57, 62
Setup
57, 67
Timer
57, 66
Video
57, 58
Wide
57, 64
MODE
Mild
47
Movie
47
Standard
47
Vivid
47
MTS/SAP button
45
MTS/SAP, using
47
Muting, using
46
P
Parental control, described
9
Password, changing
71
PIC MODE button
43
Picture contrast, adjusting
58
Picture size, adjusting in Twin View
52
POWER button
45
POWER buttons (GREEN)
44
Presetting channels
42
Problems, troubleshooting
82–85
R
Ratings
setting
69–71
viewing blocked programs
71
Rear panel controls and connections
23, 24
Remote control
buttons inside panel
45
Function of buttons
46
inserting batteries
17
programming
77–79
Remote control, operating other components with
Cable box
81
DVD player
80
Satellite receiver
81
VCR
80
Removing channels from the channel list
63
RESET button
44
Resetting
Audio options
60
Timer options
66
Video options
58
S
S Video cable
21
SAT/CABLE function button
44
SAT/CABLE power button
44
Satellite receiver
connecting
33
using with TV remote control
81
Setting up channels
42
Setup menu
57, 67
Sharpness, adjusting
58
SLEEP button
43
Sleep, using
46
Specifications
86–87
Steady Sound
adjusting
60
Surround sound
60
SYSTEM OFF button
45
T
Time
set current
66
set daylight saving
66
Timer menu
57, 66
Timer setting
66
(Continued)
90
Treble, adjusting
60
Troubleshooting
82–85
TV function button
44
TV power button
44
TV/VIDEO button
44
Twin View™
activating a picture
50
described
9
using
50
V
VCR
using with TV remote control
80
with cable box, connecting
30
with cable, connecting
29
with satellite receiver, connecting
34
Video inputs, labeling
68
Video menu
57, 58
Video Modes, selecting
58
Viewing area, recommended
20
VOL +/– button
43
W
Wide menu
57, 64
Z
Zoom feature, with Twin View
52
If, after reading this instruction manual, you have additional
questions related to the use of your Sony projection TV,
please call one of the following numbers (English only).
Customers in the continental United States
contact the Direct Response Center at:
1-800-222-SONY (7669)
Customers in Canada contact the
Customer Relations Center at:
(416) 499-SONY (7669)
Printed in Japan
