ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Index
Table of Contents
WARNING .......................................................5
Notice for users ................................................7
Preparing the recorder
Checking the Parts and Controls ...........8
Using the Display Window ....................10
Preventing Unintentional Operations
(HOLD) ...............................................16
Maintaining the Moderate Volume
Level (AVLS) (For European models
only) .....................................................17
Recharging the Battery ..........................18
Recharging the battery using a
computer ......................................................18
Recharging the battery using a USB AC
adaptor .........................................................19
Inserting a Memory Card ......................20
Turning the IC Recorder On .................22
Turning the power on ....................................22
Turning the power off ...................................22
Setting the Clock ...................................23
Setting the clock after recharging the
battery ...........................................................23
Setting the clock using the menu .................24
Setting the Language to Be Used in the
Display Window ..................................26
Selecting a Folder, File, Tab, and
Memory ...............................................27
Selecting a folder and a file ...........................27
Selecting a tab .................................................28
Selecting the memory ....................................29
Recording Files
Basic Recording ....................................31
Monitoring the recording .............................32
Stopping the recording ..................................33
Other operations ............................................33
Changing the Recording Settings .........34
Selecting a recording scene for each
situation ........................................................34
Tips for better recording ...............................35
Changing the Scene Select settings ..............36
Changing the Scene Select setting to
the default values .........................................37
Starting to Record Automatically in
Response to Sound
– the VOR Function ............................38
Recording via Other Devices ................39
Recording with an external microphone ....39
Recording from other equipment ................40
Playing Files
Basic Playback ......................................42
Stopping playback ..........................................42
Other operations ............................................43
Display when playing back a file ..................44
Changing the Playback Settings ............45
Reducing noise in the playback sound
and making the human voice clearer
– the noise cut function ..............................45
Adjusting the playback speed – the DPC
(Digital Pitch Control) function ...............46
Selecting the sound effect .............................47
Selecting the playback mode ........................49
Convenient playback methods .....................51
Selecting a Recording Date from the
Calendar and Playing Back .................52
Playing Back a File at a Desired
Time with an Alarm ............................54
Playback via Other Devices ...................56
Recording with other equipment .................56
Erasing Files
Erasing a File ........................................57
Erasing All Files in a Folder ..................58
Editing Files
Arranging Files in a Folder ...................59
Moving a file to a different folder ................59
Copying a file to the other memory ............60
Using a Track Mark ...............................61
Adding a track mark ......................................61
Erasing a track mark ......................................62
Erasing all the track marks in the
selected file at one time ..............................63
Dividing a File .......................................64
Dividing a file at the current position .........64
Dividing a file at all the track mark
positions .......................................................65
Renaming a Folder and a File................66
Changing a folder name ................................66
Changing a file name .....................................67
Protecting a File .....................................68
3
3
Table of
Contents
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Index
Listening to the FM Radio
(ICD-UX522F/UX523F only)
Tuning in an FM Radio Station .............69
Tuning in a radio station by scanning
frequencies ...................................................69
Tuning in a preset radio station ...................70
Recording FM broadcasts .............................71
Presetting FM Radio Stations ...............72
Presetting FM radio stations
automatically ................................................72
Presetting FM radio stations manually .......73
Erasing preset FM radio stations .................74
Changing the FM Radio Reception
Settings ................................................75
Switching the receiver sensitivity of the
FM radio .......................................................75
Switching the scanning sensitivity ...............76
Switching the FM radio output between
speaker and headphones ............................77
About the Menu Function
Making Settings for the Menu ...............78
Menu Settings ........................................79
Utilizing Your Computer
Using the IC Recorder with Your
Computer ............................................95
Connecting the IC recorder to your
computer ......................................................96
Structure of folders and files .........................97
Disconnecting the IC recorder from your
computer ................................................... 100
Copying Files from the IC Recorder
to Your Computer .............................101
Copying Music Files from Your
Computer to the IC Recorder and
Playing Them Back ...........................102
Copying a music file from your
computer to the IC recorder
(drag and drop) ........................................ 102
Playing back music files copied from your
computer using the IC recorder ............. 103
Using the IC Recorder as
USB Memory .....................................104
Using the Supplied Sound Organizer
Software .............................................105
What you can do using Sound
Organizer................................................... 105
System requirements for your
computer ................................................... 107
Installing Sound Organizer ....................... 108
The Sound Organizer window .................. 110
Additional Information
Using a USB AC Adaptor.....................111
Disconnecting the IC recorder from the
AC outlet ................................................... 112
Precautions ..........................................113
Specifications.......................................115
System requirements .................................. 115
Design and specifications .......................... 117
Battery life .................................................... 120
Troubleshooting
Troubleshooting ..................................121
On the IC recorder operations .................. 121
On the Sound Organizer ............................ 129
Messages List .......................................131
System Limitations ..............................134
Trademarks ..........................................135
Listening for a Lifetime .......................136
Index ....................................................138
4
4
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-12
Note
Depending on the country/region in which you have purchased the IC recorder, some
models may not be available.
Browsing the Operation Guide
To use the buttons in the Operation Guide
Click the buttons located in the upper right of the pages of this manual to jump
to “Table of Contents,” or “Index.”
Hints
You can jump to the indicated page by clicking a page number in the table of contents or
in the index.
Yo
u can jump to the indicated page by clicking a page reference indication (e.g.,
p.
6)
on each page.
To s
earch for a reference page by keyword, enter the keyword into the find text field on
the Adobe Reader window.
Op
eration procedures may differ, depending on your Adobe Reader version.
To change the page layout
The buttons on the Adobe Reader window enable you to select how pages are
displayed.
Continuous
Pages are displayed as a continuous
roll of pages, fitting the page width
inside the window. When you scroll,
the previous or next pages scroll up
or down continuously.
Single Page
Pages are displayed one at a time,
fitting the page into the window.
When you scroll, the display changes
to the previous or next page.
Jumps to the table of contents
Find what you are looking for from a list of topics in the manual.
Jumps to the index
Find what you are looking for from a list of key words mentioned in the manual.
Text field to find text
5
5
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-13
WARNING
Do not expose the batteries (battery
pack or batteries installed) to excessive
heat such as sunshine, fire or the like
for a long time.
CAUTION
Risk of explosion if battery is replaced
by an incorrect type.
Dispose of used batteries according to
the instructions.
The recorded music is limited to
private use only. Use of the music
beyond this limit requires
permission of the copyright
holders.
Sony is not responsible for
incomplete recording/
downloading or damaged data due
to problems of the IC recorder or
computer.
Depending on the types of the
text and characters, the text
shown on the IC recorder may
not be displayed properly on
device. This is due to:
— Th
e capacity of the connected
IC recorder.
— Th
e IC recorder is not
functioning normally.
— C
ontent information is
written in the language or the
character that is not
supported by the IC recorder.
For the customers in China
RATED CURRENT
CONSUMPTION: 800 mA
AC adaptor: AC-NWUM50
For users in France
At high volume, prolonged
listening to the personal
audio player can damage the
user’s hearing.
If you need to replace the
headphones/earphones, please refer
to the headphones/earphones model
corresponding to your device and
indicated below.
MDR-E706
Disposal of Old Electrical & Electronic
Equipment (Applicable in the European
Union and other European countries
with separate collection systems)
This symbol on the
product or on its
packaging indicates that
this product shall not be
treated as household
waste. Instead it shall be
handed over to the applicable
collection point for the recycling of
electrical and electronic equipment.
By ensuring this product is disposed
of correctly, you will help prevent
potential negative consequences for
the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product. The recycling of materials
will help to conserve natural
resources. For more detailed
information about recycling of this
product, please contact your local
Civic Office, your household waste
disposal service or the shop where
you purchased the product.
Applicable accessory: Headphones
6
6
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-12
Disposal of waste batteries (applicable
in the European Union and other
European countries with separate
collection systems)
This symbol on the battery
or on the packaging
indicates that the battery
provided with this product
shall not be treated as household
waste.
On certain batteries this symbol
might be used in combination with a
chemical symbol. The chemical
symbols for mercury (Hg) or lead
(Pb) are added if the battery contains
more than 0.0005% mercury or
0.004% lead.
By ensuring these batteries are
disposed of correctly, you will help
prevent potentially negative
consequences for the environment
and human health which could
otherwise be caused by inappropriate
waste handling of the battery. The
recycling of the materials will help to
conserve natural resources.
In case of products that for safety,
performance or data integrity reasons
require a permanent connection with
an incorporated battery, this battery
should be replaced by qualified
service staff only.
To ensure that the battery will be
treated properly, hand over the
product at end-of-life to the
applicable collection point for the
recycling of electrical and electronic
equipment.
For all other batteries, please view the
section on how to remove the battery
from the product safely. Hand the
battery over to the applicable
collection point for the recycling of
waste batteries.
For more detailed information about
recycling of this product or battery,
please contact your local Civic Office,
your household waste disposal service
or the shop where you purchased the
product.
Notice for the customers: the following
information is only applicable to
equipment sold in the countries
applying EU directives
The manufacturer of this product is
Sony Corporation, 1-7-1 Konan
Minato-ku Tokyo, 108-0075 Japan.
The Authorized Representative for
EMC and product safety is Sony
Deutschland GmbH, Hedelfinger
Strasse 61, 70327 Stuttgart, Germany.
For any service or guarantee matters
please refer to the addresses given in
separate service or guarantee
documents.
To prevent possible hearing
damage, do not listen at
high volume levels for long
periods.
7
7
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-12
Notice for users
All rights reserved. This manual or
the software described herein, in
whole or in part, may not be
reproduced, translated or reduced to
any machine readable form without
prior written approval from Sony
Corporation.
IN NO EVENT SHALL SONY
CORPORATION BE LIABLE FOR
ANY INCIDENTAL,
CONSEQUENTIAL OR SPECIAL
DAMAGES, WHETHER BASED ON
TORT, CONTRACT, OR
OTHERWISE, ARISING OUT OF OR
IN CONNECTION WITH THIS
MANUAL, THE SOFTWARE OR
OTHER INFORMATION
CONTAINED HEREIN OR THE USE
THEREOF.
Sony Corporation reserves the right to
make any modification to this manual
or the information contained herein at
any time without notice.
Th
e s
oftware described herein may
also be governed by the terms of a
separate user license agreement.
Thi
s software is for Windows and
cannot be used for Macintosh.
Th
e s
upplied connection support
cable is for the IC recorder ICD-
UX522/UX522F/UX523/UX523F.
You cannot connect other IC
recorders.
Di
s
play windows in this manual
may differ from what are actually
displayed on your IC recorder
depending on the area you
purchased the IC recorder and the
settings you have made.
What you record is for personal
enjoyment and use only. Copyright
laws prohibit other forms of use
without the permission of the
copyright holders.
8
8
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Checking the Parts and Controls
Front
Operation indicator
Built-in microphones (stereo) (L)
Built-in microphones (stereo) (R)
Display window
REC (record)/PAUSE button
STOP button
Control butt
on (
, /
(review/fast backward),
(cue/fast forward))
Preparing the recorder
(play)/ENTER button*
MENU button
FOLDER button
T-MARK (Track mark) button
(microphone) jack*
(headphone) jack
ERASE button
VOL (volume) –/+* button
(repeat) A-B button
NOISE CUT switch
*
These buttons and the jack have a tactile
dot. Use it as a reference point for
operations, or to identify each terminal.
9
9
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Rear
Strap hole
(A strap is not supplied.)
Speaker
USB DIRECT slide le
ver
HOLD•POWER switch
DPC(SPEED CTRL) swit
ch
microSD memory c
ard slot
(The card slot is in the battery
compartment.)
Battery compartment
Strap hole
(A strap is not supplied.)
10
10
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11

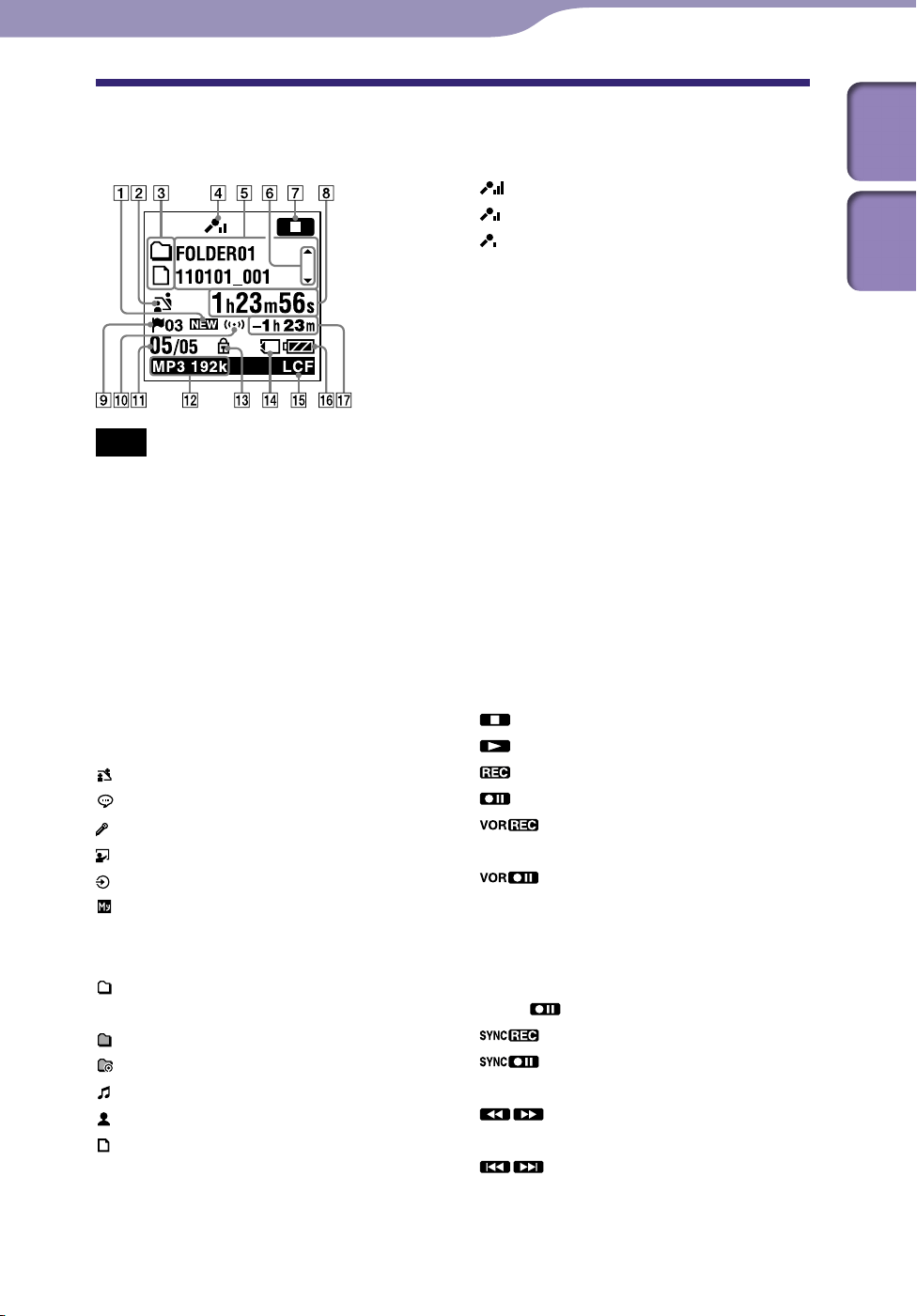

Using the Display Window
Display when stopped
Note
The above window and the other windows
in this section display indications,
numbers, or items for explanatory
purposes. The actual windows may differ
from those displayed here.
Newly arriving podcast indication
Scene select indication
Displays the currently selected scene
used for recording. Appears when a
scene is set.
: Meeting
: Voice Notes
: Interview
: Lecture
: Audio IN
: My Scene
File information type indicator
: A folder where you can record a
file
: A folder for playback only
: A folder for podcast files
: Title name
: Artist name
: File name
Microphone sensitivity indicator
: High
: Medium
: Low
File information
Displays the information for each
file according to the file information
type (folder name, title name, artist
name, file name).
Operating guide for switching file
information
You can switch the file information
display in sequence by pressing
or
.
Operation mode indicator
Displays the following, depending
on the current operation of the IC
recorder.
: stop
: playback
: recording
: recording pause (flashing)
: recording with the VOR
function
: recording pause with the
VOR function (flashing)
If y
ou press
REC/PAUSE to
pause recording when “VOR” is
set to “ON” in the menu, only
“
” flashes.
: synchronized recording
: synchronized recording
pause (flashing)
: review/fast backward, cue/
fast forward
: going backward/forward
continuously
Continued
11
11
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Elapsed time/Remaining time/
Recording date and time
indication
Track mark indicator
Displays the track mark number just
before the current position. Appears
when a track mark is set for a file.
Alarm indicator
Appears when the alarm is set in a
file.
File number
The selected file number is displayed
in the numerator and the total
number of files in the folder is
displayed in the denominator.
Recording mode indicator
Displays the recording mode set
using the menu when the IC
recorder is in the stop mode or
recording mode, and displays the
recording mode of the current file
when the IC recorder is in the
playback mode.
: LPCM file recorded or
transferred with the IC recorder
, , , ,
: MP3 file recorded or
transferred with the IC recorder
When the files are transferred from
your computer, file formats only
(
/ ) are displayed.
: WMA files transferred
: AAC-LC files transferred
Displays as follows when the IC
recorder cannot get the recording
mode.
: Unknown
Protect indicator
Appears when the protection is set
for a file.
Memory card indication
Appears when “Memory Card” is
selected as “Select Memory.”
When “Built-In Memory” is
selected, no indication is displayed.
LCF (Low Cut Filter) indicator
Appears when “LCF(Low Cut)” is
set to “ON” in the menu.
Battery indicator
Remaining recording time
Displays the remaining recording
time in hours, minutes, and seconds.
If there is more than 10 hours time
remaining, the time is displayed in
hours.
If there is more than 10 minutes and
less than 10 hours time remaining,
the time is displayed in hours and
minutes.
If there is less than 10 minutes time
remaining, the time is displayed in
minutes and seconds.
12
12
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Display when recording
Recording level guide display
Displays the recording level and the
optimum level for recording.
Display during playback
Playback mode indicator
1: Appears when a file is played
back.
: Appears when files in one folder
are played back continuously.
ALL: Appears when all the files are
played back continuously.
1: Appears when one file is played
back repeatedly.
: Appears when files in one
folder are played back repeatedly.
ALL: Appears when all the files
are played back repeatedly.
Noise cut/Effect indicator
Appears when the NOISE CUT
switch is set to “ON,” or “Effect” is
set in the menu.
: Noise cut
: Pop
: Rock
: Jazz
: Bass1
: Bass2
: Custom
13
13
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11

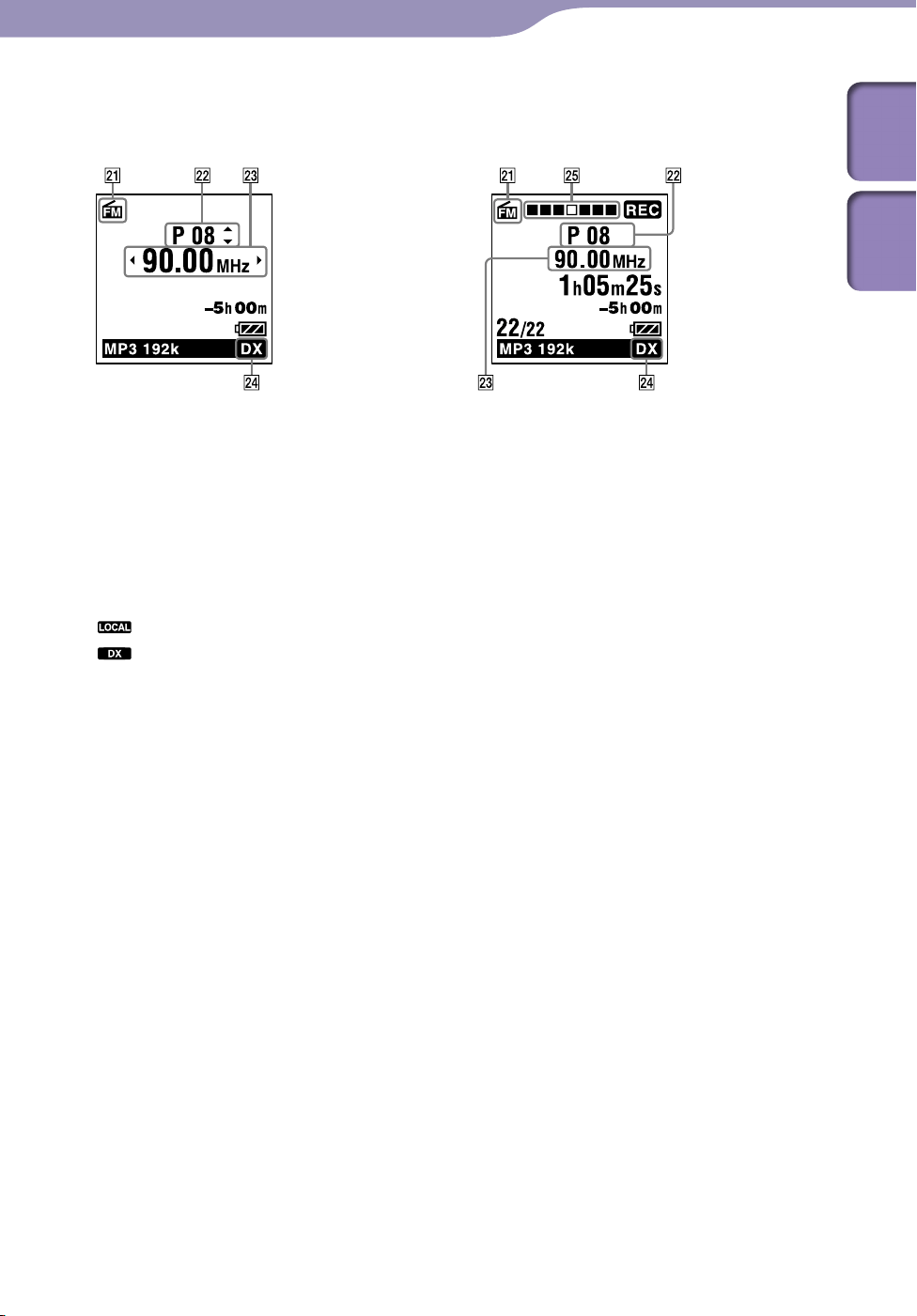

Display when listening to an FM radio
broadcast
(for ICD-UX522F/UX523F only)
FM indicator
Preset number
Radio frequency
Receiver sensitivity
: LOCAL
: DX
Display when recording an FM radio
broadcast
(for ICD-UX522F/UX523F only)
Recording progress animation
display
Displays the progress of an FM radio
recording in animation.
14
14
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Display in the HOLD status
HOLD indicator
Appears when the IC recorder is in
the HOLD status to prevent
unintentional operations.
To release the HOLD status, slide
the HOLD•POWER switch towards
the center (
p. 16).
Display of the current date and time
Current date display
Displays the current date (year,
month, and day) for 3 seconds when
you press STOP in the stop mode.
e.g.: 11y01m01d (January 1, 2011)
Current time display
Displays the current time (hour and
minutes) for 3 seconds when you
press STOP in the stop mode.
e.g.: 12:00 (24-Hour time
display)/12:00 PM (12-Hour time
display)
15
15
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Display during FOLDER selection
Tabs
Displays the types (recordable or
playback-only) of areas and memory
available:
(Voice): Recordable area used to
manage files recorded with the
IC recorder.
(Music): Playback-only area
used to manage music files
transferred from your
computer.
(Podcast): Playback-only area
used to manage podcast files
transferred from your
computer.
(Built-in memory) : Appears
when you insert a memory card
and set the memory to the
built-in memory.
(Memory card) : Appears when
you insert a memory card and
set the memory to the memory
card.
Folders
Displays the folders contained in the
selected tab.
Display during MENU operation
Menu tabs
Displays the menu tabs:
: Recording
: Playback
: Edit
: Display
: IC recorder settings
: FM radio (for ICD-UX522F/
UX523F only)
Menu items
Displays the menu items of the
selected menu tab.
16
16
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Preventing Unintentional Operations (HOLD)
You can disable all the buttons (HOLD) in order to prevent unintentional
operations when you carry the IC recorder, etc.
To disable the button operations (HOLD status)
Slide the HOLD•POWER switch in the direction of “HOLD” to disable the
buttons while the power is on.
“HOLD” will appear for approximately 3 seconds, indicating that all the button
operations are disabled.
To enable the button operations
Slide the HOLD•POWER switch towards the center.
Note
When the HOLD function is activated during recording, all the button operations are
disabled. To stop recording, cancel the HOLD function first.
Hint
Even if the HOLD function is activated, you can stop the alarm playback by pressing any
button. (You cannot stop normal playback.)
17
17
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Maintaining the Moderate Volume Level (AVLS)
(For European models only)
The AVLS (Automatic Volume Limiter System) function allows you to listen to
the sound at a moderate volume level when using the headphones. The AVLS
function limits the maximum volume to prevent auditory issues or distraction
and also to maintain a moderate volume level.
When “AVLS” is set to “ON”
When you try to adjust the volume to a level that exceeds the
AVLS-specified level, the “AVLS” indicator lights. You cannot
adjust the volume to a level that exceeds the limit.
Note
“AVLS” is set to “ON” when you purchase the IC recorder. If you want to turn off the
function and play back files at the original volume, use the menu to set “AVLS” to “OFF.”
When “AVLS” is set to “OFF”
To disable the AVLS function, do the following:
In the stop or playback mode, select MENU
the tab
“AVLS,”
and then press /ENTER.
Press or to select “OFF,” and then press /
ENTER.
The “AVLS OFF?” message is displayed with a
beeping sound.
Press or to select “Yes,” and then press /ENTER.
Press STOP to exit the menu mode.
To enable the AVLS function:
Select “ON” in the step , or select “No” in the step .
If you play back files at a volume that exceeds the AVLS-specified level for
specified period of time, the following animation will be displayed and “AVLS”
in the menu is automatically set to “ON.”
18
18
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Recharging the Battery
Recharging the battery using a computer
Insert a rechargeable battery.
Slide and lift the battery compartment lid, insert an NH-AAA rechargeable
battery with correct polarity, and close the lid.
Connect the IC recorder to your computer.
Slide the USB DIRECT slide lever on the back of the IC recorder in the
direction of the arrow, and insert the USB connector into the USB port of a
running computer.
*
1
IC recorder
To USB port of your
computer
Computer
While the battery is charging, “Connecting” and the
battery indicator are displayed in an animation.
Battery indicator
When the battery is fully charged, the battery
indicator will indicate “
.” It takes about 3 hours
and 30 minutes to fully charge an exhausted battery.
*
2
Fully charged indicator
*
1
If the IC recorder cannot be connected to a computer directly, use the supplied USB connection
support cable.
*
2
This is an approximation for the time it takes to charge from no remaining battery power to full
battery power at room temperature. It varies depending on the remaining power and the
condition of the battery. It also takes more time if the temperature of the battery is low, or if the
battery is charged while you are transferring data to the IC recorder.
Continued
19
19
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Disconnect the IC recorder from your computer.
Follow the procedures below; otherwise, when the IC recorder contains
data files, the files may be damaged or become unplayable.
Make sure that the operation indicator does not light.
Perform the following operation on your computer.
On the Windows taskbar at the bottom right of the desktop, left-click the
following icon:
Left-click “Eject IC RECORDER” (Windows 7), or “Safely remove USB
Mass Storage Device” (Windows XP, Windows Vista).
The icon and menu displayed can be different on different operating
systems. The icon may not be always displayed on the taskbar depending
on your computer settings.
On a Macintosh screen, drag “IC RECORDER” on the Finder to “Trash”
and drop it there.
For details on disconnecting the IC recorder from your computer, refer to
the operating instructions supplied with your computer.
Disconnect the IC recorder from the USB port of the computer, and
slide the USB DIRECT slide lever in the direction of the arrow to
retract the USB connector.
When using a fully charged battery or an LR03 (size AAA) alkaline battery
Follow the step .
Recharging the battery using a USB AC adaptor
You can also charge the battery by using a USB AC adaptor (not supplied) (
p. 111).
20
20
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Inserting a Memory Card
In addition to the built-in memory, you can record files on a memory card.
Inserting a memory card
Slide and lift the battery compartment lid, while the IC recorder is
turned off or in the stop mode.
The memory card slot is within the battery compartment.
Insert a microSD card into the memory card slot in the battery
compartment with the label side facing up, until it clicks into place.
With the label side
facing up
Close the battery compartment lid.
To remove a memory card
Push the memory card into the slot. When it pops out, remove it from the
memory card slot.
Structure of folders and files
5 folders are created in a memory card in addition to those in the built-in
memory. The structure of folders and files is somewhat different from that of
the built-in memory (
p. 97).
Continued
21
21
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Notes
If a memory card is not recognized, remove it and then insert it into the IC recorder
again.
Do n
ot insert any liquid, metal, flammable or any object other than a memory card into
the memory card slot. Doing so may cause fire, electric shock, or malfunctions.
Bef
ore recording, we recommend that you copy all the data stored on the memory card
to your computer and format the memory card on the IC recorder so it contains no data.
About compatible memory cards
You can use microSD/MicroSDHC memory cards with the IC recorder.
However, a memory card of 64 MB or less is not supported.
Due to the file system specifications of the IC recorder, you can record and play
back an LPCM file smaller than 2 GB, and an MP3/WMA/AAC-LC file smaller
than 1 GB using a memory card.
Note
Operations of all types of compatible memory cards are not guaranteed.
22
22
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Turning the IC Recorder On
Turning the power on
Slide and hold the HOLD•POWER switch in the direction of “POWER” until
the window display appears. The IC recorder is turned on.
Turning the power off
Slide and hold the HOLD•POWER switch in the direction of “POWER” until
the “Power Off” animation is displayed. The IC recorder is turned off.
Hint
When the IC recorder is in the stop mode, and you leave the IC recorder without
attempting an operation for a certain length of time, the auto power off function will take
effect. (The length of time before auto power off is set to “10min” when you purchase the
IC recorder.)
23
23
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Setting the Clock
You need to set the clock to use the alarm function or record the date and time.
Setting the clock after recharging the battery
,
STOP
,
/ENTER
When you insert a battery for the first time, or when you insert a battery after
the IC recorder has been without a battery for more than 1 minute, the “Set
Date&Time” animation appears, and then the year section begins to flash in the
clock setting display window.
Set year, month, day, hour and minute.
Press or
to set the year (the last two digits of the year), and then press
/ENTER. Repeat this procedure to set month, day, hour, and minute in
sequence.
You can move the cursor to the year, month, day,
hour and minute by pressing
and .
When you set the minute and press /ENTER,
the clock reflects the setting.
Press STOP to return to the stop mode display.
24
24
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Setting the clock using the menu
MENU
STOP
,
,
/ENTER
While the IC recorder is in the stop mode, you can set the clock using the
menu.
Select “Date&Time” in the menu.
Press MENU to enter the menu mode.
The menu mode window will be displayed.
(The (FM radio) tab is displayed
only on the ICD-UX522F/UX523F.)
Press , and then press or to select the
tab, and then press /ENTER.
Press or to select “Date&Time,” and then press
/ENTER.
Press or to select “Auto(Synchronizing)” or “Manual,” and then
press /ENTER.
W
hen you select “Auto(Synchronizing),” the clock
is automatically adjusted using the clock in the
computer connected to the IC recorder and on
which the supplied Sound Organizer software is
started.
When you select “Manual,” proceed to the next steps.
Press or to select “11y1m1d,” and then press
/ENTER.
Continued
25
25
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Set year, month, day, hour and minute.
Press or
to set the year (the last two digits of the year), and then press
/ENTER. Repeat this procedure to set month, day, hour, and minute in
sequence.
You can move the cursor to the year, month, day, hour and minute by
pressing
and .
When you set the minute and press /ENTER, the clock reflects the
setting.
Press STOP to return to the stop mode display.
Notes
If you do not press
/ENTER within 1 minute of entering the clock setting data, the
clock setting mode is canceled and the window will return to the display of the stop
mode.
Th
e t
ime is displayed either in 12-Hour with “AM” or “PM,” or in 24-Hour, depending
on the “Time Display” setting in the menu. The default setting differs depending on the
country or region you purchased the IC recorder.
To display the current date and time
While the IC recorder is in the stop mode, press STOP to
display the current date and time for about 3 seconds.
26
26
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Setting the Language to Be Used in the Display
Window
STOP
MENU
/ENTER
,
You can select the language to be used for messages, menus, folder names, file
names, etc.
Select MENU
the tab
“Language,” and then
press /ENTER.
Press or to select the language that you want to use, and then
press /ENTER.
Press STOP to return to the stop mode display.
27
27
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Selecting a Folder, File, Tab, and Memory
Selecting a folder and a file
,
/ENTER
,
FOLDER
You can select a folder and a file for recording, playing or editing as follows:
Press FOLDER .
The folder selection window is displayed.
Select a folder.
Press or
to select the desired folder, and then
press /ENTER.
To display the files contained in the selected folder,
press .
When you purchase the IC recorder, there are 5
folders already available (FOLDER01-05).
Select a file.
When the file selection window is displayed, press
or to select the desired file, and then press
/ENTER.
When the stop mode window is displayed, you can
switch files by pressing and .
28
28
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Selecting a tab
,
FOLDER
The recordable area and the playback-only area of folders stored on the IC
recorder are managed separately, and are displayed with tabs. You can select a
tab as follows:
Press FOLDER .
The folder selection window is displayed.
Press , and then press or to select the , , or tab.
Only the
tab will be displayed when you
purchase the IC recorder.
The
tab and the tab will be displayed when
you transfer files from your computer (
p. 102,
105).
Press the /ENTER.
The folders contained in the selected tab are displayed.
Select a folder and a file ( p. 27).
/ENTER
29
29
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Selecting the memory
STOP
,
/ENTER
FOLDER
MENU
You can switch the memory between the built-in memory and a memory card
by using the folder selection window or using the menu:
Selecting the memory using the folder selection window
Press FOLDER .
The folder selection window is displayed.
Press , and then press or to select the or tab.
(Built-in memory) or (memory card) tab will appear when you
insert a memory card into the IC recorder (
p. 20).
Press the /ENTER.
The memory selection window is displayed.
Press or to select “Built-in Memory” or
“Memory Card,” and then press /ENTER.
Th
e tab icon is changed to those of the selected
memory, or .
Press STOP to return to the stop mode display.
30
30
Preparing the Recorder
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Selecting the memory using the menu
Select MENU
the tab
“Select Memory,” and
then press /ENTER.
Press or to select “Memory Card” or “Built-in Memory,” and
then press /ENTER.
If you select “Memory Card” and the memory card
has not been formatted, proceed to the next step.
Otherwise, proceed to step 5.
When the memory card is not formatted, select Menu
the
tab
“Format,” and then press /ENTER.
“Erase All Data?” will be displayed.
Press or to select “Execute,” and then press /ENTER.
The memory card is formatted.
Press STOP to return to the stop mode display.
31
31
Recording Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11

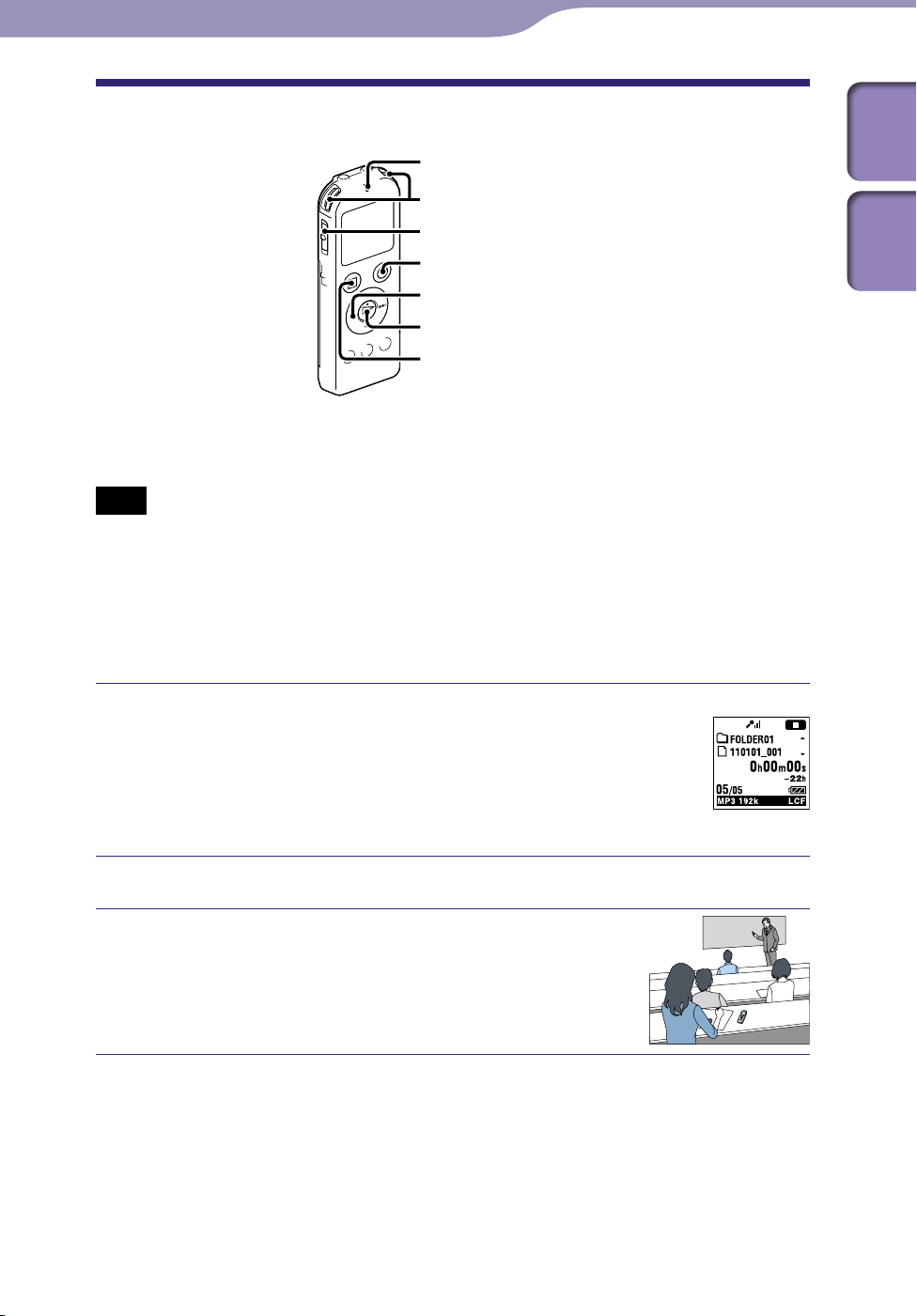

Basic Recording
Operation indicator
REC/PAUSE
HOLD•POWER
Built-in microphones (L/R)
STOP
/ENTER
The following are the basic recording procedures using the specified
microphone sensitivity and recording mode.
Note
Noise may be recorded if an object, such as your finger, etc., accidentally rubs or scratches
the IC recorder during recording.
Hint
Before you start recording, we recommend you make a trial recording first, or monitor the
recording (
p. 32).
Slide the HOLD•POWER switch in the direction of
“POWER” to turn on the IC recorder ( p
. 22), or
towards the center to release the IC recorder from
the HOLD status (
p
. 16).
The stop mode window appears.
Select the desired folder ( p.27).
Place the IC recorder so that the built-in
microphones face the direction of the source to
be recorded.
Recording Files
Continued
32
32
Recording Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Press REC/PAUSE in the stop mode.
The operation indicator lights in red.
You do not need to press and hold REC/PAUSE
while recording.
The new file will be automatically recorded as the
last file in the current folder.
Recording level guide
About the recording level guide
During recording, the recording level guide is displayed.
The upper meter shows the current input level. The white bar in the lower
meter shows the optimum input level for recording.
Please adjust the orientation of the built-in microphones, the distance from the
sound source, the microphone sensitivity, or the scene select setting so that the
upper input level fits within the lower optimum range, as illustrated above.
Hint
If the white portion of the input level meter is short, we recommend that you place the IC
recorder nearer to the sound source or set the microphone sensitivity higher.
Monitoring the recording
VOL−/+
If you connect the supplied stereo headphones to the (headphone) jack, you
can monitor the recording. You can adjust the monitoring volume by pressing
VOL –/+, but the recording level is fixed.
33
33
Recording Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Stopping the recording
Press STOP.
The “Accessing...” animation appears and the IC recorder stops at the
beginning of the current recording file.
Note while accessing
The IC recorder is recording data and storing it on the memory media when
the “Accessing...” animation appears on the display. While the IC recorder is
accessing data, do not remove the battery or connect or disconnect the USB AC
adaptor (not supplied). Doing so may damage the data.
Other operations
To Do this
pause recording
*
Press REC/PAUSE.
During recording pause, the operation indicator
flashes in red and “
” begins to flash in the
display window.
release pause and resume recording
Press REC/PAUSE again. Recording resumes
from that point. (To stop recording after pausing
recording, press STOP.)
review the current recording
instantly
Press /ENTER. Recording stops and playback
starts from the beginning of the file just recorded.
review during recording
Press and hold during recording or recording
pause. Recording stops and you can search
backwards while listening to fast playback sound.
After you release , playback starts from that
point.
*
1 hour after you pause recording, recording pause is automatically released and the IC recorder
enters the stop mode.
Hint
You can make new folders or erase unwanted folders using the supplied Sound Organizer
software (
p
. 105).
34
34
Recording Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Changing the Recording Settings
Selecting a recording scene for each situation
STOP
MENU
/ENTER
,
According to various recording scene, you can change the items for recording,
such as REC Mode (
p. 82), Mic Sensitivity (
p. 82), etc., to the
recommended settings in bulk. You can change the settings for each item.
In the stop mode, select MENU
the tab
“Scene Select,” and then press /ENTER.
Press or to select a scene you want, and then press /ENTER.
Press STOP to exit the menu mode.
Scenes Descriptions
(Meeting)
To record in a variety of situations, such as recording in
a spacious conference room.
(Voice Notes)
To record dictation with a microphone in front of your
mouth.
(Interview)
To record human voice at a distance of 1 to 2 meters (40
to 80 in.).
(Lecture)
To record a wide range of sound, such as a lecture in a
classroom or a chorus lesson.
(Audio IN)
To record from external equipment, such as a television,
portable CD/MD player or a tape recorder, connected to
the IC recorder via an audio output connector (stereo
mini-jack) with an audio connecting cable for dubbing.
(My Scene)
Use to keep your favorite settings.
35
35
Recording Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Tips for better recording
There are ways of making better recordings other than using scene selection.
Recording at a meeting
By placing the IC recorder on a handkerchief,
etc. substituting for a stand, you can record
with clear, low-noise sound, without vibration
noise from the desk.
Recording a voice note
By placing the IC recorder close to one side of
your mouth, you can prevent breathing on the
built-in microphones, and record with clear
sound.
Recording an interview
Place the IC recorder so that the built-in
microphones face the interviewee.
Recording a music performance
By attaching a tripod (not supplied) or placing the
recorder on a stand or table, you can adjust the
angle of the IC recorder and the built-in
microphones more precisely.
When recording a chorus or piano performance,
for example, place the IC recorder on a table
approximately 2 to 3 meters (80 to 120 in.) from
the performer(s). Set up the IC recorder with the
display window facing up, and with the built-in
microphones pointing towards the sound source.
36
36
Recording Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Changing the Scene Select settings
In the stop mode, select MENU
the tab
“Scene Edit,” and then press /ENTER.
Press or to select the scene you want to change the settings,
and then press /ENTER.
Press or to select “Edit from Current Setting” or “Edit,” and then
press /ENTER.
Press or to select the item you want to change, and then press
/ENTER.
Press or to select a setting item, and then press /ENTER.
For details on the menu items and settings, see “Making Settings for the
Menu.” (
p. 81 – 83)
Press or to select “Edit Complete,” and then press /ENTER.
Press STOP to exit the menu mode.
37
37
Recording Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Changing the Scene Select setting to the default values
In the stop mode, select MENU
the tab
“Scene Edit,” and then
press /ENTER.
Press or to select the scene you want to change the settings to
the default values, and then press /ENTER.
Select “Set Default Value,” and then press /ENTER.
“Default Value?” will be displayed.
Press or to select “Execute,” and then press /ENTER.
The menu item settings of the selected scene will be set to the default
values.
Press STOP to exit the menu mode.
Default settings
For details on the menu items and settings, see pages 81 through 83.
(Meeting)
(Voice Notes)
(Interview) (Lecture) (Audio IN)
(My Scene)
REC Mode
MP3
192kbps
MP3
128kbps
MP3
192kbps
MP3
192kbps
MP3
192kbps
MP3
192kbps
Mic
Sensitivity
Medium Low Medium Medium Low Medium
LCF(Low
Cut)
ON ON ON OFF OFF OFF
VOR
OFF OFF OFF OFF OFF OFF
SYNC REC
OFF OFF OFF OFF ON OFF
Select
Input
MIC IN MIC IN MIC IN MIC IN Audio IN MIC IN
38
38
Recording Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Starting to Record Automatically in Response to
Sound – the VOR Function
MENU
STOP
REC/PAUSE
,
/ENTER
You can set the VOR (Voice Operated Recording) function to “ON,” to make
the IC recorder start recording when the IC recorder detects sound, and pause
when no sound is heard, eliminating recording during soundless periods.
In the stop or recording mode, select MENU
the
tab
“VOR,” and then press /ENTER.
Press or to select “ON,” and then press /ENTER.
“VOR” is set to “OFF” when you purchase the IC recorder.
Press STOP to exit the menu mode.
Press REC/PAUSE.
“
” appears in the display window.
The recording pauses when no sound is detected and “
” flashes.
When the IC recorder detects sound again, the recording starts again.
To cancel the VOR function
Set “VOR” to “OFF” in step .
Notes
The VOR function is affected by the sound around you. Set “Mic Sensitivity”
in the menu according to the recording conditions. If recording is not
satisfactory after you have changed the “Mic Sensitivity” setting, or for an
important recording, set “VOR” to “OFF” in the menu.
During synchronized recording (
p. 40) and the FM recording (
p. 71)
(for ICD-UX522F/UX523F only), the VOR function does not work.
39
39
Recording Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Recording via Other Devices
Recording with an external microphone
Stereo
microphone
jack
STOP
REC/PAUSE
,
/ENTER
Connect an external microphone to the jack when the IC recorder
is in the stop mode.
“Select Input” appears in the display window.
If “Select Input” is not displayed, set it in the menu (
p. 83).
Press or to select “MIC IN,” and then press /ENTER.
Press STOP to exit the menu mode.
Press REC/PAUSE to start recording.
The built-in microphones are automatically cut off.
If the input level is not strong enough, adjust the “Mic Sensitivity” setting
on the IC recorder.
When a plug in power type microphone is connected, power is
automatically supplied to the microphone from the IC recorder.
To record sound from a telephone or a cell phone
You can use a headphone-type electret condenser microphone to record sound
from a telephone or a cell phone.
For details on how to make the connection, refer to the operating instructions
supplied with the microphone.
40
40
Recording Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Recording from other equipment
MENU
Radio cassette recorder,
tape recorder, etc.
jack
STOP
REC/PAUSE
,
/ENTER
You can make music files without using the computer by recording sound/
music from other equipment such as a radio cassette recorder, a tape recorder,
etc. connected to the IC recorder.
When you select “Audio IN” from the “Scene Select” menu, the settings suitable
for recording from other equipment are already selected (
p. 34).
Hint
If the input level is not strong enough, connect the headphone jack (minijack, stereo) of
other equipment to the jack of the IC recorder and adjust the volume level on the piece
of equipment connected to the IC recorder while checking the recording level guide.
To record using the synchronized recording function
The IC recorder pauses when no sound is detected for more than 2 seconds.
The IC recorder starts recording again as a new file when sound is detected.
Select MENU
the tab
“SYNC REC,” and then
press /ENTER.
Press or to select “ON,” and then press /ENTER.
Press STOP to exit the menu mode.
Continued
41
41
Recording Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Connect other equipment to the IC recorder when the IC recorder is
in the stop mode.
Connect the audio output connector (stereo mini-plug) of other
equipment to the
jack of the IC recorder using an audio connecting
cable.
“Select Input” appears in the display window.
If “Select Input” is not displayed, set it in the menu (
p
. 83).
Press or to select “Audio IN,” and then press /ENTER.
Press REC/PAUSE to start recording.
“
” flashes and the IC recorder enters the recording pause mode.
Start playback on the piece of equipment connected to the IC
recorder.
“ ” appears on the display and synchronized recording starts.
When no sound is detected for more than 2 seconds, “Dividing...” appears and
then “
” begins to flash. The synchronized recording pauses.
The IC recorder starts recording again as a new file when sound is detected.
To record without using the synchronized recording function
Select “OFF” in step of “To record using the synchronized recording
function” (
p. 40), and then proceed with steps through . When you
press REC/PAUSE in step , the built-in microphones are automatically cut
off and the sound from the connected piece of equipment is recorded.
42
42
Playing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Basic Playback
VOL−/+
HOLD•POWER
STOP
/ENTER
,
Slide the HOLD•POWER switch in the direction of “POWER” to turn
on the IC recorder ( p
. 22), or towards the center to release the IC
recorder from the HOLD status ( p
. 16).
The stop mode window appears.
Select the desired file to be played back ( p.27).
If you do not select a file, the file just recorded will be played back.
Press /ENTER.
Playback starts, and the operation indicator will light in green.
Press VOL –/+ to adjust the volume.
Note for the customers in Europe
When “AVLS” is set to “ON” in the menu and the “AVLS” indicator is displayed, you
cannot adjust the volume to a level that exceeds the AVLS-specified level. If you want to
turn off the function and play back files at the original volume, use the menu to set “AVLS”
to “OFF.”
Stopping playback
Press STOP.
Playing Files
43
43
Playing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Other operations
To Do this
stop at the current position
(Playback Pause function)
Press /ENTER. To resume playback from that
point, press /ENTER again.
go back to the beginning of the
current file
Press once.
*
1
*
2
go back to previous files
Press repeatedly. (During the stop mode,
keep the button pressed to go back the files
continuously.
*
3
)
skip to the next file
Press once.
*
1
*
2
skip to the succeeding files
Press repeatedly. (During the stop mode, keep
the button pressed to skip the files continuously.
*
3
)
*
1
When a track mark is set, the IC recorder goes backward or forward to the track mark before or
after the current point (
p. 61).
*
2
These operations are for when “Easy Search” is set to “OFF” (
p. 51).
*
3
In the continuous searching mode, the IC recorder does not locate track marks.
44
44
Playing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Display when playing back a file
File information
Press or to check the file information during playback.
A file recorded using the IC recorder is displayed as follows.
: Folder name: FOLDER01-FOLDER05
: File name: Date_file number (e.g. 110101_001)
: Artist name (e.g. My Recording)
: Title: Date_file number (e.g. 110101_001)
Counter information
You can select the display mode in the menu (
p. 88).
Elapsed time: The elapsed playback time of one file
Remaining time: The remaining playback time of one file
Recording date: Date recorded
Recording time: Time recorded
Remaining recording time
Displays the remaining recording time in hours, minutes, and seconds.
If there is more than 10 hours time remaining, the time is displayed in hours.
If there is more than 10 minutes and less than 10 hours time remaining, the
time is displayed in hours and minutes.
If there is less than 10 minutes time remaining, the time is displayed in minutes
and seconds.
45
45
Playing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Changing the Playback Settings
Reducing noise in the playback sound and making the human voice
clearer – the noise cut function
MENU
STOP
/ENTER
,
When you set the NOISE CUT switch to “ON,” ambient noise other than the
human voice is reduced. A file is played back with clear sound quality because
the noise of all frequency bands including a human voice is reduced.
To set the noise cut level
In the stop or playback mode, select MENU
the
tab
“Noise Cut Level,” and then press /ENTER.
Press or to select “Maximum” or “Medium,” and then press /
ENTER.
Press STOP to exit the menu mode.
To cancel the noise cut function
Set the NOISE CUT switch to “OFF.”
Note
When playing back a music file in good sound quality, make sure to set the NOISE CUT
switch to “OFF.”
46
46
Playing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Adjusting the playback speed – the DPC (Digital Pitch Control) function
,
You can adjust the playback speed in a range from 0.50 times to 2.00 times. The
file is played back in natural tones by means of a digital processing function.
Slide the DPC(SPEED CTRL) switch to “ON.”
During playback, press or to adjust the playback speed.
The speed decreases by 0.05 times (from ×0.50 to ×1.00).
The speed increases by 0.10 times (from ×1.00 to ×2.00).
When you press and hold each button, you can change the speed
continuously.
The playback speed is set to “×0.70” when you purchase the IC recorder.
To resume normal playback speed
Slide the DPC(SPEED CTRL) switch to “OFF.”
Note
You cannot play back an LPCM file at a speed exceeding 1.00 times the recorded speed. If
you attempt to adjust the playback speed faster than that limit, “NO FAST” appears in the
display window.
47
47
Playing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Selecting the sound effect
MENU
STOP
,
,
/ENTER
You can set the effect you want for the playback in the menu.
In the stop or playback mode, select MENU
the
tab
“Effect,” and then press /ENTER.
Press or to select effect you want for the playback, and then
press /ENTER.
Press STOP to exit the menu mode.
Option items Description
Pop Stresses middle ranges, ideal for vocals.
Rock Emphasizes high and low ranges for a powerful sound.
Jazz Emphasizes high ranges for lively sound.
Bass1 Emphasizes the bass sound.
Bass2 Emphasizes the bass sound even more.
Custom You can design your own custom sound level for 5 bands.
OFF Disables the effect function.
48
48
Playing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
To set your favorite sound level
Set “Effect” to “Custom” in step on page 47 , and then press /
ENTER.
The custom setting window will be displayed.
When you adjust the sound level for the 100 Hz,
300 Hz, 1 kHz, 3 kHz, and 10 kHz bands, press
or
t
o move to the band to the left or right, and
then press or
.
The setting can be adjusted in 7 steps from –3 to +3.
Press /ENTER.
Press STOP to exit the menu mode.
49
49
Playing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Selecting the playback mode
MENU
STOP
/ENTER
,
A-B
You can select the playback mode in the menu.
In the stop or playback mode, select MENU
the
tab
“Play Mode,” and then press /ENTER.
Press or to select “1,” “ ,” “ALL,” “
1,” “ ,” or “ ALL,” and
then press /ENTER.
Press STOP to exit the menu mode.
Option items Description/reference page
1 A file is played back.
Files in one folder are played back continuously.
ALL All the files are played back continuously.
1 One file is played back repeatedly.
Files in one folder are played back repeatedly.
ALL All the files are played back repeatedly.
50
50
Playing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
To play back a specified section repeatedly – A-B repeat
During playback, press A-B to specify the starting point A.
“A-B B?” is displayed.
Press A-B again to specify the finishing point B.
“
A-B” is displayed and the specified section is played back repeatedly.
To resume normal playback:
Press /ENTER.
To stop A-B repeat playback:
Press STOP.
To change the segment specified for A-B repeat playback:
During A-B repeat playback, press
A-B again to specify a new starting point
A. Then specify a new finishing point B, as in step .
51
51
Playing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Convenient playback methods
,
(headphone) jack
Listening with better sound quality
To listen with the headphones:
Connect the supplied stereo headphones to the
(headphone) jack. The
built-in speaker will be automatically disconnected.
To listen from an external speaker:
Connect an active or passive speaker to the
(headphone) jack.
Quickly locating the point you wish to start playback (Easy search)
When “Easy Search” is set to “ON” (
p. 85) in the menu, you can quickly
locate the point at which you wish to start playback by pressing or
repeatedly during playback.
You can set the skip time when or is pressed. This function is useful
for locating a desired point in a long recording such as at a meeting.
Searching forward/backward during playback (Cue/Review)
To search forward (Cue):
Press and hold during playback and release it at the point you wish to
resume playback.
To search backward (Review):
Press and hold during playback and release it at the point you wish to
resume playback.
The IC recorder searches at slow speed with playback sound. This is useful to
check one word forward or back. Then, if you press and hold the button, the IC
recorder starts to search at higher speed.
When files are played back or searched to the end of the last file
When you play back or fast play back to the end of the last file, “FILE END” lights up for
approx. 5 seconds.
When “FILE END” and the operation indicator go off, the IC recorder will stop at the
beginning of the last file.
If you press and hold while “FILE END” is lit, the files are played back rapidly, and
normal playback will start at the point you release the button.
52
52
Playing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Selecting a Recording Date from the Calendar
and Playing Back
MENU
STOP
,
,
/ENTER
You can play back a file recorded using the IC recorder by searching for it from
the calendar.
In the stop or playback mode, select MENU
the
tab
“Calendar,” and then press /ENTER.
The calendar appears after the “Accessing...”
animation, and the current date will be selected.
Press or to select a date, and then press
/ENTER.
The underline is displayed at the date where a
recorded file exists.
You can move to the previous week or the following week of the date by
pressing or . When you press and hold each button, you can move
continuously through the dates or the weeks.
Press or to select a file, and then press /
ENTER.
A confirmation message appears, and the file you
selected will be played back.
Press or to select “Enter,” and then press /ENTER.
The file will be played back.
Press STOP to stop playback.
Continued
53
53
Playing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
To cancel the selection of a recording date from the calendar and the accompanying
playback
Press STOP before step .
Notes
You need to set the clock in advance to select a recording date from the calendar and
play back a file (
p. 23).
If you specify a date where a recorded file does not exist, “No File” will be displayed.
Select a date where a recorded file exists.
You can search for and play back only the files in the recordable folder that contains files
recorded with the IC recorder. For details, see “Structure of folders and files” (
p. 97).
54
54
Playing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Playing Back a File at a Desired Time with an
Alarm
STOP
MENU
/ENTER
,
You can sound an alarm and start playback of a selected file at a desired time.
You can have a file played back on a specified date, once every week, or at the
same time every day. You can set an alarm for a file.
Select the file you want to play back with an alarm.
Enter the alarm setting mode.
In the stop mode, select MENU
the tab
“Alarm,”
and then press /ENTER.
Press or to select “ON,” and then press /ENTER.
Set the alarm date and time.
Press or to select “Date,” a day of the week, or “Daily,” and then
press /ENTER.
When you select “Date”:
Set the year, month, day, hour, and minute in sequence, as described in
“Setting the Clock” (
p
. 23).
When you select a day of the week or “Daily”:
Press or to set the hour, and then press /ENTER. Press or to
set the minute, and then press /ENTER.
Press or to select a favorite alarm pattern, and
then press /ENTER.
“Executing...,” is displayed.
Continued
55
55
Playing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Press STOP to exit the menu mode.
The setting process is finished and “” (alarm indicator) appears in the
display window.
To change the alarm setting
Select the file you want to change its alarm setting, and then follow steps
through .
To cancel the alarm setting
Follow steps and . In step - select “OFF” and press /ENTER. The
alarm will be canceled and the alarm indicator will disappear from the display
window.
When the set date and time comes
At the set time, the IC recorder is automatically turned on and “ALARM” is
displayed in the display window. Then the alarm and the selected file will be
played back using the selected alarm pattern.
When the playback ends, the IC recorder will stop automatically. (When the
alarm pattern is set to “Beep&Play” or “Play,” the IC recorder will stop at the
beginning of the selected file.)
To stop the alarm playback
Press any button other than VOL –/+ while the alarm sound is heard. If the
HOLD function is activated, you can stop the alarm playback by pressing any
button.
56
56
Playing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Playback via Other Devices
Recording with other equipment
Tape recorder, Mini
disc recorder, etc.
(headphone) jack
STOP
/ENTER
You can record the sound of the IC recorder with other equipment.
Before you start recording, we recommend you make a trial recording first.
Connect the (headphone) jack of the IC recorder to the external
input terminal of other equipment using an audio connecting
cable.
Press /ENTER to start playback and at the same time set the
connected equipment to the recording mode.
A file from the IC recorder will be recorded on the equipment connected.
Press STOP on the IC recorder and the connected equipment at
the same time to stop recording.
57
57
Erasing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Erasing a File
HOLD•POWER
ERASE
,
/ENTER
You can select a file and erase it as follows.
Note
Once a file has been erased, you cannot retrieve it.
Slide the HOLD•POWER switch in the direction of “POWER” to turn
on the IC recorder ( p
. 22), or towards the center to release the IC
recorder from the HOLD status ( p
. 16).
The stop mode window appears.
Select the file you want to erase when the IC recorder is in the stop
or playback mode ( p
.27).
Press ERASE.
“Erase?” is displayed and the specified file is played
back for confirmation.
Press or to select “Execute.”
Press /ENTER.
The “Erasing...” animation appears in the display window and the selected
file will be erased.
When a file is erased, the remaining files will advance so that there will be
no space between files.
To cancel erasing
Select “Cancel” in step , and then press /ENTER.
To erase a part of a file
Divide the file into two files first (
p. 64), and then proceed with steps
through .
Erasing Files
58
58
Erasing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Erasing All Files in a Folder
STOP
MENU
/ENTER
,
Select the folder containing the files you want to erase when the IC
recorder is in the stop mode ( p
.27).
Select MENU
the tab
“Erase All,” and then press /ENTER.
“Erase All Files in the Folder?” will be displayed.
Press or to select “Execute,” and then press /ENTER.
The “Erasing...” animation appears in the display window and all files in
the selected folder will be erased.
Press STOP to exit the menu mode.
To cancel erasing
Select “Cancel” in step , and then press /ENTER.
59
59
Editing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Arranging Files in a Folder
Moving a file to a different folder
MENU
STOP
,
/ENTER
Select the file you want to move.
In the stop mode, select MENU
the tab
“Move File,” and then press /ENTER.
Press , press or to select the tab or the tab, and then
press /ENTER.
Press or to select the folder that you want to
move the file into, and then press /ENTER.
“Moving File...” animation is displayed and the file
is moved to the last position in the destination
folder.
When you move a file to another folder, the original file in the previous
folder will be erased.
Press STOP to exit the menu mode.
To cancel moving the file
Press STOP before step .
Editing Files
60
60
Editing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Copying a file to the other memory
MENU
Memory card slot
STOP
,
/ENTER
You can copy files between the built-in memory and a memory card, which is
useful in saving a backup. Before starting the operation, insert a memory card
to be used for copying into the memory card slot.
Select the file you want to copy.
When you want to copy a file from a memory card to the built-in memory,
set the source memory media to “Memory Card” (
p. 29 ).
Select MENU
the tab
“File Copy,” and then press /ENTER.
The “Copy to Memory Card Select Folder” or the
“Copy to Built-In Memory Select Folder”
animation appears and the folder selection window
is displayed.
Press , press or to select the tab or the tab, and then
press /ENTER.
Press or to select the folder that you want to copy the file into,
and then press /ENTER.
The “Copying...” animation appears and the file is copied as the last file in
the destination folder. A file will be copied with the identical file name.
Press STOP to exit the menu mode.
To cancel the copy operation
Press STOP before step .
To cancel the copy operation during copying
While the “Copying...” animation is displayed in step , press STOP.
61
61
Editing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Using a Track Mark
Adding a track mark
T-MARK
,
/ENTER
You can add a track mark at a point at which you would like to divide a file
later or locate during playback. You can add a maximum of 98 track marks to
each file.
During recording, playing back, or recording pausing, press
T-MARK at the position you want to add a track mark.
The
(Track mark) indicator flashes three times, and a track
mark is added.
Locating a track mark and starting playback at the track mark
Press or in the stop mode. When the (Track mark) indicator
flashes once, press /ENTER.
62
62
Editing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Erasing a track mark
STOP
MENU
/ENTER
,
Stop at a position after the track mark you would like to erase.
Select MENU
the tab
“Erase Track Mark,” and
then press /ENTER.
“Erase Track Mark?” will be displayed.
Press or to select “Execute,” and then press /ENTER.
The “Erasing...” animation appears in the display window and the selected
track mark will be erased.
Stop position
Erase track mark
The track mark just before the stop position will be erased.
Press STOP to exit the menu mode.
To cancel erasing
Select “Cancel” in step , and then press /ENTER.
63
63
Editing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Erasing all the track marks in the selected file at one time
STOP
MENU
/ENTER
,
Select a file from which you want to erase the track marks.
Select MENU
the tab
“Erase All Track Marks,”
and then press /ENTER.
“Erase All Track Marks?” will be displayed.
Press or to select “Execute,” and then press /ENTER.
The “Erasing...” animation appears in the display window and all the track
marks will be erased at one time.
Press STOP to exit the menu mode.
To cancel erasing
Select “Cancel” in step , and then press /ENTER.
64
64
Editing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Dividing a File
Dividing a file at the current position
STOP
MENU
/ENTER
,
You can divide a file in the stop mode, so that the file is divided into two parts
and new file numbers are added to the divided file names. By dividing a file,
you can easily find the point from which you want to play back when you make
a long recording such as at a meeting. You can divide a file until the total
number of files in the folder reaches the maximum number allowed.
Stop the file at the position where you want to divide a file.
Select MENU
the tab
“Divide Current
Position,” and then press /ENTER.
“Divide?” will be displayed.
Press or to select “Execute,” and then press /ENTER.
The “Dividing...” animation appears, and the divided files will be suffixed
with a sequential number (“_1” for the original file, and “_2” for the new
file).
A file is divided.
File 1 File 2 File 3
File 2_2File 2_1File 1 File 3
A suffix made up of a sequential number is
added to a file name of the divided files.
Press STOP to exit the menu mode.
To cancel dividing
Select “Cancel” in step , and then press /ENTER.
65
65
Editing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Dividing a file at all the track mark positions
STOP
MENU
/ENTER
,
Select the file you want to divide.
In the stop mode, select MENU
the tab
“Divide All Track Marks,” and then press /ENTER.
“Divide All Track Marks?” will be displayed.
Press or to select “Execute,” and then press /ENTER.
The “Dividing...” animation appears, and the file is divided at all the track
mark positions. All the existing track marks in the files will be erased.
A suffix made up of a sequential number is added each of the divided files.
File 1
A file is divided at all the track marks.
File1_01 File 1_02 File 1_03
Press STOP to exit the menu mode.
To cancel dividing
Select “Cancel” in step , and then press /ENTER.
66
66
Editing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Renaming a Folder and a File
Changing a folder name
STOP
MENU
/ENTER
,
You can change a name of a folder used to store files recorded with the IC
recorder.
You can choose a new folder name from the templates.
Select the folder which you want to rename from the tab of the
folder list.
In the stop mode, select MENU
the tab
“Change Folder Name,” and then press /ENTER.
Press or to select a favorite folder name, and
then press /ENTER.
You can choose a new folder name from the templates.
“Executing...” appears in the display window and
the folder name will be changed.
Press STOP to exit the menu mode.
Hints
When you specify a folder name that already exists, a suffix made up of a sequential
number (2 to 10) is added to the name of the new folder.
When you choose “FOLDER” from the templates, a suffix made up of a sequential
number (01 to 10) is added to each of the folder names.
Y
o
u can use the supplied Sound Organizer software to rename a folder.
67
67
Editing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Changing a file name
STOP
MENU
/ENTER
,
You can rename a file by prefixing characters from a desired template to the file
name. A file in the recordable area, or in a folder on the
tab, can be renamed.
You can choose characters to be added from the templates.
Select the file which you want to rename from the tab of the
folder list.
In the stop mode, select MENU
the tab
“Change File Name,” and then press /ENTER.
Press or to select the desired characters to be
prefixed to the file name, and then press /
ENTER.
You can choose characters from the templates.
“Executing...” appears in the display window and
the selected characters are added to the file name
separated from it by an underbar (_).
(e.g. If “A” is added to the file 11215_001: A_
11215_001)
Press STOP to exit the menu mode.
Hint
You can use the supplied Sound Organizer software to rename a file.
68
68
Editing Files
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Protecting a File
STOP
MENU
/ENTER
,
To prevent a file from being accidentally erased or edited, you can protect an
important file. A protected file is marked with the
(protect) indicator and is
regarded as a read-only file you cannot erase or edit.
Display the file which you want to protect from the tab or the
tab.
In the stop mode, select MENU
the tab
“Protect,” and then press /ENTER.
“Set Protection?” will be displayed.
Press or to select “Execute,” and then press /ENTER.
The file is protected. A protected file is marked with the
(protect)
indicator.
Press STOP to exit the menu mode.
To release protection
Select the protected file, and then proceed with steps through . In this
case, “Erase Protection?” will be displayed in step .
69
69
Listening to the FM Radio
(ICD-UX522F/UX523F only)
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Listening to the FM Radio
(ICD-UX522F/UX523F only)
Tuning in an FM Radio Station
Tuning in a radio station by scanning frequencies
(headphone) jack
/ENTER
,
STOP
MENU
The headphone cord of the supplied stereo headphones works as an FM
antenna, when you listen to the FM radio. Therefore, connect the stereo
headphones to the
(headphone) jack and stretch the cord as long as possible.
When you listening the FM radio with the built-in speaker, connect the stereo
headphones to the
(headphone) jack and stretch the cord as long as possible.
In the sop mode, select MENU
the tab
“FM
Radio,” and then press /ENTER.
The IC recorder enters the FM radio mode.
Select the audio output either from “Headphones” or “Speaker.”
To select the audio output, select MENU
the tab
“Audio Output”
(
p. 77).
Press or repeatedly to tune in a station.
Press STOP to turn the FM radio off.
To scan radio frequencies automatically
In step , press and hold or until the frequency digits begin to
change on the display. The IC recorder automatically scans the radio
frequencies and stops when it finds a clear station.
If you cannot tune in a station, press or repeatedly to change the
frequency step by step.
70
70
Listening to the FM Radio
(ICD-UX522F/UX523F only)
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Display when listening to the FM radio
FM indication
Radio frequency
Preset number
Receiver sensitivity
Tuning in a preset radio station
STOP
MENU
/ENTER
,
When you have already preset FM radio stations (
p. 72), you can tune in a
station by selecting a preset number.
In the stop mode, select MENU
the tab
“FM
Radio,” and then press /ENTER.
The IC recorder enters the FM radio mode.
Select the audio output either from “Headphones” or “Speaker.”
To select the audio output, select MENU
the tab
“Audio Output”
(
p. 77).
Press or repeatedly until the preset (P) number you want is
displayed.
Press STOP to turn the FM radio off.
72
72
Listening to the FM Radio
(ICD-UX522F/UX523F only)
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Presetting FM Radio Stations
Presetting FM radio stations automatically
STOP
MENU
/ENTER
,
You can automatically tune in radio stations and then register them with preset
numbers. You can preset up to 30 FM radio stations automatically using the
preset menu.
In the FM radio reception mode, select MENU
the
tab
“Auto Preset,” and then press /ENTER.
“Auto Preset?” will be displayed.
Press or to select “Execute,” and then press /ENTER.
The IC recorder automatically scans for available radio frequencies and the
stations will be stored in memory from the lower frequencies to the higher
ones.
While presetting FM radio stations automatically, the preset number ready
to be assigned flashes.
To stop the automatic presetting
Press STOP. The preset numbers stored until you press the STOP button
remain in memory.
73
73
Listening to the FM Radio
(ICD-UX522F/UX523F only)
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Presetting FM radio stations manually
,
MENU
/ENTER
,
You can store an unregistered FM radio station on a preset number.
In the sop mode, select MENU
the tab
“FM Radio,” and then
press /ENTER.
The IC recorder enters the FM radio mode.
Press or repeatedly to tune in the station you want to
preset and store on a preset number.
When the station you want to tune in is not a preset station, “P - -” is
displayed. In this case, you can register it with a new preset number.
Press /ENTER.
The preset number, frequency and “Set?” will be
displayed on the display.
Press or to select “Execute,” and then press /
ENTER.
The station will be stored in memory on the preset number.
74
74
Listening to the FM Radio
(ICD-UX522F/UX523F only)
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Erasing preset FM radio stations
MENU
/ENTER
,
In the sop mode, select MENU
the tab
“FM Radio,” and then
press /ENTER.
The IC recorder enters the FM radio mode.
Press or repeatedly until the preset (P) number you want to
erase is displayed.
Press /ENTER.
The preset number, frequency and “Erase?” will be displayed on the
display.
Press or to select “Execute,” and then press /ENTER.
The preset number will be changed to “P - -.”
75
75
Listening to the FM Radio
(ICD-UX522F/UX523F only)
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Changing the FM Radio Reception Settings
Switching the receiver sensitivity of the FM radio
STOP
MENU
/ENTER
,
You can set the receiver sensitivity when listening to the FM radio.
In the FM radio reception mode, select MENU
the
tab
“DX/LOCAL,” and then press /ENTER.
Press or to select “DX” or “LOCAL,” and then press /ENTER.
Press STOP to exit the menu mode.
DX Normally, select this setting.
LOCAL
When there is interference or collapsing caused by a intense electric field
around the transmitting antenna of the broadcasting station, etc., select
this setting.
76
76
Listening to the FM Radio
(ICD-UX522F/UX523F only)
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Switching the scanning sensitivity
STOP
MENU
/ENTER
,
You can set the scanning sensitivity when presetting FM radio stations.
In the FM radio reception mode, select MENU
the
tab
“Scan Sensitivity,” and then press /
ENTER.
Press or to select “High(SCAN H)” or “Low(SCAN L),” and then
press /ENTER.
Press STOP to exit the menu mode.
77
77
Listening to the FM Radio
(ICD-UX522F/UX523F only)
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Switching the FM radio output between speaker and headphones
STOP
MENU
/ENTER
,
During receiving or recording an FM broadcast, you can switch between the
sound from the speaker and the sound from the headphones using the menu.
In the FM radio reception or recording mode, select
MENU
the tab
“Audio Output,” and then
press /ENTER.
In the FM reception mode, only the tab is
displayed. In the FM recording mode, the
tab
and
tabs are displayed.
Press or to select “Headphones” or “Speaker,” and then press
/ENTER.
Press STOP to exit the menu mode.
78
78
About the Menu Function
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Making Settings for the Menu
STOP
/ENTER
,
MENU
Press MENU to enter the menu mode.
The menu mode window will be displayed.
Press , press or to select the , , , , , or tab, and
then press /ENTER.
Press or to select the menu item for which you want to make
setting, and then press /ENTER.
Press or to select the setting that you want to set, and then
press /ENTER.
Press STOP to exit the menu mode.
Note
If you do not press any button for 60 seconds, the menu mode is automatically canceled
and the window will return to the normal display.
To return to the previous window
Press during menu mode.
To exit the menu mode
Press STOP or MENU.
79
79
About the Menu Function
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Menu Settings
Tabs Menu items
Operation mode (
: the setting can be made/
: the setting cannot be made)
Stop
mode
Playback
mode
Recording
mode
FM radio
reception
mode*
1
FM radio
recording
mode*
1
(Recording)
Scene Select
Scene Edit
REC Mode
Mic Sensitivity
LCF(Low Cut)
VOR
SYNC REC
Select Input
(Playback)
Noise Cut Level
Effect
Easy Search
Play Mode
Alarm
AVLS
*
2
(Edit)
Protect
Divide Current Position
Move File
File Copy
Change Folder Name
Change File Name
Erase Track Mark
Erase All Track Marks
Divide All Track Marks
Erase All
*
1
for ICD-UX522F/UX523F only /
*
2
for the European models only
80
80
About the Menu Function
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Tabs Menu items
Operation mode (
: the setting can be made/
: the setting cannot be made)
Stop
mode
Playback
mode
Recording
mode
FM radio
reception
mode*
1
FM radio
recording
mode*
1
(Display)
Calendar
Display
LED
Backlight
(IC recorder setting)
Select Memory
Language
Date&Time
Time Display
Beep
USB Charge
Auto Power Off
Format
System Information
(FM radio)
*
1
FM Radio
*
1
Auto Preset
*
1
DX/LOCAL
*
1
Scan Sensitivity
*
1
Audio Output
*
1
*
1
for ICD-UX522F/UX523F only
81
81
About the Menu Function
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Tabs Menu items Settings (* : Initial setting)
(Recording)
Scene Select
(
p
. 34)
Allows you to choose a recording scene
according to each recording situation as
follows:
(Meeting), (Voice Notes),
(Interview), (Lecture), (Audio
IN),
(My Scene).
You can change the items for recording
to the recommended settings in bulk.
Scene Edit
(
p
. 36)
Edits the settings of the various
recording menu items which are pre-set
in the “Scene Select” menu.
Edit from Current Setting:
Changes the settings that is
pre-set in the menu.
Set Default Value:
Changes the settings to the
default settings.
E
xecute:
Changes the settings to the
default settings and completes
the process.
C
a
ncel:
Completes the process without
changing the settings.
Edi
t: Changes the settings from the
settings in the selected scene
item.
Hint
You can edit the following menu items:
“REC Mode” (
p. 82), “Mic
Sensitivity” (
p. 82 ), “LCF(Low Cut)”
(
p. 83), “VOR” (
p. 83) “SYNC
REC” (
p. 83), “Select Input” (
p
.
83). When you select “Edit Complete,”
the process will be completed.
82
82
About the Menu Function
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Tabs Menu items Settings (* : Initial setting)
(Recording)
REC Mode
Sets the recording mode.
LPCM 44.1kHz/16bit:
LPCM (not compressed) in stereo
high-quality recording mode
MP3 192kbps
*
:
MP3 (compressed) in stereo
standard-quality recording mode
MP3 128kbps:
MP3 (compressed) in long play
stereo recording mode
MP3 160kbps(MONO):
MP3 (compressed) in monaural
high-quality recording mode
MP3 48kbps(MONO):
MP3 (compressed) in monaural
standard recording mode
MP3 8kbps(MONO):
MP3 (compressed) in long play
monaural recording mode
Note
You cannot record an FM radio
broadcast in the LPCM mode. When the
LPCM mode is selected, the radio
broadcast will be automatically recorded
in the MP3 192kbps mode.
Mic Sensitivity
Sets the microphone sensitivity.
High
:
To record a sound far away from the
IC recorder or a low sound, such as
recording in a spacious room.
Medium
*
:
To record the sound of a normal
conversation or meeting, such as
recording in a meeting space or
during interview.
Low
:
To record dictation with a
microphone in front of your mouth,
a sound near the IC recorder, or a
loud sound.
Note
During recording an FM radio broadcast
(
p. 71), the Mic Sensitivity setting is
disabled.
83
83
About the Menu Function
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Tabs Menu items Settings (* : Initial setting)
(Recording)
LCF(Low Cut)
Sets the LCF (Low Cut Filter) function
to cut a low frequency to reduce the
roaring noise from wind; therefore you
can record a file more clearly.
ON:
The LCF function is activated.
OFF
*
: The LCF function is canceled.
Note
During recording an FM radio broadcast
(
p. 71), the LCF function does not
work.
VOR
(
p
. 38)
Sets the VOR (Voice Operated
Recording) function.
ON:
Recording starts when the IC
recorder detects sound and
pauses when no sound is heard,
eliminating recording during
soundless periods. The VOR
function is activated when
REC/PAUSE is pressed.
OFF
*
: The VOR function does not
work.
Note
During recording an FM radio broadcast
(
p. 71), the VOR function does not
work.
SYNC REC
(
p
. 40)
When set to “ON,” the IC recorder enters
the recording pause mode when no
sound is detected for more than 2
seconds, and the IC recorder starts
recording again as a new file when any
sound is detected.
O
N:
The synchronized recording
function is activated.
OFF
*
: The synchronized recording
function is canceled.
Select Input
(
p
. 39, 40)
Selects the external input to be recorded
that is connected to the (microphone)
jack.
MIC IN
*
:
Select when you record files using an
external microphone.
Audio IN:
Select when you record using other
equipment.
84
84
About the Menu Function
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Tabs Menu items Settings (* : Initial setting)
(Playback)
Noise Cut Level
(
p
. 45)
Adjusts the level of the noise cut
function.
Maximum
*
:
The noise cut levels will be more
intense.
Medium:
The noise cut level will be weakened.
Select when you cannot catch the
sound easily by setting “Noise Cut
Level” to “Maximum.”
Note
When playing back files using the built-
in speaker or recording an FM radio
broadcast (
p. 71), the noise cut
function does not work.
Effect
(
p
. 47)
Sets the effect you want for the playback.
Pop:
Stresses middle ranges, ideal for
vocals.
Rock:
Emphasizes high and low ranges for
a powerful sound.
Jazz:
Emphasizes high ranges for lively
sound.
Bass1:
The bass sound is emphasized.
Bass2:
The bass sound is emphasized even
more.
Custom:
You can design your own custom
sound level for 5 bands of EQ (100
Hz, 300 Hz, 1 kHz, 3 kHz and 10
kHz) in 7 steps (–3 to +3).
OFF
*
:
The effect function does not work.
Note
When playing back files using the built-
in speaker or listening to the FM radio
(
p. 69), or when the NOISE CUT
switch is set to “ON” (
p. 45), the
effect function does not work.
85
85
About the Menu Function
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Tabs Menu items Settings (* : Initial setting)
(Playback)
Easy Search
(
p
. 51)
Sets the easy search function.
ON:
You can go forward or
backwards for the specified skip
time by pressing or
during playback. This
function is useful when
attempting to locate desired
point in a long recording.
OFF
*
: The easy search function does
not work. When you press
or , a file will be moved
forward or backward.
Set Skip Time:
Sets the time to go forward or
backward in easy searching.
S
et
ting Complete:
Changes the settings and
completes the process.
Fo
rward Skip Time:
Sets the time to skip forward
when you press . (5sec,
10sec
*
, 30sec, 1min, 5min, or
10min)
Re
verse Skip Time:
Sets the time to skip backwards
when you press . (1sec,
3sec
*
, 5sec, 10sec, 30sec, 1min,
5min, or 10min)
Play Mode
(
p
. 49)
Sets the playback mode.
1: A f
ile is played back.
*
: Files in one folder are played
back continuously.
ALL: A
ll the files are played back
continuously.
1: One file is played back
repeatedly.
: Files in one folder are played
back repeatedly.
ALL:
All the files are played back
repeatedly.
86
86
About the Menu Function
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Tabs Menu items Settings (* : Initial setting)
(Playback)
Alarm
(
p. 54)
Sets the alarm.
O
N: The alarm function is effective.
Set the date, time or day of the
week or choose daily for
playback, and set the following
alarm pattern.
B
eep&Play: The selected file is
played back after
the alarm sounds.
B
eep: Only the alarm
sounds.
P
lay: Only the selected
file is played back.
OFF
*
: The alarm function is canceled.
AVLS
*
2
(
p. 17)
Sets the AVLS (Automatic Volume
Limiter System) function.
ON
*
: The AVLS function that
maintains a moderate volume
level is effective when listening
with the headphones.
O
FF: The AVLS function does not
work and the sound is played
back at the original volume.
Notes
When you turn off the function, please
be careful not to listen to an excessive
volume of the sound.
W
hen you listen to the sound using
the headphones for the specific period
of time, the AVLS function is
automatically turned on even if you set
“AVLS” to “OFF” in the menu.
I
f you adjust the volume to a level that
exceeds the AVLS-specified level, the
volume will be set to a moderate
volume level when you turn off the IC
recorder.
*
2
for the European models only
87
87
About the Menu Function
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Tabs Menu items Settings (* : Initial setting)
(Edit)
Protect
(
p
. 68)
Protects the selected file to prevent the
file from being erased, divided, or being
moved.
Execute:
The s
elected file will be protected. If
you specify a file that has already
been protected, cancel the
protection.
Cancel:
P
r
otection or cancel protection is
not executed.
Divide Current Position
(
p
. 64)
Divides a file into two.
Execute:
A file will be divided into two.
Cancel:
Div
ision is not executed.
Move File
(
p
. 59)
Moves the selected file to the selected
folder.
Before attempting to move a file, select
the file to be moved, and then go to the
menu window.
File Copy
(
p
. 60)
Copies the selected file from the built-in
memory to the desired folder on a
memory card, or from a memory card to
the desired folder on the built-in
memory.
Before attempting to copy a file, select
the file to be copied and then go to the
menu window.
Change Folder Name
(
p
. 66)
Renames a folder by selecting a template.
Change File Name
(
p
. 67)
Renames a file by selecting a template
and prefixing the characters of the
selected template to the file name.
Erase Track Mark
(
p
. 62)
Erases the track mark just before the
current position.
Execute:
The t
rack mark will be erased.
Cancel:
The t
rack mark will not be erased.
Erase All Track Marks
(
p
. 63)
Erases all the track marks of the selected
file.
Execute:
Al
l the track marks will be erased.
Cancel:
Al
l the track marks will not be
erased.
88
88
About the Menu Function
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Tabs Menu items Settings (* : Initial setting)
(Edit)
Divide All Track Marks
(
p
. 65)
Divides a file at all the track mark
positions.
Execute:
The t
rack mark division is executed.
Cancel:
The t
rack mark division is not
executed.
Erase All
(
p
. 58)
Erases all files in the selected folder.
Press FOLDER to return to the folder
window before erasing the files and
select a folder from which all files are to
be erased, and then go to the menu
window.
Execute:
A
l
l files in the selected folder will be
erased.
Cancel:
Al
l files will not be erased.
(Display)
Calendar
(
p
. 52)
Switches the display window to a
calendar, and plays back a file recorded
with the IC recorder by selecting a date
from the calendar.
Enter:
The s
elected file is played back.
Back:
The I
C recorder does not play the
selected file and returns to the
previous window.
Display Changes the display mode.
Elapsed Time
*
:
Elapsed playback time of one file
Remain Time:
Dur
ing stop or playback, the
remaining time of one file
Dur
ing recording, the available
recording time
REC Date:
Da
te recorded
REC Time:
Tim
e recorded
89
89
About the Menu Function
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Tabs Menu items Settings (* : Initial setting)
(Display)
LED
Turns the operation indicator on or off
during operation.
ON
*
: During recording or playback,
the operation indicator lights or
flashes.
OFF
: The operation indicator does not
light or flash, even during
operation.
Note
When the IC recorder is connected to a
computer, the operation indicator lights
or flashes even if “LED” is set to “OFF.”
Backlight Turns the backlight in the display
window on or off.
ON
*
: The backlight in the display
window lights up for approx. 10
seconds.
OFF
: The backlight in the display
window does not light, even
during operation.
(IC recorder setting)
Select Memory
(
p
. 29)
Selects the memory media on which you
want to store a file, or which contains the
file you want to play, edit, or copy.
Built-In Memory
*
:
The built-in memory of the IC
recorder is selected.
Memory Card:
The m
emory card inserted in the
memory card slot is selected.
Note
When no memory card is currently
inserted in the IC recorder, the built-in
memory is automatically selected.
90
90
About the Menu Function
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Tabs Menu items Settings (* : Initial setting)
(IC recorder setting)
Language
(
p
. 26)
Sets the language to be used for
messages, menus, folder names, file
names, etc.
Deutsch (German), English, Español
(Spanish), Français (French), Italiano
(Italian), Русский (Russian),
(Japanese),
(Korean),
(Chinese),
(Chinese), (Thai)
Note
Number of language options you can
select and the default setting differ
depending on the country or region you
purchased your IC recorder.
Date&Time
(
p
. 24)
Auto(Synchronizing)
*
:
When the IC recorder is connected
to a computer that is running the
Sound Organizer, the clock will be
automatically adjusted according to
that computer.
Manual:
S
ets t
he clock by setting year, month,
day, hour, and minute in sequence.
Time Display
Sets the clock display.
12-Hour:
12:00AM = midnight, 12:00PM = noon
24-Hour:
0:00 = midnight, 12:00 = noon
Note
The default setting differs depending on
the area you purchased your IC recorder.
Beep
Sets whether a beep will be heard or not.
ON
*
: A beep will sound to indicate
that an operation has been
accepted or an error has
occurred.
OFF
: No beep sound will be heard.
Note
The alarm sounds even if you set “Beep”
to “OFF” in the menu.
91
91
About the Menu Function
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Tabs Menu items Settings (* : Initial setting)
(IC recorder setting)
USB Charge
Sets whether battery will be charged
using a USB connection or not.
ON
*
: The battery will be charged.
OFF: The battery will not be charged.
Note
If you use a USB AC adaptor (not
supplied) to connect the IC recorder to
the AC outlet (
p. 111), you can
charge battery regardless this setting.
Auto Power Off If the IC recorder is on and left for the
period you have set, the IC recorder
turns off automatically.
5min:
Th
e IC recorder will be turned off
after approx. 5 minutes.
10min
*
:
The IC recorder will be turned off
after approx. 10 minutes.
30min:
Th
e IC recorder will be turned off
after approx. 30 minutes.
60min:
The IC recorder will be turned off
after approx. 60 minutes.
OFF:
The IC recorder will not be turned
off automatically.
92
92
About the Menu Function
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Tabs Menu items Settings (* : Initial setting)
(IC recorder setting)
Format
Formats the memory media currently
selected (the built-in memory or the
memory card), erasing all the data in the
memory and resetting the folder
structure to its default status.
Execute:
Th
e “
Formatting...” animation
appears and the memory media will
be formatted.
Cancel:
The memory media will not be
formatted.
Notes
Use the IC recorder formatting
function to format the memory media.
Do not use your computer to format
the media.
S
w
itch the memory media to the one
to be formatted before you start the
format operation (
p. 29).
Wh
en you format the memory media,
all the data which you have stored on
the media will be erased. Once the
memory media has been erased, you
cannot retrieve the data that was
erased.
W
h
en you format the built-in memory,
the operating instructions stored in the
built-in memory will also be erased. To
get another copy of the operating
instructions, please visit the Sony
support home page depending on your
area ( p. 121).
System Information Displays the IC recorder model name
and the version number of the software.
93
93
About the Menu Function
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Tabs Menu items Settings (* : Initial setting)
(FM radio)
*
1
FM Radio
*
1
(
p
. 69)
The IC recorder enters the FM radio
mode.
Notes
While the FM radio is activated, you
cannot change memory media or
select a folder. Before starting FM
radio recording, select the memory
media and folder you want to use to
record the FM broadcast in advance.
Y
o
u cannot record an FM broadcast in
LPCM mode. When “REC Mode” is
set to “LPCM 44.1kHz/16bit,” an FM
broadcast is recorded in “MP3
192kbps.”
D
ur
ing recording an FM radio
broadcast, the Mic Sensitivity, VOR,
LCF (Low Cut Filter), and noise cut
functions are disabled.
Auto Preset
*
1
(
p
. 72)
Scans automatically for available
frequencies. The stations will be stored
in memory.
Execute:
The automatic presetting is executed.
Cancel:
The automatic presetting is canceled.
DX/LOCAL
*
1
(
p
. 75)
Sets the receiver sensitivity when
listening to the FM radio.
DX
*
:
Normally, select this setting.
LOCAL:
When there is interference or
collapsing caused by a intense
electric field around the transmitting
antenna of the broadcasting station,
etc., select this setting.
Note
Select “DX” when the IC recorder
reception status is not good due to a
weak signal.
*
1
for ICD-UX522F/UX523F only
94
94
About the Menu Function
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Tabs Menu items Settings (* : Initial setting)
(FM radio)
*
1
Scan Sensitivity
*
1
(
p
. 76)
Sets the scanning sensitivity when
presetting FM radio stations.
High(SCAN H)
*
:
The scanning sensitivity is set to
high.
Low(SCAN L):
The scanning sensitivity is set to low.
Audio Output
*
1
(
p
. 77)
During FM reception or recording,
switches between the sound from the
speaker and the sound from the
headphones.
Headphones
*
:
The sound comes out from the
headphones.
Speaker:
The sound comes out from the
speaker(s).
*
1
for ICD-UX522F/UX523F only
95
95
Utilizing Your Computer
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Utilizing Your Computer
Using the IC Recorder with Your Computer
When the IC recorder is connected to your computer, you can transfer data
between them.
Copying files from the IC recorder to your computer to store them ( p. 101)
Copying music files from your computer to the IC recorder to play them back (
p
. 102)
Using the IC recorder as USB memory ( p. 104)
You can store image data or text data stored on the computer temporarily in the
IC recorder.
Managing and editing files using the Sound Organizer software ( p. 105)
The supplied Sound Organizer software allows you to transfer the files that you
have recorded using the IC recorder to your computer to manage and edit
them. You can also transfer music files and podcast files stored on your
computer to the IC recorder.
System requirements for your computer
For details on the system requirements for your computer, see page 107, 115.
96
96
Utilizing Your Computer
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Connecting the IC recorder to your computer
To USB port of your computer
IC recorder
Your computer
To exchange files between the IC recorder and your computer, connect the IC
recorder to your computer.
Slide the USB DIRECT slide lever on the back of the IC recorder, and
insert the USB connector into the USB port of a running computer.
Make sure the IC recorder has been recognized properly.
On the Windows screen; open “My Computer” or “Computer,” and make
sure that “IC RECORDER” or “MEMORY CARD” has been recognized.
On the Macintosh screen; make sure that an “IC RECORDER” or
“MEMORY CARD” drive is displayed on the Finder.
The IC recorder is recognized by the computer as soon as the connection is
made. While the IC recorder is connected to the computer, “Connecting” is
displayed in the display window of the IC recorder.
If the IC recorder cannot be connected to a computer directly, use the supplied
USB connection support cable.
USB connection support
cable (supplied)
97
97
Utilizing Your Computer
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Structure of folders and files
The folders and files are displayed on the computer screen as shown.
On a Windows screen using Explorer, and on a Macintosh screen using Finder,
folders and files can be displayed by opening “IC RECORDER” or “MEMORY
CARD.”
When connecting the IC recorder with your computer after the destination
memory media has been set to “Memory Card” (
p. 29), the structure of
folders is different from that when the destination memory media is set to
“Built-In Memory.”
Built-in memory
IC RECORDER
Folder for files recorded
using the IC recorder
Folder transferred from
your computer
VOICE*
1
FOLDER01
FOLDER05
MUSIC
POP
J-POP*
2
LPCM
LPCM
AAC-LC
AAC-LC
PODCASTS
NEWS*
2
Conversation*
2
Instructions*
5
*
3
*
3
*
4
MP3
MP3
MP3
WMA
microSD card
“MEMORY CARD”
Folder for files recorded
using the IC recorder
Folder transferred from
your computer
PRIVATE
SONY
FOLDER01
VOICE
FOLDER05
MUSIC
POP
J-POP
LPCM
LPCM
AAC-LC
AAC-LC
PODCASTS
NEWS
Conversation
MP3
MP3
MP3
WMA
*
1
Even if a file is transferred directly under the VOICE folder, it will not be displayed on
the
tab of the IC recorder. When you transfer a file from your computer to the IC
recorder, put the file in the folders under the VOICE folder.
*
2
The name of a folder in which music files are stored will be displayed on the IC
recorder as it is, so it is convenient if you put an easy-to-remember name on the folder
in advance.
Fo
lders shown in the illustration are examples of folder names.
*
3
The IC recorder can recognize up to 8 levels of folders transferred to the IC recorder.
*
4
If you transfer music files separately, they are classified as being in “No Folder.”
*
5
The operating instructions of the IC recorder are stored in the “Instructions” folder
directly under the “IC RECORDER” folder.
Continued
98
98
Utilizing Your Computer
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Hints
The title or artist name, etc., registered in the music files, can be displayed on the IC
recorder. It is useful if you input the ID3 tag information using the software you use to
make the music files on your computer.
If n
o title, or artist name has been registered “No Data” will be displayed in the display
window of the IC recorder.
Structure of folders displayed in the display window of the IC recorder
The display of the structure of the folders seen in the display window of the IC
recorder is different from that seen on the display of a computer.
The folder indicators in the display window of the IC recorder are as follows:
: Folder for files recorded using the IC recorder
: Folder transferred from a computer (They are displayed when music files
have been transferred from a computer.)
: Folder for podcast files transferred from a computer (These folders are
displayed when podcast files have been transferred from a computer.)
Note
If folders have no files that can be played back using the IC recorder, those folders will not
be displayed in the display window of the IC recorder.
Folders displayed on the tab of the IC recorder
Folders for files recorded using the IC recorder (folders under the VOICE
folder) will be displayed.
Note
Even if a file is transferred directly under the VOICE folder, it will not be displayed on the
tab of the IC recorder.
Continued
99
99
Utilizing Your Computer
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Folders displayed on the tab of the IC recorder
The following folders will be displayed among the folders forwarded from a
computer.
F
o
lders under the MUSIC folder which contains a file (when some folders
have multiple levels, all folders will be displayed in parallel.)
F
o
lders transferred to places other than under the MUSIC folder or the
PODCASTS folder
A f
o
lder called “No Folder” (If you transfer music files separately, those files
will be displayed under this folder.)
Folders displayed on the tab of the IC recorder
Folders for podcast files transferred from a computer will be displayed.
When you transfer podcast files from your computer to the IC recorder, use the
supplied Sound Organizer software.
100
100
Utilizing Your Computer
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Disconnecting the IC recorder from your computer
Follow the procedures below; otherwise, data may be damaged.
Make sure that the operation indicator of the IC recorder does not
light.
Perform the following operation on your computer.
On the Windows taskbar at the bottom right of the desktop, left-click the
following icon:
Left-click “Eject IC RECORDER” (Windows 7), or “Safely remove USB
Mass Storage Device” (Windows XP, Windows Vista).
The icon and menu displayed can be different on different operating
systems. The icon may not be always displayed on the taskbar depending
on your computer settings.
On a Macintosh screen, drag “IC RECORDER” on the Finder to “Trash”
and drop it there.
For details on disconnecting the IC recorder from your computer, refer to
the operating instructions supplied with your computer.
Disconnect the IC recorder from the USB port of the computer, and
slide the USB DIRECT slide lever in the direction of the arrow to
retract the USB connector.
101
101
Utilizing Your Computer
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Copying Files from the IC Recorder to Your
Computer
You can copy the files and folders from the IC recorder to your computer to
store them.
Connect the IC recorder to your computer ( p. 96).
Copy files or folders you want to transfer to your computer.
Drag and drop the files or folders you want to copy from “IC RECORDER”
or “MEMORY CARD” to the local disk on your computer.
To copy a file or folder (Drag and drop)
IC RECORDER or
MEMORY CARD
Your computer
Click and hold,
drag,
and then drop.
Disconnect the IC recorder from your computer ( p. 100).
102
102
Utilizing Your Computer
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Copying Music Files from Your Computer to the
IC Recorder and Playing Them Back
You can copy music or the other audio files (LPCM(.wav)/MP3(.mp3)/
WMA(.wma)/AAC-LC(.m4a)
*
) from your computer to the IC recorder by
dragging and dropping them, and you can play them back using the IC
recorder.
*
For the file formats that can be played back using the IC recorder, see “Specifications”
(
p. 115).
Copying a music file from your computer to the IC recorder (drag and
drop)
Connect the IC recorder to your computer ( p. 96).
Copy the folder in which the music files are stored to the IC recorder.
On a Windows screen using Explorer, or on a Macintosh screen using
Finder, drag and drop the folder containing the music files onto “IC
RECORDER” or “MEMORY CARD.”
The IC recorder can recognize up to 400 folders. You can copy up to 199
files to one folder. Moreover, the IC recorder can recognize up to a total of
4,095 folders and files for one memory media.
Disconnect the IC recorder from your computer ( p. 100).
103
103
Utilizing Your Computer
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Playing back music files copied from your computer using the IC recorder
Press FOLDER.
Press , press or to select the tab, and then press /
ENTER.
Press or to select the folder ( ) in which music files are stored,
and then press /ENTER.
To display the files contained in the selected folder, press .
Select the music file you want to play.
When the file selection window is displayed, press or
to select the
desired file, and then press /ENTER.
When the stop mode window is displayed, you can switch files by pressing
and .
Press /ENTER to start playback.
Press
STOP to stop playback.
Display when playing back a music file
Press or to check the music file information during playback.
: Folder name
: File name
: Artist name
: Title name
104
104
Utilizing Your Computer
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Using the IC Recorder as USB Memory
When the IC recorder is connected to your computer, image data or text data
on the computer, as well as files recorded using the IC recorder can be
temporarily stored on the IC recorder.
Your computer must meet the specified system requirements to use the IC
recorder as USB memory.
For details on the system requirements, see page 115.
105
105
Utilizing Your Computer
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Using the Supplied Sound Organizer Software
What you can do using Sound Organizer
Sound Organizer allows you to exchange files with an IC recorder or memory
card. The songs imported from music CDs and other media, MP3 and other
audio files imported from a computer, and podcasts can also be played and
transferred to an IC recorder. Various operations can be performed for
imported files, including playback, editing and conversion to MP3 and other
formats. You can also burn CDs of the music you like, and send audio files by
mail.
Importing files recorded with an IC recorder
You can import recording files that were recorded with an IC recorder into
Sound Organizer.
The imported files are saved to the computer.
Importing songs from a music CD
You can import the songs of a music CD into Sound Organizer.
The imported songs are saved to the computer.
Importing songs on the computer
You can import music and other files saved to the computer into Sound
Organizer.
Subscribing to and updating podcasts
You can subscribe to podcasts in Sound Organizer.
Subscribing to and updating podcasts enables you to download (subscription)
and enjoy the latest data from the Internet.
Playing files
You can play the files imported into Sound Organizer.
Changing the file information of files
You can change the title name, artist name, and other file information
displayed in the file list.
Dividing files
You can divide one file into multiple files.
Combining files
You can combine multiple files into one file.
106
106
Utilizing Your Computer
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Editing templates for a folder or file name
You can edit the templates used as “Change File Name” and “Change Folder
Name” menu options.
Deleting files from an IC recorder
You can delete a file saved to an IC recorder.
Use this operation to delete files in the IC recorder when you want to increase
the amount of free space in the IC recorder or there are unnecessary files.
Transferring files to an IC recorder
You can transfer a file from Sound Organizer to an IC recorder or memory
card.
You can enjoy transferred music, podcasts, and other content on your IC
recorder.
Burning a music CD
You can select your favorite songs from the songs imported into Sound
Organizer and then burn your own original music CD.
Other convenient uses
You can start the mail software and send a recording file attached to mail.
Yo
u can use the voice recognition software Dragon NaturallySpeaking (not
supplied) which is compatible with Sound Organizer to perform voice
recognition for a file and convert the voice to text.
107
107
Utilizing Your Computer
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
System requirements for your computer
The following shows the system requirements for using Sound Organizer.
Operating systems
Windows 7 Ultimate
Win
dows 7 Professional
Win
dows 7 Home Premium
Win
dows 7 Home Basic
Win
dows 7 Starter (32 bit version)
Win
dows Vista Ultimate Service Pack 2 or higher
Win
dows Vista Business Service Pack 2 or higher
Win
dows Vista Home Premium Service Pack 2 or higher
Win
dows Vista Home Basic Service Pack 2 or higher
Win
dows XP Media Center Edition 2005 Service Pack 3 or higher
Win
dows XP Media Center Edition 2004 Service Pack 3 or higher
*
Windows XP Media Center Edition Service Pack 3 or higher
*
Windows XP Professional Service Pack 3 or higher
Win
dows XP Home Edition Service Pack 3 or higher
Pre-installed.
*
Excluding China
Notes
One of the above operating systems should be by default pre-installed. Upgraded
operating systems or multi-boot environment are not supported.
64 bi
t versions of Windows XP are not supported.
IBM PC/AT or compatible
CPU
Windows XP: Pentium III processor of 500 MHz or faster
Windows Vista: Pentium III processor of 800 MHz or faster
Windows 7: Pentium III processor of 1 GHz or faster
M
em
ory
Windows XP: At least 256 MB
Windows Vista: At least 512 MB (In the case of Windows Vista Ultimate/
Business/Home Premium, at least 1 GB is recommended.)
Windows 7: At least 1 GB (32 bit version)/At least 2 GB (64 bit version)
F
r
ee hard disk space
At least 400 MB is required.
Depending on the version of Windows, more than 400 MB may be used.
Also, free space for handling music data is required.
Di
s
play settings
Screen resolution: 800 × 600 pixels or higher (1,024 × 768 pixels is
recommended.)
Screen color: High Color (16 bit) or higher
108
108
Utilizing Your Computer
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Sound card
A SoundBlaster compatible card is recommended.
US
B p
ort
A compatible USB port is required to use devices and media.
Operation via a USB hub is not guaranteed except for models for which
operation has been specifically guaranteed.
Di
s
k drive
A CD-ROM drive is required. To create a music CD, you need a CD-R/RW
drive.
Installing Sound Organizer
Install Sound Organizer on your computer.
Notes
When installing Sound Organizer, log in to an account with administrator privileges.
Also, if you are using Windows 7 and the [User Account Control] screen appears,
confirm the contents of the screen and then click [Yes] ([Continue] in the case of
Windows Vista).
S
o
und Organizer cannot be started by a user with limited privileges in Windows XP.
To u
se the software update function in Windows XP, you must log on to an account with
computer administrator privileges.
The W
indows Media Format Runtime module is added by the installer of Sound
Organizer. This module is not removed when Sound Organizer is uninstalled.
However, it may not be installed if it has been preinstalled.
The d
ata in the content storage folders is not deleted when Sound Organizer is
uninstalled.
In a
n installation environment in which multiple operating systems are installed on one
computer, do not install Sound Organizer in each of the operating systems. Doing so
may result in data inconsistencies.
Make sure that the IC recorder is not connected, then turn on your
computer and start up Windows.
Insert the supplied CD-ROM into the CD-ROM drive.
The [Sound Organizer - InstallShield Wizard] menu starts up
automatically and the [Welcome to Sound Organizer Installer] window
appears.
If the [Welcome to Sound Organizer Installer] menu does not start up,
open Windows Explorer, right-click the CD-ROM drive, double-click
[SoundOrganizerInstaller.exe], and then follow the instructions on the
screen.
Continued
109
109
Utilizing Your Computer
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Make sure that you accept the terms of the license agreement,
select [I accept the terms in the license agreement], then click
[Next].
When the [Setup Type] window appears, select [Standard] or
[Custom], and then click [Next].
Follow the instructions on the screen and set the installation settings when
you select [Custom].
When the [Ready to Install the Program] window appears, click
[Install].
The installation starts.
When [Sound Organizer has been installed successfully.] window
appears, check [Launch Sound Organizer Now], and then click
[Finish].
Note
You may need to restart your computer after installing Sound Organizer.
110
110
Utilizing Your Computer
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
The Sound Organizer window
Help
Displays the help of Sound
Organizer. For details on each
operation, refer to these help files.
The file list of Sound Organizer
(My Library)
Displays a list of files included in My
Library of Sound Organizer in
accordance with the operation.
Recording Files : Displays a list of
recording files.
Recording files that were recorded
with an IC recorder appear in this
library when they are imported.
Music: Displays a list of music
files.
Songs imported from a music CD
appear in this library.
Podcast: Displays a list of
podcasts.
The file list of the IC recorder
Displays the files saved to the
connected IC recorder or memory
card.
Edit Mode button
Displays the edit area so that you
can edit a file.
Quick Operation Guide button
Displays the Quick Operation Guide
to receive guidance on the basic
features of Sound Organizer.
Sidebar (Import/Transfer)
IC Recorder: Displays the transfer
screen. A list of files on a connected
device appears.
Import CD: Displays the screen
for importing music CDs.
Burn CD/DVD: Displays the
screen for burning discs.
Transfer buttons
: Transfers the files of Sound
Organizer to an IC recorder or
memory card.
: Imports the files of an IC
recorder or memory card to My
Library of Sound Organizer.
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
111
111
Additional Information
Table of
Contents
Index
Additional Information
Using a USB AC Adaptor
USB connector of
the IC recorder
USB AC adaptor
(not supplied)
You can charge the rechargeable battery by connecting the IC recorder to an
AC outlet using a USB AC adaptor (not supplied). You can charge the battery
while you are using the IC recorder, so that it is useful when you want to record
for a long time.
When you use the IC recorder for the first time, or after you have not used the
IC recorder for a certain period of time, charge the battery continuously until
“
” is displayed.
It takes about 3 hours 30 minutes to fully charge an exhausted battery.
*
*
This is an approximation for the time it takes to charge from no remaining battery power to full
battery power at room temperature. It varies depending on the remaining power and the
condition of the battery.
Connect a USB AC adaptor (not supplied) to an AC outlet.
Slide the USB DIRECT slide lever on the back of the IC recorder and
connect the USB connector to the USB AC adaptor.
While the battery is charging, the battery indicator is displayed in an
animation.
Now you can use the IC recorder while charging the battery.
Battery indicator
Notes
While playing back files using the built-in speaker, you cannot charge the battery.
Yo
u cannot charge an LR03 (size AAA) alkaline battery (not supplied).
Dur
ing the FM listening and recording, you cannot charge a battery.
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
112
112
Additional Information
Table of
Contents
Index
Disconnecting the IC recorder from the AC outlet
Follow the procedures below; otherwise, when the IC recorder contains data
files, the files may be damaged or become unplayable.
If you are recording or playing back a file, press STOP to put the
IC recorder into the stop mode.
Make sure that the operation indicator of the IC recorder does not
light.
Disconnect the IC recorder from the USB AC adaptor, and then
disconnect the USB AC adaptor from the AC outlet.
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
113
113
Additional Information
Table of
Contents
Index
Precautions
On power
Operate the unit only on 1.2 V or 1.5 V DC. Use one NH-AAA rechargeable
battery or one LR03 (size AAA) alkaline battery.
On safety
Do not operate the unit while driving, cycling or operating any motorized
vehicle.
On handling
Do not leave the unit in a location near heat sources, or in a place subject to
direct sunlight, excessive dust or mechanical shock.
S
h
ould any solid object or liquid fall into the unit, remove the battery and
have the unit checked by qualified personnel before operating it any further.
B
e c
areful not to allow water to splash on the unit. The unit is not water-
proof. In particular, be careful in the following situations.
W
h
en you have the unit in your pocket and go to the bathroom, etc.
When you bend down, the unit may drop into the water and may get wet.
W
h
en you use the unit in an environment where the unit is exposed to
rain, snow, or humidity.
I
n cir
cumstances where you get sweaty. If you touch the unit with wet
hands or if you put the unit in the pocket of sweaty clothes, the unit may
get wet.
Y
ou may feel pain in your ears if you use the headphones when the ambient
air is very dry. This is not because of a malfunction of the headphones, but
because of static electricity accumulated in your body. You can reduce static
electricity by wearing non-synthetic clothes that prevent the emergence of
static electricity.
On noise
Noise may be heard when the unit is placed near an AC power source, a
fluorescent lamp or a mobile phone during recording or playback.
N
o
ise may be recorded when an object, such as your finger, etc., rubs or
scratches the unit during recording.
On maintenance
To clean the exterior, use a soft cloth slightly moistened in water. Then use a
soft dry cloth to wipe the exterior. Do not use alcohol, benzine or thinner.
If you have any questions or problems concerning your unit, please consult
your nearest Sony dealer.
Continued
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
114
114
Additional Information
Table of
Contents
Index
Backup recommendations
To avoid potential risk of data loss caused by accidental operation or
malfunction of the IC recorder, we recommend that you save a backup copy of
your recorded files to a computer, etc.
On using a memory card
When formatting (initializing) a memory card, make sure to use the IC
recorder to format it. Operations of the memory cards formatted with
Windows or other devices are not guaranteed.
I
f you format a memory card containing recorded data, the recorded data will
be deleted. Be careful not to delete important data.
D
o n
ot leave a memory card within the reach of small children. They might
accidentally swallow it.
D
o n
ot insert or remove a memory card during recording/playback/
formatting. Doing so may cause a malfunction of the IC recorder.
D
o n
ot remove a memory card while the “Accessing...” animation appears in
the display window or the operation indicator is flashing in orange. Doing so
may damage the data.
W
e do n
ot guarantee the operations of all types of compatible memory cards
with the IC recorder.
Y
o
u cannot use a ROM (read-only-memory) type or write-protected memory
card.
D
a
ta may be corrupted in the following cases:
Wh
en a memory card is removed or the IC recorder is turned off during a
read or write operation.
W
h
en a memory card is used in locations subject to static electricity or
electrical noise.
W
e a
ssume no responsibility for any loss or damage of recorded data.
We r
ecommend that you save a backup copy of the important data.
Do n
ot touch the terminal of a memory card with your hand or a metal
object.
D
o n
ot strike, bend or drop a memory card.
Do n
ot disassemble or modify a memory card.
Do n
ot expose a memory card to water.
Do n
ot use a memory card under the following conditions:
Lo
cations beyond the required operating conditions, including locations,
such as the hot interior of a car parked in the sun and/or in the summer,
the outdoors exposed to direct sunlight, or a place near a heater.
H
umid lo
cations or locations with corrosive substances present.
Wh
en using a memory card, make sure to check the correct insertion
direction into the memory card slot.
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
115
115
Additional Information
Table of
Contents
Index
Specifications
System requirements
To use your computer with the Sound Organizer software
To use your computer with the Sound Organizer software, see “System
requirements for your computer” (
p. 107).
To use your computer without the Sound Organizer software
To use your computer with the IC recorder without the Sound Organizer
software, or to use the IC recorder as a USB mass storage device, your
computer must meet the operating system requirements and port environment
described below.
Operating systems
Windows 7 Ultimate
Win
dows 7 Professional
Win
dows 7 Home Premium
Win
dows 7 Home Basic
Win
dows 7 Starter
Win
dows Vista Ultimate Service Pack 2 or higher
Win
dows Vista Business Service Pack 2 or higher
Win
dows Vista Home Premium Service Pack 2 or higher
Win
dows Vista Home Basic Service Pack 2 or higher
Win
dows XP Media Center Edition 2005 Service Pack 3 or higher
Win
dows XP Media Center Edition 2004 Service Pack 3 or higher
*
Windows XP Media Center Edition Service Pack 3 or higher
*
Windows XP Professional Service Pack 3 or higher
Win
dows XP Home Edition Service Pack 3 or higher
Mac OS X (v10.3.9-v10.6)
P
re-installed.
*
Excluding China
Notes
One of the above operating systems should be by default pre-installed. Any operating
system other than those indicated above (Windows 98, Windows 2000 or Linux, etc.),
upgraded operating systems or multi-boot environment are not supported.
64 bi
t versions of Windows XP are not supported.
For the latest version information and compatibility with your operating system, please
access the support home page for the IC recorder ( p. 121).
Continued
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
116
116
Additional Information
Table of
Contents
Index
Hardware environment:
Sound board: Sound boards compatible with any of the supported operating
systems
P
o
rt: USB port
Dis
k drive
A CD-ROM drive is required. To create a music CD, you need a CD-R/RW
drive.
Notes
The following systems are not supported:
Operating systems other than the ones indicated on page 115
Personally constructed computers or operating systems
Upgraded operating systems
Multi-boot environment
Multi-monitor environment
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
117
117
Additional Information
Table of
Contents
Index
Design and specifications
IC Recorder section
Capacity (User available capacity)
ICD-UX522/UX522F 2 GB (approx. 1.80 GB = 1,932,735,283 Byte)
ICD-UX523/UX523F 4 GB (approx. 3.60 GB = 3,865,470,566 Byte)
A part of the memory capacity is used as a management area.
Maximum number of folders (for a drive)
400 folders
Maximum number of files (for a folder)
199 files
Maximum number of files (for a drive)
4,074 files (When 21 folders are contained in a drive.)
Frequency range
LPCM 44.1kHz/16bit 50 Hz - 20,000 Hz
MP3 192kbps 50 Hz - 20,000 Hz
MP3 128kbps 50 Hz - 16,000 Hz
MP3 160kbps(MONO) 50 Hz - 20,000 Hz
MP3 48kbps(MONO) 50 Hz - 14,000 Hz
MP3 8kbps(MONO) 60 Hz - 3,400 Hz
Compatible file formats
MP3
*
1
Bit rate: 32 kbps - 320 kbps (Supports variable bit rate (VBR))
Sampling frequencies: 16/22.05/24/32/44.1/48 kHz
File extension: .mp3
*
1
The playback of MP3 files recorded using the IC recorder is
also supported. Not all encoders are supported.
WMA
*
2
Bit rate: 32 kbps - 192 kbps, (Supports variable bit rate (VBR))
Sampling frequencies: 44.1 kHz
File extension: .wma
*
2
WMA Ver. 9 is compatible, however, MBR (Multi Bit Rate),
Lossless, Professional, and Voice are not supported.
Copyright-protected file cannot be played back. Not all
encoders are supported.
AAC-LC
*
3
Bit rate: 16 kbps - 320 kbps, (Supports variable bit rate (VBR))
Sampling frequencies:
11.025/12/16/22.05/24/32/44.1/48 kHz
File extension: .m4a
*
3
Copyright-protected file cannot be played back. Not all AAC
encoders are supported.
LPCM Sampling frequencies: 44.1 kHz
Quantization bit rate: 16 bit
File extension: .wav
Continued
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
118
118
Additional Information
Table of
Contents
Index
FM radio section (for ICD-UX522F/UX523F only)
Frequency range
For Korea 87.5 MHz - 108.0 MHz
IF 128 kHz
For other countries and regions 87.50 MHz - 108.00 MHz
IF 128 kHz
Antenna
Stereo headphones cord antenna
General section
Speaker
Approx. 20 mm (13/16 in.) dia.
Input/Output
Microphone jack (minijack, stereo)
input for plug in power, minimum input level 0.9 mV
Headphone jack (minijack, stereo)
output for 8 ohms - 300 ohms impedance headphones
USB connector (Type-A)
High-Speed USB compatible
microSD memory card slot
Playback speed control (DPC)
2.00 times - 0.50 times MP3/WMA/AAC-LC
1.00 time - 0.50 times LPCM
Power output
90 mW
Power requirements
One NH-AAA rechargeable battery
(supplied)
1.2 V DC
One LR03 (size AAA) alkaline battery
(not supplied)
1.5 V DC
Operating temperature
5°C - 35°C (41 °F to 95 °F)
Dimensions (w/h/d) (not incl. projecting parts and controls) (JEITA)
*4
Approx. 36.6 mm × 102.0 mm × 13.7 mm (1 1/2 × 4 1/8 × 9/16 inches)
Mass (JEITA)
*4
Approx. 58 g (2 oz) including one NH-AAA rechargeable battery
*
4
Measured value by the standard of JEITA (Japan Electronics and Information Technology Industries
Association)
Supplied accessories
See supplied Quick Start Guide
Design and specifications are subject to change without notice.
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
119
119
Additional Information
Table of
Contents
Index
Maximum recording time
*5*6
The maximum recording time of all the folders is as follows.
REC mode
(Recording
scene
*7
)
Built-in memory Memory card
ICD-UX522/
UX522F
ICD-UX523/
UX523F
2GB 4GB 8GB 16GB 32GB
LPCM 44.1kHz/
16bit
3h. 6h. 3h. 6h. 12h. 5m. 24h. 15m. 48h. 40.m
MP3 192kbps
(
/ / / /
)
22h. 20m. 44h. 40m. 22h. 20m. 44h. 40m. 89h. 25m. 178h. 357h.
MP3 128kbps
(
)
33h. 30m. 67h. 5m. 33h. 30m. 67h. 5m. 134h. 268h. 536h.
MP3 160kbps
(MONO)
26h. 45m. 53h. 40m. 26h. 45m. 53h. 40m. 107h. 214h. 429h.
MP3 48kbps
(MONO)
89h. 25m. 178h. 89h. 25m. 178h. 357h. 715h. 1431h.
MP3 8kbps
(MONO)
536h. 1073h. 536h. 1073h. 2147h. 4294h. 8589h.
h.: hours/m.: minutes
*
5
When you are going to record continuously for a long time, you may have to replace the battery with
new one in the midst of recording. For details on the battery life, see the table on page 120.
*
6
The maximum recording time in the above table is for your reference only, and may differ depending
on the card specifications.
*
7
Default settings
The maximum playback time of a music file /number of files
*8
Bit rate ICD-UXC523/UX523F ICD-UXC522/UX522F
Playback time Number of files Playback time Number of files
48 kbps 178h. 2670 files 89h. 25m. 1341 files
128 kbps 67h. 5m. 1006 files 33h. 30m. 502 files
256 kbps
33h. 30m. 502 files 16h. 45m. 251 files
h.: hours/m.: minutes
*
8
In the case where MP3 files of 4 minutes each are transferred to the IC recorder.
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
120
120
Additional Information
Table of
Contents
Index
Battery life
When using a Sony NH-AAA rechargeable battery
*1
REC Mode Recording Playback through
speaker
*2
Playback using the
headphones
FM recording
*3
LPCM 44.1kHz/16bit Approx. 22h. Approx. 14h. Approx. 34h. —
MP3 192kbps Approx. 24h. Approx. 15h. Approx. 41h. Approx. 7h. 30m.
MP3 128kbps Approx. 24h. Approx. 15h. Approx. 41h.
Approx. 7h. 30m.
MP3 160kbps (MONO) Approx. 24h. Approx. 15h. Approx. 41h.
Approx .7h. 30m.
MP3 48kbps (MONO) Approx. 25h. Approx. 15h. Approx. 41h.
Approx. 7h. 30m.
MP3 8kbps (MONO) Approx. 30h. Approx. 15h. Approx. 41h.
Approx. 8h.
Music file
(128 kbps/44.1kHz)
— Approx. 15h. Approx. 41h. —
FM reception
*
3
Approx. 9h.
h.: hours/m.: minutes
When using a Sony LR03 (SG) (size AAA) alkaline battery
*1
REC Mode Recording Playback through
speaker
*2
Playback using the
headphones
FM recording
*3
LPCM 44.1kHz/16bit Approx. 24h. Approx. 20h. Approx. 49h. —
MP3 192kbps Approx. 29h. Approx. 22h. Approx. 61h. Approx. 8h. 30m.
MP3 128kbps Approx. 31h. Approx. 22h. Approx. 61h.
Approx. 8h. 30m.
MP3 160kbps (MONO) Approx. 31h. Approx. 22h. Approx. 61h.
Approx. 8h. 30m.
MP3 48kbps (MONO) Approx. 33h Approx. 22h. Approx. 61h.
Approx. 8h. 30m.
MP3 8kbps (MONO) Approx. 42h. Approx. 22h. Approx. 61h.
Approx. 10h.
Music file
(128 kbps/44.1kHz)
— Approx. 22h. Approx. 61h. —
FM reception
*
3
Approx. 11h.
h.: hours/m.: minutes
*
1
The battery life is measured in testing using methods proprietary to Sony. The battery life may shorten
depending on how you operate the IC recorder.
*
2
When playing back music through the internal speaker with the volume level set to 13
*
3
for ICD-UX522F/UX523F only
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-12
121
121
Troubleshooting
Table of
Contents
Index
Troubleshooting
Troubleshooting
Before taking the IC recorder for repair, check the following sections. Should
any problem persist after you have made these checks, consult your nearest
Sony dealer.
Please access the following support home page to get the support information
about your IC recorder:
For customers in Europe:
http://support.sony-europe.com/DNA
For customers in Latin America:
http://www.sony-latin.com/index.crp
For customers in the U.S.A.:
http://www.sony.com/recordersupport
For customers in Canada:
http://www.sony.ca/ElectronicsSupport
http://fr.sony.ca/ElectronicsSupport
For customers in other countries/regions:
http://www.sony-asia.com/support
Note that recorded files may be deleted during service or repair work.
On the IC recorder operations
Noise
Noise is heard.
An o
bject, such as your finger, etc., accidentally rubbed or scratched the IC recorder
during recording so that noise was recorded.
The I
C recorder was placed near an AC power source, a fluorescent lamp or a
mobile phone during recording or playback.
The p
lug of the connected external microphone (not supplied) is dirty.
Clean the plug.
The p
lug of the connected headphones is dirty.
Clean the plug.
Continued
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-12
122
122
Troubleshooting
Table of
Contents
Index
Power source
The IC recorder cannot be turned on. The IC recorder does not operate, even if you
press any button.
The b
attery is weak.
The b
attery has been inserted with incorrect polarity (
p. 18).
The p
ower of the IC recorder is off.
Slide a
nd hold the HOLD•POWER switch in the direction of “POWER” until the
window display appears. The power is turned on (
p. 22).
The H
OLD function is activated.
Slide the HOLD•POWER switch in the center direction (
p. 16).
The IC recorder cannot be turned off.
Slide and hold the HOLD•POWER switch in the direction of “POWER” until “Power
Off ” animation is displayed when the IC recorder is stopped. The power is turned off
(
p. 22).
The IC recorder is powered off automatically.
Wh
en the IC recorder is in the stop mode and you leave the IC recorder without
attempting an operation for a certain length of time, the auto power off function
will take effect. (The length of time before auto power off is set to “10min” when
you purchase the IC recorder.) You can select the length of time before auto power
off takes effect in the menu (
p. 91).
The
battery life is short.
The b
attery life on page 120 is based on playback with the volume level set to 13.
The battery life may shorten depending on the operation of the IC recorder.
Ev
en if you do not use the IC recorder, the battery is consumed slightly. If you do
not intend to use the IC recorder for an extended period of time, it is recommended
that you turn the power off (
p. 22) or remove the battery. Moreover, if you set
“Auto Power Off” to a short span in the menu (
p. 91), you can prevent the
battery from being consumed due to forgetting to turn the IC recorder off.
Th
e b
attery indicator is displayed only for a short time, however, the rechargeable
battery is not charged completely. It takes about 3 hours 30 minutes to fully charge
an exhausted battery.
The I
C recorder has not been used for a certain time. Charge and discharge the
rechargeable battery using the IC recorder several times.
Yo
u are using the rechargeable battery in an environment with a temperature of
under 5 °C (41 ºF). Battery life becomes shorter as a result of the battery
characteristics. This is not a malfunction.
The r
echargeable battery has deteriorated. Replace the old rechargeable battery with
a new one.
Yo
u are using a manganese battery for this IC recorder. You cannot use the IC
recorder with a manganese battery.
Continued
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-12
123
123
Troubleshooting
Table of
Contents
Index
Charging
You cannot charge the battery by connecting the IC recorder to your computer.
Wh
en you connect the IC recorder to a computer which is not running, the battery
will not be charged. Even if the computer is on, and the computer is in a mode of
reduced operation (standby or sleep), you cannot charge the battery.
“US
B Charge” is set to “OFF” in the menu.
To charge the battery using your computer, set it to “ON” (
p. 91).
Dis
connect the IC recorder from your computer and reconnect it.
The charging indicator is not displayed or disappears in the middle of charging.
A r
echargeable battery has not been inserted, or a battery other than a rechargeable
battery (alkaline battery, manganese battery, etc.) has been inserted.
A r
echargeable battery has been inserted with incorrect polarity.
Th
e USB connector of the IC recorder is not connected properly.
W
hile playing back files using the built-in speaker or listening to the FM radio
(ICD-UX522F/UX523F only), you cannot charge the battery.
Th
e rechargeable battery has deteriorated.
Replace the old rechargeable battery with a new one.
“
” or “ ” is flashing instead of the battery indicator.
Th
e environmental temperature is out of the range for charging. Charge the battery
in an environment with a temperature of 5 °C - 35 °C (41 °F - 95 °F).
Operating
The IC recorder does not operate correctly.
Take out the battery and insert it again.
You may have formatted the memory of the IC recorder using the computer.
Use the IC recorder formatting function to format the memory (
p. 92).
The
operation indicator does not light.
“LED” is set to “OFF.”
Display the menu and set “LED” to “ON” (
p. 89).
Continued
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-12
124
124
Troubleshooting
Table of
Contents
Index
Recording
You cannot record a file.
The r
emaining memory capacity is insufficient.
Yo
u cannot record a file when you select a folder in the playback-only area (the
tab and the
tab).
Recording is interrupted.
The V
OR function is activated. When you are not using the VOR function, set
“VOR” to “OFF” in the menu (
p. 38).
The VOR function does not work.
Dur
ing synchronized recording, the VOR function does not work.
Dur
ing recording an FM broadcast (ICD-UX522F/UX523F only), the VOR
function does not work.
When recording from other equipment, the input level is too strong or not strong
enough.
C
o
nnect the headphone jack of other equipment to the (microphone) jack of the
IC recorder and adjust the volume level on the piece of equipment connected to the
IC recorder.
Playback
The playback volume is low.
The b
uilt-in speaker is mainly for monitoring, and the playback volume is low.
Use the supplied headphones.
No sound comes from the speaker.
He
adphones are plugged in (
p. 51).
“A
udio Output” in the menu is set to “Headphones,” when you are listening to the
radio (ICD-UX522F/UX523F only).
Set “Audio Output” to “Speaker” (
p. 77).
Sound
comes from the speaker even when the headphones are plugged in.
If y
ou plug in the headphones not securely during playback, the sound may come
from the speaker.
Unplug the headphones, and then insert them securely.
“A
udio Output” in the menu is set to “Speaker,” when you are listening to the radio
(ICD-UX522F/UX523F only).
Set “Audio Output” to “Headphones” (
p. 77).
Continued
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-12
125
125
Troubleshooting
Table of
Contents
Index
Sound effect does not change even when the “Effect” setting is changed.
Wh
en you are using the built-in speaker or when you are listening to the radio
(ICD-UX522F/UX523F only), the effect function is invalid.
Wh
en the NOISE CUT switch is set to “ON,” the effect function does not work.
Playback speed is too fast or too slow.
The D
PC(SPEED CTRL) switch to “ON,” and the playback speed is adjusted with
or .
S
lide the DPC(SPEED CTRL) switch to “OFF” or press or to adjust the
speed in DPC again (
p. 46).
Yo
u cannot play back an LPCM file at a speed exceeding 1.00 times the recorded
speed. If you attempt to adjust the playback speed faster than that limit, “NO FAST”
appears in the display window.
Playback
sound is not good when a music file is played back.
Wh
en you play back a music file with the NOISE CUT switch set to “ON,” playback
sound may be deteriorated.
S
et the NOISE CUT switch to “OFF.”
Editing
You cannot divide a file.
Yo
u need a certain amount of free space in the memory to divide a file.
199 fi
les have been recorded in the selected folder (
).
Era
se some of the files (
p. 57) or erase all the files after you store them on the
other memory media or on your computer.
Be
cause of the system limitations, you may not be able to divide a file at the very
beginning or at the very end of the file.
Yo
u cannot divide files other than those recorded using the IC recorder (e.g., a file
transferred from a computer).
You cannot move a file.
Yo
u cannot move a
(Podcast) file.
Yo
u cannot move a protected file.
Yo
u cannot move a file to a memory card.
You cannot copy a file to another memory.
Yo
u cannot copy a
(Podcast) file to another memory.
Continued
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-12
126
126
Troubleshooting
Table of
Contents
Index
Clock
“--:--” is displayed.
Yo
u have not set the clock (
p. 23).
“--y--m--
d” or “--:--” is displayed on the REC Date display.
The d
ate of recording will not be displayed if you recorded the file when the clock
was not set.
Display
There are fewer menu items displayed in the menu mode.
Dur
ing playback, recording, or FM reception (ICD-UX522F/UX523F only) modes,
there are menu items that are not displayed (
p. 79).
The remaining time displayed in the display window is shorter than that
displayed in the supplied Sound Organizer software.
The I
C recorder requires a certain amount of memory for system operation. That
amount is subtracted from the remaining time, which is the reason for the
difference.
Files
The “Memory Full” animation is displayed and you cannot start recording.
The m
emory is full.
Era
se some of the files (
p. 57) or erase all the files after you store them on the
other memory media or on your computer.
The
“File Full” animation is displayed and you cannot operate the IC recorder.
199 fi
les have been recorded in the selected folder (
) or 4,074 files (when there
are 21 folders) in total have been recorded. Therefore you cannot record another
file, or move a file.
Era
se some of the files (
p. 57) or erase all the files after you store them on the
other memory media or on your computer.
The
memory card is not recognized.
Rem
ove a memory card and check the side of the memory card. Then insert it with
correct side and direction (
p. 20).
Sw
itch the memory media of the IC recorder to “Memory Card” (
p. 29).
Continued
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-12
127
127
Troubleshooting
Table of
Contents
Index
Computers
Menu does not reflect the change in settings.
If t
he battery is removed just after the menu setting is changed, or the menu setting
is changed using “IC Recorder Setting” of the Sound Organizer software with the
exhausted battery inserted, the menu setting may not function.
A
character in a folder or file name is displayed in unreadable characters.
The I
C recorder cannot support or display some special characters and symbols that
are entered on a computer using Windows Explorer or the Macintosh Finder.
It takes a long time to copy a file.
If t
he file size of a file is large, it takes a considerable time to finish copying. Wait
until the copying is finished.
The IC recorder is not recognized by your computer. A folder/file cannot be
transferred from your computer.
Dis
connect the IC recorder from your computer and reconnect it.
Do n
ot use a USB hub or USB extension cable other than supplied USB connection
support cable. Connect the IC recorder directly to your computer or use the
supplied USB connection support cable.
Op
eration is not guaranteed if you use any system requirements other than those
described on page 115.
Dep
ending on the USB port position, the IC recorder may not be recognized. If this
happens, try another port.
The file transferred from your computer cannot be played back.
The I
C recorder can recognize up to 8 levels of folders transferred to the IC
recorder.
The f
ile format may differ from those that can be played back using the IC recorder
(LPCM(.wav)/MP3(.mp3)/WMA(.wma)/AAC-LC(.m4a)). Check the compatible
file formats (
p. 117).
The
computer cannot start.
If y
ou reboot the computer with the IC recorder connected to the computer, the
computer may freeze or may not start properly.
Disconnect the IC recorder from the computer and reboot the computer again.
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-12
128
128
Troubleshooting
Table of
Contents
Index
FM radio (ICD-UX522F/UX523F only)
No sound comes from the speaker.
“A
udio Output” in the menu is set to “Headphones,” when you are listening to the
radio (ICD-UX522F/UX523F only).
Set “Audio Output” to “Speaker” (
p. 77).
Sound
comes from the speaker even when the headphones are plugged in.
“A
udio Output” in the menu is set to “Speaker,” when you are listening to the radio
(ICD-UX522F/UX523F only).
Set “Audio Output” to “Headphones” (
p. 77).
The
audio is weak or has poor quality when listening to the radio.
Mo
ve the unit away from the TV.
The picture of your TV becomes unstable.
If y
ou are listening to an FM program near the TV with an indoor antenna, move
the IC recorder away from the TV.
You cannot receive FM radio stations, or a lot of static is heard.
The h
eadphones are not connected (the headphone cord is the FM antenna)
Connect the headphones to the (headphone) jack and extend the headphone
cord.
“D
X/LOCAL” has been set to “LOCAL.”
Set it to “DX” (
p. 75).
You cannot preset an FM radio station.
Yo
u have already preset 30 FM radio stations.
Erase unwanted preset stations (
p. 74).
“S
can Sensitivity” has been set to “Low(SCAN L).”
Set it to “High(SCAN H)” (
p. 76).
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-12
129
129
Troubleshooting
Table of
Contents
Index
On the Sound Organizer
Refer to the help files of the Sound Organizer software, too.
The Sound Organizer software cannot be installed.
The f
ree disk or memory space on the computer is too small.
C
heck the hard disk and memory space.
Yo
u are trying to install the software into the operating system that the Sound
Organizer software does not support.
I
nstall the software into the supported operating system (
p. 107).
In W
indows XP, you have logged on using a user name belonging to a user account
with limitations. Or in Windows Vista or Windows 7, you have logged on using a
guest account.
M
a
ke sure to log on using a user name with computer administrator privileges.
The IC recorder cannot be properly connected.
Ch
eck that the installation of the software has been successful. Also check the
connection as follows:
– W
hen using an external USB hub, connect the IC recorder directly to the
computer or use the supplied USB connection support cable.
– Di
sconnect and then connect the IC recorder.
– C
onnect the IC recorder to another USB port.
Y
our computer may be in the system standby/hibernate mode.
D
o not let your computer enter into the system standby/hibernate mode while
being connected to the IC recorder.
Sa
ve a backup copy of all of the data stored on the built-in memory or the memory
card, and then format the built-in memory or the memory card using the
formatting function in the menu (
p. 92).
Playback
sound from the computer is low./No sound is emitted from the
computer.
N
o sound board is installed.
N
o speaker is built-in or connected to the computer.
Th
e volume of the sound is turned down.
T
urn up the volume on the computer. (Refer to the instruction manual of the
computer.)
Th
e volume of WAV files can be changed and saved using the “Increase Volume”
feature of the Microsoft Sound Recorder.
Stored files cannot be played back or edited.
Y
ou cannot play back files whose file format the Sound Organizer software does not
support. Depending on the file format, you cannot use part of editorial features of
the software. Refer to the help files of the Sound Organizer software.
Continued
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-12
130
130
Troubleshooting
Table of
Contents
Index
The counter or slider moves incorrectly, or noise is heard.
Thi
s happens when you play back files that you divided.
St
ore a file on your computer first
*
, and then add it to the IC recorder. (
*
Select
the saving file format that suits the IC recorder you use.)
Op
eration is slow when there are many files.
W
hen the total number of files increases, the operation becomes slower, regardless
of the length of the recording time.
Display does not work during saving, adding, or deleting of files.
I
t takes a longer time to copy or delete long files.
Wa
it until the copying is finished. After completing operations, the display works
normally.
The
software ‘hangs’ when the Sound Organizer software starts up.
D
o not disconnect the connector of the IC recorder while the computer is
communicating with the IC recorder. Otherwise the computer operations become
unstable or the data inside the IC recorder may be damaged.
Th
ere may be conflict between the software and other driver or application.
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-12
131
131
Troubleshooting
Table of
Contents
Index
Messages List
Follow the instructions below if a message appears in the display.
Message Cause/Remedy
HOLD
Slide HOLD Switch to
Activate.
All the button operations are disabled because the IC
recorder is in the HOLD status to prevent unintentional
operations. Slide the HOLD•POWER switch towards the
center to release the IC recorder from the HOLD status (
p. 16).
Low Battery Level
You cannot format the memory or erase all the files in a
folder because of insufficient battery power. Charge the
rechargeable battery (
p. 18) or replace the old
rechargeable battery with a new one. Or replace the old
LR03 (size AAA) alkaline battery with a new one.
Low Battery
The battery is exhausted. Charge the rechargeable battery
(
p. 18) or replace the old rechargeable battery with a
new one. Or replace the old LR03 (size AAA) alkaline
battery with a new one.
Memory Card Error
An error occurred while a memory card was being inserted
into the memory card slot. Remove and try inserting it
again. If this message persists, use a new memory card.
Memory Card Not
Supported
A memory card that the IC recorder does not support is
inserted. See “About compatible memory cards” (
p. 21).
Read Only Memory Card
A read-only memory card is inserted. A read-only memory
card cannot be used with the IC recorder.
Memory Full
The remaining memory capacity of the IC recorder is
insufficient. Erase some files before recording.
File Full
When there are already the maximum number of files in
the selected folder or the total number of files stored on the
IC recorder has exceeded the maximum, you cannot record
a new file. Erase some files before recording.
Settings are Full
When 30 FM stations have already been stored in the IC
recorder’s memory, you cannot preset a new FM station
(for ICD-UX522F /UX523F only).
When you rename a folder, there are already 10 folders
with the same folder name as the folder you selected. Please
select a different folder name from the templates.
Track Marks are Full
You can set up to 98 track marks for a file. Cancel
unwanted track marks (
p. 62).
File Damaged
You cannot play back or edit files, because the data of the
selected file is damaged.
Continued
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-12
132
132
Troubleshooting
Table of
Contents
Index
Message Cause/Remedy
Format Error
The IC recorder cannot be turned on using the computer
because there is no copy of the control file required for
operation. Format the IC recorder using the formatting
function in the menu (
p. 92). Do not use your computer
to format the IC recorder.
Process Error
The IC recorder failed in memory access. Remove and then
re-insert the battery.
Save a backup copy of your data and format the IC recorder
using the menu (
p. 92).
Stop and Reinsert
Memory Card
A memory card was inserted during recording or playback.
Remove the memory card and insert it while the IC
recorder is in the stop mode.
Set Date&Time
Set the clock; otherwise, you cannot set the alarm.
No File
The selected folder does not have any files. You cannot
move a file or set the alarm, etc., because of this.
No Track Marks
There are no track marks when you attempt to erase a track
mark or track marks, or divide a file at all the track mark
positions.
No Memory Card
There is no memory card inserted into the memory card
slot when you attempt to set the “Select Memory,” or “File
Copy” menus.
File Protected
The selected file is protected or is a “Read only” file. You
cannot erase it. Cancel the protection on the IC recorder or
cancel “Read only” on your computer to edit the file using
the IC recorder.
Already Set
You set the alarm to play back a file at a date and time
previously set on another file. Change the alarm setting.
Past Date/Time
You set the alarm when the time has already passed. Check
it and set the appropriate date and time (
p. 54).
Unknown Data
This data is not in a file format that is supported by the IC
recorder. The IC recorder supports LPCM(.wav)/MP3
(.mp3)/WMA(.wma)/AAC-LC(.m4a) files. For details, see
“Design and specifications” (
p. 117).
You cannot play back copyright protected files.
Continued
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-13
133
133
Troubleshooting
Table of
Contents
Index
Message Cause/Remedy
Invalid Operation
You cannot divide or set a track mark in files in the folder
in the playback-only area (the
tab and the tab).
When a memory card has a bad block on it, the card
cannot be written to. Prepare a new memory card to
replace the current one.
The file name has reached the maximum number of
characters; you cannot divide the file. Shorten the file name.
The “Divide All Track Marks” function cannot be used
because there is a track mark within 0.5 seconds from the
dividing position.
The “Divide All Track Marks” function cannot be used
because there is a track mark within 0.5 seconds from the
beginning of a file or the end of a file.
The file length is less than 1 second; you cannot divide such
a short file.
The “Divide Current Position” function cannot be used at a
position within 0.5 seconds from the beginning of a file or
the end of a file.
New File
The file being recorded has reached the maximum size
limit (2 GB for an LPCM file, and 1 GB for an MP3 file).
The file will be divided automatically and recording will
continue as a new file.
Invalid when Noise Cut is
ON
When the NOISE CUT switch is set to “ON,” the effect
function does not work. Set the NOISE CUT switch to
“OFF.” (
p. 45).
Change Folder
If there are no files in the
or folder, no folders are
displayed in the display window. A folder containing a file
will be displayed.
Cannot Divide - Exceeds
Max 199 Files in Folder
When there are already 199 files in the selected folder or
the total number of files stored on the IC recorder exceeds
the maximum, you cannot divide a file. Erase some files
before dividing a file.
Same File Name Exists
A file of the same file name already exists in the folder, so a
file cannot be created or renamed.
Erased Track Marks too
near Divide Point
When there is a track mark set within 0.5 seconds from the
dividing position, the track mark is automatically erased.
No operation with
Memory Card
You cannot set an alarm in a file stored on a memory card.
Switch the memory media of the IC recorder to “Built-In
Memory” (
p. 29, 30).
AVLS
*
The volume of the playback sound exceeds the AVLS-
specified level. Adjust the volume to a moderate level.
System Error
A system error other than the above has occurred. Remove
the battery and re-insert it.
*
: for the European models only
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-12
134
134
Troubleshooting
Table of
Contents
Index
System Limitations
There are some system limitations of the IC recorder. Troubles as mentioned
below are not malfunctions of the IC recorder.
Symptom Cause/Remedy
You cannot display or play
back music files in order.
If you have transferred music files using your computer,
those files may not be transferred in order of transfer
because of system limitations. If you transfer music files
from your computer to the IC recorder one by one, you can
display and play back the music files in transferred order.
A file is divided
automatically.
The file being recorded has reached the maximum size
limit (2 GB for an LPCM file, and 1 GB for an MP3 file).
Therefore it is automatically divided.
You cannot enter lower-
case characters.
Depending on the combination of the characters used for
the folder name that was made on your computer, those
characters may change to all capitals.
“” is displayed in place
of a folder name, title,
artist name, or file name.
A character which cannot be displayed on the IC recorder
has been used. Using your computer, replace it with one
which can be displayed on the IC recorder.
When you set A-B repeat
playback, the set positions
move a little.
Depending on the files, the set positions may move.
The remaining recording
time becomes shorter
when you divide a file.
You need a certain amount of free space for a file
management area to divide a file, therefore the remaining
recording time will be shortened.
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-12
135
135
Table of
Contents
Index
Trademarks
Microsoft, Windows, Windows Vista and Windows Media are registered
trademarks or trademarks of Microsoft Corporation in the United States and/
or other countries.
Macintosh and Mac OS are trademarks of Apple Inc., registered in the USA
and other countries.
Pentium is a registered trademark of Intel Corporation.
MPEG Layer-3 audio coding technology and patents licensed from
Fraunhofer IIS and Thomson.
microSD and microSDHC logos are trademarks of SD-3C, LLC.
Nuance, the Nuance logo, Dragon, Dragon NaturallySpeaking, and
RealSpeak are trademarks and/or registered trademarks of Nuance
Communications Inc., and/or its affiliates in the United States and/or other
countries.
US and foreign patents licensed from Dolby Laboratories.
All other trademarks and registered trademarks are trademarks or registered
trademarks of their respective holders. Furthermore, “ ™ ” and “®” are not
mentioned in each case in this manual.
The “Sound Organizer” uses software modules as shown below:
Windows Media Format Runtime
This product contains technology subject to certain intellectual property rights
of Microsoft.
Use or distribution of this technology outside of this product is prohibited
without the appropriate license(s) from Microsoft.
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-12
136
136
Table of
Contents
Index
For the customers in Canada
Listening for a Lifetime
Selecting fine audio equipment such as the unit you’ve just purchased is only
the start of your musical enjoyment. Now it’s time to consider how you can
maximize the fun and excitement your equipment offers. This manufacturer,
the Consumer Electronics Association (CEA)® and the American Speech-
Language-Hearing Association (ASHA) want you to get the most out of your
equipment by playing it at a safe level; a level that lets the sound come through
clearly without annoying blaring or distortion and, most importantly, without
damaging your sensitive hearing.
Sound can be deceiving. Over time your hearing “comfort level” adapts to
higher volumes of sound. So what sounds “normal” can actually be loud and
harmful to your hearing. Guard against this by setting your equipment at a safe
level BEFORE your hearing adapts.
TO ESTABLISH A SAFE LEVEL:
Set your volume control to the lowest level where you can hear the music
comfortably and clearly. Prolonged exposure to anything over 85 decibels can
cause gradual hearing loss.
Once you have established a sound level where you can hear the audio
comfortably, clearly and without distortion, set the dial and leave it there.
See if your music player has a volume limiter that allows you to set a safe
listening level by establishing a maximum volume level on your player. This is
a great solution for parents to ensure their children listen at a safe level.
Limit listening time to give your hearing “quiet breaks.”
BE SURE TO OBSERVE THE FOLLOWING GUIDELINES WHEN
WEARING YOUR HEADPHONES OR EARBUDS:
Do not turn up the volume so high that you can’t hear sounds around you.
Do not use headphones or earbuds while operating a motorized vehicle; it
may create a traffic hazard and is illegal in many areas.
Used wisely, your new sound equipment will provide years of fun and
enjoyment. Since hearing damage from loud noise is often undetectable until it
is too late, this manufacturer, CEA and ASHA recommend that you avoid
prolonged exposure to excessive noise. The following list of sound levels is
included for your information so that you can better protect your hearing.
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-12
137
137
Table of
Contents
Index
DECIBEL LEVEL EXAMPLES:
30 Whisper
40 Quiet room
50 Moderate rainfall
60 Normal conversation
70 Busy traffic, vacuum cleaner
80 Alarm clock
CONSTANT EXPOSURE TO THESE NOISES CAN BE DANGEROUS:
90 Lawn mower, motorcycle
100 Chain saw
110 Rock concert
120 Jet plane takeoff
130 Jackhammer
140 Firecrackers
This information courtesy of the American Speech-Language-Hearing
Association (ASHA), the national professional, scientific and credentialing
association for more than 135,000 audiologists, speech-language pathologists,
and speech, language and hearing scientists. For information on protection
against noise-induced hearing loss, call the ASHA Action Center
(800-638-8255), Monday through Friday, 8:30 a.m. to 5 p.m. To find an
audiologist in your area, visit www.asha.org/findpro. Parents can find helpful
information about how to protect their children’s hearing and how to teach
them about safe listening at www.listentoyourbuds.org, an ASHA award-
winning public education campaign sponsored in part by CEA.
A safety tip from the Consumer Electronics Association, 1919 South Eads
Street, Arlington, VA 22202 and the American Speech-Language-Hearing
Association, 2200 Research Boulevard, Rockville, MD 20850.
138
138
Additional Information
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
Index
A
A-B repeat ....................................... 50
AAC-LC files ................................117
Adjusting the volume ..............32, 42
Alarm ..................................54, 79, 86
Alkaline battery ........................... 120
AVLS (Automatic Volume Limiter
System) ............................17, 79, 86
B
Battery indicator ....................18, 111
Battery life .................................... 120
Built-in memory ................29, 30, 97
Built-in microphones .................... 31
C
Calendar .............................52, 80, 88
Changing a file name ........67, 79, 87
Changing a folder name ...66, 79, 87
Changing the Scene Select
settings ............................36, 79, 81
Connecting the IC recorder to
your computer ......................18, 96
Copying a file to the other
memory ...........................60, 79, 87
Copying files to your
computer ................................... 101
Copying music files to the
IC recorder ................................102
Cue ................................................... 51
D
Displaying the current date
and time ...................................... 25
Display window ............................. 10
Dividing a file at all the track
mark positions ................65, 79, 88
Dividing a file at the current
position ...........................64, 79, 87
DPC (Digital Pitch Control) ........ 46
E
Easy search .........................51, 79, 85
Editing files ..................................... 59
Effect ...................................47, 79, 84
Erasing ............................................ 57
Erasing all files in a
folder ...............................58, 79, 88
Erasing all the track
marks ...............................63, 79, 87
Erasing a track mark .........62, 79, 87
External microphone .................... 39
F
FM radio
Listening to the
FM radio ..................... 69, 70, 80, 93
Presetting FM radio stations
automatically .....................72, 80, 93
Presetting FM radio stations
manually .........................................73
Recording FM broadcasts ................71
Switching the FM radio
output .................................77, 80, 94
Switching the receiver
sensitivity ...........................75, 80, 93
Switching the scanning
sensitivity ...........................76, 80, 94
Folder ..................................27, 66, 97
H
HOLD ............................................. 16
HOLD•POWER switch ..........16, 22
I
Index to parts and controls
Display window ................................10
Front .....................................................8
Rear ....................................................... 9
Input selection .............39, 41, 79, 83
Inserting a memory card .............. 20
L
LPCM files .................................... 117
139
139
Additional Information
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
M
Maintenance .................................113
Memory card ............. 20, 29, 30, 114
Menu
Alarm ...........................................79, 86
Audio Output ..............................80, 94
Auto Power Off ...........................80, 91
Auto Preset ..................................80, 93
AVLS .............................................79, 86
Backlight ......................................80, 89
Beep ..............................................80, 90
Calendar .......................................80, 88
Change File Name ......................79, 87
Change Folder Name .................79, 87
Date&Time ..................................80, 90
Display .........................................80, 88
Divide All Track Marks ..............79, 88
Divide Current Position .............79, 87
DX/LOCAL .................................80, 93
Easy Search ..................................79, 85
Effect .............................................79, 84
Erase All .......................................79, 88
Erase All Track Marks ................79, 87
Erase Track Mark ........................79, 87
File Copy ......................................79, 87
FM Radio .....................................80, 93
Format ..........................................80, 92
Language ......................................80, 90
LCF(Low Cut) .............................79, 83
LED ...............................................80, 89
Making settings .................................78
Menu Settings ....................................79
Mic Sensitivity .............................79, 82
Move File .....................................79, 87
Noise Cut Level ...........................79, 84
Play Mode ....................................79, 85
Protect ..........................................79, 87
REC Mode ...................................79, 82
Scan Sensitivity ...........................80, 94
Scene Edit ....................................79, 81
Scene Select .................................79, 81
Select Input ..................................79, 83
Select Memory ............................80, 89
SYNC REC ...................................79, 83
System Information ....................80, 92
Time Display ...............................80, 90
USB Charge .................................80, 91
VOR ..............................................79, 83
Messages list ................................. 131
microSD card ................................. 97
Monitoring the recording ............. 32
Moving a file .......................59, 79, 87
MP3 files ....................................... 117
N
Noise .............................................. 113
Noise cut ......................................... 45
Noise cut level ....................45, 79, 84
P
Pause recording .............................. 33
Playback .......................................... 42
Playback modes .......................49, 85
Playback speed ............................... 46
Playback time ............................... 119
Podcasts ........................................ 105
Precautions ................................... 113
Protecting a file ..................68, 79, 87
R
Rechargeable battery .....18, 111, 120
Recharging the battery ..........18, 111
Recording ....................................... 31
Recording from a telephone ......... 39
Recording from other
equipment ................................... 40
Recording level guide ................... 32
Recording time ............................119
Recording with an external
microphone ................................ 39
Recording with other
equipment ................................... 56
Remaining recording time ........... 44
Review ....................................... 33, 51
S
Scene selection ...................34, 79, 81
Selecting a folder and a file .......... 27
Selecting a tab ................................ 28
Selecting the
memory .....................29, 30, 80, 89
Setting the clock .................23, 80, 90
Setting the language ..........26, 80, 90
Sound Organizer ......................... 105
Specifications ............................... 115
Synchronized recording ....40, 79, 83
System limitations ....................... 134
System requirements ...........107, 115
140
140
Additional Information
Table of
Contents
Index
ModelName: ICD-UX522/UX522F/UX523/UX523F
PartNumber: 4-293-033-11
T
Tab view .......................................... 15
Track mark ..................................... 61
Troubleshooting ........................... 121
U
USB AC adaptor ..........................111
USB Memory ................................ 104
Using the IC recorder with your
computer ..................................... 95
V
VOR (Voice Operated
Recording) ......................38, 79, 83
W
WMA files .................................... 117
