"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page
HDR-TD30/TD30V
User Guide
Use this manual if you encounter any problems, or have any questions about the camcorder.
Back to top
Copyright 2013 Sony Corporation
1
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Operation Search
Operation Search
Operation Search
Search by operation
Back to top
Copyright 2013 Sony Corporation
2
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Before use
Before use
How to use this User Guide
How to use this User Guide
Models and illustrations used in this User Guide
Parts and controls/Screen indicators
Parts and controls
Screen indicators
How does your 3D camcorder work
How does your 3D camcorder work?
Back to top
Copyright 2013 Sony Corporation
3
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Getting started
Getting started
Checking the supplied items
Supplied items
Charging the battery pack
Charging the battery using the AC Adaptor
Charging the battery using your computer
Charging the battery abroad
Turning the power on, and setting the date and time
Turning the power on, and setting the date and time
Preparing the recording media
Inserting a memory card
Back to top
Copyright 2013 Sony Corporation
4
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Recording
Recording
Recording
Recording movies
Shooting photos (2D only)
Screen indicators during recording
Useful functions for recording images
Zooming
Intelligent Auto
Recording the selected subject clearly (Face Priority) (2D only)
Recording movies in dim places (Video Light)
Recording in mirror mode
Using the GPS function (HDR-TD30V)
Back to top
Copyright 2013 Sony Corporation
5
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Playback
Playback
Playback
Playing movies and photos from the Event View screen
Playing movies and photos from a map (HDR-TD30V)
Operating buttons while playing images
Adjusting the depth during playback (3D Depth Adjustment)
Dividing a movie
Capturing a photo from a movie (2D only)
Highlight Playback
Enjoying a digest of your movies (Highlight Playback)
Saving Highlight Playback in high definition image quality (HD) (Scenario Save)
Converting Highlight Playback scenes or Highlight Scenarios to standard definition image
quality (STD) (Highlight Movie)
Playing images on a TV
Connecting the camcorder to a 3D TV

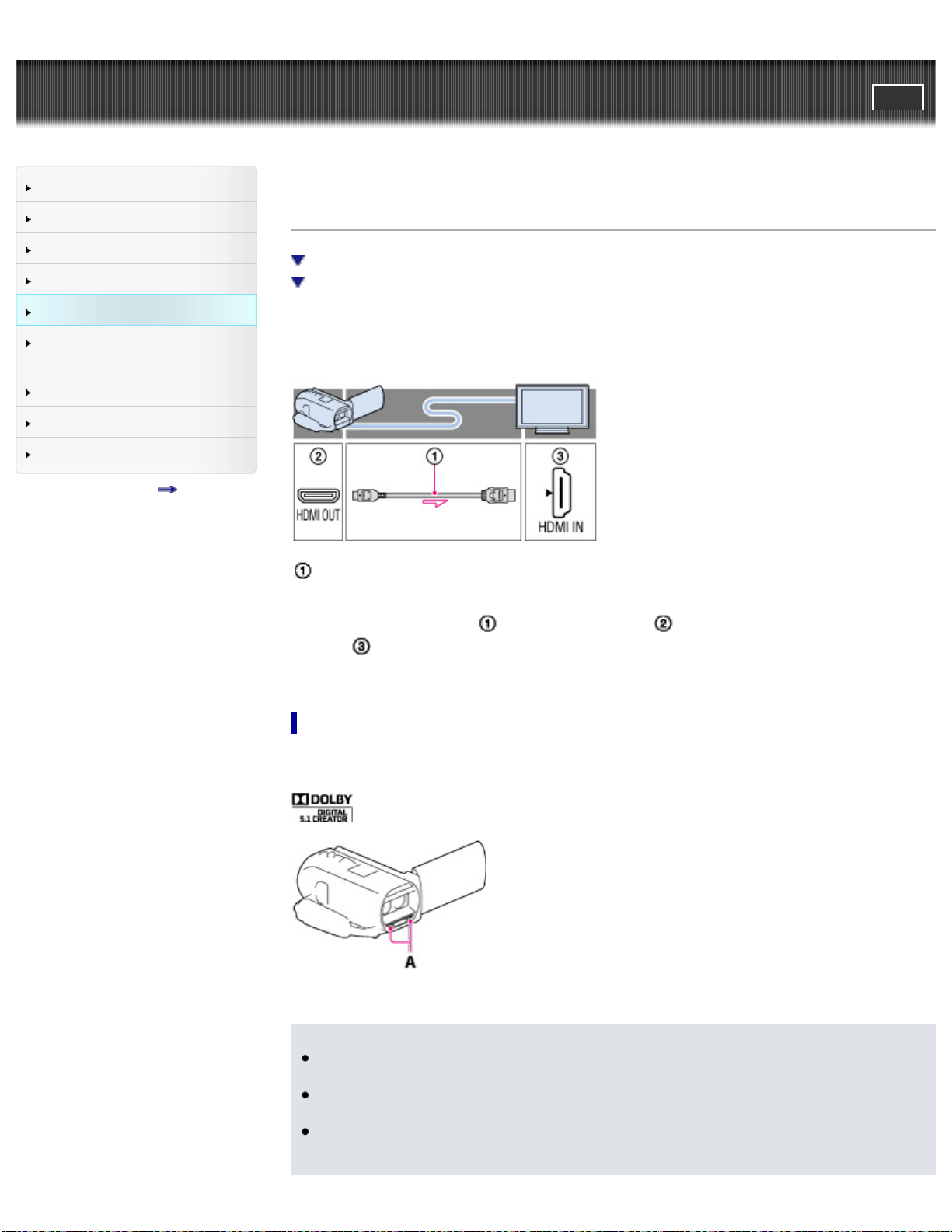

Connecting the camcorder to a high definition TV
Connecting the camcorder to a non-high-definition TV
Connecting the camcorder to a TV via a VCR
Using “BRAVIA” Sync
Back to top
Copyright 2013 Sony Corporation
6
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Saving images with an external device
Saving images with an external device
Using the “PlayMemories Home” software
Playing images on a computer
Checking the computer system
Installing the "PlayMemories Home" software in your computer
Disconnecting your camcorder from the computer
The devices on which the created disc can be played back
Starting the "PlayMemories Home" software
Downloading the dedicated software for the camcorder
Selecting a method for saving images
Types of media devices on which the images can be saved
Saving images on an external media device
Saving images on an external media device easily
Saving the desired images in the camcorder to the external media device
Playing back images in the external media device on the camcorder
Devices that cannot be used as an external media device
Creating a disc with a recorder
Creating a standard definition image quality (STD) disc with a recorder
Back to top
Copyright 2013 Sony Corporation
7
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder
Customizing your camcorder

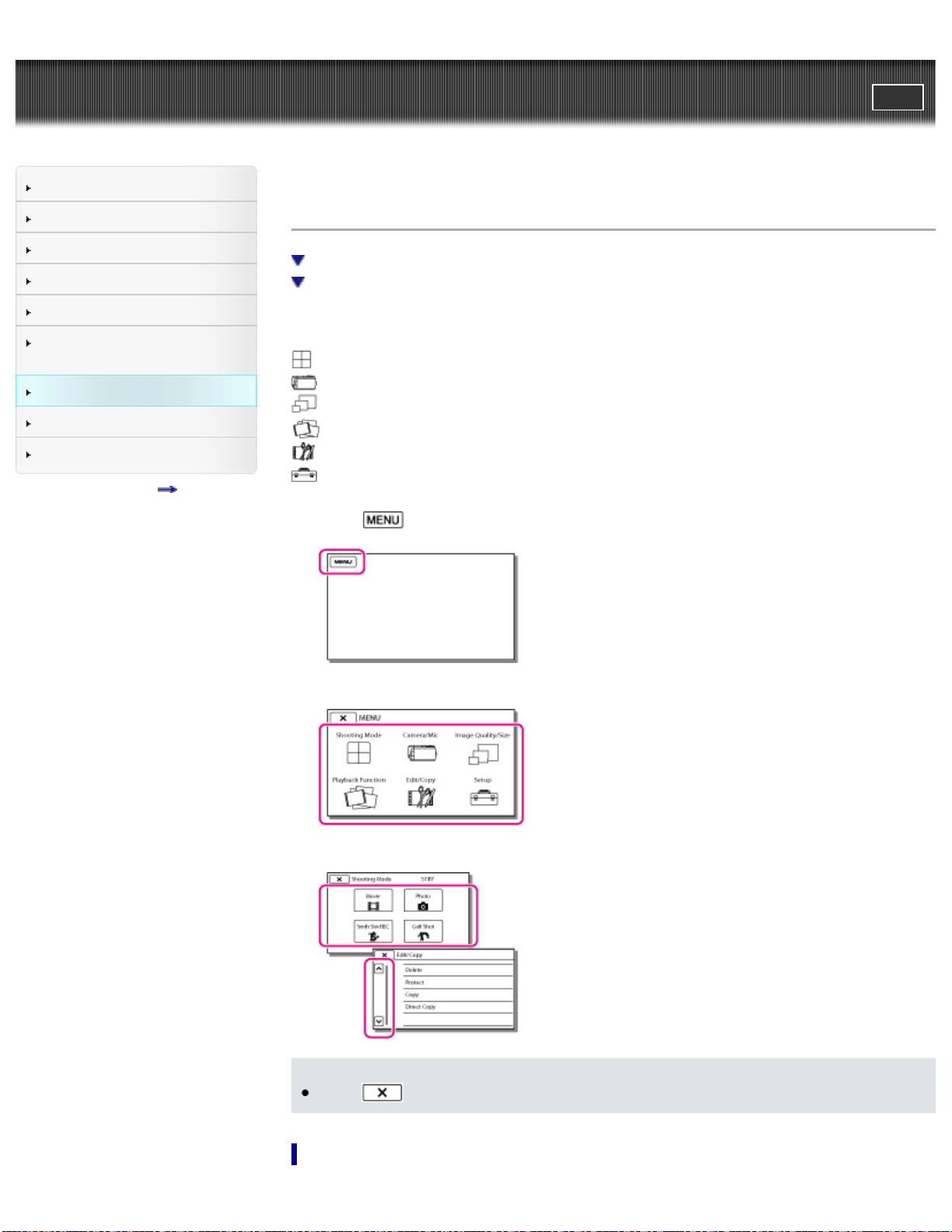

Using menu items
Setting up menu items
Shooting Mode
Movie
Photo (2D only)
Smth Slw REC (Smooth slow rec) (2D only)
Golf Shot (2D only)
Camera/Mic
White Balance (2D only)
Spot Meter/Fcs (Spot meter/focus) (2D only)
Spot Meter (Flexible spot meter) (2D only)
Spot Focus (2D only)
Exposure
Focus
IRIS (2D only)
Shutter Speed (2D only)
AGC Limit (2D only)
AE Shift
White Balance Shift
Low Lux (2D only)
3D Depth Adjustment (3D only)

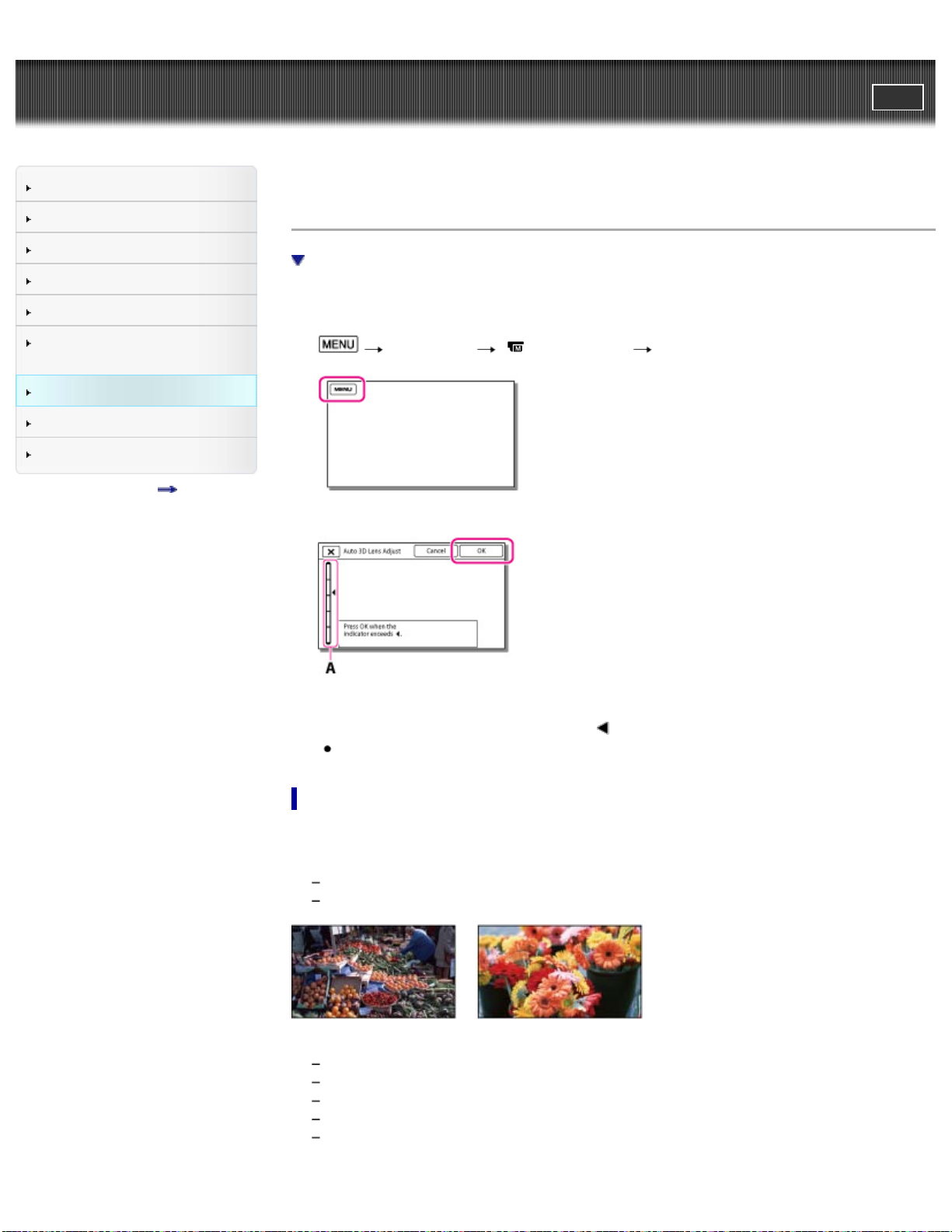

Auto 3D Lens Adjust (3D only)
Scene Selection (2D only)
Cinematone
Fader (2D only)
Self-Timer (2D only)
Tele Macro (2D only)
SteadyShot (movie)
SteadyShot (photo) (2D only)
Digital Zoom (2D only)
Auto Back Light (2D only)
Face Detection
Smile Shutter (2D only)
Smile Sensitivity (2D only)
Flash (2D only)
Flash Level (2D only)
Red Eye Reduction (2D only)
Closer Voice
Blt-in Zoom Mic
Auto Wind NR
8
Audio Mode
Micref Level (Microphone reference level)
My Button
Guide Frame (2D only)
Display Setting
Zebra (2D only)
Peaking (2D only)
Light Bright
Audio Level Display
Image Quality/Size
REC Mode (2D only)
Frame Rate (2D only)
HD/STD Setting (2D only)
Wide Mode (2D only)
x.v.Color
Image Size (2D only)
Playback Function
Event View

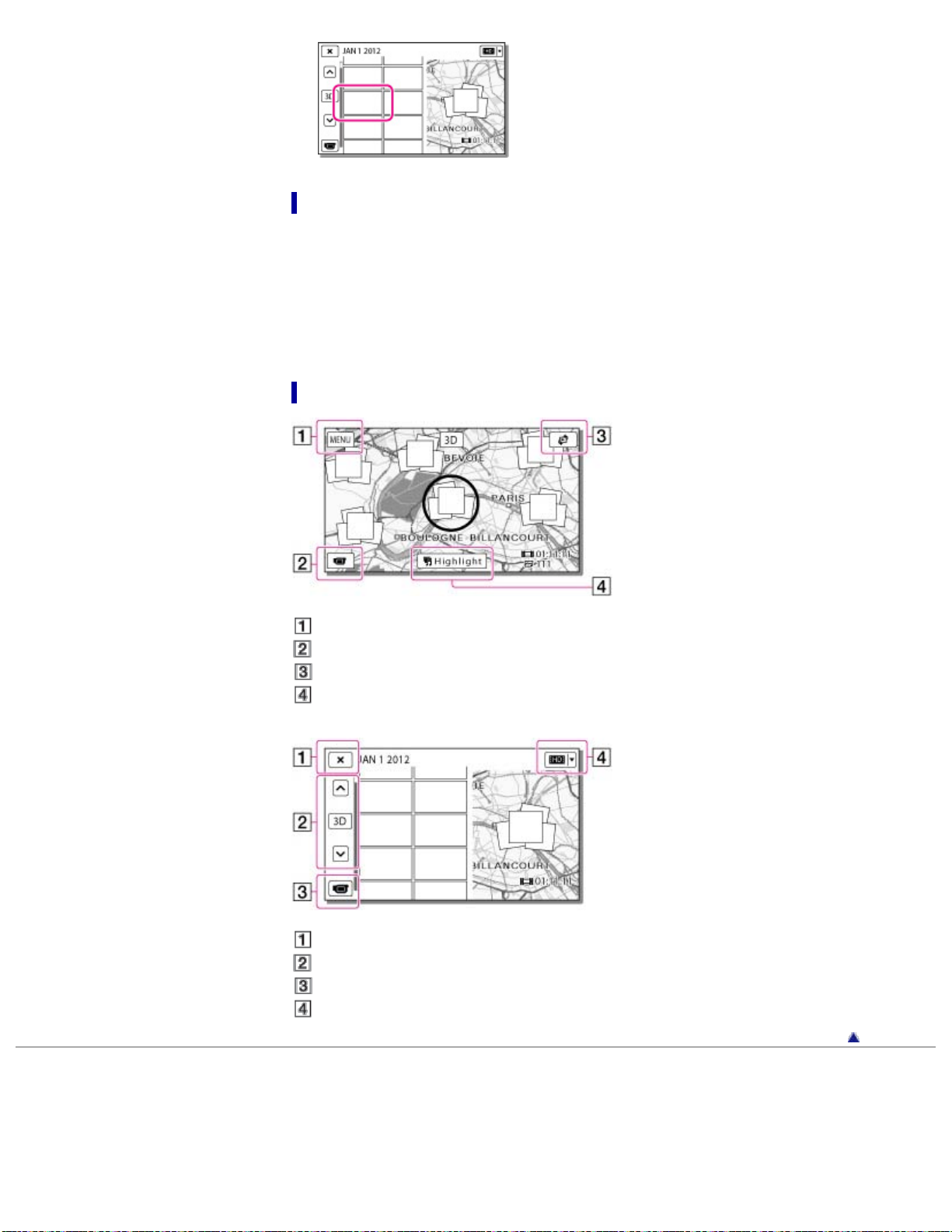

Map View (HDR-TD30V)
Highlight Movie (2D only)
Scenario
Edit/Copy
Delete
Protect
Copy
Direct Copy
Setup
Media Info
Format
Repair Img. DB F.
File Number
Data Code
Volume
Download Music
Empty Music
TV Type
HDMI 3D Setting
HDMI Resolution
CTRL FOR HDMI (Control for HDMI)
USB Connect
USB Connect Setting
USB LUN Setting
Beep
LCD Brightness
Your Location (HDR-TD30V)
GPS Setting (HDR-TD30V)
REC Lamp
Remote Ctrl
9
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Troubleshooting
Troubleshooting
If you have problems
If you have problems
Troubleshooting
Overall operations/Wireless Remote Commander
Batteries/power sources
LCD screen
Memory card
Recording
Playback
Playing back images stored on memory card on other devices
Editing movies/photos on your camcorder
Playback on the TV
Copying/Connecting to other devices
Connecting to a computer
Self-diagnosis display/Warning indicators
Self-diagnosis display
Warning Indicators
Back to top
Copyright 2013 Sony Corporation
11
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Maintenance and precautions
Maintenance and precautions
Maintenance and precautions
About the AVCHD format

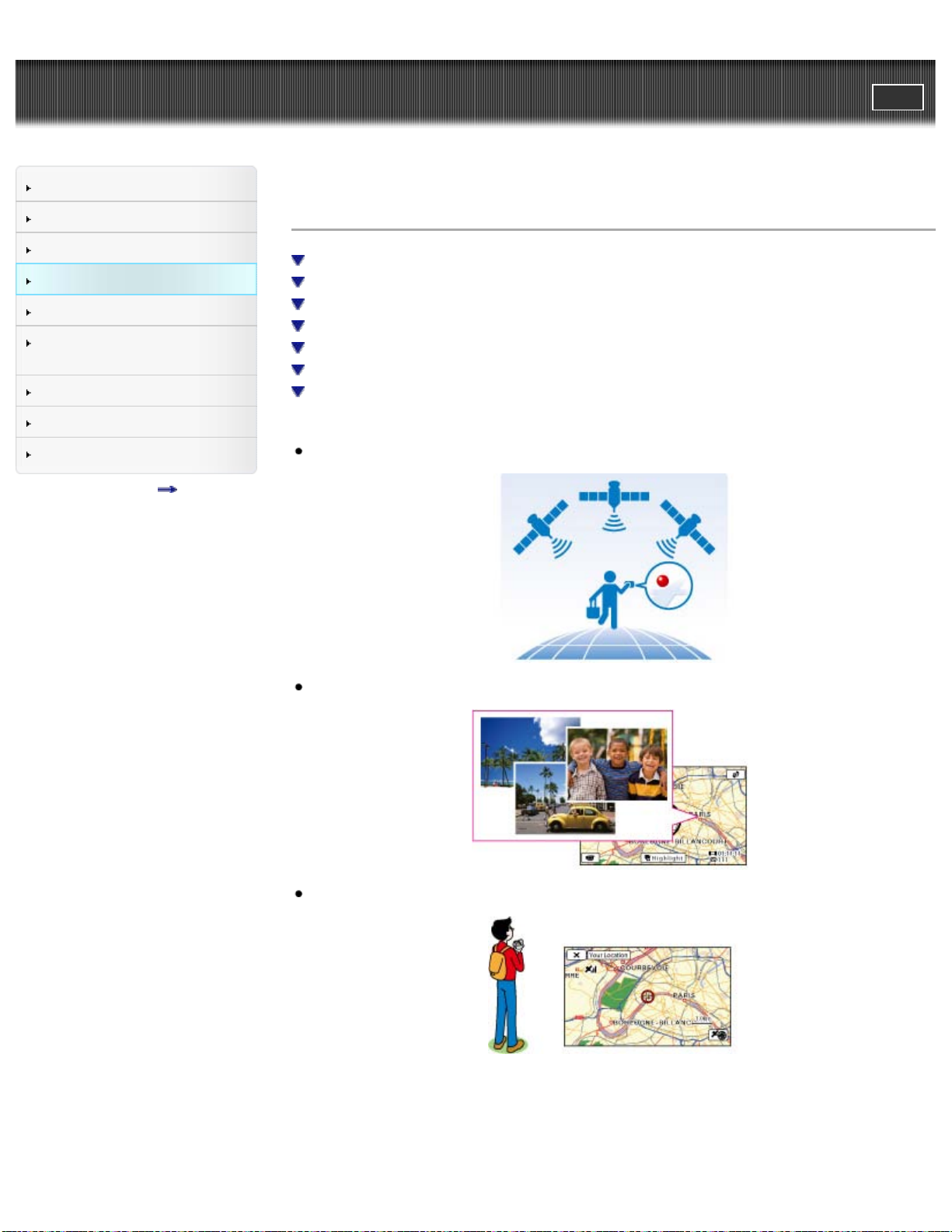

About GPS (HDR-TD30V)
About the memory card
About the “InfoLITHIUM” battery pack
About the AC Adaptor

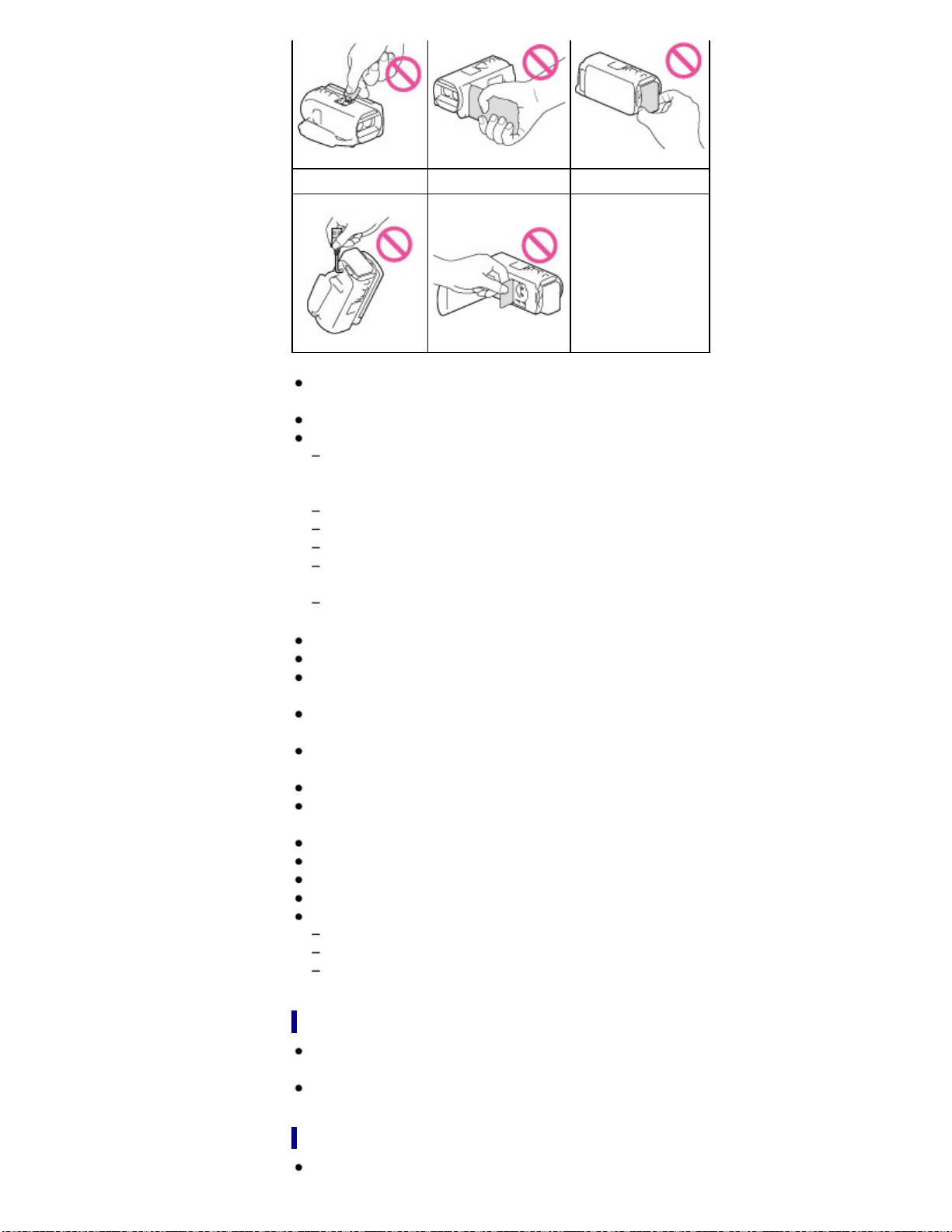

About handling of your camcorder
On use and care
On moisture condensation
On charging the pre-installed rechargeable battery
Notes on disposal/transfer of the camcorder
Recording time of movies/number of recordable photos
Charging time
Expected time of recording and playback with each battery pack
Expected recording time of movies
Expected number of recordable photos
Using your camcorder abroad
Using your camcorder abroad
On trademarks
On trademarks
Back to top
Copyright 2013 Sony Corporation
12
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Contents list
Contents list
Operation Search
Operation Search
Search by operation
Back to top
Before use
How to use this User Guide
How to use this User Guide
Models and illustrations used in this User Guide
Parts and controls/Screen indicators
Parts and controls
Screen indicators
How does your 3D camcorder work
How does your 3D camcorder work?
Back to top
Getting started
Checking the supplied items
Supplied items
Charging the battery pack
Charging the battery using the AC Adaptor
Charging the battery using your computer
Charging the battery abroad
Turning the power on, and setting the date and time
Turning the power on, and setting the date and time
Preparing the recording media
Inserting a memory card
Back to top
Recording
Recording
Recording movies
Shooting photos (2D only)
Screen indicators during recording
Useful functions for recording images
Zooming
13
Intelligent Auto
Recording the selected subject clearly (Face Priority) (2D only)
Recording movies in dim places (Video Light)
Recording in mirror mode
Using the GPS function (HDR-TD30V)
Back to top
Playback
Playback
Playing movies and photos from the Event View screen
Playing movies and photos from a map (HDR-TD30V)
Operating buttons while playing images
Adjusting the depth during playback (3D Depth Adjustment)
Dividing a movie
Capturing a photo from a movie (2D only)
Highlight Playback
Enjoying a digest of your movies (Highlight Playback)
Saving Highlight Playback in high definition image quality (HD) (Scenario Save)
Converting Highlight Playback scenes or Highlight Scenarios to standard definition image
quality (STD) (Highlight Movie)
Playing images on a TV
Connecting the camcorder to a 3D TV
Connecting the camcorder to a high definition TV
Connecting the camcorder to a non-high-definition TV
Connecting the camcorder to a TV via a VCR
Using “BRAVIA” Sync
Back to top
Saving images with an external device
Using the “PlayMemories Home” software
Playing images on a computer
Checking the computer system
Installing the "PlayMemories Home" software in your computer
Disconnecting your camcorder from the computer
The devices on which the created disc can be played back
Starting the "PlayMemories Home" software
Downloading the dedicated software for the camcorder
Selecting a method for saving images
Types of media devices on which the images can be saved
Saving images on an external media device
Saving images on an external media device easily
Saving the desired images in the camcorder to the external media device
Playing back images in the external media device on the camcorder
Devices that cannot be used as an external media device
Creating a disc with a recorder
Creating a standard definition image quality (STD) disc with a recorder
14
Back to top
Customizing your camcorder
Using menu items
Setting up menu items
Shooting Mode
Movie
Photo (2D only)
Smth Slw REC (Smooth slow rec) (2D only)
Golf Shot (2D only)
Camera/Mic
White Balance (2D only)
Spot Meter/Fcs (Spot meter/focus) (2D only)
Spot Meter (Flexible spot meter) (2D only)
Spot Focus (2D only)
Exposure
Focus
IRIS (2D only)
Shutter Speed (2D only)
AGC Limit (2D only)
AE Shift
White Balance Shift
Low Lux (2D only)
3D Depth Adjustment (3D only)
Auto 3D Lens Adjust (3D only)
Scene Selection (2D only)
Cinematone
Fader (2D only)
Self-Timer (2D only)
Tele Macro (2D only)
SteadyShot (movie)
SteadyShot (photo) (2D only)
Digital Zoom (2D only)
Auto Back Light (2D only)
Face Detection
Smile Shutter (2D only)
Smile Sensitivity (2D only)
Flash (2D only)
Flash Level (2D only)
Red Eye Reduction (2D only)
Closer Voice
Blt-in Zoom Mic
Auto Wind NR
Audio Mode
Micref Level (Microphone reference level)
My Button
Guide Frame (2D only)
Display Setting
15
Zebra (2D only)
Peaking (2D only)
Light Bright
Audio Level Display
Image Quality/Size
REC Mode (2D only)
Frame Rate (2D only)
HD/STD Setting (2D only)
Wide Mode (2D only)
x.v.Color
Image Size (2D only)
Playback Function
Event View
Map View (HDR-TD30V)
Highlight Movie (2D only)
Scenario
Edit/Copy
Delete
Protect
Copy
Direct Copy
Setup
Media Info
Format
Repair Img. DB F.
File Number
Data Code
Volume
Download Music
Empty Music
TV Type
HDMI 3D Setting
HDMI Resolution
CTRL FOR HDMI (Control for HDMI)
USB Connect
USB Connect Setting
USB LUN Setting
Beep
LCD Brightness
Your Location (HDR-TD30V)
GPS Setting (HDR-TD30V)
REC Lamp
Remote Ctrl
Power On By LCD
Language Setting
Battery Info
Power Save
Demo Mode
16
Date & Time Setting
Area Setting
Auto Clock ADJ (HDR-TD30V)
Auto Area ADJ (HDR-TD30V)
Back to top
Troubleshooting
If you have problems
If you have problems
Troubleshooting
Overall operations/Wireless Remote Commander
Batteries/power sources
LCD screen
Memory card
Recording
Playback
Playing back images stored on memory card on other devices
Editing movies/photos on your camcorder
Playback on the TV
Copying/Connecting to other devices
Connecting to a computer
Self-diagnosis display/Warning indicators
Self-diagnosis display
Warning Indicators
Back to top
Maintenance and precautions
Maintenance and precautions
About the AVCHD format
About GPS (HDR-TD30V)
About the memory card
About the “InfoLITHIUM” battery pack
About the AC Adaptor
About handling of your camcorder
On use and care
On moisture condensation
On charging the pre-installed rechargeable battery
Notes on disposal/transfer of the camcorder
Recording time of movies/number of recordable photos
Charging time
Expected time of recording and playback with each battery pack
Expected recording time of movies
Expected number of recordable photos
Using your camcorder abroad
Using your camcorder abroad
On trademarks
17
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Operation Search > Operation Search > Search by operation
Search by operation

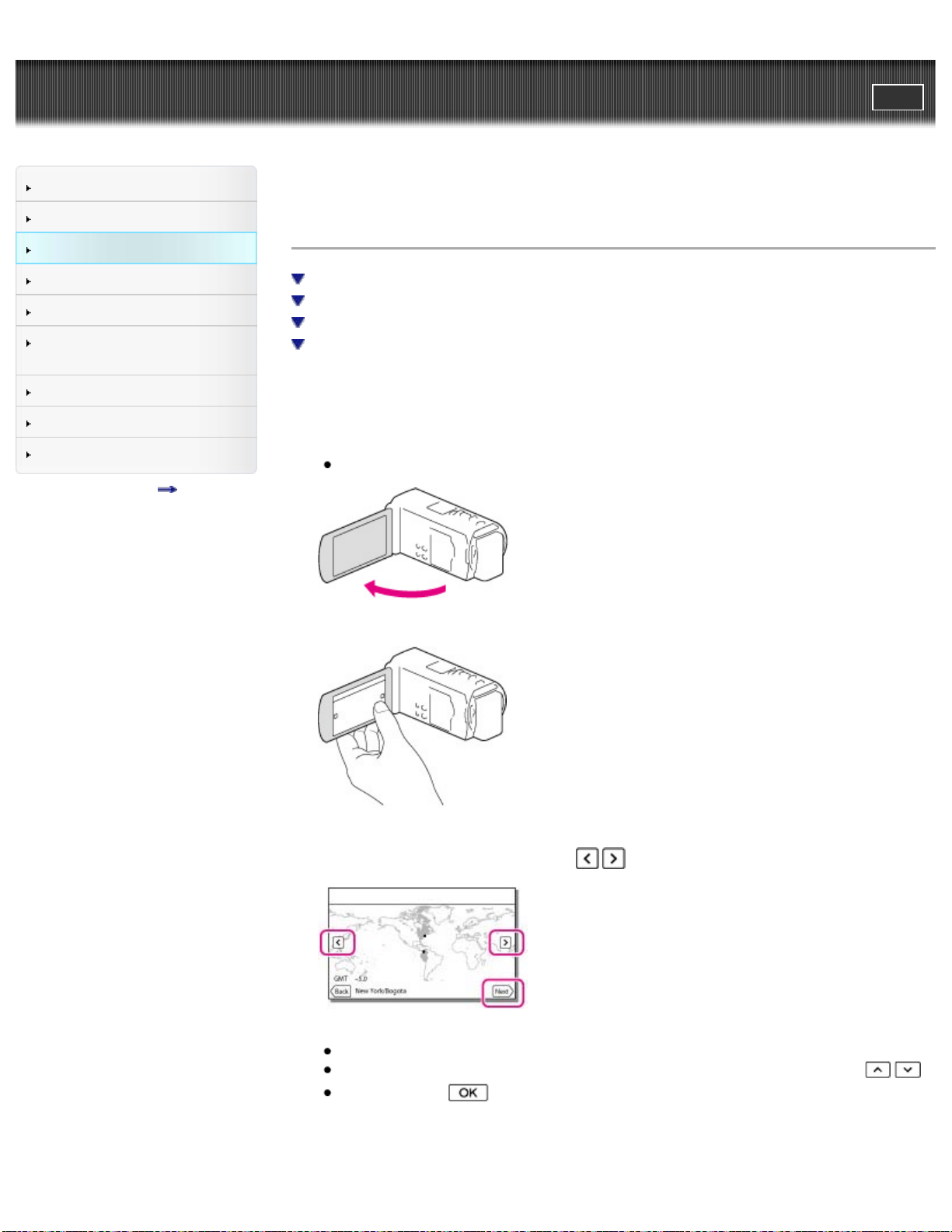

Setting the date and time

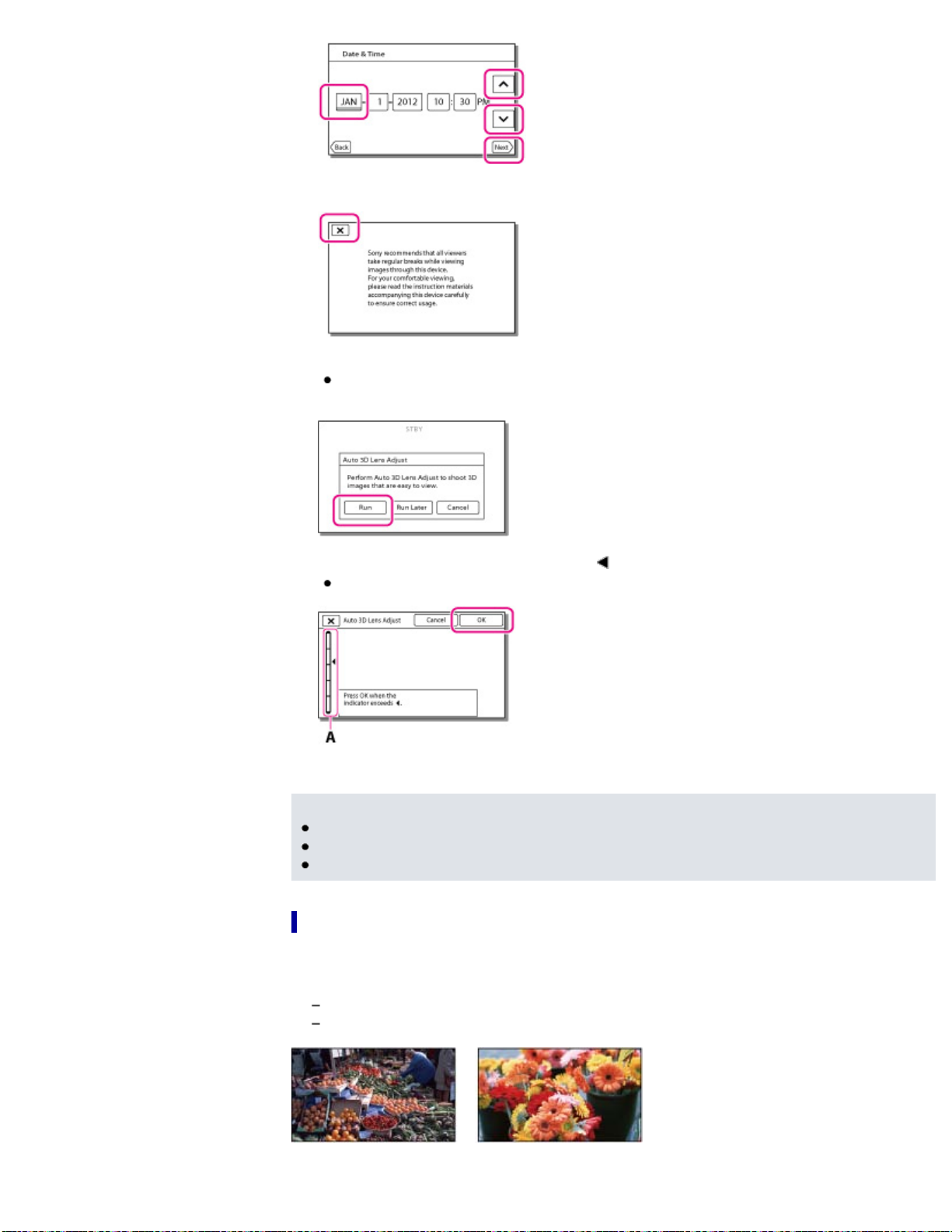

Date & Time Setting
Area Setting
Auto Clock ADJ (HDR-TD30V)
Identifying part names
Parts and controls

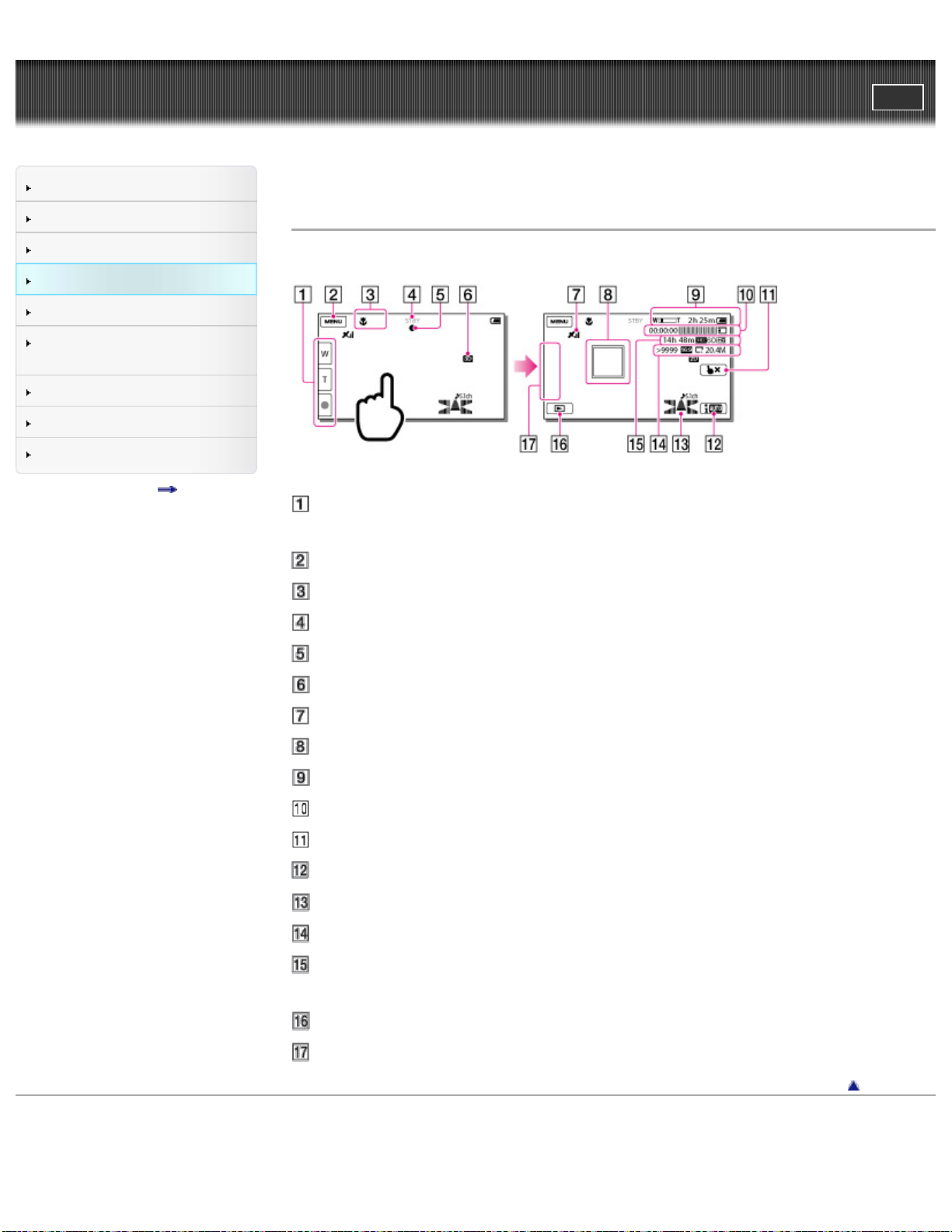

Screen indicators

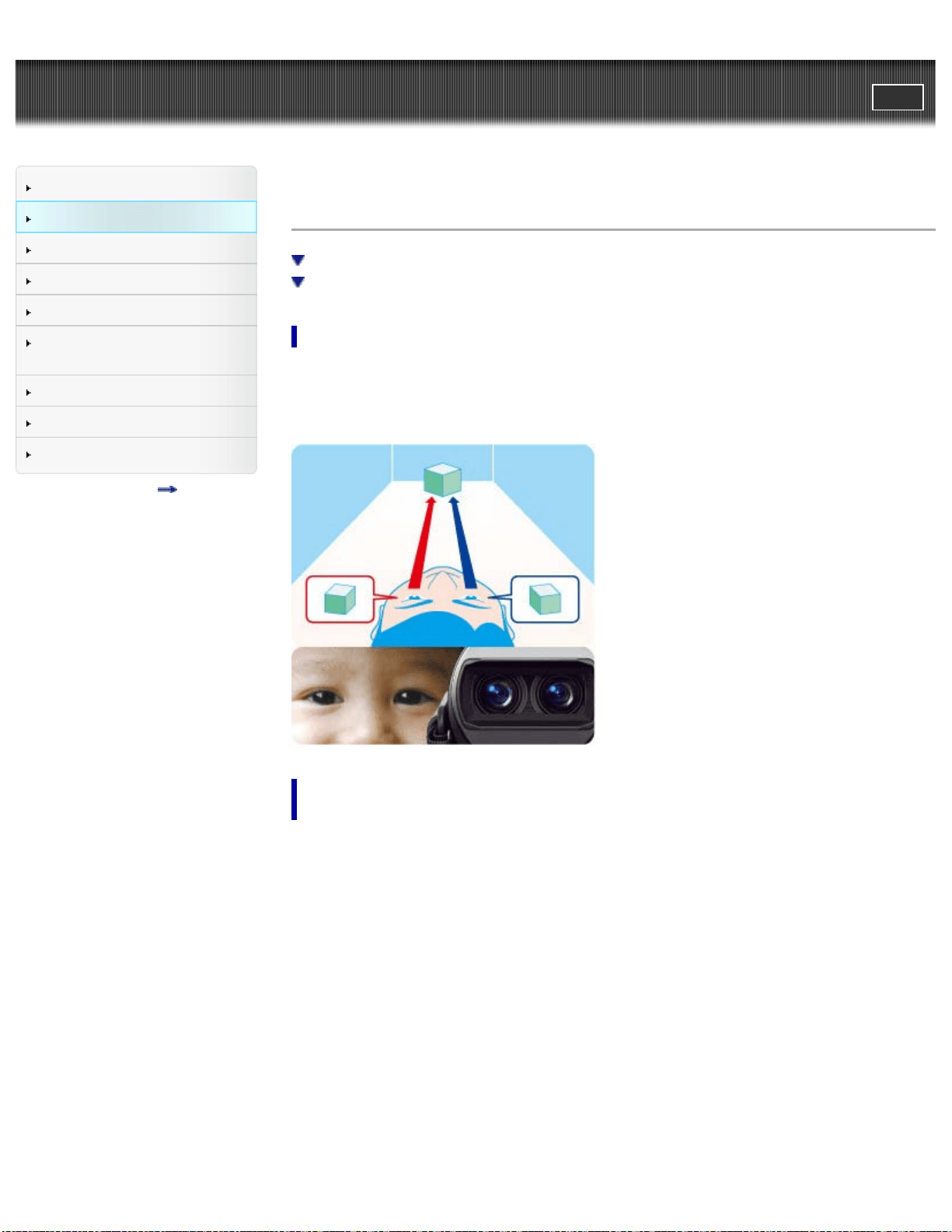

How does your 3D camcorder work?
How does your 3D camcorder work?
Displaying the data code
Data Code
Checking your golf swing

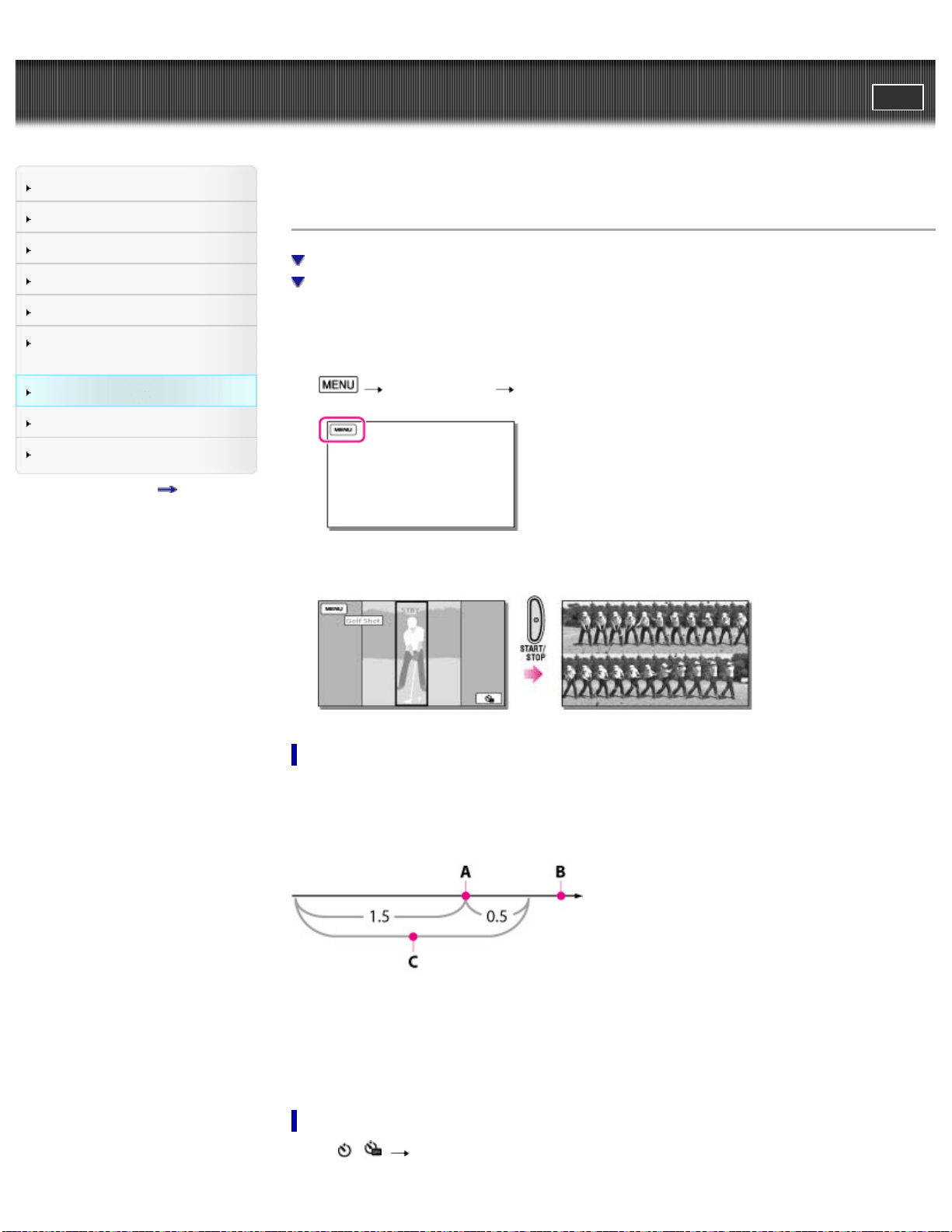

Golf Shot (2D only)
Smth Slw REC (Smooth slow rec) (2D only)
Selecting the suitable setting automatically for the recording situation
Intelligent Auto
Recording people clearly
Face Detection
Recording the selected subject clearly (Face Priority) (2D only)
Smile Shutter (2D only)
Scene Selection (2D only) (Portrait)
Scene Selection (2D only) (Spotlight)
Scene Selection (2D only) (Night Portrait)
Closer Voice
Recording images with the selected image quality
REC Mode (2D only)
Frame Rate (2D only)
HD/STD Setting (2D only)
Wide Mode (2D only)
Image Size (2D only)
Recording images without blurring
SteadyShot (movie)
SteadyShot (photo) (2D only)
Adjusting the focus
Spot Focus (2D only)
Tracking focus: Recording the selected subject clearly (Face Priority) (2D only)
Focus
Using the GPS function
GPS Setting (HDR-TD30V)
19
Your Location (HDR-TD30V)
Recording movies in a dim place
Low Lux (2D only)
Scene Selection (2D only) (Night Portrait)
Scene Selection (2D only) (Night Scene)
Recording movies in dim places (Video Light)
Flash (2D only)
Recording sound clearly
Closer Voice
Auto Wind NR
Audio Mode
Blt-in Zoom Mic
Micref Level (Microphone reference level)
Capturing photos during movie recording
Recording high quality photos during movie recording (Dual capture): Recording movies
Smile Shutter (2D only)
Recording sunset or fireworks beautifully
Scene Selection (2D only) (Fireworks)
Scene Selection (2D only) (Sunrise&Sunset)
Saving battery power
Power Save
Playing movies and photos from an event
Event View
Playing movies and photos from a map
Map View (HDR-TD30V)
Enjoying a digest of your movies
Enjoying a digest of your movies (Highlight Playback)
Playing images on a TV
Connecting the camcorder to a high definition TV
Connecting the camcorder to a non-high-definition TV
Editing movies and photos
Capturing a photo from a movie (2D only)
Dividing a movie
Delete
Saving images with an external device
Saving images on an external media device easily
Creating a disc
Creating a standard definition image quality (STD) disc with a recorder
Back to top
Copyright 2013 Sony Corporation
20
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Before use > How to use this User Guide > How to use this User Guide
How to use this User Guide
Selecting a topic to display
Returning to a previous page
Printing out a page
Marks and notations used in this User Guide
This User Guide explains how to use each function of the camcorder, how to change settings, and how
to troubleshoot a problem.

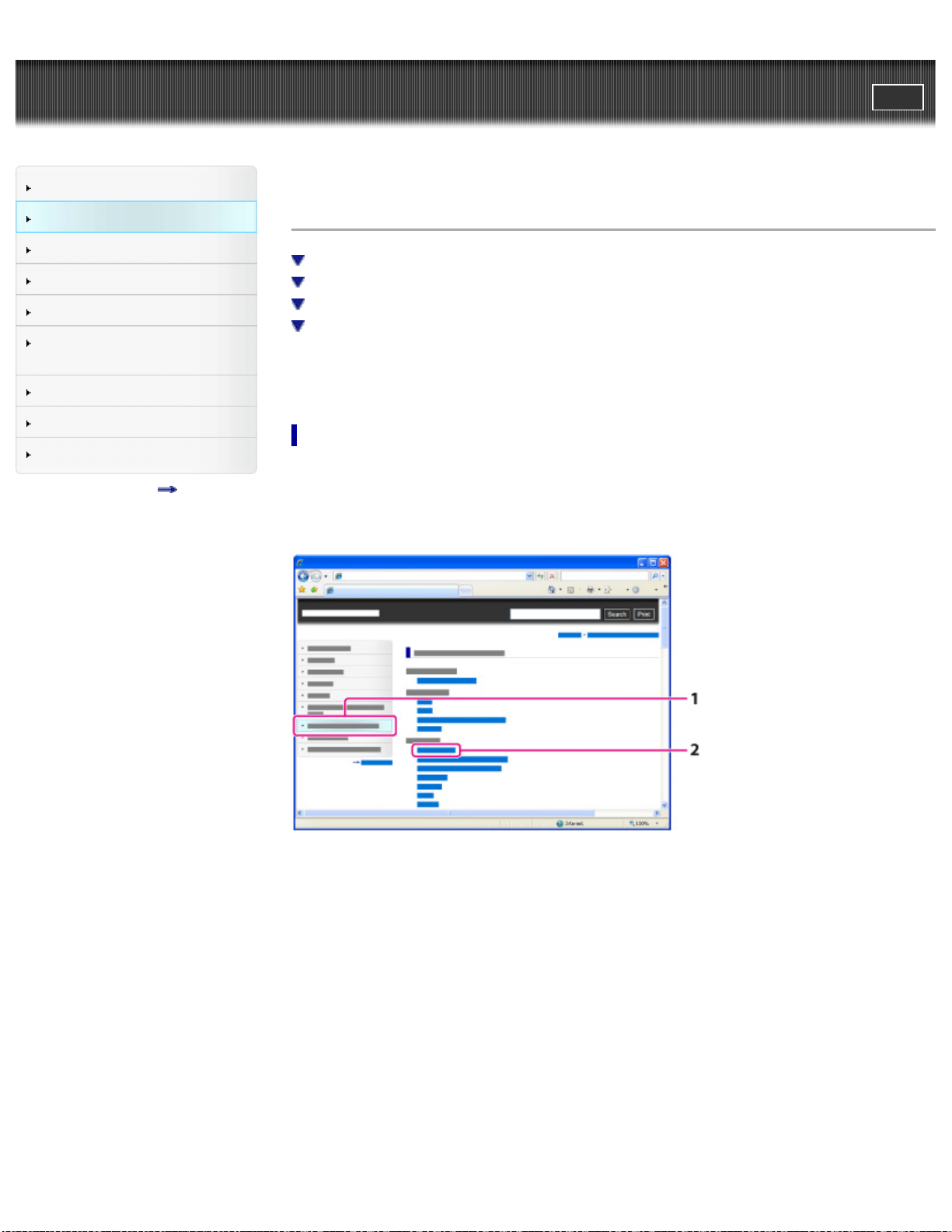

Selecting a topic to display

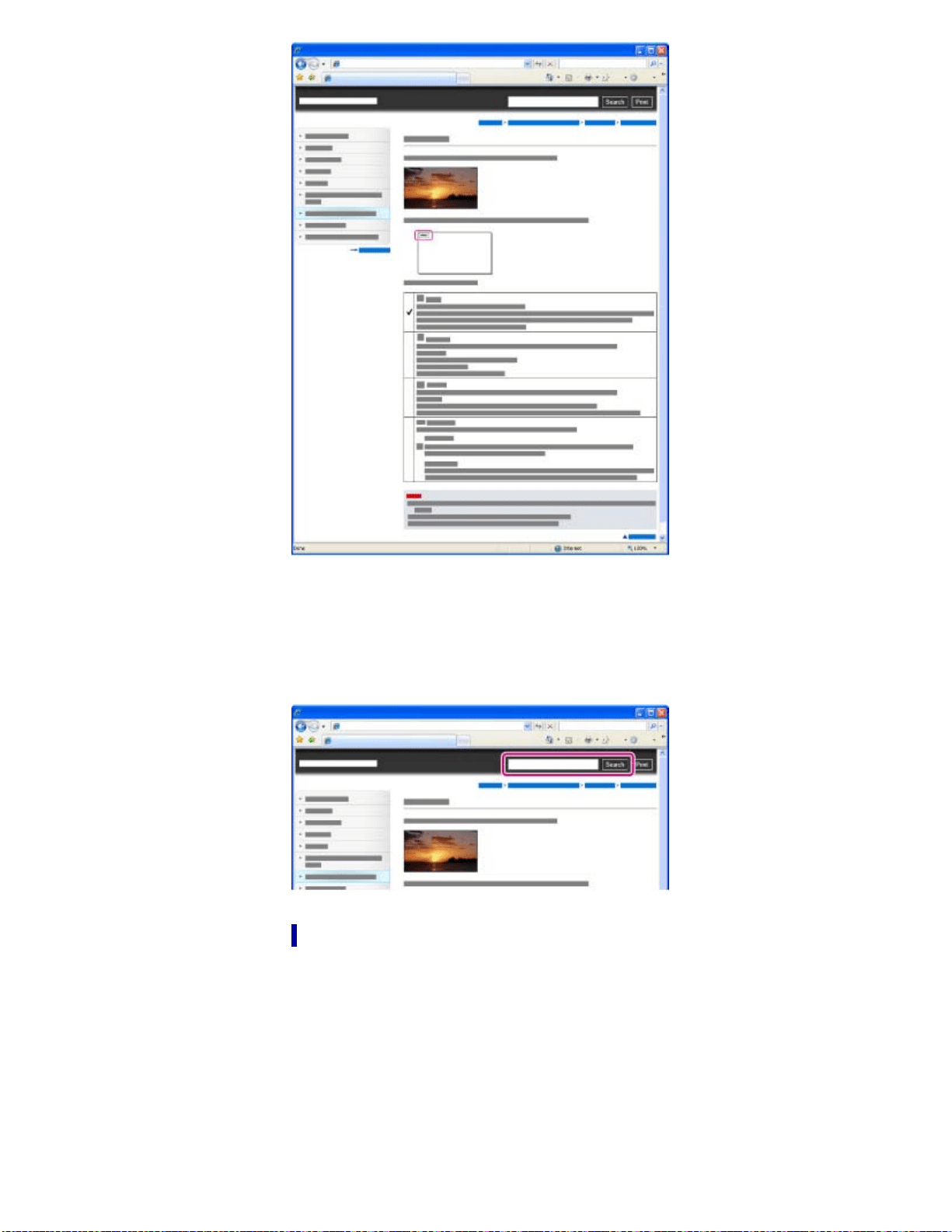

The following illustrations take Internet Explorer 7 as an example.
1. Click a title in the side bar on the left of the browser window.
A list of topic titles appears in the right pane.
2. Click a topic title in the list.
Descriptions appear in the right pane.
21
Changing the font size
Change the font size by changing the setting of your web browser. For how to change the font size
setting, refer to the Help of your web browser.
Searching a topic by keyword
Enter the keyword in the search window, then click the [Search] button.

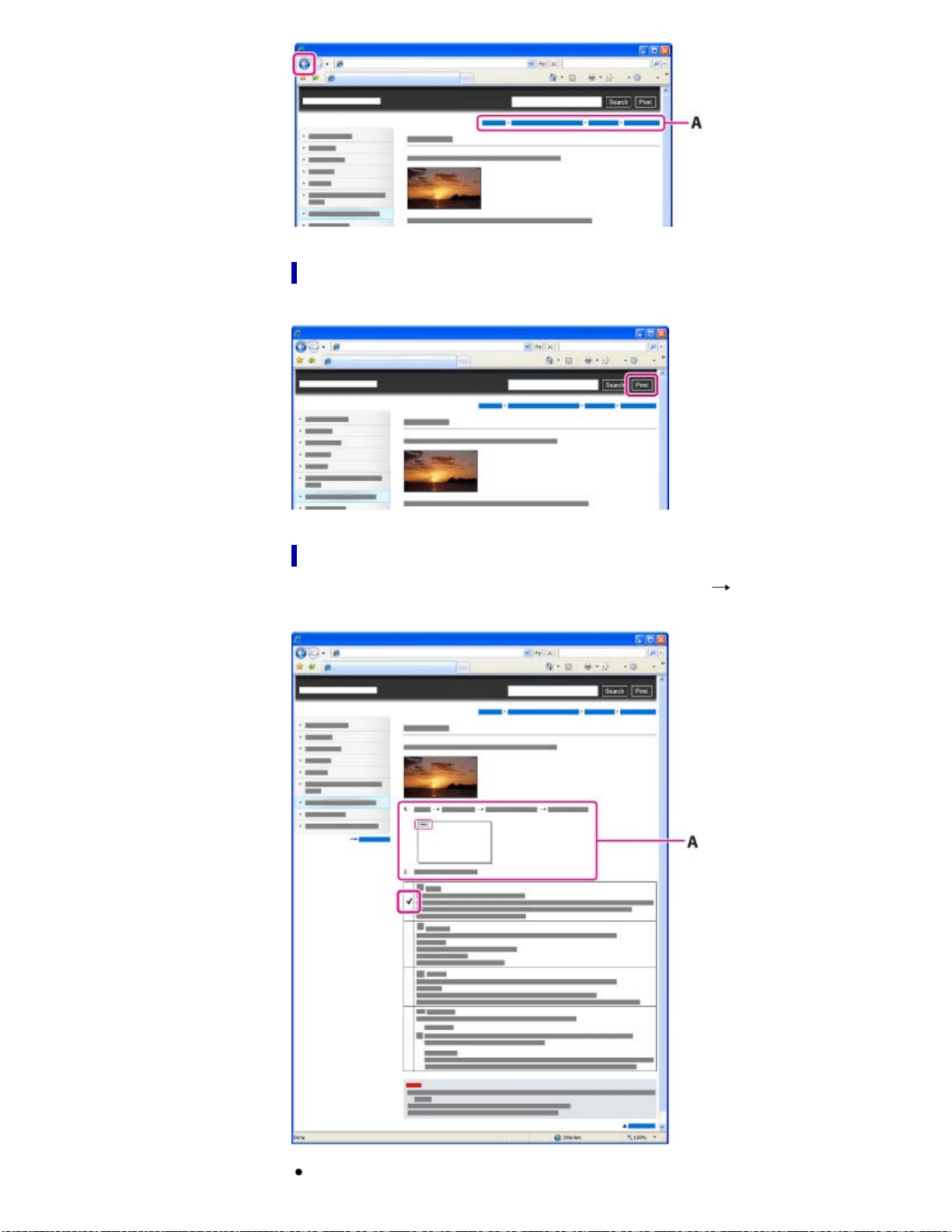

Returning to a previous page
Use the back button of your web browser or the breadcrumb trail navigation (A) to return to a page you
previously viewed.
22
Printing out a page
Click the [Print] button to print out a page you are viewing.
Marks and notations used in this User Guide
In this User Guide, the sequence of operations is shown by arrows ( ) (A).
Operate the camcorder in the order indicated.
23
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Before use > How to use this User Guide > Models and illustrations used in this User Guide
Models and illustrations used in this User Guide
Models described in this User Guide
Illustrations and on-screen displays used in this User Guide
Models described in this User Guide
Models described in this User Guide are as follows.
HDR-TD30/TD30V
Difference of each model is as follows.
GPS
HDR-TD30
HDR-TD30V
Illustrations and on-screen displays used in this User Guide
The example images used in this User Guide for illustration purposes are captured using a digital still
camera, and therefore may appear different from images and screen indicators that actually appear
on your camcorder.
And, the illustrations of your camcorder and its screen indication are exaggerated or simplified for
understandability.
Back to top
Copyright 2013 Sony Corporation
25
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Before use > Parts and controls/Screen indicators > Parts and controls

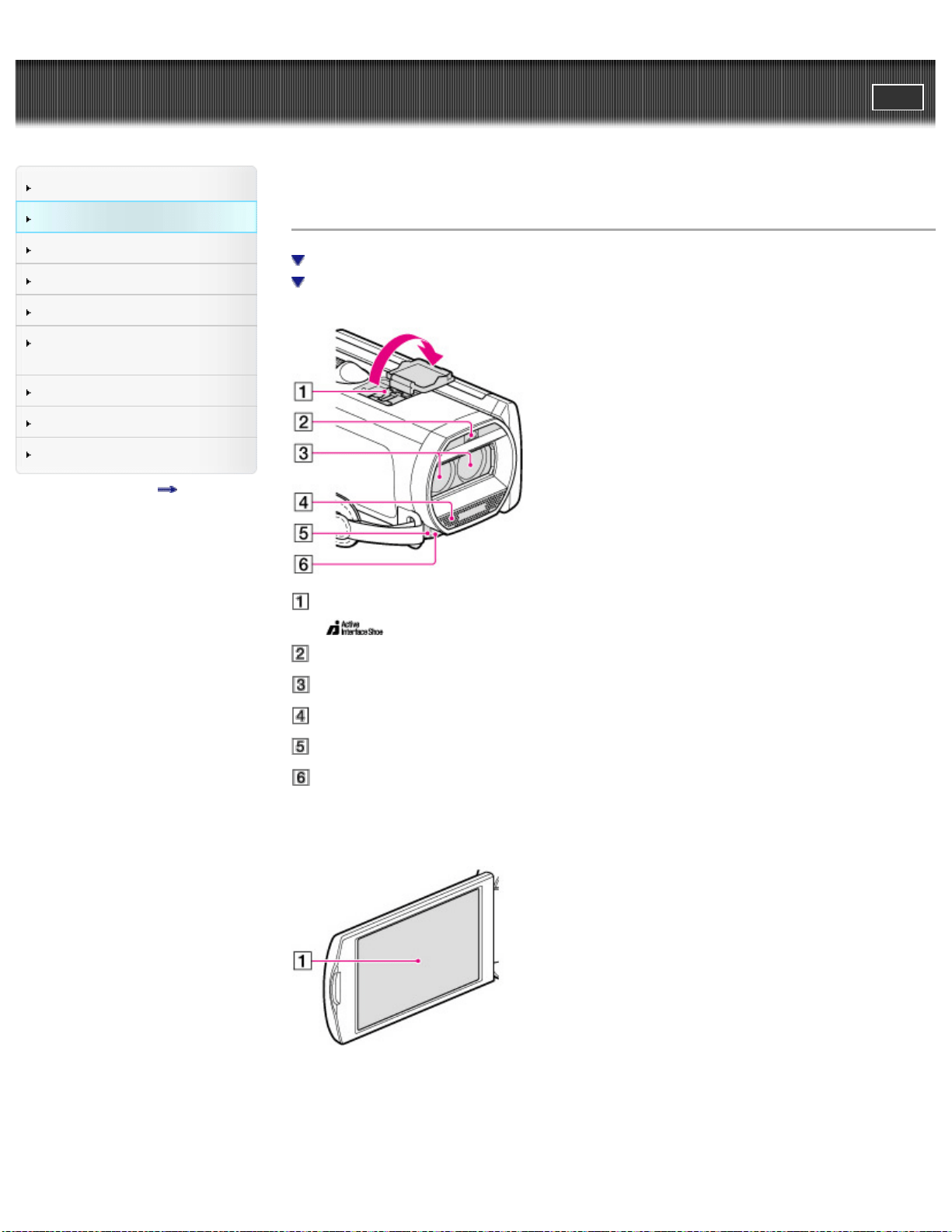

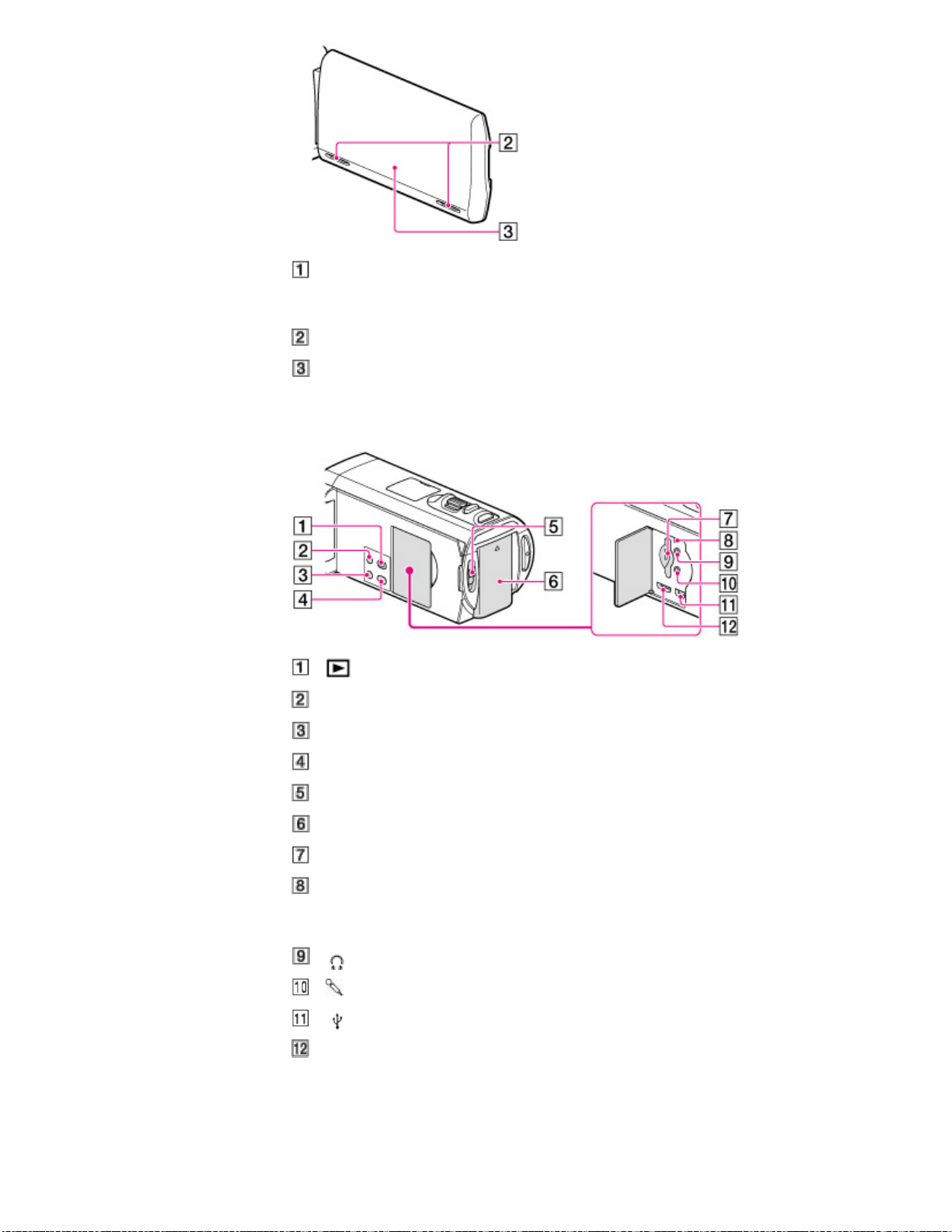

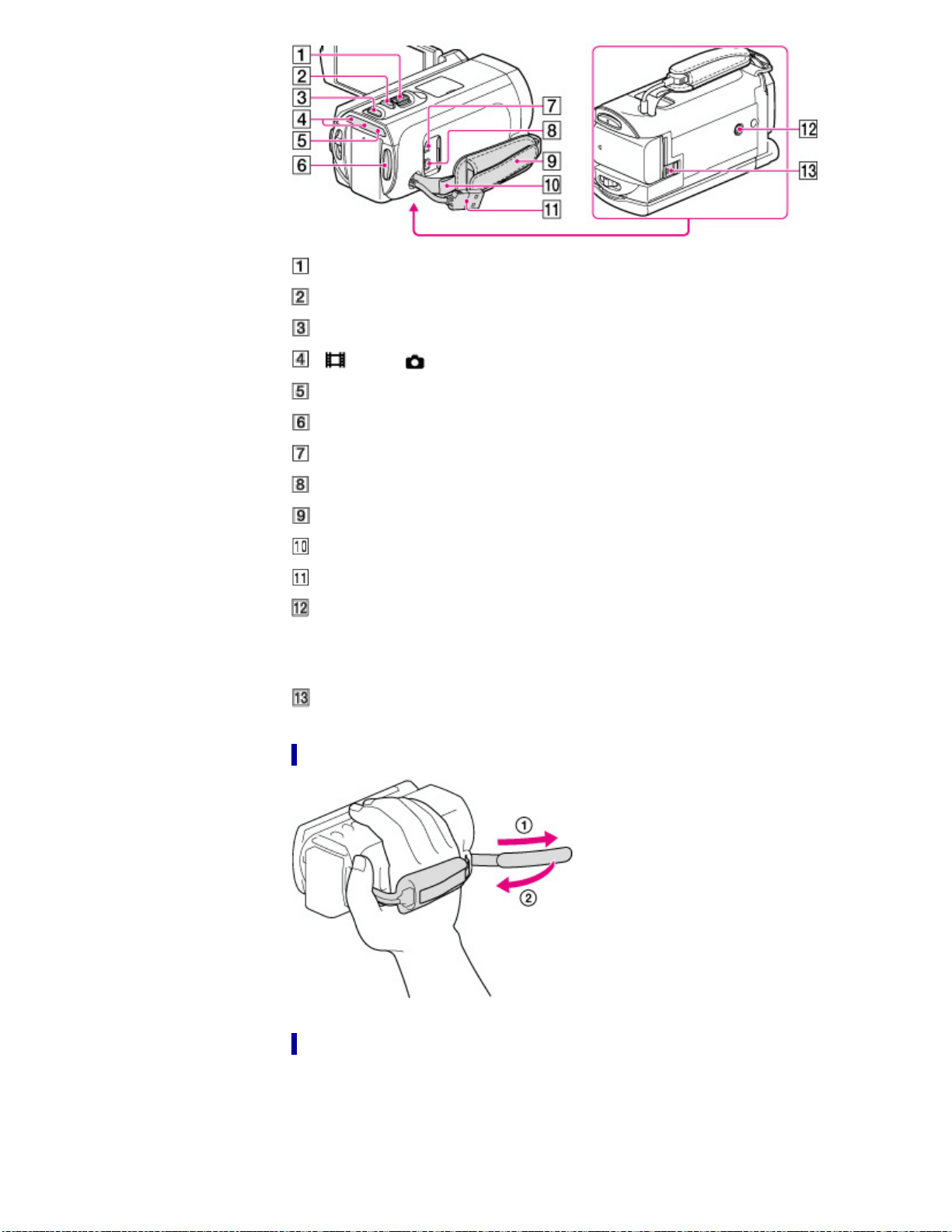

Parts and controls
To fasten the grip belt

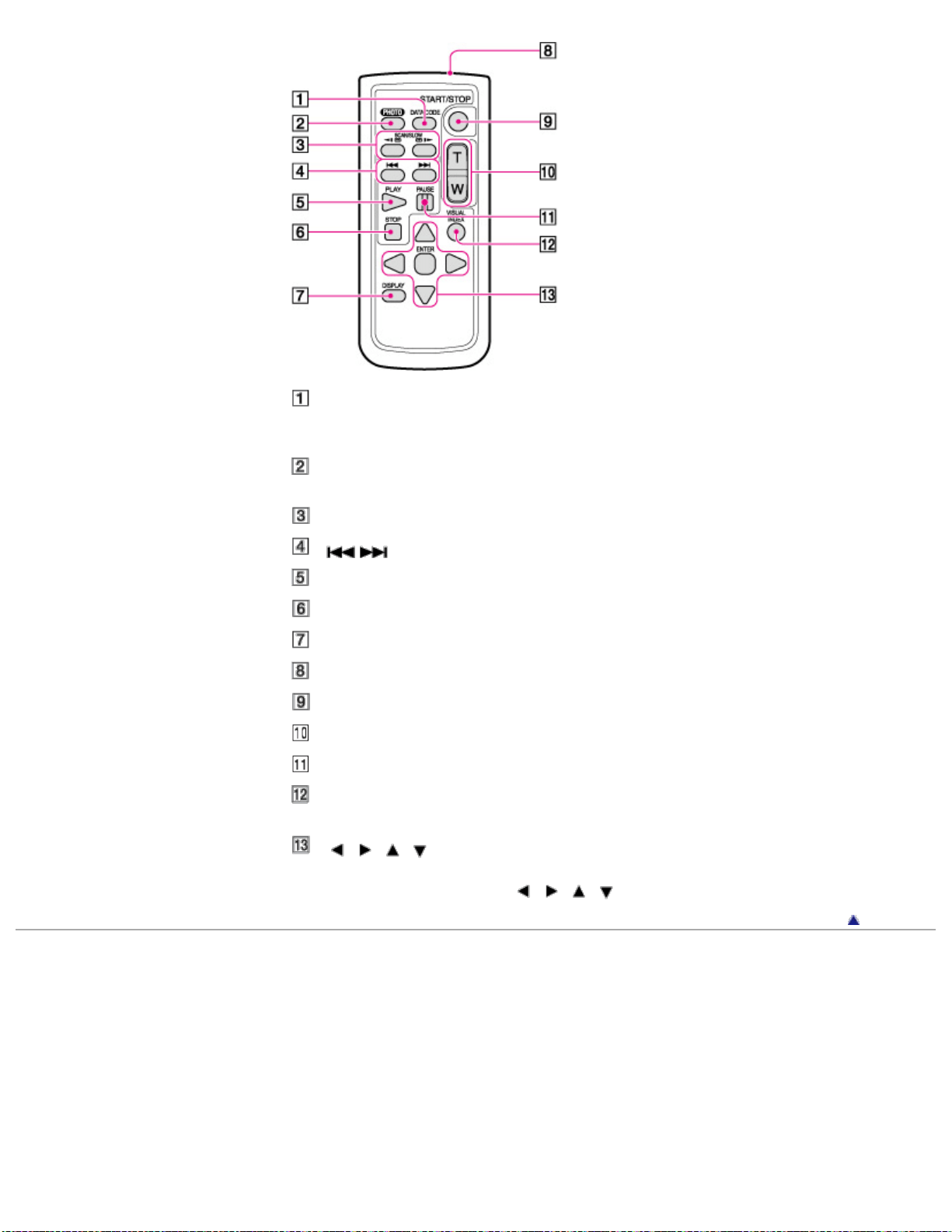

Wireless Remote Commander
Active Interface Shoe
Flash/Video light
Lens (G lens)
Built-in microphone
Remote sensor/Infrared port
Camera recording lamp
The camera recording lamp lights up in red during recording. The lamp flashes when the remaining
recording media capacity or battery power is low.
26
LCD screen/Touch panel

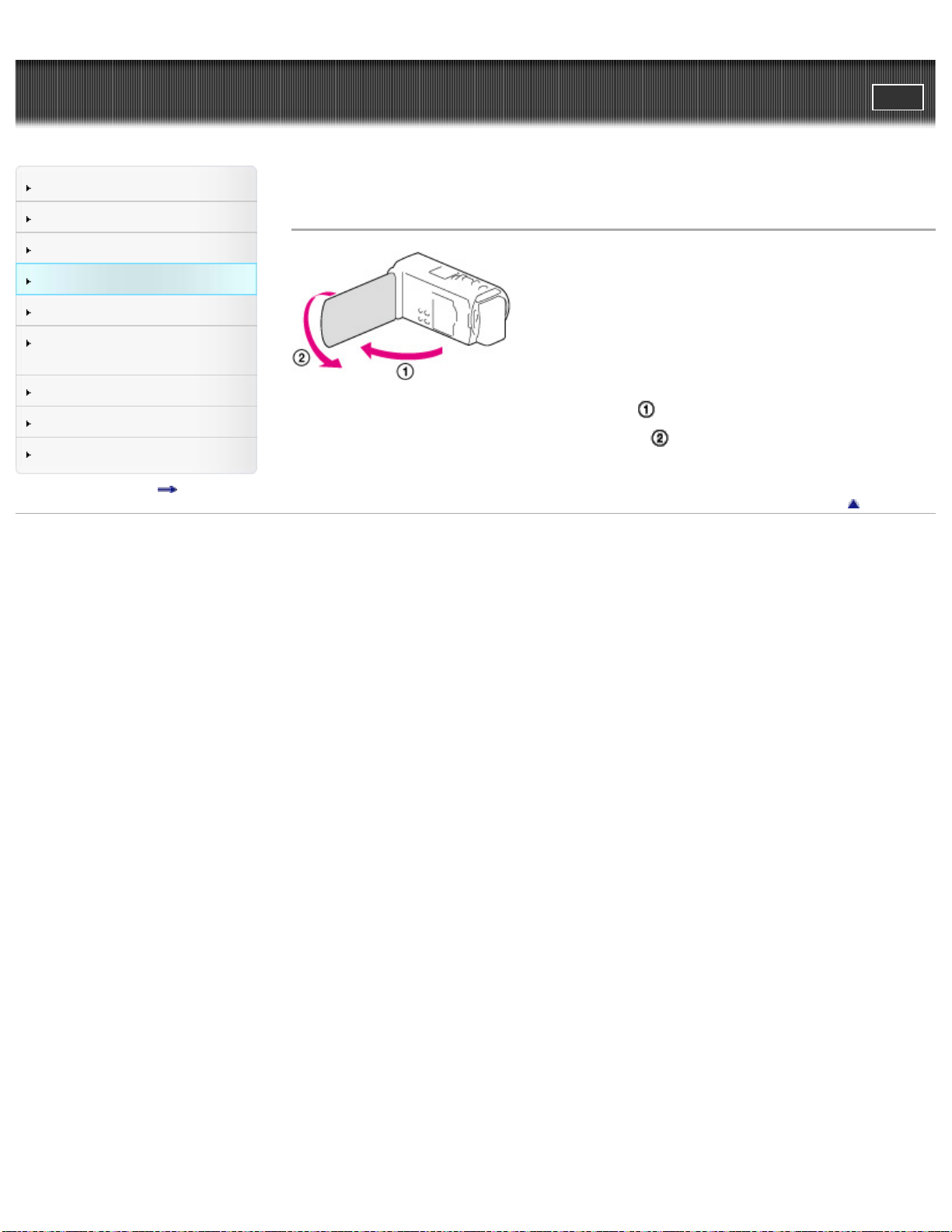

If you rotate the LCD panel 180 degrees, you can close the LCD panel with the LCD screen facing
out. This is convenient during playback operations.
Speakers
GPS antenna (HDR-TD30V)
A GPS antenna is located in the LCD panel.
(View Images) button
POWER button

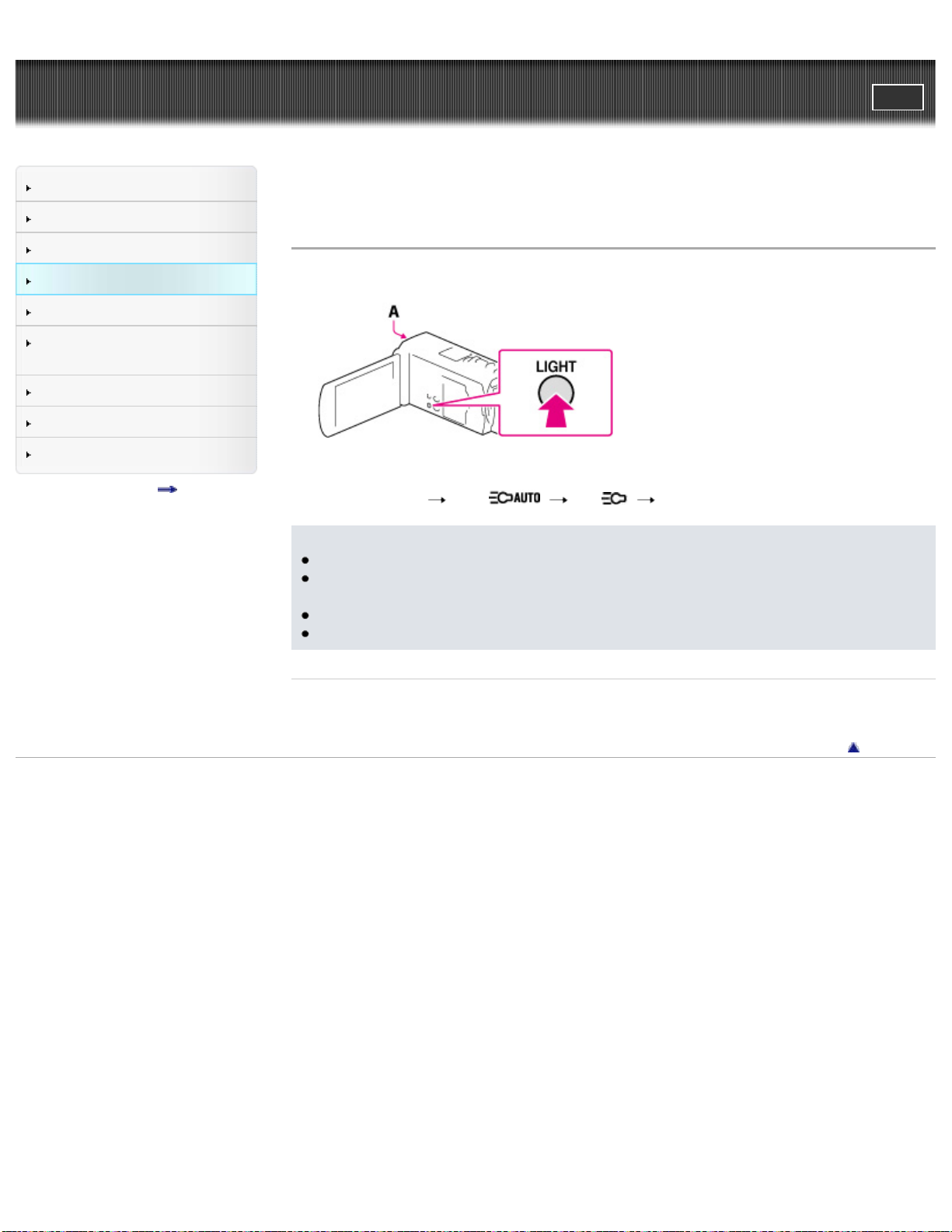

LIGHT (Video Light) button

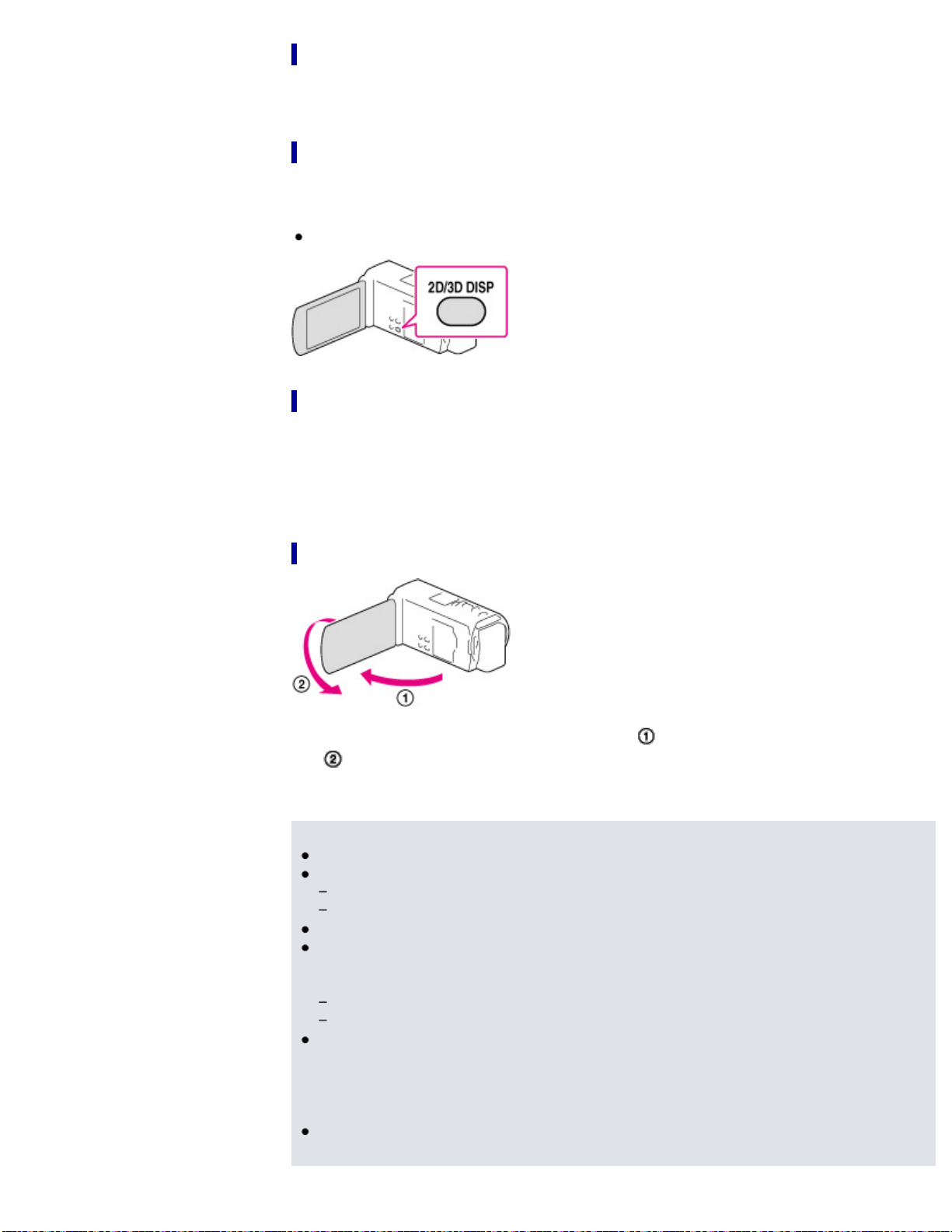

2D/3D DISP (display) button
2D/3D switch
Battery pack
Memory card slot/access lamp
RESET button
Press RESET using a pointed object.
Press RESET to initialize all the settings including the clock setting.
(headphones) jack
(microphone) jack (PLUG IN POWER)
(USB) jack
HDMI OUT jack
27

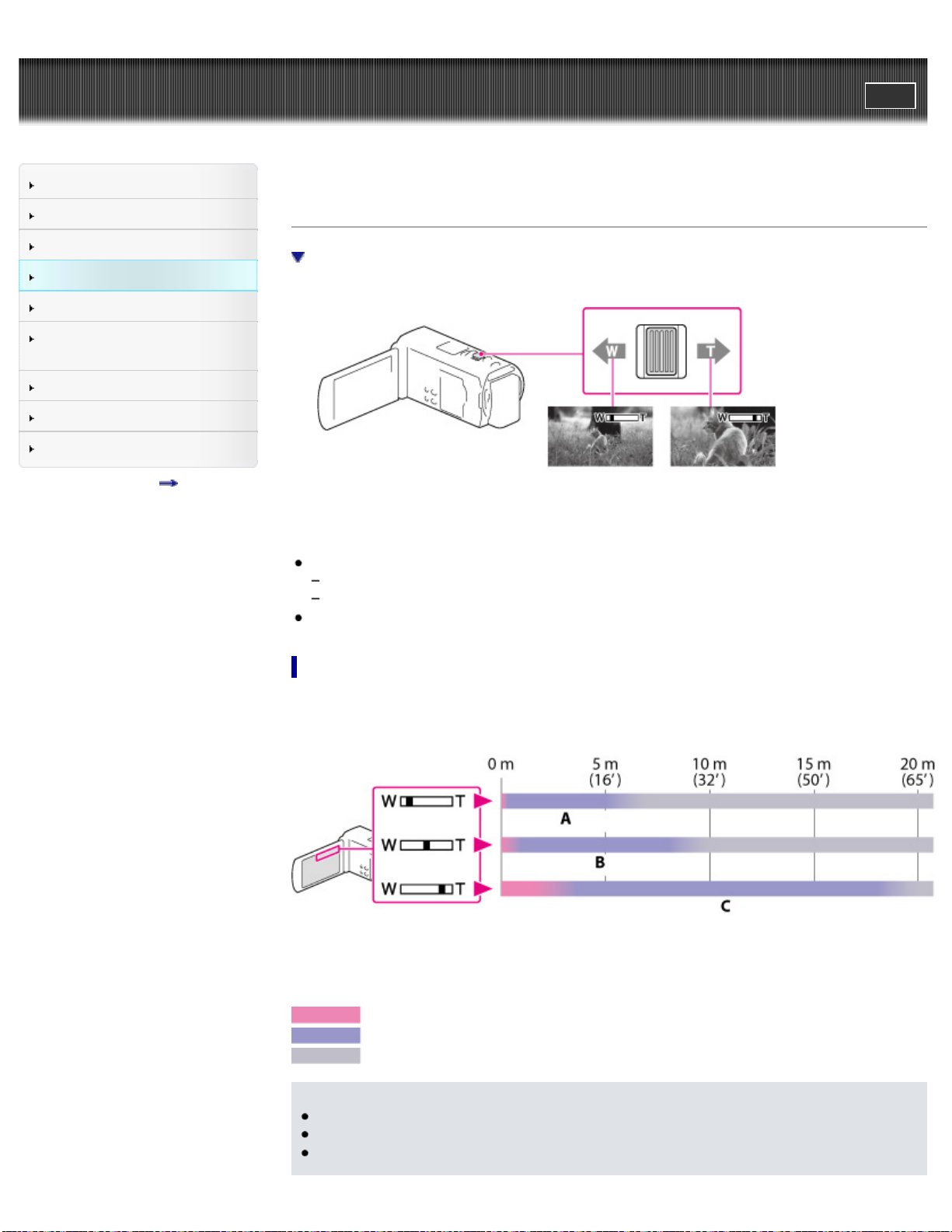

Power zoom lever
PHOTO button
MODE button
(Movie)/ (Photo) lamp
CHG (charge) lamp
START/STOP button
DC IN jack
A/V Remote Connector
Grip belt
Loop for a shoulder belt
Built-in USB Cable
Tripod receptacle
Attach a tripod (sold separately: the length of the screw must be less than 5.5 mm (7/32 in.))
Depending on the specifications of the tripod, your camcorder may not attach in the proper
direction.
BATT (battery) release lever
To fasten the grip belt

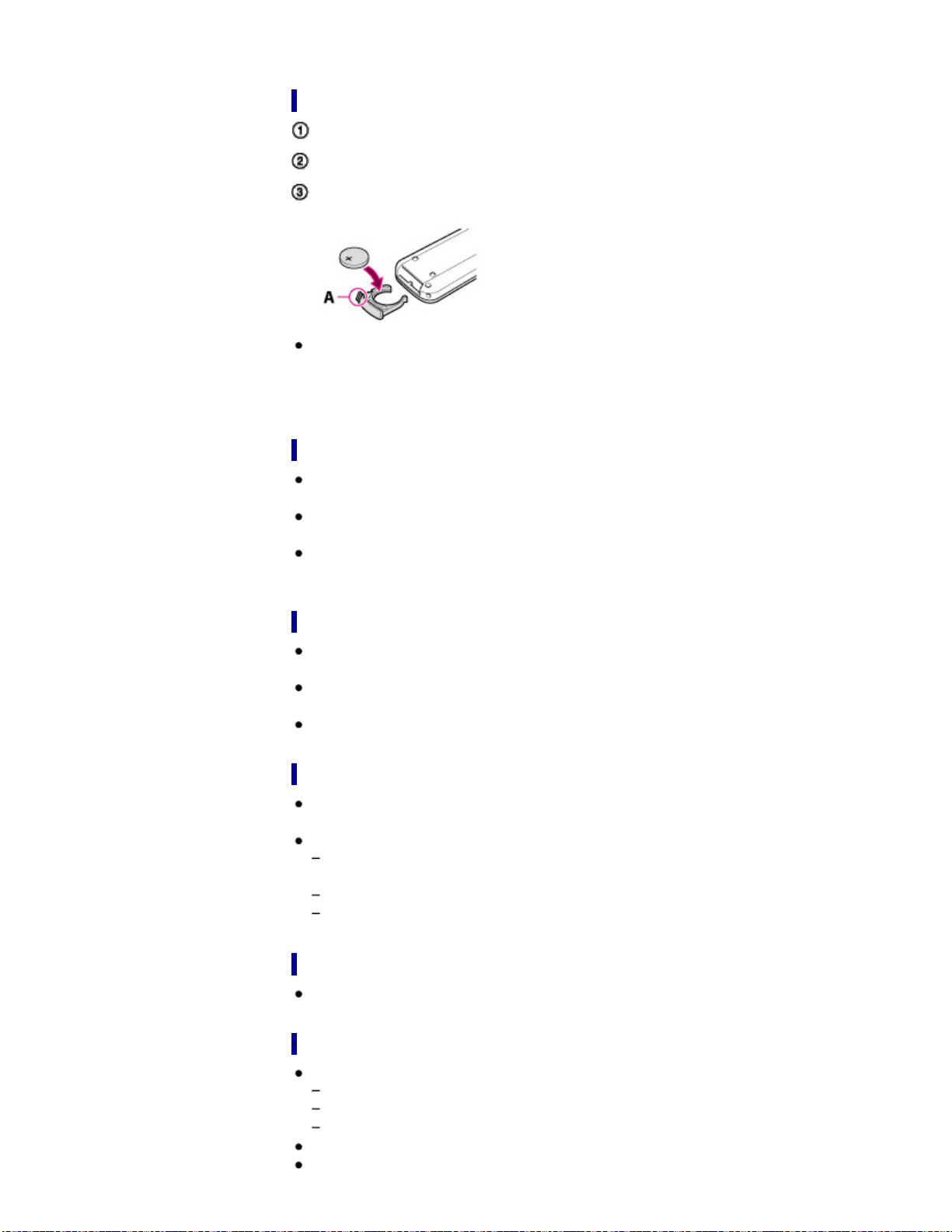

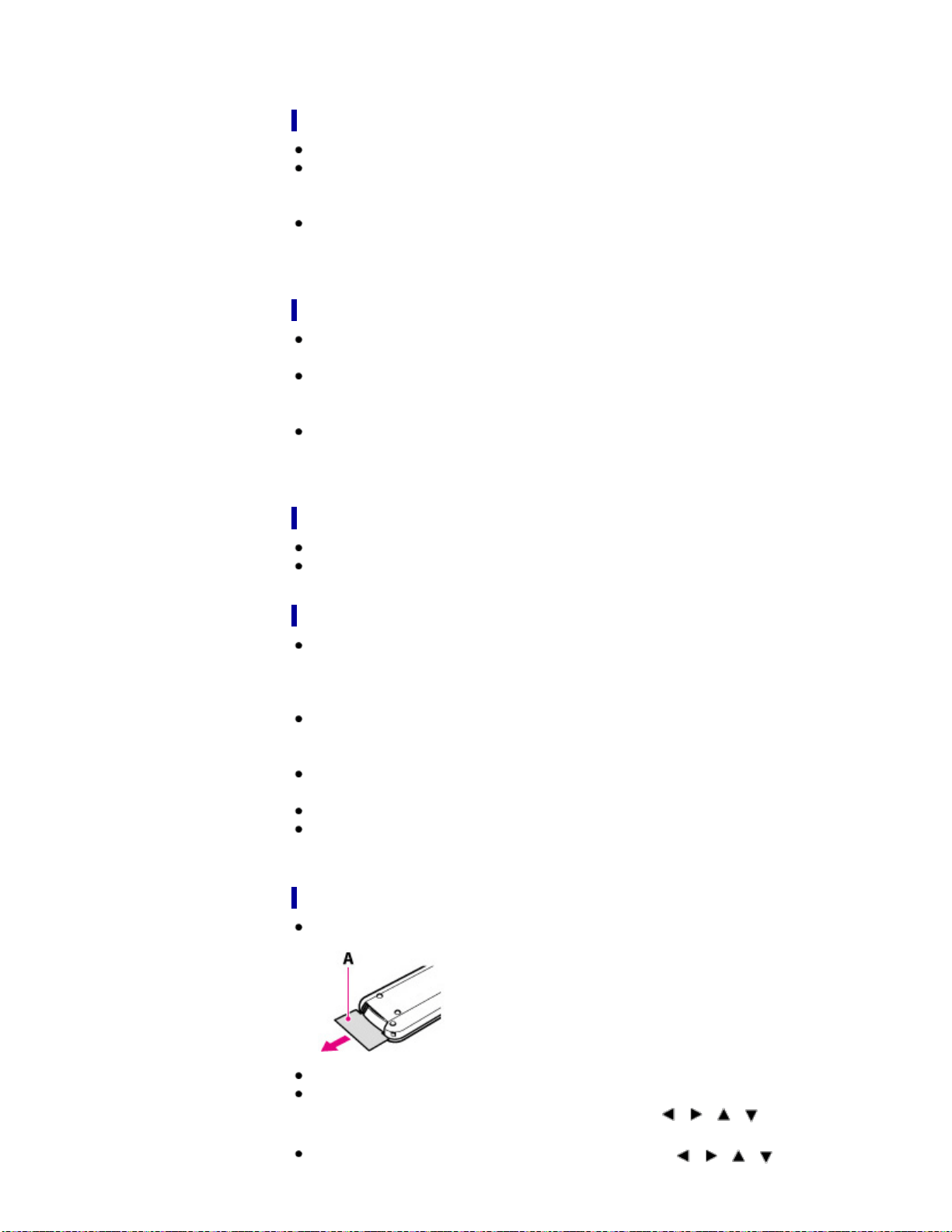

Wireless Remote Commander
The wireless remote commander is useful when you use the projector.
28
DATA CODE button
Displays the date and time, camera setting data, or coordinates (HDR-TD30V) of the recorded
images when you press this button during playback.
PHOTO button
The on-screen image when you press this button will be recorded as a still image.
SCAN/SLOW buttons
/ (Previous/Next) buttons
PLAY button
STOP button
DISPLAY button
Transmitter
START/STOP button
Power zoom buttons
PAUSE button
VISUAL INDEX button
Displays an Index screen during playback.
/ / / /ENTER buttons
When you press any of these buttons, the light blue frame appears on the LCD screen. Select a
desired button or an item with
/ / / , then press ENTER to enter.
Back to top
Copyright 2013 Sony Corporation
29
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Before use > Parts and controls/Screen indicators > Screen indicators

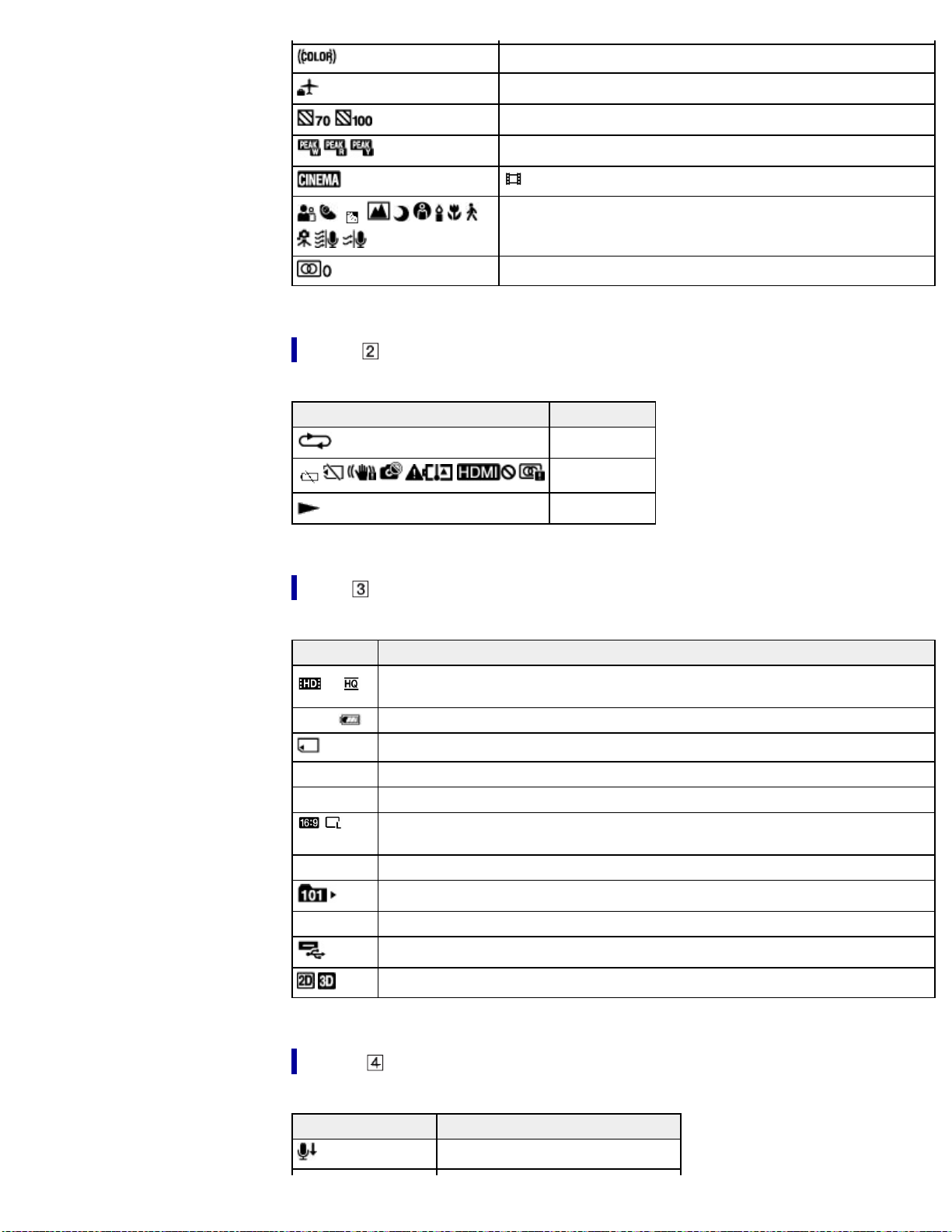

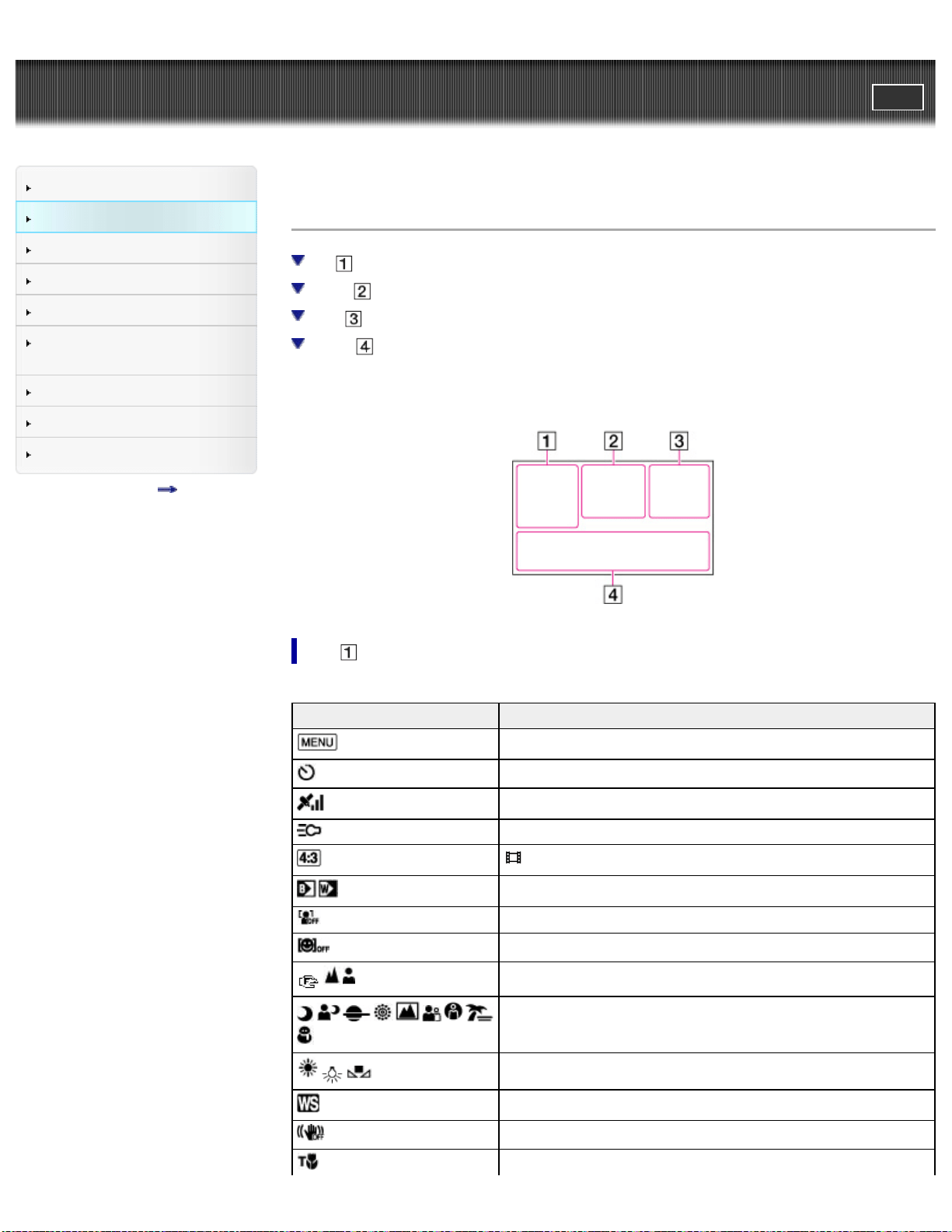

Screen indicators
Left
Center
Right
Bottom
The following indicators appear when you change the settings.
Check also for the indicators that appear during recording or playing.
Left
Indicator Meaning
MENU button
Self-timer recording
GPS triangulating status
Video light
Wide Mode
Fader
[Face Detection] set to [Off]
[Smile Shutter] set to [Off]
Manual focus
Scene Selection
White Balance
White Balance Shift
SteadyShot off
Tele Macro
30
x.v.Color
Destination
Zebra
Peaking
Cinematone
Intelligent Auto (face detection/scene detection/camera-shake
detection/sound detection)
3D Depth Adjustment
Center
Indicator Meaning
Slideshow Set
Warning
Playback mode
Right
Indicator Meaning
60i
Recording image quality (HD/STD), frame rate (60p/60i/24p) and recording mode
(PS/FX/FH/HQ/LP)
60min
Remaining battery
Recording/playback/editing media
0:00:00 Counter (hour:minute:second)
00min Estimated recording remaining time
20.4M
Photo size
9999 Approximate number of recordable photos
Playback folder on the memory card
100/112 Current playing movie or photo/Number of total recorded movies or photos
Connection to the external media device
2D/3D recording or playback
Bottom
Indicator Meaning
Micref Level low
31
[Auto Wind NR] set to [Off]
[Closer Voice] set to [Off]
Blt-in Zoom Mic
Audio Mode
Low Lux
EV AE Shift
Shutter Speed
IRIS
Spot Meter/Fcs/Spot Meter/Exposure
Intelligent Auto
101-0005
Data file name
Protect
Flash/Flash Level/Red Eye Reduction
Indicators and their positions are approximate and may differ from what you actually see.
Some indicators may not appear, depending on your camcorder model.
Back to top
Copyright 2013 Sony Corporation
32
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Before use > How does your 3D camcorder work > How does your 3D camcorder work?
How does your 3D camcorder work?
How does the camcorder record 3D movies?
How do movies look like 3D movies on the LCD screen, without using 3D glasses?
How does the camcorder record 3D movies?
People see objects (in parallax) using their right and left eyes individually. Parallax tricks the viewer’s
brain into perceiving a sense of depth in the images.
Your camcorder sees subjects using 2 lenses in the same way people’s eyes do, and then records them
in 3D.
How do movies look like 3D movies on the LCD screen, without using 3D
glasses?
Because the LCD screen of your camcorder is covered with a 3D sheet that reproduces the effect of the
3D glasses, you can view movies in 3D without using 3D glasses.
The sheet delivers different light to your right and left eyes simultaneously.
This means that your right eye sees the image shot by the right lens only, while your left eye sees the
image shot by the left lens only.
As a result, a parallax effect is produced and movies are seen in 3D.
33
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Getting started > Checking the supplied items > Supplied items

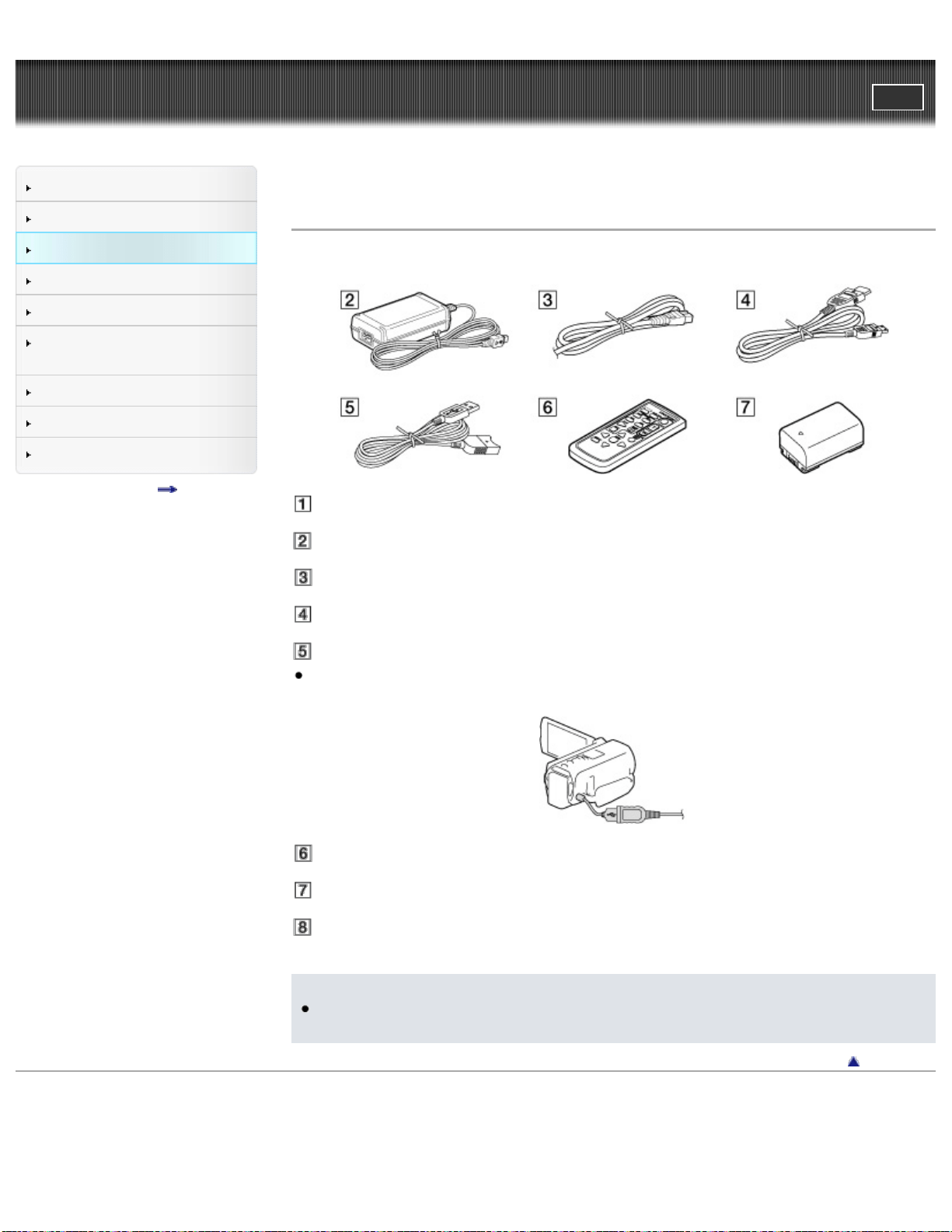

Supplied items
The numbers in ( ) are the supplied quantity.
Camcorder (1)
AC Adaptor (1)
Power cord (mains lead) (1)
HDMI cable (1)
USB connection support cable (1)
The USB connection support cable is designed for use with this camcorder only. Use this cable when
the Built-in USB Cable of the camcorder is too short for connection.
Wireless Remote Commander (1)
Rechargeable battery pack NP-FV50 (1)
“Operating Guide” (1)
Notes
The “PlayMemories Home” software and “PlayMemories Home Help Guide” can be downloaded
from the Sony website.
Back to top
Copyright 2013 Sony Corporation
35
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Getting started > Charging the battery pack > Charging the battery using the AC Adaptor

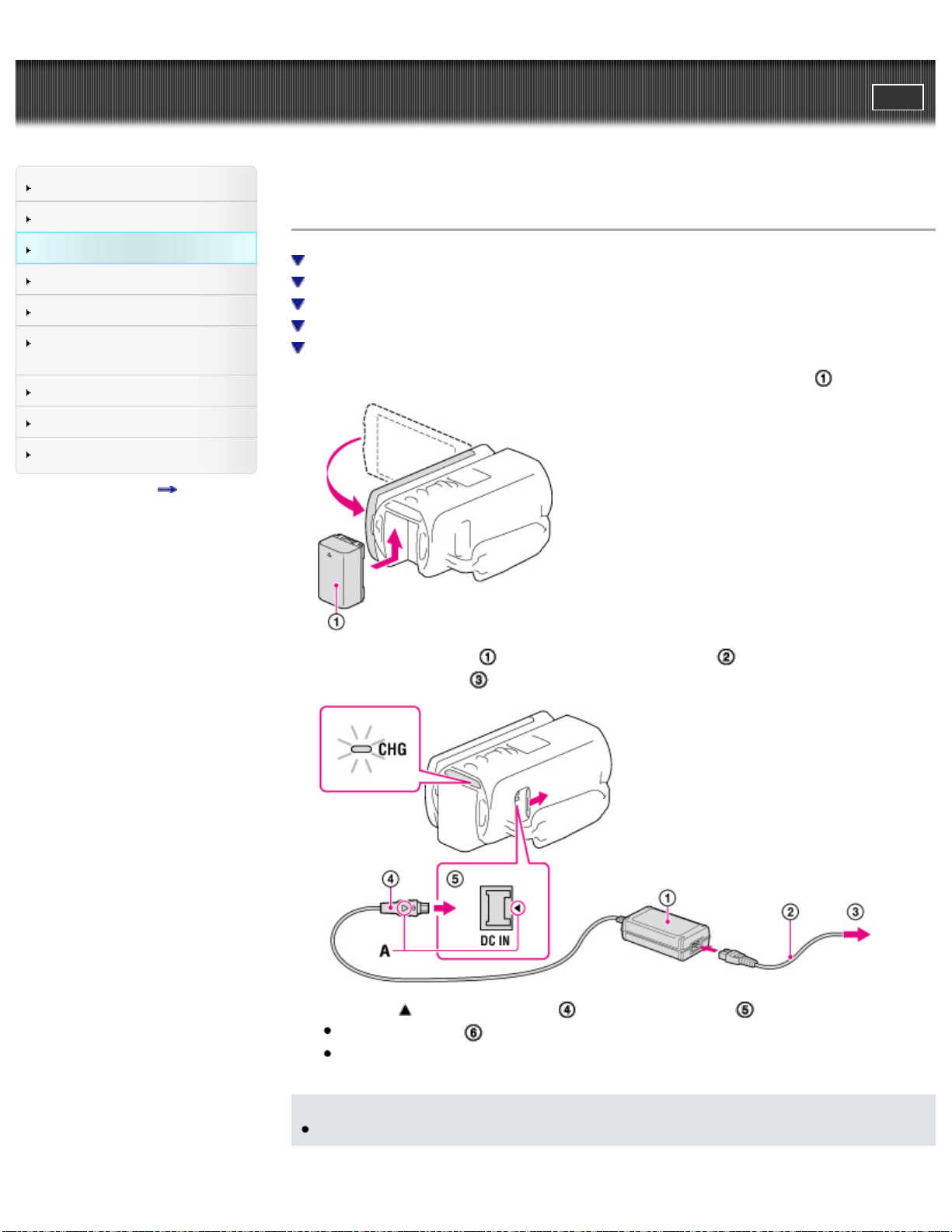

Charging the battery using the AC Adaptor
Charging time
To remove the battery pack
To use a wall outlet (wall socket) as a power source
Notes on the battery pack
Notes on the AC Adaptor
1. Turn off your camcorder by closing the LCD screen and attach the battery pack (
).
2. Connect the AC Adaptor ( ) and the power cord (mains lead) ( ) to your camcorder and the
wall outlet (wall socket) (
).
A: Align the mark on the DC plug ( ) with that of DC IN jack ( ).
The CHG (charge) (
) lamp turns on.
The CHG (charge) lamp turns off when the battery pack is fully charged. Disconnect the AC
Adaptor from the DC IN jack of your camcorder.
Notes
You cannot attach any “InfoLITHIUM” battery pack other than the V series to your camcorder.
36

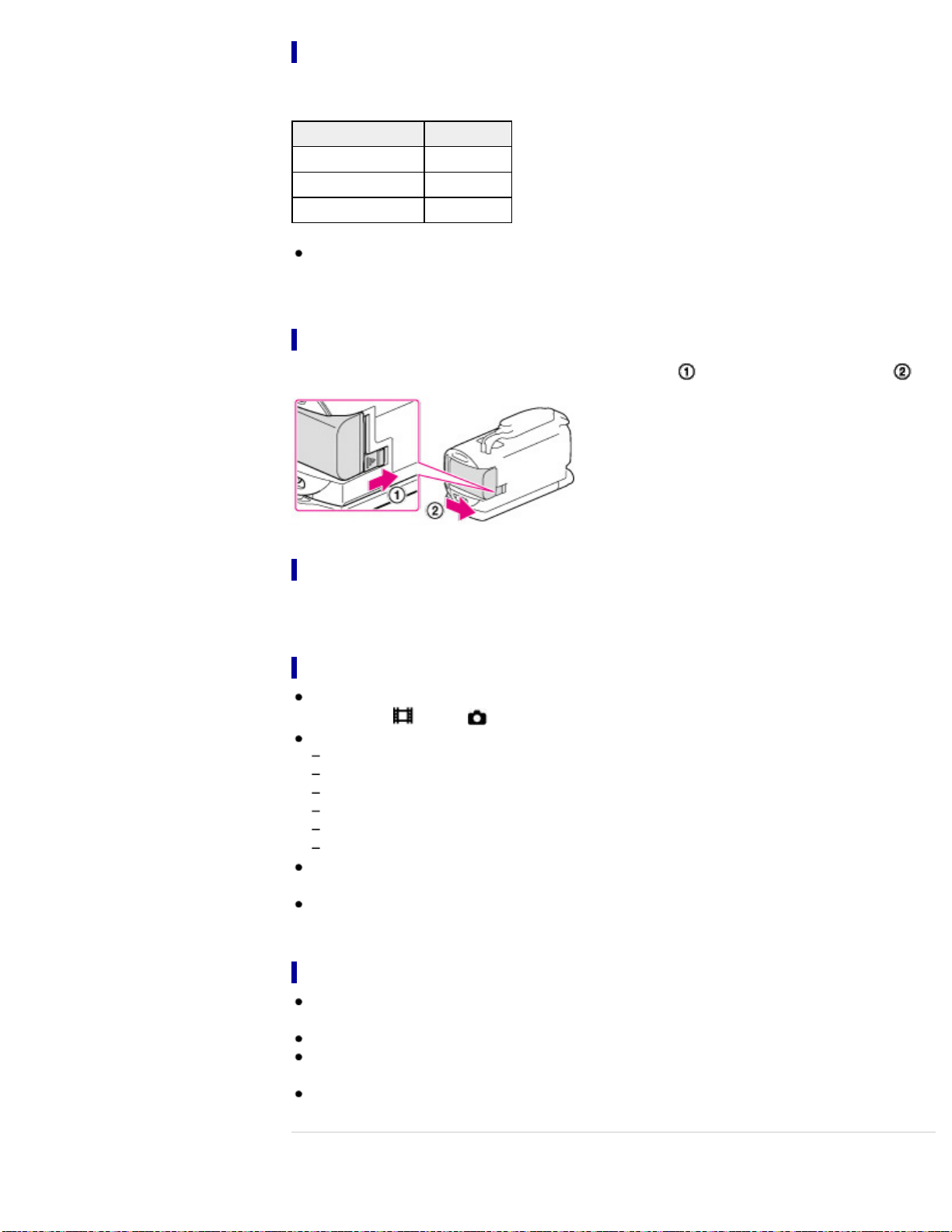

Charging time
Approximate time (min.) required when you fully charge a fully discharged battery pack.
Battery pack AC Adaptor
NP-FV50 (supplied) 155
NP-FV70 195
NP-FV100 390
The charging times shown in the table above are measured when charging the camcorder at a
temperature of 25 °C (77 °F). It is recommended that you charge the battery in a temperature range
of 10 °C to 30 °C (50 °F to 86 °F).
To remove the battery pack
Close the LCD screen. Slide the BATT (battery) release lever ( ) and remove the battery pack ( ).
To use a wall outlet (wall socket) as a power source
Make the same connections as those for charging the battery pack.
Even if the battery pack is attached, the battery pack is not discharged.
Notes on the battery pack
When you remove the battery pack or disconnect the AC Adaptor, turn the camcorder off and make
sure that the
(Movie)/ (Photo) lamps, the access lamp are turned off.
The CHG (charge) lamp flashes during charging under the following conditions.
The battery pack is not attached correctly.
The battery pack is damaged.
The temperature of the battery pack is low.
Remove the battery pack from your camcorder and put it in a warm place.
The temperature of the battery pack is high.
Remove the battery pack from your camcorder and put it in a cool place.
We do not recommend that you use an NP-FV30, which only allows short recording and playback
times, with your camcorder.
In the default setting, the power turns off automatically if you leave your camcorder without any
operation for about 2 minutes, to save battery power ([Power Save]).
Notes on the AC Adaptor
Use the nearby wall outlet (wall socket) when using the AC Adaptor. Disconnect the AC Adaptor from
the wall outlet (wall socket) immediately if any malfunction occurs while using your camcorder.
Do not use the AC Adaptor placed in a narrow space, such as between a wall and furniture.
Do not short-circuit the DC plug of the AC Adaptor or battery terminal with any metallic objects. This
may cause a malfunction
Disconnect the AC Adaptor from the camcorder, holding both the camcorder and the DC plug.
Related topics
37
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Getting started > Charging the battery pack > Charging the battery using your computer

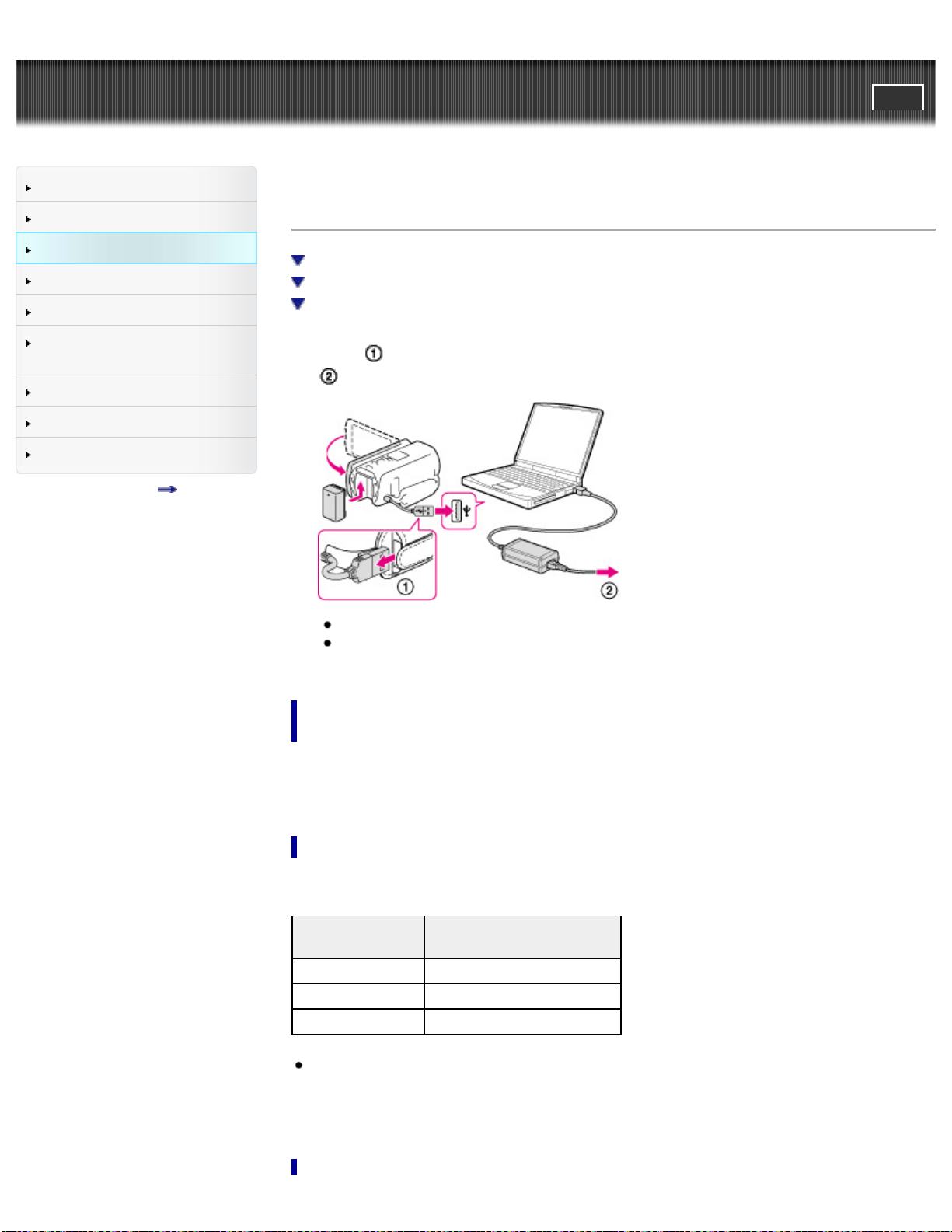

Charging the battery using your computer
To charge the battery from a wall outlet (wall socket) using the Built-in USB Cable
Charging time
To remove the battery pack

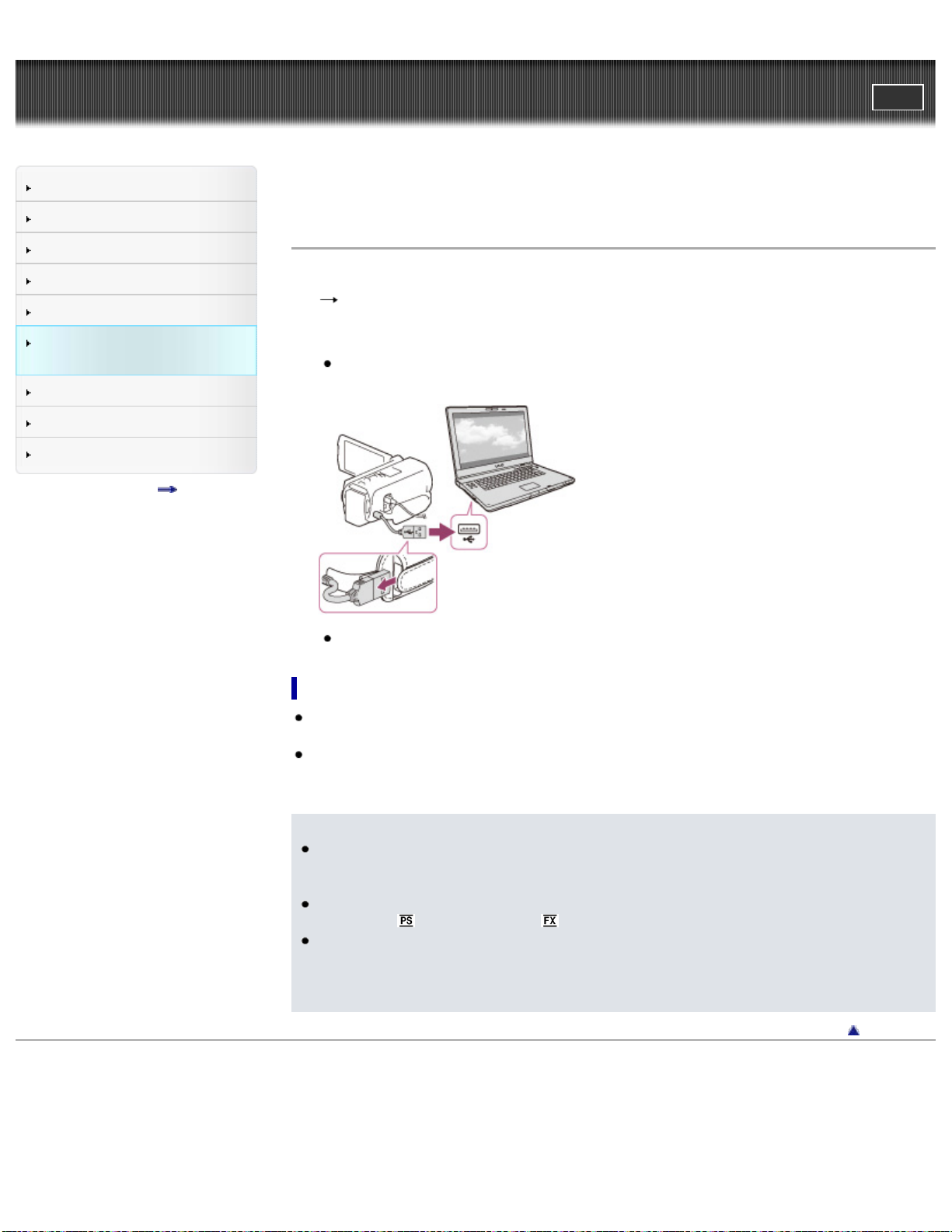

1. Turn off your camcorder and connect the camcorder to a running computer using the Built-in USB
Cable (
).
: To the wall outlet (wall socket)
The CHG (charge) lamp turns on.
The CHG (charge) lamp turns off when the battery pack is fully charged. Disconnect Built-in USB
Cable from your computer.
To charge the battery from a wall outlet (wall socket) using the Built-in USB
Cable
You can charge the battery by connecting the Built-in USB Cable to a wall outlet (wall socket) using an
AC-UD10 USB charger/AC Adaptor (sold separately). You cannot use a Sony CP-AH2R, CP-AL, or AC-
UP100 portable power supply device (sold separately) to charge the camcorder.
Charging time
Approximate time (min.) required when you fully charge a fully discharged battery pack.
Battery pack
Built-in USB Cable*
(when using your computer)
NP-FV50 (supplied) 280
NP-FV70 545
NP-FV100 1,000
The charging times shown in the table above are measured when charging the camcorder at a
temperature of 25 °C (77 °F). It is recommended that you charge the battery in a temperature range
of 10 °C to 30 °C (50 °F to 86 °F).
* The charging times are measured without using the USB Connection support cable.
39
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Getting started > Charging the battery pack > Charging the battery abroad
Charging the battery abroad
You can charge the battery pack in any countries/regions using the AC Adaptor supplied with your
camcorder within the AC 100 V – 240 V, 50 Hz/60 Hz range.
Notes
Do not use an electronic voltage transformer.
Related topics
Charging the battery using the AC Adaptor
Back to top
Copyright 2013 Sony Corporation
41
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Getting started > Turning the power on, and setting the date and time > Turning the power
on, and setting the date and time
Turning the power on, and setting the date and time
Tips on using [Auto 3D Lens Adjust]
To change the language setting
To turn off the power

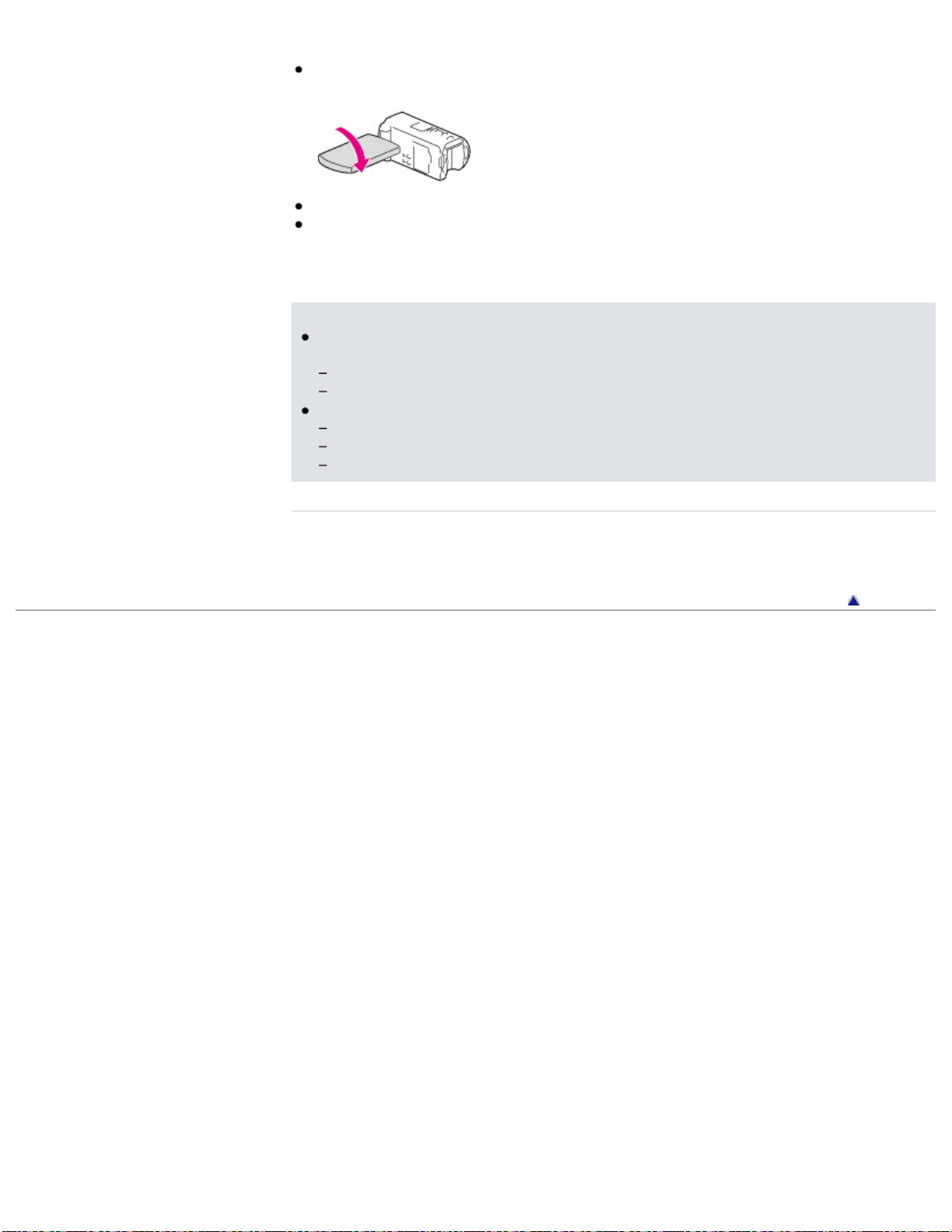

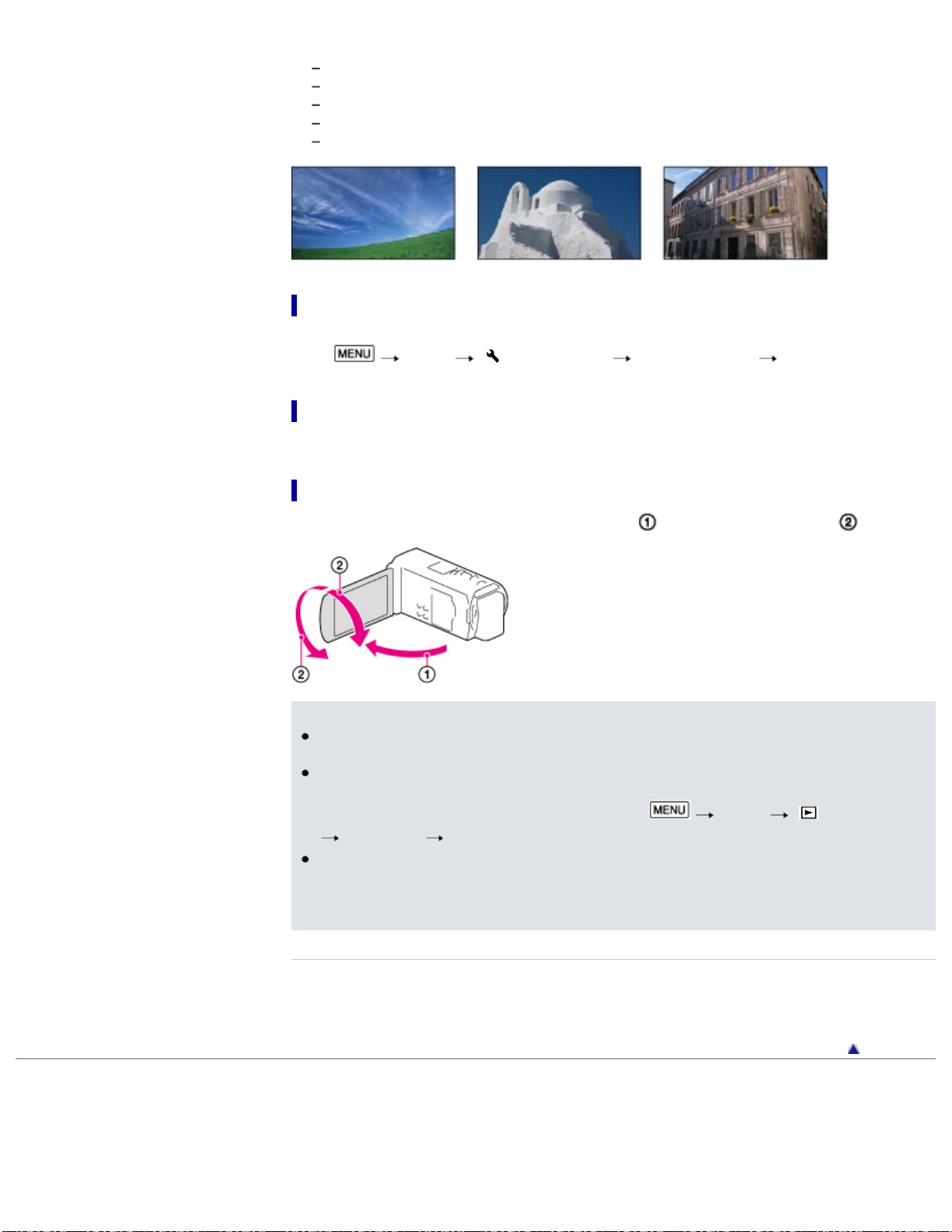

To adjust the angle of the LCD screen
Set the date and time, and adjust the lens with [Auto 3D Lens Adjust] to record optimum 3-dimensional
movies.
1. Open the LCD screen of your camcorder and turn the power on.
You can also turn on the camcorder by pressing POWER.
2. Select the desired language, then select [Next].
Touch the button on the LCD screen.
3. Select the desired geographical area with
/ , then select [Next].
4. Set [Daylight Savings] or [Summer Time], select the date format and the date and time.
If you set [Daylight Savings] or [Summer Time] to [On], the clock advances 1 hour.
When you select the date and time, select one of the items and adjust the value with
/ .
When you select
, the date and time setting operation is complete.
42
5. Confirm the notice on continuous use of your camcorder.
6. Select [Run] and display a subject on the LCD screen.
If you select [Run Later], the [Auto 3D Lens Adjust] screen will appear when you turn on the
camcorder next time.
7. When the scale of the indicator exceeds the mark, select [OK].
The camcorder automatically zooms in or out to adjust the lenses.
A: Indicator
Notes
If you feel uncomfortable viewing the image in 3D, press 2D/3D DISP and check the image in 2D.
If [Could not adjust.] appears, touch [Run Again].
If the 2D/3D switch is set to 2D, the [Auto 3D Lens Adjust] screen does not appear.
Tips on using [Auto 3D Lens Adjust]
Referring to the following examples, display a subject that will indicate a higher scale on the LCD
monitor.
Subjects that indicate a higher scale:
Bright subjects, such as objects outdoors in daylight
Subjects with various colors and shapes
43
Subjects that indicate a lower scale and result in adjustment failure:
Dark subjects, such as objects viewed at night
Subjects within 1.5 m (4 feet 11 1/8 inches) away from the camcorder
Plain, non-colorful subjects
Subjects that repeat the same pattern, such as rows of windows on buildings
Moving subjects
To change the language setting
You can change the on-screen displays to show messages in a specified language.
Select
[Setup] [ General Settings] [Language Setting] a desired language.
To turn off the power
Close the LCD screen or press the POWER button.
To adjust the angle of the LCD screen
First open the LCD panel 90 degrees to the camcorder ( ), and then adjust the angle ( ).
Notes
Face directly towards the LCD screen from about 30 cm (11 7/8 in.) away from the screen to watch
3D movies with optimum sense of depth.
The recording date, time and condition, and coordinates (HDR-TD30V) are recorded automatically
on the recording media. They are not displayed during recording. However, you can check them as
[Data Code] during playback. To display them, select
[Setup] [ Playback Settings]
[Data Code] [Date/Time].
Once the clock is set, the clock time is automatically adjusted with [Auto Clock ADJ ] and [Auto
Area ADJ] set to [On]. The clock may not be adjusted to the correct time automatically, depending
on the country/region selected for your camcorder. In this case, set [Auto Clock ADJ ] and [Auto
Area ADJ] to [Off] (HDR-TD30V).
Related topics
[Power On By LCD]
To set the date and time again: [Date & Time Setting]
Back to top
Copyright 2013 Sony Corporation
44
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Getting started > Preparing the recording media > Inserting a memory card

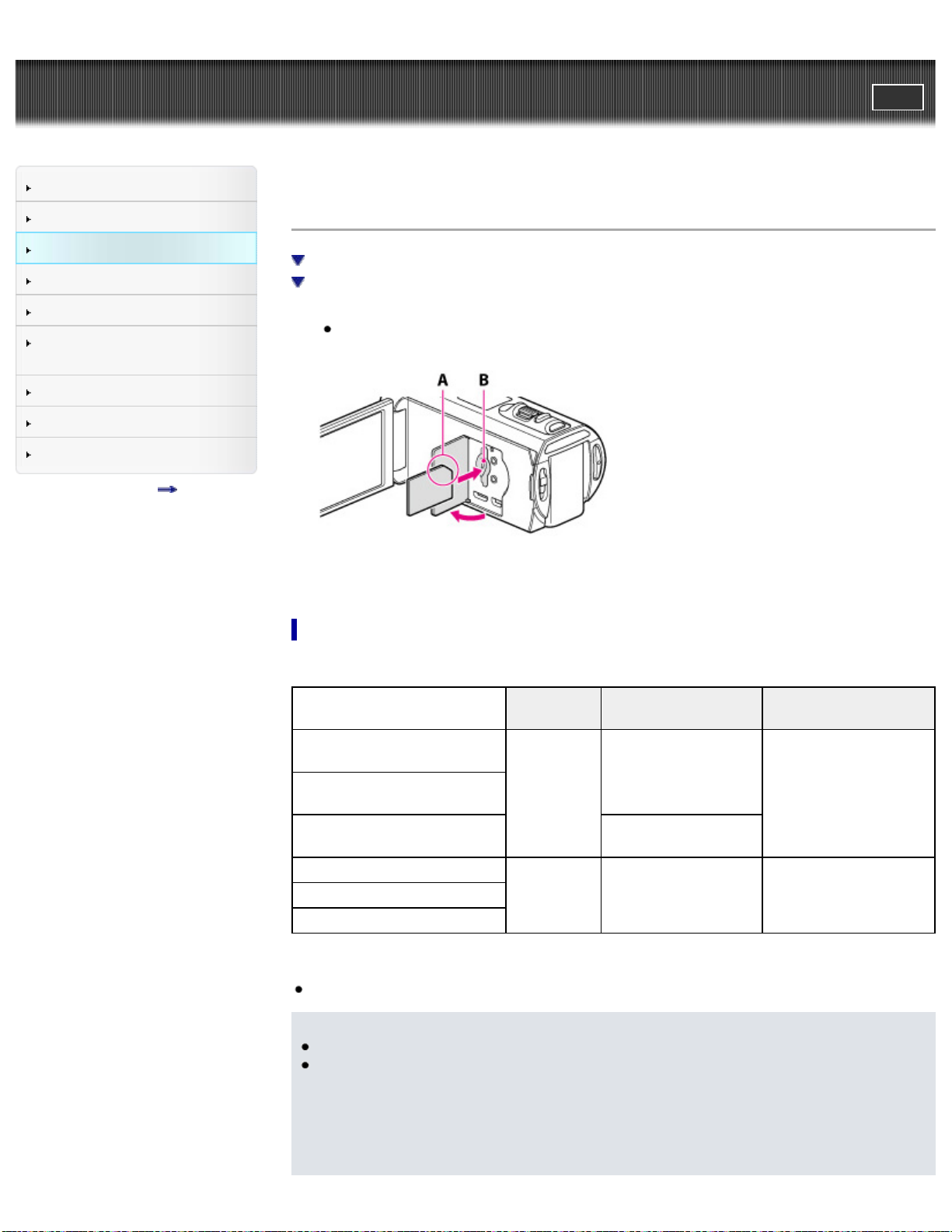

Inserting a memory card
Types of memory card you can use with your camcorder
To eject the memory card
1. Open the cover, and insert the memory card until it clicks.
The [Preparing image database file. Please wait.] screen appears if you insert a new memory
card. Wait until the screen disappears.
A: Insert the card with the notched edge in the direction as illustrated
B: Access lamp
Types of memory card you can use with your camcorder
SD Speed
Class
Capacity (operation
verified)
Described in this
manual
“Memory Stick PRO Duo” media
(Mark2)
—
Up to 32 GB
“Memory Stick PRO Duo”
media
“Memory Stick PRO-HG Duo”
media
“Memory Stick XC-HG Duo”
media
Up to 64 GB
SD memory card
Class 4 or
faster
Up to 64 GB SD cardSDHC memory card
SDXC memory card
Operation with all memory cards is not assured.
Notes
A MultiMediaCard cannot be used with this camcorder.
Movies recorded on the “Memory Stick XC-HG Duo” media and SDXC memory cards cannot be
imported to or played back on computers or AV devices not supporting the exFAT* file system by
connecting the camcorder to these devices with the USB cable. Confirm in advance that the
connecting equipment is supporting the exFAT system. If you connect an equipment not supporting
the exFAT system and the format screen appears, do not perform the format. All the data recorded
will be lost.
45
* The exFAT is a file system that is used for the “Memory Stick XC-HG Duo” media and SDXC memory
cards.
To eject the memory card
Open the cover and lightly push the memory card in once.
Notes
To ensure stable operation of the memory card, it is recommended to format the memory card with
your camcorder before the first use. Formatting the memory card will erase all the data stored on it
and the data will be irrecoverable. Save your important data on your PC, etc.
If [Failed to create a new Image Database File. It may be possible that there is not enough free
space.] is displayed, format the memory card.
Confirm the direction of the memory card. If you forcibly insert the memory card in the wrong
direction, the memory card, memory card slot, or image data may be damaged.
When inserting or ejecting the memory card, be careful so that the memory card does not pop out
and drop.
Back to top
Copyright 2013 Sony Corporation
46
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Recording > Recording > Recording movies
Recording movies
To obtain good 3D movies
If you feel uncomfortable with 3D movies
To display items on the LCD screen
To record in mirror mode
In the default setting, movies are recorded in 3D with high definition image quality (HD).
1. Open the LCD screen and press MODE to turn on the
(Movie) lamp.
2. Set the 2D/3D switch to 3D.
To record 2D movies, set the 2D/3D switch to 2D.
3. Press START/STOP to start recording.
To stop recording, press START/STOP again.
You can record photos during 2D movie recording by pressing PHOTO (Dual Capture).
Notes
Do not operate the 2D/3D switch during recording. The camcorder stops recording.
You may not be able to shoot photos depending on the setting in [
REC Mode] and [ Frame
Rate].
47
To obtain good 3D movies
Shoot the subject from about 30 cm to 5 m (11 7/8 in. to 16 ft. 4 7/8 in.) away. The optimum distance
varies when you use zooming.
If you feel uncomfortable with 3D movies
If you feel uncomfortable while viewing 3D movies on the LCD screen for a long time, press the 2D/3D
DISP button to switch the image from 3D to 2D.
The image appears in 2D, but the camcorder continues recording in 3D.
When the screen is switched from 2D to 3D, the screen becomes darker. This is not a malfunction.
To display items on the LCD screen
Items on the LCD screen disappear if you do not operate the camcorder for a few seconds after you turn
the camcorder on or switch between the movie recording and photo shooting modes. Touch anywhere
except the buttons on the LCD screen to display information on icons with functions convenient for
recording.
To record in mirror mode
1. Open the LCD panel 90 degrees to the camcorder ( ), then rotate it 180 degrees to the lens side
(
).
A mirror-image of the subject appears on the LCD screen, but the image will be normal when
recorded.
Notes
If you close the LCD screen while recording movies, the camcorder stops recording.
The maximum continuous recordable times of movies are as follows:
3D recording: about 6 hours 30 minutes
2D recording: about 13 hours
When a movie file exceeds 2 GB, the next movie file is created automatically.
The following states will be indicated if data is still being written onto the recording media after
recording has finished. During this time, do not apply shock or vibration to the camcorder, or
remove the battery or AC Adaptor.
Access lamp is lit or flashing
The media icon in the upper right of the LCD screen is flashing
The LCD screen of your camcorder can display recording images across the entire screen (full pixel
display). However, this may cause slight trimming of the top, bottom, right, and left edges of images
when played back on a TV which is not compatible with full pixel display. In the case of 2D
recording, it is recommended you record images with [Guide Frame] set to [On] and using the outer
frame of [Guide Frame] as a guide.
When the frame rate is set to [24p], you cannot record photos while the camcorder is in movie
recording mode.
48
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Recording > Recording > Shooting photos (2D only)

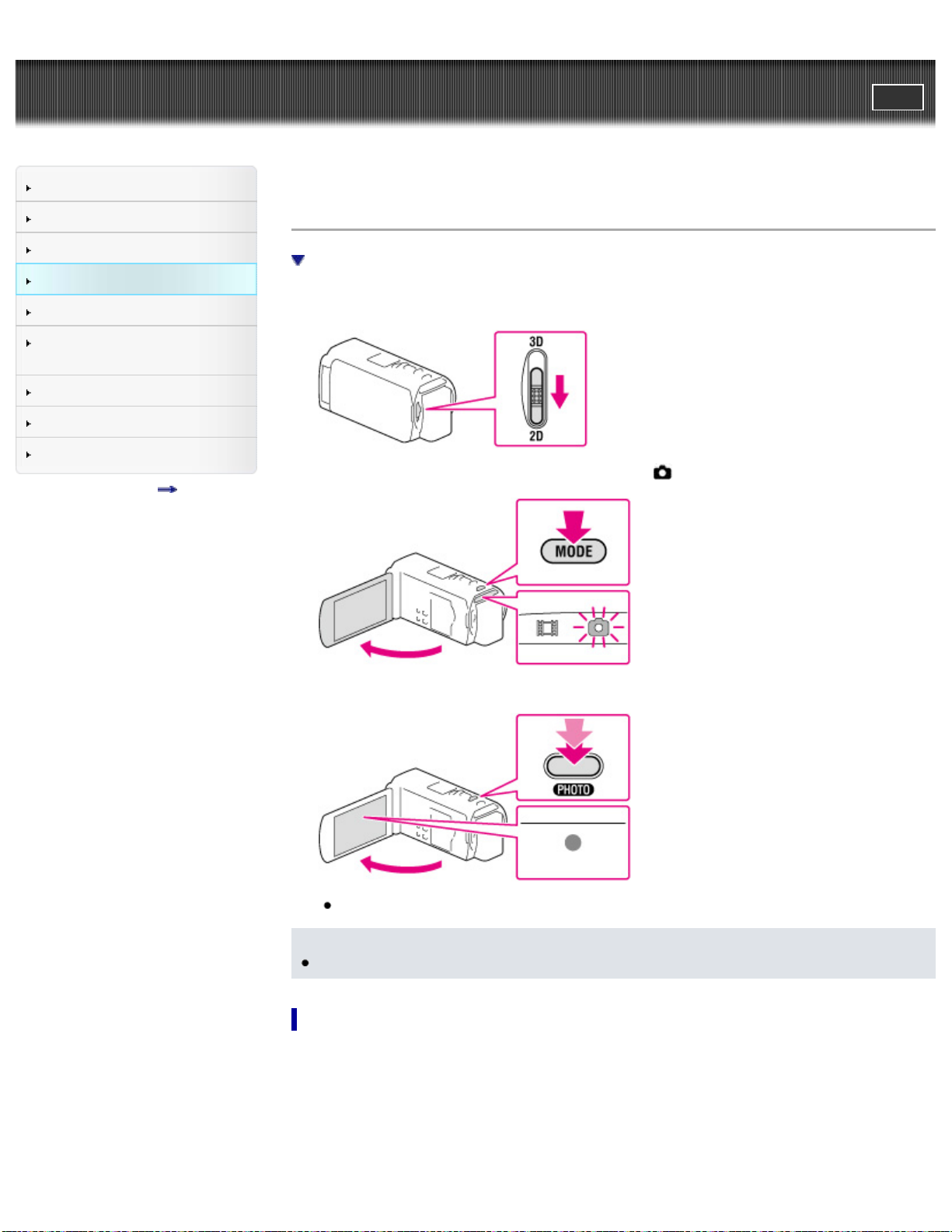

Shooting photos (2D only)
If white circular spots appear on photos
1. Set the 2D/3D switch to 2D.
2. Open the LCD screen and press MODE to turn on the (Photo) lamp.
3. Press PHOTO lightly to adjust the focus, then press it fully.
When the focus is adjusted properly, AE/AF lock indicator appears on the LCD screen.
Notes
You cannot shoot photos in 3D.

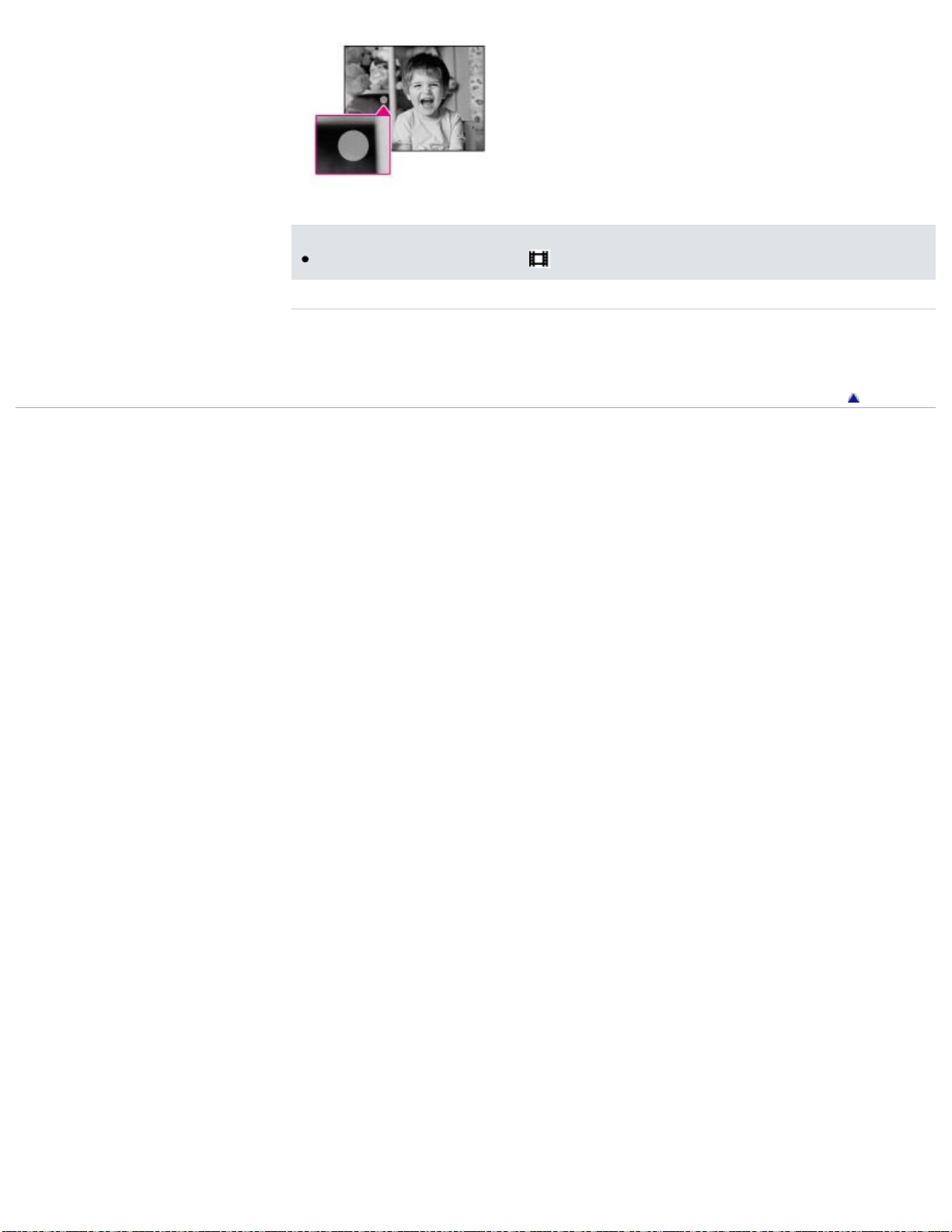

If white circular spots appear on photos
This is caused by particles (dust, pollen, etc.) floating close to the lens. When they are accentuated by
the camcorder’s flash, they appear as white circular spots.
To reduce the white circular spots, light the room and shoot the subject without a flash.
50
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Recording > Recording > Screen indicators during recording
Screen indicators during recording
Described here are icons for both movie recording (3D/2D)and photo recording (2D) modes.
Zoom button (W: Wide/T: Telephoto), START/STOP button (in movie recording mode),
PHOTO button (in photo recording mode)
MENU button
Status detected by Intelligent Auto
Recording status ([STBY]/[REC])
AE/AF (automatic exposure/automatic focus) lock
2D/3D recording mode
GPS triangulating status (HDR-TD30V)
Tracking focus
Zoom, Remaining battery
Counter (hour: minute: second), Capturing a photo, Recording/playback/editing media
Tracking focus cancel button
Intelligent Auto button
Audio mode, Audio Level Display
Approximate number of recordable photos, Aspect ratio (16:9 or 4:3), and photo size (L/M/S)
Estimated recording remaining time, Recording image quality (HD/STD), Frame rate
(60p/60i/24p) and recording mode (PS/FX/FH/HQ/LP)
View Images button
My button (you can assign your favorite functions to icons displayed in this area)
Back to top
Copyright 2013 Sony Corporation
52
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Recording > Useful functions for recording images > Zooming
Zooming
Optimum distance from the subject to record 3D movies
1. Move the power zoom lever to magnify or reduce the size of the image.
W: Wider range of view (Wide angle)
T: Close view (Telephoto)
You can magnify images as follows.
3D recording: Up to 12 times the original size (Extended Zoom)
2D recording: Up to 17 times the original size (Extended Zoom)
Move the power zoom lever slightly for a slower zoom. Move it further for a faster zoom.
Optimum distance from the subject to record 3D movies
The distance at which you can obtain good 3D movies varies depending on the zooming level.
The zoom scale on the LCD screen and the distance from the subject
A: Approx. 0.3 m - 5 m (11 7/8 in. - 16 ft. 4 7/8 in.)
B: Approx. 0.9 m - 8 m (2 ft. 11 1/2 in. - 26 ft. 3 in.)
C: Approx. 3.6 m - 18 m (11 ft. 9 3/4 in. - 59 ft. 3/4 in.)
: Not recommended. The movie will be blurred.
: The movie will seem 3-dimensional and realistic.
: The movie will seem flat without a sense of depth.
Notes
If the movies appear doubled on the LCD screen, return the zoom to the original level.
A subject within 30 cm (11 7/8 in.) away should be recorded in 2D.
Be sure to keep your finger on the power zoom lever. If you move your finger off the power zoom
53
lever, the operation sound of the power zoom lever may also be recorded.
You cannot change the zoom speed with the
/ button on the LCD screen.
The minimum possible distance between camcorder and subject while maintaining sharp focus is
about 1 cm (about 13/32 in.) for wide angle and about 80 cm (about 31 1/2 in.) for telephoto (2D
recording only).
During 2D recording, you can magnify images up to 10 times the original size using optical
zooming, unless [
SteadyShot] is set to [Active].
Related topics
Further zooming: [Digital Zoom (2D only)]
Back to top
Copyright 2013 Sony Corporation
54
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Recording > Useful functions for recording images > Intelligent Auto

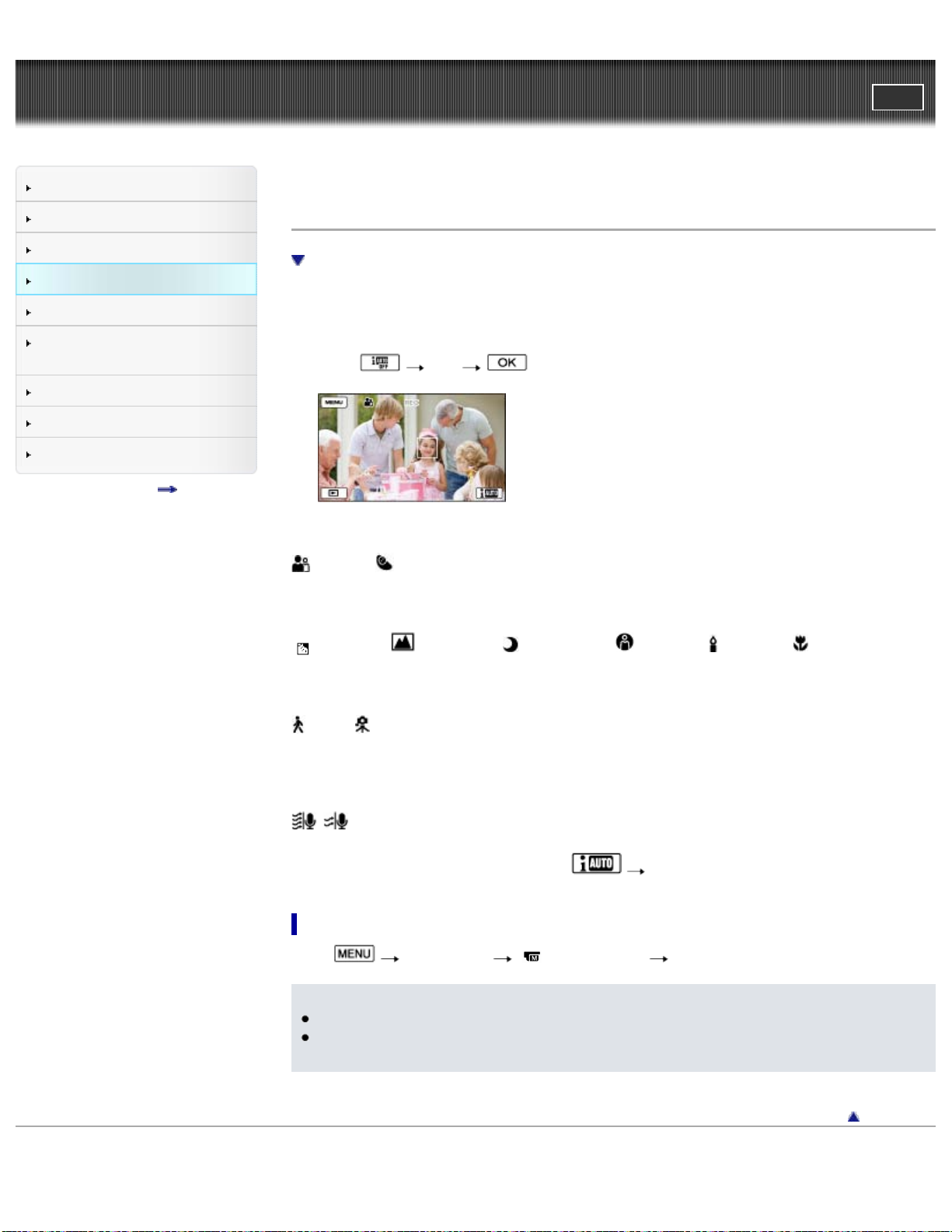

Intelligent Auto
To record images brighter than that of when using the Intelligent Auto function
Your camcorder records movies after selecting the most suitable setting for the subjects or the situation
automatically. ([On] is the default setting.) When the camcorder detects a subject, the icons that
correspond to the detected conditions are displayed.
1. Select
[On] at the right bottom of the recording screen of movies or photos.
Face detection:
The camcorder detects faces, and adjusts the focus, color and exposure.
(Portrait), (Baby)
Scene detection:
The camcorder selects the most effective setting automatically, depending on the scene.
(Backlight), (Landscape), (Night Scene), (Spotlight), (Low light), (Macro)
Camera-shake detection:
The camcorder detects whether camera-shake occurs or not, and makes the optimum compensation.
(Walk), (Tripod)
Sound detection:
The camcorder detects and suppresses the wind noise so that the voice of a person or the surrounding
sound can be recorded clearly.
, (Auto Wind NR)
To cancel the Intelligent Auto function, select
[Off] on the recording screen.
To record images brighter than that of when using the Intelligent Auto function
Select [Camera/Mic] [ Manual Settings] [Low Lux].
Notes
The frames on the faces do not appear during 3D recording.
The camcorder may not detect the expected scene or subject, depending on the recording
conditions.
Back to top
Copyright 2013 Sony Corporation
55
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Recording > Useful functions for recording images > Recording the selected subject clearly
(Face Priority) (2D only)

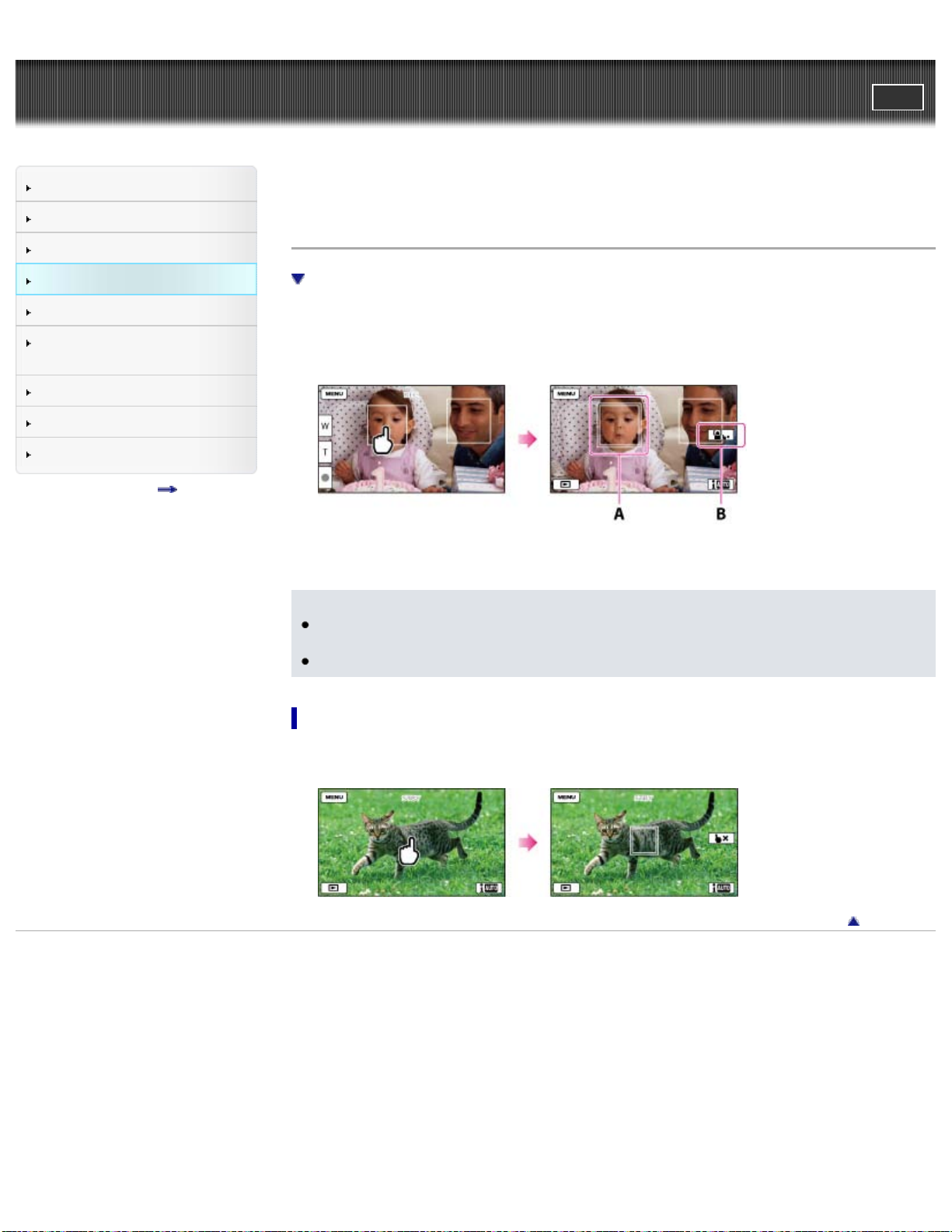

Recording the selected subject clearly (Face Priority) (2D only)
To record subjects other than people (Tracking focus)
Your camcorder can track a face you select and adjust the focus, exposure, and skin tone of the face
automatically.
1. Touch one of the faces targeted.
A: The double-lined frame is displayed.
B: You can release the selection.
Notes
The subject you touched may not be detected, depending on the surrounding brightness or hairstyle
of the subject.
Make sure to set the [Face Detection] setting to other than [Off] ([Auto] is the default setting).
To record subjects other than people (Tracking focus)
Touch the subject you want to record.
Your camcorder adjusts the focus automatically.
Back to top
Copyright 2013 Sony Corporation
56
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Recording > Useful functions for recording images > Recording movies in dim places (Video
Light)
Recording movies in dim places (Video Light)
1. Press LIGHT.
A: Flash/Video light
Each time you press the LIGHT button, the setting changes as follows.
Off (no indicator)
Auto ( ) On ( ) ...
Notes
Keep a distance of about 0.3 m to 1.5 m (1 foot to 5 feet) between the camcorder and the subject.
The video light generates strong light. Do not use the video light directly in front of the eyes at close
range.
The battery drains quickly while using the video light.
When you shoot photos, the video light turns off and will work as a flash.
Related topics
[Light Bright]
Back to top
Copyright 2013 Sony Corporation
57
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Recording > Useful functions for recording images > Recording in mirror mode
Recording in mirror mode
1. Open the LCD panel 90 degrees to the camcorder ( ).
2. Rotate the LCD screen 180 degrees to the lens side (
) to adjust the angle.
A mirror-image of the subject appears on the LCD screen, but the image will be normal when
recorded.
Back to top
Copyright 2013 Sony Corporation
58
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Recording > Useful functions for recording images > Using the GPS function (HDR-TD30V)

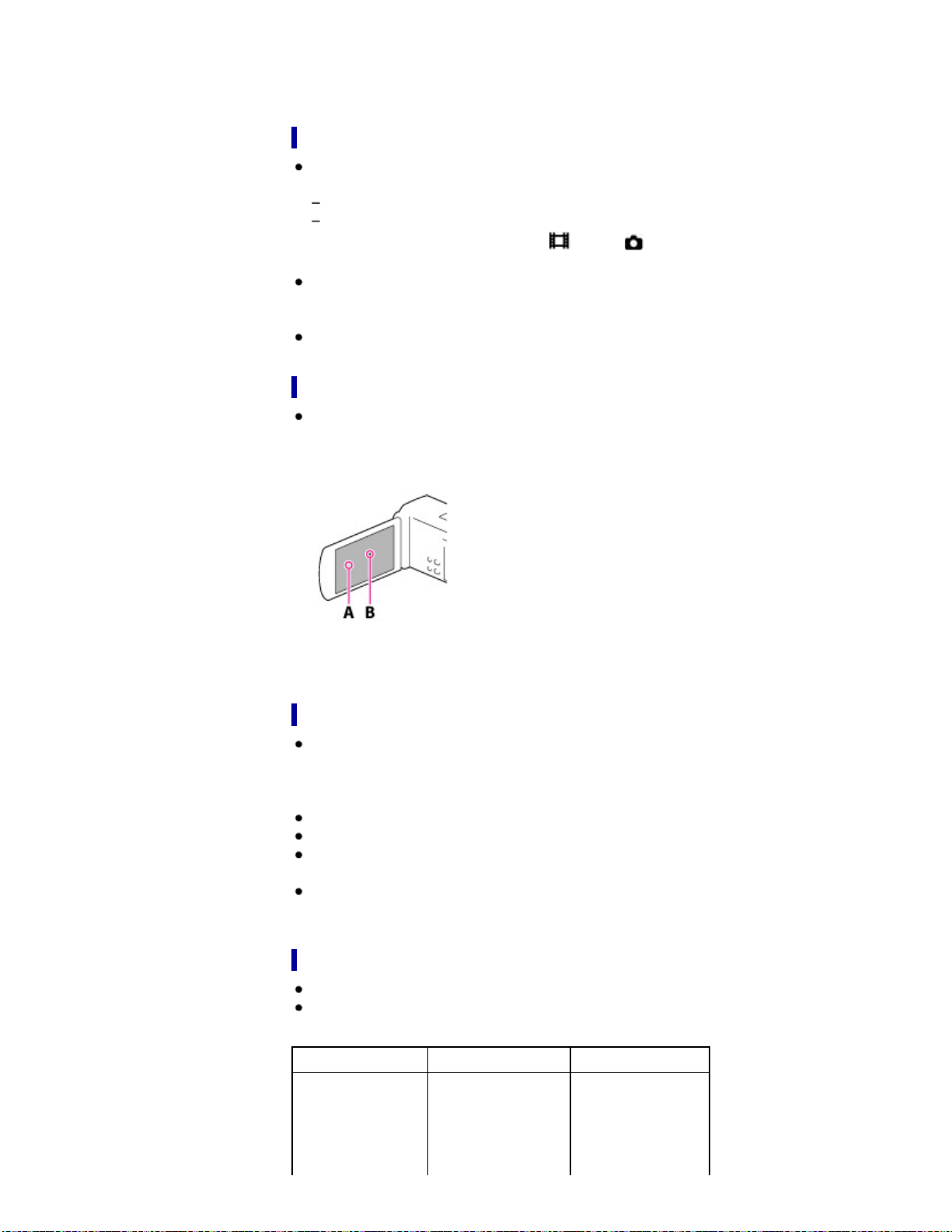

Using the GPS function (HDR-TD30V)
If you do not want to record location information
To obtain a map of the current location (triangulating priority mode)
To check the triangulating status
On the satellite map and triangulating gauge
How to check the GPS satellite icons/triangulating gauge
If data on your current location cannot be obtained
Hints for better reception
The following features are available if you use the GPS (Global Positioning System) function.
Recording location information on movies or photos ([On] is the default setting.)
Playing movies and photos by searching for them from a map
Displaying a map of your current location
GPS triangulating status
59
A: Number of dots changes while the camcorder is searching for the satellites.
B: Triangulating meters appear when the satellites are found.
When the camcorder cannot triangulate
A: The camcorder does not have location information.
B: The camcorder displays the location information that was previously obtained.
If you do not want to record location information
Select [Setup] [ General Settings] [GPS Setting] [Off].
Notes
It may take a while before the camcorder starts triangulating.
Use the GPS function outdoors and in open areas, as the radio signals can best be received in
such areas.
The map always displays the north at the top.
To obtain a map of the current location (triangulating priority mode)
This feature is useful for checking a map of your current location while traveling.
As the camcorder turns other functions off to search for satellites, obtaining triangulating information can
take priority.
1. Select
[Setup] [ General Settings] [Your Location].
A: A marker that indicates your current location
B: Displays the triangulating information
Notes
If you select a certain point on the screen, the map shows an area with that point at the center.
Select
to move your current location back to the center again.
If the camcorder cannot acquire current location information, the triangulating information appears.
If the location information that was previously obtained is invalid, the marker does not appear.
To close the current location screen, select
.
60

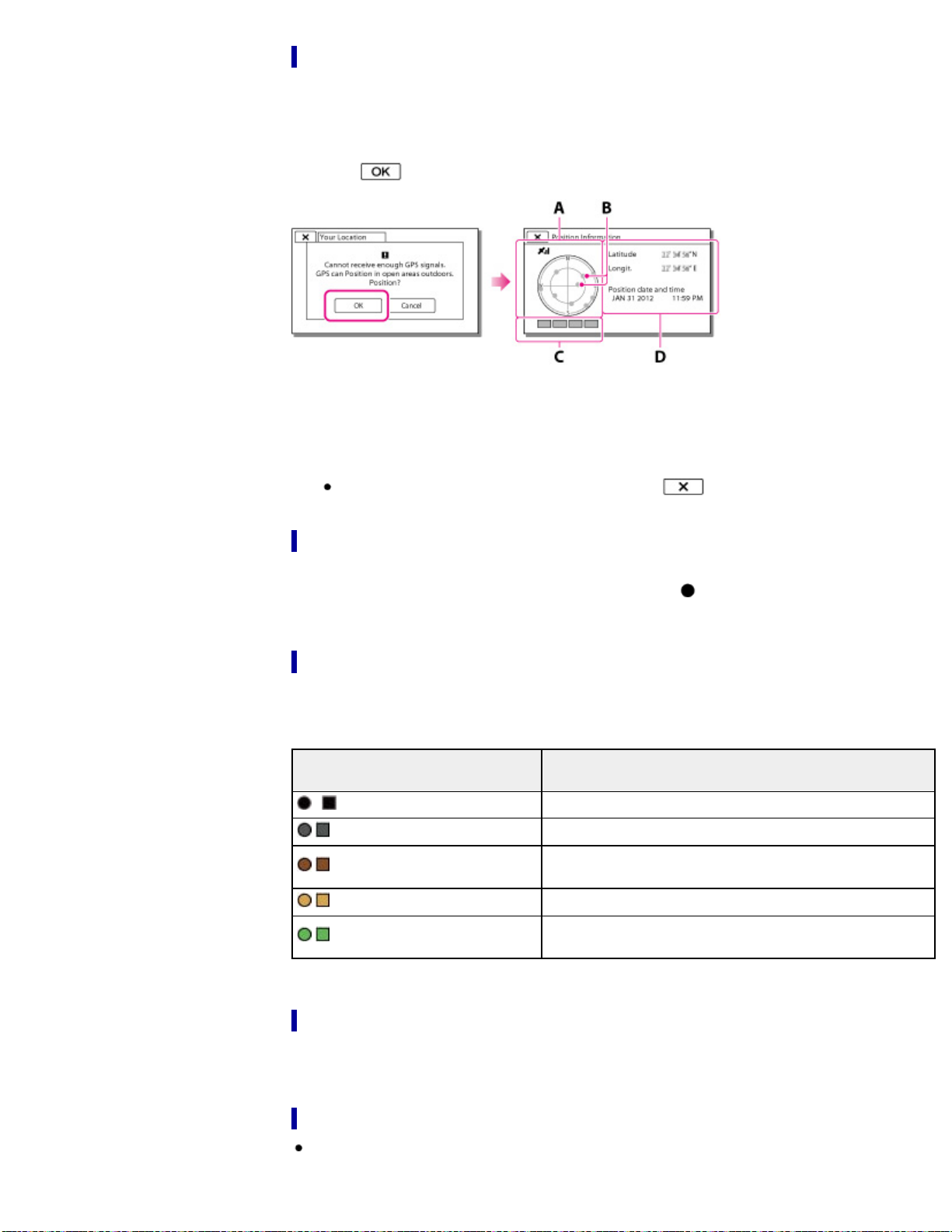

To check the triangulating status
The camcorder displays the status of the GPS signal reception when you are unable to obtain the
triangulating information.
1. Display your current location.
If your current location appears on the LCD screen, you do not need to continue this operation.
2. Select
.
A: Satellite map
B: Satellite icons
C: Triangulating gauge
D: Information for the location that was previously obtained.
To close the triangulating information screen, select
.
On the satellite map and triangulating gauge
The center of the satellite map shows your current location. You can check the direction
(north/south/east/west) of the satellites with the satellite icons (
) that appear on the satellite map.
When the camcorder succeeds in triangulating your location, the triangulating gauge turns to green.
How to check the GPS satellite icons/triangulating gauge
The color of the GPS satellite icons and the triangulating gauge change according to the current status
of triangulation.
GPS satellite icons/triangulating
gauge
Status
/ (black)
No signal, but orbit information for the satellite is available.
/ (gray)
Part of the satellite orbit information has been obtained.
/ (brown)
About a half of the satellite orbit information has been
obtained.
/ (ocher)
Most of the satellite orbit information has been obtained.
/ (green)
Triangulating is completed and the satellite is currently being
used.
If data on your current location cannot be obtained
A display that allows you to triangulate the location again appears. In this case, follow the instruction that
appears on the LCD screen.
Hints for better reception
Use the GPS function outdoors and in open areas.
For details on locations or situations where radio signals cannot be received, see “About GPS (HDR-
61
TD30V).”
Rotate the LCD panel to direct the GPS antenna toward the sky. Do not place your hand on the GPS
antenna.
Select [Your Location] in the menu to use the triangulating priority mode.
Use GPS Assist Data. If you import GPS Assist Data from your computer to your camcorder using
the “PlayMemories Home” software, the time it takes the camcorder to acquire your location
information can be shortened. Connect the camcorder to a computer that is connected to the
Internet. The GPS Assist Data will be updated automatically.
Notes
In the following situations, the current location of the camcorder shown on the map may be different
from the actual location. The margin of error can be as wide as several hundred meters.
When the camcorder receives GPS signals that have been reflected off the surrounding buildings
When the GPS signal is too weak
The GPS Assist Data may not function in the following cases:
When the GPS Assist Data are not updated for about 30 days or more
When the date and time of the camcorder are not correctly set
When the camcorder is moved for a long distance
Related topics
GPS antenna: see Parts and controls
Locations or situations where radio signals cannot be received: see About GPS (HDR-TD30V)
Back to top
Copyright 2013 Sony Corporation
62
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Playback > Playback > Playing movies and photos from the Event View screen

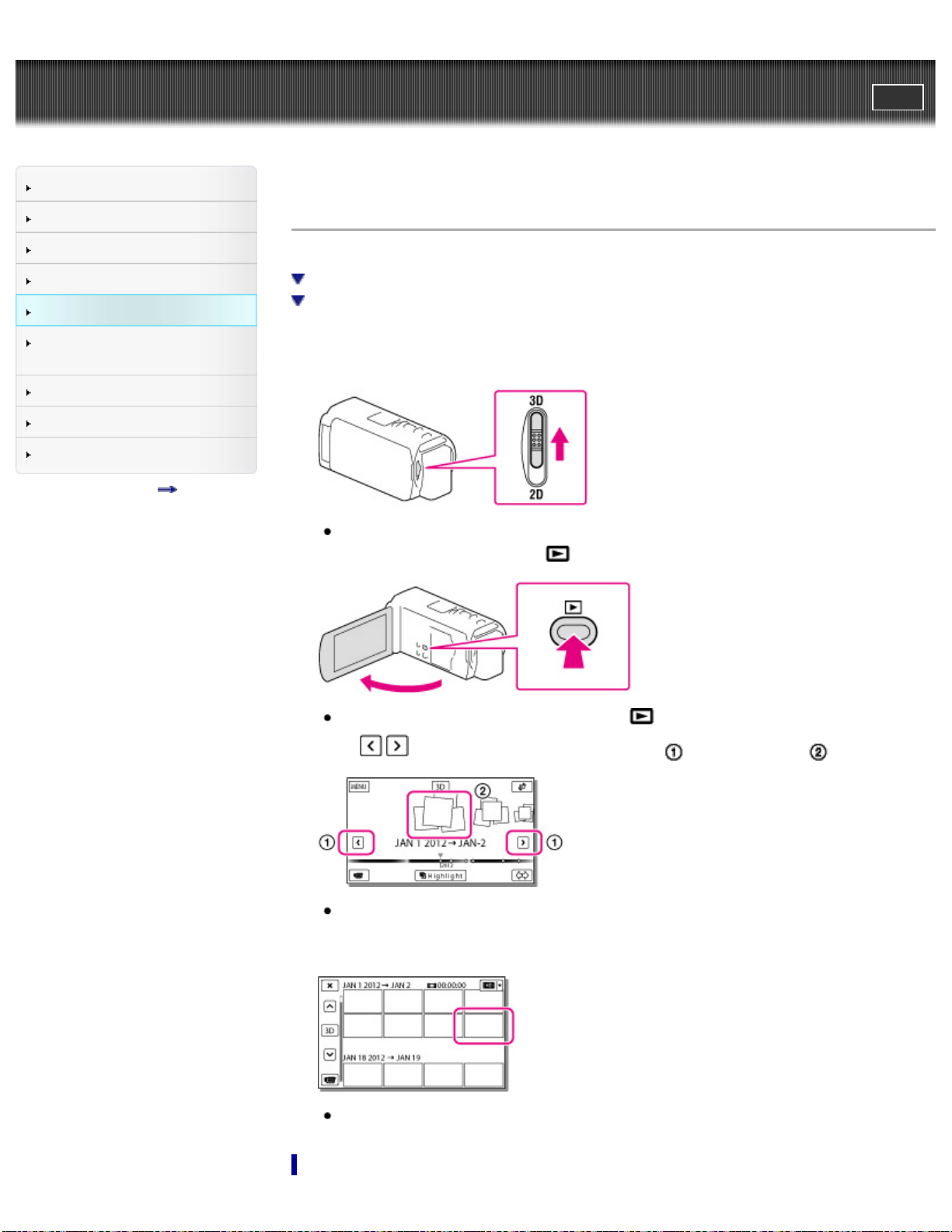

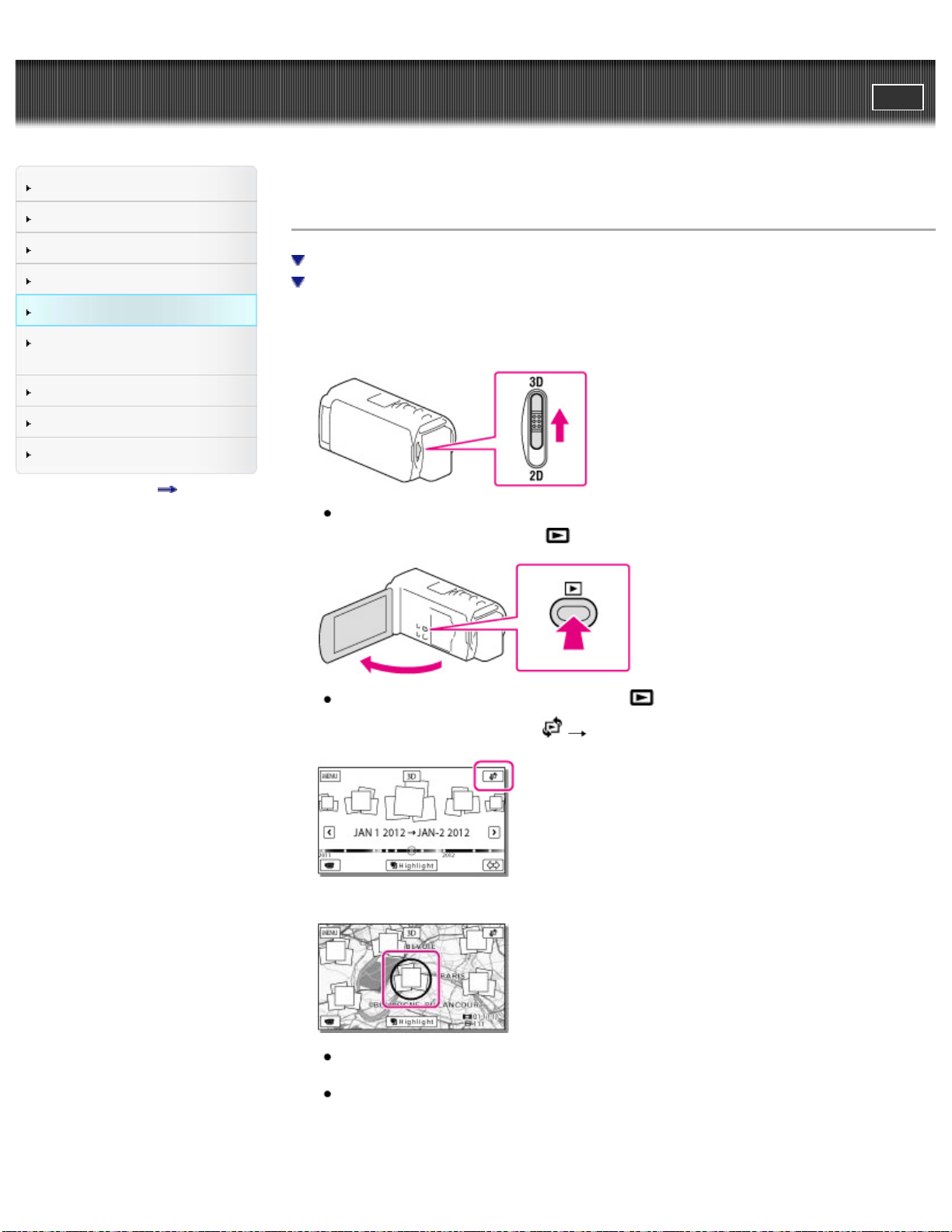

Playing movies and photos from the Event View screen

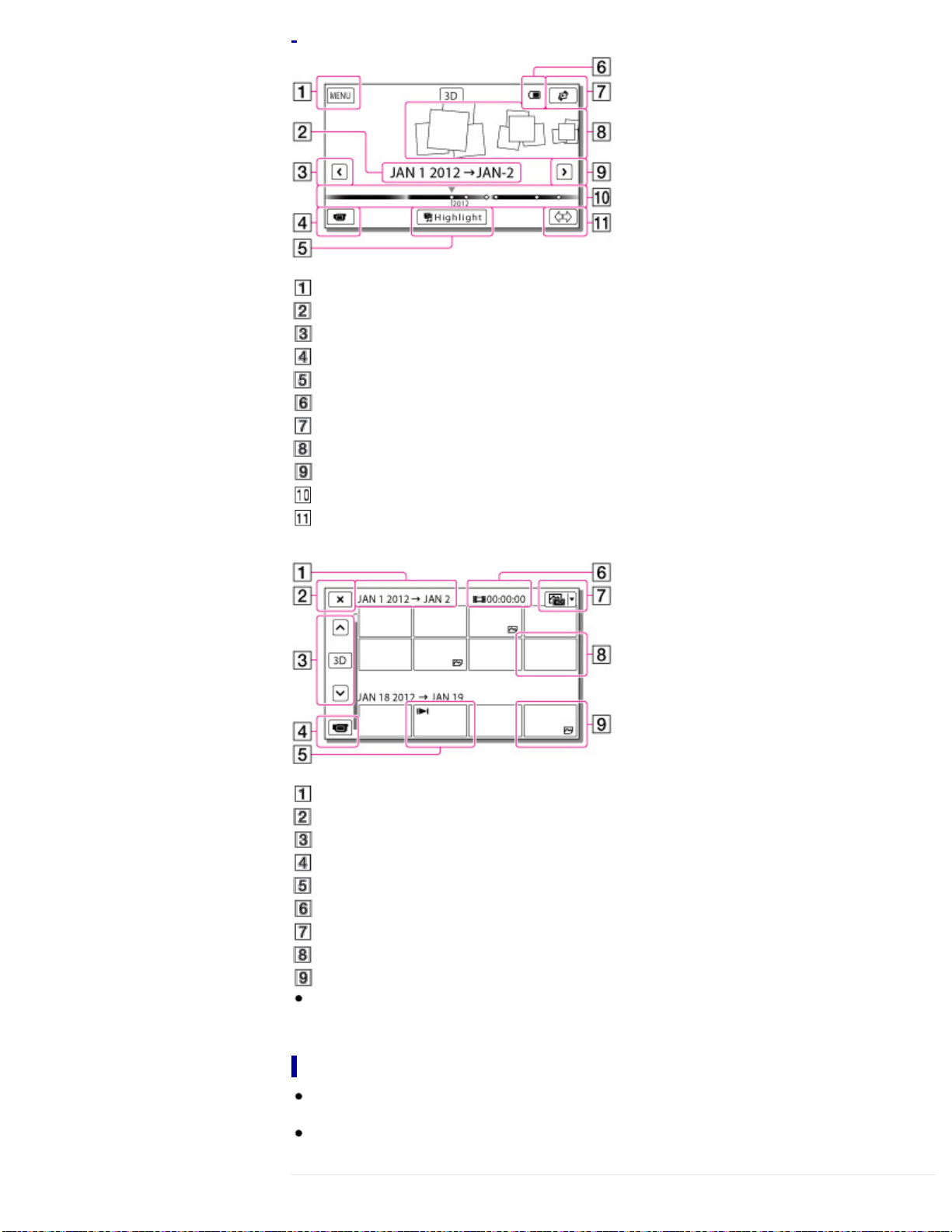

Screen display on the Event View screen
To view 3D movies on the LCD screen
You can search for recorded images by date and time of recording (Event view).
1. Set the 2D/3D switch to 3D.
To play back 2D movies and photos, set the 2D/3D switch to 2D.
2. Open the LCD screen and press the
button on the camcorder to enter the playback mode.
You can enter the playback mode by selecting on the LCD screen. [Details]
3. Select
/ to move the desired event to the center ( ) and then select it ( ).
The camcorder displays recorded images as an event automatically, based on the date and
time.
4. Select the image.
The camcorder plays from the selected image to the last image in the event.
Screen display on the Event View screen
63
: To the MENU screen
: Event name
: To the previous event
: Change to the movie/photo recording mode
: To play back short movies
: Remaining battery
: To the Map View screen (HDR-TD30V)
: Events
: To the next event
: Time-line bar
: Change Event Scale button
: Event title
: To go back to the Event View screen
: Previous/next
: Change to the movie/photo recording mode
: Last played image
: Recorded time/number of photos
: Switch Image Type button (2D only)
: Movie
: Photo (2D only)
Reduced-size images which enable you to view many images at the same time on an index screen
are called “thumbnails.”
To view 3D movies on the LCD screen
Watch 3D movies on the LCD screen from directly in front of the screen, about 30 cm (11 7/8 in.)
away. The 3-dimensional movie will look realistic.
If you feel discomfort from your eyes, press the 2D/3D DISP button to display the movies in 2D.
[Details]
64
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Playback > Playback > Playing movies and photos from a map (HDR-TD30V)
Playing movies and photos from a map (HDR-TD30V)
When you use the map data for the first time
Screen display on the Map View
You can search for recorded images by location of recording (Map View).
1. Set the 2D/3D switch to 3D.
To play back 2D movies and photos, set the 2D/3D switch to 2D.
2. Open the LCD screen and press the
button on the camcorder to enter the playback mode.
You can enter the playback mode by selecting on the LCD screen. [Details]
3. Switch to the Map View by touching
[Map View].
4. Select the recording location.
Touch the direction on the map in which you want the map to be scrolled. Keep touching that
point to scroll the map continuously.
If you change the map scale using the power zoom lever, the clusters of thumbnails will change
as well.
5. Select the desired image.
66
When you use the map data for the first time
A message appears asking you to confirm whether you agree with the terms of the license agreement of
the map data. You can use the map data by touching [Yes] on the screen after agreeing to the terms of
the license agreement. (For details on the license agreement, refer to the “Operating Guide” supplied
with your camcorder.)
You cannot use the map data if you touch [No]. However, when you try to use the map data for the
second time, the same message will appear on the screen, and you can use the map data by touching
[Yes].
Screen display on the Map View
: To the MENU screen
: To the movie recording display
: To the Event View screen
: To play back short movies
: To the Map View
: Previous/next
: To the movie recording display
: Switch Image Type button (2D only)
Back to top
Copyright 2013 Sony Corporation
67
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Playback > Playback > Operating buttons while playing images
Operating buttons while playing images
While playing a movie
While viewing photos (2D only)
To play back images with other devices
Items on the LCD screen disappear if you do not operate the camcorder for a few seconds. To display
the items again, touch the LCD screen.

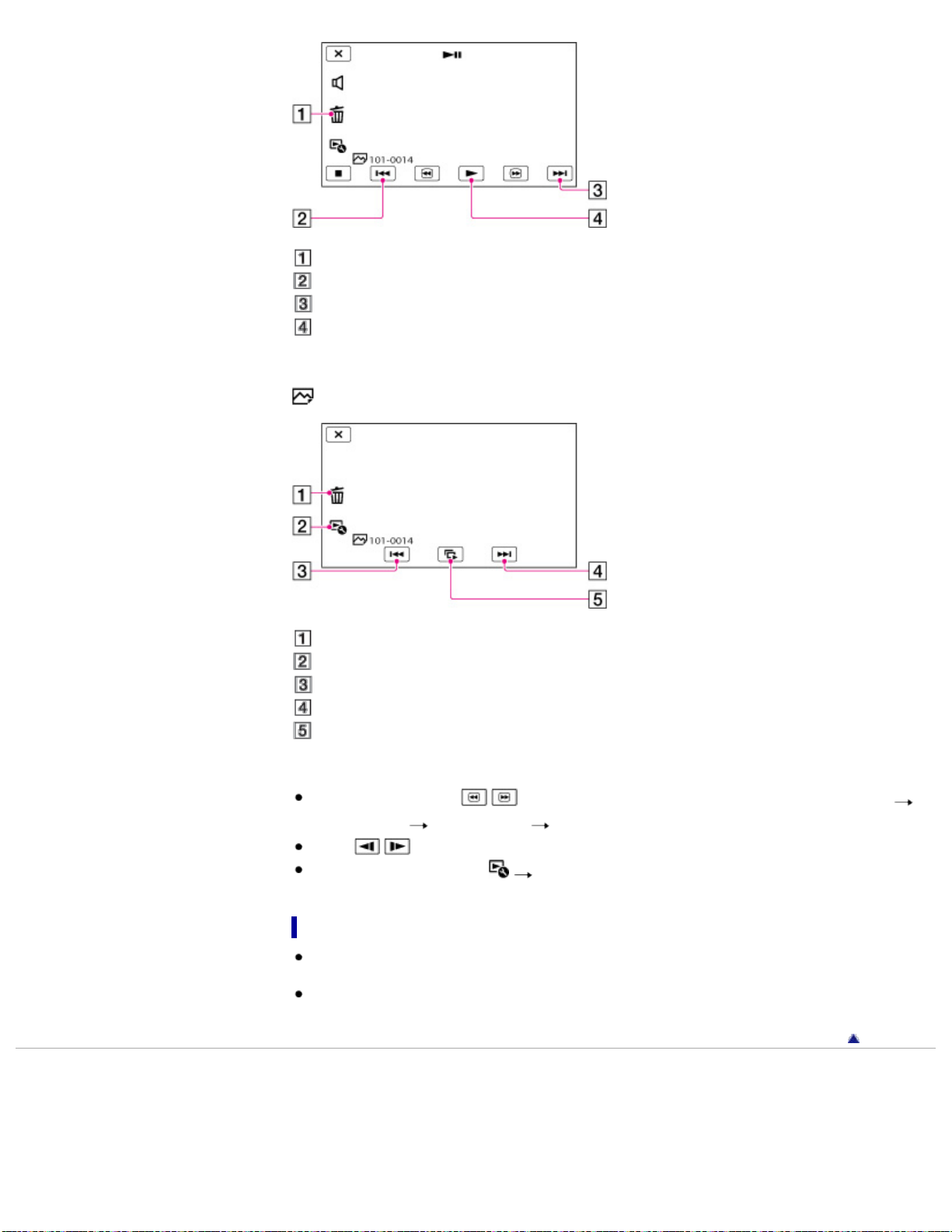

While playing a movie
: Volume
: Delete
: Context
: To stop
: Previous
: To fast-reverse
: Next
: To fast-forward
: To pause
While viewing photos (2D only)
Operating buttons while viewing photos will be changed depends on the setting of Switch Image Type
Button.
(Movie/photo)
68
: Delete
: Previous
: Next
: To play/pause movies and photos in the order recorded
(photo)
: Delete
: Context
: Previous
: Next
: To start/stop slide show
As you repeat selecting
/ during playback, movies are played as fast as about 5 times
about 10 times about 30 times about 60 times.
Select
/ during pause to play movies slowly.
To repeat Slideshow, select
[Slideshow Set].
To play back images with other devices
You may not be able to play back normally images recorded on your camcorder with other devices.
Also, you may not be able to play back images recorded on other devices with your camcorder.
Standard definition image quality (STD) movies recorded on SD memory cards cannot be played on
AV equipment of other manufacturers.
Back to top
Copyright 2013 Sony Corporation
69
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Playback > Playback > Adjusting the depth during playback (3D Depth Adjustment)
Adjusting the depth during playback (3D Depth Adjustment)
You can adjust the sense of depth while playing back 3D movies, so that the action in the movie looks
like it is jumping out of the screen.
1. Select
[3D Depth Adjustment] on the 3D movie playback screen.
The movie pauses, and the screen used to adjust the vertical direction appears in 2D (the
doubled image display).
2. Select
/ to adjust the vertical direction [Next].
3. Select / to adjust the horizontal direction .
The screen used to adjust the horizontal direction appears in 3D.
Back to top
Copyright 2013 Sony Corporation
70
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Playback > Playback > Dividing a movie

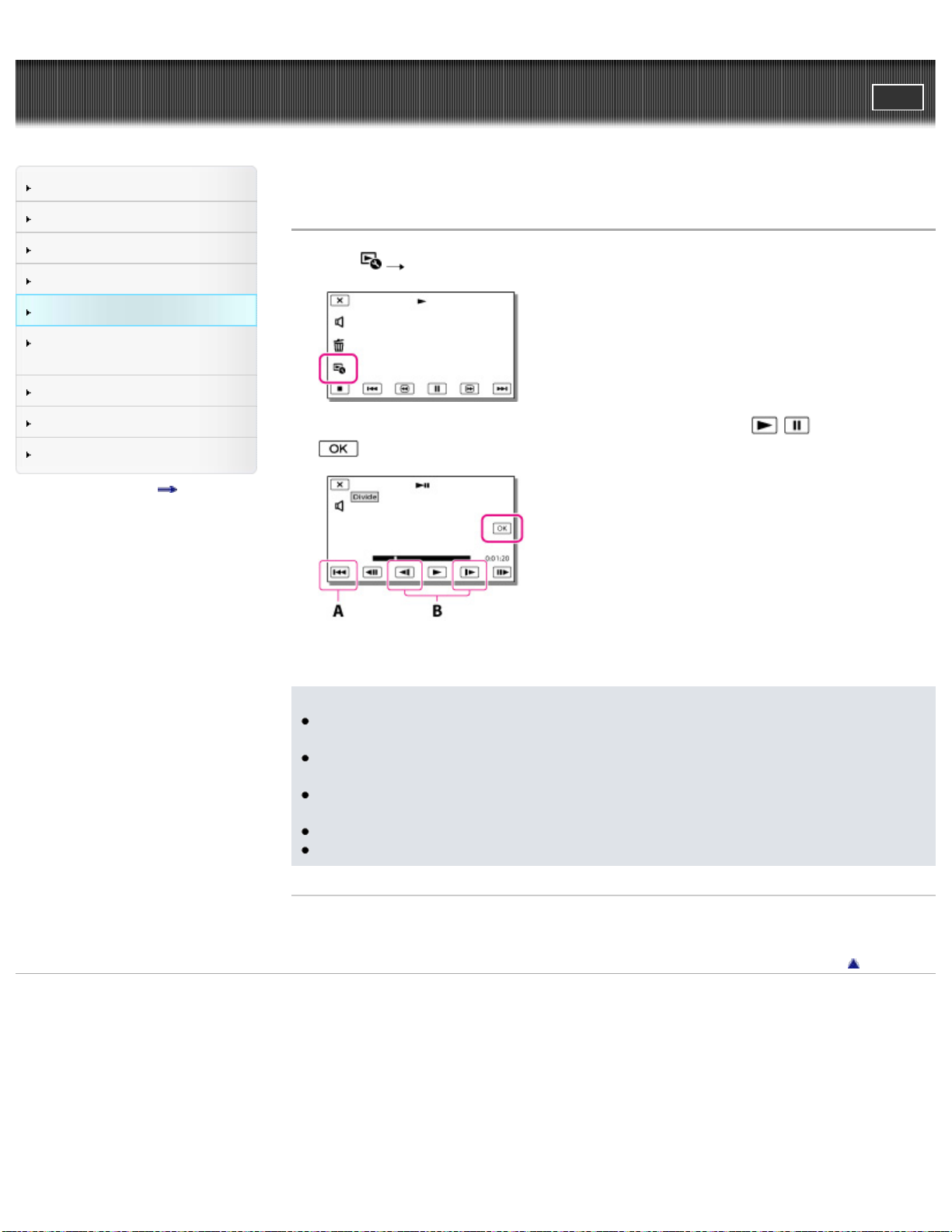

Dividing a movie
1. Select [Divide] on the movie playback screen.
2. Select the point where you want to divide the movie into scenes using / , and then select
.
A: Returns to the beginning of the selected movie
B: Adjusts the dividing point with more precision
Notes
A slight difference may occur from the point where you select and the actual dividing point, as your
camcorder selects the dividing point based on about half-second increments.
Some basic editing operations can be done on the camcorder. If you want to do advanced editing
operations, use the “PlayMemories Home” software.
Do not remove the battery pack or the AC Adaptor from your camcorder while dividing the images. It
may damage the recording media.
Do not eject the memory card while dividing images from the memory card.
If you divide movies that are included in saved scenarios, the scenarios will be deleted.
Related topics
[Delete]
Back to top
Copyright 2013 Sony Corporation
71
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Playback > Playback > Capturing a photo from a movie (2D only)

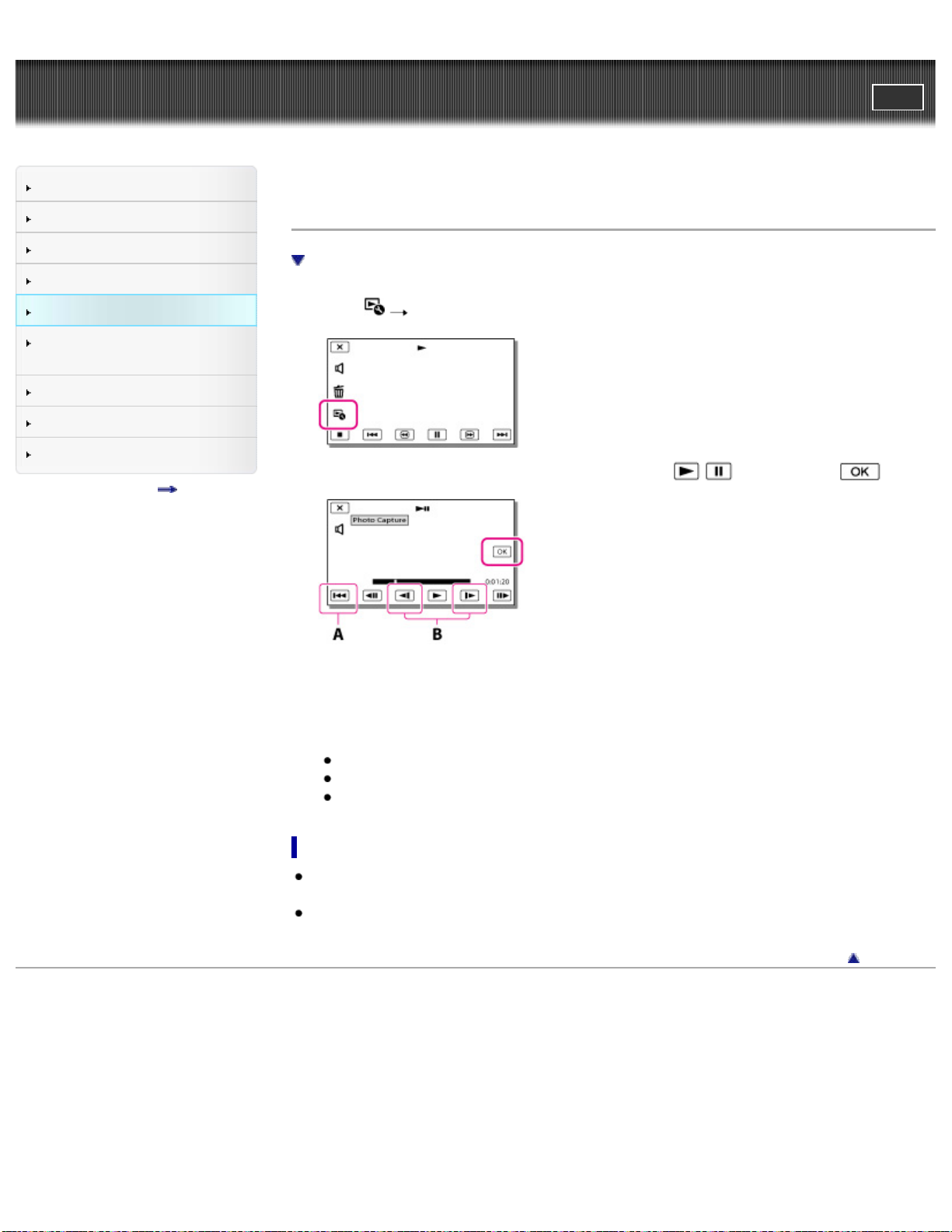

Capturing a photo from a movie (2D only)
On recording date and time of captured photos
1. Select
[Photo Capture] that appears on the playback screen of a movie.
2. Select the point where you want to capture a photo using / , and then select .
A: Returns to the beginning of the selected movie
B: Adjusts the capturing point with more precision
If the movie was recorded with one of the following image quality levels, the image size will be set
as shown below.
High definition image quality (HD): 2.1 M (16:9)
Wide aspect ratio (16:9) with standard definition image quality (STD): 0.2 M (16:9)
4:3 aspect ratio with standard definition image quality (STD): 0.3 M (4:3)
On recording date and time of captured photos
The recording date and time of captured photos is the same as the recording date and time of the
movies.
If the movie you are capturing from has no data code, the recording date and time of the photo will
be the date and time you captured from the movie.
Back to top
Copyright 2013 Sony Corporation
72
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Playback > Highlight Playback > Enjoying a digest of your movies (Highlight Playback)

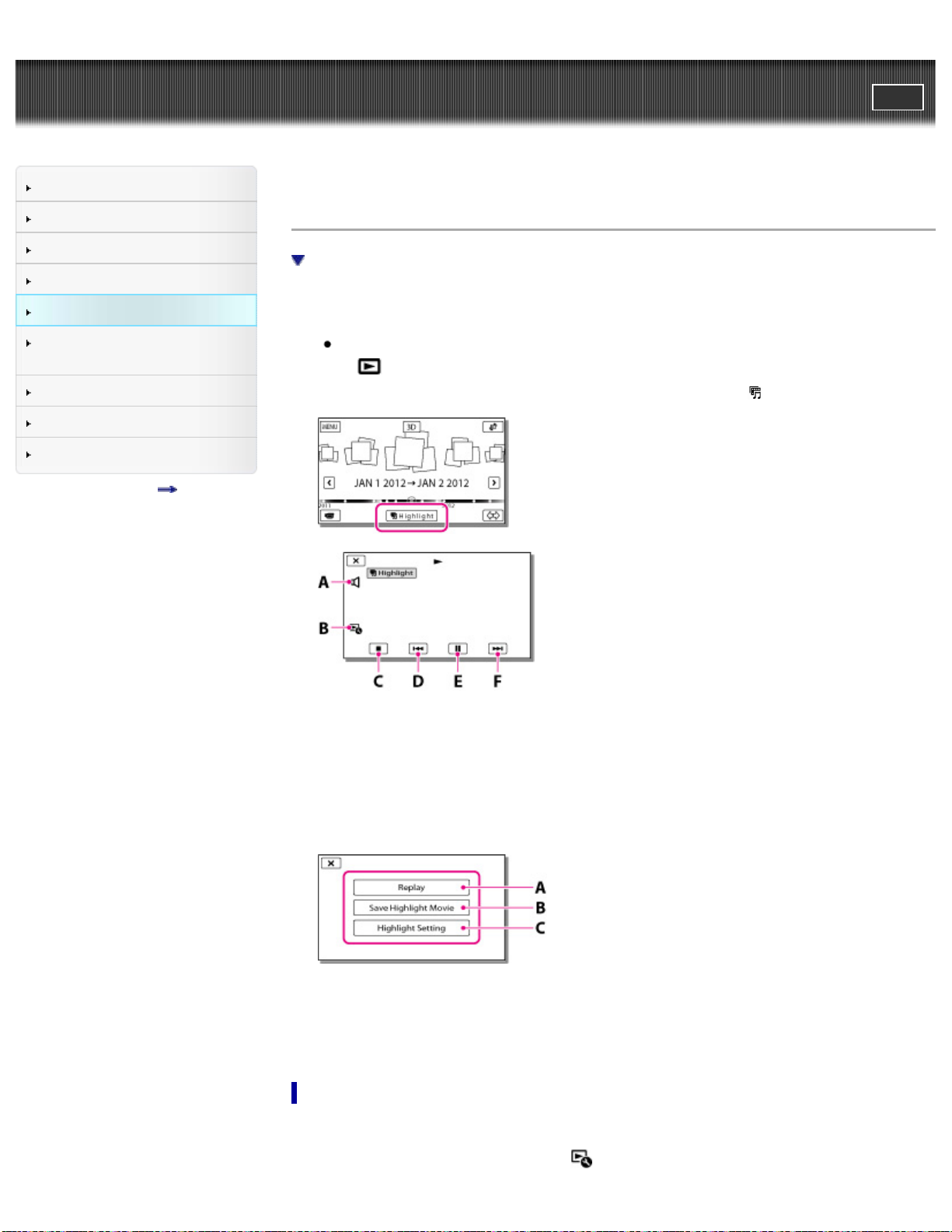

Enjoying a digest of your movies (Highlight Playback)
To change the settings for Highlight Playback
You can enjoy a digest of high definition image quality (HD) movies and photos, similar to a short movie.
1. Set the 2D/3D switch to 3D.
To play back 2D movies and photos, set the 2D/3D switch to 2D.
2. Press
(View Images).
3. Display the desired event at the center of the Event View, and select [
Highlight].
A: Volume adjustment
B: Context
C: To stop
D: Previous
E: To pause
F: Next
4. Select the desired operation when the highlight playback finishes.
A: The camcorder plays the Highlight Playback scenes again.
B: You can save the Highlight Playback scenes in standard definition image quality (STD).
C: You can change the settings for Highlight Playback.
To change the settings for Highlight Playback
You can change the Highlight Playback settings by selecting [Highlight Setting] on the screen after
Highlight Playback has finished.
You can also change the setting by selecting
[Highlight Setting] while the camcorder is playing
73
highlight scenes.
[Playback Range]: You can set the playback range (starting and ending date) of the Highlight
Playback.
[Theme]: You can select a theme for Highlight Playback.
[Music]: You can select music.
[Audio mix]: The original sound is played back with the music.
[Length]: You can set the length of the Highlight Playback segment.
[Highlight Point]: You can set the points in a movie or photo that will be used in a Highlight Playback.
Play the desired movie, and select
. Or play the desired photo and select .
appears on the movie or photo that is used in a Highlight Playback.
To erase the points, select
[Clear All Points].
Notes
Highlight Playback scenes will change each time you select a Highlight Playback.
The [Playback Range] setting is cleared when the Highlight Playback stops.
After the music file is transferred to the camcorder, if you cannot play the music, the music file may
be damaged. Delete the music file by selecting
[Setup] [ Playback Settings]
[Empty Music], then transfer the music file again. You can restore the music data recorded on your
camcorder at the default using “Music Transfer.” For operating instructions, see “Music Transfer”
help.
If the Highlight Playback function was started from the Map View, [Highlight Point] cannot be set.
However, if the Highlight Playback function was started from the Event View screen and you set the
[Highlight Point], the point can take effect on the Map View also (HDR-TD30V).
The audio used for the Highlight Playback will be converted to 2ch stereo.
When you connect the camcorder to an external device, such as a TV, and watch Highlight
Playback, these images do not appear on the LCD screen of the camcorder.
Back to top
Copyright 2013 Sony Corporation
74
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list

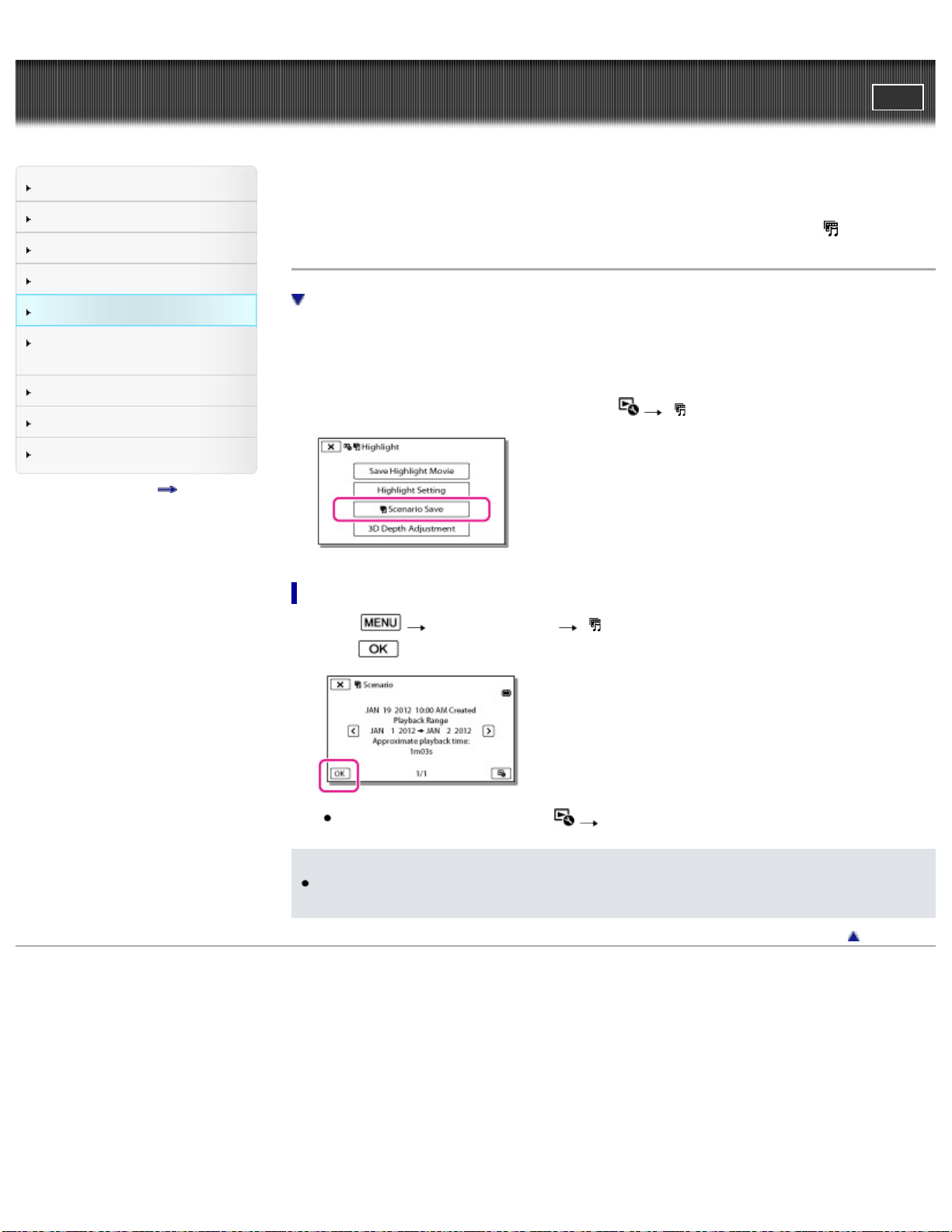

Top page > Playback > Highlight Playback > Saving Highlight Playback in high definition image quality
(HD) (Scenario Save)
Saving Highlight Playback in high definition image quality (HD) ( Scenario
Save)
To play back a saved scenario
You can save your favorite Highlight Playback as a “Scenario” with high definition image quality (HD). Up
to 8 scenarios can be saved and these scenarios can be played on the camcorder only.
1. Select [Replay] on the screen after a Highlight Playback has finished.
2. When the Highlight Playback starts again, select
[ Scenario Save].
To play back a saved scenario
1. Select [Playback Function] [ Scenario], select the desired scenario, and then
select
.
To erase a saved scenario, select [Erase]/[Erase All] while playing the scenario.
Notes
When you connect the camcorder to an external device, such as a TV, and watch Highlight
Scenario, these images do not appear on the LCD screen of the camcorder.
Back to top
Copyright 2013 Sony Corporation
75
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Playback > Highlight Playback > Converting Highlight Playback scenes or Highlight
Scenarios to standard definition image quality (STD) (Highlight Movie)
Converting Highlight Playback scenes or Highlight Scenarios to standard
definition image quality (STD) (Highlight Movie)
To play back a Highlight Movie
You can convert the data format of Highlight Playback or Highlight Scenarios to 2D movies with standard
definition image quality (STD) and save them as a “Highlight Movie.” Highlight movies can be used to be
uploaded to the Web.
1. Select [Save Highlight Movie] on the screen after Highlight Playback or Highlight Scenario playback
has finished.
To play back a Highlight Movie
1. Set the 2D/3D switch to 2D.
2. Select
[Playback Function] [Highlight Movie] and select the desired Highlight Movie.
To erase Highlight Movie, select
while the Highlight Movie is playing.
Back to top
Copyright 2013 Sony Corporation
76
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Playback > Playing images on a TV > Connecting the camcorder to a 3D TV

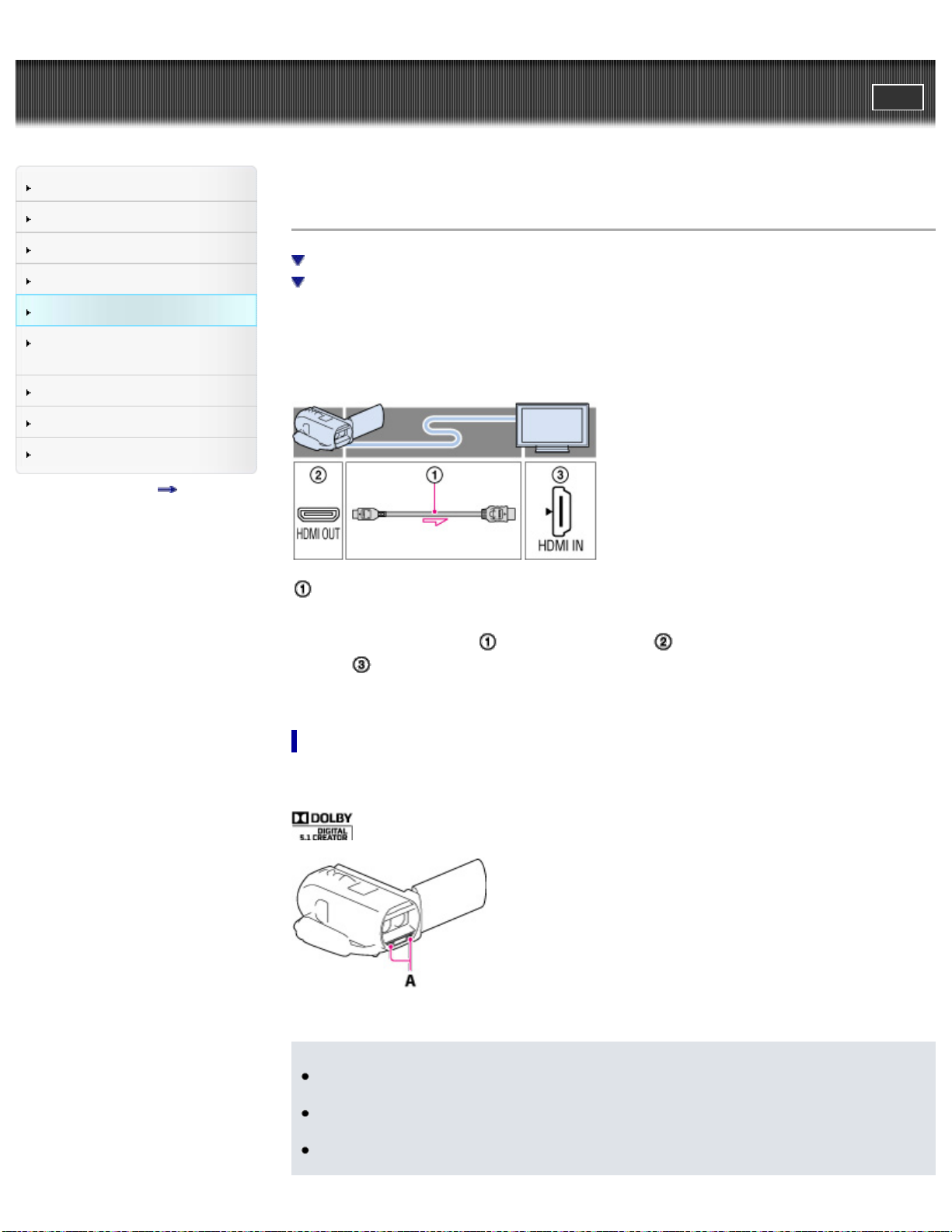

Connecting the camcorder to a 3D TV
Enjoying 5.1ch surround sound
On an HDMI cable
When movies are recorded in 3D, they are played back in 3D on a 3D TV. Use the HDMI cable to
connect the camcorder to a TV.
Make sure that the 2D/3D switch of the camcorder is set to 3D.
: Supplied
1. Switch the input on the TV to the connected jack.
2. Connect the HDMI cable (
) to the HDMI OUT jack ( ) on the camcorder and to the HDMI IN
jack (
) on the TV.
3. Play a movie on the camcorder.
Enjoying 5.1ch surround sound
You can record Dolby Digital 5.1ch surround sound with the built-in microphone. Realistic sound can be
enjoyed when playing a movie on a device that support 5.1ch surround sound input.
A: Built-in microphone
Notes
If you playback 5.1ch sound with the speakers on your camcorder, 5.1ch sound is automatically
converted and output in 2ch.
To enjoy the 5.1ch surround sound of the movies recorded with high definition image quality (HD) in
5.1ch sound, you need a device compatible with 5.1ch surround.
When you connect your camcorder with the supplied HDMI cable, the sound of high definition
image quality (HD) movies recorded in 5.1ch sound is automatically output in 5.1ch sound. The
77
sound of standard definition image quality (STD) movies is converted to 2ch.
On an HDMI cable
Use an HDMI cable with the HDMI logo.
Use an HDMI mini connector on one end (for the camcorder), and a plug suitable for connecting your
TV on the other end.
Copyright-protected images are not output from the HDMI OUT jack of your camcorder.
Some TVs may not function correctly (e.g., no sound or image) with this connection.
Do not connect the camcorder HDMI OUT jack to an external device HDMI OUT jack, as malfunction
may result.
HDMI (High Definition Multimedia Interface) is an interface to send both video/audio signals. The
HDMI OUT jack outputs high quality images and digital audio.
Notes
Refer to the instruction manuals of the TV as well.
Use the supplied AC Adaptor as the power source. [Details]
If you connect your camcorder to the TV using more than one type of cable to output images, HDMI
output takes priority.
Related topics
[Audio Mode]
Back to top
Copyright 2013 Sony Corporation
78
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Playback > Playing images on a TV > Connecting the camcorder to a high definition TV
Connecting the camcorder to a high definition TV
Enjoying 5.1ch surround sound
On an HDMI cable
When movies are recorded with high definition image quality (HD), they are played back in high
definition image quality (HD) on a high definition TV. Use the HDMI cable to connect the camcorder to a
TV which has an HDMI input jack.
If the TV does not have an HDMI input jack, use the A/V connecting cable (sold separately). [Details]
: Supplied
1. Switch the input on the TV to the connected jack.
2. Connect the HDMI cable (
) to the HDMI OUT jack ( ) on the camcorder and to the HDMI IN
jack (
) on the TV.
3. Play a movie or a photo on the camcorder.
Enjoying 5.1ch surround sound
You can record Dolby Digital 5.1ch surround sound with the built-in microphone. Realistic sound can be
enjoyed when playing a movie on a device that support 5.1ch surround sound input.
A: Built-in microphone
Notes
If you playback 5.1ch sound with the speakers on your camcorder, 5.1ch sound is automatically
converted and output in 2ch.
To enjoy the 5.1ch surround sound of the movies recorded with high definition image quality (HD) in
5.1ch sound, you need a device compatible with 5.1ch surround.
When you connect your camcorder with the supplied HDMI cable, the sound of high definition
79
image quality (HD) movies recorded in 5.1ch sound is automatically output in 5.1ch sound. The
sound of standard definition image quality (STD) movies is converted to 2ch.
On an HDMI cable
Use an HDMI cable with the HDMI logo.
Use an HDMI mini connector on one end (for the camcorder), and a plug suitable for connecting your
TV on the other end.
Copyright-protected images are not output from the HDMI OUT jack of your camcorder.
Some TVs may not function correctly (e.g., no sound or image) with this connection.
Do not connect the camcorder HDMI OUT jack to an external device HDMI OUT jack, as malfunction
may result.
HDMI (High Definition Multimedia Interface) is an interface to send both video/audio signals. The
HDMI OUT jack outputs high quality images and digital audio.
Notes
Refer to the instruction manuals of the TV as well.
Use the supplied AC Adaptor as the power source. [Details]
The 3D movies may seem to be shaking from side to side when played in 2D on a TV. You can
prevent the shaking by setting [3D Depth Adjustment] to [Manual] before recording. [Details]
When movies are recorded with standard image quality (STD), they are played back in standard
definition image quality (STD) even on a high definition TV.
If you connect your camcorder to the TV using more than one type of cable to output images, HDMI
output takes priority.
Related topics
[Audio Mode]
Back to top
Copyright 2013 Sony Corporation
80
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Playback > Playing images on a TV > Connecting the camcorder to a non-high-definition TV

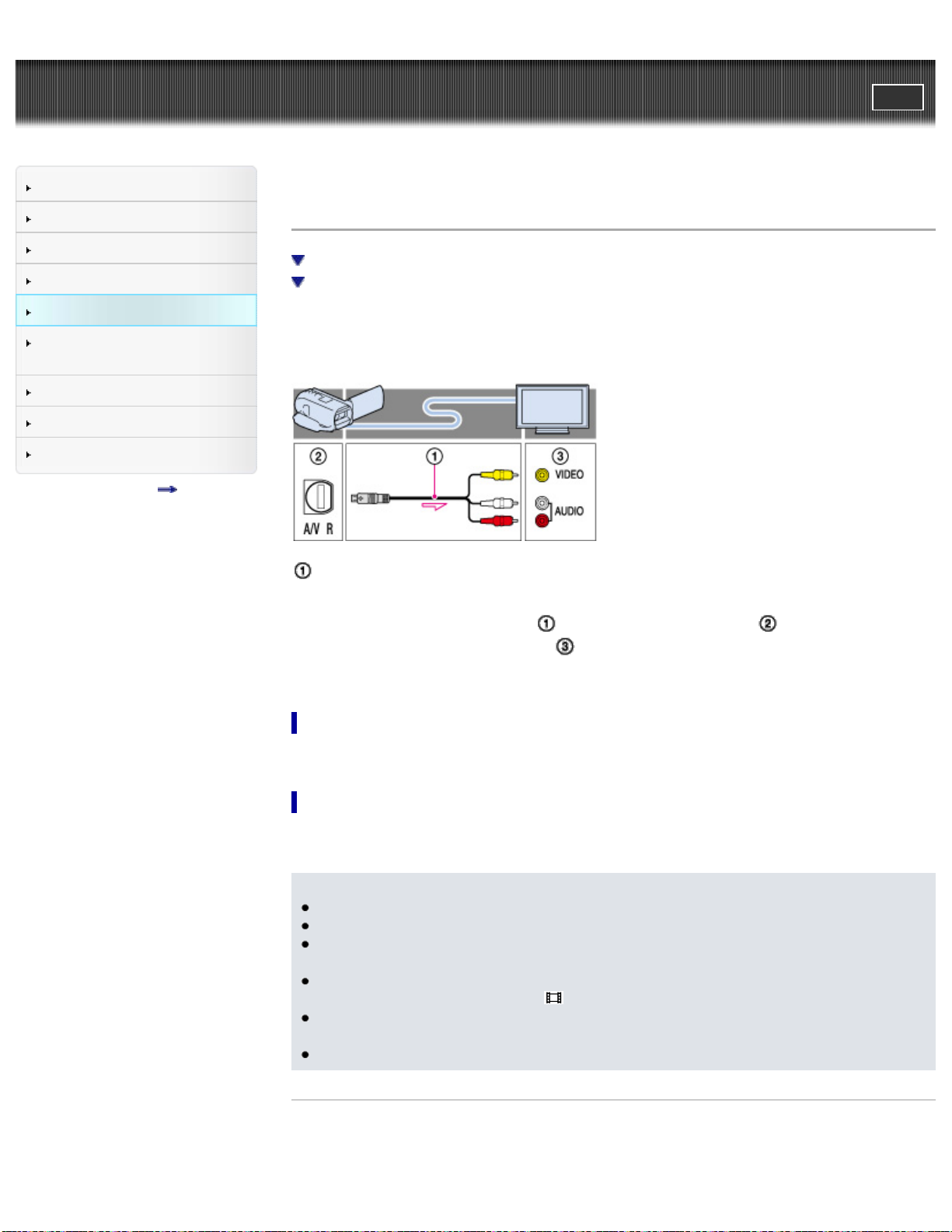

Connecting the camcorder to a non-high-definition TV
To set the aspect ratio according to the connected TV (16:9/4:3)
When your TV is monaural (When your TV has only one audio input jack)
When movies are recorded with high definition image quality (HD), they are played back in standard
definition image quality (STD) on a non-high-definition TV. When movies are recoded with standard
image quality (STD), they are played back in standard definition image quality (STD).
: Sold separately
1. Switch the input on the TV to the connected jack.
2. Connect the A/V connecting cable (
) to the A/V Remote Connector ( ) on the camcorder and
to the AUDIO and VIDEO input jacks (
) on the TV.
3. Play a movie or a photo on the camcorder.
To set the aspect ratio according to the connected TV (16:9/4:3)
Set [TV Type] to [16:9] or [4:3] according to your TV.
When your TV is monaural (When your TV has only one audio input jack)
Connect the yellow plug of the A/V connecting cable (sold separately) to the video input jack and
connect the white (left channel) or red (right channel) plug to the audio input jack of your TV or VCR.
Notes
Refer to the instruction manuals of the TV as well.
Use the supplied AC Adaptor as the power source. [Details]
The 3D movies may seem to be shaking from side to side when played in 2D on a TV. You can
prevent the shaking by setting [3D Depth Adjustment] to [Manual] before recording. [Details]
When you play back standard definition image quality (STD) movies on a 4:3 TV that is not
compatible with the 16:9 signal, set [
Wide Mode] to [4:3] to record movies with 4:3 aspect ratio.
If you connect your camcorder to the TV using more than one type of cable to output images, HDMI
input takes priority on the TV.
The camcorder does not support the S-Video output.
Related topics
[TV Type]
[Wide Mode (2D only)]
81
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Playback > Playing images on a TV > Connecting the camcorder to a TV via a VCR

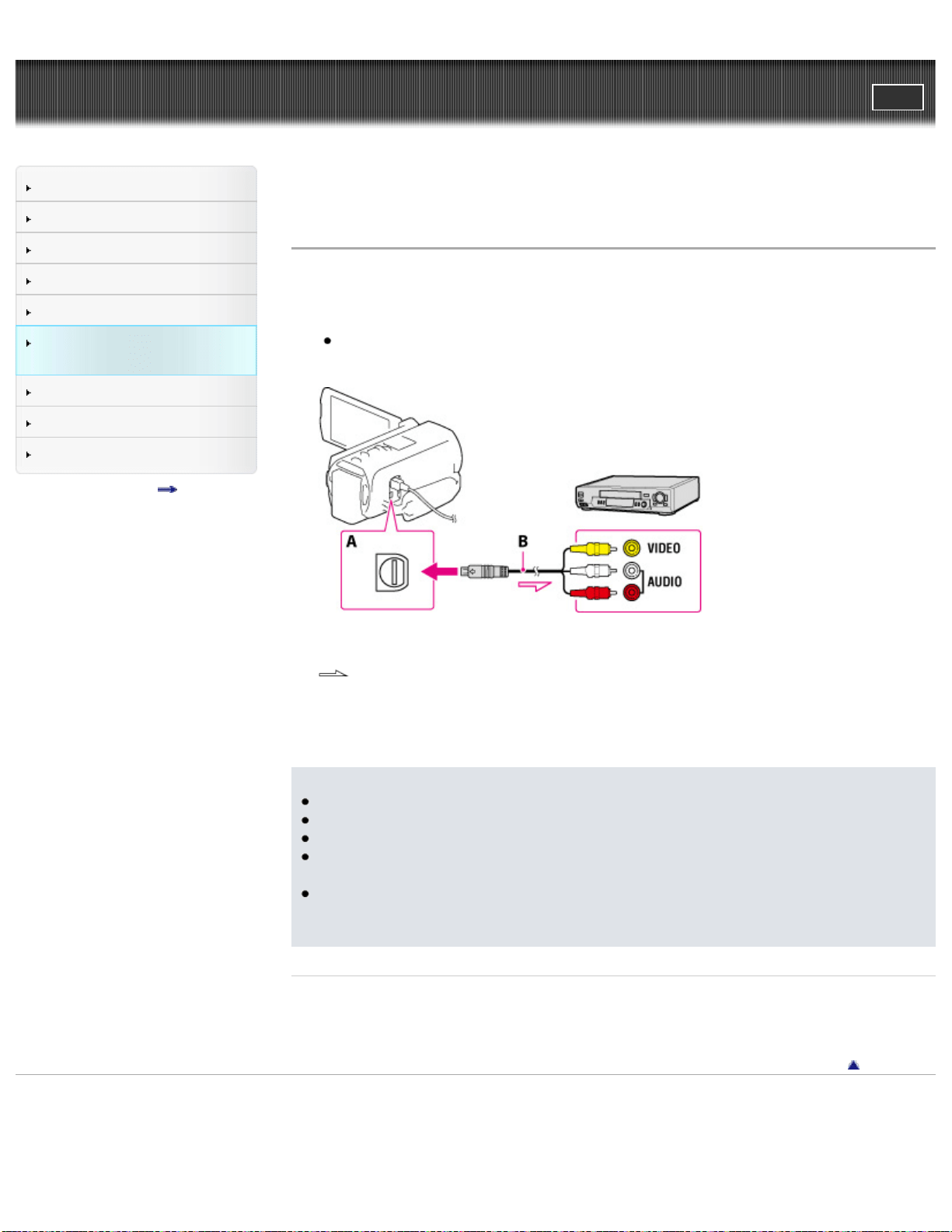

Connecting the camcorder to a TV via a VCR
Connect your camcorder to the LINE IN input on the VCR using the A/V connecting cable (sold
separately). Set the input selector on the VCR to LINE (VIDEO 1, VIDEO 2, etc.).
Back to top
Copyright 2013 Sony Corporation
83
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Playback > Playing images on a TV > Using “BRAVIA” Sync
Using “BRAVIA” Sync
You can operate your camcorder with the remote commander of your TV by connecting your camcorder
to a “BRAVIA” Sync compatible TV launched in 2008 or later with the HDMI cable.
You can operate the menu of your camcorder by pressing the SYNC MENU button of the remote
commander of your TV. You can display the camcorder screens such as Event View, play selected
movies or display selected photos by pressing up/down/left/right/enter buttons of the remote commander
of your TV.
Notes
There may be some operations you cannot do with the remote commander.
Set [CTRL FOR HDMI] to [On].
Also set your TV accordingly. Refer to the instruction manual of the TV for details.
The operation of “BRAVIA” Sync differs according to each model of BRAVIA. Refer to the
instruction manual of your TV for details.
If you turn off the TV, your camcorder is turned off simultaneously.
Back to top
Copyright 2013 Sony Corporation
84
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Saving images with an external device > Using the “PlayMemories Home”
software > Playing images on a computer

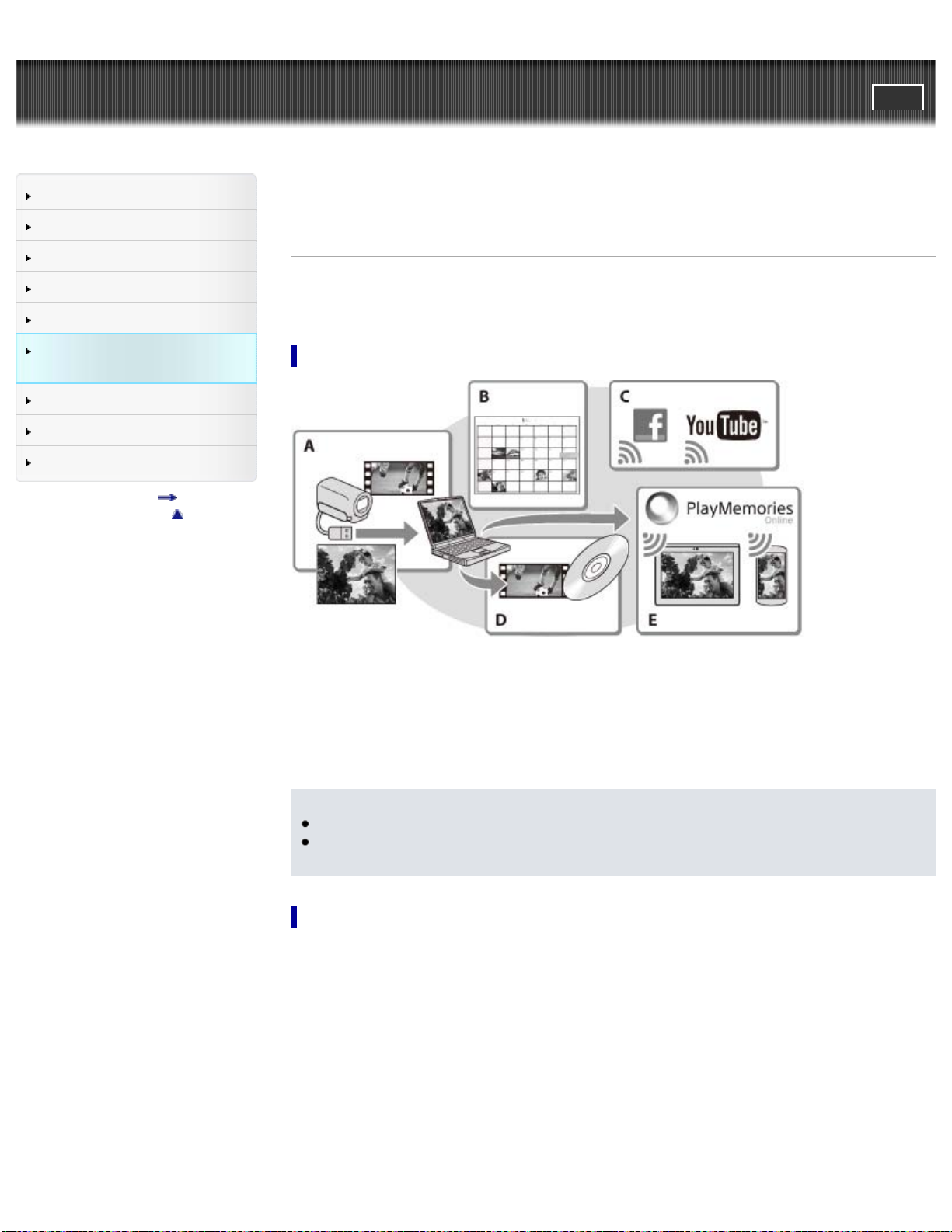

Playing images on a computer
The “PlayMemories Home” software allows you to import movies and still images to your computer to
use them in a variety of ways.
What you can do with “PlayMemories Home” software (Windows)
A: Import images from the camcorder / B: View images in a calendar / C: Upload images to online
services / D: Create a movie disc (DVD (2D)/Blu-ray) / E: Share images in “PlayMemories Online”
“PlayMemories Home” can be downloaded from the following URL.
www.sony.net/pm
Notes
An Internet connection is required to install “PlayMemories Home.”
An Internet connection is required to use “PlayMemories Online” and other online services. The
services may not be available in some countries/regions.
Software for Mac
The “PlayMemories Home” software is not supported with Mac. To import images from the camcorder to
your Mac and play them, use the appropriate software on your Mac. For details, visit the following URL.
http://www.sony.co.jp/imsoft/Mac/
Back to top
Copyright 2013 Sony Corporation
85
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Saving images with an external device > Using the “PlayMemories Home”
software > Checking the computer system
Checking the computer system
OS*
1
Microsoft Windows XP SP3*
2
/Windows Vista SP2*
3
/Windows 7 SP1/Windows 8
CPU*
4
Intel Core Duo 1.66 GHz or faster, or Intel Core 2 Duo 1.66 GHz or faster (Intel Core 2 Duo 2.26 GHz
or faster is required when processing 3D, FX or FH movies, and Intel Core 2 Duo 2.40 GHz or faster is
required when processing PS movies.)
Memory
Windows XP: 512 MB or more (1 GB or more is recommended)
Windows Vista/ Windows 7/Windows 8: 1 GB or more
Hard disk
Disk volume required for installation: Approximately 500 MB
Display
Minimum 1,024 × 768 dots
*
1
Standard installation is required. Operation is not assured if the OS has been upgraded or in a multi-boot
environment.
*
2
64-bit editions and Starter (Edition) are not supported. Windows Image Mastering API (IMAPI) Ver.2.0 or
newer is required to use disc creation function, etc.
*
3
Starter (Edition) is not supported.
*
4
Faster processor is recommended.
Notes
Operation with all computer environments is not assured.
Back to top
Copyright 2013 Sony Corporation
86
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Saving images with an external device > Using the “PlayMemories Home”
software > Installing the “PlayMemories Home” software in your computer
Installing the “PlayMemories Home” software in your computer
1. Access the following download site using an Internet browser on your computer, then click [Install]
[Run].
www.sony.net/pm
2. Install according to the on-screen instructions.
When the on-screen instructions prompting you to connect the camcorder to a computer appear,
connect the camcorder to your computer with the Built-in USB cable.
When the installation completes, “PlayMemories Home” starts up.
Notes on installation
If the “PlayMemories Home” software is already installed on your computer, connect the camcorder
to your computer. Functions that can be used with this camcorder will then be available.
If the “PMB (Picture Motion Browser)” software is installed on your computer, it will be overwritten by
the “PlayMemories Home” software. In this case, you cannot use some functions that were available
with “PMB” with this “PlayMemories Home” software.
Notes
When you access the camcorder from the computer, use the “PlayMemories Home” software.
Operation is not guaranteed if you operate the data using software other than the “PlayMemories
Home” software or you directly manipulate files and the folders from a computer.
Images cannot be saved to some discs depending on the recording mode. Movies recorded in [3D],
[60p Quality
] or [Highest Quality ] mode can only be saved to a Blu-ray disc.
The camcorder automatically divides an image file that exceeds 2 GB and saves the parts as
separate files. All image files may be shown as separate files on a computer, however, the files will
be handled properly by the import function and the playback function of the camcorder or the
“PlayMemories Home” software.
Back to top
Copyright 2013 Sony Corporation
87
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Saving images with an external device > Using the “PlayMemories Home”
software > Disconnecting your camcorder from the computer

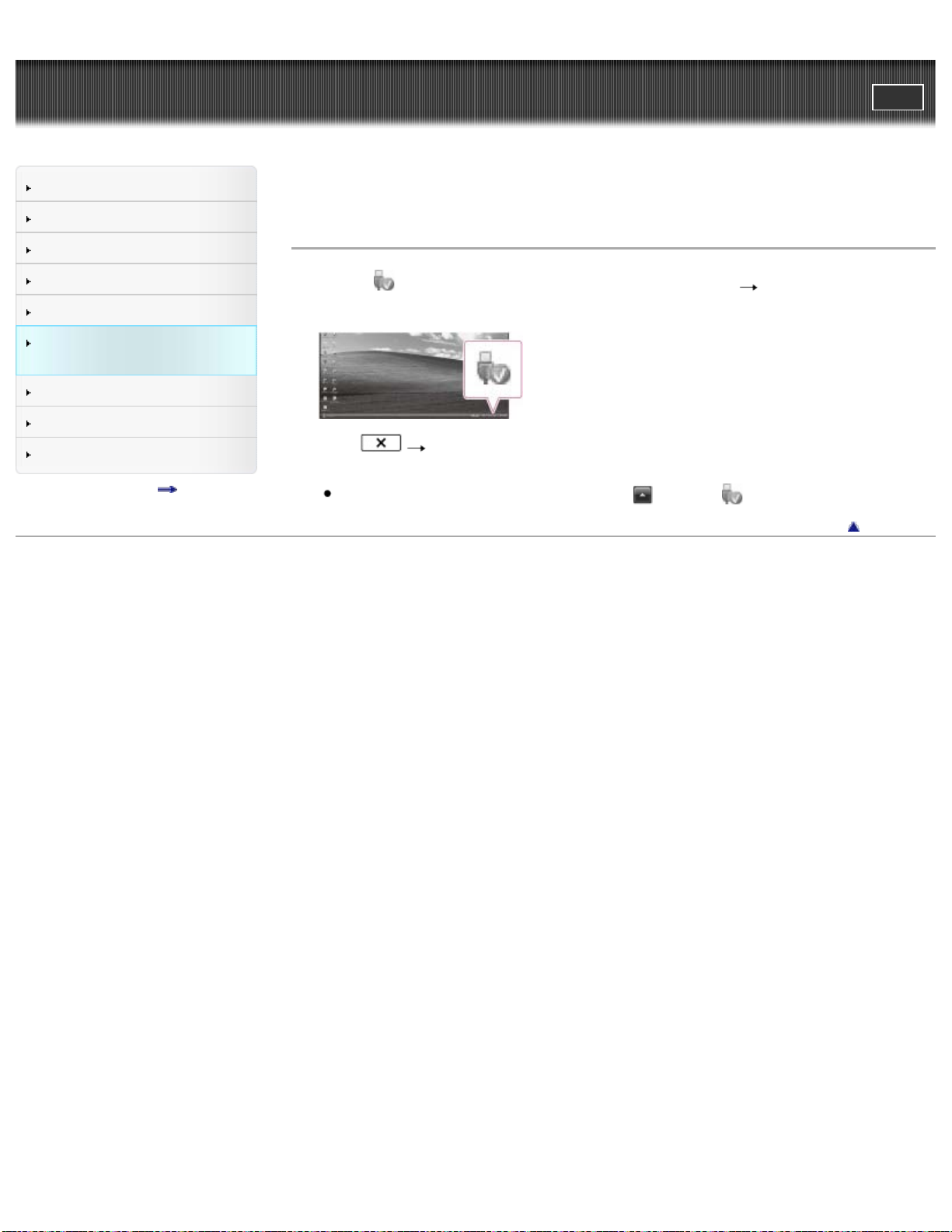

Disconnecting your camcorder from the computer
1. Click the icon at the bottom right of the desktop of the computer [Safely remove USB Mass
Storage Device].
2. Select [Yes] on the camcorder screen.
3. Disconnect the USB cable.
If you are using Windows 7 or Windows 8, click
, then click .
Back to top
Copyright 2013 Sony Corporation
88
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Saving images with an external device > Using the “PlayMemories Home” software > The
devices on which the created disc can be played back
The devices on which the created disc can be played back
Blu-ray discs
Blu-ray disc player such as a Sony Blu-ray disc player or PlayStation
®
3
DVD disc with high definition image quality (HD)
AVCHD format playback devices, such as a Sony Blu-ray disc player or a PlayStation
®
3
Notes
The AVCHD recording disc can be played back only on AVCHD format compatible devices.
Discs with high definition image quality (HD) images recorded should not be used in DVD
players/recorders. Because DVD players/recorders are not compatible with the AVCHD format,
DVD players/recorders may fail to eject the disc.
Always keep your PlayStation
®
3 upgraded to the latest version of its system software. The
PlayStation
®
3 may not be available in some countries/regions.
To create a Blu-ray disc
You can create a Blu-ray disc with a high definition image quality (HD) movie previously imported to a
computer.
To create a Blu-ray disc, the “BD Add-on Software” must be installed.
http://support.d-imaging.sony.co.jp/BDUW/
Your computer must support the creation of Blu-ray discs.
BD-R (unrewritable) and BD-RE (rewritable) media are available for creating Blu-ray discs. You
cannot add contents to either type of disc after creating the disc.
To play back a Blu-ray disc that has been created with a movie that was recorded in [3D] or [60p
Quality
] image quality, you need a device that complies with the AVCHD Ver. 2.0 format.
Back to top
Copyright 2013 Sony Corporation
89
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Saving images with an external device > Using the “PlayMemories Home”
software > Starting the “PlayMemories Home” software
Starting the “PlayMemories Home” software
1. Double-click the “PlayMemories Home” icon on the computer screen.
The “PlayMemories Home” software starts up.
When using Windows 8, select the “PlayMemories Home” icon from the start screen.
2. Double-click the “PlayMemories Home Help Guide” short-cut icon on the computer screen to see
how to use “PlayMemories Home.”
When using Windows 8, select [PlayMemories Home Help Guide] from the help menu of
“PlayMemories Home.”
If the icon is not displayed on the computer screen, click [Start]
[All Programs]
[PlayMemories Home] the desired item.
For details on “PlayMemories Home,” select
(“PlayMemories Home Help Guide”) on the
software or visit the PlayMemories Home support page (http://www.sony.co.jp/pmh-se/).
Back to top
Copyright 2013 Sony Corporation
90
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Saving images with an external device > Using the “PlayMemories Home”
software > Downloading the dedicated software for the camcorder
Downloading the dedicated software for the camcorder
You can install the dedicated software for the camcorder from the following URL.
For Windows: http://www.sony.co.jp/imsoft/Win/
For Mac: http://www.sony.co.jp/imsoft/Mac/
Main software
Music Transfer
Music Transfer allows you to change the music files that have been supplied with your camcorder to suit
your tastes, or to delete or add music files.
Furthermore, this software can restore the music files that were supplied with your camcorder.
Notes
The software that can be used with your camcorder will differ, depending on the countries/regions.
Back to top
Copyright 2013 Sony Corporation
91
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Saving images with an external device > Selecting a method for saving images > Types of
media devices on which the images can be saved
Types of media devices on which the images can be saved
Types of media that images can be saved on will depend on the recording mode selected.
Types of media
Recording mode
3D PS* FX FH/HQ/LP
Memory card inserted in this camcorder
External media (USB storage devices)
Blu-ray discs
AVCHD recording discs
* [60p Quality ] can be set only when the [ Frame Rate] is set to [60p].
Back to top
Copyright 2013 Sony Corporation
92
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Saving images with an external device > Saving images on an external media
device > Saving images on an external media device easily

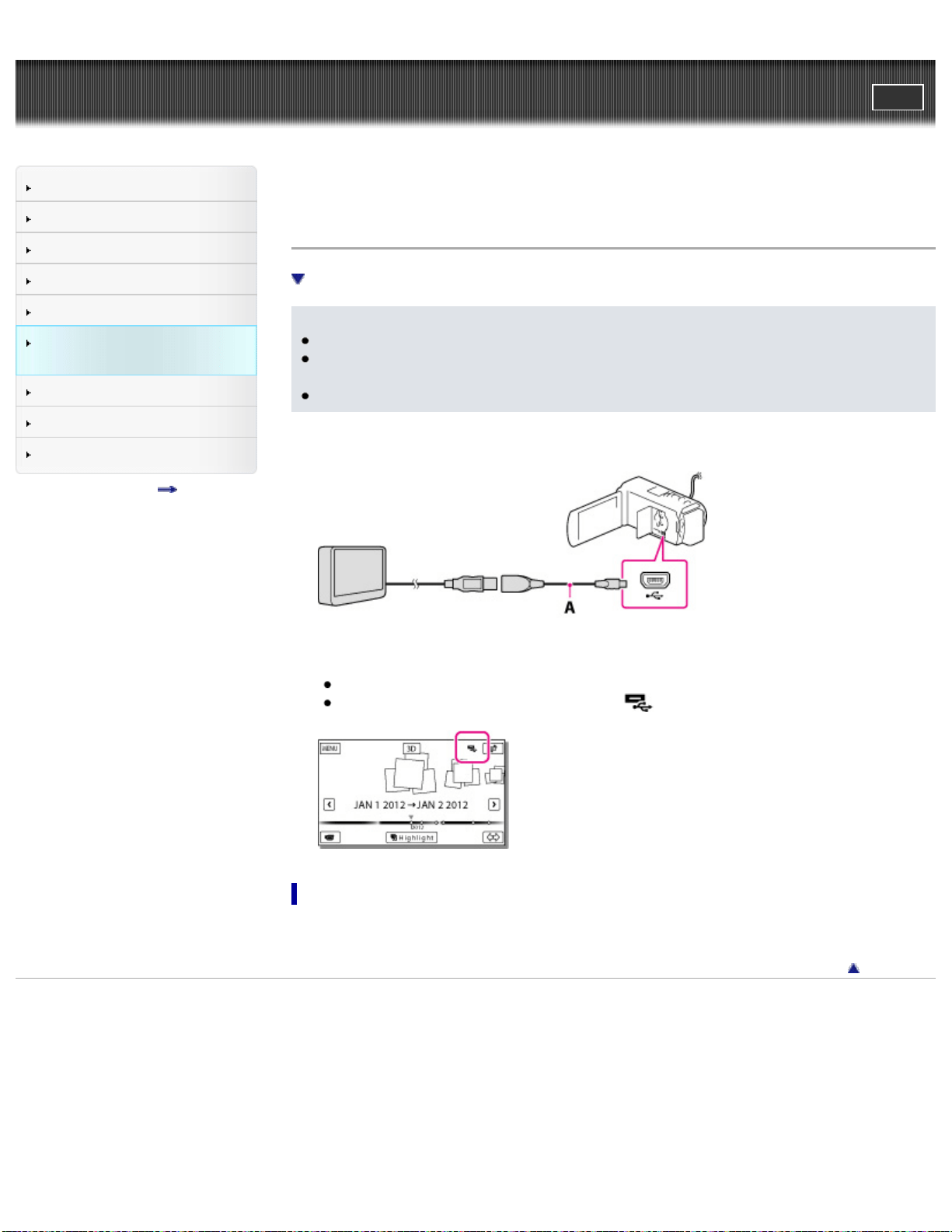

Saving images on an external media device easily
To delete images in the external media device
You can save movies and photos on an external media device (USB storage devices), such as an
external hard disk drive. The following functions will be available after you have saved your images on
an external media device.
You can connect your camcorder and the external media device, and then play back images stored
on the external media device.
You can connect your computer and the external media device and import images to your computer
using the “PlayMemories Home” software.
Notes
For this operation, you need the USB Adaptor Cable VMC-UAM1 (sold separately).
Connect the AC Adaptor and the power cord (mains lead) to the DC IN jack of your camcorder and
the wall outlet (wall socket).
Refer to the instruction manual supplied with the external media device.

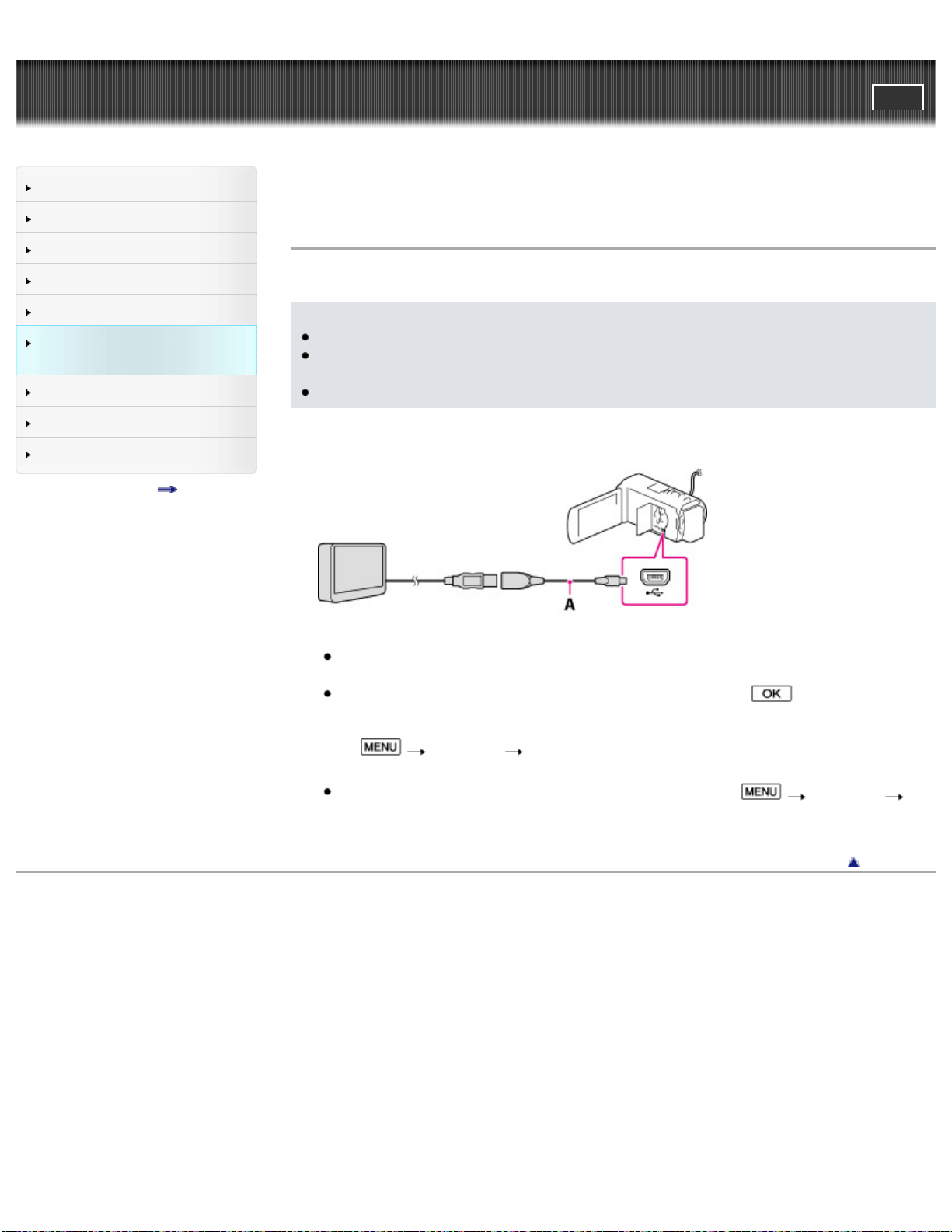

1. Connect your camcorder and the external media device using the USB Adaptor Cable (sold
separately).
A: USB Adaptor Cable VMC-UAM1 (sold separately)
Make sure not to disconnect the USB cable while [Preparing image database file. Please wait.] is
displayed on the LCD screen.
If [Repair Img. DB F.] is displayed on the camcorder screen, select
.
2. Select [Copy.] on the camcorder screen.
Movies and photos that are stored on the recording media, and that have not yet been saved on to
external media device can be saved on the connected media device at this time.
This operation is available only when there are newly recorded images in your camcorder.
To disconnect the external media device, select
while the camcorder is in the playback
standby mode (either Event View or Event Index is displayed).
To delete images in the external media device
93
1. Select [Play without copying.] in step 2 above.
2. Select
[Edit/Copy] [Delete], and then follow the instructions that appear on the LCD
screen to delete images.
Notes
You may not be able to use external media devices with a code function.
The FAT file system is available for your camcorder. If the storage medium of the external device
was formatted for the NTFS file system, etc., format the external media device using the camcorder
before use. The format screen appears when an external media device is connected to your
camcorder. Make sure that important data has not previously been saved on the external media
device before you format it using the camcorder.
Operation is not assured with every device satisfying requirements for operating.
For details on available external media devices, go to the Sony support website in your
country/region.
The number of scenes you can save on the external media device are as follows. However, even if
the external media device has free space, you cannot save scenes exceeding the following number.
High definition image quality (HD) movies: Max. 3,999
Standard definition image quality (STD) movies: Max. 9,999
Photos: Max. 40,000
If your camcorder does not recognize the external media device, try the following operations.
Reconnect the USB Adaptor Cable (sold separately) to your camcorder.
If the external media device has the AC power cord (mains lead), connect it to the wall outlet (wall
socket).
The number of scenes may be smaller depending on the type of images recorded.
You cannot copy images from an external media device to the internal recording medium on the
camcorder.
Back to top
Copyright 2013 Sony Corporation
94
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Saving images with an external device > Saving images on an external media
device > Saving the desired images in the camcorder to the external media device
Saving the desired images in the camcorder to the external media device
You can save desired images in the camcorder to the external media device.
Notes
For this operation, you need the USB Adaptor Cable VMC-UAM1 (sold separately).
Connect the AC Adaptor and the power cord (mains lead) to the DC IN jack of your camcorder and
the wall outlet (wall socket).
Refer to the instruction manual supplied with the external media device.
1. Connect your camcorder and the external media device using the USB Adaptor Cable (sold
separately).
A: USB Adaptor Cable VMC-UAM1 (sold separately)
Make sure not to disconnect the USB cable while [Preparing image database file. Please wait.] is
displayed on the LCD screen.
If [Repair Img. DB F.] is displayed on the camcorder screen, select
.
2. Select [Play without copying.].
3. Select
[Edit/Copy] [Copy], and then follow the instructions that appear on the LCD
screen to save images.
If you want to copy images that have not yet been copied, select
[Edit/Copy]
[Direct Copy] while your camcorder is connected to the external media device.
Back to top
Copyright 2013 Sony Corporation
95
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Saving images with an external device > Saving images on an external media
device > Playing back images in the external media device on the camcorder
Playing back images in the external media device on the camcorder
To play back high definition image quality (HD) movies on your computer
Notes
For this operation, you need the USB Adaptor Cable VMC-UAM1 (sold separately).
Connect the AC Adaptor and the power cord (mains lead) to the DC IN jack of your camcorder and
the wall outlet (wall socket).
Refer to the instruction manual supplied with the external media device.
1. Connect your camcorder and the external media device using the USB Adaptor Cable (sold
separately).
A: USB Adaptor Cable VMC-UAM1 (sold separately)
2. Select [Play without copying.] and select the image you want to view.
You can also view images on a TV connected to your camcorder.
When an external media device is connected,
will appear on the Event View screen.
To play back high definition image quality (HD) movies on your computer
On the “PlayMemories Home” software, select the drive that represents the external media device
connected, and then play movies.
Back to top
Copyright 2013 Sony Corporation
96
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Saving images with an external device > Saving images on an external media
device > Devices that cannot be used as an external media device
Devices that cannot be used as an external media device
You cannot use the following devices as an external media device.
media devices with a capacity exceeding 2 TB
ordinary disc drive such as CD or DVD drive
media devices connected via a USB hub
media devices with built-in USB hub
card reader
Back to top
Copyright 2013 Sony Corporation
97
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Saving images with an external device > Creating a disc with a recorder > Creating a
standard definition image quality (STD) disc with a recorder
Creating a standard definition image quality (STD) disc with a recorder
Connect your camcorder to a disc recorder with the A/V connecting cable (sold separately). You can
copy images played back on your camcorder on a disc or video cassette.
1. Insert the recording medium in the recording device (a disc recorder, etc.).
If your recording device has an input selector, set it to the input mode.
2. Connect your camcorder to the recording device with the A/V connecting cable (sold separately).
A: A/V Remote Connector
B: A/V connecting cable
: Signal flow
Connect your camcorder to the input jacks of the recording device.
3. Start playback on your camcorder, and record it on the recording device.
4. When dubbing is finished, stop the recording device, and then your camcorder.
Notes
3D movies are converted to 2D with standard definition image quality (STD).
You cannot copy images to recorders connected with an HDMI cable.
Since copying is performed via analog data transfer, the image quality may deteriorate.
High definition image quality (HD) movies will be copied with standard definition image quality
(STD).
When you connect a monaural device, connect the yellow plug of the A/V connecting cable (sold
separately) to the video input jack, and the white (left channel) or the red (right channel) plug to the
audio input jack on the device.
Related topics
Copying date and time information: [Data Code]
Using 4:3 screen size display device: [TV Type]
Back to top
Copyright 2013 Sony Corporation
98
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Using menu items > Setting up menu items
Setting up menu items
To find a menu item quickly
When you cannot select a menu item
The camcorder has various menu items under each of 6 menu categories.
Shooting Mode (Items for selecting a shooting mode)
Camera/Mic (Items for customized shooting)
Image Quality/Size (Items for setting up image quality or size)
Playback Function (Items for playback)
Edit/Copy (Items to be edited such as copy or protect)
Setup (Other setup items)
1. Select
.
2. Select a category.
3. Select your desired menu item.
Notes
Select
to finish setting the menu or to return to the previous screen.
To find a menu item quickly
99
The [Camera/Mic] and [Setup] menus have sub-categories. Select the sub-category icon so that the
LCD screen displays the list of menus in the sub-category selected.
A: Sub-category icons
When you cannot select a menu item
Grayed out menu items or settings are not available.
Your camcorder displays the reason why you cannot select the menu item or the instruction of under
which condition you can set the menu item.
Back to top
Copyright 2013 Sony Corporation
100
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Shooting Mode > Movie
Movie
You can select the movie recording mode.
1.
[Shooting Mode] [Movie].
Back to top
Copyright 2013 Sony Corporation
101
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Shooting Mode > Photo (2D only)
Photo (2D only)
You can select the photo shooting mode.
1.
[Shooting Mode] [Photo].
Back to top
Copyright 2013 Sony Corporation
102
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Shooting Mode > Smth Slw REC (Smooth slow rec) (2D
only)
Smth Slw REC (Smooth slow rec) (2D only)
To change the timing at which the camcorder starts recording
The camcorder records approximately 3-second-long fast actions or motions as an approximately 12-
second-long slow-motion movie.
1.
[Shooting Mode] [Smth Slw REC].
2. Press the START/STOP button.
[Recording...] disappears when recording is finished.
To change the timing at which the camcorder starts recording
Select [ ]/[ ] to make the setting.
[3sec After] (default setting)
The camcorder records a movie of approximately 3 seconds after the START/STOP button is
pressed.
[3sec Before]
The camcorder records a move of approximately 3 seconds before the START/STOP button is
pressed.
Notes
You cannot record sound.
Image quality is not as good as that of normal recording.
[
REC Mode] will be set to [Standard ] automatically.
Back to top
Copyright 2013 Sony Corporation
103
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Shooting Mode > Golf Shot (2D only)
Golf Shot (2D only)
Timing that the camcorder starts recording
To check your form using self-timer
Divides 2 seconds of fast movement into frames which are then recorded as a movie and photos. You
can view a series of movement when playing back, which is convenient in cases such as checking golf
swing or tennis form.
1.
[Shooting Mode] [Golf Shot].
2. On the [Golf Shot] screen, frame the subject in the white frame in the center of the screen, then
press START/STOP right after the subject has taken a swing.
Timing that the camcorder starts recording
If the moment when the largest sound in 1 second after the START/STOP button is pressed has been
detected, the camcorder assumes the moment as the sound of a club hitting the ball.
When the sound of a club hitting the ball is detected, the recording time period is automatically adjusted
according to at that moment.
A: The sound of a club hitting the ball*
B: The point when you press START/STOP
C: The camcorder records images in this 2 seconds period.
* The camcorder sets the point when the loudest sound in the past 1 second is detected, as the sound of a club
hitting the ball.
To check your form using self-timer
Select [ ]/[ ] [On].
104
The camcorder starts countdown of the timer after you press the START/STOP button.
The point when the count reaches 0 is assumed as the moment of impact and motion before and after 0
is recorded.
Notes
If the camcorder cannot detect the sound of a club hitting the ball, the camcorder automatically sets
the impact point at 0.5 second before the START/STOP button has been pressed, and records a
movie in the time period between 1.5 seconds before the impact point to 0.5 second after the
impact point.
The size of photos becomes 1,920
1,080.
You cannot record sound.
Image quality is not as good as that of normal recording.
[
REC Mode] will be set to [Standard ] automatically.
Impact sound may be detected by the internal microphone even when an external microphone is
attached.
The image recorded may be noisy when your camcorder has failed to analyze the shot properly
because there may be movement in background of the [Golf Shot] recording screen. It is
recommended that you record images under stable conditions (for example, using a tripod).
Back to top
Copyright 2013 Sony Corporation
105
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > White Balance (2D only)

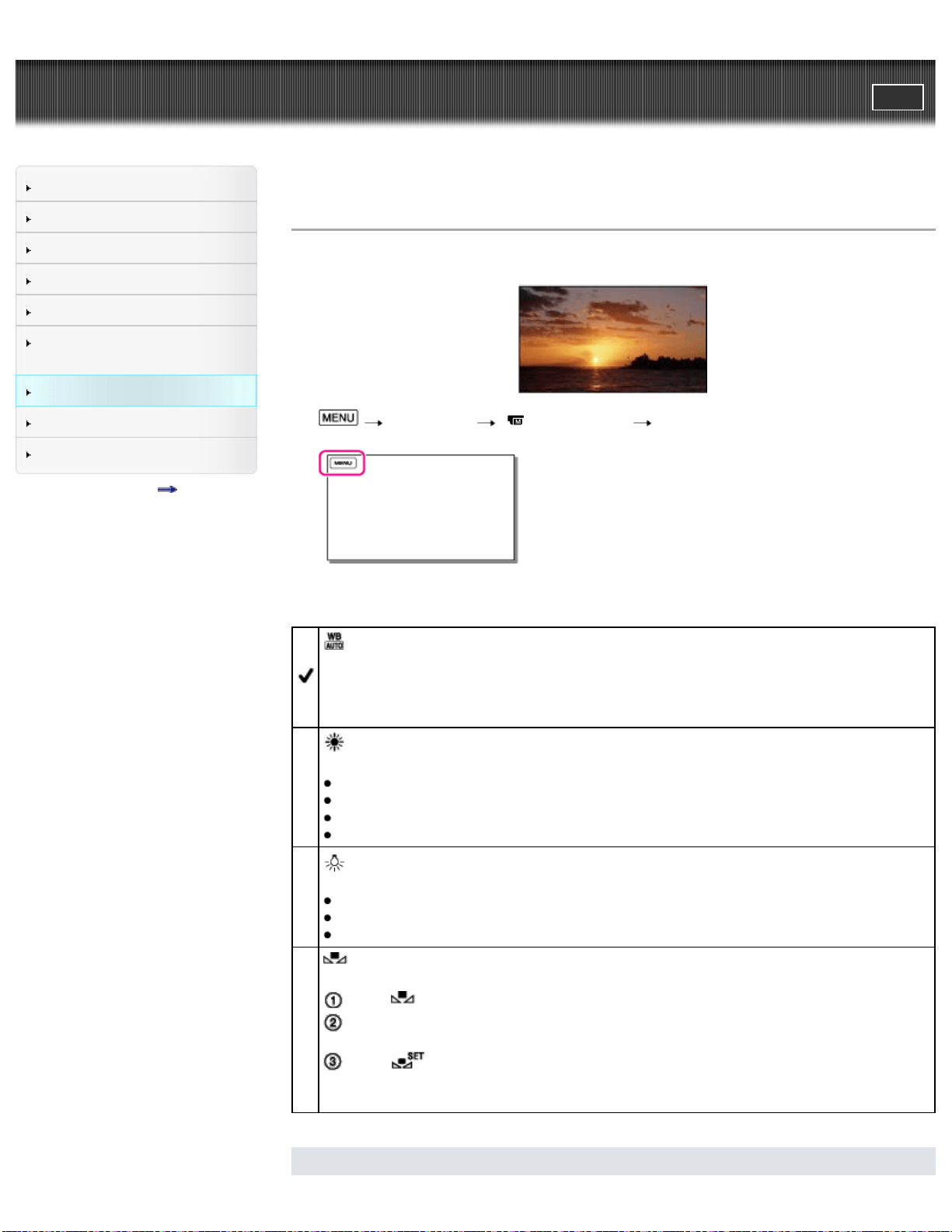

White Balance (2D only)
You can adjust the color balance to the recording environment.
1. [Camera/Mic] [ Manual Settings] [White Balance].
2. Select the desired setting.
(Auto)
The white balance is adjusted automatically.
If you have changed the battery pack while [Auto] was selected, or taken your camcorder outdoors
after inside use (or vice versa), aim your camcorder at a nearby white object for about 10 seconds
for better color balance adjustment.
(Outdoor)
The white balance is appropriately adjusted for the following recording conditions:
Outdoors
Night views, neon signs and fireworks
Sunrise or sunset
Under daylight fluorescent lamps
(Indoor)
The white balance is appropriately adjusted for the following recording conditions:
Indoors
At party scenes or studios where the lighting conditions change quickly
Under video lamps in a studio, or under sodium lamps or incandescent-like color lamps
(One Push)
The white balance will be adjusted according to the ambient light.
Select [
].
Keep framing white object such as a piece of paper, to fill the screen under the same lightning
conditions as you will shoot the subject.
Select [
].
If the lighting conditions changed by bringing your camcorder outdoors from inside the house,
or vice versa, you need to redo the [One Push] procedure to readjust the white balance.
Notes
106
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Spot Meter/Fcs (Spot meter/focus) (2D only)

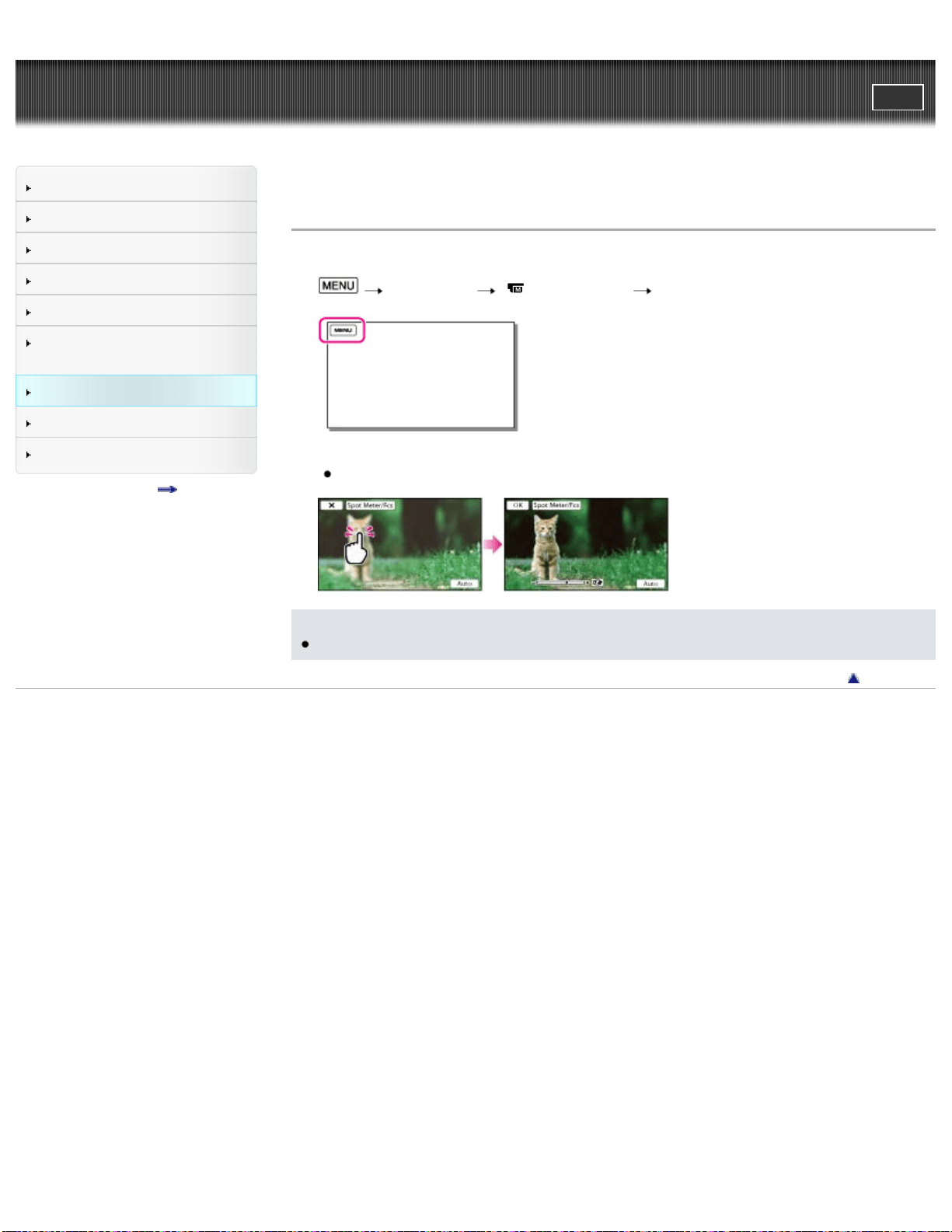

Spot Meter/Fcs (Spot meter/focus) (2D only)
Exposure and focus can be adjusted for the selected subject automatically.
1.
[Camera/Mic] [ Manual Settings] [Spot Meter/Fcs].
2. Touch the subject of which you want to adjust the exposure and focus.
To adjust the brightness and focus automatically, touch [Auto].
Notes
[Exposure] and [Focus] are automatically set to [Manual].
Back to top
Copyright 2013 Sony Corporation
108
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Spot Meter (Flexible spot meter) (2D only)
Spot Meter (Flexible spot meter) (2D only)
Exposure can be adjusted and set for the selected subject automatically. This function is useful when
there is strong contrast between the subject and the background, such as subjects in the spotlight on
stage.
1.
[Camera/Mic] [ Manual Settings] [Spot Meter].
2. Touch the subject of which you want to adjust the exposure.
To return the setting to automatic exposure, touch [Auto].
Notes
[Exposure] is automatically set to [Manual].
Back to top
Copyright 2013 Sony Corporation
109
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Spot Focus (2D only)

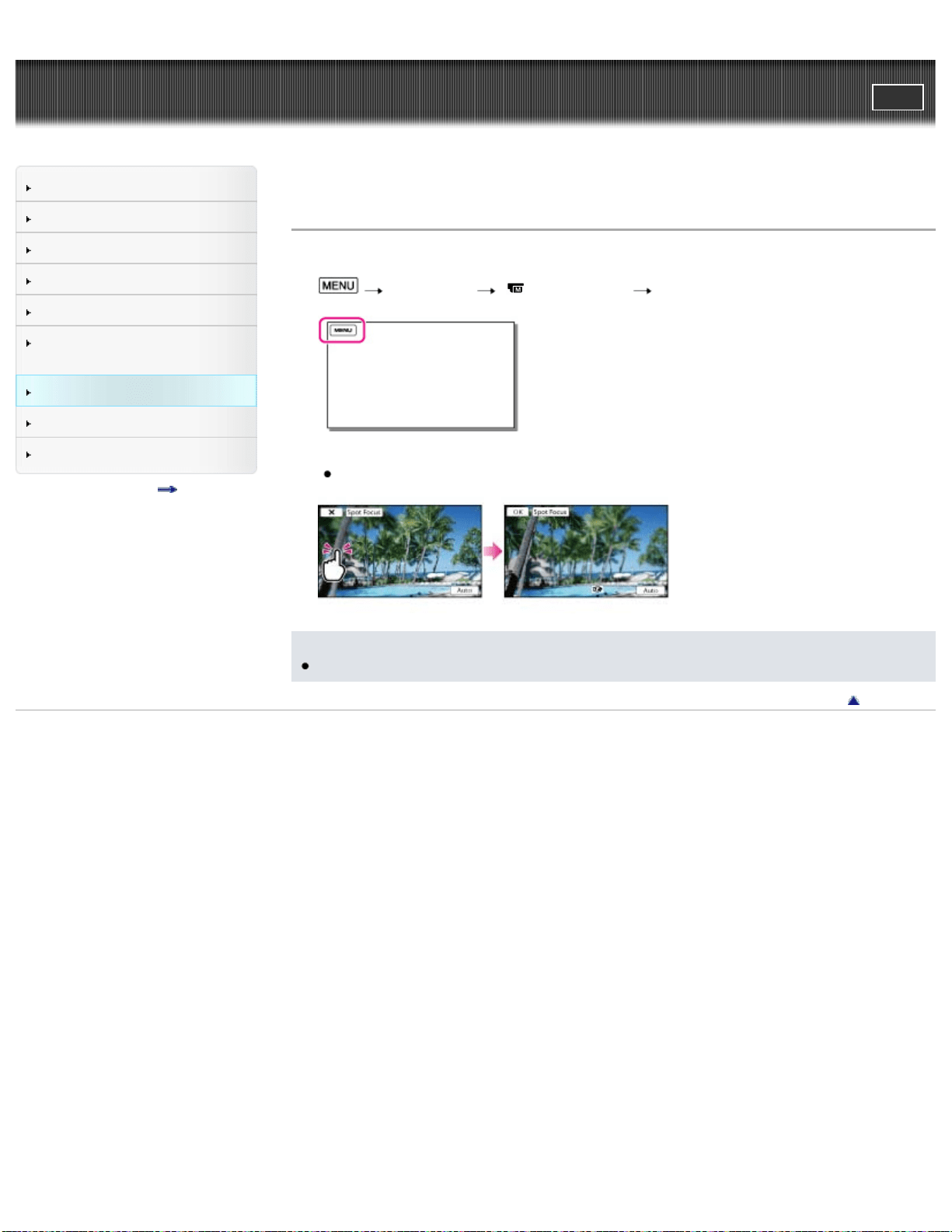

Spot Focus (2D only)
Focus can be adjusted automatically for the subject selected.
1.
[Camera/Mic] [ Manual Settings] [Spot Focus].
2. Touch the subject of which you want to adjust the focus.
To adjust the focus automatically, touch [Auto].
Notes
[Focus] is automatically set to [Manual].
Back to top
Copyright 2013 Sony Corporation
110
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list

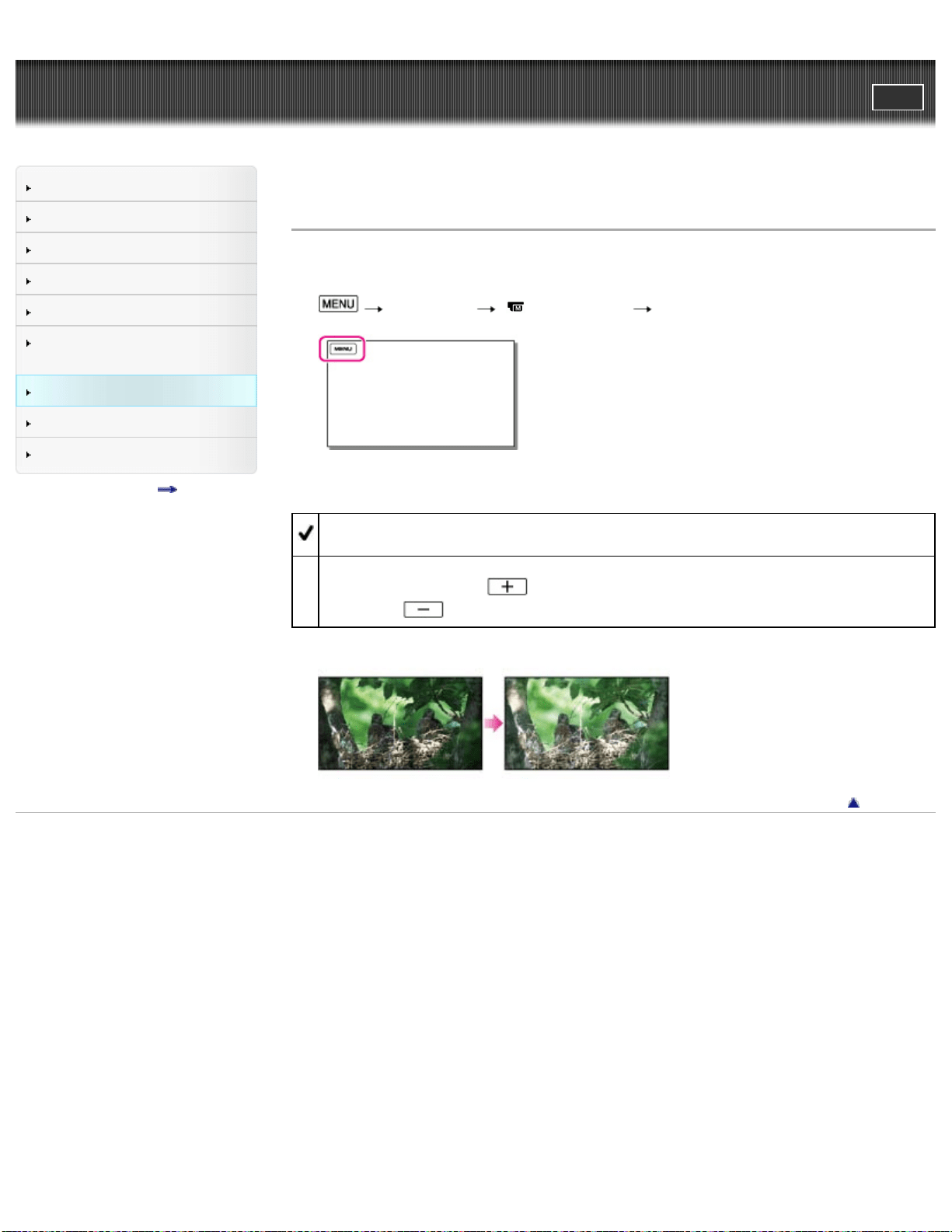

Top page > Customizing your camcorder > Camera/Mic > Exposure

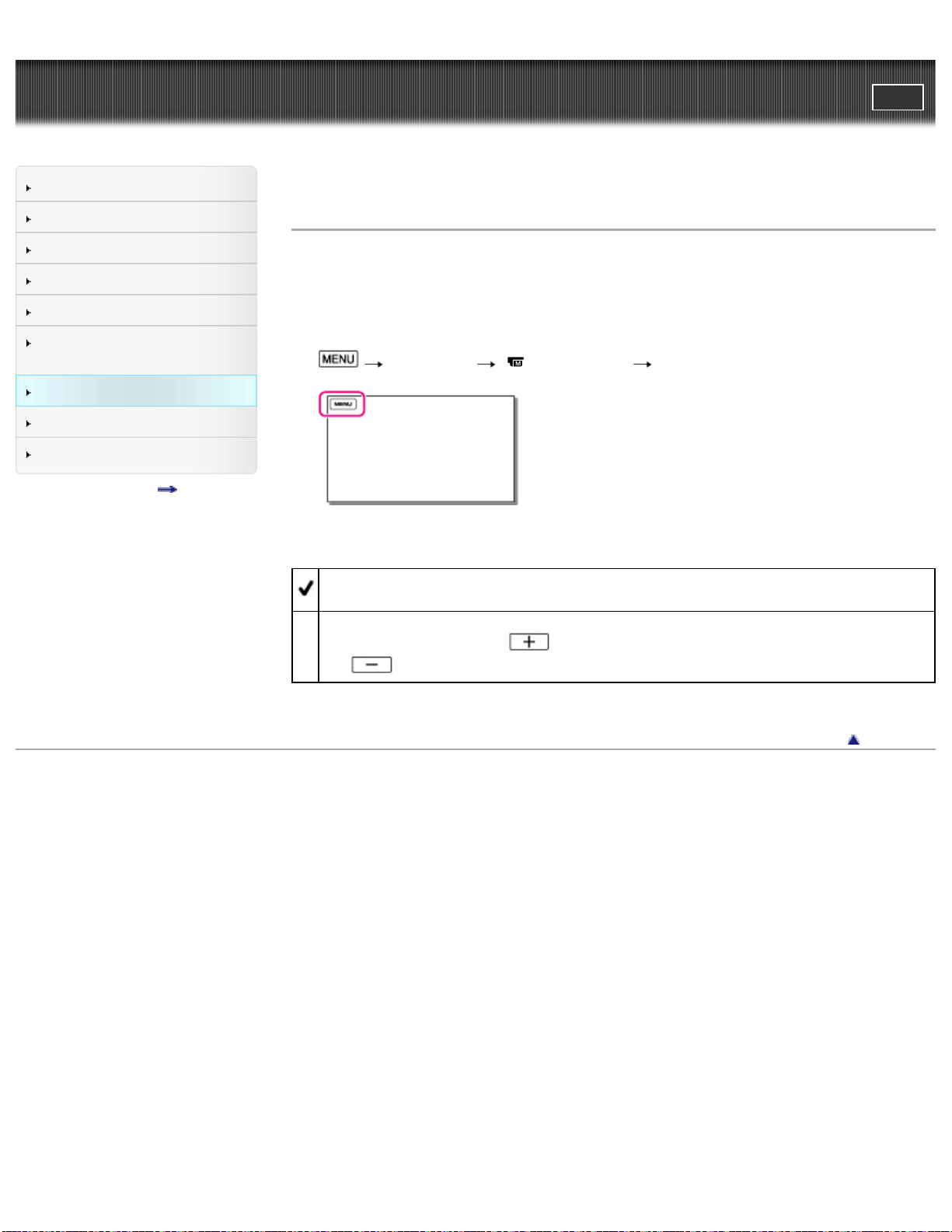

Exposure
You can fix the brightness of a picture manually. Adjust the brightness when the subject is too bright or
too dark.
1.
[Camera/Mic] [ Manual Settings] [Exposure].
2. Select the desired item.
Auto
The exposure is adjusted automatically.
Manual
Adjust the exposure using
to increase the brightness when recording a white or backlit
subject, and
to lower the brightness when recording a dark subject or in a dark place.
Back to top
Copyright 2013 Sony Corporation
111
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Focus

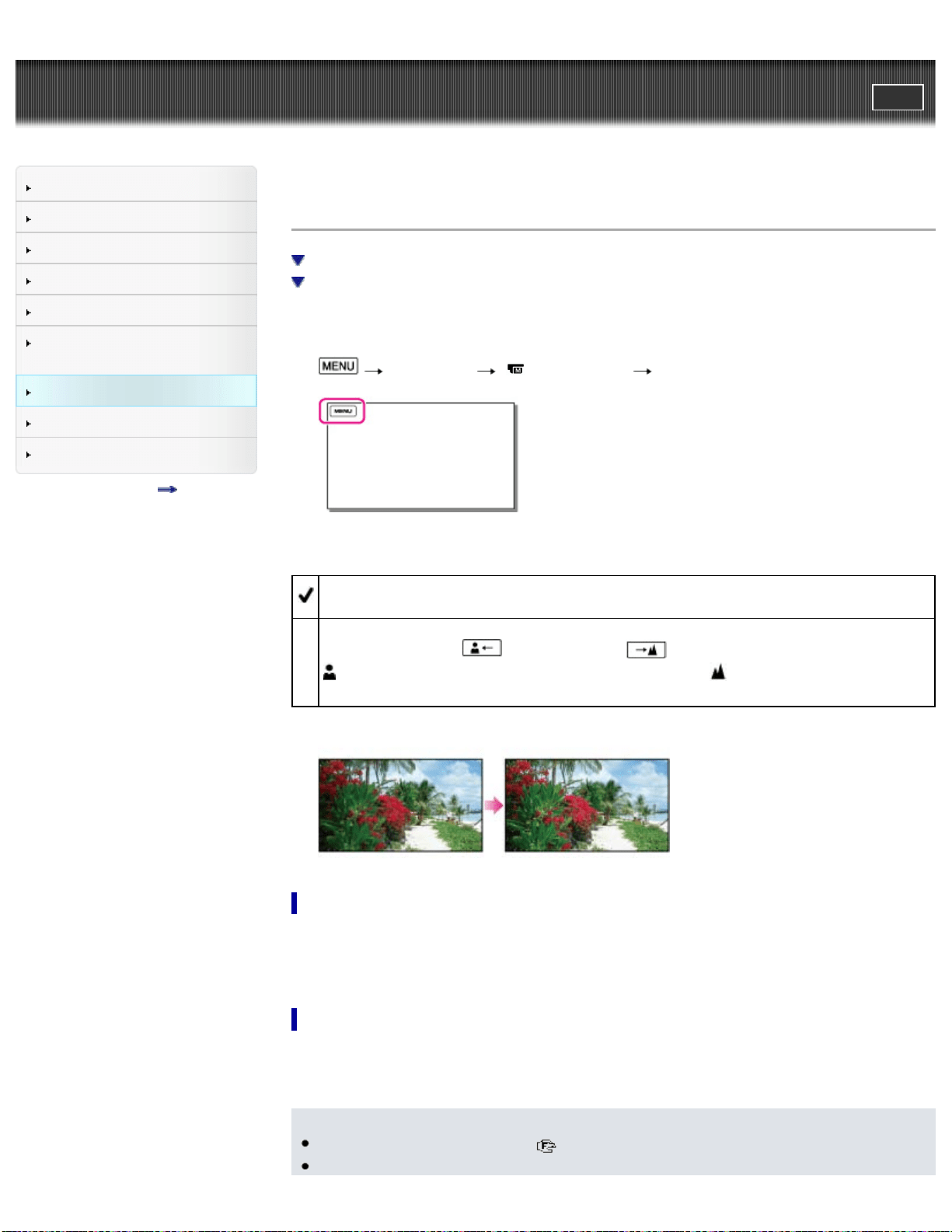

Focus
To adjust the focus
On focal distance information
You can adjust the focus manually. You can select this function also when you want to focus on a
certain subject intentionally.
1.
[Camera/Mic] [ Manual Settings] [Focus].
2. Select the desired item.
Auto
The focus is adjusted automatically.
Manual
Adjust the focus using
(nearby subject) or (distant subject).
appears when the focus cannot be adjusted any closer, and appears when the focus cannot
be adjusted farther away.
To adjust the focus
It is easier to focus on the subject by moving the power zoom lever towards T (telephoto) to adjust the
focus, then towards W (wide angle) to adjust the zoom for recording. When you want to record a subject
at close range, move the power zoom lever to W (wide angle), then adjust the focus.
On focal distance information
Your camcorder displays the focal distance information for a few seconds when the focus mode is
switched from automatic to manual or when you set the focus manually. You can use this information as
a guide when the subject is dark and focus adjustment is difficult.
Notes
When you set [Focus] to [Manual],
appears.
The minimum possible distance between camcorder and subject while maintaining sharp focus is
112
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > IRIS (2D only)
IRIS (2D only)
You can shoot images with the IRIS priority mode. Changing IRIS parameter changes the focus range. If
you decrease the IRIS parameter, the camcorder can focus on a narrow range, and if you increase the
IRIS parameter, the camcorder can focus on a wide range. You can change the IRIS parameter
depending on what type of photos you want to shoot, either to sharpen the subject with its background
blurred or sharpen the whole image.
1.
[Camera/Mic] [ Manual Settings] [IRIS].
2. Select the desired item.
Auto
The IRIS is adjusted automatically.
Manual
Adjust the exposure selecting
to sharpen the whole image (increase the IRIS parameter),
and
to sharpen the subject with its background blurred (decrease the IRIS parameter).
Back to top
Copyright 2013 Sony Corporation
114
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Shutter Speed (2D only)
Shutter Speed (2D only)
You can shoot images with the Shutter Speed priority mode. When you shoot a moving subject at a
higher shutter speed, it appears as if frozen on the image. At a lower shutter speed, the subject appears
as if it is flowing.
1.
[Camera/Mic] [ Manual Settings] [Shutter Speed].
2. Select the desired item.
Auto
The shutter speed is adjusted automatically.
Manual
Adjust the shutter speed using
to increase the shutter speed, and to decrease the
shutter speed.
Back to top
Copyright 2013 Sony Corporation
115
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > AGC Limit (2D only)

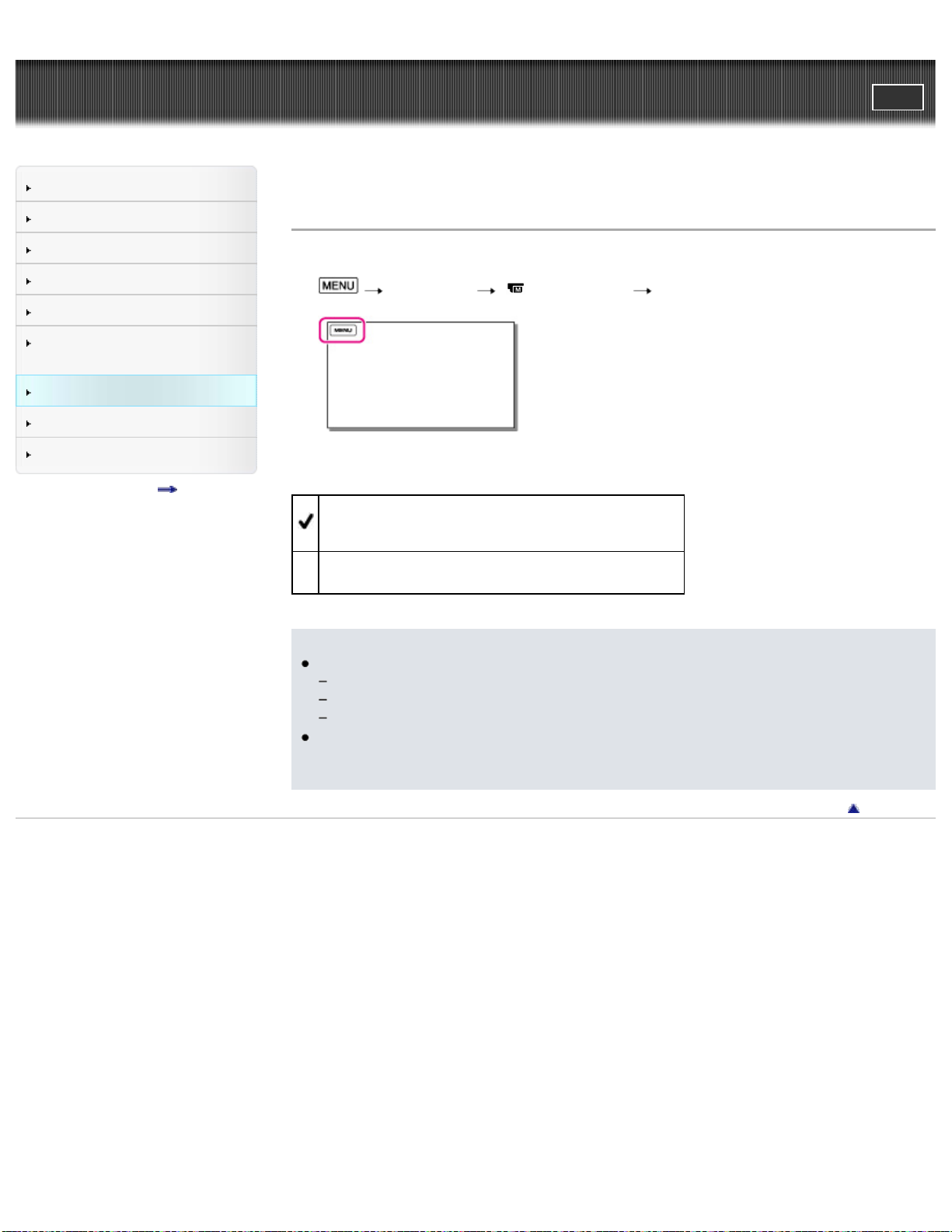

AGC Limit (2D only)
You can select the upper limit for the AGC (Auto Gain Control) to record dim scenes as they look.
1.
[Camera/Mic] [ Manual Settings] [AGC Limit].
2. Select the desired item.
Off
The gain is automatically adjusted.
24dB/21dB/18dB/15dB/12dB/9dB/6dB/3dB/0dB
The gain is automatically adjusted up to the selected limit.
Notes
The upper limit that can be selected varies depending on the shooting mode.
Movie: 24 dB
Photo: 18 dB
[Smth Slw REC]: 12 dB
At a higher gain, the brightness becomes more appropriate in dim scenes, but the noise increases.
At a lower gain, the noise decreases, but the shutter speed becomes slower to compensate for the
lack of brightness, causing camera-shake or subject blur.
Back to top
Copyright 2013 Sony Corporation
116
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > AE Shift

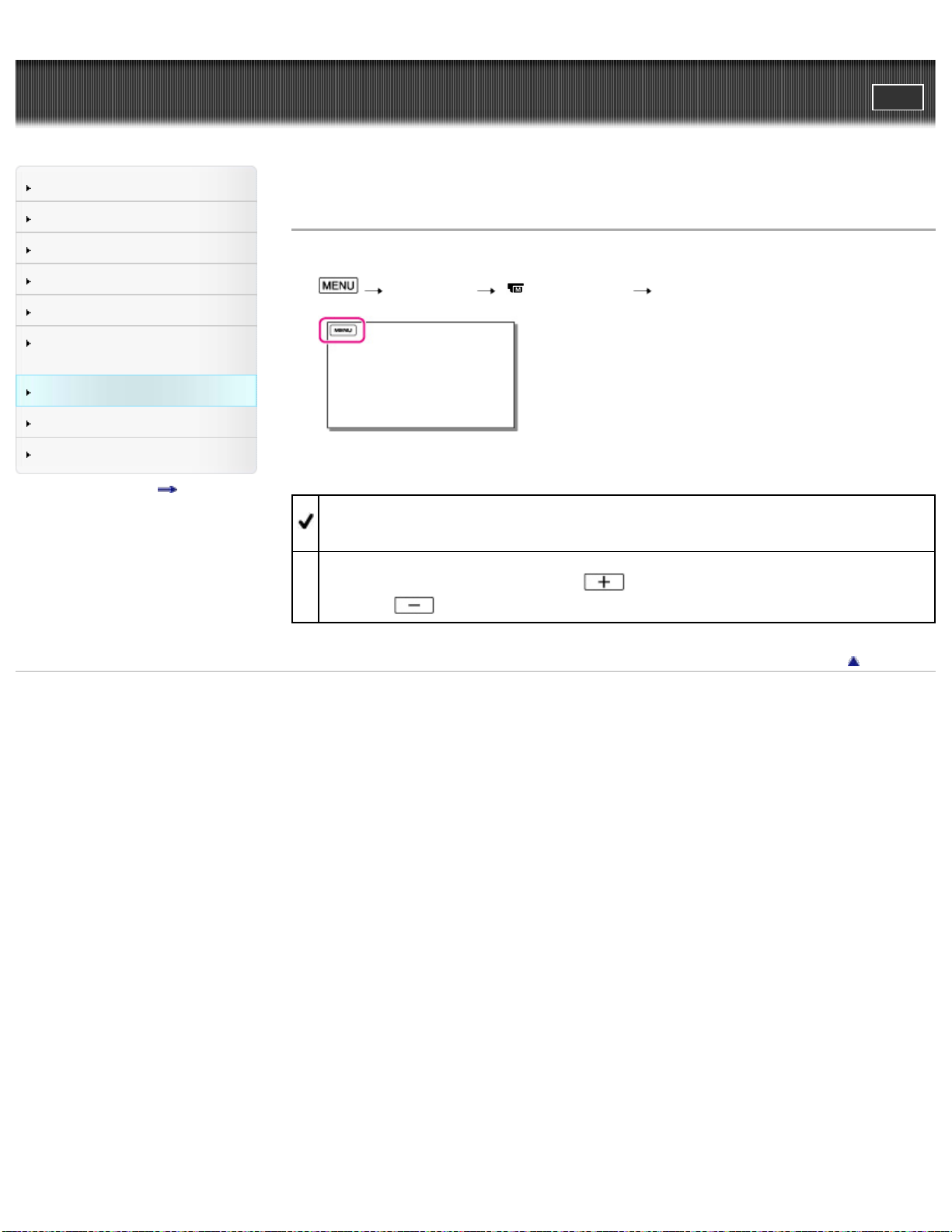

AE Shift
You can adjust the exposure based on the results of the automatic exposure measurement.
1.
[Camera/Mic] [ Manual Settings] [AE Shift].
2. Select the desired item.
Off
The exposure is adjusted automatically.
On (Adjusted number and EV)
Adjust the automatic exposure level using
when the subject is white or the background is
bright, and
when the subject is dark or the light is dim.
Back to top
Copyright 2013 Sony Corporation
117
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > White Balance Shift
White Balance Shift
You can adjust the white balance manually.
1.
[Camera/Mic] [ Manual Settings] [White Balance Shift].
2. Select the desired item.
Off
The white balance is adjusted automatically.
On (
and adjusted number)
Adjust the white balance using
when the images appear bluish, and when the
images appear reddish.
Back to top
Copyright 2013 Sony Corporation
118
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Low Lux (2D only)
Low Lux (2D only)
You can record bright color images, even in dim light.
1.
[Camera/Mic] [ Manual Settings] [Low Lux].
2. Select the desired item.
Off
The Low Lux function is not used.
On (
)
The Low Lux function is used.
Back to top
Copyright 2013 Sony Corporation
119
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > 3D Depth Adjustment (3D only)
3D Depth Adjustment (3D only)
Tips for [3D Depth Adjustment]
You can adjust the sense of depth when you record 3D movies.
1.
[Camera/Mic] [ Camera Settings] [3D Depth Adjustment].
2. Select the desired item.
Auto
The depth is automatically adjusted.
Manual
Adjust the depth using
to move the image into the foreground, and to move it further
into the background.
Tips for [3D Depth Adjustment]
In the default setting, the camcorder detects the relative position between a subject and its background
during recording, and automatically adjusts the parallax effect accordingly, so that you will feel
comfortable when watching 3-dimensional movies.

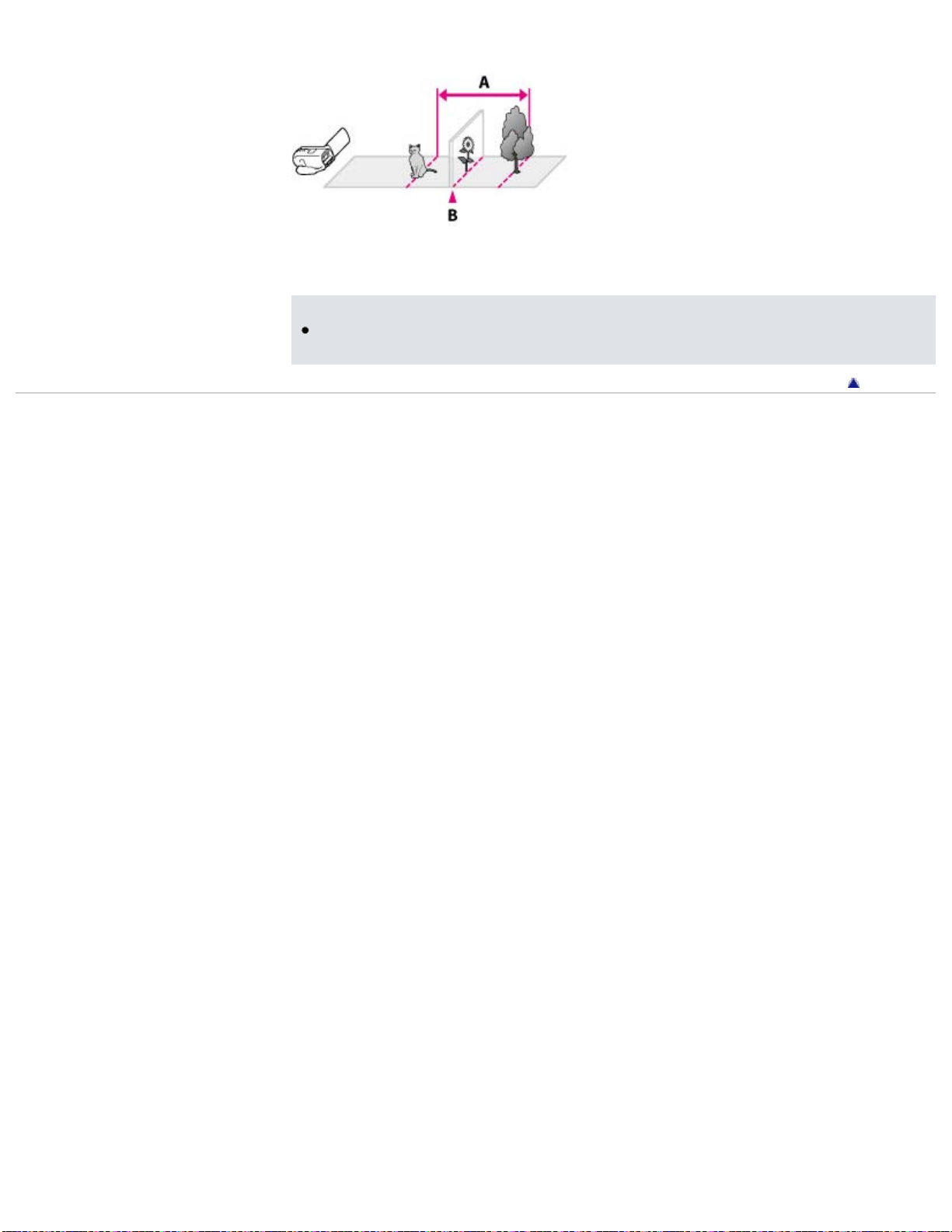

The camcorder detects the relative position.
120
The camcorder adjusts the parallax effect.
A: Comfortable sense of depth
B: Monitor
Notes
Since the parallax is adjusted automatically, the 3D movies may seem to be shaking from side to
side when played in 2D. To prevent the shaking, adjust the depth manually before recording.
Back to top
Copyright 2013 Sony Corporation
121
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Auto 3D Lens Adjust (3D only)
Auto 3D Lens Adjust (3D only)
Tips on using [Auto 3D Lens Adjust]
You can correct the vertical position of the right and left movies automatically to record optimum 3D
movies.
1.
[Camera/Mic] [ Manual Settings] [Auto 3D Lens Adjust].
2. Display a subject on the LCD screen.
A: Indicator
3. When the scale of the indicator exceeds the
mark, select [OK].
The camcorder automatically zooms in or out to adjust the lenses.
Tips on using [Auto 3D Lens Adjust]

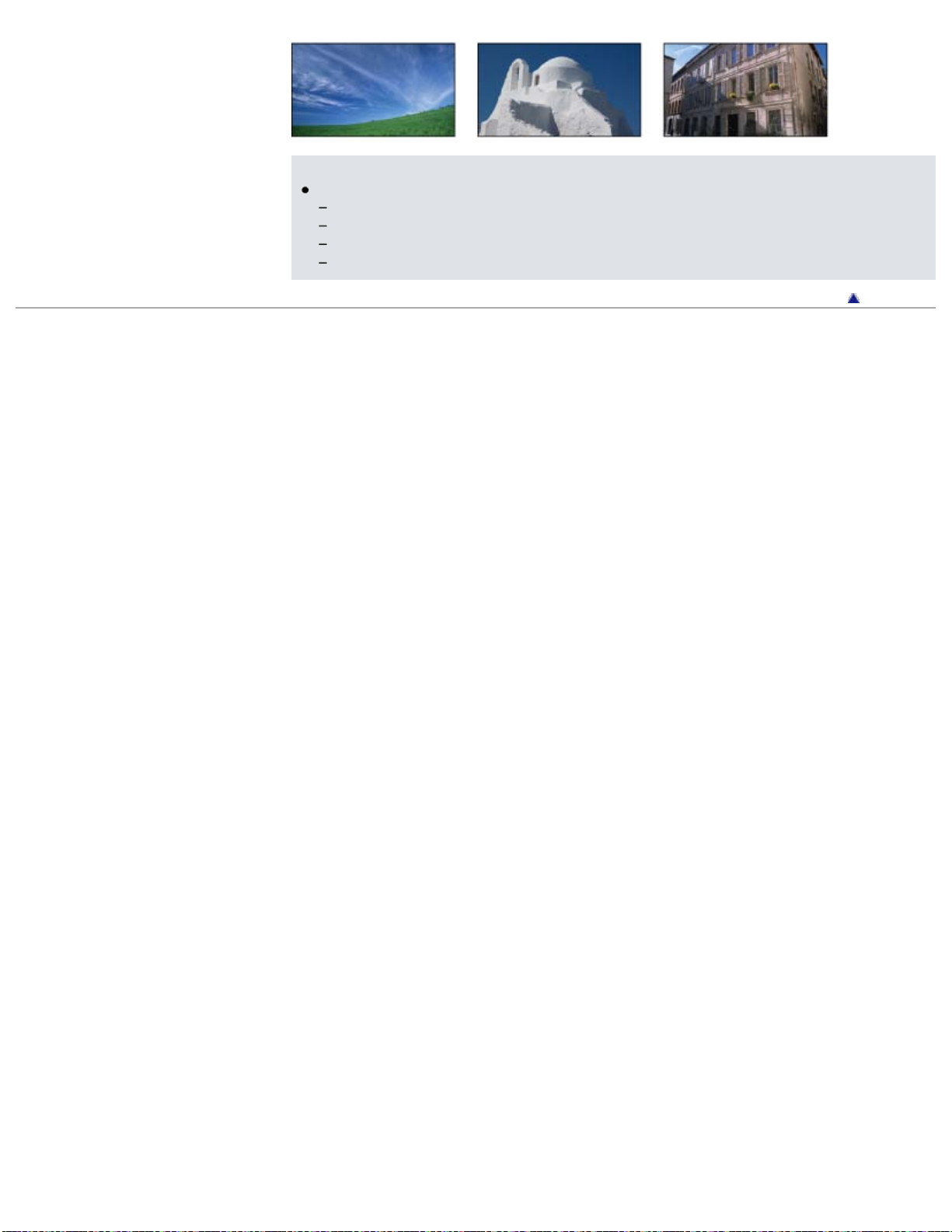

Referring to the following examples, display a subject that will indicate a higher scale on the LCD
monitor.
Subjects that indicate a higher scale:
Bright subjects, such as objects outdoors in daylight
Subjects with various colors and shapes
Subjects that indicate a lower scale and result in adjustment failure:
Dark subjects, such as objects viewed at night
Subjects within 1.5 m (4 ft. 11 1/8 in.) away from the camcorder
Plain, non-colorful subjects
Subjects that repeat the same pattern, such as rows of windows on buildings
Moving subjects
122
Notes
Use [Auto 3D Lens Adjust] in the following cases.
When you feel that the 3D movies do not look the way you want them to
When you have not adjusted the 3D lenses for a while
When a strong mechanical shock has been applied to the camcorder
When using the camcorder in a very hot or cold place
Back to top
Copyright 2013 Sony Corporation
123
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Scene Selection (2D only)

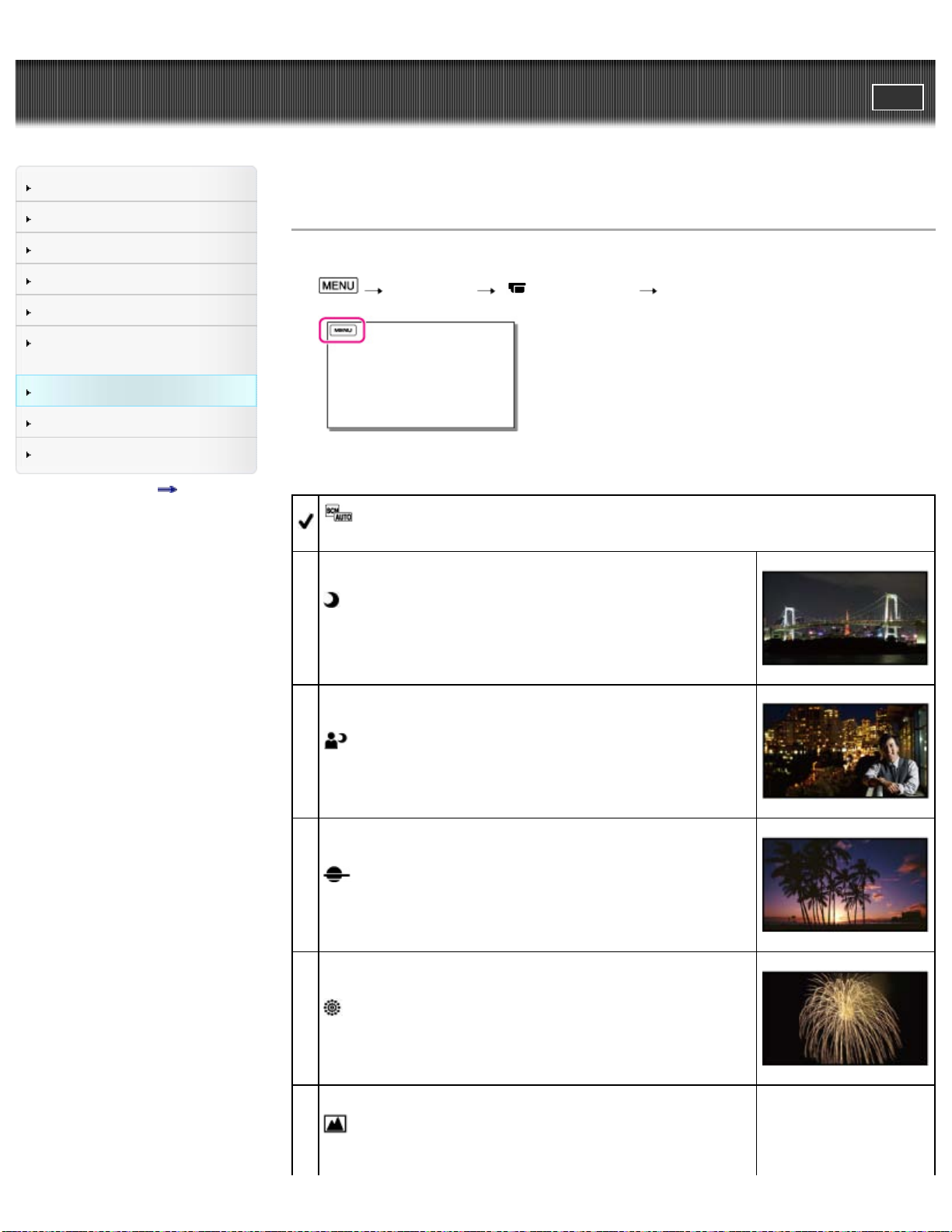

Scene Selection (2D only)
You can record images effectively in various situations.
1.
[Camera/Mic] [ Camera Settings] [Scene Selection].
2. Select the desired item.
(Auto)
Records images in average image quality without the [Scene Selection] function.
(Night Scene)*
1
Maintains the darkening atmosphere of the distant surroundings in
night scenes.
(Night Portrait)
Enables to take photos of people and background using a flash.
(Sunrise&Sunset)*
1
Reproduces the atmosphere of scenes such as sunsets or sunrises.
(Fireworks)*
1
Takes spectacular shots of fireworks.

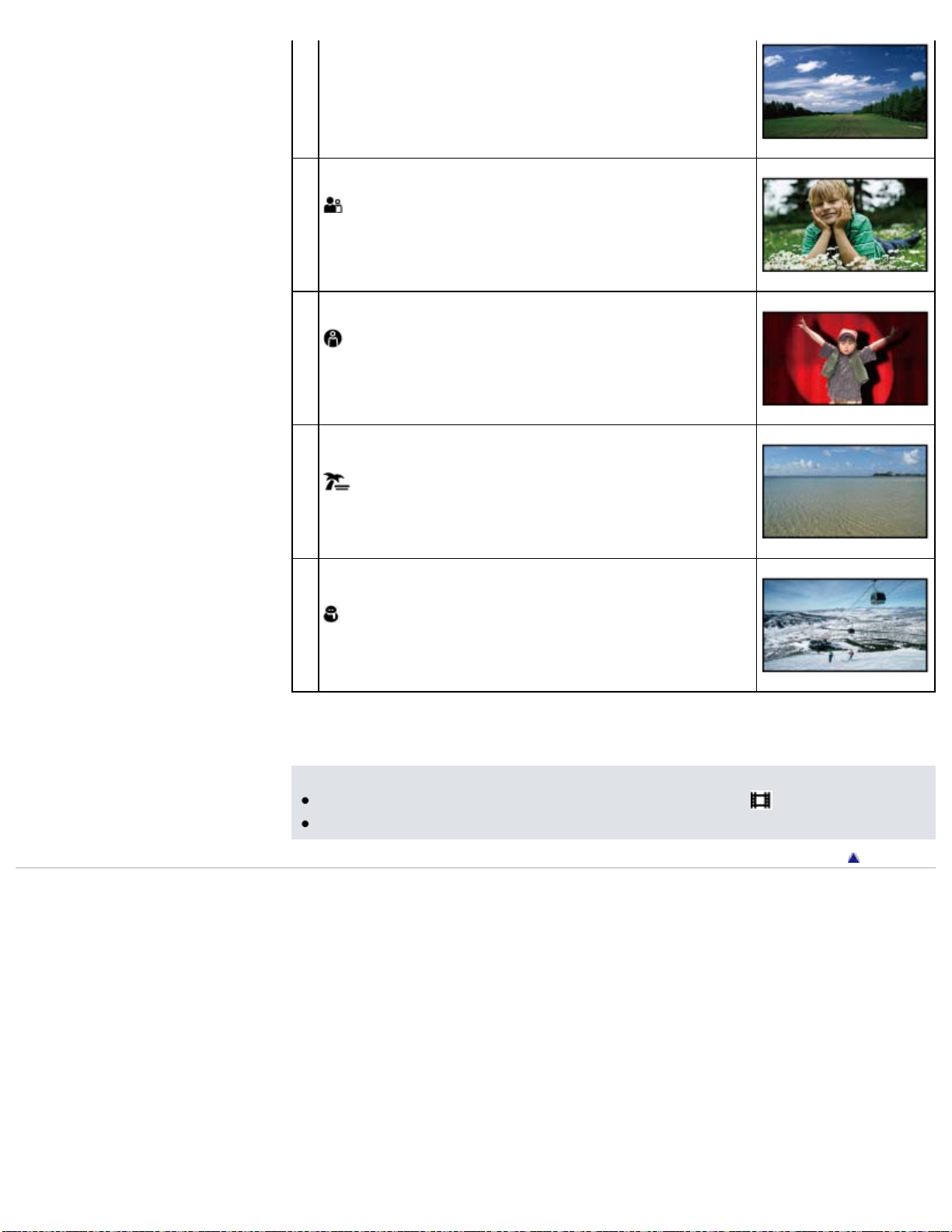

(Landscape)*
1
Shoots distant subjects clearly. This setting also prevents your
camcorder from focusing on glass or metal mesh in windows
124
between the camcorder and the subject.
(Portrait)
Brings out the subject such as people or flowers while creating a soft
background.
(Spotlight)*
2
Prevents people’s faces from appearing excessively white when
subjects are lit by strong light.
(Beach)*
2
Takes the vivid blue of the ocean or a lake.
(Snow)*
2
Takes bright pictures of a white landscape.
*
1
Adjusted to focus on subjects farther away only.
*
2
Adjusted not to focus on subjects a short distance away.
Notes
Even if you set [Night Portrait], the setting changes to [Auto] when the
(Movie) lamp is lit.
If you set [Scene Selection], the [White Balance] setting is canceled.
Back to top
Copyright 2013 Sony Corporation
125
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Cinematone

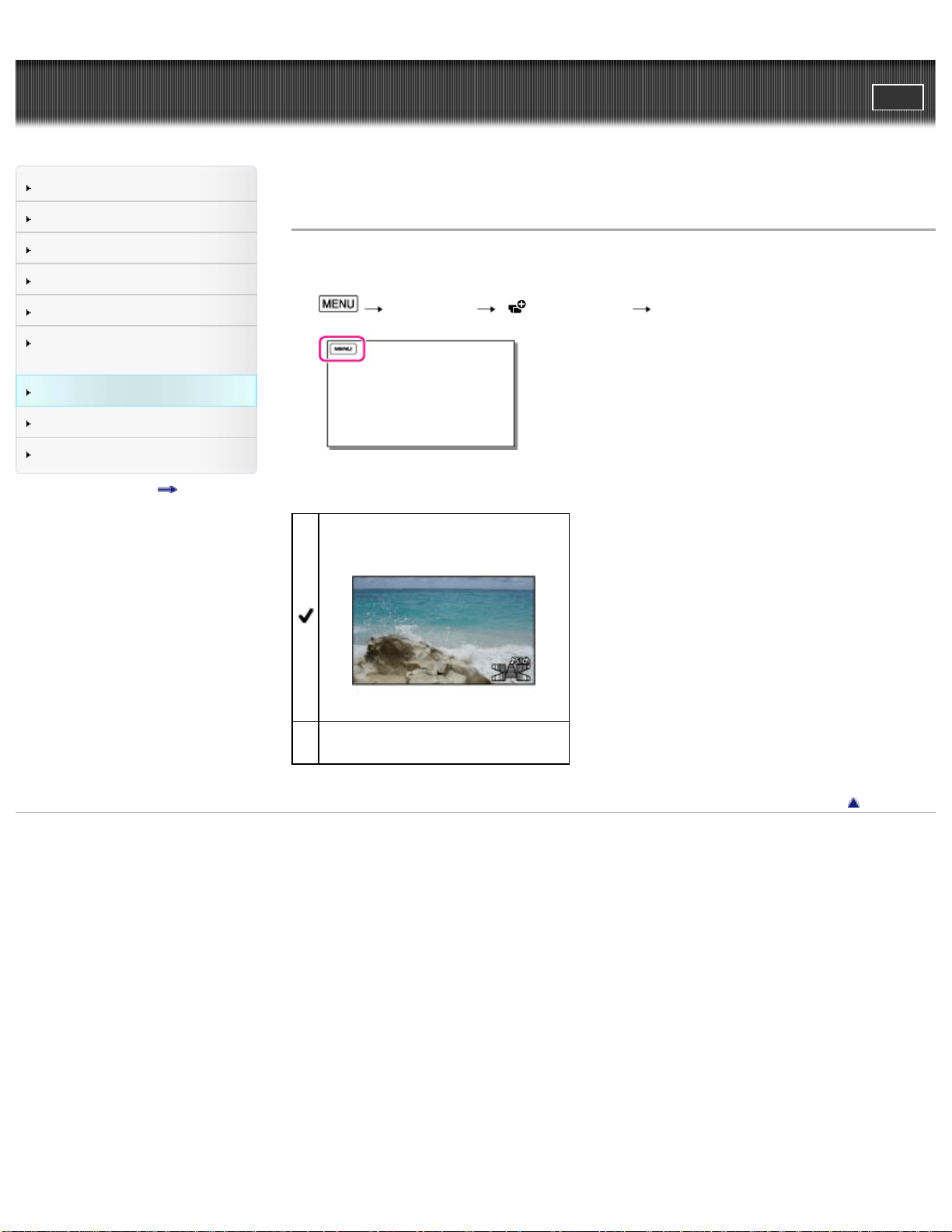

Cinematone
The camcorder automatically adjusts the color of the movie to resemble the atmosphere of film camera
images when recording a movie.
1.
[Camera/Mic] [ Camera Settings] [ Cinematone].
2. Select the desired item.
Off
Does not use the Cinematone function.
On
Uses the Cinematone function.
Notes
When you switch the [
Cinematone] function on or off, the image will be paused temporarily.
Back to top
Copyright 2013 Sony Corporation
126
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Fader (2D only)
Fader (2D only)
You can record a transition with the following effects adding to the interval between scenes.
Select the desired effect in [STBY] (to fading in) or [REC] (to fading out) mode.
1.
[Camera/Mic] [ Camera Settings] [ Fader].
2. Select the desired item.
Off
Does not use an effect.
White Fader (
)
Fades in/out with the white effect.
Out
In
Black Fader ( )
Fades in/out with the black effect.
Out
In
Notes
When you press START/STOP or operate the 2D/3D switch, the setting is cleared.
Back to top
Copyright 2013 Sony Corporation
127
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Self-Timer (2D only)
Self-Timer (2D only)
Press PHOTO to start the count down. A photo is recorded after about 10 seconds.
You can also operate by pressing PHOTO on the Wireless Remote Commander.
1.
[Camera/Mic] [ Camera Settings] [ Self-Timer].
2. Select the desired item.
Off
Cancels the self-timer.
On (
)
Starts the self-timer recording. To cancel the recording, select [Reset].
Notes
When you operate the 2D/3D switch, the setting is cleared.
Back to top
Copyright 2013 Sony Corporation
128
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Tele Macro (2D only)
Tele Macro (2D only)
This is useful to shoot small subjects, such as flowers or insects. You can blur out backgrounds and the
subject stands out clearer.
1.
[Camera/Mic] [ Camera Settings] [Tele Macro].
2. Select the desired item.
Off
Cancels Tele Macro. (Tele Macro is also canceled when you move the zoom lever to the W side.)
On (
)
The zoom moves to the top of the T (telephoto) side automatically and allows recording subjects

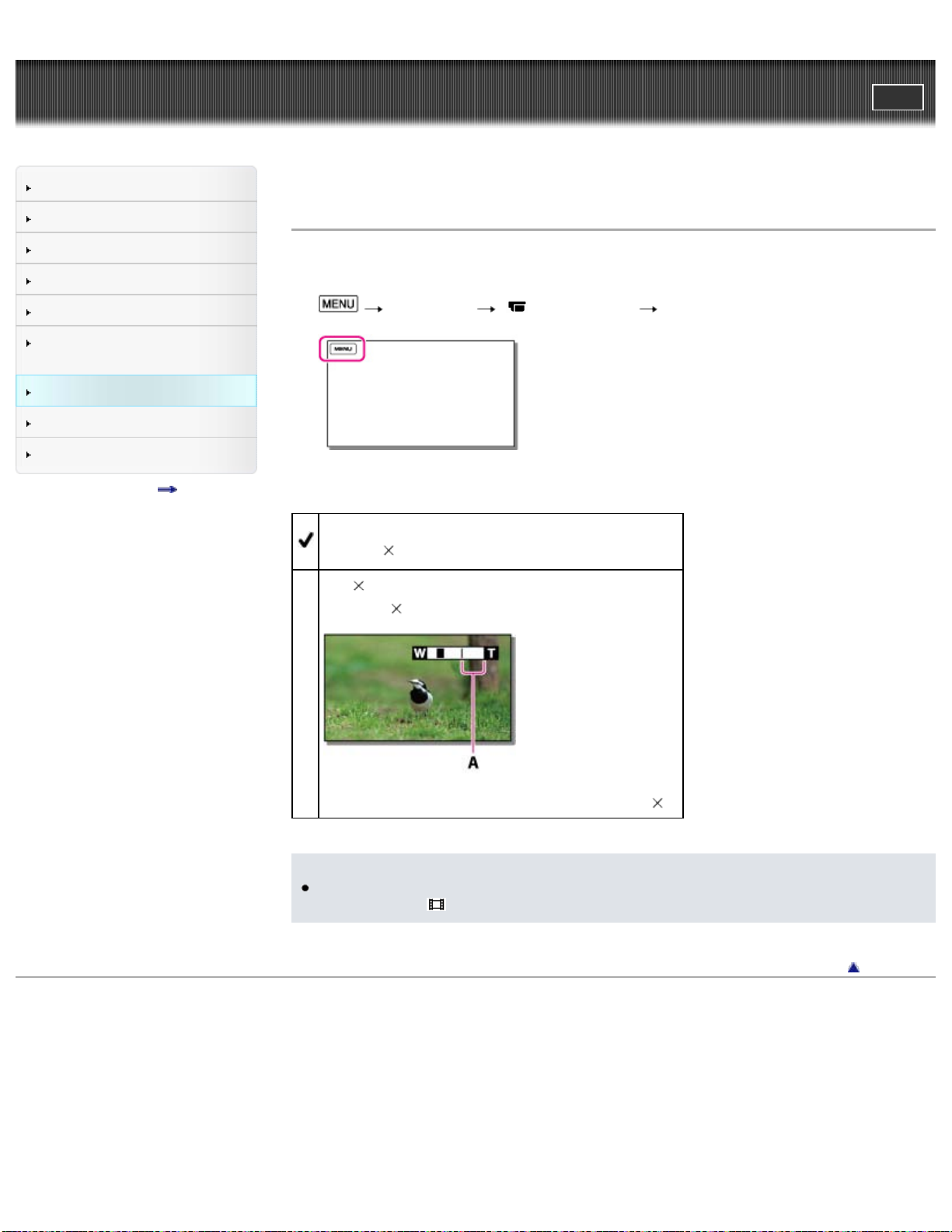

at close range down to about 38 cm (1 ft. 3 in.).
Notes
When you operate the 2D/3D switch, the setting is cleared.
When recording a distant subject, focusing may be difficult and can take some time.
Adjust the focus manually when it is hard to focus automatically.
Related topics
Zooming
Focus
Back to top
Copyright 2013 Sony Corporation
129
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > SteadyShot (movie)
SteadyShot (movie)
You can compensate for camera shake.
Set [
SteadyShot] to [Off] ( ) when using a tripod (sold separately), then the image becomes
natural.
1.
[Camera/Mic] [ Camera Settings] [ SteadyShot].
2. Select the desired item.
Active
Provides a more powerful SteadyShot effect.
Standard
Provides a SteadyShot effect, performing wide-angle recording under relatively stable recording
conditions.
Off (
)
The SteadyShot function is not used.
Notes
If you change the setting, the imaging field will also change accordingly.
During 2D recording, you can magnify images up to 10 times the original size using optical
zooming, unless [
SteadyShot] is set to [Active].
Back to top
Copyright 2013 Sony Corporation
130
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > SteadyShot (photo) (2D only)
SteadyShot (photo) (2D only)
You can compensate for camera shake.
Set [
SteadyShot] to [Off] ( ) when using a tripod (sold separately), then the image becomes
natural.
1.
[Camera/Mic] [ Camera Settings] [ SteadyShot].
2. Select the desired item.
On
The SteadyShot function is used.
Off (
)
The SteadyShot function is not used.
Back to top
Copyright 2013 Sony Corporation
131
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Digital Zoom (2D only)
Digital Zoom (2D only)
You can select the maximum zoom level. Note that the image quality decreases when you use the digital
zoom.
1.
[Camera/Mic] [ Camera Settings] [Digital Zoom].
2. Select the desired item.
Off
Up to 17
zoom is performed.
120
Up to 120 zoom is performed digitally.
A: The zooming zone appears when you select [120 ].
Notes
During 2D recording, you can magnify images up to 10 times the original size using optical
zooming, unless [
SteadyShot] is set to [Active].
Back to top
Copyright 2013 Sony Corporation
132
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Auto Back Light (2D only)
Auto Back Light (2D only)
Your camcorder adjusts the exposure for backlit subjects automatically.
1.
[Camera/Mic] [ Camera Settings] [Auto Back Light].
2. Select the desired item.
On
The exposure for backlit subjects is adjusted automatically.
Off
Does not adjust the exposure for backlit subjects.
Back to top
Copyright 2013 Sony Corporation
133
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Face Detection
Face Detection
Recording conditions for better face detection performance
You can set the camcorder to detect a face automatically.
Your camcorder adjusts the focus/color/exposure automatically for the face of the selected subject.
1.
[Camera/Mic] [ Face] [Face Detection].
2. Select the desired item.
Auto
Detects faces without distinction between adults and children.
Child Priority (
)
Gives faces of children priority.
Adult Priority (
)
Gives faces of adults priority.
Off (
)
Does not detect faces.
Recording conditions for better face detection performance
Shoot in a sufficiently bright place.
The subject is not wearing glasses, a hat or mask.
The subject faces directly towards the camera.
Notes
Faces may not be detected depending on recording conditions, subject conditions, and the setting
of your camcorder.
The frames on the faces do not appear during 3D recording.
Related topics
Recording the selected subject clearly (Face Priority) (2D only)
Smile Shutter (2D only)
Back to top
Copyright 2013 Sony Corporation
134
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Smile Shutter (2D only)

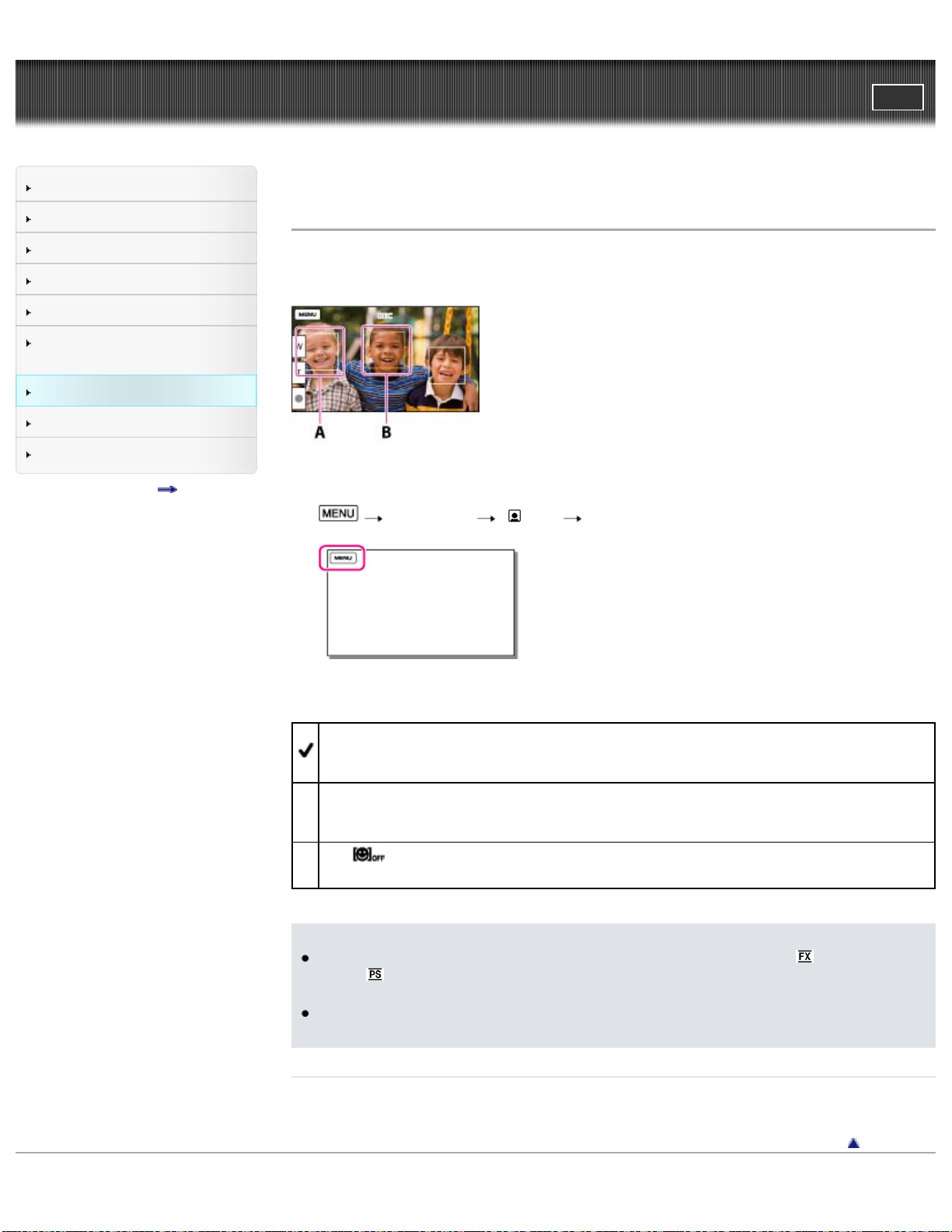

Smile Shutter (2D only)
The shutter is released automatically when the camcorder detects a smile.
If you do not want to take photos automatically, select [Off].
A: The camcorder is detecting a face.
B: The camcorder is detecting a smile (orange).
1.
[Camera/Mic] [ Face] [Smile Shutter].
2. Select the desired item.
Dual Capture
Only during movie recording, the shutter is released automatically, when the camcorder detects a
smile.
Always On
The shutter is released when the camcorder detects a smile whenever the camcorder is in
recording mode.
Off (
)
Smiles are not detected, so photos are not recorded automatically.
Notes
When the frame rate and the recording mode are set to [60i]/[Highest Quality
] or [60p]/[60p
Quality
], you cannot use the Smile Shutter function while recording movies. Furthermore, when
the framerate is set to [24p], you cannot use the Smile Shutter function, either.
Smiles may not be detected depending on recording conditions, subject conditions, and the setting
of your camcorder.
Related topics
[Smile Sensitivity (2D only)]
Back to top
Copyright 2013 Sony Corporation
135
136
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Smile Sensitivity (2D only)
Smile Sensitivity (2D only)
Sets the smile detection sensitivity for using the Smile Shutter function.
1.
[Camera/Mic] [ Face] [Smile Sensitivity].
2. Select the desired item.
Slight Smile
Detects even a slight smile.
Normal Smile
Detects a normal smile.
Big Smile
Detects a big smile.
Back to top
Copyright 2013 Sony Corporation
137
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Flash (2D only)

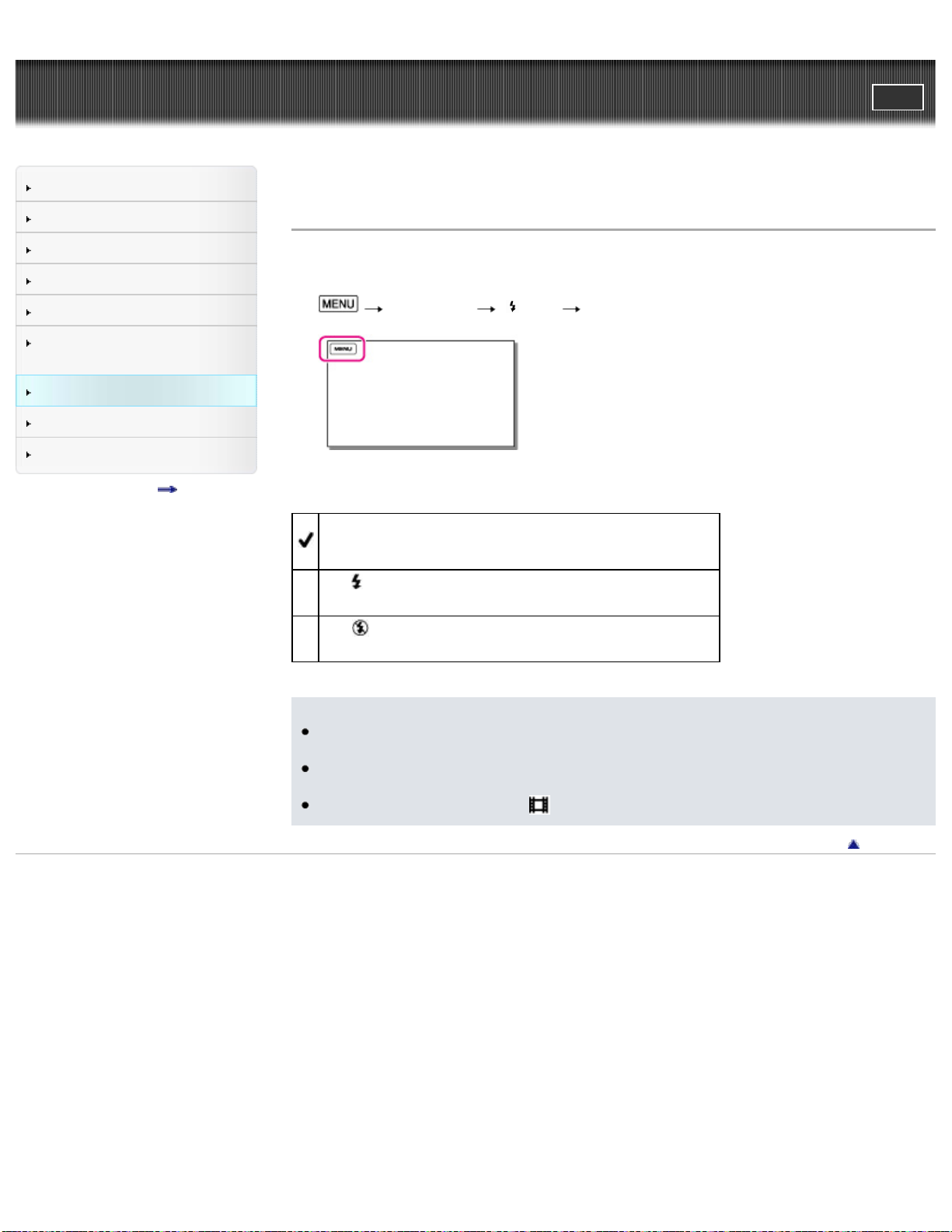

Flash (2D only)
You can select the flash setting when you record photos using the built-in flash, or an external flash
(sold separately) that is compatible with your camcorder.
1.
[Camera/Mic] [ Flash] [Flash].
2. Select the desired item.
Auto
Automatically flashes when there is insufficient ambient light.
On (
)
Always uses the flash regardless of the surrounding brightness.
Off (
)
Records without flash.
Notes
The recommended distance to the subject when using the built-in flash is approximately 0.3 m to
1.5 m (1 foot to 5 feet).
Remove any dust from the surface of the flash before using it. Flash effect may be impaired if heat
discoloration or dust obscures the lamp.
The flash does not flash while the
(Movie) lamp is lit.
Back to top
Copyright 2013 Sony Corporation
138
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Flash Level (2D only)
Flash Level (2D only)
You can select the brightness of the flash light.
You can set this function when you record photos using the built-in flash, or an external flash (sold
separately) that is compatible with your camcorder.
1.
[Camera/Mic] [ Flash] [Flash Level].
2. Select the desired item.
High (
)
Makes the flash level higher.
Normal ( )
Normal flash level
Low (
)
Makes the flash level lower.
Back to top
Copyright 2013 Sony Corporation
139
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Red Eye Reduction (2D only)
Red Eye Reduction (2D only)
You can prevent redeye by activating the pre-flash before the flash flashes.
You can set this function when you record photos using the built-in flash, or an external flash (sold
separately) that is compatible with your camcorder.
1.
[Camera/Mic] [ Flash] [Red Eye Reduction].
2. Select the desired item.
Off
Does not use Red Eye Reduction to prevent redeye.
On (
)
Uses Red Eye Reduction to prevent redeye.
Notes
The redeye reduction may not produce the desired effect due to individual differences and other
conditions.
The redeye function does not work with automatic recording by [Smile Shutter].
Back to top
Copyright 2013 Sony Corporation
140
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Closer Voice
Closer Voice
Your camcorder detects a face of a person and records the voice clearly.
1.
[Camera/Mic] [ Microphone] [Closer Voice].
2. Select the desired item.
On
Detects faces and records the voices clearly.
Off (
)
Does not detect faces and record the voces clearly.
Notes
The frames on the faces do not appear during 3D recording.
The [Closer Voice] function does not activate while an external microphone is connected to the
camcorder.
When you want to record the sound clearly without any interference, for example when you record
a music concert, set [Closer Voice] to [Off].
Related topics
[Face Detection]
Back to top
Copyright 2013 Sony Corporation
141
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Blt-in Zoom Mic
Blt-in Zoom Mic
You can record a movie with vivid sound appropriate to the zoom position.
1.
[Camera/Mic] [ Microphone] [Blt-in Zoom Mic].
2. Select the desired item.
Off
The microphone does not record sound following zooming in or out.
On (
)
The microphone records sound following zooming in or out.
Back to top
Copyright 2013 Sony Corporation
142
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Auto Wind NR
Auto Wind NR
Your camcorder records a movie with less wind noise input from the built-in microphone. This function
automatically cuts the low-range wind noise according to the noise level.
1.
[Camera/Mic] [ Microphone] [Auto Wind NR].
2. Select the desired item.
On
Reduces the wind noise.
Off (
)
Does not reduce the wind noise.
Notes
When you set [Auto Wind NR] to [Off], Intelligent Auto is set to [Off].
[Auto Wind NR] will not function while an external microphone is attached to your camcorder.
Back to top
Copyright 2013 Sony Corporation
143
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Audio Mode
Audio Mode
You can change the recording sound format.
1.
[Camera/Mic] [ Microphone] [Audio Mode].
2. Select the desired item.
5.1ch Surround ( )
Records sound in 5.1ch surround.
2ch Stereo (
)
Records sound in 2ch stereo.
Back to top
Copyright 2013 Sony Corporation
144
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Micref Level (Microphone reference level)
Micref Level (Microphone reference level)
You can select the microphone level for recording sound.
1.
[Camera/Mic] [ Microphone] [Micref Level].
2. Select the desired item.
Normal
Records various ambient sounds, converting them into the appropriate level.
Low (
)
Records ambient sound faithfully. Select [Low] when you want to record an exciting and powerful
sound in a concert hall, etc. (This setting is not suitable for recording conversations.)
Back to top
Copyright 2013 Sony Corporation
145
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > My Button

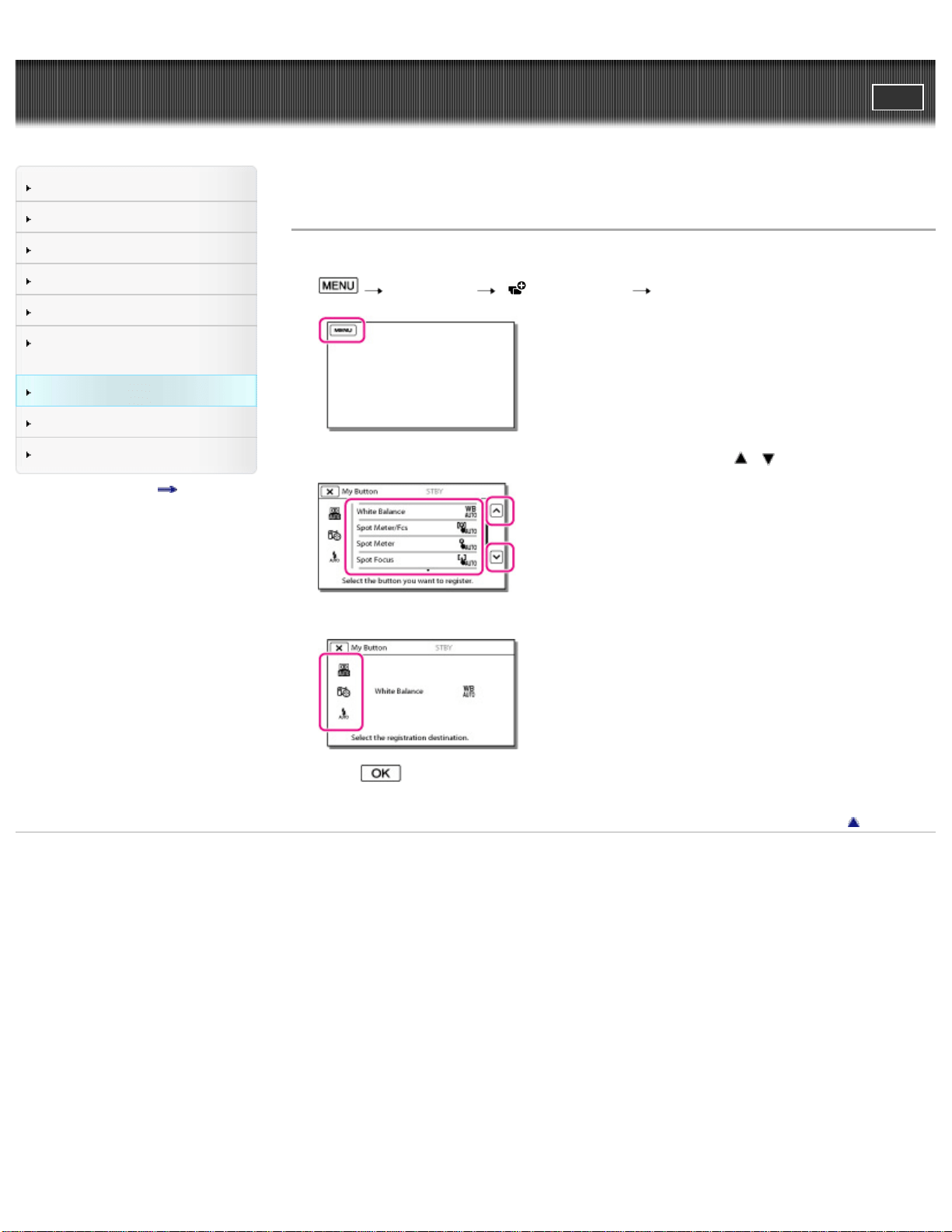

My Button
You can assign functions that you frequently use when recording to one of the My Buttons.
1.
[Camera/Mic] [ Shooting Assist] [My Button].
2. Select the menu item that you want to assign to a My Button using / .
3. Select one of the My Buttons to which the menu item will be assigned.
4. Select .
Back to top
Copyright 2013 Sony Corporation
146
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Guide Frame (2D only)

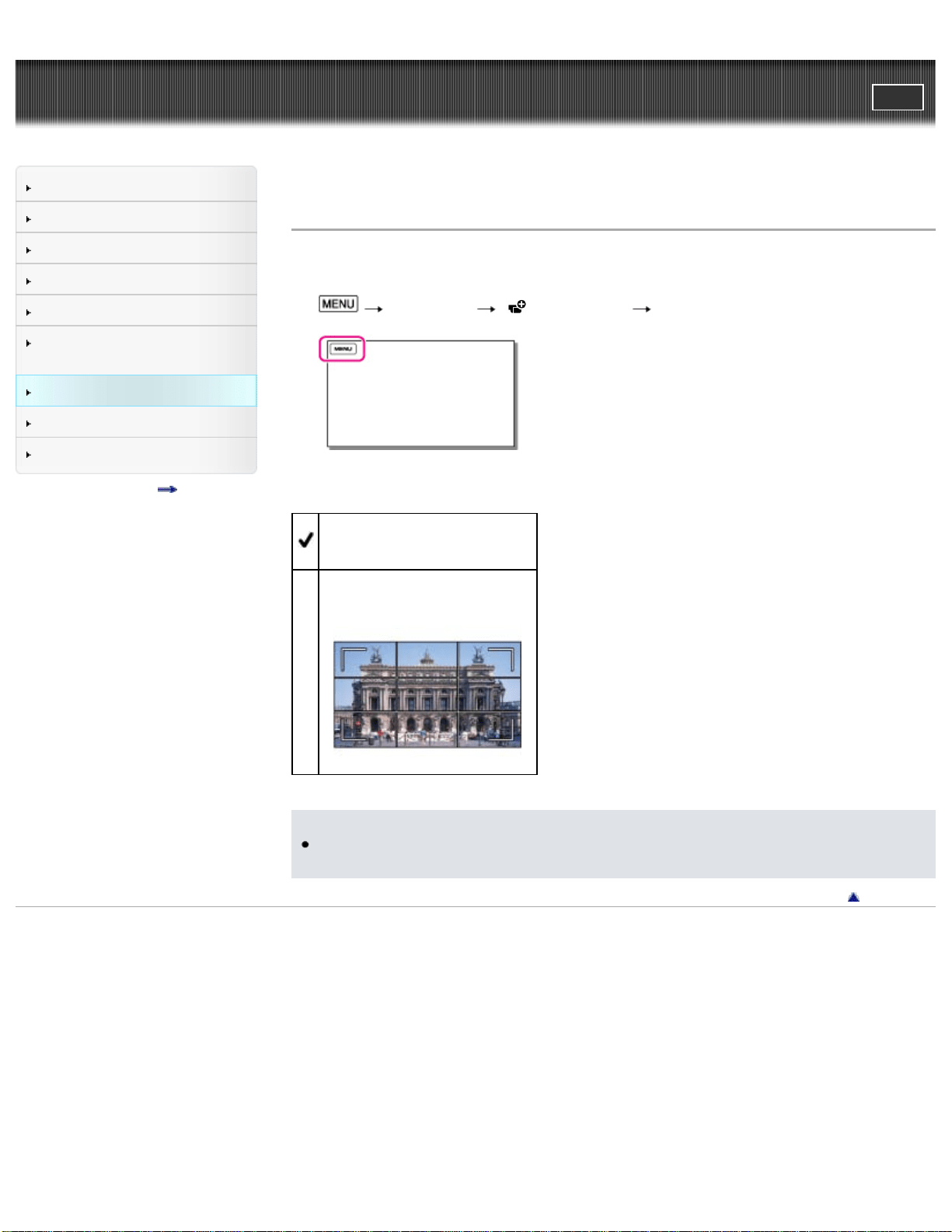

Guide Frame (2D only)
You can display the frame and check that the subject is horizontal or vertical. Positioning the subject at
the cross point of the guide frame makes a balanced composition. The frame is not recorded.
1.
[Camera/Mic] [ Shooting Assist] [Guide Frame].
2. Select the desired item.
Off
Does not display the guide frame.
On
Displays the guide frame.
Notes
The outer frame of [Guide Frame] shows the display area of a TV which is not compatible with full
pixel display.
Back to top
Copyright 2013 Sony Corporation
147
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Display Setting
Display Setting
You can set the duration of displaying the icons or indicators on the LCD screen while recording.
1.
[Camera/Mic] [ Shooting Assist] [Display Setting].
2. Select the desired item.
Auto
Displays for about 3 seconds. The rec & zoom buttons on the LCD screen is displayed.
On
Always displays. The rec & zoom buttons on the LCD screen is not displayed.
Notes
You cannot change the setting of the icons or indicators on the LCD screen while in the playback
mode.
Back to top
Copyright 2013 Sony Corporation
148
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Zebra (2D only)
Zebra (2D only)
You can display a zebra pattern as a guide for adjusting brightness. The zebra pattern will not be
recorded with the image.
1.
[Camera/Mic] [ Shooting Assist] [Zebra].
2. Select the desired item.
Off
Does not display the zebra pattern.
(70)
Displays the zebra pattern over the part of an image that exceeds the brightness level of about 70
IRE*.
(100)
Displays the zebra pattern over the part of an image that exceeds the brightness level of about
100 IRE*.
* IRE (Institute of Radio Engineers) is a measure of the video signal level that is used as the bases of brightness;
the reference level (pedestal level) is set to 0 (%) and the maximum level (completely white level) is set to
100 (%).
Notes
With a subject that exceeds a brightness level of 100 IRE, the image may become overexposed.
Back to top
Copyright 2013 Sony Corporation
149
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Peaking (2D only)
Peaking (2D only)
You can display an image on the screen with its outlines enhanced with colors. This function helps you
to adjust the focus. The enhanced outlines will not be recorded on the image.
1.
[Camera/Mic] [ Shooting Assist] [Peaking].
2. Select the desired item.
Off
Does not display the enhanced outlines.
(White)
Displays the enhanced outlines in white.
(Red)
Displays the enhanced outlines in red.
(Yellow)
Displays the enhanced outlines in yellow.
Notes
The enhanced outlines may not appear in a dark location.
Back to top
Copyright 2013 Sony Corporation
150
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Light Bright
Light Bright
You can set the brightness of the video light.
1.
[Camera/Mic] [ Shooting Assist] [Light Bright].
2. Select the desired item.
Standard
Standard brightness.
Bright
Select this mode when you find the video light is not bright enough.
Back to top
Copyright 2013 Sony Corporation
151
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Camera/Mic > Audio Level Display
Audio Level Display
You can select whether or not to display the audio level meter.
Shape of the audio level meter differs depending on the [Audio Mode] setting.
1.
[Camera/Mic] [ Shooting Assist] [Audio Level Display].
2. Select the desired item.
On
Displays audio level meter.
Off
Does not display the audio level meter.
Back to top
Copyright 2013 Sony Corporation
152
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Image Quality/Size > REC Mode (2D only)

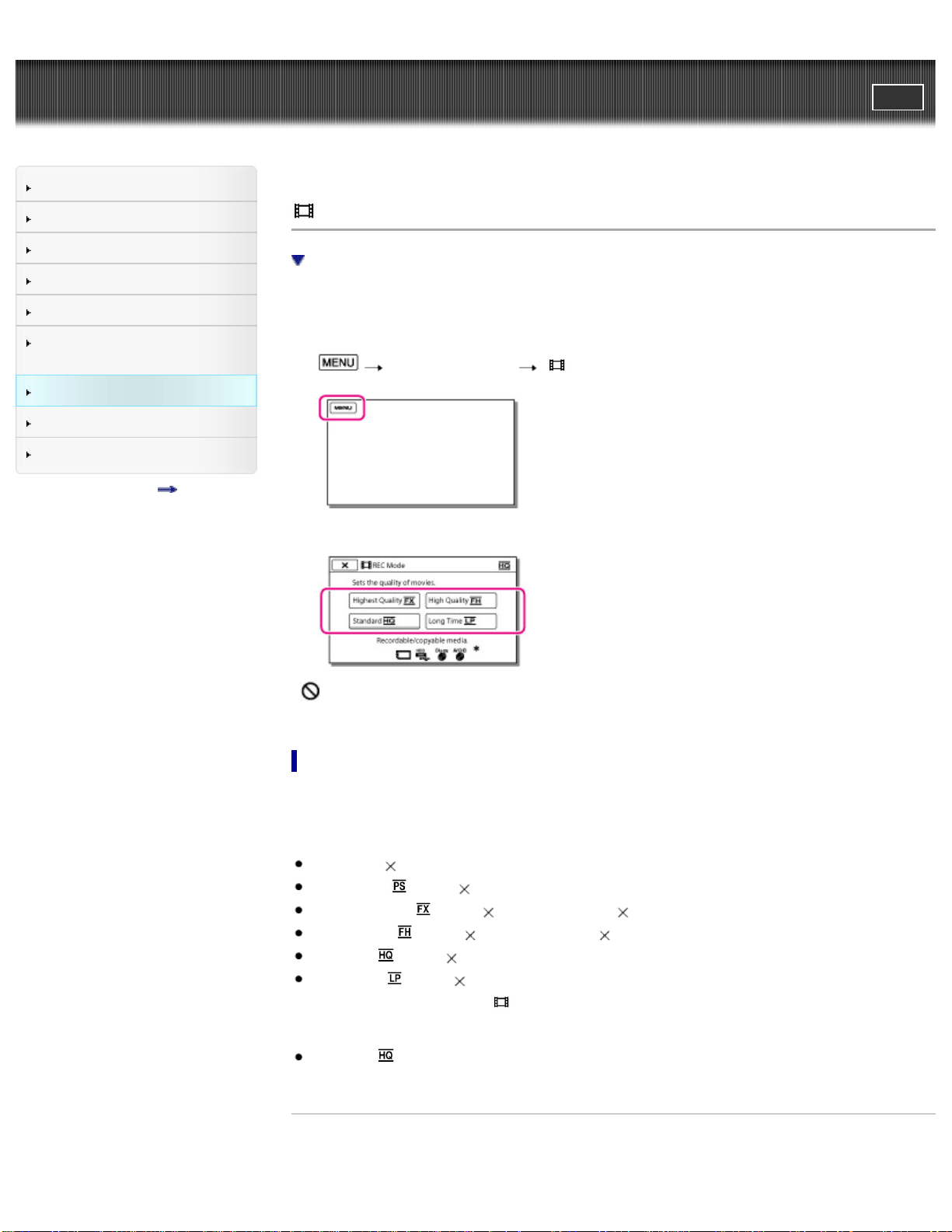

REC Mode (2D only)
On image quality
You can switch the recording mode to select the movie quality when recording high definition image
quality (HD) movies. The recording time of the recording media is changed depending on the recording
mode.
1.
[Image Quality/Size] [ REC Mode].
2. Select the desired recording mode
* appears on a medium icon if a movie recorded with the selected recording mode cannot be copied on that
medium.
On image quality
The image quality and the bit-rate for each recording mode can be set as follows. “M,” such as in “24M,”
means “Mbps.”
For high definition image quality (HD):
[3D]: 1920
1080/60i quality, MVC HD 28M (3D)
[60p Quality
]: 1920 1080/60p quality, AVC HD 28M (PS)*
[Highest Quality
]: 1920 1080/60i or 1920 1080/24p quality, AVC HD 24M (FX)
[High Quality
]: 1920 1080/60i or 1920 1080/24p quality, AVC HD 17M (FH)
[Standard
]: 1440 1080/60i quality, AVC HD 9M (HQ)
[Long Time
]: 1440 1080/60i quality, AVC HD 5M (LP)
* You can select this setting when [ Frame Rate] is set to [60p].
For standard definition image quality (STD):
[Standard
]: Standard quality, Standard STD 9M (HQ)*
* Standard image quality (STD) is fixed to this value.
Related topics
Types of media devices on which the images can be saved
153
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Image Quality/Size > Frame Rate (2D only)
Frame Rate (2D only)
You can select the frame rate to be used to record high definition image quality (HD) movies. Using [60i]
is recommended for standard recording. Set [
Frame Rate] first, before setting [ REC Mode].
1.
[Image Quality/Size] [ Frame Rate].
2. Select the desired frame rate.
60i
For ordinary recording, this frame rate is recommended.
60p
You can record movies with a volume of data twice that of 60i with this setting, and this will allow
you to enjoy clear images. When you play a movie recorded with this setting on a TV, the TV must
be compatible with 60p movie playback and you have to set [HDMI Resolution] to [1080p/480p]. If
the TV is not compatible with 60p movie playback, the movie will be output as a 60i movie.
24p
You can record movies which provide an atmosphere closer to that of film images with this setting.
It is recommended that you record movies with this setting using a tripod.
Notes
The media that the recorded images can be saved on will depend on the recording mode that has
been set during recording.
Related topics
REC Mode (2D only)
Types of media devices on which the images can be saved
Back to top
Copyright 2013 Sony Corporation
155
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Image Quality/Size > HD/STD Setting (2D only)
HD/STD Setting (2D only)
You can select the image quality of movies.
1.
[Image Quality/Size] [ / Setting].
2. Select the desired item.
HD Quality
Records movies in High definition image quality (HD).
STD Quality
Records movies in standard definition image quality (STD). This setting is highly-compatible with
other playback devices.
Notes
When you play or edit movies, only movies with the selected image quality will be displayed on your
camcorder.
Back to top
Copyright 2013 Sony Corporation
156
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Image Quality/Size > Wide Mode (2D only)
Wide Mode (2D only)
When recording standard definition image quality (STD) movies, you can select the horizontal to vertical
ratio.
1.
[Image Quality/Size] [ Wide Mode].
2. Select the desired item.
16:9 WIDE
Records movies to the full screen on a 16:9 (wide) TV screen.
4:3 (
)
Records movies to the full screen on a 4:3 TV screen.
Notes
For details on the holizontal/vertical ratio of the TV that will be connected, refer to the instruction
manuals of the TV.
Related topics
[TV Type]
Back to top
Copyright 2013 Sony Corporation
157
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Image Quality/Size > x.v.Color
x.v.Color
You can capture wider range of colors. Various colors such as the brilliant color of flowers and turquoise
blue of the sea can be more faithfully reproduced. Refer to the instruction manuals of the TV.
1.
[Image Quality/Size] [ x.v.Color].
2. Select the desired item.
Off
Records in ordinary color range.
On (
)
Select this setting if the recorded movies will be played back on an x.v.Color-compliant TV.
Notes
If the movie recorded with this function [On] is played back on a non-x.v.Color-compliant TV, the
color may not be reproduced correctly.
Back to top
Copyright 2013 Sony Corporation
158
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Image Quality/Size > Image Size (2D only)
Image Size (2D only)
You can select a size for the photos you are going to shot.
1.
[Image Quality/Size] [ Image Size].
2. Select the desired item.
Notes
The image size selected with this setting takes effect for photos taken by the Dual Capture function
[Details].
Related topics
Expected number of recordable photos
Back to top
Copyright 2013 Sony Corporation
159
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Playback Function > Event View
Event View
You can display the Event View screen.
1.
[Playback Function] [Event View].
Related topics
Playing movies and photos from the Event View screen
Back to top
Copyright 2013 Sony Corporation
160
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Playback Function > Map View (HDR-TD30V)
Map View (HDR-TD30V)
You can display the Map View screen.
1.
[Playback Function] [Map View].
Related topics
Playing movies and photos from a map (HDR-TD30V)
Back to top
Copyright 2013 Sony Corporation
161
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Playback Function > Highlight Movie (2D only)
Highlight Movie (2D only)
You can watch the Highlight Movie you have saved.
1.
[Playback Function] [Highlight Movie].
2. Select the desired Highlight Movie.
Related topics
Converting Highlight Playback scenes or Highlight Scenarios to standard definition image quality (STD)
(Highlight Movie)
Back to top
Copyright 2013 Sony Corporation
162
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Playback Function > Scenario
Scenario
You can view Highlight Scenario that you have saved.
1.
[Playback Function] [ Scenario].
2. Select the desired scenario.
Related topics
Saving Highlight Playback in high definition image quality (HD) (Scenario Save)
Back to top
Copyright 2013 Sony Corporation
163
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Edit/Copy > Delete

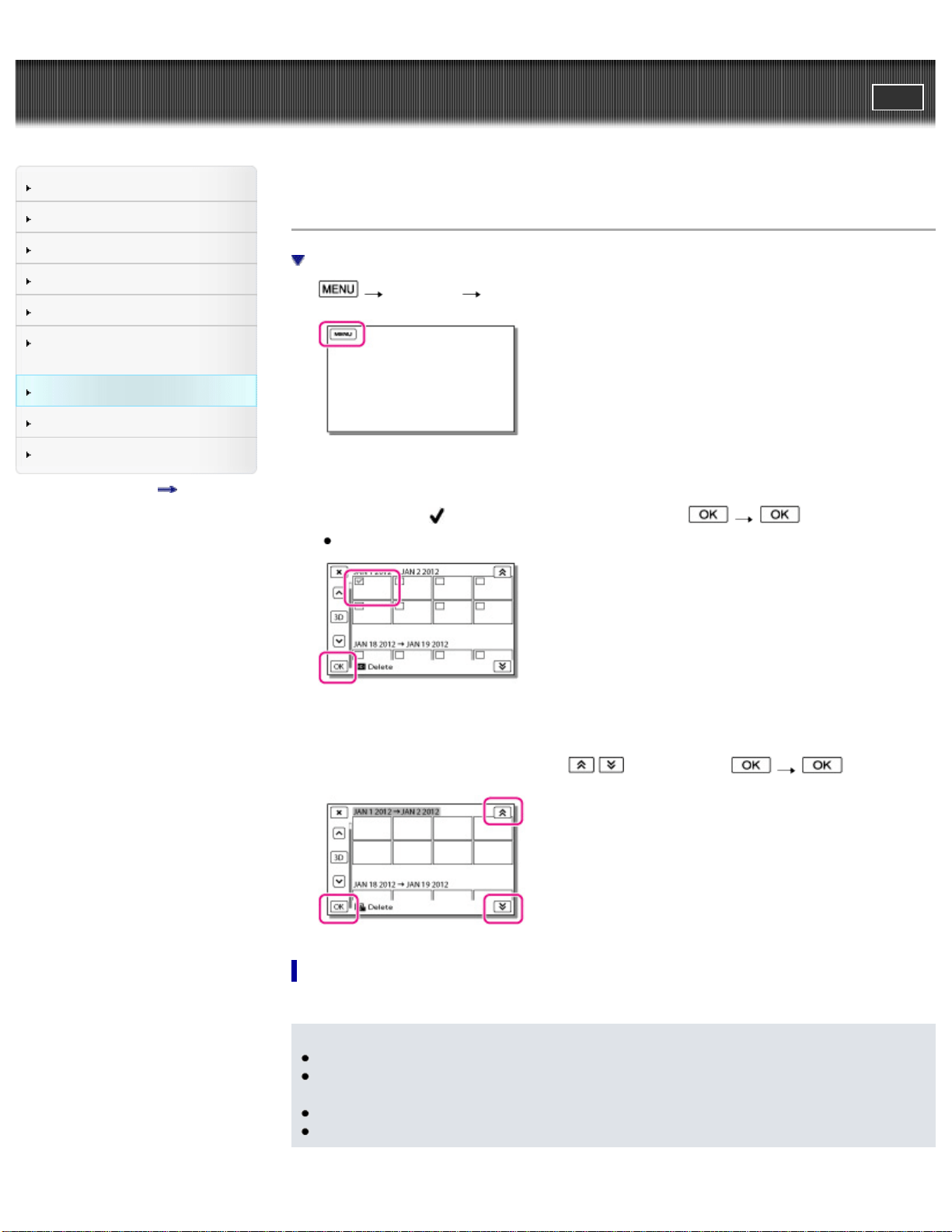

Delete
To delete a part of a movie
1.
[Edit/Copy] [Delete].
2. Select the desired setting ([Multiple Images] or [All In Event]).
Multiple Images
Add check marks
to the desired images, and then select .
To delete 2D movies, select the type of image.
All In Event
You can delete all images in the selected date at one time.
Select the date you want to delete using
/ , and then select .
To delete a part of a movie
You can divide a movie and delete it.
Notes
You cannot restore images once they are deleted. Save important movies and photos in advance.
Do not remove the battery pack or the AC Adaptor from your camcorder while deleting the images.
It may damage the recording media.
Do not eject the memory card while deleting images from the memory card.
If you delete movies/photos that are included in saved scenarios, the scenarios will also be deleted.
164
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Edit/Copy > Protect

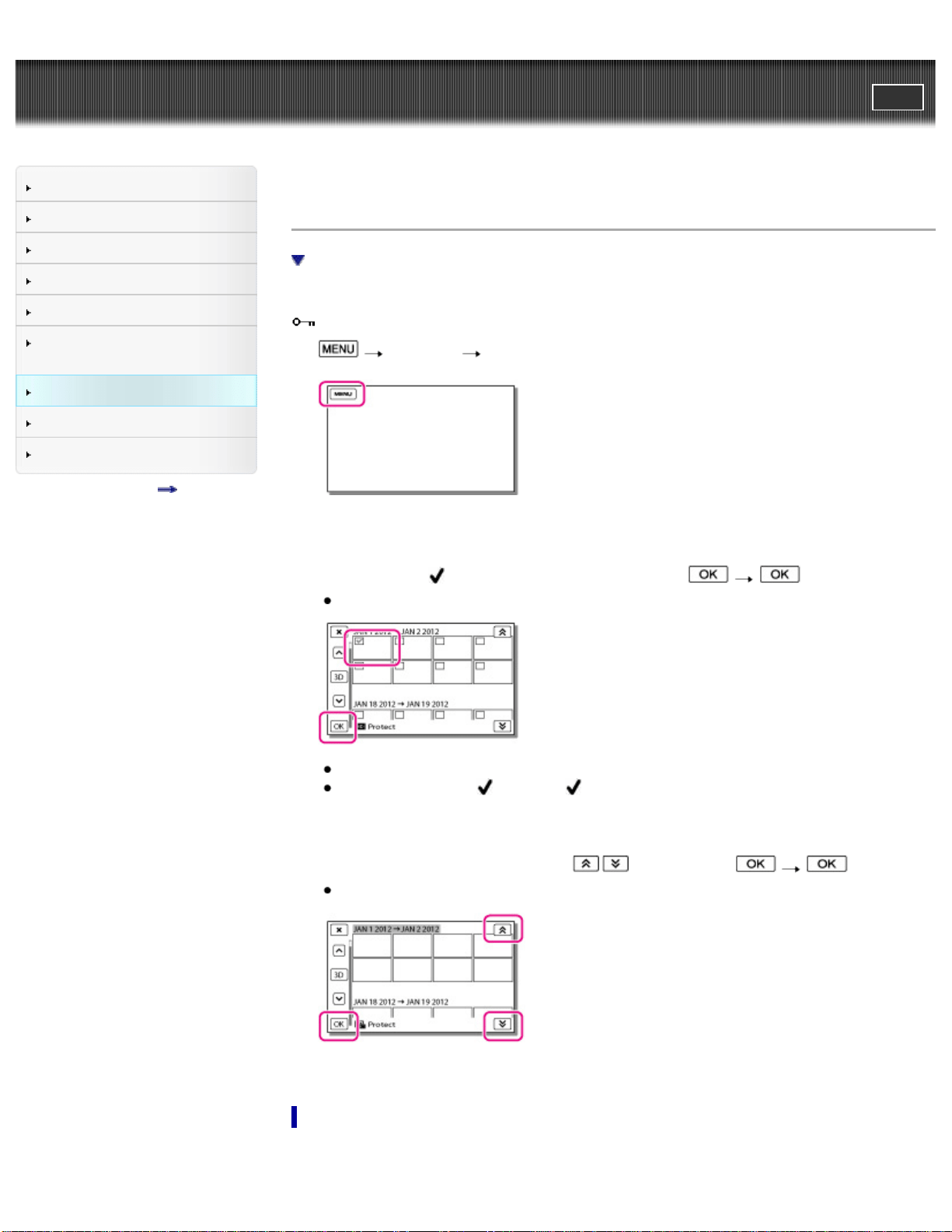

Protect
To remove the protection of an event
Protect movies and photos to avoid deleting them by mistake.
will be displayed on the protected images.
1.
[Edit/Copy] [Protect].
2. Select the desired setting ([Multiple Images] or [Set All In Event]).
Multiple Images
Add check marks
to the desired images, and then select .
To protect 2D movies, select the type of image.
You can select multiple images.
Select the image with
so that the mark disappears and you can remove the protection.
Set All In Event
You can protect all images in the selected date at one time.
Select the date you want to protect using
/ , and then select .
You cannot select multiple dates.
To remove the protection of an event
You can remove the protection from all images in the selected date at one time.
In step 3 above, select [Remove All In Event], select the date you want to remove the protection using
166
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Edit/Copy > Copy

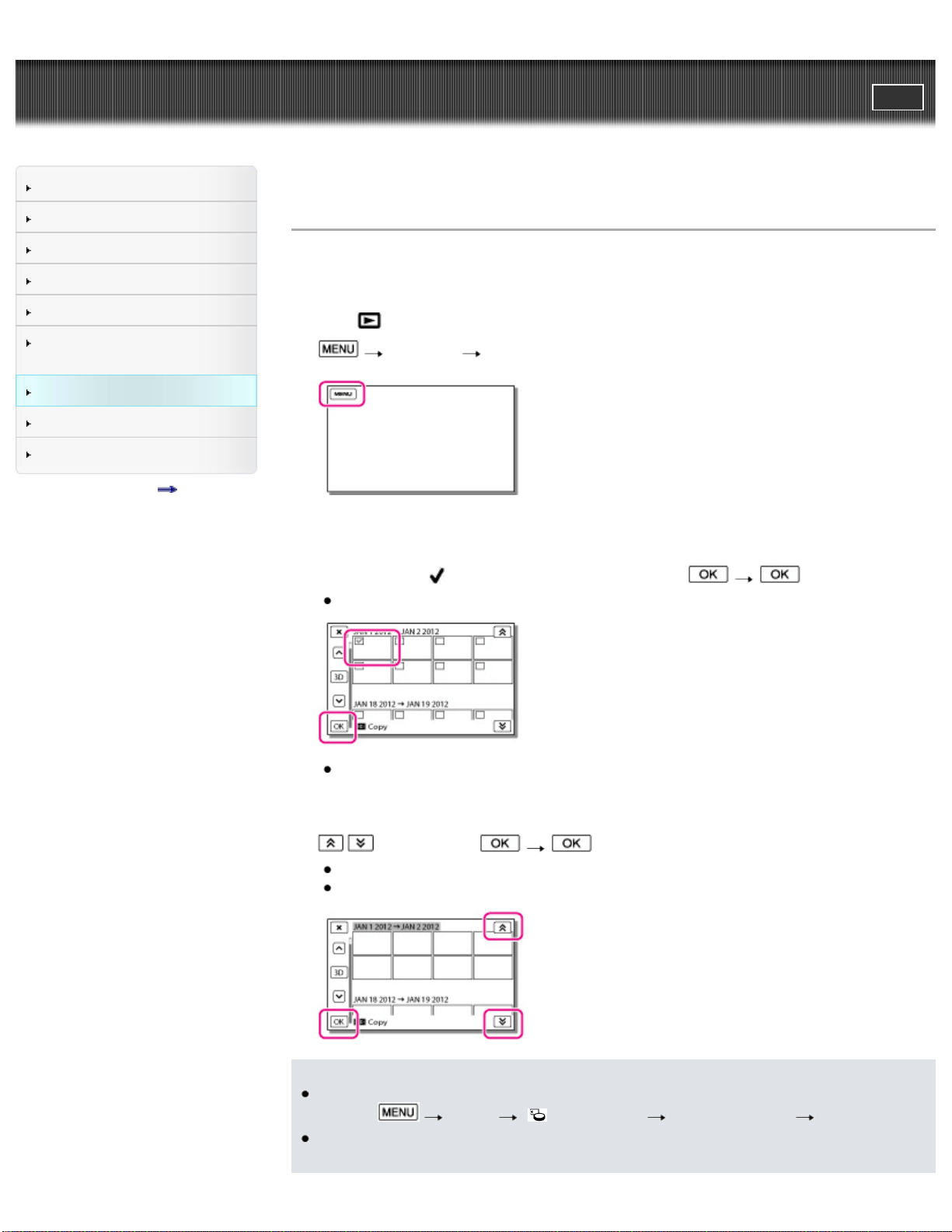

Copy
You can copy images stored on the recording media of the camcorder. The original copy of the image
will not be deleted after the copy operation has been completed. You can copy images stored on the
recording media to an external media device.
1. Press
(View Images).
2.
[Edit/Copy] [Copy].
3. Select the desired setting ([Multiple Images] or [All In Event]).
Multiple Images
Add check marks
to the desired images, and then select .
To copy 2D movies, select the type of image.
You can select multiple images.
All In Event
You can copy all images in the selected date at one time. Select the date you want to copy using
/ , and then select .
You cannot select multiple dates.
To copy 2D movies, select the type of image.
Notes
When you record an image on the memory card for the first time, create the image database file by
selecting
[Setup] [ Media Settings] [Repair Img. DB F.] [Memory Card].
Connect your camcorder to the wall outlet (wall socket) using the supplied AC Adaptor to prevent
your camcorder from running out of power during copy.
168
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Edit/Copy > Direct Copy
Direct Copy
You can save images on an external media device (USB storage device) manually while the device is
connected to your camcorder. You can perform this operation while the camcorder is displaying the
event view of the external device connected.
1. Press
(View Images).
2.
[Edit/Copy] [Direct Copy].
3. Follow the instructions that appear on the LCD screen.
Related topics
Saving images on an external media device easily
Back to top
Copyright 2013 Sony Corporation
170
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > Media Info
Media Info
You can check the remaining recordable time for movies and the approximate free and used media
space of the recording media.
1.
[Setup] [ Media Settings] [Media Info].
2. Select the recording medium that you want to view the information.
Note
Since there is a management file area, the used space is not displayed as 0 % even if you perform
[Format]. [Details]
Back to top
Copyright 2013 Sony Corporation
171
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > Format
Format
Formatting deletes all the movies and photos to recover recordable free space.
1.
[Setup] [ Media Settings] [Format].
2. Select the recording medium that you want to format, and then select .
Notes
Connect your camcorder to the wall outlet (wall socket) using the supplied AC Adaptor for this
operation. [Details]
To avoid the loss of important images, you should save them before formatting the recording
media.
Protected movies and photos will also be deleted.
Make sure not to do the following while [Executing...] is displayed.
Open/Close the LCD screen.
Operate buttons on the camcorder.
Eject the memory card from your camcorder.
Disconnect the AC Adaptor.
Back to top
Copyright 2013 Sony Corporation
172
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > Repair Img. DB F.
Repair Img. DB F.
The camcorder may be able to repair the damaged database file using this menu item.
1.
[Setup] [ Media Settings] [Repair Img. DB F.].
2. Select the recording medium that you want to repair, and then select .
Back to top
Copyright 2013 Sony Corporation
173
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > File Number
File Number
You can select the way to assign file number of photos.
1.
[Setup] [ Media Settings] [File Number].
2. Select the desired item.
Series
Assigns file numbers of photos in sequence.
The file number becomes larger each time you record a photo. Even if the memory card is
replaced with another one, the file number is assigned in sequence.
Reset
Assigns file numbers in sequence, following the largest file number existing on the recording
medium.
When the memory card is replaced with another one, the file number is assigned for each memory
card.
Back to top
Copyright 2013 Sony Corporation
174
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > Data Code
Data Code
During playback, your camcorder displays the information recorded automatically at the time of
recording. You can check the following information.
1.
[Setup] [ Playback Settings] [Data Code].
2. Select the desired item.
Off
Data code is not displayed.
Date/Time
Displays the date and time.
Camera Data
Displays camera setting data.
Coordinates (HDR-TD30V)
Displays coordinates.
Date/Time
Date
Time
Camera Data
Movie
175

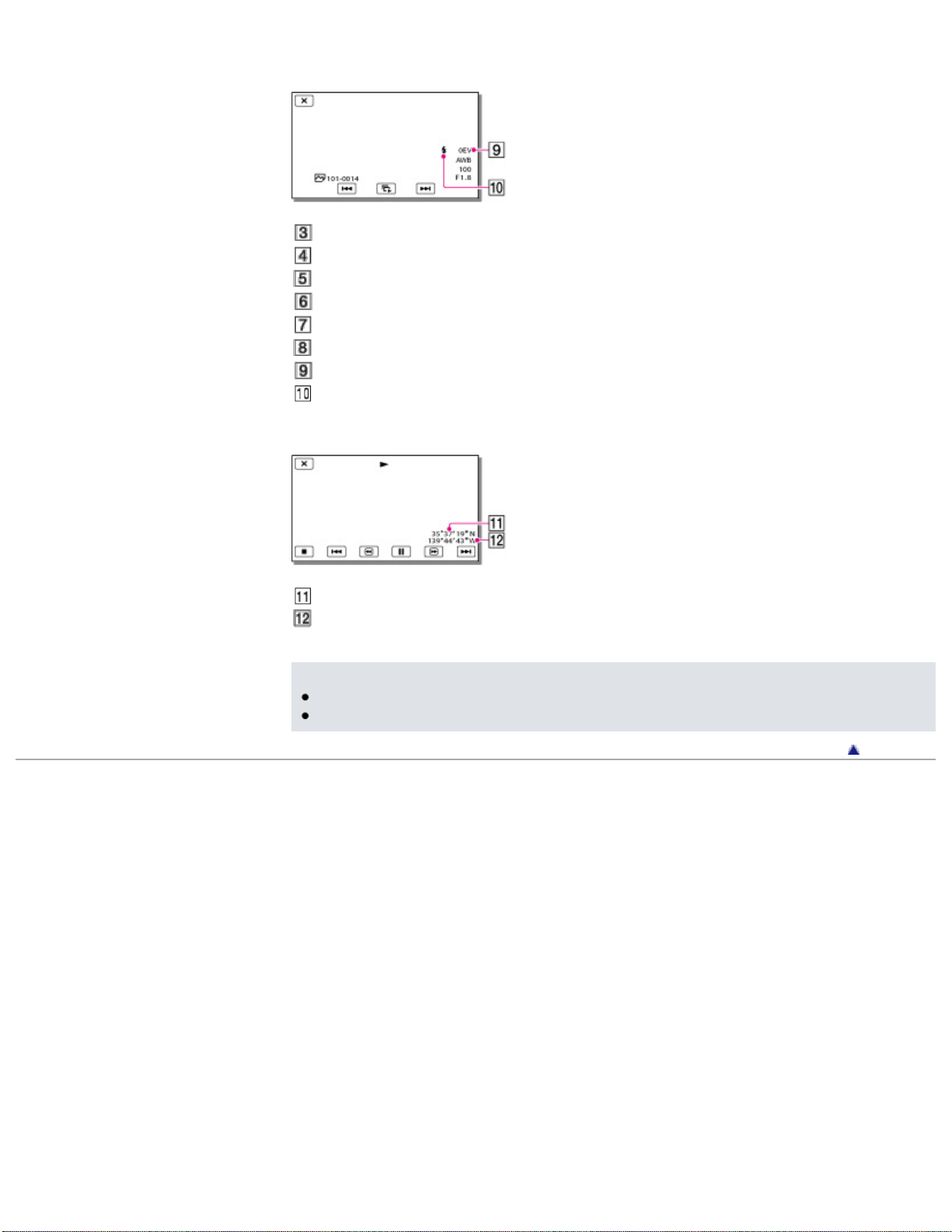

SteadyShot off
White Balance
Shutter Speed
IRIS (Aperture value)
Gain
Brightness
Exposure
Flash
Coordinates (HDR-TD30V)
Latitude
Longitude
Notes
The data code is displayed on the TV screen if you connect your camcorder to a TV.
Depending on the recording media condition, [--:--:--] may appear.
Back to top
Copyright 2013 Sony Corporation
176
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > Volume
Volume
You can adjust the volume of playback sound.
1.
[Setup] [ Playback Settings] [Volume].
2. Adjust the volume using / .
Back to top
Copyright 2013 Sony Corporation
177
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > Download Music
Download Music
You can transfer music files from audio CDs or MP3 files to your camcorder by connecting the
camcorder to a computer. To transfer music files, use “Music Transfer.”
1.
[Setup] [ Playback Settings] [Download Music].
2. Follow the instructions that appear on the display.
For details, refer to “Music Transfer” Help.
Back to top
Copyright 2013 Sony Corporation
178
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > Empty Music
Empty Music
You can delete all music files stored on the camcorder.
1.
[Setup] [ Playback Settings] [Empty Music].
2. Select [OK] or [Cancel].
Notes
If you delete music files using [Empty Music], the music data recorded on your camcorder at the
factory will be deleted as well.
Back to top
Copyright 2013 Sony Corporation
179
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > TV Type

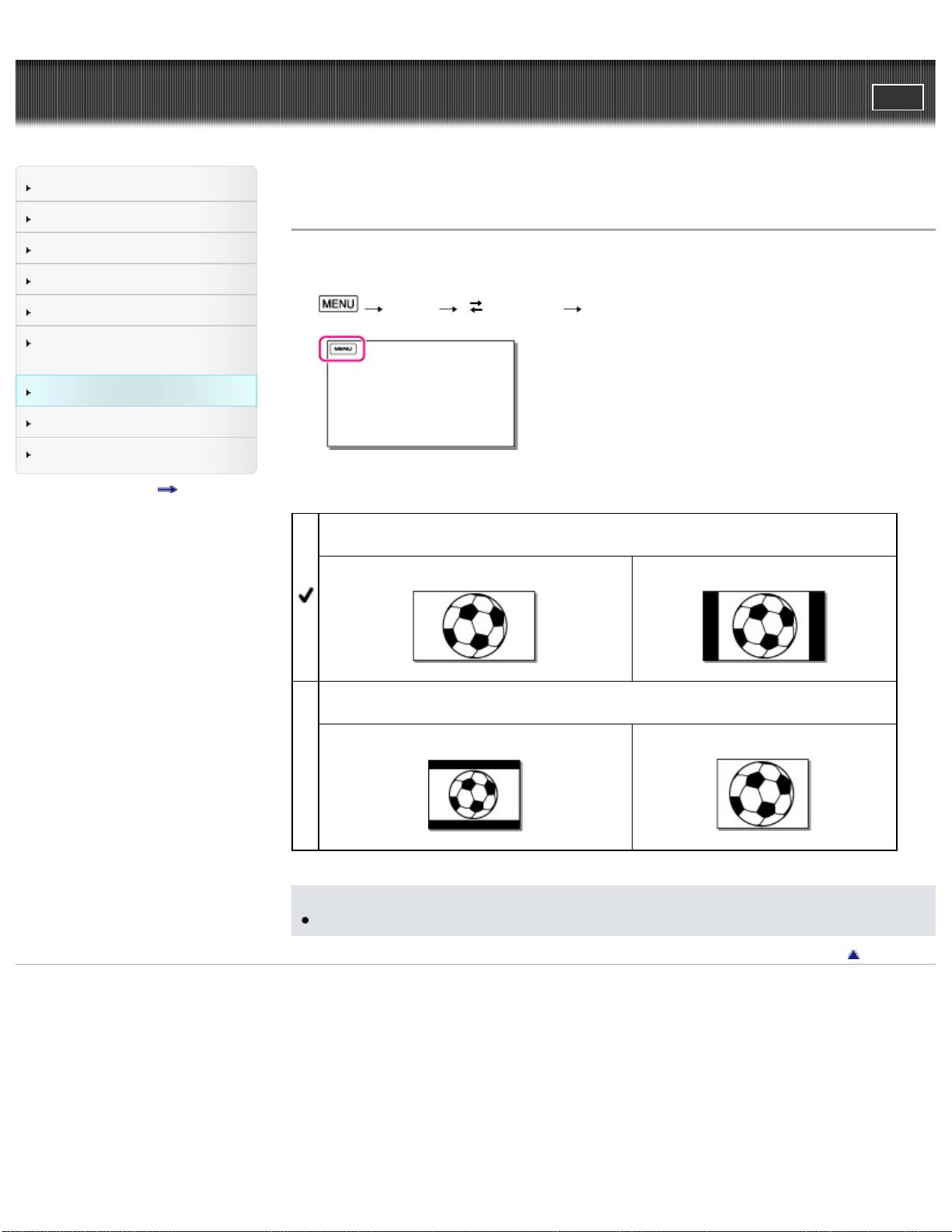

TV Type
You need to convert the signal depending on the TV connected when playing back movies and photos.
The recorded movies and photos are played back as following illustrations.
1.
[Setup] [ Connection] [TV Type].
2. Select the desired item.
16:9
Select this to view your movies on a 16:9 (wide) TV.
Movies and photos recorded in 16:9 (wide) mode
Movies and photos recorded in 4:3 mode
4:3
Select this to view your movies and photos on a 4:3 standard TV.
Movies and photos recorded in 16:9 (wide) mode
Movies and photos recorded in 4:3 mode
Notes
Horizontal to vertical ratio of high definition image quality (HD) movies is 16:9.
Back to top
Copyright 2013 Sony Corporation
180
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > HDMI 3D Setting
HDMI 3D Setting
You can select the output format of the right and left images when connecting your camcorder to a 3D
TV with the HDMI cable (supplied).
1.
[Setup] [ Connection] [HDMI 3D Setting].
2. Select the desired item.
Auto
Normal setting (outputs the images according to the TV automatically).
Frame Packing
Outputs the right and left images in full high definition image quality as they were recorded.
Side-by-Side
Halves the resolution of the right and left images in full high definition image quality, and outputs
the right and left images aligned side by side.
Back to top
Copyright 2013 Sony Corporation
181
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > HDMI Resolution
HDMI Resolution
Select the output image resolution when connecting your camcorder to a TV with the HDMI cable. When
you output 3D movies, 1080i is selected automatically.
1.
[Setup] [ Connection] [HDMI Resolution].
2. Select the desired item.
Auto
Normal setting (outputs the signal according to the TV automatically).
1080p/480p
Outputs high definition image quality (HD) movies with a 1080p signal and standard image quality
(STD) movies with a 480p signal.
Select this setting when you watch movies that have been recorded with [
Frame Rate] set to
[60p], on the 60p compliant TV.
1080i/480i
Outputs high definition image quality (HD) movies with a 1080i signal and standard image quality
(STD) movies with a 480i signal.
720p/480p
Outputs high definition image quality (HD) movies with a 720p signal and standard image quality
(STD) movies with a 480p signal.
480p
Outputs the 480p signal.
480i
Outputs the 480i signal.
Notes
When [
Frame Rate] is set to [60p] and [HDMI Resolution] is set to [720p/480p] or [480p], HDMI
signals cannot be output during recording.
Select [1080p/480p] when you play movies recorded with [
Frame Rate] set to [60p] on a TV
compatible with 60p movie playback.
Back to top
Copyright 2013 Sony Corporation
182
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > CTRL FOR HDMI (Control for HDMI)
CTRL FOR HDMI (Control for HDMI)
When connecting your camcorder to a “BRAVIA” Sync compatible TV with a HDMI cable, you can play
back movies on your camcorder by aiming the TV’s Remote Commander at the TV. [Details]
1.
[Setup] [ Connection] [CTRL FOR HDMI].
2. Select the desired item.
On
Operates your camcorder using the TV’s Remote Commander.
Off
Does not operate your camcorder using the TV’s Remote Commander.
Back to top
Copyright 2013 Sony Corporation
183
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > USB Connect
USB Connect
Select this item when a USB connection does not start even when you connect the camcorder to an
external device with the USB Cable.
1.
[Setup] [ Connection] [USB Connect].
Back to top
Copyright 2013 Sony Corporation
184
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > USB Connect Setting
USB Connect Setting
You can set the USB transfer mode for connecting the camcorder to a computer or other USB device.
1.
[Setup] [ Connection] [USB Connect Setting].
2. Select the desired item.
Auto
The camcorder automatically selects the USB transfer mode depending on the connected device.
MTP
This is a USB transfer mode compatible with certain types of computers.
Mass Storage
This is a USB transfer mode compatible with many types of USB devices.
Notes
When you connect the camcorder to other devices using the [MTP] mode, movies that have been
recorded with the same image quality as the one currently selected (selected with the [
/
Setting] menu) can only be displayed on the connected device.
When the camcorder is connected to an external device in the [MTP] mode, movie files will be
displayed with the recorded date, however, some information, such as area information, included in
the movie files cannot be displayed on the connected device. To import images from the camcorder
to your computer, use the “PlayMemories Home” software.
If the “Device Stage*” window does not open when you connect the camcorder to a computer
equipped with Windows 7 or Windows 8, set [USB Connect Setting] to [Auto].
* “Device Stage” is a menu of Windows 7 or Windows 8, that is used to manage devices (camcorder, camera,
etc.) that are connected to the computer.
Back to top
Copyright 2013 Sony Corporation
185
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > USB LUN Setting
USB LUN Setting
Improves compatibility with external devices by limiting the functions of the USB connection.
1.
[Setup] [ Connection] [USB LUN Setting].
2. Select the desired item.
Multi
Use this setting for ordinary operations.
Single
Try this setting only if you cannot connect to an external device.
Back to top
Copyright 2013 Sony Corporation
186
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > Beep
Beep
You can turn on or off the operation sound.
1.
[Setup] [ General Settings] [Beep].
2. Select the desired item.
On
A melody sounds when you start/stop recording, or operate your camcorder.
Off
Cancels the melody.
Back to top
Copyright 2013 Sony Corporation
187
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > LCD Brightness
LCD Brightness
You can adjust the brightness of the LCD screen.
1.
[Setup] [ General Settings] [LCD Brightness ].
2. Select the desired item.
Normal
Normal setting (normal brightness).
Bright
Select this when the LCD screen is not bright enough.
This adjustment does not affect the recorded images in any way.
Back to top
Copyright 2013 Sony Corporation
188
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > Your Location (HDR-TD30V)
Your Location (HDR-TD30V)
You can display your current location.
1.
[Setup] [ General Settings] [Your Location].
Your current location appears on the Map View.
Related topics
Using the GPS function (HDR-TD30V)
Back to top
Copyright 2013 Sony Corporation
189
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > GPS Setting (HDR-TD30V)
GPS Setting (HDR-TD30V)
You can select whether the camcorder receives or does not receive GPS signals.
1.
[Setup] [ General Settings] [GPS Setting].
2. Select the desired item.
On
Receives GPS signals.
The location information will not be recorded until triangulating is finished successfully.
Off
Does not receive GPS signals.
The location information that has previously been recorded will be invalid.
Back to top
Copyright 2013 Sony Corporation
190
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > REC Lamp
REC Lamp
You can make the camera recording lamp on the front of your camcorder not to turn on.
1.
[Setup] [ General Settings] [REC Lamp].
2. Select the desired item.
On
The camera recording lamp lights up.
Off
The camera recording lamp does not light up.
Back to top
Copyright 2013 Sony Corporation
191
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > Remote Ctrl
Remote Ctrl
1. [Setup] [ General Settings] [Remote Ctrl].
2. Select the desired item.
On
Select this when you use the supplied Wireless Remote Commander.
Off
Select this when you do not use supplied Wireless Remote Commander.
Related topics
Wireless Remote Commander
Back to top
Copyright 2013 Sony Corporation
192
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > Power On By LCD
Power On By LCD
You can set the power of the camcorder to turn on or off by opening or closing the LCD screen panel.
1.
[Setup] [ General Settings] [Power On By LCD].
2. Select the desired item.
On
Turns the power on or off by opening or closing the LCD screen panel.
Off
Does not turn the power on or off by opening or closing the LCD screen panel. If you want to close
the LCD screen panel while recording a movie, select this setting.
Back to top
Copyright 2013 Sony Corporation
193
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > Language Setting
Language Setting
You can select the language to be used on the LCD screen.
The camcorder offers [ENG[SIMP]] (simplified English) for when you cannot find your native tongue
among the options.
1.
[Setup] [ General Settings] [Language Setting].
2. Select the desired language.
Back to top
Copyright 2013 Sony Corporation
194
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list

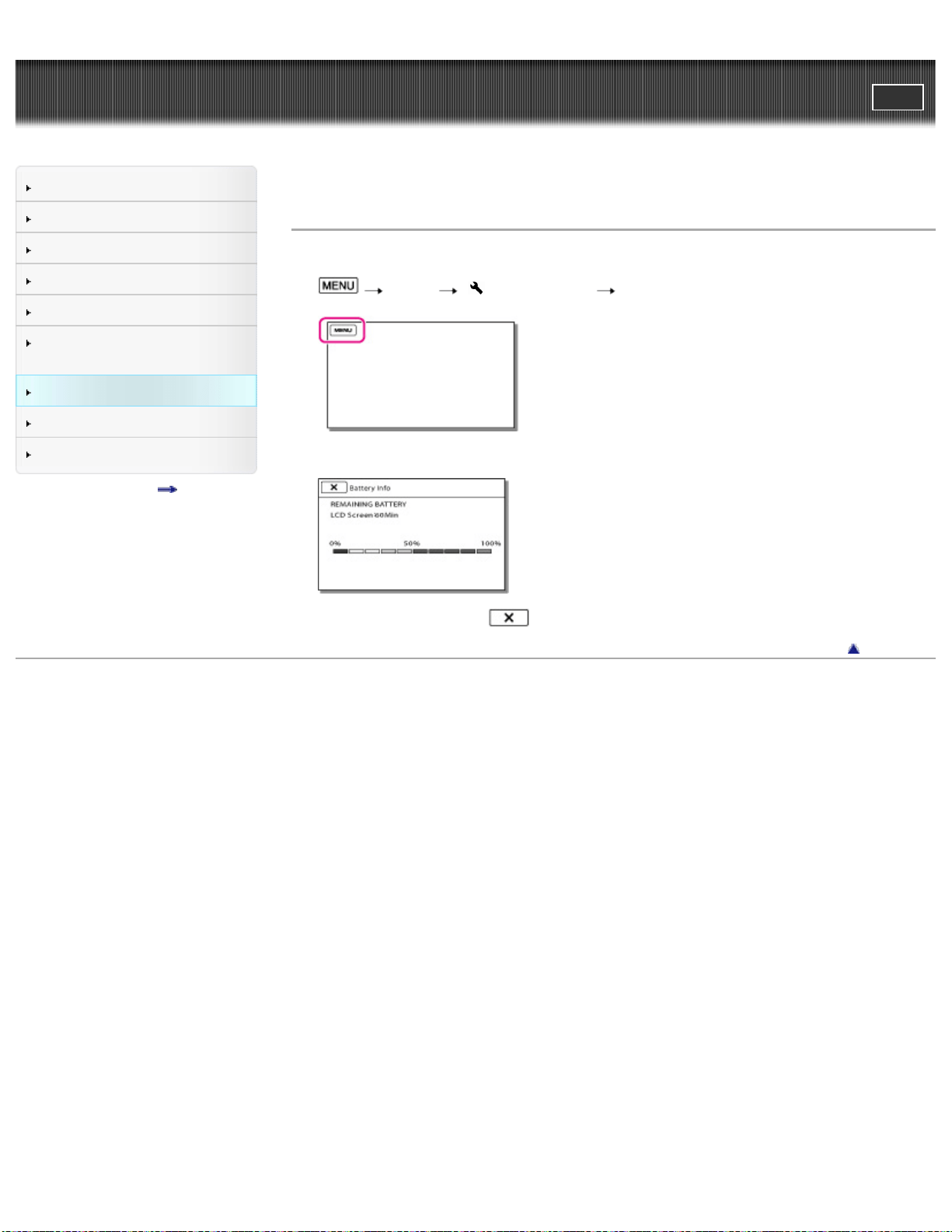

Top page > Customizing your camcorder > Setup > Battery Info
Battery Info
You can check the estimated remaining capacity of the battery.
1.
[Setup] [ General Settings] [Battery Info].
The battery information appears.
To close the screen, select .
Back to top
Copyright 2013 Sony Corporation
195
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > Power Save
Power Save
You can change the setting for the backlight of the LCD screen and the power status of the camcorder.
1.
[Setup] [ General Settings] [Power Save].
2. Select the desired item.
Off
The backlight of the LCD screen is always on brightly. The camcorder does not turn off
automatically.
Standard
The backlight of the LCD screen turns dark automatically if you do not attempt to operate your
camcorder for more than about 1 minute.
The camcorder turns off automatically if you do not attempt to operate your camcorder for more
than about 2 minutes.
Max
The brightness of the LCD screen is adjusted to the surrounding brightness automatically.
The backlight of the LCD screen turns dark automatically if you do not attempt to operate your
camcorder for more than about 15 seconds.
The camcorder turns off automatically if you do not attempt to operate your camcorder for more
than about 1 minute.
Back to top
Copyright 2013 Sony Corporation
196
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > Demo Mode
Demo Mode
Sets playback of the demonstration movie about the functions of the camcorder.
When the camcorder is connected to a wall outlet (wall socket) and no operation is attempted within a
certain period with the movie recording mode or the Event View mode set, a demonstration movie starts
playing.
1.
[Setup] [ General Settings] [Demo Mode].
2. Select the desired item.
On
The demonstration appears.
You can set the type of demonstration and the interval after which a demonstration begins to play
when there has been no operation attempted for the specified period of time.
Off
The demonstration does not appear.
Notes
When you operate your camcorder, the demonstration playback will be suspended. (It appears
again if no operation is attempted for more than the specified period of time you set in [Demo
Mode].)
The demonstration movie appears as mirror-image when it is played in mirror mode.
Back to top
Copyright 2013 Sony Corporation
197
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > Date & Time Setting
Date & Time Setting
1. [Setup] [ Clock Settings] [Date & Time Setting].
2. Select the desired item ([Date & Time Format], [Summer Time], or [Date & Time]).
Date & Time Format
You can select one from 4 types of date and time format.
Daylight Savings/Summer Time
You can change this setting without stopping the clock.
Off
Does not set the summertime.
On
Sets the summertime. The clock is set to move the time forward 1 hour.
Date & Time
You can set the clock.
Back to top
Copyright 2013 Sony Corporation
198
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > Area Setting
Area Setting
You can adjust a time difference without stopping the clock. Select your local area when using the
camcorder in other time zones.
1.
[Setup] [ Clock Settings] [Area Setting].
2. Select the desired item.
For HDR-TD30
Home
Select this item when you are going to use the camcorder in the area where you are living.
Destination (
)
Select this item when you want to use the camcorder with the area setting set to another place.
For HDR-TD30V
Set the area.
Related topics
World time difference
Back to top
Copyright 2013 Sony Corporation
199
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > Auto Clock ADJ (HDR-TD30V)
Auto Clock ADJ (HDR-TD30V)
The camcorder can maintain accurate time automatically by acquiring time information from the GPS
system.
1.
[Setup] [ Clock Settings] [Auto Clock ADJ ].
2. Select the desired item.
On
Maintains accurate time automatically.
Off
Does not maintain accurate time using the GPS system.
Notes
You must set the date and time on your camcorder before use. [Details]
There may be discrepancies of a few seconds even if [Auto Clock ADJ ] is activated.
This function automatically adjusts the clock when the camcorder receives GPS signals and finishes
triangulating successfully while the power is on. Once the clock is adjusted, it will not be adjusted
until the next time you turn the camcorder on again.
The clock may not be adjusted to the correct time automatically using the GPS system, depending
on the country/region selected for your camcorder. In this case, set [Auto Clock ADJ ] to [Off].
Back to top
Copyright 2013 Sony Corporation
200
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Customizing your camcorder > Setup > Auto Area ADJ (HDR-TD30V)
Auto Area ADJ (HDR-TD30V)
The camcorder can compensate for time differences automatically by acquiring location information from
the GPS system.
1.
[Setup] [ Clock Settings] [Auto Area ADJ].
2. Select the desired item.
On
Compensates for time differences automatically.
Off
Does not compensate for time differences automatically.
Notes
You must set the date and time on your camcorder before use. [Details]
The camcorder may not compensate for the time difference automatically, depending on the
country/region selected for your camcorder. In this case, set [Auto Area ADJ] to [Off].
Back to top
Copyright 2013 Sony Corporation
201
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Troubleshooting > If you have problems > If you have problems
If you have problems
If you run into any problems using your camcorder, follow the steps below.
1. Check the items under “Troubleshooting”, and inspect your camcorder.
If a code such as “C:(or E:)
: ” appears on the screen, see “Self-diagnosis
display/Warning indicators”.
2. Disconnect the power source, attach the power source again after about 1 minute, and turn the
camcorder on.
3. Press RESET using a pointed object, and turn the camcorder on. [Details]
If you press RESET, all settings, including the clock setting, are reset.
4. Contact your Sony dealer or local authorized Sony service facility.
Back to top
Copyright 2013 Sony Corporation
202
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Troubleshooting > Troubleshooting > Overall operations/Wireless Remote Commander
Overall operations/Wireless Remote Commander
The power does not turn on.
Attach a charged battery pack to the camcorder. [Details]
The plug of the AC Adaptor has been disconnected from the wall outlet (wall socket). Connect it to
the wall outlet (wall socket). [Details]
The camcorder does not operate even when the power is set to on.
It takes a few seconds for your camcorder to be ready to shoot after the power is turned on. This is
not a malfunction.
Disconnect the AC Adaptor from the wall outlet (wall socket) or remove the battery pack, then
reconnect it after about 1 minute. If the functions still do not work, press RESET using a pointed
object. (If you press RESET, all settings, including the clock setting, are reset. [Details])
The temperature of your camcorder is extremely high. Turn off your camcorder and leave it for a
while in a cool place.
The temperature of your camcorder is extremely low. Leave your camcorder with the power of your
camcorder on. Turn off your camcorder and take it to a warm place. Leave the camcorder there for a
while, then turn on your camcorder.
The menu settings have been changed automatically.
While Intelligent Auto is active, some menu settings related to image quality will be changed
automatically.
The following menu items return to the default settings when you switch between movie recording
and photo recording and playback modes.
[
Fader]
[
Self-Timer]
[ Tele Macro]
The following menu items return to the default settings when you operate the 2D/3D switch.
[White Balance]
[IRIS]
[Shutter Speed]
[AE Shift]
[White Balance Shift]
[Low Lux]
[Scene Selection]
[Auto Back Light]
The camcorder gets warm.
Your camcorder may become warm during operation. This is not a malfunction.
A rattling noise is heard when the camcorder is shaken.
203
If no noise is heard when the camcorder is turned on and is in the movie/photo recording mode, the
noise is produced by the movement of the internal lens. This is not a malfunction.
Intelligent Auto is canceled.
The Intelligent Auto setting is canceled if you change the following settings:
[Smth Slw REC]
[Golf Shot]
[Tele Macro]
[
SteadyShot]
[
SteadyShot]
[Auto Back Light]
[Face Detection]
[White Balance]
[Spot Meter/Fcs]
[Spot Meter]
[Spot Focus]
[Exposure]
[Focus]
[IRIS]
[Shutter Speed]
[AGC Limit]
[AE Shift]
[White Balance Shift]
[Low Lux]
[Scene Selection]
[
Cinematone]
[Auto Wind NR]
The supplied Wireless Remote Commander does not function.
Set [Remote Ctrl] to [On]. [Details]
Insert a battery into the battery holder with the +/– polarities correctly matching the +/– marks.
[Details]
Remove any obstructions between the Wireless Remote Commander and the remote sensor.
Point the remote sensor away from strong light sources such as direct sunlight or overhead lighting.
Otherwise, the Wireless Remote Commander may not function properly.
Another DVD device malfunctions when you use the supplied Wireless Remote
Commander.
Select a commander mode other than DVD 2 for your DVD device, or cover the sensor of your DVD
device with black paper.
Back to top
Copyright 2013 Sony Corporation
204
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Troubleshooting > Troubleshooting > Batteries/power sources
Batteries/power sources
The power abruptly turns off.
Use the AC Adaptor.
In the default setting, when about 2 minutes have elapsed while you do not operate your camcorder,
the camcorder is automatically turned off (Power Save). Change the setting of [Power Save], or turn
on the power again. [Details]
Charge the battery pack. [Details]
The CHG (charge) lamp does not light while the battery pack is being charged.
Close the LCD screen. [Details]
Attach the battery pack to the camcorder correctly. [Details]
Connect the power cord (mains lead) to the wall outlet (wall socket) properly.
The battery charge is completed. [Details]
The CHG (charge) lamp flashes while the battery pack is being charged.
When the battery is being charged using the Built-in USB Cable, disconnect the Built-in USB Cable
and connect it again.
If the temperature of the battery pack is too high or too low, you may not be able to charge it. [Details]
Attach the battery pack to the camcorder correctly. If the problem persists, disconnect the AC Adaptor
from the wall outlet (wall socket) and contact your Sony dealer. The battery pack may be damaged.
[Details]
The remaining battery time indicator does not indicate the correct time.
The ambient temperature is too high or too low. This is not a malfunction.
The battery pack has not been charged enough. Fully charge the battery again. If the problem
persists, replace the battery pack with a new one. [Details]
The indicated time may not be correct depending on the environment of use.
The battery pack is quickly discharged.
The ambient temperature is too high or low. This is not a malfunction.
The battery pack has not been charged enough. Fully charge the battery again. If the problem
persists, replace the battery pack with a new one. [Details]
Back to top
Copyright 2013 Sony Corporation
205
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Troubleshooting > Troubleshooting > LCD screen
LCD screen
Menu items are grayed out.
You cannot select grayed items in the current recording/playback situation.
There are some functions you cannot activate simultaneously.
The buttons do not appear on the touch panel.
Touch the LCD screen lightly.
Press DISPLAY on the Wireless Remote Commander. [Details]
The buttons on the touch panel do not work correctly or do not work at all.
If you cover the panel with a commercially available protective film, the panel may not operate.
If you are touching somewhere other than the point you should touch, the panel may not operate
properly. Touch only the point where the feature you want to operate is located.
The buttons on the touch panel quickly disappear.
If you set [Display Setting] to [On], the buttons do not disappear from the touch panel while in
recording mode. [Details]
There are dots in the shape of a grid on the screen.
These points are a normal result of the manufacturing process of the screen and do not affect the
recording in any way.
The backlight of the LCD screen turns off if you do not attempt to operate your
camcorder for a while.
In the default setting, the backlight of the LCD screen turns off automatically if you do not attempt to
operate your camcorder for more than about 1 minute. [Details]
The screen is dark.
The screen becomes darker when displaying 3D movies.
Back to top
Copyright 2013 Sony Corporation
206
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Troubleshooting > Troubleshooting > Memory card
Memory card
Operations using the memory card cannot be performed.
If you use the memory card formatted on a computer, format it again on your camcorder. [Details]
Images stored on the memory card cannot be deleted.
The maximum number of images that you can delete on the index screen at one time is 100.
You cannot delete the protected images.
The data file name is not indicated correctly or flashes.
The file is damaged.
The file format is not supported by your camcorder. [Details]
Back to top
Copyright 2013 Sony Corporation
207
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Troubleshooting > Troubleshooting > Recording
Recording
Refer also to “Memory card”.
Pressing START/STOP or PHOTO does not record images.
The playback screen is displayed. Press MODE to turn on the (Movie) or (Photo) lamp.
[Details] [Details]
Your camcorder is recording the image you have just shot on the recording media. You cannot make
new recording during this period.
The recording media is full. Delete unnecessary images. [Details]
Total number of movie scenes or photos exceeds the recordable capacity of your camcorder. Delete
unnecessary images. [Details] [Details]
The temperature of your camcorder is extremely high. Turn off your camcorder and leave it for a
while in a cool place.
The temperature of your camcorder is extremely low. Turn off your camcorder and take it to a warm
place. Leave the camcorder there for a while, then turn on the camcorder.
Photos cannot be recorded.
You cannot record photos together with:
[Smth Slw REC]
[Golf Shot]
[
Fader]
The camcorder cannot shoot photos while it is in the movie recording mode, depending on the [
REC Mode] or [ Frame Rate] selected.
The access lamp remains lit or flashing even if recording was stopped.
Your camcorder is recording the scene you have just shot on the memory card.
The imaging field looks different.
The imaging field may look different depending on the condition of your camcorder. This is not a
malfunction.
The flash does not work.
You cannot record with the built-in flash while the (Movie) lamp is on.
Even if auto flash or
(Auto redeye reduction) is selected, you cannot use the flash with:
[Spot Meter/Fcs]
[Spot Meter]
[Manual] in [Exposure]
[Night Scene], [Sunrise&Sunset], [Fireworks], [Landscape], [Spotlight], [Beach] or [Snow] in [Scene
Selection]
208
The actual recording time for movies is less than the expected recording time of the
recording media.
Depending on the recording conditions, the time available for recording may be shorter, for example
when recording a fast moving object, etc.
The camcorder stops operating.
The temperature of your camcorder is extremely high. Turn off your camcorder and leave it for a
while in a cool place.
The temperature of your camcorder is extremely low. Turn off your camcorder and take it to a warm
place. Leave the camcorder there for a while, then turn on the camcorder.
If you keep applying vibration on the camcorder, recording may stop.
3D movies are not recorded as correct 3D movies.
Adjust the image position with [Auto 3D Lens Adjust].
There is a time difference between the point when START/STOP is pressed and the point
that the recording movie is started or stopped actually.
On your camcorder, there may be a slight time difference between the point where you press
START/STOP and the actual point that recording movie starts/stops. This is not a malfunction.
The horizontal to vertical ratio of the movie (16:9 (wide)/4:3) cannot be changed.
The horizontal to vertical ratio of high definition image quality (HD) movies is 16:9 (wide).
The auto focus does not function.
Set [Focus] to [Auto]. [Details]
The recording conditions are not suitable for auto focus. Adjust the focus manually. [Details]
SteadyShot does not function.
Set [ SteadyShot] to [Active] or [Standard], [ SteadyShot] to [On]. [Details] [Details]
Even if [
SteadyShot] is set to [Active] or [Standard], [ SteadyShot] to [On], your camcorder
may not be able to compensate for excessive vibrations.
Images cannot be recorded or played back correctly.
If you record and delete images repeatedly for a long time, the files on the recording media may
become fragmented and images cannot be recorded or played back correctly. After backing up the
images on other media, format the recording media on your camcorder. [Details]
The subjects passing by the screen very fast appear crooked.
This is called the focal plane phenomenon. This is not a malfunction. Because of the way the image
device (CMOS sensor) reads out image signals, the subjects passing by the lens rapidly might
appear crooked depending on the recording conditions.
Horizontal stripes appear on the images.
209
This occurs when recording images under a fluorescent lamp, sodium lamp, or mercury lamp. This is
not a malfunction.
Black bands appear when you record a TV screen or computer screen.
Set [ SteadyShot] to an option except for [Active]. [Details]
LCD brightness cannot be adjusted.
You cannot adjust LCD brightness when:
The LCD panel is closed on your camcorder with the LCD screen facing out.
The power is supplied from the AC Adaptor.
Sound is not recorded correctly.
Connect the microphone again in the same way as when you start recording movies.
Photos are recorded automatically.
In the default setting, photos are recorded automatically when the camcorder detects a smile.
[Details]
Back to top
Copyright 2013 Sony Corporation
210
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Troubleshooting > Troubleshooting > Playback
Playback
Images cannot be played back.
Select the image quality of the movie you want to play back. [Details]
Images recorded on other devices may not be played back. This is not a malfunction.
Photos cannot be played back.
Photos cannot be played back if you have modified files or folders, or have edited the data on a
computer. (The file name flashes in that case.) This is not a malfunction.
The movie freezes.
Photos which were recorded while recording a movie are played back. In the default setting, movies
and photos are played back continuously.
is indicated on a thumbnail.
This may appear on an image recorded on other devices, edited on a computer, etc.
You removed the AC Adaptor or the battery pack while the recording media icon at the top right
corner of the screen flashes, or before the access lamp is turned off after recording. This may
damage your image data and
is displayed.
is indicated on a thumbnail.
The image data base file may be damaged.
Check the data base file by selecting
[Setup] [ Media Settings] [Repair Img.
DB F.]
the recording medium. If it still appears, delete the image with . [Details]
No sound or only a quiet sound is heard during playback.
Turn up the volume. [Details]
Sound is quiet when the LCD screen is closed facing out. Open the LCD screen.
When you record sound with [Micref Level] set to [Low], the recorded sound may be difficult to hear.
[Details]
Sounds cannot be recorded while shooting with [Smth Slw REC] or [Golf Shot].
Left and right sound is heard unbalanced when playing back movies on computers or
other devices.
Change the sound conversion type (downmix type) when playing back on 2ch stereo devices. Refer
to the instruction manual supplied with your playback device for details.
211
Change the sound to 2ch when creating a disc using the “PlayMemories Home” software.
This happens when sound recorded in 5.1ch surround is converted to 2ch (normal stereo sound) by a
computer or other device. This is not a malfunction.
Record sound with [Audio Mode] set to [2ch Stereo]. [Details]
The movie seems to be shaking from side to side.
This may happen when you play back 3D movies on your camcorder or a TV. Set [3D Depth
Adjustment] to [Manual]. [Details]
Back to top
Copyright 2013 Sony Corporation
212
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Troubleshooting > Troubleshooting > Playing back images stored on memory card on other
devices
Playing back images stored on memory card on other devices
Images cannot be played back or the memory card is not recognized.
The playback device does not support playing back memory cards. [Details]
Back to top
Copyright 2013 Sony Corporation
213
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Troubleshooting > Troubleshooting > Editing movies/photos on your camcorder
Editing movies/photos on your camcorder
Unable to edit.
Unable to edit because of the condition of the image.
You cannot edit the files based on Map View.
A movie cannot be divided.
A movie that is too short cannot be divided.
Release the protection, and then divide.
A photo cannot be captured from a movie.
The recording media where you want to save photos is full.
Set the 2D/3D switch to 2D.
Back to top
Copyright 2013 Sony Corporation
214
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Troubleshooting > Troubleshooting > Playback on the TV
Playback on the TV
Neither image nor sound is played on the connected TV.
Images are not output from the HDMI OUT jack, if copyright protection signals are recorded in the
images.
The top, bottom, right, and left edges of images are trimmed slightly on a connected TV.
The LCD screen of your camcorder can display recording images across the entire screen (full pixel
display). However, this may cause slight trimming of the top, bottom, right, and left edges of images
when played back on a TV which is not compatible with full pixel display.
It is recommended you record images using the outer frame of [Guide Frame] as a guide. [Details]
The image appears distorted on the 4:3 TV.
This happens when viewing an image recorded in the 16:9 (wide) mode on a 4:3 TV. Set [TV Type]
correctly and play back the image. [Details]
Black bands appear at the top and bottom of the screen of the 4:3 TV.
This happens when viewing an image recorded in the 16:9 (wide) mode on a 4:3 TV. This is not a
malfunction.
The images being played back do not appear on the LCD screen when you connect the
camcorder to a TV and play back images.
Highlight Playback or a scenario will not appear on the LCD screen of the camcorder while it is
connected to a TV and play back images.
Back to top
Copyright 2013 Sony Corporation
215
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Troubleshooting > Troubleshooting > Copying/Connecting to other devices
Copying/Connecting to other devices
Images are not copied correctly.
You cannot copy images using the HDMI cable.
The A/V connecting cable (sold separately) is not connected properly. Make sure to connect the
cable to the input jack of another device. [Details]
Back to top
Copyright 2013 Sony Corporation
216
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Troubleshooting > Troubleshooting > Connecting to a computer
Connecting to a computer
“PlayMemories Home” cannot be installed.
An Internet connection is required to install “PlayMemories Home.”
Check the computer environment or installation procedure required to install “PlayMemories Home.”
“PlayMemories Home” does not work correctly.
Quit “PlayMemories Home” and restart your computer.
The camcorder is not recognized by the computer.
Disconnect devices from the USB jack of the computer other than the keyboard, mouse, and your
camcorder.
Disconnect the Built-in USB Cable from the computer and your camcorder, and restart the computer,
then connect the computer and your camcorder again in the correct order.
When both the Built-in USB Cable and the USB jack of the camcorder are connected to the external
devices at the same time, disconnect one that is not connected to a computer.
Back to top
Copyright 2013 Sony Corporation
217
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Troubleshooting > Self-diagnosis display/Warning indicators > Self-diagnosis display
Self-diagnosis display
If indicators appear on the LCD screen, check the following.
If the problem persists even after you have tried to fix a couple of times, contact your Sony dealer or
local authorized Sony service facility. In this case, when you contact them, give them all the numbers of
the error code beginning with C or E.
You may hear a melody when some warning indicators appear on the screen.
C:(or E:) : (Self-diagnosis display)
C:04:
The battery pack is not an “InfoLITHIUM” battery pack (V series). Use an “InfoLITHIUM” battery pack
(V series). [Details]
Connect the DC plug of the AC Adaptor to the DC IN jack of your camcorder securely. [Details]
C:06:
The battery pack temperature is high. Change the battery pack or place it in a cool place.
C:13:
/ C:32:
Remove the power source. Reconnect it and operate your camcorder again.
E:
:
Follow the steps from 2 on “If you have problems”.
(Battery level warning)
The battery pack is nearly used up.
Depending on the operating environment or battery conditions,
may flash, even if there are about
20 minutes remaining.
(Warning indicator pertaining to battery pack temperature)
The battery pack temperature is high. Change the battery pack or place it in a cool place.
(Warning indicator pertaining to HDMI output stopped by overheating)
Because the temperature of your camcorder has reached a level where HDMI output has stopped, no
image is displayed on the connected monitor, etc. Leave the camcorder until the temperature
decreases. However, you can continue recording on the camcorder.
218
(Warning indicator pertaining to memory card)
Slow flashing
Free spaces for recording images are running out. For the type of memory card you can use with
your camcorder, see “Types of memory card you can use with your camcorder”.
No memory card is inserted. [Details]
Fast flashing
There are not enough free spaces for recording images. After storing the images on other media,
delete unnecessary images, or format the memory card. [Details]
The image data base file may be damaged.
Check the data base file by selecting
[Setup] [ Media Settings] [Repair Img.
DB F.]
the recording medium.
The memory card is damaged.
(Warning indicators pertaining to memory card formatting)
The memory card is damaged.
The memory card is not formatted correctly. [Details]
(Warning indicator pertaining to incompatible memory card)
Incompatible memory card is inserted. [Details]
(Warning indicator pertaining to the write-protect of the memory card)
The memory card is write-protected.
Access to the memory card was restricted on another device.
(Warning indicator pertaining to the external device)
The image data base file may be damaged.
Check the data base file by selecting
[Setup] [ Media Settings] [Repair Img.
DB F.]
the recording medium.
The external device is damaged.
(Warning indicators pertaining to external device formatting)
The external device is damaged.
The external device is not formatted correctly.
(Warning indicator pertaining to the flash)
There is something wrong with the flash.
(Warning indicator pertaining to camera-shake warning)
The amount of lights is not sufficient, so camera-shake easily occurs. Use the flash.
The camcorder is unsteady, so camera-shake easily occurs. Hold the camcorder steady with both
219
hands and record the image. However, note that the camera-shake warning indicator does not
disappear.
(Warning indicator pertaining to photo recording)
The recording media is full.
Photos cannot be recorded during processing. Wait for a while, then record.
When [
REC Mode] is set to [Highest Quality ] or [60p Quality ], you cannot capture photos
while recording movies. Furthermore, if [
Frame Rate] is set to [24p], you cannot record photos
while the camcorder is in movie recording standby mode.
(Warning indicator pertaining to 3D recording)
The distance between your camcorder and the subject is too short. Widen the distance or set the
zoom to W. Or, select [Manual] in [3D Depth Adjustment] and adjust the depth. [Details]
Back to top
Copyright 2013 Sony Corporation
220
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Troubleshooting > Self-diagnosis display/Warning indicators > Warning Indicators
If messages appear on the screen, follow the instructions.
Warning Indicators
Data error.
If the message is preceded by a GPS indicator, there may be some trouble with the GPS receiver.
Turn on your camcorder again.
This may occur when you keep applying shock on the camcorder.
Movies recorded on other devices may not be played back.
The Image Database File is damaged. Do you want to create a new file?
HD movie management information is damaged. Create new information?
The management file is damaged. When you select [Yes], a new management file is created. The old
recorded images on the media cannot be played back (Image files are not damaged). If you execute
[Repair Img. DB F.] after creating new information, playing back the old recorded images may
become possible. If it does not work, copy the image using the “PlayMemories Home” software.
There is no Image Database File Movies cannot be recorded or played Create a new file?
You cannot record or play back movies because no movie management information exists. If you
select [Yes], new management information is created and you can record or play back movies.
There is no HD movie management information. Create new information?
You cannot record or play back movies because no high definition image quality (HD) movie
management information exists. If you select [Yes], new management information is created and you
can record or play back movies with high definition image quality (HD).
You can record standard definition image quality (STD) movies or photos.
Inconsistencies found in image database file. Do you want to repair the image database
file?
The Image Database File is damaged. Do you want to repair the Image Database File?
Inconsistencies found in image database file. Cannot record or play HD movies. Do you
want to repair the image database file?
You cannot record or play back movies because no movie management information exists. If you
select
, new management information is created and you can record or play back movies.
Inconsistencies found in the image database file. Back up and recover.
Recover, then import using the included PC software.
Since the database information of high definition image quality (HD) movies has been damaged,
there are inconsistencies between the information in the database and the information in the file.
Select
to back up the high definition image quality (HD) movies and repair the database file.
You cannot see the backed-up movies on the camcorder. By connecting the camcorder to a
computer after repairing the database, you can import backed-up high definition image quality (HD)
221
movies to the computer using the “PlayMemories Home” software installed on the computer.
However, it is not guaranteed that all movies can be imported to the computer.
Buffer overflow. Writing to the media was not completed in time.
You have performed recording and erasing operations repeatedly, or a memory card that has been
formatted by other device is used. Copy and take data backup to other device (such as a computer),
and then format the memory card on the camcorder. [Details]
The size of the inserted memory card is not sufficient for copying the movie(s). Use the
recommended memory card. [Details]
Recovering data.
Your camcorder tries to recover data automatically if the data writing was not performed properly.
Cannot recover data.
Writing data onto the media of the camcorder has failed. Attempts were made to recover the data,
but they were unsuccessful.
Reinsert the memory card.
Reinsert the memory card a few times. If even then the indicator flashes, the memory card could be
damaged. Try with another memory card.
Cannot recognize this memory card. Format and use again.
Format the memory card. Note that if you format the memory card, all the recorded movies and
photos are deleted. [Details]
Still picture folder is full. Cannot record still pictures.
You cannot create folders exceeding 999MSDCF. You cannot create or delete created folders using
your camcorder.
Format the memory card, or delete folders using your computer. [Details]
This memory card may not be able to record or play movies.
Use a memory card recommended for your camcorder. [Details]
This memory card may not be able to record or play images correctly.
Use a memory card recommended for your camcorder. [Details]
Do not eject the memory card during writing. Data may be damaged.
Reinsert the memory card.
External media cannot execute functions.
Check the data base file by selecting [Setup] [ Media Settings] [Repair Img.
DB F.]
the recording medium.
If even then the indicator flashes, reconnect the external media device, and then perform the format.
222
Note that if you format the external media device, all the recorded movies and photos in it are
deleted.
If you cannot perform the format, the external media may not be supported by the camcorder, or it
may be damaged. Try with another external media.
Unable to access external media.
Use the external media device in stable condition (the environment such as no vibration and room
temperature, etc.).
Make sure that the power source of the external media device is connected.
Others
Maximum number of images already selected.
You can select only 100 images at one time for:
Deleting movies/photos
Protecting movies/photos, or releasing the protection
Copying movies/photos
Data protected.
You tried to delete protected data. Release the protection of the data.
Back to top
Copyright 2013 Sony Corporation
223
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Maintenance and precautions > Maintenance and precautions > About the AVCHD format
About the AVCHD format
What is the AVCHD format?
The AVCHD format is a high definition digital video camera format used to record a high definition (HD)
signal using efficient data compression coding technology. The MPEG-4 AVC/H.264 format is adopted
to compress video data, and the Dolby Digital or Linear PCM system is used to compress audio data.
The MPEG-4 AVC/H.264 format is capable of compressing images at higher efficiency than that of the
conventional image compressing format.
The AVCHD format Ver. 2.0, to which 3D and 60p recording modes have been added, uses the MPEG
MVC/H.264 format to compress 3D images.
As the AVCHD format uses a compression coding technology, the picture may be disturbed in
scenes where picture, field angles or brightness, etc. change drastically, but this is not a malfunction.
Recording and playback on your camcorder
Based on the AVCHD format, your camcorder records and plays with the high definition image quality
(HD).
In addition to high definition image quality (HD), your camcorder is capable of recording a standard
definition (STD) signal in the conventional MPEG-2 format.
Video signal*: MPEG-4 AVC/H.264 1920
1080/60p, 1920 1080/60i, 1440 1080/60i, 1920
1080/24p
Audio signal:
Dolby Digital 2ch/5.1ch
Recording media:
Memory card
* Data recorded in AVCHD format other than the above mentioned cannot be played on your camcorder.
Back to top
Copyright 2013 Sony Corporation
224
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Maintenance and precautions > Maintenance and precautions > About GPS (HDR-TD30V)
About GPS (HDR-TD30V)
The GPS (Global Positioning System) is a system that calculates geographical location from highly
accurate US space satellites. This system allows you to pinpoint your exact location on the earth. The
GPS satellites are located in 6 orbits, approximately 20,000 km above the earth. The GPS system
consists of 24 or more GPS satellites. A GPS receiver receives radio signals from the satellites, and
calculates the current location of the receiver based on the orbital information (almanac data) and travel
time of the signals, etc.
Determining a location is called “triangulating.” A GPS receiver can determine the location’s latitude and
longitude by receiving signals from 3 or more satellites.
As the positions of GPS satellites vary constantly, it may take longer to determine the location or the
receiver may not be able to determine the location at all, depending on the location and time you use
the camcorder.
“GPS” is a system for determining geographic location by triangulating radio signals from GPS
satellites. Avoid using the camcorder in places where radio signals are blocked or reflected, such as
a shadowy place surrounded by buildings or trees, etc. Use the camcorder in open sky environments.
You may not be able to record location information at locations or in situations where radio signals
from the GPS satellites do not reach the camcorder as follows.
In tunnels, indoors or under the shade of buildings.
Between tall buildings or at narrow streets surrounded by buildings.
In underground locations, locations surrounded by dense trees, under an elevated bridge, or in
locations where magnetic fields are generated, such as near high voltage cables.
Near devices that generate radio signals of the same frequency band as the camcorder: near 1.5
GHz band mobile telephones, etc.
When you upload to or share on the web images recorded with [GPS Setting] set to [On], location
information may unintentionally be made known to others. If you want to avoid that situation, set
[GPS Setting] to [Off].
On triangulating errors
If you move to another location right after turning the power switch to ON, it may take a longer time
for the camcorder to start triangulating, compared to when you stay in the same place.
Error caused by the position of GPS satellites
The camcorder automatically triangulates your current location when the camcorder receives radio
signals from 3 or more GPS satellites. The triangulating error allowed by the GPS satellites is about
10 m (33 feet). Depending on the environment of the location, the triangulating error can be greater.
In this case, your actual location may not match the location on the map based on the GPS
information. Meanwhile, the GPS satellites are controlled by the United States Department of
Defense, and the degree of accuracy may be changed intentionally.
Error during the triangulating process
The camcorder acquires location information periodically during triangulating. There is a slight time
difference between when the location information is acquired and when the location information is
recorded on an image, therefore, the actual recording location may not match exactly the location on
the map based on the GPS information.
On the restriction of use of GPS
Use GPS in accordance with the regulations of the situation, the countries/regions of use.
On the map data
The camcorder contains map data for the following countries/regions. Europe, Japan, North America,
Oceania, etc.
Built-in map is powered by companies as follows; Map of Japan by Zenrin Co., Ltd., other areas by
NAVTEQ.
225
The map data included is as of the date of production of this manual.
GPS maps will appear in 2-dimensional graphics except for certain landmarks in Japan, which will
appear in 3D.
The map always displays the north at the top.
You cannot change the language on the map.
You cannot update the map data.
The scale of the map is 100 feet to 6,000 miles.
On the geographic coordinate system
The “WGS-84” geographic coordinate system is used.
On copyright
The map data of the camcorder is copyrighted. Unauthorized copying or other usage of the map data
may be contrary to the copyright laws.
On the navigation function
The camcorder does not have a navigation function that uses GPS.
Back to top
Copyright 2013 Sony Corporation
226
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Maintenance and precautions > Maintenance and precautions > About the memory card
About the memory card
A memory card formatted by a computer (Windows OS/Mac OS) does not have guaranteed
compatibility with your camcorder.
Data read/write speed may vary depending on the combination of the memory card and memory card
compliant product you use.
Damaged or lost data may occur in the following cases (the data will not be compensated for):
If you eject the memory card, or turn off your camcorder while your camcorder is reading or writing
image files on the memory card (while the access lamp is lit or flashing)
If you use the memory card near magnets or magnetic fields
It is recommended that you make a back-up of important data on the hard disk of a computer.
Do not attach a label or the like on memory card or memory card adaptor.
Do not touch, or allow metallic objects to come into contact with the terminals.
Do not bend, drop or apply strong force to the memory card.
Do not disassemble or modify the memory card.
Do not let the memory card get wet.
Keep the memory card out of the reach of small children. There is danger that a child might swallow
it.
Do not insert anything other than the compliant size of memory card into the memory card slot. Doing
so may cause a malfunction.
Do not use or keep the memory card in the following locations:
Places subject to extremely high temperature, such as a car parked outside in the summer
Places under direct sunlight
Places with extremely high humidity or subject to corrosive gases
On the memory card adaptor
When using memory card with memory card compliant device inserting memory card into memory
card adaptor, make sure the memory card is inserted facing in the correct direction. Note that
improper use may cause a malfunction.
On image data compatibility
Image data files recorded on memory card by your camcorder conform to the “Design rule for
Camera File system” universal standard established by the JEITA (Japan Electronics and Information
Technology Industries Association).
If you cannot use memory cards that have been used with another device, format it with your
camcorder. Note that formatting erases all information on the memory card. [Details]
You may not be able to play back images with your camcorder:
When playing back image data modified on your computer
When playing back image data recorded with other devices
About the “Memory Stick” media
Types of “Memory Stick” media Recording/Playback
“Memory Stick Duo” media (with MagicGate) —
“Memory Stick PRO Duo” media (Mark2)
“Memory Stick PRO-HG Duo” media
“Memory Stick XC-HG Duo” media
227
This product does not support 8-bit parallel data transfer but it supports 4-bit parallel data transfer the
same as with “Memory Stick PRO Duo” media.
This product cannot record or play data that uses “MagicGate” technology. “MagicGate” is a
copyright protection technology that records and transfers the contents in an encrypted format.
Back to top
Copyright 2013 Sony Corporation
228
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Maintenance and precautions > Maintenance and precautions > About the “InfoLITHIUM”
battery pack
About the “InfoLITHIUM” battery pack
Your camcorder operates only with an “InfoLITHIUM” V series battery packs.
“InfoLITHIUM” V series battery packs have the
mark.
What is an “InfoLITHIUM” battery pack?
An “InfoLITHIUM” battery pack is a lithium-ion battery pack that has functions for communicating
information related to operating conditions between your camcorder and an AC Adaptor/charger
(sold separately).
The “InfoLITHIUM” battery pack calculates the power consumption according to the operating
conditions of your camcorder, and displays the remaining battery time in minutes.
To charge the battery pack
Be sure to charge the battery pack before you start using your camcorder.
We recommend that you charge the battery pack in an ambient temperature range of 10 ˚C to 30 ˚C
(50 °F to 86 °F) until the CHG (charge) lamp turns off. If you charge the battery pack outside of this
temperature range, you may not be able to charge it efficiently.
To use the battery pack effectively
Battery pack performance decreases when the ambient temperature is 10 ˚C (50 °F) or below, and
the length of time you can use the battery pack becomes shorter. In that case, do one of the following
to use the battery pack for a longer time.
Put the battery pack in a pocket to warm it up, and install it on your camcorder right before you
start taking shots.
Use a large capacity battery pack: NP-FV70/FV100 (sold separately).
Frequent use of the LCD screen or a frequent playback, fast forward or reverse operation wears out
the battery pack faster. We recommend using a large capacity battery pack: NP-FV70/FV100 (sold
separately).
Be sure to close the LCD screen when not recording or playing back on your camcorder. The battery
pack is also consumed when your camcorder is in recording standby or playback pause.
Have spare battery packs ready for 2 or 3 times the expected recording time, and make trial
recordings before making the actual recording.
Do not expose the battery pack to water. The battery pack is not water resistant.
About the remaining battery time indicator
When the power goes off even though the remaining battery time indicator indicates that the battery
pack has enough power to operate, charge the battery pack fully again. Remaining battery time will
be indicated correctly. Note, however, that the battery indication will not be restored if it is used in
high temperatures for a long time, or if left in a fully charged state, or when the battery pack is
frequently used. Use the remaining battery time indication as a rough guide only.
The
mark that indicates low battery flashes even if there are still 20 minutes of battery time
remaining, depending on the operating conditions or ambient temperature.
About storage of the battery pack
If the battery pack is not used for a long time, fully charge the battery pack and use it up on your
camcorder once a year to maintain proper function. To store the battery pack, remove it from your
camcorder and put it in a dry, cool place.
To discharge the battery pack on your camcorder completely, select
[Setup] [
General Settings] [Power Save] [Off], and leave your camcorder in recording standby until
229
the power goes off. [Details]
About battery life
Battery capacity decreases over time and through repeated use. If decreased usage time between
charges becomes significant, it is probably time to replace it with a new one.
Each battery’s life is governed by storage, operating and environmental conditions.
Back to top
Copyright 2013 Sony Corporation
230
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Maintenance and precautions > Maintenance and precautions > About the AC Adaptor
About the AC Adaptor
Use the nearby wall outlet (wall socket) when using the AC Adaptor. Disconnect the AC Adaptor from
the wall outlet (wall socket) immediately if any malfunction occurs while using your camcorder.
Do not use the AC Adaptor placed in a narrow space, such as between a wall and furniture.
Do not short-circuit the DC plug of the AC Adaptor or battery terminal with any metallic objects. This
may cause a malfunction.
Back to top
Copyright 2013 Sony Corporation
231
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Maintenance and precautions > About handling of your camcorder > On use and care
On use and care
About language setting
On recording
Viewing 3D movies
Notes on use
LCD Panel
About this manual, illustrations and on-screen displays
On use and care
When not using your camcorder for a long time
Note on the camcorder/battery pack temperature
Notes on charging through the USB cable
When the camcorder is connected to a computer or accessories
Notes on optional accessories
Active Interface Shoe
Notes on the Wireless Remote Commander
To change the battery of the Wireless Remote Commander
On handling the LCD screen
LCD screen
On handling the casing
To clean the flash
About care and storage of the lens
About language setting
The on-screen displays in each local language are used for illustrating the operating procedures.
Change the screen language before using the camcorder if necessary.
On recording
Before starting to record, test the recording function to make sure the image and sound are recorded
without any problems.
Compensation for the contents of recordings cannot be provided, even if recording or playback is not
possible due to a malfunction of the camcorder, recording media, etc.
TV color systems differ depending on the country/region. To view your recordings on a TV, you need
a NTSC system-based TV.
Television programs, films, video tapes, and other materials may be copyrighted. Unauthorized
recording of such materials may be contrary to the copyright laws.
Viewing 3D movies
Some people may experience discomfort (such as eye strain, fatigue, or nausea) while watching 3D
video images. Sony recommends that all viewers take regular breaks while watching 3D video
images. The length and frequency of necessary breaks will vary from person to person. You must
decide what works best. If you experience any discomfort, you should stop watching the 3D video
images until the discomfort ends; consult a doctor if you believe necessary. You should also review
the instruction manual of any other device or media used with this product. The vision of young
232
children (especially those under six years old) is still under development. Consult your doctor (such
as a pediatrician or eye doctor) before allowing young children to watch 3D video images. Adults
should supervise young children to ensure they follow the recommendations listed above.
Notes on use
Do not do any of the following. Otherwise, the recording media may be damaged, recorded images
may be impossible to play back or may be lost, or other malfunctions could occur.
ejecting the memory card when the access lamp is lit or flashing
removing the battery pack or AC Adaptor from the camcorder, or applying mechanical shock or
vibration to the camcorder when the
(Movie)/ (Photo) lamps or the access lamp are lit or
flashing
When the camcorder is connected to other devices through a USB connection and the power of the
camcorder is turned on, do not close the LCD panel. The image data that has been recorded may be
lost.
Use the camcorder in accordance with local regulations.
LCD Panel
The LCD screen is manufactured using extremely high-precision technology, so over 99.99% of the
pixels are operational for effective use. However, there may be some tiny black points and/or bright
points (white, red, blue, or green in color) that appear constantly on the LCD screen. These points
are normal results of the manufacturing process and do not affect the recording in any way.
A: White, red, blue or green points
B: Black points
About this manual, illustrations and on-screen displays
The example images used in this manual for illustration purposes are captured using a digital still
camera, and therefore may appear different from images and screen indicators that actually appear
on your camcorder. And, the illustrations of your camcorder and its screen indication are exaggerated
or simplified for understandability.
Design and specifications of your camcorder and accessories are subject to change without notice.
In this manual, the memory card is called “recording media.”
In this manual, the DVD disc recorded with high definition image quality (HD) is called AVCHD
recording disc.
The model name is shown in this manual when there is a difference in specification between models.
Confirm the model name on the bottom of your camcorder.
On use and care
The camcorder is not dustproofed, dripproofed or waterproofed.
Do not hold the camcorder by the following parts.
Shoe cover LCD Screen Battery pack
233
Built-in USB Cable Jack cover
Do not aim at the sun. Doing so might cause your camcorder to malfunction. Take images of the sun
only in low light conditions, such as at dusk
Use the camcorder in accordance with local regulations.
Do not use or store the camcorder and accessories in the following locations:
Anywhere extremely hot, cold or humid. Never leave them exposed to temperatures above 60 ˚C
(140 °F), such as under direct sunlight, near heaters or in a car parked in the sun. They may
malfunction or become deformed.
Near strong magnetic fields or mechanical vibration. The camcorder may malfunction.
Near strong radio waves or radiation. The camcorder may not be able to record properly.
Near tuner devices such as TVs or radio. Noise may occur.
On a sandy beach or anywhere dusty. If sand or dust gets in your camcorder, it may malfunction.
Sometimes this malfunction cannot be repaired.
Near windows or outdoors, where the LCD screen, or the lens may be exposed to direct sunlight.
This damages the LCD screen.
Operate your camcorder on DC 6.8 V/7.2 V (battery pack) or DC 8.4 V (AC Adaptor).
For DC or AC operation, use the accessories recommended in these operating instructions.
Do not let your camcorder get wet, for example, from rain or sea water. If your camcorder gets wet, it
may malfunction. Sometimes this malfunction cannot be repaired.
If any solid object or liquid gets inside the casing, unplug your camcorder and have it checked by a
Sony dealer before operating it any further.
Avoid rough handling, disassembling, modifying, physical shock, or impact such as hammering,
dropping or stepping on the product. Be particularly careful of the lens.
Keep the LCD screen closed when you are not using your camcorder.
Do not wrap your camcorder with a towel, for example, and operate it. Doing so might cause heat to
build up inside.
When disconnecting the power cord (mains lead), pull it by the plug and not the cord.
Do not damage the power cord (mains lead) such as by placing anything heavy on it.
Do not use a deformed or damaged battery pack.
Keep metal contacts clean.
If the battery electrolytic liquid has leaked:
Consult your local authorized Sony service facility.
Wash off any liquid that may have contacted your skin.
If any liquid gets in your eyes, wash with plenty of water and consult a doctor.
When not using your camcorder for a long time
To keep your camcorder in optimum state for a long time, turn it on and let it run by recording and
playing back images about once a month.
Use up the battery pack completely before storing it.
Note on the camcorder/battery pack temperature
When the temperature of the camcorder or battery pack becomes extremely high or extremely low,
234
you may not be able to record or play back on the camcorder, due to the protection features of the
camcorder being activated in such situations. In this case, an indicator appears on the LCD screen.
Notes on charging through the USB cable
Operation with all computers is not assured.
If you connect the camcorder to a laptop computer that is not connected to a power source, the
battery of the laptop computer will continue to use up its charge. Do not leave the camcorder
connected to a computer in this manner.
Charging with a personally assembled computer, with a converted computer, or through a USB hub
are not guaranteed. The camcorder may not function correctly depending on the USB device which is
used with the computer.
When the camcorder is connected to a computer or accessories
Do not try to format the recording media of the camcorder using a computer. If you do so, your
camcorder may not operate correctly.
When connecting the camcorder to another device with communication cables, be sure to insert the
connector plug in the correct way. Pushing the plug forcibly into the terminal will damage the terminal
and may result in a malfunction of the camcorder.
When the camcorder is connected to other devices through a USB connection and the power of the
camcorder is turned on, do not close the LCD panel. The image data that has been recorded may be
lost.
Notes on optional accessories
We recommend that you use genuine Sony accessories.
Genuine Sony accessories may not be available in some countries/regions.
Active Interface Shoe
The Active Interface Shoe supplies power to accessories such as a video light, a flash, or a
microphone (sold separately). The accessory can be turned on or off as you open or close the LCD
screen of your camcorder. Refer to the operating instructions supplied with your accessory for
details.
The Active Interface Shoe has a safety device for fixing the installed accessory securely. To connect
an accessory, press down and push it to the end, and then tighten the screw. To remove an
accessory, loosen the screw, and then press down and pull out the accessory.
When you are recording movies with an external flash (sold separately) connected to the accessory
shoe, turn off the power of the external flash to prevent charging noise being recorded.
You cannot use an external flash (sold separately) and the built-in flash at the same time.
When an external microphone (sold separately) is connected, it takes precedence over the built-in
microphone.
Notes on the Wireless Remote Commander
Remove the insulation sheet (A) before using the Wireless Remote Commander.
Point the Wireless Remote Commander towards the remote sensor to operate your camcorder.
When no commands have been sent from the Wireless Remote Commander within a certain period,
the light blue frame disappears. When you press any of
/ / / , or ENTER again, the
frame appears at the position where it was displayed last.
You cannot select some buttons on the LCD screen using
/ / / .
235
To change the battery of the Wireless Remote Commander
While pressing on the tab (A), inset your fingernail into the slit to pull out the battery case.
Place a new battery with the + side facing up.
Insert the battery case back into the Wireless Remote Commander until it clicks.
When the lithium battery becomes weak, the operating distance of the Wireless Remote Commander
may shorten, or the Wireless Remote Commander may not function properly. In this case, replace
the battery with a Sony CR2025 lithium battery. Use of another battery may present a risk of fire or
explosion.
On handling the LCD screen
If you leave fingerprints, hand cream, etc. on the LCD screen, the coating of the LCD screen will
come off easily. Wipe those off as soon as possible.
If you wipe the LCD screen strongly with a tissue, etc., the coating of the LCD screen may be
scratched.
If the LCD screen becomes dirty with fingerprints or dust, it is recommended that you gently remove
those from the screen then clean it with a soft cloth, etc.
LCD screen
Do not exert excessive pressure on the LCD screen, as it may cause uneven color and other
damage.
If your camcorder is used in a cold place, a residual image may appear on the LCD screen. This is
not a malfunction.
While using your camcorder, the back of the LCD screen may heat up. This is not a malfunction.
On handling the casing
If the casing is soiled, clean the camcorder body with a soft cloth lightly moistened with water, and
then wipe the casing with a dry soft cloth.
Avoid the following to avoid damage to the finish:
Using chemicals such as thinner, benzine, alcohol, chemical cloths, repellent, insecticide and
sunscreen
Handling the camcorder with above substances on your hands
Leaving the casing in contact with rubber or vinyl objects for a long period of time
To clean the flash
If fingerprints or dust make the flash dirty, it is recommended that you use a soft cloth to clean it.
About care and storage of the lens
Wipe the surface of the lens clean with a soft cloth in the following instances:
When there are fingerprints on the lens surface
In hot or humid locations
When the lens is exposed to salty air such as at the seaside
It is recommended that you use [Auto 3D Lens Adjust] after wiping the lens.
Store in a well-ventilated location subject to little dirt or dust.
236
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Maintenance and precautions > About handling of your camcorder > On moisture
condensation
On moisture condensation
If your camcorder is brought directly from a cold place to a warm place, moisture may condense inside
your camcorder. This may cause a malfunction to your camcorder.
If moisture condensation has occurred
Leave your camcorder for about 1 hour without turning it on.
Note on moisture condensation
Moisture may condense when you bring your camcorder from a cold place into a warm place (or vice
versa) or when you use your camcorder in a humid place as follows:
You bring your camcorder from a ski slope into a place warmed up by a heating device.
You bring your camcorder from an air conditioned car or room into a hot place outside.
You use your camcorder after a squall or a rain.
You use your camcorder in a hot and humid place.
How to prevent moisture condensation
When you bring your camcorder from a cold place into a warm place, put your camcorder in a plastic
bag and seal it tightly. Remove the bag when the air temperature inside the plastic bag has reached
the surrounding temperature (after about 1 hour).
Back to top
Copyright 2013 Sony Corporation
238
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Maintenance and precautions > About handling of your camcorder > On charging the pre-
installed rechargeable battery
On charging the pre-installed rechargeable battery
On charging the pre-installed rechargeable battery
How to charge the pre-installed rechargeable battery
On charging the pre-installed rechargeable battery
Your camcorder has a pre-installed rechargeable battery to retain the date, time, and other settings
even when the LCD screen is closed. The pre-installed rechargeable battery is always charged while
your camcorder is connected to the wall outlet (wall socket) via the AC Adaptor or while the battery pack
is attached. The rechargeable battery will be fully discharged in about 3 months if you do not use your
camcorder at all. Use your camcorder after charging the pre-installed rechargeable battery.
However, even if the pre-installed rechargeable battery is not charged, the camcorder operation will not
be affected as long as you are not recording the date.
How to charge the pre-installed rechargeable battery
Connect your camcorder to a wall outlet (wall socket) using the supplied AC Adaptor, and leave it with
the LCD screen closed for more than 24 hours.
Back to top
Copyright 2013 Sony Corporation
239
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Maintenance and precautions > About handling of your camcorder > Notes on
disposal/transfer of the camcorder
Notes on disposal/transfer of the camcorder
Note on disposal/transfer of the memory card
Note on disposal/transfer of the memory card
Even if you delete data in the memory card or format the memory card on your camcorder or a
computer, you may not delete data from the memory card completely. When you give the memory card
to somebody, it is recommended that you delete data completely using data deletion software on a
computer. Also, when you dispose of the memory card, it is recommended that you destroy the actual
body of the memory card.
Back to top
Copyright 2013 Sony Corporation
240
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Maintenance and precautions > Recording time of movies/number of recordable
photos > Charging time
Charging time
Approximate time (min.) required when you fully charge a fully discharged battery pack.
Battery pack
Charging time
AC Adaptor Built-in USB Cable* (when using your computer)
NP-FV50 (supplied) 155 280
NP-FV70 195 545
NP-FV100 390 1000
The charging times shown in the table above are measured when charging the camcorder at a
temperature of 25 ˚C (77 °F). It is recommended that you charge the battery in a temperature range
of 10 ˚C to 30 ˚C (50 °F to 86 °F).
* The charging times are measured without using the USB Connection support cable.
Back to top
Copyright 2013 Sony Corporation
241
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Maintenance and precautions > Recording time of movies/number of recordable
photos > Expected time of recording and playback with each battery pack
Expected time of recording and playback with each battery pack
Recording time
Playing time
“HD” stands for high definition image quality, and “STD” stands for standard definition image quality.
Recording time
Approximate time available when you use a fully charged battery pack.
(unit: minute)
3D
Battery pack Continuous recording time Typical recording time
NP-FV50 (supplied) 70 35
NP-FV70 150 75
NP-FV100 300 150
2D
Battery pack Continuous recording time Typical recording time
Image quality HD STD HD STD
NP-FV50 (supplied) 105 110 50 55
NP-FV70 220 235 110 115
NP-FV100 440 470 220 235
Each recording time is measured when the camcorder is recording high definition image quality (HD)
movies with [
REC Mode] set to [Standard ].
Typical recording time shows the time when you repeat recording start/stop, switching the MODE
lamp, and zooming.
Times measured when using the camcorder at 25 ˚C (77 °F). 10 ˚C to 30 ˚C (50 °F to 86 °F) is
recommended.
The recording and playback time will be shorter when you use your camcorder in low temperatures.
The recording and playback time will be shorter depending on the conditions under which you use
your camcorder.
Playing time
Approximate time available when you use a fully charged battery pack.
(unit: minute)
3D
Battery pack
NP-FV50 (supplied) 110
242
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Maintenance and precautions > Recording time of movies/number of recordable
photos > Expected recording time of movies
Expected recording time of movies
Expected recording time of movies
Bit-rate and recording pixels
Expected recording time of movies
High definition image quality (HD)
(unit: minute)
16 GB 32 GB 64 GB
[3D]
75
(75)
150
(150)
305
(305)
[60p Quality
]
75
(75)
150
(150)
305
(305)
[Highest Quality
]
85
(85)
180
(180)
360
(360)
[High Quality
]
120
(120)
245
(245)
490
(490)
[Standard
]
210
(160)
430
(325)
865
(655)
[Long Time
] (5.1ch)*
370
(300)
740
(610)
1490
(1225)
[Long Time
] (2ch)*
380
(310)
770
(630)
1545
(1260)
Standard definition image quality (STD)
(unit: minute)
16 GB 32 GB 64 GB
[Standard
] (5.1ch)*
220
(200)
445
(410)
895
(825)
[Standard
] (2ch)*
225
(210)
460
(420)
920
(845)
* You can change the recording sound format with [Audio Mode]. [Details]
When using a Sony memory card.
You can record movies of a maximum of 3,999 scenes with high definition image quality (HD), and
9,999 scenes with standard definition image quality (STD).
The maximum continuous recording times of movies are as follows.
3D: about 6 hours 30 minutes
2D: about 13 hours
Your camcorder uses the VBR (Variable Bit Rate) format to automatically adjust image quality to suit
244
the recording scene. This technology causes fluctuations in the recording time of the media. Movies
containing quickly moving and complex images are recorded at a higher bit-rate, and this reduces the
overall recording time.
Notes
The recordable time may vary depending on the recording and subject conditions and [REC Mode]
and [
Frame Rate]. [Details] [Details]
The number in ( ) is the minimum recordable time.
Bit-rate and recording pixels
The following list shows the bit-rate, pixels and aspect ratio of each recording mode for movies (movie +
audio, etc.).
3D movie:
Max. 28 Mbps 1,920
1,080 pixels/16:9
High definition image quality (HD):
PS: Max. 28 Mbps 1,920
1,080 pixels/16:9
FX: Max. 24 Mbps 1,920
1,080 pixels/16:9
FH: Approx. 17 Mbps (average) 1,920
1,080 pixels/16:9
HQ: Approx. 9 Mbps (average) 1,440
1,080 pixels/16:9
LP: Approx. 5 Mbps (average) 1,440
1,080 pixels/16:9
Standard definition image quality (STD):
HQ: Approx. 9 Mbps (average) 720
480 pixels/16:9, 4:3
The photo recording pixels and the aspect ratio.
Photo recording mode, Dual capture:
6,016
3,384 dots/16:9
4,512
3,384 dots/4:3
4,224
2,376 dots/16:9
2,592
1,944 dots/4:3
1,920
1,080 dots/16:9
640
480 dots/4:3
Capturing a photo from a movie:
1,920
1,080 dots/16:9
640
360 dots/16:9
640
480 dots/4:3
Back to top
Copyright 2013 Sony Corporation
245
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Maintenance and precautions > Recording time of movies/number of recordable
photos > Expected number of recordable photos
Expected number of recordable photos
20.4M
2 GB 230
4 GB 465
8 GB 940
16 GB 1850
32 GB 3800
64 GB 7500
When using a Sony memory card.
The number of recordable photos of memory card shown is for the maximum image size of your
camcorder. The actual number of recordable photos is displayed on the LCD screen during
recording. [Details]
The number of recordable photos of memory card may vary depending on the recording conditions.
Notes
The unique pixel array of Sony’s ClearVid and the image processing system (BIONZ) allow still
image resolution equivalent to the sizes described.
Back to top
Copyright 2013 Sony Corporation
246
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Maintenance and precautions > Using your camcorder abroad > Using your camcorder
abroad
Using your camcorder abroad
Power supply
You can use your camcorder in any countries/regions using the AC Adaptor supplied with your
camcorder within the AC 100 V to 240 V, 50 Hz/60 Hz range.
Viewing 3D movies
In countries/regions where 1080/60i is supported, you can view 3D movies as that of the recorded
movies.
You need a NTSC-system-based and 1080/60i compatible 3D TV (or monitor) with an HDMI input jack.
An HDMI cable must be connected.
Viewing high definition image quality (HD) movies
In countries/regions where 1080/60i is supported, you can view the movies with the same high definition
image quality (HD) as that of the recorded movies. You need a NTSC-system-based and 1080/60i
compatible TV (or monitor) with an HDMI input jack. An HDMI cable must be connected.
Viewing standard definition image quality (STD) movies
To view standard definition image quality (STD) movies, you need a NTSC-system-based TV with
AUDIO/VIDEO input jacks. An A/V connecting cable (sold separately) must be connected.
On TV color systems
System Used in
NTSC
Bahama Islands, Bolivia, Canada, Central America, Chile, Colombia, Ecuador, Guyana,
Jamaica, Japan, Korea, Mexico, Peru, Surinam, Taiwan, the Philippines, the USA,
Venezuela, etc.
PAL
Australia, Austria, Belgium, China, Czech Republic, Denmark, Finland, Germany, Holland,
Hong Kong, Hungary, Italy, Kuwait, Malaysia, New Zealand, Norway, Poland, Portugal,
Singapore, Slovak Republic, Spain, Sweden, Switzerland, Thailand, United Kingdom, etc.
PAL-M Brazil
PAL-N Argentina, Paraguay, Uruguay
SECAM Bulgaria, France, Guiana, Iran, Iraq, Monaco, Russia, Ukraine, etc.
Setting to the local time
You can easily set the clock to the local time by setting a time difference when using your camcorder
abroad. Select
[Setup] [ Clock Settings] [Date & Time Setting] [Daylight
Savings] or [Summer Time], and
[Setup] [ Clock Settings] [Area Setting]. [Details]
[Details]
HDR-TD30V
When [Auto Clock ADJ ] and [Auto Area ADJ] are set to [On], the clock is set to the local time
automatically by the GPS function. [Details] [Details]
World time difference
247
Time-zone differences Area setting
GMT Lisbon/London
+01:00 Berlin/Paris
+02:00 Helsinki/Cairo/Istanbul
+03:00 Nairobi
+03:30 Tehran
+04:00 Moscow/Abu Dhabi/Baku
+04:30 Kabul
+05:00 Karachi/Islamabad
+05:30 Kolkata/New Delhi
+06:00 Almaty/Dhaka
+06:30 Yangon
+07:00 Bangkok/Jakarta
+08:00 HongKong/Singapore/Beijing
+09:00 Tokyo/Seoul
+09:30 Adelaide/Darwin
+10:00 Melbourne/Sydney
+11:00 Solomon Is
+12:00 Fiji/Wellington
–11:00 Midway Island
–10:00 Hawaii
–09:00 Alaska
–08:00 LosAngeles/Tijuana
–07:00 Denver/Arizona
–06:00 Chicago/MexicoCity
–05:00 New York/Bogota
–04:00 Santiago
–03:30 St. John’s
–03:00 Brasilia/Montevideo
–02:00 Fernando de Noronha
–01:00 Azores/Cape Verde Is.
Back to top
Copyright 2013 Sony Corporation
248
"Handycam" User Guide
PrintSearch
Operation Search
Before use
Getting started
Recording
Playback
Saving images with an external
device
Customizing your camcorder
Troubleshooting
Maintenance and precautions
Contents list
Top page > Maintenance and precautions > On trademarks > On trademarks
On trademarks
“Handycam” and are registered trademarks of Sony Corporation.
“AVCHD”, “AVCHD” logotype, “AVCHD 3D/Progressive” and “AVCHD 3D/Progressive” logotype are
trademarks of Panasonic Corporation and Sony Corporation.
“Memory Stick,” “
,” “Memory Stick Duo,” “ ,” “Memory Stick PRO Duo,” “
,” “Memory Stick PRO-HG Duo,” “ ,” “Memory
Stick XC-HG Duo,” “
,” “MagicGate,” “ ,” “MagicGate Memory
Stick” and “MagicGate Memory Stick Duo” are trademarks or registered trademarks of Sony
Corporation.
“InfoLITHIUM” is a trademark of Sony Corporation.
“x.v.Color” is a trademark of Sony Corporation.
“BIONZ” is a trademark of Sony Corporation.
is a registered trademark of Sony Corporation.
“BRAVIA” is a trademark of Sony Corporation.
Blu-ray Disc
and Blu-ray are trademarks of the Blu-ray Disc Association.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks
or registered trademarks of HDMI Licensing LLC in the United States and other countries.
Microsoft, Windows, Windows Vista, and DirectX are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
Mac and Mac OS are registered trademarks of Apple Inc. in the U.S. and other countries.
Intel, Intel Core, and Pentium are trademarks or registered trademarks of Intel Corporation or its
subsidiaries in the United States and other countries.
“
” and “PlayStation” are registered trademarks of Sony Computer Entertainment Inc..
NAVTEQ and the NAVTEQ Maps logo are trademarks of NAVTEQ in the US and other countries.
SDXC logo is a trademark of SD-3C, LLC.
MultiMediaCard is a trademark of MultiMediaCard Association.
Facebook and the “f” logo are trademarks or registered trademarks of Facebook, Inc.
YouTube and the YouTube logo are trademarks or registered trademarks of Google Inc.
All other product names mentioned herein may be the trademarks or registered trademarks of their
respective companies. Furthermore,
and are not mentioned in each case in this manual.
Notes on the License
ANY USE OF THIS PRODUCT IN ANY MANNER OTHER THAN PERSONAL USE THAT COMPLIES
WITH THE MPEG-2 STANDARD FOR ENCODING VIDEO INFORMATION FOR PACKAGED MEDIA IS
EXPRESSLY PROHIBITED WITHOUT A LICENSE UNDER APPLICABLE PATENTS IN THE MPEG-2
PATENT PORTFOLIO, WHICH LICENSE IS AVAILABLE FROM MPEG LA, L.L.C., 6312 S. Fiddler’s
Green Circle, Suite 400E, Greenwood Village, CO 80111 U.S.A.
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE
PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE
REMUNERATION TO
(i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ( “AVC VIDEO”) AND/OR
(ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL
ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC
VIDEO.
NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE.
ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C.
249
SEE <HTTP://WWW.MPEGLA.COM>
We provide the software in your camcorder based on license agreements with the owners of the
respective copyrights. Based on requests by the owners of copyright of these software applications, we
have an obligation to inform you of the following. Please read the following sections.
Copies of the licenses (in English) are stored in the internal memory of your camcorder. Establish a
Mass Storage connection between your camcorder and a computer, and read the files in the “LICENSE”
folder in “PMHOME.”
On GNU GPL/LGPL applied software
The software that is eligible for the following GNU General Public License (hereinafter referred to as
“GPL”) or GNU Lesser General Public License (hereinafter referred to as “LGPL”) are included in the
camcorder.
This informs you that you have a right to have access to, modify, and redistribute source code for these
software programs under the conditions of the supplied GPL/LGPL.
Source code is provided on the web. Use the following URL to download it. When downloading the
source code, select HDR-TD30 as the model for your camcorder.
http://www.sony.net/Products/Linux/
We would prefer you do not contact us about the contents of source code.
Copies of the licenses (in English) are stored in the internal memory of your camcorder. Establish a
Mass Storage connection between your camcorder and a computer, and read the files in the “LICENSE”
folder in “PMHOME.”
Back to top
Copyright 2013 Sony Corporation
250
