LG WKE100HWA Single Unit Front Load LG WashTower™

OPERATION-WASHER

Using the Washer

WARNING

• To reduce the risk of fire, electric shock, or injury to persons, read the SAFETY INSTRUCTIONS before operating this appliance.

Operation Overview

1 Sort laundry and load the washer.

• Sort laundry by fabric type, soil level, color and load size as needed. Open the door and load items into the washer.

• If using single-use detergent packs, or gel or tablet detergents, place them in the drum before loading the laundry.

2 Add cleaning products.

• Add the proper amount of HE (HighEfficiency) detergent to the detergent dispenser.

• If desired, add bleach or fabric softener to the appropriate areas of the dispenser drawer.

• Do not place liquid or powdered detergent packs, or gel or tablet detergents in the dispenser.

3 Turn on the washer.

• Press the Power button to turn on the washer.

4 Select a cycle.

• Turn the cycle selector knob or press the cycle buttons repeatedly until the desired cycle is selected.

• The preset wash temperature, spin speed, soil level and option settings for the selected cycle are shown.

• The Normal cycle must be selected in order to change its default settings.

• Pressing the Start/Pause button without selecting a cycle immediately starts the Normal cycle with the default settings.

5 Adjust settings.

• Default settings for the selected cycle can be changed, if desired, using the cycle modifier and option buttons.

• Not all modifiers and options are available on all cycles. A different chime sounds and the LED does not light up if the selection is not allowed.

6 Begin cycle.

• Press the Start/Pause button to begin the cycle. The door locks, and the washer agitates briefly without water to measure the weight of the load.

• If the Start/Pause button is not pressed within a certain time, the washer shuts off and all settings are lost.

7 End of cycle.

• When the cycle is finished, a melody sounds. Immediately remove the clothing from the washer to reduce wrinkling.

• Check around the door seal when removing the load for small items that may be caught in the seal.

NOTE

• The washer rotates the laundry in a way that allows it to use less water while still fully saturating the clothing. It is normal to be unable to see water during the wash cycle.

Sorting Laundry

CAUTION

• Clothing or articles that are waterproof or water-resistant must be washed in the Waterproof, Bedding, Bulky/Large, or Jumbo Wash cycle only. (Examples include water resistant clothing, mattress covers, outdoor clothes, and plastic mats.) Failure to do so may result in personal injury or damage to the washer, clothes, walls, floor, and surrounding objects due to abnormal vibration.

• Remove the stuffing from pillows and cushions before washing the covers. Failure to do so can cause excessive vibration, resulting in damage to the washer, clothes, nearby objects, walls, and floor.

Grouping Similar Items

For the best washing results, and to reduce the possibility of damage to clothing, sort clothing into loads made up of similar items.

Mixing different fabric types and/or soil levels can result in poor wash performance, color transfer, discoloration, fabric damage or linting. Fabrics should be sorted into groups as described below.

Colors

Sort articles by color. Wash dark clothes separately from light colors or whites. Mixing dark clothes with light clothes can result in dye transfer or discoloration of the lighter clothes.

Soil Level

Wash heavily soiled clothing together. Washing lightly soiled clothing in the same load with heavily soiled clothing could result in poor wash performance for the lightly soiled clothing.

Fabric Type

Delicate articles should not be mixed with heavy or sturdy fabric types. Washing heavy fabrics with delicates can result in poor wash performance for the heavy fabrics and possible damage to the delicates.

Lint Type

Some fabrics attract and bind lint to them while others give off lint in the laundry process. Avoid mixing these lint collectors and lint producers in the same load. Mixing these fabrics will result in pilling and linting on the lint collectors. (For example, lint collector - knit sweater; lint producer - terry cloth towels.)

How to Sort Laundry

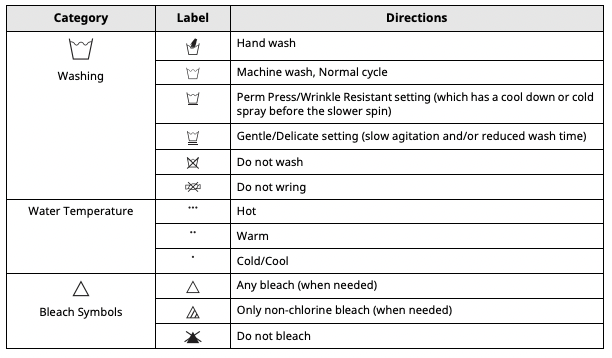

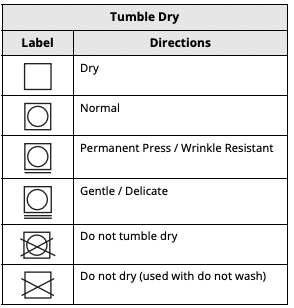

Fabric Care Labels

Many articles of clothing include a fabric care label. Using the chart below, adjust the cycle and option selections to care for your clothing according to the manufacturer’s recommendations.

Loading the Washer

WARNING

• Clothing or articles that are waterproof or waterresistant must be washed in the Waterproof, Bedding, Bulky/Large, or Jumbo Wash cycle only. (Examples include water resistant clothing, mattress covers, outdoor clothes, and plastic mats.) Failure to do so may result in personal injury or damage to the washer, clothes, walls, floor, and surrounding objects due to abnormal vibration.

General Tips

• Check and empty pockets. Paper clips, coins, matches, etc.can damage clothing and the washer.

• Close zippers and hooks, and tie drawstrings to prevent snagging or tangling of clothes.

• Pretreat heavily stained areas for best results.

• Brush off heavy soil, dust, and hair from items before washing. Excess dirt or sand can abrade other fabrics and lead to poor wash performance.

• For best performance, load clothes as shown.

- Do not press down on items while stacking them in the drum.

- Load clothes loosely, and do not overfill the drum. Clothes need room to circulate in order to get clean.

• Combine large and small items in the drum. Load large items first. Large items should not be more than half of the total load.

• The washer can be fully loaded, but the drum should not be tightly packed with items. The door of the washer must close easily.

• The washer will not fill or operate with the door open.

Bulky Items

• Wash thick, bulky items individually. Heavy blankets, comforters, bedspreads, or pet beds can get tangled or cause an unbalanced load if combined with other items.

Small Items

• Do not wash a single small item. Add enough similar items to the load to prevent an out-ofbalance load.

• Wash small, light items in a mesh bag. Small items can get caught in the impeller at the bottom of the drum, and brassiere hooks can snag on other clothing or the drum.

Adding Cleaning Products

About Detergent Use

This washer is designed for use with only HE (HighEfficiency) detergents.

• HE detergents produce fewer suds, dissolve more efficiently to improve washing and rinsing performance, and help to keep the interior of the washer clean. Using detergent that is not HE may cause oversudsing and unsatisfactory performance which could result in error codes, cycle failure, and washer damage.

• Detergents designated as HE-compatible may not provide optimal results.

• For proper wash performance, always measure detergent using the measuring device provided by the detergent manufacturer. For an average load, use less than half of the recommended maximum. Use less detergent for soft water, light soil, or smaller loads.

• Use extra care when measuring 2X and 3X concentrated detergents because even a small amount of extra detergent can lead to problems.

• Never use more than the maximum amount of detergent recommended by the manufacturer. Using too much detergent can lead to oversudsing, poor rinsing, detergent buildup in clothing, and residue buildup that can contribute to odors in the washer.

Maximum fill line

Average load fill line

Liquid detergent

Powdered detergent

Single-Use Detergent Packs / Gel or Tablet Detergents

• Do not use more than one single-use detergent pack in the washer. Using too much detergent may cause oversudsing and unsatisfactory performance. Reduce detergent amount or add an extra rinse if detergent residue is left on fabrics. To add an extra rinse, select the Extra Rinse option.

• Place liquid or powdered detergent packs, or gel or tablet detergents in the tub before loading laundry. Do not place these detergents in the dispenser.

Using the Dispenser

To add cleaning products to the automatic dispenser:

1 Open the dispenser drawer.

2 Load the laundry products into the appropriate compartments.

• Follow the manufacturer’s recommendations when adding cleaning products.

Pre-wash detergent compartment (on some models)

Liquid detergent cup

Main wash detergent compartment

Liquid fabric softener compartment

Liquid chlorine bleach compartment

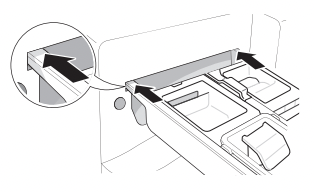

3 Gently close the detergent dispenser drawer before starting the cycle.

• Slamming the drawer closed may result in the detergent overflowing into another compartment or dispensing into the drum earlier than programmed.

• Be careful not to get a hand caught in the drawer while closing.

• It is normal for a small amount of water to remain in the dispenser compartments at the end of the cycle.

CAUTION

• Do not place or store laundry products, such as detergent, bleach, or liquid fabric softener, on top of your washer. These products can damage the washer’s finish and controls.

Pre-wash Detergent Compartment

Add liquid or powdered detergent to this compartment when using the Pre-wash option. Always use HE (High-Efficiency) detergent with your washer.

• When using the Pre-wash option, liquid detergent for the main wash needs to be loaded in the liquid detergent cup accessory in the main wash dispenser (where applicable), to prevent it from being dispensed with the pre-wash detergent.

• The amount of detergent added for the Prewash option is 1/2 the amount recommended for the main wash cycle. For example, if the main wash cycle requires one measure of detergent, add 1/2 measure for the Pre-wash option.

Main Wash Detergent Compartment

This compartment holds laundry detergent for the main wash cycle. Either powdered or liquid detergent may be used in this compartment.

• The detergent is added to the load at the beginning of the cycle. Always use HE (HighEfficiency) detergent with your washer.

• Do not exceed the maximum fill line. Using too much detergent can result in detergent buildup in clothing and the washer.

• Liquid or powdered color-safe bleach may be added to the main wash compartment with detergent of the same type. Do not mix liquids and powders

• If the dispenser has a liquid detergent cup and insert:

- Make sure they are in place when using liquid detergent.

- Make sure to remove them when using powdered detergent. Powdered detergent will not dispense with the liquid detergent cup and insert in place.

• If you use a detergent that does not dissolve easily or a detergent with high viscosity, it will leave a residue and clog the dispenser.

Liquid Bleach Compartment

This compartment holds liquid bleach, which is dispensed automatically at the proper time during the wash cycle. The dispenser is activated twice to ensure complete dispensing of the bleach. Any liquid remaining in the dispenser at the end of the cycle is water, not bleach.

WARNING

• Do not mix chlorine bleach with ammonia or acids such as vinegar or rust/scale remover. Mixing chemicals like these can produce a lethal gas, resulting in severe injury or death.

NOTE

• Do not add powdered bleach to this compartment. The bleach compartment is designed to dispense liquid chlorine bleach only. Powdered or liquid color-safe bleach will not dispense properly.

• Follow the manufacturer’s recommendations when adding bleach. Never add more than one cup, and do not exceed the maximum fill line or the bleach may be dispensed immediately and damage fabrics. Using too much bleach can also damage fabrics.

• Never pour undiluted liquid chlorine bleach directly onto the load or into the drum. Fabric damage can occur.

• Do not use color-safe bleach or oxygen bleach in the same cycle with liquid chlorine bleach.

Fabric Softener Compartment

This compartment holds fabric softener, which is automatically dispensed during the final rinse cycle. Either powdered or liquid fabric softener may be used.

• Do not exceed the maximum fill line. Using too much fabric softener may stain clothes or cause buildup on fabrics or in the washer.

• Dilute concentrated fabric softeners with warm water.

• Never pour fabric softener directly onto the load or into the drum.

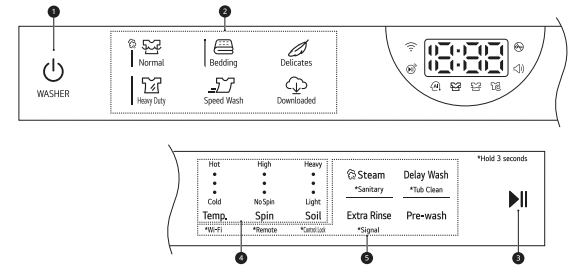

Control Panel

Control Panel Features for the Washer

Power On/Off Button

• Press this button to turn the washer on or off.
• Pressing this button during a cycle will cancel that cycle and any load settings will be lost.
• The door will unlock after a brief pause.

NOTE

• If there is any water remaining in the drum after the washer shuts off, it will drain after a delay. The washer can be restarted at any time before the drain begins. However, once the water begins to drain, all functions will be suspended until the water has been completely drained and the washer shuts off.

Cycles

• Press a button to select the desired cycle.
• Once the desired cycle has been selected, the standard presets will appear in the display. These settings can be adjusted using the Cycle Modifier buttons at any time before starting the cycle.

Start/Pause Button

• Press and hold this button to start the selected cycle.
• If the washer is running, use this button to pause the cycle without losing the current settings.

NOTE

• If the Start/Pause button is not pressed to start the selected cycle, after a delay the washer automatically turns off and all cycle settings are lost. Any water remaining in the drum will be drained.

Cycle Modifier Buttons

• Use these buttons to adjust the wash temperature, spin speed and soil level settings for the selected cycle.
• The current settings are shown in the display.
• Press the button for that option to select other settings.

Option and Extra Function Buttons

• These buttons allow you to select additional cycle options. Certain buttons also allow you to activate special functions by pressing and holding the button for 3 seconds.

Remote Start

Use a smartphone to control your washer remotely.

- For more information, see SMART FUNCTIONS in this manual.

Wi-Fi

When the washer is connected to a home Wi-Fi network, the icon on the control panel is lit.

- To connect the washer to the LG ThinQ application, press and hold the Temp. button for 3 seconds.

Time and Status Display

Wi-Fi Indicator

• This indicator is lit when the product is connected to a home Wi-Fi network.

Remote Start Indicator

• This indicator lights up when the Remote Start feature is activated.

Door Lock Indicator

• This indicator lights up when the cycle starts and the door is locked.

• The indicator light stays on until the cycle is paused, stopped or has finished.

Signal Indicator

• This indicator lights up when the end-of-cycle and button tones are turned on.

Estimated Time Remaining

• When a cycle is selected, the default time for that cycle is displayed. This time will change as modifiers or options are selected.

• If the display shows -I--, then the time will be displayed after the load sensing has detected the load size.

• The time shown is only an estimate. This time is based on normal operating conditions. Several external factors (load size, room temperature, incoming water temperature, etc.) can affect the actual time

NOTE

• Once the Start/Pause button is pressed, the washer will measure the size of the load. The estimated time may change once the load size has been measured.

• If the Delay Wash function is set, the remaining delay time counts down until the cycle begins.

AI DD Indicator

• This feature offers optimized washing by detecting the load size and laundry characteristics. The indicator lights up when the Normal cycle is selected with a Warm wash temperature setting.

NOTE

• The AI DD functionality may vary depending on the environment and model.

Cycle Status Indicators

• These LEDs will blink when a cycle is selected to indicate which stages will run.

• When a cycle is running, the LED for the active stage will blink, and the LEDs for the remaining stages will remain steady. Once a stage is complete, the LED will turn off. If a cycle is paused, the active stage LED will stop blinking

Wash Cycles

The wash cycles are designed for specific types of wash loads. Select the cycle that best matches the load contents for maximum wash performance and fabric care. See Sorting Laundry section for best results, and follow the fabric care labels on your garments. For a guide to fabric care symbols, see Sorting Laundry section.

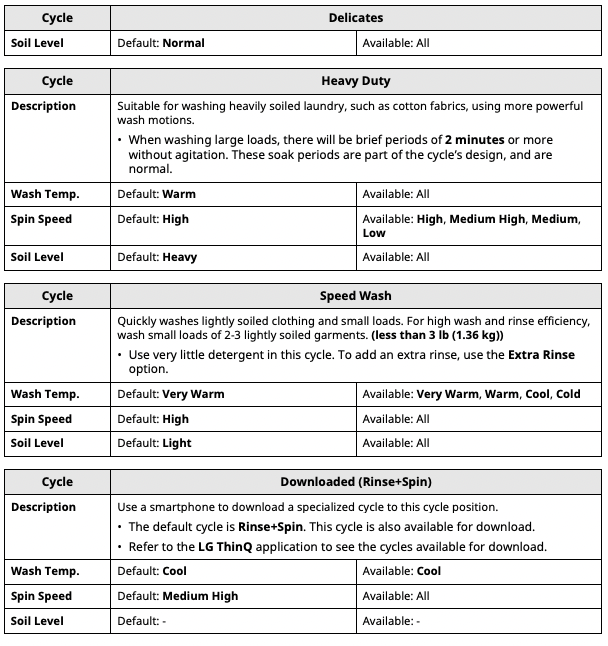

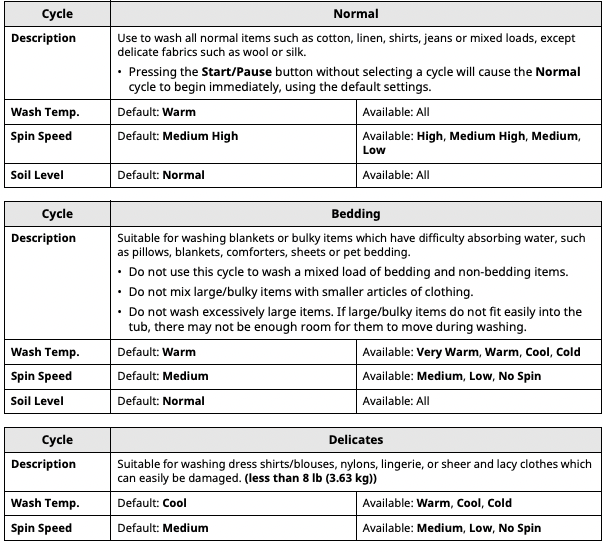

Cycle Guide

Turn the knob or press the button to select the desired cycle. When you select a wash cycle, the light for the corresponding wash cycle will turn on.

NOTE

• Whenever load weights are mentioned, assume 1 lb (0.45 kg) = 1 thick bath towel (dry).

• Temperature: Cold > Cool > Warm > Very Warm > Hot

• Spin: No Spin > Low > Medium > Medium High > High

• Soil: Light > Medium Light > Normal > Medium Heavy > Heavy

Available Options

NOTE

• Delay Wash and Extra Rinse can be selected for every cycle in this table.

Cycle Modifiers

About Modifier Buttons Each cycle has default settings that are selected automatically. You can also customize these settings using the cycle modifier buttons.

• Repeatedly press the button for the desired modifier until the indicator light for the desired setting is lit.

• The washer automatically adjusts the water level for the type and size of wash load for best results and maximum efficiency.

• This is a high-efficiency washer, and the water levels may be much lower than you expect. This is normal, and cleaning/rinsing performance will not be compromised.

NOTE

• The LED next to the setting lights up when the setting is selected.

• To protect your garments, not every wash temperature, spin speed, soil level, or option is available with every cycle.

• A chime will sound twice and the LED will not light if the desired setting is not allowed for the selected cycle.

• Follow the fabric care labels on the garment for best results.

Temp.

Make sure the wash temperature is suitable for the type of load you are washing.

• Press the Temp. button repeatedly to select the wash and rinse temperature combination for the selected cycle.

• All rinses use unheated cold water.

• Cold rinses use less energy. The actual cold rinse temperature depends on the temperature of the cold water at the faucet.

Spin

Higher spin speeds extract more water from clothes, reducing drying time and saving energy.

• Press the Spin button repeatedly until the desired speed is selected.

• Some fabrics, such as delicates, require a slower spin speed.

Soil

Adjusting the soil level setting will modify the cycle times and/or wash actions.

• Press the Soil button repeatedly until the desired soil level is selected.

• The Heavy soil setting may increase cycle times. The Light soil setting may decrease cycle times.

Options and Extra Functions

Your washer includes several additional cycle options to customize cycles to meet your individual needs.

• Select the desired option after selecting the desired cycle and settings.

NOTE

• The LED for the option will light when the option is selected.

• To protect your garments, not every option is available with every cycle.

• A chime will sound twice and the LED will not light if the selected option is not allowed for the selected cycle.

Special Cycles

Sanitary

This cycle washes clothes at a high temperature.

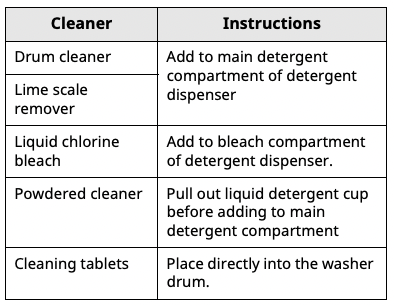

Tub Clean

This is a special cycle designed to clean the inside of the washer.

Steam

Adding this option to a wash cycle helps provide superior cleaning performance. Using steam gives fabrics the cleaning benefits of a very hot wash.

• Steam may not be clearly visible during steam cycles. This is normal. Too much steam could damage clothing.

• Do not use steam with delicate fabrics such as wool and silk, or easily discolored fabrics.

WARNING

• Do not touch the door during steam cycles. The door surface can become very hot and can cause severe burns. Allow the door lock to release before opening the door.

• Do not attempt to override the door lock mechanism or reach into the washer during a steam cycle. Steam can cause severe burns.

Delay Wash

Once you have selected the cycle and other settings, press the Delay Wash button to delay the start of the wash cycle.

• Each press of this button increases the delay time by 1 hour, for up to 19 hours.

• Once the desired delay time is set, press the Start/Pause button to start the delay time.

NOTE

• If the Start/Pause button is not pressed to begin the delay time, the washer automatically turns off after a certain time and all cycle settings are lost.

Extra Rinse

This option adds an extra rinse to the selected cycle. Use this option to help ensure the removal of detergent or bleach residue from fabrics.

• Press the Extra Rinse button to add additional rinses to the cycle.

Using the Pre-wash Option

This option adds a pre-wash (for about 15 - 17 minutes) for improved cleaning of heavily soiled or stained clothing.

NOTE

• If you select Pre-wash after putting the detergent directly in the drum, the detergent may be washed away, reducing the washing performance.

Control Lock

Use this function to disable the controls. This function can prevent children from changing cycles or operating this washer.

NOTE

• The function does not lock the door.

• Once this function is set, all buttons are locked except the Power button.

• When the controls are locked, CL and the remaining time are alternately shown on the display during the wash cycle.

• Turning off the power will not reset this function. You must deactivate this function before you can access any other options and functions.

Locking/Unlocking the Control Panel

1 Turn on the power.

2 Press and hold the Soil button for 3 seconds to activate/deactivate this function.

• When the function is deactivated, a chime will sound and the remaining time for the current cycle will reappear on the display.

Signal

The washer plays a melody when the wash cycle is finished. The buttons make a sound each time a button is pressed. Use this button to turn the melody and button tones on or off.

• To turn the function on/off, press and hold the Extra Rinse button for 3 seconds.

OPERATION-DRYER

Using the Dryer

WARNING

• To reduce the risk of fire, electric shock, or injury to persons, read the SAFETY INSTRUCTIONS before operating this appliance.

Operation Overview

1 Clean the Lint Filter.

• If the lint filter has not already been cleaned, lift out the filter and remove the lint from the last load. This will help ensure the fastest and most efficient drying performance. Make sure to reinstall the filter, pressing down until it clicks firmly into place.

2 Load the Dryer.

• Load the dryer with the wet laundry from the washer. If the load is extra large, you may need to divide it into smaller loads for proper performance and fabric care.

3 Turn on the Dryer.

• Press the Power button to turn on the dryer. The cycle LEDs will illuminate and a chime will sound.

4 Select a Cycle.

• Press a cycle button to select a cycle. The preset temperature, dry level, and option settings for that cycle will be shown.

5 Adjust Settings.

Default settings for the selected cycle can now be changed, if desired, using the cycle modifier and option buttons.

• Not all modifiers and options are available on all cycles. A different chime will sound and the LED will not come on if the selection is not allowed.

6 Begin Cycle.

• Press the Start/Pause button to begin the cycle. The cycle can be paused at any time either by opening the door or by pressing the Start/Pause button.

• If the Start/Pause button is not pressed within a certain time, the dryer shuts off and all settings are lost.

7 End of Cycle

• When the cycle is finished, the chime will sound. Immediately remove your clothing from the dryer to reduce wrinkling. If Wrinkle Care is selected, the dryer will tumble briefly every few minutes to help prevent wrinkles from setting in the clothes.

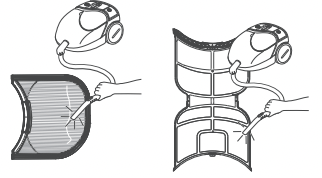

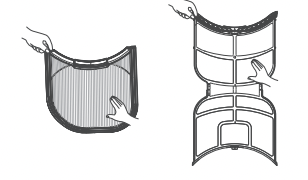

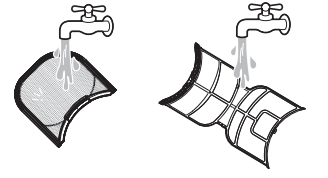

Check the Lint Filter Before Every Load

Always make sure the lint filter is clean before starting a new load; a clogged lint filter will increase drying time. To clean, pull the lint filter straight up and roll any lint off the filter with your fingers. Push the lint filter firmly back into place. See Regular Cleaning for more information.

Always ensure the lint filter is properly installed before running the dryer. Running the dryer with a loose or missing lint filter will damage the dryer and articles in the dryer.

Loading the Dryer

General Tips

• Combine large and small items in the same load.

• Close zippers, hooks and drawstrings to prevent these items from snagging or tangling on other clothes.

NOTE

• Damp clothes will expand as they dry. Do not overload the dryer; clothes require room to tumble and dry properly.

Grouping Similar Items

For the best drying results, and to reduce the possibility of damage to clothing, sort clothes into loads that can be dried with the same drying cycle.

Different fabrics have different care requirements, and some fabrics will dry more quickly than others.

Woolen Items

Always follow fabric care labels before drying woolen items in a dryer. After the cycle, the items may still be damp. Do not repeat the cycle. Pull the items to their original shape if needed and lay them flat to finish drying.

Woven and Loopknit Materials

Some woven and loopknit materials may shrink, depending on quality.

Permanent Press and Synthetics

Do not overload your dryer. Take out permanent press items as soon as the dryer stops to reduce wrinkles.

Baby Clothes and Nightgowns

Always check the manufacturer’s instructions.

Rubber and Plastics

Do not dry any items made from or containing rubber or plastics such as:

• Aprons, bibs and chair covers
• Curtains and tablecloths
• Bath mats

Fiberglass

Do not dry fiberglass articles in your dryer. Glass particles left in the dryer could be picked up by your clothes the next time you use the dryer and irritate your skin.

Fabric Care Labels

Sort and dry laundry according to care labels, size, and fabric type. Do not overload the dryer. This will save energy and time and give the best drying performance.

Fabric Care Labels

Many articles of clothing include a fabric care label. Using the chart below, adjust the cycle and option selections to care for your clothing according to the manufacturer's recommendations.

Control Panel

Control Panel Features for the Dryer

Power Button

• Press the button to turn the appliance on. Press again to turn the appliance off.

NOTE

• Pressing the Power button during a cycle will cancel that cycle and any load settings will be lost.

Cycles

• Press a button to select the desired cycle. Once the desired cycle has been selected, the standard presets will be shown in the display.

Start/Pause Button

• Press and hold this button to start the selected cycle. If the appliance is running, use this button to pause the cycle without losing the current settings.

NOTE

• If you do not press the Start/Pause button to resume a cycle within a certain time, the appliance turns off automatically and all cycle settings are lost.

Cycle Modifier Buttons

• Press these buttons to select additional cycle options. Press and hold any button marked with an asterisk for 3 seconds to activate a special function.

Extra Options and Functions

• Use these buttons to select the desired options for the selected cycle. Not all options are available for each cycle.
• Remote Start

- With the LG ThinQ app, you can use a smartphone to control your appliance remotely.

• Wi-Fi

- Press and hold the Temp. button for 3 seconds to initiate the connection of the appliance to the LG ThinQ application.

Time and Status Display

Wi-Fi Indicator

• This indicator is lit when the product is connected to a home Wi-Fi network.

Remote Start Indicator

• This indicator lights up when the Remote Start feature is activated.

Flow Sense Indicator

• The Flow Sense duct blockage sensing system detects and alerts you to blockages in the ductwork that reduce exhaust flow from the dryer. Maintaining a clean exhaust system improves operating efficiency and helps minimize service calls, saving you money.

Signal Indicator

• This indicator lights up when the end-of-cycle and button tones are turned on.

Estimated Time Remaining

• When a drying cycle is selected, the estimated drying time for the selected cycle is displayed. This time will change if you select extra options for the cycle.
• The cycle time on Sensor Dry cycles may fluctuate as the appliance recalculates drying time for optimal results.

AI Sensor Dry Indicator

• This feature optimizes drying times and temperatures by detecting the laundry's characteristics.
• The indicator lights up when the Normal cycle is selected with the Normal dry level, except when the Energy Saver option is turned on.

Lint Filter Status Indicator

• lights up at the beginning of the cycle to remind you to check the lint filter. It also lights up if the lint filter needs to be cleaned or is missing. If the lint filter is not inserted, the icon will light up and the appliance will not operate.

Cycle Status Indicators

• lights up when the appliance is in the drying stage.
• lights up when the appliance is in the cool down stage.

Dry Cycles

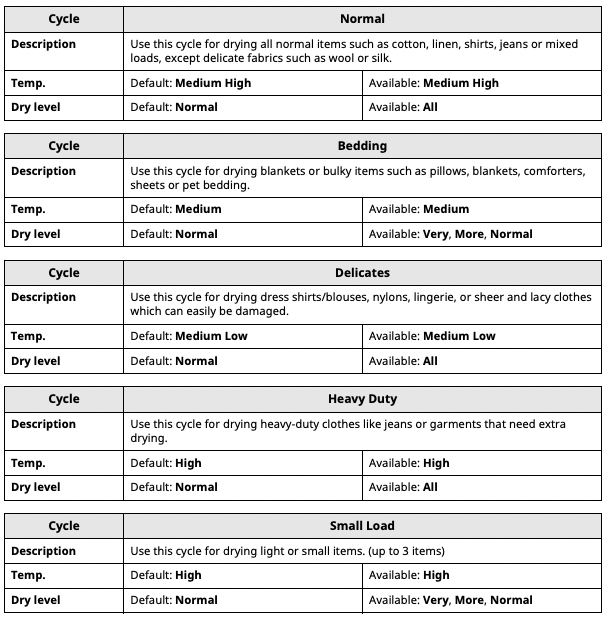

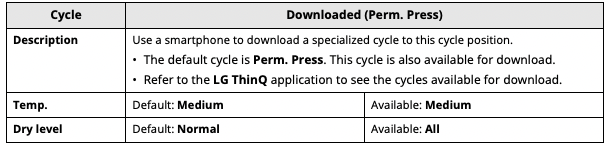

Cycle Guide

The appliance automatically sets the dryness level and temperature at the recommended setting for each cycle. The estimated time remaining will be shown in the display.

• Temperature: Low > Medium Low > Medium > Medium High > High

• Dry Level: Damp > Less > Normal > More > Very

Available Options

† This option is automatically included in the cycle and can be deselected.

NOTE

• The Energy Saver option is set to on by default. If you turn on the dryer and set the Energy Saver option to off, the Energy Saver option is turned off when you turn on the dryer.

Cycle Modifiers

About Modifier Buttons

Each cycle has default settings that are selected automatically. Customize these settings using the cycle modifier buttons. Press the button for the desired modifier to open the modifier’s screen.

Temp.

Use this button to adjust the temperature setting. This allows precise care of fabrics and garments. Press the Temp. button repeatedly to scroll through available settings.

Dry Level

Use this button to select the dryness level for the cycle. Press the Dry Level button repeatedly to scroll through available settings.

• The appliance will automatically adjust the cycle time according to the selected dryness level. Selecting More or Very will increase the cycle time, while Less or Damp will decrease the cycle time.
• Use a Less or Damp setting for items that you wish to iron.

Time Dry

Use this button to manually select the drying time, from 20 to 60 minutes, in 10-minute increments.

• Use this for small loads or to remove wrinkles.

Options and Extra Functions

Your dryer includes several additional cycle options to customize cycles to meet your individual needs.

Select the desired option after selecting the desired cycle and settings.

NOTE

• The LED for the option will light up when the option is selected.
• To protect your garments, not every option is available with every cycle.
• A chime will sound twice and the LED will not light up if the selected option is not allowed for the selected cycle.

More Time / Less Time

Use these buttons to increase or decrease drying time in 5 minutes increments when you use the Time Dry funtion.

Wrinkle Care

Selecting this option will tumble the load periodically for up to 3 hours after the selected cycle, or until the door is opened. This is helpful in preventing wrinkles when you are unable to remove items from the dryer immediately.

Press the Wrinkle Care button before you start a drying cycle.

NOTE

• When the option is set, a rectangle with a dashed line and ENd appears on the display until the feature is off.
• When the option is set, only the Power button works after the drying cycle ends.
• When a drying cycle is running, pause the cycle first to set the option.
• Always turn off the appliance before unloading the clothes.

Energy Saver

This option helps to reduce the energy consumption of the Normal cycle, depending on the load size. When the Energy Saver option is selected, the cycle begins with an air dry section and the drying time is increased.

Control Lock

Use this function to disable the controls. This function can prevent children from changing cycles or operating this dryer.

NOTE

• The function does not lock the door.
• Once this function is set, all buttons are locked except the Power button.
• When the controls are locked, CL and the remaining time are alternately shown on the display during the dry cycle.
• Turning off the power will not reset this function. You must deactivate this function before you can access any other options and functions.

Locking/Unlocking the Control Panel

1 Turn on the power.

2 Press and hold the Time Dry button for 3 seconds to activate/deactivate this function.

• When the function is deactivated, a chime will sound and the remaining time for the current cycle will reappear on the display.

Signal

The dryer plays a melody when the dry cycle is finished. The buttons make a sound each time a button is pressed. Use this button to turn the melody and button tones on or off.

• To turn the function on/off, press and hold the Wrinkle Care button for 3 seconds.

MAINTENANCE

WARNING

• To reduce the risk of fire, electric shock, or injury to persons, read this entire owner’s manual, including the SAFETY INSTRUCTIONS, before operating this appliance.

• Unplug the appliance before cleaning to avoid the risk of electric shock. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

• Do not use volatile substances (benzene, paint thinner, alcohol, acetone, etc.), abrasive cleaners, or detergents with strong chemical components when cleaning the appliance. Doing so may cause discoloration or damage to the appliance, or may cause a fire.

• Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service personnel - Do not contact the following parts while the appliance is energized: pump, valve, motor, control board.

Washer

Regular Cleaning

Care after Wash

After the cycle is finished, wipe the door and the inside of the door seal to remove any moisture.

• Wipe the body of the washer with a dry cloth to remove any moisture.

• Leave the door open to dry the drum interior.

WARNING

• Make sure children and pets do not climb into the drum. Engage the Control Lock feature if needed to prevent children from accidentally starting a wash cycle.

Cleaning the Exterior

Proper care of your washer can extend its life.

Door:

Wash with a damp cloth on the outside and inside and then dry with a soft cloth.

Exterior:

• Immediately wipe off any spills.

• Wipe with a damp cloth.

• Do not touch the surface or the display with sharp objects.

Cleaning the Drum

Over time, residue may build up in the drum, leading to mildew or a musty odor. Run the Tub Clean cycle monthly to remove residue and prevent odor.

NOTE

• Make sure to run the Tub Clean cycle only when the drum is empty. Never load laundry while using this cycle. The laundry may be damaged or contaminated with cleaning products.

• Run the cycle more often under heavy use conditions or if odor is already present.

• If mildew or musty smell already exists, run this cycle once a week for three consecutive weeks.

1 Remove any clothing from the drum.

2 Add cleaning agents.

• For other drum cleaning products, follow the cleaner manufacturer’s instructions and recommendations.

• Do not exceed the maximum fill line when adding bleach or powdered cleaners. Powdered cleaners may remain in the drum after cleaning.

3 Close the door and press the Power button.

4 Select the Tub Clean cycle and press the Start/Pause button to begin the cycle.

5 After the cycle ends, open the door and allow the drum interior to dry completely.

WARNING

• Make sure children and pets do not climb into the drum. Engage the Control Lock feature if needed to prevent children from accidentally starting a wash cycle.

NOTE

• If you use a descaler or drum cleaner during the Tub Clean cycle, use the Speed Wash option to rinse the washer drum before running your next wash cycle.

Automatic Alert for Tub Clean

When the power is on and the tcL message blinks on the display, it means the washer drum needs cleaning. Use the Tub Clean cycle to clean the washer drum. The frequency of the automatic alert’s appearance depends on how often the washer is used. However, the message will generally appear every one to two months.

Removing Mineral Buildup

In areas with hard water, mineral scale can form on internal components of the washer. Periodically clean the mineral buildup on the internal components to extend the lifespan of the washer. Use of a water softener is recommended in areas with hard water.

• Use a descaler to remove visible mineral buildup on the washer drum.

• After descaling, always run the Tub Clean cycle before washing clothing.

• Mineral scale and other spots may be removed from the stainless steel drum using a soft cloth soaked in stainless steel cleaner.

• Do not use steel wool or abrasive cleaners.

Leaving the Door Open

After you finish using the washer, leave the door open overnight to allow air to circulate and dry the drum. This helps prevent odors.

Cleaning the Dispenser Drawer

Leaving detergent in the detergent dispenser drawer for an extended period of time or using the washer for a long period of time may cause the build-up of residue in the detergent dispenser drawer. Remove and clean the detergent dispenser drawer once or twice a month.

WARNING

• Do not spray water inside the washer. Doing so may cause fire or electric shock.

1 Turn off the washer, and unplug the power cord.

2 Pull the drawer straight out until it stops.

3 Press down hard on the disengage button a and pull the drawer completely out.

4 Remove the inserts from the drawer.

5 Clean the inserts and drawer with warm water.

• Use a soft cloth or brush to clean and to remove any residue.

• Do not use soap when cleaning the drawer and inserts.

6 Wipe off any moisture with a dry towel or cloth after cleaning.

7 To clean the drawer opening, use a small, non-metal brush to clean the recess. Remove all residue from the upper and lower parts of the recess.

8 Replace the drawer.

Cleaning the Door Seal

Clean the door seal once a month to prevent build-up of dirt.

CAUTION

• Cleaning the door seal with undiluted bleach may cause malfunction of the door seal and washer parts. You must add water to the bleach before using it.

1 Wear rubber gloves and protective goggles.

2 Dilute 3/4 cup (177 mL) of liquid chlorine bleach in 1 gallon (3.8 L) of water.

3 Wipe around the door seal.

• Soak a sponge or a soft cloth in this diluted solution and wipe all around the door seal.

4 Wipe up any moisture with a dry towel or cloth after cleaning.

5 Leave the door open to allow the door seal to dry completely.

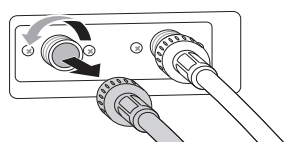

Cleaning the Water Inlet Filters

If the washer does not fill properly, an error message will appear on the display. The inlet valve filter screens could be clogged by hard water scale, sediment in the water supply, or other debris.

WARNING

• The inlet screens protect the delicate parts of the inlet valve from being damaged by particles that could enter the valves with the water supply. Operating the washer with these filters removed could cause a valve to open continuously, resulting in flooding and/or property damage.

CAUTION

• Do not use the washer without the inlet filters. Doing so will cause leaks and malfunction.

• If you use the washer in an area with hard water, the inlet filter may clog due to lime buildup and require more frequent cleaning.

1 Turn off the washer, and unplug the power cord.

2 Turn off hot and cold water faucets.

3 Unscrew the hot and cold water hoses from the back of the washer.

4 Remove the filters from the water valves carefully.

• Use pliers to pull out the filters from the water valves.

5 Remove foreign objects and soak the filters in white vinegar or a lime scale remover.

• If using a lime scale remover, follow the manufacturer’s instructions. Be careful not to damage the filters while cleaning them.

6 Rinse filters thoroughly and press them back into place.

7 Flush then reattach the water hoses.

• Before reattaching the water inlet hoses, flush them by running several gallons of water through them into a bucket or drain, preferably with the faucets wide open for maximum flow.

NOTE

• An IE error message may blink on the display when the water pressure is low or an inlet filter is clogged with dirt. Clean the inlet filter.

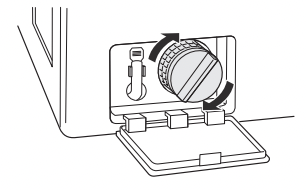

Cleaning the Drain Pump Filter

The washer fails to drain if the drain pump filter is clogged. Periodically clean the drain filter to prevent clogging with foreign objects.

WARNING

• Opening the drain filter will result in water overflowing if there is water in the drum. Use a bucket if the drum is not completely drained before you open the drain filter.

• Using the washer without the drain filter or with an incorrectly assembled drain filter may cause leaks or malfunction of the washer.

1 Turn off the washer, and unplug the power cord.

2 Open the drain pump filter cover.

3 Drain any remaining water.

• Unclip the drain hose and remove the plug from the drain hose to drain the remaining water.

4 Remove the pump filter.

• Twist the pump filter counterclockwise to remove.

5 Clean the pump filter and opening.

6 Reassemble the plug onto the drain hose and reclip the drain hose.

7 Insert the drain pump filter and twist it clockwise.

8 Close the drain pump filter cover.

NOTE

• An message blinks on the display when the drain pump filter is clogged with dirt. Clean the drain pump filter.

Care in Cold Climates

Storing the Appliance

If the washer will not be used for an extended period of time and is in an area that could be exposed to freezing temperatures, follow these steps to protect the washer from damage.

NOTE

• Make sure the drum is empty before following these steps.

• 1 Turn off the washer, and unplug the power cord.
• 2 Turn off the water faucets.
• 3 Disconnect the water inlet hoses. Drain any water from the hoses.

• 4 Plug the power cord into a properly grounded electrical outlet.
• 5 Add 1 gallon of nontoxic recreational vehicle (RV) antifreeze to the empty drum and close the door.

• Never use automotive antifreeze.

• 6 Turn on the washer and press the Spin button.
• 7 Press the Start/Pause button to start the drain pump for 1 minute.

• This will expel some of the antifreeze, leaving enough to protect the washer from damage.

• 8 Turn off the washer and unplug the power cord.
• 9 Dry the drum interior with a soft cloth, and close the door.
• 10 Store the washer in an upright position.
• 11 Remove the inserts from the dispenser. Drain any water in the compartments and let them dry.
• 12 To remove the antifreeze from the washer after storage, run the Speed Wash cycle using detergent.

• Do not add laundry to this cycle.

When the Water Inlet Hoses Are Frozen

• 1 Turn off the washer, and unplug the power cord.
• 2 Turn off the faucets connected to the water inlet hoses.
• 3 Pour hot water on the frozen faucets to thaw the water inlet hoses and remove the water inlet hoses.
• 4 Immerse the water inlet hoses in hot water to thaw them.
• 5 Reconnect the water inlet hoses to the water inlets of the washer and to the faucets.

• See Connecting the Water Inlet Hoses for details.

• 6 Turn on the faucets.
• 7 Press the Power button to turn on the washer.
• 8 Press the Spin button to operate spin only cycle for draining and spinning.
• 9 Press the Start/Pause button.

When the Drain Hose is Frozen

• 1 Pour hot water in the washer drum and close the door.
• 2 Wait for 1 - 2 hours.
• 3 Press the Power button.
• 4 Press the Spin button to operate spin only cycle for draining and spinning.
• 5 Press the Start/Pause button to make sure the water drains.

Dryer

Regular Cleaning

Cleaning the Exterior

Proper care of your appliance can extend its life. The outside of the appliance can be cleaned with warm water and a mild, nonabrasive household detergent. Immediately wipe off any spills with a soft, damp cloth.

NOTE

• Do not use methylated spirits, solvents, or similar products.

• Never use steel wool or abrasive cleansers; they can damage the surface.

Cleaning the Interior

• Wipe around the door opening and seal with a soft, damp cloth to prevent lint and dust buildup that could damage the door seal.

• Clean the window with a soft cloth dampened with warm water and a mild, nonabrasive household detergent. Then wipe dry.

• The stainless steel drum can be cleaned with a conventional stainless steel cleaner, used according to the manufacturer’s specifications. Never use steel wool or abrasive cleansers; they may scratch or damage the surface.

Cleaning Around and Under the Appliance

Vacuum lint and dust from around the dryer and underneath it regularly.

Maintaining Ductwork

Vent ductwork should be checked for lint build up once per month and cleaned at least once per year. If any noticeable reduction in airflow or drying performance occurs, immediately check ductwork for obstructions and blockages and contact a qualified technician or service provider.

Cleaning the Lint Filter

Always clean the lint from the filter after every cycle.

Lint Filter

To clean the lint filter, open the dryer door and pull the lint filter straight up. Then:

• 1 For everyday cleaning, roll any lint off the filter with your fingers, or

• 2 Vacuum the lint filter.

• 3 If the lint filter has become very dirty or clogged with fabric softener, wash the lint filter in warm, soapy water and allow it to dry thoroughly before reinstalling.

NOTE

• NEVER operate the appliance without the lint filter in place.

TROUBLESHOOTING

The appliance is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the appliance does not function properly or does not function at all, check the following before you call for service.

Washer

FAQs: Frequently Asked Questions

Q: Why does my washer make loud banging noises while it is filling with water?

A: This is actually a problem with the plumbing in your home. When the water valve in the washer shuts off, it can cause pipes in your home to move, resulting in a loud banging noise. This effect, called water hammer, can be reduced by installing an item called a water hammer arrestor. Add-on arrestors can be purchased through your local hardware or home improvement store.

Q: Why is there so little water in my washer? How can it clean the clothes?

A: HE (High-Efficiency) washers are designed to properly wash your laundry while using a minimum amount of water and energy. Because the water volume is low, the small amount of detergent used is more concentrated in the water, resulting in excellent cleaning performance.

Q: When I press a button, why does my washer beep and then nothing happens?

A: The Control Lock feature is turned on. To turn it off, turn on the washer, then press and hold the button that has Control Lock on or under it for 3 seconds.

Q: Where should I pour the powdered laundry products when doing my laundry?

A: If you are using powdered laundry detergent, load it in the main detergent dispenser after removing the liquid detergent insert. Powdered laundry agents or powdered color safe bleach should be put directly into the drum. These products can be put in the empty drum before loading or on top of the laundry after loading the washer.

Error Messages

IE INLET ERROR

Water supply faucets are not fully open.

• Make sure that the water faucets are fully open.

Water inlet hoses are kinked, pinched, or crushed.

• Make sure that the hoses are not kinked, pinched or crushed behind or under the washer. Be careful when moving the washer during cleaning or maintenance.

Water inlet filters are clogged.

• Clean the inlet filters. See MAINTENANCE.

Water supply pressure to faucet or house is too low.

• • Check another faucet in the house to make sure that household water pressure is adequate and flow is not restricted.

• Disconnect the water inlet hoses from the washer and run a few gallons of water through the hoses to flush out any dirt.

• If flow is too low, contact a plumber to have the water supply lines repaired.

Water supply connected with leak-limiting hoses.

• The use of hoses designed to limit leaks is not recommended. Leak limiting hoses can trip falsely and prevent the washer from filling.

UE UNBALANCE ERROR

The load is too small.

• Add additional items to allow the washer to balance the load.

Heavy articles are mixed with lighter items.

• Always try to wash articles of somewhat similar weight to allow the washer to evenly distribute the weight of the load for spinning.

The load is out of balance.

• Manually redistribute the load if articles have become tangled, preventing the automatic rebalancing from working properly

dE, dE1, dEz, dE4 DOOR OPEN ERROR

The door is not secured.

• Close and secure the door. If the message keeps appearing, unplug the power cord and call for service.

OE WATER OUTLET ERROR

Drain hose is kinked, pinched, or clogged.

• Make sure that the drain hose is free of clogs or kinks and is not pinched behind or under the washer.

The end of the drain hose is more than 96 inches (2.4 m) above the bottom of the washer.

• Move the end of the drain hose so that it is lower than 96 inches (2.4 m).

tE TEMPERATURE SENSOR ERROR

Control error.

• Unplug the washer and wait 60 minutes. Reconnect power and try again.
• If the error code is still displayed, call for service

FE OVERFLOW ERROR

Water level is too high due to a faulty water valve.

• Close the water faucets, unplug the washer, and call for service.

PE PRESSURE SENSOR ERROR

The water level sensor is not working correctly.

• Close the water faucets, unplug the washer, and call for service.

LE MOTOR LOCKED ERROR

A motor error has occurred.

• Allow the washer to stand for 30 minutes and then restart the cycle.
• If the error code is still displayed, call for service. svd

Sud OVERSUDSING DETECTION

Oversudsing of detergent

• Do not add more than the manufacturer’s recommended amount of detergent.
• If too many suds are detected during spinning, the washer stops to help prevent leaking.

PF WATER LEVEL SENSOR ERROR

Water level is too low or high compared to the load.

• Unplug the washer and wait for 60 minutes. Reconnect power and try again.
• If the error code is still displayed, call for service.

FF FROZEN ERROR

Inlet hose, drain hose or drain pump is frozen.

• See Care in Cold Climates.

CL CONTROL LOCK FUNCTION

The Control Lock function is on to prevent anyone from changing cycles or operating the washer.

• Turn off the Control Lock function in the control panel. See Control Lock under Options and Extra Functions. tcL

tcL TUB CLEAN ALARM

It is time to run the Tub Clean cycle.

• This is not an error code. It indicates that the Tub Clean cycle is running or needs to be run to clean the washer drum.

uS VIBRATION SENSOR ERROR

Vibration sensor malfunctions.

• Call for service.

Noises

Clicking

Door lock sounds when the door locks or unlocks.

• Normal operation

Spraying or hissing

Water spraying or circulating during the cycle

• Normal operation

Humming or Gurgling

Drain pump is pumping water from the washer at times during a cycle.

• Normal operation

Water sloshing

A liquid in the balance ring around the pulsator helps the basket spin smoothly.

• Normal operation

Water being added after the washer has already begun to operate

The washer adapts to the load size and type to add more water to the cycle as needed.

• Normal operation

The wash load may be unbalanced. If the washer senses that the load is unbalanced, it will stop and refill to redistribute the load.

• Normal operation

The washer may be diluting laundry additives to add to the wash load.

• Normal operation

Rattling and clanking noise

Foreign objects, such as keys, coins, or safety pins may be in drum or pump.

• Stop the washer, check the drum and the drain filter for foreign objects.
• If noise continues after the washer is restarted, call for service.

Thumping sound

Heavy wash loads may produce a thumping sound.

• This is normal, but if the sound continues, the washer is probably out of balance. Stop and redistribute wash load.

Wash load may be out of balance.

• Pause the cycle and redistribute the load after the door unlocks.

Vibrating noise

Packaging materials were not removed.

• See Unpacking and Removing Shipping Material in INSTALLATION.

Wash load may be unevenly distributed in the drum.

• Pause the cycle and redistribute the load after the door unlocks.

Not all leveling feet are resting firmly and evenly on the floor.

• See Leveling the Appliance in INSTALLATION.

Floor is not rigid enough.

• Make sure that the floor is solid and does not flex. See Flooring in INSTALLATION.

Squeaking noise

Packaging materials were not removed.

• See Unpacking and Removing shipping Material in INSTALLATION.

Banging noise when the washer is filling with water. (Water hammer)

Plumbing in the home moves or flexes when the water valves in the washer shut off.

• Water hammer is not caused by a defect in the washer. Install water hammer arrestors purchased separately at hardware or home improvement store) between the fill hose and the washer for best results.

Household water supply pressure is very high.

• Adjust household water supply regulator to a lower pressure or contact a plumber.

Operation

Water Leaking

Hoses are not connected correctly.

• Check hoses and connectors for leaks, cracks, and splits.
• Check and tighten hose connections.

House drain pipes are clogged.

• The washer pumps out water very rapidly. Check for water backing up out of the drain pipe during drain. If water is seen coming out of the drain, check for proper drain hose installation and check for restrictions in the drain.
• Contact a plumber to repair drain pipe.

Drain hose has come out of the drain connector or is not inserted far enough.

• Tie drain hose to inlet hose or standpipe to prevent it from coming out during drain.
• For smaller drain pipes, insert the drain hose into the pipe as far as the drain hose flange. For larger drain pipes, insert the drain hose into the pipe 1 - 2 inches past the flange.

Oversudsing of detergent

• Oversudsing may create leaks, and may be caused by the type and amount of detergent used. HE (High-Efficiency) detergent is the only detergent recommended. The normal amount of detergent to use is 1/4 to 1/2 of the maximum amount recommended by the detergent manufacturer.
• Always reduce the amount of detergent if the load is small or lightly soiled, or if the water is very soft.
• Never use more than the maximum amount recommended by the detergent manufacturer.

Excessive sudsing

Too much detergent or incorrect detergent

• HE detergents are formulated specifically for HE (High-Efficiency) washers and contain suds reducing agents. Only use detergent with the HE (High-Efficiency) logo.
• For detergent quantities refer to Detergent Use in OPERATION. If sudsing or detergent residue continues to be an issue, add an extra rinse.

Washer will not turn on.

Power cord is not properly plugged in.

• Make sure that the plug is plugged securely into a grounded, 3-prong, 120-VAC, 60 Hz outlet.

House fuse is blown, circuit breaker has tripped, or power outage has occurred.

• Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified election.

Wash cycle time is longer than usual.

The washer automatically adjusts the wash time for the amount of laundry, water pressure and other operating conditions.

• This is normal. The washer adjusts cycle time automatically to provide optimal results for the selected cycle. The time remaining shown in the display is only an estimate. Actual time may vary

Incomplete or no dispensing of detergent

Detergent compartments clogged from incorrect filling.

• Make sure that detergent and additives are put into the correct dispenser compartments.
• For all detergent types, always make sure that the dispenser drawer is fully closed before the start of the cycle.

Too much detergent used.

• Make sure that the suggested amount of detergent is used according to the manufacturer’s recommendations. You may also dilute the detergent with water to the maximum fill line on the compartment to avoid clogging. Use only HE (High-Efficiency) detergent.

NOTE

• Always use as little detergent as possible. HE (High-Efficiency) washers need very little detergent to achieve optimum results. Using too much detergent will cause poor wash and rinse performance and may contribute to odors in the washer.

Insufficient water supply

• Make sure that both hot and cold water faucets are turned on all the way.

Normal residue

• It is normal for a small amount of detergent to remain in the dispenser. If this residue builds up, it can interfere with normal dispensing of detergents. Refer to the cleaning instructions.

Washer will not operate.

Control panel has powered off due to inactivity.

• This is normal. Press the Power button to turn on the washer.

Washer is unplugged.

• Make sure that the power cord is plugged securely into an electrical outlet.

Water supply is turned off.

• Turn both hot and cold faucets fully on.

Controls are not set properly.

• Make sure that the cycle was set correctly, close the door and press the Start/Pause button to start the wash cycle.

Door is open.

• Close the door and make sure that nothing is caught under the door preventing it from closing completely.

Circuit breaker/fuse is tripped/blown.

• Check house circuit breakers/fuses. Replace fuses or reset breaker. The washer should be on a dedicated branch circuit.

Start/Pause button was not pressed after the cycle was set.

• Press the Power button then reselect the desired cycle and press the Start/Pause button. If the Start/Pause button is not pressed within a certain time, the washer will be turned off. (The time varies by model, from 4 to 60 minutes.).

Extremely low water pressure.

• Check another faucet in the house to make sure that household water pressure is adequate.

Washer is too cold.

• If the washer has been exposed to temperatures below freezing for an extended period of time, allow it to warm up before pressing the Power button. Otherwise, the display will not come on.

Washer is not filling properly.

Filter is clogged.

• Make sure that inlet filters on the fill valves are not clogged. Refer to Cleaning the Water Inlet Filters in MAINTENANCE.

Inlet hoses may be kinked.

• Check that inlet hoses are not kinked or clogged.

Energy efficiency

• This is a High-Efficiency (HE) washer. As a result, the water level settings for this washer may be different than for conventional washer.

Insufficient water supply

• Make sure that both hot and cold water faucets are turned on all the way.

Washer door is open.

• Close the door and make sure that nothing is caught under the door preventing it from closing completely.

Water level is too low.

• The water will not normally cover the clothes. The fill level is optimized for the wash motion to achieve the best wash performance.

Water in the washer does not drain or drains slowly.

Drain hose is kinked, pinched, or clogged.

• Make sure that the drain hose is free of clogs or kinks and is not pinched behind or under the washer.

The end of the drain hose is more than 96 inches (2.4 m) above the bottom of the washer.

• Move the end of the drain hose so that it is lower than 96 inches (2.4 m).

Bleach does not dispense.

Bleach dispenser cover is not properly installed (on some models).

• Make sure that the bleach cover is properly installed and snapped into place before the beginning of the cycle.

Bleach dispenser is dirty or clogged.

• Lift out the bleach dispenser cover and clean out the reservoir. Lint and other foreign debris that are collected inside the dispenser may prevent proper dispensing of the bleach.

Premature dispensing of bleach

Bleach dispenser filled for future load.

• You cannot store bleach in the dispenser for future use. The bleach will be dispensed every load.

Overfilling the bleach dispenser

• Overfilling the bleach dispenser will cause the bleach to dispense immediately, which will damage the laundry or the washer. Always measure bleach, but never fill above the max line on the dispenser. A half cup of bleach is sufficient for most loads. Never use more than cup of bleach.

Performance

Wrinkling

Washer is not unloaded promptly.

• Always remove items from the washer as soon as the cycle is complete.

Washer is overloaded.

• The washer can be fully loaded, but the drum should not be tightly packed with items. The door of the washer should close easily.

Hot and cold water inlet hoses are reversed.

• Hot water rinse can set wrinkles in garments. Check the inlet hose connectors.

Staining

Bleach or softener dispensed too soon.

• Dispenser compartment was overfilled or closed too quickly, causing the bleach or softener to dispense immediately. Always measure bleach, and never use more than 1 cup.

Bleach or softener was added directly to the wash load in the drum.

• Always use the dispensers to ensure that laundry products are properly dispensed at the right time in the cycle.

Washer was not unloaded promptly.

• Always remove items from the washer as soon as possible after the cycle is completed.

Clothes were not properly sorted.

• Always wash dark colors separately from light colors and whites to prevent discoloration.
• Never wash heavily soiled items with lightly soiled items.

Poor stain removal

Proper options are not selected.

• Heavier soils and tougher stains may require extra cleaning power. Select the Heavy Soil feature to boost the cleaning power of the selected cycle.

Previously set stains.

• Articles that have previously been washed may have stains that have been set. These stains may be difficult to remove and may require hand washing or pre-treating to aid in stain removal.

Musty or mildewy odor in the washer

Incorrect or too much detergent has been used.

• Use only HE (High-Efficiency) detergent in accordance with the manufacturer’s instructions.

Inside of the drum was not cleaned properly.

• Run the Tub Clean cycle regularly

Odor

Some odor is caused by the rubber attached to the washing machine.

• This odor is normal for new rubber and will disappear after the machine has been run a few times.

If the rubber door gasket and door seal area are not cleaned regularly, odors can occur from mold or foreign substances.

• Be sure to clean the gasket and door seal regularly and check under the door seal for small items when unloading the washer.

Odors can occur if foreign substances are left in the drainage pump filter.

• Be sure to clean the drainage pump filter regularly.

Odors can occur if the drainage hose is not properly installed, causing siphoning (water flowing back inside the washing machine).

• When installing the drainage hose, be sure that it doesn’t become kinked or blocked.

Dryer

FAQs: Frequently Asked Questions

Q: When I press a button, why does my dryer beep and then nothing happens?

A: The Control Lock feature is turned on. To turn off Control Lock, turn the dryer on, then press and hold the button that has Control Lock on or under it for 3 seconds.

Q: Why does my dryer take so long to dry clothes?

A: Proper airflow is critical to the efficient operation of clothes dryers. A lint filter which is full of lint or clogged with fabric softener sheet residue can reduce the airflow to the point that the time required to dry clothing will be greatly increased.

Q: Why does my dryer start by itself every few minutes?

A: This is how the Wrinkle Care feature works. The dryer runs briefly every few minutes for up to 3 hours after the cycle finishes. This feature is designed to help prevent wrinkles from setting in when the dryer is not unloaded immediately after the cycle is finished.

Error Messages

tE1 through tE7 TEMPERATURE SENSOR ERROR

Temperature sensor failure.

• Turn off the appliance and call for service.

P5 POWER ERROR

Power cord is connected incorrectly.

• Check the connection of the power cord to the terminal block.

d75, d8O, d9O, dG5 DUCT BLOCK ERROR

The duct work is about 75% - 95% blocked. (The error code is displayed for 2 hours only.)

• Do not use the appliance until the exhaust system has been cleaned and/or repaired. Using the appliance with a severely restricted exhaust is dangerous and could result in a fire or other property damage.

• Check the outside dryer vent while the appliance is operating to make sure there is strong airflow. If the exhaust system is extremly long, have it repaired or rerouted.

House exhaust system blocked.

• Keep the area around the dryer clean and free of clutter. Check vent hood for damage or lint clogging. Make sure the area around the vent hood is clear.

CL CONTROL LOCK FUNCTION

The Control Lock function is on to prevent anyone from changing cycles or operating the dryer.

• Turn off the Control Lock function in the control panel. See Control Lock under Options and Extra Functions.

Operation

The Flow SenseTM () indicator remains active after clearing the restriction in the venting.

After clearing the restrictions, the Flow SenseTM () system requires multiple, consecutive cycles to determine that the performance value has improved before the Flow SenseTM () indicator is reset.

• If the Flow SenseTM () indicator remains active for more than five cycles after the restriction has been cleared, call for service.

Clothes take too long to dry.

Exhaust ducts are blocked, dirty, or duct run is too long.

• Confirm that the exhaust duct is properly configured and free of debris, lint, and obstructions. Make sure that the outside wall damper can open properly and is not blocked, jammed, or clogged.

Load is not properly sorted

• Separate heavy items from lightweight items. Larger and heavier items take longer to dry. Light items in a load with heavy items can fool the sensor because the light items dry faster.

Large and heavy fabrics are loaded.

• Heavy fabrics take longer to dry because they tend to retain more moisture. To help reduce and maintain more consistent drying times for large and heavy fabrics, separate these items into smaller loads of a consistent size.

Dryer controls are not set properly.

• Use the appropriate control settings for the type of load you are drying. Some loads may require an adjustment of the dry level setting for proper drying.

Lint filter needs to be cleaned.

• Remove the lint from the filter before every load. With the lint removed, hold the filter up to a light to see if it is dirty or clogged. With some loads that produce high amounts of lint, such as new bath towels, it may be necessary to pause the cycle and clean the filter during the cycle.

House fuse is blown, circuit breaker has tripped, or power outage has occurred.

• Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.

The appliance is overloaded.

• Divide extra large loads into smaller loads for better drying performance and efficiency.

Energy Saver option is selected. (on some models)

• If using the Normal cycle, deselect the Energy Saver option that is selected by default. This option reduces enery use by adding an air dry section to the beginning of the cycle. It is normal to feel no heat at the beginning of the cycle while in Energy Saver mode.

The appliance will not turn on.

Power cord is not properly plugged in.

• Make sure that the plug is securely plugged into a grounded outlet matching the appliance's rating plate.

House fuse is blown, circuit breaker has tripped, or power outage has occurred.

• Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.

The appliance does not heat.

House fuse is blown, circuit breaker has tripped, or power outage has occurred.

• Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.

Gas supply or service is turned off.

• Confirm that the house gas shutoff and the shutoff valves of the dryer are both fully open. Even if gas is not supplied to the appliance, it will run and no error codes will display. Verify that other gas appliances in the home are working normally.

Energy Saver option is selected. (on some models)

• If using the Normal cycle, deselect the Energy Saver option that is selected by default. This option reduces energy use by adding an air dry section to the beginning of the cycle. It is normal to feel no heat at the beginning of the cycle while in Energy Saver mode.

Drying time is not consistent.

Heat settings, load size, or dampness of clothing is not consistent.

• The drying time for a load will vary depending on the size of the load, the type of fabrics, the wetness of the clothes and the condition of the lint filter. An unbalanced load in the washer can cause poor spinning, resulting in wetter clothes which will take longer to dry.

Performance

Clothes are wrinkled.

Clothes dried too long (overdried).

• Overdrying a load of laundry can lead to wrinkled clothes. Try a shorter drying time or use a lower dry level setting and remove items while they still retain a slight amount of moisture.

Clothes left in dryer too long after cycle ends.

• Use the Wrinkle Care option. This option will tumble the clothes briefly every few minutes for up to 3 hours to help prevent wrinkling.

Greasy or dirty spots on clothes.

Fabric softener used incorrectly.

• Check and follow the instructions provided with your fabric softener.

Clean and dirty clothes are being dried together.

• Use your dryer to dry only clean items. Soil from dirty clothes can transfer to the clean clothes in the same or later loads.

Clothes were not properly cleaned or rinsed before being placed in the dryer.

• Stains on dried clothes could be stains that were not removed during the washing process. Make sure that clothes are being completely cleaned or rinsed according to the instructions for your washer and detergent. Some difficult soils may require pre-treating prior to washing.

Clothes are shrinking.

Garment care instructions are not being followed.

• To avoid shrinking your clothes, always consult and follow fabric care instructions. Some fabrics will naturally shrink when washed. Other fabrics can be washed but will shrink when dried in a dryer. Use a low or no heat setting.

Lint on clothes.

Lint filter not cleaned properly.

• Remove the lint from the filter before every load. With the lint removed, hold the filter up to a light to see if it is dirty or clogged. If it looks dirty, follow the cleaning instructions in the MAINTENANCE section. With some loads that produce high amounts of lint, it may be necessary to clean the filter during the cycle.

Laundry not sorted properly.

• Some fabrics are lint producers (i.e., a fuzzy white cotton towel) and should be dried separately from clothes that are lint trappers (i.e., a pair of black linen pants).

Excess static in clothes.

• Use a fabric softener to reduce static electricity. Be sure to follow the manufacturer’s instructions. Overdrying a load of laundry can cause a buildup of static electricity.

The appliance is overloaded.

• Divide extra large loads into smaller loads for drying.

Tissue, paper, etc., left in pockets.

• Check pockets thoroughly before washing and drying clothes.

Excess static in clothes after drying.

Fabric softener is not used or is used incorrectly.

• Use a fabric softener, if available, to reduce static electricity. Be sure to follow the manufacturer’s instructions.

Clothes dried too long (overdried).

• Overdrying a load of laundry can cause a buildup of static electricity. Adjust settings and use a shorter drying time. Select a lower dry level setting, if necessary.

Drying synthetics, permanent press, or synthetic blends.

• These fabrics are naturally more prone to static buildup. Try using fabric softener, or use a lower dry level setting and/or shorter time settings.

Clothes have damp spots after a dry cycle.

Very large load or very small load. Single large item such as a blanket or comforter.

• If items are too tightly packed or too sparse the sensor may have trouble reading the dryness level of the load. Use a Time Dry cycle for very small loads.
• Large, bulky items such as blankets or comforters can sometimes wrap themselves into a tight ball of fabric. The outside layers will dry and register on the sensors, while the inner core remains damp. When drying a single bulky item, it may help to pause the cycle once or twice and rearrange the item to unwrap and expose any damp areas.
• To dry a few remaining damp items from a very large load or a few damp spots on a large item after a sensor cycle has completed, empty the lint trap, and then set a Time Dry cycle to finish drying the item(s).

Indicator Messages

Flow Sense indicator () shows four bars during the drying cycle or the display shows d8O after drying.

Exhaust system is too long or has too many turns/restrictions.

• Install a shorter or straighter duct run. See the Installation Instructions for details.

Partial blockage of the ductwork due to lint buildup or other foreign object.

• Ductwork should be checked/cleaned immediately. Dryer can be used in this condition, but drying times will be longer and energy consumption will increase.

The appliance has detected a restriction in the external dryer venting.

• If exhaust restrictions are sensed by the Flow Sense system, the indicator will remain on for 2 hours after the end of the cycle. Opening the door or pressing the Power button will turn off the display.

• This warning light is not a dryer failure and is not covered by the dryer warranty. Contact a duct cleaning service to set up an appointment to have your exhaust system cleaned and inspected.

The Flow Sense indicator () remains active after clearing the restriction in the venting.

After clearing the restriction, the Flow Sense system requires multiple, consecutive cycles to determine that the performance value has improved before the Flow Sense indicator is reset.

• If the Flow Sense indicator remains active for more than five cycles after the restriction has been cleared, call for service.

Check filter indicator () is on during the drying cycle.

Lint filter not cleaned properly.

• Remove the lint from the filter before every load. With the lint removed, hold the filter up to a light to see if it is dirty or clogged. If it looks dirty, follow the cleaning instructions. With some loads that produce high amounts of lint, it may be necessary to clean the filter during the cycle

Common

Wi-Fi

Trouble connecting appliance and smartphone to Wi-Fi network

The password for the Wi-Fi network was entered incorrectly.

• Delete your home Wi-Fi network and begin the connection process again.

Mobile data for your smartphone is turned on.

• Turn off the Mobile data on your smartphone before connecting the appliance.

The wireless network name (SSID) is set incorrectly.

• The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)

The router frequency is not 2.4 GHz.

• Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and connect the appliance to the wireless router. To check the router frequency, check with your Internet service provider or the router manufacturer.

The appliance and the router are too far apart.

• If the appliance is too far from the router, the signal may be weak and the connection may not be configured correctly. Move the router closer to the appliance or purchase and install a Wi-Fi repeater.

Related Products
